Ceiling cassette user manual
INSTALLATION AND USE INSTRUCTIONS
Congratulations on your purchase!
Thank you for choosing a Sirius product.
SLT958 EM EAN #9351116001292
SLT958 EM WH EAN #9351116001780
SLT952 EM EAN #9351116001018
SLT968 EM EAN #9351116002053
SLT968 EM WH EAN #9351116002060
SLT960 EM EAN #9351116000936
2
The symbol on the product or on its packaging indicates that this product
may not be treated as house-hold waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly,
you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the
product. This appliance is marked according to the European directive
2002/96/EC on waste electrical and electronic equipment (WEEE).
BEFORE YOU INSTALL
TO THE ATTENTION OF THE USER
PRE-INSTALLATION CHECKS
OPENING THE GLASS PANELS
LINE MEASUREMENTS
INSTALLING THE TIMBER SUPPORT BEAMS
MOTOR AND VENTING OPTIONS
TOP VENT INSTALLATION
SIDE VENT INSTALLATION
SEM 1 & SEM 2
SIDE VENT INSTALLATION
SEM 7 & SEM 8
REMOTE CONTROL
DUCTING FROM MOTOR TO WALL
ELECTRICAL CONNECTION

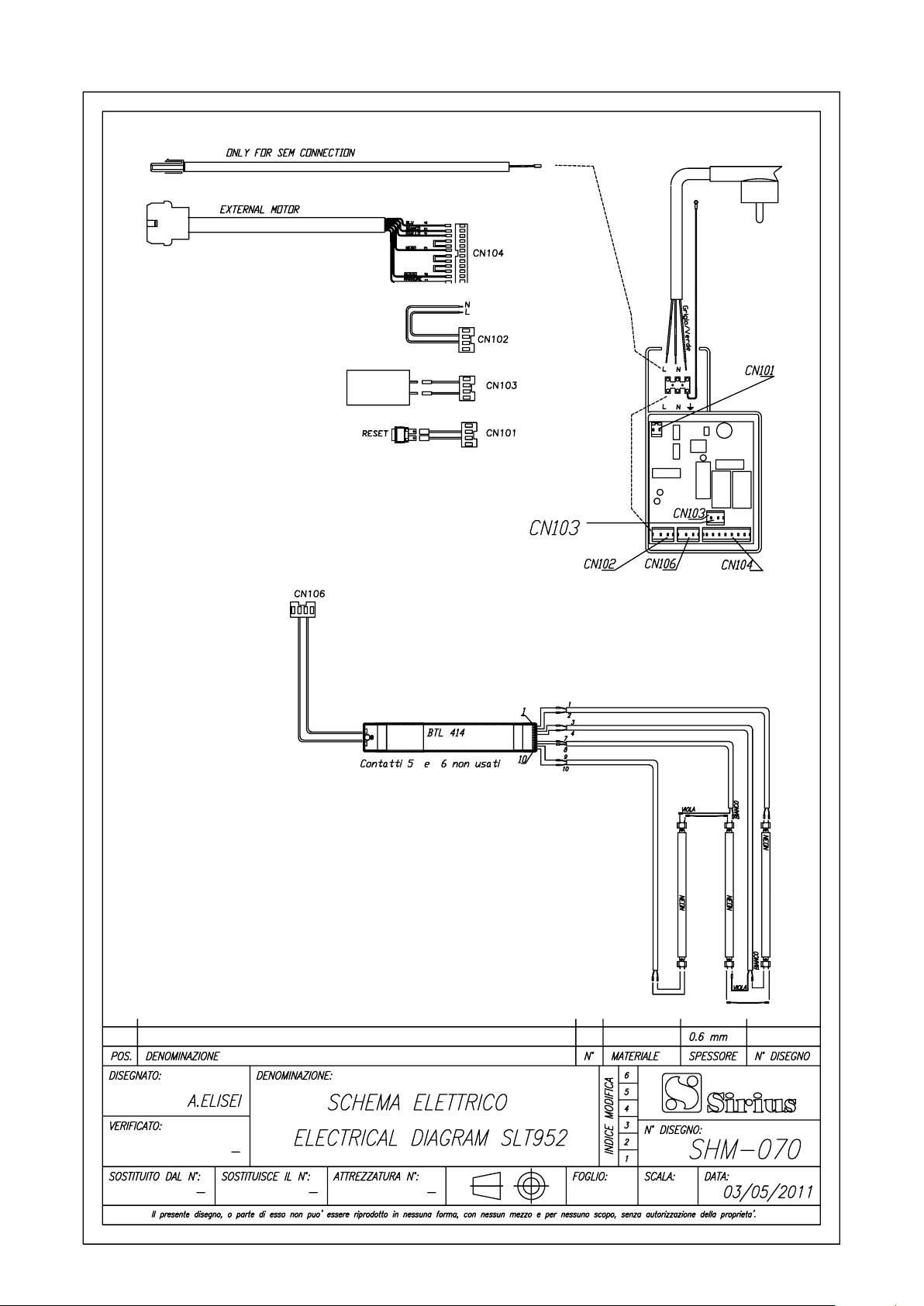

WIRING DIAGRAMS
PARTS LIST
WARRANTY
3
4
5
7
8
9
10
11
12
13
14
15
15
16
20
22
3
BEFORE YOU INSTALL – please read
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory
such as flexible ducting, Sirius will only warrant the hood and motor. If installation is found to be the
cause of failure or issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to
increase noise levels, increase vibration and reduce airflow.
Sirius Semi-rigid or solid ducting can be used in lieu.
There is a range available to suit any application.
Ducting available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to installation
CAUTION
WARNING
The appliance must be installed and
connected to the power supply only by a
qualified technician.
• There shall be adequate ventilation of the room when the range hood is used at the same time as
appliancess burning gas or other fuels (not applicable to appliances that only discharge the air back into
the room)
• The details concerning the method and frequency of cleaning
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flambé under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.
4
TO THE ATTENTION OF THE USER
This rangehood is designed to work with ducted
outside evacuation.
Keep these instructions for use with the appliance. If
the appliance should be sold or passed on to others,
make sure that the instructions are passed on with
it. We thank you for taking note of these suggestions
before installing and using the appliance. They have
been written for your personal safety and the safety
of others.
SAFETY INSTRUCTIONS
These hoods have been designed for personal
use in the home. The appliance must be used by
adults. Make sure that the appliance is out of reach
of children and that they do not use it to play with.
Make sure that children do not operate the controls.
• When the appliance is delivered, check the overall
appearance of the packaging. Check PARTS
LIST on page 20 for all included parts prior
to discarding packaging.
Any remarks should be written on the delivery
docket, of which you keep a copy.
Your appliance is designed for normal domestic
use. It is not designed for commercial or industrial
use, or for purposes other than those for which it
was designed.
• Any consequences of or damage from incorrect
installation or incorrect use of the appliance will
not be covered by the manufacturer’s guarantee.
• Do not ever change or try to change the
characteristics of this appliance. This would be
a danger. Repairs must be performed only by an
authorised technician.
• Always disconnect the hood before carrying out
cleaning or maintenance operations.
• Adequately ventilate the room when a rangehood
and other appliances, powered by energy other
than electricity, are used simultaneously, so that
the hood does not suck any combustion fumes.
• It is not allowed to cook food over open flames
(flambé) or operate gas hobs without pots
or pans on them under the hood itself (the
flames sucked into the hood might damage the
appliance).
• Frying under the appliance must be done under
constant supervision as hot oils and fats may
ignite.
• Respect the guidelines for cleaning and
replacement of grease filters. Accumulated
deposits of grease are a fire hazard.
WARNING
• This appliance must not be used over cook tops
powered by wood or coal or in any case, over
cook tops with power levels that could damage
the appliance.
• Never use steam or high-pressure devices
for cleaning your hood (regulations regarding
electrical safety).
• Never use the rangehood without the grease
filters.
At Sirius, we are constantly seeking to improve
our products. We reserve the right to modify their
technical, functional, or aesthetic characteristics
deriving from their upgrading.
Motors manufactured and approved by Sirius only
are to be used at all times. Failure to comply with this
will result in the forfeit of the manufacturer warranty.
The air collected must not be conveyed into a flue
used for smoke or fumes from appliances powered
by anything other than electricity (central heating
systems, bathroom and toilet exhausts, etc.). As
far as discharging exhaust air is concerned, please
follow the guidelines given by competent authorities.
5
PRE-INSTALLATION CHECKS
Connect all of the electrical components to the unit and motor to make sure both the unit and the motor are
functioning properly.
(NOTE: The motor plug is fitted with a dummy plug - with the exception of SEM1 motor - to protect
the connection from dust. Ensure the red dummy plug is removed and replaced with the two
pin motor plug from the power transformer box. Failure to do so will result in only two speeds
operating).
Remove all plugs and proceed with installation if both unit and motor are fully operational.
BEFORE YOU INSTALL
Lighting connection
Installation must comply with the regulations in force regarding the ventilation of enclosed environments.
In particular, discharged air must not be conveyed into a duct used for fumes discharge or discharge from
appliances using gas or other combustible materials. Air cannot be ducted into roof space.
The use of discontinued ducts is not allowed without the approval of a qualified technician.
Check PARTS LIST on page 20 for all included
parts prior to discarding packaging.
Sirius warranty covers only Sirius product. If you choose to install a non-Sirius branded accessory such as
flexible ducting, Sirius will only warrant the hood and motor. If installation or inferior parts are found to be the
cause of failure or issue then charges will apply for service and parts.
Flexible ducting is not permitted under any circumstances. Flexible ducting has been found to increase noise
levels, increase vibration and reduce airflow. Sirius Semi-rigid or solid ducting can be used in lieu. There is a
range available to suit any application.
Available at www.siriusbrand.com
A reduction in the duct diameter from stated ducting size will void warranty.
If you are in doubt about the ducting, please contact Sirius on 1300 762 219 prior to
installation.
CAUTION
NOTE
6
Before proceeding with the installation of the ceiling cassette, please thoroughly inspect the entire unit
(including the motor) for any damages, including all of the electrical connections. If any damage is found,cease
installation and report it immediately to the retail partner that the cassette was purchased from.
Reduction of the ducting diametrer will void the manufacturer warranty as it will severely affect the performance
of the motor and may cause damage with prolonged usage.
Use ducting approved by standards enforced, see www.siriusbrand.com for details for approved ducting. The
manufacturer will not be deemed responsible for air capacity and noise problems caused by failure to comply
with the above and no warranty on the product will be provided.
FAILURE TO INSTALL THE SCREWS OR FIXING DEVICE IN
ACCORDANCE WITH THESE INSTRUCTIONS MAY RESULT IN
ELECTRICAL HAZARDS OR ELECTROCUTION.
The cassette requires one 10AMP GPO located inside the ceiling cavity
to power both the lighting and the motor.
The ceiling cassette is designed for a ceiling height of up to 2700mm high.
• SLT960 EM ONLY
Installation of the ceiling cassette can either be installed 50mm proud mounted or 260mm proud with the
additional purchase of the stainless steel proud mount kit (SPS-76105980960)
• Only use Sirius Ducting with a maximum length of 7 metres & minimum of 2 metres from the outlet collar
on the cassette to the motor location.
• Limit the number of elbows in the ducting, since each 90 degree bend reduces the air capacity by 1 lineal
metre (e.g. if there are 2 x 90 degree bends, the maximum duct length should not exceed 5 metres.)
• Avoid abrupt changes of direction where possible, bends of more than 90 degrees should be avoided at all
costs.
• Use of 150mm ducting is applicable for SLT958 models only, 200mm ducting is applicable for SLT952 /
SLT960 / SLT968.
WARNING
WARNING
WARNING
NOTE
NOTE
DANGER
7
OPENING THE GLASS PANELS - SLT960 EM
OPENING THE LIGHT PANELS - SLT952 EM
OPENING THE COVER PANELS - SLT958 EM,
SLT958 EM WH, SLT968 EM, SLT968 EM
Step 1a: Accessibilty to the filters is done by pulling
down on the glass panels. These are held on by
magnets.
Swing the glasss panels downwards on either side
to expose the grease filters. (Fig. 1)
Step 1b: Depress the tabs on either side of the two
panels, pull down and allow them to swing open to
expose the grease filters. (Fig. 2)
A chain is fitted for safety purposes.
Step 1c: On the side where the speed control light
is visible, pull down in the centre of the panel.
The panel is held on by a strong magnet. Allow the
panel to swing open to expose the grease filters.
(Fig. 3) A chain is fitted for safety purposes.
Step 1d: After swinging open the panel/panels on
any of the cassettes, disconnect the lighting by
depressing the tabs on the connection plug and
pulling the cable.
So that no damage is caused during the installation
process, remove the panels by unscrewing the
hinges on the underside of the cassette. This will
also lighten the cassette to make lifting it into place
and installation easier.
Fig. 1
Fig. 2
Depress tabs
on side
Panel drops down
Depress tabs
on side
Fig. 3
Example shown: SLT960
Depress tabs
on side of plug
Unscrew hinges
8

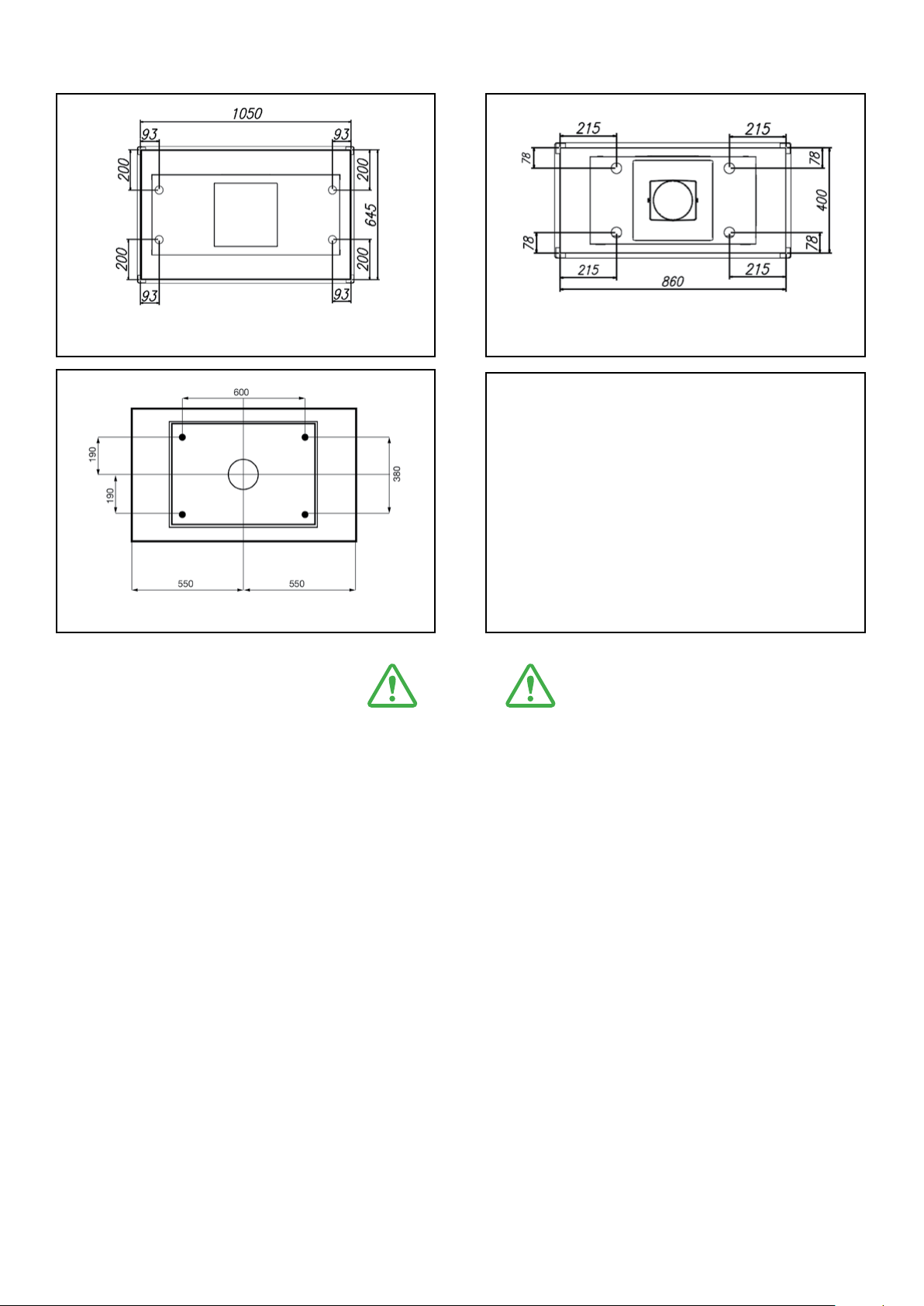

LINE MEASUREMENTS FOR MOUNTING HOLES
Fig.4d: SLT968 EM
Fig.4a: SLT952 EM
Fig.4b: SLT958 EM
Fig.4c: SLT960 EM
As every installation will differ slightly depending on the ceiling cavity of the dwelling,
this installation shall be used as a guide only.
NOTE
• These cassettes are held in place with the use
of the 4 x 250mm threaded bolts. Using the
measurements in the Fig. 4 line drawings ensure
that there is timber framework (not supplied) inside
the cavity to support the weight on the cassette.
Please refer to each individual measurement for
the exact location of the mounting holes or take
a physical measurement of the location when the
cassette has been unpackaged.
9
Timber support beams (not supplied)
250mm bolts
250mm bolts
Fig. 5
INSTALLING THE TIMBER SUPPORT BEAMS
• After running the timber support beams in the cavity above, pre-drill 4 x 8mm holes through the timber
and pass the 4 x 250mm bolts through them, ensuring that the larger washer is on the INSIDE OF THE
CEILING CASSETTE. (Fig. 5a)
• Lift the cassette into position and ensure that
the 4 x 250mm bolts pass through the mounting
points. Fit the larger diameter washer first and
then wind the wingnut up thr thread and tighten
the cassette into position. These will enable you
to flush the unit tight with the ceiling (Fig. 5a).
• After screws are fitted, replace the panels that
were removed during Step 1d by reattaching the
hinges and reattaching the light cable.
Fig. 5a
10
CONNECTION OF THE SELECTED OFFBOARD
MOTOR: TOP VENT OPTION
MOTOR AND VENTING OPTIONS:
SLT958 EM (150mm DUCTING)
MOTOR AND VENTING OPTIONS:
SLT952 EM, SLT960 EM, SLT968 EM
(200mm DUCTING)
• Ensure that the two side venting options are
blocked off with the included plates.
Motor MUST be accessible for servicing at all times.
Motor MUST be accessible for servicing at all times.
NOTE
NOTE
Note: Roof vent option shown.
Motor can also be wall or eave vented.
Motor can be a maximum 2 metres from
ground level.
Motor can be a maximum 2 metres from
ground level.
Note: Wall vent option shown.
Motor can also be roof or eave vented.
Note: Eave vent option shown.
Motor can also be roof or wall vented.
SEM 1
SEM 5
SEM 7
SEM 2
2 metres max
2 metres max
SEM 8 SEM 8
2 x side vent plates (Part ‘B’) included.
11
TOP VENT INSTALLATION
1. Use 150mm ducting (Part ‘K.1’) for SLT958 EM models or 200mm ducting (Part ‘K.2’) for SLT952 /
SLT960 EM / SLT968 EM models.
2. The ducting fits directly onto the collar on the top adaptor plate (Part ‘D’).
3. Fix in place using a universal ring clamp (Part ‘G’).
PART ‘F’
PART ‘F’
PART ‘K.1’ / ‘K.2’
PART ‘K.1’ / ‘K.2’
PART ‘K.1’ / ‘K.2’
SEM 2 / SEM 7
OUTSIDEINSIDE
WALL
INTERNAL MOTOR:
Ducting to SEM 1 (150mm) / SEM 8 motor (200mm)
Please note that the final exit point for SEM 1 or 8 can be through the roof, wall or eave vent.
EXTERNAL MOTOR:
Ducting to SEM 2 (150mm) / SEM 7 motor (200mm)
EXTERNAL MOTOR: Ducting to SEM 5 (150mm)
SLT958 EM models only: Download SEM5 user manual from www.siriusbrand.com
URC-25/325
HEIGHT FROM GROUND
500mm (min) - 2mtrs (max)
EXAMPLE ONLY
EXAMPLE ONLY
12
SIDE VENT INSTALLATION: SLT958 EM
150mm DUCTING: SEM 1 MOTOR (INTERNAL)
SIDE VENT INSTALLATION: SLT958 EM
150mm DUCTING: SEM 2 MOTOR (EXTERNAL)
• Ensure that the unused side and top ports
are blocked off using the supplied blocking
ports (Part ‘B’ and Part ‘E’).
1A: Connect the top of the 150mm connector piece
(Part ‘H’) to the round outlet on adaptor (Part ‘A’), the
connect length of 150mm ducting (Part ‘K.1’) to the
bottom of the 150mm connector piece (Part ‘H’).
2A. Secure to the motor with a universal ring clamp
(Part ‘F’).
SEM 2 MOTOR
SEM 1 MOTOR
MIN 2 METRES /
MAX 7 METRES
MIN 2 METRES / MAX 7 METRES
MAX 5 METRES
LONG SIDE
VENT OPTION
LONG SIDE
VENT OPTION
OUTSIDEINSIDE
SHORT SIDE
VENTING OPTION
EXTERNAL VENT
Side vent adapter (Part ‘H’).
PART ‘A’
PART ‘A’
PART ‘H’
PART ‘H’
PART ‘K.1’
PART ‘K.1’
PART ‘E’
PART ‘E’
WALL
13
SIDE VENT INSTALLATION: SLT952 EM, SLT968 EM, SLT960 EM
200mm DUCTING: SEM 8 MOTOR (INTERNAL)
SIDE VENT INSTALLATION: SLT952 EM, SLT968 EM, SLT960 EM
200mm DUCTING: SEM 7 MOTOR (EXTERNAL)
• Ensure that the unused side and top ports are blocked off using the supplied blocking panels
(Part ‘B’ and Part ‘E’).
1B: Connect a duct expander (Part ‘G’) to round adapter, then connect length of ducting (Part ‘K.2’) to the
200mm outlet.
2B: Secure to the motor with a universal ring clamp (Part ‘G’).
• See page 12 for ducting to vent (N/A for SEM 7 motor)
SHORT SIDE
VENT OPTION
OUTSIDEINSIDE
LONG SIDE
VENT OPTION
LONG SIDE
VENT OPTION
SEM 7 MOTOR
SEM 8 MOTOR
EXTERNAL VENT
PART ‘K.2’
PART ‘K.2’
PART ‘A’
PART ‘A’
PART ‘E’
PART ‘E’
PART ‘G’
PART ‘G’
WALL
MIN 2 METRES / MAX 7 METRES
MIN 2 METRES /
MAX 7 METRES
MAX 5 METRES
14
Working:
6 channel control for rangehood remote.
• When the rangehood is first turned on, hold the
lighting button for 5 seconds.
RC001 - RADIO CONTROL
Radio control used for the remote operation of
rangehoods.
TECHNICAL DATA
• Alkaline battery powered: 12 V mod. 23 A
• Operating frequency: 433.92 Mhz
• Combinations: 32.768
• Max. consumption: 25 mA
• Operating temperature: -20 ÷ + 55 °C
• Dimensions: 120 x 45 x 15 mm.
OPERATING DESCRIPTION
The transmitter is equipped with 5 buttons for cooker
hood management, as specified below:
: Light ON/OFF command.
: Motor ON (speed level 1) / OFF command.
: Reduce speed.
: Increase speed.
: 10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the radio control unit
ready to be used with codes preset in the factory.
REMOTE CONTROL
OPERATION MODE
Standard configuration:
Standard configuration requires all rangehood radio
control systems to be provided with the same
transmission code. In the event two rangehoods are
installed in the same room or nearby, each system
may affect the operation of the another. Therefore,
the code of one radio control system must be
changed.
Generating a new transmission code:
The radio control system is provided with preset
codes. Should new codes be required, proceed as
follows: Press simultaneously buttons:
for two seconds. When LEDs are on, press buttons:
(within 5 seconds). The LEDs flashing 3 times
indicate the procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Learning the new transmission code.
Once the transmission code is changed in the radio
control unit, the electronic central unit of the cooker
hood must be made to set the new code in the
following way:
Press the main power-off button of the hood and
then restore power to the electronic control unit.
Within the next 15 seconds, press the Light Button to
synchronise the central unit with the code.
Reset of the Factory configuration:
To restore the Factory configuration, follow the
procedure described below: press simultaneously
buttons:
for 2 seconds. When LEDs light on, press buttons:
(within 5 seconds). LEDs flashing 6 times in-dicate
the procedure is completed.
WARNING! This operation deletes permanently
the preset codes.
Emergency button:
In the event that the radio control does not work, use
the emergency button to switch the appliance off.
After any necessary repairs have been performed,
reset the emergency button.
15
ELECTRICAL CONNECTION
CEILING CASSETTE
CABLE FROM MOTOR
6-PIN PLUG
EARTH WIRE
TRANSFORMER BOX
DUMMY PLUG
DUCTING FROM MOTOR TO WALL VENT: (SEM 1 and SEM 8)
1. Run the length of ducting to the motor. (Additional lengths of ducting can be attached using an
additional internal connector pieces.)
NOTE: No connector required as it connects directly to the collar of the motor.
2. Secure with another universal ring clamp (Part ‘F’).
NOTE: The location of the motor is to be no less than 2 metres away from the rangehoood.
Failure to do so may result in additional noise level of the downdraft. Maximum distance is 7 metres,
however 3 - 5 metres is optimum to minimise noise and maximise performance.
3. Using another length of semi-rigid duct run from the exit collar on the SEM 1 / SEM 8 to a predetermined
exit point and connect to weatherproof vent with a clamp.
See www.siriusbrand.com for multiple vent options or see our nearest retail partner.
16
WIRING DIAGRAM: SLT952 EM
17
WIRING DIAGRAM: SLT968 EM
18
PART A
Side vent adapter
PART B
Side vent cover
PART C
Top bracket
PART D
Front/rear vent adaptor
SPS-20059120071
PART E
Front/rear vent cover plate
SPS-75059000082
PARTS LIST (INCLUDED)
19
PART F
Universal ring clamp
URC25-215/325
PART G
150mm to 200mm Duct expander
GDR 150/200
PART H
150mm diameter connector piece
GDC-150
PART J
200mm diameter connector piece
GDC-200
Part K.1 / K.2
Semi rigid aluminium ducting 150mm / 200mm
SRPRO 30/150 or SRPRO 30/200
PARTS LIST (NOT INCLUDED)
20
ARISIT PTY LIMITED (Australia)
ABN 23 091 515 294
40-44 Mark Anthony Drive
Dandenong South VIC 3175
P: Sales & Service: 1300 762 219
F: Sales & Service: (03) 9768 0838
ARISIT PTY LIMITED (New Zealand)
1A Howe Street Newton, Auckland 1145
PO Box 68-140 Newton, Auckland 1145
P: (09) 306 1020 - Fax: (09) 302 0077
Sirius Hoods and ducting products are only available
from our select group of Sirius Professional Stockists
nationwide. For the latest list of Sirius Stockists
near you, please refer to www.siriusbrand.com
All efforts have been made to ensure that the
information provided in this brochure is correct at
the time of printing. Due to continuous product
improvement and ongoing development, Sirius
reserves the right to make changes to the
products and technical data without prior notice.
Some products appearing in this brochure may
be for illustrative purposes only. Diagrams are
indicative measures only. Prior to commencing
cabinetry cutouts the operating/installation
instructions accompanying the product must
be referred to at www.siriusbrand.com
www.arisit.com
www.arisitwarranties.com.au
www.siriusbrand.com
when Sirius ducting is used.
Full replacement warranty on parts and labour. Check website for T&Cs.
Year
Warranty
