Electrolux EW28BS85KSCA refrigerator User Manual

EN FREEZER / REFRIGE_S,TOR

FR REFRIGERATEUR / CONGEIATELJR

ES REFRIGERADOR O3N CONGEIADOR

USE AND CARE GUIDE

GUIDE D'UTILISATION _ D'ENTRETIEN

GUIA DE USO Y CUIDADO

807650601 February 2013

2 Finding information

Pmease read and save this gu

Thank you for choosing Electrolux, our new premium

brand in home appliances.This Use & Care Guide is

part of our commitment to customer satisfaction and

product quality throughout the service life of your new

appliance.

Keep a record for quick

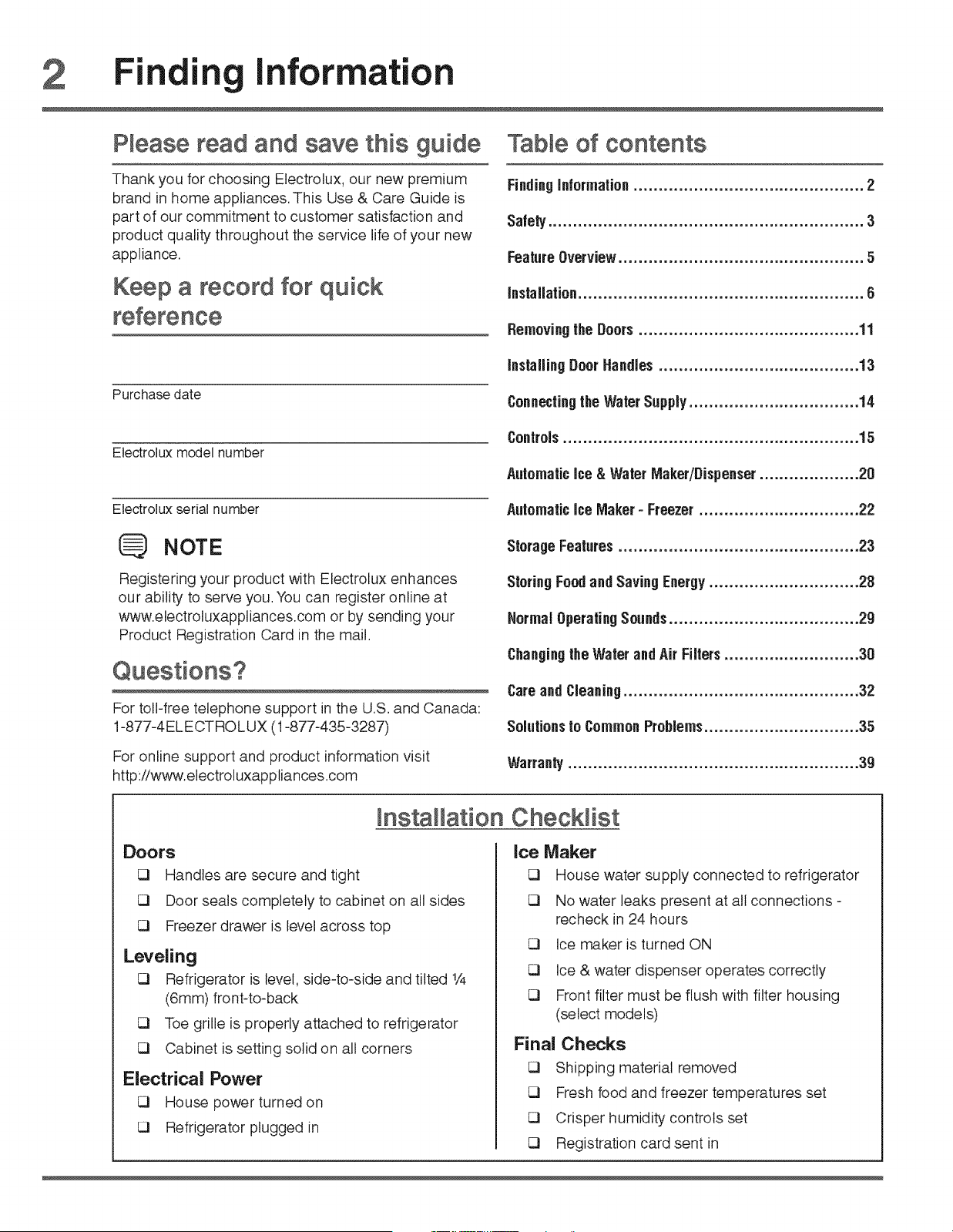

Table of contents

Findinginformation.............................................. 2

Safely ............................................................... 3

Feature Overview ................................................. 5

Installation ......................................................... 6

Removingthe Boors ............................................ 11

Purchase date

Etectrolux model number

Electrolux serial number

lnstaflingDoorHandles ........................................ 13

Connectingthe WaterSupply .................................. 14

Controls........................................................... 15

Automaticice & Water Maker/Dispenser .................... 20

NOTE

Registering your product with Electrolux enhances

our ability to serve you. You can register online at

www.electroluxappliances.com or by sending your

Product Registration Card in the mail.

AutomaticIce Maker- Freezer................................ 22

Storage Features ................................................ 23

Storing Food and Saving Energy.............................. 28

Normal Operating Sounds ...................................... 29

Changingthe Water andAir Filters........................... 30

For toll-free telephone support in the U.S. and Canada:

1-877-4ELECTROLUX (1-877-435-3287)

For online support and product information visit

http:iiwww.electroluxapptiances.com

CareandCleaning............................................... 32

Solutions to CommonProblems............................... 35

Warranty.......................................................... 39

installation Checklist

Doors

[] Handles are secure and tight

rq Door seals completely to cabinet on all sides

[] Freezer drawer is level across top

Leveling

[] Refrigerator is level, side-to-side and tilted 1/4

(6mm) front-to-back

CI Toe grille is properly attached to refrigerator

[] Cabinet is setting solid on all corners

Electrical Power

13 House power turned on

[] Refrigerator plugged in

ice Maker

E3 House water supply connected to refrigerator

E3 No water leaks present at all connections -

recheck in 24 hours

[] Ice maker is turned ON

[] Ice & water dispenser operates correctly

[] Front filter must be flush with filter housing

(select models)

Final Checks

[] Shipping material removed

[] Fresh food and freezer temperatures set

[] Crisper humidity controls set

[] Registration card sent in

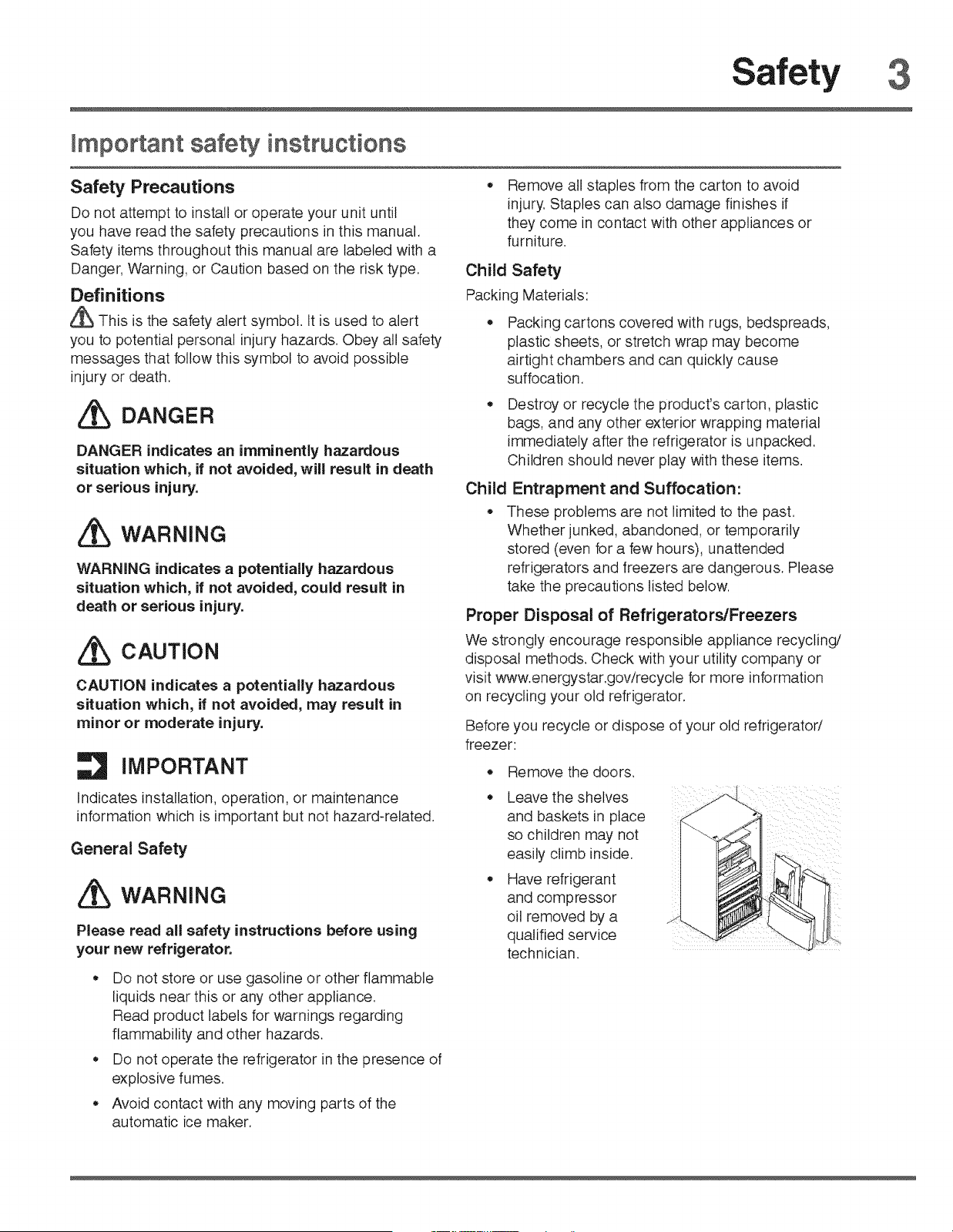

Safety 3

Important safe instructions

Safety Precautions

Do not attempt to install or operate your unit until

you have read the safety precautions in this manual.

Safety items throughout this manual are labeled with a

Danger, Warning, or Caution based on the risk type.

Definitions

This is the safety alert symbol. It is used to alert =

you to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible

injury or death.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in

death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

iMPORTANT

Indicates installation, operation, or maintenance

information which is important but not hazard-related.

General Safety

WARNING

Please read all safety instructions before using

your new refrigerator.

_, Do not store or use gasoline or other flammable

liquids near this or any other appliance.

Read product labels for 'warnings regarding

flammability and other hazards.

• Do not operate the refrigerator in the presence of

explosive fumes.

,, Avoid contact with any moving parts of the

automatic ice maker.

Remove all staples from the carton to avoid

injury. Staples can also damage finishes if

they come in contact with other appliances or

furniture.

Child Safety

Packing Materials:

Packing cartons covered with rugs, bedspreads,

plastic sheets, or stretch wrap may become

airtight chambers and can quickly cause

suffocation.

Destroy or recycle the product's carton, plastic

bags, and any other exterior wrapping material

immediately after the refrigerator is unpacked.

Children should never play with these items.

Child Entrapment and Suffocation:

• These problems are not limited to the past.

Whether junked, abandoned, or temporarily

stored (even for a few hours), unattended

refrigerators and freezers are dangerous. Please

take the precautions listed below.

Proper Disposal of Refrigerators/Freezers

We strongly encourage responsible appliance recycling,/

disposal methods. Check with your utility company or

visit www.energystar.govirecycle for more information

on recycling your old refrigerator.

Before you recycle or dispose of your old refrigerator/

freezer:

Remove the doors.

Leave the shelves ....

and baskets in place

so children may not

easily climb inside.

Have refrigerant

and compressor

oil removed by a

qualified service

technician.

4 Safety

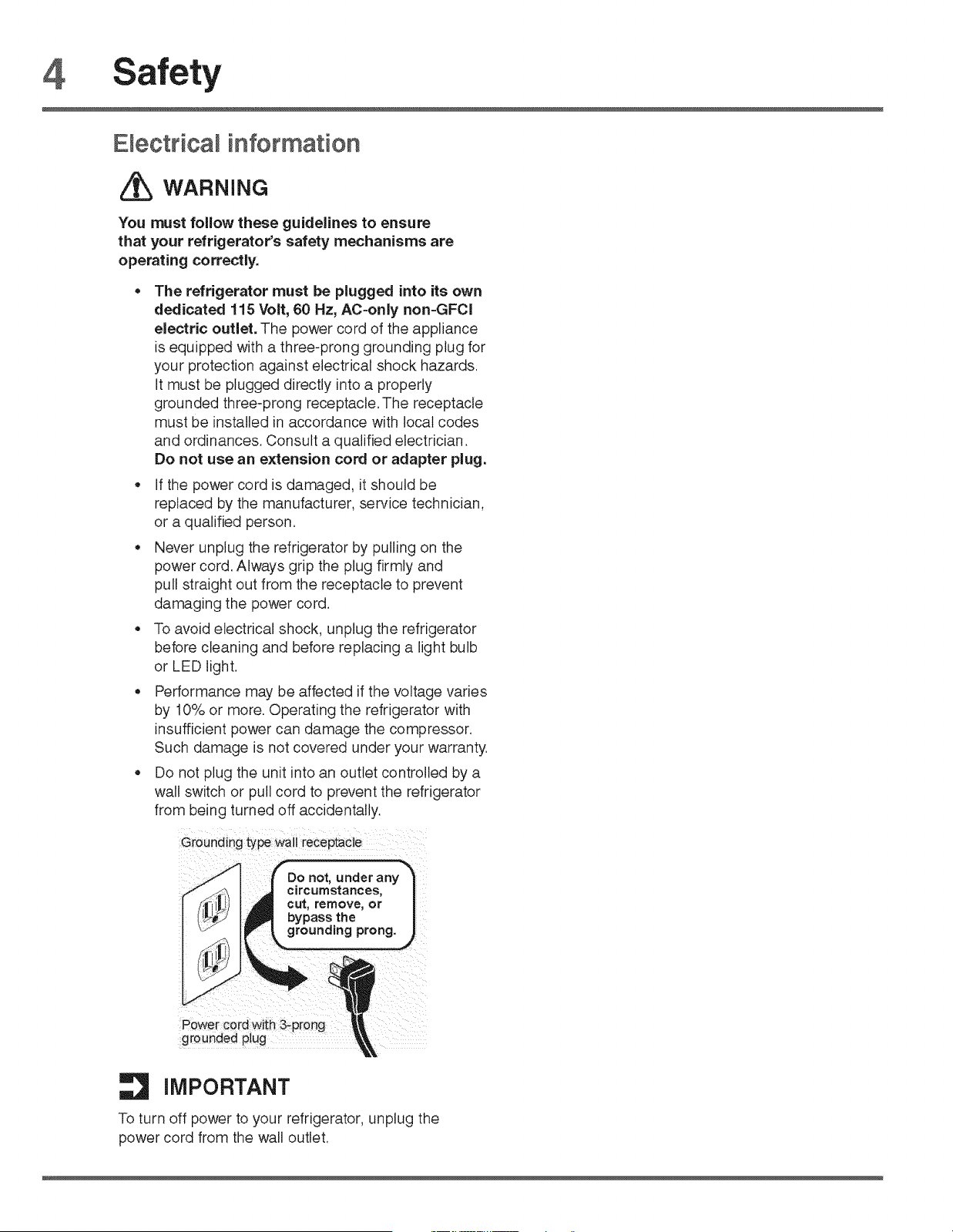

Emectdcaminformation

WARNING

You must follow these guidelines to ensure

that your refrigerator's safety mechanisms are

operating correctly.

o The refrigerator must be plugged into its own

dedicated 115 Volt, 60 Hz, AC-only non=GFCI

electric outlet. The power cord of the appliance

is equipped with a three-prong grounding plug for

your protection against electrical shock hazards.

It must be plugged directly into a properly

grounded three-prong receptacle. The receptacle

must be installed in accordance with local codes

and ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter plug.

,, If the power cord is damaged, it should be

replaced by the manufacturer, service technician,

or a qualified person.

,, Never unplug the refrigerator by pulling on the

power cord. Always grip the plug firmly and

pull straight out from the receptacle to prevent

damaging the power cord.

,, To avoid electrical shock, unplug the refrigerator

before cleaning and before replacing a light bulb

or LED light.

,, Performance may be affected if the voltage varies

by 10% or more. Operating the refrigerator with

insufficient power can damage the compressor.

Such damage is not covered under your warranty.

• Do not plug the unit into an outlet controlled by a

wall switch or pull cord to prevent the refrigerator

from being turned off accidentally.

| IMPORTANT

To turn off power to your refrigerator, unplug the

power cord from the wall outlet.

Feature Overview 5

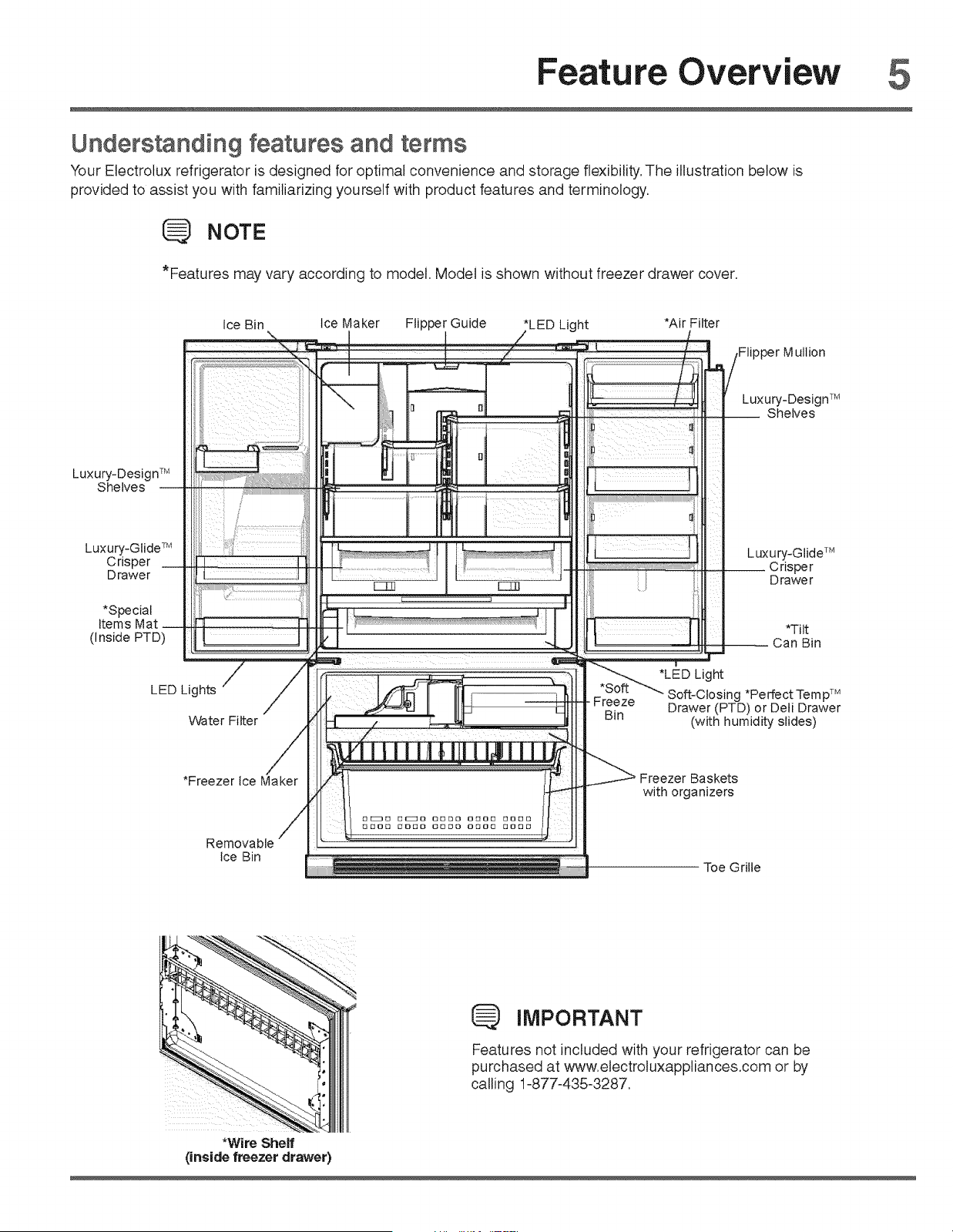

Understanding features and terms

Your Electrolux refrigerator is designed for optimal convenience and storage flexibility, The illustration below is

provided to assist you with familiarizing yourself with product features and terminology.

_ NOTE

*Features may vary according to model. Model is shown without freezer drawer cover.

Ice Bin Ice Maker Flipper Guide *LED Light *Air Filter

Flipper M uJlion

Luxury-Design TM

Shelves

Luxury-Glide TM

Crisper

Drawe r

*Special

(Inside PTD)

LED Lights

Water Filter

- Freeze

Bin

Luxury-Design TM

__ Shelves

Luxu ry-G lideTM

__ Crisper

Drawe r

*Tilt

Can Bin

*LED Light

Soft=Closing *Perfect TernpTM

Drawer (PTD) or Dell Drawer

(with humidity slides)

*Freezer ice Maker

Freezer Baskets

with organizers

Removable

Ice Bin

Toe Grille

IMPORTANT

Features not included with your refrigerator can be

purchased at v_Nw.electroluxapptiances.comor by

calling 1-877-435-3287.

*Wire Shelf

(inside freezer drawer)

installation

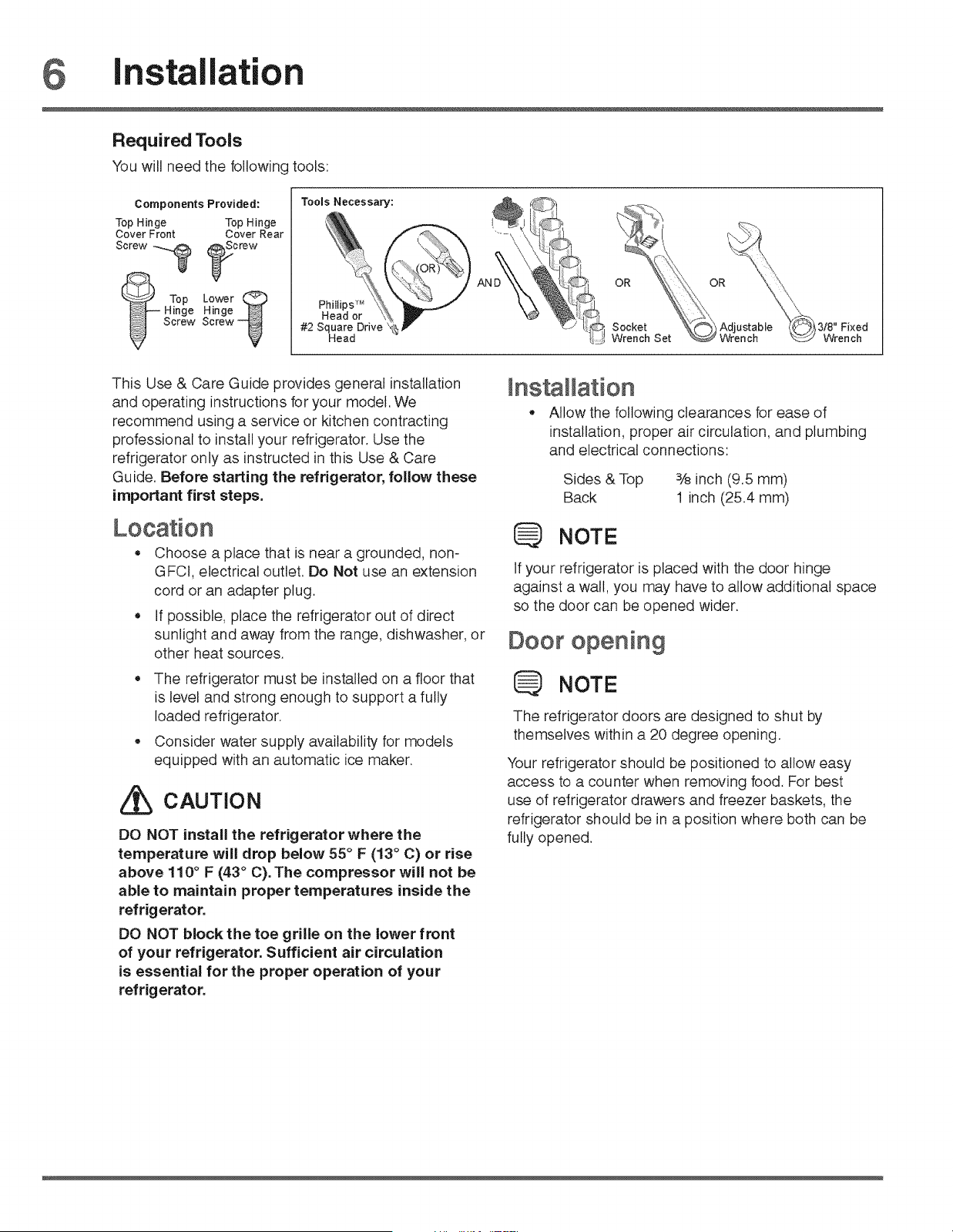

Required Tools

You will need the following tools:

Components Provided:

Top Hinge Top Hinge

Cover Front Cover Rear

Screw -,_ (_Screw

Top Lower

Hinge Hinge

Screw Screw

Tools Necessary:

Phillips TM

Head or

#2 Square Drive

Head

This Use & Care Guide provides general installation

and operating instructions for your model. We

recommend using a service or kitchen contracting

professional to install your refrigerator. Use the

refrigerator only as instructed in this Use & Care

Guide. Before starting the refrigerator, follow these

important first steps.

,, Choose a place that is near a grounded, non-

GFCI, electrical outlet. Do Not use an extension

cord or an adapter plug.

• If possible, place the refrigerator out of direct

sunlight and away from the range, dishwasher, or

other heat sources.

,, The refrigerator must be installed on a floor that

is level and strong enough to support a fully

loaded refrigerator.

,, Consider water supply availability for models

equipped with an automatic ice maker.

CAUTION

DO NOT install the refrigerator where the

temperature will drop below 55° F (13 ° C) or rise

above 110° F (43 ° C). The compressor will not be

able to maintain proper temperatures inside the

refrigerator,

DO NOT block the toe grille on the lower front

of your refrigerator. Sufficient air circulation

is essential for the proper operation of your

refrigerator.

lnstalJation

,, Allow the following clearances for ease of

installation, proper air circulation, and plumbing

and electrical connections:

Sides & Top 3/8inch (9.5 mm)

Back 1 inch (25.4 mm)

NOTE

If your refrigerator is placed with the door hinge

against a wall, you may have to allow additional space

so the door can be opened wider.

Door opening

NOTE

The refrigerator doors are designed to shut by

themselves within a 20 degree opening.

Your refrigerator should be positioned to aitow easy

access to a counter when removing food. For best

use of refrigerator drawers and freezer baskets, the

refrigerator should be in a position where both can be

fully opened.

installation 7

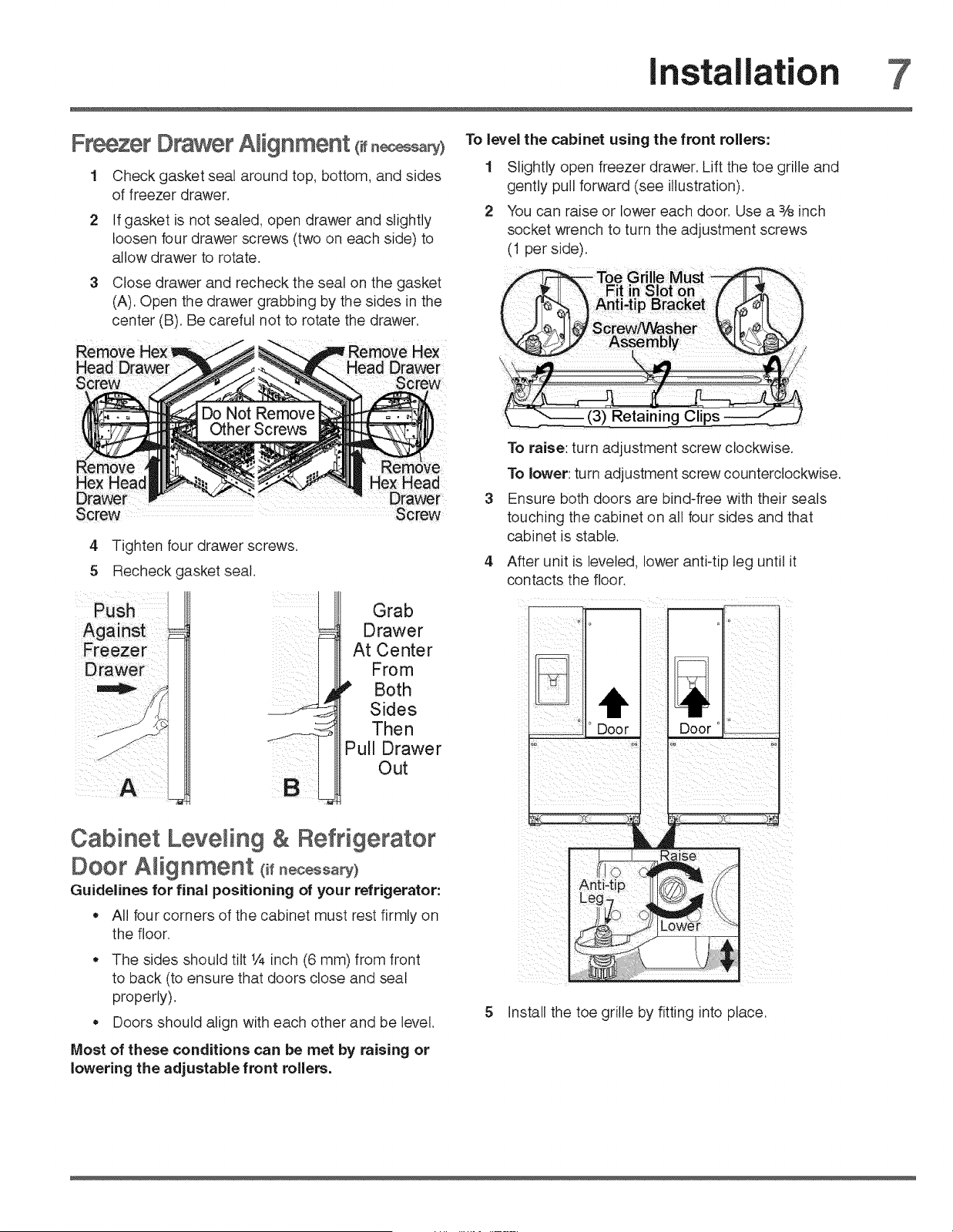

Freezer Drawer Alignment (_n_,.rj)

1 Check gasket seal around top, bottom, and sides

of freezer drawer.

2 If gasket is not sealed, open drawer and slightly

loosen four drawer screws (two on each side) to

allow drawer to rotate.

3 Close drawer and recheck the seal on the gasket

(A). Open the drawer grabbing by the sides in the

center (B). Be careful not to rotate the drawer.

To level the cabinet using the front rollers:

1 Slightly open freezer drawer. Lift the toe grille and

gently pull forward (see illustration).

2 "Youcan raise or lower each door. Use a 3is inch

socket wrench to turn the adjustment screws

(1 per side).

5 Recheck gasket seal.

Push

Against _-

Tighten four drawer screws.

Head

Grab

Drawer

At Center

From

Both

Sides

Then

Pull Drawer

Out

Cabinet Leveling & Refrigerator

Door

AMignment (Hne°e® o j)

Guidelines for final positioning of your refrigerator:

,, All four corners of the cabinet must rest firmly on

the floor,

,, The sides should tilt 1/4inch (6 mm) from front

to back (to ensure that doors close and seal

properly).

,, Doors should align with each other and be level.

Most of these conditions can be met by raising or

lowering the adjustable front rollers.

To raise: turn adjustment screw clockwise.

To lower: turn adjustment screw counterclockwise.

Ensure both doors are bind-free with their seals

touching the cabinet on all four sides and that

cabinet is stable.

After unit is leveled, lower anti-tip leg until it

contacts the floor.

_owe r

5 nsta the toe grille by fitting into place.

installation

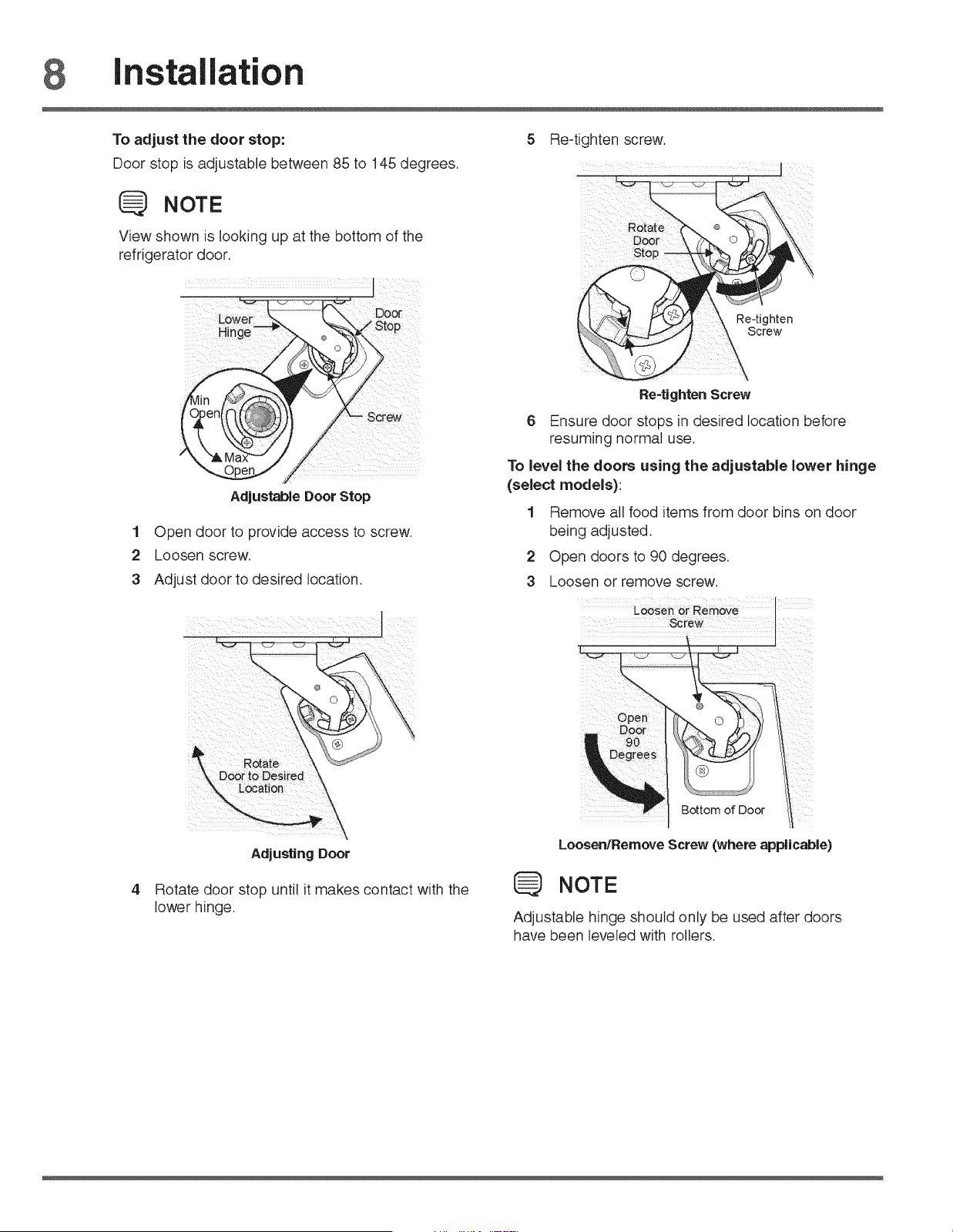

To adjust the door stop:

Door stop is adjustable between 85 to 145 degrees.

NOTE

View shown is looking up at the bottom of the

refrigerator door,

Adjustable Door Stop

1 Open door to provide access to screw.

2 Loosen screw.

3 Adjust door to desired location.

5 Re-tighten screw.

Re-tighten

Screw

Re-tighten Screw

6 Ensure door stops in desired location before

resuming normal use.

To level the doors using the adjustable lower hinge

(select models):

1 Remove all food items from door bins on door

being adjusted.

2 Open doors to 90 degrees.

3 Loosen or remove screw.

Adjusting Door

4 Rotate door stop until it makes contact with the

NOTE

lower hinge,

Bottom of Door

Loosen/Remove Screw (where applicable)

Adjustable hinge should only be used after doors

have been leveled with rollers.

installation 9

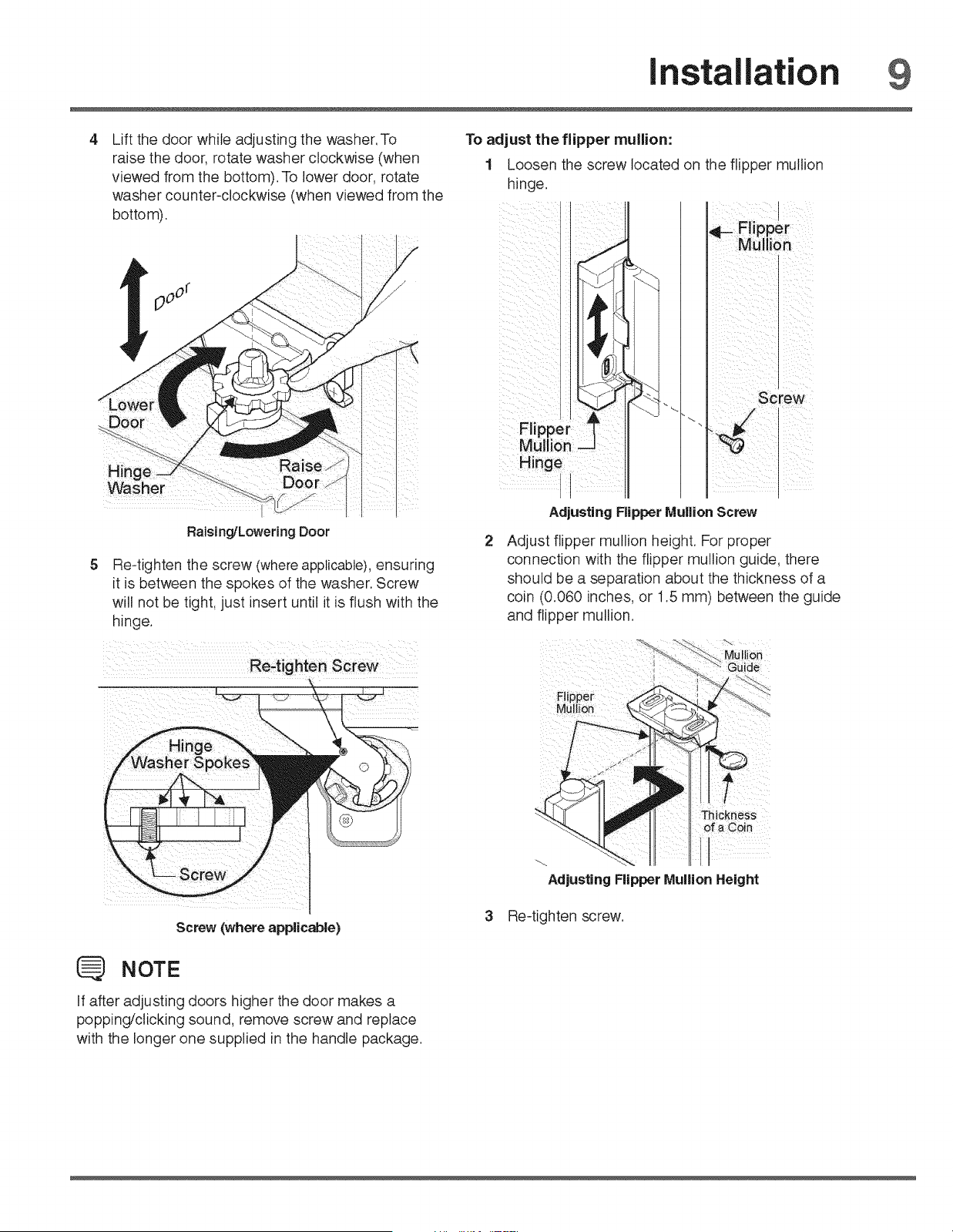

Lift the door while adjusting the washer.To

raise the door, rotate washer clockwise (when

viewed from the bottom). To lower door, rotate hinge.

washer counter-clockwise (when viewed from the ........................

bottom).

Washer

Raising/Lowering Door

Re-tighten the screw (where applicable), ensuring

it is between the spokes of the washer. Screw

will not be tight, just insert until it is flush with the

hinge.

Re,tighten Screw

To adjust the flipper mullion:

1 Loosen the screw located on the flipper mullion

_ F!ipper

Mulliiin

Adjusting Flipper MuBion Screw

Adjust flipper mullion height. For proper

connection with the flipper mullion guide, there

should be a separation about the thickness of a

coin (0.060 inches, or 1.5 mm) between the guide

and flipper mullion.

Screw (where applicable)

Adjusting Flipper Mullion Height

Re-tighten screw.

NOTE

If after adjusting doors higher the door makes a

popping/clicking sound, remove screw and replace

with the longer one supplied in the handle package.

installation

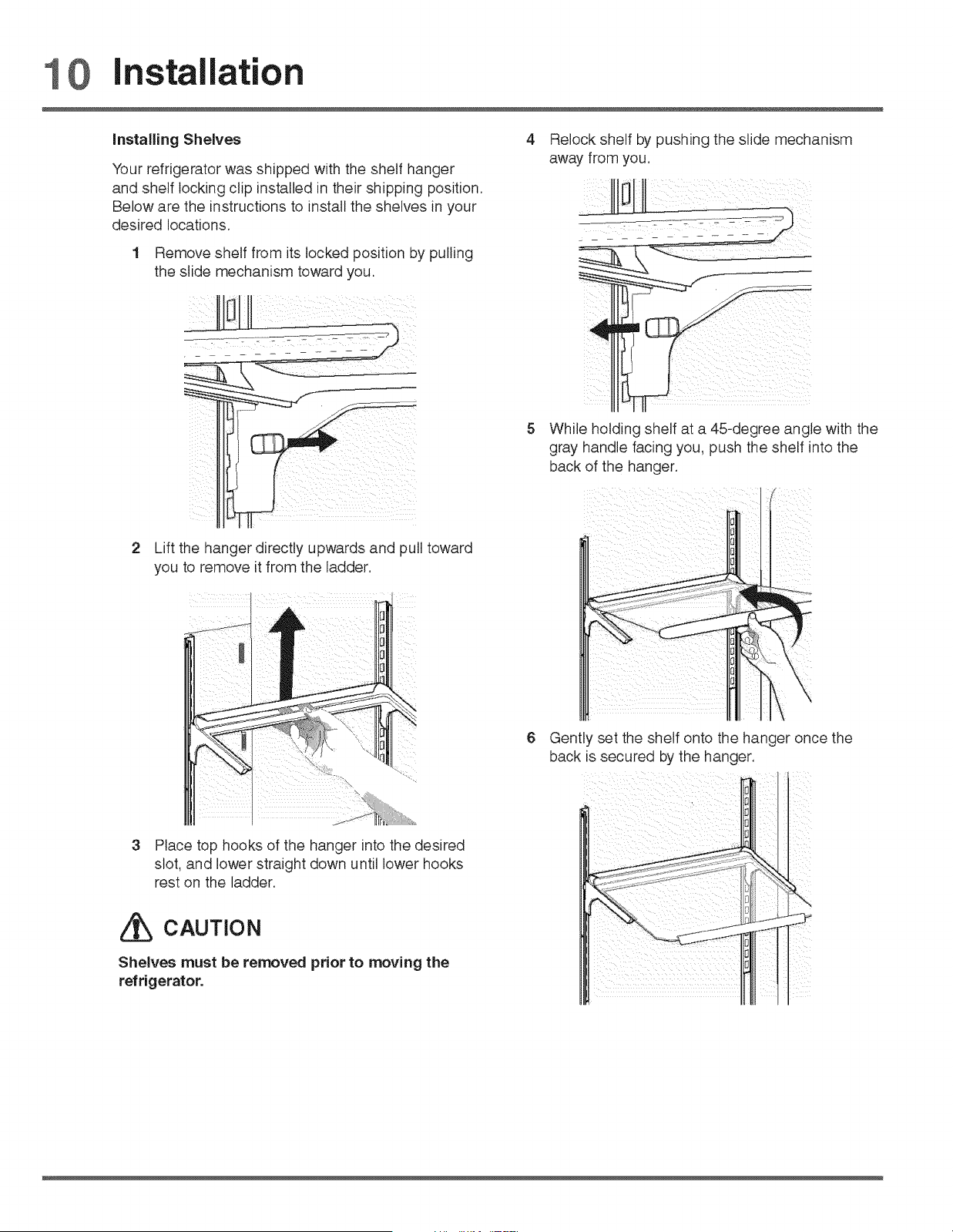

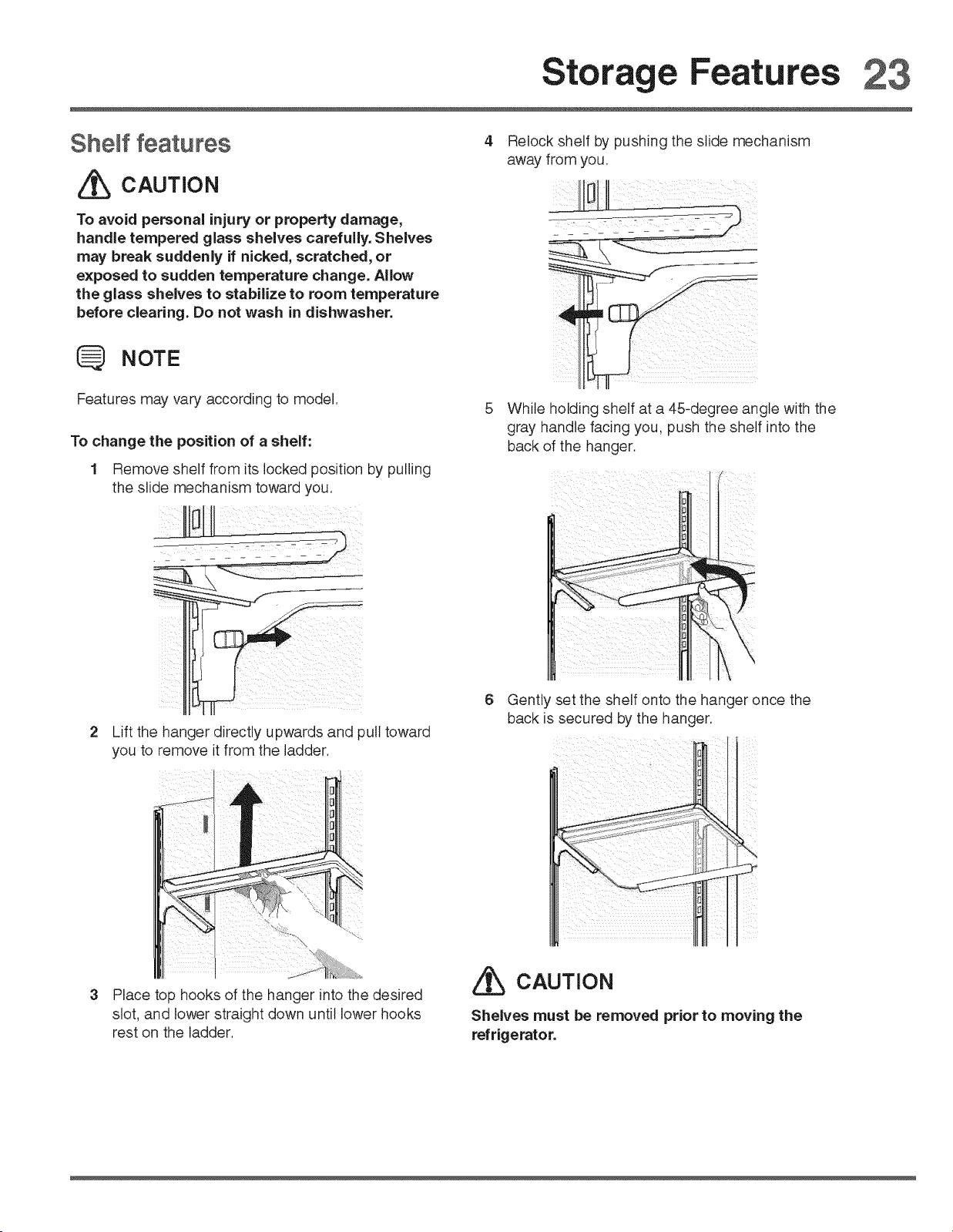

Installing Shelves 4

'(our refrigerator was shipped with the shelf hanger

and shelf locking clip installed in their shipping position.

Below are the instructions to install the shelves in your

desired locations.

1 Remove shelf from its locked position by pulling

the slide mechanism toward you.

Relock shelf by pushing the slide mechanism

away from you.

Lift the hanger directly upwards and pull toward

you to remove it from the ladder.

5 While holding shelf at a 45=degree angle with the

gray handle facing you, push the shelf into the

back of the hanger.

6 Gently set the shelf onto the hanger once the

back is secured by the hanger.

3 Place top hooks of the hanger into the desired

slot, and lower straight down until lower hooks

rest on the ladder.

CAUTION

Shelves must be removed prior to moving the

refrigerator.

Removin

the Doors 1

Getting through narrow spaces

If your refrigerator will not fit through an entrance area,

you can remove the doors. Check first by measuring the

entrance.

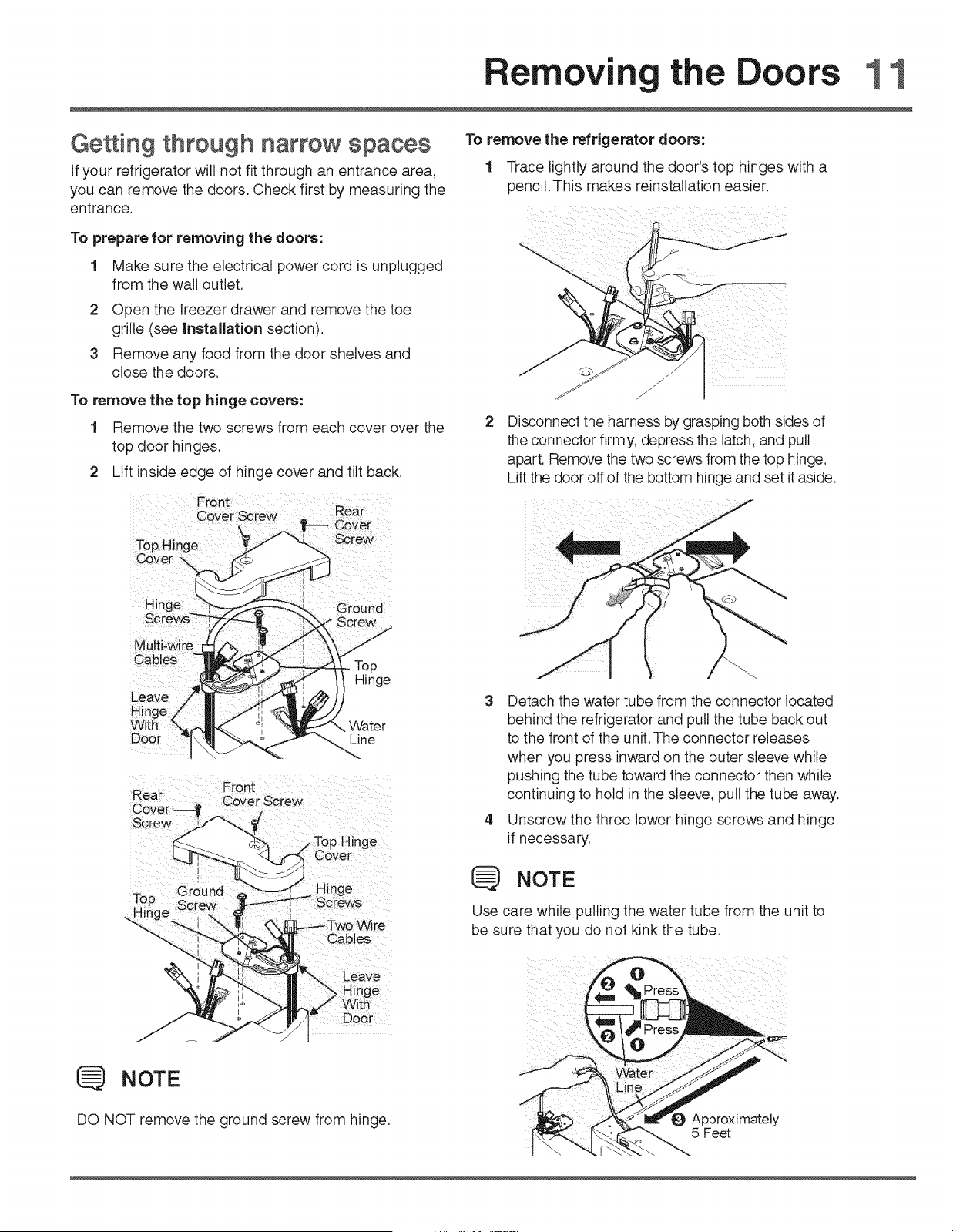

To remove the refrigerator doors:

1 Trace lightly around the door's top hinges with a

pencil.This makes reinstallation easier.

To prepare for removing the doors:

Make sure the electrical power cord is unplugged

from the wall outlet.

2 Open the freezer drawer and remove the toe

grille (see Installation section).

3 Remove any food from the door shelves and

close the doors.

To remove the top hinge covers:

1 Remove the two screws from each cover over the

top door hinges.

2 Lift inside edge of hinge cover and tilt back.

Disconnect the harness by grasping both sides of

the connector firmly, depress the latch, and pull

apart. Remove the two screws from the top hinge.

Lift the door off of the bottom hinge and set it aside.

Leave

Door

Hinge

Water

Line

Leave

NOTE

DO NOT remove the ground screw from hinge.

3 Detach the water tube from the connector located

behind the refrigerator and pull the tube back out

to the front of the unit. The connector releases

when you press inward on the outer sleeve while

pushing the tube toward the connector then while

continuing to hold in the sleeve, pull the tube away.

4 Unscrew the three lower hinge screws and hinge

if necessary.

NOTE

Use care while pulling the water tube from the unit to

be sure that you do not kink the tube,

Approximately

5 Feet

2 Removing

e Doors

NOTE

"Youwill be pulling approximately five feet of water

tube from the back of the refrigerator.

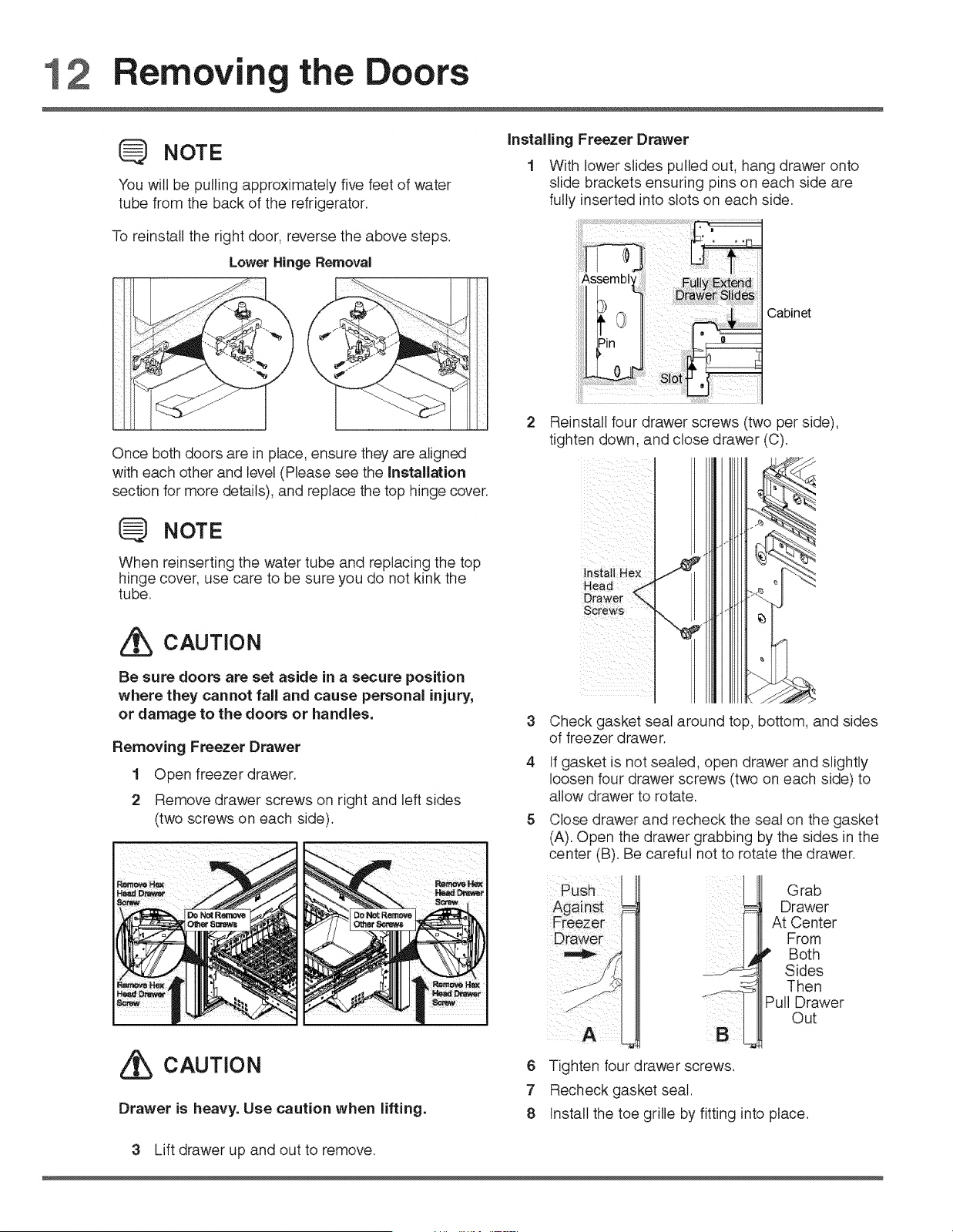

Installing Freezer Drawer

1 With lower slides pulled out, hang drawer onto

slide brackets ensuring pins on each side are

fully inserted into slots on each side.

To reinstall the right door, reverse the above steps.

Lower Hinge Removal

Cabinet

Once both doors are in place, ensure they are aligned

with each other and level (Please see the Installation

section for more details), and replace the top hinge cover.

NOTE

When reinserting the water tube and replacing the top

hinge cover, use care to be sure you do not kink the

tube.

CAUTION

Be sure doors are set aside in a secure position

where they cannot fall and cause personal injury,

or damage to the doors or handles.

Removing Freezer Drawer

1 Open freezer drawer.

2 Remove drawer screws on right and left sides

(two screws on each side).

CAUTION

Drawer is heavy. Use caution when lifting.

Reinstall four drawer screws (two per side),

tighten down, and close drawer (C).

Check gasket seal around top, bottom and sides

of freezer drawer.

If gasket is not sealed, open drawer and slightly

loosen four drawer screws (two on each side) to

allow drawer to rotate.

Close drawer and recheck the seat on the gasket

(A). Open the drawer grabbing by the sides in the

center (B). Be careful not to rotate the drawer.

Push

Against

Freezer

Drawer

Grab

Drawer

At Center

From

Both

Sides

Then

Pull Drawer

Out

6 Tighten four drawer screws.

7 Recheck gasket seat.

8 Install the toe grille by fitting into place.

3 Lift drawer up and out to remove.

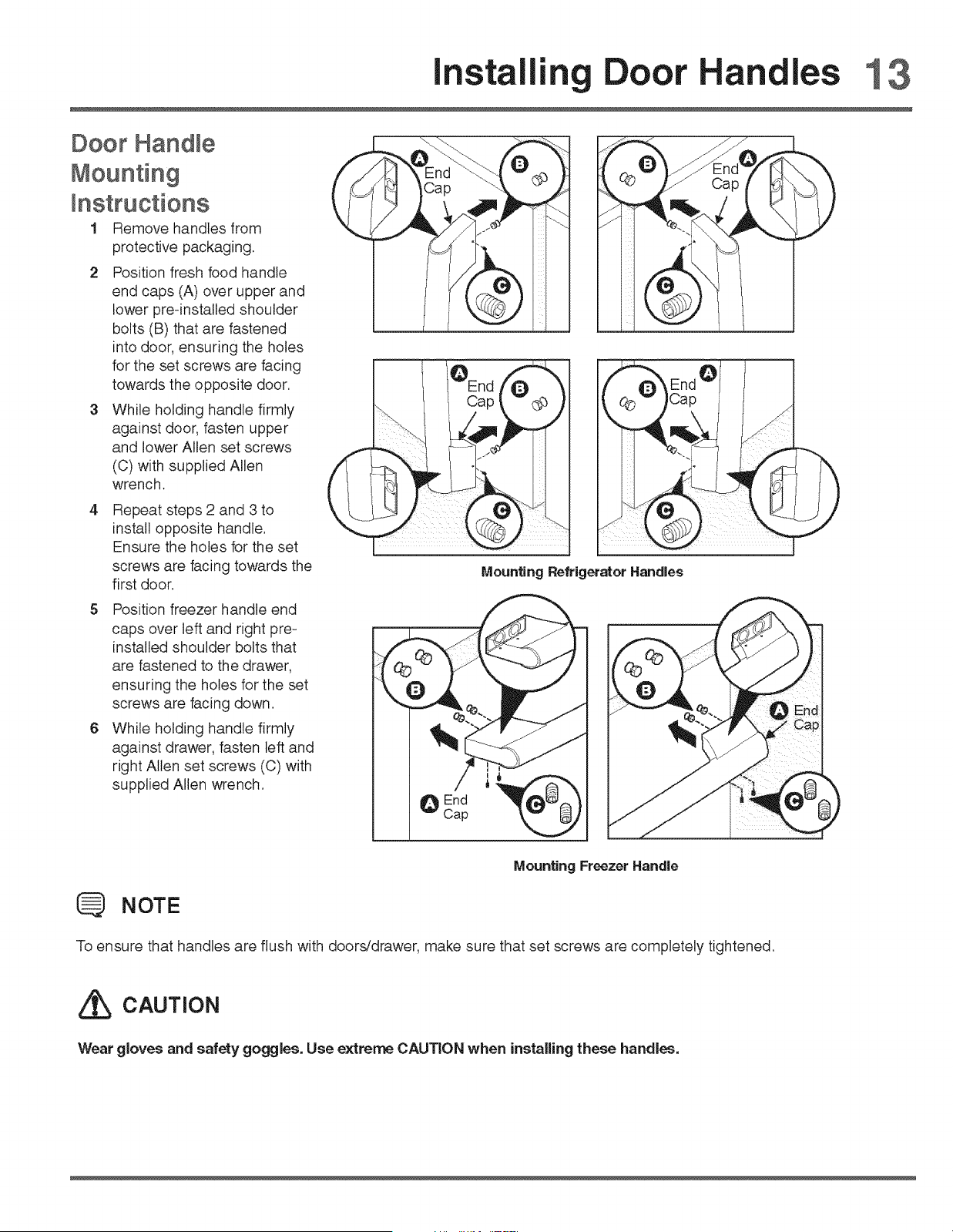

installing Door andles 13

Door Handle

1 Remove handles from

protective packaging.

2 Position fresh food handle

end caps (A) over upper and

lower pre-installed shoulder

bolts (B) that are fastened

into door, ensuring the holes

for the set screws are facing

towards the opposite door.

3 While holding handle firmly

against door, fasten upper

and lower Allen set screws

wrench.

Repeat steps 2 and 3 to

install opposite handle,

Ensure the holes for the set

screws are facing towards the

first door.

5 Position freezer handle end

caps over left and right pre-

installed shoulder bolts that

are fastened to the drawer,

ensuring the holes for the set

screws are facing down.

6 While holding handle firmly

against drawer, fasten left and

right Allen set screws (C) with

supplied Allen wrench.

Mounting Refrigerator Handles

_End _

Cap

NOTE

Mounting Freezer Handle

To ensure that handles are flush with doors/drawer, make sure that set screws are completely tightened.

CAUTION

Wear gloves and safety goggles. Use extrerr_ CAUTION when installing these handles.

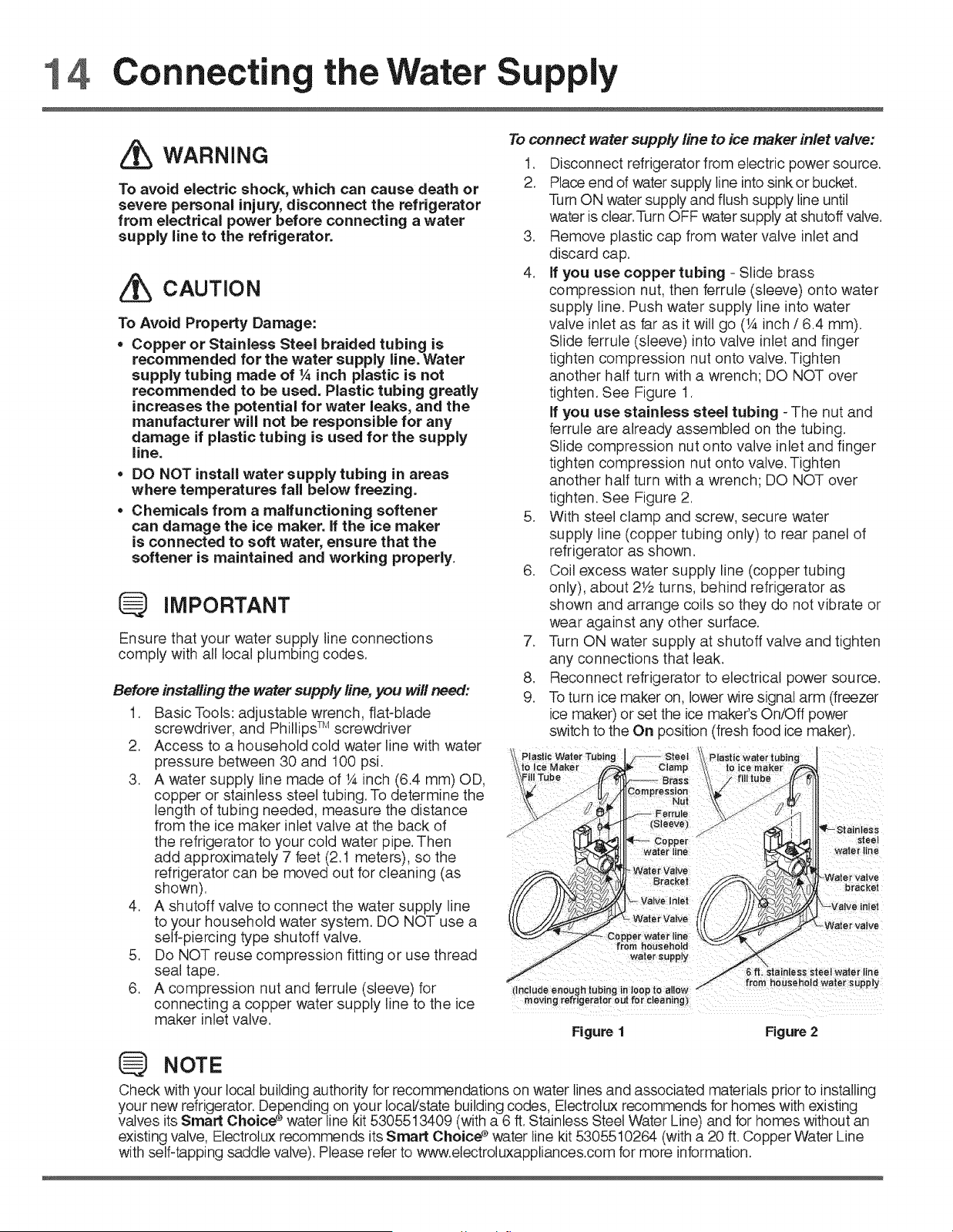

4 Connecting theWater uppiy

WARNING

To avoid electric shock, which can cause death or

severe personal injury, disconnect the refrigerator

from electrical power before connecting a water

supply line to the refrigerator.

CAUTION

To Avoid Property Damage:

• Copper or Stainless Steel braided tubing is

recommended for the water supply line° Water

supply tubing made of 1A inch plastic is not

recommended to be used, Plastic tubing greatly

increases the potential for water leaks, and the

manufacturer wiil not be responsible for any

damage if plastic tubing is used for the supply

line.

DO NOT install water supply tubing in areas

where temperatures fail below freezing.

Chemicals from a malfunctioning softener

can damage the ice maker. If the ice maker

is connected to soft water, ensure that the

softener is maintained and working properly.

iMPORTANT

Ensure that your water supply line connections

comply with all local plumbing codes.

Before installing the water supply line, you will need:

1. Basic Tools: adjustable wrench, flat-blade

screwdriver, and Phillips TM screwdriver

2. Access to a household cold water line with water

pressure between 30 and t00 psi.

3. A water supply line made of ¼ inch (6.4 mm) OD,

copper or stainless steel tubing. To determine the

length of tubing needed, measure the distance

from the ice maker inlet valve at the back of

the refrigerator to your cold water pipe. Then

add approximately 7 feet (2.1 meters), so the

refrigerator can be moved out for cleaning (as

shown).

4. A shutoff valve to connect the water supply line

to your household water system. DO NOT use a

self-piercing type shutoff valve.

5. Do NOT reuse compression fitting or use thread

seal tape.

6. A compression nut and ferrule (sleeve) for

connecting a copper water supply fine to the ice

maker inlet valve.

NOTE

To connect water supply line to ice maker inlet valve:

1. Disconnect refrigerator from electric power source,

2. Place end of water supply line into sink or bucket.

Turn ON water supply and flush supply line until

water is clear,Turn OFF water supply at shutoff valve.

3. Remove plastic cap from water valve inlet and

discard cap.

4. If you use copper tubing - Slide brass

compression nut, then ferrule (sleeve) onto water

supply line. Push water supply line into water

valve inlet as far as it wilt go (¼ inch / 6.4 mm).

Slide ferrule (sleeve) into valve inlet and finger

tighten compression nut onto valve. Tighten

another half turn with a wrench; DO NOT over

tighten. See Figure 1.

If you use stainless steel tubing - The nut and

ferrule are already assembled on the tubing.

Slide compression nut onto valve inlet and finger

tighten compression nut onto valve. Tighten

another half turn with a wrench; DO NOT over

tighten. See Figure 2.

5. With steel clamp and screw, secure water

supply line (copper tubing only) to rear panel of

refrigerator as shown.

6. Coil excess water supply line (copper tubing

only), about 2V2turns, behind refrigerator as

shown and arrange coils so they do not vibrate or

wear against any other surface.

7. Turn ON water supply at shutoff valve and tighten

any connections that leak.

8. Reconnect refrigerator to electrical power source.

9. To turn ice maker on. lower wire signal arm (freezer

ice maker) or set the ice maker's On/Off power

switch to the On position (fresh food ice maker).

Plastic Water Ti g I/_ Steel \_,_Piasticwate _im 1

to ice Maker =_, Clamp _i\, to ice m, _ / _--_

,F,IT_be "I_V------Bras_,'I\/ fi,tu_ .4'f "_'Ill

-" 211c0mpre_ion%/ "li.Ill

LIII " Nut \_, ..--",8 Ill

" Ill..-- Ferrule _,/" _.tit

(Sleeve) J

,"IIT(--. .....--? ,, I]I._staJnles,

" [IF- Copper ' lll stee,

wotor,,ne Itl wa,er,,oe

I-waterVal o

,. _ Water va ve

_, E ?_;_ bracket

Bracket _b_

¢J'- ,ve,n,et/// iY) "Zl"- o,vo,n,et

_-_L-WaterVave ftt' /// _2 _

{[! ///_ _ Water valve

- Copper Water I ne k_'X_¢i//_"- _ f

from household _ "_._,_

water supply /_

rainless steel water line

.,..." from househo d waler supply

(tn_Uodvtng _°e°Pc[e°egli_ °

Figure 1 Figure 2

Check with your local building authority for recommendations on water lines and associated materials prior to installing

your new refrigerator. De_ending on your locaVstate building codes, Electrolux recommends for homes with existing

valves its Smart Choice water line kit 5305513409 (with a 6 ft. Stainless Steel Water Line) and for homes without an

existing valve, Electrotux recommends its Smart Choice ®water line kit 5305510264 (with a 20 ft. Copper Water Line

with self-tapping saddle valve). Please refer to v,_'w.electroluxappliances.comfor more information.

Controls

G Centre

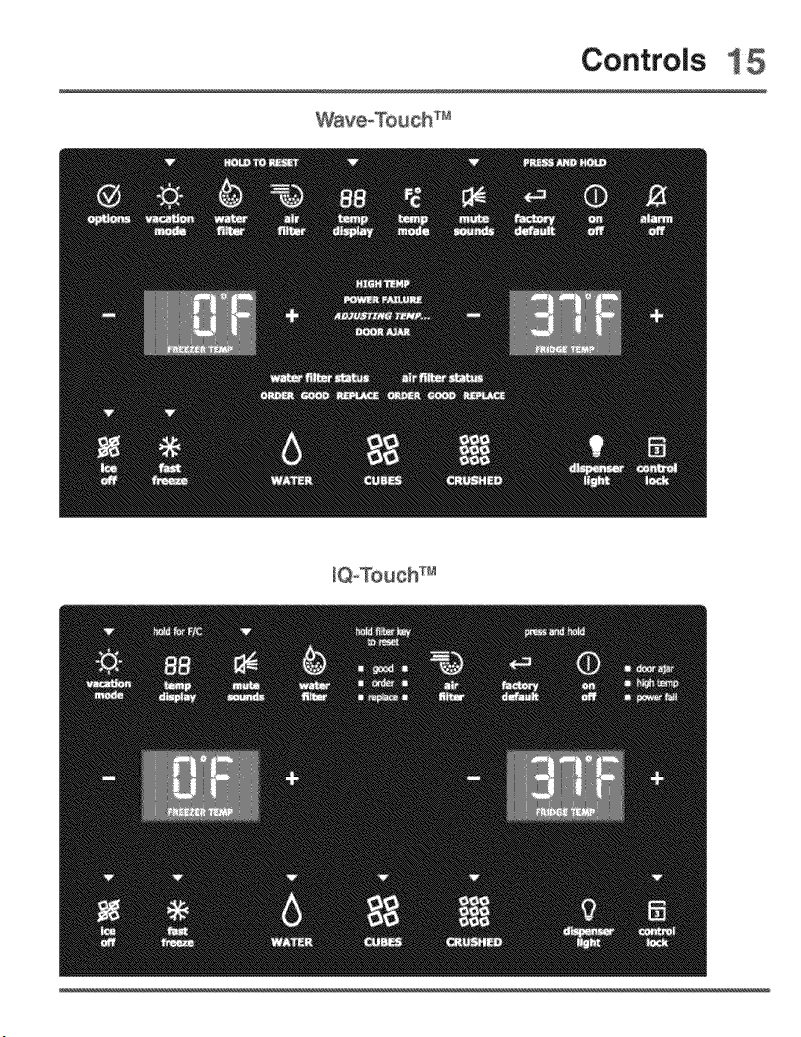

Wave°Touch TM(selectrood÷is}

Your refrigerator is equipped with a Wave-Touch TM

control panel display. It is only necessary to gently

touch the glass. There are three levels of display.

1*t Level: Sleep Mode

Sleep Mode displays only the WATER, CUBES and

CRUSHED options. Touch an icon to activate the

desired dispenser mode. The active dispenser mode is

more brightly illuminated.

2naLevel: Awakened Display Mode

The control panel is awakened by touching anywhere

on the glass where there is an indicator. Black space

wilt not awaken the display. After 10 seconds of

inactivity, the control panel will return to the Sleep mode,

The following dispenser options are illuminated:

iceoff

(FreshFood

IceMaker)

last freeze

Pressand hold for threesecondsto turn the ice

makerONor OFF.The ice makeris OFFwhen the

LEDabovethe Ice Off icon is illuminated.Ifthere is

no indicator,thenthe icemakeris ON.Turningthe

icemakerOFFdisablesthe icedispensingfeature.

NeitherCUBESnor CRLISHEDwill operatewith the

icemakerOFF.

Activates a faster rate for freezing food and

increased iceproduction.

NOTE

Refer to Automatic Ice Maker-Freezer section for

freezer ice maker controls.

dispenserlight On/ Off

controllock Pressand hold for three seconds to activate and

deactivate.This restricts undesired changes to

the refrigerator's settings and prevents use of

the ice and water dispenser.

iMPORTANT

When the ice maker is turned off, the ice in the bucket

should be transferred to the freezer or discarded to

prevent it from melting.

3rdLevel: UserVariabie Options

Touching the options icon displays the following options:

vacationmode

Conservesenergy by increasingthe time

betweenautomatic defrost. This feature is auto-

maticallyactivatedduring long periods between

door openings. Vacationmode is manually

activated when the indicator is tit.

water fiJter

air filter

tempdisplay

tempmode

Touchto display filter condition status. Press

and hold for three seconds to reset after filter

change.

Touchto display filter status. Pressand hold for

three seconds to reset after filter change.

When active,it allows the display of the freezer

and fridge temps during Sleep Mode.The tem-

perature isdisplayed when the indicator is lit.

Touchto toggle display from Fahrenheitto

Celsius.

mute sounds

factory default

on off

Tonesemitted by each keypress canbe turned

off based on user preference.The sounds are

mutedwhen the indicator is tit.Warning signals

will stay active.

Resetsalt refrigerator settings such as temp,

ternp display,and alarm tones to their factory

default settings.

Pressand hold for three seconds to turn off the

cooling system to clean the rdrigerator. It also

turns off the ice maker,all dispenser functions,

and the Perfect TempTM drawer (select models).

The temperature display will readOFF.

iMPORTANT

Pressing the system on/off icon does not turn off

power to your refrigerator. You must unplug the power

cord from the walt outlet.

Controls 17

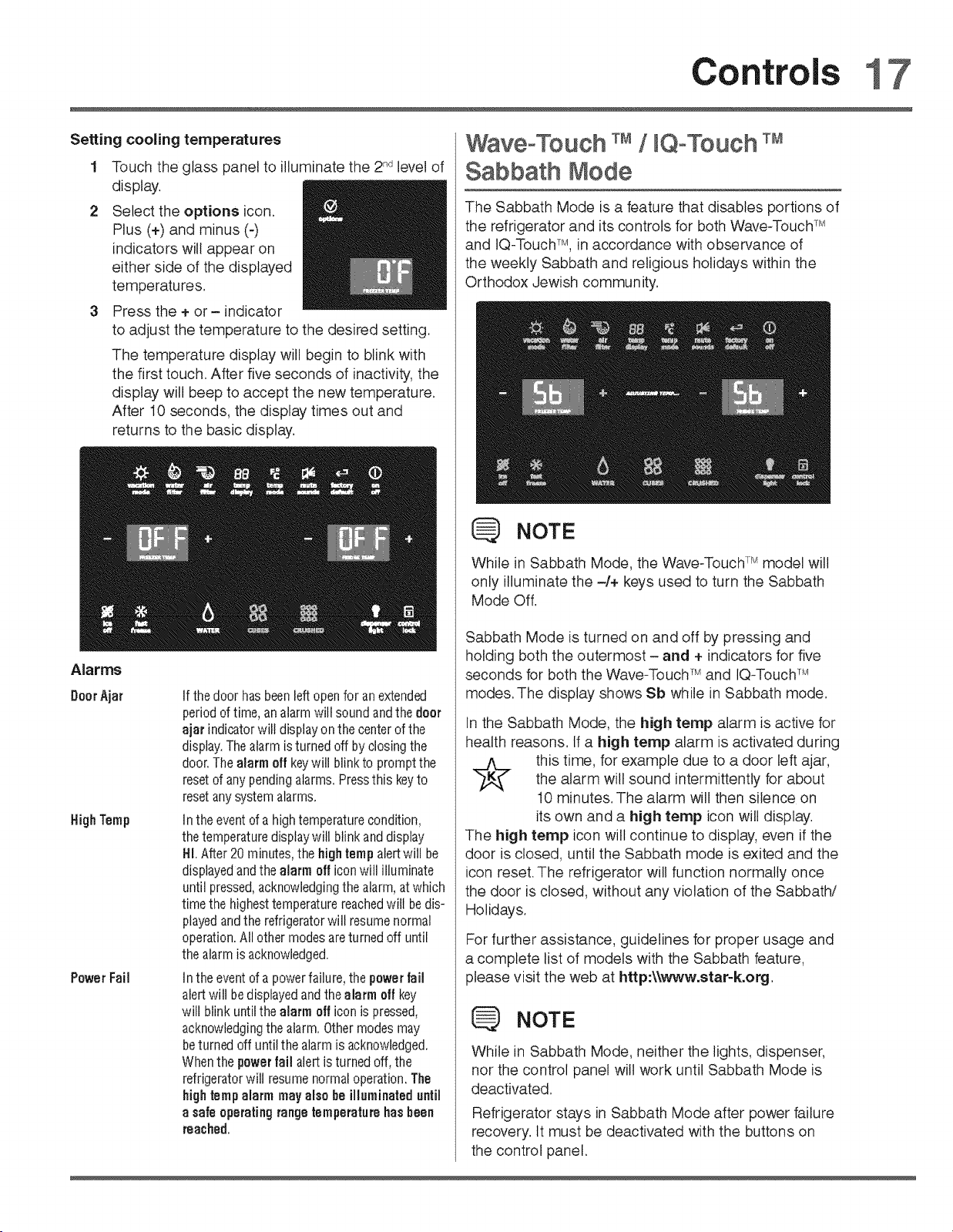

Setting cooling temperatures

Touch the glass panel to illuminate the 2ndlevel of

display.

Select the options icon.

Plus (+) and minus (-)

indicators wilt appear on

either side of the displayed

temperatures.

Press the + or- indicator

to adjust the temperature to the desired setting.

The temperature display will begin to blink with

the first touch. After five seconds of inactivity, the

display will beep to accept the new temperature.

After 10 seconds, the display times out and

returns to the basic display.

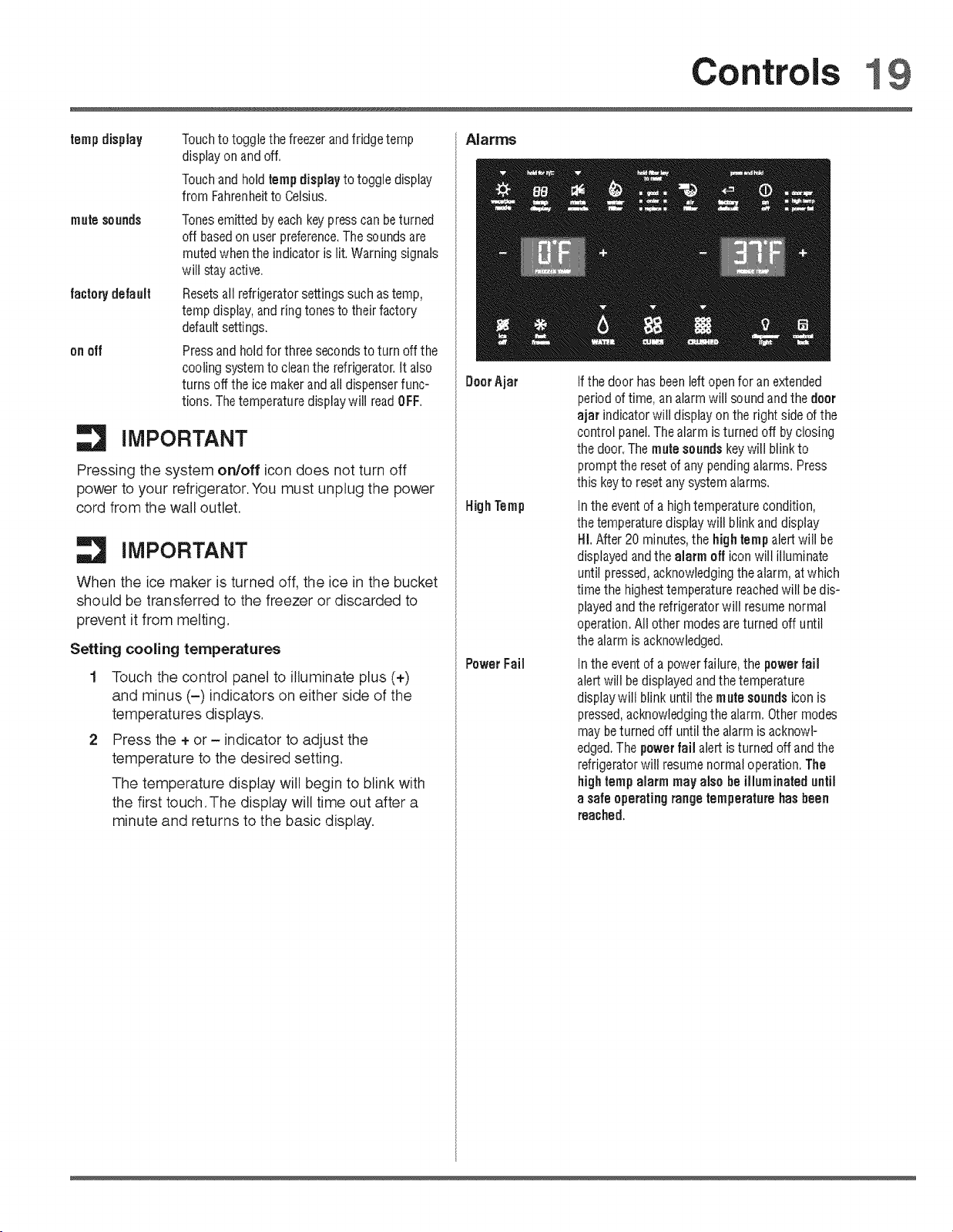

Alarms

DoorAjar

HighTemp

PowerFail

If the door has been left open for an extended

period of time, an alarm will sound and the doer

ajar indicator will display on the center of the

display.The alarm is turned off by closing the

door. The alarm off key will blink to prompt the

reset of any pending alarms. Pressthis keyto

reset any system alarms.

In the event of a high temperature condition,

the temperature disptaywill blink and display

HI. After 20 minutes, the high temp alert will be

displayed and the alarm officon will illuminate

until pressed,acknowledging the alarm, at which

time the highest temperature reachedwilt be dis-

played and the refrigerator will resurnenormal

operation. All other modes are turned off until

the alarm is acknowledged.

Unthe event of a power failure, the power fail

alert will bedisplayed and the alarm off key

will blink until the alarm off icon is pressed,

acknowledging the alarm. Other modes may

be turned off until the alarm is acknowledged.

When the powerfail alert is turned off, the

refrigerator will resume normal operation. The

high tamp alarm may also be illuminateduntil

a safe operatingrange temperaturehas been

reached.

WaveoTouch / Q°Touch

Sabbath Mode

The Sabbath Mode is a feature that disables portions of

the refrigerator and its controls for both Wave-ToucW M

and IQ-Touch TM, in accordance with observance of

the weekly Sabbath and religious holiday's within the

Orthodox Jewish community.

NOTE

While in Sabbath Mode, the Wave-Touch TM model will

only illuminate the -/+ keys used to turn the Sabbath

Mode Off.

Sabbath Mode is turned on and off by pressing and

holding both the outermost - and + indicators for five

seconds for both the Wave-Touch TM and IQ-Touch TM

modes. The display shows Sb while in Sabbath mode.

In the Sabbath Mode, the high temp alarm is active for

health reasons, tf a high tamp alarm is activated during

this time, for example due to a door left ajar,

the alarm will sound intermittently for about

10 minutes. The alarm will then silence on

its own and a high tamp icon will display.

The high temp icon wilt continue to display, even if the

door is closed, until the Sabbath mode is exited and the

icon reset. The refrigerator will function normally once

the door is closed, without any violation of the Sabbath/

Holidays.

For further assistance, guidelines for proper usage and

a complete list of models with the Sabbath feature,

please visit the web at http:\\www.star-k.org.

NOTE

While in Sabbath Mode, neither the lights, dispenser,

nor the control panel will 'work until Sabbath Mode is

deactivated.

Refrigerator stays in Sabbath Mode after power failure

recovery, tt must be deactivated with the buttons on

the control panel.

Contro

NOTE

Although you have entered the Sabbath Mode, the ice

maker will complete the cycle it had already initiated.

The ice cube compartment will remain cold and new

ice cubes can be made with standard trays.

Sabbath Mode and the Perfect Temp TM Drawer

The Perfect TempTM Drawer should be turned off for the

Sabbath/Holidays, Before putting the refrigerator into

the Sabbath mode, turn the PerfectTemp TM Drawer off

by pressing the drawer on/off button. The display will

show OFF and the drawer will turn off. Then enter the

Sabbath mode function on the main refrigerator display.

(See Wave-Touch/IQ-Touch Sabbath Mode section.)

When in Sabbath mode, the display will not illuminate

and the drawer will remain off. The drawer can still be

used as a non-temp controlled drawer in this mode.

When the refrigerator is taken out of Sabbath mode, the

Perfect TempTM Drawer will have to be turned back on.

NOTE

If the Perfect Temp TM Drawer is not turned off prior

to putting the unit into Sabbath Mode, it will continue

to adjust itself to maintain the set point even if the

display does not illuminate to show that it is still on.

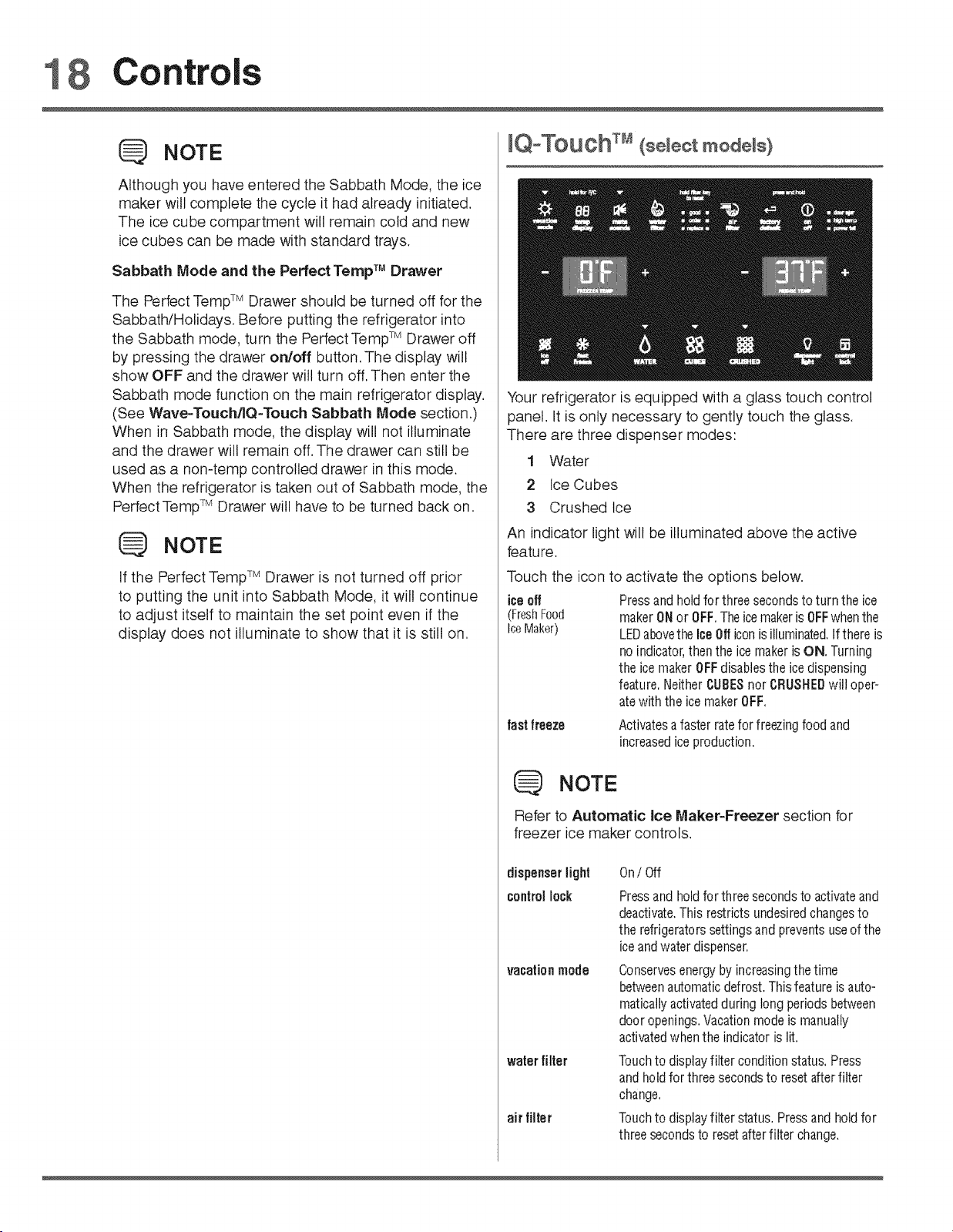

QoTouohTM(semect mode_s)

Your refrigerator is equipped with a glass touch control

panel. It is only necessary to gently touch the glass,

There are three dispenser modes:

1 Water

2 Ice Cubes

3 Crushed Ice

An indicator light will be illuminated above the active

featu re.

Touch the icon to activate the options below.

ice off Press and hold for three seconds to turn the ice

(FreshFood maker ONor 0FF, The ice makeris OFFwhenthe

IceMaker) LEDabovethe Ice Off icon is illuminated.If there is

no indicator,then the ice maker is ON. Turning

the ice maker OFFdisables the icedispensing

feature, Neither CUBESnor CRUSHEDwill oper-

atewith the ice maker OFF.

fast freeze

Activates a faster rate for freezing food and

increasedice production.

NOTE

Refer to Automatic Ice Maker-Freezer section for

freezer ice maker controls.

vacationmode

waterfilter

air filter

On/ Off

Pressand hold for three seconds to activate and

deactivate.This restricts undesiredchangesto

the refrigerators settings and prevents use of the

iceand water dispenser,

Conservesenergy by increasing the time

betweenautomatic defrost. This feature is auto=

maticallyactivated during tong periods between

door openings. Vacation mode is manually

activatedwhen the indicator is lit,

Touchto display filter condition status, Press

and hold for three seconds to reset after filter

change,

Touchto display filter status, Press and hold for

three seconds to reset afterfilter change.

Controls 19

tempdisplay

mutesounds

factorydefault

on off

Touchto toggle the freezer and fridge temp

display on and off.

Touchand hold temp display to toggle display

from Fahrenheitto Celsius.

Tonesemitted by eachkey press can be turned

off basedon user preference.The sounds are

muted when the indicator is lit. Warning signals

will stay active.

Resets all refrigerator settings such as temp,

temp display, and ring tones to their factory

default settings.

Press and hold for three seconds to turn off tile

cooling system to clean the refrigerator. It also

turns off the ice rnaker and atl dispenser func-

tions. The temperature display will read OFF.

IMPORTANT

Pressing the system on/off icon does not turn off

power to your refrigerator. You must unplug the power

cord from the wall outlet.

IMPORTANT

When the ice maker is turned off, the ice in the bucket

should be transferred to the freezer or discarded to

prevent it from melting.

Setting cooling temperatures

Touch the control panel to illuminate plus (+)

and minus (-) indicators on either side of the

temperatures displays.

Press the ÷ or - indicator to adjust the

temperature to the desired setting.

The temperature display will begin to blink with

the first touch. The display will time out after a

minute and returns to the basic display.

Alarms

OoorAjar

HighTemp

PowerFail

If the door has beenleft open for anextended

periodof time, an alarm will sound andthe door

ajar indicator will display on the right side of the

control panel. The alarm is turned off by closing

the door. The mute sounds keywill blink to

prompt the reset of any pending alarms. Press

this keyto reset any system alarms.

In the event of a high temperature condition,

the ternperature display will blink and display

HI=After 20 minutes,the high tempalert will be

displayed and the alarm off icon witl illuminate

until pressed, acknowledging the alarm, at which

time the highesttemperature reachedwill be dis-

playedand the refrigerator will resume normal

operation. All other modes areturned off until

the alarm is acknowledged.

In the event of a power failure, the powerfail

alert will bedisplayed and the temperature

dispfaywill blink until the mute soundsicon is

pressed,acknowledgingthe alarm. Other modes

may be turned off until the alarm is acknowl-

edged.The powerfail alert isturned off and the

refrigeratorwill resume normal operation. The

highletup alarm may also be illuminated until

a safe operatingrange temperaturehas been

reached,

Automatic ice & Water Maker/Dispenser

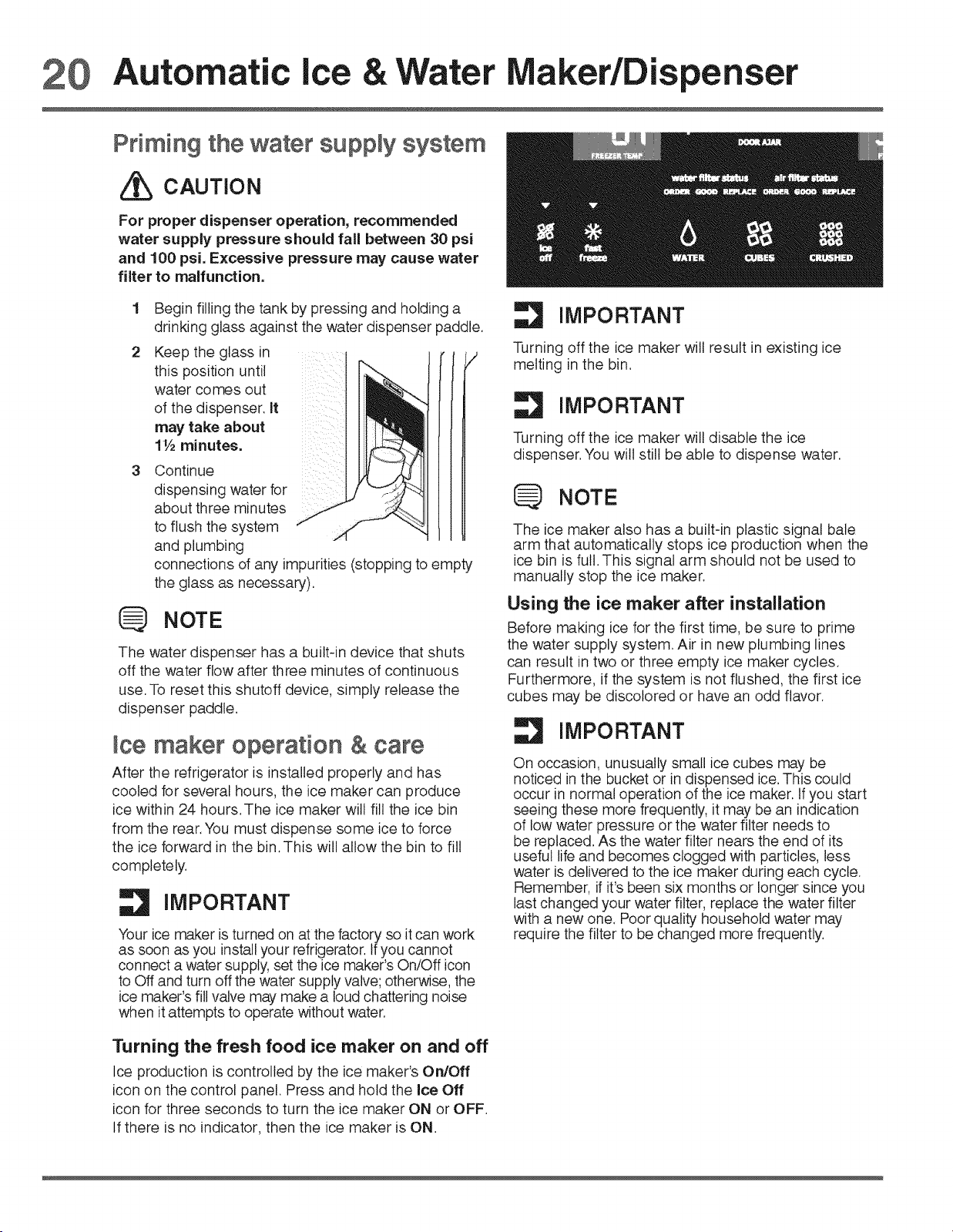

Priming the water supply system

CAUTION

For proper dispenser operation, recommended

water supply pressure should lab between 30 psi

and 100 psi. Excessive pressure may cause water

filter to malfunction.

Begin filling the tank by pressing and holding a

drinking glass against the water dispenser paddle.

Keep the glass in

this position until

water comes out

of the dispenser. It

may take about

11/2minutes.

Continue

dispensing water for

about three minutes

to flush the system

and plumbing

connections of any impurities (stopping to empty

the glass as necessary).

NOTE

The water dispenser has a built-in device that shuts

off the water flow after three minutes of continuous

use. To reset this shutoff device, simply release the

dispenser paddle.

Ice maker operation & care

After the refrigerator is installed properly and has

cooled for several hours, the ice maker can produce

ice within 24 hours.The ice maker will fill the ice bin

from the rear. You must dispense some ice to force

the ice forward in the bin. This will allow the bin to fill

completely.

iMPORTANT

Your ice maker isturned on at the factory so it can work

as soon as you install your refrigerator. If you cannot

connect a water supply, set the ice maker's On/Off icon

to Off and turn off the water supply valve; otherwise, the

ice maker's fill valve may make a loud chattering noise

when it attempts to operate without water.

IMPORTANT

Turning off the ice maker will result in existing ice

melting in the bin.

iMPORTANT

Turning off the ice maker will disable the ice

dispenser. You witt still be able to dispense water.

NOTE

The ice maker also has a built-in plastic signal bale

arm that automatically stops ice production when the

ice bin is full. This signal arm should not be used to

manually stop the ice maker.

Using the ice maker after installation

Before making ice for the first time, be sure to prime

the water supply system. Air in new plumbing lines

can result in two or three empty ice maker cycles.

Furthermore, if the system is not flushed, the first ice

cubes may be discolored or have an odd flavor.

iMPORTANT

On occasion, unusually small ice cubes may be

noticed in the bucket or in dispensed ice.This could

occur in normal operation of the ice maker. Ifyou start

seeing these more frequently, it may be an indication

of low water pressure or the water filter needs to

be replaced. As the water filter nears the end of its

useful life and becomes clogged with particles, less

water is delivered to the ice maker during each cycle.

Remember, if it's been six months or longer since you

last changed your water filter, replace the water filter

with a new one. Poor quality household water may

require the filter to be changed more frequently.

Turning the fresh food ice maker on and off

Ice production is controlled by the ice maker's On/Off

icon on the control panel. Press and hold the Ice Off

icon for three seconds to turn the ice maker ON or OFF.

If there is no indicator, then the ice maker is ON.

Automatic ice &Water aker/Dispenser 21

ice maker/dispenser tips

,, If your refrigerator is not connected to a water

supply or the water supply is turned off, turn off

the ice maker by holding the On/Off soft-touch

icon for three seconds.

,, The following sounds are normal when the ice

maker is operating:

= Motor running

Ice dropping into ice bin

- Water valve opening or closing

Running water

,, When dispensing ice, you will hear a snapping

or clicking sound when the ice chute opens and

closes.

,, If you need a large quantity of ice at one time, it is

best to get cubes directly from the ice bin.

,, Ice cubes stored too long may develop an odd

flavor. Empty the ice bin as explained below.

,, When dispensing cubed ice, it is normal to have

a small quantity of little pieces along with the

whole cubes.

CAUTION

If the water supply to your refrigerator is softened,

be sure the softener is properly maintained.

Chemicals from a water softener can damage the

ice maker.

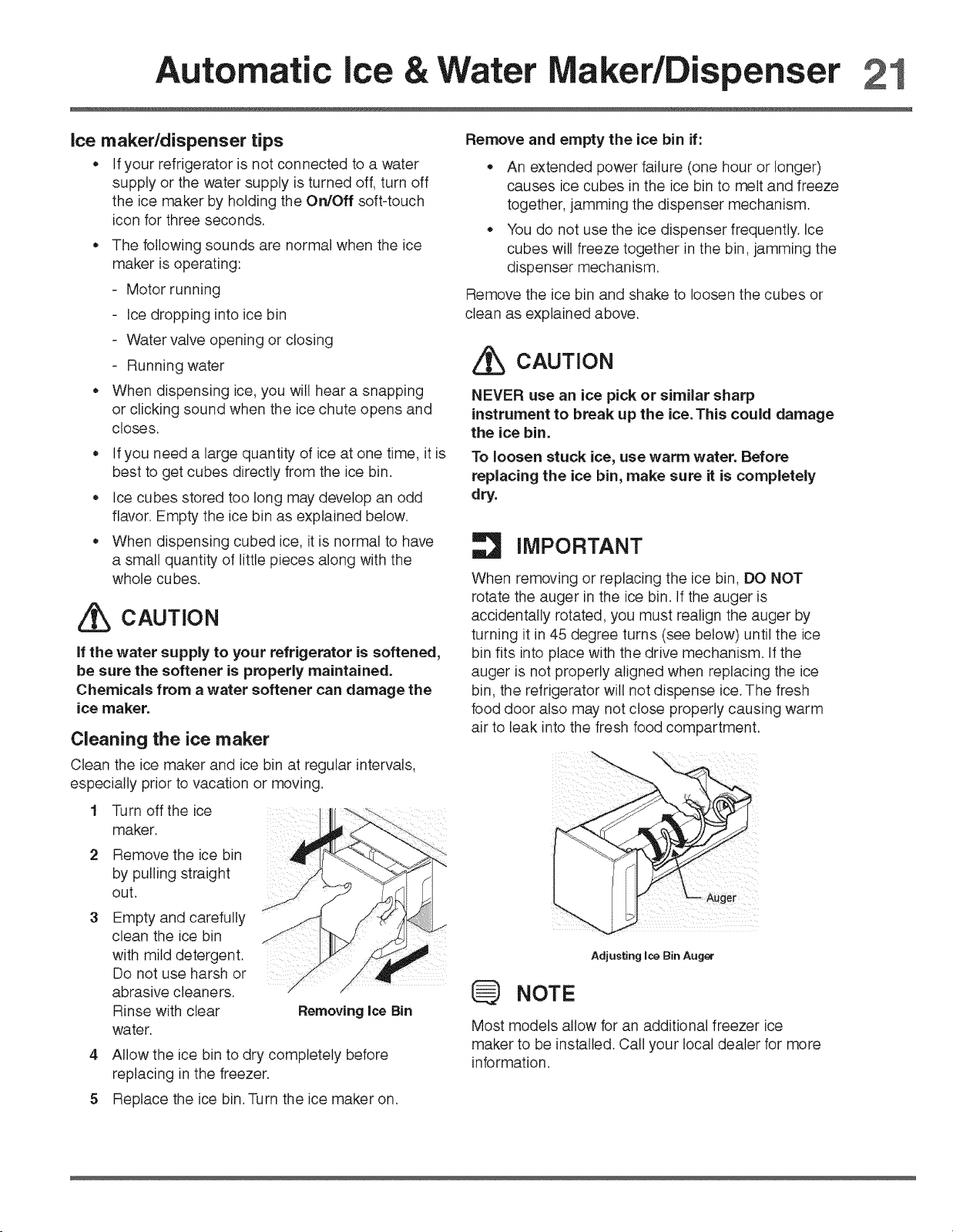

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals,

especially prior to vacation or moving=

1 Turn off the ice

maker.

2 Remove the ice bin

by pulling straight

out.

3 Empty and carefully

clean the ice bin

with mild detergent.

Do not use harsh or

abrasive cleaners.

Rinse with clear

water.

Removing Ice Bin

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Replace the ice bin. Turn the ice maker on.

Remove and empty the ice bin if:

An extended power failure (one hour or longer)

causes ice cubes in the ice bin to melt and freeze

together, jamming the dispenser mechanism.

,, You do not use the ice dispenser frequently. Ice

cubes will freeze together in the bin, jamming the

dispenser mechanism.

Remove the ice bin and shake to loosen the cubes or

clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This could damage

the ice bin.

To loosen stuck ice, use warm water. Before

replacing the ice bin, make sure it is completely

dry.

IMPORTANT

When removing or replacing the ice bin, DO NOT

rotate the auger in the ice bin. If the auger is

accidentally rotated, you must realign the auger by

turning it in45 degree turns (see below) until the ice

bin fits into place with the drive mechanism. If the

auger is not properly aligned when replacing the ice

bin, the refrigerator will not dispense ice. The fresh

food door also may not close properly causing warm

air to leak into the fresh food compartment.

Adjusting ice Bin Auger

NOTE

Most models allow for an additional freezer ice

maker to be installed. Call your local dealer for more

information.

22 Automatic ice

- Freezer

Ice maker operation & care

(seWect models)

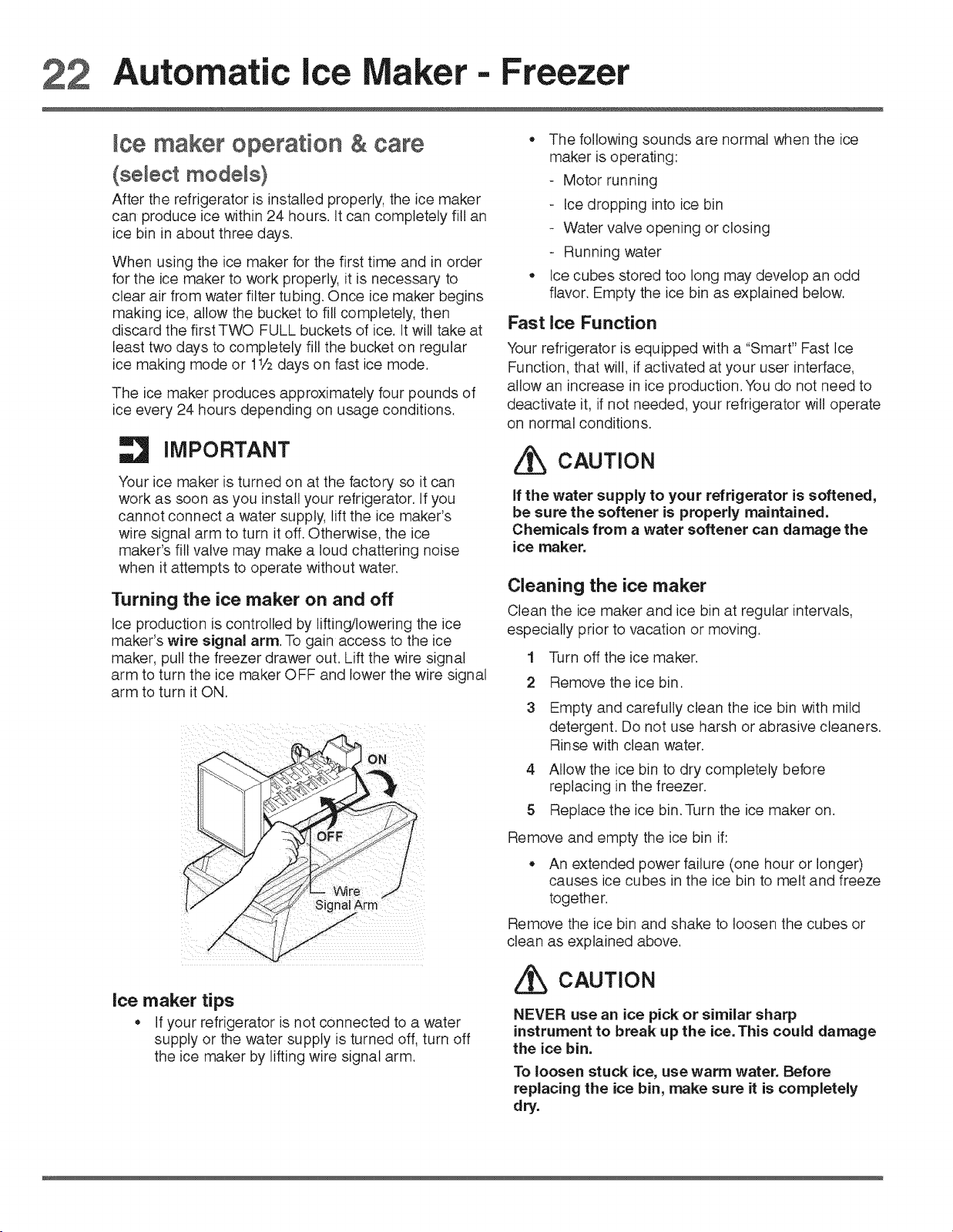

After the refrigerator is installed properly, the ice maker

can produce ice within 24 hours, tt can completely fill an

ice bin in about three days.

When using the ice maker for the first time and in order

for the ice maker to work properly, it is necessary to

clear air from water filter tubing. Once ice maker begins

making ice, allow the bucket to fill completely; then

discard the first TWO FULL buckets of ice. It will take at

least two days to completely fill the bucket on regular

ice making mode or 11/2days on fast ice mode.

The ice maker produces approximately four pounds of

ice every 24 hours depending on usage conditions.

IMPORTANT

"four ice maker is turned on at the factory so it can

work as soon as you install your refrigerator. If you

cannot connect a water supply, lift the ice maker's

wire signal arm to turn it off. Otherwise, the ice

maker's fill valve may make a loud chattering noise

when it attempts to operate without water.

Turning the ice maker on and off

Ice production is controlled by lifting/lowering the ice

maker's wire signal arm. To gain access to the ice

maker, pull the freezer drawer out. Lift the wire signal

arm to turn the ice maker OFF and lower the wire signal

arm to turn it ON.

I ON

nal Arm

Ice maker tips

,, If your refrigerator is not connected to a water

supply or the water supply is turned off, turn off

the ice maker by lifting wire signal arm.

,, The following sounds are normal when the ice

maker is operating:

Motor running

Ice dropping into ice bin

Water valve opening or closing

Running water

,, Ice cubes stored too long may develop an odd

flavor. Empty the ice bin as explained below.

Fast Ice Function

Your refrigerator is equipped with a "Smart" Fast Ice

Function, that will, if activated at your user interface,

allow an increase in ice production. You do not need to

deactivate it, if not needed, your refrigerator wilt operate

on normal conditions.

CAUTION

If the water supply to your refrigerator is softened,

be sure the softener is properly maintained.

Chemicals from a water softener can damage the

ice maker.

Cleaning the ice maker

Clean the ice maker and ice bin at regular intervals,

especially prior to vacation or moving.

I Turn off the ice maker.

2 Remove the ice bin.

3 Empty and carefully clean the ice bin with mild

detergent. Do not use harsh or abrasive cleaners.

Rinse with clean water.

4 Allow the ice bin to dry completely before

replacing in the freezer.

5 Replace the ice bin.Turn the ice maker on.

Remove and empty the ice bin if:

,, An extended power failure (one hour or longer)

causes ice cubes in the ice bin to melt and freeze

together.

Remove the ice bin and shake to loosen the cubes or

clean as explained above.

CAUTION

NEVER use an ice pick or similar sharp

instrument to break up the ice. This could damage

the ice bin.

To loosen stuck ice, use warm water. Before

replacing the ice bin, make sure it is completely

dry.

Storage Features

Shelf features

CAUTION

Relock shelf by pushing the slide mechanism

away from you.

To avoid personal injury or property damage,

handle tempered glass shelves carefully. Shelves

may break suddenly if nicked, scratched, or

exposed to sudden temperature change. Allow

the glass shelves to stabilize to room temperature

before clearing. Do not wash in dishwasher.

NOTE

Features may vary according to model.

To change the position of a shelf:

1 Remove shelf from its locked position by pulling

the slide mechanism toward you,

While holding shelf at a 45-degree angle with the

gray handle facing you, push the shelf into the

back of the hanger,

Lift the hanger directly upwards and pull toward

you to remove it from the ladder,

Place top hooks of the hanger into the desired

slot and lower straight down until lower hooks

rest on the ladder,

Gently set the shelf onto the hanger once the

back is secured by the hanger.

CAUTION

Shelves must be removed prior to moving the

refrigerator.

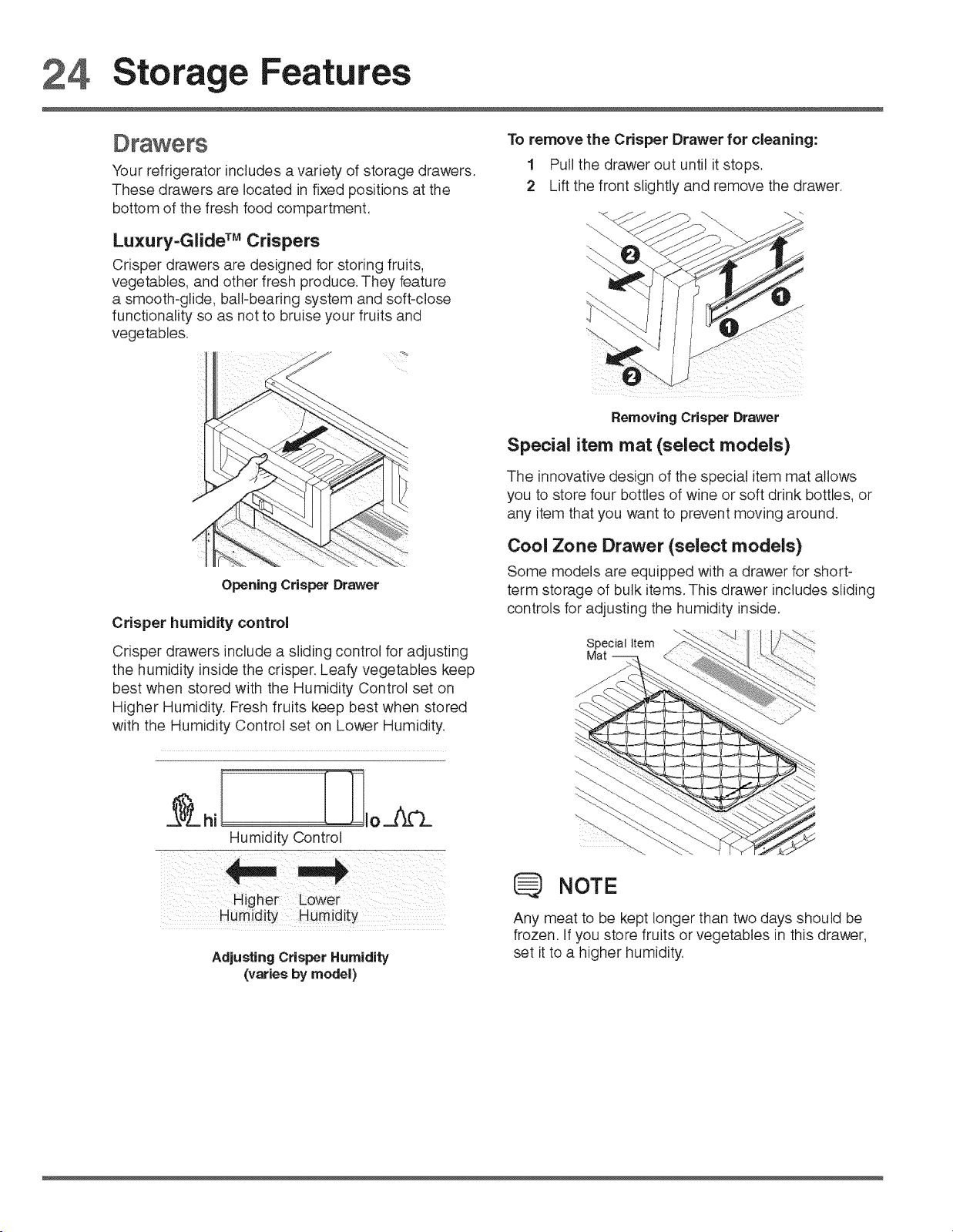

Storage Features

Your refrigerator includes a variety of storage drawers.

These drawers are located in fixed positions at the

bottom of the fresh food compartment.

Luxury-Glide TM Crispers

Crisper drawers are designed for-storing fruits,

vegetables, and other fresh produce. They feature

a smooth-glide, ball-bearing system and soft-close

functionality so as not to bruise your fruits and

vegetables.

Opening Crisper Drawer

Crisper humidity control

Crisper drawers include a sliding control for adjusting

the humidity inside the crisper. Leafy vegetables keep

best when stored with the Humidity Control set on

Higher Humidity. Fresh fruits keep best when stored

with the Humidity Control set on Lower Humidity.

Humidity Control

4 ,

Higher Lower

Humidity Humidity

Adjusting Crisper Humidity

(varies by model)

To remove the Crisper Drawer for cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the drawer.

Removing Crisper Drawer

Special item mat (select models)

The innovative design of the special item mat allows

you to store four bottles of wine or soft drink bottles, or

any item that you want to prevent moving around.

Cool Zone Drawer (select models)

Some models are equipped with a drawer for short-

term storage of bulk items. This drawer includes sliding

controls for adjusting the humidity inside.

Special Item

Mat

NOTE

Any meat to be kept longer than two days should be

frozen. If you store fruits or vegetables in this drawer,

set it to a higher humidity.

Storage Features 25

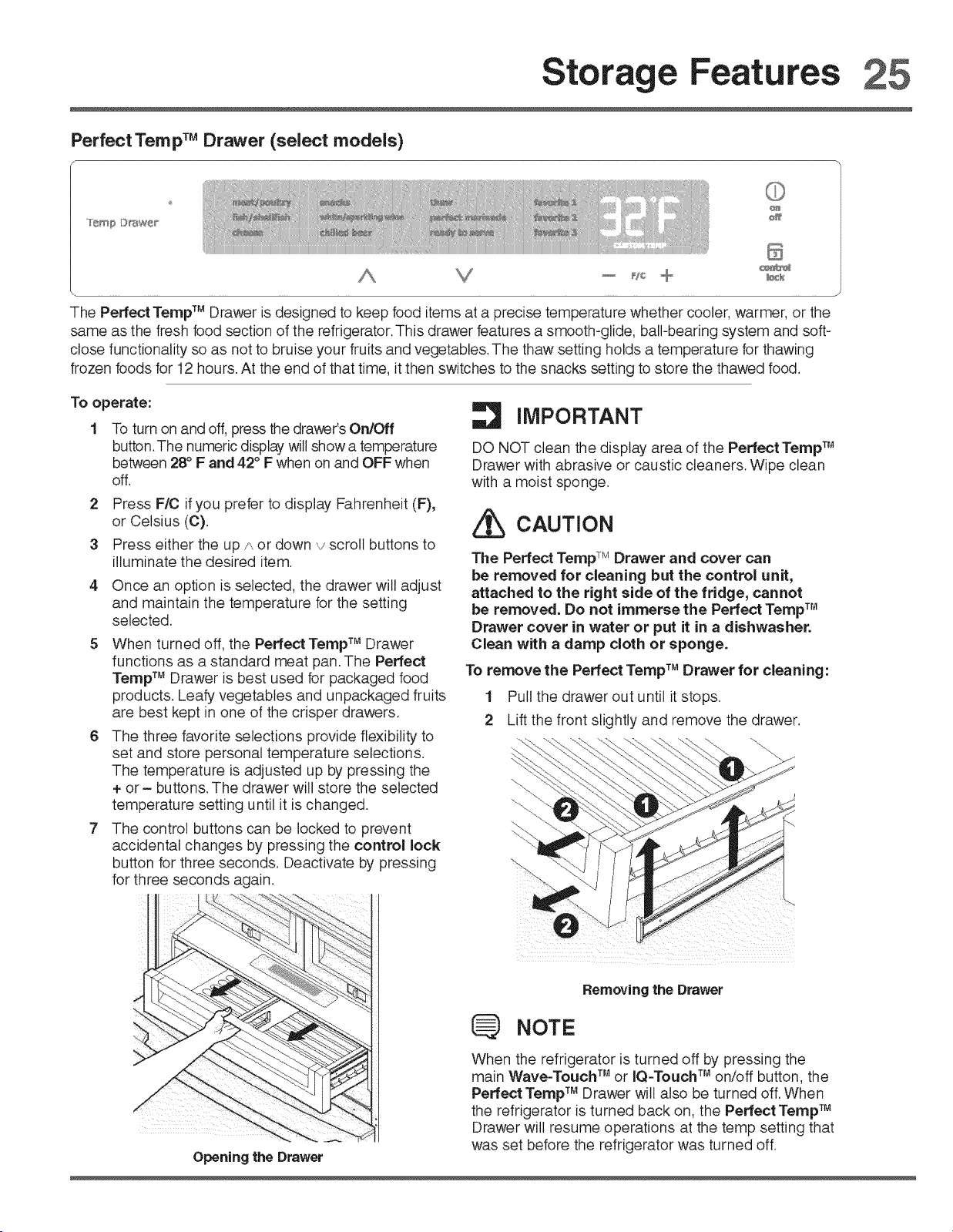

Perfect Tem p TM Drawer (select models)

The Perfect Temp TM Drawer is designed to keep food items at a precise temperature whether cooler, warmer, or the

same as the fresh food section of the refrigerator. This drawer features a smooth-glide, ball-bearing system and soft-

close functionality so as not to bruise your fruits and vegetables. The thaw setting holds a temperature for thawing

frozen foods for 12 hours. At the end of that time, it then switches to the snacks setting to store the thawed food.

To operate:

To turn on and off, press the drawer's On/Off

button.The numeric display will show a temperature

between 28° F and 42° F when on and OFF when

off.

2 Press FiC ifyou prefer to display Fahrenheit (F),

or Celsius (C).

3 Press either the up p..or down ,./scroll buttons to

illuminate the desired item.

4 Once an option is selected, the drawer will adjust

and maintain the temperature for the setting

selected.

When turned off, the Perfect Temp TM Drawer

functions as a standard meat pan. The Perfect

Temp TM Drawer is best used for packaged food

products. Leafy vegetables and unpackaged fruits

are best kept in one of the crisper drawers.

The three favorite selections provide flexibility to

set and store personal temperature selections.

The temperature is adjusted up by pressing the

+ or - buttons. The drawer will store the selected

temperature setting until it is changed.

The control buttons can be locked to prevent

accidental changes by pressing the control lock

button for three seconds. Deactivate by pressing

for three seconds again.

Opening the Drawer

IMPORTANT

DO NOT clean the display area of the Perfect Temp TM

Drawer with abrasive or caustic cleaners. Wipe clean

with a moist sponge.

CAUTION

The Perfect Temp TM Drawer and cover can

be removed for cleaning but the control unit,

attached to the right side of the fridge, cannot

be removed. Do not immerse the Perfect Temp TM

Drawer cover in water or put it in a dishwasher.

Clean with a damp cloth or sponge.

To remove the Perfect Temp TM Drawer for cleaning:

1 Pull the drawer out until it stops.

2 Lift the front slightly and remove the drawer.

Removing the Drawer

NOTE

When the refrigerator is turned off by pressing the

main Wave-Touch TM or IQ-Touch TM on/off button, the

Perfect Temp TM Drawer wilt also be turned off. When

the refrigerator is turned back on, the Perfect Temp TM

Drawer will resume operations at the temp setting that

was set before the refrigerator was turned off.

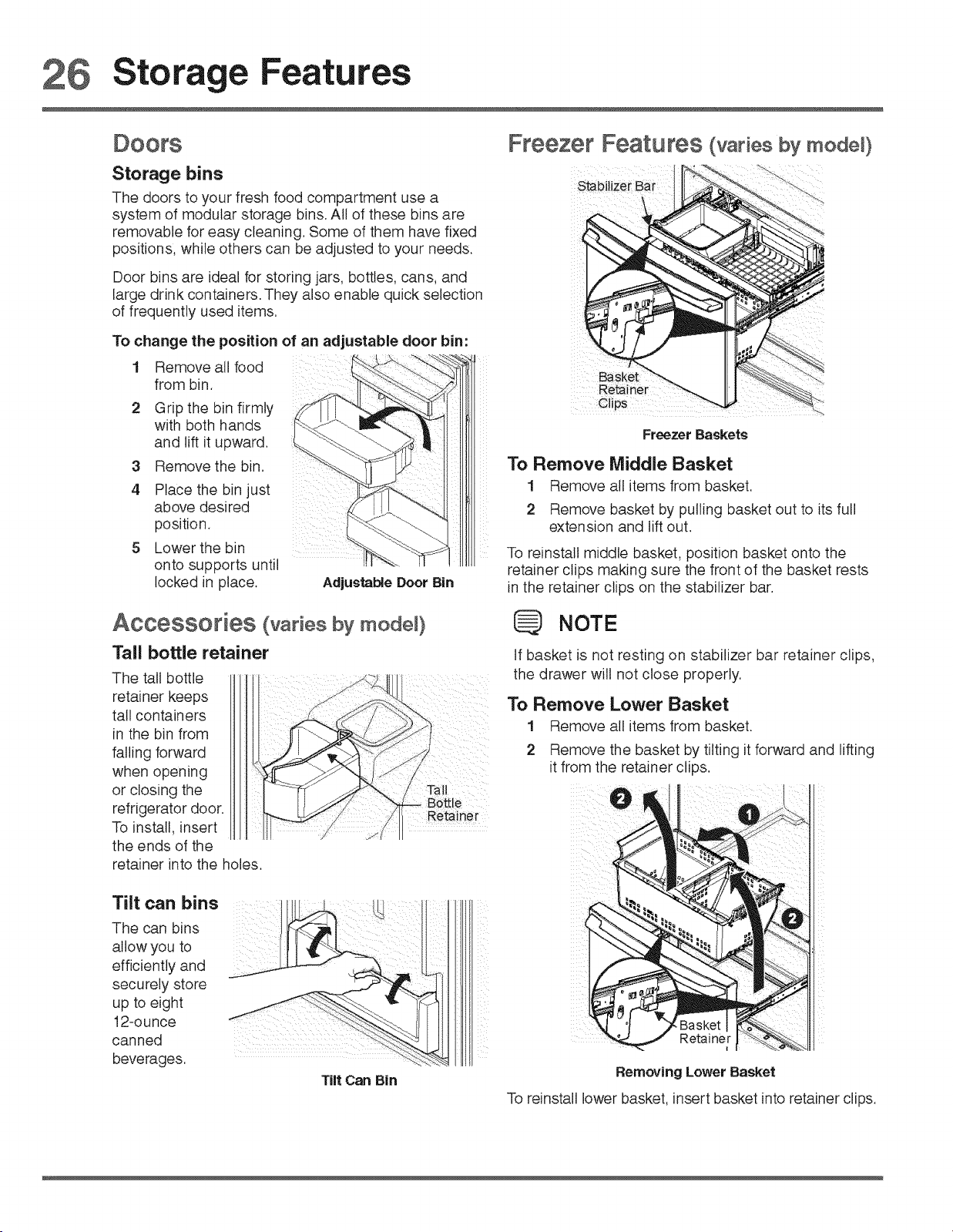

Storage Features

Doors

Storage bins

The doors to your fresh food compartment use a

system of modular storage bins. All of these bins are

removable for easy cleaning. Some of them have fixed

positions, while others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and

large drink containers. They also enable quick selection

of frequently used items.

To change the position of an adjustable door bin:

1 Remove all food

from bin,

2 Grip the bin firmly

with both hands

and lift it upward.

Remove the bin.

Place the bin just

above desired

position.

Lower the bin

onto supports until

locked in place. Adjustable Door Bin

Accessories (varies by mode0

Tall bottle retainer

The tall bottle

retainer keeps

tall containers

in the bin from

falling forward

when opening

or closing the

refrigerator door.

To install, insert

the ends of the

retainer into the holes

Tilt can bins

The can bins

allow you to

efficiently and

securely store

up to eight

12-ounce

canned

beverages.

Tilt Can Bin

Freezer Features (variesby mode0

Freezer Baskets

To Remove Middle Basket

1 Remove all items from basket.

2 Remove basket by pulling basket out to its full

extension and lift out.

To reinstall middle basket, position basket onto the

retainer clips making sure the front of the basket rests

in the retainer clips on the stabilizer bar.

NOTE

If basket is not resting on stabilizer bar retainer clips,

the drawer wilt not close properly.

To Remove Lower Basket

1 Remove all items from basket.

2 Remove the basket by tilting it forward and lifting

it from the retainer clips.

Removing Lower Basket

To reinstall lower basket, insert basket into retainer clips.

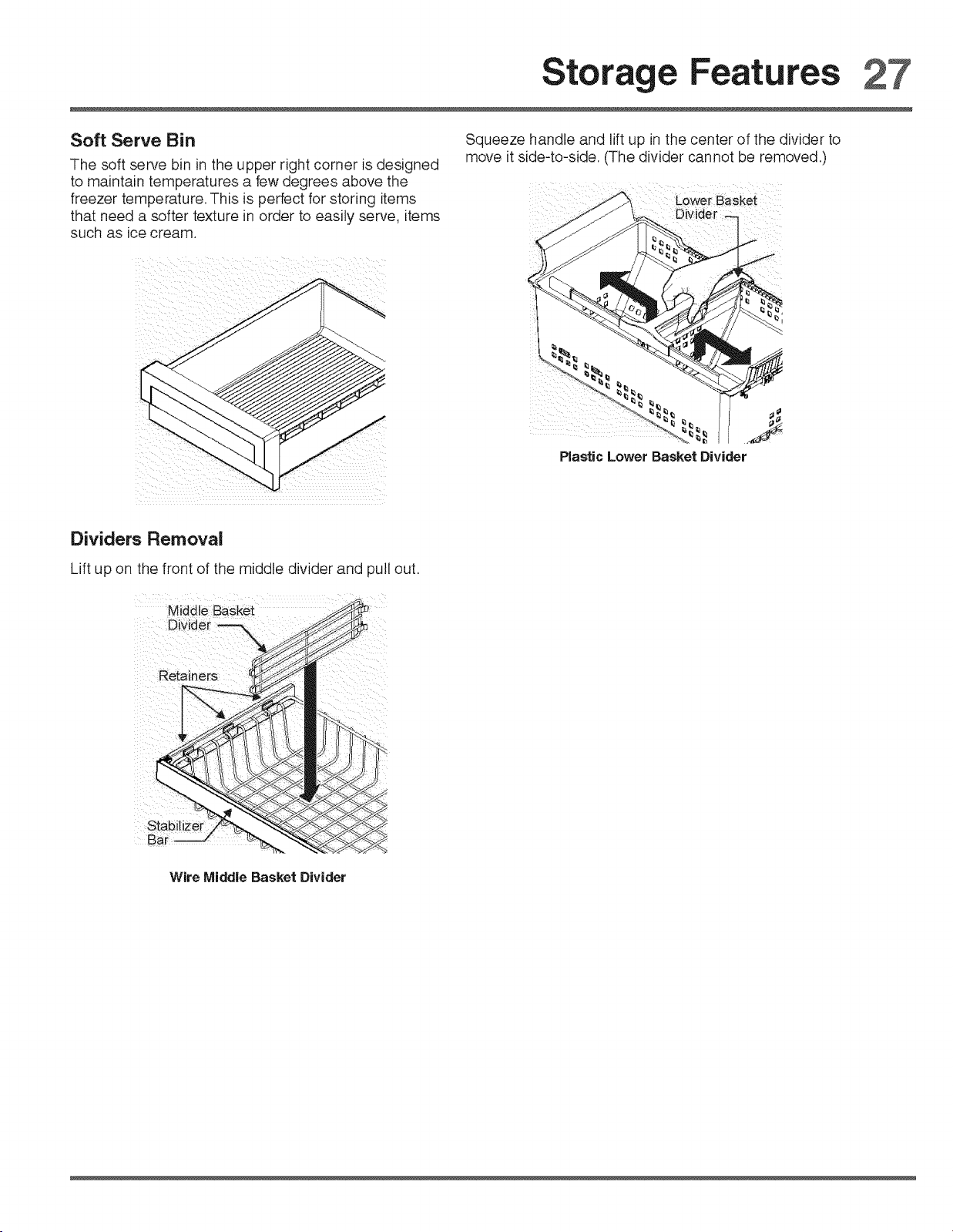

Storage Features 27

Soft Serve Bin

The soft serve bin in the upper right corner is designed

to maintain temperatures a few degrees above the

freezer temperature, This is perfect for storing items

that need a softer texture in order to easily serve, items

such as ice c-eam,

Squeeze handle and lift up in the center of the divider to

move it side-to-side. (The divider cannot be removed.)

Plastic Lower Basket Divider

Dividers Removal

Lift up on the front of the middle divider and pull out,

Wire Middle Basket Divider

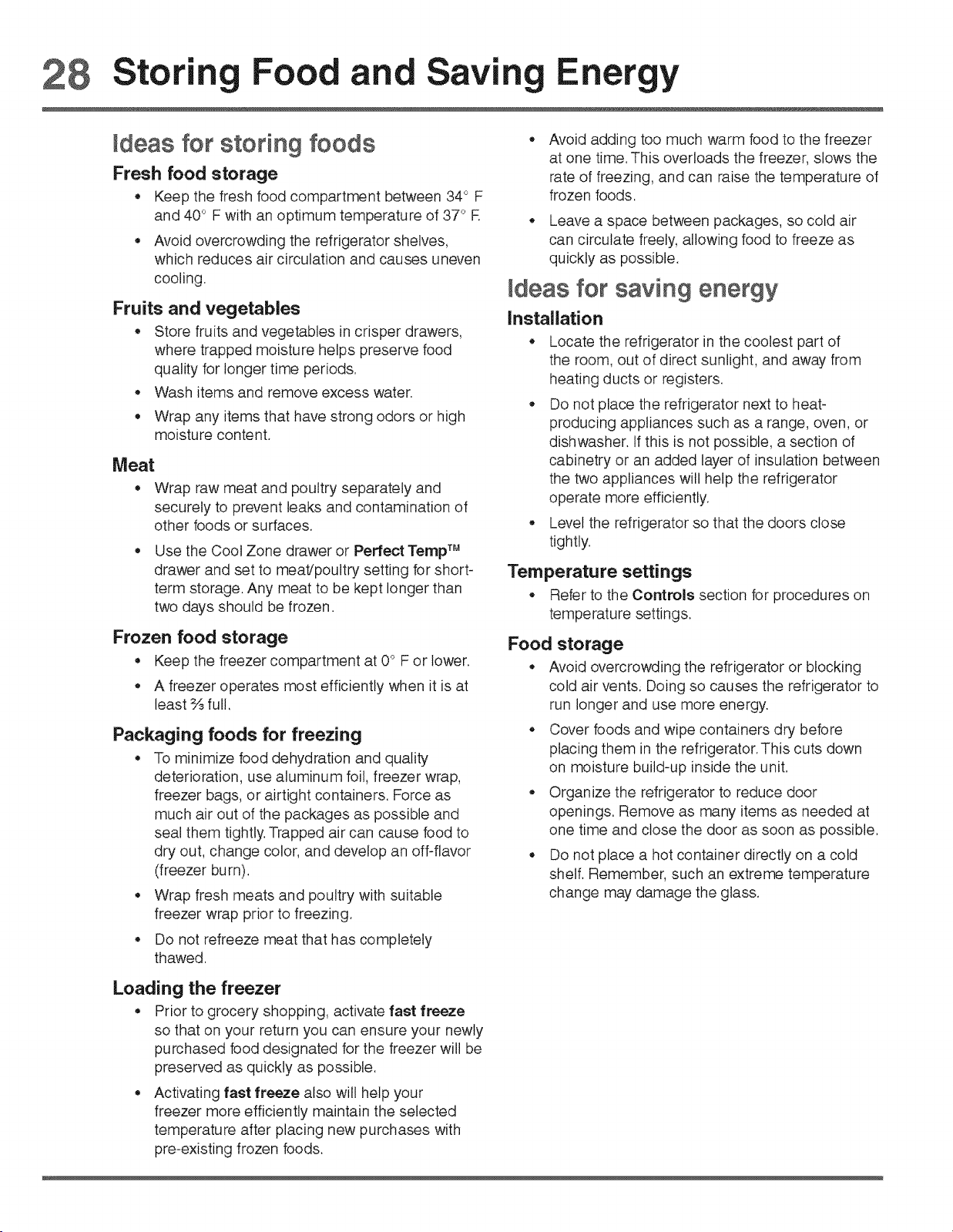

Storing Food an Saving Energy

ideas for storing foods

Fresh food storage

,, Keep the fresh food compartment between 34° F

and 40 ° F with an optimum temperature of 37 ° R

o Avoid overcrowding the refrigerator shelves,

which reduces air circulation and causes uneven

cooling.

Fruits and vegetables

,, Store fruits and vegetables in crisper drawers,

where trapped moisture helps preserve food

quality for longer time periods.

,, Wash items and remove excess water.

Wrap any items that have strong odors or high

moisture content.

Meat

,, Wrap raw meat and poultry separately and

securely to prevent leaks and contamination of

other foods or surfaces.

Use the Cool Zone drawer or Perfect Temp TM

drawer and set to meat/poultry setting for short-

term storage. Any meat to be kept longer than

two days should be frozen.

Frozen food storage

• Keep the freezer compartment at 0° F or lower.

,, A freezer operates most efficiently when it is at

least % full.

Packaging foods for freezing

,, To minimize food dehydration and quality

deterioration, use aluminum foil, freezer wrap,

freezer bags, or airtight containers. Force as

much air out of the packages as possible and

seal them tightly. Trapped air can cause food to

dry out, change color, and develop an off-flavor

(freezer burn).

,, Wrap fresh meats and poultry with suitable

freezer wrap prior to freezing.

,, Do not refreeze meat that has completely

thawed.

Avoid adding too much warm food to the freezer

at one time. This overloads the freezer, slows the

rate of freezing, and can raise the temperature of

frozen foods.

,, Leave a space between packages, so cold air

can circulate freely, allowing food to freeze as

quickly as possible.

mdeasfor saving energy

Installation

Locate the refrigerator in the coolest part of

the room, out of direct sunlight, and away from

heating ducts or registers.

Do not place the refrigerator next to heat-

producing appliances such as a range, oven, or

dishwasher. If this is not possible, a section of

cabinetry or an added layer of insulation between

the two appliances will help the refrigerator

operate more efficiently.

,, Level the refrigerator so that the doors close

tightly.

Temperature settings

,, Refer to the Controls section for procedures on

temperature settings.

Food storage

,, Avoid overcrowding the refrigerator or blocking

cold air vent& Doing so causes the refrigerator to

run longer and use more energy.

* Cover foods and wipe containers dry before

placing them in the refrigerator.This cuts down

on moisture build-up inside the unit.

Organize the refrigerator to reduce door

openings. Remove as many items as needed at

one time and close the door as soon as possible.

,, Do not place a hot container directly on a cold

shelf. Remember, such an extreme temperature

change may damage the glass.

Loading the freezer

Prior to grocery shopping, activate fast freeze

so that on your return you can ensure your newly

purchased food designated for the freezer will be

preserved as quickly as possible.

,, Activating fast freeze also will help your

freezer more efficiently maintain the selected

temperature after placing new purchases with

pre-existing frozen foods.

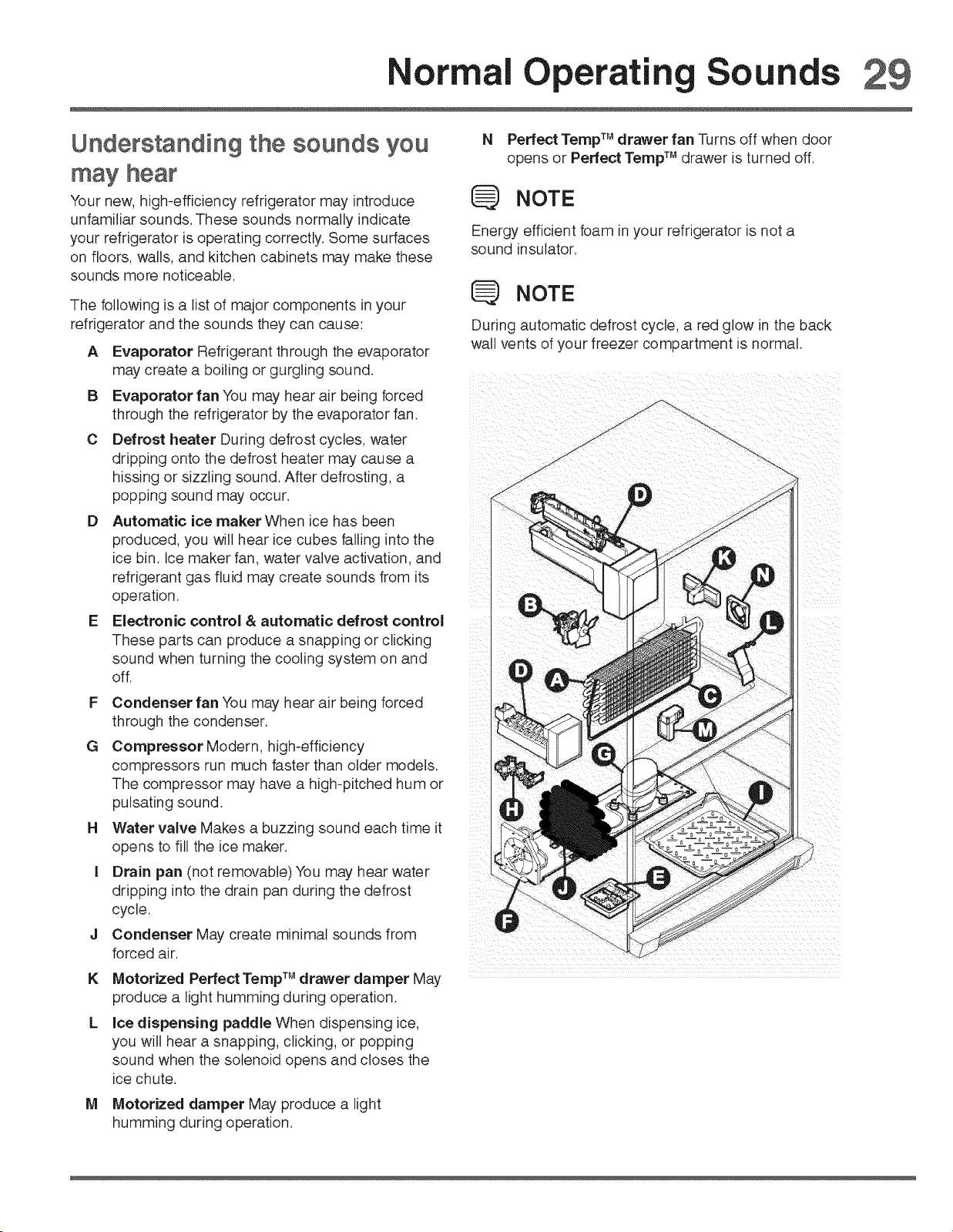

ormal Operatin Sounds 29

Understanding the sounds you

may hear

Your new, high-efficiency refrigerator may introduce

unfamiliar sounds. These sounds normally indicate

your refrigerator is operating correctly. Some surfaces

on floors, walls, and kitchen cabinets may make these

sounds more noticeable.

The following is a list of major components in your

refrigerator and the sounds they can cause:

N Perfect Temp TM drawer fan Turns off when door

opens or Perfect Temp TM drawer is turned off.

NOTE

Energy efficient foam in your refrigerator is not a

sound insulator.

Evaporator Refrigerant through the evaporator

may create a boiling or gurgling sound.

Evaporator fan You may hear air being forced

through the refrigerator by the evaporator fan ....

Defrost heater During defrost cycles, water

dripping onto the defrost heater may cause a

hissing or sizzling sound. After defrosting, a

popping sound may occur.

Automatic ice maker When ice has been

produced, you will hear ice cubes falling into the

ice bin. Ice maker fan, water valve activation, and

refrigerant gas fluid may create sounds from its

operation.

Electronic control & automatic defrost control

These parts can produce a snapping or clicking

sound when turning the cooling system on and

off.

NOTE

During automatic defrost cycle, a red glow in the back

wall vents of your freezer compartment is normal.

Condenser fan You may hear air being forced

through the condenser.

Compressor Modern, high-efficiency

compressors run much faster than older models.

The compressor may have a high-pitched hum or

pulsating sound.

Water valve Makes a buzzing sound each time it

opens to fill the ice maker.

Drain pan (not removable) You may hear water

dripping into the drain pan during the defrost

cycle.

Condenser May create minimal sounds from

forced air.

Motorized Perfect Temp TM drawer damper May"

produce a light humming during operation.

Ice dispensing paddle When dispensing ice,

you will hear a snapping, clicking, or popping

sound when the solenoid opens and closes the

ice chute.

Motorized damper May produce a light

humming during operation.

3 Changin TheWater and Air Filters

Your refrigerator is equipped with separate water and

air filtering systems. The water filter system filters all

dispensed drinking water, as well as the water used to

produce ice. The air filter removes odors and impurities

from the refrigerator compartment.

NOTE

The control panel includes controls to monitor the

status of your water and air filters. See the Controls

section for more information.

About your advanced water filter

The PureAdvantage rMNGFC 2000 ice and

water filter system is tested and certified t_

NSF International to NSFiANSI Standards 42

and 53 for the reduction of claims specified on

the performance data sheet.

Push Water Filter Button

Unpack the new filter cartridge and remove the

two protective caps covering the inlet and exit of

the filter. Slide the filter gently into the housing

until it stops against the snap-in connector at the

back of the housing.

Do not use with water that is microbiologicalty unsafe or of

unknow_qquality without adequate disinfection before or after

the system. Systems certified for cyst reduction may be used

on disinfected waters that may contain filterable cysts.

,, Rated Capacity - 400 gallons for

PureAdvantage rMice and water filter

,, Rated service flow- .5 gallons per minute

,, Maximum Rated Pressure - 100 pounds per

square inch

* Recommended Minimum Operating Pressure: 30

pounds per square inch

o Operating Temp.: Min. 33 ° F, Max. 100 ° F

Water fimter

The water filter is located at the lower left side of the

fresh food compartment.

Replacing your PureAdvantage TM water filter

In general, you should change the water filter every six

months to ensure the highest possible water quality. The

Water Filter Status light on the Touch Panel prompts

you to replace the filter after a standard amount of water

(400 gallons) has flowed through the system.

Push firmly until the cartridge snaps into

place (you should hear two clicks). When fully

engaged, the front of the filter cartridge should be

flush with the filter release button.

If your refrigerator has not been used for a period of

time (during moving for example), change the filter

before reinstalling the refrigerator.

It is not necessary to turn the water supply off to

change the filter. Be ready to wipe up any small

amounts of water released during the filter replacement.

1 Turn Off the ice maker on the control panel.

2 Push the filter release button above the cartridge

to disconnect it.

3 Slide the old water filter cartridge straight out of

the housing and discard it.

ReinstallWater Filter

6 Turn On the ice maker at the control panel.

7 Press a drinking glass against the water

dispenser while checking for any leaks at the filter

housing. Spurts and sputters may occur as the

system purges air out of the dispenser system.

8 Prime the water supply system as described

previously.

9 Press and hold the Filter Status button on the control

panel for three seconds. When the display changes

from Replace to Good, the status has been reset.

Changin TheWater an Air Filters 33

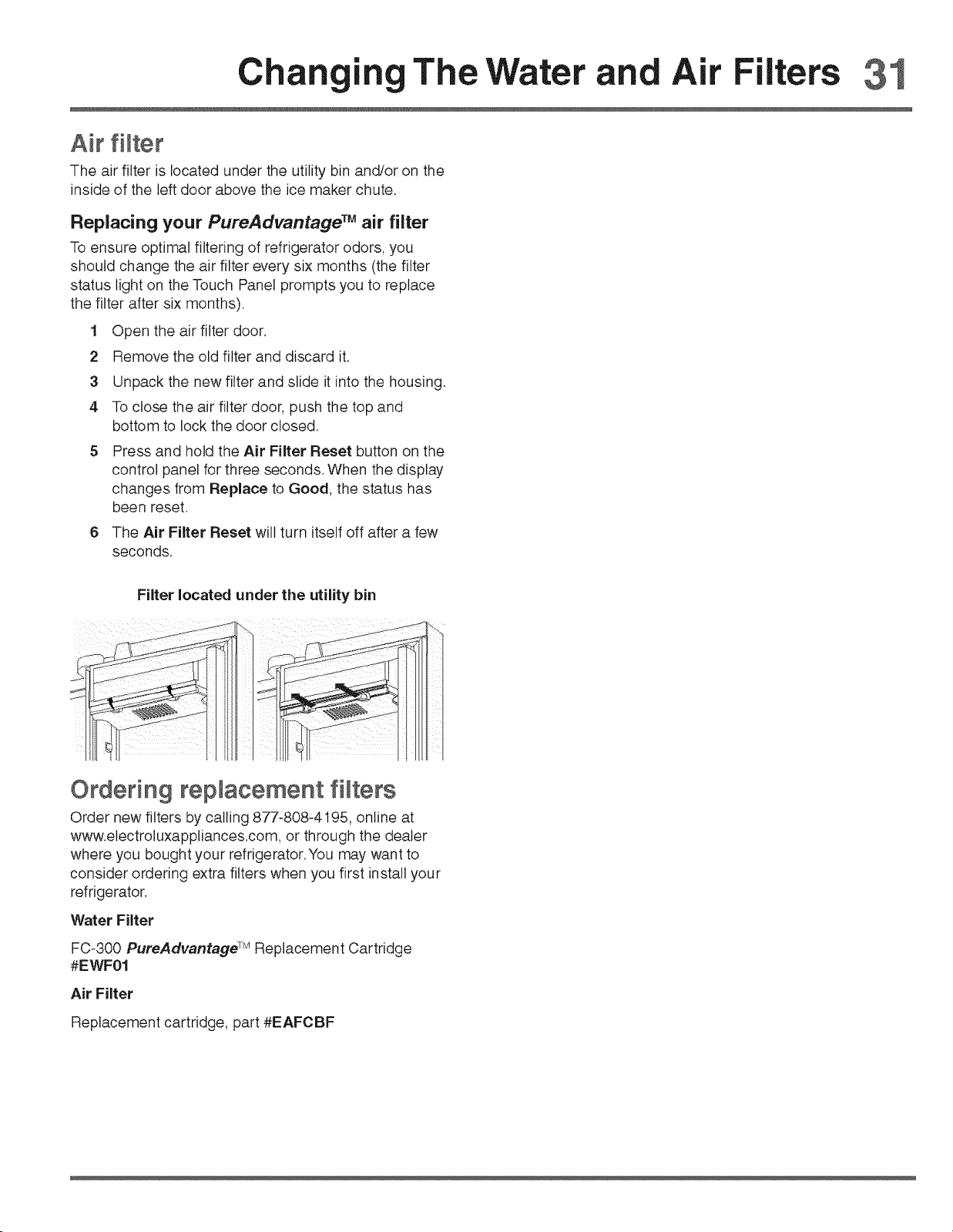

Air fiJter

The air filter is located under the utility bin and/or on the

inside of the left door above the ice maker chute.

Replacing your PureAdvantage TM air filter

To ensure optimal filtering of refrigerator odors, you

should change the air filter every six months (the filter

status light on the Touch Panel prompts you to replace

the filter after six months).

1 Open the air filter door.

2 Remove the old filter and discard it.

3 Unpack the new filter and slide it into the housing.

4 To close the air filter door push the top and

bottom to lock the door closed.

Press and hold the Air Filter Reset button on the

control panel for three seconds. When the display

changes from Replace to Good, the status has

been reset.

6 The Air Filter Reset will turn itself off after a few

seconds.

Filter located under the utility bin

Ordering repWacement filters

Order new filters by calling 877-808-4195, online at

www.etectroluxappliances.com, or through the dealer

where you bought your refrigerator. "Youmay want to

consider ordering extra filters when you first install your

refrigerator.

Water Filter

FC-300 PureAdvantage TM Replacement Cartridge

#EWF01

Air Filter

Replacement cartridge, part #EAFCBF

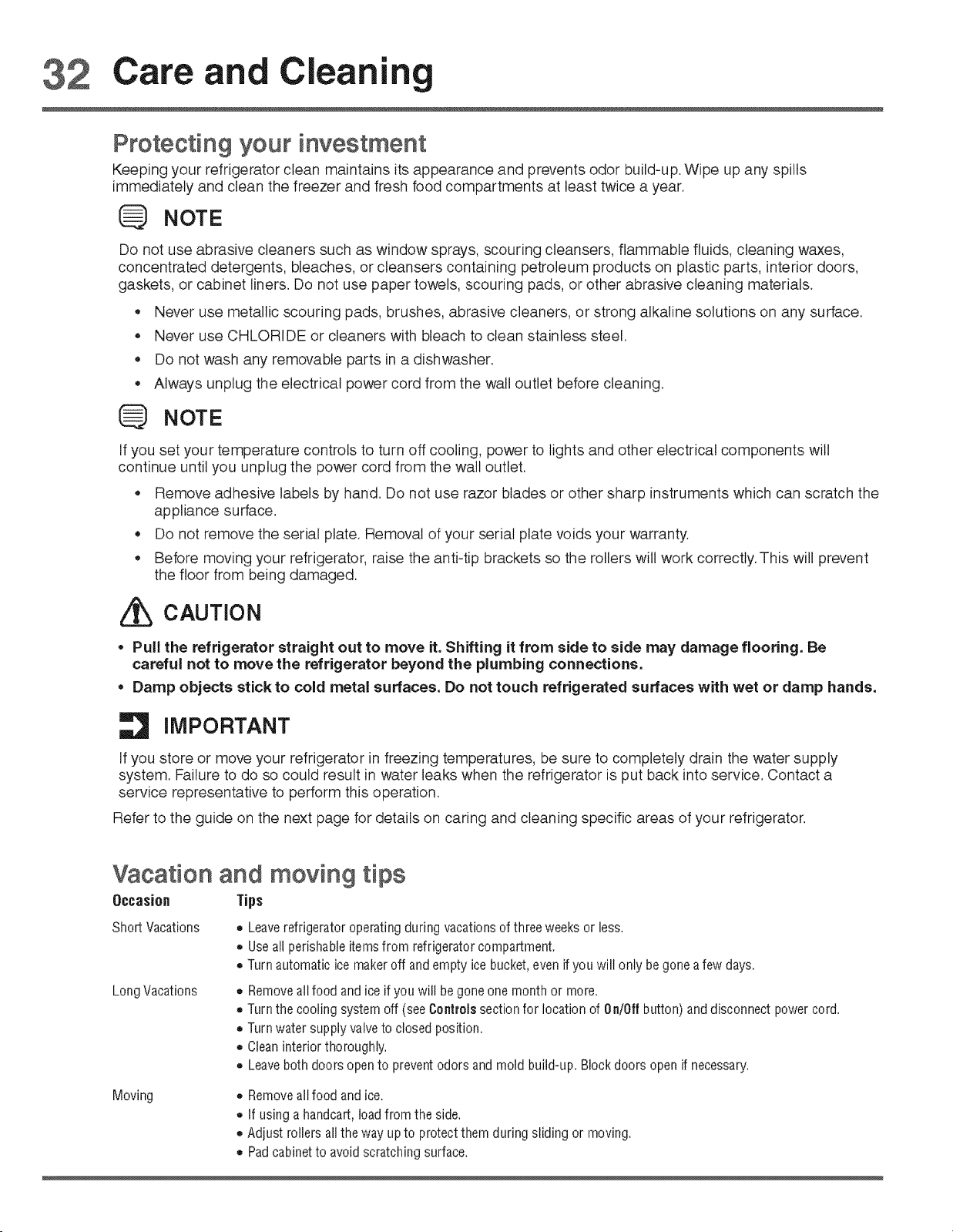

32 Care and Cleaning

Protecting your investment

Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any spills

immediately and clean the freezer and fresh food compartments at least twice a year.

NOTE

Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning ,waxes,

concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior doors,

gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other abrasive cleaning materials.

Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.

Never use CHLORI DE or cleaners with bleach to clean stainless steel.

Do not wash any removable parts in a dishwasher.

Always unplug the electrical power cord from the wall outlet before cleaning.

NOTE

If you set your temperature controls to turn off cooling, power to lights and other electrical components will

continue until you unplug the power cord from the wall outlet.

,, Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can scratch the

appliance surface.

,, Do not remove the serial plate. Removal of your serial plate voids your warranty.

,, Before moving your refrigerator, raise the anti-tip brackets so the rollers wilt work correctly. This will prevent

the floor from being damaged.

CAUTION

,, Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be

careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stickto cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.

IMPORTANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain the water supply

system. Failure to do so could result in water leaks when the refrigerator is put back into service. Contact a

service representative to perform this operation.

Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.

Vacation and moving tips

Tips

Occasion

ShortVacations

Long Vacations

,, Leave refrigerator operating during vacations of three weeks or less.

,, Useall perishable items from refrigerator compartment.

,, Turn automatic ice maker off and ernpty ice bucket even if you will only be gone afew days.

,, Remove all food and ice if you will be gone one month or more.

° Turn the cooling system off (see Controls section for location of 0n/0ff button) and disconnect power cord.

,, Turn water supply valve to closed position.

,, Clean interior thoroughly.

,, Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.

Moving

• Remove all food and ice.

,, If using a handcart, load from the side.

,, Adjust rollers all the way up to protect them during sliding or moving.

,, Padcabinet to avoid scratching surface.

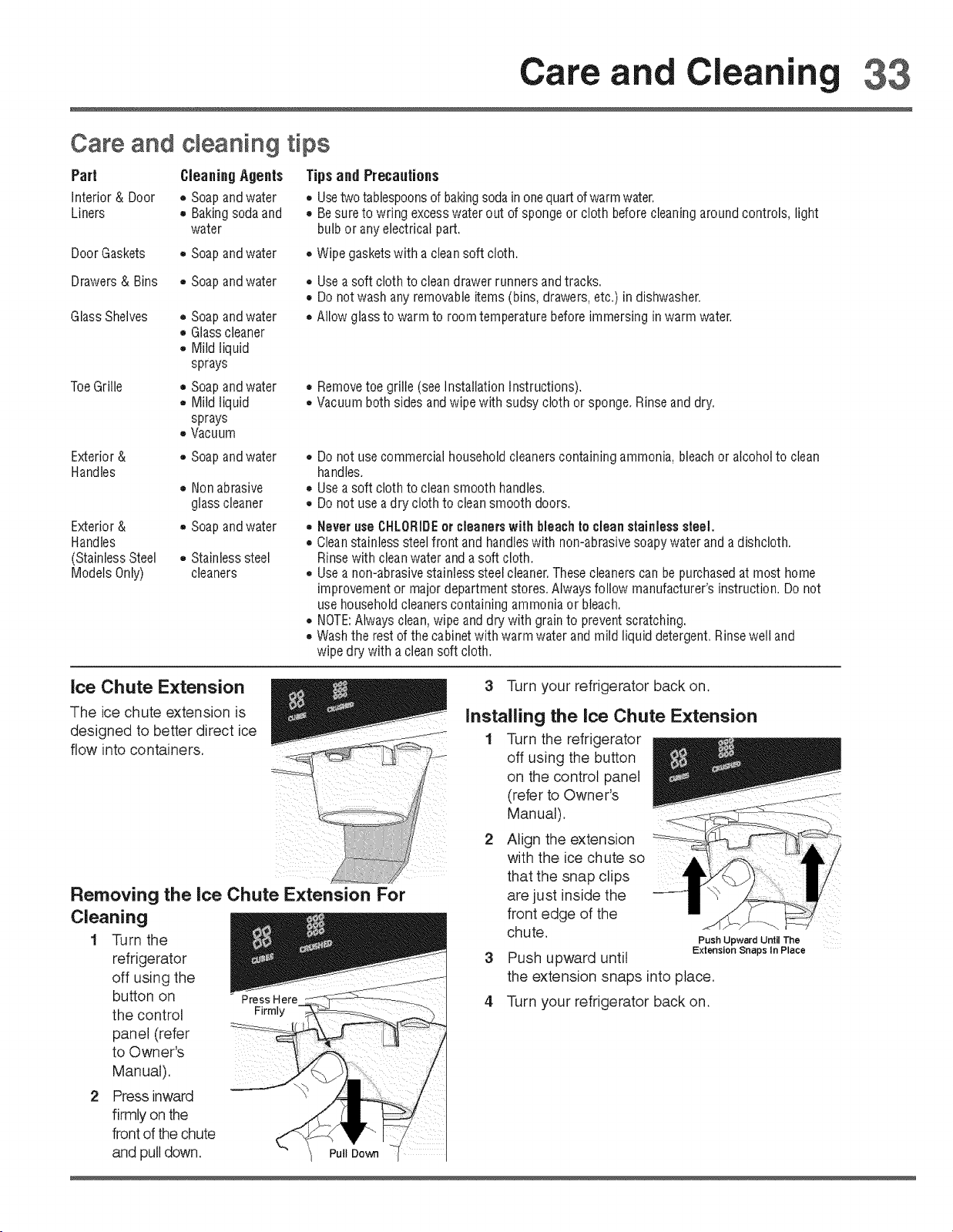

Care an Cleaning 33

Care and cleaning tips

Parl CleaningAgents

Interior& Door ,, Soapandwater

Liners ,, Bakingsodaand

water

DoorGaskets ,, Soapandwater

Tips and Precautions

,, Usetwotablespoonsof bakingsodain onequartofwarmwater.

• Besureto wring excesswaterout of spongeor cloth beforecleaningaroundcontrols, light

bulbor anyelectricalpart.

. Wipe gaskets with a clean soft cloth.

Drawers & Bins = Soap and water

Glass Shelves

Toe Grille

Soap and water

Glasscleaner

w Mild liquid

sprays

• Soap and water

= Mild liquid

sprays

o Vacuum

Exterior & = Soap and water

Handles

, Non abrasive

glass cleaner

Exterior & • Soap and water

Handles

(Stainless Steel • Stainless steel

Models Only) cleaners

• Use a soft cloth to clean drawer runners and tracks.

• Do not wash any removable items (bins, drawers, etc.) in dishwasher.

• Allow glass to warm to roorn temperature before immersing in warm water.

• Remove toe grille (see Installation Instructions).

- Vacuum both sides and wipe with sudsy cloth or sponge. Rinse and dry.

• Do not use commercial household cleaners containing ammonia, bleach or alcohol to clean

handles.

Use a soft cloth to clean smooth handles.

• Do not use a dry cloth to clean smooth doors.

= Never use CHLORIDEor cleaners with bleach to clean stainless steel.

, Cleanstainless steel front and handles with non=abrasivesoapy water and a dishcloth.

Rinse with clean water and a soft cloth.

o Use a non-abrasive stainless steel cleaner.These cleaners can be purchased at most home

improvement or major department stores. Always follow manufacturer's instruction, Do not

use household cleaners containing ammonia or bleach.

• NOTE:Always clean, wipe and dry with grain to prevent scratching.

, Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse weft and

wipe dry with a clean soft cloth.

lee Chute Extension

The ice chute extension is

designed to better direct ice

flow into containers.

Removing the ice Chute Extension For

Cleaning

1 Turn the

refrigerator

off using the

button on Press Here

the control Firmly

panel (refer

to Owner's

Manual).

2 Press inward

firmly on the

front of the chute

and pull down. PullDown

3 Turn your refrigerator back on.

Installing the ice Chute Extension

1 Turn the refrigerator

off using the button

on the control panel

(refer to Owner's

Manual).

2 Align the extension

with the ice chute so

that the snap clips

are just inside the

front edge of the

iiii i_

chute.

Push Upward Until The

Push upward until Extensien Snaps In Place

the extension snaps into place.

4 Turn your refrigerator back on.

34 Care and Cleaning

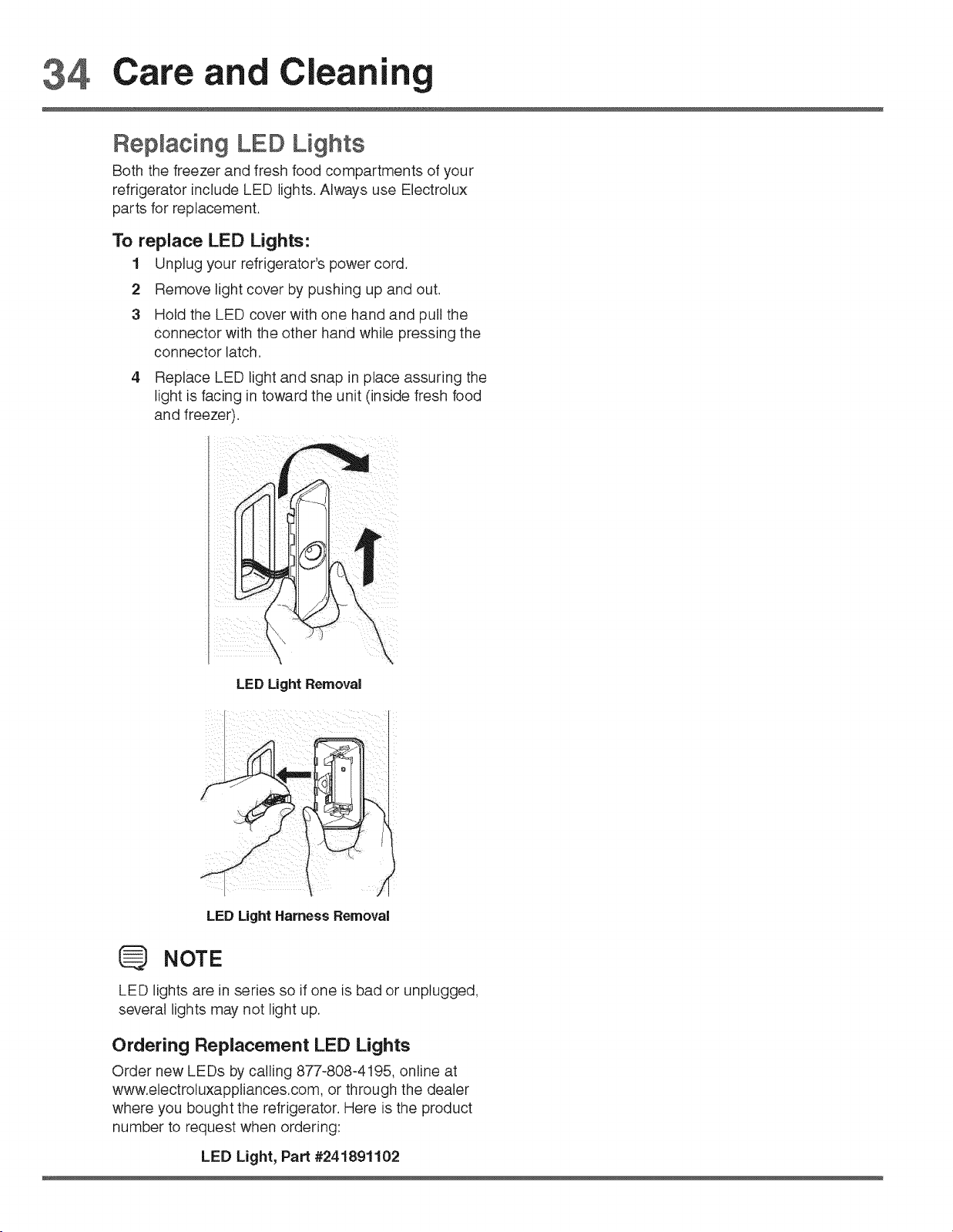

Replacing LED Lights

Both the freezer and fresh food compartments of your

refrigerator include LED lights. Always use Electrolux

parts for replacement.

To replace LED Lights:

1 Unplug your refrigerator's power cord.

2 Remove light cover by pushing up and out.

3 Hold the LED cover with one hand and pull the

connector with the other hand while pressing the

connector latch.

4 Replace LED light and snap in place assuring the

light is facing in toward the unit (inside fresh food

and freezer).

LED Light Removal

LED Light Harness Removal

NOTE

LED lights are in series so if one is bad or unplugged,

several lights may not light up.

Ordering Replacement LED Lights

Order new LEDs by calling 877-808-4195, online at

www.electroluxappliances.com, or through the dealer

where you bought the refrigerator. Here is the product

number to request when ordering:

LED Light, Part #241891102

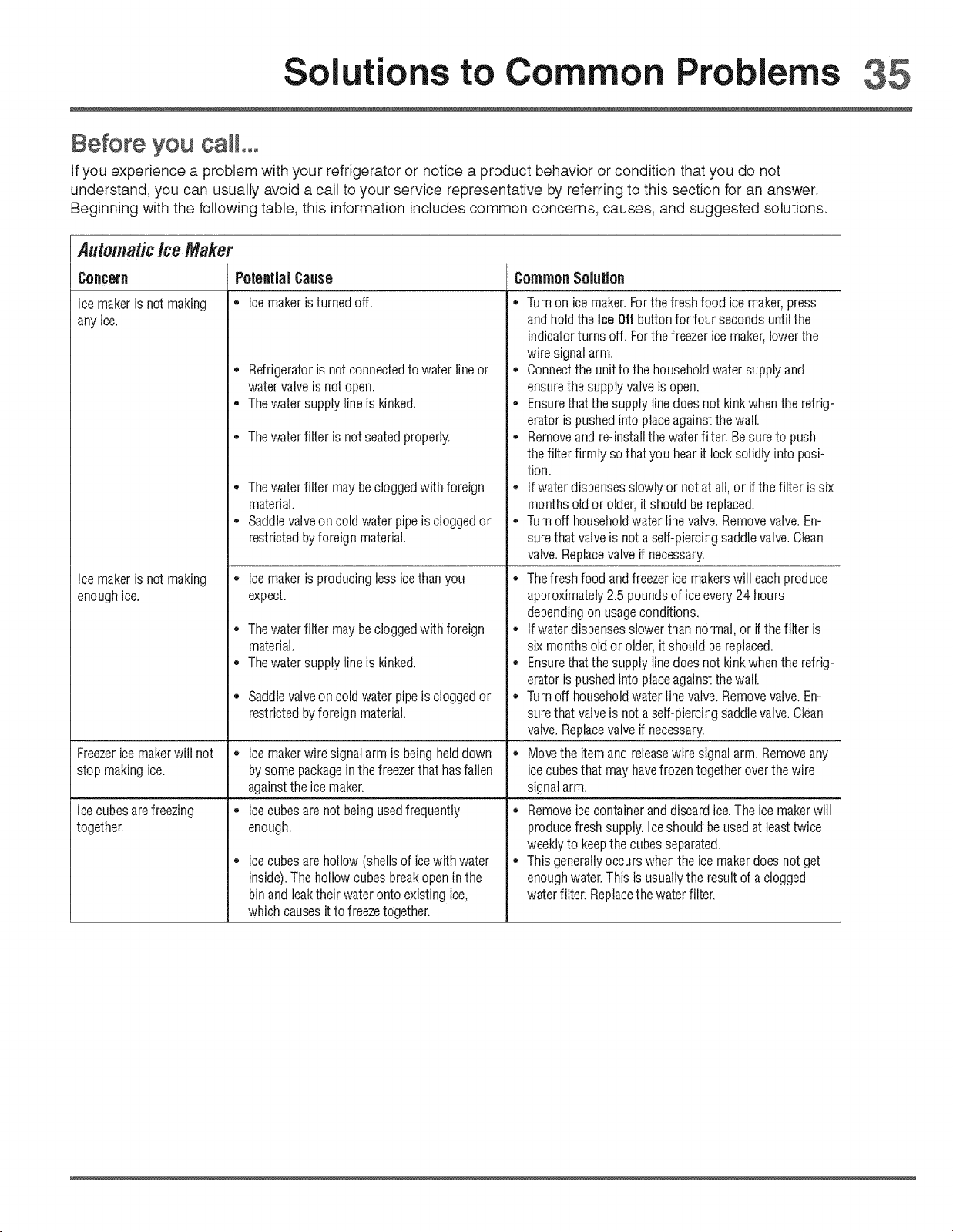

Solutions to Common Problems 35

Before you CaHo.o

If you experience a problem with your refrigerator or notice a product behavior or condition that you do not

understand, you can usually avoid a call to your service representative by referring to this section for an answer.

Beginning with the following table, this information includes common concerns, causes, and suggested solutions.

Automatic/coMaker

Potenlial Cause CommonSolution

,,, Ice maker isturned off. *

Concern

ice maker is not making

any ice.

Icemakeris notmaking

enoughice.

Freezericemaker will not

stop making ice.

Ice cubes are freezing

together.

Refrigerator is not connected to water line or

water valve is not open.

,, Thewater supply line is kinked.

,, Thewater filter is not seated properly.

Thewater filter may be cloggedwith foreign

material.

,, Saddle valveon cold water pipe is clogged or

restricted by foreign material.

Ice maker is producing less ice than you

expect.

Thewater filter may be cloggedwith foreign

material.

Thewater supply line is kinked.

Saddle valveon cold water pipe is clogged or

restricted by foreign material.

• Ice maker wire signal arm is being held down

by some packagein the freezer that hasfallen

against the ice maker.

,, Ice cubes are not being used frequently

enough,

Ice cubes are hollow (shells of icewith water

inside). The hollow cubes break open in the

bin and leaktheir water onto existing ice,

which causesit to freeze together.

Turn on icemaker. Forthe fresh food ice maker,press

and hold the Ice Off button for four seconds until the

indicator turns off. For the freezerice maker, lower the

wire signal arm.

Connectthe unit to the household water supply and

ensurethe supply valve is open.

• Ensurethat the supply line does not kink when the refrig-

erator is pushed into placeagainst the wall.

Remove and re-install the water filter. Be sure to push

thefilter firmly so that you hear it lock solidly into posi-

tion.

,, If water dispenses slowly or not at all, or if the filter is six

months old or older, it should be replaced.

o Turn off householdwater line valve. Remove valve. En-

sure that valve is not a self-piercing saddlevalve. Clean

valve. Replacevalve if necessary.

• Thefresh food andfreezer ice makerswill each produce

approximately 2.5 pounds of ice every 24 hours

depending on usageconditions.

• If water dispenses slower than normal, or if the filter is

six months old or older, it should be replaced.

,, Ensurethat the supply line does not kink when the refrig-

erator is pushed into placeagainst thewall.

Turn off householdwater line valve. Remove valve.En-

sure that valve is not a self-piercing saddlevalve. Clean

valve. Replacevalve if necessary.

,, Move the item and releasewire signal arm. Remove any

ice cubesthat may havefrozen together over the wire

signal arm.

,, Remove ice container anddiscard ice. The ice maker will

produce fresh supply. Ice should be used at leasttwice

weeklyto keepthe cubes separated,

,, This generallyoccurs when the ice makerdoes not get

enough water. This is usually the result of a clogged

water filter. Replacethe water filter.

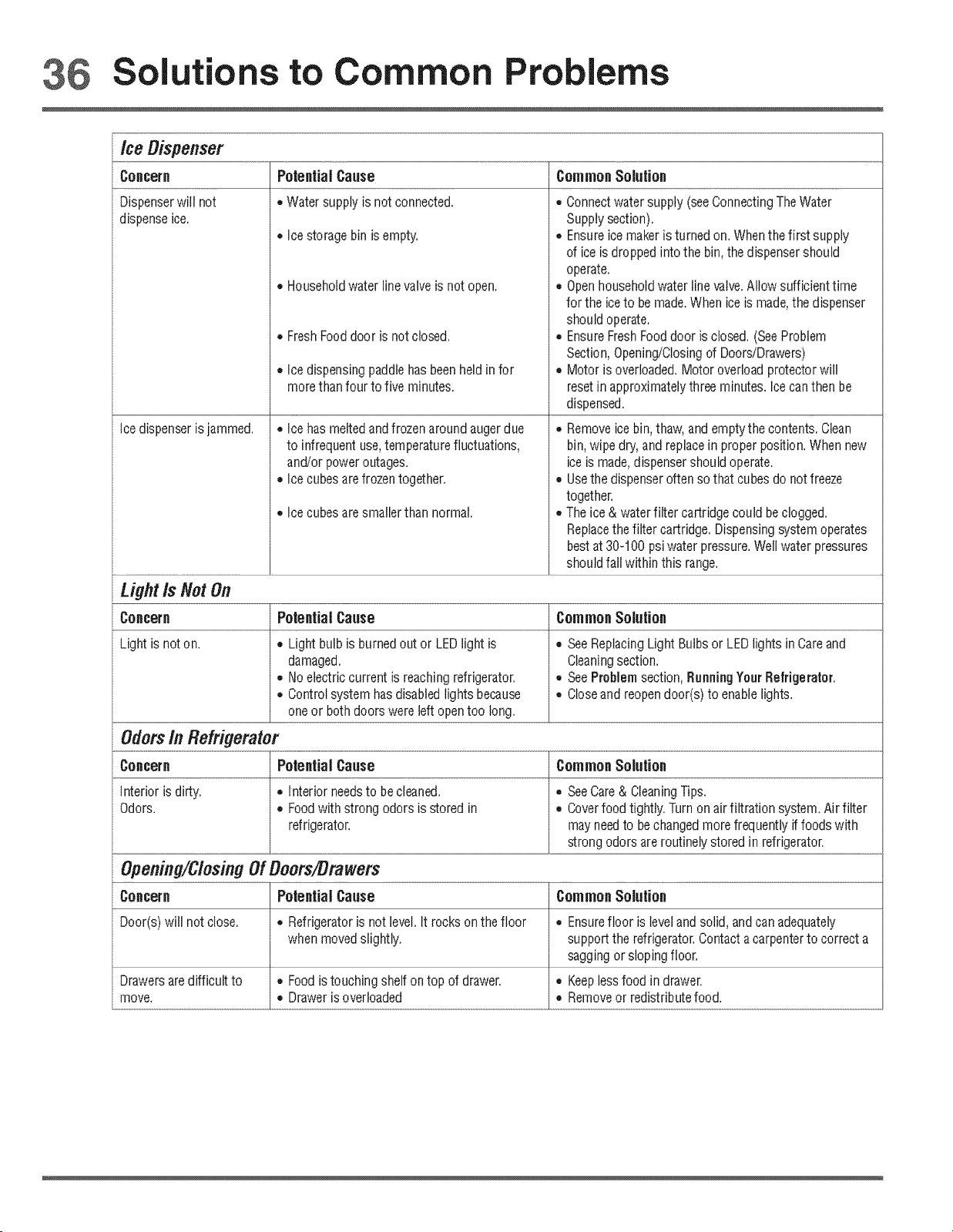

36 Solutions to Common Problems

iceDispenser

Concern

Dispenserwill not

dispense ice.

Ice dispenser is jammed.

Light/s Not On

Concern

Light is not on=

Potential Cause

,, Watersupplyis notconnected.

,, Icestoragebin is empty.

,, Household water line valve is not open.

,, Fresh Fooddoor is not closed.

,, Ice dispensing paddlehas been held in for

more than four to five minutes.

e Ice has melted andfrozen around auger due

to infrequent use, temperature fluctuations,

and/or power outages.

,, Ice cubes arefrozen together.

,, Ice cubes aresmaller than normal.

CommonSolution

• Connect water supply (see ConnectingThe Water

Supply section).

,, Ensureice maker is turned on. When the first supply

of ice is dropped into the bin, the dispenser should

operate.

, Openhousehold water line valve. Allow sufficient time

for the ice to be made. When ice is made,the dispenser

should operate.

® EnsureFreshFooddoor is closed. (SeeProblem

Section, Opening/Closingof Doors/Drawers)

,, Motor is overloaded. Motor overload protector will

reset in approximately three minutes. Ice can then be

dispensed.

® Removeice bin, thaw, and emptythe contents. Clean

bin, wipe dry, and replace in proper position. When new

ice is made,dispenser should operate.

• Use the dispenser often so that cubes do not freeze

together.

,, The ice & water filter cartridge could be clogged.

Replacethe filter cartridge. Dispensing system operates

bestat 30-100 psiwater pressure.Well water pressures

should fall within this range.

PotentialCause CommonSolution

,, Light bulb is burned out or LED light is

damaged.

,, Noelectric current is reaching refrigerator.

,, Control system has disabled lights because

one or both doors were left open too long.

Odorsin Refrigerator

• See Replacing Light Bulbsor LED lights in Careand

Cleaningsection.

,, SeeProblemsection, Running Your Refrigerator.

• Closeand reopen door(s) to enable lights.

Concern Potential Cause Common Solution

Interior isdirty. = Interior needsto be cleaned. • See Care& CleaningTips.

Odors. • Food with strong odors is stored in ,, Coverfood tightly. Turn on air filtration system. Air filter

refrigerator, may need to be changed more frequently if foods with

strong odors are routinely stored in refrigerator.

Opening/Closing Of Doors/Drawers

Concern Potential Cause CommonSolution

Door(s) 'will not close. ,, Refrigerator is not level. It rocks onthe floor • Ensurefloor is leveland solid, and can adequately

when moved slightly, support the refrigerator. Contact a carpenter to correct a

sagging or sloping floor,

Drawers are difficult to ,, Food istouching shelf ontop of drawer. = Keep lessfood in drawer.

move. e Drawer is overloaded ,, Remove or redistribute food.

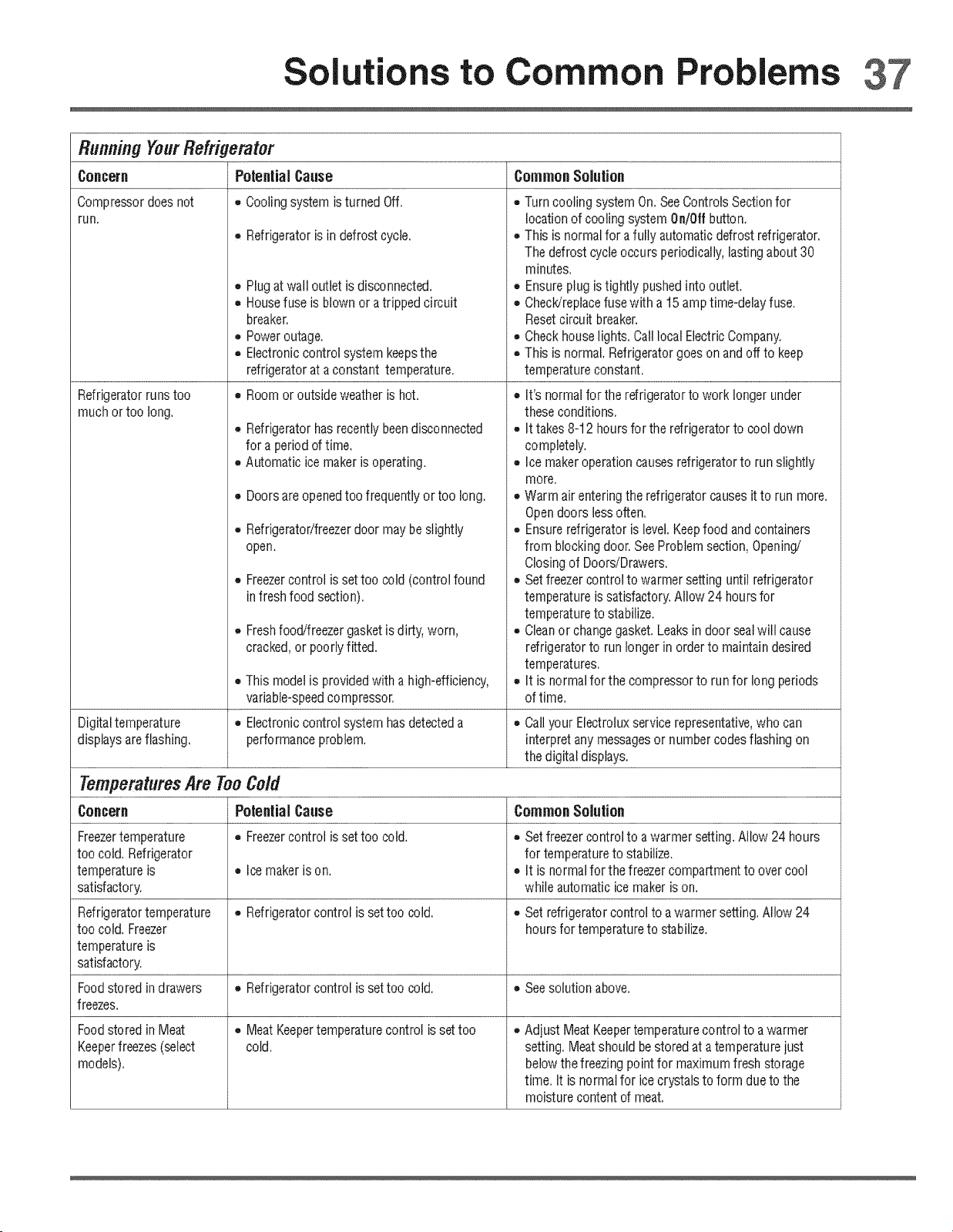

Solutions to Common Problems 37'

RunningYourRefrigerator

Concern Potential Cause

Compressor does not • Cooling system is turned Off.

run.

Refrigeratorrunstoo

muchortoo long.

,, Refrigerator is in defrost cycle.

,, Plug at wall outlet is disconnected.

= Housefuse is blown or a tripped circuit

breaker.

,, Power outage.

,, Electroniccontrol system keepsthe

refrigerator at aconstant temperature.

,, Room or outside weather is hot.

• Refrigerator hasrecently been disconnected

for a period of time.

,, Automatic ice maker is operating.

Doors are openedtoo frequently or too long.

Refrigerator/freezerdoor may be slightly

open.

Freezercontrol is set too cold (control found

infresh food section).

Freshfood/freezergasketis dirty,worn,

cracked,or poorlyfitted.

CommonSolution

,, Turn cooling system On. SeeControls Section for

location of cooling system On/Off button.

,, This is normal for a fully automatic defrost refrigerator.

The defrost cycle occurs periodically, lasting about 30

minutes.

o Ensureplug is tightly pushedinto outlet.

,, ChecWreplacefuse with a 15 amp time-delayfuse.

Resetcircuit breaker.

,, Check house lights. Call local ElectricCompany.

,, This is normal. Refrigerator goes on and off to keep

temperature constant.

,, This model is provided with a high-efficiency, ,,

variable-speedcompressor.

Digital temperature ,, Electronic control system has detecteda ,, Call your Electrolux service representative,who can

displays are flashing, performance problem, interpret any messagesor number codes flashing on

the digital displays.

TemperaturesAre TooCold

Concern PotentialCause CommonSolution

Freezertemperature ,, Freezercontrol is set too cold. ,, Set freezercontrol to awarmer setting. Allow 24 hours

too cold. Refrigerator for temperature to stabilize.

temperature is • Ice maker is on. • It is normal for the freezercompartment to over cool

satisfactory, while automatic ice maker is on.

Refrigerator temperature ,, Refrigerator control is set too cold. ,, Set refrigerator control to a warmer setting. Allow 24

too cold. Freezer hours for temperature to stabilize.

temperature is

satisfactory.

Food stored in drawers • See solution above.

freezes.

Food stored in Meat

Keeperfreezes (select

models).

,, Refrigeratorcontrol is set too cold,

,, Meat Keepertemperature control is set too

cold.

,, It's normal for the refrigerator to work longer under

these conditions.

,, It takes 8-12 hours for the refrigerator to cool down

completely.

• Ice maker operation causes refrigerator to run slightly

more.

• Warm air entering the refrigerator causes it to run more.

Opendoors lessoften.

• Ensurerefrigerator is level. Keepfood and containers

from blocking door. See Problem section, Opening/

Closing of Doors/Drawers.

• Set freezer control to warmer setting until refrigerator

temperature is satisfactory. Allow 24 hours for

temperature to stabilize.

• Clean or changegasket. Leaks in door seal will cause

refrigerator to run longer in order to maintain desired

temperatures.

It is normal for the compressor to run for long periods

of time.

,, Adjust Meat Keepertemperature control to a warmer

setting. Meat should be stored at a temperature just

below the freezing point for maximum fresh storage

time. It is normal for ice crystals to form dueto the

moisture content of meat.

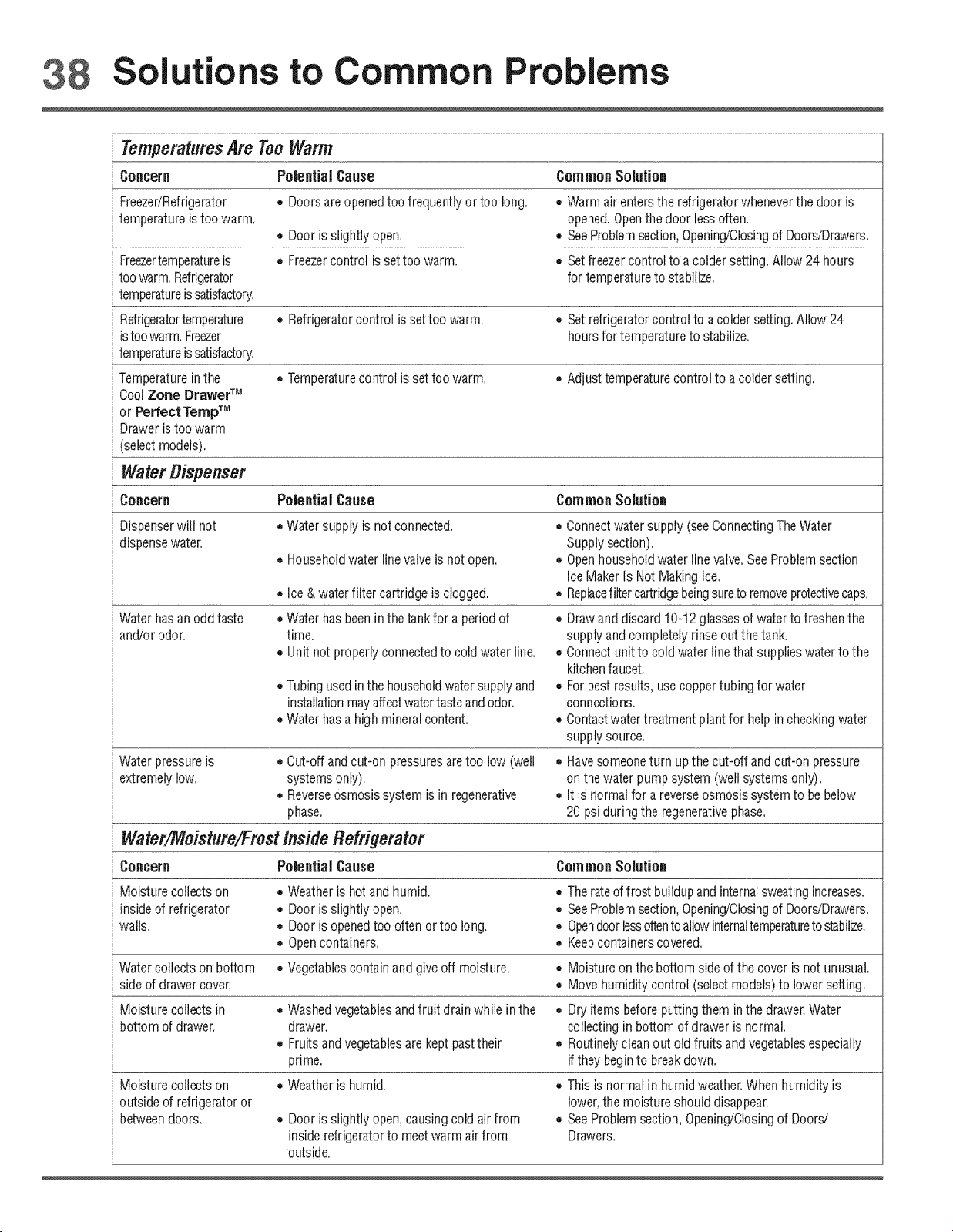

3 Solutions to Common Problems

Concern

Freezer/Refrigerator

temperature is too warm.

Freezertemperatureis

too warm. Refrigerator

temperatureis satisfactory.

TemperaturesAre 7o0 Warm

PotentialCause

, Doors are opened too frequently or too long.

• Door is slightly open.

• Freezercontrol is set too warm.

Rdrigeratortemperature

istoo warm. Freezer

temperatureis satisfactory.

Temperature in the

Cool Zone Drawer TM

or Perfect Temp TM

Drawer is too warm

(select models).

WaterBispenser

, Refrigerator control is set too warm.

, Temperaturecontrol is set too warm.

CommonSolution

• Warm air enters the refrigerator whenever the door is

opened. Openthe door less often.

,, SeeProblem section, Opening/Closingof Doors/Drawers.

• Set freezer control to a colder setting. Allow 24 hours

for temperatureto stabilize.

• Setrefrigeratorcontrolto a coldersetting,Allow24

hoursfor temperatureto stabilize.

,, Adjust temperature control to a colder setting.

Concern CommonSolution

Dispenserwill not

dispense water.

Waterhasanoddtaste

and/orodor.

PotentialCause

• Water supply is not connected.

, Household water line valve is not open.

• Ice & water filter cartridge is clogged.

• Water has been in the tank for a period of

time.

• Unit not properly connected to cold water line.

, Tubingused in the householdwater supply and

installation may affect watertaste and odor.

• Water has a high mineral content.

• Connect water supply (see ConnectingThe Water

Supply section).

, Openhousehold water line valve. See Problem section

Ice Maker Is Not Making Ice.

,, Replacefilter cartridgebeingsureto removeprotectivecaps.

• Draw and discard 10-12 glasses of water to freshen the

supply and completely rinse out the tank.

• Connect unit to cold water line that supplies water to the

kitchenfaucet.

• For best results, use copper tubing for water

connections.

, Contact water treatment plant for help in checking water

supply source.

Water pressureis , Cut-off and cut-on pressures aretoo low (well • Havesomeone turn up the cut-off and cut-on pressure

extremely low. systems only), on the water pump system (well systems only).

, Reverseosmosis system is in regenerative • it is normal for a reverseosmosis system to be below

phase. 20 psi during the regenerativephase.

Water/Moisture/FrostInsideRefrigerator

Concern PotentialCause CommonSolution

Moisture collects on • Weather is hot and humid. • The rateof frost buildup and internalsweating increases.

inside of refrigerator • Door is slightly open. • See Problem section, Opening/Closingof Doors/Drawers.

walls. ,, Dogr is opened too often or too Iong. • Opendoor lessoftento allowinternaltemperatureto stabilize.

• Opencontainers. • Keepcontainers covered.

Water collects on bottom - Vegetablescontain and give off moisture. • Moisture on the bottom side of the cover is not unusual.

side of drawer cover. • Move humidity control (select models) to lower setting.

Moisture collects in , Washed vegetablesandfruit drain while in the , Dry items before putting them in the drawer.Water

bottom of drawer, drawer, collecting in bottom of drawer is normal.

,, Fruits and vegetables are kept past their • Routinely cleanout old fruits and vegetablesespecially

prime, if they beginto break down.

• Weather is humid.Moisture collects on

outside of refrigerator or

betweendoors.

• Doorisslightlyopen,causingcoldairfrom

insiderefrigeratorto meetwarmair from

outside,

• This is normal in humid weather. When humidity is

lower,the moisture should disappear.

, SeeProblem section, Opening/Closingof Doors/

Drawers.

Warranty

Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or

replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and

maintained in accordance with the provided instructions. In addition, the cabinet liner and sealed refrigeration system (compressor,

condenser, evaporator, dryer or tubing) of your appliance is covered by a two through five year limited warranty. During the 2nd through

5th years from your original date of purchase, Electrolux will repair or replace any parts in the cabinet liner and sealed refrigeration

system which prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance

with the provided instructions.

Exclusions

10.

11.

12.

13.

14.

This warranty does not cover the following:

Products with original serial numbers that have been removed, altered or cannot be readily determined.

Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

Rust on the interior or exterior of the unit.

Products purchased "as-is" are not covered by this warranty.

Food loss due to any refrigerator or freezer failures.

Products used in a commercial setting.

Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary

household use or used other than in accordance with the provided instructions.

Service calls to correct the installation of your appliance otto instruct you how to use your appliance.

Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a

part of the appliance when it is shipped from the factory.

Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other

cosmetic parts.

Pickup and delivery costs; your appliance is designed to be repaired in the home.

Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage

expense for service calls to remote areas, including the state of Alaska.

Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors,

cabinets, walls, etc.

Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux

parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse,

inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT

AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW,

BUT NOT LESS THAN ONEYEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES

SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRI-I-rEN LIMITED

WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION

OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE

LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRI-Fi-EN WARRANTY GIVES YOU SPECI FIC LEGAL RIGHTS.

YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

IfYou Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required.

If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by

contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux

Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux

Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts

under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described

or illustrated are subject to change without notice.

USA

1-877-435-3287

Electrolux Major Appliances North America

10200 David Taylor Drive

Charlotte, NC 28262

Canada

1-800-265-8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada L5V 3E4

Electrolux EW28BS85KSCA refrigerator

Product's Documents

User Manual

Specifications

Electrolux EW28BS85KSCA Questions and Answers
