6-Year Limited Tank/Parts Warranty*
• Combustion Safety Cut-o Switch
Shuts down the water heater should combustion air be restricted.
• Combination Thermostat/ECO
With factory-preset pressure regulator and built-in millivolt-powered
energy cuto for overheat protection.
• Lint Resistant Design
Main burner ignition forces air through the ame trap, clearing lint o
the trap. Proven design tested under four di erent lint test scenarios.
• Durable and E cient Burner Construction
Steel multiport low NOx burner featured on natural gas models;
stainless steel burner featured on most propane models
(50T50 is cast iron).
• Code Approvals
CSA International (formerly AGA) ANSI Z21.10.1 – CSA 4.1 (current
edition).
• Piezo Electric Igniter
For lighting the pilot without matches.
• Drain Valve
Child-resistant, corrosion-resistant drain valve.
• T&P Valve
Conveniently located on the side of the tank to facilitate piping to a
drain or external to the building. Also available with top T&P opening
for eld installation.
• Anode Rod
Top-mounted, heavy-duty anode protects tank against corrosion,
extending the life of the tank.
• Dip Tube
Carries cold inlet water deep into the tank to minimize temperature
dilution of hot water.
• 3/4” Top Water Connections
• 1/2” Gas Connection
All BFG pre xed models are equipped with the Flame Guard® Safety System
Pilot View Port
NRGSS00107 R Feb. 2008
The Flame Guard® Safety System reduces the risk
of accidental res involving ammable vapors
from products such as gasoline, paint thinner,
and solvents. With a standard right-hand thread
thermocouple, resettable thermal safety switch
and larger sight-glass, the Flame Guard® Safety
System is better than ever.
Residential Gas with the
Flame Guard® Safety System
American Spec Sheets 2008 new te5 5American Spec Sheets 2008 new te5 5 2/27/08 2:19:48 PM2/27/08 2:19:48 PM
No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage retrieval system, without permission in writing from American Water Heaters.
Distributed By:
Order Entry and Sales
500 Princeton Road (FEDEX, UPS)
Johnson City, TN 37601-2030
P.O. Box 4808 (Mailing)
Johnson City, TN 37602-4808
(800) 937-1037
FAX (800) 581-7224
Warranty and Service
500 Princeton Road (FEDEX, UPS)
Johnson City, TN 37601-2030
P.O. Box 1597 (Mailing)
Johnson City, TN 37605-1597
(800) 999-9515
FAX (800) 999-5210
NRGSS00107 R Feb. 2008
Residential Gas with the
Flame Guard® Safety System
Speci cation
Residential gas water heater(s) shall be ammable vapor-resistant models ____________ as manufactured by American Water Heater Company, or an approved equal,
and shall have a ______ -year limited tank warranty and a ______ -year limited parts warranty, when installed in a residential application. The heater shall be equipped
with a ammable vapor- resistant combustion system that includes an integral ame trap, a resettable thermal switch and a piezo electric igniter. In the event of a
ammable vapor incident or a severe back draft condition, the heater must render itself inoperable. The heater must be tested for lint buildup resistance. Heater(s)
shall have a storage capacity of ______ gallons and shall have a rated input of __________ BTU’s, and shall be design certi ed, tested and listed in accordance with CSA
International to the latest addition ANSI Z21.10.1 – CSA 4.1. Heaters shall meet or exceed the requirements of the Federal “National Appliance Energy Conservation Act
of 1987”– 2004 requirements and shall comply with ASHRAE Standard 90.1-1999. The interior of the storage tank shall be lined with a baked-on Fused Ceramic Shield
tank lining, fused to the tank at 1600° F, forming a corrosion-resistant lining; polymer linings are not acceptable. Each tank shall be furnished with an internal anode for
cathodic protection. The unit must be equipped with a combination gas control thermostat and non-reset type ECO. A corrosion-resistant drain valve shall be provided
on the front of each unit. The tank shall be totally encased in a steel jacket, painted and insulated with a non-CFC foam to reduce standby heat loss.

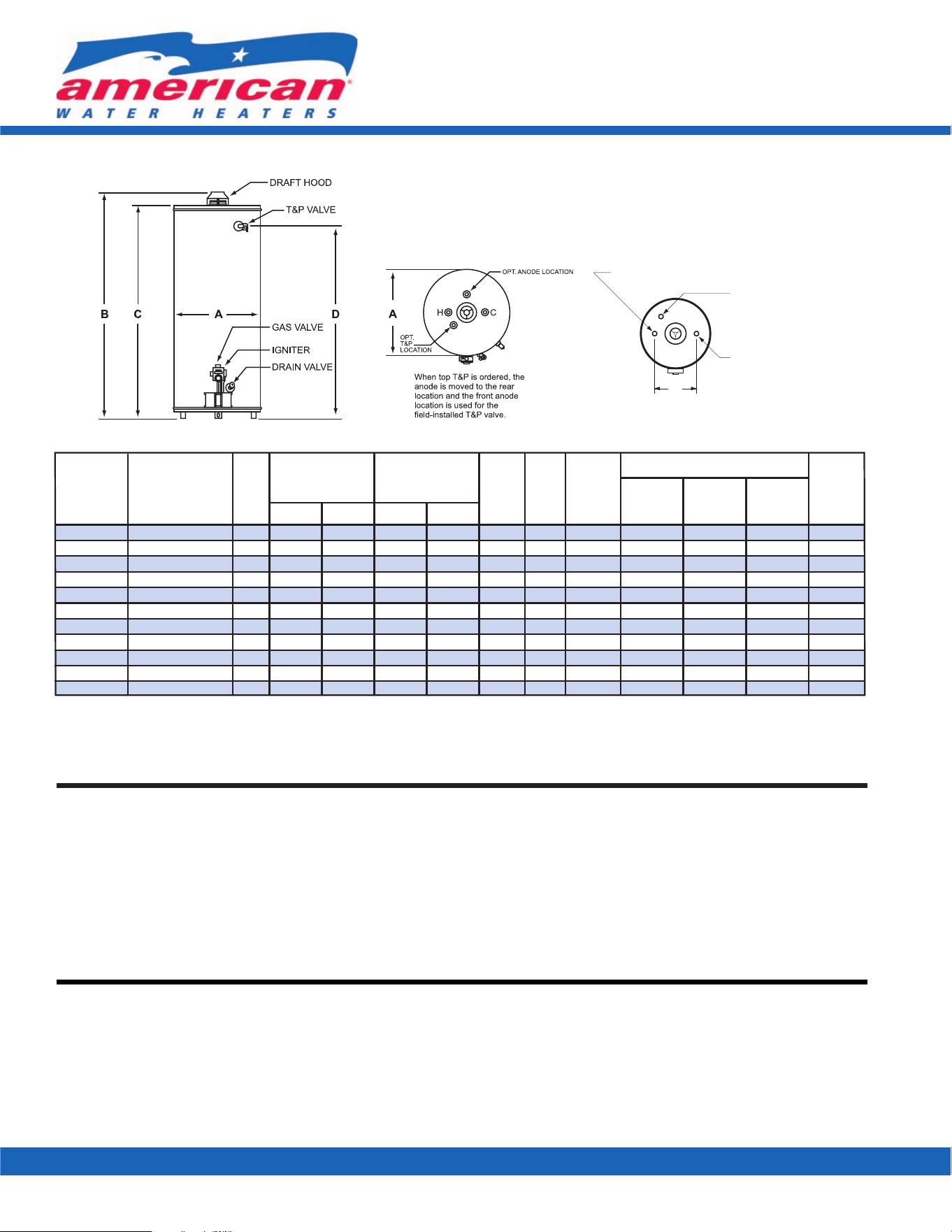

HOT CONNECTION
COLD
CONNECTION
ANODE ROD
8"
Top View: FVG model
INPUT GPH HEIGHT
BTU RECOVERY
PER HR. 90° RISE JACKET TOP OF TOP OF SIDE APPROX.
GAL. VENT DIAM. VENT HEATER T&P SHIP
WARRANTY MODEL NUMBER CAP. NAT. LP NAT. LP DIAM. E.F. A B C D WEIGHT
6-Year BFG61-30S30-3NOV 30 30,000 29,000 30.4 29.4 3 0.61 18 49 45-3/4 39 99
6-Year BFG61-30T30-3NOV 30 30,000 29,000 30.4 29.4 3 0.61 16 59-3/4 56-1/2 49-1/2 98
6-Year BFG61-40S40-3NOV 40 40,000 36,000 40.5 36.5 3 0.59 20 52-1/4 49 42-1/4 132
6-Year BFG61-40T40-3NOV 40 40,000 36,000 40.5 36.5 3 0.59 18 62 58-3/4 51-3/4 127
6-Year BFG61-50T40-3NOV 50 40,000 40,000 40.5 40.5 3 0.58 20 60-3/4 57-1/2 50-1/2 148
6-Year BFG61-50T50-4NOV† 50 50,000 47,000 50.7 47.6 4 0.58 20 60-3/4 57-1/2 50-1/2 148
6-Year BFG62-40S40-3NOV 40 40,000 36,000 40.5 36.5 3 0.62 22 52-1/4 49 42-1/4 146
6-Year BFG62-40T40-3NOV 40 40,000 36,000 40.5 36.5 3 0.63 20 62 58-3/4 51-3/4 132
6-Year BFG62-50T40-3NOV 50 40,000 40,000 40.5 40.5 3 0.62 22 60-3/4 57-1/2 50-1/2 155
6-Year BFG62-50T50-4NOV† 50 50,000 47,000 50.7 47.6 4 0.60 22 60-3/4 57-1/2 50-1/2 155
6-Year FVG62-50T65-4NOV* 50 65,000 55,000 66.5 56.3 4 0.58 22 63-7/8 59-1/2 54-1/8 195
Dimensions on all charts shown in inches. Dimensions and speci cations subject to change without notice in accordance with our policy of continuous product improvement.
*The FVG62-50T65-4NOV uses a FVIR compliant design, which is di erent from the BFG design.
†Select propane models feature cast iron burners; all other propane models have stamped stainless steel burners.
Inlet and outlet are on 8” centers. Delete “V” in model number for top T&P option, T&P opening on top of the heater with the valve shipped in the box for eld installation. To order
propane models, change “NO” to su x “P.”
