IMPORTANT
READ THIS MANUAL CAREFULLY.
SEE INSIDE COVER FOR IMPORTANT
INFORMATION ABOUT THIS MANUAL.KEEP
INSTRUCTION WITH APPLIANCE FOR FUTURE
REFERENCE.
!
COBALT SMART-HEAT™
ELECTRIC HEATER
BY BROMIC
INSTALLATION, INSTRUCTION AND
SERVICE MANUAL
SUITABLE FOR ELECTRIC HEATER MODELS:
COBALT 2000W, 3000W, 4000W- AND COBALT 6000W
Version 1.0 USA
2 3
www.bromicheating.com
www.bromicheating.com
!
IMPORTANT
This manual contains important information about the installation, operation, and
maintenance of Cobalt Smart-Heat™ Electric Heaters. Please pay close attention to the
important safety information shown throughout this instruction manual. Any safety
information will be accompanied by the following safety alert symbols:
DANGER, WARNING, IMPORTANT
• READ THIS MANUAL CAREFULLY before installing or
servicing this product.
• Improper installation, operation, or maintenance can
result in death, severe injury, or property damage.
• This appliance is intended for fixed installation with 230-
240Volt power supply.
• Installation MUST be carried out by a licensed and
authorised technician in accordance with local electrical
codes.
• Patent Pending & Australian Registered Design 338721
• - Use this heater only as described in this manual. Any
other use not recommended by manufacturer may cause
fire, electric shock, or injury to persons.
• - For Domestic and Commercial Use
!
!
!
CONTENTS
IMPORTANT NOTES & WARNINGS 4
PRODUCT OVERVIEW 5
PRODUCT DESCRIPTION AND FEATURES 5
SPECIFICATIONS 5
HEATER INSTALLATION 6
INSTALLATION CLEARANCES 6

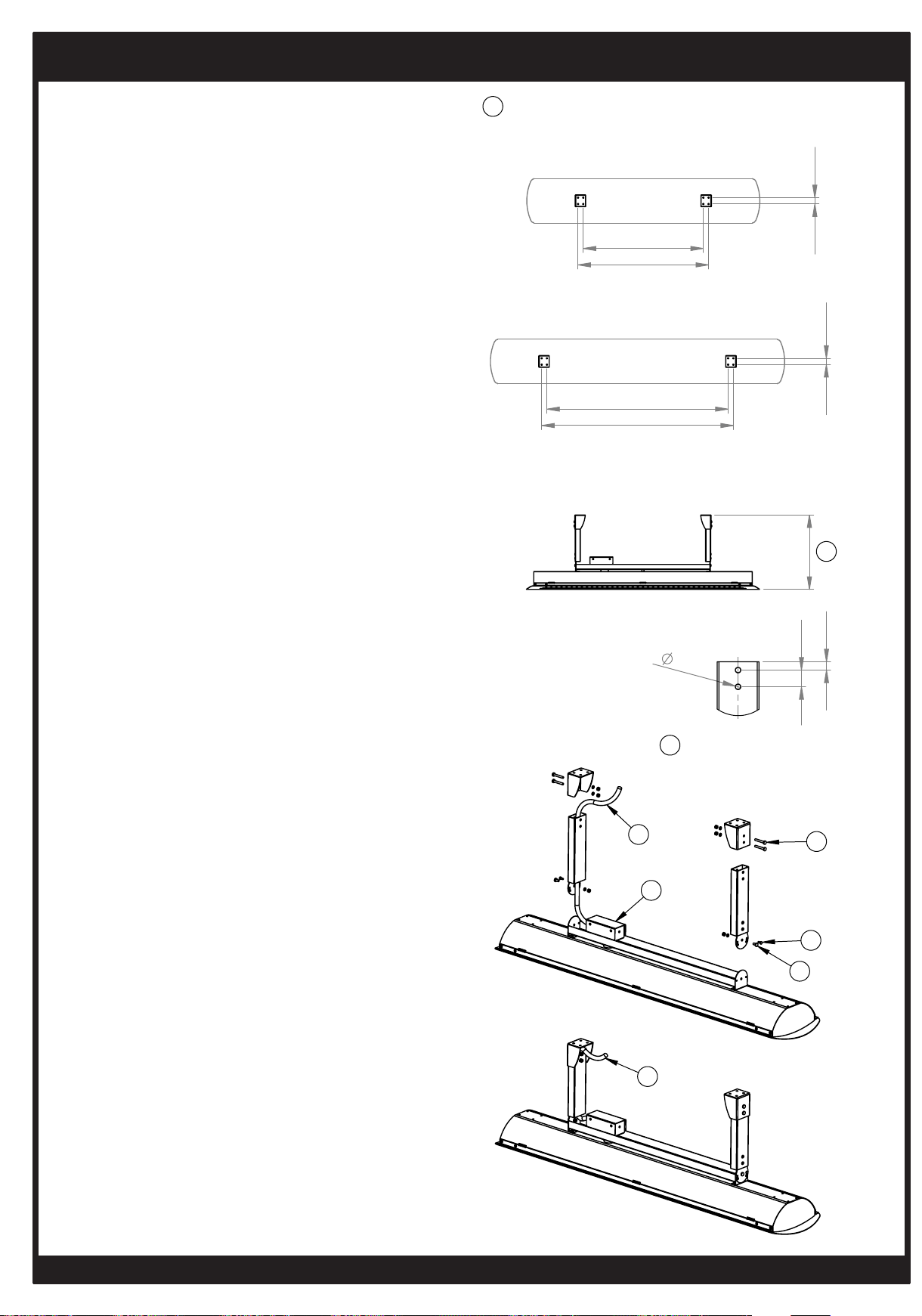

CEILING WALL MOUNTING 7
CHAIN SUSPENSION 7
TUBE SUSPENSION 8

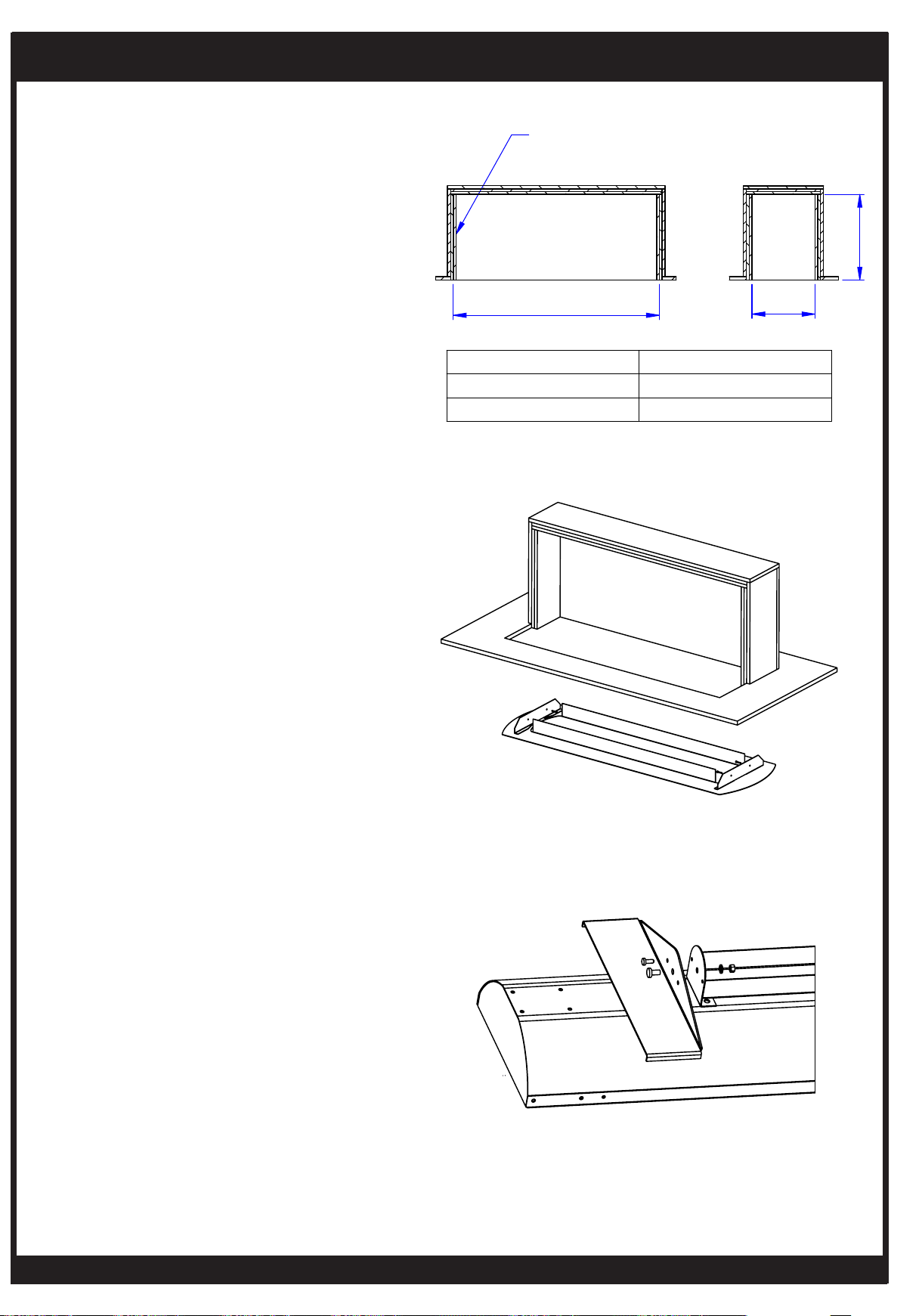

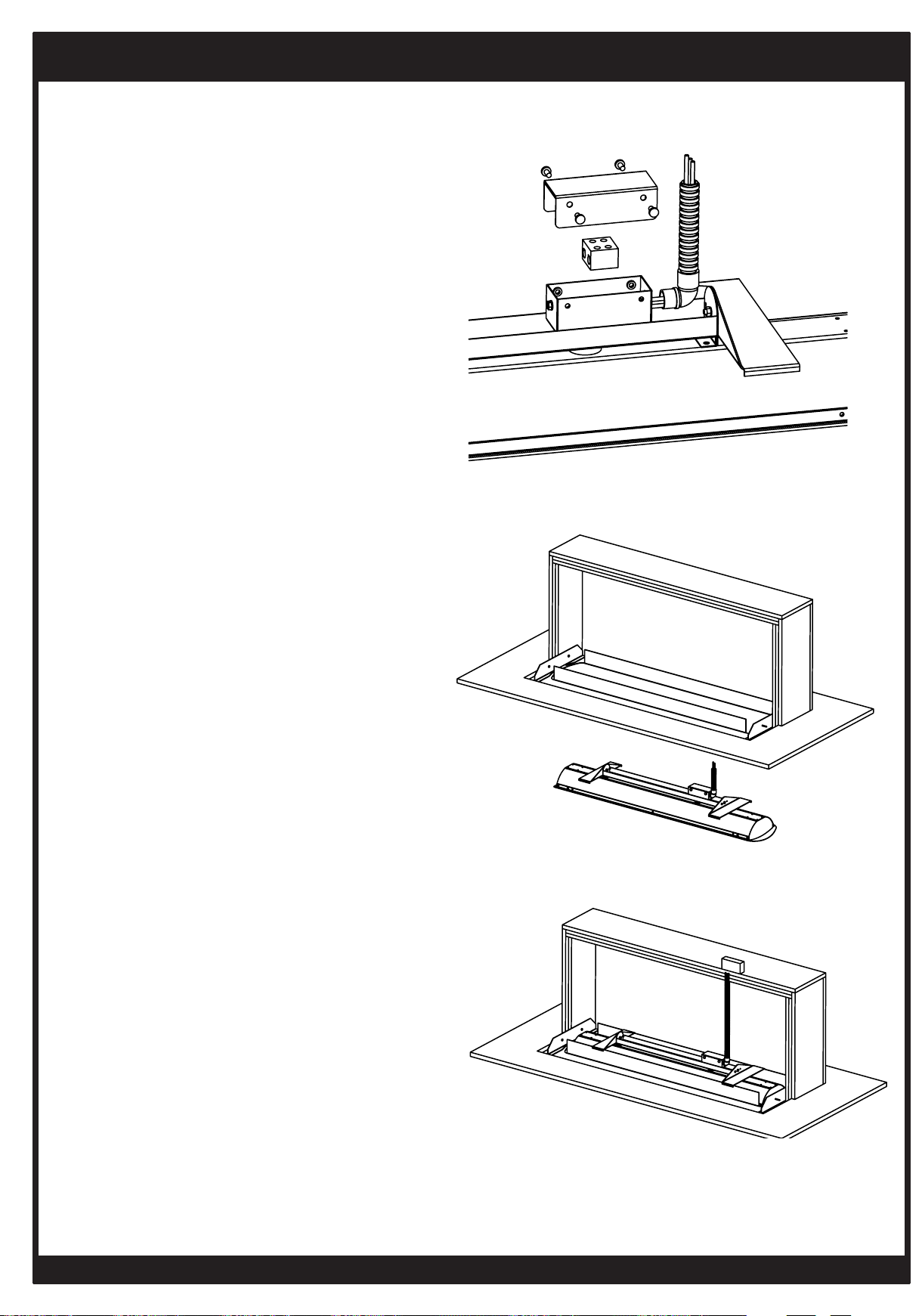

CEILING RECESS 9

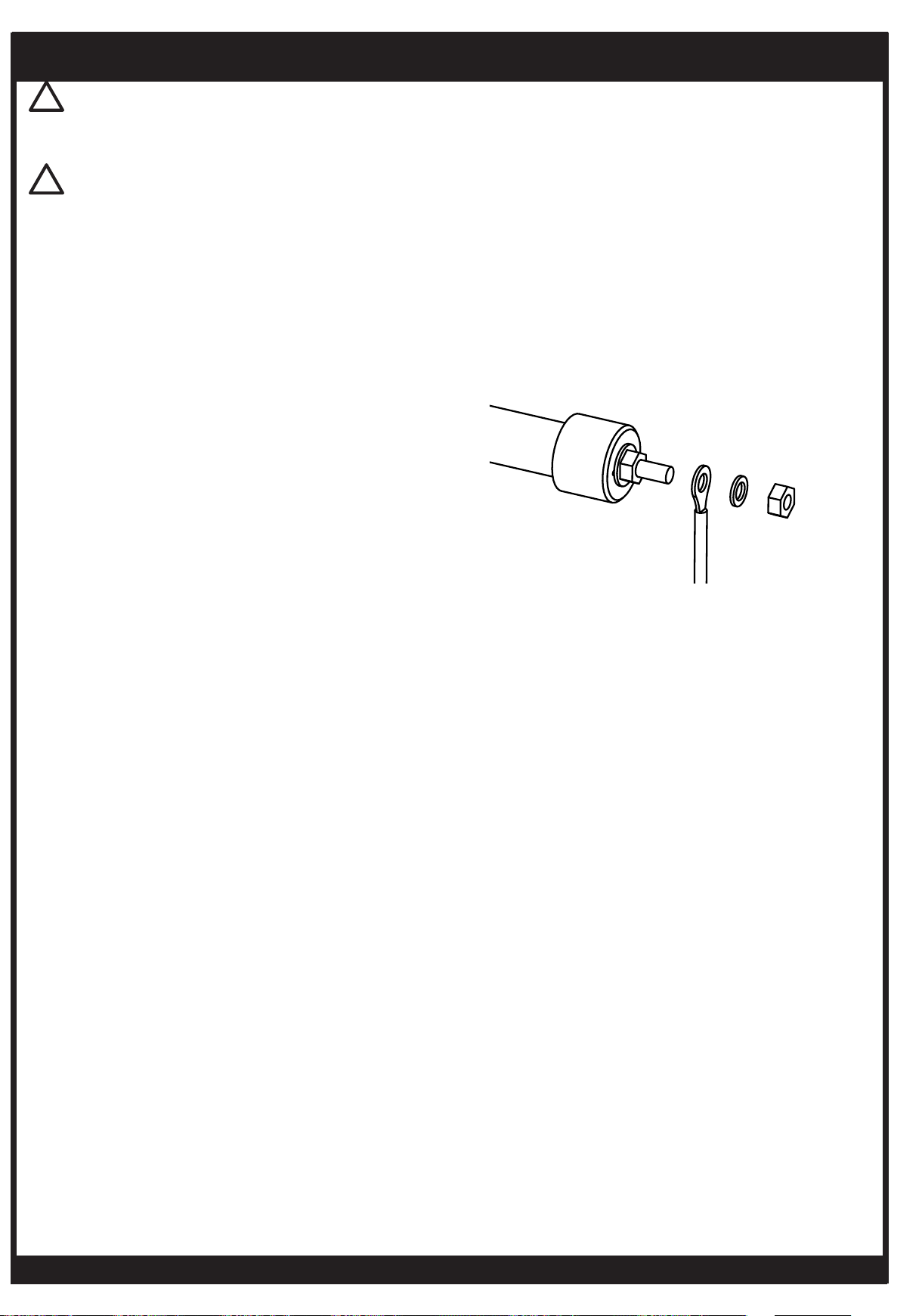

ELEMENT INSTALLATION 11
ELECTRICAL INSTALLATION 13

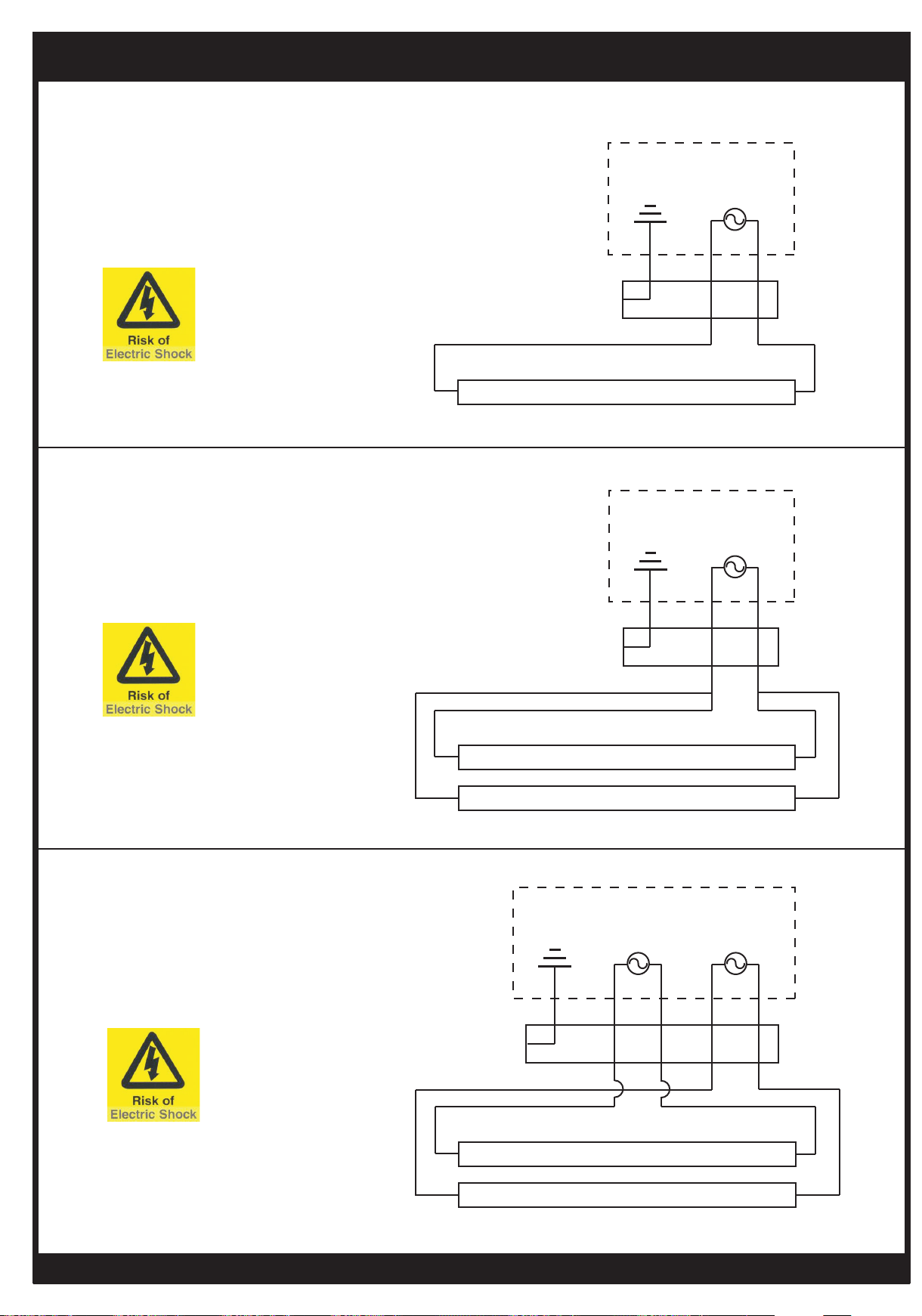

WIRING DIAGRAMS 14
SERVICING 15
MAINTENANCE 15

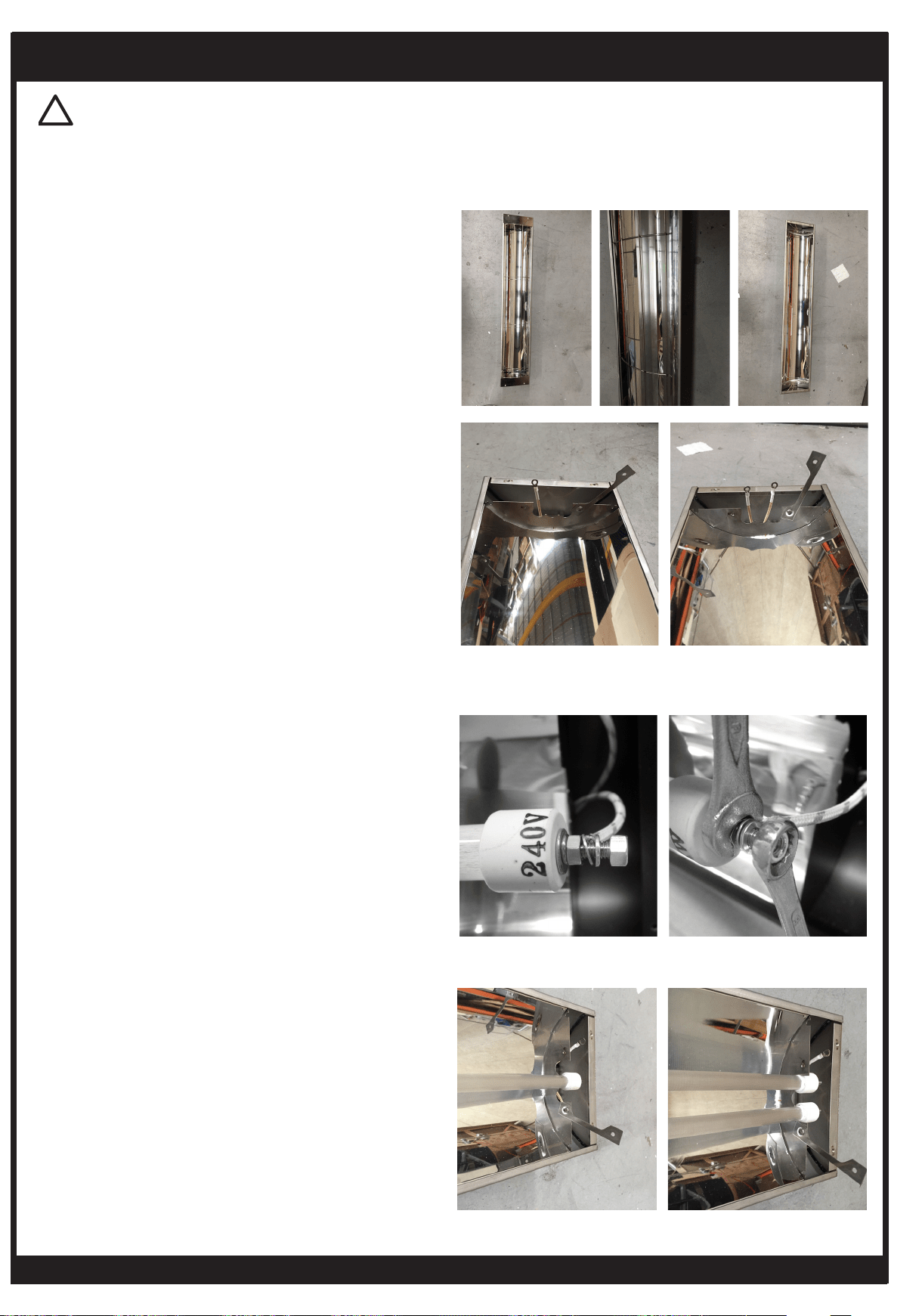

TUBE ELEMENT REPLACEMENT 15
REPLACEMENT PART LIST 16
TROUBLESHOOTING 16
BROMIC HEATING
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Australia
Telephone: 1300 276 642 (within Australia) or +61 2 9426 5222 (from overseas)
Email: [email protected] Web: www.bromicheating.com
Note: Bromic Heating reserves the right to make changes to specifications, parts, components and equipment without prior
notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic
Heating.
2 3
www.bromicheating.com
www.bromicheating.com
!
IMPORTANT
This manual contains important information about the installation, operation, and
maintenance of Cobalt Smart-Heat™ Electric Heaters. Please pay close attention to the
important safety information shown throughout this instruction manual. Any safety
information will be accompanied by the following safety alert symbols:
DANGER, WARNING, IMPORTANT
• READ THIS MANUAL CAREFULLY before installing or
servicing this product.
• Improper installation, operation, or maintenance can
result in death, severe injury, or property damage.
• This appliance is intended for fixed installation with 230-
240Volt power supply.
• Installation MUST be carried out by a licensed and
authorised technician in accordance with local electrical
codes.
• Patent Pending & Australian Registered Design 338721
• - Use this heater only as described in this manual. Any
other use not recommended by manufacturer may cause
fire, electric shock, or injury to persons.
• - For Domestic and Commercial Use
!
!
!
CONTENTS
IMPORTANT NOTES & WARNINGS 4
PRODUCT OVERVIEW 5
PRODUCT DESCRIPTION AND FEATURES 5
SPECIFICATIONS 5
HEATER INSTALLATION 6
INSTALLATION CLEARANCES 6
CEILING WALL MOUNTING 7
CHAIN SUSPENSION 7
TUBE SUSPENSION 8
CEILING RECESS 9
ELEMENT INSTALLATION 11
ELECTRICAL INSTALLATION 13
WIRING DIAGRAMS 14
SERVICING 15
MAINTENANCE 15
TUBE ELEMENT REPLACEMENT 15
REPLACEMENT PART LIST 16
TROUBLESHOOTING 16
BROMIC HEATING
Head Office: 10 Phiney Place, Ingleburn NSW 2565 Australia
Telephone: 1300 276 642 (within Australia) or +61 2 9426 5222 (from overseas)
Note: Bromic Heating reserves the right to make changes to specifications, parts, components and equipment without prior
notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic
Heating.
4 5
www.bromicheating.com
www.bromicheating.com
IMPORTANT NOTES AND WARNINGS
WARNING
• Read all instructions before installing or using this heater
• Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock, or injury to persons.
• Improper installation, adjustment, or alteration and failure
to follow the warnings and instructions in this manual could
result in severe personal injury, death or property damage.
• The manufacturer is not responsible for any damage that could
happen from improper use. The manufacturer emphasises that
this appliance should be used in a responsible manner and
that all procedures, warnings, and safety instructions contained
in this booklet be followed strictly.
• This heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may
fall into a bathtub or other water container.
• Do not install the heater directly near a bathtub, shower or
swimming pool. Any switches or controls must not be within
reach of a person in the bathtub, shower or swimming pool.
• This heater is hot when in use. To avoid burns do not let bare
skin touch hot surfaces. Keep combustible materials such as
furniture, pillows, bedding, papers, clothes , etc. and curtains
at least 3’ 3” from the front the front of the heater and keep
them away from the sides and rear.
• Extreme caution is necessary when any heater is used by
or near children or invalids and whenever the heater is left
operating and unattended.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Keep packaging materials out of reach of children
• Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns,
clothing ignition, or other serious personal injury
• Children should be carefully supervised when they are in the
area of the heater.
• Do not attempt to alter the unit in any manner.
• Do not paint any surface of the heater.
• Do not touch the heater with wet hands at any time.
• Do not insert or allow foreign objects to enter front cover or
front opening as this may cause an electric shock or fire, or
damage the heater
• Do not touch the heating surface at any time, even when the
heater is turned off and has cooled down.
• Do not use or store flammable materials near this
appliance
• Do not spray aerosols or flammable materials in the vicinity
of this appliance while it is in operation
• Never operate the heater in an explosive environment such as
areas where petrol or other flammable liquids or vapours are
stored.
• Clothing or other flammable materials should not be hung
from the heater or placed on or near the heater.
INSTALLATION
• IMPORTANT - Installation must be carried out by a licensed
and authorised person.
• The installer is to ensure that the requirements of the local
authority, local electrical installation code, municipal building
codes, and any other relevant statutory regulations are carried
out.
• After unpacking, make sure the appliance shows no signs
of visible damage or tampering. If the appliance appears
damaged, contact the place of purchase for assistance.
• Remove transit protection before use.
• This appliance must only be used on a 230-240 Volt AC Single
Phase electricity supply
• This radiant heater is NOT intended to be installed on
recreational vehicles and/or boats.
• Do not run cord under carpeting. Do not cover with throw
rugs, runners or the like arrange cord away from traffic area
and where it will not be tripped over
• A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint or flammable liquids are
used or stored.
• To maintain Ingress Protection Rating (IPX4), only IPX4 rated
conduit fittings should be used for electrical installation.
• Warning –To Reduce the risk of fire with Danger –To Avoid Fire
• This warning tag shall be permanently affixed to the power
supply cord, no more than 6” from the attachment plug and
the permanence of the warning tag shall be determined in
accordance with Test for Permanence of Cord Tag Section:53
• This Installation, Operation and Service manual should not
be removed from the site of installation. Installer should leave
manual with the customer for future reference.
• Any guard or other protective device removed for servicing
(conducted by an authorised person) must be replaced before
operating the heater.
• Heaters are not intended to be installed in wardrobes.
• The appliance must not be located directly below or in front of
a wall electricity socket. This is because the heat radiated from
the appliance may damage the electricity outlet or plug.
• If the appliance has not been used, or will not be used, for a
long period of time, disconnect power supply
• A means for all-pole disconnection of the heater must be
incorporated in the fixed wiring according to the local
electrical codes.
• Do not mount the heater vertically. Install Heater so that
the infrared elements are horizontal. Failure to do this
may cause the heating element within the tube to sag and
cause premature burnout. Installing vertically will void the
manufacturer’s warranty.

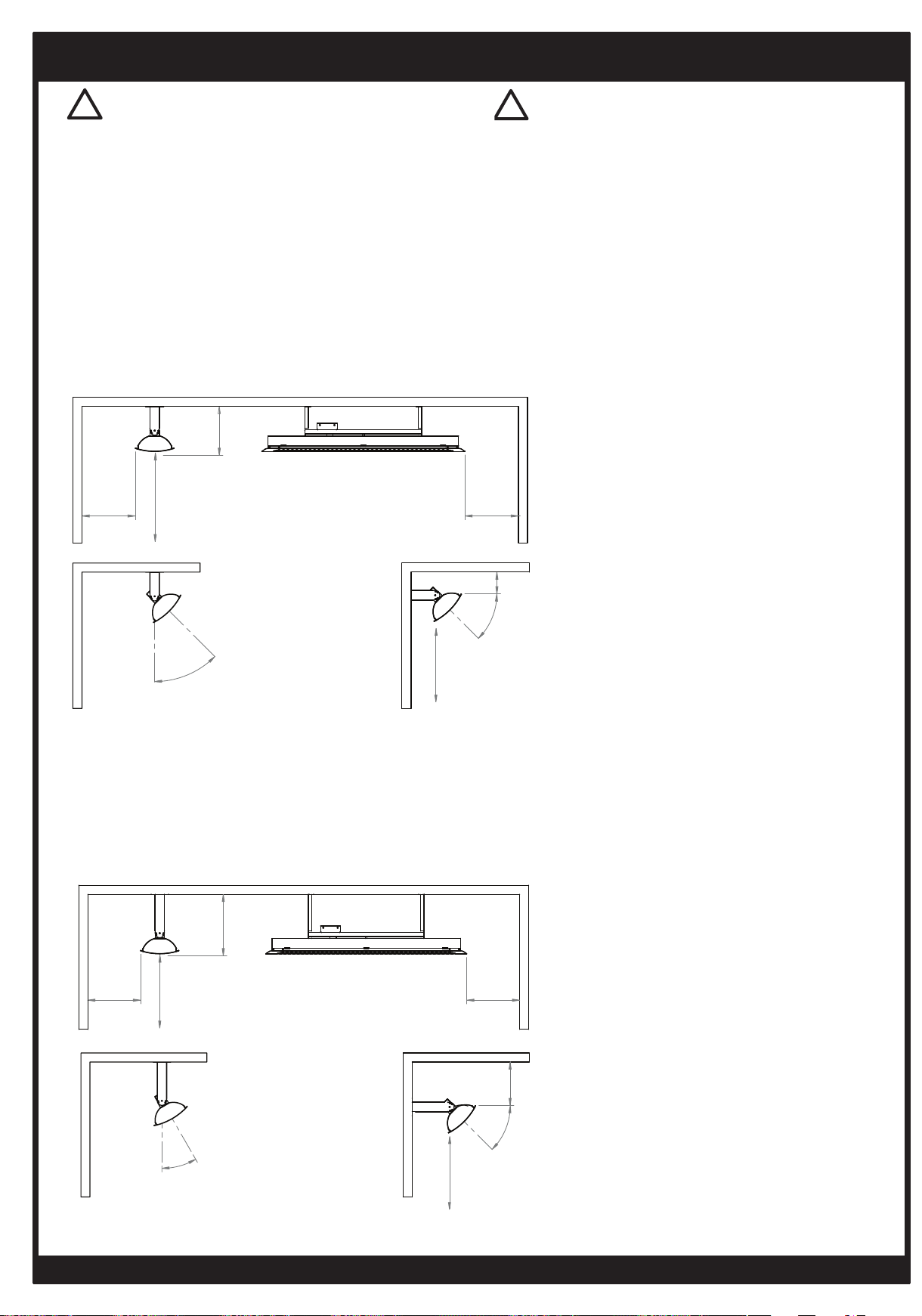

CLEARANCE
• Do not place articles on or against this appliance
• A minimum safety distance of 39.4” should always be left in
front of the appliance.
• This unit must be mounted at a minimum of 71” above the
floor.
• Be sure the heater is not facing the ceiling or flammable or
combustible substances/materials.
!
MAINTENANCE/ REPAIR
• Installation and repair must be carried out by a qualified &
licenced service person only. The heater should be inspected
before use and at least annually serviced & inspected by a
qualified & licenced service person.
• Do not perform maintenance until heater has been turned off,
power disconnected, and heater temperature has cooled to
room temperature.
• Check for damage to the appliance regularly. If damage to
the appliance is suspected, discontinue use immediately and
contact the supplier or qualified person to repair.
• If the supply cord is damaged, it must be replaced by an
authorised and licensed person
• At the end of this product’s useful life, it must not be disposed
of as domestic waste, but must be taken to a collection
centre for waste electrical and electronic equipment. It
is the user’s responsibility to dispose of this appliance
through the appropriate channels at the end of its useful life.
Failure to do so may incur the penalties established by laws
governing waste disposal. Proper differential collection, and
the subsequent recycling, processing and environmentally
compatible disposal of waste equipment avoids unnecessary
damage to the environment and possible related health risks,
and also promotes recycling of the materials used in the
appliance. For further information on waste collection and
disposal, contact your local waste disposal service, or the place
of purchase
PRODUCT OVERVIEW
IMPORTANT NOTES AND WARNINGS
CONTINUES ...
PRODUCT FEATURES
• The Cobalt Smart-Heat Electric heaters are
designed to provide efficient spot heating for
commercial and residential applications.
• Suitable for indoor and outdoor heating
applications such as restaurants, cafes, bars and
clubs, factories, office spaces, designated smoking
areas, public areas, hotels and more.
• The heaters are available in 2000W, 3000W,
4000W and 6000W models to suit a range of
environments.
• IPX4 water ingress protection rating.
• Soft glow infrared heating element - No harsh
glare.
• Wall and ceiling mounting brackets allowing
adjustable angle of the heating direction.

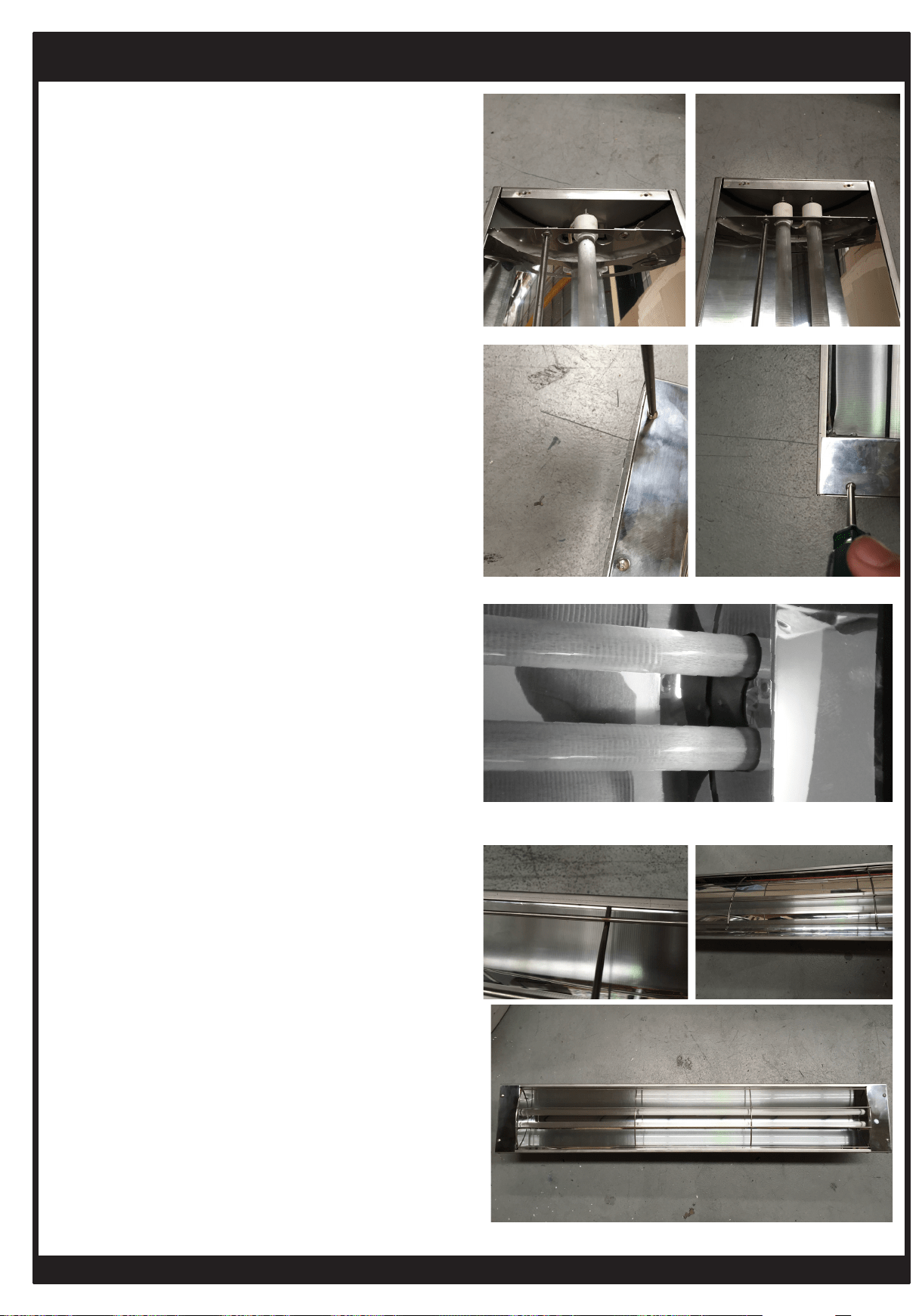

• Tube elements are included with the heater and
easily installed.
• Heater is equipped with spectral reflector for
excellent radiant heat output.
• Patent Pending & Registered Design
Model 2000W 3000W 4000W 6000W
Part no. BH0610001 BH0610002 BH0610003 BH0610004
No. of Elements Single element Single element Double element Double element
Bracket Length 6.5” 6.5” 9.5” 9.5”
Power (Watts) 1.8 - 2.0kW 2.8 - 3.0kW 3.4-3.9kW 5.4-5.9kW
Heating Area* up to 64ft
2
up to 100ft
2
up to 120ft
2
up to 144ft
2
Power connection required (Volts/
Amps)
230-240V - a.c.-
50/60Hz / 8.3A
230-240V -a.c.-
50/60Hz / 12.5A
230-240V -a.c.-
50/60Hz / 16.6A
230-240V -a.c.-
50/60Hz / 25A
Dimension (W”xD”xH”) 44” x 8.5” x 3.5” 56” x 8.5” x 3.5” 44” x 8.5” x 3.5” 56” x 8.5” x 3.5”
Weight (kg) 19.8lbs 22lbs 19.8lbs 22lbs
*Heating areas are based on protected environment with mounting height of 96” (8’). For unprotected and extremely cold and windy environments heating areas can be less.
Please contact Bromic Heating for further advice.
4 5
www.bromicheating.com
www.bromicheating.com
IMPORTANT NOTES AND WARNINGS
WARNING
• Read all instructions before installing or using this heater
• Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock, or injury to persons.
• Improper installation, adjustment, or alteration and failure
to follow the warnings and instructions in this manual could
result in severe personal injury, death or property damage.
• The manufacturer is not responsible for any damage that could
happen from improper use. The manufacturer emphasises that
this appliance should be used in a responsible manner and
that all procedures, warnings, and safety instructions contained
in this booklet be followed strictly.
• This heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may
fall into a bathtub or other water container.
• Do not install the heater directly near a bathtub, shower or
swimming pool. Any switches or controls must not be within
reach of a person in the bathtub, shower or swimming pool.
• This heater is hot when in use. To avoid burns do not let bare
skin touch hot surfaces. Keep combustible materials such as
furniture, pillows, bedding, papers, clothes , etc. and curtains
at least 3’ 3” from the front the front of the heater and keep
them away from the sides and rear.
• Extreme caution is necessary when any heater is used by
or near children or invalids and whenever the heater is left
operating and unattended.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
• Keep packaging materials out of reach of children
• Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns,
clothing ignition, or other serious personal injury
• Children should be carefully supervised when they are in the
area of the heater.
• Do not attempt to alter the unit in any manner.
• Do not paint any surface of the heater.
• Do not touch the heater with wet hands at any time.
• Do not insert or allow foreign objects to enter front cover or
front opening as this may cause an electric shock or fire, or
damage the heater
• Do not touch the heating surface at any time, even when the
heater is turned off and has cooled down.
• Do not use or store flammable materials near this
appliance
• Do not spray aerosols or flammable materials in the vicinity
of this appliance while it is in operation
• Never operate the heater in an explosive environment such as
areas where petrol or other flammable liquids or vapours are
stored.
• Clothing or other flammable materials should not be hung
from the heater or placed on or near the heater.
INSTALLATION
• IMPORTANT - Installation must be carried out by a licensed
and authorised person.
• The installer is to ensure that the requirements of the local
authority, local electrical installation code, municipal building
codes, and any other relevant statutory regulations are carried
out.
• After unpacking, make sure the appliance shows no signs
of visible damage or tampering. If the appliance appears
damaged, contact the place of purchase for assistance.
• Remove transit protection before use.
• This appliance must only be used on a 230-240 Volt AC Single
Phase electricity supply
• This radiant heater is NOT intended to be installed on
recreational vehicles and/or boats.
• Do not run cord under carpeting. Do not cover with throw
rugs, runners or the like arrange cord away from traffic area
and where it will not be tripped over
• A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint or flammable liquids are
used or stored.
• To maintain Ingress Protection Rating (IPX4), only IPX4 rated
conduit fittings should be used for electrical installation.
• Warning –To Reduce the risk of fire with Danger –To Avoid Fire
• This warning tag shall be permanently affixed to the power
supply cord, no more than 6” from the attachment plug and
the permanence of the warning tag shall be determined in
accordance with Test for Permanence of Cord Tag Section:53
• This Installation, Operation and Service manual should not
be removed from the site of installation. Installer should leave
manual with the customer for future reference.
• Any guard or other protective device removed for servicing
(conducted by an authorised person) must be replaced before
operating the heater.
• Heaters are not intended to be installed in wardrobes.
• The appliance must not be located directly below or in front of
a wall electricity socket. This is because the heat radiated from
the appliance may damage the electricity outlet or plug.
• If the appliance has not been used, or will not be used, for a
long period of time, disconnect power supply
• A means for all-pole disconnection of the heater must be
incorporated in the fixed wiring according to the local
electrical codes.
• Do not mount the heater vertically. Install Heater so that
the infrared elements are horizontal. Failure to do this
may cause the heating element within the tube to sag and
cause premature burnout. Installing vertically will void the
manufacturer’s warranty.
CLEARANCE
• Do not place articles on or against this appliance
• A minimum safety distance of 39.4” should always be left in
front of the appliance.
• This unit must be mounted at a minimum of 71” above the
floor.
• Be sure the heater is not facing the ceiling or flammable or
combustible substances/materials.
!
MAINTENANCE/ REPAIR
• Installation and repair must be carried out by a qualified &
licenced service person only. The heater should be inspected
before use and at least annually serviced & inspected by a
qualified & licenced service person.
• Do not perform maintenance until heater has been turned off,
power disconnected, and heater temperature has cooled to
room temperature.
• Check for damage to the appliance regularly. If damage to
the appliance is suspected, discontinue use immediately and
contact the supplier or qualified person to repair.
• If the supply cord is damaged, it must be replaced by an
authorised and licensed person
• At the end of this product’s useful life, it must not be disposed
of as domestic waste, but must be taken to a collection
centre for waste electrical and electronic equipment. It
is the user’s responsibility to dispose of this appliance
through the appropriate channels at the end of its useful life.
Failure to do so may incur the penalties established by laws
governing waste disposal. Proper differential collection, and
the subsequent recycling, processing and environmentally
compatible disposal of waste equipment avoids unnecessary
damage to the environment and possible related health risks,
and also promotes recycling of the materials used in the
appliance. For further information on waste collection and
disposal, contact your local waste disposal service, or the place
of purchase
PRODUCT OVERVIEW
IMPORTANT NOTES AND WARNINGS
CONTINUES ...
PRODUCT FEATURES
• The Cobalt Smart-Heat Electric heaters are
designed to provide efficient spot heating for
commercial and residential applications.
• Suitable for indoor and outdoor heating
applications such as restaurants, cafes, bars and
clubs, factories, office spaces, designated smoking
areas, public areas, hotels and more.
• The heaters are available in 2000W, 3000W,
4000W and 6000W models to suit a range of
environments.
• IPX4 water ingress protection rating.
• Soft glow infrared heating element - No harsh
glare.
• Wall and ceiling mounting brackets allowing
adjustable angle of the heating direction.
• Tube elements are included with the heater and
easily installed.
• Heater is equipped with spectral reflector for
excellent radiant heat output.
• Patent Pending & Registered Design
Model 2000W 3000W 4000W 6000W
Part no. BH0610001 BH0610002 BH0610003 BH0610004
No. of Elements Single element Single element Double element Double element
Bracket Length 6.5” 6.5” 9.5” 9.5”
Power (Watts) 1.8 - 2.0kW 2.8 - 3.0kW 3.4-3.9kW 5.4-5.9kW
Heating Area* up to 64ft
2
up to 100ft
2
up to 120ft
2
up to 144ft
2
Power connection required (Volts/
Amps)
230-240V - a.c.-
50/60Hz / 8.3A
230-240V -a.c.-
50/60Hz / 12.5A
230-240V -a.c.-
50/60Hz / 16.6A
230-240V -a.c.-
50/60Hz / 25A
Dimension (W”xD”xH”) 44” x 8.5” x 3.5” 56” x 8.5” x 3.5” 44” x 8.5” x 3.5” 56” x 8.5” x 3.5”
Weight (kg) 19.8lbs 22lbs 19.8lbs 22lbs
*Heating areas are based on protected environment with mounting height of 96” (8’). For unprotected and extremely cold and windy environments heating areas can be less.
Please contact Bromic Heating for further advice.
6 7
www.bromicheating.com
www.bromicheating.com
HEATER INSTALLATION CONTINUED...
HEATER INSTALLATION
INSTALLATION CLEARANCES
FOR 2000W & 3000W MODELS
2000W & 3000w models must be installed with the minimum installation clearances shown in below diagrams. 2000W &
3000W models are supplied with short mounting brackets to be used for both ceiling & wall mounting.
INSTALLATION CLEARANCES
FOR 4000W & 6000W MODELS
4000W & 6000W models must be installed with the minimum installation clearances shown in below diagrams. 4000W
& 6000W models are supplied with long mounting brackets to be used for both ceiling & wall mounting.
Alternatively, short mounting brackets can be used for wall mounting of the 4000W & 6000W models to position the
heater closer to the wall. Short mounting brackets must be purchased separately.

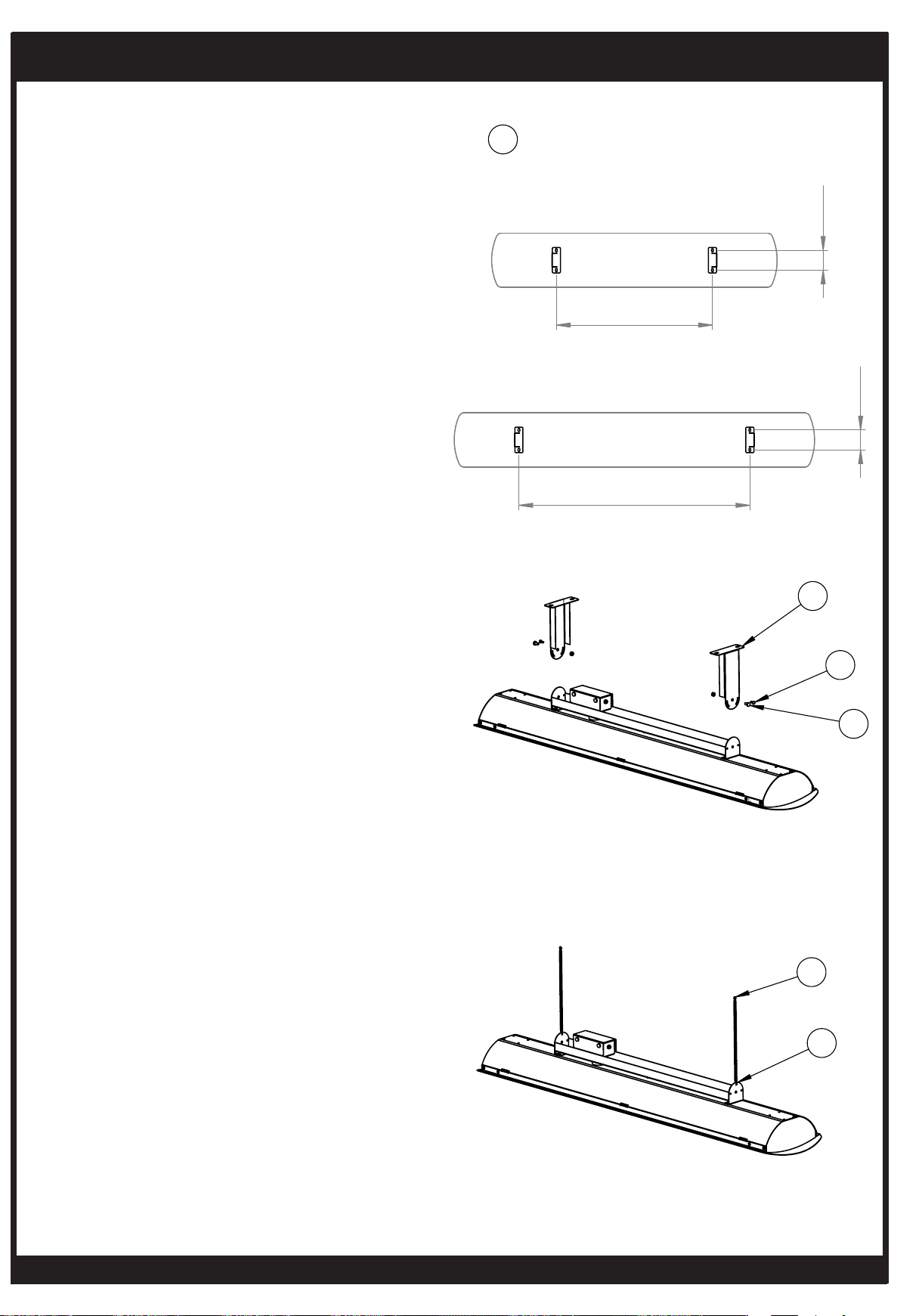

CEILING & WALL MOUNTING
1. Mark mounting hole centres on ceiling or wall.
2. Attach mounting brackets to ceiling or wall using
appropriate fasteners (Not supplied).

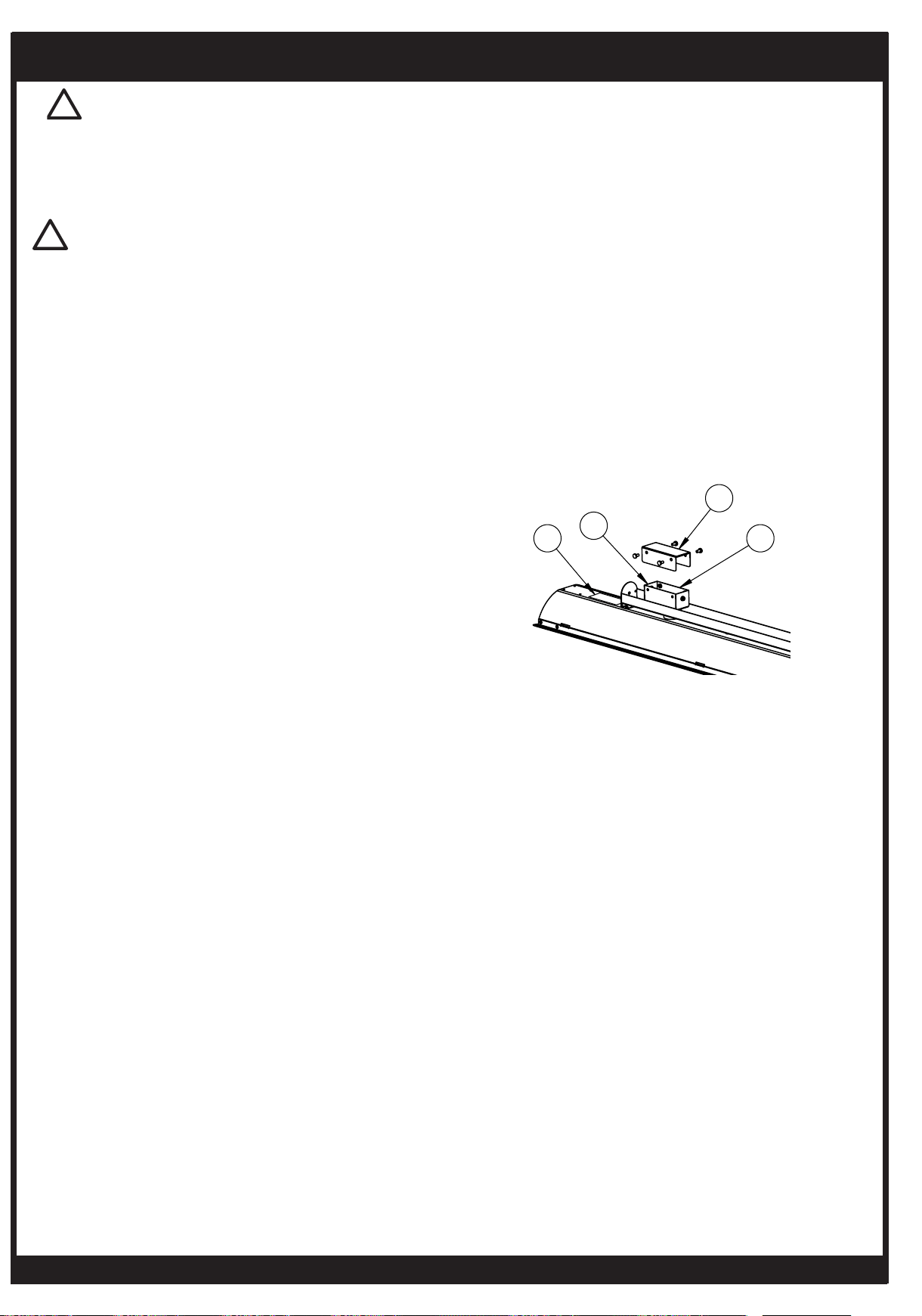

3. Bring heater up to mounting brackets and lock
into position with M5x10 screw & nut.
4. Rotate heater to required angle. Lock into posi-
tion with self tapping screw.
5. Make electrical connection from heater to power
supply.
CHAIN SUSPENSION (SOLD SEPARATELY)
1. Heater must be installed with heater surface 94.5”
above the floor level. If required, cut down length
of chain to ensure correct installation height.
2. Attach chains to heater with “S” hooks. Crimp “S”
hooks closed after assembly.
3. Prepare ceiling structure for heater. Attach chains
to ceiling structure & suspend heater.
4. Make electrical connection from heater to power
supply. If required fix suply power cord to ceiling
chain with cable ties.
WARNING
DO NOT MOUNT THE HEATER VERTICALLY!
Heater MUST be installed so that the tube elements
are horizontal. Failure to do this will cause the heating
element within the tube to sag and cause premature
burnout. Installing vertically will void the manufacturers
warrant
y.
!
!
WARNING
DO NOT MOUNT THE HEATER VERTICALLY!
For outdoor installation heater must be mounted with
face of heater angled down.
For longest product life & to maintain product
appearance mount heater under cover & protect from
rain & weather whenever possible.
24”
3”
35.5”
3”
2
3
4
2
3
CEILING & WALL MOUNTING
(1) Mark mounng hole centres on ceiling or wall.
(2) Aach mounng brackets to ceiling or wall
using appropriate fasteners (Not supplied).
(3) Bring heater up to mounng brackets and lock
into posion with M5x10 screw & nut.
(4) Rotate heater to required angle.
Lock into posion with .
(5) Make electrical connecon from heater to
power supply.
CHAIN SUSPENSION
(1) Heater must be installed with heater surface
2400mm above the floor level. If required, cut
down length of chain to ensure correct
installaon height.
(2) Aach chains to heater with "S" hooks. Crimp
"S" hooks closed aer assembly.
(3) Prepare ceiling structure for heater. Aach
chains to ceiling structure & suspend heater.
(4) Make electrical connecon from heater to
power supply. If required fix suply power cord to
ceiling chain with cable es.
Mounng Hole Centres & Heater Posion
2000W & 4000 Models
1
3000W & 6000 Models
10”
12”
45°
5”
45°
30°
30
°
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
12”
18” 12”
13”
12”
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
10”
12”
45°
5”
45°
30°
30
°
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
12”
18” 12”
13”
12”
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
FOR CANADA (CETL)
APPROVAL DO NOT INSTALL
LESS THAN 96” (8’)
FROM THE FLOOR
FOR CANADA (CETL)
APPROVAL DO NOT INSTALL
LESS THAN 96” (8’)
FROM THE FLOOR
6 7
www.bromicheating.com
www.bromicheating.com
HEATER INSTALLATION CONTINUED...
HEATER INSTALLATION
INSTALLATION CLEARANCES
FOR 2000W & 3000W MODELS
2000W & 3000w models must be installed with the minimum installation clearances shown in below diagrams. 2000W &
3000W models are supplied with short mounting brackets to be used for both ceiling & wall mounting.
INSTALLATION CLEARANCES
FOR 4000W & 6000W MODELS
4000W & 6000W models must be installed with the minimum installation clearances shown in below diagrams. 4000W
& 6000W models are supplied with long mounting brackets to be used for both ceiling & wall mounting.
Alternatively, short mounting brackets can be used for wall mounting of the 4000W & 6000W models to position the
heater closer to the wall. Short mounting brackets must be purchased separately.
CEILING & WALL MOUNTING
1. Mark mounting hole centres on ceiling or wall.
2. Attach mounting brackets to ceiling or wall using
appropriate fasteners (Not supplied).
3. Bring heater up to mounting brackets and lock
into position with M5x10 screw & nut.
4. Rotate heater to required angle. Lock into posi-
tion with self tapping screw.
5. Make electrical connection from heater to power
supply.
CHAIN SUSPENSION (SOLD SEPARATELY)
1. Heater must be installed with heater surface 94.5”
above the floor level. If required, cut down length
of chain to ensure correct installation height.
2. Attach chains to heater with “S” hooks. Crimp “S”
hooks closed after assembly.
3. Prepare ceiling structure for heater. Attach chains
to ceiling structure & suspend heater.
4. Make electrical connection from heater to power
supply. If required fix suply power cord to ceiling
chain with cable ties.
WARNING
DO NOT MOUNT THE HEATER VERTICALLY!
Heater MUST be installed so that the tube elements
are horizontal. Failure to do this will cause the heating
element within the tube to sag and cause premature
burnout. Installing vertically will void the manufacturers
warrant
y.
!
!
WARNING
DO NOT MOUNT THE HEATER VERTICALLY!
For outdoor installation heater must be mounted with
face of heater angled down.
For longest product life & to maintain product
appearance mount heater under cover & protect from
rain & weather whenever possible.
24”
3”
35.5”
3”
2
3
4
2
3
CEILING & WALL MOUNTING
(1) Mark mounng hole centres on ceiling or wall.
(2) Aach mounng brackets to ceiling or wall
using appropriate fasteners (Not supplied).
(3) Bring heater up to mounng brackets and lock
into posion with M5x10 screw & nut.
(4) Rotate heater to required angle.
Lock into posion with .
(5) Make electrical connecon from heater to
power supply.
CHAIN SUSPENSION
(1) Heater must be installed with heater surface
2400mm above the floor level. If required, cut
down length of chain to ensure correct
installaon height.
(2) Aach chains to heater with "S" hooks. Crimp
"S" hooks closed aer assembly.
(3) Prepare ceiling structure for heater. Aach
chains to ceiling structure & suspend heater.
(4) Make electrical connecon from heater to
power supply. If required fix suply power cord to
ceiling chain with cable es.
Mounng Hole Centres & Heater Posion
2000W & 4000 Models
1
3000W & 6000 Models
10”
12”
45°
5”
45°
30°
30
°
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
12”
18” 12”
13”
12”
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
10”
12”
45°
5”
45°
30°
30
°
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
12”
18” 12”
13”
12”
96”(8’)
CEILING MOUNTING MINIMUM
CLEARANCE TO FLOOR
71”(6’)
WALL MOUNTING MINIMUM
CLEARANCE TO FLOOR
FOR CANADA (CETL)
APPROVAL DO NOT INSTALL
LESS THAN 96” (8’)
FROM THE FLOOR
FOR CANADA (CETL)
APPROVAL DO NOT INSTALL
LESS THAN 96” (8’)
FROM THE FLOOR
8 9
www.bromicheating.com
www.bromicheating.com
1.2”
1.2”
22.6”
24.6”
2000W & 4000W Models
Mounting Hole Centres & Heater Position
1
36”
34”
3000W & 6000W Models
2
0.8”
0.4”
0.25”
Suspension Tube
Mounting Hole
3
4
6
7
5
8
9
1. Mark mounting hole centres on ceiling.
Attach mounting brackets to ceiling using
appropriate fasteners (Not supplied).
2. Heater must be installed with heater surface at least
2400mm above the floor level.
Supplied suspension tubes position heater surface
1000mm below the ceiling surface.
If required, cut down length of suspension tubes to
ensure correct installation height.
Minimum distance from front surface of heater to
ceiling surface must be 250mm for 2000W & 3000W
models & 330mm for 4000W & 6000W models.
3. If suspension tubes are cut down, drill new mounting
holes in each tube.
4. Make electrical connection in junction box as per
electrical installation instructions in this manual.
5. Feed power cord through suspension tube.
6. Assemble suspension tubes to rear bracket with M5
screw, spring washer and nut.
7. Rotate heater to required angle. 15° or 30° in either
direction. Lock into position with self tapping screw.
8. Raise heater assembly into position.
Attach suspension tubes to ceiling brackets with
M5x35mm screws, spring washers & nuts.
9. Make electrical connection from suspension tube
power cord to power from ceiling as per
electrical installation instructions in this manual.
TUBE SUSPENSION (SOLD SEPARATELY)
TUBE SUSPENSION (SOLD SEPARATELY)
1. Mark mounting hole centres on ceiling. Attach
mounting brackets to ceiling using appropriate
fasteners (Not supplied).
2. Heater must be installed with heater surface at least
7’10” above the floor level. Supplied suspension
tubes position heater surface 39.4” below the
ceiling surface. If required, cut down length of
suspension tubes to ensure correct installation
height. Minimum distance from front surface of
heater to ceiling surface must be 9.8” for 2000W &
3000W models & 13” for 4000W & 6000W models.
3. If suspension tubes are cut down, drill new
mounting holes in each tube.
4. Make electrical connection in junction box as per
electrical installation instructions in this manual.
5. Feed power cord through suspension tube.
6. Assemble suspension tubes to rear bracket with
M5 screw, spring washer and nut.
7. Rotate heater to required angle. 15° or 30° in either
direction. Lock into position with self tapping
screw.
8. Raise heater assembly into position. Attach
suspension tubes to ceiling brackets with
M5x35mm screws, spring washers & nuts.
9. Make electrical connection from suspension tube
power cord to power from ceiling as per electrical
installation instructions in this manual.
HEATER INSTALLATION CONTINUED... HEATER INSTALLATION CONTINUED...
CEILING RECESS KIT
(SOLD SEPARATELY)
1. Prepare ceiling cut out & ceiling box. Minimum
ceiling box dimensions must be as shown in table.
Heater must be installed with heater surface at least
94.4” above the floor level.
2. From below, bring ceiling frame up and into ceiling
cut out.
3. Fasten ceiling frame to ceiling box through
mountingholes with fasteners (not supplied).
4. Prepare heater for installation. Attach mounting
brackets to both ends of heater with supplied fasteners.
19.7”
14.5”
A
2 LAYERS OF 16MM FIREPROOF
INSULATION MUST BE INSTALLED ON ALL
SURFACES OF CEILING BOX
MODEL
DIMENSION "A"
2000W & 4000W
3’ 10”
3000W & 6000W
4’ 8”
8 9
www.bromicheating.com
www.bromicheating.com
1.2”
1.2”
22.6”
24.6”
2000W & 4000W Models
Mounting Hole Centres & Heater Position
1
36”
34”
3000W & 6000W Models
2
0.8”
0.4”
0.25”
Suspension Tube
Mounting Hole
3
4
6
7
5
8
9
1. Mark mounting hole centres on ceiling.
Attach mounting brackets to ceiling using
appropriate fasteners (Not supplied).
2. Heater must be installed with heater surface at least
2400mm above the floor level.
Supplied suspension tubes position heater surface
1000mm below the ceiling surface.
If required, cut down length of suspension tubes to
ensure correct installation height.
Minimum distance from front surface of heater to
ceiling surface must be 250mm for 2000W & 3000W
models & 330mm for 4000W & 6000W models.
3. If suspension tubes are cut down, drill new mounting
holes in each tube.
4. Make electrical connection in junction box as per
electrical installation instructions in this manual.
5. Feed power cord through suspension tube.
6. Assemble suspension tubes to rear bracket with M5
screw, spring washer and nut.
7. Rotate heater to required angle. 15° or 30° in either
direction. Lock into position with self tapping screw.
8. Raise heater assembly into position.
Attach suspension tubes to ceiling brackets with
M5x35mm screws, spring washers & nuts.
9. Make electrical connection from suspension tube
power cord to power from ceiling as per
electrical installation instructions in this manual.
TUBE SUSPENSION (SOLD SEPARATELY)
TUBE SUSPENSION (SOLD SEPARATELY)
1. Mark mounting hole centres on ceiling. Attach
mounting brackets to ceiling using appropriate
fasteners (Not supplied).
2. Heater must be installed with heater surface at least
7’10” above the floor level. Supplied suspension
tubes position heater surface 39.4” below the
ceiling surface. If required, cut down length of
suspension tubes to ensure correct installation
height. Minimum distance from front surface of
heater to ceiling surface must be 9.8” for 2000W &
3000W models & 13” for 4000W & 6000W models.
3. If suspension tubes are cut down, drill new
mounting holes in each tube.
4. Make electrical connection in junction box as per
electrical installation instructions in this manual.
5. Feed power cord through suspension tube.
6. Assemble suspension tubes to rear bracket with
M5 screw, spring washer and nut.
7. Rotate heater to required angle. 15° or 30° in either
direction. Lock into position with self tapping
screw.
8. Raise heater assembly into position. Attach
suspension tubes to ceiling brackets with
M5x35mm screws, spring washers & nuts.
9. Make electrical connection from suspension tube
power cord to power from ceiling as per electrical
installation instructions in this manual.
HEATER INSTALLATION CONTINUED... HEATER INSTALLATION CONTINUED...
CEILING RECESS KIT
(SOLD SEPARATELY)
1. Prepare ceiling cut out & ceiling box. Minimum
ceiling box dimensions must be as shown in table.
Heater must be installed with heater surface at least
94.4” above the floor level.
2. From below, bring ceiling frame up and into ceiling
cut out.
3. Fasten ceiling frame to ceiling box through
mountingholes with fasteners (not supplied).
4. Prepare heater for installation. Attach mounting
brackets to both ends of heater with supplied fasteners.
19.7”
14.5”
A
2 LAYERS OF 16MM FIREPROOF
INSULATION MUST BE INSTALLED ON ALL
SURFACES OF CEILING BOX
MODEL
DIMENSION "A"
2000W & 4000W
3’ 10”
3000W & 6000W
4’ 8”
10 11
www.bromicheating.com
www.bromicheating.com
ELEMENT INSTALLATION
!
WARNING
This Heater MUST be permanently Installed and hard
wired by an authorised/licenced person. Do Not
perform maintenance, or carry out installation or
assembly procedure while electrical power is switched
on.
2000W & 3000W Models 4000W & 6000W Models
2000W & 3000W Models 4000W & 6000W Models
1. Remove the wire cover by pulling it out from under the
edge of the heater and in between the reflector.
2. Check that ring terminals are crimped securely to
cables. 2000W & 3000W models have one cable
at each end for assembly of one element. 4000W
& 6000W models have two cables at each end for
assembly of two elements. The first element must
be connected to the cables marked L1 & N1. The
second element must be connected to the cables
marked L2 & N2.
3. Fasten elements to cables. Remove outer nut & lock
washer from the threaded stud on the element.
Assemble ring terminal to the threaded stud &
secure with outer nut and lock washer. Use one
spanner to hold the inner nut on the element, while
fastening the outer nut with a second spanner.
Repeat for other end of element.
4. Put elements in the support bracket. For 2000W &
3000W models put element in the centre position.
For 4000W & 6000W models put elements in the
outside positions.
HEATER INSTALLATION CONTINUED...
5. Assemble supplied terminal blocks, wire, conduit &
junction box cover. The Ceiling Recess Kit is supplied
with 5 wires & 2 terminal blocks. Not all parts are
required for all installations. See wiring diagrams
for installation options. For double element heater
models the elements can be wired to be turned on
independently or together.
6. Raise one side of heater up into the ceiling box & then
raise whole heater into cavity.
7. Rotate the heater into horizontal position in the ceiling
box & then lower down onto the ceiling frame.
8. Ensure all four side mounting brackets are hooked
over the ceiling frame & centre the heater inside the
frame.
9. Make electrical connection from heater to power
supply as per electrical installation instructions in this
manual.
10. Connection to be made outside the ceiling box on the
side or top of the ceiling box.
10 11
www.bromicheating.com
www.bromicheating.com
ELEMENT INSTALLATION
!
WARNING
This Heater MUST be permanently Installed and hard
wired by an authorised/licenced person. Do Not
perform maintenance, or carry out installation or
assembly procedure while electrical power is switched
on.
2000W & 3000W Models 4000W & 6000W Models
2000W & 3000W Models 4000W & 6000W Models
1. Remove the wire cover by pulling it out from under the
edge of the heater and in between the reflector.
2. Check that ring terminals are crimped securely to
cables. 2000W & 3000W models have one cable
at each end for assembly of one element. 4000W
& 6000W models have two cables at each end for
assembly of two elements. The first element must
be connected to the cables marked L1 & N1. The
second element must be connected to the cables
marked L2 & N2.
3. Fasten elements to cables. Remove outer nut & lock
washer from the threaded stud on the element.
Assemble ring terminal to the threaded stud &
secure with outer nut and lock washer. Use one
spanner to hold the inner nut on the element, while
fastening the outer nut with a second spanner.
Repeat for other end of element.
4. Put elements in the support bracket. For 2000W &
3000W models put element in the centre position.
For 4000W & 6000W models put elements in the
outside positions.
HEATER INSTALLATION CONTINUED...
5. Assemble supplied terminal blocks, wire, conduit &
junction box cover. The Ceiling Recess Kit is supplied
with 5 wires & 2 terminal blocks. Not all parts are
required for all installations. See wiring diagrams
for installation options. For double element heater
models the elements can be wired to be turned on
independently or together.
6. Raise one side of heater up into the ceiling box & then
raise whole heater into cavity.
7. Rotate the heater into horizontal position in the ceiling
box & then lower down onto the ceiling frame.
8. Ensure all four side mounting brackets are hooked
over the ceiling frame & centre the heater inside the
frame.
9. Make electrical connection from heater to power
supply as per electrical installation instructions in this
manual.
10. Connection to be made outside the ceiling box on the
side or top of the ceiling box.
12 13
www.bromicheating.com
www.bromicheating.com
ELEMENT INSTALLATION CONTINUED...
5. Close element lock bracket & fasten with screw.
Repeat for other end of heater.
6. Assemble end caps at both ends of the heater with
2 screws. For 4000W & 6000W models ensure that
the middle tab of the end caps are slotted behind
the element support bracket.
7. Attach the wire cover by pushing one side of it in
between the reflector and under the edge of the
heater. Perform the same process on the other
edge of the heater
2000W & 3000W Models 4000W & 6000W Models
!
WARNING
This Heater MUST be permanently Installed and hard
wired by an authorised/licenced person. Do Not
perform maintenance, or carry out installation or
assembly procedure while electrical power is switched
on.
1. Check product label for correct voltage and wattage
- Make sure power source conforms to the heaters
requirements.
2. Junction box has a Ø0.86” hole to suit M20 or PG13.5
cord grip. Install cord grip with minimum rating of IPX4
to maintain the IPX4 rating of the heater. Cord grip
must have minimum temperature rating of 220°F.
3. Use appropriate power supply cables for the heaters’
voltage and wattage with minimum temperature rating
of 220°F. The fixed wiring must be positioned away
from & protected from the enclosure of the heater.
4. Make electrical connections in accordance with local
electrical code regulations. For outdoor installation all
connections must be made in accordance with local
electrical code regulations for outdoor wiring. Only use
wiring components approved for outdoor use with min-
WARNING
ELECTRICAL SHOCK HAZARD! Serious injury or death
may occur. Disconnect from electrical supply before
installing or servicing this heater. Read and follow
installation clearance requirements outlined in this
manual. The Appliance MUST be connected to a properly
grounded electrical source.
!
ELECTRICAL INSTALLATION
imum IPX4 rating. For 2000W & 3000W models the junc-
tion box has one loop of cable. Cut the loop and use the
two ends for the active and neutral connections for the
element. For 4000W & 6000W models the junction box
has two loops of cable. Cut the cable loop marked black
and use the two ends for the active & neutral connections
for the first element. Cut the unmarked cable loop and
use the two ends for the active & neutral connections for
the second element. Earth ground wire screw is located in
the end of junction box.
5. After installation, the distance between live parts and
earth (or earthed metal) should not be less than 0.09”. The
distance between live and neutral terminal should not be
less than 0.07”.
6. Assemble the junction box cover & gasket. Ensure that
the junction box cover gasket (supplied with unit) is
installed to maintain the IPX4 water ingress protection
rating of the heater. Failure to install correctly will void the
manufacturer’s warranty
ELECTRICAL INSTALLATION
6
1
2
4
12 13
www.bromicheating.com
www.bromicheating.com
ELEMENT INSTALLATION CONTINUED...
5. Close element lock bracket & fasten with screw.
Repeat for other end of heater.
6. Assemble end caps at both ends of the heater with
2 screws. For 4000W & 6000W models ensure that
the middle tab of the end caps are slotted behind
the element support bracket.
7. Attach the wire cover by pushing one side of it in
between the reflector and under the edge of the
heater. Perform the same process on the other
edge of the heater
2000W & 3000W Models 4000W & 6000W Models
!
WARNING
This Heater MUST be permanently Installed and hard
wired by an authorised/licenced person. Do Not
perform maintenance, or carry out installation or
assembly procedure while electrical power is switched
on.
1. Check product label for correct voltage and wattage
- Make sure power source conforms to the heaters
requirements.
2. Junction box has a Ø0.86” hole to suit M20 or PG13.5
cord grip. Install cord grip with minimum rating of IPX4
to maintain the IPX4 rating of the heater. Cord grip
must have minimum temperature rating of 220°F.
3. Use appropriate power supply cables for the heaters’
voltage and wattage with minimum temperature rating
of 220°F. The fixed wiring must be positioned away
from & protected from the enclosure of the heater.
4. Make electrical connections in accordance with local
electrical code regulations. For outdoor installation all
connections must be made in accordance with local
electrical code regulations for outdoor wiring. Only use
wiring components approved for outdoor use with min-
WARNING
ELECTRICAL SHOCK HAZARD! Serious injury or death
may occur. Disconnect from electrical supply before
installing or servicing this heater. Read and follow
installation clearance requirements outlined in this
manual. The Appliance MUST be connected to a properly
grounded electrical source.
!
ELECTRICAL INSTALLATION
imum IPX4 rating. For 2000W & 3000W models the junc-
tion box has one loop of cable. Cut the loop and use the
two ends for the active and neutral connections for the
element. For 4000W & 6000W models the junction box
has two loops of cable. Cut the cable loop marked black
and use the two ends for the active & neutral connections
for the first element. Cut the unmarked cable loop and
use the two ends for the active & neutral connections for
the second element. Earth ground wire screw is located in
the end of junction box.
5. After installation, the distance between live parts and
earth (or earthed metal) should not be less than 0.09”. The
distance between live and neutral terminal should not be
less than 0.07”.
6. Assemble the junction box cover & gasket. Ensure that
the junction box cover gasket (supplied with unit) is
installed to maintain the IPX4 water ingress protection
rating of the heater. Failure to install correctly will void the
manufacturer’s warranty
ELECTRICAL INSTALLATION
6
1
2
4
14 15
www.bromicheating.com
www.bromicheating.com
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
EARTH
WIRE
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
EARTH
WIRE
Heater Element 2
WIRING DIAGRAM
COBALT SMART-HEAT ELECTRIC
OPTIONAL INSTALLATION
4000W & 6000W MODELS
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
AC
240 V AC
SINGLE PHASE
EARTH
WIRE
Heater Element 2
WIRING DIAGRAM
COBALT SMART-HEAT ELECTRIC
STANDARD INSTALLATION
4000W & 6000W MODELS
WIRING DIAGRAM
COBALT SMART-HEAT ELECTRIC
STANDARD INSTALLATION
2000W & 3000W MODELS
www.bromicheating.com
ELECTRIC AL INSTALLATION CONTINUED...
For longest product life & to maintain product appearance
mount heater under cover & protect from rain & weather
whenever possible.
The exterior housing of the heater should be cleaned
regularly with a soft damp cloth. For locations near the
coast, salt in the air can cause rusting of metal. Additional
cleaning of the heater with a soft damp cloth fortnightly will
increase the life of the products appearance.
Ensure that there is no excessive build-up of dirt/dust on
the reflectors or elements as this can cause overheating
and premature element failure. To clean the reflectors and
elements, ensure heater is off and has been off for at least 2
hours after operation, and wipe off any dirt/dust with a soft
& dry cloth.
MAINTENANCE
SERVICING
TUBE ELEMENT REPLACEMENT
WARNING
ELECTRICAL SHOCK HAZARD!
Serious injury or death may occur.
Disconnect from electrical supply before servicing this
heater.
!
!
WARNING
Servicing and maintenance MUST be carried out by an
authorised and licensed person only
1. Remove the wire cover by pulling it out from under the
edge of the heater and in between reflector.
2. Remove first Element End Cover by unscrewing the 2
screws holding it in place.
3. Remove Outer Hex Nut, Lock Washer and Lead Wire
Ring Terminal from the threaded stud.
4. Remove second Element End Cover by unscrewing the
2 screws holding it in place.
5. Remove Outer Hex Nut, Lock Washer and Lead Wire
Ring Terminal from the threaded stud.
6. Remove old Tube Element.
7. Install new Tube Element by following element installa-
tion instructions on page 11 of this manual.
14 15
www.bromicheating.com
www.bromicheating.com
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
EARTH
WIRE
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
WARNING
240 V AC Single Phase
Heater must be permanently
installed and hard wired by an
authorised/licenced person.
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
EARTH
WIRE
Heater Element 2
WIRING DIAGRAM
COBALT SMART-HEAT ELECTRIC
OPTIONAL INSTALLATION
4000W & 6000W MODELS
Junction Box
AC
Heater Element 1
240 V AC
SINGLE PHASE
AC
240 V AC
SINGLE PHASE
EARTH
WIRE
Heater Element 2
WIRING DIAGRAM
COBALT SMART-HEAT ELECTRIC
STANDARD INSTALLATION
4000W & 6000W MODELS
WIRING DIAGRAM
COBALT SMART-HEAT ELECTRIC
STANDARD INSTALLATION
2000W & 3000W MODELS
www.bromicheating.com
ELECTRIC AL INSTALLATION CONTINUED...
For longest product life & to maintain product appearance
mount heater under cover & protect from rain & weather
whenever possible.
The exterior housing of the heater should be cleaned
regularly with a soft damp cloth. For locations near the
coast, salt in the air can cause rusting of metal. Additional
cleaning of the heater with a soft damp cloth fortnightly will
increase the life of the products appearance.
Ensure that there is no excessive build-up of dirt/dust on
the reflectors or elements as this can cause overheating
and premature element failure. To clean the reflectors and
elements, ensure heater is off and has been off for at least 2
hours after operation, and wipe off any dirt/dust with a soft
& dry cloth.
MAINTENANCE
SERVICING
TUBE ELEMENT REPLACEMENT
WARNING
ELECTRICAL SHOCK HAZARD!
Serious injury or death may occur.
Disconnect from electrical supply before servicing this
heater.
!
!
WARNING
Servicing and maintenance MUST be carried out by an
authorised and licensed person only
1. Remove the wire cover by pulling it out from under the
edge of the heater and in between reflector.
2. Remove first Element End Cover by unscrewing the 2
screws holding it in place.
3. Remove Outer Hex Nut, Lock Washer and Lead Wire
Ring Terminal from the threaded stud.
4. Remove second Element End Cover by unscrewing the
2 screws holding it in place.
5. Remove Outer Hex Nut, Lock Washer and Lead Wire
Ring Terminal from the threaded stud.
6. Remove old Tube Element.
7. Install new Tube Element by following element installa-
tion instructions on page 11 of this manual.
16
www.bromicheating.com
REPLACEMENT PART LIST
No. Description PART NUMBER
1 Heater - Cobalt electric 2000W 240V BH0610001
2 Heater - Cobalt electric 3000W 240V BH0610002
3 Heater - Cobalt electric 4000W 240V BH0610003
4 Heater - Cobalt electric 6000W 240V BH0610004
5 Front cover - Cobalt electric 2000W & 4000W BH8180030
6 Front cover - Cobalt electric 3000W & 6000W BH8180031
7 Element end cover set - Cobalt electric 2000W & 3000W BH8180032
8 Element end cover set - Cobalt electric 4000W & 6000W BH8180033
9 Junction box cover & seal set - Cobalt electric BH8180034
10 Mounting Bracket set (short) - Cobalt electric BH8180035
11 Mounting Bracket set (Long) - Cobalt electric BH8180036
12 Ceiling recess kit - Cobalt electric 2000W & 4000W BH3130014
13 Ceiling recess kit - Cobalt electric 3000W & 6000W BH3130015
14 Tube suspension kit - Cobalt electric BH3130016
SYMPTOM POSSIBLE CAUSE (S) CORRECTIVE ACTION
Element does not energize 1. Defective element
2. Improper connection
1. Replace element
2. Check connection to power
outlet
Not enough heat 1. Heater too small for application
2. Heater mounted too high or too
far
1. Add additional heater(s)
2. Decrease mounting height or
distance
Too much heat 1. Heater too large for application
2. Heater mount too low or too close
1. Replace with smaller heater
2. Increase mounting height or
distance
Hot spot in Tube 1. Heater is not level
2. Grease or moisture on tube
1. Adjust to level mount
2. Clear tube-replace if problem
persists
TROUBLESHOOTING
