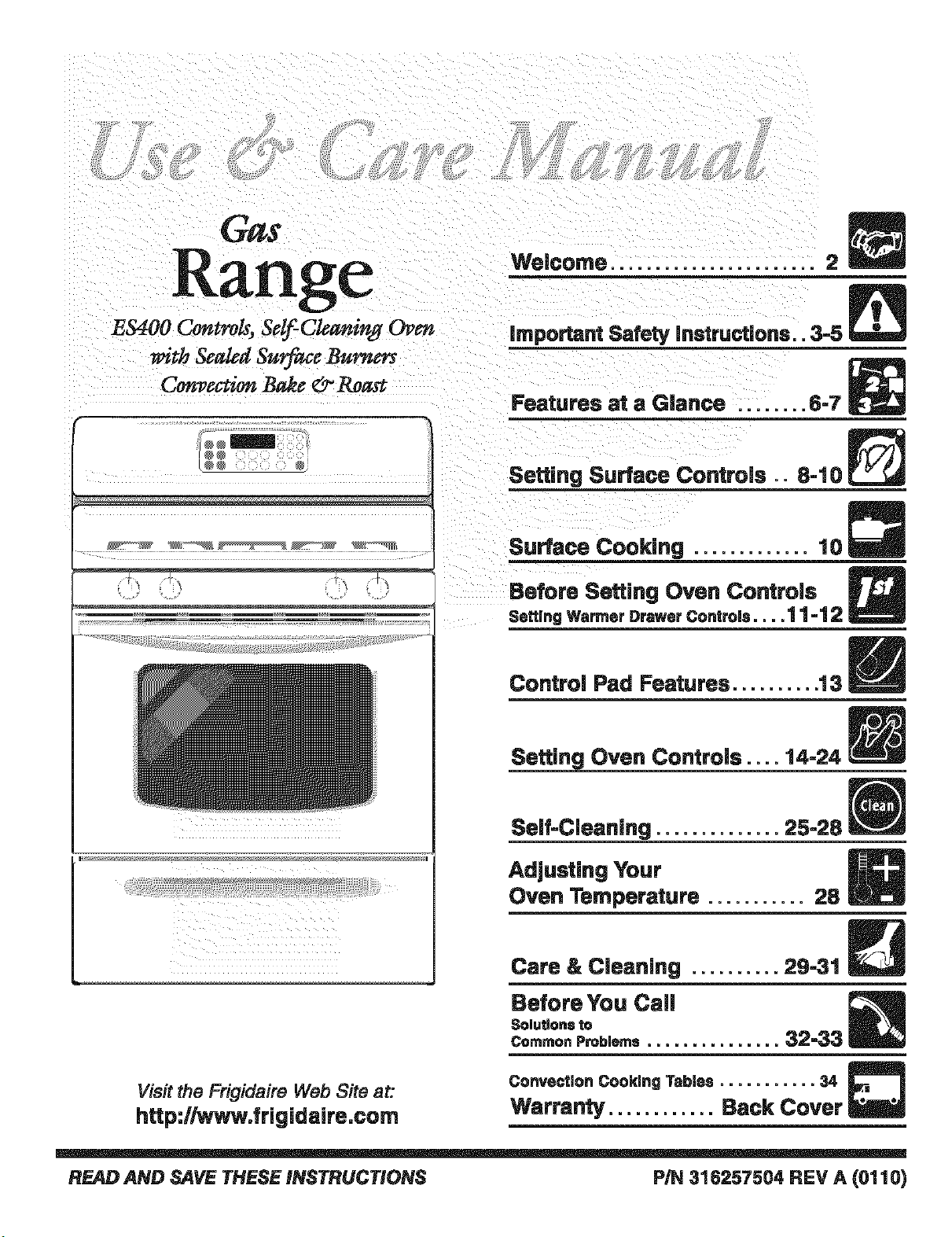

Gas
Range
ES400 Controls, Self-Cleaning Oven
with Sealed Surface Burners
Convection Bake &Roast
Welcome ....................... 2
important SafetyInstru_[ons.. 3-5

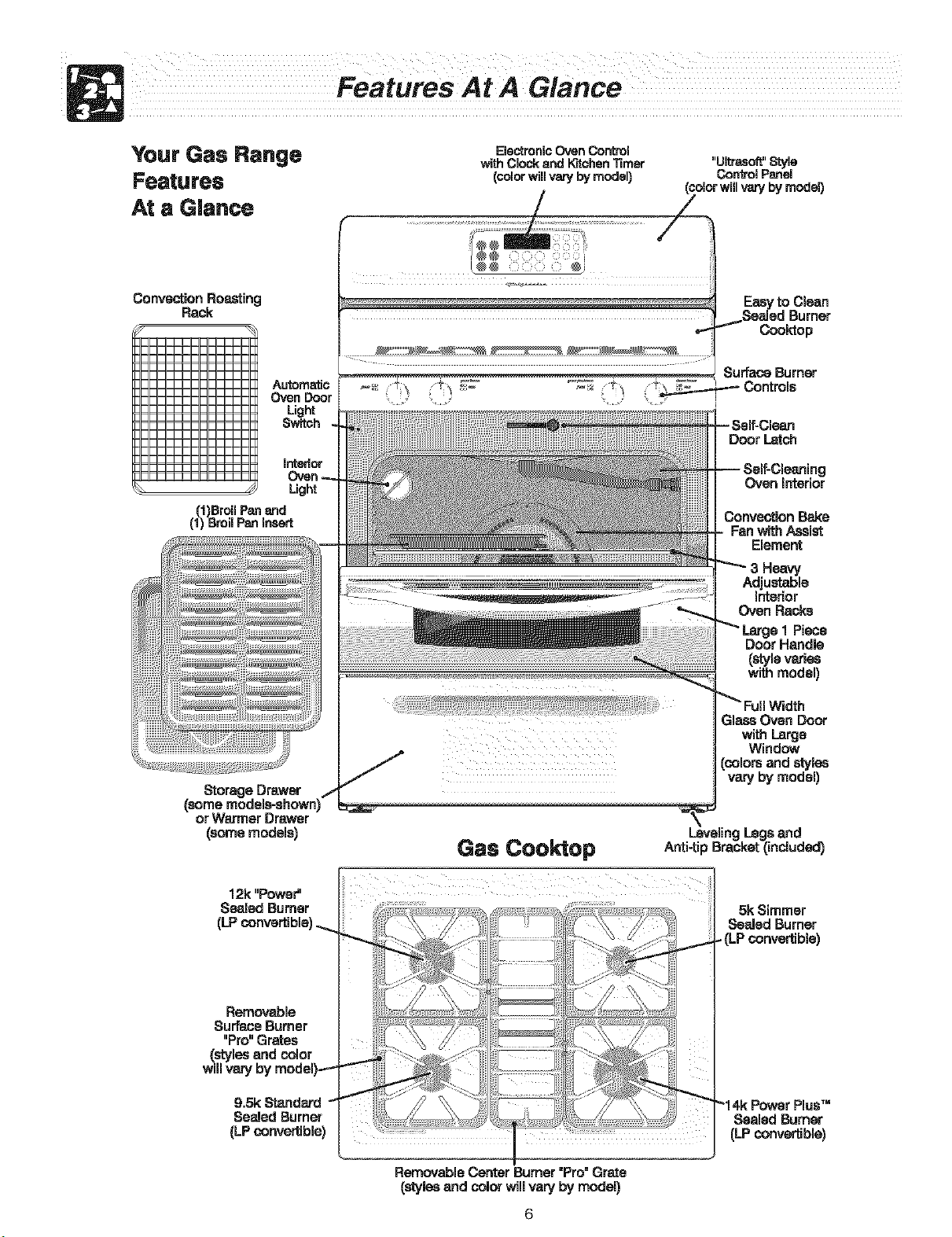

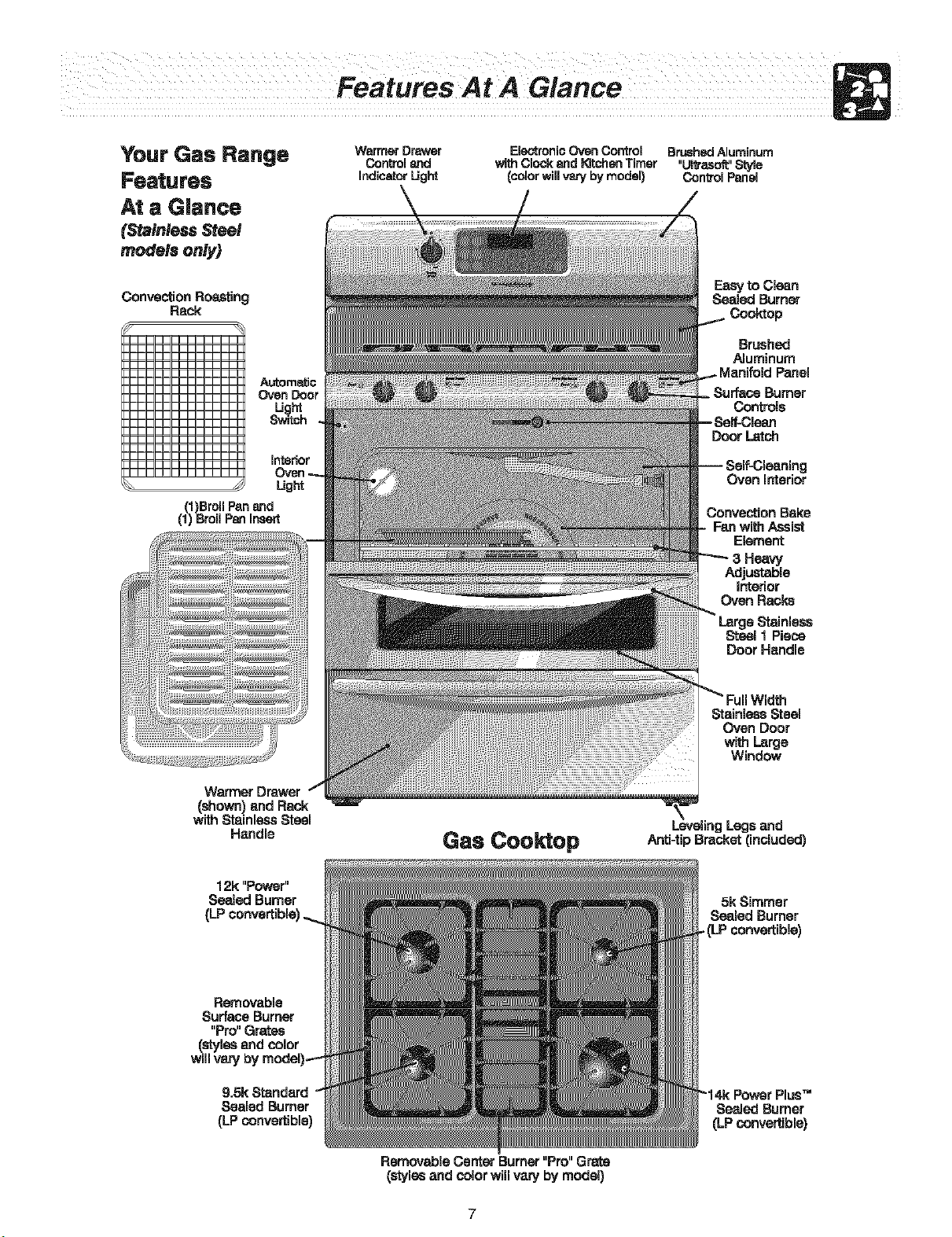

Features at a Glance ........ 6-7

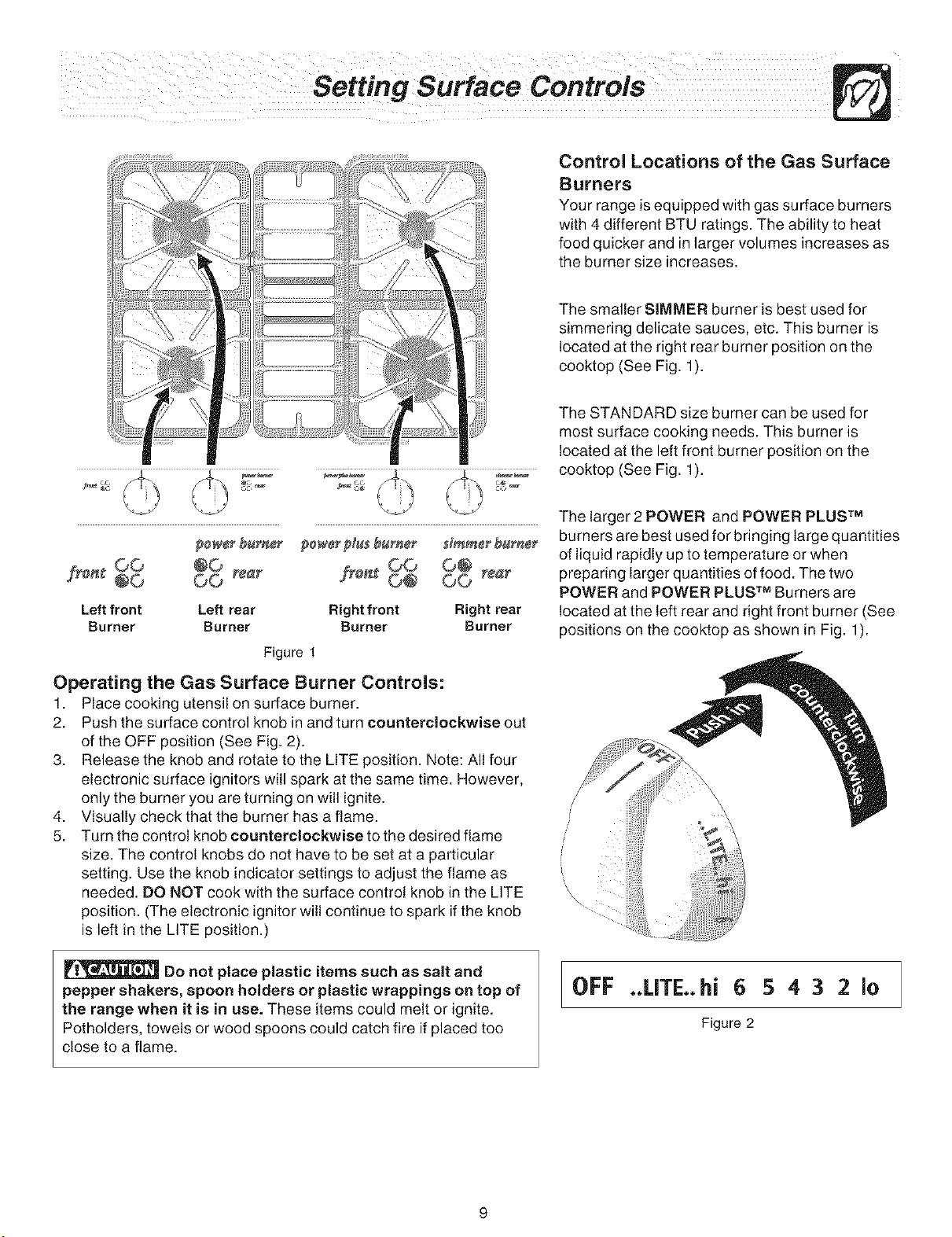

SettingS_rface Controls .. 8-10

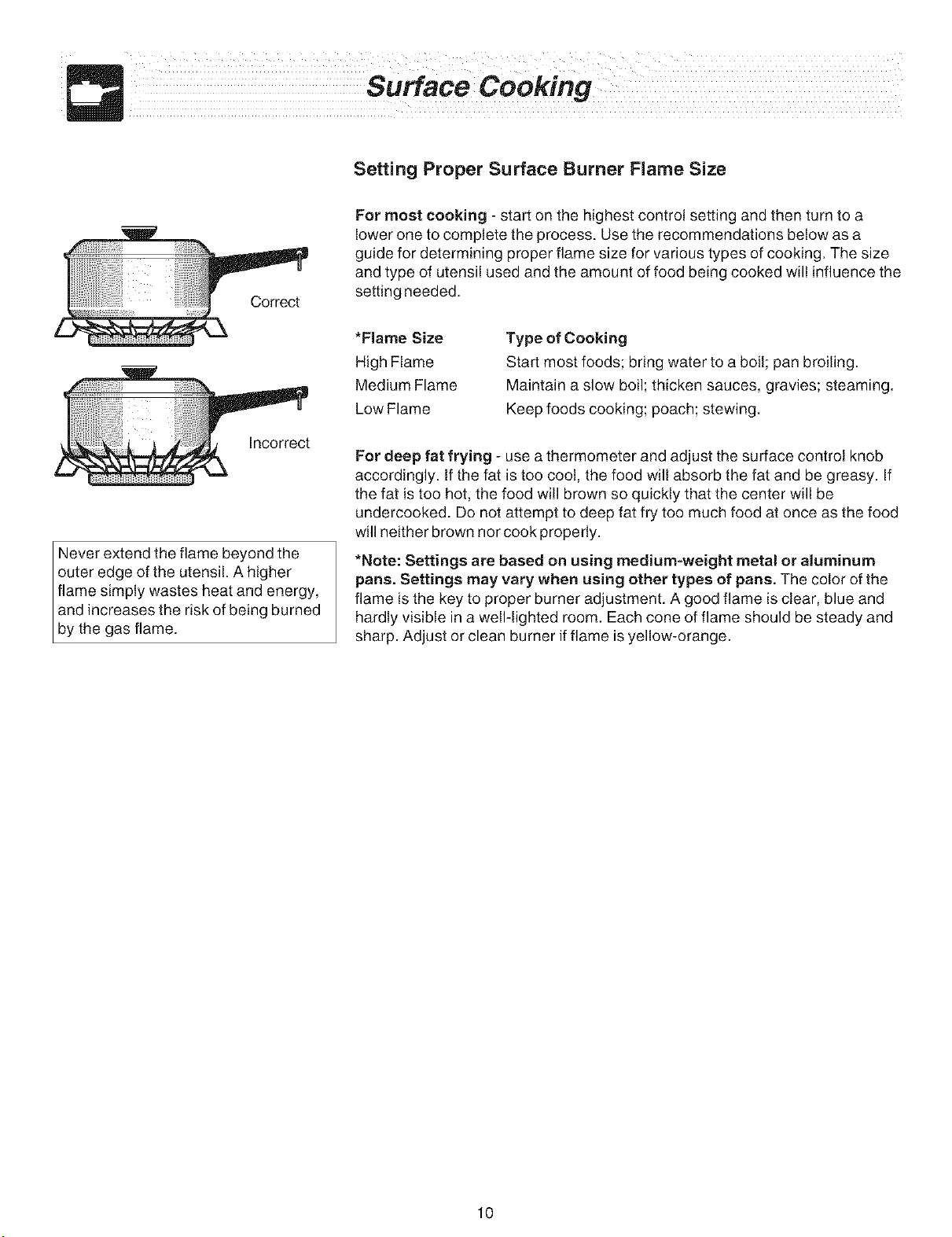

Surface Cooking ............. 10

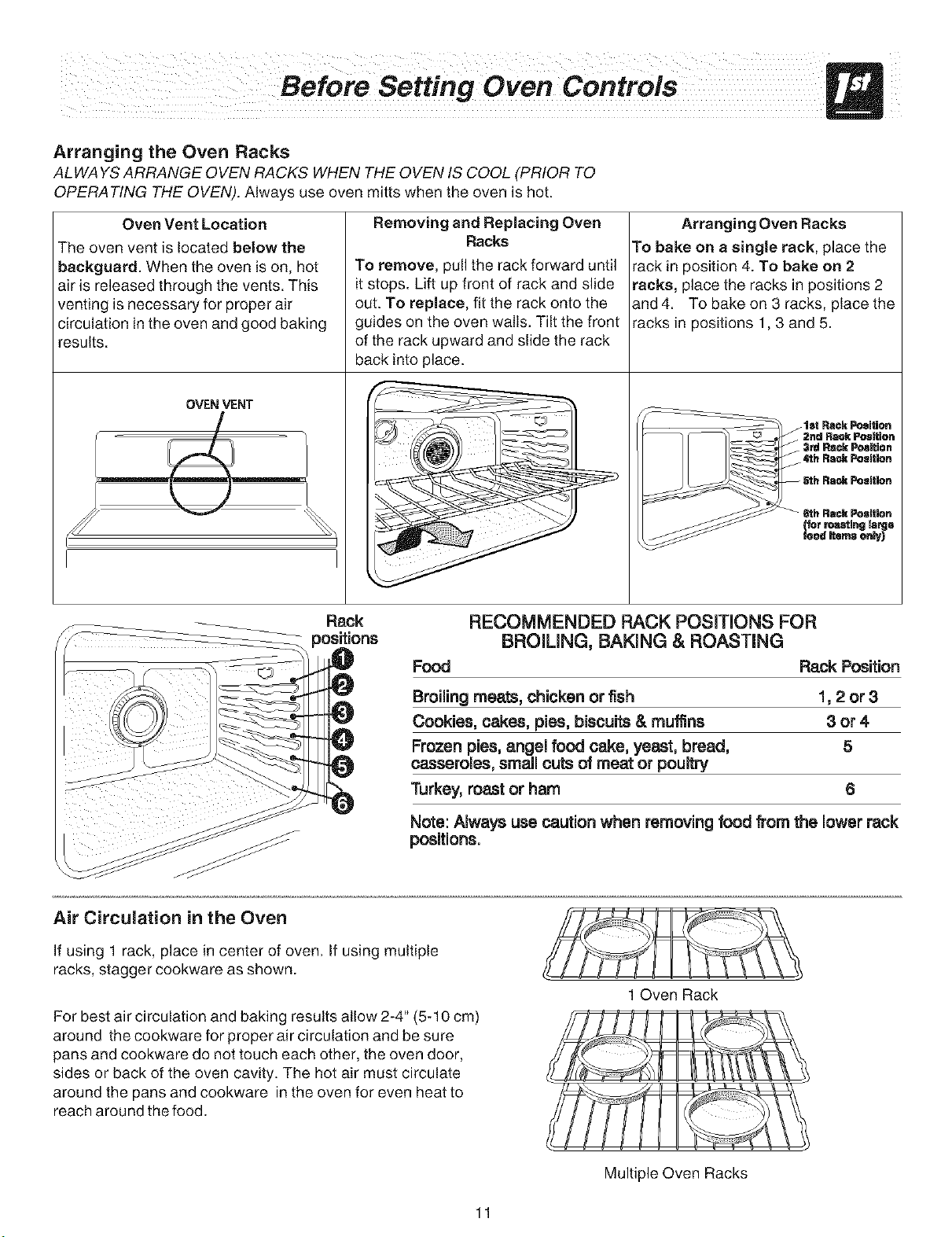

Before SeUing Oven Controls

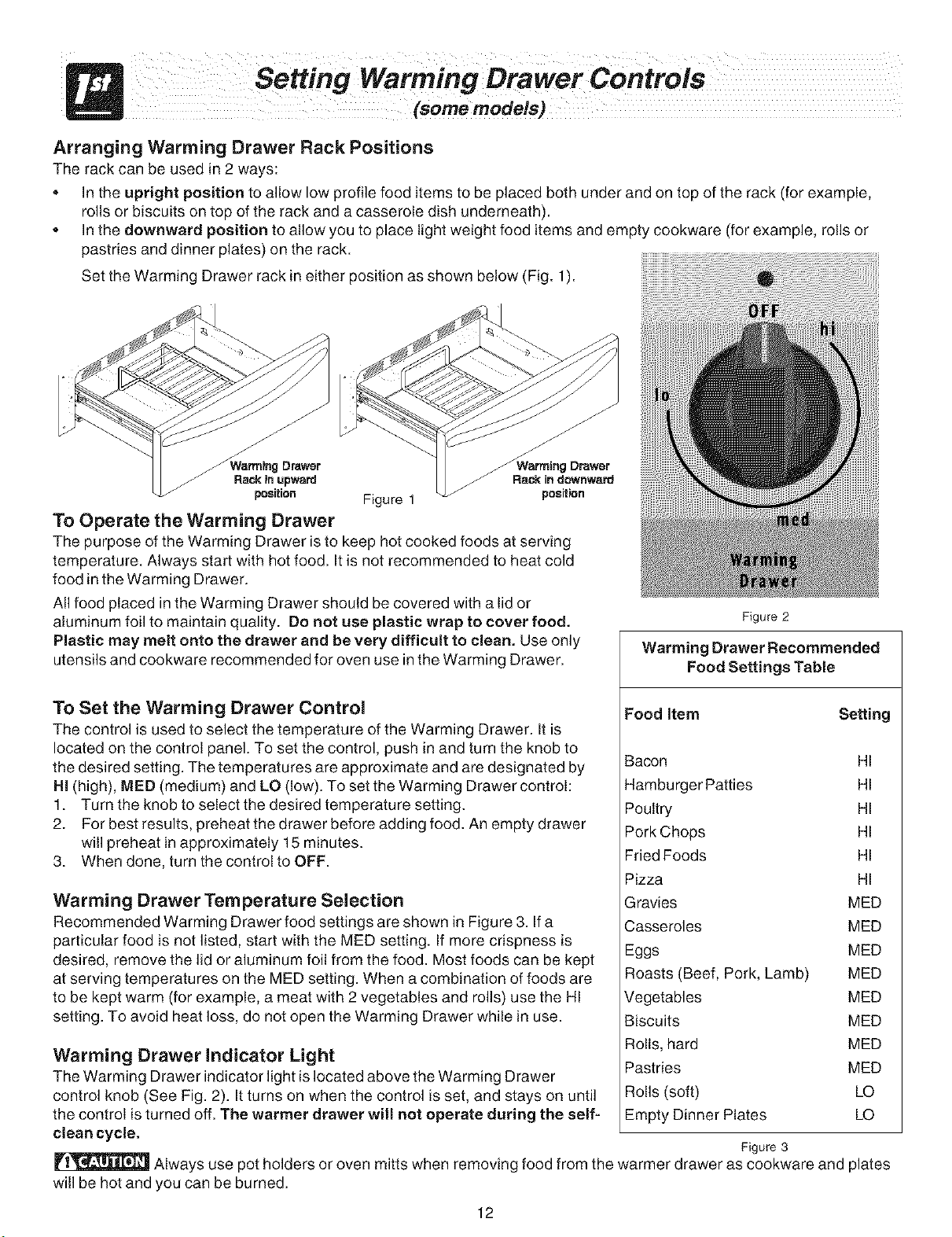

Setting Warmer Drawer Controls .... 1 1 =12

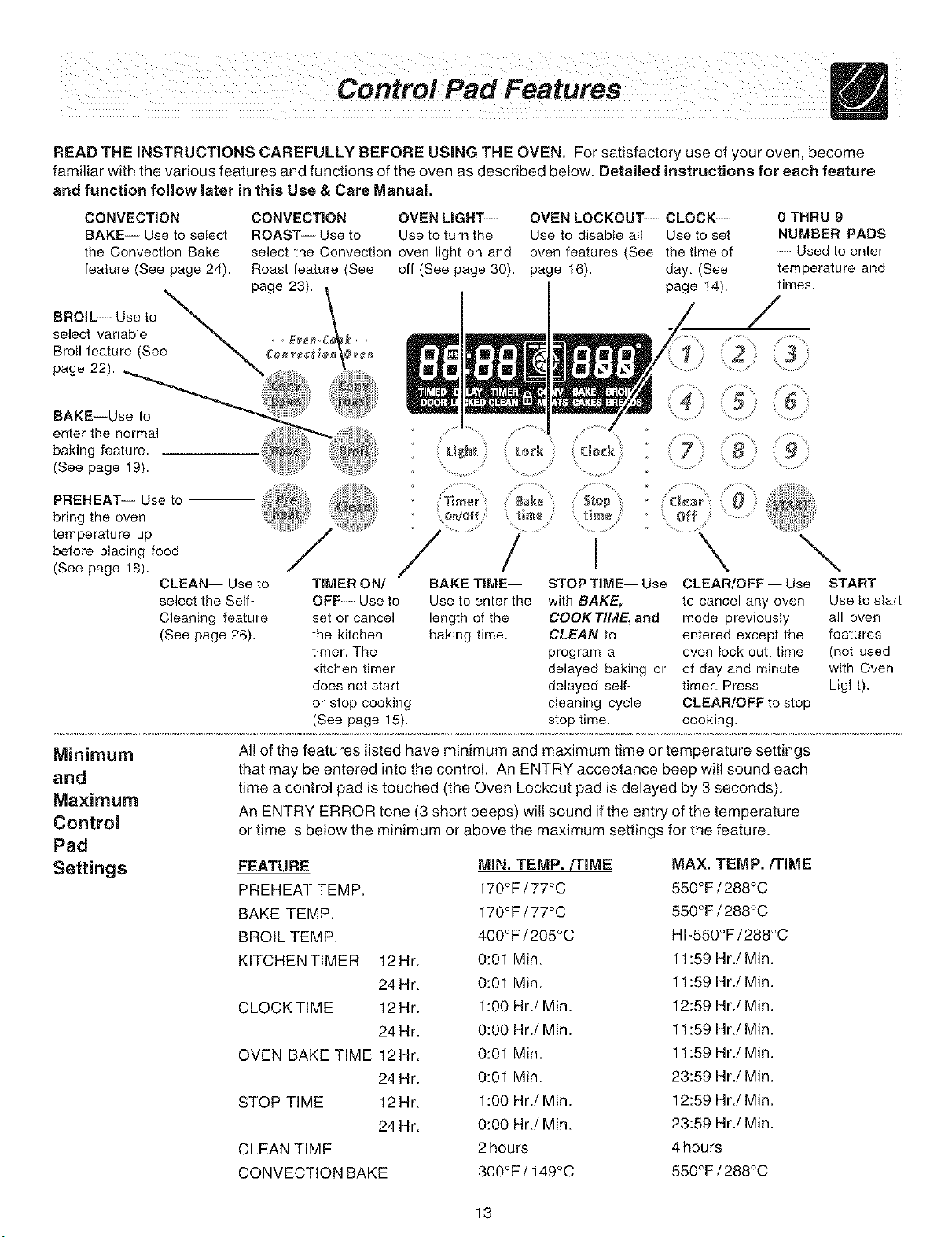

Control Pad Features .......... 13

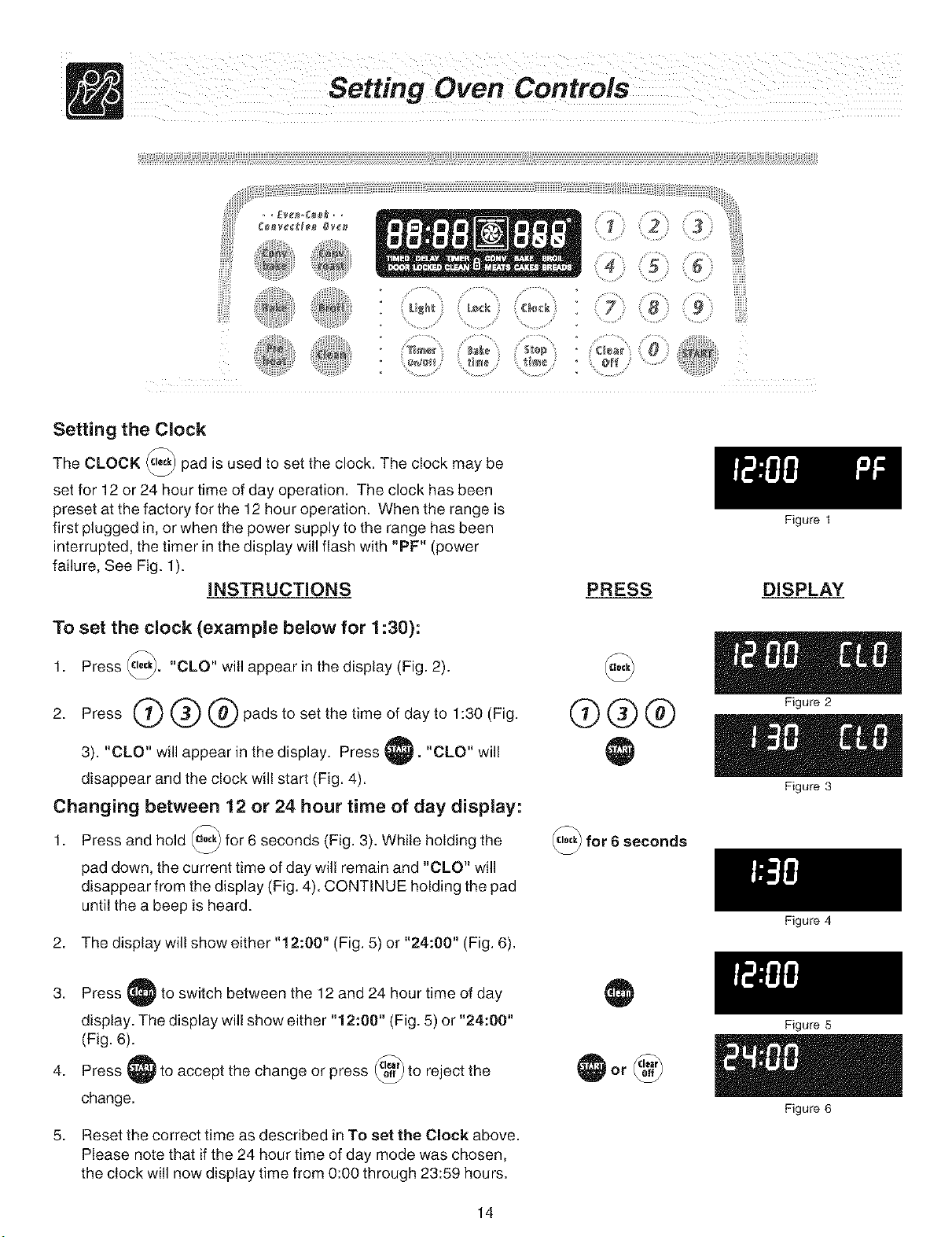

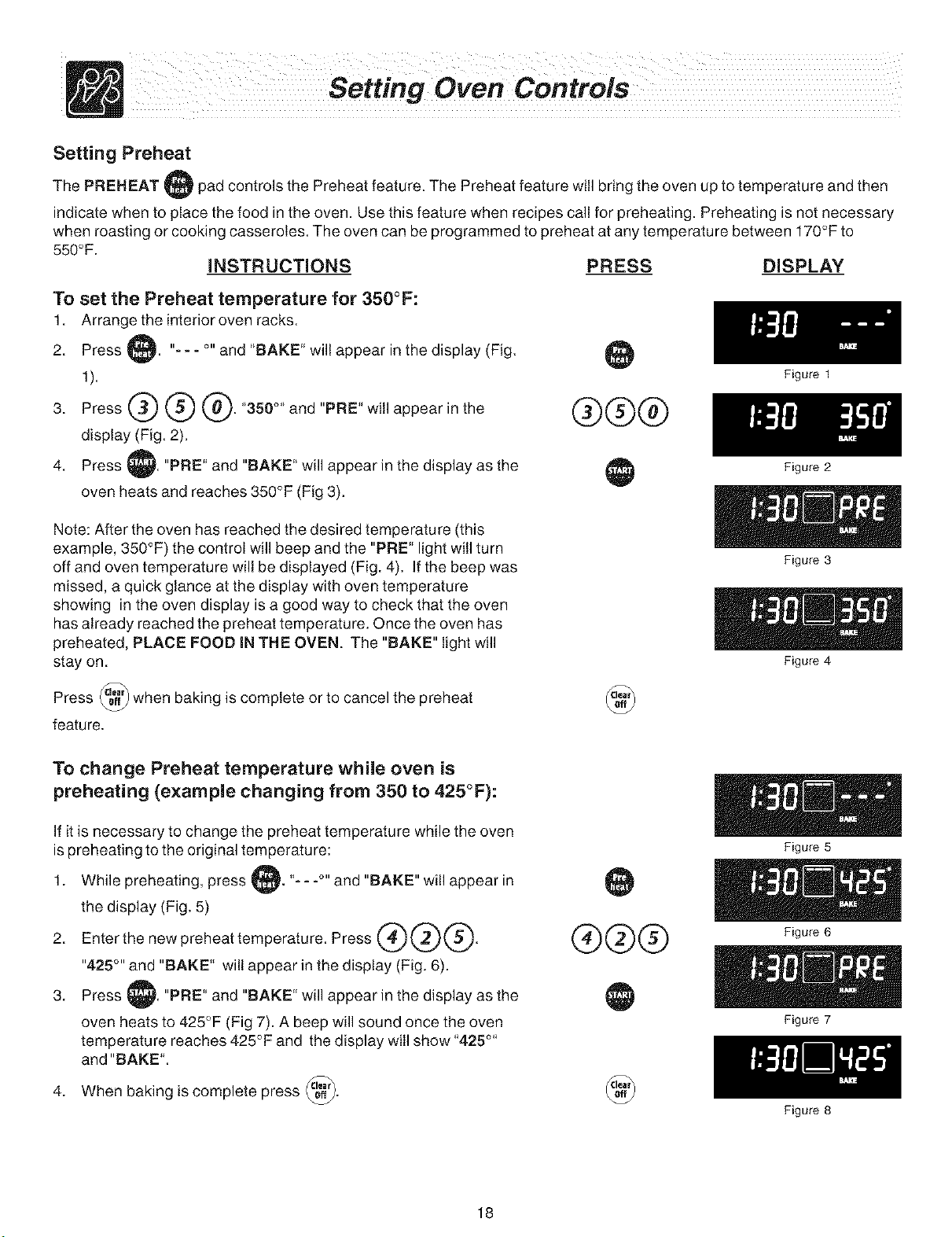

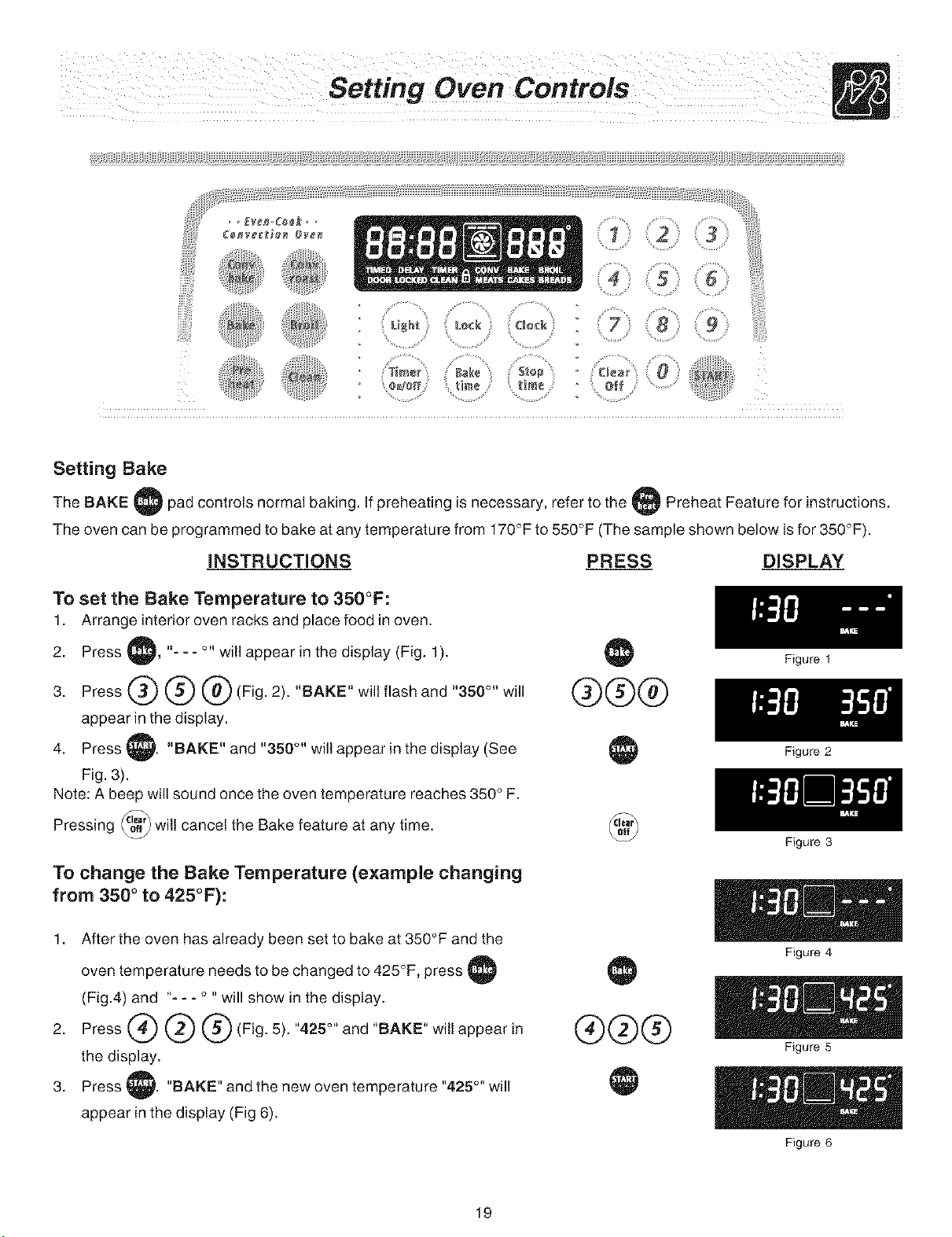

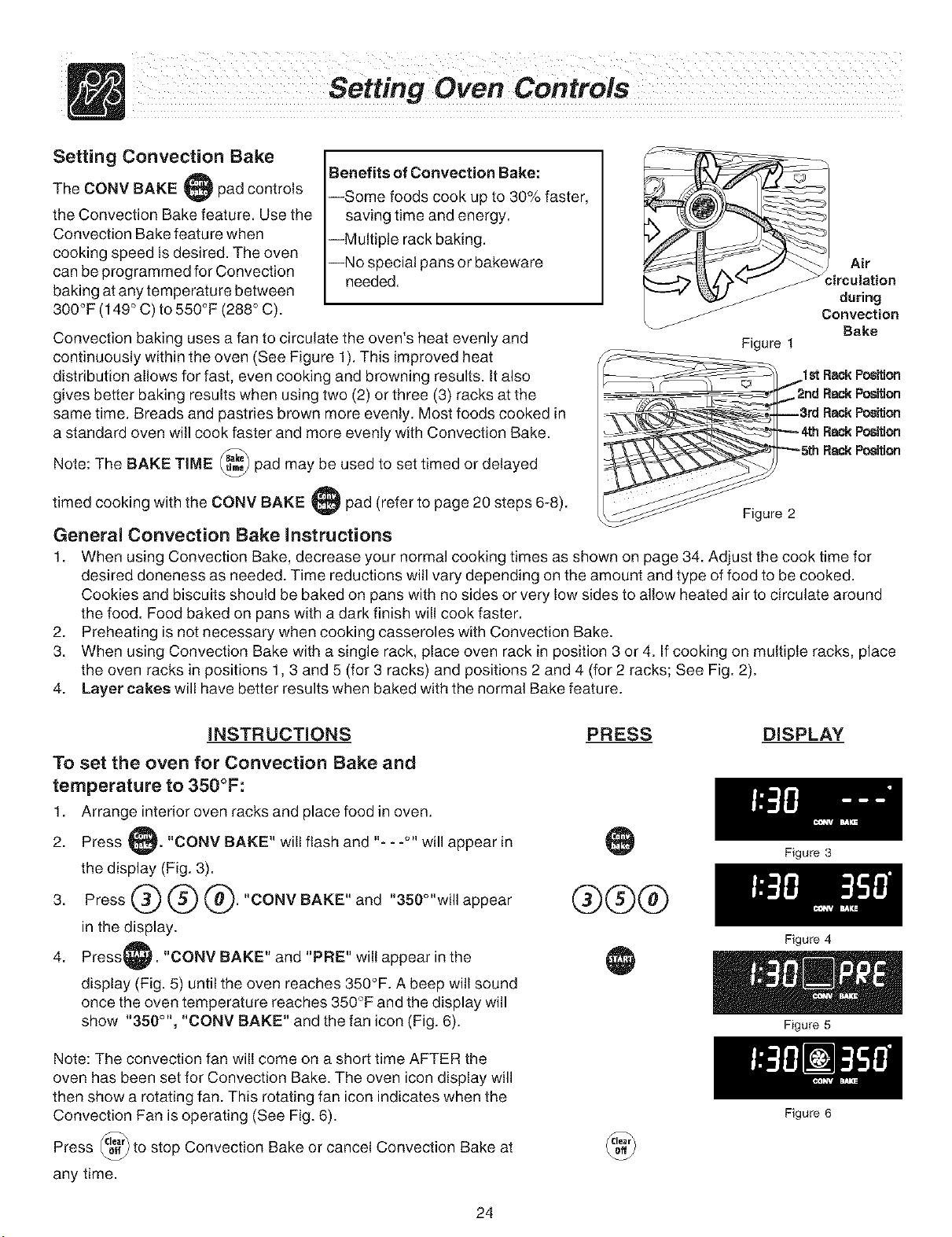

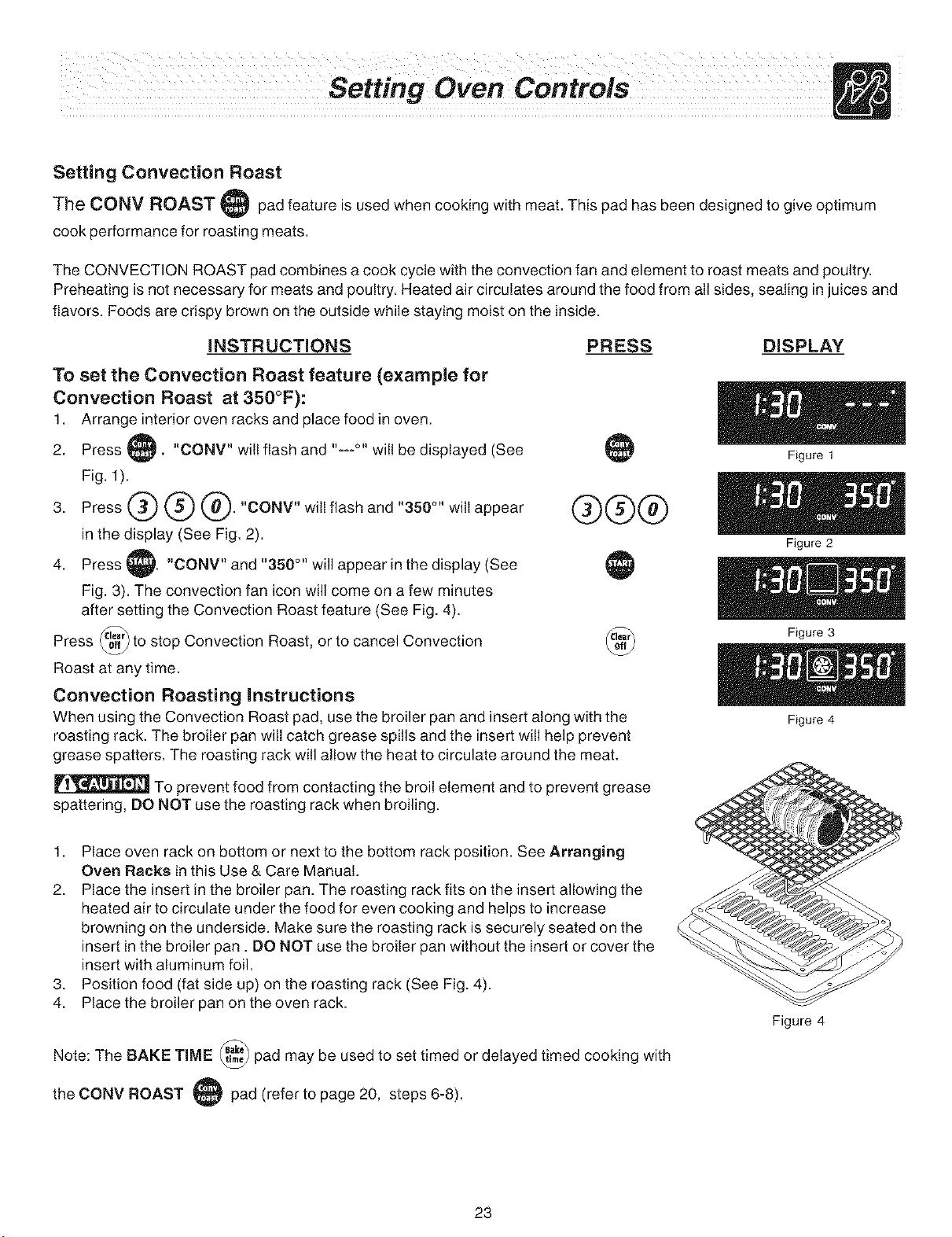

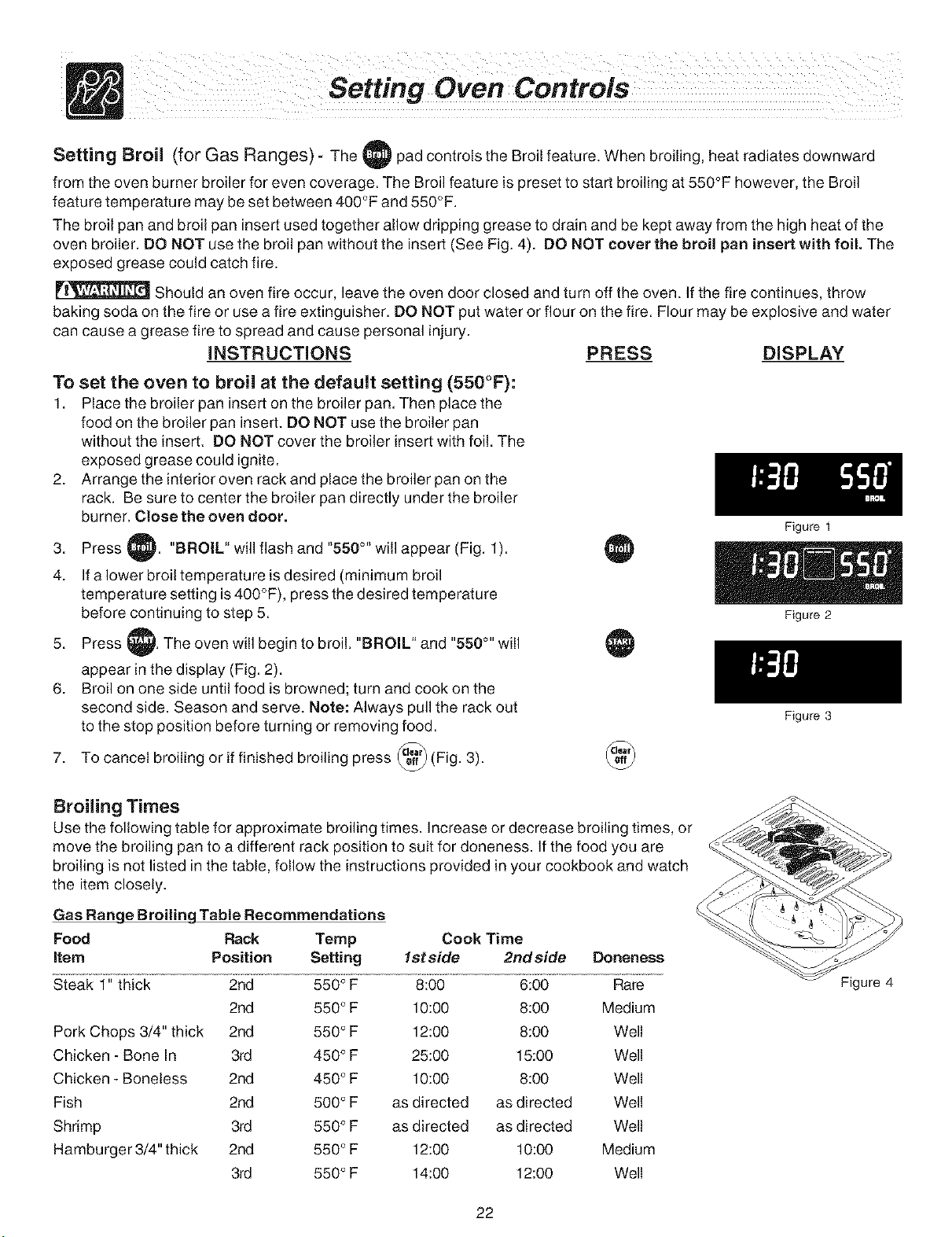

Setting Oven Controls .... 14=24

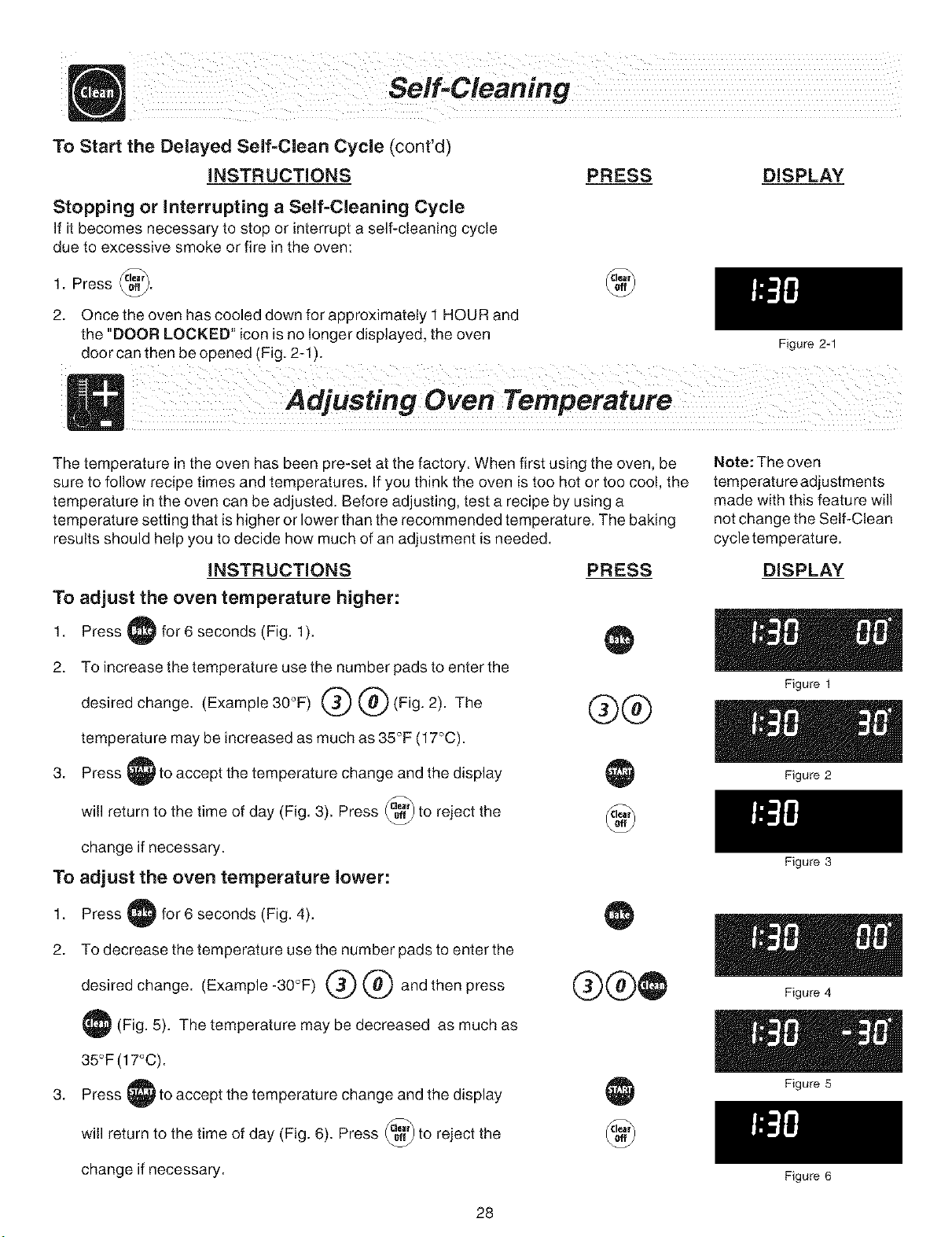

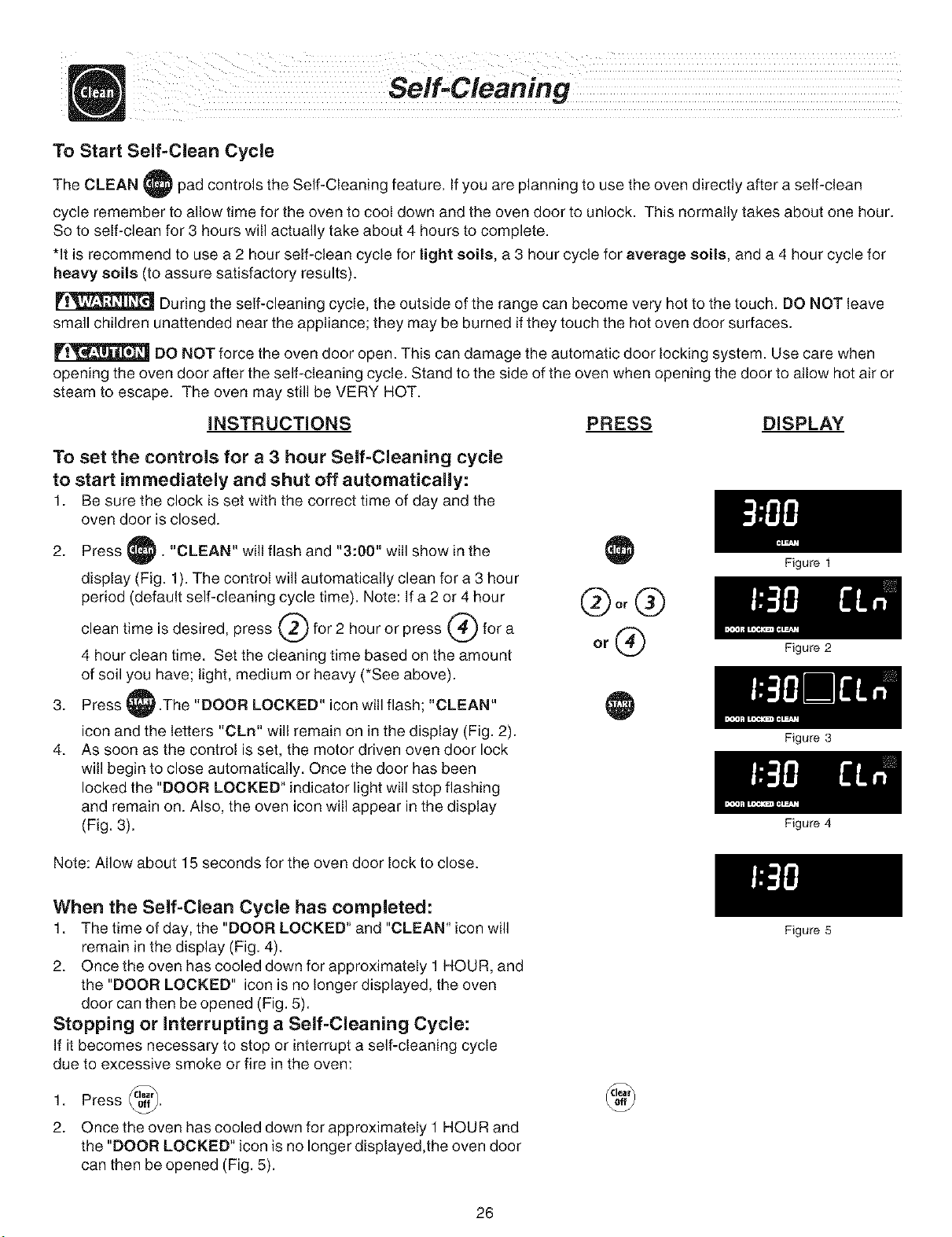

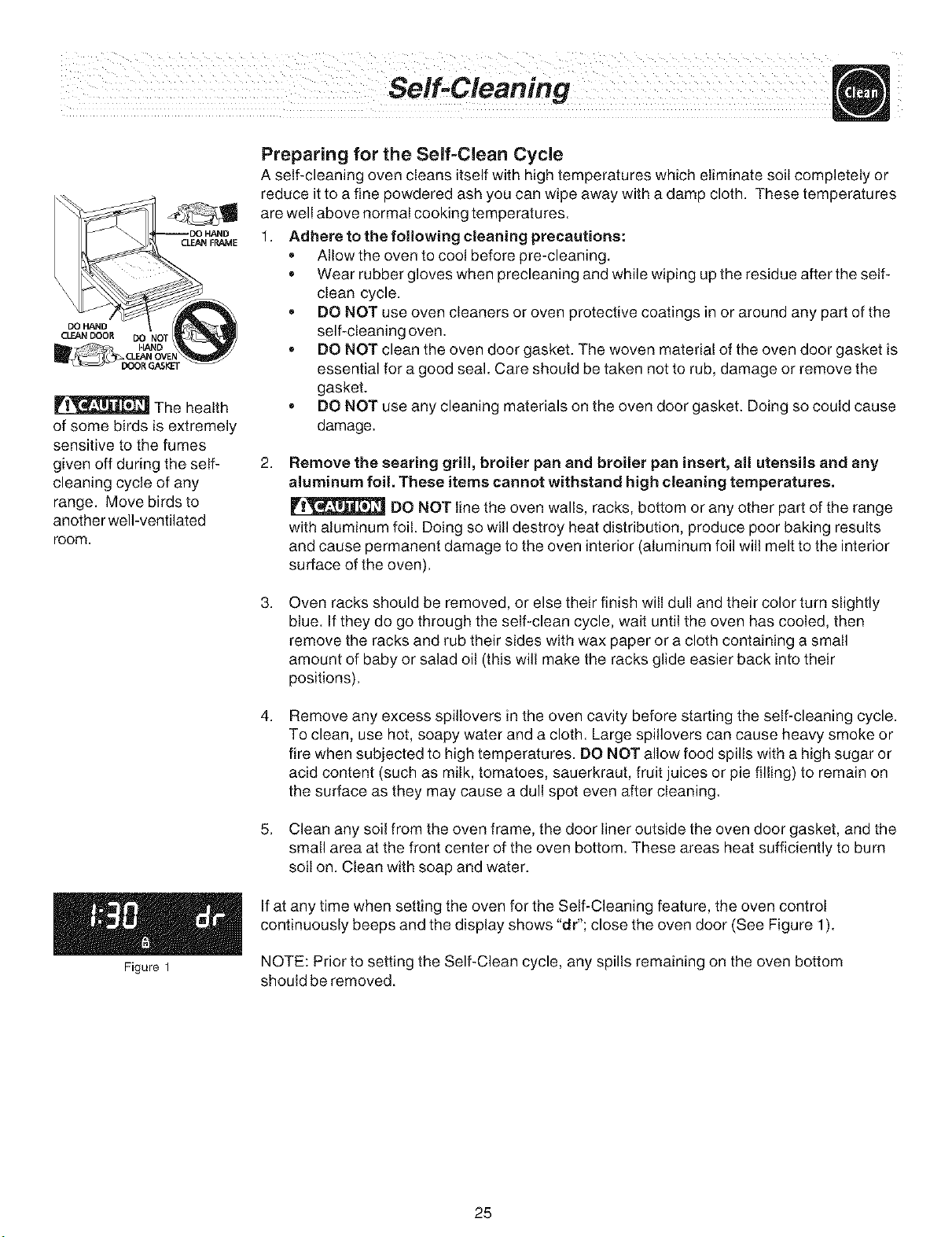

Self-Cleaning .............. 25=28 |
Adjusting Your
Oven Temperature ........... 28

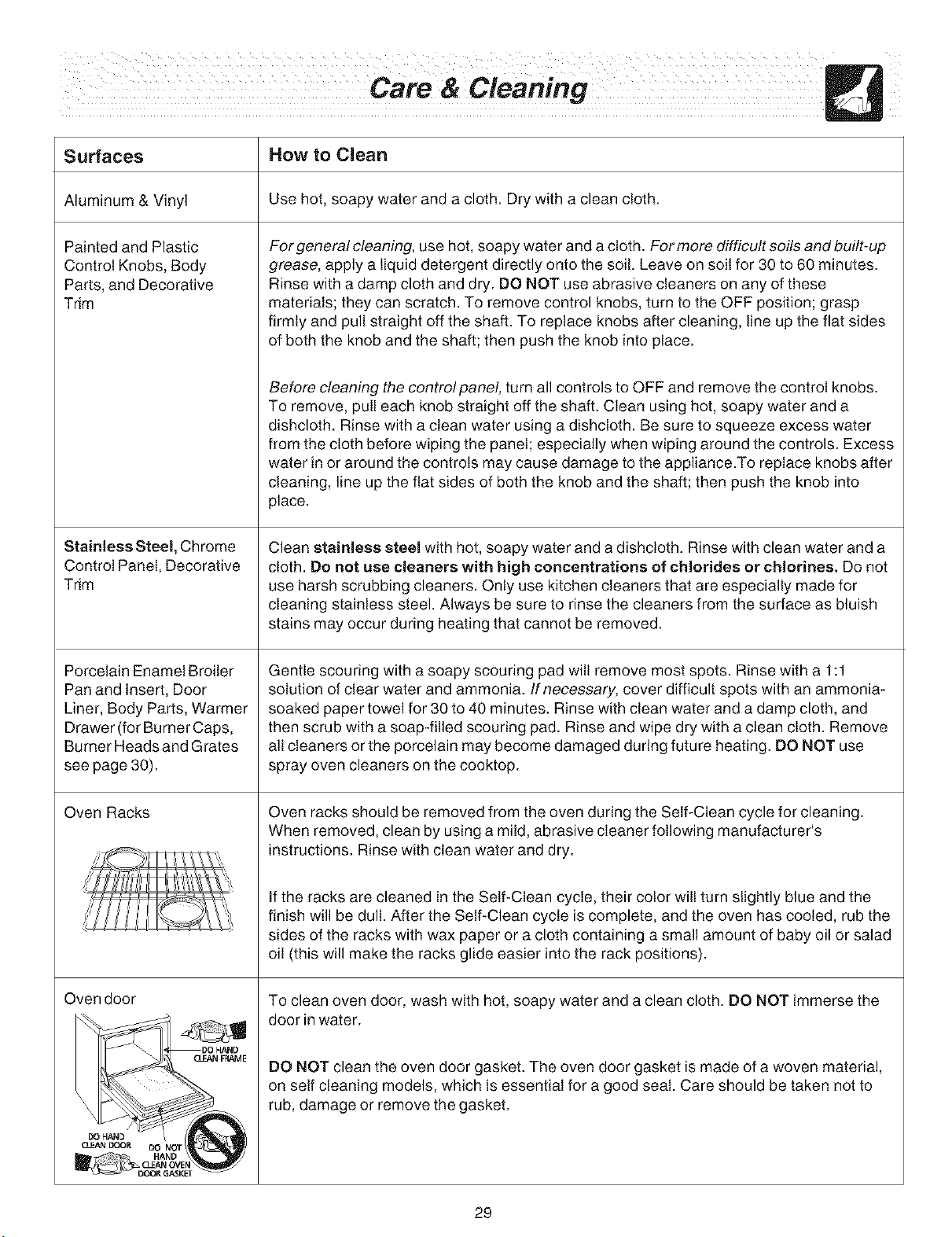

Care & Cleaning .......... 29=31

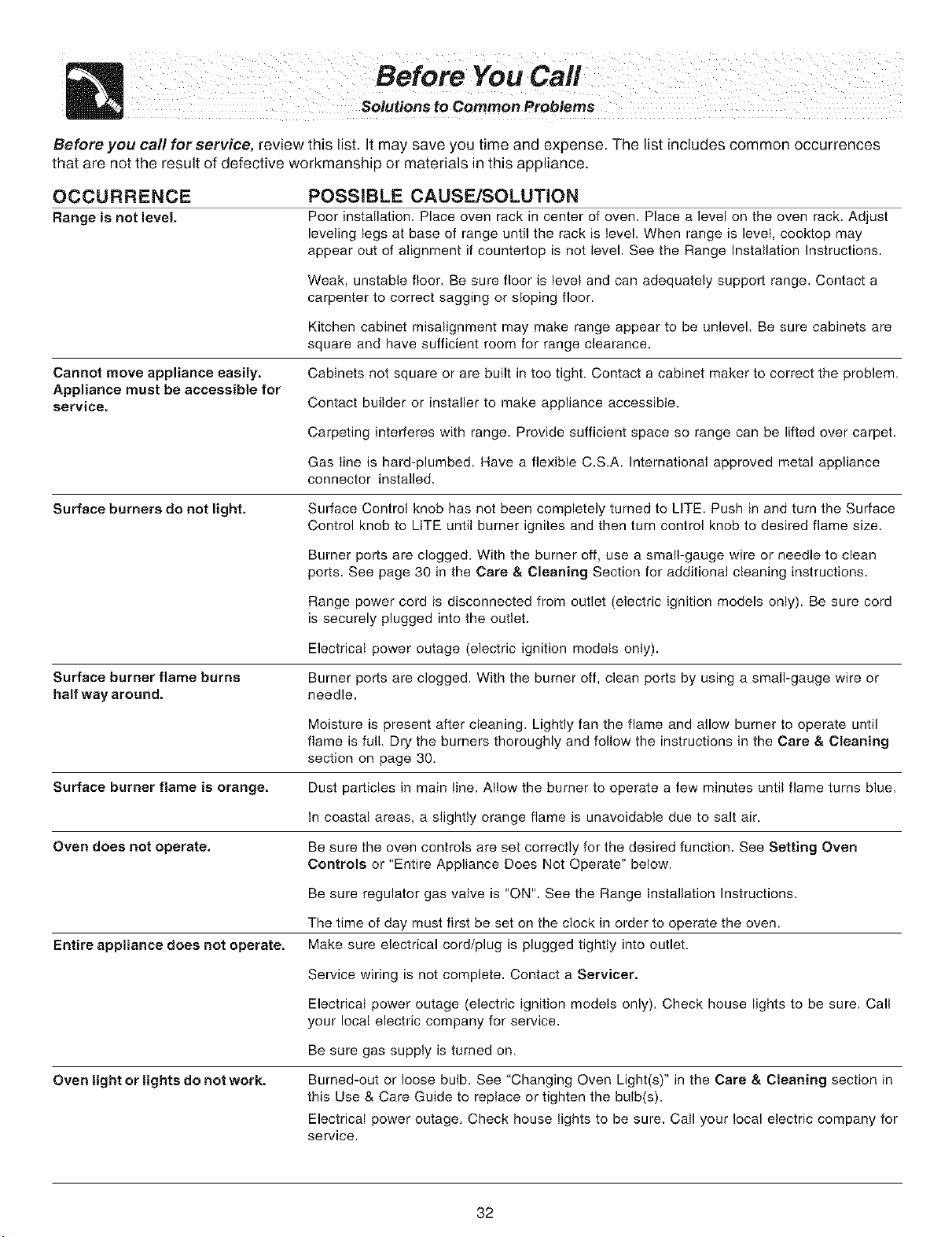

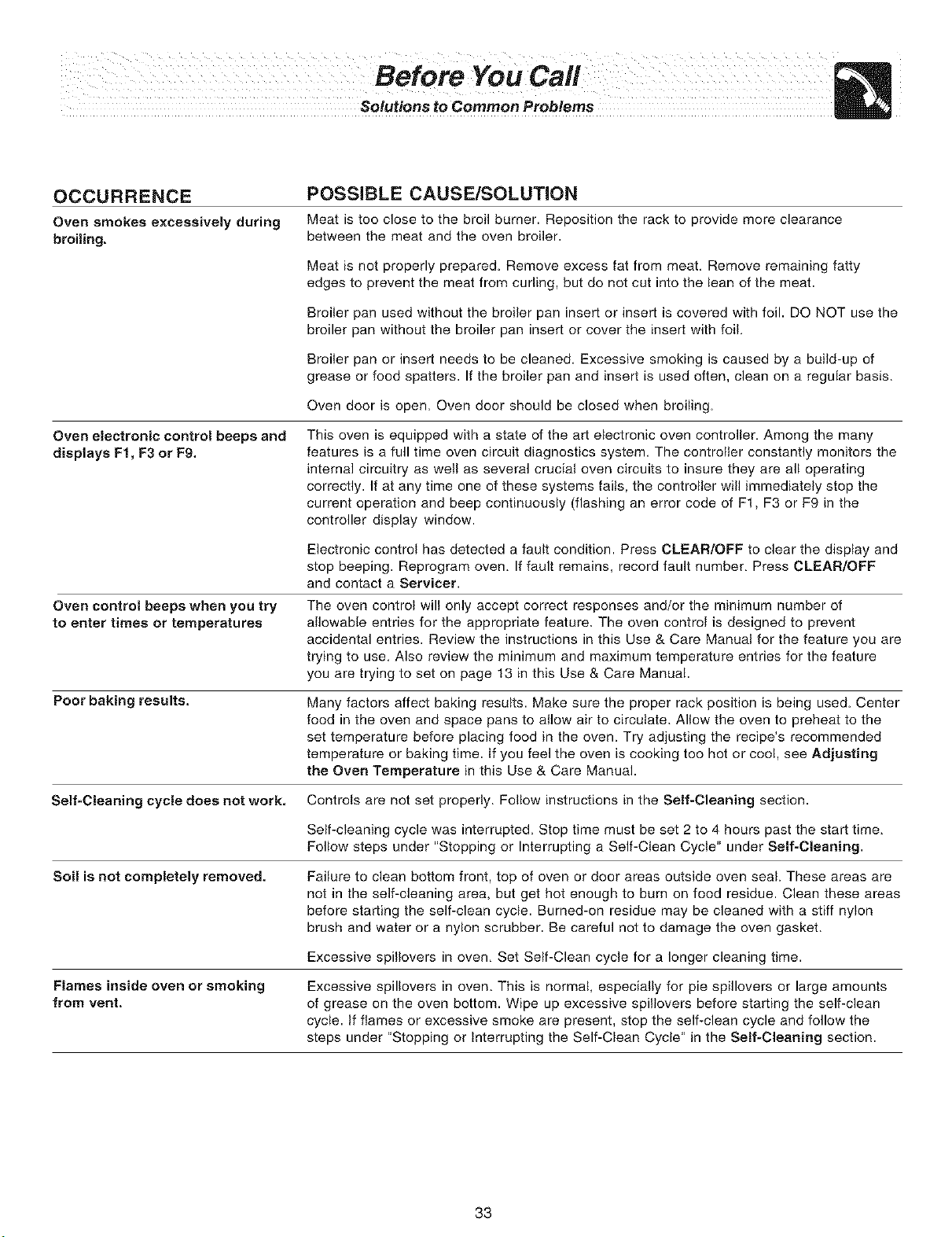

Before You Cail _--_
SoJgt|ons to
Common Problems ............... 32-33
Convection Cooking Tables ........... 34 |
Warranty ............ Back Cover
Visff the Frigidaire Web Site at:
http//www " " " corn." .frigidaire .
READ AND SAVE THESE iNSTRUCTiONS P/N 316257504 REV A (0110)

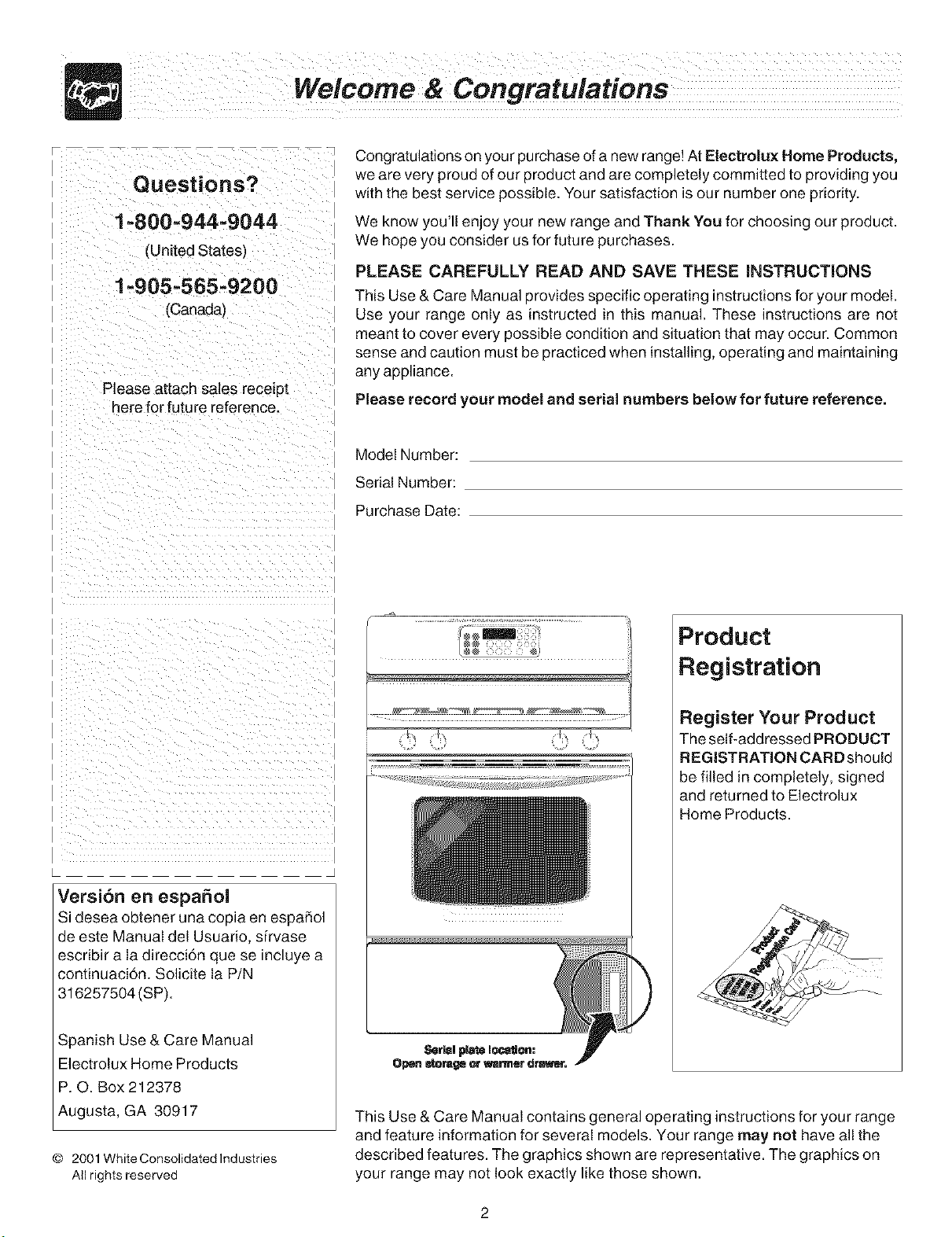

Welcome&Congratulations
Questions?
1-800-944-9044
(United Statesi
1-905-565-9200
(Canada_
Please attach sales receipt
here for future reference.
Congratulations on your purchase of a new range! At Electrelux Home Products,
we are very proud of our oroduct and are completely committed to providing you
with the best service possible, Your satisfaction is our number one priority.
We know you'll enjoy your new range and Thank You for choosing our product.
We hope you consider us for future purchases.
PLEASE CAREFULLY READ AND SAVE THESE iNSTRUCTiONS
This Use & Care Manual provides specific operating instructions for your model.
Use your range only as instructed in this manual. These instructions are not
meant to cover every possible condition and situation that may occur. Common
sense and caution must be oracticed when installing, operating and maintaining
any appliance.
Please record your model and serial numbers below for future reference.
Model Number:
Serial Number:
Purchase Date:
Versibn en espa5ol
Si desea obtener una copia en espa_ol
de este Manual del Usuario, sirvase
escribir a la direcci6n que se incluye a
continuaci6n. Solicite la P/N
316257504 (SP).
Spanish Use & Care Manual
Electrolux Home Products
P. O. Box 212378
Augusta, GA 30917
© 2001WhiteConsoJidatedlndustries
All rights reserved
m
Product
Registration
Register Your Product
The self-addressed PRODUCT
REGiSTRATiON CARD should
be filled in completely, signed
and returned to Electrolux
Home Products.
This Use & Care Manual contains general operating instructions for your range
and feature information for several models. Your range may not have all the
described features. The graphics shown are representative. The graphics on
your range may not look exactly like those shown.

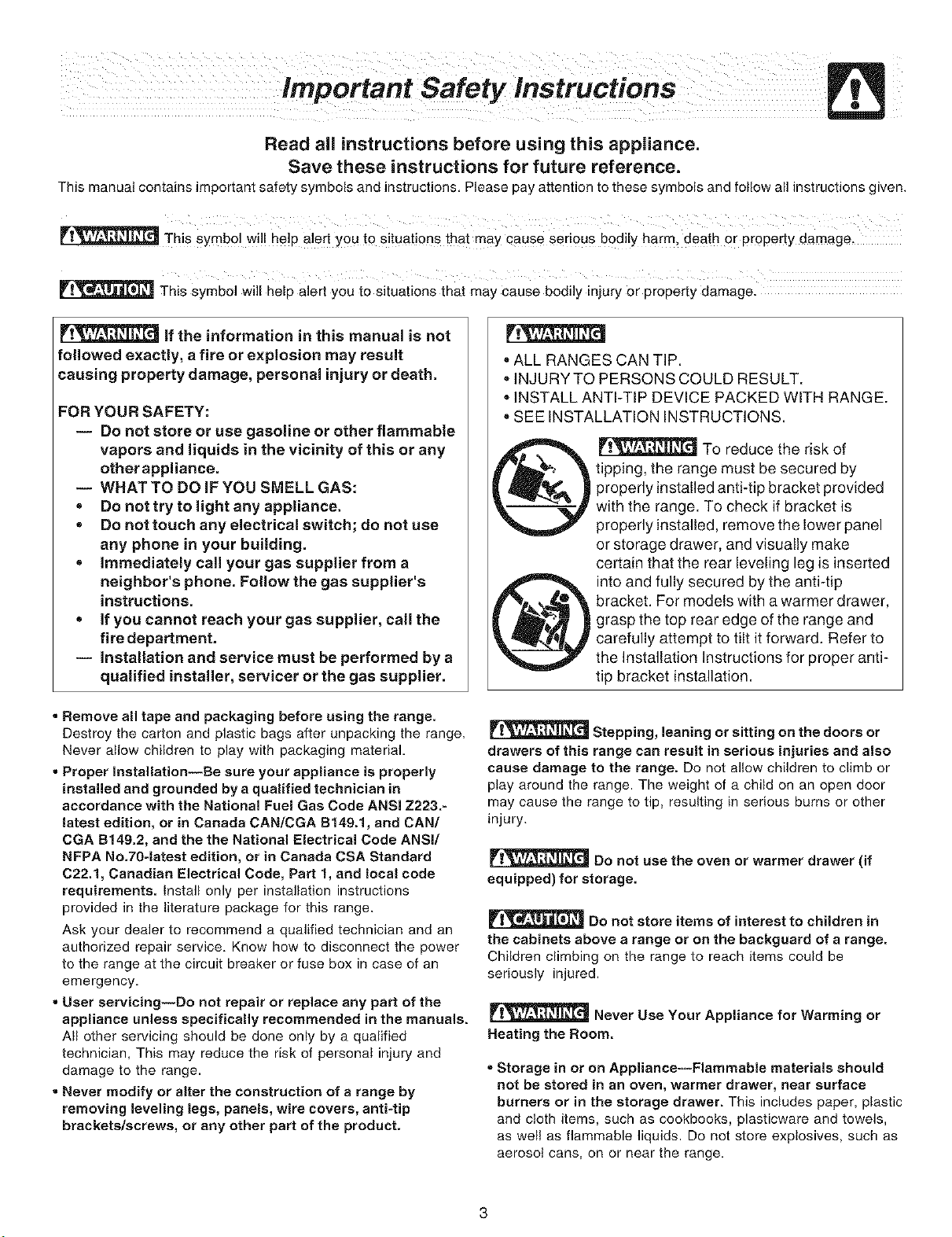

Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given.
This symbo I wi!! he!p alert you to situations that may cause serious bodily harm, death or property damage,
This symbol will help alert you to situations that may Cause bodily injury or property damage.
If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use
any phone in your building.
* Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
° If you cannot reach your gas supplier, call the
firedepartment.
-- Installation and service must be performed by a
qualified installer, servicer or the gas supplier.
• ALL RANGES CAN TIP.
INJURY TO PERSONS COULD RESULT.
INSTALL ANTI-TIP DEVICE PACKED WITH RANGE.
SEE INSTALLATION INSTRUCTIONS.
_ lr_J_ To reduce the risk of
tipping, the range must be secured by
properly installed anti-tip bracket provided
with the range. To check if bracket is
properly installed, remove the lower panel
or storage drawer, and visually make
certain that the rear leveling leg is inserted
into and fully secured by the anti-tip
dels with a warmer drawer,
grasp the top rear edge of the range and
y attempt to tilt it forward. Refer to
the Installation Instructions for proper anti-
tip bracket installation.
=Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material
=Proper Installation--Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Fuel Gas Code ANSI Z223.=
latest edition, or in Canada CAN/CGA B149.1, and CAN/
CGA B149.2, and the the National Electrical Code ANSI/
NFPA No.70-1atest edition, or in Canada CSA Standard
C22.1, Canadian Electrical Code, Part 1, and local code
requirements. Install only per installation instructions
provided in the literature package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repair service. Know how to disconnect the power
to the range at the circuit breaker or fuse box in case of an
emergency=
=User servicing--Do not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified
technician, This may reduce the risk of personal injury and
damage to the range.
=Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti4ip
brackets/screws, or any other part of the product.
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children to climb or
play around the range. The weight of a child on an open door
may cause the range to tip, resulting in serious burns or other
injury.
_Do not use the oven or warmer drawer (if
equipped) for storage.
Do not store items of interest to children in
the cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be
seriously injured.
Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on Appliance--Flammable materials should
not be stored in an oven, warmer drawer, near surface
burners or in the storage drawer. This includes paper, plastic
and cloth items, such as cookbooks, plasticware and towels,
as well as flammable liquids. Do not store explosives, such as
aerosol cans, on or near the range,
3

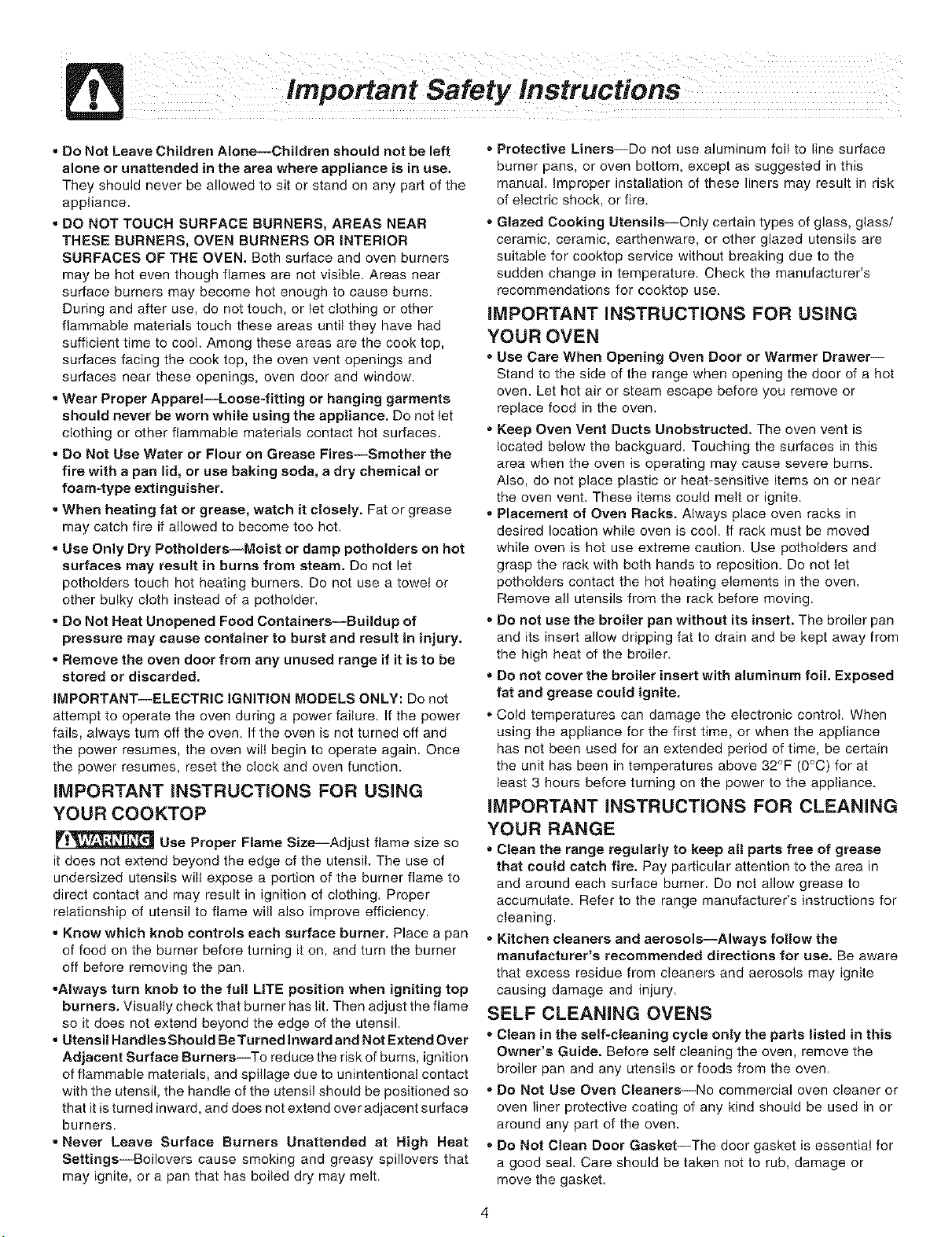

• Do Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
• DO NOT TOUCH SURFACE BURNERS, AREAS NEAR
THESE BURNERS, OVEN BURNERS OR INTERIOR
SURFACES OF THE OVEN. Both surface and oven burners
may be hot even though flames are not visible. Areas near
surface burners may become hot enough to cause burns.
During and after usa, do not touch, or let clothing or other
flammable materials touch these areas until they have had
sufficient time to cool. Among these areas are the cook top,
surfaces facing the cook top, the oven vent openings and
surfaces near these openings, oven door and window.
• Wear Proper Apparel--Loose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease Fires--Smother the
fire with a pan lid, or use baking soda, a dry chemical or
foam=type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
• Use Only Dry Potholders--Moist or damp potholders on hot
surfaces may result in burns from steam. Do not let
potholders touch hot heating burners. Do not use a towel or
other bulky cloth instead of a potholder.
• Do Not Heat Unopened Food Containers--Buildup of
pressure may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--ELECTRIC IGNITION MODELS ONLY: Do not
attempt to operate the oven during a power failure. If the power
fails, always turn off the oven. If the oven is not turned off and
the power resumes, the oven will begin to operate again. Once
the power resumes, reset the clock and oven function.
iMPORTANT iNSTRUCTiONS FOR USING
YOUR COOKTOP
Use Proper Flame Size--Adjust flame size so
it does not extend beyond the edge of the utensil. The use of
undersized utensils will expose a portion of the burner flame to
direct contact and may result in ignition of clothing. Proper
relationship of utensil to flame will also improve efficiency.
• Know which knob controls each surface burner. Place a pan
of food on the burner before turning it on, and turn the burner
off before removing the pan.
•Always turn knob to the fall LITE position when igniting top
burners. Visually check that burner has lit. Then adjust the flame
so it does not extend beyond the edge of the utensil.
• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Burners--To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it is turned inward, and does not extend over adjacent surface
burners.
• Never Leave Surface Burners Unattended at High Heat
Settings--Boilovers cause smoking and greasy spillovers that
may ignite, or a pan that has boiled dry may melt.
• Protective Liners--Do not use aluminum foil to line surface
burner pans, or oven bottom, except as suggested in this
manual. Improper installation of these liners may result in risk
of electric shock, or fire.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop service without breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for cooktop use.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
* Use Care When Opening Oven Door or Warmer Drawer--
Stand to the side of the range when opening the door of a hot
oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is
located below the backguard. Touching the surfaces in this
area when the oven is operating may cause severe burns.
Also, do not place plastic or heat-sensitive items on or near
the oven vent. These items could melt or ignite.
° Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.
° Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
• Cold temperatures can damage the electronic control. When
using the appliance for the first time, or when the appliance
has not been used for an extended period of time, be certain
the unit has been in temperatures above 32°F (0°C) for at
least 3 hours before turning on the power to the appliance.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease
that could catch fire. Pay particular attention to the area in
and around each surface burner. Do not allow grease to
accumulate. Refer to the range manufacturer's instructions for
cleaning.
• Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
SELF CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this
Owner's Guide. Before self cleaning the oven, remove the
broiler pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
• Do Not Clean Door Gasket--The door gasket is essential for
a good seal. Care should be taken not to rub, damage or
move the gasket.

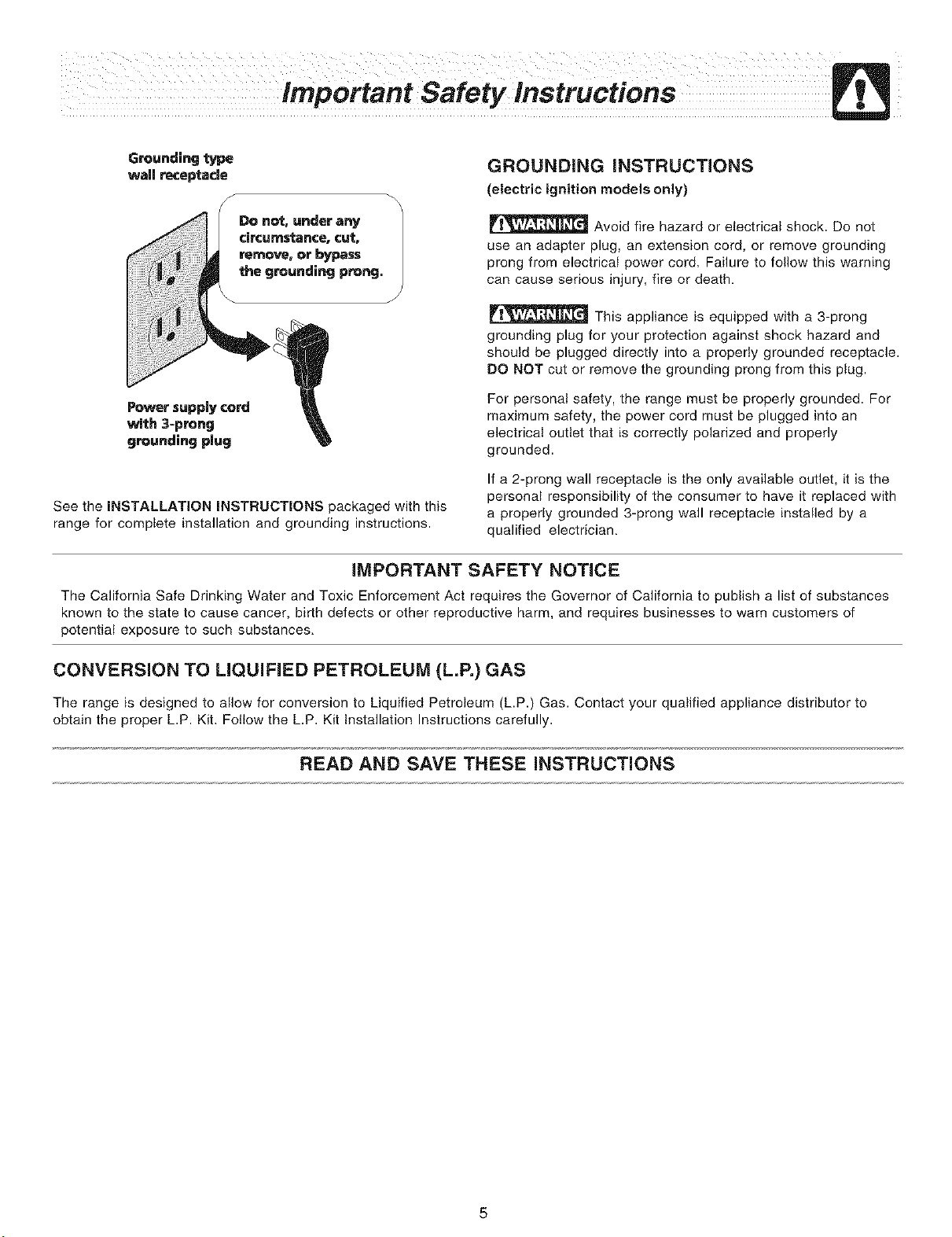

Grounding type
wall roceptacle
Power supply cord
with 3-prong
grounding plug
See the INSTALLATION INSTRUCTIONS packaged with this
range for comptete installation and grounding instructions.
GROUNDING iNSTRUCTiONS
(electric ignition rnodels only)
Avoid fire hazard or electrical shock. Do not
use an adapter plug, an extension cord, or remove grounding
prong from electrical power cord, Failure to follow this warning
can cause serious injury, fire or death,
This appliance is equipped with a 3-prong
grounding plug for your protection against shock hazard and
should be plugged directly into a properly grounded receptacle.
DO NOT cut or remove the grounding prong from this plug.
For personal safety, the range must be properly grounded. For
maximum safety, the power cord must be plugged into an
electrical outlet that is correctly polarized and properly
grounded.
If a 2-prong wall receptacle is the only available outlet, it is the
personal responsibility of the consumer to have it replaced with
a properly grounded 3-prong wall receptacle installed by a
qualified electrician,
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances
known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of
potential exposure to such substances,
CONVERSION TO LIQUIFIED PETROLEUM (L.P.) GAS
The range is designed to allow for conversion to Liquified Petroleum (L.P.) Gas. Contact your qualified appliance distributor to
obtain the proper L.P. Kit, Follow the L.P. Kit Installation Instructions carefully.
READ AND SAVE THESE INSTRUCTIONS
5
Features At A Giance
Your Gas Range
Features
At a Glance
Convection Boasting
Rock
Automatic
OvenDoor
LighL
Switch
interior
Light
(1)BroilPanand
(1) BroilPaninsert
Storage Drawer
(some
or W_mer Drawer
(some models)
12k "Power"
Sealed Burner
(LP convertible)._
Removable
Surface Burner
"Pro" Grates
(stylesand cctor
will vary by model)-
9.5k Standard
SeaJed Burner
(LP convertible
Electronic Oven Control
withClockand WJtchan33mer "UItraseff"Style
(colorwig_ by model) Conb'olPanel
Easy to Clean
_._.BeaJedBurner
,-_ Cooktop
Door Latch
ig
Ovenlnterior
Convection Bake
Fan with Assist
Element
Adjustable
interior
Oven Recks
Piece
DoorHandle
(stylevaries
withmodel)
Giaes Oven Door
with Large
Window
(cctors and styles
vary by modal)
Gas Cook-top
Ig Lags and
Anti-tip Bracket (included)
5k Simmer
SealedBurner
- (LPconvertible)
"14k PowerPlus"
SealedBurner
(LPconvertible)
=l =l
Removable Center Burner Pro Grate
(styles and color willvary by model)
6
Your Gas Range
Features
At a Glance
(Stainless Steel
models only)
Convection Roasting
Rack
Interior
Ugl_
(1)BroilPenand
(1)BroilPanInsert
WarmerDrawer
Controland
IndicatorUght
El_-_ronicOvenControl
withClockand KitchenTimer
(colorwillvarybymodel)
BrushedAluminum
"Ul_as_' S_e
Ces'molPanel
Easyto Clean
Sealed Burner
Cooktop
Brushed
AJuminum
SurfaceBurner
Controls
Door Latch
Ovenlnterior
Convection Bake
Fan with Assist
Element
Adjustable
interior
Oven Racks
eStainless
I Piece
Door Handle
WarmerDrawer
(shown)andRack
withStainlessSteel
Handle
Gas Coo_op
Removable Center Burner "Pro" Grate
(styles and colorwill vary by model)
StainlessSteal
Oven Door
withLarge
Window
12k"Power"
SealedBurner
5k Simmer
SealedBurner
•(LPeonve_ible)
Removable
Surface Burner
"Pro" Grates
(styles and color
willvary by
"14kPowerPlus"
BeaJedBurner
(LPconvertible)
settingsurfaceControls

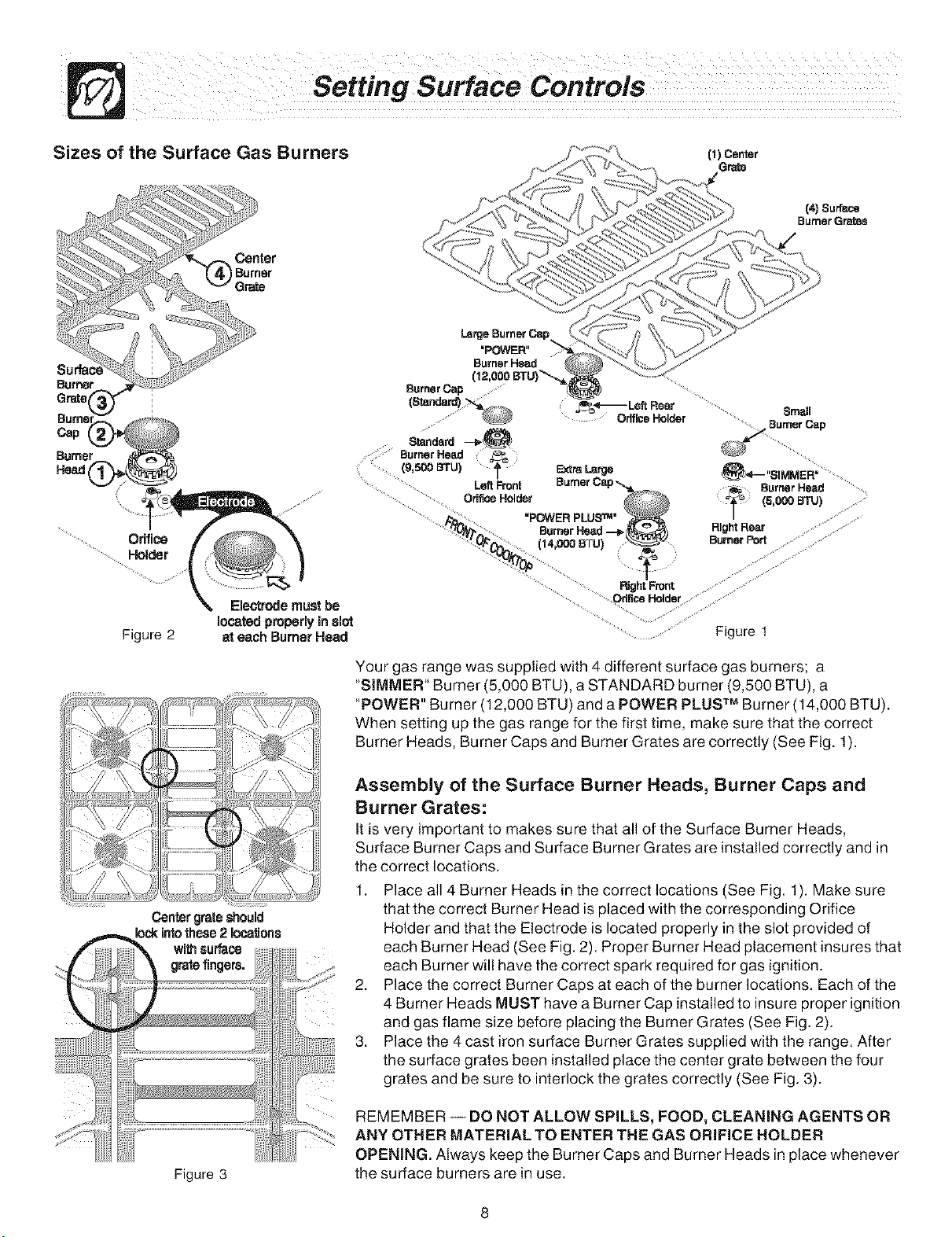

Sizes of the Surface Gas Burners (1)center
Grate
%¸¸¸¸¸¸¸¸¸¸¸
%¸¸¸¸¸
Figure 2
ii i¸
Electrode must be
located properly inslot
at each Burner Head
Centergrateshould
lockintothese2 IOcetJons
wi_ surface
gratefingers.
Your gas range was supplied with 4 different surface gas burners; a
"SIMMER" Burner (5,000 BTU), a STANDARD burner (9,500 BTU), a
"POWER" Burner (12,000 BTU) and a POWER PLUS TM Burner (14,000 BTU).
When setting up the gas range for the first time, make sure that the correct
Burner Heads, Burner Caps and Burner Grates are correctly (See Fig. 1).
Assembly of the Surface Burner Heads, Burner Caps and
Burner Grates:
It is very important to makes sure that all of the Surface Burner Heads,
Surface Burner Caps and Surface Burner Grates are installed correctly and in
the correct locations.
1. Place all 4 Burner Heads in the correct locations (See Fig. 1). Make sure
that the correct Burner Head is placed with the corresponding Orifice
Holder and that the Electrode is located properly in the slot provided of
each Burner Head (See Fig. 2). Proper Burner Head placement insures that
each Burner will have the correct spark required for gas ignition.
2. Place the correct Burner Caps at each of the burner locations. Each of the
4 Burner Heads MUST have a Burner Cap installed to insure proper ignition
and gas flame size before placing the Burner Grates (See Fig. 2).
3. Place the 4 cast iron surface Burner Grates supplied with the range. After
the surface grates been installed place the center grate between the four
grates and be sure to interlock the grates correctly (See Fig. 3).
Figure 3
REMEMBER -- DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR
ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER
OPENING, Always keep the Burner Caps and Burner Heads inplace whenever
the surface burners are in use.
Control Locations of the Gas Surface
Burners
Your range is equipped with gas surface burners
with 4 different BTU ratings. The ability to heat
food quicker and in larger volumes increases as
the burner size increases.
The smaller SIMMER burner is best used for
simmering delicate sauces, etc. This burner is
located at the right rear burner position on the
cooktop (See Fig. 1).
The STANDARD size burner can be used for
most surface cooking needs. This burner is
located at the left front burner position on the
_ _ cooktop (See Fig. 1).
front O0 @0
@0 O0 r_ar
,_÷en_O0 O@
O@ O0 rear
Left front Left rear Right front Right rear
Burner Burner Burner Burner
Figure 1
Operating the Gas Surface Burner Controls:
1. Place cooking utensil on surface burner.
2. Push the surface control knob in and turn counterclockwise out
of the OFF position (See Fig. 2).
3. Release the knob and rotate to the LITE position. Note: All four
electronic surface ignitors will spark at the same time. However,
only the burner you are turning on will ignite.
4. Visually check that the burner has a flame.
5. Turn the control knob counterclockwise to the desired flame
size. The control knobs do not have to be set at a particular
setting. Use the knob indicator settings to adjust the flame as
needed. DO NOT cook with the surface control knob in the LITE
position. (The electronic ignitor will continue to spark if the knob
is left in the LITE position.)
The larger 2 POWER and POWER PLUS TM
burners are best used for bringing large quantities
of liquid rapidly up to temperature or when
preparing larger quantities of food. The two
POWER and POWER PLUS TM Burners are
located at the left rear and right front burner (See
positions on the cooktop as shown in Fig. 1).
Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top of
the range when it is in use. These items could melt or ignite.
Potholders, towels or wood spoons could catch fire if placed too
close to a flame.
OFF ..LITE..hi 6 5 4 3 2 Io
Figure 2
9
Setting Proper Surface Burner Flame Size
Correct
Incorrect
Never extend the flame beyond the
outer edge of the utensil. A higher
flame simply wastes heat and energy,
and increases the risk of being burned
by the gas fame.
For most cooking - start on the highest control setting and then turn to a
lower one to complete the process. Use the recommendations below as a
guide for determining proper flame size for various types of cooking. The size
and type of utensil used and the amount of food being cooked will influence the
setting needed.
*Flame Size
High Flame
Medium Flame
Low Flame
Type of Cooking
Start most foods; bring water to a boil; pan broiling.
Maintain a slow boil; thicken sauces, gravies; steaming.
Keep foods cooking; poach; stewing.
For deep fat frying - use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If
the fat is too hot, the food will brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the food
will neither brown nor cook properly.
*Note: Settings are based on using medium=weight metal or aluminum
pans. Settings may vary when using other types of pans, The color of the
flame is the key to proper burner adjustment. A good flame is clear, blue and
hardly visible in a well-lighted room. Each cone of flame should be steady and
sharp. Adjust or clean burner if flame is yellow-orange.
10
BeroreSettingOvenControls
Arranging the Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL (PRIOR TO
OPERATING THE OVEN). Always use oven mitts when the oven is hot.
Oven Vent Location
The oven vent is located below the
backguard. When the oven is on, hot
air is released through the vents. This
venting is necessary for proper air
circulation in the oven and good baking
results.
OVEN VENT
Removing and Replacing Oven
Racks
To remove, pull the rack forward until
it stops. Lift up front of rack and slide
out. To replace, fit the rack onto the
guides on the oven walls. Tilt the front
of the rack upward and slide the rack
back into place.
Arranging Oven Racks
To bake on a single rack, place the
rack in position 4. To bake on 2
racks, place the racks in positions 2
and 4. To bake on 3 racks, place the
racks in positions 1,3 and 5.
Rack RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack Position
Broiling meats, chicken or fish 1,2 or 3
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozen pies, angel food cake, yeast, bread, 5
casseroles, small outs of meat or poultry
Turkey, roast or ham 6
Note: Always use caution when removing food from the lower rack
positions.
Air Circulation in the Oven
If using 1 rack, place in center of oven. If using multiple
racks, stagger cookware as shown.
For best air circulation and baking results allow 2-4" (5-10 cm)
around the cookware for proper air circulation and be sure
pans and cookware do not touch each other, the oven door,
sides or back of the oven cavity. The hot air must circulate
around the pans and cookware in the oven for even heat to
reach around the food.
1 Oven Rack
z
I
Multiple Oven Racks
11
(some modele)
Arranging Warming Drawer Rack Positions
The rack can be used in 2 ways:
, In the upright position to allow low profile food items to be placed both under and on top of the rack (for example,
rolls or biscuits on top of the rack and a casserole dish underneath).
, In the downward position to allow you to place light weight food items and empty cookware (for example, rolls or
pastries and dinner plates) on the rack.
Set the Warming Drawer rack in either position as shown below (Fig. 1).
_Warming Drawer
J Rackinupward
position
To Operate the Warming Drawer
Figure 1
J
J
_ Warming Drawer
Rack in downward
position
The purpose of the Warming Drawer is to keep hot cooked foods at serving
temperature. Always start with hot food. It is not recommended to heat cold
food in the Warming Drawer.
All food placed in the Warming Drawer should be covered with a lid or
aluminum foil to maintain quality. Do not use plastic wrap to cover food,
Plastic may melt onto the drawer and be very difficult to clean, Use only
utensils and cookware recommended for oven use in the Warming Drawer.
To Set the Warming Drawer Control
The control is used to select the temperature of the Warming Drawer. Itis
located on the control panel. To set the control, push in and turn the knob to
the desired setting. The temperatures are approximate and are designated by
HI (high), MED (medium) and LO (low). To set the Warming Drawer control:
1. Turn the knob to select the desired temperature setting.
2. For best results, preheat the drawer before adding food. An empty drawer
will preheat in approximately 15 minutes.
3. When done, turn the control to OFF.
Warming Drawer Temperature Selection
Recommended Warming Drawer food settings are shown in Figure 3. If a
particular food is not listed, start with the MED setting. If more crispness is
desired, remove the lid or aluminum foil from the food= Most foods can be kept
at serving temperatures on the MED setting. When a combination of foods are
to be kept warm (for example, a meat with 2 vegetables and rolls) use the HI
setting. To avoid heat loss, do not open the Warming Drawer while in use.
Figure 2
Warming Drawer Recommended
Food Settings Table
Food Item Setting
Warming Drawer Indicator Light
The Warming Drawer indicator light is located above the Warming Drawer
control knob (See Fig. 2). It turns on when the control is set, and stays on until
the control is turned off. The warmer drawer will not operate during the self=
clean cycle,
Figure 3
Always use pot holders or oven mitts when removing food from the warmer drawer as cookware and plates
will be hot and you can be burned.
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Roils (soft) LO
Empty Dinner Plates LO
12
READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each feature
and function follow later in this Use & Care Manual.
CONVECTION
BAKE-- Use to select
the Convection Bake
feature (See page 24).
CONVECTION OVEN LIGHT--
ROAST-- Use to Use to turn the
select the Convection oven light on and
Roast feature (See off (See page 30).
OVEN LOCKOUT-- CLOCK--
Use to disable atl Use to set
oven features (See the time of
page 16). day, (See
page 14).
O THRU 9
NUMBER PADS
-- Used to enter
temperature and
times.
% j
%¸..¸¸.¸
(See page 19).
PREHEAT-- Use to
bring the oven
temperature up
before placing food
(See page 18).
Minimum
and
Maximum
Control
Pad
Settings
,,,,, o ..............
/" I
%¸.¸¸¸¸¸
CLEAN-- Use to
select the Self-
Cleaning feature
(See page 26).
TIMER ON/ BAKE TIME-- STOP TIME-- Use CLEAR/OFF-- Use
OFF-- Use to Use to enter the with BAKE, to cancel any oven
set or cancel length of the COOK TIME, and mode previously
the kitchen baking time. CLEAN to entered except the
timer. The program a oven lock out, time
kitchen timer delayed baking or of day and minute
does not start delayed self- timer, Press
or stop cooking cleaning cycle CLEAR/OFF to stop
(See page 15). stop time. cooking.
All of the features listed have minimum and maximum time or temperature settings
that may be entered into the control. An ENTRY acceptance beep will sound each
time a control pad is touched (the Oven Lockout pad is delayed by 3 seconds).
An ENTRY ERROR tone (3 short beeps) will sound ifthe entry of the temperature
or time is below the minimum or above the maximum settings for the feature,
FEATURE MIN, TEMP./TIME MAX, TEMP./TIME
PREH EAT TEM P. 170°F / 77°C 550°F / 288°C
BAKE TEMP. 170°F/77°C 550°F/288°C
BROIL TEMP. 400°F/205°C HI-550°F/288°C
KITCHENTIMER 12Hr. 0:01 Min. 11:59Hr./Min.
24Hr. 0:01 Min. 11:59 Hr./Min.
CLOCKTIME 12Hr. 1:00 Hr./Min. 12:59 Hr./Min.
24 Hr. 0:00 Hr./Min. 11:59 Hr./Min.
OVEN BAKE TIME 12Hr. 0:01 Min. 11:59 Hr./Min.
24Hr. 0:01 Min. 23:59 Hr./Min.
STOP TIME 12 Hr. 1:00 Hr./Min. 12:59 Hr./Min.
24 Hr. 0:00 Hr./Min. 23:59 Hr./Min.
CLEAN TiME 2 hours 4 hours
CONVECTION BAKE 300°F / 149°C 550°F / 288°C
\
START--
Use to start
all oven
features
(not used
with Oven
Light),
13
i_£ # e_ ..................
Setting the Clock
The CLOCK @ pad is used to set the clock= The clock may be
set for 12 or 24 hour time of day operation. The clock has been
preset at the factory for the 12 hour operation. When the range is
first plugged in, or when the power supply to the range has been
interrupted, the timer in the display will flash with "PF" (power
failure, See Fig. 1).
iNSTRUCTiONS
Figure 1
PRESS DISPLAY
To set the clock (example below for 1:30):
1. Press @, "CLO" will appear in the display (Fig. 2).
2. Press @@@padstosetthetimeofdaytol:30(Fig.
3). "CLO" will appear in the display. Press, "CLO" will
disappear and the clock will start (Fig. 4).
Changing between 12 or 24 hour time of day display:
1. Press and hold @ for 6 seconds (Fig. 3). While holding the
pad down, the current time of day will remain and "CLO" will
disappear from the display (Fig. 4). CONTINUE holding the pad
until the a beep is heard.
@®®
for 6 seconds
Figure 2
Figure 3
2. The display will show either "12:00" (Fig. 5) or "24:00" (Fig. 6).
.
4.
5.
Press Jto switch between the 12 and 24 hour time of day
display. The display will show either "12:00" (Fig. 5) or "24:00"
(Fig. 6).
Press Ito accept the change or press _ to reject the
change.
Reset the correct time as described in To set the Clock above.
Please note that if the 24 hour time of day mode was chosen,
the clock will now display time from 0:00 through 23:59 hours.
Figure 4
Figure 5
Figure 6
14
Setting Oven Controis

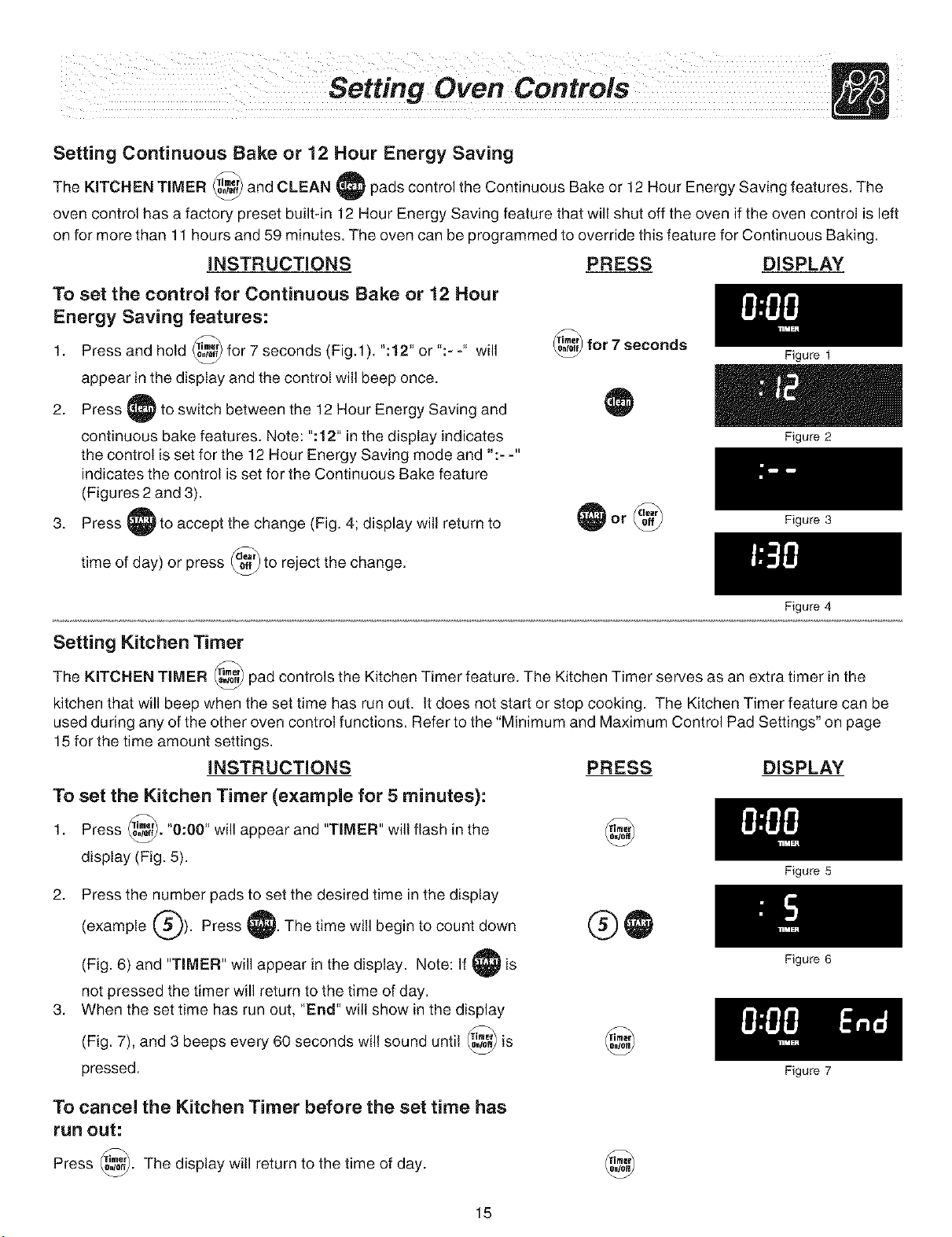

Setting Continuous Bake or 12 Hour Energy Saving
The KITCHEN TIMER _ and CLEAN ) pads control the Continuous Bake or 12 Hour Energy Saving features. The
oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven contro{ is left
on for more than 11 hours and 59 minutes. The oven can be programmed to override this feature for Continuous Baking.
iNSTRUCTiONS PRESS DISPLAY
To set the control for Continuous Bake or 12 Hour
Energy Saving features:
1. Press and hold _ for 7 seconds (Fig.l). ":12" or ":- =" will
appear in the display and the control will beep once.
2. Press I to switch between the 12 Hour Energy Saving and
continuous bake features. Note: ":12" in the display indicates
the control is set for the 12 Hour Energy Saving mode and ":= ="
indicates the control is set for the Continuous Bake feature
(Figures 2 and 3).
3. Press tto accept the change (Fig. 4; display will return to
_for 7 seconds Figure 1
Figure 2
time of day) or press _ to reject the change.
Figure 4
Setting Kitchen Timer
The KITCHEN TIMER _ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the
kitchen that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be
used during any of the other oven control functions. Refer to the "Minimum and Maximum Control Pad Settings" on page
15 for the time amount settings.
INSTRUCTIONS
To set the Kitchen Timer (example for 5 minutes):
1. Press _. "0:00" will appear and "TIMER" will flash in the
display (Fig. 5).
PRESS
@
DISPLAY
2.
.
Press the number pads to set the desired time in the display
(example (5)), Press I .The time will begin to count down
(Fig. 6) and "TIMER" will appear in the display. Note: If ) is
not pressed the timer will return to the time of day.
When the set time has run out, "End" will show in the display
(Fig. 7), and 3 beeps every 60 seconds will sound until _ is
pressed.
®@
@
To cancel the Kitchen Timer before the set time has
run out:
Press _. The display will return to the time of day.
@
15
Figure 5
Figure 6
Figure 7

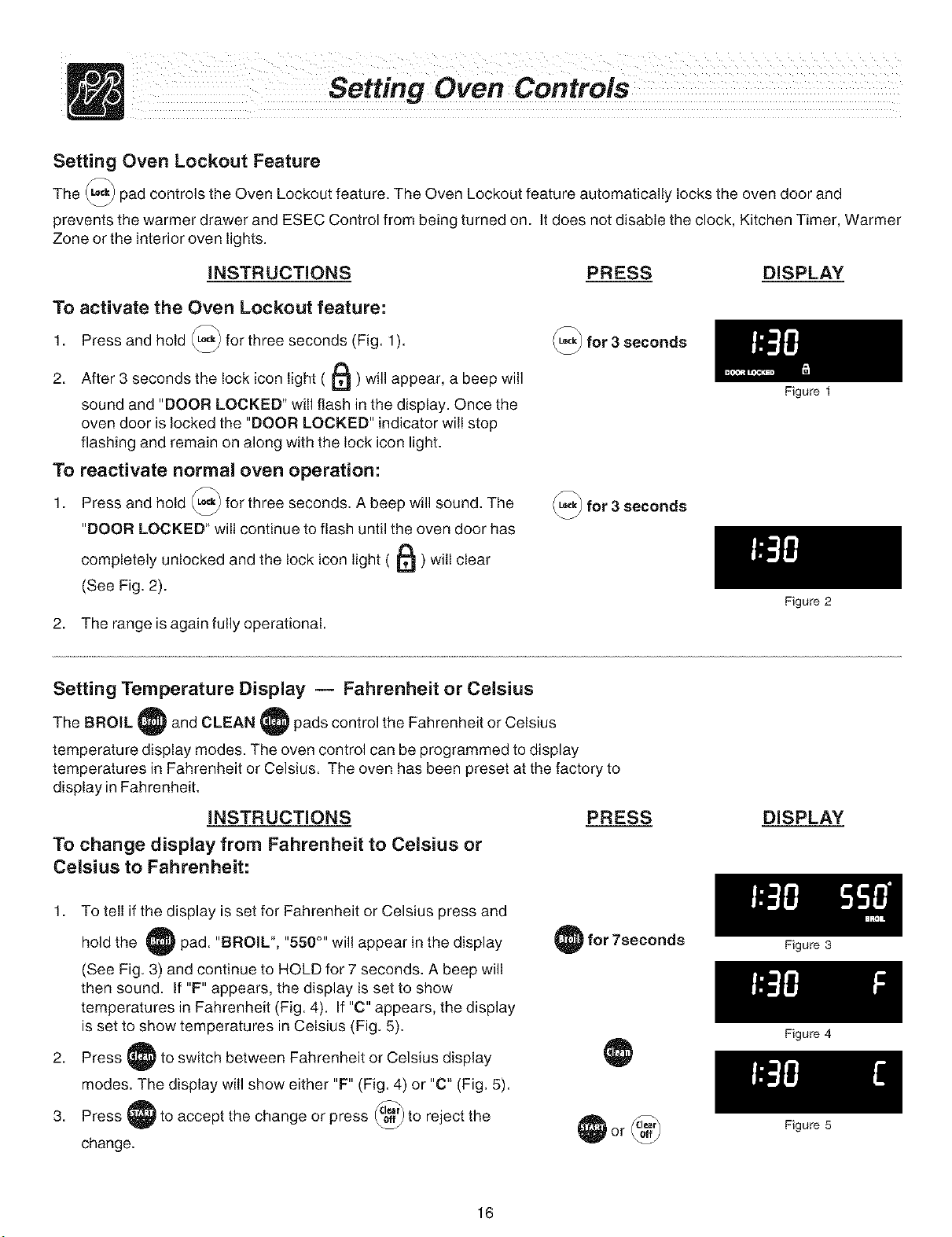

Setting Oven Lockout Feature
The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and
prevents the warmer drawer and ESEC Control from being turned on. It does not disable the clock, Kitchen Timer, Warmer
Zone or the interior oven lights.
INSTRUCTIONS PRESS DISPLAY
To activate the Oven Lockout feature:
1. Press and hold _ for three seconds (Fig. 1).
2. After 3 seconds the lock icon light ( _ ) will appear, a beep will
sound and "DOOR LOCKED" will flash in the display. Once the
oven door is locked the "DOOR LOCKED" indicator will stop
flashing and remain on along with the lock icon light.
To reactivate normal oven operation:
1. Press and hold _ for three seconds. A beep will sound. The
"DOOR LOCKED" will continue to flash until the oven door has
completely unlocked and the lock icon light ( _ ) will clear
(See Fig. 2).
_for 3 seconds
_for 3 seconds
2. The range is again fully operational.
Setting Temperature Display -- Fahrenheit or Celsius
The BROIL and CLEAN ) pads control the Fahrenheit or Celsius
temperature display modes. The oven control can be programmed to display
temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to
display in Fahrenheit.
INSTRUCTIONS
To change display from Fahrenheit to Celsius or
Celsius to Fahrenheit:
PRESS
1. To tell if the display is set for Fahrenheit or Celsius press and
hold the ) pad. "BROIL", "550°'' will appear in the display
(See Fig. 3) and continue to HOLD for 7 seconds. A beep will
then sound. If "F" appears, the display is set to show
temperatures in Fahrenheit (Fig. 4). If "C" appears, the display
is set to show temperatures in Celsius (Fig. 5).
2.
3.
Press i to switch between Fahrenheit or Celsius display
modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).
Press Ito accept the change or press _ to reject the
change.
for 7seconds
Figure 1
Figure 2
DISPLAY
16
Figure 3
Figure 4
Figure 5
Setting Oven Controis
<

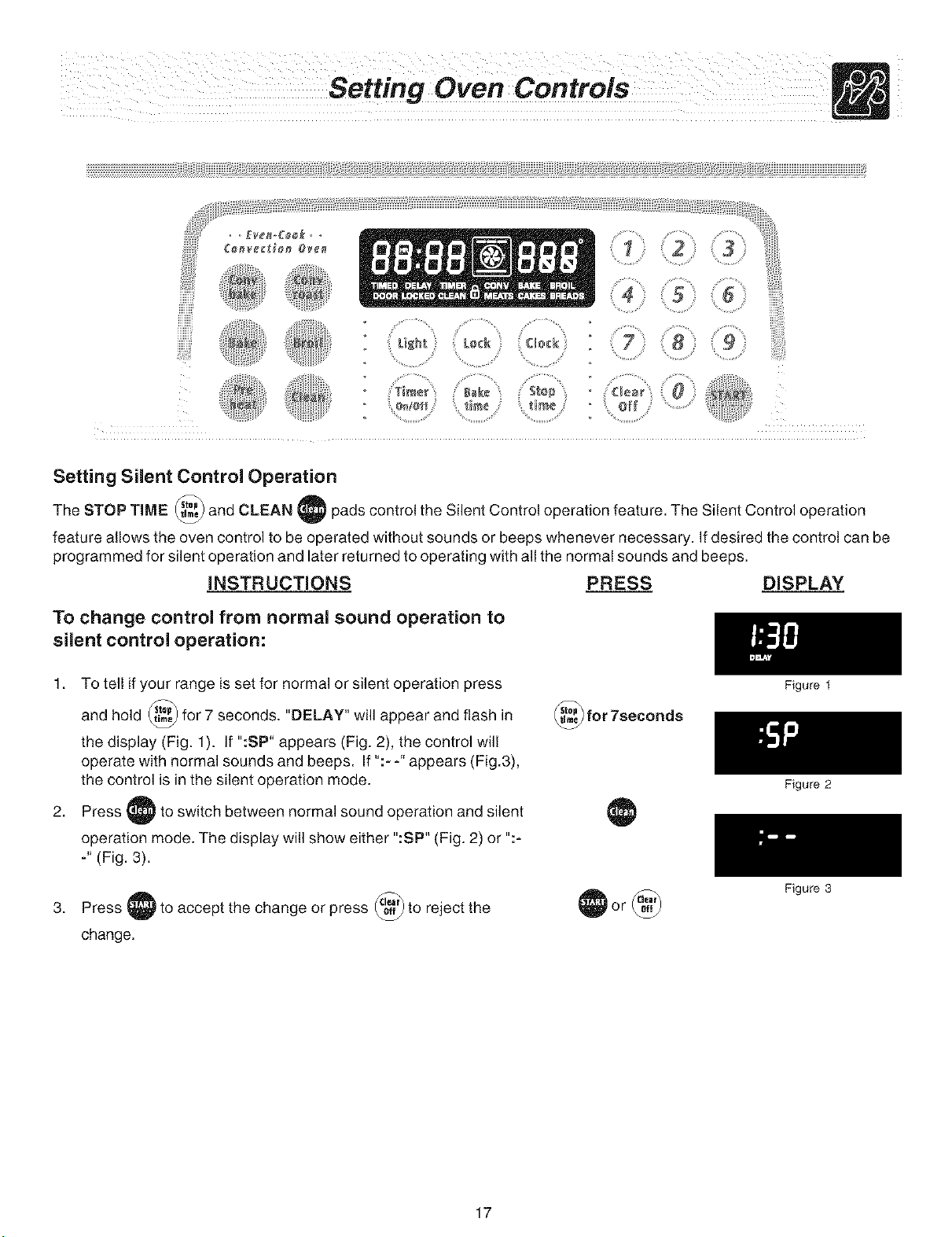

Setting Silent Control Operation
The STOP TIME _ and CLEAN !_ pads control the Silent Control operation feature. The Silent Control operation
feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be
programmed for silent operation and later returned to operating with all the normal sounds and beeps.
INSTRUCTIONS PRESS DISPLAY
To change control from normal sound operation to
silent control operation:
1. To tell if your range is set for normal or silent operation press
and hold _ for 7 seconds. "DELAY" will appear and flash in
the display (Fig. 1). If ":SP" appears (Fig. 2), the control will
operate with normal sounds and beeps. If ":- -" appears (Fig.3),
the control is in the silent operation mode.
2. Press, Ito switch between normal sound operation and silent
operation mode. The display will show either ":SP" (Fig. 2) or ":-
-" (Fig. 3).
for 7seconds
3. Press tto accept the change or press _ to reject the
change.
or_
17
Figure 1
Figure 2
Figure 3
Setting Preheat
The PREHEAT ) pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then
indicate when to place the food in the oven. Use this feature when recipes call for preheating. Preheating is not necessary
when roasting or cooking casseroles. The oven can be programmed to preheat at any temperature between 170°F to
550°F.
INSTRUCTIONS PRESS DISPLAY
To set the Preheat temperature for 350°F:
1. Arrange the interior oven racks.
2. Press "- - - °" and "BAKE" will appear in the display (Fig.
1).
3. Press@@@."350°"and"PRE"willappearinthe
display (Fig. 2).
4. Press "PRE" and "BAKE" will appear in the display as the
oven heats and reaches 350°F (Fig 3).
Note: After the oven has reached the desired temperature (this
example, 350°F) the control will beep and the "PRE" light will turn
off and oven temperature will be displayed (Fig. 4). If the beep was
missed, a quick glance at the display with oven temperature
showing in the oven display is a good way to check that the oven
has already reached the preheat temperature. Once the oven has
preheated, PLACE FOOD IN THE OVEN. The "BAKE" light will
stay on.
Press _ when baking is complete or to cancel the preheat
feature.
®®®
@
Figure 1
Figure 2
Figure 3
Figure 4
To change Preheat temperature while oven is
preheating (example changing from 350 to 425°F):
If it is necessary to change the preheat temperature while the oven
is preheating to the original temperature:
1. While preheating, press t ,,..o,, and "BAKE" will appear in
the display (Fig. 5)
2. Enter the new preheat temperature. Press _ @@.
"425°'' and "BAKE" will appear in the display (Fig. 6).
.
4.
Press "PRE" and "BAKE" will appear in the display as the
oven heats to 425°F (Fig 7). A beep will sound once the oven
temperature reaches 425°F and the display will show "425 °"
and "BAKE".
When baking is complete press _.
®®®
@
Figure 5
Figure 6
Figure 7
18
Figure 8
,_,_,_, .,_.,_*, ', ,, •,,.,,_' %,,, ,, •. ,, ,,, .,,,,,_
4 )
%.¸¸..¸¸
¸¸.¸-¸•-%¸
Setting Bake
The BAKE pad controls normal baking. Ifpreheating is necessary, refer to the Preheat Feature for instructions.
The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for 350°F).
INSTRUCTIONS PRESS DISPLAY
To set the Bake Temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press ), "- =- °" will appear in the display (Fig. 1).
3. Press @ @ @ (Fig. 2). "BAKE" will flash and "350°" will
appear in the display.
4. Press _ "BAKE" and "350°" will appear in the display (See
Fig. 3).
Note: A beep will sound once the oven temperature reaches 350 ° F.
Pressing @ will cancel the Bake feature at any time.
®®®
@
To change the Bake Temperature (example changing
from 350 ° to 425°F):
1. After the oven has already been set to bake at 350°F and the
2.
3.
oven temperature needs to be changed to 425°F, press
(Fig.4) and "=- - ° "will show in the display.
Press (_ @ @ (Fig. 5). "425°" and "BAKE" will appear in
the display.
Press _ "BAKE" and the new oven temperature "425°" will
appear in the display (Fig 6).
®®®
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
19
. !
Setting Oven Contro s

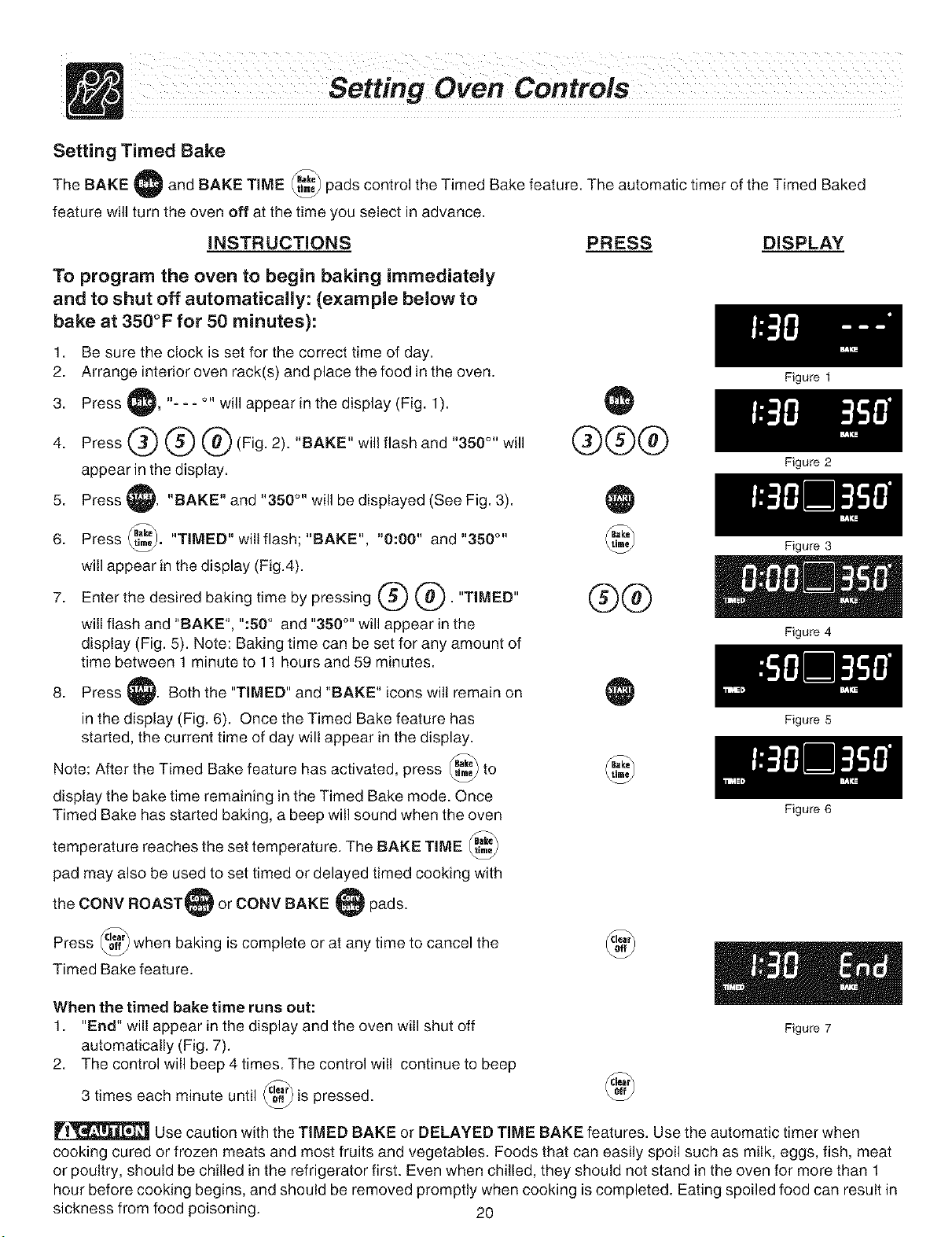

Setting Timed Bake
The BAKE and BAKE TIME @ pads control the Timed Bake feature. The automatic timer of the Timed Baked
feature will turn the oven off at the time you select in advance.
INSTRUCTIONS PRESS DISPLAY
To program the oven to begin baking immediately
and to shut off automatically: (example below to
bake at 350°F for 50 minutes):
1,
2.
,
4. (_) (_(_
Be sure the clock is set for the correct time of day.
Arrange interior oven rack(s) and place the food in the oven.
Press ), "- =- °" will appear in the display (Fig. 1).
Press @ @ @ (Fig. 2). "BAKE" will flash and "350°" will
appear in the display.
5. Press ' "BAKE" and "350 °" will be displayed (See Fig. 3).
6. Press _. "TIMED" will flash; "BAKE", "0:00" and "350 °"
will appear in the display (Fig.4).
7. Enter the desired baking time by pressing _ @. "TIMED" _@
will flash and "BAKE", ":50" and "350°'' will appear in the
display (Fig. 5). Note: Baking time can be set for any amount of
time between 1 minute to 11 hours and 59 minutes.
Figure 1
Figure 2
Figure 3
Figure 4
8. Press Both the "TIMED" and "BAKE" icons will remain on
in the display (Fig. 6). Once the Timed Bake feature has
started, the current time of day will appear in the display.
Note: After the Timed Bake feature has activated, press @ to
display the bake time remaining in the Timed Bake mode. Once
Timed Bake has started baking, a beep will sound when the oven
temperature reaches the set temperature. The BAKE TIME
pad may also be used to set timed or delayed timed cooking with
the CONV ROASTI ,or CONV BAKE } pads.
Press _ when baking is complete or at any time to cancel the
Timed Bake feature.
Figure 5
Figure 6
@
@
When the timed bake time runs out:
1. "End" will appear in the display and the oven will shut off
automatically (Fig. 7).
2. The control will beep 4 times. The control will continue to beep
3 times each minute until _ is pressed.
_F_ Use caution with the TIMED BAKE or DELAYED TIME BAKE features. Use the automatic timer when
cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat
or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1
hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in
sickness from food poisoning. 20
Figure 7

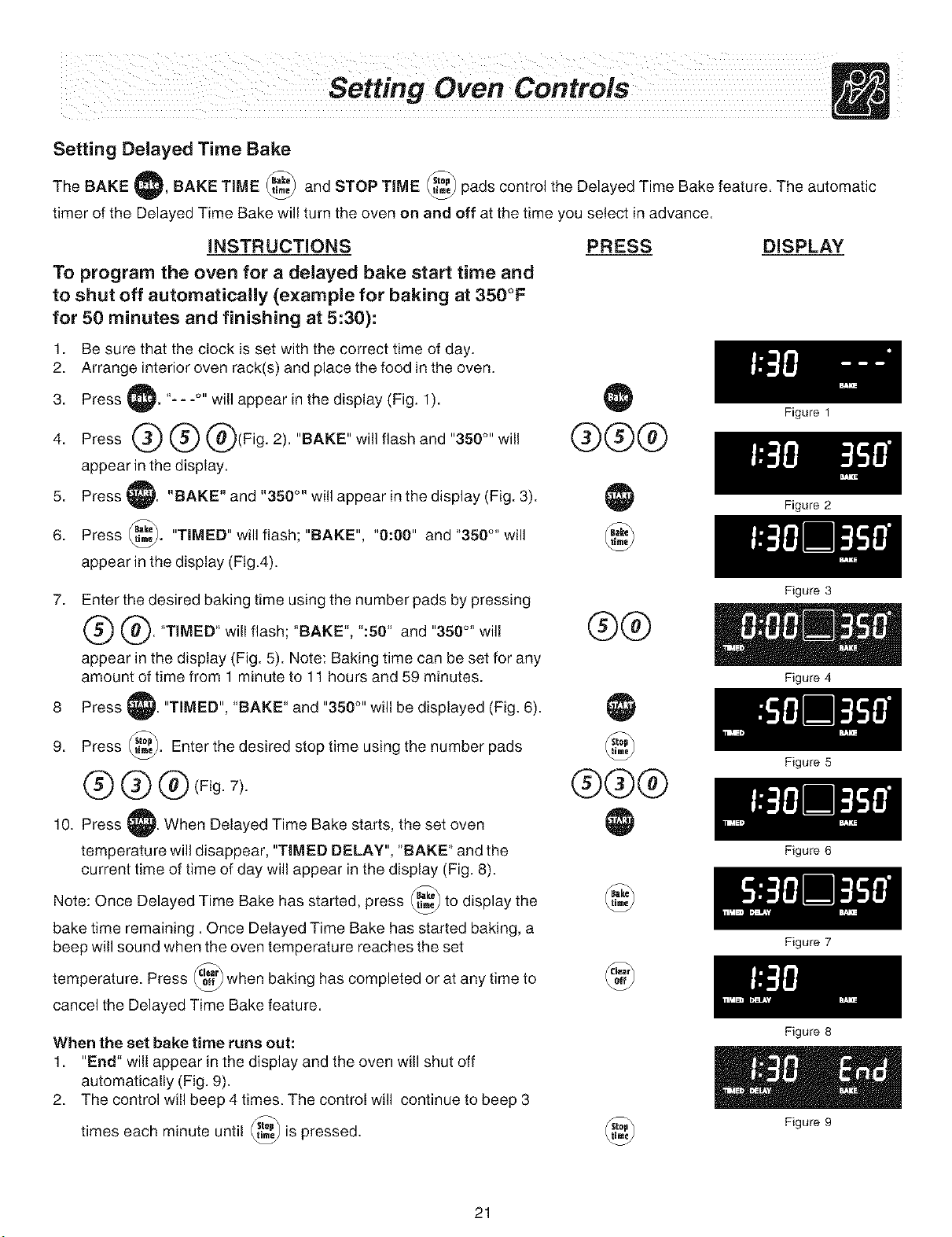

Setting Delayed Time Bake
The BAKE q BAKE TiME @ and STOP TiME @ pads control the Delayed Time Bake feature. The automatic
timer of the Delayed Time Bake wilJturn the oven on and off at the time you select in advance.
iNSTRUCTiONS
To program the oven for a delayed bake start time and
to shut off automatically (example for baking at 350°F
for 50 minutes and finishing at 5:30):
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food inthe oven.
3. Press I. "==-°" will appear in the display (Fig. 1).
4. Press @ @ @(Fig. 2). "BAKE" will flash and "350 °" will
appear in the display.
5. Press ' "BAKE" and "350 °" will appear in the display (Fig. 3).
6. Press @. "TIMED" will flash; "BAKE", "0:00" and "350 °" will
appear in the display (Fig.4).
PRESS DISPLAY
®®®
@
7.
Enter the desired baking time using the number pads by pressing
@ @. "TIMED" will flash; "BAKE", ":50" and "350°" will
appear in the display (Fig. 5). Note: Baking time can be set for any
amount of time from 1 minute to 11 hours and 59 minutes.
®®
8 Press "TIMED", "BAKE" and "350°'' will be displayed (Fig. 6).
9. Press @. Enter the desired stop time using the number pads @
@ @ ® (Fig. 7). @@®
10. Press When Delayed Time Bake starts, the set oven
temperature will disappear, "TIMED DELAY", "BAKE" and the
current time of time of day will appear in the display (Fig. 8).
Note: Once Delayed Time Bake has started, press @ to display the
bake time remaining. Once Delayed Time Bake has started baking, a
beep will sound when the oven temperature reaches the set
temperature. Press _ when baking has completed or at any time to
cancel the Delayed Time Bake feature.
Figure 1
Figure 2
Figure 3
Figure 4
When the set bake time runs out:
1. "End" will appear in the display and the oven will shut off
automatically (Fig. 9).
2. The control will beep 4 times. The control will continue to beep 3
times each minute until _ is pressed.
@
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
21
Setting Broil (for Gas Ranges)- The _t pad controls the Broil feature. When broiling, heat radiates downward
from the oven burner broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil
feature temperature may be set between 400°F and 550°F.
The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the
oven broiler. DO NOT use the broil pan without the insert (See Fig. 4). DO NOT cover the broil pan insert with foil. The
exposed grease could catch fire.
Should an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water
can cause a grease fire to spread and cause personal injury.
INSTRUCTIONS PRESS DISPLAY
To set the oven to broil at the default setting (550°F):
1. Place the broiler pan insert on the broiler pan. Then place the
food on the broiler pan insert. DO NOT use the broiler pan
without the insert. DO NOT cover the broiler insert with foil. The
exposed grease could ignite.
2. Arrange the interior oven rack and place the broiler pan on the
rack. Be sure to center the broiler pan directly under the broiler
burner. Close the oven door.
.
4.
Press "BROIL" will flash and "550°``will appear (Fig. 1).
If a lower broil temperature is desired (minimum broil
temperature setting is 400°F), press the desired temperature
before continuing to step 5.
5. Press The oven will begin to broil. "BROIL" and "550 °'' will
appear in the display (Fig. 2).
6. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack out
to the stop position before turning or removing food.
7. To cancel broiling or if finished broiling press _ (Fig. 3).
@
Figure 1
Figure 2
Broiling Times
Use the following table for approximate broiling times. Increase or decrease broiling times, or
move the broiling pan to a different rack position to suit for doneness. If the food you are
broiling is not listed in the table, follow the instructions provided in your cookbook and watch
the item closely.
Gas Range Broiling Table Recommendations
Food Rack Temp Cook Time
Item Position Setting lstside 2ndside Doneness
Steak 1" thick 2nd 550 ° F 8:00 6:00 Rare
2nd 550 ° F 10:00 8:00 Medium
Pork Chops 3/4" thick 2nd 550 ° F 12:00 8:00 Well
Chicken - Bone In 3rd 450 ° F 25:00 15:00 Well
Chicken - Boneless 2nd 450 ° F 10:00 8:00 Well
Fish 2nd 500 ° F as directed as directed Well
Shrimp 3rd 550 ° F as directed as directed Well
Hamburger 3/4" thick 2nd 550°F 12:00 10:00 Medium
3rd 550 ° F 14:00 12:00 Well
Figure 3
Figure 4
22
Setting Oven Cont'rols
Setting Convection Roast
The CONV ROAST t pad feature is used when cooking with meat. This pad has been designed to give optimum
cook performance for roasting meats.
The CONVECTION ROAST pad combines a cook cycle with the convection fan and element to roast meats and poultry.
Preheating is not necessary for meats and poultry. Heated air circulates around the food from all sides, sealing in juices and
flavors. Foods are crispy brown on the outside while staying moist on the inside.
INSTRUCTIONS PRESS DISPLAY
To set the Convection Roast feature (example for
Convection Roast at 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press J. "CONV" will flash and "==-°" will be displayed (See
Fig. 1).
3. Press @ @ @. "CONV" will flash and "350 °" will appear
in the display (See Fig. 2).
@@@
4. Press _ "CONV" and "350 °" will appear in the display (See
Fig. 3). The convection fan icon will come on a few minutes
after setting the Convection Roast feature (See Fig. 4).
Press @_ to stop Convection Roast, or to cancel Convection @
Roast at any time.
Convection Roasting instructions
When using the Convection Roast pad, use the broiler pan and insert along with the
roasting rack. The broiler pan will catch grease spills and the insert will help prevent
grease spatters. The roasting rack will allow the heat to circulate around the meat.
To prevent food from contacting the broil element and to prevent grease
spattering, DO NOT use the roasting rack when broiling.
Figure 1
Figure 2
Figure 3
Figure 4
1. Place oven rack on bottom or next to the bottom rack position. See Arranging
Oven Racks in this Use & Care Manual.
2. Place the insert in the broiler pan. The roasting rack fits on the insert allowing the
heated air to circulate under the food for even cooking and helps to increase
browning on the underside. Make sure the roasting rack is securely seated on the
insert in the broiler pan. DO NOT use the broiler pan without the insert or cover the
insert with aluminum foil.
3. Position food (fat side up) on the roasting rack (See Fig. 4).
4. Place the broiler pan on the oven rack.
Note: The BAKE TIME _ pad may be used to set timed or delayed timed cooking with
the CONY ROAST pad (refer to page 20, steps 6-8).
Figure 4
23
Setting Convection Bake
The CONV BAKE pad controls
the Convection Bake feature. Use the
Convection Bake feature when
cooking speed is desired. The oven
can be programmed for Convection
baking at any temperature between
3O0°F (149 °C) to 550°F (288 ° C).
Benefits of Convection Bake:
--Some foods cook up to 30% faster,
saving time and energy.
--Multiple rack baking.
--No special pans or bakeware
needed.
Convection baking uses a fan to circulate the oven's heat evenly and
continuously within the oven (See Figure 1). This improved heat
distribution allows for fast, even cooking and browning results. It also
gives better baking results when using two (2) or three (3) racks at the
same time. Breads and pastries brown more evenly. Most foods cooked in
a standard oven will cook faster and more evenly with Convection Bake.
Note: The BAKE TIME _ pad may be used to set timed or delayed
timed cooking with the CONV BAKE q 'pad (refer to page 20 steps 6-8).
General Convection Bake Instructions
_c Air
irculation
_ during
c°"22 e"°n
Figure 1
1stRackPosition
2ndRackPosition
Figure 2
1. When using Convection Bake, decrease your normal cooking times as shown on page 34. Adjust the cook time for
desired doneness as needed. Time reductions will vary depending on the amount and type of food to be cooked.
Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around
the food. Food baked on pans with a dark finish will cook faster.
2. Preheating is not necessary when cooking casseroles with Convection Bake.
3. When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place
the oven racks in positions 1,3 and 5 (for 3 racks) and positions 2 and 4 (for 2 racks; See Fig. 2).
4. Layer cakes will have better results when baked with the normal Bake feature.
INSTRUCTIONS
To set the oven for Convection Bake and
temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press "CONV BAKE" will flash and "- - -°" will appear in
the display (Fig. 3).
3. PressQQ(_."OONVBAKE"and "350°"willappear
in the display.
4. Press "CONV BAKE" and "PRE" will appear inthe
display (Fig. 5) until the oven reaches 350°F. A beep will sound
once the oven temperature reaches 350°F and the display will
show "350 °", "CONV BAKE" and the fan icon (Fig. 6).
Note: The convection fan will come on a short time AFTER the
oven has been set for Convection Bake. The oven icon display will
then show a rotating fan. This rotating fan icon indicates when the
Convection Fan is operating (See Fig. 6).
Press _ to stop Convection Bake or cancel Convection Bake at
any time.
PRESS DISPLAY
®®®
@
Figure 3
Figure 4
Figure 5
24
Figure 6
The health
of some birds is extremely
sensitive to the fumes
given off during the self-
cleaning cycle of any
range. Move birds to
another well-ventilated
room.
Figure 1
Preparing for the Self-Clean Cycle
A self-cleaning oven cleans itself with high temperatures which eliminate soil completely or
reduce it to a fine powdered ash you can wipe away with a damp cloth. These temperatures
are well above normal cooking temperatures.
1. Adhere to the following cleaning precautions:
* Allow the oven to cool before pre-cleaning.
* Wear rubber gloves when precleaning and while wiping up the residue after the self-
clean cycle.
DO NOT use oven cleaners or oven protective coatings in or around any part of the
self-cleaning oven.
DO NOT clean the oven door gasket. The woven material of the oven door gasket is
essential for a good seal. Care should be taken not to rub, damage or remove the
gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so could cause
damage.
2.
Remove the searing grill, broiler pan and broiler pan insert, all utensils and any
aluminum foil. These items cannot withstand high cleaning temperatures,
DO NOT line the oven walls, racks, bottom or any other part of the range
with aluminum foil. Doing so will destroy heat distribution, produce poor baking results
and cause permanent damage to the oven interior (aluminum foil will melt to the interior
surface of the oven).
.
Oven racks should be removed, or else their finish will dull and their color turn slightly
blue. If they do go through the self-clean cycle, wait until the oven has cooled, then
remove the racks and rub their sides with wax paper or a cloth containing a small
amount of baby or salad oil (this will make the racks glide easier back into their
positions).
4.
Remove any excess spillovers in the oven cavity before starting the self-cleaning cycle.
To clean, use hot, soapy water and a cloth. Large spillovers can cause heavy smoke or
fire when subjected to high temperatures. DO NOT allow food spills with a high sugar or
acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on
the surface as they may cause a dull spot even after cleaning.
5. Clean any soil from the oven frame, the door liner outside the oven door gasket, and the
small area at the front center of the oven bottom. These areas heat sufficiently to burn
soil on. Clean with soap and water.
If at any time when setting the oven for the Self-Cleaning feature, the oven control
continuously beeps and the display shows "dr"; close the oven door (See Figure 1).
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven bottom
should be removed.
25
To Start Self-Clean Cycle
The CLEAN I pad controls the Self-Cleaning feature. Ifyou are planning to use the oven directly after a self-clean
cycle remember to allow time for the oven to cool down and the oven door to unlock= This normally takes about one hour.
So to self-clean for 3 hours will actually take about 4 hours to complete.
*It is recommend to use a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for
heavy soils (to assure satisfactory results).
During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance; they may be burned if they touch the hot oven door surfaces.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the controls for a 3 hour Self-Cleaning cycle
to start immediately and shut off automatically:
1. Be sure the clock is set with the correct time of day and the
oven door is closed.
2,
,
4.
Press i. "CLEAN" will flash and "3:00" will show in the
display (Fig. 1). The control will automatically clean for a 3 hour
period (default self-cleaning cycle time). Note: If a 2 or 4 hour
clean time is desired, press ___ for 2 hour or press _ for a
4 hour clean time. Set the cleaning time based on the amount
of soil you have; light, medium or heavy (*See above).
Press _ i.The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" will remain on in the display (Fig. 2).
As soon as the control is set, the motor driven oven door lock
will begin to close automatically. Once the door has been
locked the "DOOR LOCKED" indicator light will stop flashing
and remain on. Also, the oven icon will appear in the display
(Fig. 3).
Note: Allow about 15 seconds for the oven door lock to close.
When the Self-Clean Cycle has completed:
1. The time of day, the "DOOR LOCKED" and "CLEAN" icon will
remain in the display (Fig. 4).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 5).
Stopping or Interrupting a Self-Cleaning Cycle:
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke or fire in the oven:
1,
2.
Press _.
Once the oven has cooled down for approximately I HOUR and
the "DOOR LOCKED" icon is no longer displayed,the oven door
can then be opened (Fig. 5).
@
26
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
To Start Delayed Self-Clean Cycle
The CLEAN, }, STOP TIME _ pads and length of clean cycle, controls the Delayed Self-Clean operation. The
automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO START THE SELF-
CLEAN CYCLE for recommended clean times.
_During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the control for the Self-Cleaning Cycle to start at a
delayed time and shut off automatically: (example 3 hour self=
clean cycle to finish at 9:00):
1. Be sure the clock is set with the correct time of day and the
oven door is closed.
2.
Press I. "CLEAN" will flash and "3:00" will show inthe
display (Fig. 1). The control will automatically clean for a 3 hour
period (default self-cleaning cycle time). Note: If a 2 or 4 hour
clean time is desired, press _ for 2 hour or press _ for a
4 hour clean time. Set the cleaning time based on the amount
of soil you have; light, medium or heavy (*See page 26).
3. Press i i.The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" will remain on in the display (Fig. 2).
4. Press _ (Fig. 3). Enter the desired stop time using the
number pads (_ (_ (_) (Fig. 4).
@
®®®
5. Press The "CLn" icon will turn off; "DELAY", "DOOR
LOCKED" and "CLEAN" icons will remain on.
6. As soon as the control is set, the motor driven oven door lock
will begin to close automatically and once the door has been
locked the "DOOR LOCKED" indicator light will quit flashing
and remain on. The oven icon will appear in the display (Fig. 5).
7. The control will calculate backward from the set stop time to
determine when the self-cleaning cycle should begin. The self-
cleaning cycle will come on automatically at the calculated
time. At that time, the icon "DELAY" will go out; "CLEAN" and
"CLn" will appear in the display (Fig. 6).
When the Self-Clean Cycle has completed:
1. The time of day, the "DOOR LOCKED" and "CLEAN" icon will
remain in the display (Fig. 7).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 8).
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
27
Figure 8
Self-Cleaning
To Start the Delayed Self-Clean Cycle (cont'd)
iNSTRUCTiONS
Stopping or interrupting a Self-Cleaning Cycle
If it becomes necessary to stop or interrupt a self-cleaning cycle
due to excessive smoke orfire in the oven:
1. Press @_.
2. Once the oven has cooled down for approximately I HOUR and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 2-1).
PRESS DISPLAY
@
The temperature in the oven has been pre-set at the factory. When first using the oven, be
sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, the
temperature in the oven can be adjusted. Before adjusting, test a recipe by using a
temperature setting that is higher or lower than the recommended temperature. The baking
results should help you to decide how much of an adjustment is needed.
INSTRUCTIONS PRESS
To adjust the oven temperature higher:
1. Press I for 6 seconds (Fig. 1).
2. To increase the temperature use the number pads to enter the
desired change. (Example30°F) (_) (_(Fig. 2). The Q(_
temperature may be increased as much as 35°F (17°C).
3. Press Ito accept the temperature change and the display
will return to the time of day (Fig. 3). Press _ to reject the _
change if necessary.
To adjust the oven temperature lower:
1. Press ) for 6 seconds (Fig. 4).
2. To decrease the temperature use the number pads to enter the
desired change. (Example-30°F) _ _ and then press Q(_@
) (Fig. 5). The temperature may be decreased as much as
35°F (17°C).
3. Press Ito accept the temperature change and the display
return to the time of day (Fig. 6). Press _ to reject the
will
change if necessary.
Figure 2-1
Note: The oven
temperature adjustments
made with this feature will
not change the Self-Clean
cycle temperature.
DISPLAY
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
28
Figure 6
Surfaces How to Clean
Aluminum & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted and Plastic
Control Knobs, Body
Parts, and Decorative
Trim
Stainless Steel, Chrome
Control Panel, Decorative
Trim
Porcelain Enamel Broiler
Pan and Insert, Door
Liner, Body Parts, Warmer
Drawer (for Burner Caps,
Burner Heads and Grates
see page 30).
Oven Racks
Oven door
For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up
grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.
Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these
materials; they can scratch. To remove control knobs, turn to the OFF position; grasp
firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides
of both the knob and the shaft; then push the knob into place.
Before cleaning the controlpanel, turn all controls to OFF and remove the control knobs.
To remove, pull each knob straight off the shaft. Clean using hot, soapy water and a
dishcloth. Rinse with a clean water using a dishcloth. Be sure to squeeze excess water
from the cloth before wiping the panel; especially when wiping around the controls. Excess
water in or around the controls may cause damage to the appliance.To replace knobs after
cleaning, line up the fiat sides of both the knob and the shaft; then push the knob into
place.
Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a
cloth. Do not use cleaners with high concentrations of chlorides or chlorines, Do not
use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for
cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish
stains may occur during heating that cannot be removed.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-
soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and
then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove
all cleaners or the porcelain may become damaged during future heating. DO NOT use
spray oven cleaners on the cooktop.
Oven racks should be removed from the oven during the Self-Clean cycle for cleaning.
When removed, clean by using a mild, abrasive cleaner following manufacturer's
instructions. Rinse with clean water and dry.
If the racks are cleaned in the Self-Clean cycle, their color will turn slightly blue and the
finish will be dull. After the Self-Clean cycle is complete, and the oven has cooled, rub the
sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad
oil (this will make the racks glide easier into the rack positions).
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the
door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a woven material,
on self cleaning models, which is essential for a good seal. Care should be taken not to
rub, damage or remove the gasket.
29
Odfic8
Holder
Figure 1
Cleaning the Burner Grates, Burner Caps and Burner Heads
The Burner Grates, Burner Caps and Burner Heads should be routinely cleaned.
Keeping the burner ports clean will prevent improper ignition and an uneven flame
at each burner position. Refer to the following instructions.
To Remove and Replace the Surface Burner Grate, Surface Burner Cap and
Surface Burner Head - Remove in the following order; (1st) Center Burner
Grate, (2nd) Surface Burner Grate, (3rd) Surface Burner Cap, (4th) Surface Burner
Head (See Figure 1).
Reverse the procedure above to replace the Surface Burner Cap, Surface Burner
Head and Surface Burner Grate. Do not remove any burner parts from the
cooktop until the burner parts have completely cooled and are safe to
handle. Do not operate the surface burners without the Surface Burner Caps,
Surface Burner Heads and Surface Burner Grates properly in place.
To Clean the Burner Caps, Burner Heads and Burner Grates - Use a soap-
filled scouring pad or a mild abrasive cleanser to clean the surface burner caps
and surface burner heads. The ports (or slots) around the burner heads must be
routinely cleaned. If residue still remains in these ports, use a small-gauge wire or
needle to clean the slots or holes. For proper flow of gas and ignition of the
burner--DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY
OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING.
ALWAYS keep the surface burner cap and surface burner head in place whenever
a surface burner is in use.
Care and Cleaning of Stainless Steel (Stainless Steel models only)
Some models are equipped with stainless steel exterior parts. Special care and cleaning
are required for maintaining the appearance of stainless parts. Please refer to the table
provided at the beginning of the General Care & Cleaning section in this Use & Care
Manual.
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat with the
inside of the door facing down.
To Remove Oven Door:
1. Open the door.
2. Remove screws located on the inside of the oven door near the hinges A (one on
each side.)
3. Close the door to the quarter-open position. Grasp the door firmly on both sides and
lift up and off the hinges.
4. To clean oven door, follow the instructions provided in the General Care & Cleaning
table on page 29.
To Replace Oven Door:
1. Be sure the hinge arms are in the quarter-open position. Be careful if pulling the
hinges open by hand. The hinges may snap back against the oven frame and could
pinch fingers.
2. Hold the door at the sides near the top. Insert the hinge arms intoslots at the bottom
of the door.
3. Hinge arms must go into the range slots evenly. The hinge arms should be inserted
into the bottom corners of the door as far as they can go.
4. Ifthe door is not in line with the oven frame, remove it and repeat the above steps.
30
Figure I
Figure 2
Removing and Replacing the Warming Drawer (Stainless Steel
models only)
To Remove Warming Drawer:
1. _ Turn power off before removing the warmer drawer•
2. Open the drawer to the fully opened position.
3. Locate glide lever on each side of drawer, pull up on the left glide lever and
push down on the right glide lever (See Fig. 1).
5. Pull the Warming Drawer away from the range.
To Replace Warming Drawer:
1. Pull the bearing glides to the front of the chassis glide (See Fig. 2).
2. Align the glide on each side of the drawer with the glide slots on the range.
3. Push the drawer into the range until levers "click" (approximately 2"). Pull
the drawer open again to seat bearing glides into position, if you do not
hear the levers "click" or the bearing glides do not feel seated remove
the drawer and repeat steps 1 thru 3. This will minimize possible damage
to the bearing glides•
NOTE: The Warming Drawer will NOT operate while inthe "Self-Clean" and "Oven
Lockout" modes.
l_1 _ Electrical Shock Hazard can occur and result
in serious injury or death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
Wire
Holder
Figure 3
Operating and Replacing the Oven Light
Be sure the range is unplugged and all parts are COOL
before replacing the oven light=Wear a leather-faced glove for
protection against possible broken glass•
Operating the Oven Light
The interior oven light will automatically turn on when the oven door is
opened. Press _ to turn the light ON and OFF when the oven door
is closed. The oven light is located at the rear wall of the oven interior
and is covered with a glass shield held by a wire holder (See Figure 3).
The Glass Shield must be in place whenever the oven is in use.
To Replace the Oven Light:
1. Turn electrical power off at the main source and unplug the range.
2. Press Wire Holder to one side to release the glass shield.
3. Replace the old bulb with a new 40 watt appliance bulb.
4. Replace Glass Shield over bulb and snap Wire Holder into place.
5. Turn power back on again at the main source (or plug in the range).
6. The clock will then need to be reset. To reset, see Setting the
Clock in this Use & Care Manual.
31
BeforeYo.Call
Solutions to Cemmon Prob!ems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Range is not level. Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust
leveling legs at base of range until the rack is level. When range is level, cooktop may
appear out of alignment if countertop is not level. See the Range Installation Instructions.
Weak, unstable floor. Be sure floor is level and can adequately support range. Contact a
carpenter to correct sagging or sloping floor.
Kitchen cabinet misaiignment may make range appear to be unlevel. Be sure cabinets are
square and have sufficient room for range clearance.
Cannot move appliance easily. Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem.
Appliance must be accessible for
service. Contact builder or installer to make appliance accessible.
Carpeting interferes with range, Provide sufficient space so range can be lifted over carpet.
Gas line is hard-plumbed. Have a flexible C.S.A. International approved metal appliance
connector installed,
Surface burners do not light. Surface Control knob has not been completely turned to LITE. Push in and turn the Surface
Control knob to LITE until burner ignites and then turn control knob to desired flame size.
Burner ports are clogged, With the burner off, use a small-gauge wire or needle to clean
ports. See page 30 in the Care & Cleaning Section for additional cleaning instructions.
Range power cord is disconnected from outlet (electric ignition models only). Be sure cord
is securely plugged into the outlet.
Electrical power outage (electric ignition models only).
Surface burner flame burns Burner ports are clogged. With the burner off, clean ports by using a small-gauge wire or
halfway around, needle.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until
flame is full. Dry the burners thoroughly and follow the instructions in the Care & Cleaning
section on page 30.
Surface burner flame is orange. Dust particles in main line. Allow the burner to operate a few minutes until flame turns blue,
In coastal areas, a slightly orange flame is unavoidable due to salt air,
Oven does not operate. Be sure the oven controls are set correctly for the desired function. See Setting Oven
Controls or "Entire Appliance Does Not Operate" below.
Be sure regulator gas valve is "ON". See the Range Installation Instructions,
The time of day must first be set on the clock in order to operate the oven.
Entire appliance does not operate. Make sure electrical cord/plug is plugged tightly into outlet,
Service wiring is not complete. Contact a Servicer.
Electrical power outage (electric ignition models only), Check house lights to be sure. Call
your local electric company for service,
Be sure gas supply is turned on,
Oven light or lights do not work. Burned-out or loose bulb, See "Changing Oven Light(s)" in the Care & Cleaning section in
this Use & Care Guide to replace or tighten the bulb(s),
Electrical power outage, Check house lights to be sure. Call your local electric company for
service.
32
Solutions to Common Problems
OCCURRENCE POSSIBLE CAUSE/SOLUTION
Oven smokes excessively during Meat is too close to the broil burner. Reposition the rack to provide more clearance
broiling, between the meat and the oven broiler.
Meat is not properly prepared. Remove excess fat from meal Remove remaining fatty
edges to prevent the meat from curling, but do not cut into the lean of the meat.
Broiler pan used without the broiler pan insert or insert is covered with foil. DO NOT use the
broiler pan without the broiler pan insert or cover the insert with foil
Broiler pan or insert needs to be cleaned. Excessive smoking is caused by a build-up of
grease or food spatters. If the broiler pan and insert is used often, clean on a regular basis.
Oven door is open. Oven door should be closed when broiling.
Oven electronic control beeps and
displays F1, F3 or Fg.
This oven is equipped with a state of the art electronic oven controller. Among the many
features is a full time oven circuit diagnostics system. The controller constantly monitors the
internal circuitry as well as several crucial oven circuits to insure they are all operating
correctly. If at any time one of these systems fails, the controller will immediately stop the
current operation and beep continuously (flashing an error code of F1, F3 or F9 in the
controller display window.
Oven control beeps when you try
to enter times or temperatures
Electronic control has detected a fault condition. Press CLEAR/OFF to clear the display and
stop beeping. Reprogram oven. If fault remains, record fault number. Press CLEAR/OFF
and contact a Servicer.
The oven control will only accept correct responses and/or the minimum number of
allowable entries for the appropriate feature. The oven control is designed to prevent
accidental entries. Review the instructions in this Use & Care Manual for the feature you are
trying to use. Also review the minimum and maximum temperature entries for the feature
you are trying to set on page 13 in this Use & Care Manual.
Poor baking results.
Many factors affect baking results. Make sure the proper rack position is being used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the
set temperature before placing food in the oven. Try adjusting the recipe's recommended
temperature or baking time. If you feel the oven is cooking too hot or cool, see Adjusting
the Oven Temperature in this Use & Care Manual.
Self-Cleaning cycle does not work. Controls are not set properly. Follow instructions in the Self-Cleaning section.
Self-cleaning cycle was interrupted. Stop time must be set 2 to 4 hours past the start time.
Follow steps under "Stopping or Interrupting a Self-Clean Cycle" under Self-Cleaning.
Soil is not completely removed. Failure to clean bottom front, top of oven or door areas outside oven seal These areas are
not in the self-cleaning area, but get hot enough to burn on food residue. Clean these areas
before starting the self-clean cycle. Burned-on residue may be cleaned with a stiff nylon
brush and water or a nylon scrubber. Be careful not to damage the oven gasket.
Excessive spillovers in oven. Set Self-Clean cycle for a longer cleaning time.
Flames inside oven or smoking Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts
from vent. of grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean
cycle. If flames or excessive smoke are present, stop the self-clean cycle and follow the
steps under "Stopping or Interrupting the Self-Clean Cycle" in the Self-Cleaning section.
33
Cooking Tables
Foods for CONVECTION
RAKE pad
*Decrease
normal cook time by:
Frozen foods, pies,
pastries and pizza
15-25 %
Refrigerator cookies 15-35 %
Refrigerator biscuits 15-30 %
Rolls & Breads 20-25%
Fresh Pies/Pastries 10-20 %
Begin with the maximum reduction in
cook times and adjust as needed.
*Recommended reduction in cook
times based on brands of food items
tested. Cook times may vary with your
specific brand of food item.
Foods for CONVECTION
ROAST pad
*Decrease
normal cook time by:
Meats 15-30 %
Poultry (unstuffed) 20-30 %
Begin with the maximum reduction in
cook times and adjust as needed.
*Recommended reduction in cook
times based on brands of food items
tested. Cook times may vary with your
specific brand of food item.
34
35
RANGE WARRANTY
Your range is protected by this warranty
WARRANTY _ROUGH OUR AU'_IORmZEDSERVICERS, _IE CONSUMERWiLL Bl_ RESPONSIBLEFOR:
PERIOD WEWILL:
FULLONE-YEAR Oneys_ from original Payall coatsfor repairing or t_pl_cinganypartsof this Costsefserviceoalisth_tateliatedunderNORMAL
WARRANTY pu_h_e date. appliancewhichproveto bedetsative inmaterialsor RESPODelmLITIES OFTHE CONSUMED._
worl_nanship,
UMmTED2NC=5"rH Etscondthrough fifth Providea replacementfor any defectiveeurfaeeheating Diagnosticcoctsandany transportationandlaborcosts
YEARWARRANTY yeatsfrom original element,deterioratedrubberized-siliconeseal(upswept which arerequiredbecauseof se_ce.
|Gl_ss_moo_op, pumhasedate. models only),orglasssmoothtopthat cracksdueto
Seal & Elements) thermal breaksge{notcustomer abuae).
LiMiTEDWARRANTlf Timepedodslisted Allof the provisionsof thefull andlimited wartanttss Costsofthe technician'stravel tothe homeandany
(Appli_ble to the above, aboveandthe exclusionsIlated belowapply, co_tsfor pickup anddeliveryofthe appliancerequired
SR=teof Abmka) becauseef service.
In the U.S.A., your appliance is warranted by Eiectrolux Home Products North America, a division of White Consolidated Industries, Inc. W_
authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty mus
be performed by us or an authorized Electrolux Home Products North America servicer. In Canada, your appliance is warranted by WCI Canada
Inc.
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for th_
items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2, Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3, Proper connection to a grounded power suppiy of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4, Expenses for making the appiiance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,
which are not a part of the appiiance when it was shipped from the factory,
5. Damages to finish after installation.
6, Replacement of iight bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1, CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSE, _
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY iMPLiED WARRANTY.
NOTE: Some states do not allow the exclusion or iimitation of incidental or consequential damages, so this
limitation or exclusion may not appiy to you.
2, Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinal_j household use. The consumer shall pay for such service catls.
3, Damages caused by services performed by servicers other than Electrolux Home Products North America or it_
authorized servicers; use of parts other than genuine Electrolux Home Products pads; obtained from persons
other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God
4, Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes th4
warranty period should service be required, if service is performed, it is in your best interest to obtain and keep a
receipts. This written warranty gives you specific legal rights, You may also have other rights that vary from state to state
Service under this warranty must be obtained by contacting Eiectroiux Home Products:
This warranty oniy applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as described or iliustrated ar_
subject to change without notice. All warranties are made by Electrolux Home Products North America, a division of White Consolidated Industries
Inc. In Canada, your appliance is warranted by WCI Canada, Inc. 03-U-RA-01 (rev. 01/2001
USA
800.944=9644
Electroiux Home Products North America
P.O. Box 212378
Augusta, GA 30917
Canada
866=213=9397 (English)
866=294.9911 (French)
Electrolux Home Products Nodh America
6150 McLaughlin Road
Mississauga, Ontario, Canada
L5R 402
