• For ceilings up to a 45° angle.
• Design allows remote control receiver to be installed within the canopy
up to a 45° angle.
• Works with ½” and ¾” fan down rods.
• Unique Patent Pending design.
UNPACKING THE CATHEDRAL CANOPY KIT
1. Identify all the included components (Fig. A):
a. Universal Mounting Plate
b. Mounting Bracket with (2) 3/8” long canopy screws
c. Canopy
d. Decorative Cover Ring
e. (2) ¾” long screws
f. (2) split washers
g. (2) flat washers
h. Down rod sleeve adaptor
i. Retaining Ball
j. Retaining Pin
k. 1/4” long retaining screw
l. 3/8” long retaining screw
2. Remove the (2) canopy screws from the Mounting bracket
and remove the canopy.
INSTRUCTIONS
1. Turn off power supply before installation.
2. The outlet box and support structure must be securely mounted and capable
of reliably supporting a ceiling fan. Use only listed outlet boxes marked
“for fan support”.
3. Align universal mounting plate to the outlet box, so that the mounting brackets
mounting holes are positioned horizontally (Fig. B).
4. Secure universal mounting plate to outlet box with outlet box screws
(not included).
5. Position mounting bracket, so that the mounting bracket opening is away from
the ceiling peak (Fig. C and D).
6. Secure mounting bracket to universal mounting plate with ¾” mounting screw,
lock washer and flat washer.
Note: The universal mounting plate can be installed with the flange/lip facing
towards or away from ceiling, it does not affect the performance.
7. Determine the size of the down rod you are using is ½” or ¾”.
8. For ½” down rod: position down rod adaptor sleeve, so that retaining screw hole
is located above retaining pin hole. Slide down rod and adaptor sleeve
through bottom of retaining ball and insert retaining pin through down rod. Lock
pin into retaining ball slots and secure with 3/8” long retaining screw (Fig. E).
For ¾” down rod: slide down rod through bottom of retaining ball and insert
retaining pin through down rod. Lock pin into retaining ball slots and secure
with ¼” long retaining screw (Fig. F).
9. Break off the tab of the decorative cover ring.
10. Slide the ceiling fan wires through: decorative cover ring, canopy, down rod
assembly. Secure the down rod to the ceiling fan according to the ceiling fan
instructions.
11. Lift retaining ball and place into mounting bracket, making sure the mounting
bracket tab sits properly into the slot of the retaining ball (Fig. G).
12. For optional remote control installation: Insert remote control receiver above the
mounting bracket ring (Fig. G).
13. Make electrical connections according to remote control and ceiling fan
manufacturer’s instructions.
14. Connect green grounding wire from the retaining ball to the grounding
conductor in the outlet box.
15. Raise canopy to mounting bracket. Secure with (2) 3/8” long canopy screws.
16. Peel the backing off the adhesive tape strips on the inside of the decorative
cover ring. Secure to the canopy by gently pressing the adhesive tape to the
bottom of the canopy.
Westinghouse Lighting Corporation, Philadelphia, PA 19154-1029, U.S.A.
Westinghouse Lighting Corporation, a Westinghouse Electric Corporation licensee
www.westinghouselighting.com
and “Westinghouse” are registered trademarks of Westinghouse Electric Corporation
y “Westinghouse” son marcas registradas de Westinghouse Electric Corporation
Made in China/Hecho en China
© 2012 WESTINGHOUSE LIGHTING CORPORATION
CATHEDRAL CEILING
FAN CANOPY KIT

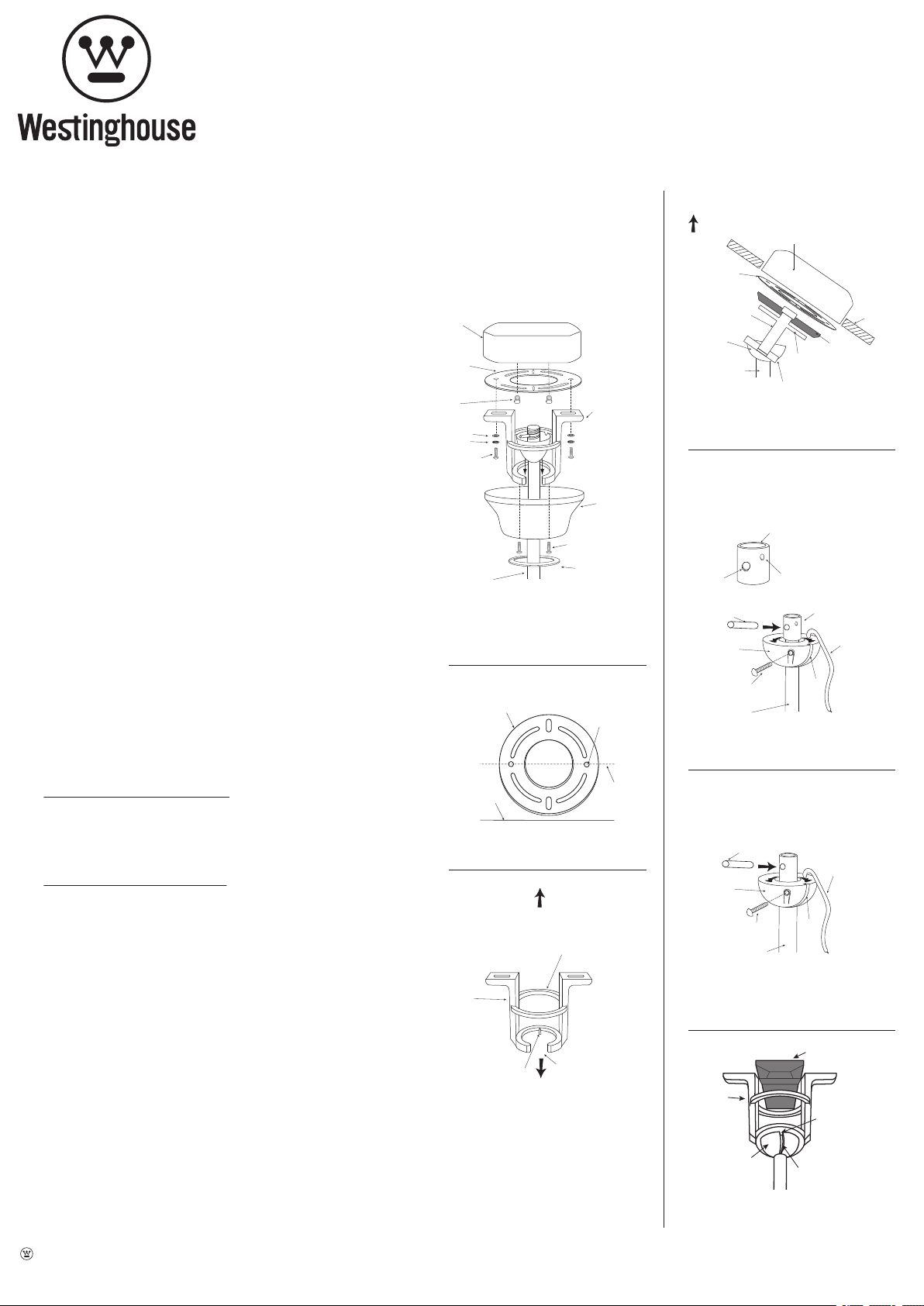

Fig. A
CANOPY
3/8” LONG
CANOPY SCREWS
DECORATIVE
COVER RING
DOWN ROD
*
UNIVERSAL
MOUNTING PLATE
OUTLET BOX
*
FLAT WASHER
SPLIT WASHER
OUTLET BOX SCREWS
*
3/4” LONG SCREWS
MOUNTING
BRACKET
*NOT INCLUDED
INSTALLATION DIAGRAM
Fig. B
HORIZONTAL
MOUNTING BRACKET
MOUNTING HOLES
UNIVERSAL
MOUNTING PLATE
FLOOR
Fig. C
MOUNTING
BRACKET RING
MOUNTING BRACKET
OPENING
MOUNTING
BRACKET
MOUNTING
BRACKET TAB
CEILING
PEAK
Fig. D
UNIVERSAL
MOUNTING PLATE
OUTLET BOX
*
*NOT INCLUDED
CEILING
PEAK
MOUNTING BRACKET
RETAINING BALL
CEILING
DOWN ROD*
REMOTE
CONTROL RECIEVER
*
MOUNTING
BRACKET RING
MOUNTING BRACKET OPENING
Fig. E
TOP OF DOWN ROD
SLEEVE ADAPTER
RETAINING
PIN HOLE
RETAINING SCREW HOLE
*NOT INCLUDED
DOWN ROD AND RETAINING BALL ASSEMBLY
FOR 1/2” DOWN ROD
RETAINING PIN
3/8” LONG
RETAINING SCREW
SLOT
GREEN
GROUNDING
WIRE
RETAINING BALL
1/2” DOWN ROD*
DOWN ROD SLEEVE ADAPTER
Fig. F
RETAINING PIN
1/4” LONG
RETAINING SCREW
SLOT
DOWN ROD AND RETAINING BALL ASSEMBLY
FOR 3/4” DOWN ROD
GREEN GROUNDING WIRE
RETAINING
BALL
3/4” DOWN ROD*
*
NOT INCLUDED
Fig. G
RETAINING
BALL SLOT
MOUNTING
BRACKET
MOUNTING
BRACKET TAB
RETAINING
BALL
*NOT INCLUDED
REMOTE
CONTROL RECEIVER
*
