8x50mm
7x50mm
NOTICE
* Please make sure that you have all parts indicated before you begin assembly of this item
* This item should be assembled on a soft surface to prevent scratching the finish during assembly
* This item may require periodic tightening
Part List and Hardware List
A
B
C
D
E
H1
H2
H3
Allen bolt L
Sunlouger Frame
Cross bar of leg
Frone leg
Back leg
Allen key
Washer
Screw -1
1X
2X
2X
2X
4X
8X
8X
2X
PIECE
DESCRIPTION PICTURE QUANTITY
Model# PAT7024
Product Dimensions:24.8" W x 80.9" D x 37.4" H
CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when not in use.
Remove wooden furniture from standing water. Dust regularly with small brush or vacuum
Spills should be taken care of immediately before they harden or
stain with a slightly dampened sponge.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 30 minutes.
Tools Required for Assembly (included): Allen Key
1
2
3

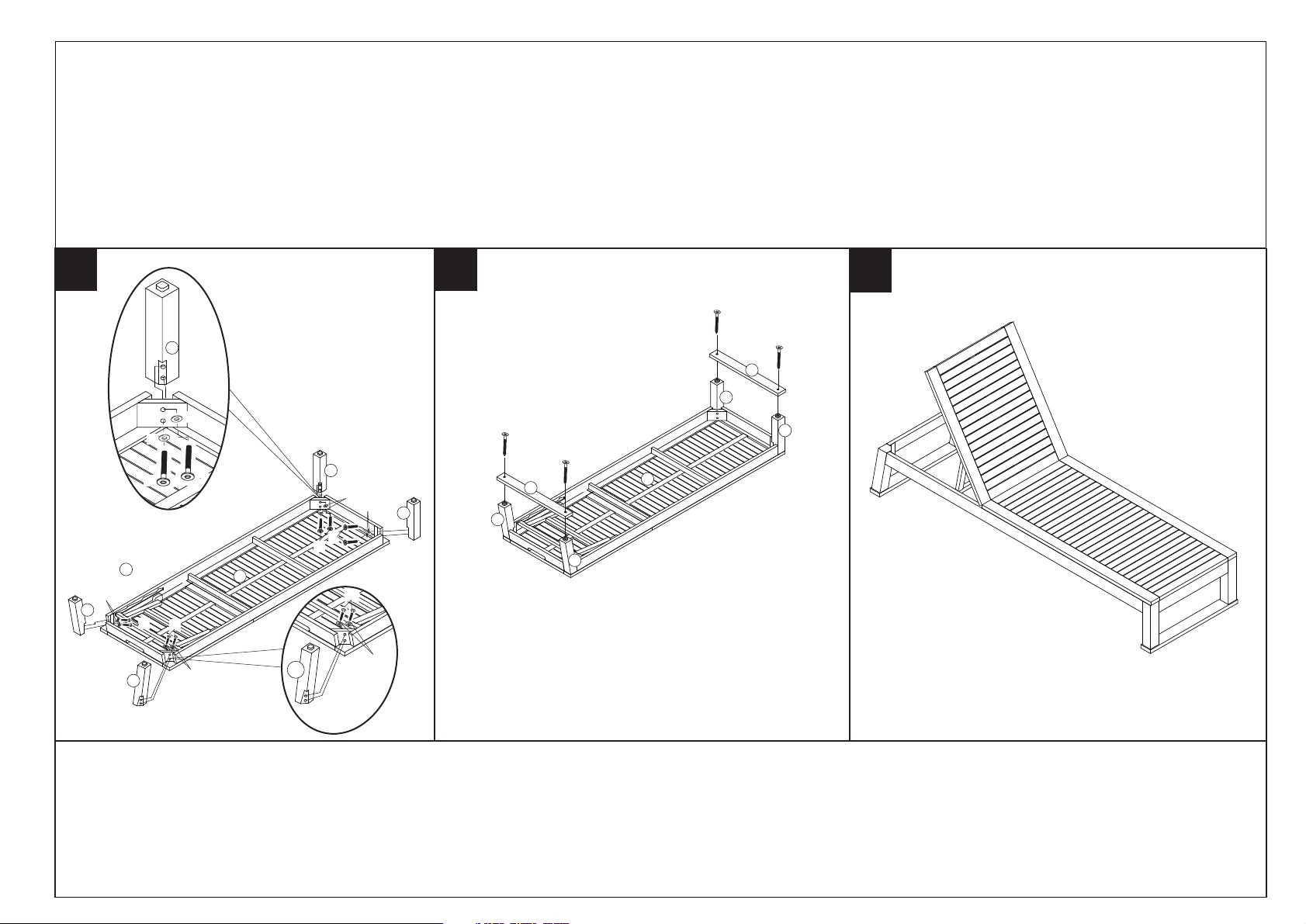

Step 1
Attached (B) to (A),insert (H2)
inside, using (H1) tighten by (H3)
Step 2
Attached (D) to (B),using (E) tighten by (H3)
B
B
B
E
A
E
E
E
C
C
B
B
D
D
C
C
C
A
H2
H2
H1
H1
H1
H1
H2
H2
H1
H2
H1
H2
C
C
H1
H2
H1
