Use & Care Guide
Manual de Uso y Cuidado
Guide d'Utilisation et d'Entretien
English / Espa_ol / Fran_ais
Mode Ls/Mode Jos/Mod_ Jes:795.5109*
Kenmore Elite°
@
C_
P/N MFL63729002
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kemorecorn
www.sears.com
Sears Canada inc.
Toronto, Ontario, Canada M5B 2B8
www.sea rs.ca
TM

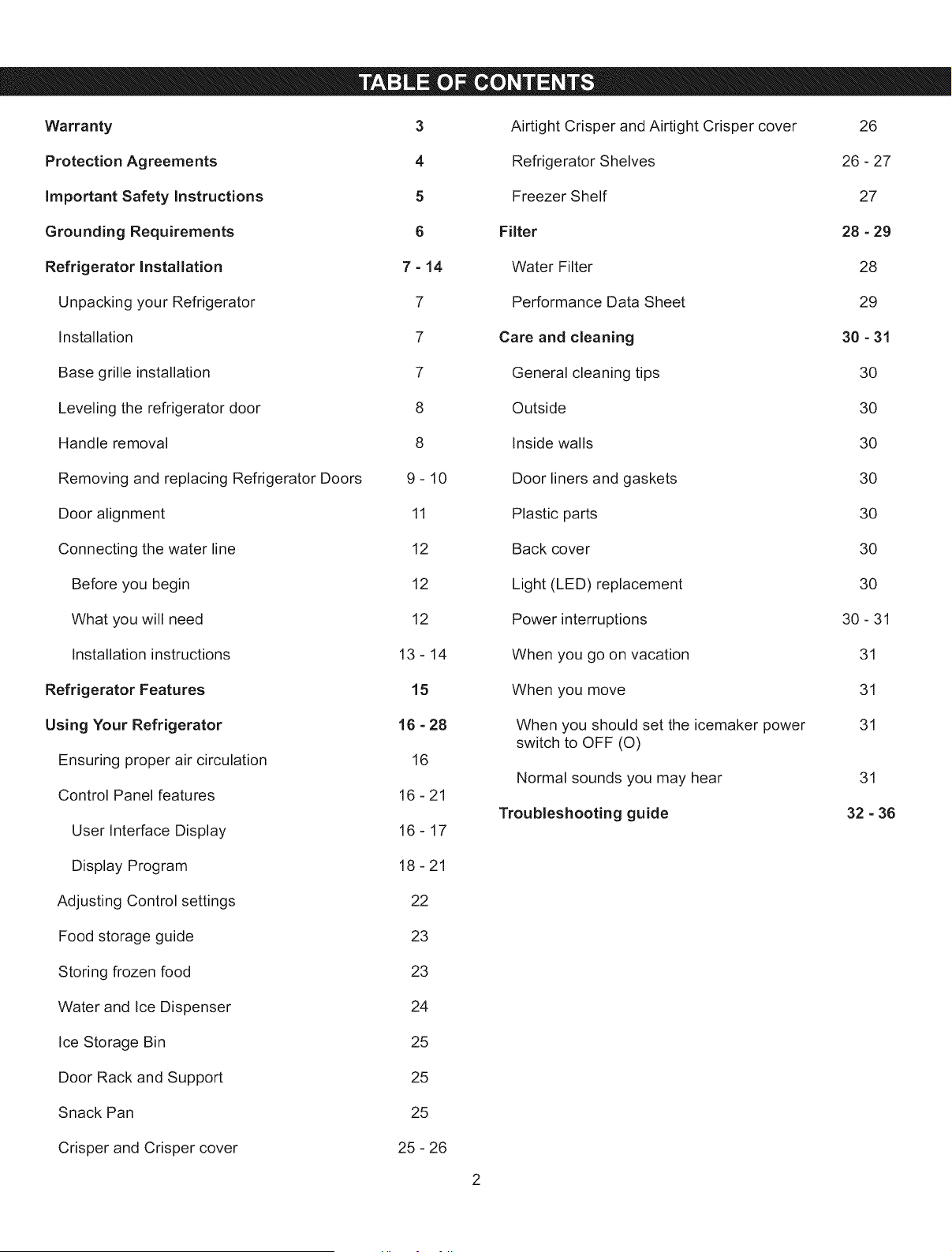

Warranty 3
Protection Agreements 4
important Safety instructions 5
Grounding Requirements 6
Refrigerator installation 7 - 14

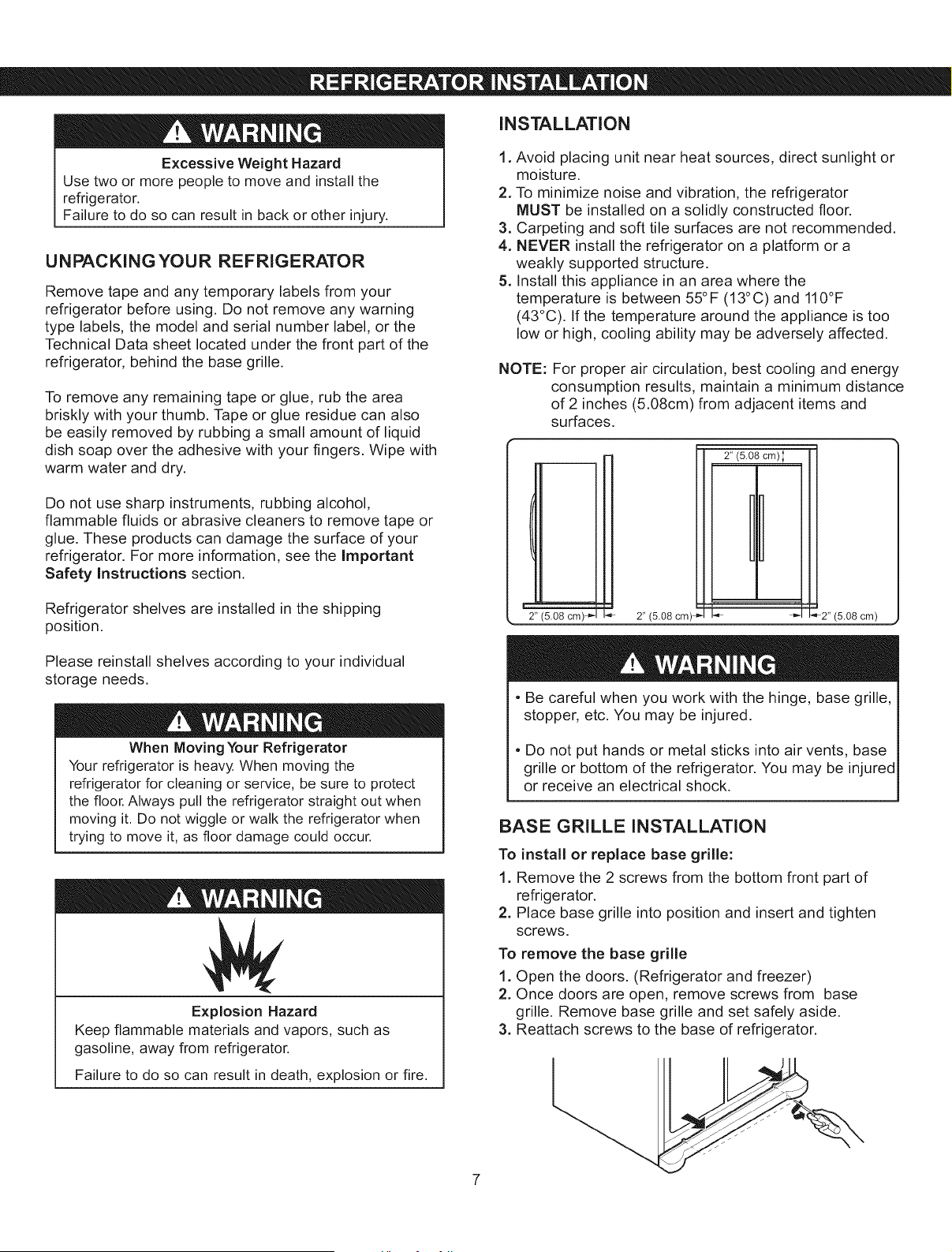

Unpacking your Refrigerator 7
installation 7
Base grille installation 7

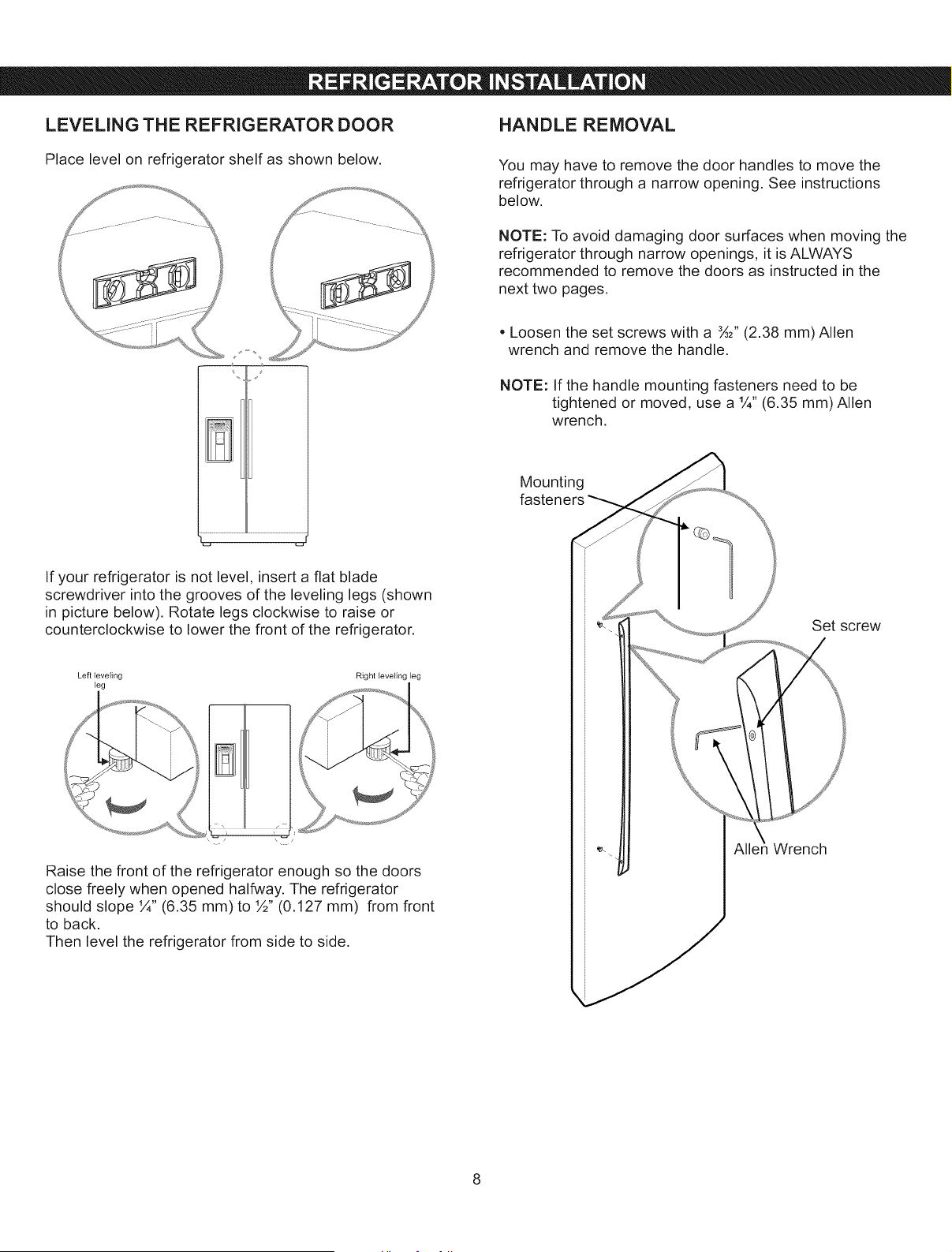

Leveling the refrigerator door 8
Handle removal 8

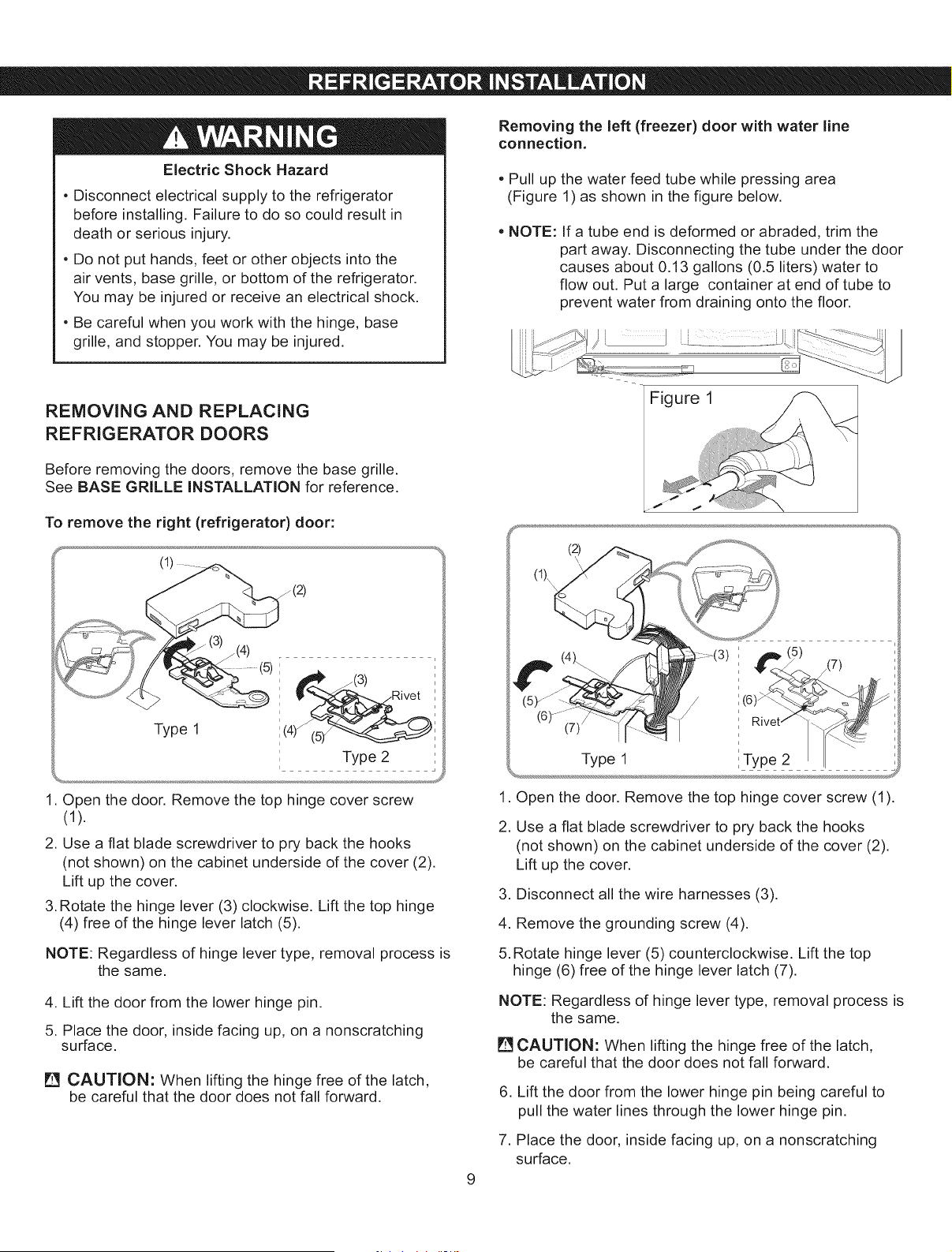

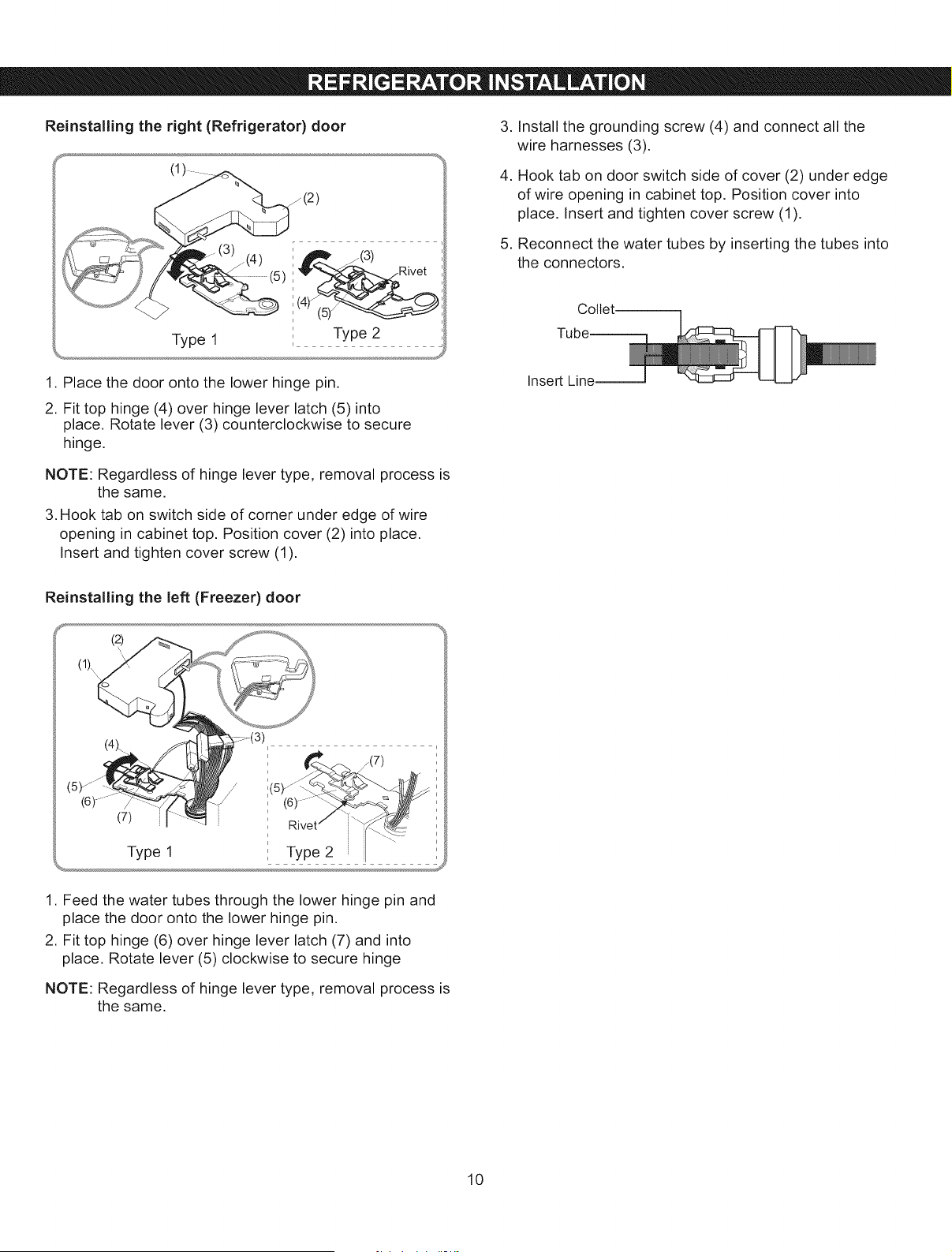

Removing and replacing Refrigerator Doors 9 - 10

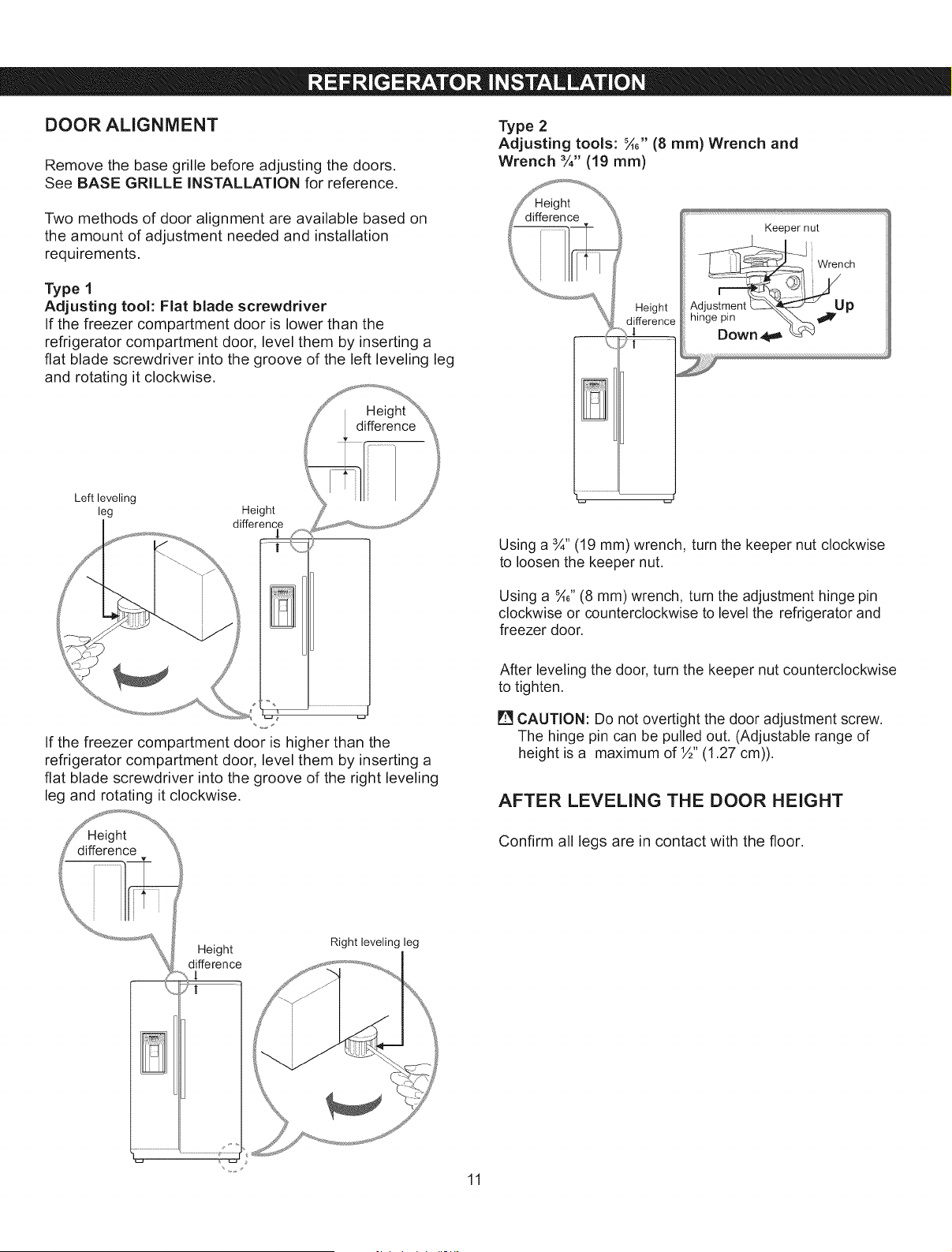

Door alignment 11

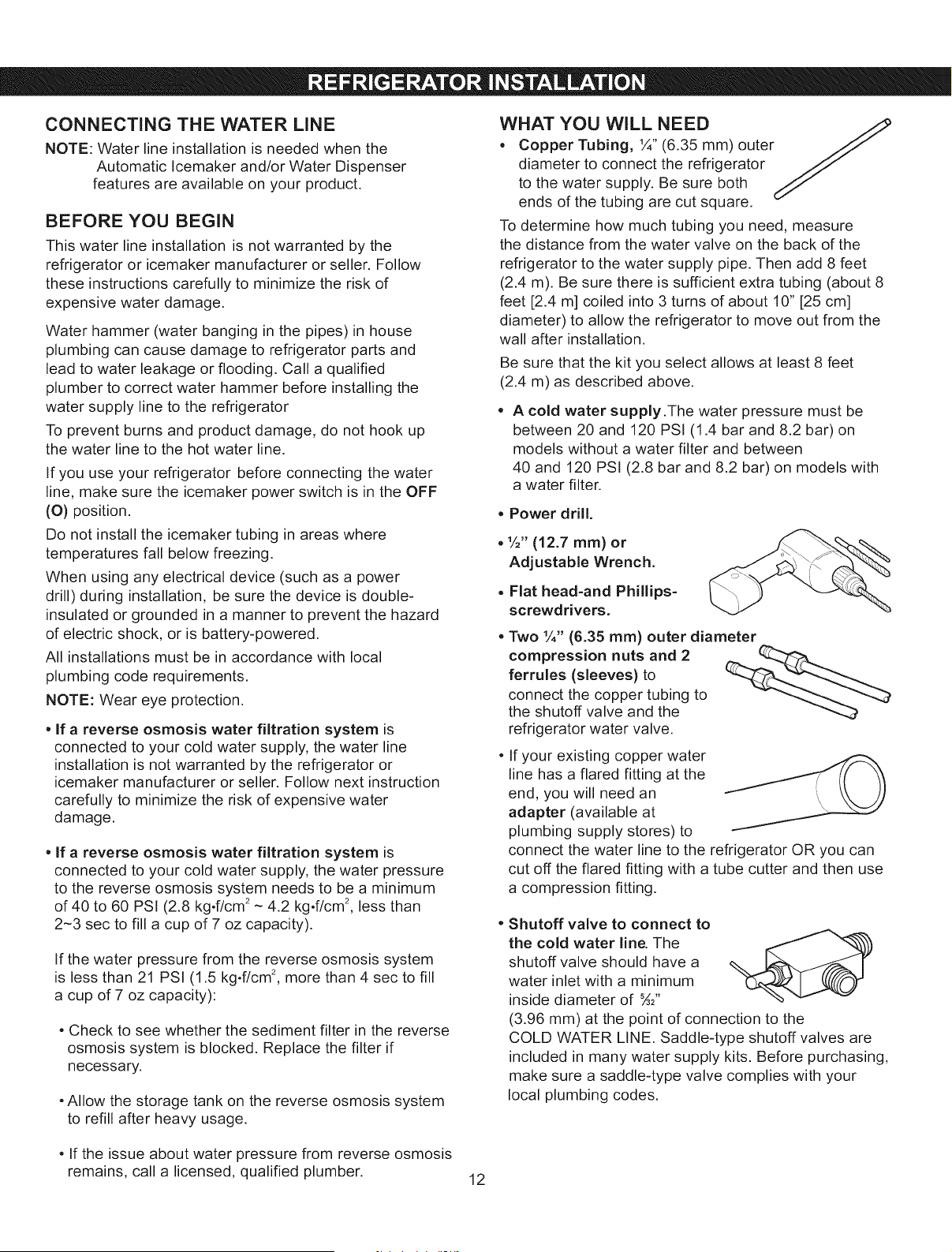

Connecting the water line 12
Before you begin 12
What you will need 12

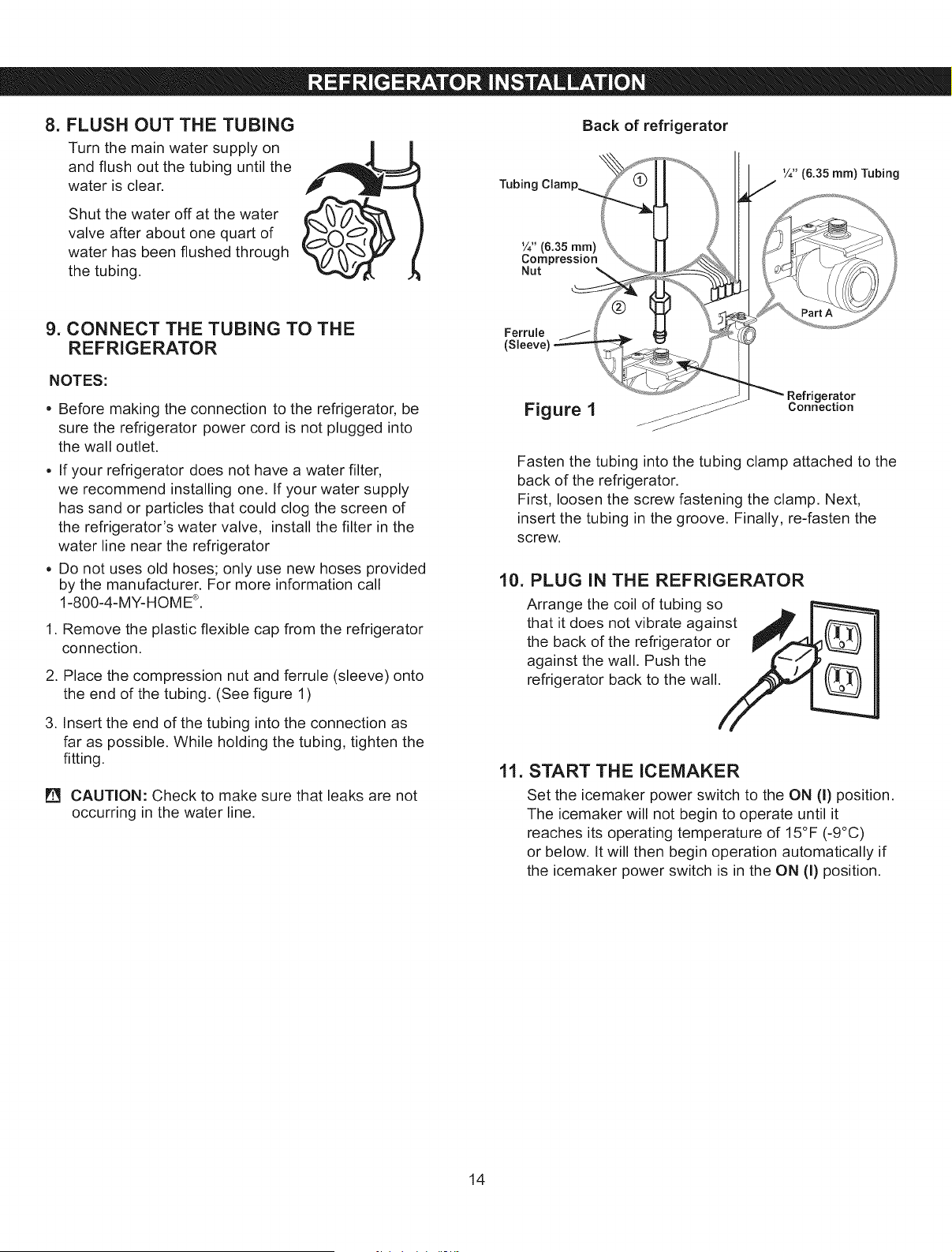

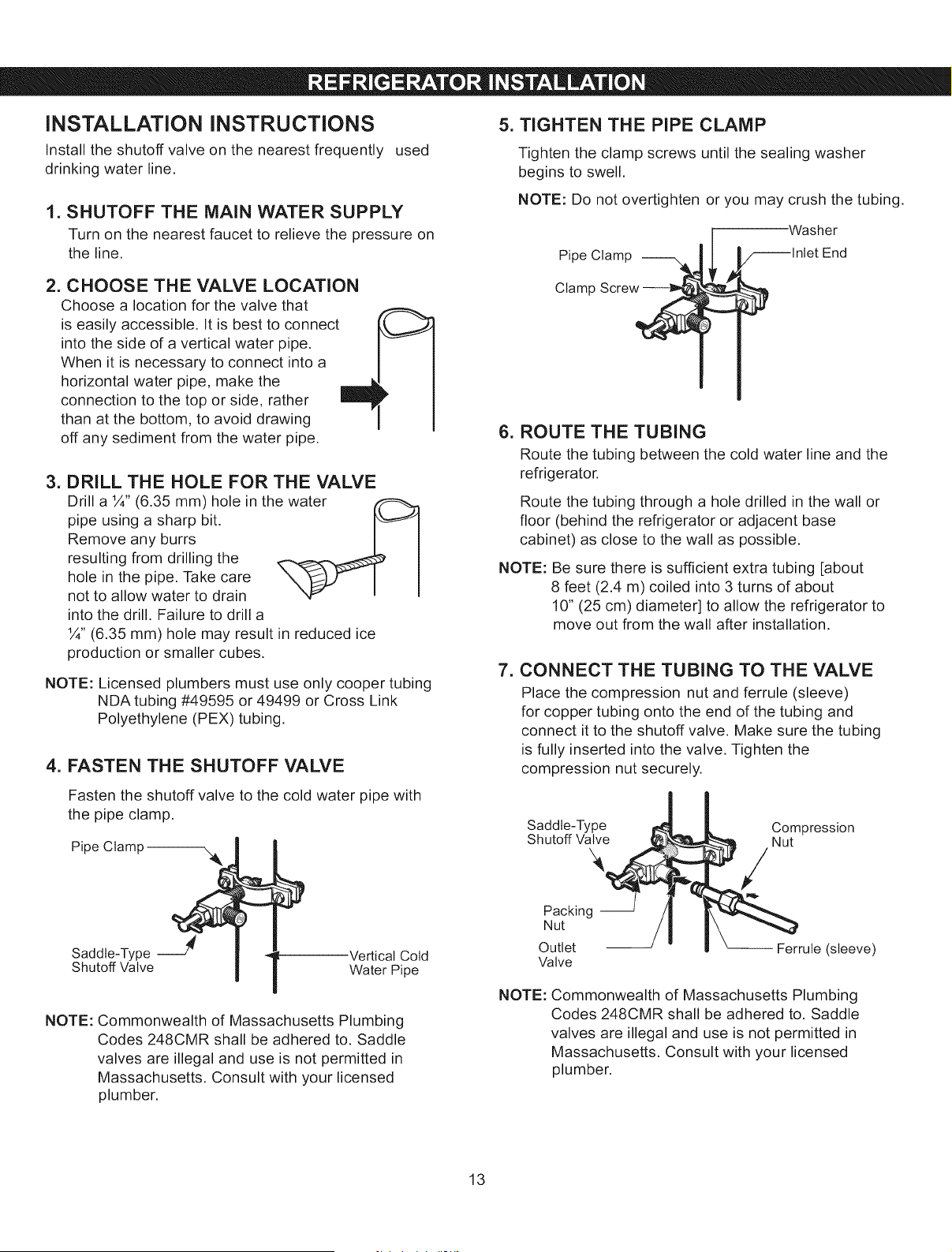

installation instructions 13 - 14

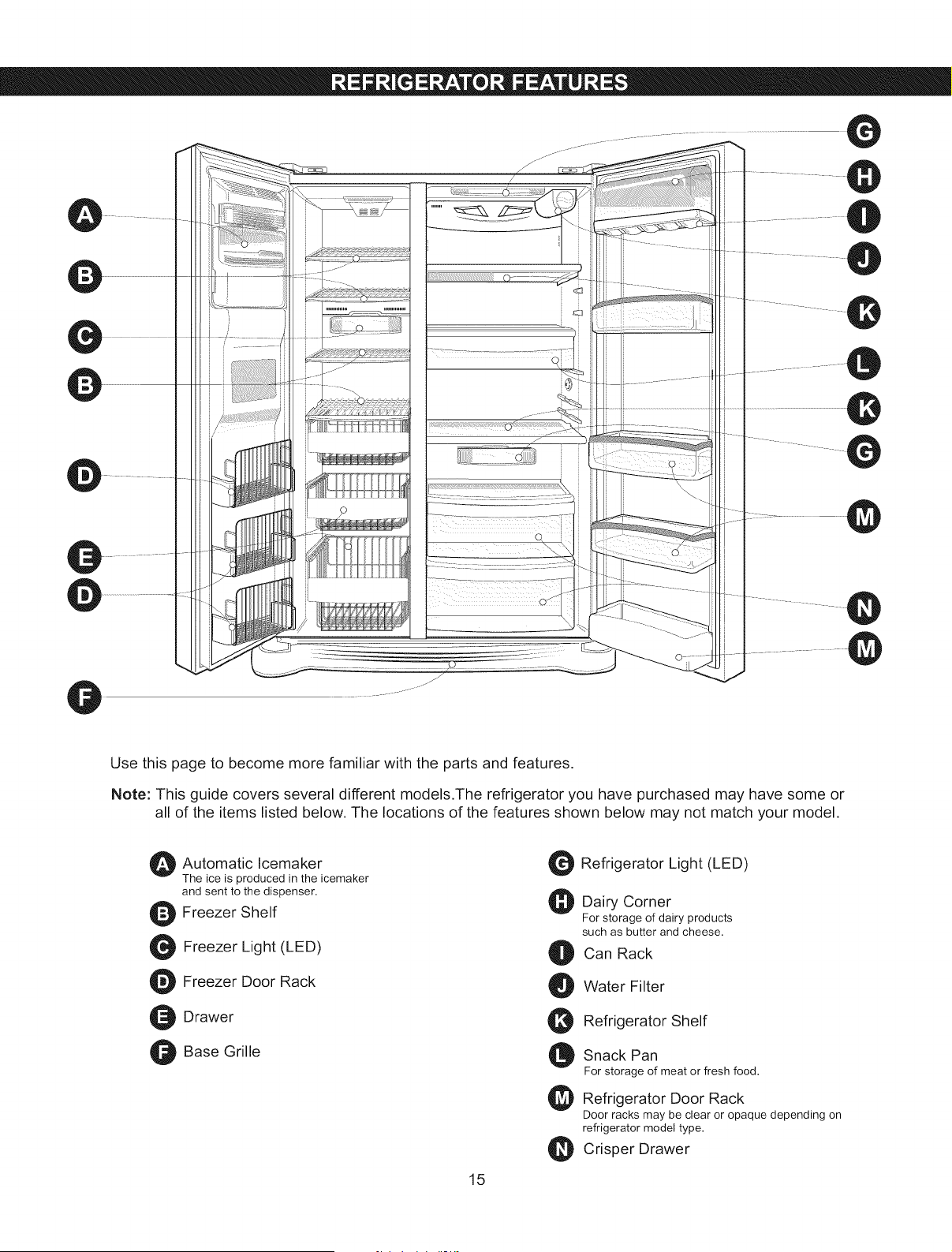

Refrigerator Features 15
Using Your Refrigerator 16 =28

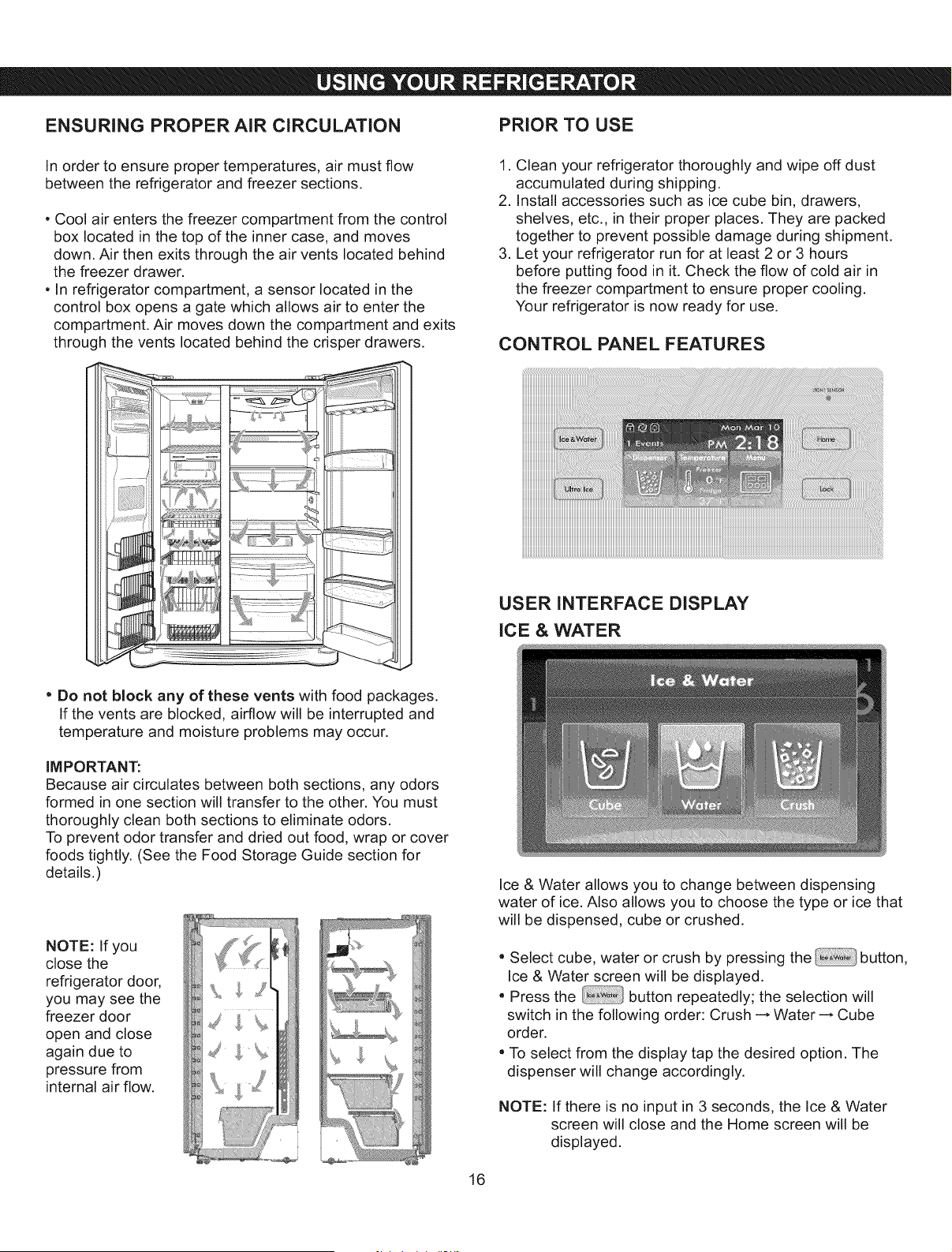

Ensuring proper air circulation 16

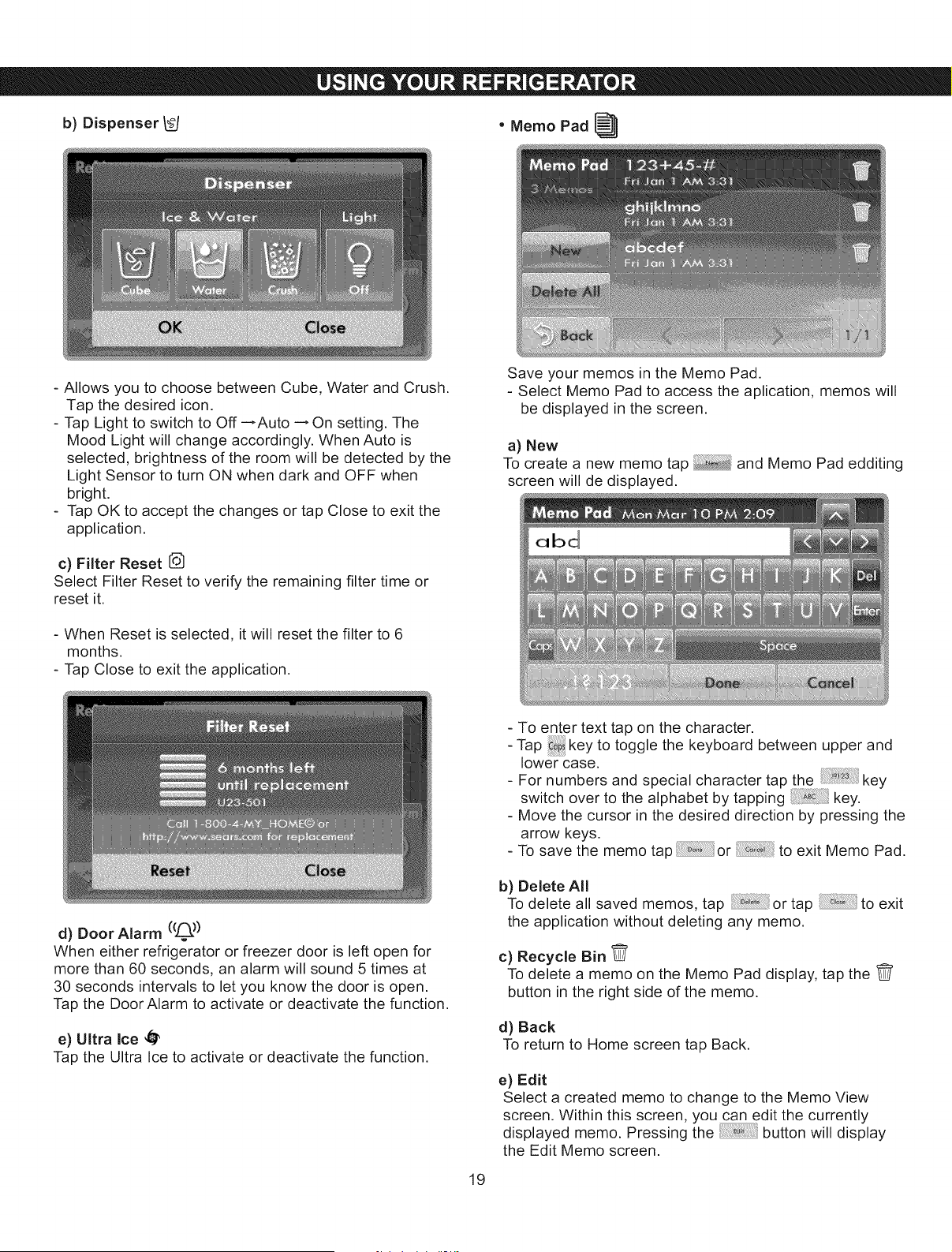

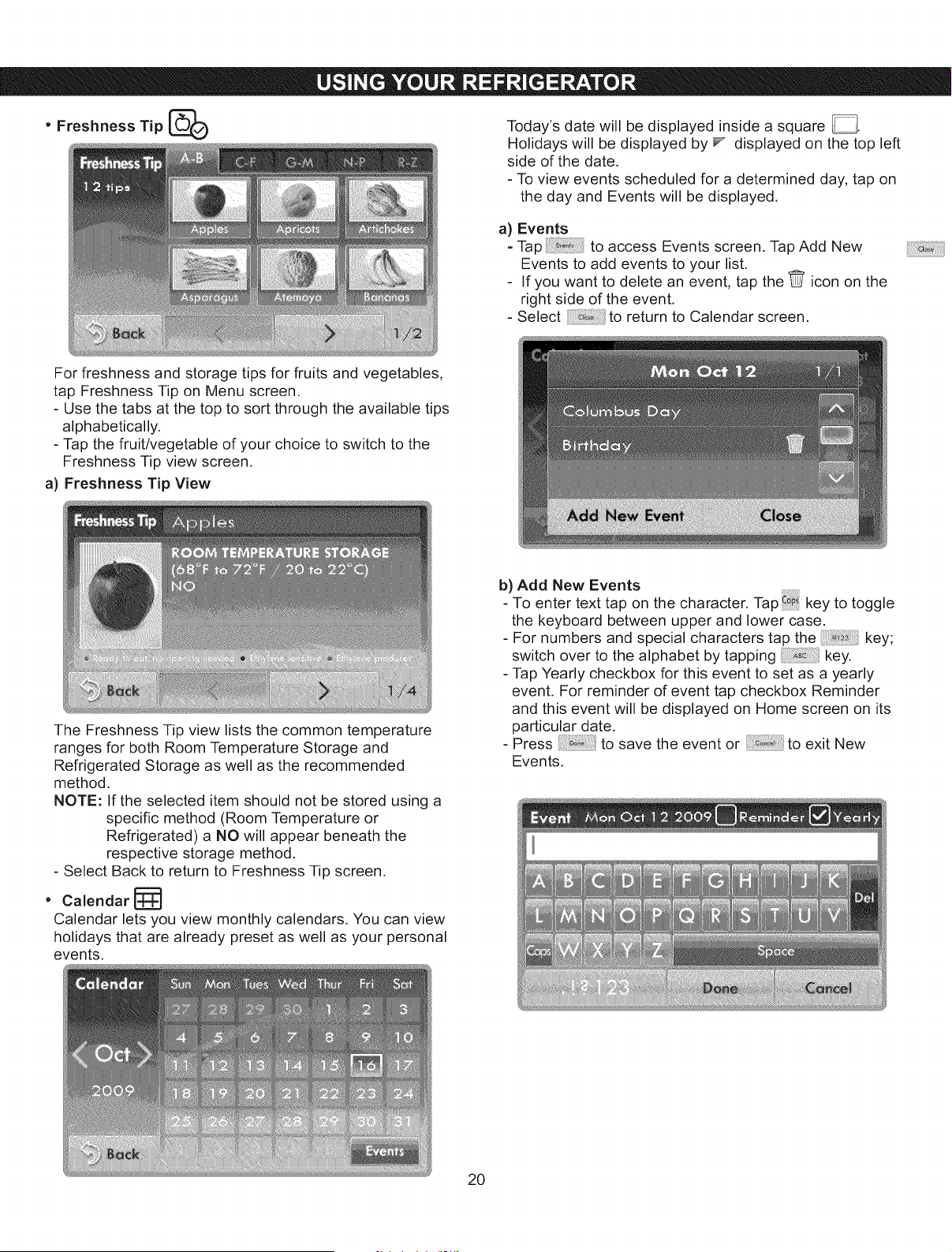

Control Panel features 16 - 21

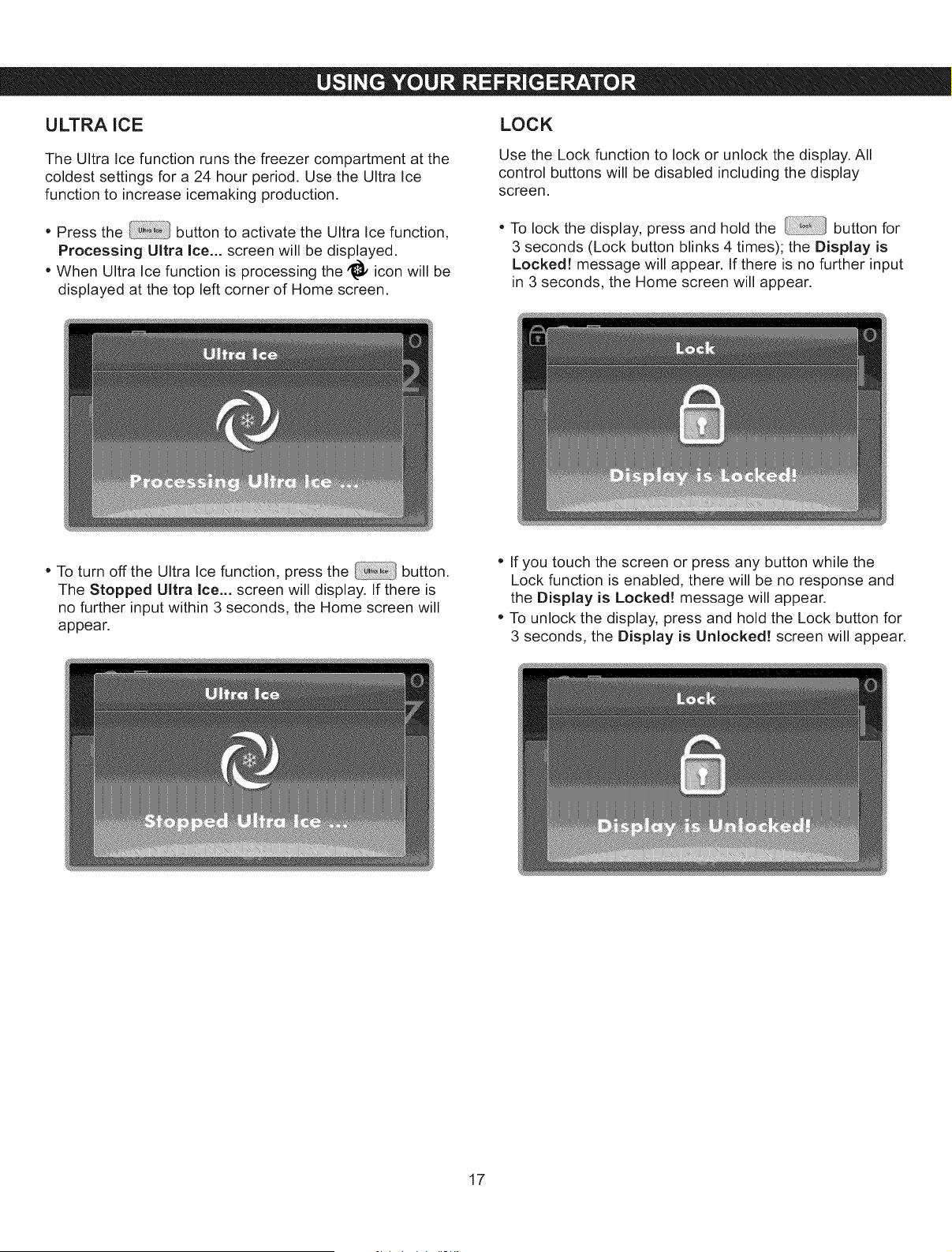

User Interface Display 16 - 17

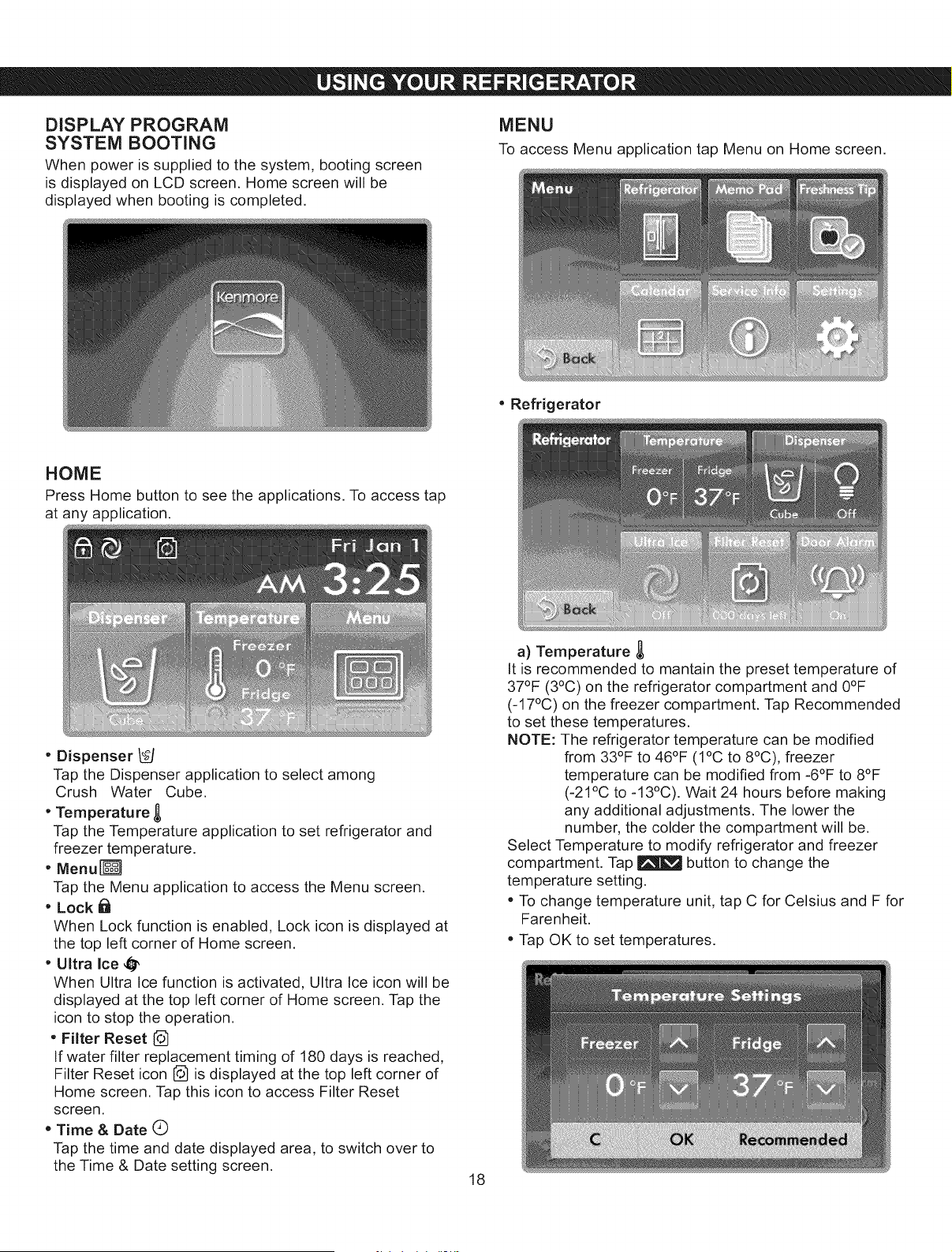

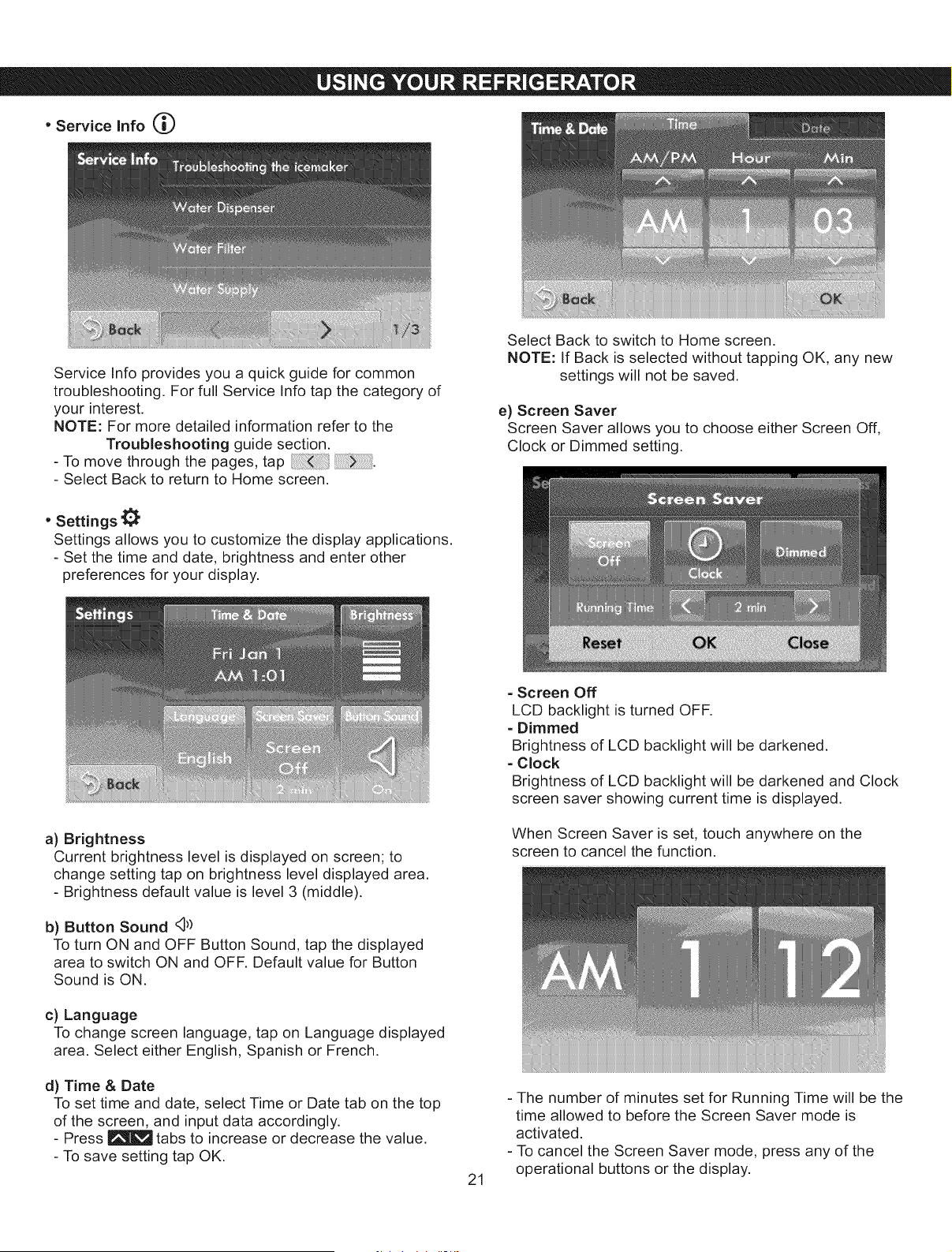

Display Program 18 - 21

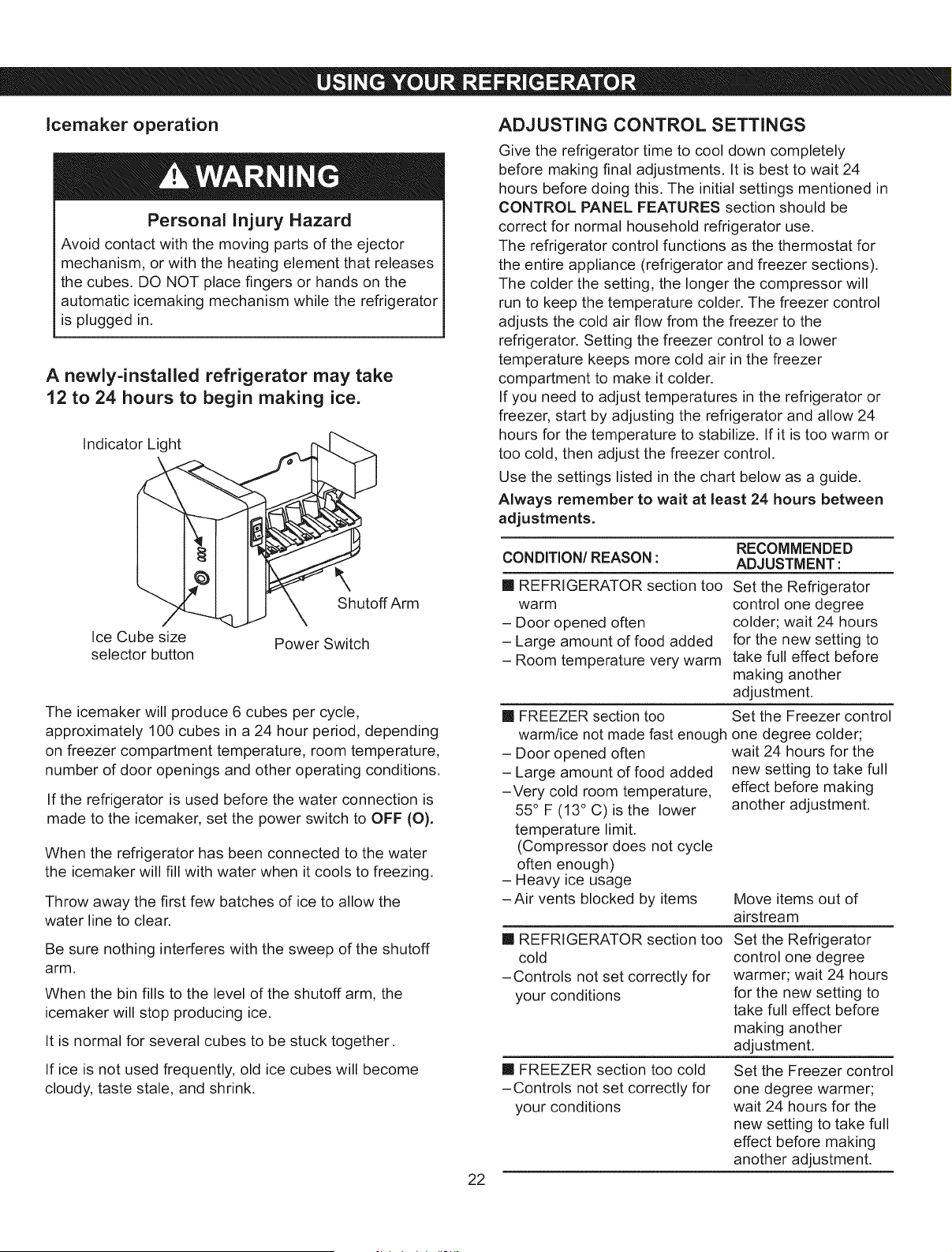

Adjusting Control settings 22

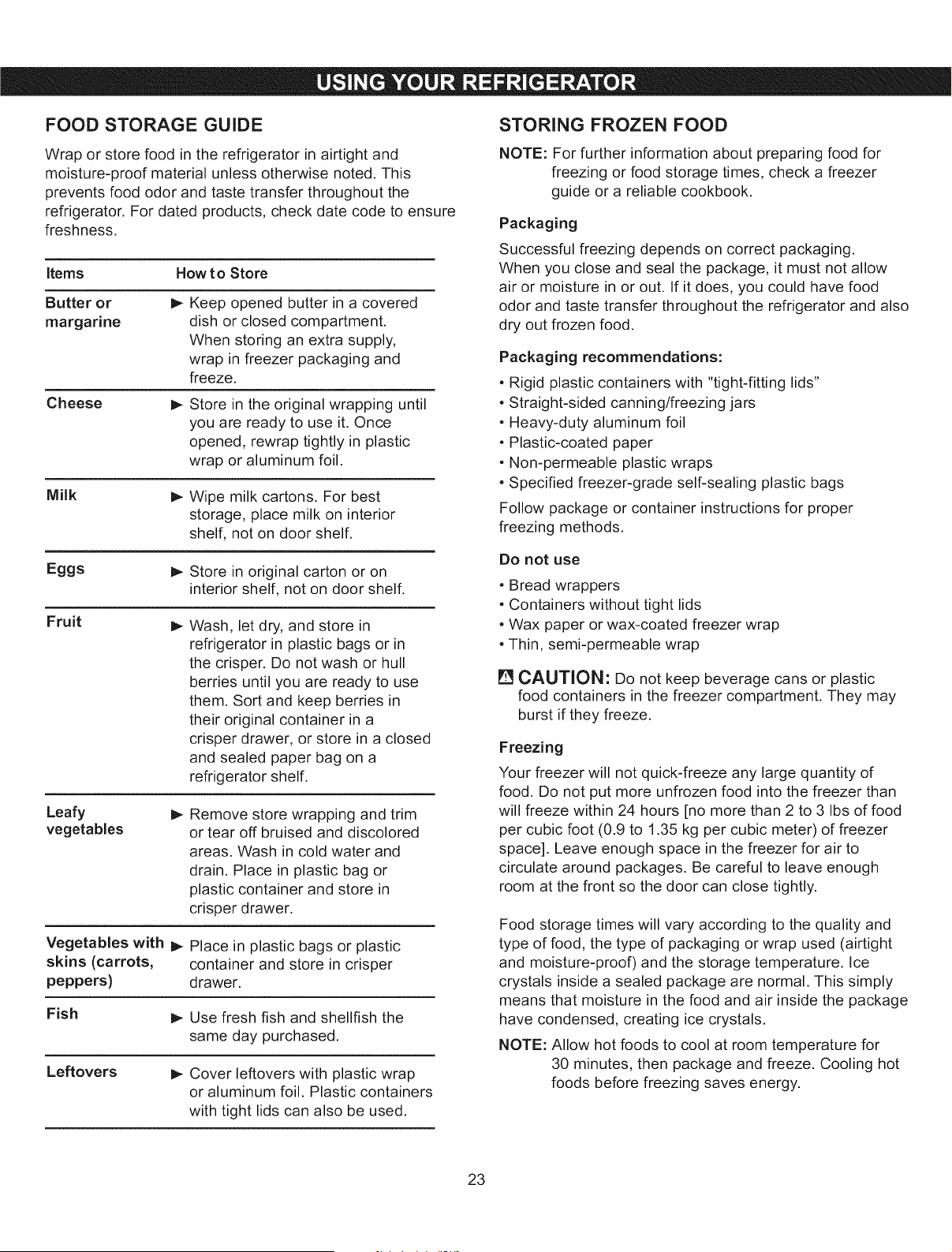

Food storage guide 23
Storing frozen food 23

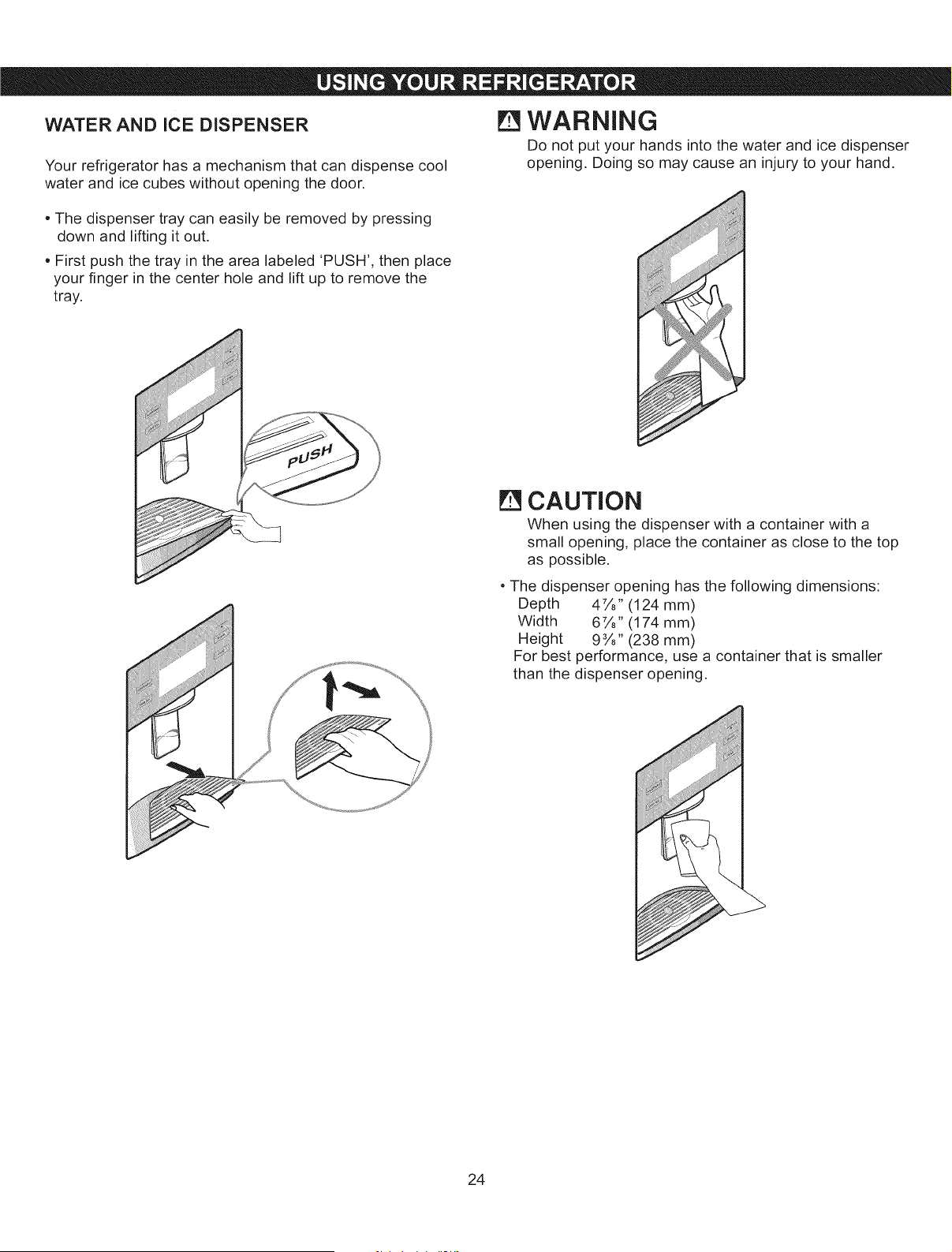

Water and ice Dispenser 24

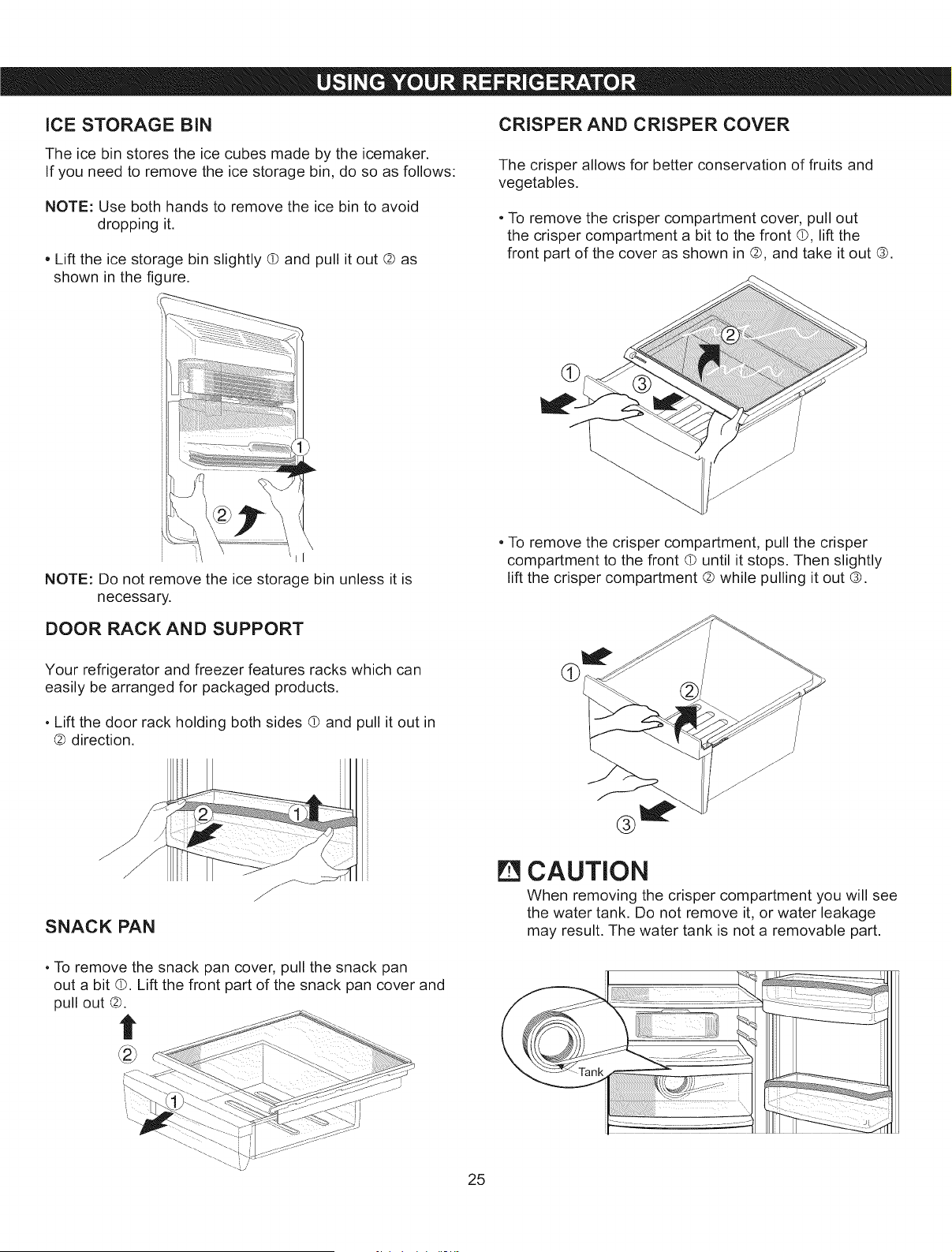

Ice Storage Bin 25
Door Rack and Support 25
Snack Pan 25
Crisper and Crisper cover 25 - 26

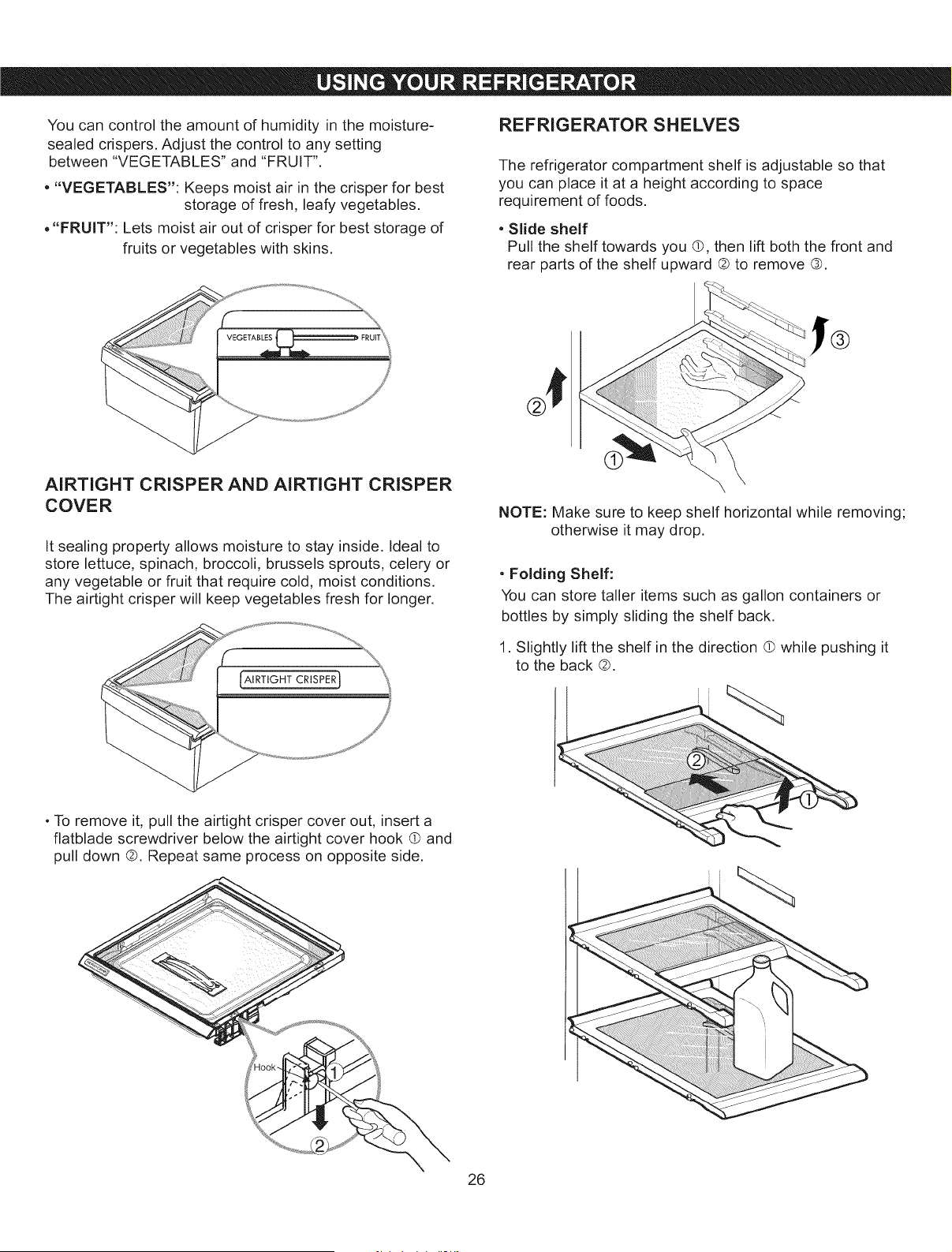

Airtight Crisper and Airtight Crisper cover 26
Refrigerator Shelves 26 - 27

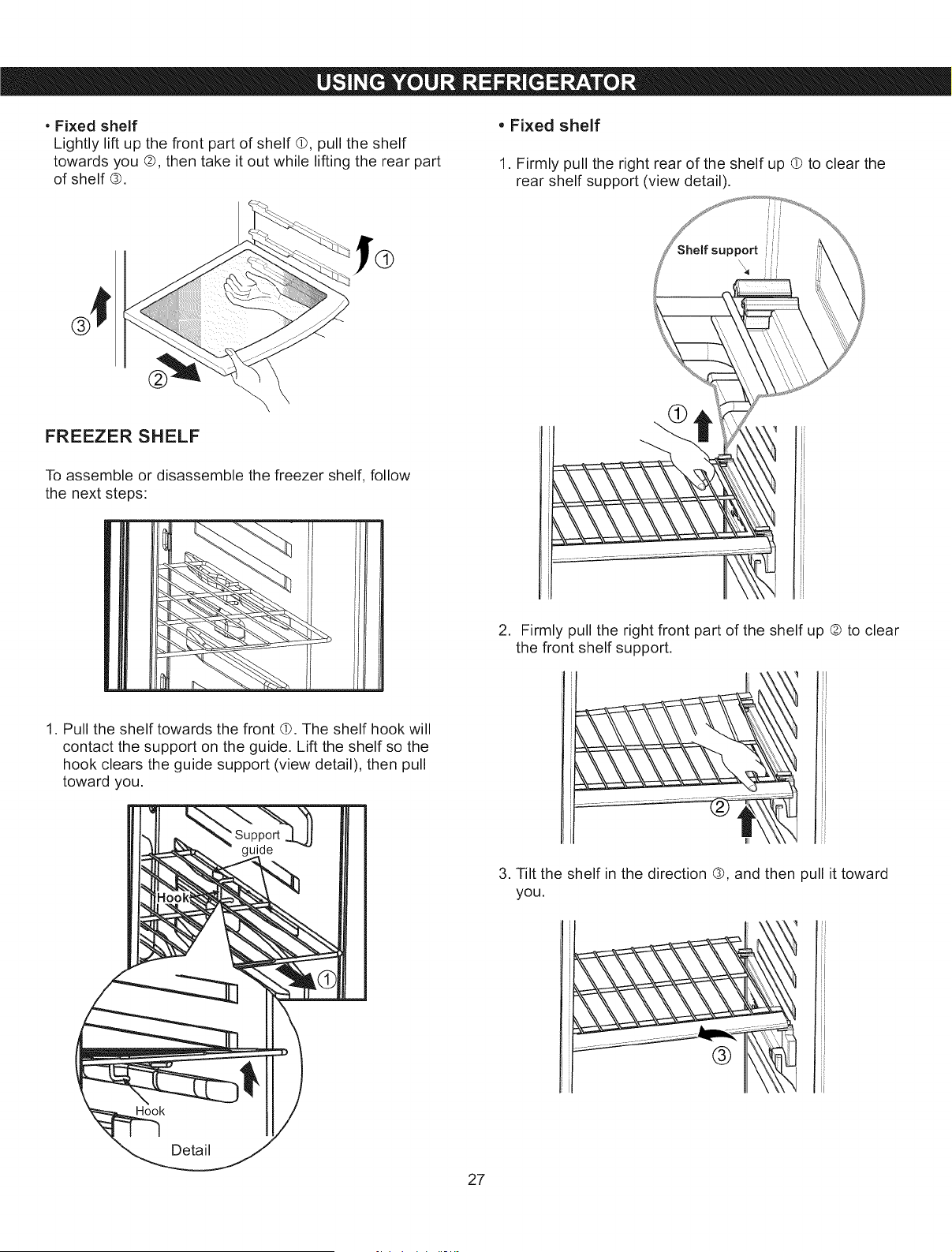

Freezer Shelf 27
Filter 28 - 29

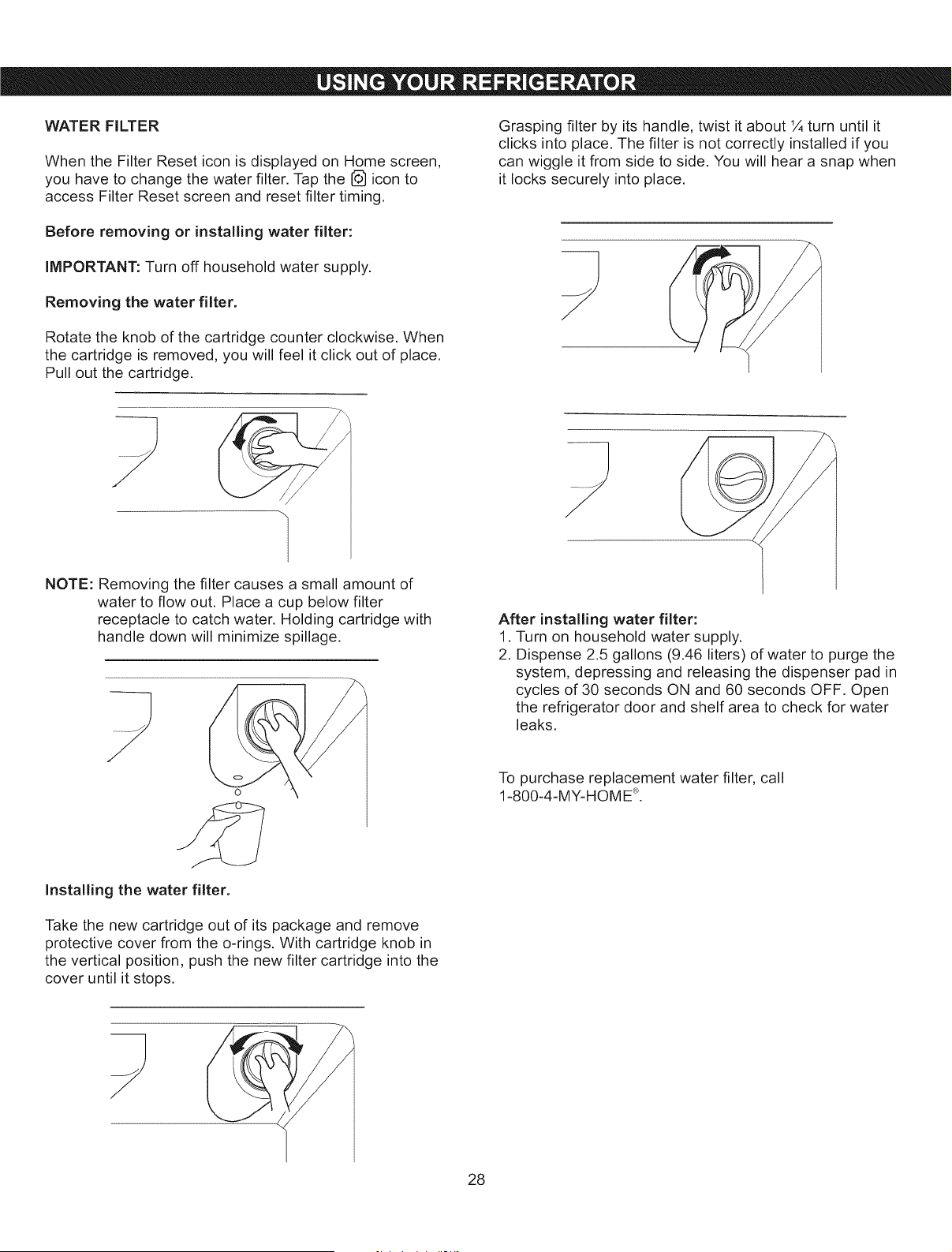

Water Filter 28

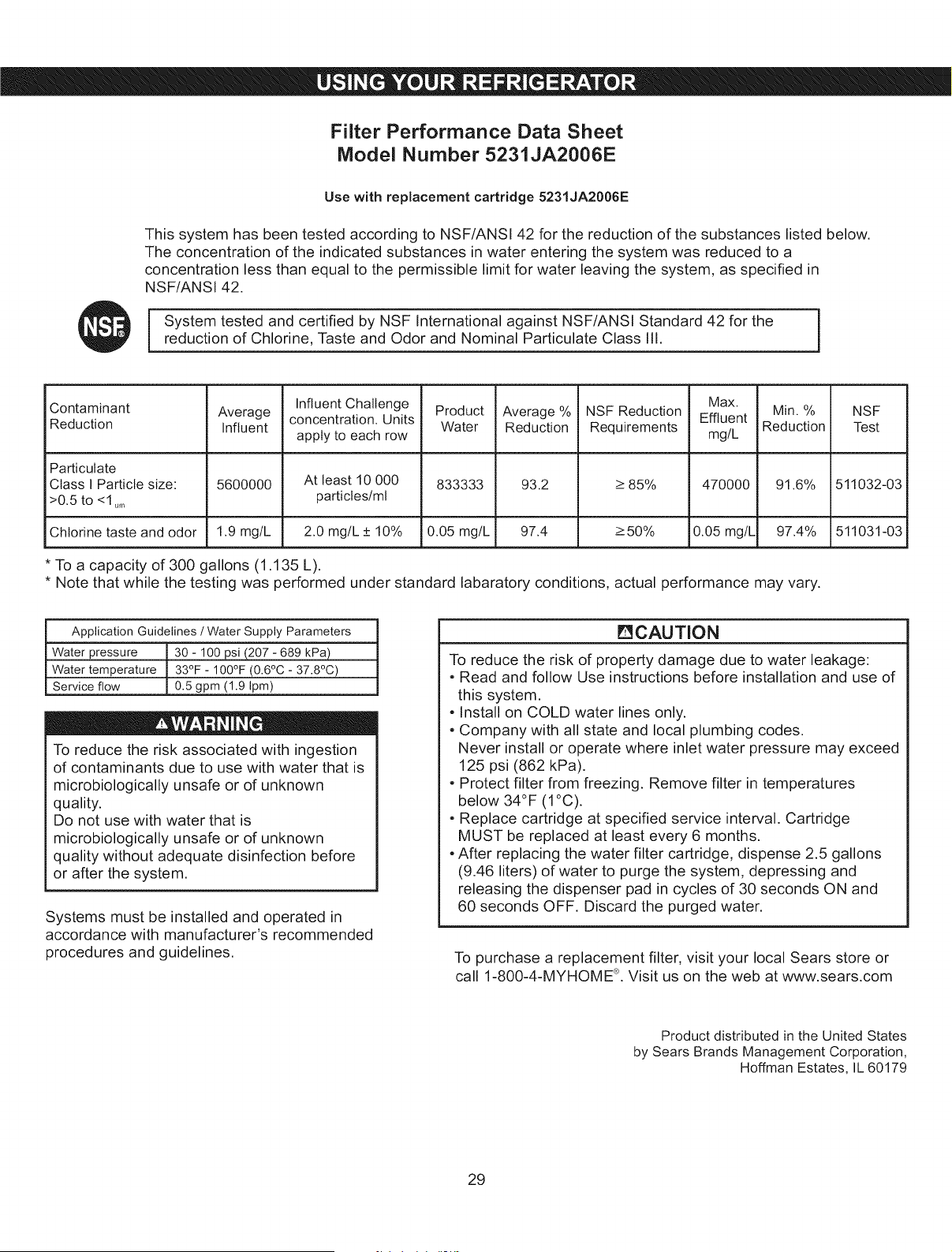

Performance Data Sheet 29

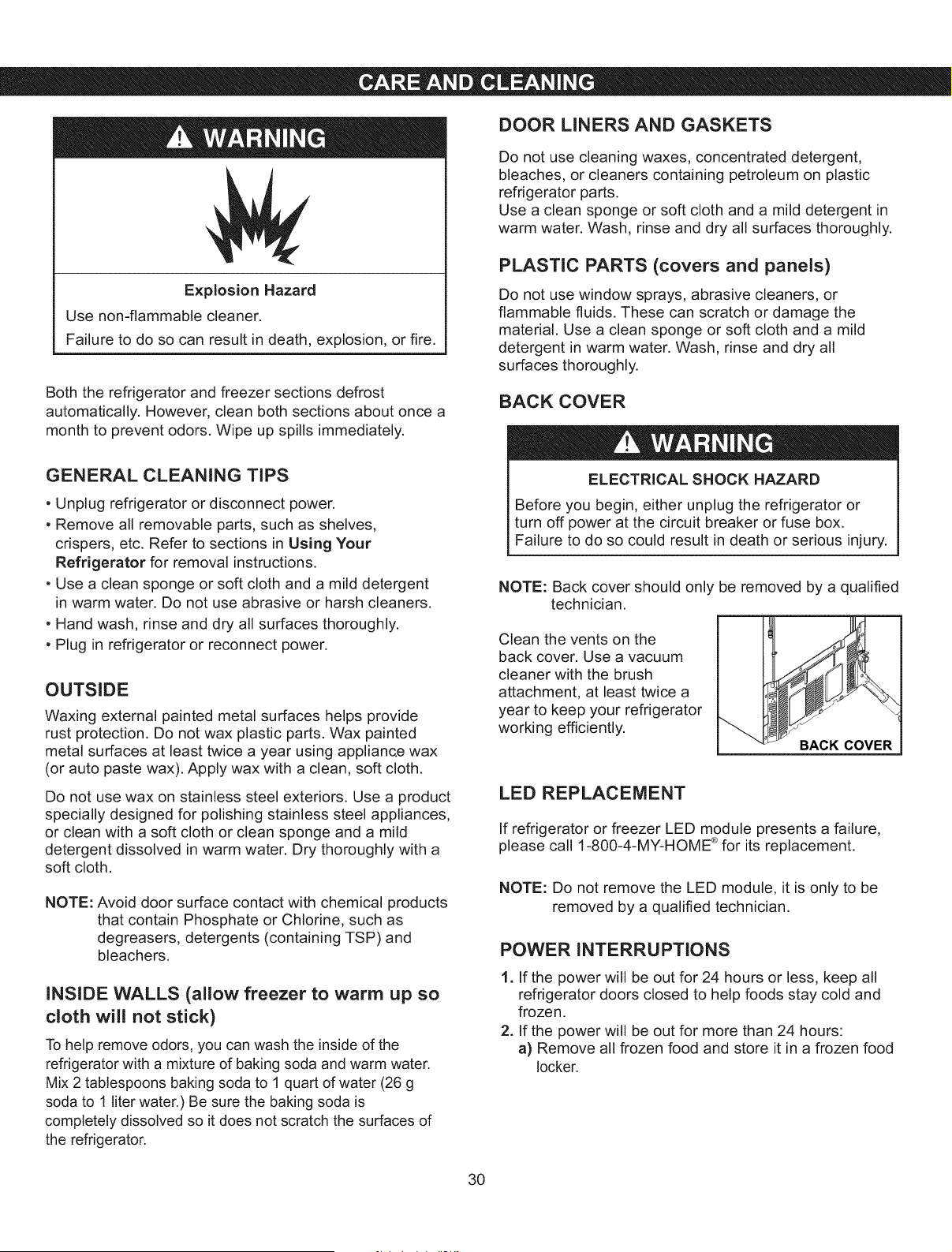

Care and cleaning 30 =31
General cleaning tips 30
Outside 30
inside walls 30
Door liners and gaskets 30
Plastic parts 30
Back cover 30
Light (LED) replacement 30
Power interruptions 30 - 31

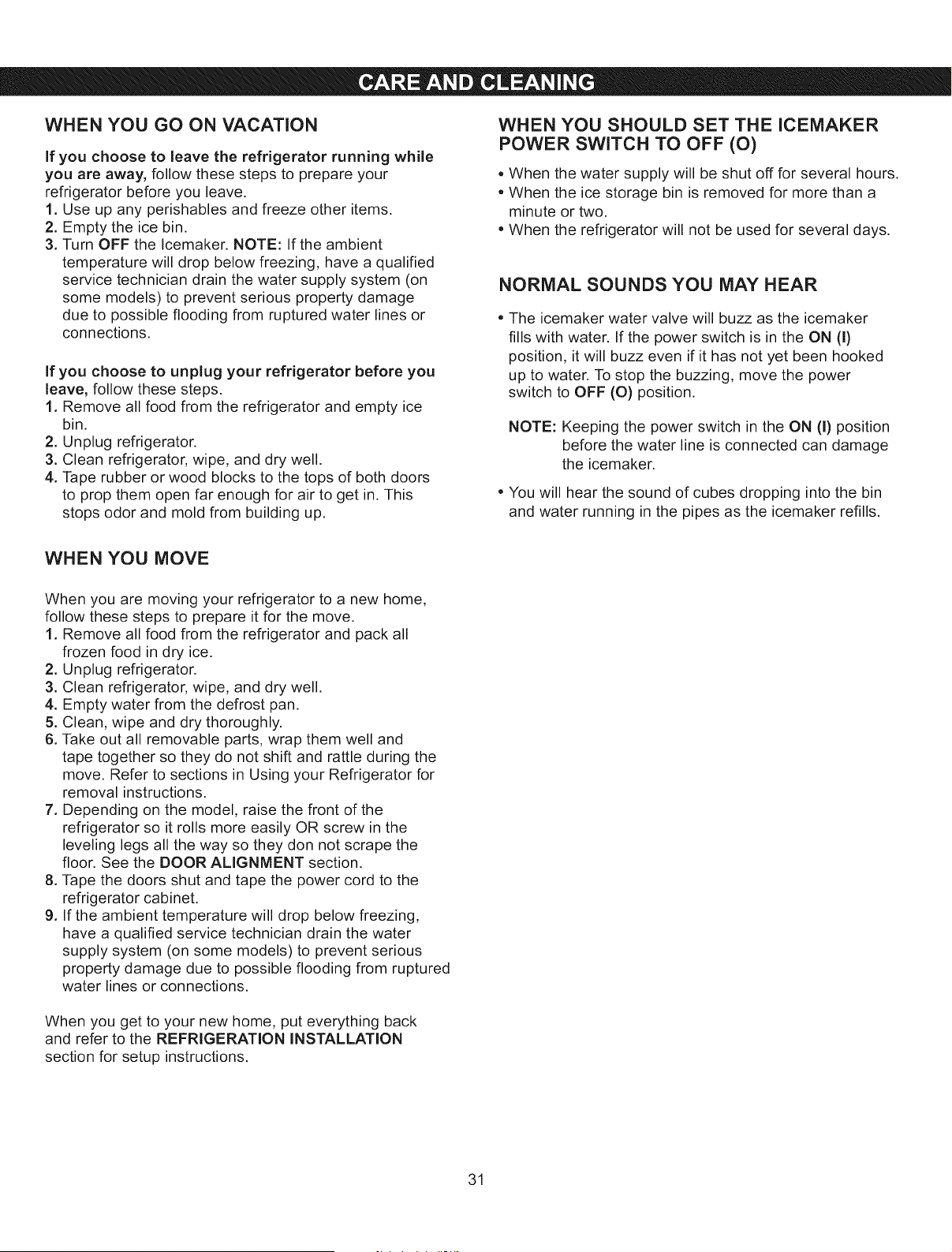

When you go on vacation 31
When you move 31
When you should set the icemaker power 31
switch to OFF (O)
Normal sounds you may hear 31

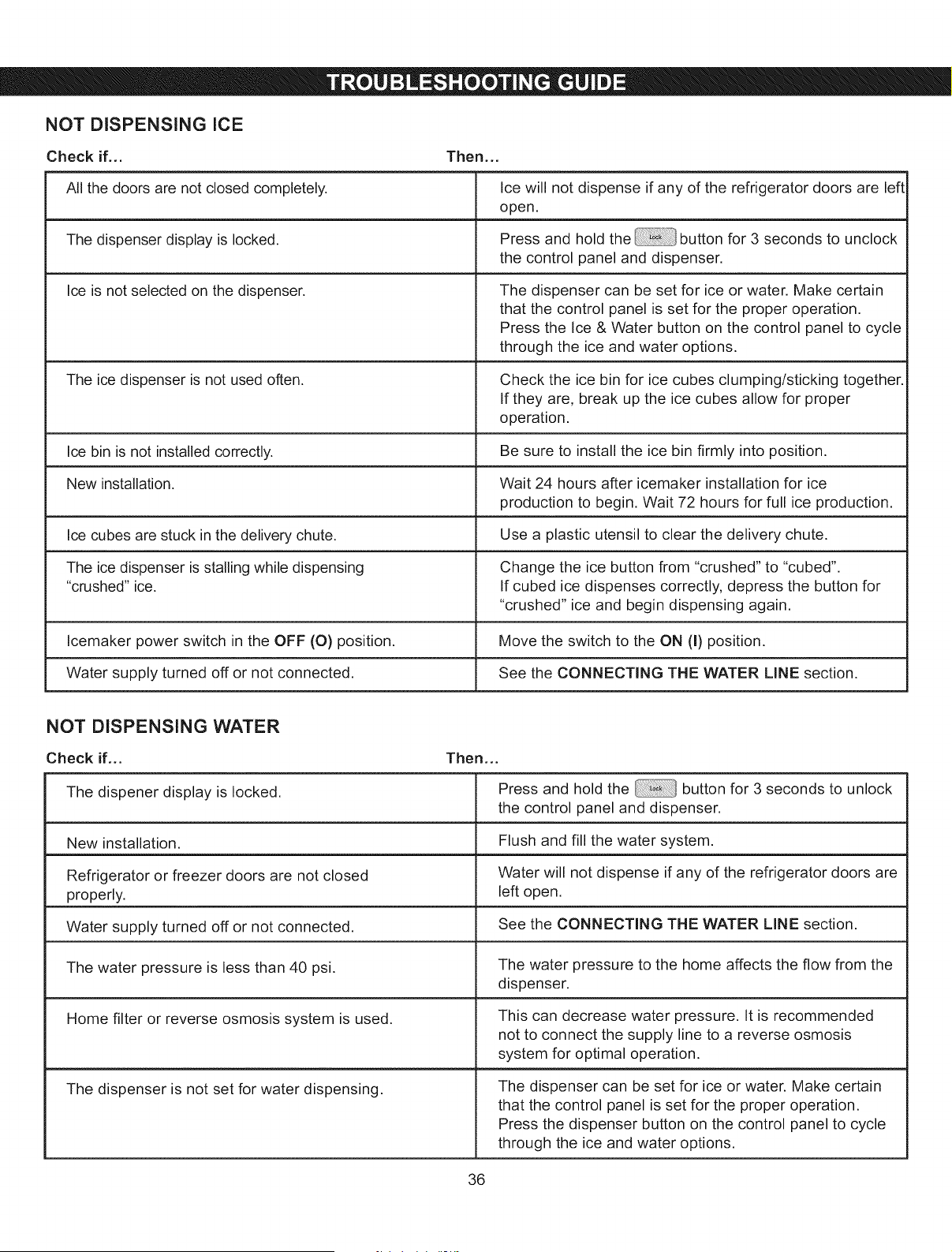

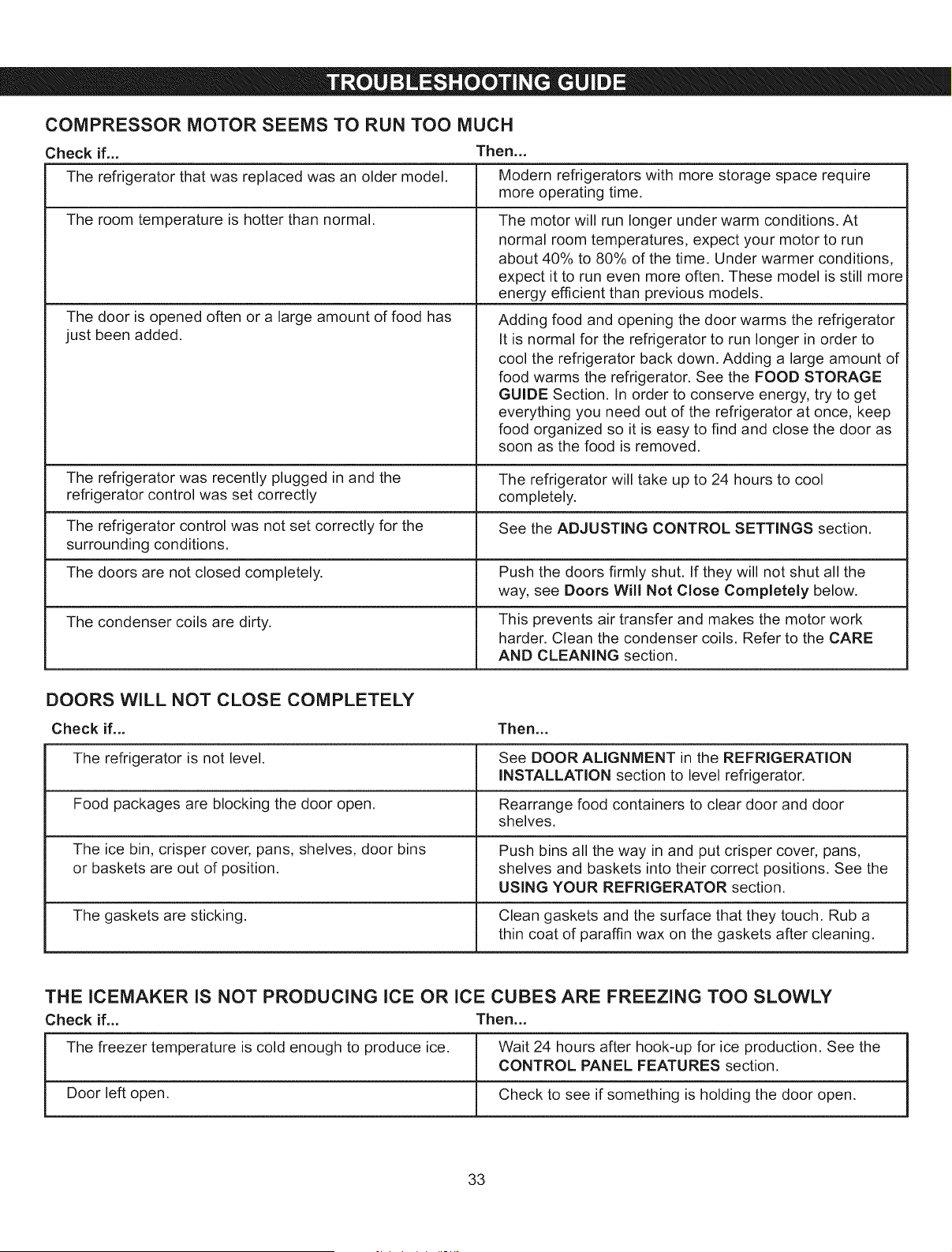

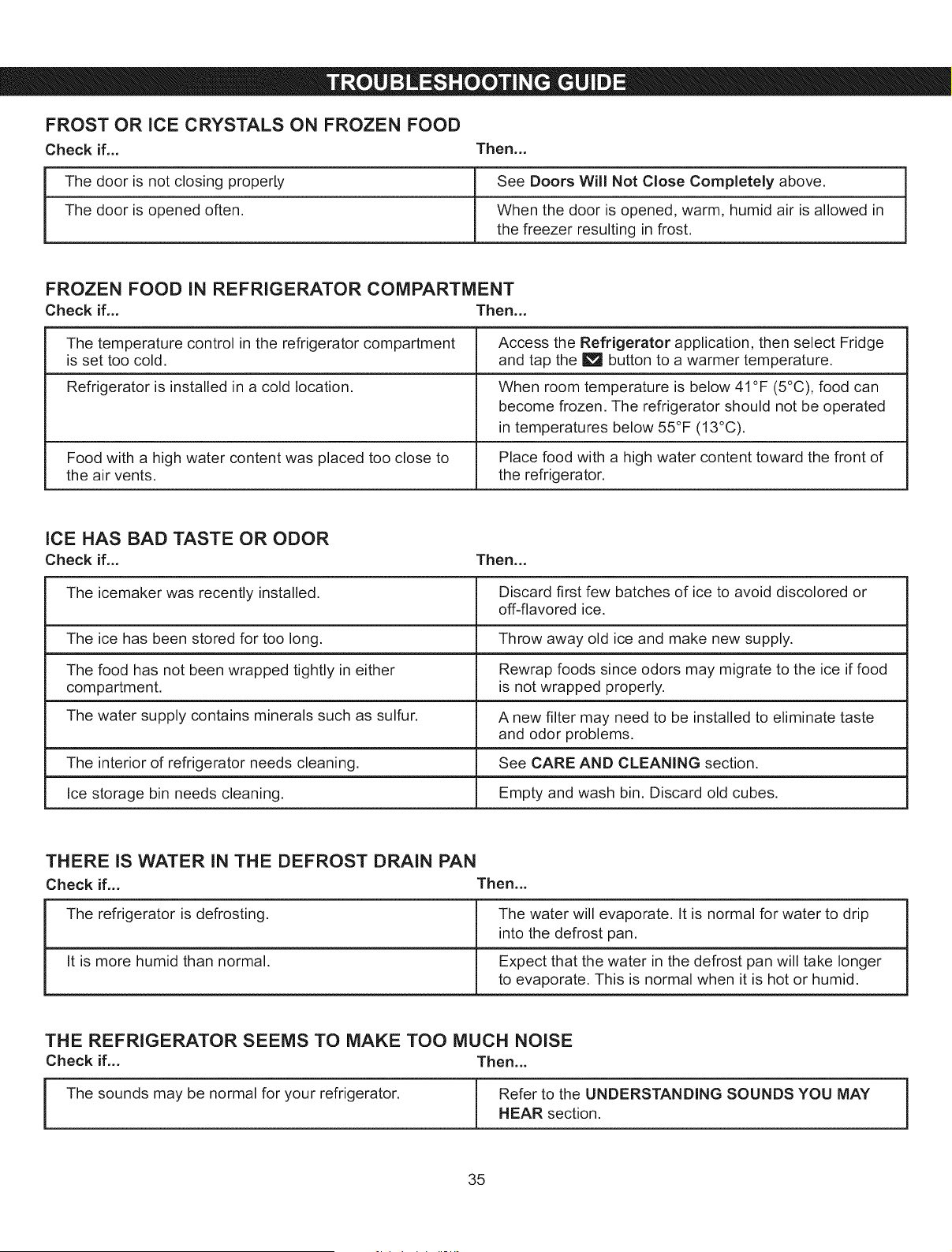

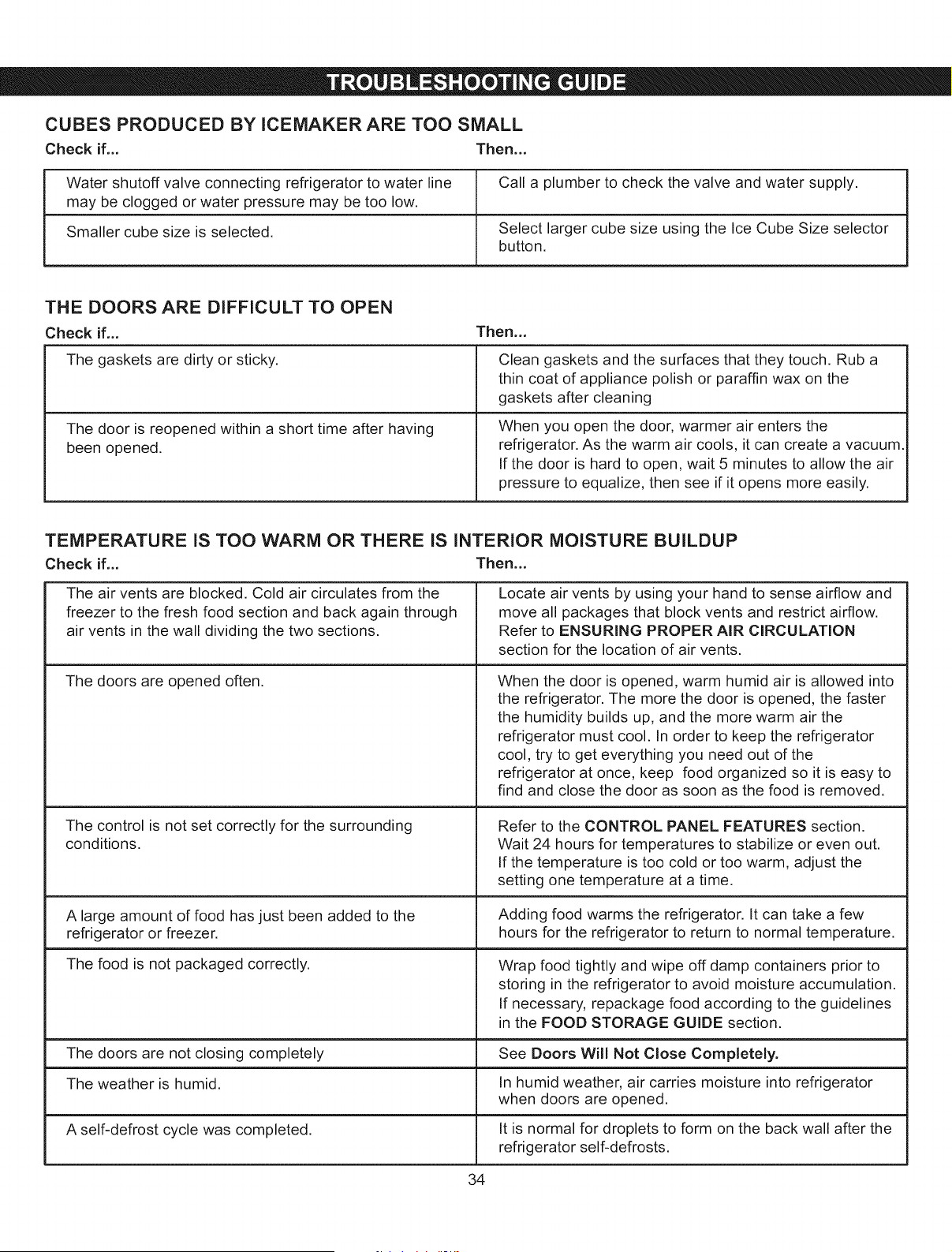

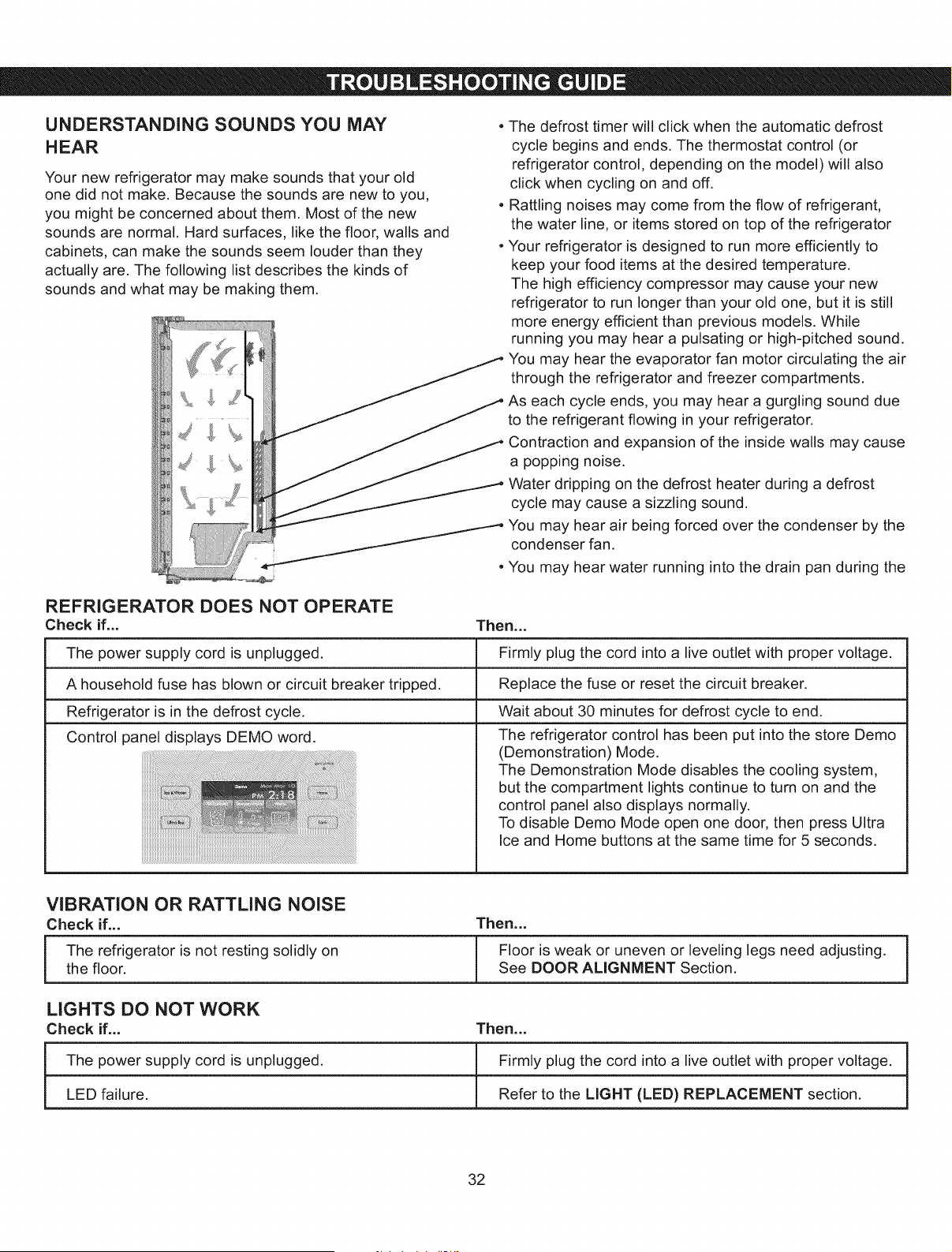

Troubleshooting guide 32 - 36
SIDE=BY-SIDE REFRIGERATOR
TM

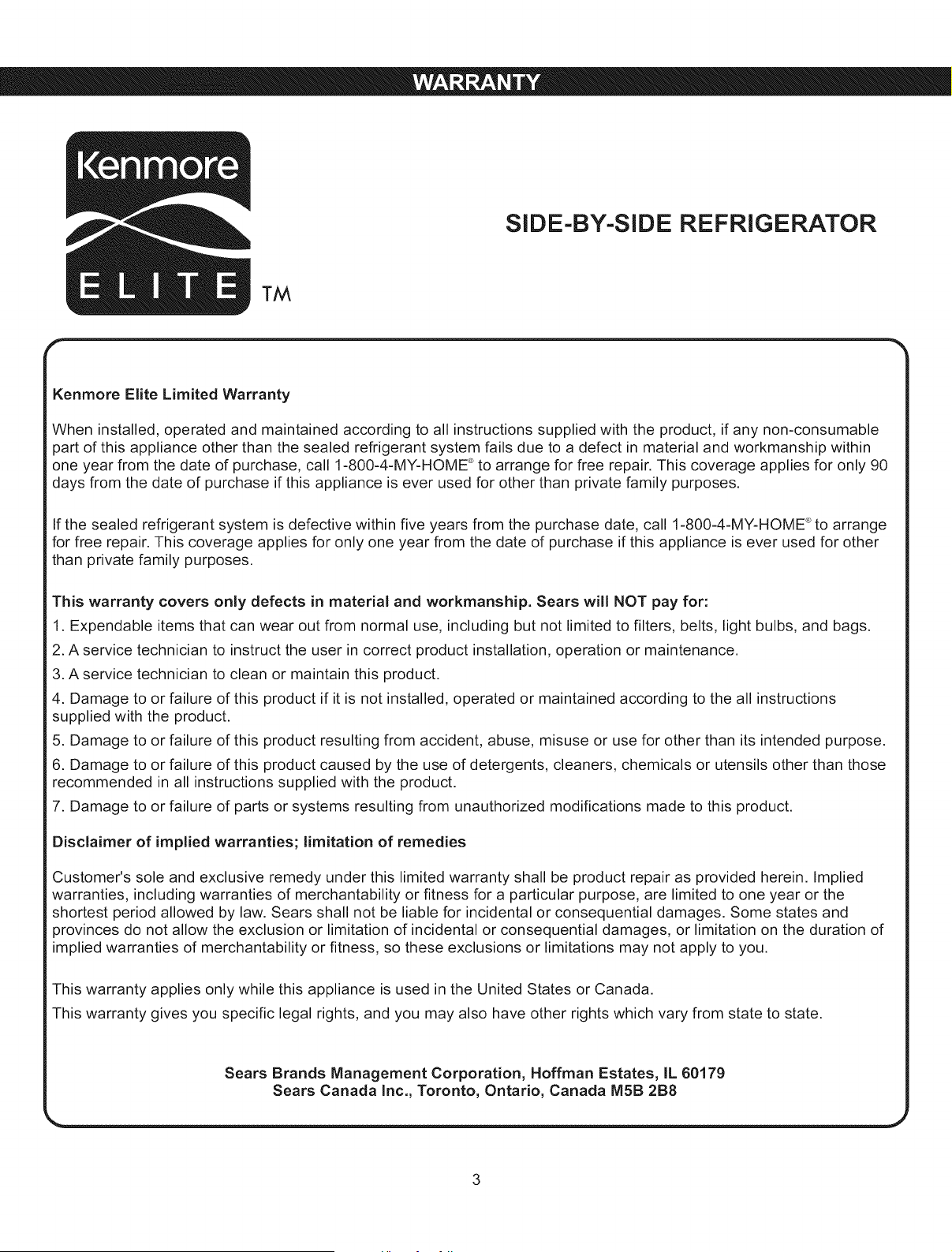

Kenmore Elite Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if any non=consumable
3art of this appliance other than the sealed refrigerant system fails due to a defect in material and workmanship within
one year from the date of purchase, call 1=800=4=MY-HOME®to arrange for free repair. This coverage applies for only 90
days from the date of purchase if this appliance is ever used for other than private family purposes.
If the sealed refrigerant system is defective within five years from the purchase date, call 1=800=4=MY-HOME®to arrange
for free repair. This coverage applies for only one year from the date of purchase if this appliance is ever used for other
than private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions
supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied
warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the
shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and
provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of
implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8

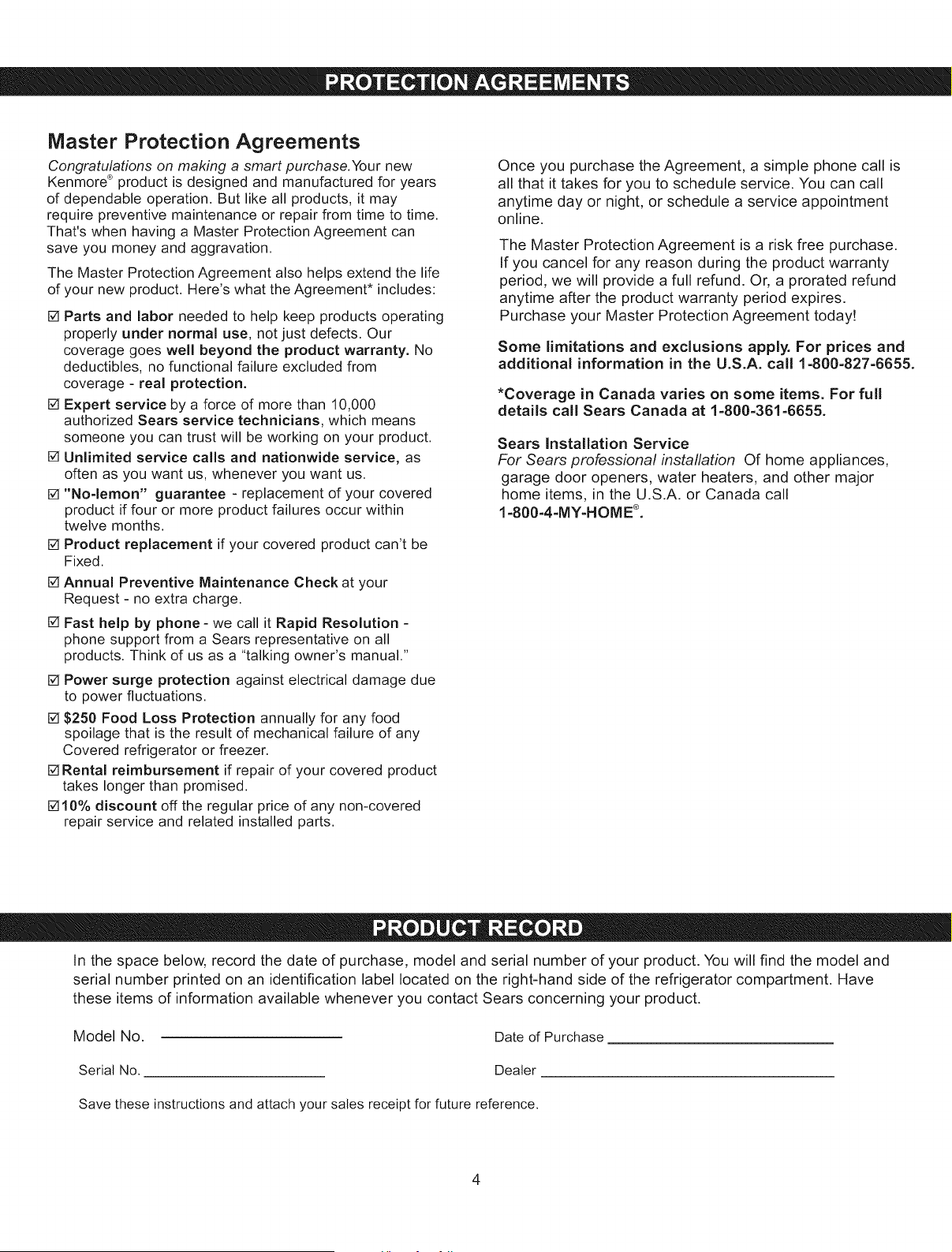

Master Protection Agreements
Congratulations on making a smart purchase.Your new
Kenmore ® product is designed and manufactured for years
of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life
of your new product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating
properly under normal use, not just defects. Our
coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from
coverage - real protection.
[] Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
[] Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
[] "No-lemon" guarantee - replacement of your covered
product if four or more product failures occur within
twelve months.
[] Product replacement if your covered product can't be
Fixed.
[] Annual Preventive Maintenance Check at your
Request - no extra charge.
[] Fast help by phone- we call it Rapid Resolution -
phone support from a Sears representative on all
products. Think of us as a "talking owner's manual."
[] Power surge protection against electrical damage due
to power fluctuations.
[] $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
Covered refrigerator or freezer.
[]Rental reimbursement if repair of your covered product
takes longer than promised.
[]10% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund. Or, a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and
additional information in the U.S.A. call 1-800-827-6655.
*Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800=361-6655.
Sears Installation Service
For Sears professional instaflation Of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-1VlY-HONIE®.
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have
these items of information available whenever you contact Sears concerning your product.
Model No. Date of Purchase
Serial No. Dealer
Save these instructions and attach your sales receiptfor future reference.

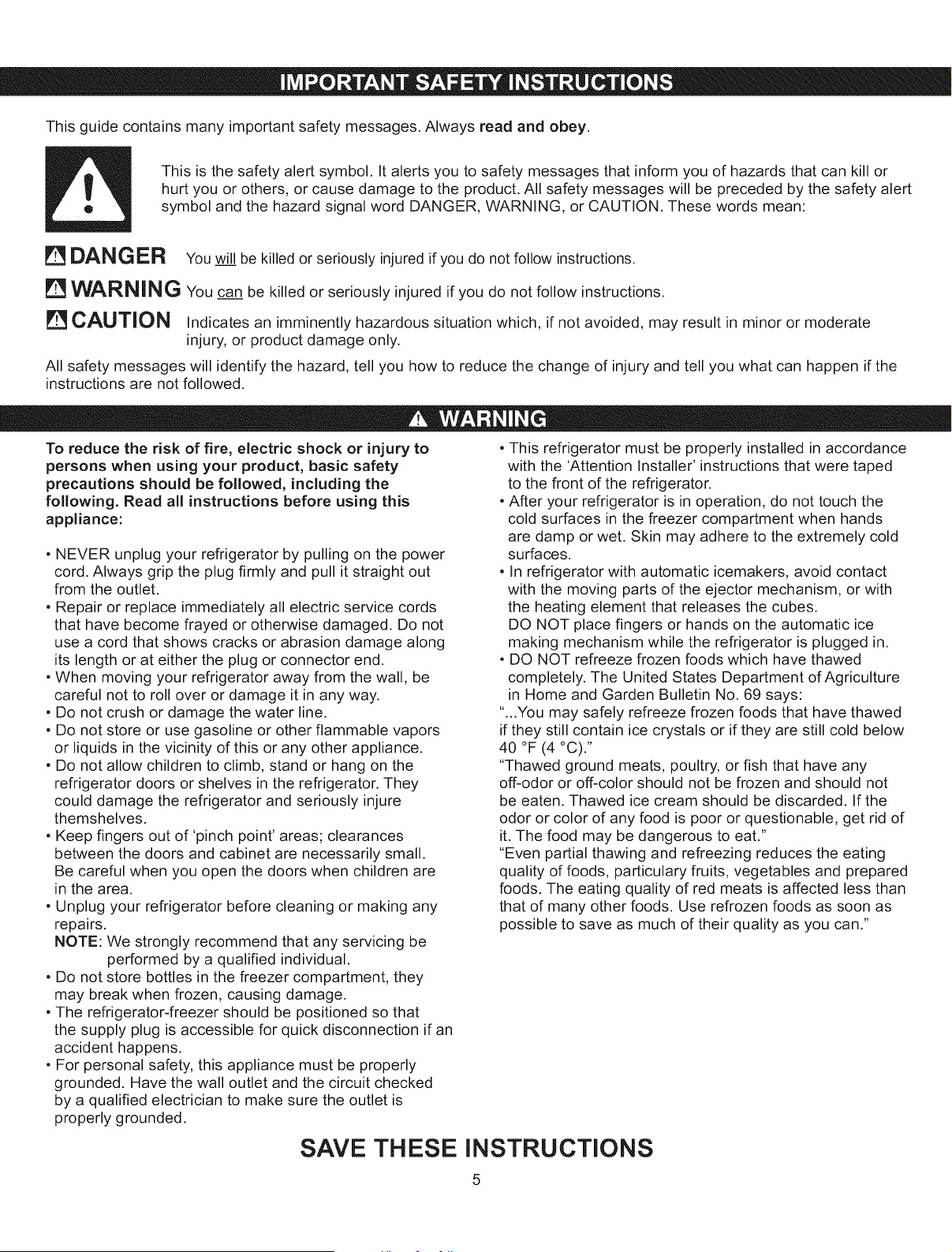

Thisguidecontainsmanyimportantsafetymessages.Alwaysreadandobey.
Thisis thesafetyalertsymbol.Italertsyoutosafetymessagesthatinformyouofhazardsthatcankillor
hurtyouorothers,orcausedamagetotheproduct.Allsafetymessageswillbeprecededbythesafetyalert
symbolandthehazardsignalwordDANGER,WARNING,orCAUTION.Thesewordsmean:
DANGER You wil___/ibe killed or seriously injured if you do not follow instructions.
WARNING You can be killed or seriously injured if you do not follow instructions.
CAUTION Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate
injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the change of injury and tell you what can happen if the
instructions are not followed.
To reduce the risk of fire, electric shock or injury to
persons when using your product, basic safety
precautions should be followed, including the
following. Read all instructions before using this
appliance:
• NEVER unplug your refrigerator by pulling on the power
cord. Always grip the plug firmly and pull it straight out
from the outlet.
• Repair or replace immediately all electric service cords
that have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage along
its length or at either the plug or connector end.
• When moving your refrigerator away from the wall, be
careful not to roll over or damage it in any way.
• Do not crush or damage the water line.
• Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
• Do not allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They
could damage the refrigerator and seriously injure
themshelves.
• Keep fingers out of 'pinch point' areas; clearances
between the doors and cabinet are necessarily small.
Be careful when you open the doors when children are
in the area.
• Unplug your refrigerator before cleaning or making any
repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
• Do not store bottles in the freezer compartment, they
may break when frozen, causing damage.
• The refrigerator=freezer should be positioned so that
the supply plug is accessible for quick disconnection if an
accident happens.
• For personal safety, this appliance must be properly
grounded. Have the wall outlet and the circuit checked
by a qualified electrician to make sure the outlet is
properly grounded.
SAVE THESE
• This refrigerator must be properly installed in accordance
with the 'Attention Installer' instructions that were taped
to the front of the refrigerator.
• After your refrigerator is in operation, do not touch the
cold surfaces in the freezer compartment when hands
are damp or wet. Skin may adhere to the extremely cold
surfaces.
• In refrigerator with automatic icemakers, avoid contact
with the moving parts of the ejector mechanism, or with
the heating element that releases the cubes.
DO NOT place fingers or hands on the automatic ice
making mechanism while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of Agriculture
in Home and Garden Bulletin No. 69 says:
"...You may safely refreeze frozen foods that have thawed
if they still contain ice crystals or if they are still cold below
40 °F (4 °C)."
"Thawed ground meats, poultry, or fish that have any
off-odor or off-color should not be frozen and should not
be eaten. Thawed ice cream should be discarded. If the
odor or color of any food is poor or questionable, get rid of
it. The food may be dangerous to eat."
"Even partial thawing and refreezing reduces the eating
quality of foods, particulary fruits, vegetables and prepared
foods. The eating quality of red meats is affected less than
that of many other foods. Use refrozen foods as soon as
possible to save as much of their quality as you can."
INSTRUCTIONS

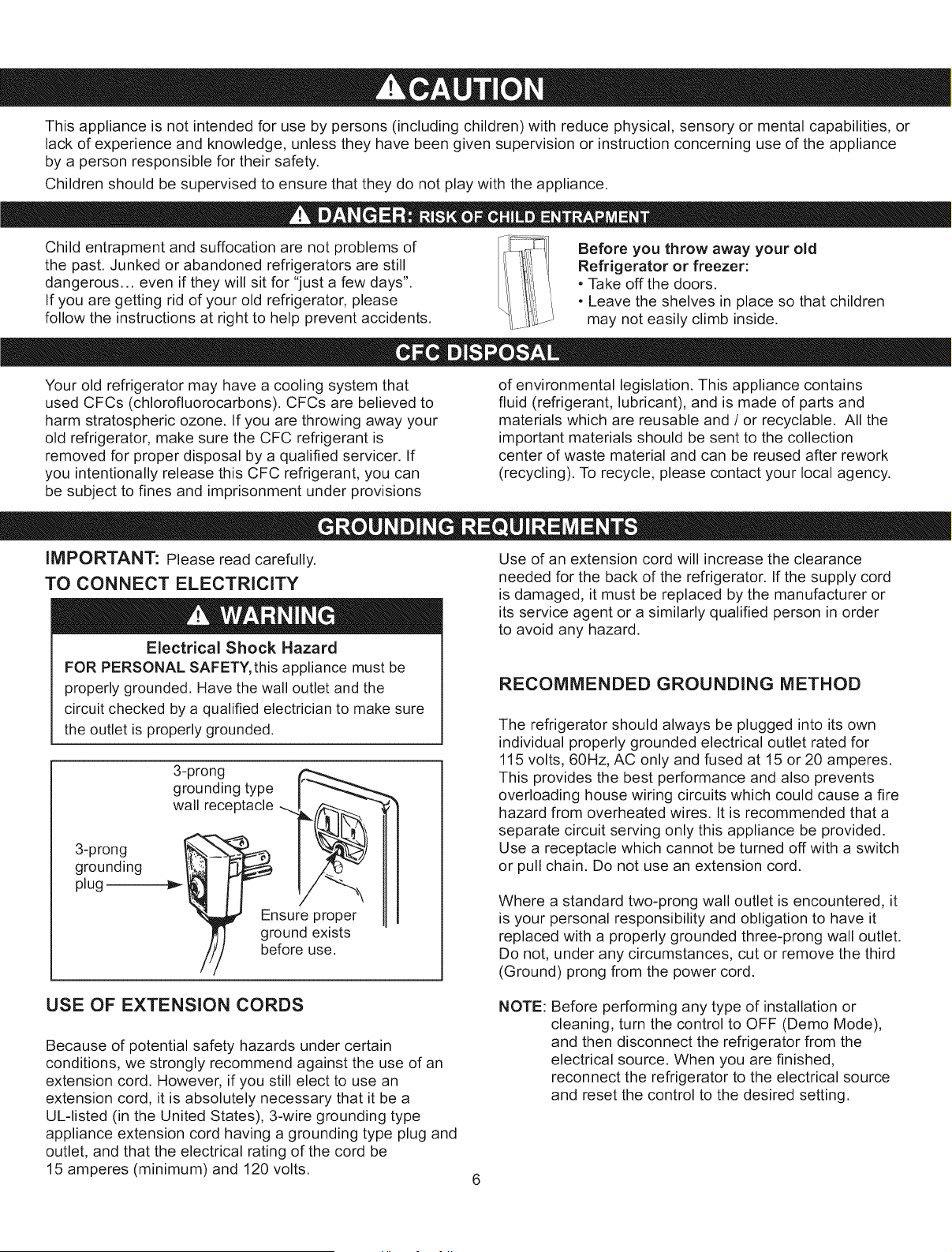

This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous.., even if they will sit for "just a few days".
If you are getting rid of your old refrigerator, please
follow the instructions at right to help prevent accidents.
Before you throw away your old
Refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children
may not easily climb inside.
Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are believed to
harm stratospheric ozone. If you are throwing away your
old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified servicer. If
you intentionally release this CFC refrigerant, you can
be subject to fines and imprisonment under provisions
of environmental legislation. This appliance contains
fluid (refrigerant, lubricant), and is made of parts and
materials which are reusable and / or recyclable. All the
important materials should be sent to the collection
center of waste material and can be reused after rework
(recycling). To recycle, please contact your local agency.
IMPORTANT: Please read carefully,
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
Use of an extension cord will increase the clearance
3-prong
grounding
plug
3-prong
grounding type
wall receptacle --...,
sure proper
_1 ground exists
/I/// before use.
needed for the back of the refrigerator. If the supply cord
is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order
to avoid any hazard.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 volts, 60Hz, AC only and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the third
(Ground) prong from the power cord.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of an
extension cord. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (in the United States), 3=wire grounding type
appliance extension cord having a grounding type plug and
outlet, and that the electrical rating of the cord be
15 amperes (minimum) and 120 volts.
NOTE: Before performing any type of installation or
cleaning, turn the control to OFF (Demo Mode),
and then disconnect the refrigerator from the
electrical source. When you are finished,
reconnect the refrigerator to the electrical source
and reset the control to the desired setting.
Excessive Weight Hazard
Use two or more people to move and install the
refrigerator.
Failure to do so can result in back or other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning
type labels, the model and serial number label, or the
Technical Data sheet located under the front part of the
refrigerator, behind the base grille.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also
be easily removed by rubbing a small amount of liquid
dish soap over the adhesive with your fingers. Wipe with
warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids or abrasive cleaners to remove tape or
glue. These products can damage the surface of your
refrigerator. For more information, see the Important
Safety Instructions section.
Refrigerator shelves are installed in the shipping
position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
INSTALLATION
1. Avoid placing unit near heat sources, direct sunlight or
moisture.
2. To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
3. Carpeting and soft tile surfaces are not recommended.
4. NEVER install the refrigerator on a platform or a
weakly supported structure.
5. Install this appliance in an area where the
temperature is between 55°F (13°C)and 110°F
(43°C). If the temperature around the appliance is too
low or high, cooling ability may be adversely affected.
NOTE: For proper air circulation, best cooling and energy
consumption results, maintain a minimum distance
of 2 inches (5.08cm) from adjacent items and
surfaces.
2" (5.08 cm) 4" "_ 2" (5.08 cm) _" ÷ _" "_-2" (5.08 cm)
2" (5.08 cm)_
• Be careful when you work with the hinge, base grille,
stopper, etc. You may be injured.
• Do not put hands or metal sticks into air vents, base
grille or bottom of the refrigerator. You may be injured
or receive an electrical shock.
BASE GRILLE INSTALLATION
To install or replace base grille:
1. Remove the 2 screws from the bottom front part of
refrigerator.
2. Place base grille into position and insert and tighten
screws.
To remove the base grille
1. Open the doors. (Refrigerator and freezer)
2. Once doors are open, remove screws from base
grille. Remove base grille and set safely aside.
3. Reattach screws to the base of refrigerator.
LEVELING THE REFRIGERATOR DOOR HANDLE REMOVAL
Place level on refrigerator shelf as shown below.
!
You may have to remove the door handles to move the
refrigerator through a narrow opening. See instructions
below.
NOTE: To avoid damaging door surfaces when moving the
refrigerator through narrow openings, it is ALWAYS
recommended to remove the doors as instructed in the
next two pages.
• Loosen the set screws with a %2"(2.38 mm) Allen
wrench and remove the handle.
NOTE: If the handle mounting fasteners need to be
tightened or moved, use a _/4"(6.35 mm) Allen
wrench.
Mounting
fasteners
If your refrigerator is not level, insert a flat blade
screwdriver into the grooves of the leveling legs (shown
in picture below). Rotate legs clockwise to raise or
counterclockwise to lower the front of the refrigerator.
Set screw
Left leveling Right leveling leg
leg
Raise the front of the refrigerator enough so the doors
close freely when opened halfway. The refrigerator
should slope Y4"(6.35 mm) to ½" (0.127 mm) from front
to back.
Then level the refrigerator from side to side.
Wrench
ElectricShockHazard
• Disconnect electrical supply to the refrigerator
before installing. Failure to do so could result in
death or serious injury.
• Do not put hands, feet or other objects into the
air vents, base grille, or bottom of the refrigerator.
You may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base
grille, and stopper. You may be injured.
Removing the left (freezer) door with water line
connection.
• Pull up the water feed tube while pressing area
(Figure 1) as shown in the figure below.
• NOTE: If a tube end is deformed or abraded, trim the
part away. Disconnecting the tube under the door
causes about 0.13 gallons (0.5 liters) water to
flow out. Put a large container at end of tube to
prevent water from draining onto the floor.
REMOVING AND REPLACING
REFRIGERATOR DOORS
Before removing the doors, remove the base grille.
See BASE GRILLE INSTALLATION for reference.
To remove the right (refrigerator) door:
S %
(4) ,
) _ _(3)
Type 1 i(4y (5)__;
; Type 2 ;
i •
1. Open the door. Remove the top hinge cover screw
(1).
2. Use a flat blade screwdriver to pry back the hooks
(not shown) on the cabinet underside of the cover (2).
Lift up the cover.
3.Rotate the hinge lever (3) clockwise. Lift the top hinge
(4) free of the hinge lever latch (5).
NOTE: Regardless of hinge lever type, removal process is
the same.
4. Lift the door from the lower hinge pin.
5. Place the door, inside facing up, on a nonscratching
surface.
CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
Figure 1
(1)\,
(2)
_(7)
/
/
Type 1 :Type 2
1 Open the door. Remove the top hinge cover screw (1).
2. Use a flat blade screwdriver to pry back the hooks
(not shown) on the cabinet underside of the cover (2).
Lift up the cover.
3. Disconnect all the wire harnesses (3).
4. Remove the grounding screw (4).
5. Rotate hinge lever (5) counterclockwise. Lift the top
hinge (6) free of the hinge lever latch (7).
NOTE: Regardless of hinge lever type, removal process is
the same.
[] CAUTION: When lifting the hinge free of the latch,
be careful that the door does not fall forward.
6. Lift the door from the lower hinge pin being careful to
pull the water lines through the lower hinge pin.
7. Place the door, inside facing up, on a nonscratching
surface.
Reinstallingtheright (Refrigerator)door
,
2.
Type 1 ,i Type 2
Place the door onto the lower hinge pin.
Fit top hinge (4) over hinge lever latch (5) into
place. Rotate lever (3) counterclockwise to secure
hinge.
NOTE: Regardless of hinge lever type, removal process is
the same.
3. Hook tab on switch side of corner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
3. Install the grounding screw (4) and connect all the
wire harnesses (3).
4. Hook tab on door switch side of cover (2) under edge
of wire opening in cabinet top. Position cover into
place. Insert and tighten cover screw (1).
5. Reconnect the water tubes by inserting the tubes into
the connectors.
Coltet
Reinstalling the left (Freezer) door
j_
(2)
(1)\,
(4),
/
(7)
Type 1
1. Feed the water tubes through the lower hinge pin and
place the door onto the lower hinge pin.
2. Fit top hinge (6) over hinge lever latch (7) and into
place. Rotate lever (5) clockwise to secure hinge
NOTE: Regardless of hinge lever type, removal process is
the same.
10
DOOR ALIGNMENT
Remove the base grille before adjusting the doors.
See BASE GRILLE INSTALLATION for reference.
Type 2
Adjusting tools: _6" (8 ram) Wrench and
Wrench 3/4" (19 ram)
Two methods of door alignment are available based on
the amount of adjustment needed and installation
requirements.
Type 1
Adjusting tool: Fiat blade screwdriver
If the freezer compartment door is lower than the
refrigerator compartment door, level them by inserting a
flat blade screwdriver into the groove of the left leveling leg
and rotating it clockwise.
Left leveling
leg
Height
difference
=,
Height
difference
Keeper nut
t Wrench
hinge pin "_, ,_V
Down.,_ _'__
Using a ¾" (19 mm) wrench, turn the keeper nut clockwise
to loosen the keeper nut.
Using a _6" (8 mm) wrench, turn the adjustment hinge pin
clockwise or counterclockwise to level the refrigerator and
freezer door.
After leveling the door, turn the keeper nut counterclockwise
to tighten.
If the freezer compartment door is higher than the
refrigerator compartment door, level them by inserting a
flat blade screwdriver into the groove of the right leveling
leg and rotating it clockwise.
CAUTION: Do not overtight the door adjustment screw.
The hinge pin can be pulled out. (Adjustable range of
height is a maximum of ½" (1.27 cm)).
AFTER LEVELING THE DOOR HEIGHT
Height
difference
Right leveling leg
Confirm all legs are in contact with the floor.
11
CONNECTING THE WATER LINE
NOTE: Water line installation is needed when the
Automatic Icemaker and/or Water Dispenser
features are available on your product.
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer or seller. Follow
these instructions carefully to minimize the risk of
expensive water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing the
water supply line to the refrigerator
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the OFF
(O) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations must be in accordance with local
plumbing code requirements.
NOTE: Wear eye protection.
• If a reverse osmosis water filtration system is
connected to your cold water supply, the water line
installation is not warranted by the refrigerator or
icemaker manufacturer or seller. Follow next instruction
carefully to minimize the risk of expensive water
damage.
• If a reverse osmosis water filtration system is
connected to your cold water supply, the water pressure
to the reverse osmosis system needs to be a minimum
of 40 to 60 PSi (2.8 kg.f/cm 2- 4.2 kgof/cm2, less than
2-3 sec to fill a cup of 7 oz capacity).
If the water pressure from the reverse osmosis system
is less than 21 PSI (1.5 kg.f/cm 2, more than 4 sec to fill
a cup of 7 oz capacity):
• Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if
necessary.
• Allow the storage tank on the reverse osmosis system
to refill after heavy usage.
WHAT YOU WILL NEED
* Copper Tubing, 1/4"(6.35 mm) outer
diameter to connect the refrigerator JJ
to the water supply. Be sure both JJ
ends of the tubing are cut square.
To determine how much tubing you need, measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8
feet [2.4 m] coiled into 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.
Be sure that the kit you select allows at least 8 feet
(2.4 m) as described above.
• A cold water supply.The water pressure must be
between 20 and 120 PSI (1.4 bar and 8.2 bar) on
models without a water filter and between
40 and 120 PSI (2.8 bar and 8.2 bar) on models with
a water filter.
• Power drill.
• 1/2"(12.7 ram) or
Adjustable Wrench.
• Flat head-and Phillips=
screwdrivers.
• Two 1/4" (6.35 mm) outer diameter
compression nuts and 2
ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
• If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can
cut off the flared fitting with a tube cutter and then use
a compression fitting.
, Shutoff valve to connect to
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of %2"
(3.96 mm) at the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your
local plumbing codes.
• If the issue about water pressure from reverse osmosis
remains, call a licensed, qualified plumber. 12
iNSTALLATiON iNSTRUCTiONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUTOFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve that
is easily accessible. It is best to connect
into the side of a vertical water pipe.
When it is necessary to connect into a
horizontal water pipe, make the
connection to the top or side, rather
than at the bottom, to avoid drawing
off any sediment from the water pipe.
= DRILL THE HOLE FOR THE VALVE
Drill a 1¼,(6.35 mm) hole in thewater _
pipe using a sharp bit.
Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a
1¼"(6.35 mm) hole may result in reduced ice
production or smaller cubes.
NOTE: Licensed plumbers must use only cooper tubing
NDA tubing #49595 or 49499 or Cross Link
Polyethylene (PEX) tubing.
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Pipe Clamp
Saddle-Type --J
Shutoff Valve
Vertical Cold
Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed
plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the tubing.
Washer
Pipe Clamp _ _lnlet End
Clamp Screw!__ _
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing [about
8 feet (2.4 m) coiled into 3 turns of about
10" (25 cm) diameter] to allow the refrigerator to
move out from the wall after installation.
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing
is fully inserted into the valve. Tighten the
compression nut securely.
Saddle-Type
Shutoff Va_ed
Packing j i
Nut
Outlet
Valve
Compression
Ferrule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle
valves are illegal and use is not permitted in
Massachusetts. Consult with your licensed
plumber.
13
= FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water _ _'_ ),4
valve after about one quart of
water has been flushed through
the tubing.
Back of refrigerator
Tubing
1/4"(6,35 mm)
Compression
Nut
W' (6.35 mm) Tubing
9. CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
• If your refrigerator does not have a water filter,
we recommend installing one. If your water supply
has sand or particles that could clog the screen of
the refrigerator's water valve, install the filter in the
water line near the refrigerator
• Do not uses old hoses; only use new hoses provided
by the manufacturer. For more information call
1-800-4-MY-HOME ®.
1. Remove the plastic flexible cap from the refrigerator
connection.
,
,
Place the compression nut and ferrule (sleeve) onto
the end of the tubing. (See figure 1)
Insert the end of the tubing into the connection as
far as possible. While holding the tubing, tighten the
fitting.
CAUTION: Check to make sure that leaks are not
occurring in the water line.
Ferrule
Figure 1
Refrigerator
Connection
Fasten the tubing into the tubing clamp attached to the
back of the refrigerator.
First, loosen the screw fastening the clamp. Next,
insert the tubing in the groove. Finally, re-fasten the
screw,
10. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall,
11. START THE ICEIVlAKER
Set the icemaker power switch to the ON (I) position,
The icemaker will not begin to operate until it
reaches its operating temperature of 15°F (-9°C)
or below. It will then begin operation automatically if
the icemaker power switch is in the ON (I) position,
14
Q
Use this page to become more familiar with the parts and features.
Note: This guide covers several different models.The refrigerator you have purchased may have some or
all of the items listed below, The locations of the features shown below may not match your model,
O utomatic Icemaker
The ice is produced in the icemaker
and sent to the dispenser.
O Freezer Shelf
G Freezer Light (LED)
O Freezer Door Rack
O Drawer
O Base Grille
15
O
@
@
@
@
@
Refrigerator Light (LED)
Dairy Corner
For storage of dairy products
such as butter and cheese,
Can Rack
Water Filter
Refrigerator Shelf
Snack Pan
For storage of meat or fresh food.
Refrigerator Door Rack
Door racks may be clear or opaque depending on
refrigerator model type.
Crisper Drawer
ENSURING PROPER AiR CiRCULATiON PRIOR TO USE
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections.
o Cool air enters the freezer compartment from the control
box located in the top of the inner case, and moves
down. Air then exits through the air vents located behind
the freezer drawer.
o In refrigerator compartment, a sensor located in the
control box opens a gate which allows air to enter the
compartment. Air moves down the compartment and exits
through the vents located behind the crisper drawers.
" Do not block any of these vents with food packages.
If the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
iMPORTANT:
Because air circulates between both sections, any odors
formed in one section will transfer to the other. You must
thoroughly clean both sections to eliminate odors.
To prevent odor transfer and dried out food, wrap or cover
foods tightly. (See the Food Storage Guide section for
details.)
NOTE: If you
close the
refrigerator door,
you may see the
freezer door
open and close
again due to
pressure from
internal air flow.
1. Clean your refrigerator thoroughly and wipe off dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for at least 2 or 3 hours
before putting food in it. Check the flow of cold air in
the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.
CONTROL PANEL FEATURES
USER INTERFACE DISPLAY
ICE & WATER
Ice & Water allows you to change between dispensing
water of ice. Also allows you to choose the type or ice that
will be dispensed, cube or crushed.
. Select cube, water or crush by pressing the button,
Ice & Water screen will be displayed.
. Press the I. ,_;_ button repeatedly; the selection will
switch in the following order: Crush --, Water ---*Cube
order.
. To select from the display tap the desired option. The
dispenser will change accordingly.
NOTE: If there is no input in 3 seconds, the Ice & Water
screen will close and the Home screen will be
displayed.
16
ULTRA ICE LOCK
The Ultra Ice function runs the freezer compartment at the
coldest settings for a 24 hour period. Use the Ultra Ice
function to increase icemaking production.
®
Press the .i} button to activate the Ultra Ice function,
Processing Ultra Ice... screen will be displayed.
• When Ultra Ice function is processing the _ icon will be
displayed at the top left corner of Home screen.
Use the Lock function to lock or unlock the display. All
control buttons will be disabled including the display
screen.
[-:
" To lock the display, press and hold the :i} button for
3 seconds (Lock button blinks 4 times); the Display is
Locked! message will appear. If there is no further input
in 3 seconds, the Home screen will appear.
* To turn off the Ultra Ice function, press the [, .... J button.
The Stopped Ultra Ice... screen will display. If there is
no further input within 3 seconds, the Home screen will
appear.
* If you touch the screen or press any button while the
Lock function is enabled, there will be no response and
the Display is Locked! message will appear.
* To unlock the display, press and hold the Lock button for
3 seconds, the Display is Unlocked! screen will appear.
17
DISPLAY PROGRAM
SYSTEM BOOTING
When power is supplied to the system, booting screen
is displayed on LCD screen. Home screen will be
displayed when booting is completed.
MENU
To access Menu application tap Menu on Home screen.
• Refrigerator
HOME
Press Home button to see the applications. To access tap
at any application.
• Dispenser _J
Tap the Dispenser application to select among
Crush Water Cube.
• Temperature
Tap the Temperature application to set refrigerator and
freezer temperature.
" Menu_
Tap the Menu application to access the Menu screen.
" Lock
When Lock function is enabled, Lock icon is displayed at
the top left corner of Home screen.
• Ultra Ice @
When Ultra Ice function is activated, Ultra Ice icon will be
displayed at the top left corner of Home screen, Tap the
icon to stop the operation,
• Filter Reset [_]
If water filter replacement timing of 180 days is reached,
Filter Reset icon I_ is displayed at the top left corner of
Home screen. Tap this icon to access Filter Reset
screen.
" Time & Date (_)
Tap the time and date displayed area, to switch over to
the Time & Date setting screen.
18
a) Temperature
It is recommended to mantain the preset temperature of
37°F (3°C) on the refrigerator compartment and 0°F
(-17°C) on the freezer compartment. Tap Recommended
to set these temperatures.
NOTE: The refrigerator temperature can be modified
from 33°F to 46°F (1°C to 8°C), freezer
temperature can be modified from =6°F to 8°F
(-21°C to =13°C). Wait 24 hours before making
any additional adjustments. The lower the
number, the colder the compartment will be.
Select Temperature to modify refrigerator and freezer
compartment. Tap _ button to change the
temperature setting.
To change temperature unit, tap C for Celsius and F for
Farenheit.
Tap OK to set temperatures.
b) Dispenser _ • Memo Pad
- Allows you to choose between Cube, Water and Crush.
Tap the desired icon.
- Tap Light to switch to Off -_Auto _ On setting. The
Mood Light will change accordingly. When Auto is
selected, brightness of the room will be detected by the
Light Sensor to turn ON when dark and OFF when
bright.
- Tap OK to accept the changes or tap Close to exit the
application.
c) Filter Reset [_
Select Filter Reset to verify the remaining filter time or
reset it.
- When Reset is selected, it will reset the filter to 6
months.
- Tap Close to exit the application.
Save your memos in the Memo Pad.
- Select Memo Pad to access the aplication, memos will
be displayed in the screen.
a) New
To create a new memo tap and Memo Pad edditing
screen will de displayed.
d) Door Alarm ((.,_))
When either refrigerator or freezer door is left open for
more than 60 seconds, an alarm will sound 5 times at
30 seconds intervals to let you know the door is open.
Tap the Door Alarm to activate or deactivate the function.
e) Ultra Ice @
Tap the Ultra Ice to activate or deactivate the function.
- To enter text tap on the character.
- Tap _ key to toggle the keyboard between upper and
lower case.
- For numbers and special character tap the key
switch over to the alphabet by tapping key.
- Move the cursor in the desired direction by pressing the
arrow keys.
- To save t he mem o tap or to exit Memo Pad.
b) Delete All
To delete all saved memos, tap to
or tap exit
the application without deleting any memo.
c) Recycle Bin
To delete a memo on the Memo Pad display, tap the
button in the right side of the memo.
d) Back
To return to Home screen tap Back.
e) Edit
Select a created memo to change to the Memo View
screen. Within this screen, you can edit the currently
displayed memo. Pressing the button will display
the Edit Memo screen.
19
• Freshness Tip [_
Today's date will be displayed inside a square _.
Holidays will be displayed by F displayed on the top left
side of the date.
- To view events scheduled for a determined day, tap on
the day and Events will be displayed.
a) Events
=Tap to access Events screen. Tap Add New
Events to add events to your list.
If you want to delete an event, tap the _ icon on the
right side of the event.
- Select to return to Calendar screen.
For freshness and storage tips for fruits and vegetables,
tap Freshness Tip on Menu screen.
- Use the tabs at the top to sort through the available tips
alphabetically.
- Tap the fruit/vegetable of your choice to switch to the
Freshness Tip view screen.
a) Freshness Tip View
The Freshness Tip view lists the common temperature
ranges for both Room Temperature Storage and
Refrigerated Storage as well as the recommended
method.
NOTE: If the selected item should not be stored using a
specific method (Room Temperature or
Refrigerated) a NO will appear beneath the
respective storage method.
- Select Back to return to Freshness Tip screen.
• Calendar
Calendar lets you view monthly calendars. You can view
holidays that are already preset as well as your personal
events.
b) Add New Events
- To enter text tap on the character. Tap_ key to toggle
the keyboard between upper and lower case.
- For numbers and special characters tap the key;
switch over to the alphabet by tapping key.
- Tap Yearly checkbox for this event to set as a yearly
event. For reminder of event tap checkbox Reminder
and this event will be displayed on Home screen on its
particular date.
- Press :::,, to save the event or to exit New
Events.
2O
" ServiceInfo (_
Service Info provides you a quick guide for common
troubleshooting. For full Service Info tap the category of
your interest.
NOTE: For more detailed information refer to the
Troubleshooting guide section.
- To move through the pages, tap
- Select Back to return to Home screen.
• Settings "_
Settings allows you to customize the display applications.
- Set the time and date, brightness and enter other
preferences for your display.
Select Back to switch to Home screen.
NOTE: If Back is selected without tapping OK, any new
settings will not be saved.
e) Screen Saver
Screen Saver allows you to choose either Screen Off,
Clock or Dimmed setting,
a) Brightness
Current brightness level is displayed on screen; to
change setting tap on brightness level displayed area.
- Brightness default value is level 3 (middle).
b) Button Sound <:]_)
To turn ON and OFF Button Sound, tap the displayed
area to switch ON and OFF. Default value for Button
Sound is ON.
c) Language
To change screen language, tap on Language displayed
area. Select either English, Spanish or French.
d) Time & Date
To set time and date, select Time or Date tab on the top
of the screen, and input data accordingly.
- Press _ tabs to increase or decrease the value.
- To save setting tap OK.
21
=Screen Off
LCD backlight is turned OFF.
=Dimmed
Brightness of LCD backlight will be darkened.
=Clock
Brightness of LCD backlight will be darkened and Clock
screen saver showing current time is displayed.
When Screen Saver is set, touch anywhere on the
screen to cancel the function.
- The number of minutes set for Running Time will be the
time allowed to before the Screen Saver mode is
activated.
- To cancel the Screen Saver mode, press any of the
operational buttons or the display.
Icemaker operation
Personal injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOT place fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
A newly=installed refrigerator may take
12 to 24 hours to begin making ice.
Indicator Light
Ice Cube size
selector button
Shutoff Arm
Power Switch
The icemaker will produce 6 cubes per cycle,
approximately 100 cubes in a 24 hour period, depending
on freezer compartment temperature, room temperature,
number of door openings and other operating conditions.
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to OFF (O).
When the refrigerator has been connected to the water
the icemaker will fill with water when it cools to freezing.
Throw away the first few batches of ice to allow the
water line to clear.
Be sure nothing interferes with the sweep of the shutoff
arm.
When the bin fills to the level of the shutoff arm, the
icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
22
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely
before making final adjustments. It is best to wait 24
hours before doing this. The initial settings mentioned in
CONTROL PANEL FEATURES section should be
correct for normal household refrigerator use.
The refrigerator control functions as the thermostat for
the entire appliance (refrigerator and freezer sections).
The colder the setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator and allow 24
hours for the temperature to stabilize. If it is too warm or
too cold, then adjust the freezer control.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
CONDITION/REASON :
II REFRIGERATOR section too
warm
- Door opened often
- Large amount of food added
- Room temperature very warm
II FREEZER section too
warm/ice not made fast enough
- Door opened often
- Large amount of food added
-Very cold room temperature,
55° F (13 ° C) is the lower
temperature limit.
(Compressor does not cycle
often enough)
- Heavy ice usage
-Air vents blocked by items
II REFRIGERATOR section too
cold
-Controls not set correctly for
your conditions
II FREEZER section too cold
-Controls not set correctly for
your conditions
RECOMMENDED
ADJUSTMENT :
Set the Refrigerator
control one degree
colder; wait 24 hours
for the new setting to
take full effect before
making another
adjustment.
Set the Freezer control
one degree colder;
wait 24 hours for the
new setting to take full
effect before making
another adjustment.
Move items out of
airstream
Set the Refrigerator
control one degree
warmer; wait 24 hours
for the new setting to
take full effect before
making another
adjustment.
Set the Freezer control
one degree warmer;
wait 24 hours for the
new setting to take full
effect before making
another adjustment.
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to ensure
freshness.
items How t o Store
Butter or I_
margarine
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese
Store in the original wrapping until
you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Milk
_- Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Eggs
_- Store in original carton or on
interior shelf, not on door shelf.
Fruit
Wash, let dry, and store in
refrigerator in plastic bags or in
the crisper. Do not wash or hull
berries until you are ready to use
them. Sort and keep berries in
their original container in a
crisper drawer, or store in a closed
and sealed paper bag on a
refrigerator shelf.
Leafy
vegetables
Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper drawer.
Vegetables with I_ Place in plastic bags or plastic
skins (carrots, container and store in crisper
peppers) drawer.
Fish _ Use fresh fish and shellfish the
same day purchased.
Leftovers
Cover leftovers with plastic wrap
or aluminum foil. Plastic containers
with tight lids can also be used.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer
guide or a reliable cookbook.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not allow
air or moisture in or out. If it does, you could have food
odor and taste transfer throughout the refrigerator and also
dry out frozen food.
Packaging recommendations:
• Rigid plastic containers with "tight=fitting lids"
• Straight-sided canning/freezing jars
• Heavy=duty aluminum foil
• Plastic-coated paper
• Non=permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
CAUTION: Do not keep beverage cans or plastic
food containers in the freezer compartment. They may
burst if they freeze.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours [no more than 2 to 3 Ibs of food
per cubic foot (0.9 to 1.35 kg per cubic meter) of freezer
space]. Leave enough space in the freezer for air to
circulate around packages. Be careful to leave enough
room at the front so the door can close tightly.
Food storage times will vary according to the quality and
type of food, the type of packaging or wrap used (airtight
and moisture-proof) and the storage temperature. Ice
crystals inside a sealed package are normal. This simply
means that moisture in the food and air inside the package
have condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot
foods before freezing saves energy.
23
WATER AND ICE DISPENSER
Your refrigerator has a mechanism that can dispense cool
water and ice cubes without opening the door.
WARNING
Do not put your hands into the water and ice dispenser
opening. Doing so may cause an injury to your hand.
• The dispenser tray can easily be removed by pressing
down and lifting it out.
• First push the tray in the area labeled 'PUSH', then place
your finger in the center hole and lift up to remove the
tray.
CAUTION
When using the dispenser with a container with a
small opening, place the container as close to the top
as possible.
• The dispenser opening has the following dimensions:
Depth 4V8" (124 mm)
Width 6V8" (174 mm)
Height 9V8" (238 mm)
For best performance, use a container that is smaller
than the dispenser opening.
24
iCE STORAGE BIN
The ice bin stores the ice cubes made by the icemaker.
If you need to remove the ice storage bin, do so as follows:
NOTE: Use both hands to remove the ice bin to avoid
dropping it.
• Lift the ice storage bin slightly @ and pull it out ® as
shown in the figure.
CRISPER AND CRISPER COVER
The crisper allows for better conservation of fruits and
vegetables.
• To remove the crisper compartment cover, pull out
the crisper compartment a bit to the front @, lift the
front part of the cover as shown in ®, and take it out @.
NOTE: Do not remove the ice storage bin unless it is
necessary.
DOOR RACK AND SUPPORT
• To remove the crisper compartment, pull the crisper
compartment to the front (b until it stops. Then slightly
lift the crisper compartment ® while pulling it out @.
Your refrigerator and freezer features racks which can
easily be arranged for packaged products.
• Lift the door rack holding both sides (b and pull it out in
® direction.
SNACK PAN
• To remove the snack pan cover, pull the snack pan
out a bit @. Lift the front part of the snack pan cover and
pull out ®.
t
@
CAUTION
When removing the crisper compartment you will see
the water tank. Do not remove it, or water leakage
may result. The water tank is not a removable part.
Youcancontroltheamountof humidityinthemoisture-
sealedcrispers.Adjustthecontrolto anysetting
between"VEGETABLES"and"FRUIT".
• "VEGETABLES":Keepsmoistair inthecrisperforbest
storageoffresh,leafyvegetables.
• "FRUIT": Lets moist air out of crisper for best storage of
fruits or vegetables with skins,
REFRIGERATOR SHELVES
The refrigerator compartment shelf is adjustable so that
you can place it at a height according to space
requirement of foods.
• Slide shelf
Pull the shelf towards you @, then lift both the front and
rear parts of the shelf upward ® to remove @.
AIRTIGHT CRISPER AND AIRTIGHT CRISPER
COVER
It sealing property allows moisture to stay inside. Ideal to
store lettuce, spinach, broccoli, brussels sprouts, celery or
any vegetable or fruit that require cold, moist conditions.
The airtight crisper will keep vegetables fresh for longer.
®
NOTE: Make sure to keep shelf horizontal while removing;
otherwise it may drop.
• Folding Shelf:
You can store taller items such as gallon containers or
bottles by simply sliding the shelf back.
1. Slightly lift the shelf in the direction d:)while pushing it
to the back ®.
• To remove it, pull the airtight crisper cover out, insert a
flatblade screwdriver below the airtight cover hook d:)and
pull down ®. Repeat same process on opposite side.
26
• Fixed shelf • Fixed shelf
Lightly lift up the front part of shelf @, pull the shelf
towards you ®, then take it out while lifting the rear part 1. Firmly pull the right rear of the shelf up @ to clear the
of shelf ®. rear shelf support (view detail).
@
FREEZER SHELF
To assemble or disassemble the freezer shelf, follow
the next steps:
S
1. Pull the shelf towards the front @. The shelf hook will
contact the support on the guide. Lift the shelf so the
hook clears the guide support (view detail), then pull
toward you.
t''
.
Firmly pull the right front part of the shelf up ® to clear
the front shelf support.
3. Tilt the shelf in the direction ®, and then pull it toward
you.
27
WATERFILTER
When the Filter Reset icon is displayed on Home screen,
you have to change the water filter. Tap the [_] icon to
access Filter Reset screen and reset filter timing.
Before removing or installing water filter:
IMPORTANT: Turn off household water supply.
Removing the water filter.
Rotate the knob of the cartridge counter clockwise. When
the cartridge is removed, you will feel it click out of place.
Pull out the cartridge.
Grasping filter by its handle, twist it about _¼turn until it
clicks into place. The filter is not correctly installed if you
can wiggle it from side to side. You will hear a snap when
it locks securely into place.
NOTE: Removing the filter causes a small amount of
water to flow out. Place a cup below filter
receptacle to catch water. Holding cartridge with
handle down will minimize spillage.
After installing water filter:
1. Turn on household water supply.
2. Dispense 2.5 gallons (9.46 liters) of water to purge the
system, depressing and releasing the dispenser pad in
cycles of 30 seconds ON and 60 seconds OFF. Open
the refrigerator door and shelf area to check for water
leaks.
To purchase replacement water filter, call
1-800-4-MY-HOME ®.
Installing the water filter.
Take the new cartridge out of its package and remove
protective cover from the o-rings. With cartridge knob in
the vertical position, push the new filter cartridge into the
cover until it stops.
28
Filter Performance Data Sheet
Nlodel Number 5231JA2006E
Use with replacement cartridge 5231JA2006E
This system has been tested according to NSF/ANSI 42 for the reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to a
concentration less than equal to the permissible limit for water leaving the system, as specified in
NSF/ANSl 42.
I ystem tested and certified by NSF International against NSF/ANSI Standard 42 for the
reduction of Chlorine, Taste and Odor and Nominal Particulate Class III.
Max.
Influent Challenge Product Average % NSF Reduction Effluent Min. % NSF
Contaminant Average concentration. Units Water Reduction Requirements Reduction Test
Reduction Influent apply to each row mg/L
Particulate
Class I Particle size: 5600000 At least 10 000 833333 93.2 > 85% 470000 91.6% 511032-03
>0.5 to <1 ,m particles/ml
Chlorine taste and odor 1.9 mg/L 2.0 mg/L + 10% 0.05 mg/L 97.4 >50% 0.05 mg/L 97.4% 511031-03
To a capacity of 300 gallons (1.135 L).
* Note that while the testing was performed under standard labaratory conditions, actual performance may vary.
Application Guidelines / Water Supply Parameters
Water pressure 30 - 100 psi !207 - 689 kPa)
Water temperature 33°F - 100°F (0.6°C - 37.8°C)
Service flow 0.5 gpm (1.9 Ipm)
To reduce the risk associated with ingestion
of contaminants due to use with water that is
microbiologically unsafe or of unknown
quality.
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system.
Systems must be installed and operated in
accordance with manufacturer's recommended
procedures and guidelines.
_3CAUTION
To reduce the risk of property damage due to water leakage:
• Read and follow Use instructions before installation and use of
this system.
• Install on COLD water lines only.
• Company with all state and local plumbing codes.
Never install or operate where inlet water pressure may exceed
125 psi (862 kPa).
• Protect filter from freezing. Remove filter in temperatures
below 34°F (1°C).
• Replace cartridge at specified service interval. Cartridge
MUST be replaced at least every 6 months.
• After replacing the water filter cartridge, dispense 2.5 gallons
(9.46 liters) of water to purge the system, depressing and
releasing the dispenser pad in cycles of 30 seconds ON and
60 seconds OFF. Discard the purged water.
To purchase a replacement filter, visit your local Sears store or
call 1-800-4-MYHOME ®.Visit us on the web at www.sears.com
Product distributed in the United States
by Sears Brands Management Corporation,
Hoffman Estates, IL 60179
29
ExplosionHazard
Usenon-flammablecleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once a
month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
oUnplug refrigerator or disconnect power.
oRemove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
oUse a clean sponge or soft cloth and a mild detergent
in warm water. Do not use abrasive or harsh cleaners.
oHand wash, rinse and dry all surfaces thoroughly.
oPlug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide
rust protection. Do not wax plastic parts. Wax painted
metal surfaces at least twice a year using appliance wax
(or auto paste wax). Apply wax with a clean, soft cloth.
Do not use wax on stainless steel exteriors. Use a product
specially designed for polishing stainless steel appliances,
or clean with a soft cloth or clean sponge and a mild
detergent dissolved in warm water. Dry thoroughly with a
soft cloth.
NOTE: Avoid door surface contact with chemical products
that contain Phosphate or Chlorine, such as
degreasers, detergents (containing TSP) and
bleachers.
INSIDE WALLS (allow freezer to warm up so
cloth will not stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water.) Be sure the baking soda is
completely dissolved so it does not scratch the surfaces of
the refrigerator.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergent,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
Use a clean sponge or soft cloth and a mild detergent in
warm water. Wash, rinse and dry all surfaces thoroughly.
PLASTIC PARTS (covers and panels)
Do not use window sprays, abrasive cleaners, or
flammable fluids. These can scratch or damage the
material. Use a clean sponge or soft cloth and a mild
detergent in warm water. Wash, rinse and dry all
surfaces thoroughly.
BACK COVER
ELECTRICAL SHOCK HAZARD
Before you begin, either unplug the refrigerator or
turn off power at the circuit breaker or fuse box.
Failure to do so could result in death or serious injury.
NOTE: Back cover should only be removed by a qualified
technician.
Clean the vents on the
back cover. Use a vacuum
cleaner with the brush
attachment, at least twice a
year to keep your refrigerator
working efficiently.
LED REPLACEMENT
If refrigerator or freezer LED module presents a failure,
please call 1-800=4-MY-HOME ®for its replacement.
NOTE: Do not remove the LED module, it is only to be
removed by a qualified technician.
POWER INTERRUPTIONS
1. If the power will be out for 24 hours or less, keep all
refrigerator doors closed to help foods stay cold and
frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen food
locker.
3O
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator running while
you are away, follow these steps to prepare your
refrigerator before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
3. Turn OFF the Icemaker. NOTE: If the ambient
temperature will drop below freezing, have a qualified
service technician drain the water supply system (on
some models) to prevent serious property damage
due to possible flooding from ruptured water lines or
connections.
If you choose to unplug your refrigerator before you
leave, follow these steps.
1. Remove all food from the refrigerator and empty ice
bin.
2. Unplug refrigerator.
3. Clean refrigerator, wipe, and dry well.
4. Tape rubber or wood blocks to the tops of both doors
to prop them open far enough for air to get in. This
stops odor and mold from building up.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO OFF (O)
• When the water supply will be shut off for several hours.
• When the ice storage bin is removed for more than a
minute or two.
• When the refrigerator will not be used for several days.
NORMAL SOUNDS YOU MAY HEAR
• The icemaker water valve will buzz as the icemaker
fills with water. If the power switch is in the ON (I)
position, it will buzz even if it has not yet been hooked
up to water. To stop the buzzing, move the power
switch to OFF (O) position.
NOTE: Keeping the power switch in the ON (I) position
before the water line is connected can damage
the icemaker.
• You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Unplug refrigerator.
3. Clean refrigerator, wipe, and dry well.
4. Empty water from the defrost pan.
5. Clean, wipe and dry thoroughly.
6. Take out all removable parts, wrap them well and
tape together so they do not shift and rattle during the
move. Refer to sections in Using your Refrigerator for
removal instructions.
7. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they don not scrape the
floor. See the DOOR ALIGNMENT section.
8. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
9. If the ambient temperature will drop below freezing,
have a qualified service technician drain the water
supply system (on some models) to prevent serious
property damage due to possible flooding from ruptured
water lines or connections.
When you get to your new home, put everything back
and refer to the REFRIGERATION INSTALLATION
section for setup instructions.
31
UNDERSTANDING SOUNDS YOU MAY
HEAR
Your new refrigerator may make sounds that your old
one did not make. Because the sounds are new to you,
you might be concerned about them. Most of the new
sounds are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they
actually are. The following list describes the kinds of
sounds and what may be making them.
The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
Rattling noises may come from the flow of refrigerant,
the water line, or items stored on top of the refrigerator
Your refrigerator is designed to run more efficiently to
keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, but it is still
more energy efficient than previous models. While
running you may hear a pulsating or high-pitched sound.
You may hear the evaporator fan motor circulating the air
through the refrigerator and freezer compartments.
each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator.
Contraction and expansion of the inside walls may cause
a popping noise.
Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
You may hear air being forced over the condenser by the
condenser fan.
You may hear water running into the drain pan during the
REFRIGERATOR DOES NOT OPERATE
Check if,,,
The power supply cord is unplugged.
A household fuse has blown or circuit breaker tripped.
Refrigerator is in the defrost cycle.
Control panel displays DEMO word.
Then,,,
Firmly plug the cord into a live outlet with proper voltage.
Replace the fuse or reset the circuit breaker.
Wait about 30 minutes for defrost cycle to end.
The refrigerator control has been put into the store Demo
(Demonstration) Mode.
The Demonstration Mode disables the cooling system,
but the compartment lights continue to turn on and the
control panel also displays normally.
To disable Demo Mode open one door, then press Ultra
Ice and Home buttons at the same time for 5 seconds.
VIBRATION OR RATTLING NOISE
Check if,,, Then...
The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.the floor. See DOOR ALIGNMENT Section.
LIGHTS DO NOT WORK
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
LED failure. Refer to the LIGHT (LED) REPLACEMENT section.
32
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if... Then...
The refrigerator that was replaced was an older model. Modern refrigerators with more storage space require
more operating time.
The room temperature is hotter than normal.
The door is opened often or a large amount of food has
just been added.
The motor will run longer under warm conditions. At
normal room temperatures, expect your motor to run
about 40% to 80% of the time. Under warmer conditions,
expect it to run even more often. These model is still more
energy efficient than previous models.
Adding food and opening the door warms the refrigerator
It is normal for the refrigerator to run longer in order to
cool the refrigerator back down. Adding a large amount of
food warms the refrigerator. See the FOOD STORAGE
GUIDE Section. In order to conserve energy, try to get
everything you need out of the refrigerator at once, keep
food organized so it is easy to find and close the door as
soon as the food is removed.
The refrigerator was recently plugged in and the The refrigerator will take up to 24 hours to cool
refrigerator control was set correctly completely.
The refrigerator control was not set correctly for the See the ADJUSTING CONTROL SETTINGS section.
surrounding conditions.
The doors are not closed completely. Push the doors firmly shut. If they will not shut all the
way, see Doors Will Not Close Completely below.
The condenser coils are dirty. This prevents air transfer and makes the motor work
harder. Clean the condenser coils. Refer to the CARE
AND CLEANING section.
DOORS WILL NOT CLOSE COMPLETELY
Check if... Then...
The refrigerator is not level. See DOOR ALIGNMENT in the REFRIGERATION
INSTALLATION section to level refrigerator.
Food packages are blocking the door open. Rearrange food containers to clear door and door
shelves.
The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans,
or baskets are out of position, shelves and baskets into their correct positions. See the
USING YOUR REFRIGERATOR section.
The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a
thin coat of paraffin wax on the gaskets after cleaning.
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
Check if... Then...
The freezer temperature is cold enough to produce ice. Wait 24 hours after hook-up for ice production. See the
CONTROL PANEL FEATURES section.
Door left open. Check to see if something is holding the door open.
33
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Check if...
Water shutoff valve connecting refrigerator to water line
may be clogged or water pressure may be too low.
Smaller cube size is selected,
Then...
Call a plumber to check the valve and water supply.
Select larger cube size using the Ice Cube Size selector
button.
THE DOORS ARE DIFFICULT TO OPEN
Check if...
The gaskets are dirty or sticky,
The door is reopened within a short time after having
been opened.
Then...
Clean gaskets and the surfaces that they touch. Rub a
thin coat of appliance polish or paraffin wax on the
gaskets after cleaning
When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create a vacuum.
If the door is hard to open, wait 5 minutes to allow the air
pressure to equalize, then see if it opens more easily.
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP
Check if... Then...
The air vents are blocked. Cold air circulates from the
freezer to the fresh food section and back again through
air vents in the wall dividing the two sections.
The doors are opened often.
The control is not set correctly for the surrounding
conditions.
Locate air vents by using your hand to sense airflow and
move all packages that block vents and restrict airflow.
Refer to ENSURING PROPER AIR CIRCULATION
section for the location of air vents.
When the door is opened, warm humid air is allowed into
the refrigerator. The more the door is opened, the faster
the humidity builds up, and the more warm air the
refrigerator must cool. In order to keep the refrigerator
cool, try to get everything you need out of the
refrigerator at once, keep food organized so it is easy to
find and close the door as soon as the food is removed.
Refer to the CONTROL PANEL FEATURES section.
Wait 24 hours for temperatures to stabilize or even out.
If the temperature is too cold or too warm, adjust the
setting one temperature at a time.
A large amount of food has just been added to the Adding food warms the refrigerator. It can take a few
refrigerator or freezer, hours for the refrigerator to return to normal temperature.
The food is not packaged correctly.
Wrap food tightly and wipe off damp containers prior to
storing in the refrigerator to avoid moisture accumulation.
If necessary, repackage food according to the guidelines
in the FOOD STORAGE GUmDE section.
The doors are not closing completely See Doors Will Not Close Completely.
The weather is humid. In humid weather, air carries moisture into refrigerator
when doors are opened.
A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the
refrigerator self-defrosts.
34
FROST OR ICE CRYSTALS ON FROZEN FOOD
Check if...
The door is not closing properly
The door is opened often.
Then...
See Doors Will Not Close Completely above.
When the door is opened, warm, humid air is allowed in
the freezer resulting in frost.
FROZEN FOOD IN REFRIGERATOR COMPARTMENT
Check if... Then...
The temperature control in the refrigerator compartment Access the Refrigerator application, then select Fridge
is set too cold. and tap the _ button to a warmer temperature.
Refrigerator is installed in a cold location. When room temperature is below 41 °F (5°C), food can
become frozen. The refrigerator should not be operated
in temperatures below 55°F (13°C).
Food with a high water content was placed too close to Place food with a high water content toward the front of
the air vents, the refrigerator.
iCE HAS BAD TASTE OR ODOR
Check if... Then...
The icemaker was recently installed, Discard first few batches of ice to avoid discolored or
off-flavored ice.
The ice has been stored for too long, Throw away old ice and make new supply,
The food has not been wrapped tightly in either Rewrap foods since odors may migrate to the ice if food
compartment, is not wrapped properly,
The water supply contains minerals such as sulfur, A new filter may need to be installed to eliminate taste
and odor problems,
The interior of refrigerator needs cleaning, See CARE AND CLEANING section,
Ice storage bin needs cleaning, Empty and wash bin. Discard old cubes,
THERE iS WATER iN THE DEFROST DRAIN PAN
Check if... Then...
The refrigerator is defrosting.
It is more humid than normal.
The water will evaporate. It is normal for water to drip
into the defrost pan.
Expect that the water in the defrost pan will take longer
to evaporate, This is normal when it is hot or humid,
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE
Check if... Then...
I he sounds may be normal for your refrigerator, Refer to the UNDERSTANDING SOUNDS YOU MAYHEAR section,
35
NOT DISPENSING iCE
Check if... Then...
All the doors are not closed completely. Ice will not dispense if any of the refrigerator doors are left
open,
Thedispenserdisplayislocked Pressandholdthe buttonfor3secondstoundock
the control panel and dispenser,
Ice is not selected on the dispenser. The dispenser can be set for ice or water. Make certain
that the control panel is set for the proper operation.
Press the Ice & Water button on the control panel to cycle
through the ice and water options.
The ice dispenser is not used often. Check the ice bin for ice cubes clumping/sticking together.
If they are, break up the ice cubes allow for proper
operation.
Ice bin is not installed correctly. Be sure to install the ice bin firmly into position.
New installation. Wait 24 hours after icemaker installation for ice
production to begin. Wait 72 hours for full ice production.
Ice cubes are stuck in the delivery chute. Use a plastic utensil to clear the delivery chute.
The ice dispenser is stalling while dispensing Change the ice button from "crushed" to "cubed".
"crushed" ice. If cubed ice dispenses correctly, depress the button for
"crushed" ice and begin dispensing again.
Icemaker power switch in the OFF (O) position. Move the switch to the ON (I) position.
Water supply turned off or not connected. See the CONNECTING THE WATER LINE section.
NOT DISPENSING WATER
Check if... Then...
The dispener display is locked, Press and hold the button for 3 seconds to unlock
the control panel and dispenser,
New installation, Flush and fill the water system,
Refrigerator or freezer doors are not closed Water will not dispense if any of the refrigerator doors are
properly, left open,
Water supply turned off or not connected, See the CONNECTING THE WATER LINE section,
The water pressure is less than 40 psi. The water pressure to the home affects the flow from the
dispenser,
Home filter or reverse osmosis system is used. This can decrease water pressure. It is recommended
not to connect the supply line to a reverse osmosis
system for optimal operation.
The dispenser is not set for water dispensing.
The dispenser can be set for ice or water. Make certain
that the control panel is set for the proper operation.
Press the dispenser button on the control panel to cycle
through the ice and water options.
36
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-8oo-469-4663)
TM
® Registered Trademark / Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC en otros paises
Mc Marque de commerce / MDMarque deposde de Sears Brands, LLC
