18
PRO GRAND
®
RANGES
27-INCH DEPTH
Our 100-year anniversary is a momentous milestone, one we’re proud to mark with yet
another ground breaking industry rst—two personalized Thermador 60-inch Pro Grand
®
Ranges, part of our new Ultimate Culinary Series. Whether your kitchen serves as a place of
culinary exploration night after night or a center for entertaining, there is a Culinary Center
that perfectly caters to the way you cook.
CATEGORY
1.800.735.4328 | THERMADOR.COM
19
PRO GRAND
®
STEAM & PRO GRAND RANGES
1.800.735.4328 | THERMADOR.COM
19MODELS SHOWN: PRD606RESG PRO GRAND
®
RANGE AND VCIN60RP CUSTOM INSERT
EXTRALOW
®
SIMMER
Our ExtraLow feature provides the widest variety of
temperature control of any simmer system. Cycling on and
off, each Star Burner
®
can maintain temperatures as low as
100°, a must-have option for cooks who demand perfection
when preparing delicate sauces, melted cheeses, or even
sugary confections. Each Thermador Pro Grand Range
features four ExtraLow burners.
QUICKCLEAN BASE
®
The raised pedestal burner and porcelain maintop have
been crafted for perfect integration and easy cleanup. A
hand and sponge t easily under each burner to wipe the
surface clean and a teardrop emboss reduces food buildup
near the base.
FASTEST TIME TO BOIL
Our Star
®
Burner’s 18,000 BTUs/hr of output and superior
heat distribution boils water in a fraction of the time of a
conventional range or cooktop and over 50% faster than
leading competitors.
TELESCOPIC RACKS
Full Access
®
telescopic racks glide smoothly on ball
bearings, allowing them to expand completely for safe,
easy access to your meal. Plus, their robust construction
safely supports the heaviest dishes while integrated easy-
grip handles make them easy to use.
SINGLE FAN TECHNOLOGY
Our convection technology is so powerful that only one fan
is needed. Convection keeps the temperature consistent
throughout the cavity and allows for multi-rack cooking.
Controlled airow patterns optimize the transfer of heat so
that food is heated evenly.
Regardless of which Thermador Pro Grand
®
Range you choose, you can expect your kitchen
to transform into a room that is as beautiful
as it is functional. Each and every Pro Grand
Range features these common ingredients to
create the ultimate cooking experience.
ALL PRO GRAND
®
RANGES INCLUDE
THESE FEATURES
20
THERMADOR EXCLUSIVE
THERMADOR EXCLUSIVE
22K BURNER
Our powerful sealed Star
®
Burner delivers an industry-
leading 22,000 BTUs of pure cooking power for better
searing and faster boiling.
SOFTCLOSE
®
HINGES
Hydraulic SoftClose hinges prevent slamming and ensure
ultra smooth closing of both ovens and the warming drawer.
EXTRA-LARGE CAPACITY OVEN
Our 36-inch and 48-inch ovens offer a maximum capacity of
5.7 cubic feet and can accommodate full-sized commercial
sheet pans.
ELECTRONIC DISPLAY
Electronic oven display interfaces with cook timer,
CookControl
™
meat probe and preheat status with
audible alert.
VERSATILE DESIGN OPTIONS
Pro Grand Ranges feature striking stainless steel
feet or you can add a stainless steel toekick accessory
for a sleek, nished look.
STAR-K CERTIFIED
Thermador Professional
®
Ranges are Star-K
certied making it possible to use them on the
Sabbath or the Holidays.
PRO GRAND
®
RANGES | FEATURES & BENEFITS
1.800.735.4328 | THERMADOR.COM
21
CATEGORY
FEATURES & BENEFITS
22
OUR EXCLUSIVE, PATENTED STAR
®
BURNER
Lighting a heavenly re under the status quo,
the Star Burner is perhaps the single most iconic
innovation from Thermador. But the star shape
isn’t just for show. Featured on all Thermador
Professional
®
Ranges, the Star Burner delivers
56% more coverage with superior ame spread
and a reduced cold spot for faster and more even
heating across any size pan.
A STAR-SHAPED PEG IN A
WORLD OF ROUND HOLES
Star Burner: 35 ports / 16
3
/
4
" perimeter
Conventional Burner: 28 ports / 10
3
/
4
" perimeter
CATEGORY
FEATURES & BENEFITS
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | FEATURES & BENEFITS
1.800.735.4328 | THERMADOR.COM
2323
SELECTED PRO GRAND
®
RANGES INCLUDE
THESE FEATURES
FASTEST SELF-CLEAN
In just 2 hours, the interior walls and rack supports become
perfectly clean, thanks to the fastest self-cleaning cycle on
the market.
12-INCH REMOVABLE GRIDDLE AND
GRILL ACCESSORY
Our 12-inch non-stick, rust-proof cast-aluminum fusion
coated surface griddle is thermostatically controlled to
deliver consistent, even heating across the entire surface.
It is also removable for easy cleaning or interchange it with
our grill accessory.
Our non-stick, rust-proof cast-aluminum grill accessory (sold
separately) features a fusion coated surface that is easy to
clean and dishwasher-safe.
INDOOR ELECTRIC PRO GRILL WITH CERAMIC
BRIQUETTES
Our easy-to-clean, indoor grilling feature boasts industry-
leading design, featuring ceramic briquettes and fusion
coated grill plates that fully cover the heating elements to
offer exceptional grilling performance with genuine smoky
avor while minimizing are-ups. 2 heating zones let you
control the front and back zones independently.
THIRD ELEMENT CONVECTION SYSTEM
Thermador
®
Dual-Fuel Ranges feature a True Convection
system that directs heat to cook foods more evenly with
gourmet results and 25% time savings.
THE ULTIMATE CULINARY SERIES
Devout cooks and avid entertainers will revel in the cutting-edge innovation, personalization and exceptional
versatility of our new 60-inch Ultimate Culinary Center and our new Ultimate Entertainer’s Center. The 60-inch
Pro Grand
®
Range puts the power of kitchen personalization in your hands.
How do you cook? Choose from two rangetops and two oven congurations and design the center that is right
for your cooking style. With this much size, power and culinary performance, the only thing larger than our 60-inch
ranges is the desire to own one.
24
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | FEATURES & BENEFITS
1.800.735.4328 | THERMADOR.COM
25
CHOOSE YOUR RANGETOP CONFIGURATION
CHOOSE YOUR OVEN CONFIGURATION
SIX BURNERS + DOUBLE GRIDDLE
It doesn’t get any bigger than this. Our
24-inch Double Griddle is unrivaled for
sheer size and cooking superiority. The
griddle is designed to remove easily for
cleaning and boasts a smooth, scratch
resistant surface.
SIX BURNERS + ELECTRIC
INDOOR GRILL + GRIDDLE
Unlimited cooking potential. For those
wanting the exibility to do everything,
the Grill + Griddle combination is
unbeatable. The 12-inch indoor grill
features lava briquettes, authentic grilling
performance and easy cleanup while the
12-inch griddle boasts a smooth, scratch
resistant surface to easily handle all of
your entertaining needs.
STEAM & CONVECTION OVEN +
36-INCH CONVECTION OVEN
Healthier Results. Moisture Retention.
Flavor Enhancement. The benets
of cooking with steam are plentiful.
Combined with a large 36-inch convection
oven that accommodates a full size sheet
pan, plus a warming drawer.
TWO LARGE DOUBLE
CONVECTION OVENS—
30-INCH AND 36-INCH
Even Cooking. Faster Results. Improved
Efciency. Cooking with convection
has been the mainstay in professional
kitchens for decades. The 36-inch oven
accommodates a full size sheet pan and
the unequivocal secondary oven has
more cu. ft. usable capacity than the
competition’s primary 30-inch ovens.
PERSONALIZATION IN EVERY SQUARE INCH
Thermador goes beyond expectations by offering unparalleled personalization to suit your
unique cooking style. Seize the rare opportunity to mix and match two cooking surfaces
and two oven congurations. Each center incorporates dual fuel rangetops with 6 Star
®
Burners. The rest? Is up to you! No matter what your preference, the Ultimate Culinary
Series provides personal design, combined with the Thermador quality, craftsmanship and
performance that provide real innovations for real cooks.
PRO GRAND
®
STEAM RANGES
THE ULTIMATE CULINARY CENTER
It’s no mere range. No mere oven. It’s an arsenal for the culinary enthusiast. It’s where the real cook’s passion for
food meets our passion for innovation. Available in 48-inch and 60-inch, Thermador Pro Grand Steam Ranges are
the only ranges to offer unmatched versatility and exceptional cooking prowess with seven ways to cook.
26
THE ULTIMATE
CULINARY CENTER
FEATURE HIGHLIGHTS
THE ULTIMATE CULINARY CENTER
GOES BIGGER
For those whose kitchens demand cooking superiority in a
big way, Thermador offers the 60-inch Pro Grand
®
Steam
Range. Never before has a range existed on the market
at this size, with this culinary repower. It is the only range
available with a steam and convection combination oven
plus full size convection oven, warming drawer and
next-generation surface cooking that features a full size
double griddle. With its bold and timeless design,
easy-to-clean environment and Thermador exclusives, like
our patented Star
®
Burner, a 60-inch Pro Grand Steam
Range in the kitchen is the ultimate joy for real cooks.
DUAL ZONE, DOUBLE GRIDDLE
Our industry leading 60-inch range boasts the largest dual
zone, double griddle on the market. Zoned for perfect
control for delicate foods or searing at higher temperatures.
And best of all, it’s very easy to remove and clean.
SEVEN COOKING OPTIONS
Both the 60-inch and 48-inch Ultimate Culinary Center
®
feature seven distinct cooking options that will forever
change the way real cooks cook. These are the only
ranges on the market to offer ExtraLow
®
simmering
technology, 22,000 BTUs of cooking power, fusion coated
surface Griddle & Grill or Double Griddle, a large capacity
Convection Oven, Warming Drawer and the industry
exclusive Steam & Convection Oven.
STEAM AND CONVECTION OVEN
The award-winning oven offers three distinct cooking
variations: Steam only, Convection only or Steam &
Convection Cooking which makes food crisp on the outside
and moist on the inside, just like it was being served at a
5-star restaurant.
WARMING DRAWER
The spacious warming drawer features a state-of-the-art
glass-ceramic surface that uses a powerful element to ensure
quick and even heating. It’s easy-to-clean and you can place
food directly on the surface. An integrated warming drawer
is the ultimate indulgence for the culinary enthusiast.
PRO GRAND
®
RANGES | FEATURES & BENEFITS
1.800.735.4328 | THERMADOR.COM
27
28
60-INCH PRO GRAND
®
RANGES

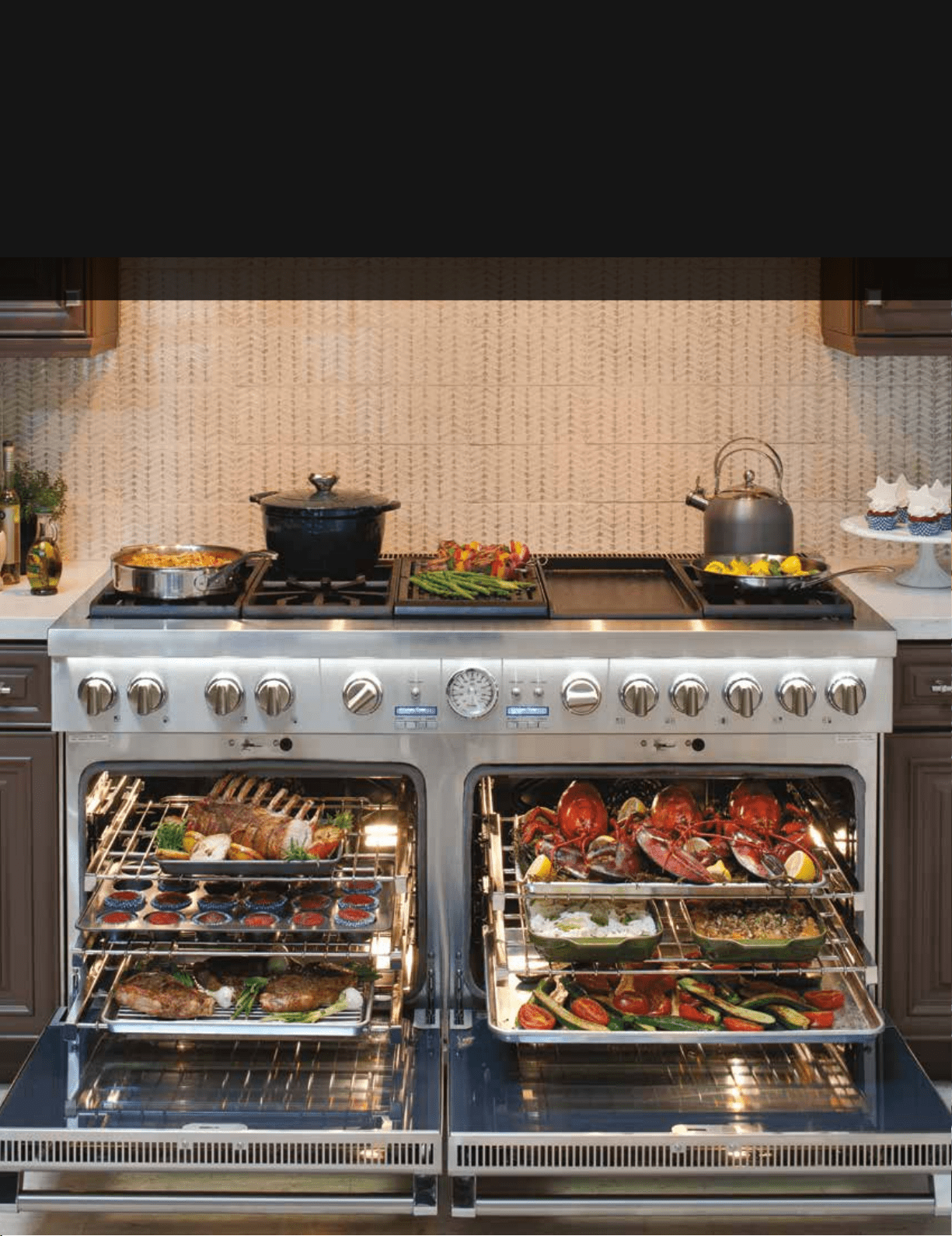

THE ULTIMATE ENTERTAINER’S CENTER
With unmatched versatility and exceptional cooking prowess, The Ultimate Entertainer’s Center is the ideal arsenal
for culinary enthusiasts who love to entertain and want the powerful possibilities to ensure exceptional results.
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | FEATURES & BENEFITS
1.800.735.4328 | THERMADOR.COM
29
60-INCH ULTIMATE
ENTERTAINER’S CENTER
FEATURE HIGHLIGHTS
THE BIG STORY—30+36=60
How does 30+36=60? Simply stated, our ovens have been
re-designed to perform for the ultimate entertainer. The
36-inch convection oven accommodates professional-
grade catering trays and the secondary oven has more cu.
ft. usable capacity than the competition’s primary 30-inch
ovens. At a massive 10.6 cubic square feet, it has the
largest combined oven cooking capacity on the market.
DUAL ZONE, DOUBLE GRIDDLE
The 60-inch Ultimate Entertainer’s Center is available with
the largest dual zone, double griddle on the market.
Zoned for perfect control for delicate foods or searing
at higher temperatures. And best of all, it’s very easy to
remove and clean.
FLUSH WALL INSTALL
By incorporating innovative venting technology that
reduces back wall temperatures, the 60-inch Pro Grand
®
Range is the rst of its size that can be installed ush
against a combustible wall with zero clearance for pure,
unadulterated design exibility.
4.9
cu. ft.
5.7
cu. ft.
30
PRO GRAND
®
RANGES
OPTIONAL ACCESSORIES
36-INCH DUAL-FUEL 36-INCH GAS
PRD364JDGU
PRD364NLGU
PRD366JGU
PRG364JDG
PRL364JDG
PRG364NLG
PRL364NLG
PRG366JG
PRL366JG
PABRICKBKN
Black Ceramic Briquettes
with Basket
PA12GRILLN
12" Pro Grill
PA12LCVRN
12" Pro Grill Cover for
Indoor Electric Grill
PA12CVRJ
12" Pro Griddle
Cover
PA36JLBG
9" Low Backguard
PAGRIDDLEN
Griddle for Indoor
Electric Grill
PA12CHPBLK
12" Cutting Board
PA36JTKG
Toekick
PAGRIDDLE
Griddle
PWOKRINGHC
Wok Ring
PAKNOBLUNG
Blue Knob Pro Grand Kit
PRO GRAND
®
RANGES | ACCESSORIES
1.800.735.4328 | THERMADOR.COM
31
PRO GRAND
®
RANGES
OPTIONAL ACCESSORIES
48-INCH DUAL-FUEL 48-INCH GAS
PRD48JDSGU
PRD48NLSGU
PRD48NCSGU
PRD486JDGU
PRD486NLGU
PRD484NCGU
PRG486JDG
PRL486JDG
PRG486NLG
PRL486NLG
PABRICKBKN
Black Ceramic Briquettes with Basket
PA12GRILLN
12" Pro Grill
PA12LCVRN
12" Pro Grill Cover for Indoor Electric Grill
PA12CVRJ
12" Pro Grill / Griddle Cover
PA48JLBSG
9" Low Backguard
PA48JLBG
9" Low Backguard
PAGRIDDLEN
Griddle for Indoor Electric Grill
PA12CHPBLK
12" Cutting Board
PAGRIDDLE
Griddle
PWOKRINGHC
Wok Ring
PA48JTKG
Toekick
PAKNOBLUNG
Blue Knob Pro Grand Kit
CSRACKH
Wire Rack
CS2XLH
Cooking Pan – Full Size
CS1XLPH
Perforated Cooking Pan – Half Size
(1
5
/
8
" Deep)
CS1XLH
Cooking Pan – Half Size
CS2XLPH
Perforated Cooking Pan – Full Size
(1
5
/
8
" Deep)
CS2LH
Baking Tray
32
PRO GRAND
®
RANGES
OPTIONAL ACCESSORIES
60-INCH DUAL-FUEL
PRD606RCG
PRD606REG
PRD606RCSG
PRD606RESG
PABRICKBKN
Black Ceramic Briquettes with Basket
PA12GRILLN
12" Pro Grill
PA12LCVRN
12" Pro Grill Cover for Indoor Electric Grill
PA12CVRJ
12" Pro Grill / Griddle Cover
PA24CVRR
24" Griddle Cover
PA60RLBG
9" Low Backguard
PAGRIDDLEN
Griddle for Indoor Electric Grill
PA12CHPBLK
12" Cutting Board
PAGRIDDLE
Griddle
PAWOKRINGHC
Wok Ring
PA60RTKG
Toekick
PAKNOBLURG
Blue Knob Pro Grand Kit
CSRACKH
Wire Rack
CS2XLH
Cooking Pan – Full Size
CS1XLPH
Perforated Cooking Pan – Half Size
(1
5
/
8
" Deep)
CS1XLH
Cooking Pan – Half Size
CS2XLPH
Perforated Cooking Pan – Full Size
(1
5
/
8
" Deep)
CS2LH
Baking Tray
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | ACCESSORIES & SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
33
PRD366JGU
36-INCH DUAL-FUEL PRO GRAND
®
RANGE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 40 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.7 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W
Broil Power 4,000 W
Convection Power 2,750 W
BURNER PERFORMANCE
Total Number of Cooktop Burners 6
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature
Sensor, 1 X Island Trim, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
34
THERMADOR EXCLUSIVE
PRD364JDGU
36-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 40 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.7 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W
Broil Power 4,000 W
Convection Power 2,750 W
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature
Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
35
PRD364NLGU
36-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 40 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.7 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W
Broil Power 4,000 W
Convection Power 2,750 W
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature
Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
36
THERMADOR EXCLUSIVE
PRG366JG
36-INCH GAS PRO GRAND
®
RANGE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRL366JG - LP
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 15 A
Volts (V) 120 V
Frequency (Hz) 60 Hz; 50-60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 30,000 BTU (NG)
Broil Power 17,000 BTU (NG)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim,
1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
37
PRL366JG
36-INCH GAS PRO GRAND
®
RANGE (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRG366JG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 15 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27, 5 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 25,000 BTU (LP)
Broil Power 17,000 BTU (LP)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU 15,000 (LP)
Power of Front Center Burner BTU 15,000 (LP)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim,
1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
38
THERMADOR EXCLUSIVE
PRG364JDG
36-INCH GAS PRO GRAND
®
RANGE WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRL364JDG - LP
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 30,000 BTU (NG)
Broil Power 17,000 BTU (NG)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill
Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
39
PRG364NLG
36-INCH GAS PRO GRAND
®
RANGE WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRL364NLG - LP
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 30,000 BTU (NG)
Broil Power 17,000 BTU (NG)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill
Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
40
THERMADOR EXCLUSIVE
PRL364JDG
36-INCH GAS PRO GRAND
®
RANGE WITH
GRIDDLE (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRG364JDG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 25,000 BTU (LP)
Broil Power 17,000 BTU (LP)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill
Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
41
PRL364NLG
36-INCH GAS PRO GRAND
®
RANGE WITH
GRILL (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRG364NLG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 30 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity N/A
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 25,000 BTU (LP)
Broil Power 17,000 BTU (LP)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Grill
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU N/A
Power of Front Center Burner BTU N/A
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
35
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 36" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 360 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill
Plate, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
42
THERMADOR EXCLUSIVE
PRD486JDGU
48-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.7 / 2.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,400 W (Sm)
Broil Power 4,000 W (Lg) /
3,600 W (Sm)
Convection Power 2,750 W (Lg) /
1,960 W (Sm)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Telescopic Rack -
Small, 2 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler
Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
43
PRD486NLGU
48-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.7 / 2.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,400 W (Sm)
Broil Power 4,000 W (Lg) /
3,600 W (Sm)
Convection Power 2,750 W (Lg) /
1,960 W (Sm)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Telescopic Rack -
Small, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler
Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
44
THERMADOR EXCLUSIVE
PRD484NCGU
48-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH GRIDDLE AND GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.7 / 2.5 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,400 W (Sm)
Broil Power 4,000 W (Lg) /
3,600 W (Sm)
Convection Power 2,750 W (Lg) /
1,960 W (Sm)
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 and XLO (NG)
Power of Front Center Burner BTU 22,000 and XLO (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) 1,630 W
Power of Back Right Burner BTU N/A
Power of Front Right Burner BTU N/A
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Telescopic Rack -
Small, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate, 1 X Broiler
Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
45
PRD48JDSGU
48-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH STEAM AND GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- The only professional range on the market with a built-in
steam oven and warming drawer
- 27 Easy Cook
®
food programs. Pre-programmed modes
automatically set the oven temperature and humidity to
ensure perfect cooking results
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.1 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook,
Defrost, Easy Cook
®
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer 1.1 cu. ft. - Low, Med,
High
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,960 W (Sm)
Broil Power 4,000 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Temperature
Sensor, 1 X Island Trim, 1 X STS Tray-GN
1
/
3
-Punched-40 mm Deep,
1 X STS Tray-GN
1
/
3
-Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-
Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-Punched-40 mm Deep, 1
X STS Tray-GN
2
/
3
-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X
Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
46
THERMADOR EXCLUSIVE
PRD48NLSGU
48-INCH DUAL-FUEL PRO GRAND
®
RANGE WITH
STEAM AND GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- The only range in the market with a steam and convection
combination oven, plus a full-size convection oven and a
warming drawer
- 27 Easy Cook
®
food programs. Pre-programmed modes
automatically set the oven temperature and humidity to
ensure perfect cooking results
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.1 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook,
Defrost, Easy Cook
®
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer 1.1 cu. ft. - Low, Med,
High
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,960 W (Sm)
Broil Power 4,000 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature
Sensor, 1 X Island Trim, 1 X STS Tray-GN
1
/
3
-Punched-40 mm Deep,
1 X STS Tray-GN
1
/
3
-Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-
Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-Punched-40 mm Deep, 1
X STS Tray-GN
2
/
3
-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X
Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRD48NCSGU
48-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH STEAM, GRIDDLE AND GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- The only range in the market with a steam and convection
combination oven, plus a full-size convection oven and a
warming drawer
- 27 Easy Cook
®
food programs. Pre-programmed modes
automatically set the oven temperature and humidity to
ensure perfect cooking results
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type No Plug
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.1 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook,
Defrost, Easy Cook
®
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer 1.1 cu. ft. - Low, Med,
High
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,960 W (Sm)
Broil Power 4,000 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 4 + Griddle + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 and XLO (NG)
Power of Front Center Burner BTU 22,000 and XLO (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Far Right 12" Electric Griddle (W) 1,630 W
Power of Back Right Burner BTU N/A
Power of Front Right Burner BTU N/A
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 1 X Temperature
Sensor, 1 X Island Trim, 1 X STS Tray-GN
1
/
3
-Punched-40 mm Deep,
1 X STS Tray-GN
1
/
3
-Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-
Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-Punched-40 mm Deep, 1
X STS Tray-GN
2
/
3
-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X
Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
47
48
THERMADOR EXCLUSIVE
PRG486JDG
48-INCH GAS PRO GRAND
®
RANGE WITH GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRL486JDG - LP
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean,
K
eep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 30,000 BTU NG (Lg) /
15,000 BTU NG (Sm)
Broil Power 17,000 BTU NG (Lg) /
9,000 BTU NG (Sm)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 2 X Telescopic Rack - Small, 2 X Temperature Sensor,
1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
49
PRG486NLG
48-INCH GAS PRO GRAND
®
RANGE WITH GRILL
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRL486NLG - LP
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean,
K
eep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 30,000 BTU NG (Lg) /
15,000 BTU NG (Sm)
Broil Power 17,000 BTU NG (Lg) /
9,000 BTU NG (Sm)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 18,000 and XLO (NG)
Power of Back Left Burner BTU 18,000 and XLO (NG)
Power of Back Center Burner BTU 18,000 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 18,000 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Telescopic Rack - Small, 1 X Temperature Sensor,
1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
50
THERMADOR EXCLUSIVE
PRL486JDG
48-INCH GAS PRO GRAND
®
RANGE WITH
GRIDDLE (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRG486JDG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong NEMA
5-20
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 25,000 BTU NG (Lg) /
12,300 BTU NG (Sm)
Broil Power 17,000 BTU NG (Lg) /
9,000 BTU NG (Sm)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU 15,000 (LP)
Power of Front Center Burner BTU 15,000 (LP)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 2 X Telescopic Rack - Small, 2 X Temperature Sensor,
1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
51
PRL486NLG
48-INCH GAS PRO GRAND
®
RANGE WITH
GRILL (LP)
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
Also Available:
PRG486NLG - Natural Gas
FEATURES & BENEFITS
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 18,000 BTU (LP) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Superfast 2-hour self-clean mode–fastest in the industry
TECHNICAL DETAILS
Circuit Breaker (A) 20 A
Volts (V) 120 V
Frequency (Hz) 60 Hz
Plug Type 120V-3 Prong
Power Cord Length (in) 96"
Energy Source Gas
Gas Type Liquid Gas 27.5 mbar
(USA)
Alternative Gas Type Natural Gas 15 mbar
(USA)
See page 31 for accessories.
GENERAL PROPERTIES
Oven Capacity 5.5 / 2.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Roast, Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 25,000 BTU NG (Lg) /
12,300 BTU NG (Sm)
Broil Power 17,000 BTU NG (Lg) /
9,000 BTU NG (Sm)
Convection Power N/A
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Grill
Power of Front Left Burner BTU 15,000 and XLO (LP)
Power of Back Left Burner BTU 15,000 and XLO (LP)
Power of Back Center Burner BTU 15,000 (LP)
Power of Front Center Burner BTU 15,000 (LP)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 1,630 W
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 15,000 and XLO (LP)
Power of Front Right Burner BTU 18,000 and XLO (LP)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
47
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 48" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 530 lbs
ACCESSORIES (INCLUDED)
3 X Telescopic Rack, 1 X Telescopic Rack - Small, 1 X Temperature Sensor,
1 X Island Trim, 1 X Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
52
THERMADOR EXCLUSIVE
PRD606RCG
60-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH GRILL AND GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 10.6 cu.
ft. overall (5.7 cu. ft. main oven & 4.9 cu. ft. secondary oven)
- Superior grilling results, 2000 watt Indoor Electric Grill with
Ceramic Briquettes in addition to 12" electric griddle and 6
powerful Star
®
Burners
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
GENERAL PROPERTIES
Oven Capacity 5.7 / 4.9 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
2,000 W (Sm)
Broil Power 3,600 W (Lg) /
3,000 W (Sm)
Convection Power 2,750 W (Lg) /
2,750 W (Sm)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle + Grill
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) 2,000 W
Power of Center 24" Dual Zone Electric Griddle N/A
Power of Far Right 12" Electric Griddle (W) 1,630 W
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
59
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 60" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 668 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Telescopic Rack -
Secondary Oven, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate,
1 X Broiler Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
53
PRD606REG
60-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH DOUBLE GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 10.6 cu.
ft. overall (5.7 cu. ft. main oven & 4.9 cu. ft. secondary oven)
- 24" Double griddle with two independently controlled zones
(left & right)
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
- SoftClose
®
hinges for ultra smooth closing of the oven door
- Cleans both ovens simultaneously in just 2 hours
GENERAL PROPERTIES
Oven Capacity 5.7 / 4.9 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Keep Warm
Cooking Modes - Small Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self Clean, Proof
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Both)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer No
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
2,000 W (Sm)
Broil Power 3,600 W (Lg) /
3,000 W (Sm)
Convection Power 2,750 W (Lg) /
2,750 W (Sm)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle + Grill
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Center 24" Dual Zone Electric Griddle 1,630 W (Left & Right)
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
59
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 60" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 652 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Telescopic Rack -
Secondary Oven, 1 X Temperature Sensor, 1 X Island Trim, 1 X Grill Plate,
1 X Broiler Pan Small, 1 X Broiler Pan, Probe
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
54
THERMADOR EXCLUSIVE
PRD606RCSG
60-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH STEAM, GRILL AND GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 5.7 cu. ft.
(large enough to t a caterers full sheet pan)
- Superior grilling results, 2000 watt Indoor Electric Grill with
Ceramic Briquettes in addition to 12" electric griddle and 6
powerful star burners
- The only professional range on the market with a built-in
steam oven and warming drawer
- 27 Easy Cook
®
food programs. Pre-programmed modes
automatically set the oven temperature and humidity to
ensure perfect cooking results
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
GENERAL PROPERTIES
Oven Capacity 5.7 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook,
Defrost, Easy Cook
®
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer 1.4 cu. ft.- Low, Med,
High
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,960 W (Sm)
Broil Power 3,600 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) 1,630 W
Power of Center 12" Electric Grill (W) 2,000 W
Power of Center 24" Dual Zone Electric Griddle N/A
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
59
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 60" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 610 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Temperature
Sensor, 1 X Island Trim, 1 X STS Tray-GN
1
/
3
-Punched-40 mm Deep,
1 X STS Tray-GN
1
/
3
-Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-
Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-Punched-40 mm Deep, 1
X STS Tray-GN
2
/
3
-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X
Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
THERMADOR EXCLUSIVE
PRO GRAND
®
RANGES | SPECIFICATIONS
1.800.735.4328 | THERMADOR.COM
55
PRD606RESG
60-INCH DUAL-FUEL PRO GRAND
®
RANGE
WITH STEAM AND DOUBLE GRIDDLE
PROFESSIONAL SERIES, COMMERCIAL-DEPTH, PORCELAIN COOKTOP SURFACE
FEATURES & BENEFITS
- Largest Pro Range Oven capacity in the industry @ 5.7 cu. ft.
(large enough to t a caterers full sheet pan)
- 24" Double griddle with two independently controlled zones
(left & right)
- The only professional range on the market with a built-in
steam oven and warming drawer
- 27 Easy Cook
®
food programs. Pre-programmed modes
automatically set the oven temperature and humidity to
ensure perfect cooking results
- Patented Pedestal Star
®
Burner with QuickClean Base
®
designed for easy surface cleaning and superior heat spread
for any size pan
- Powerful 22,000 BTU (NG) burner (front right)
- Precision simmering capabilities as low as 100°F (375 BTU)
with 4 ExtraLow
®
Simmer burners
GENERAL PROPERTIES
Oven Capacity 5.7 / 1.4 cu. ft.
Cooking Modes - Main / Large Cavity
Bake, Convection Bake, Broil, Convection Broil, Roast, Convection Roast,
Self clean, Keep Warm
Cooking Modes - Small Cavity
Steam, True Convection, Steam / Convection, Reheat, Proof, Slow Cook,
Defrost, Easy Cook
®
Additional Features
Meat Probe, Sabbath Function, Cook Timer, Kitchen Timer
Cleaning Type Self Clean (Primary)
Type of Grate Continuous Cast Iron
Controls Metal Knobs and LCD
Display
Warming Drawer 1.4 cu. ft.- Low, Med,
High
Sealed Burners Yes
OVEN PERFORMANCE
Bake Power 2,000 W (Lg) /
1,960 W (Sm)
Broil Power 3,600 W (Lg)
Convection Power 2,750 W (Lg)
BURNER PERFORMANCE
Total Number of Cooktop Burners 6 + Griddle
Power of Front Left Burner BTU 22,000 and XLO (NG)
Power of Back Left Burner BTU 12,500 and XLO (NG)
Power of Back Center Burner BTU 12,500 (NG)
Power of Front Center Burner BTU 18,000 (NG)
Power of Center 12" Electric Griddle (W) N/A
Power of Center 12" Electric Grill (W) N/A
Power of Center 24" Dual Zone Electric Griddle 1,630 W (Left & Right)
Power of Far Right 12" Electric Griddle (W) N/A
Power of Back Right Burner BTU 12,500 and XLO (NG)
Power of Front Right Burner BTU 22,000 and XLO (NG)
DIMENSIONS & WEIGHT
Overall Appliance Dimensions (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x
59
15
/
16
" x 28
3
/
4
"
Required Cutout Size (HxWxD) (in) 35
7
/
8
"–36
3
/
4
" x 60" x
24"–25
1
/
8
"
Adjustable Range Height (in.)
7
/
8
"
Net Weight (lbs) 590 lbs
ACCESSORIES (INCLUDED)
1 X Nozzle Set for Liquid Gas, 3 X Telescopic Rack, 2 X Temperature
Sensor, 1 X Island Trim, 1 X STS Tray-GN
1
/
3
-Punched-40 mm Deep,
1 X STS Tray-GN
1
/
3
-Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-
Unpunched-40 mm Deep, 1 X STS Tray-GN
2
/
3
-Punched-40 mm Deep, 1
X STS Tray-GN
2
/
3
-Unpunched-28 mm Deep, 1 X Grid, 1 X Grill Plate, 1 X
Broiler Pan Small, 1 X Broiler Pan
WARRANTY
Limited Warranty, Entire Appliance,
Parts and Labor
2 Year
TECHNICAL DETAILS
Circuit Breaker (A) 50 A
Volts (V) 240 / 208 V
Frequency (Hz) 60 Hz
Plug Type 240V-4 Prong
Power Cord Length (in) Purchase Separately
Energy Source Gas and Electric
Gas Type Natural Gas 15 mbar
(USA)
Alternative Gas Type Liquid Gas 27.5 mbar
(USA)
See page 32 for accessories.
AVAILABLE SUMMER 2016
56
PRO GRAND
®
RANGES
PLANNING INFORMATION
MODEL OPTIONS
There are three sizes of Thermador Pro Grand
®
Ranges to choose
from—36-inch, 48-inch and 60-inch—in your choice of all-gas or
dual-fuel congurations. All models are 27-inches deep and available
in stainless steel with porcelain cooktop. Be sure to reference the
correct model information in this design guide.
INSTALLATION CONSIDERATIONS
The information in this design guide provides key features, product
dimensions, cutouts and installation specications. Before installing a
Thermador Pro Grand Range, be sure to verify the cutout dimensions
and electrical / gas connections. Also, always consult with the
installation manual packed with the product for complete details
before installing.
INSTALLATION OPTIONS
Thermador Pro Grand Ranges feature a bold, professional design and
a commercial-depth of 27-inches. These ranges can be installed in a
wall or island installation.
BACKGUARDS
When using the Flush Island Trim, Thermador recommends a
minimum 12" (305 mm) rear clearance to a combustible surface (see
Figure 1, Cabinet Clearances). Clearances from non-combustible
materials are not part of the ANSI Z21.1 scope and are not certied
by CSA. Clearances of less than 12" (305 mm) must be approved by
the local codes and / or by the local authority having jurisdiction.
NATURAL GAS OR LP
Thermador Dual-Fuel Pro Grand Ranges are shipped by the factory
to operate on natural gas. They must be converted for use with
propane. Verify that the type of gas being used at the installation site
matches the type of gas used by the appliance. If the location / job
site requires conversion from natural gas to propane (LP), utilize the
included LP kit. Field conversion must be done by qualied service
personnel only. Please refer to the LP Conversion Instructions for
further information.
HIGH ALTITUDE
A high altitude kit is available through Customer Services as service
part number 746376.
VENTILATION REQUIREMENTS
We strongly recommend that a Thermador Professional
®
Wall or Island
Hood or Custom Insert be installed with all Thermador Pro Grand
Ranges. Downdraft ventilation should not be used. Do not install a
microwave-hood combination above the cooktop, as these types of
units do not provide the proper ventilation and are not suitable for
use with Thermador Pro Grand Ranges.
Due to the 27-inch commercial-depth of Pro Grand Ranges, the PH
Professional Series Wall Hoods or Professional Series Custom Inserts
would provide the appropriate depth from the wall to correspond to
these ranges.
For high output gas cooktops (60,000 BTU or greater), the minimum
of one (1) CFM of ventilation per 100 BTU is recommended. If the
cooktop has a grill or griddle, add 150 CFM to the estimated blower
capacity. Additional blower capacity may be required for longer
duct runs.
The following table indicates the ventilation hood options that are
recommended for use with Thermador Pro Grand Ranges. Refer
to the Ventilation section or www.Thermador.com for a complete
selection of Professional ventilation options, blowers, and accessories.
WIDTH CONFIGURATION
VENTILATION
OPTIONS
36" 4 Burners
w/Grill OR Griddle
36" or 42" Pro Wall Hood
36" Chimney Wall Hood
42" Island Hood
36" Custom Insert
36" 6 Burners 36" or 42" Pro Wall Hood
36" Chimney Wall Hood
42" Island Hood
36" Custom Insert
48" 4 Burners
w/Grill AND Griddle
48" or 54" Pro Wall Hood
48" Chimney Wall Hood
42" Island Hood
36" Custom Insert
48" 6 Burners
w/Grill OR Griddle
48" or 54" Pro Wall Hood
48" Chimney Wall Hood
42" Island Hood
36" Custom Insert
60" 6 Burners with Grill
AND Griddle OR 24"
Griddle
60" Pro Wall Hood
60" Custom Insert
PRO GRAND
®
RANGES
PLANNING INFORMATION
PRO GRAND
®
RANGES | PLANNING INFORMATION
1.800.735.4328 | THERMADOR.COM
57
ELECTRICAL AND GAS SPECIFICATIONS
Be sure your appliance is properly installed and grounded by a
qualied technician. Installation, electrical and gas connections, and
grounding must comply with all applicable local codes.
GAS REQUIREMENTS AND HOOKUP
Verify that the type of gas being used at the installation site matches
the type of gas used by the appliance. If an LP kit is utilized,
conversion from natural gas to propane must be done by qualied
service personnel only. Please refer to the LP Conversion Instructions
for further information.
A manual gas shut-off valve must be installed external to the
appliance, in a location accessible from the front, for the purpose of
shutting off the gas supply. The supply line must not interfere with the
back of the unit.
NATURAL GAS REQUIREMENTS:
Inlet Connection:
3
/
4
" NPT external,
1
/
2
" NPT internal
(Minimum
3
/
4
" diam. ex line)
Supply Pressure: 6" min. to 14" max. water column
(14.9 to 34.9 mb)
Manifold Pressure: 5" water column (12.5 mb)
PROPANE GAS REQUIREMENTS:
Inlet Connection:
3
/
4
" NPT external,
1
/
2
" NPT internal
(Minimum
3
/
4
" diam. ex line)
Supply Pressure: 11" min. to 14" max. water column
(27.4 mb to 34.9 mb)
Manifold Pressure: 10" water column (24.9 mb)
ALL-GAS:
Thermador Pro Grand All-Gas Ranges are equipped with a 3-wire
plug and are designed to be connected to a 120V AC, 60 Hz, single-
phase power supply. A dedicated circuit breaker is required.
MODEL REQUIRED CIRCUIT BREAKER
120V AC, 60 Hz
PRG366JG – NG 15 A
PRL366JG – LP 15 A
PRG364JDG – NG 20 A
PRG364NLG – NG 20 A
PRL364JDG – LP 20 A
PRL364NLG – LP 20 A
PRG486JDG – NG 20 A
PRG486NLG – NG 20 A
PRL486JDG – LP 20 A
PRL486NLG – LP 20 A
DUAL-FUEL:
Thermador Pro Grand Dual-Fuel Ranges are dual rated, designed to
be connected to either 240 / 208V AC, 60 Hz, 4-wire, single-phase
power supply. The connection may be made with a range supply cord
kit (purchased separately) or by hard-wiring to the power supply.
A dedicated circuit breaker is required.
MODEL REQUIRED CIRCUIT BREAKER
240 / 208V AC, 60Hz
PRD366JGU 40 A
PRD364JDGU 40 A
PRD364NLGU 40 A
PRD486JDGU 50 A
PRD486NLGU 50 A
PRD484NCGU 50 A
PRD48JDSGU 50 A
PRD48NLSGU 50 A
PRD48NCSGU 50 A
PRD606RCG 50 A
PRD606REG 50 A
PRD606RCSG 50 A
PRD606RESG 50 A
ELECTRICAL SUPPLY
IMPORTANT: The cord supplied with
gas ranges having an electric griddle
requires a NEMA 5-20 receptacle as
shown here. Local codes my require
a different wiring method.
WARNING: This appliance is equipped with a three-prong grounding
plug for protection against shock hazard and should be plugged
directly into a properly grounded receptacle. DO NOT cut or remove
the grounding prong from this plug. DO NOT ALTER THIS PLUG.
NEMA 5-20
RECEPT
ACLE
PLUG
ELECTRICAL AND GAS LOCATIONS
Typical placement of the electrical and gas supply can be found
within the ”Cutout and Range Dimensions“ located on the installation
pages. Alternate placement within the supply zone is acceptable.
Dual-Fuel ranges may be connected to the power supply with a
range supply cord kit (sold separately) or by hard-wiring to the power
supply. All-gas ranges may be connected to the power supply with
the supplied range cord or by hard-wiring. It is the responsibility
of the installer to provide the proper wiring components (cord or
conduit and wires) and complete the electrical connection as dictated
by local codes and ordinances and / or the National Electric Code.
The units must be properly grounded.
Installation of the range must be planned so that the rough-in of
the junction box for the receptacle or conduit connection will allow
maximum clearance to the rear of the unit.
58
PRO GRAND
®
RANGES
INSTALLATION
36-INCH RANGE CUTOUT DIMENSIONS
36-INCH RANGE DIMENSIONS
PRO GRAND
®
RANGES
INSTALLATION
PRO GRAND
®
RANGES | INSTALLATION
1.800.735.4328 | THERMADOR.COM
59
48-INCH RANGE CUTOUT DIMENSIONS
48-INCH RANGE DIMENSIONS
60
PRO GRAND
®
RANGES
INSTALLATION
60-INCH RANGE CUTOUT DIMENSIONS
60-INCH RANGE DIMENSIONS
7"
(178 mm)
8"
(203 mm)
6"
(153 mm)
2 ½"(64 mm)
5"
(127 mm)
34"(864 mm)
10"(254 mm)
CATEGORY | INSTALLATION
1.800.735.4328 | THERMADOR.COM
61
PRO GRAND
®
RANGES | INSTALLATION
1.800.735.4328 | THERMADOR.COM
PRO GRAND
®
RANGES
INSTALLATION
61
36-INCH, 48-INCH AND 60-INCH PRO GRAND
RANGE DIMENSIONS AND CLEARANCE
REQUIREMENTS WITH “FLUSH ISLAND TRIM”
36-INCH, 48-INCH AND 60-INCH PRO GRAND
RANGE DIMENSIONS AND CLEARANCE
REQUIREMENTS WITH “LOW BACK”
Note: A 36-inch minimum clearance is required between
the top of the cooking surface and the bottom of an
unprotected cabinet. A 30-inch clearance can be used
when the bottom of the wood or metal cabinet is
protected by not less than
1
/
4
inch of a ame retardant
material covered with not less than No. 28 MSG sheet
steel, 0.015 inch (0.4 mm) thick stainless steel, 0.024 inch
(0.6 mm) aluminum, or 0.020 inch (0.5 mm) thick copper.
Combustible
Materials
31¼" (794 mm)
29
1
/
8
" (740 mm)
36" (914 mm) min.
to combustible
materials
25
1
/
8
" (638 mm)
max. recess depth
Combustible
Back Wall
35
7
/
8
" (911 mm) Min.
36¾" (933 mm) Max.
26
7
/
8
" (683 mm)
48¾" (1238 mm)
12” (305 mm) min. to
combustible surface
with Flush Island Trim
12" (305 mm) min. to
combustible surface
with Flush Island Trim
If an inner wall
is used under the
cantilever counter
top, there should be a
1
/
8
" (3 mm) gap from
the rear of the range
to the inner wall.
For Flush Island Trim
For Flush Island Trim
installations, counterinstallations, counter
surface should havesurface should have
a cantilever edgea cantilever edge
meeting the back meeting the back
section of the Flushsection of the Flush
Island Trim accessory.Island Trim accessory.
Shaded area behind
range indicates
minimum clearance
to combustible surfaces,
combustible materials
cannot be located within
this area.
Shaded area behind
range indicates
minimum clearance
to combustible surfaces,
combustible materials
cannot be located within
this area.
As defined in the “National Fuel Gas Code” (ANSI Z223.1, Current Edition).
Clearances from non-combustible materials are not part of the ANSI Z21.1
scope and are not certified by CSA. Clearances of less than 12" (305 mm)
must be approved by the local codes and/or by the local authority having jurisdiction.
9" (229 mm)
Lowback
Combustible
Materials
31¼" (794 mm)
29
1
/8
" (740 mm)
36" (914 mm) min.
to combustible
materials
25
1
/8
" (638 mm)
max. recess depth
Combustible
Back Wall
35
7
/8
" (911 mm) Min.
36¾" (933 mm) Max.
26
7
/8
" (683 mm)
48¾" (1238 mm)
As defined in the “National Fuel Gas Code” (ANSI Z223.1, Current Edition).
Clearances from non-combustible materials are not part of the ANSI Z21.1
scope and are not certified by CSA. Clearances of less than 12" (305 mm)
must be approved by the local codes and/or by the local authority having jurisdiction.
432 App Store is a trademark of Apple Inc.; Google Play is a trademark of Google Inc.
EXPERIENCE
THERMADOR
®
Thermador is committed to giving you an enjoyable, creative and
rewarding cooking experience. Whether you would like to research our
products, watch a video of our chef searing the perfect scallop, or have
questions on the use and care of your product, simply browse our online
resource library at thermador.com.
CUSTOMER SERVICE
For dedicated customer service on
any Thermador product, please call:
1-800-735-4328 or contact us at
thermador.com
VISIT THE ABOVE SITES TO SHARE
PHOTOS OF YOUR NEW KITCHEN
AND CREATIVE DISHES.
CONNECT WITH US
thermador.com/blog
pinterest.com/thermador
instagram.com/thermadorhome
facebook.com
youtube.com/thermadorhome
twitter.com/thermador
TAKE US WITH YOU
Visit the App Store
™
or Google Play
™
to
download our Innovations app, including
the Thermador Kitchen Ideas & Lookbook
and the Thermador Kitchen Design and
Planning Guide.
B
433
PRODUCT
WARRANTY
These warranties give you specic legal rights and you may have other rights that vary from state to state. Limited Warranty from Date of Purchase. For complete warranty details, refer to your
Use & Care manual, or ask your dealer.
Specications are for planning purposes only. Refer to installation instructions and consult your countertop supplier prior to making counter opening. Consult with a heating and ventilation
engineer for your specic ventilation requirements. For the most detailed information, refer to installation instructions accompanying product or write to Thermador
®
indicating the model
number. Specications are correct at time of printing. Thermador reserves the right to change product specications or design without notice. Some models are certied for use in Canada.
Thermador is not responsible for products that are transported from the U.S. for use in Canada.
© 2015 BSH Home Appliances Corporation.
PROFESSIONAL RANGES
Limited warranty, entire appliance, parts and labor (2 year)
PROFESSIONAL RANGETOPS
Limited warranty, entire appliance, parts and labor (2 year)
BUILT-IN OVENS
Limited warranty parts and labor (2 year)
INDUCTION COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
Limited warranty for glass ceramic surface/electronic
elements and switches; parts only (3rd to 5th year)
GAS COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
ELECTRIC COOKTOPS
Limited warranty, entire appliance, parts and labor (2 year)
Limited warranty for glass ceramic surface/electronic
elements and switches; parts only (3rd to 5th year)
VENTILATION
Limited warranty, entire appliance, parts and labor (2 year)
WARMING DRAWERS
Limited warranty, entire appliance, parts and labor (2 year)
BUILT-IN MICROWAVES
Limited warranty, entire appliance, parts and labor (2 year)
REFRIGERATION
Limited two-year warranty, entire appliance, parts and labor
on any part of the refrigerator that fails because of a
manufacturing defect
Limited warranty for sealed refrigeration system*; parts and
labor (3rd to 6th year)
Limited warranty for sealed refrigeration system*; parts only
(7th to 12th year)
* Sealed refrigeration system includes compressor, evaporator, condenser,
dryer/ strainer and connection tubing
DISHWASHERS
Full warranty, entire appliance, parts and labor (2 year)
Limited warranty for microprocessor or printed circuit board;
parts only (3rd to 5th year)
Limited warranty for racks (does not include rack components);
parts only (3rd to 5th year)
Limited warranty for rust-through on inner tub liner; parts only
(Lifetime)
BUILT-IN COFFEE MACHINES
Limited warranty, entire appliance, parts and labor (2 year)
1 800 735 4328
USA THERMADOR.COM
CANADA THERMADOR.CA
©2015 BSH HOME APPLIANCES CORPORATION. ALL RIGHTS RESERVED.
#13-THD-0250 MG 10/15
