,,,, ...... _ _.,,_t=,,_ * _
OWNER'S
MANUAL
MODEL NOS.
625.348571
625.348591
Caution:
Read and Follow
All Safety Rules and
Operating Instructions
Before First Use of
This Product,
If you have questions when
installing, operating or main-
taining your softener, and
when setting the timer, call
this toll-free number ....
1-800-426-9345
SAVE THIS MANUAL
Deluxe Demand Water Softeners
÷ Warranty
Start Up / Setting Timer
How it Works
Care Of
,_ Specifications
¢, Repair Parts
Use plastic bag and tie provided, to hang manuals nearby
the softener for future reference,
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

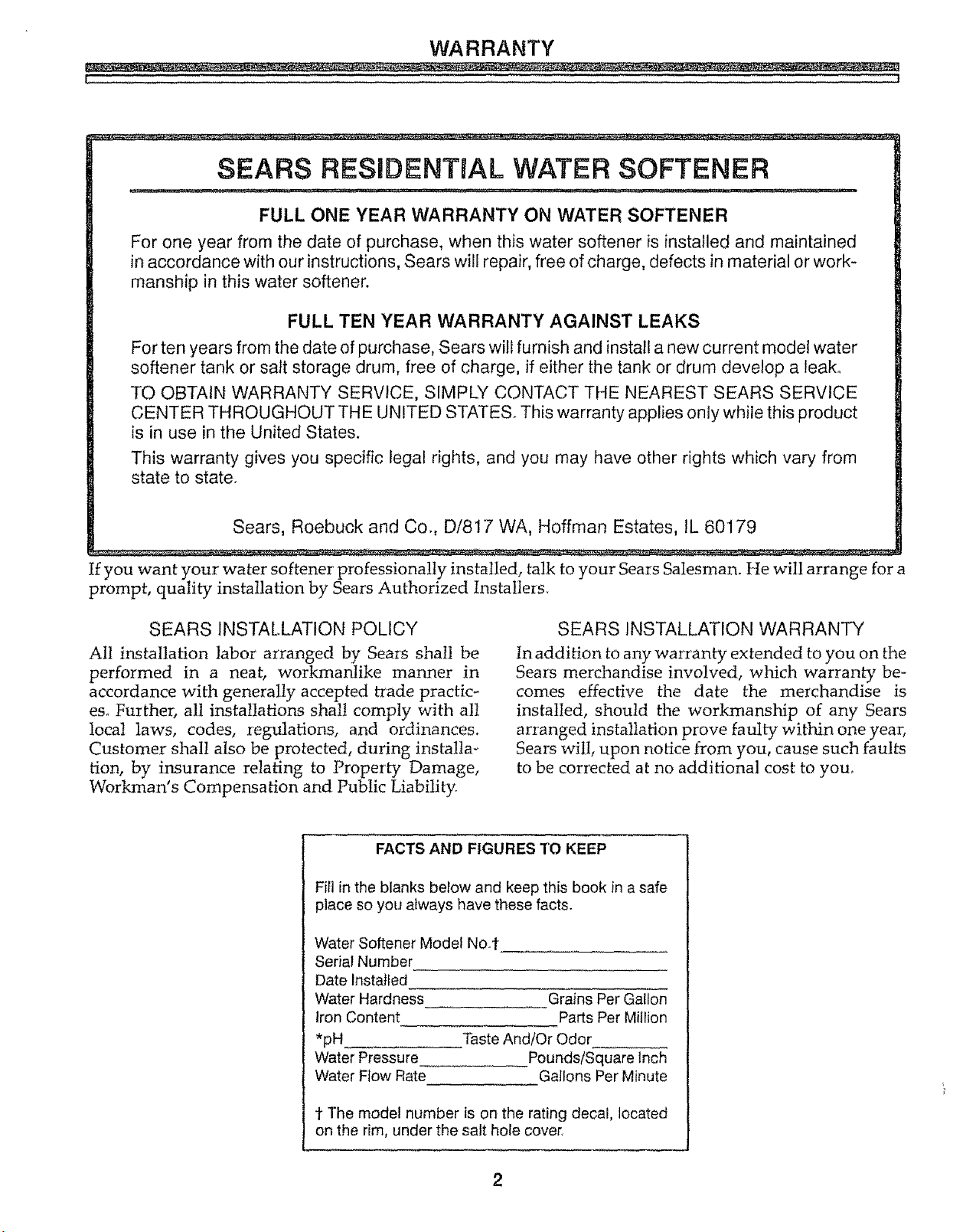

SEARS RESIDENTUAL WATER SOFTENER
FULL ONE YEAR WARRANTY ON WATER SOFTENER
For one year from the date of purchase, when this water softener is installed and maintained
in accordance with our instructions, Sears will repair, free of charge, defects in material or work-
manship in this water softener.
FULL TEN YEAR WARRANTY AGAINST LEAKS
For ten years from the date of purchase, Sears will furnish and install a new current model water
softener tank or salt storage drum, free of charge, if either the tank or drum develop a leak.
TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS SERVICE
CENTER THROUGHOUT THE UNITED STATES° This warranty applies only while this product
is in use in the United States.
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
If you want your water softener' professionally installed, talk to your Sears Salesman. He will arrange for a
prompt, quality installation by Sears Authorized Installers.
SEARS INSTALLATION POLICY
All installation labor arranged by Sears shall be
performed in a neat, workmanlike manner in
accordance with generally accepted trade practic-
eso Further, all installations shall comply with all
local laws, codes, regulations, and ordinances.
Customer shall also be protected, during instalta_
tion, by insurance relating to Property Damage,
Workman's Compensation and Public Liability.
SEARS INSTALLATION WARRANTY
In addition to any warranty extended to you on the
Sears merchandise involved, which warranty be-
comes effective the date the merchandise is
installed, should the workmanship of any Sears
arranged installation prove faulty within one year,
Sears will, upon notice from you, cause such faults
to be corrected at no additional cost to you,
FACTS AND FIGURES TO KEEP
Fill in the blanks below and keep this book in a safe
place so you atways have these facts.
Water Softener Model No.I"
Serial Number
Date Installed
Water Hardness
Iron Content
*pH
Water Pressure
Water Ftow Rate
Grains Per Gallon
Parts Per Million
Taste And/Or Odor
Pounds/Square Inch
Gallons Per Minute
1"The model number is on the rating decal, located
on the rim, under the salt hole cove_
2
TABLE OF CONTENTS
_i _'!" ....... ii! iii ii
I_ I
PAGE
NO.
SECTION 1
SOFTENER START UP
A, SAFETY GUIDES
B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL
C, PROGRAM THETIMER
D, SANITIZING THEWATER SOFTENER

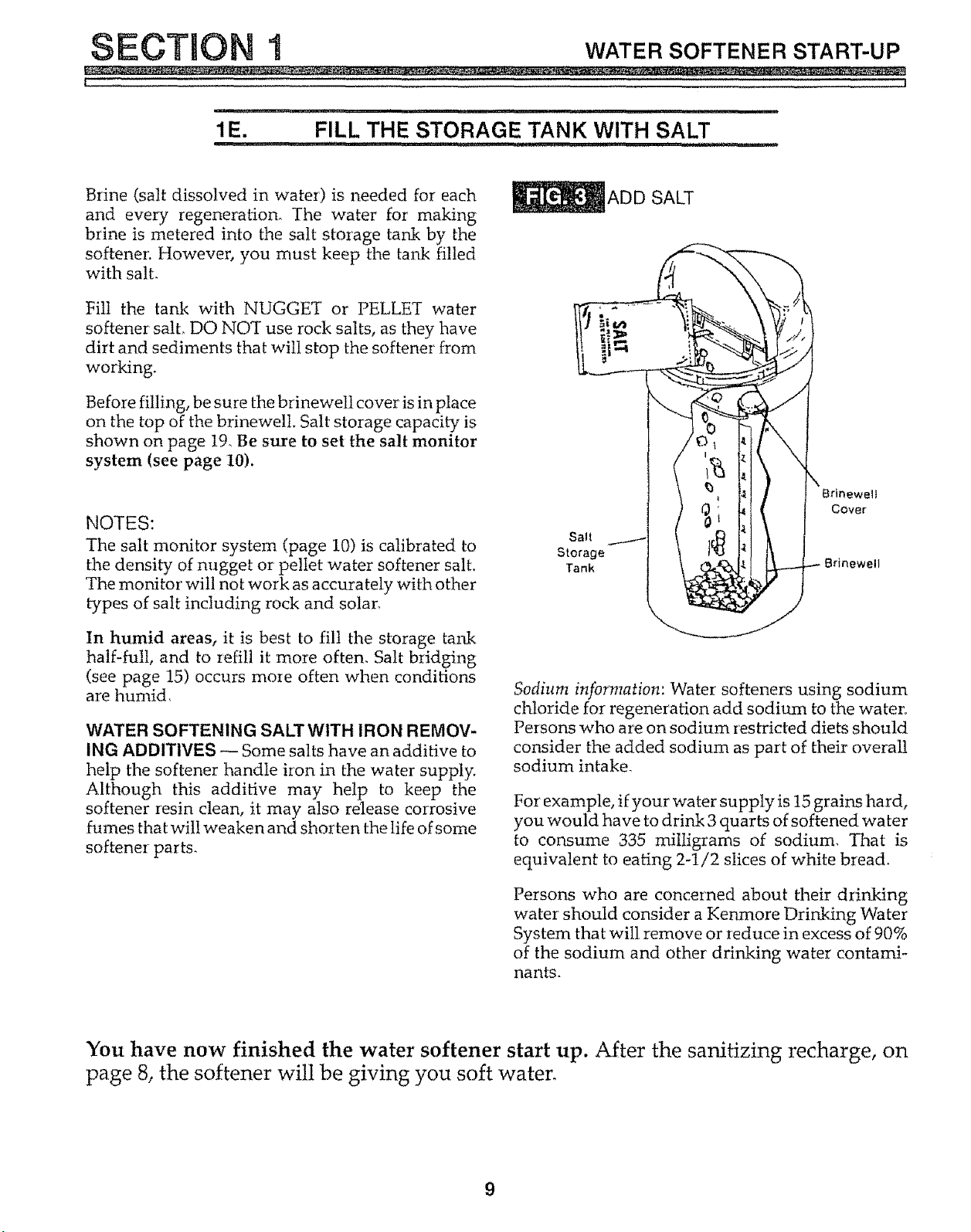

E_ FILL THE STORAGE TANK WITH SALT
4
5
6-7
8
9
SECTRON 2 HOW YOUR WATER SOFTENER WORKS

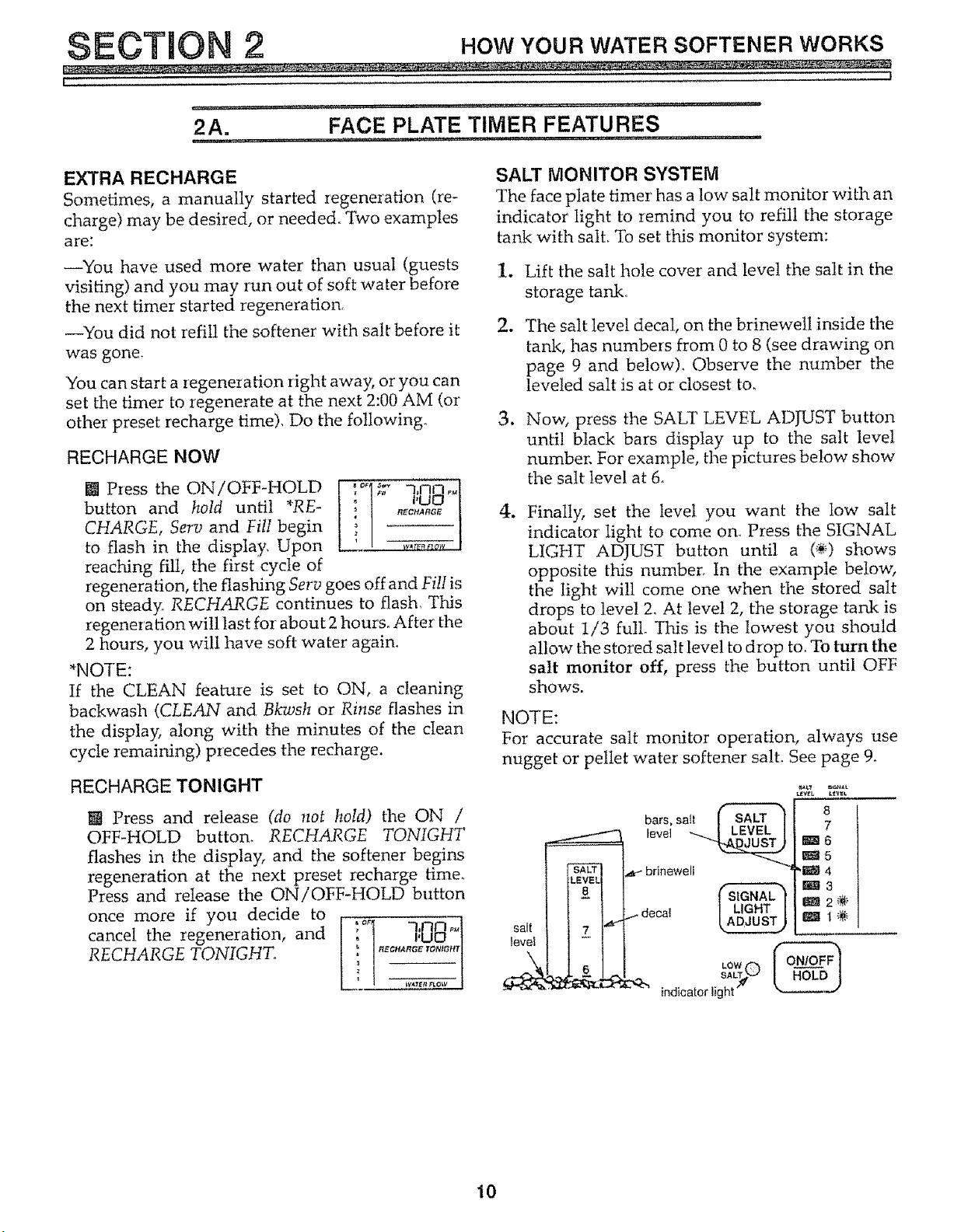

Ao FACE PLATE TIMER FEATURES 10-'11
B, SOFT WATER SERVICE AND REGENERATION 12-14
SECTUON 3 CAREOFYOURSOFTENER

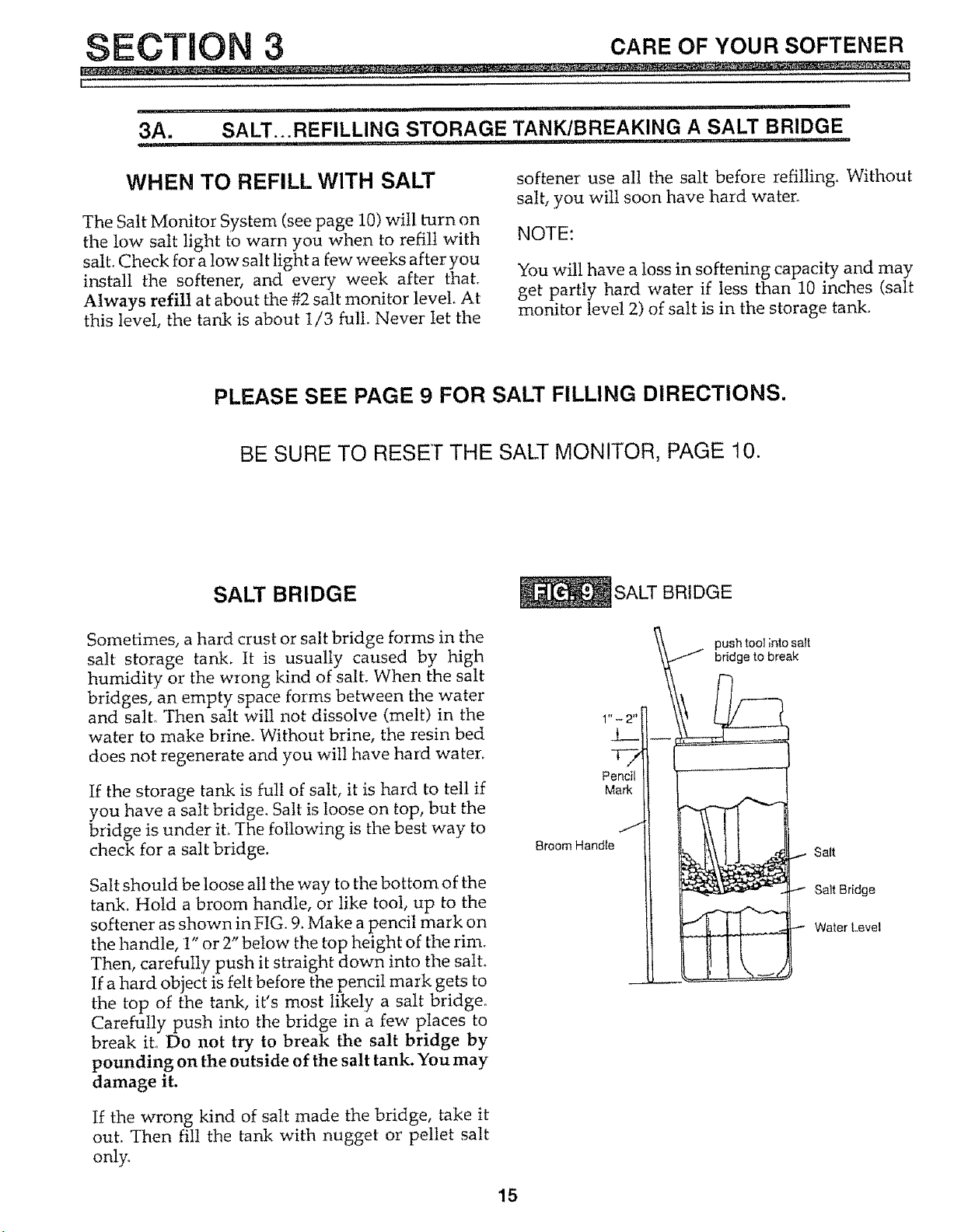

A. SALT: REFILLING STORAGE TANK, SALT BRIDGE
B, KEEPING THE WATER SOFTENER CLEAN
C. KEEP THE SOFTENER FROM FREEZING
D, HELPFUL HINTS CHECKLIST
"15
'16
17
!8
SECTION 4 OTHER THINGS TO KNOW

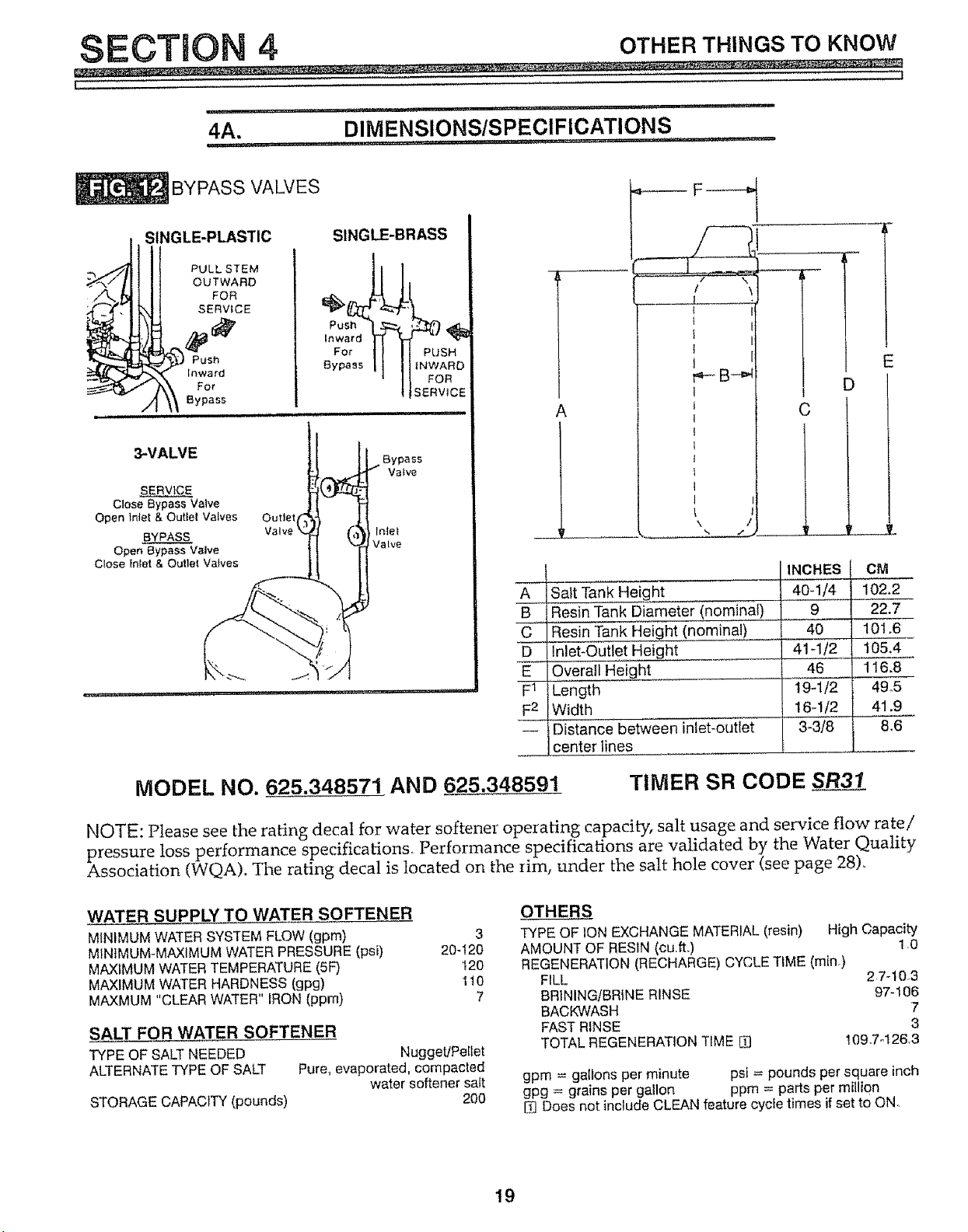

A_ DIMENSIONS/SPECIFICATIONS
19
SECTaON 5
SERVICE TECH INFORMATION

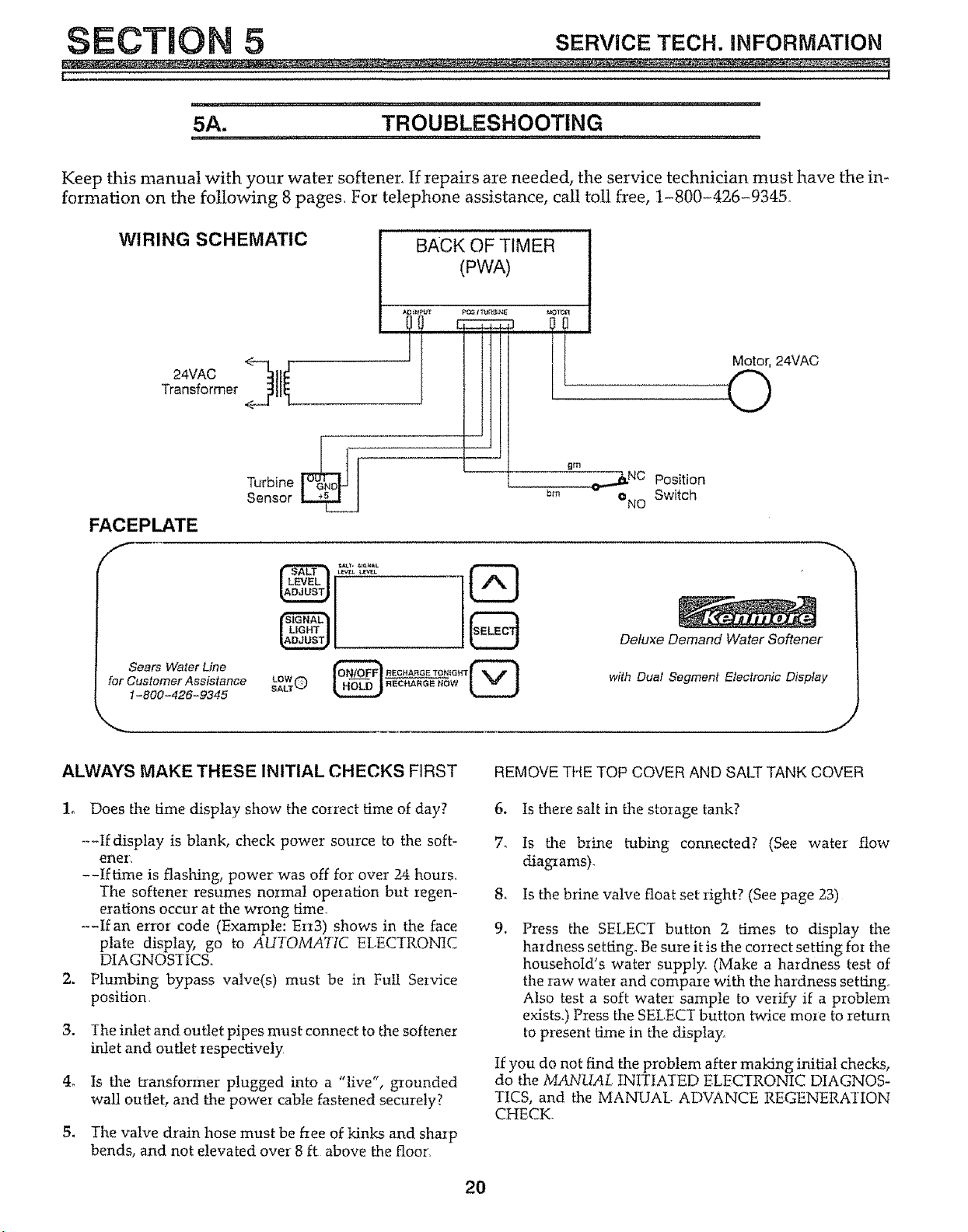

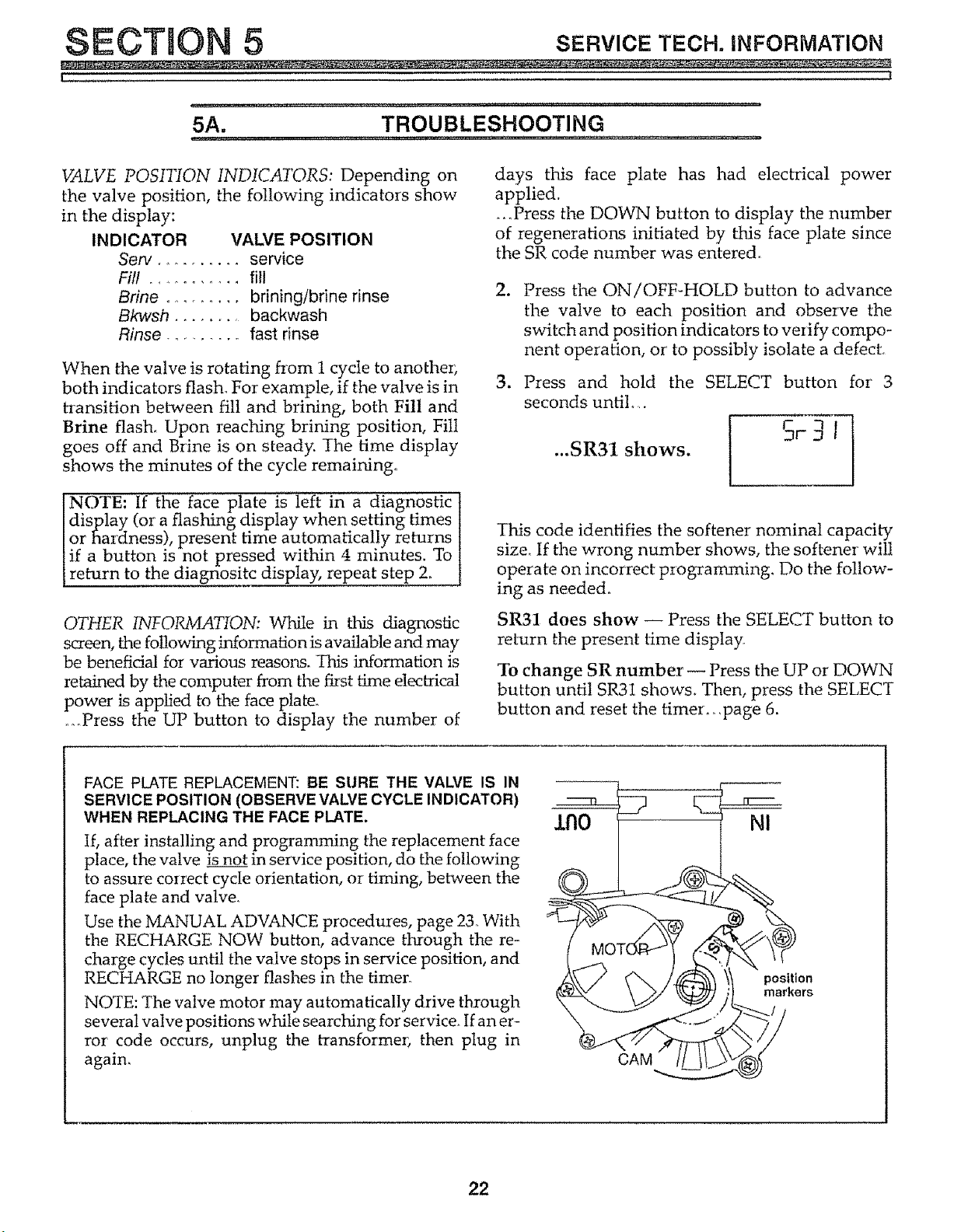

A. TROUBLESHOOTING

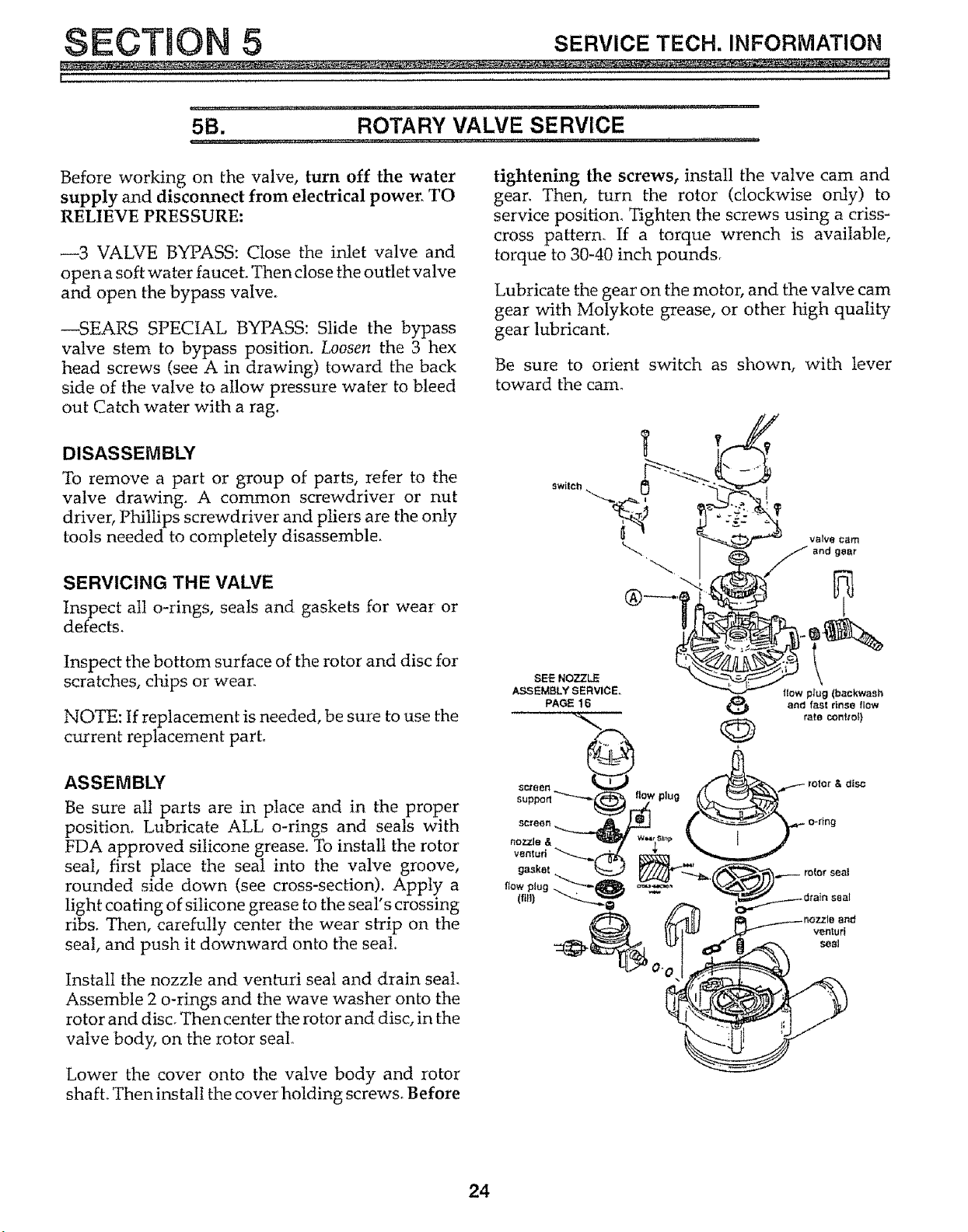

B. ROTARY VALVE SERVICE

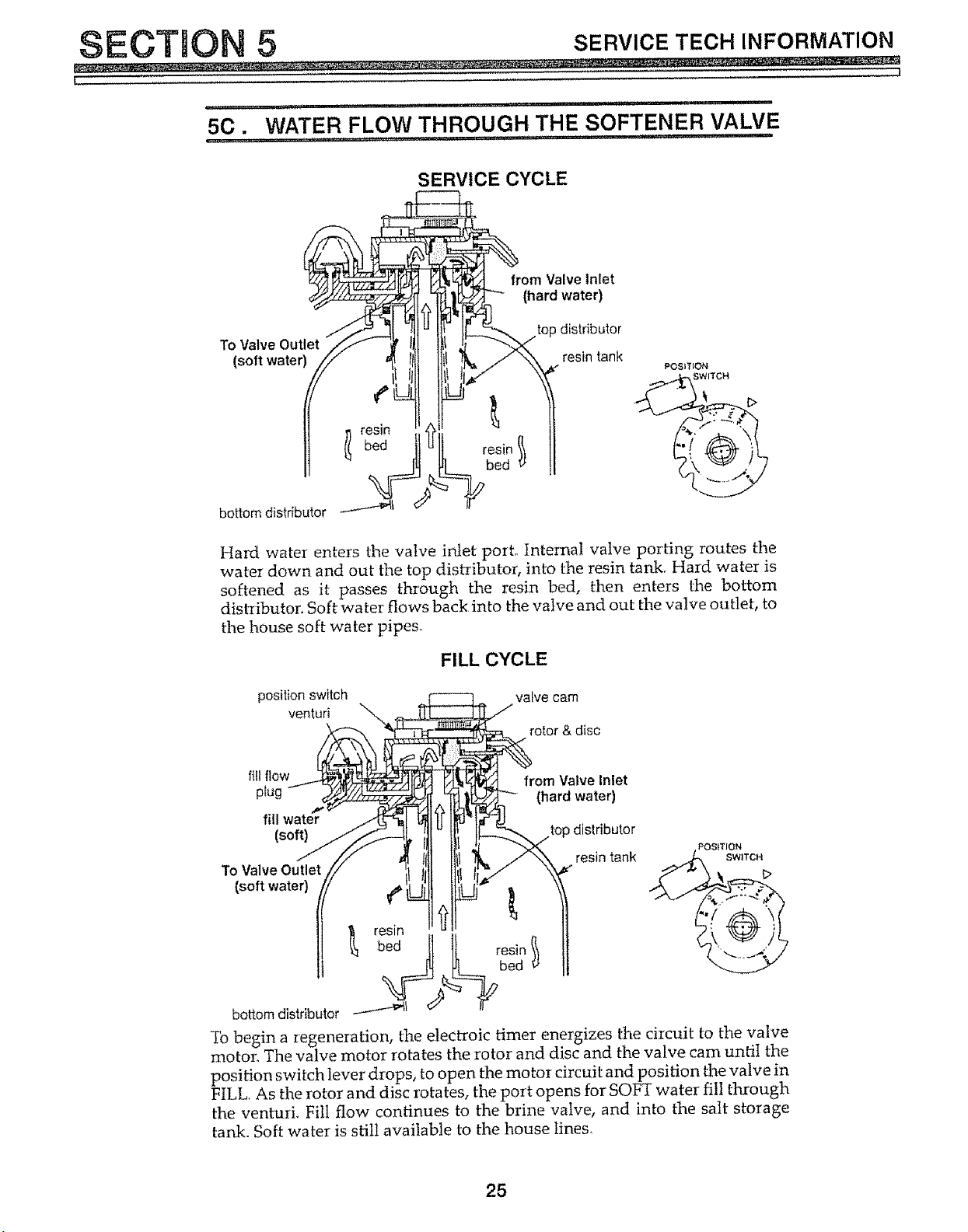

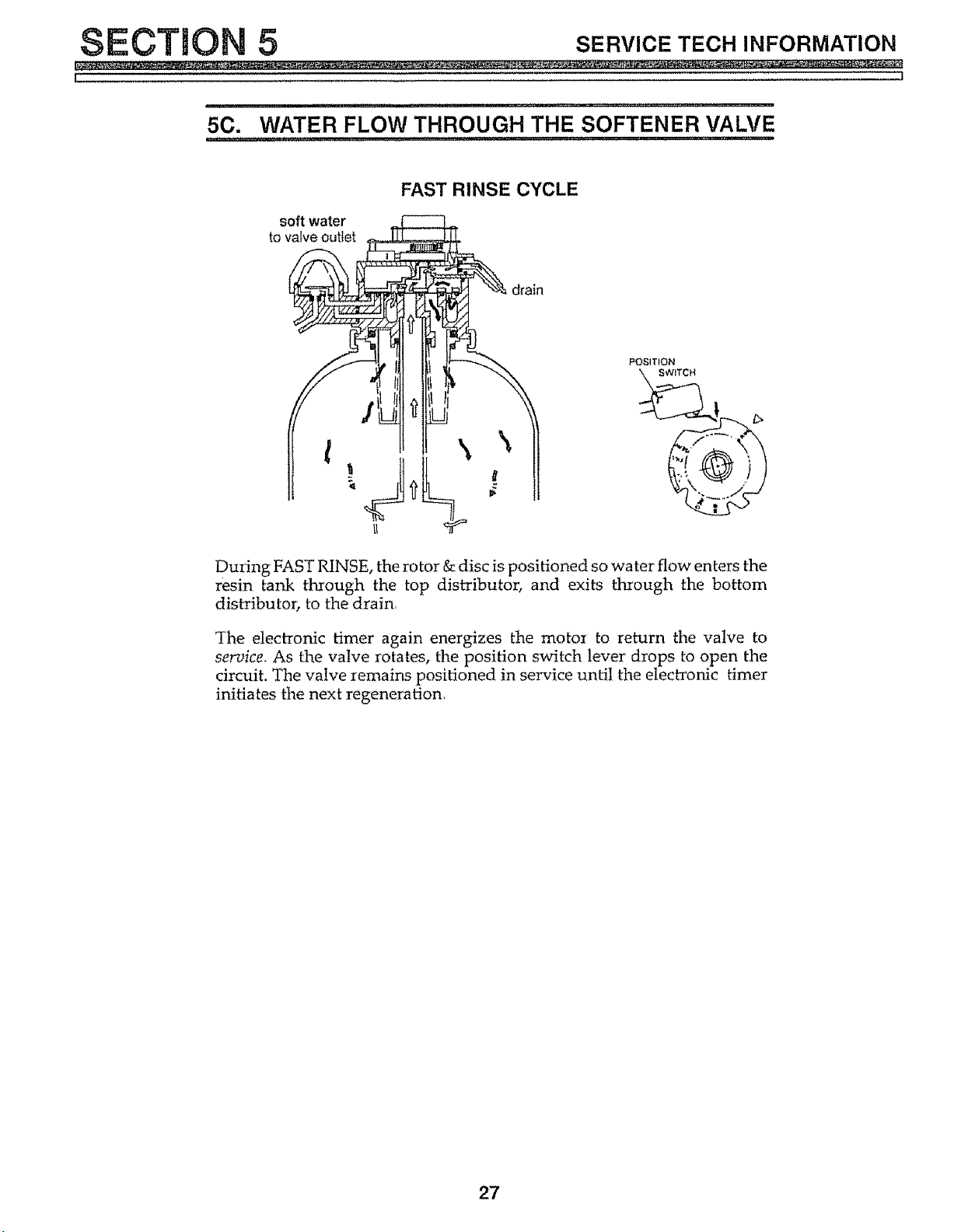

Co WATER FLOW THROUGH THE SOFTENER VALVE
20-23
24
25-27
SECTUON 6
REPAIR PARTS 28-3 1
SECTION 1 WATER SOFTENER START-UP
l

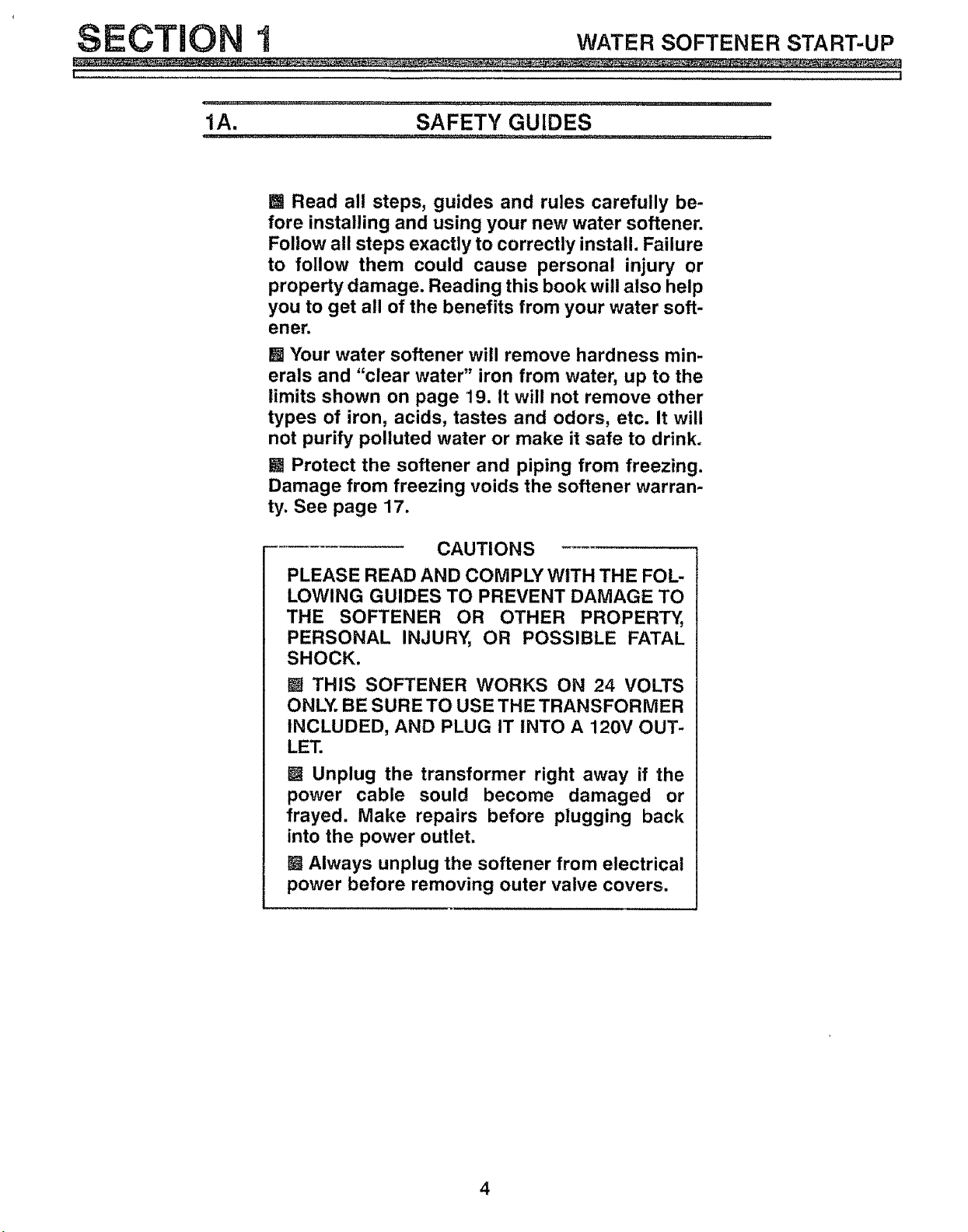

1A. SAFETY GUIDES
[] Read all steps, guides and rules carefully be-
fore installing and using your new water softener.
Follow all steps exactly to correctly install. Failure
to follow them could cause personal injury or
property damage. Reading this book will also help
you to get all of the benefits from your water soft-
ener.
[] Your water softener will remove hardness min-
erals and "clear water" iron from water, up to the
limits shown on page 19. It will not remove other
types of iron, acids, tastes and odors, etc. It will
not purify polluted water or make it safe to drink.
g Protect the softener and piping from freezing.
Damage from freezing voids the softener warran-
ty. See page 17.
CAUTIONS
PLEASE READ AND COMPLY WITH THE FOL-
LOWING GUIDES TO PREVENT DAMAGE TO
THE SOFTENER OR OTHER PROPERTY,
PERSONAL INJURY, OR POSSIBLE FATAL
SHOCK.
[] THIS SOFTENER WORKS ON 24 VOLTS
ONLY. BE SURE TO USE THE TRANSFORMER
INCLUDED, AND PLUG IT INTO A 120V OUT-
LET.
[] Unplug the transformer right away if the
power cable sould become damaged or
frayed. Make repairs before plugging back
into the power outlet.
M Always unplug the softener from electrical
power before removing outer valve covers.
4
SECT_O 1 WATER SOFTENER START-UP
f .,.4
1B, CHECK LIST OF ALL STEP-BY-STEP GUIDES TO INSTALL
j i ,i., ,i, ,,,111i1,,i i HIIIH,q.,I III , , p, U, ,,,,_.... iii IIII ................................
Refer to the Installation Manual, part no, 7159931,
for step-by-step guides
To be sure you have done al! the steps to install the
softener, read the following list., Page numbers
referred to are in the Installation Manual.
_" Is the house water flow going INTO the soften-
er valve INLET? Trace piping to be sure. See
pages 1.0and i1.
_-" ts the plumbing bypass valve (oI 3 valves) set
for SERVICE. See FIG. 12, page t9 of this manu-
al
v' Is the valve drain hose connected the right way,
and without sharp bends or kinks that could
stop or reduce water flow? See page 16o
INLET
Is the softener power cable connected to the
ta'ansformer? Is the transformer plugged into
an inside, 120V-60Hz electrical outlet? See
page 20
W' Be sure to restart the water heater,, See page 20.
brass
Jl I,
3-valve LF _r_r-d.!
plastic
Note, foz installations in the State of Massachusetts:
Plumbing codes of Massachusetts shall be adhered to,
Consult with your licensed plumben
5
SECTION 1 WATE.SOFTENERSTART-UP
i i

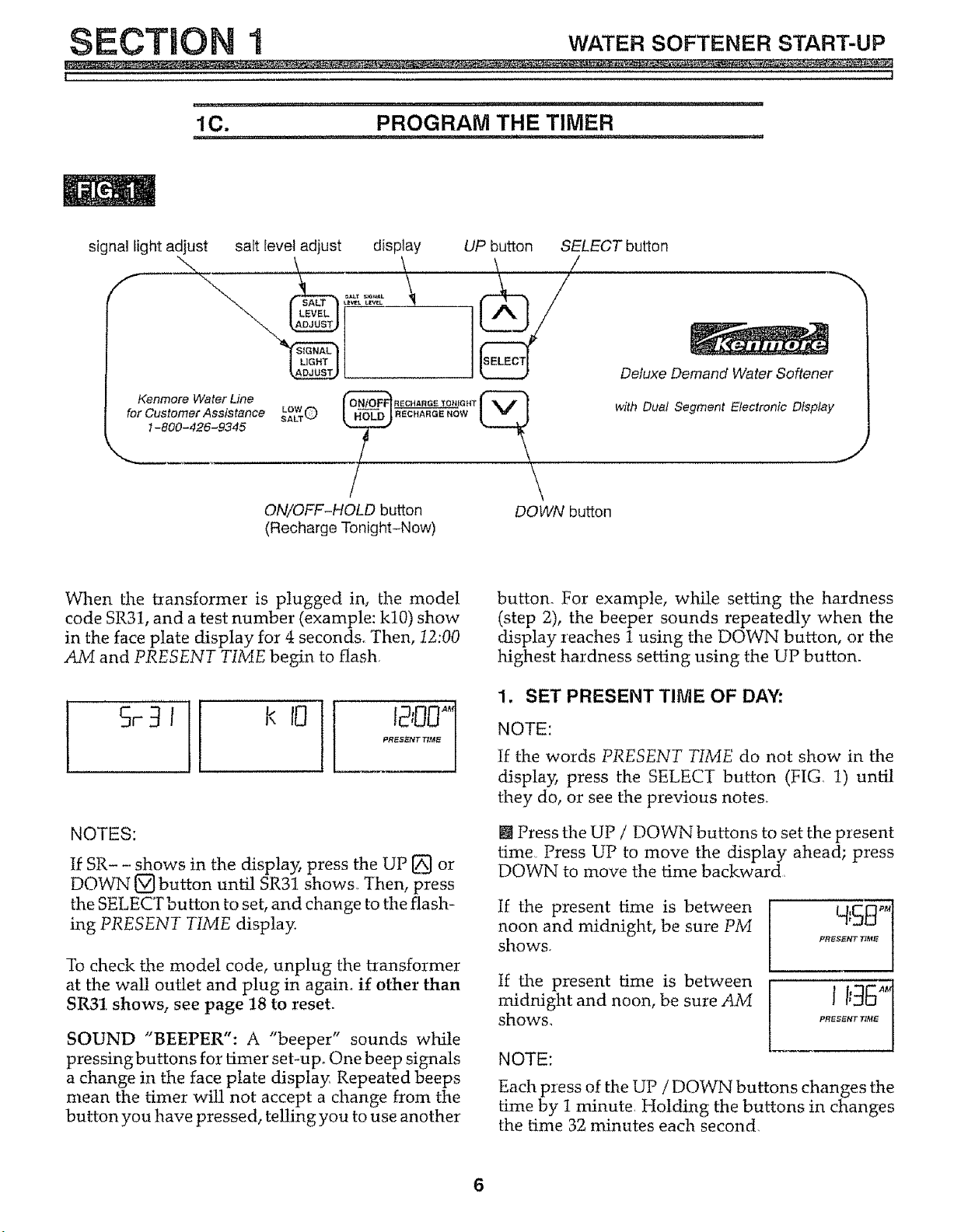

lC. PROGRAM THE TIMER
, ,,,,, ,,
signal light adjust salt level adjust display
Kenmore Water Une
for Customer Assistance LOW0
SALT
t -800-426-9345
UP button SELECT button
\ /
ON/OFF-HOLD button
(Recharge Tonight-Now)
Deluxe Demand Water Softener
with Dual Segment Electronic Display
DOWN button
When the transformer is plugged in, the model
code SR31, and a test number (example: kl0) show
in the face plate display for 4 seconds° Then, I2:00
/_,_ and PRESENT TIME begin to flash
NOTES:
If SR- - shows in the displa_4 press the UP _-_ or
DOWN _button unt_fl SR31 shows. Then, press
the SELECT button to set, and change to the flash-
ing PRESENT TIME display.
To check the model code, unplug the transformer
at the wall outlet and plug in again° if other than
SR31 shows, see page 18 to reset,
SOUND "BEEPER": A "beeper" sounds while
pressingbuttons for timer sebupo One beep signals
a change in the face plate display, Repeated beeps
mean the timer _*All not accept a change from the
button you have pressed, telling you to use another
button. For example, while setting the hardness
(step 2), the beeper sounds repeatedly when the
display reaches 1 using the DOWN button, or the
highest hardness setting using the UP button.
1. SET PRESENT TIME OF DAY:
NOTE:
If the words PRESENT TIME do not show in the
displa_ press the SELECT button (FIG. 1) until
they do, or see the previous note&
[] Press the UP / DOWN buttons to set the present
time Press UP to move the display ahead; press
DOWN to move the time backward.
If the present time is between
noon and midnight, be sure PM
shows.
tf the present time is between
midnight and noon, be sure AM
shows,
NOTE:
H'SEF1
PRESt_'NTTI,_IE ]
1I 35"1
PREStZNT TIM_ I
Each press of the UP / DOWN buttons changes the
time by I minute, Holding the buttons in changes
the time 32 rninutes each second.
SECTION I WATER SOFTENER START-UP
i i
lC° PROGRAM THE TIMER
J......... _ ............................... i , ,11 ir_ ,
2. SET WATER HARDNESS
[] Press the SELECT button
(flashing) and HARDNESS.
NUMBER:
once to display 25
The grains per gallon (gpg)
hardness of your water supply 2S ]
is on your water analysis re-
porL Be sure to enter water test ,,aR_N_
results on page 2, for future
reference.
NOTE:
If your water supply contains iron, compensate for
it by adding to the water hardness number. For
example, assume your water is 20 gpg hard and con tarns
2 ppm iron. Add 5 to the hardness number for each 1
ppm of iron. In this example, you would use 30 for your
hardness number.
20 gpg hardness
2 ppm iron x 5 = 10 +10
(times) 30 HARDNESS NUMBER
[] Press the UP / DOWN buttons to set your water
hardness number in the display. The DOWN
button moves the display to 1. The UP button
moves the display to the highest setting (see
maximum setting for your model in the specifica-
tions).
NOTE:
Each press of the UP / DOWN button changes the
display by 1 between i and 25, Between 25 and the
highest number; the display changes 5 at a
time, o25, 30, 35, etc. Holding the UP or DOWN
button in changes the display twice each second,
3_
SET RECHARGE, or REGENERATION
TIME:
[] Press the SELECT button to display 2:00 AM
(flashing) and RECHARGE TIME,
Atthe2:00AMrechargetime [ _;O_A 1
setting, the softener begins re- R_C,_RG_
generation (see pages 12 and r_E
1.3) at 2:00 AM, ending no later
than 4:00 AM. This is a good time in most
households because water is not being used (see
Automatic Bypass, page 14)_If a different recharge
time setting would be better for your household,
do the following,
[] Press the UP / DOWN buttons to set the desired
recharge starting hour. Be sure to observe the
AM-PM as you did when setting the present time
of day,
NOTE:
Each press of the UP / DOWN buttons changes the
display I hour, Holding the buttons in changes the
display twice each second°
4. SET CLEAN FEATURE (optional):
[] Press the SELECT button to display OFF
(flashing) and CLEAN,
This feature is beneficial on
water supplies containing iron OFF-:
and/or high amounts of sedi- CLEA_
ments (sand, silt, diit, etc..).
When set to ON, a backwash 0r-i
and fast rinse cycle will occur
CLaN
first, preceeding the normal re-
generation sequence (see page
12). This provides extra clean-
ing of the resin bed before it is
regenerated with the salt brine_ To conserve water,
if your water supply does not contain iron or
sediments, be sure this feature is set to OFF, Use the
UP / Down buttons to change the ON / OFF
displays.
[] Press the SELECT button once again, to return
the present time, and RECHARGE TONIGHT in the
display,
I'q" 5,' ,=9']R
RECHARGE TO,
NIGHT
IF YOU NEED HELP PROG1LAMMtNG THE TIMER, CALL TOLL FREE, NUMBER 1-800-426-9345.
SEE PAGES 10 AND 11 FOR OTHER FACE PLATE TIMER FEATURES,
SECTION I WATER SOFTENER START-UP

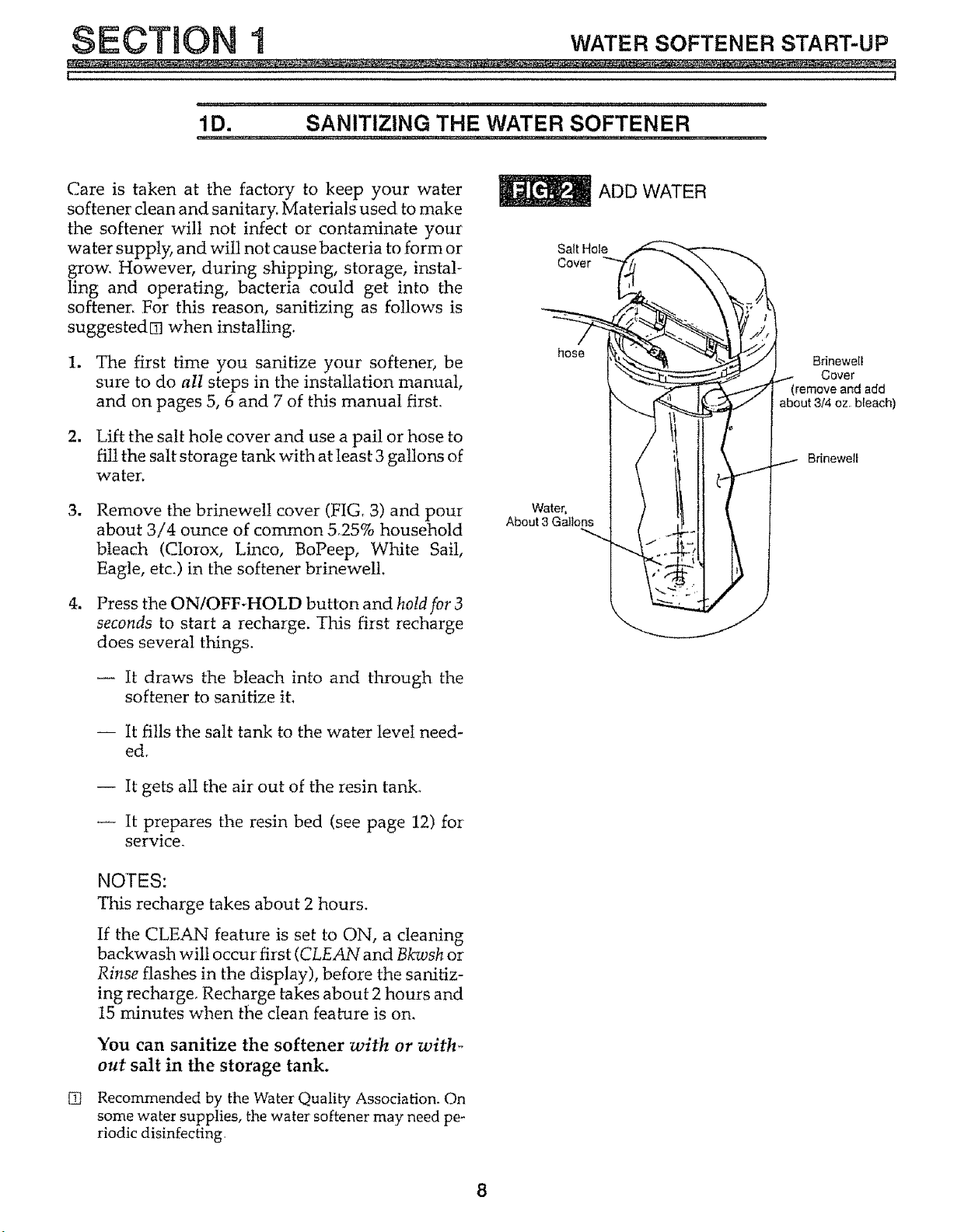

1D. SANITIZING THE WATER SOFTENER
Care is taken at the factory to keep your water
softener clean and sanitary. Materials used to make
the softener wilt not infect or contaminate your
water supply, and will not cause bacteria to form or
grow. However, during shipping, storage, instal-
ling and operating, bacteria could get into the
softener. For this reason, sanitizing as follows is
suggested[] when installing_
1. The first time you sanitize your softener; be
sure to do all steps in the installation manual,
and on pages 5, 6 and 7 of this manual first.
2. Lift the salt hole cover and use a pai! or hose to
fill the salt storage tank with at least 3 gallons of
water.
=
_m
Remove the brinewel! cover (FIG_ 3) and pour
about 3/4 ounce of common 5.25% household
bleach (Clo_ox, Linco, BoPeep, White Sail,
Eagle, etc.) in the softener brinewe!l.
Press the ON/OFF-HOLD button and hold for 3
seconds to start a recharge. This first recharge
does several things.
-- It draws the bleach into and through the
softener to sanitize it.
-- It fills the salt tank to the water level need-
ed,
-- It gets all the air out of the resin tank.
-- It prepares the resin bed (see page 12) for
service.
[]
NOTES:
This recharge takes about 2 hours.
If the CLEAN feature is set to ON, a cleaning
backwash will occur first (CLEAdq and Bkwsh or
Rinse flashes in the display), before the sanitiz-
ing recha,ge_ Recharge takes about 2 hours and
15 minutes when the clean feabure is on.
You can sanitize the softener with or with-
out salt in the storage tank.
Recommended by the Water Quality Association. On
some water supplies, the water softener may need pe-
riodic disinfecting,
ADD WATER
hose
Water, } !_ I] |
About 3 Galto._ .,,._ _I1 _
Brinewell
I.- Cover
(remove and add
about 3/4 oz, bleach)
Brinewelt
SECTION 1 WATER SOFTENER START-UP
J
it ,i ii , ii ,Ul Ulll,ii i1,,,i,ii1,1 u ,, ill!ll,_ll i lu,i
1E. FILL THE STORAGE TANK WITH SALT
l l,l,i iii , .... lUUll,i ,,,i i , ' i i iii ....
Brine (salt dissolved in water) is needed for each
and every regeneration_ The water for making
b_ine is metered into the salt storage tank by the
softener. However, you must keep the tank filled
with salt.
Fill the tank with NUGGET or PELLET water
softener salt_ DO NOT use rock salts, as they have
dirt and sediments that will stop the softener' from
working.
Before filling, be sure the brinewell cover is in place
on the top of the brinewelI. Salt storage capacity is
shown on page 19_ Be sure to set the salt monitor
system (see page 10).
NOTES:
The salt monitor system (page 10) is calibrated to
the densi_ of nugget or pellet water softener salt.
The monitor will not work as accurately with other
types of salt including rock and solar,
In humid areas, it is best to fill the storage taixk
half-full, and to refill it more often, Salt bridging
(see page 15) occurs more often when conditions
are humid,
WATER SOFTENING SALT WITH IRON REMOV-
ING ADDITIVES -- Some salts have an additive to
help the softener handle iron in the water supply.
Although this additive may help to keep the
softener resin clean, it may also release corrosive
fumes that will weaken and shorten the life of some
softener parts_
ADD SALT
Salt ,_
Storage
Tank
Cover
Sodium information: Water softeners using sodium
ch!oride for regeneration add sodiuxn to the water,
Persons who are on sodium Iestricted diets should
consider the added sodium as part of their overall
sodium intake_
For example, if your water supply is 15 grains hard,
you would have to drink 3 quarts of softened water
to consume 335 milligrams of sodium_ That is
equivalent to eating 2q/2 slices of white bread°
Persons who are concerned about their drinking
water should consider a Kenmore Drinking Water
System that will remove or ieduce in excess of 90%
of the sodium and other drir_&ing water contami-
nants.
You have now finished the water softener start up. After the sanitizing recharge, on
page 8, the softener will be giving you soft water.
SEOT_O 2 HOW YOUR WATER SOFTENER WORKS
2A. FACE PLATE TIMER FEATURES
u u,,, i i ,,
EXTRA RECHARGE
Sometimes, a manually started regeneration (re-
charge) may be desired, or neede& Two examples
are:
--You have used more water than usual (guests
visiting) and you may run out of soft water before
the next timer started regeneration.
You did not refill the softener with salt before it
was gone.
You can start a regeneration right awa}; or you can
set the timer to regenerate at the next 2:00 AM (or
other preset recharge time), Do the following_
RECHARGE NOW
M PIess the ON/OFF-HOLD i°']_77t_p,,
button and hold until *RE- ,_C,A,G_
CHARGE, Serv and fill begin
to flash in the display, Upon __.__ ,, _,o.
reaching fill, the first cycle of
regeneration, the flashing Serv goes off and Fill is
on steady. RECHARGE continues to flash. This
regeneration will last for about 2 hours. After the
2 hours, you will have soft water again.
*NOTE:
If the CLEAN feature is set to ON, a cleaning
backwash (CLEAN and Bkwsh or Rinse flashes in
the display, along with the minutes of the clean
cycle remaining) precedes the recharge.
RECHARGE TONIGHT
[] Press and release (do not hold) the ON /
OFF-HOLD button. RECHARGE TONIGHT
flashes in the display, and the softener begins
regeneration at the next preset recharge time.
Press and release the ON/OFF-HOLD button
once more if you decide to [ :oq q,no..]
° 1 _,uo t
cancel the regeneration, and ! ._._._ON,G._
RECHARGE TONIGHT. , 1_ ]
SALT MONITOR SYSTEM
The face plate timer has a low salt monitor with an
indicator light to remind you to refill the storage
tank with sail To set this monitor system:
1. Lift the salt hole cover and level the salt in the
storage tank,.
2. The salt level decal, on the brinewetI inside the
tar&, has numbers from 0 to 8 (see drawing on
page 9 and below)_ Observe the number the
leveled saIt is at or closest to,
3_
Now, press the SALT LEVEL ADJUST button
until black bars display up to the salt level
number'. For example, the pictures below show
the salt leve! at 6.
41
FinaIly, set the level you want the low salt
indicator light to come on. Press the SIGNAL
LIGHT ADJUST button until a (_) shows
opposite this number. In the example below,
the light will come one when the stored salt
drops to level Z At level 2, the storage tank is
about 1/3 full. This is the lowest you should
allow the stored salt level to drop to. To turn the
salt monitor off, press the button until OFF
shows.
NOTE:
For accurate salt monitor operation, always use
nugget or pellet water softener salt. See page 9.
salt
levet
8 _
-i
bars, salt
level _ _ LEVEL
JUS3'
._- brinewell
_f decal 1 LIGHT
8
7
_6
f_15
'*IEf_ 4
_3
ItB2_
_l_
SA_
indicator tight
10
SECTION 2 .ow YOURWATERSOFTE.ERWORKS
i i
2A. FACE PLATE TIMER FEATURES
OPTIONAL SETTINGS - CLEAN FEATURE
MINUTES, MAXIMUM DAYS BETWEEN RE-
GENERATIONS, and 12 / 24 HOUR TIME
READINGS:
1. To set 1, 2 or all 3 options, press and hold SELECT
for 3 seconds. Then press again until the CLEAN
TIME display shows
Ct.EAN r_ME l
default minutes
CLEAN 71ME
example: time set to 3minutes
_CLEAN feature minutes: If you die using this
feature (page 7), the Iength of the extra backwash
cycle automatically sets to 7 minutes_ However,
you can adjust this time fiom 1 to 15 minutes in
length° To change this cycle time, use the UP button
to increase the time, or the DOWN button to
shorten the timer tf no change is desired, continue
betow.
2. Press SELECT again to show the following
RECHARGE display_
.... 1
oA
RE.
CHARGE
defauEtdisplay
,E. 4°,}
CHARGE
example: set to 4 days maximum
between regenerations
_Maximum days between regenerations: The
faceplate timer automatically controls regenera-
tion frequency (see page 14). This provides the
greatest operating efficiency, and normally the
maximum days feature is not needed. If you want to
be certain a regeneration will occur within a
number of days, use this feature. For example, if
your water supply contains iron and you want the
softener to regenerate at least once every few days
to keep the resin bed clean, set the display as
typically shown above. Setting is available from 1
to 15 days by using the UP and DOWN buttons.
3. Press SELECT to show the 12 HOUR display.
_12 or 24 hour clock: All time t2h;"
displays are shown in standard ,,,,E
clock time (1 to 12 PM; and 1 to 12
AM) at the 12 hr default setting.
If military time displays are de- 2_hr'_,,,E
sired, set to 24 hr by pressing the
Up 'button.
4. Press SELECT to return the present time
display.
WATER FLOW THROUGH THE SOFTENER
If soft water is in use, the water
flow bars continually scroll
across the displa); The bars
scroll slowly when water flow is
slow, and move faster as water
flow increases The flow bars do
not show when all faucets and
water using appliances are off_
no water flow
Ftow_
soft water is in use
RECHARGE TIME REMAINING and VALVE
POSITION INDICATORS vatve recharge
One of the valve position indica- position time
tors (Serv, Fill, Brine, Bkwsh, indicators remaining
_
Rinse) is displayed while the 1!°7','"_ 10_,,,,_
softener is recharging (See
*NOTE on page 10 if the CLEAN !i t_'_%
feature is ON)_ RECHARGE
flashes in the display and, begin-
ning with Brine, the minutes of recharge remaining
before return to service appears in place of the
present time. When the valve is moving from one
cycle to another, both position indicators are
flashing.
PROGRAM MEMORY
If electTicaI power to the softener goes off, the time
display is blank but the face plate timer keeps the
correct time for about 12 hours. When electrical
power comes on again, you have to reset the
present time only if the display is flashing° The
HARDNESS and RECHARGE TIME never require
resetting unless a change is desired.
Even if the timer is incoIrect after a long power
outage, the softener works as it should to keep
your water soft. However, regenerations may
occur at the wrong time of day until you reset the
timer to the correct time of day.
ERROR CODE
An error code could appear in _f-i- J
the face plate display if a prob-
lem occurs in the softener dec-
tronicso tf you see an error code
instead of the present time of day, please call you
local Sears Service Department for service.
11
SEOTnON 2 HowYourWATERSOFTENERWORKS
t J
2B. SOFT WATER SERVlCE AND REGENERATION
....... i .......... v,, ,i,i ........... . .....
SERVICE
When the softener is giving you soft water, it is
called "Service"° During service, hard water flows
through the house main water pipe into the
softener° Inside the softener resin tank is a bed
made up of thousands of tiny, plastic resin beads
(FIG. 4)_ As hard water passes through the bed,
each bead attracts and holds the hardness miner-
als. This is called ion_exchanging. It is much like a
magnet attracting and holding metals_ Water with-
out the hardness minerals (soft water) flows out of
the softener and into the house soft water pipes
After a period of time, the resin beads become
coated with hardness minerals and they have to be
cleaned. This cleaning is called regeneration or
recharge. Regeneration is started at 2:00 a.m. by the
electronic timer (see page t4)o It takes place in 5
stages or cycles° These are:
E] FILL [] BACKWASH
[_ BRINING [_ FAST RINSE
BRINE RINSE
NOTE:
If the CLEAN feature (page 7) is set to ON,
additional backwash and fast rinse cycles occur
before the fill cycle.
WATER FLOW THROUGH THE
SOFTENER IN SERVICE
salt storage
tank (salt
not shown) --_
brine valve
\
so.% i h ;,water
!i .
resin tank
resin bed
REGENERATION
[] FILL: Salt, dissolved in water, is called brine.
Brine is needed to clean the hardness rninerals
from the resin beads, To make the brine, water
flows into the salt storage area during the fill stage
as shown in FIG. 5. Fill cycle length depends on
how much soft water making capacity you have
used since the last regeneration. As you use more
water, fill time increases so more brine is made. The
greater amount of brine cleans more hardness
minerals from the resin bed,
WATER FLOW THROUGH THE
SOFTENER IN FILL
brine valve
,\
soft water A hard water
OUT "[1" _" IN
flitwater
12
SECTION 2 HOWYOURWATERSOFTENERWORKS
i l
i,i, ........... _n u,ii i n u.i '"'"""
2B. SOFT WATER SERVICE AND REGENERATION
F2qBRINING: During brining, the brine is moved
from the salt storage area, into the resin tank, Inside
the resin tank, brine cleans hardness minerals from
the resin beads and they are discharged out the
drain, How much brine is needed to clean the resin
depends on:
--the amount of resin in the softener;
---how fast the brine goes through the be&
The nozzle and venturi (FIG. 6) make suction to
take brine horn the salt tank and put it into the
resin tank_ They keep the brine flow down to a very
slow rate to get the best resin cleaning with the
least sail
]-3qBRINE RINSE: After all of the brine goes into
the resin tank, the brine valve closes. Water keeps
flowing the same way it did during brining except
the brine flow has stopped° Hardness minerals and
brine flush from the resin tank to the drain Brining
and brine rinse together vary in the length of time
they take, relative to the fill cycle length,
WATER FLOW THROUGH THE
SOFTENER IN BRINING AND
BRINE RINSE
hard water
bypass OUT _
nozzle &
venluri
brine vatve
\,
hard water
7
ilii!
drain
brine
WATER FLOW THROUGH THE
SOFTENER IN BACKWASH
hard water 4_ It hard water
bypass OUT a _' IN
f
[]FAST RINSE: Backwash is followed by a fast
flow of water down through the resin tank The fast
flow packs the resin bed and gets it ready for return
to service (FIG. 8),
After fast rinse, the softener returns to service,
Hard water goes into the resin tank where the resin
bed again takes out the hardness minerals. Soft
water goes to the house soft water pipes.
WATER FLOW THROUGH THE
SOFTENER IN FAST RINSE
solt water A hard water
OUT U _' IN
drain
[_BACKWASH: During backwash, wa_er flows
UP through the resin tank (FIG_ 7) at a fast rate to
flush iron minerals, dir_ and sediments from the
bed and to the drain, The bed lifts and expands for
good cleanJngo
13
SECTION 2 How YOUR WATER SOFTENER WORKS
{ J
2B. SOFT WATER SERVICE AND REGENERATION
.................................... J:l
'l ....
AUTOMATIC BYPASS
During the brining, brine rinse and backwash
cycles of regeneration, hard water goes through
the softener valve and to the house pipes_ If a faucet
is opened, hard water is there for your needs,
However, you should not use HOT water, if
possible, because the water heater will refill with
haiti water° The softener regenerates from 2:00 AM
to about 4:00 AM, (you can set anytime), a time
when not much water is used.
If you get up early in the morning and you can hear
the softener regenerating, change the time setting.
Set the recharge time to 12:00 AM or 1:00 AM (page
7), Then regeneiation will start and end that much
earlier and your water heater will not refill with
hard water if a hot faucet is opened°
ELECTRONICS
Two main parts of the softener's electronics are [] a
WATER METER, and [2] a COMPUTER,
[] WATER METER -- The water meter is in the
softener valve outlet. As water flows through the
meter, it sends electric pulses to the computer_ The
computer changes the pulses to a measure in
gallons of water.
[] COMPUTER -- The computer is part of the
circuit board. It is programmed to know the
softener's capacity (how many grains of hardness
minerals it will take out of the water before a
regeneration is needed). When starting the soften-
er, page 7, you set it for the grains per gallon (gpg)
hardness of the water.
To find a regeneration pattern best for your needs,
the computer uses: (1) water usage from the meter,
(2) hardness setting, (3) softener capacity, and (4)
time since the last regeneration° The computer
always adjusts this pattern to your water using
habits. It works toward providing you with soft
water for the longest time and the most efficient
salt usage.
Softening capacity is used as haiti water goes
through the softener and hardness minerals are
removed. When the computer determines that
only enough capacity remains to provide soft
water up to the next regeneration starting time
(2:00 AM, or as otherwise set) it will schedule a
regeneration. RECHARGE TONIGHT displays un-
til the regeneration begins, When the regeneration
begins, TONIGHT goes off and *RECHA_RGE or
RECHARGE TIME REMAINING flashes during
the 2 hour regeneration°
*NOTE:
If the CLEAN feature is set to ON, a cleaning
backwash (CLEAN and Bkwsh or Rinse flashes in
the display, along with the minutes of the clean
cycle remaining), precedes the recharge,
14
SECTmON 3 CAREOFYOURSOFTENER
i J
,llnu i i nlu,n,, ii ii ,lln I lUll,Ul, Ull iii
3A. SALT...REFILLING STORAGE TANK/BREAKING A SALT BRIDGE
......................... hi' ii n i,, ,i ,,,,ll,l,rll
n ' ' nl "' u ul
WHEN TO REFILL WITH SALT
The Salt Monitor System (see page 10) will turn on
the low salt light to warn you when to refill with
salt. Check for a low salt light a few weeks after you
install the softener, and every week after thatr
Always refill at about the #2 salt monitor level. At
this level, the tank is about 1/3 full. Never let the
softener use all the salt before refilling_ Without
salt, you will soon have haid water.
NOTE:
You will have a loss in softening capacity and may
get partly hard water if less than 10 inches (salt
monitor level 2) of salt is in the storage tank.
PLEASE SEE PAGE 9 FOR SALT FILLING DIRECTIONS.
BE SURE TO RESET THE SALT MONITOR, PAGE 10.
SALT BRIDGE
Sometimes, a hard crust or salt bridge forms in the
salt storage tank. It is usually caused by high
humidity or the wIong kind of salt. When the salt
bridges, an empty space forms between the water
and salt. Then salt will not dissolve (melt) in the
water to make brine. Without brine, the resin bed
does not regenerate and you will have hard water.
If the storage tank is full of salt, it is hard to tell if
you have a salt bridge. Salt is loose on top, but the
bridge is under iL The following is the best way to
check for a salt bridge.
Salt should be loose all the way to the bottom of the
tank. Hold a broom handle, or like tool, up to the
softener as shown in FIG. 9. Make a pencil mark on
the handle, 1" or 2" below the top height of the rimr
Then, carefully push it straight down into the sail
If a hard object is felt before the pencil mark gets to
the top of the tank, it's most likely a salt bridge.
Carefully push into the bridge in a few places to
break iL Do not try to break the salt bridge by
pounding on the outside of the salt tank. You may
damage it.
If the wrong kind of salt made the bridge, take it
out. Then fill the tank with nugget or pellet salt
only.
SALT BRIDGE
push tool ;nto salt
bridge to break
1" _ 2 t_
L_
T7
Pencil
Mark
J
Broom Handle
Salt
Salt Bridge
Water Level
15
SECTION 3 CA.EOFYOURSOFTE.ER
[ I
3B. KEEPING THE WATER SOFTENER CLEAN
COVERS
To keep your new Kenmore water softener looking
nice, apply a coat of paste wax and repeat once a
year. When dusty, wipe it with a damp cloth to
keep it sparkling.
NOTE:
Never use cleaners having amanonia or abrasives.
They may scratch and dull the surfacer
NOZZLE & VENTURI
A clean nozzle and venturi (FIG. 10) is a must for
tile softener to work right° This small unit moves
brine from the salt storage tank to the resin tank
during regeneratJon_ If it becomes plugged with
sand, silt, dirt, etc,, tile softener will not work and
you wilt get hard water.
To get to the nozzle and vent-uri, remove the
softener top cover. Be sure the softener is in service
cycle (no water pressure at nozzle and venturi),
then turn off the cap from the nozzle and venturi
housing_ Do not lose the large o-ring seal Lift out the
screen support and screen, then the nozzle and
venturi. Wash and rinse the parts in warm water
until clean. If needed, use a small brush to remove
iron or dirt. Also check and clean the gasket, flow
plugs and screen&
Carefully replace all parts in the correct order_
Lubricate the o-ring seal with silicone grease or
Vaseline and place in position° Install and tighten
the cap, by hand only. Do not overtighten and
break the cap or housing.
CLEANING THE NOZZLE &
VENTURI
coo @
O-ring Seat _-_.._..._ _.=
v
Screen Support -_._...._ _%
Screen ,4-, "Flow Plug
(1 EP)
Nozzle & Venturi "--__ -_S
Screen
Gasket ._... /
IMPORTANT: Be sure small "_ "_.._
ho_es in 1ha gasket are cen-
tered directly over the small
holes in the nozzte & venturi
housing
*FIow Ptug
(HVDC)
Nozzle & Venturi
Housing
*lnstatl with numbered stde up concave
side down, Be sure the largest !low plug is
located in the nozzle & venturi housing
IRON FROM THE RESIN BED
Your water softener takes hardness minerals (cal-
cium and magnesium) out of the watei: Also, it can
contro! some "clear water" iron. See maximum
allowed in the specifications on page 19. With clear
water iron, water from a faucet is clear when first
put into a glass. After 15 to 30 minutes, the water
begins to cloud or turn rust colored. A water
softener WILL NOT remove any iron which makes
the water cloudy or rusty as it comes from the
faucet (called red water iron), To take red water
iron out of water, or over the maximum of clear
water iron, an iron filter or other equipment is
needed. Your local Seazs store has trained people to
help you with iron water problems.
If your water supply has clear water iron, even
though less than the maximum allowed, regular
resin bed cleaning is needed° Sears has resin bed
cleaner, Item No_ 42-34426 for this. Clean the bed at
least every 6 months_ If iron shows up in the soft
water before 6 months, clean more often. Printed
instructions are on the resin bed cleaner bottle_
16
SECTION 3 CAREOFYOURSOFTENE.
3C. KEEP THE SOFTENER FROM FREEZING
...... ,i i,, ,,,_,,.n;_ .... ,,,i i, i, i, ,i, ,,1111iii ..._._.._alJ ii, i , ,ll.,i
If the softene_ is installed where it could freeze
(summer cabin, lake home, etc,), you must drain all
water from it to stop possible freeze damage To
drain the softener
1. Close the shut-off valve on the house main
water pipe, near the water meter or pressure
tank°
2. Open a faucet in the soft water pipes to vent
pressure in the softener_
o
Refer to FIG. 12 on page 194 Move the stem in a
single bypass valve to bypass, Close the inlet
and outlet valve in a 3-valve bypass system,
and open the bypass valve_ If you want water in
the house pipes again, reopen the shut-off
valve on the main water pipe.
4. Unplug the transformer at the wal! outlet
Remove the salt hole cover and the main cover.
Xhke off both drain hoses°
5,
Carefully remove the large holding clips at the
softener inlet and outlet (see Key No, 61, on
page 30), Separate the softener from the adap-
tors or bypass valve.
o Remove the brinewell cover and disconnect the
brine valve tubing at the nozzle and ventu_i
assembly (see page 30). Lift the brine valve out
of the brinewello Tip the brine valve upside
down to drain out water.
,
8_
DRAIN WATER FROM THE
SOFTENER
Drain Wood Block
I
Looking at FIG. 11, lay a piece of 2 inch thick
board near the floor drain° Move the softener
close to the drain, SLOWLY and CAREFULLY
tip it over until the rim rests on the wood bIock
with the inlet and outlet over the drain, Do not
allow the softener's weight to rest on the inlet
and outlet fittings or they will break.
Tip the bottom of the softener up a few inches
and hold until all water has drained, Leave the
softener laying like this until you are ready to
use it, Plug the inlet and outlet with rags to
keep dirt, bugs, ete, out,
17
SECTION CAREOFYOUR
SOFTENER
3D, HELPFUL HINTS CHECKLIST
,., TO HELP YOU SAVE MONEY
If your water softener fails to work, make the following easy checks, Often, you wilt find what's wrong
yourself and you won't have to call and wait for service. If you do not find anything wrong, -while making
the checks, and your softener still does not work, call your Sears Service Department.
NOTES:
1_Also read ERROR CODE, page 11.
2. If an error code is not dispIayed, press and hold the SELECT button for several seconds until a flashing SR
code appears. It must show SR31o If SR 17, 22, 39 or 60 shows, the face plate computer is working on incor-
rect input and would probably be the cause of the problem. To set SR31, press either the UP [_or DOWN []
button° When SR31 shows, press SELECT to return a flashing 12:00 AM display_ Reset the present time, hard-
ness number and recharge time, pages 6 and 7.
You can find the model number of your water softener on the rating decal, on the brine tank rim, See page
28,
PROBLEM
NO SOFT WATER
WATERHARD
SOMETIMES
CAUSE
No salt (or salt bridged) in the
storage tank
Transfomer unplugged at the wail
outlet, or power cable leads loose,
fuse blown, circuit breaker popped,
or circuit switched off.
Manual bypass valve(s) in bypass
3osition
Dirty, plugged or damaged nozzle &
ventud
"_al_ drNn hose plugged
Hardness number setting too low
Using hot water when softener is
regenerating
Increase in the grains of hardness in
your water supply
CORRECTION
Refill with salt, or break the saIt bridge (page 15)oPress
ON/OFF-HOLD (RECHARGE NOW) button and hold for
3 seconds to start a regeneration (see page t 0).
Check for loss of power due to any of these and correct.
With the power back on, look at the time display and
read PROGRAM MEMORY, page 11_
Look at FIG. 12 on page 19. Move the stem in a single
valve to ser¢ice. In a 3-valve bypass, open the inlet and
outlet valves, and be sure to fully close the bypass valve.
Take apart and clean or replace damaged parts (see
page 16).
The drain hose must not have kinks, sharp bends, or be
raised too high above the softener (see page I6 in your
installation manual)°
Press and release the SELECT button until HARDNESS
shows in the display. Read the hardness number in the
display and be sure the same grains per gallon number
is shown on your water analysis report. See page 7 to
reset. Press and release the SELECT button until the
3resent time shows in the display.
Avoid using hot water during this time because the
water heater refills with hard water (see Automatic
Bypass, page 14)_
Ask your Sears retail or catalog store for a new water
analysis. Then make a new hardness number setting
(page 7).
18
SECTION 4 OTHE.THINGSTOKNOW
t_
i !
4A. DIMENSIONS/SPECIFICATIONS
BYPASS VALVES
J SINGLE-PLASTIC
_<'-_/il I I I OUTWAeD
SE_CE
>x'_ _nward
_.,,,,/ /_\ For
A \\ ey_
SING_-BRASS
Inward
For
Bypass
tSERVICE
_VALVE
SERVICE
Close Bypass Vatve
Open Inlet & Outlet Vatves
BYPASS
Open Bypass Valve
Close _nlet & Outlet Valves
Bypass
Vatve
Inlet
Valve
..../ 2
!
f
l
1
I
t
I
1
t
l
I
t
I
1
x
% .#
E
D
C
A . Salt Tank Height ....
B Resin Tank Diameter (nominal)
C Resin Tank Height (nominal._)
D Inlet-Outlet Height
E 0verall Heig_ht
Fi Length
F2 Width
-- Distance between inlet-outlet
center lines
INCHES CM
40:1g.4 . 102._.2
9 22.7
40 101.6
41-1/2 105.4
46 1163
19-1/2 49°5
16-1/2 41.9
3-3/8 8.6
MODEL NO. 625.348571 AND 625.348591
TIMER SR CODE SR31
NOTE: Please see the rating decal for water softener operating capacity, salt usage and service flow rate/
pressure loss performance specifications, Performance specifications are validated by the Water Quality
Association (WQA), The rating decal is located on the rim, under the salt hole cover (see page 28),
WATER SUPPLY TO WAT_ER SOFTENER
MINIMUM WATER SYSTEM FLOW (gpm) 3
MINIMUM-MAXIMUM WATER PRESSURE (psi) 20-120
MAXIMUM WATER TEMPERATURE (SF) t20
MAXIMUM WATER HARDNESS (gpg) 110
MAXMUM "CLEAR WATER" IRON (pprn) 7
SALT FOR WATER SOFTENER
TYPE OF SALT NEEDED Nugget/Pellet
ALTERNATE TYPE OF SALT Pure, evaporated, compacted
water softener salt
STORAGE CAPACITY (pounds) 200
OTHER SS
TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity
AMOUNT OF RESIN (cu.ft,) 1,0
REGENERATION (RECHARGE) CYCLE TIME (rain,)
FILL 27-103
BRiNING/BRINE RINSE 97-106
BACKWASH 7
FAST RINSE 3
TOTAL REGENERATION TIME m 10974 263
gpm = gallons per minute psi = pounds per square inch
gpg = grains per gallon ppm = parts per million
Does not include CLEAN feature cycle times if set to ON,
19
SECTIO 5 SERVICETECH.INFORMATION
| i
5A. TROUBLESHOOTING
Keep this manual with your water softener.. If repairs are needed, the service technician must have the in-
formation on the following 8 pages, For telephone assistance, call toll free, 1-800-426-9345
WIRING SCHEMATIC
BACK OF TIMER
(PWA)
FACEPLATE
Turbine _J
Sensor
AClttPL_
O0 c-_,__
I H
pos t IUKS#_Q _]on
DO
_rn
o.,._ NC Position
bm eNO Switch
Motor,24VAC
©
f
_zvtm _L
Deluxe Demand Water Softener
Sears Water Line
for Customer Assistance
1-800-426-9345
SALT
with Dual Segment Electronic Display
ALWAYS MAKE THESE INITIAL CHECKS FIRST
1. Does the time display show the correct time of day?
.
°
4_
--If display is blank, check power source to the soft-
enei.
--Iftime is flashing, power was off for over 24 hours,
The softener resumes normal opeiation but zegen-
erations occur at the wrong time.
---If an error code (Example: EI:_3) shows in the face
plate display, go to AUTOMAWC ELECTRONIC
DIAGNOSTICS.
Plumbing bypass valve(s) must be in Full Service
position.
The inlet and outlet pipes must connect to the softener
inlet and outlet _espectively
Is the transformer plugged into a "five", grounded
wall outlet, and the power cable fastened securely?
The valve drain hose must be bee of kinks and shaIp
bends, and not elevated over 8 ft above the floor,
REMOVE THE TOP COVER AND SALT TANK COVER
6. Is there salt in fire storage tank?
7_ Is the brine tubing connected? (See water flow
diagrams).
8, Is the brine valve float set right? (See page 23)
,
Press the SELECT button 2 times to display the
hardness setting° Be sure it is the correct setting foi the
household's water supply. (Make a hardness test of
the raw water and compare with the hardness setting
Also test a soft water sample to verify if a problem
exists.) Press the SELECT button twice moie to return
to present time in the display.
If you do not find the problem after making initial checks,
do the MANUAL INITIATED ELECTRONIC DIAGNOS-
TICS, and the MANUAL. ADVANCE REGENERATION
CHECK.
20
SECTION 5 SERVICE TECH INFORMATION
I P
,,, ','', ,,,._, ii, n,i, i ....... ii i, ,1' i1,,,,i :ill
5A. TROUBLESHOOTING
AUTOMATIC ELECTRONIC DIAGNOSTICS
The face plate computer has a self-diagnostic
function for the electrical system (except input
power and water meter)° The computer monitors
the electronic components and
circuits for correct operation. If _l- t- I
a malfunction occurs, an error
code appears in the face plate
display.
The chart below shows the error codes that could
appear, and the possible defects for' each code.
While an error code appears in the display, all face
plate buttons are inoperable except the SELECT
button. SELECT remains operational so the service
person can make the MANUAL INITIATED ELEC-
TRONIC DIAGNOSTICS (below) to further isolate
the defect, and check the water meter.
CODE
Err1 Err2
Err3 Err4
Err5
POSSIBLE DEFECT
MOST LIKELY ,_ _ LESS LIKELY
motor inoperative / wiring harness or connection to switch / position switch / valve defect
causing high torque
face plate
PROCEDURE FOR REMOVING ERROR CODE FROM FACE PLATE: 1.1Unplug transformer' Z Correct defect
3. Plug in transformer 4 Wait for 6 minutes. The error code will return if the defect was not corrected
MANUAL INITIATED ELECTRONICS
DIAGNOSTICS
1. To enter diagnostics, press the SELECT button
and hold for 3 seconds.
You wilt see the following display, showing valve
cycle position, position switch status (open or
closed), and turbine operation.
vane position indicator turbine count (wa-
ter flowing)
position switch
indicator (open)
turbine count (no
water flowing)
TURBINE OPERATION: If no water is flowing
tt'Lrough the softener, the turbine indicator displays
3 zeros° When water is flowing, the flow bar scrolls
across the display, and a 000 to 199 count repeats
for each gallon of water passing through the
turbine. _Ib check for positive operation of the
turbine if zeros are shown, open a nearby soft
water faucet and observe the t_arbine count and
flow bar_
If you don't get a reading in the display, with facue_
open, pull the sensor from the valve outlet port°
Pass a small magnet back and forth in front of the
sensoL You should get a reading in the display° If
you get a reading, unhook the in and out plumbing
and check the turbine for binding.
POSITION SWITCH STATUS: With the valve in
service, or any of the recharge cycles, the switch
indicator will show open -,',-. While the valve is
rotating from 1 position to anothei, the indicator
will show the switch closed --",-. A defect is
probable if indications vary from this pattern,
21
SECTION 5 SERVICETECH.I.FORMAT O.
5A. TROUBLESHOOTING
VALVE POSITION INDICATORS: Depending on
the valve position, the following indicators show
in the display:
INDICATOR VALVE POSITION
Serv .......... service
Fill ............. filt
Brine ......... brining/brine rinse
Bkwsh .......... backwash
Rinse ......... fast rinse
When the valve is rotating from 1 cycle to anothei,
both indicators flash. For example, if the valve is in
transition between fill and brining, both Fill and
Brine flash° Upon react-ring brining position, Fill
goes off and Brine is on steady, The time display
shows the minutes of the cycle remaining°
NOTE: If the face plate is ieft in a diagnostic
Idisplay (or a flashing display when setting times
[or hardness), present time automatically returns
lif a button is not pressed within 4 minutes. To
Ireturn to the diagnositc display, repeat step 2.
OTHER INFORMATION: While in this diagnostic
screen, the following information is available and may
be beneficial for various reasons. This information is
retained by the computer from the first time electrical
power is applied to the face plate.
°_Press the UP button to display the number of
days this face plate has had electrical power
applied.
_.,Press the DOWN button to display the number
of regenerations initiated by this face plate since
the SR code number was entered,
.
=
Press the ON/OFF-HOLD button to advance
the valve to each position and obseive the
switch and position indicators to vei ify compo-
nent operation, or to possibly isolate a defect
Press and hold the SELECT button for 3
seconds until
5r31
...SR31 shows.
This code identifies the softener nominal capacity
size_ If the wrong number show's, the softener will
operate on incorrect programming, Do the follow-
ing as needed°
SR31 does show _ Press the SELECT button to
return the present time display,
To change SR number-- Press the UP or DOWN
button until SR31 shows. Then, press the SELECT
button and reset the timer,_,page 6.
FACE PLATE REPLACEMENT: BE SURE THE VALVE IS IN
SERVICE POSITION (OBSERVE VALVE CYCLE INDICATOR)
WHEN REPLACING THE FACE PLATE.
If, after installing and programming the replacement face
place, the valve is not in service position, do the following
to assure correct cycle orientation, or timing, between the
face plate and valve.
Use the MANUAL ADVANCE procedures, page 23° With
the RECHARGE NOW button, advance through the re-
charge cycles until the valve stops in service position, and
RECHARGE no longer flashes in the timer.
NOTE: The valve motor may automatically drive through
several valve positions while searching for service_ If an er-
ror code occurs, unplug the transformer', then plug in
again.
J
J.rl0 NI
CAM
position
markers
22
SECTION 5 SERV,CETECH,NFORMAT,ON
L I
.............. lUl
,,,,,,, iii, i,, i
5A. TROUBLESHOOTING
,,,,,,,,,,,,,;,;;,.............. _ _ ,,,,, i .... n,u, u,,,,u,,,r,
MANUAL ADVANCE REGENERATION CHECK
This check verifies proper operation of the valve
motor, brine tank fill, brine draw; regeneration
flow iates, and other controller functions. Always
make the initial checks, and the manual initiated
diagnostics,
NOTES: The face plate display must show a steady
time (not flashing). If an Error code shows, first
press the SELECT button to enter the diagnostic
display,
1. Press the ON!OFF-HOLD button and hold in
for 3 seconds° *RECHARGE and Fill begin to
flash as the softener enters the fill cycle of
regeneration. When Fill is on stead}; remove
the brinewelt cover and, using a flashlight,
observe f!I! water entering the tanL
*NOTE: If the CLEAN feature is set to ON, a
cleaning backwash (CLEAN and Bkwsh or Rinse
flashes in the display, along with the minutes of the
clean cycle remairdng), precedes the recharge.
a, If water does not enter the tank, look for an ob-
structed nozzle, venturi, fill flow plug, brine
tubing, or brine valve riser pipe.
CYCLE FLOW RATES (GALLONS PER MIN.)
FILL (flow to salt storage tank) 0°3 (11 liters)
BRINING "_ ,16 (°6 liters)
BRINE RINSE I A 1 (.4 liters)
BACKWASH (flow to drain) t8 (68 liters)
FAST RINSE 1.8 (6.8 liters)
2. After observing fill, press the ON/OFF-HOLD
button to move the softener into brining. A
slow flow" of water to the drain will begin.
Verify brine draw horn the brine tank by
shining a flashlight into the brineweI1 and
observing a noticeable drop in the liquid level.
NOTE: Be sure a salt bridge is not preventing
water with salt contact,
a. If the softener does not draw brine ....
,_, nozzle and/or venturi dirty or defective°
.o.nozzIe and venturi not seated properly on
gasket°
o,,restricted drain (check drain fitting and
hose),
,.,defective nozzle and venturi seal
o.,other inner valve defect (rotor seal, rotor &
disc, wave washer, etc.),
NOTE: If water system pressure is low, an elevated
drain hose may cause back pressure, stopping
brine draw,
m
Again press ON/OFF-HOLD to move the
softener into backwash° Look for a fast flow, of
water from the drain hose.
a. An obstructed flow indicates a plugged top dis-
tributor, backwash flow plug, or drain hose,
4. Press ON/OFF-HOLD to move the softener
into fast rinse. Again look for a fast drain flow.
Allow the softener to rinse for a few minutes to
flush out any brine that may remain in the resin
tank from the brining cycle tesL
5. To return the softener to service, press ON/
OFF-HOLD,
BRtNE VALVE
FLOAT SE'I_|NG
! ,
FREEBOARDMEASUREMENT
(Distance from top of resin J_ to top of
resin
[
FREEBOARD
7"-11"
Resin Tank
Resin Bed
23
SEOTBON 5 SERV,CETEC,.,NFORMAT,O,
[ ,J
5B. ROTARY VALVE SERVICE
Before working on the valve, turn off the water
supply and disconnect from electrical power. TO
RELIEVE PRESSURE:
--3 VALVE BYPASS: Close the inlet valve and
open a soft water faucet. Then close the outlet valve
and open the bypass valve.
--SEARS SPECIAL BYPASS: Slide the bypass
valve stem to bypass position. Loosen the 3 hex
head screws (see A in drawing) toward the back
side of the valve to allow pressure water to bleed
out Catch water with a rag.
DISASSEMBLY
]b remove a part or group of parts, refer to the
valve drawing. A common screwdriver or nut
driver, Phillips screwdriver and pliers are the only
tools needed to completely disassemble.
SERVICING THE VALVE
Inspect all o-rings, seals and gaskets for wear or
defects.
tightening the screws, install the valve cam and
gear_ Then, turn the rotor (clockwise only) to
service position. Tighten the screws using a criss-
cross pattern. If a torque wrench is available,
torque to 30-40 inch poundsr
Lubricate the gear on the motor, and the valve cam
gear with Motykote grease, or other high quality
gear lubricant.
Be sure to orient ;witch as shown, with lever
toward the cam°
valve cam
Inspect the bottom surface of the rotor and disc for
scratches, chips or wear.
NOTE: If replacement is needed, be sure to use the
current replacement part.
ASSEMBLY
Be sure all parts are in place and in the proper
position. Lubricate ALL o-rings and seals with
FDA approved silicone grease. To install the rotor
seal, first place the seal into the valve groove,
rounded side down (see cross-section). Apply a
light coating of silicone grease to the seal's crossing
ribs. Then, carefully center the wear strip on the
seat, and push it downward onto the seal.
Install the nozzle and venturi seal and drain seal
Assemble 2 o-rings and the wave washer onto the
rotor and disc. Then center the rotor and disc, in the
valve body, on the rotor seal
Lower the cover onto the valve body and rotor
shaft. Then install the cover holding screws_ Before
SEE NOZZLE
ASSEMBLY SERVICE,
PAGE 16
sci'e
flow p,tug (backwash
_, and fast rinse flow
(_ rate control}
24
SECTBON 5 SERVICE TECH INFORMATION
t ]
50 . WATER FLOW THROUGH THE SOFTENER VALVE
SERVICE CYCLE
To Valve Outlet
(softwater)
from Valve Inlet
(hard water)
distributor
resin tank
POSITION
Hard water enters the valve inlet port° Internal valve porting routes the
water down and out the top distributor, into the resin tank. Hard water is
softened as it passes through the resin bed, then enters the bottom
distiibutor. Soft water flows back into the valve and out the valve outlet, to
the house soft water pipes.
FILL CYCLE
position switch
ventud
valve cam
rotor & disc
fill flow
plug
fill water
(soft)
To Valve Outlet
(soft water)
resin
from Valve Inlet
(hard water)
top distributor
resin tank
bottomdistributor
To begin a regeneration, the electroic timer energizes the circuit to the valve
motor° The valve motor rotates the rotor and disc and the valve cam until the
position switch lever drops, to open the motor circuit and position the valve in
FILL. As the rotor and disc rotates, the port opens for SOFT water fill through
the venturL Fill flow continues to the brine valve, and into the salt storage
tank. Soft water is still available to the house lines,
25
SECTION 5 SERVICE TECH. INFORMATION
i i
5C, WATER FLOW THROUGH THE SOFTENER VALVE
BRINING AND BRINE RINSE CYCLES
bypass hard water
to valve outlet
ventud
nozzle
brine from
salt stor-
age tank
from ValveInlet
(hard water)
After fill, timer/switch action allows the motor to Urn the rotor and disc into
BRINING position, Water flow is directed to the nozzleo Suction, created by the
nozzle and venturi, draws brine from the salt storage tank and injects it into the
resin bed via the bottom distributor: Flow continues out the top dis_ibutor and to
the drain_ Hard water is available at the valve outlet°
When the brine valve closes to end brine draw water flow continues in the same
directions to slowly RINSE brine flom the resin bed and to the drain.
bypass hard water
to valve outlet
BACKWASH CYCLE
flow plug
drain
Timer/switch action again allows the motor to turn
the rotor & disc to place the valve in BACKWASH,
stopping water flow to the nozzle° Water is routed
down and out the bottom distributor, up through the
bed, and out the top distributor to the drain. The fast
flow (controlled by a flow plug in the drain fitting)
flushes dirt, sediments, iron deposits, remaining brine
and hardness to the drain.
f
\
26
$EGTIO 5 SERVICETECHINFORMATION
5C. WATER FLOW THROUGH THE SOFTENER VALVE
soft water
to valve outlet
FAST RINSE CYCLE
t
!
\
\
POSITION
During FAST RINSE, the rotor & disc is positioned so water flow enters the
resin tap2< through the top distributor, and exits through the bottom
distributor, to the drain
]-he electronic timer again energizes the motor to return the valve to
service. As the valve rotates, the position switch lever drops to open the
circuit. The valve remains positioned in service until the electronic timer
initiates the next regeneration
27
SECTION 6 REPAIRPARTS
KENMORE WATER SOFTENERS
MODEL NOS. 625.348571 AND 625.348591
Valve Assembly
page 30)
26
25
24
Rating Decal
Location
20
19
18
t7
15
14
13
16
KEY I
NO. I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
¢,
PART
NUMBER
7137604
7137612
7095373
7132840
7183451
7178464
7178749
7178757
7137599
7137727
7082150
7100819
7144619
7148875
0900431
1103200
9003500
7116488
7105047
0502272
7144952
7170270
7O7787O
7170254
7170296
7141001
7176292
7088033
7137913
7159931
7198993
DESCRIPTION
Cover (main)
Salt Hole Cover
Transformer, 24'7-10VA @.&
Power Cord (transformer)
Timer Repl (PWA)
Face Plate (order req'd decal)
Face Plate Decal, Mod 62&348571
Face Plate Decal, Mod 625,348591
Rim
Brinewell Cover
Wing Nut, 1/4"
Brinewell
Salt Storage Tank
Plastic Screw, 1/4" x 5/8"
Tube Clamp @A
Tube Adaptor @,&
Grommet @,dk
Brine Valve Assy_ (also see pg, 29)
Replacement Distributor
Resin
Resin Tank (incL Key No, 18)
O-Ring, 2_3/4" x 3"
Top Distributor
O-Ring, 13/16" x lq/t6"
O-Ring, 2-7/8" x 3-1/4"
Vapor Barrier
Clamp Section (2 req.)
Clamp Retainer (2 req)
Decal, Salt Level []
Cov..Lock (req'd. for shipment only)
Installation Manual
Owners Manual
_, not illustrated
@,& Included in parts bags° see page 31.=
[] Aligns with top of brinwelL
28
SECTION 6 REPAIRPARTS
! t
KENMORE WATER SOFTENERS
MODEL NOS. 625.348571 AND 625.348591
46
45
44
t BRINE VALVE
ASSEMBLY
30
32
33
34
35
37
38
43 l
_" ' 39
41
40
KEY I
NO, I
30 I
31 1
32 I
33 I
34 I
35 I
36 I
37 !
38 l
39 I
4O I
4
=
42
43
44
45
46
47
48
49
eA
PART
NUMBER
7168647
0513860
7097202
0516947
7093216
7092278
7170288
0516211
0516924
7116713
7092252
7080653
7131365
7094979
7092294
7092286
7095470
7113016
7171349
7112997
Included
DESCRIPTION
Float Weight, Ceramic
Float Stop
Float (includes key no 33)
Float Seal
Float Rod & Stem
Guide Cap
O-Ring 15/I6 x 1-3/16
Seal
Retainer, Bottom Seat
Clip
_rine Valve Body
Clip
Screen
Insert
Retaining Ring
O-Ring, 5/16 x 9/16
Brine Tube
Tubing Assy, (inctKey Nos 43, 44 & 45)
Cone Screen
Ground Clamp Kit O_,
in parts bags,, ,see page 31,
INLET- OUTLET 49
GROUNDING CLAMPS /
29
SECTION 6 REPAIRPA.TS
I ]
KENMORE WATER SOFTENERS
MODEL NOS° 625.348571 AND 625,348591
91
I
VALVE ASSEMBLY
58
59
6O
79
78
76
75
77
/
74
73
72
3O
SECTION 8 REPAIRPARTS
I ]
KEY
NO.
5O
51
52
53
54
55
56
57
58 ]
59
6O
61
62
63 1
64 _
i
65"-"
66
67
68
69
7O
71
72
73
74
75
76
77
78
[]
%
KENMORE WATER SOFTENERS
MODEL NOS. 625.348571 AND 625,348591
PART
NUMBER
713 t 755
7t 33008
0900857
7117808
0503288
7113927
7142942
0501228
7170327
7024160
0900431
7116713
0507369
0507615
7170335
42-3441
2207800
7170288
7134224
7170204
7092642
7129889
7081764
7082053
7170319
7081201
7081104
1202600
7095030
I 1148800
PARTS LIST
DESCRIPTION NO.
Screw, #6-20 x 7/8 (2 req.)
Motor (Includes 2 ea. of Key No.
5O)
Screw, #6-20 x 318 (2 req)
Motor Plate
Bearing
Cam and Gear
Clip (Drain)
Flow Plug
O-Ring, 5/8 x 13/16
Drain Hose Adaptor
Tube Clamp @A
Clip (2 req..) @A
Installation Nut (2 req) _ []
Installation Tube (2 req ) A []
Washer (2 req..) .& m
Install.. Kit (InCl Key Nos 62, 63 & 64) []
Installation Adaptor (2 reqo) @[]
O-Ring, t5116 x 1-3/16 (2 req..) @E_
Rotor Seal
O-Ring, 3/8 x 9/16
Plug (Drain Seal)
Spring
Seal (Nozzle & Venturi)
Valve Body
O-Ring, 114x 3/8 (2 req.)
Retainer (Nozzle & Ventufi)
Nozzle & Venturi Housing
Nut -- Ferrule
Cone Screen
Flow Plug, .3 gpm
Parts included with Model No 625.348591 only.
Parts included with Model No. 625.348571 only
PART
NUMBER
79 7187772
- 7163663
80 7146043
81 7167659
82 7170262
83 7081188
84 0521829
85 7170246
86 7199232
87 7082087
88 7170212
89 7170238
90 7085263
91 7074123
92 7077472
93 7030713
94 7117816
95 7070412
96 7173707
97 2204101
98 7117858
99 9000803
@ 7187065
@ 7147112
@ 7144821
7129716
42-3433
@notillustrated
DESCRIPTION
Nozzle and Venturi -- Gasket Kit
Gasket (only)
Screen
Screen Support
O-Ring, 1-1/8 x 1-3/8
Cap
Flow Plug, .1 gpm
O-Ring, 3-3/8 x 3-5/8
Rotor & Disc
Wave Washer
O-Ring, 3/4 x 15/16
O-Ring, 7/16 x 5/8
Valve Cover
Screw, #10-14 x 2 (5 req)
Expansion Pin
Switch
Spacer
Screw, #4_24 x 1-1/8 (flat head)
Sensor Housing
Turbine Support and Shaft
Turbine
O-Ring
Nozzle & Venturi Assy. (Includes
Key Nos.. 75, and 77 through 84)
Parts Bag, Model No. 625.348571
(Includes parts marked with a @,
pages 28, 29 & 31) -- order manu-
als separately, if needed.
Parts Bag, Model No. 625°348591
(incL parts marked with a ._ pages
28, 29 & 31) -- order manuals sep_
arately, if needed.
Seat Kit (includes Key Nos. 67, 68,
71,85, 88 and 89}
Drain Tube, 3/8" I.D_x 20' Ak[.Tj
BYPASS INSTALLATION VALVE
MODEL NO. 625.34372
KEY
NO.
oo
101
102
103
104
PART
NUMBER
0502206
7129863
7105013
7130911
7170288
DESCRIPTION
Retainer Ring
Bypass Body
O-Ring, 13/16 x I (4 reqo)
Stem
O-Ring, 16/I6 x t-3/16 (2 req)
42-3437 .Bypass Valve (Complete) ,&.[Z]___
31
103
/
104
102
101
100
I
MODEL NOS.
625.348571
625.348591
The model number of
your water softener is
found on the rating de-
cato This decal is on the
rim, under the salt cover°
When requesting service
or ordering parts, always
provide the following in-
formation:
Product Type
_, Model Number
e, Part Number
_, Part Description
Deluxe Demand Water Softeners
For the repair or replacement parts you need
delivered directly to your home
Call 7 am - 7 pm, 7 days a week
1 - 800 - 366 - PART
(1 - 800 - 366 - 7278)
For in-home major brand repair service
Call 24 hours a day, 7 days a week
1 - 800 - 4 - REPAIR
(1 - 800 - 473 - 7247)
For the location of a
Sears Parts and Repair Center in your area
Call 24 hours a day, 7 days a week
1 - 800 - 488 - 1222
For information on purchasing a Sears
Maintenance Agreement, or to inquire
about an existing Agreement
Call 9 am - 5 pm, Monday - Saturday
1 - 800 - 827 - 6655
America's Repair Specialists
SEARS
Sears, Roebuck and Co., Hoffrnan Estates, IL 60179 U.S.A.
7198993 (4/98)
