Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352

A06823437September 2023

use

care

Microwave Oven

Introduction. . . . . . . . . . . . . . . . . . 2

Cleaning And Care

. . . . . . . . . . .

19-21

Precautions Microwave Energy . . . . . . . 3

Service Call Check . . . . . . . . . . . . .

Important Safety Instructions. . . . . . .

4-7

. . . . . . . . . . . . . . . .Warranty

Maintenance

. . . . . . . . . . . . . .

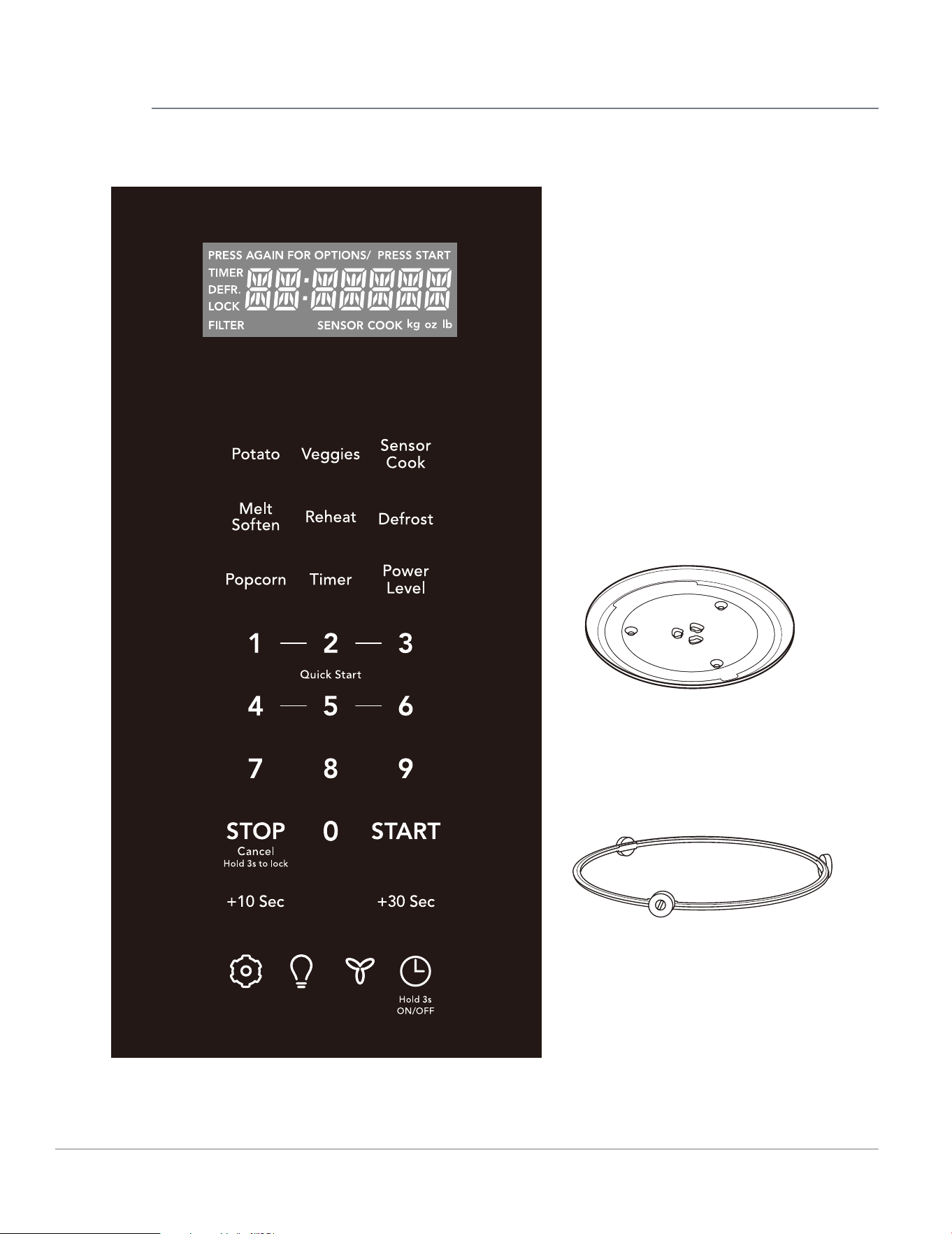

Names Of Oven Parts And Accessories . .

Operation

. . . . . . . . . . . . . . . . . 9

-17

INTRODUCTION

Thank you for bringing Frigidaire into your home!

We see your purchase as the beginning of a long

relationship together.

This manual is your resource for the use and care

of your product. Please read it before using your

appliance. Keep it handy for quick reference. If

something doesn’t seem right, the troubleshooting

section will help you with common issues.

FAQs, helpful tips and videos, cleaning products, and

kitchen and home accessories are available at www.

frigidaire.com.

We are here for you! Visit our website, chat with an

agent, or call us if you need help. We may be able

to help you avoid a service visit. If you do need

service, we can get that started for you

Let's make it ocial! Be sure to register your prod-

uct.

Keep your product info here so it’s easy to ﬁnd.

Model Number:

Serial Number:

Purchase Date:

Serial Number Location

Let’s make it official! Be sure to register your product.

Visit us at Frigidaire.com/register

Or use your mobile device to scan the QR code.

Welcome to our

family

Do not attempt to operate this oven

with the door open since open door operation can

result in harmful exposure to microwave energy. It

is important not to defeat or tamper with the safety

interlocks.

Do not place any object between the oven front

face and the door or allow soil or cleaner residue to

accumulate on sealing surfaces.

Do not operate the oven if it is damaged. It is

particularly important that the oven door close

properly and that there is no damage to the:

(1) DOOR (bent)

(2)HINGES AND LATCHES (broken or loosened)

(3)DOOR SEALS AND SEALING SURFACES.

The oven should not be adjusted or repaired by

anyone except properly qualified service

personnel.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

WARNING

To reduce the risk of burns, electric shock, fire,

injury to persons or exposure to excessive

microwave energy:

This device complies with part 18 of the FCC Rules.

RADIO INTERFERENCE

• Operation of the microwave oven may cause

interference to your radio, TV or similar

equipment.

• When there is interference, it may be reduced

or eliminated by taking the following measures:

- Clean door and sealing surface of the oven.

- Reorient the receiving antenna of radio or

television.

- Relocate the microwave oven with respect to

the receiver.

- Move the microwave oven away from the

receiver.

- Plug the microwave oven into a different outlet

so that microwave oven and receiver are on

different branch circuits.

UTENSILS

CAUTION

• Personal Injury Hazard

• Tightly-closed utensils could explode. Closed

containers should be opened and plastic pouches

should be pierced before cooking.

• See the instructions on "Materials you can use in

microwave oven or to be avoided in microwave

oven."

There may be certain non-metallic utensils that are

not safe to use for microwaving. If in doubt, you

can test the utensil in question following the

procedure below.

Utensil Test:

- Fill a microwave-safe container with 1 cup of

cold water (250ml) along with the utensil in

question.

- Cook on maximum power for 1 minute.

Carefully feel the utensil. If the empty

utensil is

warm, do not use it for microwave cooking.

- Do not exceed 1 minute cooking time.

SAVE THESE INSTRUCTIONS

(Only for USA)

PRECAUTIONS MICRO WAVE ENERGY

WARNING

Indicates a potentially hazardous situation which,

if not avoided, may result in death or serious

inju

ry.

CAUTION

Indicates a potentially hazardous situation

which, if not avoided, may result in minor or

moderate injury.

IMPORTANT

Indicates installation, operation or main-tenance

information which is important but not hazard-

related.

Read all instructions before using this appliance.

This manual contains important safety symbols and instructions. Please pay at-tention to these symbols

and follow all instructions given.

Do not attempt to install or operate your appliance until you have read the safety precautions in this

manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based

on the risk type.

Warnings and important instructions ap-pearing in this guide are not meant to cover all possible

conditions and situations that may occur. Common sense, caution, and care must be exercised with

installing, maintaining, or operating your appliance.

DEFINITIONS

This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible injury or death.

NOTE

Indicates a short, informal reference – something

written down to assist the memory or for future

reference.

NOTE

ELECTRICAL

REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz,

1.5 kilowatts and 13.5 amps.This product must be

connected to a seperate and dedicated supply

circuit of the proper voltage and frequency. Wire

size must conform to the requirements of the

National Electrical Code or the prevailing local

code for this kilowatt rating. The power supply

cord and plug should be brought to a seperate

and dedicated 15- to 20-ampere branch circuit

single grounded outlet. The outlet box should be

located in the cabinet above the microwave oven.

The outlet box and supply circuit should be

installed by a qualifed electrician and conform to

the National Electrical Code or the prevailing local

code.

IMPORTANT

1. If you have any questions about the grounding

or electrical instructions, consult a qualified

electrician or service

person.

2. Neither Electrolux nor the dealer can accept

any liability for damage to the microwave oven

or personal injury resulting from failure to

observe the

correct electrical connection

procedures.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety

precautions should be followed, including the

following:

WARNING

To reduce the risk of burns, electric shock, fire,

injury to persons or exposure to excessive

microwave energy:

• Read all instructions before using the appliance.

• Read and follow the specific:

"PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY" found on page 3.

• This appliance must be grounded. Connect only

to properly grounded outlet. See

"GROUNDING INSTRUCTIONS" found on page 6.

• Install or locate this appliance only

in accordance with the provided installation

instructions.

• Some products such as whole eggs and sealed

containers - for example, closed glass jars - are

able to explode and should not be heated in this

oven.

• Use this appliance only for its intended use as

described in the manual. Do

not use corrosive chemicals or vapors in this

appliance. This type of oven is specifically

designed to heat, cook or dry food. It is not

designed for industrial or laboratory use.

• HOT CONTENTS CAN CAUSE SEVERE BURNS.

DO NOT ALLOW CHILDREN TO USE THE

MICROWAVE. Use caution when removing hot

items.

• Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly, or if it

has been damaged or dropped.

• This appliance should be serviced only by

qualified service personnel. Contact nearest

authorized service facility for examination, repair,

or adjustment.

• Do not cover or block any openings on the

appliance.

• Do not store this appliance outdoors. Do not use

this product near water - for example, near a

kitchen sink, in a wet basement, near a swimming

pool, or similar location.

• Do not immerse cord or plug in water.

• Keep cord away from heated surface.

• Do not let cord hang over edge of table or

counter. When cleaning surfaces of door and

oven that comes together on closing the door,

use only mild, nonabrasive soaps, or detergent

applied with a sponge or soft cloth.

• To reduce the risk of fire in the oven cavity:

- Do not overcook food. Carefully attend appliance

when paper, plastic, or other combustible

materials are placed inside the oven to facilitate

cooking.

- Remove wire twist-ties from paper or plastic bag

before when placing bag in oven.

- If material inside of the oven ignite, keep oven

door closed, turn oven off, and disconnect the

power cord, or shut off power at the fuse or circuit

breaker panel.

- Do not use the cavity for storage purposes. Do not

leave paper products, cooking utensils, or food in

the cavity when not in use.

• Liquids, such as water, coffee, or tea are able to be

overheated beyond the boiling point without

appearing to

be boiling. Visible bubbling or boiling when the

container is removed from the microwave oven is

not always present. THIS COULD RESULT IN VERY

HOT LIQUID SUDDENLY BOILING OVER WHEN THE

CONTAINER IS DISTURBED OR A UTENSIL IS

INSERTED INTO THE LIQUID. To reduce the risk of

injury to persons:

• Do not overheat the liquid.

• Stir the liquid both before and halfway through

heating it.

• Do not use straight-sided containers with narrow

necks.

• After heating, allow the container to stand in the

microwave oven for a short time before removing

the container.

• Use extreme care when inserting a spoon or other

utensil into the container.

• Oversized food or oversized metal utensils should

not be inserted in a microwave oven as they

may create a fire or risk of electric shock. Do not

clean with metal scouring pads. Pieces can burn off

the pad and touch electrical parts involving a risk of

electric shock.

• Do not store any materials, other than

manufacturer's recommended accessories, in this

oven when not in use.

• Do not cover racks or any other part of the oven

with metal foil. This will cause over- heating of the

oven.

• Clean Ventilation Hoods Frequently -Grease should

not be allowed to accumulate on hood or filter.

• When flaming foods under the hood, turn the fan on.

• Use care when cleaning the vent-hood filter.

Corrosive cleaning agents, such as lye-based oven

cleaners, may damage the filter.

• Suitable for use above both gas and electric cooking

equipment.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of

electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord

having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly

installed and grounded.

WARNING

Improper use of the grounding can result in a risk

of electric shock.

Consult a qualified electrician or serviceman if the

grounding instructions are not completely

understood, or if doubt exists as to whether the

appliance is properly grounded. If it is necessary to

use an extension cord, use only a

3-wire extension cord that has a 3-blade grounded

plug, and 3-slot receptacle th

at will accept the

plug on the appliance.The marked rating of the

extension cord shall be equal to or greater than the

electrical rating of the appliance.

DANGER

Electric Shock Hazard

Touching some of the internal components can

cause serious personal injury or death. Do not

disassemble this appliance.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT

1. If you have any questions about the

grounding or electrical instructions, consult a

qualified electrician or service person.

2. Neither Electrolux nor the dealer can accept

any liability for damage to the microwave

oven or personal injury resulting from failure

to observe the

correct electrical connection

procedures.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in

electric shock. Do not plug into an outlet until

appliance is properly installed and grounded.

• A short power supply cord is provided to reduce

the risks resulting from becoming entangled in or

tripping over a longer cord.

• Longer cord sets or extension cords are available

and may be used if care is exercised in their use.

• If a long cord or extension cord is used:

- The marked electrical rating of the cord set or

extension cord should be at least as great as the

electrical rating of the appliance.

- The extension cord must be a grounding-type 3-

wire cord.

- The longer cord should be arranged so that it

will not drape over the counter top or tabletop

where it can be pulled on by children or tripped

over unintentionally.

Materials you can use in microwave oven

Browning dish

Follow manufacturer instructions. The bottom of browning dish must be at

least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the

turntable to break.

Dinnerware

Microwave-safe only. Follow manufacturer's instructions. Do not use cracked

or chipped dishes.

Glass jars

Always remove lid. Use only to heat food until just warm. Most glass jars are

not heat resistant and may break.

Glassware

Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not

use cracked or chipped dishes.

Oven cooking bags

Follow manufacturer instructions. Do not close with metal tie. Make slits to

allow steam to escape.

Paper plates and cups

Use for short term cooking/warming only. Do not leave oven unattended

while cooking.

Paper towels

Use to cover food for reheating and absorbing fat. Use with supervision for a

short-term cooking only.

Parchment paper Use as a cover to prevent splattering or a wrap for steaming.

Plastic

Microwave-safe only. Follow the manufacturer instructions. Should be labeled

"Microwave Safe". Some plastic containers soften, as the food inside gets hot.

"Boiling bags" and tightly closed plastic bags should be slit, pierced or vented

as directed by package.

Plastic wrap

Microwave-safe only. Use to cover food during cooking to retain moisture. Do

not allow plastic wrap to touch food.

Thermometers Microwave-safe only (meat and candy thermometers).

Wax paper Use as a cover to prevent splattering and retain moisture.

IMPORTANT SAFETY INSTRUCTIONS

Materials to be avoided in microwave oven

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.

Food carton with

metal handle

May cause arcing. Transfer food into microwave-safe dish.

Metal or metal-

trimmed utensils

Metal shields the food from microwave energy. Metal trim may cause arcing.

Metal twist ties May cause arcing and could cause a fire in the oven.

Paper bags May cause a fire in the oven.

Plastic foam

Plastic foam may melt or contaminate the liquid inside when exposed to high

temperature.

Wood Wood will dry out when used in the microwave oven and may split or crack.

NAMES OF OVEN PARTS AND ACCESSORIES

Glass turntable

Turntable Ring Assembly

Touch pad once.

3. Touch START pad.

1. Touch and hold pad .

1. Touch Timer pad once.

NOTE

OPERATION

• Plug in the oven. Close the door. The oven display

will flash 12:00 ENTER TIME.

• If no operation after 1 minute, the oven will show

12:01.

SETTING THE CLOCK ON/OFF

Example: to turn off clock display:

Example: to turn on clock display:

2. Enter time using number pads.

1. Before operating your new oven make sure you

read and understand this Use and Care Guide

completely.

2. Before the Built-in Convention Microwave Oven

can be used, follow these procedures:

3. Set clock. See below.

SETTING THE CLOCK

Example: setting clock display for 9:00:

2. Time will display, after 3s,

OFF will display.

1. Clock key (short press <1sec) to

enter the clock query state,

display "current clock" for 3

seconds and then return to

standby mode, the clock is not

displayed;

2. Hold Clock button 3s, at

beginning, clock will be

displayed then display ON, then

display clock again.

2. Enter desired time using

number pads.

3. Touch Timer pad.

SETTING THE TIMER

Example: setting timer for 5 minutes:

Timer count down does not stop even if the door is

opened. To stop/cancel the timer, press the Timer

key once. When the timer has reached the end of

set time, you will hear beep alerts indicating the

timer has run out.

EXHAUST HIGH / MED / LOW / OFF

The exhaust ventilation removes steam and other

cooking vapors from the cooking surface of the

range below the microwave oven.

To operate the exhaust vent, touch the

Exhaust High/Med/Low/Off pad once

for the highest speed setting. Touch

the pad again to choose the Med

speed setting, a 3rd time to choose the

Low speed setting and a four times to

turn the exhaust ventilation off.

SURFACE LIGHT HIGH / LOW / OFF

Touch the Surface Light High/Low/Off

pad once to activate the surface light,

the screen displays "HIGH". Continue

to touch the Surface Light High/Low

/Off pad, you can choose the LOW or

OFF gear.

The display will return to default after 15 minutes

if a cooking cycle is stopped and not restarted.

If the temperature gets too hot around the

microwave oven, the fan in the exhaust vent hood

will automatically turn on at the LOW setting to

cool the oven. The fan will automatically turn off

when the internal parts are cool. When this

occurs, the vent cannot be turned off.

Example: to change the control lock from ON

to OFF:

NOTE

HEATING WITH HIGH POWER LEVEL

Example: to heat for 7 minutes at 100% power:

2. Touch START pad.

USING READY SET

OPERATION

When heating has finished you will hear beeps and

“End” will display.

CONTROL LOCK

You may lock the control panel to prevent the

microwave from being accidentally started or

used by children.

The control lock feature is very useful when

cleaning the control panel. The lock will prevent

accidental programming when wiping the control

panel clean.

Example: to set the control lock ON:

Microwave heating or cooking may be quickly set

at 100%power level for 1 or 6 minutes. Use the

number keys 1- 6 to choose the desired minutes

of cook time (this option will only work using the

1-6 numeric pads):

ample: to quickly heat for 2 minutes at

100% power:

Touch and hold the Stop/Cancel pad

for more than 3 seconds. The Lock

icon will appear in the display window

along with a beep.

Touch and hold the Stop/Cancel pad

for more than 3 seconds. The Lock

icon will disappear in the display

window.

Touch number pads 2 for desired

minutes of cook time.

the Ready Set function cannot be set when using

the Defrost (by weight) feature.

“Food” will be displayed if a quick start cooking

cycle is not selected within 5 minutes of placing

food in the microwave. You must open then close

the door again to clear “Food” from the display.

1. Use the number pads to enter

desired heating time (cook

time may be set up to 99

minutes and 99 seconds).

1. Use the number pads to enter

desired heating time (cook

time may be set up to 99

minutes and 99 seconds).

2. Touch Power Level pad once

for power level 10 (100%

power).

3. Touch Power Level pad 3

times for power level to 7.

PL-70 appears in the display

(70 % power).

4. Touch START pad.

When heating has finished you will hear beeps and

“End” will display.

HEATING WITH LOWER POWER LEVELS

Using the highest power level to heat foods with

does not always give the best results when some

types of food need slower cooking, such as roasts,

baked goods or custards. Your oven has nine other

power levels you may choose.

Example: to heat for 4 minutes at 70% power:

USING THE +10 SEC /+ 30 SEC KEY

This feature will let you quickly start or add

10 or 30 seconds.

Touch the +10 sec/+30 sec pad to :

+10 Sec / +30 Sec

Touch +30 pad twice.

NOTE

Touch the Stop/Cancel pad to:

OPERATION

“Food” will be displayed if a quick start cooking

cycle or +10 Sec/+30 Sec key is pressed more

than 5 minutes after the door of microwave oven

is closed. You must open then close the door

again to clear “Food” from the display.

VEGGIES

Example: to cook for frozen veggies.

1. Touch Veggies twice.

2. Touch START pad.

1. Erase if you have entered wrong

information.

2. Cancel timer setting process.

3. Touch pad once to pause the oven

temporarily during cooking.

(Touch START pad again to

resume cooking.)

4. Return the time of day (clock) to

the display after cooking cycle is

completed.

5. Stop a program during cooking,

touch twice.

1. Touch Defrost pad once. MEAT will

appear in the display.

2. Touch START pad to confirm.

3. Use the numeric pads to input

weight of food to defrost in pounds

(10 = 1.0 lb.)

You may enter any weight from 0.1

to 6.0 lbs.

1. Start programmed cooking.

2. Start cooking for 10 seconds/30 seconds at 100%

power level.

USING THE STOP/CANCEL KEY

This feature will let you quickly stop or cancel

the cooking process.

Example: to add 1 minute of cook time during

100% microwave cooking :

SETTING DEFROST

Example: to defrost 1.0 lbs of meat.

The microwave will beep when finished and

“End” will display.

Veggies x1 1-4 cups

Veggies x2 1-4 cups

TOUCH

AMOUNT

FRESH VEGGIES

FROZEN VEGGIES

DISPLAY

3. Extend cooking time in multiples of 10

seconds/30 seconds each time this pad is

touched during microwave cooking.

4. Touch START pad.

When defrosting has finished you will hear beeps

and “End” will display.

Defrost x1

Defrost x2

Defrost x3 0.1~6.0 lbs

0.1~6.0 lbs

MEAT

Touch

Wight Range

Display

POULTRY

FISH

DEFROSTING SUGGESTIONS FOR MEATS

For best results, please read these suggestions when

defrosting meats.

DEFROSTING TIPS

OPERATION

0.5 to 3.0 lbs

(8 to 48

oz.)

0.5 to 3.0 lbs

(8 to 48

oz.).

2.5 to 6.0 lbs.

(40 to 96

oz.)

0.5 to 3.0 lbs.

(8 to 48

oz.)

• When using the defrost weight feature, the

weight entered should always be pounds (valid

entries are from 0.1 to 6.0 pounds).

• Use both defrost weight and defrost time

features for raw food items only. Defrosting

gives best results when food to be thawed is a

minimum of 0°F (taken directly from a true

freezer). If the food has been stored in a

refrigerator-freezer that does not maintain a

temperature of 5° F or below, always program a

lower food weight or lower cook time to prevent

cooking the food.

• If the frozen food is stored outside the freezer

for up to 20 minutes, enter a reduced cook time

or weight.

• The shape of the package will alter the

defrosting time. Shallow rectangular food

packets defrost more quickly than a deep frozen

block of food.

• Separate pieces as they begin to defrost.

Separated frozen pieces of food defrost better.

• Shield warm areas of food with small pieces of

foil if they start to become warm.

• You may use small pieces of aluminum foil to

shield food items like chicken wings, leg tips and

fish tails, but do not allow the foil to touch the

oven cavity walls when defrosting.

After each stage,

rearrange the food. If

there are any warm or

thawed portions of food,

shield them with narrow

flat pieces of aluminum

foil. Remove any pieces

of food that are nearly

defrosted. Let stand,

covered for about 5 to 10

minutes.

Steaks,

chops

or fish

After each stage, remove

any pieces of food that

are nearly defrosted. Let

stand, covered with foil

for 5 to 10 minutes.

Ground

meat

Remove giblets before

freezing poultry. Start

defrosting with the

breast side down. After

the 1st stage, turn the

chicken over and shield

any warm portions with

narrow strips of

aluminum foil. After the

2nd stage, again shield

any warm portions with

narrow strips of

aluminum foil. Let stand,

covered, for 30 to 60

minutes in the

refrigerator.

After each stage,

rearrange or remove any

pieces of food that are

nearly defrosted. Let

stand for 10-20 minutes.

Whole

chicken

Chicken

pieces

Meat

Normal

amount

Suggestions

2.5 to 6.0 lbs.

(40 to 96

oz.)

Start with the food

placed fat side down.

After each stage, turn

the food over and shield

any warm portions with

narrow strips of

aluminum foil. Let stand,

covered for 15-30

minutes.

Roast

beef or

pork

OPERATION

NOTES FOR SENSOR COOKING

1. The ﬁnal cooking result will vary according to

the food condition (e.g. initial temperature,

shape, quality). Check food for temperature

after cooking. If additional time is needed,

continue to cook manually.

2. Stay near the oven while it’s in use and check

cooking progress frequently so that there is no

chance of overcooking food.

3. When SENSOR COOKING is selected Turntable

On is automatically set for optimum cooking.

Be careful when removing any covering to allow

steam to escape away from you.

Using Sensor Settings:

1. Be sure the exterior of the cooking container and

the interior of the oven are dry. Wipe off any

moisture with a dry cloth or paper towel.

2. The oven works with foods at normal storage

tem-perature. For example, popcorn would be at

room temperature.

3. More or less food than the quantity listed in the

chart should be cooked following the guidelines

in any micro-wave cookbook.

4. During the first part of SENSOR COOKING, food

name will appear in the display. Do not open the

oven door or press the pad during this part

of the cycle. The measurement of vapor will be

interrupt ed. When the sensor detects the vapor

emitted from the food, remainder of cooking time

will appear. Door may the opened when remain

ing cooking time appears in the display. At this

time, you may stir or season food, as desired.

5. If the sensor does not detect vapor properly when

pop-ping popcorn, the oven will turn off, and the

correct time of day will be displayed. If the sensor

does not detect vapor properly when cooking

other foods, AN ERROR CODE E-04 will be

displayed, and the oven will turn off.

6. Check food for temperature after cooking. If

additional time is needed, continue to cook

manually.

COVERING FOODS:

Some foods cook better when covered.

1. Casserole lid.

2. Plastic wrap: Use plastic wrap recommended for

microwave cooking. Cover dish loosely; allow

approximately 1/2 inch to remain uncovered to

allow steam to escape. Plastic wrap should not

touch food.

3. Wax paper: Cover dish completely; fold excess

wrap under dish to secure. If dish is wider than

paper, overlap two pieces at least one inch to

cover.

1. Touch Sensor Cook pad 4 times to

choose the frozen breakfast.

2. Touch START pad.

Sensor Cook chart

Example: to cook frozen breakfast .

NSOR COOK

You can cook foods by touching the sensor cook

pad multiple times. You don’t need to calculate

cooking time or power level.

AMO UNT

Sensor

Cook

Sensor

Cook

Sensor

Cook

Sensor

Cook

10 oz./ 20 oz.

1-2 cups

Select 1, 2

or 3 slices

T OUCH DISPLAY

BACON

FROZEN DINNER

RICE

FROZEN BREAKFAST

8-12 oz

Sensor cooking has an electronic controlled sensor

that detects the vapor (moisture and humidity)

emitted from the food as it heats. The sensor

adjusts the cooking times and power level for

various foods and quantities automatically.

OPERATION

SUGGESTED POWER LEVELS FOR

COOKING

The 10 power levels available with this microwave

will help you to adjust to the power output best

suited for the food type you are preparing. As with

any food preparation in the microwave, it is best to

follow the microwave instructions that are printed

on food packaging.

The table below provides suggested power levels

for various types of food that you can be prepare in

the microwave.

Convenience

category

Amount Suggestions

Potato

1, 2, 3, 4

potatoes

8, 16, 24,

36 oz.

Pierce each potato

several times using a

fork. Place on turntable

in spoke-like fashion.

After cooking, let stand

for 3-5 minutes. Let

oven cool for at least 5

minutes before using

again. Use the START

pad to increase cook

time for larger potatoes.

The popcorn feature lets you pop 3 different

commercially packaged microwave popcorn sized

bags. Use the table below to determine the setting

to use.

Popcorn x2

DISPLAY

3.3 oz.

3.0 oz.

1.75 oz.

Popcorn x1

Popcorn x3

TOUCH

Touch: Display Shows:

SETTING SOUND

Example: to set sound OFF.

OPERATION

On yes

Filter indicator light on by default

for recirculation. The filter indicator

light will track the vent fan on time.

Off yes

Turn off the filter indicator light

when vented to outside. The filter

indicator light will not track the vent

vent fan on time.

Rest yes

Reset Filter Indicator

The filter indicator light on the

display will track the vent fan on

time.

When it is time to change the

charcoal filter the indicator light on

the display will come on. Once the

charcoal filter is changed, use reset

yes to turn filter yes to turn filter

indicator off and begin new time for

charcoal filter replacement.

Rest no

Will not reset the time for filter

indicator light.

Touch: Display Shows:

ouch:

Display Shows:

ouch:

Display Shows:

SETTING FILTER

SETTING LANGUAGE

If the language is English:

SETTING TURNTABLE ON/OFF

If the turntable is on:

SETTING WEIGHT LB/KG

NOTE

After cooking completed, turntable setting will

return to ON automatically.

ouch:

Display Shows:

Touch: Display Shows:

SETTING FILTER

SETTING DEMO

If the language

is English:

ouch:

Display Shows:

Troubleshooting

Check your problem by using the chart below and try the solutions for each problem. If the

microwave oven still does not work properly, contact the nearest authorized service center.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY

Oven will not start

• Electrical cord for oven is not

plugged in.

• Door is open.

• Wrong operation is set.

• Plug into the outlet.

• Close the door and try again.

• Check instructions.

Arcing or sparking

• Materials to be avoided in

microwave oven were used.

• The oven is operated when empty.

• Spilled food remains in the cavity.

• Use microwave-safe cookware only.

• Do not operate with oven empty.

• Clean cavity with wet towel.

Unevenly cooked

foods

• Materials to be avoided in

microwave oven were used.

• Food is not defrosted completely.

• Cooking time, power level is not

suitable.

• Food is not turned or stirred.

• Use microwave-safe cookware only.

• Completely defrost food.

• Use correct cooking time, power

level.

• Turn or stir food.

Overcooked foods

• Cooking time, power level is not

suitable.

• Use correct cooking time, power

level.

Undercooked foods

• Materials to be avoided in

microwave oven were used.

• Food is not defrosted completely.

• Oven ventilation ports are

restricted.

• Cooking time, power level is not

suitable.

• Use microwave-safe cookware only.

• Completely defrost food.

• Check to see that oven venti-

lation ports are not restricted.

• Use correct cooking time, power

level.

Improper defrosting

• Materials to be avoided in

microwave oven were used.

• Cooking time, power level is not

suitable.

• Food is not turned or stirred.

• Use microwave-safe cookware only.

• Use correct cooking time, power

level.

• Turn or stir food.

MAINTENANCE

CLEANING AND CARE 19

Disconnect the power cord or leave the door open to deactivate the oven during

cleaning. Disconnect the power cord before replacing ﬁlters and lights.

WAVEGUIDE COVER

The waveguide cover is located on the right side

in the microwave oven cavity. It is made from

mica so requires special care. Keep the wave-

guide cover clean to assure good microwave

oven performance. Carefully wipe with a damp

cloth any food spatters from the surface of the

cover immediately after they occur. Built-up

splashes may overheat and cause smoke or

possibly catch fire. DO NOT REMOVE THE

WAVEGUIDE COVER.

ODOR REMOVAL

Occasionally, a cooking odor may remain in the

microwave oven. To remove, combine 1 cup

water, grated peel and juice of 1 lemon in a

2-cup glass measuring cup.

Boil for several minutes using 100% power.

Allow to set in microwave oven until cool. Wipe

interior with a soft cloth.

TURNTABLE/TURNTABLE SUPPORT

The turntable and turntable support can be

removed for easy cleaning. Wash them in mild,

sudsy water; for stubborn stains use a mild

cleanser and non-abrasive scouring sponge.

They are also dishwasher-proof. Use upper

wirerack of dishwasher. The turntable motor

shaft is not sealed, so excess water or spills

should be wiped up immediately.

EXTERIOR

The outside surface is precoated steel and

plastic. Clean the outside with mild soap and

water; rinse and dry with a soft cloth. Do not use

any type of household or abrasive cleaner.

DOOR

Wipe the window on both sides with a soft cloth

to remove any spills or spatters. Metal parts will

be easier to maintain if wiped frequently with a

soft cloth. Avoid the use of spray and other

harsh cleaners as they may stain, streak or dull

the door surface.

EASY CARE™ STAINLESS STEEL /

SMUDGE _PRO OF™ STAINLESS STEEL /

BLACK STAINLESS STEEL(SOME MODELS)

Your microwave oven(some models) may have a

Stainless Steel finish or coating. Clean the

stainless with warm soapy water using a clean

sponge or cloth. Rinse with clean water and dry

with a soft clean cloth. DO NOT use ANY store

bought cleaners like Stainless Steel cleaners or

any other types of cleaners containing any

abrasive, chlorides, chlorines or ammonia. It is

recommended to use mild dish soap and water

or a 50/50 solution of water and vinegar.

TOUCH CONTROL PANEL

Care should be taken in cleaning the touch

control panel. If the control panel becomes

soiled, open the microwave oven door before

cleaning. Wipe the panel with a cloth dampened

slightly with water only. Dry with a soft cloth. Do

not scrub or use any sort of chemical cleaners.

Close door and touch STOP/CLEAR

INTERIOR

Cleaning is easy because little heat is generated

to the interior surfaces . To clean the interior

surfaces, wipe with a soft cloth and warm water.

DO NOT USE ABRASIVE OR HARSH CLEANERS

OR SCOURING PADS. For heavier soil, use

baking soda or a mild soap; rinse thoroughly

with hot water. The round wire rack and shelf

can be cleaned with hot soapy water, rinsed and

dried.

CAUTION

CLEANING AND CARE

Disconnect the power cord or leave the door open to deactivate the oven during

cleaning. Disconnect the power cord before replacing ﬁlters and lights.

To avoid ris k of p erson al injury or pro perty

da ma ge, do not operate oven hood without

filters properly in place.

CLEANING THE EXHAUST FILTERS

The oven ventilation exhaust filters should be

removed and cleaned often; generally at least once

every month.

Vent exhaust ﬁlter part number 5304478913

To order parts call 800-599-7569

• To remove the exhaust ventilation filters, slide

the filter to the rear. Then pull filter downward

and push to the other side. The filter will drop

out. Repeat for the 2nd filter.

• To reinstall the exhaust ventilation filter, slide it

into the side slot, then push up and toward oven

to lock.

Reinstall the 2nd filter using the same

procedure.

• Soak the ventilation filters in hot water using a

mild detergent. Rinse well and shake to dry or

wash in a dishwasher. Do not use ammonia. The

aluminum on the filter will corrode and darken.

Ventilation filters

Front

Rear

Surface lights

Tab

CLEANING AND CARE 21

Disconnect the power cord or leave the door open to deactivate the oven during

cleaning. Disconnect the power cord before replacing ﬁlters and lights.

• Disconnect power to the microwave oven at the

circuit breaker panel or by unplugging.

• Press the “Push” position on the cover.

• And then open the cover.

Charcoal Filter when installed in your microwave

oven, is used for nonvented, recirculated installa-

tion. When it is time to replace the charcoal filter,

the FILTER light on display will turn on.

If your microwave is vented to the outside, then

you can turn off the filter light in the settings.

CHARCOAL FILTER REPLACEMENT

Charcoal ﬁlter part number

To order parts call 800-599-7569

FRPAMRAF

• Remove the charcoal filter by pushing the top of

the filter inwards, then pull it forward out from

the unit.

• Slide the top of the new charcoal filter into the

top area of the filter cavity.

• Press the bottom of charcoal filter to place it

into the correct position.

• Press the “Push” to close the cover.

SERVICE CALL CHECK

SPECIFICATIONS

Please check the following before calling for service:

Place one cup of water in a glass measuring cup in the microwave oven and close the

door securely. Operate the microwave oven for one minute at HIGH 100%.

YES ____ NO ____

* The International Electiotechnical Commission's standardized method for measuring output wattage.

omplies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,

DHHS -

Subchapter J.

Inc. for use in USA or Canada.

- This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.

- This symbol on the nameplate means the product is listed by Underwriters Laboratories,

method is widely recognized. test method

This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International

Standard CISPR11.

***

Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for

holding food is less.

In compliance with standards set by:

F C - Federal Communications Commission Authorized.

Does the microwave oven light come on?

Does the cooling fan work? (Put your hand at top above Display.)

C Does the turntable rotate? (It is normal for the turntable to turn in either

direction.)

Is the water in the microwave oven warm?

If “NO” is the answer to any of the above questions,

please check electrical outlet, fuse and/or circuit

breaker. If they are functioning properly, CONTACT

YOUR NEAREST ELECTROLUX AUTHORIZED

SER-VICER.

A microwave oven should never be serviced by a

“do-it-yourself” repair person.

NOTE

1. If time appearing in the display is counting

down very rapidly, check Demonstration

Mode on page 19.

2. If the oven is set for more than 30 minutes

at 90 or 100 percent power level, after the ﬁ

rst 30 minutes the power level will automat-

ically adjust itself to 80 percent power to

avoid overcooking.

AC Line Voltage: Single phase 120V, 60Hz, AC only

AC Power Required:

Output Power*: 1000 W

Frequency: 2450 MHz (Class B/Group2)**

Outside Dimensions (including handle):

Cavity Dimensions:

Microwave oven Capacity***:

Cooking Uniformity: Turntable

Weight:

Work/Night Light:

Oven Light:

29 .88" (W) x 15.04" (D) x 16.41" (H)

20.94

1500W 13.5 amps.

1.9 Cu.Ft.

" (W) x 9.57 " (D) x 14.43 " (H)

1*1.2W LED, the part number is 5304499540.

Approx. (net) 55.2 lbs, (gross) 60.7 lbs

2*1.2W LED, the part number is 5304499540.

WARRANTY 23

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not

in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,

shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air ﬁ lters, water ﬁ lters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the ﬁ nish of appliance or home incurred during installation, including but not limited to

ﬂ oors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine

Electrolux parts or parts obtained from persons other than authorized service companies; or external causes

such as abuse, misuse, inadequate power supply, accidents, ﬁ res, or acts of God.

Canada

1.800.265.8352

L5V 3E4

Printed in China

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

USA

1-800-374-4432

Electrolux Home Products,

Inc., 10200 David Taylor

Drive Charlotte, NC 28262

Your appliance is covered by a one year limited warranty. For one year from your original

date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this

appliance that prove to be defective in materials or workmanship when such appliance is

installed, used and maintained in accordance with the provided instructions.

This warranty does not cover the following:

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR

OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE

YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL

NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND

INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY

IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED

WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN

WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM

STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone

numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major

Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by

Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.

Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service

company. Product features or speciﬁ cations as described or illustrated are subject to change without notice.

welcome

home

Frigidaire.com

1-800-374-4432

Frigidaire.ca

1-800-265-8352

owner support

accessories

service

Our home is your home. Visit us if you

need help with any of these things:

registration

(See your registration card

for more information.)

Frigidaire GMOS1962AF Gallery 1.9 Cu. Ft. Over-The-Range Microwave

Product's Documents

Use & Care Manual

Specifications

Frigidaire GMOS1962AF Questions and Answers
