Life's Good
FRE CH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LFX25973**
P/No : MFL62184517

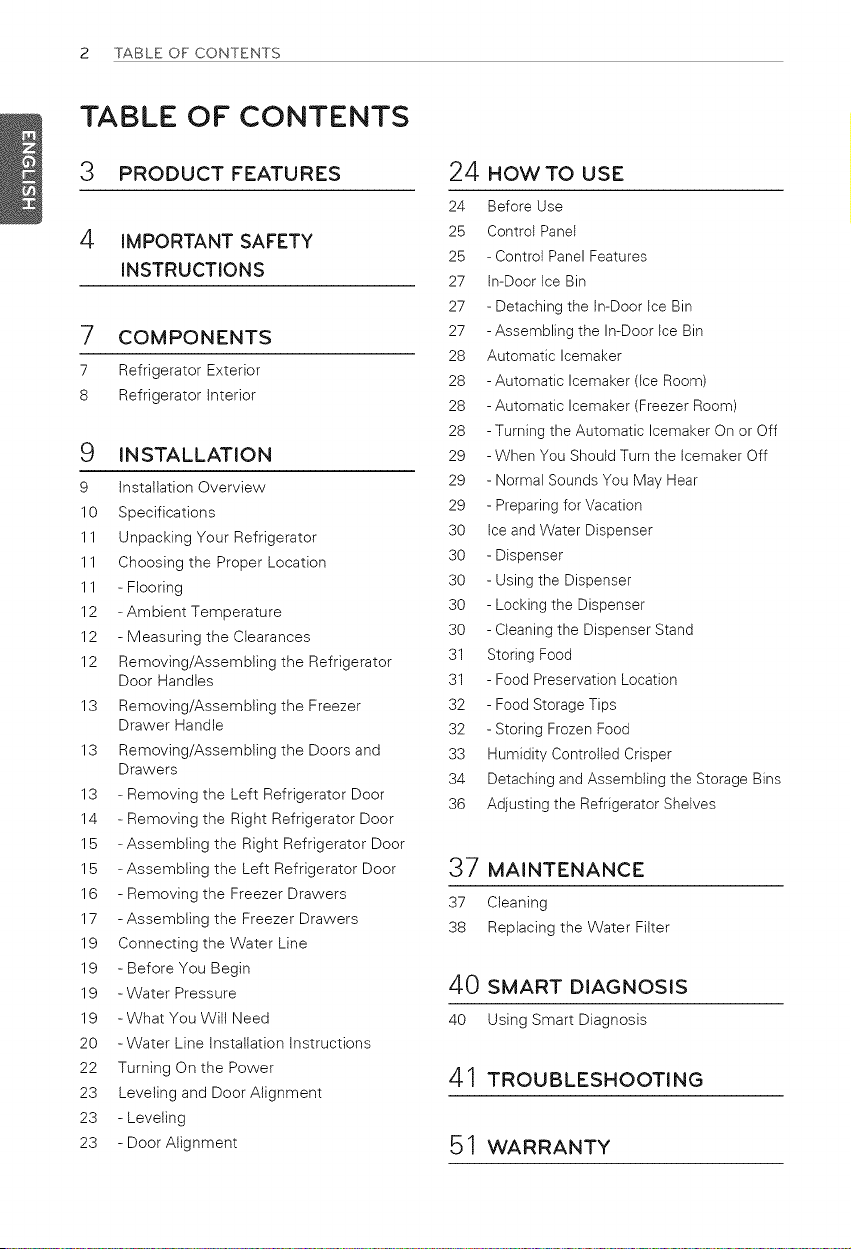

2 TABLE OF CONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 IMPORTANT SAFETY
INSTRUCTIONS
7 COMPONENTS
7 Refrigerator Exterior
8 Refrigerator interior
9
9
0
1
1
1
2
2
2
3
4
5
5
6
7
9
9
9
9
20
22
23
23
23
INSTALLATION

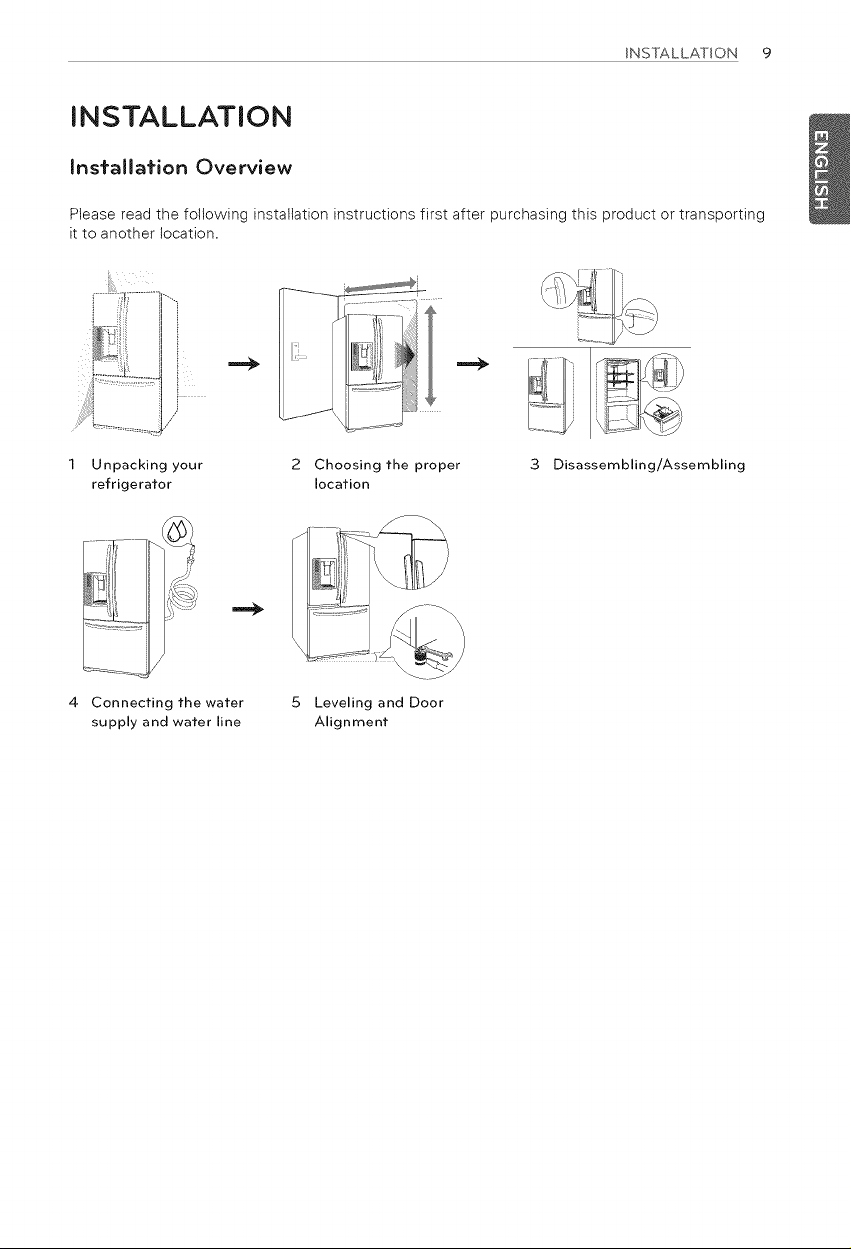

Installation Overview
Specifications

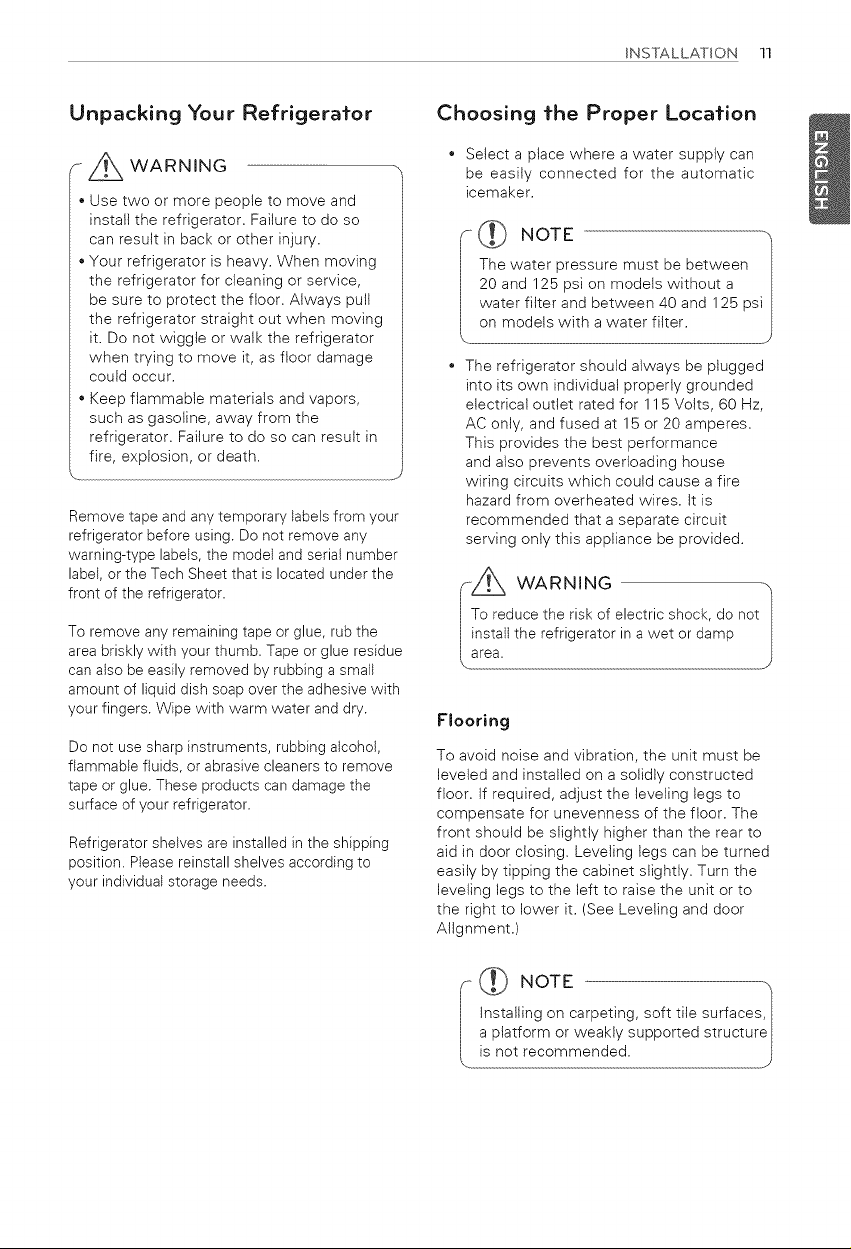

Unpacking Your Refrigerator
Choosing the Proper Location
- Flooring

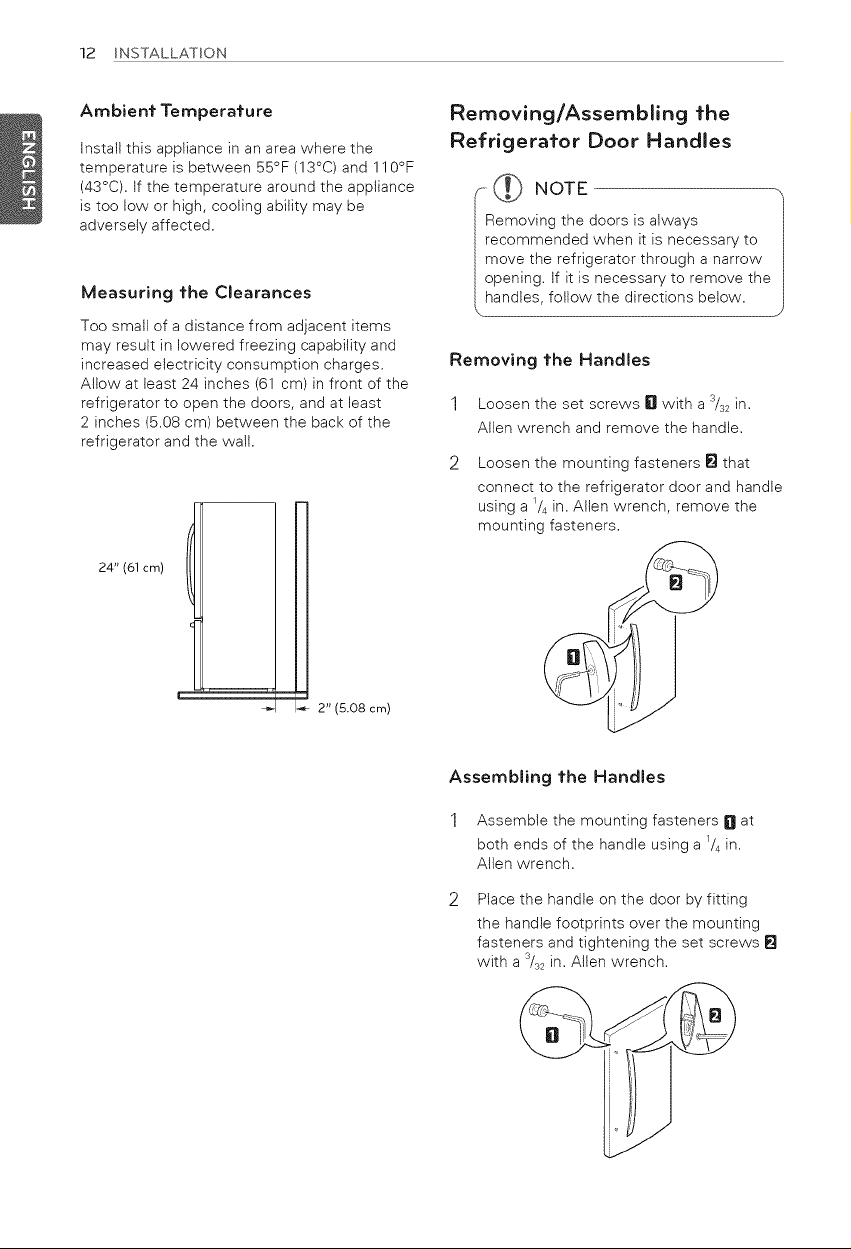

- Ambient Temperature
- Measuring the Clearances
Removing/Assembling the Refrigerator
Door Handles

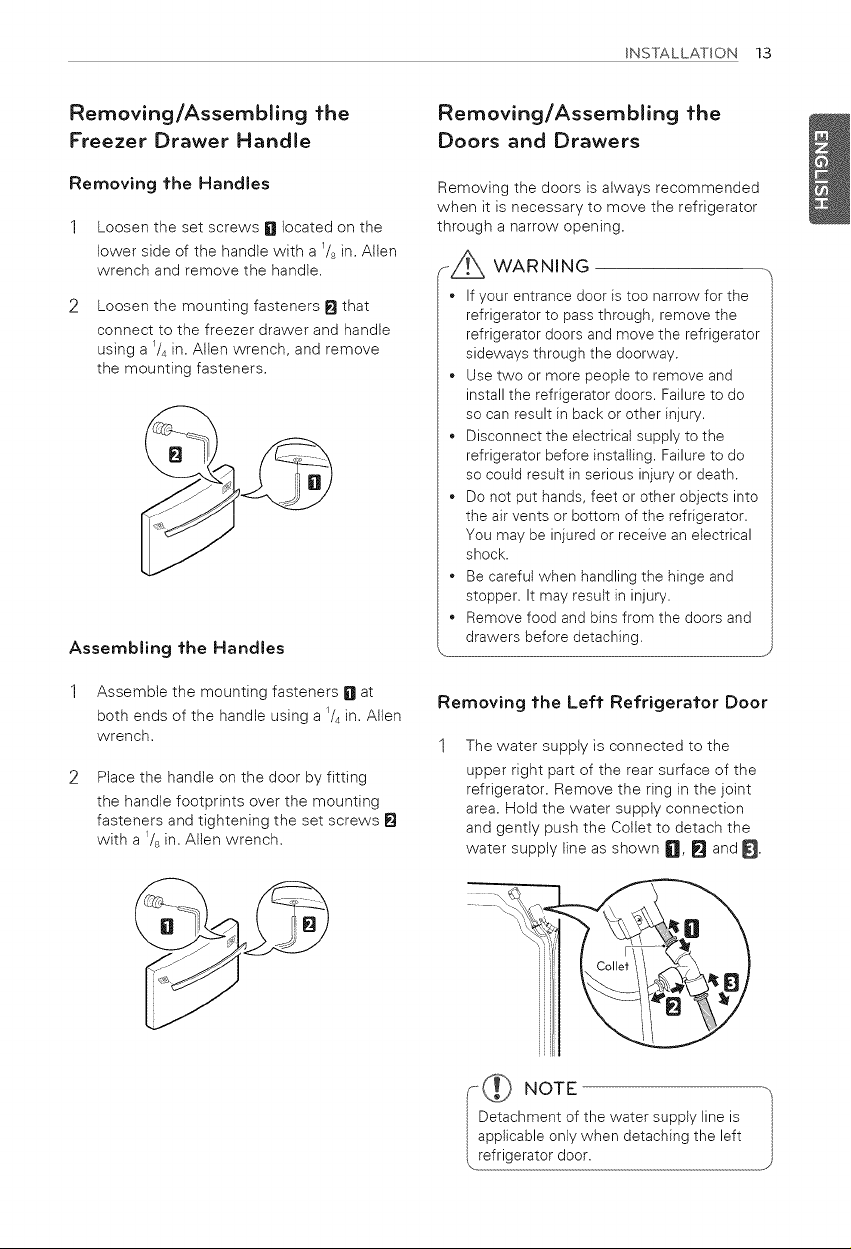

Removing/Assembling the Freezer
Drawer Handle
Removing/Assembling the Doors and
Drawers

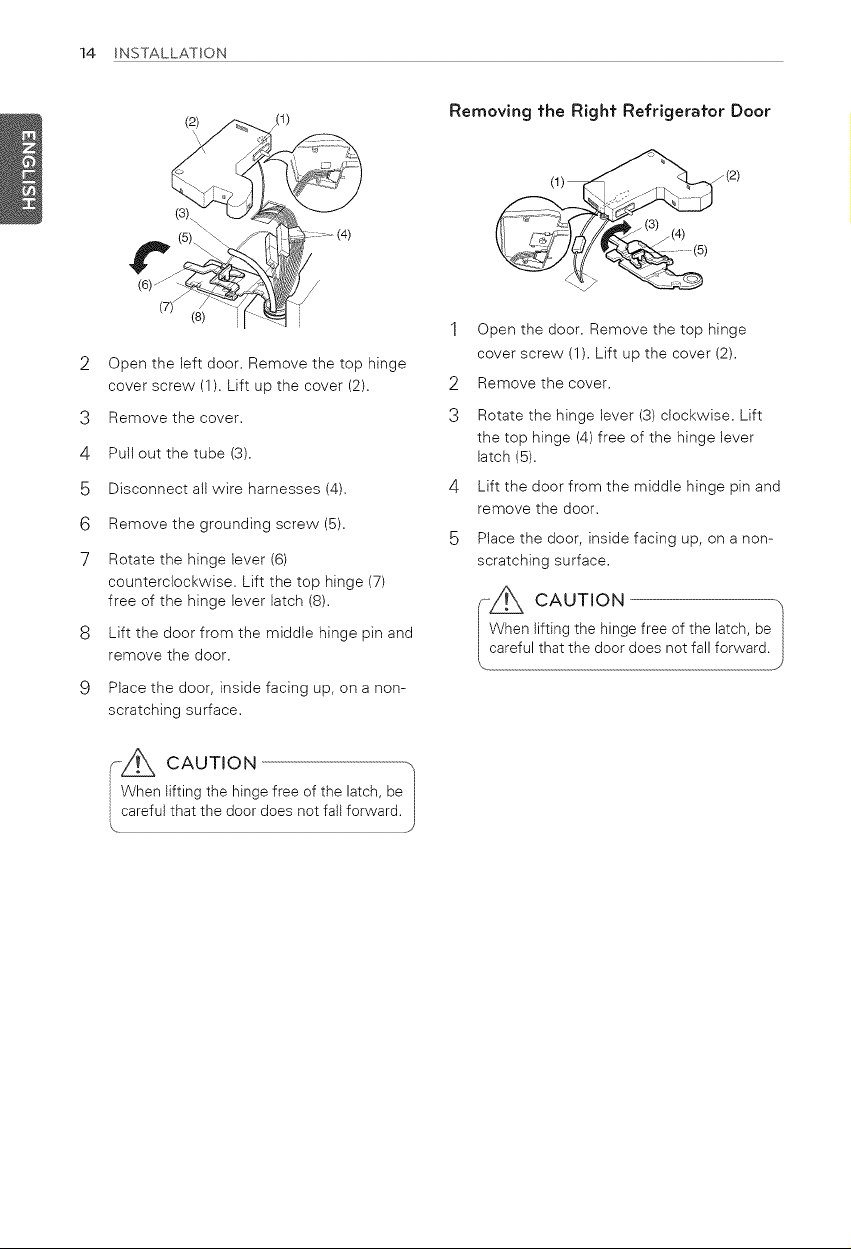

- Removing the Left Refrigerator Door
- Removing the Right Refrigerator Door

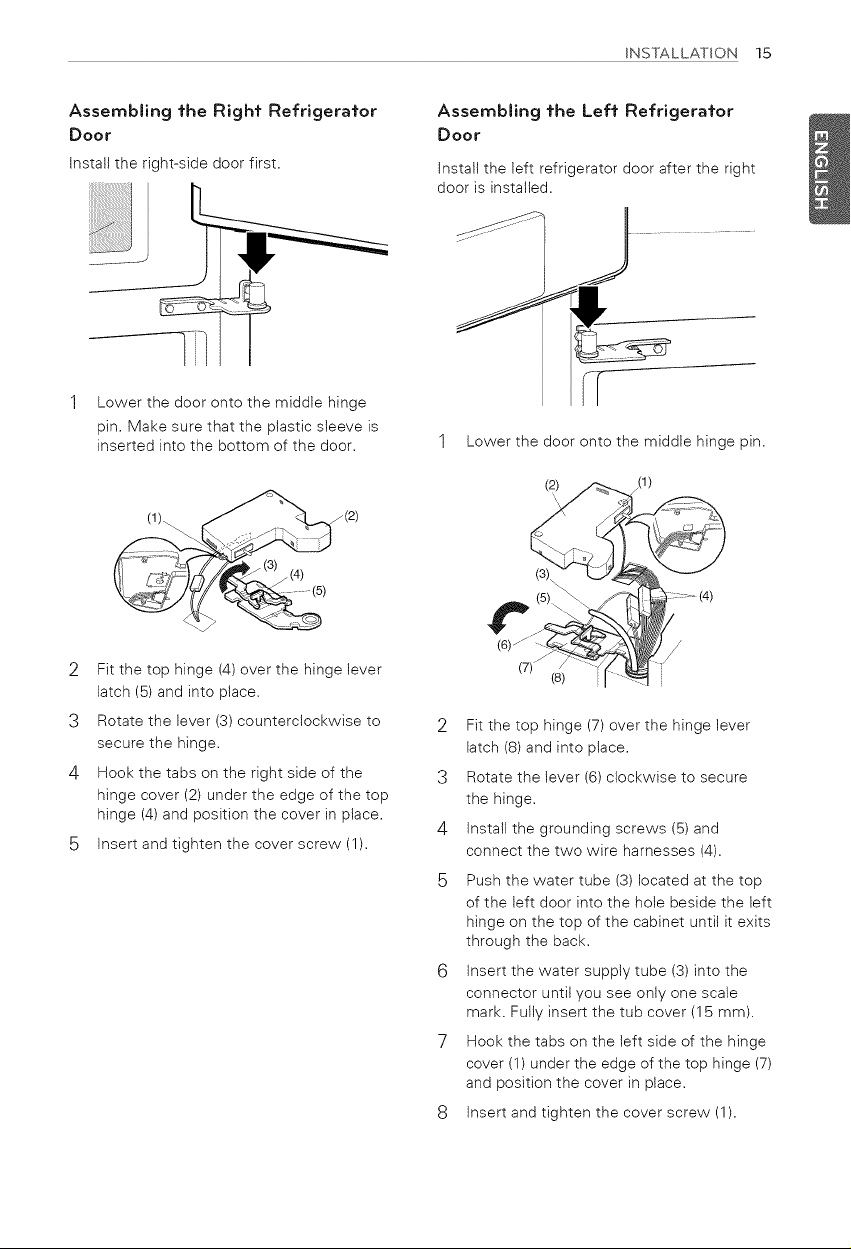

- Assembling the Right Refrigerator Door
- Assembling the Left Refrigerator Door

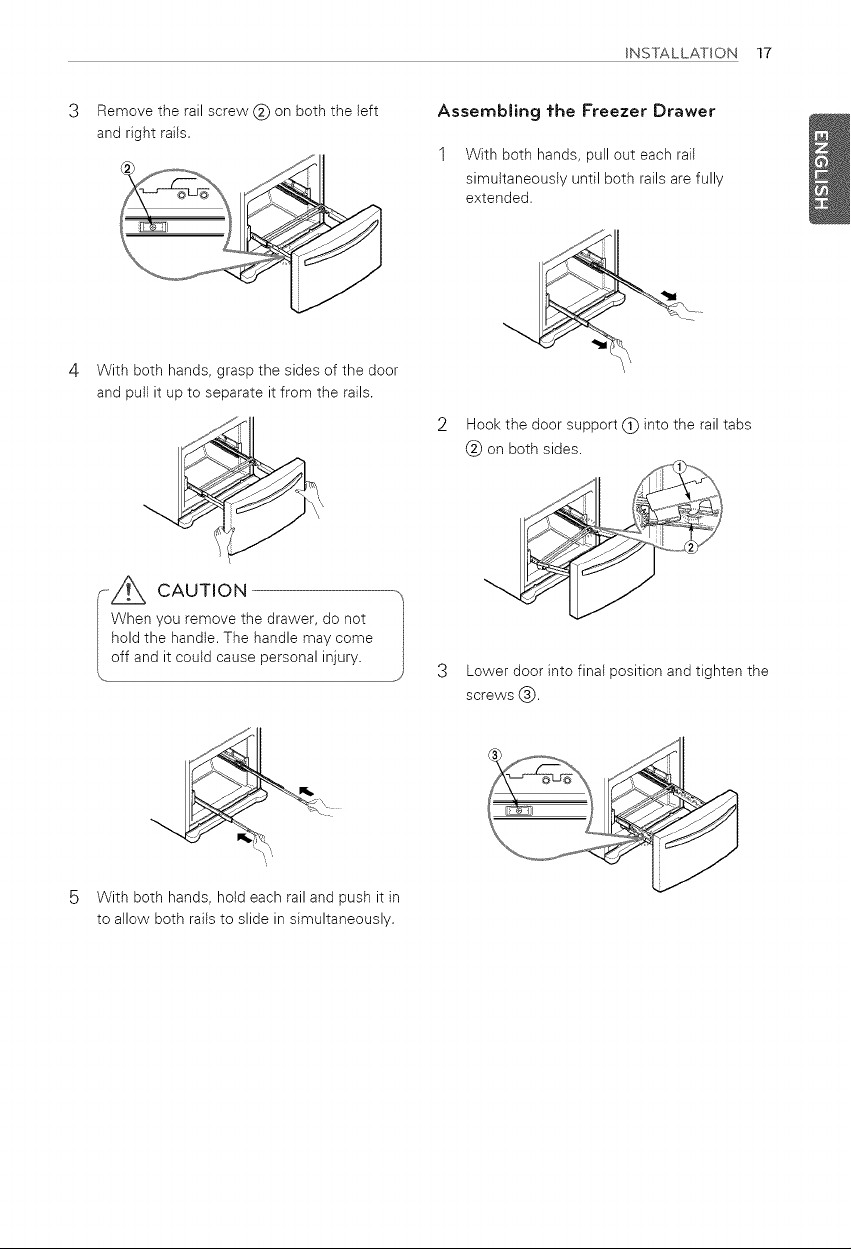

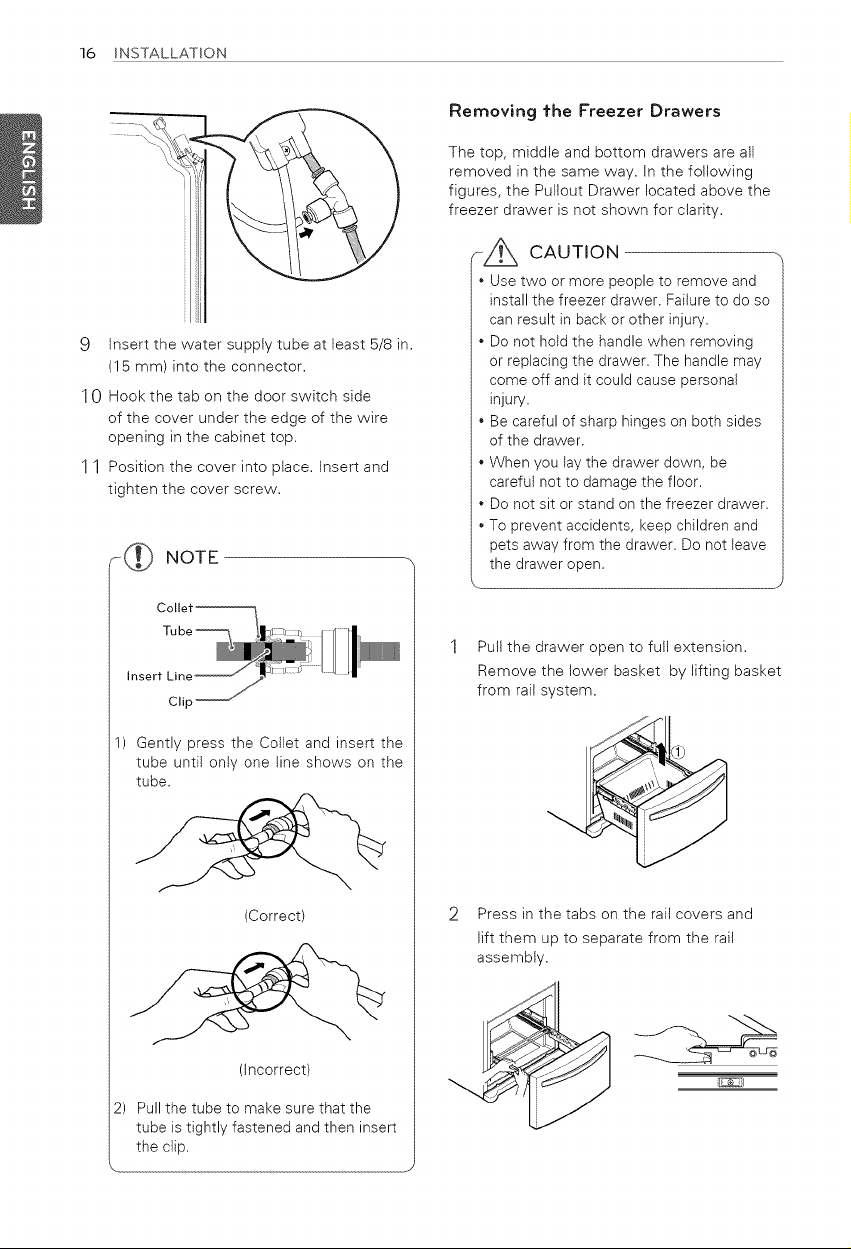

- Removing the Freezer Drawers

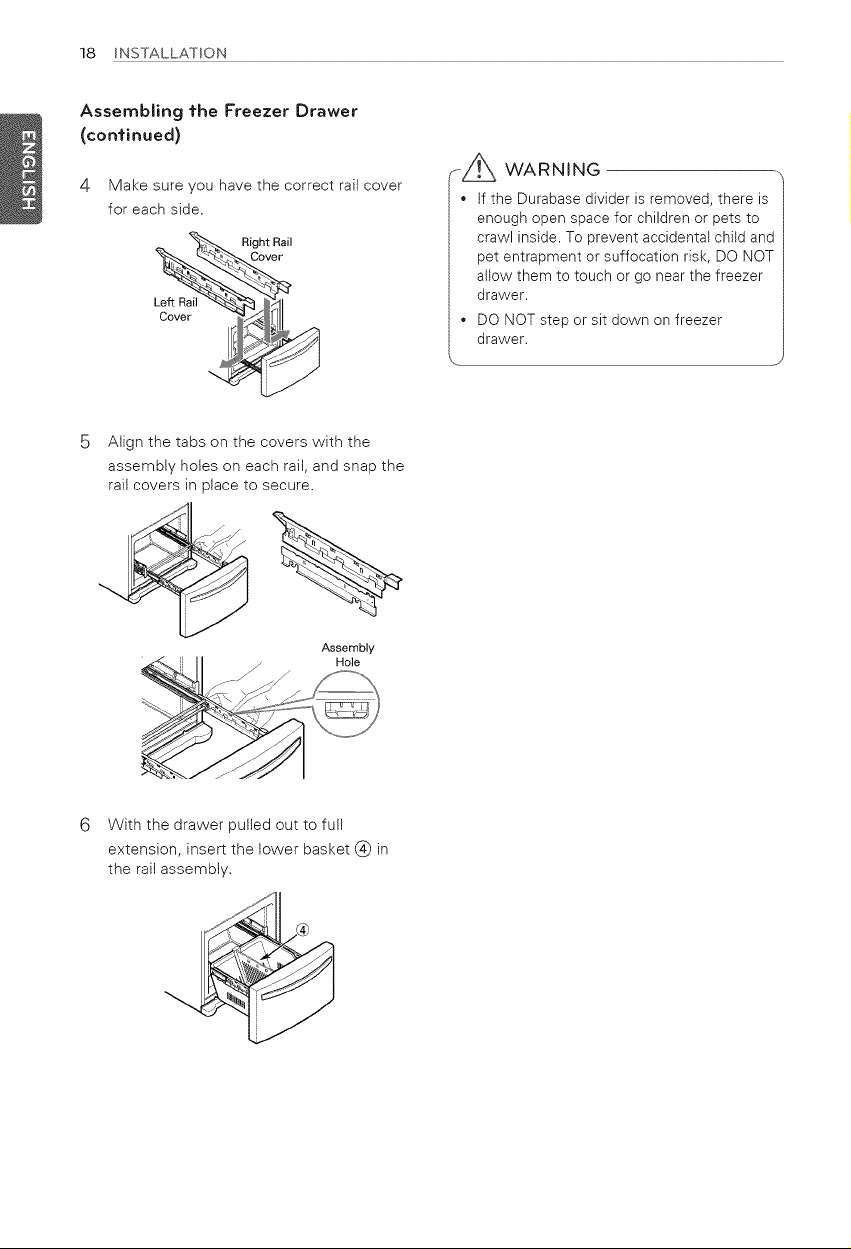

- Assembling the Freezer Drawers

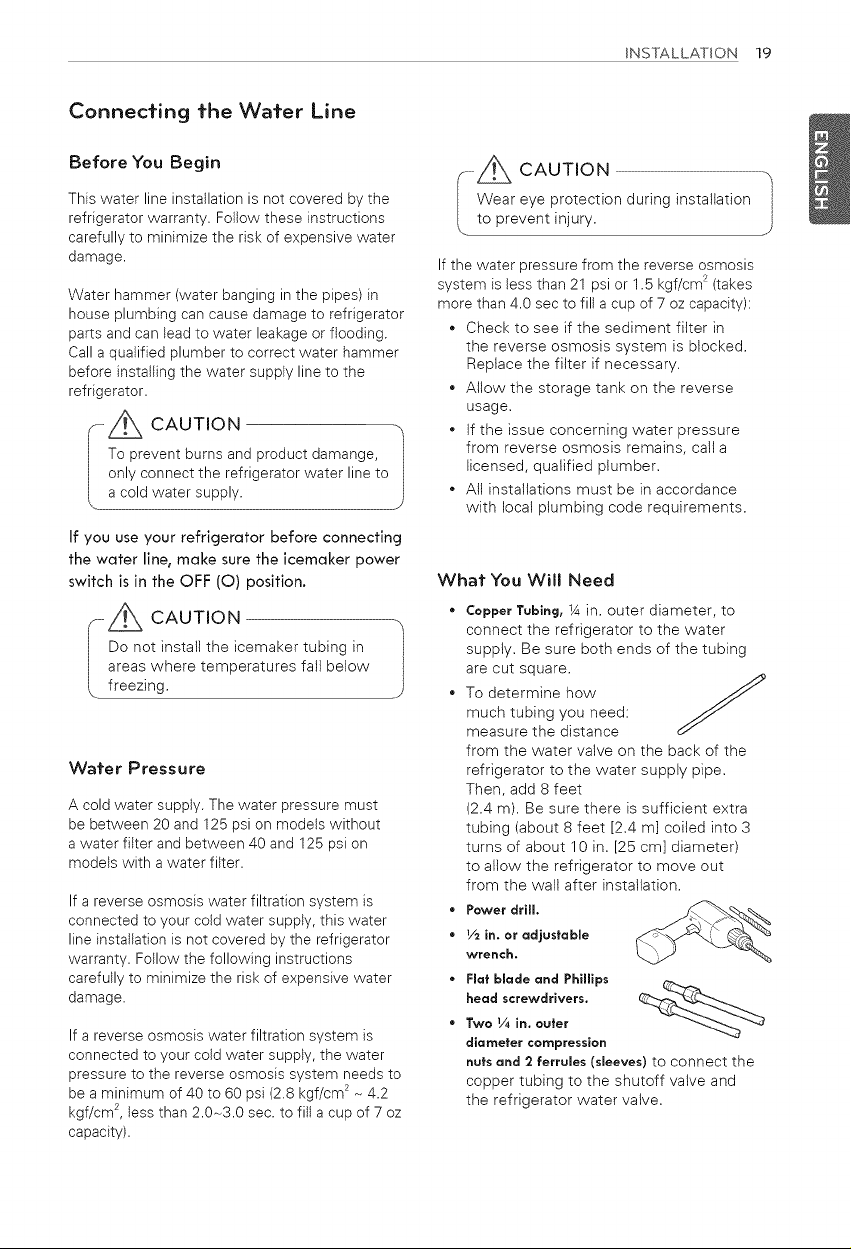

Connecting the Water Line
- Before You Begin
- Water Pressure
- What You Will Need

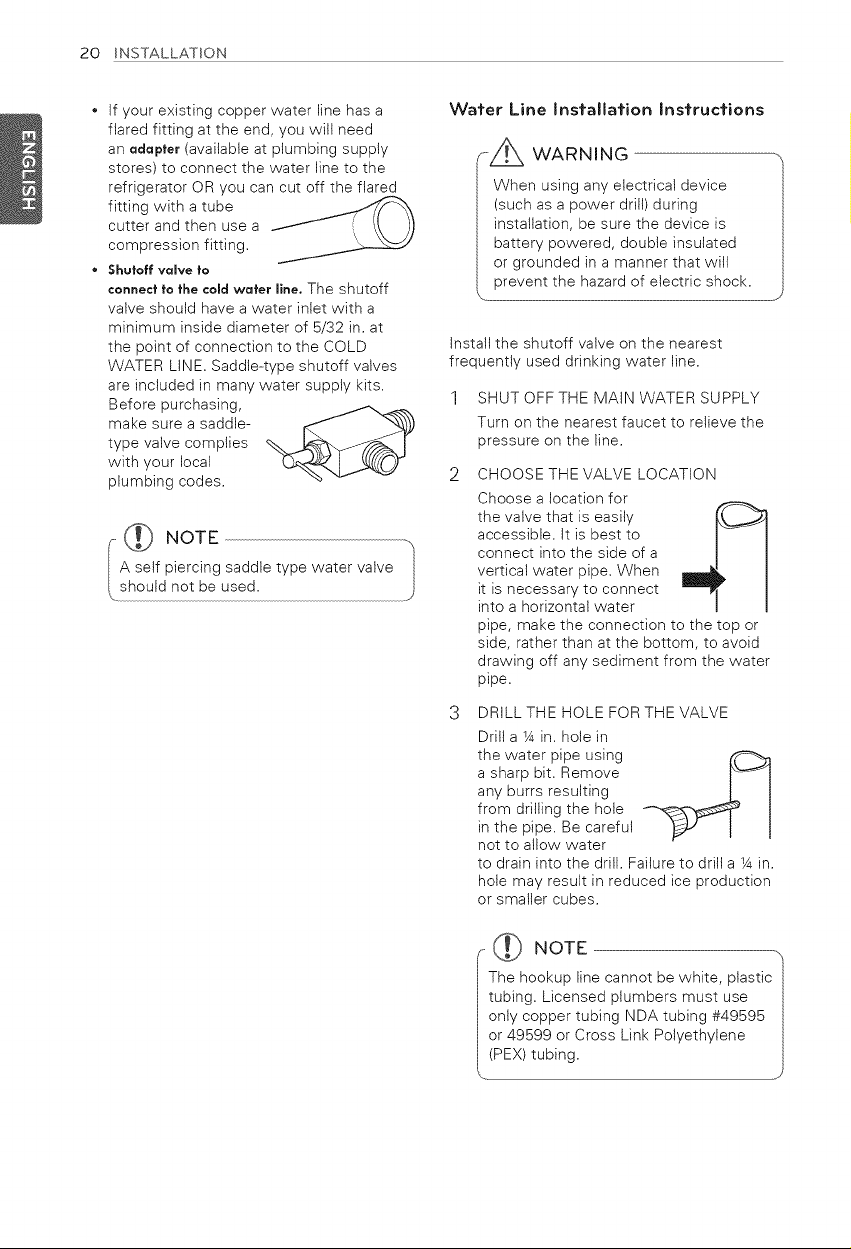

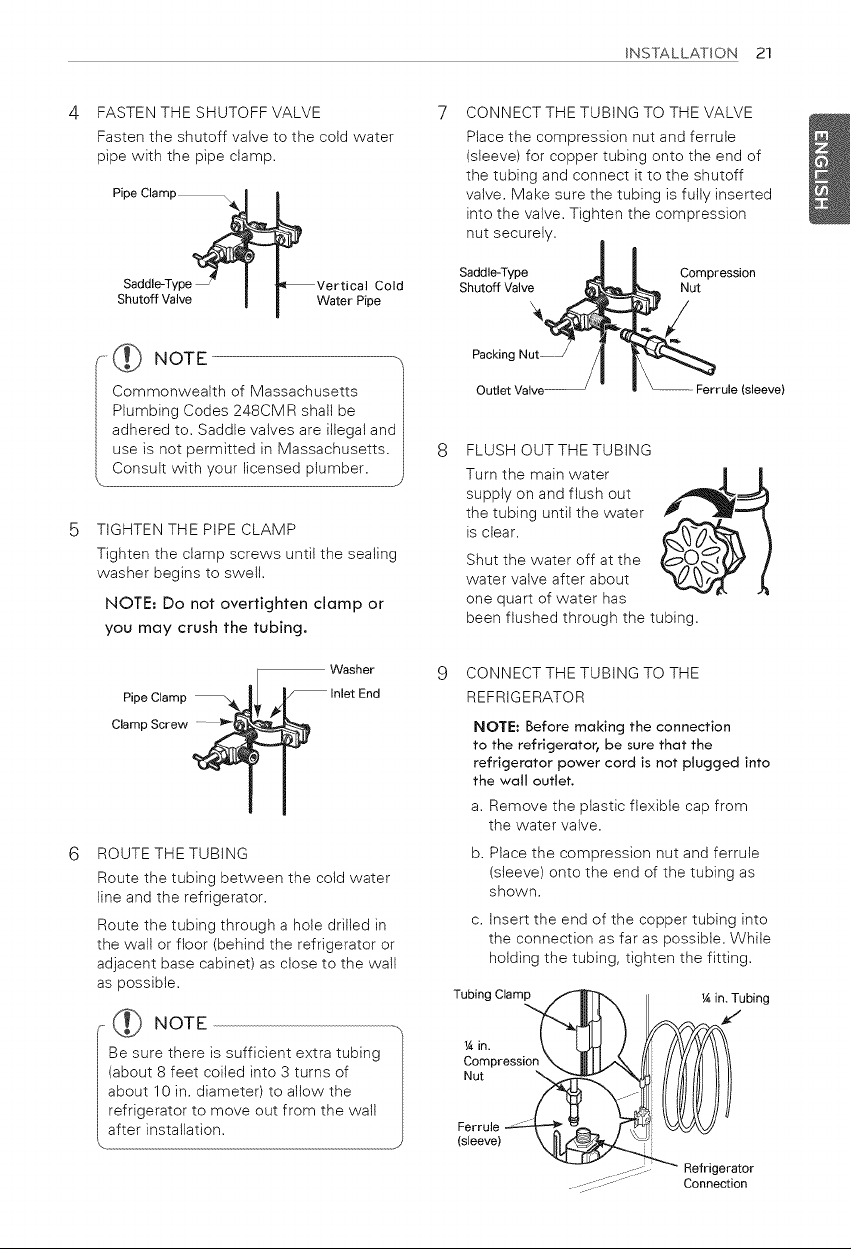

- Water Line Installation instructions

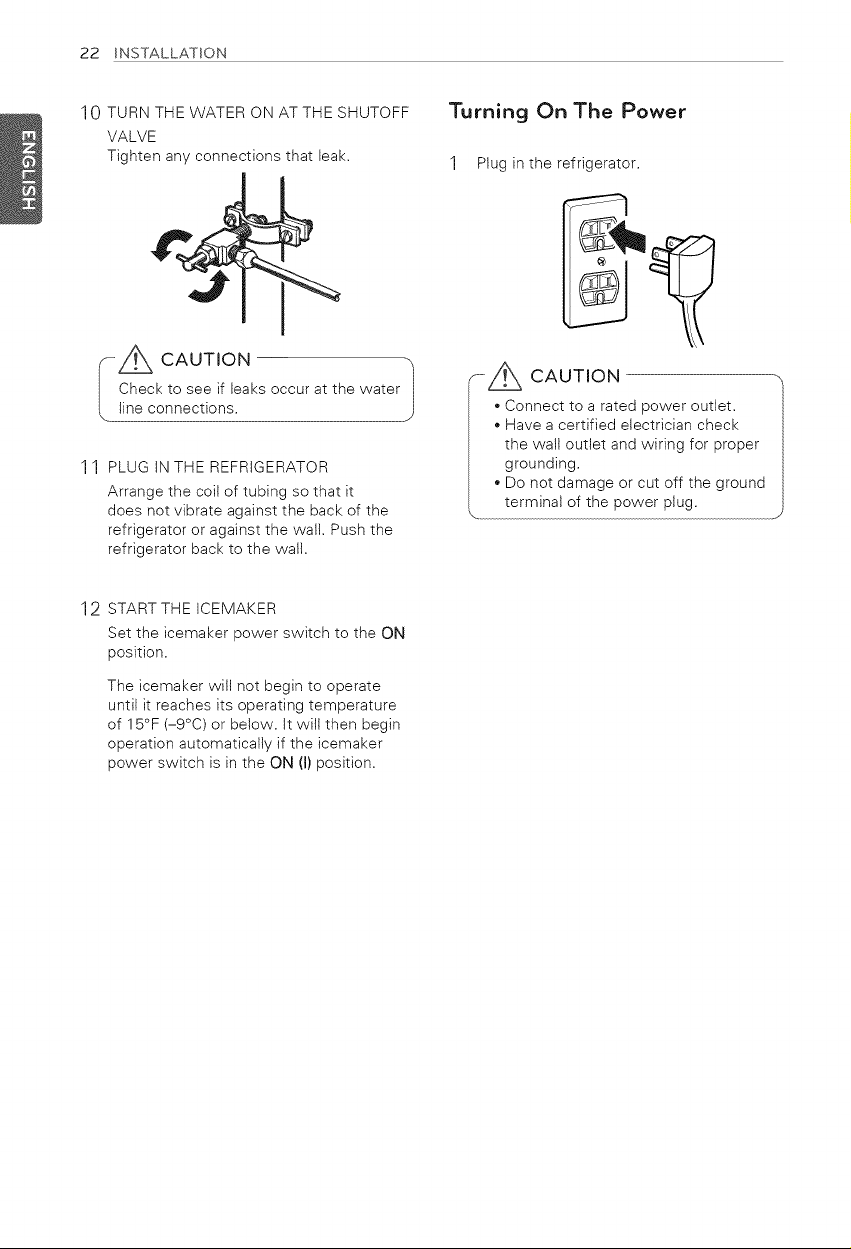

Turning On the Power
Leveling and Door Alignment
- Leveting
- Door Alignment
24 HOW TO USE
24 Before Use

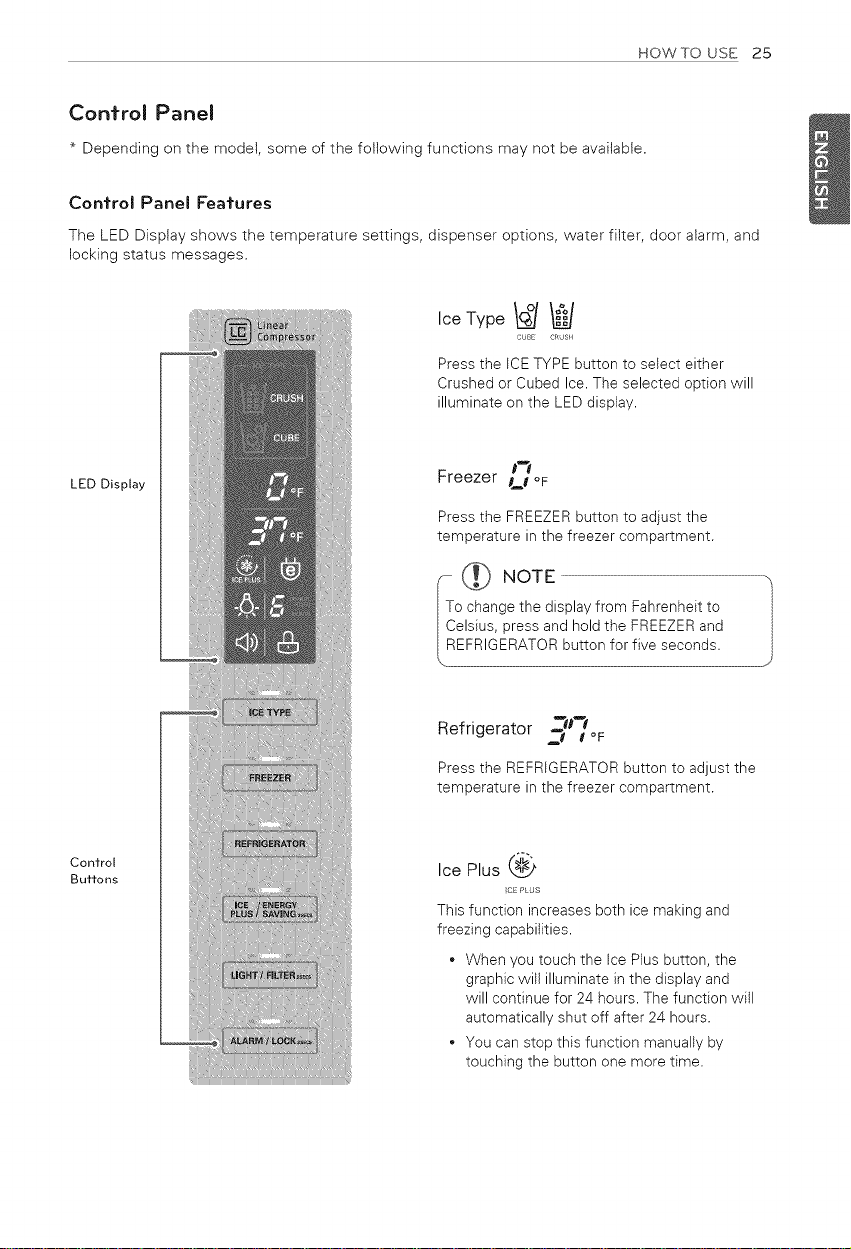

25 Control Panel
25 - Control Panel Features

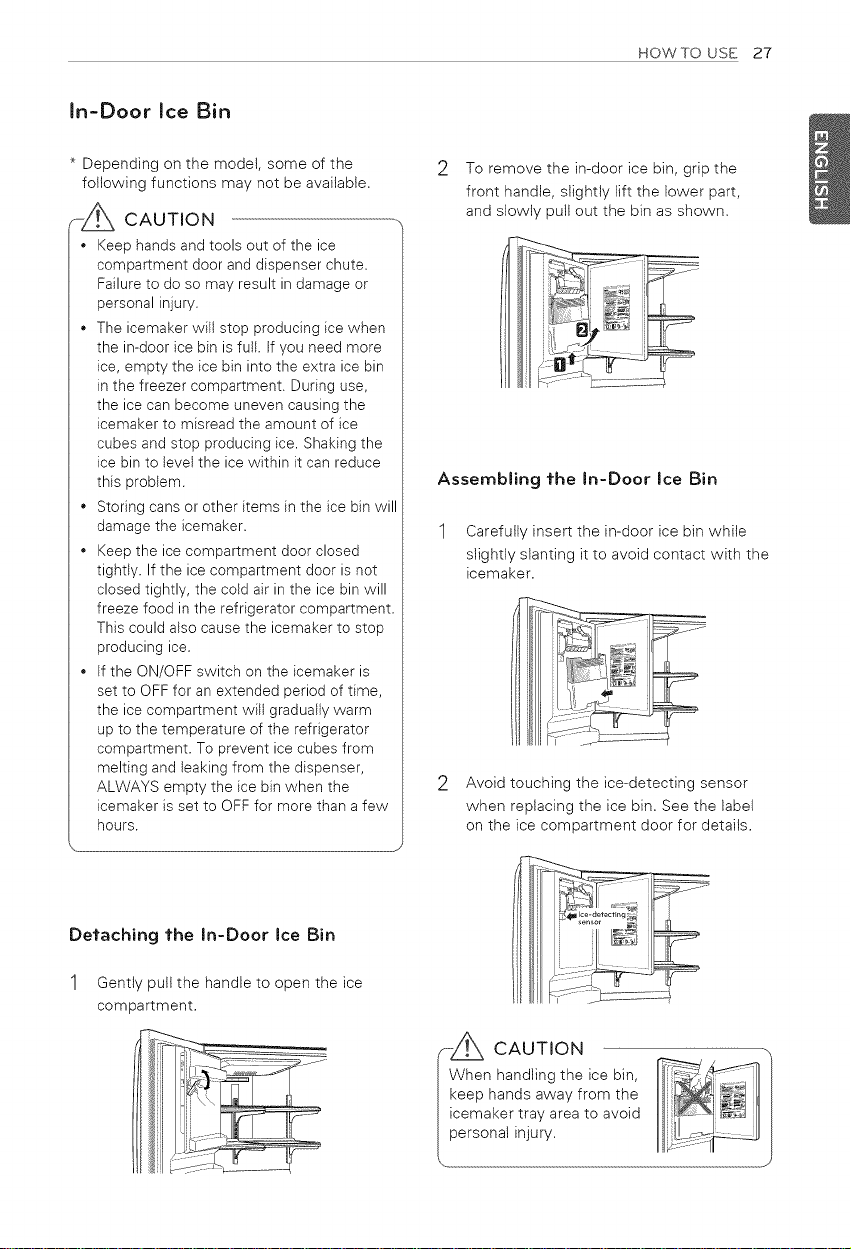

27 In-Door ice Bin
27 - Detaching the In-Door ice Bin
27 - Assembling the In-Door ice Bin

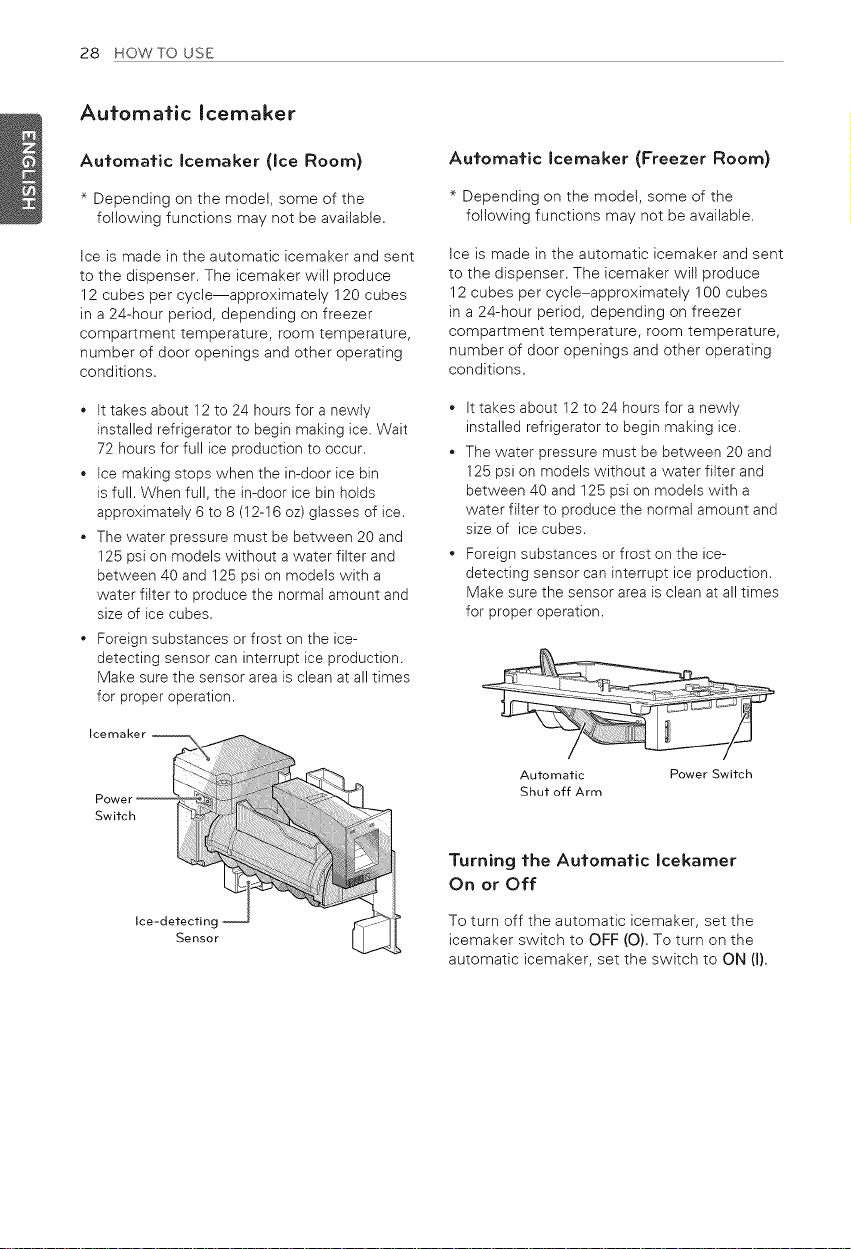

28 Automatic Icemaker
28 - Automatic Icemaker (ice Room)
28 - Automatic Icemaker (Freezer Room)
28 - Turning the Automatic Icemaker On or Off

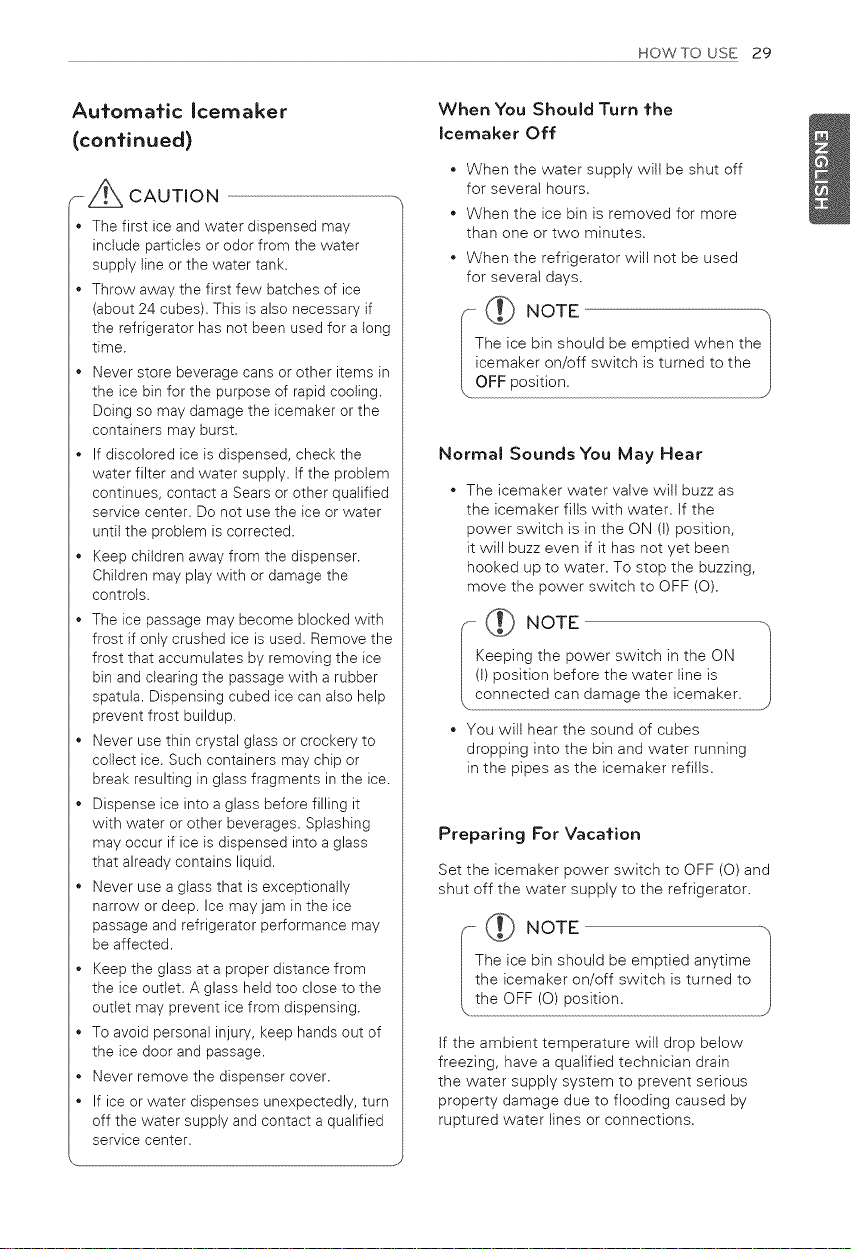

29 - When You Should Turn the Icemaker Off
29 - Normal Sounds You May Hear
29 - Preparing for Vacation

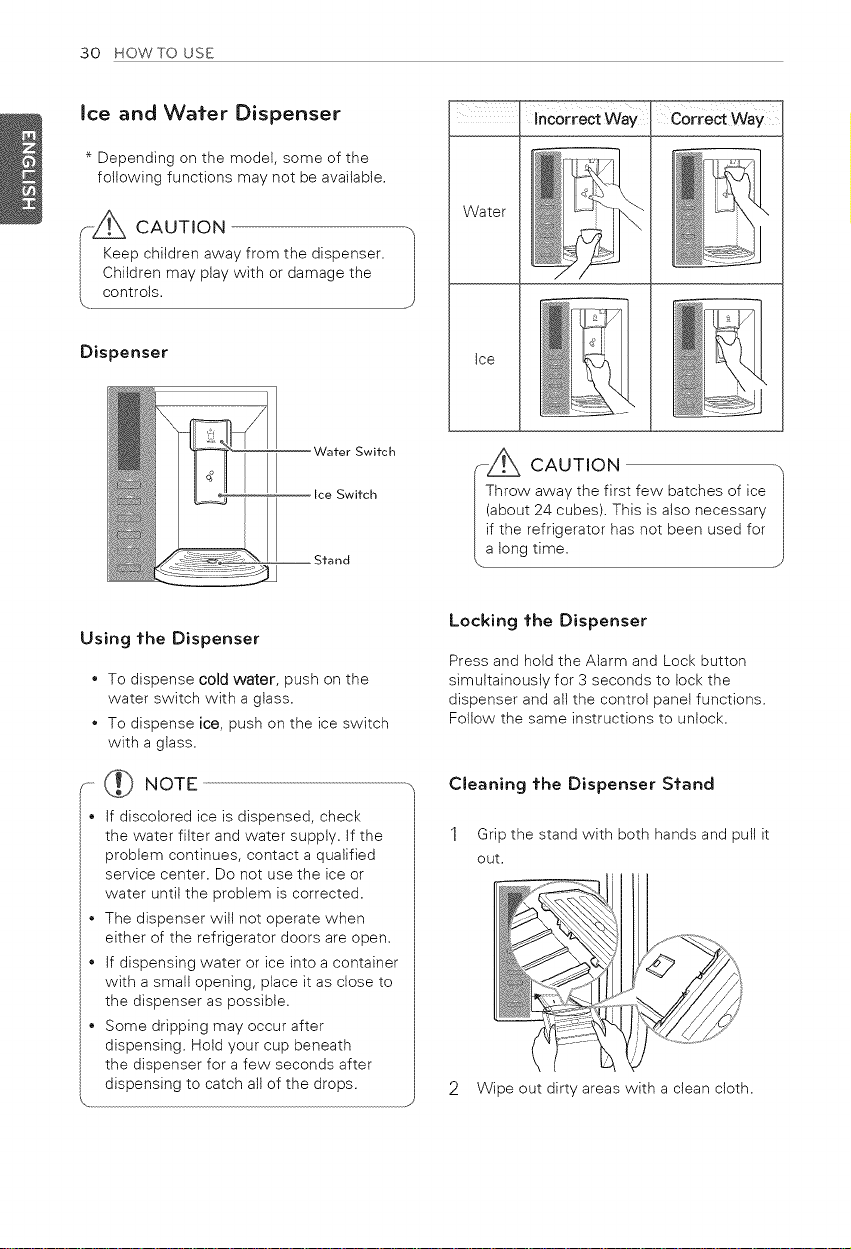

30 ice and Water Dispenser
30 - Dispenser
30 - Using the Dispenser
30 - Locking the Dispenser
30 - Cleaning the Dispenser Stand

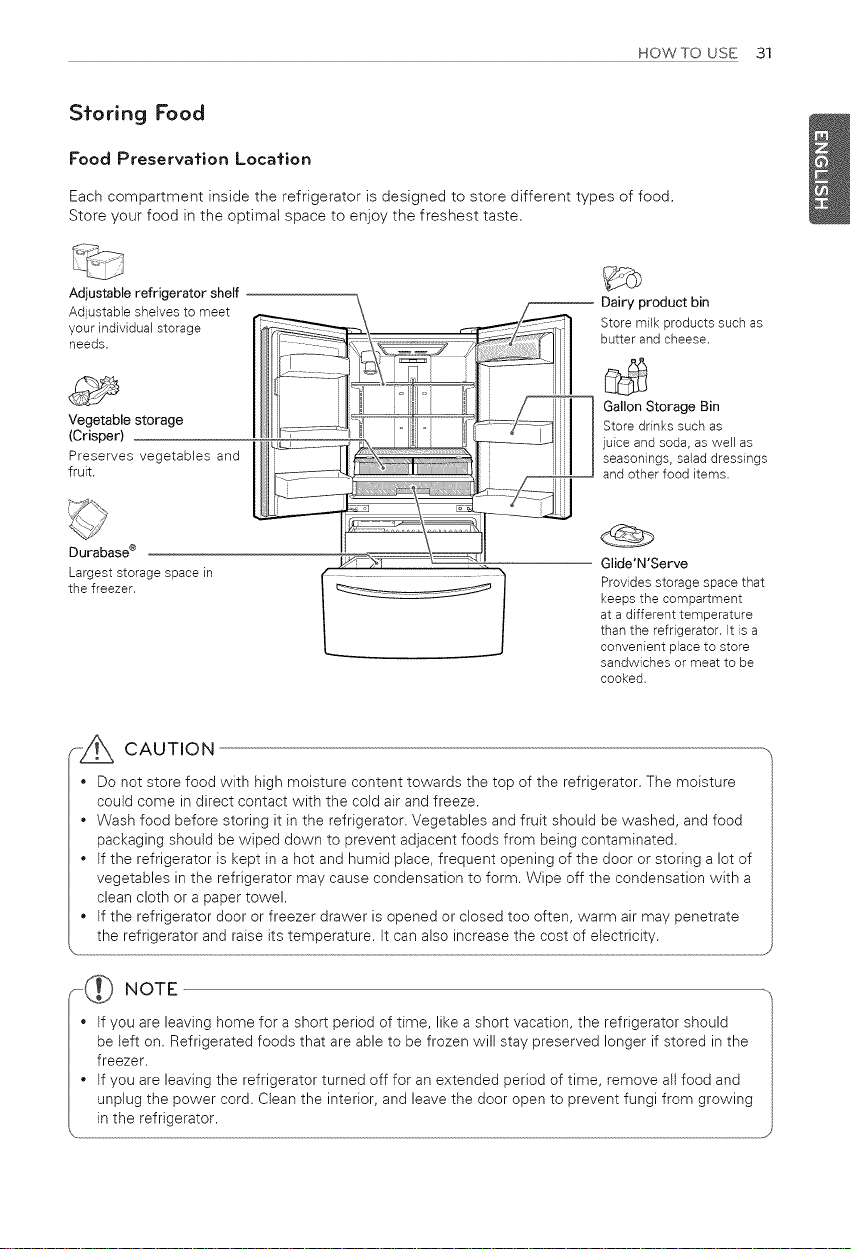

31 Storing Food
31 - Food Preservation Location
32 - Food Storage Tips
32 - Storing Frozen Food

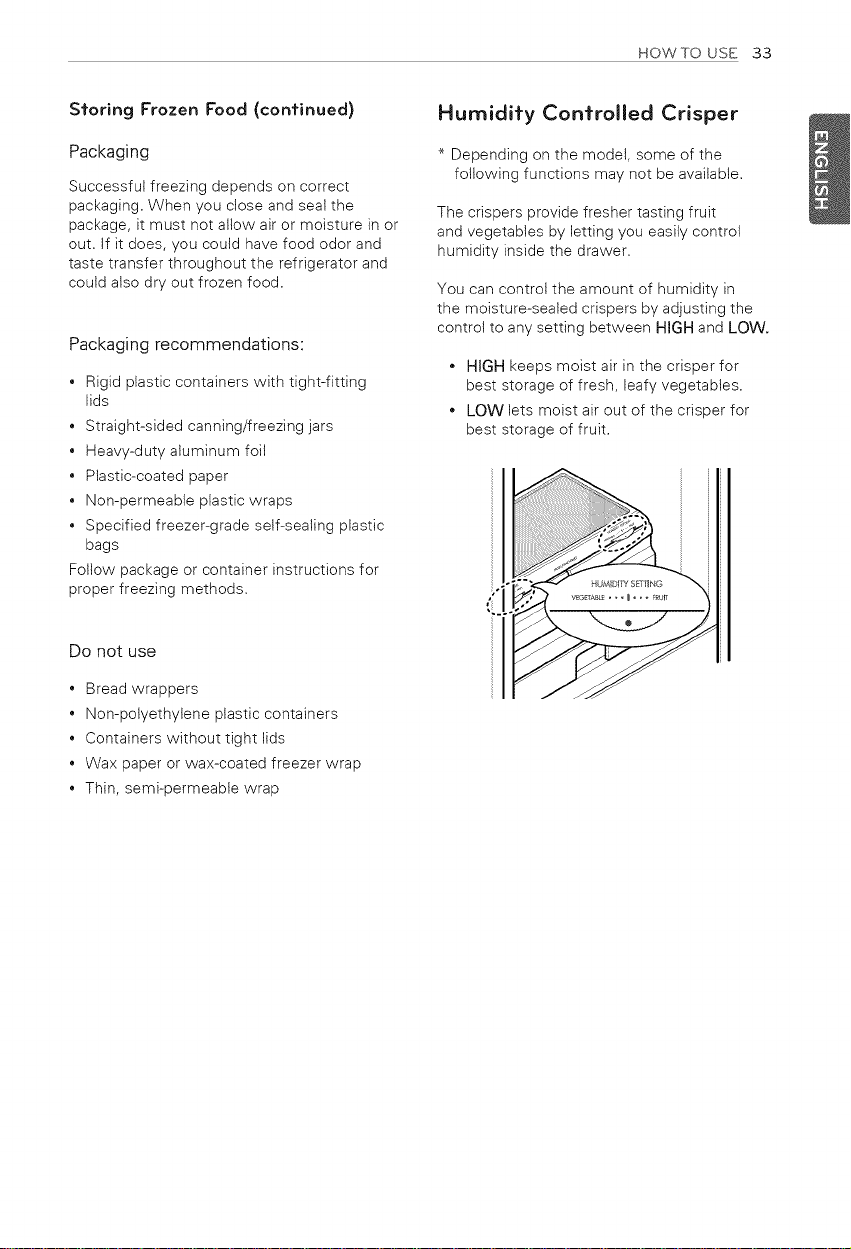

33 Humidity Controlled Crisper

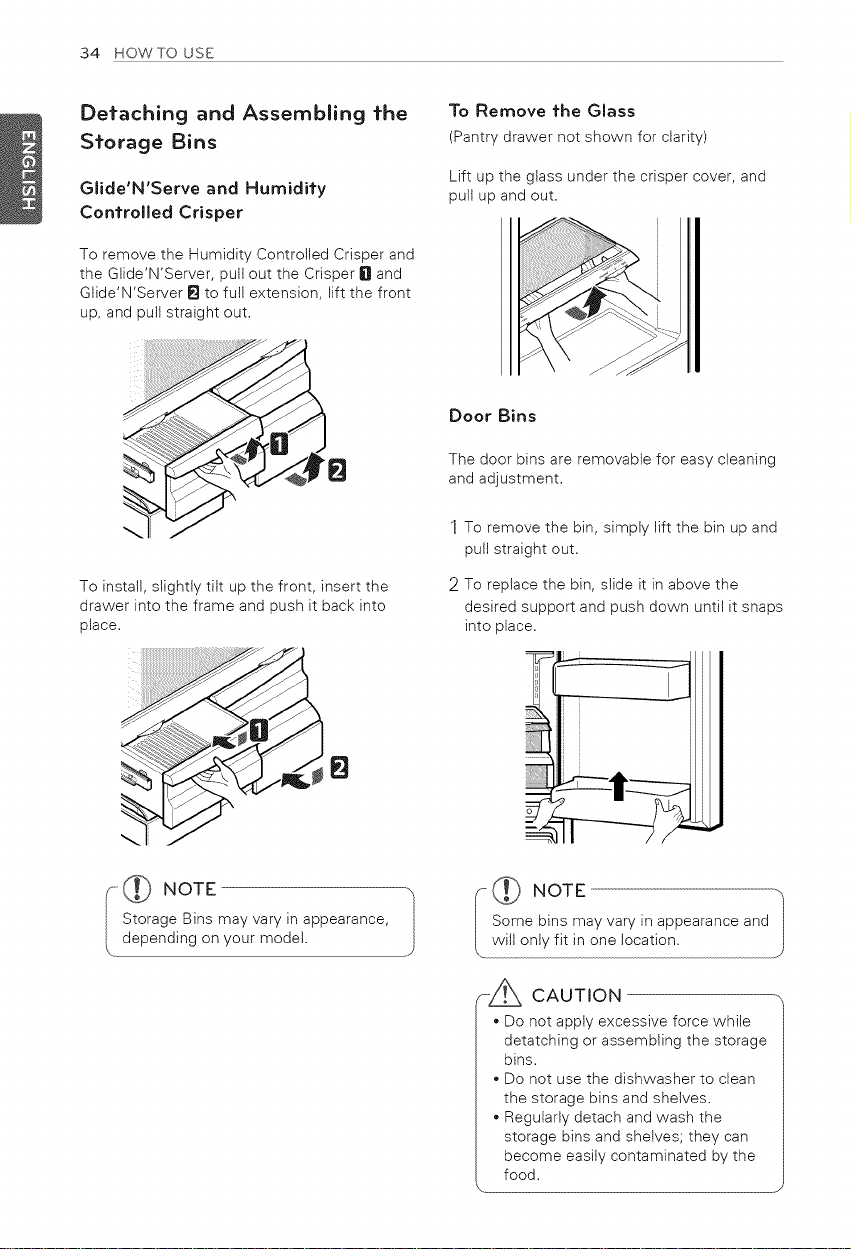

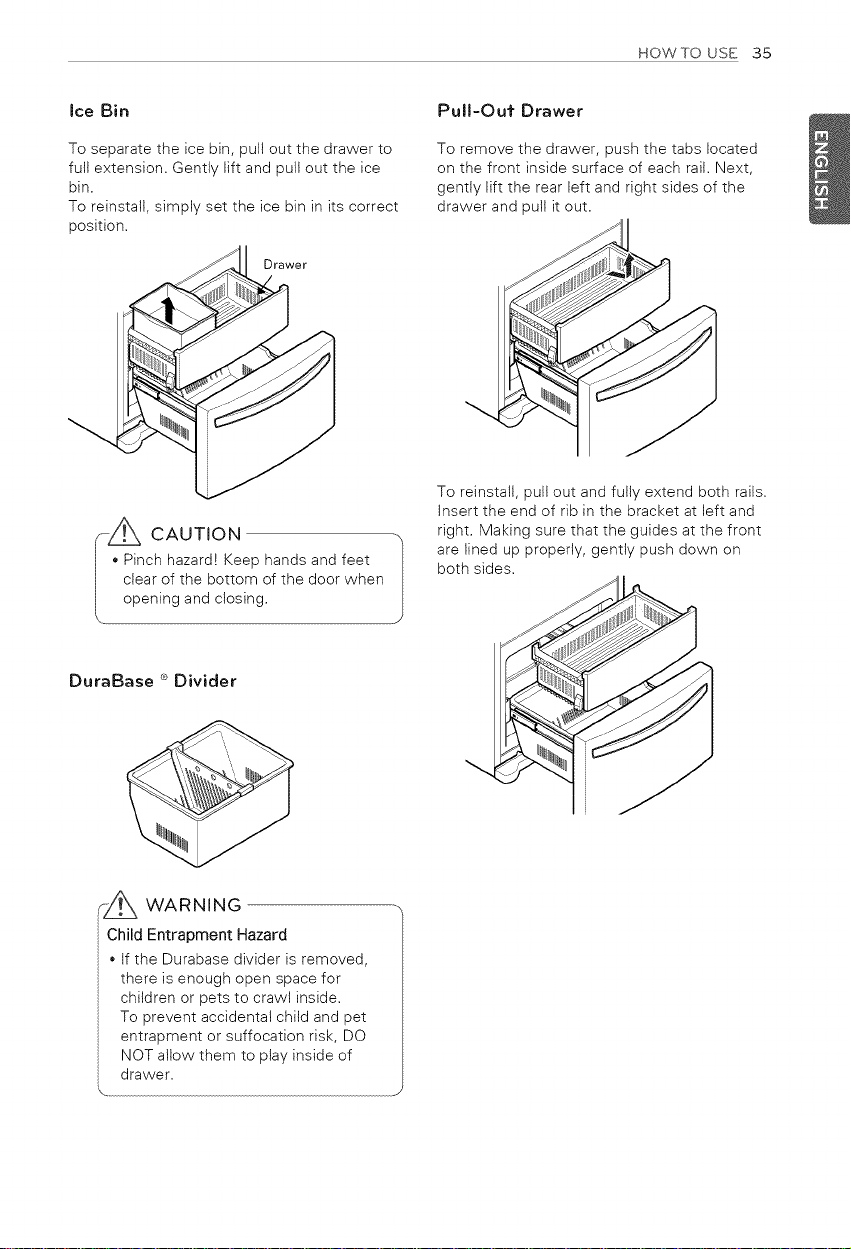

34 Detaching and Assembling the Storage Bins

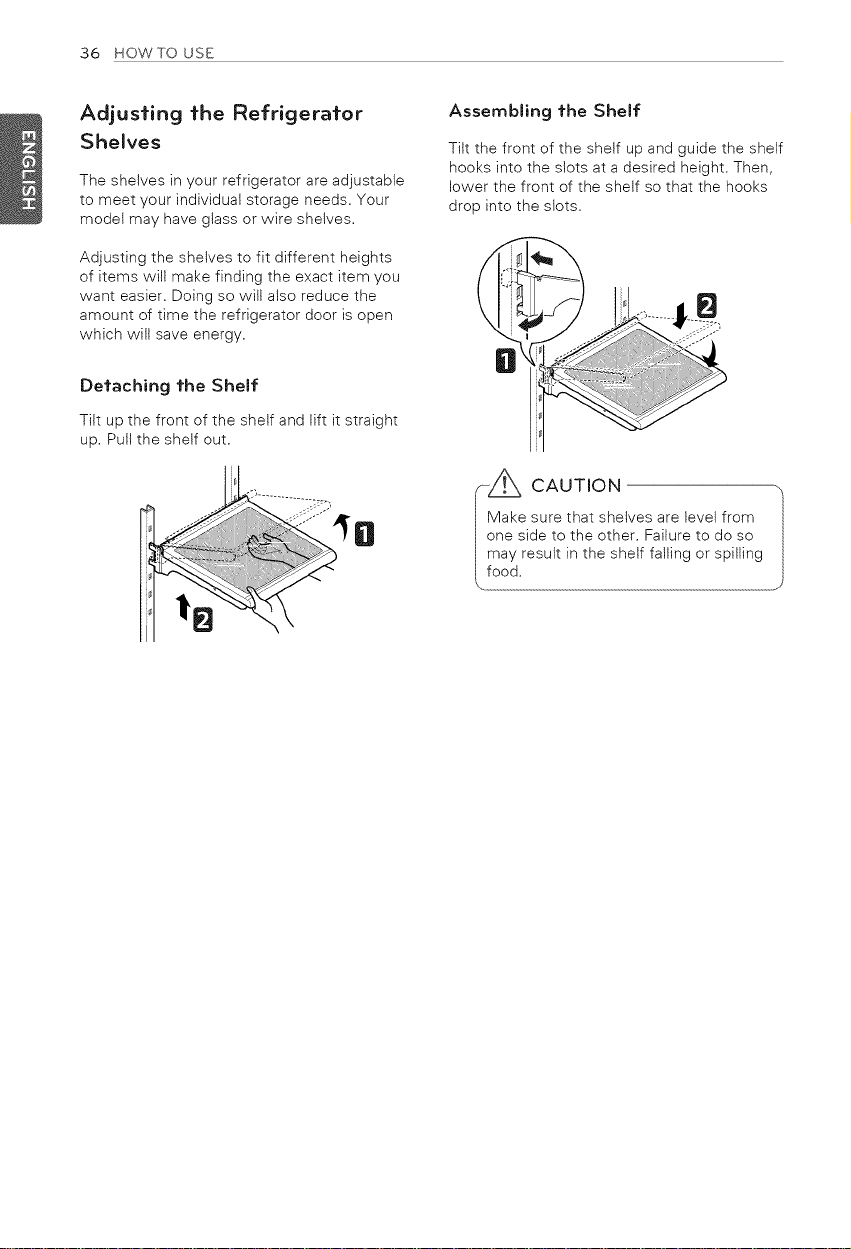

36 Adjusting the Refrigerator Shelves

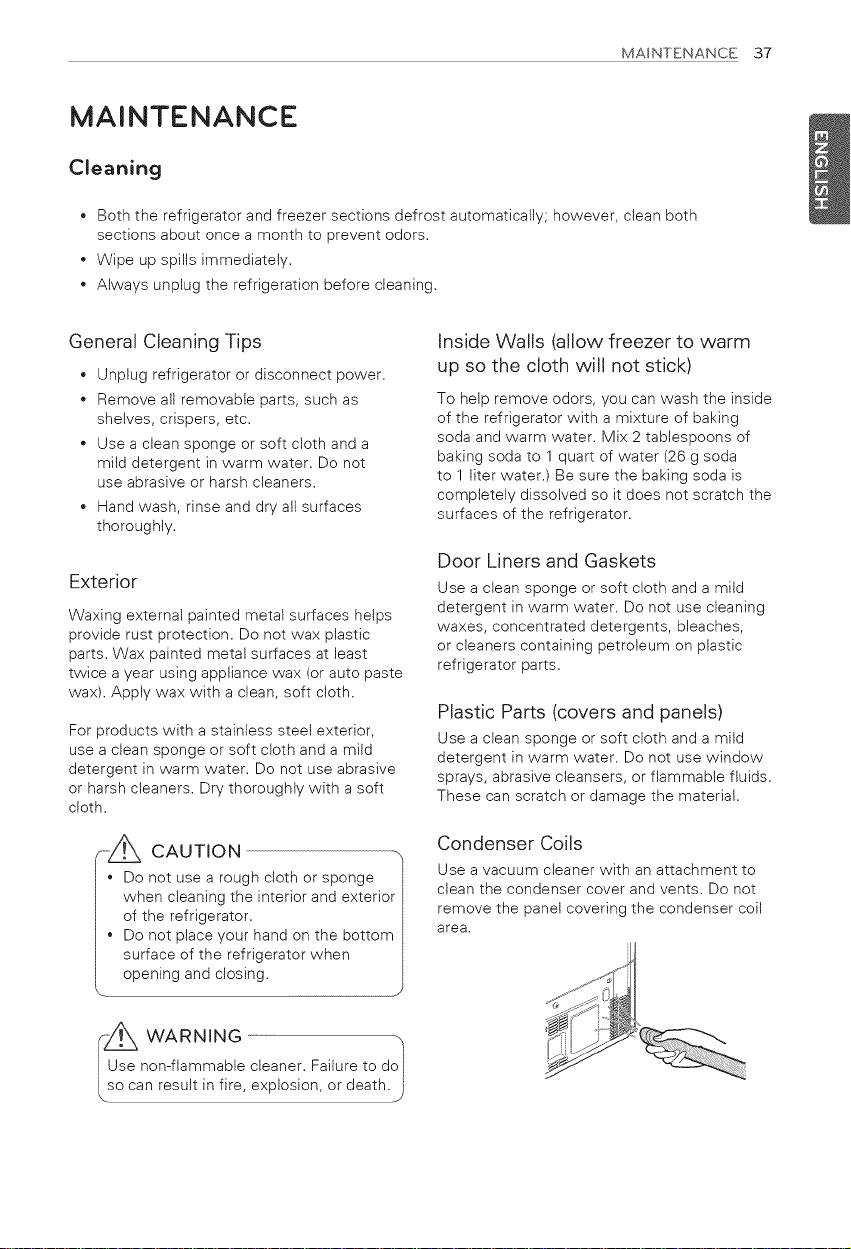

37 MAINTENANCE
37 Cleaning

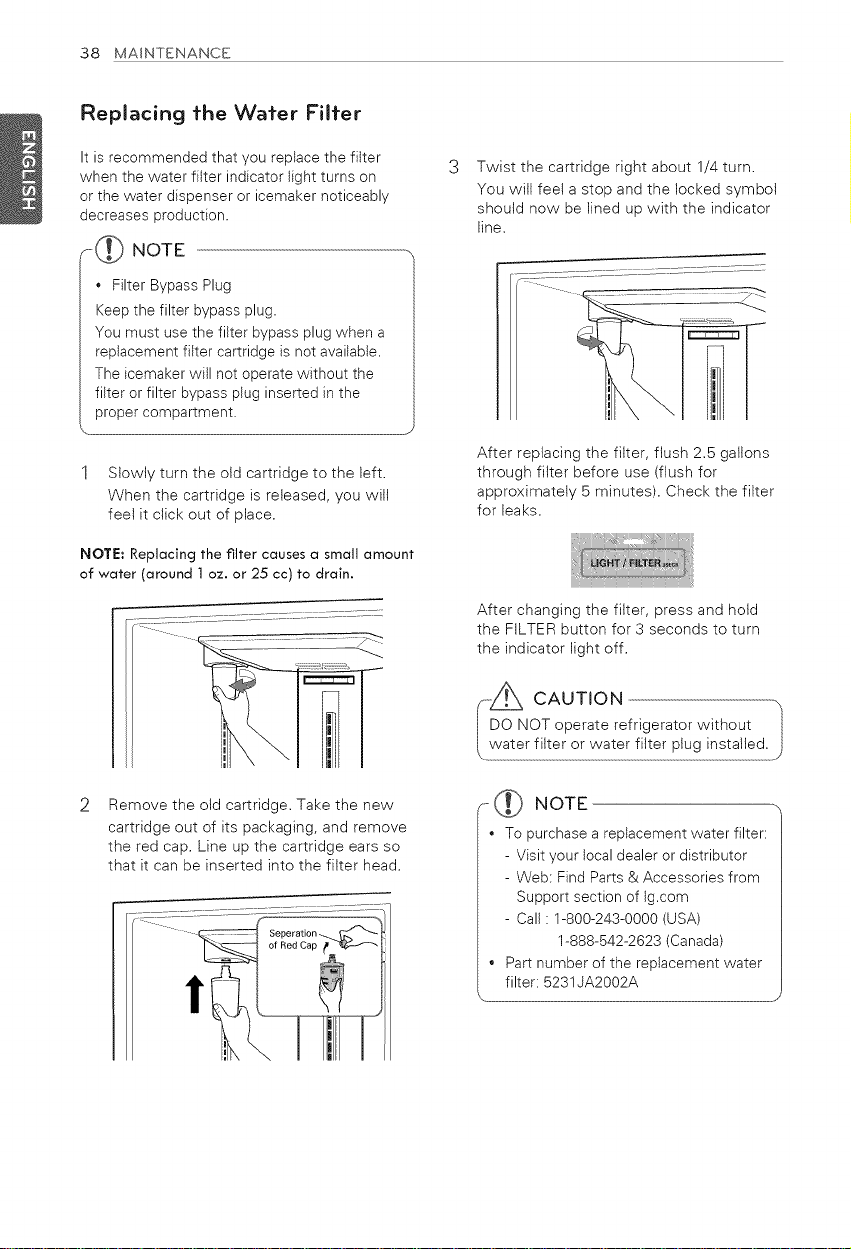

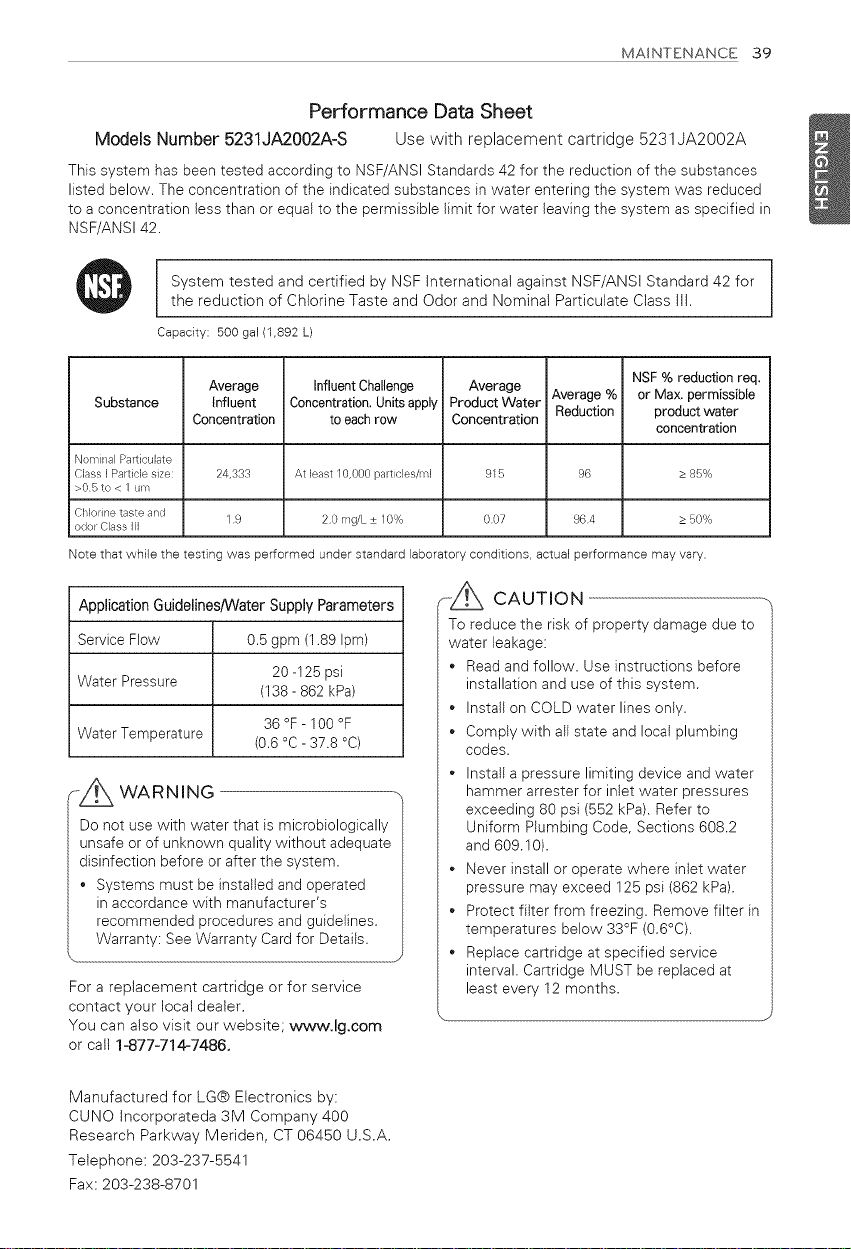

38 Replacing the Water Filter

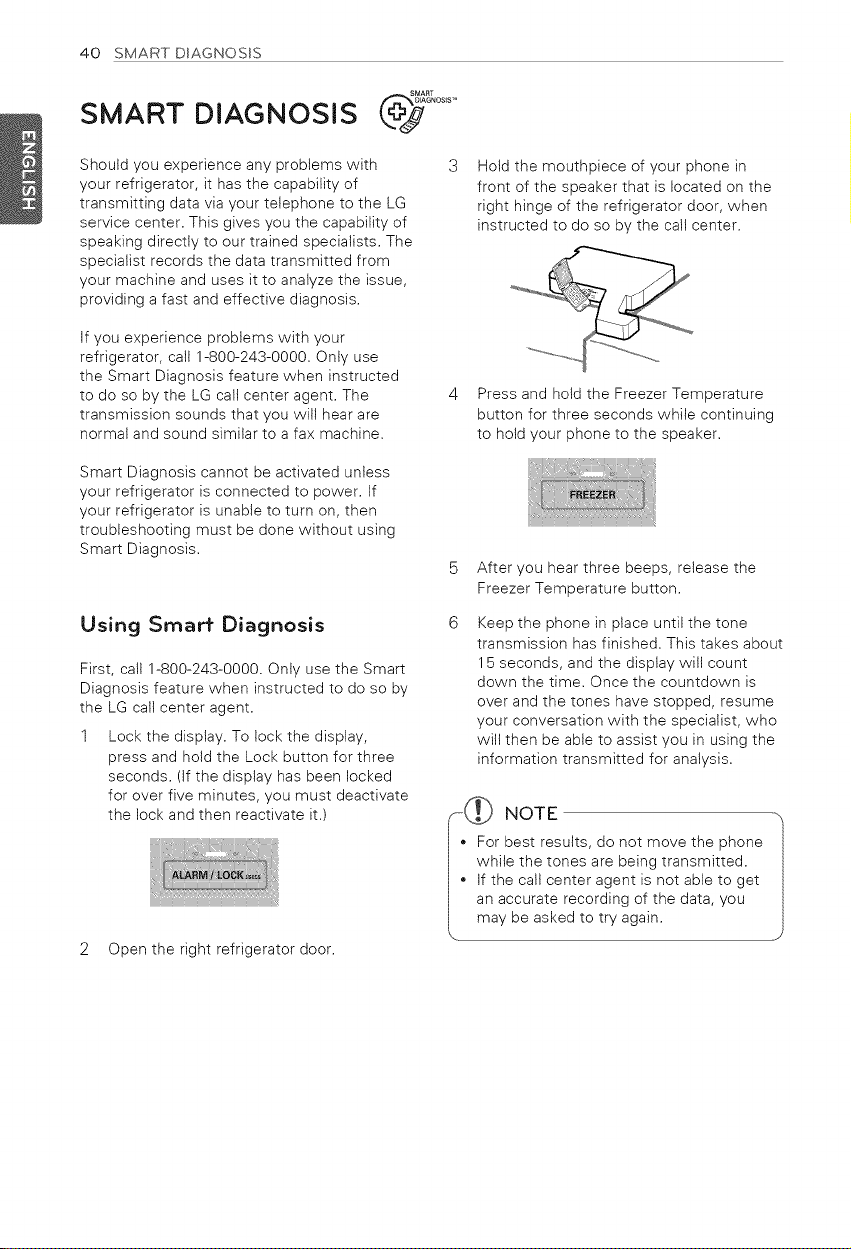

40 SMART DIAGNOSIS
40 Using Smart Diagnosis

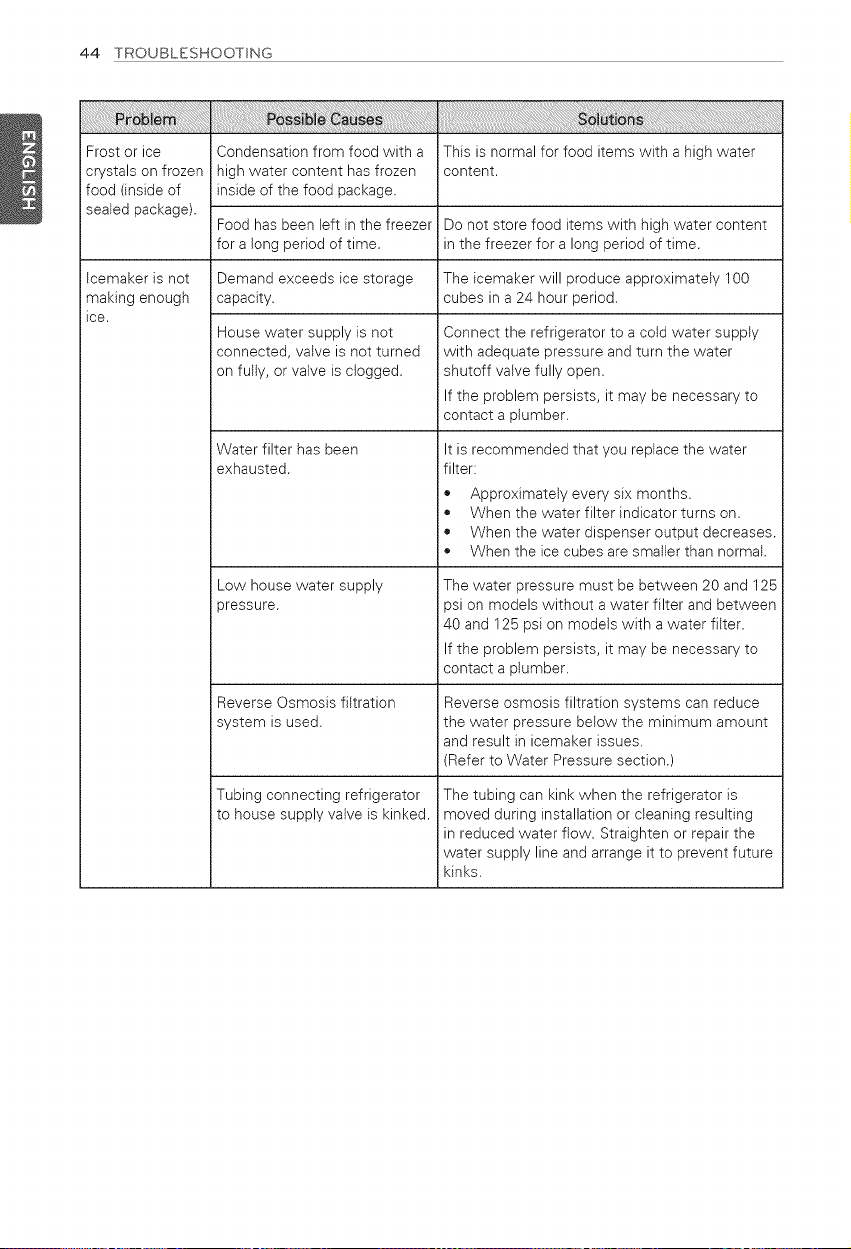

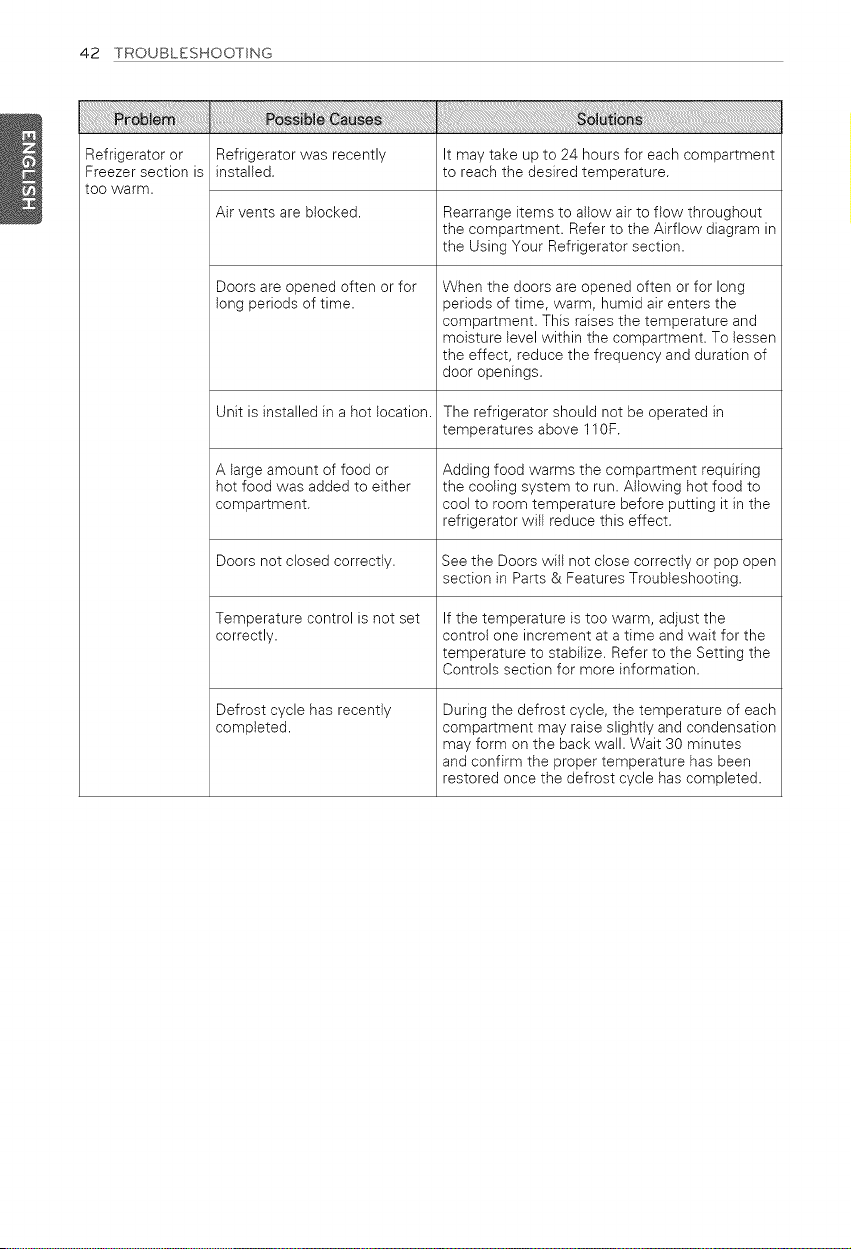

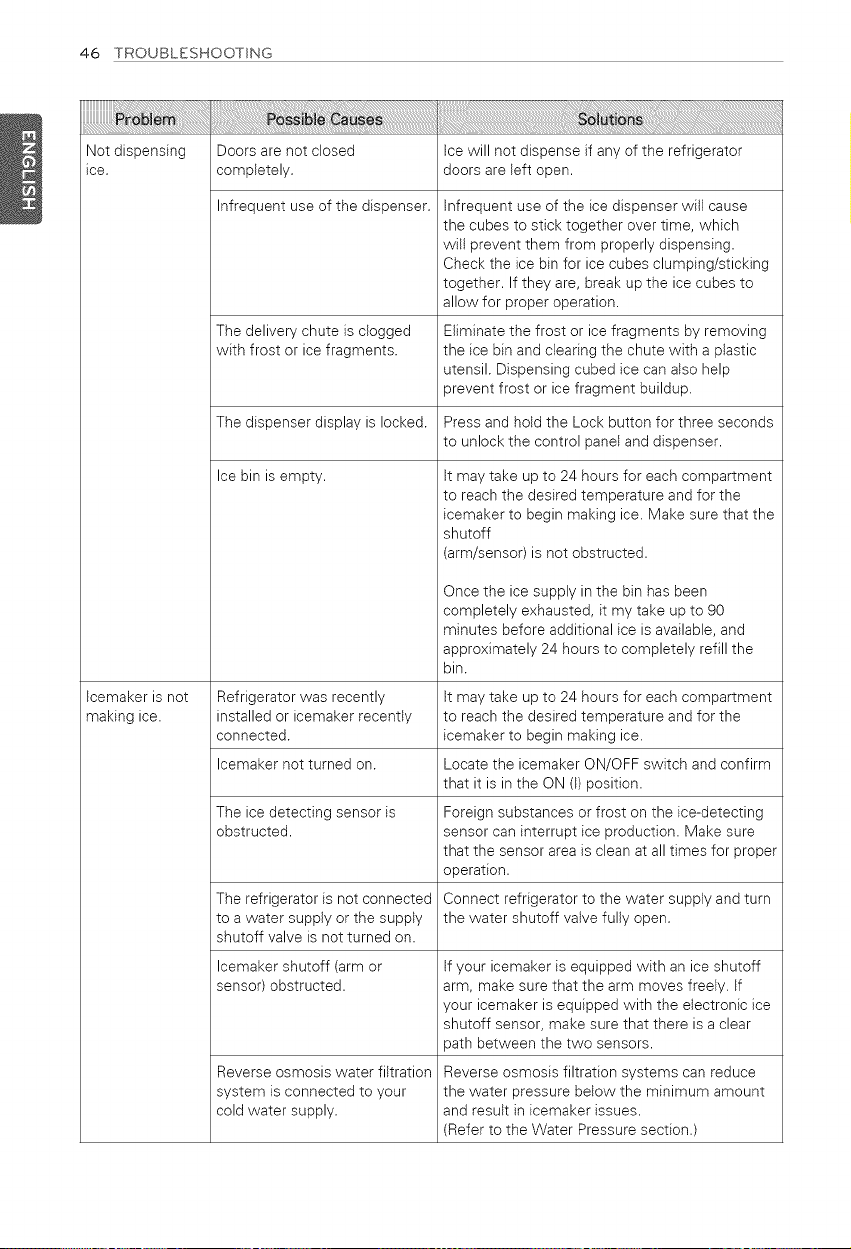

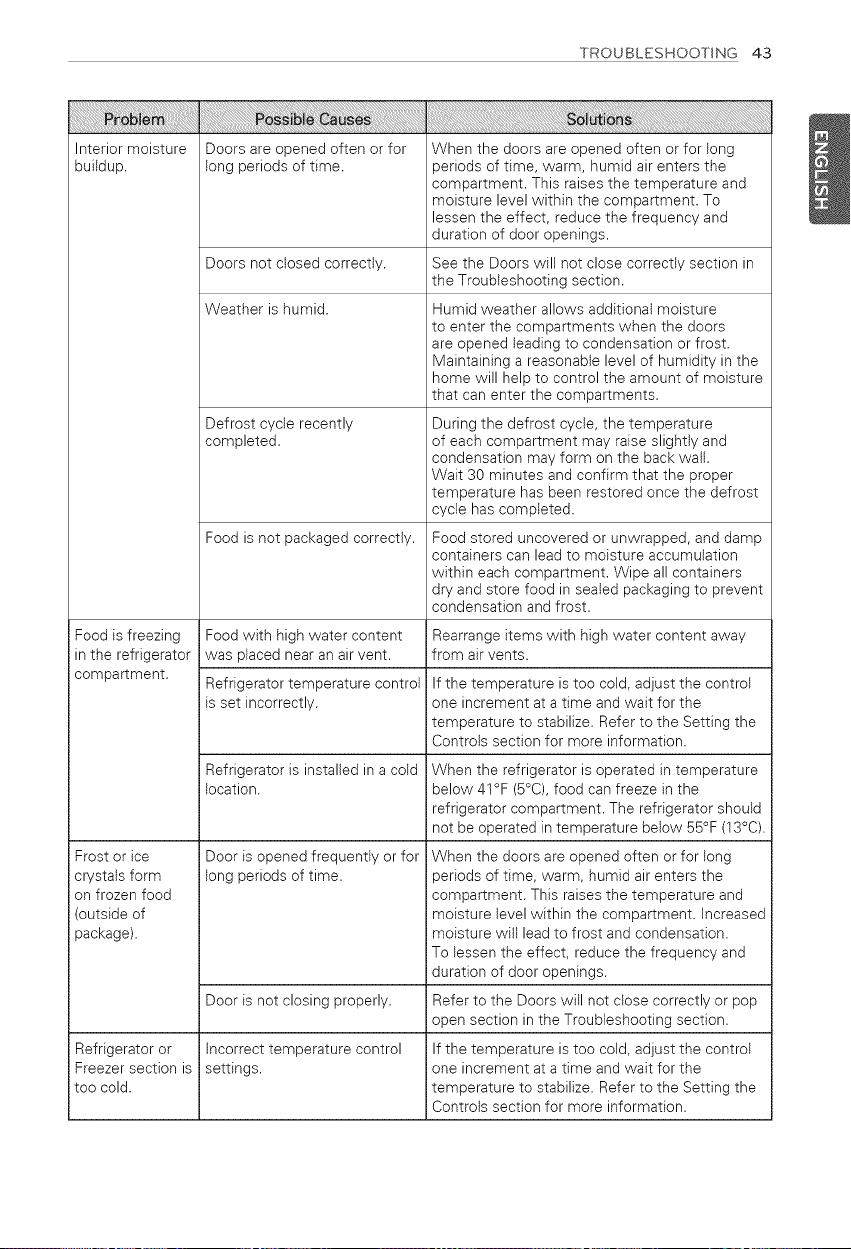

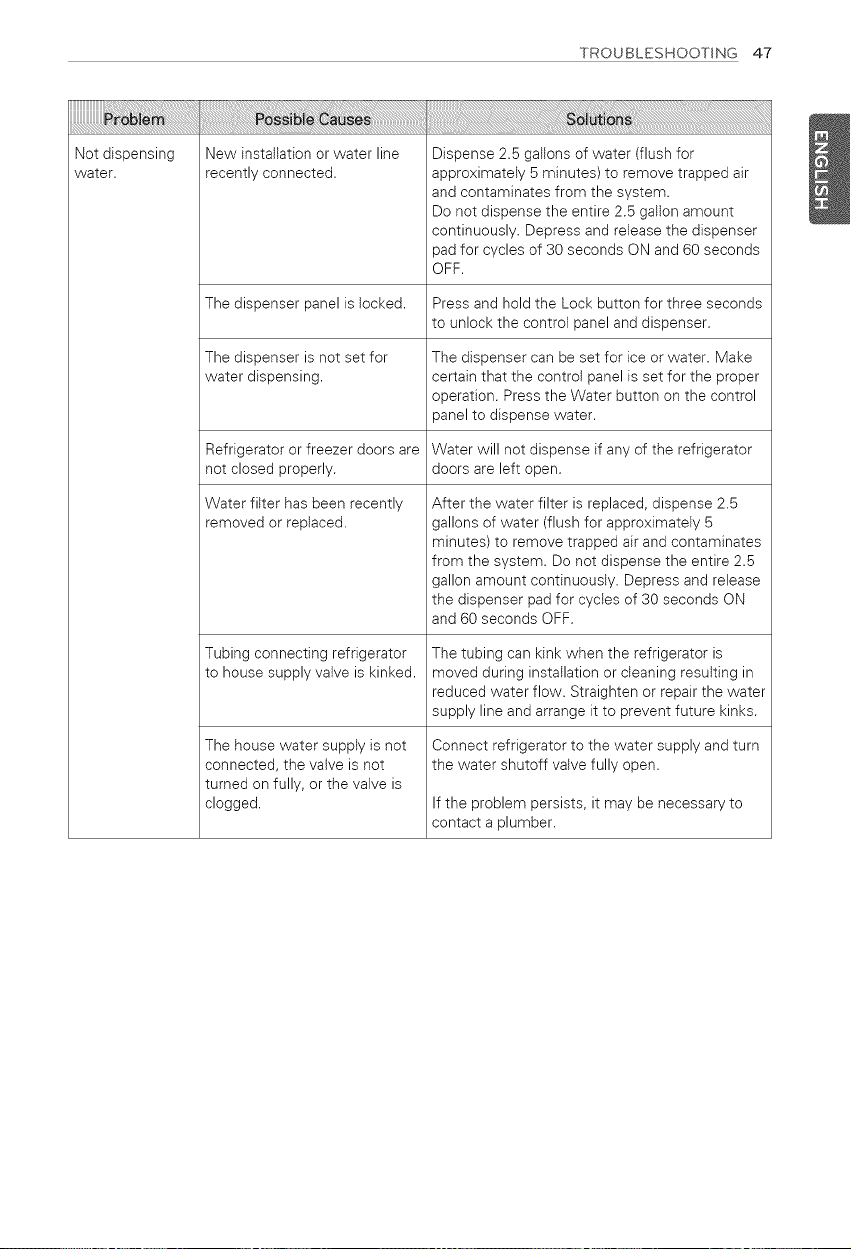

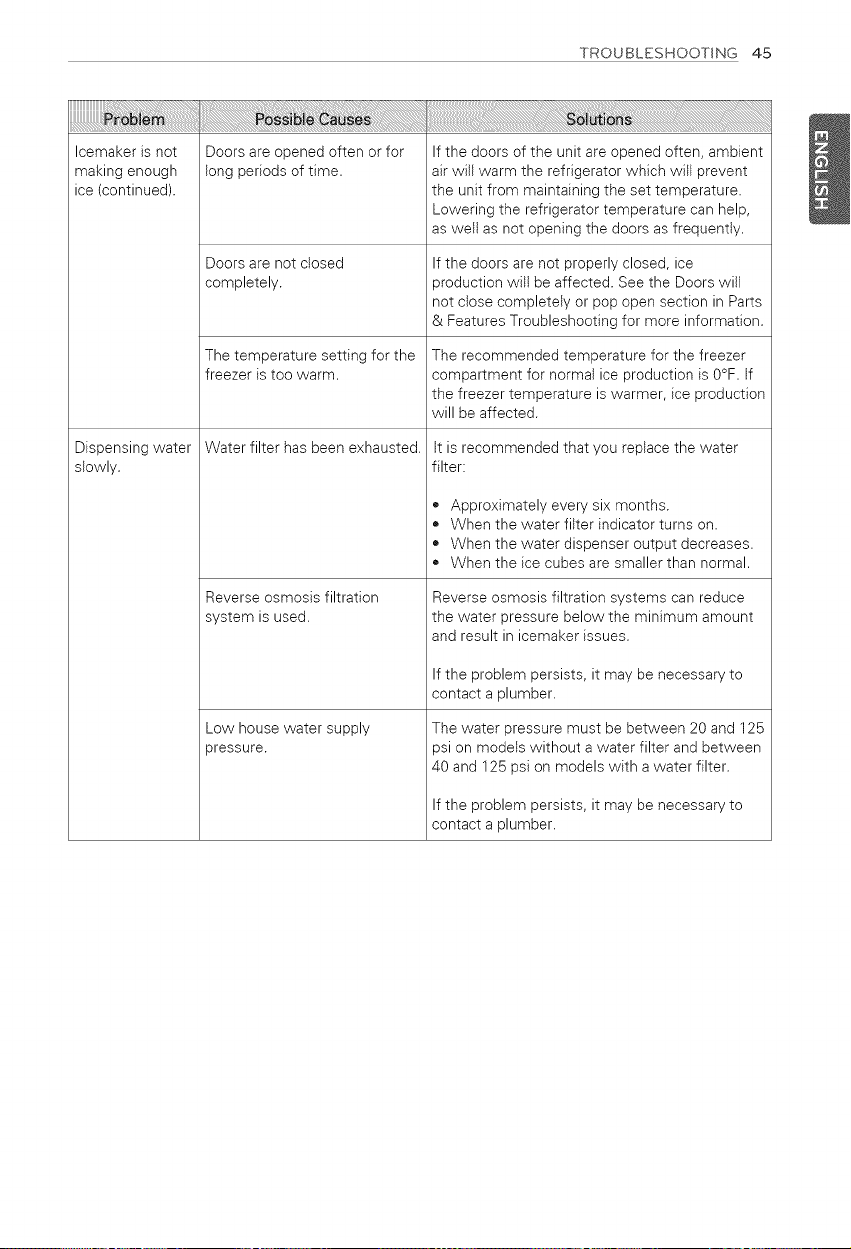

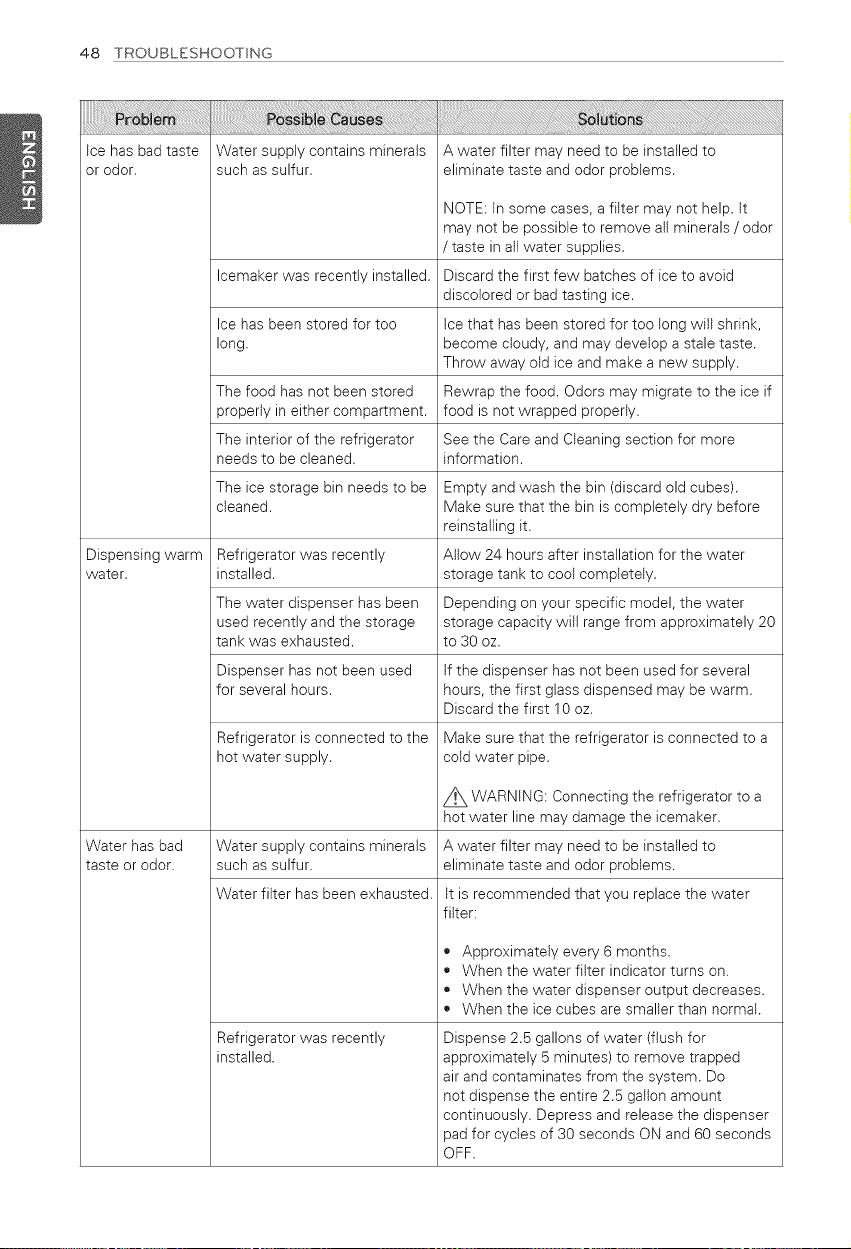

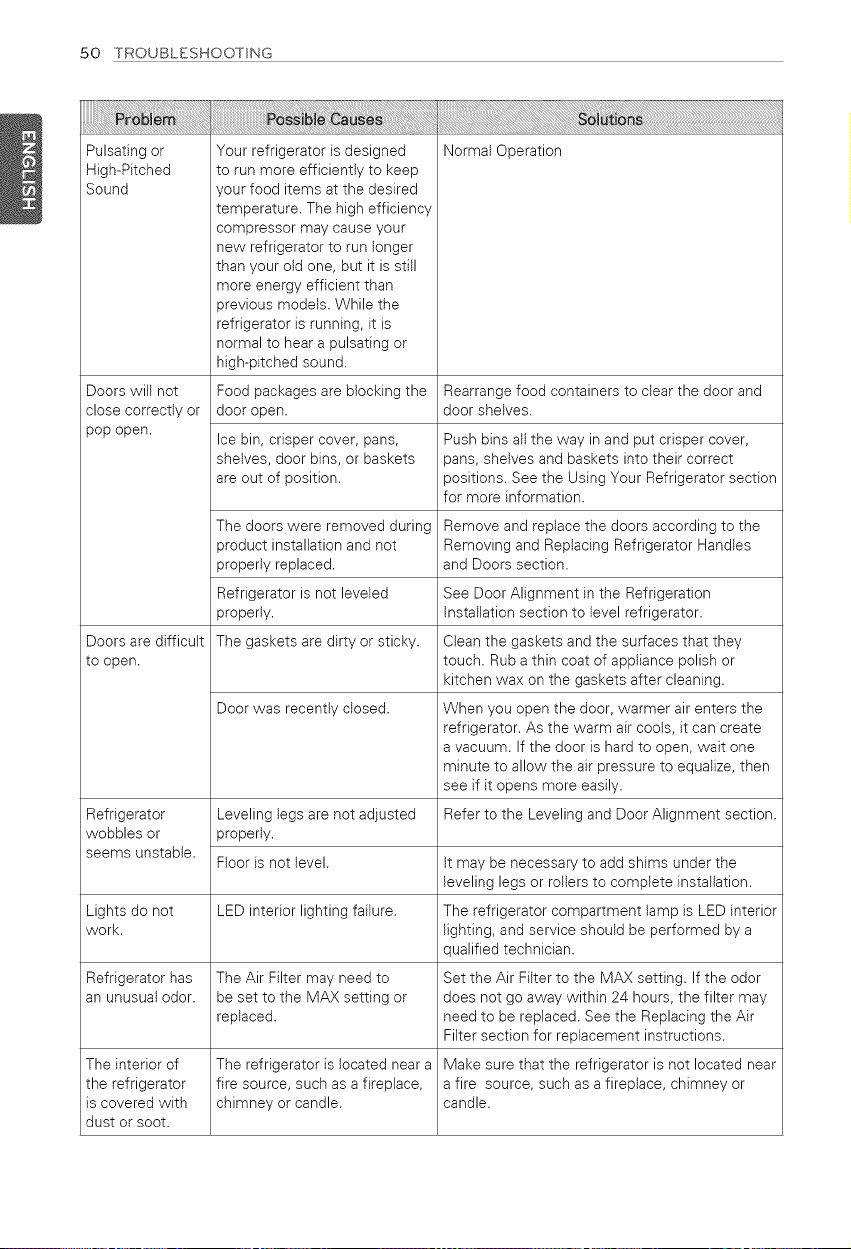

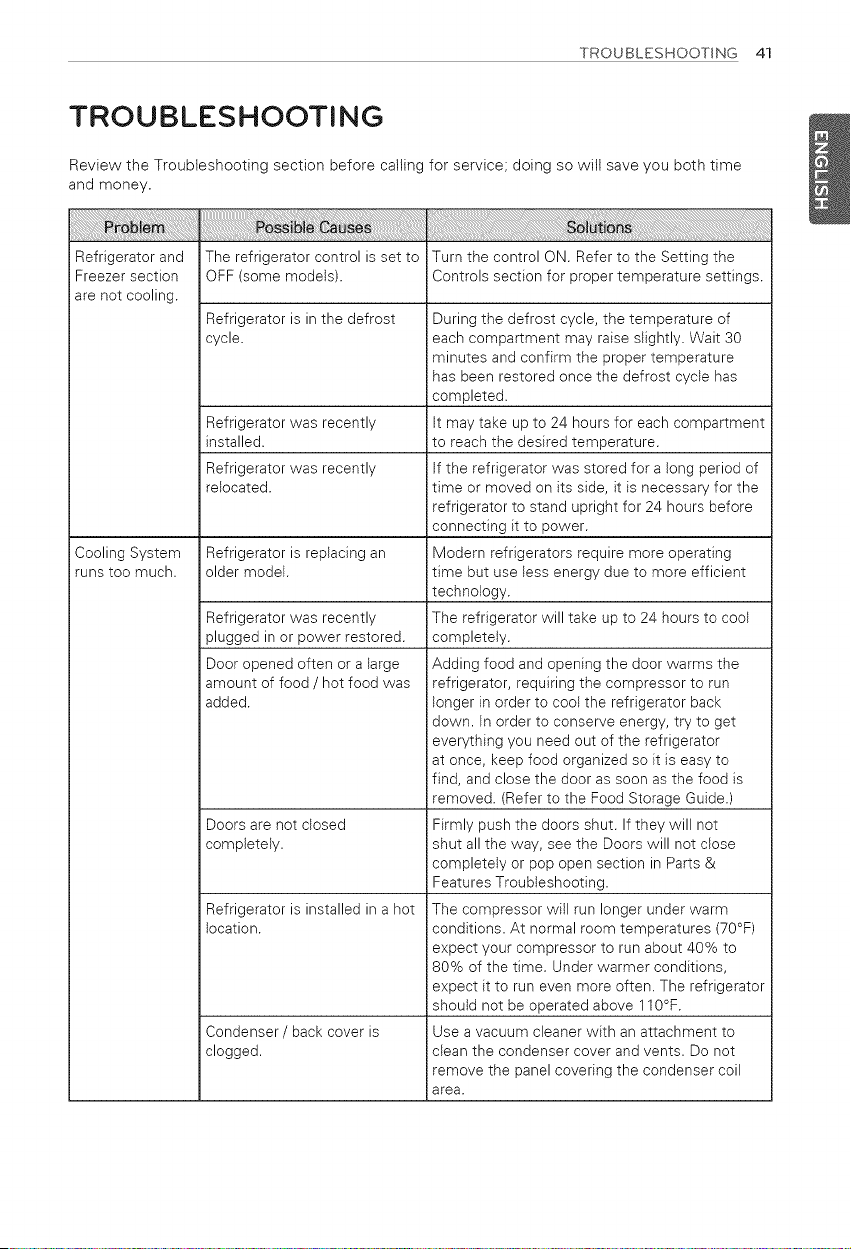

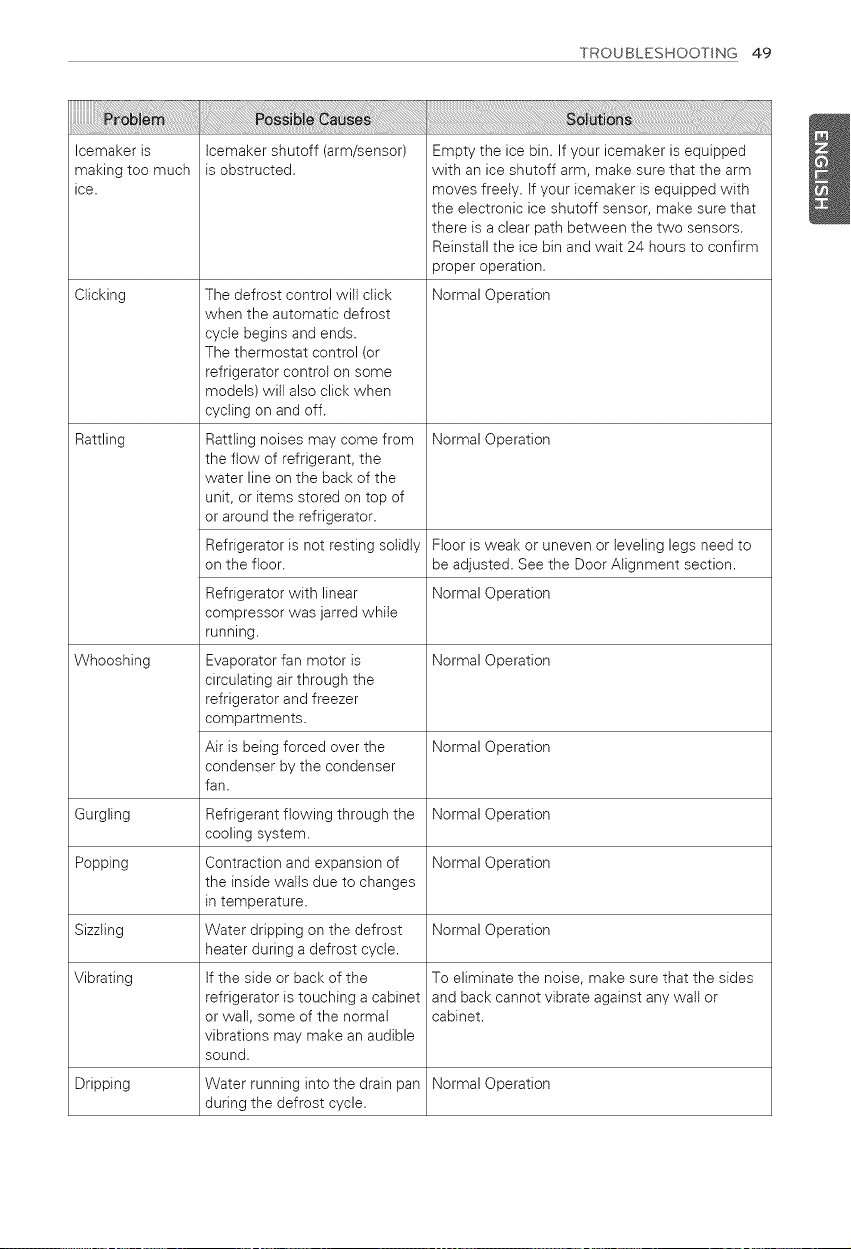

41 TROUBLESHOOTING

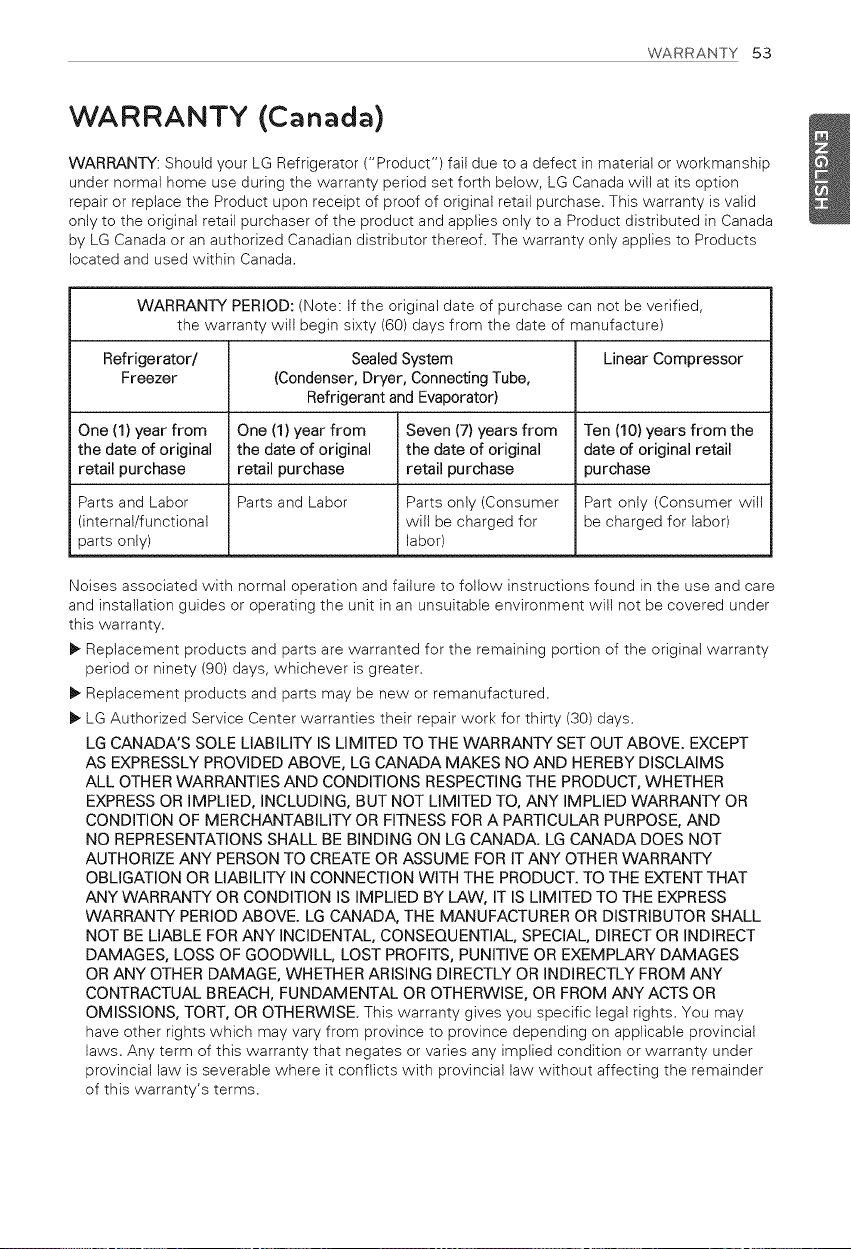

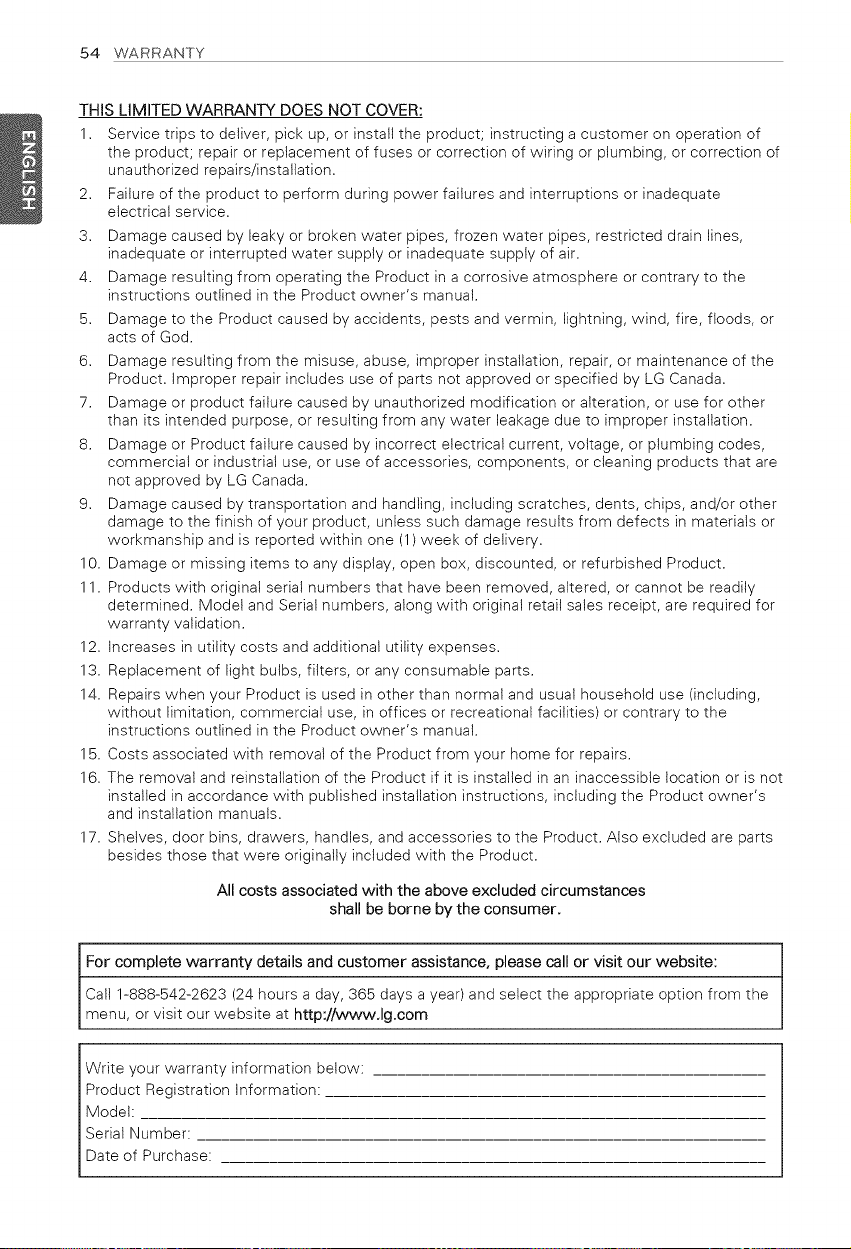

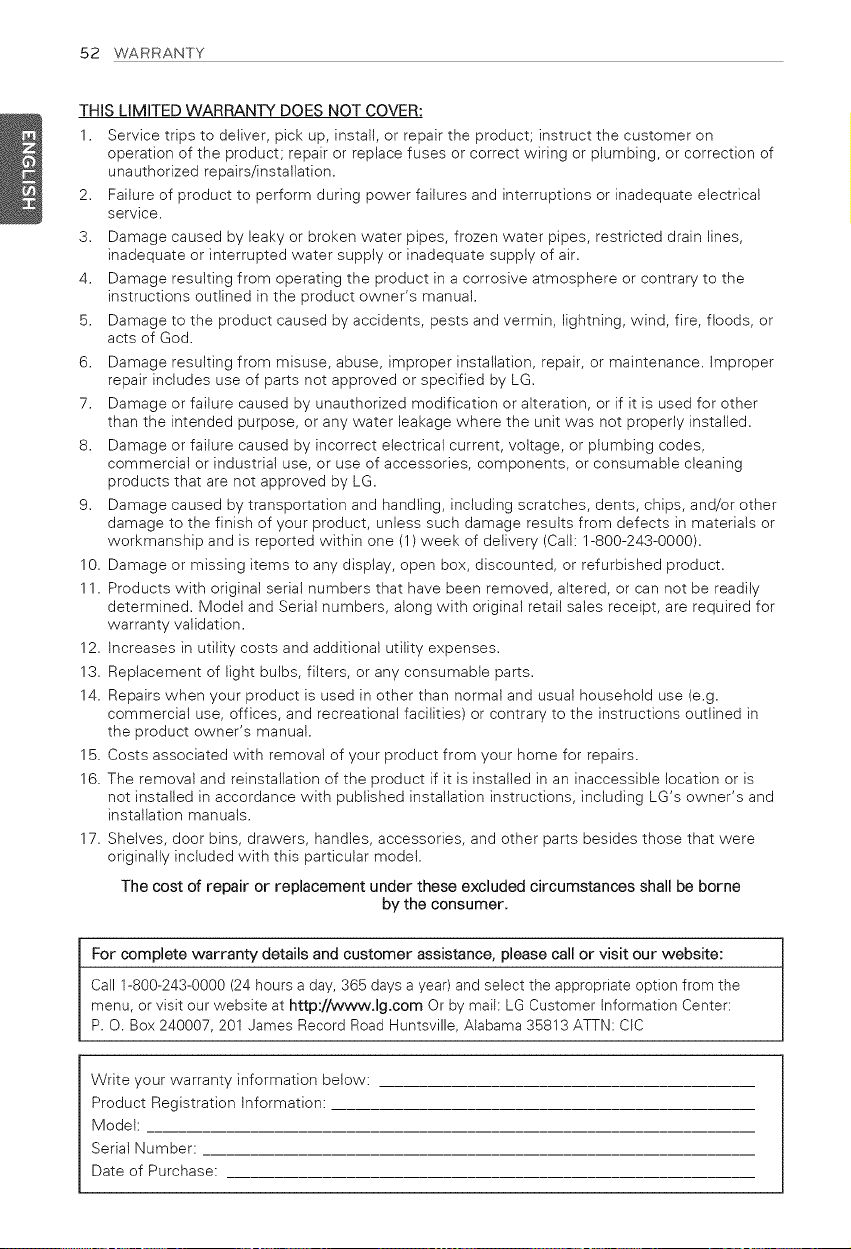

51 WARRANTY

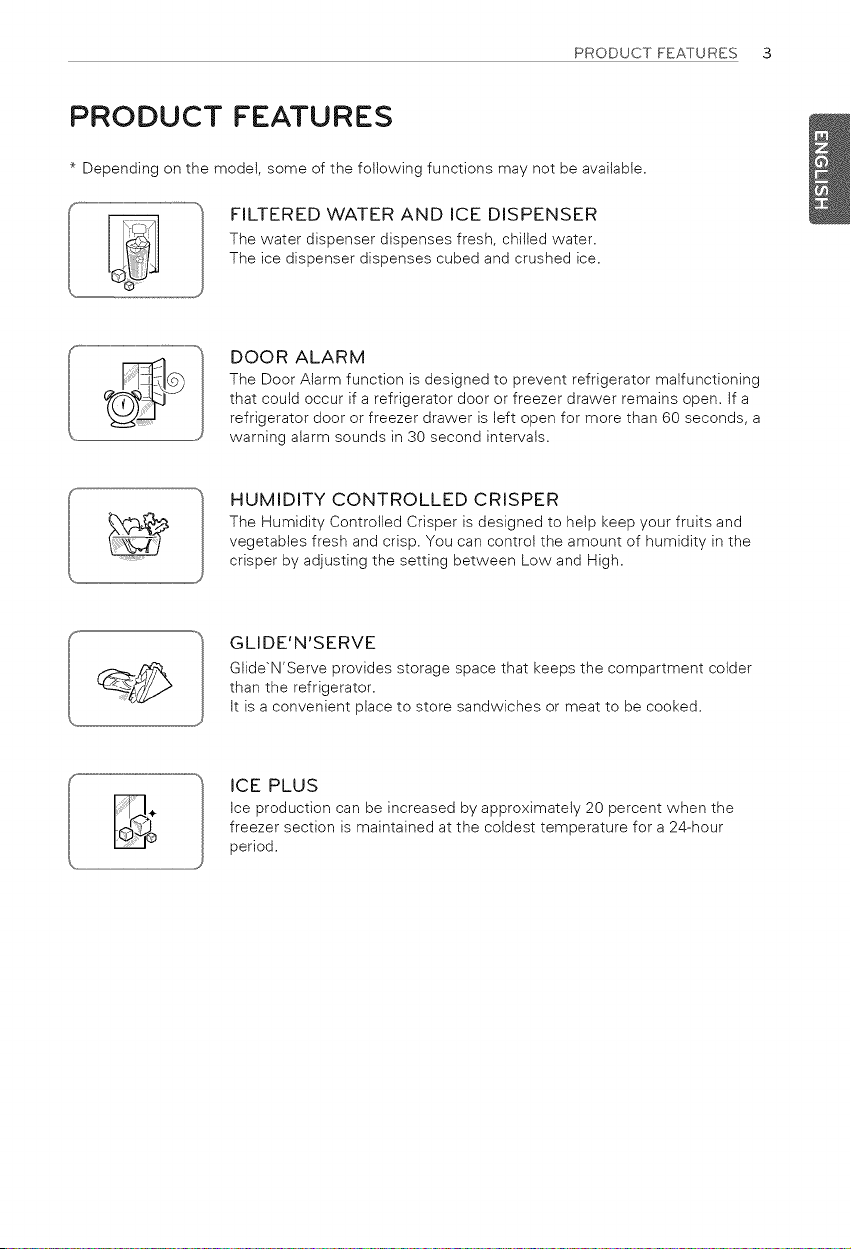

PRODUCT FEATURES 3
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water.
The ice dispenser dispenses cubed and crushed ice.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open, If a
refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds in 30 second intervals,
HUMIDITY CONTROLLED CRISPER
The Humidity Controlled Crisper is designed to help keep your fruits and
vegetables fresh and crisp, You can control the amount of humidity in the
crisper by adjusting the setting between Low and High,
GLIDE'N'SERVE
Glide'N'Serve provides storage space that keeps the compartment colder
than the refrigerator,
It is a convenient place to store sandwiches or meat to be cooked,
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period,

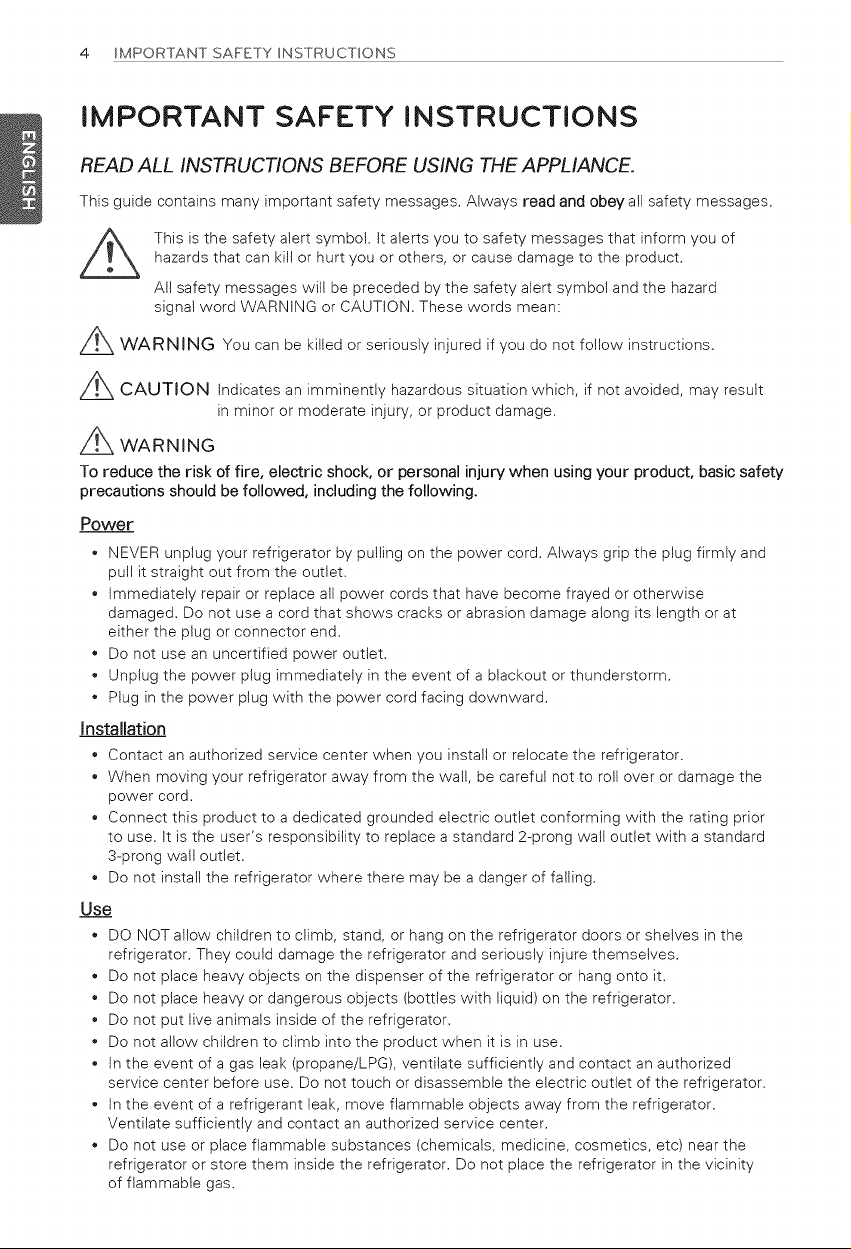

4 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:
Z_ WARNING You can be killed or seriously injured if you do not follow instructions.
Z_ CAUTION indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
z_ WARNING
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
Power
• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and
pull it straight out from the outlet.
• Immediately repair or replace all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either the plug or connector end.
• Do not use an uncertified power outlet.
• Unplug the power ptug immediately in the event of a blackout or thunderstorm.
• Plug in the power plug with the power cord facing downward.
Installation
• Contact an authorized service center when you install or relocate the refrigerator.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the
power cord.
• Connect this product to a dedicated grounded electric outlet conforming with the rating prior
to use. It is the user's responsibility to replace a standard 2-prong wan outlet with a standard
3-prong wan outlet.
• Do not install the refrigerator where there may be a danger of falling.
Use
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
• Do not place heavy objects on the dispenser of the refrigerator or hang onto it.
• Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
• Do not put live animals inside of the refrigerator.
• Do not allow children to climb into the product when it is in use.
• In the event of a gas leak (propane/LPG), ventilate sufficiently and contact an authorized
service center before use. Do not touch or disassemble the electric outlet of the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator.
Ventilate sufficiently and contact an authorized service center.
• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the
refrigerator or store them inside the refrigerator. Do not place the refrigerator in the vicinity
of flammable gas.

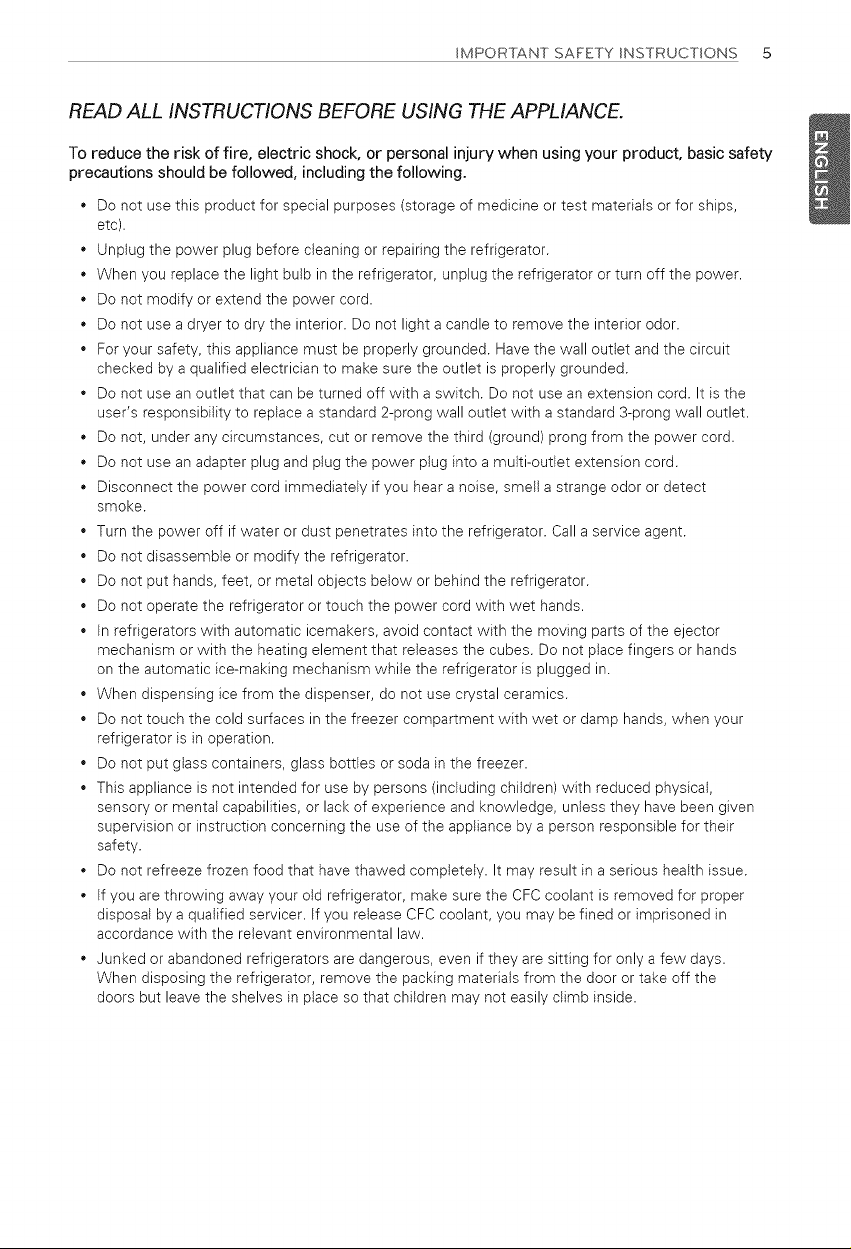

IMPORTANT SAFETY INSTRUCTIONS 5
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
• Do not use this product for special purposes (storage of medicine or test materials or for ships,
etc)
• Unplug the power plug before cleaning or repairing the refrigerator.
• When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power
• Do not modify or extend the power cord
• Do not use a dryer to dry the interior. Do not light a candle to remove the interior odor.
• For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the outlet is properly grounded.
• Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the
user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect
smoke.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not disassemble or modify the refrigerator.
• Do not put hands, feet, or metal objects below or behind the refrigerator.
• Do not operate the refrigerator or touch the power cord with wet hands
• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
mechanism or with the heating element that releases the cubes. Do not place fingers or hands
on the automatic ice-making mechanism while the refrigerator is plugged in.
• When dispensing ice from the dispenser, do not use crystal ceramics.
• Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your
refrigerator is in operation.
• Do not put glass containers, glass bottles or soda in the freezer
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
• Do not refreeze frozen food that have thawed completely It may result in a serious health issue.
• If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper
disposal by a qualified servicer If you release CFC coolant, you may be fined or imprisoned in
accordance with the relevant environmental law
• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days
When disposing the refrigerator, remove the packing materials from the door or take off the
doors but leave the shelves in place so that children may not easily climb inside

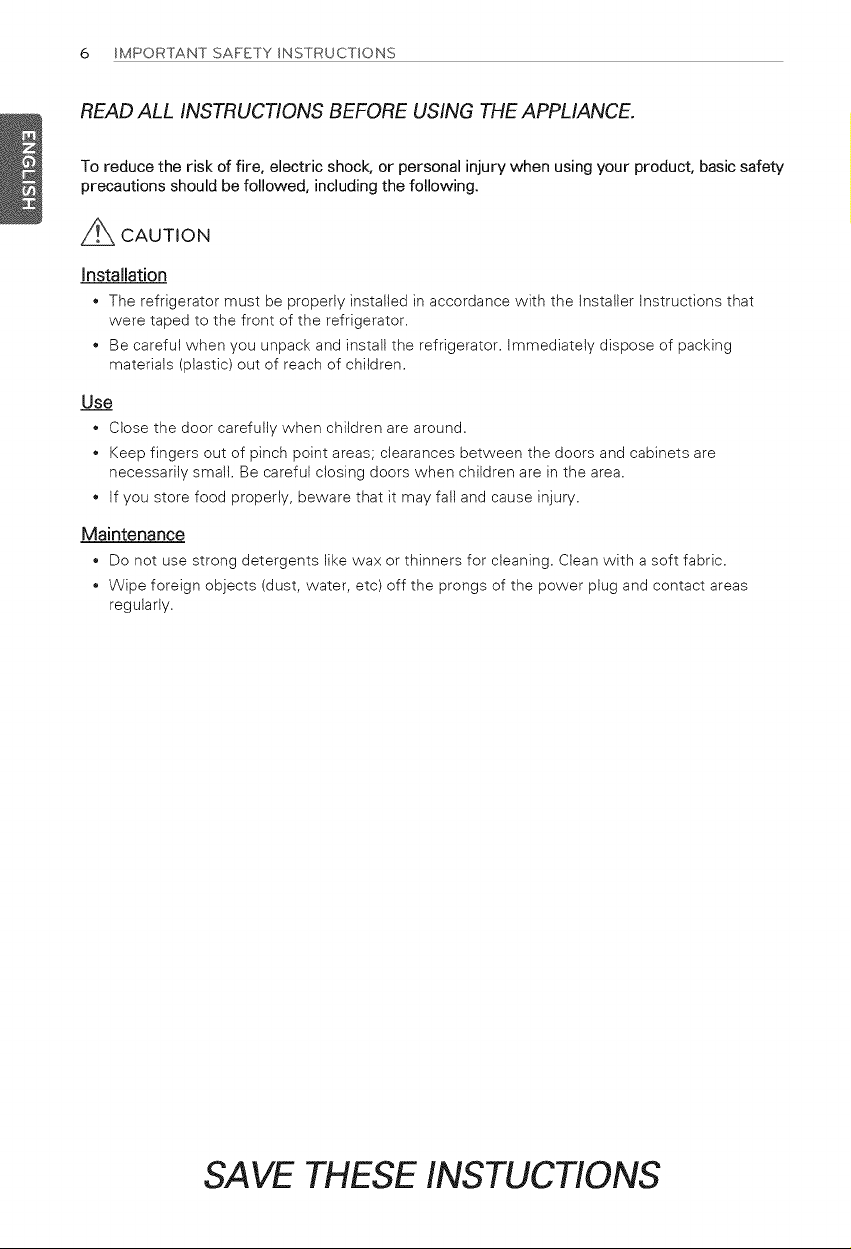

6 IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
Z_ CAUTION
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that
were taped to the front of the refrigerator.
Be careful when you unpack and install the refrigerator, immediately dispose of packing
materials (plastic) out of reach of children.
Use
Close the door carefully when children are around.
Keep fingers out of pinch point areas; clearances between the doors and cabinets are
necessarily small. Be careful closing doors when children are in the area.
If you store food properly, beware that it may fan and cause injury.
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft fabric.
Wipe foreign objects (dust, water, etc) off the prongs of the power plug and contact areas
regularly.
SAVE THESE INSTUCTIONS

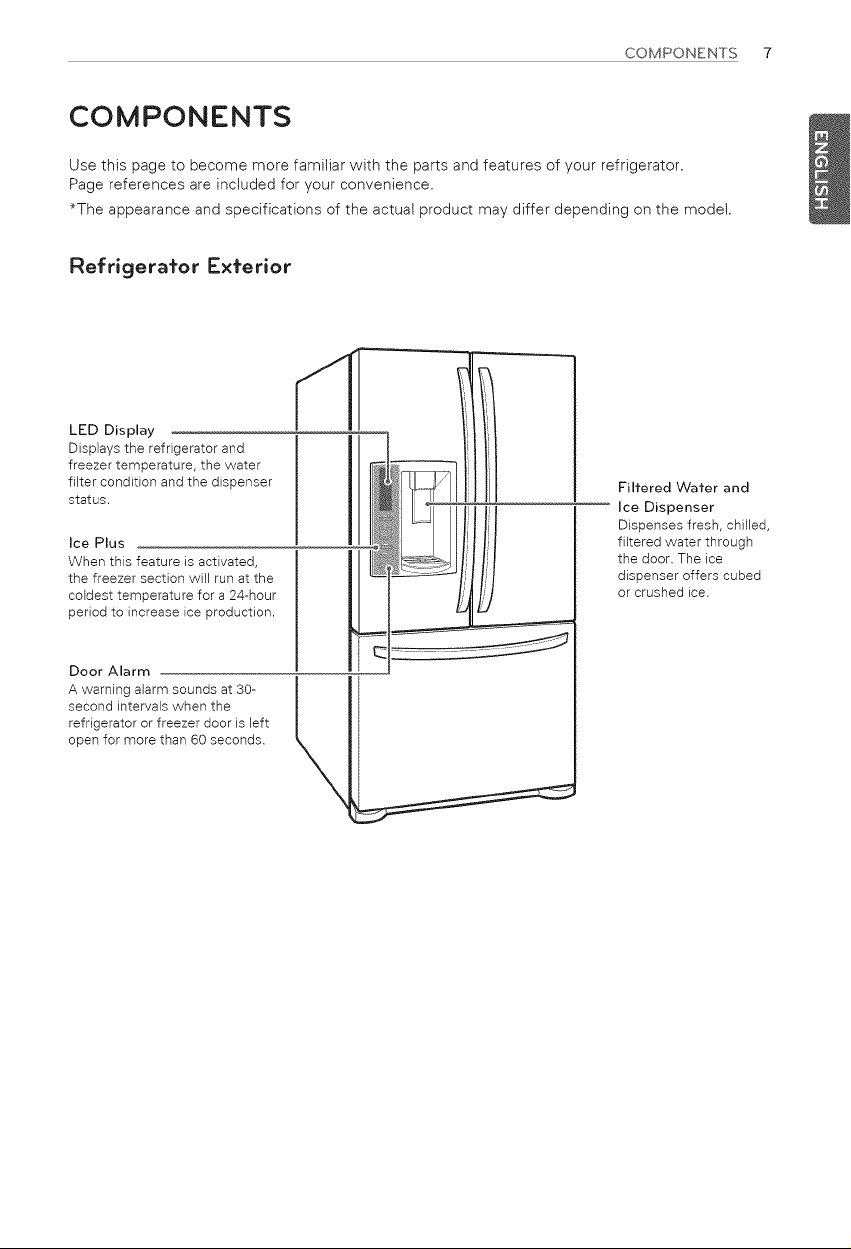

COMPONENTS 7
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
Page references are included for your convenience.
*The appearance and specifications of the actual product may differ depending on the model.
Refrigerafor Exferior
LED Display
Displays the refrigerator and
freezer temperature, the water
filter condition and the dispenser
status.
Ice Plus
When this feature is activated,
the freezer section will run at the
coldest temperature for a 24-hour
period to increase ice production.
Door Alarm
A warning alarm sounds at 30-
second intervals when the
refrigerator or freezer door is left
open for more than 60 seconds.
Filtered Water and
Ice Dispenser
Dispenses fresh, chilled,
filtered water through
the door. The ice
dispenser offers cubed
or crushed ice.
8 COMPONENTS
Refrigerafor Inferior
LED Interior Lamps
The interior lamps light up the
inside of the refrigerator.
Water Filter
SpacePlus Ice System --
Automatically produces
80-130 ice cubes in a
24-hour period.
Fixed Door Bins
Mullion I
Folds in when the
left door is opened.
Diagnosis Speaker
Hold your phone to this speaker when
activating Smart Diagnosis. Refer to the
Smart Diagnosis section for more details.
Dairy Product Bin
F efrigerator Shelves
The shelves in your
refrigerator are
adjustable to meet your
individual storage needs.
Can Storage Bin
Used to preserve chilled
food or drinks.
Glide'N'Serve
Allows you to store food items
at a different temperature than
the regular refrigerator area.
Auto Closing Hinge
The refrigerator doors
and freezer drawers close
automatically when you push
them slightly.
(The door only closes
automatically when it is open
at an angle of less than 30°.)
-- Durabase Divider
Modular Door Bins
Crispers
Controls humidity and
helps vegetables and
fruit to stay crisp.
Pullout Drawer
Durabase
Automatic Icemaker
Removable Ice
Storage Bin
The ice storage bin
can be removed to fill
ice buckets, coolers,
or pitchers.
INSTALLATION9
INSTALLATION
Insfallafion Overview
Please read the following installation instructions first after purchasing this product or transporting
it to another location.
1 Unpacking your 2 Choosing the proper 3 Disassembling/Assembling
refrigerator location
4 Connecting the water 5 Leveling and Door
supply and water line Alignment
10 INSTALLATION
Speci{icafions
The appearance and specifications listed in this manual may vary due to constant product
improvements.
Bottom4reezer refrigerator model LFX25973
Description French door refrigerator
Electrical requirements 115 VAC @ 60 Hz
Min./Max. Water pressure 20 - 125 psi (1.4 - 8.4 kgf/cm 2)
Dimensions 35 3/4" (W) X34 1/4" (D)X 69 3/4" (H), 46 1/2" (D w/door open)
908 mm (W) X 869.95 mm (D)X 1 771.65 (H), 1 181.1 mm (D w/door
open)
Net weight 309 lb. (140kg)
Refrigerator storage 17.56 cu. ft.
capacity
Freezer storage capacity 7.14 cu. ft.
INSTALLATION 11
Unpacking Your Refrigerator
_- Z_ WARNING
Use two or more people to move and
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
the refrigerator for cleaning or service,
be sure to protect the floor. Always pull
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors,
such as gasoline, away from the
refrigerator. Failure to do so can result in
fire, explosion, or death.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.
Choosing the Proper Location
Select a place where a water supply can
be easily connected for the automatic
icemaker.
q) NOTE "/
The water pressure must be between
20 and 125 psi on models without a
water filter and between 40 and 125 psi I
on models with a water filter.
The refrigerator should always be plugged
into its own individual properly grounded
electrical outlet rated for 115 Volts, 60 Hz,
AC only, and fused at 15 or 20 amperes.
This provides the best performance
and also prevents overloading house
wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
i WARNING "/
ITo reduce the risk of electric shock, do not
_install the refrigerator ina wet or damp
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
floor. If required, adjust the leveling legs to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to
the right to lower it. (See Leveling and door
Alignment.)
--_ NOTE
Installing on carpeting, soft tile surfaces
a platform or weakly supported structur_
12 INSTALLATION
Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely affected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 inches (61 cm) in front of the
refrigerator to open the doors, and at least
2 inches (5.08 cm) between the back of the
refrigerator and the wall.
24" (61 cm)
m
-_ 2" (5.08 cm)
Removing/Assembling the
Refrigerator Door Handles
'h_ NOTE
Removing the doors is always
recommended when it is necessary to
move the refrigerator through a narrow
pening. If it is necessary to remove the
andles, follow the directions below
Removing the Handles
Loosen the set screws D with a s/s2 in.
Allen wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the refrigerator door and handle
using a//4 in. Allen wrench, remove the
mounting fasteners.
Assembling the Handles
1 Assemble the mounting fasteners D at
both ends of the handle using a/4 in.
Allen wrench.
2
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a s/s2in. Allen wrench.
INSTALLATION 13
Removing/Assembling the
Freezer Drawer Handle
Removing the Handles
1 Loosen the set screws D located on the
lower side of the handle with a 1/sin. Atlen
wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the freezer drawer and handle
using a//4 in. Allen wrench, and remove
the mounting fasteners.
Assembling the Handles
1 Assemble the mounting fasteners D at
both ends of the handle using a//4 in. Atlen
wrench.
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws _1
with a//g in. Allen wrench.
Removing/Assembling the
Doors and Drawers
Removing the doors is always recommended
when it is necessary to move the refrigerator
through a narrow opening.
F_ WARNING
• If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
• Use two or more people to remove and
install the refrigerator doors, Failure to do
so can result in back or other injury.
• Disconnect the electrical supply to the
refrigerator before installing. Failure to do
so could result in serious injury or death.
• Do net put hands, feet or other objects into
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
• Be careful when handling the hinge and
stopper. It may result in injury.
• Remove food and bins from the doors and
drawers before detaching.
Removing the Left Refrigerator Door
The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown D, _ and _.
___> NOTE -_
Detachment of the water supply line is
applicable only when detaching the left
14 INSTALLATION
2
3
4
5
6
7
8
9
(1)
F::= (4)
/
#
Open the left door. Remove the top hinge
cover screw (1), Lift up the cover (2),
Remove the cover.
Pull out the tube (3),
Disconnect all wire harnesses (4).
Remove the grounding screw (5).
Rotate the hinge lever (6)
counterclockwise. Lift the top hinge (7)
free of the hinge lever latch (8).
Lift the door from the middle hinge pin and
remove the door.
Place the door, inside facing up, on a non-
scratching surface.
Removing fhe Right Refrigerafor Door
1
2
3
4
5
_j(2)
--4
Open the door. Remove the top hinge
cover screw (1). Lift up the cover (2).
Remove the cover.
Rotate the hinge lever (3) clockwise. Lift
the top hinge (4) free of the hinge lever
latch (5).
Lift the door from the middle hinge pin and
remove the door.
Place the door, inside facing up, on a non-
scratching surface.
[-Z_ CAUTION --_
I When lifting the hinge free of the latch, be I
f_Z_ CAUTION ----,
I _A/henlifting the hinge free of the latch, be
,.careful that the door does not fall forward.
Assembling "the Right Refrigerator
Door
Install the right-side door first
..... J
1 Lower the door onto the middle hinge
pin Make sure that the plastic sleeve is
inserted into the bottom of the door
(2)
2 Fit the top hinge (4) over the hinge lever
latch (5) and into place
3 Rotate the lever (3) counterclockwise to
secure the hinge
4 Hook the tabs on the right side of the
hinge cover (2) under the edge of the top
hinge (4) and position the cover in place
5 Insert and tighten the cover screw (1)
INSTALLATION 15
Assembling "the Left Refrigerator
Door
Install the left refrigerator door after the right
door is installed
1 Lower the door onto the middle hinge pin
(1)
@
i:::-(4)
/
#
2 Fit the top hinge (7) over the hinge lever
latch (8)and into place
:3 Rotate the lever (6) clockwise to secure
the hinge
4 Install the grounding screws (5) and
connect the two wire harnesses (4)
5 Push the water tube (3) located at the top
of the left door into the hole beside the left
hinge on the top of the cabinet until it exits
through the back
6 Insert the water supply tube (3) into the
connector until you see onty one scale
mark Fully insert the tub cover (15 mm)
7 Hook the tabs on the left side of the hinge
cover (1) under the edge of the top hinge (7)
and position the cover in place
S Insert and tighten the cover screw (1)
16 INSTALLATION
9 Insert the water supply tube at least 5/8 in.
(15 ram) into the connector.
10 Hook the tab on the door switch side
of the cover under the edge of the wire
opening in the cabinet top.
11 Position the cover into place. Insert and
tighten the cover screw.
_-_} NOTE
) Gently press the Collet and insert the
tube until only one line shows on the
tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the
tube is tightly fastened and then insert
the clip.
Removing fhe Freezer Drawers
The top, middle and bottom drawers are all
removed in the same way. In the following
figures, the Pullout Drawer located above the
freezer drawer is not shown for clarity.
_-//_ CAUTION
o Use two or more people to remove and
install the freezer drawer. Failure to do so
can result in back or other injury.
o Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
° Be careful of sharp hinges on both sides
of the drawer.
° When you lay the drawer down, be
careful not to damage the floor.
o Do not sit or stand on the freezer drawer.
• To prevent accidents, keep children and
pets away from the drawer. Do not leave
the drawer open.
1 Pull the drawer open to full extension.
Remove the lower basket by lifting basket
from rail system.
2 Press in the tabs on the rail covers and
lift them up to separate from the rail
assembly.
INSTALLATION 17
4
Remove the rail screw (_) on both the left
and right rails.
With both hands, grasp the sides of the door
and pull it up to separate it from the rails.
When you remove the drawer, do not
hold the handle. The handle may come
off and it could cause personal injury.
With both hands, hold each rail and push it in
to allow both rails to slide in simultaneously.
Assembling fhe Freezer Drawer
1 With both hands, pull out each rail
simultaneously until both rails are fully
extended.
2
Hook the door support (_ into the rail tabs
(_ on both sides.
3 Lower door into final position and tighten the
screws (_).
18 INSTALLATION
Assembling fhe Freezer Drawer
(continued)
4
Make sure you have the correct rail cover
for each side.
Co e _
FZ_ WARNING
• If the Durabase divider is removed, there is
enough open space for children or pets to
crawl inside. To prevent accidental child and
pet entrapment or suffocation risk, DO NOT
anew them to touch or go near the freezer
drawer.
• DO NOT step or sit down on freezer
drawer.
Align the tabs on the covers with the
assembly holes on each rail, and snap the
rail covers in place to secure.
Assembly
6
With the drawer pulled out to full
extension, insert the lower basket (_ in
the rail assembly.
INSTALLATION 19
Connecting the Wafer Line
Before You Begin
This water line installation is not covered by the
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
Water hammer (water banging inthe pipes) in
house plumbing can cause damage to refrigerator
parts and can lead to water leakage or flooding.
Call a qualified plumber to correct water hammer
before installing the water supply line to the
refrigerator.
--Z_ CAUTION
To prevent burns and product damange,
only connect the refrigerator water line to
a cold water supply.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF (O) position.
Z_ CAUTION
Do not install the icemaker tubing _n
areas where temperatures fall below
freezing.
Water Pressure
A cold water supply. The water pressure must
be between 20 and 125 psi on models without
a water filter and between 40 and 125 psi on
models with a water filter.
If a reverse osmosis water filtration system is
connected to your cold water supply, this water
line installation is not covered by the refrigerator
warranty. Follow the following instructions
carefully to minimize the risk of expensive water
damage.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (2.8 kgf/cm 2 ~ 4.2
kgf/cm 2, less than 2.0~3.0 sec. to fill a cup of 7 oz
capacity).
_ Z_ CAUTION -.
Wear eye protection during installation
to prevent injury.
J
If the water pressure from the reverse osmosis
system is less than 21 psi or 1.5 kgf/cm _(takes
more than 4.0 sec to fill a cup of 7 oz capacity):
* Check to see if the sediment filter in
the reverse osmosis system is blocked.
Replace the filter if necessary.
Allow the storage tank on the reverse
usage.
If the issue concerning water pressure
from reverse osmosis remains, call a
licensed, qualified plumber.
Atl installations must be in accordance
with local plumbing code requirements.
What You Will Need
Copper Tubing, ¼ in, outer diameter, to
connect the refrigerator to the water
supply. Be sure both ends of the tubing
are cut square.
To determine how
much tubing you need:
measure the distance
from the water valve on the back of the
refrigerator to the water supply pipe.
Then, add 8 feet
(2.4 m). Be sure there is sufficient extra
tubing (about 8 feet [2.4 m] coiled into 3
turns of about 10 in. [25 cm] diameter)
to allow the refrigerator to move out
from the wan after installation.
Powerdrill.
* 1/2 in. or adjusfable
wrench.
®
®
Fla_' blade and Phillips
head screwdrivers.
Two 1/t in. outer
dlarne_er compression
nu_s and 2 ferrumes (sleeves) to connect the
copper tubing to the shutoff valve and
the refrigerator water valve.
20 INSTALLATION
• If your existing copper water line has a
flared fitting at the end, you will need
an adapter (available at plumbing supply
stores) to connect the water line to the
refrigerator OR you can cut off the flared
fitting with a tube
cutter and then use a
compression fitting.
• Shutoff valve !a
connect I'o the cold water line. The shutoff
valve should have a water inlet with a
minimum inside diameter of 5/32 in. at
the point of connection to the COLD
WATER LINE. Saddle-type shutoff valves
are included in many water supply kits.
Before purchasing,
make sure a saddle-
type valve complies
with your local
plumbing codes.
-- _ NOTE
A setf piercing saddle type water valve /
Water Line Insfallafion Insfrucfions
FZ_ WARNING
When using any electrical device
(such as a power drill) during
installation, be sure the device is
battery powered, double insulated
or grounded in a manner that will
prevent the hazard of electric shock.
install the shutoff valve on the nearest
frequently used drinking water line.
SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the
pressure on the line.
2 CHOOSE THE VALVE LOCATION
Choose a location for
the valve that is easily
accessible. It is best to
connect into the side of a
vertical water pipe. When
it is necessary to connect
into a horizontal water
pipe, make the connection to the top or
side, rather than at the bottom, to avoid
drawing off any sediment from the water
pipe.
3 DRILL THE HOLE FOR THE VALVE
Drill a _Ain. hole in
the water pipe using
a sharp bit. Remove
any burrs resulting
from drilling the hole
in the pipe. Be careful
not to allow water
to drain into the drill. Failure to drill a 14in.
hole may result in reduced ice production
or smaller cubes.
,' _D NOTE ..................................
The hookup line cannot be white, plastic /
tubing. Licensed plumbers must use I
only copper tubing NDA tubing #49595 I
or 49599 .or Cross Link Polyethylene I
INSTALLATION 21
4 FASTEN THE SHUTOFF VALVE 7
Fasten the shutoff valve to the cold water
pipe with the pipe clamp.
Pipe Clamp_
Saddle-Type _ _ _Vertical Cold
Shutoff Valve _ I Water Pipe
NOTE -'/
Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be
adhered to. Saddle valves are illegal and_
use is not permitted in Massachusetts. _ S
, Consult with your licensed ptumber
TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE," Do not overtighten clamp or
you may crush the tubing.
Pipe Clamp
Clamp Screw
Washer
_ Inlet End
ROUTE THE TUBING
Route the tubing between the cold water
line and the refrigerator.
Route the tubing through a hole drilled in
the wall or floor (behind the refrigerator or
adjacent base cabinet) as close to the wall
as possible.
-([_) NOTE
Be sure there is sufficient extra tubing
(about 8 feet coiled into 3 turns of
about 10 in. diameter) to allow the
refrigerator to move out from the wan
after installation.
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule
(sleeve) for copper tubing onto the end of
the tubing and connect it to the shutoff
valve. Make sure the tubing is fully inserted
into the valve. Tighten the compression
nut securely.
Saddle-Type
Shutoff Valve _
Packing Nut .......................
Outlet Valve _
Compression
Nut
Ferrule (sleeve)
FLUSH OUT THE TUBING
Turn the main water
supply on and flush out
the tubing until the water
is clear.
Shut the water off at the
water valve after about
one quart of water has
been flushed through the tubing.
9 CONNECT THE TUBING TO THE
REFRIGERATOR
NOTE: Before making the connection
to the refrigerator, be sure that the
refrigerator power cord is not plugged into
the wall outlet.
a. Remove the plastic flexible cap from
the water valve.
b. Place the compression nut and ferrule
(sleeve) onto the end of the tubing as
shown.
c. Insert the end of the copper tubing into
the connection as far as possible. While
holding the tubing, tighten the fitting.
Tubing Clamp /.Ir_, 1,4in. Tubing
"* ),
CompressionX,. IllII/& It //YZ/_11II
.ut.... ((ttt!)Jl
Ferrule _ _€:>__ _
(sleeve) Re fnr_ge_at°r
22 INSTALLATION
10 TURN THE WATER ON AT THE SHUTOFF
VALVE
Tighten any connections that leak.
Turning On The Power
1 Plug in the refrigerator.
Z_ CAUTION -I
Check to see ifleaksoccurat thewaterJ
/
11 PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it
does not vibrate against the back of the
refrigerator or against the wall. Push the
refrigerator back to the wall.
-_ CAUTION
Connect to a rated power outlet.
Have a certified electrician check
the walt outlet and wiring for proper
grounding.
Do not damage or cut off the ground
terminal of the power plug.
12 START THE ICEMAKER
Set the icemaker power switch to the ON
position.
The icemaker wilt not begin to operate
until it reaches its operating temperature
of 15°F (-9°C) or below. It wilt then begin
operation automatically if the icemaker
power switch is in the ON (I) position.
INSTALLATION 23
Leveling and Door Alignmenf
Leveling
After installing, ptug the refrigerator's power
cord into a 3-prong grounded outlet and push
the refrigerator into the final position.
Your refrigerator has two front leveling legs--
one on the right and one on the left. Adjust the
legs to alter the tilt from front-to-back or side-
to-side. If your refrigerator seems unsteady, or
you want the doors to close more easily, adjust
the refrigerator's tilt using the instructions
below:
Door Alignment
Both the left and right refrigerator doors have
an adjustable nut, located on the bottom hinge,
to raise and lower them to align properly.
If the space between your doors is uneven,
follow the instructions below to align the doors
evenly:
Use the wrench (included with the Owner's
Manual) to turn the nut in the door hinge to
adjust the height. To the right to raise or to the
left to lower the height.
1 Remove the base grille. Refer to the Base
Grille Installation section.
Turn the leveling leg to the left to raise
that side of the refrigerator or to the right
to lower it. It may take several turns of
the leveling leg to adjust the tilt of the
refrigerator.
/ (_) NOTE
A flare nut wrench works best, but an
open-end wrench will suffice.
Do not over-tighten.
Open both doors again and check to make
sure that they close easily. If the doors do
not close easily, tilt the refrigerator slightly
more to the rear by turning both leveling
legs to the left. It may take several more
turns, and you should turn both leveling
legs the same mount.
4 Replace the base grille.
24 HOWTO USE
HOW TO USE
Clean the refrigerator.
Clean your refrigerator thoroughly and wipe off all dust that accumulated during
shipping.
Z_D CAUTION
o not scratch the refrigerator with a sharp object or use a detergent that
contains alcohol, a flammable liquid or an abrasive when removing any tape
or adhesive from the refrigerator,.
Do not peel off the model or serial number label or the technical information
on the rear surface of the refrigerator.
NoTE
Remove adhesive residue by wiping it off with your thumb or dish detergent.
Connect the power supply.
Check if the power supply is connected before use.
Read the "Turning On The Power" section.
Turn off the icemaker if the refrigerator is not yet connected to the
water supply.
Turn off the automatic icemaker and then plug the power plug of the refrigerator
into the grounded electric outlet.
* This is applicable only to certain models.
____.WCAUTION
Running the automatic icemaker before connecting it to the water
. supply may cause the refrigerator to malfunction, /
Wait for the refrigerator to cool.
Allow your refrigerator to run for at least two to three hours before putting food in
it. Check the flow of cold air in the freezer compartment to ensure proper cooling.
---_ CAUTION
utting food in the refrigerator before it has cooled could cause the
food to spoil, or a bad odor could remain inside the refrigerator.
The refrigerator makes a loud noise after initial operation.
This is normal. The loudness will decrease as the temperature lowers.
Open refrigerator doors and freezer drawers to ventilate the interior.
The inside of the refrigerator may smell like plastic at first. Remove any adhesive
tape from inside the refrigerator and open the refrigerator doors and the freezer
drawers for ventilation.
HOWTO USE 25
Control Panel
* Dependingon the model, some of the following functions may not be available,
Control Panel Feafures
The LED Display shows the temperature settings, dispenser options, water filter, door alarm, and
locking status messages.
LED Display
Control
Buttons
IceType W
CUBE CRSS_
Press the tCE TYPE button to select either
Crushed or Cubed Ice. The selected option will
illuminate on the LED display.
Freezer LTOF
Press the FREEZER button to adjust the
temperature in the freezer compartment.
d} NOTE
o change the display from Fahrenheit to
elsius, press and hold the FREEZERand
EFRIGERATOR button for five seconds
--#--1
Refrigerator _ ; OF
Press the REFRIGERATOR button to adjust the
temperature in the freezer compartment.
Ice Plus @
_CE_LUS
This function increases both ice making and
freezing capabilities.
• When you touch the Ice Plus button, the
graphic will illuminate in the display and
will continue for 24 hours. The function will
automatically shut off after 24 hours.
• You can stop this function manually by
touching the button one more time.

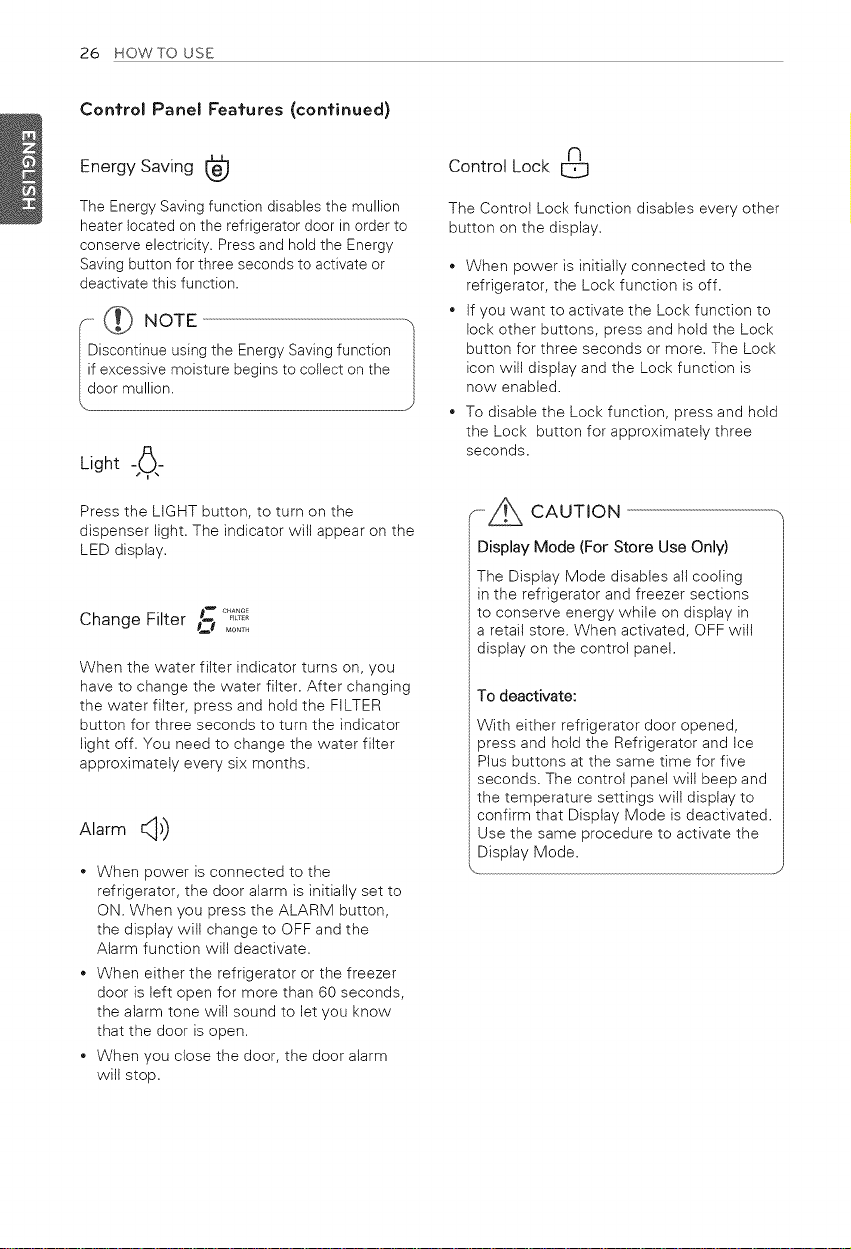

26 HOWTO USE
Control Panel Features (continued)
Energy Saving [_
The Energy Saving function disables the mullion
heater located on the refrigerator door in order to
conserve electricity. Press and hold the Energy
Saving button for three seconds to activate or
deactivate this function.
_-_ NOTE
Discontinue using the Energy Saving function
if excessive moisture begins to collect on the
door mullion.
Press the LIGHT button, to turn on the
dispenser light. The indicator will appear on the
LED display.
w C_AN_E
Change Filter IT, ......
J_u .....
When the water filter indicator turns on, you
have to change the water filter. After changing
the water filter, press and hold the FILTER
button for three seconds to turn the indicator
light off. You need to change the water filter
approximately every six months.
Alarm q))
When power is connected to the
refrigerator, the door alarm is initially set to
ON. When you press the ALARM button,
the display will change to OFF and the
Alarm function will deactivate.
When either the refrigerator or the freezer
door is left open for more than 60 seconds,
the alarm tone will sound to let you know
that the door is open.
When you close the door, the door alarm
will stop.
D
Control Lock CC]
The Control Lock function disables every other
button on the display.
When power is initially connected to the
refrigerator, the Lock function is off.
If you want to activate the Lock function to
lock other buttons, press and hold the Lock
button for three seconds or more. The Lock
icon will display and the Lock function is
now enabled.
To disable the Lock function, press and hold
the Lock button for approximately three
seconds.
_ Z_ CAUTION
Display Mode (For Store Use Only)
The Display Mode disabtes all cooling
in the refrigerator and freezer sections
to conserve energy while on display in
a retail store, When activated, OFF will
display on the control panel.
To deactivate:
With either refrigerator door opened,
press and hold the Refrigerator and Ice
Plus buttons at the same time for five
seconds. The control panel wilt beep and
the temperature settings wilt display to
confirm that Display Mode is deactivated.
Use the same procedure to activate the
Display Mode.
HOWTO USE 27
In-Door ice Bin
* Depending on the model, some of the
following functions may not be available.
_-z_ CAUTION
. Keep hands and tools out of the ice
compartment door and dispenser chute.
Failure to do so may result in damage or
personal injury.
. The icemaker will stop producing ice when
the in-door ice bin is full. If you need more
ice, empty the ice bin into the extra ice bin
in the freezer compartment. During use,
the ice can become uneven causing the
icemaker to misread the amount of ice
cubes and stop producing ice. Shaking the
ice bin to level the ice within it can reduce
this problem.
Storing cans or other items in the ice bin wil
damage the icemaker.
Keep the ice compartment door closed
tightly. If the ice compartment door is not
closed tightly, the cold air in the ice bin will
freeze food in the refrigerator compartment.
This could also cause the icemaker to stop
producing ice.
If the ON/OFF switch on the icemaker is
set to OFF for an extended period of time,
the ice compartment will gradually warm
up to the temperature of the refrigerator
compartment. To prevent ice cubes from
melting and leaking from the dispenser,
ALWAYS empty the ice bin when the
icemaker is set to OFF for more than afew
hours.
2 To remove the in-door ice bin, grip the
front handle, slightly lift the lower part,
and slowly pull out the bin as shown.
Assembling "the In-Door Ice Bin
1 Carefully insert the in-door ice bin while
slightly slanting it to avoid contact with the
icemaker.
2 Avoid touching the ice-detecting sensor
when replacing the ice bin. See the label
on the ice compartment door for details.
Defaching "the In-Door _ce Bin
1 Gently pull the handle to open the ice
compartment.
F_ CAUTION
I _A/hen handling the ice bin,
I keep hands away from the
I icemakertray area to avoid
28 HOWTO USE
Aufomafi¢ Icemaker
Aufomafic Icemaker (Ice Room)
* Depending on the model, some of the
following functions may not be available.
Ice is made in the automatic icemaker and sent
to the dispenser. The icemaker will produce
12 cubes per cycle--approximately 120 cubes
in a 24-hour period, depending on freezer
compartment temperature, room temperature,
number of door openings and other operating
conditions.
• It takes about 12 to 24 hours for a newly
installed refrigerator to begin making ice. Wait
72 hours for full ice production to occur.
Ice making stops when the in-door ice bin
is full. When full, the in-door ice bin holds
approximately 6 to 8 (t2-16 oz) glasses of ice.
The water pressure must be between 20 and
125 psi on models without a water filter and
between 40 and 125 psi on models with a
water filter to produce the normal amount and
size of ice cubes.
Foreign substances or frost on the ice-
detecting sensor can interrupt ice production.
Make sure the sensor area is clean at all times
for proper operation.
{cemaker --
Switch
Ice-detecting
Sensor
Aufomafic Icemaker (Freezer Room)
* Depending on the model, some of the
following functions may not be available.
Ice is made in the automatic icemaker and sent
to the dispenser. The icemaker will produce
12 cubes per cycle-approximately 10O cubes
in a 24-hour period, depending on freezer
compartment temperature, room temperature,
number of door openings and other operating
conditions.
• It takes about 12 to 24 hours for a newly
installed refrigerator to begin making ice.
• The water pressure must be between 20 and
125 psi on models without a water filter and
between 40 and 125 psi on models with a
water filter to produce the normal amount and
size of ice cubes.
• Foreign substances or frost on the ice-
detecting sensor can interrupt ice production.
Make sure the sensor area is clean at all times
for proper operation.
Automatic Power Switch
Shut off Arm
Turning fhe Aufomafic Icekamer
On or Off
To turn off the automatic icemaker, set the
icemaker switch to OFF (O). To turn on the
automatic icemaker, set the switch to ON (I).
HOWTOUSE29
Aufomafic Icemaker
(confinued)
_ Z_ CAUTION
• The first ice and water dispensed may
include particles or odor from the water
supply line or the water tank.
• Throw away the first few batches of ice
(about 24 cubes). This is also necessary if
the refrigerator has not been used for a long
time.
• Never store beverage cans or other items in
the ice bin for the purpose of rapid cooling.
Doing so may damage the icemaker or the
containers may burst.
• If discolored ice is dispensed, check the
water filter and water supply. If the problem
continues, contact a Sears or other qualified
service center. Do not use the ice or water
until the problem is corrected.
• Keep children away from the dispenser.
Children may play with or damage the
controls.
• The ice passage may become blocked with
frost if only crushed ice is used. Remove the
frost that accumulates by removing the ice
bin and clearing the passage with a rubber
spatula. Dispensing cubed ice can also help
prevent frost buildup.
° Never use thin crystal glass or crockery to
collect ice. Such containers may chip or
break resulting in glass fragments in the ice.
° Dispense ice into a glass before filling it
with water or other beverages. Splashing
may occur if ice is dispensed into a glass
that already contains liquid.
° Never use aglass that is exceptionally
narrow or deep. Ice may jam in the ice
passage and refrigerator performance may
be affected.
° Keep the glass at a proper distance from
the ice outlet. A glass held too close to the
outlet may prevent ice from dispensing.
° To avoid personal injury, keep hands out of
the ice door and passage.
° Never remove the dispenser cover.
° If ice or water dispenses unexpectedly, turn
off the water supply and contact a qualified
service center.
When You Should Turn 1"he
Icemaker Off
* When the water supply will be shut off
for several hours.
* When the ice bin is removed for more
than one or two minutes.
* When the refrigerator will not be used
for several days.
NOTE "1
I The ice bin should be emptied when the/
/icemaker on/off switch is turned to the |
Normal Sounds You May Hear
* The icemaker water valve wilt buzz as
the icemaker fills with water. If the
power switch is in the ON (I) position,
it will buzz even if it has not yet been
hooked up to water. To stop the buzzing,
move the power switch to OFF (O).
l- NOTE -/
_Keeping the power switch in the ON
J(I) position before the water line is
* You will hear the sound of cubes
dropping into the bin and water running
in the pipes as the icemaker refills.
Preparing For Vacation
Set the icemaker power switch to OFF (O) and
shut off the water supply to the refrigerator.
NOTE
I The ice bin should be emptied anytime
_the icemaker on/off switch is turned to
(the OFF (O) position.
If the ambient temperature will drop below
freezing, have a qualified technician drain
the water supply system to prevent serious
property damage due to flooding caused by
ruptured water lines or connections.
30 HOWTO USE
Ice and Wafer Dispenser
Depending on the model, some of the
following functions may not be available.
Keep children away from the dispenser.
Children may play with or damage the
controls.
Dispenser
Water Switch
Ice Switch
Stand
IncorreotWaY CorreotWay
Water
ice
_ CAUTION
row away the first few batches of ice
about 24 cubes). This is also necessary
f the refrigerator has not been used for
long time.
Using the Dispenser
• To dispense cold water, push on the
water switch with a glass.
• To dispense ice, push on the ice switch
with a glass.
- (_ NOTE
• If discolored ice is dispensed, check
the water filter and water supply. If the
problem continues, contact a qualified
service center. Do not use the ice or
water until the problem is corrected.
The dispenser will not operate when
either of the refrigerator doors are open.
If dispensing water or ice into a container
with a small opening, place it as close to
the dispenser as possible.
Some dripping may occur after
dispensing. Hold your cup beneath
the dispenser for a few seconds after
dispensing to catch all of the drops.
k,
Locking the Dispenser
Press and hold the Alarm and Lock button
simultainousty for 3 seconds to lock the
dispenser and alt the control panel functions.
Follow the same instructions to unlock.
Cleaning the Dispenser Stand
1 Grip the stand with both hands and pull it
out.
2 Wipe out dirty areas with a clean cloth.
HOWTO USE 31
Sforing Food
Food Preservation Location
Each compartment inside the refrigerator is designed to store different types of food.
Store your food in the optimal space to enjoy the freshest taste.
Adjustable refrigerator shelf
Adjustab]e shelves to meet
your individuaJ storage
needs.
Vegetablestorage
(Crisper)
Preserves vegetables and
fruit.
Durabase ®
Largest storage space in
the freezer,
-- Dairy product bin
Storemilkproductssuchas
butterandcheese.
Gallon Storage Bin
Storedrinkssuchas
juice andsoda,aswell as
seasonings,saladdressings
andotherfood items.
Glide'N'Serve
Providesstoragespacethat
keepsthe compartment
atadifferent temperature
thanthe refrigerator,it isa
convenientplaceto store
sandwichesor meatto be
cooked.
F_ CAUTION
• Do not store food with high moisture content towards the top of the refrigerator. The moisture
could come in direct contact with the cold air and freeze.
• Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food
packaging should be wiped down to prevent adjacent foods from being contaminated.
• If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of
vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a
clean cloth or a paper towel.
• If the refrigerator door or freezer drawer is opened or closed too often, warm air may penetrate
the refrigerator and raise its temperature. It can also increase the cost of electricity.
\
_ NOTE
If you are leaving home for a short period of time, like a short vacation, the refrigerator should
be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the
freezer.
If you are leaving the refrigerator turned off for an extended period of time, remove all food and
unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing
in the refrigerator.
32 HOWTO USE
Food Storage Tips
The following tips may not be applicable
depending on the model.
Wrap or store food in the refrigerator in airtight
and moisture-proof material unless otherwise
noted. This prevents food odor and taste transfer
throughout the refrigerator. For dated products,
check date code to ensure freshness.
Food How to
Butter or Keep opened butter in a covered
Margarine dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese Store in the original wrapping
until you are ready to use it.
Once opened, rewrap tightly in
plastic wrap or aluminum foil.
Milk Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Eggs Store in original carton on
interior shelf, not on door shelf.
Fruit Do not wash or hull the fruit
until it is ready to be used. Sort
and keep fruit in its original
container, in a crisper, or store
in a completely closed paper
bag on a refrigerator shelf.
Leafy
Vegetables
Vegetables
with skins
(carrots,
peppers)
Fish
Remove store wrapping and
trim or tear off bruised and
discolored areas. Wash in cold
water and drain. Place in plastic
bag or plastic container and
store in crisper.
Place in plastic bags or plastic
container and store in crisper.
Store fresh fish and shellfish
in the freezer section if they
are not being consumed the
same day of purchase. It is
recommended to consume
fresh fish and shellfish the
same day purchased.
Leftovers Cover leftovers with plastic
wrap, aluminum foil, or plastic
containers with tight lids.
Storing Frozen Food
NOTE "/
Check a freezer guide or a reliable cookbook I
for further information about preparing food I
for freezing or food storage times.
Freezing
Your freezer will not quick-freeze a large
quantity of food. Do not put more unfrozen
food into the freezer than will freeze within
24 hours (no more than 2 to 3 Ibs. of food per
cubic foot of freezer space). Leave enough
space in the freezer for air to circulate around
packages. Be careful to leave enough room at
the front so the door can close tightly.
Storage times will vary according to the quality
and type of food, the type of packaging or wrap
used (how airtight and moisture-proof) and
the storage temperature. Ice crystals inside a
sealed package are normal. This simply means
that moisture in the food and air inside the
package have condensed, creating ice crystals.
_ NOTE
Allow hot foods to cool at room temperature
for 30 minutes, then package and freeze.
Cooling hot foods before freezing saves
energy.
HOWTO USE 33
Storing Frozen Food (continued)
Packaging
Successful freezing depends on correct
packaging. When you close and seal the
package, it must not allow air or moisture in or
out. If it does, you could have food odor and
taste transfer throughout the refrigerator and
could also dry out frozen food.
Packaging recommendations:
Rigid plastic containers with tight-fitting
lids
Straight-sided canning/freezing jars
Heavy-duty aluminum foil
Plastic-coated paper
Non-permeable plastic wraps
Specified freezer-grade self-sealing plastic
bags
Follow package or container instructions for
proper freezing methods.
Do not use
Bread wrappers
Non-polyethylene plastic containers
Containers without tight lids
Wax paper or wax-coated freezer wrap
Thin, semi-permeable wrap
Humidify Controlled Crisper
* Depending on the model, some of the
following functions may not be available.
The crispers provide fresher tasting fruit
and vegetables by letting you easily control
humidity inside the drawer.
You can control the amount of humidity in
the moisture-sealed crispers by adjusting the
control to any setting between HIGH and LOW.
* HIGH keeps moist air in the crisper for
best storage of fresh, leafy vegetables.
LOW lets moist air out of the crisper for
best storage of fruit.
'L
34 HOWTO USE
Defaching and Assembling fhe
Sforage Bins
Glide'N'Serve and Humidify
Controlled Crisper
To remove the Humidity Controlled Crisper and
the Glide'N'Server, pull out the Crisper D and
Glide'N'Server [] to full extension, lift the front
up, and pull straight out.
8
To install, slightly tilt up the front, insert the
drawer into the frame and push it back into
place.
B
NOTE
Storage Bins may vary in appearance, J
To Remove "the Glass
(Pantry drawer not shown for clarity)
Lift up the glass under the crisper cover, and
pull up and out.
Door Bins
The door bins are removable for easy cleaning
and adjustment.
1To remove the bin, simply lift the bin up and
pull straight out.
2 To replace the bin, slide it in above the
desired support and push down until it snaps
into place.
NOTE "/
Some bins may vary in appearance and
_Z_ CAUTION
Do not apply excessive force while
detatching or assembling the storage
bins.
Do not use the dishwasher to clean
the storage bins and shelves.
Regularly detach and wash the
storage bins and shelves; they can
become easily contaminated by the
food.
HOWTO USE 35
Ice Bin
To separate the ice bin, pull out the drawer to
full extension. Gently lift and pull out the ice
bin.
To reinstall, simply set the ice bin in its correct
position.
Drawer
U-z_ CAUTION
/ • Pinch hazard! Keep hands and feet
clear of the bottom of the door when
/ opening and closing
DuraBase ® Divider
"Z_ WARNING
Child Entrapment Hazard
• If the Durabase divider is removed,
there is enough open space for
children or pets to crawl inside.
To prevent accidental child and pet
entrapment or suffocation risk, DO
NOT allow them to play inside of
drawer.
Pull-Our Drawer
To remove the drawer, push the tabs located
on the front inside surface of each rail. Next,
gently lift the rear left and right sides of the
drawer and pull it out.
To reinstall, pull out and fully extend both rails.
Insert the end of rib in the bracket at left and
right. Making sure that the guides at the front
are lined up properly, gently push down on
both sides.
H_
36 HOWTO USE
Adjusting the Refrigerator
Shelves
The shelves in your refrigerator are adjustable
to meet your individual storage needs. Your
model may have glass or wire shelves.
Adjusting the shelves to fit different heights
of items will make finding the exact item you
want easier. Doing so wilt also reduce the
amount of time the refrigerator door is open
which will save energy.
Detaching the Shelf
Tilt up the front of the shelf and lift it straight
up. Pull the shelf out.
Assembling the Shelf
Tilt the front of the shelf up and guide the shelf
hooks into the slots at a desired height. Then,
lower the front of the shelf so that the hooks
drop into the slots.
f-Z_ CAUTION
I Make sure that shelves are level from
lone side to the other. Failure to do so
Imay result in the shelf failing or spilling
_.food
MAINTENANCE 37
MAINTENANCE
Cleaning
• Both the refrigerator and freezer sections defrost automatically; however, clean both
sections about once a month to prevent odors.
Wipe up spills immediately.
Always unplug the refrigeration before cleaning.
General Cleaning Tips
Unplug refrigerator or disconnect power.
Remove alt removable parts, such as
shelves, crispers, etc.
Use a clean sponge or soft cloth and a
mild detergent in warm water. Do not
use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces
thoroughly.
Exterior
Waxing external painted metal surfaces helps
provide rust protection. Do not wax plastic
parts. Wax painted metal surfaces at least
twice a year using appliance wax (or auto paste
wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior,
use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use abrasive
or harsh cleaners. Dry thoroughly with a soft
cloth.
"_D CAUTION
o not use a rough clothor sponge
when cleaningthe interiorand exteriol
of therefrigerator,
Do not placeyour hand on the bottom
surfaceofthe refrigeratorwhen
opening and closing.
Inside Walls (allow freezer to warm
up so the cloth will not stick)
To help remove odors, you can wash the inside
of the refrigerator with a mixture of baking
soda and warm water. Mix 2 tablespoons of
baking soda to 1 quart of water (26 g soda
to 1 liter water.) Be sure the baking soda is
completely dissolved so it does not scratch the
surfaces of the refrigerator.
Door Liners and Gaskets
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use cleaning
waxes, concentrated detergents, bleaches,
or cleaners containing petroleum on plastic
refrigerator parts.
Plastic Parts (covers and panels)
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use window
sprays, abrasive cleansers, or flammable fluids.
These can scratch or damage the material.
Condenser Coils
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
f WARNING
se non-flammable cleaner. Failure to do I
o can result in fire, explosion, or death. /
38 MAINTENANCE
Replacing fhe Wafer Filler
It is recommended that you replace the filter
when the water filter indicator light turns on
or the water dispenser or icemaker noticeably
decreases production.
F-_ NOTE
• Filter Bypass Plug
Keep the filter bypass plug.
You must use the filter bypass plug when a
replacement filter cartridge is not available.
The icemaker will not operate without the
filter or filter bypass plug inserted in the
proper compartment.
L.__
1 Slowly turn the old cartridge to the left.
When the cartridge is released, you will
feet it click out of place.
NOTE: Replacing the filter causes a small amount
of water (around 1 oz. or 25 cc) to drain.
2
Remove the old cartridge. Take the new
cartridge out of its packaging, and remove
the red cap. Line up the cartridge ears so
that it can be inserted into the filter head.
!
3
Twist the cartridge right about 1/4 turn.
You will feel a stop and the locked symbol
should now be lined up with the indicator
line.
After replacing the filter, flush 2.5 gallons
through filter before use (flush for
approximately 5 minutes). Check the filter
for leaks.
After changing the filter, press and hold
the FILTER button for 3 seconds to turn
the indicator light off.
_O N CAUTION 1
OT operaterefrigeratorwithout
ater filter orwater filter plug installed.
"_k_ NOTE --,
• To purchase a replacement water filter:
- Visit your local dealer or distributor
- Web: Find Parts & Accessories from
Support section of Ig.com
- Call : 1-800-243-0000 (USA)
1-888-542-2623 (Canada)
Part number of the replacement water
filter: 5231JA2002A
_J
MAINTENANCE 39
Performance Data Sheet
Models Number 5231JA2002A-S Usewith replacementcartridge5231JA2002A
This system has been tested according to NSF/ANSI Standards 42 for the reduction of the substances
listed below. The concentration of the indicated substances in water entering the system was reduced
to a concentration less than or equal to the permissible limit for water leaving the system as specified in
NSF/ANSI 42.
System tested and certified by NSF International against NSF/ANSt Standard 42 for
the reduction of Chlorine Taste and Odor and Nominal Particulate Class IIk
Capacity: 500 gal (1,892 L)
Substance
Nominal Particulate
Class I Particle size:
>0B to < 1 uq
Chlorine taste and
odor Class III
Average
tnfluent
Concentration
24,333
19
Influent Challenge
Concentration, Units apply
to eachrow
At bast 10,000 particles/ ql
20 mg/L ± 10%
Average
Product Water Average %
Concentration Reduction
NSF % reduction req.
or Max. permissible
product water
concentration
915 96 _>85%
007 964 _>50%
Note that while the testing was performed under standard laboratory conditions, actual performance may vary.
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.89 Ipm)
20 -125 psi
Water Pressure
(138- 862 kPa)
36 °F- 100°F
Water Temperature (0.6 °C- 37.8 °C)
"Z_ WARNING
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system.
• Systems must be installed and operated
in accordance with manufacturer's
recommended procedures and guidelines.
Warranty: See Warranty Card for Details.
\
For a replacement cartridge or for service
contact your local dealer.
You can also visit our website; wvcwJg.com
or call 1-877-714-7486,
r--Z_ CAUTION
To reduce the risk of property damage due to
water leakage:
Read and follow. Use instructions before
installation and use of this system.
Install on COLD water lines only.
Comply with all state and local plumbing
codes.
Install a pressure limiting device and water
hammer arrester for inlet water pressures
exceeding 80 psi (552 kPa). Refer to
Uniform Plumbing Code, Sections 608.2
and 609.10).
Never install or operate where inlet water
pressure may exceed 125 psi (862 kPa).
Protect filter from freezing. Remove filter in
temperatures below 33°F (O.6°C).
Replace cartridge at specified service
interval. Cartridge MUST be replaced at
least every 12 months.
Manufactured for LG® Electronics by:
CUNO Incorporateda 3M Company 400
Research Parkway Meriden, CT 06450 U.S.A.
Telephone: 203-237-5541
Fax: 203-238-8701
40 SMART DIAGNOSIS
SMART DIAGNOSIS .....
Should you experience any problems with
your refrigerator, it has the capability of
transmitting data via your telephone to the LG
service center. This gives you the capability of
speaking directly to our trained specialists. The
specialist records the data transmitted from
your machine and uses it to analyze the issue,
providing a fast and effective diagnosis.
If you experience problems with your
refrigerator, call 1-800-243-0000. Only use
the Smart Diagnosis feature when instructed
to do so by the LG call center agent. The
transmission sounds that you will hear are
normal and sound similar to a fax machine.
Smart Diagnosis cannot be activated unless
your refrigerator is connected to power. If
your refrigerator is unable to turn on, then
troubleshooting must be done without using
Smart Diagnosis.
Using Smarf Diagnosis
First, call 1-800-243-0000. Only use the Smart
Diagnosis feature when instructed to do so by
the LG call center agent.
1 Lock the display. To tock the display,
press and hold the Lock button for three
seconds. (If the display has been locked
for over five minutes, you must deactivate
the lock and then reactivate it.)
2 Open the right refrigerator door.
Hold the mouthpiece of your phone in
front of the speaker that is located on the
right hinge of the refrigerator door, when
instructed to do so by the call center.
Press and hold the Freezer Temperature
button for three seconds while continuing
to hold your phone to the speaker.
After you hear three beeps, release the
Freezer Temperature button.
Keep the phone in place until the tone
transmission has finished. This takes about
15 seconds, and the display will count
down the time. Once the countdown is
over and the tones have stopped, resume
your conversation with the specialist, who
will then be able to assist you in using the
information transmitted for analysis.
_-_> NOTE --_
I • For best results, do not move the phone
| while the tones are being transmitted.
I " If the call center agent is not able to get J
J an accurate recording of the data, you
TROUBLESHOOTING 41
TROUBLESHOOTING
Review the Troubleshooting section before calling for service; doing so will save you both time
and money.
iRefrigerator and The refrigerator control is set to iTurn the control ON. Refer to the Setting the
Freezer section OFF (some models). Controls section for proper temperature settings.
are not cooling.
Refrigerator is in the defrost
cycle.
Refrigerator was recently
installed.
Refrigerator was recently
relocated.
Cooling System Refrigerator is replacing an
runs too much. older model.
Refrigerator was recently
plugged in or power restored.
Door opened often or a large
amount of food / hot food was
added.
Doors are not dosed
completely.
Refrigerator is installed in a hot
location.
Condenser / back cover is
clogged.
iDuring the defrost cycle, the temperature of
ieach compartment may raise slightly. Wait 30
minutes and confirm the proper temperature
has been restored once the defrost cycle has
icompleted.
iIt may take up to 24 hours for each compartment
to reach the desired temperature.
iif the refrigerator was stored for a long period of
time or moved on its side, it is necessary for the
irefrigerator to stand upright for 24 hours before
iconnecting it to power.
Modern refrigerators require more operating
time but use less energy due to more efficient
itechnology.
The refrigerator will take up to 24 hours to cool
icompletely.
iAdding food and opening the door warms the
irefrigerator, requiring the compressor to run
ilonger in order to cool the refrigerator back
down. in order to conserve energy, try to get
ieverything you need out of the refrigerator
iat once, keep food organized so it is easy to
ifind, and close the door as soon as the food is
removed. (Refer to the Food Storage Guide.)
iFirmly push the doors shut. If they will not
shut all the way, see the Doors will not close
icompletely or pop open section in Parts &
Features Troubleshooting.
iThe compressor will run longer under warm
conditions. At normal room temperatures (70°F)
expect your compressor to run about 40% to
80% of the time. Under warmer conditions,
expect it to run even more often. The refrigerator
ishould not be operated above 1IO°F.
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
42 TROUBLESHOOTING
Refrigeratoror Refrigeratorwasrecently Itmaytakeupto24hoursforeachcompartment
Freezersectionis installed, toreachthedesiredtemperature.
toowarm.
Airventsareblocked. Rearrangeitemstoallowairtoflowthroughout
thecompartment.RefertotheAirflowdiagramin
theUsingYourRefrigeratorsection.
Doorsareopenedoftenorfor
longperiodsoftime.
Unitisinstalledinahotlocation.
Alargeamountoffoodor
hotfoodwasaddedtoeither
compartment.
Doorsnotclosedcorrectly.
Temperaturecontrolisnotset
correctly.
Defrostcyclehasrecently
completed.
Whenthedoorsareopenedoftenorforlong
periodsoftime,warm,humidairentersthe
compartment.Thisraisesthetemperatureand
moisturelevelwithinthecompartment.Tolessen
theeffect,reducethefrequencyanddurationof
dooropenings.
Therefrigeratorshouldnotbeoperatedin
temperaturesabove11OF.
Addingfoodwarmsthecompartmentrequiring
thecoolingsystemtorun.Allowinghotfoodto
cooltoroomtemperaturebeforeputtingitinthe
refrigeratorwillreducethiseffect.
SeetheDoorswillnotclosecorrectlyorpopopen
sectioninParts&FeaturesTroubleshooting.
Ifthetemperatureistoowarm,adjustthe
controloneincrementatatimeandwaitforthe
temperaturetostabilize.RefertotheSettingthe
Controlssectionformoreinformation.
Duringthedefrostcycle,thetemperatureofeach
compartmentmayraiseslightlyandcondensation
mayformonthebackwall.Wait30minutes
andconfirmthepropertemperaturehasbeen
restoredoncethedefrostcyclehascompleted.
TROUBLESHOOTING 43
Interior moisture
buildup.
Food is freezing
in the refrigerator
compartment.
Frost or ice
crystals form
on frozen food
(outside of
package).
Doors are opened often or for
long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To
lessen the effect, reduce the frequency and
duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in
the Troubleshooting section.
Weather is humid.
Defrost cycle recently
completed.
Food is not packaged correctly.
Food with high water content
was placed near an air vent.
Refrigerator temperature control
is set incorrectly.
Refrigerator is installed in a cow
location.
Door is opened frequently or for
long periods of time.
Humid weather allows additional moisture
to enter the compartments when the doors
are opened leading to condensation or frost.
Maintaining a reasonable level of humidity in the
home will help to control the amount of moisture
that can enter the compartments.
During the defrost cycle, the temperature
of each compartment may raise slightly and
condensation may form on the back wall.
Wait 30 minutes and confirm that the proper
temperature has been restored once the defrost
cycle has completed.
Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation
within each compartment. Wipe all containers
dry and store food in sealed packaging to prevent
condensation and frost.
Rearrange items with high water content away
from air vents.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
Door is not closing properly.
Refrigerator or Incorrect temperature control If the temperature is too cold, adjust the control
Freezer section is settings, one increment at a time and wait for the
too cold. temperature to stabilize. Refer to the Setting the
Controls section for more information.
When the refrigerator is operated in temperature
below 41°F (5°C), food can freeze in the
refrigerator compartment. The refrigerator should
not be operated in temperature below 55°F (13°C).
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. Increased
moisture will lead to frost and condensation.
To lessen the effect, reduce the frequency and
duration of door openings.
Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
44 TROUBLESHOOTING
Frost or ice Condensation from food with a This is normal for food items with a high water
crystals on frozen high water content has frozen content.
food (inside of inside of the food package.
sealed package).
Food has been left in the freezer Do not store food items with high water content
for a long period of time. in the freezer for a long period of time.
Icemaker is not Demand exceeds ice storage The icemaker will produce approximately 100
making enough capacity, cubes in a 24 hour period.
ice.
House water supply is not
connected, valve is not turned
on fully, or valve is dogged.
Water filter has been
exhausted.
Low house water supply
pressure.
Reverse Osmosis filtration
system is used.
Tubing connecting refrigerator
to house supply valve is kinked.
Connect the refrigerator to a cold water supply
with adequate pressure and turn the water
shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
It is recommended that you replace the water
filter:
• Approximately every six months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
The water pressure must be between 20 and 125
psi on models without awater filter and between
40 and 125 psi on models with a water filter.
If the problem persists, it may be necessary to
contact a plumber.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to Water Pressure section.)
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting
in reduced water flow. Straighten or repair the
water supply line and arrange it to prevent future
kinks.
TROUBLESHOOTING 45
Icemaker is not
making enough
ice (continued).
Dispensing water
slowly.
Doors are opened often or for
long periods of time.
Doors are not dosed
completely.
The temperature setting for the
freezer is too warm.
Water filter has been exhausted.
Reverse osmosis filtration
system is used.
Low house water supply
pressure.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent
the unit from maintaining the set temperature.
Lowering the refrigerator temperature can help,
as well as not opening the doors as frequently.
If the doors are not properly closed, ice
production will be affected. See the Doors will
not dose completely or pop open section in Parts
& Features Troubleshooting for more information.
The recommended temperature for the freezer
compartment for normal ice production is 0°F. tf
the freezer temperature is warmer, ice production
will be affected.
It is recommended that you replace the water
filter:
• Approximately every six months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
If the problem persists, it may be necessary to
contact a plumber.
The water pressure must be between 20 and 125
psi on models without a water filter and between
40 and 125 psi on models with a water filter.
If the problem persists, it may be necessary to
contact a plumber.
46 TROUBLESHOOTING
i
Not dispensing Doors are not closed Ice will not dispense if any of the refrigerator
ice. completely, doors are left open.
Infrequent use of the dispenser.
Icemaker is not
making ice.
The delivery chute is clogged
with frost or ice fragments.
Infrequent use of the ice dispenser will cause
the cubes to stick together over time, which
will prevent them from properly dispensing.
Check the ice bin for ice cubes clumping!sticking
together. If they are, break up the ice cubes to
allow for proper operation.
Eliminate the frost or ice fragments by removing
the ice bin and clearing the chute with a plastic
utensil. Dispensing cubed ice can also help
prevent frost or ice fragment buildup.
The dispenser display is locked. Press and hold the Lock button for three seconds
to unlock the control panel and dispenser.
Ice bin is empty.
Refrigerator was recently
installed or icemaker recently
connected.
Icemaker not turned on.
The ice detecting sensor is
obstructed.
The refrigerator is not connected
to a water supply or the supply
shutoff valve is not turned on.
Icemaker shutoff (arm or
sensor) obstructed.
Reverse osmosis water filtration
system is connected to your
cold water supply.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice. Make sure that the
shutoff
(arm/sensor) is not obstructed.
Once the ice supply in the bin has been
completely exhausted, it my take up to 90
minutes before additional ice is available, and
approximately 24 hours to completely refill the
bin.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice.
Locate the icemaker ON/OFF switch and confirm
that it is in the ON (1)position.
Foreign substances or frost on the ice-detecting
sensor can interrupt ice production. Make sure
that the sensor area is clean at all times for proper
operation.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
If your icemaker is equipped with an ice shutoff
arm, make sure that the arm moves freely. If
your icemaker is equipped with the electronic ice
shutoff sensor, make sure that there is a clear
path between the two sensors.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to the Water Pressure section.)
TROUBLESHOOTING 47
Not dispensing
water.
New insta%tion or water line
recently connected.
Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped air
and contaminates from the system.
Do not dispense the entire 2.5 gallon amount
continuously. Depress and release the dispenser
padfor cycles of 30 seconds ON and 60 seconds
OFF.
The dispenser panel is locked. Press and hold the Lock button for three seconds
to unlock the control panel and dispenser.
The dispenser is not set for The dispenser can be set for ice or water. Make
water dispensing, certain that the control panel is set for the proper
operation. Press the Water button on the control
panel to dispense water.
Refrigerator or freezer doors are Water will not dispense if any of the refrigerator
not closed properly, doors are left open.
Water filter has been recently
removed or replaced.
Tubing connecting refrigerator
to house supply valve is kinked.
The house water supply is not
connected, the valve is not
turned on fully, or the valve is
clogged.
After the water filter is replaced, dispense 2.5
gallons of water (flush for approximately 5
minutes) to remove trapped air and contaminates
from the system. Do not dispense the entire 2.5
gallon amount continuously. Depress and release
the dispenser pad for cycles of 30 seconds ON
and 60 seconds OFF.
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting in
reduced water flow. Straighten or repair the water
supply line and arrange it to prevent future kinks.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
48 TROUBLESHOOTING
Ice has bad taste
or odor.
Water supply contains minerals
such as sulfur.
A water filter may need to be installed to
eliminate taste and odor problems.
NOTE: In some cases, a filter may not help. It
may not be possible to remove all minerals / odor
/ taste in all water supplies.
Discard the first few batches of ice to avoid
discolored or bad tasting ice.
Icemaker was recently installed.
Ice has been stored for too Ice that has been stored for too long will shrink,
long. become cloudy, and may develop a stale taste.
Throw away old ice and make a new supply.
The food has not been stored Rewrap the food. Odors may migrate to the ice if
properly in either compartment, food is not wrapped properly.
The interior of the refrigerator See the Care and Cleaning section for more
needs to be cleaned, information.
The ice storage bin needs to be Empty and wash the bin (discard old cubes).
cleaned. Make sure that the bin is completely dry before
reinstalling it.
Dispensing warm Refrigerator was recently Allow 24 hours after installation for the water
water, installed, storage tank to cool completely.
The water dispenser has been Depending on your specific model, the water
used recently and the storage storage capacity will range from approximately 20
tank was exhausted, to 30 oz.
Dispenser has not been used If the dispenser has not been used for several
for several hours, hours, the first glass dispensed may be warm.
Discard the first 10 oz.
Refrigerator is connected to the Make sure that the refrigerator is connected to a
hot water supply, cold water pipe.
Z_ WARNING: Connecting the refrigerator to a
hot water line may damage the icemaker.
Water has bad Water supply contains minerals A water filter may need to be installed to
taste or odor. such as sulfur, eliminate taste and odor problems.
Water filter has been exhausted. It is recommended that you replace the water
filter:
Refrigerator was recently
installed.
• Approximately every 6 months.
• When the water filter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped
air and contaminates from the system. Do
not dispense the entire 2.5 gallon amount
continuously. Depress and release the dispenser
pad for cycles of 30 seconds ON and 60 seconds
OFF.
TROUBLESHOOTING 49
Icemaker is
making too much
ice.
Clicking
Icemaker shutoff (arm/sensor)
is obstructed.
The defrost control will click
when the automatic defrost
cycle begins and ends.
The thermostat control (or
refrigerator control on some
models) will also click when
cycling on and off.
Empty the ice bin. If your icemaker is equipped
with an ice shutoff arm, make sure that the arm
moves freely. If your icemaker is equipped with
the electronic ice shutoff sensor, make sure that
there is aclear path between the two sensors.
Reinstall the ice bin and wait 24 hours to confirm
proper operation.
Normal Operation
Rattling Rattling noises may come from Normal Operation
the flow of refrigerant, the
water line on the back of the
unit, or items stored on top of
or around the refrigerator.
Refrigerator is not resting solidly Floor is weak or uneven or leveling legs need to
on the floor, be adjusted. See the Door Alignment section.
Refrigerator with linear Normal Operation
compressor was jarred while
running.
Whooshing Evaporator fan motor is Normal Operation
circulating air through the
refrigerator and freezer
compartments.
Air is being forced over the Normal Operation
condenser by the condenser
fan.
Gurgling Refrigerant flowing through the Normal Operation
cooling system.
Popping Contraction and expansion of Normal Operation
the inside walls due to changes
in temperature.
Sizzling Water dripping on the defrost Normal Operation
heater during a defrost cycle.
Vibrating If the side or back of the To eliminate the noise, make sure that the sides
refrigerator is touching a cabinet and back cannot vibrate against any wall or
or wall, some of the normal cabinet.
vibrations may make an audible
sound.
Dripping Water running into the drain pan Normal Operation
during the defrost cycle.
50 TROUBLESHOOTING
Pulsating or
High-Pitched
Sound
Your refrigerator is designed
to run more efficiently to keep
your food items at the desired
temperature. The high efficiency
compressor may cause your
new refrigerator to run longer
than your old one, but it is still
more energy efficient than
previous models. While the
refrigerator is running, it is
normal to hear a pulsating or
high-pitched sound.
Food packages are blocking the
door open.
Normal Operation
Doors win not Rearrange food containers to dear the door and
close correctly or door shelves.
pop open. Ice bin, crisper cover, pans, Push bins all the way in and put crisper cover,
shelves, door bins, or baskets pans, shelves and baskets into their correct
are out of position, positions. See the Using Your Refrigerator section
for more information.
The doors were removed during Remove and replace the doors according to the
product installation and not Removing and Replacing Refrigerator Handles
properly replaced, and Doors section.
Refrigerator is not leveled See Door Alignment in the Refrigeration
properly. Installation section to level refrigerator.
Doors are difficult The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they
to open. touch. Ruba thin coat of appliance polish or
kitchen wax on the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create
a vacuum. If the door is hard to open, wait one
minute to allow the air pressure to equalize, then
see if it opens more easily.
Refrigerator Leveling legs are not adjusted Refer to the Leveling and Door Alignment section.
wobbles or properly.
seems unstable.
Floor is not level. It may be necessary to add shims under the
leveling legs or rollers to complete insta%tion.
Lights do not LED interior lighting failure. The refrigerator compartment lamp is LED interior
work. lighting, and service should be performed by a
qualified technician.
Refrigerator has The Air Filter may need to Set the Air Filter to the MAX setting. If the odor
an unusual odor. be set to the MAX setting or does not go away within 24 hours, the filter may
replaced, need to be replaced. See the Replacing the Air
Filter section for replacement instructions.
The interior of The refrigerator is located near a Make sure that the refrigerator is not located near
the refrigerator fire source, such as a fireplace, a fire source, such as a fireplace, chimney or
is covered with chimney or candle, candle.
dust or soot.
WARRANTY 51
WARRANTY (USA)
Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under
normal home use, during the warranty period set forth below, LG will at its option repair or replace
the product. This limited warranty is valid onty to the original retail purchaser of the product and
applies only when purchased and used within the United States including U.S. Territories. Proof of
original retail purchase is required to obtain warranty service under this limited warranty.
WARRANTY PERIOD
Sealed System
Refrigerator (Condenser. Dryer. Connecting Tube, Linear Compressor
Refrigerant and Evaporator)
One (1) year from One (1) year from the Seven (7) years from Ten (10) years from the
the date of original date of original retail the date of original date of original retail
retail purchase purchase retail purchase purchase
Parts and Labor Parts and Labor Parts only (Consumer Part only (Consumer will
(internal/functional will be charged for be charged for labor)
parts only) labor)
Noises associated with normal operation and failure to follow instructions found in the use and
care and installation guides or operating the unit in an unsuitable environment will not be covered
under this warranty.
1_Replacement products and parts are warranted for the remaining portion of the original warranty
period or ninety (90) days, whichever is greater.
1_Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED
BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE.
NEITHER THE MANUFACTURER NOR ITS U,S. DISTRIBUTOR SHALL BE LIABLE FOR ANY
INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY
OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do
not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This
warranty gives you specific legal rights and you may also have other rights that vary from state
to state.
52 WARRANTY
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on
operation of the product; repair or replace fuses or correct wiring or plumbing, or correction of
unauthorized repairs/installation.
2. Failure of product to perform during power failures and interruptions or inadequate electrical
service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines,
inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the
instructions outlined in the product owner's manual.
5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or
acts of God.
6. Damage resulting from misuse, abuse, improper installation, repair, or maintenance, improper
repair includes use of parts not approved or specified by LG.
7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other
than the intended purpose, or any water leakage where the unit was not properly installed.
8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes,
commercial or industrial use, or use of accessories, components, or consumable cleaning
products that are not approved by LG.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the finish of your product, unless such damage results from defects in materials or
workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).
0. Damage or missing items to any display, open box, discounted, or refurbished product.
1. Products with original serial numbers that have been removed, altered, or can not be readily
determined. Modet and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
2. Increases in utility costs and additional utility expenses.
3. Replacement of light bulbs, filters, or any consumable parts.
4. Repairs when your product is used in other than normal and usual household use (e.g.
commercial use, offices, and recreational facilities) or contrary to the instructions outlined in
the product owner's manual.
5. Costs associated with removal of your product from your home for repairs.
6. The removal and reinstallation of the product if it is installed in an inaccessible location or is
not installed in accordance with published installation instructions, including LG's owner's and
installation manuals.
7. Shelves, door bins, drawers, handles, accessories, and other parts besides those that were
originally included with this particular model.
The cost of repair or replacement under these excluded circumstances shall be borne
by the consumer.
For complete warranty details and customer assistance, please call or visit our website:
Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate option from the
menu, or visit our website at http://www.lg.com Or by mail: LG Customer Information Center:
P.O. Box 240007, 201 James Record Road Huntsville, Alabama 35813 ATTN: CIC
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
WARRANTY 53
WARRANTY (Canada)
WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship
under normal home use during the warranty period set forth below, LG Canada will at its option
repair or replace the Product upon receipt of proof of original retail purchase. This warranty is valid
only to the originat retail purchaser of the product and applies only to a Product distributed in Canada
by LG Canada or an authorized Canadian distributor thereof. The warranty only applies to Products
located and used within Canada.
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
Refrigerator/ Sealed System Linear Compressor
Freezer (Condenser, Dryer, Connecting Tube,
Refrigerant and Evaporator)
One (1) year from One (1)year from Seven (7) years from Ten (10) years from the
the date of original the date of original the date of original date of original retail
retail purchase retail purchase retail purchase purchase
Parts and Labor Parts and Labor Parts only (Consumer Part only (Consumer will
(internal/functional will be charged for be charged for labor)
parts only) labor)
Noises associated with normal operation and failure to follow instructions found in the use and care
and installation guides or operating the unit in an unsuitable environment will not be covered under
this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty
period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA'S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT
AS EXPRESSLY PROVIDED ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS
ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND
NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT
AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY
OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT
ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL
NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT
DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES
OR ANY OTHER DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY
CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR
OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may
have other rights which may vary from province to province depending on applicable provincial
laws. Any term of this warranty that negates or varies any implied condition or warranty under
provincial law is severable where it conflicts with provincial law without affecting the remainder
of this warranty's terms.
54 WARRANTY
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of
the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of
unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate
electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines,
inadequate or interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the
instructions outlined in the Product owner's manuak
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or
acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the
Product. improper repair includes use of parts not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other
than its intended purpose, or resulting from any water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes,
commercial or industrial use, or use of accessories, components, or cleaning products that are
not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other
damage to the finish of your product, unless such damage results from defects in materials or
workmanship and is reported within one (1) week of delivery.
0. Damage or missing items to any display, open box, discounted, or refurbished Product.
1. Products with original serial numbers that have been removed, altered, or cannot be readily
determined. Model and Serial numbers, along with original retail sales receipt, are required for
warranty validation.
2. Increases in utility costs and additional utility expenses.
3. Replacement of light bulbs, filters, or any consumable parts.
4. Repairs when your Product is used in other than normal and usual household use (including,
without limitation, commercial use, in offices or recreational facilities) or contrary to the
instructions outlined in the Product owner's manual.
5. Costs associated with removal of the Product from your home for repairs.
6. The removal and reinstaltation of the Product if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions, including the Product owner's
and installation manuals.
7. Shelves, door bins, drawers, handles, and accessories to the Product. Atso excluded are parts
besides those that were originally included with the Product.
All costs associated with the above excluded circumstances
shall be borne by the consumer,
For complete warranty details and customer assistance, please call or visit our website:
Call 1-888-542-2623 (24 hours a day, 365 days a year) and select the appropriate option from the
menu, or visit our website at http://www]g.com
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
Life's Good
For inquires or corF_r-nenTs,
visi¢ www_[g_com or c_:_ll;
1-800-243-0000 usA,c..........,e_;<_
1-888-865-3026 usA,co_,......,, u,,÷
1-888-542-2623 CAN/,,_>/,,
