SELECT CLEAN TMSelf-Cleaning Gas Range
Cocina de gas de auto limpieza SELECT CLEANTi
Models, Modelos 665.75832
665.75834
665.75839
TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT.
TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE
REFERENCE.
PARA EL INSTALADOR: FAVOR DE DEJAR ESTE MANUAL DE INSTRUCCIONES
CON LA UNIDAD.
PARA EL CONSUMIDOR: FAVOR DE LEER Y GUARDAR ESTE MANUAL PAPA
FUTURAS REFERENClAS,
Super Capacity with ULTRABAKE TM System
Capacidad extra con el Sistema ULTRAJBAKE TM
8273766 Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. wreN.sears.corn

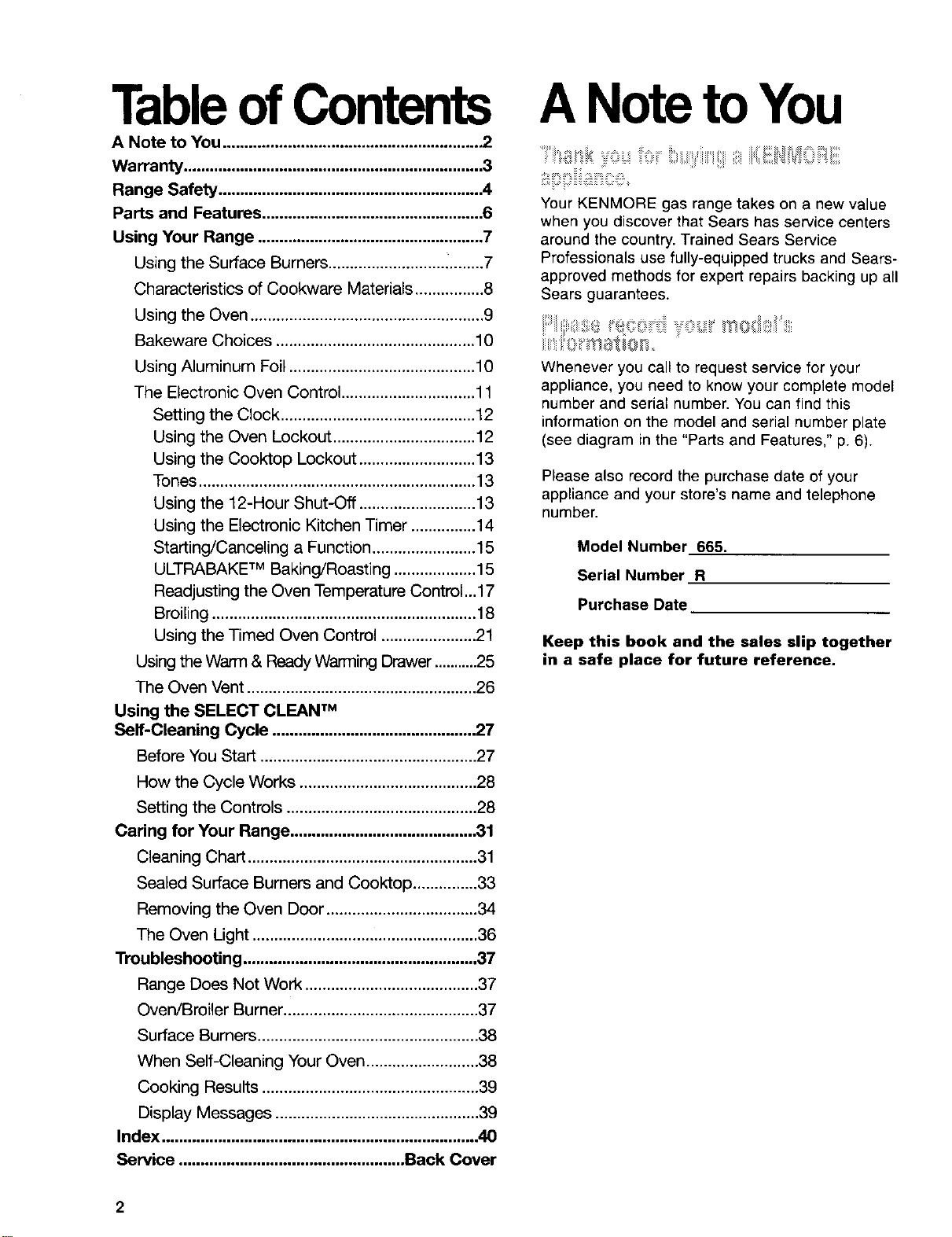

TableofContents
A Note to You ............................................................ 2
Warranty ..................................................................... 3
Range Safety ............................................................. 4
Parts and Features ................................................... 6
Using Your Range .................................................... 7
Using the Surface Burners ........................... _........7
Characteristics of Cookware Materials ................ 8
Using the Oven ...................................................... 9

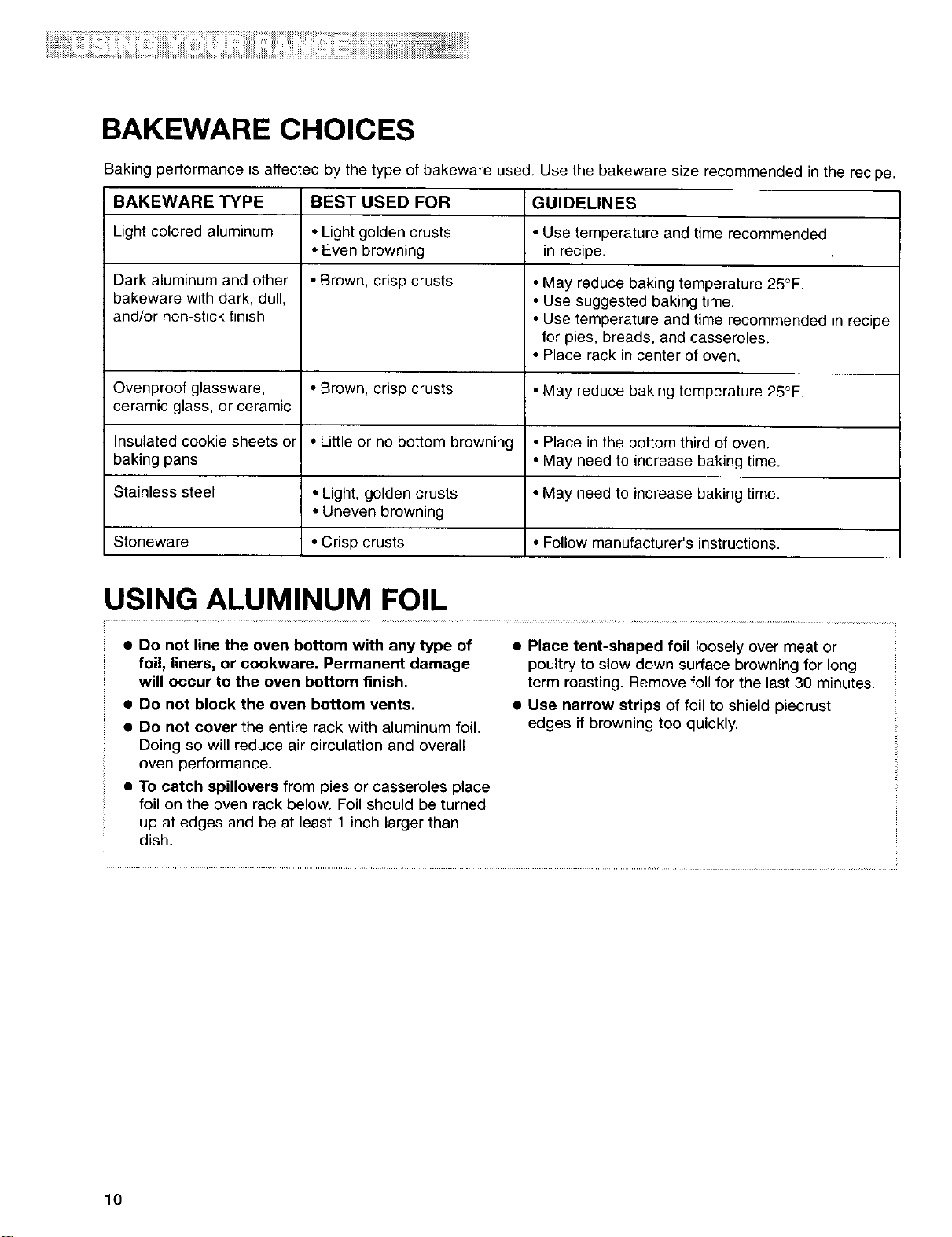

Bakeware Choices .............................................. 10
Using Aluminum Foil ........................................... 10
The Electronic Oven Control ............................... 11
Setting the Clock ............................................. 12
Using the Oven Lockout ................................. 12
Using the Cooktop Lockout ........................... 13
Tones ................................................................ 13
Using the 12-Hour Shut-Off ........................... 13
Using the Electronic Kitchen Timer ............... 14

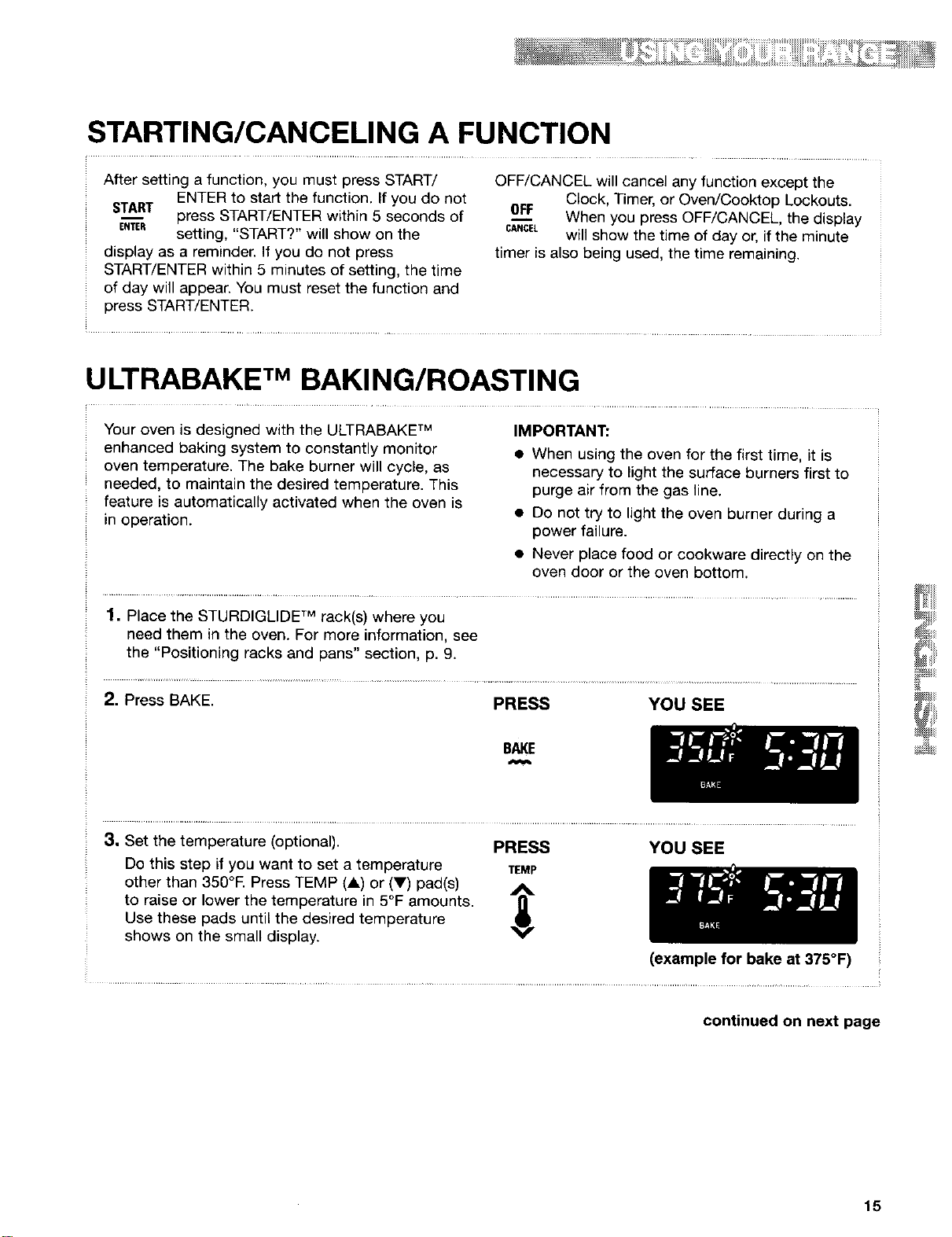

Starting/Canceling a Function ........................ 15
ULTRABAKE TM Baking/Roasting ................... 15
Readjusting the Oven Temperature Control...17
Broiling ............................................................. 18
Using the Timed Oven Control ...................... 21
Using the Warm & Ready Warming Drawer ...........25
The Oven Vent ..................................................... 26

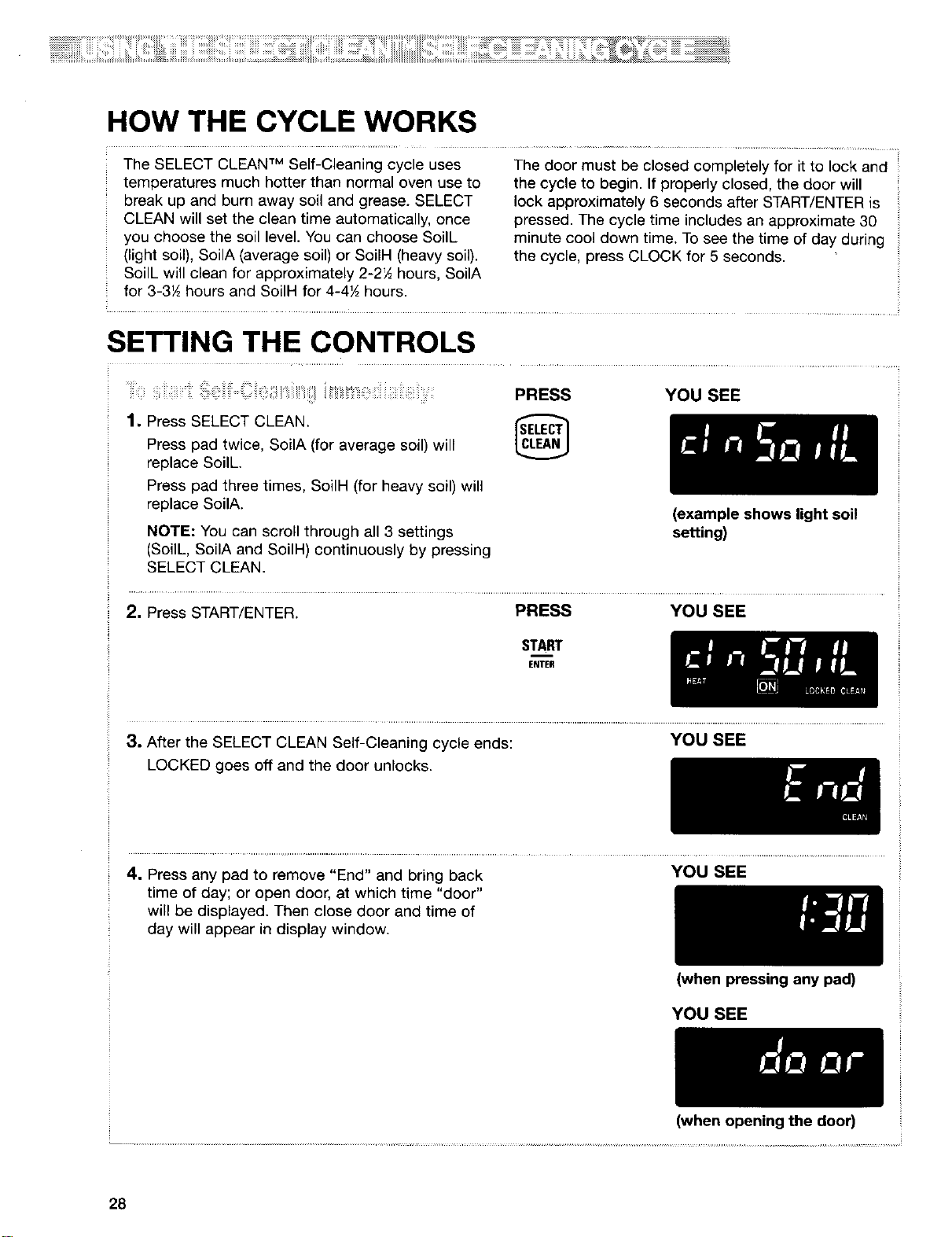

Using the SELECT CLEAN TM
Self-Cleaning Cycle ............................................... 27
Before You Start .................................................. 27
How the Cycle Works ......................................... 28
Setting the Controls ............................................ 28
Caring for Your Range ........................................... 31
Cleaning Chart ..................................................... 31
Sealed Surface Burners and Cooktop ............... 33
Removing the Oven Door ................................... 34
The Oven Light .................................................... 36
Troubleshooting ...................................................... 37
Range Does Not Work ........................................ 37
Oven/Broiler Burner ............................................. 37
Surface Burners ................................................... 38
When Self-Cleaning Your Oven .......................... 38
Cooking Results .................................................. 39
Display Messages ............................................... 39
Index ......................................................................... 40
Service .................................................... Back Cover
2
A NotetoYou
Your KENMORE gas range takes on a new value
when you discover that Sears has service centers
around the country. Trained Sears Service
Professionals use fully-equipped trucks and Sears-
approved methods for expert repairs backing up all
Sears guarantees.
Whenever you call to request service for your
appliance, you need to know your complete model
number and serial number. You can find this
information on the model and serial number plate
(see diagram in the "Parts and Features," p. 6).
Please also record the purchase date of your
appliance and your store's name and telephone
number.
Model Number 665.
Serial Number R
Purchase Date
Keep this book and the sales slip together
in a safe place for future reference.

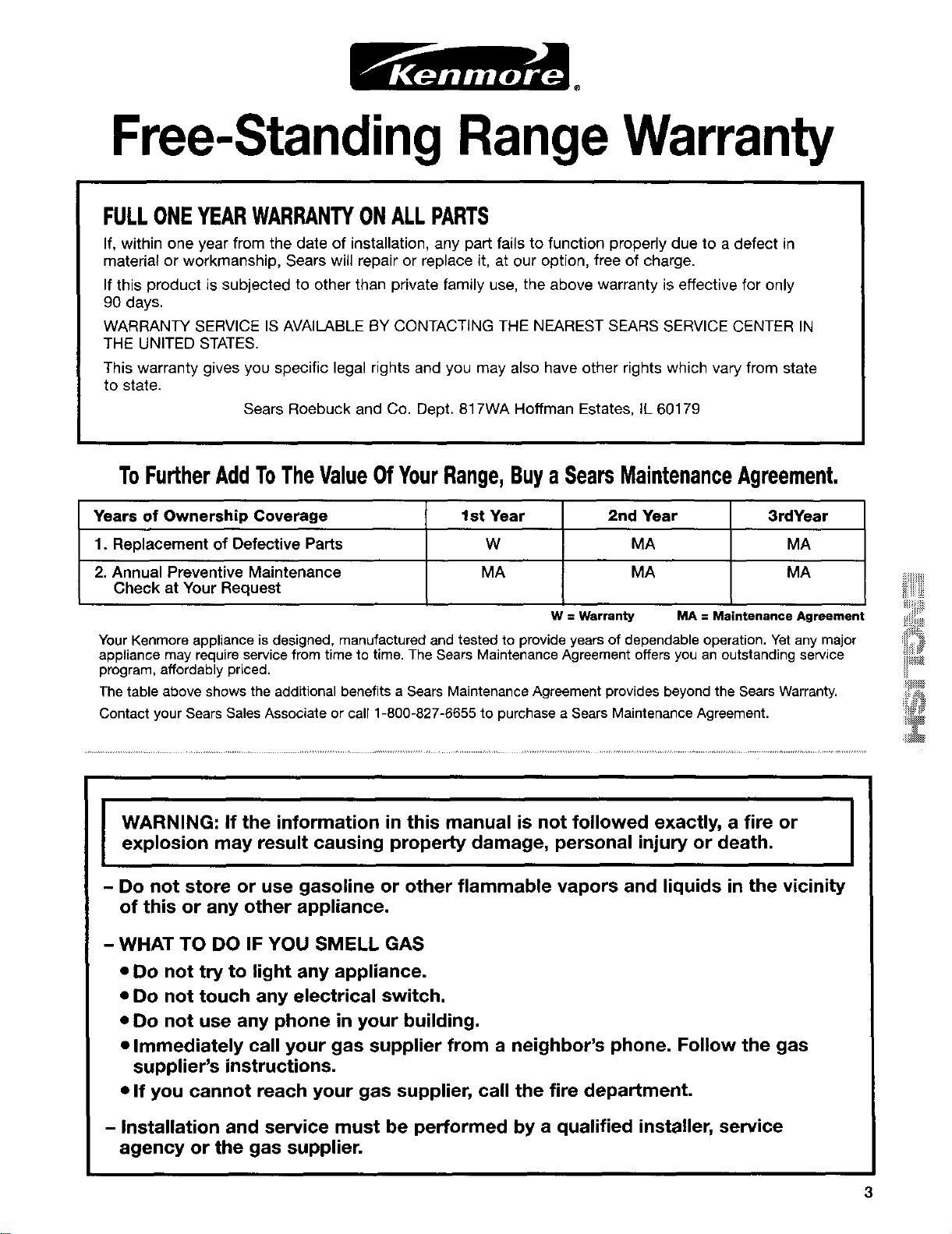

Free-StandingRangeWarranty
FULLONEYEARWARRANTYONALLPARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in
material or workmanship, Sears will repair or replace it, at our option, free of charge.
If this product is subjected to other than private family use, the above warranty is effective for only
90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN
THE UNITED STATES.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state.
Sears Roebuck and Co. Dept. 817WA Hoffman Estates, IL 60179
ToFurtherAddToTheValueOfYourRange,BuyaSearsMaintenanceAgreement.
Years of Ownership Coverage 1st Year 2nd Year 3rdYear
1. Replacement of Defective Parts W MA MA
2. Annual Preventive Maintenance MA MA MA
Check at Your Request
W = Warranty MA = Maintenance Agreement
Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service
program, affordably priced.
The table above shows the additional benefits a Sears Maintenance Agreement provides beyond the Sears Warranty.
Contact your Sears Sales Associate or call 1-800-827-6655 to purchase a Sears Maintenance Agreement.
I WARNING: If the information in this manual is not followed exactly, a fire or I
I
explosion may result causing property damage, personal injury or death.
I
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or the gas supplier.
3
Range Safety
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.

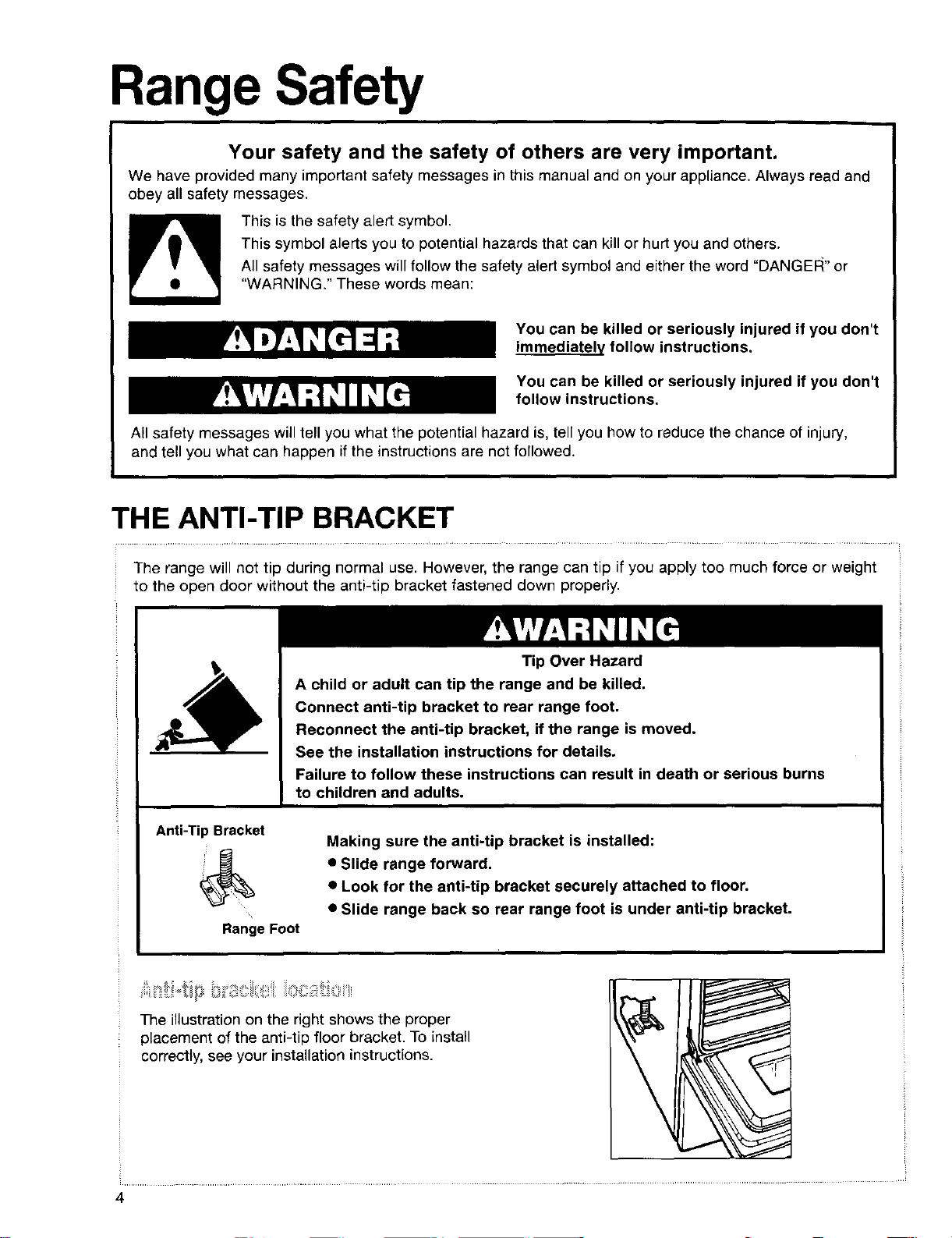

THE ANTI-TIP BRACKET
The range will not tip during normal use. However, the range can tip if you apply too much force or weight
to the open door without the anti-tip bracket fastened down properly.
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Anti-Tip Bracket
Range Foot
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
• Slide range back so rear range foot is under anti-tip bracket.
The illustrationon the right shows the proper
placement of the anti-tip floor bracket. To install
correctly, see your installation instructions.
4

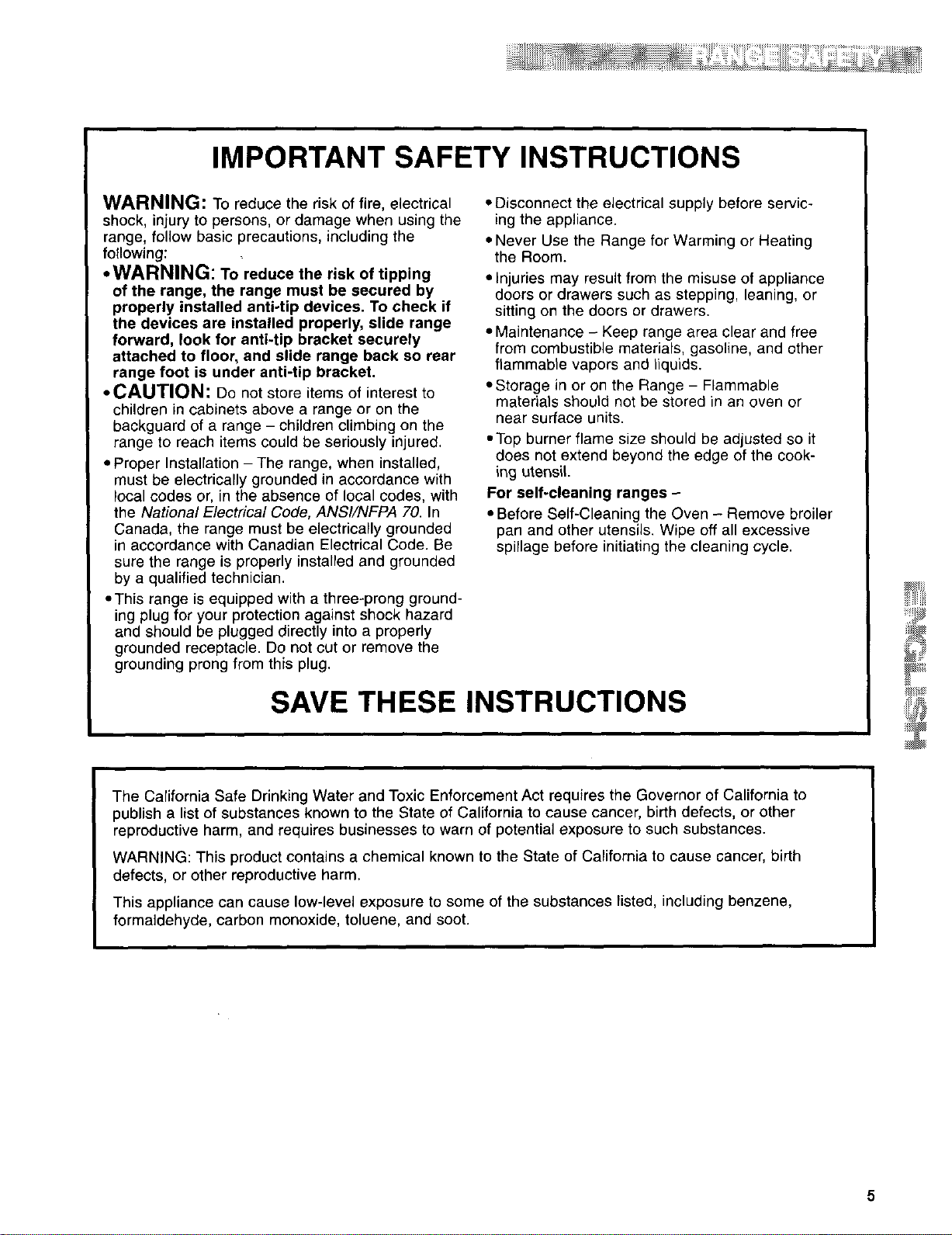

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
•WARNING: To reduce the risk of tipping
of the range, the range must be secured by
properly installed anti-tip devices. To check if
the devices are installed properly, slide range
forward, look for anti-tip bracket securely
attached to floor, and slide range back so rear
range foot is under anti-tip bracket.
• CAUTION: Do not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
• Proper Installation -The range, when installed,
must be electrically grounded in accordance with
local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70. In
Canada, the range must be electrically grounded
in accordance with Canadian Electrical Code. Be
sure the range is properly installed and grounded
by a qualified technician.
=This range is equipped with a three-prong ground-
ing plug for your protection against shock hazard
and should be plugged directly into a properly
grounded receptacle. Do not cut or remove the
grounding prong from this plug.
• Disconnect the electrical supply before servic-
ing the appliance.
• Never Use the Range for Warming or Heating
the Room.
• Injuries may result from the misuse of appliance
doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
• Maintenance - Keep range area clear and free
from combustible materials, gasoline, and other
ftammable vapors and liquids.
=Storage in or on the Range - Flammable
materials should not be stored in an oven or
near surface units.
• Top burner flame size should be adjusted so it
does not extend beyond the edge of the cook-
ing utensil.
For self-cleaning ranges -
• Before Self-Cleaning the Oven - Remove broiler
pan and other utensils. Wipe off all excessive
spillage before initiating the cleaning cycle.
SAVE THESE INSTRUCTIONS
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the State of California to cause cancer, birth defects, or other
reproductive harm, and requires businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth
defects, or other reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene,
formaldehyde, carbon monoxide, toluene, and soot.

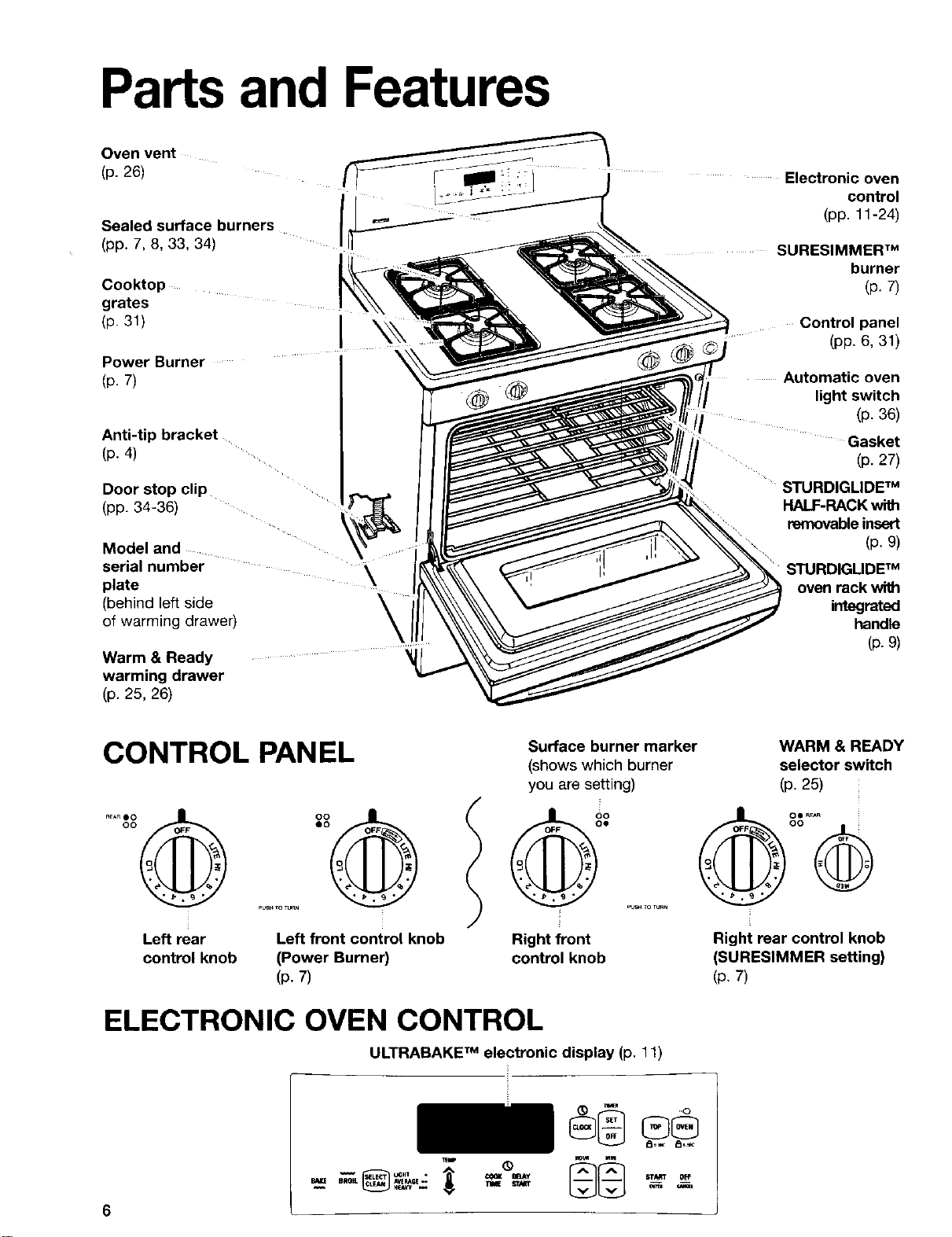

Parts and Features
Oven vent
(p. 26)
Sealed surface burners
(pp. 7, 8, 33, 34)
Cooktop
grates
(p. 31) [ _
Power Burner
(p. 7)
Anti-tip bracket ,
(p. 4) ......
Door stop clip
(pp. 34-36)
Model and
serial number
plate
(behind left side
of warming drawer)
Warm & Ready
warming drawer
(p. 25, 26)
\
Electronic oven
control
(pp. 11-24)
SURESIMMER xM
burner
(p. 7)
Control panel
(pp. 6, 31)
Automatic oven
light switch
/p.36/
r Gasket
(p. 27)
STURDIGMDE TM
HALF-RACK with
removable insert
(p. 9)
STURDIGLIDETM
oven rack with
integrated
handle
(p. 9)
CONTROL PANEL
I
a£AR• 0 I
O0
@
Left rear
control knob
Left front control knob
(Power Burner)
(p. 7)
Surface burner marker
(shows which burner
you are setting)
oo
.......
Right front
control knob
WARM & READY
selector switch
(p. 25)
oo
Right rear control knob
(SURESIMMER setting)
(p. 7)
ELECTRONIC OVEN CONTROL
ULTRABAKE TMelectronic display (p. 11)
6
BROIL _EMGE
B_ HEAW M ]1_ S_'/_r
_@ O
UsingYour Range

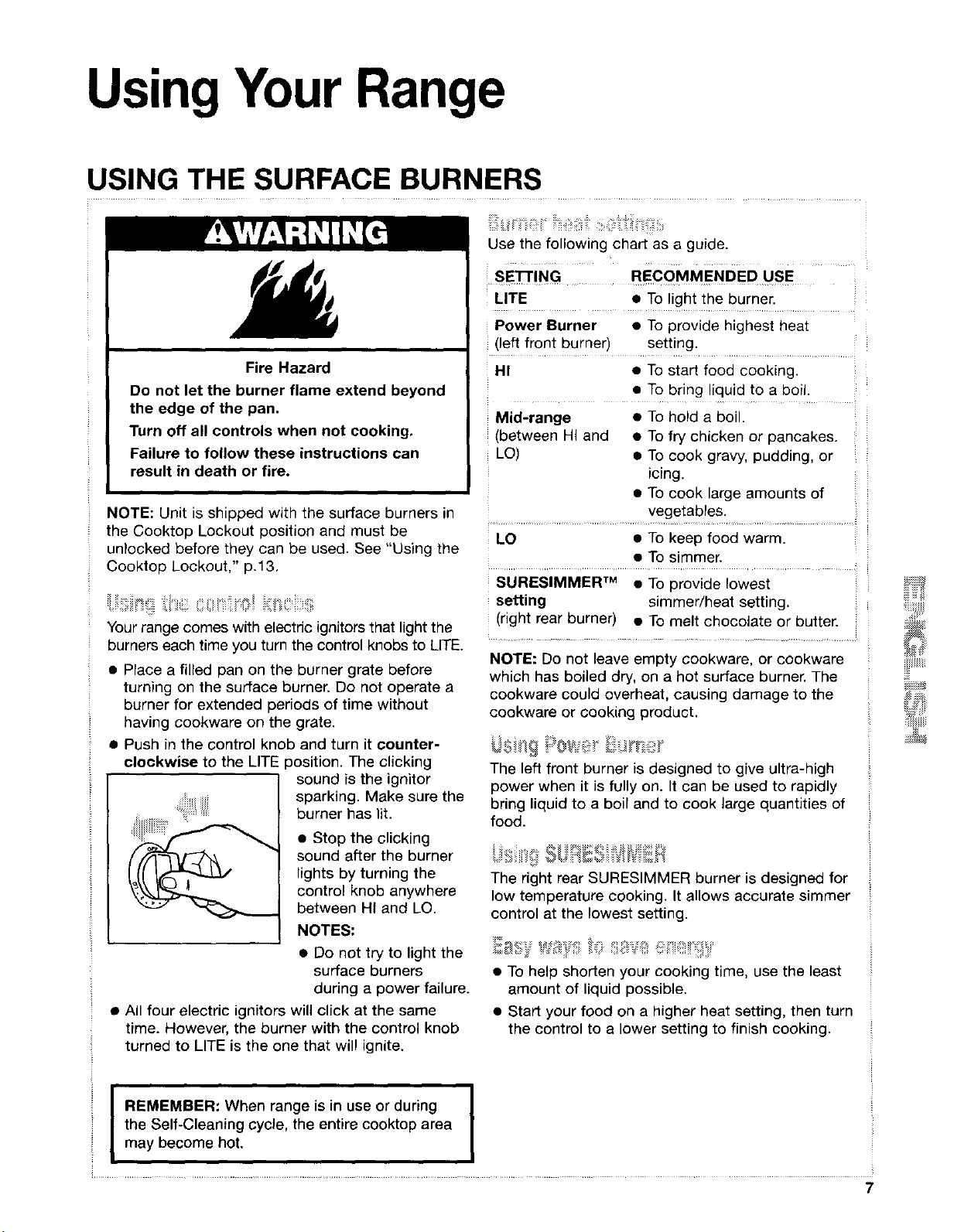

USING THE SURFACE BURNERS
Fire Hazard
Do not let the burner flame extend beyond
the edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can
result in death or fire.
NOTE: Unit is shipped with the surface burners in
the Cooktop Lockout position and must be
unlocked before they can be used. See "Using the
Cooktop Lockout," p.13,
Yourrange comes with electricignitorsthat lightthe
burners each time you turn the controlknobs to LITE.
• Place a filled pan on the burner grate before
turning on the surface burner. Do not operate a
burner for extended periods of time without
having cookware on the grate.
• Push in the control knob and turn it counter-
clockwise to the LITE )osition. The clicking
sound is the ignitor
sparking. Make sure the
burner has lit.
• Stop the clicking
sound after the burner
lights by turning the
control knob anywhere
between HI and LO.
NOTES:
• Do not try to light the
surface burners
during a power failure.
• All four electric ignitors will click at the same
time. However, the burner with the control knob
turned to LITE is the one that will ignite.
Use the following char_ as a guide.
LITE • To light the burner.
Power Burner • To provide highest heat
(left front burner) setting.
HI • To start food cooking.
• To bring liquid to a boil.
Mid-range • To hold a boil.
(between HI and • To fry chicken or pancakes.
LO) • To cook gravy, pudding, or
icing.
• To cook large amounts of
vegetables.
LO • To keep food warm.
• To simmer.
SURESIMMER TM • To provide lowest
setting simmer/heat setting.
(right rear burner) • To melt chocolate or butter.
NOTE: Do not leave empty cookware, or cookware
which has boiled dry, on a hot surface burner. The
cookware could overheat, causing damage to the
cookware or cooking product.
The left front burner is designed to give ultra-high
power when it is fully on. It can be used to rapidly
bring liquid to a boil and to cook large quantities of
food.
The right rear SURESIMMER burner is designed for
low temperature cooking. It allows accurate simmer
control at the lowest setting.
• To help shorten your cooking time, use the least
amount of liquid possible.
• Start your food on a higher heat setting, then turn
the control to a lower setting to finish cooking.
I REMEMBER: When range is in use or during |
I
the Self-Cleaning cycle, the entire cooktop area
I
may become hot.

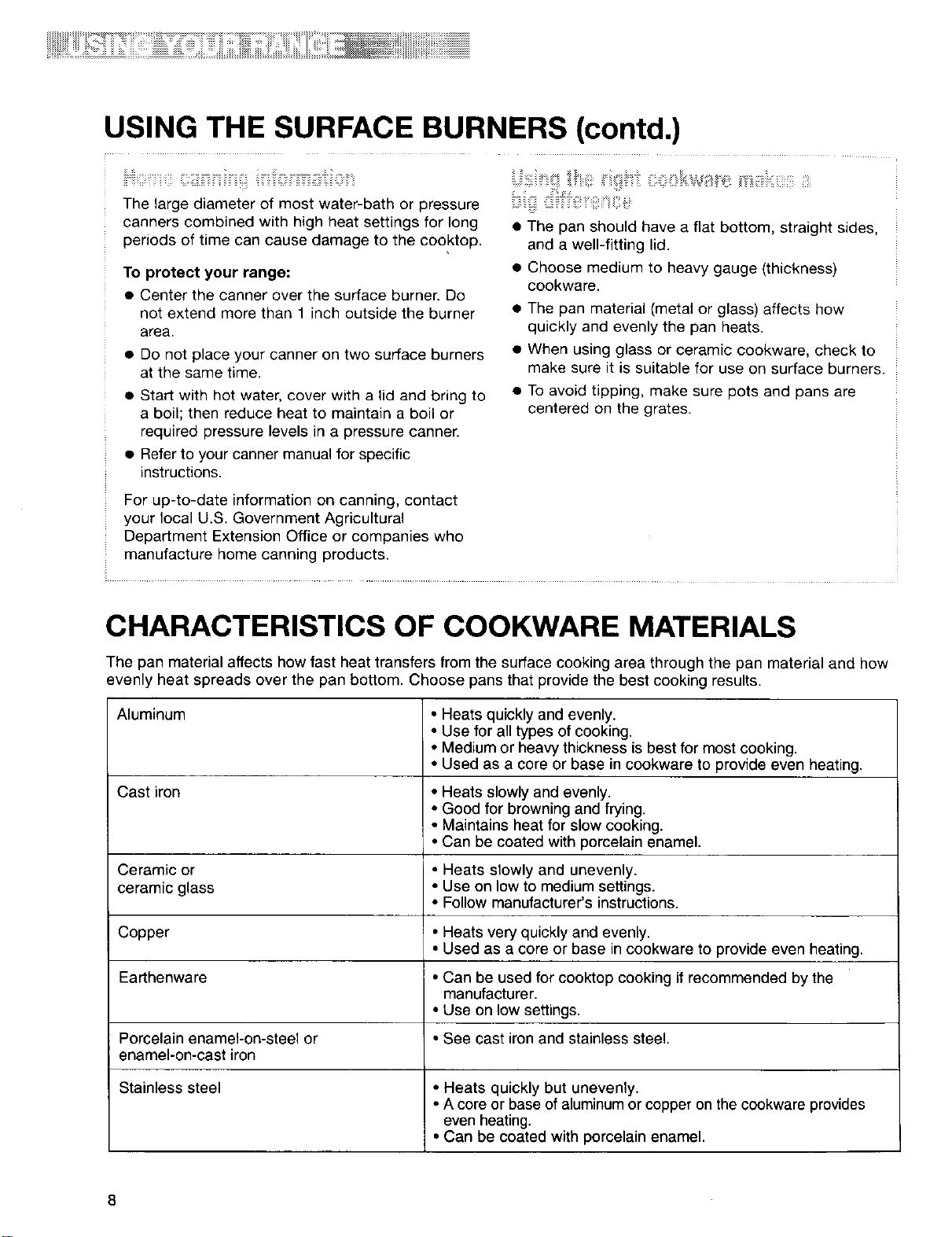

USING THE SURFACE BURNERS (contd.)
The large diameter of most water-bath or pressure
canners combined with high heat settings for long
periods of time can cause damage to the cooktop.
To protect your range:
• Center the canner over the surface burner• Do
not extend more than 1 inch outside the burner
area•
• Do not place your canner on two surface burners
at the same time.
• Start with hot water, cover with a lid and bring to
a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
• Refer to your canner manual for specific
instructions.
• The pan should have a flat bottom, straight sides,
and a well-fitting lid.
• Choose medium to heavy gauge (thickness)
cookware.
• The pan material (metal or glass) affects how
quickly and evenly the pan heats.
• When using glass or ceramic eookware, check to
make sure it is suitable for use on surface burners.
• To avoid tipping, make sure pots and pans are
centered on the grates.
For up-to-date information on canning, contact
your local U.S. Government Agricultural
Department Extension Office or companies who
manufacture home canning products.
CHARACTERISTICS OF COOKWARE MATERIALS
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum • Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or • Heats slowly and unevenly.
ceramic glass • Use on low to medium settings.
• Follow manufacturer's instructions.
Copper • Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating•
Earthenware • Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
Porcelain enamel-on-steel or • See cast iron and stainless steel.
enamel-on-cast iron
Stainless steel • Heats quickly but unevenly.
• A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.
8

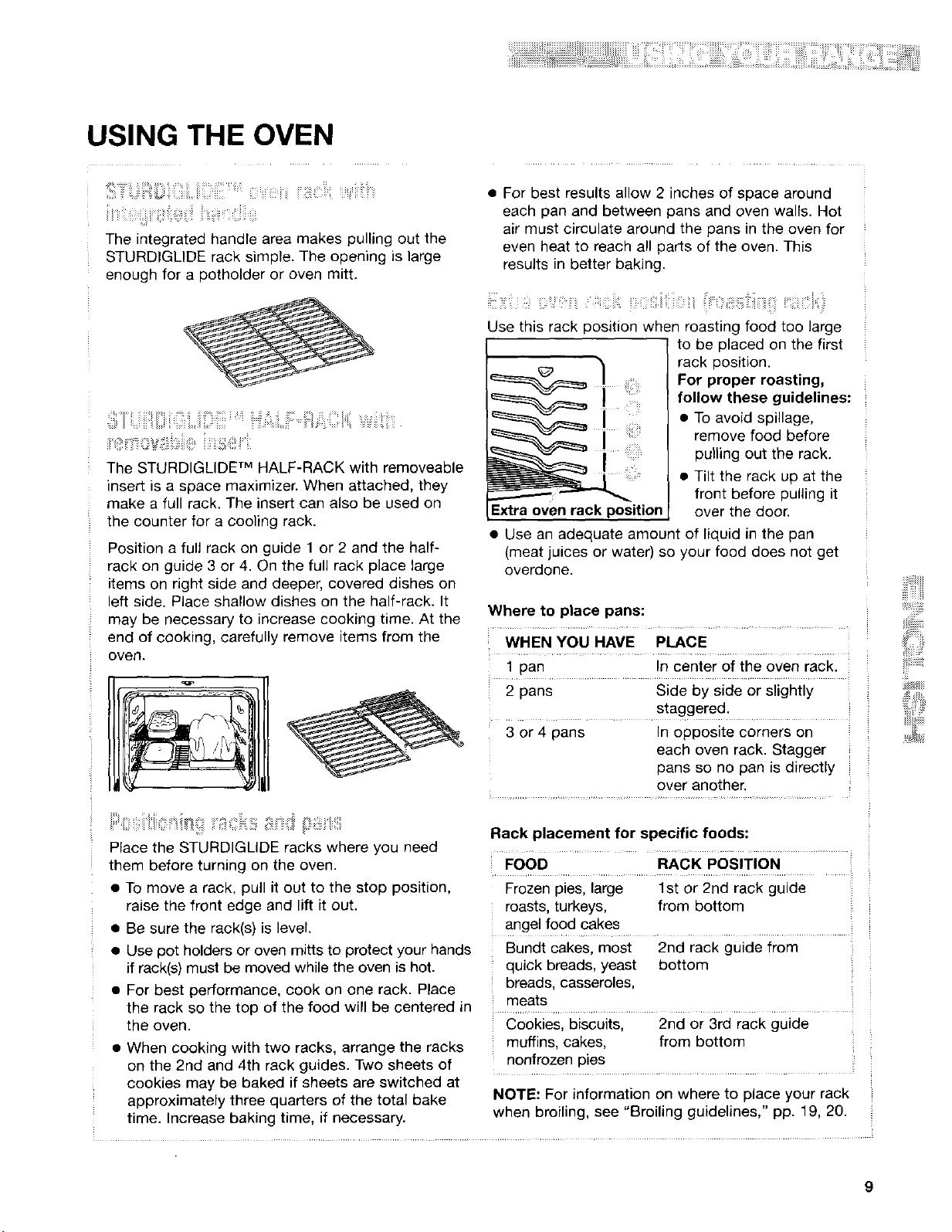

USING THE OVEN
= ==
The integrated handle area makes pulling out the
STURDIGLIDE rack simple. The opening is large
enough for a potholder or oven mitt.
= == = =;=
The STURDIGLIDE TM HALF-RACK with removeable
insert is a space maximizer. When attached, they
make a full rack. The insert can also be used on
the counter for a cooling rack.
Position a full rack on guide 1 or 2 and the half-
rack on guide 3 or 4. On the full rack place large
items on right side and deeper, covered dishes on
left side. Place shallow dishes on the half-rack. It
may be necessary to increase cooking time. At the
end of cooking, carefully remove items from the
oven.
• For best results allow 2 inches of space around
each pan and between pans and oven wails. Hot
air must circulate around the pans in the oven for
even heat to reach all parts of the oven. This
results in better baking.
Use this rack position when roasting food too large
f to be placed on the first
rack position.
For proper roasting,
follow these guidelines:
• To avoid spillage,
remove food before
pulling out the rack.
position
• Tilt the rack up at the
front before pulling it
over the door.
• Use an adequate amount of liquid in the pan
(meat juices or water) so your food does not get
overdone.
Where to place pans:
WHEN YOU HAVE PLACE
1 pan In center of the oven rack.
2 pans Side by side or slightly
............. staggered • ............
3 or 4 pans In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another. =
::::iii;iiii ii ¸ _ i ::'_ _ _:i_ _.......
Place the STURDIGLIDE racks where you need
them before turning on the oven.
• To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
• Be sure the rack(s) is level.
• Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
• For best performance, cook on one rack. Place
the rack so the top of the food will be centered in
the oven.
• When cooking with two racks, arrange the racks
on the 2rid and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake
time. Increase baking time, if necessary.
Rack placement for specific foods:
FOOD RACK POSITION
Frozen pies, large 1st or 2rid rack guide
roasts, turkeys, from bottom
angel food cakes .................
Bundt cakes, most 2nd rack guide from
quick breads, yeast bottom
breads, casseroles,
Cookies, biscuits, 2nd or 3rd rack guide
muffins, cakes, from bottom
nonfrozen pies
NOTE: For information on where to place your rack
when broiling, see "Broiling guidelines," pp. 19, 20.
=
9
;ii:¸
BAKEWARE CHOICES
Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe
BAKEWARE TYPE BEST USED FOR GUIDELINES
Light colored aluminum • Light golden crusts ° Use temperature and time recommended
• Even browning in recipe.
Dark aluminum and other • Brown, crisp crusts • May reduce baking temperature 25°F.
bakeware with dark, dull, • Use suggested baking time.
and/or non-stick finish • Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware, • Brown, crisp crusts • May reduce baking temperature 25°F.
ceramic glass, or ceramic
Insulated cookie sheets or • Little or no bottom browning • Place in the bottom third of oven.
baking pans ° May need to increase baking time.
Stainless steel • Light, golden crusts • May need to increase baking time.
• Uneven browning
Stoneware • Crisp crusts ° Follow manufacturer's instructions.
USING ALUMINUM FOIL
• Do not line the oven bottom with any type of
foil, liners, or cookware. Permanent damage
will occur to the oven bottom finish.
• Do not block the oven bottom vents.
• Do not cover the entire rack with aluminum foil.
Doing so will reduce air circulation and overall
oven performance.
• To catch spillovers from pies or casseroles place
foil on the oven rack below. Foil should be turned
up at edges and be at least 1 inch larger than
dish.
• Place tent-shaped foil loosely over meat or
poultry to slow down surface browning for long
term roasting. Remove foil for the last 30 minutes.
• Use narrow strips of foil to shield piecrust
edges if browning too quickly.
10

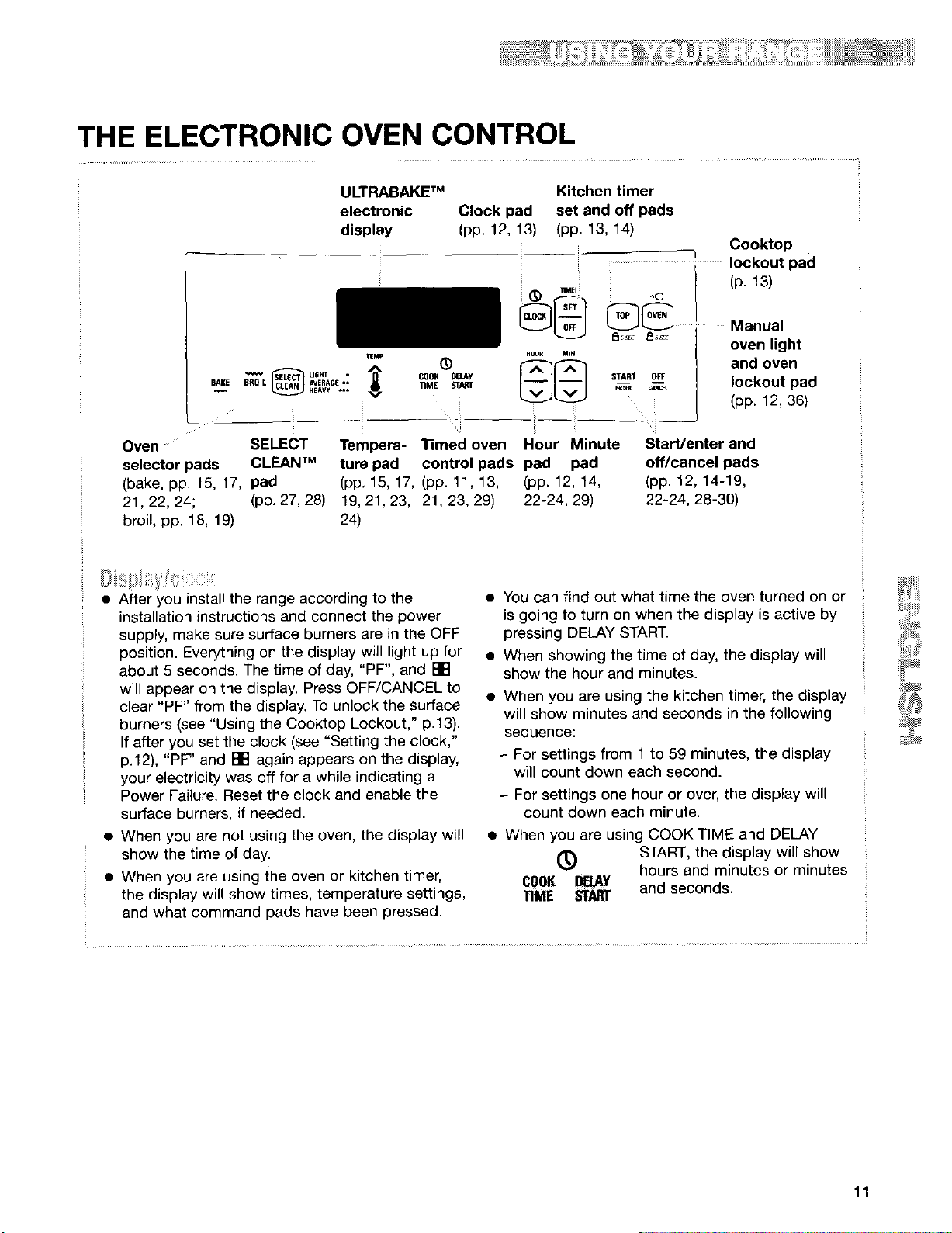

THE ELECTRONIC OVEN CONTROL
ULTRABAKE TM Kitchen timer
electronic Clock pad set and off pads
display (pp. 12, 13) (pp. 13, 14)
_ Cooktop
................ lockout pad
(p. 13)
_MFA _)
_FI _CrT_ LI6HT • -_- COOK I_]_Ay STAB_" OFF
BAKE BROIL AVERAGE"* riME STAre"
HEAVy _. e_R CZ_E(
i _MB;
KOUR MtN
Hour Minute
pad pad
(pp. 12, 14,
22-24, 29)
Oven SELECT Tempera- Timed oven
selector pads CLEAN TM ture pad control pads
(bake, pp. 15, 17, pad (pp. 15, 17, (pp. 11, 13,
21, 22, 24; (pp. 27, 28) 19, 21, 23, 21, 23, 29)
broil, pp. 18, 19) 24)
Manual
oven light
and oven
lockout pad
(pp. 12, 36)
Start/enter and
off/cancel pads
(pp. 12, 14-19,
22-24, 28-30)
• After you install the range according to the
installation instructions and connect the power
supply, make sure surface burners are in the OFF
position. Everything on the display will light up for
about 5 seconds. The time of day, "PF", and []
will appear on the display. Press OFF/CANCEL to
clear "PF" from the display. To unlock the surface
burners (see "Using the Cooktop Lockout," p.13).
If after you set the clock (see "Setting the clock,"
p.12), "PF" and [] again appears on the display,
your electricity was off for a while indicating a
Power Failure. Reset the clock and enable the
surface burners, if needed.
• When you are not using the oven, the display will
show the time of day.
• When you are using the oven or kitchen timer,
the display will show times, temperature settings,
and what command pads have been pressed.
• You can find out what time the oven turned on or
is going to turn on when the display is active by
pressing DELAY START.
• When showing the time of day, the display will
show the hour and minutes.
• When you are using the kitchen timer, the display
will show minutes and seconds in the following
sequence:
- For settings from 1 to 59 minutes, the display
will count down each second.
- For settings one hour or over, the display will
count down each minute.
• When you are using COOK TIME and DELAY
START, the display will show
hours and minutes or minutes
COOK and seconds.
_ME
11

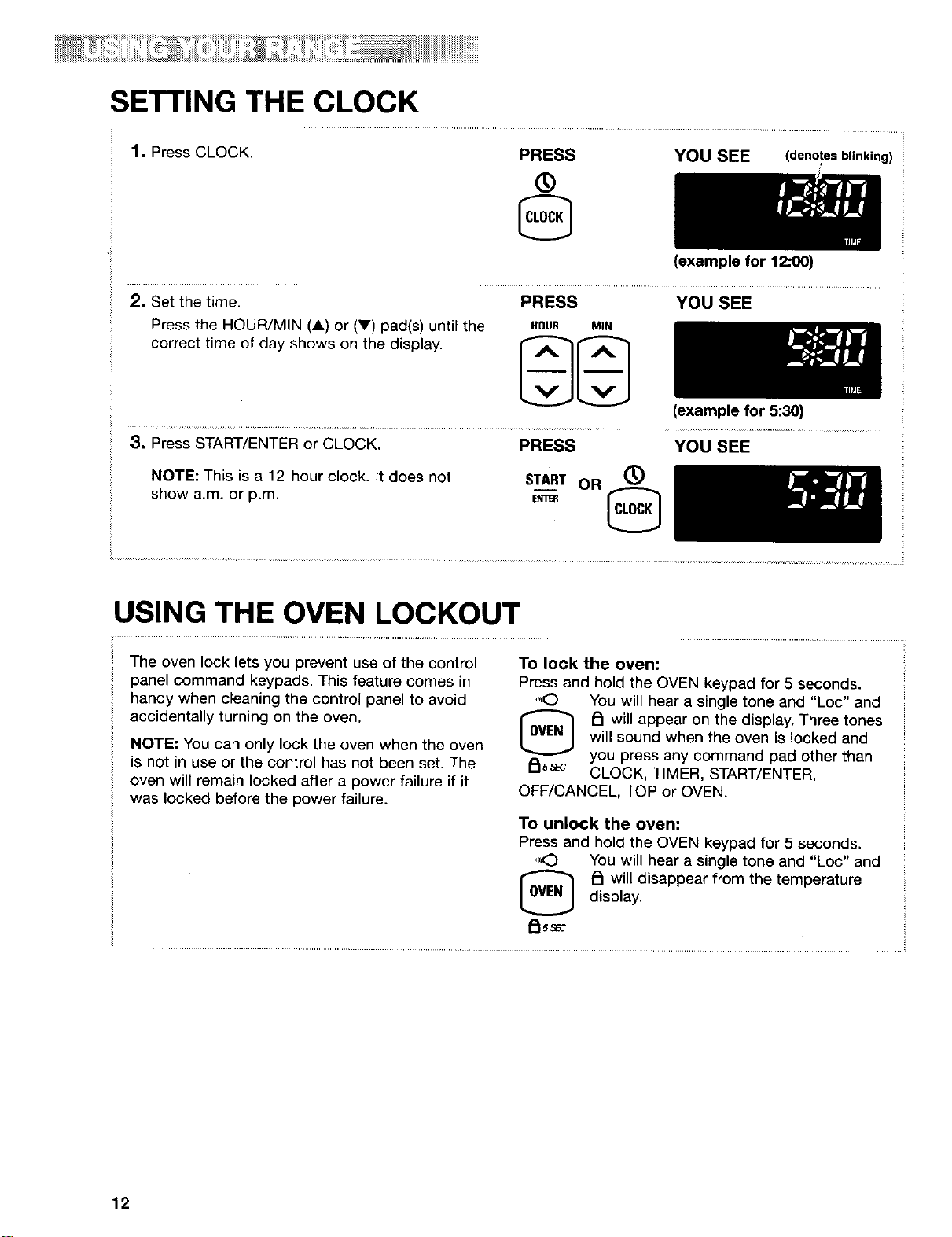

SETTING THE CLOCK
1. Press CLOCK. PRESS YOU SEE
®
(denotes blinking)
(example for 12:00)
2. Set the time. PRESS YOU SEE
Press the HOUR/MIN (A) or (V) pad(s) until the
correct time of day shows on the display.
HOUR MIN
(example for 5:30)
3. Press START/ENTER or CLOCK. PRESS YOU SEE
NOTE: This is a 12-hour clock. It does not
show a.m. or p.m,
STA..._RT OR (_)
ENTER
USING THE OVEN LOCKOUT
The oven lock lets you prevent use of the control
panel command keypads. This feature comes in
handy when cleaning the control panel to avoid
accidentally turning on the oven,
NOTE: You can only lock the oven when the oven
is not in use or the control has not been set. The
oven will remain locked after a power failure if it
was locked before the power failure.
To lock the oven:
Press and hold the OVEN keypad for 5 seconds.
,',,0 You will hear a single tone and "Lot" and
_ will appear on the display. Three tones
will sound when the oven is locked and
85_c you press any command pad other than
CLOCK, TIMER, START/ENTER,
OFF/CANCEL, TOP or OVEN.
To unlock the oven:
Press and hold the OVEN keypad for 5 seconds.
",,O You will hear a single tone and "Loc" and
[_ _ will disappear from the temperature
display.
_ssEc
12

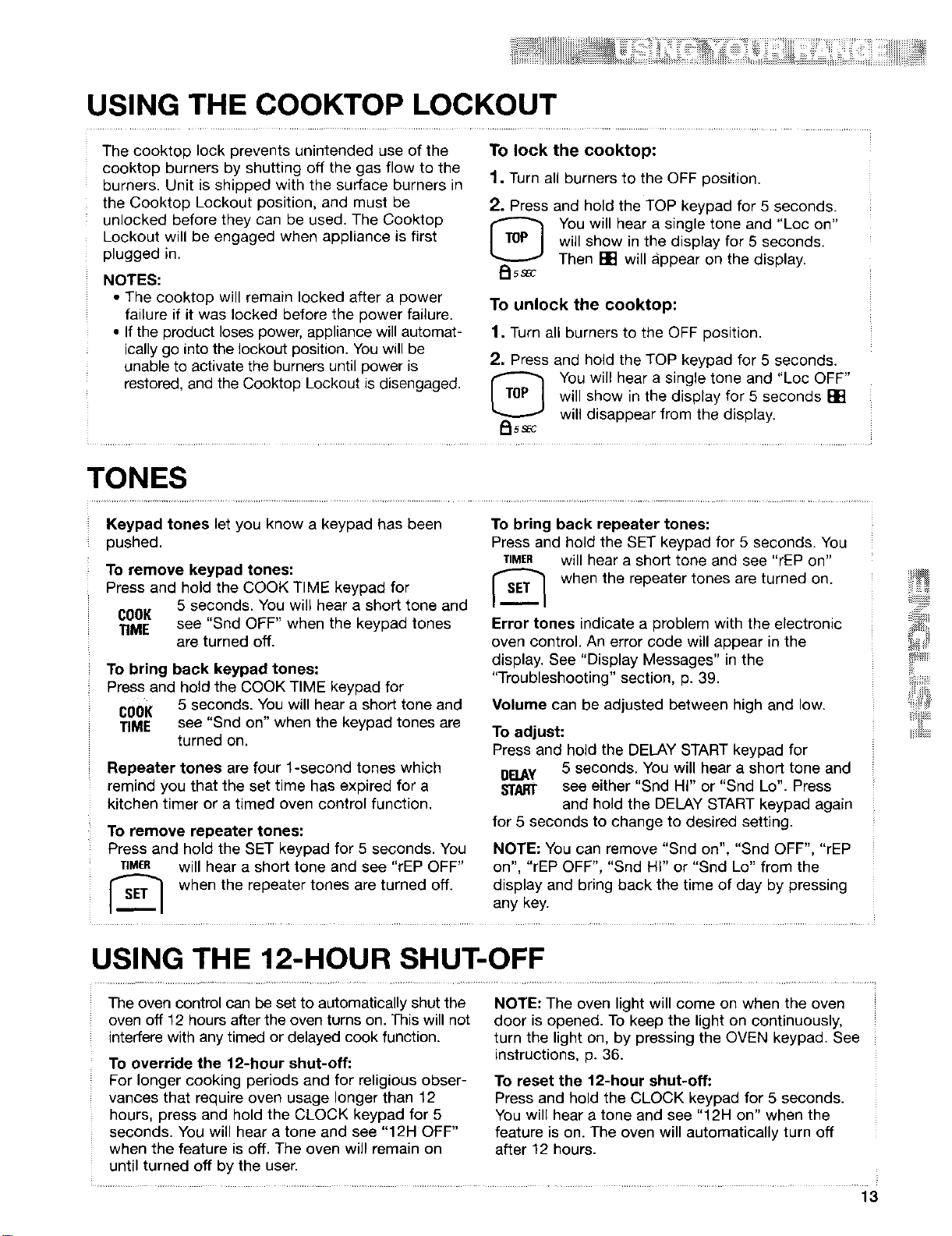

USING THE COOKTOP LOCKOUT
The cooktop lock prevents unintended use of the
cooktop burners by shutting off the gas flow to the
burners. Unit is shipped with the surface burners in
the Cooktop Lockout position, and must be
unlocked before they can be used. The Cooktop
Lockout will be engaged when appliance is first
plugged in.
NOTES:
• The cooktop will remain locked after a power
failure if it was locked before the power failure.
• If the product loses power, appliance will automat-
ically go into the lockout position. You will be
unable to activate the burners until power is
restored, and the Cooktop Lockout is disengaged.
To lock the cooktop:
1. Turn all burners to the OFF position.
2. Press and hold the TOP keypad for 5 seconds.
You will hear a single tone and "Loc on"
will show in the display for 5 seconds.
Then [] will appear on the display.
l=ls_zc
To unlock the cooktop:
1. Turn all burners to the OFF position.
2. Press and hold the TOP keypad for 5 seconds.
You will hear a single tone and "Loc OFF"
will show in the display for 5 seconds []
will disappear from the display.
PlssEc
TONES
Keypad tones let you know a keypad has been
pushed.
To remove keypad tones:
Press and hold the COOK TIME keypad for
5 seconds. You will hear a short tone and
COOK
TIME see "Snd OFF" when the keypad tones
are turned off.
To bring back keypad tones:
Press and hold the COOK TIME keypad for
COOK 5 seconds. You will hear a short tone and
TIME see "Snd on" when the keypad tones are
turned on.
Repeater tones are four 1-second tones which
remind you that the set time has expired for a
kitchen timer or a timed oven control function.
To remove repeater tones:
Press and hold the SET keypad for 5 seconds. You
riMER will hear a short tone and see "rEP OFF"
when the repeater tones are turned off.
To bring back repeater tones:
Press and hold the SET keypad for 5 seconds. You
TIMER will hear a short tone and see "rEP on"
when the repeater tones are turned on.
Error tones indicate a problem with the electronic
oven control. An error code will appear in the
display. See "Display Messages" in the
"Troubleshooting" section, p. 39,
Volume can be adjusted between high and low.
To adjust:
Press and hold the DELAY START keypad for
OEL&Y 5 seconds. You will hear a short tone and
START see either "Snd HI" or "Snd Lo". Press
and hold the DELAY START keypad again
for 5 seconds to change to desired setting.
NOTE: You can remove "Snd on", "Snd OFF", "rEP
on", "rEP OFF", "Snd HI" or "Snd Lo" from the
display and bring back the time of day by pressing
any key.
[:_ii
_!i!i
::::_::
USING THE 12-HOUR SHUT-OFF
The oven control can be set to automatically shut the
oven off 12 hours after the oven turns on. This will not
interfere with any timed or delayed cook function.
To override the 12-hour shut-off:
For longer cooking periods and for religious obser-
vances that require oven usage longer than 12
hours, press and hold the CLOCK keypad for 5
seconds. You will hear a tone and see "12H OFF"
when the feature is off. The oven will remain on
until turned off by the user.
NOTE: The oven light will come on when the oven
door is opened. To keep the light on continuously,
turn the light on, by pressing the OVEN keypad. See
instructions, p. 36.
To reset the 12-hour shut-off:
Press and hold the CLOCK keypad for 5 seconds.
You will hear a tone and see "12H on" when the
feature is on. The oven will automatically turn off
after 12 hours.
13

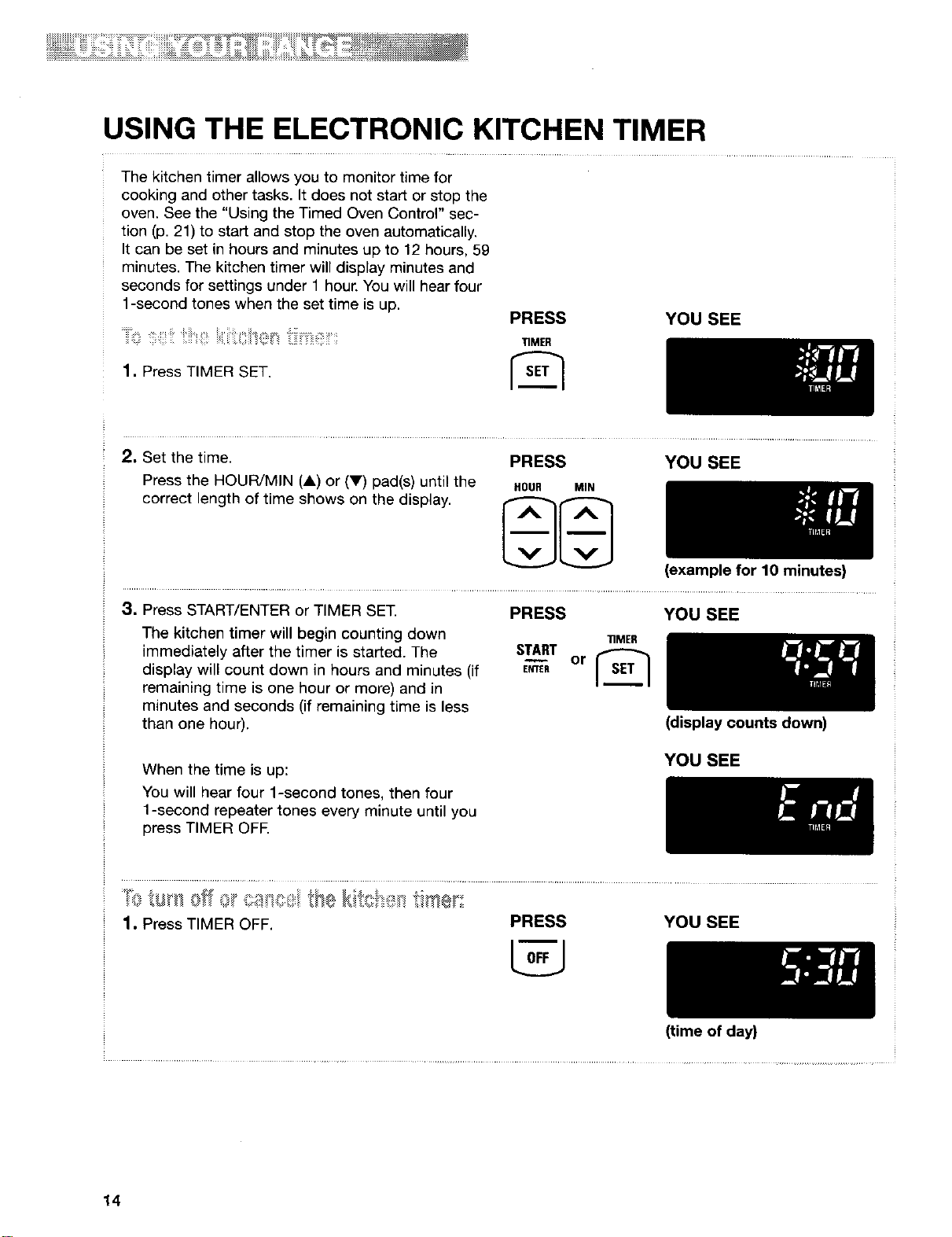

USING THE ELECTRONIC KITCHEN TIMER
The kitchen timer allows you to monitor time for
cooking and other tasks. It does not start or stop the
oven. See the "Using the Timed Oven Control" sec-
tion (p. 21) to star_ and stop the oven automatically.
It can be set in hours and minutes up to 12 hours, 59
minutes. The kitchen timer will display minutes and
seconds for settings under 1 hour. You will hear four
1-second tones when the set time is up.
: :: = ==,=,===,",,,,,,_+_',i : =
1. Press TIMER SET.
PRESS
TIMER
YOU SEE
2, Set the time.
Press the HOUR/MIN (A) or (V) pad(s) until the
correct length of time shows on the display.
PRESS YOU SEE
HOUR MIN
(example for 10 minutes)
3. Press START/ENTER or TIMER SET.
The kitchen timer will begin counting down
immediately after the timer is started. The
display will count down in hours and minutes (if
remaining time is one hour or more) and in
minutes and seconds (if remaining time is less
than one hour).
PRESS YOU SEE
TIMER
START_or [_
E_n'ER
When the time is up:
You will hear four 1-second tones, then four
1-second repeater tones every minute until you
press TIMER OFE
(display counts down)
YOU SEE
1, Press TIMER OFF. PRESS YOU SEE
(time of day)
14
STARTING/CANCELING A FUNCTION
After setting a function, you must press START/
ENTER to start the function. If you do not
START__press START/ENTER within 5 seconds of
ENTER setting, "START?" will show on the
display as a reminder. If you do not press
START/ENTER within 5 minutes of setting, the time
of day will appear. You must reset the function and
press START/ENTER.
OFF/CANCEL will cancel any function except the
OFF Clock, Timer, or Oven/Cooktop Lockouts.
When you press OFF/CANCEL, the display
CANCELwill show the time of day or, if the minute
timer is also being used, the time remaining.
ULTRABAKE TM BAKING/ROASTING
Your oven is designed with the ULTRABAKF M
enhanced baking system to constantly monitor
oven temperature. The bake burner will cycle, as
needed, to maintain the desired temperature. This
feature is automatically activated when the oven is
in operation.
IMPORTANT:
• When using the oven for the first time, it is
necessary to light the surface burners first to
purge air from the gas line.
• Do not try to light the oven burner during a
power failure.
• Never place food or ceekware directly on the
oven door or the oven bottom.
1. Place the STURDIGLIDE TM rack(s) where you
need them in the oven. For more information, see
the "Positioning racks and pans" section, p. 9.
2. Press BAKE. PRESS YOU SEE
BAKE
':iii
3, Set the temperature (optional). PRESS YOU SEE
Do this step if you want to set a temperature TEMP
other than 350°E Press TEMP (A) or (V) pad(s) _.
to raise or lower the temperature in 5°F amounts.
Use these pads until the desired temperature
shows on the small display.
(example for bake at 375°F)
continued on next page
15

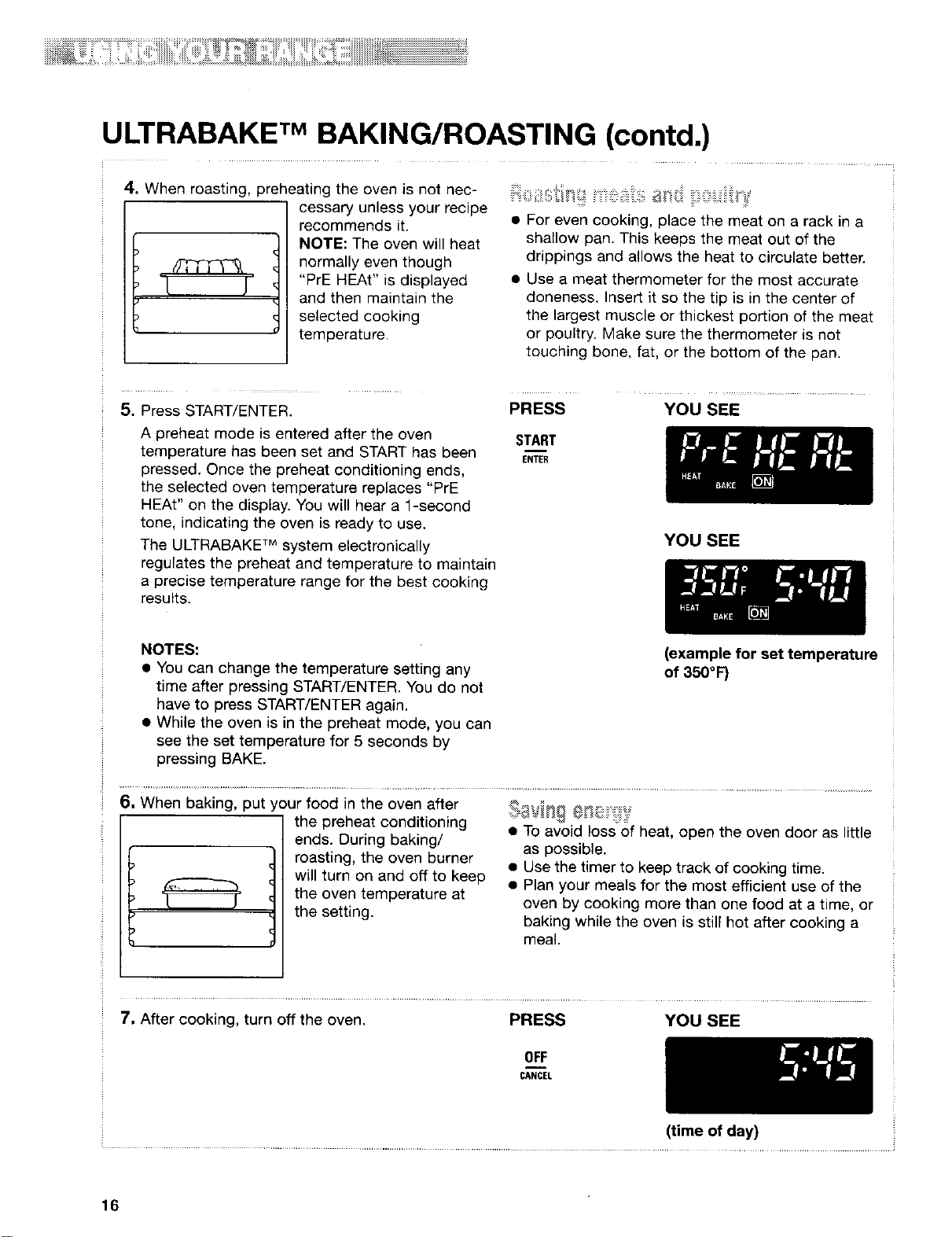

ULTRABAKE TMBAKING/ROASTING (contd.)
4. When roasting, preheating the oven is not nec-
cessary unless your recipe
recommends it.
NOTE: The oven will heat
normally even though
"PrE HEAt" is displayed
and then maintain the
selected cooking
temperature.
• For even cooking, place the meat on a rack in a
shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate better.
a Use a meat thermometer for the most accurate
doneness. Insert it so the tip is in the center of
the largest muscle or thickest portion of the meat
or poultry. Make sure the thermometer is not
touching bone, fat, or the bottom of the pan.
5. Press START/ENTER.
A preheat mode is entered after the oven
temperature has been set and START has been
pressed. Once the preheat conditioning ends,
the selected oven temperature replaces "PrE
HEAt" on the display. You will hear a 1-second
tone, indicating the oven is ready to use.
The ULTRABAKE TM system electronically
regulates the preheat and temperature to maintain
a precise temperature range for the best cooking
results.
PRESS
START
ENTER
YOU SEE
YOU SEE
NOTES:
• You can change the temperature setting any
time after pressing START/ENTER. You do not
have to press START/ENTER again.
• While the oven is in the preheat mode, you can
see the set temperature for 5 seconds by
pressing BAKE.
(example for set temperature
of 350°F)
6. When baking, put your food in the oven after
the preheat conditioning
ends. During baking/
roasting, the oven burner
will turn on and off to keep
oven temperature at
the
the setting.
a To avoid loss of heat, open the oven door as little
as possible.
• Use the timer to keep track of cooking time.
• Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
7. After cooking, turn off the oven. PRESS YOU SEE
OFF
CANCEL
(time of day)
16

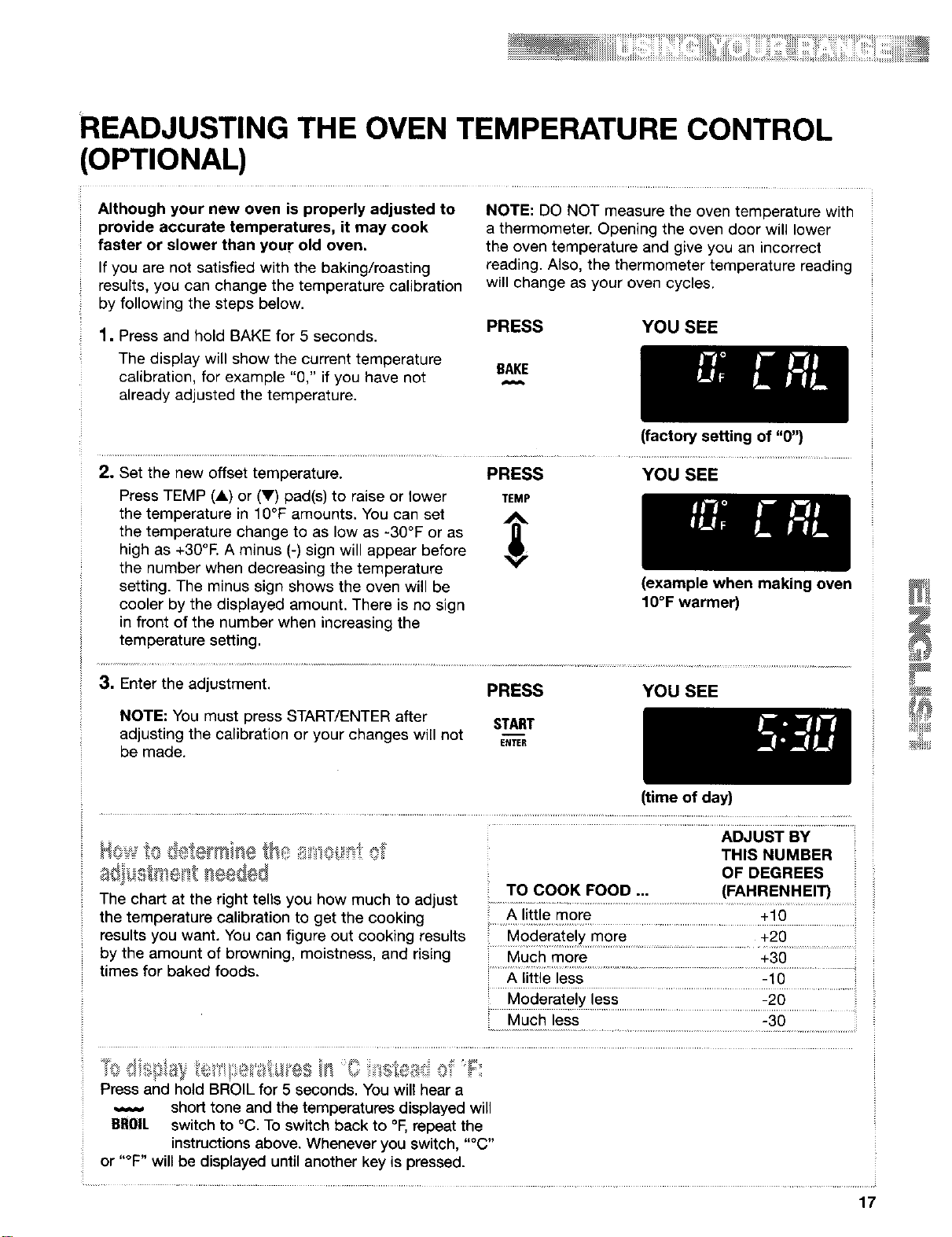

READJUSTING THE OVEN TEMPERATURE CONTROL
(OPTIONAL)
Although your new oven is properly adjusted to
provide accurate temperatures, it may cook
faster or slower than your old oven.
If you are not satisfied with the baking/roasting
results, you can change the temperature calibration
by following the steps below.
1. Press and hold BAKE for 5 seconds.
The display will show the current temperature
calibration, for example "0," if you have not
already adjusted the temperature.
NOTE: DO NOT measure the oven temperature with
a thermometer. Opening the oven door will lower
the oven temperature and give you an incorrect
reading. Also, the thermometer temperature reading
will change as your oven cycles.
PRESS YOU SEE
BAKE
(factory setting of "O")
2. Set the new offset temperature. PRESS YOU SEE
Press TEMP (A) or (V) pad(s) to raise or lower TEMP
the temperature in 10°F amounts. You can set A
the temperature change to as low as -30°F or as
high as +30°R A minus (-) sign will appear before
the number when decreasing the temperature
setting. The minus sign shows the oven will be
cooler by the displayed amount. There is no sign
in front of the number when increasing the
temperature setting.
(example when making oven
10°F warmer)
3. Enter the adjustment. PRESS YOU SEE
NOTE: You must press START/ENTER after START
adjusting the calibration or your changes will not
ENTER
be made.
(time of day)
t
F
}¢_swto determise th<;,__,'_e,Js{of
adisstme tneeded
The chart at the right tells you how much to adjust
the temperature calibration to get the cooking
results you want. You can figure out cooking results
by the amount of browning, moistness, and rising
times for baked foods.
ADJUST BY
THIS NUMBER
OF DEGREES
TO COOK FOOD ... (FAHRENHEIT)
: "A"ii{tiem'oi'e.................................. +10
............ ÷2£
Much more +30
A little less -10
.........Moclerateiy less ............................120 .........
Press and hold BROIL for 5 seconds. You will hear a
short tone and the temperatures displayed will
BROIl. switch to °C. To switch back to °F,repeat the
instructions above. Whenever you switch, "°C"
or "°F" will be displayed until another key is pressed.
17
BROILING

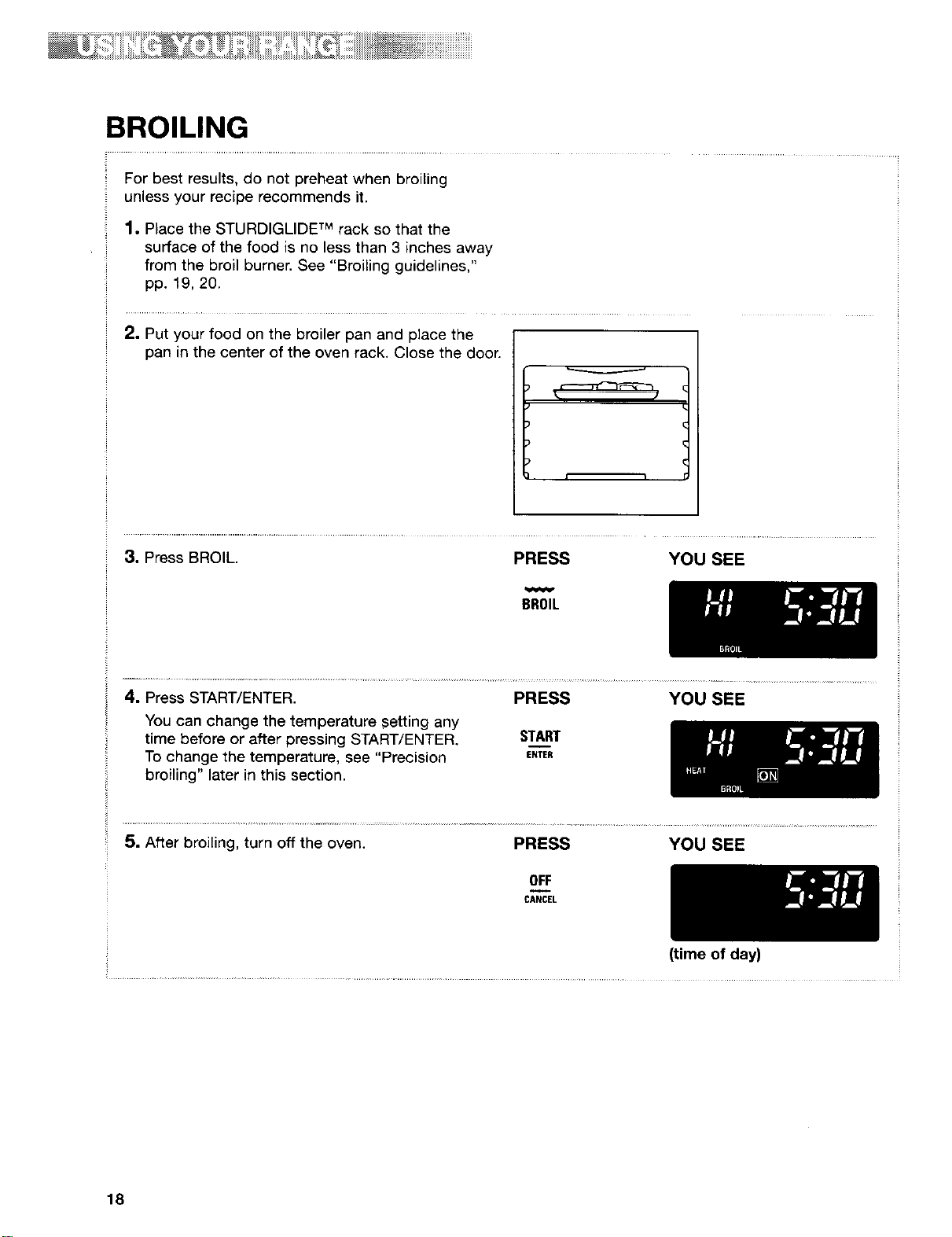

For best results, do not preheat when broiling
unless your recipe recommends it.
1. Place the STURDIGLIDE TM rack so that the
surface of the food is no less than 3 inches away
from the broil burner. See "Broiling guidelines,"
pp. 19, 20.
2. Put your food on the broiler pan and place the
pan in the center of the oven rack. Close the door.
v
3. Press BROIL. PRESS YOU SEE
BROIL
4. Press START/ENTER. PRESS YOU SEE
You can change the temperature setting any
time before or after pressing START/ENTER.
To change the temperature, see "Precision
broiling" later in this section.
START
ENTER
5. After broiling, turn off the oven. PRESS YOU SEE
OFF
CANCEL
(time of day)
18
BROILING (contd.)

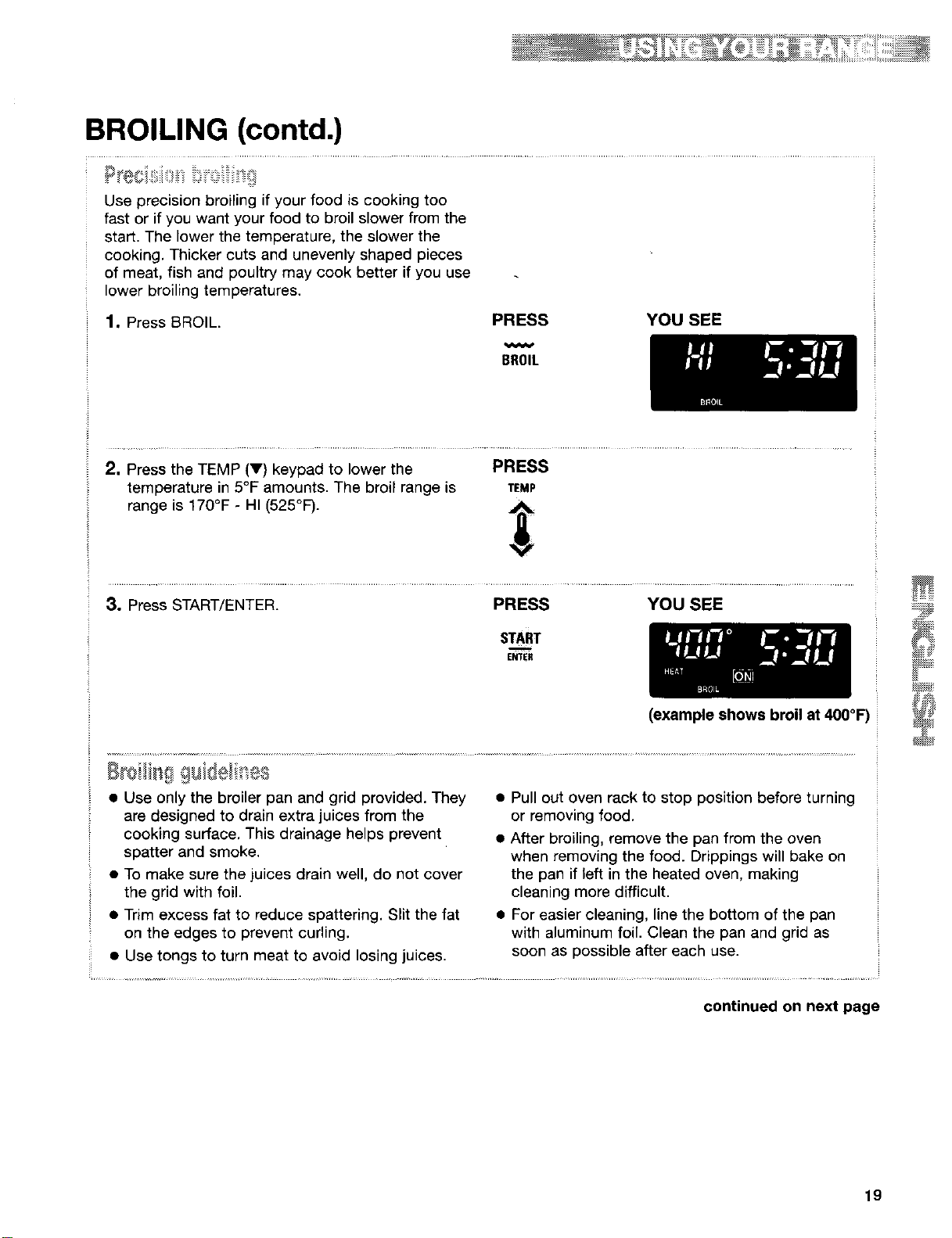

Use precision broiling if your food is cooking too
fast or if you want your food to broil slower from the
start. The lower the temperature, the slower the
cooking. Thicker cuts and unevenly shaped pieces
of meat, fish and poultry may cook better if you use
lower broiling temperatures.
1. Press BROIL. PRESS YOU SEE
BROIL
2, Press the TEMP (V) keypad to lower the PRESS
temperature in 5°F amounts. The broil range is TEMP
range is 170°F - HI (525°F).
3. Press START/ENTER. PRESS YOU SEE
START
ENTER
(example shows broil at 400°F)
• Use only the broiler pan and grid provided. They •
are designed to drain extra juices from the
cooking surface, This drainage helps prevent •
spatter and smoke.
• To make sure the juices drain well, do not cover
the grid with foil.
• Trim excess fat to reduce spattering. Slit the fat •
on the edges to prevent curling.
• Use tongs to turn meat to avoid losing juices.
Pull out oven rack to stop position before turning
or removing food,
After broiling, remove the pan from the oven
when removing the food. Drippings will bake on
the pan if left in the heated oven, making
cleaning more difficult.
For easier cleaning, line the bottom of the pan
with aluminum foil. Clean the pan and grid as
soon as possible after each use.
continued on next page
19

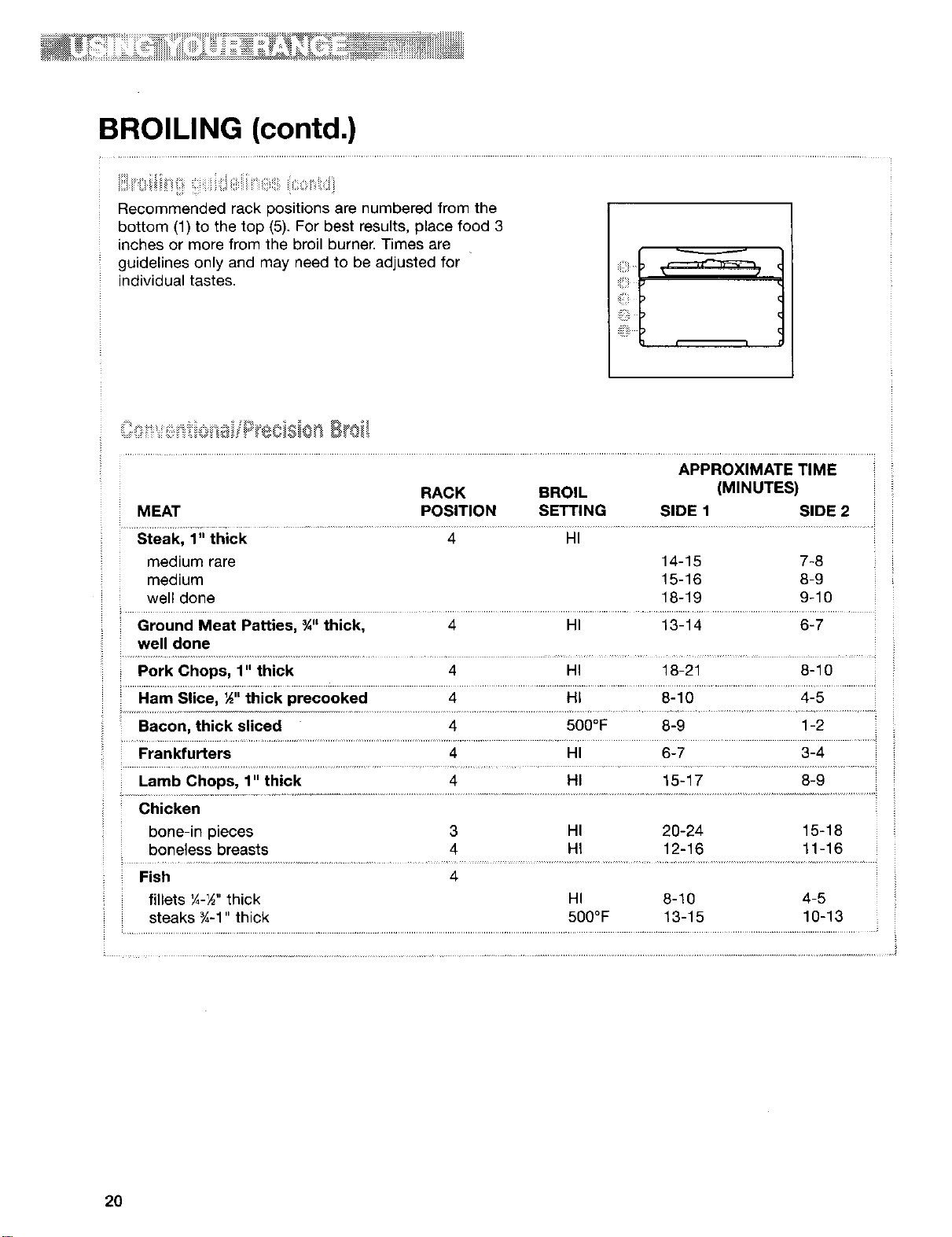

BROILING (contd.)
Recommended rack positions are numbered from the
bottom (1) to the top (5). For best results, place food 3
inches or more from the broil burner. Times are
guidelines only and may need to be adjusted for
individual tastes.
iiv
.... _,w s __fie_sls_QSB_8[_
APPROXIMATE TIME
RACK BROIL (MINUTES)
MEAT POSITION SETTING SIDE 1 SIDE 2
Steak, 1" thick 4 HI
medium rare 14-15 7-8
medium 15-16 8-9
well done 18-19 9-10
i .............................................................................................................................................................................................................
Ground Meat Patties, ¾" thick, 4 HI 13-14 6-7
well done
.............................................................................................................Pork Chops, 1" thick 4 ....... i8_2i ...... 8-i0
Ham Slice, ½" thick precooked 4 HI 8-10 4-5
Frankfurters 4 HI 6-7 3-4
Lamb Chops, 1" thick 4 HI 15-17 8-9
: Chicken
bone-in pieces
boneless breasts
: Fish
3 HI 20-24 15-18
4 HI 12-16 11-16
.... i
4 '_
fillets ¼-½" thick HI 8-10 4-5
steaks ¾-1" thick 50O°F 13-15 10-13
2O

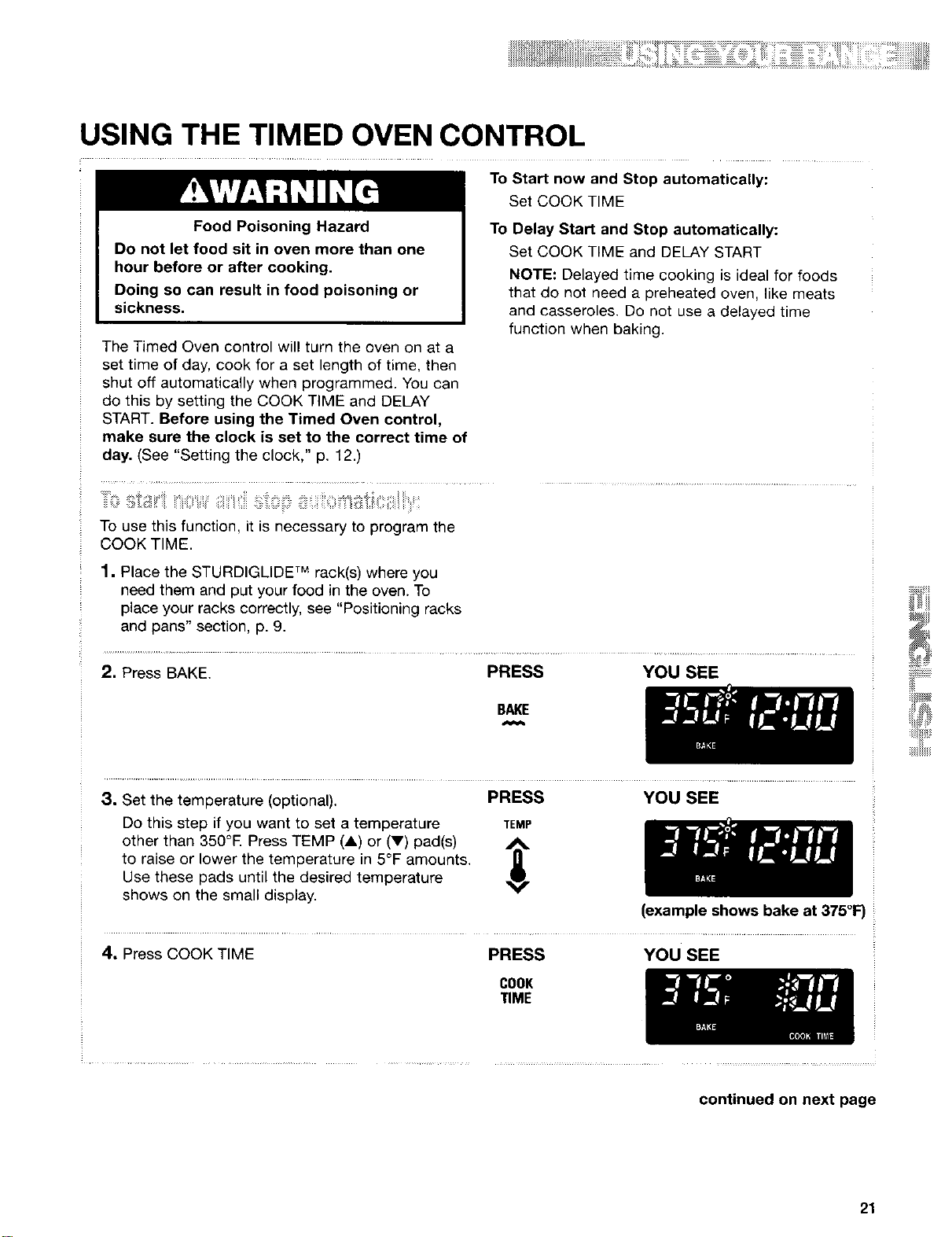

USING THE TIMED OVEN CONTROL
Food Poisoning Hazard
Do not let food sit in oven more than one
hour before or after cooking.
Doing so can result in food poisoning or
sickness.
The Timed Oven control will turn the oven on at a
set time of day, cook for a set length of time, then
shut off automatically when programmed. You can
do this by setting the COOK TIME and DELAY
START. Before using the Timed Oven control,
make sure the clock is set to the correct time of
day. (See "Setting the clock," p. 12.)
To Start now and Stop automatically:
Set COOK TIME
To Delay Start and Stop automatically:
Set COOK TIME and DELAY START
NOTE: Delayed time cooking is ideal for foods
that do not need a preheated oven, like meats
and casseroles. Do not use a delayed time
function when baking.
To use this function, it is necessary to program the
COOK TIME.
1. Place the STURDIGLIDE TM rack(s) where you
need them and put your food in the oven. To
place your racks correctly, see "Positioning racks
and pans" section, p. 9.
2. Press BAKE. PRESS YOU SEE
BAKE
3, Set the temperature (optional). PRESS
Do this step if you want to set a temperature TEMP
other than 350°F. Press TEMP (A) or (V) pad(s) #_.
to raise or lower the temperature in 5°F amounts.
Use these pads until the desired temperature
shows on the small display.
YOU SEE
(example shows bake at 375°F)
4. Press COOK TIME PRESS YOU SEE
COOK
TIME
continued on next page
21

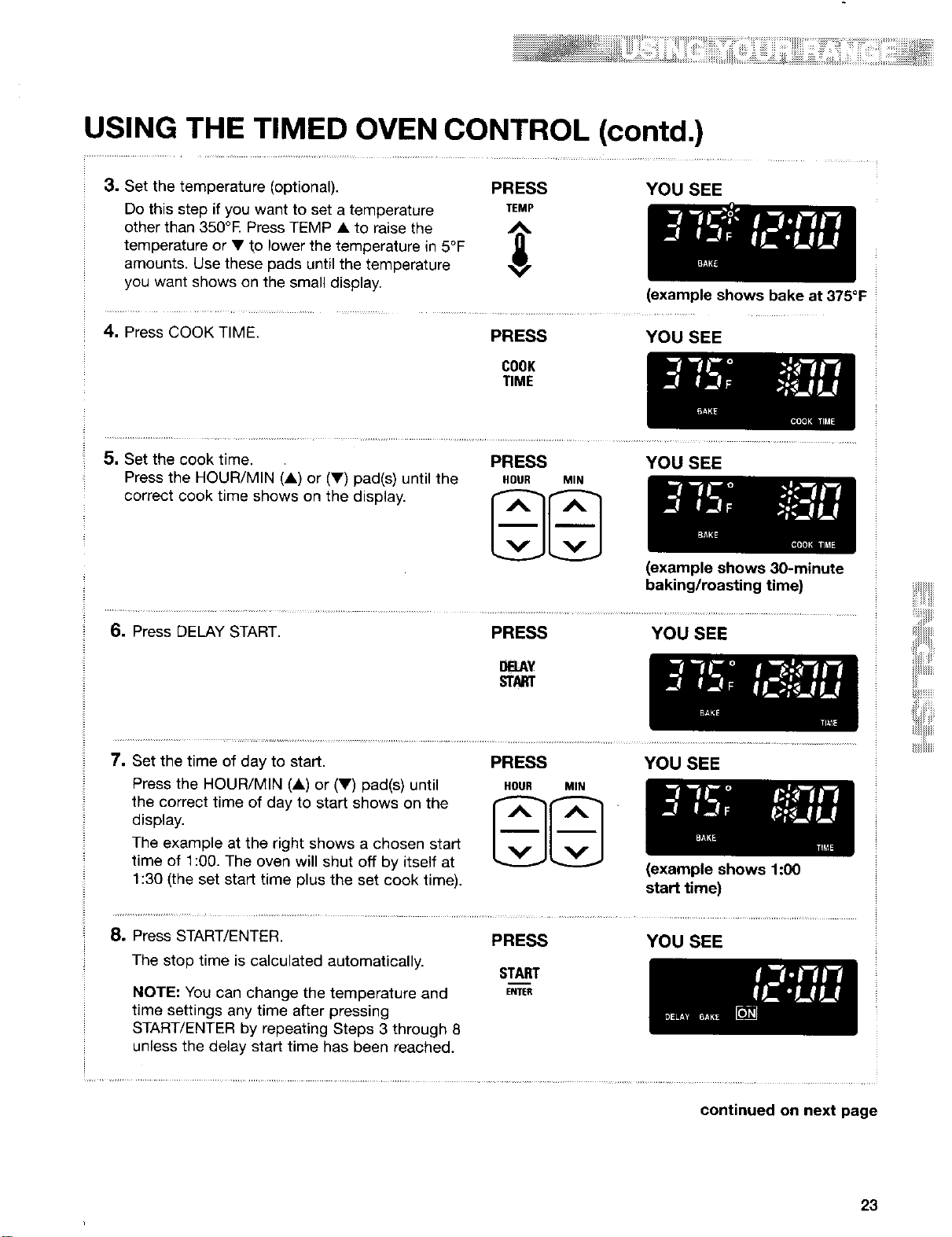

USING THE TIMED OVEN CONTROL (contd.)

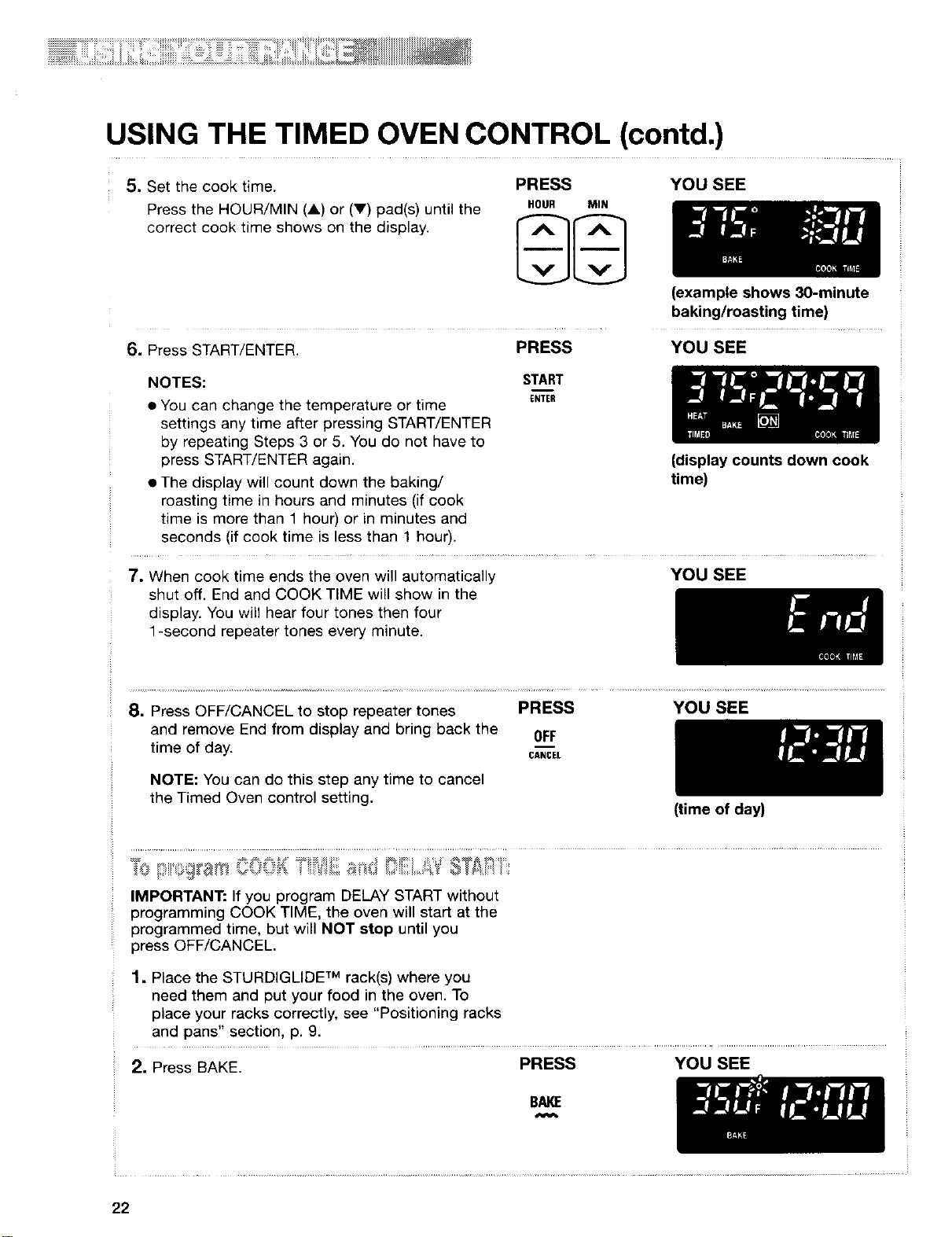

5. Set the cook time.
Press the HOUR/MIN (A) or (V) pad(s) until the
correct cook time shows on the display.
PRESS
HOUR MIN
YOU SEE
6. Press START/ENTER. PRESS
(example shows 30-minute
baking/roasting time)
YOU SEE
NOTES: START
• You can change the temperature or time ENTER
settings any time after pressing START/ENTER
by repeating Steps 3 or 5. You do not have to
press START/ENTER again.
• The display will count down the baking/
roasting time in hours and minutes (if cook
time is more than 1 hour) or in minutes and
seconds (if cook time is less than 1 hour),
(display counts down cook
time)
7. When cook time ends the oven will automatically
shut off. End and COOK TIME will show in the
display. You will hear four tones then four
1-second repeater tones every minute.
YOU SEE
8. Press OFF/CANCEL to stop repeater tones PRESS
and remove End from display and bring back the OFF
time of day. CANC'_L
YOU SEE
NOTE: You can do this step any time to cancel
the Timed Oven control setting.
(time of day)
IMPORTANT: If you program DELAY START without
programming COOK TIME, the oven will start at the
programmed time, but will NOT stop until you
press OFF/CANCEL.
1. Place the STURDiGLIDE TM rack(s) where you
need them and put your food in the oven. To
place your racks correctly, see "Positioning racks
and pans" section, p. 9.
2. Press BAKE. PRESS YOU SEE
BAKE
22
USING THE TIMED OVEN CONTROL (contd.)
3. Set the temperature (optional). PRESS
Do this step if you want to set a temperature TEMP
other than 350°E Press TEMP • to raise the
temperature or • to lower the temperature in 5°F
amounts. Use these pads until the temperature
you want shows on the small display.
YOU SEE
4. Press COOK TIME. PRESS YOU SEE
(example shows bake at 375°F
COOK
TIME
5, Set the cook time. PRESS YOU SEE
Press the HOUR/MIN (•) or (•) pad(s) until the HOUR MIN
correct cook time shows on the display, i_-'_ f_-_'_l
(example shows 30-minute
baking/roasting time)
6. Press DELAY START. PRESS YOU SEE
DELAY
ST_T
7. Set the time of day to start. PRESS
Press the HOUR/MIN (•) or (V) pad(s) until HOUR MIN
the correct time of day to start shows on the I"_-'_I'_"-A"_I
display.
The example at the right shows a chosen start
time of 1:00. The oven will shut off by itself at
1:30 (the set start time plus the set cook time).
YOU SEE
8, Press START/ENTER.
The stop time is calculated automatically.
NOTE: You can change the temperature and
time settings any time after pressing
START/ENTER by repeating Steps 3 through 8
unless the delay start time has been reached.
(example shows 1:00
start time)
PRESS YOU SEE
START
ENTER
continued on next page
23
USING THE TIMED OVEN CONTROL (contd.)

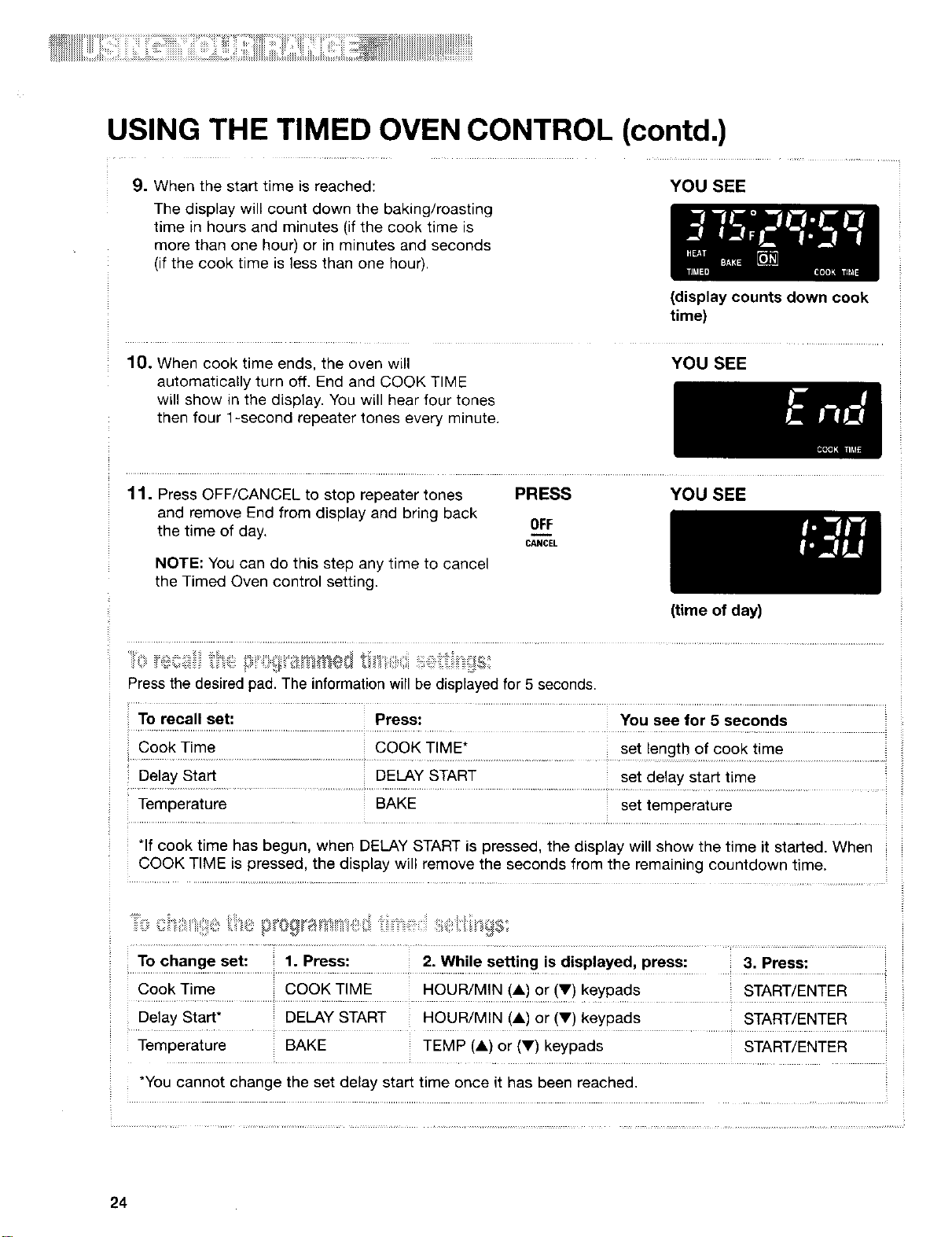

9. When the start time is reached:
The display will count down the baking/roasting
time in hours and minutes (if the cook time is
more than one hour) or in minutes and seconds
(if the cook time is less than one hour).
YOU SEE
10. When cook time ends, the oven will
automatically turn off. End and COOK TIME
will show in the display. You will hear four tones
then four 1-second repeater tones every minute.
(display counts down cook
time)
YOU SEE
11. Press OFF/CANCEL to stop repeater tones PRESS
and remove End from display and bring back
the time of day. _OFF
CANCEL
YOU SEE
NOTE: You can do this step any time to cancel
the Timed Oven control setting.
Press the desired pad. The information will be displayed for 5 seconds.
(time of day)
To recall set: Press: You see for 5 seconds
Cook T!me ........................... cOOK TIME* .............................. set length ..........
Delay Start DELAY START set delay start time
Temperature BAKE set temperature
*If cook time has begun, when DELAY START is pressed, the display will show the time it started. When
COOK TIME is pressed, the display will remove the seconds from the remaining countdown time.
To change set: 1. Press: 2. While setting is displayed, press: 3. Press:
Cook Time COOK TIME HOUR/MIN (A) or (V) keypads START/ENTER
Delay Start* DELAY START HOUR/MIN (A) or (V) keypads START/ENTER
Temperature BAKE TEMP (A) or (V) keypads START/ENTER
*You cannot change the set delay start time once it has been reached.
24

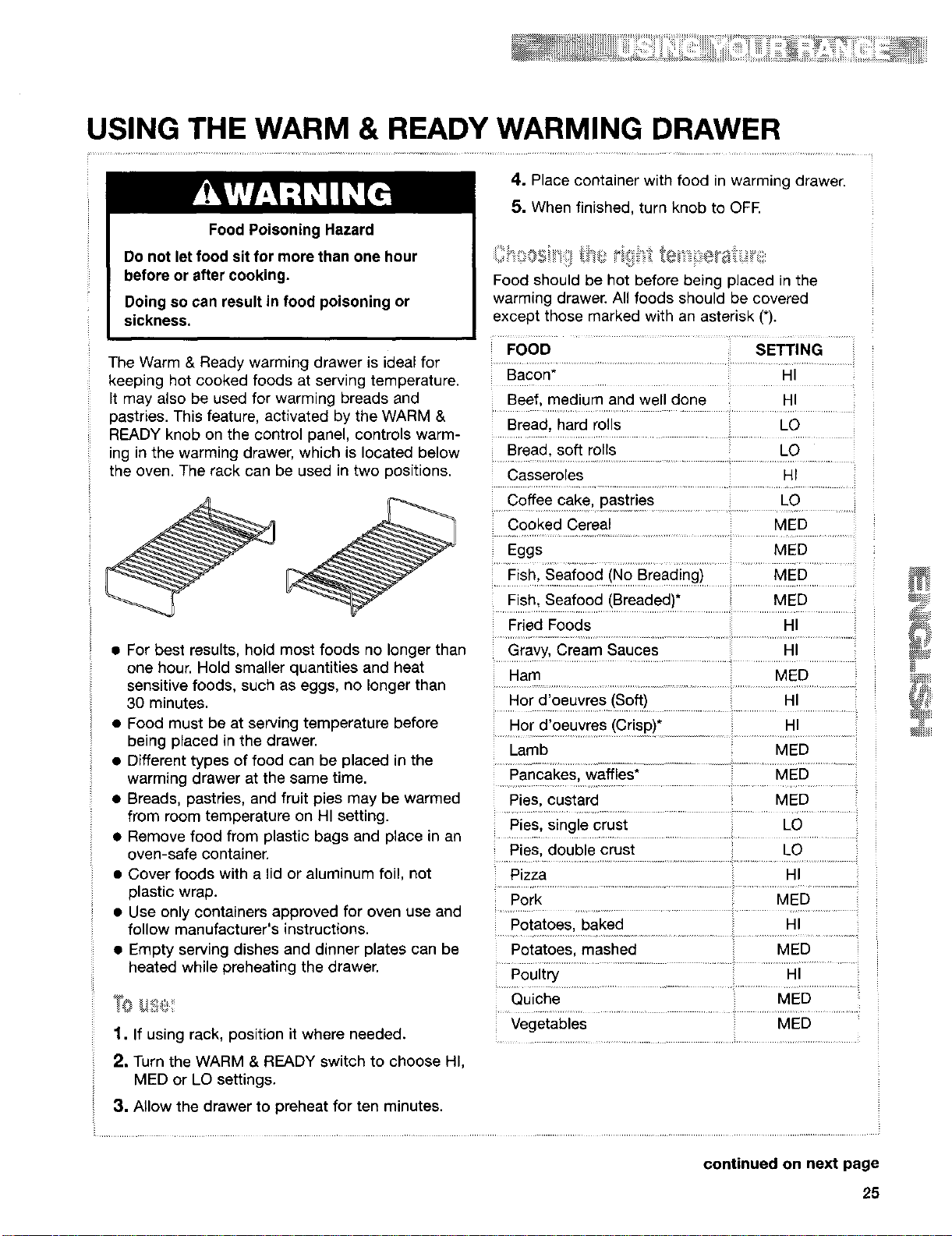

USING THE WARM & READY WARMING DRAWER
Food Poisoning Hazard
Do not let food sit for more than one hour
before or after cooking.
Doing so can result in food poisoning or
sickness,
The Warm & Ready warming drawer is ideal for
keeping hot cooked foods at serving temperature.
it may also be used for warming breads and
pastries. This feature, activated by the WARM &
READY knob on the control panel, controls warm-
ing in the warming drawer, which is located below
the oven. The rack can be used in two positions.
4. Place container with food in warming drawer.
5. When finished, turn knob to OFF.
Food should be hot before being placed in the
warming drawer. All foods should be covered
except those marked with an asterisk (*).
FOOD SETTING
Bacon* HI
Beef medium and well done HI
Bread, hard rolls LO
Bread soft rolls LO
Casseroles HI
Coffee cake, pastries LO
Cooked Cereal MED
Eggs MED
Fish, Seafood (No Breading) MED
Fish, Seafood (Breaded)* MED
ii
• For best results, hold most foods no longer than
one hour. Hold smaller quantities and heat
sensitive foods, such as eggs, no longer than
30 minutes.
• Food must be at serving temperature before
being placed in the drawer.
• Different types of food can be placed in the
warming drawer at the same time.
• Breads, pastries, and fruit pies may be warmed
from room temperature on HI setting.
• Remove food from plastic bags and place in an
oven-safe container.
• Cover foods with a lid or aluminum foil, not
plastic wrap.
• Use only containers approved for oven use and
follow manufacturer's instructions.
• Empty serving dishes and dinner plates can be
heated while preheating the drawer.
1, If using rack, position it where needed.
2. Turn the WARM & READY switch to choose HI,
MED or LO settings.
3. Allow the drawer to preheat for ten minutes.
Gravy, Cream Sauces HI
Ham MED
........N°r d'°euvres (S°ff! .............. ..................H!....................
..........Hor d'oeuvres (Crisp!* ........... HI
Lamb MED
Pancakes, waffles* MED
Pies, custard MED
Pies, single crust LO
Pies, double crust LO
Pizza HI
Pork MED
Potatoes, baked HI
Potatoes, mashed MED
Poultry HI
Quiche MED
Vegetables MED
continued on next page
25

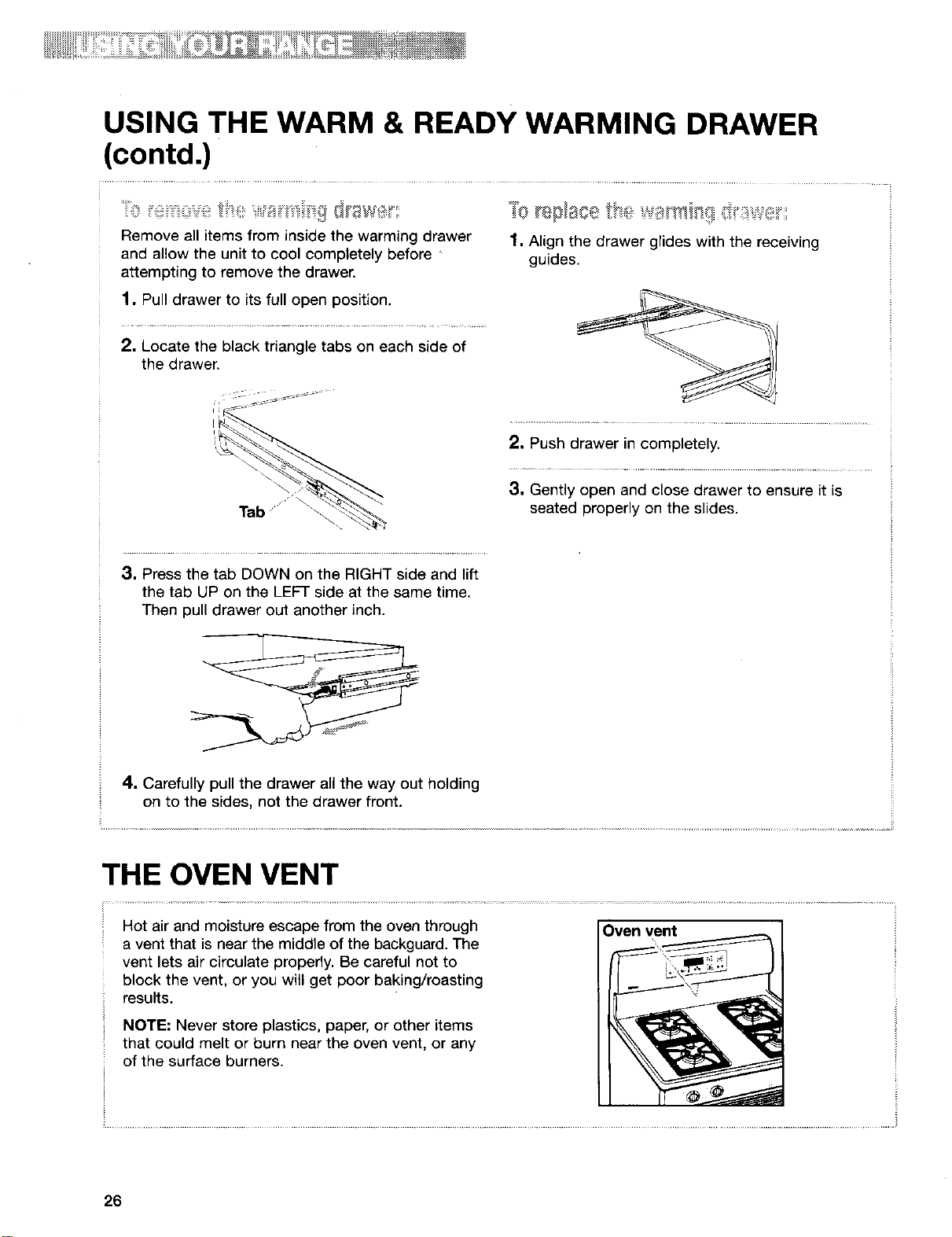

USING THE WARM & READY WARMING DRAWER
(contd.)
Remove all items from inside the warming drawer
and allow the unit to cool completely before
attempting to remove the drawer.
1. Pull drawer to its full open position.
2. Locate the black triangle tabs on each side of
the drawer.
1. Align the drawer glides with the receiving
guides.
2. Push drawer in completely.
3. Gently open and close drawer to ensure it is
seated properly on the slides.
3. Press the tab DOWN on the RIGHT side and lift
the tab UP on the LEFT side at the same time.
Then pull drawer out another inch.
4. Carefully pull the drawer all the way out holding
on to the sides, not the drawer front.
THE OVEN VENT
Hot air and moisture escape from the oven through Oven vent
a vent that is near the middle of the backguard. The
vent lets air circulate properly. Be careful not to
block the vent, or you will get poor baking/roasting
results.
NOTE: Never store plastics, paper, or other items
that could melt or burn near the oven vent, or any
of the surface burners.
26

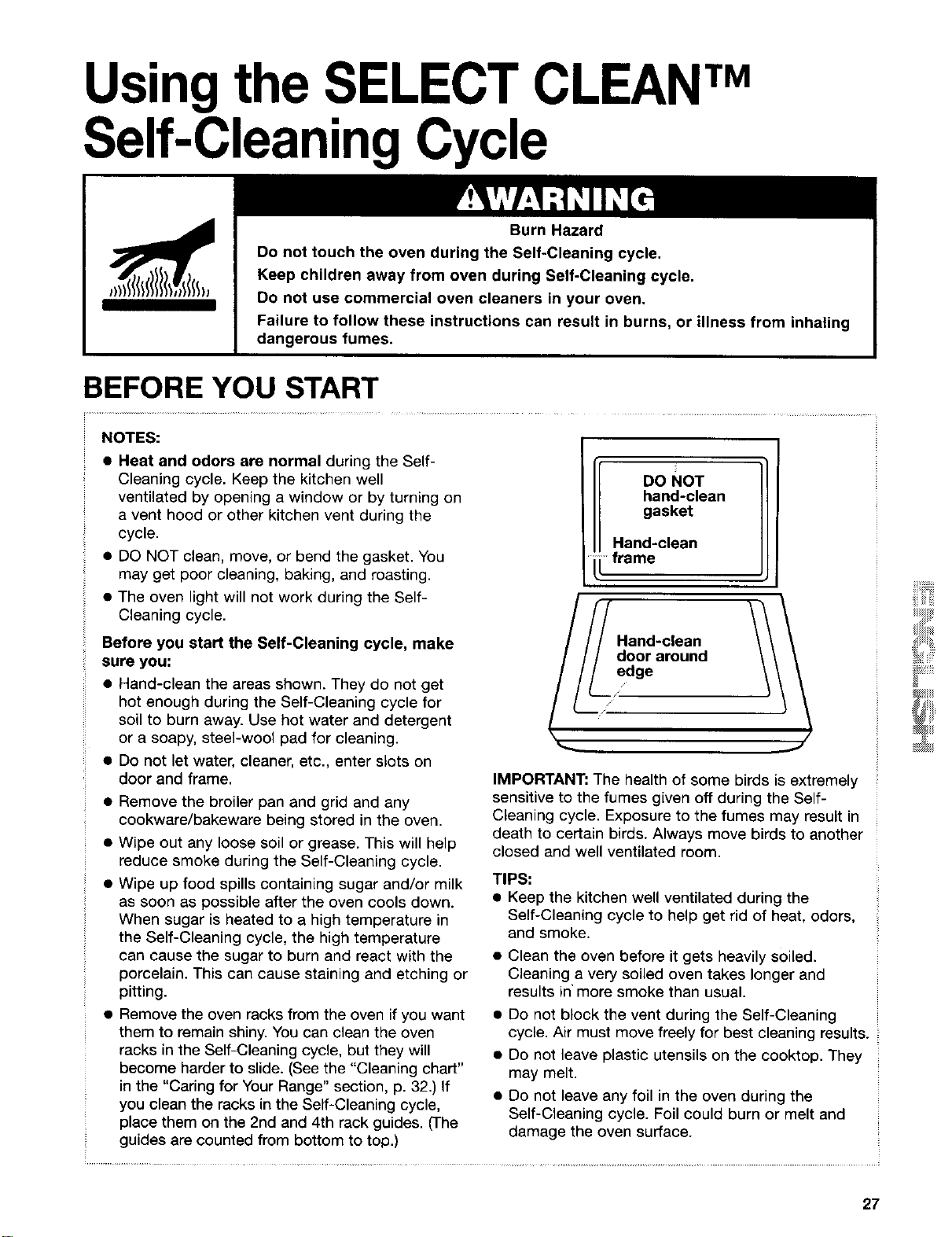

Usingthe SELECT CLEANTM
Self-Cleaning Cycle
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
BEFORE YOU START
NOTES:
• Heat and odors are normal during the Self-
Cleaning cycle. Keep the kitchen well
ventilated by opening a window or by turning on
a vent hood or other kitchen vent during the
cycle.
• DO NOT clean, move, or bend the gasket. You
may get poor cleaning, baking, and roasting.
• The oven light will not work during the Self-
Cleaning cycle.
Before you start the Self-Cleaning cycle, make
sure you:
• Hand-clean the areas shown. They do not get
hot enough during the Self-Cleaning cycle for
soil to burn away. Use hot water and detergent
or a soapy, steel-wool pad for cleaning.
• Do not let water, cleaner, etc., enter slots on
door and frame.
• Remove the broiler pan and grid and any
cookware/bakeware being stored in the oven.
• Wipe out any loose soil or grease. This will help
reduce smoke during the Self-Cleaning cycle.
• Wipe up food spills containing sugar and/or milk
as soon as possible after the oven cools down.
When sugar is heated to a high temperature in
the Self-Cleaning cycle, the high temperature
can cause the sugar to burn and react with the
porcelain. This can cause staining and etching or
pitting.
• Remove the oven racks from the oven if you want
them to remain shiny. You can clean the oven
racks in the Self-Cleaning cycle, but they will
become harder to slide. (See the "Cleaning chart"
in the "Caring for Your Range" section, p. 32.) if
you clean the racks in the Self-Cleaning cycle,
place them on the 2nd and 4th rack guides. (The
guides are counted from bottom to top.)
DO NOT
hand-clean
gasket
Hand-clean
frame
Hand-clean
door around
edge
IMPORTANT= The health of some birds is extremely
sensitive to the fumes given off during the Self-
Cleaning cycle. Exposure to the fumes may result in
death to certain birds. Always move birds to another
closed and well ventilated room.
TIPS=
• Keep the kitchen well ventilated during the
Self-Cleaning cycle to help getrid of heat, odors,
and smoke.
Clean the oven before it gets heavily soiled.
Cleaning a very soiled oven takes longer and
results in'more smoke than usual.
• Do not block the vent during the Self-Cleaning
cycle. Air must move freely for best cleaning results.
• Do not leave plastic utensils on the cooktop. They
may melt.
Do not leave any foil in the oven during the
Self-Cleaning cycle. Foil could burn or melt and
damage the oven surface.
27
HOW THE CYCLE WORKS
The SELECT CLEAN TM Self-Cleaning cycle uses
temperatures much hotter than normal oven use to
break up and burn away soil and grease. SELECT
CLEAN will set the clean time automatically, once
you choose the soil level. You can choose SoilL
(light soil), SoilA (average soil) or SoiIH (heavy soil).
SoilL will clean for approximately 2-2½ hours, SoilA
for 3-3½ hours and SoilH for 4-4½ hours.
The door must be closed completely for it to lock and
the cycle to begin. If properly closed, the door will
lock approximately 6 seconds after START/ENTER is
pressed. The cycle time includes an approximate 30
minute cool down time. To see the time of day during
the cycle, press CLOCK for 5 seconds.
SETTING THE CONTROLS
1. Press SELECT CLEAN.
Press pad twice, SoilA (for average soil) will
replace SoilL.
Press pad three times, SoilH (for heavy soil) will
replace SoilA.
NOTE: You can scroll through all 3 settings
(SoilL, SoilA and SoilH) continuously by pressing
SELECT CLEAN.
PRESS YOU SEE
(example shows light soil
setting)
2. Press START/ENTER. PRESS YOU SEE
START
ENTER
3. After the SELECT CLEAN Self-Cleaning cycle ends: YOU SEE
LOCKED goes off and the door unlocks.
4. Press any pad to remove "End" and bring back YOU SEE
time of day; or open door, at which time "door"
will be displayed. Then close door and time of
day will appear in display window.
(when pressing any pad)
YOU SEE
(when opening the door)
28

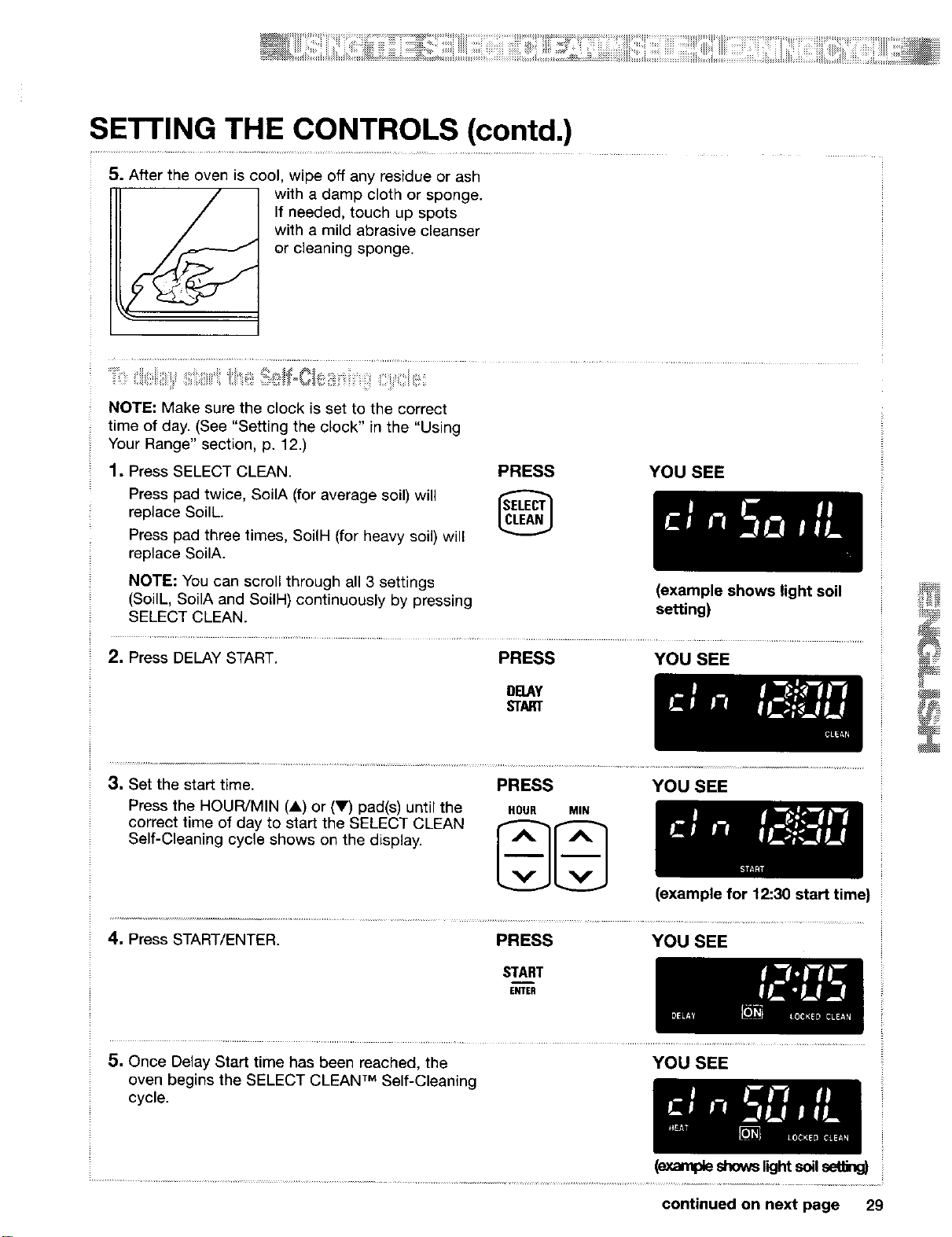

SETTING THE CONTROLS (contd.)
5. After the oven is cool, wipe oft any residue or ash
with a damp cloth or sponge.
If needed, touch up spots
with a mild abrasive cleanser
or cleaning sponge.
NOTE; Make sure the clock is set to the correct
time of day. (See "Setting the clock" in the "Using
Your Range" section, p. 12.)
1• Press SELECT CLEAN.
Press pad twice, SoilA (for average soil) will
replace SoilL.
Press pad three times, SoilH (for heavy soil) will
replace SoilA.
PRESS YOU SEE
NOTE: You can scroll through all 3 settings
(SoilL, SoilA and SoilH) continuously by pressing
SELECT CLEAN.
(example shows light soil
setting)
2. Press DELAY START. PRESS YOU SEE
DELAY
START
3. Set the start time.
PRESS YOU SEE
Press the HOUR/MIN (A) or (V) pad(s) until the
correct time of day to start the SELECT CLEAN
Self-Cleaning cycle shows on the display.
HOUR MIN
4, Press START/ENTER. PRESS YOU SEE
START
ENTER
Z
5. Once Delay Start time has been reached, the YOU SEE
oven begins the SELECT CLEAN TM Self-Cleaning
cycle.
(exampleshowsI_1"_,._1
continued on next page 29

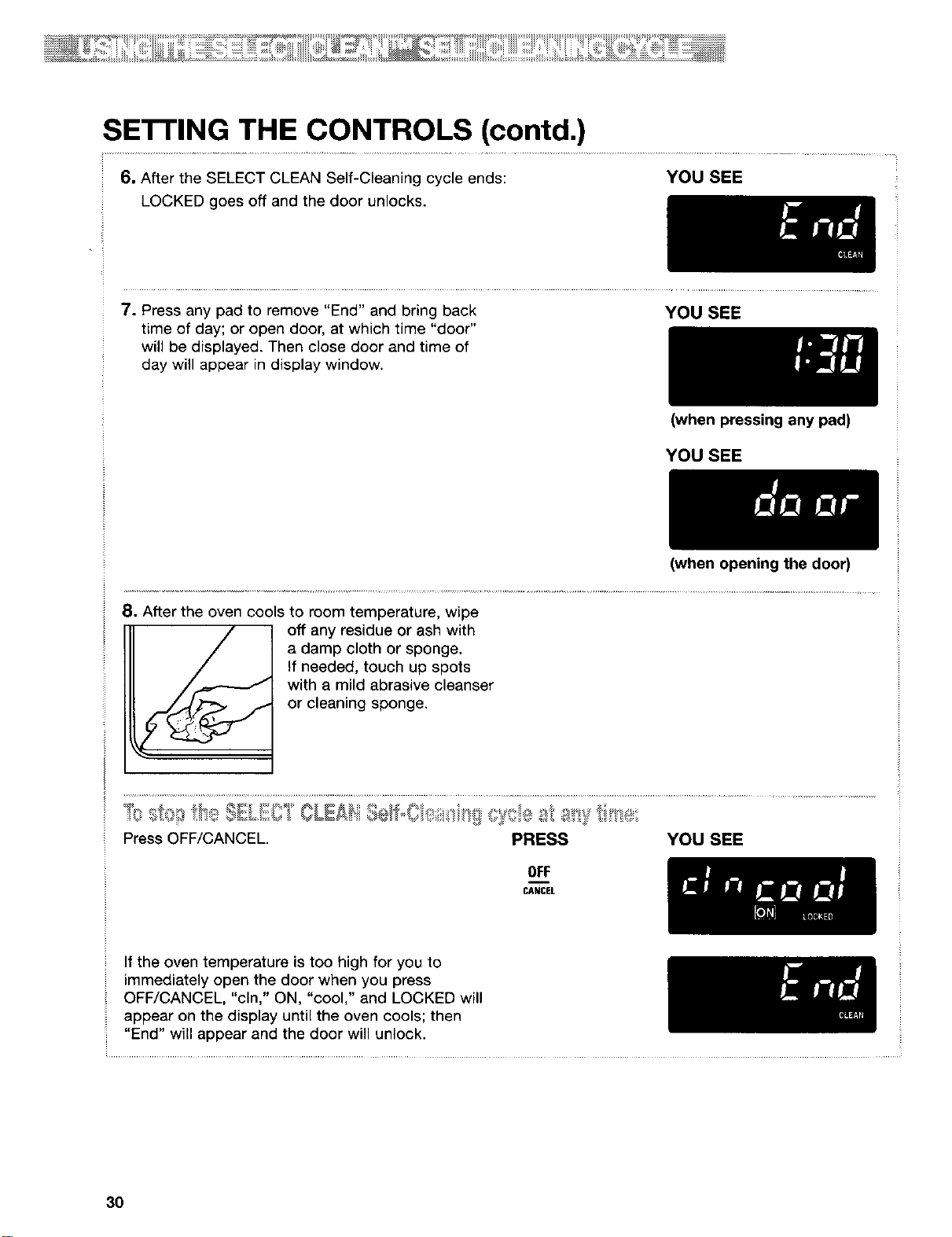

SETTING THE CONTROLS (contd.)
6. After the SELECT CLEAN Self-Cleaning cycle ends: YOU SEE
LOCKED goes off and the door unlocks.
7. Press any pad to remove "End" and bring back
time of day; or open door, at which time "door"
will be displayed. Then close door and time of
YOU SEE
day will appear in display window.
(when pressing any pad)
YOU SEE
(when opening the door)
8, After the oven cools to room temperature, wipe
off any residue or ash with
a damp cloth or sponge.
If needed, touch up spots
with a mild abrasive cleanser
or cleaning sponge.
Press OFF/CANCEL. PRESS YOU SEE
OFF
If the oven temperature is too high for you to
immediately open the door when you press
OFF/CANCEL, "cln," ON, "cool," and LOCKED will
appear on the display until the oven cools; then
"End" will appear and the door will unlock.
3O

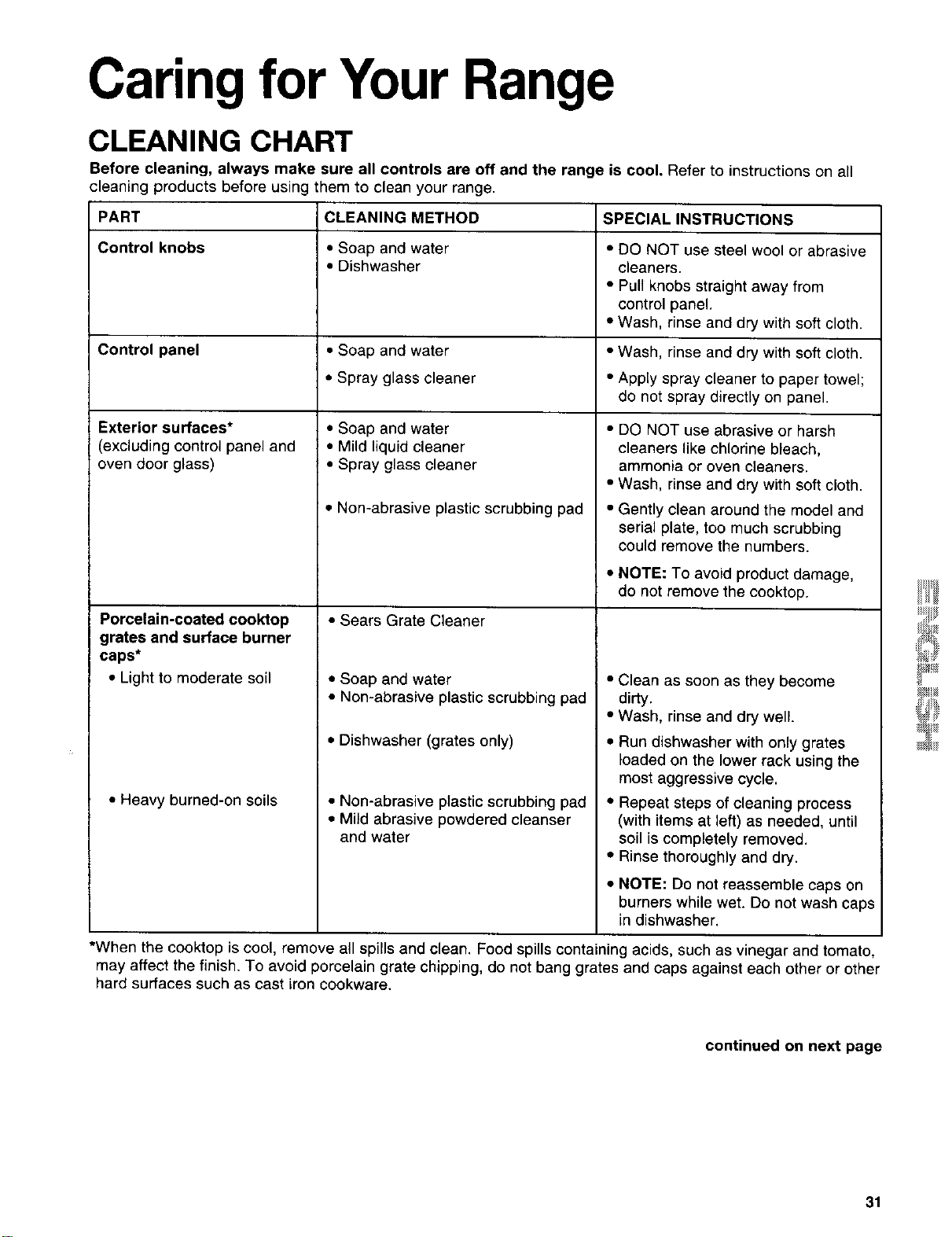

Caringfor YourRange
CLEANING CHART
Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all
cleaning products before using them to clean your range.
PART CLEANING METHOD SPECIAL INSTRUCTIONS
Control knobs • Soap and water • DO NOT use steel wool or abrasive
• Dishwasher cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft cloth.
Control panel • Soap and water * Wash, rinse and dry with soft cloth.
• Spray glass cleaner • Apply spray cleaner to paper towel;
do not spray directly on panel.
Exterior surfaces*
(excluding control panel and
oven door glass)
Porcelain-coated cooktop
grates and surface burner
caps*
• Light to moderate soil
• Heavy burned-on soils
• Soap and water
• Mild liquid cleaner
• Spray glass cleaner
• Non-abrasive plastic scrubbing pad
• Sears Grate Cleaner
• Soap and water
• Non-abrasive plastic scrubbing pad
• Dishwasher (grates only)
• Non-abrasive plastic scrubbing pad
• Mild abrasive powdered cleanser
and water
• DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
• Wash, rinse and dry with soft cloth.
• Gently clean around the model and
serial plate, too much scrubbing
could remove the numbers.
• NOTE: To avoid product damage,
do not remove the cooktop.
• Clean as soon as they become
dirty.
• Wash, rinse and dry well.
• Run dishwasher with only grates
loaded on the lower rack using the
most aggressive cycle.
• Repeat steps of cleaning process
(with items at left) as needed, until
soil is completely removed.
• Rinse thoroughly and dry.
• NOTE: Do not reassemble caps on
burners while wet. Do not wash caps
in dishwasher.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato,
may affect the finish. To avoid porcelain grate chipping, do not bang grates and caps against each other or other
hard surfaces such as cast iron cookware.
continued on next page
31

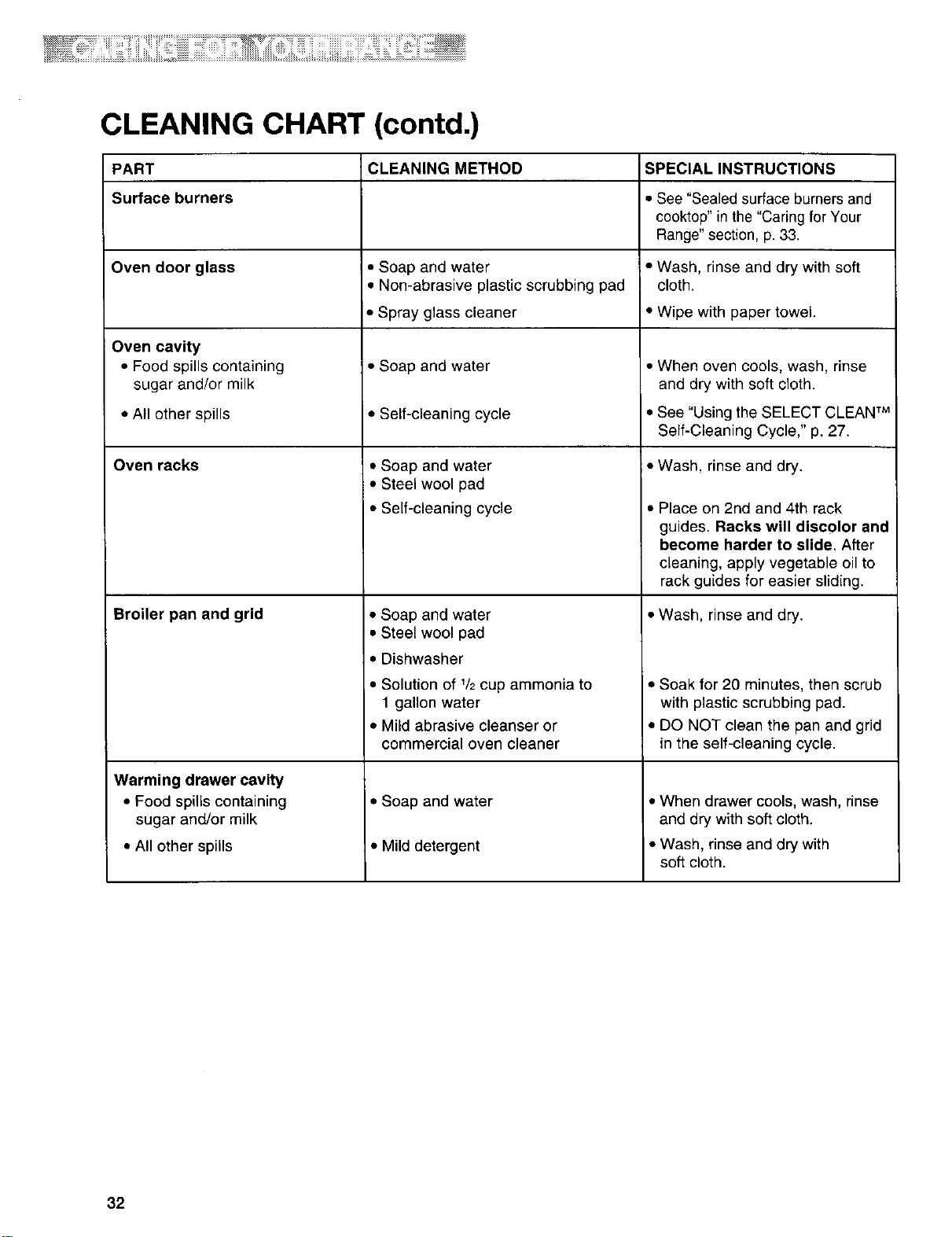

CLEANING CHART (contd.)
PART
Surface burners
Oven door glass
i Oven cavity
• Food spills containing
sugar and/or milk
• All other spills
Oven racks
Broiler pan and grid
Warming drawer cavity
• Food spills containing
sugar and/or milk
• All other spills
CLEANING METHOD
• Soap and water
• Non-abrasive plastic scrubbing pad
• Spray glass cleaner
• Soap and water
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Dishwasher
• Solution of 1/2cup ammonia to
1 gallon water
• Mild abrasive cleanser or
commercial oven cleaner
• Soap and water
• Mild detergent
SPECIAL INSTRUCTIONS
• See "Sealed surface burners and
cooktop"in the "Caring for Your
Range"section, p. 33.
• Wash, rinse and dry with soft
cloth.
• Wipe with paper towel.
• When oven cools, wash, rinse
and dry with soft cloth.
• See "Using the SELECT CLEAN TM
Self-Cleaning Cycle," p. 27.
• Wash, rinse and dry.
• Place on 2rid and 4th rack
guides. Racks will discolor and
become harder to slide. After
cleaning, apply vegetable oil to
rack guides for easier sliding.
• Wash, rinse and dry.
• Soak for 20 minutes, then scrub
with plastic scrubbing pad.
• DO NOT clean the pan and grid
in the self-cleaning cycle.
• When drawer cools, wash, rinse
and dry with soft cloth.
• Wash, rinse and dry with
soft cloth.
32

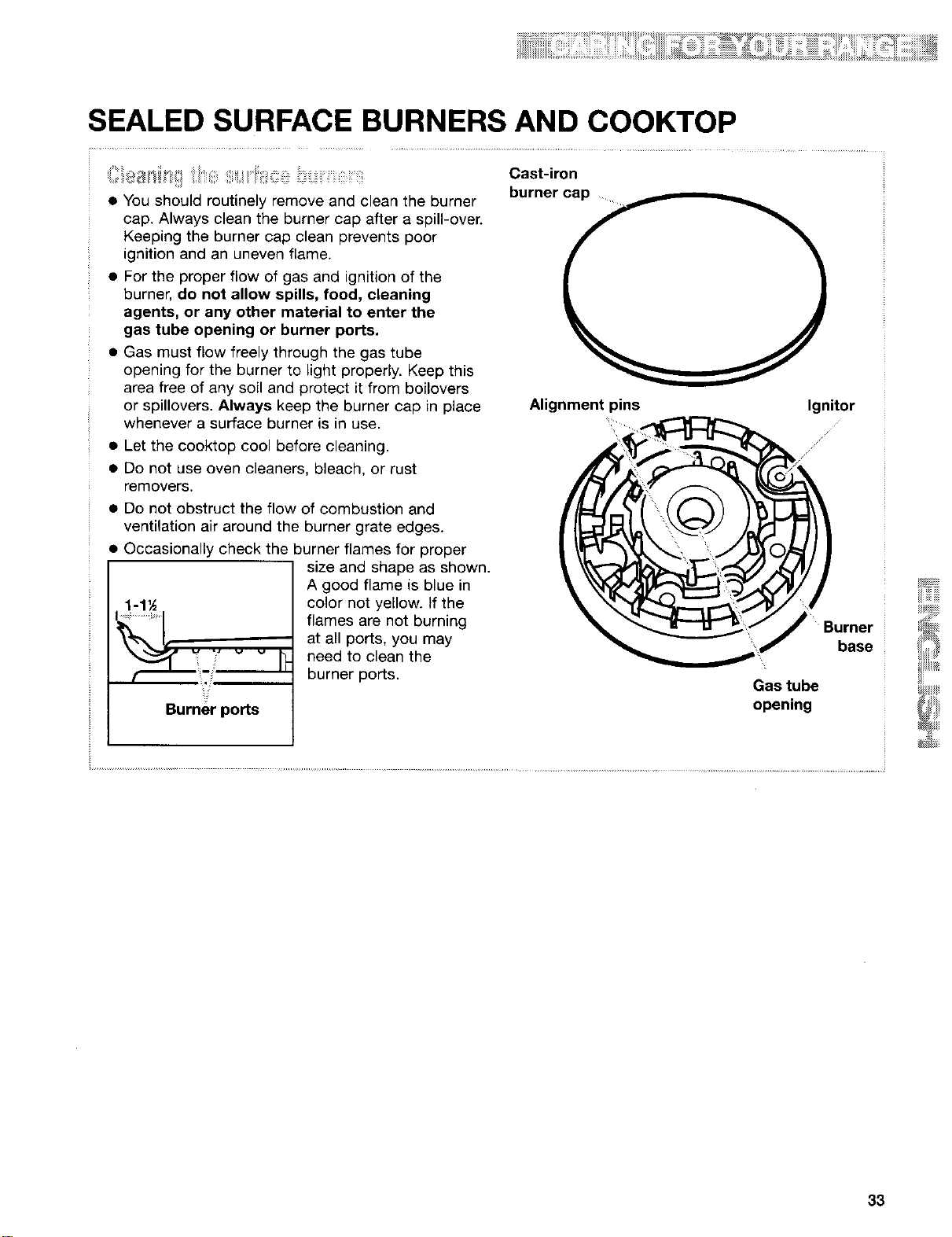

SEALED SURFACE BURNERS AND COOKTOP
• You should routinely remove and clean the burner
cap. Always clean the burner cap after a spill-over.
Keeping the burner cap clean prevents poor
ignition and an uneven flame.
• For the proper flow of gas and ignition of the
burner, do not allow spills, food, cleaning
agents, or any other material to enter the
gas tube opening or burner ports.
• Gas must flow freely through the gas tube
opening for the burner to light properly. Keep this
area free of any soil and protect it from boilovers
or spillovers. Always keep the burner cap in place
whenever a surface burner is in use.
• Let the cooktop cool before cleaning.
• Do not use oven cleaners, bleach, or rust
removers.
• Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Occasionally check the burner flames for proper
Burner ports
size and shape as shown.
A good flame is blue in
color not yellow. If the
flames are not burning
at all ports, you may
need to clean the
burner ports.
Cast-iron
burner_ ..........
Alignment pins Ignitor
base
Gas tube
opening
_iiiii
33

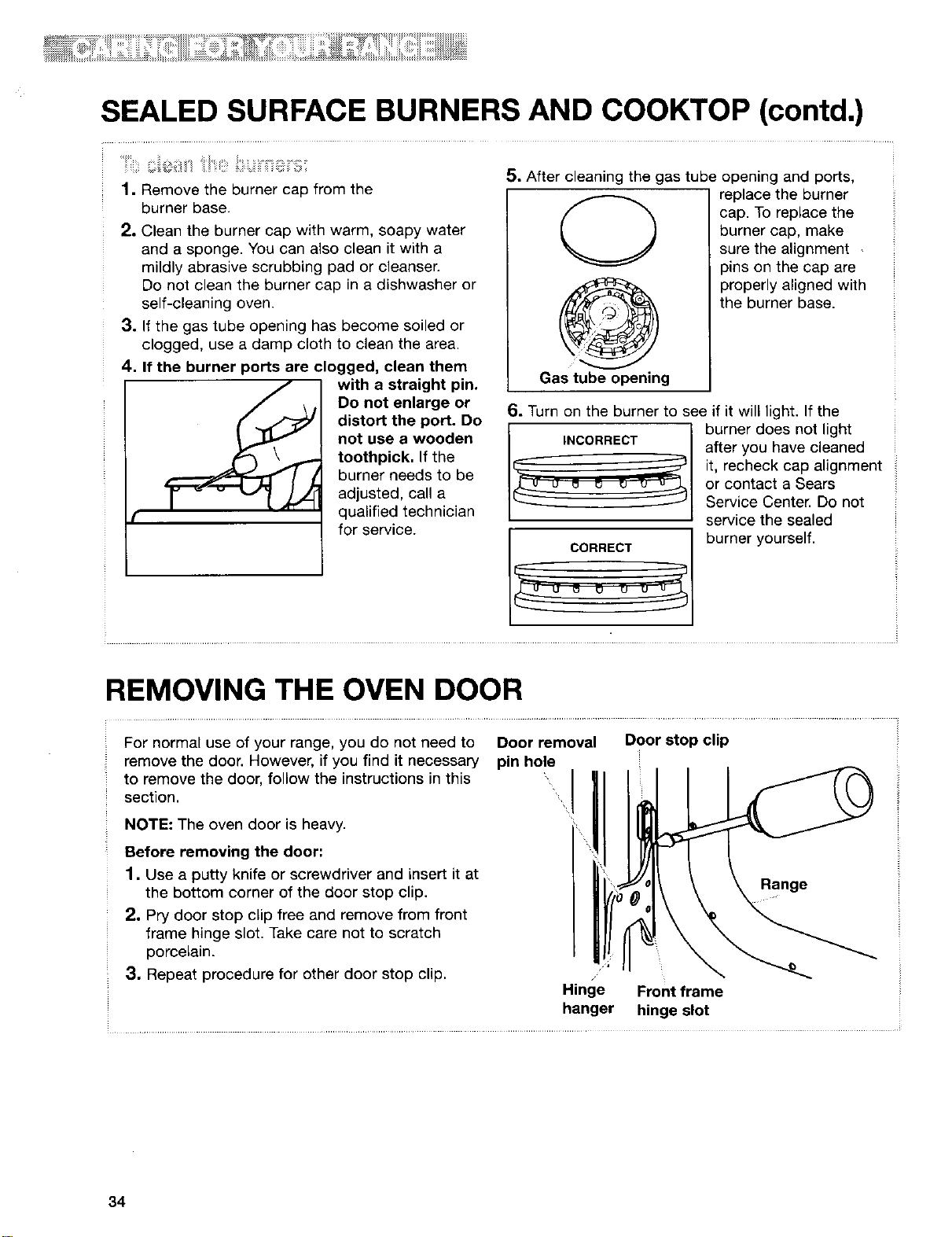

SEALED SURFACE BURNERS AND COOKTOP (contd.)
1. Removethe burner cap from the
burner base.
2. Clean the burner cap with warm, soapy water
and a sponge. You can also clean it with a
mildly abrasive scrubbing pad or cleanser.
Do not clean the burner cap in a dishwasher or
self-cleaning oven.
3. If the gas tube opening has become soiled or
clogged, use a damp cloth to clean the area.
4. If the burner ports are clogged, clean them
with a straight pin.
Do not enlarge or
distort the port. Do
not use a wooden
toothpick. If the
burner needs to be
adjusted, call a
qualified technician
for service.
5. After cleaning the gas tube opening and ports,
C)
Gas tube opening
replace the burner
cap. To replace the
burner cap, make
sure the alignment .
pins on the cap are
properly aligned with
the burner base.
6. Turn on the burner to see if it will light. If the
umer oesnoth*
after you have cleaned
it, recheck cap alignment
or contact a Sears
Service Center. Do not
service the sealed
burner yourself.
REMOVING THE OVEN DOOR
For normal use of your range, you do not need to Door removal
remove the door. However, if you find it necessary pin hole
tosection,remove the door, follow the instructions in this
NOTE: The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain.
3. Repeat procedure for other door stop clip.
Door stop clip
Range
Hinge Front frame
hanger hinge slot
34

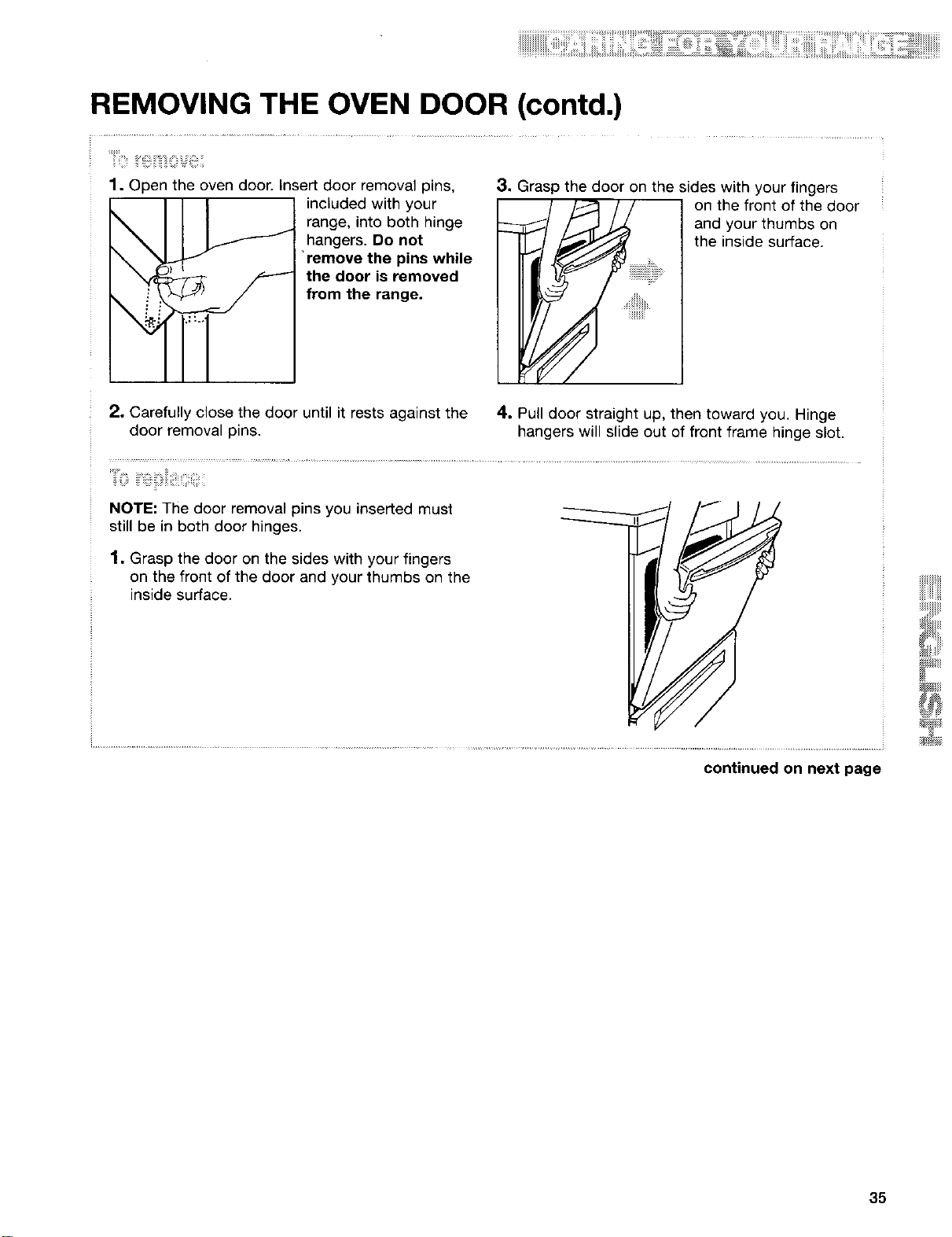

REMOVING THE OVEN DOOR (contd.)
'==;
3" ::
1. Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not
"remove the pins while
the door is removed
from the range.
3. Grasp the door on the sides with your fingers
on the front of the door
and your thumbs on
the inside surface.
2. Carefully close the door until it rests against the 4. Pull door straight up, then toward you. Hinge
door removal pins. hangers will slide out of front frame hinge slot.
NOTE= The door removal pins you inserted must
still be in both door hinges.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface.
continued on next page
35

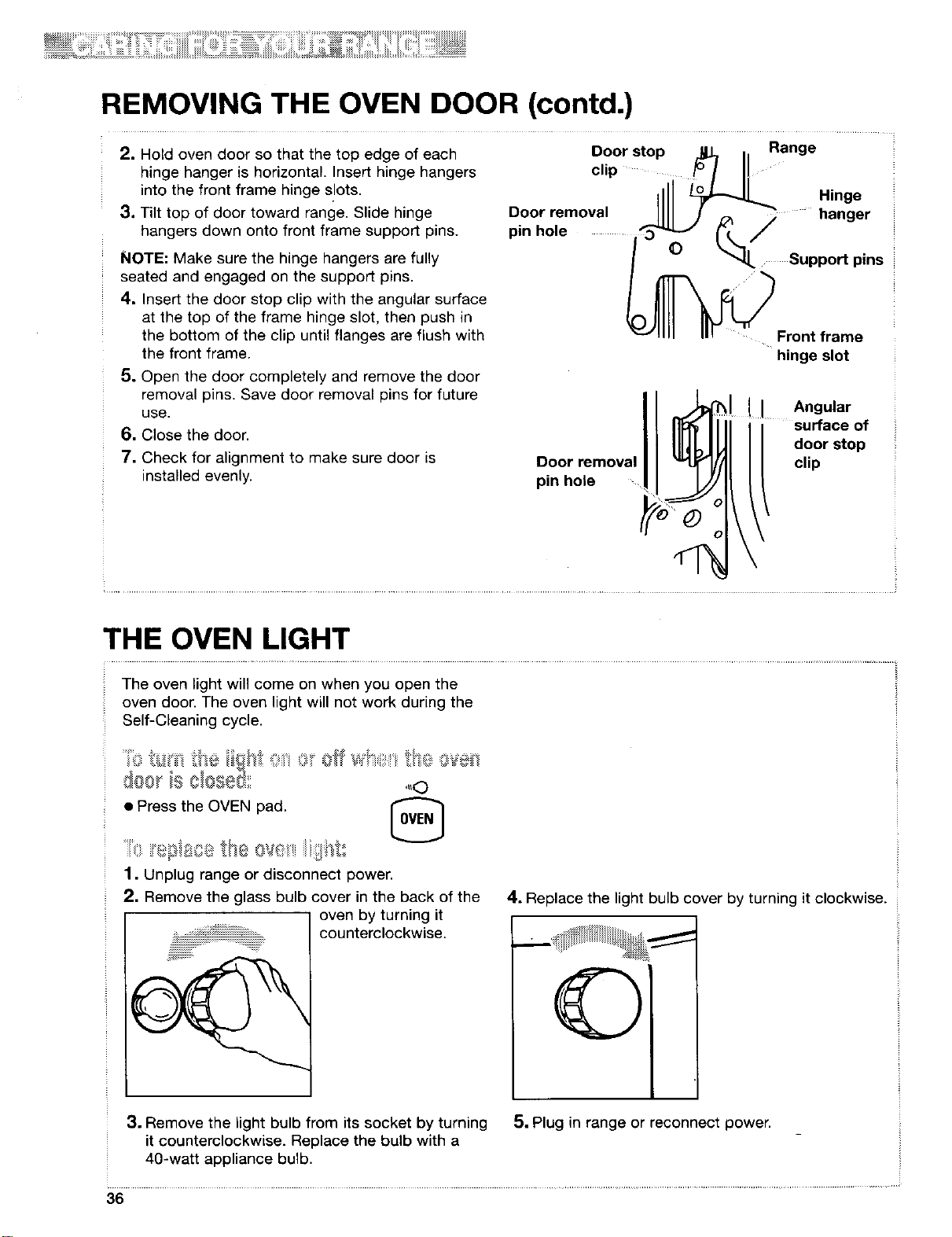

REMOVING THE OVEN DOOR (contd.)
2. Hold oven door so that the top edge of each
hinge hanger is horizontal. Insert hinge hangers
into the front frame hinge slots.
3. Tilt top of door toward range. Slide hinge
hangers down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully
seated and engaged on the support pins.
4. Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5. Open the door completely and remove the door
removal pins. Save door removal pins for future
use.
6. Close the door.
7. Check for alignment to make sure door is
installed evenly.
Door stop
clip
Door removal
pin hole
O
Range
Hinge
(_/ hanger
Suppo_ pins
Front frame
hinge slot
Door removal
pin hole
I I Angular
surface of
door stop
clip
THE OVEN LIGHT
The oven light will come on when you open the
oven door. The oven light will not work during the
Self-Cleaning cycle.
4. Replace the light bulb cover by turning it clockwise.
3. Remove the light bulb from its socket by turning 5, Plug in range or reconnect power.
it counterclockwise. Replace the bulb with a
4g-watt appliance bulb.
36

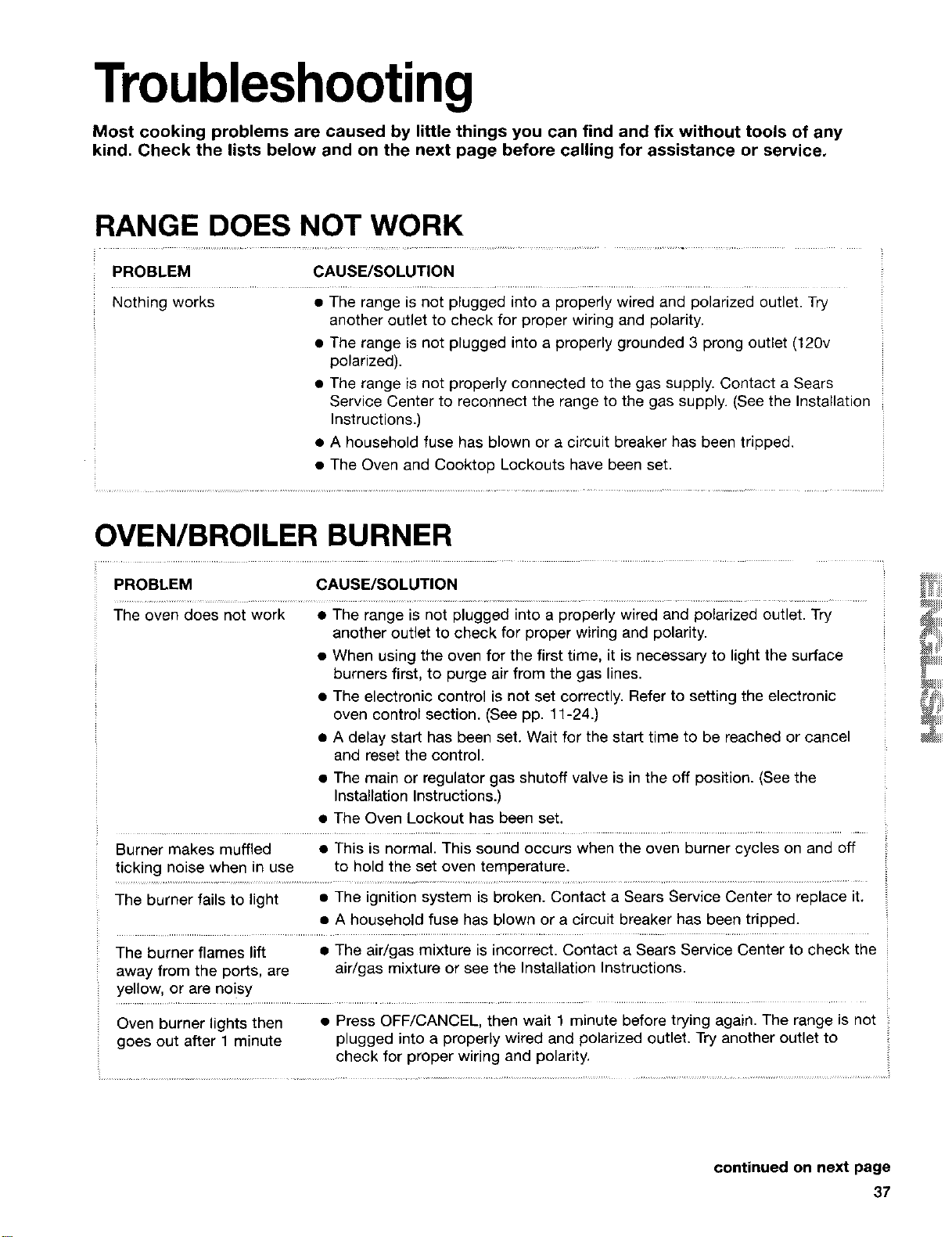

Troubleshooting
Most cooking problems are caused by little things you can find and fix without tools of any
kind. Check the lists below and on the next page before calling for assistance or service.
RANGE DOES NOT WORK
PROBLEM CAUSE/SOLUTION
Nothing works • The range is not plugged into a properly wired and polarized outlet. Try
another outlet to check for proper wiring and polarity.
• The range is not plugged into a properly grounded 3 prong outlet (120v
polarized).
• The range is not properly connected to the gas supply. Contact a Sears
Service Center to reconnect the range to the gas supply. (See the Installation
Instructions.)
• A household fuse has blown or a circuit breaker has been tripped.
• The Oven and Cooktop Lockouts have been set.
OVEN/BROILER BURNER
PROBLEM CAUSE/SOLUTION
The oven does not work • The range is not plugged into a properly wired and polarized outlet. Try
another outlet to check for proper wiring and polarity.
• When using the oven for the first time, it is necessary to light the surface
burners first, to purge air from the gas lines.
• The electronic control is not set correctly. Refer to setting the electronic
oven control section. (See pp. 11-24.)
• A delay start has been set. Wait for the start time to be reached or cancel
and reset the control.
• The main or regulator gas shutoff valve is in the off position. (See the
Installation Instructions.)
• The Oven Lockout has been set.
Burner makes muffled • This is normal. This sound occurs when the oven burner cycles on and off
ticking noise when in use to hold the set oven temperature.
The burner fails to light • The ignition system is broken. Contact a Sears Service Center to replace it.
• A household fuse has blown or a circuit breaker has been tripped.
The burner flames lift • The air/gas mixture is incorrect. Contact a Sears Service Center to check the
away from the ports, are air/gas mixture or see the Installation Instructions.
yellow, or are noisy
Oven burner lights then • Press OFF/CANCEL, then wait 1 minute before trying again. The range is not
goes out after 1 minute plugged into a properly wired and polarized outlet. Try another outlet to
check for proper wiring and polarity.
_iiii
continued on next page
37

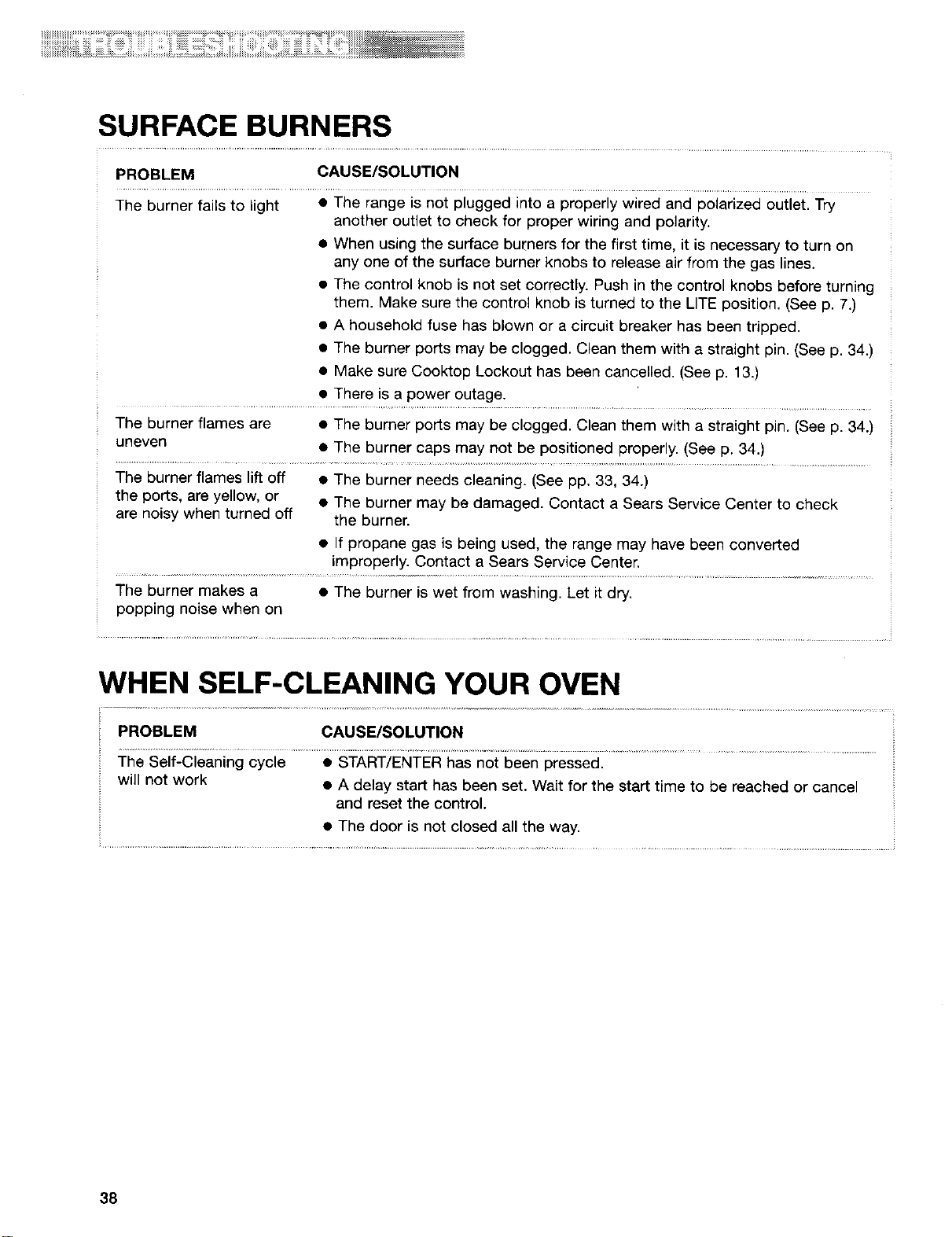

SURFACE BURNERS
PROBLEM CAUSE/SOLUTION
The burner fails to light • The range is not plugged into a properly wired and polarized outlet• Try
another outlet to check for proper wiring and polarity.
• When using the surface burners for the first time, it is necessary to turn on
any one of the surface burner knobs to release air from the gas lines.
• The control knob is not set correctly• Push in the control knobs before turning
them. Make sure the control knob is turned to the LITE position. (See p. 7.)
• A household fuse has blown or a circuit breaker has been tripped.
• The burner ports may be clogged. Clean them with a straight pin. (See p. 34.)
• Make sure Cooktop Lockout has been cancelled, (See p. 13.)
• There is a power outage.
The burner flames are • The burner ports may be clogged• Clean them with a straight pin. (See p. 34.)
uneven • The burner caps may not be positioned properly• (See p. 34.)
The burner flames lift off • The burner needs cleaning. (See pp. 33, 34.)
the ports, are yellow, or • The burner may be damaged• Contact a Sears Service Center to check
are noisy when turned off the burner•
• If propane gas is being used, the range may have been converted
improperly• Contact a Sears Service Center.
The burner makes a • The burner is wet from washing• Let itdry.
popping noise when on
WHEN SELF-CLEANING YOUR OVEN
PROBLEM CAUSE/SOLUTION
The Self-Cleaning cycle • START/ENTER has not been pressed.
will not work • A delay start has been set. Wait for the start time to be reached or cancel
and reset the control.
• The door is not closed all the way.
38

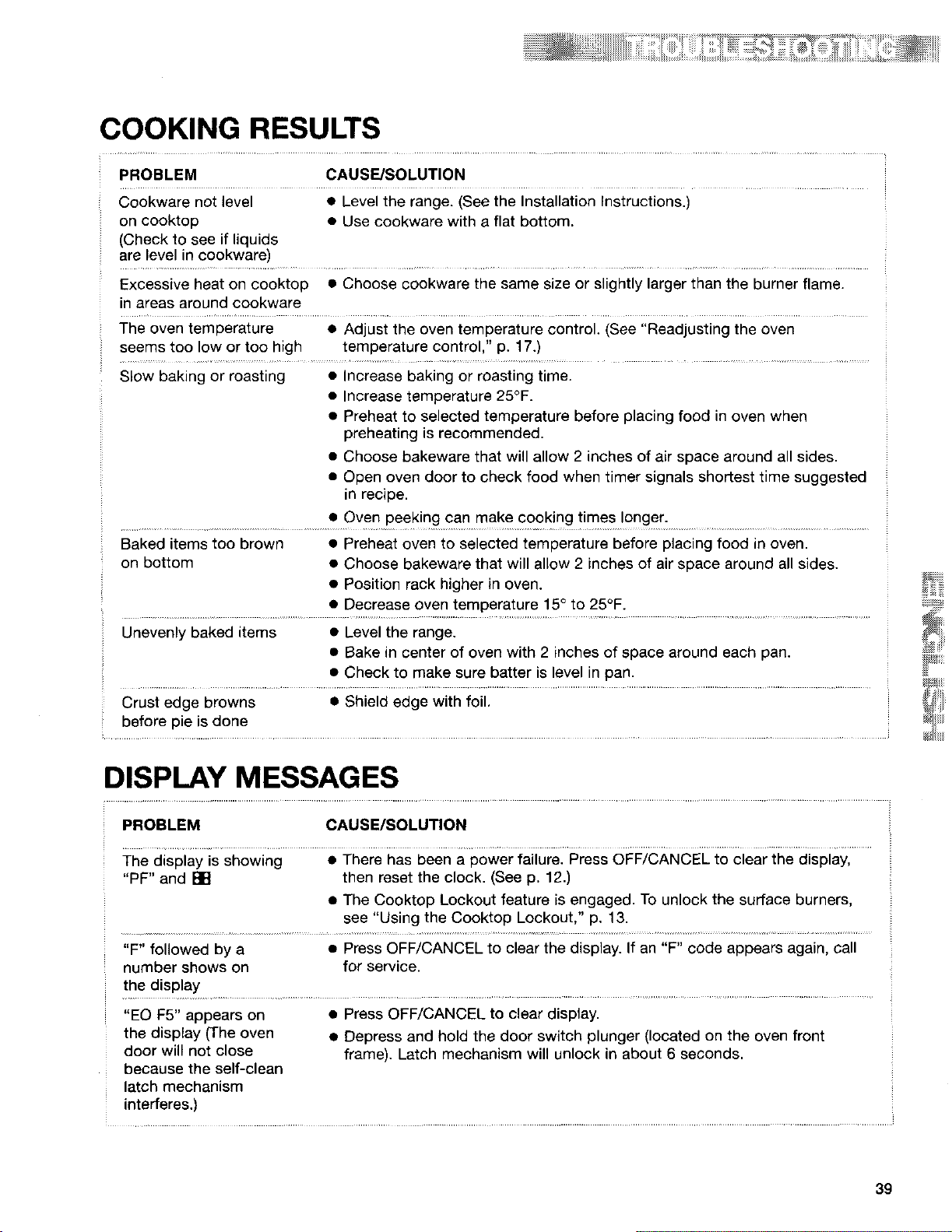

COOKING RESULTS
PROBLEM CAUSE/SOLUTION
Cookware not level • Level the range. (See the Installation Instructions.)
on cooktop • Use cookware with a flat bottom.
(Check to see if liquids
are level in cookware)
Excessive heat on cooktop • Choose cookware the same size or slightly larger than the burner flame.
in areas around cookware
The oven temperature • Adjust the oven temperature control. (See "Readjusting the oven
seems too low or too high temperature control," p. 17.)
Slow baking or roasting • Increase baking or roasting time.
• Increase temperature 25°F.
• Preheat to selected temperature before placing food in oven when
preheating is recommended.
• Choose bakeware that will allow 2 inches of air space around all sides.
• Open oven door to check food when timer signals shortest time suggested
in recipe.
• Oven peeking can make cooking times longer.
Baked items too brown • Preheat oven to selected temperature before placing food in oven.
on bottom • Choose bakeware that will allow 2 inches of air space around all sides.
• Position rack higher in oven.
• Decrease oven temperature 15° to 25°F.
Unevenly baked items • Level the range.
• Bake in center of oven with 2 inches of space around each pan.
• Check to make sure batter is level in pan.
Crust edge browns • Shield edge with foil,
before pie is done
DISPLAY MESSAGES
PROBLEM CAUSE/SOLUTION
The display is showing • There has been a power failure. Press OFF/CANCEL to clear the display,
"PF" and [] then reset the clock. (See p. 12.)
• The Cooktop Lockout feature is engaged. To unlock the surface burners,
see "Using the Cooktop Lockout," p. 13.
"F" followed by a • Press OFF/CANCEL to clear the display. If an "F" code appears again, call
number shows on for service.
the display
"EO F5" appears on
the display (The oven
door will not close
because the self-clean
latch mechanism
interferes.)
• Press OFF/CANCEL to clear display.
• Depress and hold the door switch plunger (located on the oven front
frame). Latch mechanism will unlock in about 6 seconds.
i_ii!_¸
39
Index
TOPIC PAGE TOPIC PAGE
ANTI-TIP BRACKET ...................................................... 4
BROILING
Grid .................................................................. 19, 20
Guidelines ........................................................ 19, 20
Pan .................................................................... 18-20
Setting cycle ............................................................ 18
Oven rack positions ................................................ 20
CLEANING
Broiler pan and grid ................................................ 32
Control knobs .......................................................... 31
Control panel .......................................................... 31
Exterior surfaces .................................................... 31
Oven cavity ............................................................ 32
Oven door glass ...................................................... 32
Oven racks ................................................................ 32
Self-Cleaning .................................................... 27-30
Surface burners ................................................ 33, 34
Cooktop grates and surface burner caps ................ 31
Warming drawer cavity ............................................ 32
CONTROL PANEL
Burner heat settings .................................................. 7
Control knobs ........................................................ 6, 7
Surface burner markers ............................................ 6
COOKWARE
Canning .................................................................... 8
Materials .................................................................... 8
ELECTRONIC OVEN CONTROL
12-hour shut-off ...................................................... 13
Canceling ................................................................ 15
Celsius/Fahrenheit .................................................. 17
Clock ...................................................................... 12
Cooktop Lockout .................................................... 13
Display/clock .......................................................... 11
Kitchen timer .......................................................... 14
Oven Lockout .......................................................... 12
Starting .................................................................... 15
Tones ...................................................................... 13
FEATURES .................................................................... 6
MODEL AND SERIAL NUMBER .................................. 2
OVEN DOOR ........................................................ 34-36
OVEN LIGHT .............................................................. 36
OVEN TEMPERATURE
Readjusting ............................................................ 17
Setting .............................................................. 15, 19
OVEN VENT ................................................................ 26
PANS ........................................................................ 8, 9
PARTS .......................................................................... 6
ROASTING
Pans .......................................................................... 9
Setting cycle ............................................................ 15
Oven rack positions .................................................. 9
Tips .......................................................................... 16
SAFETY ............................................ i....................... 4, 5
SELECT CLEAN TM SELF-CLEANING CYCLE
Before you start ...................................................... 27
Delay start .............................................................. 29
How the cycle works .............................................. 28
Setting the controls ................................................ 28
Starting immediately .............................................. 28
Stopping the cycle .................................................. 30
SERVICE ...................................................... Back Cover
STLIRDIGUDETM HALF-RACKWITH REMOVABLEINSERT....9
STURDIGUDETM RACK WITH INTEGRATEDHANDLE..........9
SURFACE BURNERS
Control knobs ...................................................... 6, 31
Control setting guide ................................................ 7
Power Burner ............................................................ 7
SURESIMMER TM setting .......................................... 7
Surface burner markers ............................................ 6
Tips ............................................................................ 7
TIMED OVEN CONTROL ...................................... 21-24
TROUBLESHOOTING .......................................... 37-39
ULTRABAKE TM BAKING
Aluminum foil .......................................................... 10
Bakeware ................................................................ 10
Pans .......................................................................... 9
Preheat conditioning .............................................. 16
Setting cycle ............................................................ 15
Oven rack positions .................................................. 9
Tips .......................................................................... 16
ULTRABAKE system ........................................ 15, 16
WARM & READY WARMING DRAWER ................ 25, 26
WARRANTY .................................................................. 3
4O
: : For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
........... 1 800-4 MY-HOME _ Anyti day ightiiiiiiiiiiiiill _ .. M me, or n
::::::::::::::::::::: (!-800469-4663)
iiiiiiiiiiiiiiiiiiiiii
!_iiiiiiiii
_li_lNW,sears,com
!_iiiii!ii
To bring in products such as vacuums, lawn equipment and electronics
for repair, call for the location of your nearest Sears Parts & Repair Center
1-800488-1222 Anytime, dayor night
www.sears.com
iilii - ....................................................... iiiiiiii¸
there ,ace eo accessor,esandowner's aoua,s ;;;
th tyo dtodo If, call E_ars PatlsDire_t_ ! .....................a u nee -it-yourse
800 366 PART_ ................
" " " a.m.- 11p.m. CST,
(1-800-366-72 78) 7days a week ...............
com/partsdirect .......................
WWW sears .......................
............. purchase or inquire about a SearsServiceAgreement ..............
TO
!ii!i!i!iiiiiiiii iiiiiiiiiiiiiiiiiii
1800-827-6655
7 a.m. - 5 p.m. CST,Mon. - Sat. .....
1-877-LE-FOYB_ _:_:_:_:_:_::
......'............... 1-888-_ _ (1 877 6937) ...........- -533-
....._;_il,iiiiii (1-888 -784 -6427)
!i !!iiiiiiiiiii! [ SEARS ]
"!!::__i_,,_:,_,,,_:,_,_,_ [HomeCentral .................... ....
8273766 3/00
© Sears, Roebuck and Co. ® Registered Trademark/TM Trademark of Sears, Roebuck and Co. Printed in the U.S.A.
® Marca Registrada/TM rnarca de fabrica de Sears, Roebuck and Co. Irnpreso en EE,UU.
