Table of contents
en-us Operating instructions
( Safety Definitions. . . . . . . . . . .5
( IMPORTANT SAFETY
INSTRUCTIONS . . . . . . . . . . . .6
ƒ Causes of Damage. . . . . . . . . .9
* Getting Started . . . . . . . . . . . .10
+ Water softening system /
special salt . . . . . . . . . . . . . . .12
, Rinse Aid. . . . . . . . . . . . . . . . .14
- Loading the Dishwasher . . . .15
. Detergent . . . . . . . . . . . . . . . .25
/ Dishwasher Cycles . . . . . . . .27
0 Dishwasher Cycle Options . .28
1 Operating the Dishwasher. . .31
2 Care and Maintenance. . . . . .36
3 Troubleshooting . . . . . . . . . . .40
4 Customer Service. . . . . . . . . .44
‡ Statement of Limited
Product Warranty. . . . . . . . . .45
en-us
4
'HDU9DOXHG&XVWRPHU
7KDQN\RXIRUVHOHFWLQJD%RVFK
GLVKZDVKHU<RXKDYHMRLQHGWKH
PDQ\FRQVXPHUVZKRGHPDQGTXLHWDQGVXSHULRUSHUIRUPDQFHIURP
WKHLUGLVKZDVKHUV
,I\RXKDYHDQ\TXHVWLRQVRUFRPPHQWVSOHDVHFRQWDFWXVE\SKRQHDW
:KLOHWKHUHGRQ·WIRUJHWWRUHJLVWHU\RXUQHZGLVKZDVKHUE\FOLFNLQJ
RQWKH´6XSSRUWµWDERUILOOLQJRXWWKHSURGXFWUHJLVWUDWLRQFDUG
HQFORVHGZLWK\RXUQHZXQLW
ZZZERVFKKRPHFRPXV86$
RU
ZZZERVFKKRPHFD&DQDGD
7ROHDUQPRUHDERXW\RXUGLVKZDVKHUDQGDYDLODEOHDFFHVVRULHVDV
ZHOODVPDQ\RWKHUWRSTXDOLW\%RVFKDSSOLDQFHVYLVLWRXUZHEVLWHDW
7KLVPDQXDOZDVZULWWHQZLWK\RXUVDIHW\DQGFRQYHQLHQFHLQPLQG
DQGWKHLQIRUPDWLRQFRQWDLQHGKHUHLQLVYHU\LPSRUWDQW:HKLJKO\
UHFRPPHQGWKDW\RXUHDGWKLVPDQXDOEHIRUHXVLQJ\RXUGLVKZDVKHU
IRUWKHILUVWWLPH
%6++RPH$SSOLDQFHV&RUSRUDWLRQ
0DLQ6WUHHW6XLWH
RUZULWHXVDW
,UYLQH&$
Safety Definitions en-us
5
( Safety Definitions
Safety Definitions
9 WARNING
This indicates that death or
serious injuries may occur as a
result of non-observance of this
warning.
9 CAUTION
This indicates that minor or
moderate injuries may occur as
a result of non-observance of
this warning.
NOTICE
This indicates that damage to the
appliance or property may occur as a
result of non-compliance with this
advisory.
Note: This alerts you to important
information and/or tips.
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
6
( IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
This dishwasher is provided with
Installation Instructions and this Use
and Care Manual. Read and
understand all instructions before
using the dishwasher.
This dishwasher is intended for use
up to a maximum altitude of
13,000 ft (4,000 meters) above sea
level.
To reduce the risk of fire, electrical
shock, or serious injury, observe the
following:
Risk of fire, electrical shock, or serious injury
9 WARNING
RISK OF INJURY OR DEATH!
Misuse of the dishwasher can
result in serious injury or death.
Do not use the dishwasher in
any way not covered in this
manual or for any purpose other
than those explained in the
following pages.
9 WARNING
RISK OF INJURY!
Severe injury and/or product
damage could result from the
use of unauthorized service
technicians or non-original
replacement parts. All repairs
must be performed by an
authorized service technician
using only original equipment
factory replacement parts.
9 WARNING
RISK OF ELECTRICAL SHOCK
OR FIRE!
Electrical shock or fire could
result if the electrical supply for
the dishwasher covered in this
manual is incorrectly installed or
if the dishwasher has been
improperly grounded. Do not
use the dishwasher covered in
this manual unless you are
certain the electrical supply has
been correctly installed and the
dishwasher has been properly
grounded.
9 WARNING
HEALTH HAZARD!
Never use harsh chemicals to
clean your dishwasher. Some
chloride-containing products
can damage your dishwasher
and may present health
hazards!
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
7
GROUNDING INSTRUCTIONS
This appliance must be grounded to
a metal, permanent wiring system or
an equipment grounding conductor
must be run with the circuit
conductors and connected to the
equipment grounding terminal or
lead on the dishwasher. See the
Installation Instructions included with
this dishwasher for more information
on electrical requirements.
9 WARNING
RISK OF ELECTRIC SHOCK!
This appliance must be
grounded. In the event of a
malfunction or breakdown,
grounding will reduce the risk of
electric shock by providing a
path of least resistance for
electric current. This appliance
is equipped with a cord having
an equipment-grounding
conductor.
Improper connection of the
equipment-grounding conductor
can result in risk of electric
shock. Check with a qualified
electrician if you are in doubt
whether the appliance is
properly grounded.
Safe Operation
Use this dishwasher only for its
intended function, which is the
washing of household dishware and
kitchenware rated as dishwasher
safe.
Use only detergents or rinsing agents
recommended for use in a
dishwasher, and keep them out of
the reach of children.
9 CAUTION
When loading items to be
washed:
■ Locate sharp items so they
are not likely to damage the
door seal.
■ Load knives and other sharp
utensils with their HANDLES
UP to reduce the risk of
cut-type injuries.
■ Do not wash plastic items
unless they are marked
“dishwasher safe” or the
equivalent. For plastic items
not so marked, check the
manufacturer’s
recommendations.
■ Do not operate your
dishwasher unless all
enclosure panels are in
place.
■ Do not tamper with or
override controls and
interlocks.
Do not abuse, sit or stand on the
door or dish racks of the dishwasher.
9 WARNING
RISK OF INJURY!
To avoid risk of injury, always
use caution when opening the
door during or following a wash
cycle as hot water or steam
may escape. Do not fully open
the door until water noises have
stopped and steam has
subsided.
NSF/ANSI 184 Certified residential
dishwashers are not intended for
licensed food establishments.
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
8
Child Safety
To reduce risk of injury, do not allow
children to play in or on the
dishwasher.
When children become old enough
to operate the appliance, it is the
responsibility of the parents/legal
guardians to ensure the children are
instructed in safe practices by
qualified persons.
Proper Care and Maintenance
9 WARNING
RISK OF EXPLOSION!
Under certain conditions,
hydrogen gas may be produced
in a hot water system that has
not been used for two weeks or
more. Hydrogen gas is
explosive. Before using a
dishwasher that is connected to
a hot water system that has
been unused for two weeks or
longer, turn on all hot water
faucets and let the water flow
from each for several minutes.
This will release any
accumulated hydrogen gas. As
the gas is explosive, do not
smoke or use an open flame
during this time.
Remove the dishwasher door to the
washing compartment when
removing an old dishwasher for
service or discarding.
To avoid floor damage and possible
mold growth, do not allow wet areas
to remain around or under the
dishwasher.
To avoid dishwasher damage, do not
allow water to remain in your
dishwasher systems through
extended periods of freezing
temperatures. Freezing temperatures
can damage the water fill valve and
potentially other components of your
dishwasher.
NOTICE
It is highly recommended for the end
user to become familiar with the
procedure to shut off the incoming
water supply and the procedure to
shut off the incoming power supply.
See the Installation Instructions or
contact your installer for more
information.
9 WARNING
STATE OF CALIFORNIA
PROPOSITION 65 WARNINGS!
This product contains one or
more chemicals known to the
State of California to cause
cancer, birth defects, or other
reproductive harm.
Causes of Damage en-us
9
ƒ Causes of Damage
Causes of Damage
NOTICES
■ Never use steam cleaning
products to clean your
dishwasher. The manufacturer will
not be liable for the possible
damages or consequences.
■ Bleach-based wipes can cause
stainless-steel doors and tubs to
rust.
■ Using harsh chemicals
(e.g. bleach), abrasive cleaners,
scouring pads (metal or plastic),
or abrasive cloths/paper towels
can damage your dishwasher’s
exterior door panel, fascia panel
and buttons.
■ To avoid dishwasher damage, do
not load the dishwasher with
paper products, plastic bags,
packing materials or anything
other than normal, dishwasher
safe dishware and kitchenware.
en-us Getting Started
10
* Getting Started
Getting Started
Appliance overview
5HVHWVHF
$ZDMFT
0O0GG 4UBSU
3FTFUTFD
0QUJPOT
%$
&
$ZDMF4UBUVT
Getting Started en-us
11
The numbers stated below refer to
the overview images on the previous
page of this manual.
Operating panel
Dishwasher interior
components
Display indicators
--------
Menu overview
The dishwasher has been preset with
certain settings for your convenience.
You can change these factory
settings.
Use the function keys #, + and
3 to change the settings.
--------
( On/Off button
0 Wash cycles
8 Digital display
@ Delay start button
H Wash cycle options
P Start button
1* Third rack
12 Upper rack
1: Upper spray arm
1B Detergent tab tray
1J Vent hole
1R Lower spray arm
1Z Dispenser for special salt
1b Filters
1j Silverware basket
9" Lower rack
9* Rinse aid dispenser
92 Detergent dispenser
9: Lock for detergent dispenser
9B Rating plate
‹:‹‹
Cycle time remaining
Clean
Lights up when dishes are
clean
Sanitize
Lights up when sanitation
requirements are met
Add Rinse
Aid
Lights up when rinse aid is low
Add Salt
Lights up when salt is low
Setting Factory setting Description
• Water hardness
•:‹‹ - •:‹ˆ
•:‹‹ Setting the water hardness. When using
Multitabs, select the lowest setting.
§ Rinse aid
§:‹‹ - §:‹‡
§:‹† Amount of rinse aid affects drying. When using
Multitabs, select setting 0.
š Intensive drying
š:‹‹ - š:‹‚
š:‹‹ / Off Improved drying for glasses and plasticware.
› Cycle completion signal
›:‹‹ - ›:‹„
›:‹ƒ Signal sounds when wash cycle is complete.
† TimeLight
®
†:‹‹, †:‹‚, †:‹ƒ
†:‹‚ While a wash cycle is running, status information
is projected onto the floor.
˜ Auto power off
˜:‹‹ - ˜:‹ƒ
˜:‹‹ Dishwasher switches off automatically after wash
cycle is complete.
en-us Getting Started
12
+ Water softening
system / special salt
Your water hardness level directly
impacts your dishwasher’s
performance. Hard water will
increase spotting and reduce
detergent performance. Some
dishwasher models are equipped
with a water softener that uses a
special salt to adjust the water
hardness to obtain optimal
performance. The dishwasher salt is
added to the salt chamber 1Z
located under the lower dishwasher
rack. The amount of salt that is
dispensed is based on your home
water hardness. The home water
hardness can be determined by
using the water hardness test strip
included in your manual set (or from
your local hardware store). The
dishwasher water softener setting
must be adjusted to match your
water hardness.
Instructions for use of
included “Water Hardness
Test Strip”
Only use salt designed for automatic
dishwashers. Never use household
water softener salt or table salt.
Follow the instructions below for the
included test strip. (If purchasing a
different test strip, follow
manufacturers instructions).
1.
Run the water at the kitchen sink
for 5 minutes.
2.
Dip the end of the test strip with
the colored squares into the tap
water for 1 second and shake off
excess water.
3.
After one minute, compare the
test strip to the chart below and
determine the Dishwasher Water
Softener setting.
4.
Adjust the dishwasher Water
Softener setting. ~ "Adjusting
the water softening system"
on page 13
5.
If required, add salt to the
dishwasher salt chamber as
shown. ~ "Using special
dishwasher salt" on page 13
Adjusting the water softener settings
Using the test strip included with
your dishwasher
(Purchased test strips may have a
different scale)
Water
softener
setting
Add salt to
salt
dispenser
Water hardness onversion chart
(only necessary if you purchase a
different test strip)
ppm gpg/°dH
•:‹‹ No 0 116 0 6
•:‹‚ Yes 117 152 7 8
•:‹ƒ Yes 153 188 9 10
•:‹„ Yes 189 223 11 13
•:‹… Yes 224 294 14 17
•:‹† Yes 295 383 18 22
•:‹‡ Yes 384 544 23 31
•:‹ˆ Yes 545 890 32 52
Getting Started en-us
13
Adjusting the water
softening system
The amount of salt dispensed can be
set from •:‹‹ to •:‹ˆ. Salt is not
required at the set value •:‹‹.
Set the softening system as follows:
1.
Ask your local water utility
company for the water hardness
value of your tap water.
2.
Required setting can be found in
the water hardness table.
3.
Open the door.
4.
Switch on On/Off switch (.
5.
Hold down function key # and
press Start button P until the
display 8 indicates •:‹x (x can
be any number).
6.
Release both buttons.
The indicator of function key #
flashes and the display 8
indicates •:‹…. Press function key
3 to select the desired setting.
7.
Save the selected setting by
pressing the Start button P .
The chosen setting has now been
stored.
Using special dishwasher
salt
As soon as the low salt indicator
lights up on the digital display 8,
salt should be topped off. Always
refill with special salt immediately
before switching on the appliance.
This ensures that overrun special salt
solution is immediately washed out
and does not corrode the rinsing tub.
NOTICE
Detergent will destroy the water
softening system! Never pour
detergent into the salt dispenser.

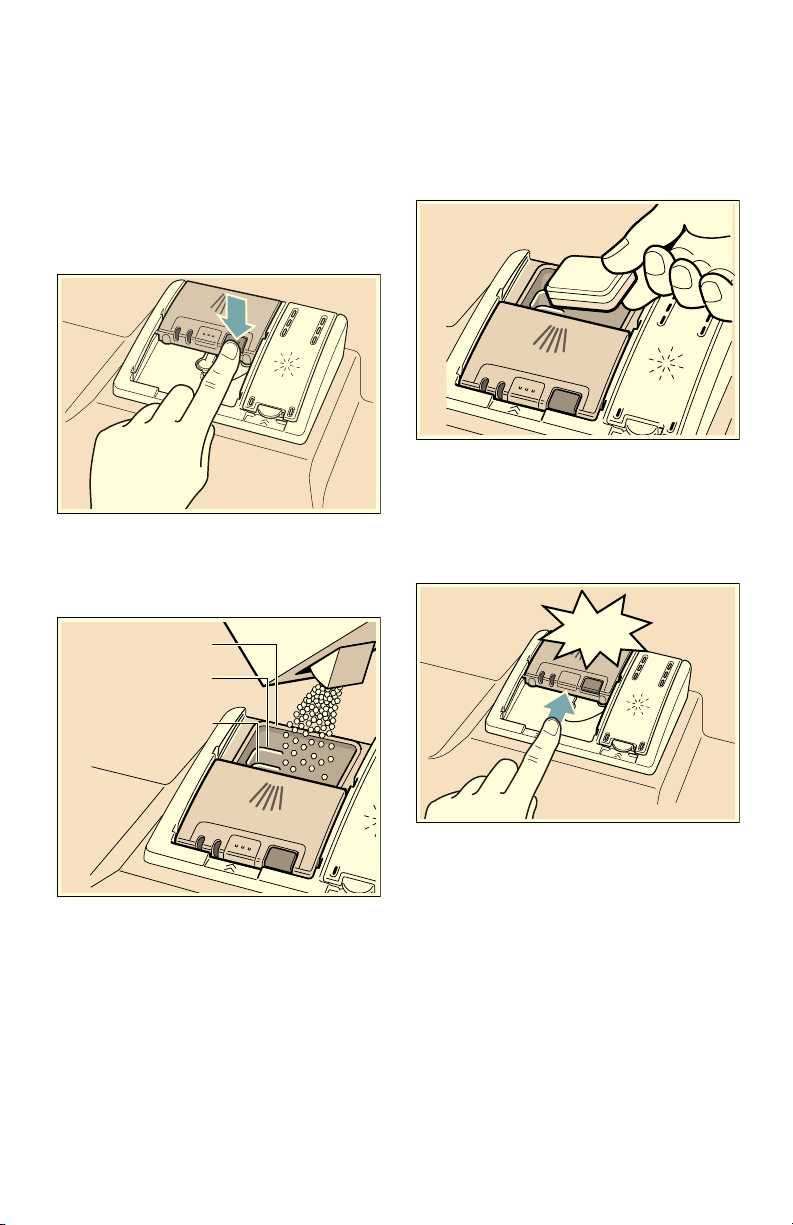

Top off the salt as follows:
1.
Undo the screw plug on the
dispenser 1Z.
2.
Fill the dispenser with water
(required only when switching on
the appliance for the first time).
3.
Add salt as illustrated (do not use
table salt, salt tablets or salt for
use with whole house water
softeners).
The water is displaced and runs
out.
For more information about buying
dishwasher salt, please contact
customer service (1-800-944-2904).
Using detergents with salt
component
Detergent with a salt component
If combined detergents with a salt
component are used, special salt can
usually be omitted up to a water
hardness of 21° dH (37° fH,
26° Clarke, 3.7 mmol/l). If the water
hardness is over 21° dH, salt must
be used.
Switching off low salt
indicator / water softening
system
Switching off water softening system
If the use of combined detergents
with a salt component impairs the
low salt indicator on the digital
display 8, the low salt indicator
can be switched off.
Proceed as described under “Setting
water softening system” and set the
value to •:‹‹. The water softening
system and salt refill indicator are
now switched off.
en-us Rinse Aid
14
, Rinse Aid
Rinse Aid
To achieve proper drying, always use
a liquid rinse aid, even if your
detergent contains a rinse aid or
drying additive.
Note: The dishwasher indicates low
rinse aid by turning on the Rinse Aid
indicator on the display 8. If this
indicator lights up, you need to refill
the rinse aid dispenser 9* by
following the directions below.
Adding rinse aid
NOTICE
To avoid oversudsing or clogging, do
not overfill the rinse aid
dispenser 9*. Wipe up any spills
with a damp cloth.
1.
Open the rinse aid dispenser 9*
by pressing on the latch of the lid
and pull it open.
2.
Add liquid rinse aid to the
dispenser 9* until it is full. Do
not overfill.
3.
Close the lid. Lid must be fully
closed until it clicks in order to
seal.
4.
Wipe up any excess rinse aid that
may have puddled when the
dispenser reservoir is full.
The indicator light will go out a few
moments after the dishwasher door
is shut.
NOTICE
Do not fill the rinse aid dispenser 9*
with detergent. Doing so will damage
the dishwasher.
Setting the amount of rinse
aid used
The amount of rinse aid dispensed
can be set from §:‹‹ to §:‹‡. The
factory setting is §:‹†.
You should only change the setting if
streaks remain on the dishes (lower
the amount), or if dishes are not
getting dry enough (increase the
amount).
PD[
Loading the Dishwasher en-us
15
1.
Open the door.
2.
Press the On/Off button (.
3.
Hold down function key # and
press Start button P until the
display 8 indicates •:‹x (x can
be any number).
4.
Release both buttons.
The indicator of function key #
flashes and the display 8
indicates the factory set value
•:‹…
5.
Press the function key # until
the display 8 shows §:‹†.
6.
Press function key 3 to select
the desired setting.
7.
Press Start button P to save
the setting.
Turning off rinse aid
indicator
Proceed as described in the section
“Setting the amount of rinse aid
used” and set value to §:‹‹. The
rinse aid indicator is now turned off.
NOTICE
Using no rinse aid or setting the
dispenser to §:‹‹ may result in
longer cycle times consuming more
energy and water. The higher
temperatures and longer cycle times
can damage fine china or glassware.
- Loading the
Dishwasher
Loading the Dishwasher
Dishware material
Note: Before using your dishwasher
for the first time, check the
information in this section. Some
items are not dishwasher-safe and
should be hand washed; others
require special loading.
Setting Amount
§:‹‹ dispenser is OFF
§:‹‚ lowest setting
§:‹ƒ low setting
§:‹„ medium setting
§:‹… medium/high setting
§:‹† high setting
§:‹‡ highest setting
Recommended
Aluminum Colored anodized aluminum
may fade over time.
Minerals in your water may
cause the aluminum to
darken or spot. This can
usually be removed with a
soap-filled steel wool pad.
China, Crystal,
Stoneware
Some hand-painted utensils
may discolor, fade or spot.
Hand wash these utensils.
Position fragile glassware so
that it will not topple over or
come in contact with other
utensils during the wash
cycle.
Glass Milk glass may discolor or
become yellow.
Non-stick
Coatings
Apply a light coating of
vegetable oil to non-stick
surfaces after drying.
Plastics Make sure the plasticware is
dishwasher-safe.
Stainless Steel,
Sterling Silver
and Silver
Plates
Load these so they do not
come in contact with other
metals, stainless steel
dishwasher tub walls or the
inner door.
en-us Loading the Dishwasher
16
Loading the racks
For best dishwashing results,
observe the following when loading
the dishwasher:
■ Do not pre-wash items with
loosely attached food soil.
■ Remove all food particles, bones,
toothpicks and excessive grease.
■ Pre-treat items having burned-on,
baked-on or starchy soils.
■ Load dishes in the dishwasher
racks so the insides of bowls,
pots and pans are facing the
spray arms.
■ Avoid nesting and contact points
between dishes.
■ Separate items of dissimilar
metals. Use care to not block
movement of the spray arms.
■ Only wash household dishware
and kitchenware rated as
dishwasher-safe.
Refer to the Dishware Materials
section for more information
about dishware suitability.
NOTICE
To avoid dishwasher damage, do not
load the dishwasher with paper
products, plastic bags, packing
materials or anything other than
normal, dishwasher safe dishware
and kitchenware.
Loading the upper rack
Ensure items do not protrude through
the bottom of the racks and block the
spray arms.
Note: When pushing the upper
rack 12 into the dishwasher, push it
until it stops against the back of the
tub so the upper rack spray
arm 1: connects to the water
supply at the back of the tub. Do not
push racks in using the door.
Loading the lower rack
Place large items in the lower
rack 9". Load pots, pans and bowls
upside down. Do not block the vent
hole 1J with tall baking sheets.
Load these items on the right side of
the dishwasher.
Not Recommended
Acrylic Crazing or small cracks
throughout the acrylic, may
occur.
Adhesive-
Joined Pieces
Adhesives that join
materials such as plastic,
wood, bone, steel, copper,
tin, etc. may loosen.
Bone-Handled
Utensils
Handles may separate.
Iron Iron will rust. Hand wash
and dry immediately.
Non-Dishware
Items
Your dishwasher is intended
for use in cleaning ONLY
standard household
dishware and kitchenware.
Pewter, Brass,
Bronze
These items will tarnish.
Hand wash and dry
immediately.
Tin Tin will stain. Hand wash
and dry immediately.
Wood Wooden bowls, wooden
utensils and utensils with
wooden handles can crack,
warp and lose their finish.
Loading the Dishwasher en-us
17

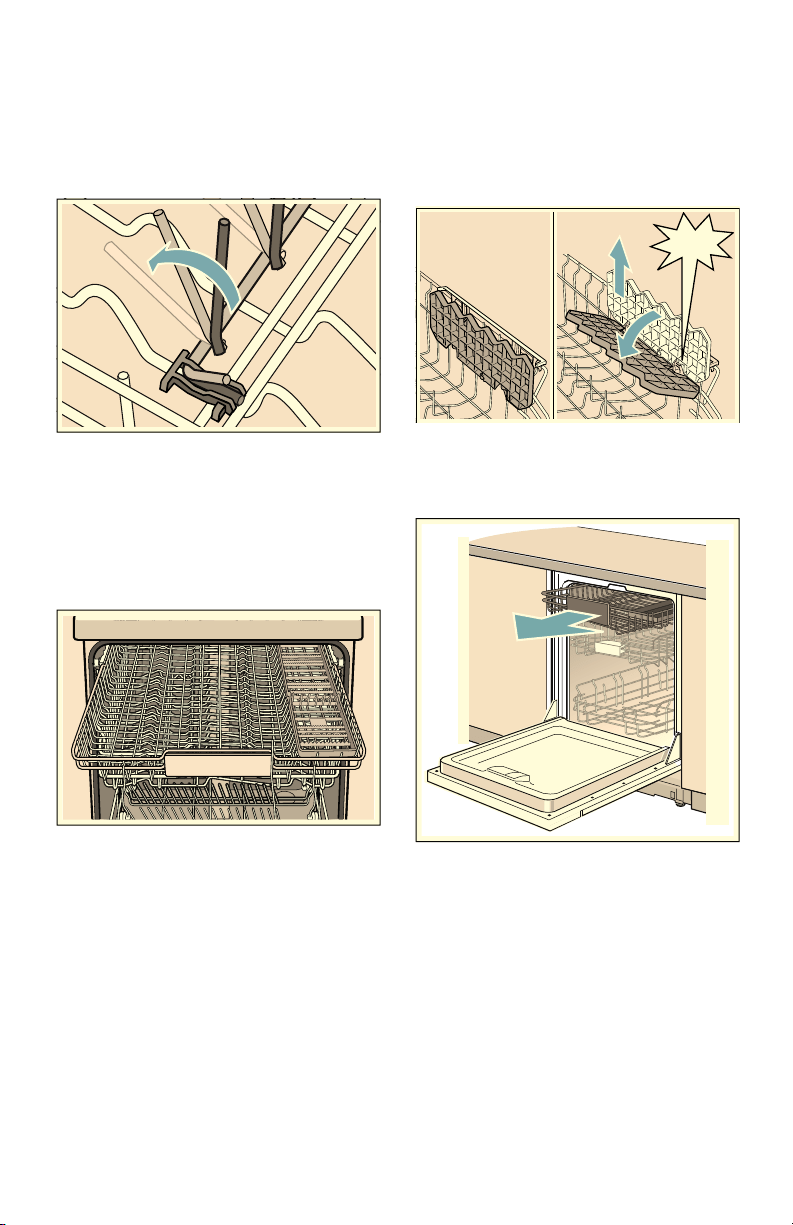

Loading the third level rack
The third level rack 1* offers extra
space for items like dessert bowls,
serving spoons or pasta forks.
In order to achieve optimal cleaning,
avoid placing heavily soiled items or
items with burned in food soils in the
third level rack.
Overloading the upper rack 12 may
reduce performance in the third level
rack.
When loading items in the third level
rack that have concaved bottoms or
cavities, water may collect in the
cavities.
Recommended loading
pattern
For daily, regular or typical use
12 place setting
Lower rack 9"
Upper rack 12
Note: Folding the cup shelves down
will allow the cups to sit at an
increased angle and reduce water
pooling on cup bottoms.
Third rack 1*
en-us Loading the Dishwasher
18
Additional loading pattern
10 place setting
Lower rack 9"
Upper rack 12
Note: Folding the cup shelves down
will allow the cups to sit at an
increased angle and reduce water
pooling on cup bottoms.
Third rack 1*
Loading the silverware
basket
Place knives and sharp utensils with
their handles up and forks and
spoons with their handles down. If
large or oddly-shaped items are
loaded in the silverware basket, be
sure they do not nest together.
9 WARNING
RISK OF INJURY!
The sharp points and edges of
knives and other sharp utensils
can cause serious injury. Load
knives and other sharp utensils
with edges down. Do not allow
children to handle or play near
knives and sharp utensils.
Loading the Dishwasher en-us
19
The Double Flex silverware basket
This basket splits along its length,
resulting in two halves that may be
placed in a variety of positions in the
lower rack 9", greatly increasing
the lower rack’s loading versatility.
The basket snaps together either
side by side or back to back.
To split the Double Flex silverware
basket:
Grasp the basket and slide the two
halves in opposite directions and
then pull the two halves apart.
Side by side
Back to back
To assemble the Double Flex
silverware basket:
Hold the two halves side by side or
back to back, so that the tab on one
basket can slip into the notch on the
other basket. Push the two halves in
opposite directions until they click.
Note: The silverware basket lid may
also be folded downward in order to
leave the basket open.
This dishwasher is equipped with a
silverware drawer that should
accommodate most silverware
loading needs.
However, if you are washing while the
silverware drawer has been removed,
or with excess silverware, a
silverware basket is also included.
When loading the silverware basket
you should avoid excessive contact
points and nesting of similar items
(allowing two spons to rest inside
one another).
A good way to avoid excessive
contact points is to load the
silverware basket with the lids
closed, inserting each piece of
silverware into one of the individual
slots as shown.
en-us Loading the Dishwasher
20
Suggested loading patterns
Recommended loading pattern
For daily, regular or typical use
12 place setting
Additional loading pattern
10 place setting
Unloading the dishwasher
When unloading the dishwasher, to
prevent water from dripping onto dry
dishes, unload the lower
rack 9" first. Next, unload the
silverware basket 1j followed by
the upper rack 12, and then the
third rack (if equipped).
Note: Dishes are more likely to chip
when unloading before cooling.
Adjusting the height of the
rack
If required, the height of the upper
rack 12 can be adjusted to create
more space for taller utensils either in
the upper or lower rack.
1 Salad fork
2 Teaspoon
3 Dinner fork
4 Knife
5 Tablespoon
6 Serving spoon
7 Serving fork
With
silverware
basket
Upper rack Lower rack
Setting 1
max. ø
9.4 in
(24 cm)
13.4 in
(34 cm)
Setting 2
max. ø
10.4 in
(26.5 cm)
12 in
(30.5 cm)
Setting 3
max. ø
11.4 in
(29 cm)
11 in (28 cm)
Loading the Dishwasher en-us
21
Arrange large plates up to a diameter
of 13.4 in (34 cm) in the lower
basket 9" as illustrated.
RackMatic
®
The height of the upper rack 12 can
be adjusted in 3 steps to create more
space.
1.
Pull the upper rack out of the
dishwasher until it stops.
2.
To lower the rack, push the
RackMatic® lever inward.
3.
To raise the rack, hold the basket
on the sides of the upper rack
and lift it up.
Note: Check spray arm for clearance
after adjustment.
Rack accessories
Flip tines
The upper and lower rack are fitted
with flip tines that can be folded
down depending on what you may
need to load in the rack.
Lower rack flip tines: To fold down,
pull flip tine gently forward and
release it from the notch. Push the
flip tine downward. To fold up, push
flip tines into an upright position until
the holder engages in the notch.
With
third rack
Upper rack Lower rack
Setting 1
max. ø
7 in (18 cm) 13.4 in
(34 cm)
Setting 2
max. ø
8 in
(20.5 cm)
12 in
(30.5 cm)
Setting 3
max. ø
9 in
(23 cm)
11 in (28 cm)
en-us Loading the Dishwasher
22
Upper rack flip tines: To fold down,
push flip tines downward with gentle
pressure. To fold up, push flip tines
into an upright position until the
holder engages in the notch.
Third rack
The third rack 1* horizontally
positions knives, spatulas and other
oversized tools for improved cleaning
and easier loading and unloading.
Arrange cutlery in third rack as
illustrated.
Cup shelves
The cup shelves and the space
underneath them can be used for
small cups or for larger serving
utensils.
Removing/Installing third
rack
&/,&.
Loading the Dishwasher en-us
23
Removing third rack 1*
1.
Pull out third rack all the way (1).
2.
Lift upper rollers over the stopper
hooks of both rails (2).
3.
Pull third rack out forward and
upward so the the holding hooks
and the lower rollers of the rack
slide over the stopper hooks of
both rails (3).
Installing third rack 1*
1.
Pull out third rack rails all the
way (1).
2.
Insert third rack at an angle. Make
sure that the stopper hooks of
both rails slide in between the
holding hooks and the lower
rollers of the third rack (2).
3.
Slide third rack in and lift the
upper rollers over the front
stopper hooks of both rails (3).
4.
Push in third rack (4).
Removing/Installing upper
rack with Rackmatic
®
en-us Loading the Dishwasher
24
Removing upper rack 12
1.
Pull out upper rack all the way (1).
2.
Lift front rollers over the stopper
hook of the rail (2).
3.
Pull out upper rack forwards and
upwards so that the upper and
lower rollers of the rack slide over
the stopper hooks of both
rails (3).
Installing upper rack 12
1.
Pull out upper rack rails all the
way (1).
2.
Insert upper rack at an angle.
Make sure that the stopper hooks
of both rails slide in between the
upper and lower rollers on the
rear side of the rack (2).
3.
Slide upper rack in and lift the
upper rollers over the front
stopper hooks of both rails (3).
4.
Push in upper rack (4).
Detergent en-us
25
. Detergent
Detergent
Use only detergent specifically
designed for dishwashers. For best
results, use fresh powdered
dishwashing detergent or detergent
tabs.
NOTICE
To avoid dishwasher damage:
■ Do not use hand dishwashing
products in your dishwasher.
■ Do not use too much detergent if
your water is soft. Using too much
detergent with soft water may
cause etching in glassware and
fine china.
This dishwasher uses less water than
most, therefore, less detergent is
required. With soft water,
1 tablespoon (15 ml) of detergent
will clean most loads. The detergent
dispenser cup has lines that measure
detergent to 1 tablespoon (15 ml)
and 1.75 tablespoons (25 ml).
3 tablespoons (45 ml) of detergent
will completely fill the detergent
dispenser.
Note: If you do not know the
hardness of your water supply, use
15 ml of detergent. Increase the
amount if necessary to the least
amount required to get your
kitchenware clean.
Use the measuring lines in the
detergent dispenser cup as a guide
to measure the amount of detergent
recommended in the following table.
Wash Cycle Hard Water/
Heavy Soil
Medium Water/
Medium Soil
Soft Water/
Little Soil
Heavy 3 tbsp
(45 ml)
3 tbsp
(45 ml)
1.75 - 3 tbsp
(25 - 45 ml)
Auto 1.75 - 3 tbsp
(25 - 45 ml)
1.75 tbsp
(25 ml)
1 - 1.75 tbsp
(15 - 25 ml)
Glass 1.75 tbsp
(25 ml)
1 - 1.75 tbsp
(15 - 25 ml)
1 tbsp
(15 ml)
Normal 1.75 - 3 tbsp
(25 - 45 ml)
1.75 tbsp
(25 ml)
1 - 1.75 tbsp
(15 - 25 ml)
Speed60
®
1.75 tbsp
(25 ml)
1 - 1.75 tbsp
(15 - 25 ml)
1 tbsp
(15 ml)
Rinse none none none
en-us Detergent
26
Adding detergent
1.
If the detergent dispenser 92 is
still closed, push the button 9:
to open it.
Note: Make sure the detergent
dispenser is dry and clear of
detergent residue.
2.
Pour detergent into the dry
detergent dispenser 92 only.
Add detergent. Do not overfill the
detergent dispenser.
When using detergent tabs, lay
them such that they do not come
in contact with the cover, insert a
detergent tab flat, not on its side.
Note: Do not place detergent
tabs or utensils in the detergent
tab tray 1B. Place tabs or other
detergent forms directly in the
detergent dispenser 92.
Dosage: see manufacturer’s
instructions on the packaging.
3.
Close the lid by placing the finger
on the lid as shown. Slide the lid
closed and press down firmly until
it clicks.
The detergent dispenser will open
automatically at the ideal time for
the set cycle. The powder or liquid
detergent is distributed in the
appliance and is dissolved,
detergent tabs will fall into the
detergent tab tray 1B where it
dissolves during the cycle.
Tip: If the dishware is only lightly
soiled, slightly less than the indicated
amount of detergent is usually
adequate.
WEVSPO
WEVSPO
PD[
WEVSPO
&/,&.
Dishwasher Cycles en-us
27
/ Dishwasher Cycles
Dishwasher Cycles
Note: The Energy Guide label was based on the Normal soil sensing cycle as
follows: The unit was tested without any rinse aid (liquid) in the rinse aid
dispenser 9*. A single dose of detergent was inserted into the detergent
dispenser 92, with no detergent being used in the prewash. The unit was not
subjected to truncated testing per the definitions in the test procedure. We
recommend that dish loads such as the one in the energy certification test
have the rack position set in the highest position.
Wash cycle Recommended use Possible wash cycle option
Heavy Best for cleaning items with baked-on
food or grease. These dishes would
normally require soaking or hand
scouring.
all
Auto Smartest cycle, with most flexible soil
sensing, which is ideal for mixed dishware
and food soils.
all
Glass Best for delicate dishes and glasses, the
Glass cycle lowers temperature and cycle
length to decrease energy usage.
Delay
Half Load
Extra Dry
Extra Scrub
Normal
(see note at
bottom of table)
Recommended for daily, regular or typical
use to completely wash a full load of
normally soiled dishes.
all
Note: In order to obtain optimal
performance with minimum energy
consumption, it is recommended to
disable all available options and
settings, except Auto Power Off - set
to ˜:‹‚~ "Auto power off"
on page 33
Speed60
®
Cleans freshly soiled dishes with easy to
remove soils.
This cycle reduces cycle time while still
including drying.
Delay
Extra Dry
®
Rinse Use this cycle if you need to pre-rinse
dishes to avoid odors. Place unrinsed
dishes inside the dishwasher and select
the Rinse cycle. Uses less water than
hand rinsing and very low energy.
Delay
en-us Dishwasher Cycle Options
28
0 Dishwasher Cycle
Options
Dishwasher Cycle Options
Delay
Allows you to delay the start time of
your dishwasher up to 24 hours.
Half Load
Can reduce water consumption when
washing small, lightly soiled loads
that fill approximately half of the
dishwasher’s capacity.
Delicate
This option’s reduced time and
temperature are best for lightly soiled
items with easy to remove food soils.
The option also reduces the
likelihood of cloudy glasses. Rinse
aid is recommended for the high
gloss drying function (even when
using combination detergents).
Sanitize
Increases the temperatures and
retains them for an extra long time to
obtain a defined disinfecting
performance. Continuous use of this
function increases the hygiene status.
This additional option is ideal for
cleaning items such as chopping
boards and baby bottles.
Using the Sanitize option may also
improve drying. The cycle time and
energy usage may be increased.
Extra Dry
Used in combination with a wash
cycle (except Rinse), the Extra Dry
option raises the temperature and
extends the drying time to further
enhance drying results and provide a
brilliant shine. The energy usage may
be increased.
ExtraScrub
This option increases pressure and
temperature in the lower rack for
intensive cleaning.
Dishwasher Cycle Options en-us
29
Wash Cycle Information
To save energy, this dishwasher has
EcoSense where the sensors in the
dishwasher automatically adjust the
cycle length, temperature and water
changes based on the amount of
food soil and the incoming water
temperature. The “Smart Control”
makes decisions that can cause the
cycle time and water usage to adjust
intermittently. Wash cycle times are
based on 120°F (49° C) water
supply. If your household water
supply is different than 120°F
(49° C), your dishwasher’s cycle
times may be impacted.
Heavy Auto Glass Normal
Speed60
®
Rinse
Cycle
time
min.
110 - 135 105 - 129 70 130 - 135 60 9
Water
usage
gal/L
4.9-6.4/
18.6-24.2
3.4-6.4/
12.9-24.1
3.4/
13.0
2.3-5.5/
8.8-21.0
3.8/
14.3
1.1/
4.1
Wash
temp.
°F/°C
151-160/
66-71
127-131/
53-55
122/
50
113-131/
45-55
122/
50
in-
coming
Rinse
temp.
°F/°C
162/
72
153-162/
67-72
140/
60
156/
69
158/
70
in-
coming
Half Load
Cycle
time
min.
114 95-105 65 90-99 N/A N/A
Water
usage
gal/L
4.7/
17.9
2.7-4.4/
10.2-16.5
3.2/
12.0
2.8-3.7/
10.8-13.9
N/A N/A
Rinse
temp.
°F/°C
162/
72
131-151
55-60
140/
60
162/
72
N/A N/A
Delicate
Cycle
time
min.
105 - 130 90 - 105 N/A 110 - 120 N/A N/A
Water
usage
gal/L
4.9-6.4/
18.6-24.2
3.5-6.5/
13.1-24.5
N/A 2.3-5.5/
8.8-21.0
N/A N/A
Rinse
temp.
°F/°C
140/
60
149
65
N/A 140-149/
60-65
N/A N/A
en-us Dishwasher Cycle Options
30
Note: Only sanitizing cycles have been designed to meet the requirements of
Section 6 of the NSF/ANSI Standard for Residential Equipment for soil removal
and sanitization efficacy. There is no intention, either directly or indirectly, to
imply that all cycles have passed sanitization performance tests.
Sanitize
Cycle
time
min.
130-150 125-150 N/A 135-155 N/A N/A
Water
usage
gal/L
4.9-6.4/
18.6-24.2
3.4-6.4/
12.9-24.1
N/A 2.3-5.5/
8.8-21.0
N/A N/A
Rinse
temp.
°F/°C
162/
72
162/
72
N/A 162/
72
N/A N/A
Extra Dry
Cycle
time
min.
130-150 125-150 100 135-155 60 N/A
Water
usage
gal/L
4.9-6.4/
18.6-24.2
3.5-6.5/
13.1-24.5
3.4/
13
2.4-5.5/
8.8-20.8
3.8/
14.3
N/A
Rinse
temp.
°F/°C
162/
72
162/
72
162/
72
162/
72
158/
60
N/A
Extra Scrub
Cycle
time
min.
95-110 75-90 85 95-105 N/A N/A
Water
usage
gal/L
4.3-5.5/
16.3-20.5
4.3-5.3/
16.1-20.0
3.4/
13
4.4-5.6/
16.6-21.1
N/A N/A
Rinse
temp.
°F/°C
162/
72
162/
72
140/
60
162/
72
N/A N/A
Heavy Auto Glass Normal
Speed60
®
Rinse
Operating the Dishwasher en-us
31
1 Operating the
Dishwasher
Operating the Dishwasher
Note: With hidden controls, the door
must be opened before changing
settings and closed after changing
settings.
9 WARNING
RISK OF INJURY!
To avoid risk of injury, always
use caution when opening the
door during or following a wash
cycle as hot water or steam
may escape. Do not fully open
the door until water noises have
stopped and steam has
subsided.
Protection against
unintentional operation
Your dishwasher is equipped with a
function that helps to prevent
unintentional operation (e.g. by
children).
After setting the dishwasher, the
dishwasher door has to be closed
within 4 seconds, otherwise the
operation will be paused. There will
be a signal on the control panel
advising you to press the Start button
again and close the door.
This function will be activated when:
■ pressing Start to begin a wash
cycle
■ setting Delay time and pressing
Start
■ opening the door while Delay time
is active
■ opening the door during a wash
cycle.
Note: This function cannot be
deactivated.
Operating the touch buttons
Buttons are sensitive and should be
touched gently. Avoid any grease or
food particles resting on the buttons
as they could activate the
dishwasher.
Wiping and cleaning can also
activate the dishwasher. For best
results, use bare, clean hands when
touching the buttons.
To clean the touch buttons wipe them
with a dry or slightly damp cloth.
AquaSensor
AquaSensor
The AquaSensor is an optical
measuring device which measures
the cleanliness of the rinse water.
The AquaSensor is used according
to the wash cycle. If the AquaSensor
is active, “clean” rinse water can be
transferred to the next rinse and
water consumption can be reduced
by 0.8–1-5 gal (3–6 liters). If the
rinse water is not yet clear, the water
is drained and is replaced with fresh
water. In the automatic wash cycles
the temperature and running time
can also be adjusted to the degree of
soiling.
en-us Operating the Dishwasher
32
Switching the appliance on
1.
Turn the water supply on fully.
2.
Open the door.
3.
Press the On/Off button (.
The display of the last selected
wash cycle flashes. This wash
cycle remains selected if no other
wash cycle button 0 is pressed.
The expected wash cycle duration
flashes on the display 8.
Select any desired option.
4.
Press Start button P.
Wash cycle sequence starts.
Note: Your dishwasher is protected
against unintentional operation. If the
appliance door remains open for
more than 4 seconds after pressing
the Start button, the operation will be
paused. Press the Start button again
and close the appliance door.
Time display
When a wash cycle is selected the
remaining wash cycle time is shown
on the display 8.
The wash cycle time is determined
during the wash cycle by the water
temperature, the amount of dishes,
as well as the degree of soiling and
may vary (depending on the selected
wash cycle).
Delay Start
You can delay the start of the cycle in
one hour increments up to 24 hours.
To set Delay start:
1.
Open the door and press the
On/Off button (. Select a cycle.
2.
Press the Delay button from the
wash cycle options H until the
displayed time corresponds with
your requirements.
3.
Press the Start button P to
activate Delay start.
To cancel Delay start:
1.
Open the door and press the
Delay button until œ:‹‹ is
indicated on the digital
display 8.
2.
Press the Start button P to
save setting.
Note: Your dishwasher is protected
against unintentional operation. If the
appliance door remains open for
more than 4 seconds after pressing
the Start button, the operation will be
paused. Press the Start button again
and close the appliance door.
Wash cycle end
The wash cycle has ended when the
display 8 reads ‹:‹‹.
If the signal tone has been set, the
wash cylce end is also indicated by a
buzzer.
To change the signal volume:
1.
Open the door.
2.
Press the On/Off button (.
3.
Hold down function key # and
press Start button P until the
display 8 indicates •:‹x (x can
be any number).
4.
Release both buttons. The LED for
function key # flashes and teh
digital display shows the factory
setting •:‹….
5.
Press function key # until the
display shows ›:‹ƒ.
œ:‹‚ 1 hour delay
œ:ƒ… 24 hours delay
›:‹‹ Off
›:‹‚ low
›:‹ƒ medium
›:‹„ loud
Operating the Dishwasher en-us
33
6.
Press function key 3. Each time
the button is pressed the set
value increases by one level;
when it reaches the value ›:‹„,
the display jumps back to ›:‹‹
(off).
7.
Press Start button P to save
the setting.
Auto power off
This setting determines the length of
time the control panel stays
illuminated after the cycle is
complete.
To save energy the recommended
setting is ˜:‹‚.
This setting can be adjusted from
˜:‹‹ to ˜:‹ƒ.
To change the setting:
1.
Open the door.
2.
Press On/Off button (.
3.
Hold down function key # and
press Start button P until the
display 8 indicates •:‹x (x can
be any number).
4.
Release both buttons.
The indicator of function key #
flashes and the display 8
indicates the factory set value
•:‹…
5.
Press function key # until the
display 8 indicates ˜:‹x.
6.
Press function key 3 until the
display corresponds with your
requirements.
7.
Press Start button P.
Switching off the appliance
Short time after the end of the wash
cycle:
1.
Open the door.
2.
Switch off On/Off button (.
3.
Turn off water supply.
4.
Remove the utensils when they
have cooled down.
9 WARNING
RISK OF INJURY!
To avoid risk of injury, always
use caution when opening the
door during or following a wash
cycle as hot water or steam
may escape. Do not fully open
the door until water noises have
stopped and steam has
subsided.
˜:‹‹ dishwasher does not turn off
automatically
˜:‹‚ dishwasher turns off
automatically after 1 minute
˜:‹ƒ dishwasher turns off
automatically after
120 minutes (2 hours)
en-us Operating the Dishwasher
34
Interrupting the wash cycle
9 CAUTION
Expansion (overpressure) may
cause the appliance door to
open and/or water to escape! If
the door was opened on an
appliance which has a hot water
connection or is heated, always
leave the door ajar for several
minutes and then close.
1.
Open the door.
2.
Switch off On/Off switch (.
The LED’s go out. The wash cycle
is saved.
3.
To continue the wash cycle,
switch on the On/Off switch (
again.
4.
Close the door.
Note: Your dishwasher is protected
against unintentional operation. If the
appliance door remains open for
more than 4 seconds after pressing
the Start button, the operation will be
paused. Press the Start button again
and close the appliance door.
Cancel a cycle (Reset)
1.
Open the door and press and
hold Start button P for
approximately 3 seconds until the
display reads ‹:‹‚, then close
door again.
2.
Wait about 1 minute while the
dishwasher drains.
3.
Open the door and press the
On/Off button (.
Changing the wash cycle
When the Start button ( has been
pressed, the wash cycle cannot be
changed. The only way a wash cycle
can be changed is by terminating the
wash cycle (Reset).
Intensive drying
The final rinse uses a higher
temperature which improves the
drying result. The cycle time may
increase slightly. (Caution if utensils
are delicate!)
This feature has two settings:
To change the setting:
1.
Open the door.
2.
Press On/Off button (.
3.
Hold down function key # and
press Start button P until the
display 8 indicates •:x (x can
be any number).
4.
Release both buttons.
The indicator of function key #
flashes and the display 8
indicates the factory set value
•:‹…
5.
Press function key # until the
display 8 indicates the factory
set value š:‹‹.
6.
Press function key 3 to switch
the feature on š:‹‚ or off š:‹‹.
7.
Press Start button P to save
setting.
TimeLight
®
(Optical display while the
wash cycle is running)
While wash cycle is running, an
optical display (additional cycle
information) is indicated on the floor
under the appliance door. If the base
panel is pulled forwards or if the
appliance is installed at eye-level with
flush furniture front, the display is not
visible.
š:‹‹ Off
š:‹‚ On
Operating the Dishwasher en-us
35
This feature has three settings:
All time remaining displays
To change the setting:
1.
Open the door.
2.
Press On/Off button (.
3.
Hold down function key # and
press Start button P until the
display 8 indicates •:x (x can
be any number).
4.
Release both buttons.
The indicator of function key #
flashes and the display 8
indicates the factory set value
•:‹…
5.
Press function key # until the
display 8 indicates the factory
set value †:‹‚.
6.
Press function key 3 to switch
between †:‹‹, †:‹‚ and †:‹ƒ.
7.
Press Start button P to save
setting.
†:‹‹ Optical display is switched
off.
†:‹‚ Time remaining and cycle
progress is displayed
alternating with the Bosch
®
logo (about 5 seconds per
image).
†:‹ƒ Like †:‹‚. Additional wash
cycle options are displayed.
!
Bosch
®
logo
Pre-rinse
Cleaning
Rinsing
Drying
en-us Care and Maintenance
36
2 Care and
Maintenance
Care and Maintenance
A regular inspection and
maintenance of your machine will
help to prevent faults. This saves time
and prevents future problems.
Overall condition of the
dishwasher
NOTICE
■ Never use a steam cleaner to
clean your dishwasher. The
manufacturer is not liable for any
resulting damage.
■ Regularly wipe the front of the
appliance with a damp cloth -
water and a small amount of
liquid soap is adequate. Do not
use sponges as they could
scratch the surfaces.
■ Do not use bleach-based wipes
as they could damage the surface
or printing.
■ Stainless steel appliances: To
prevent corrosion, do not use
sponges or chlorine based
cleaners. Use a stainless steel
polish to seal and protect the
surface. Do not use chlorine
based cleaners or wipes.
■ Clean the outer edges of the
inside door panel regularly to
remove debris that may collect
from normal loading. If spots
begin to appear on the stainless
steel, make sure the rinse agent is
full and functioning properly.
■ Clean the door seal regularly with
a damp cloth to remove food
particles that may collect from
normal loading and cause odor. A
soiled door seal may not seal
properly.
9 WARNING
Use caution when removing
parts for cleaning as some
debris may be sharp.
Filters
The Bosch
®
filter system 1b is
designed to prevent the need to
pre-rinse normally attached food soils
from your dishes. Simply scrape
leftover food soils off of dishware
before loading. This process will
conserve time, water and the energy
require to heat your household water
supply.
Your dishwasher filter system is
designed to filter 100% of the water
entering the spray arms to provide a
continuous supply of clean water to
remove food soils from your
dishware.
Filter components
The filter system 1b consists of
three parts.
A Large Object Trap
Prevents objects that should not
be placed in your dishwasher
from damaging the dishwasher
pump system or clogging your
household drain.
$
%
&
Care and Maintenance en-us
37
Cleaning intervals
The filter system 1b is designed to
minimize maintenance while
providing premium cleaning
performance and minimum energy
consumption.
Depending on use habits and water
hardness, the filter system will require
some maintenance to sustain
premium cleaning performance.
Your filter system may need to be
cleaned when:
■ You notice food soils remaining
on the filter system or objects
trapped in the Large Object Trap.
■ A drop in cleaning performance
or a gritty film forms on the
dishware.
When washing normally attached
food soils that have been scraped
before loading, in a household that
runs the dishwasher every other day,
your filter should be cleaned:
Note: Clean the filter after washing
loads with large amounts of food
soils or loads with a heavy starch
content, like potatoes and pasta, to
maintain optimal performance.
To check or clean the filter system:
1.
Unscrew the Large Object Trap as
illustrated and remove the entire
filter system.
2.
Remove any residue and clean
filters by rinsing under running
water. Note: do not use abrasive
brushes or steel wool, etc., as
they may damage the filter.
3.
Reinstall the filter system in
reverse sequence and lock into
place by screwing the Large
Object Trap until the marking
arrows align.
B Flat Fine Filter
Prevents food particles from
entering the wash chamber and
directs particles toward the micro
filter.
C Micro Filter
Directs the smallest of particles
to the household plumbing drain.
Cleaning interval Use this setting,
3-6 times a year if you rinse before
loading
4-12 times a year if you only scrape
before loading
12 times a year if you have hard water
en-us Care and Maintenance
38

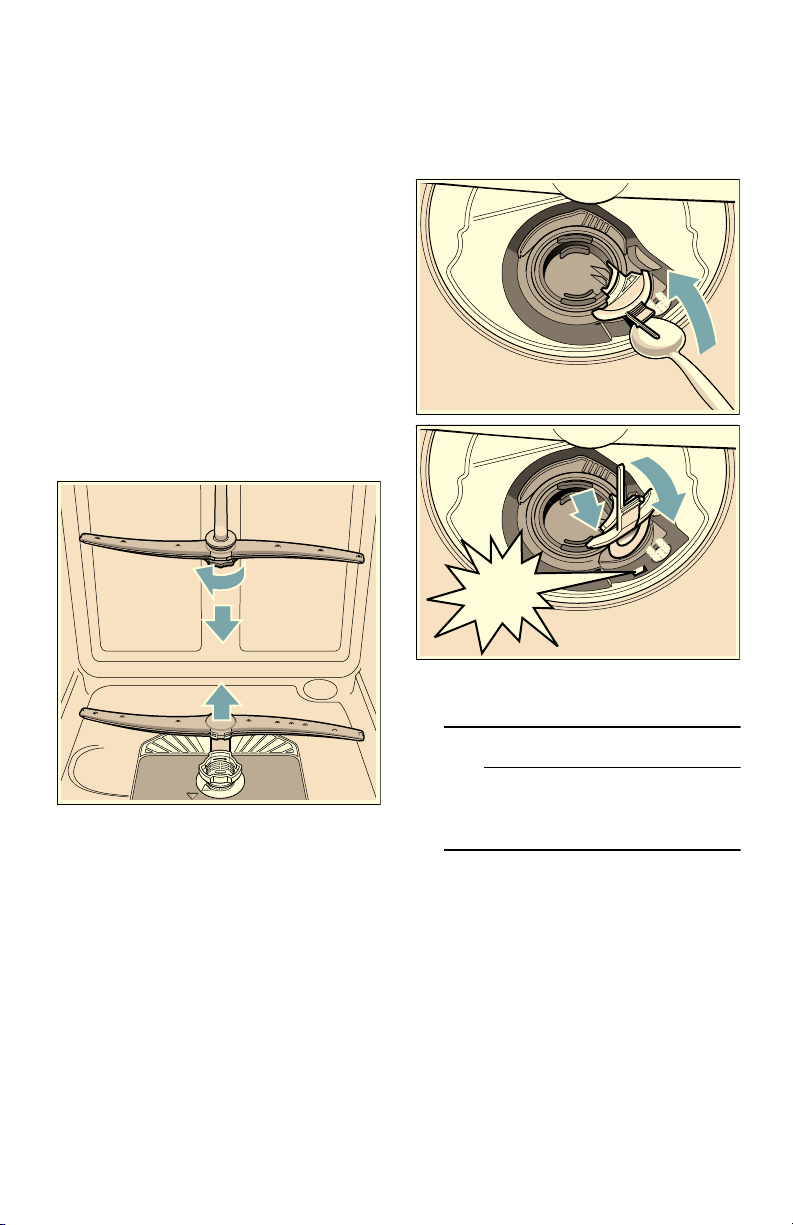

Spray arms
Check spray arms 1:, 1R for
grease and limescale deposits. If you
find such deposits:
■ Fill detergent dispenser 92 with
detergent and start the appliance
without utensils in the cycle with
the highest rinsing temperature.
~ "Wash Cycle Information"
on page 29
■ Clean the appliance with
detergents/appliance cleaners
which are particularly suitable for
use with dishwashers.
■ Unscrew the upper spray arm
1: and pull off the lower spray
1R arm as shown. Inspect for
deposits.
Drain pump
Large food remnants in the rinsing
water not retained by the filters may
block the waste water pump. In this
case:
■ Disconnect the appliance from the
power supply.
■ Remove the filters. ~ "Filters"
on page 36
■ Scoop out standing water - use a
sponge if necessary.
■ Using a spoon, pry off the pump
cover until it clicks, then grip the
cover and pull upward until it
resists and then pull forward.
■ Check inner compartment and
remove any foreign objects.
9 WARNING
Use caution when removing
parts for cleaning as some
debris may be sharp.
■ Place cover in the original
position, press down and engage.
■ Reinstall filters.
Note: The drain pump will not work
properly if the drain pump cover is
not snapped in completely until it
clicks.
&OLFN
Care and Maintenance en-us
39
Preparing your unit for
vacation
NOTICE
Before leaving for vacation during
warmer weather, besides turning off
the main valve, also turn off water
supply at the nearest point to the
dishwasher. Do not leave soiled
dishware in unit and leave door
slightly open. During colder weather,
please follow the instructions for
winterizing your unit below.
Winterizing your unit
NOTICE
If your dishwasher will be unused for
a period of time in a location that
experiences freezing temperatures
(holiday home or through a vacation
period), have your dishwasher
winterized by a professional service.
en-us Troubleshooting
40
3 Troubleshooting
Troubleshooting
Dishwashers may occasionally
exhibit problems that are unrelated to
a malfunction of the dishwasher itself.
The following information may help
you with a dishwasher problem
without involving a repair
professional.
Problem Cause Action
Dishwasher
does not start
Door may not be properly latched. Shut the door completely until you hear a
click.
Dishwasher may not be turned on. Press the main power switch ( to turn
dishwasher on.
Dishwasher not reset or previous
cycle not completed.
Reset the dishwasher. ~ "Cancel a cycle
(Reset)" on page 34
Delay start engaged. Reset Delay start. ~ "Delay Start"
on page 32
Interruption of electrical power
supply to dishwasher or blown fuse.
Check circuit breaker.
The door may have been closed
without first selecting a cycle.
Select a cycle and close the door.
Water supply may not be turned on. Check and turn on water supply.
Cycle does not
resume after
door is opened
and closed
during cycle.
Door is opened longer than
4 seconds after a cycle has started.
Press Start button again to resume cycle.
Display does
not illuminate
A fuse may have been blown or
circuit breaker tripped.
Check the fuse or circuit breaker box and
replace the fuse or reset the breaker if
necessary.
Door not closed or latched.
Note: For models with controls on
top of the door, the display only
illuminates when the door is opened
and controls are visible.
Ensure door is properly latched and
completely closed.
Troubleshooting en-us
41
Dishwasher
seems to run a
long time
Incoming water is not warm
enough.
Before starting a cycle, run hot water faucet
at the sink closest to the dishwasher.
Cycle time can vary due to soil and
water conditions.
Sensors in the dishwasher automatically
increase the cycle time to ensure a good
wash when heavy soil is detected.
Rinse aid dispenser 9* is empty,
or rinse aid setting has been set to
“0”.
Add rinse aid, or change rinse aid setting.
Dishwasher connected to cold
water supply.
Note: Check the typical wash cycle
length. ~ "Wash Cycle
Information" on page 29
Verify dishwasher is connected to hot water
supply plumbing.
Dishes are not
getting clean
enough
Spray arm movement obstructed. Ensure that spray arm movement is not
blocked by hand rotating spray
arms 1:, 1R before starting cycle.
Spray arm nozzles clogged. Remove spray arms 1:, 1R and clean
them. ~ "Spray arms" on page 38
Improper use of detergents. Increase or decrease detergent depending
on the water hardness.
Filters 1b could be clogged. Clean the filters 1b. ~ "Filter
components" on page 36
Dishes are nested or loaded too
closely together.
Rearrange load such that water spray can
reach all items in the dishwasher.
~ "Loading the Dishwasher" on page 15
Selected wash cycle is not suitable
for food soil conditions.
Refer to Wash Cycle Information.
~ "Wash Cycle Information" on page 29
Streaks on
glassware or
residue on the
dishes
Incorrect rinse aid setting. Depending on the hardness of water, adjust
the rinse agent dispenser 9*. ~ "Rinse
Aid" on page 14
Dishes are not
getting dry
enough
Note: Plastic or
Teflon do not
typically dry as
well as other
items due to
their inherent
properties.
Rinse aid dispenser 9* is empty
or incorrect rinse aid amount is set.
Add rinse aid or adjust setting - the use of
rinse agent improves drying, use the Auto
cycle, use the Sanitize option.
Improper loading of dishes. Rearrange load to ensure items are not
nesting. ~ "Loading the Dishwasher"
on page 15
Note: Select models offer an extra heating
option to improve drying performance.
en-us Troubleshooting
42
Odor
Note: Water
testing is done
in the factory.
Occasionally
water may still
appear in
dishwasher at
purchase which
may create an
odor.
Food debris is present at the
bottom of the dishwasher.
Remove the filters and clean them.
~ "Care and Maintenance" on page 36
Food particles are present near the
door seal.
~ "Care and Maintenance" on page 36
Residual water is present at the
bottom of the dishwasher.
Ensure the dishwasher has completely
drained from the last cycle.
Drain hose is obstructed. Remove any obstructions from the drain
hose by calling qualified personnel.
Note: If odor still persists, run the Normal/
Regular cycle until it flushes and interrupt
the cycle and place an 8 oz. cup of distilled
white vinegar solution on the upper rack and
then finish the cycle.
Dishwasher not
filling with
water or
“Check water
supply” display
lights up
Restriction in the water supply
system.
Ensure that the water supply valve (typically
located under kitchen sink) is open and
check that the water supply line has no
kinks or clogs.
Previous wash cycle was not
completed.
~ "Operating the Dishwasher" on page 31
Delay start is active. Cancel the delay start or wait until delay
start time completes.
Household water supply turned off. Turn on water supply.
Fascia panel
discolored or
marked
Abrasive cleaner used. Use mild detergents with soft damp cloth.
Noise during
wash cycle
Dishes may not be arranged
properly.
Water circulation sound is normal, but if you
suspect items are banging into each other
or into the spray arms, check optimal
arrangement of dishes. ~ "Loading the
Dishwasher" on page 15
Water leaks
Suds. Using wrong type of detergent or overfilling
the rinse aid dispenser results in suds and
leaks - use only dishwasher detergents. If
suds still persist, add one tablespoon of
vegetable oil at the bottom of the
dishwasher and run the desired cycle.
Door seal could be pulled away
from track.
Ensure the door seal is in the track.
Condensation vent is blocked. Ensure that condensation vent is not
blocked.
Improper installation. Have proper installation verified by qualified
personnel (water supply, drain system,
leveling, plumbing).
Troubleshooting en-us
43
--------
Tub stains Stains on the dishwasher interior
are due to water hardness.
Concentrated lemon juice can reduce the
build-up of hard water stains. Run
Normal/Regular cycle until it flushes and
interrupt the cycle and then place an 8 oz.
cup of the concentrated lemon solution on
the upper rack and finish the cycle. This can
be done periodically to avoid build-up.
Silverware in contact with tub. Ensure that silverware does not make
contact with the tub while running a cycle.
Detergent
dispenser
cover will not
shut
Improper operation of detergent
cover.
For instructions on opening and closing the
dispenser ~ "Detergent" on page 25
Previous cycle was not finished or
interrupted.
~ "Operating the Dishwasher" on page 31
Unable to
select desired
cycle
Previous cycle not finished. ~ "Operating the Dishwasher" on page 31
Touch sensitive
keys not
activating
easily or
activating
without being
touched
Water or other liquid on the surface. Wiping the fascia with a wet cloth may
cause unwanted activation. wipe the fascia
with a soft, dry cloth when possible. If you
must use a damp cloth to clean, dry
immediately. Never pour water on the
controls.
Touch keys not being activated
properly.
Press the center of the touch key with the
flat area of your fingertip. A beep will sound
to indicate that the selection has been
made. Touching the keys lightly should
work.
Note: There is a built-in delay to prevent
someone from launching several actions at
once by accidentally wiping their hand (or a
cleaning cloth) across the control panel.
en-us Customer Service
44
4 Customer Service
Customer Service
Your Bosch® dishwasher requires no
special care other than that
described in the Care and
Maintenance section of this manual.
If you are having a problem with your
dishwasher, before calling for service
please refer to the Troubleshooting
Guide section of the manual. If
service is necessary, contact your
dealer or installer or an authorized
service center. Do not attempt to
repair the appliance yourself. Any
work performed by unauthorized
personnel may void the warranty.
If you are having a problem with your
Bosch® dishwasher and are not
pleased with the service you have
received, please take the following
steps until the problem is corrected
to your satisfaction:
1.
Call us at 1-800-944-2904
2.
Contact Customer Service from
our web site:
www.bosch-home.com/us or
www.bosch-home.ca
3.
Contact your installer or the
Bosch Authorized Service
Contractor in your area.
4.
Write us:
BSH Home Appliances Corporation
1901 Main Street
Irvine, CA 92614
Please be sure to include your model
information as well as an explanation
of the problem and the date it

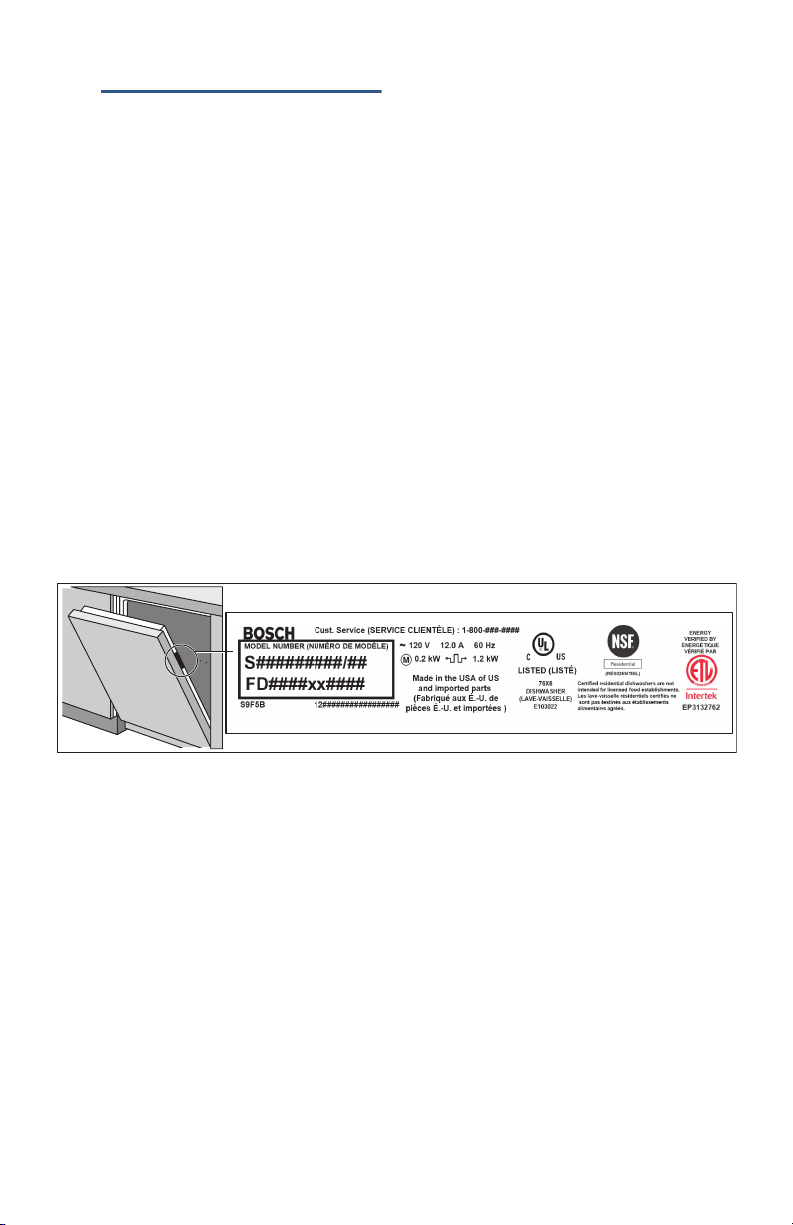

started. You will find the model and
serial number information on the
label located on the edge of the
dishwasher door. Please make a
copy of your invoice and keep it with
this manual. The customer may be
required to show proof of purchase
to validate warranty coverage.
Statement of Limited Product Warranty en-us
45
‡ Statement of Limited
Product Warranty
Statement of Limited Product Warranty
What this Warranty Covers
& Who it Applies to:
The limited warranty provided by
BSH Home Appliances Corporation
(BSH) in this Statement of Limited
Product Warranty applies only to
Bosch® dishwashers (“Product”)
sold to you, the first using purchaser,
provided that the Product was
purchased:
■ for your normal, household
(non-commercial) use, and has in
fact at all times only been used
for normal household purposes;
■ new at retail (not a display, “as
is”, or previously returned model),
and not for resale, or commercial
use; and
■ within the United States or
Canada, and has at all times
remained within the country of
original purchase. The warranties
stated herein apply only to the
first purchaser of the Product and
are not transferable.
Please make sure to return your
registration card; while not necessary
to effectuate warranty coverage, it is
the best way for BSH to notify you in
the unlikely event of a safety notice or
product recall.
How Long the Warranty
Lasts
BSH warrants that the Product is free
from defects in materials and
workmanship for a period of three
hundred sixty five (365) days from
the date of purchase. The foregoing
timeline begins to run upon the date
of purchase, and shall not be stalled,
tolled, extended, or suspended, for
any reason whatsoever.
This Product is also warranted to be
free from cosmetic defects in
material and workmanship (such as
scratches of stainless steel,
paint/porcelain blemishes, chip,
dents, or other damage to the finish
of the Product), for a period of thirty
(30) days from the date of purchase
or closing date for new construction.
This cosmetic warranty excludes
slight color variations due to inherent
differences in painted and porcelain
parts, as well as differences caused
by kitchen lighting, product location,
or other similar factors. This
cosmetic warranty specifically
excludes any display, floor, “As Is”,
or “B” stock appliances.
Extended Limited Warranty
BSH also provides these additional
limited warranties:
■ 5 year limited warranty on
electronics: BSH will repair or
replace any BSH microprocessor
or printed circuit board if it proves
to be defective in materials or
workmanship (excludes labor
charges).
■ 5 year limited warranty on dish
racks: BSH will replace the upper
or lower dish rack (excluding rack
components), if the rack proves
defective in materials or
workmanship (excludes labor
charges).
■ Lifetime warranty against stainless
steel rust through: BSH will repair
or replace your dishwasher with
the same model or a current
model that is substantially
equivalent or better in
functionality, if the inner liner
should rust through (excludes
labor charges).
■ BSH will repair or replace the
stainless steel door if the door
should rust through (excludes
labor charges).
en-us Statement of Limited Product Warranty
46
Repair/Replace as Your
Exclusive Remedy
During this warranty period, BSH or
one of its authorized service
providers will repair your Product
without charge to you (subject to
certain limitations stated herein) if
your Product proves to have been
manufactured with a defect in
materials or workmanship. If
reasonable attempts to repair the
Product have been made without
success, then BSH will replace your
Product (upgraded models may be
available to you, in the sole discretion
of BSH, for an additional charge). All
removed parts and components shall
become the property of BSH at its
sole option. All replaced and/or
repaired parts shall assume the
identity of the original part for
purposes of this warranty and this
warranty shall not be extended with
respect to such parts. BSH’s sole
liability and responsibility hereunder
is to repair manufacturer-defective
Product only, using a BSH-authorized
service provider during normal
business hours. For safety and
property damage concerns, BSH
highly recommends that you do not
attempt to repair the Product
yourself, or use an unauthorized
servicer; BSH will have no
responsibility or liability for repairs or
work performed by a non-authorized
servicer. If you choose to have
someone other than an authorized
service provider work on your
Product, THIS WARRANTY WILL
AUTOMATICALLY BECOME NULL
AND VOID. Authorized service
providers are those persons or
companies that have been specially
trained on BSH products, and who
possess, in the opinion of BSH, a
superior reputation for customer
service and technical ability (note
that they are independent entities
and are not agents, partners,
affiliates or representatives of BSH).
Notwithstanding the foregoing, BSH
will not incur any liability, or have
responsibility, for the Product if it is
located in a remote area (more than
100 miles from an authorized service
provider) or is reasonably
inaccessible, hazardous, threatening,
or treacherous locale, surroundings,
or environment; in any such event, if
you request, BSH would still pay for
labor and parts and ship the parts to
the nearest authorized service
provider, but you would still be fully
liable and responsible for any travel
time or other special charges by the
service company, assuming they
agree to make the service call.
Out of Warranty Product
BSH is under no obligation, at law or
otherwise, to provide you with any
concessions, including repairs,
pro-rates, or Product replacement,
once this warranty has expired.
Warranty Exclusions
The warranty coverage described
herein excludes all defects or
damage that are not the direct fault
of BSH, including without limitation,
one or more of the following:
■ Use of the Product in anything
other than its normal, customary
and intended manner (including
without limitation, any form of
commercial use, use or storage of
an indoor product outdoors, use
of the Product in conjunction with
air or water-going vessels);
Statement of Limited Product Warranty en-us
47
■ Any party’s willful misconduct,
negligence, misuse, abuse,
accidents, neglect, improper
operation, failure to maintain,
improper or negligent installation,
tampering, failure to follow
operating instructions,
mishandling, unauthorized service
(including self-performed “fixing”
or exploration of the appliance’s
internal workings);
■ Adjustment, alteration or
modification of any kind;
■ A failure to comply with any
applicable state, local, city, or
county electrical, plumbing and/or
building codes, regulations, or
laws, including failure to install the
product in strict conformity with
local fire and building codes and
regulations;
■ Ordinary wear and tear, spills of
food, liquid, grease
accumulations, or other
substances that accumulate on,
in, or around the Product;
■ Any external, elemental and/or
environmental forces and factors,
including without limitation, rain,
wind, sand, floods, fires, mud
slides, freezing temperatures,
excessive moisture or extended
exposure to humidity, lightning,
power surges, structural failures
surrounding the appliance, and
acts of God.
In no event shall BSH have any
liability or responsibility whatsoever
for damage to surrounding property,
including cabinetry, floors, ceilings,
and other structures or objects
around the Product. Also excluded
from this warranty are Products on
which the serial numbers have been
altered, defaced, or removed; service
visits to teach you how to use the
Product, or visits where there is
nothing wrong with the Product;
correction of installation problems
(you are solely responsible for any
structure and setting for the Product,
including all electrical, plumbing or
other connecting facilities, for proper
foundation/flooring, and for any
alterations including without limitation
cabinetry, walls, floors, shelving,
etc.); and resetting of breakers or
fuses.
TO THE EXTENT ALLOWED BY LAW,
THIS WARRANTY SETS OUT YOUR
EXCLUSIVE REMEDIES WITH
RESPECT TO PRODUCT, WHETHER
THE CLAIM ARISES IN CONTRACT
OR TORT (INCLUDING STRICT
LIABILITY, OR NEGLIGENCE) OR
OTHERWISE. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES,
WHETHER EXPRESS OR IMPLIED.
ANY WARRANTY IMPLIED BY LAW,
WHETHER FOR MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE, OR OTHERWISE, SHALL
BE EFFECTIVE ONLY FOR THE
PERIOD THAT THIS EXPRESS
LIMITED WARRANTY IS EFFECTIVE.
IN NO EVENT WILL THE
MANUFACTURER BE LIABLE FOR
CONSEQUENTIAL, SPECIAL,
INCIDENTAL, INDIRECT, “BUSINESS
LOSS”, AND/OR PUNITIVE
DAMAGES, LOSSES, OR EXPENSES,
INCLUDING WITHOUT LIMITATION
TIME AWAY FROM WORK, HOTELS
AND/OR RESTAURANT MEALS,
REMODELLING EXPENSES IN
EXCESS OF DIRECT DAMAGES
WHICH ARE DEFINITIVELY CAUSED
EXCLUSIVELY BY BSH, OR
OTHERWISE. SOME STATES DO
NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, AND
SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATIONS MAY NOT
APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE. No attempt to
alter, modify or amend this warranty
en-us Statement of Limited Product Warranty
48
shall be effective unless authorized in
writing by an officer of BSH Home
Appliances Corporation.
How to Obtain Warranty
Service
TO OBTAIN WARRANTY SERVICE
FOR YOUR PRODUCT, YOU
SHOULD CONTACT THE NEAREST
BSH AUTHORIZED SERVICE
CENTER, OR CALL 1-800-944-2904
.BJO4USFFU4VJUF
#4))PNF"QQMJBODFT$PSQPSBUJPO
*SWJOF$"
#4)TFSÎTFSWFMFESPJUEFNPEJGJFSMFTEPOOÎFTUFDIOJRVFTPVMFEFTJHO
TBOTQSÎBWJT$FSUBJOTNPEÑMFTTPOUDFSUJGJÎTQPVSVOFVUJMJTBUJPOBV$BOBEB
VOFVUJMJTBUJPOBV$BOBEB7ÎSJGJFSBVQSÑTEVONBSDIBOEPVEJTUSJCVUFVSDBOBEJFO
#4)OFTUQBTSFTQPOTBCMFQPVSMFTQSPEVJUTUSBOTQPSUÎTEFT±UBUT6OJTQPVS
#4)SFTFSWFTUIFSJHIUUPDIBOHFTQFDJGJDBUJPOTPSEFTJHOXJUIPVUOPUJDF
4PNFNPEFMTBSFDFSUJGJFEGPSVTFJO$BOBEB#4)JTOPUSFTQPOTJCMFGPS
QSPEVDUTXIJDIBSFUSBOTQPSUFEGSPNUIF6OJUFE4UBUFTGPSVTFJO$BOBEB
$IFDLXJUIZPVSMPDBM$BOBEJBOEJTUSJCVUPSPSEFBMFS
*9001238313*
9001238313
(9701)
Rev B
