User manual of Frigidaire CGDS3065PFR (48 pages)
file thumbnail

FRIGIDAIRE

TABLE OF CONTENTS

Product Record and Registration Important Safety Instructions Before Setting Surface Burners

Setting Surface Burners Before Setting Oven Controls

Oven Controls

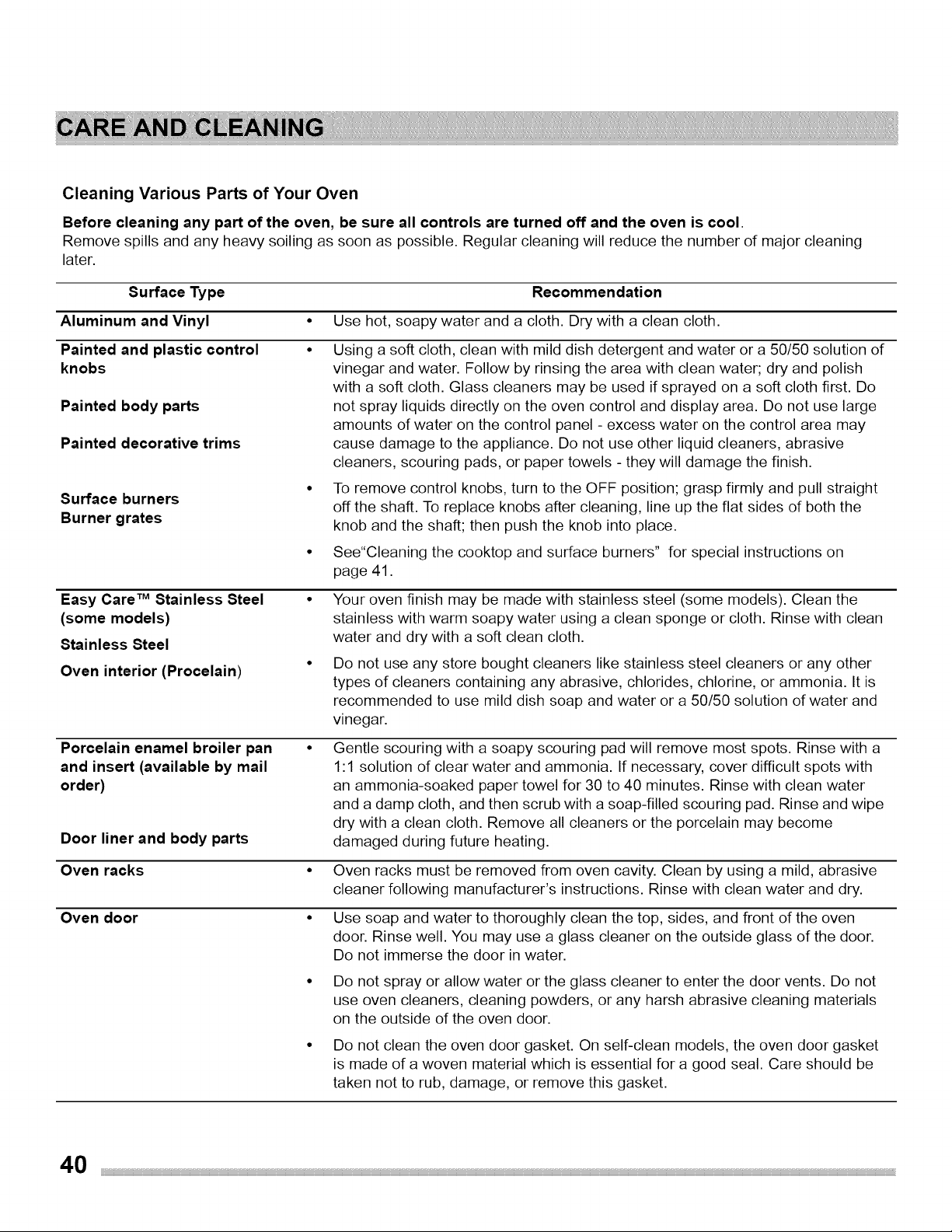

Care and Cleaning

Before You Call Warranty

GO tad

O'1 IO

I'O C)

Need Help? Product Registration Product Record and Registration Important Safety Instructions Before Setting Surface Burners

Setting Surface Burners Before Setting Oven Controls

Oven Controls

Care and Cleaning

Before You Call .

Warranty

Thank you for choosing Frigidaire.

Important: This Use and Care Guide is part of our commit ment to customer satisfaction and product quality throughout the service life of your new appliance. We view your purchase as the beginning of a relationship.

To ensure our ability to continue serving you. please use this page to record important product information.

Need Help?

Visit the Frigidaire web site at www.frigidaire.com

Before you call for service. there are a few things you can do to help us serve you better.

Read this Use & Care Manual

This manual contains instructions to help you use and maintain your range properly.

If You Received a Damaged Range

Immediately contact the dealer (or builder) that sold you the range.

Save Time and Money

Check the section title "Before You Call". This section helps step you through some common problems that might occur.

If you do need service. help is only a phone call away. Call Frigidaire Customer Services at 1-800-944-9044.

Product Registration

Registering your product with Frigidaire enhances our ability to serve you. Register online at www.frigidaire.com or by dropping your Product Registration Card in the mail.

Record model & serial numbers here

Purchase Date

Questions?

For toll-free telephone support in the U.S. call 1-800-944-9044

For online support and Internet production information visit http://www.frigidaire.com.

Frigidaire model number

Frigidaire serial number

Serial Plate Location Left side of OVeRframe

°!2 E!ec! o ux HomeProduc!s nc: AHr!gh!sreserved: Pr!n!edin!heUSA

CAUTIONS AND WARNINGS

Read all instructions before using this appliance.

This manual contains important safety symbols and instructions.

Please pay attention to these symbols and follow all instructions given.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual.

Safety items throughout this manual are labeled with a WARNING or CAUTION statement

DEFINITIONS

Indicates a potentially hazardous situation which. if not avoided. may result in minor or moderate injury.

Indicates installation. operation. maintenance. or

Storage In or On Appliance--Flammable materials should not be stored in an oven or near surface i;

If the information in this manual is not followed

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Immediately call your gas supplier from neighbor's phone.

Follow the gas supplier's instructions.

If you cannot reach your gas supplier. call the fire department.

Installation and service must be performed by a qualified installer. servicer or the gas supplier.

Indicates a short. informal reference.

Usually

Tip Over Hazard

• A child or adult can tip the appliance and be killed.

• Verify the device is engaged with the countertops or that the device has been installed to the walls of

;= Ensure the anti-tip device is re-engaged with the countertop. the walls of the cabinet. the wall. or the floor as per the installation instructions when the

To check if the anti-tip

Refer to the anti-tip bracket installation

Do Not Leave Children Alone Children should not be left alone or unattended in the area where

Stepping. leaning. or sitting on the door or drawers of a oven can result in serious injuries and also cause damage to the appliance.

Do not allow children to climb or play around the oven.

The weight of a child on an open over door may cause the oven to tip. resulting in serious burns or other injury.

Never cover any slots. holes. or passages in the oven bottom or cover an entire oven rack with

Important Safety Notice The California Safe Drinking Water and Toxic Enforcement Act requires the governor of California to publish a list of substances known to cause cancer. birth defects. or other reproductive harms. and requires businesses to warn customers of potential exposures to such substances.

Cold temperatures can damage the electronic control.

When using this appliance for the first time. or when the appliance has not been used for an extended period of time. be sure the appliance has been in temperatures above 32°F (0°C) for at least 3 hours before turning on the power to the appliance.

Do not attempt to operate the oven during a power failure.

If the power fails. always turn off the oven.

If i: the oven is not turned off and the power resumes. the oven will begin to operate again.

Once the power resumes. reset the clock and oven function.

Whenheatingfat orgrease. atchit closely.

Greasemaycatchfire if it becomestoo hot.

Donot usewaterorflourongreasefires.

Smotherfire orflameor usea dry chemicalor foam-typeextinguisher.Coverthefirewitha pan lid or usebakingsoda.

Usedrypotholders.Moistordamppotholderson hotsurfacesmayresultinburnsfromsteam.Do notlet potholderstouchhotcookingareas.Do notusetowelsor otherbulkycloths.

Donotheatunopenedfoodcontainers.Build-up of pressuremaycausecontainerto burstand resultin injury.

Wearproperapparel.Loose-fittingor hanging garmentsshouldneverbewornwhileusingthe appliance.

Donottouchheatingelementsor interior surfacesof oven.Heatingelementsmaybe hot eventhoughtheyaredarkincolor.Interior surfacesof an ovenbecomehotenoughto causeburns.Duringandafteruse. o nottouch. or letclothingor otherflammablematerials contactheatingelementsor interiorsurfacesof ovenuntiltheyhavehadsufficienttimeto cool.

Othersurfacesof theappliancemaybecomehot enoughto causeburns- amongthesesurfaces are(identificationofsurfaces- for example. ven ventopeningsandsurfacesnearthese openings. vendoors. ndwindowsof oven doors).

Readandfollowthebelowinstructionsandprecau tionsfor unpacking. nstalling. ndservicingyour appliance: Removealltapeandpackagingbeforeusingthe oven.Destroythecartonandplasticbagsafter unpackingthe oven.Neverallowchildrento play withpackagingmaterial. Properinstallationis essential.Be sureyour applianceisproperlyinstalledandgroundedbya qualifiedtechnicianinaccordancewiththe NationalElectricalCodeANSI/NFPANo.70 latesteditionandlocalelectricalcoderequire ments.In Canada. nstallinaccordancewith CSAStandardC22.1. anadianElectricalcode.

Part1. nd localelectricalcoderequirements. inthe literaturepackagefor thisoven.

UserServicing- Donotrepairor replaceanypart of the applianceunlessspecificallyrecom mendedinthe manuals.All otherservicing shouldbedoneonly bya qualifiedtechnician.

Thisreducesthe riskof personalinjuryand damageto theoven.

Askyourdealerto recommenda qualifiedtechni cianandanauthorizedrepairservice.Knowhow to disconnectthe powerto theovenat thecircuit breakeror fuseboxincaseof anemergency.

Nevermodifyoraltertheconstructionof anoven by removingthelevelinglegs. anels. ire covers. nti-tipbrackets/screws. r anyother partof theoven. Removetheovendoorfromanyunusedovenif it isto bestoredordiscarded.

IMPORTANT INSTRUCTIONS FOR USING YOUR

COOKTOP

Use Proper Flame Size Adjust flame size so it does not extend beyond the edge of the utensil.

The use of undersized utensils will expose a portion of the burner flame to direct contact and may result in ignition of clothing.

Proper relationship of utensil to flame will also improve efficiency.

Knowwhich knob controls each surface burner.

Place a pan of food on the burner before turning it on. and turn the burner off before removing the pan.

Always turn knob to the full LITE position when igniting top burners.

Visually check that burner has lit. Then adjust the flame so it does not extend beyond the edge of the utensil.

Utensil handles should be turned inward and not

Never leave surface burners unattended at high heat settings

Boil overs cause smoking and greasy spill overs that may ignite. or a pan that has boiled dry may melt.

Glazed cooking utensils

Only certain types of glass. glass/ceramic. ceramic. earthenware. or other glazed utensils are suitable for cook top service without breaking due to the sudden change in temperature.

Check the manufacturer's recom mendations for cook top use.

When you are flaming foods under a ventilating hood. turn the fan on.

IMPORTANT INSTRUCTIONS FOR USING YOUR OVEN

Never use your appliance for warming or heating the room.

Use care when opening oven door. lower oven door. or warmer drawer (some models).

Stand to the side of the oven when opening the door of a hot oven.

Let hot air or steam escape before you remove or replace food in the oven.

Keep oven vent ducts unobstructed.

Touching surfaces in this area when the oven is on may cause severe burns.

Do not place plastic or heat sensitive items on or near the oven vent.

These

Placement of Oven Racks Always place oven racks in desired location while oven is cool.

If rack

Do not use a broiler pan without its insert.

Broiler pans and inserts allow dripping fat to drain away from the high heat of the broiler.

Do not cover the broiler insert with aluminum foil; exposed fat and grease could ignite.

Protective Liners Do not use aluminum foil to line

Do not cook food on the oven bottom.

Always cook in proper cookware and always use the over racks.

IMPORTANT INSTRUCTIONS FOR CLEANING YOUR OVEN GROUNDING INSTRUCTIONS

For models equipped with power cord:

Before manually cleaning any part of the oven. be sure all controls are turned off and the oven is cool.

Cleaning a hot oven can cause burns.

Always followthe manufacturer's recommended directions for use of kitchen cleaners and aerosols.

Be aware that excess residue from cleaners and

Clean ventilating hoods frequently.

Grease should not be allowed to accumulate on the hood or filter.

Follow the manufacturer's instructions for cleaning hoods.

Avoid fire hazard or electrical shock.

Failure to

For personal safety. this appliance must be properly grounded.

For maximum safety. the power cord must be plugged into an electrical outlet that is the correct voltage. is correctly polarized. and properly grounded in accordance with local codes.

For personal safety. this appliance must be properly grounded.

For maximum safety. the power cord must be plugged into an electrical outlet that is the correct voltage. is correctly polarized and properly grounded in accor dance with local codes.

SELF-CLEANING OVENS

Clean only the parts listed in this manual.

Before using self-clean. remove the broiler pan. any food. utensils. and cookware from the oven.

Remove oven racks unless otherwise instructed.

Do not use oven cleaners.

No commercial oven

Do not clean the oven door gasket.

The door gasket is essential for a good seal. Care should be taken not to rub. damage. or move the gasket.

Some birds are extremely sensitive to the fumes given off during the self-clean cycle of any oven.

Move birds to another well-ventilated room.

Power supply cord with 4-prong grounding plug V grounded wall receptacle

It is the responsibility and obligation of the consumer to contact a qualified installer to assure that the elec trical installation is adequate and is in conformance with all local codes and ordinances.

See the installation instructions packaged with this appliance for complete installation and grounding instructions.

GROUNDING INSTRUCTIONS (con't) This appliance allows for conversion to Liquefied Petroleum (L.P.) Gas.

Avoid fire hazard or electrical shock.

Failure to

For models without factory-supplied power cord:

For personal safety. this appliance must be properly grounded.

For maximum safety. the power cord must be plugged into an electrical outlet that is the correct voltage. is correctly polarized and properly grounded in accordance with local codes.

Is the personal responsibility of the consumer to have the appropriate outlet with the correct. properly grounded wall recep tacle installed by a qualified electrician.

It is the responsibility and obligation of the consumer to contact a qualified installer to assure that the electrical installation is adequate and is in conformance with all local codes and ordinances.

See the installation instructions packaged with this appliance for complete installation and grounding instructions.

Personal injury or death from electrical shock may occur if the conversion to L.P. gas is not made by a qualified installer or electrician.

Any additions. changes or conversions required in order for this appliance to satisfactorily meet the

Conversion to L.P. Gas

If L.P. conversion is needed. contact your local L.P.

Gas provider for assistance.

The L.P. conversion kit is provided with this appliance and is located on the lower rear (back side) panel of the range.

Before installing the kit be sure to read the L.P. Installation Instructions and follow them carefully when making the installation.

Control locations of the gas surface burners

Your built-in range is equipped with gas surface burners with different BTU ratings. The ability to heat food quicker and in larger volumes increases as the burner size increases.

The small simmer burner (some models) is best used for simmering delicate sauces. etc. This burner is located at the right rear burner position on the cooktop (Figure 1). The standard burner can be used for most surface cooking needs. The standard burners are located at the left front

The power burners are best used for bringing large quanti ties of liquid rapidly up to temperature or when preparing larger quantities of food. The POWER burner is located at the right front position on the cooktop.

Regardless of size. always select cookware that is suitable for the amount and type of food being prepared. Select a burner and flame size appropriate to the pan. Never allow flames to extend beyond the outer edge of the pan.

Assembly of the burner caps and burner grates

It is very important to make sure that all of the surface burner caps and surface burner grates are installed correctly and at the correct locations.

Remove all packing material from cooktop area.

Discard all packing material (if applicable).

Unpack burner grates and position on the cooktop.

On round style burners. the burner cap lip (Figure 2) should fit snug into the center of burner head and rest level. Refer to Figure 3 for correct and incorrect burner cap placement.

Once in place. you may check the fit by gently sliding the burner cap from side to side (Figure 4) to be sure it is centered and firmly seated. When the burner cap lip makes contact inside the center of the burner head you will be able to hear the burner cap click.

Burner cap

Burner cap lip

Figure 1: Burner locations

Do not allow spills. food. cleaning agents or any other material to enter the gas orifice holder opening. Always keep the burner caps and burner heads in place whenever the surface burners are in use.

Figure 2: Burner cap and burner head

Correct burner cap Incorrect burner cap

Figure 3: Proper burner cap placement

Figure 4:

:iiiiiiiiiiiiiiiiiil

Gently moving cap for proper placement

Double Ring style burners (some models)

The Double Ring burner only operates properly with two burner caps in place. Be sure the burner cap lips are posi tioned facing down towards the burner head and into the recessed areas (Figure 5) on each side of the burner head.

Be sure both burner caps are seated firmly and rest level on the burner head before operating.

Check the fit for each cap using the same method for the round burner caps by gently sliding each cap from side to side. Please note that the burner cap lips should not move out of recessed areas of the burner head.

Dual burner head (some models)

Burner cap

Burner cap lip

'T="_ Burner head

Recessed areas

Burner

Burner caps

Please note that the burner cap should not move off the center of the burner head when sliding from side to side.

Check and be sure that all oval style (some models) burner caps are correctly in place on oval burner heads.

Do not use the surface burners without the burner caps and burner grates properly installed.

Missing pieces or improper installation may lead to spills. burns. or damage to your range and cookware.

Make sure the burner grates are properly placed on the cooktop before using the surface burners (Figure 6). The grates are designed to rest inside the recess on the cooktop.

To install burner grates. place grates flat-side down and align into the cooktop recess.

Grates should rest flush against each other and against the sides of the recess. iiiii

Figure 5: Dual burner head using two burner caps

Figure 6: Proper grate installation

Using Proper Cookware

Do not place plastic items such as salt and pepper shakers. spoon holders or plastic wrappings on top of the range when it is in use. These items could melt or ignite.

Pot holders. towels or wood spoons could catch fire if placed too close to a flame. Do not operate the burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

Important: Do not place aluminum foil or any material that can melt on the range cooktop. If these items melt they may damage the cooktop.

For best cooking results. cookware should have flat bottoms that rest level on the burner grate. Before using cookware. check for flatness by rotating a ruler across the bottom of the cookware (Figure 7).

Cookware Material Types

The most popular materials available are:

Aluminum

Excellent heat conductor. Some types of food will cause it to darken (Anodized aluminum cookware resists staining & pitting).

Copper

Excellent heat conductor but discolors easily.

Stainless

Slow heat conductor with uneven cooking results.

Durable. easy to clean and resists staining.

Cast Iron

A slow heat conductor however will retain heat very well. Cooks evenly once cooking temperature is reached.

Porcelain enamel on metal

Heating characteristics will vary depending on base material.

Glass

Slow heat conductor.

Figure 7: Checking pan for flat bottom

Please note: The size and type of utensil used. and the amount and type of food being cooked will influence the burner flame setting needed for best cooking results.

Operating the gas surface controls

Place cooking utensil on surface burner.

Push the surface control knob in and turn counterclock

Release the knob and rotate to the LITE position (Figure 8). Note: All four electronic surface ignitors will spark at the same time. However. only the burner you are turning on will ignite.

Visually check that the burner has a flame.

Turn the control knob counterclockwise to the desired flame size. The control knobs do not have to be set at a particular setting. Use the knob indicator settings to adjust the flame as needed. Do not cook with the surface control knob in the LITE position. (The elec tronic ignitor will continue to spark if the knob is left in the LITE position.)

Setting proper surface burner flame size

Start on the highest control setting and adjust to the desired setting. Use the recommendations below as a guide for determining proper flame size for various types of cooking.

The size and type of utensil used and the amount of food being cooked will influence the setting needed.

Flame Size Type of Cooking

High Flame Start most foods

Bring water to a boil

Pan broiling

Medium Flame Maintain slow boil

Thicken sauces and

Steaming foods

Low Flame Keep foods cooking. poaching and stewing

Figure 8: Gas knob LITE position

Incorrect Correct

Figure Gas flame adjustment

Never extend the flame beyond the outer edge of the utensil. A higher flame simply wastes heat and energy. and increases the risk of being burned by the gas flame.

In the event of an electrical power outage. the surface burners can be lit manually. To light a surface burner. hold a lit match to the burner head. then slowly turn the surface control knob to LITE. After burner lights turn the knob to desired setting.

Settings based on using medium weight metal or aluminum pans. Settings may vary using other types of pans. The color of the flame is key to proper burner i: adjustment.

A good flame is clear. blue. and hardly visible in a well-lighted room. Each cone of the flame should be steady and sharp. Clean burner if flame is yellow-orange.

Setting Surface Controls

Your gas appliance may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases.

It is important to select cookware that is suitable for the amount and type of food being prepared.

The smaller SIMMER burner (on some models) is best suited for simmering delicate sauces. etc.

The standard size burners may be used for most surface cooking needs. Some models are equipped with a center burner.

The larger POWER burners (on some models) or TURBO BOIL burner (on some models) are recommended for bringing large quantities of liquid to temperature and when preparing larger quantities of food.

To set surface burners:

Place cooking utensil on center of surface burner grate.

Be sure the cooking utensil sets stable on the burner grate.

Push the desired surface control knob in and turn coun

Release the surface control knob and rotate to the LITE

Once the burner has a flame. push the control knob in and turn counterclockwise to the desired flame size.

Use the control knob markings and adjust the flame as needed.

Important:

Do not cook with the surface control knob left in the Lite position. The electronic ignitor will continue to spark if the control knob setting remains in the MTE position.

When setting any surface control knob to the Lite position. all electronic surface ignitors will spark at the same time. However. only the surface burner you are setting will ignite.

Never place or straddle a cooking utensil over 2 different surface cooking areas at the same time. This can cause uneven heating results.

In the event of an electrical power outage. the surface burners can be lit manually. Use caution when lighting surface burners manually. To light a surface burner. hold a lit match to the burner head. then slowly turn the surface control knob to LITE. After burner lights push in and turn knob to desired setting.

When operating the oven. it is possible for residual heat from the oven to build-up and over time to eventually transfer to the surface control knobs located directly above the oven door.

Figure 10: Proper way to set burners

Do not place flammable items such as plastic salt and pepper shakers. spoon holders or plastic wrappings on the cooktop when it is in use. These items could melt or ignite.

Potholders. towels. or wooden spoons could catch fire if placed too close to the range cooktop.

Do not place aluminum foil or any material that can melt on the range cooktop. If these items melt they may perma nently damage the cooktop surface.

Home Canning

Be sure to read and observe all the following points when home canning with your appliance.

Check with the United States Department of Agriculture (USDA) website and be sure to read all the information they have available as well as follow recommendations for home canning procedures.

Use only quality flat bottom canners when home canning. Use a straight-edge to check canner bottom.

Make sure the diameter of the canner does not exceed

1 inch beyond the surface element markings or burner.

Start with hot tap water to bring water to boil more quickly.

Use the highest heat setting when first bringing the water to a boil. Once boiling is achieved. reduce heat to lowest possible setting to maintain that boil.

Setting Double Ring Burner (some models)

The versatile Double Ring surface burner offers a complete range of gas surface settings from the same burner position.

At the lowest setting. only the burner's inner ring is active. using a smaller flame perfect for simmering. The burner's outer ring when set for HI will provide a gas flame that may be used to bring a large pan of liquid to boil quickly.

Figure 11: Burner at highest (L) setting and simmer (R)

Operating the Double Ring Burner:

Push right front surface burner control knob in and turn counterclockwise out of the OFF position and rotate to the LITE position.

Visually check that both inner and outer rings for the Double Ring burner are lit (Figure 11). Once lit. turn the control counterclockwise and adjust to the desired flame size.

When adjusting for a low or simmer type flame setting. continue to rotate the control knob counterclockwise from HI setting towards LO (Figure 12). When the knob is turned close enough towards the LO setting. the flame for the outer ring portion of the burner will turn off leaving only the inner burner with a flame for simmering (Figure 11). Make any further flame adjustments as needed..

Figure 12: Setting the double ring burner

Dual burner head (some models)

Burner cap

Burner head

Burner

Burner caps

Figure 13: Placing burner caps correctly

Do not place flammable items such as plastic salt and pepper shakers. spoon holders or plastic wrappings on the cooktop when it is in use. These items could melt or ignite.

Potholders. towels or wooden spoons could catch fire if placed too close to the range cooktop.

Do not place aluminum foil. or any material that can melt on the range cooktop. If these items melt they may perma nently damage the cooktop surface.

Do not cook with the surface control knob left in the LITE position. The electronic ignitor will continue to spark if the control knob setting remains in the LITE position.

When setting any surface control knob to the LITE position. all electronic surface ignitors will spark at the same time. However. only the surface burner you are setting will ignite.

Never place or straddle a cooking utensil over two different surface cooking areas at the same time. This can cause uneven heating results.

In the event of an electrical power outage. the surface burners can be lit manually. Use caution when lighting surface burners manually. To light a surface burner. hold a lit match to the burner head. then slowly turn the surface control knob to LITE. After burner lights push in and turn knob to desired setting.

Oven vent location

The oven vent is located in the rear of the cooktop. When the oven is on. warm air passes through this vent. This venting is necessary for proper air circulation in the oven and good baking results. While the oven is in operation. it is normal for steam or moisture to appear near the vent.

Important: Do not block oven vent.

Removing. replacing. and arranging flat or offset oven racks

To arrange

Always arrange the oven racks when the oven is cool (prior to operating the oven).

To remove

Pull the oven rack straight forward until it reaches the stop position. Lift up front of oven rack slightly and slide out.

To replace

Place the oven rack on the rack guides on both sides of oven walls. Tilt the front of oven rack upward slightly and slide the oven rack back into place. Be sure oven racks are level before using.

Important: Remove all oven racks and accessories from the oven before performing a self clean operation.

Figure 14: Do not block oven vent location

Always use pot holders or oven mitts when using the oven. When cooking. the oven interior and exterior. oven racks and cooktop will become very hot which can cause burns.

Air circulation in the oven

For best results the air circulation must be optimal when baking. Allow a space of 2-4 inches (5-10 cm) around the cookware for proper air circulation.

Be sure pans and cookware do not touch each other. the oven door. sides. or back of the oven cavity.

Hot air must be able to circulate around cookware for even heat to reach the food.

Protective Liners -- Do not use aluminum foil to line the

Type of oven racks Oven Rack Descriptions

Flat oven racks (or the flat handle oven rack) may be used for most cooking needs and may be placed in most oven rack positions.

The offset oven rack (some models) provides addi tional stepdown positions from the standard flat rack design. The offset design positions the base of the rack about ½ of a rack position lower than the flat rack and may be used in most oven rack positions.

The half oven rack (some models) design comes with a removable section that allows for taller cooking utensils.

The Effortless 7MOven Rack (some models)is described in the "Effortless 7MOven Rack system" section on page 17.

All oven racks should be removed before a self clean

The ability of the racks to easily slide in and out along the rack positions may also be affected.

Effortless TM Oven rack

Figure 15: Variety of oven racks

Effortless TMOven Rack system

Some models are equipped with a special oven rack system that automatically extends the oven rack to assist in access to your food items. This rack extends when the oven door is opened or closed.

Only the Effortless 7u Oven Rack system performs best when connected and used in oven rack position 2.

If the rack system is assembled with the connector arms. the Effortless TMOven rack may be used in oven rack positions 1. 2. and 3.

To assemble the Effortless TMOven Rack system:

Locate all required parts. You will need the supplied oven rack. Effortless TMOven Rack is a flat rack with a

Be sure the oven is completely cool before proceeding.

Open the oven door.

Place the oven rack in positions 1.2. or 3 (see Figure 16 to verify positions)..

Figure 17:

Bracket must be at rear of the range

Figure Rack positions

Be sure the rack connector brackets are at the rear of the

Figure 18: Assembly of the Effortless TMoven rack

Assemble one connector arm at a time. With the oven

Figure 19: Connector arm/door connection

While holding the connector arm in place. twist the connector arm so the ends of the connector arm point upwards (See Figure 20). The connector arm should now be locked into position.

Repeat steps 4 and 5 for the other connector arm.

End should

End should

Figure 20: Left & right brackets. pointing up

Once both connector arms are properly in place. be sure to test the oven rack operation by gently closing the oven door. The oven rack should move in and out of the oven freely when the door is opened or closed. (See Figure 21)

Figure 21:

Effortless TMoven rack after assembly

Remove all oven racks and accessories before starting a self-clean cycle.

If the oven racks are left in the oven during the self-clean cycle. the gliding ability of the Effortless Tu Oven Rack system will be damaged. and oven racks will lose their shiny finish and may turn blue.

Remove all oven racks and clean according to instruc tions provided in the Care & Cleaning section of this manual.

Make sure the oven and oven racks are completely cool when trying to assemble or disassemble the Effortless Tu Oven Rack system.

Never pick up hot oven racks or parts. iiiii

Gallery Model (above) Professional Model (below)

Steam Clean -- Use for steam clean function for quick cleaning of oven.

Self Clean Use to select self-clean function.

Delay Start -- Use to program a delayed time bake or delayed self-cleaning cycle start time.

Bake Time -- Use to enter the length of baking time.

Set Clock -- Use along with the numeric keypad to set the time of day.

Timer on-off Use to set or cancel the timer. Timer does not start or stop the cooking process.

Oven Light Use to turn the oven light on and off.

Oven Lockout -- Use to lock the oven door and the control panel.

Bake Use to select the bake cooking feature.

10. Broil -- Use to select broil cooking feature.

11. Convect -- Use to select between convection bake. convection roast. and convection broil (some models).

12. Warm/Keep Warm -- Use to keep food and dishes warm until served.

13. Probe -- Use to monitor internal temperature of food.

14. My Favorites (some models) Use to program and save favorite recipes settings.

15. Quick Preheat (Gallery Model)/Powerplus Preheat (Professional Model) -- Use to raise oven to preheat temperature.

16. Convect Convert Use to convert regular recipe temperature to convection recipe temperature.

17. Slow Cook (some models) Use for cooking foods requiring long cooking times with lower temperatures.

18. Start -- Use for starting all cooking features.

19. Numeric Keypad Use to enter temperatures and times.

20. Off -- Use to turn off any oven function entered except time of day and minute time

Setting Continuous Bake or 6 Hour Energy Saving

The timer on-off and self clean keys control the contin uous bake or 6 hour energy saving features. The oven control has a factory preset 6 Hour Energy Saving feature that shuts off the oven if the oven control is left on for more

To set the control for continuous bake or 6 hour energy saving:

Press and hold timer on-off for 6 seconds.

After 6 seconds 6Hr OFF or StAY On will appear in the display and the control will beep once.

Press self clean to switch between the 6 hour energy saving and continuous bake features.

Press start to accept the change (display will return to time of day) or press off to reject the change.

Note: Hr OFF indicates the control is set for the 6 hour

Temperature Display (Fahrenheit/Celsius)

The broil and self clean keys control the Fahrenheit (°F) or Celsius (°C) temperature display modes. The oven control can be programmed to display temperatures in °F or °C.

The oven is preset at the factory to display in °F.

To change display from °F to °C or °C to °F

To tell if the display is set for °F or °C. press broil and hold for 6 seconds. 550 ° will appear. broil will flash in the display. and a beep will sound. If F appears. the display is set to show temperatures in °F. If C appears. the display is set to show temperatures in °C.

Press self clean to switch between °F or °C display modes. The display will show either F or C.

Press start to accept the change or press off to reject the change.

Setting Control for Silent Operation

The delay start and self clean keys control the silent control feature. The silent control operation feature allows the oven control to be operated without sounds or beeps whenever necessary.

If desired. the control can be programmed for silent operation and later returned to operate with the normal sounds and beeps.

To change control from normal sound operation to silent control operation:

To set oven for normal or silent operation. press and hold delay start. -- -- will appear and DELAY will flash in the display. After 6 seconds bEEP On or bEEP OFF will appear in the display.

Press self clean to switch between normal sound operation and silent operation mode. The display will show either bEEP On or bEEP OFF. If bEEP On appears. the control will operate with normal sounds and beeps. If bEEP OFF appears. the control is in the silent operation mode.

Press start to accept the change or press off to reject the change.

Setting the Timer

The timer on-off key controls the minute timer and serves as an extra timer and can be used during any of the other oven control functions.

To set the minute timer:

Press timer on-off. -- -- will appear and timer will flash in the display.

Press the number keys to set the desired time.

Press start. The time will begin to count down and Timer will stay in the display. When the time expires.

End and Timer will show in the display. The clock will beep three times every 30 seconds until timer on-off is pressed.

To cancel the minute timer before the set time expires. press timer on-off.

If start is not pressed. the timer will return to the time of day after 25 seconds.The timer does not start or stop the cooking process.

Setting Oven Lockout Feature

The Ekey controls the oven lockout. When active. this

To activate the oven lockout feature:

After 3 seconds. door Loc will appear. a tone will sound. and the word DOOR and the I1 icon will flash.

Once locked. DOOR and the lock icon will stop flashing and remain visible with the Loc.

To reactivate normal oven operation:

Press and hold l!_ for 3 seconds.

After 3 seconds. door Loc will appear. a tone will sound. and the word DOOR and the lock icon will flash in the display until the oven door has completely unlocked.

Do not attempt to open the oven door while the door is unlocking. This could harm the motor door latch.

The oven is now fully operational.

Oven Light

The oven is equipped with two oven lights. The oven lights will turn on automatically when the oven door is opened.

The oven light may be turned on when the door is closed by using the oven light key on the control panel.The light will stay off until the door unlocks.

Setting Preheat

The powerplus preheat/quick preheat feature is used when a recipe calls for preheating the oven. When the preheat stage ends. a tone will sound indicating when to place the food in the oven. Preheat can be programmed for temperatures between 170°F to 550°F and is not necessary when roasting or cooking casseroles.

For batter and dough-based goods such as cakes. pastries. and breads. use the regular bake or convection function for best results.

To set the preheat temperature for 350°F:

Arrange the interior oven racks.

Press powerplus preheat/quick preheat. The display will show 350.

Press start.

350 and PREHEAT will be displayed while the oven is preheating.

Press off when baking is complete or to cancel the preheat feature.

To change preheat temperature while oven is preheating (ex: changing from 350°F to 425°F):

Press powerplus preheat/quick preheat. The display will show 350.

Enter the new preheat temperature.

Press 4 2 5.

Press start. The display will show 425.

When baking is complete. press off.

To toggle the oven lights on and off:

Press (").

The interior oven lights are covered with a glass shield.

The glass shield must be in place whenever the oven is in use. To change the interior oven lights. see "Replacing the oven light" on page 41.

Once the oven reaches the set temperature. the control beeps and the word PREHEAT turns off. The bake feature will display the set oven temperature and will continue cooking at the set bake temperature.

When oven is preheated. place food in the oven.

During preheat. the convection fan is active during the first rise in temperature to allow oven to reach its target temperature faster.

The bake. broil. and convection elements will also cycle for a better heat distribution.

Setting Bake

Bake controls normal baking. If a rapid preheating is preferred. refer to "Setting Preheat" on page 22.

The oven can be programmed to bake at any temperature from 170°F to 550°R

To set the bake temperature to 375°F:

Arrange interior oven racks.

Press bake. The display will show 350.

Press 3 7 5 using the numeric keys.

Press start. The actual internal oven temperature will be displayed.

A beep will sound once the oven temperature reaches 375°F. and the display will show 375°.

When the oven is preheated. place food in oven.

Once the oven has reached the set temperature the oven will cycle on and off to maintain a consistent set tempera ture. During preheat and when oven is heating to maintain the set temperature. the bake element indicator

To change the bake temperature (example: changing from 375°F to 425°F):

After the oven has already been set to bake at 375°F and the oven temperature needs to be changed to 425°F. press bake.

The display will show 375.

Press 4 2 5 using the numeric keys.

Press start. The change is accepted and the oven temperature will increase to the new set temperature.

When the oven temperature rises to the new set temperature of 425. the control will beep.

Baking Tips

For best bake results:

Fully preheat the oven before baking items like cookies. cakes. biscuits. and breads.

When using any single rack. position the rack so that the food is in the center of the oven.

For best results when baking cakes using two oven racks. place racks in positions 2 and 4 (See Figure 22).

When baking using two oven racks. position cookware as shown in Figure 23. Allow at least 2 inches (5 cm) of space between cookware for proper air circulation.

Dark or dull bakeware absorbs more heat than shiny bakeware.

It may be necessary to reduce oven temper ature and cook time to prevent overbrowning of some foods. Dark bakeware is recommended for pies. Shiny bakeware is recommended for cakes. cookies. and muffins.

For batter and dough-based baked goods such as cakes. pastries. and breads. use the convection function for best results.

Do not open the oven door often. Opening the door will reduce the temperature in the oven and may increase the cooking time necessary for best results.

Figure 22: Rack positions Figure 23: Pan spacing

Setting Bake Time

Use bake time when setting the oven to cook for a specific length of time and shut off automatically when the time is complete.

When cooking time ends. the oven will shut off and will beep. This feature can be used with bake. convection bake. convection roast. and slow cook modes.

To program the oven to begin baking immediately and to shut off automatically (example: Bake at 350°F for 30 minutes):

Be sure the clock is set for the correct time of day.

Arrange interior oven rack(s) and place the food in then oven.

Press bake. 350 will appear in the display.

Press start. The actual oven temperature will appear in the display.

Press bake time. -- -- will appear in the display.

Enter the desired baking time by pressing 3 0.

Press start. Once the timed bake feature has started. the current time of day will appear in the display.

Press off when baking has finished or at any time to cancel the bake time feature. A bake time of 0 minute can also be entered to cancel the bake time feature and keep the oven in its current cooking mode.

When the timed bake finishes:

The display will show End and the time of day and the oven will shut off automatically.

The control will beep three times and continue to beep three times every 30 seconds until off is pressed.

Baking time can be set for any amount of time between 1 minute to 5 hrs and 59 minutes. The time remaining can be shown in the timer section of the display by pressing bake time at any moment of the cooking.

Once bake time has started baking. a beep will sound when the oven temperature reaches the set temperature.

Setting Delay Start

Food Poisoning Hazard. Do not let food sit for more than il one hour before or after cooking. Doing so can result in food poisoning or sickness.

Foods that can easily spoil such as milk. eggs. fish. meat. or poultry should be chilled in the refrigerator first. Even when chilled. they should not

Bake. convect. bake time. and delay start keys control the delayed start feature. The automatic timer of delayed start will turn the oven on and off at the time you select in advance.

To program the oven for a delayed start time with the bake function. (example: baking at 375°F for 30 minutes. starting at 5:30):

Be sure that the clock is set with the correct time of day.

Arrange interior oven rack and place the food in the oven.

Press bake. The display will show 350.

Enter the desired temperature (in this example 375°F 3 7 5 using the numeric keys.

Press start. The actual oven temperature will appear in the display.

Press bake time and enter 3 0 using numeric keys.

Press start.

Press delay start.

Enter the desired start time; pressing 5 30.

10. Press start.

When a delayed baking function starts. the set oven temperature will appear. Delay. bake. and the current time of day will appear in the display. When the desired start time is reached. the actual oven temperature appears in display and delay disappears.

The oven starts to bake at the previ ously selected temperature.

Convection Cooking

Multiple rack baking may increase cook time for some foods. but the overall result is time saved. Some food may cook faster and more evenly with convection bake.

Convection baking cycles the bake. broil and convection elements with a fan to circulate the heat evenly and continu ously within the oven (See Figure 24).

Benefits of convection cooking:

Multiple rack baking.

Some foods cook faster. saving time and energy.

Figure 24: Air circulation in convection function

Setting Convection Bake

This mode of cooking enables you to obtain the best results when baking with multiple pans and racks. The oven can be programmed for convection baking at any temperature between 170°F to 550°F with a default temperature of 350°F.

To set the oven for convection bake and temperature to 375°F:

Arrange interior oven racks.

Press convect.

CONVECT and BAKE will flash and

350 will appear in the display. If a convection bake of 350°F is needed. press start.

Press 3 7 5. Convect and bake will keep flashing. and 375° will appear in the display.

Press start. The actual oven temperature and the fan icon will be displayed.

A beep will sound once the oven temperature reaches 375°F. and the display will show 375 °. CONVECT. BAKE. and the fan icon.

Place food in oven.

Convection baking tips:

Fully preheat the oven before baking items like cookies. cakes. biscuits. and breads.

If your recipe cooking temperature has already been converted for convection baking. there is no need to reduce your oven temperature.

If not. you can easily reduce using the Convection Convert feature. Please see "Setting Convection Convert" on page 26 for further instruction on temperature conversion.

When using any single rack. position the rack so that the food is in the center of the oven.

For best results when baking cakes using two oven racks. place racks in positions 2 and 4 (See Figure 25).

When baking using two oven racks. position cookware as shown in Figure 26. Allow at least 2 inches (5 cm) of space between cookware for proper air circulation.

Dark or dull bakeware absorbs more heat than shiny bakeware.

It may be necessary to reduce oven temper ature and cook time to prevent overbrowning of some foods. Dark bakeware is recommended for pies. Shiny bakeware is recommended for cakes. cookies. and muffins.

Do not open oven door too often. Doing so reduces oven temperature and may extend cooking time.

Most baked goods (except cakes) should be baked on pans with no sides or low sides to allow air to circulate.

Figure 25: Rack positions Figure 26: Pan spacing

The convection fan will start as soon as the oven is set for convection bake. The display shows an icon of rotating fan within a square. indicating that the convection fan is operating. The bake. broil. and convection elements will also cycle for a better heat distribution.

Pressing off will stop the feature at any time.

Setting Convection Convert

Convection convert automatically converts a standard baking recipe for convection baking. When set properly. this feature is designed to display the actual converted (reduced) temperature in the display. Convection convert may only be used with a convection bake cooking mode. It can be used with a delay start and bake time. For delay start instructions and bake time instructions see page 24. If convection conversion is used with the bake time and delay start features.

CF (check food) will be displayed when 75% of the bake time complete. At this time the oven control will sound three long beeps at regular intervals until baking time is finished.

The control will display End and continue to beep at regular intervals until off is pressed.

To set the oven for convection bake with a standard

Arrange interior oven racks.

Press convect.

Convect and bake will flash and 350 will appear in the display.

Pres 4 0 0. Convect and bake will keep flashing and 400° will appear in the display.

Press start.

Set bake time or delay start if needed. For delay start or bake time instructions. see page 24.

Press convect convert. and the oven temperature displayed will be 25°F lower than the original set temperature of 400°R The actual oven temperature and the fan icon will be displayed. A beep will sound once the oven temperature reaches 375°F. and the display will show 375°. CONVECT. BAKE. and the fan icon.

Place food in the oven.

When using a bake time under 20 minutes. the convec tion convert will not beep and display the CF message.

Pressing off will stop the feature at any time.

Bake. broil. and convection elements will cycle for better heat distribution and faster and more even cooking.

Important: Do not open the oven door often. Opening the door will reduce the temperature in the oven and may increase the cooking time necessary for best results.

Setting Convection Broil (some models)

Use this mode for thicker cuts of meat. fish. and poultry. The convection broiling gently browns the exterior and seals in the juices. Convection broiling uses the broil element and a fan to circulate the oven's heat evenly and continuously within the oven.

The oven can be programmed for convection and normal broiling at any temperature between 400°F to 550°F with a default temperature of 550°F (See Table 1).

To set a convection broil temperature of 500°F:

Arrange oven racks first. Press convect.

The display will show 350 and convect and bake will flash.

Press convect two more times. The display will show 550 and convect and broil will flash.

Press 5 0 0 using numeric keys.

Press start.

500. CONVECT.

BROIL. and the fan icon will show in the display.

Allow oven to preheat for 2 minutes then place food in the oven.

The preheat tone will not sound for this feature. When broiling in the upper rack positions use the offset rack (if

Convection broiling tips:

For optimum browning. preheat the broil element for 2 minutes. Always pull the rack out to the stop position before turning or removing food.

Always use a broiler pan and its grid when broiling. It keeps grease away from the high heat of the broil element.

Do not use the broil pan without the insert. Do not cover the broil pan insert with foil. The exposed grease could catch fire. If using a searing grill (available by mail order). preheat the grill for 5 to 10 minutes before placing your meat. Broil one side until the food is browned; turn and cook on the second side. Season and serve.

Convection broiling is generally faster than conventional broiling. Check for doneness at the minimum recom mended time.

Setting Convection Roast

This mode is best for cooking tender cuts of beef. lamb. pork. and poultry. Use this mode when cooking speed is desired. Convection roasting gently browns the exterior and seals in the juices. Convection roasting uses the bake element. convection element. broil element. and fan to circulate the heat evenly and continuously within the oven.

The oven can be programmed for convection roasting at any temperature between 170°F to 550°F with a default temperature of 350°F.

Should an oven fire occur. do not open oven door. turn off the oven. If the fire continues. throw baking soda on the

To set a convection roast temperature of 375°F:

Arrange oven racks and place food in the oven.

Press convect. The display will show 350 and convect and bake will flash.

Press convect again. The display will show 350 and convect and roast will flash.

Enter the desired roasting temperature using the number keys. i.e.: 3 7 5. Press start.

The actual oven temperature will be displayed.

Convect. roast. and the fan icon will be displayed. The bake. broil. and convection elements will also cycle for a better heat distribution.

Convection roasting tips:

Use a broiler pan and grid. as well as a roasting rack (available by mail order). The broiler pan will catch grease drippings. and the grid will help prevent spatters.

The roasting rack will hold the meat. Make sure the roasting rack is securely seated on the grid in the broiler pan. Do not use the broiler pan without the grid or cover the grid with aluminum foil.

Pull the rack out to the stop position before removing food. Position food (fat side up) on the roasting rack.

Do not open the oven door often. Doing so will reduce the temperature in the oven and may increase the cooking time necessary for best results.

It's not recommended to roast chicken on a roasting rack. Use a deep pan and place on rack position 1 (offset rack).

Setting My Favorites Recipe (some models)

The my favorites key allows the user to save a recipe to be recalled at any time. The recipe may be for any baking temperature between 170°F (77°C) and 550°F (288°C).

Once saved. the user needs only to select the my favorites key. and the baking function will start automatically with the pre-programmed recipe. The oven can recall a cooking sequences from its internal memory. which is easily acces sible from a one touch key. This function can be used with bake. convection bake. convection roast. and preheat.

To save a favorite (example: 450°F bake for 30 minutes):

Press bake. The default temperature will appear in the display.

Enter temperature needed. i.e.: 4 5 0. Press start.

Press bake time.

Enter time needed. i.e.: 3 0. Press start.

Press and hold for 3 seconds my favorites key. The v icon will be shown to confirm your setting has been saved.

The bake recipe will start. If you do not need it at this time. press off.

To recall a favorite:

Press my favorites.

Press start.

Recalling a my favorites recipe can only be done when the oven is not in operation.

To overwrite a favorite:

To overwrite my favorites. simply start a new cooking sequence and save it as shown in example above. The new my favorites settings will overwrite the old ones.

To delete a favorite:

Press my favorites for 3 seconds to delete while the oven is not in operation and no cooking mode has been set. The heart icon will turn off. indicating that the recipe has been deleted.

Setting Broil

This mode is best for meats. fish and poultry up to 1" thick.

Broiling cooks by direct heat. The broil key controls the broil feature. An optional searing grill. broiler pan. and insert are available via the enclosed accessories brochure (See Figure 28). The oven can be programmed to broil at any temperature from 400°F to 550°F with a default tempera ture of 550°F.

If an oven fire occurs. do not open the oven door- turn the oven off. If the fire continues. use a fire extinguisher.

Do not put water or flour on the fire. Flour may be explosive.

Always broil with oven door closed.

The broiler pan and the insert (some models) allow grease to drain and be kept away from the high heat of the broiler. Do not use the pan without the insert. Do not cover the insert with aluminum foil; the exposed grease

If using a searing grill. preheat oven 5 to 10 minutes before grilling.

To set a broil of 500°F:

Place the broiler pan insert on the broiler pan and place the food on the broiler pan insert.

Arrange the interior oven rack and place the broiler pan on the rack. Center the broiler pan directly under the broiler element.

Preheat for 2 minutes before broiling.

Press broil. The display will show 550.

Press 5 0 0. If a lower broil temperature is desired (minimum broil temperature setting is 400°F). press the desired temperature before continuing to Step 5.

Press start. The oven will begin to broil. 500 ° will appear in the display.

Broil on one side until food is browned; turn and cook on the second side. Season and serve. Always pull the rack out to the stop position before turning or removing food.

To stop broiling. press off.

To ensure proper results use only Electrolux Home Products. Inc. approved broil pan and insert.

Figure 27: Broil rack positions

Broiling tips:

For optimum browning. preheat the broil element for 2 minutes. Broil one side until the food is browned; turn and cook on the second side. Season and serve.

Table 1: Broiling recommendations

Broiler

Searing Grill

Broiler Pan & Insert

Figure 28: Broiling accessories available at www.frigidaire.com.

Food item Rack Position Temperature 1st side Doneness

Steak 1" thick 3rd or 4th 550°F 6:00 Rare 3rd or 4th 550°F 7:00 Medium

Pork Chops 314"thick 3rd or 4th 550°F 8:00 Well

Chicken - Bone In 3rd 450°F 20:00 Well

Chicken - Boneless 3rd or 4th 450°F 8:00 Well

Fish 3rd 500°F 13:00 Well

Shrimp 3rd 550 °F 5:00 Well

Hamburger 1" thick 3rd or 4th 550°F 9:00 7:00 Medium

Cook time 2nd side

4:00 5:00

6:00

10:00

6:00

Setting Slow Cook (some models)

The slow cook feature is best for cooking at lower tempera tures for longer periods of time and works best for beef (ribs and brisket). pork roasts. and poultry dishes.

Slow cook has two settings: Lo 225°F (108°C) and Hi 275°F (135°C). Both settings can be used with the following options:

Bake time.

Bake time with delay start.

Food poisoning hazard: do not let food sit for more than one hour before or after cooking. Doing so may result in food borne illness.

Slow cook tips:

Slow cooking meats may result in the outside of the meat turning dark; this is normal. Completely thaw all frozen foods before cooking. Preheating the oven is not necessary.

When using a single oven rack. place in oven rack so food is centered in oven. Position multiple racks to accommodate size of cooking utensils when cooking multiple food items.

Add any cream or cheese sauces during the last hour of cooking.

Do not frequently open the oven door or leave the oven door open when checking food items. The more heat that is lost. the longer the food will need to cook.

Cover foods to keep them moist or use a loose or vented cover to allow foods to turn crisp or brown.

Roasts may be left uncovered so browning can occur.

Cook times will vary depending on the weight. fat content. bone. and the shape of the roast.

To set slow cook:

Position oven racks and cookware in oven. Close the oven door. Press slow cook (some models}. HI will appear in the oven display indicating the default setting is for high heat. If a low setting is needed. press slow cook again to select the LO setting and release.

Press start.

To stop cooking at any time. press off.

Slow cook can be changed between Hi and Lo settings by pressing slow cook to toggle between the two settings. Press start to activate the new setting.

Setting Warm/Keep Warm

Warm / keep warm is best for keeping oven baked foods warm for serving after cooking has finished. The warm/ keep warm key turns on the feature. and will maintain an oven temperature of 170°F (77°C). This feature will keep oven baked foods warm for serving up to 3 hours after cooking.

After 3 hours. the warm/keep warm feature will turn the oven off. The feature may be used without any other cooking operations or can be set to turn on automatically after a bake time or delay start.

Warm/keep warm tips:

Always start with hot food. Do not use the warm/keep warm feature to heat cold food.

Food in heat-safe glass and glass ceramic containers may need higher temperature settings compared to food in regular containers.

Avoid repeated openings of the oven. it will allow hot air to escape and the food to cool.

Aluminum foil may be used to cover food to increase moisture content.

To set warm/keep warm:

Arrange interior oven racks and place food in oven.

Press warm/keep warm. "HLd" will appear in the display.

Press start.

If start is not touched within 25 seconds

To set warm/keep warm to turn on automatically:

Arrange interior oven racks and place food in oven. Set the oven properly for bake time or delay start. For delay start instructions. see page 24. For bake time instruc tions. see page 24.

Press warm/keep warm.

If no key is touched within 25 seconds. the request to turn on the feature will be canceled.

Press start. HLd will disappear and the temperature will be displayed. The warm/keep warm is set to turn on automatically after timed bake has finished.

To turn the feature off at any time. press off.

Cooking with Meat Probe

Do not use kitchen utensils to pull on the probe cable or handles. Always insert and remove the probe using the provided handles. as shown in Figure 29. and always use a pot holder to protect hands from possible burns.

In some models the probe receptacle is found at the top left side of the oven cavity.

Use the probe feature for best results when cooking foods such as roasts. hams or poultry.

For meats like poultry and roasts. using a probe to check internal temperature is the safest method to ensure properly cooked food.

The probe feature. when set correctly. will signal an alert when the internal food temperature reaches the desired set target temperature.

When active. the probe displays the internal food tempera ture which is visible in the display during the cooking process. This eliminates any guesswork or the need to open the oven door to check the thermometer.

Do not store the probe inside the oven. Use only the original probe provided. Connecting any other probe or device could result in damage to the oven control. electronics. and the receptacle.

Before starting self clean. double check that the probe is removed from the oven interior. Defrost frozen

Proper placement of probe in food.

Insert the probe so that the probe tip rests inside the center of the thickest part of meat or food (See Figure 30). For best results. do not allow the probe temperature sensor to contact bone. fat. gristle. or the cookware.

Insert:

Figure 29:

Using the probe

Figure 30: Probe in thickest area of food

For bone-in ham or lamb. insert the probe into the center of lowest large muscle or joint.

For meat loaf or casseroles. insert the probe into center of food.

When cooking fish. insert meat probe just above the gill.

For whole poultry or turkey. fully insert the probe sensor into the thickest part of inner thigh. just below the leg (See Figure 31).

Figure 31 : Probe in thickest part of thigh

To set probe:

Insert the probe into the food. Place prepared food on the desired oven rack position and slide into the oven.

Plug the connector end of the probe all the way into the probe receptacle while the oven is still cool. The recep tacle is located on the upper left front oven cavity wall (See Figure 29).

When the probe is set. an acceptance tone will sound. the probe icon will illuminate. and the actual probe temperature appears in the display (See Figure 32).

Close the oven door

Figure 32:

Probe set showing probe temperature

Press probe key once. Enter the desired target food temperature using the numeric keys. and set tempera ture for food type. The minimum setting is 140°F (60°C); the maximum is 210°F (99°C). Default is 170°F (77°C).

Press start to accept the target temperature.

Set for quick preheat. bake. convect bake. convect roast. or convect convert. and if necessary adjust the oven temperature accordingly.

The control will provide three beeps when the internal target temperature is reached. The oven will automati cally change to a warm setting (HLd). and the actual probe temperature will alternate in the display. Warm will maintain the oven temperature at 170°F (77°C) for 3 hours unless otherwise cancelled.

To stop cooking at any time. press off.

To set the preferred oven operation once the probe reaches the target temperature:

The oven is preset to automatically stop cooking and start the warm feature when probe sensor reaches the target temperature.

This may be set to continue cooking if desired.

Setting the options once the probe reaches the target temperature must be done when the oven is inactive. The probe is not required to be connected to the probe recep tacle when setting this option.

To set the oven to continue cooking after reaching the target temperature:

Press probe key and hold for 6 seconds.

Press self clean key and toggle until Continu: appears. as shown in Figure 33. then press start to accept.

Figure 33: Probe set to continue cooking

To set the oven to automatically stop cooking and start warm once reaching target temperature:

Press probe key and hold for 6 seconds.

Press the self clean key and toggle until CANCEL appears. as shown in Figure 34. then press start to accept

Figure 34: Probe set to cancel cooking

Probe too hot message:

When the message Prob Too Hot flashes in the display. the probe temperature has exceeded 250°F (121°C).

If the probe is not removed. this message may continue until the sensor reaches 300°F (149°C) or higher. and oven will automatically turn off.

During cooking the internal food temperature will display by default. To see the target temperature press the probe key once. After 6 seconds the display will revert to the i! internal food temperature.

To assure accuracy. do not remove the probe from the food or receptacle until the desired internal temperature is reached.

If the probe is removed from the receptacle only. the probe feature will cancel but the oven will continue to cook. If the probe is removed from the food only. the probe feature will remain active and may eventually generate a probe too hot message.

To change the target temperature while cooking. press the probe key once. Use the numeric keys to change the temperature.

Press the start key to accept any change.

Table 2: cooking temperatures

Food Type

Ground meat and meat mixtures

Beef. Pork. Veal. Lamb

Turkey. Chicken

Fresh beef. veal. lamb

Medium rare

Medium

Well Done

Poultry

Chicken and Turkey. whole

USDA recommended minimum internal

Internal Temp.

160°F (71°C)

165°F (74°C)

145°F (63°C)

160°F (71°C)

170°F (77°C)

165°F (74°C)

Poultry Breasts. Roasts 165°F (74°C)

Poultry Thighs. Wings 165°F (74°C)

Duck and Goose 165°F (74°C)

Stuffing (cooked alone or in bird) 165°F (74°C)

Fresh Pork 160°F (71°C)

Fresh (raw) 160°F (71°C)

Pre-cooked (to reheat) 140°F (60°C

Eggs and egg dishes

Eggs Cook until yolk and white are firm

Eggs dishes 160°F (71°C)

Leftovers and Casseroles 165°F (74°C)

The U.S. Department of Agriculture states. "Rare fresh beef is pop ular. but you should know that cooking it to only 140°F (6O°C) means some food poisoning organisms may sur vive." (Source: Safe Food Book. Your Kitchen Guide.

USDA Rev. June 1985.)

Visit the USDA Food Safety and Inspection website at www.fsis.usda.gov

Setting Warmer Drawer (some models)

To Operate the Warmer Drawer

Always start with hot food. It is not recommended to heat cold food in the warmer drawer. All food placed in the warmer drawer should be covered with a lid or

Do not cover crisp foods.

Do not use plastic wrap to cover food. Plastic may melt onto the drawer and be very difficult to clean.

Use only dish ware. utensils and cookware recom

Always use potholders or oven mitts when removing food from the warmer drawer as cookware and plates will be hot.

To set the warmer drawer:

Press the warmer drawer key (Figure 35). The warmer drawer indicator light will turn on.

Press temp to reach the desired setting. The tempera tures are approximate. and are designated by LO. MED and HI with varying degrees of heat.

The indicator light will turn on and will remain on showing the selected heat setting.

To turn the warmer drawer off press warmer drawer.

The warmer drawer indicator light and the selected setting indicator light will turn off.

)ii))))i)JJ))))Lii41Lq)))))(J

Figure 35: Warmer drawer control

Food Poisoning Hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness.

Foods that can easily spoil such as milk. eggs. fish. meat. or poultry should be chilled in the refrigerator first. Even when chilled. they should not stand in the oven for more than 1 hour before cooking begins and should be removed promptly when finished

Warmer Drawer Temperature Selection

Refer to the chart below for recommended settings. If a particular food is not listed. start with the medium setting. If more crispness is desired. remove the lid or aluminum foil.

Most foods can be kept at serving temperatures by using the medium setting. When a combination of foods are to be kept warm (for instance. a meat with 2 vegetables and rolls). use the high setting. Refrain from opening the warmer drawer while in use to eliminate loss of heat from the drawer.

To Warm Serving Bowls and Plates

Heat bowls and plates on the LO setting. Place empty dishes on the rack to raise them off drawer bottom. To further heat dishes or to heat fine china. check with the manufacturer for maximum heat tolerance.

IMPORTANT: The warmer drawer will turn off automatically when the oven is in a self cleaning mode. The warmer drawer can be used immediately after the clean cycle is ended.

Warmer Drawer Recommended Temperature Settings

Food item

Bacon

Biscuits

Casseroles

Empty Dinner plates

Fish. Seafood

Hamburgers

Pancakes.

Waffles

Pastries.

Pies. Rolls (hard)

Pizza. Potatoes (baked)

Poultry

Roasts (Beef. Pork.

Setting

Arranging Warmer Drawer Rack Positions

The warmer drawer rack can be set in two positions to accommodate foods and any items that need to be warmed or kept warm. The rack must be placed in the vertical position in one of two ways.

In the upright position (Figure 36) to allow low profile food items to be placed both under and on top of the rack (for example. rolls or biscuits on top of the rack and a casserole dish under).

Upright Position

Figure 36: Warmer drawer rack set upright

In the downward position (Figure 37) to allow the placement of light weight food items and empty dish ware (for example. rolls or pastries and dinner plates).

Downward Position

Figure 37: Warmer drawer rack in down position

Restoring Factory Default Setting

Your appliance is programmed with default control settings.

Over time. users may make changes to these settings. The following options have settings that can be modified and may have been changed since the appliance was new:

12 or 24 hour display mode

Continuous bake or 6 hour energy savings mode

Silent or audible control

Oven temperature display (°F or °C)

Oven temperature adjustments (offsets)

Stored recipes

Cancel/continue cooking with meat probe option.

If you choose to restore factory default settings. all of the above user preferences will be restored to their original settings (factory default). The oven temperature offset will

To restore oven control to factory default settings:

When the oven is in idle and no cooking function is in operation. press and hold the 7 key until the acceptance tone sounds (about 6 seconds)

Press start. The control is now reset to default settings.

Adjusting Oven Temperature

The temperature in the oven is pre-set at the factory. When first using the oven. be sure to follow recipe times and temperatures.

Do not use oven thermometers such as those should in grocery stores to check the temperature settings inside the oven. These thermometers may display temperatures that vary widely from the actual temperature.

If you think the oven is cooking too hot or too cool for the temperature you select. you can adjust the actual oven temperature to be more or less than what is displayed.

Before adjusting. test a recipe by using a temperature setting higher or lower than the recommended temperature.

The baking results should help you to decide how much of an adjustment is needed.

To adjust the oven temperature higher:

Press bake for 6 seconds. UPO 0 will appear in the display.

To increase the temperature. use the number keys to enter the desired change. For example. for 30°F. press 3 0. The temperature may be increased as much as 35°F (19°C).

Press start to accept the temperature change and the display will return to the time of day. Press off to reject the change if necessary.

To adjust the oven temperature lower:

Press bake for 6 seconds. The display will show.UPO 0.

To decrease the temperature. use the number keys to enter the desired change (Example -30°F) 3 0. Then. press self clean. The temperature may be decreased as much as 35°F (19°C).

Press start to accept the temperature change and the display will return to the time of day. Press off to reject the change if necessary.

The oven temperature adjustments made with this feature will not change the self clean cycle temperature or the broil temperature.The oven temperature adjustments are permanent and will stay in the unit memory unless you manually change it again or if all the controls are reset.

Even a power outage will not reset these changes. Follow the same procedure again if you wish to change it to a different setting or use the "Restoring Factory Default Setting" instructions on page 34 to restore settings to their defaults.

Setting the Sabbath Feature (For use on the Jewish Sabbath and Holidays)

The bake time and start keys are used to set the Sabbath feature.

For further assistance. guidelines for proper usage. and a complete list of models with the Sabbath feature. please visit the web at www.star-k.org.

The Sabbath feature may only be used with the bake function. Once the oven is properly set using bake with the Sabbath feature active. the oven will remain on until cancelled.

The Sabbath feature overrides the

If the oven light is needed during the Sabbath. press Oven light before activating the Sabbath feature. Once the oven light is turned on and the Sabbath feature is active. the oven light will remain on until the Sabbath feature is turned off. If the oven light needs to be off. be sure to turn the oven light off before activating the Sabbath feature.

To turn off the Sabbath feature. press and hold both the bake time and delay start keys for at least 3 seconds.

SAb will disappear from the display..

You may change the oven temperature once baking has started by pressing bake and the numeric keys for the new temperature.

For example. to change from 350°F to 425°F. press 4 2 5. Then. press start twice.

Only the following controls will function after setting the Sabbath feature: numeric keypad. bake. start. and off. All other features will not function once the

Sabbath feature is properly activated.

The display will not show temperature changes or sound any audible tones when the oven is set with the Sabbath feature

It is advised to not activate any cooking function other than bake while the Sabbath feature is active.

To program the oven to begin baking immediately and activate the Sabbath feature (example: baking at 350°F):

Be sure that the clock is set with the correct time of day.

Place the food in the oven. Press bake. 350 ° appears in the display. Press start.

The actual oven temperature appears in the display.

If you desire to set the oven control for a bake time or delayed bake time. do so at this time. If not. skip this step and continue to Step 5. For delay start or bake time instructions see page 24. Remember the oven will turn off after using bake time or delay start and may only be used once during the Sabbath/Jewish holidays. The maximum bake time is 5 hours and 59 minutes.

The oven will turn on and begin heating.

Press and hold both the bake time and delay start keys for at least 3 seconds. SAb will appear in the display. Once SAb appears in the display. the oven control will no longer beep or display any further changes. and the oven is properly set for the Sabbath feature.

The oven may be turned off at any time by first pressing off (this will turn the oven off only).

Food Poisoning Hazard. Do not let food sit for more than one hour before or after cooking. Doing so can result in food poisoning or sickness.

Foods that can easily spoil such as milk. eggs. fish. meat. or poultry should be chilled in the refrigerator first. Even when chilled. they should not stand in the oven for more than 1 hour before cooking begins and should be removed promptly when finished cooking.

Power failure while using Sabbath feature:

Should you experience a power failure or interruption. the oven will shut off. When power is returned. SF (Sabbath Failure) will be displayed. and the oven will not turn back on automatically.

If your food was nearly fully cooked. you may allow the trapped heat in the oven to finish the cooking process. Otherwise. you should remove the food when the power failure occurs because you may only start the oven once during the Sabbath/Jewish holidays.

After the Sabbath observance turn off the Sabbath feature.

Press and hold both the bake time and delay start keys for at least 3 seconds. SAb will disappear from the display. and the oven may be used with all normal functions.

Steam Clean

The steam clean feature offers a chemical-free and time

Do not add ammonia. oven cleaners. or any other household cleaners or chemicals to the water used in the

Before manually cleaning any part of the oven. be sure all controls are turned off and the oven is cool. The oven

To set a steam clean cycle:

Oven should be at room temperature.

If the oven tem perature is above the room temperature. steam clean will not start. Be sure the oven is cool. Remove all racks and oven accessories.

Scrape or wipe loose debris from the oven bottom.

Pour 8 oz (235 ml) distilled or filtered water onto the oven bottom (See Figure 38). Close the oven door.

Steam clean is a 20 minute cycle. Time remaining is shown in the display.

An alert will sound at the end of the cycle. and the End message will show in the display. Press off to return to the clock.

When the steam clean cycle is complete. stand to the side of the oven out of the way of escaping vapor when opening the oven door. The cycle includes a cool-down period. so you may immediately use a soft cloth or sponge to remove any remaining water.

Wipe oven cavity and bottom. Do not clean oven door gasket (See Figure 40).

Figure 38: Add 8 ounces of distilled water

Press steam clean. StCn will show in the display (See Figure 39).

Figure 39: Steam clean selected

Press start.

Figure 40: Clean around the oven door gasket

For best results. clean oven immediately after the cycle is complete. Steam clean works best for soils on the oven bottom. Removal of especially stubborn or baked-on soils may require a manual cleaning.

Some condensation or water vapor may appear close to the oven vent. This is normal. The oven gasket may become damp; do not wipe dry. Open door to about 10° (it should stop a few inches from the door frame) and allow to air dry.

Local water sources often contain minerals (hard water) and will leave deposits on the oven cavity. If this occurs. wipe cavity with vinegar or lemon juice. Use distilled or filtered water.

If the door is opened during the steam clean cycle. a beep will sound and d-0 will show in the display. Close the oven door. Keep oven door closed during steam clean cycle.

Steam clean cannot be programmed with a delay start. If steam clean results are not satisfactory. run a self clean.

See "Self-Cleaning Operation" on page 37.

Self-Cleaning Operation

Do not line the oven walls. racks. bottom. or any other part of the oven with aluminum foil. Doing so will block heat distribution. produce poor baking results. and cause permanent damage to the oven interior (aluminum foil will melt to the interior surface of the oven).

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well-ventilated room.

During the self-cleaning cycle. the outside of the oven can become very hot to the touch.

Do not leave small children unattended near the appliance.

Do not force the oven door open. This can damage the automatic door locking system.

Use caution when opening the door after the self cleaning cycle is completed.

The oven may still be very hot.

Stand to the side of the oven door when opening the door to allow hot air or steam to escape.

A self-cleaning oven cleans itself with high temperatures (well above normal cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away with a damp cloth.

What to expect during self-cleaning

While in self-clean mode. the oven heats to temperatures much higher than those used in normal cooking. Sounds of metal expansion and contraction are normal.

Odors are normal as the food soil is being removed. Smoke may appear through the oven vent.

If heavy spills are not wiped up before cleaning. they may flame and cause more smoke and odor than usual. This is normal and safe and should not cause alarm. If available. use an exhaust fan during the self-cleaning cycle.

Do not use oven cleaners or protective coatings in or around any part of the oven interior. Do not clean the oven door gasket. Take care not to rub. damage. or remove the gasket or use any cleaning substances on the oven door gasket (See Figure 41 ). Doing so could cause damage and reduce the efficiency of the oven's performance.

Clean any soil from the oven frame. door liner outside the oven door gasket. and the small area at the front center of the oven bottom with soap and water (See Figure 41 ). These areas heat sufficiently to burn soil

Remove any excessive spills from the oven cavity before starting the self-cleaning cycle. To clean. use hot. soapy water and a cloth. Large spills can cause heavy smoke or fire when subjected to high tempera tures. Do not allow food spills with a high sugar or acid content (such as milk. tomatoes. sauerkraut. fruit juices. or pie filling) to remain on the surface as they may leave a dull spot even after cleaning.

Do not use aluminum foil or liners in the oven. These

Remove all oven racks and accessories.

If oven racks are not removed before a self-clean. they will lose their special coating and will no longer slide in and out of the oven cavity effortlessly.

Oven racks accidentally left in the oven during self clean may be wiped down after cooling with a high temperature cooking oil to lubricate them.

Setting Self Clean Cycle Duration

The self clean key controls the self-cleaning feature. If you are planning to use the oven directly after a self-clean cycle remember to allow time for the oven to cool down and the

It is recommended to use a 2 hour self-clean cycle for light soils. a 3 hour cycle for average soils. and a 4 hour cycle for heavy soils.

To set the controls for a 3 hour self-cleaning cycle to start immediately and shut off automatically:

Be sure the clock is set with the correct time of day and the oven door is closed.

Press self clean. CLn and 3:00 HR will show in the display. The control will automatically clean for a 3 hour period (default self-cleaning cycle time). If a 2 or 4 hour clean time is desired. press self clean multiple times to toggle between 2. 3. or 4 hours.

Press start. door Loc will appear. a beep will sound. and the word DOOR and the I icon will flash; CLn will remain on in the display.

As soon as the control is set. the motor driven oven door lock will begin to close automatically.

Once the door is locked. the DOOR indicator light and icon will stop flashing and remain on. and the oven icon will appear in the display. Allow about 15 seconds for the oven door to lock completely.

When the self-clean cycle is completed:

HOT will appear in the display. The time of day. the word DOOR. and the I1 icon will remain in the display.

Once the oven has cooled for approximately 1 hour. door OPn will appear. and the word DOOR and the lock icon will flash until the door unlocks. The door can be opened. and the display will show the time of day.

To stop or Interrupt a self-cleaning cycle:

If it becomes necessary to stop or interrupt a self-cleaning cycle due to excessive smoke or fire in the oven:

Press off.

The oven door can only be opened after the oven has cooled down for about 1 HOUR. door OPn will appear. and the word DOOR and the I1icon will flash until the door is unlocked. The oven door can then be opened. and the timer will revert back to the time of day.

When self clean is active you may check the time remaining by pressing the Self Clean once. The remaining time will appear in the display momentarily before reverting back to the time of day.

If your clock is set with the (default) 12 hr display mode. the Delay Start for a Self Clean can only be programmed to start up to 11 hours and 59 minutes after the time showing in the display (be sure to set the clock to current time before programming a delay start). To set a Delay Start Self Clean to begin 12 or more hours (maximum is 23 hours and 59 minutes) after the time of setting. be sure to first set the control in the 24 Hr display mode.

If Self Clean was active and then interrupted by a power failure or cancelled before the oven was thor oughly cleaned. it may be necessary to run another Self Clean cycle.

If the oven temperature was high enough when Self Clean was interrupted the oven control may not allow another Self Clean cycle to be set for up to 4 hours. iiiii

Figure 41 : Clean around the oven door gasket

Setting a Delay Start Self Clean Cycle

The self clean and delay start keys control the delayed self-clean operation. The automatic timer will turn the oven on and off at the time you select in advance.

If your clock is set with the (default) 12hr display mode. the Delay Start for a Self Clean can only be programmed to start up to 11 hours and 59 minutes after the time showing in the display. Be sure to set the time of day to

(the maximum is 23 hours and 59 minutes) after the time of setting the Self Clean. be sure to first set the control to the 24 hour display mode.

To set the control for the self cleaning cycle to start at a delayed time and shut off automatically (example: 3 hour self clean cycle to start at 4:30):

Be sure the clock is set with the correct time of day and the oven door is closed.

Press self clean. CLn and 3:00 HR will show in the display. The control will automatically clean for a 3 hour period. If a 2 or 4 hour clean time is desired. press self clean multiple times to toggle between 2. 3. or 4 hours.

Press start. door Loc will appear. a beep will sound.

As soon as the control is set. the motor driven oven door lock will begin to close automatically.

Once the door has been locked. the word DOOR and the I1 lock icon indicator light will quit flashing and remain on.

Press delay start. Enter the desired start time using the number keys 4 3 0.

Press start. DELAY. DOOR. and the I1icons will remain on.

The control will start the self-cleaning at the set start time for the period of time previously selected. At that time. the icon DELAY will go out; CLn and oven icon will appear in the display.

Do not attempt to force the door open while self clean is active or when the motor door latch is unlocking or the door lock indicator is flashing.

Once the display is clear. the oven door can then be opened. and the timer will revert back to the time of day.

If Self Clean was active and then interrupted by a power failure or cancelled before the oven was thoroughly cleaned. it may be necessary to run another Self Clean cycle.

When the self-clean cycle is completed:

HOT will appear in the display. The time of day. the word DOOR. and the lock icon will remain in the display.

When oven cools approximately 1 HOUR. door OPn will appear. and the word DOOR and the icon will flash until the door is unlocked.

If the oven temperature was high enough when the Self Clean was interrupted. the oven control may not allow another Self Clean to be set for up to 4 hours.

Cleaning Various Parts of Your Oven

Before cleaning any part of the oven. be sure all controls are turned off and the oven is cool.

Remove spills and any heavy soiling as soon as possible. Regular cleaning will reduce the number of major cleaning later.

Surface Type Recommendation

Aluminum and Vinyl Use hot. soapy water and a cloth. Dry with a clean cloth.

Painted and plastic control Using a soft cloth. clean with mild dish detergent and water or a 50/50 solution of knobs vinegar and water. Follow by rinsing the area with clean water; dry and polish with a soft cloth. Glass cleaners may be used if sprayed on a soft cloth first. Do not spray liquids directly on the oven control and display area. Do not use large amounts of water on the control panel - excess water on the control area may cause damage to the appliance.

Do not use other liquid cleaners. abrasive cleaners. scouring pads. or paper towels - they will damage the finish.

Painted body parts

Painted decorative trims

Surface burners Burner grates

To remove control knobs. turn to the OFF position; grasp firmly and pull straight off the shaft. To replace knobs after cleaning. line up the flat sides of both the knob and the shaft; then push the knob into place.

See"Cleaning the cooktop and surface burners" for special instructions on page 41.

Easy Care TMStainless Steel (some models)

Stainless Steel

Oven interior (Procelain)

Your oven finish may be made with stainless steel (some models). Clean the stainless with warm soapy water using a clean sponge or cloth. Rinse with clean water and dry with a soft clean cloth.

Do not use any store bought cleaners like stainless steel cleaners or any other types of cleaners containing any abrasive. chlorides. chlorine. or ammonia.

It is recommended to use mild dish soap and water or a 50/50 solution of water and vinegar.

Porcelain enamel broiler pan and insert (available by mail order)

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1 solution of clear water and ammonia.

If necessary. cover difficult spots with an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth. and then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the porcelain may become Door liner and body parts damaged during future heating.

Oven racks Oven racks must be removed from oven cavity. Clean by using a mild. abrasive cleaner following manufacturer's instructions.

Rinse with clean water and dry.

Oven door Use soap and water to thoroughly clean the top. sides. and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the door.

Do not immerse the door in water.

Do not spray or allow water or the glass cleaner to enter the door vents. Do not use oven cleaners. cleaning powders. or any harsh abrasive cleaning materials on the outside of the oven door.

Do not clean the oven door gasket. On self-clean models. the oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub. damage. or remove this gasket.

Cleaning the cooktop and surface burners

To avoid possible burns turn off all of the surface burners and allow them to cool.

Any additions. changes or conversions required in order for this appliance to satisfactorily meet the application needs must be made by an authorized qualified agency.

Routinely clean the cooktop. Wipe with a clean. damp cloth and wipe dry to avoid scratches.

Keeping the surface burner head ports and slots clean will prevent improper ignition and an uneven flame.

To clean recessed and contoured areas of cooktop

If a spill occurs on or in the recessed or contoured areas. blot up spill with an absorbent cloth. Rinse with a clean. damp cloth and wipe dry.

To clean burner grates

Clean when the grates are cool. Use nonabrasive plastic scrubbing pad and mild abrasive cleanser.

Food soils containing acids may affect the finish. Clean immediately after the grates are cool. Thoroughly dry grates immediately following cleaning.

To clean burner caps

Remove caps from burner heads after they have cooled. Clean heavy soils with a plastic scrubbing pad and absorbent cloth. Thoroughly dry burner caps imme diately following cleaning including the bottom and inside of cap.

Do not use abrasive cleaners. Do not clean burner caps in the dishwasher.

Do not operate surface burners without burner caps properly in place.

To clean the surface burner heads

For proper gas flow it may be necessary to clean the burner head and slots. First use a clean damp cloth to soak up any spills. Remove any food from between the burner slots using a small nonabrasive brush like a toothbrush and wipe up using a damp cloth. For stubborn soils located in the slots. use a small-gauge wire or needle to clean. The electrode must be carefully cleaned. Take care not to hit the electrode with any thing hard or it could be damaged.

To clean the burner head ignition ports

Each burner head has a small ignition port (Figure 42).

Should you experience ignition problems it may be that this port hole is partially blocked with soil. With the burner head in place. use a small wire gauge needle or the end of a paper clip to clear the ignition port.

Figure 42: Gas burner head parts

Replacing the oven light

Be sure the oven is unplugged and all parts are cool before replacing oven light.

The interior oven lights are located at the rear of the oven cavity and are covered with a glass shield.

Replacing the oven interior light bulb:

Turn electrical power off at the main source or unplug the appliance.

Remove interior oven light shield by turning a quarter turn. Replace bulb with a new T-4 type Halogen 25 watt appliance bulb.

Do not allow your fingers to touch the new bulb when replacing. This will shorten the life of the bulb. Use a paper towel or cotton glove while handling the new bulb when installing.

Replace glass oven light shield.

Turn power back on again at the main source (or plug the appliance back in).

Be sure to reset the time of day on the clock.

Figure 43: Halogen light

Removing the Warmer Drawer

To remove the warmer drawer:

Turn power OFF to the appliance before removing the warmer drawer.

Open the warmer drawer completely.

On left warmer drawer rail. locate black release lever and press up with finger while pulling out slightly on the oven drawer handle. On right warmer drawer rail. locate black release lever and press down with finger while pulling out slightly on the warmer drawer handle (Figure 44).

The warmer drawer should now be released from the rails. Remove warmer oven drawer (using level and square motion) completely out and away from the appli ance.

To replace the warmer drawer:

Pull the bearing glides to the front of the outer compart ment glide channels until they snap into place (See Figure 43).

Figure Bearing glide placement

Carefully line up both sides of the warmer drawer glide rails to the outer compartment glide channels located inside the empty warmer drawer compartment (See Figure 44).

Left-hand rail and release

Warmer

Figure Channel alignment

While holding the warmer drawer level and square using the warmer drawer handle. push (do not force) the warmer drawer all the way into the outer compart ment glide channels all the way into the range. Open the warmer drawer again to verify the glides have seated.

If you do not hear the levers "click" or the bearing glides do not feel seated remove the warmer drawer and

Right-hand rail and release

Figure Removing the warmer drawer

Removing and Replacing the Oven Door

The door is heavy. For safe. temporary storage. lay the door flat with the inside of the door facing down.

To remove oven door:

Open oven door completely horizontal with floor (See Figure 47).

Pull the door hinge locks on both left and right door hinges down from the oven frame completely towards the oven door (See Figure 48). A tool such as a small flat-blade screwdriver may be required.

Firmly grasp both sides of oven door along the door sides. Do not use the oven door handle (See Figure 49).

Close the door to approximately 10 degrees from the oven door frame.

Lift the oven door hinge arms over the roller pins located on each side of the oven frame (See Figure 49).

To replace oven door:

Firmly grasp both sides of oven door along the door sides. Do not use the oven door handle (See Figure 49).

Holding the oven door at the same angle as the removal position. seat the hook of the hinge arm over the roller pins located on each side of the oven door frame (See Figure 49 and Figure 50). The hook of the hinge arms must be fully seated onto the roller pins.

Fully open the oven door. horizontal with floor See Figure 47).

Push the door hinge locks up towards and into the oven frame on both left and right oven door hinges to the locked position (See Figure 48).

Close the oven door.

Special door care instructions Most oven doors contain glass that can break. Do not close the oven door until all the oven racks are fully in place. Do not hit the glass with pots. pans. or any other object. Scratching. hitting. jarring. or stressing the glass may weaken its structure causing an increased risk of breakage at a later time.

Oven door

Figure 47: Door hinge location

Figure 48: Door hinge locks

Figure 49: Holding door for removal

Figure 50: roller pin

Replacement and location of hinge arm and

Solutions to Common Baking Problems

For best cooking results. heat the oven before baking cookies. breads. cakes. pies or pastries. etc. There is no need to preheat the oven for roasting meat or baking casseroles.

The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appli ance.

Baking Problems

Cookies and biscuits burn on the bottom.

Cakes too dark on top or bottom.

Cakes not done in center.

Cakes not level.

Foods not done when

Baking Problems and Solutions Chart

Causes Corrections

Cookies and biscuits put into oven before the

Oven rack is overcrowded.

Dark pans absorbs heat too fast.

Cakes put in oven before preheating time is completed.

Rack position too high or too low.

Oven too hot.

Oven too hot.

Incorrect pan size.

Pan not centered in oven.

Range not level.

Pan too close to oven wall or rack overcrowded.

Pan warped.

Oven too cool.

Oven overcrowded.

Oven door opened too frequently.

Allow oven to preheat to desired temperature before placing food in oven.

Choose pan sizes that will permit 2" to 4" of air space (5.1 cm to 10.2 cm) on all sides when placed in the oven.

Use a medium weight baking sheet.

Allow oven to preheat to the selected temperature before placing food in the oven.

Use proper rack position for baking needs.

Set oven temperature 25°F/13°C lower than recommended.

Set oven temperature 25°F/13°C lower than recommended.

Use pan size suggested in recipe.

Use proper rack position and place pan to allow for 2" to 4" of air space (5.1 cm to 10.2 cm) on all sides of pan.

Place a marked glass measuring cup filled with water on the center of the oven rack. If the water level is uneven. refer to the installation instruc tions for leveling the range.

Be sure to allow 2" to 4" of air space (5.1 cm to 10.2 cm) on all sides of each pan in the oven.

Do not use pans that are dented or warped.

Set oven temperature 25°F/13°C higher than suggested and bake for the recommended time.

Be sure to remove all pans from the oven except the ones to be used for baking.

Open oven door only after shortest recommended baking time.

Solutions to Common Problems

Before you call for service. review the following list. It may save you time and expense.

Possible solutions are provided with the problem listed:

Problem

Poor baking results

Solution

Many factors effect baking results. Use proper oven rack position. Center food in the oven and space pans to allow air to circulate. Preheat oven to the set temperature before placing food in the oven. Try adjusting the recipe's recommended temperature or baking time. See "Adjusting oven temperatures" on page 23 if you feel the oven is too hot or cold.

Appliance is not level

Cannot move appliance easily.

Appliance must be accessible for service.

Entire appliance does not work.

Oven portion does not operate.

Oven light does not work.

Flames inside oven or smoking from oven vent.

Oven racks discolored or do not

If your oven is cooking poorly. or self clean is performing badly. perform the following check: Press Broil; Press START. Place your hand near the handle on the oven door.

Between the door and the control panel you should feel a rush of air on your hand. If so. your unit is functioning properly and you have had a Power Failure in your home. If no air stream is present. call a service technician to replace your cooling fan.

Be sure floor is level. strong and stable enough to adequately support range. If floor is sagging or sloping. contact a carpenter to correct the situation.

Poor installation.

Place oven rack in center of oven and place a level on the oven rack.

Adjust leveling legs at base of appliance until the rack is level.

Kitchen cabinet alignment may make range appear not level. Be sure cabinets are square and have sufficient room for appliance clearance.

Cabinets not square or are built in too tight to allow clearance for appliance.

Contact builder or installer to make appliance accessible.

Carpet interferes with appliance.

Provide sufficient space so appliance can be lifted over carpet.

For models with a power cord. make sure power cord is plugged properly into outlet. If electricity to home is working. check fuse box or breaker. Call your local electric company for service outage information.

Service wiring is not complete. Call 1-800-4-MY-HOME for assistance.

The time of day is not set. The oven clock must first be set in order to operate the oven.

See"Setting the Clock" on page 20.

Be sure oven controls are set properly. See "Oven Control Functions" on page 14 and review instructions for the desired cooking function in this manual or see "Entire appliance does not operate" in this checklist.

Be sure the oven light is secure in the socket. See "Replacing the oven light" on page 41.

Excessive spills in oven. Grease or food spilled onto oven bottom or oven cavity. Wipe up excessive spills before starting oven. If flames or excessive smoke are present when using Broil. see "Convection Cooking" on page 25.

Oven racks left in oven cavity during Self Clean. Always remove oven racks from oven cavity before starting a self-clean cycle. Clean by using a mild abrasive cleaner following manufacturer's instructions.

Rinse with clean water. dry. and replace in oven.

Ovensmokesexcessivelywhen broiling. fattyedgestopreventcurling. utdonotcutintolean.

Ovencontrolpanelbeepsand displaysanyFor Ecodeerror.

Convectionfandoesnotrotate.

SelfCleandoesnotwork.

Surfaceburnersdonotignite.

Ifyouroveniscookingpoorly. rselfcleanisperformingbadly. erformthefollowing so. ourunitisfunctioningproperlyandyouhavehada PowerFailureinyourhome.If noairstreamispresent. alla servicetechnicianto replaceyourcoolingfan isactive.Closeovendoor.

Surfacecontrolknobwasnotcompletelyturnedto Lite.Pushinandturnthesurface

Burnerportsareclogged.WiththeburnerOFF. sea small-gaugewireorneedleto burnerheadslotsandignitionports.

Surfaceburnerflameunevenor onlypartwayaroundtheburner cap.

Rangepowercordisdisconnected fromoutletelectricignitionmodelsonly).Besure gaugewireorneedle. untilflameisfull.

Surfaceburnerflameistoohigh.

Exclusions This warranty does not cover the following:

Products with original serial numbers that have been removed. altered or cannot be readily determined.

Product that has been transferred from its original owner to another party or removed outside the USA or Canada.

Rust on the interior or exterior of the unit.

Products purchased "as-is" are not covered by this warranty.

Food loss due to any refrigerator or freezer failures.

Products used in a commercial setting.

Service calls which do not involve malfunction or defects in materials or workmanship. or for appliances

Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

Expenses for making the appliance accessible for servicing. such as removal of trim. cupboards. shelves. etc. which are not a part of the appliance when it is shipped from the factory.

Service calls to repair or replace appliance light bulbs. air filters. water filters. other consumables. or knobs. handles. or other cosmetic parts.

Surcharges including. but not limited to. any after hour. weekend. or holiday service calls. tolls. ferry trip charges. or mileage expense for service calls to remote areas. including the state of Alaska.

Damages to the finish of appliance or home incurred during installation. including but not limited to floors. cabinets. walls. etc.

Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse. misuse. inadequate power supply. accidents. fires. or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES.

INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. BUT NOT LESS THAN ONE YEAR.

ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES. OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES.

SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service Keep your receipt. delivery slip. or some other appropriate payment record to establish the warranty period

This warranty only applies in the USA and Canada.

In the USA. your appliance is warranted by Electrolux Major Appliances North America. a division of Electrolux Home Products.

Inc. In Canada. your appliance is warranted by Electrolux Canada Corp.

Electrolux authorizes no person to change or add to any obligations under this warranty.

Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company.

Product features or specifications as described or illustrated are subject to change without notice.

USA 1.800.944.9044 Electrolux Home Products.

Inc.

Electrolux

10200 David Taylor Drive Charlotte.

NC 28262

Canada 800.265.8352 Electrolux Canada Corp.

5855 Terry Fox Way Mississauga.

Ontario.

Canada L5V 3E4



Newest Added: FGEF3036TDE FGHS2634KE2 PLHT189SSBC FFHT1621QB1 FEB30S5DCA

Frigidaire CGDS3065PFR | Pages: 48 | Created on: 2022-07-11 | File type: PDF | Filename: 73005306_cgds3065pfr.pdf | Size: 14.42 MB | Language: English | Other documents: 1 files.

Download User Manual

Contact us

Frigidaire in United States

1-800-374-4432 Mon-Fri, 8:30am - 8pm (EST)
