Gas Range
Estufa de gas
Models, Modelos 790.7921,
• = color number, nimero de color
O0
O0
www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. 316258037(0306)

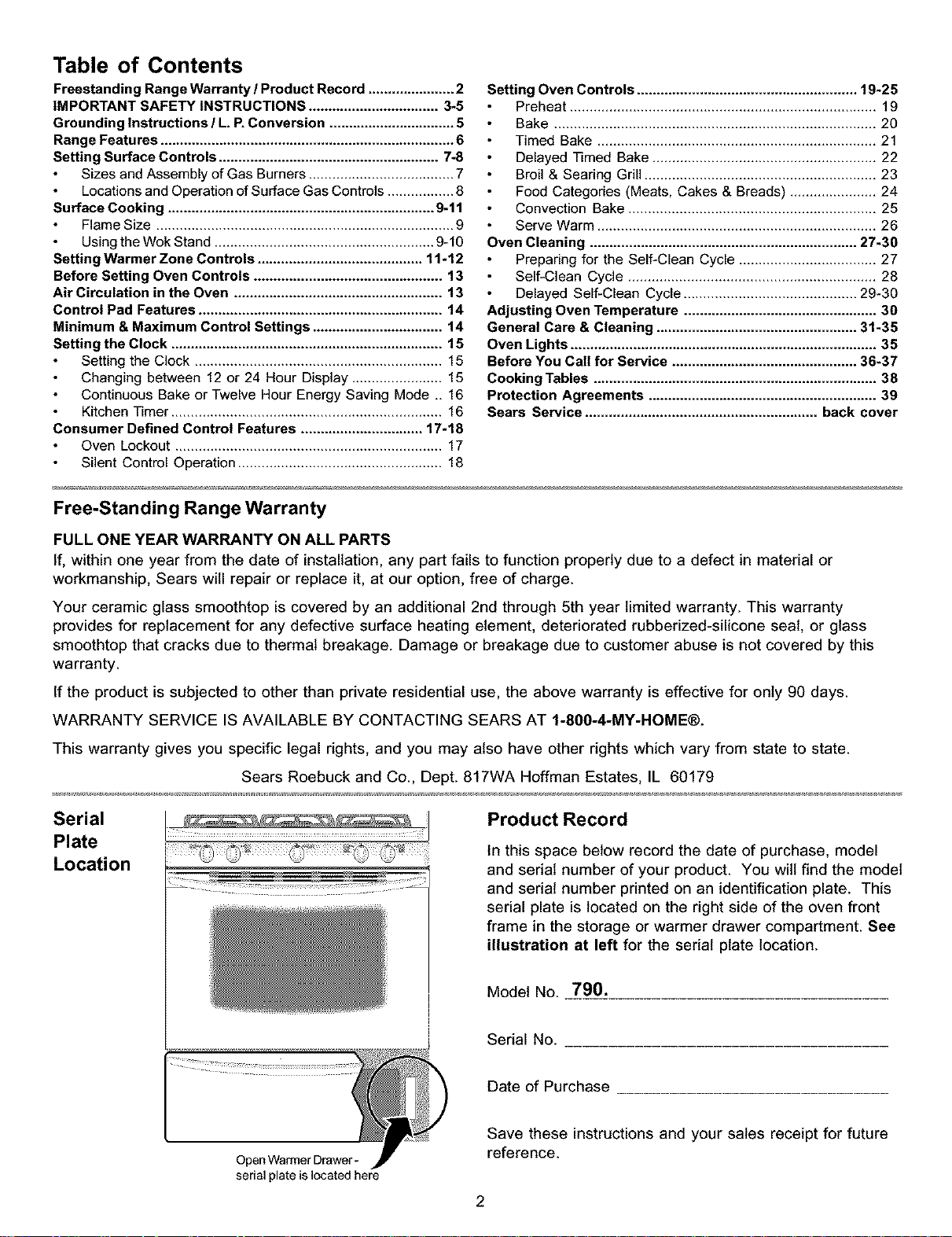

Table of Contents
Freestanding Range Warranty / Product Record ...................... 2
IMPORTANT SAFETY INSTRUCTIONS ................................. 3-5
Grounding instructions / L. P.Conversion ................................ 5

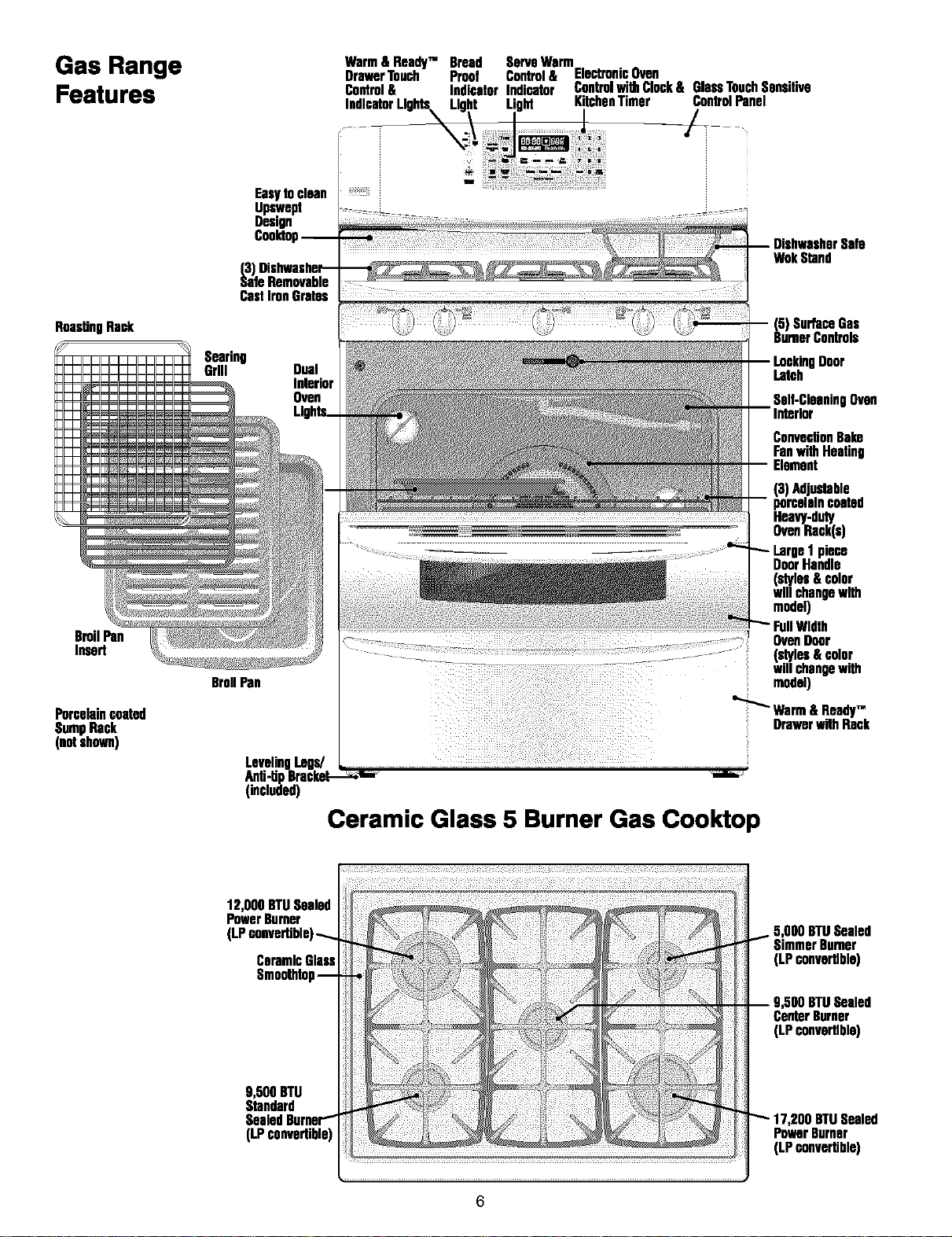

Range Features ........................................................................... 6
Setting Surface Controls ........................................................ 7-8
Sizes and Assembly of Gas Burners ..................................... 7
Locations and Operation of Surface Gas Controls ................. 8
Surface Cooking .................................................................... 9-11
Flame Size ............................................................................ 9
Using the Wok Stand ........................................................ 9-10
Setting Warmer Zone Controls .......................................... 11-12
Before Setting Oven Controls ................................................ 13
Air Circulation in the Oven ..................................................... 13

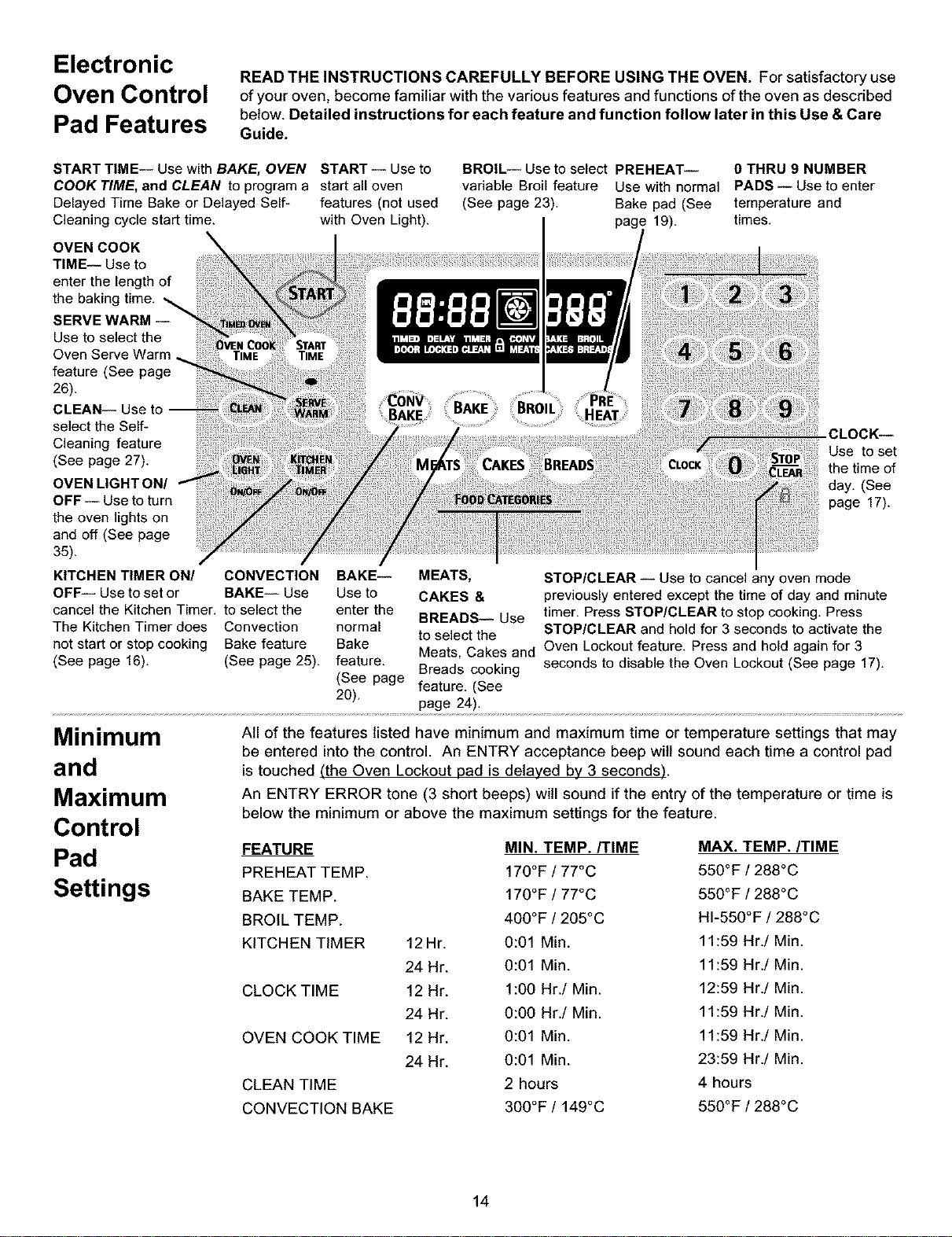

Control Pad Features .............................................................. 14
Minimum & Maximum Control Settings ................................. 14

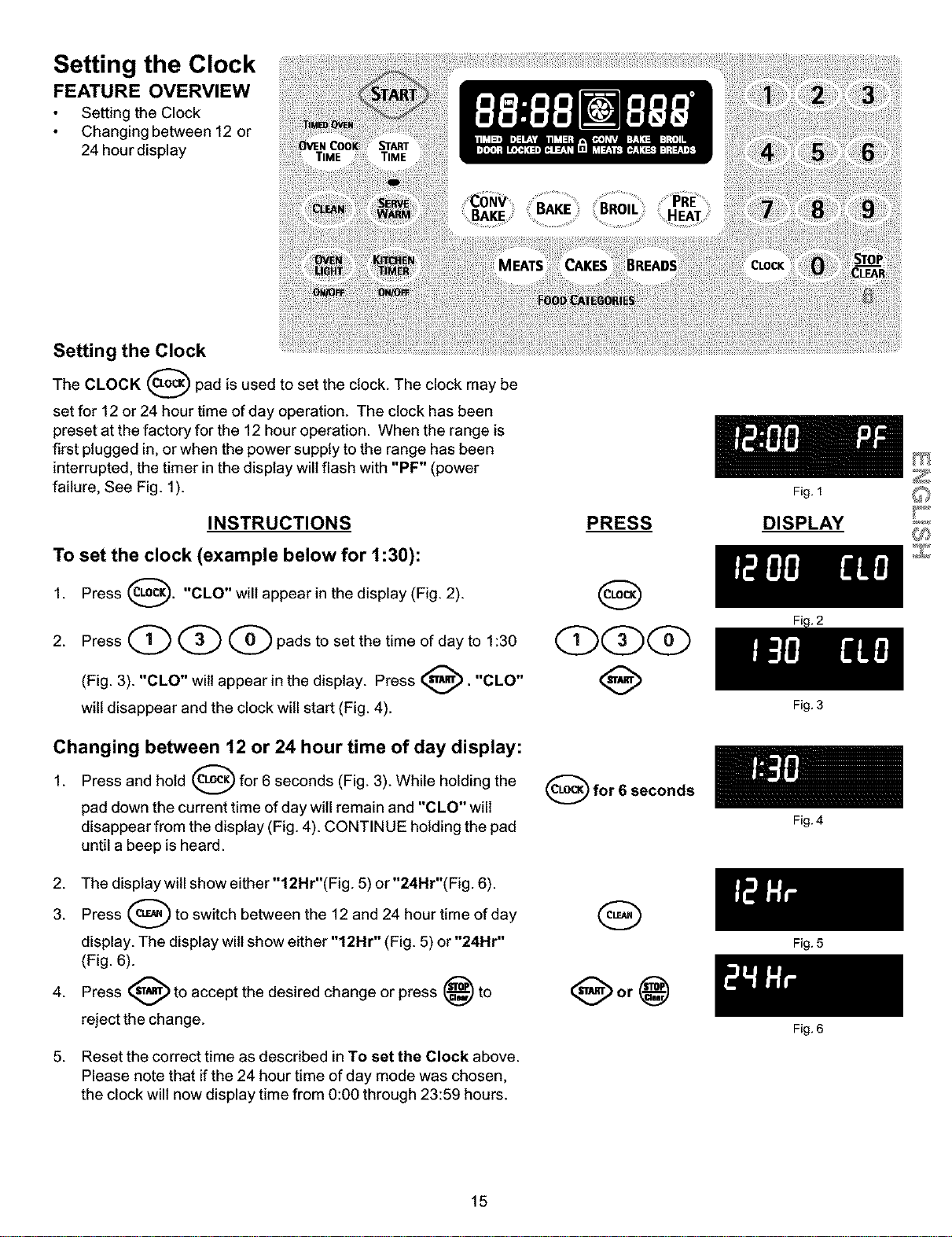

Setting the Clock ..................................................................... 15
Setting the Clock ............................................................... 15
Changing between 12 or 24 Hour Display ....................... 15
Continuous Bake or Twelve Hour Energy Saving Mode ,, 16

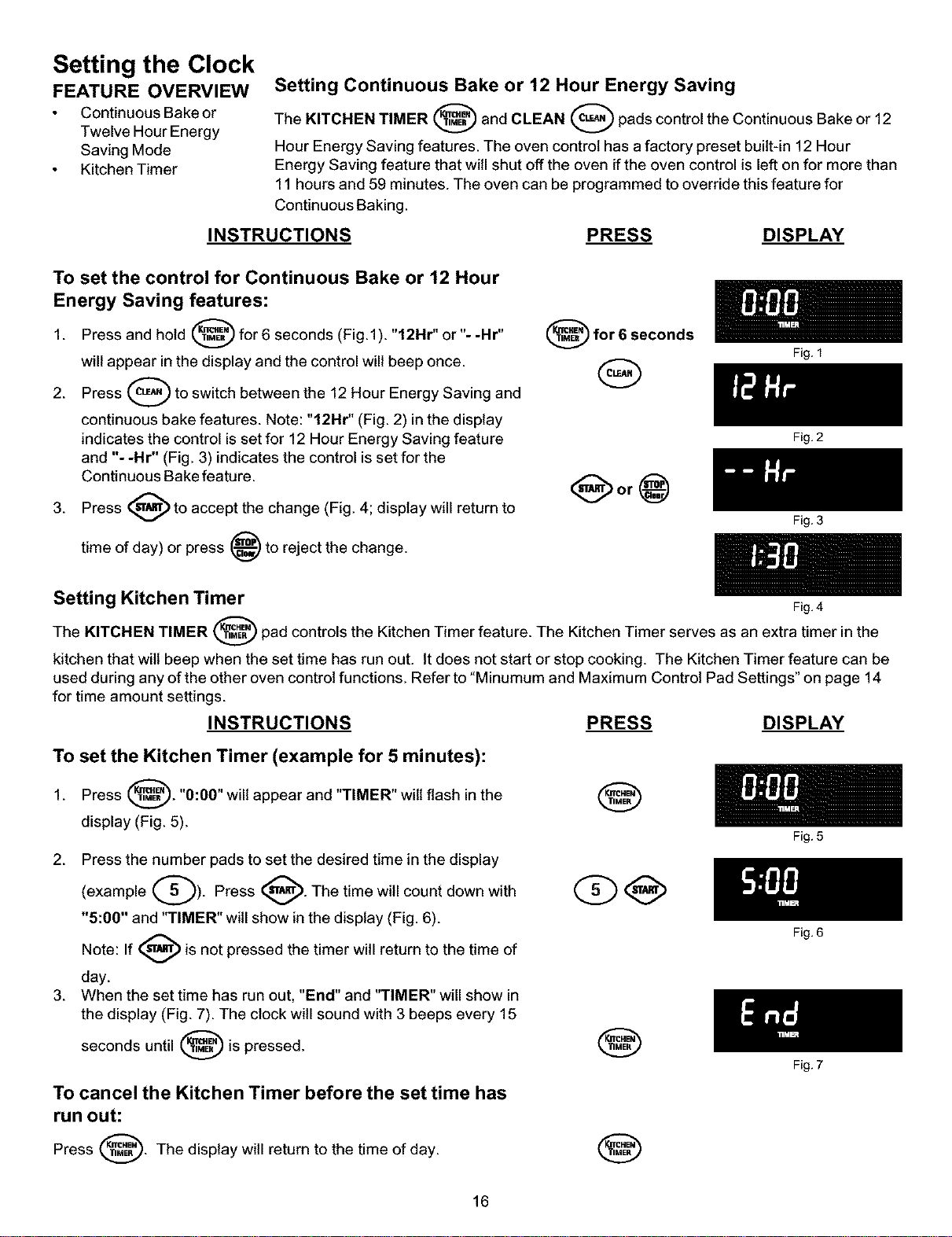

Kitchen Timer ..................................................................... 16
Consumer Defined Control Features ............................... 17-18
Oven Lockout .................................................................... 17
Silent Control Operation .................................................... 18
Setting Oven Controls ........................................................ 19-25
Preheat .............................................................................. 19
Bake .................................................................................. 20
Timed Bake ....................................................................... 21
Delayed Timed Bake ......................................................... 22
Broil & Searing Grill ........................................................... 23
Food Categories (Meats, Cakes & Breads) ...................... 24
Convection Bake ............................................................... 25

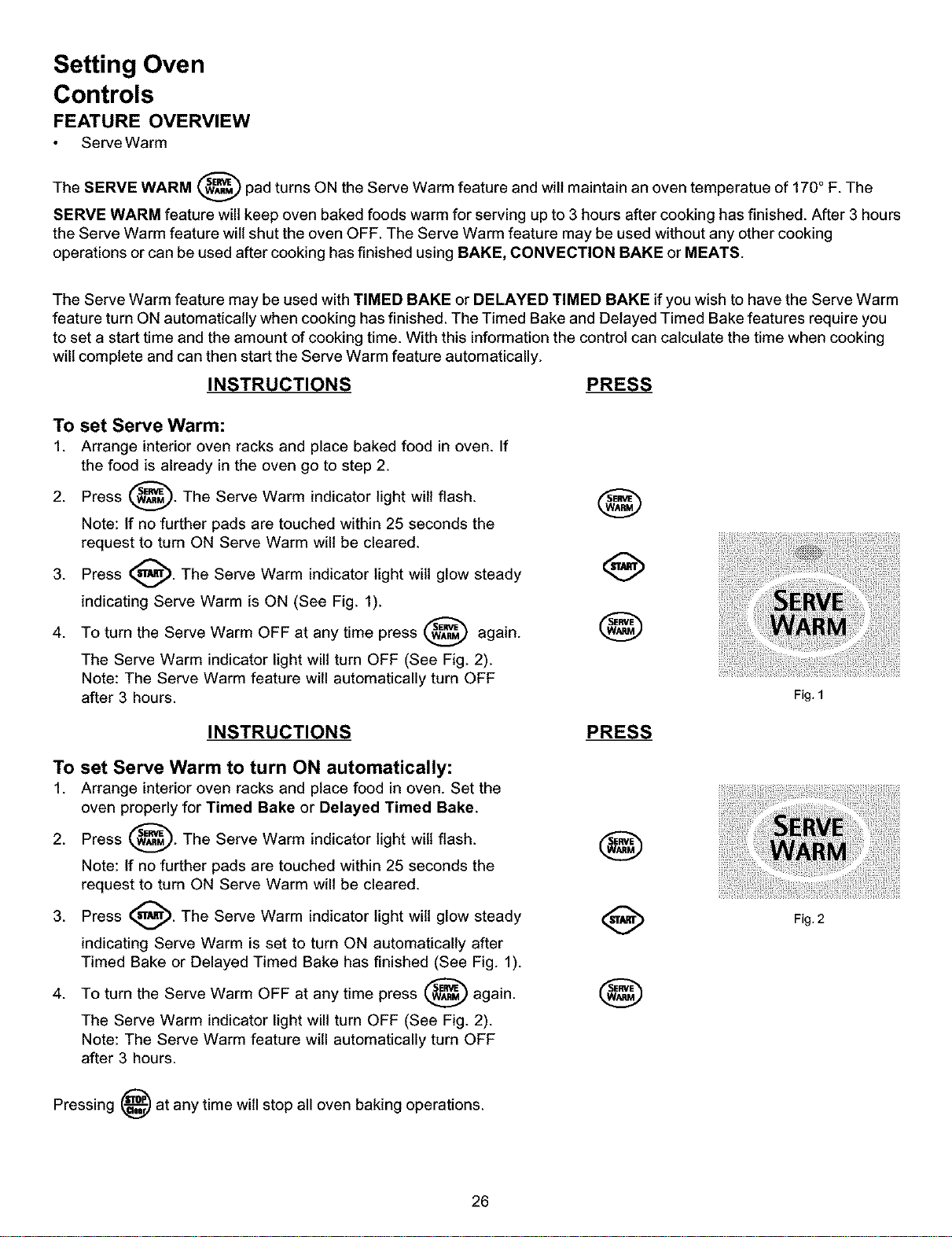

Serve Warm ....................................................................... 26

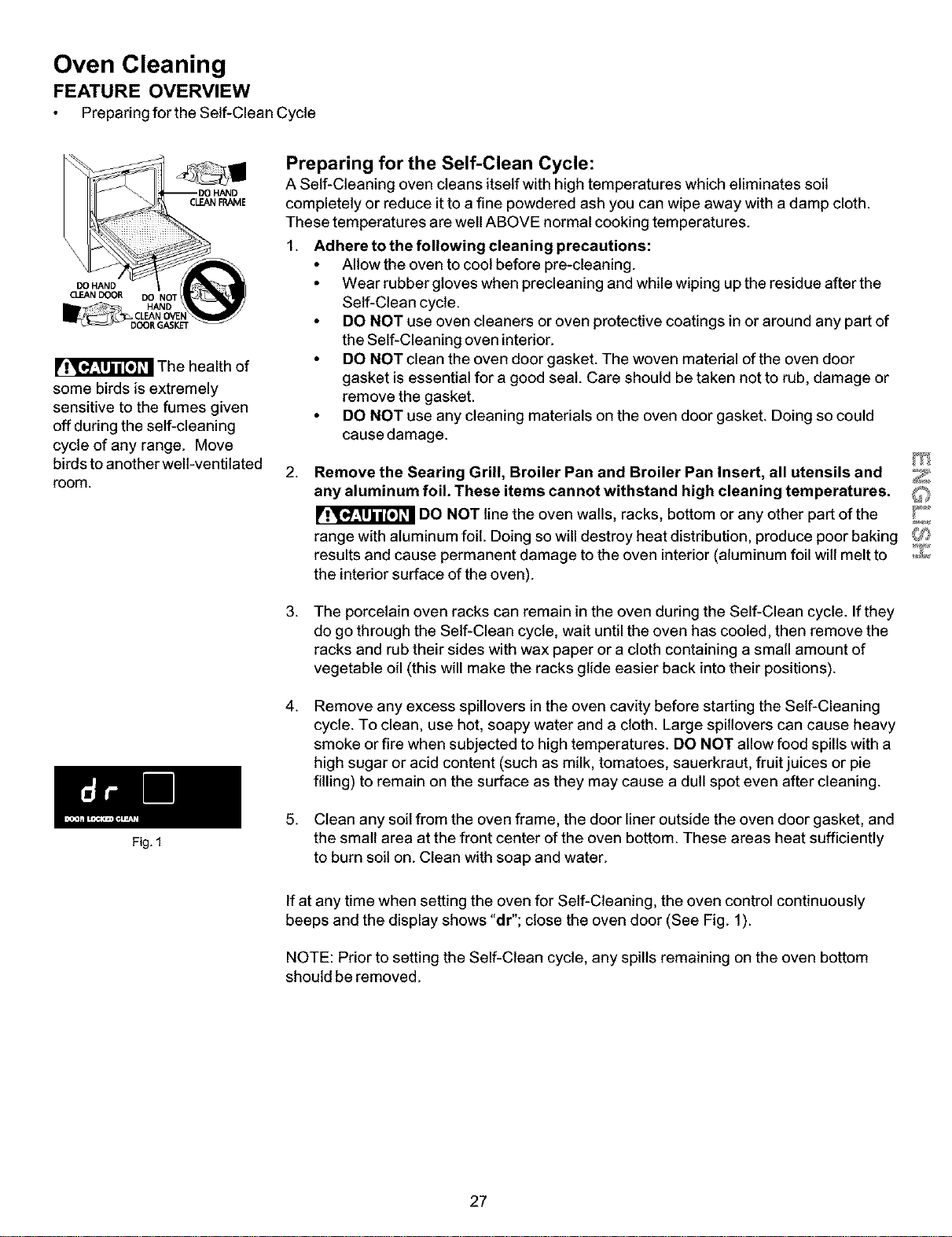

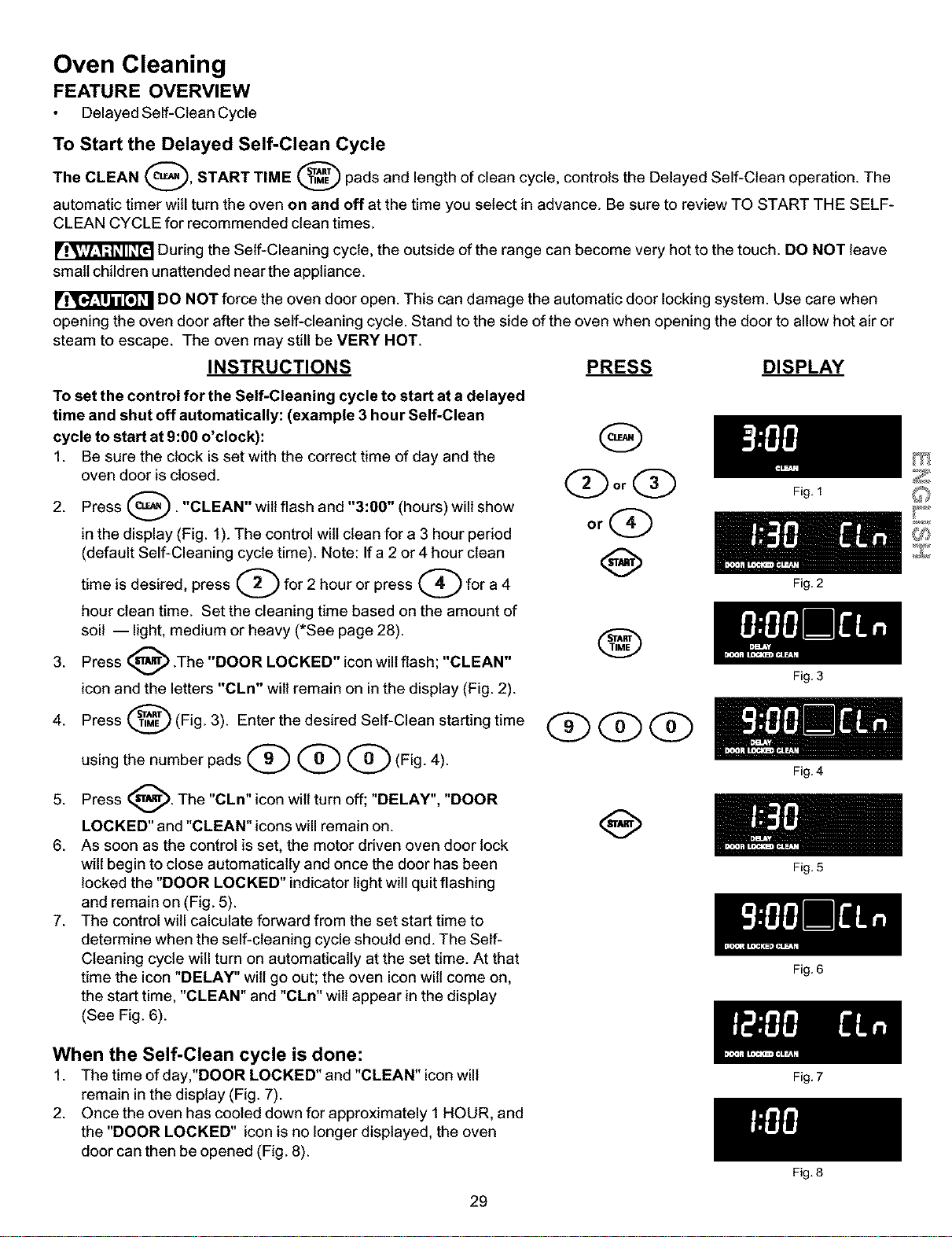

Oven Cleaning .................................................................... 27-30
Preparing for the Self-Clean Cycle ................................... 27
Self-Clean Cycle ............................................................... 28
Delayed Self-Clean Cycle ............................................ 29-30

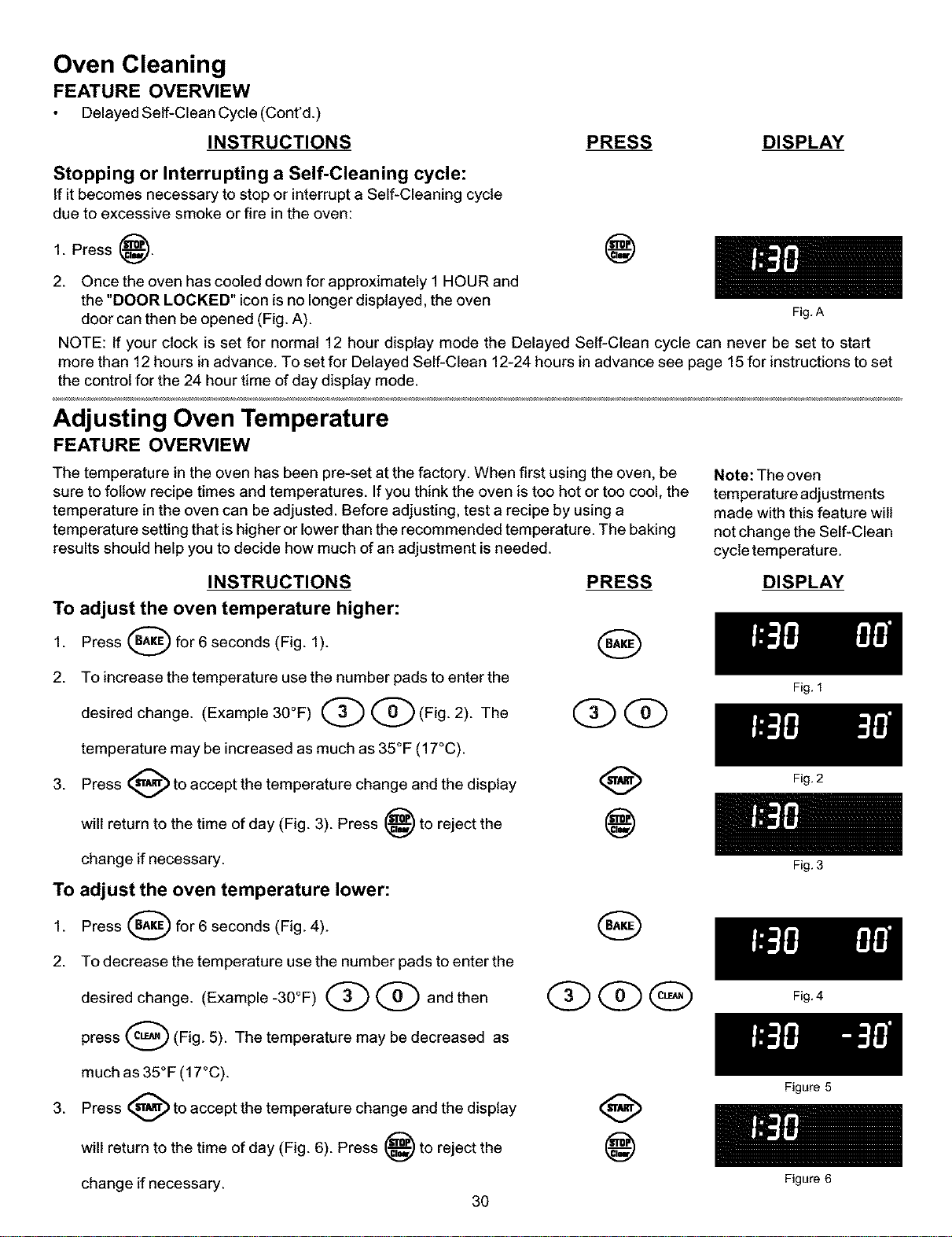

Adjusting Oven Temperature ................................................. 30

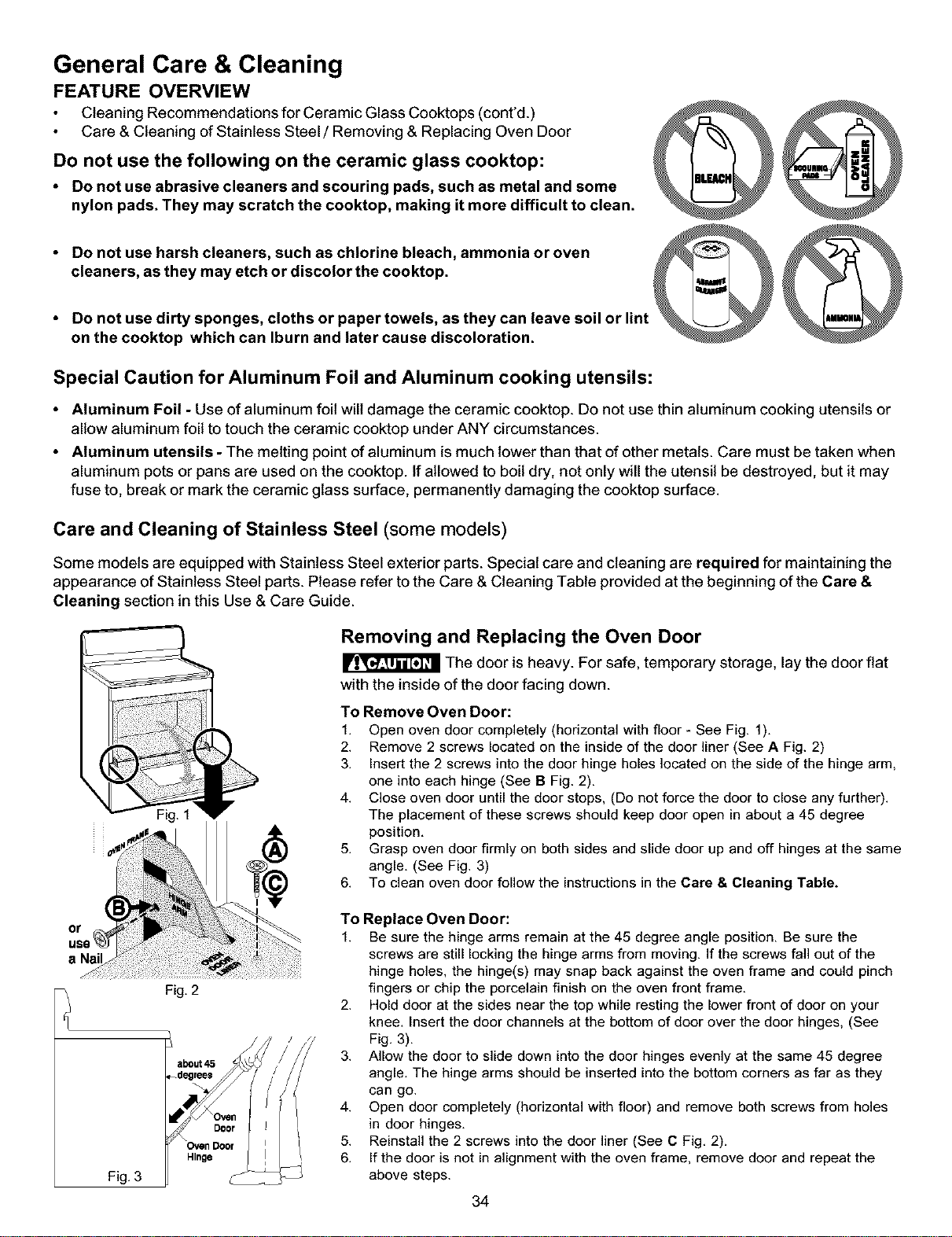

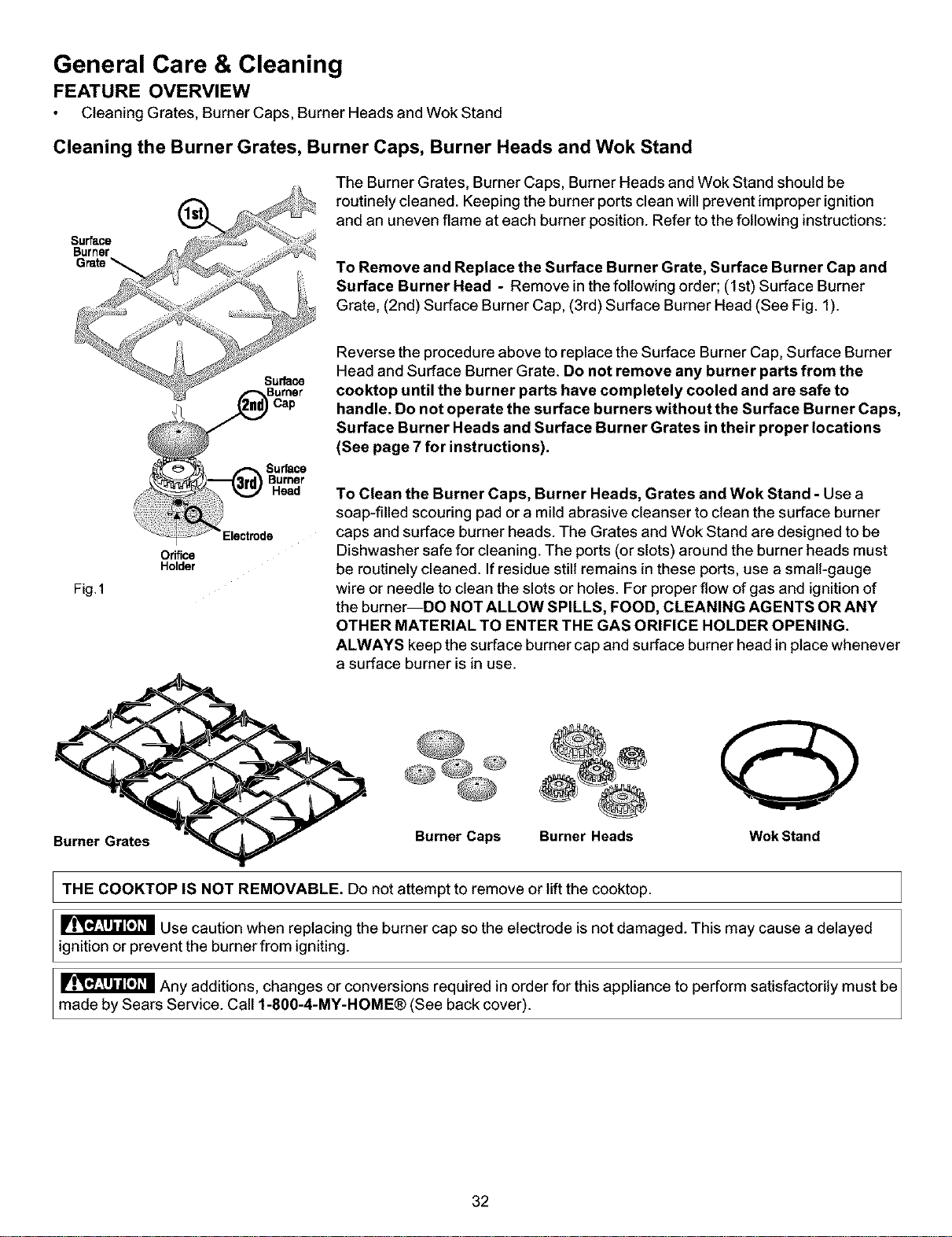

General Care & Cleaning ................................................... 31-35
Oven Lights .............................................................................. 35

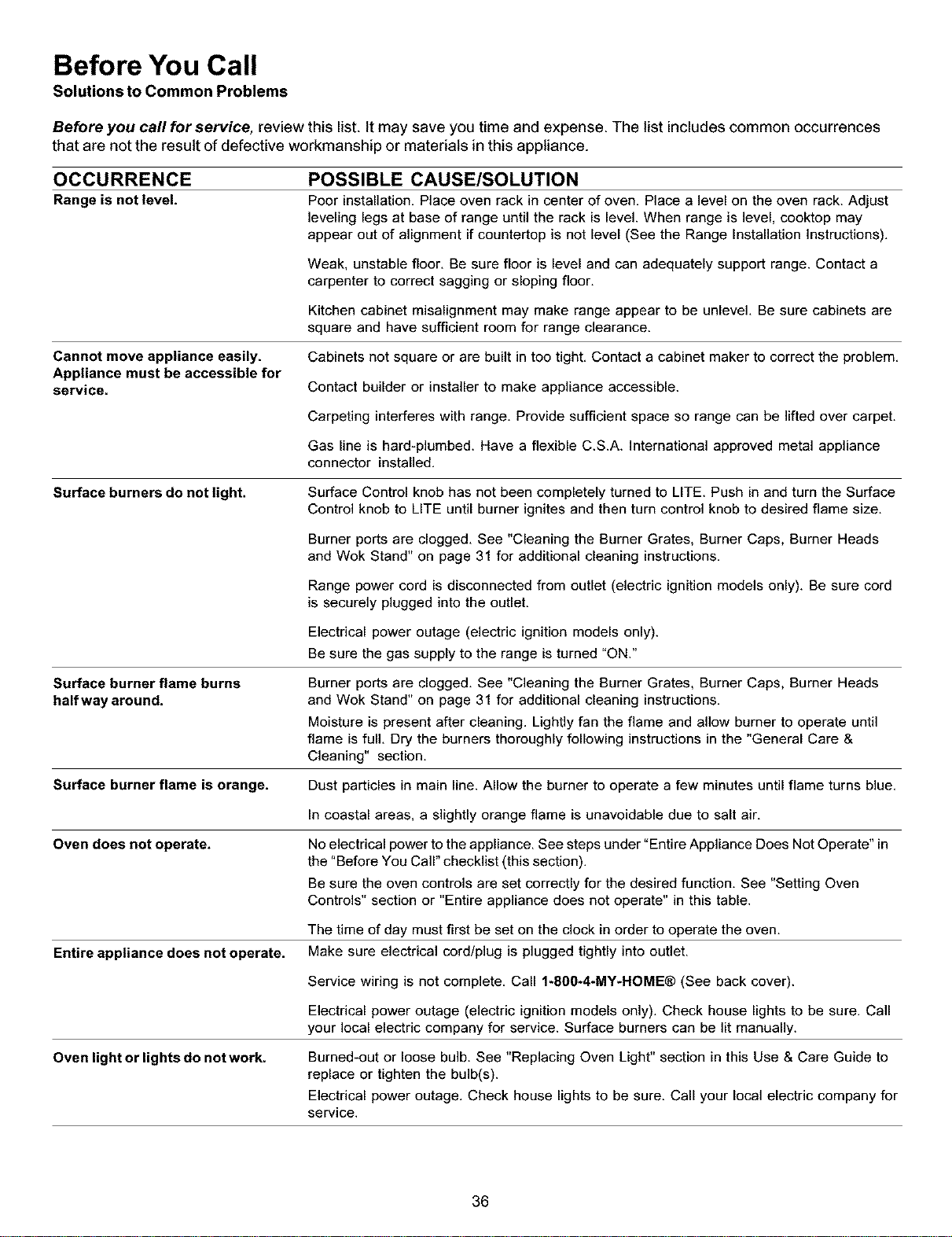

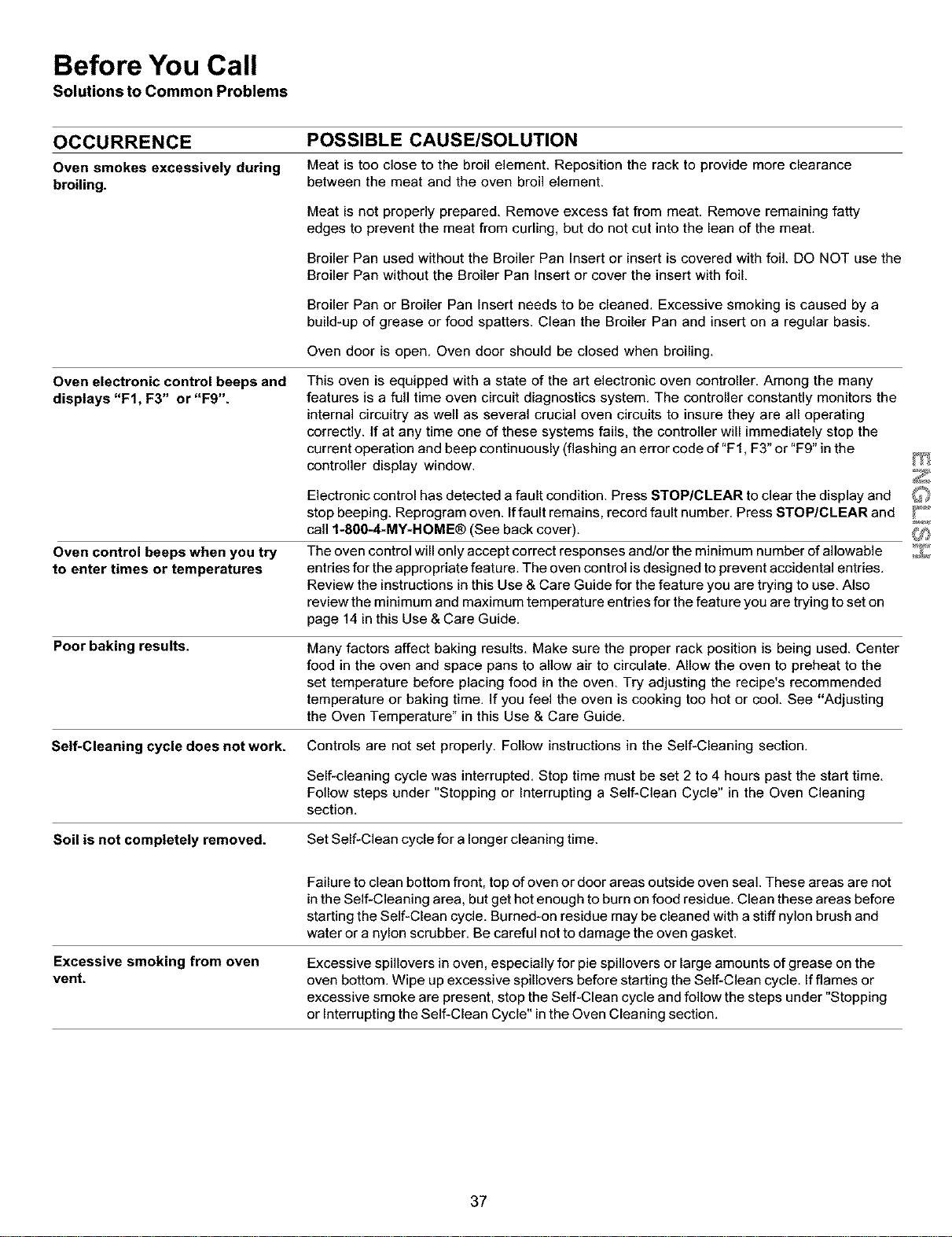

Before You Call for Service ............................................... 36-37

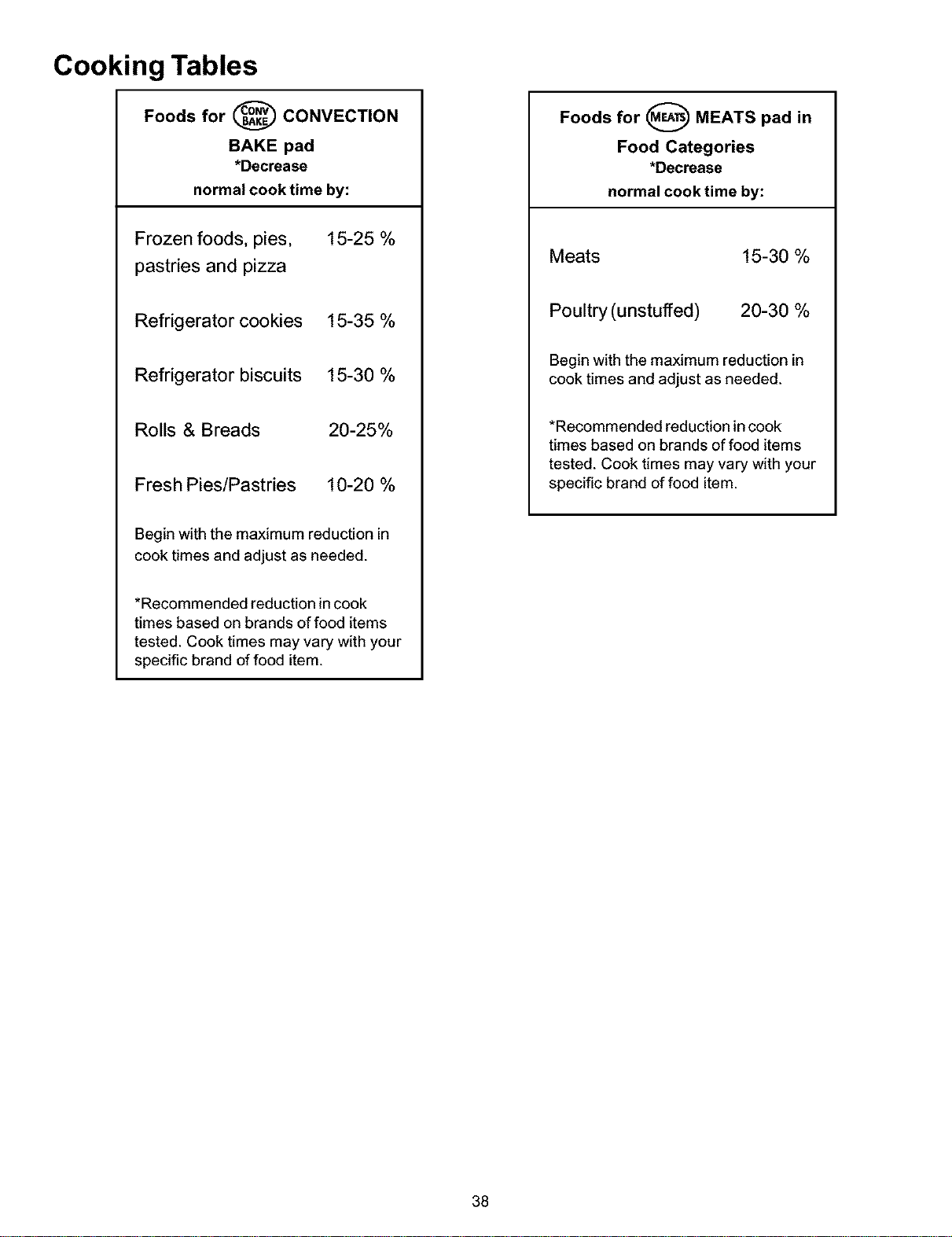

Cooking Tables ........................................................................ 38

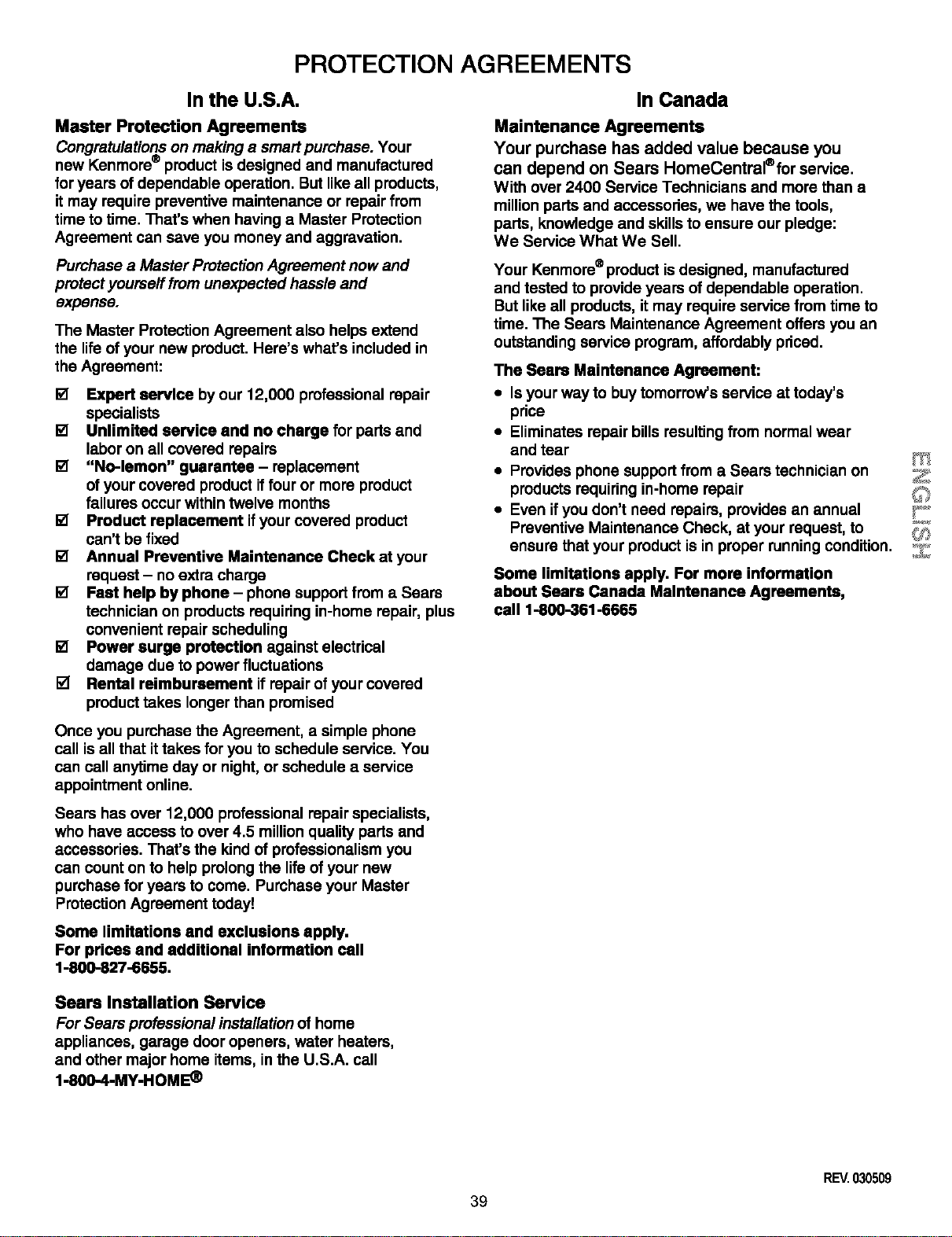

Protection Agreements .......................................................... 39

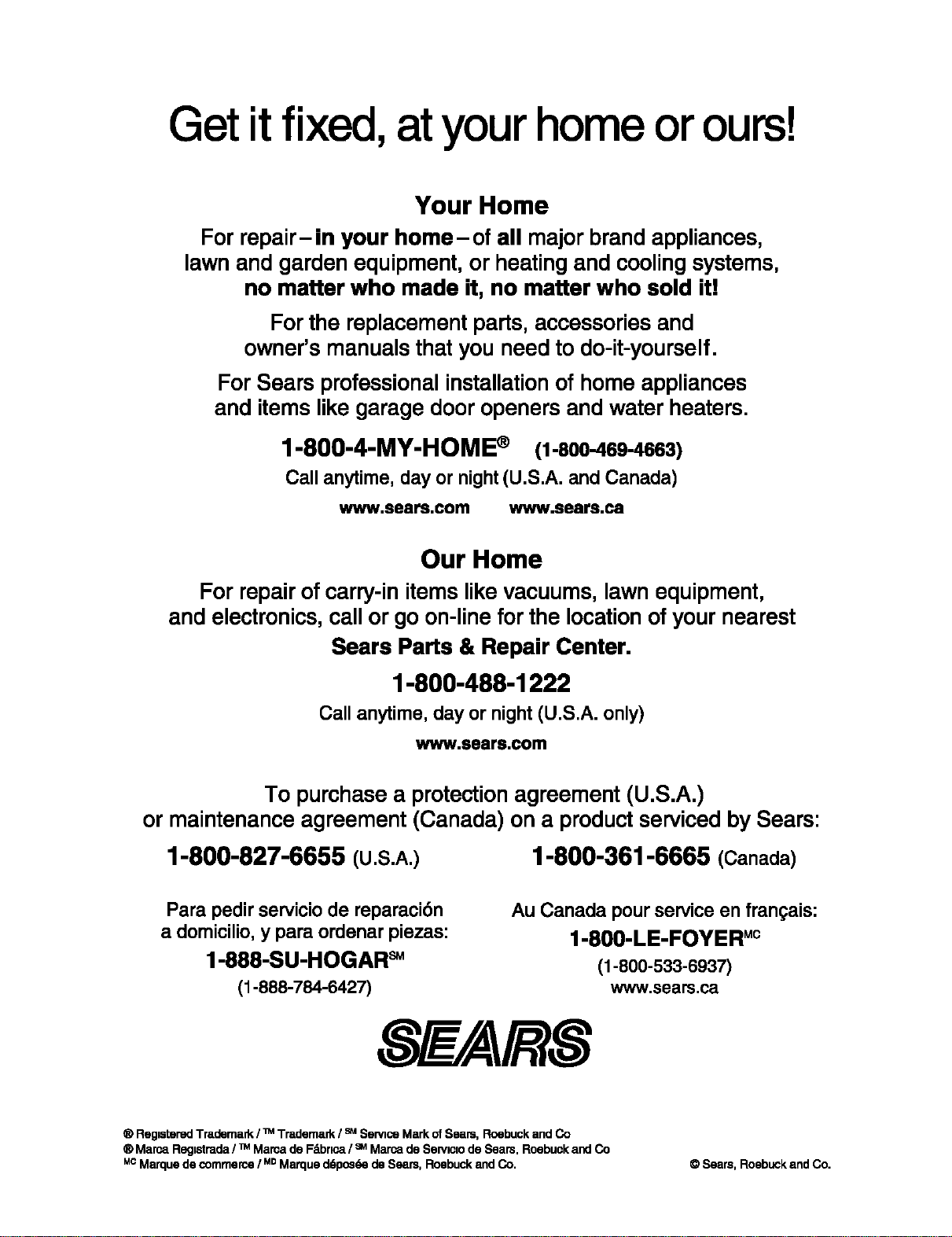

Sears Service ........................................................... back cover
Free-Standing Range Warranty
FULL ONE YEAR WARRANTY ON ALL PARTS
If, within one year from the date of installation, any part fails to function properly due to a defect in material or
workmanship, Sears will repair or replace it, at our option, free of charge.
Your ceramic glass smoothtop is covered by an additional 2nd through 5th year limited warranty. This warranty
provides for replacement for any defective surface heating element, deteriorated rubberized-silicone seat, or glass
smoothtop that cracks due to thermal breakage. Damage or breakage due to customer abuse is not covered by this
warranty.
If the product is subjected to other than private residential use, the above warranty is effective for only 90 days.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS AT 1-800-4-MY-HOME®.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179
Serial
Plate
Location
Product Record
In this space below record the date of purchase, model
and serial number of your product. You wilt find the model
and serial number printed on an identification plate. This
serial plate is located on the right side of the oven front
frame in the storage or warmer drawer compartment. See
illustration at left for the serial plate location.
Model No. 790.
Serial No..................................
Open Warmer Drawer -
serial plate is located here
Date of Purchase
Save these instructions and your sales receipt for future
reference.
2

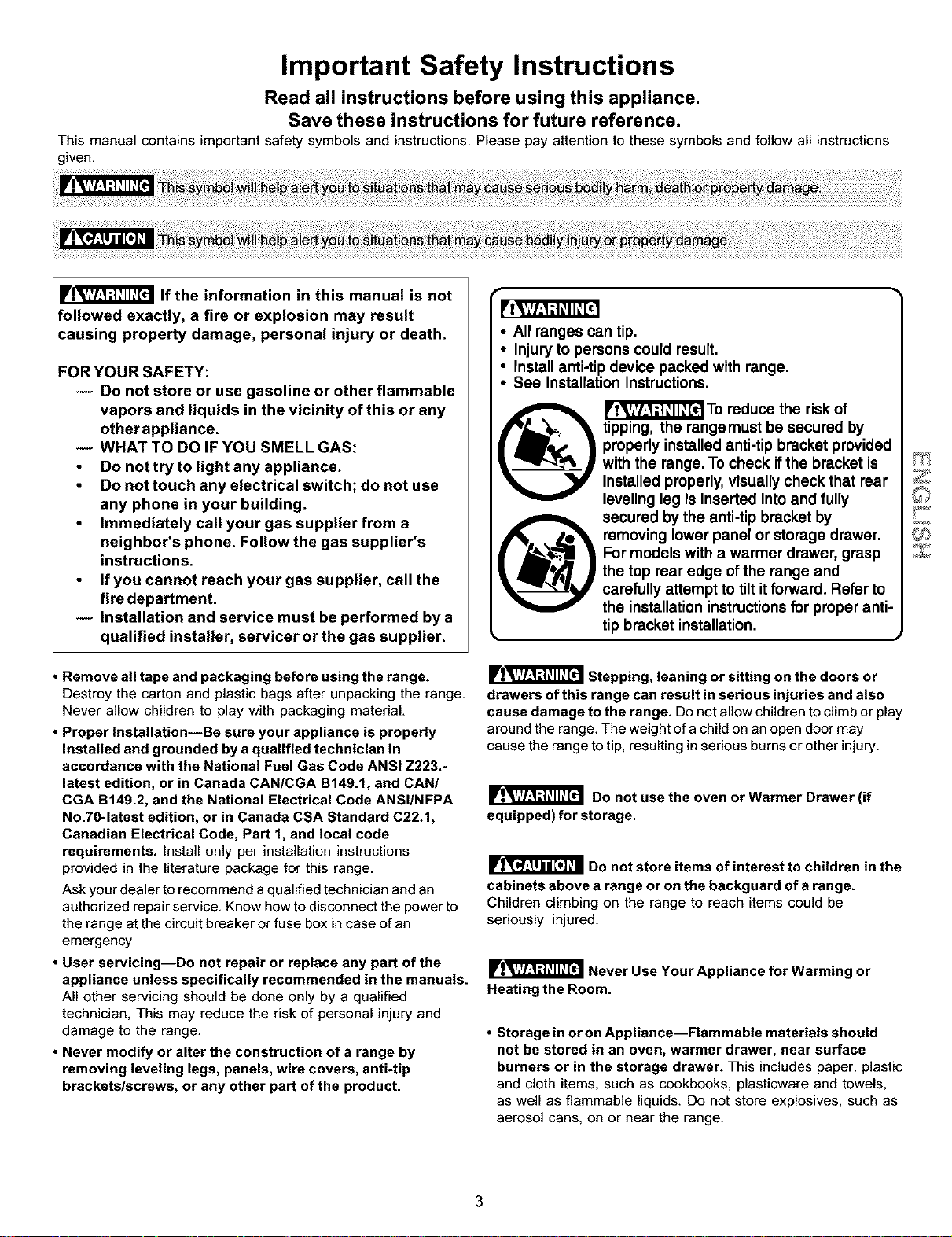

Important Safety Instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions
given.
If the information in this manual is not
followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
otherappliance.
-- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
-- Installation and service must be performed by a
qualified installer, servicer or the gas supplier.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the range.
Never allow children to play with packaging material.
• Proper InstallationiBe sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Fuel Gas Code ANSI Z223.-
latest edition, or in Canada CAN/CGA B149.1, and CAN/
CGA B149.2, and the National Electrical Code ANSIINFPA
No.704atest edition, or in Canada CSA Standard C22.1,
Canadian Electrical Code, Part 1, and local code
requirements. Install only per installation instructions
provided in the literature package for this range.
Ask your dealer to recommend aqualified technician and an
authorized repair service. Know how to disconnect the power to
the range at the circuit breaker or fuse box in case of an
emergency.
• User servicingiDo not repair or replace any part of the
appliance unless specifically recommended in the manuals.
All other servicing should be done only by a qualified
technician, This may reduce the risk of personal injury and
damage to the range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed with range.
• Sea Installation Instructions.
_FI_.YI'-I-'t_II_[€t To reduce the risk of
tipping, the rangemust be secured by
properly installed anti-tip bracket providec
with the range. To check if the bracket is
installed properly, visually check that rear
leveling leg is inserted into and fully
secured by the anti-tip bracket by
removing lower panel or storage drawer.
For models with a warmer drawer, grasp
the top rear edge of the range and
carefully attempt to tilt it forward. Refer to
the installation instructions for proper anti-
tip bracket installation.
J
Stepping, leaning or sitting on the doors or
drawers of this range can result in serious injuries and also
cause damage to the range. Do not allow children toclimb or play
around the range. The weight ofa child on an open door may
cause the range to tip, resulting in serious burns or other injury.
_Do not use the oven or Warmer Drawer (if
equipped) for storage.
_Do not store items of interest to children in the
cabinets above a range or on the backguard of a range.
Children climbing on the range to reach items could be
seriously injured.
Never Use Your Appliance for Warming or
Heating the Room.
• Storage in or on ApplianceiFlammable materials should
not be stored in an oven, warmer drawer, near surface
burners or in the storage drawer. This includes paper, plastic
and cloth items, such as cookbooks, plasticware and towels,
as well as flammable liquids. Do not store explosives, such as
aerosol cans, on or near the range.
3

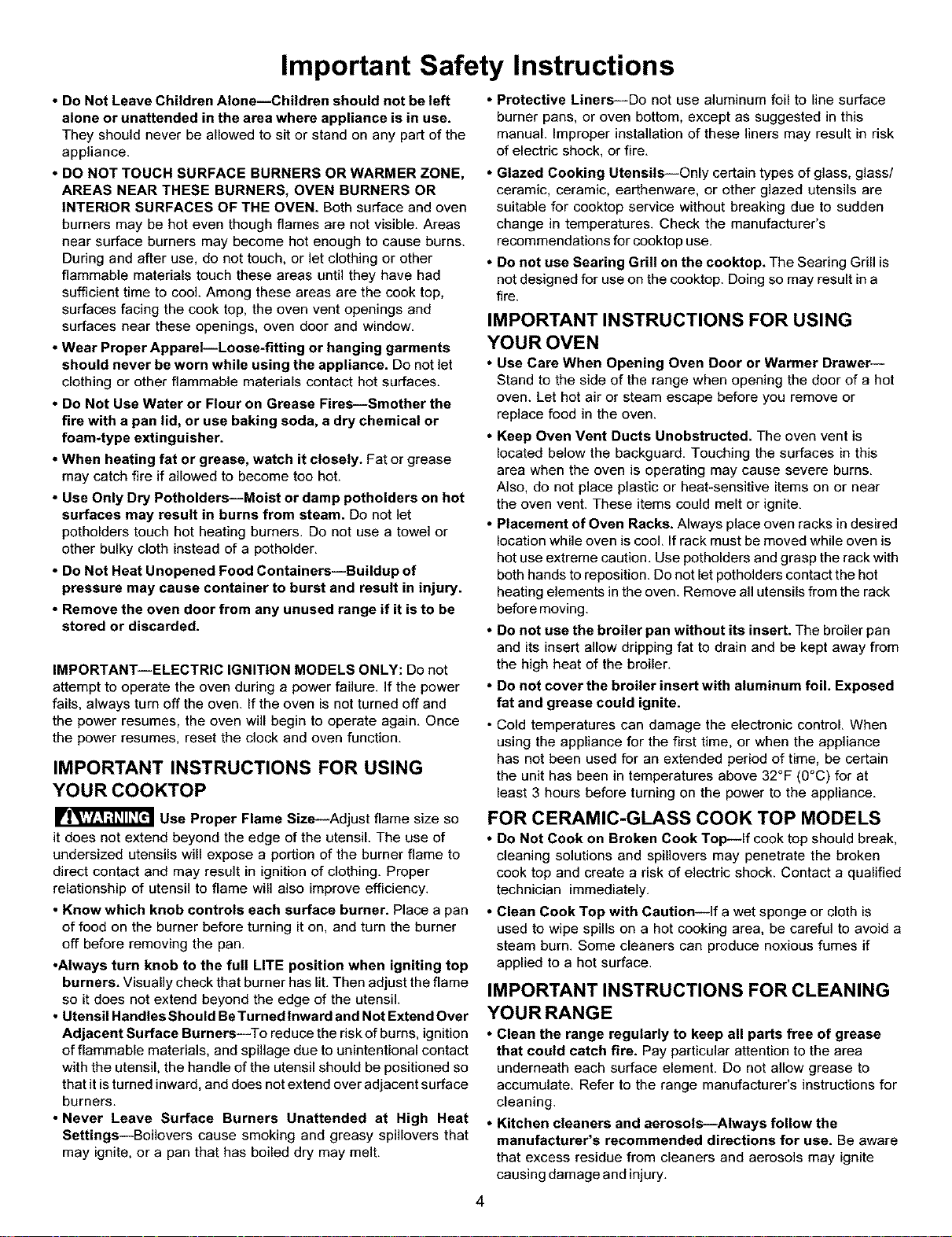

Important Safety Instructions
• DO Not Leave Children Alone--Children should not be left
alone or unattended in the area where appliance is in use.
They should never be allowed to sit or stand on any part of the
appliance.
• DO NOT TOUCH SURFACE BURNERS OR WARMER ZONE,
AREAS NEAR THESE BURNERS, OVEN BURNERS OR
INTERIOR SURFACES OF THE OVEN. Both surface and oven
burners may be hot even though flames are not visible. Areas
near surface burners may become hot enough to cause burns.
During and after use, do not touch, or let clothing or other
flammable materials touch these areas until they have had
sufficient time to cool. Among these areas are the cook top,
surfaces facing the cook top. the oven vent openings and
surfaces near these openings, oven door and window.
• Wear Proper AppareliLoose-fitting or hanging garments
should never be worn while using the appliance. Do not let
clothing or other flammable materials contact hot surfaces.
• Do Not Use Water or Flour on Grease FiresiSmother the
fire with a pan lid, or use baking soda, a dry chemical or
foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or grease
may catch fire if allowed to become too hot.
• Use Only Dry PotholdersiMoist or damp potholders on hot
surfaces may result in burns from steam. Do not let
pothotders touch hot heating burners. Do not use a towel or
other bulky cloth instead of a pothotder.
• Do Not Heat Unopened Food Containers--Buildup of
pressure may cause container to burst and result in injury.
• Remove the oven door from any unused range if it is to be
stored or discarded.
IMPORTANT--ELECTRIC IGNITION MODELS ONLY: Do not
attempt to operate the oven during a power failure, if the power
fails, always turn off the oven. If the oven is not turned off and
the power resumes, the oven will begin to operate again. Once
the power resumes, reset the clock and oven function.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
_Use Proper Flame Size--Adjust flame size so
it does not extend beyond the edge of the utensil. The use of
undersized utensils wilt expose a portion of the burner flame to
direct contact and may result in ignition of clothing. Proper
relationship of utensil to flame will also improve efficiency.
• Know which knob controls each surface burner. Place a pan
of food on the burner before turning it on, and turn the burner
off before removing the pan.
•Always turn knob to the full LITE position when igniting top
burners. Visually check that burner has lit. Then adjust the flame
so it does not extend beyond the edge of the utensil.
• Utensil Handles Should Be Turned Inward and Not Extend Over
Adjacent Surface Burners--To reduce the risk of burns, ignition
of flammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so
that it isturned inward, and does not extend over adjacent surface
burners.
• Never Leave Surface Burners Unattended at High Heat
Settings--Boilovers cause smoking and greasy spiltovers that
may ignite, or a pan that has boiled dry may melt.
• Protective Liners--Do not use aluminum foil to line surface
burner pans, or oven bottom, except as suggested in this
manual. Improper installation of these liners may result in risk
of electric shock, or fire.
• Glazed Cooking Utensils--Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed utensils are
suitable for cooktop service without breaking due to sudden
change in temperatures. Check the manufacturer's
recommendations for cooktop use.
• Do not use Searing Grill on the cooktop. The Searing Grill is
not designed for use on the cooktop. Doing so may result ina
fire.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
• Use Care When Opening Oven Door or Warmer Drawer--
Stand to the side of the range when opening the door of a hot
oven. Let hot air or steam escape before you remove or
replace food in the oven.
• Keep Oven Vent Ducts Unobstructed. The oven vent is
located below the backguard. Touching the surfaces in this
area when the oven is operating may cause severe burns.
Also, do not place plastic or heat-sensitive items on or near
the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in desired
location while oven is cool. If rack must be moved while oven is
hotuse extreme caution. Use pothotders and grasp the rack with
both hands to reposition. Do not let potholders contact the hot
heating elements in the oven. Remove all utensils from the rack
before moving.
• Do not use the broiler pan without its insert. The broiler pan
and its insert allow dripping fat to drain and be kept away from
the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil. Exposed
fat and grease could ignite.
• Cold temperatures can damage the electronic control. When
using the appliance for the first time, or when the appliance
has not been used for an extended period of time, be certain
the unit has been in temperatures above 32°F (0°C) for at
least 3 hours before turning on the power to the appliance.
FOR CERAMIC-GLASS COOK TOP MODELS
• Do Not Cook on Broken Cook Top--if cook top should break,
cleaning solutions and spillovers may penetrate the broken
cook top and create a risk of electric shock. Contact a qualified
technician immediately.
• Clean Cook Top with Caution--If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to avoid a
steam burn. Some cleaners can produce noxious fumes if
applied to a hot surface.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of grease
that could catch fire. Pay particular attention to the area
underneath each surface element. Do not allow grease to
accumulate. Refer to the range manufacturer's instructions for
cleaning.
• Kitchen cleaners and aerosolsiAIways follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
Important Safety Instructions
• Do Not Clean Door Gasket--The door gasket is essential for
a good seal. Care should be taken not to rub. damage or
move the gasket.
SELF-CLEANING OVENS
• Clean in the self-cleaning cycle only the parts listed in this
Use & Care Guide. Before self-cleaning the oven, remove the
broiler pan and any utensils or foods from the oven.
• Do Not Use Oven Cleaners--No commercial oven cleaner or
oven liner protective coating of any kind should be used in or
around any part of the oven.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known
to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure
to such substances.
Grounding type
wall receptacle
f
Do not, under any
circumstance, cut,
remove, or bypass
the grounding prong.
\
Grounding Instructions
(electric ignition models only)
Avoid fire hazard or electrical shock. Do not use an adapter plug,
an extension cord, or remove grounding prong from electrical power cord. Failure
to follow this warning can cause serious injury, fire or death.
This appliance is equipped with a 3-prong grounding plug for
your protection against shock hazard and should be plugged directly into a
properly grounded receptacle. DO NOT cut or remove the grounding prong from
this plug.
Power supply cord
with 3-prong
grounding plug
For personal safety, the range must be properly grounded. For maximum safety,
the power cord must be plugged into an electrical outlet that is correctly polarized
and properly grounded.
If a 2-prong wall receptacle is the only available outlet, it is the personal
responsibility of the consumer to have it replaced with a properly grounded 3-
prong wall receptacle installed by a qualified electrician.
See the INSTALLATION INSTRUCTIONS packaged with this range for complete
installation and grounding instructions.
Conversion to Liquefied Petroleum Gas (or L.P. Gas)
The natural gas range is designed to allow for conversion to
Liquefied Petroleum (L.P.) Gas.
If L.P. conversion is needed, contact 1-800-4-MY-HOME®
for assistance. The L.P. Conversion Kit is provided with this
range and is located on the left lower REAR (back side)
panel of the range. Before installing the kit be sure to follow
the L.P. Installation Instructions carefully.
rZ",'/_I;I#II,'[LI Personal injury or death from electrical
shock may occur if the range is not installed by a
qualified installer or electrician.
Any additions, changes or conversions
required in order for this appliance to satisfactorily
meet the application needs must be made by Sears
Service.
5
Gas Range
Features
Warm&Ready" Bread ServeWarm
DrawerTouch Proof Control& ElectronicOven
Control& IndicatorIndicator ControlwithClock& GlassTouchSensitive
ControlPanel
/
RoasUngRack
BroilPan
Insert
Porcelaincoated
SumpRack
(notshown)
Easytoclean
Upswept
Design
Cool(lop--
_3)Dishwnshe_
aleRemovable
CastIronGrates
Searing
Grill Dual
Interior
Oven
BroilPan
LevelingLegs/
Anti-Ul
(included)
+ + +
-- DishwasherSafe
WokStand
-- (S)SurfaceGas
BurnerControls
Door
Latch
Self-CleaningOven
ConvectionBake
FanwithHeating
Hoovy-duty
OvenRook(s)
Large] piece
DoorHandle
(styles&color
willchangewith
model)
FullWidth
OvenDoor
(styles&color
willchangewith
model)
'_ Warm&Ready"
DrawerwithRack
Ceramic Glass 5 Burner Gas Cooktop
12,000BTUSealed
PowerBurner
CeramicGlass
SimmerBurner
(LPconvertible)
CenterBurner
(LPconvertible)
9,500BTU
Standard
(LPconvertible)
BTUSealed
PowerBurner
(LPconvertible)
Setting Surface Controls
FEATURE OVERVIEW

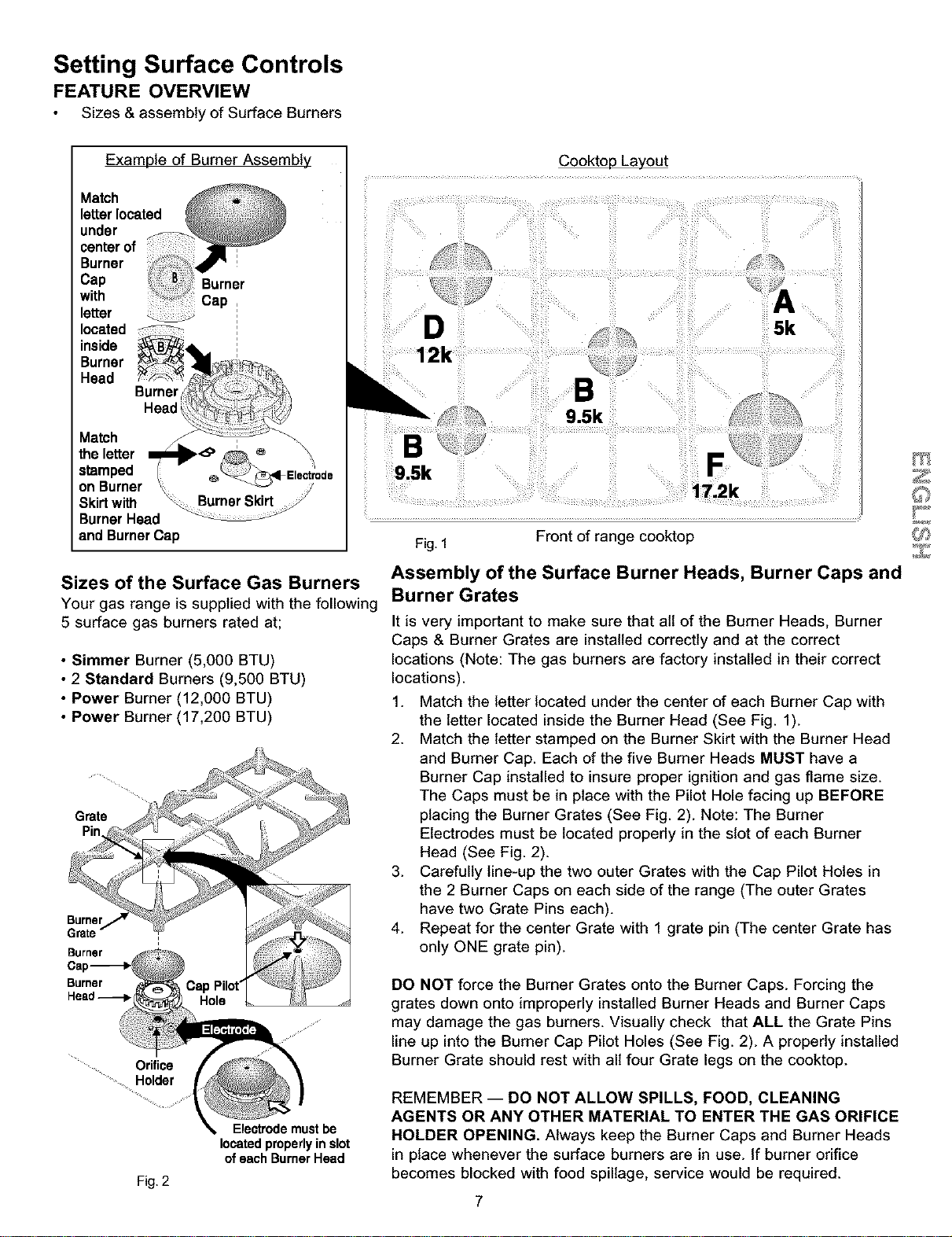

Sizes & assembly of Surface Burners
Example of Burner Assembly Cooktop Layout
A
5k
9.5k
17.2k
Fig.1 Front of range cooktop
Sizes of the Surface Gas Burners
Your gas range is supplied with the following
5 surface gas burners rated at;
• Simmer Burner (5,000 BTU)
• 2 Standard Burners (9,500 BTU)
• Power Burner (12,000 BTU)
• Power Burner (17,200 BTU)
Grate
Pin
Burner
Grate
Burner
Burner
Orifice
Holder
Fig.2
Electrodemustbe
locatedproperlyin slot
of each BurnerHead
Assembly of the Surface Burner Heads, Burner Caps and
Burner Grates
It is very important to make sure that all of the Burner Heads, Burner
Caps & Burner Grates are installed correctly and at the correct
locations (Note: The gas burners are factory installed in their correct
locations).
1. Match the letter located under the center of each Burner Cap with
the letter located inside the Burner Head (See Fig. 1).
2. Match the letter stamped on the Burner Skirt with the Burner Head
and Burner Cap. Each of the five Burner Heads MUST have a
Burner Cap installed to insure proper ignition and gas flame size.
The Caps must be in place with the Pilot Hole facing up BEFORE
placing the Burner Grates (See Fig. 2). Note: The Burner
Electrodes must be located properly in the slot of each Burner
Head (See Fig. 2).
3. Carefully line-up the two outer Grates with the Cap Pilot Holes in
the 2 Burner Caps on each side of the range (The outer Grates
have two Grate Pins each).
4. Repeat for the center Grate with 1 grate pin (The center Grate has
only ONE grate pin).
DO NOT force the Burner Grates onto the Burner Caps. Forcing the
grates down onto improperly installed Burner Heads and Burner Caps
may damage the gas burners. Visually check that ALL the Grate Pins
line up into the Burner Cap Pilot Holes (See Fig. 2). A properly installed
Burner Grate should rest with all four Grate legs on the cooktop.
REMEMBER -- DO NOT ALLOW SPILLS, FOOD, CLEANING
AGENTS OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE
HOLDER OPENING. Always keep the Burner Caps and Burner Heads
in place whenever the surface burners are in use. If burner orifice
becomes blocked with food spillage, service would be required.
7

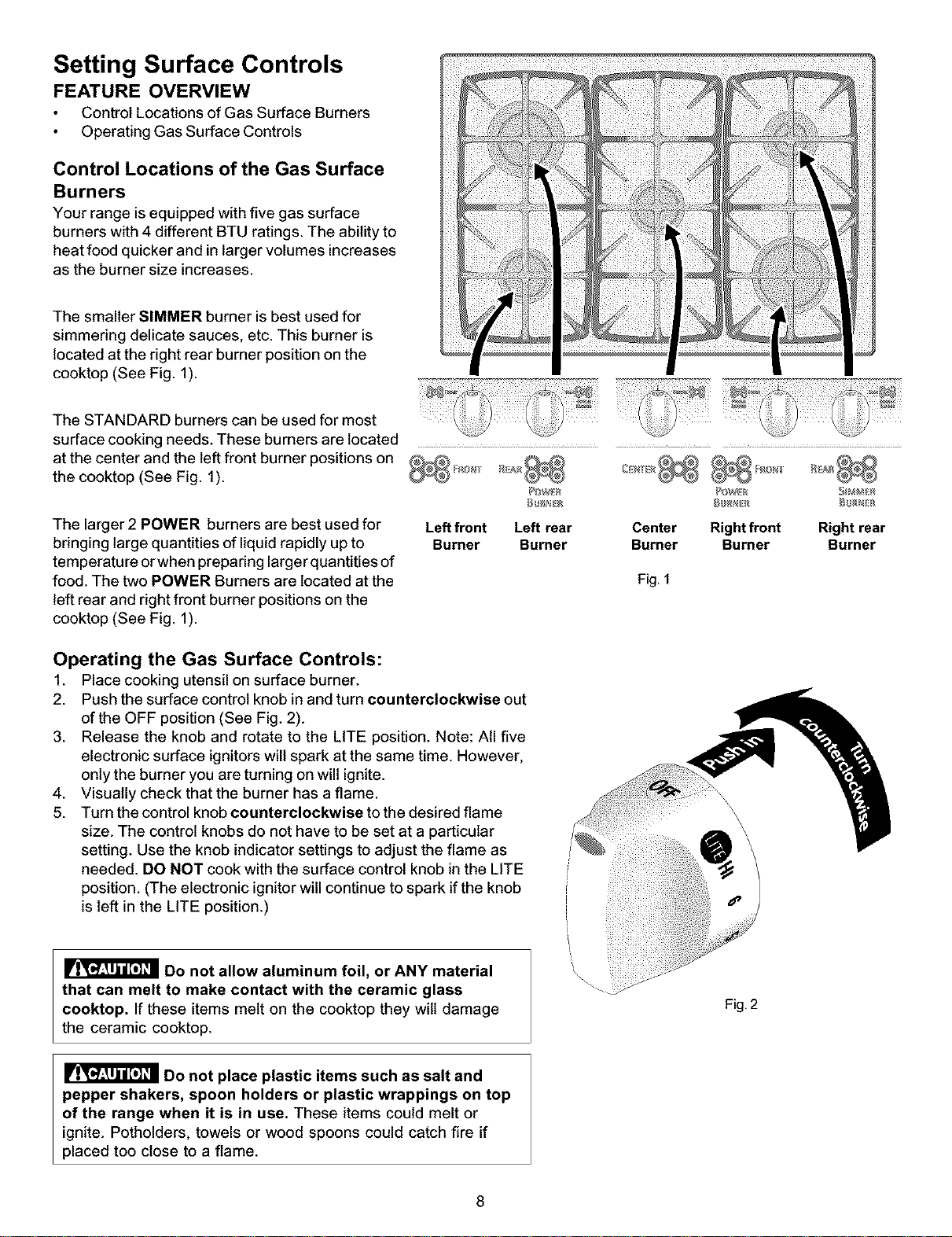

Setting Surface Controls
FEATURE OVERVIEW
Control Locations of Gas Surface Burners
Operating Gas Surface Controls
Control Locations of the Gas Surface
Burners
Your range is equipped with five gas surface
burners with 4 different BTU ratings. The ability to
heat food quicker and in larger volumes increases
as the burner size increases.
The smaller SIMMER burner is best used for
simmering delicate sauces, etc. This burner is
located at the right rear burner position on the
cooktop (See Fig. 1).
The STANDARD burners can be used for most
surface cooking needs. These burners are located ................................
at the center and the left front burner positions on
the cooktop (See Fig. 1). c_ _
The larger 2 POWER burners are best used for
bringing large quantities of liquid rapidly up to
temperature orwhen preparing larger quantities of
food. The two POWER Burners are located at the
left rear and right front burner positions on the
cooktop (See Fig. 1).
Left front Left rear Center Right front Right rear
Burner Burner Burner Burner Burner
Fig, 1
Operating the Gas Surface Controls:
1. Place cooking utensil on surface burner.
2. Push the surface control knob in and turn counterclockwise out
of the OFF position (See Fig. 2).
3. Release the knob and rotate to the LITE position. Note: All five
electronic surface ignitorswill spark at the same time. However,
only the burner you are turning on will ignite.
4. Visually check that the burner has a flame.
5. Turn the control knobcounterclockwise tothe desired flame
size. The control knobs do not have to be set at a particular
setting. Use the knob indicator settings to adjust the flame as
needed. DO NOT cook with the surface control knob in the LITE
position. (The electronic ignitor will continue to spark if the knob
is left in the LITE position.)
I_ Do not allow aluminum foil, or ANY material
that can melt to make contact with the ceramic glass
cooktop. If these items melt on the cooktop they wilt damage
the ceramic cooktop.
I_ Do not place plastic items such as salt and
pepper shakers, spoon holders or plastic wrappings on top
of the range when it is in use. These items could melt or
ignite. Potholders, towels or wood spoons could catch fire if
placed too close to a flame.
8
Fig, 2
Surface Cooking
FEATURE OVERVIEW
Setting Proper Flame Size
Using the Wok Stand

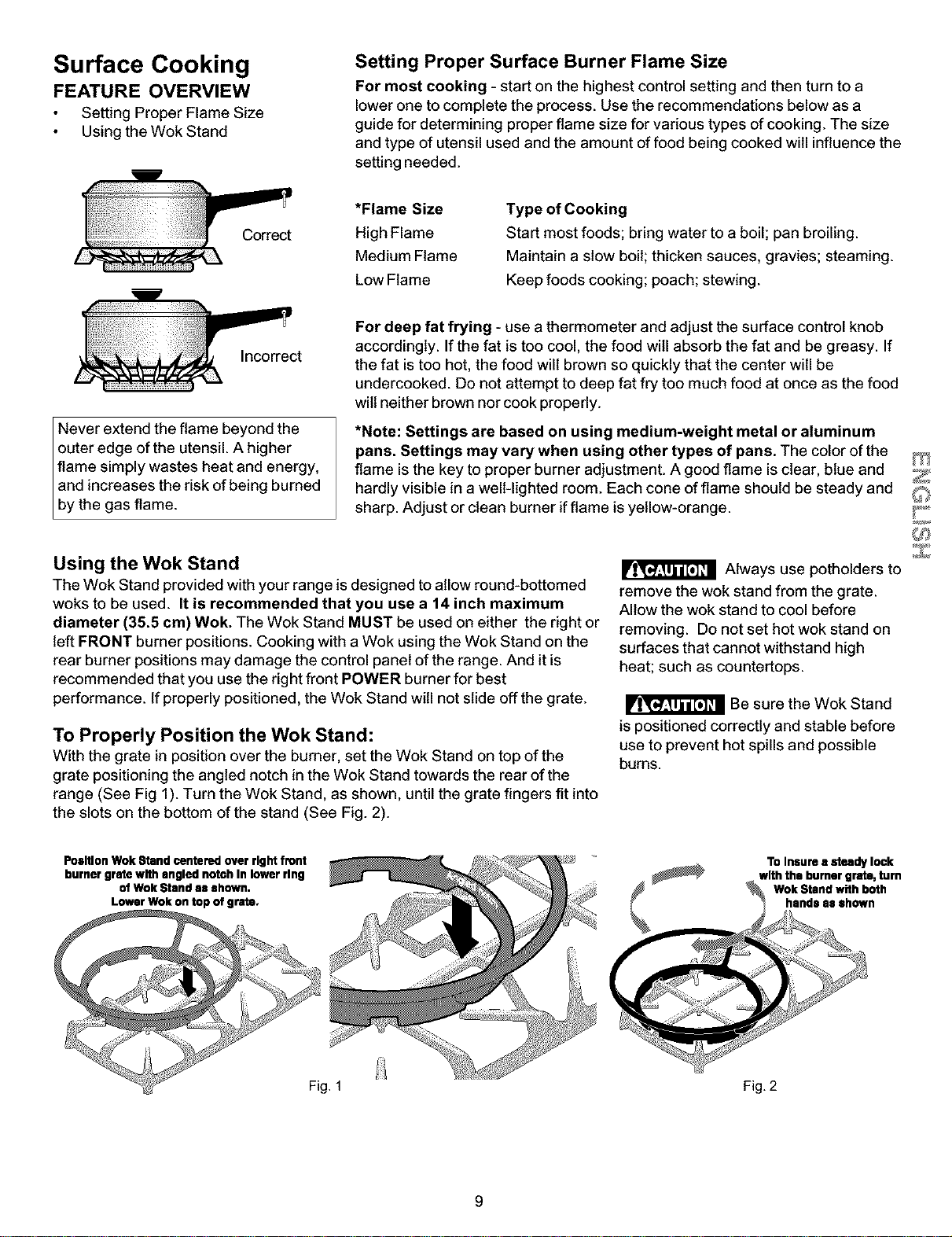

Setting Proper Surface Burner Flame Size
For most cooking - start on the highest control setting and then turn to a
lower one tocomplete the process. Use the recommendations below as a
guide for determining proper flame size for various types ofcooking. The size
and type of utensil used and the amount offood being cooked will influence the
setting needed.
Co_e_
*Flame Size
High Flame
Medium Flame
Low Flame
Type of Cooking
Start most foods; bring water to a boil; pan broiling.
Maintain a slow boil; thicken sauces, gravies; steaming.
Keep foods cooking; poach; stewing.
Incorrect
Never extend the flame beyond the
outer edge of the utensil. A higher
flame simply wastes heat and energy,
and increases the risk of being burned
by the gas flame.
For deep fat frying - use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If
the fat is too hot, the food will brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the food
wilt neither brown nor cook properly.
*Note: Settings are based on using medium-weight metal or aluminum
pans, Settings may vary when using other types of pans. The color ofthe
flame is the key to proper burner adjustment. A good flame is clear, blue and
hardly visible in a well-lighted room. Each cone of flame should be steady and
sharp. Adjust or clean burner if flame is yellow-orange.
Using the Wok Stand
The Wok Stand provided with your range is designed to allow round-bottomed
woks to be used. It is recommended that you use a 14 inch maximum
diameter (35.5 cm) Wok. The Wok Stand MUST be used on either the right or
left FRONT burner positions. Cooking with a Wok using the Wok Stand on the
rear burner positions may damage the control panel of the range. And it is
recommended that you use the right front POWER burner for best
performance. If properly positioned, the Wok Stand will not slide off the grate.
To Properly Position the Wok Stand:
With the grate in position over the burner, set the Wok Stand on top of the
grate positioningthe angled notch in the Wok Stand towards the rear of the
range (See Fig 1). Turn the Wok Stand, as shown, untilthe grate fingers fit into
the slots on the bottom of the stand (See Fig. 2).
Always use potholders to
remove the wok stand from the grate.
Allow the wok stand to cool before
removing. Do not set hot wok stand on
surfaces that cannot withstand high
heat; such as countertops.
Be sure the Wok Stand
is positioned correctly and stable before
use to prevent hot spills and possible
burns.
Position Wok Stand centered over right front
burner grate with angled notch In lower ring
of Wok Stand as shown.
LOWerWok on top of grate.
[]
To Insure a steady lock
with the burner grate, turn
Wok Stand with both
hands as shown
Fig. 1 Fig, 2
9
Surface
Cooking
FEATURE
OVERVIEW

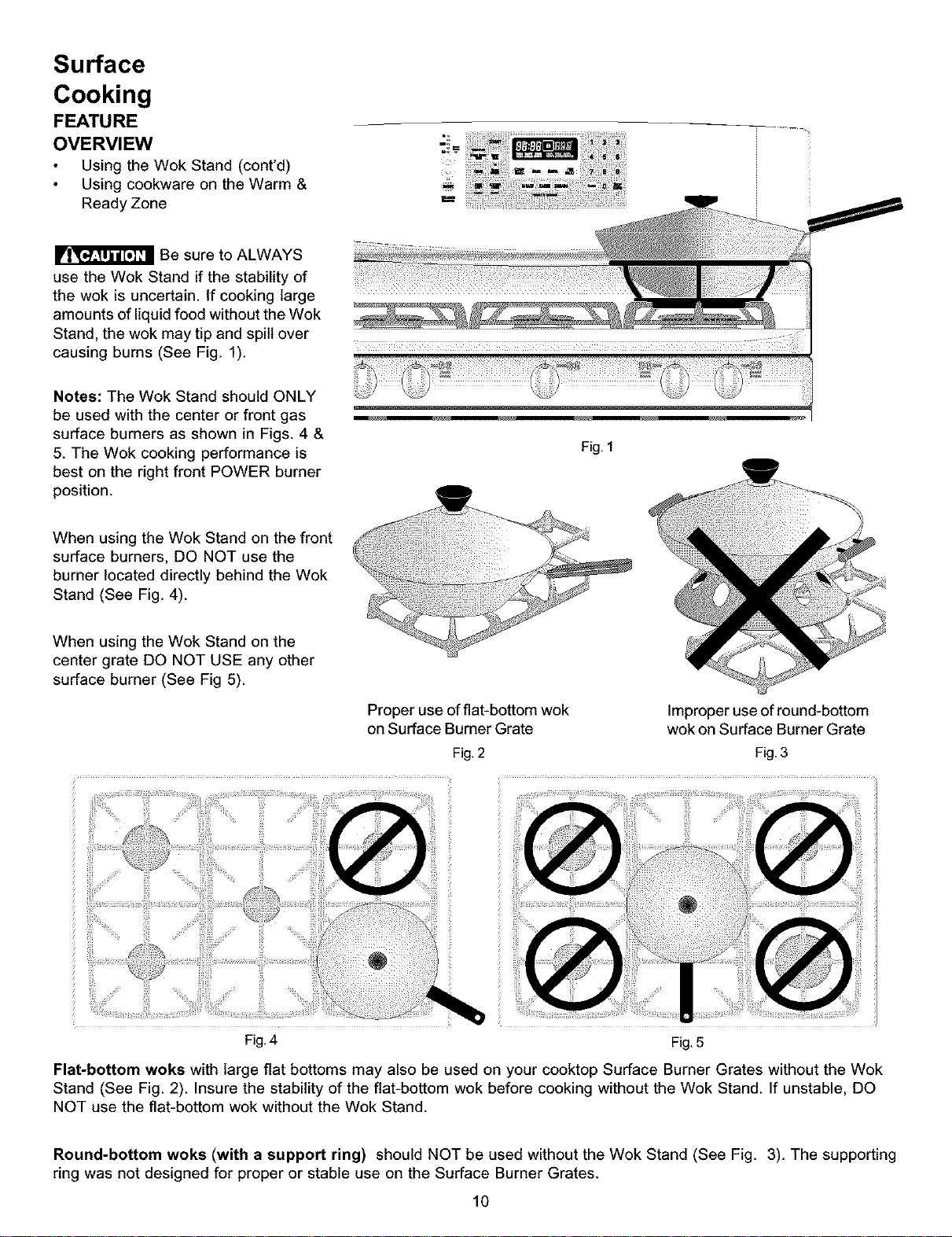

Using the Wok Stand (cont'd)
Using cookware on the Warm &
Ready Zone
Be sure to ALWAYS
use the Wok Stand if the stability of
the wok is uncertain. If cooking large
amounts of liquid food without the Wok
Stand, the wok may tip and spill over
causing burns (See Fig. 1).
Notes: The Wok Stand should ONLY
be used with the center or front gas
surface burners as shown in Figs. 4 &
5. The Wok cooking performance is
best on the right front POWER burner
position.
Fig, 1
When using the Wok Stand on the front
surface burners, DO NOT use the
burner located directly behind the Wok
Stand (See Fig. 4).
When using the Wok Stand on the
center grate DO NOT USE any other
surface burner (See Fig 5).
Proper use of flat-bottom wok
on Surface Burner Grate
Improper use of round-bottom
wok on Surface Burner Grate
Fig,2 Fig, 3
Fig. 4
Fig, 5
Flat-bottom woks with large flat bottoms may also be used on your cooktop Surface Burner Grates without the Wok
Stand (See Fig. 2). Insure the stability of the flat-bottom wok before cooking without the Wok Stand. If unstable, DO
NOT use the flat-bottom wok without the Wok Stand.
Round-bottom woks (with a support ring) should NOT be used without the Wok Stand (See Fig. 3). The supporting
ring was not designed for proper or stable use on the Surface Burner Grates.
10
Setting Warmer
Drawer Controls
FEATURE OVERVIEW
Arranging Warmer Drawer
Racks
Operating & Setting Warmer
Drawer Controls
Arranging Warmer (Warm & Ready TM) Drawer Rack Positions
The rack can be used in two ways:
In the upward position (Fig. 1) to allow low profile food items to be placed both
under and on top of the rack (for example, rolls or biscuits on top of the rack
and a casserole dish underneath).
In the downward position (Fig. 2) to allow you to place light weight food items
and empty dishware (for example, rolls or pastries and dinner plates) on the
rack.
Fig. 1
Fig. 2
/-
/-
_WWarmer Drawer
Rackindownward
position
Operating the Warmer Drawer
The purpose of the Warmer Drawer is to keep hot cooked foods at
serving temperature. Always start with hot food. It is not
recommended to heat cold food in the Warmer Drawer. All food placed
in the Warmer Drawer should be covered with a lid or aluminum foil to
maintain quality. Do not use plastic wrap to cover food. Plastic
may melt onto the drawer and be very difficult to clean. Use only
utensils and cookware recommended for oven use inthe Warmer
Drawer.
Warmer Drawer Recommended Food
SettingsTable
Food Item Setting
Bacon HI
Hamburger Patties HI
Poultry HI
Pork Chops HI
Fried Foods HI
Pizza HI
Gravies MED
Casseroles MED
Eggs MED
Roasts (Beef, Pork, Lamb) MED
Vegetables MED
Biscuits MED
Rolls, hard MED
Pastries MED
Roils (soft) LO
Empty Dinner Plates LO
Fig. 3
Always use pothotders or oven mitts when removing
food from the Warmer Drawer as cookware and plates will be hot and
you can be burned.
11

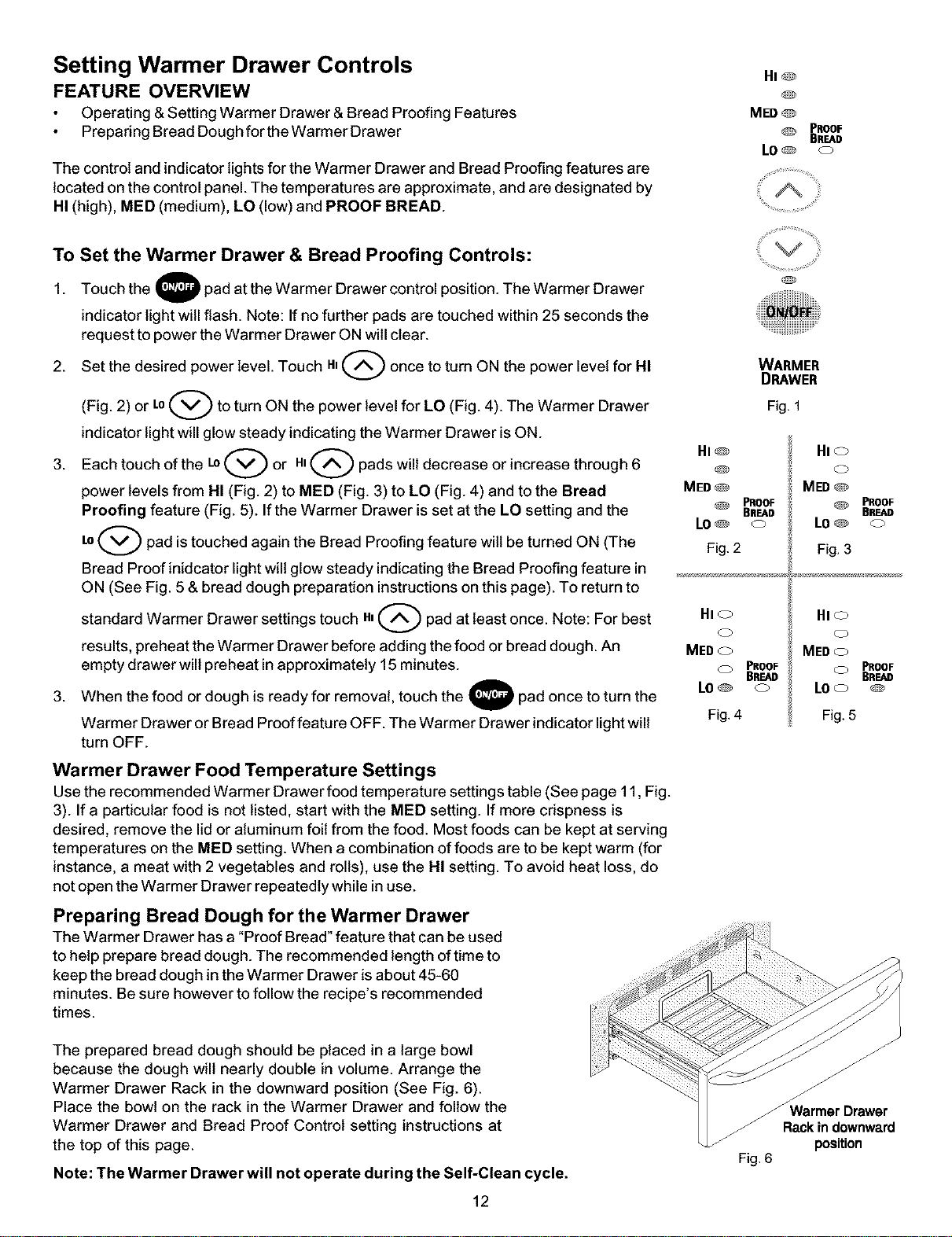

Setting Warmer Drawer Controls
FEATURE OVERVIEW
Operating & Setting Warmer Drawer & Bread Proofing Features
Preparing Bread Dough for the Warmer Drawer
The control and indicator lights for the Warmer Drawer and Bread Proofing features are
located on the control panel. The temperatures are approximate, and are designated by
HI (high), MED (medium), LO (low) and PROOF BREAD.
To Set the Warmer Drawer & Bread Proofing Controls:
1. Touch the ) pad at the Warmer Drawer control position. The Warmer Drawer
indicator light will flash. Note: If no further pads are touched within 25 seconds the
request to power the Warmer Drawer ON will clear.
2. Set the desired power level. Touch H_(_) once to turn ON the power level for HI
(Fig. 2) or Lo(_ to turn ON the power level for LO (Fig. 4). The Warmer Drawer
indicator light will glow steady indicating the Warmer Drawer is ON.
3. Each touch of the Lo(_) or Hi(_ pads will decrease or increase through 6
power levels from HI (Fig. 2) to MED (Fig. 3) to LO (Fig. 4) and to the Bread
Proofing feature (Fig. 5). If the Warmer Drawer is set at the LO setting and the
(_ pad is touched again the Bread Proofing feature wilt be turned ON (The
Bread Proof inidcator light will glow steady indicating the Bread Proofing feature in
ON (See Fig. 5 & bread dough preparation instructions on this page). To return to
standard Warmer Drawer settings touch H_@ pad at least once. Note: For best
results, preheat the Warmer Drawer before adding the food or bread dough. An
empty drawer will preheat in approximately 15 minutes.
3. When the food or dough is ready for removal, touch the Q pad once to turn the
Warmer Drawer or Bread Proof feature OFF. The Warmer Drawer indicator light will
turn OFF.
Warmer Drawer Food Temperature Settings
Use the recommended Warmer Drawer food temperature settings table (See page 11, Fig.
3). If a particular food is not listed, start with the MED setting. If more crispness is
desired, remove the lid or aluminum foil from the food. Most foods can be kept at serving
temperatures on the MED setting. When a combination of foods are to be kept warm (for
instance, a meat with 2 vegetables and rolls), use the HI setting. To avoid heat loss, do
not open the Warmer Drawer repeatedly while in use.
Preparing Bread Dough for the Warmer Drawer
The Warmer Drawer has a "Proof Bread" feature that can be used
to help prepare bread dough. The recommended length oftime to
keep the bread dough in theWarmer Drawer isabout 45-60
minutes. Be sure however tofollow the recipe's recommended
times.
The prepared bread dough should be placed in a large bowl
because the dough will nearly double in volume. Arrange the
Warmer Drawer Rack in the downward position (See Fig. 6).
Place the bowl on the rack in the Warmer Drawer and follow the
Warmer Drawer and Bread Proof Control setting instructions at
the top of this page.
Note: The Warmer Drawer will not operate during the Self-Clean cycle.
Rio
o
MED ®
PROOF
BREAD
LO _
0
WARMER
DRAWER
Fig. 1
HIo
@
MED o
PROOF
BREAD
LO_
Fig. 2
HIO
o
MED o
PROOF
BREAD
LO _
Fig. 4
HI G
o
MED
® PROOF
BREAD
LO®
Fig. 3
HI_
MED
PROOF
BREAD
LOO
Fig. 5
/-
/-
/-
_aWarmer Drawer
Rackin downward
position
Fig. 6
12
Before Setting Oven Controls
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS
COOL (PRIOR TO OPERATING THE OVEN). Always use
oven mitts when the oven is hot.
Oven Vent Location
The oven vent is located below the
backguard. When the oven is on, hot
air is released through the vent. This
venting is necessary for proper air
circulation in the oven and good baking
results.
OVEN VENT
Removing & Replacing
Oven Racks
To remove, pull the rack forward
until it stops. Lift up front of rack and
slide out. To replace, fit the rack
onto the guides on the oven walls.
Tilt the front of the rack upward and
slide the rack back into place.
Arranging Oven Racks
To bake on a single rack, place the
rack in position 4. To bake on 2
racks, place the racks in positions 2
and 4. To bake on 3 racks, place the
racks in positions 1,3 and 5.
Rack
.._s
Recommended Oven Rack Positions for Broiling, Baking and Roasting
FOOD ITEM RACK POSITION
Broiling meats, chicken or fish 1, 2 or 3
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozen pies, angel food cakes, yeast, 5
bread,casseroles, small cuts of meat or poultry
Turkey, roast or ham 6
Note: Always use caution when removing food from the lower rack positions.
Air Circulation in the Oven
If you plan to bake only one food item using one rack, place in
center of oven. If baking 2 food items using only one rack
space the items on the rack as shown in Fig. 1.
If you place 3 or more food items on more than one rack,
stagger the cookware as shown in Fig. 2.
For best air circulation and baking results allow 2-4" (5-10 cm)
around the cookware for proper air circulation and be sure
pans and cookware do not touch each other, the oven door,
sides or back of the oven cavity. The hot air must be able to
circulate around the pans and cookware in the oven for even
heat to reach around the food.
13
Fig.1 - using one oven rack
Fig. 2 - using multiple oven racks
Electronic
Oven Control
Pad Features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use
of your oven, become familiar with the various features and functions of the oven as described
below. Detailed instructions for each feature and function follow later in this Use & Care
Guide.
START TIME-- Use with BAKE, OVEN START -- Use to
COOK TIME, and CLEAN to program a start all oven
Delayed Time Bake or Delayed Self- features (not used
Cleaning cycle start time. with Oven Light).
OVEN COOK
TIME-- Use to
enter the length of
the baking time.
Use to select the
Oven Serve Warm
feature (See page
26).
CLEAN-- Use to
select the Self-
Cleaning feature
(See page 27).
OVEN LIGHT ON/
OFF -- Use to turn
the oven lights on
and off (See page
35).
KITCHEN TIMER ON/ CONVECTION
OFF-- Use to set or BAKE-- Use
cancel the Kitchen Timer. to select the
The Kitchen Timer does Convection
not start or stop cooking Bake feature
(See page 16). (See page 25).
BROIL-- Use to select PREHEAT--
variable Broil feature Use with normal
(See page 23). Bake pad (See
pag 19).
0 THRU 9 NUMBER
PADS -- Use to enter
temperature and
times.
CLOCK--
Use to set
the time of
day. (See
page 17).
BAKE-- MEATS, STOP/CLEAR -- Use to cancel any oven mode
Use to CAKES & previously entered except the time of day and minute
enter the BREADS-- Use timer. Press STOP/CLEAR to stop cooking. Press
normal to select the STOP/CLEAR and hold for 3 seconds to activate the
Bake Meats, Cakes and Oven Lockout feature. Press and hold again for 3
feature. Breads cooking seconds to disable the Oven Lockout (See page 17).
(See page feature. (See
20). page 24).
Minimum
and
Maximum
Control
Pad
Settings
All of the features listed have minimum and maximum time or temperature settings that may
be entered into the control. An ENTRY acceptance beep will sound each time a control pad
is touched (the Oven Lockout pad is delayed by 3 seconds).
An ENTRY ERROR tone (3 short beeps) will sound if the entry of the temperature or time is
below the minimum or above the maximum settings for the feature.
FEATURE
PREHEATTEMP.
BAKE TEMP.
BROIL TEMP.
KITCHEN TIMER
CLOCK TIME
OVEN COOK TIME
CLEAN TIME
CONVECTION BAKE
12Hr.
24 Hr.
12 Hr.
24 Hr.
12 Hr.
24 Hr.
MIN. TEMP./TIME
170°F / 77°C
170°F / 77°C
4OO°F/ 205°C
0:01 Min.
0:01 Min.
1:00 Hr./Min.
0:00 Hr./Min.
0:01 Min.
0:01 Min.
2 hours
300°F / 149°C
MAX. TEMP./TIME
550°F / 288°C
550°F / 288°C
HI-55O°F / 288°C
11:59 Hr./Min.
11:59 Hr./Min.
12:59 Hr./Min.
11:59 Hr./Min.
11:59 Hr./Min.
23:59 Hr./Min.
4 hours
550°F / 288°C
14
Setting the Clock
FEATURE OVERVIEW
Setting the Clock
Changing between 12 or
24 hour display
Setting the Clock
The CLOCK (_ pad is used to set the clock. The clock may be
set for 12 or 24 hour time of day operation. The clock has been
preset at the factory for the 12 hour operation. When the range is
first plugged in, or when the power supply to the range has been
interrupted, the timer in the display will flash with "PF" (power
failure, See Fig. 1).
INSTRUCTIONS
To set the clock (example below for 1:30):
1. Press (_). "CLO" will appear in the display (Fig. 2).
2. Press O _ @ pads to set the time of day to 1:30
(Fig. 3). "CLO" wilt appear in the display. Press I_). "CLO"
will disappear and the clock will start (Fig. 4).
Changing between 12 or 24 hour time of day display:
1. Press and hold _ for 6 seconds (Fig. 3). While holding the
pad down the current time of day will remain and "CLO" will
disappear from the display (Fig. 4). CONTINUE holding the pad
until a beep is heard.
2. The display will show either"12Hr"(Fig. 5) or"24Hr"(Fig. 6).
3. Press _ to switch between the 12 and 24 hour time of day
display. The display wilt show either "12Hr" (Fig. 5) or "24Hr"
(Fig. 6).
4. Press _) to accept the desired change or press i_) to
reject the change.
5. Reset the correct time as described in To set the Clock above.
Please note that if the 24 hour time of day mode was chosen,
the clock will now display time from 0:00 through 23:59 hours.
PRESS
O
OG)Q
Q for 6 seconds
Fig. 1
DISPLAY
Fig. 3
Fig. 4
Fig. 5
Fig. 6
15
Setting the Clock
FEATURE OVERVIEW
Continuous Bake or
Twelve Hour Energy
Saving Mode
Kitchen Timer
Setting Continuous Bake or 12 Hour Energy Saving
The KITCHEN TIMER _ and CLEAN (_) pads control the Continuous Bake or 12
Hour Energy Saving features. The oven control has afactory preset built-in 12 Hour
Energy Saving feature that will shut off the oven if the oven control is left on for more than
11 hours and 59 minutes. The oven can be programmed to override this feature for
Continuous Baking.
INSTRUCTIONS PRESS DISPLAY
To set the control for Continuous Bake or 12 Hour
Energy Saving features:
1. Press and hold _ for 6 seconds (Fig.l). "12Hr" or "- -Hr"
will appear in the display and the control will beep once.
2. Press (_ to switch between the 12 Hour Energy Saving and
continuous bake features. Note: "12Hr" (Fig. 2) in the display
indicates the control is set for 12 Hour Energy Saving feature
and "- -Hr" (Fig. 3) indicates the control is set for the
Continuous Bake feature.
3. Press (_) to accept the change (Fig. 4; display will return to
time of day) or press i@) to reject the change.
_for 6 seconds
Fig. 1
Fig. 2
Fig. 3
Setting Kitchen Timer Fig.4
The KITCHEN TIMER _ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the
kitchen that wilt beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be
used during any of the other oven control functions. Refer to "Minumum and Maximum Control Pad Settings" on page 14
for time amount settings.
INSTRUCTIONS PRESS DISPLAY
To set the Kitchen Timer (example for 5 minutes):
1, Press _. "0:00" wilJappear and "TIMER" wilt flash in the
display (Fig. 5).
2. Press the number pads to set the desired time in the display
(example (_). Press (_). The time will count down with
"5:00" and "TIMER" will show in the display (Fig. 6).
Note: If (_) is not pressed the timer will return to the time of
day.
3. When the set time has run out, "End" and "TIMER" will show in
the display (Fig. 7). The clock will sound with 3 beeps every 15
seconds until @ is pressed.
To cancel the Kitchen Timer before the set time has
run out:
Press _. The display will return to the time of day.
16
Fig. 5
Fig. 6
Fig. 7
Consumer Defined Control Features
FEATURE OVERVIEW
Oven Lockout
Temperature Display
Note: The Consumer Defined Control features are adjustments to the control that will not affect cooking results. These
include the _ Oven Lockout, Temperature Display and Silent Control Operation features.
Setting Oven Lockout Feature
The _) pad controlsthe Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and
prevents the Warmer Drawer, cooktop and most oven controlsfrom being turned ON. Itdoes not disable the clock,
Kitchen Timer or the interior oven lights.
INSTRUCTIONS PRESS DISPLAY
To activate the Oven Lockout feature:
1. Press and hold @ for 3 seconds (Fig. 1).
2. After 3 seconds the lock icon light ( _ ) wilt appear, a beep will
sound and "DOOR LOCKED" will flash in the display. Once the
oven door is locked the "DOOR LOCKED" indicator will stop
flashing and remain on along with the lock icon light.
To reactivate normal oven operation:
1. Press and hold @ for 3 seconds. A beep will sound. The
"DOOR LOCKED" will continue to flash until the oven door has
completely unlocked and the lock icon light ( _ ) will clear
(See Fig. 2).
2. The range is again fully operational.
for 3 seconds
for 3 seconds
Fig. 1
Fig. 2
Setting Temperature Display-- Fahrenheit or Celsius
The BROIL (_ and CLEAN (_ pads control the Fahrenheit or Celsius
temperature display modes. The oven control can be programmed todisplay
temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to
display in Fahrenheit.
INSTRUCTIONS PRESS
To change display from Fahrenheit to Celsius or
Celsius to Fahrenheit:
DISPLAY
1. To tell ifthe display is set for Fahrenheit or Celsius press
_ (Fig. 3) and hold for 7 seconds; "550 °" will first appear in
the display and then a beep will sound. If "F" appears, the
display is set to show temperatures in Fahrenheit (Fig. 4). If
"C" appears, the display is set to show temperatures in Celsius
(Fig. 5).
2. Press (_ to switch between Fahrenheit or Celsius display
modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).
3. Press (_) to accept the change or press I_1 to reject the
change.
17
(_for 7seconds
Fig. 3
Fig. 4
Fig. 5
Consumer
Defined Control
Features
FEATURE
OVERVIEW
Silent Control
Operation
Setting Silent Control Operation
The START TIME _ and CLEAN (_ pads controlthe Silent Control operation feature. The Silent Control operation
feature allows the oven controlto be operated without sounds or beeps whenever necessary. If desired the controlcan be
programmed for silent operation and later returned to operating with all the normal sounds and beeps.
INSTRUCTIONS PRESS DISPLAY
To change control from normal sound operation to
silent control operation:
1. To tell ifyour range is set for normal or silent operation press
and hold _ for 7 seconds. "0:00" will appear and "DELAY"
will flash in the display (Fig. 1).
2. Press (_ to switch between normal sound operation and
silent operation mode. The display wilt show either ":SP" (Fig. 2)
or ":--" (Fig. 3).
_ for 7seconds
If":SP" appears (Fig. 2), the control will operate with normal
sounds and beeps. If ":- -" appears (Fig.3), the control is in the
silent operation mode.
A
4. Press _ to accept the change or press I_1 to reject the
change.
Fig. 1
18
Fig. 2
(_or @ Fig. 3
Setting Oven Controls
FEATURE OVERVIEW
Preheat for Gas Ranges
Setting Preheat

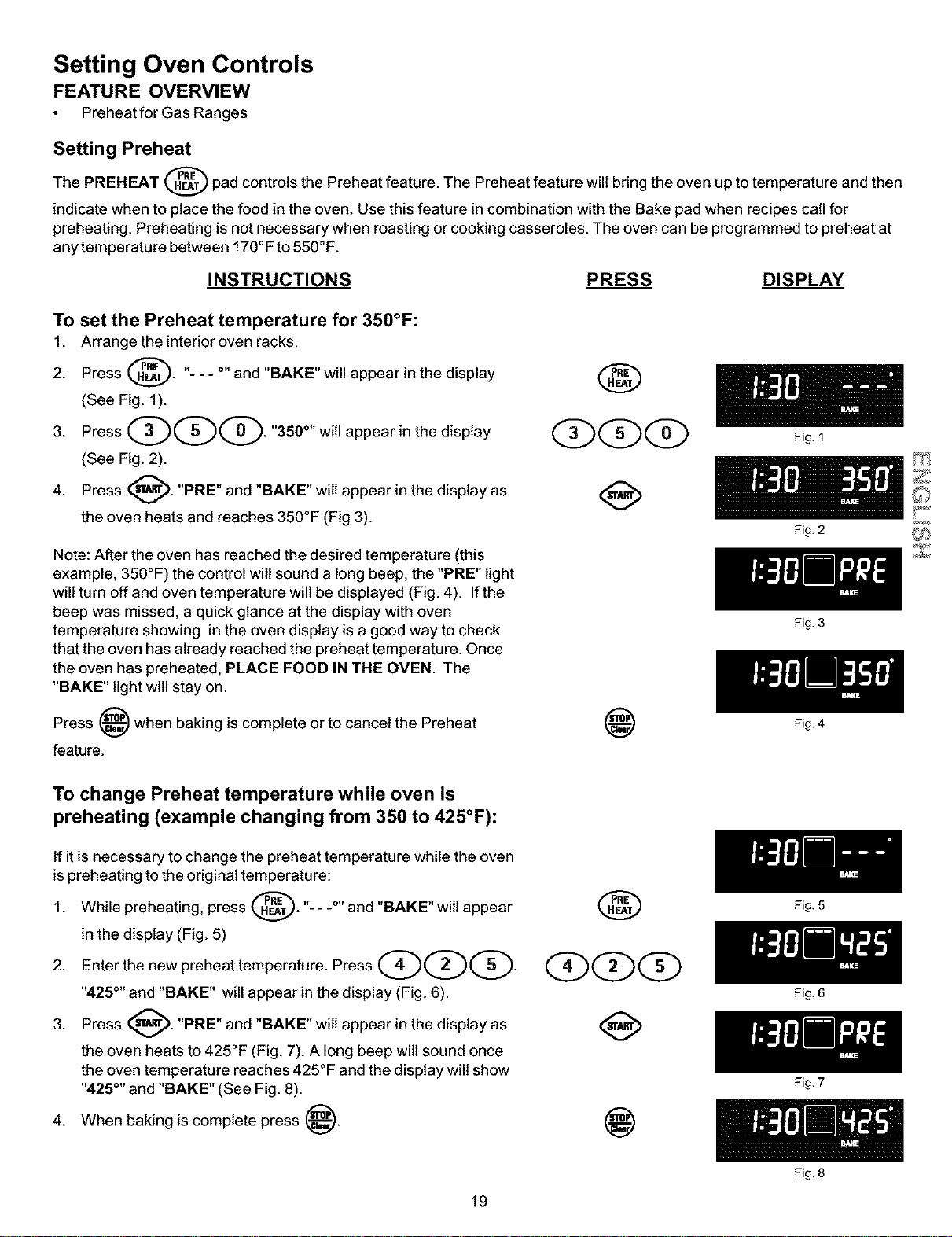

The PREHEAT @ pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then
indicate when to place the food in the oven. Use this feature in combination with the Bake pad when recipes call for
preheating. Preheating is not necessary when roasting or cooking casseroles. The oven can be programmed to preheat at
any temperature between 170°F to 550°F.
INSTRUCTIONS PRESS DISPLAY
To set the Preheat temperature for 350°F:
1. Arrange the interior oven racks.
2. Press _. "- - - °" and "BAKE" will appear in the display
(See Fig. 1).
3. Press (_ @ @. "350°" witl appear in the display
(See Fig. 2).
4. Press (_. "PRE" and "BAKE" wilt appear in the display as
the oven heats and reaches 350°F (Fig 3).
Note: After the oven has reached the desired temperature (this
example, 350°F) the control wilt sound a long beep, the "PRE" light
will turn off and oven temperature will be displayed (Fig. 4). If the
beep was missed, a quick glance at the display with oven
temperature showing in the oven display is a good way to check
that the oven has already reached the preheat temperature. Once
the oven has preheated, PLACE FOOD IN THE OVEN. The
"BAKE" light will stay on.
Press _ when baking is complete or to cancel the Preheat
feature.
Fig, 1
To change Preheat temperature while oven is
preheating (example changing from 350 to 425°F):
If it is necessary to change the preheat temperature while the oven
is preheating to the original temperature:
1. While preheating, press @. "- - -°" and "BAKE" wilt appear
in the display (Fig. 5)
2. Enter the new preheat temperature. Press __.
"425 °" and "BAKE" will appear in the display (Fig. 6).
3. Press _. "PRE" and "BAKE" wilt appear in the display as
the oven heats to 425°F (Fig. 7). A long beep wilt sound once
the oven temperature reaches 425°F and the display will show
"425 °" and "BAKE" (See Fig. 8).
4. When baking is complete press _.
Fig, 2
Fig, 3
Fig, 4
@
QQQ
®
Fig. 5
Fig. 6
Fig. 7
Fig. 8
19

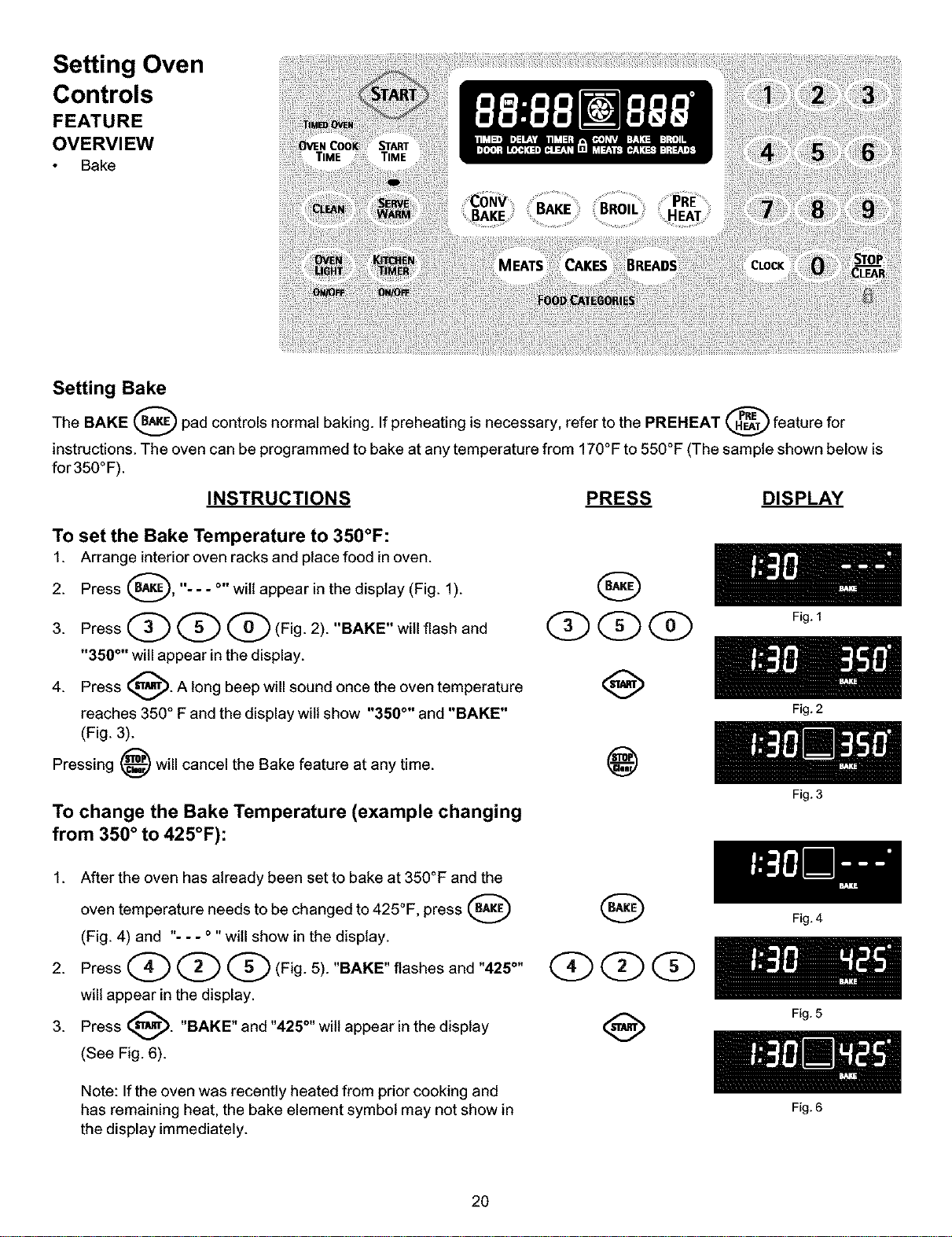

Setting Oven
Controls
FEATURE
OVERVIEW
Bake
Setting Bake
The BAKE _ pad controls normal baking. Ifpreheating is necessary, refer to the PREHEAT @ feature for
instructions. The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is
for350°F).
INSTRUCTIONS PRESS DISPLAY
To set the Bake Temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press _, "- - - °" wilt appear in the display (Fig. 1).
3. Press O @ @ (Fig. 2). "BAKE" will flash and
"350 °" will appear in the display.
4. Press _. A long beep will sound once the oven temperature
reaches 350 ° F and the display wilt show "350 °" and "BAKE"
(Fig. 3).
Pressing @ will cancel the Bake feature at any time.
®
To change the Bake Temperature (example changing
from 350 ° to 425°F):
1. After the oven has already been set to bake at 350°F and the
oven temperature needs to be changed to 425°F, press
(Fig. 4) and "- - - °" will show in the display.
2. Press @ _ @ (Fig. 5). "BAKE" flashes and "425 °"
will appear in the display.
3. Press _. "BAKE" and "425°" wilt appear in the display
(See Fig. 6).
GGQ
Note: Ifthe oven was recently heated from prior cooking and
has remaining heat, the bake element symbol may not show in
the display immediately.
2O
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Setting Oven Controls
FEATURE OVERVIEW
Timed Bake
Setting Timed Bake
The BAKE _ and OVEN COOK TIME
pads control the Timed Bake feature. The automatic timer of the Timed
Bake feature will turn the oven OFF after cooking for the desired amount of time you selected.
INSTRUCTIONS PRESS DISPLAY
To program the oven to begin baking immediately
and to shut off automatically: (example below to
bake at 350°F for 50 minutes):
1. Be sure the clock is set for the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press _, "- - - °" will appear in the display (Fig. 1).
4. Press O @ @ (Fig. 2). "BAKE" will flash and
"350 °" will appear in the display.
5. Press (_). "BAKE" and "350 °'' will appear in the display
(See Fig. 3).
_K "TIMED" will flash; "BAKE", "0:00" and
6. Press _.
"350 °" will appear in the display (Fig.4).
7. Enter the desired baking time by pressing ___ 0_.
"TIMED" will flash and "BAKE", "50:00" and "350 °" will appear
in the display (Fig. 5). Note: Baking time can be set for any
amount of time between 1 minute to 11 hours and 59 minutes.
8. Press (_. Both "TIMED" and "BAKE" will remain on in the
display (Fig. 6). Once the Timed Bake feature has started, the
current time of day will appear in the display.
OVEN_OOK
Note: After the Timed Bake feature has activated, press _ _o
display the bake time remaining in the Timed Bake mode. Once
Timed Bake has started baking, a long beep will sound when the
oven temperatu re reaches the set temperature.
Press @ when baking has finished or at any time to cancel the
Timed Bake feature.
OG)Q
G)G
Fig. 1
Fig. 2
Fig. 3
When the Timed Bake finishes:
1. "End" and the time of day will show in the display. The oven wilt
shut off automatically (Fig. 7).
2. The control will beep 3 times. The control wilt continue to beep 3
times every 30 seconds until @ is pressed.
Fig. 4
(_ Fig. 5
Fig. 6
®
Fig. 7
Use caution with the TIMED BAKE or DELAYED TIME BAKE features. Use the automatic timer when
cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat
or poultry, should be chilled in the refrigerator first. Even when chilled, they should not stand in the oven for more than 1
hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in
sickness from food poisoning.
21

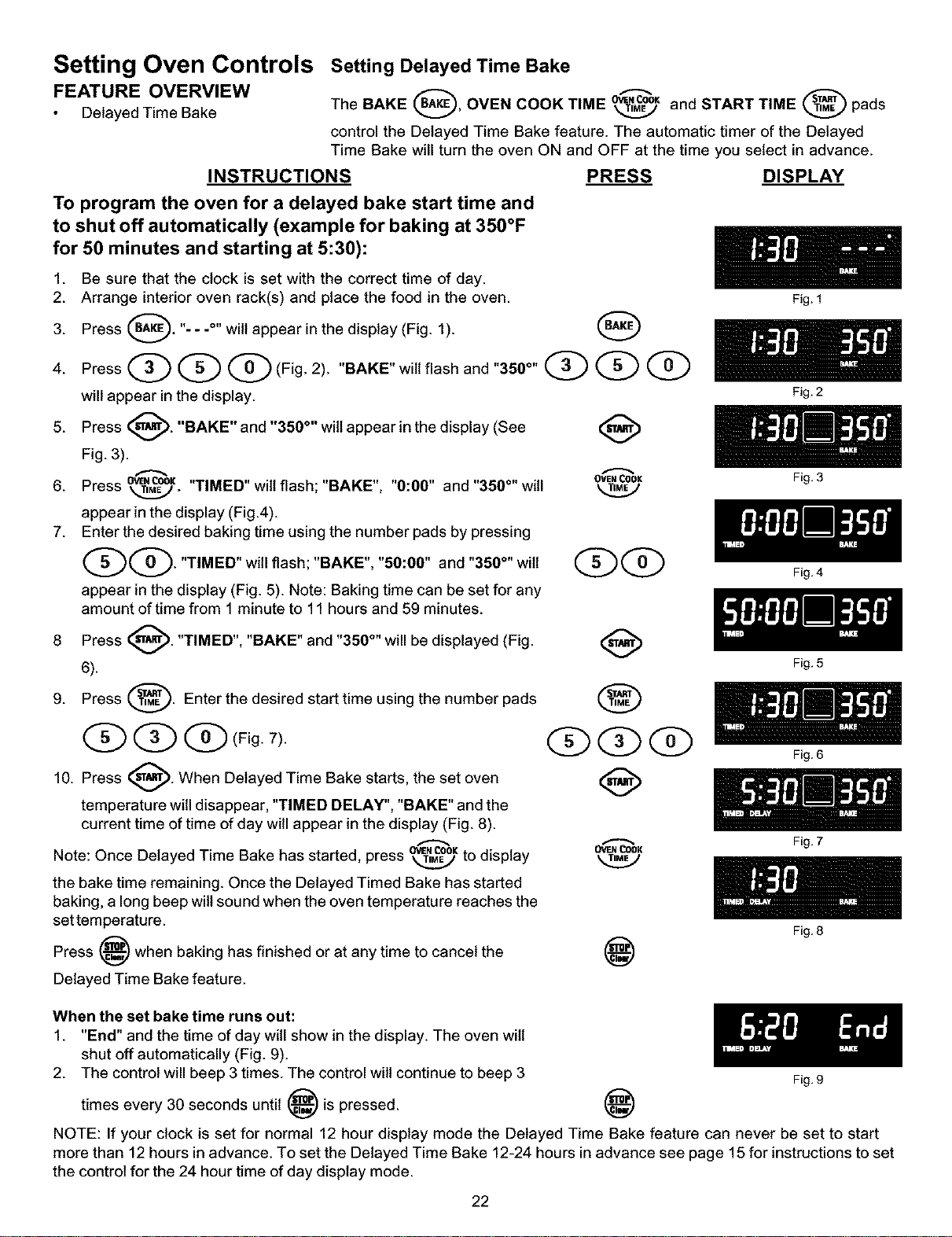

Setting Oven Controls
FEATURE OVERVIEW
Delayed Time Bake
INSTRUCTIONS
To program the oven for a delayed bake start time and
to shut off automatically (example for baking at 350°F
for 50 minutes and starting at 5:30):
Setting Delayed Time Bake
The BAKE _, OVEN COOK TIME _._'_oK_and START TIME _ pads
control the Delayed Time Bake feature. The automatic timer of the Delayed
Time Bake will turn the oven ON and OFF at the time you select in advance.
PRESS DISPLAY
1. Be sure that the clock is set with the correct time of day.
2. Arrange interior oven rack(s) and place the food in the oven.
3. Press _. "- - -°" wilt appear in the display (Fig. 1).
4.
PressC)Q C) Fig2)"BAKE"wil'f'ashand"350°"Q G) G
will appear in the display.
5. Press (_. "BAKE" and "350 °'' wilt appear in the display (See
Fig. 3).
6. Press _k_)- "TIMED" wilt flash; BAKE, "0:00" and "350 °" will
appear in the display (Fig .4).
7. Enter the desired baking time using the number pads by pressing
<Z>@ .........
"TIMED" will flash, BAKE, 50.00 and "350 °" wilt
appear in the display (Fig. 5). Note: Baking time can be set for any
amount of time from 1 minute to 11 hours and 59 minutes.
8 Press _). "TIMED", "BAKE" and "350°" will be displayed (Fig.
6).
9. Press @. Enter the desired start time using the number pads
G)Q@ Fig 7)
ov_K
A
10. Press _,). When Delayed Time Bake starts, the set oven
temperature will disappear, "TIMED DELAY", "BAKE" and the
current time of time of day will appear in the display (Fig. 8).
Note: Once Delayed Time Bake has started, press _ to display
the bake time remaining. Once the Delayed Timed Bake has started
baking, a long beep wilt sound when the oven temperature reaches the
set temperature.
Press @ when baking has finished or at any time to cancel the @
Delayed Time Bake feature.
Q Z)G
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
When the set bake time runs out:
1. "End" and the time of day will show in the display. The oven wilt
shut off automatically (Fig. 9).
2. The control will beep 3 times. The control wilt continue to beep 3 Fig.9
times every 30 seconds until _ is pressed.
NOTE: If your clock is set for normal 12 hour display mode the Delayed Time Bake feature can never be set to start
more than 12 hours in advance. To set the Delayed Time Bake 12-24 hours in advance see page 15 for instructions to set
the control for the 24 hour time of day display mode.
22

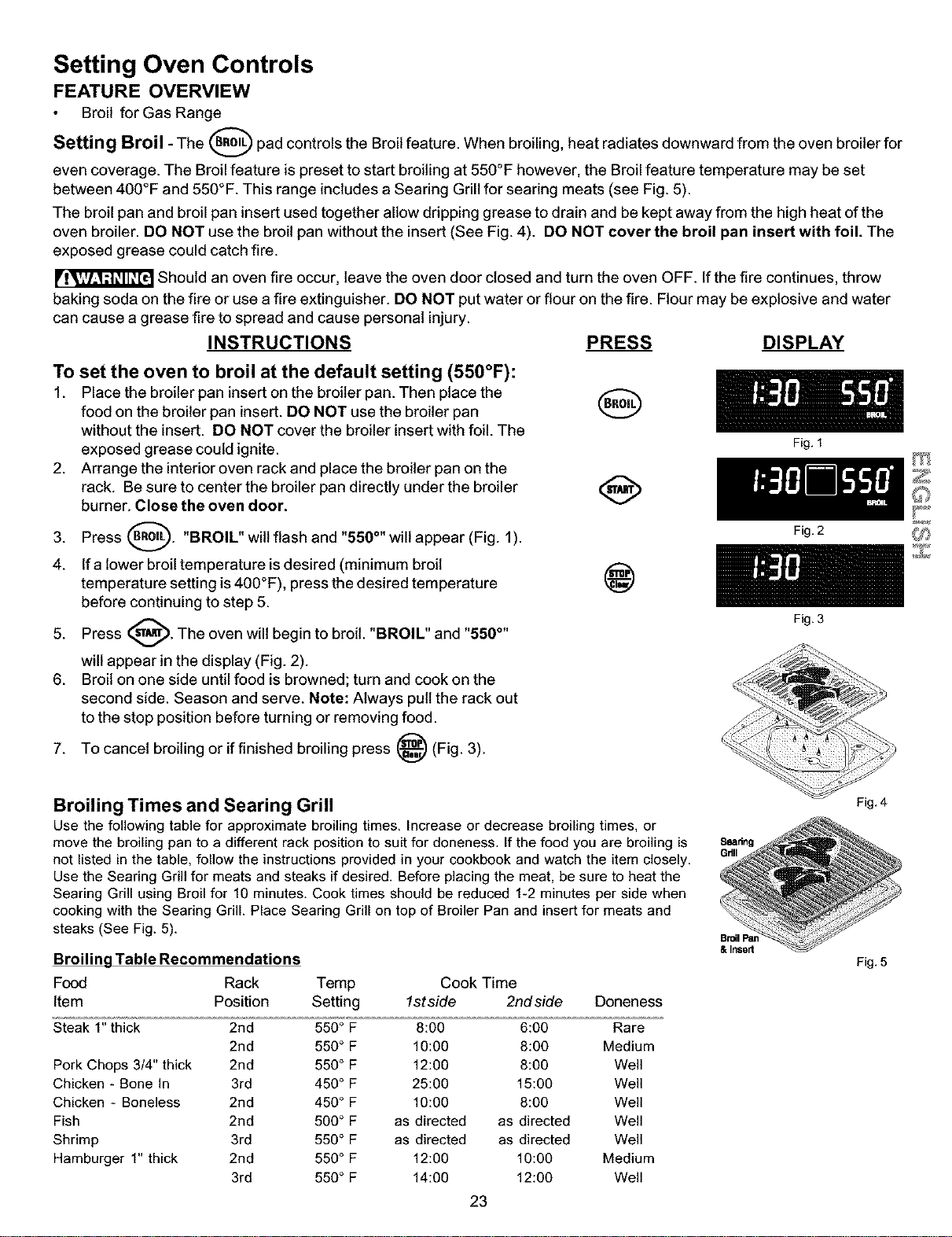

Setting Oven Controls
FEATURE OVERVIEW
Broil for Gas Range
Setting Broil - The I_) pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for
even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set
between 400°F and 550°F. This range includes a Searing Grill for searing meats (see Fig. 5).
The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the
oven broiler. DO NOT use the broil pan without the insert (See Fig. 4). DO NOT cover the broil pan insert with foil. The
exposed grease could catch fire.
_'!,YI:I,t_II_[L 1 Should an oven fire occur, leave the oven door closed and turn the oven OFF. If the fire continues, throw
baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water
can cause a grease fire to spread and cause personal injury.
INSTRUCTIONS PRESS DISPLAY
To set the oven to broil at the default setting (550°F):
1. Place the broiler pan insert on the broiler pan. Then place the
food on the broiler pan insert. DO NOT use the broiler pan
without the insert. DO NOT cover the broiler insert with foil. The
exposed grease could ignite.
2. Arrange the interior oven rack and place the broiler pan on the
rack. Be sure to center the broiler pan directly under the broiler
burner. Close the oven door.
3. Press (_. "BROIL" wilt flash and "550°" will appear (Fig. 1).
4. If a lower broil temperature is desired (minimum broil
temperature setting is 400°F), press the desired temperature
before continuing to step 5.
5. Press (:_. The oven will begin to broil. "BROIL" and "550 °"
will appear in the display (Fig. 2).
6. Broil on one side until food is browned; turn and cook on the
second side. Season and serve. Note: Always pull the rack out
to the stop position before turning or removing food.
7. To cancel broiling or if finished broiling press @ (Fig. 3).
O
®
Broiling Times and Searing Grill
Use the following table for approximate broiling times, increase or decrease broiling times, or
move the broiling pan to a different rack position to suit for aloneness.If the food you are broiling is
not listed in the table, follow the instructions provided in your cookbook and watch the item closely.
Use the Searing Grill for meats and steaks if desired. Before placingthe meat, be sure to heat the
Searing Grill using Broil for 10 minutes. Cook times should be reduced %2 minutes per side when
cooking with the Searing Grill. Place Searing Grill on top of Broiler Pan and insert for meats and
steaks (See Fig. 5).
Broiling Table Recommendations
Food Rack Temp Cook Time
Item Position Setting lstside 2ndside Doneness
Steak 1" thick 2rid 550° F 8:00 6:00 Rare
2rid 550 ° F 10:00 8:00 Medium
Pork Chops 3/4" thick 2rid 550 ° F 12:00 8:00 Well
Chicken - Bone In 3rd 450° F 25:00 15:00 Well
Chicken - Boneless 2rid 450 ° F 10:00 8:00 Well
Fish 2rid 500 ° F as directed as directed Well
Shrimp 3rd 550° F as directed as directed Well
Hamburger 1" thick 2rid 550 ° F 12:00 10:00 Medium
3rd 550° F 14:00 12:00 Well
23
Searing
BroilPar
& Insert
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Setting Oven Controls
FEATURE OVERVIEW
Food Categories (Meats/Cakes/Breads)
Roasting Instructions for Meat Pad
Setting the Food Categories Features
The MEATS 0' CAKES O and BREADS _ pads in
the Food Categories feature are used when cooking certain food items.
These pads have been designed to give optimum cook performance for the
foods selected in each category.
The MEATS pad combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating is not
necessary for meats and poultry. Heated air circulates around the food from alt sides, sealing in juices and flavors. Foods
are crispy brown on the outside while staying moist on the inside.
The CAKES pad provides a preheat with a gentle cycling of heat giving cakes more volume and allowing delicate foods to
cook more evenly.
The BREADS pad adds a preheat feature to the bake cycle to thoroughly heat the oven from top to bottom to give more
evenly browned foods. Refer to Fig. 5 for foods to cook in each category.
INSTRUCTIONS PRESS
To set the Food Categories feature (example for
Meats to cook at 350°F):
1. Arrange interior oven racks and place food in oven.
2. Press _. "MEATS" will flash and "---°" wilt be displayed
(See Fig. 1).
3. Press _ @ @. "MEATS" will flash and "350°" will _@@
appear in the display (See Fig. 2).
4. Press _. "MEATS" and "350 °" will appear inthe display
(See Fig. 3). The rotating convection fan icon will come on a
few minutes after pressing Start (Fig. 4).
Press _)to stop cooking Meats, Cakes or Breads, or to cancel
cooking Meats, Cakes or Breads at any time.
DISPLAY
Recommended
foods to be
cooked in each
category
Meats
Meat
Poultry
Fig. 5
Cakes
Cakes
Brownies
Pies (fresh & frozen)
Baked Custards
Cheesecake
Breads
Breads
Rolls
Biscuits
Muffins
Combread
Roasting Instructions for Meat Pad
When using the Meat pad for roasting, use the broiler pan and insert along with the roasting
rack. The broiler pan wilt catch grease spills and the insert will help prevent grease splatters.
The roasting rack will allow the heat to circulate around the meat.
_'!,';1_.!;1_11_.[€tTo prevent food from contacting the broil element and to prevent grease
splattering, DO NOT use the roasting rack when broiling.
1. Place oven rack on bottom or next to the bottom rack position. See Arranging Oven
Racks in the Before Setting Oven Controls section.
2. Place the insert in the broiler pan. The roasting rack fits on the insert allowing the heated
air to circulate under the food for even cooking and helps to increase browning on the
underside. Make sure the roasting rack is securely seated on the insert in the broiler
pan. DO NOT use the broiler pan without the insert. DO NOT cover the insert with
aluminum foil.
3. Position food (fat side up) on the roasting rack (See Fig. 6).
4. Place the broiler pan on the oven rack.
24
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 6
Setting Oven Controls
FEATURE OVERVIEW
Convection Bake
Setting Convection Bake
Setting Convection Bake
Benefits of Convection Bake:
--Some foods cook up to 30% faster,
saving time and energy.
--Multiple rack baking.
--No special pans or bakeware needed.
The CONVECTION BAKE _ pad controls the Convection Bake feature.
Use the Convection Bake feature when cooking speed is desired. The oven
can be programmed for Convection baking at any temperature between 300 ° F
(149 ° C) to 550 ° F (288 ° C).
Convection baking uses a fan to circulate the oven's heat evenly and
continuously within the oven (See Fig. 1). This improved heat distribution
allows for fast, even cooking and browning results. It also gives better baking
results when using 2 or 3 racks at the same time. Breads and pastries brown
more evenly. Most foods cooked in a standard oven will cook faster and more
evenly with Convection Bake.
Fig, 1
Air
circulation
during
Convection
Bake
1st Rack Posi_on
2nd Rack Posi_on
General Convection Bake Instructions
1. When using Convection Bake, decrease your normal cooking times as shown in the Cooking Tables on page 38.
Adjust the cook time for desired aloneness as needed. Time reductions will vary depending on the amount and type of
food to be cooked. Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to #_
circulate around the food. Food baked on pans with a dark finish will cook faster. _'_
2. Preheating is not necessary when cooking casseroles with Convection Bake. _
3. When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place
the oven racks in positions 1,3 and 5 (for 3 racks) and positions 2 and 4 (for 2 racks; See Fig. 2).
4. Cakes have better results when baked with the Cake pad in the Food Categories feature.
INSTRUCTIONS PRESS DISPLAY
To set the oven for Convection Bake and
temperature to 350°F:
1. Arrange interior oven racks and place food in oven.
2. Press @. "CONV BAKE" will flash and "- - -°" will appear
in the display (Fig. 3).
3. Press_@@."CONVBAKE"and "350°"will
appear in the display (See Fig. 4).
4. Press_). "CONV BAKE" and "PRE" will appear in the
display (Fig. 5) until the oven reaches 350 ° F. A beep will sound
once the oven temperature reaches 350 ° F and the display wilt
show "350 °", "CONV BAKE" and the fan icon (Fig. 6).
Note: The convection fan wilt come on a few minutes AFTER the
oven has been set for Convection Bake. The oven icon will show a
rotating fan with the square. This rotating fan icon indicates when
the Convection Fan is operating (See rotating fan in Fig. 6).
Press 'c_,) to stop Convection Bake or cancel Convection Bake at
any time.
®
25
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Setting Oven
Controls
FEATURE OVERVIEW
Serve Warm
The SERVE WARM _ pad turns ON the Serve Warm feature and will maintain an oven temperatue of 170° F. The
SERVE WARM feature will keep oven baked foods warm for serving up to 3 hours after cooking has finished. After 3 hours
the Serve Warm feature wilt shut the oven OFF. The Serve Warm feature may be used without any other cooking
operations or can be used after cooking has finished using BAKE, CONVECTION BAKE or MEATS.
The Serve Warm feature may be used with TIMED BAKE or DELAYED TIMED BAKE if you wish to have the Serve Warm
feature turn ON automatically when cooking has finished. The Timed Bake and Delayed Timed Bake features require you
to set a start time and the amount of cooking time. With this information the control can calculate the time when cooking
will complete and can then start the Serve Warm feature automatically.
INSTRUCTIONS PRESS
To set Serve Warm:
1. Arrange interior oven racks and place baked food in oven. If
the food is already in the oven go to step 2.
2. Press 8" The Serve Warm indicator light wilt flash.
Note: If no further pads are touched within 25 seconds the
request to turn ON Serve Warm will be cleared.
3. Press (_). The Serve Warm indicator light wilt glow steady
indicating Serve Warm is ON (See Fig. 1).
4. To turn the Serve Warm OFF at any time press @ again.
The Serve Warm indicator light will turn OFF (See Fig. 2).
Note: The Serve Warm feature will automatically turn OFF
after 3 hours.
@
@
Fig. 1
INSTRUCTIONS PRESS
To set Serve Warm to turn ON automatically:
1. Arrange interior oven racks and place food in oven. Set the
oven properly for Timed Bake or Delayed Timed Bake.
2. Press 8" The Serve Warm indicator light wilt flash.
Note: If no further pads are touched within 25 seconds the
request to turn ON Serve Warm will be cleared.
3. Press (_). The Serve Warm indicator light wilt glow steady
indicating Serve Warm is set to turn ON automatically after
Timed Bake or Delayed Timed Bake has finished (See Fig. 1).
4. To turn the Serve Warm OFF at any time press _ again.
The Serve Warm indicator light will turn OFF (See Fig. 2).
Note: The Serve Warm feature will automatically turn OFF
after 3 hours.
Fig. 2
Pressing @ at any time will stop all oven baking operations.
26
Oven Cleaning
FEATURE OVERVIEW
Preparing for the Self-Clean Cycle
The health of
some birds is extremely
sensitive to the fumes given
off during the self-cleaning
cycle of any range. Move
birds to another well-ventilated
room.
Fig. 1
Preparing for the Self-Clean Cycle:
A Self-Cleaning oven cleans itself with high temperatures which eliminates soil
completely or reduce itto a fine powdered ash you can wipe away with a damp cloth.
These temperatures are well ABOVE normal cookingtemperatures.
1.
2.
3.
4.
.
Adhere to the following cleaning precautions:
Allow the oven to coot before pre-cleaning.
Wear rubber gloves when precleaning and while wiping up the residue after the
Self-Clean cycle.
DO NOT use oven cleaners or oven protective coatings in or around any part of
the Self-Cleaning oven interior.
DO NOT clean the oven door gasket. The woven material of the oven door
gasket is essential for a good seal. Care should be taken not to rub, damage or
remove the gasket.
DO NOT use any cleaning materials on the oven door gasket. Doing so could
cause damage.
Remove the Searing Grill, Broiler Pan and Broiler Pan Insert, all utensils and
any aluminum foil. These items cannot withstand high cleaning temperatures.
DO NOT line the oven walls, racks, bottom or any other part of the
range with aluminum foil. Doing so will destroy heat distribution, produce poor baking
results and cause permanent damage to the oven interior (aluminum foil wilt melt to
the interior surface of the oven).
The porcelain oven racks can remain in the oven during the Self-Clean cycle. If they
do go through the Self-Clean cycle, wait until the oven has cooled, then remove the
racks and rub their sides with wax paper or a cloth containing a small amount of
vegetable oil (this will make the racks glide easier back into their positions).
Remove any excess spillovers in the oven cavity before starting the Self-Cleaning
cycle. To clean, use hot, soapy water and a cloth. Large spiltovers can cause heavy
smoke or fire when subjected to high temperatures. DO NOT allow food spills with a
high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie
filling) to remain on the surface as they may cause a dull spot even after cleaning.
Clean any soil from the oven frame, the door liner outside the oven door gasket, and
the small area at the front center of the oven bottom. These areas heat sufficiently
to burn soil on. Clean with soap and water.
If at any time when setting the oven for Self-Cleaning, the oven control continuously
beeps and the display shows "dr"; close the oven door (See Fig. 1).
NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven bottom
should be removed.
27

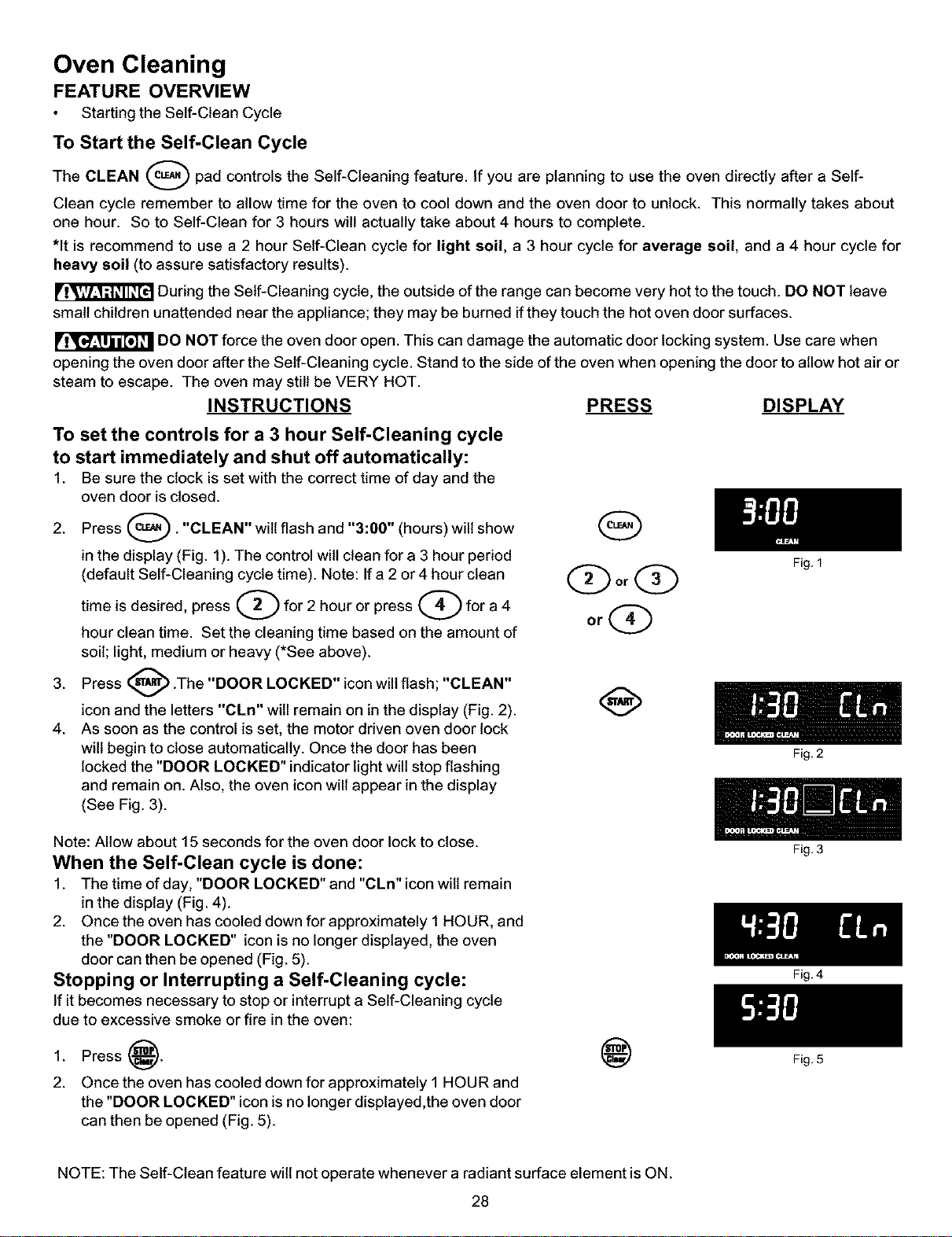

Oven Cleaning
FEATURE OVERVIEW
Starting the Self-Clean Cycle
To Start the Self-Clean Cycle
The CLEAN (_ pad controls the Self-Cleaning feature. If you are planning to use the oven directly after a Self-
Clean cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about
one hour. So to Self-Clean for 3 hours will actually take about 4 hours to complete.
*It is recommend to use a 2 hour Self-Clean cycle for light soil, a 3 hour cycle for average soil, and a 4 hour cycle for
heavy soil (to assure satisfactory results).
_'!,'l'l:l;t_ll; [_! During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance; they may be burned ifthey touch the hot oven door surfaces.
DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the Self-Cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the controls for a 3 hour Self-Cleaning cycle
to start immediately and shut off automatically:
1. Be sure the clock isset with the correct time of day and the
oven door is closed.
2. Press (_. "CLEAN" wilt flash and "3:00" (hours) will show
in the display (Fig. 1). The control wilt clean for a 3 hour period
(default Self-Cleaning cycle time). Note: If a 2 or 4 hour clean
time is desired, press (_ for 2 hour or press (_ for a 4
hour clean time. Set the cleaning time based on the amount of
soil; light, medium or heavy (*See above).
3. Press (_ .The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" will remain on in the display (Fig. 2).
4. As soon as the control is set, the motor driven oven door lock
will begin to close automatically. Once the door has been
locked the "DOOR LOCKED" indicator light will stop flashing
and remain on. Also, the oven icon will appear in the display
(See Fig. 3).
Qo,Q
Note: Allow about 15 seconds for the oven door lock to close.
When the Self-Clean cycle is done:
1. The time of day, "DOOR LOCKED" and "CLn" icon wilt remain
in the display (Fig. 4).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 5).
Stopping or Interrupting a Self-Cleaning cycle:
If it becomes necessary to stop or interrupt a Self-Cleaning cycle
due to excessive smoke or fire in the oven:
1,
2.
Press @.
Once the oven has cooled down for approximately 1 HOUR and
the "DOOR LOCKED" icon is no longer displayed,the oven door
can then be opened (Fig. 5).
®
NOTE: The Self-Clean feature wilt not operate whenever a radiant surface element is ON.
28
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Oven Cleaning
FEATURE OVERVIEW
Delayed Self-Clean Cycle
To Start the Delayed Self-Clean Cycle
The CLEAN (_), START TIME _ pads and length of clean cycle, controls the Delayed Self-Clean operation. The
automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO START THE SELF-
CLEAN CYCLE for recommended clean times.
_'!,'1'1:1;t_ll;[_! During the Self-Cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave
small children unattended near the appliance.
_lr_r'_t[_j_'_S DO NOT force the oven door open. This can damage the automatic door locking system. Use care when
opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or
steam to escape. The oven may still be VERY HOT.
INSTRUCTIONS PRESS DISPLAY
To set the control for the Self-Cleaning cycle to start at a delayed
time and shut off automatically: (example 3 hou rSelf-Clean
cycle to start at 9:00 o'clock):
1. Be sure the clock isset with the correct time of day and the
oven door is closed.
2. Press _. "CLEAN" wilt flash and "3:00" (hours) will show
in the display (Fig. 1). The control wilt clean for a 3 hour period
(default Self-Cleaning cycle time). Note: If a 2 or 4 hour clean
time is desired, press (_ for 2 hour or press _ for a 4
hour clean time. Set the cleaning time based on the amount of
soil -- light, medium or heavy (*See page 28).
3. Press (_ .The "DOOR LOCKED" icon will flash; "CLEAN"
icon and the letters "CLn" wilt remain on in the display (Fig. 2).
4. Press _ (Fig. 3). Enter the desired Self-Clean starting time
using the number pads _ _ @ (Fig. 4).
5. Press _. The "CLn" icon wilt turn off; "DELAY", "DOOR
LOCKED" and "CLEAN" icons will remain on.
6. As soon as the control is set, the motor driven oven door lock
will begin to close automatically and once the door has been
locked the "DOOR LOCKED" indicator light will quit flashing
and remain on (Fig. 5).
7. The control will calculate forward from the set start time to
determine when the self-cleaning cycle should end. The Self-
Cleaning cycle will turn on automatically at the set time. At that
time the icon "DELAY" will go out; the oven icon wilt come on,
the start time, "CLEAN" and "CLn" wilt appear in the display
(See Fig. 6).
Q
QorQ
or(
QQQ
When the Self-Clean cycle is done:
1, The time of day,"DOOR LOCKED" and "CLEAN" iconwilJ
remain in the display (Fig. 7).
2. Once the oven has cooled down for approximately 1 HOUR, and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. 8).
29
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Oven Cleaning
FEATURE OVERVIEW
Delayed Self-Clean Cycle (Cont'd.)
INSTRUCTIONS
Stopping or Interrupting a Self-Cleaning cycle:
If itbecomes necessary to stop or interrupt a Self-Cleaning cycle
due to excessive smoke or fire in the oven:
PRESS DISPLAY
1. Press @. @
2. Once the oven has cooled down for approximately 1 HOUR and
the "DOOR LOCKED" icon is no longer displayed, the oven
door can then be opened (Fig. A). Fig.A
NOTE: If your clock is set for normal 12 hour display mode the Delayed Self-Clean cycle can never be set to start
more than 12 hours in advance. To set for Delayed Self-Clean 12-24 hours in advance see page 15 for instructions to set
the control for the 24 hour time of day display mode.
Adjusting Oven Temperature
FEATURE OVERVIEW
The temperature in the oven has been pre-set at the factory. When first using the oven, be
sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, the
temperature in the oven can be adjusted. Before adjusting, test a recipe by using a
temperature setting that is higher or lower than the recommended temperature. The baking
results should help you to decide how much of an adjustment is needed.
PRESS
QQ
®
Note: The oven
temperature adjustments
made with this feature wilt
not change the Self-Clean
cycle temperature.
DISPLAYINSTRUCTIONS
To adjust the oven temperature higher:
1. Press _ for 6 seconds (Fig. 1).
2. To increase the temperature use the number pads to enter the
desired change. (Example 30°F) (_ (_ (Fig. 2). The
temperature may be increased as much as 35°F (17°C).
3. Press _) to accept the temperature change and the display
will return to the time of day (Fig. 3). Press i@) to reject the
change if necessary.
To adjust the oven temperature lower:
1. Press _ for 6 seconds (Fig. 4).
2. To decrease the temperature use the number pads to enter the
desired change. (Example-30°F) O (_ and then
press (_) (Fig. 5). The temperature may be decreased as
much as 35°F (17°C).
3. Press (_ to accept the temperature change and the display
will return to the time of day (Fig. 6). Press i@) to reject the
change if necessary.
3O
®
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Figure 5
Figure 6

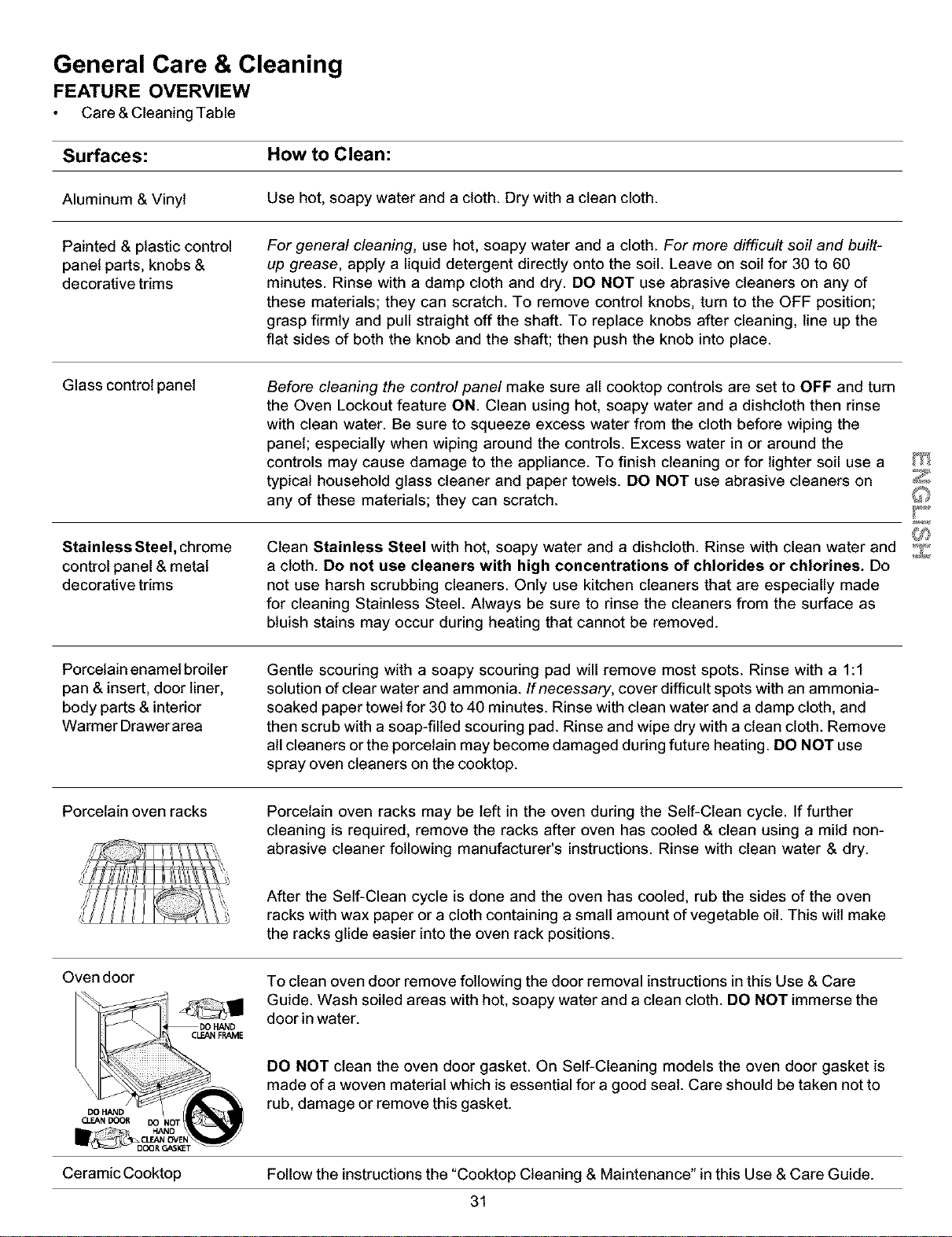

General Care & Cleaning
FEATURE OVERVIEW
Care & Cleaning Table
Surfaces: How to Clean:
Aluminum & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Painted & plastic control
panel parts, knobs &
decorative trims
For general cleaning, use hot, soapy water and a cloth. For more difficult soil and built-
up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60
minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of
these materials; they can scratch. To remove control knobs, turn to the OFF position;
grasp firmly and pull straight off the shaft. To replace knobs after cleaning, line up the
flat sides of both the knob and the shaft; then push the knob into place.
Glass control panel
Stainless Steel, chrome
control panel & metal
decorative trims
Before cleaning the control panel make sure all cooktop controls are set to OFF and turn
the Oven Lockout feature ON. Clean using hot, soapy water and a dishcloth then rinse
with clean water. Be sure to squeeze excess water from the cloth before wiping the
panel; especially when wiping around the controls. Excess water in or around the
controls may cause damage to the appliance. To finish cleaning or for lighter soil use a
typical household glass cleaner and paper towels. DO NOT use abrasive cleaners on
any of these materials; they can scratch.
Clean Stainless Steel with hot, soapy water and a dishcloth. Rinse with clean water and
a cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do
not use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made
for cleaning Stainless Steel. Always be sure to rinse the cleaners from the surface as
bluish stains may occur during heating that cannot be removed.
Porcelain enamel broiler
pan & insert, door liner,
body parts & interior
Warmer Drawerarea
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-
soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and
then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove
all cleaners orthe porcelain may become damaged during future heating. DO NOT use
spray oven cleaners on the cooktop.
Porcelain oven racks
Porcelain oven racks may be left in the oven during the Self-Clean cycle. If further
cleaning is required, remove the racks after oven has cooled & clean using a mild non-
abrasive cleaner following manufacturer's instructions. Rinse with clean water & dry.
After the Self-Clean cycle is done and the oven has cooled, rub the sides of the oven
racks with wax paper or a cloth containing a small amount of vegetable oit. This wilt make
the racks glide easier into the oven rack positions.
Oven door
DO HAND
O-EAN DOOR
CLEANFRAME
DO
To clean oven door remove following the door removal instructions in this Use & Care
Guide. Wash soiled areas with hot, soapy water and a clean cloth. DO NOT immerse the
door in water.
DO NOT clean the oven door gasket. On Self-Cleaning models the oven door gasket is
made of a woven material which is essential for a good seal. Care should be taken not to
rub, damage or remove this gasket.
DC(3 R GASI_T
Ceramic Cooktop Follow the instructions the "Cooktop Cleaning & Maintenance" in this Use & Care Guide.
31
General Care & Cleaning
FEATURE OVERVIEW
Cleaning Grates, Burner Caps, Burner Heads and Wok Stand
Cleaning the Burner Grates, Burner Caps, Burner Heads and Wok Stand
Surface
Burner
Surface
The Burner Grates, Burner Caps, Burner Heads and Wok Stand should be
routinely cleaned. Keeping the burner ports clean will prevent improper ignition
and an uneven flame at each burner position. Refer to the following instructions:
To Remove and Replace the Surface Burner Grate, Surface Burner Cap and
Surface Burner Head - Remove in thefollowing order; (1st) Surface Burner
Grate, (2nd) Surface Burner Cap, (3rd) Surface Burner Head (See Fig. 1).
Reverse the procedure above to replace the Surface Burner Cap, Surface Burner
Head and Surface Burner Grate. Do not remove any burner parts from the
cooktop until the burner parts have completely cooled and are safe to
handle. Do not operate the surface burners without the Surface Burner Caps,
Surface Burner Heads and Surface Burner Grates in their proper locations
(See page 7 for instructions).
Orifice
Holder
Fig.1
Burner Grates
To Clean the Burner Caps, Burner Heads, Grates and Wok Stand - Use a
soap-filled scouring pad or a mild abrasive cleanser to clean the surface burner
caps and surface burner heads. The Grates and Wok Stand are designed to be
Dishwasher safe for cleaning. The ports(or slots) around the burner heads must
be routinely cleaned. If residue still remains in these ports, use a small-gauge
wire or needle to clean the slots or holes. For proper flow of gas and ignition of
the burner--DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY
OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING.
ALWAYS keep the surface burner cap and surface burner head in place whenever
a surface burner is in use.
Burner Caps Burner Heads
THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.
Use caution when replacing the burner cap so the electrode is not damaged. This may cause a delayed
ignition or prevent the burner from igniting.
Any additions, changes or conversions required in order for this appliance to perform satisfactorily must be
made by Sears Service. Call 1-800-4-MY-HOME® (See back cover).
32

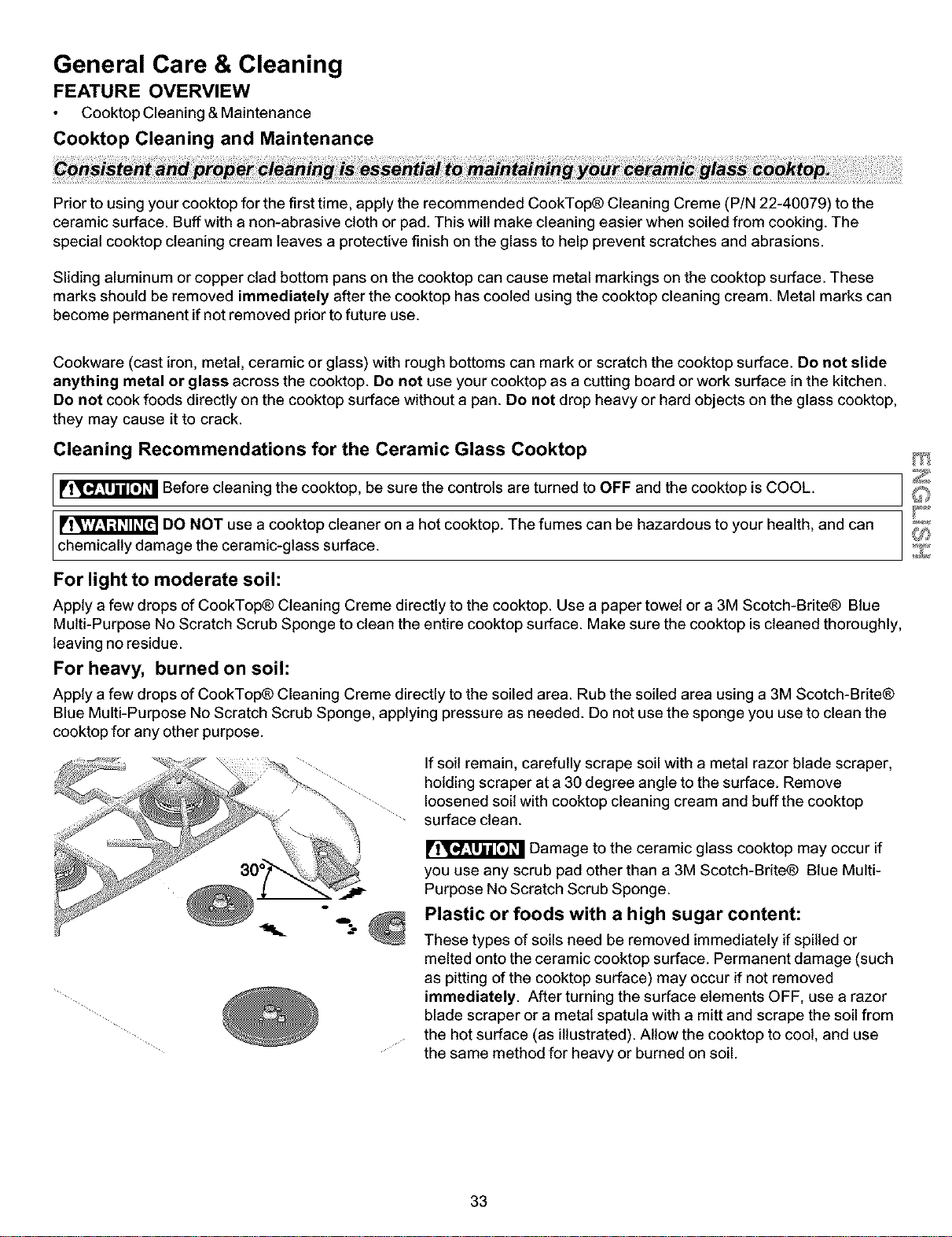

General Care & Cleaning
FEATURE OVERVIEW
Cooktop Cleaning & Maintenance
Cooktop Cleaning and Maintenance
Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme (P/N 22-40079) to the
ceramic surface. Buff with a non-abrasive cloth or pad. This will make cleaning easier when soiled from cooking. The
special cooktop cleaning cream leaves a protective finish on the glass to help prevent scratches and abrasions.
Sliding aluminum or copper clad bottom pans on the cooktop can cause metal markings on the cooktop surface. These
marks should be removed immediately after the cooktop has cooled using the cooktop cleaning cream. Metal marks can
become permanent if not removed prior to future use.
Cookware (cast iron, metal, ceramic or glass) with rough bottoms can mark or scratch the cooktop surface. Do not slide
anything metal or glass across the cooktop. Do not use your cooktop as a cutting board or work surface in the kitchen.
Do not cook foods directly on the cooktop surface without a pan. Do not drop heavy or hard objects on the glass cooktop,
they may cause it to crack.
Cleaning Recommendations for the Ceramic Glass Cooktop
[Ir_r"4r_l"_J_l Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.
_'l,','l.'l.'h'll_[L'l DO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can
chemically damage the ceramic-glass surface.
For light to moderate soil:
Apply a few drops of CookTopO Cleaning Creme directly to the cooktop. Use a paper towel or a 3M Scotch-Brite® Blue
Multi-Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly,
leaving no residue.
For heavy, burned on soil:
Apply afew drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a 3M Scotch-Bdte®
Blue Multi-Purpose No Scratch Scrub Sponge, applying pressure as needed. Do not use the sponge you use to clean the
cooktop for any other purpose.
If soil remain, carefully scrape soil with a metal razor blade scraper,
holding scraper at a 30 degree angle to the surface. Remove
loosened soil with cooktop cleaning cream and buffthe cooktop
surface clean.
[Ir_r"4_l"_"_;T_ Damage to the ceramic glass cooktop may occur if
you use any scrub pad other than a 3M Scotch-Bdte@ Blue Multi-
Purpose No Scratch Scrub Sponge.
Plastic or foods with a high sugar content:
These types of soils need be removed immediately if spilled or
melted onto the ceramic cooktop surface. Permanent damage (such
as pitting of the cooktop surface) may occur if not removed
immediately. After turning the surface elements OFF, use a razor
blade scraper or a metal spatula with a mitt and scrape the soil from
the hot surface (as illustrated). Allow the cooktop to cool, and use
the same method for heavy or burned on soil.
33
General Care & Cleaning
FEATURE OVERVIEW
Cleaning Recommendations for Ceramic Glass Cooktops (cont'd.)
Care & Cleaning of Stainless Steel / Removing & Replacing Oven Door
Do not use the following on the ceramic glass cooktop:
Do not use abrasive cleaners and scouring pads, such as metal and some
nylon pads. They may scratch the cooktop, making it more difficult to clean.
Do not use harsh cleaners, such as chlorine bleach, ammonia or oven _
i cleaners' as they may etch °r disc°l°r the c°°kt°p" 1_=_I
Do thOt UoSed iorty s potgts n; IbOtrhSOnrtlaPeertOWseles_la:cth: Ya;aonn!eave soil or lint
Special Caution for Aluminum Foil and Aluminum cooking utensils:
• Aluminum Foil - Use of aluminum foil will damage the ceramic cooktop. Do not use thin aluminum cooking utensils or
allow aluminum foil to touch the ceramic cooktop under ANY circumstances.
• Aluminum utensils - The melting point of aluminum is much lower than that of other metals. Care must be taken when
aluminum pots or pans are used on the cooktop. If allowed to boil dry, not only will the utensil be destroyed, but it may
fuse to, break or mark the ceramic glass surface, permanently damaging the cooktop surface.
Care and Cleaning of Stainless Steel (some models)
Some models are equipped with Stainless Steel exterior parts. Special care and cleaning are required for maintaining the
appearance of Stainless Steel parts. Please refer to the Care & Cleaning Table provided at the beginning of the Care &
Cleaning section in this Use & Care Guide.
Fig. 2
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the door flat
with the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor - See Fig. 1).
2. Remove 2 screws located on the inside of the door liner (See A Fig. 2)
3. Insert the 2 screws into the door hinge holes located on the side of the hinge arm,
one into each hinge (See B Fig. 2).
4. Close oven door until the door stops, (Do not force the door to close any further).
The placement of these screws should keep door open in about a 45 degree
position.
5. Grasp oven door firmly on both sides and slide door up and off hinges at the same
angle. (See Fig. 3)
6. To clean oven door follow the instructions in the Care & Cleaning Table.
or
us8
Fig. 3
about 45
Hinge
To Replace Oven Door:
1. Be sure the hinge arms remain at the 45 degree angle position. Be sure the
screws are still locking the hinge arms from moving. If the screws fall out of the
hinge holes, the hinge(s) may snap back against the oven frame and could pinch
fingers or chip the porcelain finish on the oven front frame.
2. Hold door at the sides near the top while resting the lower front of door on your
knee. Insert the door channels at the bottom of door over the door hinges, (See
Fig. 3).
3. Allow the door to slide down into the door hinges evenly at the same 45 degree
angle. The hinge arms should be inserted into the bottom corners as far as they
can go.
4. Open door completely (horizontal with floor) and remove both screws from holes
in door hinges.
5. Reinstall the 2 screws into the door liner (See C Fig. 2).
6. If the door is not in alignment with the oven frame, remove door and repeat the
above steps.
34

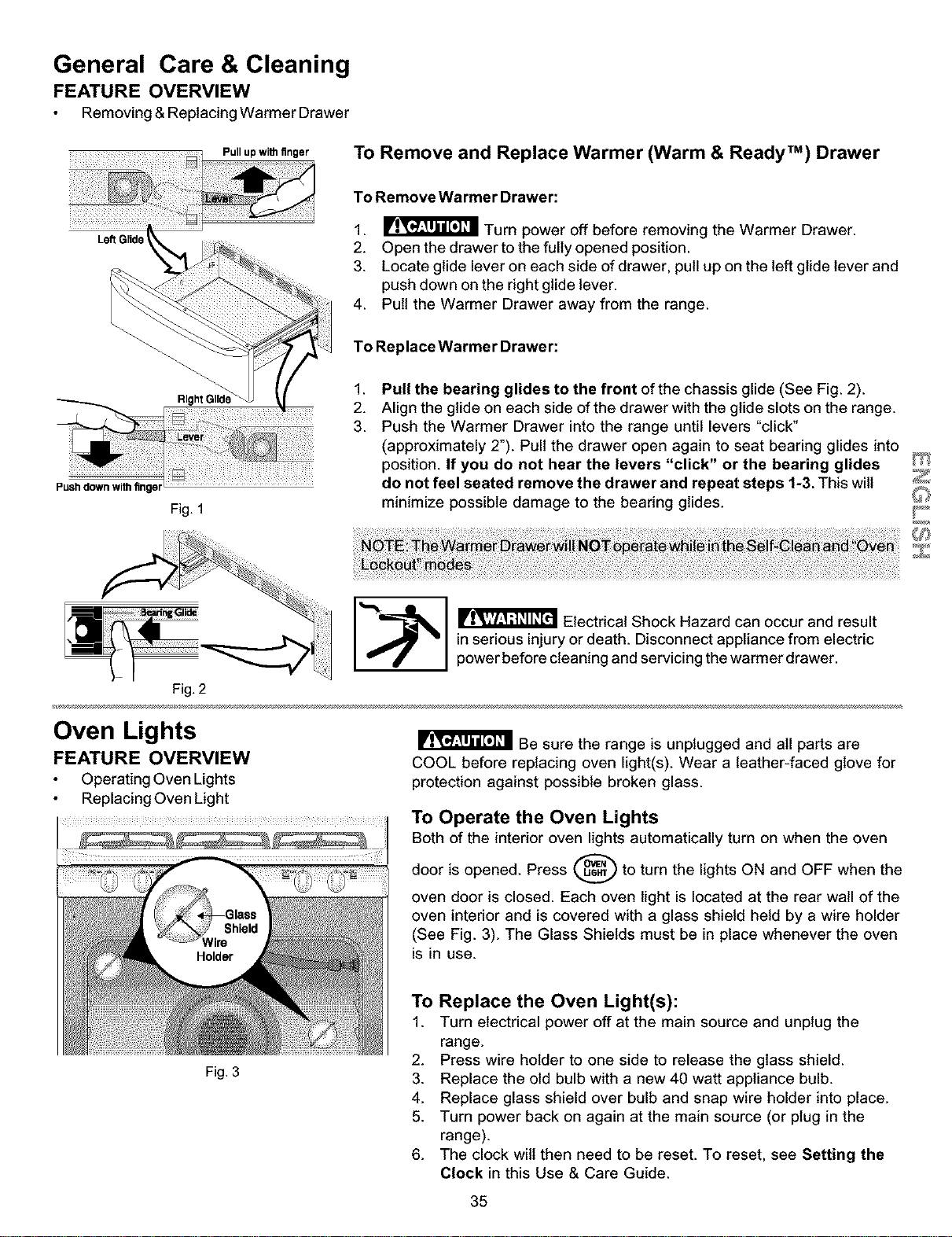

General Care & Cleaning
FEATURE OVERVIEW
Removing &Replacing Warmer Drawer
Pullup withfinger
To Remove and Replace Warmer (Warm & Ready TM) Drawer
Left Gfide
To Remove Warmer Drawer:
1. _ Turn power off before removing the Warmer Drawer.
2. Open the drawer to the fully opened position.
3. Locate glide lever on each side of drawer, pull up on the left glide lever and
push down on the right glide lever.
4. Pull the Warmer Drawer away from the range.
To Replace Warmer Drawer:
Push down with finger
Fig. 1
1,
2.
3.
Pull the bearing glides to the front of the chassis glide (See Fig. 2).
Align the glide on each side of the drawer with the glide slots on the range.
Push the Warmer Drawer into the range until levers "click"
(approximately 2"). Pull the drawer open again to seat bearing glides into
position. If you do not hear the levers "click" or the bearing glides
do not feel seated remove the drawer and repeat steps 1-3. This wilt
minimize possible damage to the bearing glides.
Fig, 2
Oven Lights
FEATURE OVERVIEW
Operating Oven Lights
Replacing Oven Light
_Vire
Holder
Fig. 3
Electrical Shock Hazard can occur and result
in serious injuryor death. Disconnect appliance from electric
power before cleaning and servicing the warmer drawer.
Be sure the range is unplugged and all parts are
COOL before replacing oven light(s). Wear a leather-faced glove for
protection against possible broken glass.
To Operate the Oven Lights
Both of the interior oven lights automatically turn on when the oven
door is opened. Press _ to turn the lights ON and OFF when the
oven door is closed. Each oven light is located at the rear wall of the
oven interior and is covered with a glass shield held by a wire holder
(See Fig. 3). The Glass Shields must be in place whenever the oven
is in use.
To Replace the Oven Light(s):
1. Turn electrical power off at the main source and unplug the
range.
2. Press wire holder to one side to release the glass shield.
3. Replace the old bulb with a new 40 watt appliance bulb.
4. Replace glass shield over bulb and snap wire holder into place.
5. Turn power back on again at the main source (or plug in the
range).
6. The clock wilt then need to be reset. To reset, see Setting the
Clock in this Use & Care Guide.
35
Before You Call
Solutions to Common Problems
Before you call for service, review this list. It may save you time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this appliance.
OCCURRENCE
Range is not level.
POSSIBLE CAUSE/SOLUTION
Poor installation, Place oven rack in center of oven, Place a level on the oven rack, Adjust
leveling legs at base of range until the rack is level, When range is level, cooktop may
appear out of alignment if countertop is not level (See the Range Installation instructions),
Weak, unstable floor, Be sure floor is level and can adequately support range, Contact a
carpenter to correct sagging or sloping floor,
Kitchen cabinet misalignment may make range appear to be unlevel, Be sure cabinets are
square and have sufficient room for range clearance,
Cannot move appliance easily.
Appliance must be accessible for
service.
Cabinets not square or are built in too tight, Contact a cabinet maker to correct the problem,
Contact builder or installer to make appliance accessible,
Carpeting interferes with range, Provide sufficient space so range can be lifted over carpet,
Gas line is hard-plumbed. Have a flexible C.S.A. International approved metal appliance
connector installed.
Surface burners do not light.
Surface burner flame burns
halfway around.
Surface burner flame is orange.
Oven does not operate.
Entire appliance does not operate.
Oven light or lights do not work.
Surface Control knob has not been completely turned to LITE. Push in and turn the Surface
Control knob to LITE until burner ignites and then turn control knob to desired flame size.
Burner ports are clogged. See "Cleaning the Burner Grates, Burner Caps, Burner Heads
and Wok Stand" on page 31 for additional cleaning instructions.
Range power cord is disconnected from outlet (electric ignition models only). Be sure cord
is securely plugged into the outlet.
Electrical power outage (electric ignition models only).
Be sure the gas supply to the range is turned "ON."
Burner ports are clogged. See "Cleaning the Burner Grates, Burner Caps, Burner Heads
and Wok Stand" on page 31 for additional cleaning instructions.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until
flame is full. Dry the burners thoroughly following instructions in the "General Care &
Cleaning" section.
Dust particles in main line. Allow the burner to operate a few minutes until flame turns blue.
In coastal areas, a slightly orange flame is unavoidable due to salt air.
No electrical power to the appliance. See steps under "Entire Appliance Does Not Operate" in
the "Before You Call" checklist (this section).
Be sure the oven controls are set correctly for the desired function. See "Setting Oven
Controls" section or "Entire appliance does not operate" in this table.
The time of day must first be set on the clock in order to operate the oven.
Make sure electrical cord/plug is plugged tightly into outlet.
Service wiring is not complete. Call %80e-4-MY-HOME® (See back cover).
Electrical power outage (electric ignition models only). Check house lights to be sure. Call
your local electric company for service. Surface burners can be lit manually.
Burned-out or loose bulb. See "Replacing Oven Light" section in this Use & Care Guide to
replace or tighten the bulb(s).
Electrical power outage. Check house lights to be sure. Call your local electric company for
service.
36
Before You Call
Solutions to Common Problems
OCCURRENCE
Oven smokes excessively during
broiling.
POSSIBLE CAUSE/SOLUTION
Meat is too close to the broil element. Reposition the rack to provide more clearance
between the meat and the oven broil element.
Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty
edges to prevent the meat from curling, but do not cut into the lean of the meat.
Broiler Pan used without the Broiler Pan Insert or insert is covered with foil. DO NOT use the
Broiler Pan without the Broiler Pan Insert or cover the insert with foil.
Broiler Pan or Broiler Pan Insert needs to be cleaned. Excessive smoking is caused by a
build-up of grease or food spatters. Clean the Broiler Pan and insert on a regular basis.
Oven door is open. Oven door should be closed when broiling.
Oven electronic control beeps and
displays "F1, F3" or "F9".
This oven is equipped with a state of the art electronic oven controller. Among the many
features is a full time oven circuit diagnostics system. The controller constantly monitors the
internal circuitry as well as several crucial oven circuits to insure they are all operating
correctly. If at any time one of these systems fails, the controller will immediately stop the
current operation and beep continuously (flashing an error code of "F1, F3" or "Fg" in the
controller display window.
Oven control beeps when you try
to enter times or temperatures
Electronic control has detected a fault condition. Press STOP/CLEAR to clear the display and
stop beeping. Reprogram oven. If fault remains, record fault number. Press STOP/CLEAR and
call 1-800-4-MY-HOME® (See back cover).
The oven control will only accept correct responses and/or the minimum number of allowable
entries for the appropriate feature. The oven control is designed to prevent accidental entries.
Review the instructions in this Use & Care Guide for the feature you are trying to use. Also
review the minimum and maximum temperature entries for the feature you are trying to set on
page 14 in this Use & Care Guide.
Poor baking results.
Many factors affect baking results. Make sure the proper rack position is being used. Center
food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the
set temperature before placing food in the oven. Try adjusting the recipe's recommended
temperature or baking time. If you feel the oven is cooking too hot or cool. See "Adjusting
the Oven Temperature" in this Use & Care Guide.
Self-Cleaning cycle does not work. Controls are not set properly. Follow instructions in the Self-Cleaning section.
Self-cleaning cycle was interrupted. Stop time must be set 2 to 4 hours past the start time.
Follow steps under "Stopping or Interrupting a Self-Clean Cycle" in the Oven Cleaning
section.
Soil is not completely removed. Set Self-Clean cycle for a longer cleaning time.
Failure to clean bottom front, top of oven or door areas outside oven seal. These areas are not
inthe Self-Cleaning area, but get hot enough to burn on food residue. Clean these areas before
starting the Self-Clean cycle. Burned-on residue may be cleaned with a stiff nylon brush and
water or a nylon scrubber. Be careful not to damage the oven gasket.
Excessive smoking from oven Excessive spillovers in oven, especially for pie spillovers or large amounts of grease on the
vent. oven bottom. Wipe up excessive spillovers before starting the Self-Clean cycle. If flames or
excessive smoke are present, stop the Self-Clean cycle and follow the steps under "Stopping
or Interrupting the Self-Clean Cycle" in the Oven Cleaning section.
37
Cooking Tables
Foods for @ CONVECTION
BAKE pad
*Decrease
normal cook time by:
Frozen foods, pies, 15-25 %
pastries and pizza
Refrigerator cookies 15-35 %
Refrigerator biscuits 15-30 %
Rolls & Breads 20-25%
Fresh Pies/Pastries 10-20 %
Begin with the maximum reduction in
cook times and adjust as needed.
*Recommended reduction in cook
times based on brands of food items
tested. Cook times may vary with your
specific brand of food item.
Foods
for _ MEATS pad in
Food Categories
*Decrease
normal cook time by:
Meats 15-30 %
Poultry (unstuffed) 20-30 %
Begin with the maximum reduction in
cook times and adjust as needed.
*Recommended reduction in cook
times based on brands of food items
tested. Cook times may vary with your
specific brand of food item.
38
PROTECTION AGREEMENTS
In the U.S.A.
Master Protection Agreements
Congratulations on making a smart purchase. Your
new Kenmore®product isdesigned and manufactured
for years of dependable operation. But like all products,
it may require preventive maintenance or repair from
time to time. That's when having a Master Protection
Agreement can save you money and aggravation.
Purchase a Master Protection Agreement now and
protect yourself from unexpected hassle and
expense.
The Master Protection Agreement also helps extend
the life of your new product. Here's what's included in
the Agreement:
[] Expert service by our 12,000 professional repair
specialists
[] Unlimited service end no charge for parts and
labor on all covered repairs
[] "No-lemon" guarantee - replacement
ofyour covered product iffour or more product
failures occur within twelve months
[] Product replacement ifyour covered product
can't be fixed
[] Annual Preventive Maintenance Check at your
request - no extra charge
[] Fast help by phone - phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling
[] Power surge protection against electrical
damage due to power fluctuations
[] Rental reimbursement if repair of your covered
product takes longer than promised
Once you purchase the Agreement, a simple phone
call is all that ittakes for you to schedule service. You
can call anytime day or night, or schedule a service
appointment online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you
can count on to help prolong the life of your new
purchase for years to come. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply.
For prices end additional information call
1-800-827-6655.
In Canada
Maintenance Agreements
Your purchase has added value because you
can depend on Sears HomeCentral®for service.
With over 2400 Service Technicians and more than a
million parts and accessories, we have the tools,
parts, knowledge and skillsto ensure our pledge:
We Service What We Sell.
Your Kenmore®product is designed, manufactured
and tested to provide years of dependable operation.
But like all products, it may require service from time to
time. The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
The Sears Maintenance Agreement:
• Is your way to buy tomorrow's service at today's
price
• Eliminates repair bills resulting from normal wear
and tear
• Provides phone support from a Sears technician on
products requiring in-home repair
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is in proper running condition.
Some limitations apply. For more information
about Sears Canada Malntanance Agreements,
call 1-600-361-6665
Sears Installation Service
For Sears professional installation of home
appliances, garage door openers, water heaters,
and other major home items, in the U.S.A. call
1-800.4-MY-HOME_
39
REV.030509
Get it fixed, atyour home or ours!
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and coolingsystems,
no matter who made it, no matter who sold it!
For the replacement parts, accessoriesand
owner's manuals that you need to do-it-yourself,
For Sears professionalinstallationof home appliances
and items like garage door openers and water heaters,
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night(U,S,A, and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line forthe locationof your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S,A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR sM
(1-888-784-6427)
Au Canada pour service en fran(_ais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
33tl 5M
® Regsterad Trademark / Trademark / Service Mark ofSeam, Roebuck and Co
3_t SM
® Mama Reglstrada / Mama de F,_brP.a/ Marca de Serwclo de Seam, Roebuckand Co
MC MD
Marque de commerce / Marque d_pco6e de See.m,Roebuck and Co. © Sears, Roebuck and CO.
