Use and Care Manual
Microwave
800/Benchmark SERIES
HMV8053U
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch HMV8053U/01:
Microwave
1
Table of ContentsUse and care manual
2
Produktinfo
2
Safety Definitions
3
9 WARNING
3
9 CAUTION
3
NOTICE:
3
Note:
3
9 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
3
IMPORTANT SAFETY INSTRUCTIONS
4
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
4
WARNING
4
WARNING
4
WARNING
4
Risk of injury
4
WARNING
4
Risk of injury
4
Grounding Instructions
4
TV / Radio Interference
5
Intended Use
5
Child Safety
5
Cleaning Safety
5
CAUTION
5
WARNING
5
Cooking Safety
5
CAUTION
5
To avoid personal injury or property damage, observe the following:
5
WARNING
6
In Case of Fire
6
1. Keep door closed
6
2. Turn appliance off
6
3. Unplug the appliance or shut off at fuse or circuit breaker
6

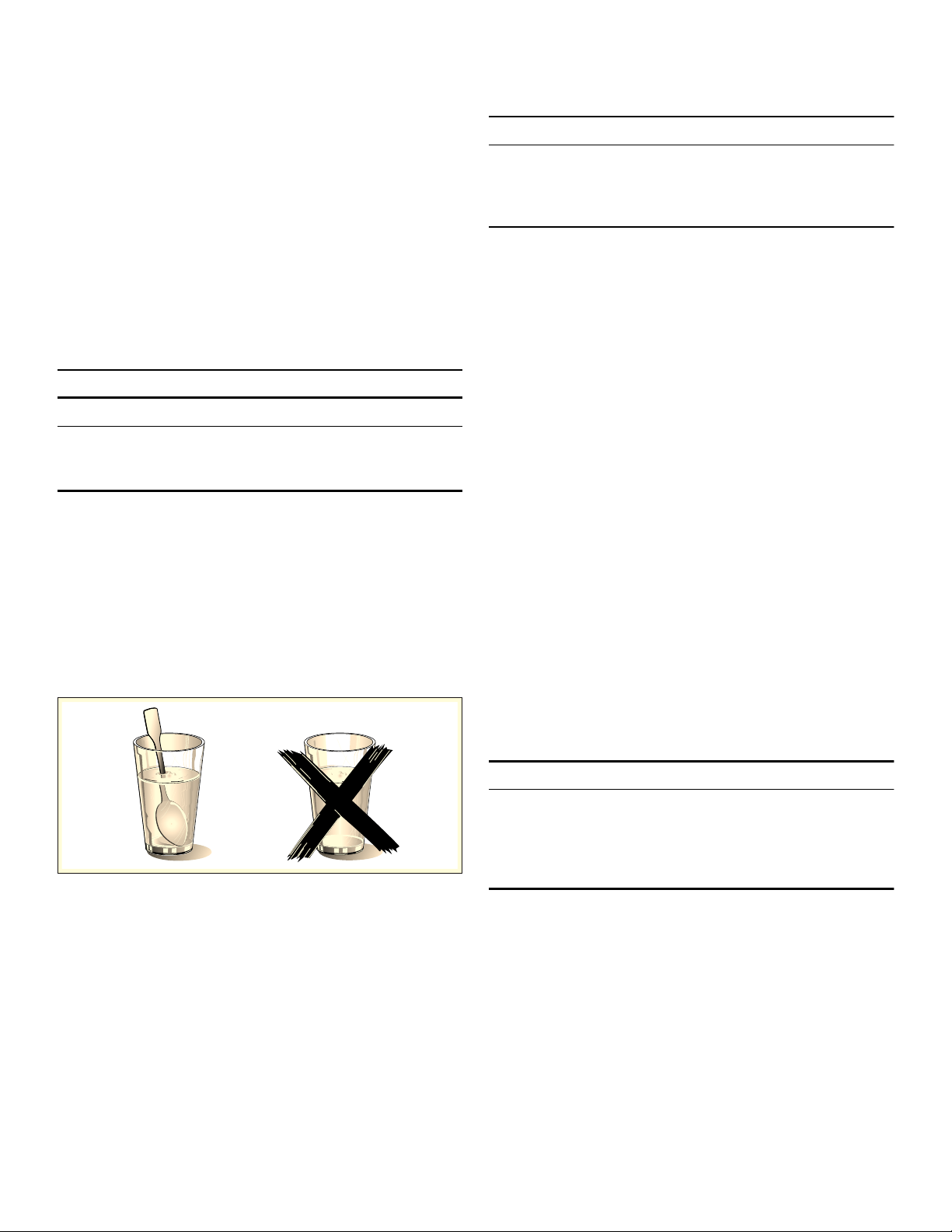

Liquids
6
CAUTION
6
Cooking Items
6
CAUTION
6
Cooking Utensils
7
Glass Tray / Turntable Ring
7
Note:
7
Exhaust Mode Operation
7
WARNING
7
Thermometers
7
Pacemakers
7
CAUTION
7
State of California Proposition 65 Warnings
8
WARNING
8
Fan Motor Operation
8
Room Venting with Carbon Filter
8
Note:
8
SAVE THESE INSTRUCTIONS.
8
Causes of damage
9
NOTICES:
9
Protecting the environment
9
Tips for saving energy
9
Getting started
10

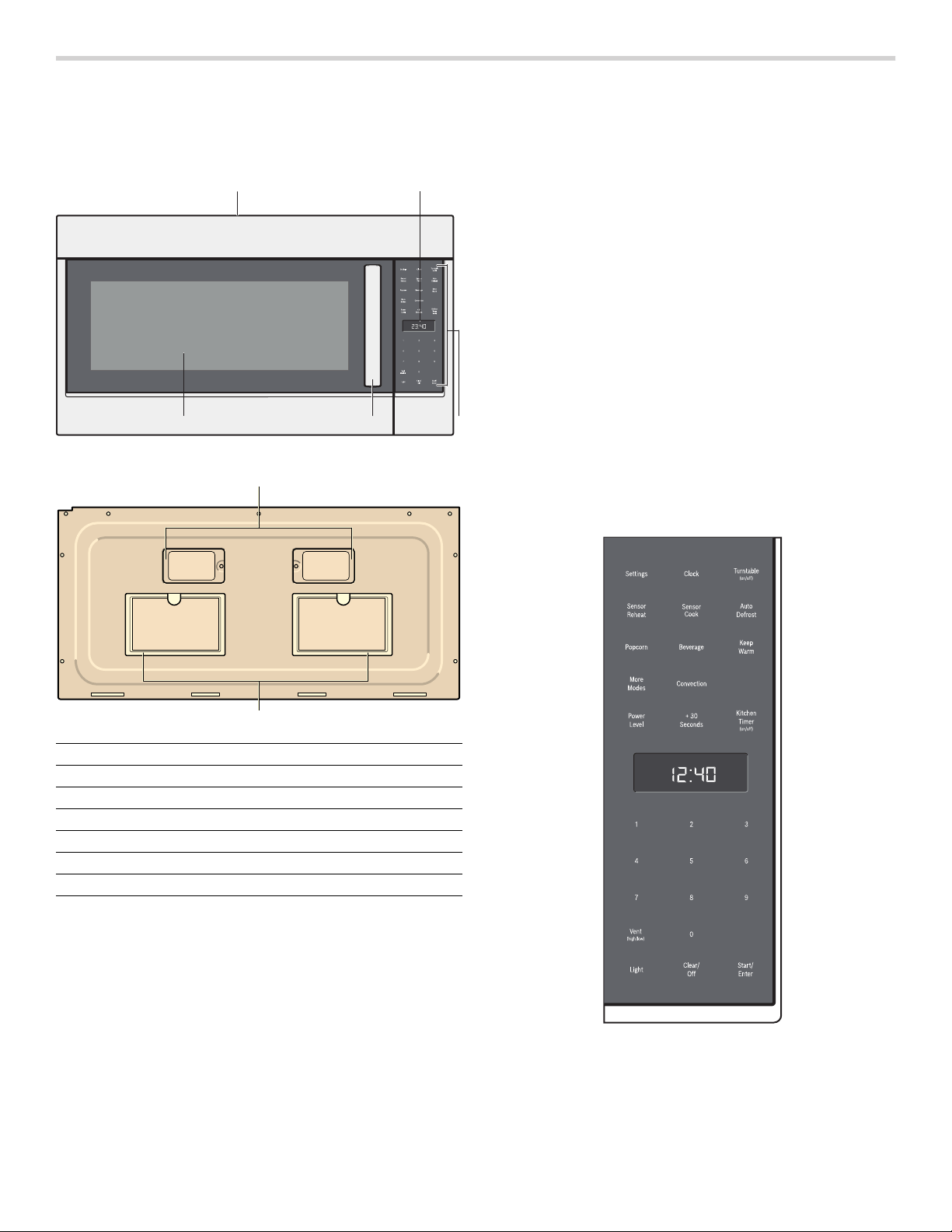

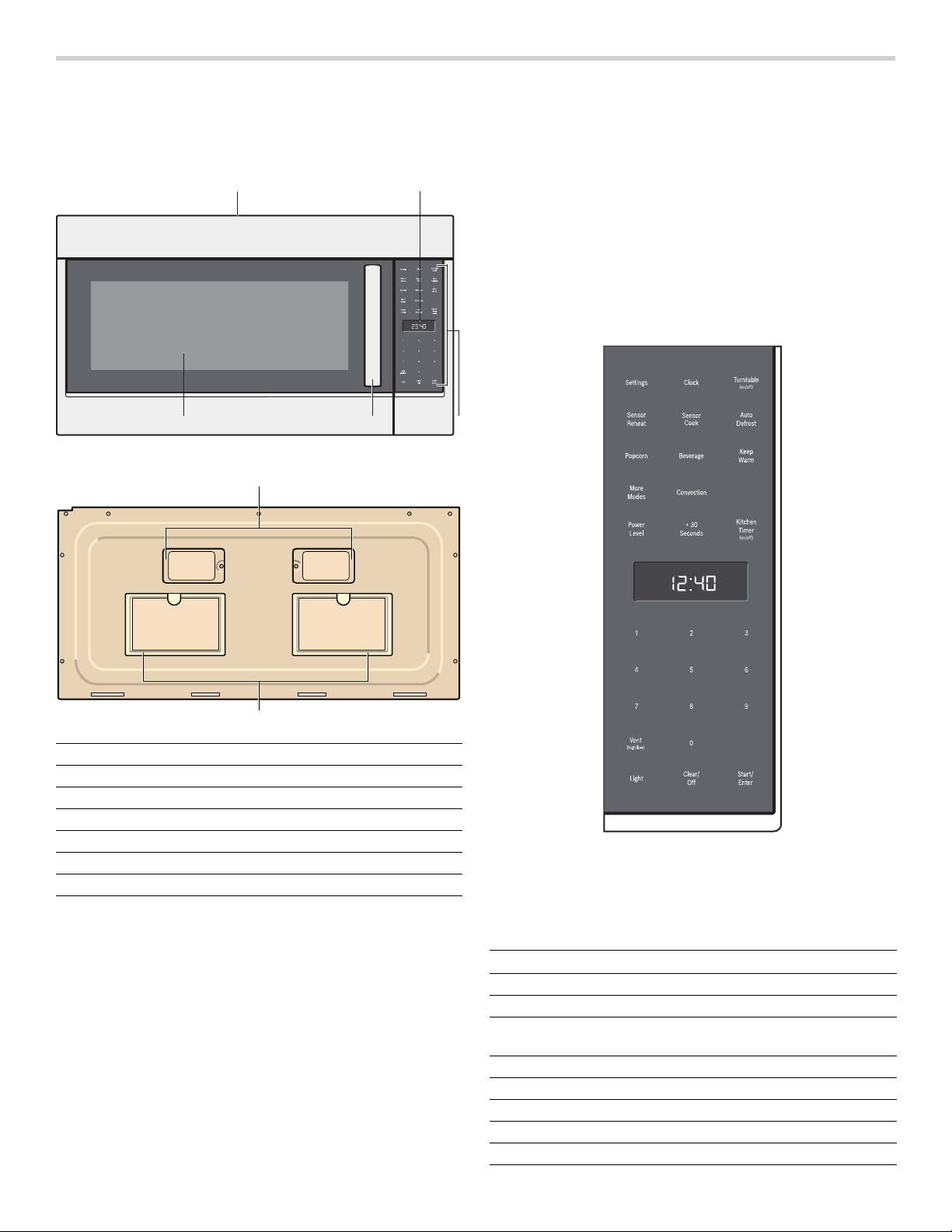

Parts
10
Cooling Fan
10
Oven Vent
10
Convection Fan
10
Oven light (LED)
10
Control panel
10
Touch keys
10

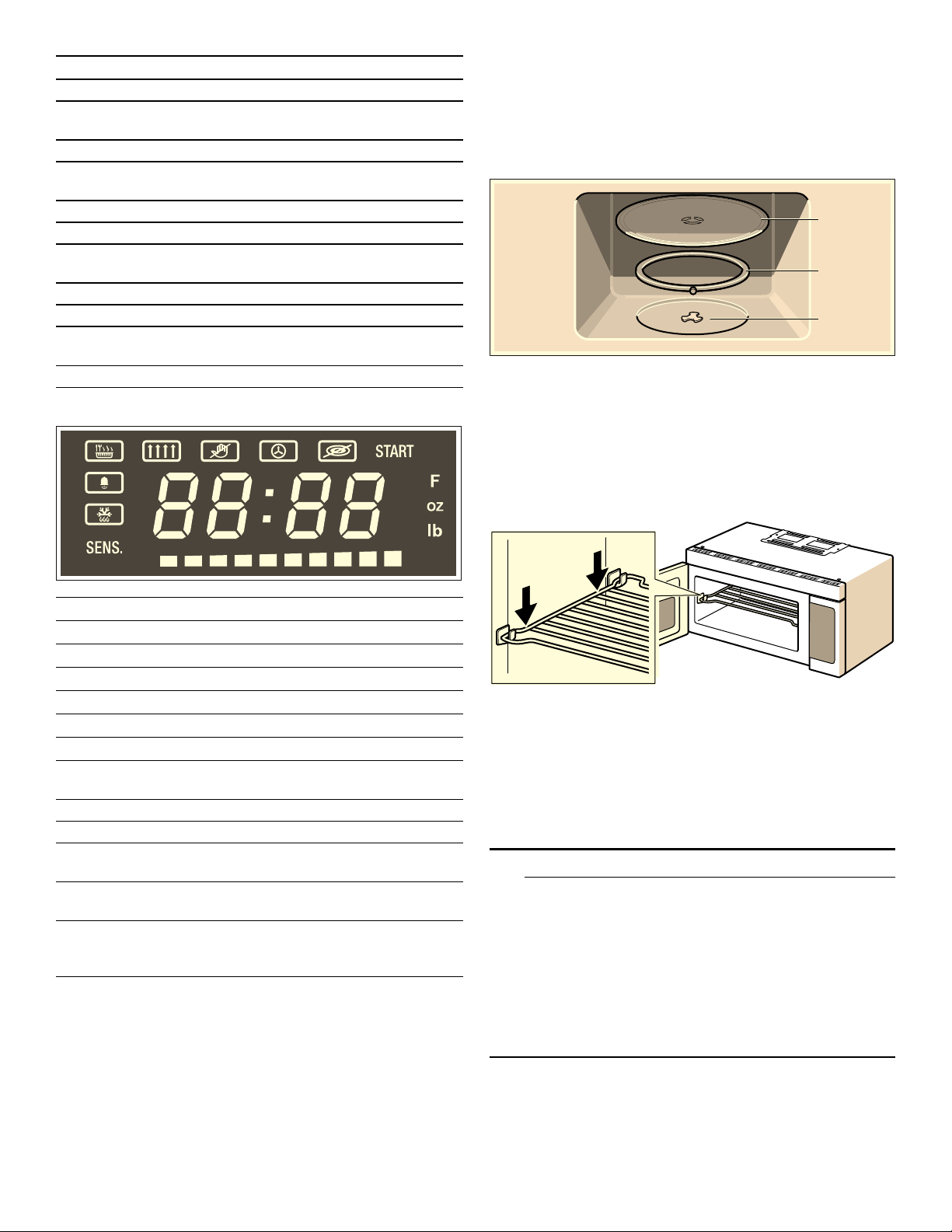

Display elements
11
Accessories
11
How to fit the turntable
11
1. Place the roller rest a in the recess in the oven cavity.
11
2. Let the turntable b slot in place in the drive c in the center of the floor of the oven cavity.
11
Note:
11
Using the metal rack
11
1. Place rack securely in the four plastic supports.
11
Note:
11
2. Place equal amounts of food both above and below rack.
11
Note:
11
9 CAUTION
11

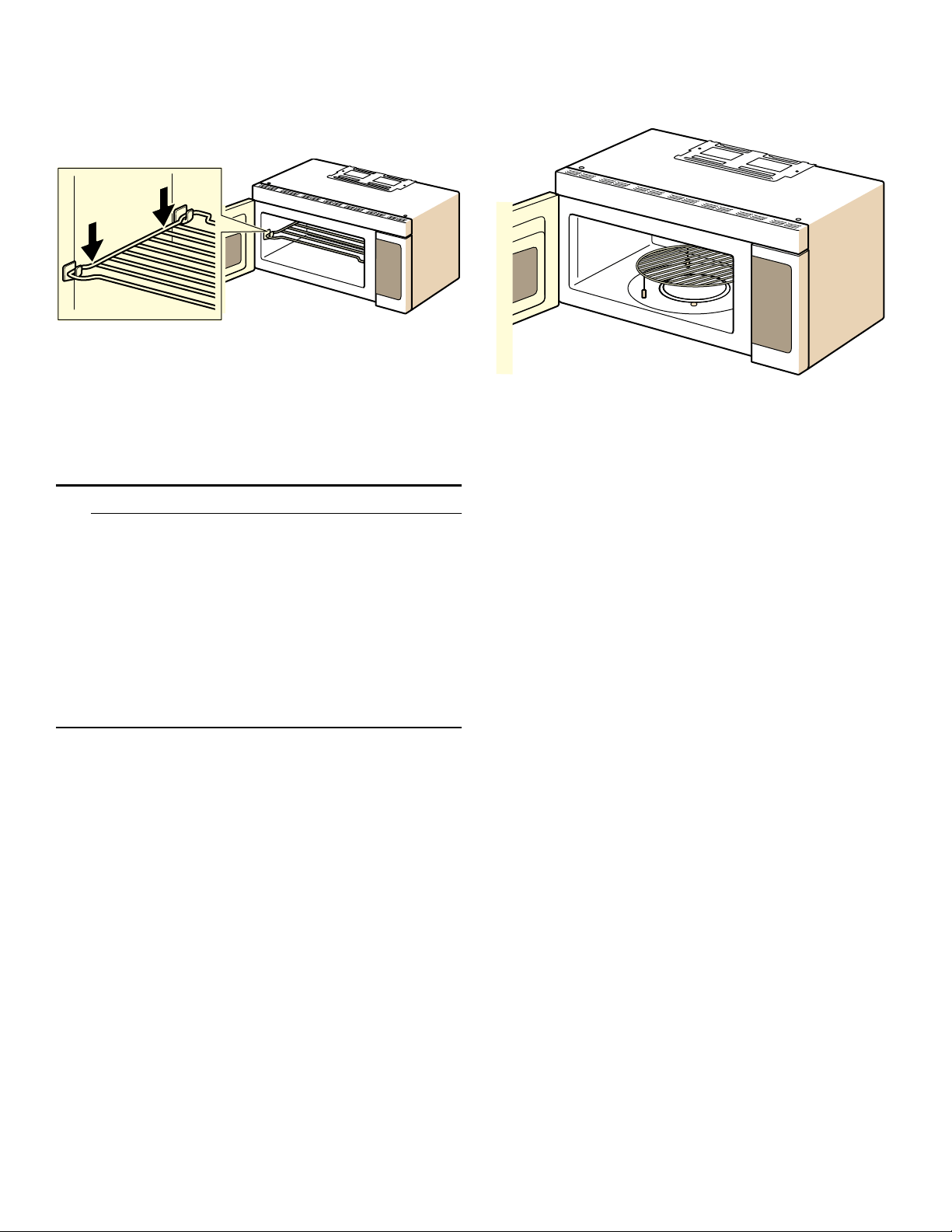

Using the convection rack
12
Notes
12
To use the convection rack:
12
1. Place convection rack securely on the center of the glass turntable.
12
2. Place food directly on the convection rack.
12
Microwave utensil guide
12
Suitable ovenware
12
Unsuitable ovenware
12
Ovenware test
12
1. Heat the empty ovenware at maximum power for ½ to 1 minute.
12
2. Check the temperature occasionally during that time.
12
Before using the appliance for the first time
13
Cleaning accessories
13
Applying the program label
13
Operation
13
Setting the clock
13
1. Touch Clock once.
13
2. Enter the time using the number keys. Example: To set the clock to 12:41 type in 1 2 4 1.
13
3. Touch Clock to confirm.
13
Setting the Kitchen Timer
13
1. Touch Kitchen Timer.
13
2. Enter the desired time using the number keys.
13
3. Touch Kitchen Timer to confirm.
13
Operating the Ventilation Fan
13
Note:
13
Turning the Surface Light on/off
13
Turning the turntable on / off
13
9 CAUTION
13
Convection
14
9 CAUTION
14
Cookware tips for Convection
14
Note:
14
Setting Convection mode
14
1. Touch Convection. 350° F and START are blinking, the À symbol lights up in the display.
14
2. Enter the desired temperature using the number keys.
14
3. Touch Start/Enter. The preheat bar appears in the display. The oven starts preheating.
14
Note:
14
4. Open the door, place convection rack and food in the oven. Close the door quickly in order to maintain oven temperature.
14
Note:
14
Opening appliance door during operation
14
Cancel operation
14
Convection cooking suggestions
14
Operating the microwave
15
1. Enter the desired cooking duration with the number keys. The timer display will fill in from right to left. Example: To set a microwave cooking time of 20 minutes and 30 seconds, enter the numbers 2 0 3 0. START is blinking.
15
2. You can start microwave operation with the default power level 10 by touching Start/Enter, or - you can adjust the power level. Touch Power Level. The default power level ˜–‚‹ is blinking. The segments in the bar underneath the number displ...
15
3. Enter the desired power level using the number keys. ˜–and the selected power level and START are blinking in the display.
15
4. Touch Start/Enter to start microwave operation.
15
Opening appliance door during operation
15
Cancel operation
15
Microwave power levels
15
Suggestions for best results
15
Adding cook time (+30 Seconds)
16
Auto Defrost
16
Setting Auto Defrost
16
1. Touch Auto Defrost once. š“”‚ and START are blinking and the à symbol lights up in the display.
16
2. Touch Auto Defrost repeatedly until the desired program number is shown in the display. Check the menu label at the bottom of the oven cavity or see program table below.
16
3. Touch Start/Enter. ‹.‹ lb is blinking in the display.
16
4. Enter the weight of the food using the number keys.
16
5. Touch Start/Enter to start the program.
16
Note:
16
Opening appliance door during operation
16
Cancel operation
16
Auto Defrost programs
16
Tips for defrosting
16
9 WARNING
16
Health Risk
16
Defrosting suggestions for meat
17
Sensor Reheat
17
Setting Sensor Reheat
17
1. Touch Sensor Reheat once. †§ -‚ and START are blinking in the display.
17
2. Touch Sensor Reheat repeatedly until the desired program number is shown in the display. Check the menu label at the bottom of the oven cavity or see program table below.
17
3. Touch Start/Enter to start sensor reheat mode. The appliance starts sensing, SENS. lights up in the display. The microwave is operating during sensing.
17
Note:
17
Notes
17
Cancel operation
17
Sensor Reheat programs
17
Reheat cooking suggestions
17
Sensor Cook
18
Setting Sensor Cook
18
1. Touch Sensor Cook once. †™-‚ and START are blinking.
18
2. Touch Sensor Cook repeatedly until the desired program number is shown in the display.
18
3. Touch Start/Enter to start sensor cook mode. SENS. lights up in the display and the appliance starts sensing.
18
Note:
18
Cancel operation
18
Sensor Cook programs
18
Panel Lock
19
Settings
19
Changing the settings
19
1. Touch Settings twice.
19
2. Touch the number key 1 to turn the clock display on, touch 2 to turn the clock display off.
19
3. Touch Start/Enter.
19
4. Touch Clear/Off to exit the settings menu.
19
Note:
19
Convenience Operation
19
Popcorn
19
9 CAUTION
19
Setting Popcorn mode
19
1. Popcorn three times. „ and START are blinking in the display.
19
2. Touch Start/Enter.
19
Cancel operation
19
Beverage
19
1. Touch Beverage twice. ƒ and START are blinking in the display.
19
2. Touch Start/Enter.
19
Cancel operation
20
Keep Warm
20
9 CAUTION
20
When using Keep Warm mode, follow these guidelines:
20
Setting Keep Warm
20
1. Touch Keep Warm. The ½ symbol lights up and ‹‹:‹‹ is blinking in the display.
20
2. Enter the desired time using the number keys.
20
3. Touch Start/Enter.
20
Notes
20
Cancel operation
20
More Modes
20
Available modes
20
Setting More Modes
20
1. Touch More Modes once. ‚ and START are blinking in the display.
20
2. Touch More Modes repeatedly until the desired program number is shown in the display. Check the menu label at the bottom of the oven cavity or see program table above.
20
3. Touch Start/Enter. For modes 1 to 4:‚ and START is blinking on the display. For mode 5: ‹‹:‹‹ is blinking in the display.
20
4. Enter the desired weight category (mode 1 - 4) or enter the desired defrost time (mode 5) with the number keys.
20
5. Touch Start/Enter to start operation.
20
Cancel operation
20
Cooking Charts
21
Cooking meat in your microwave
21
Cooking poultry in your microwave
21
Cooking eggs in your microwave
21
Cooking vegetables in your microwave
21
Cooking seafood in your microwave
22
Cleaning and Maintenance
22
9 WARNING
22
Cleaning
22
Cleaning Guide
22
Cleaning the oven vent filters
23
9 CAUTION
23
1. To remove the ventilation filters, slide the filter to the rear. Then pull filter downward and push to the other side. The filter will drop out. Repeat for the 2nd filter.
23
2. Soak the ventilation filters in hot water using a mild detergent. Rinse well and shake to dry. Do not use ammonia or wash in a dishwasher. The aluminum on the filter will corrode and darken.
23
3. To reinstall an oven ventilation filter, slide it into the side slot, then push up and toward oven to lock. Reinstall the 2nd filter using the same procedure.
23
Maintenance
24

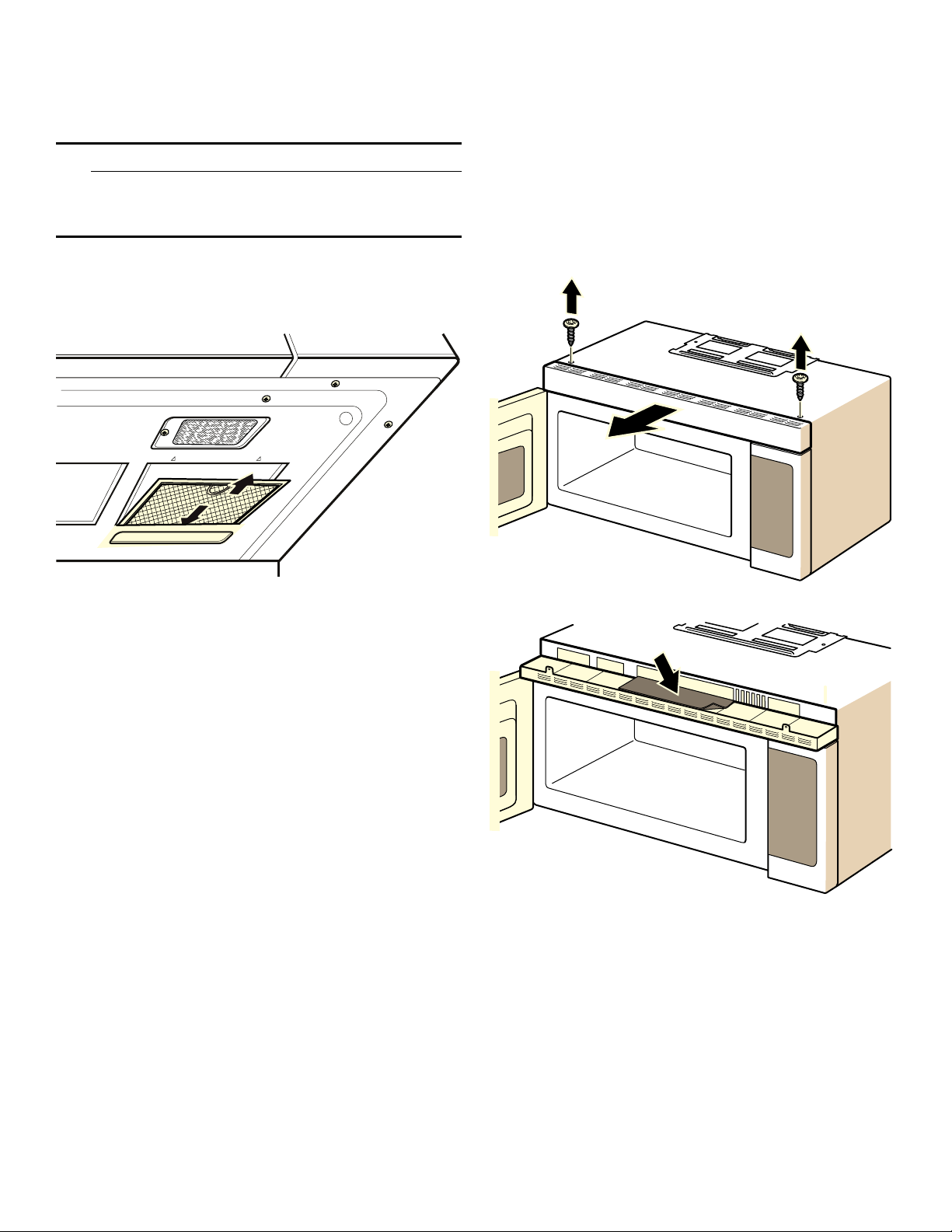

Charcoal filter replacement
24
1. Disconnect power to the microwave oven at the circuit breaker panel or by unplugging.
24
2. Remove the vent grill mounting screws.
24
3. Pull the vent grill away from the unit.
24
4. Change the charcoal filter.
24
5. Carefully push the vent grill back into place and replace the screws removed in Step 2.
24
Note:
24
Troubleshooting
24
Bosch® Support
25
Before Calling Service
25
Data Plate
25
Service
25
Parts and Accessories
26
STATEMENT OF LIMITED PRODUCT WARRANTY
26
What this Warranty Covers & Who it Applies to
26
How Long the Warranty Lasts
26
Repair/Replace as Your Exclusive Remedy
26
Out of Warranty Product
26
Warranty Exclusions
27
ContenidoManual de instrucciones
28
Produktinfo
28
Definiciones de Seguridad
29
9 ADVERTENCIA
29
9 ATENCION
29
AVISO:
29
Nota:
29
9 PRECAUCIONES PARA EVITAR UNA POSIBLE EXPOSICIÓN A UNA EXCESIVA CANTIDAD DE ENERGÍA DE MICROONDAS
29
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
30
LEER TODAS LAS INSTRUCCIONES ANTES DE UTILIZAR EL APARATO
30
ADVERTENCIA
30
ADVERTENCIA
30
ADVERTENCIA
30
Riesgo de lesiones
30
ADVERTENCIA
30
Riesgo de lesiones
30
Instrucciones para la conexión a tierra
30
Interferencia con la TV/radio
31
Uso previsto
31
Seguridad de los niños
31
Seguridad en la limpieza
31
ATENCION
31
ADVERTENCIA
31
Seguridad al cocinar
32
ATENCION
32
Para evitar lesiones personales o daños materiales, debe tenerse en cuenta lo siguiente:
32
ADVERTENCIA
32
En caso de incendio
32
1. Mantenga la puerta cerrada
32
2. Apague el electrodoméstico
32
3. Desenchufe el electrodoméstico o corte la alimentación eléctrica desde el panel de fusibles o el disyuntor.
32

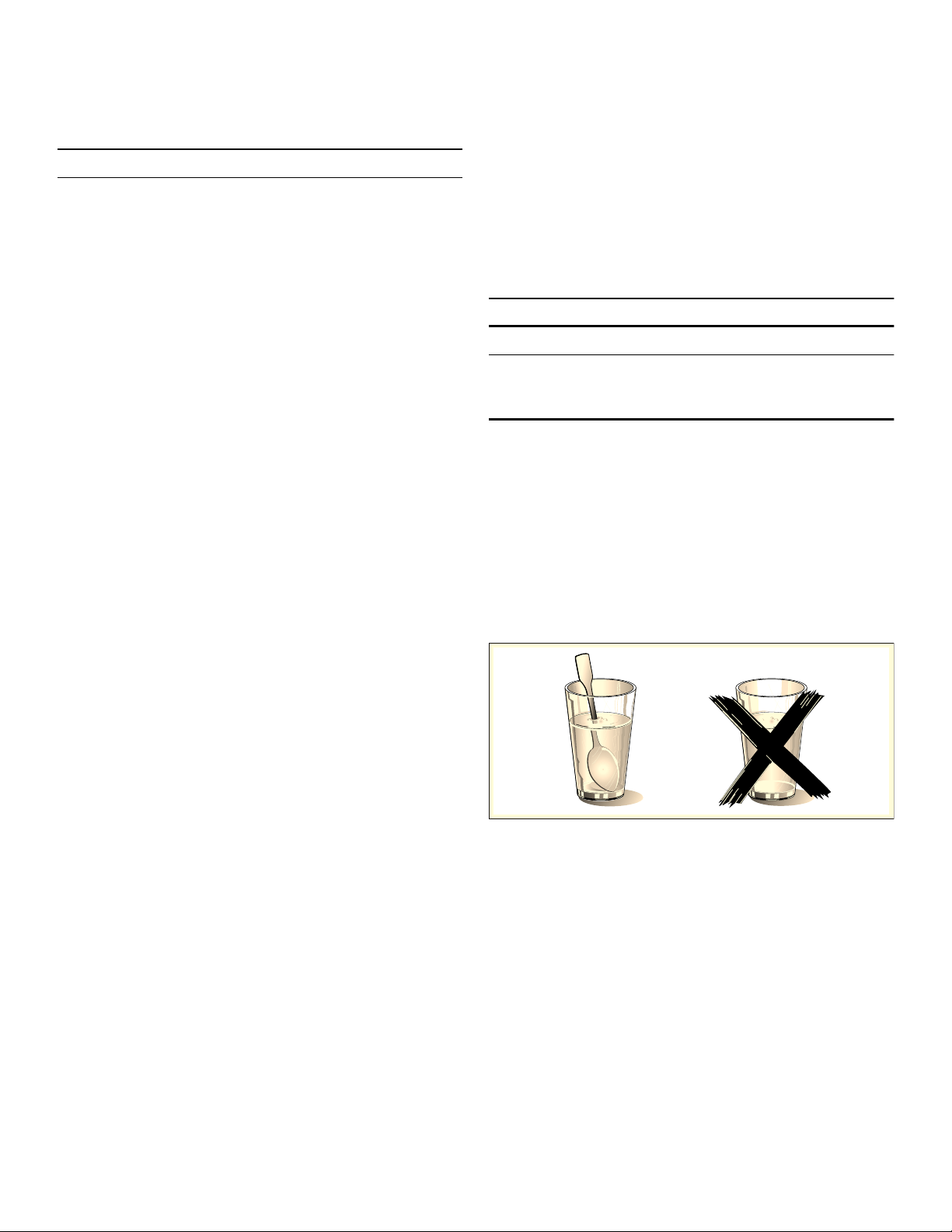

Liquidos
32
ATENCION
33
Artículos de cocina
33
ATENCION
33
Utensilios de cocina
34
Charola de vidrio/anillo de la bandeja giratoria
34
Nota:
34
Operación en modo de salida
34
ADVERTENCIA
34
Termómetros
34
Marcapasos
34
ATENCION
34
Advertencias en virtud de la Proposición 65 del estado de California
34
ADVERTENCIA
34
Funcionamiento del motor del ventilador
34
Ventilación de ambiente con filtro de carbón
34
Nota:
34
CONSERVE ESTAS INSTRUCCIONES.
34
Causas para los daños
35
AVISOS:
35
Protección del medio ambiente
35
Consejos para ahorrar energía
35
Cómo comenzar
36
Componentes
36
Ventilador de refrigeración
36
Ventilación del horno
36
Ventilador de convección
36
Luz del horno (LED)
36
Panel de control
36
Teclas digitales
37
Elementos del display
37
Accesorios
37
Para colocar la bandeja giratoria
37
1. Colocar el anillo de la bandeja giratoria a en la hendidura del compartimento de cocción.
37
2. Enclavar la bandeja giratoria b en el accionamiento c del centro de la base del compartimento de cocción.
37
Nota:
37
Utilización del rack de metal
38
1. Coloque el rack firmemente en los cuatro soportes de plástico.
38
Nota:
38
2. Coloque la misma cantidad de alimentos encima y debajo del rack.
38
Nota:
38
9 ATENCION
38
Utilización del rack de convección
38
Notas
38
Para usar el rack de convección:
38
1. Coloque el rack de convección en forma segura en el centro del plato giratorio de cristal.
38
2. Coloque el alimento directamente sobre el rack de convección.
38
Guía de utensilios para microondas
38
Utensilios para horno adecuados
38
Utensilios no aptos horno
39
Prueba de la vajilla
39
1. Introducir el recipiente vacío en el aparato durante ½ a 1 minuto a la potencia máxima.
39
2. Comprobar la temperatura de vez en cuando.
39
Antes de usar el horno por primera vez
39
Limpieza de accesorios
39
Aplicación de la etiqueta de programas
39
Operación
40
Programación del reloj
40
1. Pulse Clock (Reloj) una vez.
40
2. Ingrese la hora utilizando las teclas numéricas. Ejemplo: para programar el reloj en 12:41, ingrese 1, 2, 4, 1.
40
3. Pulse Clock para confirmar.
40
Programación del temporizador de cocina
40
1. Pulse Kitchen Timer (Temporizador de cocina).
40
2. Ingrese el tiempo deseado utilizando las teclas numéricas.
40
3. Pulse Kitchen Timer para confirmar.
40
Manejo del ventilador de ventilación
40
Nota:
40
Encendido/Apagado de la luz de superficie
40
Encendido/Apagado del plato giratorio
40
9 ATENCION
40
Convección
40
9 ATENCION
40
Consejos sobre utensilios de cocina para Convection (Convección)
41
Nota:
41
Programación del modo Convection (Convección)
41
1. Pulse Convection (Convección). Titilan 350 °F y START (Comenzar); se enciende el símbolo À en el display.
41
2. Ingrese la temperatura deseada utilizando las teclas numéricas.
41
3. Pulse Start/Enter (Comenzar/Intro). Aparece la barra de precalentamiento en el display. El horno comienza a precalentarse.
41
Nota:
41
4. Abra la puerta, coloque el rack de convección y el alimento en el horno. Cierre la puerta rápidamente para mantener la temperatura del horno.
41
Nota:
41
Abertura de la puerta del aparato durante el funcionamiento
41
Cancelación del funcionamiento
41
Sugerencias para cocinar por convección
41
Programación del microondas
42
1. Ingrese la duración de cocción deseada con las teclas numéricas. El display del temporizador se llenará de derecha a izquierda. Ejemplo: para programar un tiempo de microondas de 20 minutos y 30 segundos, ingrese los números 2, 0, 3, 0. Titil...
42
2. Puede comenzar la operación del microondas con el nivel de potencia predeterminado 10 pulsando Start/ Enter (Comenzar/Intro) o bien Puede ajustar el nivel de potencia. Pulse la tecla Power Level (Nivel de potencia). Titila el nivel de potencia pr...
42
3. Ingrese el nivel de potencia deseado utilizando las teclas numéricas. Titilan ˜– y el nivel de potencia seleccionado, y START (Comenzar) en el display.
42
4. Pulse la tecla Start/Enter para iniciar el funcionamiento del microondas.
42
Abertura de la puerta del aparato durante el funcionamiento
42
Cancelación del funcionamiento
42
Niveles de potencia del microondas
42
Sugerencias para obtener los mejores resultados
43
Añadido de tiempo de cocción (+30 Seconds [+30 segundos])
43
Auto Defrost (Descongelar automáticamente)
43
Programación de Auto Defrost (Descongelar automáticamente)
43
1. Presione una vez Auto Defrost (Descongelar automáticamente). Titilan š“”‚ y START (Comenzar) y se enciende el símbolo à en el display.
43
2. Pulse Auto Defrost repetidamente hasta que se muestre el número de programa deseado en el display. Verifique la etiqueta del menú en la parte inferior de la cavidad del horno o consulte la tabla de programas que figura a continuación.
44
3. Pulse Start/Enter (Comenzar/Intro). Titila ‹.‹ lb en el display.
44
4. Ingrese el peso del alimento con las teclas numéricas.
44
5. Pulse Start/Enter para iniciar el programa.
44
Nota:
44
Abertura de la puerta del aparato durante el funcionamiento
44
Cancelación del funcionamiento
44
Programas Auto Defrost (Descongelar automáticamente)
44
Consejos para descongelar
44
9 ADVERTENCIA
44
Riesgo para la salud
44
Sugerencias para descongelar carne
44
Sensor Reheat (Recalentar por sensor)
45
Programación de recalentamiento por sensor
45
1. Pulse una vez Sensor Reheat (Recalentamiento por sensor). Titilan †§ -‚ y START (Comenzar) en el display.
45
2. Pulse Sensor Reheat repetidamente hasta que se muestre el número de programa deseado en el display. Verifique la etiqueta del menú en la parte inferior de la cavidad del horno o consulte la tabla de programas que figura a continuación.
45
3. Pulse Start/Enter (Comenzar/Intro) para iniciar el modo de recalentamiento por sensor. Se activa el sensor del aparato, se enciende SENS. en el display. El aparato está funcionando mientras la detección.
45
Nota:
45
Notas
45
Cancelación del funcionamiento
45
Programas de Sensor Reheat (Recalentamiento por sensor)
45
Sugerencias para recalentar
45
Sensor Cook (Cocción por sensor)
45
Programación de la cocción por sensor
46
1. Pulse una vez Sensor Cook (Cocción por sensor). Titilan †™-‚ y START (Comenzar).
46
2. Pulse Sensor Cook repetidamente hasta que se muestre el número de programa deseado en el display.
46
3. Pulse Start/Enter (Comenzar/Intro) para iniciar el modo de cocción por sensor. Se enciende SENS. en el display y se activa el sensor del aparato.
46
Nota:
46
Cancelación del funcionamiento
46
Programas de Sensor Cook (Cocción por sensor)
46
Bloqueo de panel
47
Valores
47
Cambio de los valores
47
1. Pulse dos veces Settings (Valores).
47
2. Pulse la tecla numérica 1 para encender el display del reloj, pulse 2 para apagar el display del reloj.
47
3. Pulse Start/Enter (Comenzar/Intro).
47
4. Pulse Clear/Off (Borrar/Apagar) para salir del menú de valores.
47
Nota:
47
Funcionamiento práctico
47
Popcorn (Palomitas de maíz)
47
9 ATENCION
47
Programación del modo palomitas de maíz
47
1. Pulse 3 veces Popcorn (Palomitas de maíz). Titilan „ y START (Comenzar) en el display.
47
2. Pulse Start/Enter (Comenzar/Intro).
47
Cancelación del funcionamiento
47
Beverage (Bebida)
47
1. Pulse dos veces Beverage (Bebida). Titilan ƒ y START (Comenzar) en el display.
48
2. Pulse Start/Enter (Comenzar/Intro).
48
Cancelación del funcionamiento
48
Mantener caliente
48
9 ATENCION
48
Siga estas pautas al usar el modo Keep Warm (Mantener caliente):
48
Programación de Keep Warm (Mantener caliente)
48
1. Pulse Keep Warm (Mantener caliente). Se enciende el símbolo ½ y titila ‹‹:‹‹ en el display.
48
2. Ingrese el tiempo deseado utilizando las teclas numéricas.
48
3. Pulse Start/Enter (Comenzar/Intro).
48
Notas
48
Cancelación del funcionamiento
48
More Modes (Más modos)
48
Modos disponibles
48
Programación de More modes (Más modos)
48
1. Pulse una vez More Modes (Más modos). Titilan ‚ y START (Comenzar) en el display.
48
2. Pulse More Modes repetidamente hasta que se muestre el número de programa deseado en el display. Verifique la etiqueta del menú en la parte inferior de la cavidad del horno o consulte la tabla de programas que figura arriba.
48
3. Pulse Start/Enter (Comenzar/Intro). Para los modos 1 a 4: titilan ‚ y START en el display. Para el modo 5: titila ‹‹:‹‹ en el display.
48
4. Ingrese la categoría de peso deseada (modos 1 a 4) o ingrese el tiempo de descongelación deseado (modo 5) con las teclas numéricas.
49
5. Pulse Start/Enter para iniciar el funcionamiento.
49
Cancelación del funcionamiento
49
Cuadros de cocción
49
Cocinar carne de res en su horno de microondas
49
Cocción de carne de ave en su horno de microondas
49
Cocción de huevos en su horno microondas
50
Cocción de verduras en su microondas
50
Cocción de frutos de mar en su horno microondas
51
Limpieza y mantenimiento
51
9 ADVERTENCIA
51
Limpieza
51
Guía de limpieza
51
Limpieza de los filtros de ventilación del horno
53
9 ATENCION
53
1. Para retirar los filtros de ventilación, deslice el filtro hacia la parte posterior. Luego, jale el filtro hacia abajo y empuje hacia el otro lado. El filtro se liberará. Repita la operación con el segundo filtro.
53
2. Remoje los filtros de ventilación en agua caliente con un detergente suave. Enjuáguelos bien y sacúdalos para que se sequen. No use amoníaco ni los lave en un lavavajillas. El aluminio del filtro se corroe y oscurece.
53
3. Para volver a instalar el filtro de ventilación, deslícelo en la ranura lateral, luego, haga presión hacia arriba y en dirección al horno para que quede trabado. Vuelva a instalar el segundo filtro con el mismo procedimiento.
53
Mantenimiento
53
Reemplazo del filtro de carbón activo
53
1. Desconecte la energía del horno de microondas en el panel de disyuntores o desenchúfelo.
53
2. Retire los tornillos de montaje del grill de ventilación.
53
3. Saque el grill de ventilación de la unidad.
53
4. Cambie el filtro de carbón activo.
53
5. Con cuidado, vuelva a colocar el grill de ventilación en su lugar haciendo presión y vuelva a colocar los tornillos que se retiraron en el Paso 2.
53
Nota:
53
Resolución de problemas
54
Soporte de Bosch®
55
Antes de llamar al servicio
55
Placa de datos
55
Servicio técnico
55
Piezas y accesorios
55
DECLARACIÓN DE GARANTÍA LIMITADA DEL PRODUCTO
56
Cobertura de esta garantía y a quiénes se aplica
56
Duración de la garantía
56
Reparación/reemplazo como único recurso
56
Producto fuera de garantía
56
Exclusiones de la garantía
57
File type: PDF
File name: 59181189_hmv8053u-01.pdf
File size: 1.84 MB
File Language: English
Pages: 60
Author: Bosch
File created: 2016-03-01
Published: 2022-08-31
Updated: 2023-04-20
Download File
Specifications
Brand:
Bosch
Model: HMV8053U/01
Category:
Microwaves
See other models:
SHX3AR75UC/10
WTMC3321US/05
HBN8451UC/02
SHP68TL5UC/01
SHX57C05UC/43
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch HMV8051U/01
Bosch HMV8052U/01
Bosch HMV3053U/01
Bosch HMV5053U/01
Bosch HMV8053U
Bosch HMV3052U/01
Bosch HMV5052U/01
Bosch HMV3051U/01
Bosch HMV8052U/02
Bosch HMV5051U/01
Bosch HMV3053C/01
Bosch HMV5053U
Bosch HMV3053U
Bosch HMV8051U
Bosch HMB5051
Table of Contents
×
Microwave
1
Table of ContentsUse and care manual
2
Produktinfo
2
Safety Definitions
3
9 WARNING
3
9 CAUTION
3
NOTICE:
3
Note:
3
9 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
3
IMPORTANT SAFETY INSTRUCTIONS
4
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
4
WARNING
4
WARNING
4
WARNING
4
Risk of injury
4
WARNING
4
Risk of injury
4
Grounding Instructions
4
TV / Radio Interference
5
Intended Use
5
Child Safety
5
Cleaning Safety
5
CAUTION
5
WARNING
5
Cooking Safety
5
CAUTION
5
To avoid personal injury or property damage, observe the following:
5
WARNING
6
In Case of Fire
6
1. Keep door closed
6
2. Turn appliance off
6
3. Unplug the appliance or shut off at fuse or circuit breaker
6
Liquids
6
CAUTION
6
Cooking Items
6
CAUTION
6
Cooking Utensils
7
Glass Tray / Turntable Ring
7
Note:
7
Exhaust Mode Operation
7
WARNING
7
Thermometers
7
Pacemakers
7
CAUTION
7
State of California Proposition 65 Warnings
8
WARNING
8
Fan Motor Operation
8
Room Venting with Carbon Filter
8
Note:
8
SAVE THESE INSTRUCTIONS.
8
Causes of damage
9
NOTICES:
9
Protecting the environment
9
Tips for saving energy
9
Getting started
10
Parts
10
Cooling Fan
10
Oven Vent
10
Convection Fan
10
Oven light (LED)
10
Control panel
10
Touch keys
10
Display elements
11
Accessories
11
How to fit the turntable
11
1. Place the roller rest a in the recess in the oven cavity.
11
2. Let the turntable b slot in place in the drive c in the center of the floor of the oven cavity.
11
Note:
11
Using the metal rack
11
1. Place rack securely in the four plastic supports.
11
Note:
11
2. Place equal amounts of food both above and below rack.
11
Note:
11
9 CAUTION
11
Using the convection rack
12
Notes
12
To use the convection rack:
12
1. Place convection rack securely on the center of the glass turntable.
12
2. Place food directly on the convection rack.
12
Microwave utensil guide
12
Suitable ovenware
12
Unsuitable ovenware
12
Ovenware test
12
1. Heat the empty ovenware at maximum power for ½ to 1 minute.
12
2. Check the temperature occasionally during that time.
12
Before using the appliance for the first time
13
Cleaning accessories
13
Applying the program label
13
Operation
13
Setting the clock
13
1. Touch Clock once.
13
2. Enter the time using the number keys. Example: To set the clock to 12:41 type in 1 2 4 1.
13
3. Touch Clock to confirm.
13
Setting the Kitchen Timer
13
1. Touch Kitchen Timer.
13
2. Enter the desired time using the number keys.
13
3. Touch Kitchen Timer to confirm.
13
Operating the Ventilation Fan
13
Note:
13
Turning the Surface Light on/off
13
Turning the turntable on / off
13
9 CAUTION
13
Convection
14
9 CAUTION
14
Cookware tips for Convection
14
Note:
14
Setting Convection mode
14
1. Touch Convection. 350° F and START are blinking, the À symbol lights up in the display.
14
2. Enter the desired temperature using the number keys.
14
3. Touch Start/Enter. The preheat bar appears in the display. The oven starts preheating.
14
Note:
14
4. Open the door, place convection rack and food in the oven. Close the door quickly in order to maintain oven temperature.
14
Note:
14
Opening appliance door during operation
14
Cancel operation
14
Convection cooking suggestions
14
Operating the microwave
15
1. Enter the desired cooking duration with the number keys. The timer display will fill in from right to left. Example: To set a microwave cooking time of 20 minutes and 30 seconds, enter the numbers 2 0 3 0. START is blinking.
15
2. You can start microwave operation with the default power level 10 by touching Start/Enter, or - you can adjust the power level. Touch Power Level. The default power level ˜–‚‹ is blinking. The segments in the bar underneath the number displ...
15
3. Enter the desired power level using the number keys. ˜–and the selected power level and START are blinking in the display.
15
4. Touch Start/Enter to start microwave operation.
15
Opening appliance door during operation
15
Cancel operation
15
Microwave power levels
15
Suggestions for best results
15
Adding cook time (+30 Seconds)
16
Auto Defrost
16
Setting Auto Defrost
16
1. Touch Auto Defrost once. š“”‚ and START are blinking and the à symbol lights up in the display.
16
2. Touch Auto Defrost repeatedly until the desired program number is shown in the display. Check the menu label at the bottom of the oven cavity or see program table below.
16
3. Touch Start/Enter. ‹.‹ lb is blinking in the display.
16
4. Enter the weight of the food using the number keys.
16
5. Touch Start/Enter to start the program.
16
Note:
16
Opening appliance door during operation
16
Cancel operation
16
Auto Defrost programs
16
Tips for defrosting
16
9 WARNING
16
Health Risk
16
Defrosting suggestions for meat
17
Sensor Reheat
17
Setting Sensor Reheat
17
1. Touch Sensor Reheat once. †§ -‚ and START are blinking in the display.
17
2. Touch Sensor Reheat repeatedly until the desired program number is shown in the display. Check the menu label at the bottom of the oven cavity or see program table below.
17
3. Touch Start/Enter to start sensor reheat mode. The appliance starts sensing, SENS. lights up in the display. The microwave is operating during sensing.
17
Note:
17
Notes
17
Cancel operation
17
Sensor Reheat programs
17
Reheat cooking suggestions
17
Sensor Cook
18
Setting Sensor Cook
18
1. Touch Sensor Cook once. †™-‚ and START are blinking.
18
2. Touch Sensor Cook repeatedly until the desired program number is shown in the display.
18
3. Touch Start/Enter to start sensor cook mode. SENS. lights up in the display and the appliance starts sensing.
18
Note:
18
Cancel operation
18
Sensor Cook programs
18
Panel Lock
19
Settings
19
Changing the settings
19
1. Touch Settings twice.
19
2. Touch the number key 1 to turn the clock display on, touch 2 to turn the clock display off.
19
3. Touch Start/Enter.
19
4. Touch Clear/Off to exit the settings menu.
19
Note:
19
Convenience Operation
19
Popcorn
19
9 CAUTION
19
Setting Popcorn mode
19
1. Popcorn three times. „ and START are blinking in the display.
19
2. Touch Start/Enter.
19
Cancel operation
19
Beverage
19
1. Touch Beverage twice. ƒ and START are blinking in the display.
19
2. Touch Start/Enter.
19
Cancel operation
20
Keep Warm
20
9 CAUTION
20
When using Keep Warm mode, follow these guidelines:
20
Setting Keep Warm
20
1. Touch Keep Warm. The ½ symbol lights up and ‹‹:‹‹ is blinking in the display.
20
2. Enter the desired time using the number keys.
20
3. Touch Start/Enter.
20
Notes
20
Cancel operation
20
More Modes
20
Available modes
20
Setting More Modes
20
1. Touch More Modes once. ‚ and START are blinking in the display.
20
2. Touch More Modes repeatedly until the desired program number is shown in the display. Check the menu label at the bottom of the oven cavity or see program table above.
20
3. Touch Start/Enter. For modes 1 to 4:‚ and START is blinking on the display. For mode 5: ‹‹:‹‹ is blinking in the display.
20
4. Enter the desired weight category (mode 1 - 4) or enter the desired defrost time (mode 5) with the number keys.
20
5. Touch Start/Enter to start operation.
20
Cancel operation
20
Cooking Charts
21
Cooking meat in your microwave
21
Cooking poultry in your microwave
21
Cooking eggs in your microwave
21
Cooking vegetables in your microwave
21
Cooking seafood in your microwave
22
Cleaning and Maintenance
22
9 WARNING
22
Cleaning
22
Cleaning Guide
22
Cleaning the oven vent filters
23
9 CAUTION
23
1. To remove the ventilation filters, slide the filter to the rear. Then pull filter downward and push to the other side. The filter will drop out. Repeat for the 2nd filter.
23
2. Soak the ventilation filters in hot water using a mild detergent. Rinse well and shake to dry. Do not use ammonia or wash in a dishwasher. The aluminum on the filter will corrode and darken.
23
3. To reinstall an oven ventilation filter, slide it into the side slot, then push up and toward oven to lock. Reinstall the 2nd filter using the same procedure.
23
Maintenance
24
Charcoal filter replacement
24
1. Disconnect power to the microwave oven at the circuit breaker panel or by unplugging.
24
2. Remove the vent grill mounting screws.
24
3. Pull the vent grill away from the unit.
24
4. Change the charcoal filter.
24
5. Carefully push the vent grill back into place and replace the screws removed in Step 2.
24
Note:
24
Troubleshooting
24
Bosch® Support
25
Before Calling Service
25
Data Plate
25
Service
25
Parts and Accessories
26
STATEMENT OF LIMITED PRODUCT WARRANTY
26
What this Warranty Covers & Who it Applies to
26
How Long the Warranty Lasts
26
Repair/Replace as Your Exclusive Remedy
26
Out of Warranty Product
26
Warranty Exclusions
27
ContenidoManual de instrucciones
28
Produktinfo
28
Definiciones de Seguridad
29
9 ADVERTENCIA
29
9 ATENCION
29
AVISO:
29
Nota:
29
9 PRECAUCIONES PARA EVITAR UNA POSIBLE EXPOSICIÓN A UNA EXCESIVA CANTIDAD DE ENERGÍA DE MICROONDAS
29
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
30
LEER TODAS LAS INSTRUCCIONES ANTES DE UTILIZAR EL APARATO
30
ADVERTENCIA
30
ADVERTENCIA
30
ADVERTENCIA
30
Riesgo de lesiones
30
ADVERTENCIA
30
Riesgo de lesiones
30
Instrucciones para la conexión a tierra
30
Interferencia con la TV/radio
31
Uso previsto
31
Seguridad de los niños
31
Seguridad en la limpieza
31
ATENCION
31
ADVERTENCIA
31
Seguridad al cocinar
32
ATENCION
32
Para evitar lesiones personales o daños materiales, debe tenerse en cuenta lo siguiente:
32
ADVERTENCIA
32
En caso de incendio
32
1. Mantenga la puerta cerrada
32
2. Apague el electrodoméstico
32
3. Desenchufe el electrodoméstico o corte la alimentación eléctrica desde el panel de fusibles o el disyuntor.
32
Liquidos
32
ATENCION
33
Artículos de cocina
33
ATENCION
33
Utensilios de cocina
34
Charola de vidrio/anillo de la bandeja giratoria
34
Nota:
34
Operación en modo de salida
34
ADVERTENCIA
34
Termómetros
34
Marcapasos
34
ATENCION
34
Advertencias en virtud de la Proposición 65 del estado de California
34
ADVERTENCIA
34
Funcionamiento del motor del ventilador
34
Ventilación de ambiente con filtro de carbón
34
Nota:
34
CONSERVE ESTAS INSTRUCCIONES.
34
Causas para los daños
35
AVISOS:
35
Protección del medio ambiente
35
Consejos para ahorrar energía
35
Cómo comenzar
36
Componentes
36
Ventilador de refrigeración
36
Ventilación del horno
36
Ventilador de convección
36
Luz del horno (LED)
36
Panel de control
36
Teclas digitales
37
Elementos del display
37
Accesorios
37
Para colocar la bandeja giratoria
37
1. Colocar el anillo de la bandeja giratoria a en la hendidura del compartimento de cocción.
37
2. Enclavar la bandeja giratoria b en el accionamiento c del centro de la base del compartimento de cocción.
37
Nota:
37
Utilización del rack de metal
38
1. Coloque el rack firmemente en los cuatro soportes de plástico.
38
Nota:
38
2. Coloque la misma cantidad de alimentos encima y debajo del rack.
38
Nota:
38
9 ATENCION
38
Utilización del rack de convección
38
Notas
38
Para usar el rack de convección:
38
1. Coloque el rack de convección en forma segura en el centro del plato giratorio de cristal.
38
2. Coloque el alimento directamente sobre el rack de convección.
38
Guía de utensilios para microondas
38
Utensilios para horno adecuados
38
Utensilios no aptos horno
39
Prueba de la vajilla
39
1. Introducir el recipiente vacío en el aparato durante ½ a 1 minuto a la potencia máxima.
39
2. Comprobar la temperatura de vez en cuando.
39
Antes de usar el horno por primera vez
39
Limpieza de accesorios
39
Aplicación de la etiqueta de programas
39
Operación
40
Programación del reloj
40
1. Pulse Clock (Reloj) una vez.
40
2. Ingrese la hora utilizando las teclas numéricas. Ejemplo: para programar el reloj en 12:41, ingrese 1, 2, 4, 1.
40
3. Pulse Clock para confirmar.
40
Programación del temporizador de cocina
40
1. Pulse Kitchen Timer (Temporizador de cocina).
40
2. Ingrese el tiempo deseado utilizando las teclas numéricas.
40
3. Pulse Kitchen Timer para confirmar.
40
Manejo del ventilador de ventilación
40
Nota:
40
Encendido/Apagado de la luz de superficie
40
Encendido/Apagado del plato giratorio
40
9 ATENCION
40
Convección
40
9 ATENCION
40
Consejos sobre utensilios de cocina para Convection (Convección)
41
Nota:
41
Programación del modo Convection (Convección)
41
1. Pulse Convection (Convección). Titilan 350 °F y START (Comenzar); se enciende el símbolo À en el display.
41
2. Ingrese la temperatura deseada utilizando las teclas numéricas.
41
3. Pulse Start/Enter (Comenzar/Intro). Aparece la barra de precalentamiento en el display. El horno comienza a precalentarse.
41
Nota:
41
4. Abra la puerta, coloque el rack de convección y el alimento en el horno. Cierre la puerta rápidamente para mantener la temperatura del horno.
41
Nota:
41
Abertura de la puerta del aparato durante el funcionamiento
41
Cancelación del funcionamiento
41
Sugerencias para cocinar por convección
41
Programación del microondas
42
1. Ingrese la duración de cocción deseada con las teclas numéricas. El display del temporizador se llenará de derecha a izquierda. Ejemplo: para programar un tiempo de microondas de 20 minutos y 30 segundos, ingrese los números 2, 0, 3, 0. Titil...
42
2. Puede comenzar la operación del microondas con el nivel de potencia predeterminado 10 pulsando Start/ Enter (Comenzar/Intro) o bien Puede ajustar el nivel de potencia. Pulse la tecla Power Level (Nivel de potencia). Titila el nivel de potencia pr...
42
3. Ingrese el nivel de potencia deseado utilizando las teclas numéricas. Titilan ˜– y el nivel de potencia seleccionado, y START (Comenzar) en el display.
42
4. Pulse la tecla Start/Enter para iniciar el funcionamiento del microondas.
42
Abertura de la puerta del aparato durante el funcionamiento
42
Cancelación del funcionamiento
42
Niveles de potencia del microondas
42
Sugerencias para obtener los mejores resultados
43
Añadido de tiempo de cocción (+30 Seconds [+30 segundos])
43
Auto Defrost (Descongelar automáticamente)
43
Programación de Auto Defrost (Descongelar automáticamente)
43
1. Presione una vez Auto Defrost (Descongelar automáticamente). Titilan š“”‚ y START (Comenzar) y se enciende el símbolo à en el display.
43
2. Pulse Auto Defrost repetidamente hasta que se muestre el número de programa deseado en el display. Verifique la etiqueta del menú en la parte inferior de la cavidad del horno o consulte la tabla de programas que figura a continuación.
44
3. Pulse Start/Enter (Comenzar/Intro). Titila ‹.‹ lb en el display.
44
4. Ingrese el peso del alimento con las teclas numéricas.
44
5. Pulse Start/Enter para iniciar el programa.
44
Nota:
44
Abertura de la puerta del aparato durante el funcionamiento
44
Cancelación del funcionamiento
44
Programas Auto Defrost (Descongelar automáticamente)
44
Consejos para descongelar
44
9 ADVERTENCIA
44
Riesgo para la salud
44
Sugerencias para descongelar carne
44
Sensor Reheat (Recalentar por sensor)
45
Programación de recalentamiento por sensor
45
1. Pulse una vez Sensor Reheat (Recalentamiento por sensor). Titilan †§ -‚ y START (Comenzar) en el display.
45
2. Pulse Sensor Reheat repetidamente hasta que se muestre el número de programa deseado en el display. Verifique la etiqueta del menú en la parte inferior de la cavidad del horno o consulte la tabla de programas que figura a continuación.
45
3. Pulse Start/Enter (Comenzar/Intro) para iniciar el modo de recalentamiento por sensor. Se activa el sensor del aparato, se enciende SENS. en el display. El aparato está funcionando mientras la detección.
45
Nota:
45
Notas
45
Cancelación del funcionamiento
45
Programas de Sensor Reheat (Recalentamiento por sensor)
45
Sugerencias para recalentar
45
Sensor Cook (Cocción por sensor)
45
Programación de la cocción por sensor
46
1. Pulse una vez Sensor Cook (Cocción por sensor). Titilan †™-‚ y START (Comenzar).
46
2. Pulse Sensor Cook repetidamente hasta que se muestre el número de programa deseado en el display.
46
3. Pulse Start/Enter (Comenzar/Intro) para iniciar el modo de cocción por sensor. Se enciende SENS. en el display y se activa el sensor del aparato.
46
Nota:
46
Cancelación del funcionamiento
46
Programas de Sensor Cook (Cocción por sensor)
46
Bloqueo de panel
47
Valores
47
Cambio de los valores
47
1. Pulse dos veces Settings (Valores).
47
2. Pulse la tecla numérica 1 para encender el display del reloj, pulse 2 para apagar el display del reloj.
47
3. Pulse Start/Enter (Comenzar/Intro).
47
4. Pulse Clear/Off (Borrar/Apagar) para salir del menú de valores.
47
Nota:
47
Funcionamiento práctico
47
Popcorn (Palomitas de maíz)
47
9 ATENCION
47
Programación del modo palomitas de maíz
47
1. Pulse 3 veces Popcorn (Palomitas de maíz). Titilan „ y START (Comenzar) en el display.
47
2. Pulse Start/Enter (Comenzar/Intro).
47
Cancelación del funcionamiento
47
Beverage (Bebida)
47
1. Pulse dos veces Beverage (Bebida). Titilan ƒ y START (Comenzar) en el display.
48
2. Pulse Start/Enter (Comenzar/Intro).
48
Cancelación del funcionamiento
48
Mantener caliente
48
9 ATENCION
48
Siga estas pautas al usar el modo Keep Warm (Mantener caliente):
48
Programación de Keep Warm (Mantener caliente)
48
1. Pulse Keep Warm (Mantener caliente). Se enciende el símbolo ½ y titila ‹‹:‹‹ en el display.
48
2. Ingrese el tiempo deseado utilizando las teclas numéricas.
48
3. Pulse Start/Enter (Comenzar/Intro).
48
Notas
48
Cancelación del funcionamiento
48
More Modes (Más modos)
48
Modos disponibles
48
Programación de More modes (Más modos)
48
1. Pulse una vez More Modes (Más modos). Titilan ‚ y START (Comenzar) en el display.
48
2. Pulse More Modes repetidamente hasta que se muestre el número de programa deseado en el display. Verifique la etiqueta del menú en la parte inferior de la cavidad del horno o consulte la tabla de programas que figura arriba.
48
3. Pulse Start/Enter (Comenzar/Intro). Para los modos 1 a 4: titilan ‚ y START en el display. Para el modo 5: titila ‹‹:‹‹ en el display.
48
4. Ingrese la categoría de peso deseada (modos 1 a 4) o ingrese el tiempo de descongelación deseado (modo 5) con las teclas numéricas.
49
5. Pulse Start/Enter para iniciar el funcionamiento.
49
Cancelación del funcionamiento
49
Cuadros de cocción
49
Cocinar carne de res en su horno de microondas
49
Cocción de carne de ave en su horno de microondas
49
Cocción de huevos en su horno microondas
50
Cocción de verduras en su microondas
50
Cocción de frutos de mar en su horno microondas
51
Limpieza y mantenimiento
51
9 ADVERTENCIA
51
Limpieza
51
Guía de limpieza
51
Limpieza de los filtros de ventilación del horno
53
9 ATENCION
53
1. Para retirar los filtros de ventilación, deslice el filtro hacia la parte posterior. Luego, jale el filtro hacia abajo y empuje hacia el otro lado. El filtro se liberará. Repita la operación con el segundo filtro.
53
2. Remoje los filtros de ventilación en agua caliente con un detergente suave. Enjuáguelos bien y sacúdalos para que se sequen. No use amoníaco ni los lave en un lavavajillas. El aluminio del filtro se corroe y oscurece.
53
3. Para volver a instalar el filtro de ventilación, deslícelo en la ranura lateral, luego, haga presión hacia arriba y en dirección al horno para que quede trabado. Vuelva a instalar el segundo filtro con el mismo procedimiento.
53
Mantenimiento
53
Reemplazo del filtro de carbón activo
53
1. Desconecte la energía del horno de microondas en el panel de disyuntores o desenchúfelo.
53
2. Retire los tornillos de montaje del grill de ventilación.
53
3. Saque el grill de ventilación de la unidad.
53
4. Cambie el filtro de carbón activo.
53
5. Con cuidado, vuelva a colocar el grill de ventilación en su lugar haciendo presión y vuelva a colocar los tornillos que se retiraron en el Paso 2.
53
Nota:
53
Resolución de problemas
54
Soporte de Bosch®
55
Antes de llamar al servicio
55
Placa de datos
55
Servicio técnico
55
Piezas y accesorios
55
DECLARACIÓN DE GARANTÍA LIMITADA DEL PRODUCTO
56
Cobertura de esta garantía y a quiénes se aplica
56
Duración de la garantía
56
Reparación/reemplazo como único recurso
56
Producto fuera de garantía
56
Exclusiones de la garantía
57
Search:
×
Search
