FACT12LA-PS/FACT12LA-BL
FACT12SA-PS/FACT12SA-BL
(Sold Separately)
TM
Rooftop Air Conditioner
Instruction Manual
Model:
FACR13SA-PS/FACR13SA-BL
FACR14SA-PS/FACR14SA-BL
FACR15SA-PS/FACR15SA-BL
1
Contents
Thank you for purchasing this Furrion® Chill
TM
Rooftop Air Conditioner. Before
operating your new product, please read these instructions carefully. This will ensure
safe use and reduce the risk of injury. This instruction manual contains information for
installation, operation, maintenance of the product and safe use.
Please keep this instruction manual in a safe place for future reference. Be sure to pass
on this manual to any new owners of this product.
The manufacturer does not accept responsibility for any damages due to not
observing these instructions.
Contents ........................................................................................................................1
Important Safety Instructions ....................................................................................2
Handling the Device .............................................................................................................................2
Handling Electrical Cables ................................................................................................................ 3
Before Installing ...........................................................................................................4
What’s in the Box .................................................................................................................................... 4
Choosing Proper Location for the Air Conditioner .................................................................4
Roof Preparation ....................................................................................................................................6
Air Distribution Duct Sizing and Design .......................................................................................7
Air Distribution System Installation ................................................................................................8
Laying the Connecting Cables ........................................................................................................9
Installation ....................................................................................................................10
Installing the Rooftop Unit..................................................................................................................10

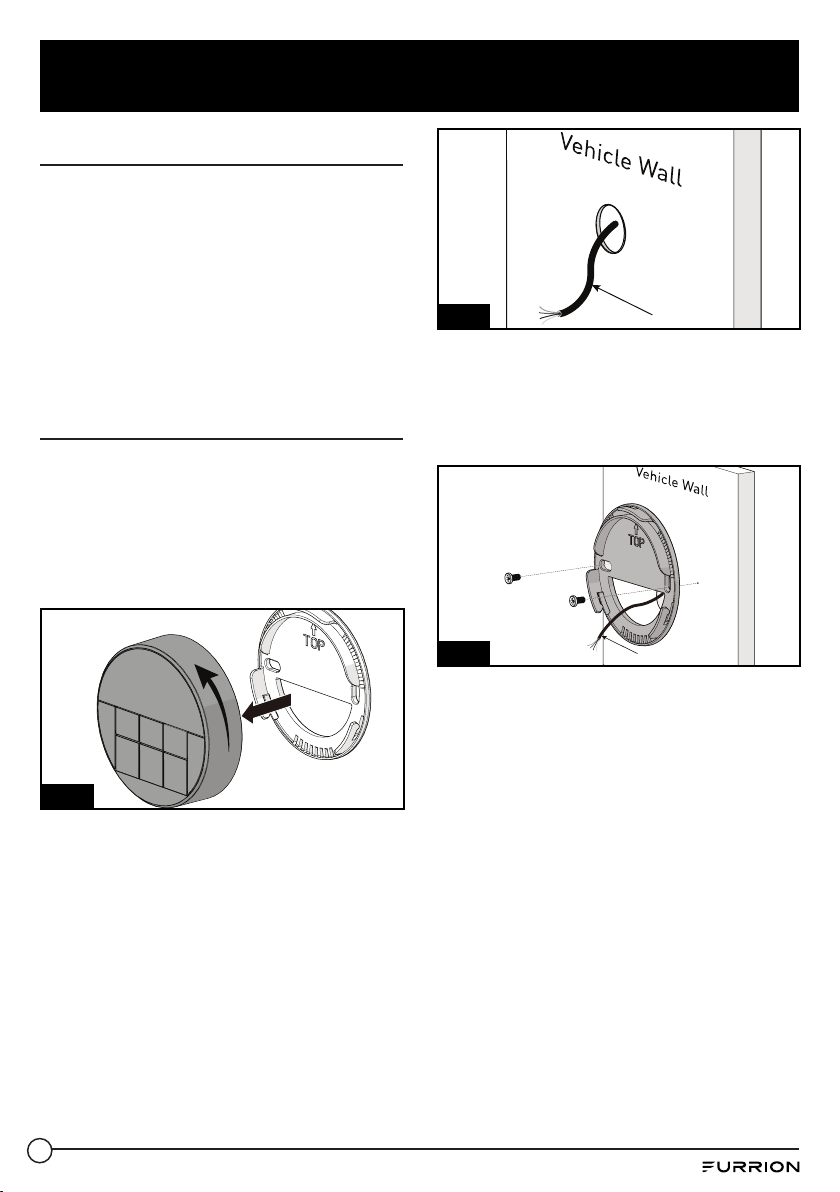

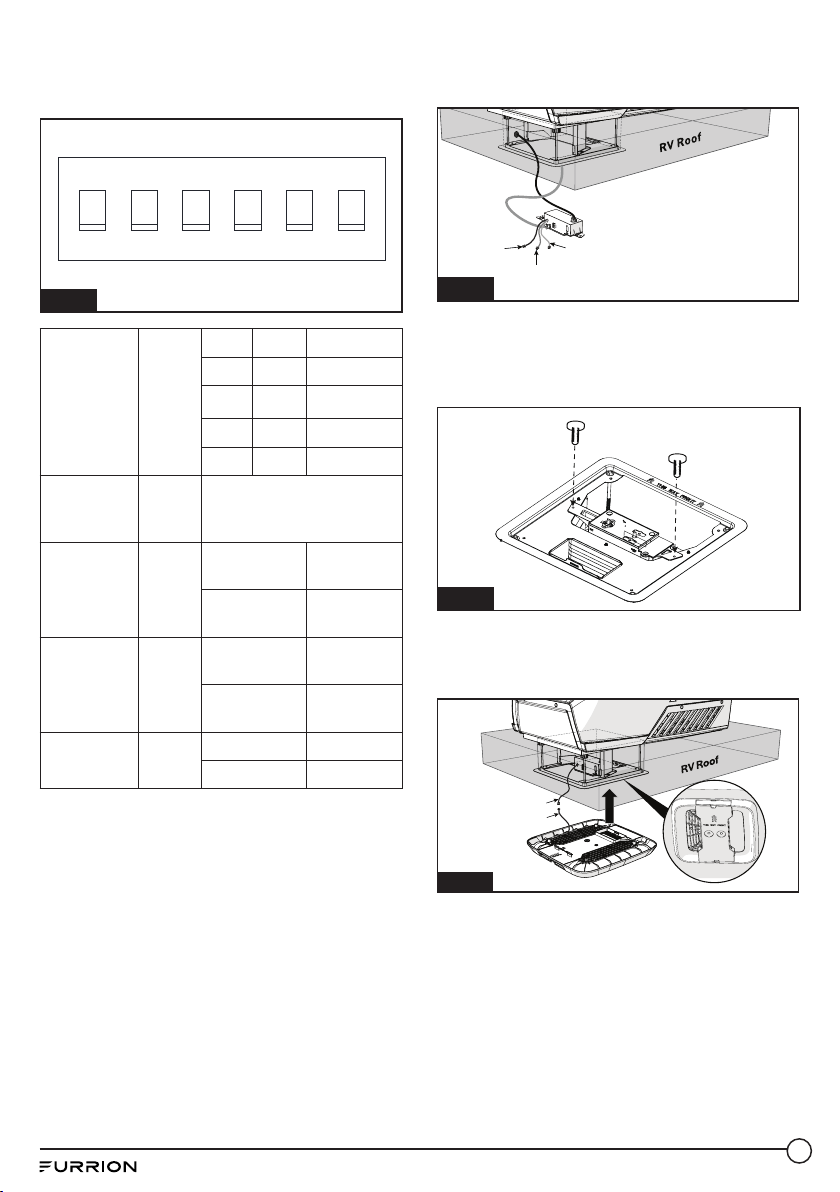

Installing the Wall Thermostat (model: FACW12SA-BL/FACW12PA-BL/FACW12ZA-
BL, sold separately) .............................................................................................................................. 10

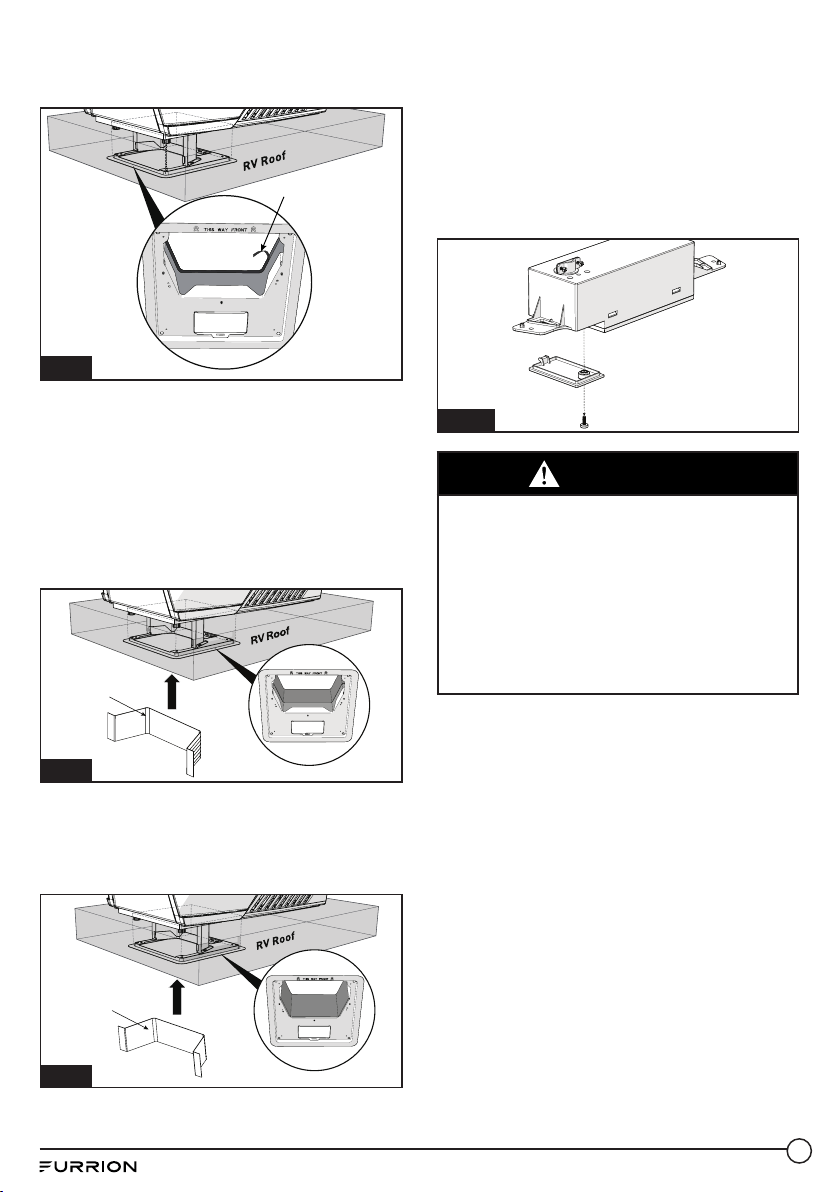

Installing the Air Distribution Box (for FACT12LA-PS/FACT12LA-BL/FACT12SA-
PS/FACT12SA-BL models only, same for both ducted and non-ducted models,
sold separately) ...................................................................................................................................... 11

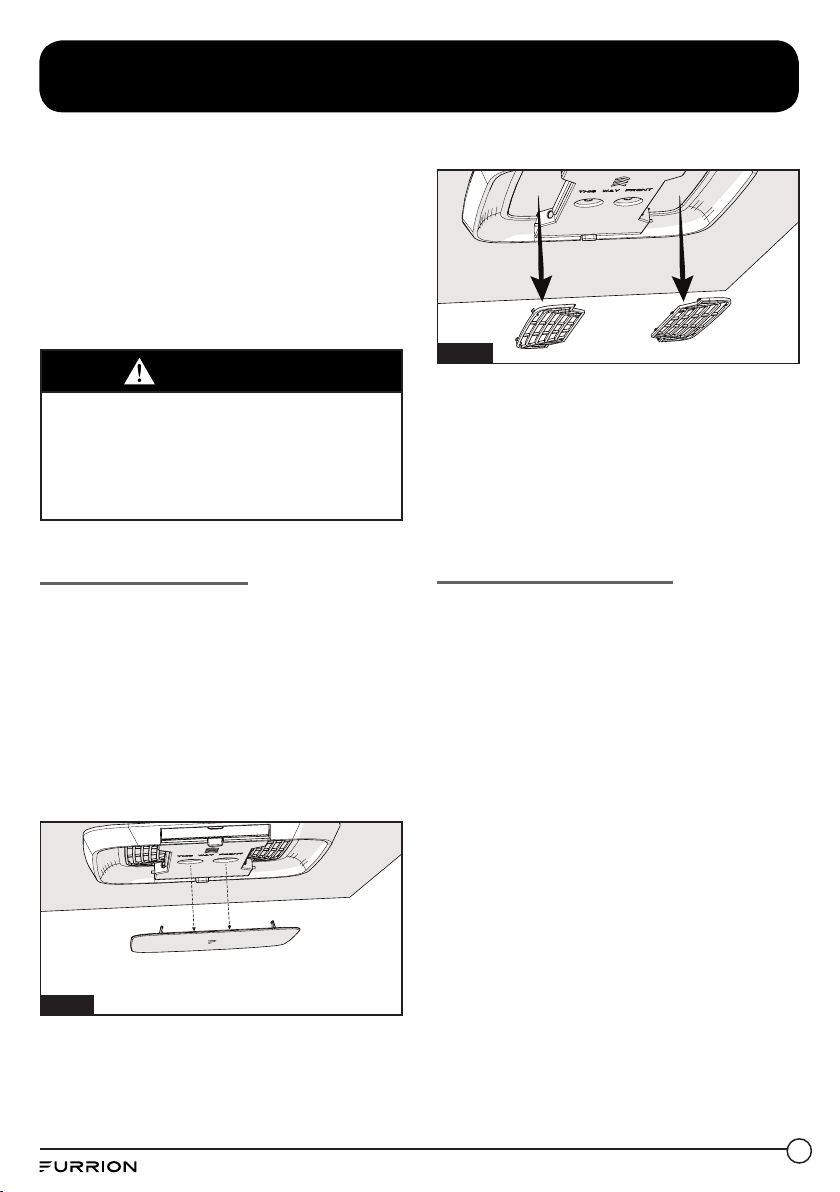

Cleaning and Maintenance ........................................................................................16
Troubleshooting ...........................................................................................................17
Specifications...............................................................................................................18

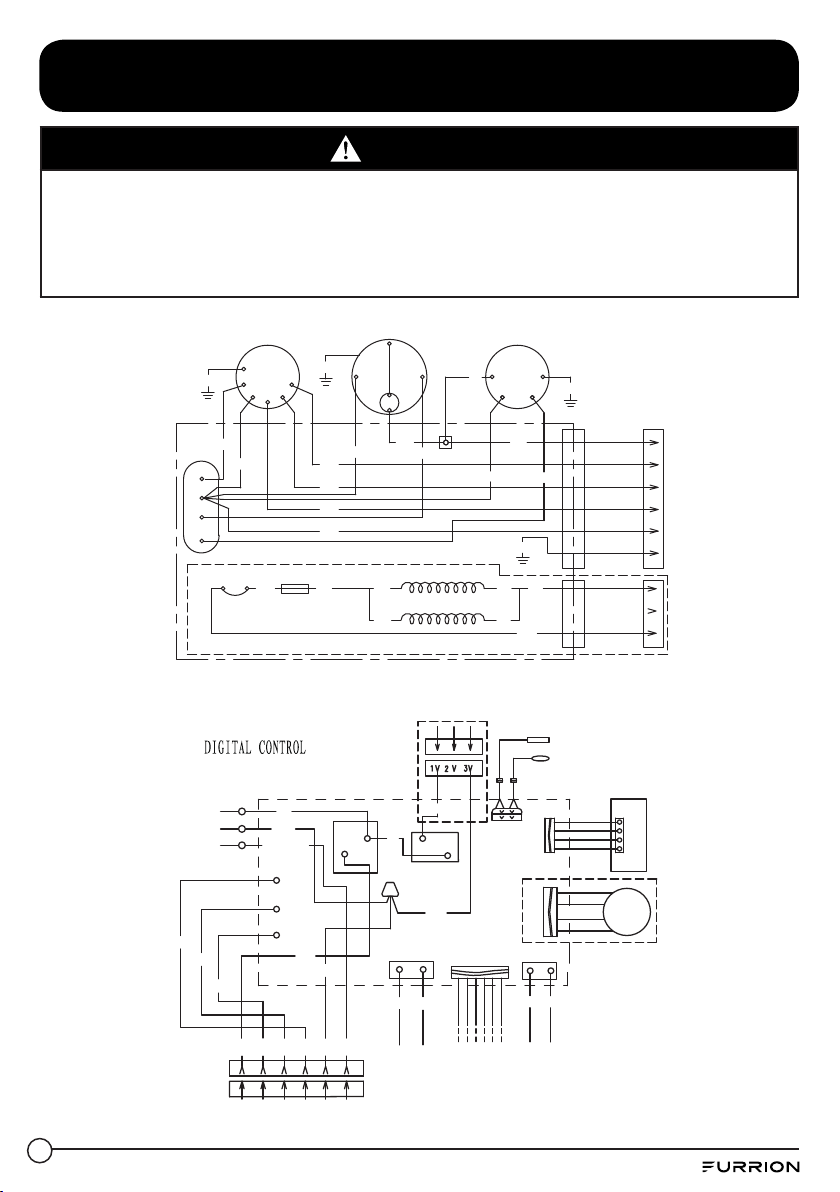

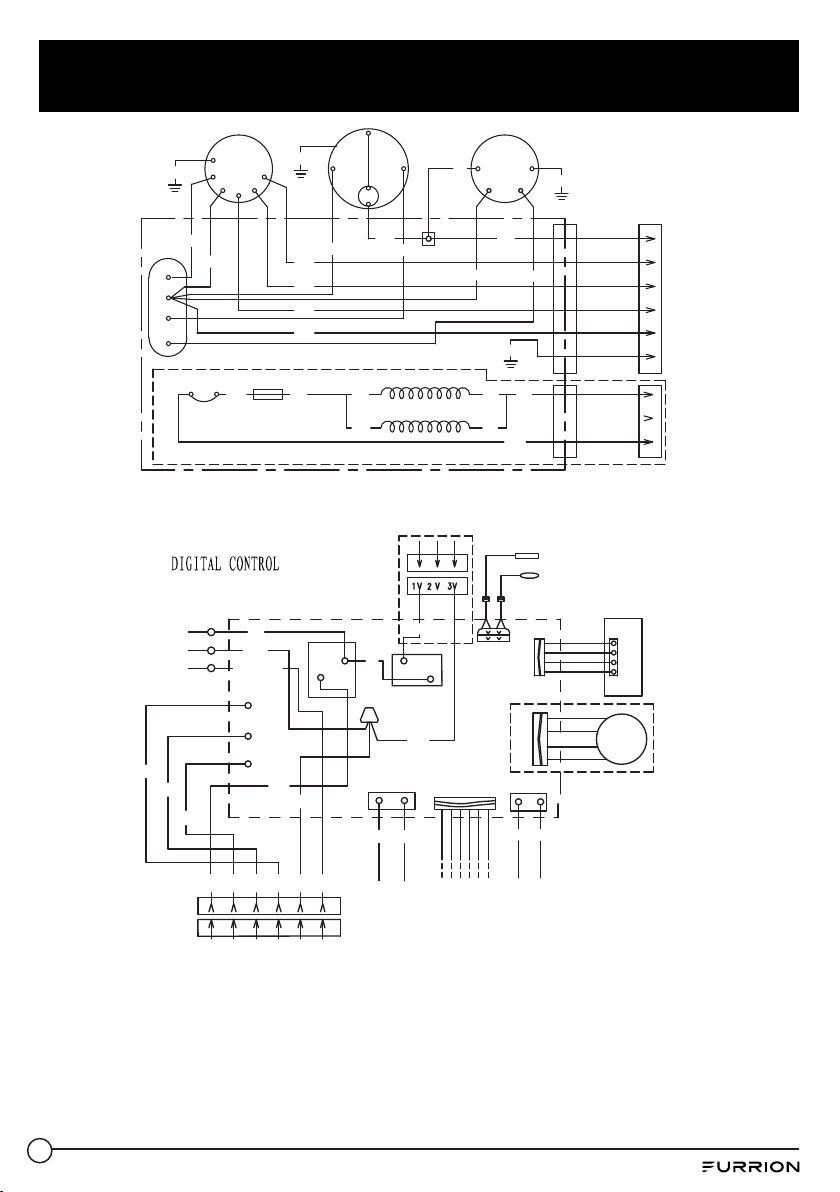

Wiring Diagram .............................................................................................................19

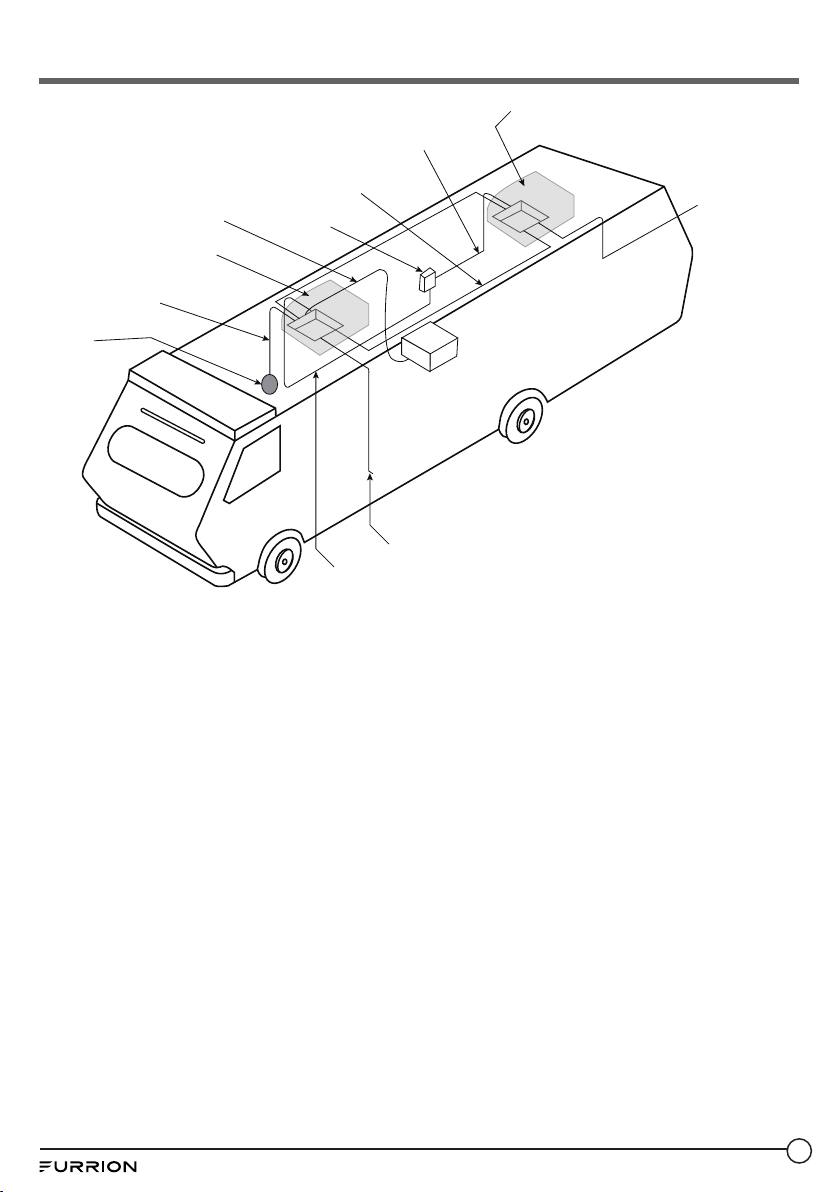

Multi Zone Wiring Diagram ................................................................................................................ 20
2
Important Safety Instructions
This manual has safety information
and instructions to help users eliminate
or reduce the risk of accidents and
injuries. Please read this instruction
manual carefully before installation
and start-up, and store it in a safe place
for future reference. If you pass on the
device to another person, hand over this
instruction manual along with it.
● The manufacturer accepts no liability
for damage in the following cases:
− Faulty assembly or connection
− Damage to the product resulting from
mechanical influences and excess
voltage
− Alterations to the product without
express permission from the
manufacturer
− Use for purposes other than those
described in the operating manual
● The following basic safety information
should be heeded when using
electrical devices to protect against:
− Electric shock
− Fire hazards
− Injury
● All Furrion product referenced in
this manual is to be installed in
accordance with local and national
codes, including the latest editions of
the following standards:
USA:
− NFPA 1192
− NFPA 70
Canada:
− C22.1
− CSA Z240
Handling the Device
WARNING
● Installation and repair of the rooftop
air conditioner must only be carried
out by qualified personnel who are
familiar with the risks involved and
the relevant regulations. Inadequate
repairs may cause serious hazards.
● Electrical devices are not toys.
Keep electrical devices out of reach
of children or elderly persons. Do
not allow them to use electrical
devices without supervision.
● Prevent inexperienced people
from using the device without
supervision.
● Do not undo the upper cover
of the rooftop air conditioner in
the event of a fire. Use approved
extinguishing agents instead. Do
not use water to extinguish fires.
3
CAUTION
● The rooftop air conditioner must be
installed securely so that it cannot
fall down.
● Only operate the rooftop air
conditioner if you are certain that
the housing and the cables are not
damaged.
● Do not use the rooftop air
conditioner near flammable fluids or
in closed rooms.
● Make sure no combustible objects
are stored or installed near the air
outlet. A distance of at least 20”
must be kept.
● Do not reach into air outlets or
insert any foreign objects into the
device.
● Only use the device as intended.
● Do not make any alterations or
conversions to the device.
● If faults occur in the refrigerant
circuit, the system must be checked
by a certified service technician and
repaired properly. The refrigerant
must never be released into the air.
Handling Electrical
Cables
WARNING
The electrical power supply must only
be connected by a qualified electrician.
CAUTION
● Refer to NEC (National Electric
Code) for proper sizing of wire
gauge (awg) based on cable length
and overcurrent protection rating
that is suppling power to the air
conditioner.
● See rooftop unit nameplate for
proper overcurrent protection
sizing.
● Attach and lay the cables so that
they cannot be tripped over or
damaged.
● Only a qualified electrician should
connect the rooftop air conditioner to
electrical power.
● Do not lay loose or bent cables next
to electrically conductive materials.
● Do not pull on the cables.
● Use cable ducts to lay cables through
walls with sharp edges.
● Refer to rooftop unit nameplate and
NEC for proper power supply rating.
4
Before Installing
Read this installation manual completely
before installing the rooftop air
conditioner.
The following tips and instructions must
be observed while installing the rooftop
air conditioner.

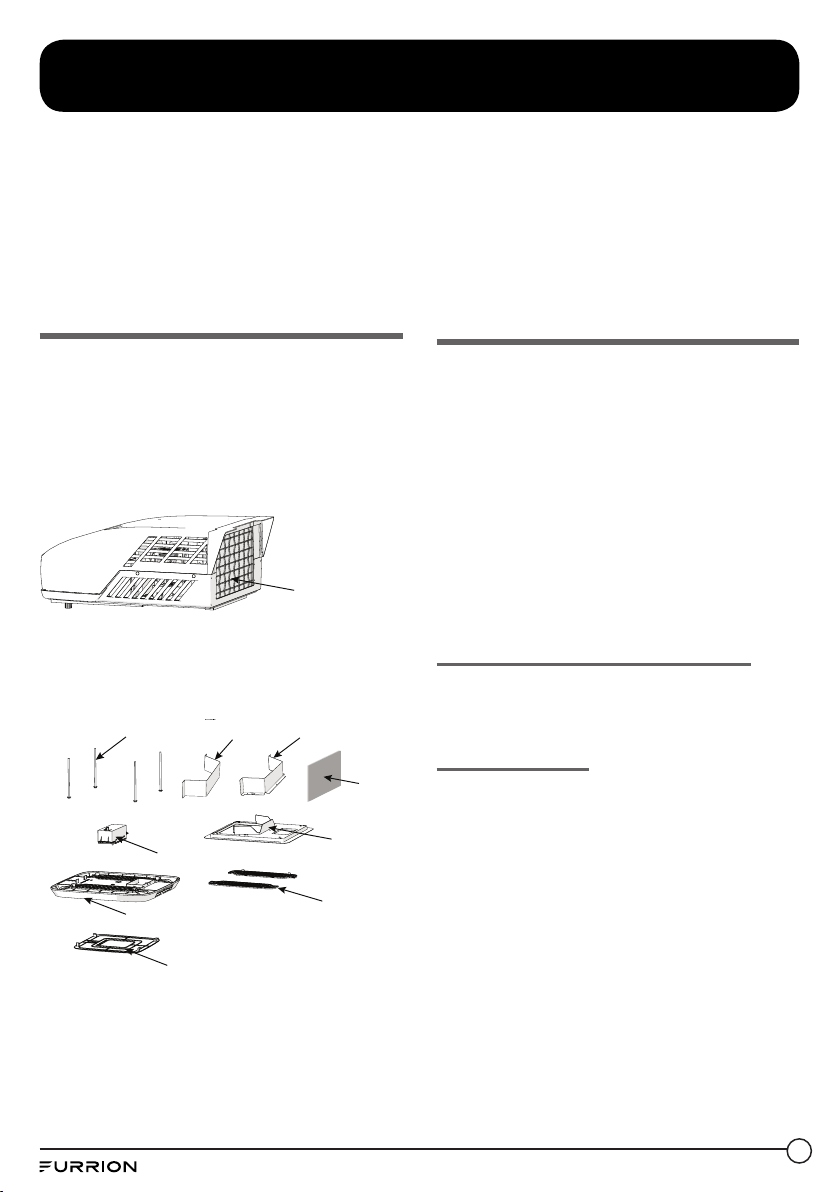

What’s in the Box
Open the box and remove the
components from carton. Make sure
you have all the following items included
in the packaging, if any item is missing,
contact your dealer.
Rooftop Air Conditioner:
Rooftop Unit
Lower Duct
Divider
Upper Duct
Divider
Mounting Frame
Filter
Decoration Plate
ADB Shroud
Control Box
Bolt
PE Foam
● Rooftop unit x 1
● Warranty Leaflet x 1
Air Distributor Box (sold separately):
Rooftop Unit
Lower Duct
Divider
Upper Duct
Divider
Mounting Frame
Filter
Decoration Plate
ADB Shroud
Control Box
Bolt
PE Foam
● Upper Duct Divider x 1
● Lower Duct Divider x 1
● Bolt x 4
● Mounting Frame x 1
● Control Box (sold separately) x 1
● Air Distribution Box (ADB) Shroud x 1
● Filter x 2
● Decoration Plate x 1
● Self-tapping Screws x 6
● PE foam x 1
● Instruction Manual x 1
Choosing Proper Location
for the Air Conditioner
IMPORTANT: The roof must be
designed to support the weight of the
rooftop unit and the weight of 2 installers
standing on the roof.
There are two ways of installing the
rooftop air conditioner:
● Using the existing roof vent opening in
the vehicle roof.
● Making a new opening. In this case
the opening should be reinforced by
an appropriate frame as required.
Existing Roof Vent Opening
The air conditioner is designed to fit over
an existing 14” roof vent opening.
New Opening
When no roof vent is available or another
location is desired, the following is
recommended:
● For one unit installation - the air
conditioner should be mounted
slightly forward of center (front to
back) and centered from side to side.
● For two unit installations, install one
air conditioner one third from the front
of the RV and the other air conditioner
two thirds from the front of the RV,
aligned in the center.
5
It is preferred that the air conditioner be
installed on a relatively flat and horizontal
roof section measured when the RV is
parked on a level surface.
NOTE: A 15° slant to either side or front
to back is acceptable for all units. If the
roof exceeds 15° please use an exterior
leveling shim to make air conditioner
level.

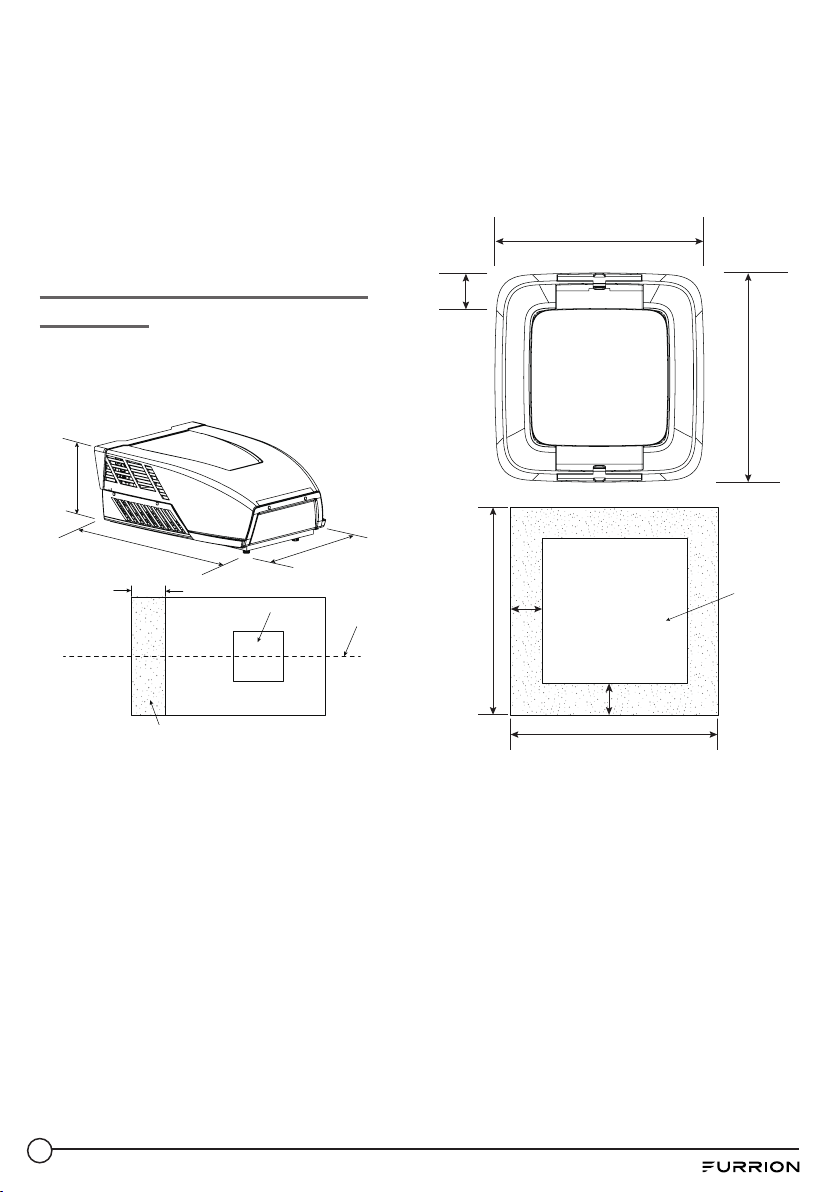

After the Location Has Been
Selected:
● Check for obstructions in the area
where the air conditioner will be
installed.
Center Line
of Rooftop
Front
Roof Opening
18”
34⁄”
(884mm)
13⁄”
(345mm)
27⁄”
(700mm)
Keep this air flow area free of obstructions
● Check the inside of the RV for
return air kit obstructions. (i.e. door
openings, room dividers, curtains,
ceiling fixtures, etc.) Allow 6”
(152mm) space from the opening to
account for any potential return air kit
obstructions.
Roof
Opening
19⁄”
(500mm)
19⁄”
(500mm)
2⁄”
(70mm)
19⁄”
(500mm)
19⁄”
(500mm)
6"
6"
6

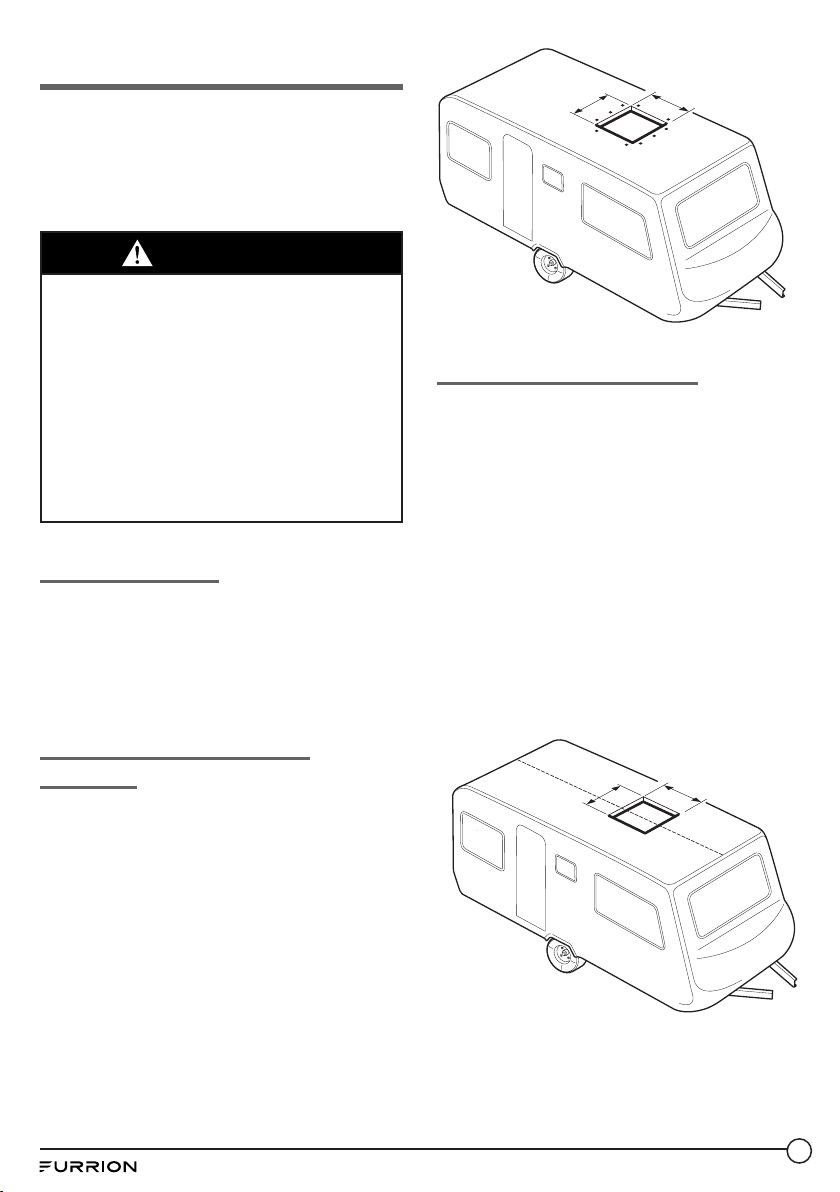

Roof Preparation
Opening Requirements - Before
preparing the ceiling opening, decide
on the type of system options. Read
all of the following instructions before
beginning the installation.
WARNING
Fire/Electric Shock Hazard
● Make sure there are no obstacles
inside the RV roof, floor and walls,
such as wires and pipes.
● Shut off the gas supply and
disconnect the 115VAC power from
the RV before drilling or cutting
into the RV. Failure to obey these
warnings could result in death or
serious injury.
Roof Thickness
The installation of air conditioner suits
for roof thickness from 3” (75mm) to 6”
(152mm). For other thickness, please
contact Furrion or Furrion authorized
service agent.
Installing in an Existing
Opening
1. Unscrew and remove the roof vent.
2. Remove all caulking compound
around the opening.
3. If the opening exceeds 14¼” x 14¼”
(+½”), it will be necessary to resize the
opening to 14¼” x 14¼” (+½”). If the
opening is less than 14¼” x 14¼” (+½”),
it must be enlarged.
362 m m
14¼ ”
362 m m
14¼ ”
362 m m
14¼ ”
362 m m
14¼ ”
Making a New Opening
If a roof vent opening will not be used,
a 14¼” x 14¼” (+½”) (362mm x 362mm)
opening must be cut through the roof
and ceiling of the RV. This opening must
be located between the roof reinforcing
members.
The 14¼” x 14¼” (+½”) opening is
part of the return air system of the air
conditioner and must be finished in
accordance with NFPA Standard 501C
Section 2.7.2.
1. Mark a 14¼” x 14¼” (+½”) square on
the roof and carefully cut an opening.
362 m m
14¼ ”
362 m m
14¼ ”
362 m m
14¼ ”
362 m m
14¼ ”
7
2. Using the roof opening as a guide, cut
a matching hole in the ceiling.
NOTE: Maintain structural integrity.
Otherwise damage to product and/or
RV could occur. Always observe the
following guidelines while structuring
the opening.

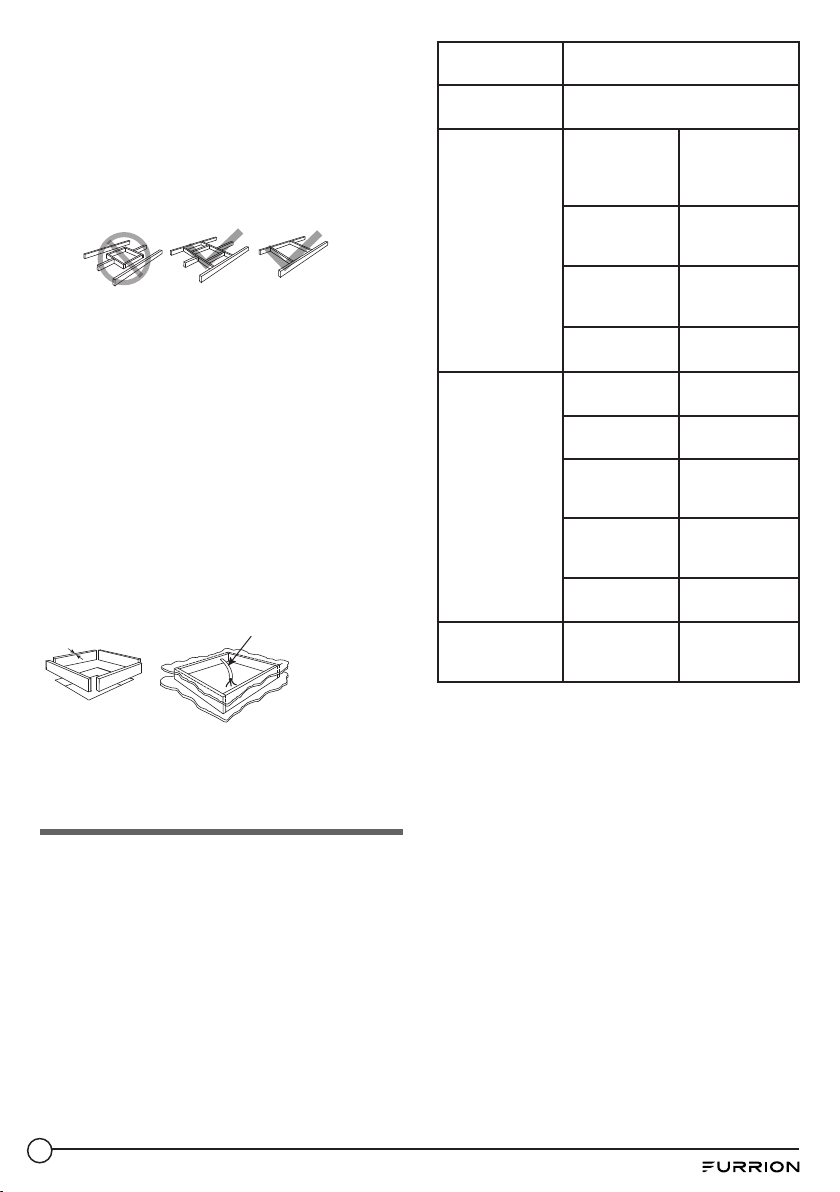

Do not cut roof
structure or
rafters
Good: rafters
supported by
cross beams
Good: location
between roof
rafters
3⁄4" Min.
(19.05 mm)
Leave access for
power supply wiring and other wirings.
3. The opening created must be framed
to provide adequate support and
prevent air from being drawn from the
roof cavity.
4. Lumber ¾” or more in thickness must
be used. Remember to provide an
entrance hole for power supplies,
wall thermostat and furnace wiring
for connections. Leave 15” (381mm)
minimum at the front of the opening.
Do not cut roof
structure or
rafters
Good: rafters
supported by
cross beams
Good: location
between roof
rafters
3⁄4" Min.
(19.05 mm)
Leave access for
power supply wiring and other wirings.
Air Distribution Duct
Sizing and Design
The installer of this system must design
the air distribution system for their
particular application.
NOTE: Make sure ductwork will NOT
bend or collapse during and after
installation, and that it is correctly
insulated and sealed. Otherwise, damage
to roof structure and ceiling could occur.
The following requirements must be met
for properly operate the unit:
Roof Cavity
Depth
3”-6” (75mm-152mm)
Duct Cross
Sectional Area
21 Sq. In. Min.
Duct Size
Depth
1½” Min. - 2½”
Max. (38mm
Min. - 63.5mm
Max.)
Width
7” Min. - 10” Max.
(178mm Min. -
254mm Max.)
Total Duct
Length
15Ft. Min. - 40Ft.
Max. (4.5m -
13m)
Duct Length
(short run)
⅓ Total Duct
Length
Register
Requirements
per A/C Unit
Number
Required
4 Min. - 8 Max.
Supply Register
Free Air Area
14 Sq. In. (90 sq.
cm)
Return Register
Free Air Area
40 Sq. In. (258
sq. cm)
Distance From
Duct End
5” Min. - 8” Max.
(127mm Min. -
203mm Max.)
Distance From
Elbow
15” (381mm)
Total System
Static Air
Pressure
Blower at High
Speed, Filter &
Grille In Place
0.55 - 1.10 In.
W.C.
● Properly insulate and seal all
discharge air ducts to prevent
condensation from forming on their
surfaces or adjacent surfaces during
operation of the unit. This insulation
must be R-7 minimum.
8
Frame
DuctDuct
Frame
Frame
Roof
Opening
Roof Opening
Roof
SIDE VIEW
(TOWARD BACK OF RV)
Duct
Ceiling
Duct
TOP VIEW
(BACK OF RV)
● Return air openings must have
80 square inches (516 square
centimeters) minimum free area
including the filter.
● Return air to the unit must be filtered
to prevent dirt accumulation on the
unit cooling surface.
Air Distribution System
Installation
It is the responsibility of the installer to
review each RV floor plan to determine
the following items in conjunction with
“Air Distribution Duct Sizing and Design”
section on Page 8.
NOTE: Alternate configurations and
methods may be used which will allow
the unit to operate properly, however,
these alternate configurations and
methods MUST be approved by Furrion
in writing.
● Duct size
● Duct layout
● Register size
● Register location
● Thermostat location
● Indoor temperature sensor location (if
applicable)
Front
Registers 4
Min - 8 Max.
(Per Unit) 14
Sq. In. Free
Area Per
Register
Air Conditioner
Return Air
9
Laying the Connecting
Cables
The rooftop air conditioner must be
connected to an electric circuit which is
able to supply the required power supply
(see chapter “Specification”).
NOTE: The supply wire must be located
in the front portion of the roof opening.
The power supply must be equipped with
a time delay fuse or circuit breaker. See
rooftop unit nameplate for rating.
DANGER
Electrical Shock Hazard
● Disconnect power before servicing.
Failure to obey this warning could
result in death or serious injury.
● Provide grounding in compliance
with all applicable electrical codes.
Failure to obey this warning could
result in death or serious injury.
1. Refer to the applicable electric code
guidelines for sizing the appropriate
wire gauge, length and type.
2. Route a 115VAC supply wire with
ground wire from the time delay fuse
or circuit breaker box to the roof
opening.
NOTE: Refer to rooftop unit
nameplate and applicable code for
proper installation.
3. Use approved method to protect
the wire where it passes through the
opening.
4. Feed the 115VAC cable through the
opening into the vehicle interior. Make
sure at least 15” (381mm) of supply
wire extends into the roof opening.
This ensures an easy connection at
the control box.
10
Installation

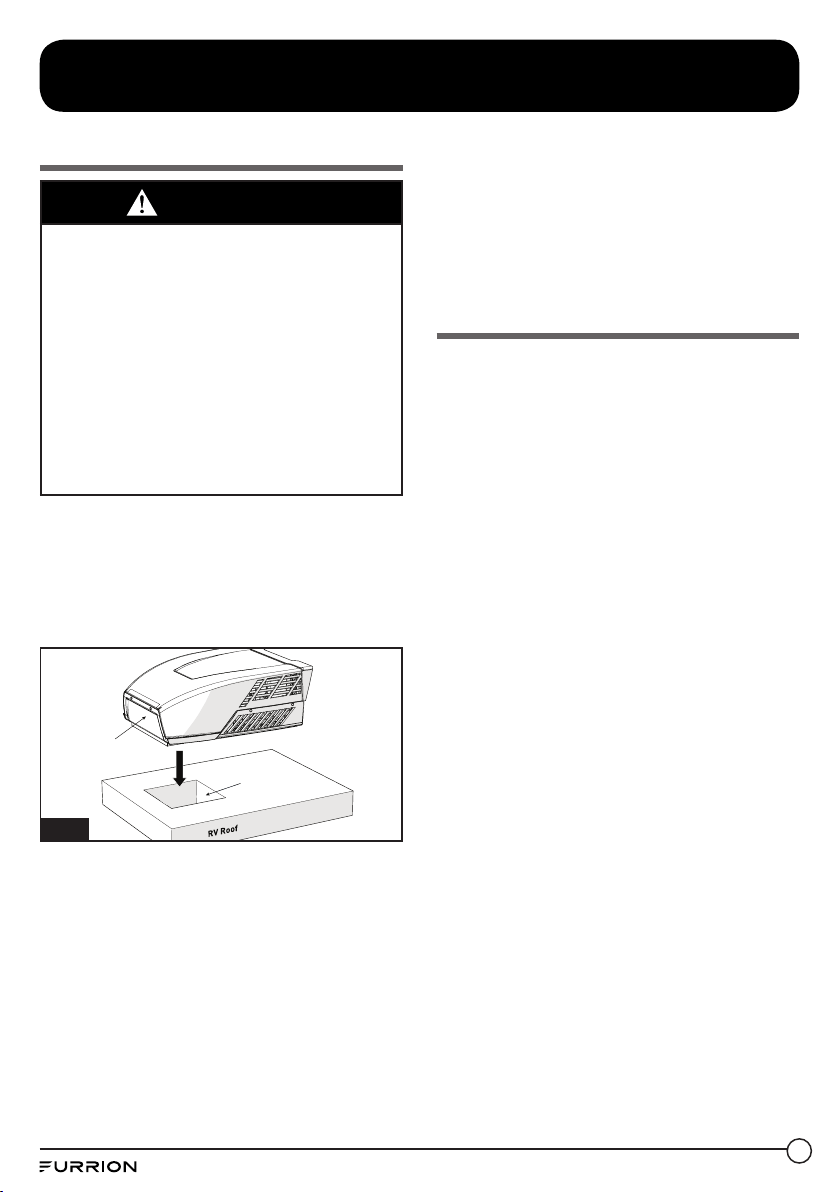

Installing the Rooftop Unit
CAUTION
● The rooftop unit weighs
approximately 100 pounds (45
kg). To prevent back injury, use a
mechanical hoist when lifting or
moving the unit. Failure to obey this
warning could result in injury.
● Do not slide unit. It may damage the
gasket at the bottom of the rooftop
unit and cause leakage.
● Do not grasp the ventilation slots to
lift the rooftop unit up.
1. Grasp the bottom of two sides of the
unit, lift and position the rooftop unit
into the prepared opening using the
gasket at the bottom of the rooftop
unit as a guide. (Fig. 1)
Roof Opening
This Side is
Facing Forward
Fig. 1
This completes the outside installation of
the rooftop unit. Minor adjustments can
be done from inside of the RV if required.
Installing the Wall
Thermostat (model:
FACW12SA-BL/
FACW12PA-BL/
FACW12ZA-BL,
sold separately)
There are 3 types of wall thermostat for
you to select.
● FACW12SA-BL: Single zone basic wall
thermostat
● FACW12PA-BL: Single zone premium
wall thermostat
● FACW12ZA-BL: Multi zone wall
thermostat
Based on the wall thermostat version you
selected. Please refer to the separate
instruction manual on how to install the
wall thermostat to the RV.
11
Installing the Air
Distribution Box (for
FACT12LA-PS/FACT12LA-
BL/FACT12SA-PS/
FACT12SA-BL models
only, same for both
ducted and non-ducted
models,
sold separately)
The rooftop unit is fixed on the RV roof
using 4 long bolts through the mounting
frame from the interior of the RV ceiling.
1. Check the gasket alignment of the
rooftop unit inside the RV over the
roof opening and adjust as necessary
by lifting and moving slightly. (Fig. 2)
Roof Opening
Fig. 2
2. Reach up into the return air opening
and pull the rooftop unit electric cord,
115VAC power cord,±12VDC and
thermostat wires. (Fig. 3)
Roof Opening
Rooftop Unit Cable
Ceiling Thickness
115VAC
Power Cord
±12VDC Wires
Thermostat Wire
Fig. 3
3. Install the assembled mounting frame
and the lower duct divider into the
rooftop opening. Make sure the “THIS
WAY FRONT” mark is facing front
(the direction of the vehicle) while
installing. (Fig. 4)
Fig. 4
4. Fix the assembled mounting frame
and lower duct divider into the rooftop
unit using 4 bolts provided. (Fig. 5)
Fig. 5
NOTE: If bolts are left loose there may
not be an adequate roof seal or if over
tightened, damage may occur to the
rooftop base or mounting frame. Evenly
tighten the four bolts to a torque of 40 to
50 inch pounds. This will compress the
roof gasket to approximately ⁄”.
12
5. Pull to remove the film off the double
sided sticky tape on the inner side of
the lower duct divider. (Fig. 6)
Film
Fig. 6
6. Stick the upper duct divider into the
assembled mounting frame.
NOTE: Make sure the upper duct
divider is compressing the top foam
on the base of the unit, and compress
to doubled sided tape on the lower
duct divider to ensure a positive
retention. (Fig. 7)
Upper Duct
Divider
Fig. 7
7. Peel to remove the release paper from
the PE foam, overlap the sticky side
over all gaps and compress to seal
and insulate the entire section. (Fig. 8)
PE Foam
Fig. 8
8. Use self adhesive foil tape to seal
all remaining gaps around the duct
divider, PE foam and roof opening,
completely sealing duct edges as
required.
9. Remove the cable compartment
cover using a Phillips screw driver.
(Fig. 9)
Fig. 9
DANGER
Electrical Shock Hazard
● Disconnect power before servicing.
Failure to obey this warning could
result in death or serious injury.
● Provide grounding in compliance
with all applicable electrical codes.
Failure to obey this warning could
result in death or serious injury.
13

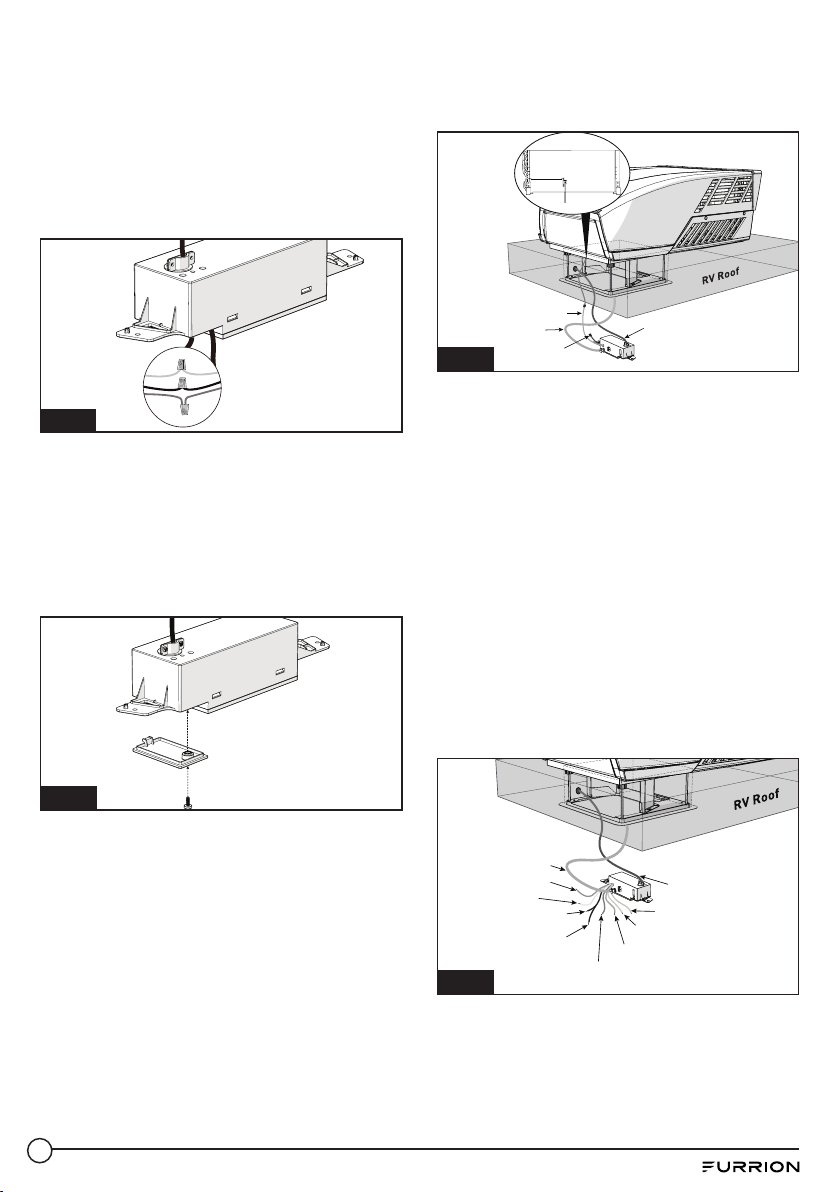

10. Loosen the strain relief on top of the
control box and let the 115VAC power
cord pass through. (Fig. 10)
NOTE: Always follow the color code
while connecting the cables.
Black - Hot
White - Neutral
Green/yellow - Ground
Fig. 10
11. Tighten the cable clip until the cable is
properly restrained.
NOTE: Do not over tighten.
12. Fit all cables into the cable
compartment and tuck any excess
wires up out of the way. Tighten the
cover with screw. (Fig. 11)
Fig. 11
13. Lock the freeze sensor onto the pipe
of the evaporator. Connect the freeze
sensor cable of the control box to the
freeze sensor of the rooftop. (Fig. 12)
Rooftop Unit
Cable
115VAC Power
Cord
Room Sensor Cable
Freeze Sensor Cable
170mm
Freeze
Sensor
Fig. 12
14. Connect the other wires of the rooftop
unit cable to the control box. (Fig. 13)
− Furnace + / Furnace - Cable:
Connect to Furnace.
− Analog Cable (if applicable):
Connect to external analog input.
− LED Cable: Connect to LED stripe.
− Wall Thermostat Cable: Connect to
wall thermostat and another zone’s
control box if applicable. (See multi
zone wiring diagram in page 21).
− Rooftop Cable: Connect to rooftop
unit.
− 115VAC Power Cord: Connect to
115VAC power source.
115VAC Power Cord
Wall Thermostat Cable
Control Cables from
Another Zone’s
Contol Box
Analog Cable
Furnace(±) Cable
12V DC Power Cable
Room Sensor Cable
Freeze Sensor Cable
LED Cable
Rooftop Unit Cable
Fig. 13
14
15. Set up the control box dip switches as
indicated in the illustration and table
below (Fig. 14):
ON
1
2
3
4
5
6
Fig. 14
Zone
Selection*
DIP 1
:DIP2
DIP 1 DIP 2 ZONE
OFF OFF ZONE1
OFF ON ZONE2
ON OFF ZONE3
ON ON ZONE4
Heat Pump
(selected
models)
DIP 3 Reserved
Furnace DIP 4
OFF
Furnace
Off
ON
Furnace
On
Electric
Heat
(selected
models)
DIP 5
OFF
Heat Stripe
Off
ON
Heat Stripe
On
Analog /
Digital
DIP 6
OFF Digital
ON Analog
*NOTE: DIP1 and DIP2 are for Multi Zone
only.
16. Connect the wall thermostat cable
and 12VDC power cable to the control
box.(Fig. 15)
Wall Ther-
mostat Cable
12V DC Power Cable
LED Cable
Fig. 15

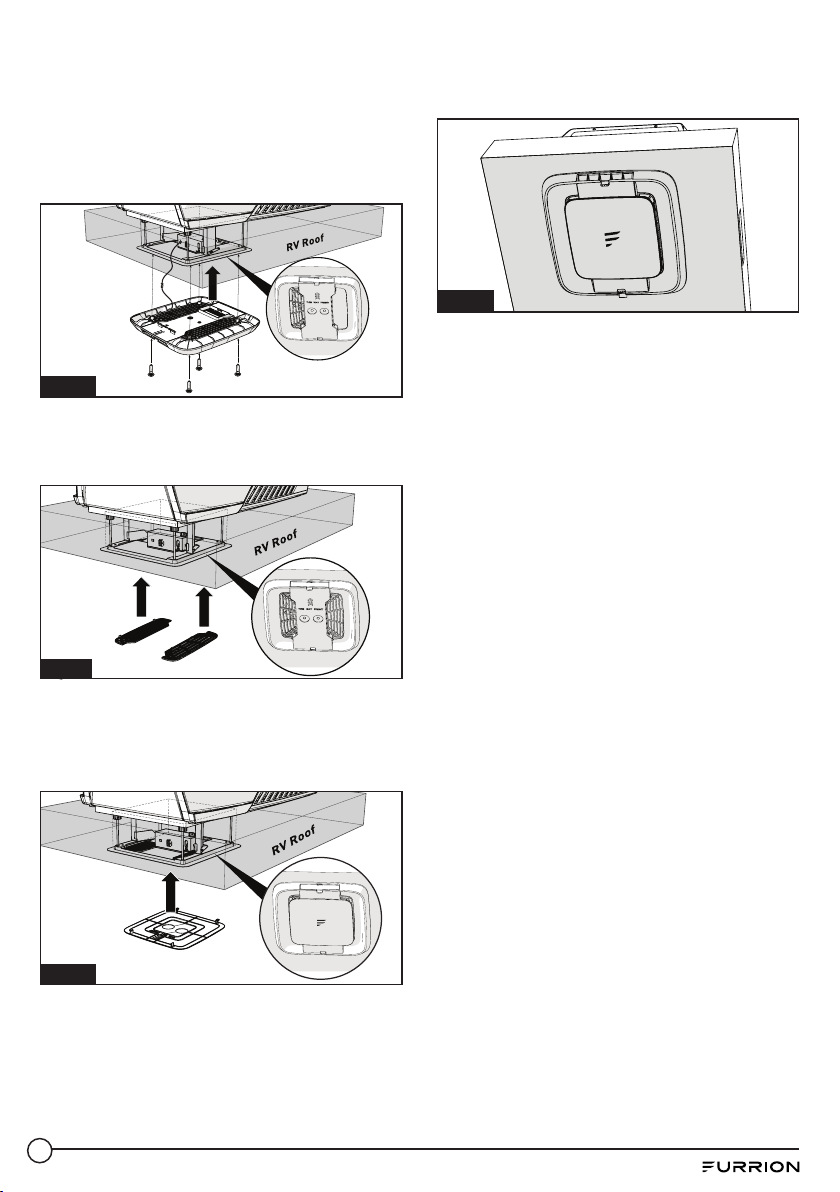

17. Install the control box into the
mounting frame and fix with 2 self-
tapping screws (one piece each side).
(Fig. 16)
Fig. 16
18. Connect the LED cable (if applicable)
from the ADB shroud to the control
box. (Fig. 17)
LED Cable
LED Cable
Fig. 17
15
19. Install the Air Distribution Box (ADB)
shroud over the mounting frame and
fix with 4 self-tapping screws.
NOTE: Make sure the “THIS WAY
FRONT” mark is facing front (the
direction of the vehicle) while installing.
(Fig. 18)
Fig. 18
20. Align the filter tabs with mating
notches and push to snap the filters
into the ADB shroud. (Fig. 19)
Fig. 19
21. Align the decoration plate tabs
with the mating notches on the
ADB shroud and push to snap the
decoration plate into place. (Fig. 20)
Fig. 20
22. Your new rooftop air conditioner has
now been fully installed in the RV roof.
(Fig. 21)
Fig. 21
Based on the wall thermostat version you
selected. Please refer to the separate
instruction manual on how to operate
your RV air conditioning system.
16
Cleaning and Maintenance
A blocked filter will impair the cooling
and heating performance of the unit
significantly.
The filter must be cleaned periodically to
ensure that it does not become clogged
with dust and other particles. The state
of the filter can be ascertained from its
appearance. If it appears dirty or clogged
then it should be cleaned.
WARNING
Airborne particles can pose a health
risk, particularly to young children
and the elderly. Ensure that filters are
cleaned in a safe and well ventilated
area.
To Clean the Filter
The filter should be cleaned every four
weeks or more when in use. Prolonged
use, higher concentrations of airborne
particles and various other factors may
result in the filters needing to be cleaned
more often.
1. Remove the decoration plate from the
air conditioning system by pushing
the side tabs to release. (Fig. 22)
Fig. 22
2. Remove the filters by pushing the
tabs to release. (Fig. 23)
Fig. 23
3. The filter can be washed with warm
soapy water. Care must be taken to
avoid ripping the fabric.
4. Replace the filters and decoration
plate, by reversing the above process.
NOTE: The filter must be completely
dry before re-installation.
To Replace the Filter
Filter changes should be carried out
depending on the amount of use, it
is recommended to change at least
every 12 months. Never operate the air
conditioning system without a filter, since
this can decrease performance and
indoor air quality.
Replacement return air filters can be
ordered directly from Furrion.
17
Troubleshooting
Problem Cause Remedy
Rooftop air
conditioner
Abnormal
shutdown
Freeze sensor has tripped. Outer temperature is too low or all air nozzles are closed.
Not cool enough
Refrigerant leakage
Contact an authorized service agent or Furrion
(see the detail contact info at the back page of
this manual).
The rooftop air conditioner is
not set to cooling.
Set the rooftop air conditioner to cooling.
The set temperature is too
high.
Select a lower temperature.
The evaporator fan is
damaged.
Contact an authorized service agent or Furrion
(see the detail contact info at the back page of
this manual).
The condenser fan is
damaged.
Contact an authorized service agent or Furrion
(see the detail contact info at the back page of
this manual).
The air intake grilles are
blocked or obstructed.
Remove any leaves and other dirt from the
ventilation grilles of the rooftop air conditioner.
The blower is defective.
Contact an authorized service agent or Furrion
(see the detail contact info at the back page of
this manual).
Water enters the
vehicle
The condensation water
drainage openings are
clogged up.
Clean the drainage openings for condensation
water.
The seals are damaged.
Contact an authorized service agent or Furrion
(see the detail contact info at the back page of
this manual).
Rooftop air
conditioner does
not switch on
No supply voltage connected. Check the power supply.
The voltage is too low.
Contact an authorized service agent or Furrion
(see the detail contact info at the back page of
this manual).
Fuse blown or circuit protector
tripped.
Check the electrical fuse of the power supply.
18
Specifications
Specification
PERFORMANCE
Model Number
FACR13SA-PS
FACR13SA-BL
FACR14SA-PS
FACR14SA-BL
FACR15SA-PS
FACR15SA-BL
Cooling Capacity (Btu/h) 13,500 14,500 15,500
Dehumidification (pint/h) 2.5 2.7 3.2
Applicable vehicle length (feet) 23 26 31
Refrigerant R410A R410A R410A
Charge (Oz) 15.9 19.8 23.1
Roof top Unit Dimensions (L x W x
H) (inch)
34⅞ x 27⅝ x 13⅝ 34⅞ x 27⅝ x 13⅝ 34⅞ x 27⅝ x 13⅝
ELECTRICAL
Volts/Frequency 115V~/60Hz/1Ph 115V~/60Hz/1Ph 115V~/60Hz/1Ph
Power Watts (Cooling) 1450 1620 1720
Amps (Cooling) 13.1 14.6 15.4
Power Cord Gauge Min. (mm
2
) AWG12 AWG12 AWG12
19
Wiring Diagram
6
5
4
3
2
1
BLU
RED
BLK
YEL
RED
WHT
WHT
BRN
GRN/YEL
INDOOR
MOTOR
COMPRESSOR
R S
C
O.L
WHT
6PIN CONN
IF
COM
CP
PASSED
DIELECTRIC
(CONN TO AIR DISTRIBUTION BOX)
USE COPPER CONDUCTORS ONLY.
OUTDOOR
MOTOR
GRN/YEL
WHT
BLK
GRN/YEL
OF
RED
GRN/YEL
BLU
CAPACITOR
2
3
1
HEAT ELEMENT
LIMMITED SWITCH
FUSE
BLK
RED
REDRED
3PIN CONN
HEAT ELEMENT
BLK
BLK
RED
RED
(OPTIONAL)
GRN/YEL
BLU
BLKYEL
RED
HIGH
MED
LOW
RY2
ON
COM
TO UPPER
UNIT
WHT
BK
WALL THERMOSTAT
BR
12V
G
TO FURNACE
THERM
+12V
GND
GRN/YEL
WHT
RGB LED
FREEZE SENSOR
ROOM SENSOR
B
A
12V
GND
654321
115VAC
60Hz 1
BLU
BLK
YEL
RED
CN3
CN2
CN6
CN5
CN1
REDBLK
BRNBRN
ANALOG
CONTROL
CN8
PASSED DIELECTIC
BK
RY7
TO UPPER
UNIT
WHT
WHT
GAY
Elect.Heater
Optional*
DANGER
Electrical Shock Hazard
● Disconnect power before servicing. Failure to obey this warning could result in
death or serious injury.
● Provide grounding in compliance with all applicable electrical codes. Failure to
obey this warning could result in death or serious injury.
20
Multi Zone Wiring Diagram
115VAC Input
Front Unit
12VDC Input 2
Wires
12VDC Input 2
Wires
Air Conditioner
Air Conditioner
Furrion
Thermostat
115VAC Input
Rear Unit
Four Conductor
Communication
Cable
Four Conductor
Communication
Cable
Breaker Box
Furnace 2 Wires
Furrion Innovation Center & Institute of Technology
● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-800-789-3341
● Email: [email protected]
©2007-2020 Furrion Ltd. Furrion
®
and the Furrion logo are trademarks licensed for
use by Furrion Ltd. and registered in the U.S. and other countries.
CN ZL201830175933.3 andother patents pending (FACR13SA-PS, FACR13SA-BL,
FACR14SA-PS, FACR14SA-BL, FACR15SA-PS, FACR15SA-BL, FACT12LA-PS,
FACT12SA-PS)
www.furrion.com
IM-FHA00024_V2.0
Multi Zone Wall Thermostat
Instruction Manual
Model: FACW12ZA-BL
1
Welcome
Thank you for purchasing this Furrion
®
Multi Zone Wall Thermostat. Before operating
your new product, please read these instructions carefully. This instruction manual
contains information for safe use, installation and maintenance of the product.
Please keep this instruction manual in a safe place for future reference. This will
ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new
owners of this product.
The manufacturer does not accept responsibility for any damages due to not
observing these instructions.
If you have any further questions regarding our products, please contact us at
supportfurrion.com
2
Contents
Welcome ............................................................................................ 1
Contents ............................................................................................2
About your Thermostat ......................................................................3
Product Features .....................................................................................................3
Control Buttons .......................................................................................................3
LCD Icons ................................................................................................................4
Installation ........................................................................................5
What’s in the Box ....................................................................................................5
Thermostat Installation ..........................................................................................5
Operation ...........................................................................................7
Turn On/Off the Thermostat ....................................................................................7
Temperature Format ............................................................................................... 7
Operation Mode .......................................................................................................7
Clock Setting ...........................................................................................................9
Program Setting ...................................................................................................... 10
Zone Selection ......................................................................................................... 10
Set the Temperature ...............................................................................................10
Set the Fan Speed ...................................................................................................11
Mood Light ...............................................................................................................11
Sleep Mode .............................................................................................................. 11
Special Features ................................................................................12
Auto Fan ..................................................................................................................12
Compressor Time Delay..........................................................................................12
Power Interruption .................................................................................................. 12
LCD Error Code .......................................................................................................12
Programmable Timers ............................................................................................ 12
Wiring Diagram .................................................................................13
Specifications ....................................................................................14
Warranty ............................................................................................15
3
About your Thermostat
Product Features
Your Multi Zone LCD thermostat is equipped with a liquid crystal display (LCD) to
indicate the temperature set-point in Fahrenheit(°F)/Centigrade(°C) and fan speed. It
is also equipped with LCD to indicate the system available operation modes.
NOTE: The available operation modes will be different depending on the system
installed in your RV.
● Liquid Crystal Display with Blue Backlight and Mode Indicators
● Auto Fan
● Room Temperature Display
● Fahrenheit(°F)/Centigrade(°C) Display
● Sleep Mode
● LED Mood Light
● Time Program

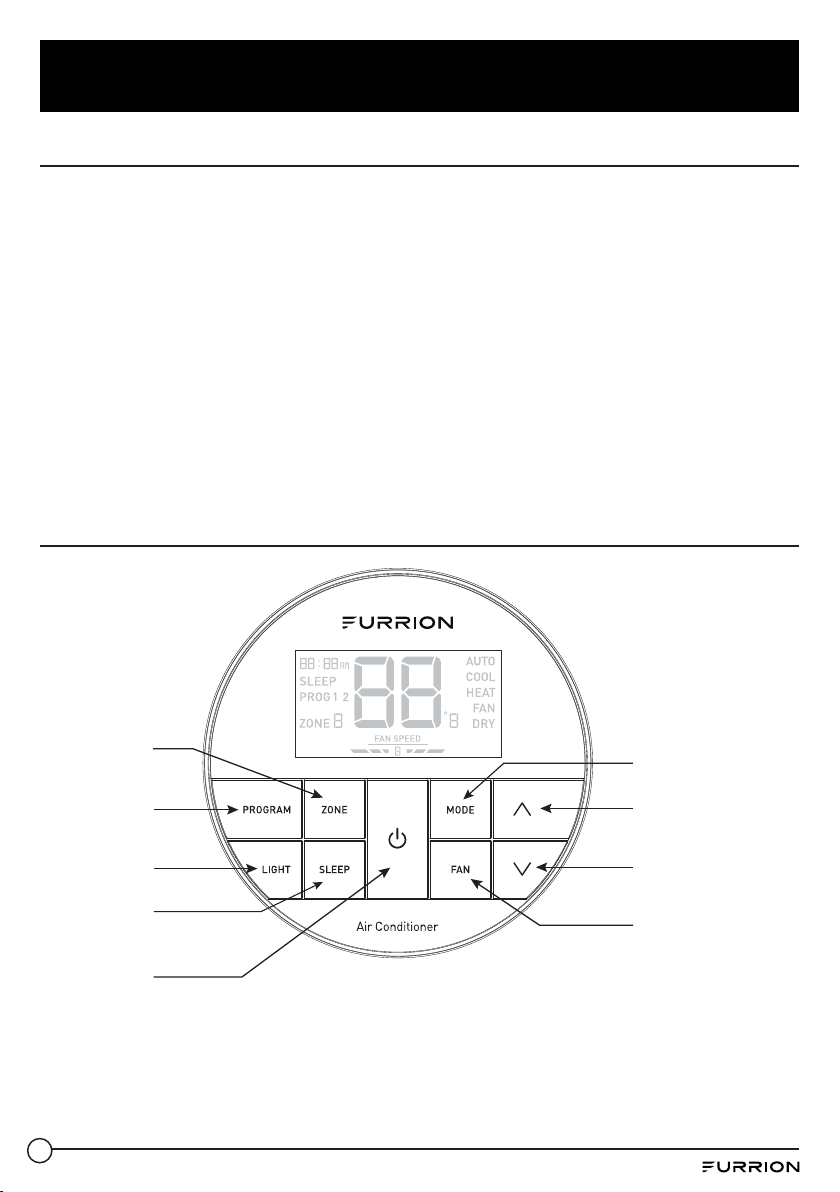

Control Buttons
Press to select
program 1 or 2
Press to select
zone
Zone
Program
Sleep Icon
Time of Day
Fan Speed
Operation Mode
Room
Temperature or
Error Code
Press to increase
temperature set-point
Press to decrease
temperature set-point
Press to select fan
speed
Press to select
different mode
Press to select
mood light
Press to turn
on/off the sleep
mode
Press to turn
on/off the air
conditioner
4
About your Thermostat

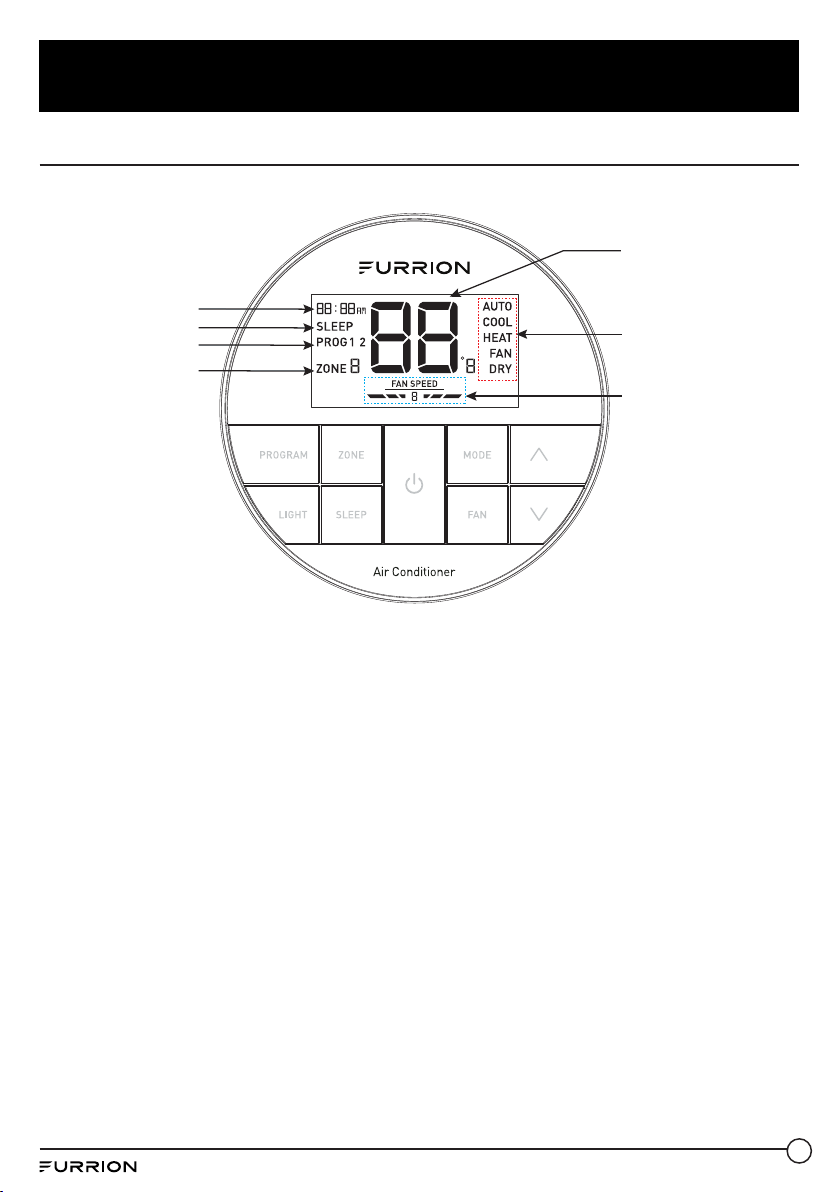

LCD Icons
Press to select
program 1 or 2
Press to select
zone
Zone
Program
Sleep Icon
Time of Day
Fan Speed
Operation Mode
Room
Temperature or
Error Code
Press to increase
temperature set-point
Press to decrease
temperature set-point
Press to select fan
speed
Press to select
different mode
Press to select
mood light
Press to turn
on/off the sleep
mode
Press to turn
on/off the air
conditioner
5
Installation
What’s in the Box
Make sure you have all the following
items included in the packaging. If any
item is damaged or missing, contact
your dealer.
– Thermostat x 1
– Instruction Manual x 1
– Warranty Card x 1
– Self-tapping Screw x 2
Thermostat Installation
1. Select a suitable location that is not
under direct influence from light, sun
or other heat sources.
2. Rotate the thermostat cover
counterclockwise and pull out the
base plate. (Fig. 1)
Fig. 1
3. Use the base plate as a template and
drill a hole on the vehicle wall. Extend
the four wire cables from the cutout
area. Refer to the cable tag label for
each cable definition. (Fig. 2)
Thermostat Cables
Fig. 2
4. Fix the base plate on the wall using 2
screws. (Fig. 3)
NOTE: Make sure the base plate is
not covering the hole and squeezing
the thermostat cables.
Thermostat Cables
Fig. 3
6
Installation
5. Connect the cables to thermostat.
Rotate the thermostat clockwise until
it clips into place. (Fig. 4 and Fig. 5)
Thermostat
cables
Fig. 4
Fig. 5
7

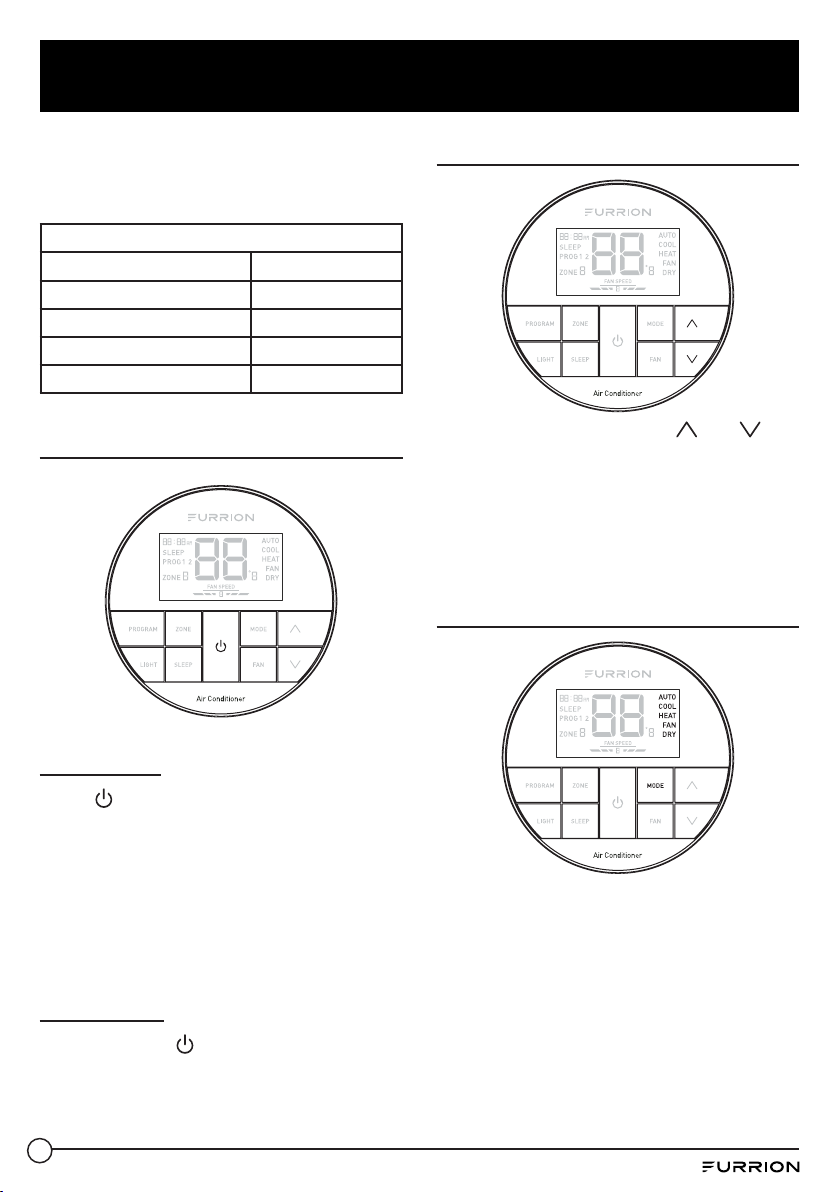

Operation
Your Furrion wall thermostat has been
preprogrammed with factory default
settings. Review the settings below and
adjust to your comfort level.
FACTORY DEFAULT SETTINGS
HEATING 68ºF / 20ºC
COOLING 72ºF / 22ºC
FAN SPEED AUTO
MODE AUTO
FURNACE DIFFERENTIAL 2ºF
Turn On/Off the Thermostat
To turn On
Press button to turn on the
thermostat. The thermostat LCD will be
illuminated and the factory settings will
be displayed on the LCD for first time
use.
NOTE: The LCD will display the
last setting if you have changed the
parameters.
To turn Off
Press and hold button for 3 seconds to
turn off the thermostat.
Only the current room temperature will
be displayed on the LCD.
Temperature Format
Simultaneously press both and
buttons for 3 seconds to toggle the
temperature format between Centigrade
and Fahrenheit.
NOTE: ºF indicates Fahrenheit and ºC
indicates Centigrade.
Operation Mode
After the thermostat is turned on,
press MODE button repeatedly to toggle
through the available modes. The
activated mode icon and temperature
set-point will be displayed on the LCD.
The thermostat will transmit the last
selected operation mode command to
the control box after 2 seconds without
any operation.
8
Operation
Depending on the system installed, there
are 5 available modes (AUTO, COOL,
HEAT, FAN and DRY) for you to select.
See the following tables for detailed
information of each mode.
NOTE: The HEAT mode is only available
after the furnace is enabled.
AUTO MODE
● The system will changeover
between COOL and HEAT mode
according to the room temperature.
For example, when the room
temperature is below 68ºF (20ºC),
the system will operate in HEAT
mode. In contrast, when the room
temperature is above 77ºF (25ºC),
the system will operate in COOL
mode. It operates the Dry Mode in
comfort temperature between 68ºF
(20ºC) to 77ºF (25ºC).
● The AUTO icon and the current
temperature set-point displays on
the LCD.
COOL MODE
● The system will cycle the
compressor on and off based on
the room temperature and the
temperature set-point.
● The fan will be turned on after the
compressor is running.
● There are 4 fan speed selections in
this mode.
Low
The fan operates continuously at
low speed and the icon
displays on the LCD.
Med
The fan operates continuously at
medium speed and the
icon displays on the LCD.
High
The fan operates continuously
at high speed and the
icon displays on the LCD.
Auto
The fan speed varies depending
on the difference between the
temperature set-point and room
temperature. The icon
displays on the LCD.
9

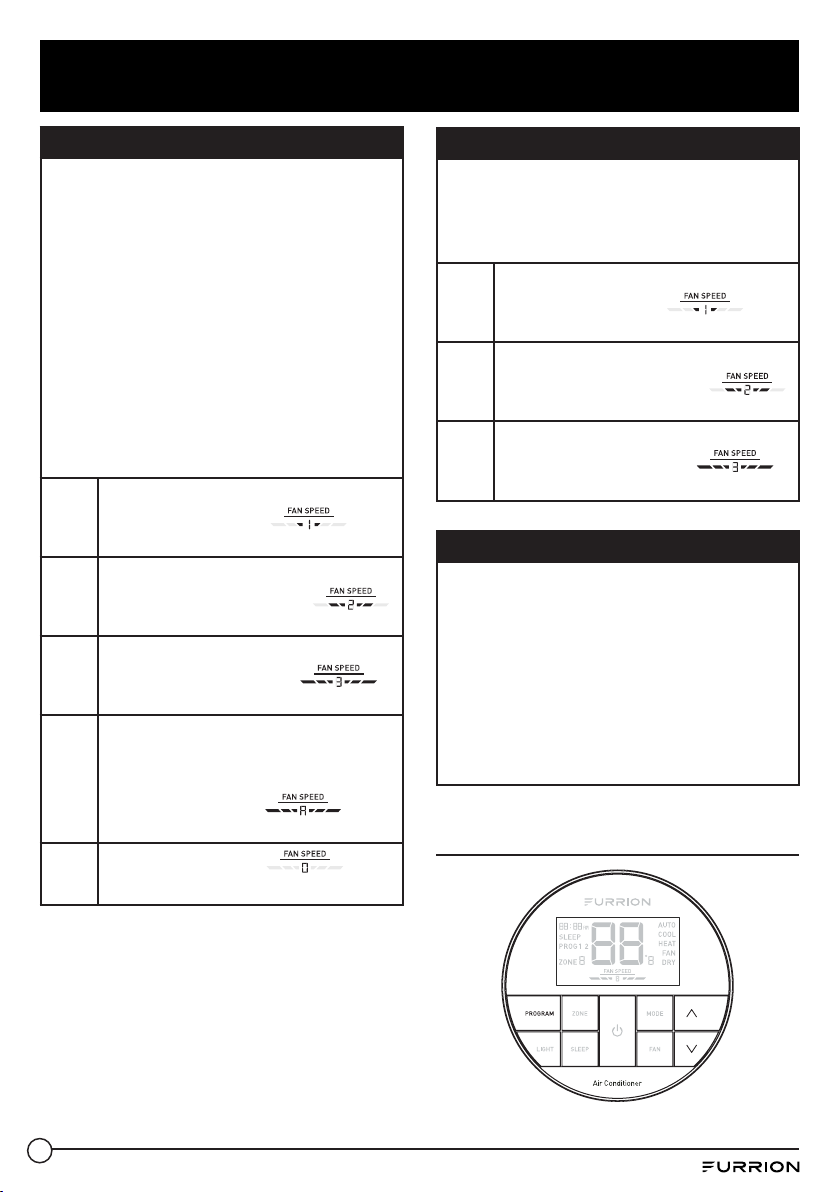

Operation
HEAT MODE
NOTE: The HEAT mode is only
available when furnace is enabled.
● The system will cycle the furnace
on and off based on the room
temperature and temperature set-
point.
● There are 4 fan speed selections in
this mode.
● The fan speed selections only apply
to the rooftop fan that is part of
the Air Conditioner. The fan speed
selection does not change the fan
speed of the furnace.
Low
The fan operates continuously at
low speed and the icon
displays on the LCD.
Med
The fan operates continuously at
medium speed and the
icon displays on the LCD.
High
The fan operates continuously
at high speed and the
icon displays on the LCD.
Auto
The fan speed varies depending
on the difference between the
temperature set-point and room
temperature. The icon
displays on the LCD.
OFF
The fan is off. The
icon
displays on the LCD.
FAN MODE
● The temperature set-point is not
available.
● There are 3 fan speed selections in
this mode.
Low
The fan operates continuously at
low speed and the icon
displays on the LCD.
Med
The fan operates continuously at
medium speed and the
icon displays on the LCD.
High
The fan operates continuously
at high speed and the
icon displays on the LCD.
DRY MODE
● Compressor runs continuously
when room temperature is higher
than set-point.
● Compressor cycles ON for 10
minutes and OFF for 6 minutes
when room temperature is lower
than set-point.
● The fan speed runs continuously at
low speed.

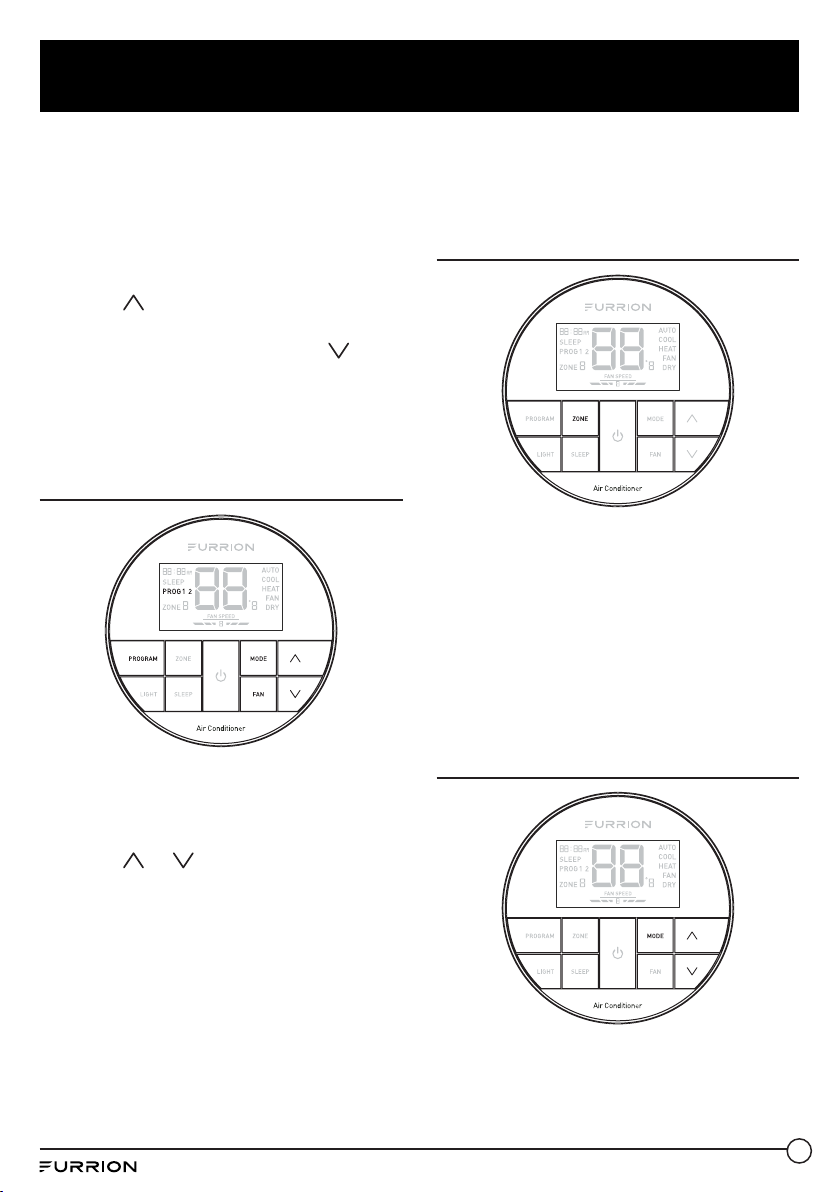

Clock Setting
10
Operation
When in OFF mode, you will be
requested to set the time on the clock
after the power turns on.
1. Press PROGRAM button for 3 seconds
to enter the clock setting mode. The
time clock icon will each flash for 0.5
seconds.
2. Press button to adjust the hour
including AM or PM, press and hold
to set the hour quickly. Press
button to adjust the minute, press
and hold to set the minute quickly.
Press PROGRAM button to save.
Program Setting
The system allows you to set 2 time
programs.
1. Press PROGRAM button, the PROG 1
and clock icons will flash on the LCD.
2. Press or button to change the
time setting of PROG 1.
3. Press MODE button to select the
desired operation mode.
4. Press FAN button to select the fan
speed.
5. Press PROGRAM button to save PROG
1 settings. The PROG 2 and clock
icons will flash on the LCD.
6. Repeat steps 2 to 5 to set PROG 2.
NOTE: You may press and hold the
PROGRAM button anytime for 3 seconds
to cancel the program setting.
Zone Selection
1. Press ZONE button on the thermostat
repeatedly to select ZONE 1,
ZONE 2, ZONE 3 or ZONE 4 if they are
connected and its relevant operating
status will be displayed on the LCD.
2. Use the control buttons to adjust
the operation of the system in one
particular zone.
Set the Temperature
The temperature set-point ranges from
60ºF~86ºF (16ºC~30ºC).
1. Press MODE button repeatedly to
11

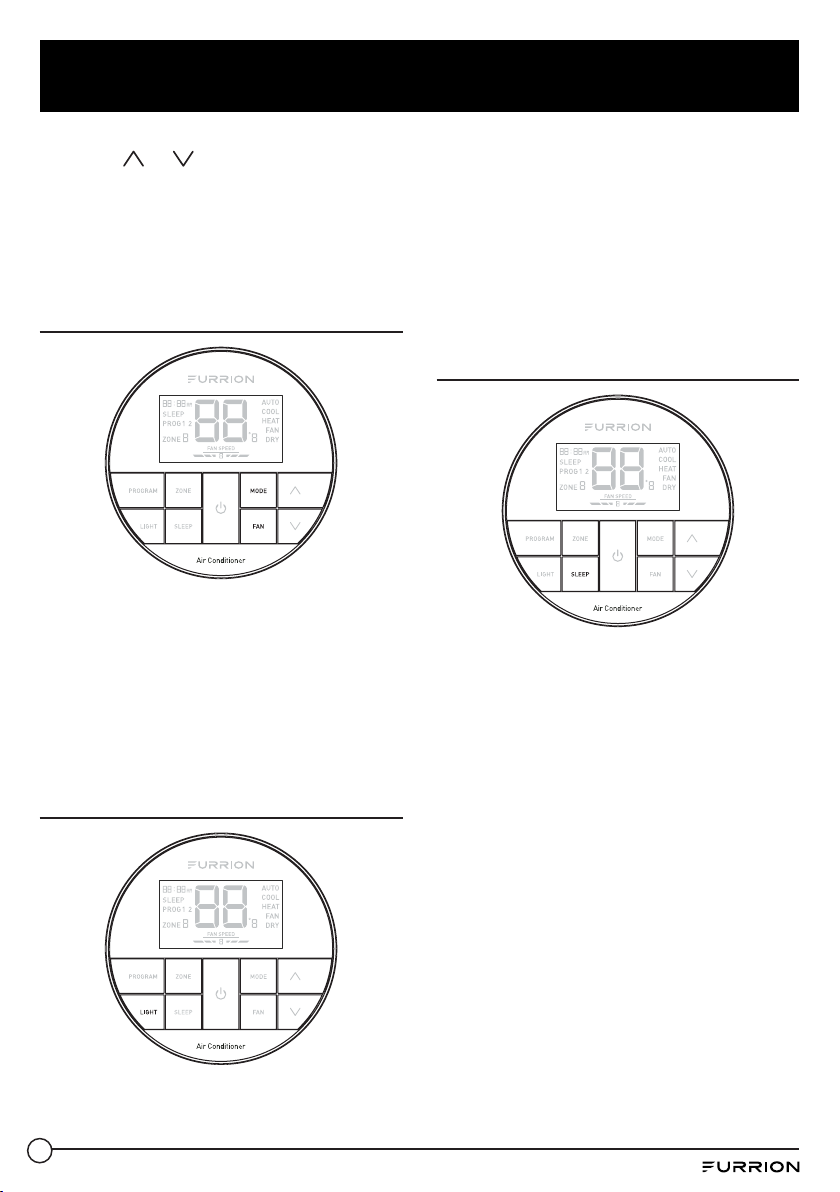

Operation
toggle to your desired mode.
2. Press or button to increase or
decrease the temperature set-point
to your comfort level.
NOTE: The temperature set-point is not
available in FAN mode.
Set the Fan Speed
1. Press MODE button repeatedly to
toggle to your desired mode.
2. Press FAN button on the thermostat
to select AUTO, HIGH, MEDIUM or
LOW fan speed.
NOTE: The fan speed selection is not
available in DRY mode.
Mood Light
The thermostat is designed with 7
predefined colors of LED light in the air
distribution box.
1. Press LIGHT button on the
thermostat to turn on the mood light.
2. Press LIGHT button to toggle to your
desired mood light.
3. To turn off the mood light, press
LIGHT button repeatedly until the
mood light turns off.
Sleep Mode
1. Press SLEEP button on the
thermostat to turn on SLEEP mode.
The SLEEP icon and the current
temperature set-point will be
displayed on LCD.
2. After meeting desired temperature.
In Cool Mode:
The temperature set-point will
increase 2ºF after running for 1 hour
and increase 2ºF after running for 2
hours, then the fan speed will be fixed
to LOW speed.
In Heat mode:
The temperature set-point will
decrease 2ºF after running for 1 hour
and decrease 2ºF after running for 2
hours, then the fan speed will be fixed
to LOW speed.
12
Special Features
Auto Fan
When the auto fan mode is selected,
the fan speed will vary depending on
the temperature difference between the
temperature set-point and the room
temperature.
Temperature
Difference
Fan Speed
>3ºF
The fan operates on High
level
>1
ºF
The fan operates on Med
level
<-1
ºF
The fan operates on Low
level
Compressor Time Delay
A time delay of approximately three
minutes occurs any time the compressor
is required to begin the cooling cycle.
NOTE: The time delay occurs
automatically after a mode is selected
or a power event occurs to ensure
pressure in the compressor is equalized
appropriately, to prevent damage.
Power Interruption
In the event the power to the air
conditioner or controller is interrupted,
the system will restart automatically
with the last status and operational
parameter set-points once the power is
restored.
LCD Error Code
The following error code will be
displayed on the LCD when the system
detects one of the following faults has
occurred.
LCD Error Code
E1
Indoor temperature sensor out of
order. System will shut down.
E2
Evaporator temperature sensor out
of order. System will shut down.
E3
Loss of communication between the
thermostat and control box. System
will shut down.
E4
Condenser temperature sensor out
of order. System will shut down.
E5
Outdoor temperature sensor out of
order. System will shut down.
lo
Insufficient low level of +12V power
supply. System will shut down.
Programmable Timers
The multizone thermostat can store up
two timer for each zone. The timers
can be used to assign start and finish
of two unique mode and fan selections.
For instance, program 1 is used to set a
day condition COOL mode and auto fan
speed to begin at 8:00AM, program 2 is
used to set an evening/night condition
AUTO mode and low fan speed to begin
at 7:00PM.
13
Wiring Diagram
6
5
4
3
2
1
BLU
RED
BLK
YEL
RED
WHT
WHT
BRN
GRN/YEL
INDOOR
MOTOR
COMPRESSOR
R S
C
O.L
WHT
6PIN CONN
IF
COM
CP
PASSED
DIELECTRIC
(CONN TO AIR DISTRIBUTION BOX)
USE COPPER CONDUCTORS ONLY.
OUTDOOR
MOTOR
GRN/YEL
WHT
BLK
GRN/YEL
OF
RED
GRN/YEL
BLU
CAPACITOR
2
3
1
HEAT ELEMENT
LIMMITED SWITCH
FUSE
BLK
RED
REDRED
3PIN CONN
HEAT ELEMENT
BLK
BLK
RED
RED
(OPTIONAL)
GRN/YEL
BLU
BLK YEL
RED
HIGH
MED
LOW
RY2
ON
COM
TO UPPER
UNIT
WHT
BK
WALL THERMOSTAT
BR
12V
G
TO FURNACE
THERM
+12V
GND
GRN/YEL
WHT
RGB LED
COIL SENSOR
ROOM SENSOR
B
A
12V
GND
654321
115VAC
60Hz 1
∅
BLU
BLK
YEL
RED
CN3
CN2
CN6
CN5
CN1
RED BLK
BRN BRN
ANALOG
CONTROL
CN8
PASSED DIELECTIC
BK
RY7
TO UPPER
UNIT
WHT
WHT
GAY
Elect.Heater
Optional*
14
DC Input Power DC 12V
Power Consumption <0.5W
Baud Rate 9600bps
Dimension 3 x 3 x ⁄” (75 x 75 x 22.5mm)
Weight 0.11kg
LCD Viewing angle 12 o’clock
LCD Backlight Blue
Specifications
15
Warranty
FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE
BY THE ORIGINAL ENDUSE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED
TO YOU IN NEW CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION
AUTHORIZED RESELLER AND USED IN NORMAL CONDITIONS, IS FREE FROM
ANY DEFECTS IN MANUFACTURING, MATERIALS, AND WORKMANSHIP. IN CASE
OF SUCH DEFECT, FURRION SHALL REPLACE OR REPAIR THE PRODUCT AT NO
CHARGE TO YOU. THIS WARRANTY DOES NOT COVER: PRODUCTS WHERE THE
ORIGINAL SERIAL NUMBERS HAVE BEEN REMOVED, ALTERED OR CANNOT
READILY BE DETERMINED; DAMAGE OR LOSS CAUSED BY ACCIDENT, MISUSE,
ABUSE, NEGLECT, PRODUCT MODIFICATION, FAILURE TO FOLLOW INSTRUCTIONS
IN INSTRUCTION MANUAL, COMMERCIAL OR INDUSTRIAL USE; DAMAGE OR LOSS
CAUSED TO THE DECORATIVE SURFACE OF PRODUCT; TO ANY DATA, SOFTWARE OR
INFORMATION; AND NORMAL WEAR AND TEAR. THIS WARRANTY ONLY PROTECTS
THE ORIGINAL ENDUSER (“YOU”) AND IS NOT TRANSFERABLE; ANY ATTEMPT TO
TRANSFER THIS WARRANTY SHALL MAKE IT IMMEDIATELY VOID. THIS WARRANTY
IS ONLY VALID IN THE COUNTRY OF PURCHASE.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER
ORAL OR WRITTEN, EXPRESS OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS
ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IF FURRION CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS
LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO
THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
16
Warranty
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED
TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF
ANY EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING,
OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH FURRION
PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR
REPLACEMENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR (WHERE
APPLICABLE IN THE COUNTRIES WHERE FURRION HAS NON-US/CANADIAN
AUTHORIZED DEALERS) COUNTRY. NO ACTION OR CLAIM TO ENFORCE THIS
WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE WARRANTY
PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the
warranty period. Service under this warranty must be obtained by contacting Furrion
at [email protected]om
Product features or specifications as described or illustrated are subject to change
without notice.
17
18
IM-FHA00029 V1.0
Furrion Innovation Center & Institute of Technology
52567 Independence Ct., Elkhart, IN 46514, USA Toll free:1-888-354-5792
Email: [email protected]
©2007-2018 Furrion Ltd. Furrion
®
and the Furrion logo are trademarks licensed for use by
Furrion Ltd. and registered in the U.S. and other countries.
FURRION.COM
