1 Safety Instructions

• Warning: Do not touch exposed cables.

• Warning: Do not use fridge if you suspect any connections could be wet.

• When using the fridge in a vehicle. please ensure the circuit being used is fused at the

• Any installation of DC power systems should be handled by a qualified professional.

• Make sure the source voltage is correct. The technical data label (page 13) has the

• Do not place any electrical devices inside the refrigerator as moisture could harm these

2. Notes On Using The Product

• Your refrigerator requires good ventilation. especially around the vents of the

• Avoid humidity: humidity inside the appliance can form frost and impair cooling. Do not

• Never clean the appliance using a hose and never submerge the unit in any liquid.

• Avoid placing your refrigerator near a heat source. This helps the refrigerator to work

• Place the refrigerator on a flat surface and away from any edges. When using the fridge

• This product is not designed for marine purposes and warranty may become void if

DOWN UNDER SERIES

Helpful Hints To ensure maximum performance from your Evakool Down Under Fridge/Freezer. please read the following helpful hints.

• Read this instruction manual thoroughly. prior to operation.

• Pre-chill your fridge before use. This will allow your fridge to achieve the desired

• Clean your fridge regularly to avoid frosting of the cooling plates and ensure the

• Do not store any electrical equipment inside the fridge after use.

3. Operation

• Power: The refrigerator can be powered by a multi-voltage system utilising either 12/24

Volts or with the included 240V adaptor. The electronic module controls the compressor and has the added function of a three stage battery protection. When the input voltage drops below the minimum. the compressor will cut out; when the voltage comes back up to the cut-in value. the compressor will restart automatically.

• Battery Protection: The SECOP compressor requires approximately 11.0 Volts (12 Volt

System) or 23.0 Volts (24V System) to operate. If the voltage drops below this the fridge will stop running.

• Cable Specification: The DC cables must have a suitable cross-section for their length

(measured from the battery to the unit). according to this table:

Cable Thickness (Area) V Max Cable Length

(mm2) AWG (m) (ft) (m) (ft)

DOWN UNDER SERIES

RECOMMENDED TEMPERATURE SETTINGS

Fridge 2°C

Freezer 16°C

COMPRESSOR SPEED SETTINGS

Eco Recommended for ambient temperatures of 30°C or less.

Max Recommended for ambient temperatures of 30°C or more.

For Maximum Efficiency

• Use the included baskets to ensure air circulation freely around the cabinet.

• Ensure the vents are not obstructed as to allow maximum airflow.

• Refrain from unnecessary opening of the unit.

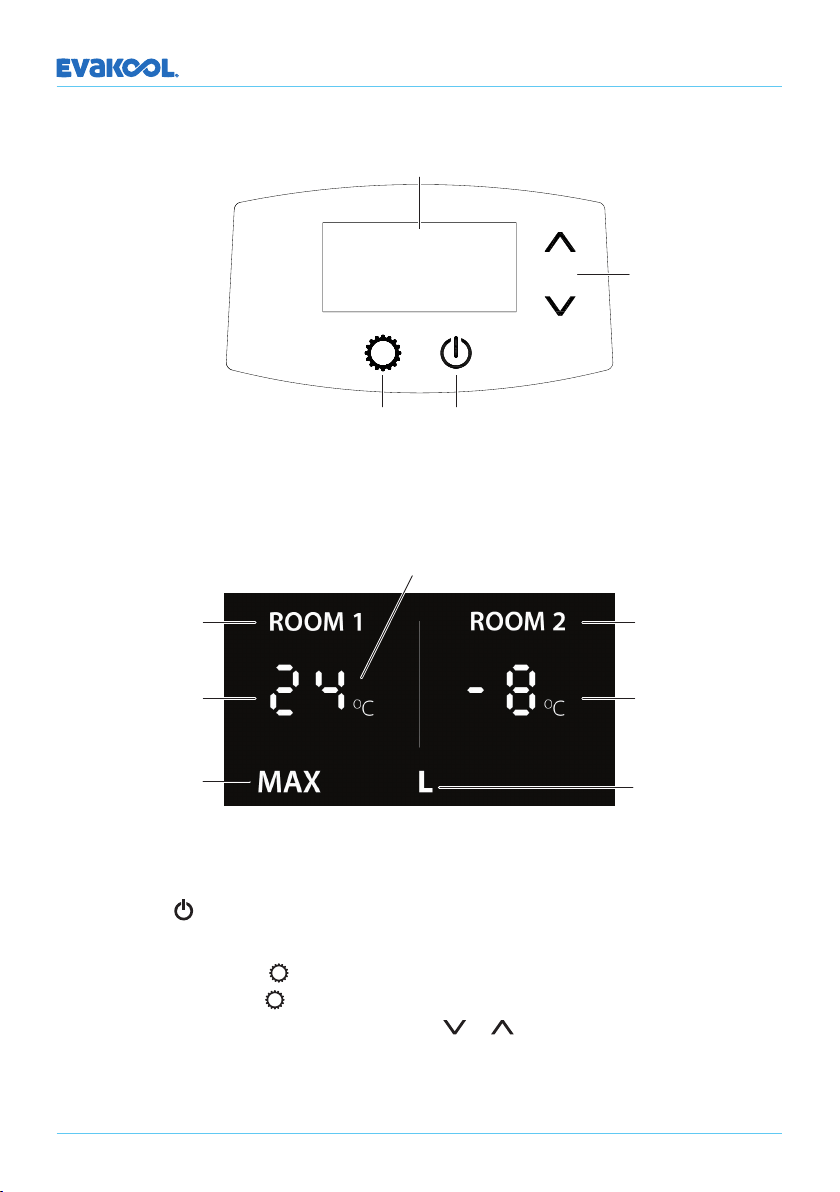

LED Control Panel

LED Display

On/Off Button

+/- Buttons

Button

DOWN UNDER SERIES

2. To turn on/off the refrigerator:

• Hold the button for one to two seconds.

3. Setting the temperature:

• To set Room 1 press button once.

• To set Room 2 press button twice.

• Once the selected room is flashing use the or buttons to select the

• After a few seconds. the selected temperature will automatically set.

1. Display

ROOM 2 - Smaller Bin

Automatically set to Celsius.

Fahrenheit not available.

Battery Protection Mode

Error message will display here

Temperature

Max or Eco Mode

ROOM 1 - Larger Bin

DOWN UNDER SERIES

4. Setting the Max or Eco mode:

• Press the button 3 times.

• Use the or buttons to select mode.

• After a few seconds. the selected mode will automatically set.

5. Setting the battery protection mode:

• Press the button 4 times.

• Use the or buttons to select the battery protection mode. Modes

Medium

High

• After a few seconds the selected mode will automatically set.

NOTE: When the power to the refrigerator is supplied by the starter battery of a car. select battery mode “H”. If the fridge is connected to an auxiliary. the battery protection mode “L” will suffice. If you wish to operate the fridge from an AC power supply. set the battery mode to “L”.

DOWN UNDER SERIES

4. Connecting the Refrigerator Connecting to a battery

• The fridge can be operated with 12V or 24V.

• Note: disconnect the fridge (and other consumer units) from the battery before you

• For safety reasons the refrigerator is equipped with an electronic system to prevent

• Plug the 12/24V connection cable into the Anderson style inlet plug. then plug it into the

12/24V power socket.

Connecting to 240V AC power supply

• Connect Anderson style plug to the power supply.

• Turn on the power at the outlet and then the refrigerator.

• Danger: Never handle plugs and switches with wet hands or if you are standing on a wet

Using the battery protection mode

• This device is equipped with a multi-level battery monitor that protects your vehicle

• If the refrigerator is operated when the vehicle’s ignition is switched off. the fridge

Battery Protection Mode

Switch-off voltage at 12V 10.1V 10.5V 11.1V

Restart voltage at 12V 10.9V 11.4V 12.4V

Switch-off voltage at 24V 21.5V 22.3V 24.3V

Restart voltage at 24V 22.7V 23.7V 25.7V

DOWN UNDER SERIES

5. Error Codes

Code Reason / Solution

Low Voltage

• Please check the source voltage to ensure it is above the cut out. Try

• The vehicle cabling may be inadequate/unsuitable. please refer to

• Try on a different power source.

Fan Issue

• Fan is drawing too many Amps (Over 1 Amp).

Contact EvaKool

Compressor Start Issues

• Unplug for 10 minutes.

• Try on a different power source.

• Possible compressor module fault.

Contact EvaKool

The Compressor Speed is Too Low

• Unplug for 10 minutes.

• Move unit to a lower ambient temperature.

• Clean vents / ensure clear air flow over compressor.

• Reduce product load inside unit.

Ambient Temperature Too High

• Clean vents / ensure clear air flow.

• Fan fault.

Contact EvaKool

Thermistor is Unplugged Contact EvaKool Thermistor is Short Circuited Contact EvaKool

DOWN UNDER SERIES

6. Preventative Maintenance & Care: Metal & Injection

Moulded Products

To ensure a long life and reliable operation of your metal and injection moulded fridge/ freezer we recommend following our preventative maintenance and care guide.

Cabinet Care

• The cabinet should be cleaned after every use by wiping both the interior and exterior

+To protect the cabinet from the harsh conditions a protective cover can be purchased

• Do not use scourers. harsh cleaning products. solvents. or oil as this will degrade the

• Do not leave the cabinet in direct sunlight as this may cause discolouration in the plastic

Defrosting

• After use. defrost ice off evaporator; switch off unit and disconnect from power source.

Leave the lids open to naturally melt the ice. Once the ice has melted. ensure the unit is completely dry by draining any residue and wiping down with a towel.

• Always make sure the cabinet is completely dry and the lid left ajar when put in storage.

This will ensure no corrosion. mold or odor will form inside the cabinet.

• Do not store electrical devices such as the 12 volt adaptor inside the refrigerator.

Refrigerator Maintenance

• As your EvaKool fridge is a portable appliance it is subjected to a variety of different

Marine Use

• We do not recommend the use of our fridges in a marine environment. as salt can cause

DOWN UNDER SERIES

7. Troubleshooting The appliance is not turning on

• Check the power supply.

• Check whether the plug and the socket have a good connection.

• If you have purchased an additional 12V adaptor with a cigarette end. check whether

• Check whether the appliance has been turned on (refer to page 6).

• Check the circuit breaker. this is located to the left of the motor cover. If the circuit

The food inside is frozen

• The set temperature is too low.

Bad performance in refrigeration

• The temperature setting is inappropriate.

• The lid is unlocked/or open.

• The lid seal is broken.

• Problems arising from poor ventilation.

• There is too much food inside the refrigerator.

• There is too much warm product inside the refrigerator.

• There is a heat source near the unit.

Hear the sound of water from inside the unit

• This is normal. due to the flow of the refrigerant.

Unusual noise when refrigerator is working

• The refrigerator is not placed on a level surface.

• Some part has come loose inside the refrigeration compartment (see a service agent).

Replacing the fuse plug (12/24V) NOTE: An Anderson to cigarette adaptor is not included with this product and can be purchased separately via our website.

• You can purchase a fuse from any automotive or electrical retailer near you. The

• Pull off the adaptor sleeve on the plug.

DOWN UNDER SERIES

• Unscrew the screw from the upper half of the housing.

• Carefully raise the upper half of the housing from the lower half.

• Take out the contact pin.

• Replace the defective fuse with a new one that has the same rating (10A. 250V).

• Re-assemble the plug in the reverse order.

Replacing the PCB (display) light

• If you require a new PCB light please contact Evakool on 1300 385 665.

Spare part code: LED-DU.

• The PCB light is located internally on the outer left and right hand sides.

• Disconnect the power supply.

• Carefully pry out the plastic light cover with a pointed and flat tool.

• Unscrew the PCB mounting screws.

• Pull out the PCB.

• Replace them with a new PCB.

• Fit the screws in with a screwdriver.

• Press the transparent part of the lamp back into the housing.

• Connect the power supply to the fridge.

If none of the above solves your issue please contact Evakool on 1300 385 665 or

DOWN UNDER SERIES

SPECIFICATIONS

Model No.

DU75-DZ DU95-DZ

Basic Data

Type DC + Adaptor

Cooling △T °C 43°C

Temperature Range Refrigeration °C

+10°C to -18°C

Gross Capacity

Power Supply DC 12/24V

Rated Current DC 5.4A/2.7A

Rated Power Input

Sound Noise Level dB

Foaming Thickness mm

Temperature Control Digital Control (NTC)

Refrigerating System

Compressor Brand SECOP PCB 2.5

Refrigerant Type R134a

Refrigerant Charging

Packing Information

Net Weight kg

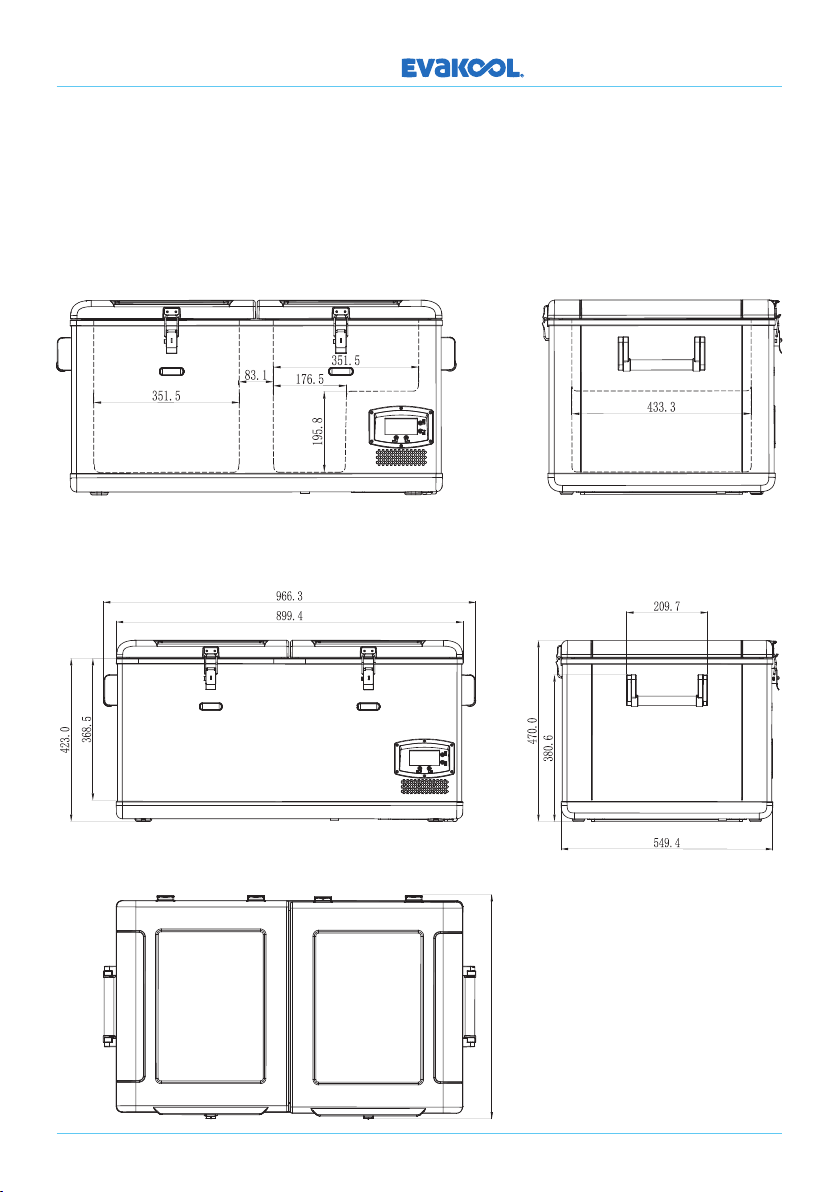

Product Dimension (L*W*H) mm 895.7*473.8*530 966.3*575*470

Certificates

8. Product Data

DOWN UNDER SERIES

10. Warranty Statement/Terms & Conditions

Nexberg Pty Ltd trading as EvaKool undertakes to the original purchaser that this product is sold free of defect in materials and/or workmanship under normal use for a period of 3 years. Subject to the following:

• The warranty period commences from the date of purchase by the original purchaser from an authorised

EvaKool dealer.

• The Secop compressor in this unit carries a 5 year warranty under normal use.

• EvaKool will honour this warranty on presentation of proof of purchase of the unit to EvaKool or its

• EvaKool will not be held responsible for any costs incurred in making a warranty claim.

• Please telephone 1300 385 665 for the name of an authorised service agent or refer to list provided on

• EvaKool will not be held responsible for any damage or loss suffered or cost incurred whilst fridge is in

• Warranty repairs may only be carried out by an authorised service agent. EvaKool will not reimburse

• Service agents may charge a fee for viewing or testing the unit. This is not covered by EvaKool or this

• Any EvaKool authorised service agent in Australia will be able to carry out the service of your unit. If a

• This warranty does not extend to any products acquired for the purposes of re-supply. to be used up or

• This fridge is intended for recreational use only. If used for commercial use. a 12 month warranty applies.

• To the extent permitted by law. this warranty does not extend to any claim for damages that you or any

• EvaKool will not accept a warranty claim if:

1. Modifications have been carried out to the unit without EvaKool’s written authority.

2. Damage to or failure of the unit has been caused in EvaKool’s opinion by incorrect. extreme or

3. Damage to or failure of the unit has been caused in EvaKool’s opinion by misuse. neglect. accident.

• EvaKool has total discretion of the variation of the warranty terms.

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are

• The above warranty conditions are in addition to any other rights and/or remedies as per the applicable

• Failure to follow the guidelines/recommendations in this manual may void the warranty.

• This warranty cannot be varied by others.

Please retain your receipt or proof of purchase for warranty purposes. You can register your warranty online at www.evakool.com.au under contact us and register product warranty.

For your nearest stockist contact Evakool

T: 1300 385 665 (1300 EVKOOL)

E: [email protected]

For Service and Warranty support contact Evakool

T: 1300 385 665 (EVKOOL) E: [email protected]



Newest Added: ED65 DU95-DZL TMX65 TMDZ-95 DU295-DZ-BLU

EvaKool DU95-DZ | Pages: 20 | Created on: 2021-03-17 | File type: PDF | Filename: 13253544_du95-dz.pdf | Size: 1.36 MB | Language: English

Download User Manual

Product Infomation and Reviews - DU95-DZ photo

DU95 DZ Photo

View more photos

T: @manualsFile

https://manualsFile.com

EvaKool DU95-DZ Questions and Answers


EvaKool

EvaKool

Owner manual PDF of DU95-DZ EvaKool 95L Down Under Dual Zone Portable Fridge/Freezer.

Use manuals file type: PDF. EvaKool - Refrigeration

Related Products
