OWNER'S MANUAL

MODEL:

PR18542STB

LAWN TRA CTOR

WARNING:

Read the Owner's Manual and follow

all Warnings and Safety Instructions.

Failure to do so can result in serious

injury.

Always Wear Eye Protection During Operation

279911 PR18542STB

174809 5.11.00 TR

Printed in U.S.A.

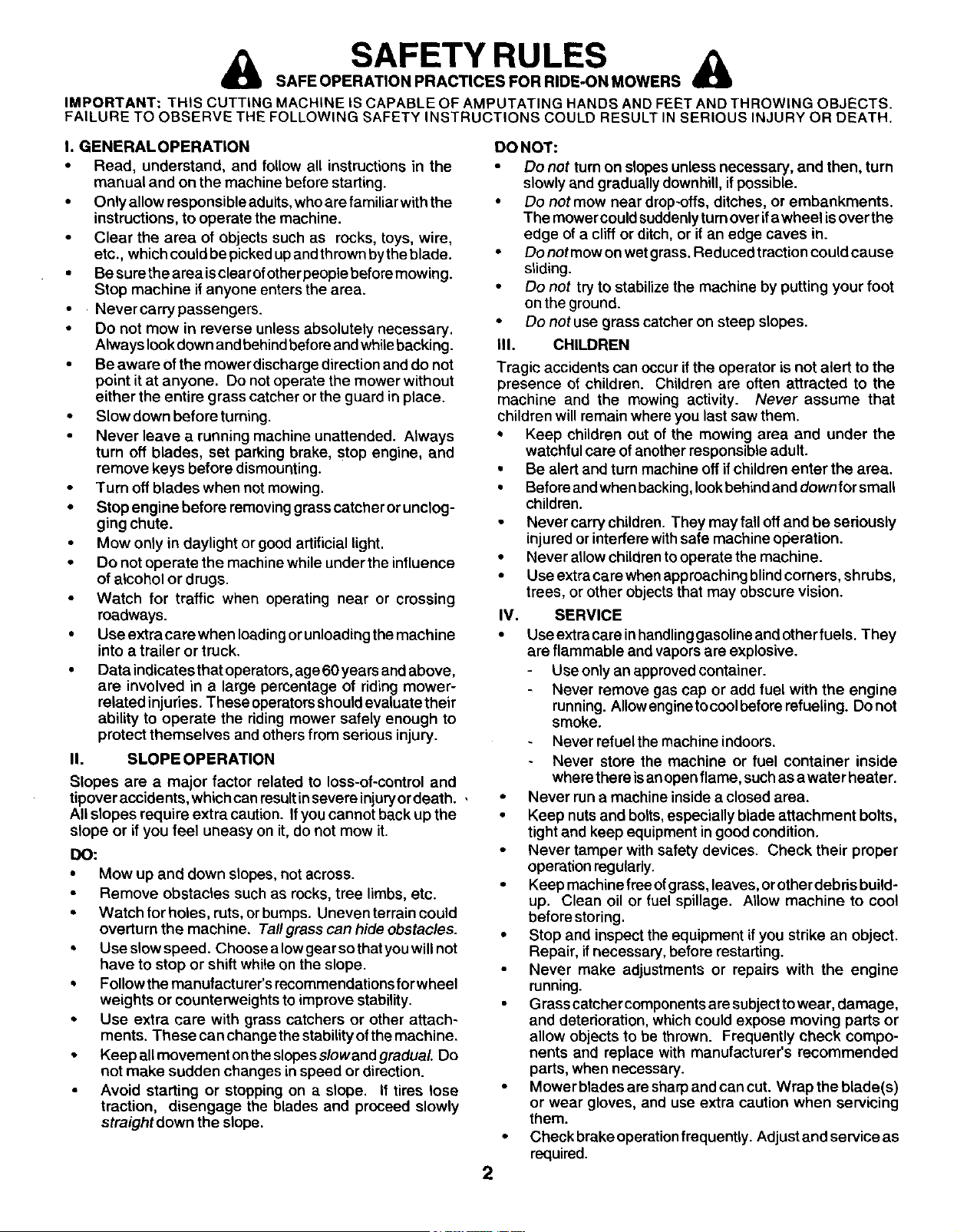

SAFETY RULES

SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERALOPERATION

• Read, understand, and follow all instructions in the

manual and on the machine before starting.

• Only allow responsible adults,who are familiar with the

instructions, to operate the machine.

• Clear the area of objects such as rocks, toys, wire,

etc., whichcould be pickedup andthrown bytheblade.

• Be sure thearea isclear ofotherpeople beforemowing.

Stop machine ifanyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always lookdownand behind beforeandwhilebacking.

• Be aware ofthe mower discharge direction and do not

point itat anyone. Do notoperate the mower without

either the entire grass catcher or the guard in place.

• Slow down before turning.

• Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

Turn offblades when not mowing.

• Stop engine before removinggrass catcher orunclog-

ging chute.

• Mow only in daylight or good artificial light.

• Do not operate the machinewhile under the influence

of alcohol or drugs.

• Watch for traffic when operating near or crossing

roadways.

• Use extracare when loadingor unloadingthe machine

into a trailer or truck.

• Data indicates thatoperators, age60 years and above,

are involved in a large percentage of riding mower-

related injuries. These operatorsshouldevaluate their

ability to operate the riding mower safely enough to

protect themselves and othersfrom serious injury.

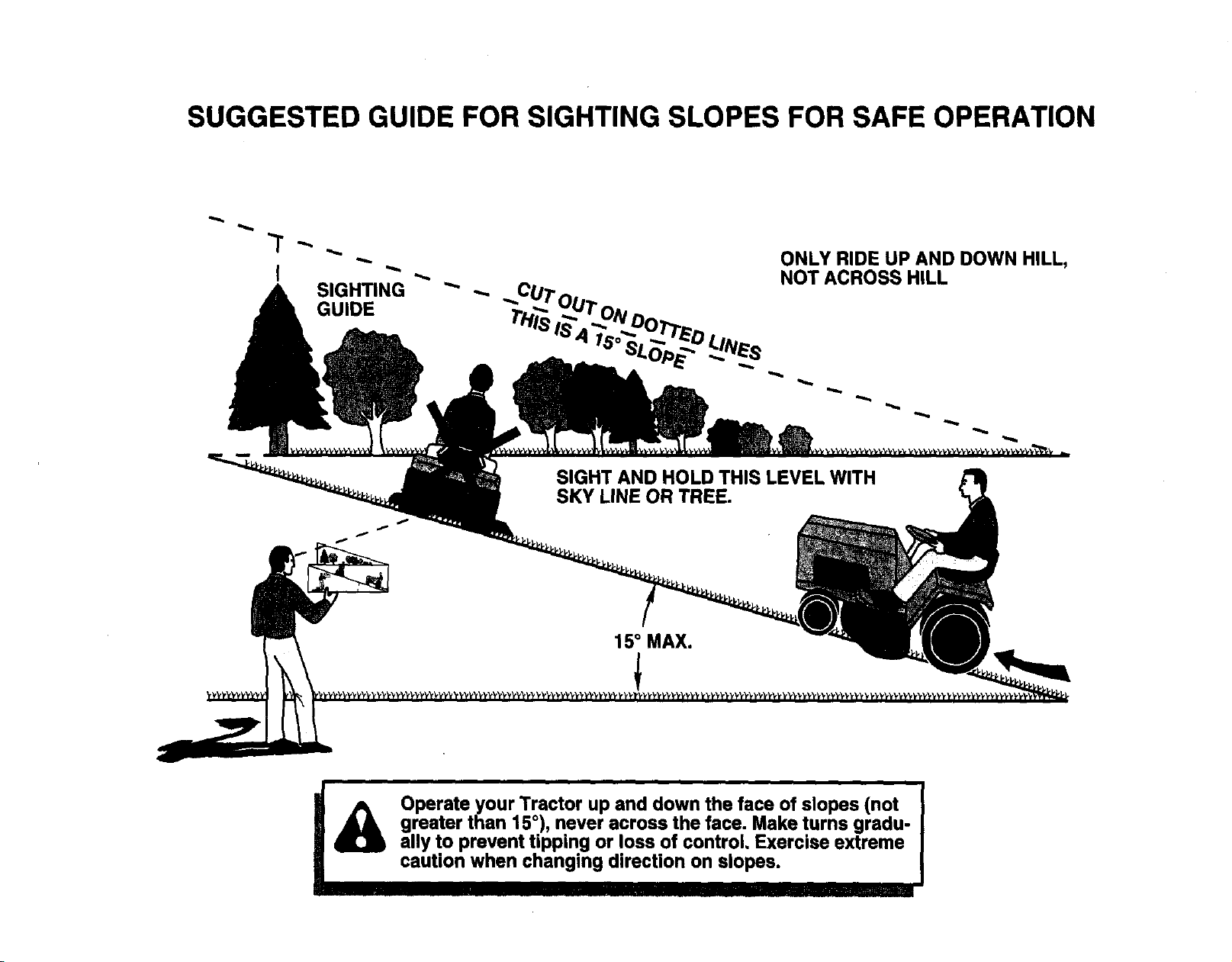

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or death.

All slopes require extra caution. Ifyou cannot back up the

slope or if you feel uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Remove obstacles such as recks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Ta!l grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not

have to stop or shift while on the slope.

• Followthe manufacturer's recommendations for wheel

weights or counterweights to improve stability.

• Use extra care with grass catchers or other attach-

ments. These can change thestability ofthe machine,

• Keepallmovementontheslopesslowandgradual. Do

not make sudden changes in speed or direction.

Avoid starting or stopping on a slope. If tires lose

traction, disengage the blades and proceed slowly

straight down the slope.

DO NOT:

• Do not turn on slopesunless necessary, and then, turn

slowly and gradually downhill, ifpossible.

• Do not mow near drop-offs, ditches, or embankments.

The mowercould suddenlyturnover ifawheel isover the

edge of a cliff or ditch, or if an edge caves in.

• Donotmowonwetgrass.Reducedtractionoouldcause

sliding.

• Do not try to stabilize the machine by putting your foot

on the ground.

• Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and under the

watchful care of another responsible adult.

° Be alert and turn machine off if children enter the area.

• Beforeandwhenbacking, lookbehindanddownforsmall

children.

• Never carry children. They may fall off and be sedously

injured or interfere with safe machine operation.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

• Use extracare inhandling gasoline and otherfuels. They

are flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine

running.AIIowenginetocoolbefore refueling. Donot

smoke.

Never refuel themachine indoors.

Never store the machine or fuel container inside

where there isanopenflame, suchas a water heater.

• Never runa machine inside a closed area.

• Keep nuts and bolts,especially blade attachment bolts,

tight and keep equipment in good condition.

Never tamper with safety devices. Check their proper

operation rogularly.

• Keep machine free of grass, leaves, or other debris build-

up. Clean oil or fuel spillage. Allow machine to cool

before storing.

• Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

• Never make adjustments or repairs with the engine

running.

Grass catcher components are subject to wear, damage,

and deterioration, which could expose moving parts or

allow objects to be thrown. Frequently check compo-

nents and replace with manufacturer's recommended

parts, when necessary.

• Mower blades are sharp and can cut. Wrap the blade(s)

or wear gloves, and use extra caution when servicing

them.

• Check brake operation frequently. Adjust and service as

required.

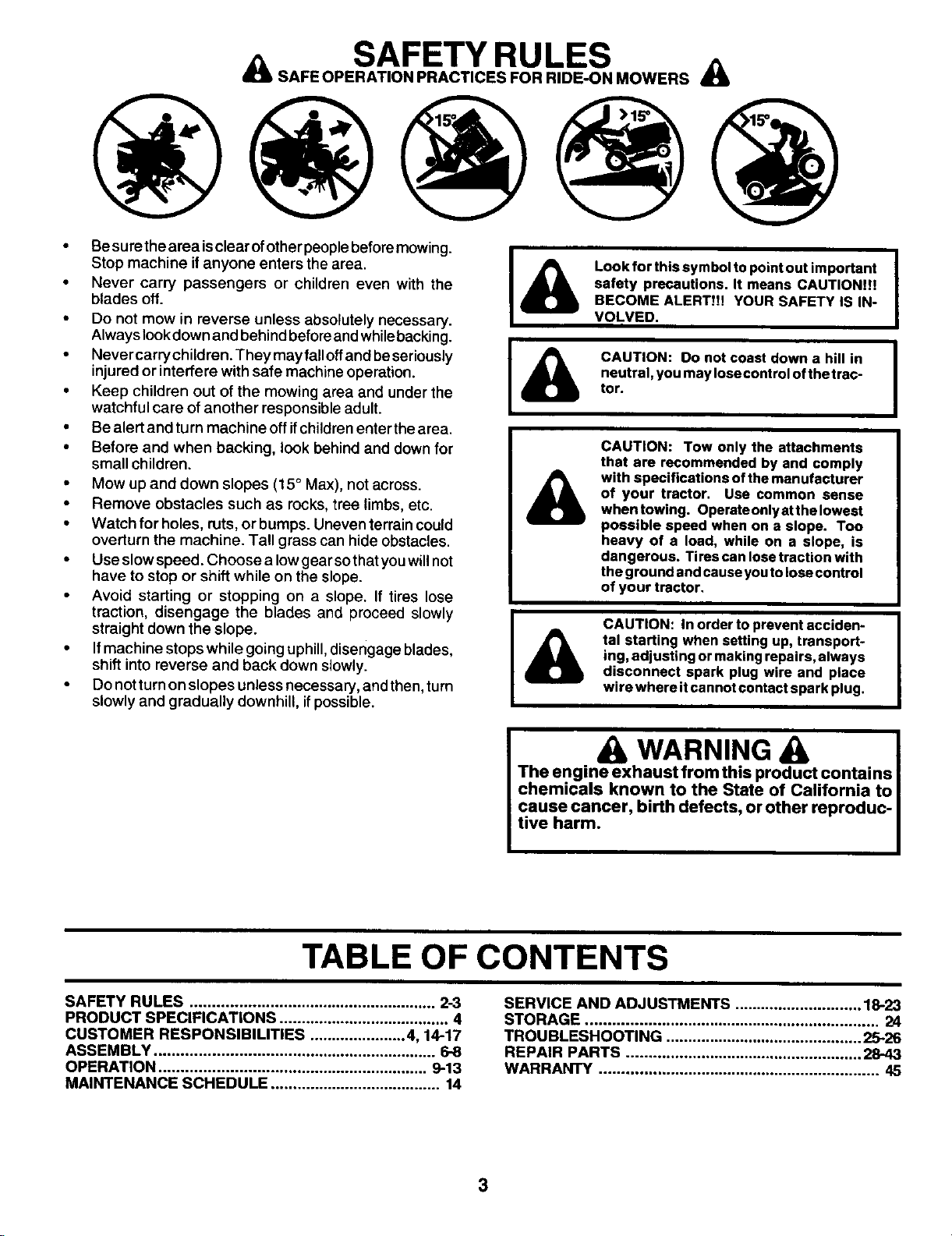

SAFETY RULES

SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS

Be sure the area isclear of other people before mowing.

Stop machine if anyone enters the area.

Never carry passengers or children even with the

blades off.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

• Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

• Keep children out of the mowing area and under the

watchful care of another responsible adult.

• Be alert and turn machine off ifchildren enterthe area.

• Before and when backing, look behind and down for

small children.

• Mow up and down slopes (15° Max), not across.

• Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gearsothat you will not

have to stop or shift while on the slope.

• Avoid starting or stopping on a slope. If tires lose

traction, disengage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

Look for this symbol to point out important

safety precautions. It means CAUTIONI!t

BECOME ALERT!!! YOUR SAFETY IS IN-

VOLVED.

CAUTION: Do not coast down a hill in

neutral, you may lose control of the trac-

tor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer

of your tractor. Use common sense

when towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous, Tires can lose traction with

the ground and cause you to lose control

of your tractor.

CAUTION: In order to prevent acciden-

tal starting when setting up, transport-

ing, adjusting or making repairs, always

disconnect spark plug wire and place

wire where it cannot contact spark plug.

WARNING/k

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other reproduc-

tive harm.

TABLE OF CONTENTS

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ...................... 4, 14-17

ASSEMBLY ................................................................ 6-8

OPERATION ............................................................. 9-13

MAINTENANCE SCHEDULE ....................................... 14

SERVICE AND ADJUSTMENTS ............................. 18-23

STORAGE ................................................................... 24

TROUBLESHOOTING ............................................. 25-26

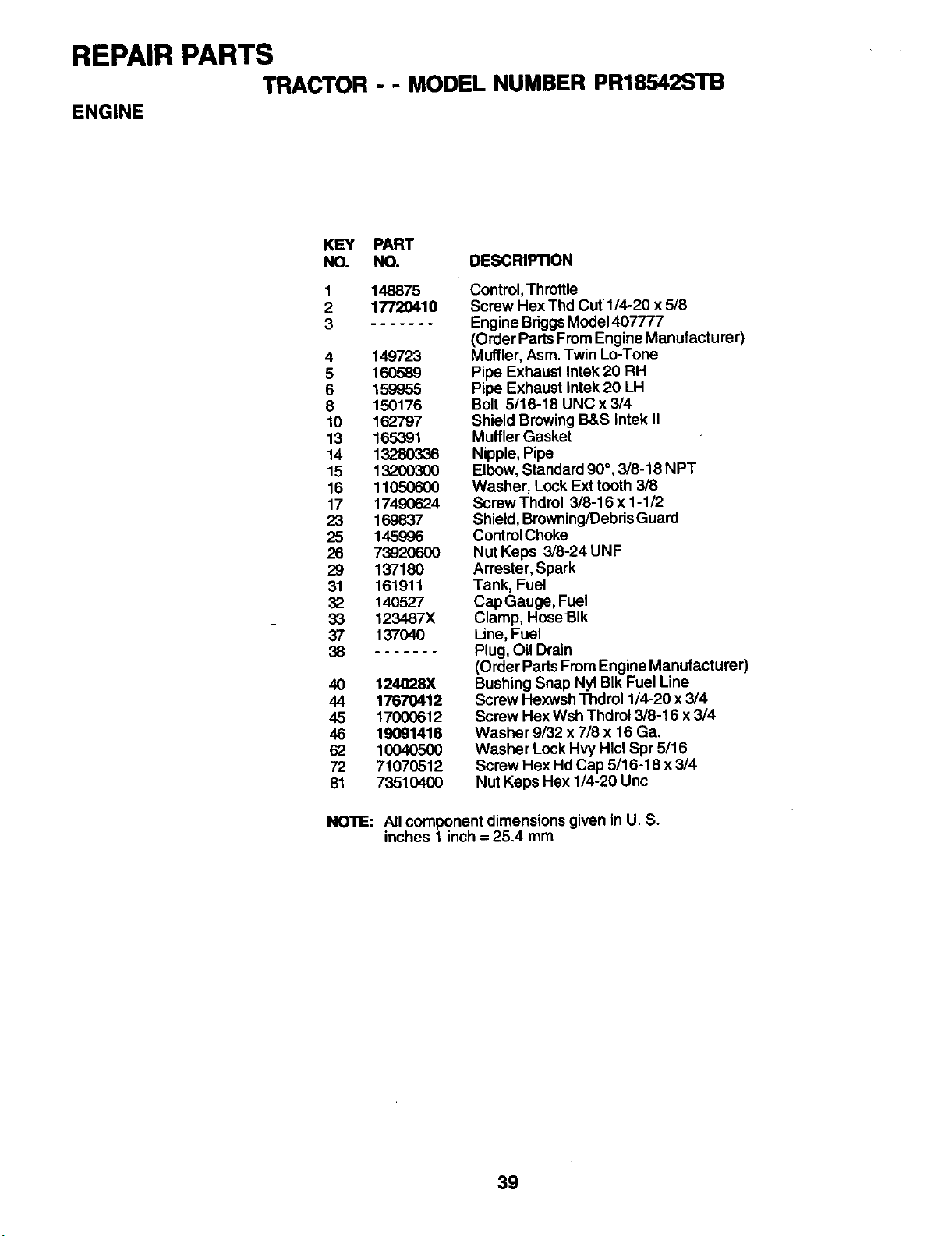

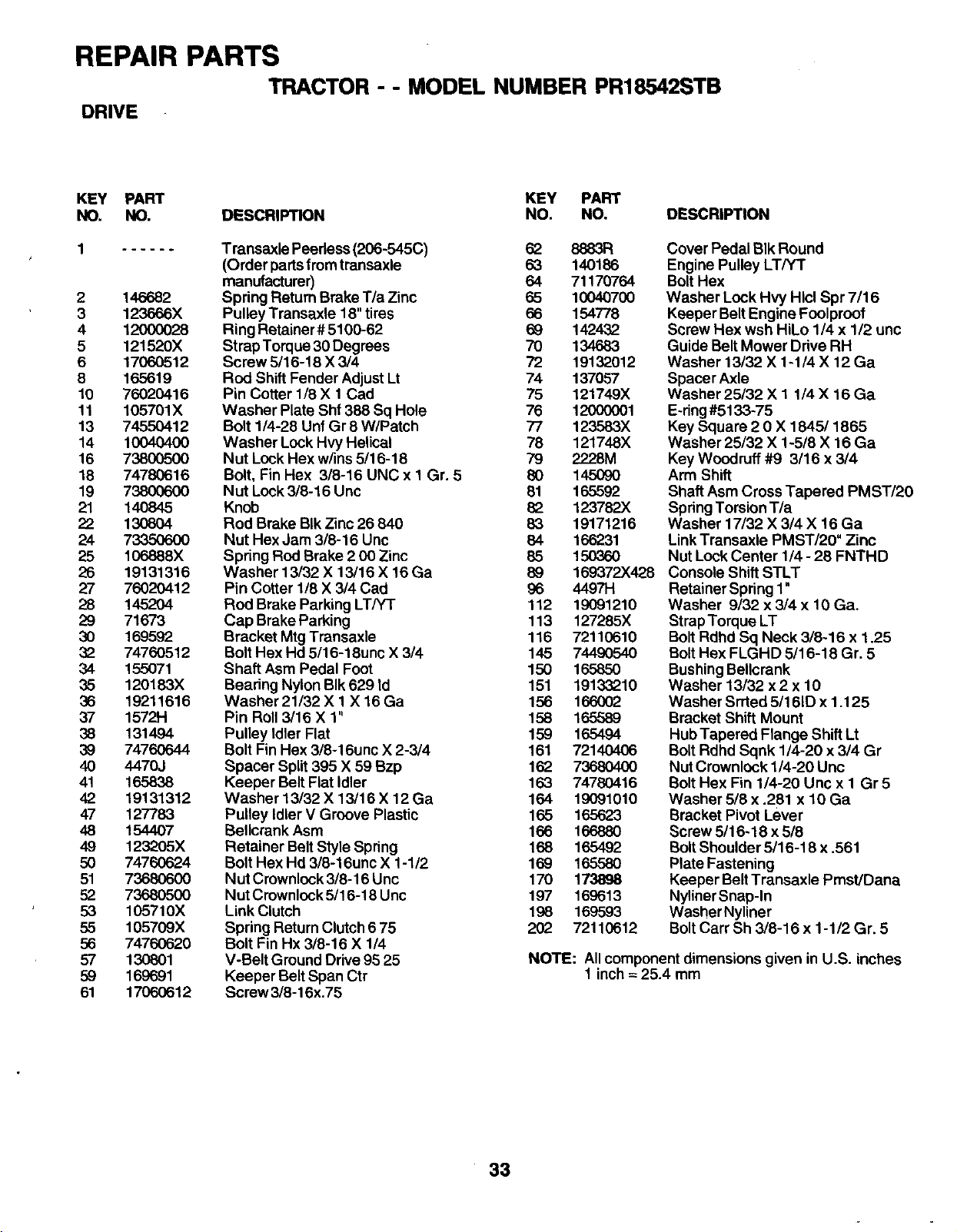

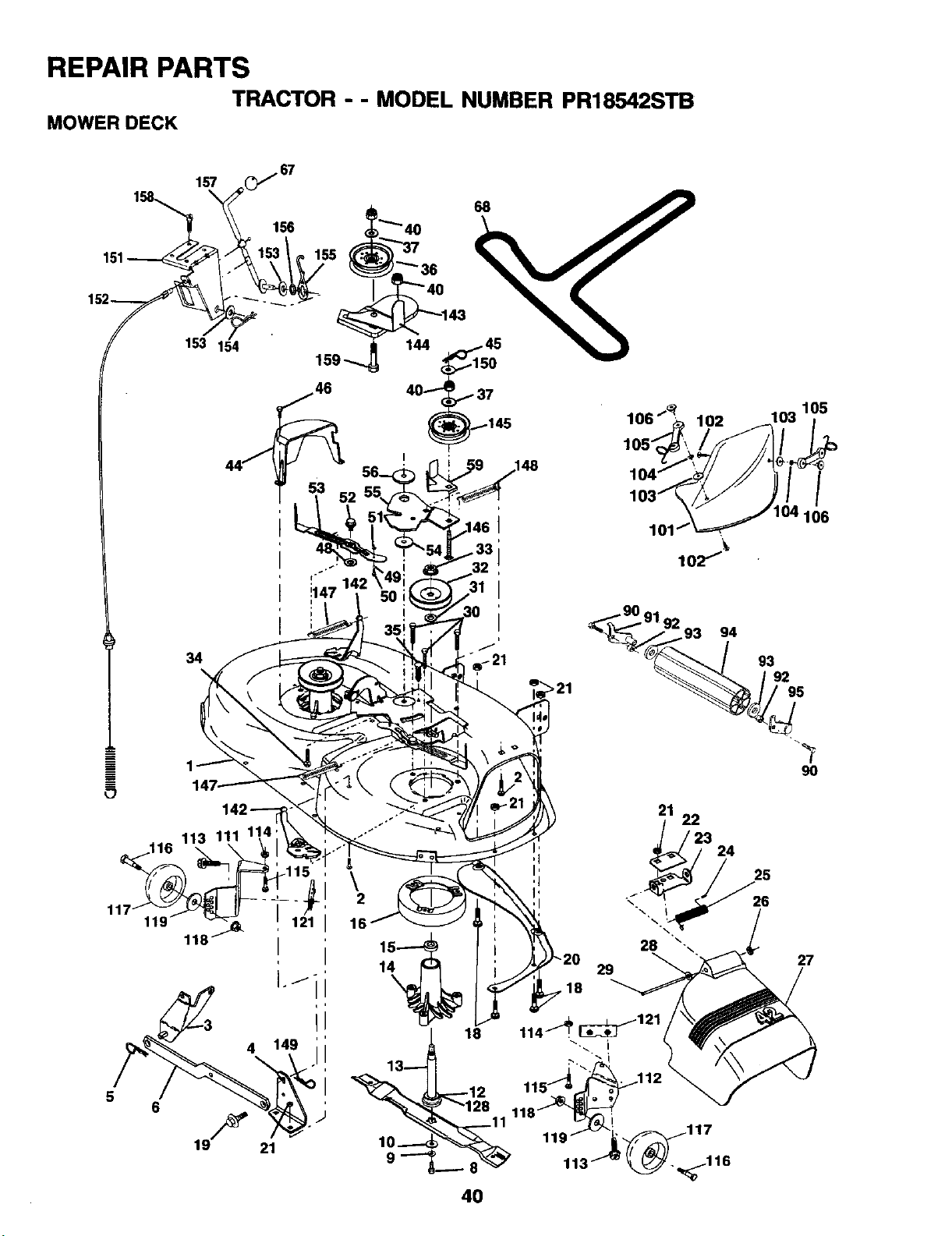

REPAIR PARTS ...................................................... 28-43

WARRANTY ................................................................ 45

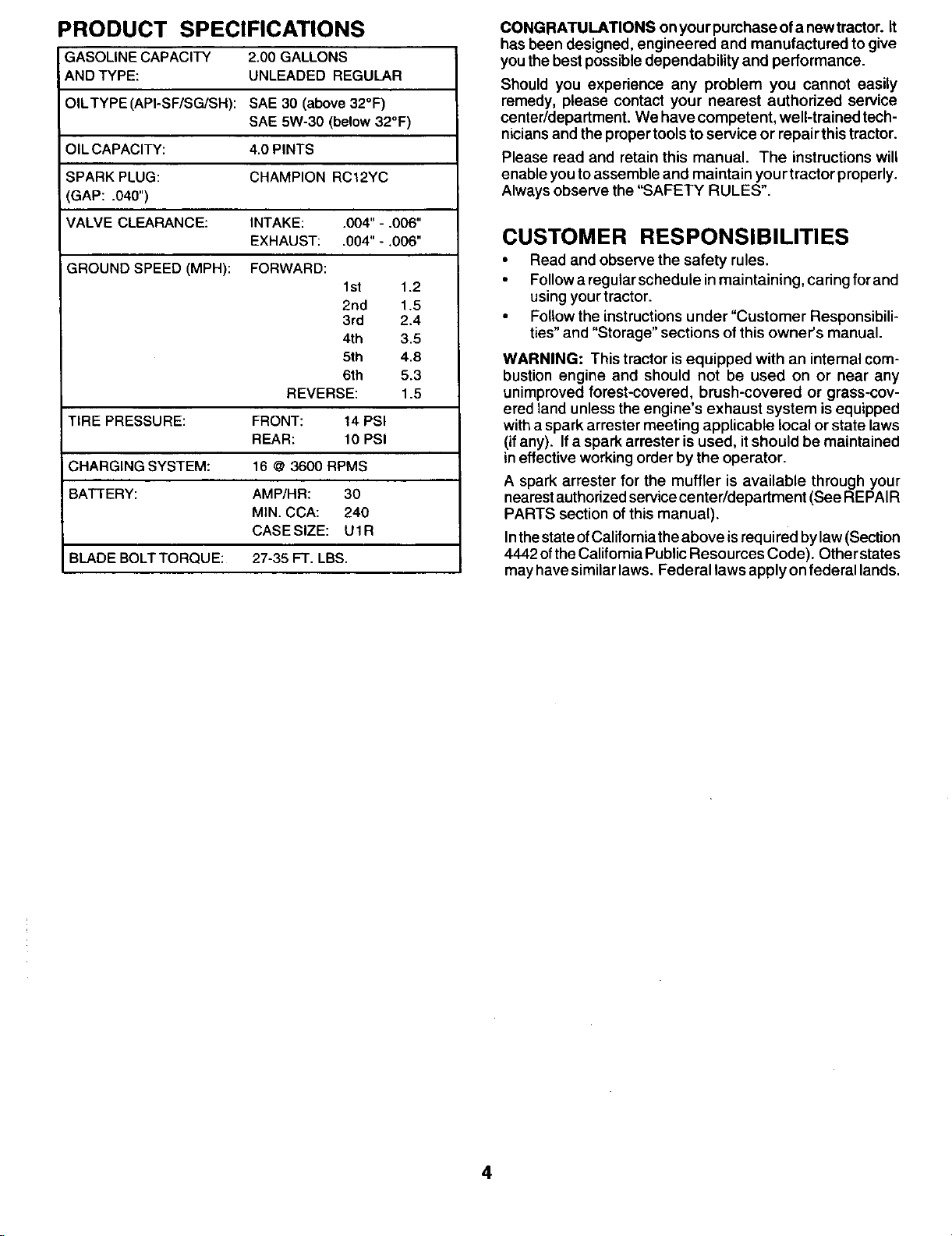

= RODUCT SPECIFICATIONS

GASOLINE CAPACITY 2.00 GALLONS

AND TYPE: UNLEADED REGULAR

OILTYPE (API-SF/SG/SH): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OILCAPACITY: 4.0 PINTS

SPARK PLUG: CHAMPION RC12YC

GAP: .040")

VALVE CLEARANCE: INTAKE: .004" - .006"

EXHAUST: .004" - .006"

GROUND SPEED (MPH): FORWARD:

1st 1.2

2nd 1.5

3rd 2.4

4th 3.5

5th 4.8

6th 5.3

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10 PSI

CHARGING SYSTEM: 16 @ 3600 RPMS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADE BOLT TORQUE: 27-35 FT. LBS.

CONGRATULATIONS onyourpurchase ofa newtractor. It

has been designed, engineered and manufactured togive

youthe best possible dependability and performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest authorized service

center/department. We have competent, well-trained tech-

niciansand the propertools toservice or repair this tractor.

Please read and retain this manual. The instructionswill

enable you to assemble and maintain you r tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring forand

using your tractor.

• Follow the instructions under "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor isequipped with an internal com-

bustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unlessthe engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(ifany). Ifa spark arrester isused, itshould be maintained

in effectiveworking order by the operator.

A spark attester for the muffler is available through your

nearestauthorizedservice center/department (See REPAIR

PARTS section of this manual).

Inthestate ofCalifomiathe above isreduiredbylaw(Section

4442 ofthe CaliforniaPublicResources Code). Other states

mayhave similarlaws. Federal laws apply onfederal lands.

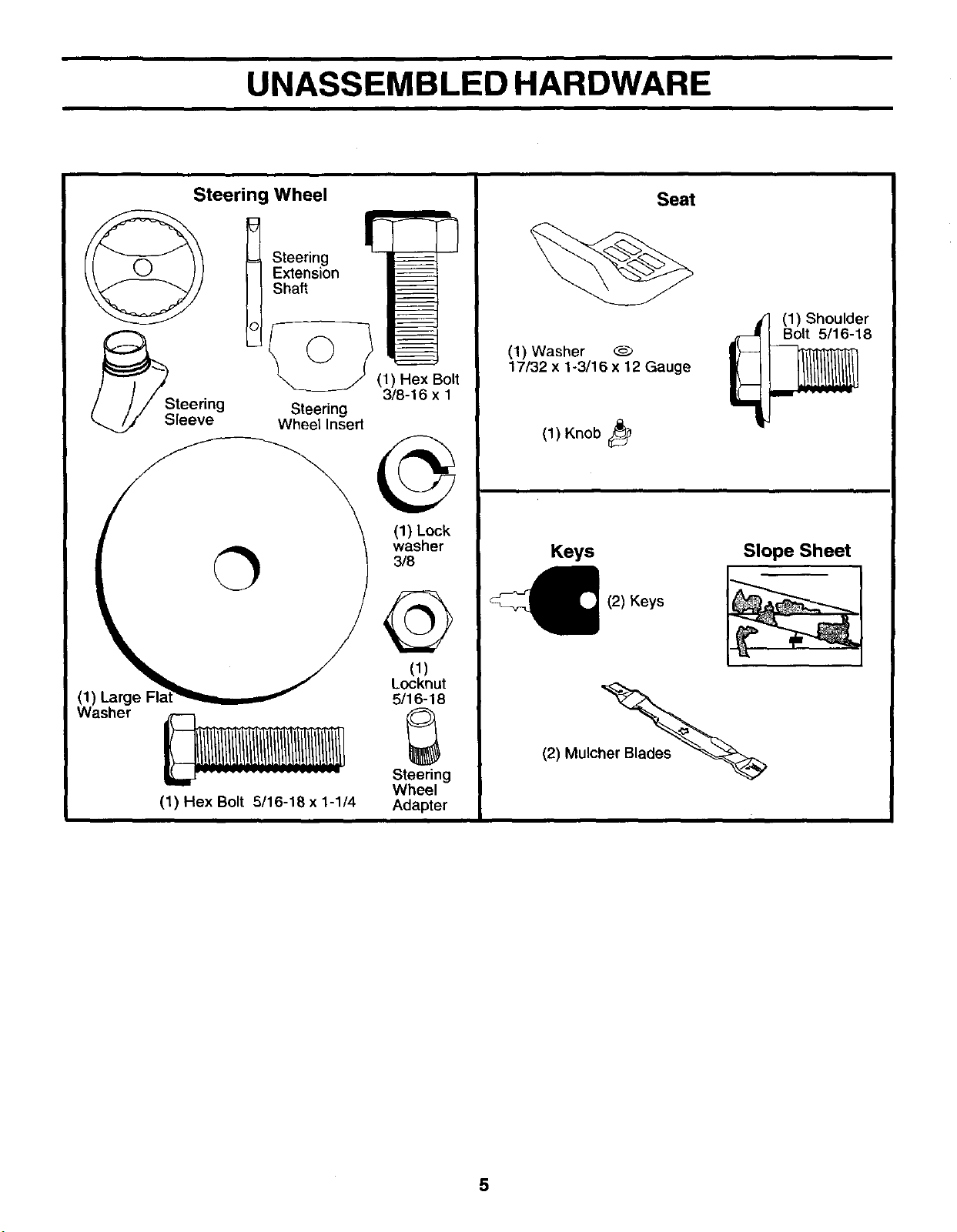

UNASSEMBLED HARDWARE

Steering Wheel

Steering

Extension

Shaft

Steering

Wheel Insert

(1) Large

Washer

(1) Hex Bolt 5/16-18 x 1-1/4

(1) Hex Bolt

3/8-16 x 1

(1) Lock

washer

3/8

(1)

Locknut

5/16-18

Steering

Wheel

Adapter

Seat

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Shoulder

Bolt 5/16-18

(1) Knob

Keys

(2) Keys

Slope Sheet

(2) Mulch_

ASSEMBLY

Your newtractor has been assembled at the factory withexception of those parts left unassembled for shipping purposes. To

ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the

correct toolsas necessary to insure proper tightness.

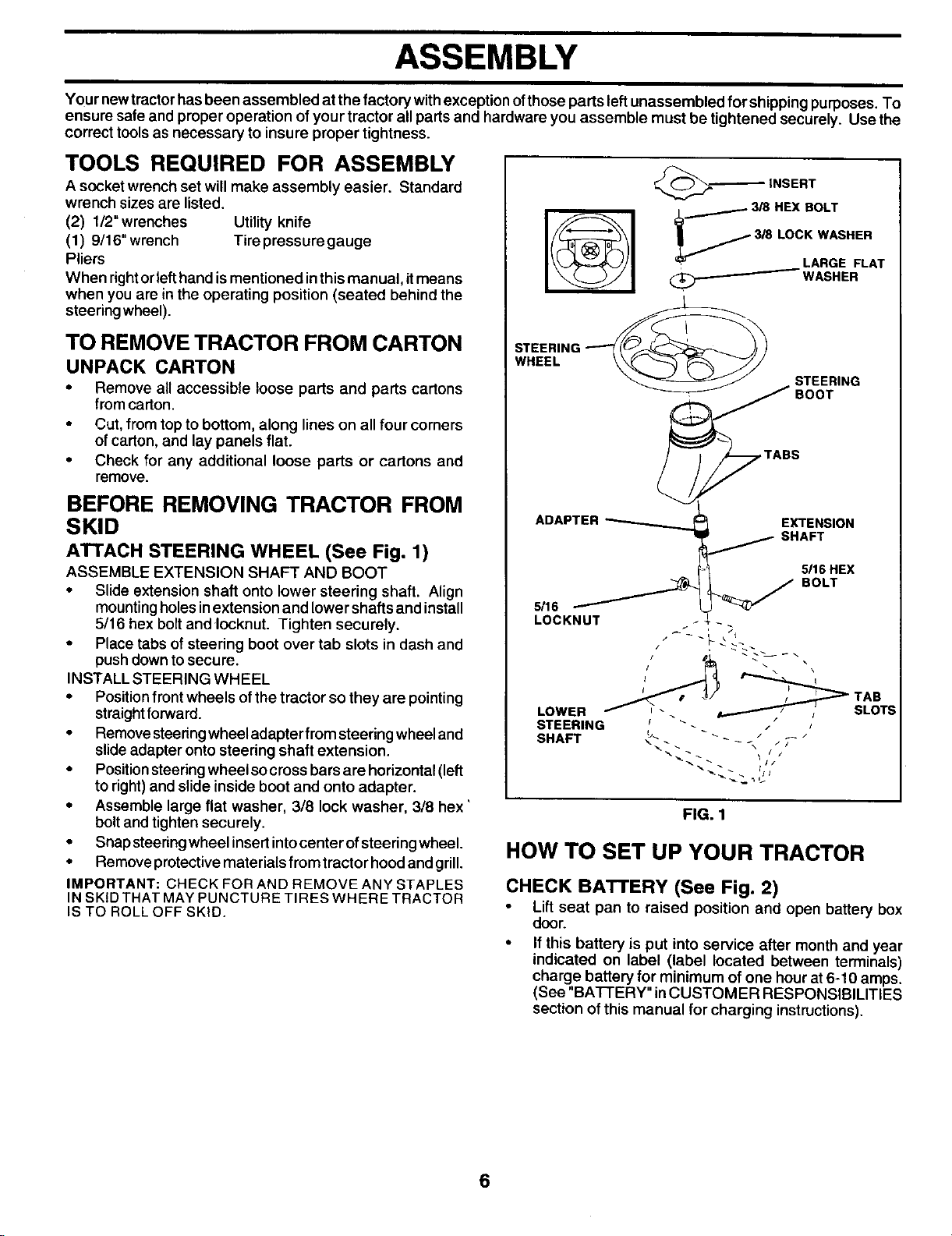

TOOLS REQUIRED FOR ASSEMBLY

A socketwrench set will make assembly easier. Standard

wrench sizes are listed.

(2) 112"wrenches Utility knife

(1) 9/16" wrench Tire pressuregauge

Pliers

When rightorlefthand ismentioned inthis manual, itmeans

when you are in the operating position (seated behind the

steeringwheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

• Remove all accessible loose parts and parts cartons

from carton.

Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

• Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

• Slide extension shaft onto lower steering shaft. Align

mounting holes in extension and lower shafts and install

5/16 hex bolt and Iocknut. Tighten securely.

• Place tabs of steedng boot over tab slots in dash and

push down to secure.

INSTALL STEERING WHEEL

• Position front wheels of the tractor so they are pointing

straight forward.

• Remove steering wheel adapter from steering wheel and

slide adapter onto steering shaft extension.

• Position steering wheel so cross bars are horizontal (left

to right) and slide inside boot and onto adapter.

• Assemble large flat washer, 3/8 lock washer, 3/8 hex'

bolt and tighten securely.

• Snap steedng wheel insert into center of steering wheel.

• Remove protective materials from tractor hood and grill.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

BOOT

ADAPTER _ITEFNTSIO N

5116 HEX

BOLT

5/16

LOCKNUT _ J,

I \ \1

LOWER __"

STEERING i _ _"

SHAFT _ _ _ _ _ _ -- _

----'-----INSERT

_..._ 3/8HEXBOLT

(_r.----------_WASHER

TAB

SLOTS

FIG. 1

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY (See Fig. 2)

• Lift seat pan to raised position and open battery box

door.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" inCUSTOM ER RESPONSIBILITIES

section of this manual for charging instructions).

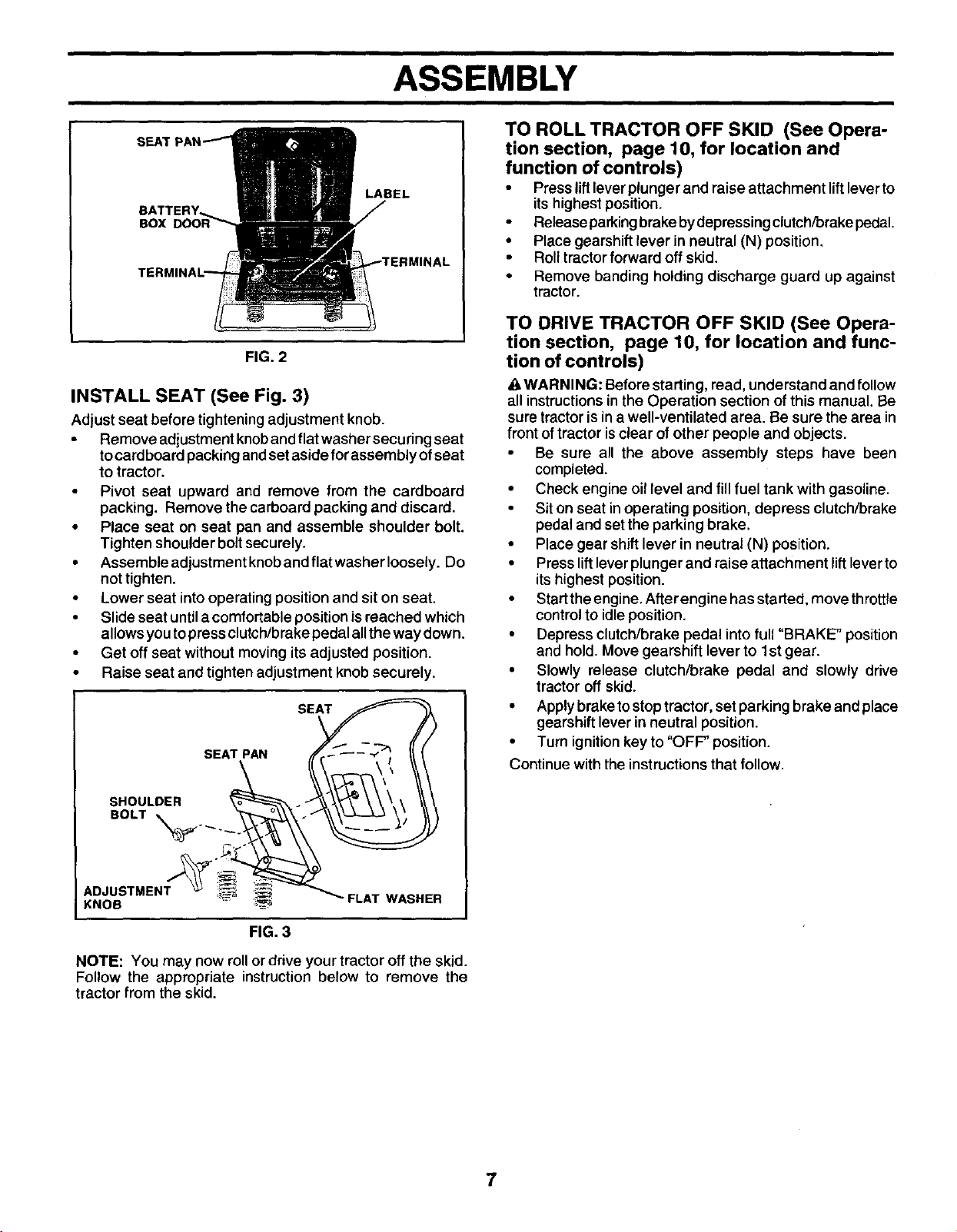

ASSEMBLY

BATTERY

BOX

LABEL

TERMI!

FIG. 2

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

• Remove adjustment knob and flat washer secu ring seat

to card board packing and set aside for assembly of seat

to tractor.

Pivot seat upward and remove from the cardboard

packing. Remove the carboard packing and discard.

• Place seat on seat pan and assemble shoulder bolt.

Tighten shoulder bolt securely.

• Assemble adjustment knob and flat washer loosely. Do

not tighten.

• Lower seat into operating position and sit on seat.

• Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way down.

• Get off seat without moving its adjusted position.

• Raise seat and tighten adjustment knob securely.

SEAT

SEAT PAN

SHOULDER

BOLT ,_._.

ADJUSTMENT

KNOB FLAT WASHER

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Opera-

tion section, page 10, for location and

function of controls)

Press liftlever plunger and raise attachment lift lever to

its highest position.

Release parking brake by depressing clutch/brake pedal.

• Place gearshift lever in neutral (N) position,

Roll tractor forward off skid.

• Remove banding holding discharge guard up against

tractor.

TO DRIVE TRACTOR OFF SKID (See Opera-

tion section, page 10, for location and func-

tion of controls)

_1,WARNING: Before starting, read, understand and follow

all instructions in the Operation section of this manual. Be

sure tractoris in a well-ventilated area. Be sure the area in

front oftractor isclear of other people and objects.

Be sure all the above assembly steps have been

completed.

• Check engine oil level and fillfuel tank with gasoline.

Sit on seat in operating position, depress clutch/brake

pedal and set the parking brake.

• Place gear shiftlever in neutral (N) position.

• Pressliftleverplunger and raise attachment lift lever to

its highest position.

• Startthe engine,Afterengine has started, move throttle

controlto idleposition.

• Depress clutch/brake pedal intofull "BRAKE" position

and hold. Move gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and slowly drive

tractor off skid.

• Apply brake tostop tractor, set parking brake and place

gearshift lever in neutral position.

• Turn ignitionkey to "OFF' position.

Continue with the instructionsthat follow.

ASSEMBLY

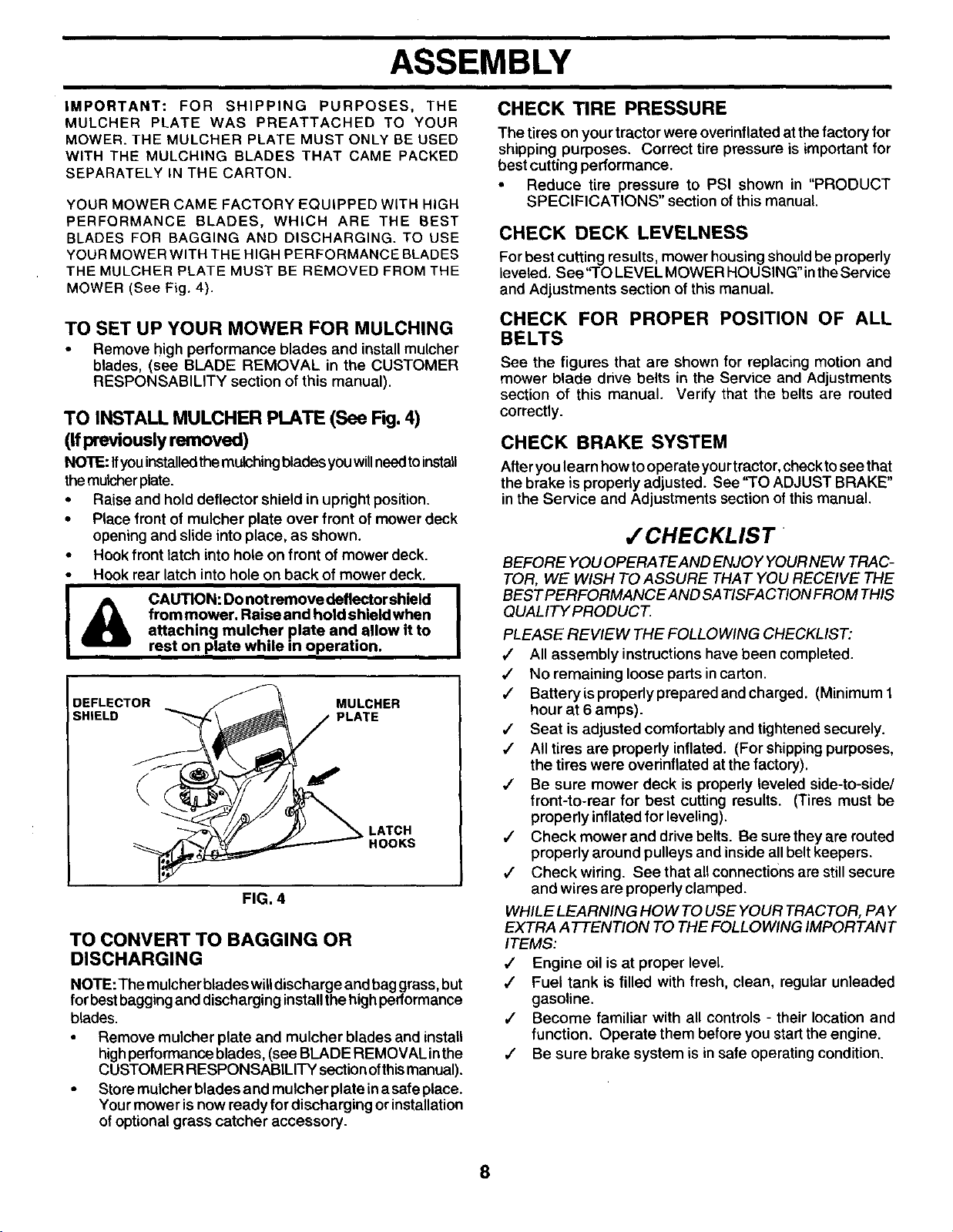

CHECK TIRE PRESSURE

IMPORTANT: FOR SHIPPING PURPOSES, THE

MULCHER PLATE WAS PREATTACHED TO YOUR

MOWER. THE MULCHER PLATE MUST ONLY BE USED

WITH THE MULCHING BLADES THAT CAME PACKED

SEPARATELY IN THE CARTON.

YOUR MOWER CAME FACTORY EQUIPPED WITH HIGH

PERFORMANCE BLADES, WHICH ARE THE BEST

BLADES FOR BAGGING AND DISCHARGING. TO USE

YOUR MOWER WITH THE HIGH PERFORMANCE BLADES

THE MULCHER PLATE MUST BE REMOVED FROM THE

MOWER (See Fig. 4).

TO SET UP YOUR MOWER FOR MULCHING

• Remove high performance blades and installmulcher

blades, (see BLADE REMOVAL in the CUSTOMER

RESPONSABILITY section of this manual).

TO INSTALL MULCHER PLATE (See Fig. 4)

(If previously removed)

NOTE: Ifyouinstalledthe mulching blades youwillneedto install

themulcher plate.

• Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

• Hook front latch into hole on front of mower deck.

Hook rear latch into hole on back of mower deck.

iAc, o.O°n°tr'm°ve " or' e'I

from mower, Raise and hold shield when

attaching mulcher plate and allow it to

rest on plate while in operation.

DEFLECTOR MULCHER

SHIELD

LATCH

HOOKS

FIG. 4

TO CONVERT TO BAGGING OR

DISCHARGING

NOTE: The mulcher blades willdischarge and bag grass, but

for best bagging and discharging install the high performance

blades.

Remove mulcher plate and mulcher blades and instatl

high performance blades, (see BLADE REMOVAL inthe

CUSTOMER RESPONSABILITY section ofthis manual).

Store mulcher blades and mulcher plate in a safe place.

Your mower is now ready for discharging or installation

of optional grass catcher accessory.

The tires on your tractor were overinflated at thefactory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See "TO LEVEL MOWER HOUSING" inthe Service

and Adjustments section ofthis manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that

the brake is properly adjusted. See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual.

,/'CHECKLIST

BEFORE YOU OPERA TEAND ENJOY YOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND SATISFACTION FROM THIS

QUALITYPRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

/ Batteryis properly prepared and charged. (Minimum 1

hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were ovednflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

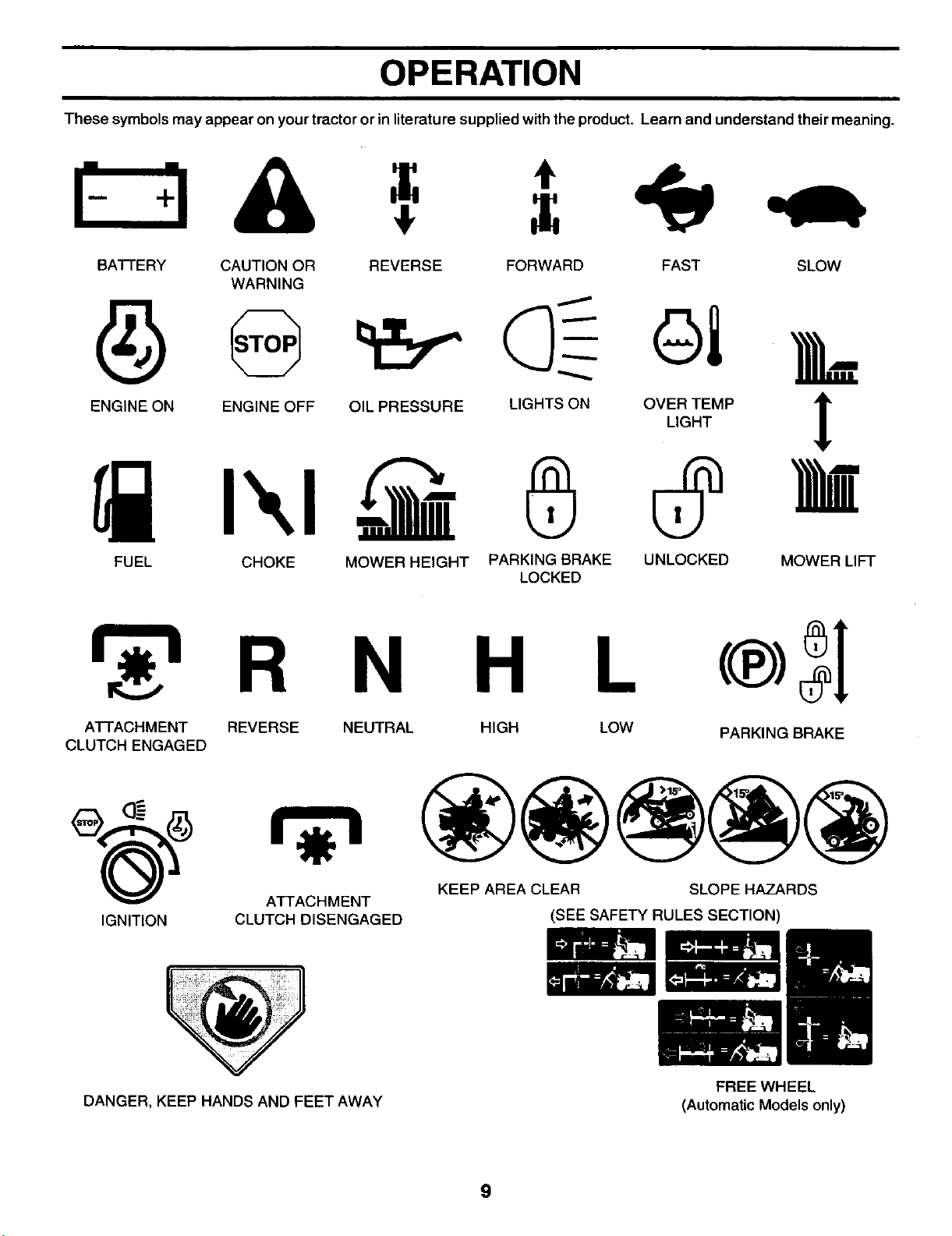

OPERATION

These symbolsmay appear on yourtractor or in literature supplied withthe product. Learn and understand their meaning.

BA'I-I'ERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENG,NEONENG,NEOFFO,,PRESSOREL,GHTSONOV_,_MP I

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N

AI-FACHMENT REVERSE

CLUTCH ENGAGED

H L

IGNITION

ATTACHMENT

CLUTCH DISENGAGED

NEUTRAL HIGH LOW

PARKING BRAKE

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

OPERATION

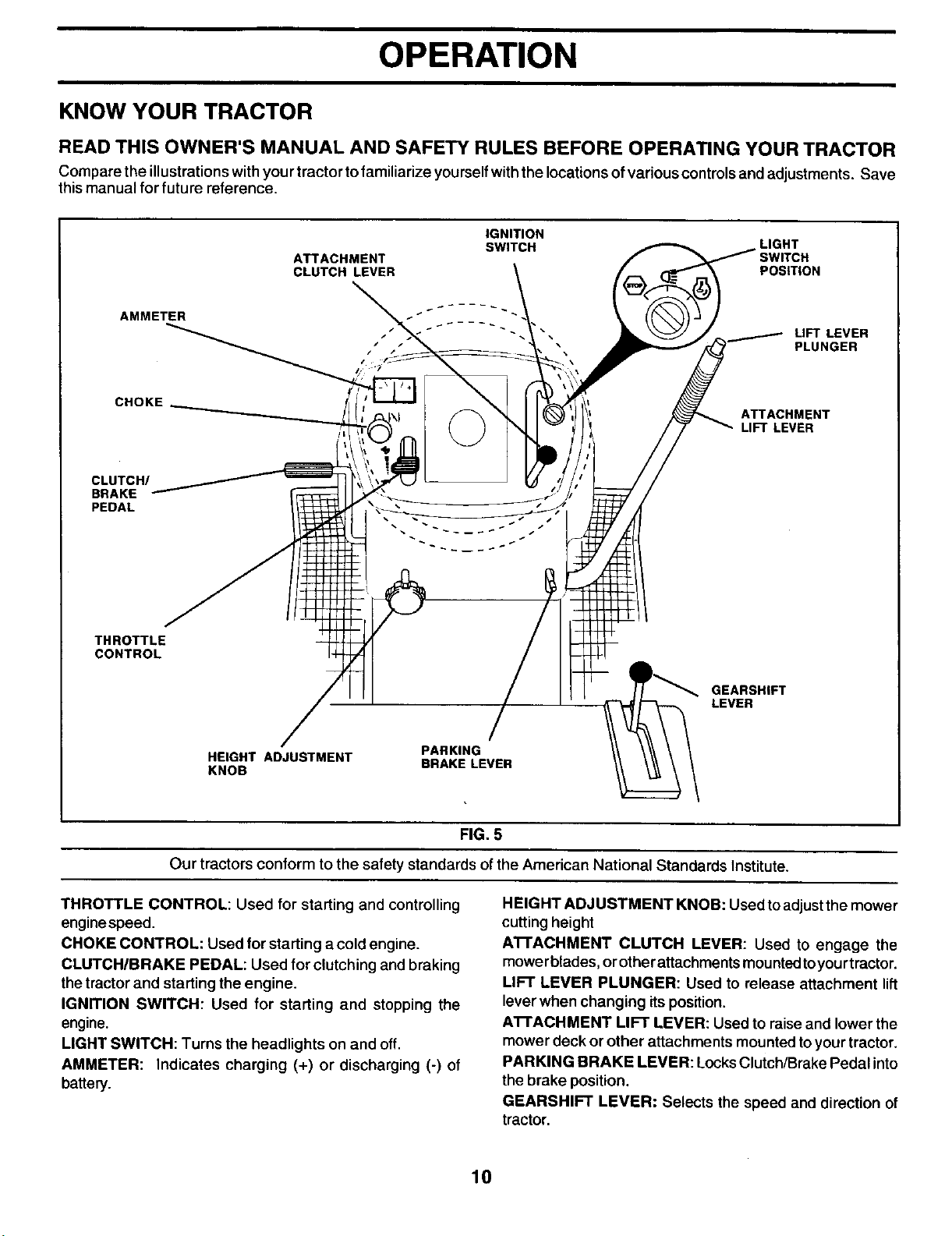

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrationswith your tractor tofamiliarize yourself withthe locations ofvarious controlsand adjustments. Save

this manual for future reference.

IGNITION

SWITCH LIGHT

ATTACHMENT

CLUTCH LEVER POSITION

AMMETER

CHOKE

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

CLUTCH/

BRAKE

PEDAL

THROTTLE

CONTROL

GEARSHIFT

LEVER

PARKING

HEIGHT ADJUSTMENT BRAKE LEVER

KNOB

FIG. 5

Our tractors conform to the safety standards ofthe American National Standards Institute.

THROTTLE CONTROL: Used for starting and controlling

enginespeed.

CHOKE CONTROL: Used for starting a coldengine.

CLUTCH/BRAKE PEDAL: Used for clutching and braking

the tractor and starting the engine.

IGNITION SWITCH: Used for starting and stopping the

engine.

LIGHT SWITCH: Turns the headlights on and off.

AMMETER: Indicates charging (+) or discharging (-) of

battery.

HEIGHT ADJUSTMENT KNOB: Used toadjustthe mower

cutting height

ATTACHMENT CLUTCH LEVER: Used to engage the

mowerblades, or otherattachments mountedtoyourtractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted toyour tractor.

PARKING BRAKE LEVER: LocksClutch/Brake Pedal into

the brake position.

GEARSHIFT LEVER: Selects the speed and direction of

tractor.

OPERATION

The operation of any tractor can result inforeign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating

your tractor or performing any adjustments or repairs. We recommend a wide vision

safety mask over spectacles or sta nda rd safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 6)

Yourtractor is equipped with an operator presence sensing

switch. When engine is running, anyattempt bythe operator

to leave the seat without first setting the parking brake will

shut off the engine.

Depress clutch/brake pedal into full "BRAKE" position

and hold.

• Place parking brake lever in "ENGAGED" position and

release pressure from clutch/Drake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

ATTACHMENT CLUTCH

CHOKE "ENGAGED"

CONTROL POSITION

POSITION

PARKING BRAKE

POSITION

CLUTCH/BRAKE

PEDAL "DRIVE"

POSITION

GEAR SHIFT

HEIGHT _ LEVER

ADJUSTMENT

KNOB PARKING BRAKE

"DISENGAGED" POSITION

FIG. 6

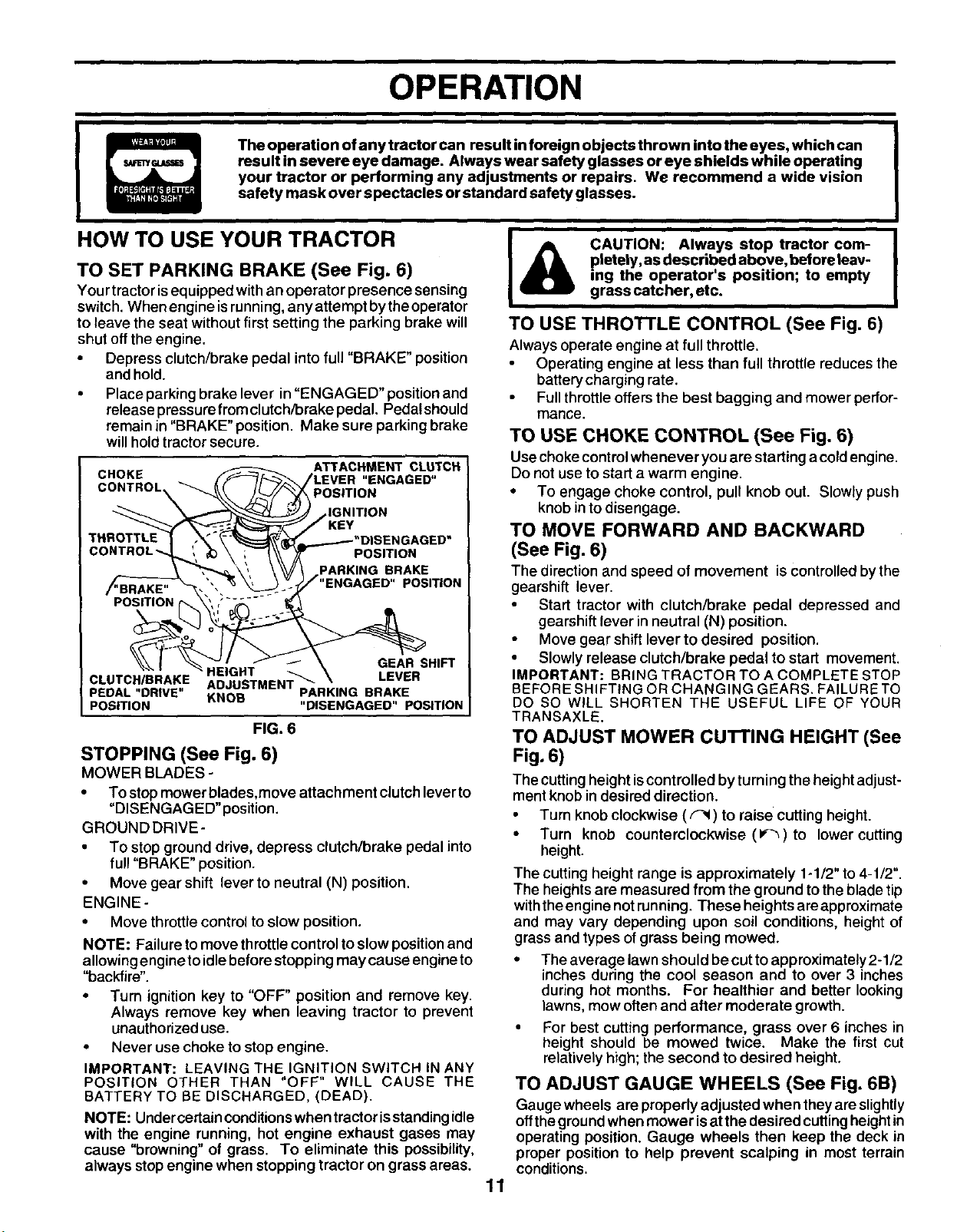

STOPPING (See Fig. 6)

MOWER BLADES -

• To stopmower blades,move attachment clutch leverto

"DISENGAGED" position.

GROUND DRIVE-

• To stop ground drive, depress clutch/Drake pedal into

full "BRAKE" position.

• Move gear shift lever to neutral (N) position.

ENGINE-

• Move throttle control to slow position.

NOTE: Failure to move throttle control to slow position and

allowing engine to idle before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "OFF" WILL CAUSE THE

BATTERY TO BE DISCHARGED, (DEAD).

NOTE: Undercettain conditions when tractor isstanding idle

with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 6)

Always operate engine at full throttle.

Operating engine at less than full throttle reduces the

battery charging rate.

• Full throttle offers the best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig. 6)

Usechoke controlwhenever you are starting a coldengine.

Do not use to start a warm engine.

• To engage choke control, pull knob out. Slowly push

knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig, 6)

The direction and speed of movement is controlled by the

gearshift lever.

• Start tractor with clutch/brake pedal depressed and

gearshift lever in neutral (N) position.

Move gear shift lever to desired position.

• Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP

BEFORE SHIFTING OR CHANGING GEARS. FAILURE TO

DO SO WILL SHORTEN THE USEFUL LIFE OF YOUR

TRANSAXLE.

TO ADJUST MOWER CU'I'rlNG HEIGHT (See

Fig. 6)

The cutting heightis controlled byturning the heightadjust-

ment knobin desired direction.

Turn knobclockwise ( F_ ) to raise cutting height.

• Turn knob counterclockwise (b,_)to lower cutting

height.

The cutting height range isapproximately 1-1/2" to 4-1/2".

The heightsare measured from the ground to the bladetip

withtheengine not running. These heights areapproximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should becut toapproximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and batter looking

lawns, mow often and after moderate growth.

• For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

TO ADJUST GAUGE WHEELS (See Fig. 6B)

Gauge wheels are properly adjusted when they are slightly

offtheground when mower isat the desired cuttingheightin

operating position. Gauge wheels then keep the deck in

proper position to help prevent scalping in most terrain

conditions.

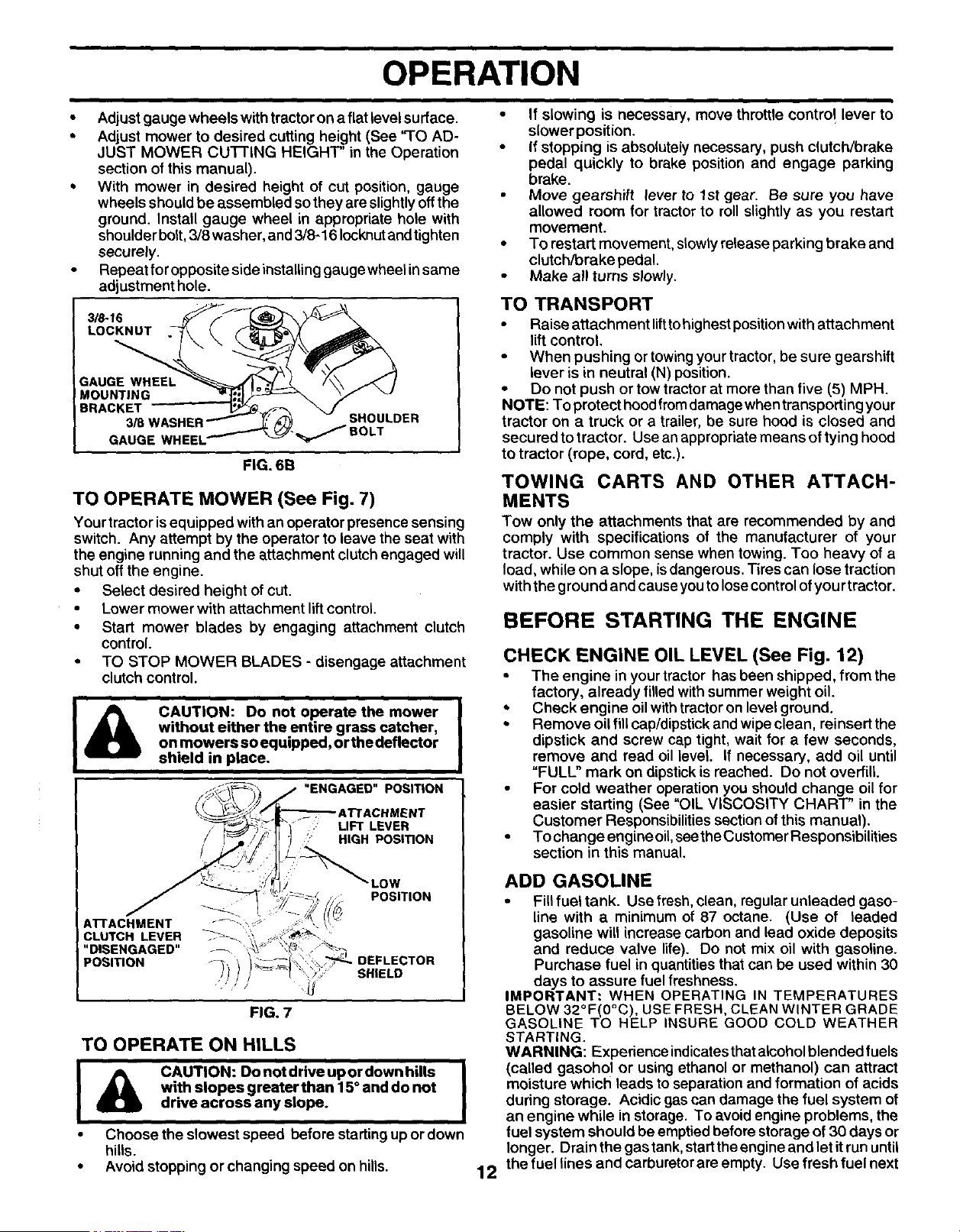

OPERATION

• Adjustgauge wheels with tractoron a fiat level surface. •

• Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUI-FING HEIGHT" in the Operation •

section of this manual).

• With mower in desired height of cut position, gauge •

wheels should be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 3/8 washer, and 3/8-16 Iocknut and tighten •

securely.

• Repeat for opposite side installinggauge wheel in same •

adjustment hole.

3/8-16

LOCKNUT

GAUGE WHEEL

!MOUNTING

BRACKET

GAUGE WHEEL

FIG. 6B

SHOULDER

TO OPERATE MOWER (See Fig. 7)

Yourtractor isequipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutchengaged will

shut off the engine.

• Select desired height ofcut.

• Lower mower with attachment liftcontrol.

• Start mower blades by engaging attachment clutch

control.

• TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, orthe deflector

shield in place.

"ENGAGED" POSITION

i. LIFT LEVER

HIGH POSITION

A'R'ACHMENT

CLUTCH LEVER -_ =_

"DISENGAGED"

POSITION _,)

FIG, 7

LOW

POSITION

DEFLECTOR

SHIELD

TO OPERATE ON HILLS

I & CAUTION: Donotdriveupordownhills I

with slopes greater than 15° and do not

drive across any slope.

Choose the slowest speed before startingup or down

hills.

• Avoid stopping or changing speed on hills,

If slowing is necessary, move throttle control lever to

slower position.

If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

Move gearshift lever to 1st gear. Be sure you have

allowed room for tractor to roll slightly as you restart

movement.

To restart movement, slowly release parking brake and

clutch/brake pedal.

Make all turns slowly.

TO TRANSPORT

Raise attachment lifttohighestposition withattachment

lift control

• When pushing ortowingyour tractor, be sure gearshift

lever is in neutral (N) position.

• Do not push or tow tractorat more than five (5) MPH.

NOTE: To protecthoodfrom damage whentransporting your

tractor on a truck or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate means oftying hood

to tractor (rope, cord, etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your

tractor. Use common sense when towing. Too heavy of a

load, while on a slope, is dangerous. Tires can lose traction

with the ground and cause you to lose control ofyou rtractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 12)

• The engine in yourtractor has been shipped, from the

factory, already filledwith summer weight oil.

• Check engine oilwithtractor on level ground.

• Remove oil fillcap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstickis reached. Do not overfill

For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities sectionof this manual).

• To change engine oil,seetheCustomer Responsibilities

section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular unleaded gaso-

line with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended fuels

(called gasoho! or using ethanol or methanol) can attract

moisture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of

an engine while in storage. To avoid engine problems, the

fuel system should be emptied before storage of 30 days or

longer. Drain the gas tank, start the engine and let it run until

the fuel lines and carburetor are empty. Use fresh fuel next

OPERATION

season. See Storage Instructionsfor additional information.

Never use engine or carburetor cleaner productsinthe fuel

tank or permanent damage may occur.

I& CAUTION: Fill to bottom of gas tank I

filler neck. Do not overfill. Wipe off any I •

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE (See Fig. 6)

When startingthe engine forthe first time orifthe engine has

run out of fuel, it will take extra cranking time to move fuel

from the tank to the engine.

• Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

• Place gear shift lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position.

• Move throttle control to fast position

• Pullchokecontrol outfor a cold engine start attempt. For •

awarm engine start attempt the choke control may not

beneeded.

NOTE: Before starting, read the warm and cold starting

procedures below.

• Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute. Ifthe engine does not start

after several attempts, push choke control in, wait a few

minutes and try again. If engine still does not start, pull

the choke control out and retry.

WARM WEATHER STARTING (50 ° Fand above)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. Ifthe engine starts

torun roughly, puilthechoke control out slightlyforafew

seconds and then continue to push the control in slowly.

• The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow itto warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° F and below)

• When engine starts, slowly push choke control in until

theengine begins to run smoothly. Continue to push the

choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control isfully in. If the engine starts to run roughly, pull

the choke control out slightly for a few seconds and then

continue to push the control in slowly. This may require

an engine warm-up period from several seconds to

several minutes, depending on the temperature.

The attachments can be used du ring the engine warm-

upperiod and may require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

MOWING TIPS

Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

• The left hand side °f m°wer sh°uld be used f°r trimming

• Drive sothat clippings are discharged onto the areathat

has been cut. Have the cut area to the right of the

machine. This will result in a more even distribution of

clippings and more uniform cutting. 13

When mowing large areas, startbyturningtothe dghtso

that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the

opposite direction making left hand turns until finished

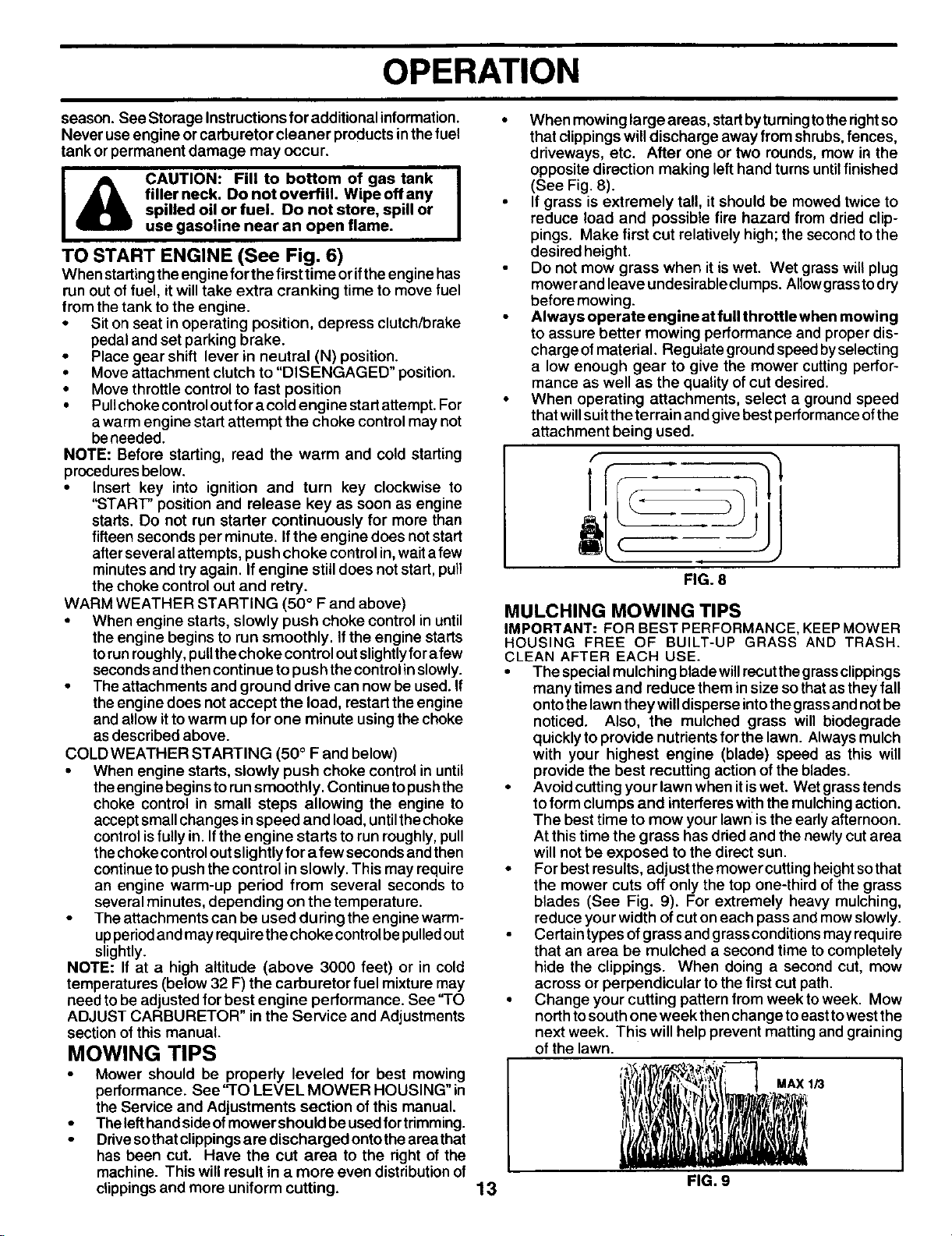

(See Fig. 8).

If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full throttle when mowing

to assure better mowing performance and proper dis-

charge of material. Regulate ground speed byselecting

a low enough gear to give the mower cutting perfor-

mance as well as the quality of cut desired.

When operating attachments, select a ground speed

that will suit the terrain and give best performance of the

attachment being used.

FiG. 8

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEPMOWER

HOUSING FREE OF BUILT-UP GRASS AND TRASH.

CLEAN AFTER EACH USE.

• The special mulching blade willrecutthegrassclippings

many times and reduce them in size sothatas they fall

ontothe lawn they willdisperse into the grassand notbe

noticed. Also, the mulched grass will biodegrade

quicklyto provide nutrientsfor the lawn. Always mulch

with your highest engine (blade) speed as this will

provide the best recutting action ofthe blades.

Avoid cuttingyou rlawn when itiswet. Wetgrass tends

toform clumps and interferes with the mulchingaction.

The best time to mow your lawn isthe early afternoon.

Atthis time the grass has dried and the newly cut area

will not be exposed to the direct sun.

• For best results, adjust the mower cutting height sothat

the mower cuts off only the top one-third of the grass

blades (See Fig. 9). For extremely heavy mulching,

reduce your width of cut on each pass and mow slowly.

Certain types of grass and grass conditions may require

that an area be mulched a second time to completely

hide the clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

MAX 1/3 I

FIG. 9

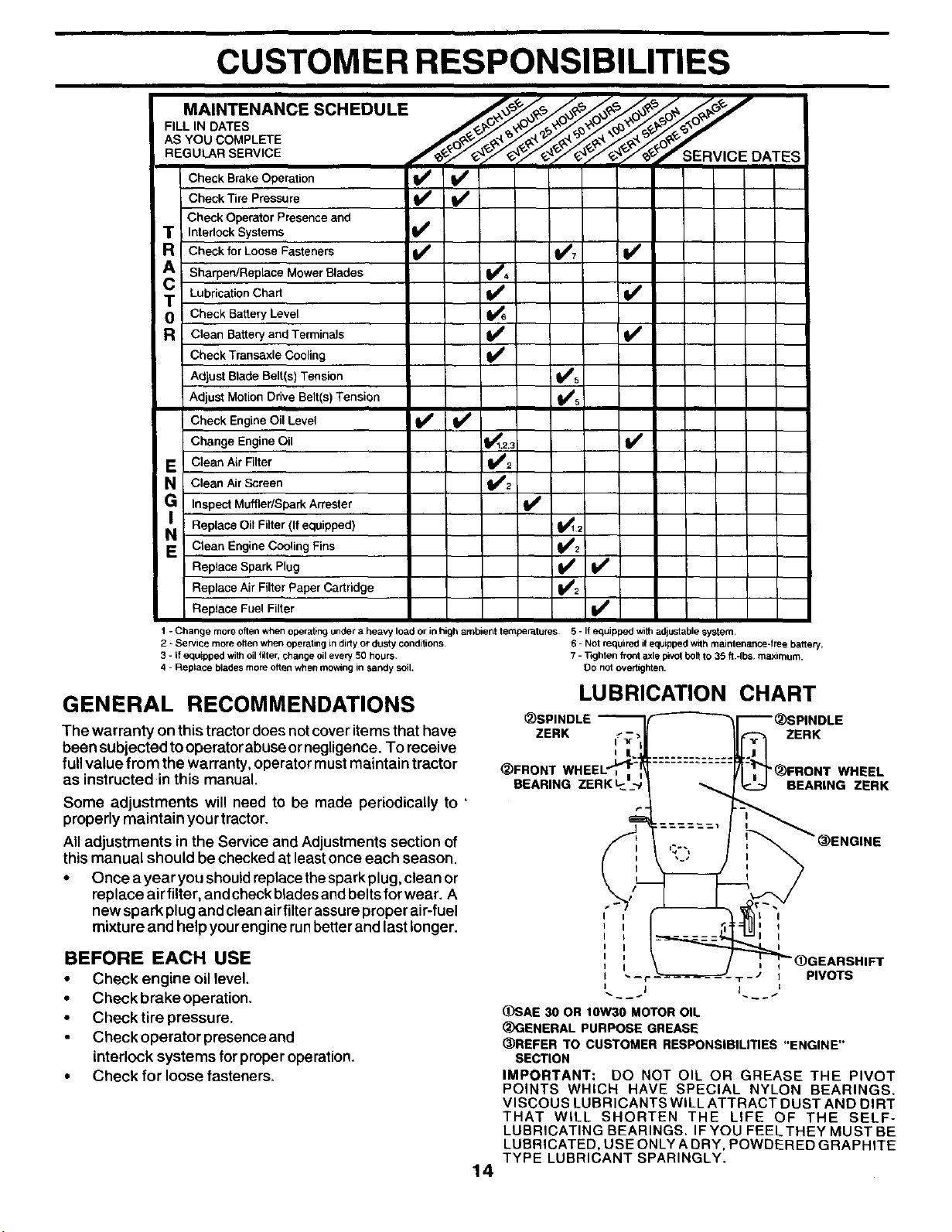

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE ___ _/,o_/_ _/_o_/

F,L ,NOAT S

AsYouCOMPLETE

REGULARSERVICE f_._.7 ¢ _/'_-'._F_y_,._-_.._SERVICE DATES

Check Operator Presence and

T Interlock Systems V'

R Check for Loose Fasteners If 1#17 V'

A Sharpen/Replace Mower Blades

T Lubrication Chart V'

0 Check Battery Level

R Clean Battery and Terminals I_#

Check Transaxle Cooling if

Adjust Blade Belt(s) Tension 1##5

Adjust Motion Drive Belt(s) Tension I_#'s!

i Check Engine Oil Level iI/

Change Engine Oil 1_1,2,: I_

E Clean Air Filter Vm2 1

i (_1 Clean Air Screen t##2

Inspect Muffler/Spark Arrester _'

Replace Oil Filter (If equipped) _22

N Clean Engine Cooling Fins

Replace Spark Plug _' If

Replace Air Filter Paper Cartridge V'2

Replace Fuel Filter V'

1 - Change more often when operating under a heavy load or in high ambient temperatures 5 - If equipped with adjustable system.

2 _ Service more often when operating in dirty or dusty conditions. 6 - Not required it equipped with maintenance-free batte N,

3 - if equipped with oil filter, change oil eve_ 50 hours. 7 - 13ghten front axle pivot bol_ to 35 ft.-Ibs maximum.

4 - Replace blades more often when mowing in sandy soil. Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must maintain tractor

as instructed in this manual,

Some adjustments will need to be made periodically to •

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean or

replace air filter, and check blades and belts for wear. A

new spark plug and clean airfilter assure proper air-fuel

mixture and help yourengine run better and last longer.

BEFORE EACH USE

• Check engine oil level,

• Checkbrakeoperation.

• Check tire pressure,

Check operator presence and

interlock systems for properoperation.

• Check for loose fasteners.

LUBRICATION CHART

_)SPINDLE

ZERK ZERK

(_FRONT

BEARING ZERK

'_)FRONT WHEEL

BEARING ZERK

i _)GEARSHIFT

- -' PIVOTS

_)SAE 30 OR 10W30 MOTOR OIL

_GENERAL PURPOSE GREASE

_)REFER TO CUSTOMER RESPONSIBILITIES "ENGINE"

SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT

POINTS WHICH HAVE SPECIAL NYLON BEARINGS.

VISCOUS LUBRICANTS WILL ATTRACT DUST AND DIRT

THAT WILL SHORTEN THE LIFE OF THE SELF-

LUBRICATING BEARINGS. IF YOU FEEL THEY MUST BE

LUBRICATED, USE ONLYADRY, POWDERED GRAPHITE

TYPE LUBRICANT SPARINGLY.

CUSTOMER RESPONSIBILITIES

MANDREL

ASSEMBLY

TRACTOR

Always observe safety rules when performingany mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance at

high speed in highest gear, then brake must be adjusted.

(See'TO ADJUST BRAKE"_inthe Service and Adjustments

section of this manual).

TIRES

• Maintain preper air pressure inalltires(See"PRODUCT

SPECIFICATIONS" section ofthis manual).

• Keep tires free ofgasoline, oil, or insect controlchemi-

cals which can harm rubber.

Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlocksystems are work-

ing properly. If you rtractor does not function as described,

repair the problem immediately.

• The engine should not start unless the clutch/brake

pedal isfully depressed and attechement clutch control

is in the disengaged position.

• When the engine is running, anyattempt bytheoperator

to leave the seat without first setting the parking brake

should shut offthe engine.

• When the engine isrunning and the attachment clutch is

engaged, any attempt by the operator to leave the seat

should shut off the engine.

• Theattachmentclutch should neveroperateunlessthe

operator is in the seat.

BLADE CARE

For bestresultsmower blades mustbe keptsharp. Replace

bent or damaged blades,

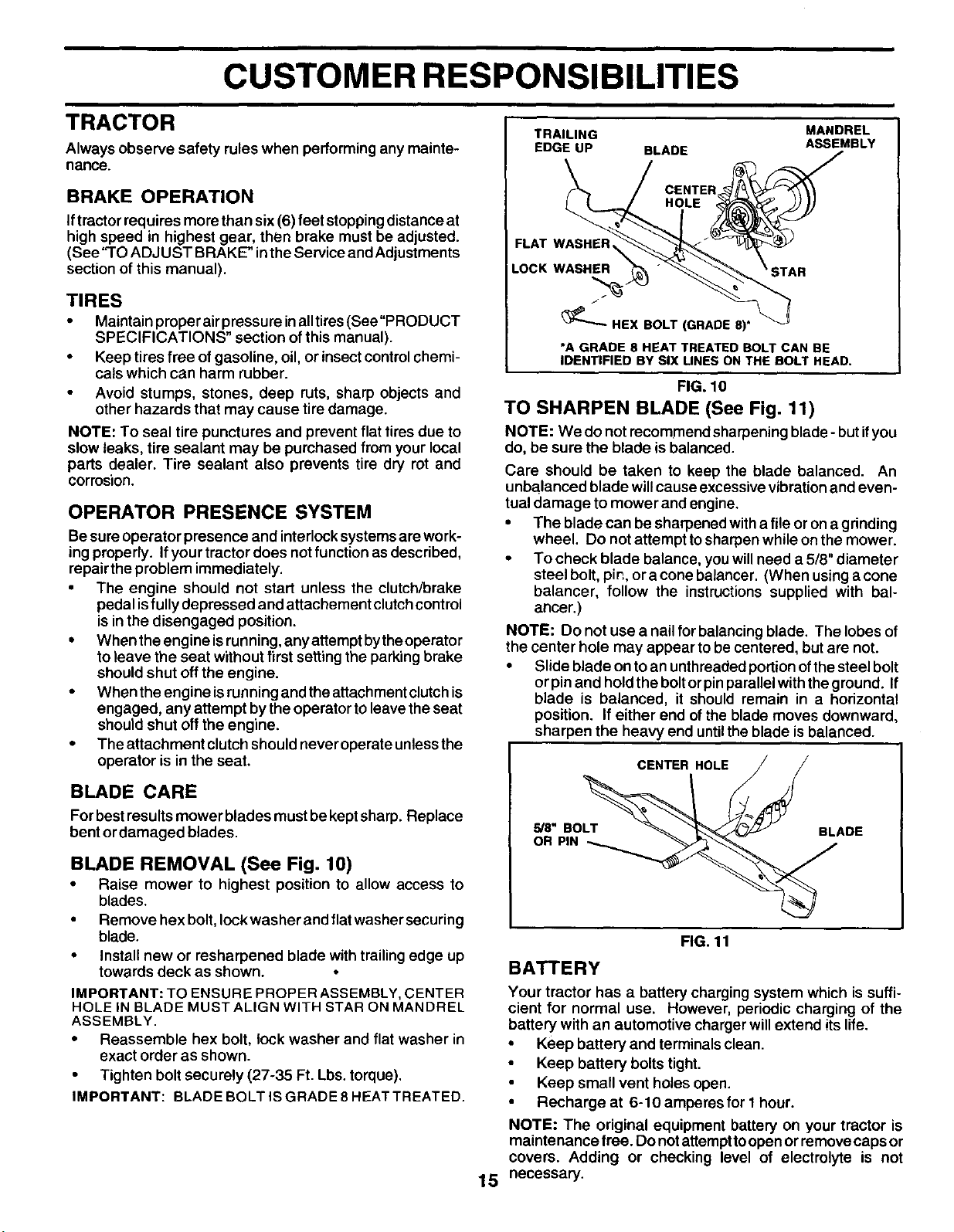

BLADE REMOVAL (See Fig. 10)

• Raise mower to highest position to allow access to

blades.

• Remove hex bolt, Iockwasher and flatwasher securing

blade.

• Install new or resharpened blade with trailingedge up

towards deck as shown.

IMPORTANT: TO ENSURE PROPER ASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

• Reassemble hex bolt, lock washer and flat washer in

exact order as shown.

Tighten bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

TRAILING

EDGE UP BLADE

HOLE

FLAT WASHER,_

LOCK WASHER

HEX BOLT (GRADE 8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SiX LINES ON THE BOLT HEAD.

FIG. 10

TO SHARPEN BLADE (See Fig. 11)

NOTE: We do not recommend sharpening blade- but ifyou

do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a gdnding

wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with bal-

ancer.)

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

• Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallelwith the ground. If

blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

CENTER HOLE/ j/

5/8" BO_ BLADE

OR PIN_

FIG. 11

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger willextend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps or

covers. Adding or checking level of electrolyte is not

necessary.

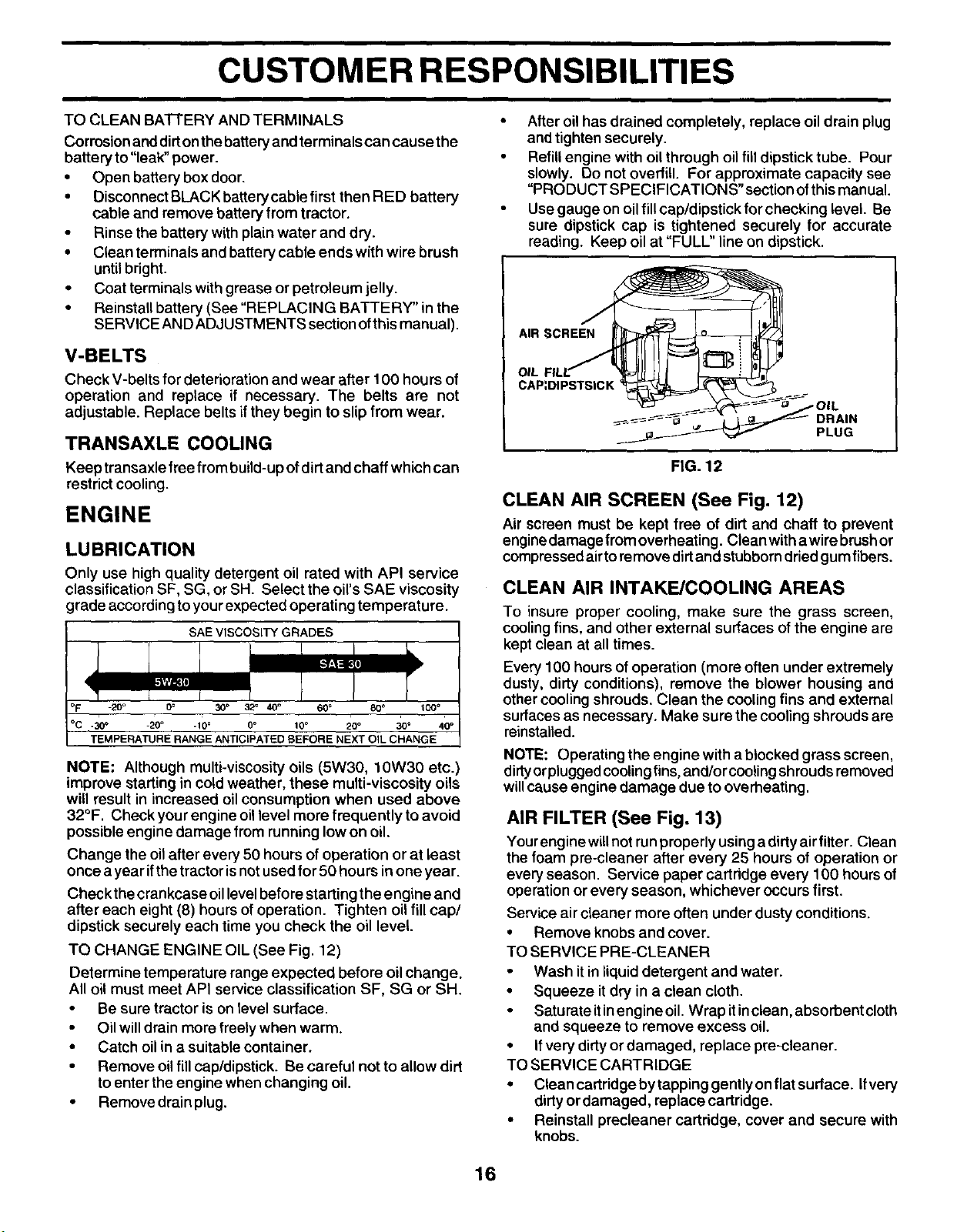

CUSTOMER RESPONSIBILITIES

TO CLEAN BA'I-FERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause the

battery to "leak" power.

• Open battery box door.

• Disconnect BLACK batterycable first then RED battery

cable and remove battery from tractor.

Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

• Coat terminals with grease or petroleum jelly.

• Reinstall battery (See "REPLACING BATTERY" in the

SERVICE AND ADJUSTMENTS section ofthis manual).

V-BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

Keep transaxle freefrom build-upofdirtand chaff which can

restrictcooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF, SG, or SH. Select the oil's SAE viscosity

grade according to your expected operating temperature.

SAE VISCOSITY GRADES

-20o 0o 30° 32° 40° 60° 80°

.30o -20° _10o 0o 10° 20° 30°

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year ifthe tractor is not used for 50 hours in one year.

Check the crankcase oillevel before starting the engine and

after each eight (8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Fig. 12)

Determine temperature range expected before oil change.

All oil must meet API service classification SF, SG or SH.

Be sure tractor is on level surface.

Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

• Remove drain plug.

• After oil has drained completely, replace oil drain plug

and tighten securely.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this manual.

• Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick.

AIR SCREEN

CAP',DIPSTSICK '

OIL

DRAIN

PLUG

FIG. 12

CLEAN AIR SCREEN (See Fig. 12)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Cleanwith a wire brushor

compressedairto remove dirtand stubborndried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirty orplugged cooling fins, and/orcooling shrouds removed

will cause engine damage due to overheating.

AIR FILTER (See Fig. 13)

Yourengine willnot runproperly usinga dirtyairfilter. Clean

the foam pre-cleaner after every 25 hours of operation or

every season. Service paper cartridge every 100 hours of

operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove knobs and cover.

TO SERVICE PRE-CLEANER

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

Saturate itin engine oil. Wrap itinclean, absorbent cloth

and squeeze to remove excess oil.

• If very dirty or damaged, replace pre-cleaner.

TO SERVICE CARTRIDGE

• Cleancartridgebytappinggentlyonflatsurface. Ifvery

dirty or damaged, replace cartridge.

• Reinstall precleaner cartridge, cover and secure with

knobs.

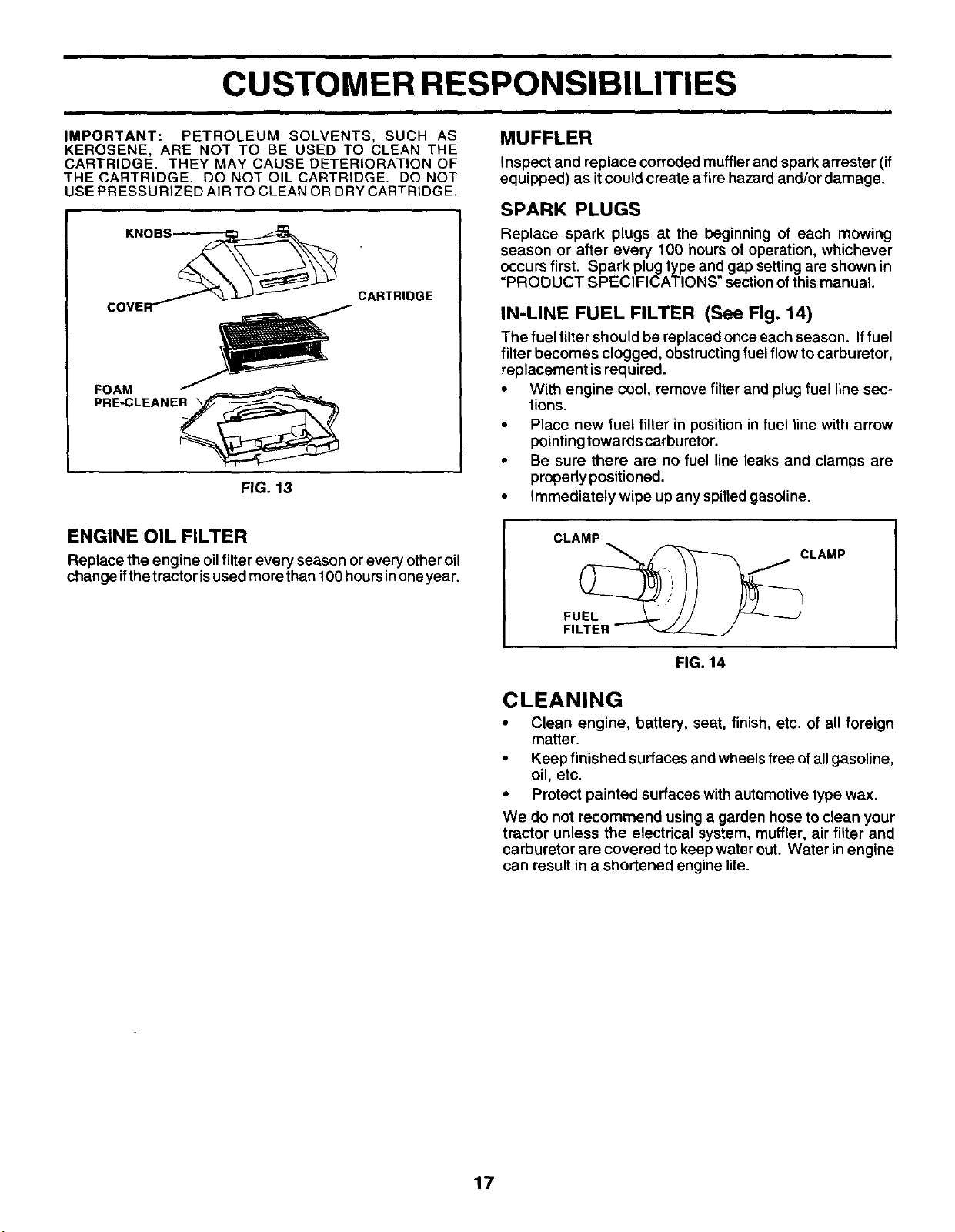

CUSTOMER RESPONSIBILITIES

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY CARTRIDGE.

CARTRIDGE

FOAM _.

PRE-CLEANE_

FIG. 13

ENGINE OIL FILTER

Replace the engine oilfilterevery season orevery otheroil

change ifthe tractorisused more than 100 hoursinone year.

MUFFLER

Inspect and replace corroded mufflerand spark arrester (if

equipped) as itcould create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 14)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

• With engine cool, remove filter and plug fuel line sec-

tions.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

• Be sure there are no fuel line leaks and clamps are

properly positioned.

• Immediately wipe up any spilled gasoline.

CLAMP

FUEL _ //

FILTER

FIG. 14

CLEANING

• Clean engine, battery, seat, finish, etc. of all foreign

matter.

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

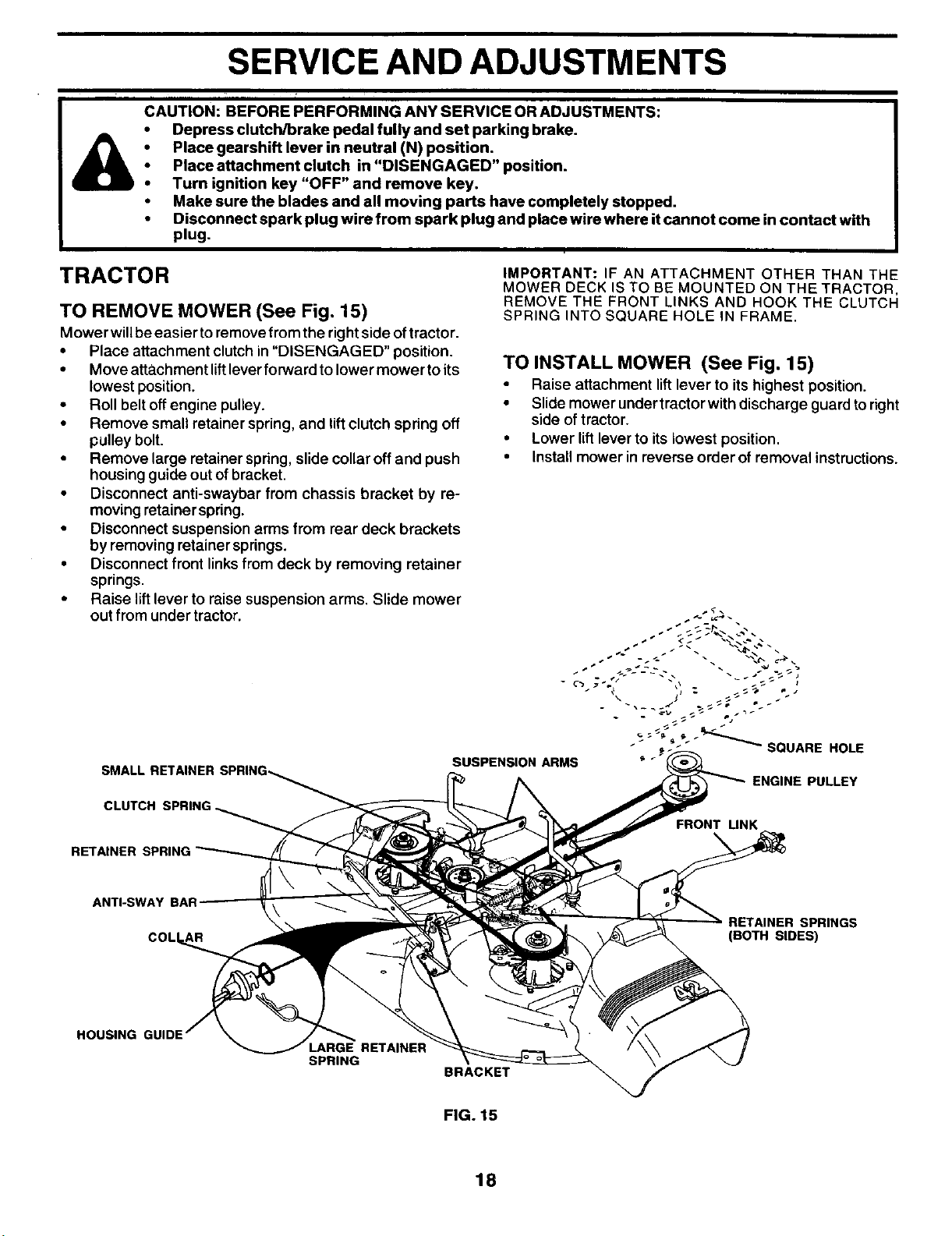

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE ORADJUSTMENTS:

Depress clutch/brake pedal fully and set parking brake.

Place gearshift lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with

plug.

TRACTOR

TO REMOVE MOWER (See Fig. 15)

Mower willbe easier toremove from the rightside oftractor.

• Place attachment clutch in "DISENGAGED" position.

• Moveattachmentliftleverforwardtolowermowertoits

lowest position.

• Roll belt off engine pulley.

• Remove small retainer spring, and liftclutch spring off

pulley bolt.

• Remove large retainer spring, slide collar off and push

housing guide out ofbracket.

• Disconnect anti-swaybar from chassis bracket by re-

moving retainer spring.

• Disconnect suspension arms from rear deck brackets

by removing retainer springs.

• Disconnect front linksfrom deck by removing retainer

springs.

• Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

SMALL RETAINER

CLUTCH SPRING

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,

REMOVE THE FRONT LINKS AND HOOK THE CLUTCH

SPRING INTO SQUARE HOLE IN FRAME.

TO INSTALL MOWER (See Fig. 15)

• Raise attachment liftlever to itshighest position.

• Slide mower under tractorwith discharge guard to right

side of tractor.

• Lower liftlever to its lowest position.

• Install mower in reverse order of removal instructions.

"" %" SQUARE HOLE

SUSPENSION ARMS

ENGINE PULLEY

FRONT LINK

ANTI-SWAY BAR

COL

RETAINER SPRINGS

(BOTH SIDES)

HOUSING GU

RETAINER

SPRING

BRACKET

FIG. 15

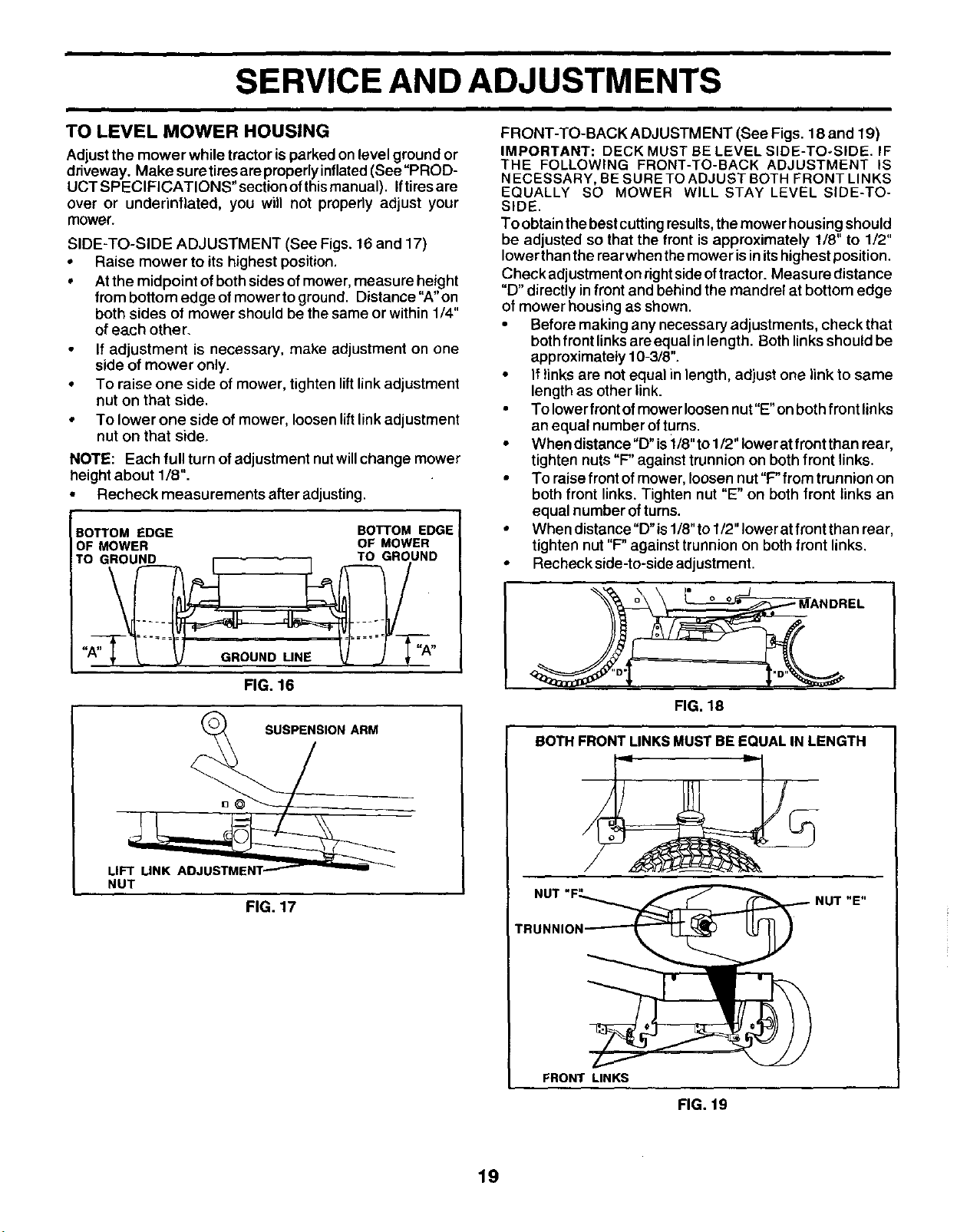

SERVICE AND ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower while tractor isparked on level ground or

driveway. Make sure tiresare properlyinflated(See"PROD-

UCT SPECIFICATIONS" sectionofthismanual). Iftiresare

over or underinflated, you will not properly adjust your

mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 16 and 17)

• Raise mower to its highest position.

• At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance"A" on

both sides of mower should be the same or within 1/4"

of each other.

• If adjustment is necessary, make adjustment on one

side of mower only.

• To raise one side of mower, tighten lift link adjustment

nut on that side.

• To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nut willchange mower

height about 1/8".

• Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER OF MOWER

GROUND TO GROUND

GROUND UNE

FIG. 16

SUSPENSION ARM

LIFT UNK ADJUSTME

NUT

FIG. 17

FRONT-TO-BACK ADJUSTMENT (See Figs. 18 and 19)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing should

be adjusted so that the front is approximately 1/8" to 1/2"

lower than the rearwhen the mower is in its highest position.

Check adjustment on rightside oftractor. Measure distance

"D" directly in front and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjustments, check that

both front links are equal in length. Both links should be

approximately 10-3/8".

• If links are not equal in length, adjust one linkto same

length as other link.

• To lower front of mower loosen nut"E"on both front links

an equal number of turns.

• Whendistance"D"isl/8"toll2"loweratfrontthanrear,

tighten nuts "F" against trunnion on both front links.

• To raise front of mower, loosen nut "F" from trunnion on

both front links. Tighten nut "E" on both front links an

equal number of turns.

• Whendistance"D"isl/8"tol/2"loweratfrontthanrear,

tighten nut "F" against trunnion on both front links.

• Recheck side-to-side adjustment.

FIG. 18

BOTHFRONT LINKS MUSTBE EQUAL IN LENGTH

IT "E"

FRONT LINKS

FIG. 19

SERVICE AND ADJUSTMENTS

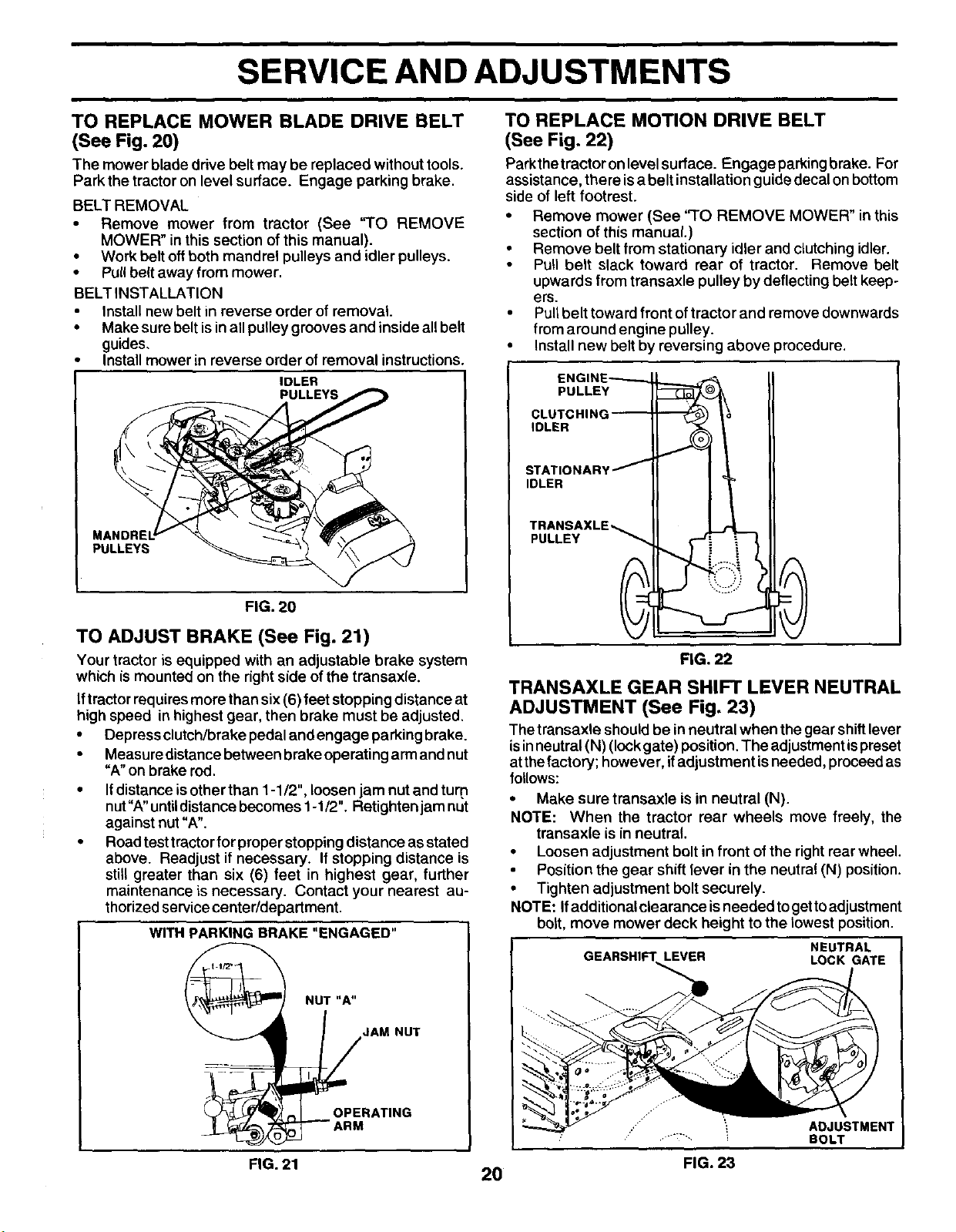

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 20)

The mower blade drive belt may be replaced without tools.

Park the tractoron level surface. Engage parking brake.

BELT REMOVAL

• Remove mower from tractor (See "TO REMOVE

MOWER" in this section ofthis manual).

• Work belt offboth mandrel pulleys and idler pulleys.

• Pullbelt away from mower.

BELT INSTALLATION

Install new belt in reverse order of removal.

• Make sure belt isin allpulley grooves and inside all belt

guides,

Install mower in reverse order of removal instructions.

IDLER

PULLEYS

FIG. 20

TO ADJUST BRAKE (See Fig. 21)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side ofthe transaxle.

Iftractorrequiresmore than six(6) feet stopping distance at

high speed in highest gear, then brake must be adjusted,

• Depressclutch/brake pedal and engage parkingbrake.

• Measure distancebetween brake operating arm and nut

=A"on brake rod.

• Ifdistance isotherthan 1-1/2", loosen jam nut and tur,n

nut"A"untildistance becomes 1-1/2". Retighten jam nut

against nut "A".

• Road testtractorfor proper stoppingdistance as stated

above. Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center/department.

WITH PARKING BRAKE "ENGAGED"

NUT "A"

JAM NUT

I RATING

_-_ ARM

FIG. 21

TO REPLACE MOTION DRIVE BELT

(See Fig. 22)

Parkthetractor on level surface. Engage parkingbrake. For

assistance, there isa belt instaUationguide decal onbottom

side of left footrest.

• Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

• Remove belt from stationary idler and clutching idler.

Pull belt slack toward rear of tractor. Remove belt

upwards from transaxle pulley by deflecting belt keep-

ers.

Pull belt toward front of tractor and remove downwards

from around engine pulley.

• Install new belt by reversing above procedure.

ENGINE-_

PULLEY

CLUTCHING--

IDLER

STATIONARY

IDLER

TRANSAXLE_

PULLEY _"

FIG. 22

TRANSAXLE GEAR SHIFT LEVER NEUTRAL

ADJUSTMENT (See Fig. 23)

The transaxle shouldbe inneutral when the gear shiftlever

isinneutral (N) (lockgate) position.The adjustmentispreset

at thefactory; however, ifadjustment isneeded, proceed as

follows:

• Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move freely, the

transaxle is in neutral.

• Loosen adjustment bolt in front of the right rear wheel.

Position the gear shift lever in the neutral (N) position.

• Tighten adjustment bolt securely.

NOTE: If additional clearance is needed toget toadjustment

bolt, move mower deck height to the lowest position.

GEARSHIFT LEVER

NEUTRAL

LOCK GATE

20¸

FIG. 23

ADJUSTMENT

BOLT

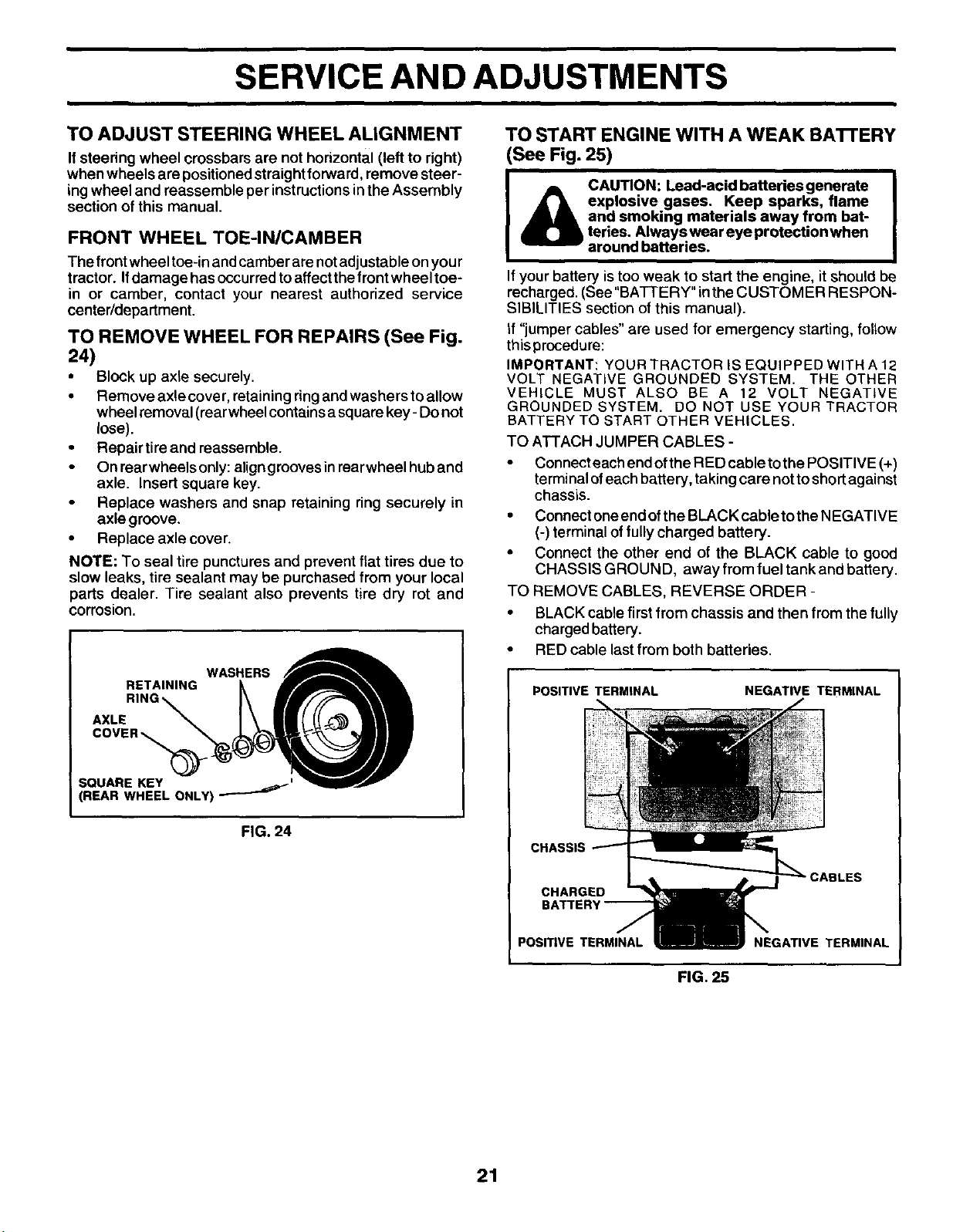

SERVICE AND ADJUSTMENTS

TO ADJUST STEERING WHEEL ALIGNMENT

Ifsteering wheel crossbars are not horizontal (left to right)

when wheels are positionedstraight forward, remove steer-

ing wheel and reassemble per instructionsinthe Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-inand camber are notadjustable on you r

tractor. If damage has occurred to affect the front wheeltoe-

in or camber, contact your nearest authorized service

center/department.

TO REMOVE WHEEL FOR REPAIRS (See Fig.

24)

• Block up axle securely.

• Remove axle cover, retainingringand washers toallow

wheel removal(rearwheel containsa squarekey- Do not

lose).

• Repair tire and reassemble.

On rearwheels only: align grooves in rearwheel hub and

axle. Insert square key.

Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

I WASHERS

RETAINING _t _r__L

R,.G\ I\ lfY/- ' ILI

AXLE _- I \ I1{ U_ Ill

SQUARE KEY

(REAR WHEEL ONLY) "_

FIG. 24

TO START ENGINE WITH A WEAK BA'I-rERY

(See Fig. 25)

CAUTION: Lead-acid batteries generate

explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

Ifyour battery is too weak to start the engine, itshould be

recharged. (See "BATTERY" in the CUSTOM ER RESPON-

SIBILITIES section of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect each end ofthe RED cabletothe POSITIVE (+)

terminal ofeach battery, taking care not to short against

chassis.

• Connect one end ofthe BLACK cabletothe NEGATIVE

(-) terminal of fully charged battery.

• Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries,

POSITIVE TERMINAL NEGATIVE TERMINAL

CHASSIS

CHARGED

POSITIVE TERMINAL NEGATIVE TERMINAL

FIG. 25

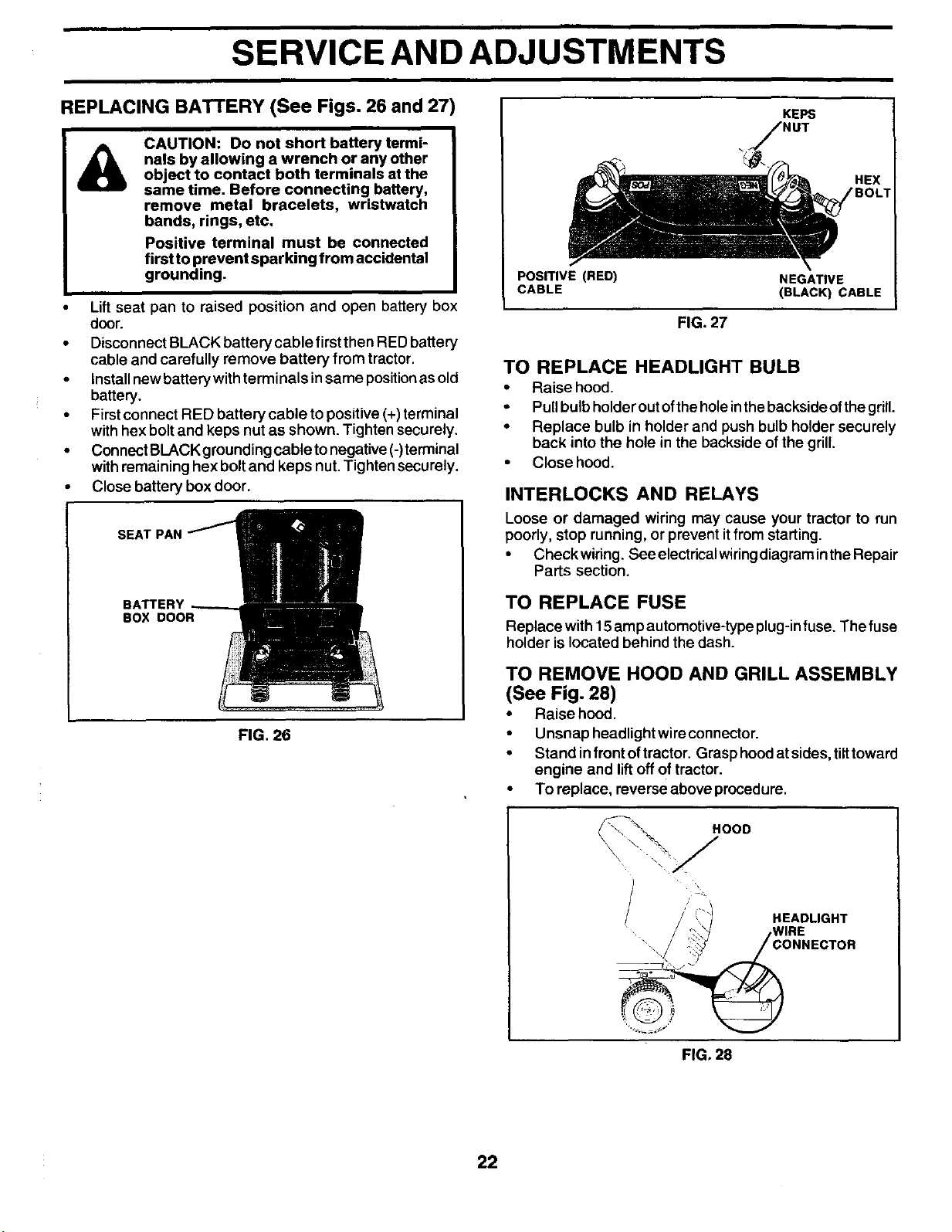

SERVICE AND ADJUSTMENTS

REPLACING BATTERY (See Figs. 26 and 27

CAUTION: Do not short battery termi-

nals by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

Lift seat pan to raised position and open battery box

door.

• Disconnect BLACK battery cable firstthen RED battery

cable and carefully remove battery from tractor.

• Install new battery with terminals insame position as old

battery.

• First connect RED battery cable to positive (+)terminal

with hex bolt and keps nut as shown. Tighten securely.

• Connect BLACK grounding cable to negative (-)terminal

with remaining hex bolt and keps nut. Tighten securely.

• Close battery box door.

SEAT PAN

BATTERY

BOX DOOR

FIG. 26

KEPS

HEX

POSITIVE (RED) NEGATIVE

CABLE (BLACK) CABLE

FIG. 27

TO REPLACE HEADLIGHT BULB

• Raise hood.

• Pullbulb holderoutoftheholeinthe backsideofthe grill.

• Replace bulb in holder and push bulb holdersecurely

back into the hole in the backside of the grill.

• Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Checkwiring. See electrical wiring diagram in the Repair

Parts section.

TO REPLACE FUSE

Replace with 15 amp automotive-typeplug-infuse. The fuse

holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 28)

• Raise hood.

• Unsnap headlight wireconnector.

• Stand in frontoftractor. Grasp hoodat sides, tilttoward

engine and lift off of tractor.

• To replace, reverse above procedure.

_ HOOD

/" (:_ HEADLIGHT

/ <_,._'i /WIRE

'.!if /CONNECTOR

FIG. 28

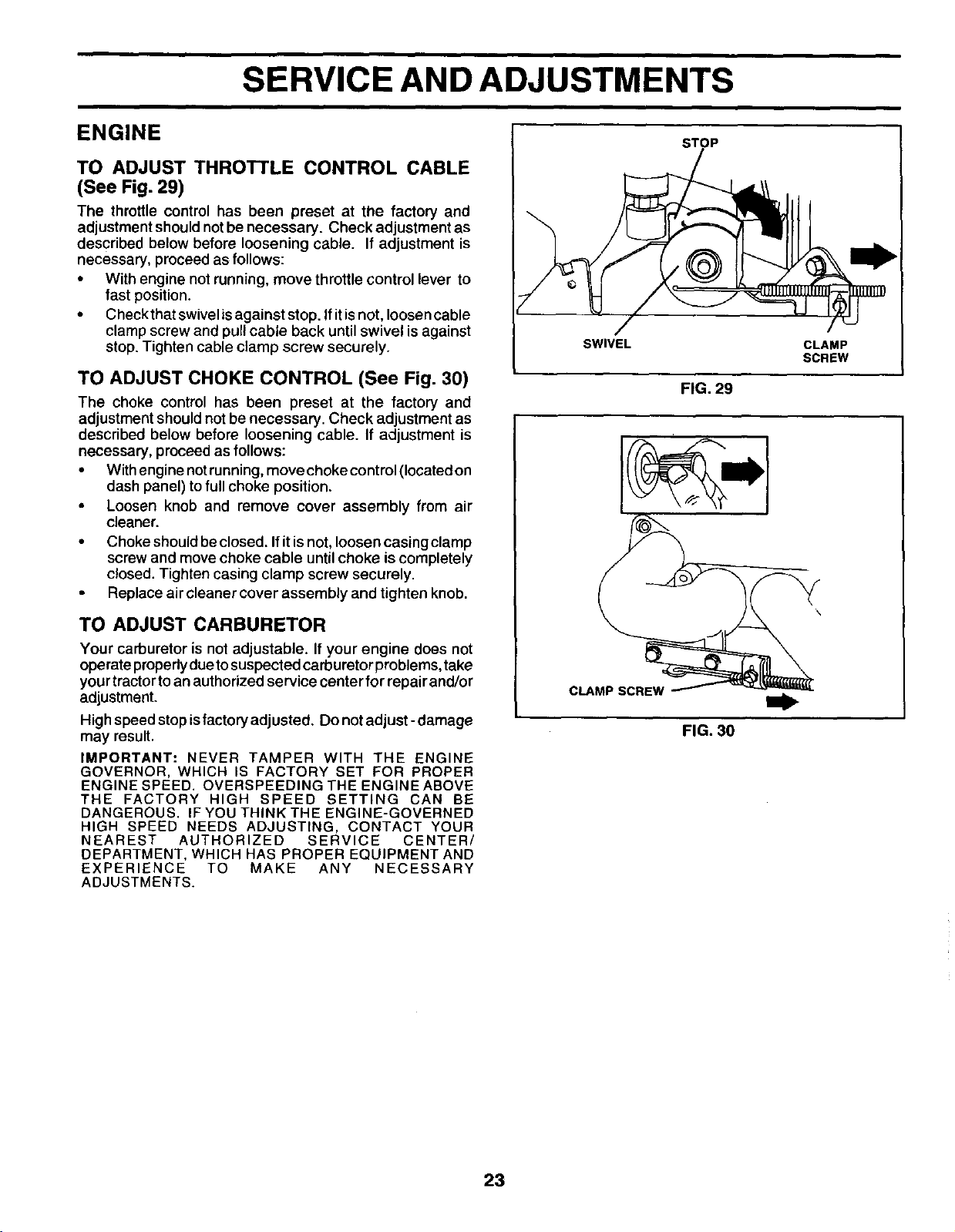

SERVICE AND ADJUSTMENTS

ENGINE )p

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 29)

The throttle control has been preset at the factory and

adjustment should notbe necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

• With engine notrunning, move throttle control lever to

fast position.

• Check that swivel isagainst stop. Ifitis not, loosen cable

clamp screw and pull cable back until swivel is against

stop. Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 30)

The choke control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

• With engine not running, move choke control (located on

dash panel) to full choke position.

• Loosen knob and remove cover assembly from air

cleaner.

• Choke should be closed. If it is not, loosen casing clamp

screw and move choke cable until choke is completely

closed. Tighten casing clamp screw securely.

• Replace air cleaner cover assembly and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems, take

your tractor to an authorized service center for repair and/or

adjustment.

High speed stop is factory adjusted. Do not adjust- damage

may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

SWIVEL CLAMP

SCREW

FIG. 29

CLAMP SCREW

FIG. 30

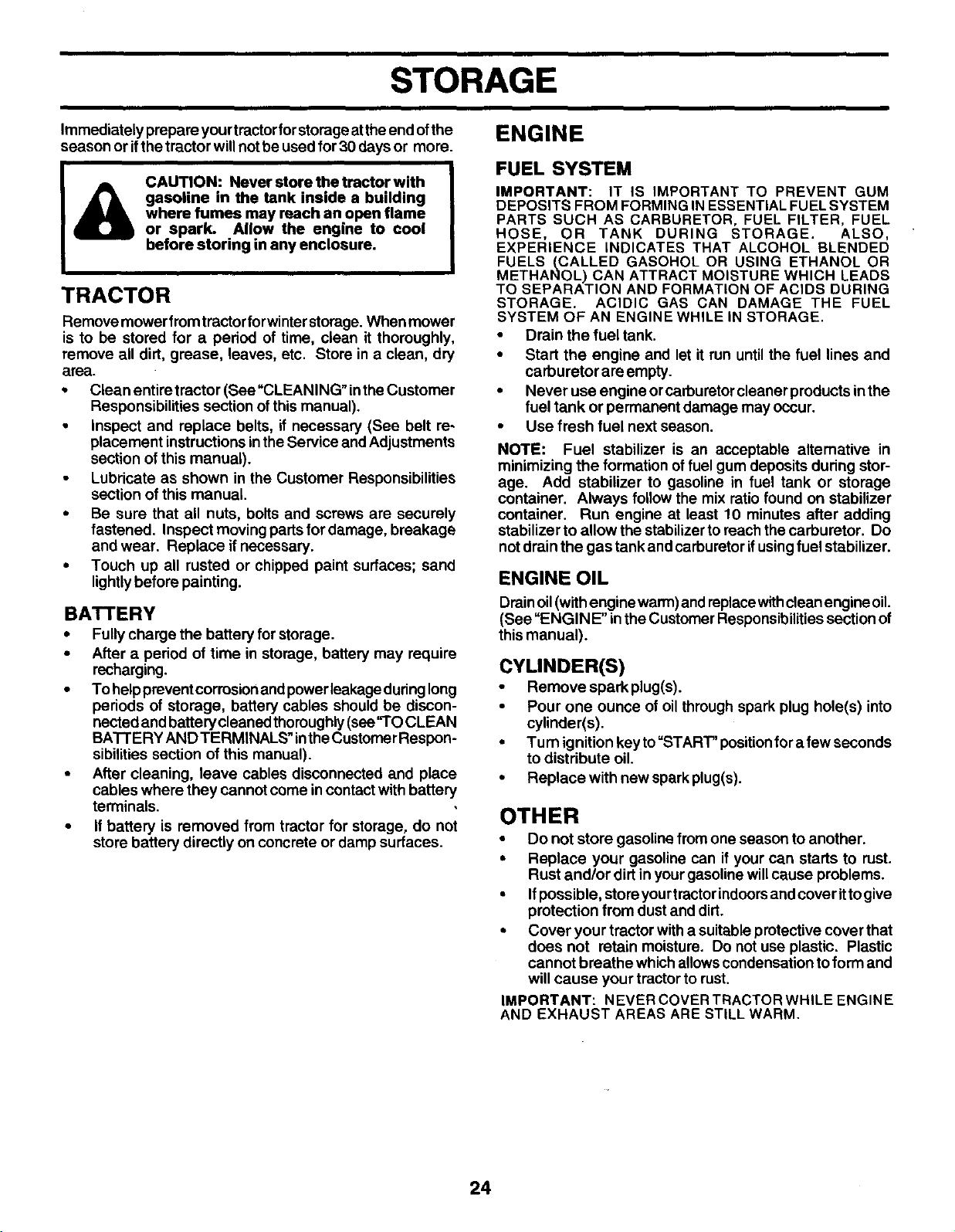

STORAGE

ENGINE

Immediately prepare yourtractorforstorageatthe end ofthe

season or ifthetractor willnotbe used for 30 daysor more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mowerfrom tractorforwinter storage. When mower

is to be stored for a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store in a clean, dry

area.

• Clean entire tractor (See =CLEANING" intheCustomer

Responsibilities section ofthis manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions inthe Service and Adjustments

section of this manual).

• Lubricate as shown in the Customer Responsibilities

section of this manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace ifnecessary.

• Touch up all rusted or chipped paint surfaces; sand

lightlybefore painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery may require

recharging.

• To helppreventcorrosionand powerleakage dudnglong

periods of storage, battery cables should be discon-

nected and batterycleaned thoroughly(see'_ro CLEAN

BATTERY AND TERMINALS" intheCustomer Respon-

sibilities section of this manual).

• After cleaning, leave cables disconnected and place

cables where they cannot come incontact with battery

terminals.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL SYSTEM

PARTS SUCH AS CARBURETOR, FUEL FILTER, FUEL

HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run untilthe fuel lines and

carburetor are empty.

• Never use engine orcarburetor cleaner products inthe

fuel tank or permanent damage may occur.

• Use fresh fuelnext season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation offuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratiofound on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizerto reach thecarburetor. Do

notdrain the gas tank and carburetor ifusingfuel stabilizer.

ENGINE OIL

Drainoil(with engine warm) and replacewithcleanengine oil.

(See "ENGINE" inthe Customer Responsibilities sectionof

this manual).

CYLINDER(S)

• Remove spark plug(s).

• Pour one ounce of oilthrough spark plug hole(s) into

cylinder(s).

• Tu m ignition key to=START' position for a few seconds

to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do notstore gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt inyour gasolinewillcause problems.

• Ifpossible, store yourtractorindeersand cover ittogive

protection from dust and dirt.

• Cover your tractor witha suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allowscondensation toform and

willcause your tractorto rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

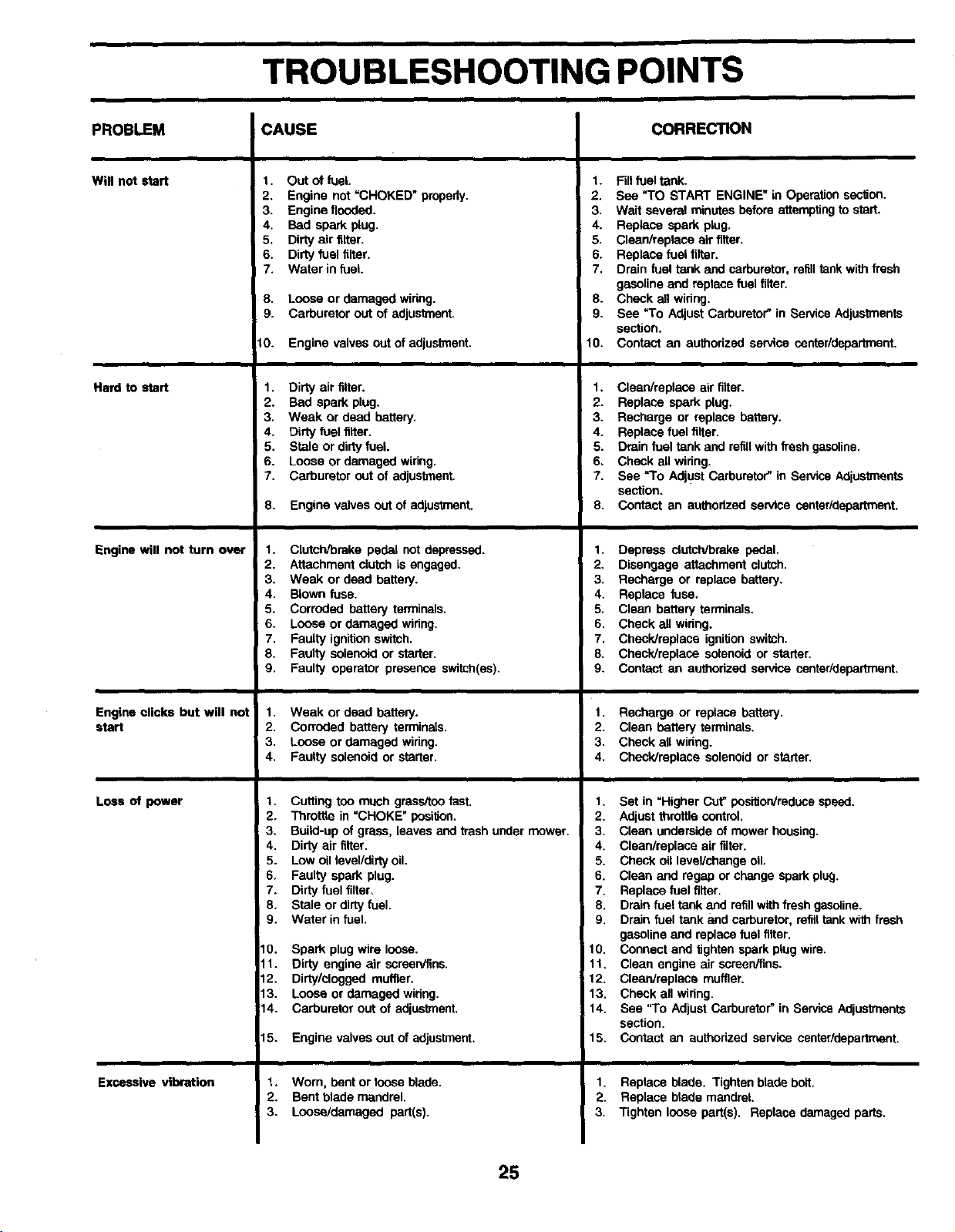

TROUBLESHOOTING POINTS

CAUSE CORRECTION

PROBLEM

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

1. Out of fuel.

2. Engine not =CHOKED" propedy.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged widng.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Louse or damaged wiring.

7. Carburetor out of adjustment

8. Engine valves out of adjustment.

1. Clutch/brake pedal not depressed.

2. Attachmentclutch is engaged.

3. Weak or dead battery.

J4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

Faultyignitionswitch.I i Faulty solenoidor starter.

9. Faulty operator presenceswitch(as).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged widng.

4. Faulty solenoid or starter.

t. Cutting too much grass/tou fast.

2. Throttle in "CHOKE" posi_on.

3. Build-up of grass, leaves and trash under mower.

4. Dirty air tilter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter,

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire Ioo_e.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged widng.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Fill fuel tank.

2. Sos "TO START ENGINE" in Operation sec_on.

3. Walt several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replase air filter.

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refilltank with fresh

gasoline and replace fuel tilter.

8. Check all wiring.

9. See =To Adjust Carburetor" in Service Adjustments

section.

10. Contac_ an authorized service centsrldepartment.

1. Clean/replace air tilter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refillwith fresh gasoline.

6, Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service sentsr/departmeat.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Checkireptace solenoid or starter.

9. Contact an authorized service center/daparVnant.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replacesolenoidor starter,

1, Set in =Higher Cut" posltion/mduce spend.

2, Adjust throttle control,

3. Clean undemide of mower housing.

4. Clean/replaca air filter.

5. Check oil level/change oil.

6. Clean and regal) or change spark plug.

7. Replace fuel tilter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel tilter.

10. Connect and tighten spark plug wire.

11. Clean engine air semen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. Sea 'q'o Adjust Carburetor" in Service Adjustments

section.

15. Contact an authorized service sentsr/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

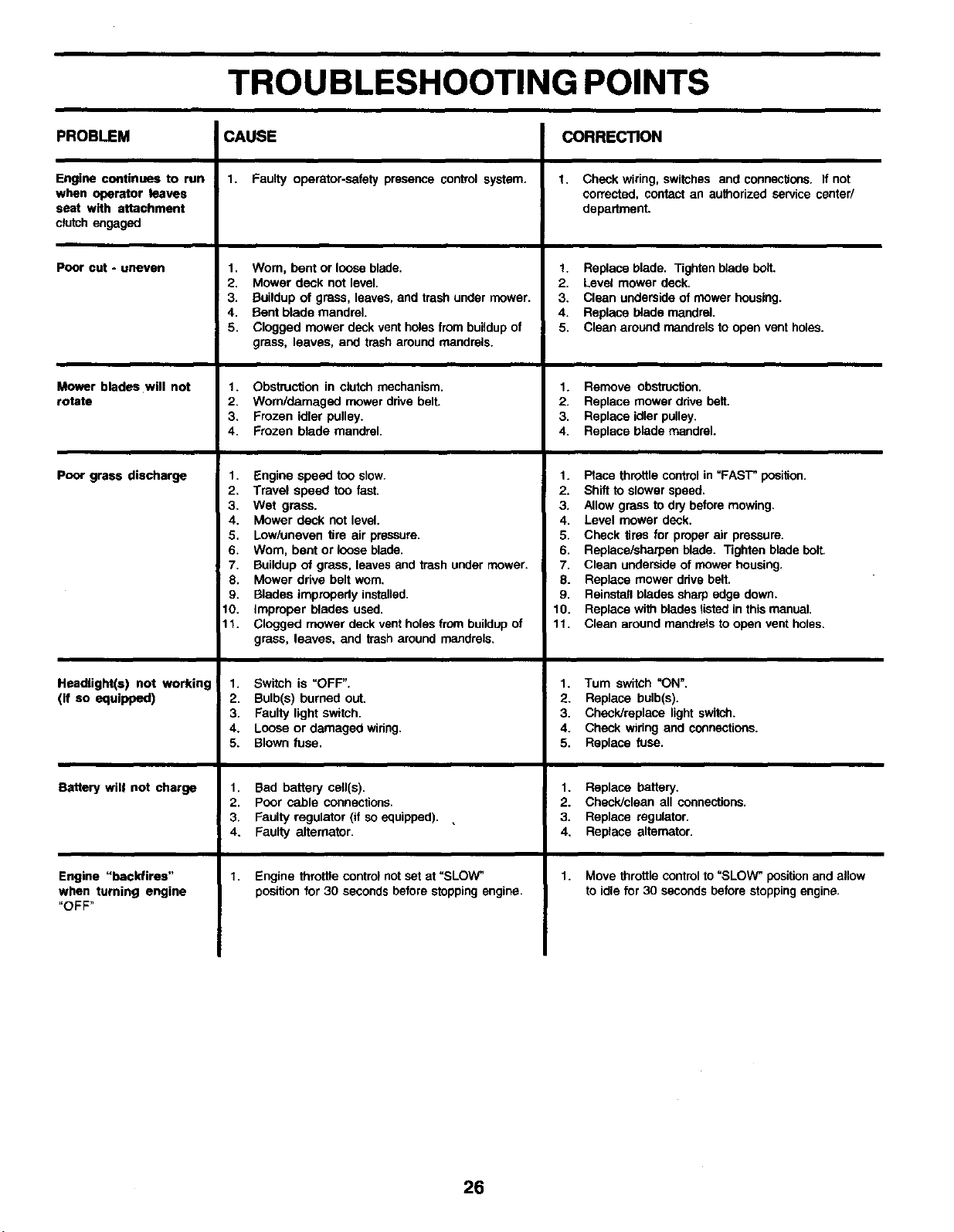

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine continues to run

when operator leaves

seat with attachment

clutch engaged

Poor cut - uneven

Mower blades will not

rotate

poor grass discharge

Hasdtight(s) not working

(if so equipped)

Battery will not charge

Engine "backfires"

when turning engine

"OFF"

1. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5, Low/uneven lJre air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and trash under mower.

8, Mower drive belt worn.

9. Blades improperly installed.

10. improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Switch is "OFF".

2. Bulb(s) burned out.

3. Faulty light switch.

4. Loose or damaged widng.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped). ,

4. Faulty alternator.

1. Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine.

I. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

!. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower ddve belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in =FAS'F position.

2. Shift _ slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

7. Clean underside of mower housing.

8. Replace mower ddvs belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Turn switch "ON".

2. Replace bulb(s).

3. Check/replace light switch.

4. Check widng and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

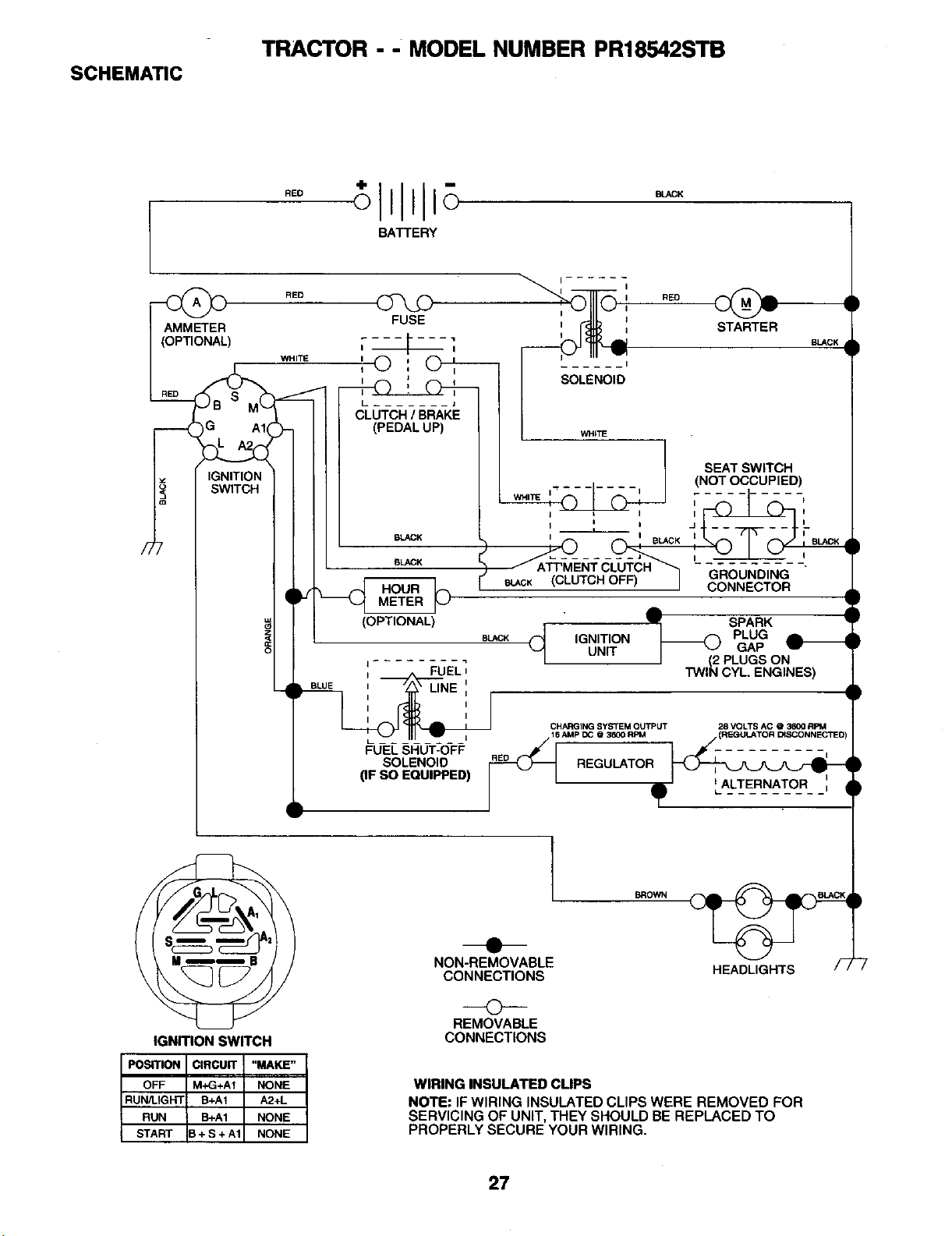

SCHEMATIC

TRACTOR - - MODEL NUMBER PR18542STB

BATTERY

RED

) WHIT E

bG A1

IGNITION

SWITCH

L* i

CLUTCH / BRAKE

(PEDAL UP)

BLACK

BLACK f

HOURMETER

(OPTIONAL)

REO

STARTER

BLACK

'_ SPARK

BLACK _ IGNITION _ PLUG L

UNIT I _J GAP

I (2 PLUGS ON

TWIN CYL. ENGINES)

:_EL,

L BLUE I _\ LINE

I I

CHARGING SYSTEM OUTPUT 28 VOLTS AC @ 3800 RPM

16 AMp DC @ 3600 R_ (REGULATOR D_SCONNECTED

FUEL SHUT-OFF _

SOLENOID REGULATOR

(IF SO EQUIPPED)

=ALTERNATOR.... :

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START B+S+A1 NONE

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

BROWN

HEADLIGHTS /_J

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

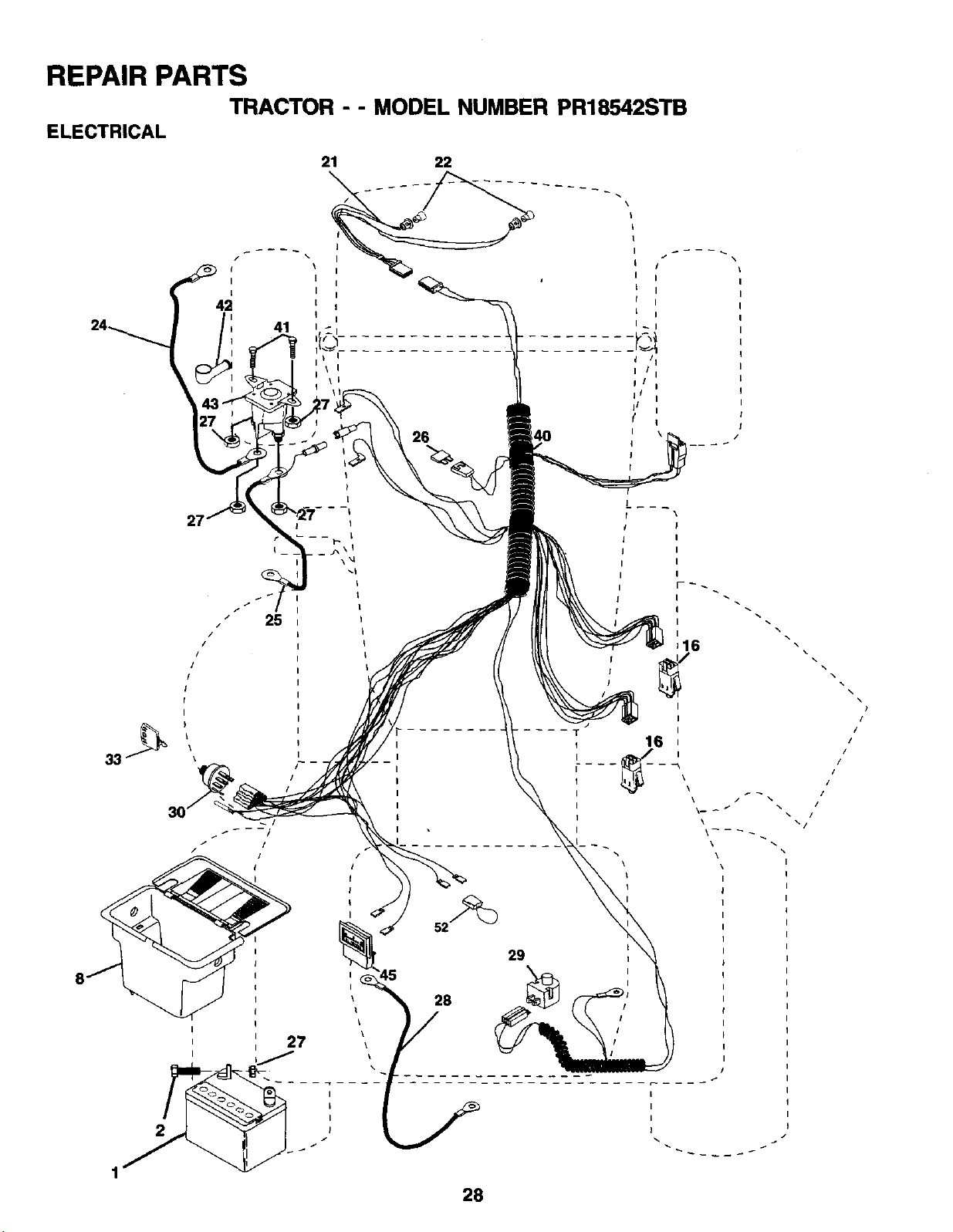

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

ELECTRICAL

I ! i

li I

I \

/ \

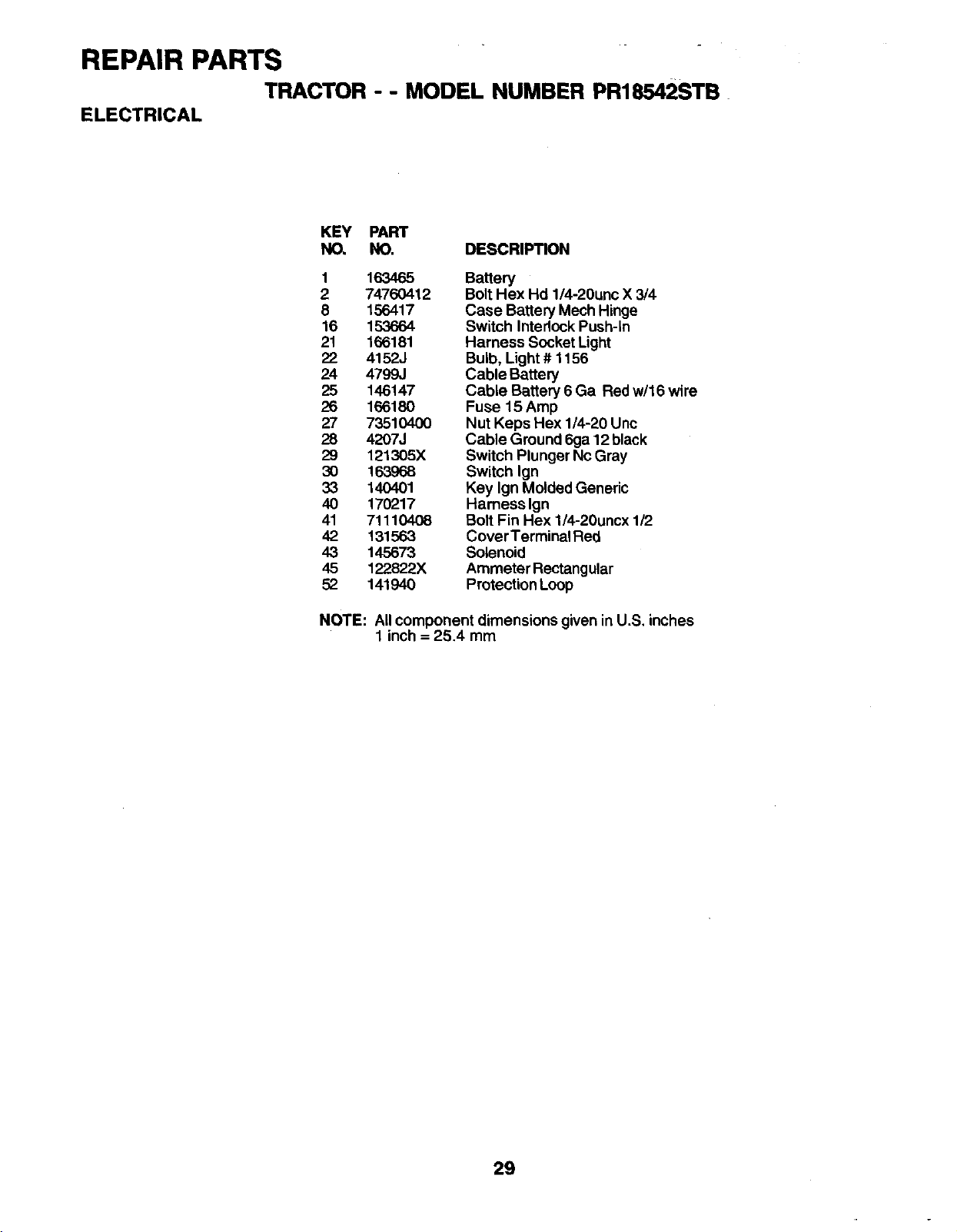

REPAIR PARTS

TRACTOR

ELECTRICAL

- - MODEL NUMBER PR18542STB

KEY PART

NO, NO. DESCRIPTION

1 163465

2 74760412

8 156417

16 153664

21 166181

22 4152J

24 4799J

25 146147

26 166180

27 7351O40O

28 4207J

29 121305X

3O 163968

33 140401

40 170217

41 71110408

42 131563

43 145673

45 122822X

52 141940

Battery

Bolt Hex Hd 1/4-20unc X 3/4

Case Battery Mech Hinge

Switch Interlock Push-in

Harness Socket Light

Bulb, Light # 1156

Cable Battery

CabLe Battery 6 Ga Red w/16 wire

Fuse 15 Amp

Nut Keps Hex 1/4-20 Unc

Cable Ground 6ga 12 black

Switch Plunger Nc Gray

Switch Ign

Key Ign Molded Generic

Harness Ign

Bolt Fin Hex 1/4-20uncx 1/2

CoverTerminal Red

Solenoid

Ammeter Rectangular

Protection Loop

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

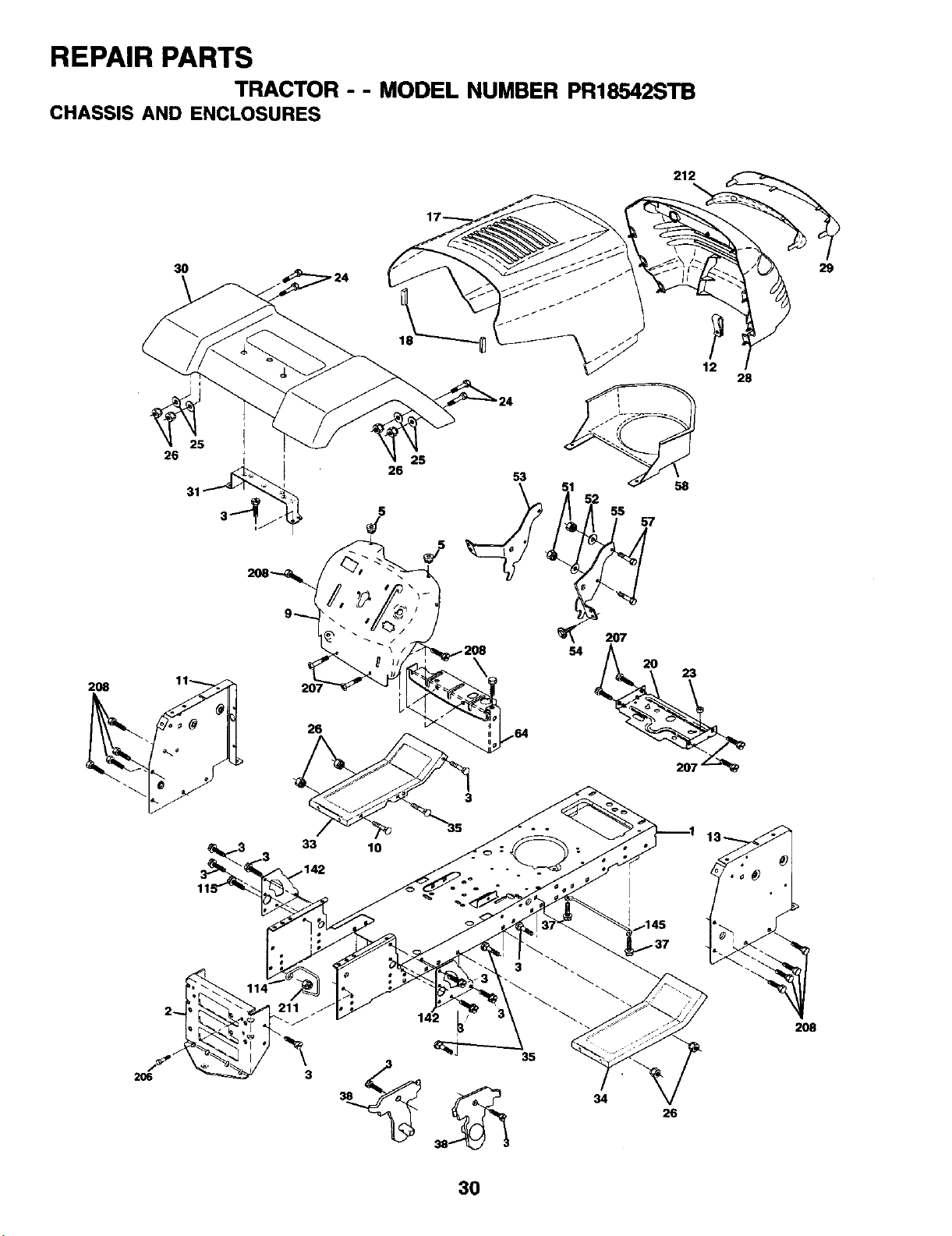

REPAIR PARTS

TRACTOR -- MODEL NUMBER PR18542STB

CHASSIS AND ENCLOSURES

212

3O 29

2O8

31 _ 53

.208 54

206

208

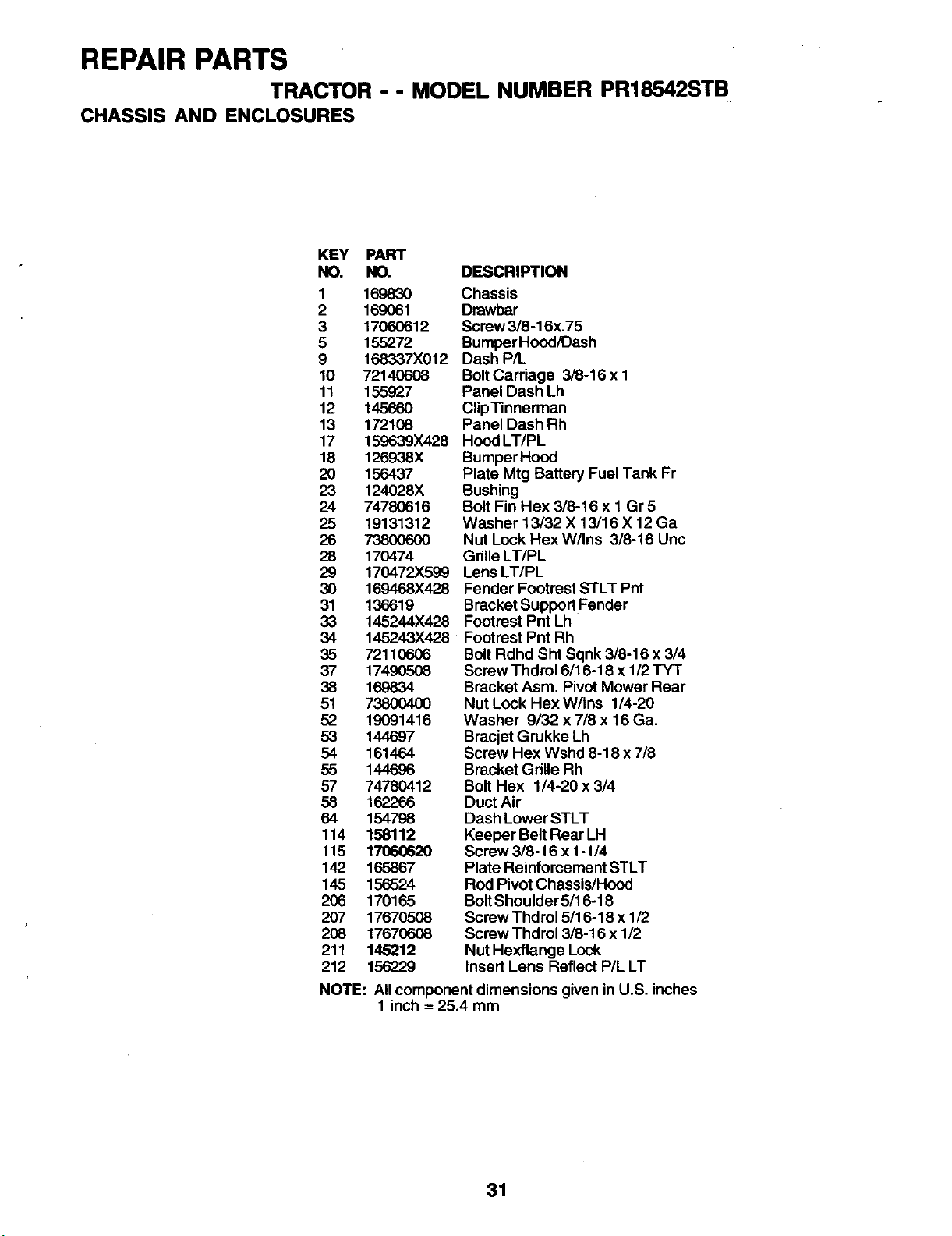

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

CHASSIS AND ENCLOSURES

KEY PART

NO. NO.

1 16983O

2 169061

3 17060612

5 155272

9 168337X012

10 72140608

11 155927

12 145660

13 172108

17 159639X428

18 126938X

20 156437

23 124028X

24 74780616

25 19131312

26 738O06OO

28 170474

29 170472X599

30 169468X428

31 136619

33 145244X428

34 145243X428

35 72110606

37 17490508

38 169834

51 73800400

52 19091416

53 144697

54 161464

55 144696

57 74780412

58 162266

64 154798

114 158112

115 17060620

142 165867

145 156524

206 170165

207 17670508

208 17670608

211 145212

212 156229

DESCRIPTION

Chassis

Dmwbar

Screw 3/8-16x.75

Bumper Hood/Dash

Dash P/L

Bolt Carriage 3/8-16x 1

Panel Dash Lh

ClipTinnerman

Panel Dash Rh

Hood LT/PL

BumperHood

Plate Mtg Battery Fuel Tank Fr

Bushing

Bolt Fin Hex 3/8-16 x 1 Gr5

Washer 13/32 X 13/16 X 12 Ga

Nut Lock Hex W/Ins 3/8-16 Uric

Gdlle LT/PL

Lens LT/PL

Fender Footrest STLT Pnt

Bracket SupportFender

Footrest Pnt Lh

Footrest Pnt Rh

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

Screw Thdrol 6/16-18 x 1/2 TY'r

Bracket Asm, Pivot Mower Rear

Nut Lock Hex W/Ins 1/4-20

Washer 9/32 x 7/8 x 16 Ga.

Bracjet Grukke Lh

Screw Hex Wshd 8-18 x 7/8

Bracket Grille Rh

Bolt Hex 1/4-20 x 3/4

Duct Air

Dash Lower STLT

Keeper Belt Rear LH

Screw 3/8-16 x 1-1/4

Plate Reinforcement STLT

Rod Pivot Chassis/Hood

BoltShoulder 5/16-18

Screw Thdrol 5/16-18 x 1/2

Screw Thdrol 3/8-16 x 1/2

Nut Hexflange Lock

Insert Lens Reflect P/L LT

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

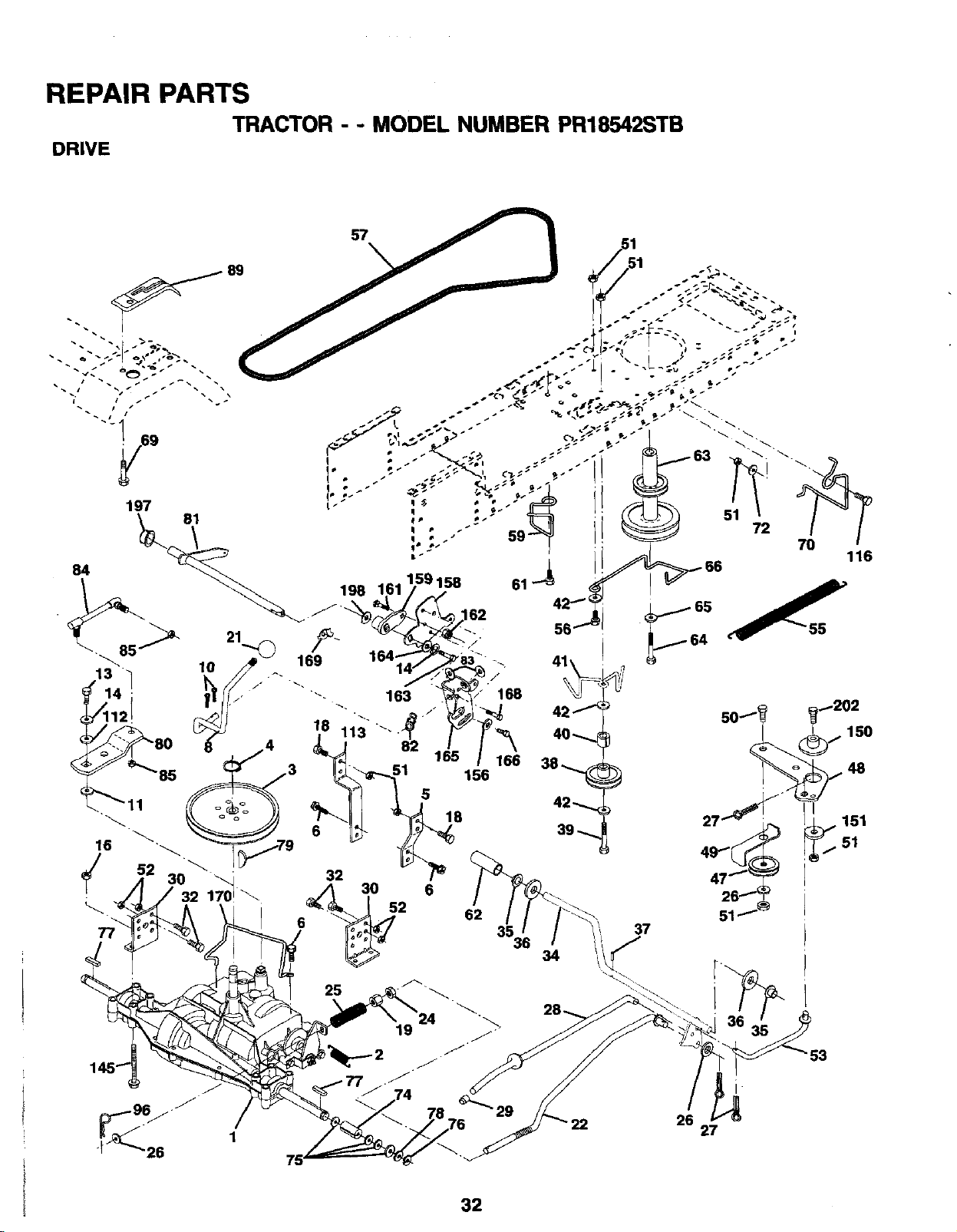

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

DRIVE

197

116

REPAIR PARTS

TRACTOR - - MOOEL NUMBER PR18542STB

DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

2 146682

3 123666X

4 12000028

5 121520X

6 17060512

8 165619

10 76020416

11 105701X

13 74550412

14 10040400

16 73800500

18 74780616

19 73800600

21 140845

22 130804

24 7335O6OO

25 106888X

26 19131316

27 76020412

28 1452O4

29 71673

30 169592

32 74760512

34 155071

35 120183X

36 19211616

37 1572H

38 131494

39 74760644

40 4470J

41 165838

42 19131312

47 127783

48 154407

49 123205X

50 74760624

51 73680600

52 73680500

53 105710X

55 105709X

56 74760620

57 130801

59 169691

61 17060612

Transaxle Peerless (206-545C) 62 8883R

(Order partsfrom transaxle 63 140186

manufacturer) 64 71170764

Spring Return Brake T/a Zinc 65 10040700

Pulley Transaxle 18"tires 66 154778

Ring Retainer# 5100-82 69 142432

Strap Torque 30 Degrees 70 134683

Screw 5/16-18 X 3/4 72 19132012

Rod Shift Fender Adjust Lt 74 137057

Pin Cotter 1/8 X 1 Cad 75 121749X

Washer Plate Shf 388 Sq Hole 76 12000001

Bolt 1/4-28 Unf Gr 8 W/Patch 77 123583X

Washer Lock Hvy Helical 78 121748X

Nut Lock Hex w/ins 5/16-18 79 2228M

Bolt, Fin Hex 3/8-16 UNC x 1Gr. 5 80 145090

Nut Lock3/8-16 Unc 81 165592

Knob 62 123782X

Rod Brake BIk Zinc 26 840 83 19171216

Nut Hex Jam 3/8-16 Unc 84 166231

Spring Rod Brake 2 00 Zinc 85 150360

Washer 13/32 X 13/16 X 16 Ga 89 169372X428

Pin Cotter 1/8 X 3/4 Cad 96 44971-1

Rod Brake Parking LT/YT 112 19091210

Cap Brake Parking 113 127285X

Bracket Mtg Transaxle 116 72110610

Bolt Hex Hd 5/16-18unc X 3/4 145 74490540

Shaft Asm Pedal Foot 150 165850

Bearing Nylon BIk 629 ld 151 19133210

Washer 21/32 X 1 X 16 Ga 156 166002

Pin Roll 3/16 X 1" 158 165589

Pulley Idler Flat 159 165494

Bolt Fin Hex 3/8-16unc X 2-3/4 161 72140406

Spacer Split395 X 59 Bzp 162 73680400

Keeper Belt Flat Idler 163 74780416

Washer 13/32 X 13/16 X 12 Ga 164 19091010

Pulley Idler V Groove Plastic 165 16.5623

BeUcrank Asm 166 166880

Retainer Belt Style Spring 168 165492

Bolt Hex Hd 3/8-16unc X 1-1/2 169 165580

Nut Crownlock 3/8-16 Unc 170 173898

Nut Crownlock5/16-18 Unc 197 169613

Link Clutch 198 169593

Spring Return Clutch 6 75 202 72110612

Bolt Fin Hx 3/8-16 X 1/4

V-Belt Ground Drive 95 25

Keeper Belt Span Ctr

Screw 3/8-16x.75

Cover Pedal BIk Round

Engine Pulley LT/YT

BoltHex

Washer Lock Hvy Hlcl Spr 7116

Keeper Belt Engine Foolproof

Screw Hex wsh HiLo 1/4 x 112unc

Guide Belt Mower Drive RH

Washer 13/32 X 1-1/4 X 12 Ga

Spacer Axle

Washer 25/32 X 1 1/4 X 16 Ga

E-dng#5133-75

Key Square 2 0 X 1845/1865

WaSher 25/32 X 1-5/8 X 16 Ga

Key Woodruff #9 3/16 x 3/4

Arm Shift

Shaft Asm Cross Tapered PMST/20

Spdng Torsion T/a

Washer 17/32 X 3/4 X 16 Ga

Link Transaxle PMST/20" Zinc

Nut Lock Center 1/4 - 28 FNTHD

Console Shift STLT

Retainer Spring 1"

Washer 9/32 x 3/4 x 10 Ga.

Strap Torque LT

Bolt Rdhd Sq Neck 3/8-16 x 1.25

Bolt Hex FLGHD 5/16-18 Gr. 5

Bushing Bellcrank

Washer 13/32 x 2 x 10

Washer Srrted 5/161D x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening

Keeper Belt Transaxle Pmst/Dana

Nyliner Snap-In

Washer Nyliner

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

NOTE: Allcomponent dimensions given in U.S. inches

1 inch = 25.4 mm

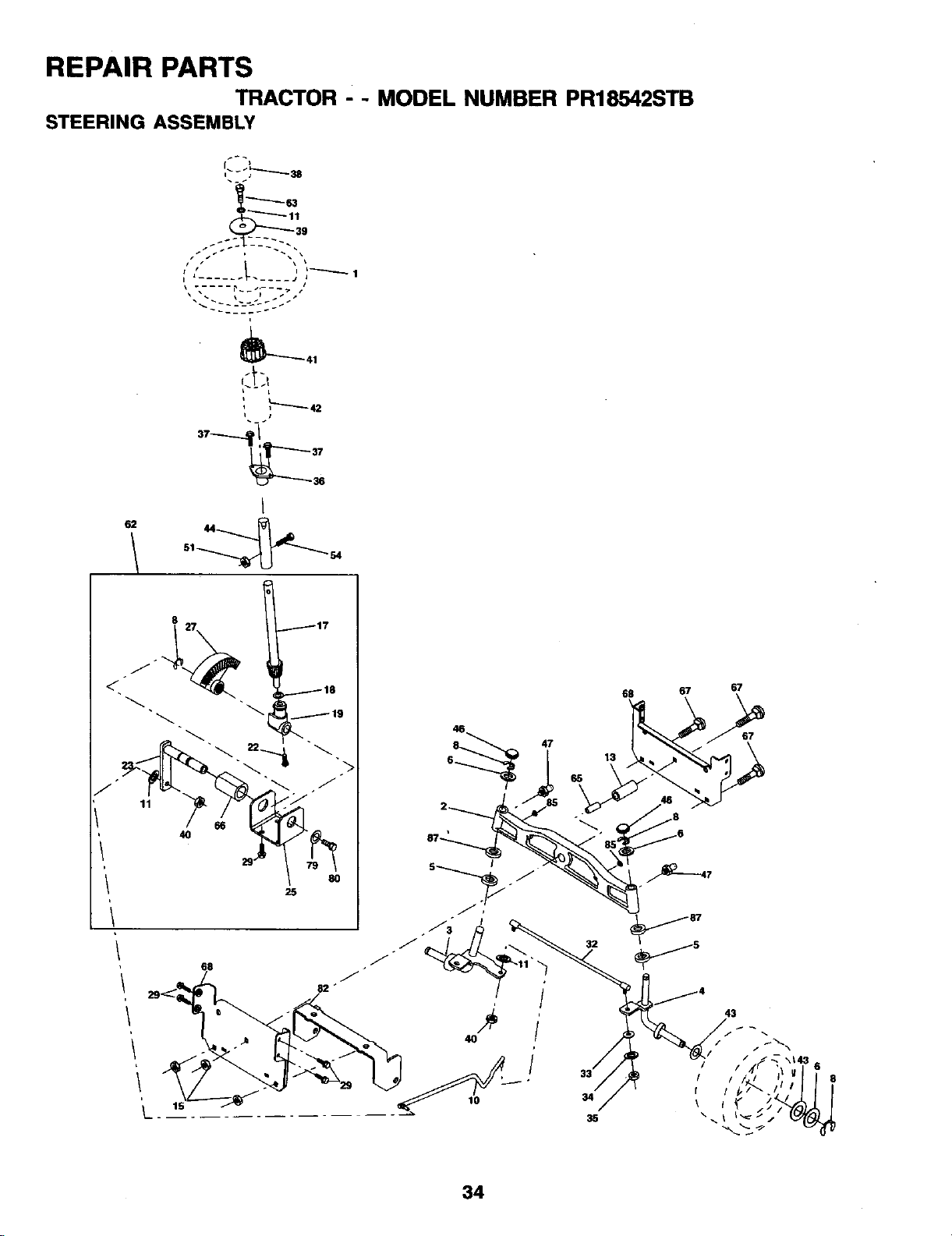

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

STEERING ASSEMBLY

_41

I_!:i

I i

62 44

82*

68 67 67

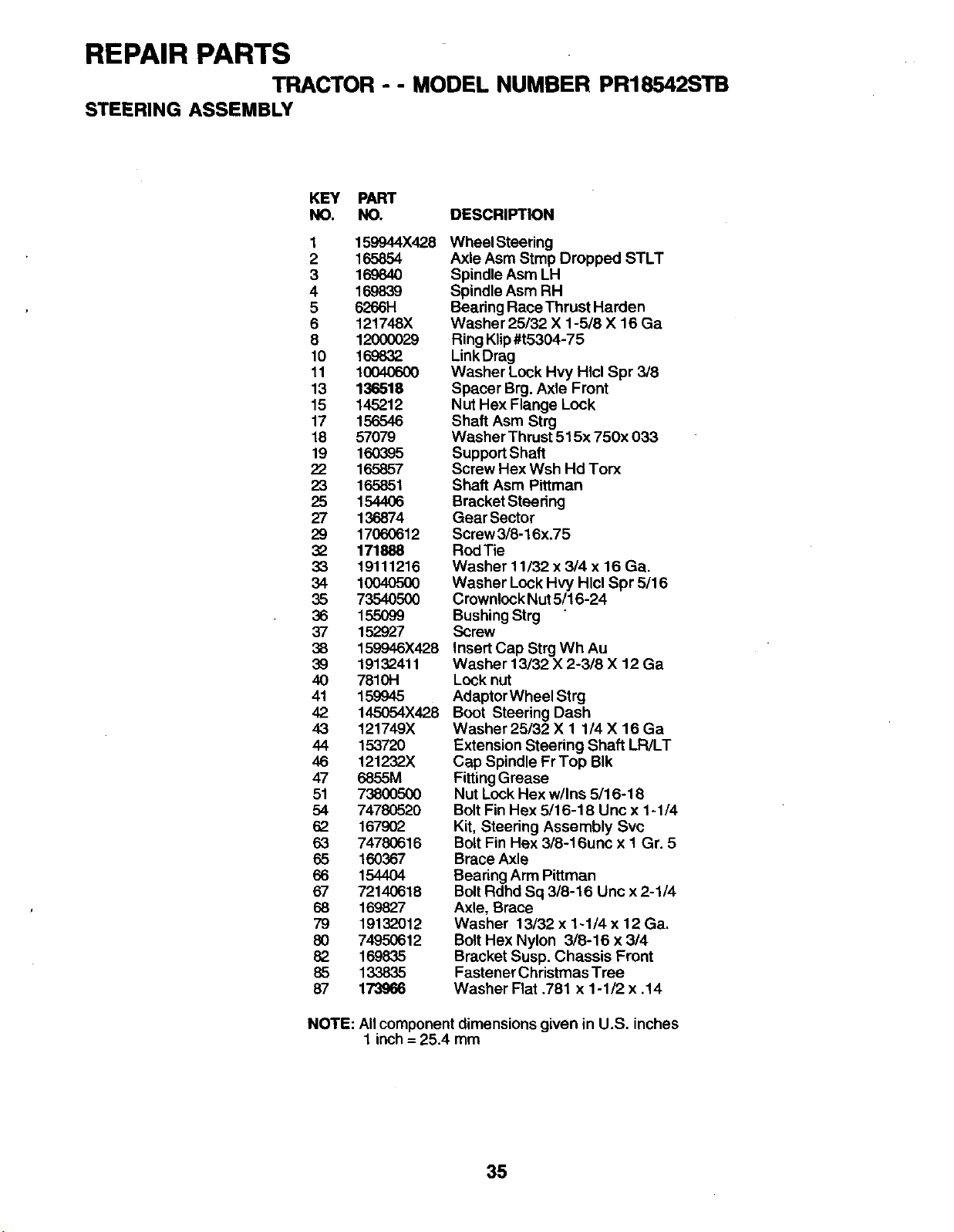

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 165854

3 169840

4 169839

5 6266H

6 121748X

8 12000029

10 169832

11 10040600

13 136518

15 145212

17 156546

18 57079

19 160395

22 165857

23 165851

25 154406

27 136874

29 17060612

32 171888

33 19111216

34 1004O50O

35 7354050O

36 155O99

37 152°J27

38 159946X428

39 19132411

40 7810H

41 159945

42 145054X428

43 121749X

44 153720

46 121232X

47 6855M

51 73800500

54 74780520

62 167902

63 74780616

65 160367

66 1544O4

67 7214O618

68 169827

79 19132012

80 74950612

82 169835

85 133835

87 173966

Wheel Steering

Axle Asm Stmp Dropped STLT

Spindle Asm LH

Spindle Asm RH

Bearing RaceThrust Harden

Washer 25/32 X 1-5/8 X 16 Ga

Ring Klip#t5304-75

LinkDrag

Washer Lock Hvy HIcl Spr 3/8

Spacer Brg. Axle Front

Nut Hex Flange Lock

Shaft Asm Strg

Washer Thrust 515x 750x 033

Support Shaft

Screw Hex Wsh Hd Torx

Shaft Asm Pittman

Bracket Steedng

Gear Sector

Screw 3/8-16x.75

Rod Tie

Washer 11/32 x 3/4 x 16 Ga.

Washer Lock Hvy Hlcl Spr 5/16

Crownlock Nut 5/16-24

Bushing Strg

Screw

Insert Cap Strg Wh Au

Washer 13132 X 2-3/8 X 12 Ga

Lock nut

Adaptor Wheel Strg

Boot Steering Dash

Washer 25132 X 1 1/4 X 16 Ga

Extension Steering Shaft LR/LT

Cap Spindle FrTop BIk

Fitting Grease

Nut Lock Hex w/Ins 5116-18

Bolt Fin Hex 5116-18 Uric x 1-1/4

Kit, Steering Assembly Svc

Bolt Fin Hex 3/8-16unc x 1 Gr. 5

Brace Axle

Bearing Arm Pittman

Bolt Rdhd Sq 3/8-16 Uric x 2-114

Axle, Brace

Washer 13132x 1-1/4 x 12 Ga.

Bolt Hex Nylon 3/8-16 x 3/4

Bracket Susp. Chassis Front

Fastener Christmas Tree

Washer Fiat .781 x 1-1/2 x .14

NOTE: Allcomponent dimensions given in U.S. inches

1 inch= 25.4 mm

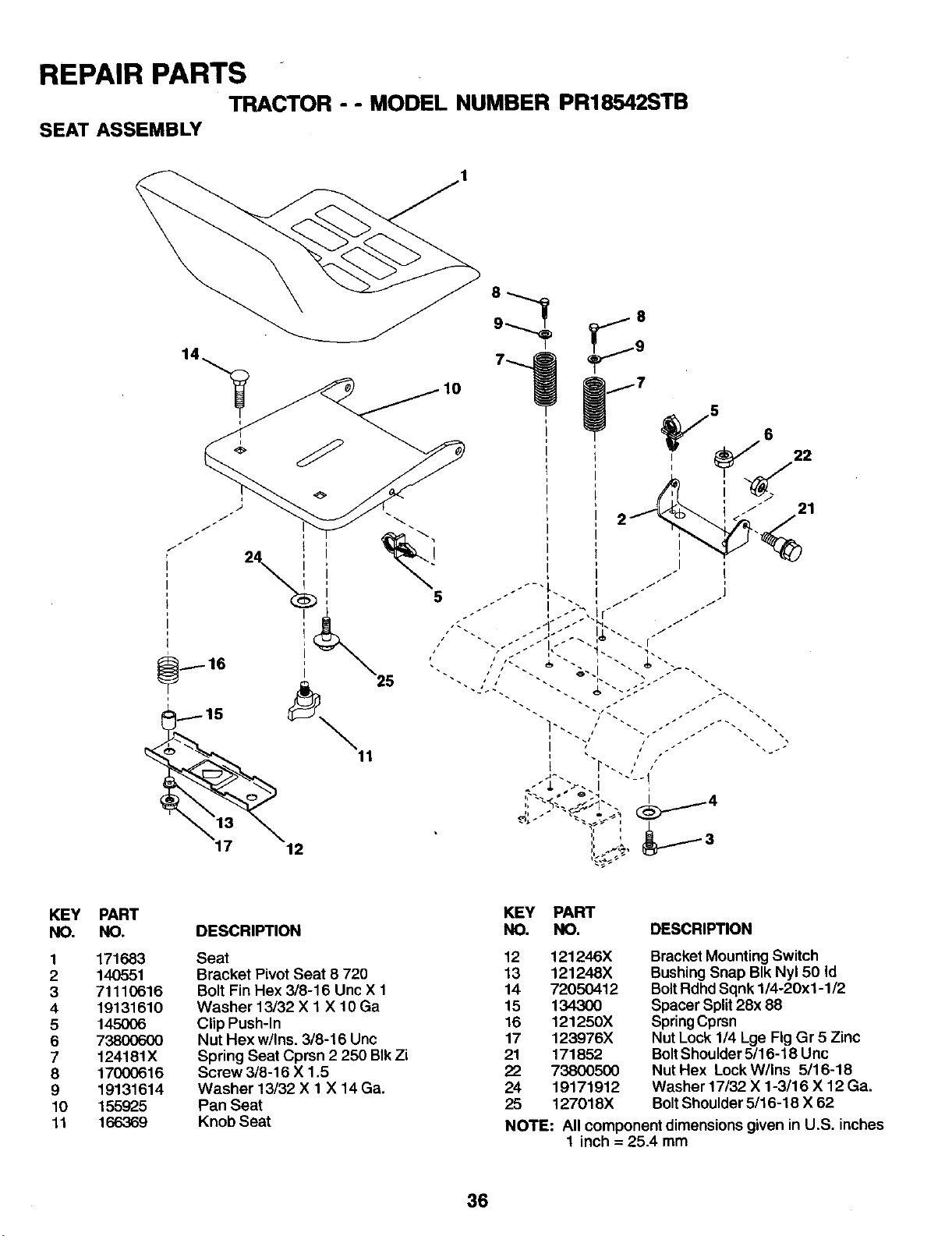

REPAIR PARTS

TRACTOR -- MODEL NUMBER PR18542STB

SEAT ASSEMBLY

17 12

KEY

NO.

PART

NO.

171683

14O551

71110616

19131610

145OO6

738OO600

124181X

17000616

19131614

155925

166369

DESCRIPTION

Seat

Bracket Pivot Seat 8 720

Bolt Fin Hex 3/8-16 Unc X 1

Washer 13/32 X 1 X 10 Ga

Clip Push-In

Nut Hex w/Ins. 3/8-16 Unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 X 1.5

Washer 13/32 X 1 X 14 Ga.

Pan Seat

Knob Seat

KEY PART

NO. NO. DESCRIPTION

12 121246X

13 121248X

14 72050412

15 1343(X)

16 121250X

17 123976X

21 171852

22 73800500

24 19171912

25 127018X

Bracket Mounting Switch

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sqnk 1/4-20x1-1/2

Spacer Split 28x 88

Spring Cprsn

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

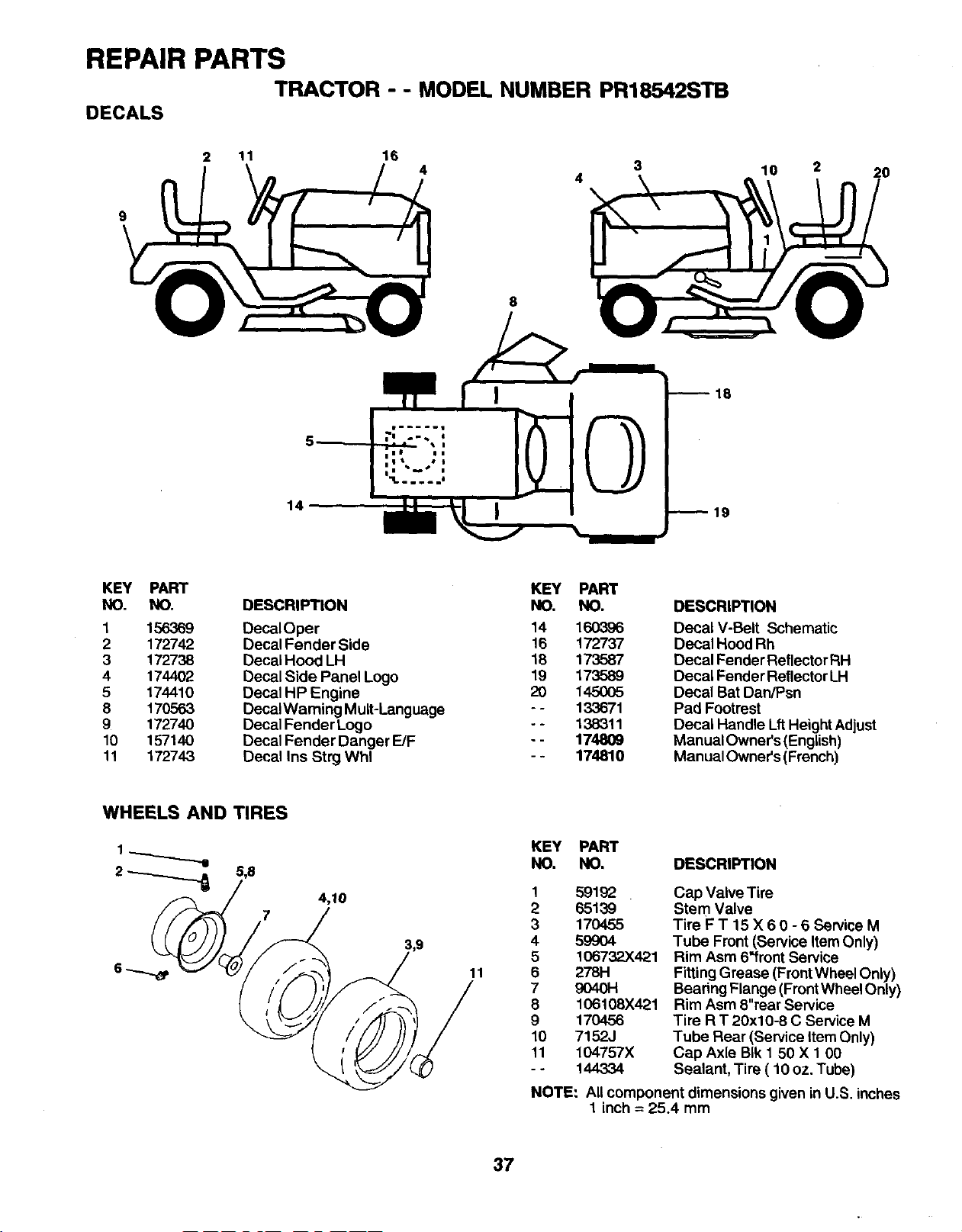

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

DECALS

2 11 16

10 2

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 156369 DecalOper 14 160396

2 172742 Decal Fender Side 16 172737

3 172738 Decal Hood LH 18 173587

4 174402 Decal Side Panel Logo 19 173589

5 174410 Decal HP Engine 20 145005

8 170563 DecalWaming Mult-Language - - 133671

9 172740 Decal Fender Logo - - 138311

10 157140 Decal Fender Danger E/F -- 174809

11 172743 Decal Ins Strg Whl - - 174810

DESCRIPTION

Decal V-Belt Schematic

Decal Hood Rh

Decal Fender Reflector RH

Decal Fender Reflector LH

Decal Bat Dan/Psn

Pad Footrest

Decal Handle LftHeight Adjust

Manual Owner's (English)

Manual Owner's (French)

WHEELS AND TIRES

4,10

DESCRIPTION

1 59192

2 65139

3 170455

4 599O4

5 106732.X4,?.1

6 278H

7 9040H

8 106108X42.1

9 170456

10 7152J

11 104757X

-- 144334

Cap Valve Tire

Stem Valve

Tire F T 15 X 6 0 - 6 Service M

Tube Front (Service ItemOnly)

Rim Asm 6ffront Service

Fitting Grease (Front Wheel Only)

Beadng Flange (FrontWheel Only)

Rim Asm 8"rear Service

Tire R T 20x10-8 C Service M

Tube Rear (Service ItemOnly)

Cap Axle BIk 1 50 X 1 00

Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

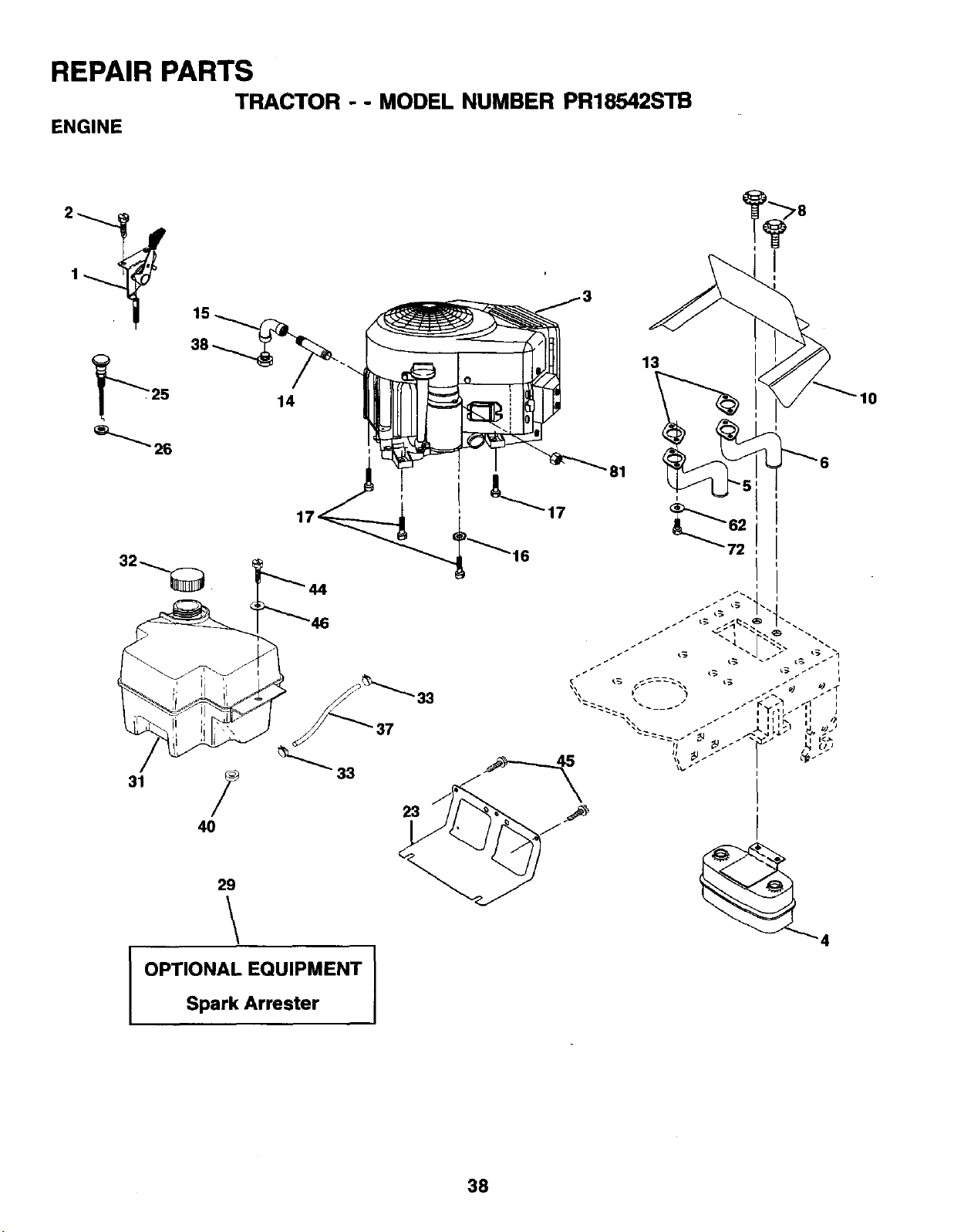

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

ENGINE

OPTIONAL EQUIPMENT

Spark Arrester

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

ENGINE

KEY PART

NO. NO. DESCRIPTION

148875

17720410

4 149723

5 16O589

6 159955

8 150176

10 162797

13 165391

14 13280336

15 13200300

16 11050600

17 17490624

23 169837

25 145996

26 73920600

29 137180

31 161911

32 140527

33 123487X

37 137040

40 124028X

44 17670412

45 17000612

46 19O91416

62 1O04O500

72 71070512

81 73510400

Control, Throttle

Screw Hex Thd Cut 1/4-20 x 5/8

Engine BdggsModel 407777

(Order PartsFromEngine Manufacturer)

Muffler, Asm. Twin Lo-Tone

Pipe Exhaust Intek 20 RH

Pipe Exhaust Intek 20 LH

Bolt 5/16-18 UNC x 3/4

Shield Browing B&S Intek II

Muffler Gasket

Nipple, Pipe

Elbow, Standard 90°, 3/8-18 NPT

Washer, Lock Ext tooth 3/8

ScrewThdrol 3/8-16 x 1-1/2

Shield, Browning/DebdsGuard

ControlChoke

Nut Keps 3/8-24 UNF

Arrester, Spark

Tank, Fuel

Cap Gauge, Fuel

Clamp, HoseBIk

Line, Fuel

Plug, Oil Drain

(Order Parts FromEngine Manufacturer)

Bushing Snap Nyl BIk Fuel Line

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw Hex Wsh Thdrol 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga,

Washer Lock Hvy Hlcl Spr 5/16

Screw Hex Hd Cap 5/16-18 x 3/4

Nut Keps Hex 1/4-20 Unc

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

MOWER DECK

1 _=-"" 3s _ X_.,S'_v

153 1_ I_ 144 ,_45

52 5_

!147 142

102

>21

103 105

106

119'

' 23

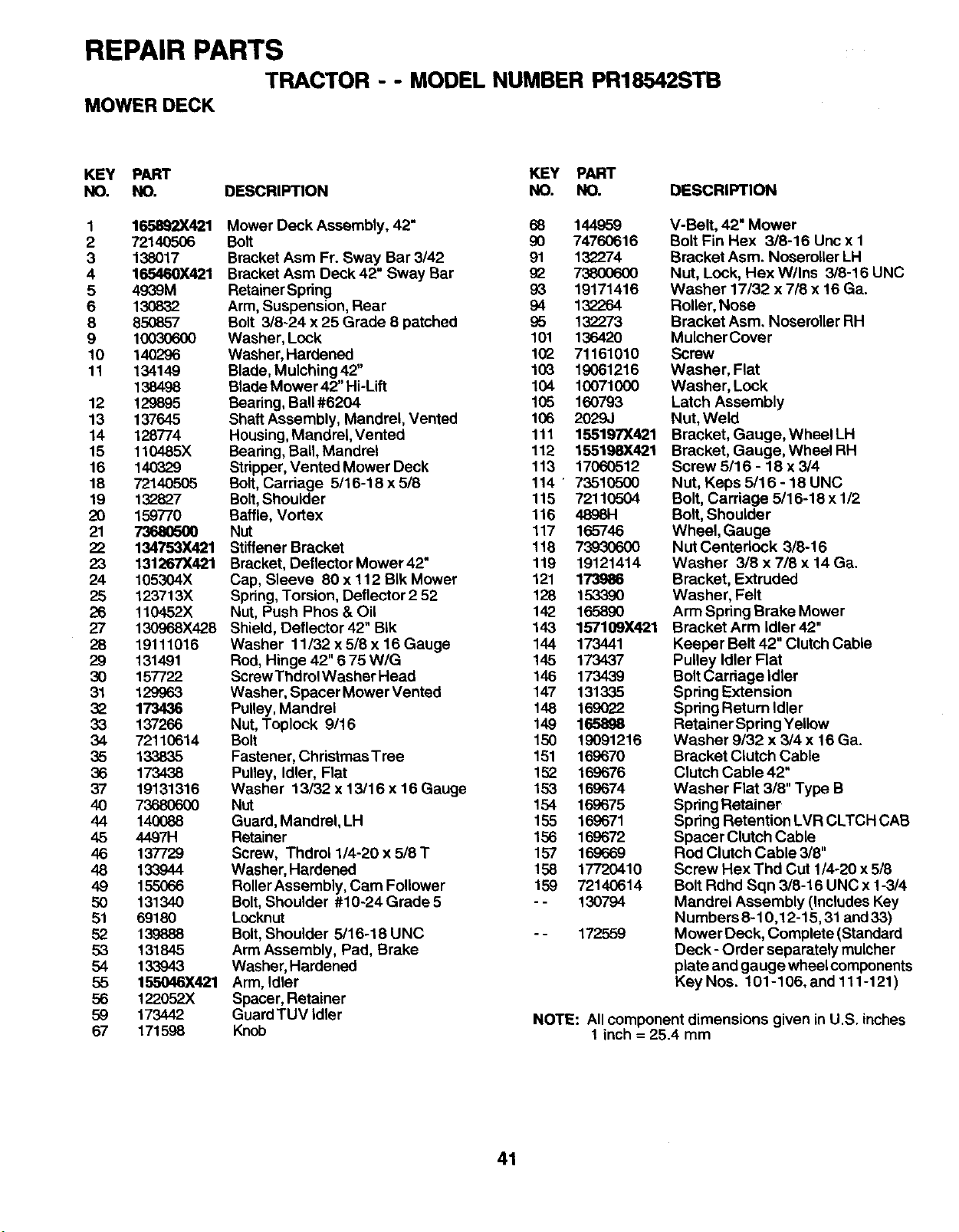

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892X421

2 72140506

3 138017

4 165460X421

5 4939M

6 130832

8 85O857

9 10030600

10 140296

11 134149

138498

12 129895

13 137645

14 128774

15 110485X

16 140329

18 72140505

19 132827

20 159770

21 7368O5OO

22 134753X421

23 131267X421

24 105304X

25 123713X

26 110452X

27 130968X428

28 19111016

29 131491

30 157722

31 129963

32 173436

33 137266

34 72110614

35 133835

36 173438

37 19131316

40 73680600

44 140O88

45 4497H

46 137729

48 133944

49 155066

50 131340

51 69180

52 139888

53 131845

54 133943

55 155046X421

56 122052X

59 173442

67 171598

Mower Deck Assembly, 42" 68 144959

Bolt 90 74760616

Bracket Asm Fr. Sway Bar 3/42 91 132274

Bracket Asm Deck 42" Sway Bar 92 73800600

Retainer Spdng 93 19171416

Arm, Suspension, Rear 94 132264

Bolt 3/8-24 x 25 Grade 8 patched 98 132273

Washer, Lock 101 136420

Washer, Hardened 102 71161010

Blade, Mulching 42" 103 19061216

Blade Mower 42" Hi-Lift 104 10071000

Bearing, Ball #6204 105 160793

Shaft Assembly, Mandrel, Vented 106 2029J

Housing, Mandrel, Vented 111 1551973(421

Bearing, Ball, Mandrel 112 155198X421

Stripper, Vented Mower Deck 113 17060512

Bolt, Carriage 5/16-18 x 5/8 114 ' 73510500

Bolt,Shoulder 115 72110504

Baffle, Vortex 116 4898H

Nut 117 165748

Stiffener Bracket 118 73930600

Bracket, DeflectorMower42" 119 19121414

Cap, Sleeve 80 x 112 BIk Mower 121 173986

Spring, Torsion, Deflector 2 52 128 153390

Nut, Push Phos & Oil 142 165890

Shield, Deflector 42" BIk 143 157109X421

Washer 11/32 x 5/8 x16 Gauge 144 173441

Rod, Hinge 42" 6 75 W/G 145 173437

ScrewThdrol Washer Head 146 173439

Washer, Spacer Mower Vented 147 131335

Pulley, Mandrel 148 169022

Nut, Toplock 9/16 149 165898

Bolt 150 19091216

Fastener, Christmas Tree 151 169670

Pulley, Idler, Flat 152 169676

Washer 13/32 x13/16 x16 Gauge 153 169874

Nut 154 169675

Guard, Mandrel, LH 155 169871

Retainer 156 169872

Screw, Thdrol 1/4-20 x 5/8 T 157 169669

Washer, Hardened 158 17720410

Roller Assembly, Cam Follower 159 72140614

Bolt, Shoulder #10-24 Grade 5 - - 130794

Locknut

Boil, Shoulder 5/16-18 UNC - - 172559

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard TUV Idler

Knob

V-Belt, 42" Mower

Bolt Fin Hex 3/8-16 Unc x 1

Bracket Asm. Nosemller LH

Nut, Lock, Hex W/Ins 3/8-16 UNC

Washer 17132 x 7/8 x 16 Ga.

Roller, Nose

Bracket Asm. NoseroUer RH

Mulcher Cover

Screw

Washer, Flat

Washer, Lock

Latch Assembly

Nut, Weld

Bracket, Gauge, Wheel LH

Bracket, Gauge, Wheel RH

Screw 5/16 - 18 x 3/4

Nut, Keps 5/16 - 18 UNC

Bolt, Carriage 5116-18 x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut Centedock 3/8-16

Washer 3/8 x 718 x 14 Ga.

Bracket, Extruded

Washer, Felt

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

BoltCarriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch Cable

Clutch Cable 42"

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention LVR CLTCH CAB

Spacer Clutch Cable

Rod Clutch Cable 3/8"

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4

Mandrel Assembly (Includes Key

Numbers 8-10,12-15, 31 and 33)

Mower Deck, Complete (Standard

Deck - Order separately mulcher

plate and gauge wheel components

Key Nos. 101-106,and 111-121)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

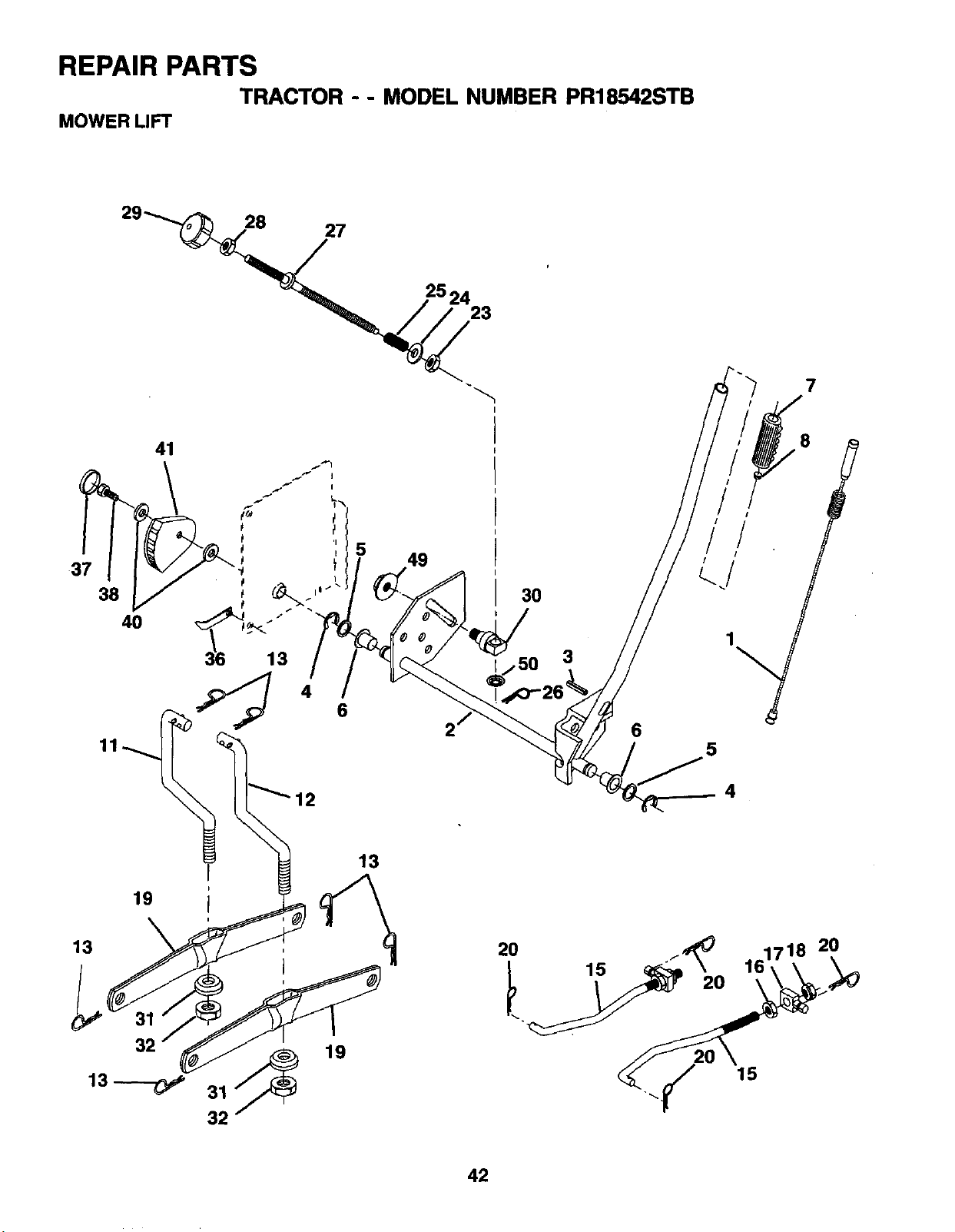

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

MOWER LIFT

25 24

4 6

13 20

_ 15 20

32 _ 19 y 15

.i'_ 161718 20

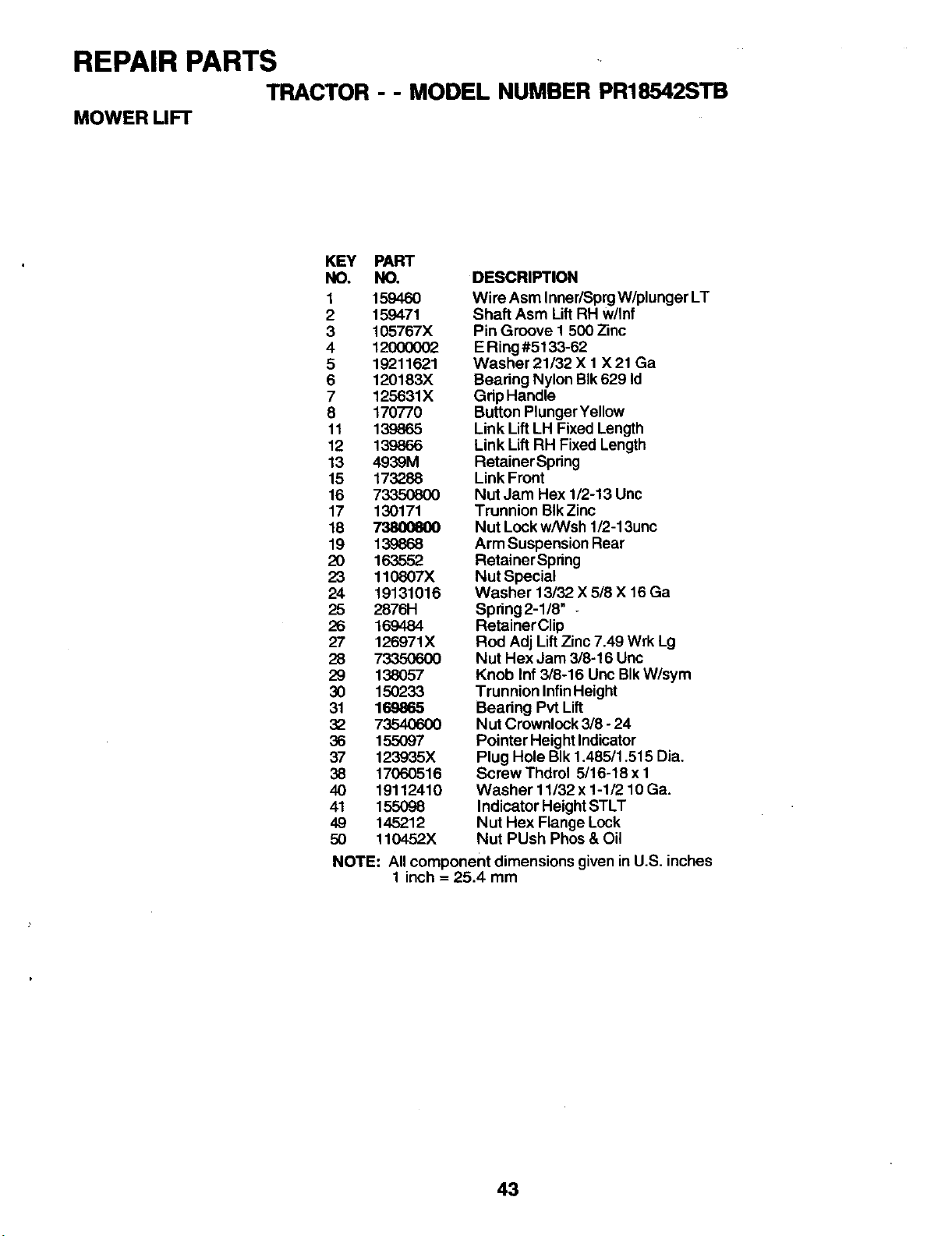

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR18542STB

MOWER LIFT

KEY PART

NO. NO.

1 15946O

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 170770

11 139865

12 139866

13 4939M

15 173288

16 73350800

17 130171

18 738OO8O0

19 139868

2O 163552

23 110807X

24 19131016

25 2876H

26 169484

27 126971X

28 73350600

29 138057

30 150233

31 169865

32 7354(To(X)

36 155097

37 123935X

38 17060516

40 19112410

41 155098

49 145212

50 110452X

DESCRIPTION

Wire Asm Inner/SprgW/plunger LT

Shaft Asm Lift RH w/Inf

Pin Groove I 500 Zinc

E Ring #5133-82

Washer 21/32 X 1 X 21 Ga

Bearing Nylon BIk 629 Id

Grip Handle

Button PlungerYellow

Link Lift LH Fixed Length

Link Lift RH Fixed Length

Retainer Spring

Link Front

Nut Jam Hex 1/2-13 Unc

Trunnion BIk Zinc

Nut Lock wNVsh 1/2-13unc

Arm Suspension Rear

Retainer Spring

Nut Special

Washer 13/32 X 5/8 X 16 Ga

Spring 2-1/8"

RetainerClip

Rod Adj Lift Zinc7.49 Wrk Lg

Nut Hex Jam 3/8-16 Unc

Knob Inf 3/8-16 Unc BIkW/sym

Trunnion InfinHeight

Bearing Pvt Lift

Nut Crownlock 3/8 - 24

Pointer Height Indicator

Plug Hole BIk 1.485/1.515 Dia.

ScrewThdrol 5/16-18 x 1

Washer 11/32 x 1-1/2 10 Ga.

Indicator Height STLT

Nut Hex Flange Lock

Nut PUsh Phos & Oil

NOTE: Allcomponent dimensions given in U.S. inches

1 inch = 25.4 mm

NOTES

LIMITED WARRANTY

The Manufacturer warrantsto the originalconsumer pumhaser that this productas manufacturedis free from defects in

materials and workmanship.Fora periodoftwo (2) yearsfrom date of purchasebythe originalconsumerpumhaser,we will

repair or replace, at our option,withoutchargefor parts or labor incurredin replacingparts,any part whichwe find to be

defeetivedue to materialsor workmanship.ThisWarranty issubjectto the following limitationsandexclusions.

1. This warranty does not applyto the engine,other than FHP manufacturedtransaxleitransmissioncomponents,battery

(except as noted below)or componentspartsthereof. Please refer to the applicablemanufacturer'swarrantyon these

items.

Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the

purchaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the

pumhaser unless such return is requested by Frigidaire Home Products.

Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find

to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange

the Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery

must be maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of

original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in

accordance with the instructions fumishod. This Warranty does not apply to any product which has been subjected to

alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard

hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Frigidaire Home Products

Outdoor Products Customer Service Dept.

250 Bobby Jones Expressway

Augusta, GA 30909 USA

In Canadacontact:

FrigidaireHome Products

7075 OrdanDrive

Mississauga,Ontario

L5T 1K6

givingthe model number,serialnumberand date of purchaseof your productand the nameand addressof the authorized

dealerfrom whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-

TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas

do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above

limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights

which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.

CUMSE" WARRANTY CUMSE"

Issued January 1980

Revised January 1991

LIMITED WARRANTIES

FOR

NEW PEERLESS GEAR POWER TRAIN COMPONENTS

A. ProductsWarranted

Peerless Gear and Machine Division of Tecumseh Products Company (=Tecumseh"), subject to the limitations contained below,

will,at its option, repair or replace, withoutcharge for pads or labor only, any part of a new Power Train Component (which as used herein

means and includes the transaxle, gear box,transmission, differential and rightangle drives, and anypart ofthe Power Train Component),

EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is found upon

examination by any Tecumseh Authorized Service Outlet orbyTecumseh's factory inGrafton, Wisconsin, tobe DEFECTIVE IN MATERIAL

AND/OR WORKMANSHIP ifreceived by Tecumseh or a Tecumseh Authorized Service Outlet for such examination within TWO YEARS

from the date of sale to the original consumer purchaser of Peerless Series 820, 900, 910, 915, 920, 930 transaxles and Series 1100

angle drive and ONE YEAR for all other Peedess products. New Power Train Components incorporated in equipment used for

commercial purposes are warranted in the same manner and to the same extent EXCEPT such Power Train Components are warranted

for NINETY (90) DAYS ONLY, and must be received by Tecumseh or by a Tecumseh Authorized Service Outlet for such examination

within 90 days from the date of sale to the original purchaser. New Power Train Components Incorporated in equipment used for rental

purposes are warranted inthe same manner and to the same extent EXCEPT such Power Train Components are warranted for THIRTY

(30) DAYS ONLY, and must be received by Tecumseh or a Tecumseh Authorized Service Outlet within 30 days from the date of sale

to the original purchaser.

B. Products And Items Not Warranted

1. Alterations or Modifications of Power Train Components.

2. Accidents, Normal Maintenance, Failure to follow the Odginal Equipment Manufacturer's Manual.

This warranty covers only parts of new Power Train Components which are found upon examination to be defective in material or

workmanship as delivered to the original purchaser. This warranty does not cover defects caused by depreciation or damage caused

by normal wear, accidents, improper maintenance, improper use or abuse of the product, failure to follow the instructions contained in

an Instruction Manual for the operation of the Power Train Component and pads. The cost of normal maintenance and replacement

of service items which are not defective shall be paid for by the original purchaser.

C. Securing Warranty_ Service

Warranty service can be arranged for bycontacting either aTecumseh Authorized Service Outlet (anyTecumseh Registered Service

Dealer, Tecumseh Authorized Service Distributor, or Tecumseh Central Warehouse Distributor)or bycontacting Tecumseh, c/o Service

Manager, Engine and Transmission Group Service Division, 900 North Street, Grafton, Wisconsin 53024. Warranty service can only

be performed by a Tecumseh Authorized Service Outlet or by Tecumseh at its factory in Grafton, Wisconsin. At the time of requesting

warranty service, evidence must be presented of the date of sale to the original purchaser. The purchaser shall pay any charges for

making service calls and/or for transporting the product to and from the place where the inspection and/or warranty work is performed.

The purchaser shall be responsible for any damage or loss incurred in connection with the transportation of Power Train Components

and/or part(s) of the Power Train Components submitted for inspection and/or warranty work.

D. Limitation of Damaqes and Implied Warranties

The foregoing EXPRESSED WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. Neither Tecumseh nor any of its

affiliates makes any warranties, rapmsentations or promises, written or oral, as to the quality ofthe Power Train Component or any of

its parts, other than as set forth herein.

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, TO THE EXTENT THAT

EITHER MAY APPLY TO ANY PART(S) OF POWER TRAIN COMPONENTS, SHALL BE LIMITED IN DURATION TO THE PERIODS OF

THE EXPRESSED WARRANTIES DEFINED IN PARAGRAPH A HEREOF. IN NO EVENT WILL TECUMSEH BE LIABLE FOR ANY

INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES AND/OR EXPENSES. Some states do not allow limitations on how long

an implied warranty lasts orthe exclusion or limitation of incidental or consequential damages, so the above limitation(s) or exclusion(s)

may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to

state.

E. No Dealer Warranty

Tecumseh neither assumes nor authorizes any other person, natural or corporate, to assume forTecumseh any other obligations

or liabilities in connection with orwith respect to any part(s) of a Power Train Component. The seller or dealer of part(s) of a Power Train

Component has no authority, whatsoever, to make any representations or promises on behalf of Tecumseh or to modify the terms or

limitations of Tecumseh's warranty in any way.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING _" -.. CUT

GUIDE TH_'s

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15° MAX.

Operate your Tractor up and down the face of slopes (not

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control, Exercise extreme

caution when changing direction on slopes.

PARTS AND SERVICE

Your POULAN PRO product has been expertly engineered and carefully manufactured to rigid

quality standards. As with all mechanical products, some adjustments or part replacement may be

necessary during the life of your unit.

FOR SERVICE OR REPLACEMENT PARTS:

1. Consult your dealer/place of purchase.

2. Consult the yellow pages of your phone directory for the name of the nearest service dealer

(under "saws" for Chain Saws or under "lawn mowers" for Trimmers, Brushcutters, and

Blowers).

3. For replacement parts, have available the following information:

a. Model Number/Manufacturer's I.D. Number

b. Description of part.

NOTE:

Frigidaire Home Products provides parts and service through its authorized distribu-

tors and dealers; therefore, all requests for parts and service should be directed to your

local dealer(s). The philosophy of Frigidaire Home Products is to continually improve

all oflts products. If the operating characteristics or the appearance of your product

differs fromthose described in this Manual, please contact your local dealer for updated

information and assistance.

Poulan Pro PR18542STB Poulan tractor

Product's Documents

User Manual

Specifications

Poulan Pro PR18542STB Questions and Answers
