Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
• Children must not play with the
appliance.
• Keep children under the age of 8
at a safe distance unless they are
constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Make sure that the flame-spreader
crowns are correctly positioned in
their seats with their respective
burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• Cooking process should always
be kept under control. A short
cooking process must be
continuously surveyed.
• While cooking do not place metal
objects, such as cutlery or dishes
on the hob surface as they may
overheat.
Instructions
5
EN
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.
• Do not pour water directly on very
hot trays.
• Keep the oven door closed during
cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS IN
THE STORAGE
COMPARTMENT (IF AVAILABLE)
OR NEAR THE APPLIANCE.
•DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• Switch off the appliance after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Before any operation on the
appliance (installation,
maintenance, positioning or
movement) always wear PPM.
• Before performing any operation
on the appliance, switch off the
power supply.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• In order to avoid hazard, if the
power supply cable is damaged,
contact technical support and
they will replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
Instructions
6
• Racks and trays should be inserted
as far as they will go into the side
guides. The mechanical safety
locks that prevent them from being
removed must face downwards
and towards the back of the oven.
• Do not sit on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could overheat and take fire. Be
very careful
• Danger of fire: do not store items
on the cooking surfaces.
• DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers for cooking.
• Do not place sealed tins or
containers in the oven cavity.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays directly
on the bottom of the oven cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to place
pans or trays on the internal
glazing pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
Instructions
7
EN
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash the removable
components such as the hob
grids, flame-spreader crowns and
burner caps in a dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the door when open.
• Do not use the handle to lift or
move this appliance.
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN A BOAT OR
CARAVAN.
• This appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To prevent any possible
overheating, the appliance should
not be installed behind a
decoration door or a panel.
• Have the gas connection
performed by authorised staff.
• Installation using a hose must be
carried out so that the length of
the hose does not exceed
2 metres when fully extended for
steel hoses and 1.5 metres for
rubber hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
• After carrying out any operation,
check that the tightening torque of
gas connections is between
10 Nm and 15 Nm.
• At the end of the installation, check
for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised
technicians.
• The appliance must be connected
to ground in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the screws
of the terminal board leads must
be 1.5-2Nm.
Instructions
8
• Before installation, make sure that
the local distribution conditions
(nature and pressure of the gas)
and the adjustment of the
appliance are compatible;
• The adjustment conditions for this
appliance are shown on the gas
setting label.
• This appliance is not connected to
an exhaust system for combustion
products. It must be installed and
connected in compliance with the
current installation regulations.
Special attention should be paid
to the relevant requirements as for
ventilation
For this appliance
• Ensure that the appliance is
switched off before replacing the
bulb.
•Do not rest any weight or sit on the
open door of the appliance.
• Take care that no objects are stuck
in the doors.
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
that specified;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.3 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.4 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.5 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
Instructions
9
EN
1.6 Disposal
This appliance must be
disposed of separately from
other waste (Directives
2002/95/EC, 2002/96/EC,
2003/108/EC). The appliance
does not contain substances in
quantities sufficient to be considered
hazardous to health and the
environment, in accordance with
current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to the
retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
10
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
11
EN
2 Description
2.1 General Description
1 Upstand
2 Cooking hob
3 Control panel
Rack/tray support frames
4 Auxiliary oven light
5 Auxiliary oven seal
6 Auxiliary oven door
7 Multifunction oven light
8 Multifunction oven seal
9 Multifunction oven door
10 Multifunction oven fan
Description
12
2.2 Cooking hob
AUX = Auxiliary burner
SR = Semi-rapid burner
UR2 = Ultra-rapid burner
2.3 Control panel
1 Programmer clock
For displaying the current time, setting
programmed cooking operations and the
minute minder timer.
2 Multifunction oven function knob
The oven’s various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
3 Multifunction oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
Description
13
EN
4 Multifunction oven temperature knob
This knob allows you to select the cooking
temperature and the Vapor Clean
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
5 Auxiliary oven knob
Allows you to turn on the light inside the
oven, set a static cooking temperature of
between 50°C and 245°C, or select one
of the other functions at maximum
temperature.
6 Auxiliary oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
7 Hob burner knobs
Useful for lighting and adjusting the hob
burners.
Press and turn the knobs anti-clockwise to
the value to light the relative burners.
Turn the knobs to the zone between the
maximum and minimum setting to
adjust the flame.
Return the knobs to the position to turn
off the burners.
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Cooling fan
The fan cools the appliance and comes into
operation during cooking. The fan causes a
steady outflow of air that exits from the rear
of the appliance and which may continue
for a brief period of time even after the
appliance has been turned off.
Interior lighting
The internal light of the appliance comes on
when any function is started:
• Multifunction oven: turn the function
knob to any function.
• Auxiliary oven: turn the variable grill
knob to the symbol or select a
cooking temperature.
Do not obstruct ventilation
openings and heat dispersal slots.
Description
14
2.5 Available accessories
Tray rack
To be placed over the top of the tray; for
cooking foods which may drip.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Rack
Useful for supporting containers with food
during cooking.
Rack
Useful for supporting containers with food
during cooking.
Tray
Useful for collecting fat from foods placed
on the rack above.
Description
15
EN
Ring reducer
Useful when using small cookware.
WOK ring
Useful when using a wok.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.
Use
16
3 Use
Instructions
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Oils and fats could catch fire if
overheated. Be very careful.
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands wearing heat
resistant gloves when moving food
inside the oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly on very hot
trays.
• Keep children under the age of 8 away
from the oven when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
High temperature inside the oven
cavity
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Use
17
EN
Precautions
A gas leak can cause an explosion.
If you smell gas or there are faults in the gas
system:
• Immediately turn off the gas supply or
close the valve on the gas cylinder.
• Extinguish all open flames and cigarettes.
• Do not turn on power switches or
appliances and do not remove plugs
from power sockets. Do not use phones
or mobile phones inside the building.
• Open the window in order to ventilate
the room.
• Call customer assistance services or your
gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service centre:
• Yellowing of the burner plate.
• Damage to kitchen utensils.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance
is in use.
• It is difficult to turn the gas valves.
If the appliance does not work properly,
contact your local Authorised Service
Centre.
First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance's
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
3.1 To save energy
• Preheat the appliance only if the recipe
requires it.
• Unless differently stated on the package,
defrost frozen food before placing it in
the cooking compartment.
• In case of multiple cooking, it is
recommended to cook food one after
the other to exploit the already hot
cooking compartment.
• Use dark metal moulds: They help to
absorb the heat better.
• Remove all trays and racks which are not
required during cooking.
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the cooking compartment clean at
all times.
Use
18
3.2 Using the accessories
Ring reducers
The ring reducers must be placed on the
hob grids. Make sure they are placed
properly.
Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally have to face downwards
and towards the oven back.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Use
19
EN
3.3 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it
counterclockwise to the maximum flame
symbol, until the burner ignites. If the burner
does not light in the first 15 seconds, turn the
knob to and wait 60 seconds before
trying again. After lighting, keep the knob
pressed in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the
operation. Keep the knob pressed in
longer.
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the hob burners, make sure
that the flame-spreader crowns are
correctly positioned in their seats with their
respective burner caps. Make sure that the
holes 1 in the flame-spreader crowns are
aligned with the igniters 3 and
thermocouples 2.
Practical tips for using the hob
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas cock is open. Return the
knob to and wait at least
60 seconds before lighting it
again.
Pan diameters:
• AUX: 12 - 14 cm.
• SR: 16 - 24 cm.
• UR2: 18 - 28 cm.
Use
20
3.4 Using the ovens
Switching on the multifunction oven
To switch on the multifunction oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the
temperature knob.
Multifunction oven functions
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Use
21
EN
Switching on the auxiliary oven
To switch on the auxiliary oven:
• Turn the knob clockwise to select the
required temperature between 50°C
and 245°C.
• Turn the knob clockwise further to select
on the available functions at maximum
temperature.
Fan assisted
The operation of the fan, combined
with traditional cooking, ensures
consistent cooking even with
complex recipes. Perfect for biscuits
and cakes, even when
simultaneously cooked on several
levels. (For multiple-level cooking,
we recommend using the 2nd and
4th runners).
Fan with round heating element
The combination of the fan and the
round heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
Eco
This function is particularly suitable
for cooking on a single shelf with
low energy consumption.
Ideal for cooking meat, fish and
vegetables. It is not recommended
for leavened foods.
To obtain maximum energy savings
and reduce cooking times, it is
recommended to place food in the
oven without preheating.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function.
Vapor Clean
This function makes cleaning easier
using the steam produced by a little
quantity of water poured onto the
appropriate groove placed on the
bottom. (see chapter “Cleaning and
maintenance”)
Use
22
Auxiliary oven functions
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• For the same total weight, cooking time
will be greater for cooking a whole
piece than when it is cut into smaller
pieces.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• When using the Fan with grill function,
we recommend that you preheat the
oven before grilling.
• We recommend placing the food at the
centre of the rack.
• With the Grill function, we recommend
that you turn the temperature knob to the
maximum value to optimise cooking.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes and in any case
particularly suitable for fatty meats
such as goose and duck.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Small grill
Using only the heat released from
the central element, this function
allows you to grill small portions of
meat and fish for making kebabs,
toasted sandwiches and any types
of grilled vegetable side dishes.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Use
23
EN
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• When cooking on multiple levels, food
should ideally be positioned on the
second and fourth shelves; increase
cooking time by a few minutes and only
used fan functions.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes out
of the oven, on the next occasion reduce
the set temperature by about 10 °C,
selecting a longer cooking time if
necessary.
• The cooking time for meringues and
choux pastry will vary depending on the
size.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• Bread and fruit, if divided into pieces, will
take the same amount of time to defrost,
regardless of the total weight and
quantity.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
3.5 Programmer clock
Value decrease key
Clock key
Increase key
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the key to reset the
programmer clock.
Use
24
Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Hold down the clock key for two
seconds. The dot between the hours and
the minutes flashes.
2. The time can be set via the value
increase key and value decrease
key . Keep the key pressed in to
increase or decrease rapidly.
3. Wait 7 seconds. The dot between the
hours and the minutes stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
Timed cooking
1. Keep the clock key pressed until the
symbol appears.
2. Press the clock key again. On the
display the symbol and the text
appear, alternating with the
current time.
3. Use the value increase and value
decrease keys to set the required
minutes of cooking.
4. Select a function and a cooking
temperature.
5. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
At the end of cooking the heating elements
will be deactivated. On the display, the
symbol turns off, the symbol
flashes and the buzzer sounds.
6. To turn the buzzer off, simply press one of
the programmer clock keys.
If the time is not set, the oven will
not switch on.
To change the time, hold down the
value increase key and value
decrease key at the same time
for two seconds, then set the time.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Use
25
EN
7. Press the clock key to reset the
programmer clock.
Programmed cooking
1. Set the cooking time as described in the
previous point “Timed cooking”.
2. Hold the menu key down for
2seconds.
3. Press the menu key again. The
display will show the digits
and the text in sequence,
while the symbol flashes (for
example, the current time is 17:30)
4. Use the or key to set the
required minutes. (for example 1 hour)
5. Press the menu key . The text
will appear on the display in
sequence with the pre-set cooking
duration added to the current time (for
example, the cooking end time shown is
18:30).
6. Press the or key to set the
cooking end time. (for example, 19:30).
7. Wait approx. 7 seconds without pressing
any key in order for the function to
activate. The current time and the
and symbols appear on the display.
8. Select a cooking temperature and
function.
9. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer
sounds.
It is not possible to set a cooking
time of more than 10 hours.
To cancel the set programming
press and hold down the value
increase and the value
decrease keys at the same
time and then turn the oven off
manually.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
Bear in mind that a few minutes for
oven preheating must be added to
the cooking time.
Use
26
10. Return the function and temperature
knobs to 0.
11. To turn off the buzzer just press any key
of the programmer clock.
12. Press the and keys at the same
time to reset the set program.
Minute minder timer
The minute minder timer can be activated at
any time.
1. Keep the clock key pressed for per
a few seconds. The display shows the
figures and the symbol
flashing between the hours and minutes.
2. Use the value increase and value
decrease keys to set the number of
minutes required.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the symbols
and appear on the display.
A buzzer will sound when the set time is
reached.
4. Press the value decrease key to turn
the buzzer off.
It is not possible to set a cooking
time of more than 10 hours.
It is not possible to set a
programmed cooking time of more
than 24 hours.
After setting, hold the menu key
down for 2 seconds to
display the cooking time
remaining. Press the menu key
again. The display shows the text
and the remaining
cooking time in sequence.
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
The minute minder timer can be set
from 1 minute to a maximum of
23 hours and 59 minutes.
Use
27
EN
Modifying the set data
1. Press the clock key .
2. Use the value increase and value
decrease keys to set the number of
minutes required.
Deleting the set data
1. Press the clock key .
2. Hold down the value increase and
value decrease keys at the same
time.
3. Then switch off the oven manually if
cooking is in progress.
Selecting the buzzer
The buzzer can have 3 tones.
1. Hold down the value increase and
value decrease keys at the same
time.
2. Press the clock key .
3. Press the value decrease key to
select a different buzzer tone.
Use
28
Multifunction oven cooking information table
Food
Weight
(kg)
Function Shelf
Temperature
(°C)
Time
(minutes)
Lasagne
3 - 4 Static 1 220 - 230 45 - 50
Pasta bake
3 - 4 Static 1 220 - 230 45 - 50
Roasted veal
2 Round 2 180 - 190 90 - 100
Pork loin
2 Round 2 180 - 190 70 - 80
Sausages
1.5 Grill 3 260 15
Roast beef
1 Round 2 200 40 - 45
Roast rabbit
1.5 Round 2 180 - 190 70 - 80
Turkey breast
3 Round 2 180 - 190 110 - 120
Roast pork neck
2 - 3 Round 2 180 - 190 170 - 180
Roast chicken
1.2 Round 2 180 - 190 65 - 70
1
st
surface 2
nd
surface
Pork chops
1.5 Grill 3 260 15 5
Spare ribs
1.5 Grill 3 260 10 10
Bacon
0.7 Grill 4 260 7 8
Pork fillet
1.5 Grill 3 260 10 5
Beef fillet
1 Grill 3 260 10 7
Salmon trout
1.2 Round 2 150 - 160 35 - 40
Delicate fish
1.5 Round 2 160 60 - 65
Flounder
1.5 Round 2 160 45 - 50
Pizza
1 Fan assisted 2 260 8 - 9
Bread
1 Round 2 190 - 200 25 - 30
Focaccia
1 Fan assisted 2 180 - 190 20 - 25
Ring cake
1 Round 2 160 55 - 60
Tart
1 Round 2 160 35 - 40
Ricotta cake
1 Round 2 160 - 170 55 - 60
Jam tarts
1 Round 2 160 20 - 25
Chiffon cake
1.2 Round 2 160 55 - 60
Profiteroles
1.2 Round 2 180 80 - 90
Sponge cake
1 Round 2 150 - 160 55 - 60
Rice pudding
1 Round 2 160 55 - 60
Brioches
0.6 Round 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.
Use
29
EN
Auxiliary oven cooking information table
Food
Weight
(kg)
Function Shelf
Temperature
(°C)
Time
(minutes)
Lasagne
3 - 4 Static/Lower 1 220 - 230 50 - 60
Pasta bake
2 Static/Lower 1 220 - 230 40
Pork chops
1 Static/Lower 1 180 - 190 70 - 80
Sausages
1,5 Grill 1 260 13 - 15
Roast rabbit
1 Static/Lower 1 180 - 190 70 - 80
Turkey breast
1,5 Static/Lower 1 180 - 190 80 - 90
Roast chicken
1 Static/Lower 1 190 - 200 55 - 60
1
st
surface 2
nd
surface
Pork chops
1 Grill/Small grill 2 260 15 5
Spare ribs
1,5 Grill 2 260 10 10
Bacon
0,8 Grill/Small grill 1 - 2 260 7 8
Pork fillet
1,5 Grill 2 260 10 5
Beef fillet
1 Grill 2 260 10 7
Salmon trout
1 Static/Lower 1 260 35 - 40
Pizza
1Static/Lower 1 260 8 - 9
Focaccia
0,8 Static/Lower 1 190 - 200 20 - 25
Fruit cake
1 Static/Lower 1 170 - 180 35 - 40
Short pastry
0,5 Static/Lower 1 170 - 180 55 - 60
The times indicated in the table do not include preheating times and are provided only as a guide.
Cleaning and maintenance
30
4 Cleaning and maintenance
Instructions
Cleaning the surfaces
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always use specific products only that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp
scrapers, as they will damage the surfaces.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
4.1 Cleaning the hob
Cooking hob grids
Remove the grids and clean them in
lukewarm water and non-abrasive
detergent. Make sure to remove any
encrustations. Dry them thoroughly and
return them to the hob.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the hob grids,
flame-spreader crowns and burner caps
in a dishwasher.
We recommend the use of
cleaning products distributed by
the manufacturer.
After cleaning, dry the appliance
thoroughly to prevent water or
detergent drips from interfering
with its operation or creating
unsightly marks.
The continuous contact between
the grids and the flame can cause
modifications to the enamel over
time in those parts exposed to
heat. This is a completely natural
phenomenon which has no effect
on the operation of this
component.
Cleaning and maintenance
31
EN
Flame-spreader crowns and burner caps
For easier cleaning, the flame-spreader
crowns and the burner caps can be
removed. Wash them in hot water and non-
abrasive detergent. Carefully remove any
encrustation, then wait until they are
perfectly dry. Refit the flame-spreader
crowns making sure that they are correctly
positioned in their housings with their
respective burner caps.
Igniters and thermocouples
For correct operation the igniters and
thermocouples must always be perfectly
clean. Check them frequently and clean
them with a damp cloth if necessary.
Remove any dry residues with a wooden
toothpick or a needle.
Knobs
The knobs should be cleaned with a soft
cloth dampened with warm water, then
dried carefully. They can be removed by
pulling them out of their housing.
4.2 Cleaning the doors
The door glazing should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
Removing the door
For easier cleaning, the door can be
removed and placed on a canvas.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
Do not use aggressive products
containing alcohol or products for
cleaning steel and glass when
cleaning the knobs, as these
products could cause permanent
damage.
Cleaning and maintenance
32
To reassemble the door, put the hinges in
the relevant slots on the front of the oven,
making sure that the grooved sections A are
resting completely in the slots. Lower the
door and once it is in place remove the pins
from the holes in the hinges.
Cleaning the door glazing
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). In
this way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Remove the intermediate glass pane by
lifting it upwards.
4. Clean the external glass pane and the
panes previously removed. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Refit the panes in the reverse order in
which they were removed.
Cleaning and maintenance
33
EN
6. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
4.3 Cleaning the oven cavities
For the best oven upkeep, clean it regularly
after having allowed it to cool.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel. Take out all removable parts
before cleaning.
For easier cleaning, we recommend
removing:
• The door (auxiliary oven only);
• The rack/tray support frames
• Removable guides, where fitted
•The seal

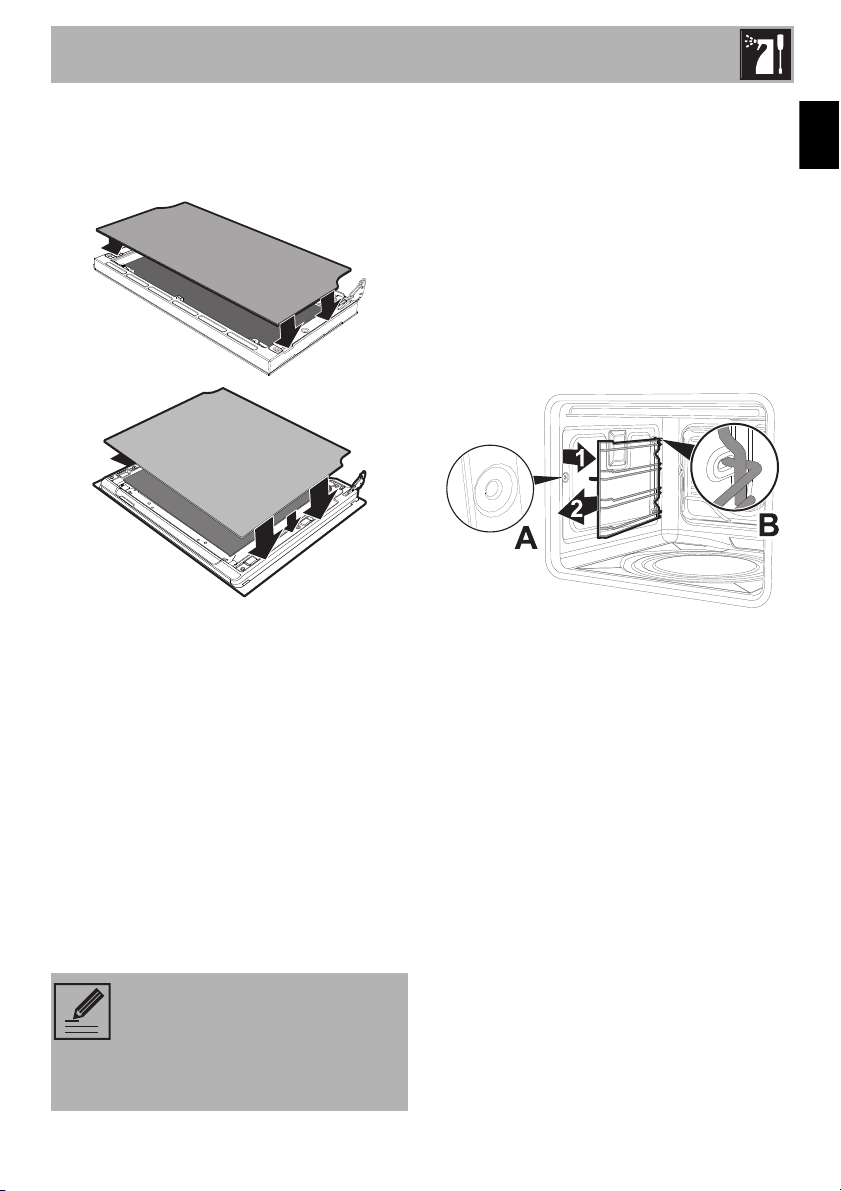

Removing rack/tray support frames
Removing the rack/tray support frames
enables the sides to be cleaned more
easily.
To remove the rack/tray support frames,
pull the frame towards the inside of the oven
to unhook it from its groove A, then slide it
out of the seats at the back B.
When cleaning is complete, repeat the
above procedures to put the rack/tray
support frames back in.
In the event you are using specific
cleaning products, we recommend
running the appliance at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
Cleaning and maintenance
34
Cleaning the roof of the oven
The appliance is equipped with a tilting grill
element that allows for easy cleaning of the
upper part of the oven cavity.
1. Free the upper heating element by gently
lifting it and rotating its retaining latch by
90 degrees.
2. Gently lower the heating element until it
stops.
3. When you have finished cleaning, place
the heating element back in position and
turn the retaining latch to lock it in place.
Vapor Clean (multifunction oven only)
Preliminary operations
Before starting the Vapor Clean cycle:
• Completely remove all accessories from
inside the oven. The upper guard can be
left inside the oven.
• Pour approx. 40 cc of water onto the
bottom of the oven. Make sure it does
not overflow out of the cavity.
High temperature inside the oven
during use
Danger of burns
• The following operations must be
performed only with the oven switched
off and completely cool.
Improper use
Risk of damage to the appliance
• Do not excessively flex the element
during cleaning.
Vapor Clean is an assisted
cleaning procedure which
facilitates the removal of dirt.
Thanks to this process, it is possible
to clean the inside of the oven very
easily. The dirt residues are
softened by the heat and water
vapor for easier removal
afterwards.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
Cleaning and maintenance
35
EN
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray against the side
walls, upwards, downwards and
towards the deflector.
• Close the door.
Vapor Clean cycle setting
1. Turn the function knob to the symbol
and the temperature knob to the symbol
.
2. Set a cooking time of 18 minutes using
the digital programmer.
3. At the end of the cooking time, the timer
will switch the oven heating elements off
and the buzzer will start to sound.
End of the Vapor Clean cycle
4. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
5. Use a non-scratch sponge with brass
filaments on hard to remove deposits.
6. In case of grease residues use specific
oven cleaning products.
7. Remove the water left inside the oven.
For improved hygiene and to avoid food
being affected by any unpleasant odours,
we recommend that the oven is dried using
a fan assisted function at 160°C for
approximately 10 minutes.
We recommend spraying approx.
20 times at the most.
We recommend wearing rubber
gloves for these operations.
For easier manual cleaning of
parts that are difficult to reach, we
recommend removing the door.
Cleaning and maintenance
36
4.4 Extraordinary maintenance
Replacing the oven light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
4. Slide out and remove the lamp.
5. Fit the new light bulb.
6. Refit the cover. Ensure the moulded part
of the glass (A) is facing the door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Live parts
Danger of electrocution
• Disconnect the appliance from the
power supply.
The oven is fitted with a 40W light
bulb.
Pay attention not to scratch the
oven compartment enamel.
Do not touch the halogen lamp
directly with your fingers, but wrap
it in insulating material.
Cleaning and maintenance
37
EN
Removing and installing the seal
To remove the seal:
• Unhook the clips in the 4 corners then
pull the seal outwards.
To refit the seal:
• Hook the clips in the 4 corners onto the
seal.
Seal maintenance tips
The seal should be soft and elastic.
• To keep the seal clean, use a non-
abrasive sponge and lukewarm water to
wash it.
What to do if...
The appliance does not work:
• The switch is defective: check the fuse
box and check that the switch is in order.
• Drop in power: check that the
appliance’s indicator lights are working.
The gas burner does not light up:
• Loss of power or moisture in the igniters:
light the gas burner with a lighter or
match.
The oven does not heat up:
• Fuse defective; check and, if necessary,
replace the switch.
• The function knob has not been set: set
the function knob.
All food prepared in the oven cavity burns
within a short time:
• Defective thermostat: contact an
Authorised Service Centre
The door glazing steams up when the
oven is hot:
• Absolutely normal behaviour caused by
the temperature difference: this has no
effect on the performance of the oven.
The display is completely off:
• Check the mains power supply.
• Check that any circuit breaker/switch
upstream of the appliance power supply
connection is in the “ON” position.
If the door is opened during a fan assisted
function, the fan stops:
• This is not a fault. It is a normal operation
of the appliance, useful when cooking
foods in order to avoid excessive heat
escaping. When the door is closed, the
oven will return to normal operation.
If the problem has not been
resolved or in the case of other
types of fault, contact your local
technical support centre.
Installation
38
5 Installation
5.1 Gas connection (not valid for the
UK)
General information
Connection to the gas mains can be made
using a continuous wall steel hose in
compliance with the guidelines established
by the standards in force. The appliance is
preset for natural gas G20 (2H) at a
pressure of 20 mbar. For supplying it with
other types of gas, see chapter “5.2
Adaptation to different types of gas”. The
gas inlet connection is threaded ½”
external gas (ISO 228-1).
Connection with a rubber hose
Verify that all following conditions are met:
• the hose is attached to the hose
connector with safety clamps;
• no part of the hose is in contact with hot
walls (max. 50 °C);
• the hose is not under traction or tension
and has no kinks or twists;
• the hose is not in contact with sharp
objects or sharp corners;
• if the hose is not perfectly airtight and
leaks gas, do not try to repair it; replace
it with a new hose;
• verify that the hose is not past its expiry
date (serigraphed on the hose itself).
Make the connection to the gas mains
using a rubber hose whose specifications
comply with current standards (verify that
the reference standard is stamped on the
hose).
For installation in the UK, please
refer to the “Local specifications for
UK gas appliances installation”
booklet.
Gas leak
Danger of explosion
• After carrying out any operation, check
that the tightening torque of gas
connections is between 10 Nm and
15 Nm.
• If required, use a pressure regulator that
complies with current regulations.
• At the end of the installation, check for
any leaks with a soapy solution, never
with a flame.
• Installation using a hose must be carried
out so that the length of the hose does
not exceed 2 metres when fully
extended for steel hoses and 1.5 metres
for rubber hoses.
• The hoses should not come into contact
with moving parts and should not be
crushed in any way.
• The adjustment conditions for this
appliance are shown on the gas setting
label.
Installation
39
EN
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread
ISO 228-1), placing the seal 2 between
them. The hose connector 4 can also be
screwed to the hose connector 3,
depending on the diameter of the gas hose
used. After having tightened the hose
connector(s), push the gas hose 6 onto the
hose connector and secure it with the clamp
5 that is compliant with the standard in
force.
Connection with a steel hose
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the connector 3 to the gas
connector 1 of the appliance, placing the
seal 2 between them.
Connection with a steel hose with
bayonet fitting
Carry out the connection to the gas mains
using a steel hose with bayonet fitting
compliant with B.S. 669. Apply insulating
material to the thread of the gas hose
connector 4 and then tighten the adapter 3.
Screw the assembly to the movable
connector 1 of the appliance, placing the
supplied seal 2 between them.
Connection using a rubber hose
complying with current standards is
only permitted if the hose can be
inspected along its entire length.
The inside diameter of the hose
must be 8 mm for LPG and 13 mm
for Natural gas and Town gas.
Installation
40
Connection to LPG
Use a pressure regulator and make the
connection on the gas cylinder following
the guidelines set out in the standards in
force.
The supply pressure must comply with the
values indicated in the table “Gas types
and Countries”.
Connection with a steel hose with conical
fitting
Make the connection to the gas mains
using a continuous wall steel hose whose
specifications comply with the applicable
standard.
Carefully screw the hose connector 3 to the
appliance’s gas connector 1 (½” thread
ISO 228-1), placing the supplied seal 2
between them. Apply insulating material to
the thread of connector 3, then tighten the
steel hose 4 to the connector 3.
Room ventilation
The appliance should be installed in rooms
that have a permanent air supply in
accordance with the standards in force. The
room where the appliance is installed must
have enough air flow for the regular
combustion of gas and the necessary air
change in the room itself. The air vents,
protected by grilles, must be the right size to
comply with current regulations and
positioned so that no part of them is
obstructed, not even partially.
The room must be kept adequately
ventilated in order to eliminate the heat and
humidity produced by cooking: In
particular, after prolonged use, you are
recommended to open a window or to
increase the speed of any fans.
Extraction of the combustion products
The combustion products may be extracted
by means of hoods connected to a natural
draught chimney whose efficiency is certain
or via forced extraction. An efficient
extraction system requires precision
planning by a specialist qualified in this
area and must comply with the positions
and clearances indicated by the applicable
standards.
When the job is complete, the installer must
issue a certificate of conformity.
This appliance is not connected to
an exhaust system for combustion
products. It must be installed and
connected in compliance with the
current installation regulations.
Special attention should be paid to
the relevant requirements as for
ventilation.
Installation
41
EN
1 Extraction using a hood
2 Extraction without a hood
A Single natural draught chimney
B Single chimney with extractor fan
C Directly outdoors with wall- or window-
mounted extractor fan
D Directly outdoors through wall
Air
Combustion products
Extractor fan
5.2 Adaptation to different types of
gas
In case of operation with other types of gas,
the burner nozzles must be changed and
the minimum flame adjusted on the gas
taps.
Replacing nozzles
1. Remove the grids, burner caps and
flame-spreader crowns in order to
access the burner cups.

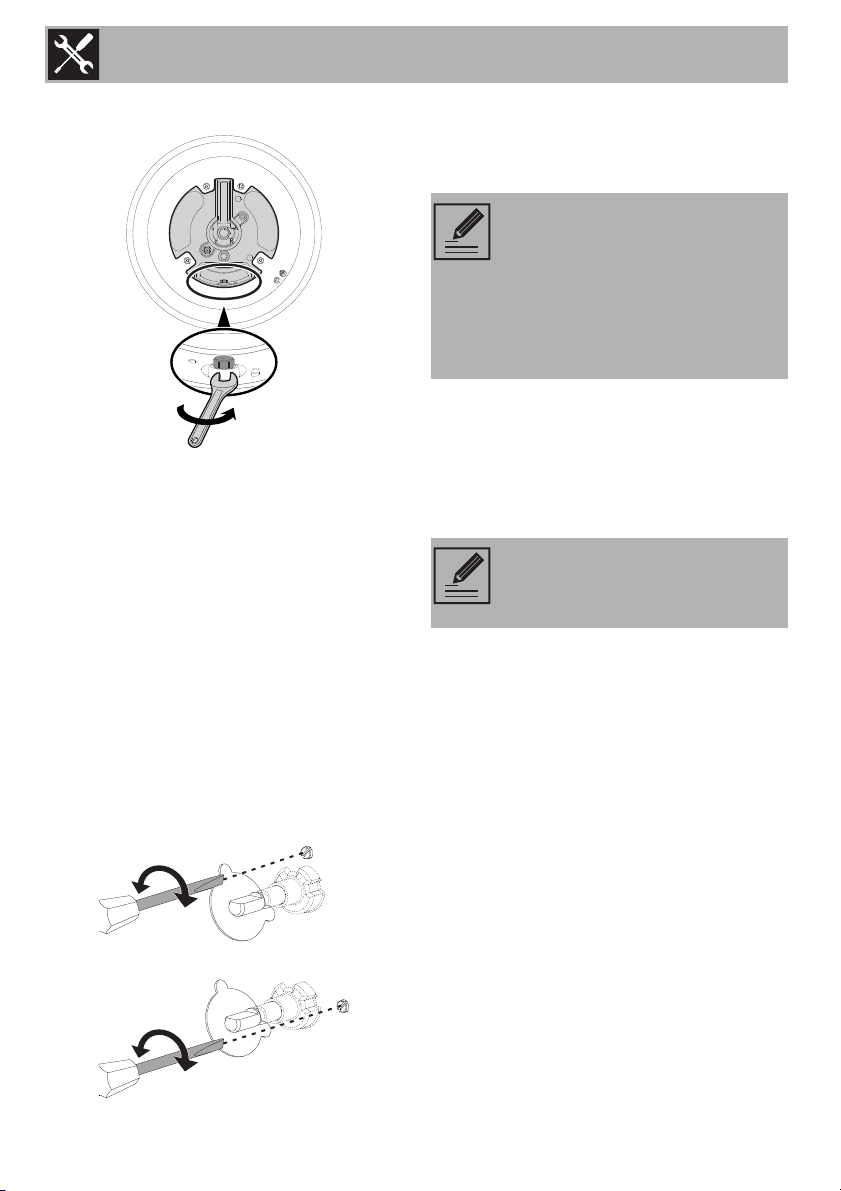

2. Replace the nozzles using a 7-mm socket
wrench according to the gas to be used
(see "Nozzle and burner specification
tables").
Installation
42
3. Reposition the burners in their respective
housings.
Adjusting the minimum setting for natural
or town gas
Light the burner and turn it to the minimum
position. Remove the gas tap knob and turn
the adjustment screw next to the tap rod
(depending on the model) until the correct
minimum flame is obtained.
Refit the knob and verify that the burner
flame is stable. Turn the knob rapidly from
the maximum to the minimum setting: The
flame should not go out. Repeat the
operation on all gas cocks.
Adjusting the minimum setting for LPG
Tighten the screw located at the side of the
cock rod clockwise all the way.
Lubricating the gas taps
Over time the gas taps may become difficult
to turn and get blocked. Clean them
internally and replace the lubrication
grease.
Following adjustment to a gas
other than the one originally set in
the factory, replace the gas setting
label on the appliance with the
one corresponding to the new gas.
The label is inserted inside the
nozzle pack (where present).
Lubrication of the gas cocks should
be performed by a specialised
technician.
Installation
43
EN
Gas types and Countries
Gas types
IT GB-IE FR-BE DE AT NL ES PT SE RU DK PL HU
1 Natural gas G20
G20 20 mbar
• • •• ••••••
G20/25 20/25 mbar
•
2 Natural gas G20
G20 25 mbar
•
3 Natural gas G25
G25 25 mbar
•
G25.3 25 mbar
•
4 Natural gas G25.1
G25.1 25 mbar
•
5 Natural gas G25
G25 20 mbar
•
6 LPG G30/31
G30/31 28/37 mbar
•• • •
G30/31 30/37 mbar
••
G30/31 30/30 mbar
•••
7 LPG G30/31
G30/31 37 mbar
•
8 LPG G30/31
G30/31 50 mbar
••
9 Town gas G110
G110 8 mbar
•••
It is possible to identify the
available gas types based on the
country the appliance is to be
installed in. Refer to the heading
number to identify the correct
values in the “Gas types and
Countries”.
Installation
44
Burner and nozzle characteristics tables
1 Natural gas G20 - 20 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.2
Nozzle diameter (1/100 mm) 72 97 145
Pre-chamber (printed on nozzle) (X) (Z) (F3)
Reduced flow rate (W) 400 500 1400
2 Natural gas G20 - 25 mbar AUX SR UR2
Rated heating capacity (kW) 1.10 1.8 4.2
Nozzle diameter (1/100 mm) 72 94 145
Pre-chamber (printed on nozzle) (X) (Z) (H3)
Reduced flow rate (W) 400 500 1400
3 Natural gas G25/G25.3 - 25 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.2
Nozzle diameter (1/100 mm) 72 94 143
Pre-chamber (printed on nozzle) (F1) (Y) (F2)
Reduced flow rate (W) 400 500 1400
4 Natural gas G25.1 - 25 mbar AUX SR UR2
Rated heating capacity (kW) 1.10 1.8 4.2
Nozzle diameter (1/100 mm) 77 100 152
Pre-chamber (printed on nozzle) (F1) (Y) (F3)
Reduced flow rate (W) 400 500 1400
5 Natural gas G25 - 20 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.2
Nozzle diameter (1/100 mm) 77 100 165
Pre-chamber (printed on nozzle) (F1) (Y) (H3)
Reduced flow rate (W) 400 500 1400
6 Natural gas G2.350 - 13 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.0
Nozzle diameter (1/100 mm) 94 120 190
Pre-chamber (printed on nozzle) (Y) (Y) (F3)
Reduced flow rate (W) 400 500 1400
Installation
45
EN
The nozzles not provided are available at Authorised Service Centres.
7 LPG G30/31 - 30/37 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.0
Nozzle diameter (1/100 mm) 50 65 100
Pre-chamber (printed on nozzle) - - -
Reduced flow rate (W) 400 500 1400
Rated flow rate G30 (g/h) 73 131 291
Rated flow rate G31 (g/h) 71 129 286
8 LPG G30/31 - 37 mbar AUX SR UR2
Rated heating capacity (kW) 1.1 1.9 4.1
Nozzle diameter (1/100 mm) 50 65 95
Pre-chamber (printed on nozzle) - - -
Reduced flow rate (W) 450 550 1500
Rated flow rate G30 (g/h) 80 138 298
Rated flow rate G31 (g/h) 79 136 293
9 LPG G30/31 - 50 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.1
Nozzle diameter (1/100 mm) 43 58 80
Pre-chamber (printed on nozzle) (H2) (M) (F4)
Reduced flow rate (W) 400 500 1400
Rated flow rate G30 (g/h) 73 131 298
Rated flow rate G31 (g/h) 71 129 293
10 Town gas G110 - 8 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 3.5
Nozzle diameter (1/100 mm) 145 185 340
Pre-chamber (printed on nozzle) /8 /2 ST8080-02
Reduced flow rate (W) 400 500 1200
Installation
46
5.3 Positioning
This appliance may be installed next to
walls, one of which must be higher than the
worktop, at a minimum distance of X mm
from the side of the appliance, as shown in
figures “A” and “C” relative to the
installation classes.
Any wall units positioned above the
worktop of the appliance must be at a
minimum distance of at least Y mm. If a
hood is installed above the hob, refer to the
hood instruction manual to ensure the
correct clearance is left.
Depending on the type of installation, this
appliance belongs to classes:
A - Class 1
(Free-standing appliance)
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the open door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
door when open.
Heat production during appliance
operation
Risk of fire
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (not less than
90°C).
X 150 mm
Y 750 mm
Installation
47
EN
B - Class 2 subclass 1
(Built-in appliance)
C - Class 2 subclass 1
(Built-in appliance)
Appliance overall dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A).
The appliance must be installed by
a qualified technician and
according to the regulations in
force.
A 600 mm
B 600 mm
C
1
min. 150 mm
D 900 - 915 mm
H 750 mm
I 450 mm
L
2
600 mm
Installation
48
Dimensions of the appliance: locations of
gas and electric connections (mm)
E = Electrical connection
G = Gas connection
Positioning and levelling
The appliance must sit level on the floor to
ensure stability.
• After making the gas and electrical
connections, level and stabilise the
appliance on the floor by screwing the
foot in or out.
Assembling the upstand
The upstand must always be positioned and
secured correctly on the appliance.
1. Loosen the 4 screws (A) on the back of
the hob (2 for each side) using a
screwdriver.
2. Place the upstand on the hob.
3. Align the slots of the upstand (B) with the
screws (A).
A 150
B 15
C 48
D 715
H 891
L 598
Heavy appliance
Risk of damage to the appliance
• Insert the front feet first and then the rear
ones.
The upstand provided is an
integral part of the product; it must
be fastened to the appliance prior
to installation.
Installation
49
EN
4. Secure the upstand to the hob by
tightening the 4 screws previously
loosened.
5.4 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
The appliance can work in the following
modes:
• 220-240 V 1N~
3 x 2.5 mm² three-core cable.
• 380-415 V 2N~
4 x 1.5 mm² four-core cable.
• 220-240 V 2~
3 x 2.5 mm² three-core cable.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains supply.
• Do not pull the cable to remove the
plug.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of
the terminal board conductors must be
1.5 - 2 Nm.
Installation
50
• 220-240 V 3~
4 x 1.5 mm² four-core cable.
• 380-415 V 3N~
5 x 1.5 mm² five-core cable.
Fixed connection
Fit the power line with an all-pole
disconnection switch, with a clearance
between its contacts that allows the
complete disconnection as per the
overvoltage category III, in compliance
with the installation regulations.
5.5 Instructions for the installer
• The plug must be accessible after
installation. Do not bend or trap the
power cable.
• The appliance must be installed
according to the installation diagrams.
• Do not try to unscrew or force the
threaded elbow of the fitting. You may
damage this part of the appliance, which
may void the manufacturer’s warranty.
• Use soap and water to check for gas
leaks on all connections. DO NOT use
naked flames when looking for leaks.
• Turn on all the burners separately and at
then all together to make sure that the
gas valve, burner and ignition are
working properly.
• Turn the burner knobs to the minimum
position and check that the flame is
stable for each individual burner and all
the burners together.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
The values indicated above refer
to the cross-section of the internal
conductor.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
