12.0-Volt Lithium-ion Cordless
3/8 in. Reversible Drill
Model No. 320. 10003
by an ]
ENERGY STAR® |
quaJJfied battery |
charger for a |
better environment|
WARNING: To reduce the risk of injury,
the user must read and understand
the Operator's manual before using
this product.
Sears Brands Management Corporation
www,crsftsman,com
* Warranty
* Safety
* Assernbly
* Operation
* Maintenance
Charge battery
Before first use

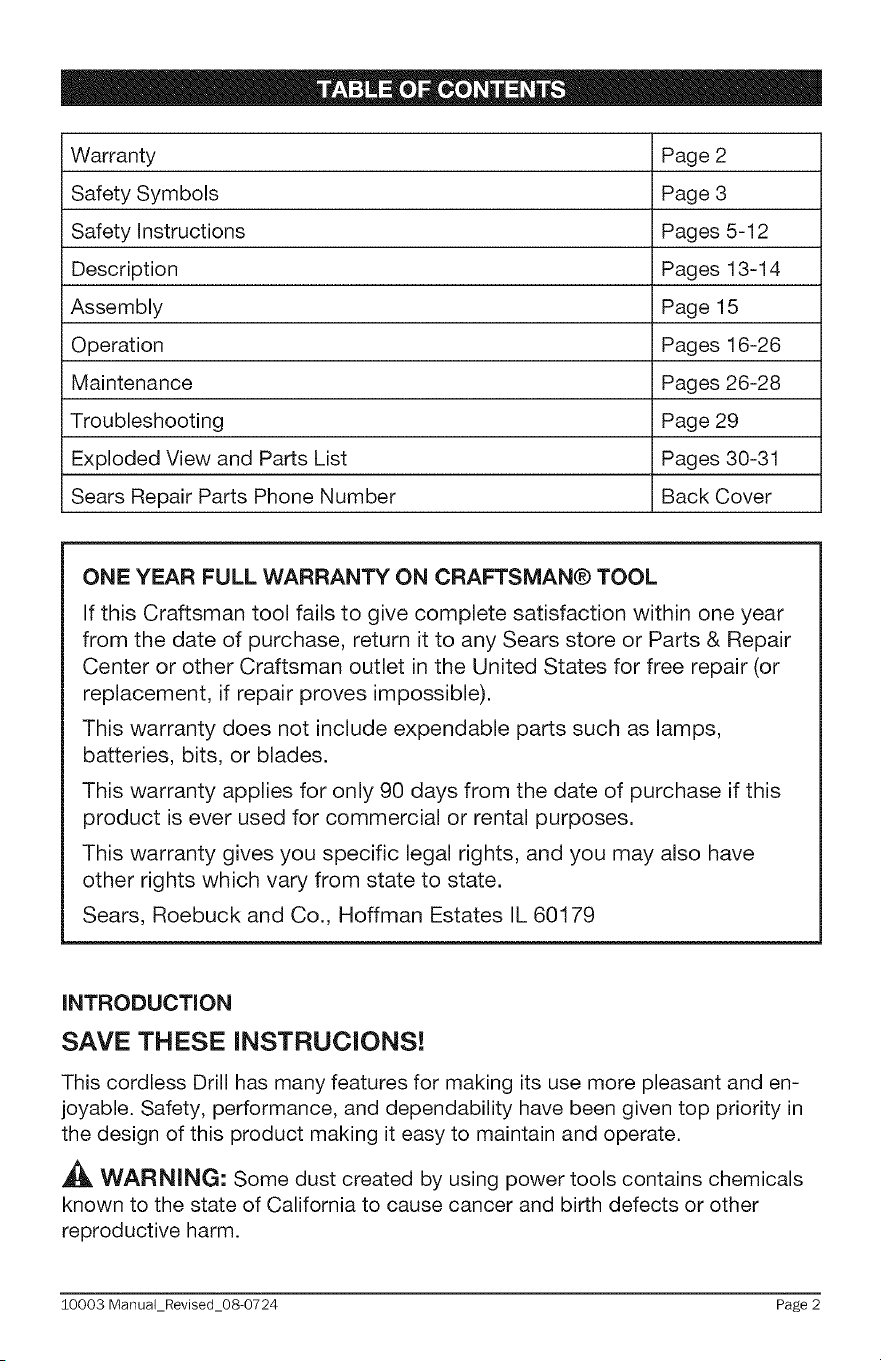

Warranty Page 2
Safety Symbols Page 3
Safety Instructions Pages 5-12
Description Pages 13-14
Assembly Page 15
Operation Pages 16-26
Maintenance Pages 26-28

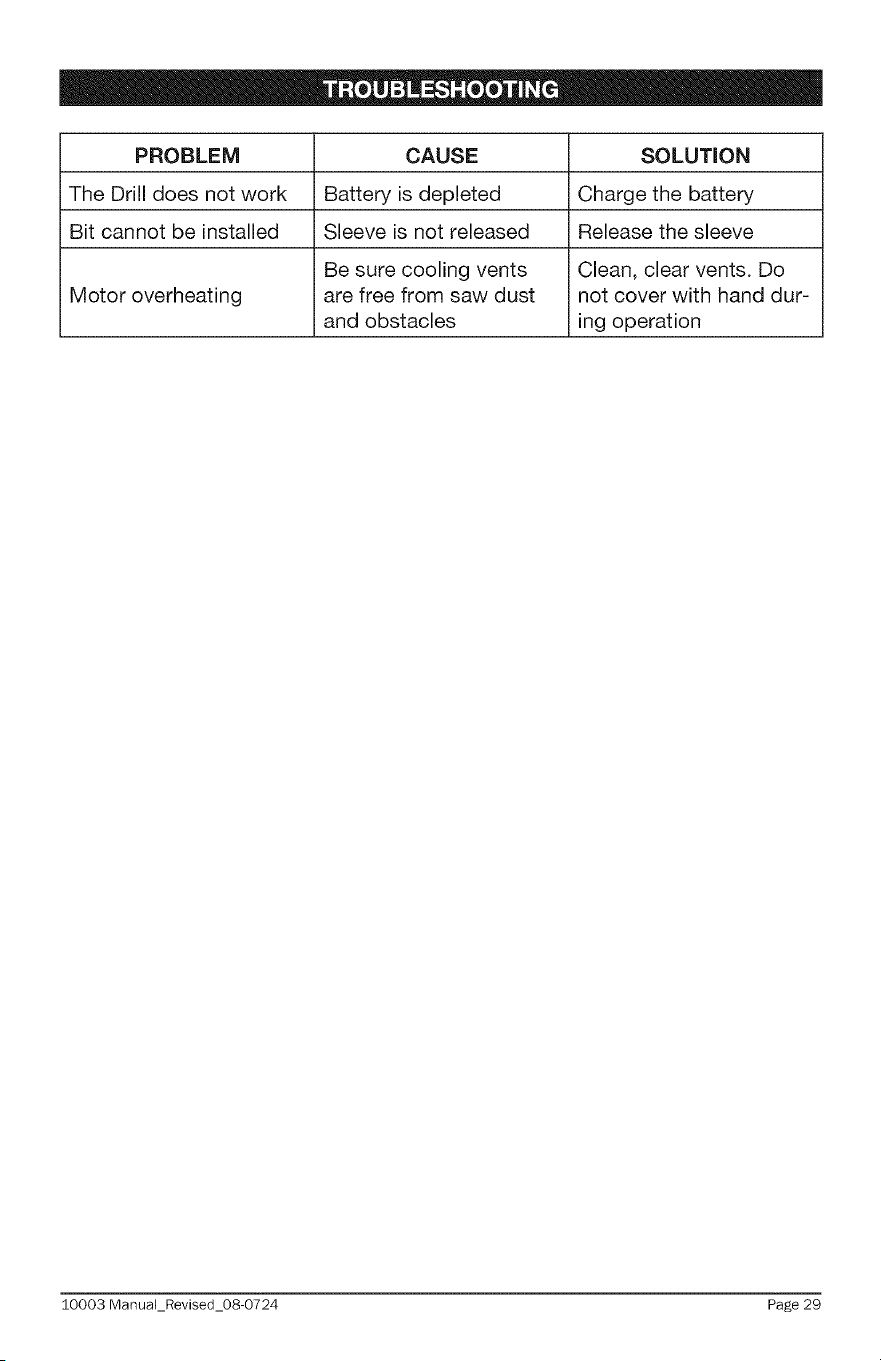

Troubleshooting Page 29

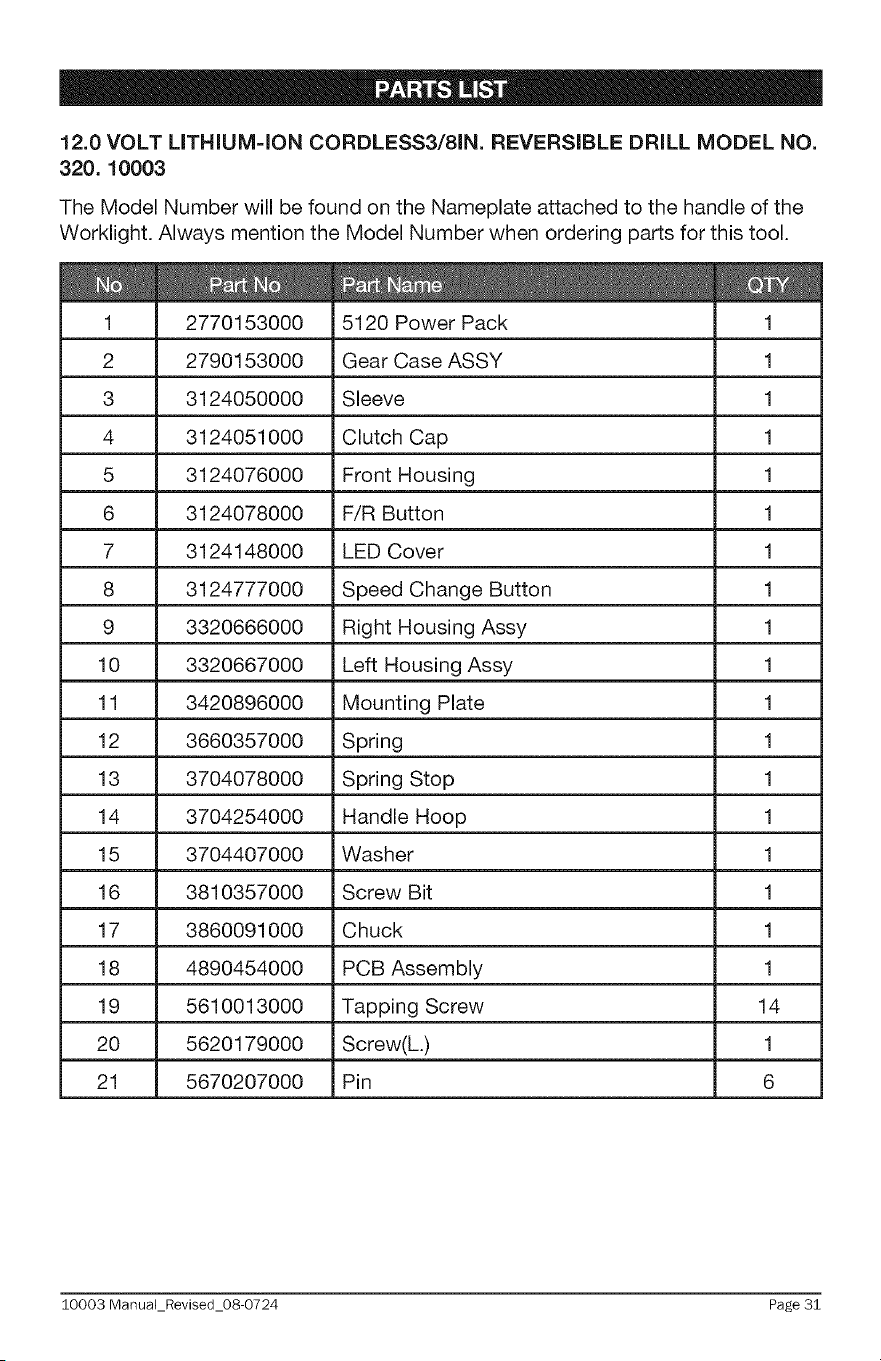

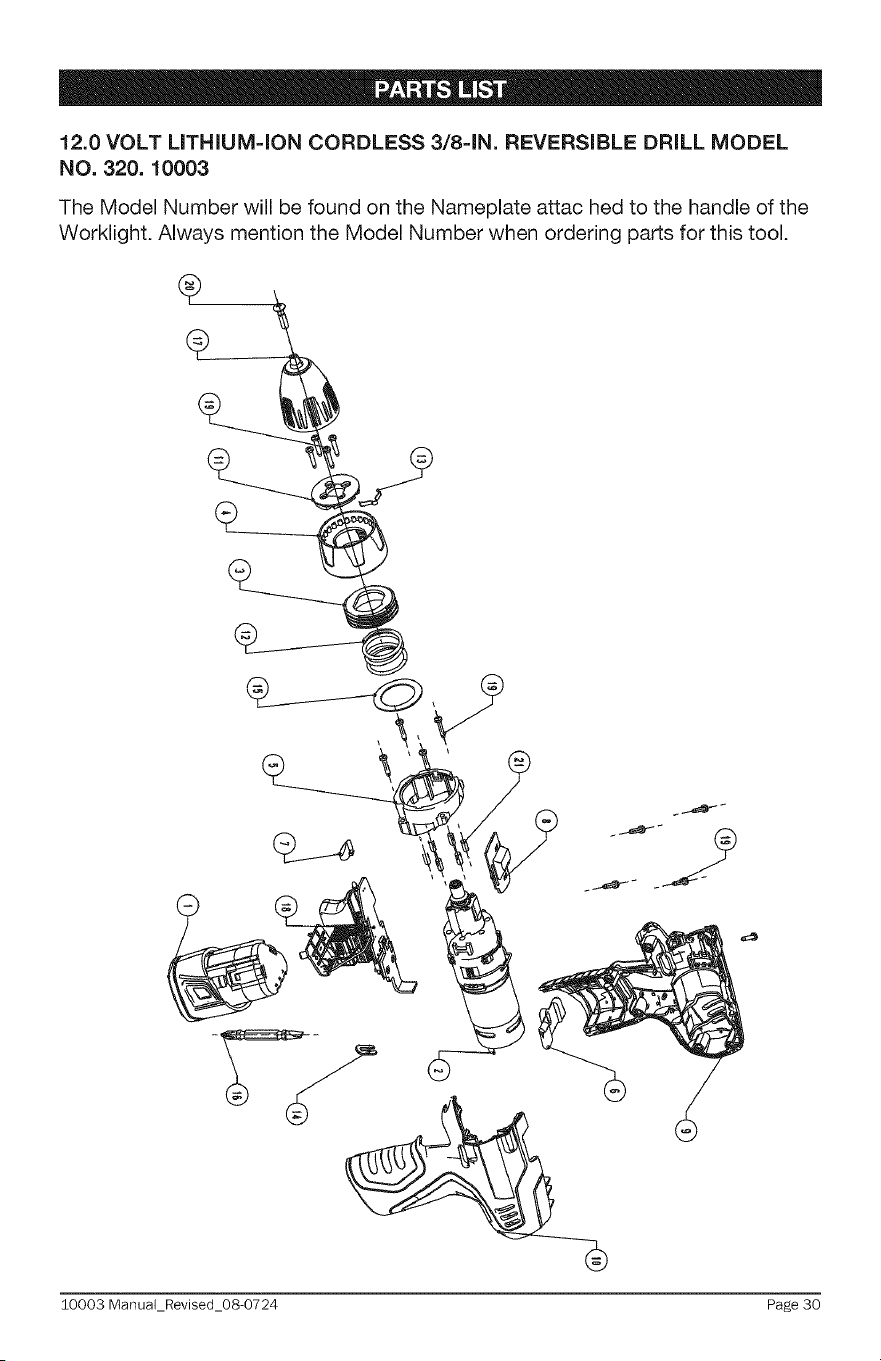

Exploded View and Parts List Pages 30-31

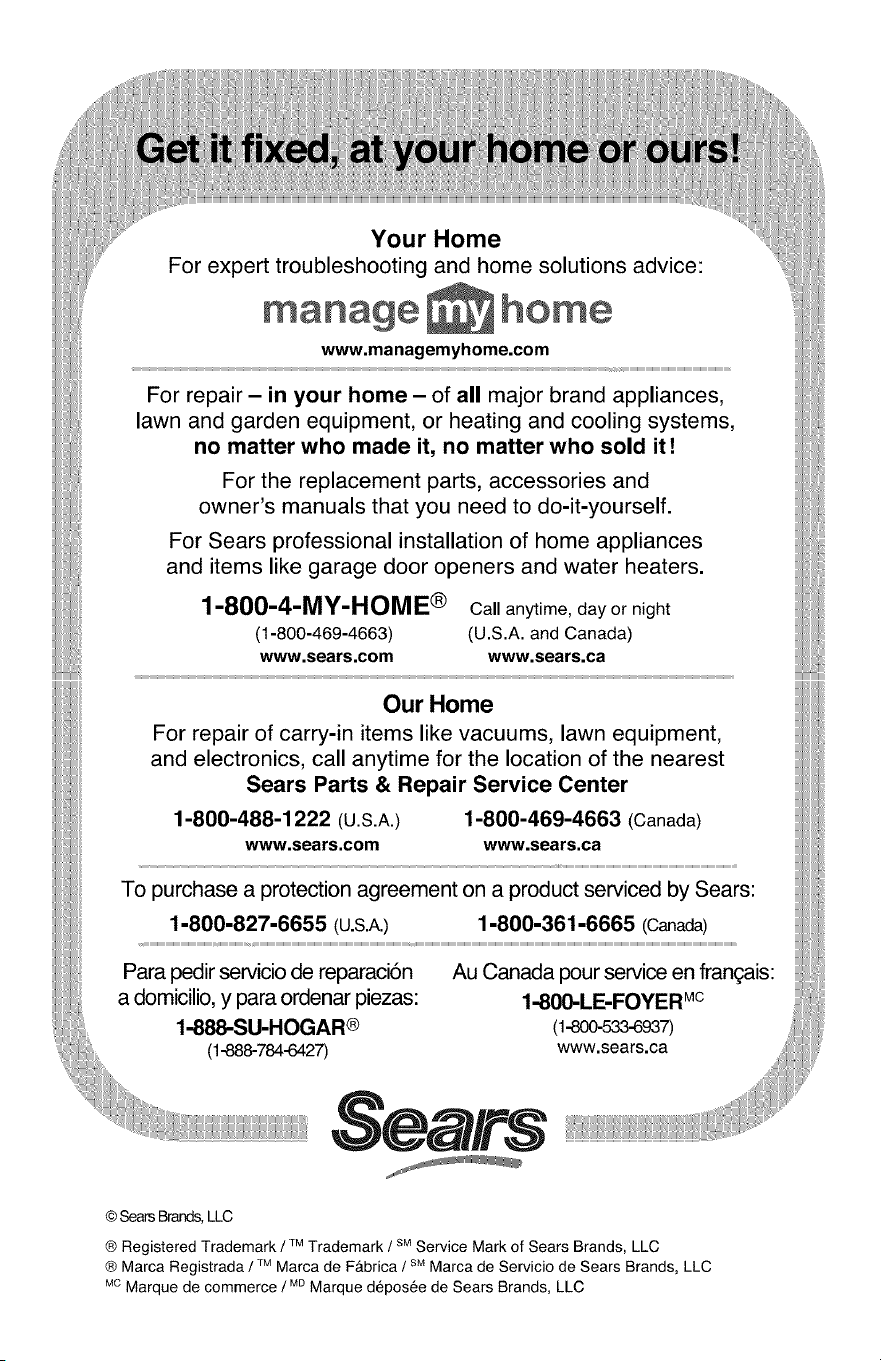

Sears Repair Parts Phone Number Back Cover
ONE YEAR FULL WARRANTY ON CRAFTSMAN® TOOL
If this Craftsman tool fails to give complete satisfaction within one year
from the date of purchase, return it to any Sears store or Parts & Repair
Center or other Craftsman outlet in the United States for free repair (or
replacement, if repair proves impossible).
This warranty does not include expendable parts such as lamps,
batteries, bits, or blades.
This warranty applies for only 90 days from the date of purchase if this
product is ever used for commercial or rental purposes.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates IL 60179
iNTRODUCTiON
SAVE THESE INSTRUCIONS!
This cordless Drill has many features for making its use more pleasant and en-
joyable. Safety, performance, and dependability have been given top priority in
the design of this product making it easy to maintain and operate.
WARNING: Some dust created by using power tools contains chemicals
known to the state of California to cause cancer and birth defects or other
reproductive harm.

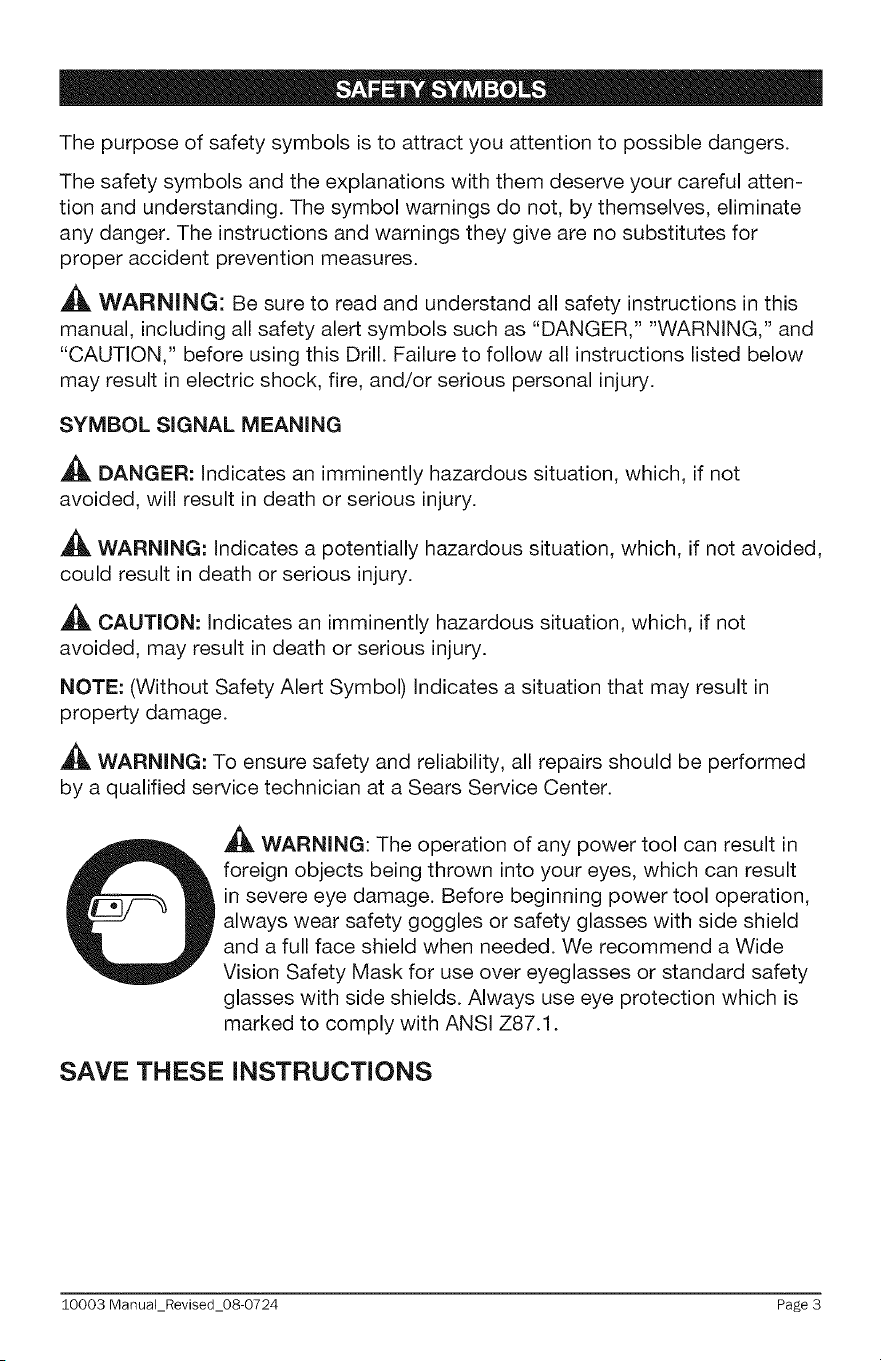

The purpose of safety symbols is to attract you attention to possible dangers.
The safety symbols and the explanations with them deserve your careful atten-
tion and understanding. The symbol warnings do not, by themselves, eliminate
any danger. The instructions and warnings they give are no substitutes for
proper accident prevention measures.
WARNING: Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as "DANGER," "WARNING," and
"CAUTION," before using this Drill. Failure to follow all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
SYMBOL SIGNAL MEANING
_. DANGER: Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates an imminently hazardous situation, which, if not
avoided, may result in death or serious injury.
NOTE: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at a Sears Service Center.
A
WARNING: The operation of any power tool can result in
foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shield
and a full face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
10003 ManuaLRevised_08 0724 Page 2 10003 ManuaLRevised_08 0724 Page 3
Warranty Page 2
Safety Symbols Page 3
Safety Instructions Pages 5-12
Description Pages 13-14
Assembly Page 15
Operation Pages 16-26
Maintenance Pages 26-28
Troubleshooting Page 29
Exploded View and Parts List Pages 30-31
Sears Repair Parts Phone Number Back Cover
ONE YEAR FULL WARRANTY ON CRAFTSMAN® TOOL
If this Craftsman tool fails to give complete satisfaction within one year
from the date of purchase, return it to any Sears store or Parts & Repair
Center or other Craftsman outlet in the United States for free repair (or
replacement, if repair proves impossible).
This warranty does not include expendable parts such as lamps,
batteries, bits, or blades.
This warranty applies for only 90 days from the date of purchase if this
product is ever used for commercial or rental purposes.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates IL 60179
iNTRODUCTiON
SAVE THESE INSTRUCIONS!
This cordless Drill has many features for making its use more pleasant and en-
joyable. Safety, performance, and dependability have been given top priority in
the design of this product making it easy to maintain and operate.
WARNING: Some dust created by using power tools contains chemicals
known to the state of California to cause cancer and birth defects or other
reproductive harm.
The purpose of safety symbols is to attract you attention to possible dangers.
The safety symbols and the explanations with them deserve your careful atten-
tion and understanding. The symbol warnings do not, by themselves, eliminate
any danger. The instructions and warnings they give are no substitutes for
proper accident prevention measures.
WARNING: Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as "DANGER," "WARNING," and
"CAUTION," before using this Drill. Failure to follow all instructions listed below
may result in electric shock, fire, and/or serious personal injury.
SYMBOL SIGNAL MEANING
_. DANGER: Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates an imminently hazardous situation, which, if not
avoided, may result in death or serious injury.
NOTE: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at a Sears Service Center.
A
WARNING: The operation of any power tool can result in
foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shield
and a full face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
10003 ManuaLRevised_08 0724 Page 2 10003 ManuaLRevised_08 0724 Page 3

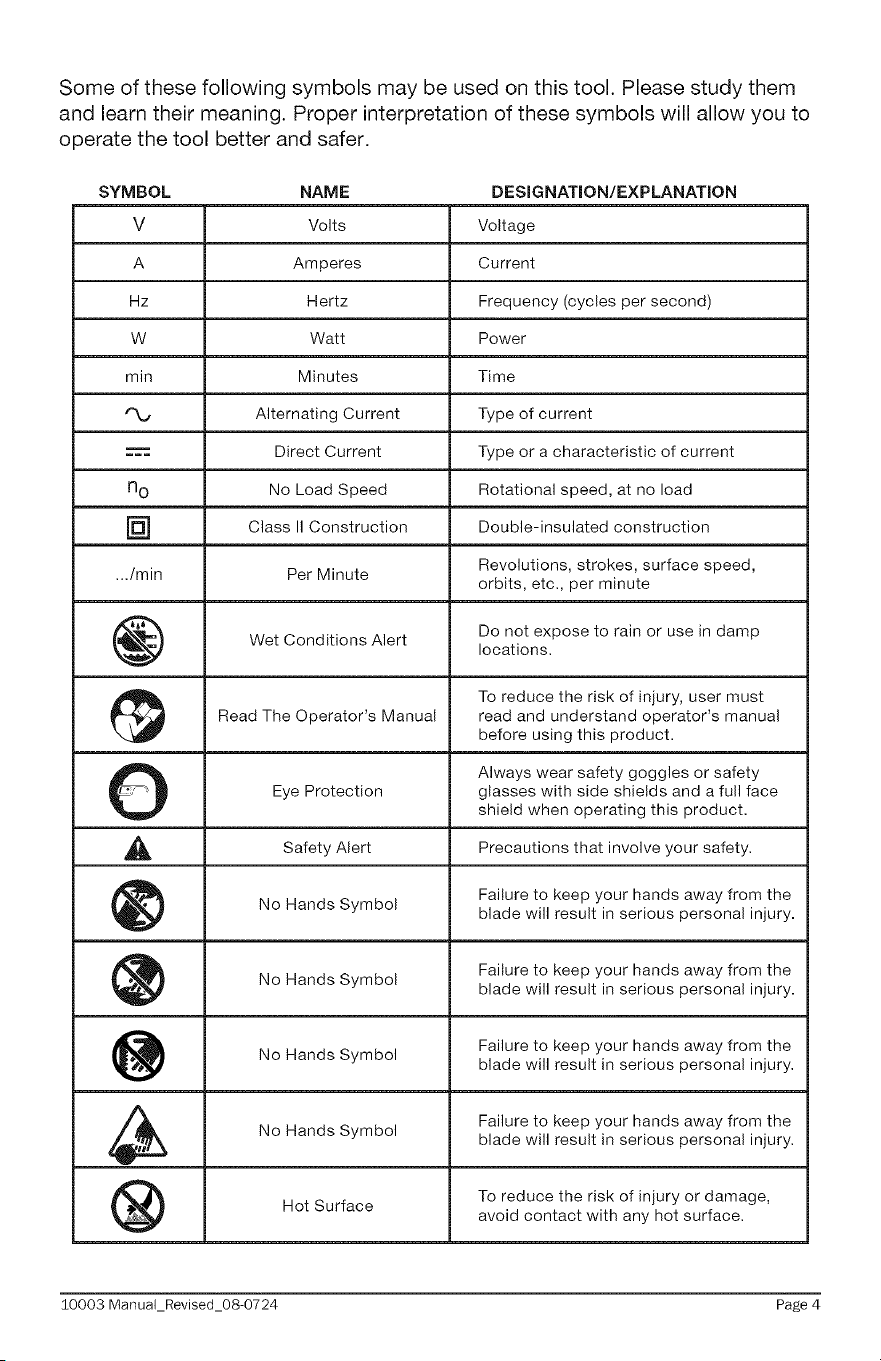

Some of these following symbols may be used on this tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n o No Load Speed Rotational speed, at no load
] Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed,
orbits, etc., per minute
Wet Conditions Alert Do not expose to rain or use in damplocations.
To reduce the risk of injury, user must
Read The Operator's Manual read and understand operator's manual
before using this product.
Always wear safety goggles or safety
Eye Protection glasses with side shields and a full face
shield when operating this product.
Alert Precautions that involve
Safety your safety.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
No Hands Failure to keep your hands away from the
Symbol
blade will result in serious personal injury.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,avoid contact with any hot surface.
10003 ManuaLRevised_08 0724 Page 4

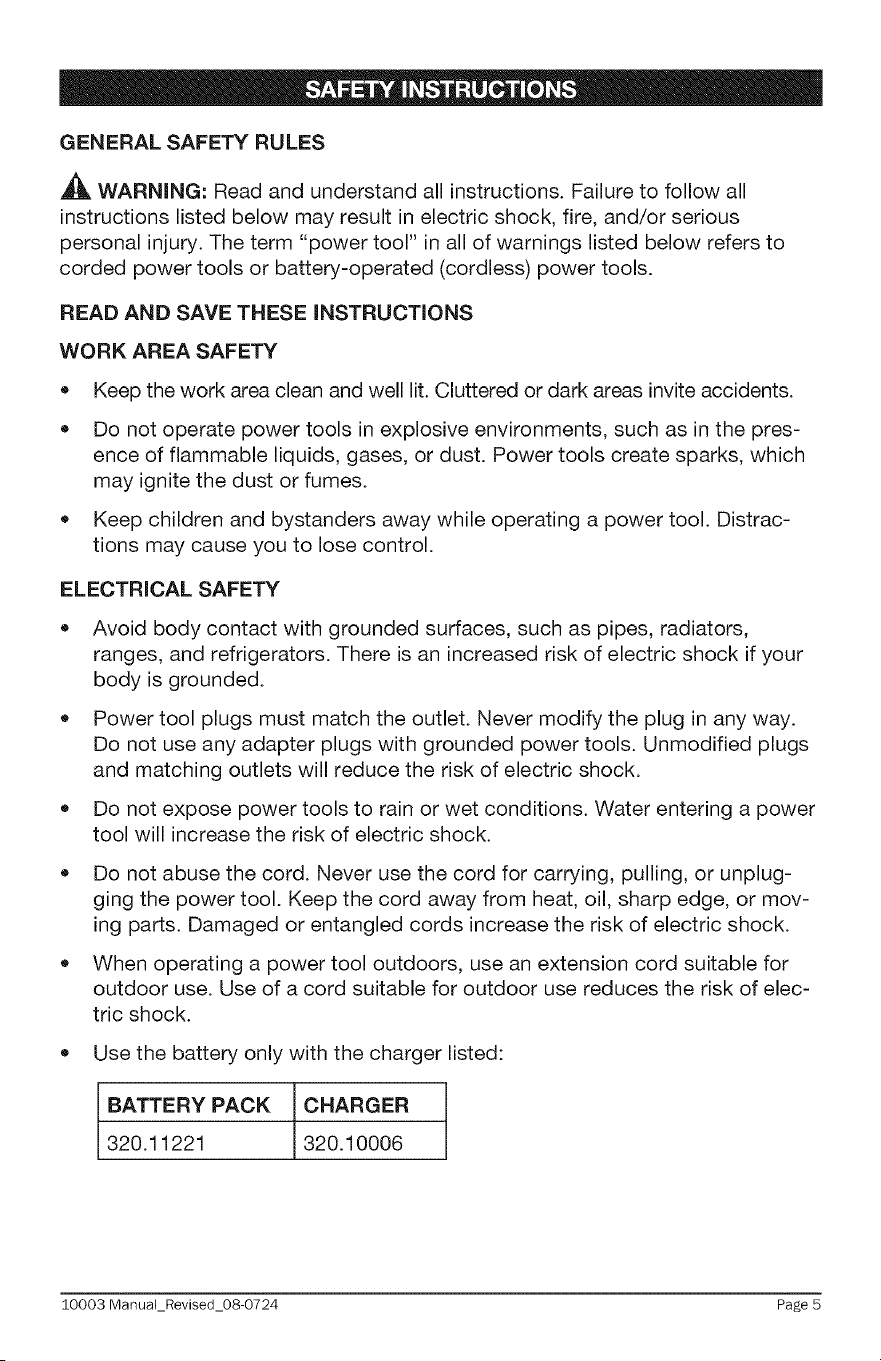

GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury. The term "power tool" in all of warnings listed below refers to
corded power tools or battery-operated (cordless) power tools.
READ AND SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
®
®
Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive environments, such as in the pres-
ence of flammable liquids, gases, or dust. Power tools create sparks, which
may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distrac-
tions may cause you to lose control.
ELECTRICAL SAFETY
Avoid body contact with grounded surfaces, such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with grounded power tools. Unmodified plugs
and matching outlets will reduce the risk of electric shock.
Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling, or unplug-
ging the power tool. Keep the cord away from heat, oil, sharp edge, or mov-
ing parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of elec-
tric shock.
• Use the battery only with the charger listed:
BATTERY PACK CHARGER
320.11221 320.10006
10003 ManuaLRevised_08 0724 Page 5
Some of these following symbols may be used on this tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n o No Load Speed Rotational speed, at no load
] Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed,
orbits, etc., per minute
Wet Conditions Alert Do not expose to rain or use in damplocations.
To reduce the risk of injury, user must
Read The Operator's Manual read and understand operator's manual
before using this product.
Always wear safety goggles or safety
Eye Protection glasses with side shields and a full face
shield when operating this product.
Alert Precautions that involve
Safety your safety.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
No Hands Failure to keep your hands away from the
Symbol
blade will result in serious personal injury.
Failure to keep your hands away from the
No Hands Symbol blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,avoid contact with any hot surface.
10003 ManuaLRevised_08 0724 Page 4
GENERAL SAFETY RULES
WARNING: Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury. The term "power tool" in all of warnings listed below refers to
corded power tools or battery-operated (cordless) power tools.
READ AND SAVE THESE INSTRUCTIONS
WORK AREA SAFETY
®
®
Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive environments, such as in the pres-
ence of flammable liquids, gases, or dust. Power tools create sparks, which
may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distrac-
tions may cause you to lose control.
ELECTRICAL SAFETY
Avoid body contact with grounded surfaces, such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with grounded power tools. Unmodified plugs
and matching outlets will reduce the risk of electric shock.
Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling, or unplug-
ging the power tool. Keep the cord away from heat, oil, sharp edge, or mov-
ing parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of elec-
tric shock.
• Use the battery only with the charger listed:
BATTERY PACK CHARGER
320.11221 320.10006
10003 ManuaLRevised_08 0724 Page 5

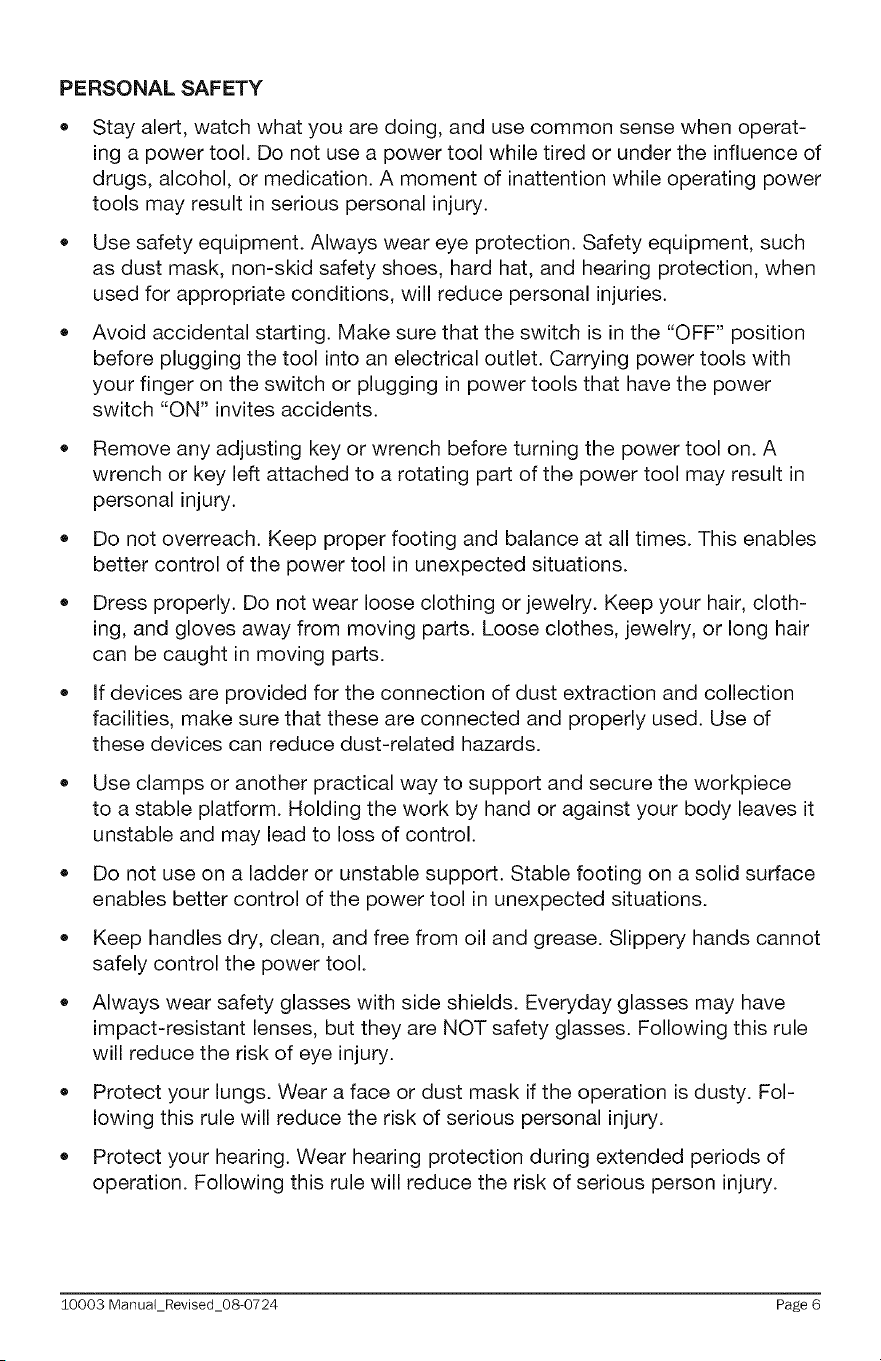

PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operat-
ing a power tool. Do not use a power tool while tired or under the influence of
drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Use safety equipment. Always wear eye protection. Safety equipment, such
as dust mask, non-skid safety shoes, hard hat, and hearing protection, when
used for appropriate conditions, will reduce personal injuries.
Avoid accidental starting. Make sure that the switch is in the "OFF" position
before plugging the tool into an electrical outlet. Carrying power tools with
your finger on the switch or plugging in power tools that have the power
switch "ON" invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A
wrench or key left attached to a rotating part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, cloth-
ing, and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection
facilities, make sure that these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Use clamps or another practical way to support and secure the workpiece
to a stable platform. Holding the work by hand or against your body leaves it
unstable and may lead to loss of control.
Do not use on a ladder or unstable support. Stable footing on a solid surface
enables better control of the power tool in unexpected situations.
Keep handles dry, clean, and free from oil and grease. Slippery hands cannot
safely control the power tool.
Always wear safety glasses with side shields. Everyday glasses may have
impact-resistant lenses, but they are NOT safety glasses. Following this rule
will reduce the risk of eye injury.
Protect your lungs. Wear a face or dust mask if the operation is dusty. Fol-
lowing this rule will reduce the risk of serious personal injury.
Protect your hearing. Wear hearing protection during extended periods of
operation. Following this rule will reduce the risk of serious person injury.

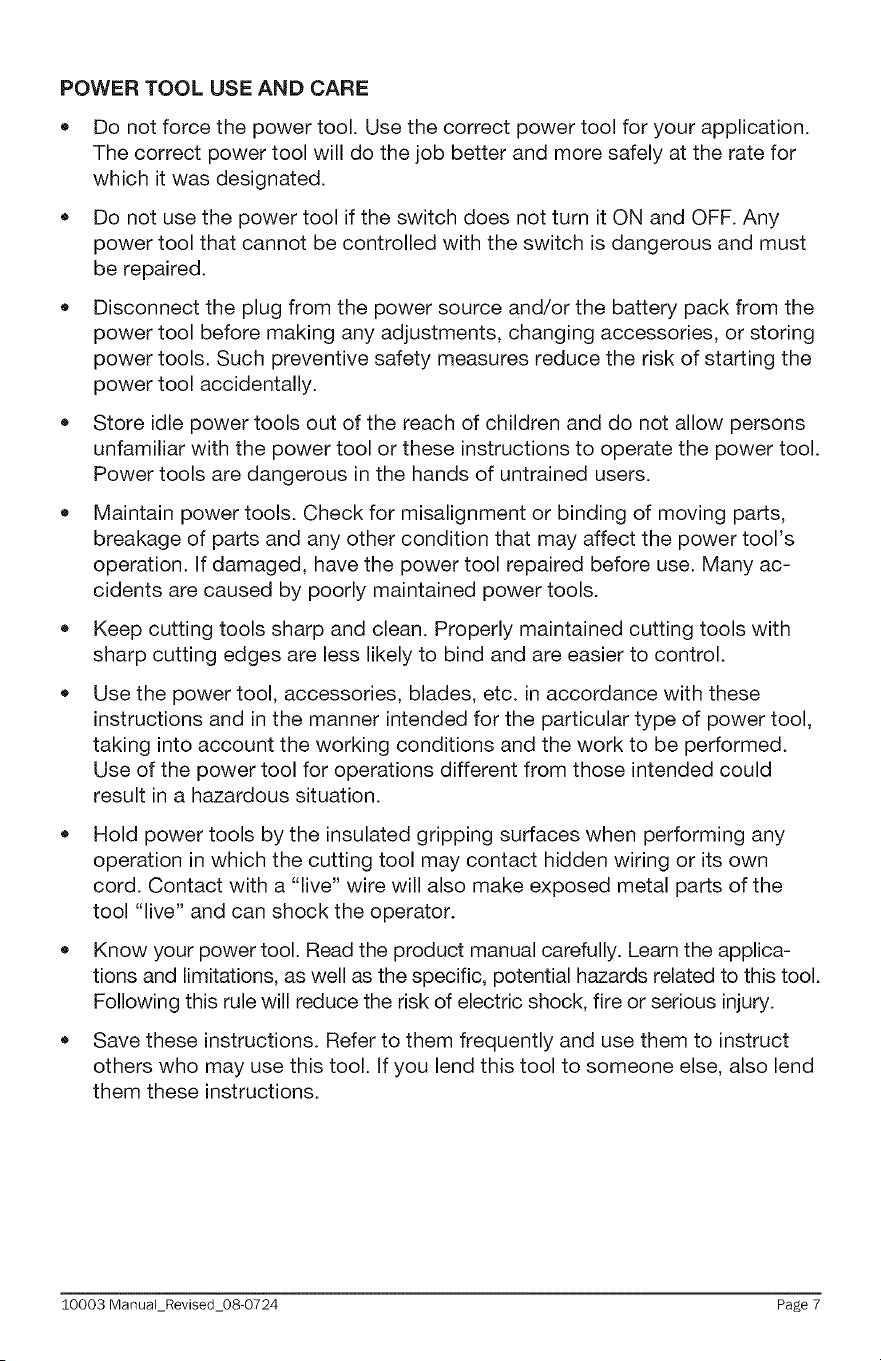

POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and more safely at the rate for
which it was designated.
Do not use the power tool if the switch does not turn it ON and OFF. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool's
operation. If damaged, have the power tool repaired before use. Many ac-
cidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories, blades, etc. in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could
result in a hazardous situation.
Hold power tools by the insulated gripping surfaces when performing any
operation in which the cutting tool may contact hidden wiring or its own
cord. Contact with a "live" wire will also make exposed metal parts of the
tool "live" and can shock the operator.
Know your power tool. Read the product manual carefully. Learn the applica-
tions and limitations, as well as the specific, potential hazards related to this tool.
Following this rule will reduce the risk of electric shock, fire or serious injury.
Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you lend this tool to someone else, also lend
them these instructions.
10003 ManuaLRevised_08 0724 Page 6 10003 ManuaLRevised_08 0724 Page 7
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operat-
ing a power tool. Do not use a power tool while tired or under the influence of
drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Use safety equipment. Always wear eye protection. Safety equipment, such
as dust mask, non-skid safety shoes, hard hat, and hearing protection, when
used for appropriate conditions, will reduce personal injuries.
Avoid accidental starting. Make sure that the switch is in the "OFF" position
before plugging the tool into an electrical outlet. Carrying power tools with
your finger on the switch or plugging in power tools that have the power
switch "ON" invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A
wrench or key left attached to a rotating part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, cloth-
ing, and gloves away from moving parts. Loose clothes, jewelry, or long hair
can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection
facilities, make sure that these are connected and properly used. Use of
these devices can reduce dust-related hazards.
Use clamps or another practical way to support and secure the workpiece
to a stable platform. Holding the work by hand or against your body leaves it
unstable and may lead to loss of control.
Do not use on a ladder or unstable support. Stable footing on a solid surface
enables better control of the power tool in unexpected situations.
Keep handles dry, clean, and free from oil and grease. Slippery hands cannot
safely control the power tool.
Always wear safety glasses with side shields. Everyday glasses may have
impact-resistant lenses, but they are NOT safety glasses. Following this rule
will reduce the risk of eye injury.
Protect your lungs. Wear a face or dust mask if the operation is dusty. Fol-
lowing this rule will reduce the risk of serious personal injury.
Protect your hearing. Wear hearing protection during extended periods of
operation. Following this rule will reduce the risk of serious person injury.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and more safely at the rate for
which it was designated.
Do not use the power tool if the switch does not turn it ON and OFF. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
Disconnect the plug from the power source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool's
operation. If damaged, have the power tool repaired before use. Many ac-
cidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories, blades, etc. in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could
result in a hazardous situation.
Hold power tools by the insulated gripping surfaces when performing any
operation in which the cutting tool may contact hidden wiring or its own
cord. Contact with a "live" wire will also make exposed metal parts of the
tool "live" and can shock the operator.
Know your power tool. Read the product manual carefully. Learn the applica-
tions and limitations, as well as the specific, potential hazards related to this tool.
Following this rule will reduce the risk of electric shock, fire or serious injury.
Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you lend this tool to someone else, also lend
them these instructions.
10003 ManuaLRevised_08 0724 Page 6 10003 ManuaLRevised_08 0724 Page 7

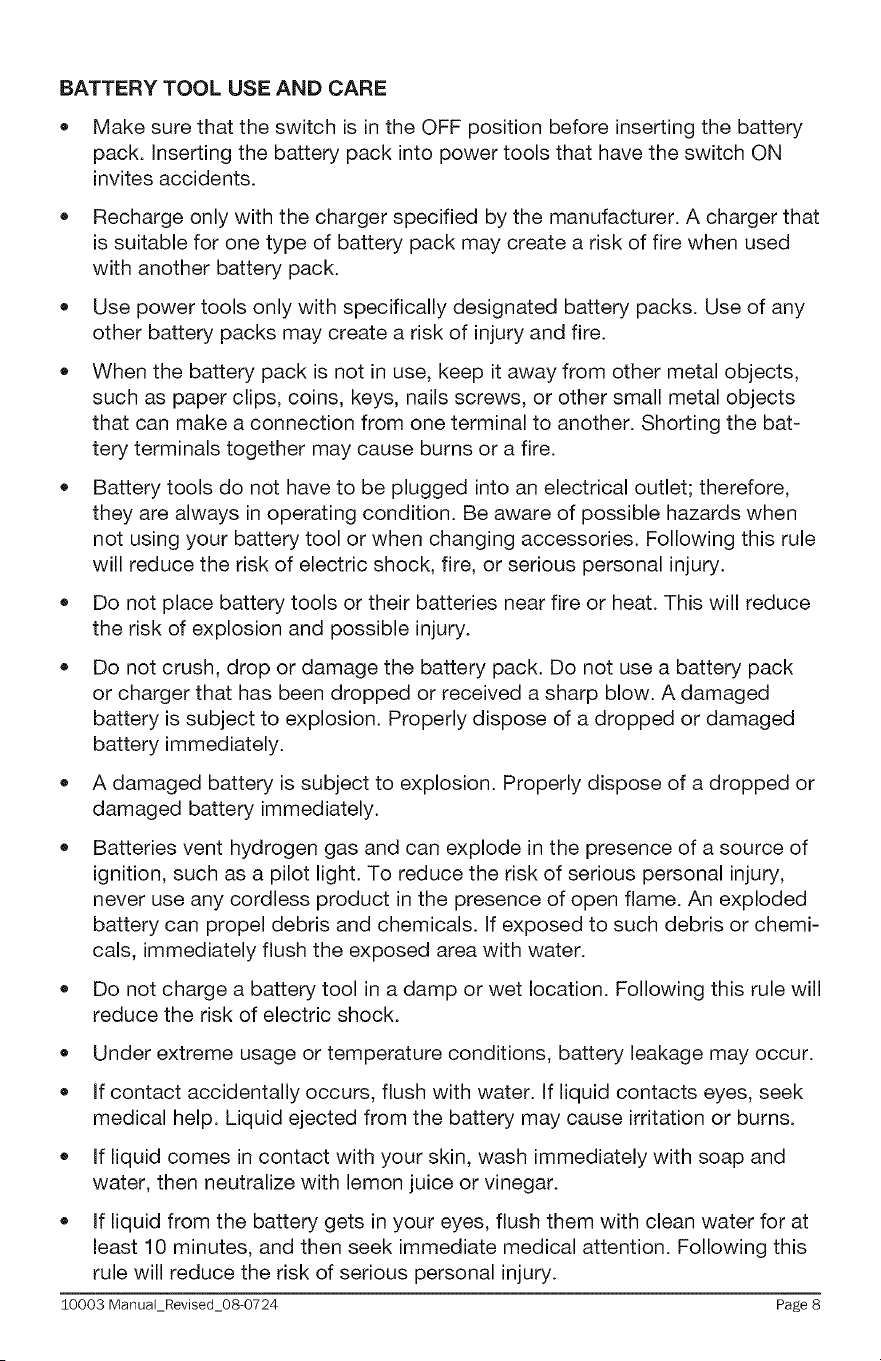

BATTERY TOOL USE AND CARE
• Make sure that the switch is in the OFF position before inserting the battery
pack. Inserting the battery pack into power tools that have the switch ON
invites accidents.
Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used
with another battery pack.
Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
When the battery pack is not in use, keep it away from other metal objects,
such as paper clips, coins, keys, nails screws, or other small metal objects
that can make a connection from one terminal to another. Shorting the bat-
tery terminals together may cause burns or a fire.
Battery tools do not have to be plugged into an electrical outlet; therefore,
they are always in operating condition. Be aware of possible hazards when
not using your battery tool or when changing accessories. Following this rule
will reduce the risk of electric shock, fire, or serious personal injury.
Do not place battery tools or their batteries near fire or heat. This will reduce
the risk of explosion and possible injury.
Do not crush, drop or damage the battery pack. Do not use a battery pack
or charger that has been dropped or received a sharp blow. A damaged
battery is subject to explosion. Properly dispose of a dropped or damaged
battery immediately.
A damaged battery is subject to explosion. Properly dispose of a dropped or
damaged battery immediately.
Batteries vent hydrogen gas and can explode in the presence of a source of
ignition, such as a pilot light. To reduce the risk of serious personal injury,
never use any cordless product in the presence of open flame. An exploded
battery can propel debris and chemicals. If exposed to such debris or chemi-
cals, immediately flush the exposed area with water.
Do not charge a battery tool in a damp or wet location. Following this rule will
reduce the risk of electric shock.
Under extreme usage or temperature conditions, battery leakage may occur.
If contact accidentally occurs, flush with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the battery may cause irritation or burns.
If liquid comes in contact with your skin, wash immediately with soap and
water, then neutralize with lemon juice or vinegar.
If liquid from the battery gets in your eyes, flush them with clean water for at
least 10 minutes, and then seek immediate medical attention. Following this
rule will reduce the risk of serious personal injury.
10003 ManuaLRevised_08 0724 Page 8

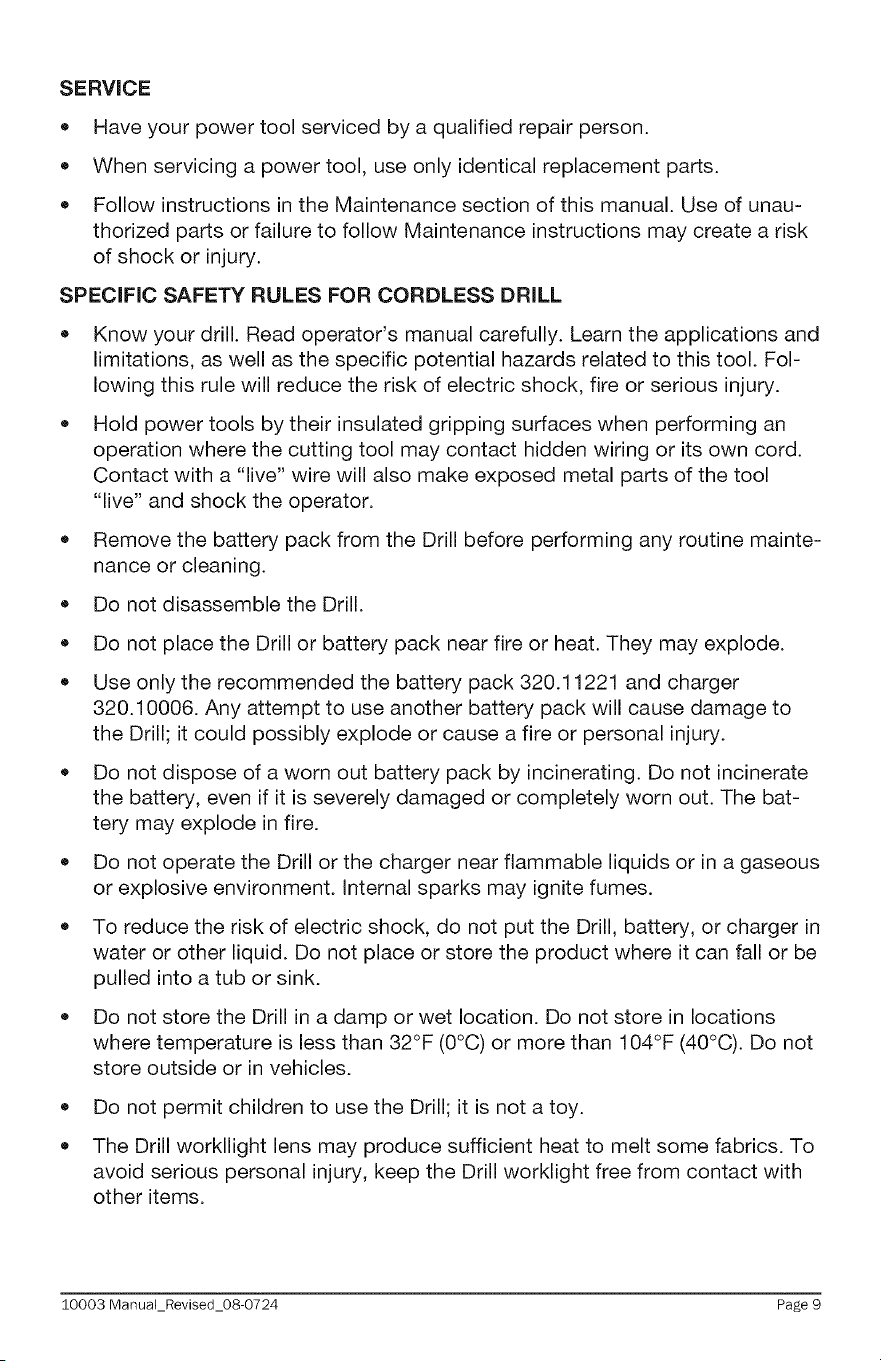

SERVICE
Have your power tool serviced by a qualified repair person.
When servicing a power tool, use only identical replacement parts.
Follow instructions in the Maintenance section of this manual. Use of unau-
thorized parts or failure to follow Maintenance instructions may create a risk
of shock or injury.
SPECIFIC SAFETY RULES FOR CORDLESS DRILL
Know your drill. Read operator's manual carefully. Learn the applications and
limitations, as well as the specific potential hazards related to this tool. Fol-
lowing this rule will reduce the risk of electric shock, fire or serious injury.
Hold power tools by their insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a "live" wire will also make exposed metal parts of the tool
"live" and shock the operator.
Remove the battery pack from the Drill before performing any routine mainte-
nance or cleaning.
Do not disassemble the Drill.
®
®
Do not place the Drill or battery pack near fire or heat. They may explode.
Use only the recommended the battery pack 320.11221 and charger
320.10006. Any attempt to use another battery pack will cause damage to
the Drill; it could possibly explode or cause a fire or personal injury.
Do not dispose of a worn out battery pack by incinerating. Do not incinerate
the battery, even if it is severely damaged or completely worn out. The bat-
tery may explode in fire.
Do not operate the Drill or the charger near flammable liquids or in a gaseous
or explosive environment. Internal sparks may ignite fumes.
To reduce the risk of electric shock, do not put the Drill, battery, or charger in
water or other liquid. Do not place or store the product where it can fall or be
pulled into a tub or sink.
Do not store the Drill in a damp or wet location. Do not store in locations
where temperature is less than 32°F (0°C) or more than 104°F (40°C). Do not
store outside or in vehicles.
®
®
Do not permit children to use the Drill; it is not a toy.

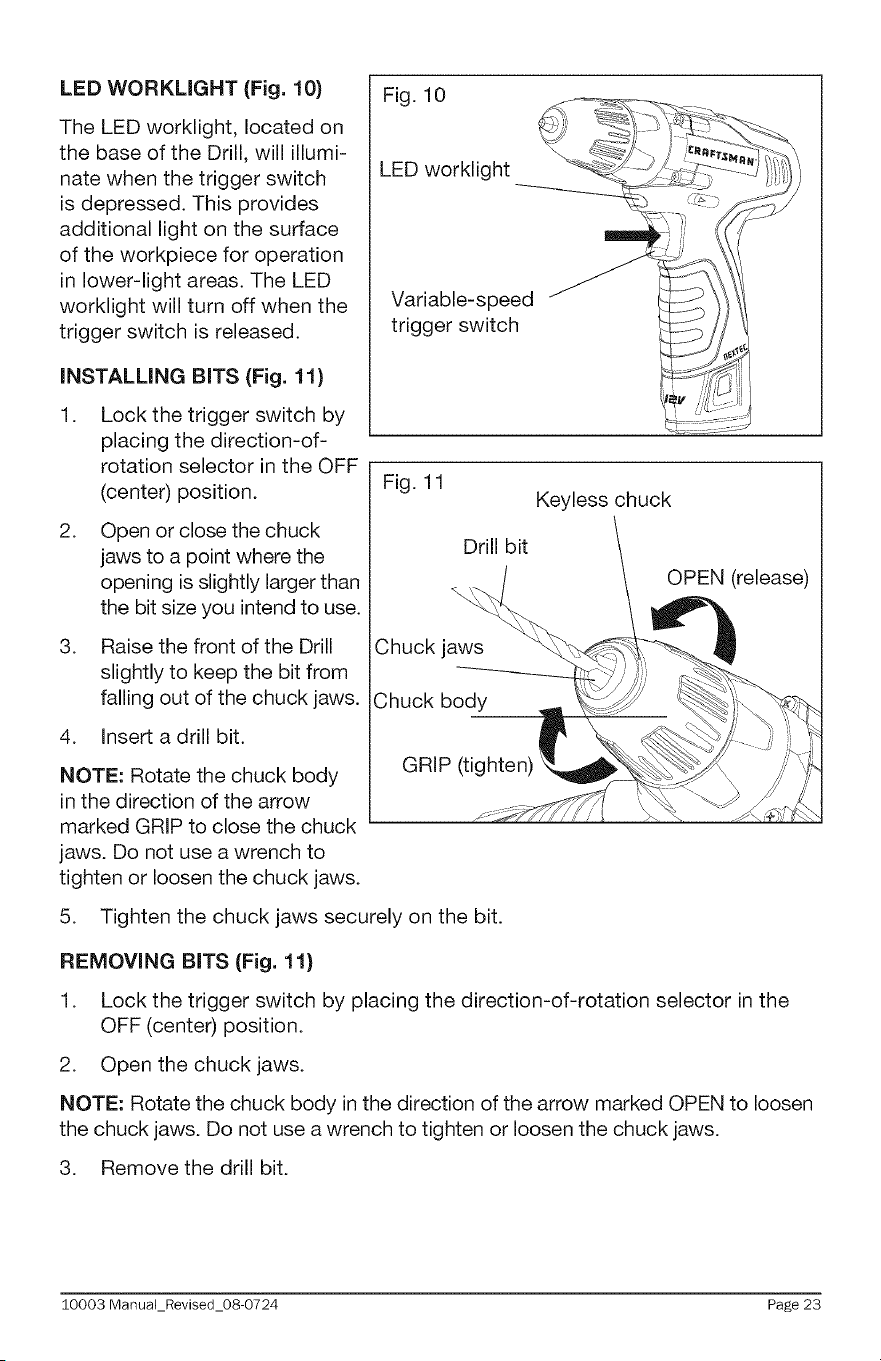

The Drill workllight lens may produce sufficient heat to melt some fabrics. To
avoid serious personal injury, keep the Drill worklight free from contact with
other items.
10003 ManuaLRevised_08 0724 Page 9
BATTERY TOOL USE AND CARE
• Make sure that the switch is in the OFF position before inserting the battery
pack. Inserting the battery pack into power tools that have the switch ON
invites accidents.
Recharge only with the charger specified by the manufacturer. A charger that
is suitable for one type of battery pack may create a risk of fire when used
with another battery pack.
Use power tools only with specifically designated battery packs. Use of any
other battery packs may create a risk of injury and fire.
When the battery pack is not in use, keep it away from other metal objects,
such as paper clips, coins, keys, nails screws, or other small metal objects
that can make a connection from one terminal to another. Shorting the bat-
tery terminals together may cause burns or a fire.
Battery tools do not have to be plugged into an electrical outlet; therefore,
they are always in operating condition. Be aware of possible hazards when
not using your battery tool or when changing accessories. Following this rule
will reduce the risk of electric shock, fire, or serious personal injury.
Do not place battery tools or their batteries near fire or heat. This will reduce
the risk of explosion and possible injury.
Do not crush, drop or damage the battery pack. Do not use a battery pack
or charger that has been dropped or received a sharp blow. A damaged
battery is subject to explosion. Properly dispose of a dropped or damaged
battery immediately.
A damaged battery is subject to explosion. Properly dispose of a dropped or
damaged battery immediately.
Batteries vent hydrogen gas and can explode in the presence of a source of
ignition, such as a pilot light. To reduce the risk of serious personal injury,
never use any cordless product in the presence of open flame. An exploded
battery can propel debris and chemicals. If exposed to such debris or chemi-
cals, immediately flush the exposed area with water.
Do not charge a battery tool in a damp or wet location. Following this rule will
reduce the risk of electric shock.
Under extreme usage or temperature conditions, battery leakage may occur.
If contact accidentally occurs, flush with water. If liquid contacts eyes, seek
medical help. Liquid ejected from the battery may cause irritation or burns.
If liquid comes in contact with your skin, wash immediately with soap and
water, then neutralize with lemon juice or vinegar.
If liquid from the battery gets in your eyes, flush them with clean water for at
least 10 minutes, and then seek immediate medical attention. Following this
rule will reduce the risk of serious personal injury.
10003 ManuaLRevised_08 0724 Page 8
SERVICE
Have your power tool serviced by a qualified repair person.
When servicing a power tool, use only identical replacement parts.
Follow instructions in the Maintenance section of this manual. Use of unau-
thorized parts or failure to follow Maintenance instructions may create a risk
of shock or injury.
SPECIFIC SAFETY RULES FOR CORDLESS DRILL
Know your drill. Read operator's manual carefully. Learn the applications and
limitations, as well as the specific potential hazards related to this tool. Fol-
lowing this rule will reduce the risk of electric shock, fire or serious injury.
Hold power tools by their insulated gripping surfaces when performing an
operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a "live" wire will also make exposed metal parts of the tool
"live" and shock the operator.
Remove the battery pack from the Drill before performing any routine mainte-
nance or cleaning.
Do not disassemble the Drill.
®
®
Do not place the Drill or battery pack near fire or heat. They may explode.
Use only the recommended the battery pack 320.11221 and charger
320.10006. Any attempt to use another battery pack will cause damage to
the Drill; it could possibly explode or cause a fire or personal injury.
Do not dispose of a worn out battery pack by incinerating. Do not incinerate
the battery, even if it is severely damaged or completely worn out. The bat-
tery may explode in fire.
Do not operate the Drill or the charger near flammable liquids or in a gaseous
or explosive environment. Internal sparks may ignite fumes.
To reduce the risk of electric shock, do not put the Drill, battery, or charger in
water or other liquid. Do not place or store the product where it can fall or be
pulled into a tub or sink.
Do not store the Drill in a damp or wet location. Do not store in locations
where temperature is less than 32°F (0°C) or more than 104°F (40°C). Do not
store outside or in vehicles.
®
®
Do not permit children to use the Drill; it is not a toy.
The Drill workllight lens may produce sufficient heat to melt some fabrics. To
avoid serious personal injury, keep the Drill worklight free from contact with
other items.
10003 ManuaLRevised_08 0724 Page 9

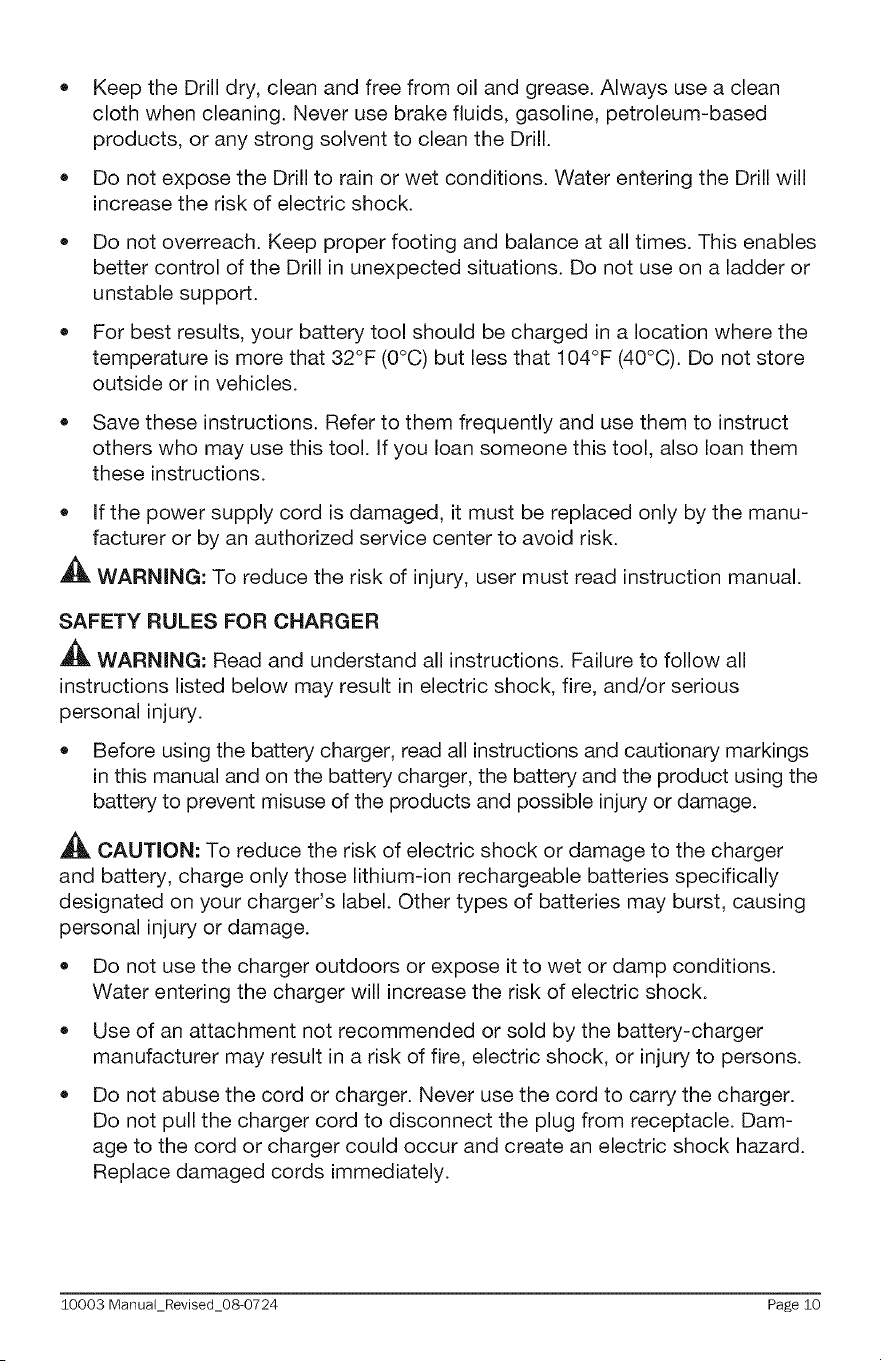

Keep the Drill dry, clean and free from oil and grease. Always use a clean
cloth when cleaning. Never use brake fluids, gasoline, petroleum-based
products, or any strong solvent to clean the Drill.
Do not expose the Drill to rain or wet conditions. Water entering the Drill will
increase the risk of electric shock.
Do not overreach. Keep proper footing and balance at all times. This enables
better control of the Drill in unexpected situations. Do not use on a ladder or
unstable support.
For best results, your battery tool should be charged in a location where the
temperature is more that 32°F (0°C) but less that 104°F (40°C). Do not store
outside or in vehicles.
• Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you loan someone this tool, also loan them
these instructions.
If the power supply cord is damaged, it must be replaced only by the manu-
facturer or by an authorized service center to avoid risk.
WARNING: To reduce the risk of injury, user must read instruction manual.
SAFETY RULES FOR CHARGER
WARNING: Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury.
Before using the battery charger, read all instructions and cautionary markings
in this manual and on the battery charger, the battery and the product using the
battery to prevent misuse of the products and possible injury or damage.
,_, CAUTION: To reduce the risk of electric shock or damage to the charger
and battery, charge only those lithium-ion rechargeable batteries specifically
designated on your charger's label. Other types of batteries may burst, causing
personal injury or damage.
Do not use the charger outdoors or expose it to wet or damp conditions.
Water entering the charger will increase the risk of electric shock.
Use of an attachment not recommended or sold by the battery-charger
manufacturer may result in a risk of fire, electric shock, or injury to persons.
Do not abuse the cord or charger. Never use the cord to carry the charger.
Do not pull the charger cord to disconnect the plug from receptacle. Dam-
age to the cord or charger could occur and create an electric shock hazard.
Replace damaged cords immediately.

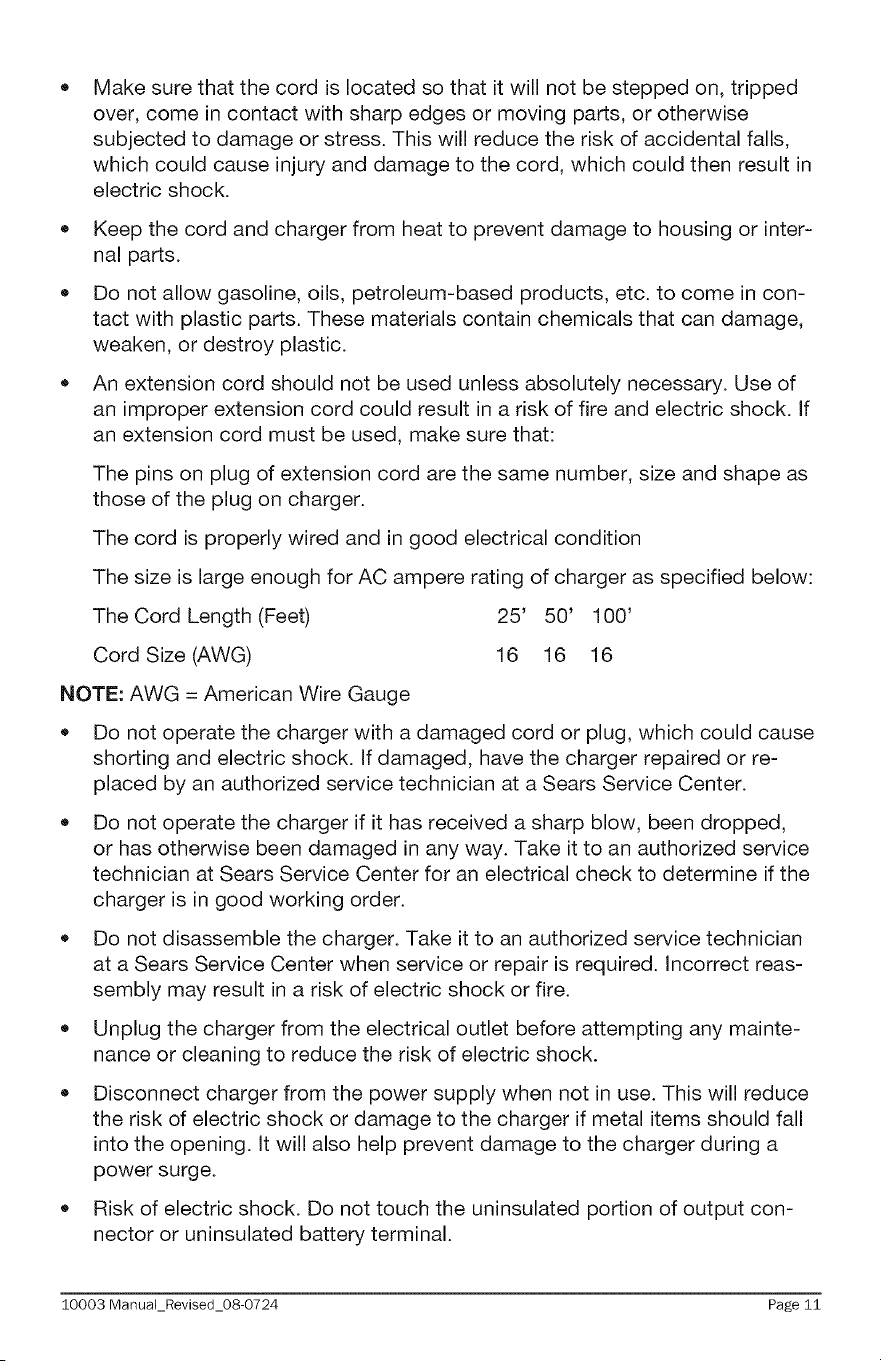

Make sure that the cord is located so that it will not be stepped on, tripped
over, come in contact with sharp edges or moving parts, or otherwise
subjected to damage or stress. This will reduce the risk of accidental falls,
which could cause injury and damage to the cord, which could then result in
electric shock.
Keep the cord and charger from heat to prevent damage to housing or inter-
nal parts.
Do not allow gasoline, oils, petroleum-based products, etc. to come in con-
tact with plastic parts. These materials contain chemicals that can damage,
weaken, or destroy plastic.
An extension cord should not be used unless absolutely necessary. Use of
an improper extension cord could result in a risk of fire and electric shock. If
an extension cord must be used, make sure that:
The pins on plug of extension cord are the same number, size and shape as
those of the plug on charger.
The cord is properly wired and in good electrical condition
The size is large enough for AC ampere rating of charger as specified below:
The Cord Length (Feet)
25' 50' 100'
Cord Size(AWG) 16 16 16
NOTE: AWG = American Wire Gauge
Do not operate the charger with a damaged cord or plug, which could cause
shorting and electric shock. If damaged, have the charger repaired or re-
placed by an authorized service technician at a Sears Service Center.
Do not operate the charger if it has received a sharp blow, been dropped,
or has otherwise been damaged in any way. Take it to an authorized service
technician at Sears Service Center for an electrical check to determine if the
charger is in good working order.
Do not disassemble the charger. Take it to an authorized service technician
at a Sears Service Center when service or repair is required. Incorrect reas-
sembly may result in a risk of electric shock or fire.
Unplug the charger from the electrical outlet before attempting any mainte-
nance or cleaning to reduce the risk of electric shock.
Disconnect charger from the power supply when not in use. This will reduce
the risk of electric shock or damage to the charger if metal items should fall
into the opening. It will also help prevent damage to the charger during a
power surge.
Risk of electric shock. Do not touch the uninsulated portion of output con-
nector or uninsulated battery terminal.
10003 ManuaLRevised_08 0724 Page 10 10003 ManuaLRevised_08 0724 Page 11
Keep the Drill dry, clean and free from oil and grease. Always use a clean
cloth when cleaning. Never use brake fluids, gasoline, petroleum-based
products, or any strong solvent to clean the Drill.
Do not expose the Drill to rain or wet conditions. Water entering the Drill will
increase the risk of electric shock.
Do not overreach. Keep proper footing and balance at all times. This enables
better control of the Drill in unexpected situations. Do not use on a ladder or
unstable support.
For best results, your battery tool should be charged in a location where the
temperature is more that 32°F (0°C) but less that 104°F (40°C). Do not store
outside or in vehicles.
• Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you loan someone this tool, also loan them
these instructions.
If the power supply cord is damaged, it must be replaced only by the manu-
facturer or by an authorized service center to avoid risk.
WARNING: To reduce the risk of injury, user must read instruction manual.
SAFETY RULES FOR CHARGER
WARNING: Read and understand all instructions. Failure to follow all
instructions listed below may result in electric shock, fire, and/or serious
personal injury.
Before using the battery charger, read all instructions and cautionary markings
in this manual and on the battery charger, the battery and the product using the
battery to prevent misuse of the products and possible injury or damage.
,_, CAUTION: To reduce the risk of electric shock or damage to the charger
and battery, charge only those lithium-ion rechargeable batteries specifically
designated on your charger's label. Other types of batteries may burst, causing
personal injury or damage.
Do not use the charger outdoors or expose it to wet or damp conditions.
Water entering the charger will increase the risk of electric shock.
Use of an attachment not recommended or sold by the battery-charger
manufacturer may result in a risk of fire, electric shock, or injury to persons.
Do not abuse the cord or charger. Never use the cord to carry the charger.
Do not pull the charger cord to disconnect the plug from receptacle. Dam-
age to the cord or charger could occur and create an electric shock hazard.
Replace damaged cords immediately.
Make sure that the cord is located so that it will not be stepped on, tripped
over, come in contact with sharp edges or moving parts, or otherwise
subjected to damage or stress. This will reduce the risk of accidental falls,
which could cause injury and damage to the cord, which could then result in
electric shock.
Keep the cord and charger from heat to prevent damage to housing or inter-
nal parts.
Do not allow gasoline, oils, petroleum-based products, etc. to come in con-
tact with plastic parts. These materials contain chemicals that can damage,
weaken, or destroy plastic.
An extension cord should not be used unless absolutely necessary. Use of
an improper extension cord could result in a risk of fire and electric shock. If
an extension cord must be used, make sure that:
The pins on plug of extension cord are the same number, size and shape as
those of the plug on charger.
The cord is properly wired and in good electrical condition
The size is large enough for AC ampere rating of charger as specified below:
The Cord Length (Feet)
25' 50' 100'
Cord Size(AWG) 16 16 16
NOTE: AWG = American Wire Gauge
Do not operate the charger with a damaged cord or plug, which could cause
shorting and electric shock. If damaged, have the charger repaired or re-
placed by an authorized service technician at a Sears Service Center.
Do not operate the charger if it has received a sharp blow, been dropped,
or has otherwise been damaged in any way. Take it to an authorized service
technician at Sears Service Center for an electrical check to determine if the
charger is in good working order.
Do not disassemble the charger. Take it to an authorized service technician
at a Sears Service Center when service or repair is required. Incorrect reas-
sembly may result in a risk of electric shock or fire.
Unplug the charger from the electrical outlet before attempting any mainte-
nance or cleaning to reduce the risk of electric shock.
Disconnect charger from the power supply when not in use. This will reduce
the risk of electric shock or damage to the charger if metal items should fall
into the opening. It will also help prevent damage to the charger during a
power surge.
Risk of electric shock. Do not touch the uninsulated portion of output con-
nector or uninsulated battery terminal.
10003 ManuaLRevised_08 0724 Page 10 10003 ManuaLRevised_08 0724 Page 11

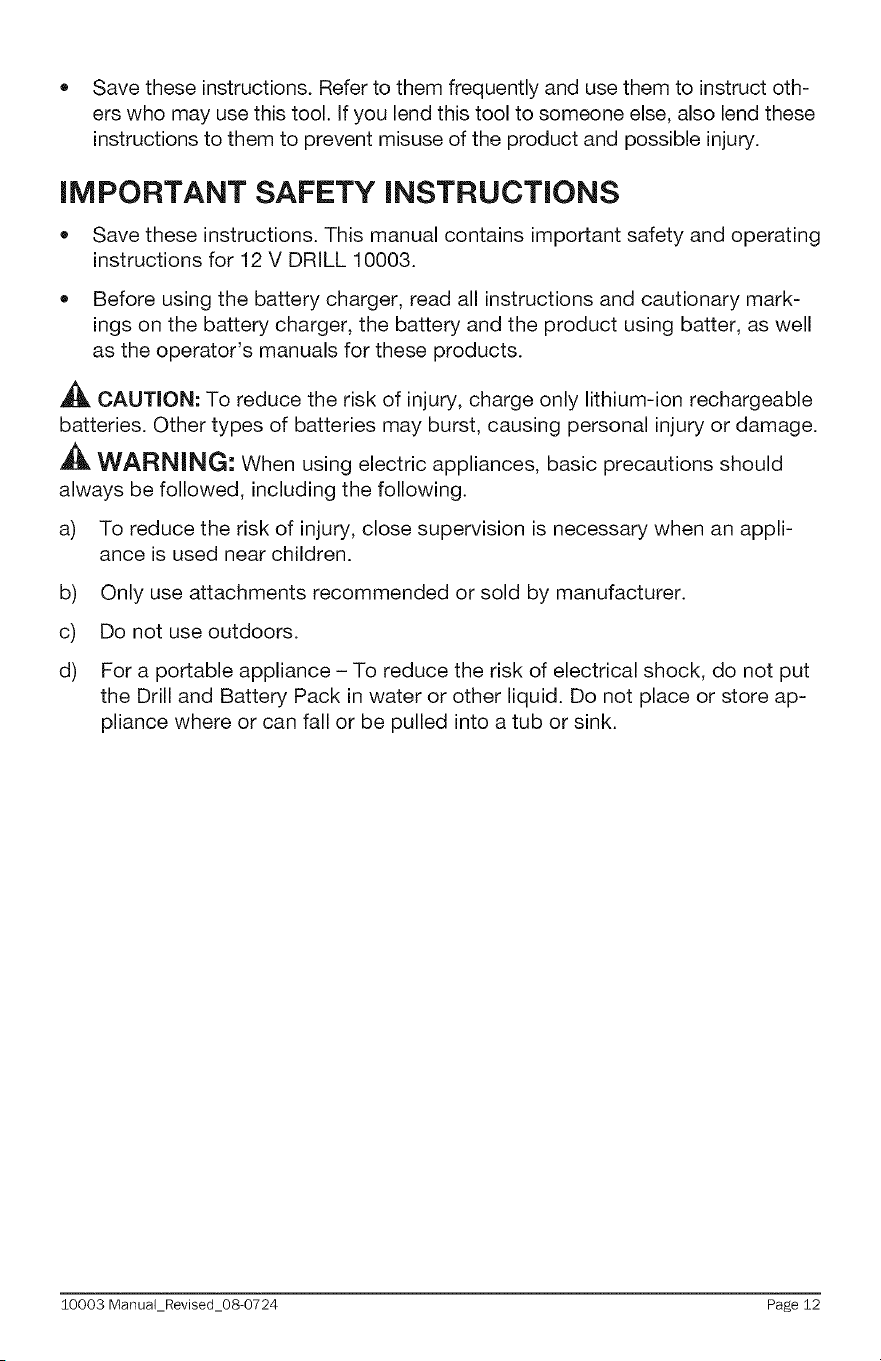

• Save these instructions. Refer to them frequently and use them to instruct oth-
ers who may use this tool. If you lend this tool to someone else, also lend these
instructions to them to prevent misuse of the product and possible injury.
IMPORTANT SAFETY INSTRUCTIONS
Save these instructions. This manual contains important safety and operating
instructions for 12 V DRILL 10003.
Before using the battery charger, read all instructions and cautionary mark-
ings on the battery charger, the battery and the product using batter, as well
as the operator's manuals for these products.
CAUTION: To reduce the risk of injury, charge only lithium-ion rechargeable
batteries. Other types of batteries may burst, causing personal injury or damage.
_, WARNING: When using electric appliances, basic precautions should
always be followed, including the following.
a) To reduce the risk of injury, close supervision is necessary when an appli-
ance is used near children.
b)
c)
d)
Only use attachments recommended or sold by manufacturer.
Do not use outdoors.
For a portable appliance - To reduce the risk of electrical shock, do not put
the Drill and Battery Pack in water or other liquid. Do not place or store ap-
pliance where or can fall or be pulled into a tub or sink.

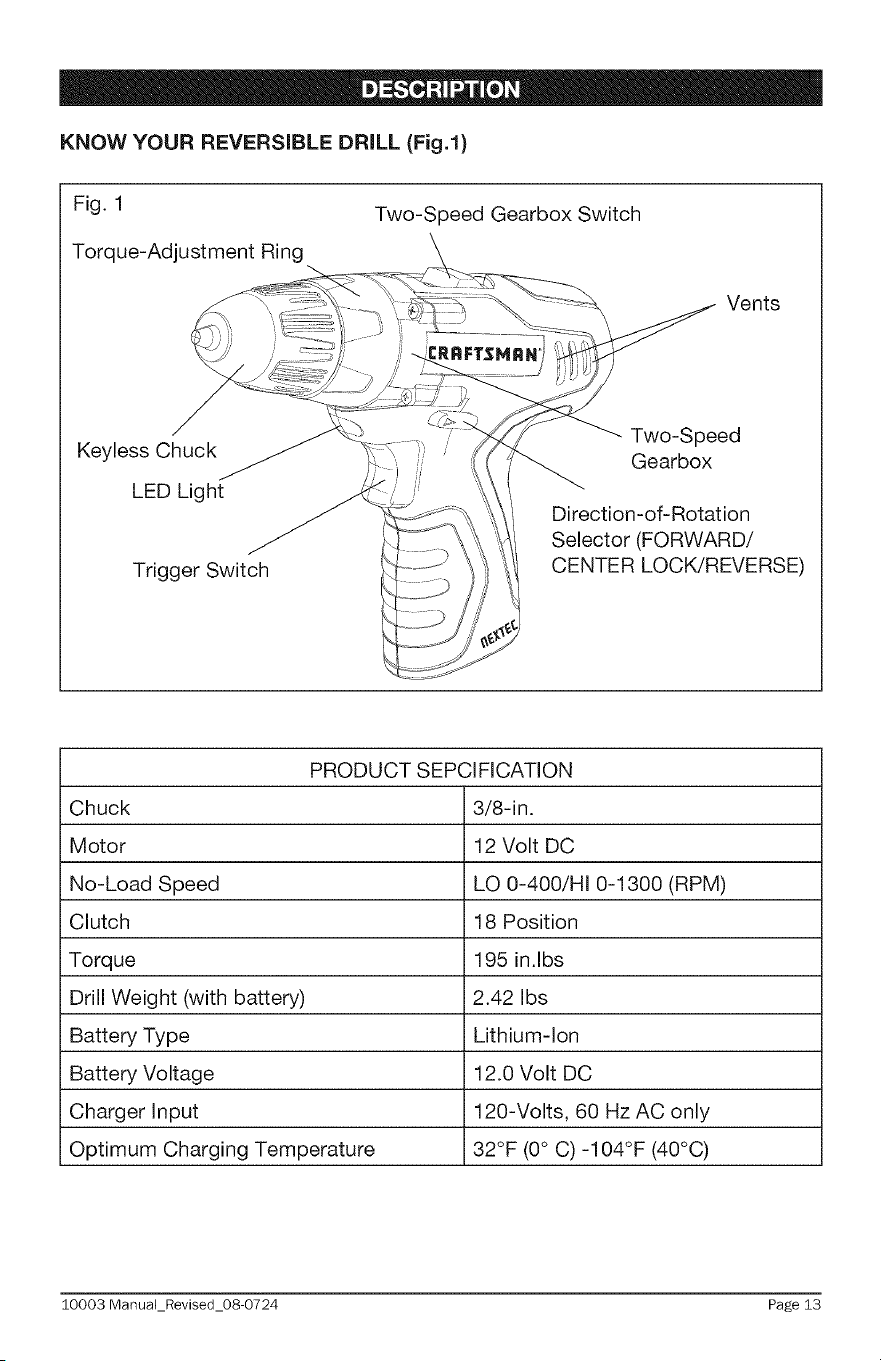

KNOW YOUR REVERSIBLE DRILL (Fig.l)
Fig. 1 Two-Speed Gearbox Switch
Torque-Adjustment Ring
Vents
Keyless Chuck
LED Light
Trigger Switch
Two-Speed
Gearbox
Direction-of-Rotation
Selector (FORWARD/
CENTER LOCK/REVERSE)
PRODUCT SEPCIFICATION
Chuck 3/8-in.
Motor 12 Volt DC
No-Load Speed LO 0-400/HI 0-1300 (RPM)
Clutch 18 Position
Torque 195 in.lbs
Drill Weight (with battery) 2.42 Ibs
Battery Type Lithium-Ion
Battery Voltage 12.0 Volt DC
Charger Input 120-Volts, 60 Hz AC only
Optimum Charging Temperature 32°F (0° C) -104°F (40°C)
10003 ManuaLRevised_08 0724 Page 12 10003 ManuaLRevised_08 0724 Page 13
• Save these instructions. Refer to them frequently and use them to instruct oth-
ers who may use this tool. If you lend this tool to someone else, also lend these
instructions to them to prevent misuse of the product and possible injury.
IMPORTANT SAFETY INSTRUCTIONS
Save these instructions. This manual contains important safety and operating
instructions for 12 V DRILL 10003.
Before using the battery charger, read all instructions and cautionary mark-
ings on the battery charger, the battery and the product using batter, as well
as the operator's manuals for these products.
CAUTION: To reduce the risk of injury, charge only lithium-ion rechargeable
batteries. Other types of batteries may burst, causing personal injury or damage.
_, WARNING: When using electric appliances, basic precautions should
always be followed, including the following.
a) To reduce the risk of injury, close supervision is necessary when an appli-
ance is used near children.
b)
c)
d)
Only use attachments recommended or sold by manufacturer.
Do not use outdoors.
For a portable appliance - To reduce the risk of electrical shock, do not put
the Drill and Battery Pack in water or other liquid. Do not place or store ap-
pliance where or can fall or be pulled into a tub or sink.
KNOW YOUR REVERSIBLE DRILL (Fig.l)
Fig. 1 Two-Speed Gearbox Switch
Torque-Adjustment Ring
Vents
Keyless Chuck
LED Light
Trigger Switch
Two-Speed
Gearbox
Direction-of-Rotation
Selector (FORWARD/
CENTER LOCK/REVERSE)
PRODUCT SEPCIFICATION
Chuck 3/8-in.
Motor 12 Volt DC
No-Load Speed LO 0-400/HI 0-1300 (RPM)
Clutch 18 Position
Torque 195 in.lbs
Drill Weight (with battery) 2.42 Ibs
Battery Type Lithium-Ion
Battery Voltage 12.0 Volt DC
Charger Input 120-Volts, 60 Hz AC only
Optimum Charging Temperature 32°F (0° C) -104°F (40°C)
10003 ManuaLRevised_08 0724 Page 12 10003 ManuaLRevised_08 0724 Page 13

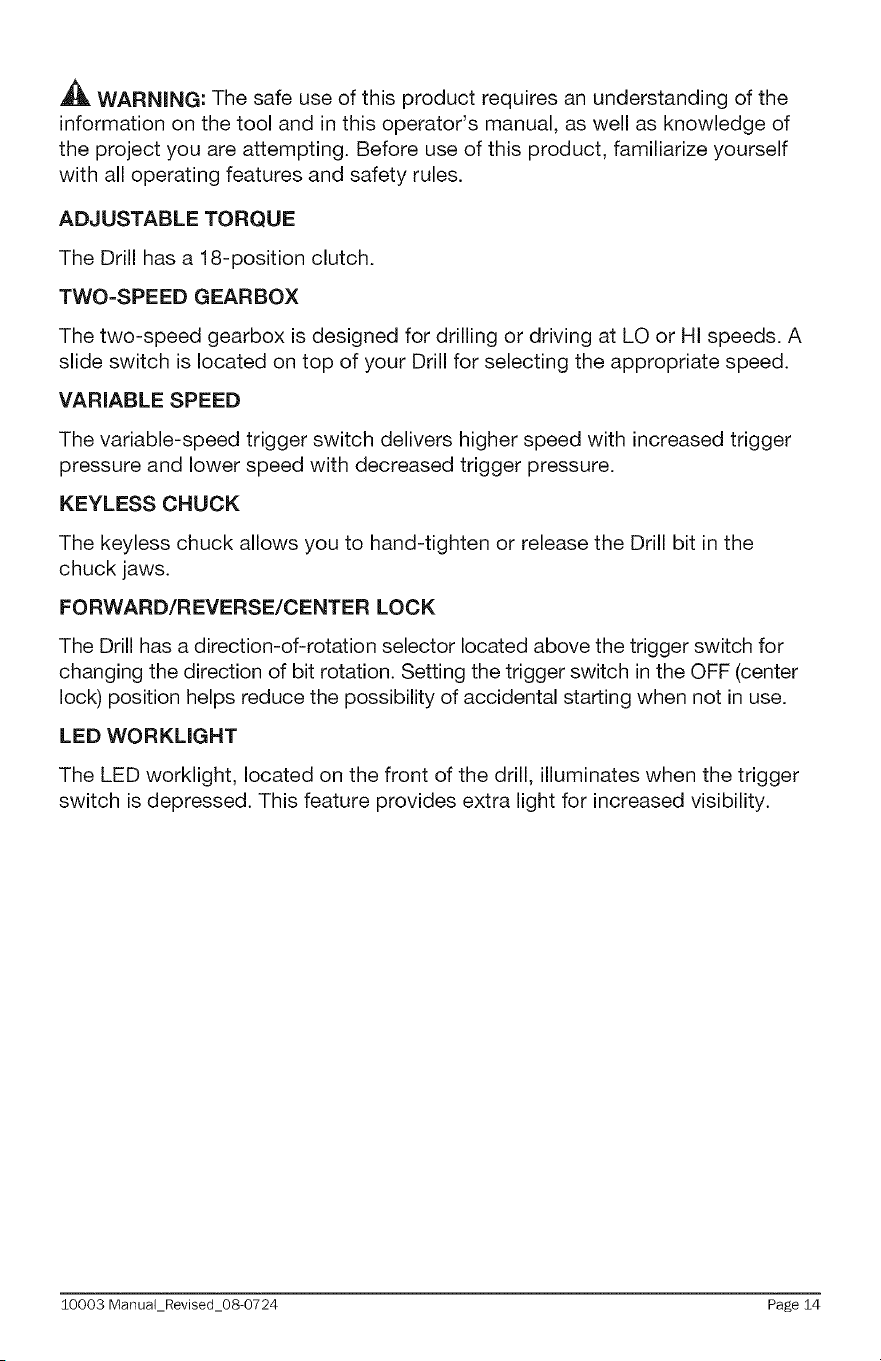

WARNING: The safe use of this product requires an understanding of the
information on the tool and in this operator's manual, as well as knowledge of
the project you are attempting. Before use of this product, familiarize yourself
with all operating features and safety rules.

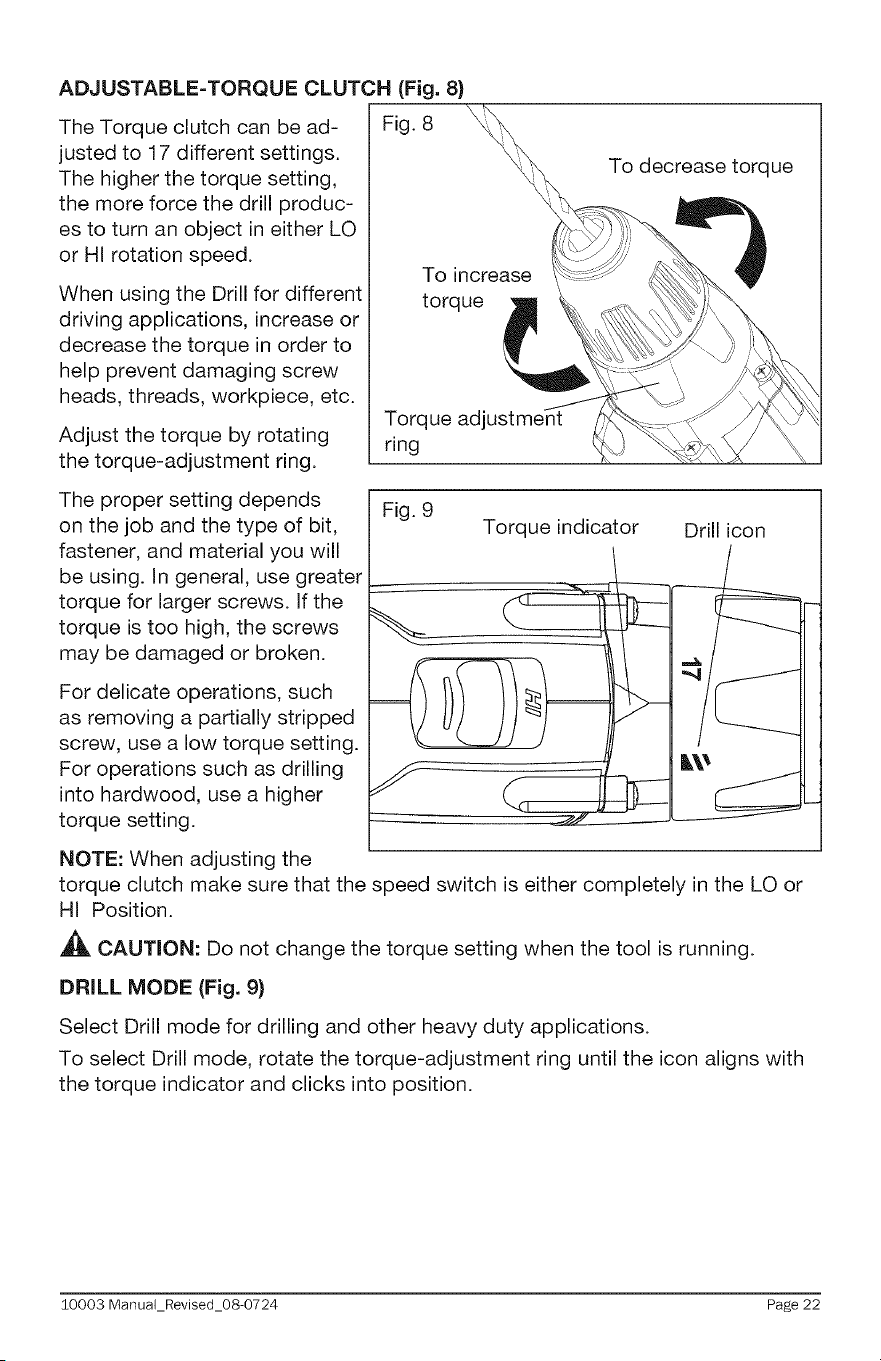

ADJUSTABLE TORQUE
The Drill has a 18-position clutch.
TWO-SPEED GEARBOX
The two-speed gearbox is designed for drilling or driving at LO or HI speeds. A
slide switch is located on top of your Drill for selecting the appropriate speed.
VARIABLE SPEED
The variable-speed trigger switch delivers higher speed with increased trigger
pressure and lower speed with decreased trigger pressure.
KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release the Drill bit in the
chuck jaws.
FORWARD/REVERSE/CENTER LOCK
The Drill has a direction-of-rotation selector located above the trigger switch for
changing the direction of bit rotation. Setting the trigger switch in the OFF (center
lock) position helps reduce the possibility of accidental starting when not in use.
LED WORKLIGHT
The LED worklight, located on the front of the drill, illuminates when the trigger
switch is depressed. This feature provides extra light for increased visibility.

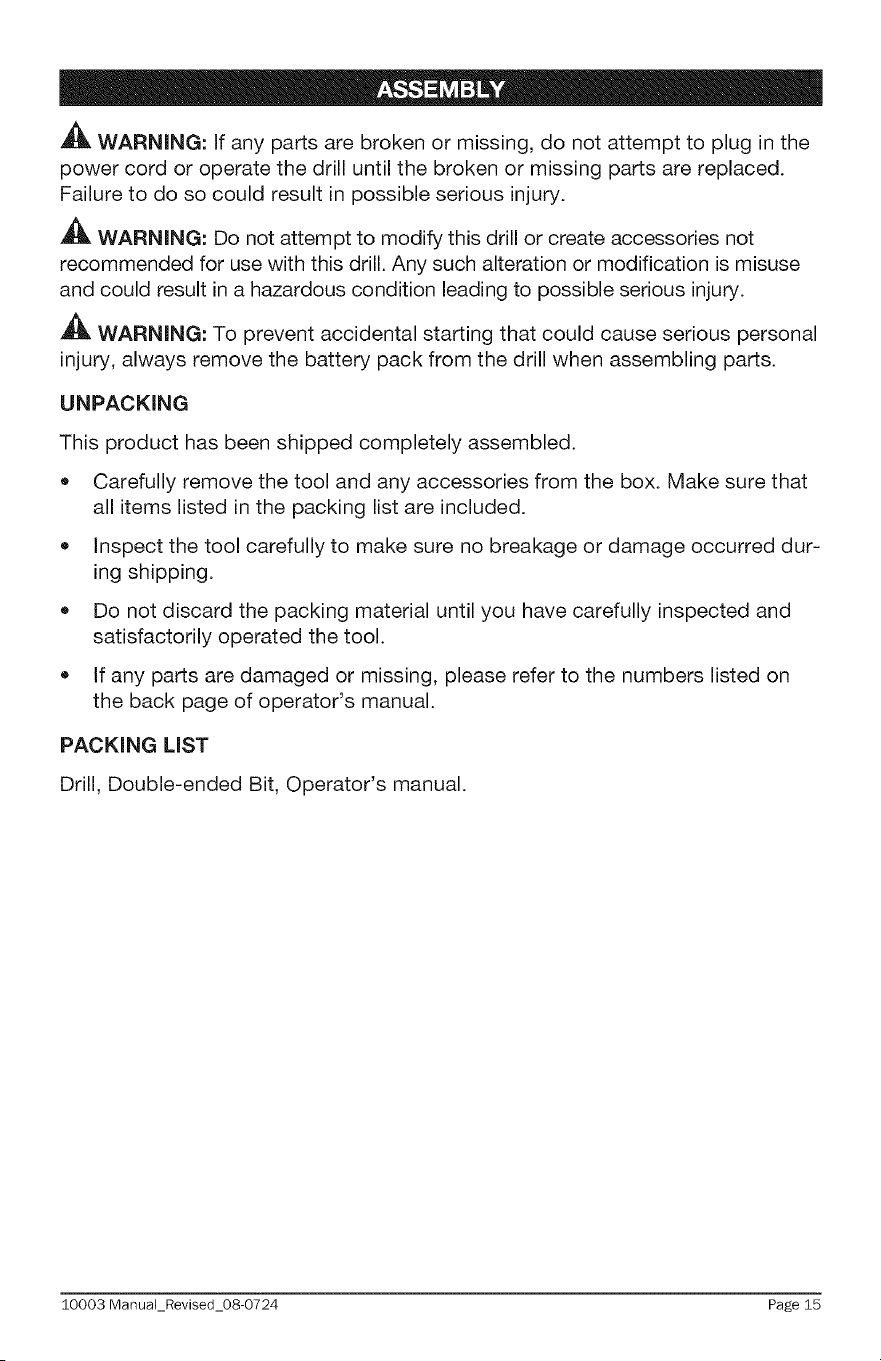

,_ WARNING: If any parts are broken or missing, do not attempt to plug in the
power cord or operate the drill until the broken or missing parts are replaced.
Failure to do so could result in possible serious injury.
WARNING: Do not attempt to modify this drill or create accessories not
recommended for use with this drill. Any such alteration or modification is misuse
and could result in a hazardous condition leading to possible serious injury.
,_ WARNING: To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the drill when assembling parts.
UNPACKING
This product has been shipped completely assembled.
= Carefully remove the tool and any accessories from the box. Make sure that
all items listed in the packing list are included.
= Inspect the tool carefully to make sure no breakage or damage occurred dur-
ing shipping.
= Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
= If any parts are damaged or missing, please refer to the numbers listed on
the back page of operator's manual.
PACKING LIST
Drill, Double-ended Bit, Operator's manual.
10003 ManuaLRevised_08 0724 Page 14 10003 ManuaLRevised_08 0724 Page 15
WARNING: The safe use of this product requires an understanding of the
information on the tool and in this operator's manual, as well as knowledge of
the project you are attempting. Before use of this product, familiarize yourself
with all operating features and safety rules.
ADJUSTABLE TORQUE
The Drill has a 18-position clutch.
TWO-SPEED GEARBOX
The two-speed gearbox is designed for drilling or driving at LO or HI speeds. A
slide switch is located on top of your Drill for selecting the appropriate speed.
VARIABLE SPEED
The variable-speed trigger switch delivers higher speed with increased trigger
pressure and lower speed with decreased trigger pressure.

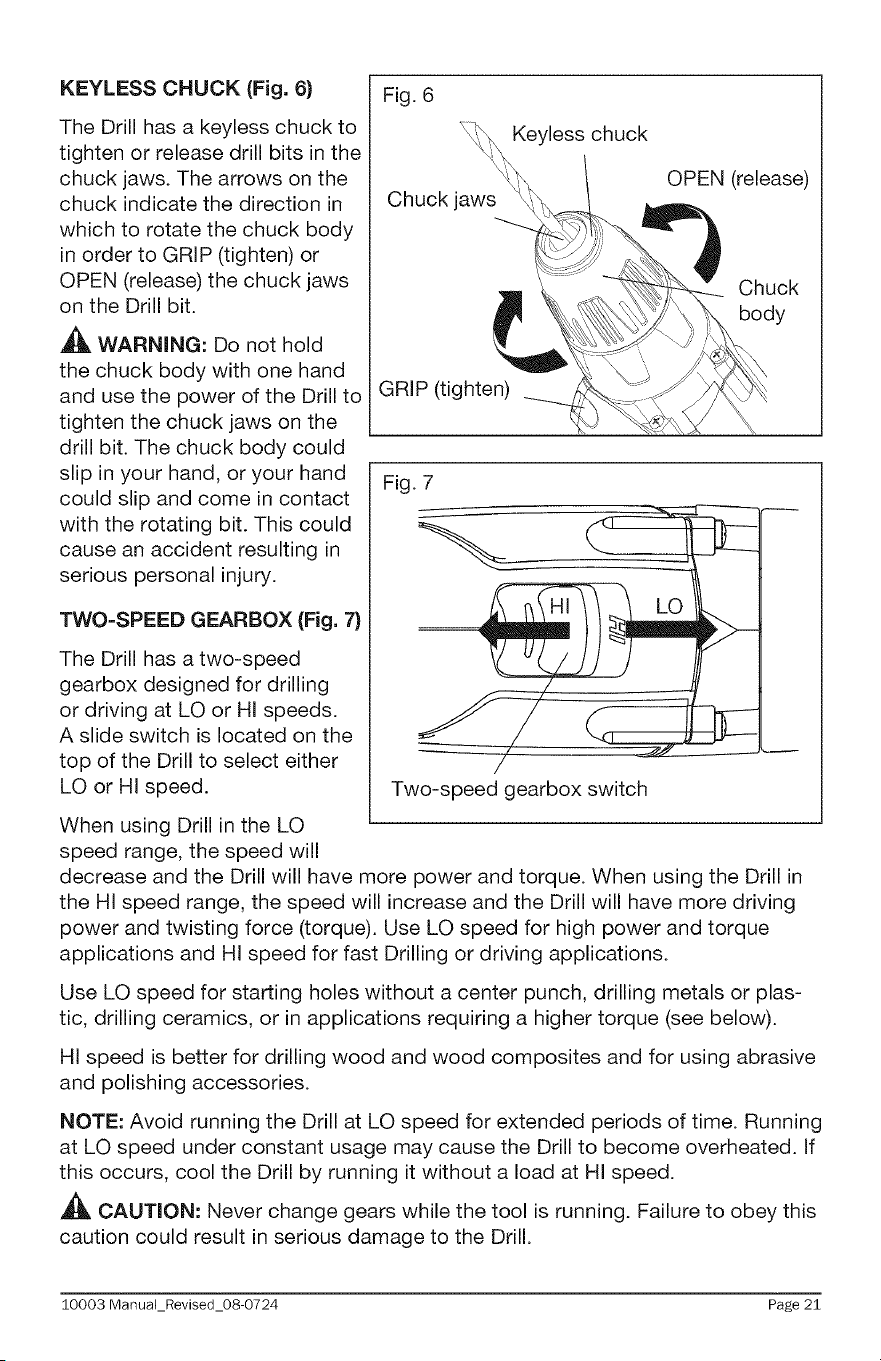

KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release the Drill bit in the
chuck jaws.

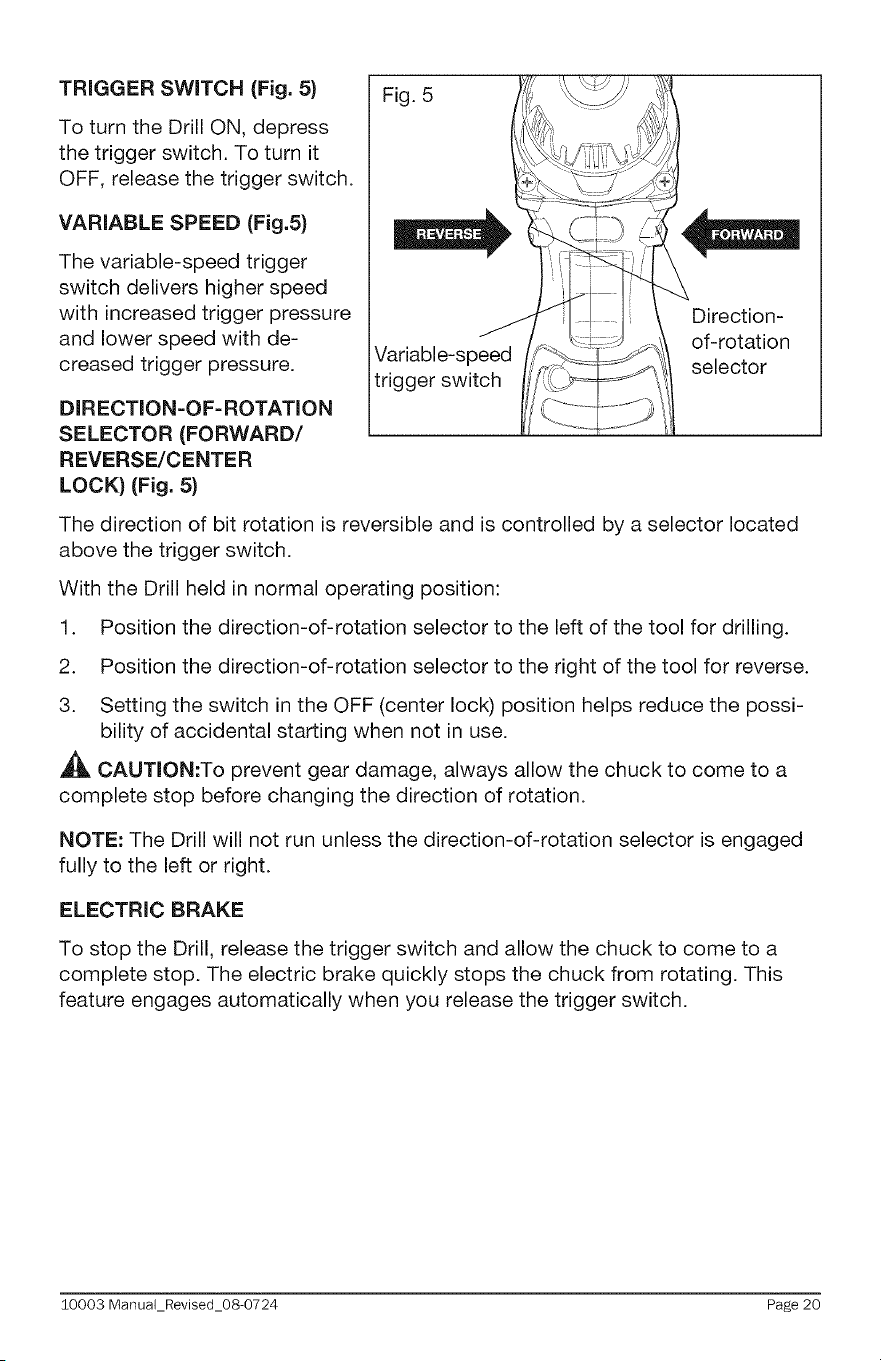

FORWARD/REVERSE/CENTER LOCK
The Drill has a direction-of-rotation selector located above the trigger switch for
changing the direction of bit rotation. Setting the trigger switch in the OFF (center
lock) position helps reduce the possibility of accidental starting when not in use.
LED WORKLIGHT
The LED worklight, located on the front of the drill, illuminates when the trigger
switch is depressed. This feature provides extra light for increased visibility.
,_ WARNING: If any parts are broken or missing, do not attempt to plug in the
power cord or operate the drill until the broken or missing parts are replaced.
Failure to do so could result in possible serious injury.
WARNING: Do not attempt to modify this drill or create accessories not
recommended for use with this drill. Any such alteration or modification is misuse
and could result in a hazardous condition leading to possible serious injury.
,_ WARNING: To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the drill when assembling parts.
UNPACKING
This product has been shipped completely assembled.
= Carefully remove the tool and any accessories from the box. Make sure that
all items listed in the packing list are included.
= Inspect the tool carefully to make sure no breakage or damage occurred dur-
ing shipping.
= Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
= If any parts are damaged or missing, please refer to the numbers listed on
the back page of operator's manual.
PACKING LIST
Drill, Double-ended Bit, Operator's manual.
10003 ManuaLRevised_08 0724 Page 14 10003 ManuaLRevised_08 0724 Page 15

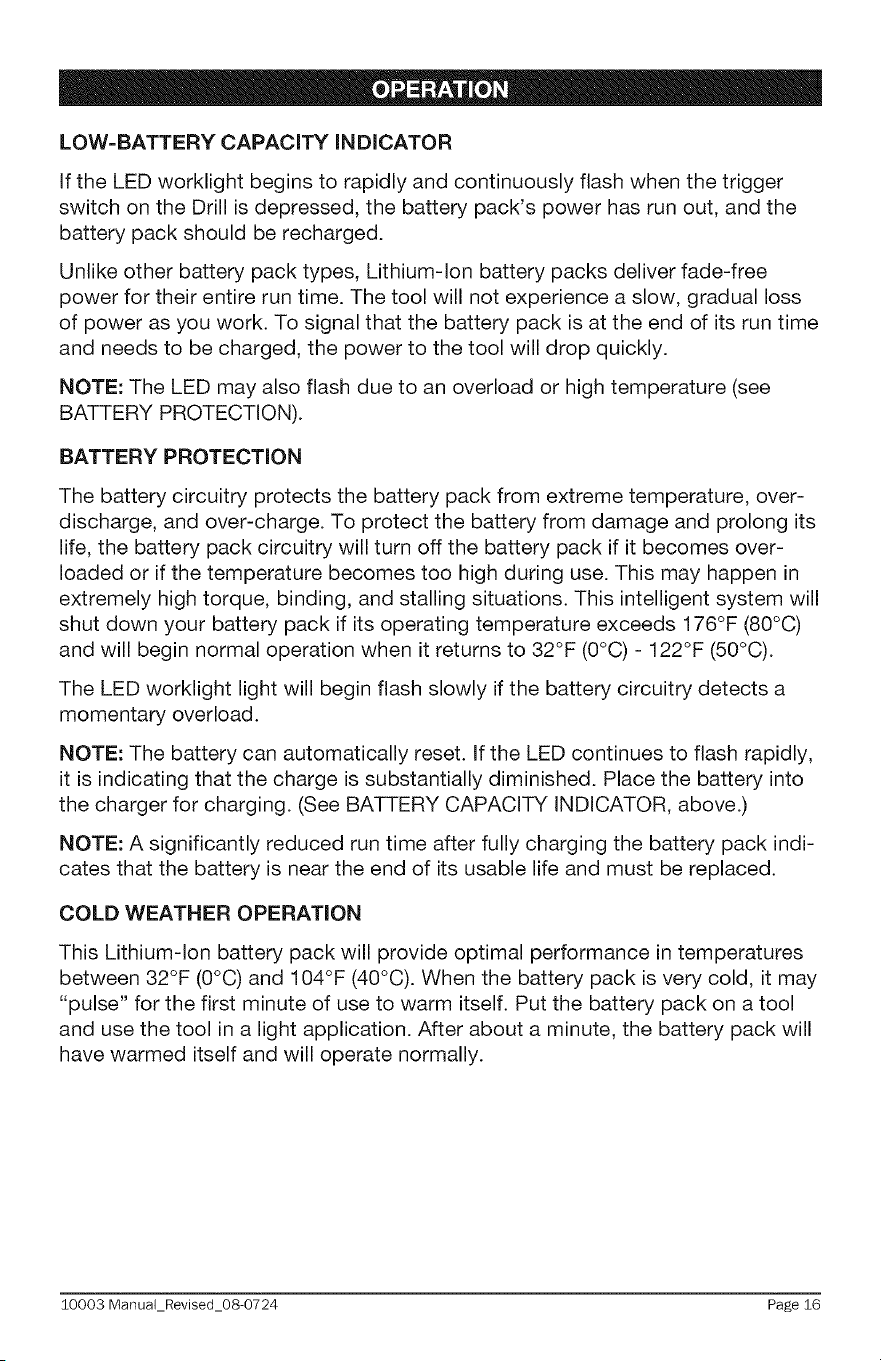

LOW-BATTERY CAPACITY INDICATOR
If the LED worklight begins to rapidly and continuously flash when the trigger
switch on the Drill is depressed, the battery pack's power has run out, and the
battery pack should be recharged.
Unlike other battery pack types, Lithium-Ion battery packs deliver fade-free
power for their entire run time. The tool will not experience a slow, gradual loss
of power as you work. To signal that the battery pack is at the end of its run time
and needs to be charged, the power to the tool will drop quickly.
NOTE: The LED may also flash due to an overload or high temperature (see
BATTERY PROTECTION).
BATTERY PROTECTION
The battery circuitry protects the battery pack from extreme temperature, over-
discharge, and over-charge. To protect the battery from damage and prolong its
life, the battery pack circuitry will turn off the battery pack if it becomes over-
loaded or if the temperature becomes too high during use. This may happen in
extremely high torque, binding, and stalling situations. This intelligent system will
shut down your battery pack if its operating temperature exceeds 176°F (80°C)
and will begin normal operation when it returns to 32°F (0°C) - 122°F (50°C).
The LED worklight light will begin flash slowly if the battery circuitry detects a
momentary overload.
NOTE: The battery can automatically reset. If the LED continues to flash rapidly,
it is indicating that the charge is substantially diminished. Place the battery into
the charger for charging. (See BATTERY CAPACITY INDICATOR, above.)
NOTE: A significantly reduced run time after fully charging the battery pack indi-
cates that the battery is near the end of its usable life and must be replaced.
COLD WEATHER OPERATION
This Lithium-Ion battery pack will provide optimal performance in temperatures
between 32°F (0°C) and 104°F (40°C). When the battery pack is very cold, it may
"pulse" for the first minute of use to warm itself. Put the battery pack on a tool
and use the tool in a light application. After about a minute, the battery pack will
have warmed itself and will operate normally.

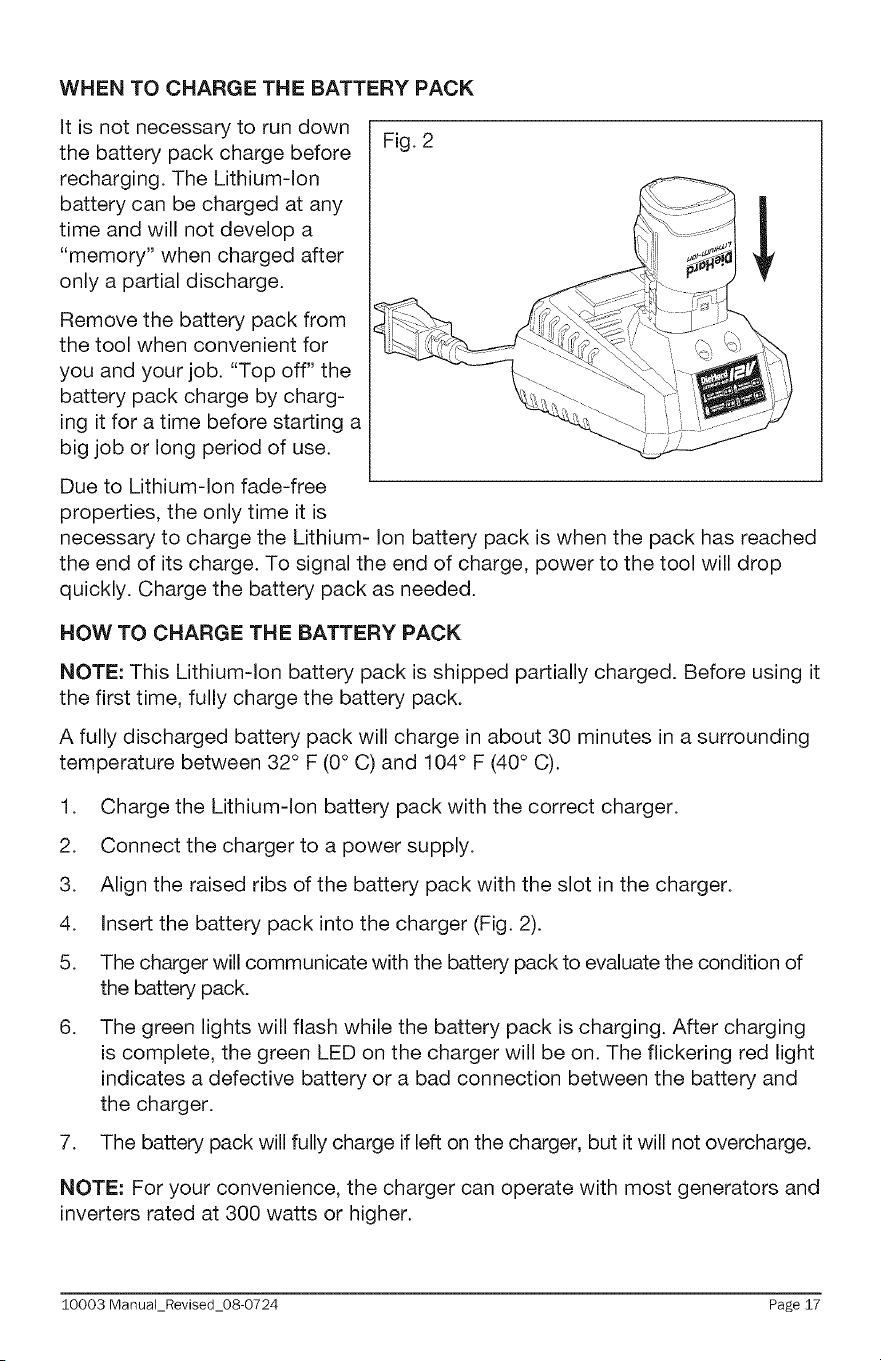

WHEN TO CHARGE THE BATTERY PACK
It is not necessary to run down
the battery pack charge before
recharging. The Lithium-Ion
battery can be charged at any
time and will not develop a
"memory" when charged after
only a partial discharge.
Remove the battery pack from
the tool when convenient for
you and your job. "Top off" the
battery pack charge by charg-
ing it for a time before starting a
big job or long period of use.
Fig. 2
Due to Lithium-Ion fade-free
properties, the only time it is
necessary to charge the Lithium- Ion battery pack is when the pack has reached
the end of its charge. To signal the end of charge, power to the tool will drop
quickly. Charge the battery pack as needed.
HOW TO CHARGE THE BATTERY PACK
NOTE: This Lithium-Ion battery pack is shipped partially charged. Before using it
the first time, fully charge the battery pack.
A fully discharged battery pack will charge in about 30 minutes in a surrounding
temperature between 32 ° F (0° C) and 104 ° F (40 ° C).
1. Charge the Lithium-Ion battery pack with the correct charger.
2. Connect the charger to a power supply.
3. Align the raised ribs of the battery pack with the slot in the charger.
4. Insert the battery pack into the charger (Fig. 2).
5. The charger will communicate with the battery pack to evaluate the condition of
the battery pack.
6. The green lights will flash while the battery pack is charging. After charging
is complete, the green LED on the charger will be on. The flickering red light
indicates a defective battery or a bad connection between the battery and
the charger.
7. The battery pack will fully charge if left on the charger, but it will not overcharge.
NOTE: For your convenience, the charger can operate with most generators and
inverters rated at 300 watts or higher.
10003 ManuaLRevised_08 0724 Page 16 10003 ManuaLRevised_08 0724 Page 17
LOW-BATTERY CAPACITY INDICATOR
If the LED worklight begins to rapidly and continuously flash when the trigger
switch on the Drill is depressed, the battery pack's power has run out, and the
battery pack should be recharged.
Unlike other battery pack types, Lithium-Ion battery packs deliver fade-free
power for their entire run time. The tool will not experience a slow, gradual loss
of power as you work. To signal that the battery pack is at the end of its run time
and needs to be charged, the power to the tool will drop quickly.
NOTE: The LED may also flash due to an overload or high temperature (see
BATTERY PROTECTION).
BATTERY PROTECTION
The battery circuitry protects the battery pack from extreme temperature, over-
discharge, and over-charge. To protect the battery from damage and prolong its
life, the battery pack circuitry will turn off the battery pack if it becomes over-
loaded or if the temperature becomes too high during use. This may happen in
extremely high torque, binding, and stalling situations. This intelligent system will
shut down your battery pack if its operating temperature exceeds 176°F (80°C)
and will begin normal operation when it returns to 32°F (0°C) - 122°F (50°C).
The LED worklight light will begin flash slowly if the battery circuitry detects a
momentary overload.
NOTE: The battery can automatically reset. If the LED continues to flash rapidly,
it is indicating that the charge is substantially diminished. Place the battery into
the charger for charging. (See BATTERY CAPACITY INDICATOR, above.)
NOTE: A significantly reduced run time after fully charging the battery pack indi-
cates that the battery is near the end of its usable life and must be replaced.
COLD WEATHER OPERATION
This Lithium-Ion battery pack will provide optimal performance in temperatures
between 32°F (0°C) and 104°F (40°C). When the battery pack is very cold, it may
"pulse" for the first minute of use to warm itself. Put the battery pack on a tool
and use the tool in a light application. After about a minute, the battery pack will
have warmed itself and will operate normally.
WHEN TO CHARGE THE BATTERY PACK
It is not necessary to run down
the battery pack charge before
recharging. The Lithium-Ion
battery can be charged at any
time and will not develop a
"memory" when charged after
only a partial discharge.
Remove the battery pack from
the tool when convenient for
you and your job. "Top off" the
battery pack charge by charg-
ing it for a time before starting a
big job or long period of use.
Fig. 2
Due to Lithium-Ion fade-free
properties, the only time it is
necessary to charge the Lithium- Ion battery pack is when the pack has reached
the end of its charge. To signal the end of charge, power to the tool will drop
quickly. Charge the battery pack as needed.
HOW TO CHARGE THE BATTERY PACK
NOTE: This Lithium-Ion battery pack is shipped partially charged. Before using it
the first time, fully charge the battery pack.
A fully discharged battery pack will charge in about 30 minutes in a surrounding
temperature between 32 ° F (0° C) and 104 ° F (40 ° C).
1. Charge the Lithium-Ion battery pack with the correct charger.
2. Connect the charger to a power supply.
3. Align the raised ribs of the battery pack with the slot in the charger.
4. Insert the battery pack into the charger (Fig. 2).
5. The charger will communicate with the battery pack to evaluate the condition of
the battery pack.
6. The green lights will flash while the battery pack is charging. After charging
is complete, the green LED on the charger will be on. The flickering red light
indicates a defective battery or a bad connection between the battery and
the charger.
7. The battery pack will fully charge if left on the charger, but it will not overcharge.
NOTE: For your convenience, the charger can operate with most generators and
inverters rated at 300 watts or higher.
10003 ManuaLRevised_08 0724 Page 16 10003 ManuaLRevised_08 0724 Page 17

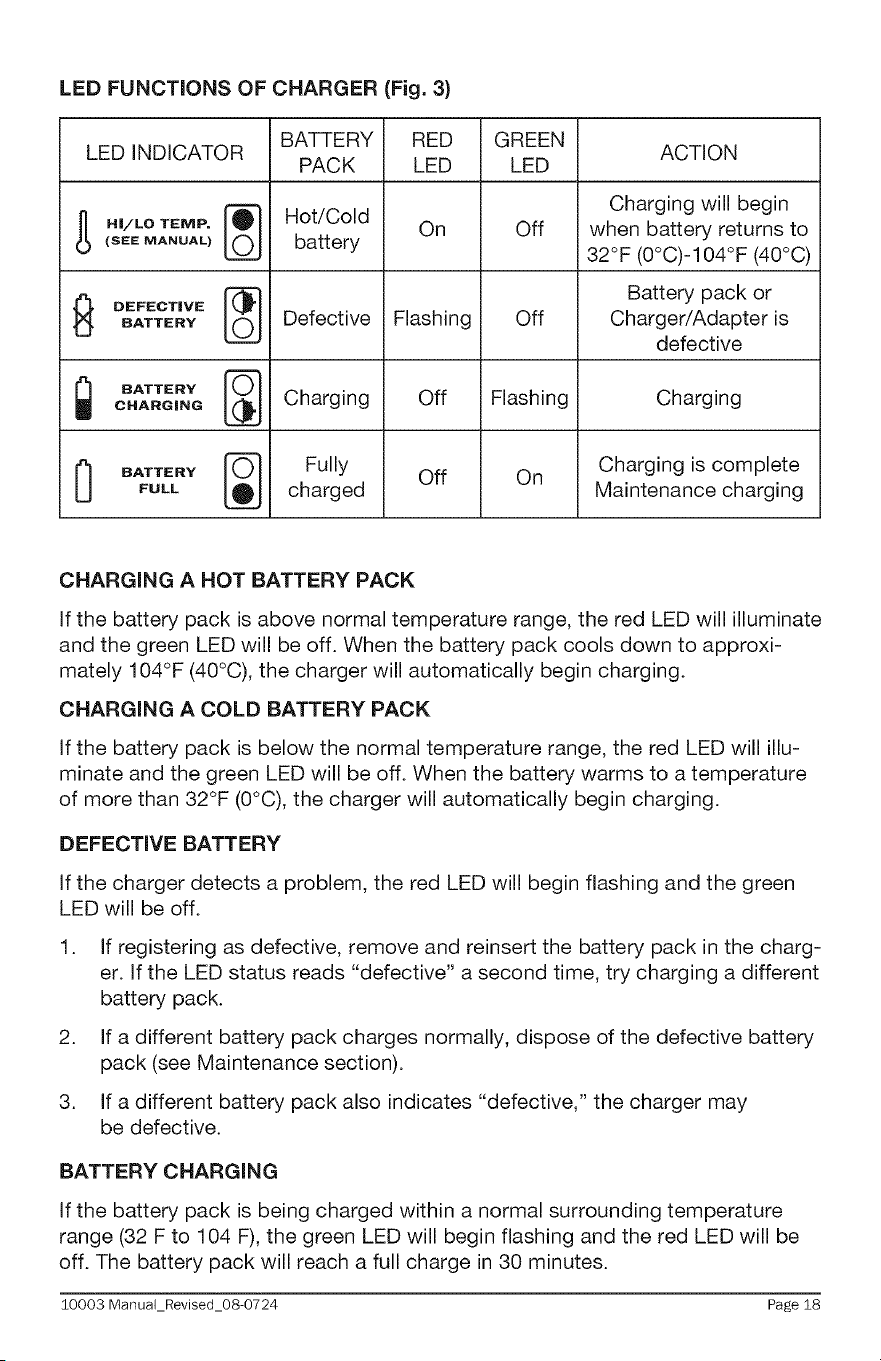

LED FUNCTIONS OF CHARGER (Fig. 3)
BATTERY RED GREEN
LED INDICATOR ACTION
PACK LED LED
Charging will beginHI/LO TEMP. Hot/Cold On Off when battery returns to
(SEE MANUAL) battery
32°F (0°O)-104°F (40°0)
DEFECTIVE _ Battery pack or
BATTERY Defective Flashing Off Charger/Adapter is
defective
BATTERY _ Charging Off Flashing Charging
CHARGING
BATTERY _ Fully Charging is complete
FULL charged Off On Maintenance charging
CHARGING A HOT BATTERY PACK
If the battery pack is above normal temperature range, the red LED will illuminate
and the green LED will be off. When the battery pack cools down to approxi-
mately 104°F (40°C), the charger will automatically begin charging.
CHARGING A COLD BATTERY PACK
If the battery pack is below the normal temperature range, the red LED will illu-
minate and the green LED will be off. When the battery warms to a temperature
of more than 32°F (0°C), the charger will automatically begin charging.
DEFECTIVE BATTERY
If the charger detects a problem, the red LED will begin flashing and the green
LED will be off.
1.
2.
3.
If registering as defective, remove and reinsert the battery pack in the charg-
er. If the LED status reads "defective" a second time, try charging a different
battery pack.
If a different battery pack charges normally, dispose of the defective battery
pack (see Maintenance section).
If a different battery pack also indicates "defective," the charger may
be defective.
BATTERY CHARGING
If the battery pack is being charged within a normal surrounding temperature
range (32 F to 104 F), the green LED will begin flashing and the red LED will be
off. The battery pack will reach a full charge in 30 minutes.

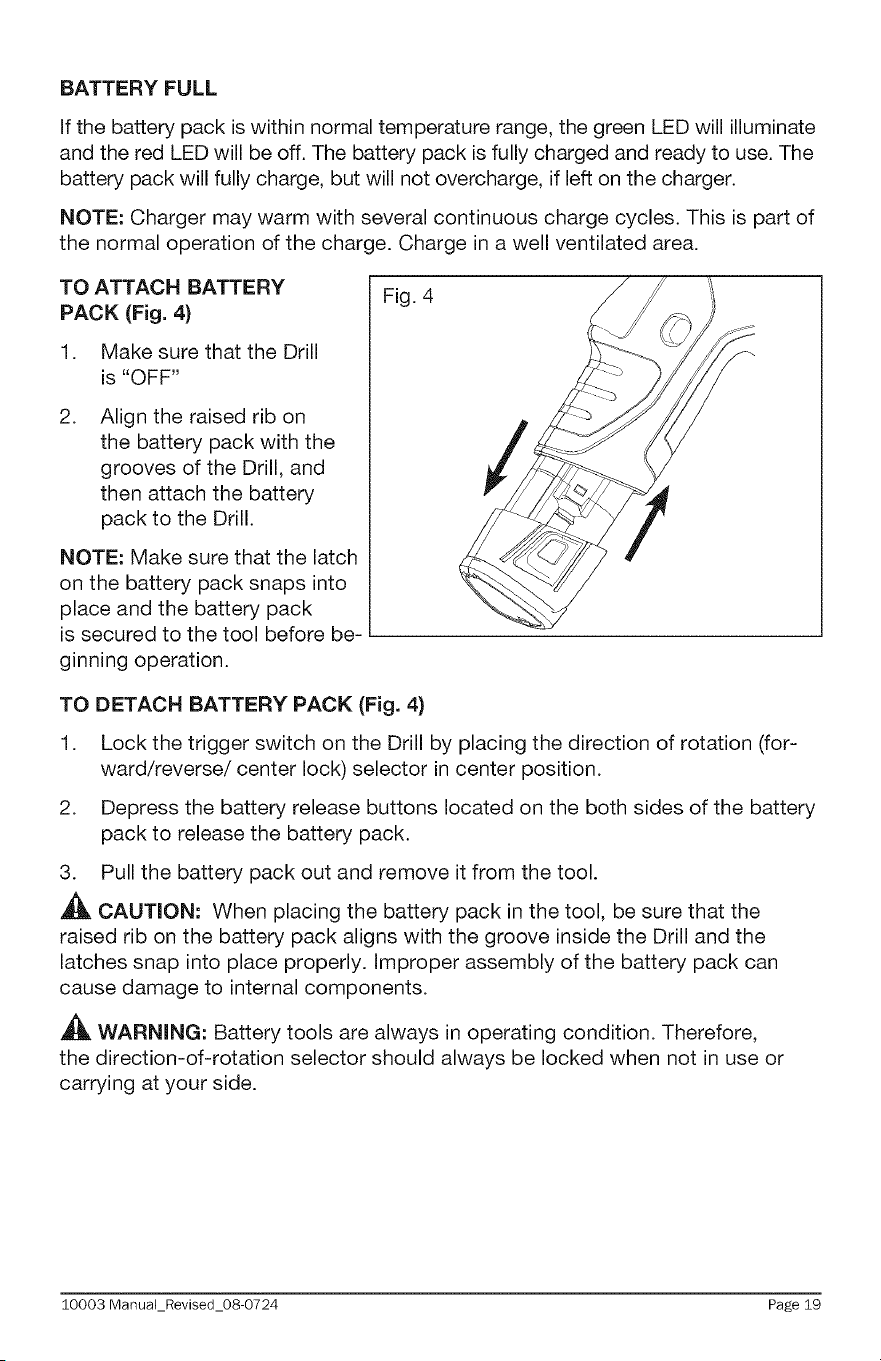

BATTERY FULL
If the battery pack is within normal temperature range, the green LED will illuminate
and the red LED will be off. The battery pack is fully charged and ready to use. The
battery pack will fully charge, but will not overcharge, if left on the charger.
NOTE: Charger may warm with several continuous charge cycles. This is part of
the normal operation of the charge. Charge in a well ventilated area.
TO ATTACH BATTERY
PACK (Fig. 4)
1. Make sure that the Drill
is "OFF"
2.
Align the raised rib on
the battery pack with the
grooves of the Drill, and
then attach the battery
pack to the Drill.
NOTE: Make sure that the latch
on the battery pack snaps into
place and the battery pack
is secured to the tool before be-
ginning operation.
Fig. 4
/
t
TO DETACH BATTERY PACK (Fig. 4)
1. Lock the trigger switch on the Drill by placing the direction of rotation (for-
ward/reverse/center lock) selector in center position.
2. Depress the battery release buttons located on the both sides of the battery
pack to release the battery pack.
3. Pull the battery pack out and remove it from the tool.
CAUTION: When placing the battery pack in the tool, be sure that the
raised rib on the battery pack aligns with the groove inside the Drill and the
latches snap into place properly. Improper assembly of the battery pack can
cause damage to internal components.
_L. WARNING: Battery tools are always in operating condition. Therefore,
the direction-of-rotation selector should always be locked when not in use or
carrying at your side.
10003 ManuaLRevised_08 0724 Page 18 10003 ManuaLRevised_08 0724 Page 19
LED FUNCTIONS OF CHARGER (Fig. 3)
BATTERY RED GREEN
LED INDICATOR ACTION
PACK LED LED
Charging will beginHI/LO TEMP. Hot/Cold On Off when battery returns to
(SEE MANUAL) battery
32°F (0°O)-104°F (40°0)
DEFECTIVE _ Battery pack or
BATTERY Defective Flashing Off Charger/Adapter is
defective
BATTERY _ Charging Off Flashing Charging
CHARGING
BATTERY _ Fully Charging is complete
FULL charged Off On Maintenance charging
CHARGING A HOT BATTERY PACK
If the battery pack is above normal temperature range, the red LED will illuminate
and the green LED will be off. When the battery pack cools down to approxi-
mately 104°F (40°C), the charger will automatically begin charging.
CHARGING A COLD BATTERY PACK
If the battery pack is below the normal temperature range, the red LED will illu-
minate and the green LED will be off. When the battery warms to a temperature
of more than 32°F (0°C), the charger will automatically begin charging.
DEFECTIVE BATTERY
If the charger detects a problem, the red LED will begin flashing and the green
LED will be off.
1.
2.
3.
If registering as defective, remove and reinsert the battery pack in the charg-
er. If the LED status reads "defective" a second time, try charging a different
battery pack.
If a different battery pack charges normally, dispose of the defective battery
pack (see Maintenance section).
If a different battery pack also indicates "defective," the charger may
be defective.
BATTERY CHARGING
If the battery pack is being charged within a normal surrounding temperature
range (32 F to 104 F), the green LED will begin flashing and the red LED will be
off. The battery pack will reach a full charge in 30 minutes.
BATTERY FULL
If the battery pack is within normal temperature range, the green LED will illuminate
and the red LED will be off. The battery pack is fully charged and ready to use. The
battery pack will fully charge, but will not overcharge, if left on the charger.
NOTE: Charger may warm with several continuous charge cycles. This is part of
the normal operation of the charge. Charge in a well ventilated area.
TO ATTACH BATTERY
PACK (Fig. 4)
1. Make sure that the Drill
is "OFF"
2.
Align the raised rib on
the battery pack with the
grooves of the Drill, and
then attach the battery
pack to the Drill.
NOTE: Make sure that the latch
on the battery pack snaps into
place and the battery pack
is secured to the tool before be-
ginning operation.
Fig. 4
/
t
TO DETACH BATTERY PACK (Fig. 4)
1. Lock the trigger switch on the Drill by placing the direction of rotation (for-
ward/reverse/center lock) selector in center position.
2. Depress the battery release buttons located on the both sides of the battery
pack to release the battery pack.
3. Pull the battery pack out and remove it from the tool.
CAUTION: When placing the battery pack in the tool, be sure that the
raised rib on the battery pack aligns with the groove inside the Drill and the
latches snap into place properly. Improper assembly of the battery pack can
cause damage to internal components.
_L. WARNING: Battery tools are always in operating condition. Therefore,
the direction-of-rotation selector should always be locked when not in use or
carrying at your side.
10003 ManuaLRevised_08 0724 Page 18 10003 ManuaLRevised_08 0724 Page 19
TRIGGER SWITCH (Fig. 5)
To turn the Drill ON, depress
the trigger switch. To turn it
OFF, release the trigger switch.
VARIABLE SPEED (Fig.5)
The variable-speed trigger
switch delivers higher speed
with increased trigger pressure
and lower speed with de-
creased trigger pressure.
Fig. 5
Variable-speed
trigger switch
Direction-
of-rotation
selector
DIRECTION-OF=ROTATION
SELECTOR (FORWARD/
REVERSE/CENTER
LOCK) (Fig. 5)
The direction of bit rotation is reversible and is controlled by a selector located
above the trigger switch.
With the Drill held in normal operating position:
1. Position the direction-of-rotation selector to the left of the tool for drilling.
2. Position the direction-of-rotation selector to the right of the tool for reverse.
3. Setting the switch in the OFF (center lock) position helps reduce the possi-
bility of accidental starting when not in use.
CAUTION:To prevent gear damage, always allow the chuck to come to a
complete stop before changing the direction of rotation.
NOTE: The Drill will not run unless the direction-of-rotation selector is engaged
fully to the left or right.
ELECTRIC BRAKE
To stop the Drill, release the trigger switch and allow the chuck to come to a
complete stop. The electric brake quickly stops the chuck from rotating. This
feature engages automatically when you release the trigger switch.
KEYLESS CHUCK (Fig. 6)
The Drill has a keyless chuck to
tighten or release drill bits in the
chuck jaws. The arrows on the
chuck indicate the direction in
which to rotate the chuck body
in order to GRIP (tighten) or
OPEN (release) the chuck jaws
on the Drill bit.
_J_ WARNING: Do not hold
the chuck body with one hand
and use the power of the Drill to
tighten the chuck jaws on the
drill bit. The chuck body could
slip in your hand, or your hand
could slip and come in contact
with the rotating bit. This could
cause an accident resulting in
serious personal injury.
TWO-SPEED GEARBOX (Fig. 7)
The Drill has a two-speed
gearbox designed for drilling
or driving at LO or HI speeds.
A slide switch is located on the
top of the Drill to select either
LO or HI speed.
Fig. 6
Chuck jaws
Keyless chuck
OPEN (release)
Chuck
body
GRIP (tighten)
Fig. 7
Two-speed gearbox switch
When using Drill in the LO
speed range, the speed will
decrease and the Drill will have more power and torque. When using the Drill in
the HI speed range, the speed will increase and the Drill will have more driving
power and twisting force (torque). Use LO speed for high power and torque
applications and HI speed for fast Drilling or driving applications.
Use LO speed for starting holes without a center punch, drilling metals or plas-
tic, drilling ceramics, or in applications requiring a higher torque (see below).
HI speed is better for drilling wood and wood composites and for using abrasive
and polishing accessories.
NOTE: Avoid running the Drill at LO speed for extended periods of time. Running
at LO speed under constant usage may cause the Drill to become overheated. If
this occurs, cool the Drill by running it without a load at HI speed.
CAUTION: Never change gears while the tool is running. Failure to obey this
caution could result in serious damage to the Drill.
10003 ManuaLRevised_08 0724 Page 20 10003 ManuaLRevised_08 0724 Page 21
TRIGGER SWITCH (Fig. 5)
To turn the Drill ON, depress
the trigger switch. To turn it
OFF, release the trigger switch.
VARIABLE SPEED (Fig.5)
The variable-speed trigger
switch delivers higher speed
with increased trigger pressure
and lower speed with de-
creased trigger pressure.
Fig. 5
Variable-speed
trigger switch
Direction-
of-rotation
selector
DIRECTION-OF=ROTATION
SELECTOR (FORWARD/
REVERSE/CENTER
LOCK) (Fig. 5)
The direction of bit rotation is reversible and is controlled by a selector located
above the trigger switch.
With the Drill held in normal operating position:
1. Position the direction-of-rotation selector to the left of the tool for drilling.
2. Position the direction-of-rotation selector to the right of the tool for reverse.
3. Setting the switch in the OFF (center lock) position helps reduce the possi-
bility of accidental starting when not in use.
CAUTION:To prevent gear damage, always allow the chuck to come to a
complete stop before changing the direction of rotation.
NOTE: The Drill will not run unless the direction-of-rotation selector is engaged
fully to the left or right.
ELECTRIC BRAKE
To stop the Drill, release the trigger switch and allow the chuck to come to a
complete stop. The electric brake quickly stops the chuck from rotating. This
feature engages automatically when you release the trigger switch.
KEYLESS CHUCK (Fig. 6)
The Drill has a keyless chuck to
tighten or release drill bits in the
chuck jaws. The arrows on the
chuck indicate the direction in
which to rotate the chuck body
in order to GRIP (tighten) or
OPEN (release) the chuck jaws
on the Drill bit.
_J_ WARNING: Do not hold
the chuck body with one hand
and use the power of the Drill to
tighten the chuck jaws on the
drill bit. The chuck body could
slip in your hand, or your hand
could slip and come in contact
with the rotating bit. This could
cause an accident resulting in
serious personal injury.
TWO-SPEED GEARBOX (Fig. 7)
The Drill has a two-speed
gearbox designed for drilling
or driving at LO or HI speeds.
A slide switch is located on the
top of the Drill to select either
LO or HI speed.
Fig. 6
Chuck jaws
Keyless chuck
OPEN (release)
Chuck
body
GRIP (tighten)
Fig. 7
Two-speed gearbox switch
When using Drill in the LO
speed range, the speed will
decrease and the Drill will have more power and torque. When using the Drill in
the HI speed range, the speed will increase and the Drill will have more driving
power and twisting force (torque). Use LO speed for high power and torque
applications and HI speed for fast Drilling or driving applications.
Use LO speed for starting holes without a center punch, drilling metals or plas-
tic, drilling ceramics, or in applications requiring a higher torque (see below).
HI speed is better for drilling wood and wood composites and for using abrasive
and polishing accessories.
NOTE: Avoid running the Drill at LO speed for extended periods of time. Running
at LO speed under constant usage may cause the Drill to become overheated. If
this occurs, cool the Drill by running it without a load at HI speed.
CAUTION: Never change gears while the tool is running. Failure to obey this
caution could result in serious damage to the Drill.
10003 ManuaLRevised_08 0724 Page 20 10003 ManuaLRevised_08 0724 Page 21
ADJUSTABLE=TORQUE CLUTCH (Fig. 8)
The Torque clutch can be ad- I Fig. 8
F
justed to 17 different settings.
I
The higher the torque setting,
the more force the drill produc-
es to turn an object in either LO
or HI rotation speed.
When using the Drill for different
driving applications, increase or
decrease the torque in order to
help prevent damaging screw
heads, threads, workpiece, etc.
Adjust the torque by rotating
the torque-adjustment ring.
ring
To decrease torque
The proper setting depends
on the job and the type of bit,
fastener, and material you will
be using. In general, use greater
torque for larger screws. If the
torque is too high, the screws
may be damaged or broken.
For delicate operations, such
as removing a partially stripped
screw, use a low torque setting.
For operations such as drilling
into hardwood, use a higher
torque setting.
Fig. 9
Torque indicator
f
Drill icon
NOTE: When adjusting the
torque clutch make sure that the speed switch is either completely in the LO or
HI Position.
,_ CAUTION: Do not change the torque setting when the tool is running.
DRILL MODE (Fig. 9)
Select Drill mode for drilling and other heavy duty applications.
To select Drill mode, rotate the torque-adjustment ring until the icon aligns with
the torque indicator and clicks into position.
LED WORKLIGHT (Fig. 10)
The LED worklight, located on
the base of the Drill, will illumi-
nate when the trigger switch
is depressed. This provides
additional light on the surface
of the workpiece for operation
in lower-light areas. The LED
worklight will turn off when the
trigger switch is released.
iNSTALLiNG BiTS (Fig. 11)
1.
2.
3.
Lock the trigger switch by
placing the direction-of-
rotation selector in the OFF I
(center) position.
I
Fig. 10
LED worklight
Variable-speed
trigger switch
Fig. 11
Open or close the chuck
jaws to a point where the Drill bit
opening is slightly larger than
the bit size you intend to use.
Raise the front of the Drill
slightly to keep the bit from
falling out of the chuck jaws. Chuck body
4. Insert a drill bit.
NOTE: Rotate the chuck body
in the direction of the arrow
marked GRIP to close the chuck
jaws. Do not use a wrench to
tighten or loosen the chuck jaws.
5. Tighten the chuck jaws securely on the bit.
Keyless chuck
OPEN (release)
REMOVING BiTS (Fig. 11)
1. Lock the trigger switch by placing the direction-of-rotation selector in the
OFF (center) position.
2. Open the chuck jaws.
NOTE: Rotate the chuck body in the direction of the arrow marked OPEN to loosen
the chuck jaws. Do not use a wrench to tighten or loosen the chuck jaws.
3. Remove the drill bit.
10003 ManuaLRevised_08 0724 Page 22 10003 ManuaLRevised_08 0724 Page 23
ADJUSTABLE=TORQUE CLUTCH (Fig. 8)
The Torque clutch can be ad- I Fig. 8
F
justed to 17 different settings.
I
The higher the torque setting,
the more force the drill produc-
es to turn an object in either LO
or HI rotation speed.
When using the Drill for different
driving applications, increase or
decrease the torque in order to
help prevent damaging screw
heads, threads, workpiece, etc.
Adjust the torque by rotating
the torque-adjustment ring.
ring
To decrease torque
The proper setting depends
on the job and the type of bit,
fastener, and material you will
be using. In general, use greater
torque for larger screws. If the
torque is too high, the screws
may be damaged or broken.
For delicate operations, such
as removing a partially stripped
screw, use a low torque setting.
For operations such as drilling
into hardwood, use a higher
torque setting.
Fig. 9
Torque indicator
f
Drill icon
NOTE: When adjusting the
torque clutch make sure that the speed switch is either completely in the LO or
HI Position.
,_ CAUTION: Do not change the torque setting when the tool is running.
DRILL MODE (Fig. 9)
Select Drill mode for drilling and other heavy duty applications.
To select Drill mode, rotate the torque-adjustment ring until the icon aligns with
the torque indicator and clicks into position.
LED WORKLIGHT (Fig. 10)
The LED worklight, located on
the base of the Drill, will illumi-
nate when the trigger switch
is depressed. This provides
additional light on the surface
of the workpiece for operation
in lower-light areas. The LED
worklight will turn off when the
trigger switch is released.
iNSTALLiNG BiTS (Fig. 11)
1.
2.
3.
Lock the trigger switch by
placing the direction-of-
rotation selector in the OFF I
(center) position.
I
Fig. 10
LED worklight
Variable-speed
trigger switch
Fig. 11
Open or close the chuck
jaws to a point where the Drill bit
opening is slightly larger than
the bit size you intend to use.
Raise the front of the Drill
slightly to keep the bit from
falling out of the chuck jaws. Chuck body
4. Insert a drill bit.
NOTE: Rotate the chuck body
in the direction of the arrow
marked GRIP to close the chuck
jaws. Do not use a wrench to
tighten or loosen the chuck jaws.
5. Tighten the chuck jaws securely on the bit.
Keyless chuck
OPEN (release)
REMOVING BiTS (Fig. 11)
1. Lock the trigger switch by placing the direction-of-rotation selector in the
OFF (center) position.
2. Open the chuck jaws.
NOTE: Rotate the chuck body in the direction of the arrow marked OPEN to loosen
the chuck jaws. Do not use a wrench to tighten or loosen the chuck jaws.
3. Remove the drill bit.
10003 ManuaLRevised_08 0724 Page 22 10003 ManuaLRevised_08 0724 Page 23

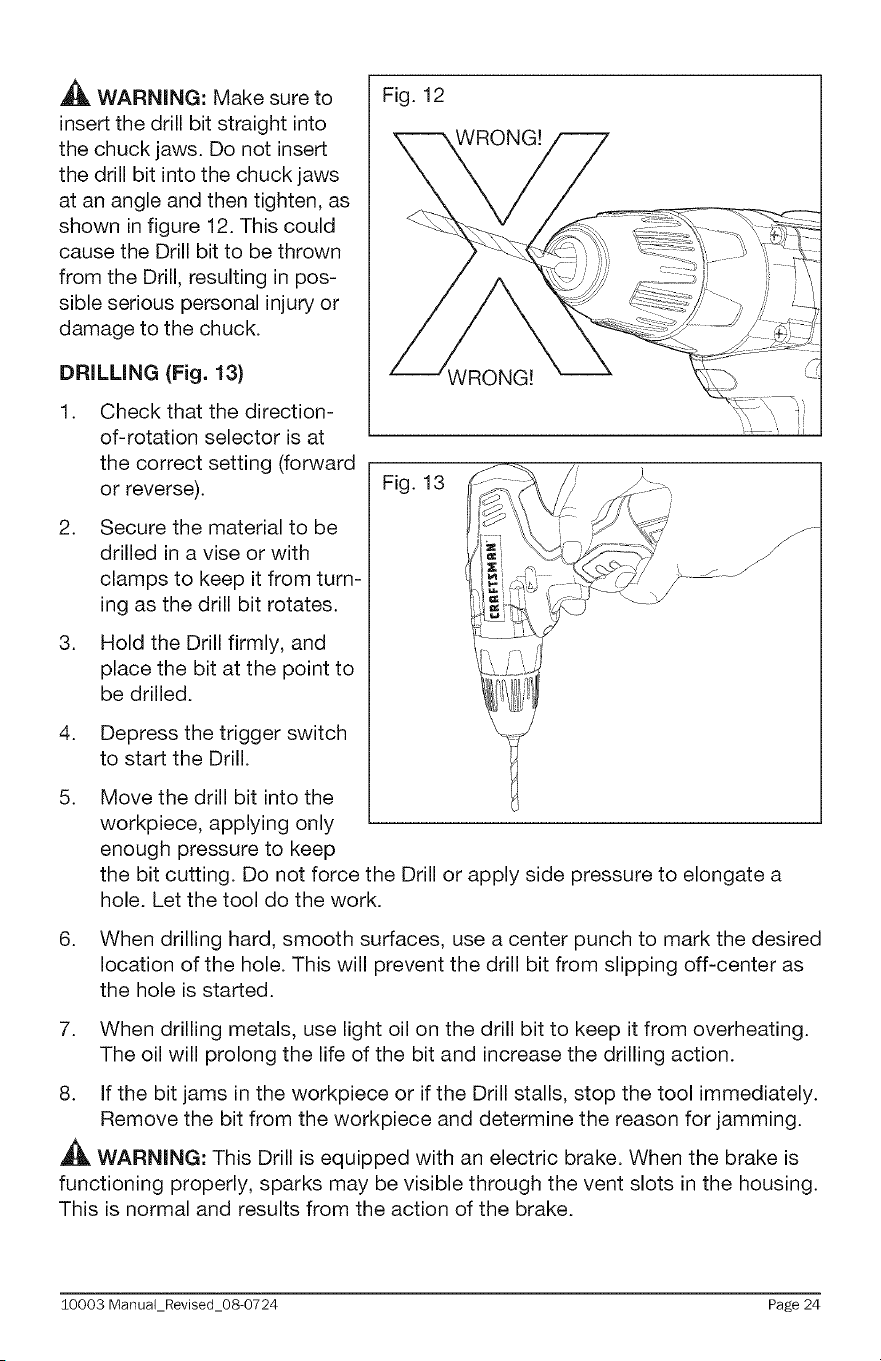

WARNING: Make sure to
insert the drill bit straight into
the chuck jaws. Do not insert
the drill bit into the chuck jaws
at an angle and then tighten, as
shown in figure 12. This could
cause the Drill bit to be thrown
from the Drill, resulting in pos-
sible serious personal injury or
damage to the chuck.
DRiLLiNG (Fig. 13)
1. Check that the direction-
of-rotation selector is at
the correct setting (forward
or reverse).
2. Secure the material to be
drilled in a vise or with
clamps to keep it from turn-
ing as the drill bit rotates.
3. Hold the Drill firmly, and
place the bit at the point to
be drilled.
4.
5.
Depress the trigger switch
to start the Drill.
Fig. 12
WRONG!
NRONG!
Fig. 13
Move the drill bit into the
workpiece, applying only
enough pressure to keep
the bit cutting. Do not force the Drill or apply side pressure to elongate a
hole. Let the tool do the work.
6. When drilling hard, smooth surfaces, use a center punch to mark the desired
location of the hole. This will prevent the drill bit from slipping off-center as
the hole is started.
7. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
8. If the bit jams in the workpiece or if the Drill stalls, stop the tool immediately.
Remove the bit from the workpiece and determine the reason for jamming.
_L. WARNING: This Drill is equipped with an electric brake. When the brake is
functioning properly, sparks may be visible through the vent slots in the housing.
This is normal and results from the action of the brake.

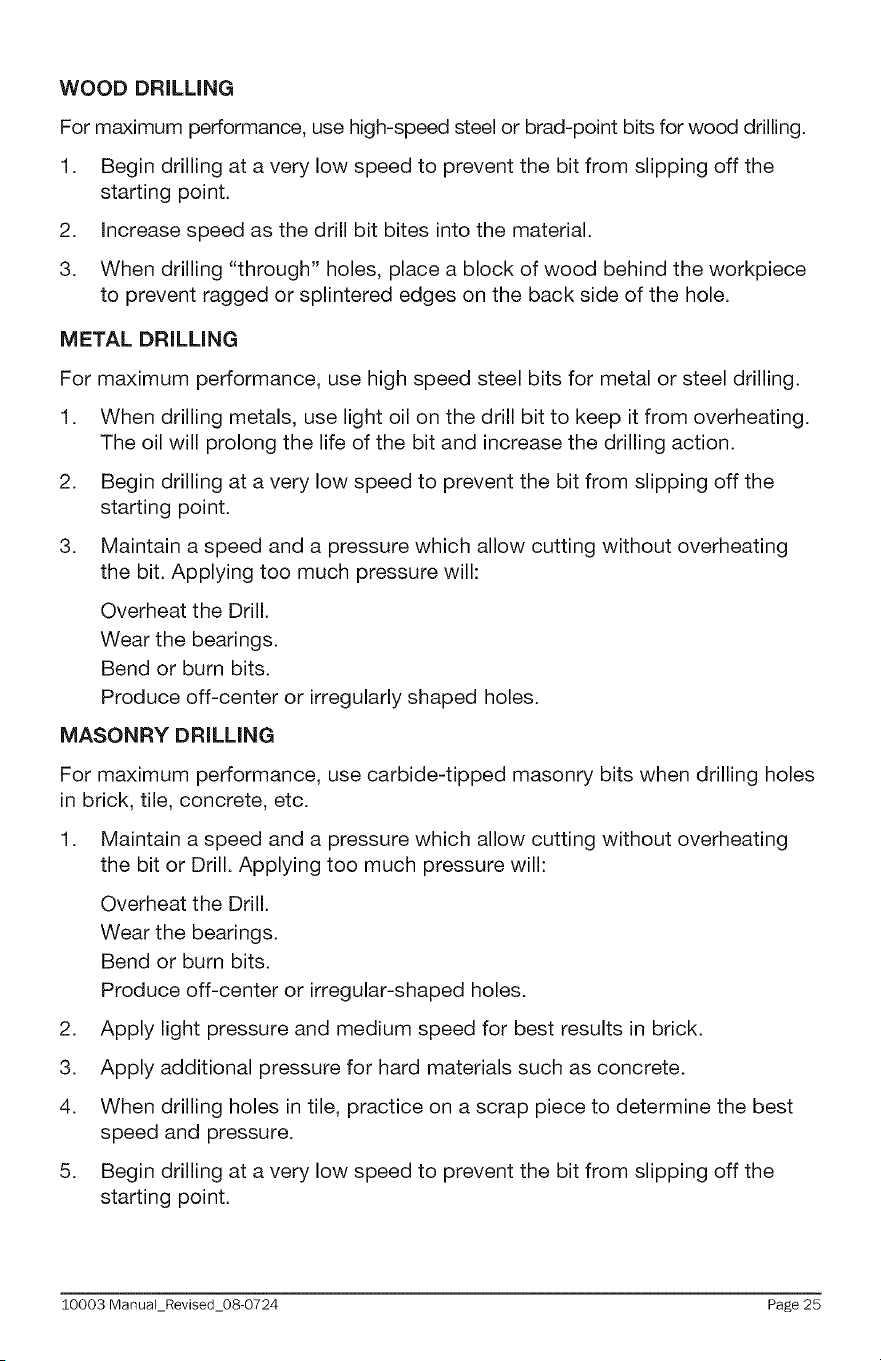

WOOD DRiLLiNG
For maximum performance, use high-speed steel or brad-point bits for wood drilling.
1. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
2. Increase speed as the drill bit bites into the material.
3. When drilling "through" holes, place a block of wood behind the workpiece
to prevent ragged or splintered edges on the back side of the hole.
METAL DRiLLiNG
For maximum performance, use high speed steel bits for metal or steel drilling.
1. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
2. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
3. Maintain a speed and a pressure which allow cutting without overheating
the bit. Applying too much pressure will:
Overheat the Drill.
Wear the bearings.
Bend or burn bits.
Produce off-center or irregularly shaped holes.
MASONRY DRiLLiNG
For maximum performance, use carbide-tipped masonry bits when drilling holes
in brick, tile, concrete, etc.
1. Maintain a speed and a pressure which allow cutting without overheating
the bit or Drill. Applying too much pressure will:
Overheat the Drill.
Wear the bearings.
Bend or burn bits.
Produce off-center or irregular-shaped holes.
2. Apply light pressure and medium speed for best results in brick.
3. Apply additional pressure for hard materials such as concrete.
4. When drilling holes in tile, practice on a scrap piece to determine the best
speed and pressure.
5. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
10003 ManuaLRevised_08 0724 Page 24 10003 ManuaLRevised_08 0724 Page 25
WARNING: Make sure to
insert the drill bit straight into
the chuck jaws. Do not insert
the drill bit into the chuck jaws
at an angle and then tighten, as
shown in figure 12. This could
cause the Drill bit to be thrown
from the Drill, resulting in pos-
sible serious personal injury or
damage to the chuck.
DRiLLiNG (Fig. 13)
1. Check that the direction-
of-rotation selector is at
the correct setting (forward
or reverse).
2. Secure the material to be
drilled in a vise or with
clamps to keep it from turn-
ing as the drill bit rotates.
3. Hold the Drill firmly, and
place the bit at the point to
be drilled.
4.
5.
Depress the trigger switch
to start the Drill.
Fig. 12
WRONG!
NRONG!
Fig. 13
Move the drill bit into the
workpiece, applying only
enough pressure to keep
the bit cutting. Do not force the Drill or apply side pressure to elongate a
hole. Let the tool do the work.
6. When drilling hard, smooth surfaces, use a center punch to mark the desired
location of the hole. This will prevent the drill bit from slipping off-center as
the hole is started.
7. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
8. If the bit jams in the workpiece or if the Drill stalls, stop the tool immediately.
Remove the bit from the workpiece and determine the reason for jamming.
_L. WARNING: This Drill is equipped with an electric brake. When the brake is
functioning properly, sparks may be visible through the vent slots in the housing.
This is normal and results from the action of the brake.
WOOD DRiLLiNG
For maximum performance, use high-speed steel or brad-point bits for wood drilling.
1. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
2. Increase speed as the drill bit bites into the material.
3. When drilling "through" holes, place a block of wood behind the workpiece
to prevent ragged or splintered edges on the back side of the hole.
METAL DRiLLiNG
For maximum performance, use high speed steel bits for metal or steel drilling.
1. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
2. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
3. Maintain a speed and a pressure which allow cutting without overheating
the bit. Applying too much pressure will:
Overheat the Drill.
Wear the bearings.
Bend or burn bits.
Produce off-center or irregularly shaped holes.
MASONRY DRiLLiNG
For maximum performance, use carbide-tipped masonry bits when drilling holes
in brick, tile, concrete, etc.
1. Maintain a speed and a pressure which allow cutting without overheating
the bit or Drill. Applying too much pressure will:
Overheat the Drill.
Wear the bearings.
Bend or burn bits.
Produce off-center or irregular-shaped holes.
2. Apply light pressure and medium speed for best results in brick.
3. Apply additional pressure for hard materials such as concrete.
4. When drilling holes in tile, practice on a scrap piece to determine the best
speed and pressure.
5. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
10003 ManuaLRevised_08 0724 Page 24 10003 ManuaLRevised_08 0724 Page 25
A

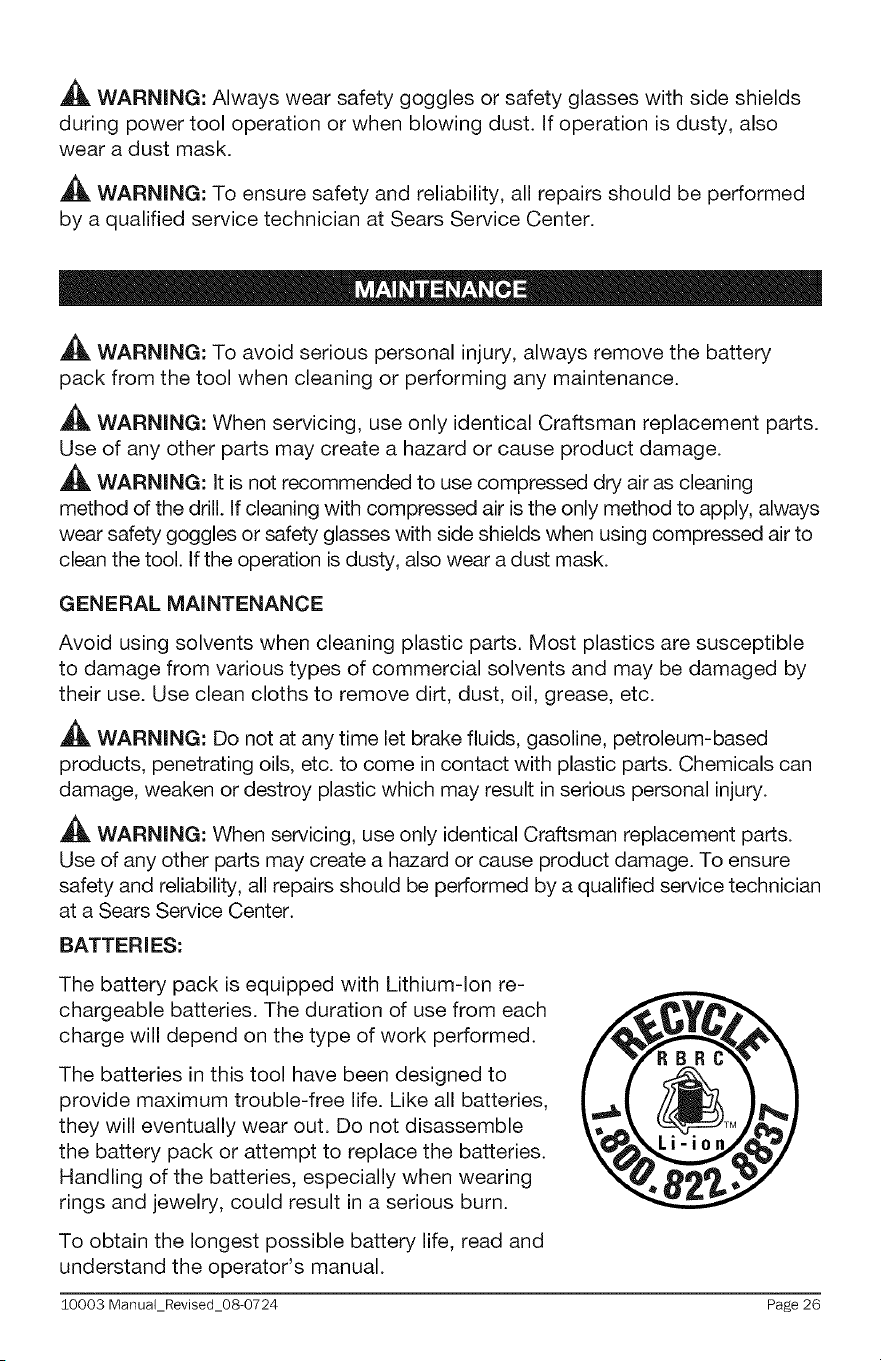

_L WARNING: Always wear safety goggles or safety glasses with side shields
during power tool operation or when blowing dust. If operation is dusty, also
wear a dust mask.
,_ WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at Sears Service Center.
WARNING: To avoid serious personal injury, always remove the battery
pack from the tool when cleaning or performing any maintenance.
,_ WARNING: When servicing, use only identical Craftsman replacement parts.
Use of any other parts may create a hazard or cause product damage.
,_ WARNING: It is not recommended to use compressed dry air as cleaning
method of the drill. If cleaning with compressed air is the only method to apply, always
wear safety goggles or safety glasses with side shields when using compressed air to
clean the tool. If the operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage from various types of commercial solvents and may be damaged by
their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
,_ WARNING: Do not at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. to come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
WARNING: When servicing, use only identical Craftsman replacement parts.
Use of any other parts may create a hazard or cause product damage. To ensure
safety and reliability, all repairs should be performed by a qualified service technician
at a Sears Service Center.
BATTERIES:
The battery pack is equipped with Lithium-Ion re-
chargeable batteries. The duration of use from each
charge will depend on the type of work performed.
The batteries in this tool have been designed to
provide maximum trouble-free life. Like all batteries,
they will eventually wear out. Do not disassemble
the battery pack or attempt to replace the batteries.
Handling of the batteries, especially when wearing
rings and jewelry, could result in a serious burn.
To obtain the longest possible battery life, read and
understand the operator's manual.

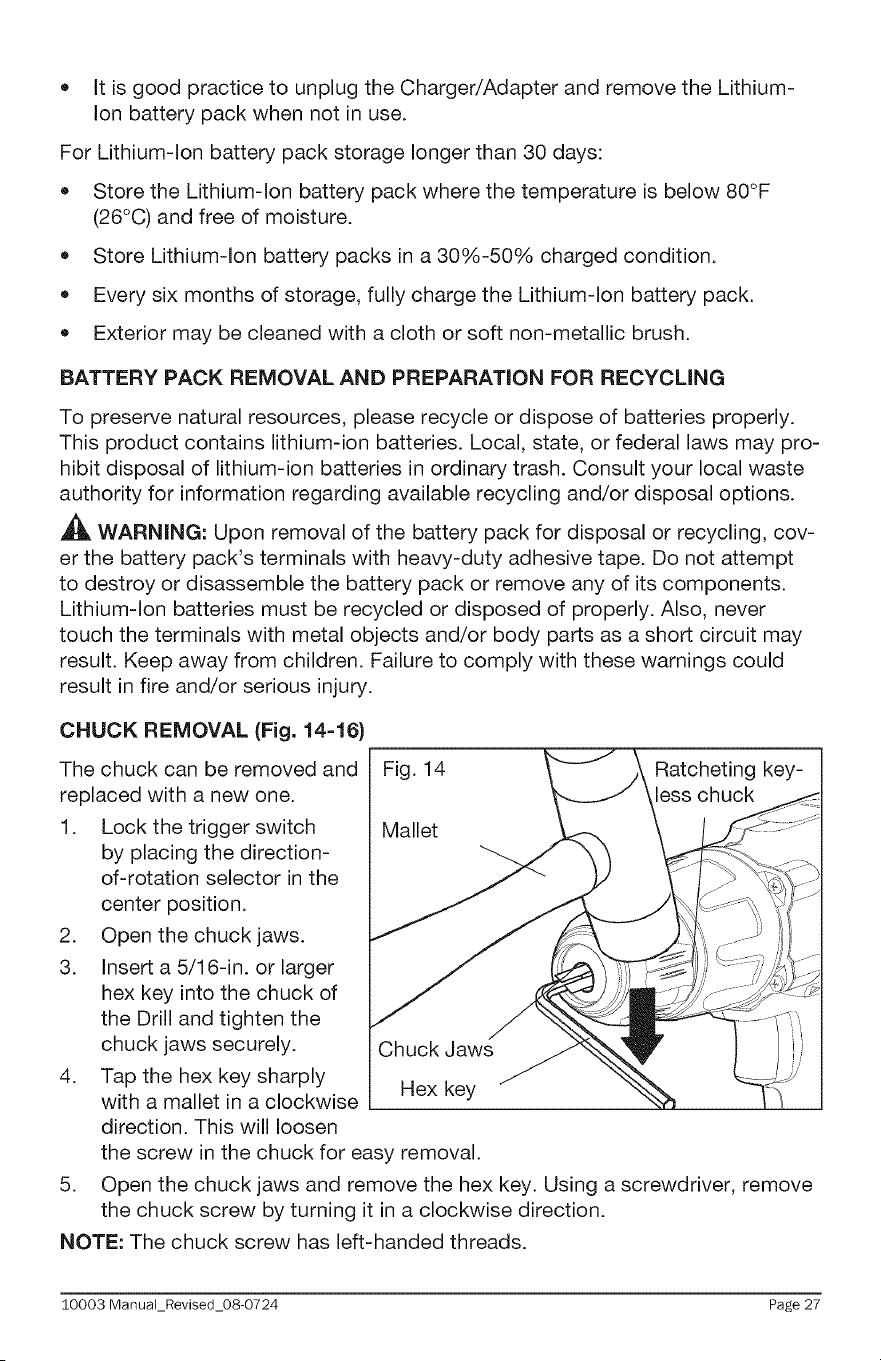

* It is good practice to unplug the Charger/Adapter and remove the Lithium-
Ion battery pack when not in use.
For Lithium-Ion battery pack storage longer than 30 days:
= Store the Lithium-Ion battery pack where the temperature is below 80°F
(26°C) and free of moisture.
= Store Lithium-Ion battery packs in a 30%-50% charged condition.
= Every six months of storage, fully charge the Lithium-Ion battery pack.
= Exterior may be cleaned with a cloth or soft non-metallic brush.
BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING
To preserve natural resources, please recycle or dispose of batteries properly.
This product contains lithium-ion batteries. Local, state, or federal laws may pro-
hibit disposal of lithium-ion batteries in ordinary trash. Consult your local waste
authority for information regarding available recycling and/or disposal options.
,_ WARNING: Upon removal of the battery pack for disposal or recycling, cov-
er the battery pack's terminals with heavy-duty adhesive tape. Do not attempt
to destroy or disassemble the battery pack or remove any of its components.
Lithium-Ion batteries must be recycled or disposed of properly. Also, never
touch the terminals with metal objects and/or body parts as a short circuit may
result. Keep away from children. Failure to comply with these warnings could
result in fire and/or serious injury.
CHUCK REMOVAL (Fig. 14-16)
The chuck can be removed and
replaced with a new one.
1. Lock the trigger switch
by placing the direction-
of-rotation selector in the
center position.
2. Open the chuck jaws.
3. Insert a 5/16-in. or larger
hex key into the chuck of
the Drill and tighten the
chuck jaws securely.
4. Tap the hex key sharply
with a mallet in a clockwise
direction. This will loosen
Fig. 14 Ratcheting key-
less chuck
Mallet
aex
the screw in the chuck for easy removal.
5. Open the chuck jaws and remove the hex key. Using a screwdriver, remove
the chuck screw by turning it in a clockwise direction.
NOTE: The chuck screw has left-handed threads.
10003 ManuaLRevised_08 0724 Page 26 10003 ManuaLRevised_08 0724 Page 27
A
_L WARNING: Always wear safety goggles or safety glasses with side shields
during power tool operation or when blowing dust. If operation is dusty, also
wear a dust mask.
,_ WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at Sears Service Center.
WARNING: To avoid serious personal injury, always remove the battery
pack from the tool when cleaning or performing any maintenance.
,_ WARNING: When servicing, use only identical Craftsman replacement parts.
Use of any other parts may create a hazard or cause product damage.
,_ WARNING: It is not recommended to use compressed dry air as cleaning
method of the drill. If cleaning with compressed air is the only method to apply, always
wear safety goggles or safety glasses with side shields when using compressed air to
clean the tool. If the operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible
to damage from various types of commercial solvents and may be damaged by
their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
,_ WARNING: Do not at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. to come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
WARNING: When servicing, use only identical Craftsman replacement parts.
Use of any other parts may create a hazard or cause product damage. To ensure
safety and reliability, all repairs should be performed by a qualified service technician
at a Sears Service Center.
BATTERIES:
The battery pack is equipped with Lithium-Ion re-
chargeable batteries. The duration of use from each
charge will depend on the type of work performed.
The batteries in this tool have been designed to
provide maximum trouble-free life. Like all batteries,
they will eventually wear out. Do not disassemble
the battery pack or attempt to replace the batteries.
Handling of the batteries, especially when wearing
rings and jewelry, could result in a serious burn.
To obtain the longest possible battery life, read and
understand the operator's manual.
* It is good practice to unplug the Charger/Adapter and remove the Lithium-
Ion battery pack when not in use.
For Lithium-Ion battery pack storage longer than 30 days:
= Store the Lithium-Ion battery pack where the temperature is below 80°F
(26°C) and free of moisture.
= Store Lithium-Ion battery packs in a 30%-50% charged condition.
= Every six months of storage, fully charge the Lithium-Ion battery pack.
= Exterior may be cleaned with a cloth or soft non-metallic brush.
BATTERY PACK REMOVAL AND PREPARATION FOR RECYCLING
To preserve natural resources, please recycle or dispose of batteries properly.
This product contains lithium-ion batteries. Local, state, or federal laws may pro-
hibit disposal of lithium-ion batteries in ordinary trash. Consult your local waste
authority for information regarding available recycling and/or disposal options.
,_ WARNING: Upon removal of the battery pack for disposal or recycling, cov-
er the battery pack's terminals with heavy-duty adhesive tape. Do not attempt
to destroy or disassemble the battery pack or remove any of its components.
Lithium-Ion batteries must be recycled or disposed of properly. Also, never
touch the terminals with metal objects and/or body parts as a short circuit may
result. Keep away from children. Failure to comply with these warnings could
result in fire and/or serious injury.
CHUCK REMOVAL (Fig. 14-16)
The chuck can be removed and
replaced with a new one.
1. Lock the trigger switch
by placing the direction-
of-rotation selector in the
center position.
2. Open the chuck jaws.
3. Insert a 5/16-in. or larger
hex key into the chuck of
the Drill and tighten the
chuck jaws securely.
4. Tap the hex key sharply
with a mallet in a clockwise
direction. This will loosen
Fig. 14 Ratcheting key-
less chuck
Mallet
aex
the screw in the chuck for easy removal.
5. Open the chuck jaws and remove the hex key. Using a screwdriver, remove
the chuck screw by turning it in a clockwise direction.
NOTE: The chuck screw has left-handed threads.
10003 ManuaLRevised_08 0724 Page 26 10003 ManuaLRevised_08 0724 Page 27

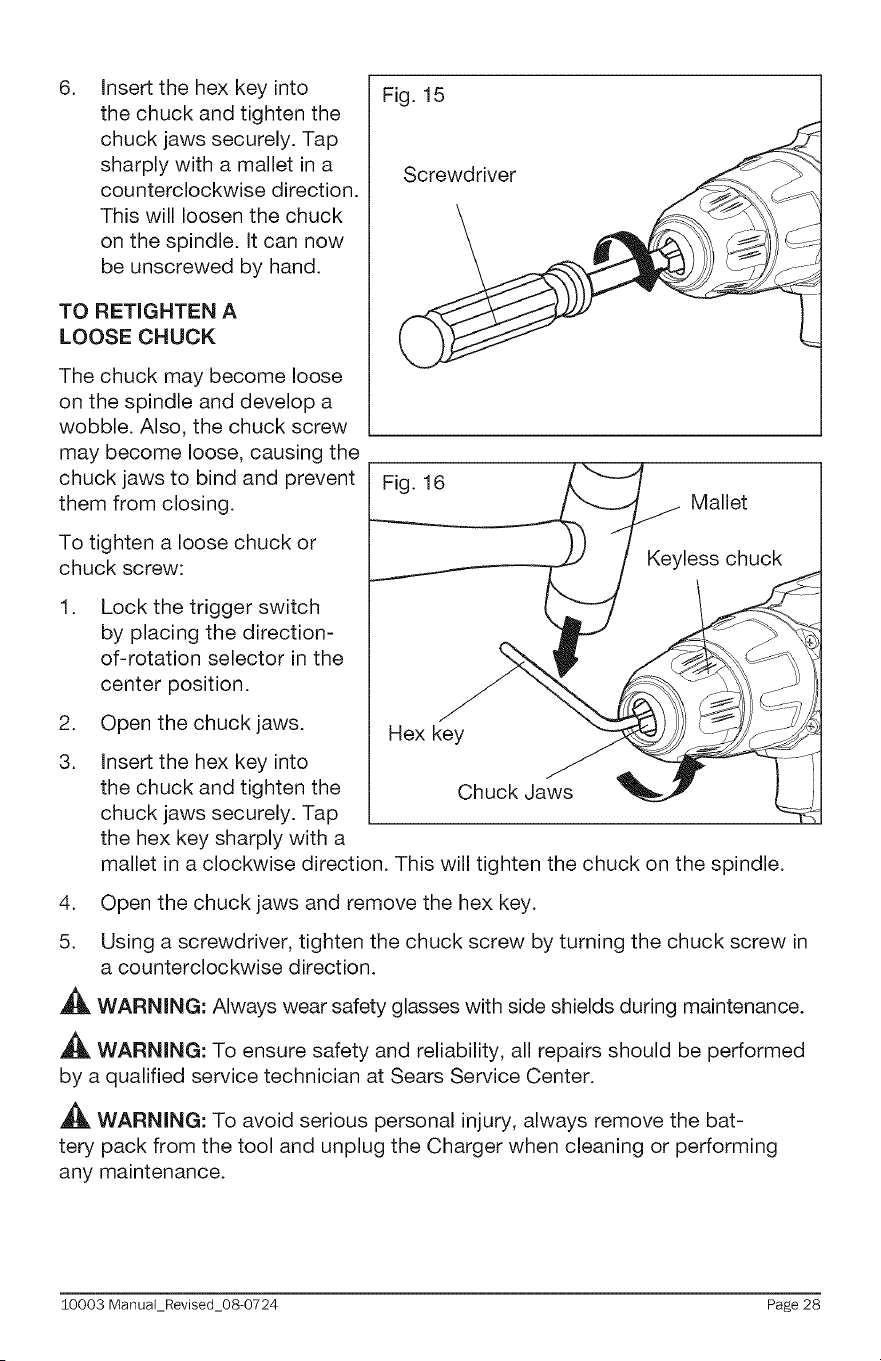

6.
Insert the hex key into
the chuck and tighten the
chuck jaws securely. Tap
sharply with a mallet in a
counterclockwise direction.
This will loosen the chuck
on the spindle. It can now
be unscrewed by hand.
TO RETIGHTEN A
LOOSE CHUCK
The chuck may become loose
on the spindle and develop a
wobble. Also, the chuck screw
may become loose, causing the
chuck jaws to bind and prevent
them from closing.
To tighten a loose chuck or
chuck screw:
1.
2.
3.
4.
5.
Fig. 15
Screwdriver
Lock the trigger switch
by placing the direction-
of-rotation selector in the
center position.
Open the chuck jaws.
Fig. 16
Mallet
Hex key
Insert the hex key into
the chuck and tighten the Chuck Jaws
chuck jaws securely. Tap
the hex key sharply with a
mallet in a clockwise direction. This will tighten the chuck on the spindle.
Open the chuck jaws and remove the hex key.
Using a screwdriver, tighten the chuck screw by turning the chuck screw in
a counterclockwise direction.
WARNING: Always wear safety glasses with side shields during maintenance.
_IL WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at Sears Service Center.
WARNING: To avoid serious personal injury, always remove the bat-
tery pack from the tool and unplug the Charger when cleaning or performing
any maintenance.
PROBLEM CAUSE SOLUTION
The Drill does not work Battery is depleted Charge the battery
Bit cannot be installed Sleeve is not released Release the sleeve
Be sure cooling vents Clean, clear vents. Do
Motor overheating are free from saw dust not cover with hand dur-
and obstacles ing operation
10003 ManuaLRevised_08 0724 Page 28 10003 ManuaLRevised_08 0724 Page 29
6.
Insert the hex key into
the chuck and tighten the
chuck jaws securely. Tap
sharply with a mallet in a
counterclockwise direction.
This will loosen the chuck
on the spindle. It can now
be unscrewed by hand.
TO RETIGHTEN A
LOOSE CHUCK
The chuck may become loose
on the spindle and develop a
wobble. Also, the chuck screw
may become loose, causing the
chuck jaws to bind and prevent
them from closing.
To tighten a loose chuck or
chuck screw:
1.
2.
3.
4.
5.
Fig. 15
Screwdriver
Lock the trigger switch
by placing the direction-
of-rotation selector in the
center position.
Open the chuck jaws.
Fig. 16
Mallet
Hex key
Insert the hex key into
the chuck and tighten the Chuck Jaws
chuck jaws securely. Tap
the hex key sharply with a
mallet in a clockwise direction. This will tighten the chuck on the spindle.
Open the chuck jaws and remove the hex key.
Using a screwdriver, tighten the chuck screw by turning the chuck screw in
a counterclockwise direction.
WARNING: Always wear safety glasses with side shields during maintenance.
_IL WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician at Sears Service Center.
WARNING: To avoid serious personal injury, always remove the bat-
tery pack from the tool and unplug the Charger when cleaning or performing
any maintenance.
PROBLEM CAUSE SOLUTION
The Drill does not work Battery is depleted Charge the battery
Bit cannot be installed Sleeve is not released Release the sleeve
Be sure cooling vents Clean, clear vents. Do
Motor overheating are free from saw dust not cover with hand dur-
and obstacles ing operation
10003 ManuaLRevised_08 0724 Page 28 10003 ManuaLRevised_08 0724 Page 29
12.0 VOLT LITHIUM=ION CORDLESS 3/8=1N. REVERSIBLE DRILL MODEL
NO. 320. 10003
The Model Number will be found on the Nameplate attached to the handle of the
Worklight. Always mention the Model Number when ordering parts for this tool.
12.0 VOLT LITHIUM=ION CORDLESS3/8iN. REVERSIBLE DRILL MODEL NO.
320. 10003
The Model Number will be found on the Nameplate attached to the handle of the
Worklight. Always mention the Model Number when ordering parts for this tool.
1 2770153000 5120 Power Pack 1
2 2790153000 Gear Case ASSY 1
3 3124050000 Sleeve 1
4 3124051000 Clutch Cap 1
5 3124076000 Front Housing 1
6 3124078000 F/R Button 1
7 3124148000 LED Cover 1
8 3124777000 Speed Change Button 1
9 3320666000 Right Housing Assy 1
10 3320667000 Left Housing Assy 1
11 3420896000 Mounting Plate 1
12 3660357000 Spring 1
13 3704078000 Spring Stop 1
14 3704254000 Handle Hoop 1
15 3704407000 Washer 1
16 3810357000 Screw Bit 1
17 3860091000 Chuck 1
18 4890454000 PCB Assembly 1
19 5610013000 Tapping Screw 14
20 5620179000 Screw(L) 1
21 5670207000 Pin 6
10003 ManuaLRevised_08 0724 Page 30 10003 ManuaLRevised_08 0724 Page 31
12.0 VOLT LITHIUM=ION CORDLESS 3/8=1N. REVERSIBLE DRILL MODEL
NO. 320. 10003
The Model Number will be found on the Nameplate attached to the handle of the
Worklight. Always mention the Model Number when ordering parts for this tool.
12.0 VOLT LITHIUM=ION CORDLESS3/8iN. REVERSIBLE DRILL MODEL NO.
320. 10003
The Model Number will be found on the Nameplate attached to the handle of the
Worklight. Always mention the Model Number when ordering parts for this tool.
1 2770153000 5120 Power Pack 1
2 2790153000 Gear Case ASSY 1
3 3124050000 Sleeve 1
4 3124051000 Clutch Cap 1
5 3124076000 Front Housing 1
6 3124078000 F/R Button 1
7 3124148000 LED Cover 1
8 3124777000 Speed Change Button 1
9 3320666000 Right Housing Assy 1
10 3320667000 Left Housing Assy 1
11 3420896000 Mounting Plate 1
12 3660357000 Spring 1
13 3704078000 Spring Stop 1
14 3704254000 Handle Hoop 1
15 3704407000 Washer 1
16 3810357000 Screw Bit 1
17 3860091000 Chuck 1
18 4890454000 PCB Assembly 1
19 5610013000 Tapping Screw 14
20 5620179000 Screw(L) 1
21 5670207000 Pin 6
10003 ManuaLRevised_08 0724 Page 30 10003 ManuaLRevised_08 0724 Page 31
