ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
C0240
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

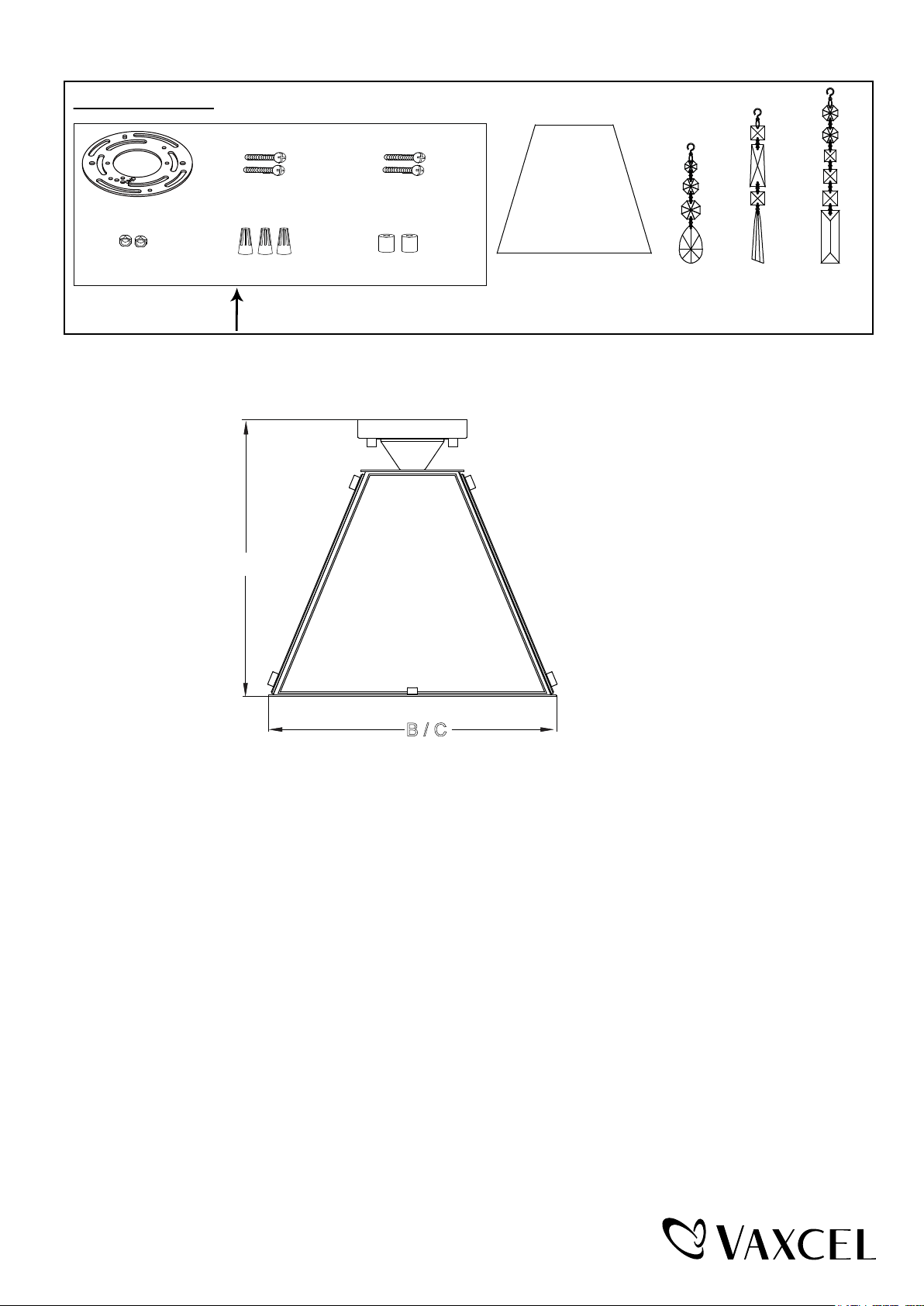

Hardware Package (included):
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
Installation Steps
Mounting Screw (B)
Wire Connector (E)
Fixture Mounting Screw (C)
Lock Nut (D)
Ball Nut (F)
Mounting plate (A)
1. Attach two fixture mounting screws
(C) to the
mounting plate (A), then secure it with two
lock nuts (D). Adjust the length of the fixture
mounting screws (C) if necessary.
2. Attach the mounting plate (A) to the outlet box
using two mounting screws (B).
3. Pull out the source wires from the outlet box. Make wire connections using wire
connector (E) as follows:
---Connect the black wire from the fixture to the black wire from the power source.
---Connect the white wire from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting plate (A) with the green ground
screw, then connect it to the house ground wire with a wire connector (E).
Carefully put the wires back into the outlet box.

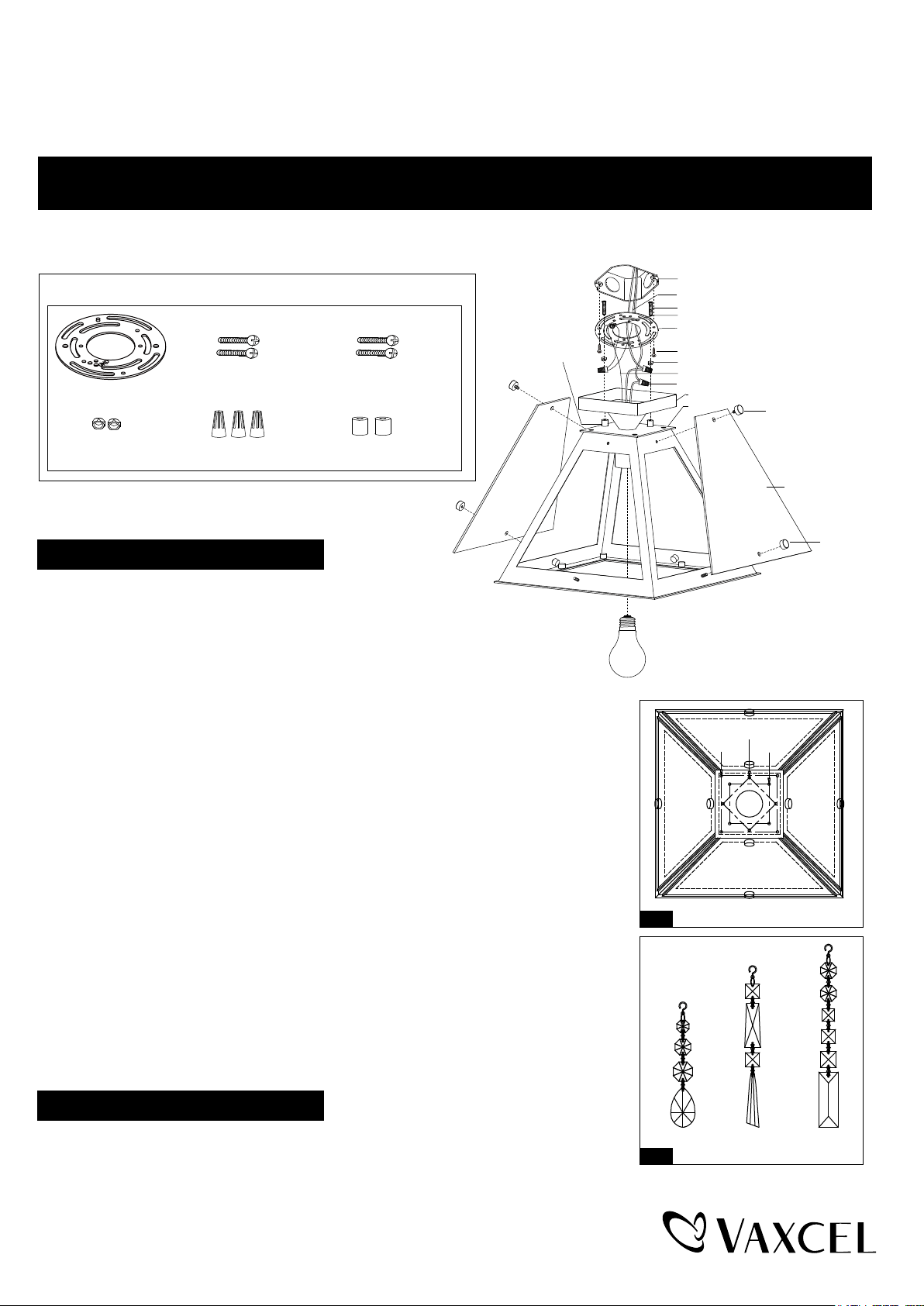

4. Install the crystal drops A , crystal drops B and crystal drops C as shown in
diagram. (See Fig.1 and Fig.2)
5. Attach 4pcs glass panels to fixture and lock it with set screws 1 for upper side
and set screws 2 for bottom side.
6. Install the bulbs (not included). Check relamping label at socket area or packaging
for maximum wattage allowed .
7. Attach the canopy onto the outlet and tighten it with two ball nuts (F).
A x 4
B x 4
C x 4
Fig.1
Fig.2
A B C
Glass Panel
Set Screw 2
Ball Nut (F)
Set Screw 1
Fixture
Canopy
Medium Base Bulb
Max.60W (not included)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw (C)
Wire Connector (E)
Mounting Plate (A)
Green Ground Screw (E)
Mounting Screw (B)
Lock Nut (D)
Outlet Box
