SUN2000-(175KTL-H0, 185KTL-INH0, 185KTL-H1)
Quick Guide
Issue: 12
Part Number: 31500AQK
Date: 2021-04-26
1
Port Description
Copyright © Huawei Technologies Co., Ltd.
2021. All rights reserved.
•
The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all
statements, information, and recommendations in this document do not constitute a warranty
of any kind, express or implied.
•
Only qualified and trained electrical technicians are allowed to operate the device. Operators
should understand the composition and working principles of the grid-tied PV power system
and local standards.
•
Before installing the device, read the user manual carefully to get familiar with product
information and safety precautions. Huawei shall not be liable for any consequences caused
by the violation of the storage, transportation, installation, and operation regulations specified
in this document and the user manual.
•
Use insulated tools when installing the device. For personal safety, wear proper personal
protective equipment (PPE).
1
Product Overview

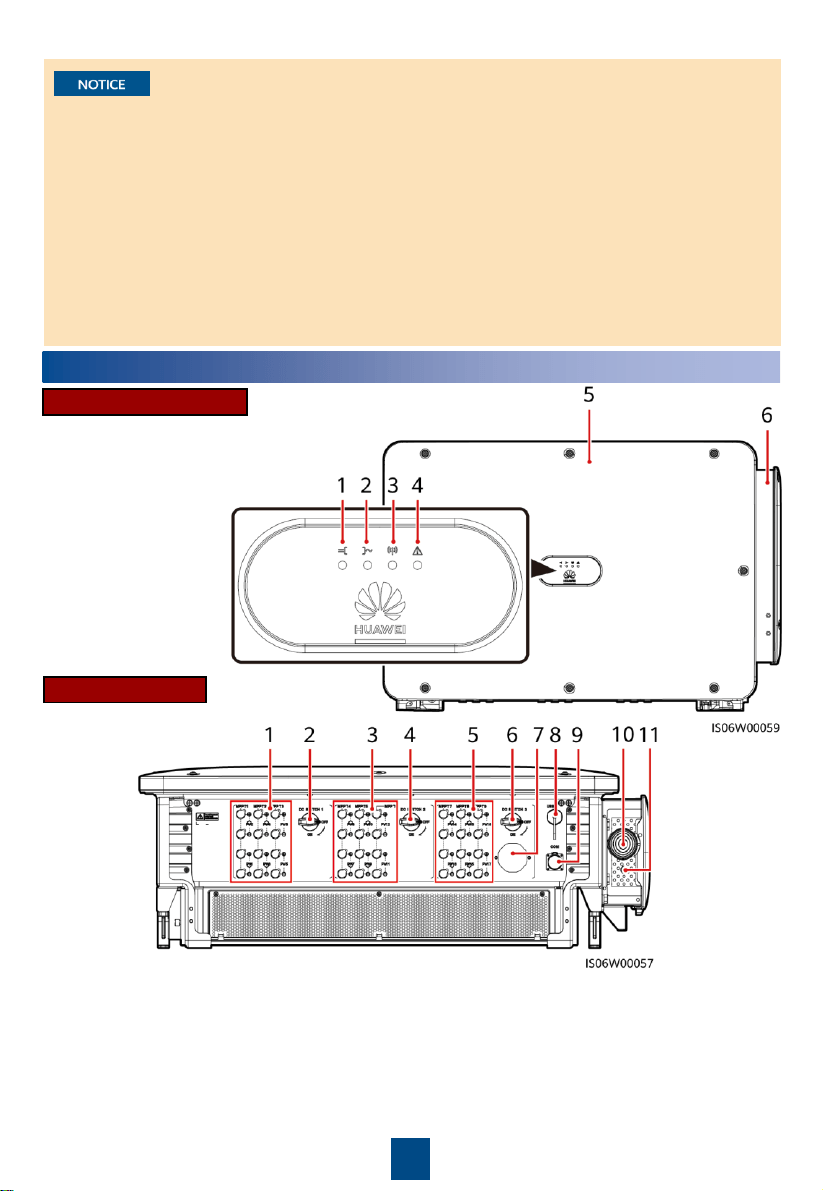

Front View
(1) PV connection indicator
(2) Grid-tied indicator
(3) Communication indicator
(4) Alarm/Maintenance
indicator
(5) Host panel cover
(6) Maintenance
compartment
(1)
DC input terminals (controlled by DC SWITCH 1)
(2) DC switch 1 (DC SWITCH 1)
(3) DC input terminals (controlled by DC SWITCH 2)
(4) DC switch 2 (DC SWITCH 2)
(5) DC input terminals (controlled by DC SWITCH 3)
(6) DC switch 3 (DC SWITCH 3)
(7) Ventilation valve
(8) USB port (USB)
(9) Communications port (COM)
(10) Hole for the AC output power cable
(11) Hole for the tracking system power cable
2
Installation Angle
2.1
2
Installation Requirements

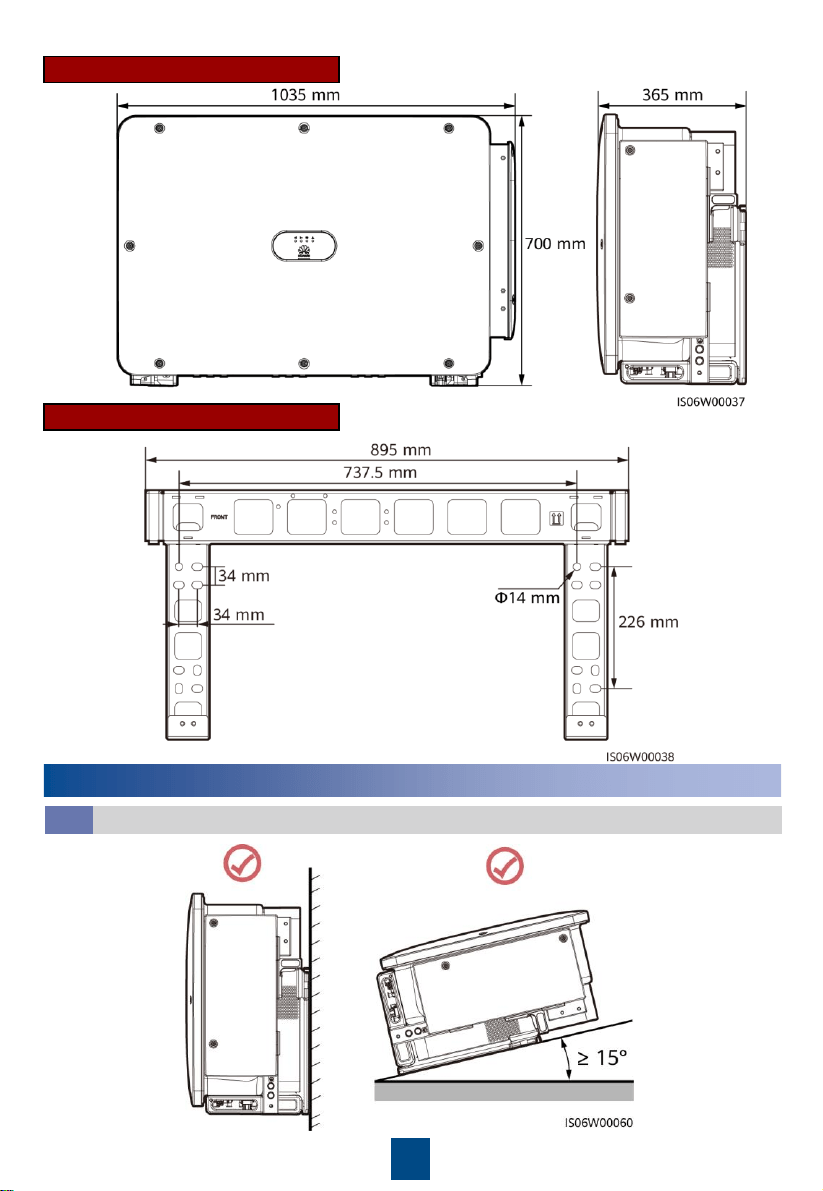

SUN2000 Dimensions
Mounting Bracket Dimensions
3
3
Installing the SUN2000
Installation Space
2.2

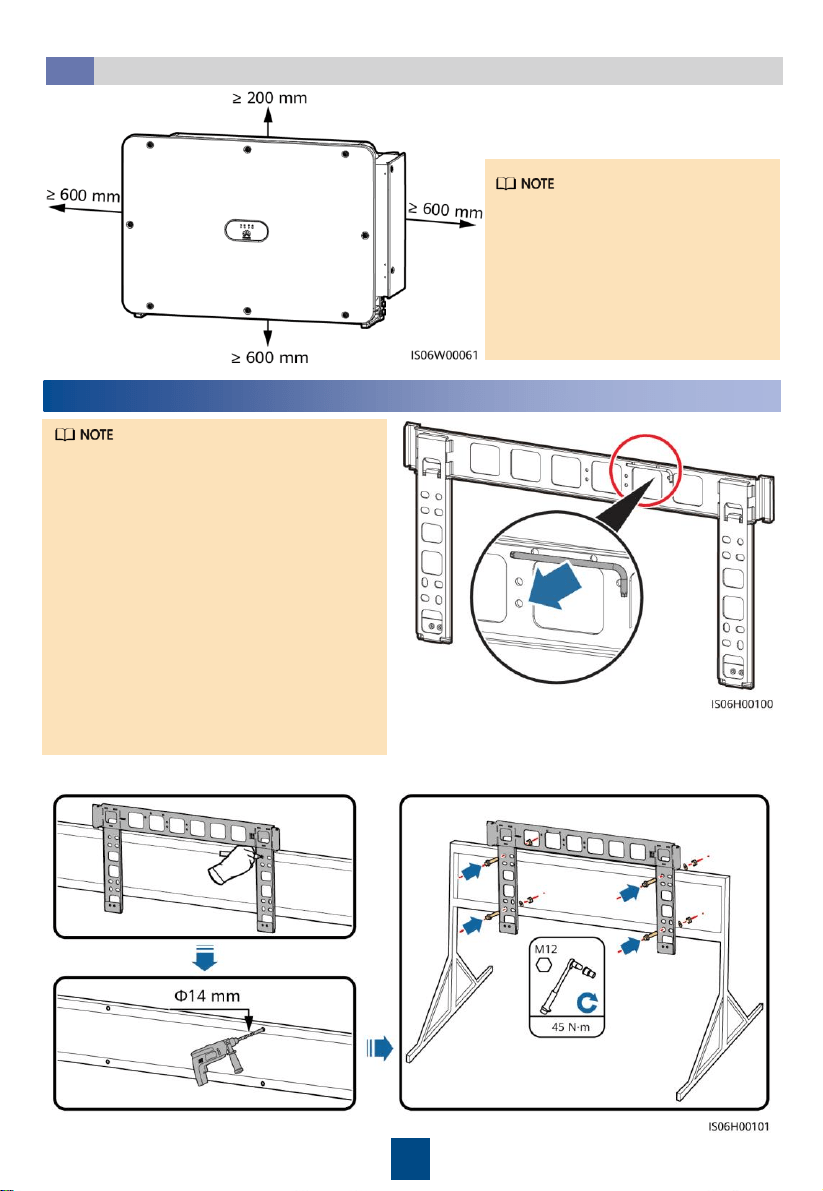

For ease of installing the SUN2000
on the mounting bracket,
connecting cables to the bottom of
the SUN2000, and maintaining the
SUN2000 in future, it is
recommended that the bottom
clearance be between 600 mm and
730 mm.
1. Install the mounting bracket.
•
The M12x40 bolt assemblies are
delivered with the SUN2000. If the bolt
assembly length does not meet the
installation requirements, prepare M12
bolt assemblies by yourself and use
them together with the delivered M12
nuts.
•
Before installing the mounting bracket,
remove the security Torx wrench from
the mounting bracket and save it for
later use.
•
This document introduces how to install
the SUN2000 on a support as an
example. For details about wall-
mounted installation, see the user
manual.
4

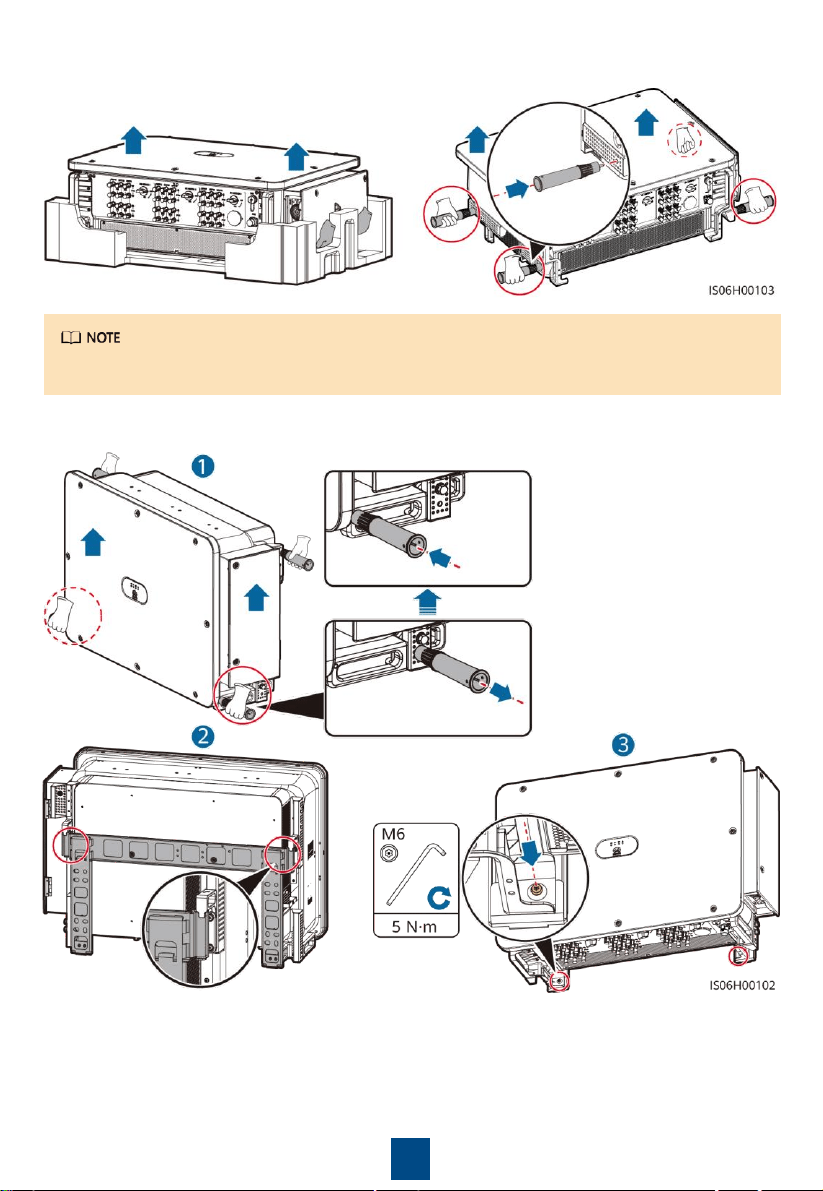

2. Unpack the inverter and move it to the specified position.
Handles are packed in a fitting bag and are not delivered with the SUN2000.
3. Adjust the installation positions of the handles, and install the SUN2000 on the mounting
bracket.
5
If outdoor copper-core cables are used, select copper wiring terminals. For details about the
requirements for cables and terminals of other materials, see the user manual.
4
Installing Cables
Installation Preparations
4.1
No.
Item
Type
Specifications
Description
1
PE cable
Single
-core
outdoor copper
cable
Conductor cross
-
sectional area ≥ S/2
a
(S
is the conductor cross
-
sectional area of the AC
output power cable.)
•
If you choose the
ground point on the
chassis shell for
connecting a PE
cable, prepare the PE
cable.
•
If you choose the
ground point in the
maintenance
compartment for
connecting a PE
cable, use a four-
core
AC output power
cable and do not
have to prepare a PE
cable.
2
AC output
power cable
b
Outdoor copper
cable
•
Conductor cross-
sectional area: 50–
240 mm
2
• Cable outer diameter:
24–66 mm (multi-
core); 14–32 mm
(single-core)
If you choose the ground
point in the maintenance
compartment for
connecting a PE cable,
use a four
-core cable.
Otherwise, use a three
-
core cable or three
single
-core cables.
Outdoor
aluminum
-core
cable
•
Conductor cross-
sectional area: 70–
240 mm
2
(multi-
core); 70–240 mm
2
(single-core)
• Cable outer diameter:
24–66 mm (multi-
core); 14–32 mm
(single-core)
3
DC input
power cable
PV cable that
meets the 1500 V
standard
•
Conductor cross-
sectional area: 4–6
mm
2
• Cable outer diameter:
4.7–6.4 mm
-
6
No.
Item
Type
Specifications
Description
4

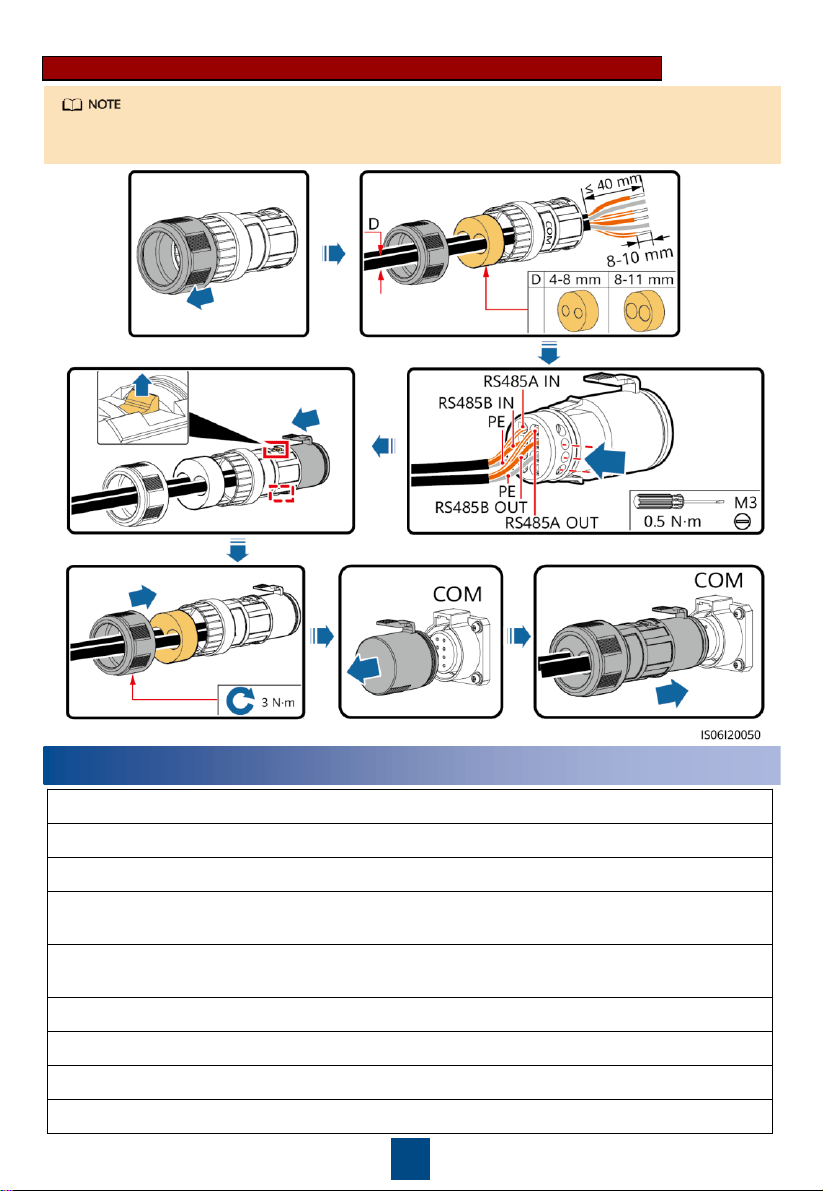

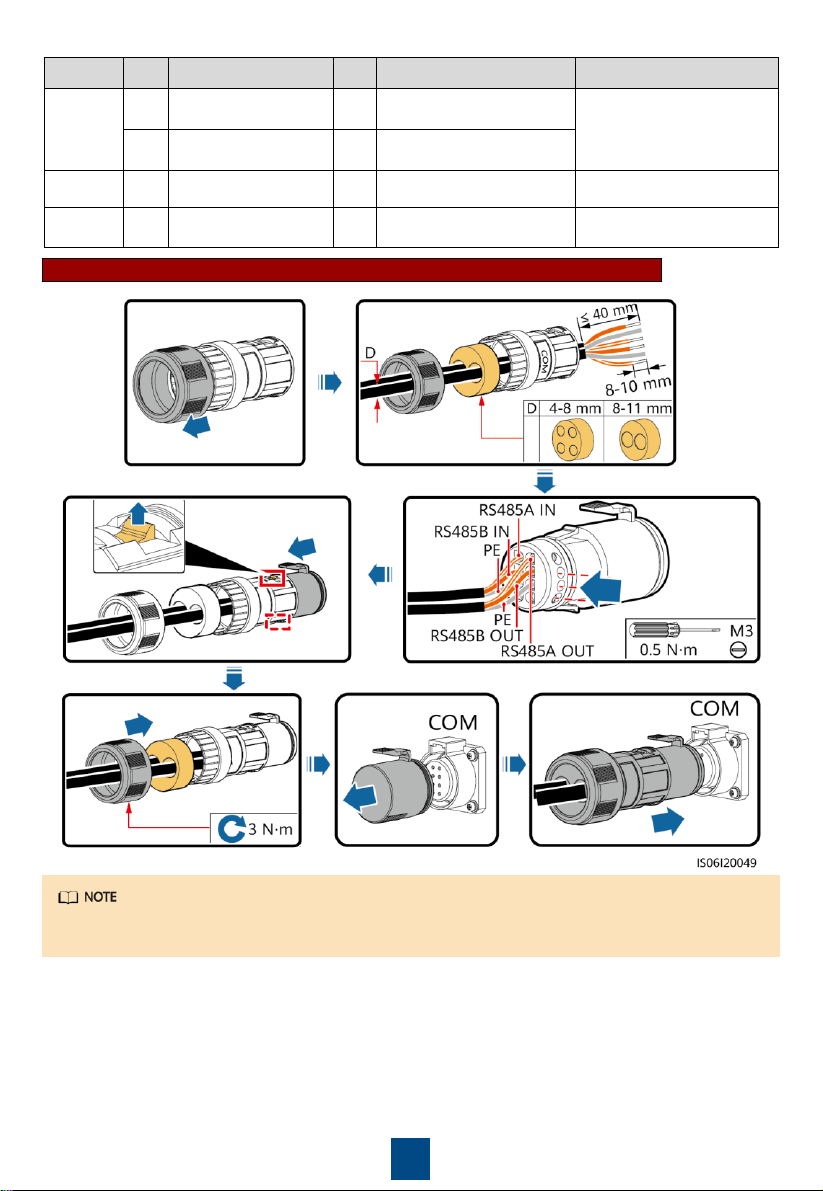

RS485
communication
s cable
Outdoor shielded
twisted pair cable
•
Conductor cross-
sectional area: 0.25–
1
mm
2
• Cable outer diameter:
4–11 mm
When three
communications cables
connect to the signal
cable connector, the
outer diameter of the
cables should be 4
–8
mm.
5
(Optional)
Power cable of
the tracking
system
Three
-
core outdoor
copper cable with
dual
-layer
protection
•
Conductor cross-
sectional area: 10
mm
2
• Cable outer diameter:
15–18 mm
-
Note a: The value is valid only if the conductors of the PE cable and AC power cable use the same
material. If the materials are different, ensure that the conductor cross
-sectional area of the PE
cable produces a conductance equivalent to that of the area S/2. The specifications of the PE
cable are subject to this table or calculated according to IEC 60364
-5-54.
Note
b: You are advised to use a soft cable to prevent poor terminal contact due to the bending
stress of the cable.
Installing the PE Cable
4.2
•

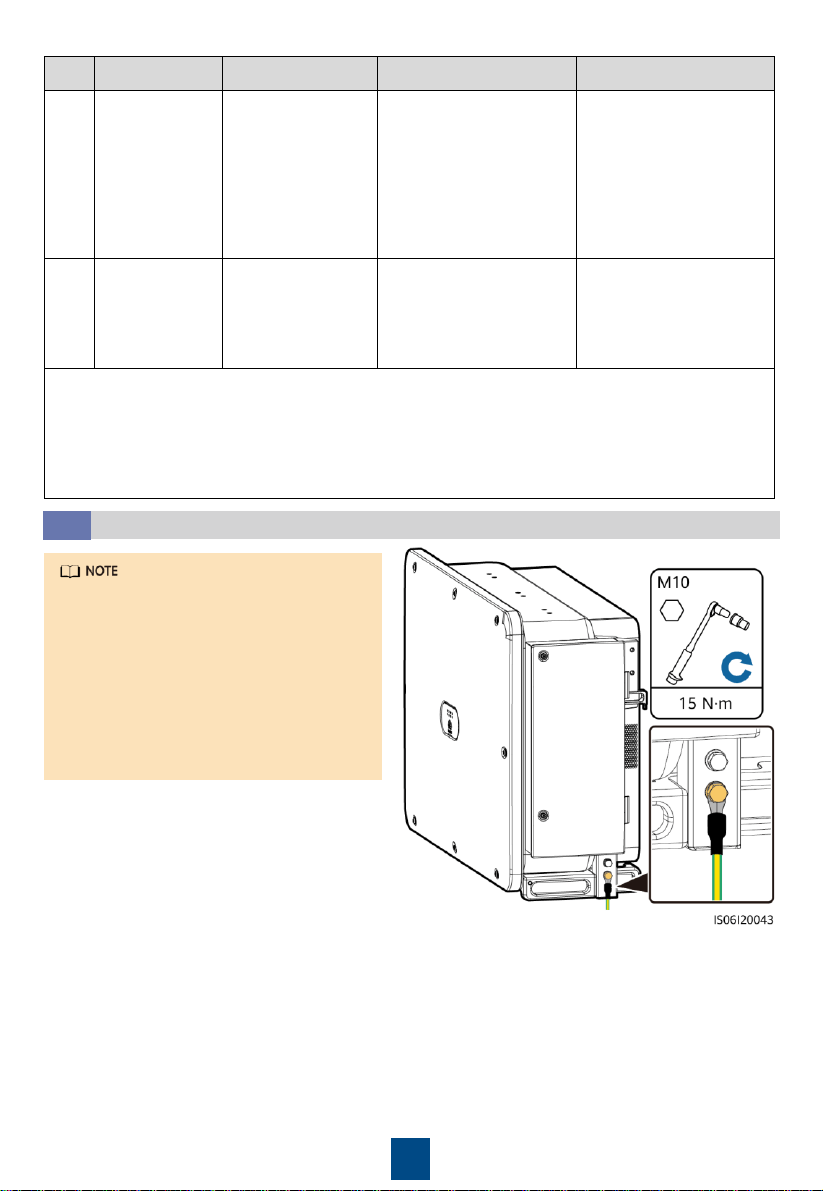

It is recommended that the PE cable
be connected to a nearby PE point.
Connect the PE points of all
SUN2000s in the same PV array to
ensure equipotential connections to
PE cables.
•
To enhance the corrosion resistance
of a ground terminal, you are advised
to apply silica gel or paint on it after
connecting the PE cable.
7
Opening the Maintenance Compartment Door
4.3
•
Do not open the host panel of the SUN2000.
•
Before opening the SUN2000 maintenance compartment door, turn off the downstream AC
output switch and three DC switches at the bottom.
•
Do not open the maintenance compartment door in rainy or snowy days. If you must, take
protective measures to prevent rain or snow from entering the maintenance compartment.
•
Do not leave unused screws in the maintenance compartment.
1. Loosen the screws on the maintenance
compartment door.
2. Open the maintenance compartment door
and adjust the support bar.
Crimping
module
8

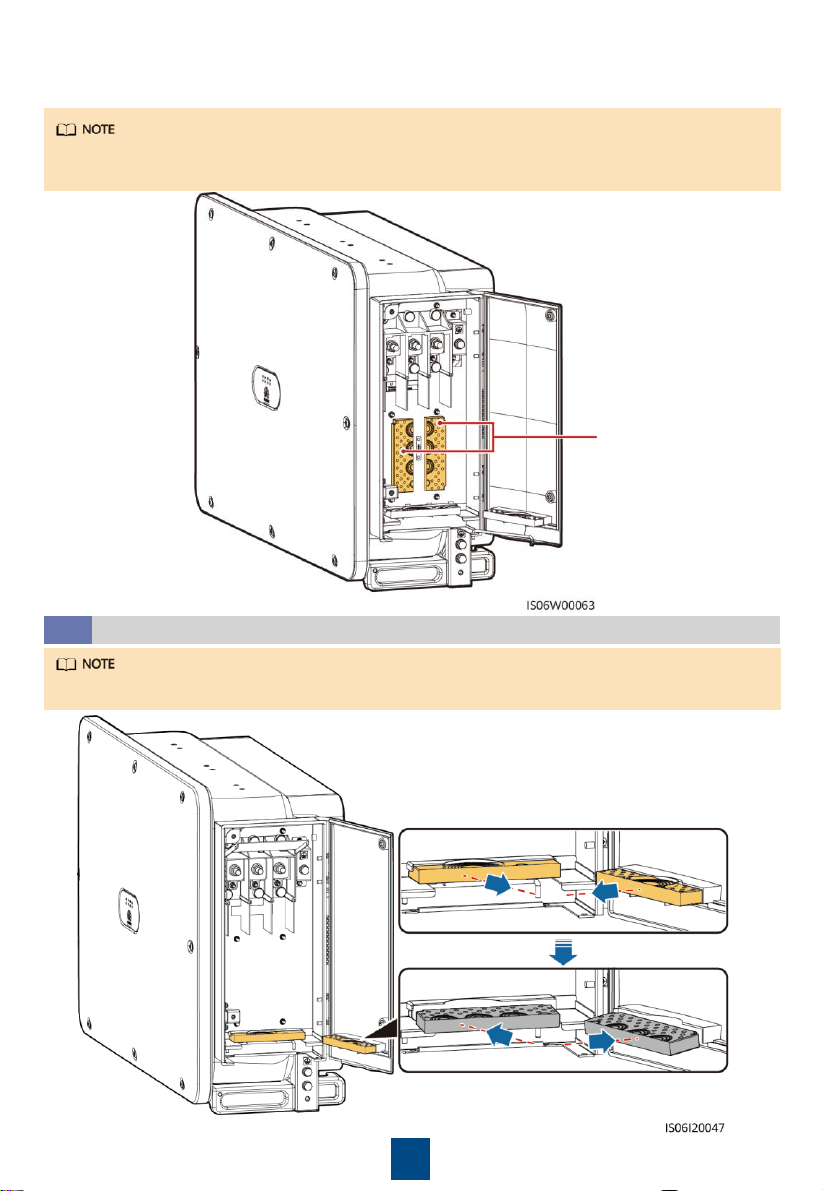

(Optional) Replacing the Crimping Module
4.4
3. Remove the crimping modules that are bound in the maintenance compartment and save
them properly for future use.
If the AC output power cable has a single core, replace the crimping module.
For some models, a three-hole rubber plug is bound in the maintenance compartment. After
removing the rubber plug, save it properly for future use
9
(Optional) Installing the Solar Tracker Power Cable
4.6
1. A switch-disconnector-fuse or fuse-switch-disconnector with a voltage of no less than 800 V,
current of 16 A, and protection type of gM needs to be installed between the SUN2000 and
the tracker controller for protection.
2. The cable between the wiring terminal on the power cable and the switch-disconnector-fuse
or fuse-switch-disconnector should be less than or equal to 2.5 meters.
Removing the Rubber Rings from the Crimping Module
4.5

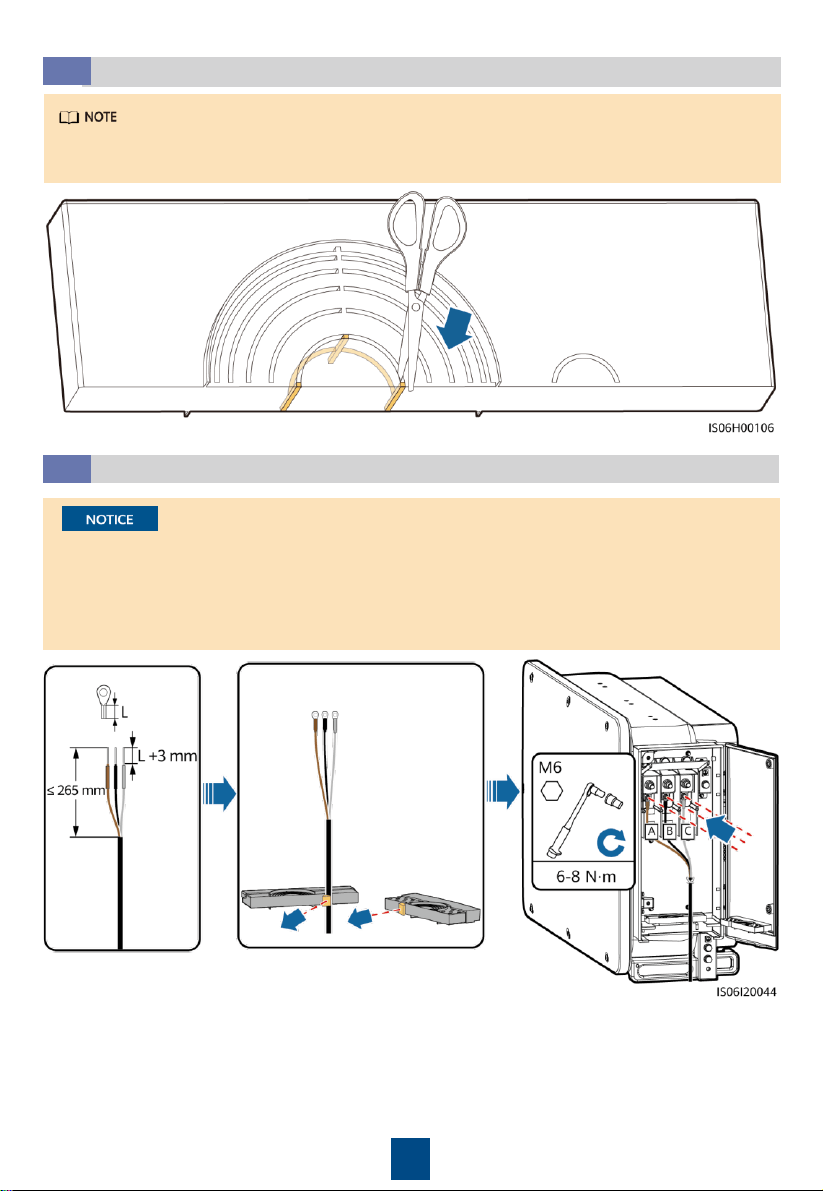

Use scissors to cut off the joints of the rubber rings to remove them. All rubber rings are
removed in the same way.
10

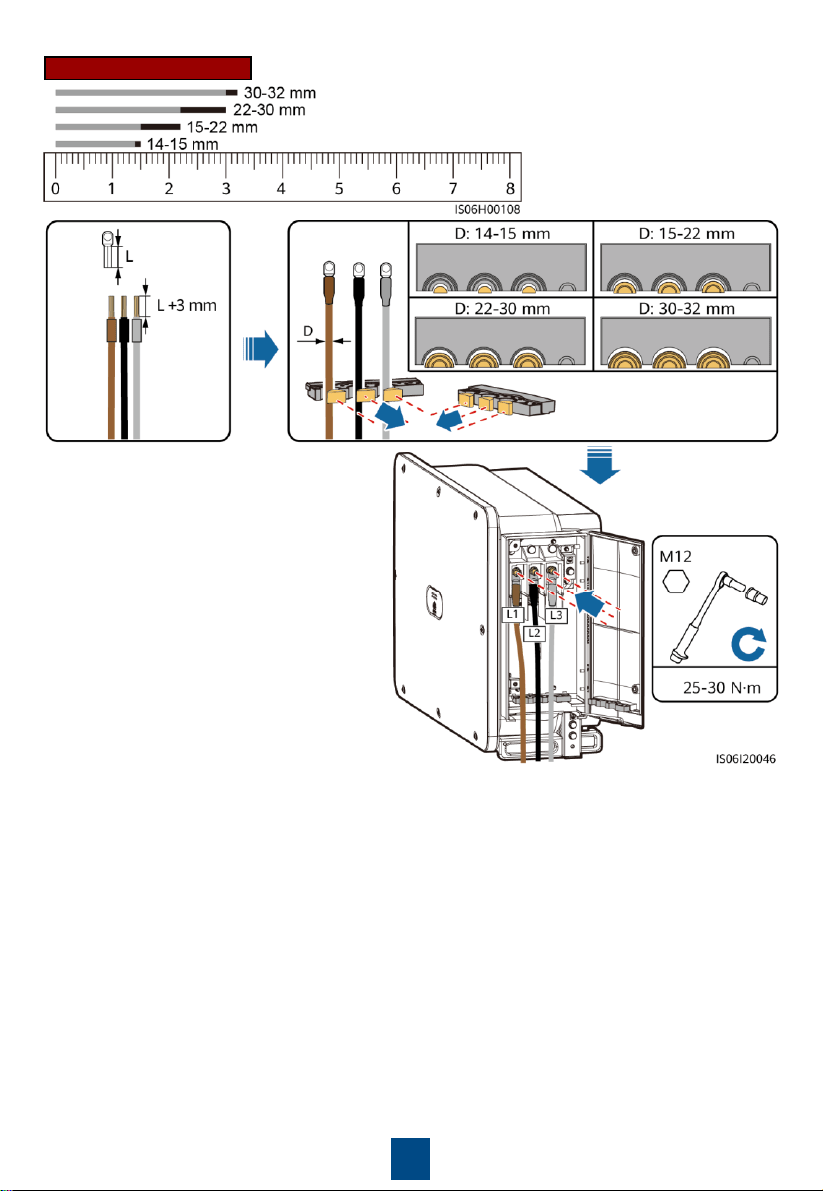

Multi-core Cable (Four-Core Cable Is Used as an Example)
Installing AC Output Power Cables
4.7
(five rings)
(four rings)
(three rings)
(two rings)
(one ring)
(six rings)

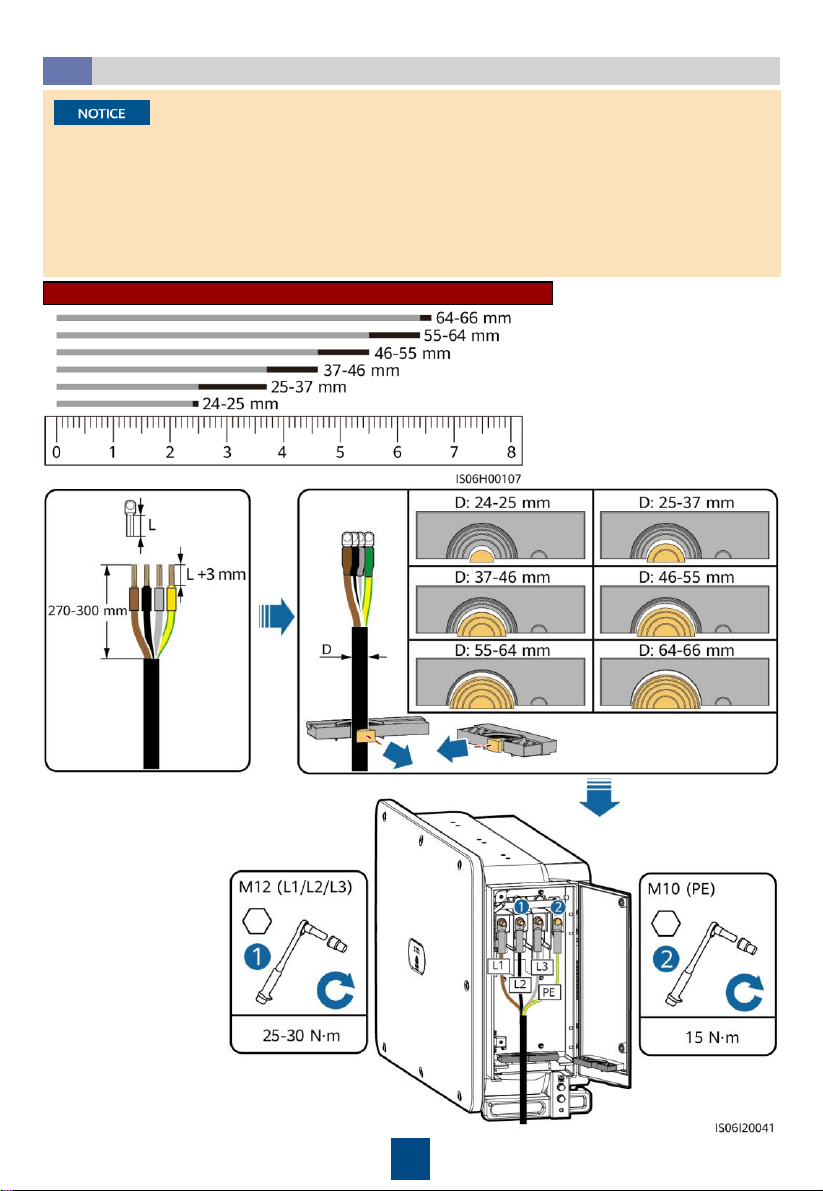

• Remove the corresponding rubber rings in strict accordance with the cable diameter, and ensure
that the crimping module is not damaged. Otherwise the protection level of the solar inverter
will be affected.
• Ensure that AC terminations provide firm and solid electrical connections. Failing to do so may
cause SUN2000 malfunction and damage to its terminal block, even starting thermal events.
• If the AC output power cables are subject to a pulling force because the inverter is not installed
stably, ensure that the last cable that bears the stress is the PE cable.
11
Single-core Cable
(three rings)
(two rings)
(one ring)
(four rings)
12
Closing the Maintenance Compartment Door
4.8
Installing DC Input Power Cables
4.9
Wiring Description of Y-branch Connectors
• Y-branch connectors can be purchased from Huawei or the manufacturers based on the
following recommended models: If the rated current of the fuse of the Y-branch connector is
15 A, the recommended model is 904095944 (Luxshare) or A040959443039 (Comlink); if
the rated current of the fuse of the Y-branch connector is 20 A, the recommended model is
904095945 (Luxshare) or A040959453039 (Comlink).
• When connecting cables to recommended Y-branch connectors, ensure that the connectors
to be paired match each other and are from the same manufacturer. Otherwise, the contact
resistance of the connectors may exceed the allowed value. In this case, the connectors may
be heated and oxidized, which may cause faults.
• Ensure that the locking nuts of all connectors are tightened.
• Do not bind more than three fuse enclosures together. Otherwise, the fuses and their
enclosures may be damaged due to overheating. It is recommended that a clearance of 10
mm or more be reserved between fuse enclosures. You are advised not to bind the fuse
enclosures with other heat emitting conductors.
Wiring rules:
1. The PV+ on the string side must be connected to the PV+ on the SUN2000 side, and the PV–
on the string side must be connected to the PV– on the SUN2000 side.
2. Preferentially and evenly connect the Y-branch connectors to the MPPTs controlled by DC
SWITCH 2 or DC SWITCH 3.
13
Number
of Y
-
branch
Connector
Sets
Recommended MPPT to Be
Connected
Number of
Y
-branch
Connector
Sets
Recommended MPPT to Be
Connected
1
MPPT9
2
MPPT6
, MPPT9
3
MPPT6
, MPPT7, MPPT9
4
MPPT4
, MPPT6, MPPT7, MPPT9
5
MPPT4
, MPPT6, MPPT7, MPPT8,
MPPT9
6
MPPT4
, MPPT5, MPPT6, MPPT7,
MPPT8
, MPPT9
7
MPPT3
, MPPT4, MPPT5, MPPT6,
MPPT7
, MPPT8, MPPT9
8
MPPT1
, MPPT3, MPPT4, MPPT5,
MPPT6
, MPPT7, MPPT8, MPPT9
9 MPPT1, MPPT2, MPPT3, MPPT4,
MPPT5, MPPT6, MPPT7, MPPT8,
MPPT9
N/A
N/A

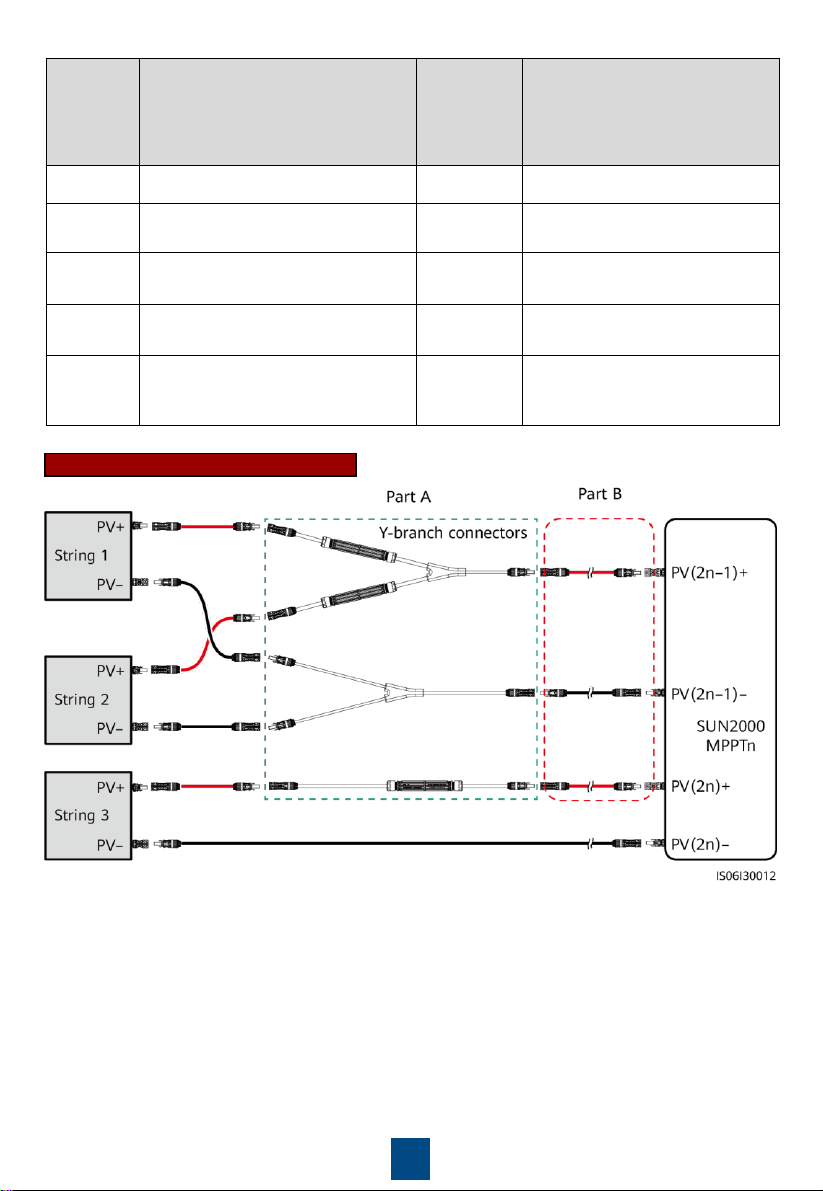

Y-branch Connector Solution
14
• It is recommended that the Y-branch connectors be connected from the PV string side and
tied to the PV trackers.
• The DC input terminals of the solar inverter are prone to damage under stress. When Y-
branch connectors are connected to the solar inverter, bind and secure the connectors to
minimize stress on the DC input terminals.
• Do not place the Y-branch connector harness on the ground. A safe distance must be
reserved between the Y-branch connector harness and the ground to avoid impact caused by
water on the ground to the harness.
Scenario
Model of Y
-branch
Connector (Part A)
Connection Description
Connecting Y
-
branch connectors
to the PV strings
(recommended)
All models
Use the DC terminals delivered with the
SUN2000s
to connect part B to the
SUN2000s.
Connecting Y
-
branch connectors
to the
SUN2000
Models recommended
by Huawei
Part A can be directly connected to the
SUN2000,
and part B is not needed.
Other models
To ensure that the terminals of part A
match
the DC
terminals of the
SUN2000, part B is needed to
connect part A to the
SUN2000. Use the DC
terminals delivered with the
SUN2000 to connect
part B to the
SUN2000.

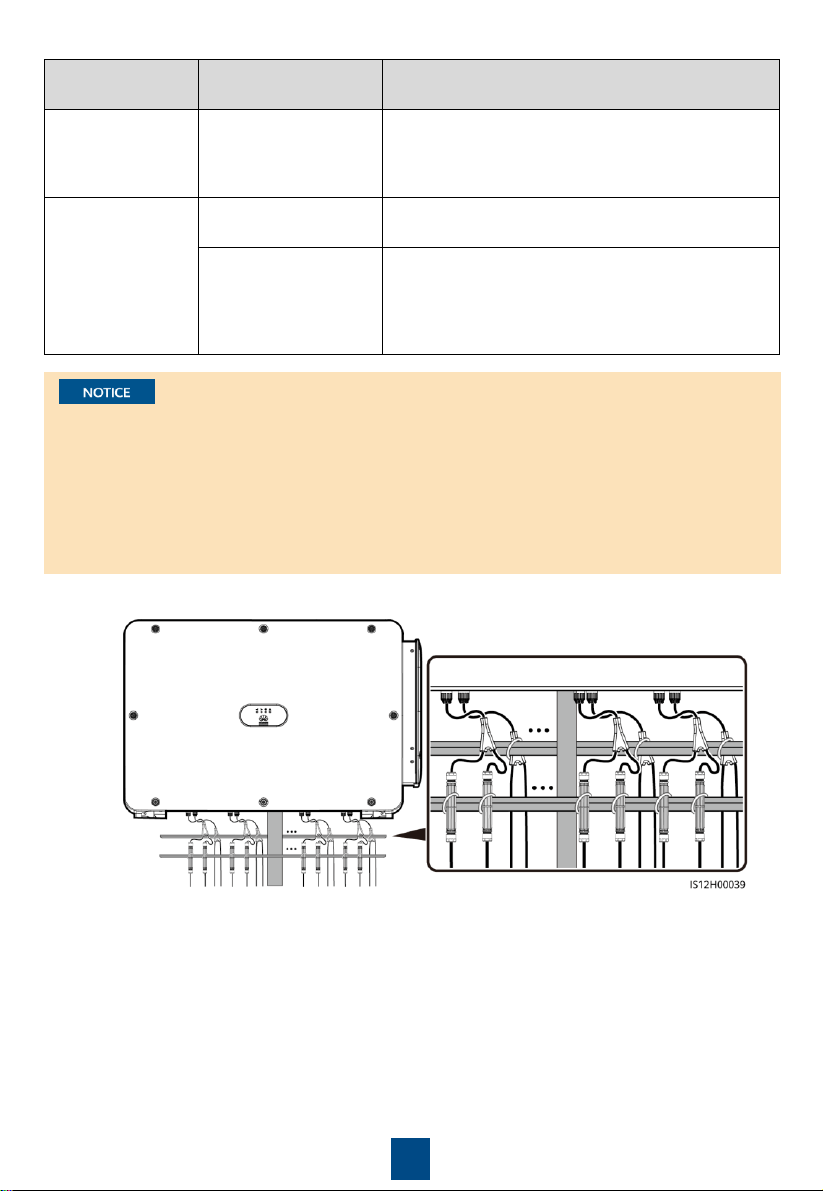

Recommended tying solution:
15

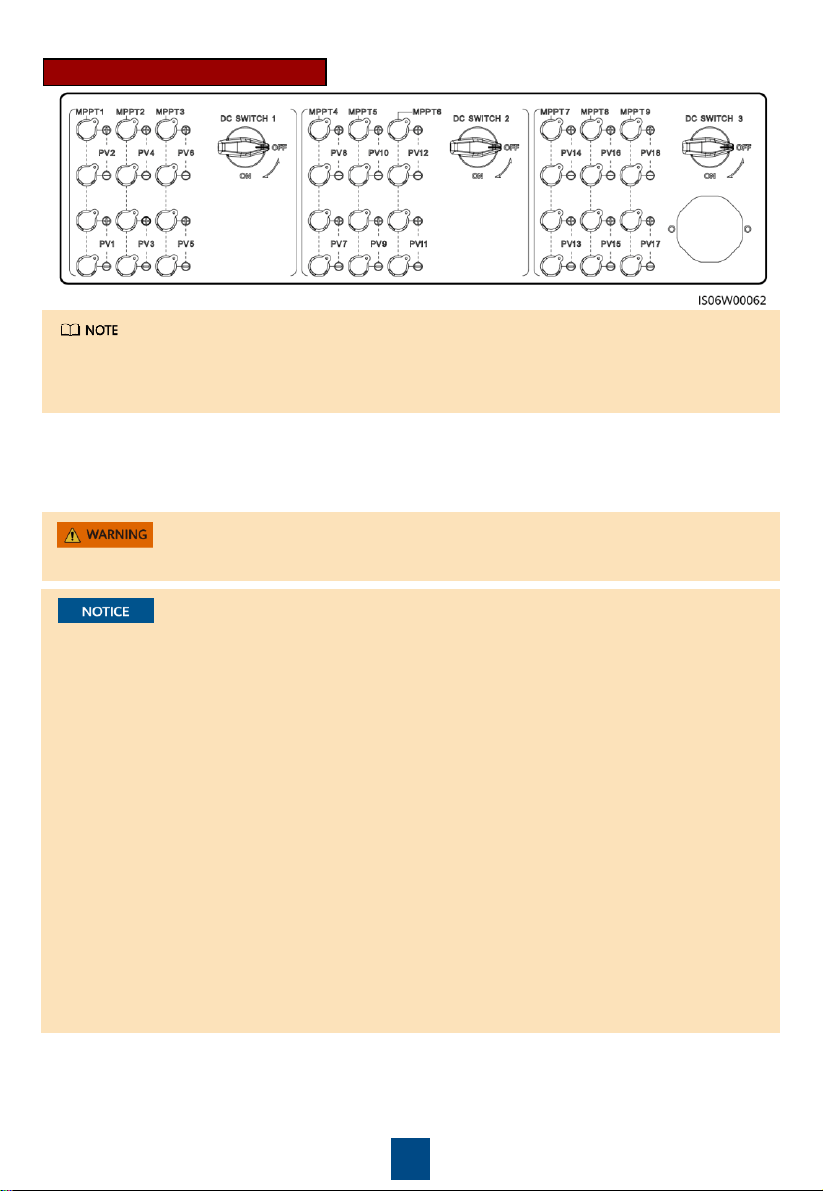

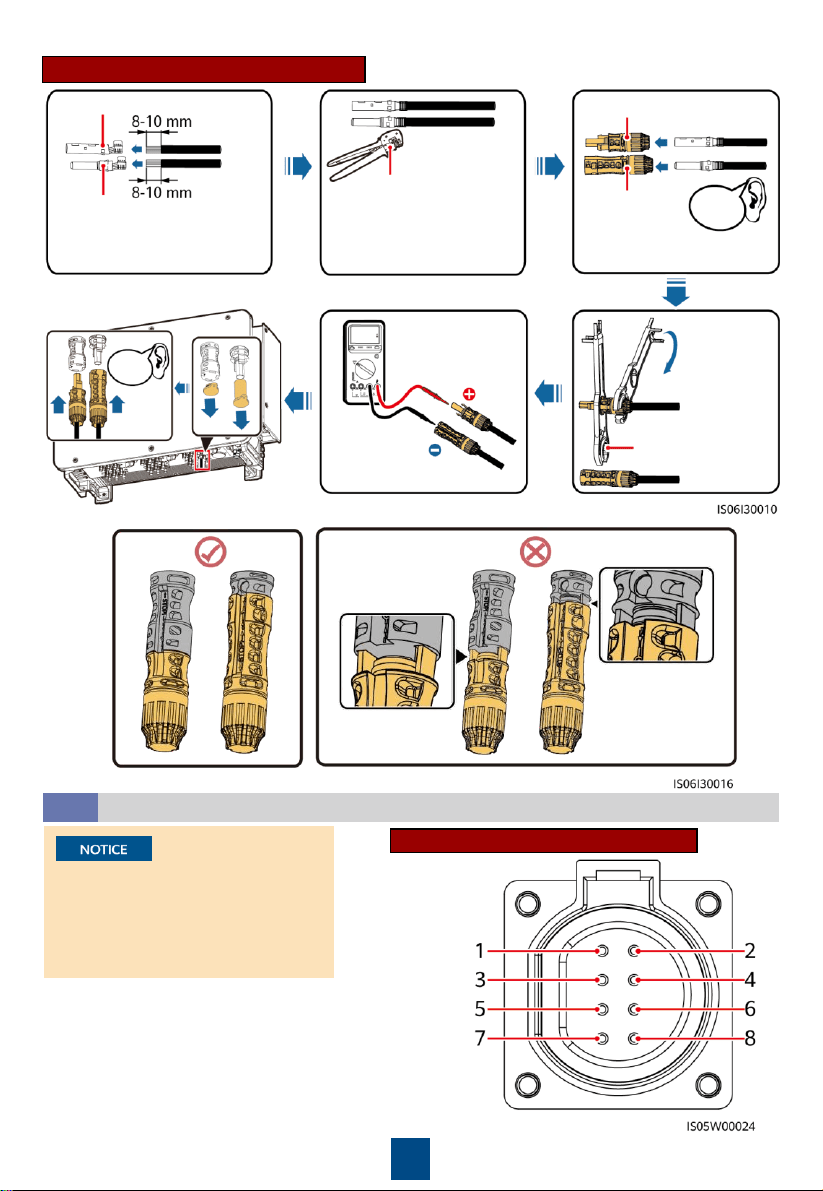

The SUN2000 has three DC switches (DC SWITCH 1, DC SWITCH 2, and DC SWITCH3).
DC SWITCH 1 controls routes 1–6 of DC input terminals, DC SWITCH 2 routes 7–12, and DC
SWITCH 3 routes 13–18.
Select DC input terminals according to the following rules:
1. Evenly distribute the DC input power cables to the DC input terminals controlled by the three
DC switches. DC SWITCH 1 is preferred.
2. Maximize the number of connected MPPT circuits.
Ensure that the PV module output is well insulated to ground.
Selecting DC Input Terminals
1. Use the MC4 EVO2 PV connectors delivered with the SUN2000. If the PV connectors are lost
or damaged, purchase the connectors of the same model. The device damage caused by
incompatible PV connectors is beyond the warranty scope.
2. Before connecting DC input power cables, label the cable polarities to ensure correct cable
connections. If the cables are connected incorrectly, the SUN2000 may be damaged.
3. Measure the voltage at the DC input end using a multimeter. If the voltage is a negative
value, the DC input polarity is incorrect. Correct the polarity. If the voltage is greater than
1500 V, too many PV modules are configured to the same string. Remove some PV modules.
4. If polarity of the DC input power cable is reversed and the DC switch is ON, do not turn off
the DC switch immediately or unplug positive and negative connectors. The device may be
damaged if you do not follow the instruction. The caused equipment damage is beyond the
warranty scope. Wait until the solar irradiance declines and the PV string current reduces to
below 0.5 A, and then turn off the three DC switches and remove the positive and negative
connectors. Correct the string polarity before reconnecting the string to the SUN2000.
5. For models of the crimping tool and removal wrench, use the recommended model or
contact your Staubli dealer.
6. Connect the PV string connector to the inverter connector, and then pull back the PV string
connector along the axial direction to check whether the connectors are securely connected.
7. The connector must be securely connected. Damages caused by improper connection are not
covered under the warranty.
16
Installing a DC input power cable
13001462
(STAUBLI)
Click
PV-CZM-41100
(STAUBLI)
Positive metal contact
Negative metal contact
Use a multimeter
to measure the
DC voltage.
Ensure that the cable
cannot be removed
after crimped.
Click
Positive connector
Negative
connector
Ensure that
the locking
nut is
secured.
Connector connection:
Communication Port Pin Definition
Installing the RS485 Communications Cable
4.10
When routing communications
cables, separate communications
cables from power cables to
prevent communication from being
affected.
17
Connecting Communications Cables (4–8 mm Four-Hole Rubber Plug)
When using the four-hole rubber plug, block the unused cable hole with a plug, and then
tighten the locking cap.
Port
Pin
Definition
Pin
Definition
Description
RS485
-1
1
RS485A IN,
RS485
differential signal+
2
RS485A OUT,
RS485
differential signal+
Used for cascading
inverters or connecting to
devices such as the
SmartLogger.
3
RS485B, RS485
differential signal
–
4
RS485B, RS485
differential signal
–
PE
5
PE, shielding ground
6
PE, shielding ground
-
RS485
-2
7
RS485A, RS485
differential signal+
8
RS485B, RS485
differential signal
–
Used for connecting to
RS485 slave devices.
18
5
Verifying the Installation
1.
The SUN2000 is installed correctly and securely.
2.
The DC switches and downstream AC switch are OFF.
3.
All ground cables are connected securely, without open circuits or short circuits.
4.
AC output power cables are connected correctly and securely, without open circuits or short
circuits.
5.
DC input power cables are connected correctly and securely, without open circuits or short
circuits.
6.
The RS485 communications cable is connected correctly and securely.
7.
The maintenance compartment door is closed and the door screws are tightened.
8.
Unused DC input terminals are sealed.
9.
Unused USB ports are plugged with watertight caps.
Connecting Communications Cables (4–8 mm Two-Hole Rubber Plug)
If three communications cables are to be connected, use the three-hole rubber plug that is
bound in the maintenance compartment.
19
6
Powering On the System
1. Turn on the AC switch between the SUN2000 and the power grid.
2. Set DC SWITCH 1 (MAIN SWITCH) at the bottom of the SUN2000 chassis to ON.
3. Check the status of LED 1. If it is steady green, set DC SWITCH 2 and DC SWITCH 3 to ON.
4. Observe the LED indicators to check the SUN2000 operating status.
Display Category
Indicator Status
Description
PV indication
LED1
LED4
-
Steady green
-
At least one PV string is properly connected, and
the DC input voltage of the corresponding MPPT
circuit is higher than or equal to 500 V.
Blinking
green at
short
intervals
Steady
red
An environmental fault occurs at DC side.
Off
-
The SUN2000 disconnects from all PV strings, or
the DC input voltage of each MPPT circuit is less
than 500 V.
Grid
-tied
indication
LED2
LED4
-
Steady green
-
The SUN2000 has connected to the power grid.
Blinking
green at
short
intervals
Steady
red
An environmental fault occurs at AC side.
Off
-
The SUN2000 does not connect to the power
grid.
Communications
indication
LED3
-
Blinking green at short
intervals
The SUN2000 receives data over RS485 or MBUS
communication.
Off
The SUN2000 has not received data over RS485
or MBUS communication for 10 seconds.
Before turning on the AC switch between the SUN2000 and the power grid, use a multimeter to
check that the AC voltage is within the specified range.
• Blinking at short intervals (on for 0.2s and then off for 0.2s).
• Blinking at long intervals (on for 1s and then off for 1s).
20
Display Category
Indicator Status
Description
Alarm/O&M
indication
LED4
-
Steady red
A warning alarm is generated.
Blinking red at short
intervals
A minor alarm is generated.
Blinking red at long
intervals
A major alarm is generated.
Steady green
Local maintenance succeeds.
Blinking green at long
intervals
In local maintenance or shuts down over a
command.
Blinking green at
short intervals
Local maintenance fails.
Off
No alarm is generated, and no local maintenance
operations are performed.

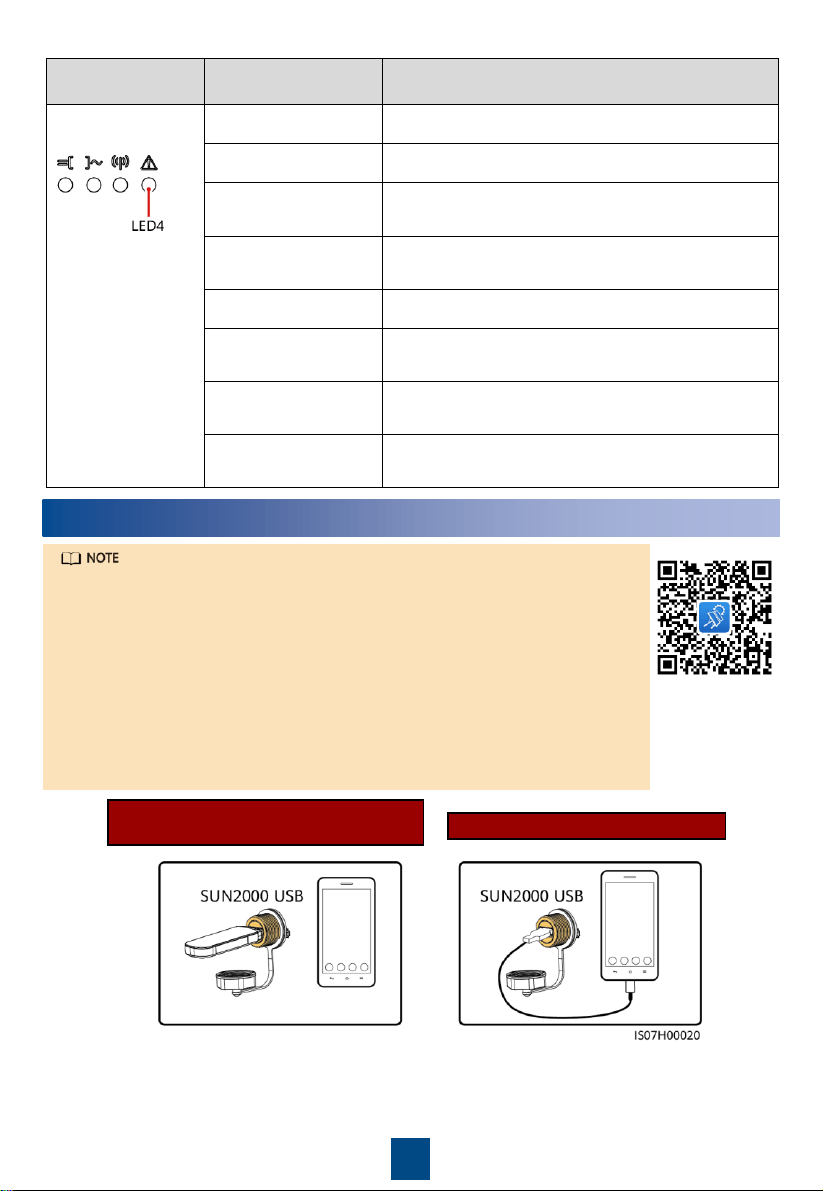

SUN2000 APP
7
Bluetooth Module or WLAN Module
Connection
USB Data Cable Connection
Scan the QR
code to
download
the app
(Android).
1. The SUN2000 app is a mobile phone app that communicates with the solar
inverter over a WLAN module, a Bluetooth module, or a USB data cable. As
a convenient local monitoring and maintenance platform, it allows for
querying alarms, configuring parameters, and performing routine
maintenance. The app is named SUN2000.
2. Go to Huawei app store (https://appstore.huawei.com), search for
SUN2000, and download the app installation package. You can also scan
the QR code (https://appgallery.cloud.huawei.com/appdl/C10279542) to
download the installation package.
3. Connect the WLAN module, Bluetooth module, or USB data cable to the
USB port on the solar inverter to ensure that the solar inverter can
communicate with the SUN2000 app.
Android
Android
21

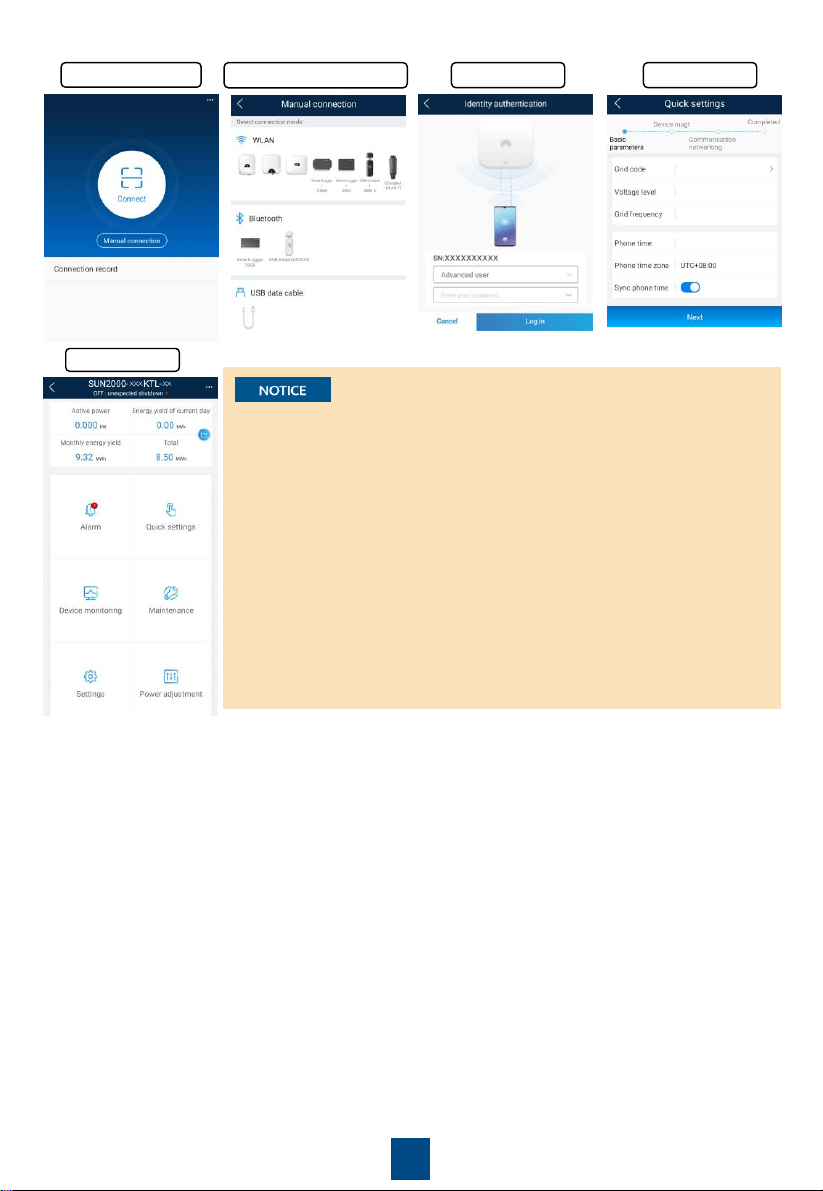

Login Page
Select Connection Mode
Select User Quick Settings
Function Menu
•
The screenshots in this document correspond to app version
3.2.00.013 (this app is available only on Android phones currently).
•
When the WLAN connection is used, the initial name of the WLAN
hotspot is Adapter-
WLAN module SN
, and the initial password is
Changeme.
•
The initial password to log in to the app for Common User,
Advanced User, and Special User is 00000a.
•
Use the initial password upon first power-on and change it
immediately after login. To ensure account security, change the
password periodically and keep the new password in mind. Not
changing the initial password may cause password disclosure. A
password left unchanged for a long period of time may be stolen or
cracked. If a password is lost, devices cannot be accessed. In these
cases, the user is liable for any loss caused to the PV plant.
•
Set the correct grid code based on the application area and scenario
of the solar inverter.
22
8
Grid Code Mapping Table
No.
Grid Code
Description
SUN2000
-
175KTL
-
H0
SUN2000
-
185KTL
-
INH0
SUN2000
-
185KTL
-
H1
1
CHINA_MV800
China medium
-voltage
power grid
Supported
-
-
2
G59
-England-MV800
G59 medium
-
voltage power
grid
-
-
Supported
3
AS4777
-MV800
Australia medium
-voltage
power grid
-
-
Supported
4
INDIA
-MV800
India medium
-
voltage power
grid
-
Supported
-
5
IEC61727
-MV800
IEC61727 medium
-voltage
power grid (50 Hz)
-
Supported
Supported
6
BDEW
-MV800
Germany medium
-voltage
power grid
-
-
Supported
7
ABNT NBR 16149
-
MV800
Brazil medium
-
voltage power
grid
-
-
Supported
8
UTE C 15
-712-1-
MV800
France medium
-voltage
power grid
-
-
Supported
9
Chile
-MV800
Chile medium
-
voltage power
grid
-
-
Supported
10
EN50438
-TR-MV800
Turkey medium
-voltage
power grid
-
-
Supported
11
TAI
-PEA-MV800
Thailand PEA medium
-
voltage power grid
-
-
Supported
12
Philippines
-MV800
Philippines medium
-voltage
power grid
-
-
Supported
13
Malaysian
-MV800
Malaysia medium
-voltage
power grid
-
-
Supported
14
NRS
-097-2-1-MV800
South Africa medium
-
voltage
power grid
-
-
Supported
15
SA_RPPs
-MV800
South Africa RPPs medium
-
voltage power grid
-
-
Supported
16
Jordan
-Transmission-
MV800
Jordan power transmission
network medium
-voltage
power grid
-
-
Supported
17
Jordan
-Distribution-
MV800
Jordan power distribution
network medium
-voltage
power grid
-
-
Supported
18
Egypt ETEC
-MV800
Egypt medium
-voltage
power grid
-
-
Supported
23
No.
Grid Code
Description
SUN2000
-
175KTL
-
H0
SUN2000
-
185KTL
-
INH0
SUN2000
-
185KTL
-
H1
19
DUBAI
-MV800
Dubai medium
-voltage
power grid
-
-
Supported
20
SAUDI
-MV800
Saudi Arabia medium
-
voltage power grid
-
-
Supported
21
EN50438_IE
-MV800
Ireland medium
-voltage
power grid
-
-
Supported
22
CLC/TS50549_IE
-
MV800
Ireland medium
-voltage
power grid (CLC/TS50549)
-
-
Supported
23
Northern Ireland
-
MV800
Northern Ireland medium
-
voltage power grid
-
-
Supported
24
CEI0
-21-MV800
Italy medium
-voltage
power grid (CEI0
-21)
-
-
Supported
25
IEC 61727
-MV800-
60HZ
General medium
-voltage
power grid
-
Supported
Supported
26
Pakistan
-MV800
Pakistan medium
-voltage
power grid
-
-
Supported
27
BRASIL
-ANEEL-
MV800
Brazil medium
-voltage
power grid
-
-
Supported
28
CEI0
-16-MV800
Italy medium
-voltage
power grid
-
-
Supported
29
ZAMBIA
-MV800
Zambia medium
-voltage
power grid
-
-
Supported
30
KENYA_ETHIOPIA_M
V800
Kenya low
-voltage and
Ethiopia medium
-voltage
power grid
-
-
Supported
31
NAMIBIA_MV800
Namibia medium
-voltage
power grid
-
-
Supported
32
Cameroon
-MV800
Cameroon medium
-
voltage
power grid
-
-
Supported
33
NIGERIA
-MV800
Nigeria medium
-voltage
power grid
-
-
Supported
34
ABUDHABI
-MV800
Abu Dhabi medium
-
voltage
power grid
-
-
Supported
35
LEBANON
-MV800
Lebanon medium
-voltage
power grid
-
-
Supported
36
ARGENTINA
-MV800
Argentina medium
-
voltage
power grid
-
-
Supported
37
Jordan
-Transmission
-
HV800
Jordan high
-voltage and
medium
-
voltage power grid
-
-
Supported
24
No.
Grid Code
Description
SUN2000
-
175KTL
-
H0
SUN2000
-
185KTL
-
INH0
SUN2000
-
185KTL
-H1
38
TUNISIA
-MV800
Tunisia medium
-voltage
power grid
-
-
Supported
39
AUSTRALIA
-NER-
MV800
Australia NER standard
medium
-voltage power
grid
-
-
Supported
40
VDE
-AR-
N4120_HV800
VDE4120 standard
medium
-voltage power
grid
-
-
Supported
41
Nicaragua
-MV800
Nicaragua medium
-
voltage power grid
-
-
Supported
42
Custom
-MV800-50Hz
Reserved
-
-
Supported
43
RD1699/661
-MV800
Spain medium
-voltage
power grid
-
-
Supported
44
PO12.3
-MV800
Spain medium
-voltage
power grid
-
-
Supported
45
Vietnam
-MV800
Vietnam medium
-voltage
power grid
-
-
Supported
46
CHILE
-PMGD-MV800
Chile PMGD medium
-
voltage power grid (800 V)
-
-
Supported
47
GHANA
-MV800
Ghana medium
-voltage
power grid (800 V)
-
-
Supported
48
OMAN
-MV800
Oman medium
-voltage
power grid
-
-
Supported
49
KUWAIT
-MV800
Kuwait medium
-voltage
power grid
-
-
Supported
50
BANGLADESH
-MV800
Bangladesh medium
-
voltage power grid
-
-
Supported
51
BAHRAIN
-MV800
Bahrain medium
-voltage
power grid
-
-
Supported
52
KAZAKHSTAN
-MV800
Kazakhstan medium
-
voltage power grid
-
-
Supported
53
Oman
-PDO-MV800
Oman PDO medium
-
voltage power grid
-
-
Supported
54
TAI
-MEA-MV800
Thailand medium
-
voltage
power grid
-
-
Supported
The grid codes are subject to change. The listed codes are for your reference only.
Huawei Technologies Co., Ltd.
Huawei Industrial Base, Bantian, Longgang,
Shenzhen 518129, People's Republic of China
solar.huawei.com
