Kenmore 79079113201 gas range User Manual

E L ! T E

DUAL FUEL RANGE

ESTUFA DE FUEL DUAL

Models

790.79112

790.79113

790.79114

790.79119

()() _)()

Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com

P/N 316258021 (020620)

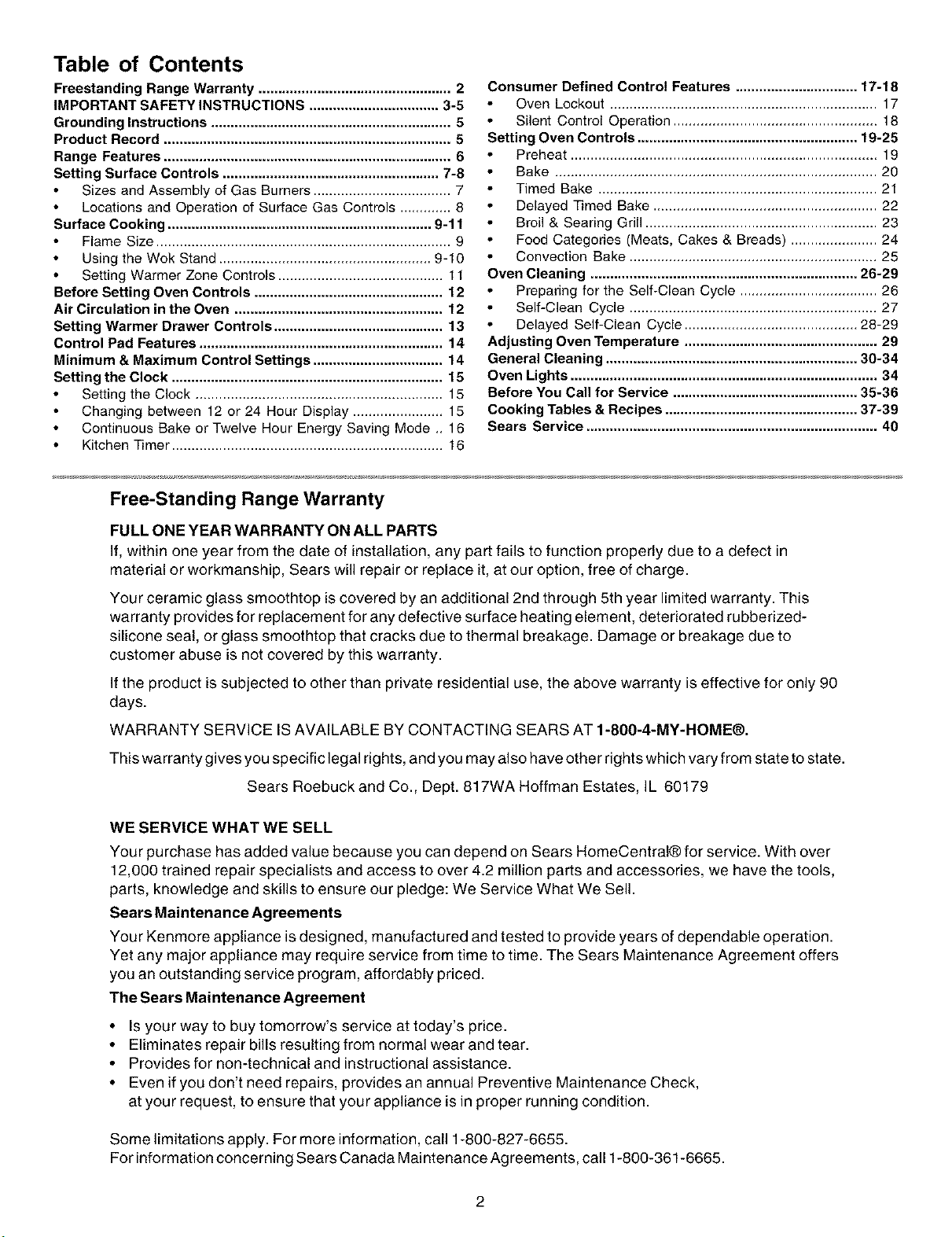

Table of Contents

Freestanding Range Warranty ................................................. 2

IMPORTANT SAFETY INSTRUCTIONS ................................. 3-5

Grounding Instructions ............................................................. 5

Product Record ......................................................................... 5

Range Features ......................................................................... 6

Setting Surface Controls ....................................................... 7-8

Sizes and Assembly of Gas Burners ................................... 7

Locations and Operation of Surface Gas Controls ............. 8

Surface Cooking ................................................................... 9-11

Flame Size ........................................................................... 9

Using the Wok Stand ...................................................... 9-10

Setting Warmer Zone Controls .......................................... 11

Before Setting Oven Controls ................................................ 12

Air Circulation in the Oven ..................................................... 12

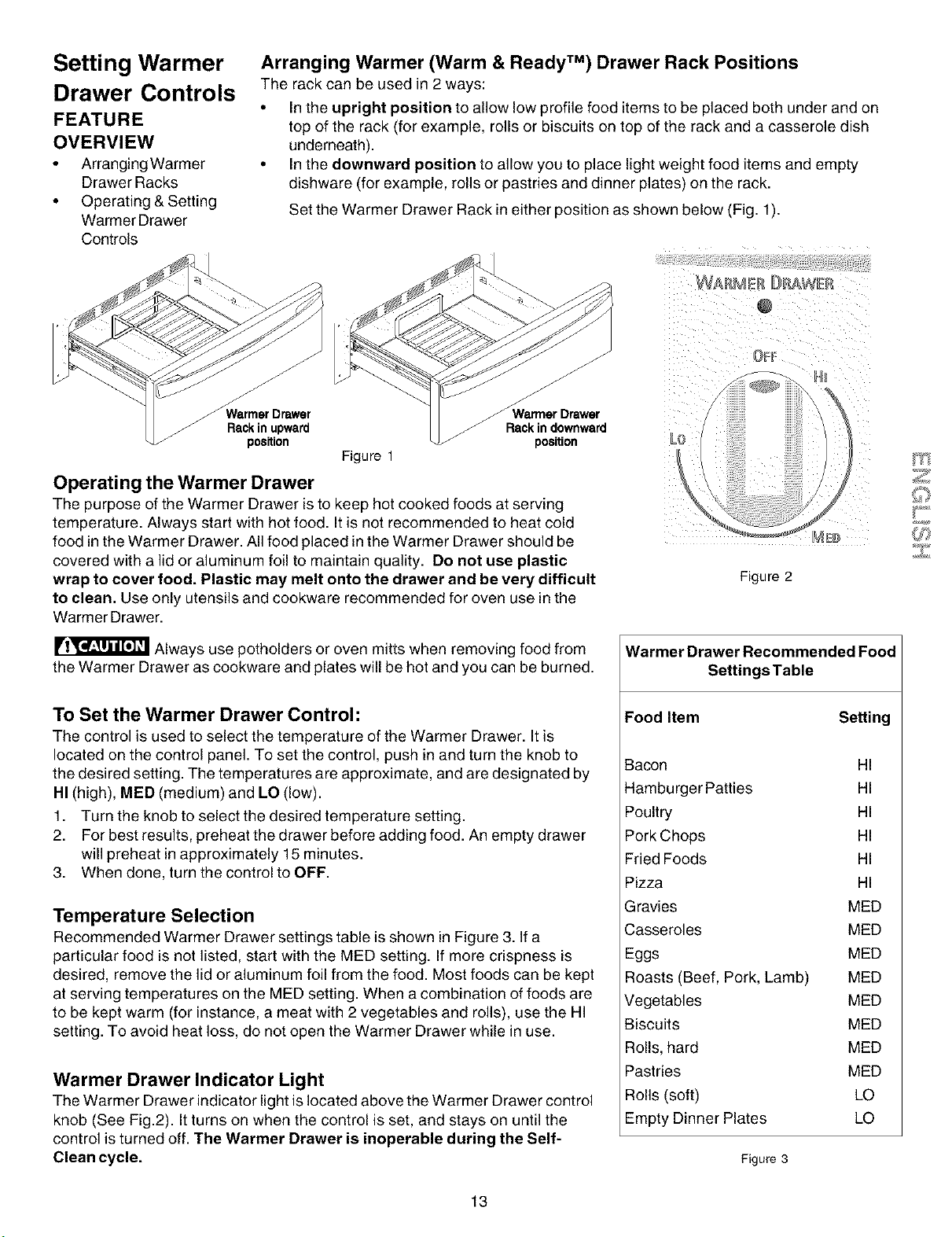

Setting Warmer Drawer Controls ........................................... 13

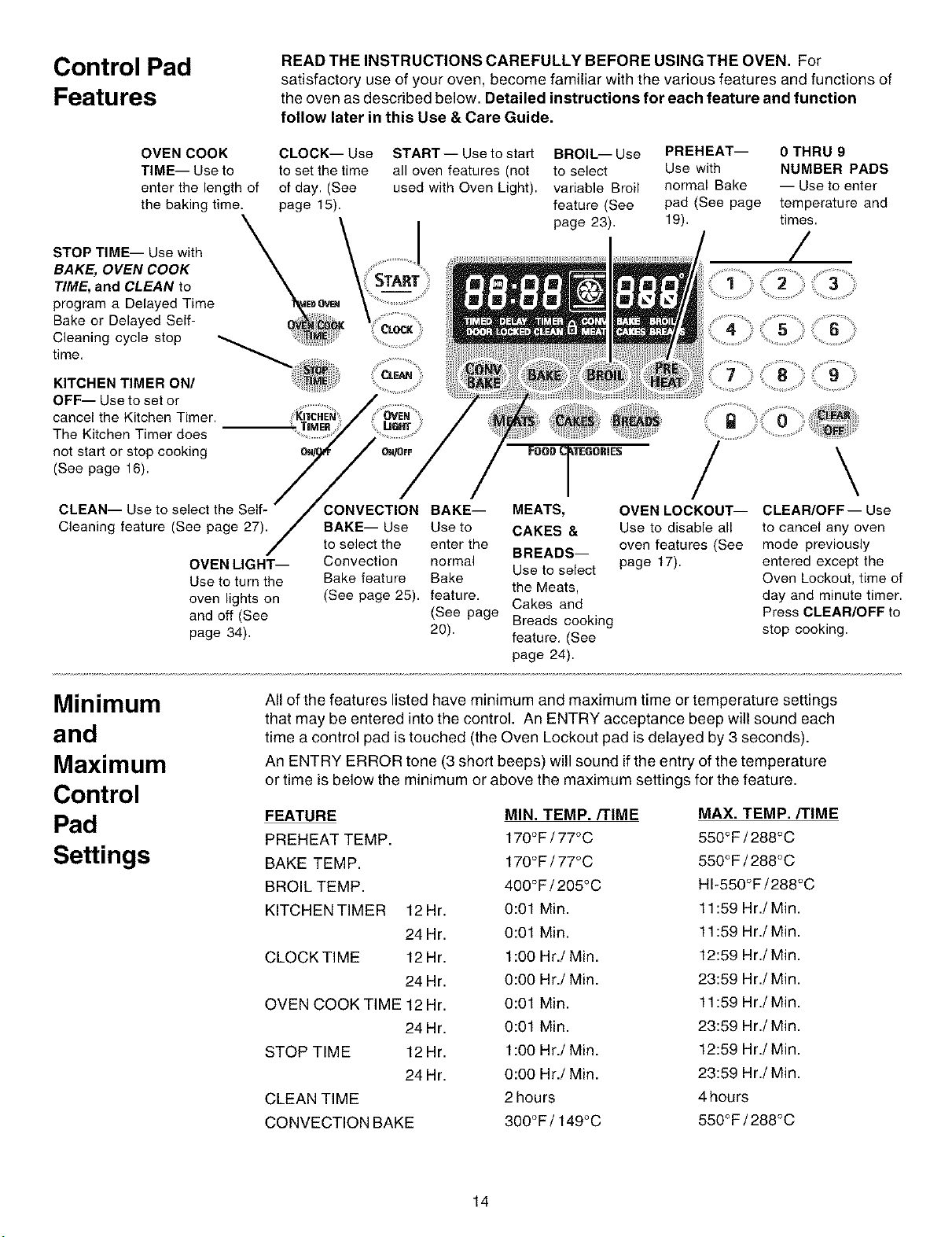

Control Pad Features .............................................................. 14

Minimum & Maximum Control Settings ................................. 14

Setting the Clock ..................................................................... 15

Setting the Clock ............................................................... 15

Changing between 12 or 24 Hour Display ....................... 15

Continuous Bake or Twelve Hour Energy Saving Mode .. 16

Kitchen Timer ..................................................................... 16

Consumer Defined Control Features ............................... 17-18

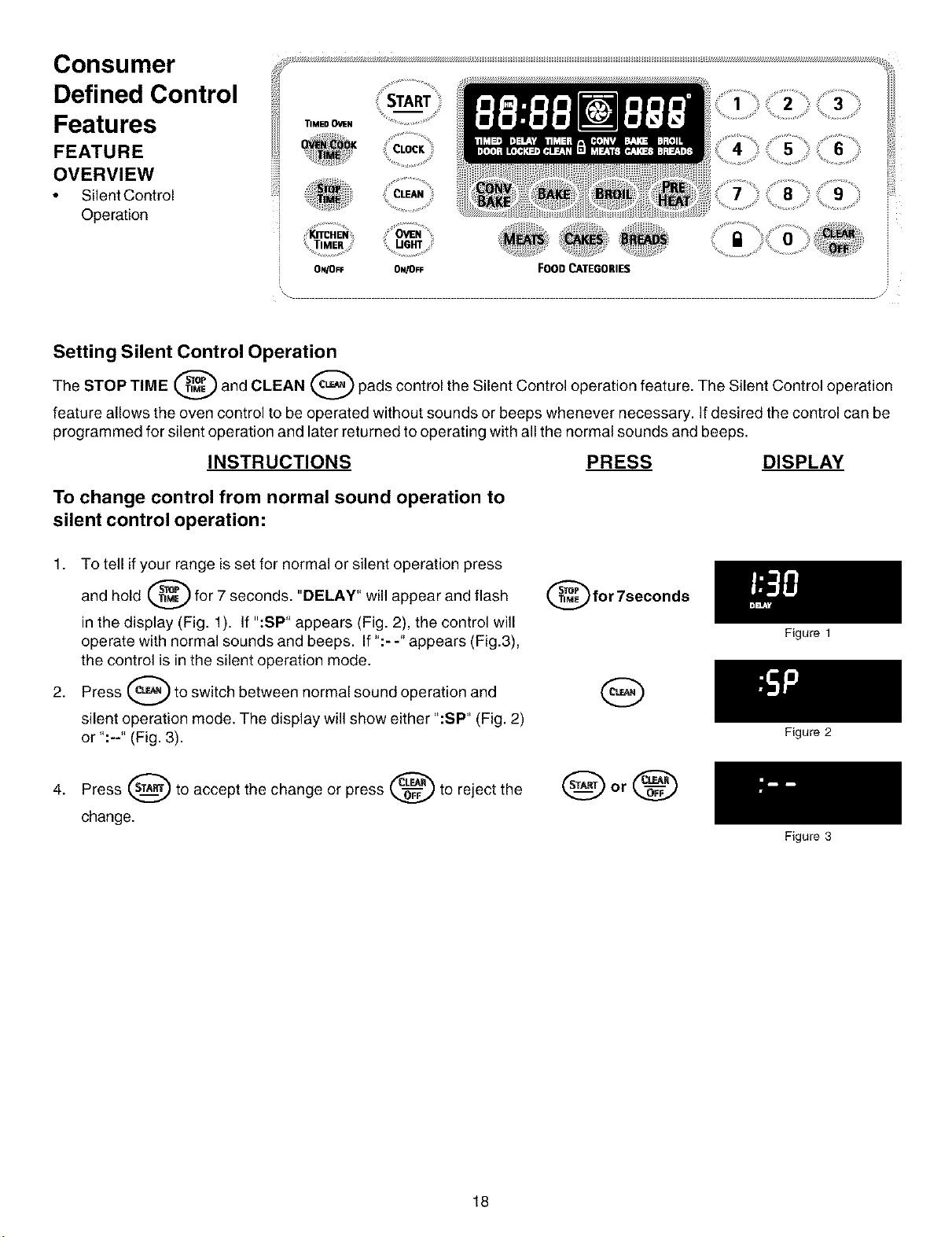

Oven Lockout .................................................................... 17

Silent Control Operation .................................................... 18

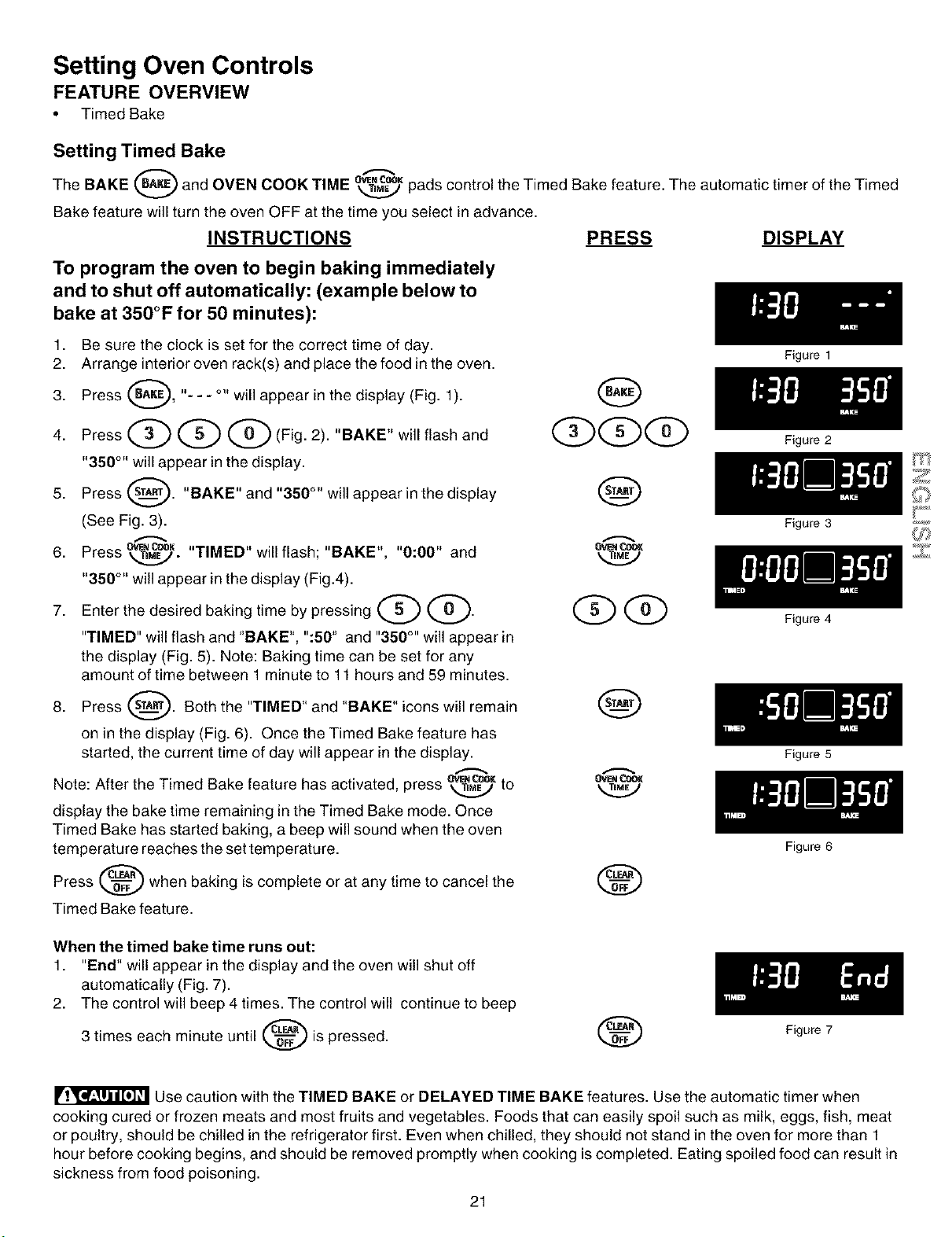

Setting Oven Controls ........................................................ 19-25

Preheat .............................................................................. 19

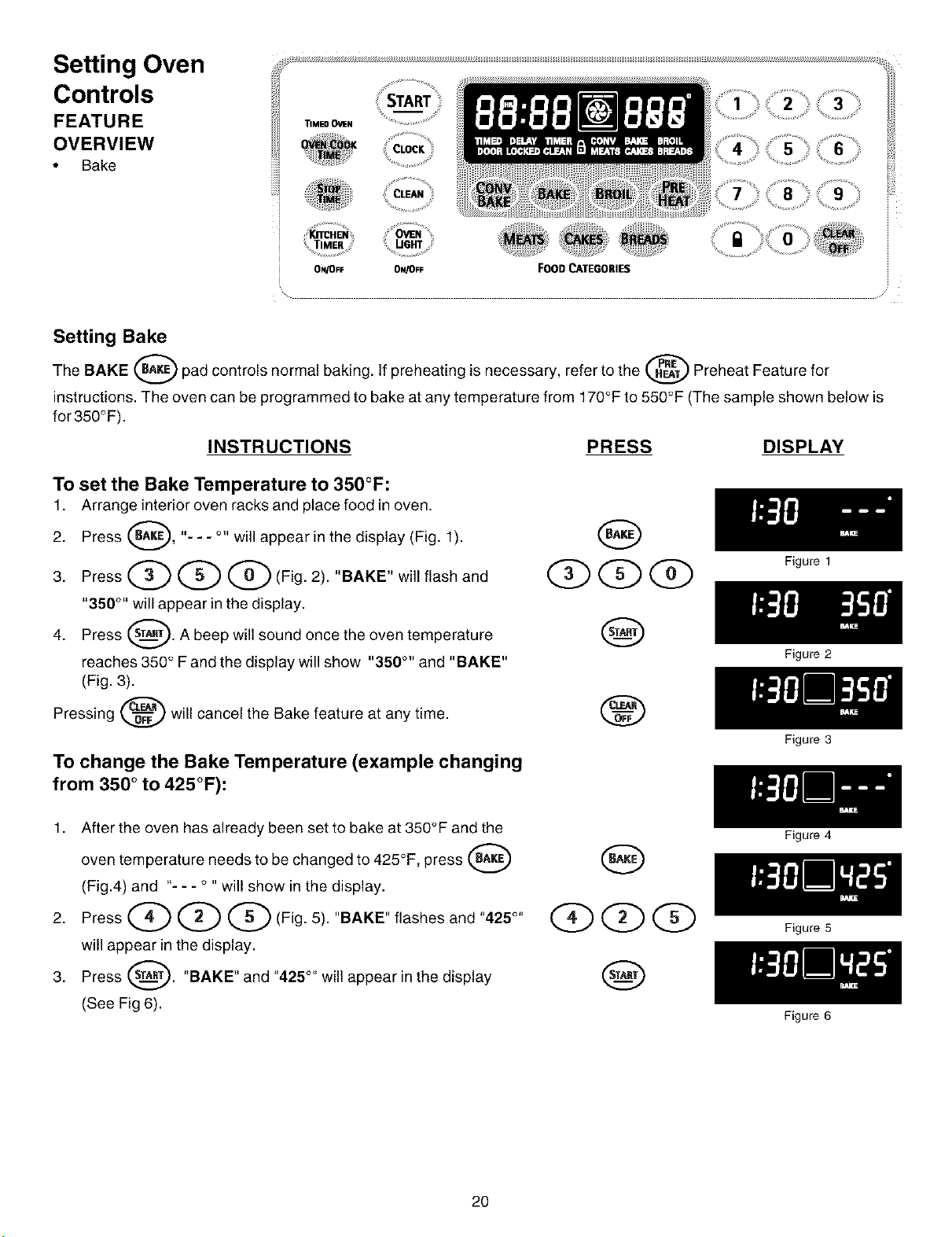

Bake .................................................................................. 20

Timed Bake ....................................................................... 21

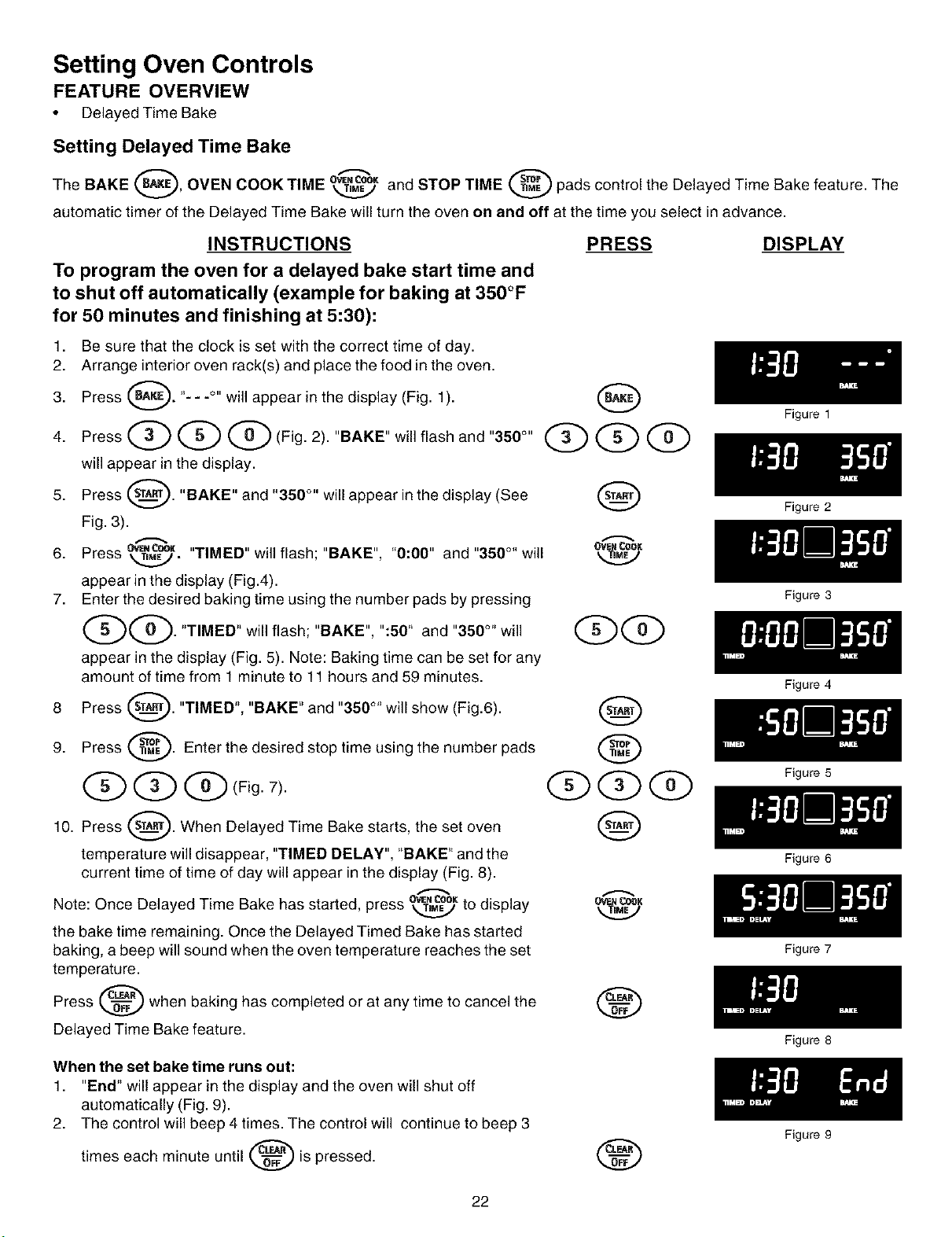

Delayed Timed Bake ......................................................... 22

Broil & Searing Grill ........................................................... 23

Food Categories (Meats, Cakes & Breads) ...................... 24

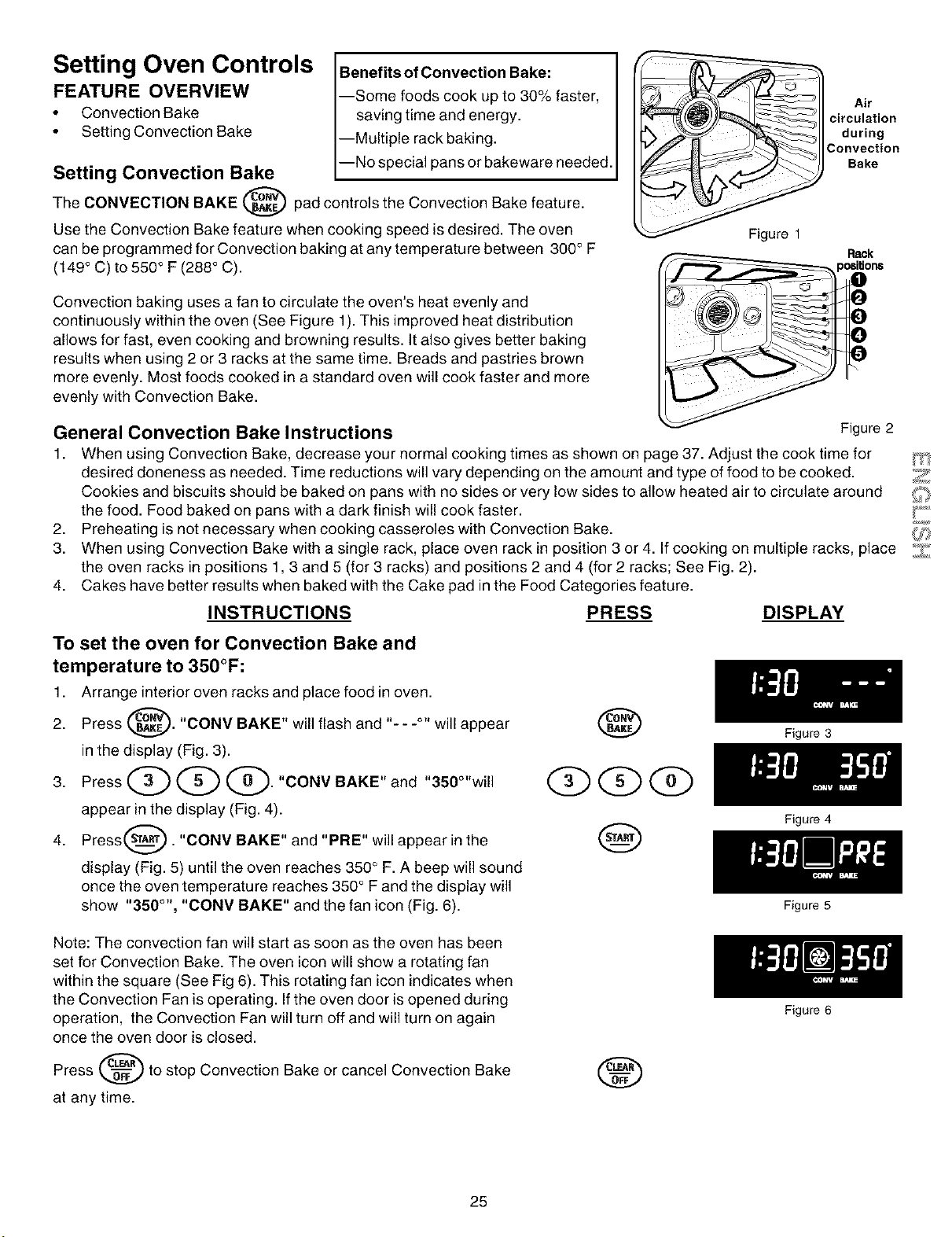

Convection Bake ............................................................... 25

Oven Cleaning .................................................................... 26-29

Preparing for the Self-Clean Cycle ................................... 26

Self-Clean Cycle ............................................................... 27

Delayed Self-Clean Cycle ............................................ 28-29

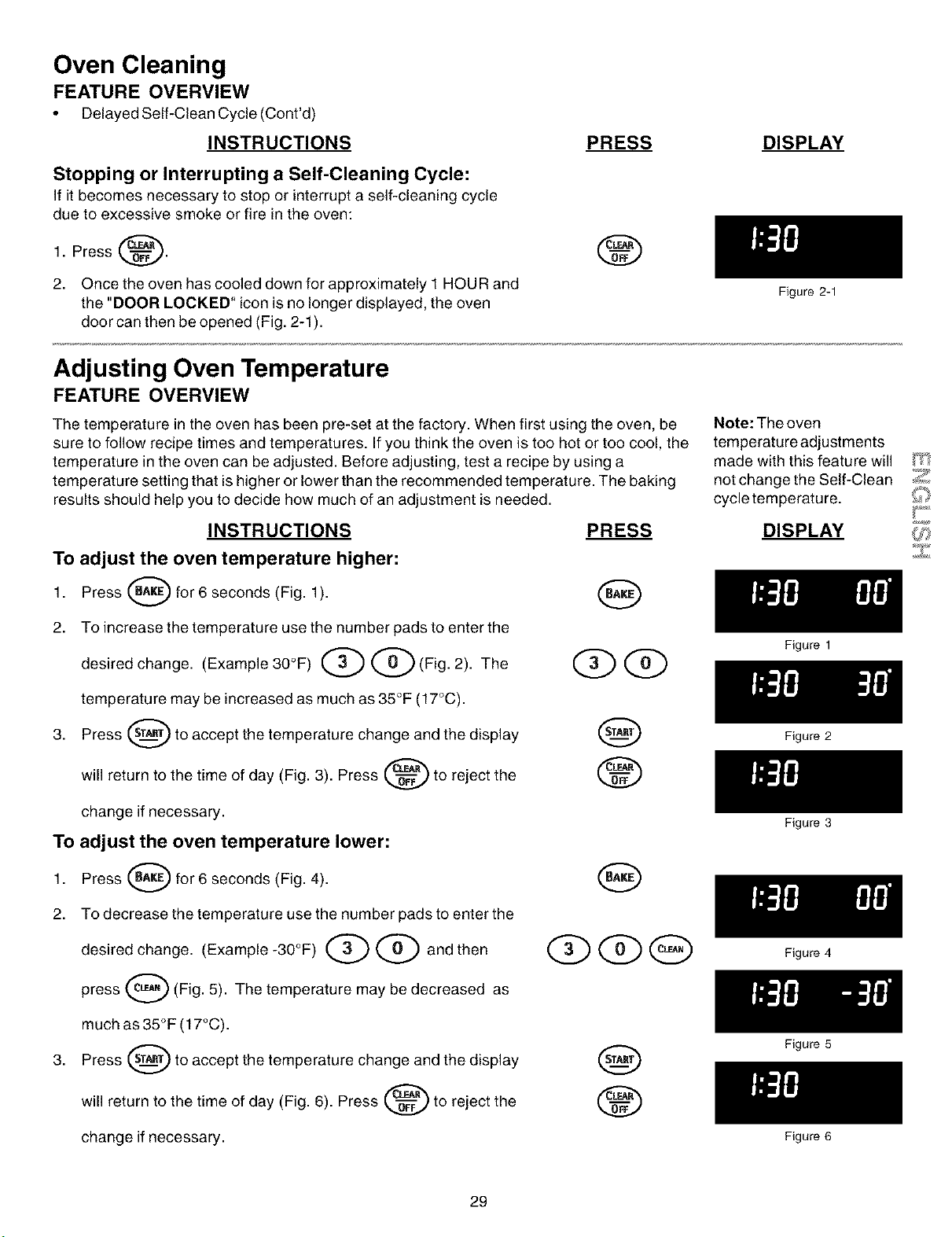

Adjusting Oven Temperature ................................................. 29

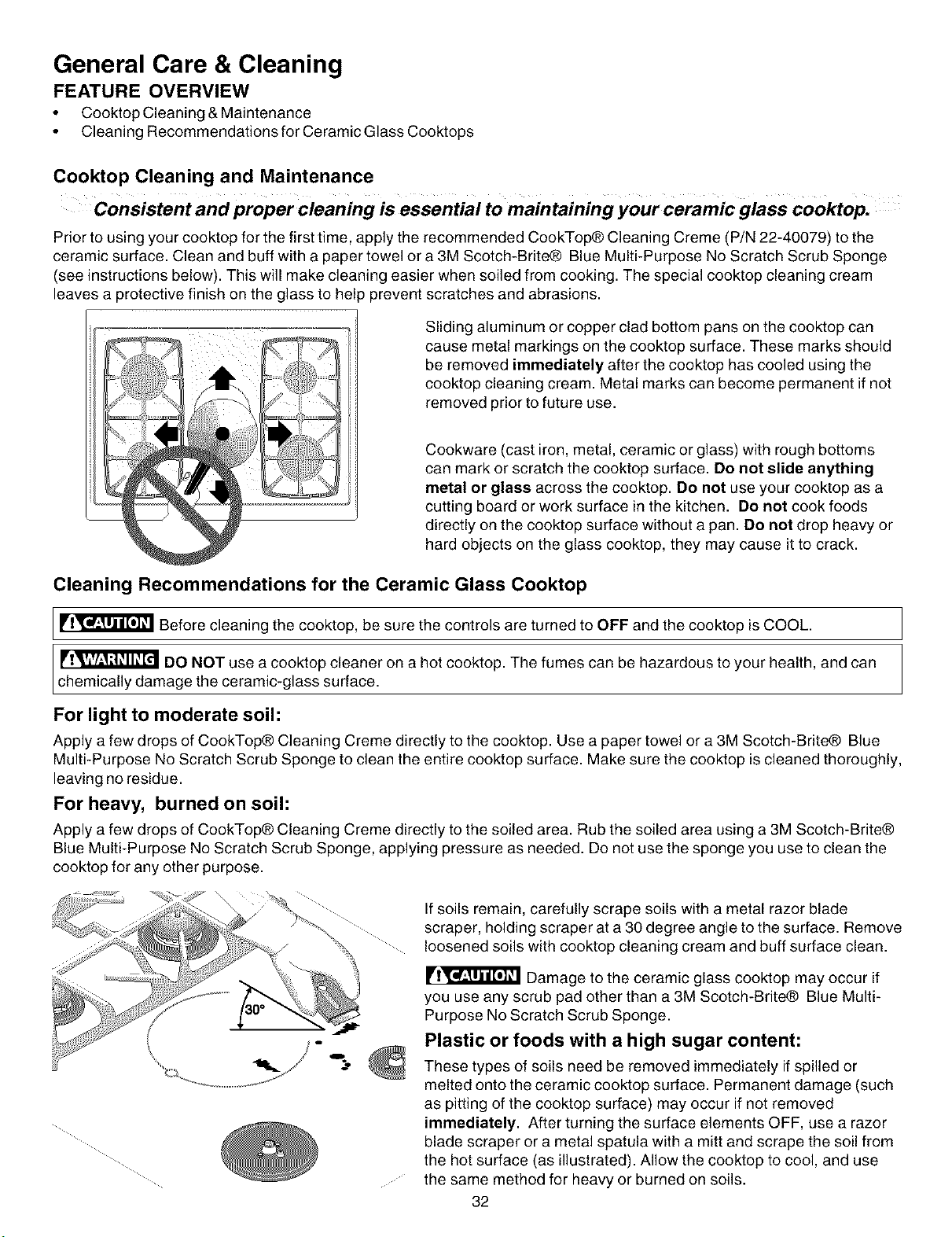

General Cleaning ................................................................ 30-34

Oven Lights .............................................................................. 34

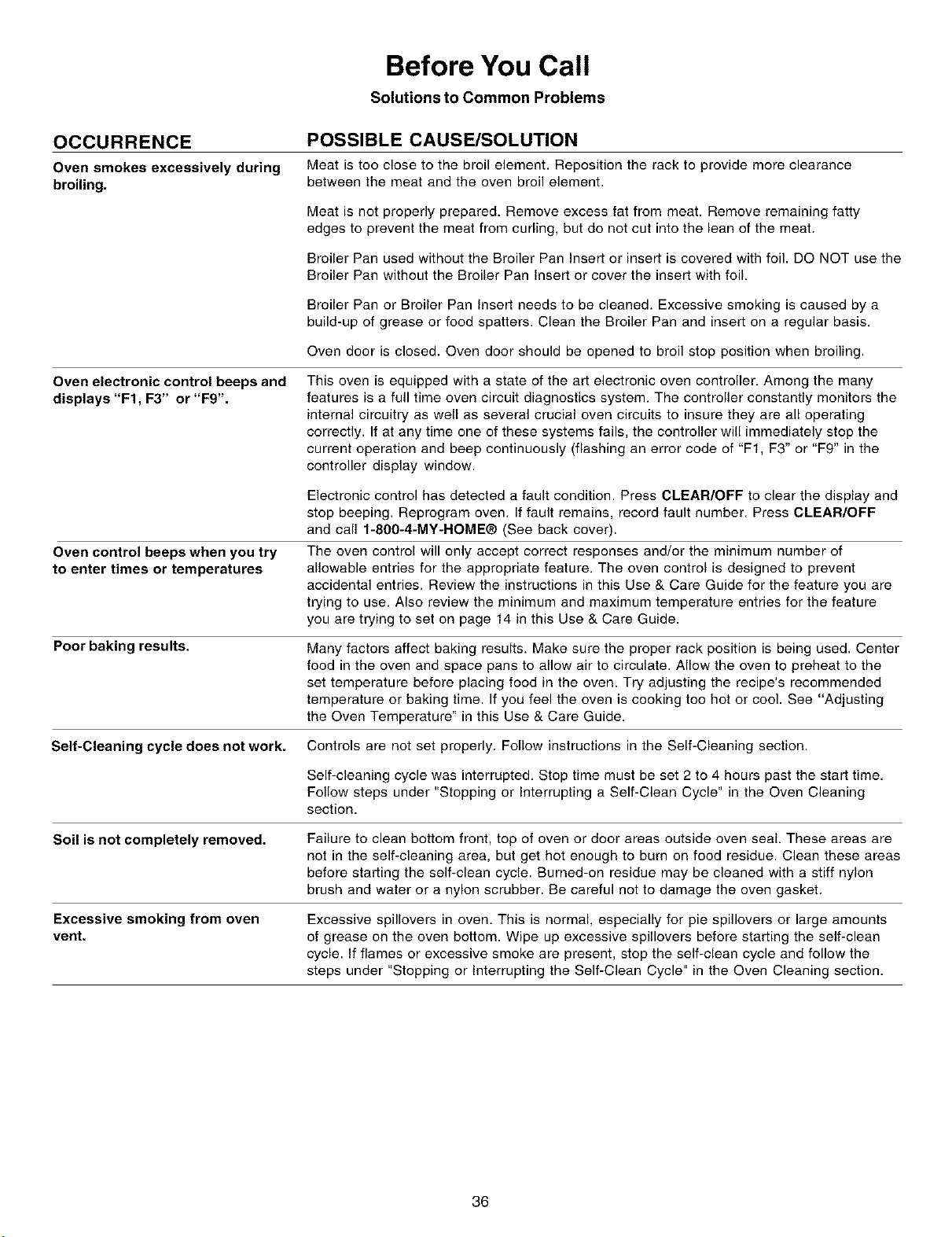

Before You Call for Service ............................................... 35-36

Cooking Tables & Recipes ................................................. 37-39

Sears Service .......................................................................... 40

Free-Standing Range Warranty

FULL ONE YEAR WARRANTY ON ALL PARTS

If, within one year from the date of installation, any part fails to function properly due to a defect in

material or workmanship, Sears will repair or replace it, at our option, free of charge.

Your ceramic glass smoothtop is covered by an additional 2nd through 5th year limited warranty. This

warranty provides for replacement for any defective surface heating element, deteriorated rubberized-

silicone seal, or glass smoothtop that cracks due to thermal breakage. Damage or breakage due to

customer abuse isnot covered by this warranty.

If the product issubjected to other than private residential use, the above warranty is effective for only 90

days.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING SEARS AT 1-8O0-4-MY-HOME®.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Roebuck and Co., Dept. 817WA Hoffman Estates, IL 60179

WE SERVICE WHAT WE SELL

Your purchase has added value because you can depend on Sears HomeCentral® for service. With over

12,000 trained repair specialists and access to over 4.2 million parts and accessories, we have the tools,

parts, knowledge and skills to ensure our pledge: We Service What We Sell.

Sears Maintenance Agreements

Your Kenmore appliance is designed, manufactured and tested to provide years of dependable operation.

Yet any major appliance may require service from time to time. The Sears Maintenance Agreement offers

you an outstanding service program, affordably priced.

The Sears Maintenance Agreement

• Is your way to buy tomorrow's service at today's price.

• Eliminates repair bills resulting from normal wear and tear.

• Provides for non-technical and instructional assistance.

• Even if you don't need repairs, provides an annual Preventive Maintenance Check,

at your request, to ensure that your appliance isin proper running condition.

Some limitations apply. For more information, call 1-800-827-6655.

For information concerning Sears Canada Maintenance Agreements, call 1-800-361-6665.

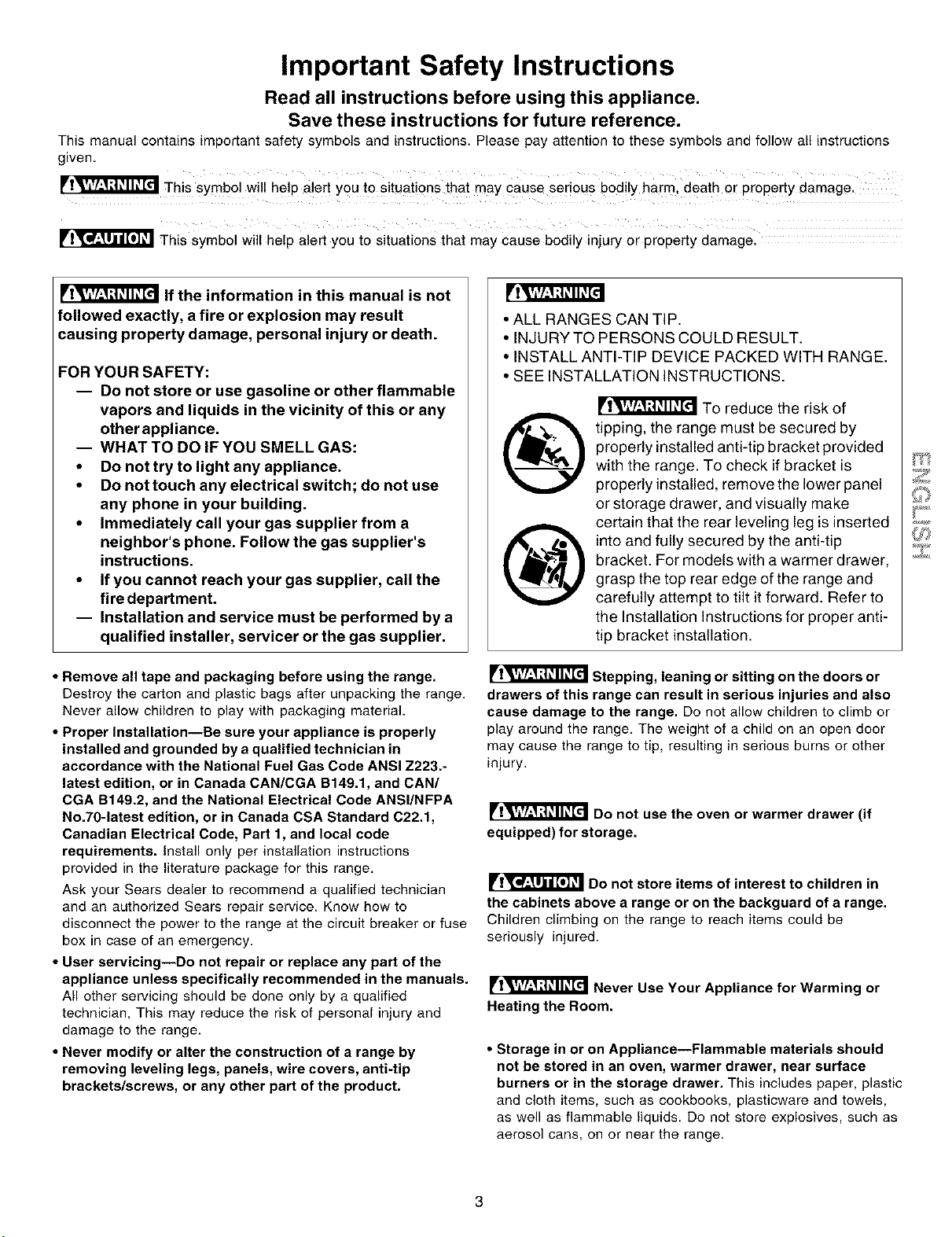

Important Safety Instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions

given.

_tV_V-'1:t#ll#[_l This symbol will help alert you to situations that may cause serious bodily harm, death or property damage.

This Symbol will help alert you to situations that may cause bodily injury or property damage.

FIVAV'J:t_II_[ell If the information in this manual is not

followed exactly, a fire or explosion may result

causing property damage, personal injury or death.

FOR YOUR SAFETY:

-- Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

-- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the

firedepartment.

-- Installation and service must be performed by a

qualified installer, servicer or the gas supplier.

• Remove all tape and packaging before using the range.

Destroy the carton and plastic bags after unpacking the range.

Never allow children to play with packaging material.

• Proper Installation--Be sure your appliance is properly

installed and grounded by a qualified technician in

accordance with the National Fuel Gas Code ANSI Z223.-

latest edition, or in Canada CAN/CGA B149.1, and CAN/

CGA B149.2, and the National Electrical Code ANSI/NFPA

No.7O-latest edition, or in Canada CSA Standard C22.1,

Canadian Electrical Code, Part 1, and local code

requirements, install only per installation instructions

provided in the literature package for this range.

Ask your Sears dealer to recommend a qualified technician

and an authorized Sears repair service. Know how to

disconnect the power to the range at the circuit breaker or fuse

box in case of an emergency.

• User servicing--Do not repair or replace any part of the

appliance unless specifically recommended in the manuals.

All other servicing should be done only by a qualified

technician, This may reduce the risk of personal injury and

damage to the range.

• Never modify or alter the construction of a range by

removing leveling legs, panels, wire covers, anti-tip

brackets/screws, or any other part of the product.

• ALL RANGES CAN TiP.

• INJURY TO PERSONS COULD RESULT.

• INSTALL ANTI-TIP DEVICE PACKED WITH RANGE.

• SEE INSTALLATION INSTRUCTIONS.

To reduce the risk of

tipping, the range must be secured by

properly installed anti-tip bracket provided

with the range. To check if bracket is

properly installed, remove the lower panel

or storage drawer, and visually make

certain that the rear leveling leg is inserted

into and fully secured by the anti-tip

bracket. For models with a warmer drawer,

grasp the top rear edge of the range and

carefully attempt to tilt it forward. Refer to

the Installation Instructions for proper anti-

tip bracket installation.

Stepping, leaning or sitting on the doors or

drawers of this range can result in serious injuries and also

cause damage to the range. Do not allow children to climb or

play around the range. The weight of a child on an open door

may cause the range to tip, resulting in serious burns or other

injury.

_Do not use the oven or warmer drawer (if

equipped) for storage.

Do not store items of interest to children in

the cabinets above a range or on the backguard of a range.

Children climbing on the range to reach items could be

seriously injured.

Never Use Your Appliance for Warming or

Heating the Room.

• Storage in or on Appliance--Flammable materials should

not be stored in an oven, warmer drawer, near surface

burners or in the storage drawer. This includes paper, plastic

and cloth items, such as cookbooks, plasticware and towels,

as well as flammable liquids. Do not store explosives, such as

aerosol cans, on or near the range.

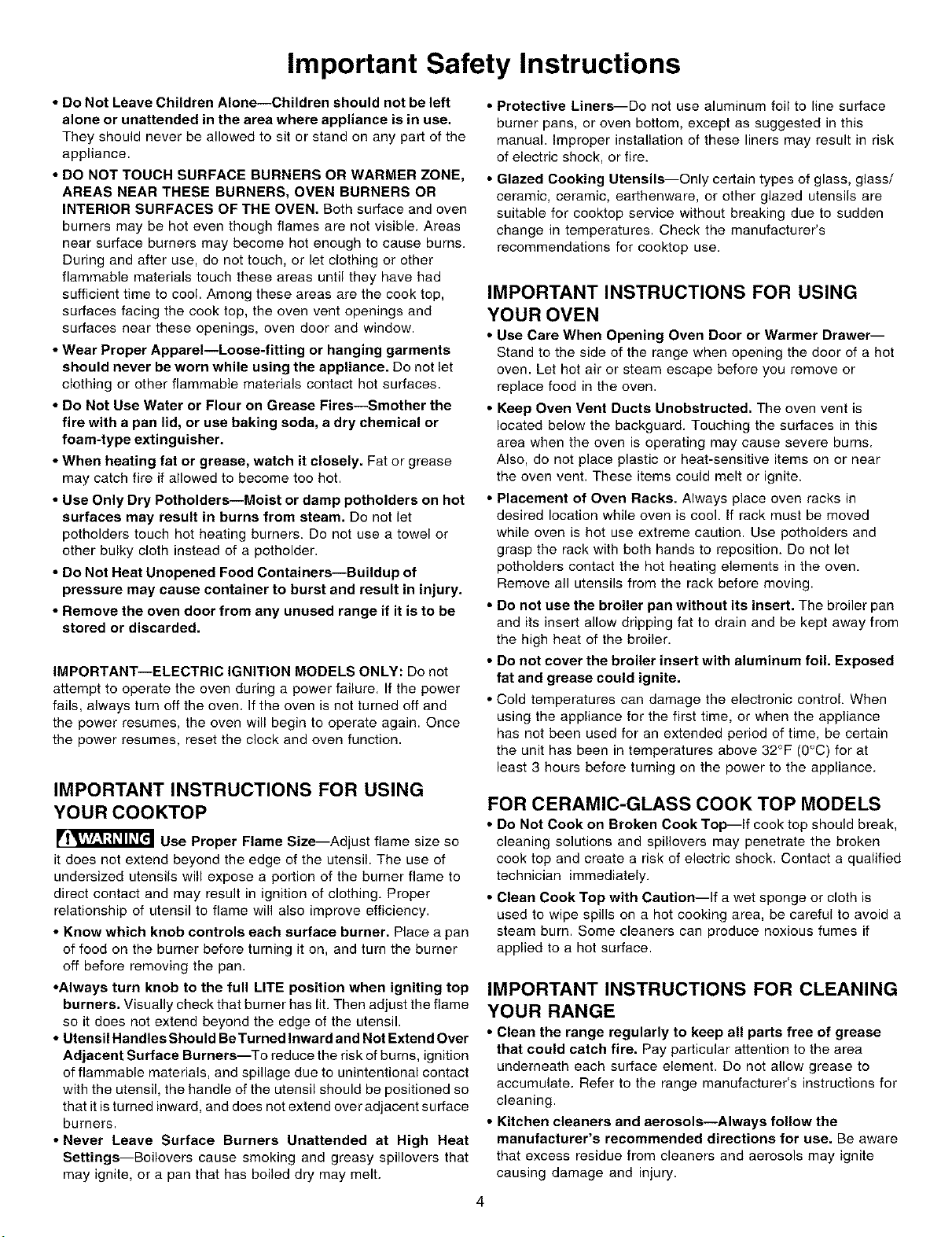

Important Safety Instructions

• Do Not Leave Children Alone--Children should not be left

alone or unattended in the area where appliance is in use.

They should never be allowed to sit or stand on any part of the

appliance.

• DO NOT TOUCH SURFACE BURNERS OR WARMER ZONE,

AREAS NEAR THESE BURNERS, OVEN BURNERS OR

INTERIOR SURFACES OF THE OVEN. Both surface and oven

burners may be hot even though flames are not visible. Areas

near surface burners may become hot enough to cause burns.

During and after use, do not touch, or let clothing or other

flammable materials touch these areas until they have had

sufficient time to cool. Among these areas are the cook top,

surfaces facing the cook top, the oven vent openings and

surfaces near these openings, oven door and window.

• Wear Proper Apparel--Loose-fitting or hanging garments

should never be worn while using the appliance. Do not let

clothing or other flammable materials contact hot surfaces.

• Do Not Use Water or Flour on Grease Fires--Smother the

fire with a pan lid, or use baking soda, a dry chemical or

foam-type extinguisher.

• When heating fat or grease, watch it closely. Fat or grease

may catch fire if allowed to become too hot.

• Use Only Dry Potholders--Moist or damp potholders on hot

surfaces may result in burns from steam. Do net let

potholders touch hot heating burners. Do not use a towel or

other bulky cloth instead of a potholder.

• Do Not Heat Unopened Food Containers--Buildup of

pressure may cause container to burst and result in injury.

• Remove the oven door from any unused range if it is to be

stored or discarded.

IMPORTANT--ELECTRIC IGNITION MODELS ONLY: Do not

attempt to operate the oven during a power failure. If the power

fails, always turn off the oven. If the oven is not turned off and

the power resumes, the oven will begin to operate again. Once

the power resumes, reset the clock and oven function.

IMPORTANT INSTRUCTIONS FOR USING

YOURCOOKTOP

Use Proper Flame Size--Adjust flame size so

it does not extend beyond the edge of the utensil. The use of

undersized utensils will expose a portion of the burner flame to

direct contact and may result in ignition of clothing. Proper

relationship of utensil to flame will also improve efficiency.

• Know which knob controls each surface burner. Place a pan

of food on the burner before turning it on, and turn the burner

off before removing the pan.

•Always turn knob to the full LITE position when igniting top

burners. Visually check that burner has lit. Then adjust the flame

so it does not extend beyond the edge of the utensil.

• Utensil Handles Should Be Turned Inward and Not Extend Over

Adjacent Surface Burners--To reduce the risk of burns, ignition

of flammable materials, and spillage due to unintentional contact

with the utensil, the handle of the utensil should be positioned so

that it is turned inward, and does not extend over adjacent surface

burners.

• Never Leave Surface Burners Unattended at High Heat

Settings--Believers cause smoking and greasy spillovers that

may ignite, or a pan that has boiled dry may melt.

• Protective Liners--Do not use aluminum foil to line surface

burner pans, or oven bottom, except as suggested in this

manual. Improper installation of these liners may result in risk

of electric shock, or fire.

• Glazed Cooking Utensils--Only certain types of glass, glass/

ceramic, ceramic, earthenware, or other glazed utensils are

suitable for cooktop service without breaking due to sudden

change in temperatures. Check the manufacturer's

recommendations for cooktop use.

IMPORTANT INSTRUCTIONS FOR USING

YOUR OVEN

• Use Care When Opening Oven Door or Warmer Drawer--

Stand to the side of the range when opening the door of a hot

oven. Let hot air or steam escape before you remove or

replace food in the oven.

• Keep Oven Vent Ducts Unobstructed. The oven vent is

located below the backguard. Touching the surfaces in this

area when the oven is operating may cause severe burns.

Also, do not place plastic or heat-sensitive items on or near

the oven vent. These items could melt or ignite.

• Placement of Oven Racks. Always place oven racks in

desired location while oven is cool. If rack must be moved

while oven is hot use extreme caution. Use potholders and

grasp the rack with both hands to reposition. Do not let

potholders contact the hot heating elements in the oven.

Remove all utensils from the rack before moving.

• Do not use the broiler pan without its insert. The broiler pan

and its insert allow dripping fat to drain and be kept away from

the high heat of the broiler.

• Do not cover the broiler insert with aluminum foil. Exposed

fat and grease could ignite.

• Cold temperatures can damage the electronic control. When

using the appliance for the first time, or when the appliance

has not been used for an extended period of time, be certain

the unit has been in temperatures above 32°F (0°C) for at

least 3 hours before turning on the power to the appliance.

FOR CERAMIC-GLASS COOK TOP MODELS

• Do Not Cook on Broken Cook Top--If cook top should break,

cleaning solutions and spil]overs may penetrate the broken

cook top and create a risk of electric shock. Contact a qualified

technician immediately.

• Clean Cook Top with Caution--If a wet sponge or cloth is

used to wipe spills on a hot cooking area, be careful to avoid a

steam burn. Some cleaners can produce noxious fumes if

applied to a hot surface.

IMPORTANT INSTRUCTIONS FOR CLEANING

YOUR RANGE

• Clean the range regularly to keep all parts free of grease

that could catch fire. Pay particular attention to the area

underneath each surface element. Do not allow grease to

accumulate. Refer to the range manufacturer's instructions for

cleaning.

• Kitchen cleaners and aerosols--Always follow the

manufacturer's recommended directions for use. Be aware

that excess residue from cleaners and aerosols may ignite

causing damage and injury.

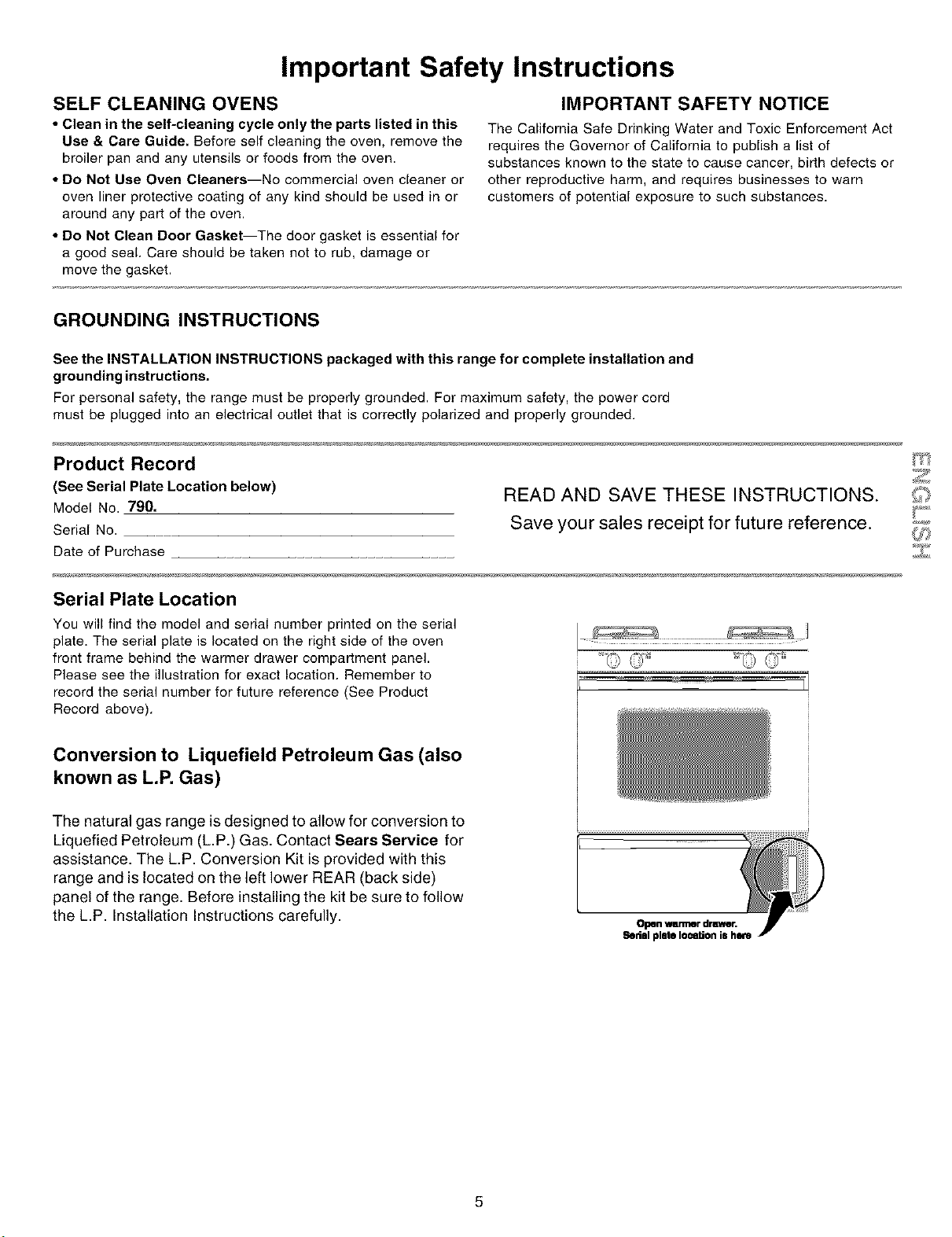

Important Safety Instructions

SELF CLEANING OVENS

• Clean in the self-cleaning cycle only the parts listed in this

Use & Care Guide. Before self cleaning the oven, remove the

broiler pan and any utensils or foods from the oven.

• Do Not Use Oven Cleaners--No commercial oven cleaner or

oven liner protective coating of any kind should be used in or

around any part of the oven.

• Do Not Clean Door Gasket--The door gasket is essential for

a good seal. Care should be taken not to rub, damage or

move the gasket.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act

requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth defects or

other reproductive harm, and requires businesses to warn

customers of potential exposure to such substances.

GROUNDING INSTRUCTIONS

See the INSTALLATION INSTRUCTIONS packaged with this range for complete installation and

grounding instructions.

For personal safety, the range must be properly grounded. For maximum safety, the power cord

must be plugged into an electrical outlet that is correctly polarized and properly grounded.

Product Record

(See Serial Plate Location below)

Model No. 790.

Serial No.

Date of Purchase

Serial Plate Location

You will find the model and serial number printed on the serial

plate. The serial plate is located on the right side of the oven

front frame behind the warmer drawer compartment panel.

Please see the illustration for exact location. Remember to

record the serial number for future reference (See Product

Record above).

READ AND SAVE THESE INSTRUCTIONS.

Save your sales receipt for future reference.

Conversion to Liquefield Petroleum Gas (also

known as L.P. Gas)

The natural gas range is designed to allow for conversion to

Liquefied Petroleum (L.P.) Gas. Contact Sears Service for

assistance. The L.P. Conversion Kit is provided with this

range and is located on the left lower REAR (back side)

panel of the range. Before installing the kit be sure to follow

the L.P. Installation Instructions carefully.

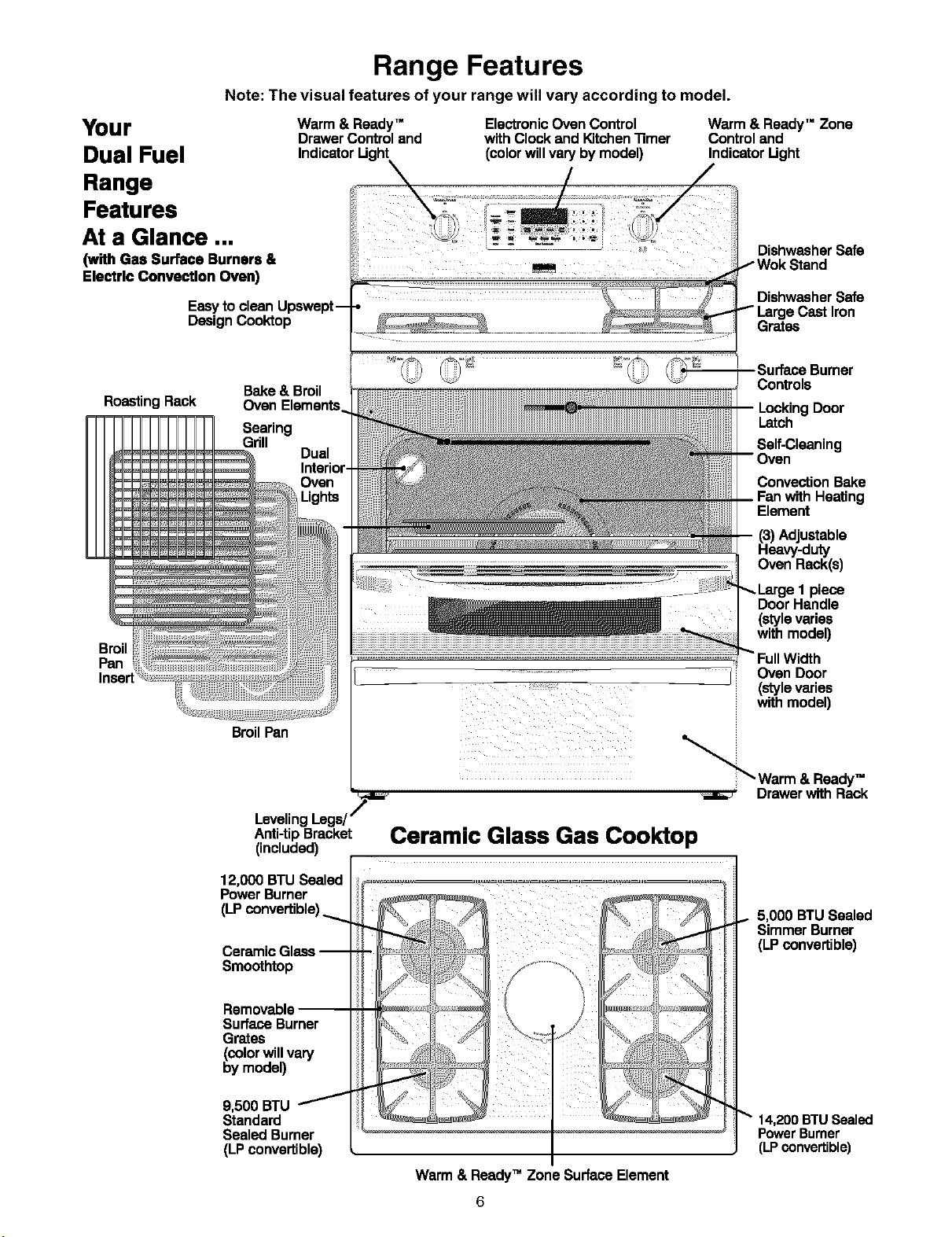

Your

Duel Fuel

Range Features

Note: The visual features of your range will vary according to model.

Warm & ReadyTM ElectronicOvenControl Warm & ReadyTM Zone

DrawerControland withClockand Kitchen"Rmer Controland

IndicatorL (colorwillvaryby model) IndicatorLight

Range

Features

At a Glance ...

(with Gas surraoe Burners &

Etectdc Convection Oven)

Easyto clean U

DesignCooktop

DishwasherSate

DishwasherSafe

_=CastIron

Grates

RoastingRack

Bake&Broil

rfaceBurner

Controls

Door

Latch

Self-Cleaning

ConvectionBake

FanwithHeating

Element

H) Adjustable

eavy-duty

Oven Rack(s)

Broil

Pan

Inser

(stylevaries

withmodel)

BroilPan

i '_'_!i!¸ i

Oven Door

stylevaries

model)

L "_" Warm& Ready

;

........ _= Drawerwith Rack

LevelingLegs/'

Anti-tipBracket

(included)

12,000 BTUSealed

PowerBurner

(LPc

Ceramic Glass Gas Cooktop

5,000 BTUSealed

SimmerBurner

(LPconvertible)

Smo_htop

Surface Burner

Grates

(color will vary

by model)

9,500 BTU

Standard

SealedBurner

(LPconvertible)

Warm & Ready" Zone SurfaceElement

14,200 BTUSealed

Power Burner

(LP convertible)

Setting Surface

Controls

FEATURE OVERVIEW

• Sizes of Surface Burners

• Assembly of Surface

Burners

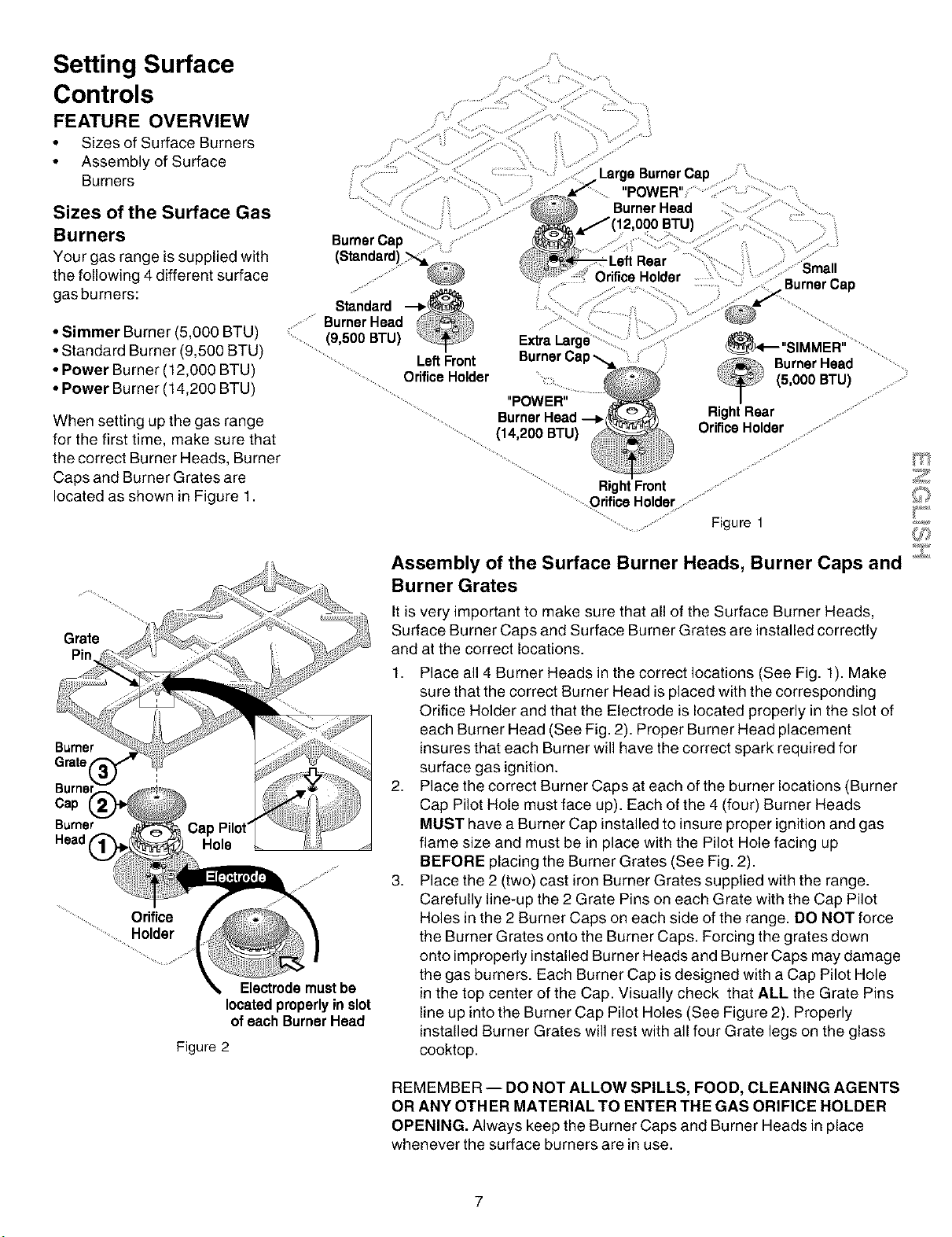

Sizes of the Surface Gas

Burners

Your gas range is supplied with

the following 4 different surface

gas burners:

• Simmer Burner (5,000 BTU)

• Standard Burner (9,500 BTU)

• Power Burner (12,000 BTU)

• Power Burner (14,200 BTU)

When setting up the gas range

for the first time, make sure that

the correct Burner Heads, Burner

Caps and Burner Grates are

located as shown in Figure 1.

Grate

Burner

Grate

Cap

Burner

Head

Orifice

.......Holder

%¸%¸¸

%¸%¸¸¸¸

"'%,

',,%,,

Electrodemustbe

locatedproperlyin slot

of each BurnerHead

Figure 2

Large Burner Cap

Burner Cap

_<-_"SIMMER" .............

BurnerHead

(5,000 BTU)

RightRear .....

OrificeHolder

....... Right Front

...........Orifice Holder

Figure 1

Assembly of the Surface Burner Heads, Burner Caps and

Burner Grates

It is very important to make sure that all of the Surface Burner Heads,

Surface Burner Caps and Surface Burner Grates are installed correctly

and at the correct locations.

1. Place all 4 Burner Heads in the correct locations (See Fig. 1). Make

sure that the correct Burner Head is placed with the corresponding

Orifice Holder and that the Electrode is located properly in the slot of

each Burner Head (See Fig. 2). Proper Burner Head placement

insures that each Burner will have the correct spark required for

surface gas ignition.

2. Place the correct Burner Caps at each of the burner locations (Burner

Cap Pilot Hole must face up). Each of the 4 (four) Burner Heads

MUST have a Burner Cap installed to insure proper ignition and gas

flame size and must be in place with the Pilot Hole facing up

BEFORE placing the Burner Grates (See Fig. 2).

3. Place the 2 (two) cast iron Burner Grates supplied with the range.

Carefully line-up the 2 Grate Pins on each Grate with the Cap Pilot

Holes in the 2 Burner Caps on each side of the range. DO NOT force

the Burner Grates onto the Burner Caps. Forcing the grates down

onto improperly installed Burner Heads and Burner Caps may damage

the gas burners. Each Burner Cap is designed with a Cap Pilot Hole

in the top center of the Cap. Visually check that ALL the Grate Pins

line up into the Burner Cap Pilot Holes (See Figure 2). Properly

installed Burner Grates will rest with all four Grate legs on the glass

cooktop.

REMEMBER -- DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS

OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER

OPENING. Always keep the Burner Caps and Burner Heads in place

whenever the surface burners are in use.

Setting Surface Controls

FEATURE OVERVIEW

• Control Locations of Gas Surface Burners

• Operating Gas Surface Controls

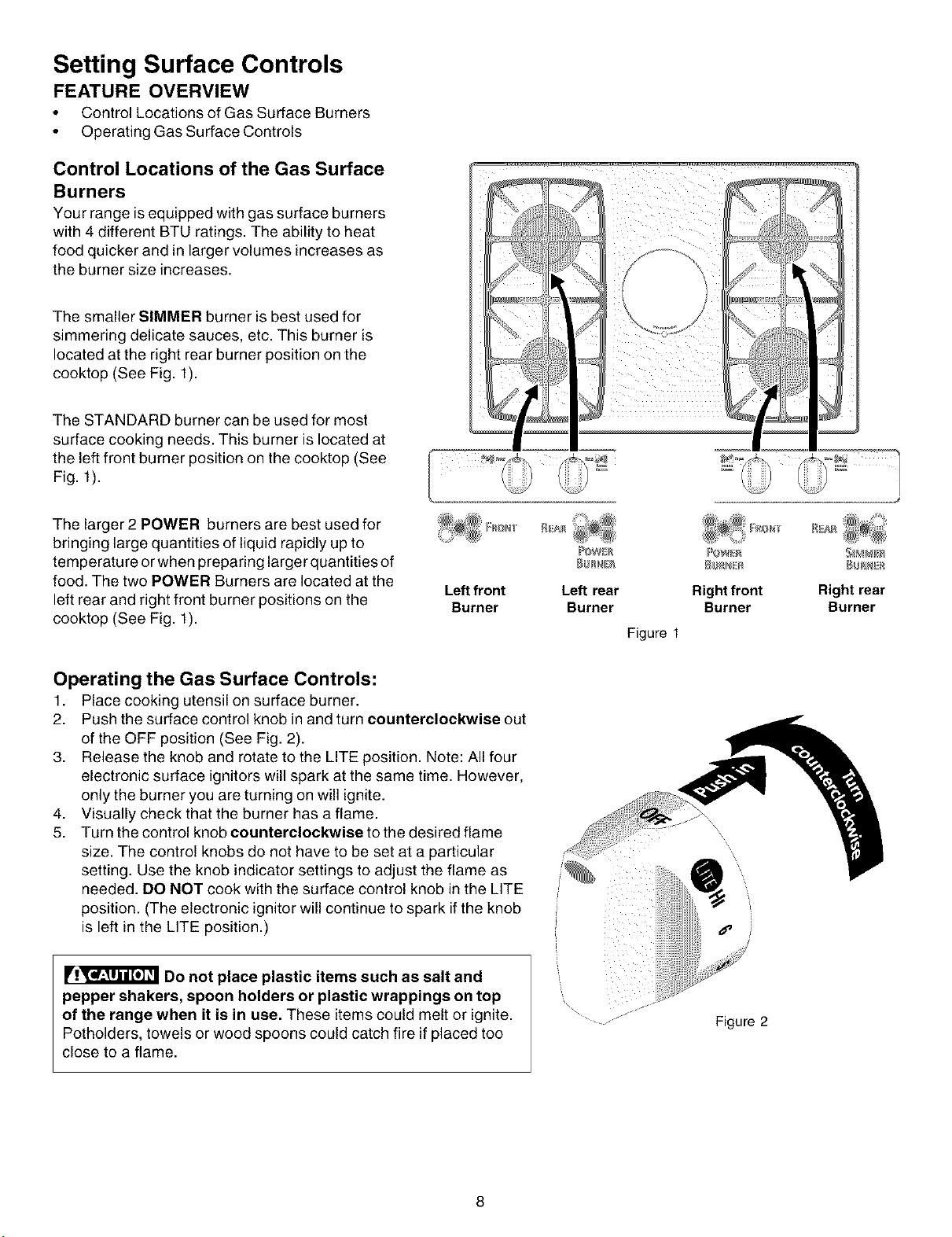

Control Locations of the Gas Surface

Burners

Your range is equipped with gas surface burners

with 4 different BTU ratings. The ability to heat

food quicker and in larger volumes increases as

the burner size increases.

The smaller SIMMER burner is best used for

simmering delicate sauces, etc. This burner is

located at the right rear burner position on the

cooktop (See Fig. 1).

The STANDARD burner can be used for most

surface cooking needs. This burner is located at

the left front burner position on the cooktop (See

Fig. 1).

The larger 2 POWER burners are best used for R_,R

bringing large quantities of liquid rapidly up to P_wE_

temperatu re or when preparing large r quantities of _H _

food. The two POWER Burners are located at the

Left front Left rear

left rear and right front burner positions on the Burner Burner

cooktop (See Fig. 1).

Operating the Gas Surface Controls:

1. Place cooking utensil on surface burner.

2. Push the surface control knob in and turn counterclockwise out

of the OFF position (See Fig. 2).

3. Release the knob and rotate to the LITE position. Note: All four

electronic surface ignitors will spark at the same time. However,

only the burner you are turning on will ignite.

4. Visually check that the burner has a flame.

5. Turn the control knob counterclockwise to the desired flame

size. The control knobs do not have to be set at a particular

setting. Use the knob indicator settings to adjust the flame as

needed. DO NOT cook with the surface control knob in the LITE

position. (The electronic ignitor will continue to spark if the knob

is left in the LITE position.)

Do not place plastic items such as salt and

pepper shakers, spoon holders or plastic wrappings on top

of the range when it is in use, These items could melt or ignite,

Potholders, towels or wood spoons could catch fire if placed too

close to a flame.

Figure 1

Right front Right rear

Burner Burner

Figure 2

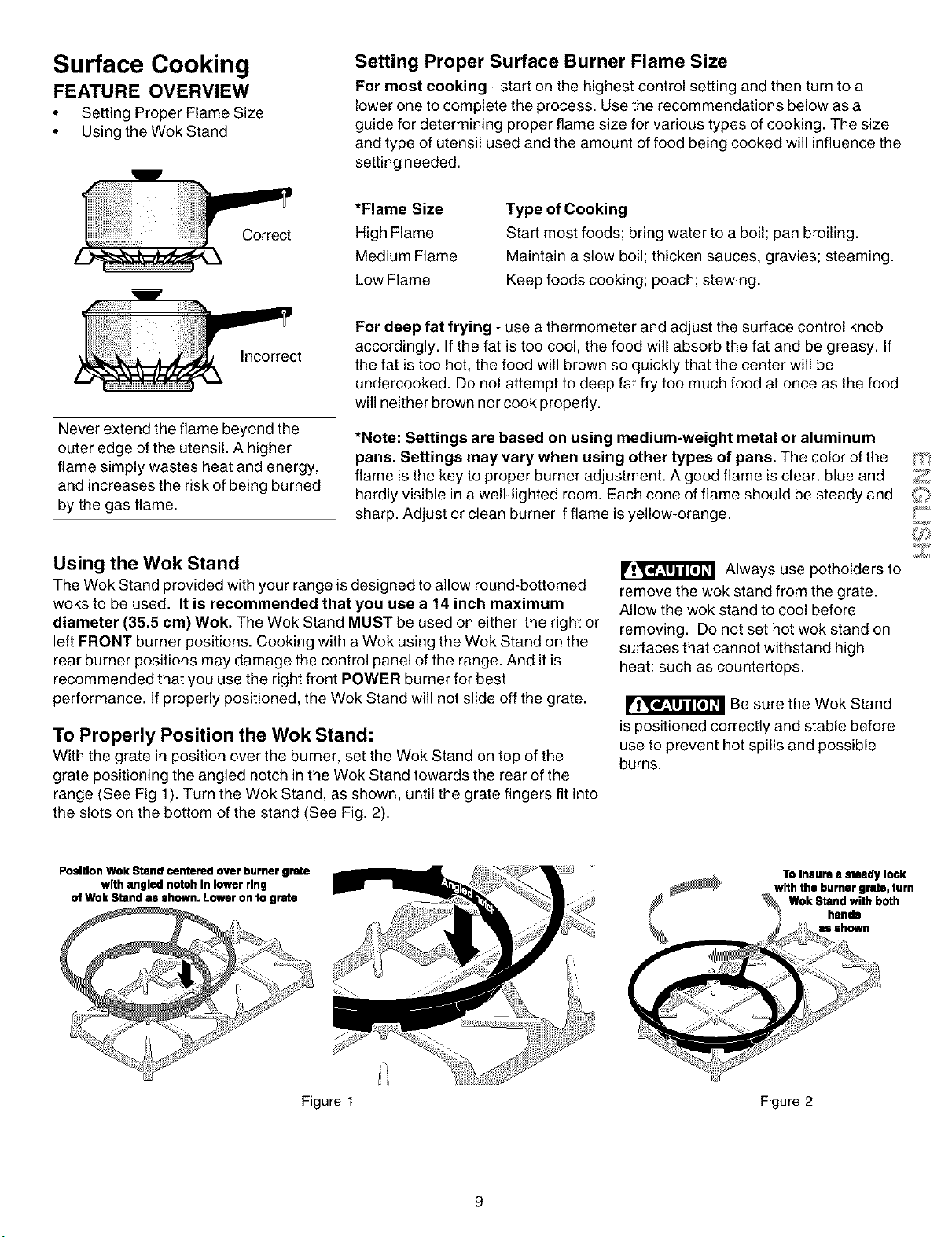

Surface Cooking

FEATURE OVERVIEW

• Setting Proper Flame Size

• Using the Wok Stand

Correct

Setting Proper Surface Burner Flame Size

For most cooking - start on the highest control setting and then turn to a

lower one to complete the process. Use the recommendations below as a

guide for determining proper flame size for various types of cooking. The size

and type of utensil used and the amount of food being cooked will influence the

setting needed.

*Flame Size

High Flame

Medium Flame

Low Flame

Type of Cooking

Start most foods; bring water to a boil; pan broiling.

Maintain a slow boil; thicken sauces, gravies; steaming.

Keep foods cooking; poach; stewing.

Incorrect

Never extend the flame beyond the

outer edge of the utensil. A higher

flame simply wastes heat and energy,

and increases the risk of being burned

by the gas fame.

For deep fat frying - use a thermometer and adjust the surface control knob

accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If

the fat is too hot, the food will brown so quickly that the center will be

undercooked. Do not attempt to deep fat fry too much food at once as the food

will neither brown nor cook properly.

*Note: Settings are based on using medium-weight metal or aluminum

pans. Settings may vary when using other types of pans. The color of the

flame isthe key to proper burner adjustment. A good flame isclear, blue and

hardly visible in a well-lighted room. Each cone of flame should be steady and

sharp. Adjust or clean burner ifflame is yellow-orange.

Using the Wok Stand

The Wok Stand provided with your range is designed to allow round-bottomed

woks to be used. It is recommended that you use a 14 inch maximum

diameter (35.5 cm) Wok. The Wok Stand MUST be used on either the right or

left FRONT burner positions. Cooking with a Wok using the Wok Stand on the

rear burner positions may damage the control panel of the range. And itis

recommended that you use the right front POWER burner for best

performance. If properly positioned, the Wok Stand will not slide off the grate.

To Properly Position the Wok Stand:

With the grate in position over the burner, set the Wok Stand on top of the

grate positioning the angled notch in the Wok Stand towards the rear of the

range (See Fig 1). Turn the Wok Stand, as shown, until the grate fingers fit into

the slots on the bottom of the stand (See Fig. 2).

Always use potholders to

remove the wok stand from the grate.

Allow the wok stand to cool before

removing. Do not set hot wok stand on

surfaces that cannot withstand high

heat; such as countertops.

Be sure the Wok Stand

is positioned correctly and stable before

use to prevent hot spills and possible

burns.

Position Wok Stand centered over burner grate

with angled notch In lower ring

ot WokStand as shown, Lower on to grate

Figure 1

To Insure a steady lock

with the burner grate, turn

Wok Stand with both

hands

as 8hown

Figure 2

Surface

Cooking

FEATURE

OVERVIEW

• Using the Wok Stand (cont'd)

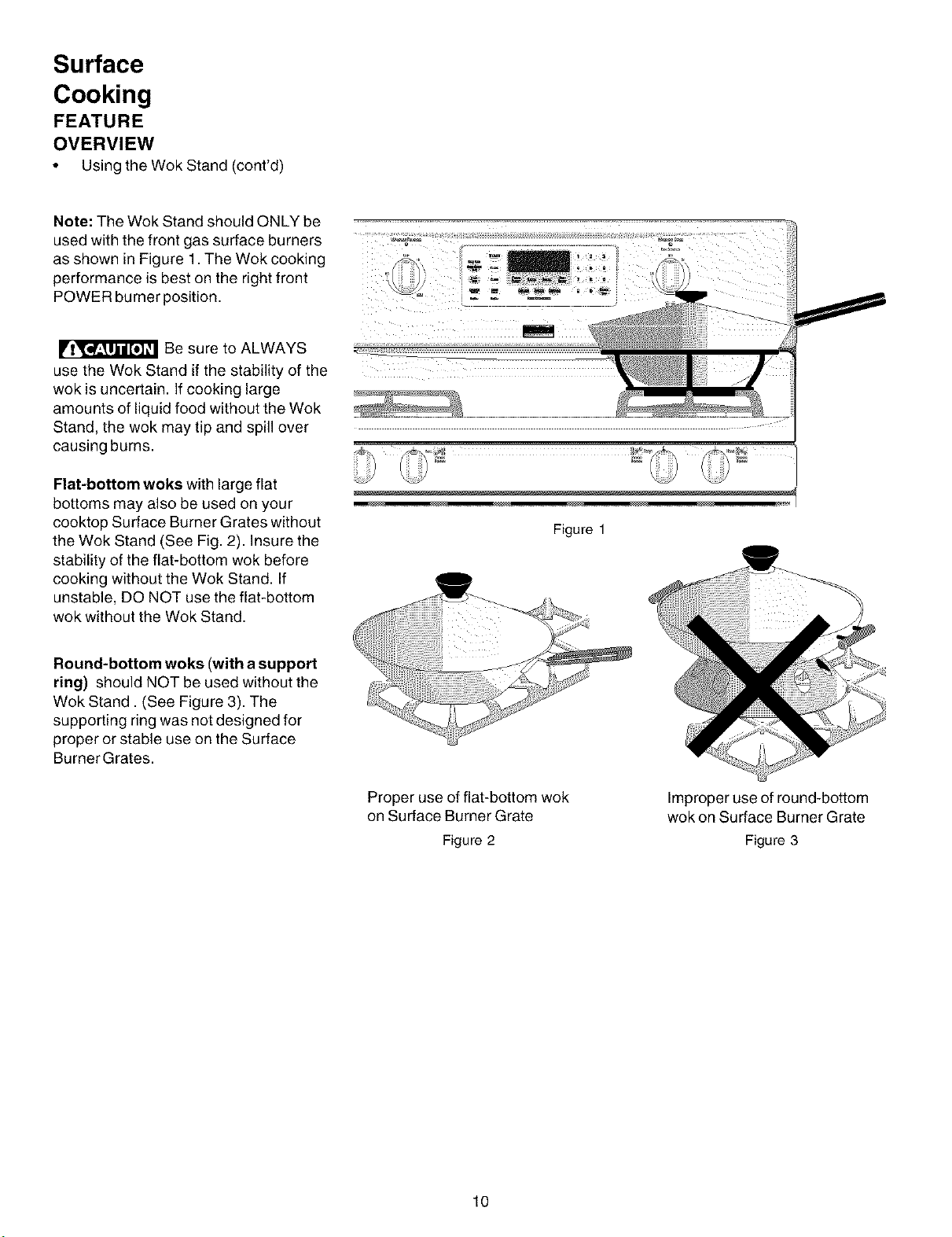

Note: The Wok Stand should ONLY be

used with the front gas surface burners

as shown in Figure 1.The Wok cooking

performance is best on the right front

POWER burner position.

Be sure to ALWAYS

use the Wok Stand if the stability of the

wok is uncertain. If cooking large

amounts of liquid food without the Wok

Stand, the wok may tip and spill over

causing burns.

Flat-bottom woks with large flat

bottoms may also be used on your

cooktop Surface Burner Grates without

the Wok Stand (See Fig. 2). Insure the

stability of the flat-bottom wok before

cooking without the Wok Stand. If

unstable, DO NOT use the flat-bottom

wok without the Wok Stand.

Figure 1

Round-bottom woks (with a support

ring) should NOT be used without the

Wok Stand. (See Figure 3). The

supporting ring was not designed for

proper or stable use on the Surface

Burner Grates.

Proper use of flat-bottom wok

on Surface Burner Grate

Figure 2

Improper use of round-bottom

wok on Surface Burner Grate

Figure 3

Surface

Cooking

FEATURE

OVERVIEW

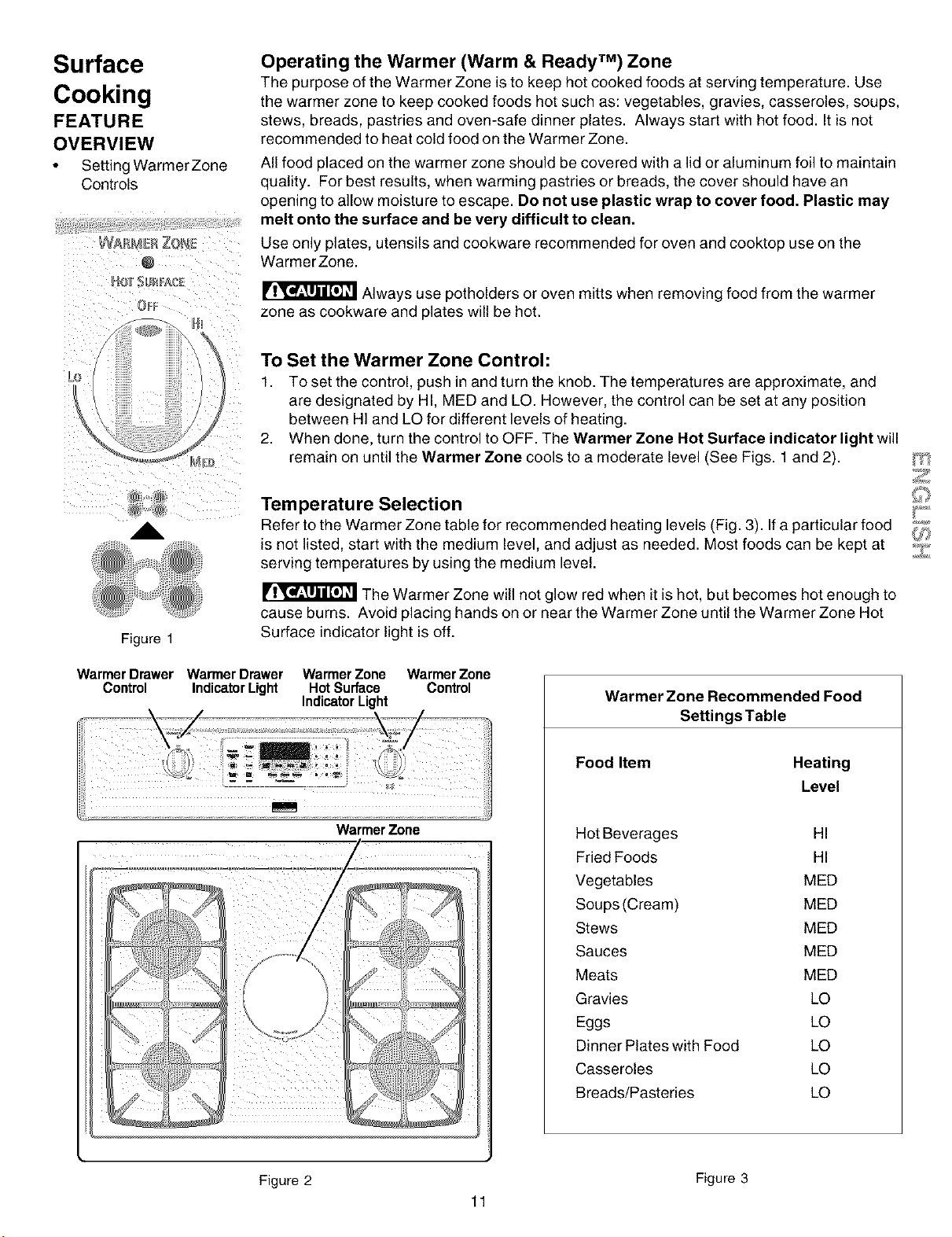

• Setting WarmerZone

Controls

_#ARMERZ_ #:

HO_ _UR_A_

J_L

Operating the Warmer (Warm & Ready TM) Zone

The purpose of the Warmer Zone is to keep hot cooked foods at serving temperature. Use

the warmer zone to keep cooked foods hot such as: vegetables, gravies, casseroles, soups,

stews, breads, pastries and oven-safe dinner plates. Always start with hot food. It is not

recommended to heat cold food on the Warmer Zone.

All food placed on the warmer zone should be covered with a lid or aluminum foil to maintain

quality. For best results, when warming pastries or breads, the cover should have an

opening to allow moisture to escape. Do not use plastic wrap to cover food. Plastic may

melt onto the surface and be very difficult to clean.

Use only plates, utensils and cookware recommended for oven and cooktop use on the

WarmerZone.

Always use potholders or oven mitts when removing food from the warmer

zone as cookware and plates will be hot.

To Set the Warmer Zone Control:

1. To _et the control, push in and turn the knob. The temperatures are approximate, and

are designated by HI, MED and LO. However, the control can be set at any position

between HI and LO for different levels of heating.

2. When done turn the control to OFF. The Warmer Zone Hot Surface indicator light will

remain on until the Warmer Zone cools to a moderate level (See Figs. 1 and 2).

,A,

Figure 1

Temperature Selection i:,,,,,,

Refer to the Warmer Zone table for recommended heating levels (Fig. 3). If a particular food </;;

is not listed, start with the medium level, and adjust as needed. Most foods can be kept at

serving temperatures by using the medium level.

The Warmer Zone will not glow red when it is hot, but becomes hot enough to

cause burns. Avoid placing hands on or near the Warmer Zone until the Warmer Zone Hot

Surface indicator light is off.

Warmer Drawer Warmer Drawer Warmer Zone Warmer Zone

Control Indicator Light Hot Surface Control

IndicatorLight

WarmerZone

Warmer Zone Recommended Food

Settings Table

Food Item

Heating

Level

Hot Beverages HI

Fried Foods HI

Vegetables MED

Soups (Cream) MED

Stews MED

Sauces MED

Meats MED

Gravies LO

Eggs LO

Dinner Plates with Food LO

Casseroles LO

BreadsiPasteries LO

Figure 2 Figure 3

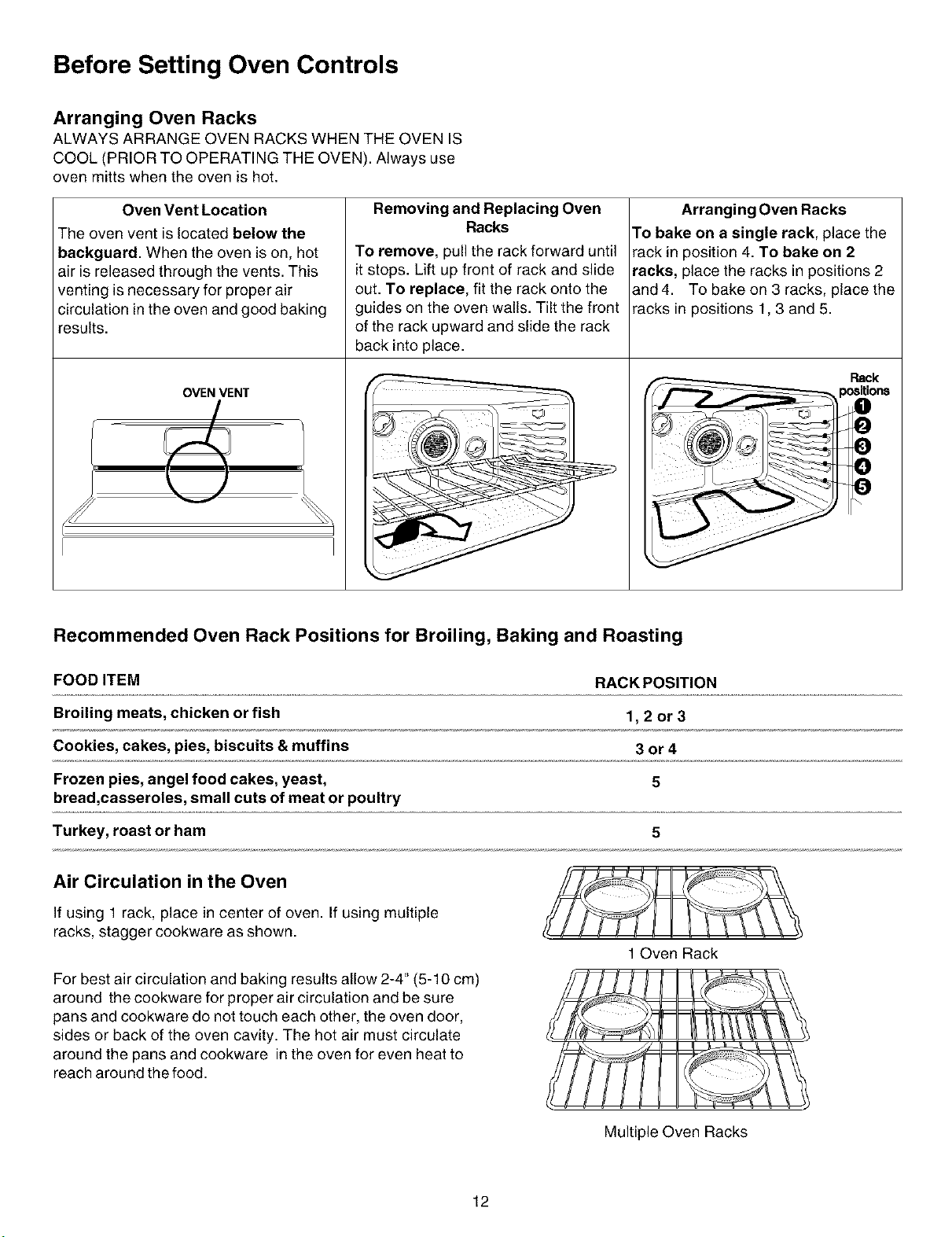

Before Setting Oven Controls

Arranging Oven Racks

ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS

COOL (PRIOR TO OPERATING THE OVEN). Always use

oven mitts when the oven is hot.

Oven Vent Location

The oven vent is located below the

backguard. When the oven is on, hot

air is released through the vents. This

venting is necessary for proper air

circulation in the oven and good baking

results.

OVEN VENT

Removing and Replacing Oven

Racks

To remove, pull the rack forward until

it stops. Lift up front of rack and slide

out. To replace, fit the rack onto the

guides on the oven walls. Tilt the front

of the rack upward and slide the rack

back into place.

Arranging Oven Racks

To bake on a single rack, place the

rack in position 4. To bake on 2

racks, place the racks in positions 2

and 4. To bake on 3 racks, place the

racks in positions 1,3 and 5.

Rack

positions

Recommended Oven Rack Positions for Broiling, Baking and Roasting

FOOD ITEM RACK POSITION

Broiling meats, chicken or fish 1,2 or 3

Cookies, cakes, pies, biscuits & muffins 3 or 4

Frozen pies, angel food cakes, yeast, 5

bread,casseroles, small cuts of meat or poultry

Turkey, roast or ham 5

Air Circulation in the Oven

If using 1 rack, place in center of oven. If using multiple

racks, stagger cookware as shown.

For best air circulation and baking results allow 2-4" (5-10 cm)

around the cookware for proper air circulation and be sure

pans and cookware do not touch each other, the oven door,

sides or back of the oven cavity. The hot air must circulate

around the pans and cookware in the oven for even heat to

reach around the food.

1 Oven Rack

Multiple Oven Racks

Setting Warmer

Drawer Controls

FEATURE

OVERVIEW

• ArrangingWarmer

Drawer Racks

• Operating & Setting

Warmer Drawer

Controls

Arranging Warmer (Warm & Ready TM) Drawer Rack Positions

The rack can be used in 2 ways:

• In the upright position to allow low profile food items to be placed both under and on

top of the rack (for example, rolls or biscuits on top of the rack and a casserole dish

underneath).

• In the downward position to allow you to place light weight food items and empty

dishware (for example, rolls or pastries and dinner plates) on the rack.

Set the Warmer Drawer Rack in either position as shown below (Fig. 1).

Warmer Drawer

_Rack in upward

position

Operating the Warmer Drawer

Figure 1

_Warmer Drawer

Rack in downward

position

The purpose of the Warmer Drawer is to keep hot cooked foods at serving

temperature. Always start with hot food. It is not recommended to heat cold

food in the Warmer Drawer. All food placed in the Warmer Drawer should be

covered with a lid or aluminum foil to maintain quality. Do not use plastic

wrap to cover food. Plastic may melt onto the drawer and be very difficult

to clean. Use only utensils and cookware recommended for oven use in the

Warmer Drawer.

Always use potholders or oven mitts when removing food from

the Warmer Drawer as cookware and plates will be hot and you can be burned.

To Set the Warmer Drawer Control:

The control is used to select the temperature of the Warmer Drawer. It is

located on the control panel. To set the control, push in and turn the knob to

the desired setting. The temperatures are approximate, and are designated by

HI (high), MED (medium) and LO (low).

1. Turn the knob to select the desired temperature setting.

2. For best results, preheat the drawer before adding food. An empty drawer

will preheat in approximately 15 minutes.

3. When done, turn the control to OFF.

Temperature Selection

Recommended Warmer Drawer settings table is shown in Figure 3. If a

particular food is not listed, start with the MED setting. If more crispness is

desired, remove the lid or aluminum foil from the food. Most foods can be kept

at serving temperatures on the MED setting. When a combination of foods are

to be kept warm (for instance, a meat with 2 vegetables and rolls), use the HI

setting. To avoid heat loss, do not open the Warmer Drawer while in use.

Warmer Drawer Indicator Light

The Warmer Drawer indicator light is located above the Warmer Drawer control

knob (See Fig.2). It turns on when the control is set, and stays on until the

control is turned off. The Warmer Drawer is inoperable during the Self-

Clean cycle.

_AAM_R ..........

Figure 2

Warmer Drawer Recommended Food

Settings Table

Food Item Setting

Bacon HI

Hamburger Patties HI

Poultry HI

Pork Chops HI

Fried Foods HI

Pizza HI

Gravies MED

Casseroles MED

Eggs MED

Roasts (Beef, Pork, Lamb) MED

Vegetables MED

Biscuits MED

Rolls, hard MED

Pastries MED

Rolls (soft) LO

Empty Dinner Plates LO

Figure 3

Control Pad

Features

READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For

satisfactory use of your oven, become familiar with the various features and functions of

the oven as described below. Detailed instructions for each feature and function

follow later in this Use & Care Guide.

OVEN COOK

TIME-- Use to

enter the length of

the baking time.

STOP TIME-- Use with

BAKE, OVEN COOK

TIME, and CLEAN to

program a Delayed Time

Bake or Delayed Self-

Cleaning cycle stop

time.

CLOCK-- Use START-- Useto start BROIL-- Use PREHEAT-- OTHRU 9

to set the time all oven features (not to select Use with NUMBER PADS

of day. (See used with Oven Light). variable Broil normal Bake -- Use to enter

page 15). feature (See pad (See page temperature and

page 23). 19). times.

KITCHEN TIMER ON/

OFF-- Use to set or

cancel the Kitchen Timer.

The Kitchen Timer does

not start or stop cooking

(See page 16).

CLEAN-- Use to select the Self-

Cleaning feature (See page 27).

CONVECTION BAKE--

BAKE-- Use Use to

to select the enter the

OVEN LIGHT-- Convection normal

Use to turn the Bake feature Bake

oven lights on (See page 25). feature.

and off (See (See page

page 34). 20).

FOOO 1;TEGORIES

MEATS,

CAKES &

BREADS--

Use to select

the Meats,

Cakes and

Breads cooking

feature. (See

page 24).

OVEN LOCKOUT--

Use to disable all

oven features (See

page 17).

CLEAR/OFF-- Use

to cancel any oven

mode previously

entered except the

Oven Lockout, time of

day and minute timer.

Press CLEAR/OFF to

stop cooking.

Minimum

and

Maximum

Control

Pad

Settings

All of the features listed have minimum and maximum time or temperature settings

that may be entered into the control. An ENTRY acceptance beep will sound each

time a control pad is touched (the Oven Lockout pad is delayed by 3 seconds).

An ENTRY ERROR tone (3 short beeps) will sound ifthe entry of the temperature

or time is below the minimum or above the maximum settings for the feature.

FEATURE MIN. TEMP./TIME MAX. TEMP./TIME

PREHEAT TEMP. 170°F / 77°C 550°F / 288°C

BAKE TEMP. 170°F/77°C 550°F/288°C

BROIL TEMP. 400°F/205°C HI-550°F/288°C

KITCHENTIMER 12Hr. 0:01 Min. 11:59Hr./Min.

24 Hr. 0:01 Min. 11:59 Hr./Min.

CLOCK TIME 12 Hr. 1:00 Hr./Min. 12:59 Hr./Min.

24 Hr. 0:00 Hr./Min. 23:59 Hr./Min.

OVEN COOK TIME 12Hr. 0:01 Min. 11:59 Hr./Min.

24 Hr. 0:01 Min. 23:59 Hr./Min.

STOP TIME 12 Hr. 1:00 Hr./Min. 12:59 Hr./Min.

24 Hr. 0:00 Hr./Min. 23:59 Hr./Min.

CLEAN TIME 2 hours 4 hours

CONVECTION BAKE 300°F / 149°C 550°F / 288°C

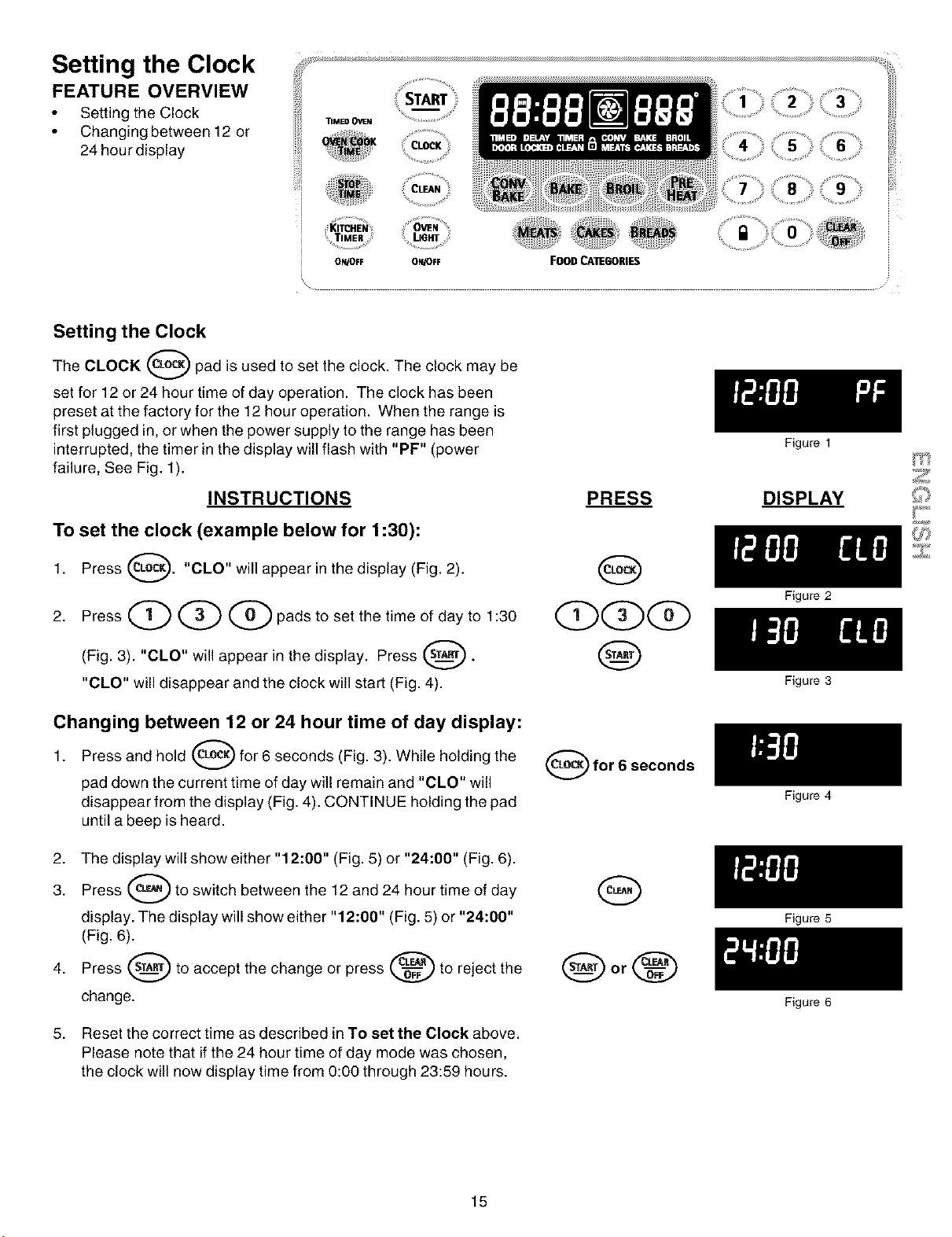

Setting the Clock

FEATURE OVERVIEW

• Setting the Clock

• Changing between 12 or

24 hour display

ON/OFF ON_FF FOODCA]EGORIES

Setting the Clock

The CLOCK O pad isused to set the clock. The clock may be

set for 12 or 24 hour time of day operation. The clock has been

preset at the factory for the 12 hour operation. When the range is

first plugged in, or when the power supply to the range has been

interrupted, the timer in the display will flash with "PF" (power

failure, See Fig. 1).

INSTRUCTIONS

To set the clock (example below for 1:30):

1. Press 0" "CLO" will appear in the display (Fig. 2).

Press 0 _ _ pads to set the time of day to 1 _30

(Fig. 3). "CLO" will appear in the display. Press _.

"CLO" will disappear and the clock will start (Fig. 4).

PRESS

O(Z)(2>

Figure 1

DISPLAY

Changing between 12 or 24 hour time of day display:

1. Press and hold 0 for 6 seconds (Fig. 3). While holding the

pad down the current time of day will remain and "CLO" will

disappear from the display (Fig. 4). CONTINUE holding the pad

until a beep is heard.

Q for 6 seconds

2. The display will show either "12:00" (Fig. 5) or "24:00" (Fig. 6).

3. Press _ to switch between the 12 and 24 hour time of day

display. The display will show either "12:00" (Fig. 5) or "24:00"

(Fig. 6).

4. Press _ to accept the change or press _ to reject the

change.

5. Reset the correct time as described in To set the Clock above.

Please note that if the 24 hour time of day mode was chosen,

the clock will now display time from 0:00 through 23:59 hours.

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Setting the Clock

FEATURE OVERVIEW

• Continuous Bake or

Twelve Hour Energy

Saving Mode

• Kitchen Timer

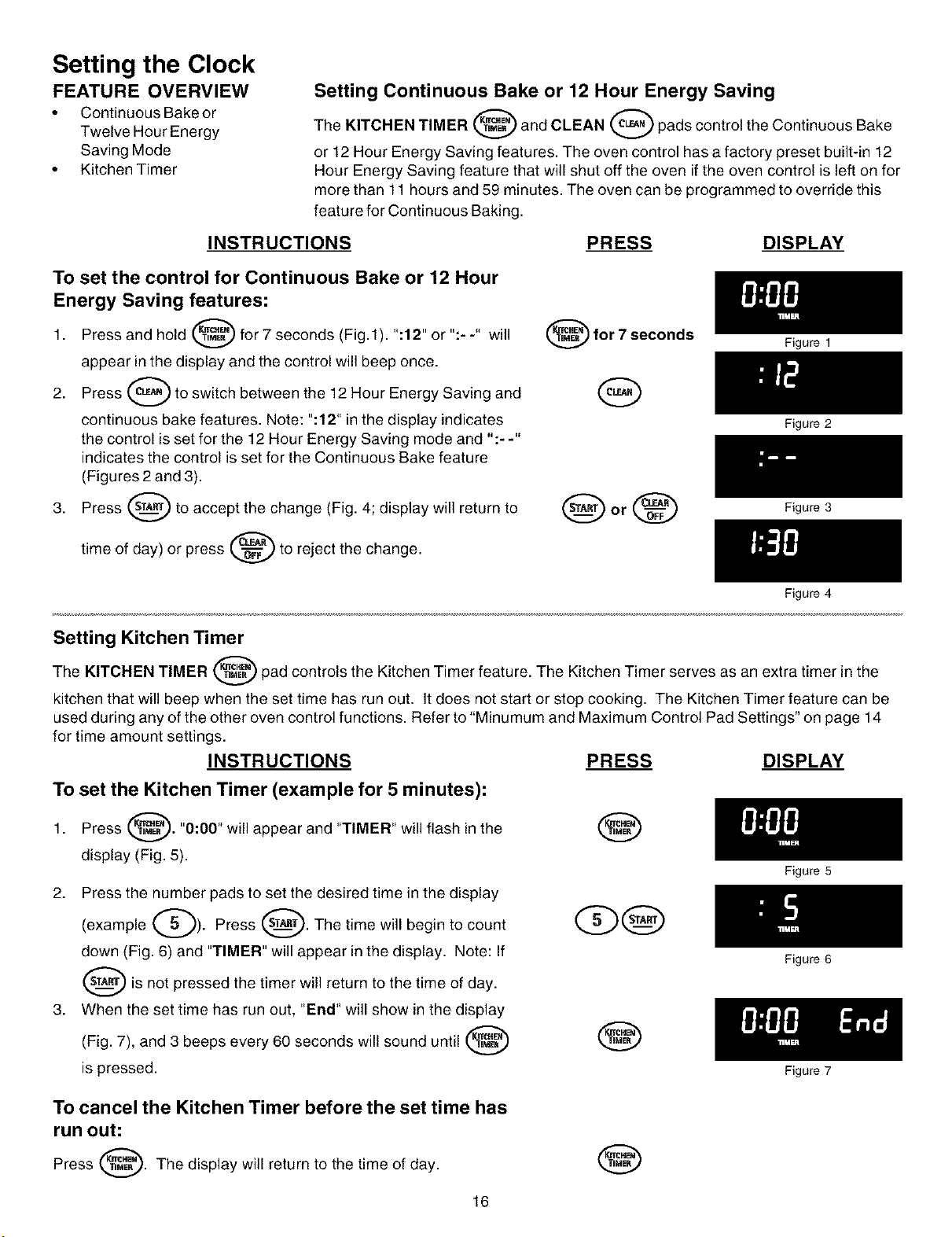

Setting Continuous Bake or 12 Hour Energy Saving

The KITCHEN TIMER _ and CLEAN (_ pads control the Continuous Bake

or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12

Hour Energy Saving feature that will shut off the oven if the oven control is left on for

more than 11 hours and 59 minutes. The oven can be programmed to override this

feature for Continuous Baking.

INSTRUCTIONS PRESS DISPLAY

To set the control for Continuous Bake or 12 Hour

Energy Saving features:

1. Press and hold _ for 7 seconds (Fig.l). ":12" or ":- -" will

appear in the display and the control will beep once.

2. Press c_ to switch between the 12 Hour Energy Saving and

continuous bake features. Note: ":12" in the display indicates

the control isset for the 12 Hour Energy Saving mode and ":- -"

indicates the control is set for the Continuous Bake feature

(Figures 2 and 3).

3. Press _ to accept the change (Fig. 4; display will return to

time of day) or press _ to reject the change.

for 7 seconds

Figure 1

Figure 2

_or _ Figure 3

Figure 4

Setting Kitchen Timer

The KITCHEN TIMER @ pad controls the Kitchen Timer feature. The Kitchen Timer serves as an extra timer in the

kitchen that will beep when the set time has run out. It does not start or stop cooking. The Kitchen Timer feature can be

used during any of the other oven control functions. Refer to "Minumum and Maximum Control Pad Settings" on page 14

for time amount settings.

INSTRUCTIONS PRESS DISPLAY

To set the Kitchen Timer (example for 5 minutes):

1. Press @. "0:00" willappear and "TIMER" will flash in the

display (Fig. 5).

2. Press the number pads to set the desired time in the display

(example _5_). Press _. The time will begin to count

down (Fig. 6) and "TIMER" will appear inthe display. Note: If

_is not pressed the timer will return to the time of day.

3. When the set time has run out, "End" will show in the display

(Fig. 7), and 3 beeps every 60 seconds will sound until

is pressed.

To cancel the Kitchen Timer before the set time has

run out:

Press _. The display will return to the time of day.

Figure 5

Figure 6

Figure 7

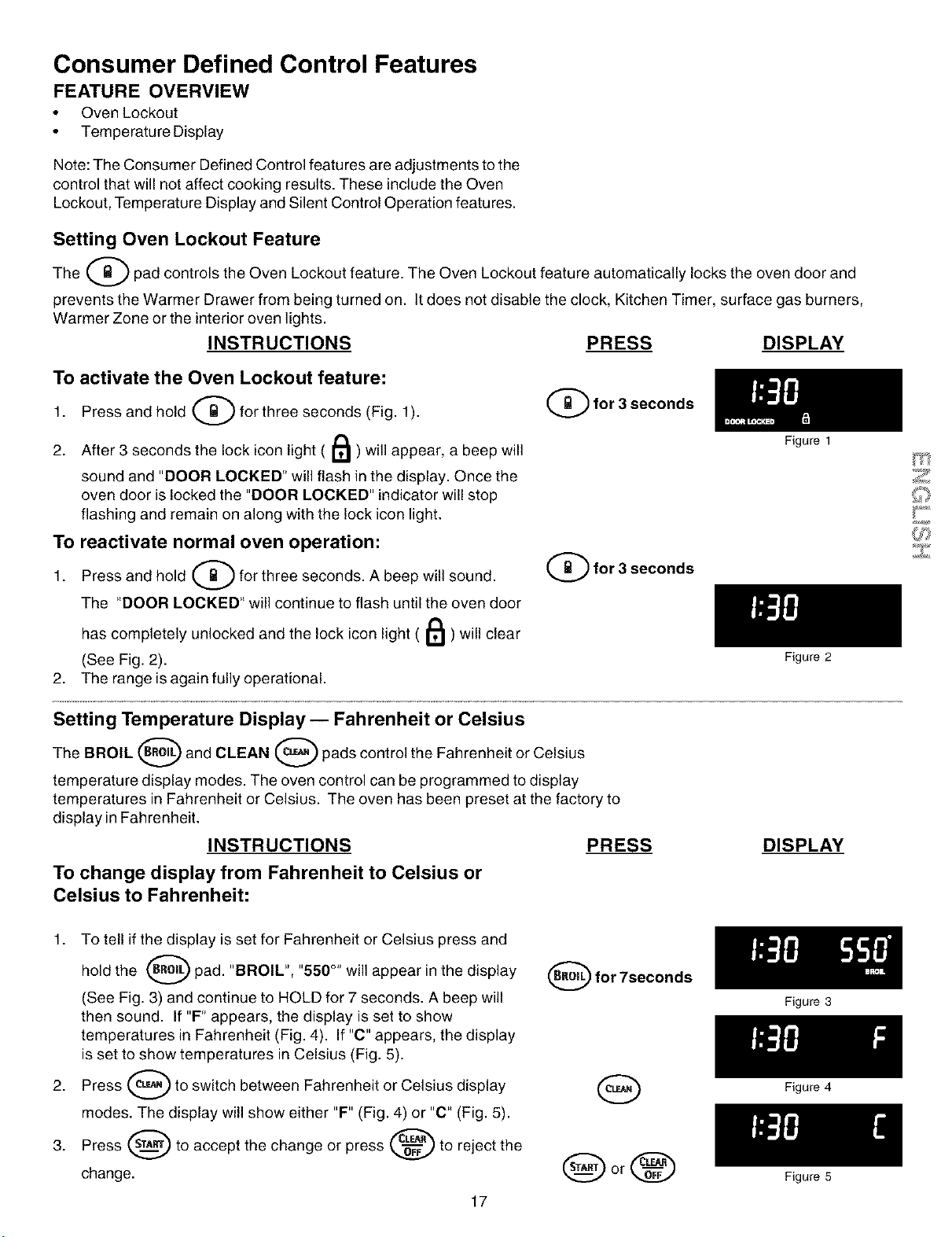

Consumer Defined Control Features

FEATURE OVERVIEW

• Oven Lockout

• Temperature Display

Note: The Consumer Defined Control features are adjustments to the

control that will not affect cooking results. These includethe Oven

Lockout, Temperature Display and Silent Control Operation features.

Setting Oven Lockout Feature

The (_ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door and

prevents the Warmer Drawer from being turned on. It does not disable the clock, Kitchen Timer, surface gas burners,

Warmer Zone or the interior oven lights.

INSTRUCTIONS PRESS DISPLAY

To activate the Oven Lockout feature:

1. Press and hold (_ for three seconds (Fig. 1).

2. After 3 seconds the lock icon light ( I1_ ) will appear, a beep will

sound and "DOOR LOCKED " will flash in the display. Once the

oven door is locked the "DOOR LOCKED" indicator will stop

flashing and remain on along with the lock icon light.

TO reactivate normal oven operation:

1. Press and hold (_ for three seconds. A beep will sound.

The "DOOR LOCKED" will continue to flash until the oven door

has completely unlocked and the lock icon light ( I1_ ) will clear

(See Fig. 2).

2. The range is again fully operational.

(_for 3 seconds

Figure 1

Figure 2

Setting Temperature Display -- Fahrenheit or Celsius

The BROIL (_ and CLEAN (_) pads control the Fahrenheit or Celsius

temperature display modes. The oven control can be programmed to display

temperatures in Fahrenheit or Celsius. The oven has been preset at the factory to

display in Fahrenheit.

INSTRUCTIONS PRESS

To change display from Fahrenheit to Celsius or

Celsius to Fahrenheit:

DISPLAY

1. To tell if the display is set for Fahrenheit or Celsius press and

hold the (_) pad. "BROIL", "550°" will appear in the display

(See Fig. 3) and continue to HOLD for 7 seconds. A beep will

then sound. If "F" appears, the display is set to show

temperatures in Fahrenheit (Fig. 4). If "C" appears, the display

is set to show temperatures in Celsius (Fig. 5).

2. Press (_) to switch between Fahrenheit or Celsius display

modes. The display will show either "F" (Fig. 4) or "C" (Fig. 5).

3. Press _ to accept the change or press _ to reject the

change.

(_for7seconds

Figure 3

Figure 4

Figure 5

Consumer

Defined Control

Features

FEATURE

OVERVIEW

• Silent Control

Operation

TIMED OVEN

TIMER

ON/OFF ON/OFF

FOOD _ATEGORIES

Setting Silent Control Operation

The STOP TIME @ and CLEAN (_ pads control the Silent Control operation feature. The Silent Control operation

feature allows the oven control to be operated without sounds or beeps whenever necessary. If desired the control can be

programmed for silent operation and later returned to operating with all the normal sounds and beeps.

INSTRUCTIONS PRESS DISPLAY

To change control from normal sound operation to

silent control operation:

1. To tell ifyour range is set for normal or silent operation press

and hold @ for 7 seconds. "DELAY" will appear and flash

in the display (Fig. 1). If ":SP" appears (Fig. 2), the control will

operate with normal sounds and beeps. If ":- -" appears (Fig.3),

the control is in the silent operation mode.

2. Press _ to switch between normal sound operation and

silent operation mode. The display will show either ":SP" (Fig. 2)

or ":--" (Fig. 3).

for 7seconds

4. Press _ to accept the change or press _ to reject the

change.

Figure 1

Figure 2

Figure 3

Setting Oven Controls

FEATURE OVERVIEW

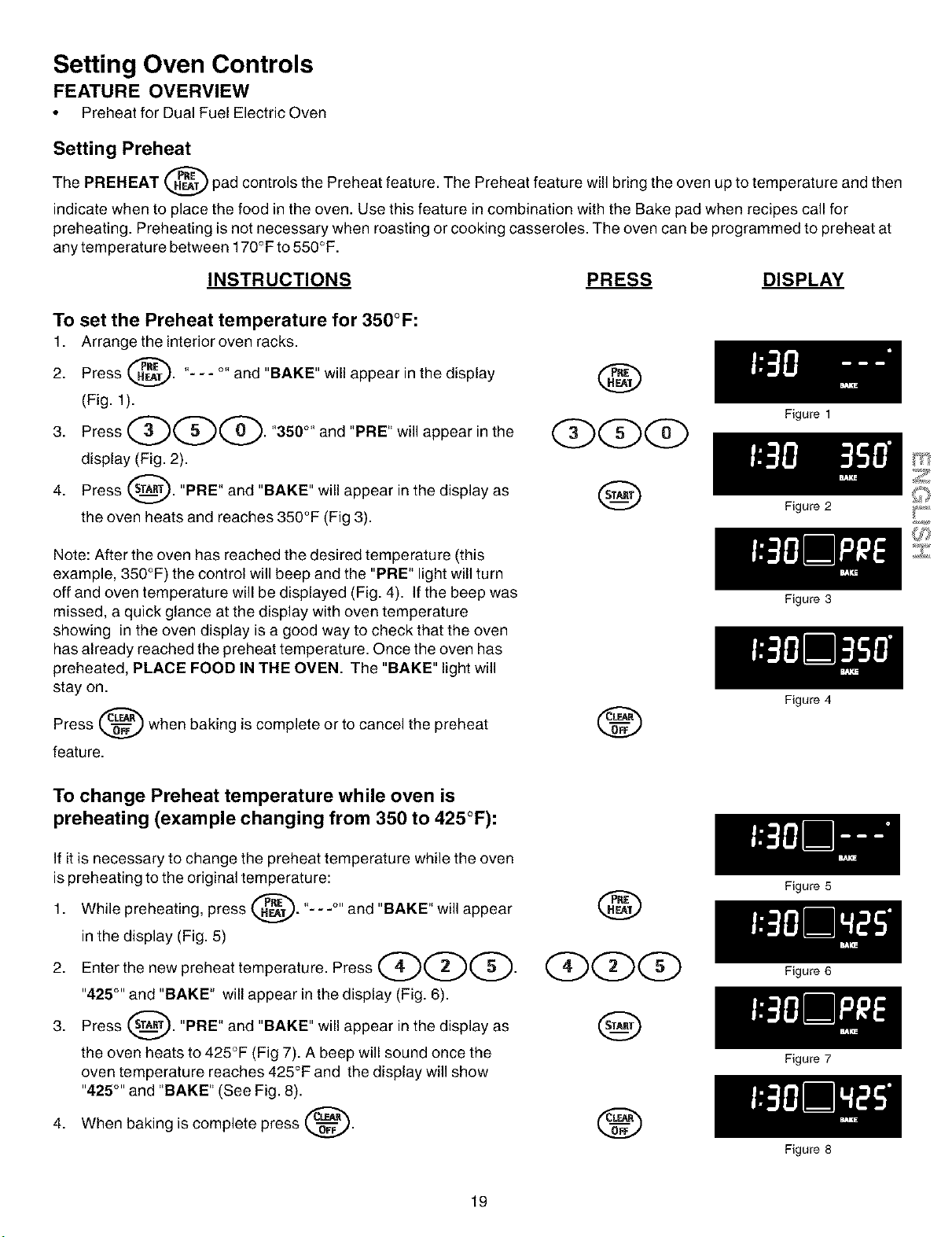

• Preheat for Dual Fuel Electric Oven

Setting Preheat

The PREHEAT _ pad controls the Preheat feature. The Preheat feature will bring the oven up to temperature and then

indicate when to place the food in the oven. Use this feature in combination with the Bake pad when recipes call for

preheating. Preheating is not necessary when roasting or cooking casseroles. The oven can be programmed to preheat at

any temperature between 170°F to 550°F.

INSTRUCTIONS PRESS DISPLAY

To set the Preheat temperature for 350°F:

1. Arrange the interioroven racks.

2. Press _. "- - - °" and "BAKE" will appear in the display

(Fig. 1).

3. Press 3_(_ 0___. "350 °`' and "PRE" will appear in the

display (Fig. 2).

4. Press sT___. "PRE" and "BAKE" will appear in the display as

the oven heats and reaches 350°F (Fig 3).

Figure 1

Note: After the oven has reached the desired temperature (this

example, 350°F) the control will beep and the "PRE" light will turn

off and oven temperature will be displayed (Fig. 4). If the beep was

missed, a quick glance at the display with oven temperature

showing in the oven display is a good way to check that the oven

has already reached the preheat temperature. Once the oven has

preheated, PLACE FOOD IN THE OVEN. The "BAKE" light will

stay on.

Press _ when baking iscomplete or to cancel the preheat

feature.

Figure 2

To change Preheat temperature while oven is

preheating (example changing from 350 to 425°F):

If itis necessary to change the preheat temperature while the oven

is preheating to the original temperature:

1. While preheating, press _. "- - -°" and "BAKE" will appear

in the display (Fig. 5)

2. Enter the new preheat temperature. Press __.

"425°'' and "BAKE" will appear in the display (Fig. 6).

3. Press _. "PRE" and "BAKE" will appear in the display as

the oven heats to 425°F (Fig 7). A beep will sound once the

oven temperature reaches 425°F and the display will show

"425°'' and "BAKE" (See Fig. 8).

4. When baking is complete press _.

(Z)(Z)(Z)

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Setting Oven

Controls

FEATURE

OVERVIEW

• Bake

TIMED OVEN

TIMER

ON/OFF ON/OFF

FOOD _ATEGORIES

)

Setting Bake

The BAKE _ pad controls normal baking. If preheating is necessary, refer to the @ Preheat Feature for

instructions. The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is

for350°F).

INSTRUCTIONS PRESS DISPLAY

To set the Bake Temperature to 350°F:

1. Arrange interior oven racks and place food in oven.

2. Press (_, "- - - °" will appear in the display (Fig. 1).

3. Press _ @ @ (Fig. 2). "BAKE" will flash and

"350°" will appear inthe display.

4. Press _. A beep will sound once the oven temperature

reaches 350° Fand the display will show "350°" and "BAKE"

(Fig. 3).

Pressing _ will cancel the Bake feature at any time.

To change the Bake Temperature (example changing

from 350 ° to 425°F):

1. After the oven has already been set to bake at 350°F and the

oven temperature needs to be changed to 425°F, press

(Fig.4) and "- - - ° "will show in the display.

2. Press @ O @ (Fig. 5). "BAKE" flashes and "425°"

will appear in the display.

3. Press _. "BAKE" and "425°" will appear in the display

(See Fig 6).

cZ> Z)cZ)

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Setting Oven Controls

FEATURE OVERVIEW

• Timed Bake

Setting Timed Bake

The BAKE _ and OVEN COOK TIME

pads control the Timed Bake feature. The automatic timer of the Timed

Bake feature will turn the oven OFF at the time you select in advance.

INSTRUCTIONS PRESS DISPLAY

To program the oven to begin baking immediately

and to shut off automatically: (example below to

bake at 350°F for 50 minutes):

1. Be sure the clock is set for the correct time of day.

2. Arrange interior oven rack(s) and place the food in the oven.

3. Press 8A____._,,,... o- will appear in the display (Fig. 1).

4 PressO G Q Fig2/"BAKE"w,,f,ashand

"350°" will appear inthe display.

5. Press _. "BAKE" and "350 °" will appear in the display

(See Fig. 3).

6. Press _k_,)- "TIMED" will flash; "BAKE", "0:00" and

"350 °" will appear in the display (Fig.4).

7. Enter the desired baking time by pressing _ 0_.

"TIMED" will flash and "BAKE", ":50" and "350 °'' will appear in

the display (Fig. 5). Note: Baking time can be set for any

amount of time between 1 minute to 11 hours and 59 minutes.

8. Press _. Both the "TIMED" and "BAKE" icons will remain

on in the display (Fig. 6). Once the Timed Bake feature has

started, the current time of day will appear in the display.

Note: After the Timed Bake feature has activated, press _ to

display the bake time remaining in the Timed Bake mode. Once

Timed Bake has started baking, a beep will sound when the oven

temperature reaches the set temperature.

Press _ when baking iscomplete or at any time to cancel the

Timed Bake feature.

QC)Q

When the timed bake time runs out:

1. "End" will appear in the display and the oven will shut off

automatically (Fig. 7).

2. The control will beep 4 times. The control will continue to beep

3 times each minute until _ is pressed.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Use caution with the TIMED BAKE or DELAYED TIME BAKE features. Use the automatic timer when

cooking cured or frozen meats and most fruits and vegetables. Foods that can easily spoil such as milk, eggs, fish, meat

or poultry, should be chilled inthe refrigerator first. Even when chilled, they should not stand in the oven for more than 1

hour before cooking begins, and should be removed promptly when cooking is completed. Eating spoiled food can result in

sickness from food poisoning.

Setting Oven Controls

FEATURE OVERVIEW

• Delayed Time Bake

Setting Delayed Time Bake

@ pads control the Delayed Time Bake feature. TheThe BAKE (_, OVEN COOK TIME _ and STOP TIME

automatic timer of the Delayed Time Bake will turn the oven on and off at the time you select in advance.

INSTRUCTIONS

To program the oven for a delayed bake start time and

to shut off automatically (example for baking at 350°F

for 50 minutes and finishing at 5:30):

PRESS DISPLAY

1. Be sure that the clock is set with the correct time of day.

2. Arrange interior oven rack(s) and place the food inthe oven.

3. Press _. "-- -°" will appear in the display (Fig. 1). (_

4. Press_@(Fig. 2). "BAKE" willflash and "350 °'' O__

will appear in the display.

5. Press ____. "BAKE" and "350 °'' willappear in the display (See

Fig. 3).

6. Press _k,,_J- "TIMED" will flash; "BAKE", "0:00" and "350 °" will

appear in the display (Fig.4).

7. Enter the desired baking time using the number pads by pressing

Q@. •......... CxZ)

"TIMED" willflash, BAKE , .50 and "350°" will

appear in the display (Fig. 5). Note: Baking time can be set for any

amount of time from 1 minute to 11 hours and 59 minutes.

8 Press _. "TIMED", "BAKE" and "350°" will show (Fig.6).

9. Press @. Enter the desired stop time using the number pads

Q Q (Z> P,0.7/. QQQ

10. Press _. When Delayed Time Bake starts, the set oven

temperature will disappear, "TIMED DELAY", "BAKE" and the

current time of time of day will appear in the display (Fig. 8).

Note: Once Delayed Time Bake has started, press @ to display

the bake time remaining. Once the Delayed Timed Bake has started

baking, a beep will sound when the oven temperature reaches the set

temperature.

Press _ when baking has completed or at any time to cancel the

Delayed Time Bake feature.

When the set bake time runs out:

1. "End" will appear in the display and the oven will shut off

automatically (Fig. 9).

2. The control will beep 4 times. The control will continue to beep 3

times each minute until _-_') is pressed.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

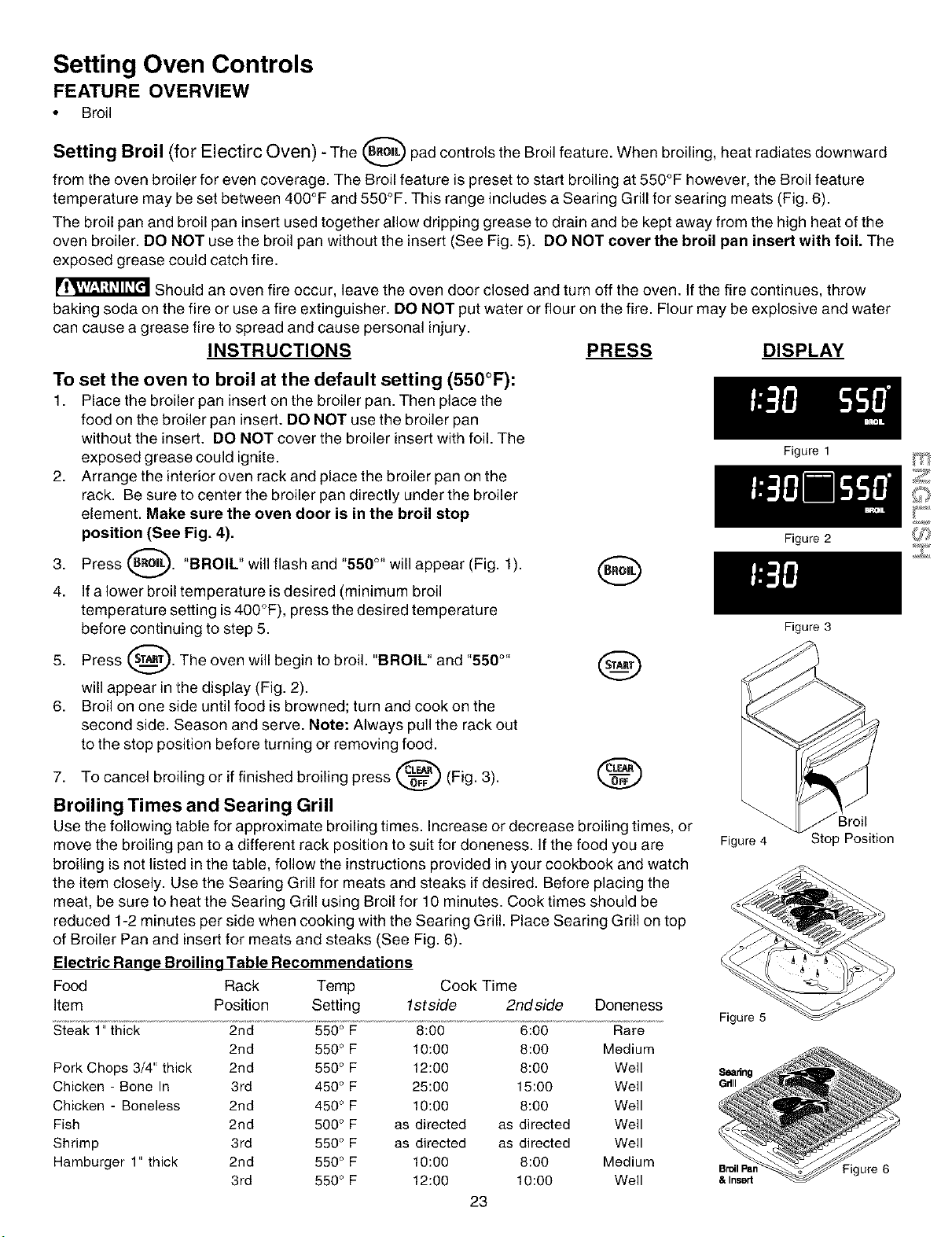

Setting Oven Controls

FEATURE OVERVIEW

• Broil

Setting Broil (for Electirc Oven) - The _ pad controls the Broil feature. When broiling, heat radiates downward

from the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature

temperature may be set between 40O°F and 550°F. This range includes a Searing Grill for searing meats (Fig. 6).

The broil pan and broil pan insert used together allow dripping grease to drain and be kept away from the high heat of the

oven broiler. DO NOT use the broil pan without the insert (See Fig. 5). DO NOT cover the broil pan insert with foil. The

exposed grease could catch fire.

r'l_i,_v/-,!;t_ll_[cllShould an oven fire occur, leave the oven door closed and turn off the oven. If the fire continues, throw

baking soda on the fire or use a fire extinguisher. DO NOT put water or flour on the fire. Flour may be explosive and water

can cause a grease fire to spread and cause personal injury.

INSTRUCTIONS PRESS DISPLAY

To set the oven to broil at the default setting (550°F):

1. Place the broiler pan insert on the broiler pan. Then place the

food on the broiler pan insert. DO NOT use the broiler pan

without the insert. DO NOT cover the broiler insert with foil. The

exposed grease could ignite.

2. Arrange the interior oven rack and place the broiler pan on the

rack. Be sure to center the broiler pan directly under the broiler

element. Make sure the oven door is in the broil stop

position (See Fig. 4).

3. Press (_. "BROIL _'will flash and "550°,`will appear (Fig. 1).

4. Ifa lower broil temperature is desired (minimum broil

temperature setting is 40O°F), press the desired temperature

before continuing to step 5.

5. Press _. The oven will begin to broil. "BROIL" and "550 °,'

will appear in the display (Fig. 2).

6. Broil on one side until food is browned; turn and cook on the

second side. Season and serve. Note: Always pull the rack out

to the stop position before turning or removing food.

7. TOcancel broiling or if finished broiling press _ (Fig. 3).

Broiling Times and Searing Grill

Use the following table for approximate broiling times. Increase or decrease broiling times, or

move the broiling pan to a different rack position to suit for doneness. If the food you are

broiling is not listed in the table, follow the instructions provided in your cookbook and watch

the item closely. Use the Searing Grill for meats and steaks if desired. Before placing the

meat, be sure to heat the Searing Grill using Broil for 10 minutes. Cook times should be

reduced 1-2 minutes per side when cooking with the Searing Grill. Place Searing Grill on top

of Broiler Pan and insert for meats and steaks (See Fig. 6).

Electric Range Broiling Table Recommendations

Food Rack Temp Cook Time

Item Position Setting lstside 2ndside Doneness

Steak 1" thick 2nd 550° F 8:00 6:00 Rare

2nd 550° F 10:00 8:00 Medium

Pork Chops 3/4" thick 2nd 550 ° F 12:00 8:00 Well

Chicken - Bone In 3rd 450° F 25:00 15:00 Well

Chicken - Boneless 2nd 450 ° F 10:00 8:00 Well

Fish 2nd 500° F as directed as directed Well

Shrimp 3rd 550° F as directed as directed Well

Hamburger 1" thick 2nd 550 ° F 10:00 8:00 Medium

3rd 550° F 12:00 10:00 Well

Figure 1

Figure 2

Figure 3

Broil

Figure 4 s Position

Figure 5

Seadng

Gdll

ar_l Pan :igure 6

&Insert

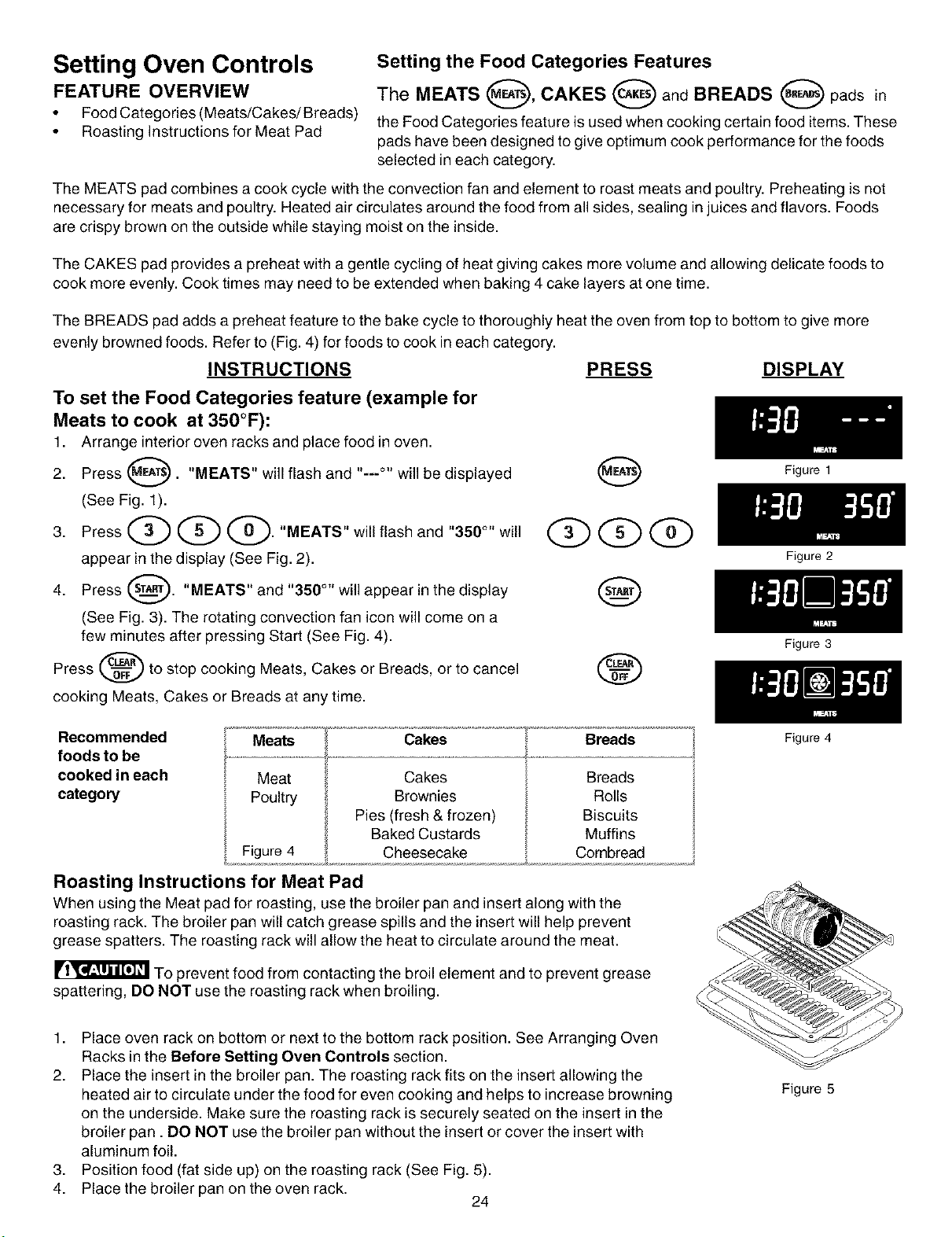

Setting Oven Controls

FEATURE OVERVIEW

• Food Categories (Meats/Cakes/Breads)

• Roasting Instructions for Meat Pad

Setting the Food Categories Features

The MEATS O' CAKES O and BREADS O pads in

the Food Categories feature is used when cooking certain food items. These

pads have been designed to give optimum cook performance for the foods

selected in each category.

The MEATS pad combines a cook cycle with the convection fan and element to roast meats and poultry. Preheating isnot

necessary for meats and poultry. Heated air circulates around the food from all sides, sealing in juices and flavors. Foods

are crispy brown on the outside while staying moist on the inside.

The CAKES pad provides a preheat with a gentle cycling of heat giving cakes more volume and allowing delicate foods to

cook more evenly. Cook times may need to be extended when baking 4 cake layers at one time.

The BREADS pad adds a preheat feature to the bake cycle to thoroughly heat the oven from top to bottom to give more

evenly browned foods. Refer to (Fig. 4) for foods to cook in each category.

INSTRUCTIONS PRESS DISPLAY

To set the Food Categories feature (example for

Meats to cook at 350°F):

1. Arrange interior oven racks and place food in oven.

2. Press O" "MEATS" will flash and "---°" will be displayed

(See Fig. 1).

3. Press _ @ @. "MEATS" will flash and "350°" will

appear in the display (See Fig. 2).

4. Press _. "MEATS" and "350 °" will appear in the display

(See Fig. 3). The rotating convection fan icon will come on a

few minutes after pressing Start (See Fig. 4).

Press _ to stop cooking Meats, Cakes or Breads, or to cancel

cooking Meats, Cakes or Breads at any time.

QQG

Recommended

foods to be

cooked in each

category

Meats Cakes

Meat Cakes

Poultry Brownies

Pies (fresh & frozen)

Baked Custards

Breads

Rolls

Biscuits

Muffins

Roasting Instructions for Meat Pad

When using the Meat pad for roasting, use the broiler pan and insert along with the

roasting rack. The broiler pan will catch grease spills and the insert will help prevent

grease spatters. The roasting rack will allow the heat to circulate around the meat.

To prevent food from contacting the broil element and to prevent grease

spattering, DO NOT use the roasting rack when broiling.

1. Place oven rack on bottom or next to the bottom rack position. See Arranging Oven

Racks in the Before Setting Oven Controls section.

2. Place the insert in the broiler pan. The roasting rack fits on the insert allowing the

heated air to circulate under the food for even cooking and helps to increase browning

on the underside. Make sure the roasting rack is securely seated on the insert in the

broiler pan. DO NOT use the broiler pan without the insert or cover the insert with

aluminum foil.

3. Position food (fat side up) on the roasting rack (See Fig. 5).

4. Place the broiler pan on the oven rack.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Setting Oven Controls

FEATURE OVERVIEW

• Convection Bake

• Setting Convection Bake

Setting Convection Bake

Benefits of Convection Bake:

--Some foods cook up to 30% faster,

saving time and energy.

--Multiple rack baking.

--No special pans or bakeware needed.

The CONVECTION BAKE _ pad controls the Convection Bake feature.

Use the Convection Bake feature when cooking speed isdesired. The oven

can be programmed for Convection baking at any temperature between 300 ° F

(149 ° C) to 550 ° F (288 ° C).

Figure 1

Air

circulation

during

Convection

Bake

Reck

Convection baking uses a fan to circulate the oven's heat evenly and

continuously within the oven (See Figure 1). This improved heat distribution

allows for fast, even cooking and browning results. It also gives better baking

results when using 2 or 3 racks at the same time. Breads and pastries brown

more evenly. Most foods cooked in a standard oven will cook faster and more

evenly with Convection Bake.

General Convection Bake Instructions Figure 2

1. When using Convection Bake, decrease your normal cooking times as shown on page 37. Adjust the cook time for

desired doneness as needed. Time reductions will vary depending on the amount and type of food to be cooked.

Cookies and biscuits should be baked on pans with no sides or very low sides to allow heated air to circulate around

the food. Food baked on pans with a dark finish will cook faster.

2. Preheating is not necessary when cooking casseroles with Convection Bake.

3. When using Convection Bake with a single rack, place oven rack in position 3 or 4. If cooking on multiple racks, place

the oven racks in positions 1,3 and 5 (for 3 racks) and positions 2 and 4 (for 2 racks; See Fig. 2).

4. Cakes have better results when baked with the Cake pad in the Food Categories feature.

INSTRUCTIONS PRESS DISPLAY

To set the oven for Convection Bake and

temperature to 350°F:

1. Arrange interior oven racks and place food in oven.

2. Press @. "CONV BAKE" willflash and "- - -°" will appear

in the display (Fig. 3).

3. Press__."CONVBAKE"and "350°"will

appear in the display (Fig. 4).

4. Press_. "CONV BAKE" and "PRE" will appear in the

display (Fig. 5) until the oven reaches 350 ° F. A beep will sound

once the oven temperature reaches 350° F and the display will

show "350 °", "CONV BAKE" and the fan icon (Fig. 6).

QQ@

Note: The convection fan will start as soon as the oven has been

set for Convection Bake. The oven icon will show a rotating fan

within the square (See Fig 6). This rotating fan icon indicates when

the Convection Fan is operating. If the oven door is opened during

operation, the Convection Fan will turn off and will turn on again

once the oven door is closed.

Press _ to stop Convection Bake or cancel Convection Bake

at any time.

Figure 3

Figure 4

Figure 5

Figure 6

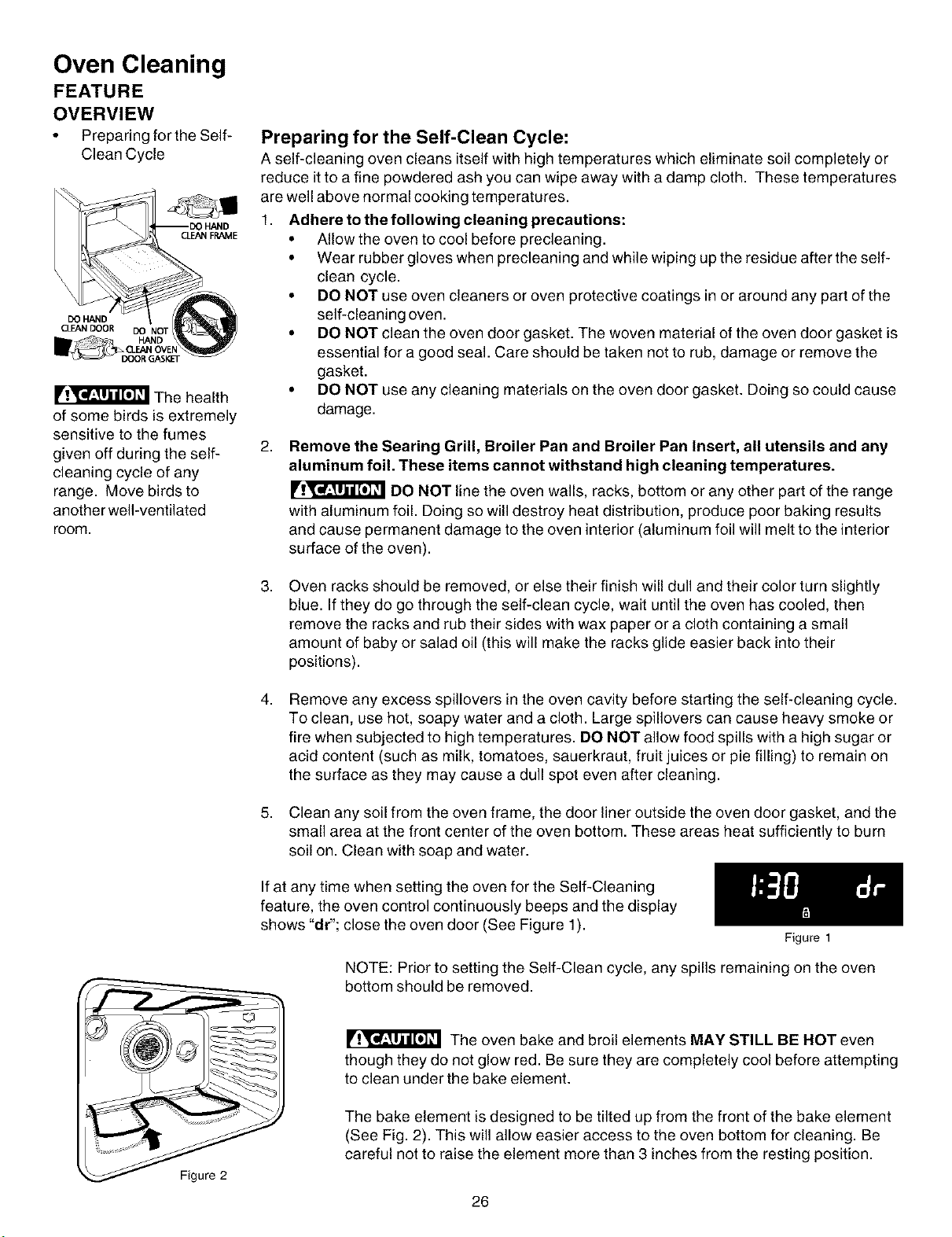

Oven Cleaning

FEATURE

OVERVIEW

• Preparing for the Self-

Clean Cycle

Ir_[==!_l'_ The health

of some birds is extremely

sensitive to the fumes

given off during the self-

cleaning cycle of any

range. Move birdsto

another well-ventilated

room.

Preparing for the Self-Clean Cycle:

A self-cleaning oven cleans itself with high temperatures which eliminate soil completely or

reduce it to a fine powdered ash you can wipe away with a damp cloth. These temperatures

are well above normal cooking temperatures.

1. Adhere to the following cleaning precautions:

• Allow the oven to cool before precleaning.

• Wear rubber gloves when precleaning and while wiping up the residue after the self-

clean cycle.

• DO NOT use oven cleaners or oven protective coatings in or around any part of the

self-cleaning oven.

• DO NOT clean the oven door gasket. The woven material of the oven door gasket is

essential for a good seal. Care should be taken not to rub, damage or remove the

gasket.

• DO NOT use any cleaning materials on the oven door gasket. Doing so could cause

damage.

Remove the Searing Grill, Broiler Pan and Broiler Pan Insert, all utensils and any

aluminum foil. These items cannot withstand high cleaning temperatures.

DO NOT line the oven walls, racks, bottom or any other part of the range

with aluminum foil. Doing so will destroy heat distribution, produce poor baking results

and cause permanent damage to the oven interior (aluminum foil will melt to the interior

surface of the oven).

Oven racks should be removed, or else their finish will dull and their color turn slightly

blue. If they do go through the self-clean cycle, wait until the oven has cooled, then

remove the racks and rub their sides with wax paper or a cloth containing a small

amount of baby or salad oil (this will make the racks glide easier back into their

positions).

Remove any excess spillovers in the oven cavity before starting the self-cleaning cycle.

To clean, use hot, soapy water and a cloth. Large spillovers can cause heavy smoke or

fire when subjected to high temperatures. DO NOT allow food spills with a high sugar or

acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on

the surface as they may cause a dull spot even after cleaning.

5. Clean any soil from the oven frame, the door liner outside the oven door gasket, and the

small area at the front center of the oven bottom. These areas heat sufficiently to burn

soil on. Clean with soap and water.

If at any time when setting the oven for the Self-Cleaning

feature, the oven control continuously beeps and the display

shows "dr"; close the oven door (See Figure 1).

Figure 1

NOTE: Prior to setting the Self-Clean cycle, any spills remaining on the oven

bottom should be removed.

The oven bake and broil elements MAY STILL BE HOT even

though they do not glow red. Be sure they are completely cool before attempting

to clean under the bake element.

The bake element is designed to be tilted up from the front of the bake element

(See Fig. 2). This will allow easier access to the oven bottom for cleaning. Be

careful not to raise the element more than 3 inches from the resting position.

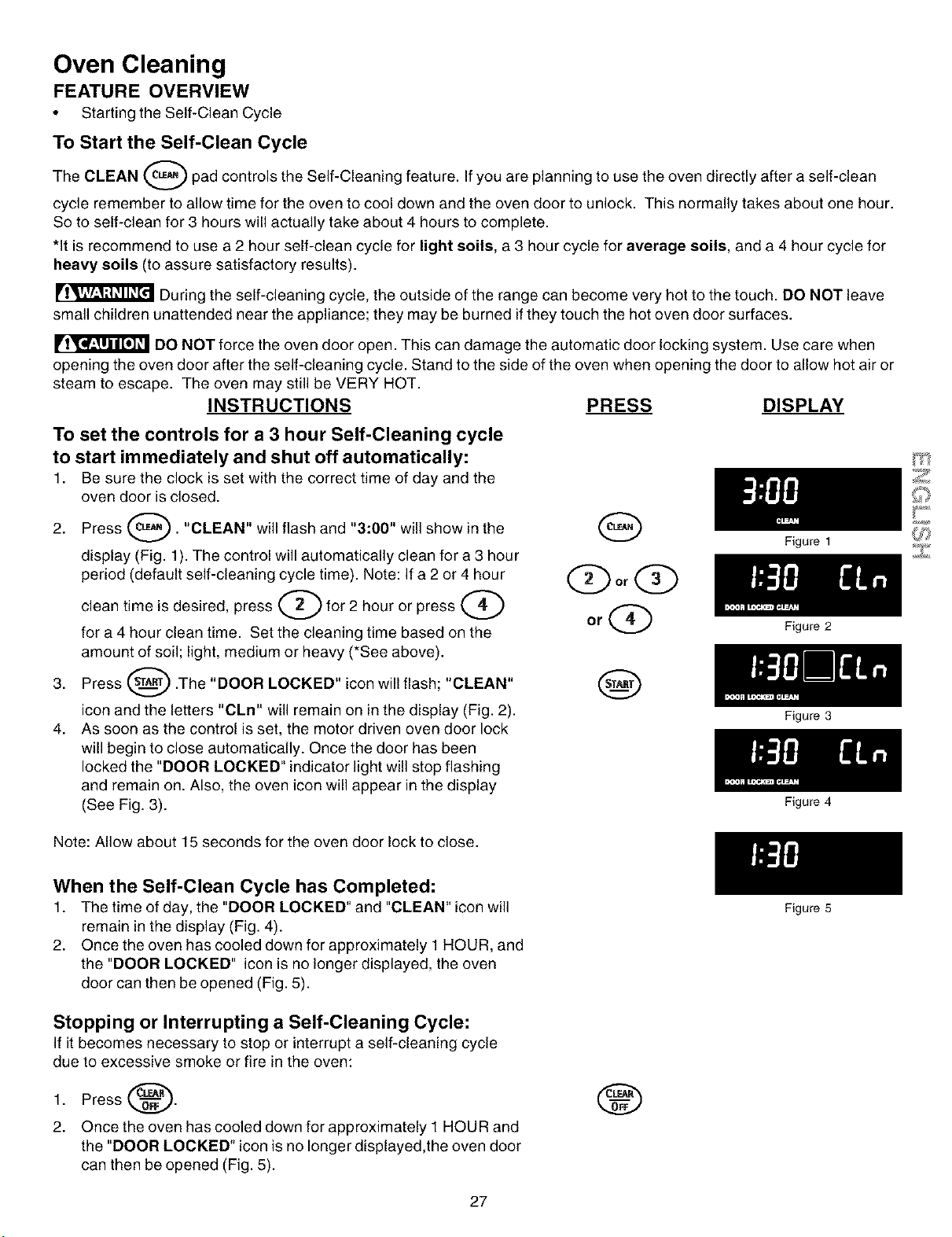

Oven Cleaning

FEATURE OVERVIEW

• Starting the Self-Clean Cycle

To Start the Self-Clean Cycle

The CLEAN (_ pad controls the Self-Cleaning feature. If you are planning to use the oven directly after a self-clean

cycle remember to allow time for the oven to cool down and the oven door to unlock. This normally takes about one hour.

So to self-clean for 3 hours will actually take about 4 hours to complete.

*It is recommend to use a 2 hour self-clean cycle for light soils, a 3 hour cycle for average soils, and a 4 hour cycle for

heavy soils (to assure satisfactory results).

_I'w-'I;t#11_[I During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave

small children unattended near the appliance; they may be burned ifthey touch the hot oven door surfaces.

DO NOT force the oven door open. This can damage the automatic door locking system. Use care when

opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or

steam to escape. The oven may still be VERY HOT.

INSTRUCTIONS PRESS DISPLAY

To set the controls for a 3 hour Self-Cleaning cycle

to start immediately and shut off automatically:

1. Be sure the clock is set with the correct time of day and the

oven door is closed.

2. Press G" "CLEAN" will flash and "3:00" will show inthe

display (Fig. 1). The control will automatically clean for a 3 hour

period (default self-cleaning cycle time). Note: If a 2 or 4 hour

clean time is desired, press 2_ for 2 hour or press

for a 4 hour clean time. Set the cleaning time based on the

amount of soil; light, medium or heavy (*See above).

3. Press _ .The "DOOR LOCKED" icon will flash; "CLEAN"

icon and the letters "CLn" will remain on in the display (Fig. 2).

4. As soon as the control is set, the motor driven oven door lock

will begin to close automatically. Once the door has been

locked the "DOOR LOCKED" indicator light will stop flashing

and remain on. Also, the oven icon will appear in the display

(See Fig. 3).

OorQ

Note: Allow about 15 seconds for the oven door lock to close.

When the Self-Clean Cycle has Completed:

1. The time of day, the "DOOR LOCKED" and "CLEAN" iconwill

remain in the display (Fig. 4).

2. Once the oven has cooled down for approximately 1 HOUR, and

the "DOOR LOCKED" icon is no longer displayed, the oven

door can then be opened (Fig. 5).

Stopping or Interrupting a Self-Cleaning Cycle:

If it becomes necessary to stop or interrupt a self-cleaning cycle

due to excessive smoke or fire in the oven:

Press _.

Once the oven has cooled down for approximately 1 HOUR and

the "DOOR LOCKED" icon is no longer displayed,the oven door

can then be opened (Fig. 5).

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

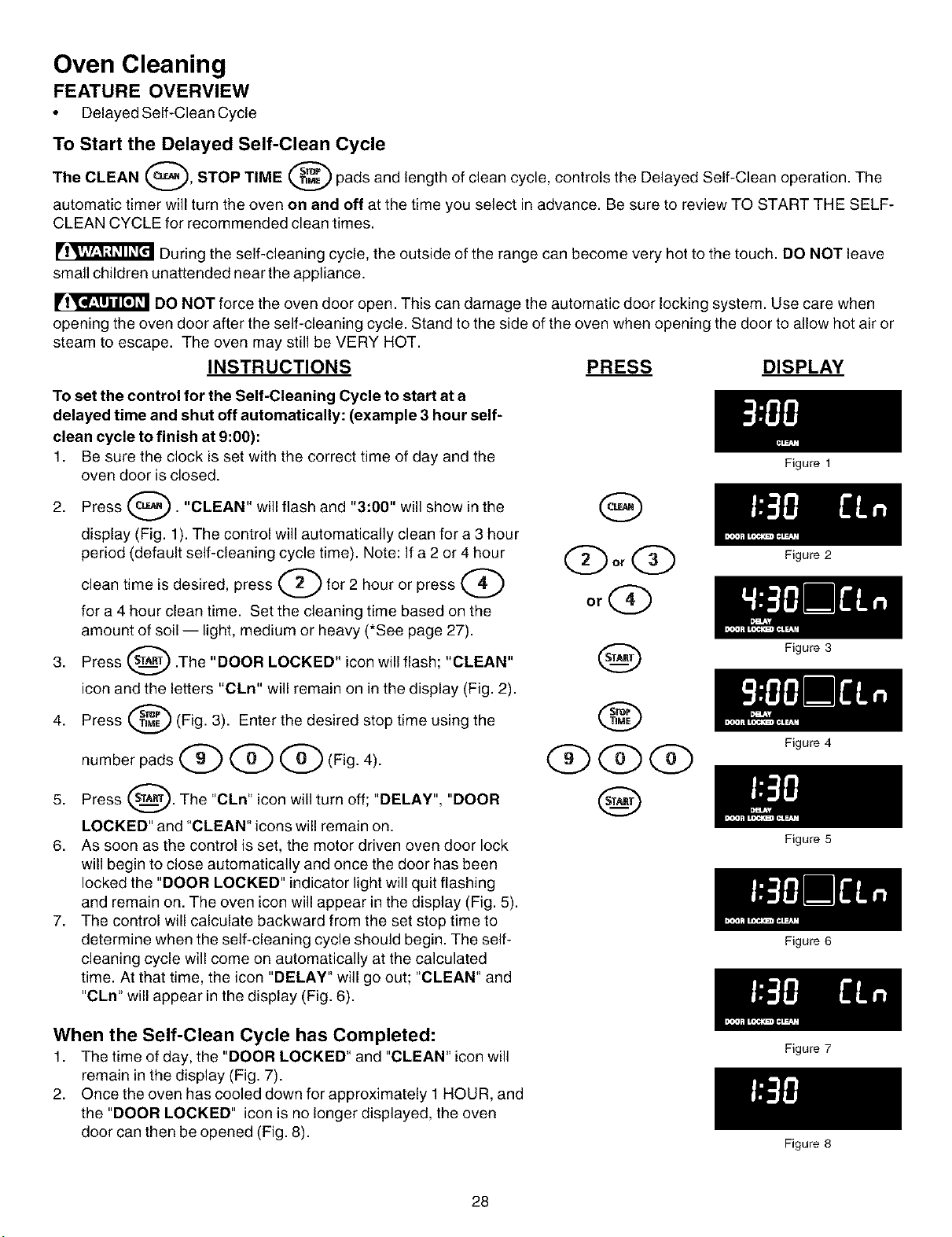

Oven Cleaning

FEATURE OVERVIEW

• Delayed Self-Clean Cycle

To Start the Delayed Self-Clean Cycle

The CLEAN (_), STOP TIME _ pads and length of clean cycle, controls the Delayed Self-Clean operation. The

automatic timer will turn the oven on and off at the time you select in advance. Be sure to review TO START THE SELF-

CLEAN CYCLE for recommended clean times.

_l'v+v-'1:t#ll_[1 During the self-cleaning cycle, the outside of the range can become very hot to the touch. DO NOT leave

small children unattended near the appliance.

[Irt_ DO NOT force the oven door open. This can damage the automatic door locking system. Use care when

opening the oven door after the self-cleaning cycle. Stand to the side of the oven when opening the door to allow hot air or

steam to escape. The oven may still be VERY HOT.

INSTRUCTIONS PRESS DISPLAY

To set the control for the Self-Cleaning Cycle to start at a

delayed time and shut off automatically: (example 3 hour self-

clean cycle to finish at 9:00):

1. Be sure the clock is set with the correct time of day and the

oven door is closed.

2. Press G" "CLEAN" will flash and "3:00" will show inthe

display (Fig. 1). The control will automatically clean for a 3 hour

period (default self-cleaning cycle time). Note: If a 2 or 4 hour

clean time is desired, press 2_ for 2 hour or press

for a 4 hour clean time. Set the cleaning time based on the

amount of soil -- light, medium or heavy (*See page 27).

3. Press _ .The "DOOR LOCKED" icon will flash; "CLEAN"

icon and the letters "CLn" will remain on in the display (Fig. 2).

4. Press _ (Fig. 3). Enter the desired stop time using the

oumberpadsC) @ @ P,g+>

5. Press _. The "CLn" icon will turn off; "DELAY", "DOOR

LOCKED" and "CLEAN" icons will remain on.

6. As soon as the control is set, the motor driven oven door lock

will begin to close automatically and once the door has been

locked the "DOOR LOCKED" indicator light will quit flashing

and remain on. The oven icon will appear in the display (Fig. 5).

7. The control will calculate backward from the set stop time to

determine when the self-cleaning cycle should begin. The self-

cleaning cycle will come on automatically at the calculated

time. At that time, the icon "DELAY" will go out; "CLEAN" and

"CLn" will appear in the display (Fig. 6).

O°rO

When the Self-Clean Cycle has Completed:

t. The time of day, the "DOOR LOCKED" and "CLEAN" iconwill

remain in the display (Fig. 7).

2. Once the oven has cooled down for approximately 1 HOUR, and

the "DOOR LOCKED" icon is no longer displayed, the oven

door can then be opened (Fig. 8).

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Oven Cleaning

FEATURE OVERVIEW

• Delayed Self-Clean Cycle (Cont'd)

INSTRUCTIONS

Stopping or Interrupting a Self-Cleaning Cycle:

If it becomes necessary to stop or interrupt a self-cleaning cycle

due to excessive smoke or fire in the oven:

1. Press _.

2. Once the oven has cooled down for approximately 1 HOUR and

the "DOOR LOCKED" icon is no longer displayed, the oven

door can then be opened (Fig. 2-1).

PRESS DISPLAY

Adjusting Oven Temperature

FEATURE OVERVIEW

The temperature in the oven has been pre-set at the factory. When first using the oven, be

sure to follow recipe times and temperatures. If you think the oven is too hot or too cool, the

temperature in the oven can be adjusted. Before adjusting, test a recipe by using a

temperature setting that is higher or lower than the recommended temperature. The baking

results should help you to decide how much of an adjustment is needed.

INSTRUCTIONS PRESS

To adjust the oven temperature higher:

1. Press _ for 6 seconds (Fig. l).

2. To increase the temperature use the number pads to enter the

desired change. (Example 30°F) _ _ (Fig. 2). The _

temperature may be increased as much as 35°F (17°C).

3. Press _ to accept the temperature change and the display

will return to the time of day (Fig. 3). Press _ to reject the

change if necessary.

To adjust the oven temperature lower:

1. Press (_ for 6 seconds (Fig. 4). (_

2. TOdecrease the temperature use the number pads to enter the

desired change. (Example -30°F) (_) _ and then (_(_

press (_ (Fig. 5). The temperature may be decreased as

much as 35°F (17°C).

3. Press _ to accept the temperature change and the display

will return to the time of day (Fig. 6). Press _ to reject the _

Figure 2-1

Note: The oven

temperature adjustments

made with this feature will

not change the Self-Clean

cycle temperature.

DISPLAY

change if necessary.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

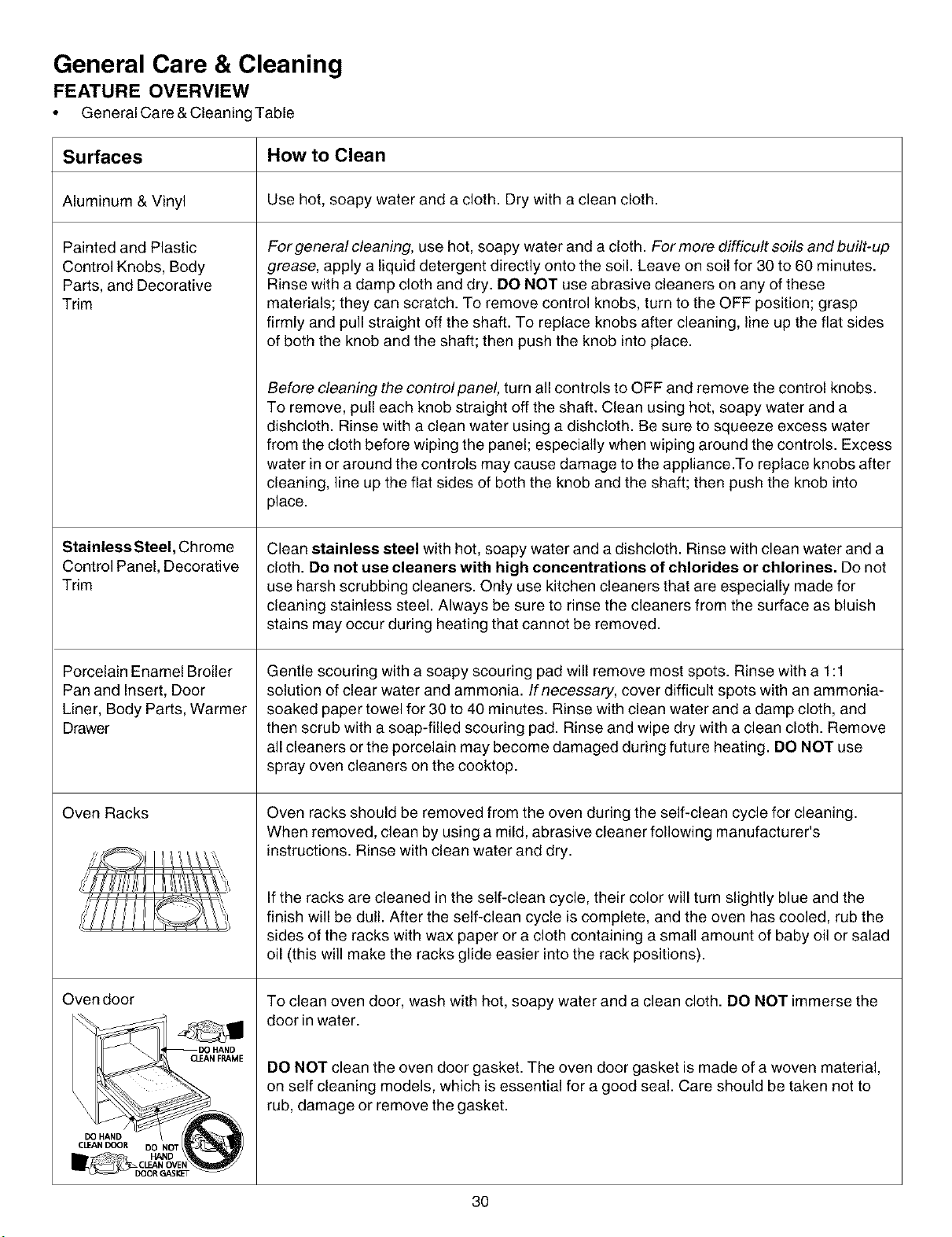

General Care & Cleaning

FEATURE OVERVIEW

• General Care & Cleaning Table

Surfaces How to Clean

Aluminum & Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.

Painted and Plastic

Control Knobs, Body

Parts, and Decorative

Trim

Stainless Steel, Chrome

Control Panel, Decorative

Trim

Porcelain Enamel Broiler

Pan and Insert, Door

Liner, Body Parts, Warmer

Drawer

Oven Racks

Ovendoor

_ CLEANFRAME

For general cleaning, use hot, soapy water and a cloth. For mere difficult soils and built-up

grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60 minutes.

Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of these

materials; they can scratch. To remove control knobs, turn to the OFF position; grasp

firmly and pull straight off the shaft. To replace knobs after cleaning, line up the flat sides

of both the knob and the shaft; then push the knob into place.

Before cleaning the controlpanel, turn all controls to OFF and remove the control knobs.

To remove, pull each knob straight off the shaft. Clean using hot, soapy water and a

dishcloth. Rinse with a clean water using a dishcloth. Be sure to squeeze excess water

from the cloth before wiping the panel; especially when wiping around the controls. Excess

water in or around the controls may cause damage to the appliance.To replace knobs after

cleaning, line up the flat sides of both the knob and the shaft; then push the knob into

place.

Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a

cloth. Do not use cleaners with high concentrations of chlorides or chlorines. Do not

use harsh scrubbing cleaners. Only use kitchen cleaners that are especially made for

cleaning stainless steel. Always be sure to rinse the cleaners from the surface as bluish

stains may occur during heating that cannot be removed.

Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1

solution of clear water and ammonia. If necessary, cover difficult spots with an ammonia-

soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp cloth, and

then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove

all cleaners or the porcelain may become damaged during future heating. DO NOT use

spray oven cleaners on the cooktop.

Oven racks should be removed from the oven during the self-clean cycle for cleaning.

When removed, clean by using a mild, abrasive cleaner following manufacturer's

instructions. Rinse with clean water and dry.

If the racks are cleaned in the self-clean cycle, their color will turn slightly blue and the

finish will be dull. After the self-clean cycle is complete, and the oven has cooled, rub the

sides of the racks with wax paper or a cloth containing a small amount of baby oil or salad

oil (this will make the racks glide easier into the rack positions).

To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the

door in water.

DO NOT clean the oven door gasket. The oven door gasket is made of a woven material,

on self cleaning models, which isessential for a good seal. Care should be taken not to

rub, damage or remove the gasket.

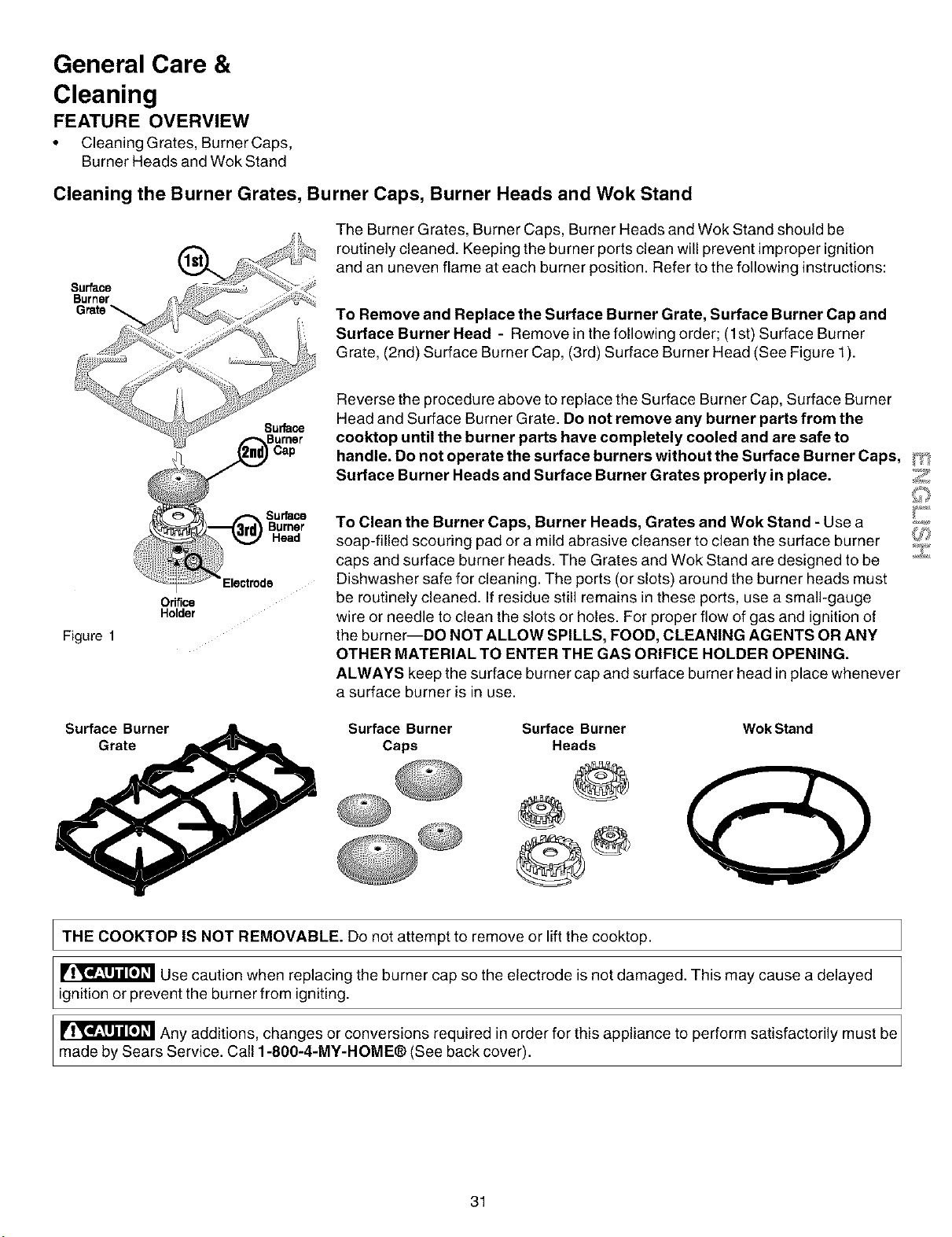

General Care &

Cleaning

FEATURE OVERVIEW

• Cleaning Grates, Burner Caps,

Burner Heads and Wok Stand

Cleaning the Burner Grates, Burner Caps, Burner Heads and Wok Stand

Surface

Burner

Surface

The Burner Grates, Burner Caps, Burner Heads and Wok Stand should be

routinely cleaned. Keeping the burner ports clean will prevent improper ignition

and an uneven flame at each burner position. Refer to the following instructions:

To Remove and Replace the Surface Burner Grate, Surface Burner Cap and

Surface Burner Head - Remove in the following order; (1st) Surface Burner

Grate, (2nd) Surface Burner Cap, (3rd) Surface Burner Head (See Figure 1).

Reverse the procedure above to replace the Surface Burner Cap, Surface Burner

Head and Surface Burner Grate. Do not remove any burner parts from the

cooktop until the burner parts have completely cooled and are safe to

handle. Do not operate the surface burners without the Surface Burner Caps, _1_

Surface Burner Heads and Surface Burner Grates properly in place.

Figure 1

Orifice

Holder

To Clean the Burner Caps, Burner Heads, Grates and Wok Stand - Use a

soap-filled scouring pad or a mild abrasive cleanser to clean the surface burner

caps and surface burner heads. The Grates and Wok Stand are designed to be

Dishwasher safe for cleaning. The ports (or slots) around the burner heads must

be routinely cleaned. If residue still remains in these ports, use a small-gauge

wire or needle to clean the slots or holes. For proper flow of gas and ignition of

the burner--DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS OR ANY

OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER OPENING.

ALWAYS keep the surface burner cap and surface burner head in place whenever

a surface burner is in use.

Surface Burner

Grate

Surface Burner Wok Stand

Caps

Surface Burner

Heads

THE COOKTOP IS NOT REMOVABLE. Do not attempt to remove or lift the cooktop.

Use caution when replacing the burner cap so the electrode is not damaged. This may cause a delayed

ignition or prevent the burner from igniting.

Any additions, changes or conversions required in order for this appliance to perform satisfactorily must be

made by Sears Service. Call 1-800-4-MY-HOME® (See back cover).

General Care & Cleaning

FEATURE OVERVIEW

• Cooktop Cleaning & Maintenance

• Cleaning Recommendations for Ceramic Glass Cooktops

Cooktop Cleaning and Maintenance

Consistent and proper cleaning is essential to maintaining your ceramic glass cooktop.

Prior to using your cooktop for the first time, apply the recommended CookTop® Cleaning Creme (P/N 22-40079) to the

ceramic surface. Clean and buff with a paper towel or a 3M Scotch-Brite® Blue Multi-Purpose No Scratch Scrub Sponge

(see instructions below). This will make cleaning easier when soiled from cooking. The special cooktop cleaning cream

leaves a protective finish on the glass to help prevent scratches and abrasions.

Sliding aluminum or copper clad bottom pans on the cooktop can

cause metal markings on the cooktop surface. These marks should

be removed immediately after the cooktop has cooled using the

cooktop cleaning cream. Metal marks can become permanent if not

removed prior to future use.

Cookware (cast iron, metal, ceramic or glass) with rough bottoms

can mark or scratch the cooktop surface. Do not slide anything

metal or glass across the cooktop. Do not use your cooktop as a

cutting board or work surface in the kitchen. Do not cook foods

directly on the cooktop surface without a pan. Do not drop heavy or

hard objects on the glass cooktop, they may cause itto crack.

Cleaning Recommendations for the Ceramic Glass Cooktop

[Ir_[_!_'_'_ Before cleaning the cooktop, be sure the controls are turned to OFF and the cooktop is COOL.

T'!_,W-'1;t_ll`'[=llDO NOT use a cooktop cleaner on a hot cooktop. The fumes can be hazardous to your health, and can

chemically damage the ceramic-glass surface.

For light to moderate soil:

Apply a few drops of CookTop® Cleaning Creme directly to the cooktop. Use a paper towel or a 3M Scotch-Brite® Blue

Multi-Purpose No Scratch Scrub Sponge to clean the entire cooktop surface. Make sure the cooktop is cleaned thoroughly,

leaving no residue.

For heavy, burned on soil:

Apply a few drops of CookTop® Cleaning Creme directly to the soiled area. Rub the soiled area using a 3M Scotch-Brite®

Blue Multi-Purpose No Scratch Scrub Sponge, applying pressure as needed. Do not use the sponge you use to clean the

cooktop for any other purpose.

If soils remain, carefully scrape soils with a metal razor blade

scraper, holding scraper at a 30 degree angle to the surface. Remove

loosened soils with cooktop cleaning cream and buff surface clean.

Damage to the ceramic glass cooktop may occur if

you use any scrub pad other than a 3M Scotch-Brite® Blue Multi-

Purpose No Scratch Scrub Sponge.

Plastic or foods with a high sugar content:

These types of soils need be removed immediately if spilled or

melted onto the ceramic cooktop surface. Permanent damage (such

as pitting of the cooktop surface) may occur if not removed

immediately. After turning the surface elements OFF, use a razor

blade scraper or a metal spatula with a mitt and scrape the soil from

the hot surface (as illustrated). Allow the cooktop to cool, and use

the same method for heavy or burned on soils.

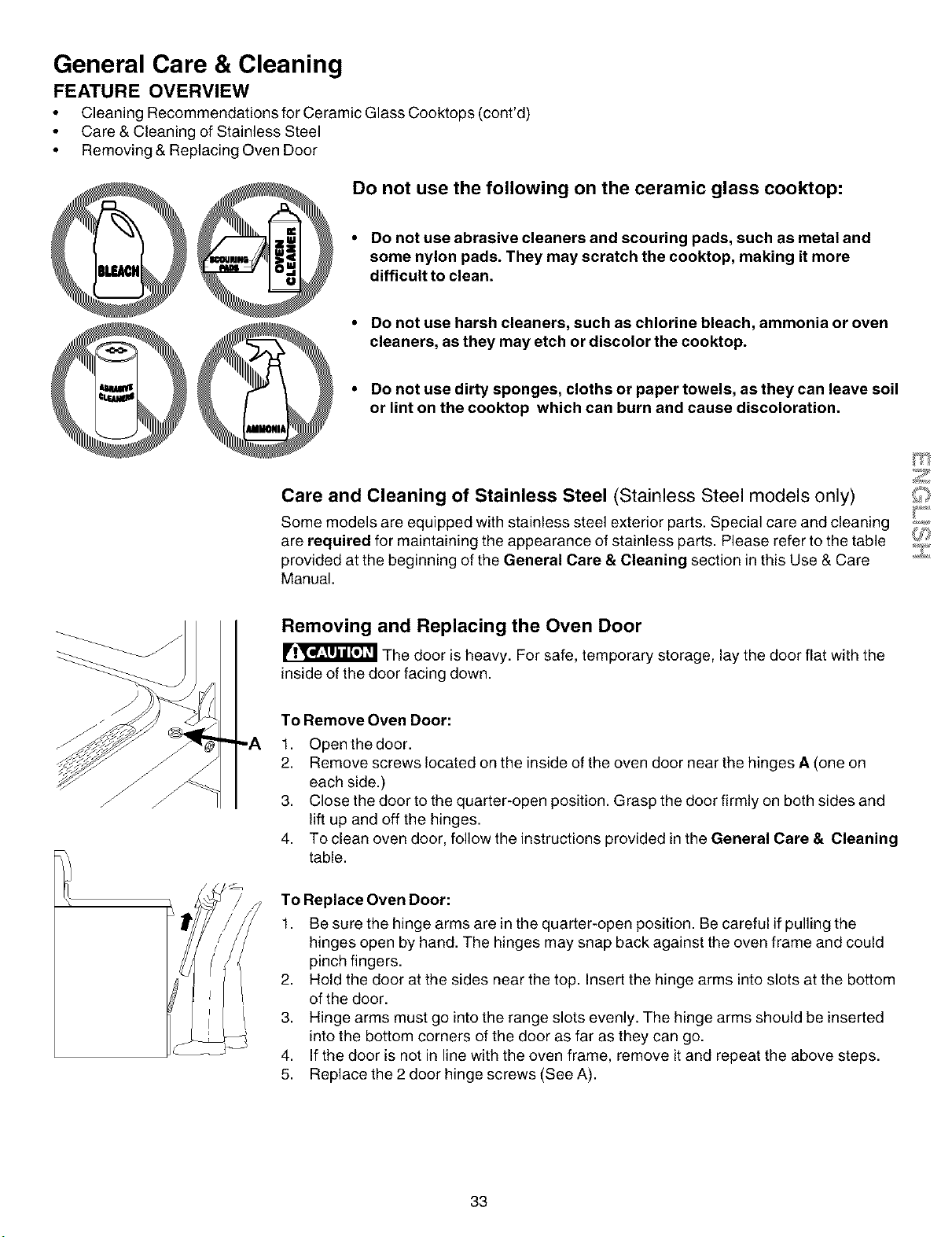

General Care & Cleaning

FEATURE OVERVIEW

• Cleaning Recommendations for Ceramic Glass Cooktops (cont'd)

• Care & Cleaning of Stainless Steel

• Removing & Replacing Oven Door

Do not use the following on the ceramic glass cooktop:

• Do not use abrasive cleaners and scouring pads, such as metal and

some nylon pads. They may scratch the cooktop, making it more

difficult to clean.

• Do not use harsh cleaners, such as chlorine bleach, ammonia or oven

cleaners, as they may etch or discolor the cooktop.

• Do not use dirty sponges, cloths or paper towels, as they can leave soil

or lint on the cooktop which can burn and cause discoloration.

Care and Cleaning of Stainless Steel (Stainless Steel models only)

Some models are equipped with stainless steel exterior parts. Special care and cleaning ,,_s,_

are required for maintaining the appearance of stainless parts. Please refer to the table _;_

provided at the beginning of the General Care & Cleaning section in this Use & Care

Manual.

Removing and Replacing the Oven Door

The door is heavy. For safe, temporary storage, lay the door flat with the

inside of the door facing down.

To Remove Oven Door:

1. Open the door.

2. Remove screws located on the inside of the oven door near the hinges A (one on

each side.)

3. Close the door to the quarter-open position. Grasp the door firmly on both sides and

lift up and off the hinges.

4. To clean oven door, follow the instructions provided in the General Care & Cleaning

table.

To Replace Oven Door:

1. Be sure the hinge arms are in the quarter-open position. Be careful if pulling the

hinges open by hand. The hinges may snap back against the oven frame and could

pinch fingers.

2. Hold the door at the sides near the top. Insert the hinge arms into slots at the bottom

of the door.

3. Hinge arms must go into the range slots evenly. The hinge arms should be inserted

into the bottom corners of the door as far as they can go.

4. Ifthe door is not in line with the oven frame, remove it and repeat the above steps.

5. Replace the 2 door hinge screws (See A).

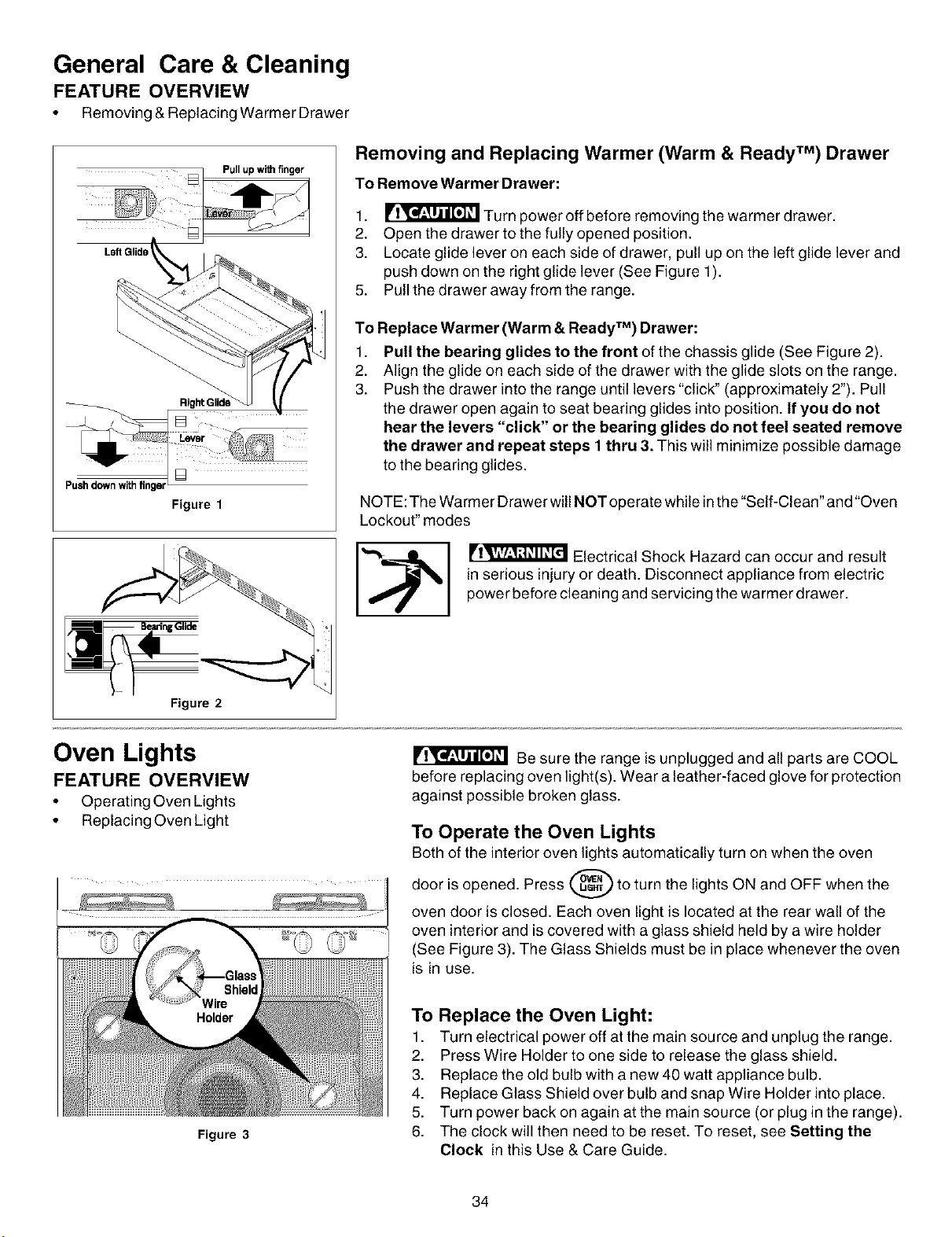

General Care & Cleaning

FEATURE OVERVIEW

• Removing & Replacing Warmer Drawer

Pull up withfinger

Left Glide

Figure 1

Figure 2

Removing and Replacing Warmer (Warm & Ready TM) Drawer

To Remove Warmer Drawer:

1. _ Turn power off before removing the warmer drawer.

2. Open the drawer to the fully opened position.

3. Locate glide lever on each side of drawer, pull up on the left glide lever and

push down on the right glide lever (See Figure 1).

5. Pull the drawer away from the range.

To Replace Warmer (Warm & Ready TM) Drawer:

1. Pull the bearing glides to the front of the chassis glide (See Figure 2).

2. Align the glide on each side of the drawer with the glide slots on the range.

3. Push the drawer into the range until levers "click" (approximately 2"). Pull

the drawer open again to seat bearing glides intoposition. If you do not

hear the levers "click" or the bearing glides do not feel seated remove

the drawer and repeat steps 1 thru 3. This will minimize possible damage

to the bearing glides.

NOTE: The Warmer Drawer will NOT operate while in the "Self-Clean" and "Oven

Lockout" modes

"_ _'tv_v-'1:t_ll_[_l Electrical Shock Hazard can occur and result

in serious injuryor death. Disconnect appliance from electric

power before cleaning and servicing the warmer drawer.

Oven Lights

FEATURE OVERVIEW

• Operating Oven Lights

• Replacing Oven Light

Wire

Holder

Figure 3

Be sure the range is unplugged and all parts are COOL

before replacing oven light(s). Wear a leather-faced glove for protection

against possible broken glass.

To Operate the Oven Lights

Bothof the interior oven lights automatically turn on when the oven

door is opened. Press _ to turn the lights ON and OFF when the

oven door isclosed. Each oven light is located at the rear wall of the

oven interior and is covered with a glass shield held by a wire holder

(See Figure 3). The Glass Shields must be in place whenever the oven

is in use.

To Replace the Oven Light:

1. Turn electrical power off at the main source and unplug the range.

2. Press Wire Holder to one side to release the glass shield.

3. Replace the old bulb with a new 40 watt appliance bulb.

4. Replace Glass Shield over bulb and snap Wire Holder into place.

5. Turn power back on again at the main source (or plug in the range).

6. The clock will then need to be reset. To reset, see Setting the

Clock in this Use & Care Guide.

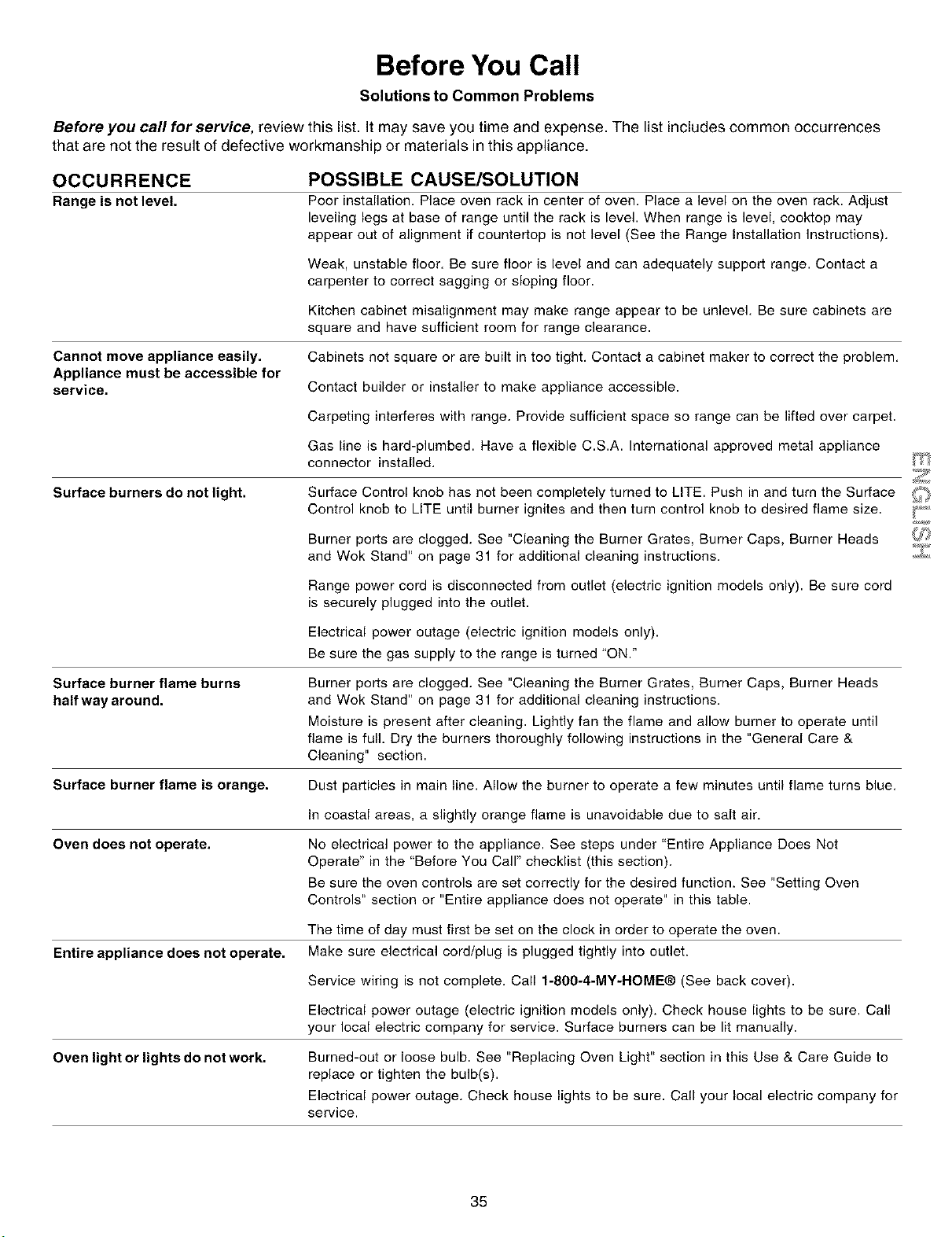

Before You Call

Solutions to Common Problems

Before you call for service, review this list. It may save you time and expense. The list includes common occurrences

that are not the result of defective workmanship or materials in this appliance.

OCCURRENCE POSSIBLE CAUSE/SOLUTION

Range is not level. Poor installation. Place oven rack in center of oven, Place a level on the oven rack. Adjust

leveling legs at base of range until the rack is level. When range is level, cooktop may

appear out of alignment if countertop is not level (See the Range Installation Instructions),

Weak, unstable floor, Be sure floor is level and can adequately support range. Contact a

carpenter to correct sagging or sloping floor.

Kitchen cabinet misalignment may make range appear to be unlevel, Be sure cabinets are

square and have sufficient room for range clearance.

Cannot move appliance easily. Cabinets not square or are built in too tight. Contact a cabinet maker to correct the problem,

Appliance must be accessible for

service. Contact builder or installer to make appliance accessible.

Carpeting interferes with range, Provide sufficient space so range can be lifted over carpet.

Gas line is hard-plumbed. Have a flexible C.S.A. International approved metal appliance

connector installed.

Surface burners do not light. Surface Control knob has not been completely turned to LITE. Push in and turn the Surface

Control knob to LITE until burner ignites and then turn control knob to desired flame size.

Burner ports are clogged, See "Cleaning the Burner Grates, Burner Caps, Burner Heads

and Wok Stand" on page 31 for additional cleaning instructions,

Range power cord is disconnected from outlet (electric ignition models only). Be sure cord

is securely plugged into the outlet.

Electrical power outage (electric ignition models only).

Be sure the gas supply to the range is turned "ON."

Surface burner flame burns Burner ports are clogged. See "Cleaning the Burner Grates, Burner Caps, Burner Heads

halfway around, and Wok Stand" on page 31 for additional cleaning instructions,

Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until

flame is full, Dry the burners thoroughly following instructions in the "General Care &

Cleaning" section.

Surface burner flame is orange. Dust particles in main line. Allow the burner to operate a few minutes until flame turns blue.

In coastal areas, a slightly orange flame is unavoidable due to salt air.

Oven does not operate. No electrical power to the appliance. See steps under "Entire Appliance Does Not

Operate" in the "Before You Call" checklist (this section),

Be sure the oven controls are set correctly for the desired function. See "Setting Oven

Controls" section or "Entire appliance does not operate" in this table.

The time of day must first be set on the clock in order to operate the oven.

Entire appliance does not operate. Make sure electrical cord/plug is plugged tightly into outlet.

Service wiring is not complete, Call 1-800-4-MY-HOME® (See back cover).

Electrical power outage (electric ignition models only). Check house lights to be sure. Call

your local electric company for service. Surface burners can be lit manually.

Oven light or lights do not work. Burned-out or loose bulb. See "Replacing Oven Light" section in this Use & Care Guide to

replace or tighten the bulb(s).

Electrical power outage, Check house lights to be sure. Call your local electric company for

service.

Before You Call

Solutions to Common Problems

OCCURRENCE POSSIBLE CAUSEJSOLUTION

Oven smokes excessively during Meat is too close to the broil element. Reposition the rack to provide more clearance

broiling, between the meat and the oven broil element.

Meat is not properly prepared. Remove excess fat from meat. Remove remaining fatty

edges to prevent the meat from curling, but do not cut into the lean of the meat.

Broiler Pan used without the Broiler Pan Insert or insert is covered with foil. DO NOT use the

Broiler Pan without the Broiler Pan Insert or cover the insert with foil.

Broiler Pan or Broiler Pan Insert needs to be cleaned. Excessive smoking is caused by a

build-up of grease or food spatters. Clean the Broiler Pan and insert on a regular basis.

Oven door is closed. Oven door should be opened to broil stop position when broiling.

Oven electronic control beeps and

displays "F1, F3" or "F9".

This oven is equipped with a state of the art electronic oven controller. Among the many

features is a full time oven circuit diagnostics system. The controller constantly monitors the

internal circuitry as well as several crucial oven circuits to insure they are all operating

correctly. If at any time one of these systems fails, the controller will immediately stop the

current operation and beep continuously (flashing an error code of "Ft, F3" or "F9" in the

controller display window.

Oven control beeps when you try

to enter times or temperatures

Electronic control has detected a fault condition. Press CLEAR/OFF to clear the display and

stop beeping. Reprogram oven. If fault remains, record fault number. Press CLEAR/OFF

and call 1-800-4-MY-HOME® (See back cover).

The oven control will only accept correct responses and/or the minimum number of

allowable entries for the appropriate feature. The oven control is designed to prevent

accidental entries. Review the instructions in this Use & Care Guide for the feature you are

trying to use. Also review the minimum and maximum temperature entries for the feature

you are trying to set on page 14 in this Use & Care Guide.

Poor baking results.

Many factors affect baking results. Make sure the proper rack position is being used. Center

food in the oven and space pans to allow air to circulate. Allow the oven to preheat to the

set temperature before placing food in the oven. Try adjusting the recipe's recommended

temperature or baking time. If you feel the oven is cooking too hot or cool. See "Adjusting

the Oven Temperature" in this Use & Care Guide.

Self-Cleaning cycle does not work. Controls are not set properly. Follow instructions in the Self-Cleaning section.

Self-cleaning cycle was interrupted. Stop time must be set 2 to 4 hours past the start time.

Follow steps under "Stopping or Interrupting a Self-Clean Cycle" in the Oven Cleaning

section.

Soil is not completely removed. Failure to clean bottom front, top of oven or door areas outside oven seal. These areas are

not in the self-cleaning area, but get hot enough to burn on food residue. Clean these areas

before starting the self-clean cycle. Burned-on residue may be cleaned with a stiff nylon

brush and water or a nylon scrubber. Be careful not to damage the oven gasket.

Excessive smoking from oven Excessive spillovers in oven. This is normal, especially for pie spillovers or large amounts

vent. of grease on the oven bottom. Wipe up excessive spillovers before starting the self-clean

cycle. If flames or excessive smoke are present, stop the self-clean cycle and follow the

steps under "Stopping or Interrupting the Self-Clean Cycle" in the Oven Cleaning section.

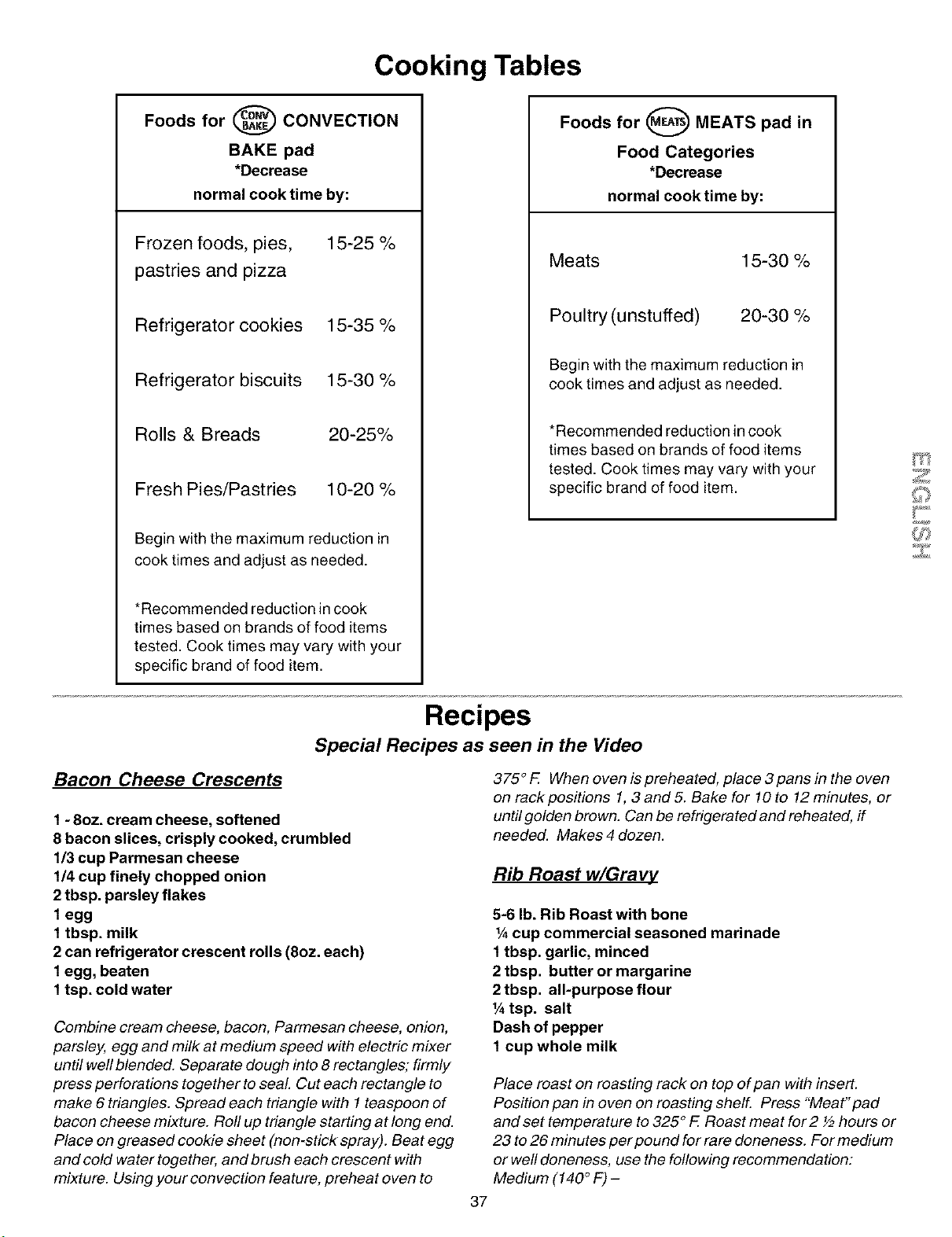

Cooking Tables

Foods for _ CONVECTION

BAKE pad

*Decrease

normal cook time by:

Frozen foods, pies,

pastries and pizza

15-25 %

Refrigerator cookies 15-35 %

Refrigerator biscuits 15-30 %

Rolls & Breads 20-25%

Fresh Pies/Pastries 10-20 %

Begin with the maximum reduction in

cook times and adjust as needed.

*Recommended reduction in cook

times based on brands of food items

tested. Cook times may vary with your

specific brand of food item.

Foods for _ MEATS pad in

Food Categories

*Decrease

normal cook time by:

Meats 15-30 %

Poultry (unstuffed) 20-30 %

Begin with the maximum reduction in

cook times and adjust as needed.

*Recommended reduction in cook

times based on brands of food items

tested. Cook times may vary with your

specific brand of food item.

Bacon Cheese Crescents

Recipes

Special Recipes as seen in the Video

1 - 8oz. cream cheese, softened

8 bacon slices, crisply cooked, crumbled

1/3 cup Parmesan cheese

1/4 cup finely chopped onion

2 tbsp. parsley flakes

1 egg

1 tbsp. milk

2 can refrigerator crescent rolls (8oz. each)

1 egg, beaten

1 tsp. cold water

Combine cream cheese, bacon, Parmesan cheese, onion,

parsley, egg and milk at medium speed with electric mixer

until well blended. Separate dough into 8 rectangles; firmly

press perforations together to seal Cut each rectangle to

make 6 triangles. Spread each triangle with 1teaspoon of

bacon cheese mixture. Rofl up triangle starting at long end.

Place on greased cookie sheet (non-stick spray). Beat egg

and cold water together, and brush each crescent with

mixture. Using your convection feature, preheat oven to

375 °F. When oven is preheated, place 3 pans in the oven

on rack positions 1,3 and 5. Bake for 10 to 12 minutes, or

until golden brown. Can be refrigerated and reheated, if

needed. Makes 4 dozen.

Rib Roast w/Gravy

5-6 lb. Rib Roast with bone

_Acup commercial seasoned marinade

1 tbsp. garlic, minced

2 tbsp. butter or margarine

2 tbsp. all-purpose flour

_Atsp. salt

Dash of pepper

1 cup whole milk

Place roast on roasting rack on top of pan with insert.

Position pan in oven on roasting shelL Press"Meat"pad

and set temperature to 325 ° F. Roast meat for 2 ½ hours or

23 to 26 minutes per pound for rare doneness. For medium

or weft doneness, use the following recommendation:

Medium (140 ° F) -

Recipes

Rib Roast w/Gravy (cont'd) Green Beans with Walnut Vinaiqrette Sauce

26 to 29 min./ Ib., Well (150 °F) - 30 to 33 min./ lb.

For gravy - Melt butter in saucepan over medium-low heat.

Stir in flour, salt and pepper. Cook over medium-low heat until

smooth and bubbly, Slowly stir in mllk: Heat until thickened,

st_'ring constantly, Add marinade and minced garlic. Blend

well; keep warm until ready to serve.

Makes 10 to 12 servings.

Roasted Potatoes

3 Ibs. small red potatoes

_Acup olive oil

6 cloves garlic, minced

2 tbsp. dried rosemary, crushed

salt

pepper

Cut each potato in half and place in a 9"x13" baking dish with

olive oil. Tosspotatoes with spoon, making sure to well coat

potatoes with oil. Add minced garlic and remaining ingredi-

ents, tossing again. Place on second rack position, above the

roast about an hour before the roast is to be ready, Green

beans will be added when prepared.

If cooking separately, set oven temperature to 400 ° F and

roast for 50 minutes. Stir once or twice while potatoes are

cooking.

Anqel Biscuits

1 pkg. dry yeast

1/2cup warm water

5 cups Bisquick

1 tbsp. baking powder

1 tsp. baking soda

1 tsp. salt

3 tbsp. sugar

1 cup shortening

1-3Acups buttermilk

Combine yeast and water in a measuring cup, allowing 5

minutes to dissolve. Mix dry ingredients in large bowl. Add

yeast mixture and buttermilk: Stir just until dry ingredients are

moistened.

Turn dough out onto a lightly floured surface; knead 6-10

times. Roll dough into ½" thickness. Cut with a 2 inch round

cutter. Place on lightly greased baking sheet. Let rise for20

minutes. Press "Bread" pad and preheat oven to 400 t_Bake

biscuits for 12 minutes or until lightly browned.

Yield: 5 dozen.

3 Ibs. fresh green beans, or frozen whole green beans

3 cups water

2 tbsp. butter

1Atsp. hickory salt

1 1/2cups walnuts, chopped

3 tbsp Parmesan cheese freshly grated

3Acup safflower oil

2 tbsp. olive oil

1Acup balsamic vinegar

1 garlic clove, minced

1 tsp. tarragon, fresh, chopped

(This can be done ahead oftime and stored in the refrigera-

tor till ready to use.)

Melt butter with salt. Pour into small baking dish, stirring in

walnuts and bake in 350° F oven for 5 minutes.

Sprinkle, and coat with Parmesan cheese. Bake 4 to 5

minutes longer until cheese is lightly brown. Remove from

oven and allow to cool

Bring 3 cups water to boil in Dutch oven. Add beans, cover

and reduce heat. Cook about 6 minutes.

Drain in colander and rinse with cold water. Arrange green

beans in casserole dish.

Combine safflower oll, olive oil, balsamic vinegar, garlic,

and tarragon. Pour on top of green beans. Topgreen beans

with walnut mixture. Cover with aluminum fell and place in

oven on second rack position, next to potatoes, about 30

minutes before roast is ready, If cooking separately, cover

and heat for 25 to 30 minutes at 350 ° tEMakes 12servings.

Apple Bourbon Pie

1/2cup raisins

1/2cup bourbon

3 Ibs. cooking apples

3Acup sugar

2 tbsp. all purpose flour

1 tsp. ground cinnamon

1/8 tsp. nutmeg

1Atsp. salt

1/2cup chopped walnuts, toasted

1 (15oz.) pkg. refrigerated pie crust

2 tsp. apricot preserves

1 tbsp. buttermilk

1 tbsp. sugar

Combine raisins and bourbon in bowl and soak for at least 2

hour: Peel apples, and cut into ½" slices. Steam apple

slices in a pan with a steamer basket for 10 minutes or until

apples are tender.

Recipes

Apple Bourbon Pie cont'd

Mix together sugar, flour, cinnamon, nutmeg, salt in large

bowl. Stir in apples, raisin mixture, and walnuts.

Combine well.

Press piecrust into 9-inch pie plate. Brush apricot preserves

over piecrust. Spoon apple mixture into piecrust. Place the

remaining piecrust on top of filling, fluting the edges togethe_

Brush top of pie with buttermilk and sprinkle with sugar.

Make 4 or 5 small slits in the top of the piecrust. Press

"Cake"pad and preheat oven to 375 ° F and bake for 45 to 50

minutes.

Chocolate Dipped Strawberries

8 oz. box semisweetchocolatepieces

2 pints fresh strawberries, chilled

Melt chocolate pieces in a 1-1/2 quart saucepan on a very

low heat. Once melted, dip tips of the strawberries in the

chocolate. Lay chocolate dipped strawberries on a piece of

wax paper to harden.

Caiun Shrimp Stirfry

4slices

2 tsp.

1/2tsp.

1/3 cup

1-1/21bs

2 tsp.

I each

1/2cup

1 14oz can

bacon

cornstarch

fish flavored bouillon granules

water

peeled shrimp

Creole seasoning

small green pepper

small yellow pepper

small red pepper

small onion

diced celery

Cajun-style stewed tomatoes, drained

Cooked Rice

Cook bacon in large wok until crisp; remove reserving 3

tablespoons of drippings. Crumble bacon, and set aside.

Combine cornstarch, bouillon granules and water; set aside.

Sprinkle peeled shrimp with creole seasoning. Pour2

tablespoons reserved bacon drippings around top of

preheated wok, coating the sides. Heat at high for 1minute.

Add shrimp; stir fry 2 to 3 minutes or until shrimp is pink:

Remove shrimp, and set aside.

Pour remaining 1tablespoon reserved drippings into wok;

add peppers, onion and celery. Stir fry 2 to 3 minutes. Add

tomatoes and stir fry2 minutes. Return shrimp to wok and

add cornstarch mixture; bring to a boil. Cook; stirring

constantly for 1 minute. Sprinkle with crumbled bacon.

Serves 4.

Your Home

For repair-in your home-of all major brand appliances,

lawn and garden equipment, or heating and coolingsystems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself,

For Sears professionalinstallationof home appliances

and items like garage door openers and water heaters,

1-800-4-MY-HOME ® (1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the locationof your nearest

Sears Parts & Repair Center,

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears,com

To purchase a protectionagreement on a productservicedby Sears:

1-800-827-6655 (U,S,A,) 1-800-361-6665 (Canada)

Para pedir servicio de reparacibn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pour service en fran_ais:

1-800-LE-FOYER Mc

(1-800-533-6937_

www.sears.ca

ARS

IM 8M

® Registered Trademark / Trademark / Service Mark of Sears, Roebuck and Co.

IM 8M

® Marca Registrada / Mama de Fdbrica / Mama de Sewicio de Seam, Roebuck and Co.

Kenmore 79079113201 gas range

Product's Documents

User Manual

Specifications

Kenmore 79079113201 Questions and Answers

Related Products

Kenmore 79078813402 Gas Range

Kenmore 3626101195 Gas Range

Kenmore 79071399700 Gas Range

Kenmore 79071053405 Gas Range

Kenmore 79036932904 Gas Range

Kenmore 79077484804 Gas Range
