Kenmore 14116329 lp gas & natural gas grill User Manual

OPERATOR'S MANUAL

Liquid Propane Gas (LPG) Grill

Model 141.16329

Natural Gas (NG) Grill

Model 141.17329

• Safety

• Assembly

• Use and Care

• Cooking Guide

" Frequently Asked Questions

Call us first if you have any problem with this

product. We can help you with questions about

assembly and grill operation or if there are

damaged or missing parts when you unpack

this unit from the shipping box. Please call

before retuming to the store.

1- 888-317-7642

8am-8pm CST, Monday throu.qh Friday

• NOTE TO ASSEMBLER / INSTALLER:

Leave this manual with the consumer.

• NOTETO CONSUMER:

Keep this manual for future reference.

• RECORD YOURSERIAL #

(see silver CSA label on main body of grill)

Failure to comply with these instructions could

result in a fire or explosion that could cause

serious bodily injury, death or property damage.

Whether this grill was assembled by you or

someone else, you must read this entire manual

before using your grill to ensure the grill is

properly assembled, installed and maintained.

Use your grill at least 3 feet away from any

wall or surface. Use your grill at least 3 feet

away from combustible objects that can melt or

catch fire (such as vinyl or wood siding, fences

and overhangs) or sources of ignition including

pilot lights on water heaters and live electrical

appliances.

• THIS GAS APPLIANCE IS DESIGNED FOR

OUTDOOR USE ONLY.

Combustion byproducts produced when using

this product contain chemicals known to the

State of California to cause cancer, birth defects,

or other reproductive harm.

Manual # P80120003A - Date:2004/12/14

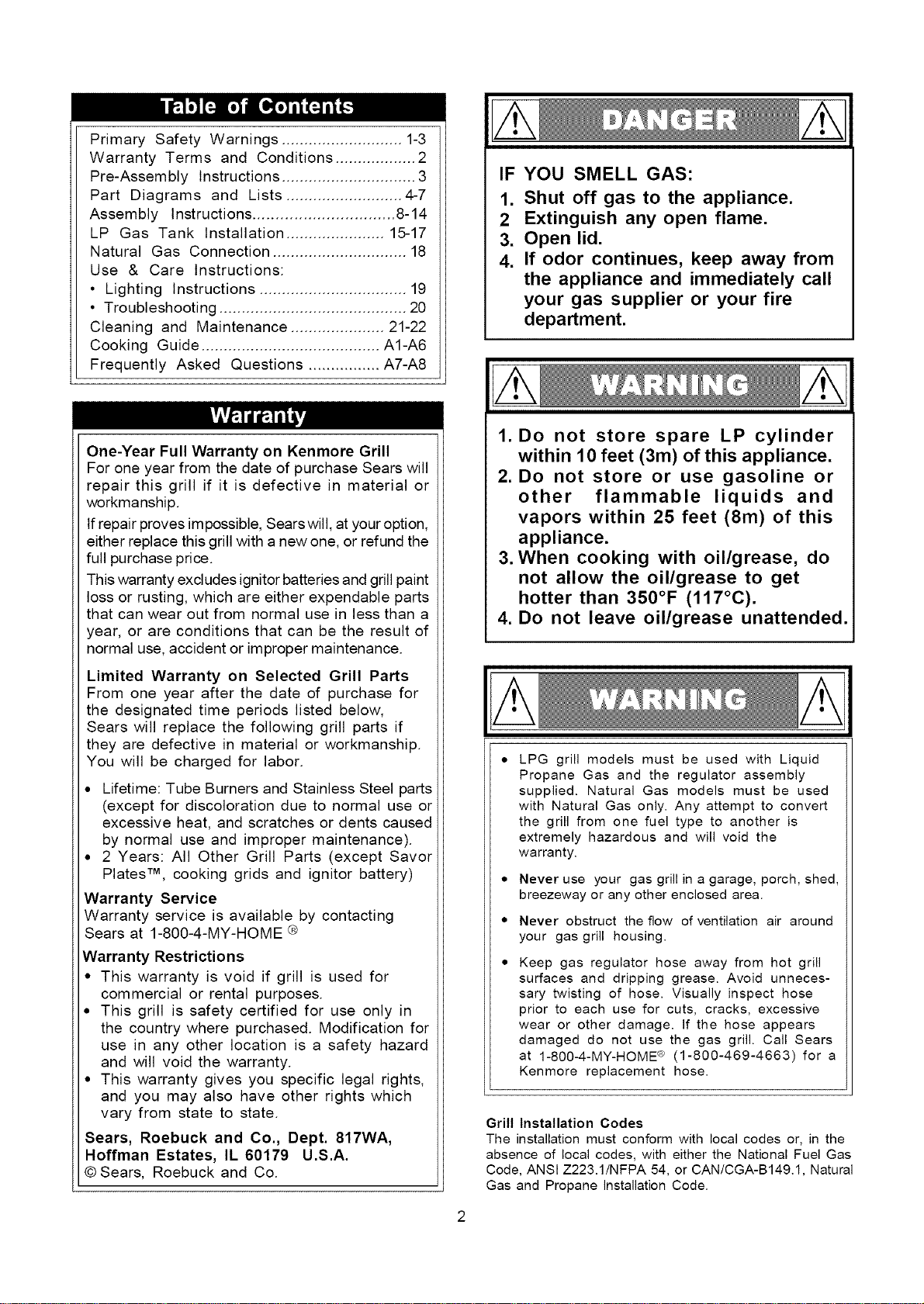

Primary Safety Warnings ........................... 1-3

Warranty Terms and Conditions .................. 2

Pre-Assembly Instructions .............................. 3

Part Diagrams and Lists .......................... 4-7

Assembly Instructions ............................... 8-14

LP Gas Tank Installation ...................... 15-17

Natural Gas Connection .............................. 18

Use & Care Instructions:

• Lighting Instructions ................................. 19

• Troubleshooting .......................................... 20

Cleaning and Maintenance ..................... 21-22

Cooking Guide ........................................ A1-A6

Frequently Asked Questions ................ A7-A8

One-Year Full Warranty on Kenmore Grill

For one year from the date of purchase Sears will

repair this grill if it is defective in material or

workmanship.

If repair proves impossible, Sears will, at your option,

either replace this grill with a new one, or refund the

full purchase price.

This warranty excludes ignitor batteries and grill paint

loss or rusting, which are either expendable parts

that can wear out from normal use in less than a

year, or are conditions that can be the result of

normal use, accident or improper maintenance.

Limited Warranty on Selected Grill Parts

From one year after the date of purchase for

the designated time periods listed below,

Sears will replace the following grill parts if

they are defective in material or workmanship.

You will be charged for labor.

• Lifetime: Tube Burners and Stainless Steel parts

(except for discoloration due to normal use or

excessive heat, and scratches or dents caused

by normal use and improper maintenance).

• 2 Years: All Other Grill Parts (except Savor

Plates TM, cooking grids and ignitor battery)

Warranty Service

Warranty service is available by contacting

Sears at 1-800-4-MY-HOME ®

Warranty Restrictions

• This warranty is void if grill is used for

commercial or rental purposes.

• This grill is safety certified for use only in

the country where purchased. Modification for

use in any other location is a safety hazard

and will void the warranty.

• This warranty gives you specific legal rights,

and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., Dept. 817WA,

Hoffman Estates, IL 60179 U.S.A.

IF YOU SMELL GAS:

1. Shut off gas to the appliance.

2 Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from

the appliance and immediately call

your gas supplier or your fire

department.

1. Do not store spare LP cylinder

within 10 feet (3m) of this appliance.

2. Do not store or use gasoline or

other flammable liquids and

vapors within 25 feet (8m) of this

appliance.

3. When cooking with oil/grease, do

not allow the oil/grease to get

hotter than 350°F (117°C).

4. Do not leave oil/grease unattended.

LPG grill models must be used with Liquid

Propane Gas and the regulator assembly

supplied. Natural Gas models must be used

with Natural Gas only. Any attempt to convert

the grill from one fuel type to another is

extremely hazardous and will void the

warranty.

Never use your gas grill in a garage, porch, shed,

breezeway or any other enclosed area.

Never obstruct the flow of ventilation air around

your gas grill housing.

Keep gas regulator hose away from hot grill

surfaces and dripping grease. Avoid unneces-

sary twisting of hose. Visually inspect hose

prior to each use for cuts, cracks, excessive

wear or other damage. If the hose appears

damaged do not use the gas grill. Call Sears

at 1-800-4-MY-HOME <e (1-800-469-4663) for a

Kenmore replacement hose.

Grill Installation Codes

The installation must conform with local codes or, in the

absence of local codes, with either the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, or CAN/CGA-B149.1, Natural

Gas and Propane installation Code.

Failure to comply with these instructions may

result in a hazardous situation which, if not

avoided, may result in injury,

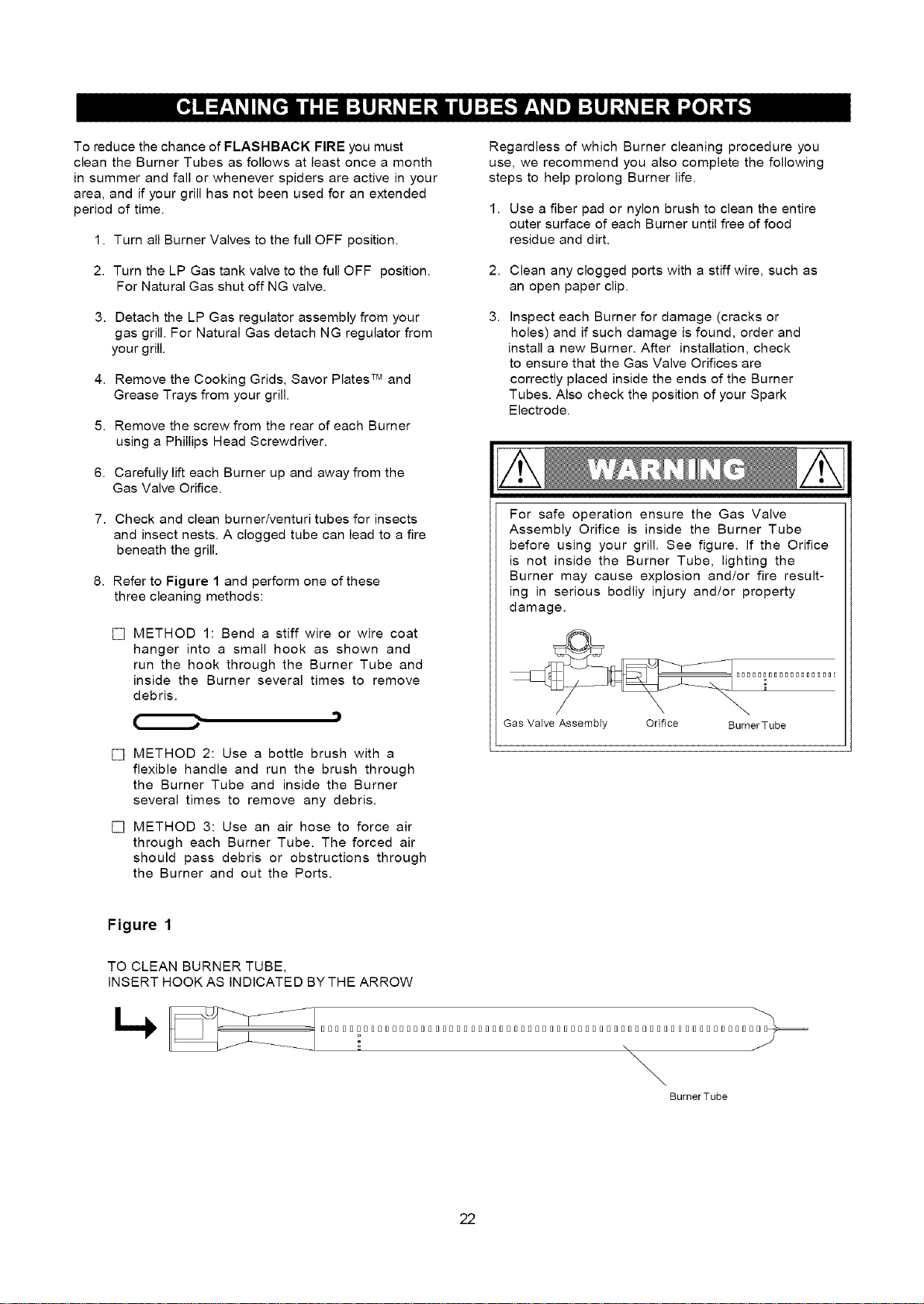

Spiders and small insects can spin webs and

nest in the grill ing transit and

warehousing flow

obstruction round the

Burner T_ FIRE"

can cau_ ate an

unsafe €

To .'K

FIRE bes

as follc grill.

Also do _ummer

and fall or in your

area, and if used for an

extended perioc

1. Remove the screw from the rear of each Burner

using a Phillips Head Screwdriver.

2. Carefully lift each Burner up and away from the

Gas Valve Orifice.

3. Check and clean Burner/Venturi Tubes for insects

and insect nests. A clogged tube can lead to a fire

beneath the grill.

4. Refer to the figure below and perform one of

these 3 cleaning methods:

[] METHOD 1: Bend a stiff wire or wire coat

hanger into a small hook as shown and run

the hook through the Burner Tube and inside

the Burner several times to remove debris.

TO CLEAN BURNER TUBE, INSERT HOOK

HERE

BurnerTube

[] METHOD 2: Use a bottle brush with a flexible

handle and run the brush through the Burner

Tube and inside the Burner several times to

remove any debris.

[] METHOD 3: Use an air hose to force air

through each Burner Tube. The forced air

should pass debris or obstructions through the

Burner and out the Ports.

For safe operation ensure the Gas Valve Assem-

bly Orifice is inside the Burner Tube before using

your grill. See figure. If the Orifice is not inside

the Burner Tube, lighting the Burner may cause

explosion and/or fire resulting in serious bodily

injury and/or property damage.

Gas Valve Assembly Orifice Burner Tube

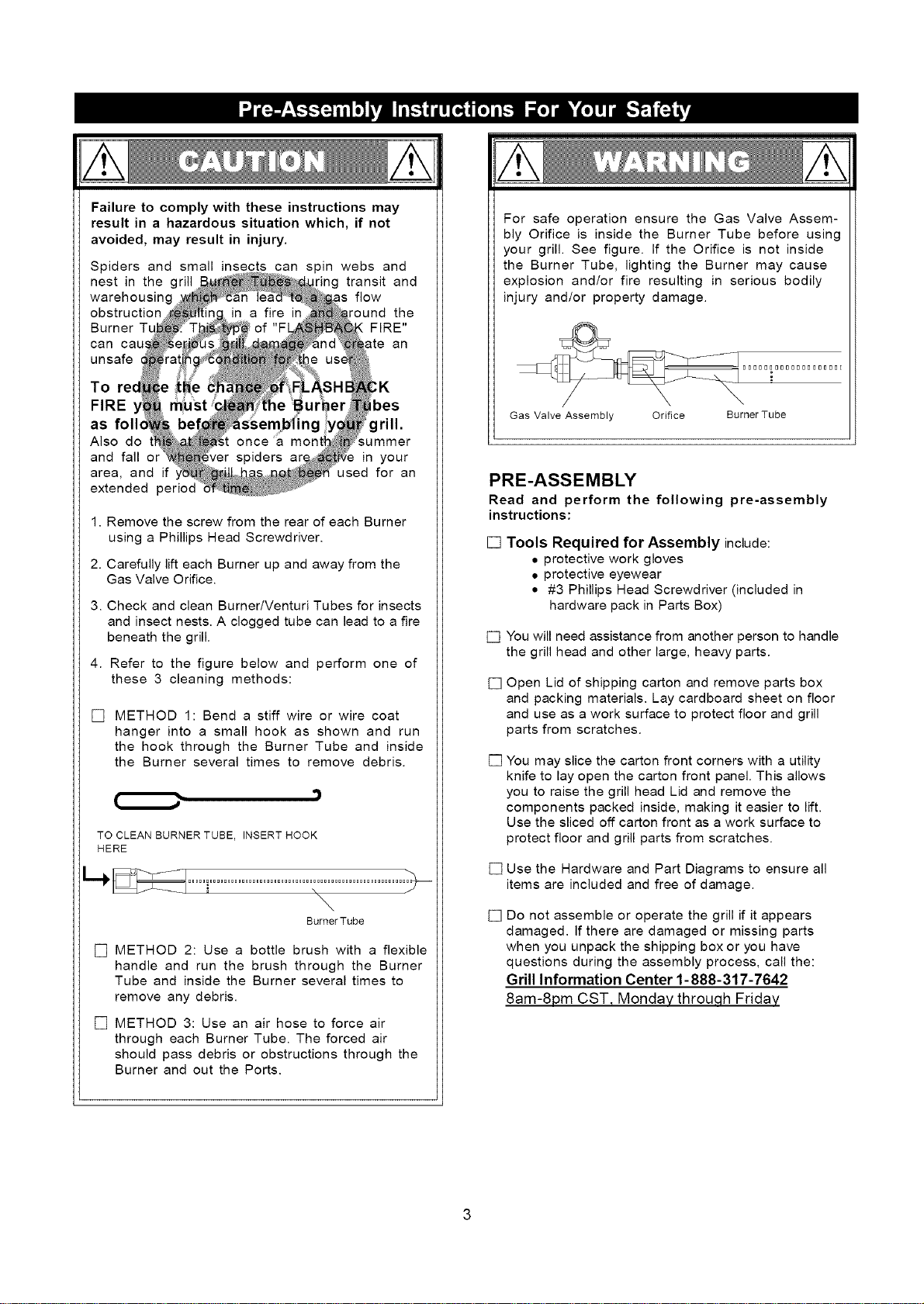

PRE-ASSEMBLY

Read and perform the following pre-assembly

instructions:

[] Tools Required for Assembly include:

• protective work gloves

• protective eyewear

• #3 Phillips Head Screwdriver (included in

hardware pack in Parts Box)

[] You will need assistance from another person to handle

the grill head and other large, heavy parts.

[] Open Lid of shipping carton and remove parts box

and packing materials. Lay cardboard sheet on floor

and use as a work surface to protect floor and grill

parts from scratches.

[] You may slice the carton front corners with a utility

knife to lay open the carton front panel. This allows

you to raise the grill head Lid and remove the

components packed inside, making it easier to lift.

Use the sliced off carton front as a work surface to

protect floor and grill parts from scratches.

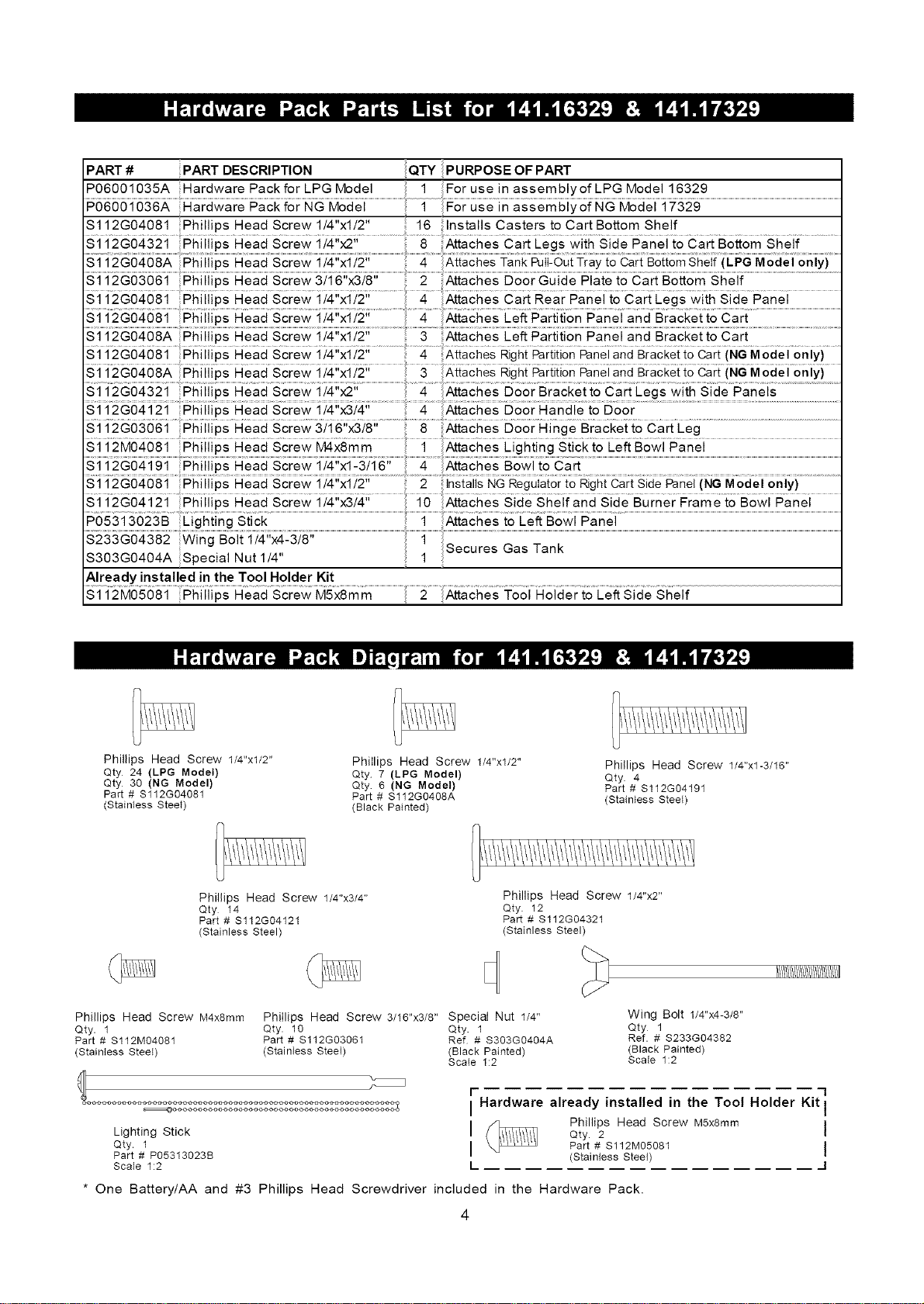

[] Use the Hardware and Part Diagrams to ensure all

items are included and free of damage.

[] Do not assemble or operate the grill if it appears

damaged. If there are damaged or missing parts

when you unpack the shipping box or you have

questions during the assembly process, call the:

Grill Information Center 1- 888-317-7642

8am-8pm CST, Monday throu.qh Friday

Sl12G04081Phi,,,psHeadScrew. 4',',x.,2"A aohes 0ht rtitionF ne,aod rac ettoC rt(.O.ode,

$1 i2G0408A Phiiiips Head Screw :i/4 x;1/2..... 3 _ghi _iiiiion _nei and Brackeiio Cari iNG Modei oniyi

Sl12G03061 Phillips Head Screw3/16"x3/8" 8 Attaches DoorHinge Bracketto CartLeg

....................................a..............................................................................................................................................................................................................................................................................................

Sl12G04081 Phillips Head Screw 1/4"xl/2" 2 Installs NG Regulator to Right Cart Side Panel (NG Medel only)

Sl i 2G6412:1 HeadScrew1/4""_74..... 10 #rame_oBowi#anei

P05313023B Lighting Stick

,, _ecures _as lanK

S303G0404A Special Nut 1/4 1

Already installed in the Tool Holder Kit

Phillips Head Screw 1/4"xl/2"

Qty 24 (LPG Model)

Qty 30 (NG Model)

Part # $112G04081

(Stainless Steel)

Phillips Head Screw 1/4"xl/2"

Qty 7 (LPG Model)

Qty 6 (NG Model)

Part # S112G0408A

(Black Painted)

Phillips Head Screw 1/4"xl-3/16"

Qty. 4

Part # $112G04191

(Stainless Steel)

Phillips Head Screw 1/4"x3/4"

Qty 14

Part # $112G04121

(Stainless Steel)

Phillips Head Screw 1/4"x2"

Qty. 12

Part # $112G04321

(Stainless Steel)

Phillips Head Screw M4x8mm

Qty. 1

Part # S112M04081

(Stainless Steet)

Phillips Head Screw 3/16"x3/8" Special Nut 1/4"

Qty. 10 Qty. 1

Part # $112G03061 Ref # S303G0404A

(Stainless Steel) (Black Painted)

Scale 1:2

Lighting Stick

Qty. 1

Part # P05313023B

Scate 1:2

Wing Bolt 1/4"x4-3/8"

Qty 1

Ref. # $233G04382

(Black Painted)

Scale 1:2

r" 7

I Hardware already installed in the Tool Holder Kit I

I Phillips Head Screw U5x8mm I

Qty. 2

I Part # Sl12M05081 I

(Stainless SteeI)

I_ _1

* One Battery/AA and #3 Phillips Head Screwdriver included in the Hardware Pack.

AIlA6

A7A8

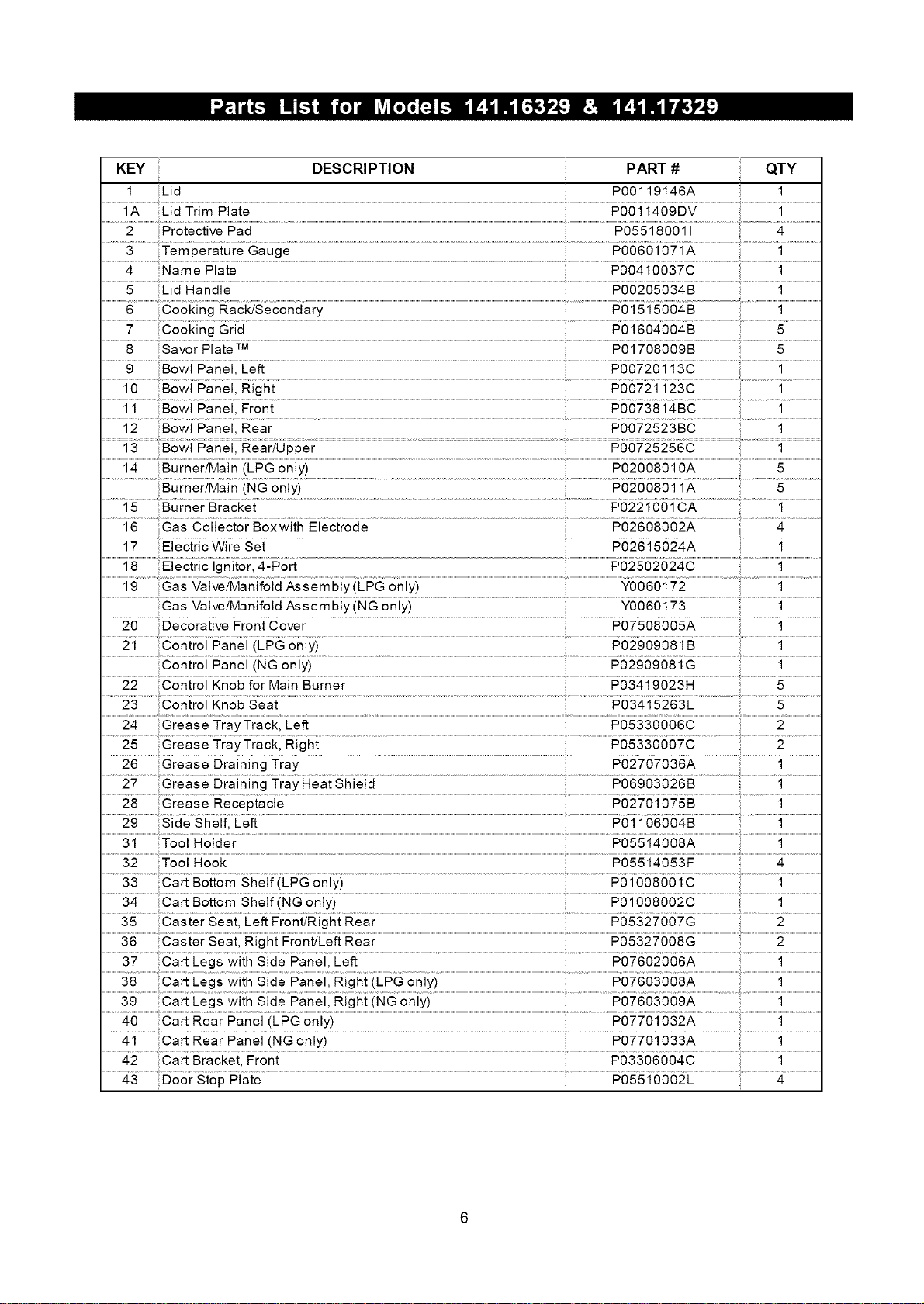

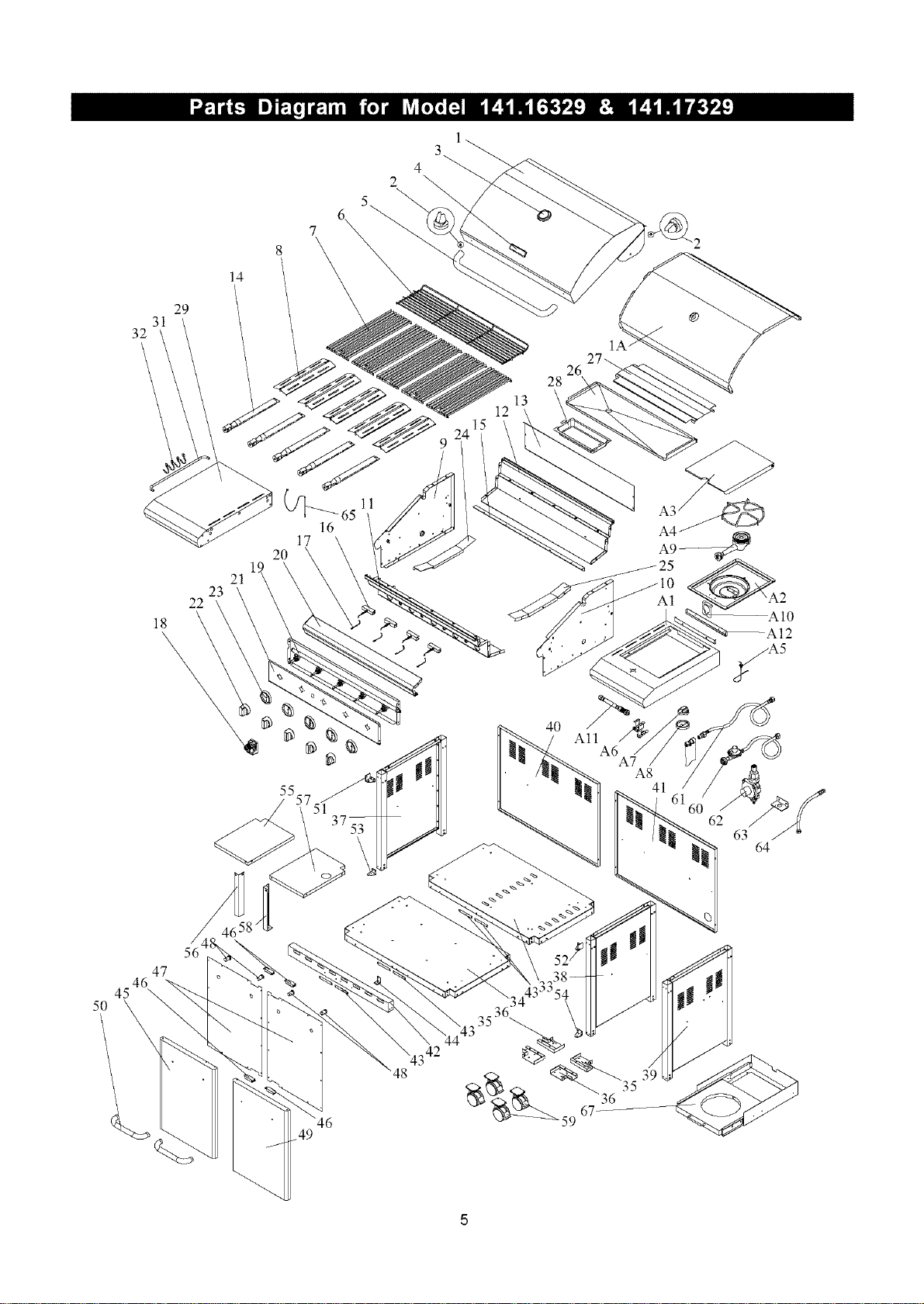

KEY ;; DESCRIPTION PART # QTY

1 Lid P0O119146A 1

1A Lid Trim Plate P0011409DV 1

....................2.........................#roteciive Pad................................................................................................................................................................................................................................................................................................................................................................................................P055isooii .......................................... 4.....................................

.....................3 Temperature..................................................................................................................................................................................................................Gauge ..........................1 .................

5 Lid Handle P00205034B 1

6 Cooking Rack/Secondary P01515004B 1

8 Savor Plate TM PO1708009B 5

9 Bowl Panel, Left P00720113C 1

10 :Bowl Panel, Right P00721123C 1

11 Bowl Panel, Front P0073814BC 1

12 Bowl Panel, Rear P0072523BC 1

...............................................................................................................................................................................................................................................................................................................................................................................................................................................................14 Burner/Main (LPG only) ......................................................................................................................................................................................5

BurnerlMain (NG only) P02008011A 5

16 Gas Collector Boxwith Electrode P02608002A 4

17 Electric Wire Set P02615024A 1

18 Electric ignitor, 4-Port P02502024C 1

19 Gas Valve/Manifold Assembly (LPG only) Y0060172 1

Gas ValvelManifold Assembly (NG only) YO060173 1

20 Decorative Front Cover P07508005A 1

21 Control Panel (LPG only) P02909081B 1

Control Panel (NG only) P02909081G 1

22 Control Knob for Main Burner P03419023H 5

23 Control Knob Seat P03415263L 5

................24....................... ......................................................................................................................................................................................................................................................................................................................................................................2....................................

25 Grease Tray Track, Right P05330007C 2

27 Grease Draining Tray Heat Shield P06903026B 1

29 Side Shelf, Left

31 Tool Holder P05514008A 1

32 Tool Hook P05514053F 4

33 Cart Bottom Shelf (LPG only) P01008001C 1

P01008002C 1

35 Caster Seat Left Front/Right Rear PO5327007G 2

36 Caster Seat, Right Front/Left Rear PO5327008G 2

37 Cart Legs with Side Panel, Left P07602006A 1

38 Cart Legs with Side Panel, Right (LPG only) P07603008A 1

39 Cart Legs with Side Panel, Right (NG only) P07603009A 1

40 Cart Rear Panel (LPG only) P07701032A 1

41 Cart Rear Panel (NG only) P07701033A 1

.................... ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................!........................................

43 Door Stop Plate P05510002L 4

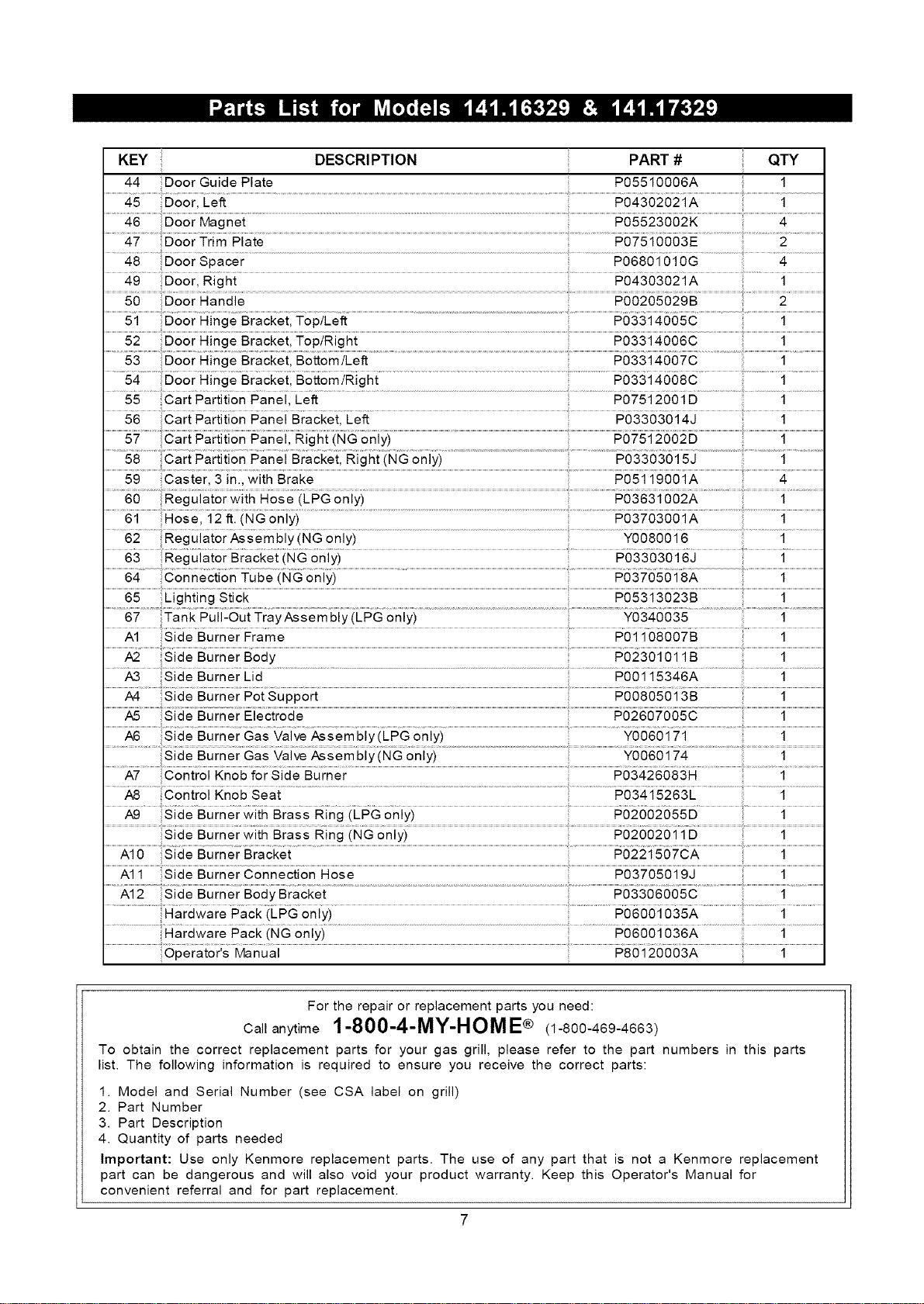

KEY DESCRI PTION PART # QTY

44 Door Guide Plate P05510006A 1

45 Door, Left P04302021A 1

46 Door Magnet

47 Door Trim Plate

49 Door, Right P04303021A 1

........................n ie.... .........................................................................................................................................2.......................................

51 Door Hinge Bracket, ToptLeft P03314005C 1

52 Door Hinge Bracket, ToptRight P03314006C 1

53 Door Hinge Bracket, Bottom/Left P03314007C 1

......................... }...................................................................................................................................................................................... ........................................

54 Door Hinge Bracket, Bottom/Right P03314008C 1

55 Cart Partition Panel, Left P07512001D 1

56 .....................................................................Cart Partition Panel Bracket, Left P03303014J 1

57 Cart Partition Panel, Right (NG only)

58 Cart Partition Panel Bracket, Right (NG only) P03303015J 1

59 Caster 3 in., with Brake P05119001A 4

.......60 Reg u!ato r w!th Hos e on ly) ............................................................................................................................................................................................................P0363 ] 002A .......................................................1 ............

61 Hose, 12 ft. (NG only) P03703001A 1

....... onJ?i.................................................................................................................................................................................

63 Regulator Bracket (NG only) P03303016J 1

64 Connection Tube (NG only)

65 Lighting Stick P05313023B 1

A1 Side Burner Frame P01108007B 1

A2 Side Burner Body P02301011B 1

,_3 Side Burner Lid P00115346A 1

Side Burner Pot Support P00805013B 1

A,5 Side Burner Electrode

A9 Side Burner with Brass Ring (LPG only)

Side Burner with Brass Ring (NG only)

A11 Side Burner Connection Hose P03705019J 1

A12 Side Burner Body Bracket 1

.........................................................................Hardware Pack (LPG only) ............................P06001035A .............................................................1

Ha[dwar e Pack (NG only) P0600! 036A 1

Operator's Manual P80120003A 1

For the repair or replacement parts you need:

Callanytime 1-800-4-MY-HOME® (1-800-469-4663)

To obtain the correct replacement parts for your gas grill, please refer to the part numbers in this parts

list. The following information is required to ensure you receive the correct parts:

1. Model and Serial Number (see CSA label on grill)

2. Part Number

3. Part Description

4. Quantity of parts needed

Important: Use only Kenmore replacement parts. The use of any part that is not a Kenmore replacement

part can be dangerous and will also void your product warranty. Keep this Operator's Manual for

convenient referral and for part replacement.

Install Casters

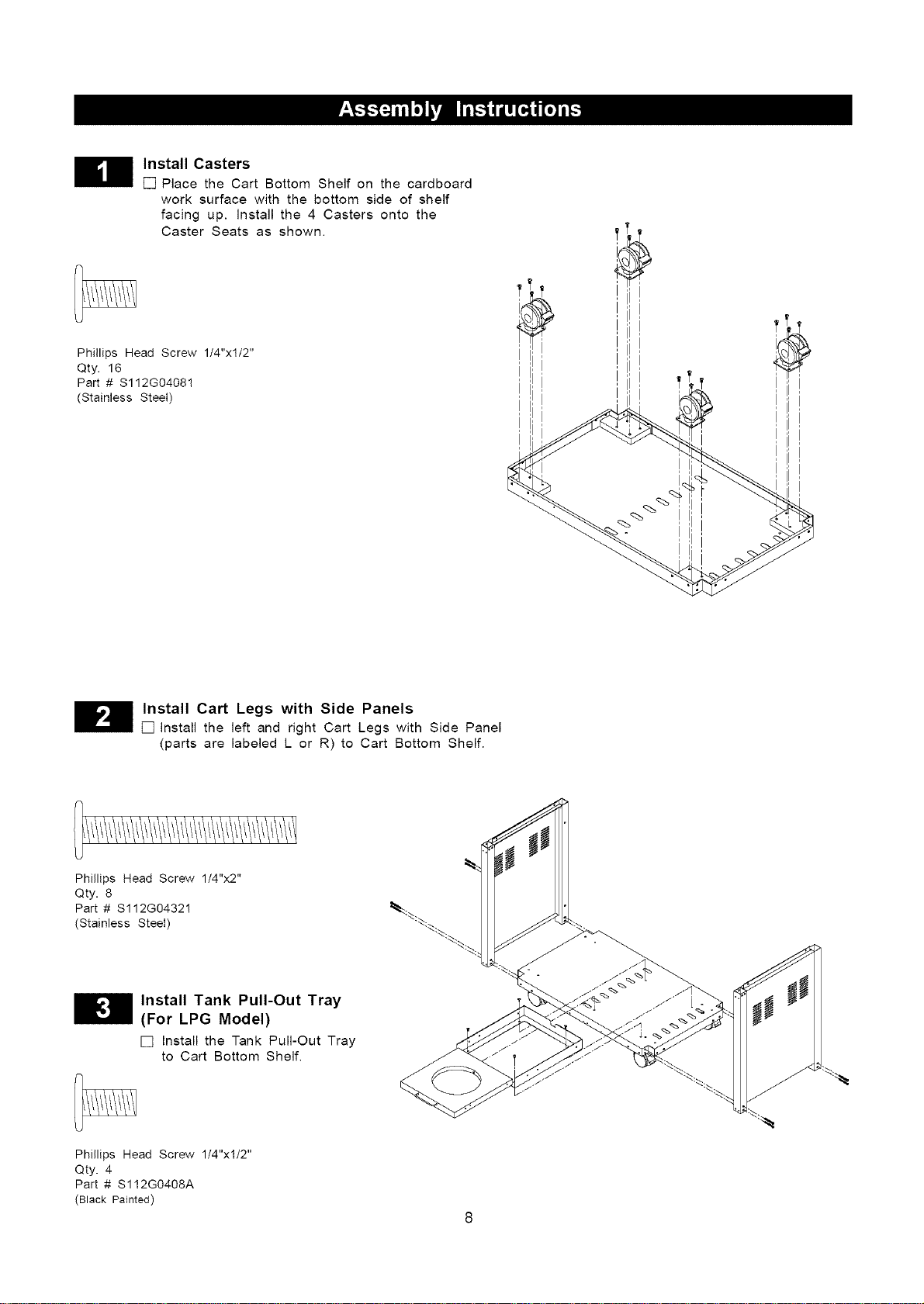

[] Place the Cart Bottom Shelf on the cardboard

work surface with the bottom side of shelf

facing up. Install the 4 Casters onto the

Caster Seats as shown.

Phillips Head Screw 1/4"xl/2"

Qty. 16

Part # S112G04081

(Stainless Steel)

Install Cart Legs with Side Panels

[] install the left and right Cart Legs with Side Panel

(parts are labeled L or R) to Cart Bottom Shelf.

Phillips Head Screw 1/4"x2"

Qty. 8

Part # S112G0432! _:_

(Stainless Steel)

Install Tank Pull-Out Tray

(For LPG Model)

[] Install the Tank Pull-Out Tray

to Cart Bottom Shelf.

Phillips Head Screw 1/4"xl/2"

Qty. 4

Part # S112G0408A

(Black Painted)

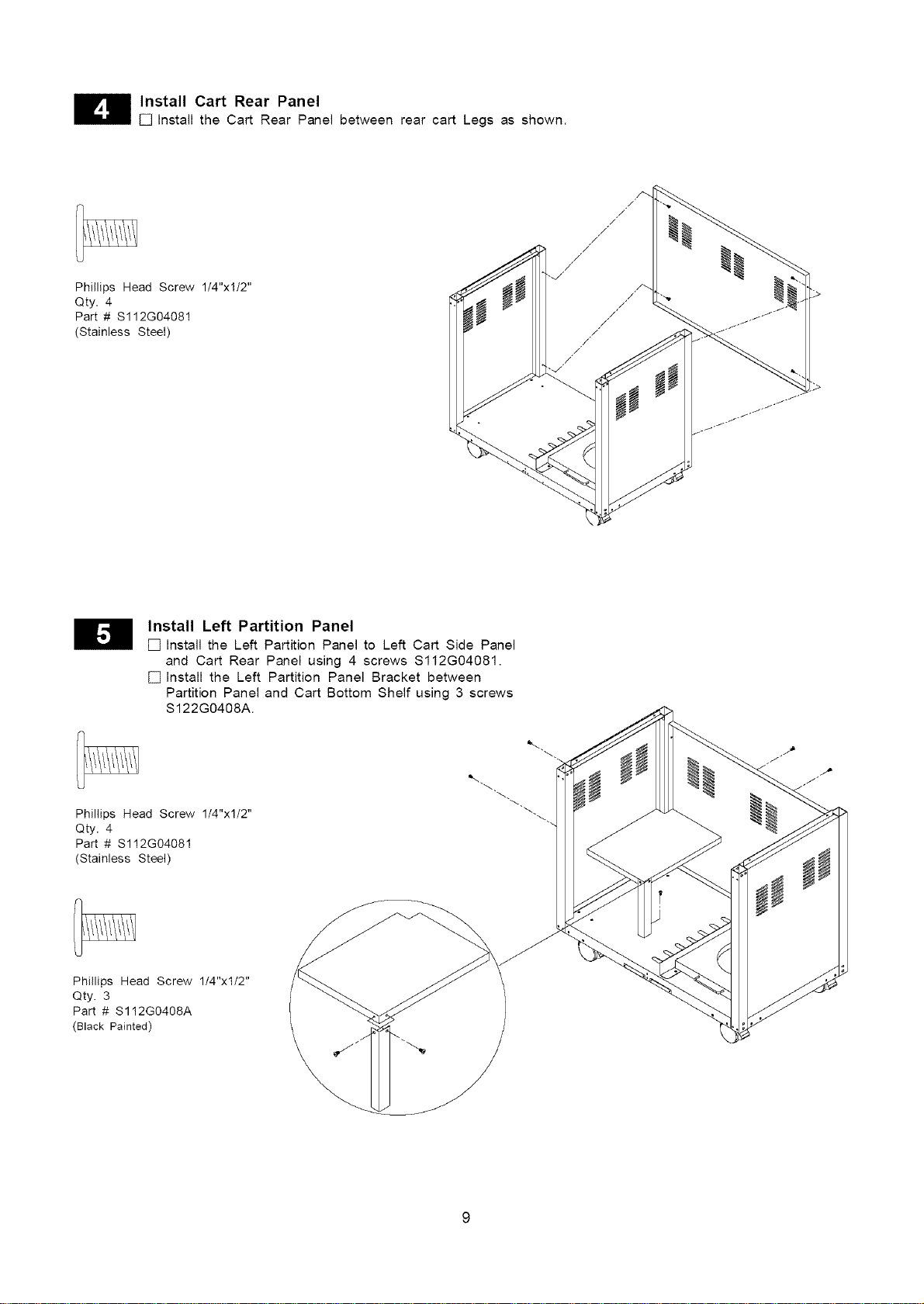

Install Cart Rear Panel

[] Install the Cart Rear Panel between rear cart Legs as shown.

Phillips Head Screw 1/4"xl/2"

Qty. 4

Part # $112G0408!

(Stainless Steel)

Install Left Partition Panel

[] Install the Left Partition Panel to Left Cart Side Panel

and Cart Rear Panel using 4 screws Sl12G04081.

[] Install the Left Partition Panel Bracket between

Partition Panel and Cart Bottom Shelf using 3 screws

S122G0408A.

Phillips Head Screw 1t4"xl/2"

Qty. 4

Part # S112G04081

(Stainless Steel)

Phillips Head Screw 1/4"xl/2"

Qty. 3

Part # S112G0408A

(Black Painted)

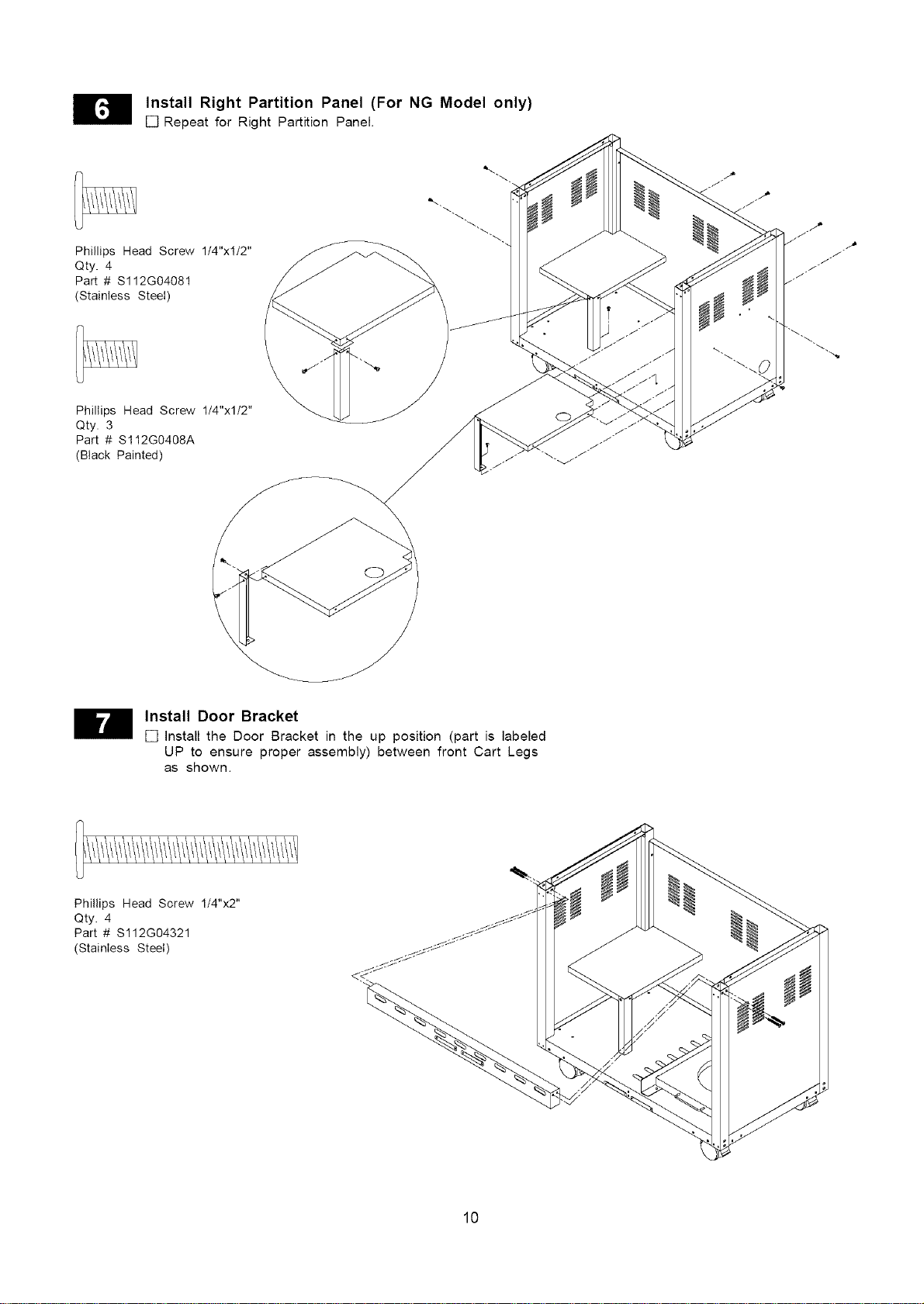

Install Right Partition Panel (For NG Model only)

[] Repeat for Right Partition Panel.

Phillips Head Screw 1/4"xl/2"

Qty. 4

Part # Sl12G0408!

(Stainless Steel)

Phillips Head Screw 1/4"xl/2"

Qty. 3

Part # S112G0408A

(Black Painted)

Install Door Bracket

[] install the Door Bracket in the up position (part is labeled

UP to ensure proper assembly) between front Cart Legs

as shown.

Phillips Head Screw 1/4"x2"

Qty. 4

Part # $112G04321

(Stainless Steel)

H nstall Doors

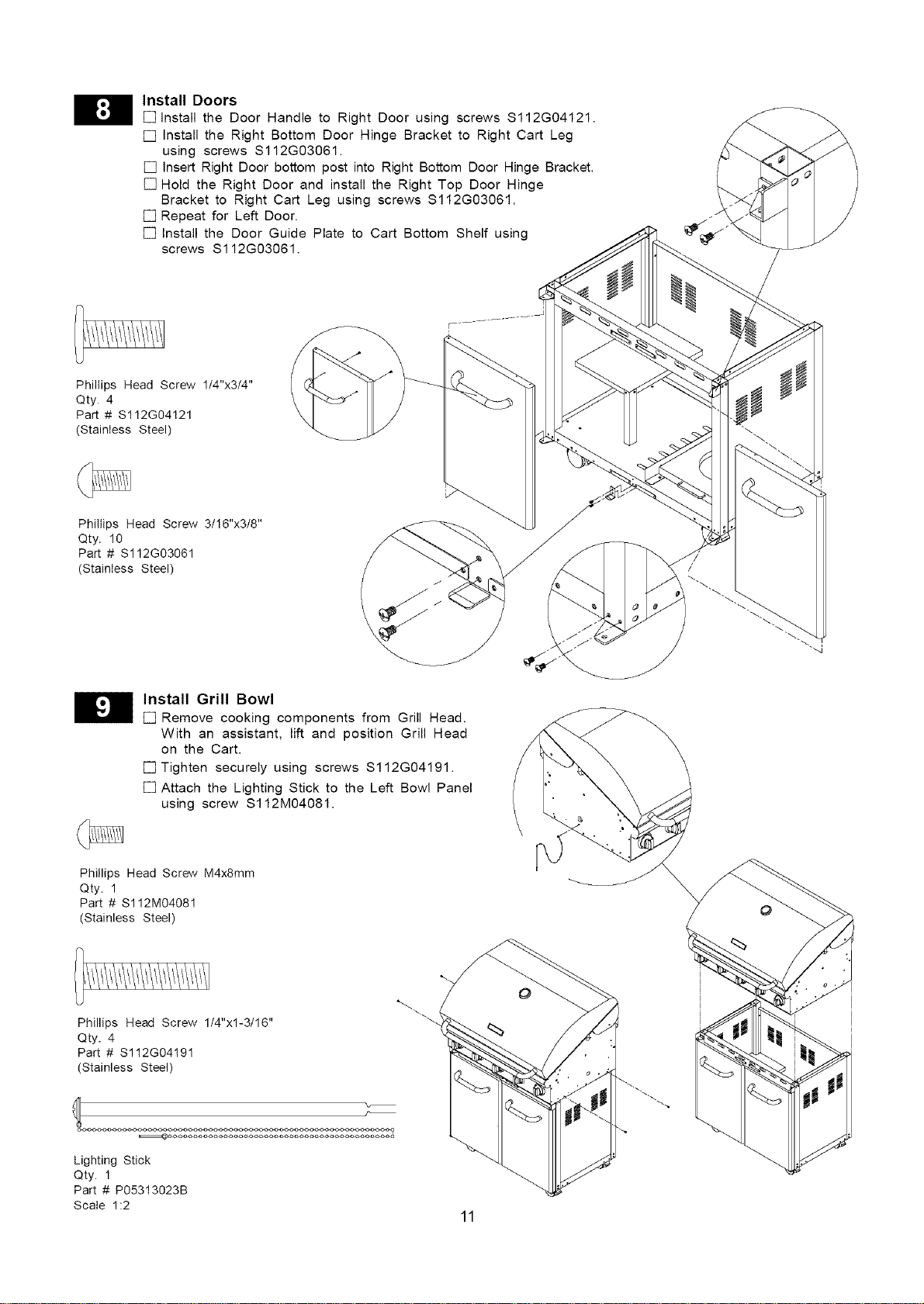

[] Install the Door Handle to Right Door using screws $112G04121.

[] install the Right Bottom Door Hinge Bracket to Right Cart Leg

using screws S112G03061.

[] Insert Right Door bottom post into Right Bottom Door Hinge Bracket.

[] Hold the Right Door and install the Right Top Door Hinge

Bracket to Right Cart Leg using screws S112G03061.

[] Repeat for Left Door.

[] Install the Door Guide Plate to Cart Bottom Shelf using

screws S112G03061.

Phillips Head Screw 1/4"x3/4"

Qty. 4

Part # $112G04121

(Stainless Steel)

Phillips Head Screw 3/16"x3/8"

Qty. 10

Part # $112G03061

(Stainless Steel)

Install Grill Bowl

[] Remove cooking components from Grill Head.

With an assistant, lift and position Grill Head

on the Cart.

[] Tighten securely using screws Sl12G04191.

[] Attach the Lighting Stick to the Left Bowl Panel

using screw S112M04081.

Phillips Head Screw M4x8mm

Qty. 1

Part # S112M04081

(Stainless Steel)

Phillips Head Screw 1/4"xl-3/16"

Qty. 4

Part # S112G04191

(Stainless Steel)

Lighting Stick

Qty. 1

Part # P05313023B

Scale 1:2

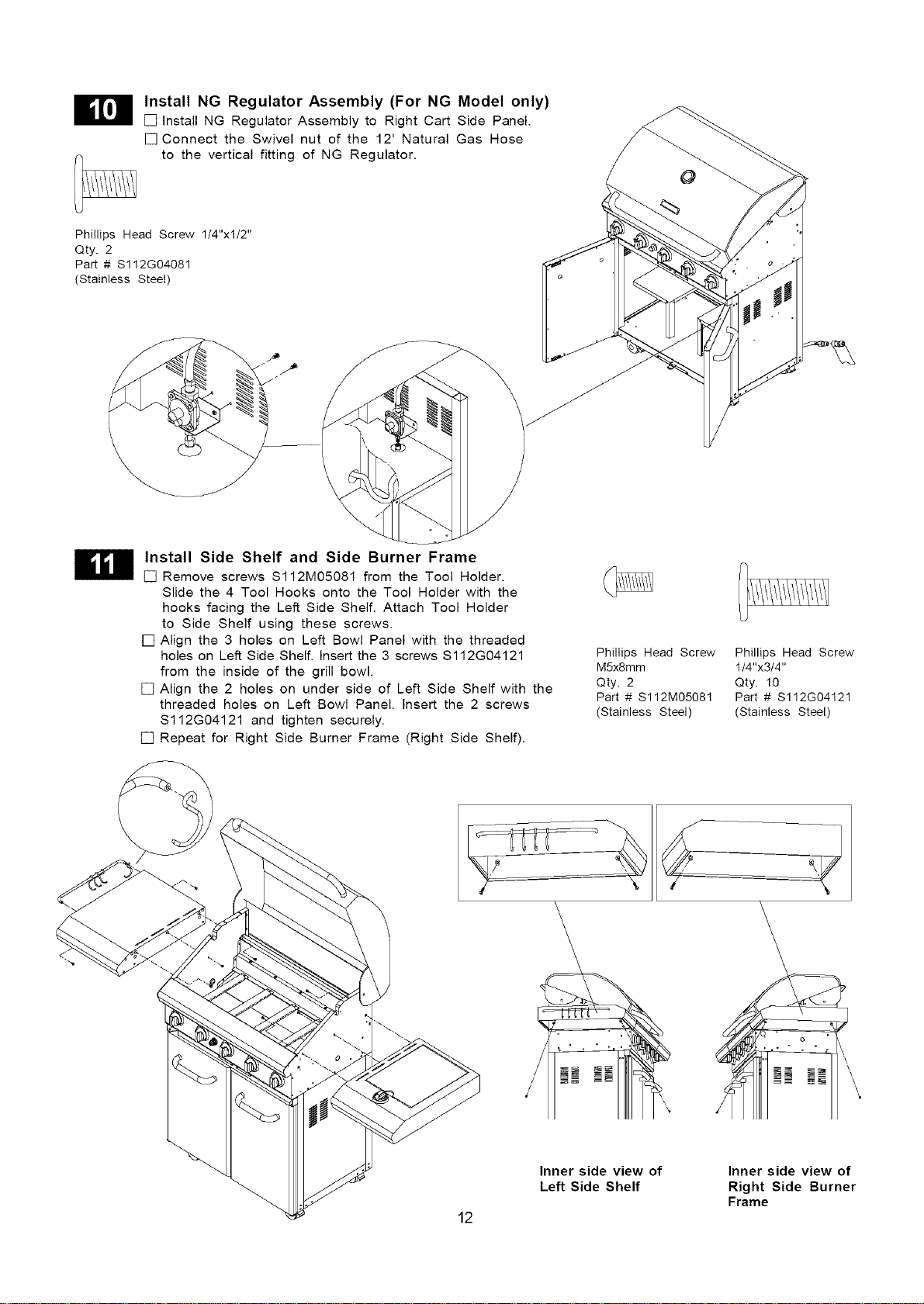

Install NG Regulator Assembly (For NG Model only)

[] Install NG Regulator Assembly to Right Cart Side Panel.

[]Connect the Swivel nut of the 12' Natural Gas Hose

to the vertical fitting of NG Regulator.

Phillips Head Screw 1/4"xl/2"

Qty. 2

Part # $112G04081

(Stainless Steel)

Install Side Shelf and Side Burner Frame

[] Remove screws Sl12M05081 from the Tool Holder.

Slide the 4 Tool Hooks onto the Tool Holder with the

hooks facing the Left Side Shelf. Attach Tool Holder

to Side Shelf using these screws.

[] Align the 3 holes on Left Bowl Panel with the threaded

holes on Left Side Shelf. Insert the 3 screws S112G04121

from the inside of the grill bowl.

[] Align the 2 holes on under side of Left Side Shelf with the

threaded holes on Left Bowl Panel. Insert the 2 screws

S112G04121 and tighten securely.

[] Repeat for Right Side Burner Frame (Right Side Shelf).

Phillips Head Screw Phillips Head Screw

M5x8mm 1/4"x3/4"

Qty. 2 Qty. 10

Part # S112M05081 Part # S112G04121

(Stainless Steel) (Stainless Steel)

Inner side view of

Left Side Shelf

Inner side view of

Right Side Burner

Frame

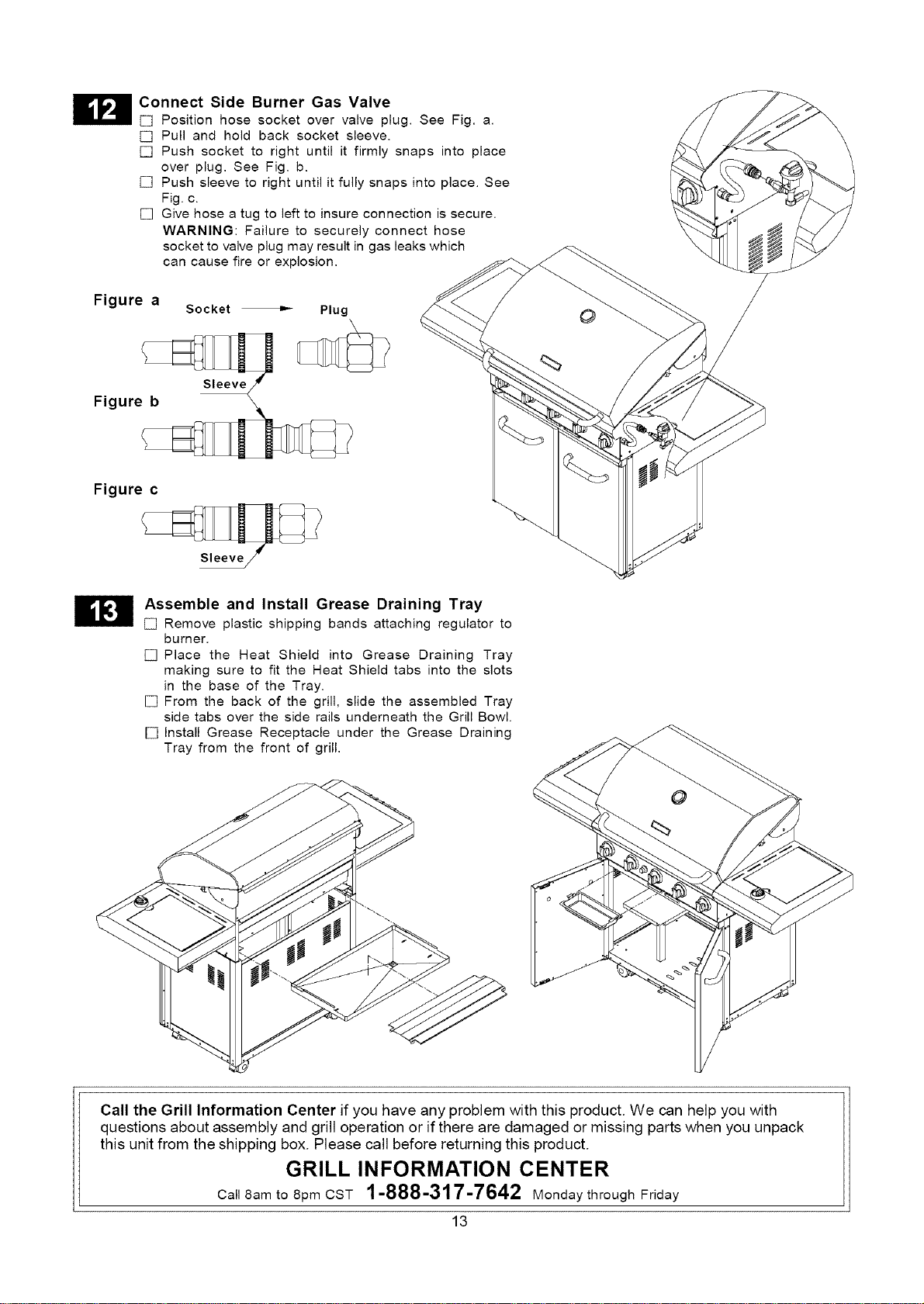

Connect Side Burner Gas Valve

[] Position hose socket over valve plug. See Fig. a.

[] Pull and hold back socket sleeve.

[] Push socket to right until it firmly snaps into place

over plug. See Fig. b.

[] Push sleeve to right until it fully snaps into place. See

Fig. c.

[] Give hose a tug to left to insure connection is secure.

WARNING: Failure to securely connect hose

socket to valve plug may result in gas leaks which

can cause fire or explosion.

Figure a

Socket _ Plug

Sleeve

Figure b

Figure c

Assemble and Install Grease Draining Tray

[] Remove plastic shipping bands attaching regulator to

burner.

[] Place the Heat Shield into Grease Draining Tray

making sure to fit the Heat Shield tabs into the slots

in the base of the Tray.

[] From the back of the grill, slide the assembled Tray

side tabs over the side rails underneath the Grill Bowl.

[] Install Grease Receptacle under the Grease Draining

Tray from the front of grill.

Call the Grill Information Center if you have any problem with this product. We can help you with

questions about assembly and grill operation or if there are damaged or missing parts when you unpack

this unit from the shipping box. Please call before returning this product.

GRILL INFORMATION CENTER

CallSamtoSpinCST 1-888-317-7642 Monday through Friday

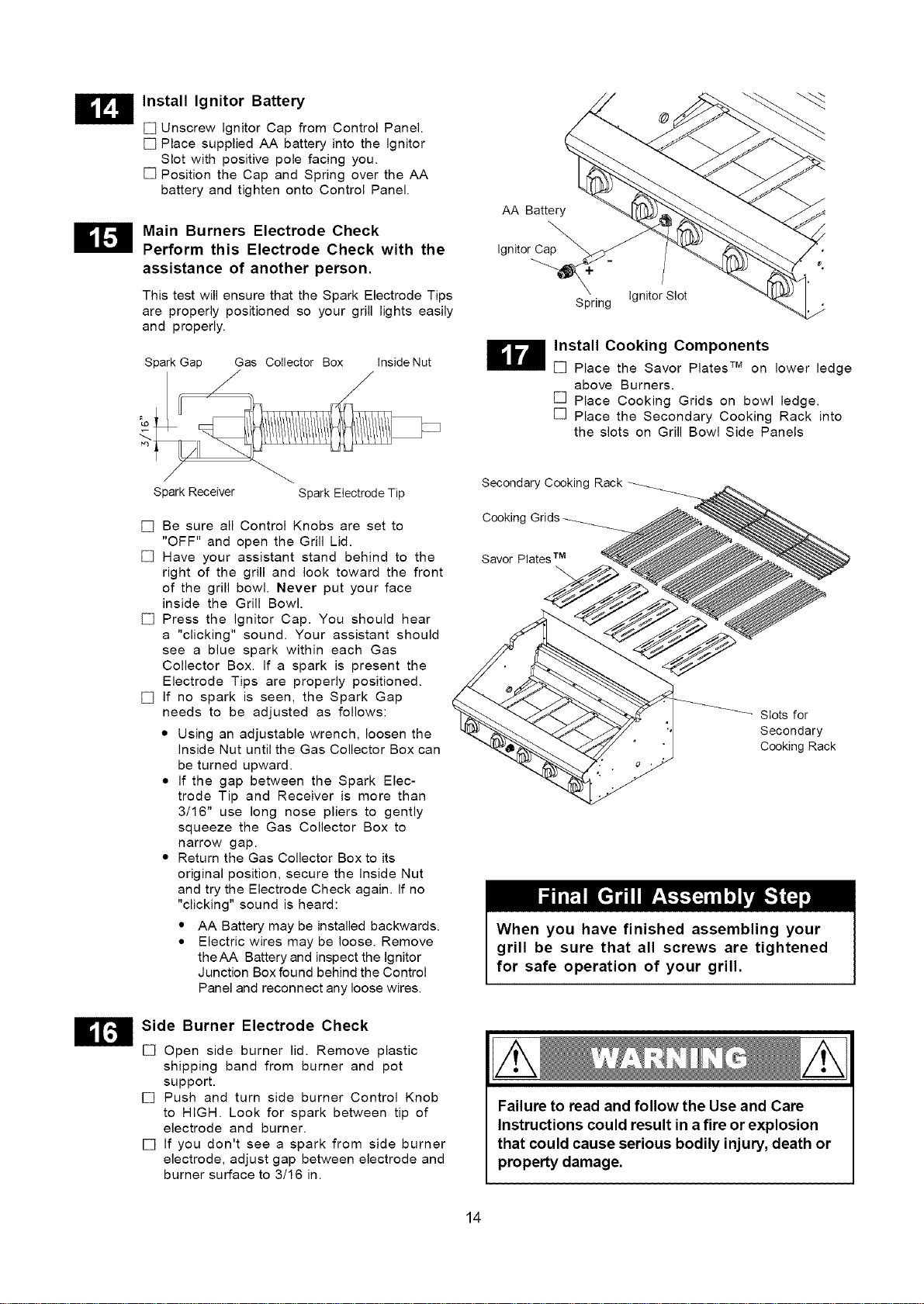

Install Ignitor Battery

[] Unscrew Ignitor Cap from Control Panel.

[] Place supplied AA battery into the Ignitor

Slot with positive pole facing you.

[] Position the Cap and Spring over the AA

battery and tighten onto Control Panel.

Main Burners Electrode Check

Perform this Electrode Check with the

assistance of another person.

This test will ensure that the Spark Electrode Tips

are properly positioned so your grill lights easily

and properly.

Spark Gap Gas Coilector Box InsideNut

AA Battery

IgnitorCap_+ _

Spring

Ignitor Slot

Install Cooking Components

[] Place the Savor Plates TM on lower ledge

above Burners.

[] Place Cooking Grids on bowl ledge.

[] Place the Secondary Cooking Rack into

the slots on Grill Bowl Side Panels

Spark Receiver Spark Eiectrode Tip

[] Be sure all Control Knobs are set to

"OFF" and open the Grill Lid.

[] Have your assistant stand behind to the

right of the grill and look toward the front

of the grill bowl. Never put your face

inside the Grill Bowl.

[] Press the ignitor Cap. You should hear

a "clicking" sound. Your assistant should

see a blue spark within each Gas

Collector Box. If a spark is present the

Electrode Tips are properly positioned.

[] If no spark is seen, the Spark Gap

needs to be adjusted as follows:

• Using an adjustable wrench, loosen the

inside Nut until the Gas Collector Box can

be turned upward.

• If the gap between the Spark Elec-

trode Tip and Receiver is more than

3/16" use long nose pliers to gently

squeeze the Gas Collector Box to

narrow gap.

• Return the Gas Collector Box to its

original position, secure the inside Nut

and try the Electrode Check again. If no

"clicking" sound is heard:

• AA Battery may be installed backwards.

• Electric wires may be loose. Remove

theAA Battery and inspect the Ignitor

Junction Box found behind the Control

Panel and reconnect any loose wires.

Side Burner Electrode Check

[] Open side burner lid. Remove plastic

shipping band from burner and pot

support.

[] Push and turn side burner Control Knob

to HIGH. Look for spark between tip of

electrode and burner.

[] If you don't see a spark from side burner

electrode, adjust gap between electrode and

burner surface to 3/16 in.

Secondary Cooking Rack

Cooking

Savor Plates TM

Slots for

Secondary

Cooking Rack

When you have finished assembling your

grill be sure that all screws are tightened

for safe operation of your grill.

Failure to read and follow the Use and Care

Instructions could result in a fire or explosion

that could cause serious bodily injury, death or

property damage.

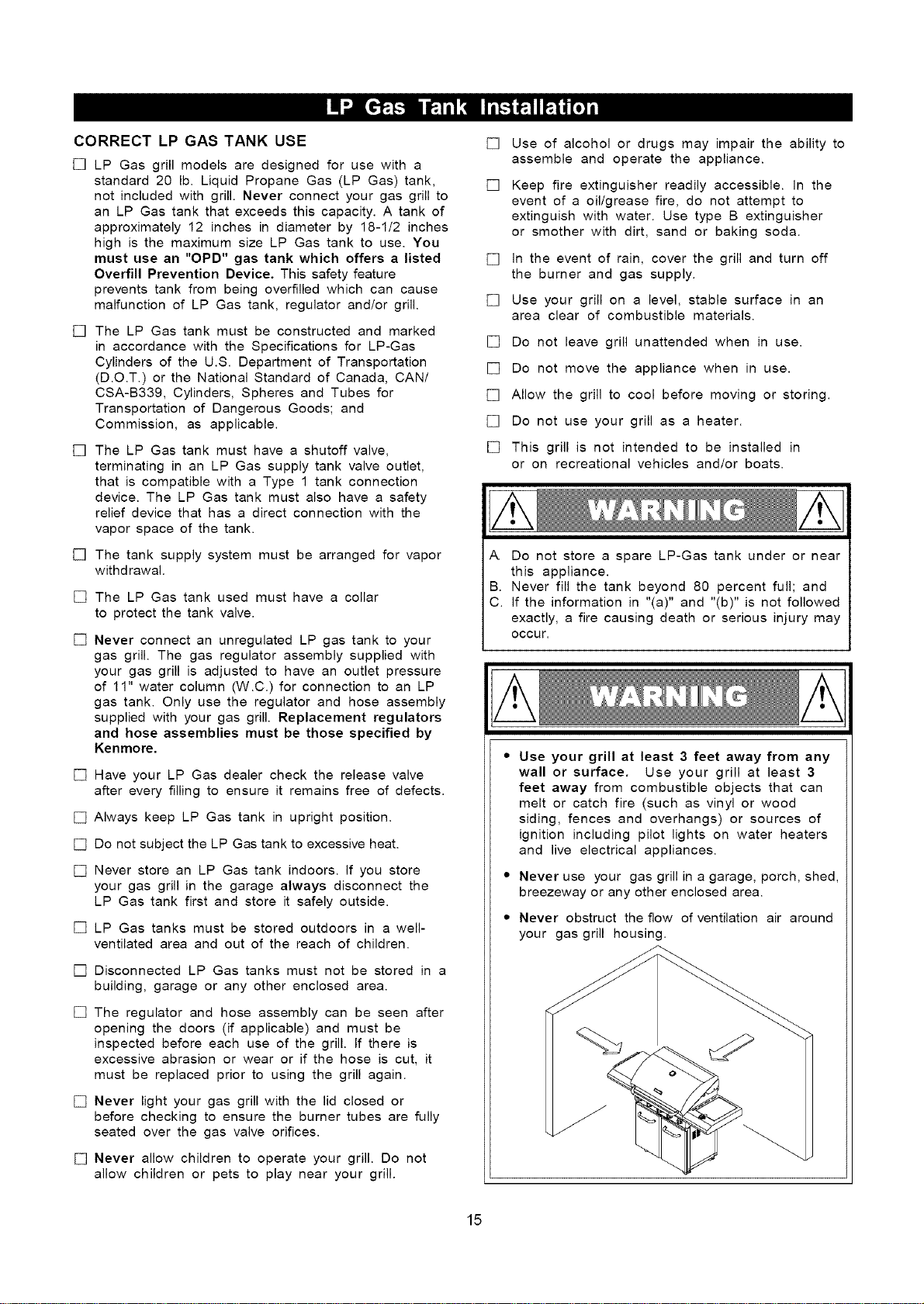

CORRECT LP GAS TANK USE

[] LP Gas grill models are designed for use with a

standard 20 lb. Liquid Propane Gas (LP Gas) tank,

not included with grill. Never connect your gas grill to

an LP Gas tank that exceeds this capacity. A tank of

approximately 12 inches in diameter by 18-1/2 inches

high is the maximum size LP Gas tank to use. You

must use an "OPD" gas tank which offers a listed

Overfill Prevention Device. This safety feature

prevents tank from being overfilled which can cause

malfunction of LP Gas tank, regulator and/or grill.

[] The LP Gas tank must be constructed and marked

in accordance with the Specifications for LP-Gas

Cylinders of the U.S. Department of Transportation

(D.O.T.) or the National Standard of Canada, CAN/

CSA-B339, Cylinders, Spheres and Tubes for

Transportation of Dangerous Goods; and

Commission, as applicable.

[] The LP Gas tank must have a shutoff valve,

terminating in an LP Gas supply tank valve outlet,

that is compatible with a Type 1 tank connection

device. The LP Gas tank must also have a safety

relief device that has a direct connection with the

vapor space of the tank.

[] The tank supply system must be arranged for vapor

withdrawal.

[] The LP Gas tank used must have a collar

to protect the tank valve.

[] Never connect an unregulated LP gas tank to your

gas grill. The gas regulator assembly supplied with

your gas grill is adjusted to have an outlet pressure

of 11" water column (W.C.) for connection to an LP

gas tank. Only use the regulator and hose assembly

supplied with your gas grill. Replacement regulators

and hose assemblies must be those specified by

Kenmore.

[] Have your LP Gas dealer check the release valve

after every filling to ensure it remains free of defects.

[] Always keep LP Gas tank in upright position.

[] Do not subject the LP Gas tank to excessive heat.

[] Never store an LP Gas tank indoors. If you store

your gas grill in the garage always disconnect the

LP Gas tank first and store it safely outside.

[] LP Gas tanks must be stored outdoors in a well-

ventilated area and out of the reach of children.

[] Disconnected LP Gas tanks must not be stored in a

building, garage or any other enclosed area.

[] The regulator and hose assembly can be seen after

opening the doors (if applicable) and must be

inspected before each use of the grill. If there is

excessive abrasion or wear or if the hose is cut, it

must be replaced prior to using the grill again.

[] Never light your gas grill with the lid closed or

before checking to ensure the burner tubes are fully

seated over the gas valve orifices.

[] Never allow children to operate your grill. Do not

allow children or pets to play near your grill.

[] Use of alcohol or drugs may impair the ability to

assemble and operate the appliance.

[] Keep fire extinguisher readily accessible. In the

event of a oil/grease fire, do not attempt to

extinguish with water. Use type B extinguisher

or smother with dirt, sand or baking soda.

[] In the event of rain, cover the grill and turn off

the burner and gas supply.

[] Use your grill on a level, stable surface in an

area clear of combustible materials.

[] Do not leave grill unattended when in use.

[] Do not move the appliance when in use.

[] Allow the grill to cool before moving or storing.

[] Do not use your grill as a heater.

[] This grill is not intended to be installed in

or on recreational vehicles and/or boats.

A. Do not store a spare LP-Gas tank under or near

this appliance.

B. Never fill the tank beyond 80 percent full; and

C. If the information in "(a)" and "(b)" is not followed

exactly, a fire causing death or serious injury may

Occur.

Use your grill at least 3 feet away from any

wall or surface. Use your grill at least 3

feet away from combustible objects that can

melt or catch fire (such as vinyl or wood

siding, fences and overhangs) or sources of

ignition including pilot lights on water heaters

and live electrical appliances.

Never use your gas grill in a garage, porch, shed,

breezeway or any other enclosed area.

Never obstruct the flow of ventilation air around

your gas grill housing.

NOTE about LP Gas Tank Exchange Programs

• Many retailers that sell grills offer you the option of

replacing your empty LP Gas tank through an exchange

service. Use only those reputable exchange compa-

nies that inspect, precision fill, test and certify their

tanks. Exchange your tank only for an OPD safety

feature-equipped tank as described in the LP Gas tank

section of this manual.

• Always keep new and exchanged LP Gas tanks in an

upright position during use, transit or storage.

• Leak test new and exchanged LP Gas tanks BEFORE

connecting one to your grill.

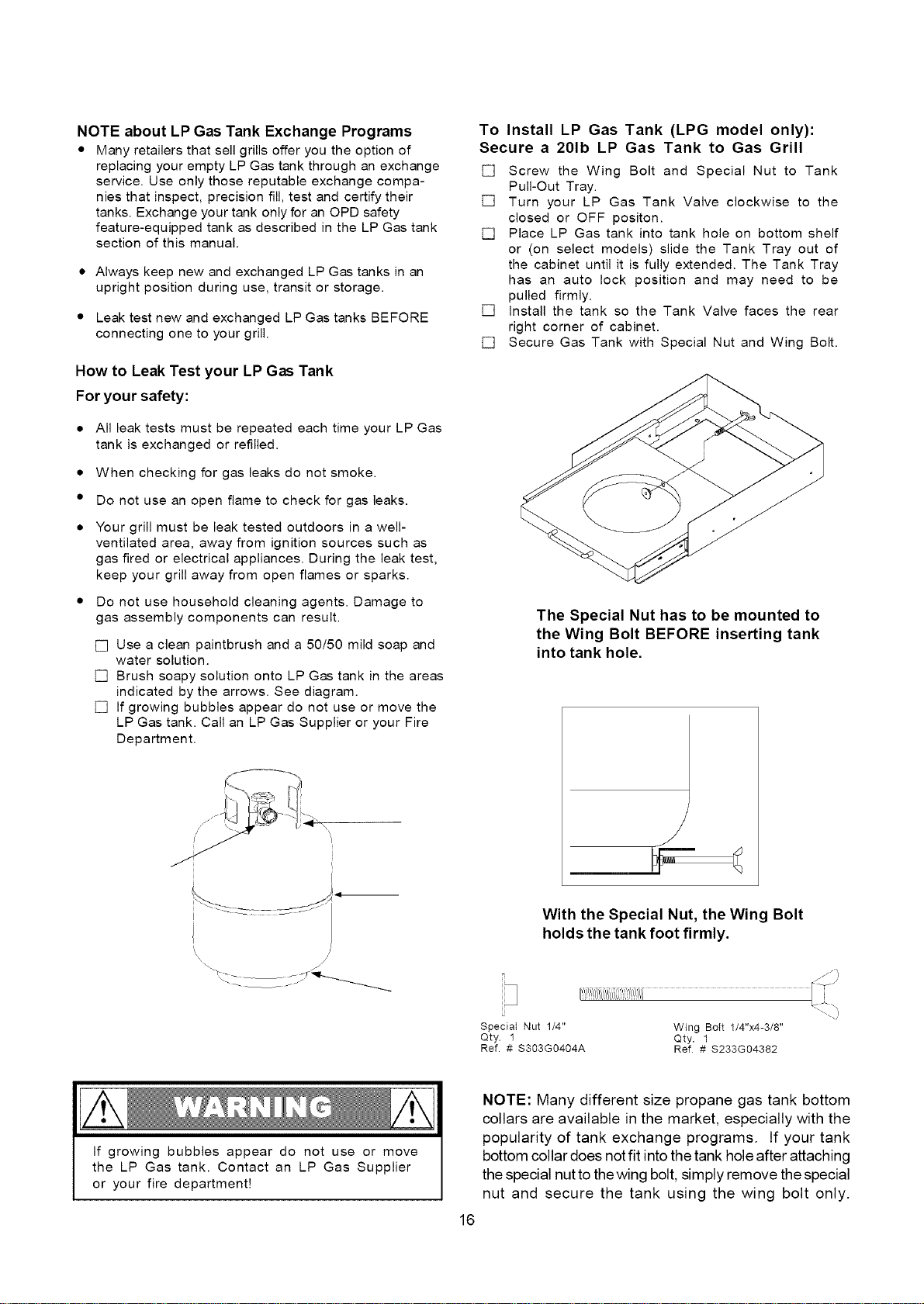

How to Leak Test your LP Gas Tank

For your safety:

• All leak tests must be repeated each time your LP Gas

tank is exchanged or refilled.

• When checking for gas leaks do not smoke.

• Do not use an open flame to check for gas leaks.

• Your grill must be leak tested outdoors in a well-

ventilated area, away from ignition sources such as

gas fired or electrical appliances. During the leak test,

keep your grill away from open flames or sparks.

• Do not use household cleaning agents. Damage to

gas assembly components can result.

[] Use a clean paintbrush and a 50/50 mild soap and

water solution.

[] Brush soapy solution onto LP Gas tank in the areas

indicated by the arrows. See diagram.

[] If growing bubbles appear do not use or move the

LP Gas tank. Call an LP Gas Supplier or your Fire

Department.

To Install LP Gas Tank (LPG model only):

Secure a 201b LP Gas Tank to Gas Grill

[] Screw the Wing Bolt and Special Nut to Tank

Pull-Out Tray.

[] Turn your LP Gas Tank Valve clockwise to the

closed or OFF positon.

[] Place LP Gas tank into tank hole on bottom shelf

or (on select models) slide the Tank Tray out of

the cabinet until it is fully extended. The Tank Tray

has an auto lock position and may need to be

pulled firmly.

[] install the tank so the Tank Valve faces the rear

right corner of cabinet.

[] Secure Gas Tank with Special Nut and Wing Bolt.

The Special Nut has to be mounted to

the Wing Bolt BEFORE inserting tank

into tank hole.

With the Special Nut, the Wing Bolt

holds the tank foot firmly.

Special Nut 1/4" Wing Bott 1/4"x4-3/8"

Qty 1 Qty. 1

Ref. # S303G0404A Ref # S233G04382

If growing bubbles appear do not use or move

the LP Gas tank. Contact an LP Gas Supplier

or your fire department!

NOTE: Many different size propane gas tank bottom

collars are available in the market, especially with the

popularity of tank exchange programs, tf your tank

bottom collar does not fit into the tank hole after attaching

the special nut to thewing bolt, simply remove the special

nut and secure the tank using the wing bolt only.

LP Gas Model only:

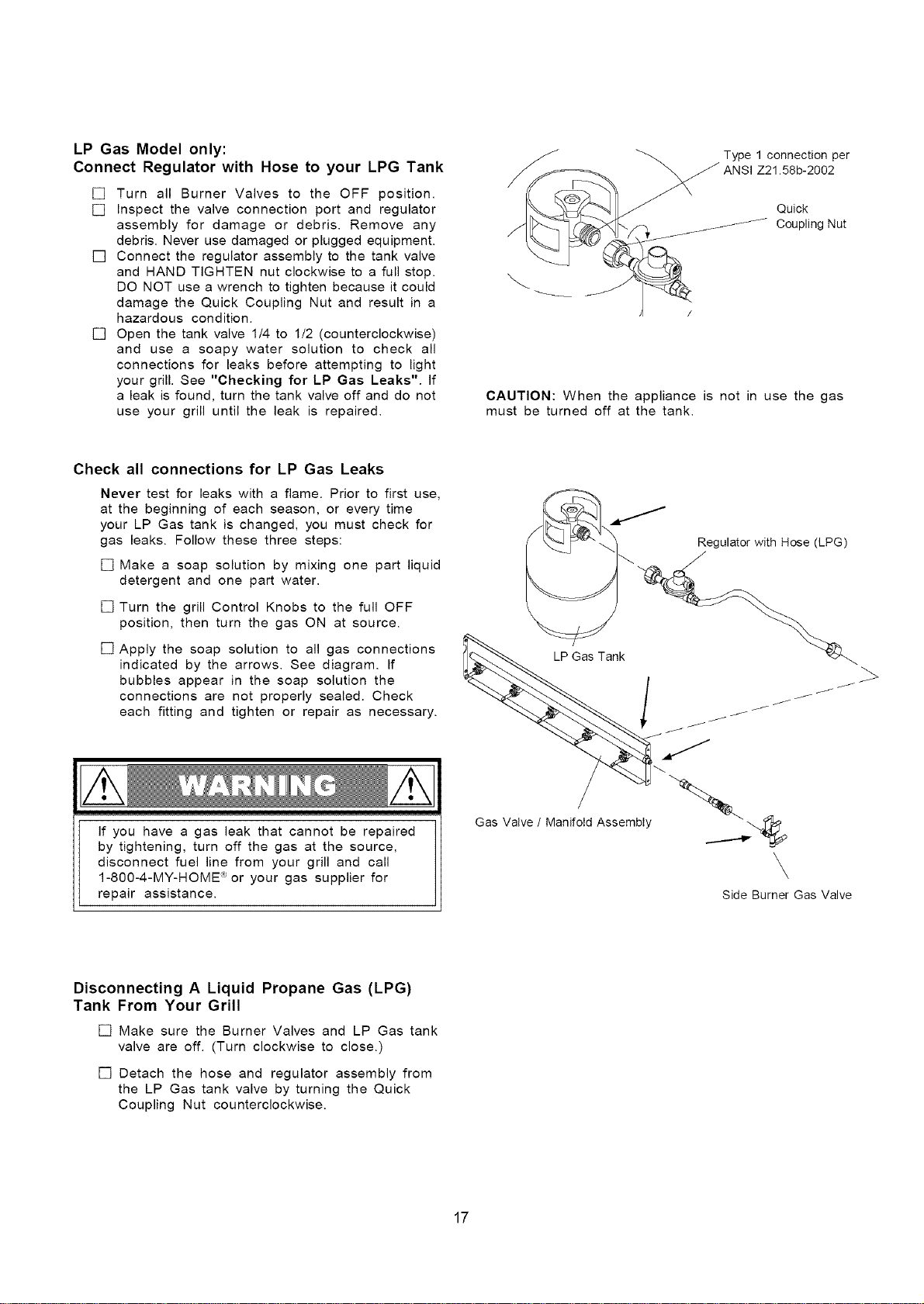

Connect Regulator with Hose to your LPG Tank

[] Turn all Burner Valves to the OFF position.

[] Inspect the valve connection port and regulator

assembly for damage or debris. Remove any

debris. Never use damaged or plugged equipment.

[] Connect the regulator assembly to the tank valve

and HAND TIGHTEN nut clockwise to a full stop.

DO NOT use a wrench to tighten because it could

damage the Quick Coupling Nut and result in a

hazardous condition.

[] Open the tank valve 1/4 to 1/2 (counterclockwise)

and use a soapy water solution to check all

connections for leaks before attempting to light

your grill. See "Checking for LP Gas Leaks". If

a leak is found, turn the tank valve off and do not

use your grill until the leak is repaired.

ff;So0ter

Quick

Coupling Nut

CAUTION: When the appliance is not in use the gas

must be turned off at the tank.

Check all connections for LP Gas Leaks

Never test for leaks with a flame. Prior to first use,

at the beginning of each season, or every time

your LP Gas tank is changed, you must check for

gas leaks. Follow these three steps:

Make a soap solution by mixing one part liquid

detergent and one part water.

[]

Turn the grill Control Knobs to the full OFF

position, then turn the gas ON at source.

Apply the soap solution to all gas connections

indicated by the arrows. See diagram. If

bubbles appear in the soap solution the

connections are not properly sealed. Check

each fitting and tighten or repair as necessary.

If you have a gas leak that cannot be repaired

by tightening, turn off the gas at the source,

disconnect fuel line from your grill and call

1-800-4-MY-HOME <_or your gas supplier for

repair assistance.

Regulator with Hose (LPG)

_.RLPGas Tank

Gas Va!ve / ManifoId AssembIy _,_$

Side Burner Gas Valve

Disconnecting A Liquid Propane Gas (LPG)

Tank From Your Grill

[] Make sure the Burner Valves and LP Gas tank

valve are off. (Turn clockwise to close.)

[] Detach the hose and regulator assembly from

the LP Gas tank valve by turning the Quick

Coupling Nut counterclockwise.

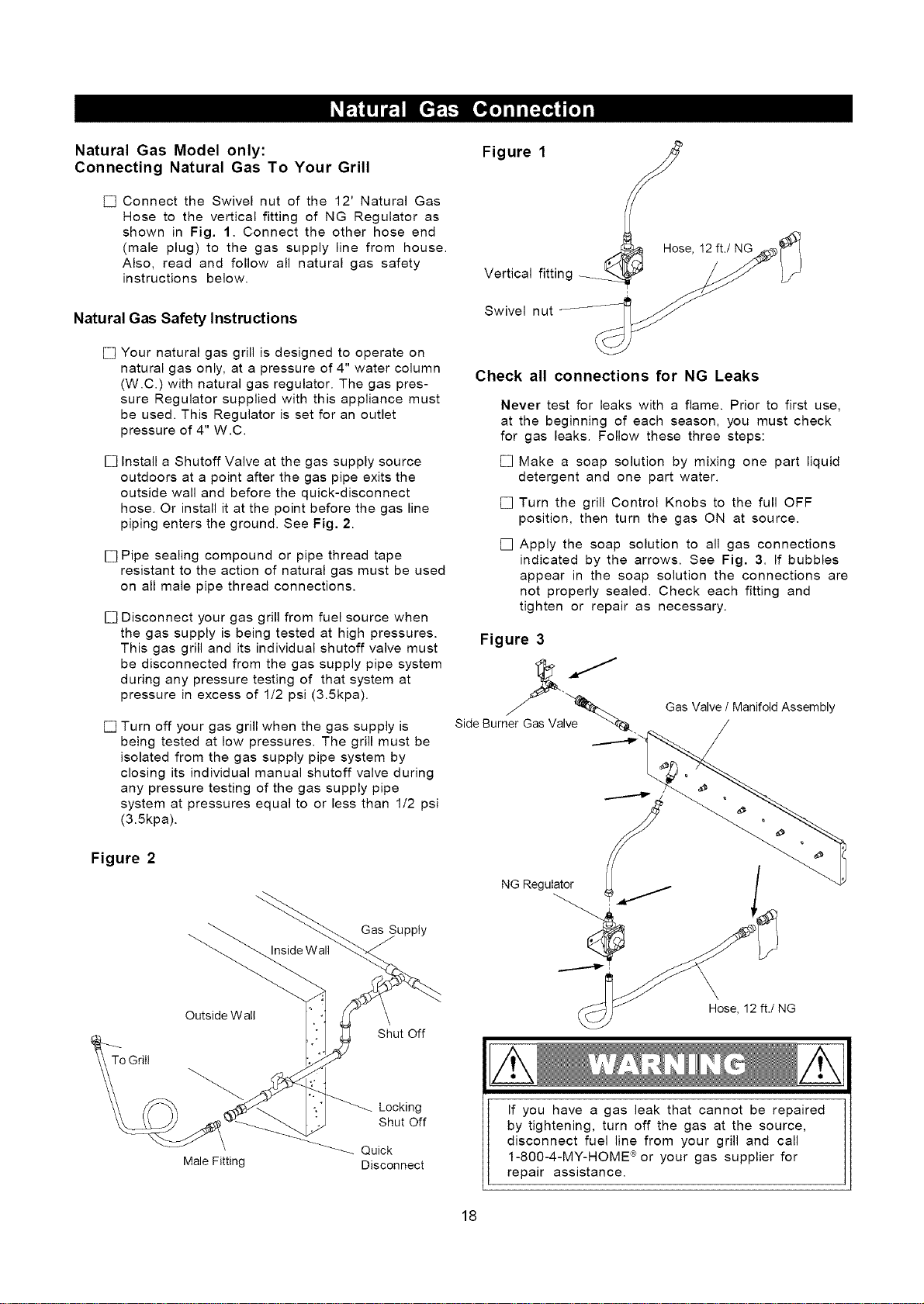

Natural Gas Model only:

Connecting Natural Gas To Your Grill

[] Connect the Swivel nut of the 12' Natural Gas

Hose to the vertical fitting of NG Regulator as

shown in Fig. 1. Connect the other hose end

(male plug) to the gas supply line from house.

Also, read and follow all natural gas safety

instructions below.

Natural Gas Safety Instructions

[] Your natural gas grill is designed to operate on

natural gas only, at a pressure of 4" water column

(W.C.) with natural gas regulator. The gas pres-

sure Regulator supplied with this appliance must

be used. This Regulator is set for an outlet

pressure of 4" W.C.

[] Install a Shutoff Valve at the gas supply source

outdoors at a point after the gas pipe exits the

outside wall and before the quick-disconnect

hose. Or install it at the point before the gas line

piping enters the ground. See Fig. 2.

[] Pipe sealing compound or pipe thread tape

resistant to the action of natural gas must be used

on all male pipe thread connections.

[] Disconnect your gas grill from fuel source when

the gas supply is being tested at high pressures.

This gas grill and its individual shutoff valve must

be disconnected from the gas supply pipe system

during any pressure testing of that system at

pressure in excess of 1/2 psi (3.5kpa).

[] Turn off your gas grill when the gas supply is

being tested at low pressures. The grill must be

isolated from the gas supply pipe system by

closing its individual manual shutoff valve during

any pressure testing of the gas supply pipe

system at pressures equal to or less than 1/2 psi

(3.5kpa).

Figure 2

Inside Wall

Gas uppty

Figure 1 _ /

Vertical fitting _ Hose, 12 ft./NG

Swivel nut

Check all connections for NG Leaks

Never test for leaks with a flame. Prior to first use,

at the beginning of each season, you must check

for gas leaks. Follow these three steps:

[] Make a soap solution by mixing one part liquid

detergent and one part water.

[] Turn the grill Control Knobs to the full OFF

position, then turn the gas ON at source.

[] Apply the soap solution to all gas connections

indicated by the arrows. See Fig. 3. If bubbles

appear in the soap solution the connections are

not properly sealed. Check each fitting and

tighten or repair as necessary.

Figure 3

SideBurn2_R.

Gas Valve / Manifold Assembly

Outside Wall

Shut Off

o GriII

Locking

Shut Off

Quick

Male Fitting Disconnect

Hose, 12 ft./NG

If you have a gas leak that cannot be repaired

by tightening, turn off the gas at the source,

disconnect fuel line from your grill and call

1-800-4-MY-HOME ® or your gas supplier for

repair assistance.

Grill Lighting Instructions

1. Before each use, check all hoses for cracks, nicks, cuts,

burns or abrasions. If a hose is damaged in any way, do

not use your grill before replacing the hose with an

authorized part from the Parts List. Also make sure all

gas supply connections are securely tightened.

2. Familiarize yourself with the safety and Use and Care

instructions in this manual. Do not smoke while lighting

grill or checking gas supply connections.

3. Be sure the LP Gas tank is filled or the Natural Gas Line

is attached to the gas source.

4. Open the Grill Lid.

5. Check that the end of each Burner Tube is properly

located over each Valve Orifice.

Failure to replace a faulty hose, secure gas supply

connections or to open the Lid before proceeding

to the Lighting Procedures could result in a fire

or explosion that could cause serious bodily injury,

death, or property damage.

6. Set Control Knobs to OFF and open the LP Gas

tank valve SLOWLY 1/4 of a turn. For Natural Gas

open the Shut Off Valve at source.

Open LP Gas tank

OFF

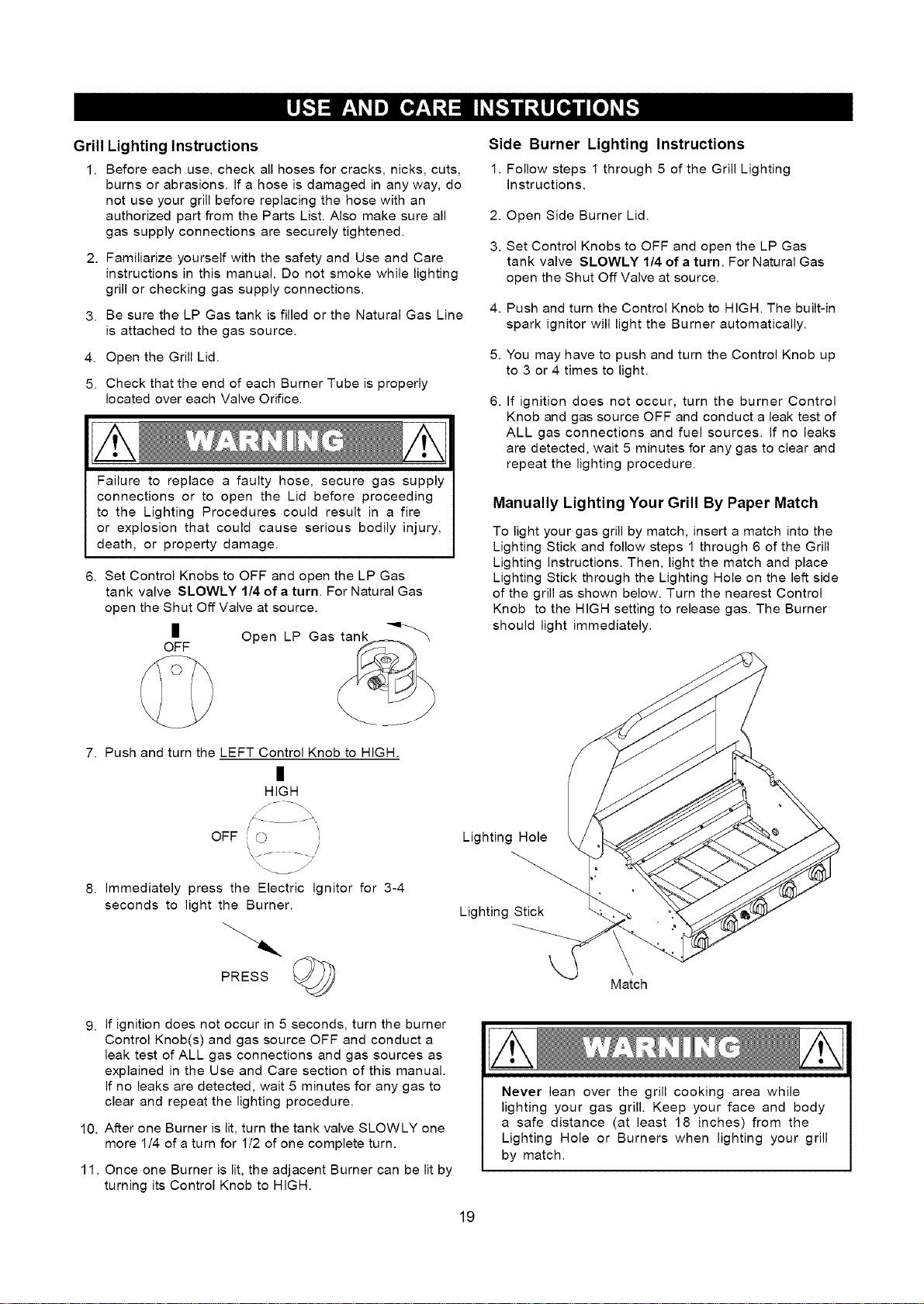

Side Burner Lighting Instructions

1. Follow steps 1 through 5 of the Grill Lighting

instructions.

Open Side Burner Lid.

Set Control Knobs to OFF and open the LP Gas

tank valve SLOWLY 1/4 of a turn. For Natural Gas

open the Shut Off Valve at source.

Push and turn the Control Knob to HIGH. The built-in

spark ignitor will light the Burner automatically.

You may have to push and turn the Control Knob up

to 3 or 4 times to light.

If ignition does not occur, turn the burner Control

Knob and gas source OFF and conduct a leak test of

ALL gas connections and fuel sources. If no leaks

are detected, wait 5 minutes for any gas to clear and

repeat the lighting procedure.

Manually Lighting Your Grill By Paper Match

To light your gas grill by match, insert a match into the

Lighting Stick and follow steps 1 through 6 of the Grill

Lighting instructions. Then, light the match and place

Lighting Stick through the Lighting Hole on the left side

of the grill as shown below. Turn the nearest Control

Knob to the HIGH setting to release gas. The Burner

should light immediately.

7. Push and turn the LEFT Control Knob to HIGH.

HIGH

/ /

OFF _ i Lighting Hole

8. immediately press the Electric ignitor for 3-4

seconds to light the Burner.

PRESS

9. If ignition does not occur in 5 seconds, turn the burner

Control Knob(s) and gas source OFF and conduct a

leak test of ALL gas connections and gas sources as

explained in the Use and Care section of this manual.

If no leaks are detected, wait 5 minutes for any gas to

clear and repeat the lighting procedure.

10. After one Burner is lit, turn the tank valve SLOWLY one

more 1/4 of a turn for 1/2 of one complete turn.

11. Once one Burner is lit, the adjacent Burner can be lit by

turning its Control Knob to HIGH.

Lighting Stick

Match

Never lean over the grill cooking area while

lighting your gas grill. Keep your face and body

a safe distance (at least 18 inches) from the

Lighting Hole or Burners when lighting your grill

by match.

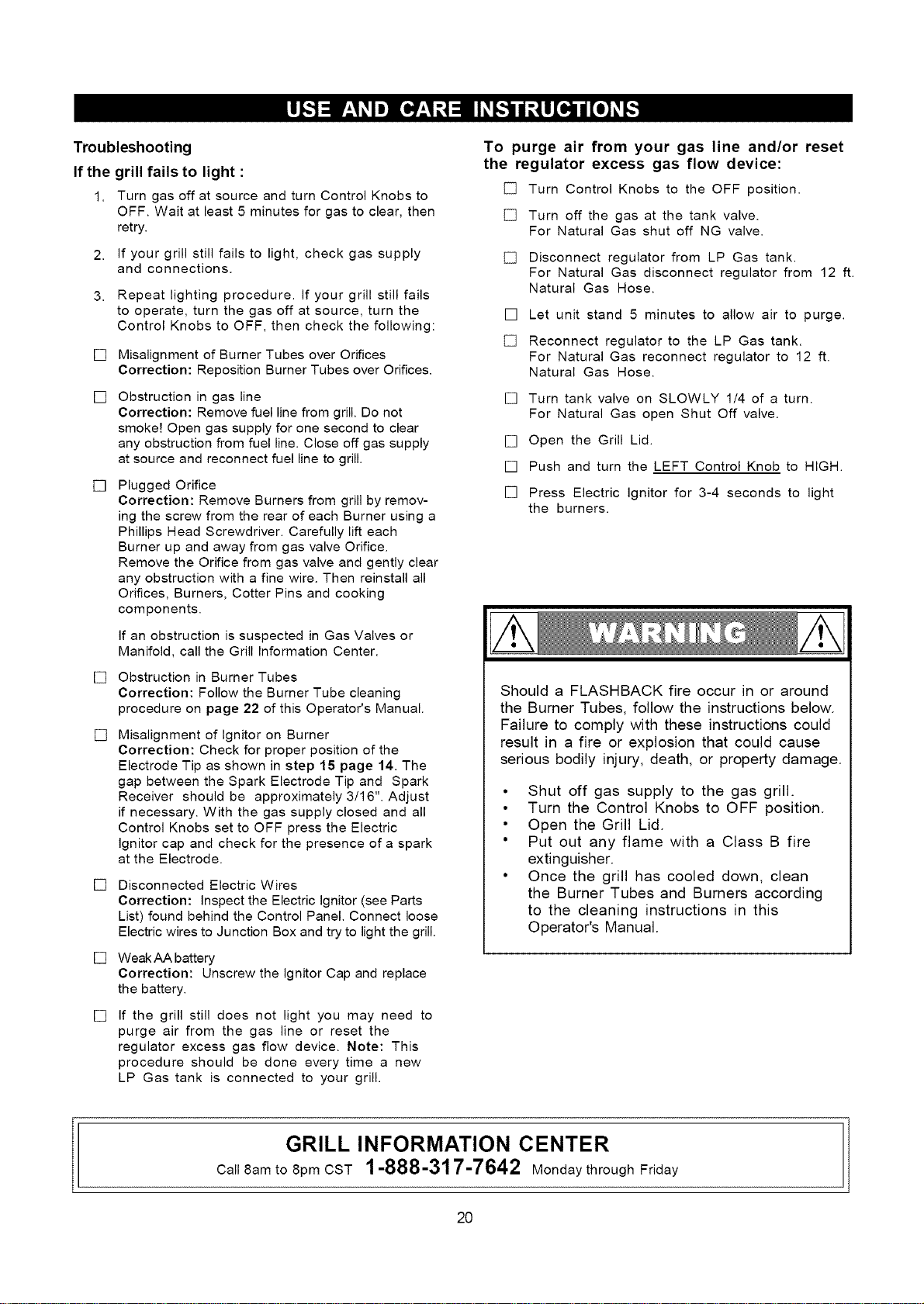

Troubleshooting

If the grill fails to light :

1. Turn gas off at source and turn Control Knobs to

OFF. Wait at least 5 minutes for gas to clear, then

retry.

2. if your grill still fails to light, check gas supply

and connections.

3. Repeat lighting procedure. If your grill still fails

to operate, turn the gas off at source, turn the

Control Knobs to OFF, then check the following:

[] Misalignment of Burner Tubes over Orifices

Correction: Reposition Burner Tubes over Orifices.

[] Obstruction in gas line

Correction: Remove fuel line from grill. Do not

smoke! Open gas supply for one second to clear

any obstruction from fuel line. Close off gas supply

at source and reconnect fuel line to grill.

[] Plugged Orifice

Correction: Remove Burners from grill by remov-

ing the screw from the rear of each Burner using a

Phillips Head Screwdriver. Carefully lift each

Burner up and away from gas valve Orifice.

Remove the Orifice from gas valve and gently clear

any obstruction with a fine wire. Then reinstall all

Orifices, Burners, Cotter Pins and cooking

com portents.

if an obstruction is suspected in Gas Valves or

Manifold, call the Grill Information Center.

[]

Obstruction in Burner Tubes

Correction: Follow the Burner Tube cleaning

procedure on page 22 of this Operator's Manual.

Misalignment of Ignitor on Burner

Correction: Check for proper position of the

Electrode Tip as shown in step 15 page 14. The

gap between the Spark Electrode Tip and Spark

Receiver should be approximately 3/16". Adjust

if necessary. With the gas supply closed and all

Control Knobs set to OFF press the Electric

ignitor cap and check for the presence of a spark

at the Electrode.

[]

Disconnected Electric Wires

Correction: inspect the Electric Ignitor (see Parts

List) found behind the Control Panel. Connect loose

Electric wires to Junction Box and try to light the grill.

Weak AA battery

Correction: Unscrew the Ignitor Cap and replace

the battery.

[]

If the grill still does not light you may need to

purge air from the gas line or reset the

regulator excess gas flow device. Note: This

procedure should be done every time a new

LP Gas tank is connected to your grill.

To purge air from your gas line and/or reset

the regulator excess gas flow device:

[] Turn Control Knobs to the OFF position.

[] Turn off the gas at the tank valve.

For Natural Gas shut off NG valve.

[] Disconnect regulator from LP Gas tank.

For Natural Gas disconnect regulator from 12 ft.

Natural Gas Hose.

[]

Let unit stand 5 minutes to allow air to purge.

Reconnect regulator to the LP Gas tank.

For Natural Gas reconnect regulator to 12 ft.

Natural Gas Hose.

[] Turn tank valve on SLOWLY 1/4 of a turn.

For Natural Gas open Shut Off valve.

[] Open the Grill Lid.

[] Push and turn the LEFT Control Knob to HIGH.

[] Press Electric Ignitor for 3-4 seconds to light

the burners.

Should a FLASHBACK fire occur in or around

the Burner Tubes, follow the instructions below.

Failure to comply with these instructions could

result in a fire or explosion that could cause

serious bodily injury, death, or property damage.

• Shut off gas supply to the gas grill.

• Turn the Control Knobs to OFF position.

• Open the Grill Lid.

• Put out any flame with a Class B fire

extinguisher.

• Once the grill has cooled down, clean

the Burner Tubes and Burners according

to the cleaning instructions in this

Operator's Manual.

GRILL INFORMATION CENTER

Call 8am to 8pro CST 1-888-317-7642 Monday through Friday

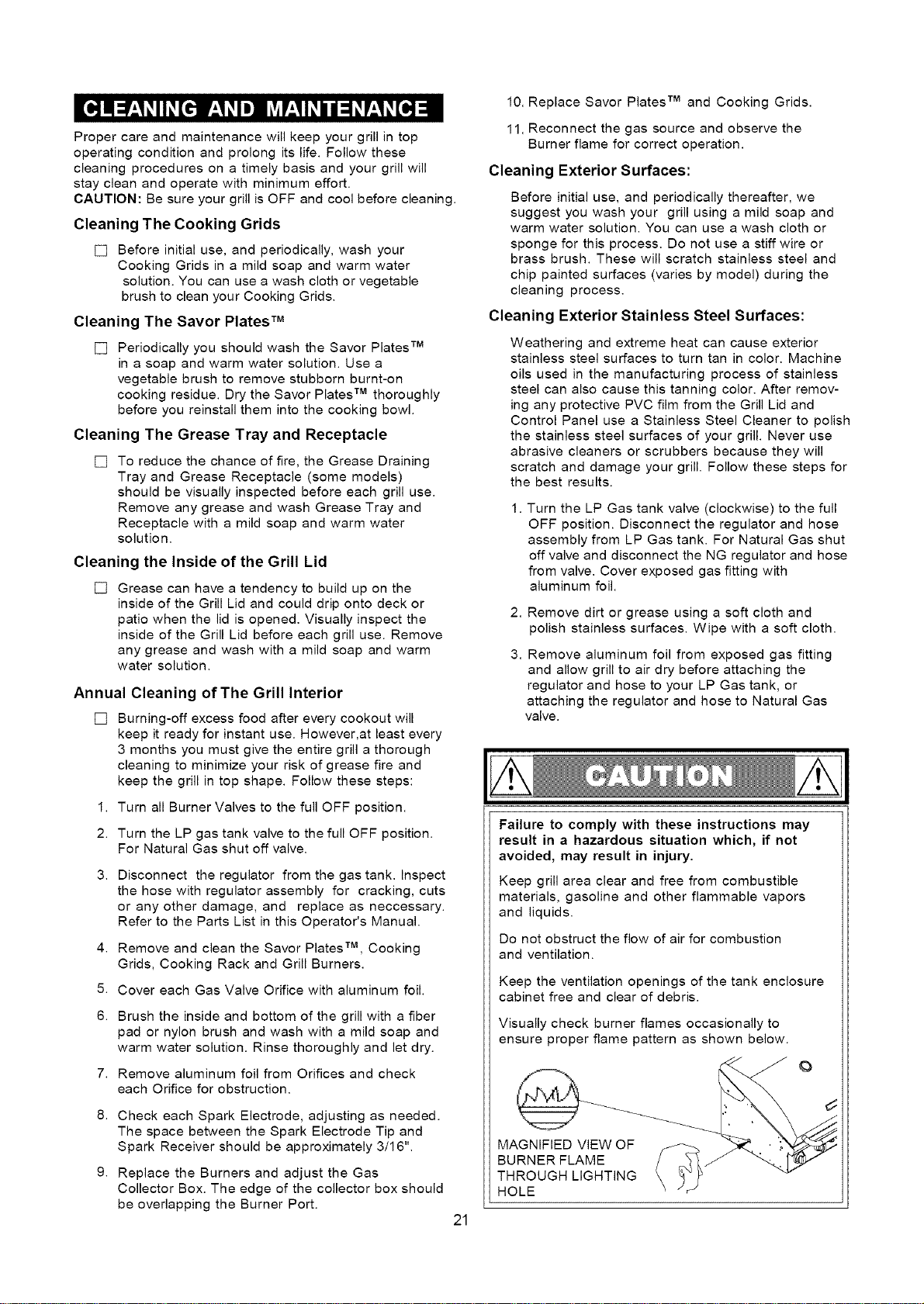

Proper care and maintenance will keep your grill in top

operating condition and prolong its life. Follow these

cleaning procedures on a timely basis and your grill will

stay clean and operate with minimum effort.

CAUTION: Be sure your grill is OFF and cool before cleaning.

Cleaning The Cooking Grids

[] Before initial use, and periodically, wash your

Cooking Grids in a mild soap and warm water

solution. You can use a wash cloth or vegetable

brush to clean your Cooking Grids.

Cleaning The Savor Plates TM

[] Periodically you should wash the Savor Plates TM

in a soap and warm water solution. Use a

vegetable brush to remove stubborn burnt-on

cooking residue. Dry the Savor Plates TM thoroughly

before you reinstall them into the cooking bowl.

Cleaning The Grease Tray and Receptacle

[] To reduce the chance of fire, the Grease Draining

Tray and Grease Receptacle (some models)

should be visually inspected before each grill use.

Remove any grease and wash Grease Tray and

Receptacle with a mild soap and warm water

solution.

Cleaning the inside of the Grill Lid

[] Grease can have a tendency to build up on the

inside of the Grill Lid and could drip onto deck or

patio when the lid is opened. Visually inspect the

inside of the Grill Lid before each grill use. Remove

any grease and wash with a mild soap and warm

water solution.

Annual Cleaning of The Grill Interior

[] Burning-off excess food after every cookout will

keep it ready for instant use. However,at least every

3 months you must give the entire grill a thorough

cleaning to minimize your risk of grease fire and

keep the grill in top shape. Follow these steps:

1. Turn all Burner Valves to the full OFF position.

2. Turn the LP gas tank valve to the full OFF position.

For Natural Gas shut off valve.

Disconnect the regulator from the gas tank. Inspect

the hose with regulator assembly for cracking, cuts

or any other damage, and replace as neccessary.

Refer to the Parts List in this Operator's Manual.

Remove and clean the Savor Plates TM, Cooking

Grids, Cooking Rack and Grill Burners.

Cover each Gas Valve Orifice with aluminum foil.

Brush the inside and bottom of the grill with a fiber

pad or nylon brush and wash with a mild soap and

warm water solution. Rinse thoroughly and let dry.

Remove aluminum foil from Orifices and check

each Orifice for obstruction.

Check each Spark Electrode, adjusting as needed.

The space between the Spark Electrode Tip and

Spark Receiver should be approximately 3116".

Replace the Burners and adjust the Gas

Collector Box. The edge of the collector box should

be overlapping the Burner Port.

10. Replace Savor Plates TM and Cooking Grids.

11. Reconnect the gas source and observe the

Burner flame for correct operation.

Cleaning Exterior Surfaces:

Before initial use, and periodically thereafter, we

suggest you wash your grill using a mild soap and

warm water solution. You can use a wash cloth or

sponge for this process. Do not use a stiff wire or

brass brush. These will scratch stainless steel and

chip painted surfaces (varies by model) during the

cleaning process.

Cleaning Exterior Stainless Steel Surfaces:

Weathering and extreme heat can cause exterior

stainless steel surfaces to turn tan in color. Machine

oils used in the manufacturing process of stainless

steel can also cause this tanning color. After remov-

ing any protective PVC film from the Grill Lid and

Control Panel use a Stainless Steel Cleaner to polish

the stainless steel surfaces of your grill. Never use

abrasive cleaners or scrubbers because they will

scratch and damage your grill. Follow these steps for

the best results.

1. Turn the LP Gas tank valve (clockwise) to the full

OFF position. Disconnect the regulator and hose

assembly from LP Gas tank. For Natural Gas shut

off valve and disconnect the NG regulator and hose

from valve. Cover exposed gas fitting with

aluminum foil.

2. Remove dirt or grease using a soft cloth and

polish stainless surfaces. Wipe with a soft cloth.

3. Remove aluminum foil from exposed gas fitting

and allow grill to air dry before attaching the

regulator and hose to your LP Gas tank, or

attaching the regulator and hose to Natural Gas

valve.

Failure to comply with these instructions may

result in a hazardous situation which, if not

avoided, may result in injury.

Keep grill area clear and free from combustible

materials, gasoline and other flammable vapors

and liquids.

Do not obstruct the flow of air for combustion

and ventilation.

Keep the ventilation openings of the tank enclosure

cabinet free and clear of debris.

Visually check burner flames occasionally to

ensure proper flame pattern as shown below.

MAGNIFIED VIEW OF

BURNER FLAME

THROUGH LIGHTING

HOLE

ToreducethechanceofFLASHBACKFIREyoumust

cleantheBurnerTubesasfollowsatleastonceamonth

insummerandfallorwheneverspidersareactiveinyour

area,andifyourgrillhasnotbeenusedforanextended

periodoftime.

1.TurnallBurnerValvestothefullOFFposition.

2.TurntheLPGastankvalvetothefullOFFposition.

ForNaturalGasshutoffNGvalve.

3. DetachtheLPGasregulatorassemblyfromyour

gasgrill.ForNaturalGasdetachNGregulatorfrom

yourgrill.

4. RemovetheCookingGrids,SavorPlatesTM and

Grease Trays from your grill.

5. Remove the screw from the rear of each Burner

using a Phillips Head Screwdriver.

6. Carefully lift each Burner up and away from the

Gas Valve Orifice.

7. Check and clean burner/venturi tubes for insects

and insect nests. A clogged tube can lead to a fire

beneath the grill.

8. Refer to Figure 1 and perform one of these

three cleaning methods:

[] METHOD 1: Bend a stiff wire or wire coat

hanger into a small hook as shown and

run the hook through the Burner Tube and

inside the Burner several times to remove

debris.

[] METHOD 2: Use a bottle brush with a

flexible handle and run the brush through

the Burner Tube and inside the Burner

several times to remove any debris.

[] METHOD 3: Use an air hose to force air

through each Burner Tube. The forced air

should pass debris or obstructions through

the Burner and out the Ports.

Regardless of which Burner cleaning procedure you

use, we recommend you also complete the following

steps to help prolong Burner life.

1. Use a fiber pad or nylon brush to clean the entire

outer surface of each Burner until free of food

residue and dirt.

2. Clean any clogged ports with a stiff wire, such as

an open paper clip.

Inspect each Burner for damage (cracks or

holes) and if such damage is found, order and

install a new Burner. After installation, check

to ensure that the Gas Valve Orifices are

correctly placed inside the ends of the Burner

Tubes. Also check the position of your Spark

Electrode.

For safe operation ensure the Gas Valve

Assembly Orifice is inside the Burner Tube

before using your grill. See figure. If the Orifice

is not inside the Burner Tube, lighting the

Burner may cause explosion and/or fire result-

ing in serious bodily injury and/or property

damage.

Gas Valve Assembly Orifice BumerTube

Figure 1

TO CLEAN BURNER TUBE,

INSERT HOOK AS INDICATED BY THE ARROW

BurnerTube

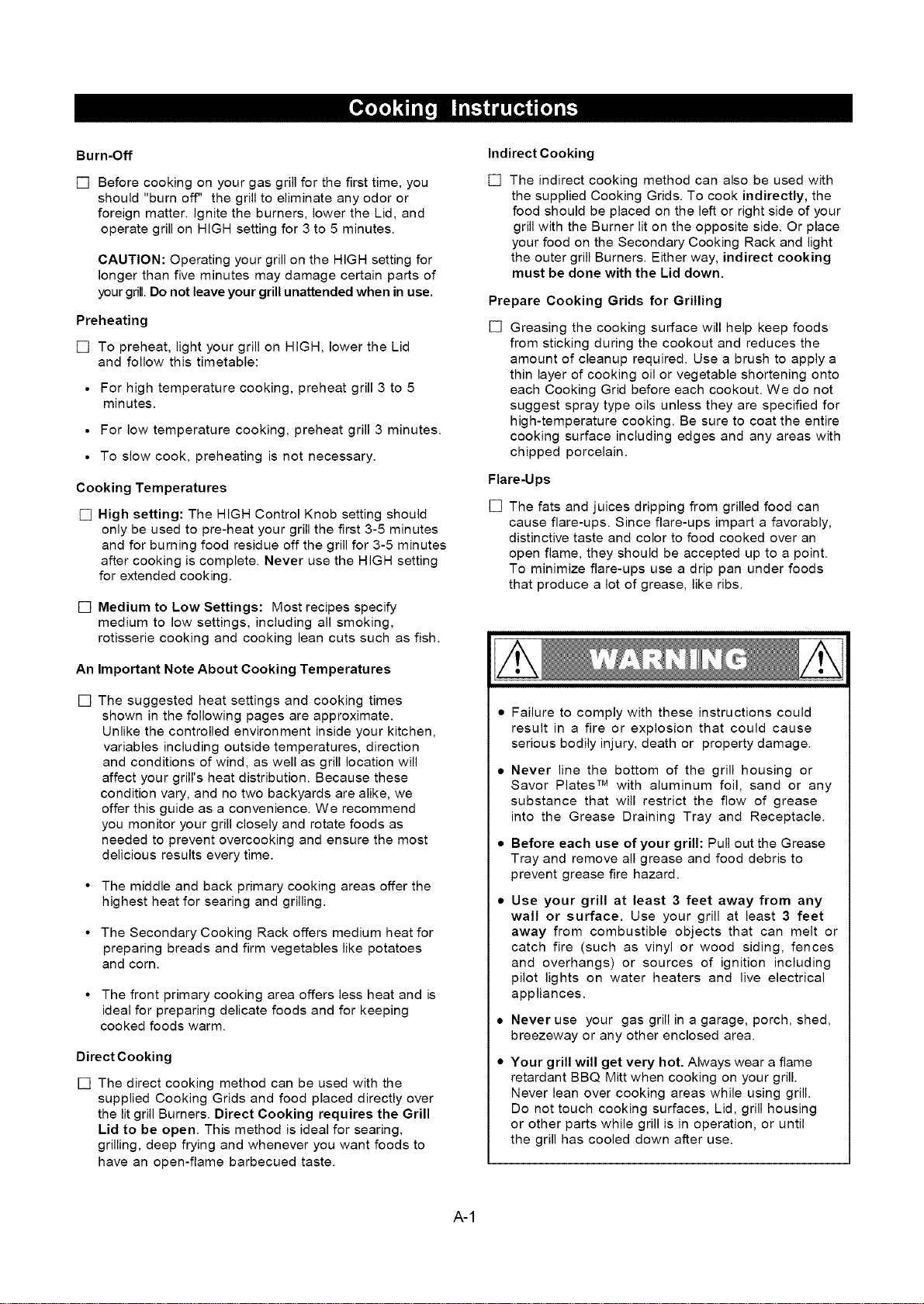

Burn-Off

[] Before cooking on your gas grill for the first time, you

should "burn off" the grill to eliminate any odor or

foreign matter. Ignite the burners, lower the Lid, and

operate grill on HIGH setting for 3 to 5 minutes.

CAUTION: Operating your grill on the HIGH setting for

longer than five minutes may damage certain parts of

your grill. Do not leave your grill unattended when in use.

Preheating

[] To preheat, light your grill on HIGH, lower the Lid

and follow this timetable:

• For high temperature cooking, preheat grill 3 to 5

minutes.

• For low temperature cooking, preheat grill 3 minutes.

• To slow cook, preheating is not necessary.

Cooking Temperatures

[] High setting: The HIGH Control Knob setting should

only be used to pre-heat your grill the first 3-5 minutes

and for burning food residue off the grill for 3-5 minutes

after cooking is complete. Never use the HIGH setting

for extended cooking.

[] Medium to Low Settings: Most recipes specify

medium to low settings, including all smoking,

rotisserie cooking and cooking lean cuts such as fish.

An Important Note About Cooking Temperatures

[] The suggested heat settings and cooking times

shown in the following pages are approximate.

Unlike the controlled environment inside your kitchen,

variables including outside temperatures, direction

and conditions of wind, as well as grill location will

affect your grill's heat distribution. Because these

condition vary, and no two backyards are alike, we

offer this guide as a convenience. We recommend

you monitor your grill closely and rotate foods as

needed to prevent overcooking and ensure the most

delicious results every time.

• The middle and back primary cooking areas offer the

highest heat for searing and grilling.

• The Secondary Cooking Rack offers medium heat for

preparing breads and firm vegetables like potatoes

and corn.

• The front primary cooking area offers less heat and is

ideal for preparing delicate foods and for keeping

cooked foods warm.

Direct Cooking

[] The direct cooking method can be used with the

supplied Cooking Grids and food placed directly over

the lit grill Burners. Direct Cooking requires the Grill

Lid to be open. This method is ideal for searing,

grilling, deep frying and whenever you want foods to

have an open-flame barbecued taste.

Indirect Cooking

[] The indirect cooking method can also be used with

the supplied Cooking Grids. To cook indirectly, the

food should be placed on the left or right side of your

grill with the Burner lit on the opposite side. Or place

your food on the Secondary Cooking Rack and light

the outer grill Burners. Either way, indirect cooking

must be done with the Lid down.

Prepare Cooking Grids for Grilling

[] Greasing the cooking surface will help keep foods

from sticking during the cookout and reduces the

amount of cleanup required. Use a brush to apply a

thin layer of cooking oil or vegetable shortening onto

each Cooking Grid before each cookout. We do not

suggest spray type oils unless they are specified for

high-temperature cooking. Be sure to coat the entire

cooking surface including edges and any areas with

chipped porcelain.

Fla re-U ps

[] The fats and juices dripping from grilled food can

cause flare-ups. Since flare-ups impart a favorably,

distinctive taste and color to food cooked over an

open flame, they should be accepted up to a point.

To minimize flare-ups use a drip pan under foods

that produce a lot of grease, like ribs.

Failure to comply with these instructions could

result in a fire or explosion that could cause

serious bodily injury, death or property damage.

Never line the bottom of the grill housing or

Savor Plates TM with aluminum foil, sand or any

substance that will restrict the flow of grease

into the Grease Draining Tray and Receptacle.

Before each use of your grill: Pull out the Grease

Tray and remove all grease and food debris to

prevent grease fire hazard.

Use your grill at least 3 feet away from any

wall or surface. Use your grill at least 3 feet

away from combustible objects that can melt or

catch fire (such as vinyl or wood siding, fences

and overhangs) or sources of ignition including

pilot lights on water heaters and live electrical

appliances.

Never use your gas grill in a garage, porch, shed,

breezeway or any other enclosed area.

Your grill will get very hot. Always wear a flame

retardant BBQ Mitt when cooking on your grill.

Never lean over cooking areas while using grill.

Do not touch cooking surfaces, Lid, grill housing

or other parts while grill is in operation, or until

the grill has cooled down after use.

A-1

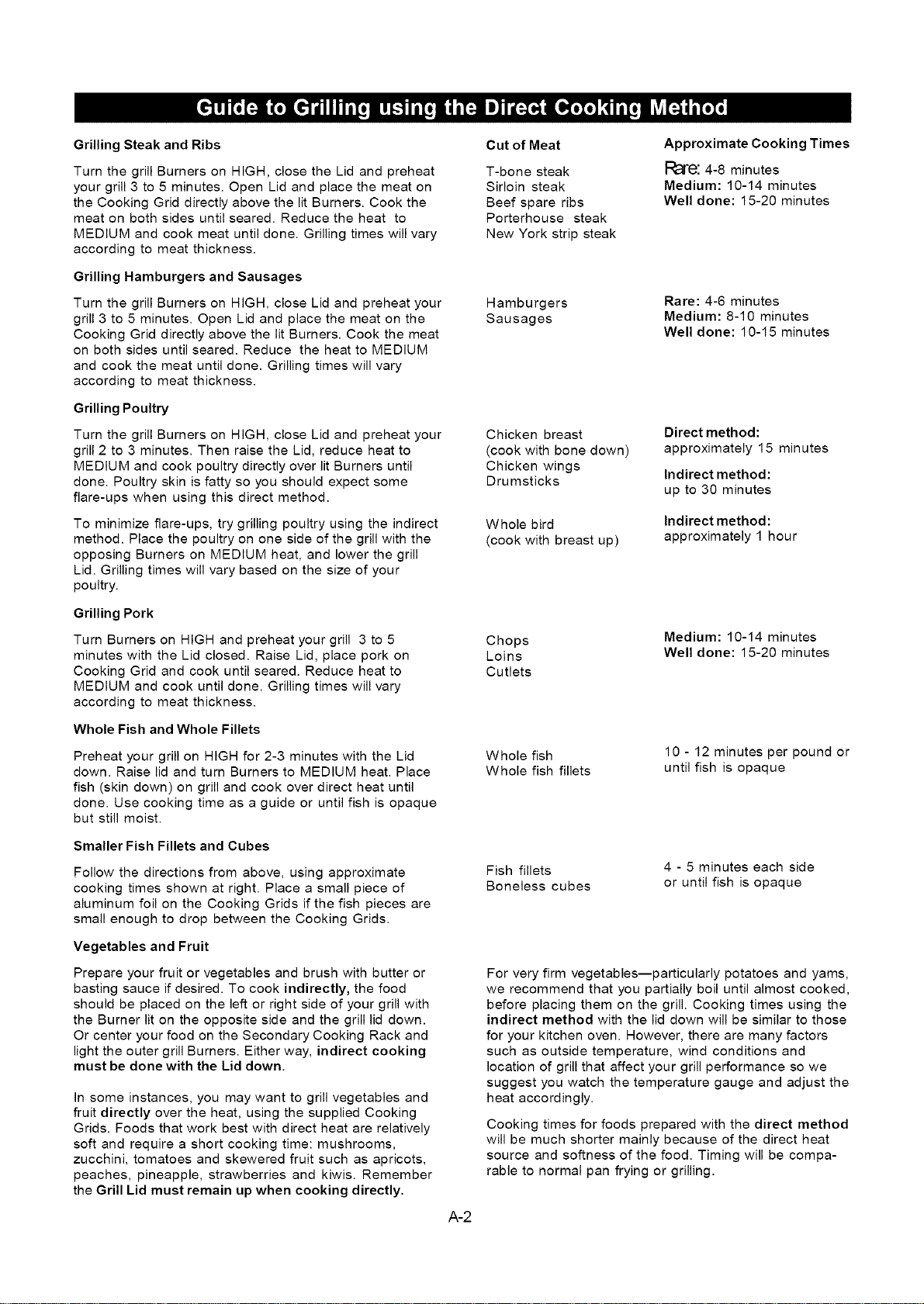

Grilling Steak and Ribs

Turn the grill Burners on HIGH, close the Lid and preheat

your grill 3 to 5 minutes. Open Lid and place the meat on

the Cooking Grid directly above the lit Burners. Cook the

meat on both sides until seared. Reduce the heat to

MEDIUM and cook meat until done. Grilling times will vary

according to meat thickness.

Cut of Meat

T-bone steak

Sirloin steak

Beef spare ribs

Porterhouse steak

New York strip steak

Approximate Cooking Times

REre: 4-8 minutes

Medium: 10-14 minutes

Well done: 15-20 minutes

Grilling Hamburgers and Sausages

Turn the grill Burners on HIGH, close Lid and preheat your

grill 3 to 5 minutes. Open Lid and place the meat on the

Cooking Grid directly above the lit Burners. Cook the meat

on both sides until seared. Reduce the heat to MEDIUM

and cook the meat until done. Grilling times will vary

according to meat thickness.

Hamburgers

Sausages

Rare: 4-6 minutes

Medium: 8-10 minutes

Well done: 10-15 minutes

Grilling Poultry

Turn the grill Burners on HIGH, close Lid and preheat your

grill 2 to 3 minutes. Then raise the Lid, reduce heat to

MEDIUM and cook poultry directly over lit Burners until

done. Poultry skin is fatty so you should expect some

flare-ups when using this direct method.

To minimize flare-ups, try grilling poultry using the indirect

method. Place the poultry on one side of the grill with the

opposing Burners on MEDIUM heat, and lower the grill

Lid. Grilling times will vary based on the size of your

poultry.

Chicken breast

(cook with bone down)

Chicken wings

Drumsticks

Whole bird

(cook with breast up)

Direct method:

approximately 15 minutes

Indirect method:

up to 30 minutes

Indirect method:

approximately 1 hour

Grilling Pork

Turn Burners on HIGH and preheat your grill 3 to 5

minutes with the Lid closed. Raise Lid, place pork on

Cooking Grid and cook until seared. Reduce heat to

MEDIUM and cook until done. Grilling times will vary

according to meat thickness.

Chops

Loins

Cutlets

Medium: 10-14 minutes

Well done: 15-20 minutes

Whole Fish and Whole Fillets

Preheat your grill on HIGH for 2-3 minutes with the Lid

down. Raise lid and turn Burners to MEDIUM heat. Place

fish (skin down) on grill and cook over direct heat until

done. Use cooking time as a guide or until fish is opaque

but still moist.

Whole fish

Whole fish fillets

10 - 12 minutes per pound or

until fish is opaque

Smaller Fish Fillets and Cubes

Follow the directions from above, using approximate

cooking times shown at right. Place a small piece of

aluminum foil on the Cooking Grids if the fish pieces are

small enough to drop between the Cooking Grids.

Fish fillets

Boneless cubes

4 - 5 minutes each side

or until fish is opaque

Vegetables and Fruit

Prepare your fruit or vegetables and brush with butter or

basting sauce if desired. To cook indirectly, the food

should be placed on the left or right side of your grill with

the Burner lit on the opposite side and the grill lid down.

Or center your food on the Secondary Cooking Rack and

light the outer grill Burners. Either way, indirect cooking

must be done with the Lid down.

In some instances, you may want to grill vegetables and

fruit directly over the heat, using the supplied Cooking

Grids. Foods that work best with direct heat are relatively

soft and require a short cooking time: mushrooms,

zucchini, tomatoes and skewered fruit such as apricots,

peaches, pineapple, strawberries and kiwis. Remember

the Grill Lid must remain up when cooking directly.

For very firm vegetables--particularly potatoes and yams,

we recommend that you partially boil until almost cooked,

before placing them on the grill. Cooking times using the

indirect method with the lid down will be similar to those

for your kitchen oven. However, there are many factors

such as outside temperature, wind conditions and

location of grill that affect your grill performance so we

suggest you watch the temperature gauge and adjust the

heat accordingly.

Cooking times for foods prepared with the direct method

will be much shorter mainly because of the direct heat

source and softness of the food. Timing will be compa-

rable to normal pan frying or grilling.

A-2

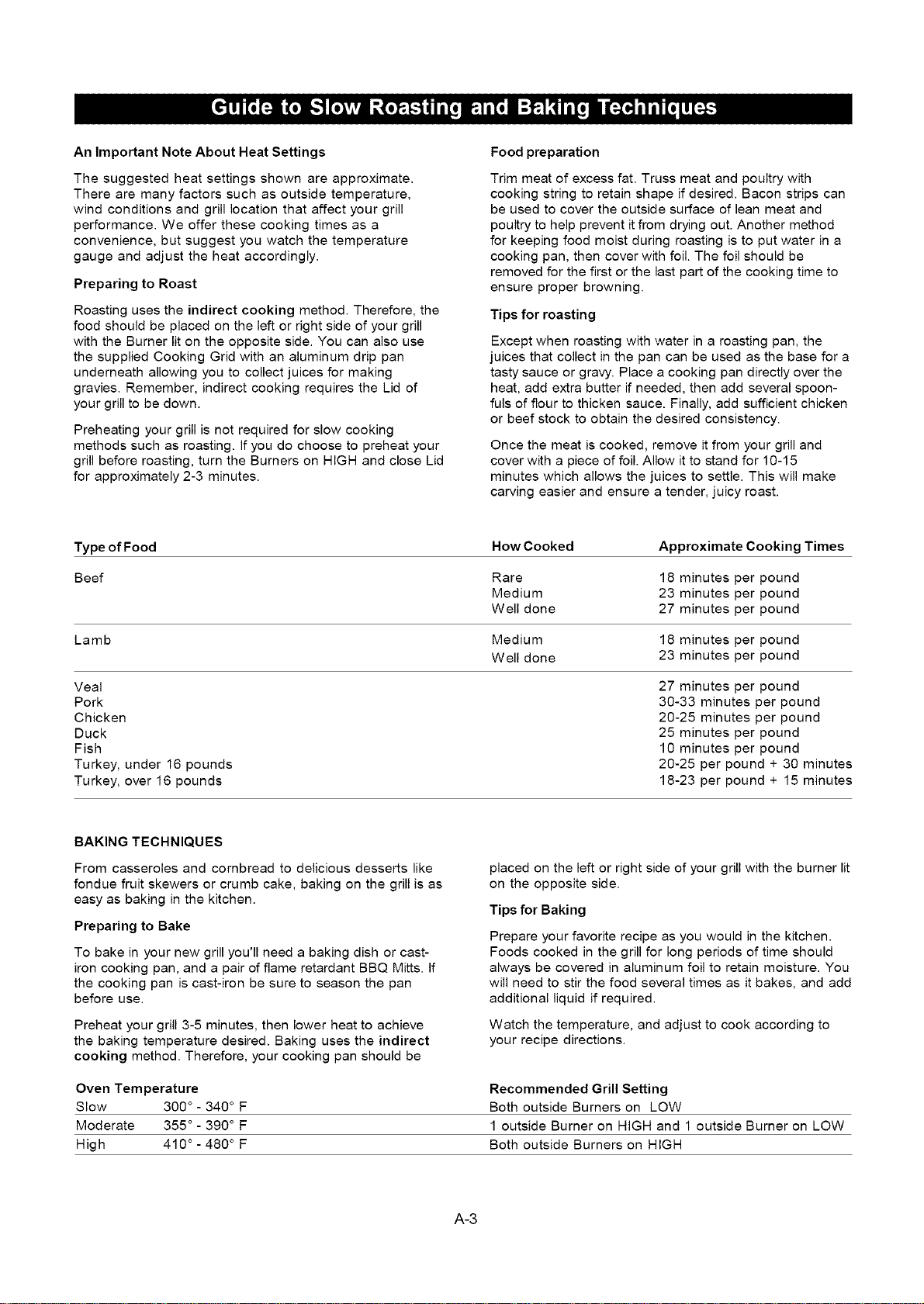

An Important Note About Heat Settings

The suggested heat settings shown are approximate.

There are many factors such as outside temperature,

wind conditions and grill location that affect your grill

performance. We offer these cooking times as a

convenience, but suggest you watch the temperature

gauge and adjust the heat accordingly.

Preparing to Roast

Roasting uses the indirect cooking method. Therefore, the

food should be placed on the left or right side of your grill

with the Burner lit on the opposite side. You can also use

the supplied Cooking Grid with an aluminum drip pan

underneath allowing you to collect juices for making

gravies. Remember, indirect cooking requires the Lid of

your grill to be down.

Preheating your grill is not required for slow cooking

methods such as roasting. If you do choose to preheat your

grill before roasting, turn the Burners on HIGH and close Lid

for approximately 2-3 minutes.

Food preparation

Trim meat of excess fat. Truss meat and poultry with

cooking string to retain shape if desired. Bacon strips can

be used to cover the outside surface of lean meat and

poultry to help prevent it from drying out. Another method

for keeping food moist during roasting is to put water in a

cooking pan, then cover with foil. The foil should be

removed for the first or the last part of the cooking time to

ensure proper browning.

Tips for roasting

Except when roasting with water in a roasting pan, the

juices that collect in the pan can be used as the base for a

tasty sauce or gravy. Place a cooking pan directly over the

heat, add extra butter if needed, then add several spoon-

fuls of flour to thicken sauce. Finally, add sufficient chicken

or beef stock to obtain the desired consistency.

Once the meat is cooked, remove it from your grill and

cover with a piece of foil. Allow it to stand for 10-15

minutes which allows the juices to settle. This will make

carving easier and ensure a tender, juicy roast.

Type of Food How Cooked Approximate Cooking Times

Beef Rare 18 minutes per pound

Medium 23 minutes per pound

Well done 27 minutes per pound

Lamb Medium 18 minutes per pound

Well done 23 minutes per pound

Veal 27 minutes per pound

Pork 30-33 minutes per pound

Chicken 20-25 minutes per pound

Duck 25 minutes per pound

Fish 10 minutes per pound

Turkey, under 16 pounds 20-25 per pound + 30 minutes

Turkey, over 16 pounds 18-23 per pound + 15 minutes

BAKING TECHNIQUES

From casseroles and cornbread to delicious desserts like

fondue fruit skewers or crumb cake, baking on the grill is as

easy as baking in the kitchen.

Preparing to Bake

To bake in your new grill you'll need a baking dish or cast-

iron cooking pan, and a pair of flame retardant BBQ Mitts. If

the cooking pan is cast-iron be sure to season the pan

before use.

placed on the left or right side of your grill with the burner lit

on the opposite side.

Tips for Baking

Prepare your favorite recipe as you would in the kitchen.

Foods cooked in the grill for long periods of time should

always be covered in aluminum foil to retain moisture. You

will need to stir the food several times as it bakes, and add

additional liquid if required.

Preheat your grill 3-5 minutes, then lower heat to achieve

the baking temperature desired. Baking uses the indirect

cooking method. Therefore, your cooking pan should be

Watch the temperature, and adjust to cook according to

your recipe directions.

Oven Temperature

Slow 300 ° - 340 ° F

Moderate 355 ° - 390 ° F

High 410 °- 480 ° F

Recommended Grill Setting

Both outside Burners on LOW

1 outside Burner on HIGH and 1 outside Burner on LOW

Both outside Burners on HIGH

A-3

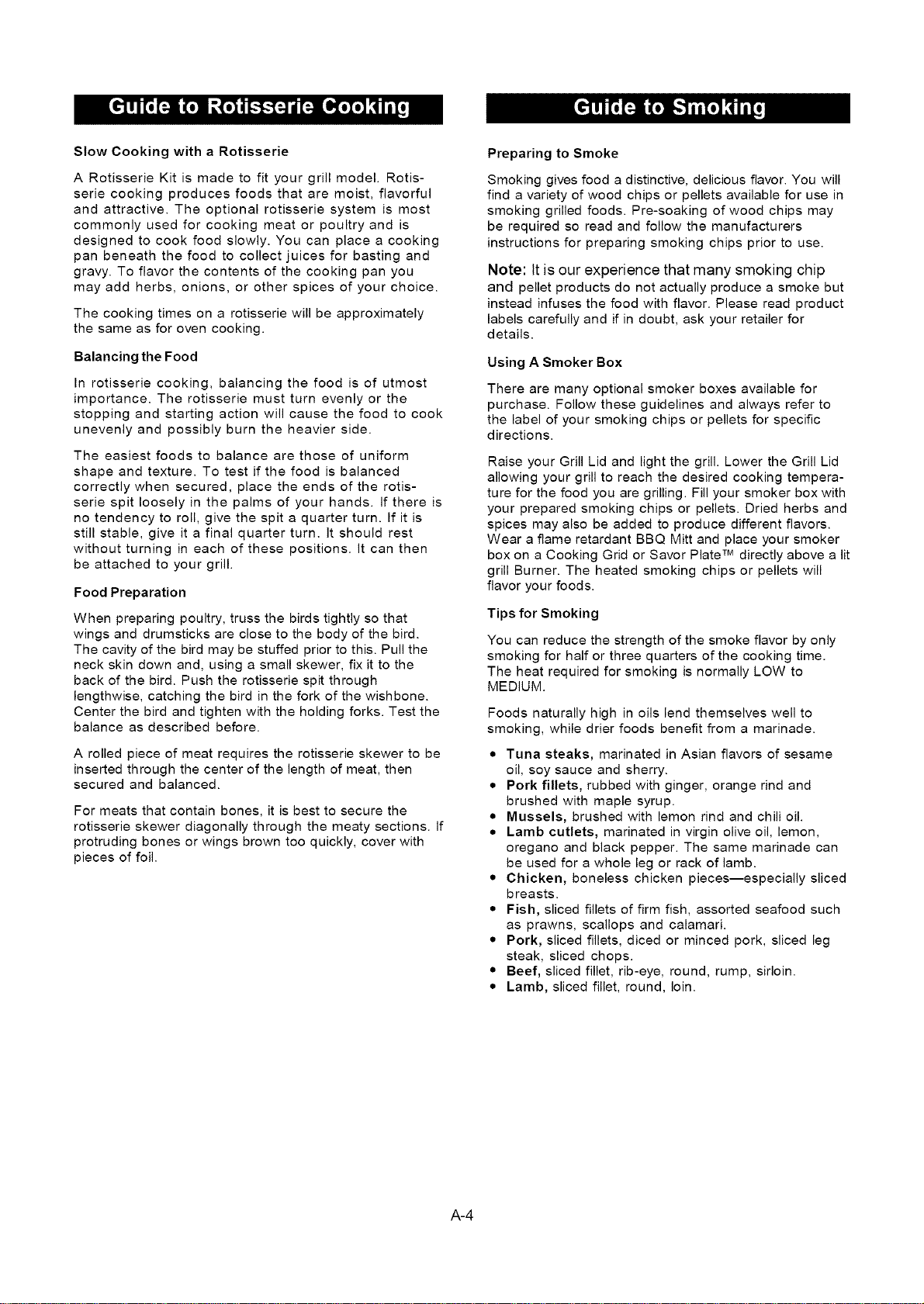

Slow Cooking with a Rotisserie

A Rotisserie Kit is made to fit your grill model. Rotis-

serie cooking produces foods that are moist, flavorful

and attractive. The optional rotisserie system is most

commonly used for cooking meat or poultry and is

designed to cook food slowly. You can place a cooking

pan beneath the food to collect juices for basting and

gravy. To flavor the contents of the cooking pan you

may add herbs, onions, or other spices of your choice.

The cooking times on a rotisserie will be approximately

the same as for oven cooking.

Balancing the Food

In rotisserie cooking, balancing the food is of utmost

importance. The rotisserie must turn evenly or the

stopping and starting action will cause the food to cook

unevenly and possibly burn the heavier side.

The easiest foods to balance are those of uniform

shape and texture. To test if the food is balanced

correctly when secured, place the ends of the rotis-

serie spit loosely in the palms of your hands. If there is

no tendency to roll, give the spit a quarter turn. If it is

still stable, give it a final quarter turn. It should rest

without turning in each of these positions. It can then

be attached to your grill.

Food Preparation

When preparing poultry, truss the birds tightly so that

wings and drumsticks are close to the body of the bird.

The cavity of the bird may be stuffed prior to this. Pull the

neck skin down and, using a small skewer, fix it to the

back of the bird. Push the rotisserie spit through

lengthwise, catching the bird in the fork of the wishbone.

Center the bird and tighten with the holding forks. Test the

balance as described before.

A rolled piece of meat requires the rotisserie skewer to be

inserted through the center of the length of meat, then

secured and balanced.

For meats that contain bones, it is best to secure the

rotisserie skewer diagonally through the meaty sections. If

protruding bones or wings brown too quickly, cover with

pieces of foil.

Preparing to Smoke

Smoking gives food a distinctive, delicious flavor. You will

find a variety of wood chips or pellets available for use in

smoking grilled foods. Pre-soaking of wood chips may

be required so read and follow the manufacturers

instructions for preparing smoking chips prior to use.

Note: It is our experience that many smoking chip

and pellet products do not actually produce a smoke but

instead infuses the food with flavor. Please read product

labels carefully and if in doubt, ask your retailer for

details.

Using A Smoker Box

There are many optional smoker boxes available for

purchase. Follow these guidelines and always refer to

the label of your smoking chips or pellets for specific

directions.

Raise your Grill Lid and light the grill. Lower the Grill Lid

allowing your grill to reach the desired cooking tempera-

ture for the food you are grilling. Fill your smoker box with

your prepared smoking chips or pellets. Dried herbs and

spices may also be added to produce different flavors.

Wear a flame retardant BBQ Mitt and place your smoker

box on a Cooking Grid or Savor Plate TM directly above a lit

grill Burner. The heated smoking chips or pellets will

flavor your foods.

Tips for Smoking

You can reduce the strength of the smoke flavor by only

smoking for half or three quarters of the cooking time.

The heat required for smoking is normally LOW to

MEDIUM.

Foods naturally high in oils lend themselves well to

smoking, while drier foods benefit from a marinade.

• Tuna steaks, marinated in Asian flavors of sesame

oil, soy sauce and sherry.

• Pork fillets, rubbed with ginger, orange rind and

brushed with maple syrup.

• Mussels, brushed with lemon rind and chili oil.

• Lamb cutlets, marinated in virgin olive oil, lemon,

oregano and black pepper. The same marinade can

be used for a whole leg or rack of lamb.

• Chicken, boneless chicken pieces--especially sliced

breasts.

• Fish, sliced fillets of firm fish, assorted seafood such

as prawns, scallops and calamari.

• Pork, sliced fillets, diced or minced pork, sliced leg

steak, sliced chops.

• Beef, sliced fillet, rib-eye, round, rump, sirloin.

• Lamb, sliced fillet, round, loin.

A-4

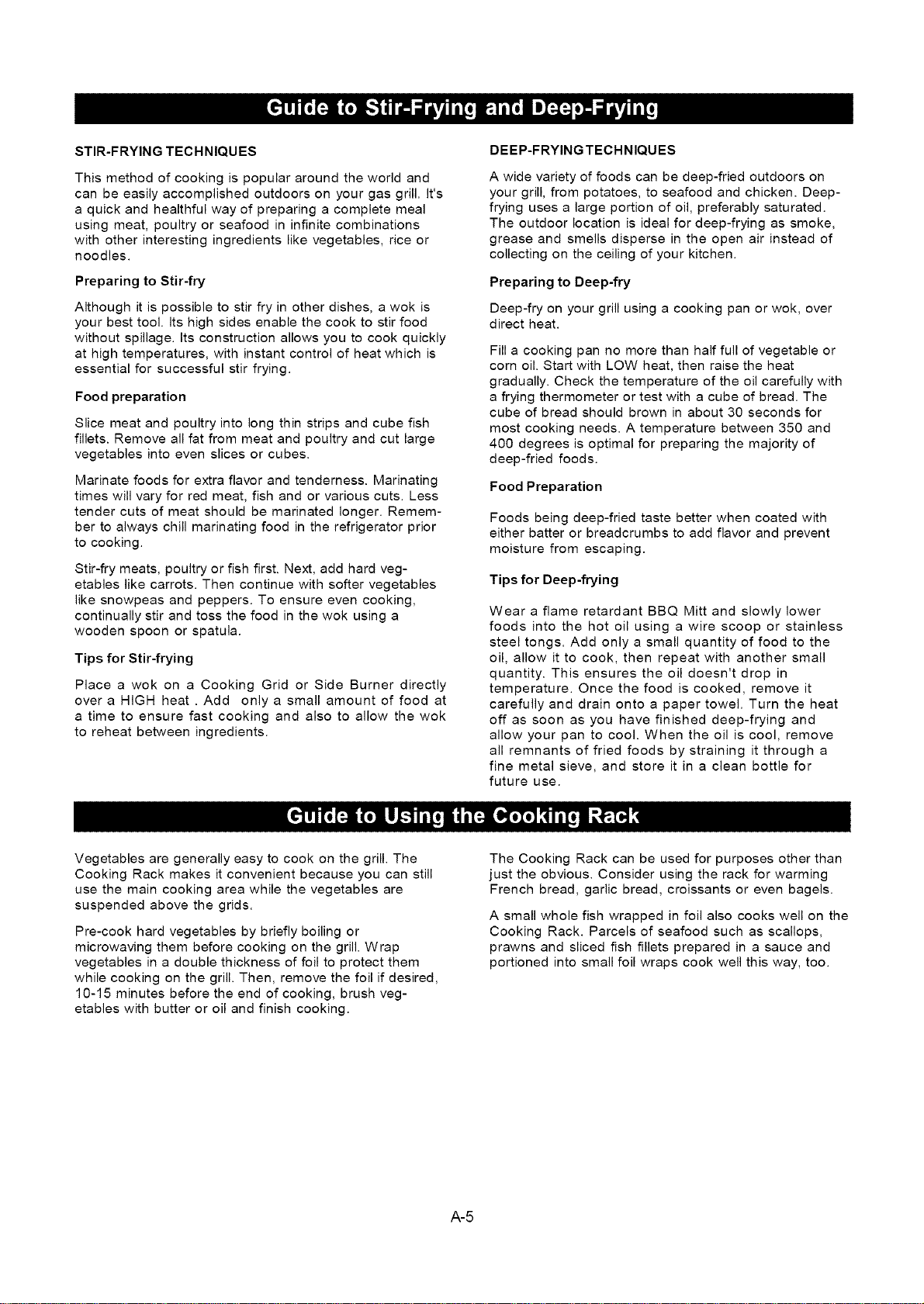

STIR-FRYING TECHNIQUES

This method of cooking is popular around the world and

can be easily accomplished outdoors on your gas grill. It's

a quick and healthful way of preparing a complete meal

using meat, poultry or seafood in infinite combinations

with other interesting ingredients like vegetables, rice or

noodles.

Preparing to Stir-fry

Although it is possible to stir fry in other dishes, a wok is

your best tool. Its high sides enable the cook to stir food

without spillage. Its construction allows you to cook quickly

at high temperatures, with instant control of heat which is

essential for successful stir frying.

Food preparation

Slice meat and poultry into long thin strips and cube fish

fillets. Remove all fat from meat and poultry and cut large

vegetables into even slices or cubes.

Marinate foods for extra flavor and tenderness. Marinating

times will vary for red meat, fish and or various cuts. Less

tender cuts of meat should be marinated longer. Remem-

ber to always chill marinating food in the refrigerator prior

to cooking.

Stir-fry meats, poultry or fish first. Next, add hard veg-

etables like carrots. Then continue with softer vegetables

like snowpeas and peppers. To ensure even cooking,

continually stir and toss the food in the wok using a

wooden spoon or spatula.

Tips for Stir-frying

Place a wok on a Cooking Grid or Side Burner directly

over a HIGH heat. Add only a small amount of food at

a time to ensure fast cooking and also to allow the wok

to reheat between ingredients.

DEEP-FRYING TECHNIQUES

A wide variety of foods can be deep-fried outdoors on

your grill, from potatoes, to seafood and chicken. Deep-

frying uses a large portion of oil, preferably saturated.

The outdoor location is ideal for deep-frying as smoke,

grease and smells disperse in the open air instead of

collecting on the ceiling of your kitchen.

Preparing to Deep-fry

Deep-fry on your grill using a cooking pan or wok, over

direct heat.

Fill a cooking pan no more than half full of vegetable or

corn oil. Start with LOW heat, then raise the heat

gradually. Check the temperature of the oil carefully with

a frying thermometer or test with a cube of bread. The

cube of bread should brown in about 30 seconds for

most cooking needs. A temperature between 350 and

400 degrees is optimal for preparing the majority of

deep-fried foods.

Food Preparation

Foods being deep-fried taste better when coated with

either batter or breadcrumbs to add flavor and prevent

moisture from escaping.

Tips for Deep-frying

Wear a flame retardant BBQ Mitt and slowly lower

foods into the hot oil using a wire scoop or stainless

steel tongs. Add only a small quantity of food to the

oil, allow it to cook, then repeat with another small

quantity. This ensures the oil doesn't drop in

temperature. Once the food is cooked, remove it

carefully and drain onto a paper towel. Turn the heat

off as soon as you have finished deep-frying and

allow your pan to cool. When the oil is cool, remove

all remnants of fried foods by straining it through a

fine metal sieve, and store it in a clean bottle for

future use.

Vegetables are generally easy to cook on the grill. The

Cooking Rack makes it convenient because you can still

use the main cooking area while the vegetables are

suspended above the grids.

Pre-cook hard vegetables by briefly boiling or

microwaving them before cooking on the grill. Wrap

vegetables in a double thickness of foil to protect them

while cooking on the grill. Then, remove the foil if desired,

10-15 minutes before the end of cooking, brush veg-

etables with butter or oil and finish cooking.

The Cooking Rack can be used for purposes other than

just the obvious. Consider using the rack for warming

French bread, garlic bread, croissants or even bagels.

A small whole fish wrapped in foil also cooks well on the

Cooking Rack. Parcels of seafood such as scallops,

prawns and sliced fish fillets prepared in a sauce and

portioned into small foil wraps cook well this way, too.

A-5

Anything you enjoy cooking indoors can

be prepared outdoors as well. These

optional accessories make it easy to use

your new Kenmore Premium or Kenmore

Elite grill as an outdoor kitchen.

Not all locations will carry all items and avail-

ability is limited to supplies on hand. Accessory

fit will vary by grill model so ask a sales associ-

ate for specific details.

Grill accessories are offered at most larger

Sears full line stores, Sears Grand, Sears

Hardware, The Great Indoors, Orchard Supply

Hardware and sears.com.

A Rotisserie Kit is made to fit your grill model. Rotis-

serie cooking produces foods that are moist and

flavorful because the slowly rotated food self-bastes to

seal in meat's natural juices. The Rotisserie Kit can be

used to slow cook foods using the indirect cooking

method or an infrared back burner, a feature available on

select models.

Versatile cast-iron Pan

and Lid set is ideal for

preparing deep dish

pizza, cornbread,

casseroles and

deserts.

Reversible cast-

iron Griddle offers

a flat side for

grilling breakfast,

fish and fajitas and

a ribbed side for

cooking bacon,

sausages and

burgers.

Load this Smoker Box with

your favorite chips and add

flavor to grilled foods.

Protect your grill from rain, snow and seasonal debris

with a quality made grill cover. Fit varies by grill model.

A-6

Quality 304 grade

stainless steel grill

tools offer long reach

handles for easier

outdoor cooking.

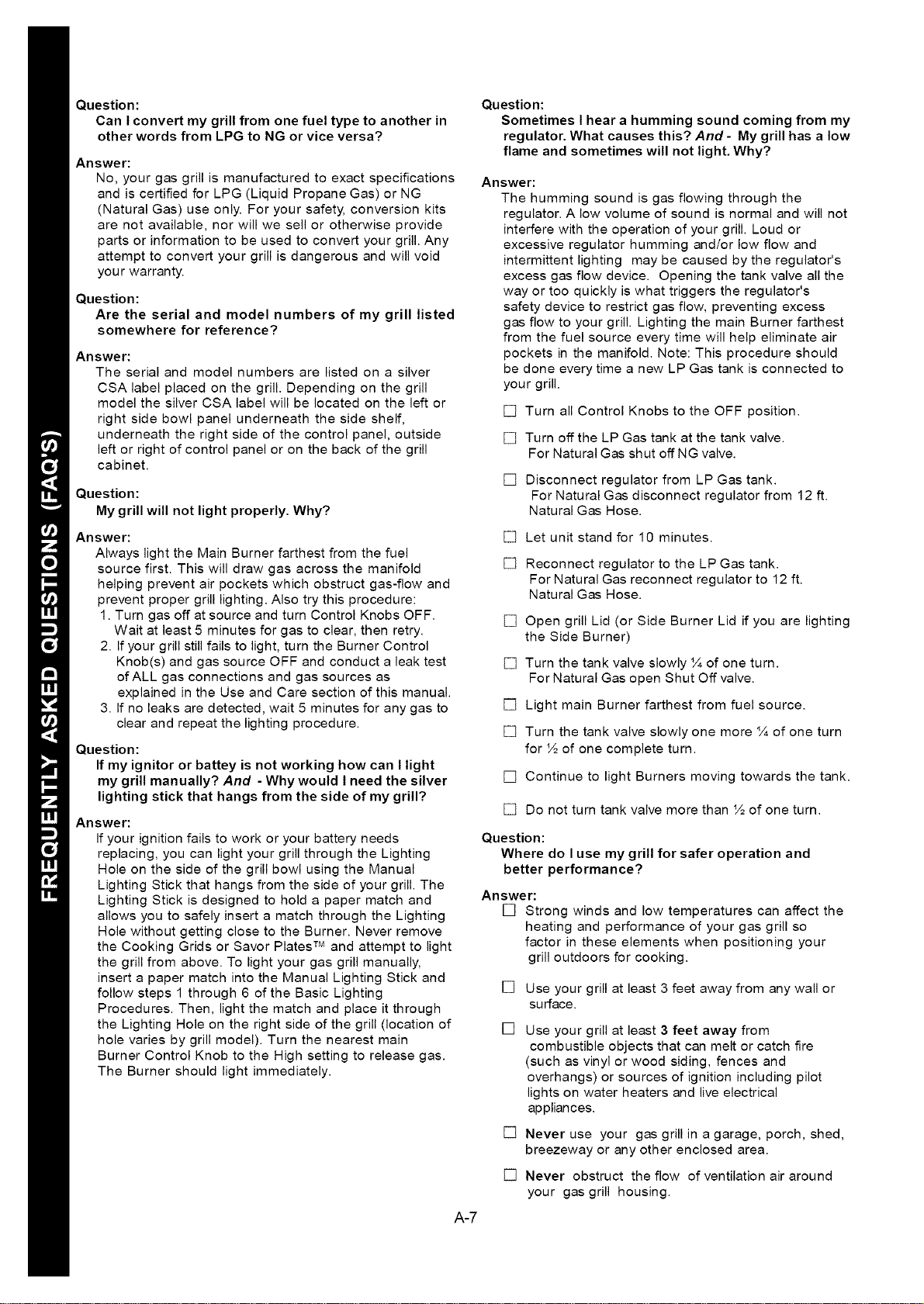

Question:

Can I convert my grill from one fuel type to another in

other words from LPG to NG or vice versa?

Answer:

No, your gas grill is manufactured to exact specifications

and is certified for LPG (Liquid Propane Gas) or NG

(Natural Gas) use only. For your safety, conversion kits

are not available, nor will we sell or otherwise provide

parts or information to be used to convert your grill. Any

attempt to convert your grill is dangerous and will void

your warranty.

Question:

Are the serial and model numbers of my grill listed

somewhere for reference?

Answer:

The serial and model numbers are listed on a silver

CSA label placed on the grill. Depending on the grill

model the silver CSA label will be located on the left or

right side bowl panel underneath the side shelf,

underneath the right side of the control panel, outside

left or right of control panel or on the back of the grill

cabinet.

Question:

My grill will not light properly. Why?

Answer:

Always light the Main Burner farthest from the fuel

source first. This will draw gas across the manifold

helping prevent air pockets which obstruct gas-flow and

prevent proper grill lighting. Also try this procedure:

1. Turn gas off at source and turn Control Knobs OFF.

Wait at least 5 minutes for gas to clear, then retry.

2. If your grill still fails to light, turn the Burner Control

Knob(s) and gas source OFF and conduct a leak test

of ALL gas connections and gas sources as

explained in the Use and Care section of this manual.

3. If no leaks are detected, wait 5 minutes for any gas to

clear and repeat the lighting procedure.

Question:

If my ignitor or battey is not working how can I light

my grill manually? And - Why would I need the silver

lighting stick that hangs from the side of my grill?

Answer:

If your ignition fails to work or your battery needs

replacing, you can light your grill through the Lighting

Hole on the side of the grill bowl using the Manual

Lighting Stick that hangs from the side of your grill. The

Lighting Stick is designed to hold a paper match and

allows you to safely insert a match through the Lighting

Hole without getting close to the Burner. Never remove

the Cooking Grids or Savor Plates TM and attempt to light

the grill from above. To light your gas grill manually,

insert a paper match into the Manual Lighting Stick and

follow steps 1 through 6 of the Basic Lighting

Procedures. Then, light the match and place it through

the Lighting Hole on the right side of the grill (location of

hole varies by grill model). Turn the nearest main

Burner Control Knob to the High setting to release gas.

The Burner should light immediately.

A-7

Question:

Sometimes I hear a humming sound coming from my

regulator. What causes this? And - My grill has a low

flame and sometimes will not light. Why?

Answer:

The humming sound is gas flowing through the

regulator. A low volume of sound is normal and will not

interfere with the operation of your grill. Loud or

excessive regulator humming and/or low flow and

intermittent lighting may be caused by the regulator's

excess gas flow device. Opening the tank valve all the

way or too quickly is what triggers the regulator's

safety device to restrict gas flow, preventing excess

gas flow to your grill. Lighting the main Burner farthest

from the fuel source every time will help eliminate air

pockets in the manifold. Note: This procedure should

be done every time a new LP Gas tank is connected to

your grill.

[]

Turn all Control Knobs to the OFF position.

Turn off the LP Gas tank at the tank valve.

For Natural Gas shut off NG valve.

Disconnect regulator from LP Gas tank.

For Natural Gas disconnect regulator from 12 ft.

Natural Gas Hose.

Let unit stand for 10 minutes.

Reconnect regulator to the LP Gas tank.

For Natural Gas reconnect regulator to 12 ft.

Natural Gas Hose.

Open grill Lid (or Side Burner Lid if you are lighting

the Side Burner)

Turn the tank valve slowly ¼ of one turn.

For Natural Gas open Shut Off valve.

Light main Burner farthest from fuel source.

Turn the tank valve slowly one more % of one turn

for ½ of one complete turn.

Continue to light Burners moving towards the tank.

[] Do not turn tank valve more than ½ of one turn.

Question:

Where do Iuse my grill for safer operation and

better performance?

Answer:

[] Strong winds and low temperatures can affect the

heating and performance of your gas grill so

factor in these elements when positioning your

grill outdoors for cooking.

[]

Use your grill at least 3 feet away from any wall or

surface.

Use your grill at least 3 feet away from

combustible objects that can melt or catch fire

(such as vinyl or wood siding, fences and

overhangs) or sources of ignition including pilot

lights on water heaters and live electrical

appliances.

Never use your gas grill in a garage, porch, shed,

breezeway or any other enclosed area.

Never obstruct the flow of ventilation air around

your gas grill housing.

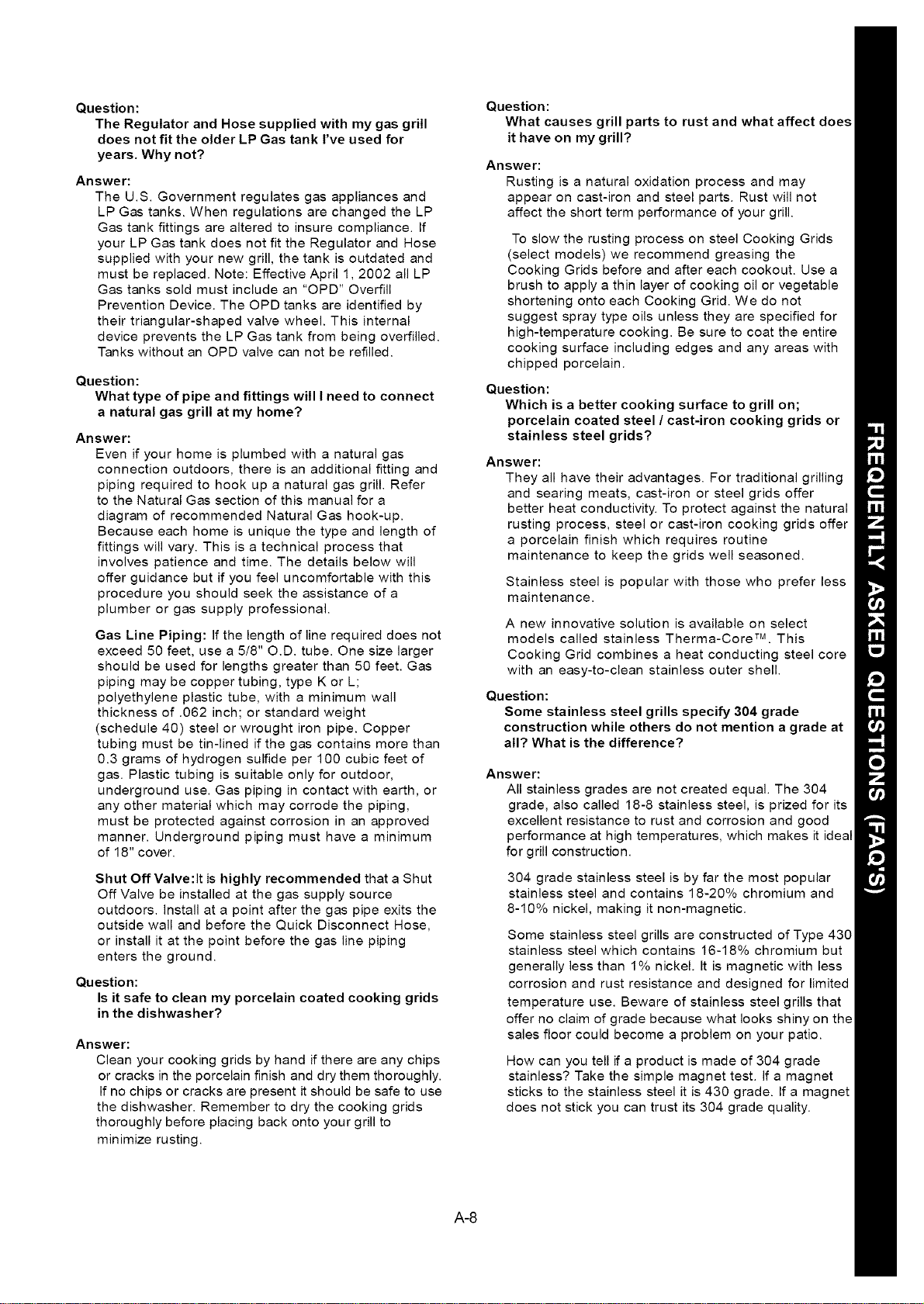

Question:

The Regulator and Hose supplied with my gas grill

does not fit the older LP Gas tank I've used for

years. Why not?

Answer:

The U.S. Government regulates gas appliances and

LP Gas tanks. When regulations are changed the LP

Gas tank fittings are altered to insure compliance. If

your LP Gas tank does not fit the Regulator and Hose

supplied with your new grill, the tank is outdated and

must be replaced. Note: Effective April 1,2002 all LP

Gas tanks sold must include an "OPD" Overfill

Prevention Device. The OPD tanks are identified by

their triangular-shaped valve wheel. This internal

device prevents the LP Gas tank from being overfilied.

Tanks without an OPD valve can not be refilled.

Question:

What type of pipe and fittings will I need to connect

a natural gas grill at my home?

Answer:

Even if your home is plumbed with a natural gas

connection outdoors, there is an additional fitting and

piping required to hook up a natural gas grill. Refer

to the Natural Gas section of this manual for a

diagram of recommended Natural Gas hook-up.

Because each home is unique the type and length of

fittings will vary. This is a technical process that

involves patience and time. The details below will

offer guidance but if you feel uncomfortable with this

procedure you should seek the assistance of a

plumber or gas supply professional.

Gas Line Piping: If the length of line required does not

exceed 50 feet, use a 5/8" O.D. tube. One size larger

should be used for lengths greater than 50 feet. Gas

piping may be copper tubing, type K or L;

polyethylene plastic tube, with a minimum wall

thickness of .062 inch; or standard weight

(schedule 40) steel or wrought iron pipe. Copper

tubing must be tin-lined if the gas contains more than

0.3 grams of hydrogen sulfide per 100 cubic feet of

gas. Plastic tubing is suitable only for outdoor,

underground use. Gas piping in contact with earth, or

any other material which may corrode the piping,

must be protected against corrosion in an approved

manner. Underground piping must have a minimum

of 18" cover.

Shut Off Valve:It is highly recommended that a Shut

Off Valve be installed at the gas supply source

outdoors. Install at a point after the gas pipe exits the

outside wall and before the Quick Disconnect Hose,

or install it at the point before the gas line piping

enters the ground.

Question:

Is it safe to clean my porcelain coated cooking grids

in the dishwasher?

Answer:

Clean your cooking grids by hand if there are any chips

or cracks in the porcelain finish and dry them thoroughly.

If no chips or cracks are present it should be safe to use

the dishwasher. Remember to dry the cooking grids

thoroughly before placing back onto your grill to

minimize rusting.

Question:

What causes grill parts to rust and what affect does

it have on my grill?

Answer:

Rusting is a natural oxidation process and may

appear on cast-iron and steel parts. Rust will not

affect the short term performance of your grill.

To slow the rusting process on steel Cooking Grids

(select models) we recommend greasing the

Cooking Grids before and after each cookout. Use a

brush to apply a thin layer of cooking oil or vegetable

shortening onto each Cooking Grid. We do not

suggest spray type oils unless they are specified for

high-temperature cooking. Be sure to coat the entire

cooking surface including edges and any areas with

chipped porcelain.

Question:

Which is a better cooking surface to grill on;

porcelain coated steel / cast-iron cooking grids or

stainless steel grids?

Answer:

They all have their advantages. For traditional grilling

and searing meats, cast-iron or steel grids offer

better heat conductivity. To protect against the natural

rusting process, steel or cast-iron cooking grids offer

a porcelain finish which requires routine

maintenance to keep the grids well seasoned.

Stainless steel is popular with those who prefer less

maintenance.

A new innovative solution is available on select

models called stainless Therma-Core TM. This

Cooking Grid combines a heat conducting steel core

with an easy-to-clean stainless outer shell.

Question:

Some stainless steel grills specify 304 grade

construction while others do not mention a grade at

all? What is the difference?

Answer:

All stainless grades are not created equal. The 304

grade, also called 18-8 stainless steel, is prized for its

excellent resistance to rust and corrosion and good

performance at high temperatures, which makes it ideal

for grill construction.

304 grade stainless steel is by far the most popular

stainless steel and contains 18-20% chromium and

8-10% nickel, making it non-magnetic.

Some stainless steel grills are constructed of Type 430

stainless steel which contains 16-18% chromium but

generally less than 1% nickel. It is magnetic with less

corrosion and rust resistance and designed for limited

temperature use. Beware of stainless steel grills that

offer no claim of grade because what looks shiny on the

sales floor could become a problem on your patio.

How can you tell if a product is made of 304 grade

stainless? Take the simple magnet test. If a magnet

sticks to the stainless steel it is 430 grade. If a magnet

does not stick you can trust its 304 grade quality.

A-8

Your Home

For repair-in your home-of aH major brand app!ian_s

lawn and garden equipment or heating and cooing systems

no matter who made it, no matter who sold lfl

Forme rep acement pads a_essodes and

owners manuab that you need to dooit°yeurse/f

For Sears p_ofessional ins_a_atioe ef home applian_s

and items _ike garage doer openers and water heate_

Cali anyt m® day o s_ght (US,A, asd Canada}

_sea_ corn www_sears ca

Our Home

For repair of car_oin items like vacuums, lawn equipment

and ebctronics call or go on-line for the bcation of yeur nearest

Kenmore 14116329 lp gas & natural gas grill

Product's Documents

User Manual

Specifications

Kenmore 14116329 Questions and Answers
