GREE ELECTRIC APPLIANCES,INC.OF ZHUHAI
Change for Life
Sapphire Parts Manual
Models: SAP09HP230V1A
SAP12HP230V1A
SAP18HP230V1A
SAP24HP230V1A
Revision A
Table of Contents
Parts Manual
Exploded View and Parts List
Exploded View Indoor Unit ............................................................................................................3
Exploded View Outdoor Unit .........................................................................................................5
Parts List Indoor Unit .....................................................................................................................4
Parts List Outdoor Unit ..................................................................................................................7
Product Catalog Nomenclature
Product Nomenclature ..................................................................................................................2
SAP09HP230V1AS & SAP12HP230V1AS
Exploded View Indoor Unit ............................................................................................................3
Parts List Indoor Unit .....................................................................................................................9
Parts List Outdoor Unit .................................................................................................................11
Exploded View Indoor Unit ............................................................................................................8
Exploded View Outdoor Unit ........................................................................................................10
SAP18HP230V1AS & SAP24HP230V1AS
2
Product Catalog Number-Nomenclature
Series Designation
VIR - VIREO
LIVS - LIVO
SAP - SAPPHIRE
Product Type
S - System
O - Outdoor units
H - Indoor High Wall
Revision Level
Cooling Capacity
09 - 9,000 BTUH
12 - 12,000 BTUH
18 - 18,000 BTUH
24 - 24,000 BTUH
Style/Color Designation
Electrical Rating
Model Type
HP -Heat Pump
230V - 208/230V 60Hz 1PH
Example: SAP12HP230V1AO
SAP 12 HP 230V 1 A
O
3
Parts Manual
Exploded View and Parts List
Indoor Unit
1
2
3
4
5
6
7
9
10
11
13
14
15
34
35
36
37
16
17
18
19
24
25
26
27
28
29
30
38
31
32
33
20
21
22
23
12
8
MODE FAN
TURBO
SLEEPI FEEL
TIMER ON
TIMER OFF
CLOCK
QUIET
X-FAN TEMP LIGHT
The component picture is only for reference; please refer to the actual product.
FAN
MODE
ON/OF
F
+-
39
SAP09HP230V1AH
SAP12HP230V1AH
4
5
Parts Manual
No.
Description
Part Code
Qty
SAP09HP230V1AH SAP12HP230V1AH
Product Code CB437N01200 CB437N00900
1
Front Panel(low display) 20000300057T 20000300057T 1
2
Filter Sub-Assy 11122089 11122089 2
3
Front Case Sub-Assy 00000200060 00000200060 1
4
Axile Bush 10542036 10542036 2
5
Guide Louver 10512501 10512501 1
6
Ring of Bearing 26152025 26152025 1
7
O-Gasket of Cross Fan Bearing 76512203 76512203 1
8
Cross Flow Fan 10352060 10352060 1
9
Air Louver(Manual) 10512736 10512736 3
10
Helicoid Tongue 26112512 26112512 1
11
Rear Case assy 00000100177 00000100177 1
12
Evaporator Support 24212177 24212177 1
13
Evaporator Assy 0100200001401 0100200001401 1
14
Wall Mounting Frame 01362026 01362026 1
15
Drainage Hose 05230014 05230014 1
16
Cold Plasma Generator / / /
17
Rubber Plug (Water Tray) 76712012 76712012 1
18
Connecting pipe clamp 2611218801 2611218801 1
19
Crank 73012005 73012005 1
20
Stepping Motor 1521240212 1521240212 1
21 Motor Press Plate 26112511 26112511 1
22 Fan Motor 15012136 15012136 1
23 Screw Cover 2425201726 2425201726 3
24
Electric Box Assy 10000204907 10000204767 1
25 Electric Box 2011221102 2011221102 1
26 Lower Shield of Electric Box 01592139 01592139 1
27 Shield Cover of Electric Box 01592176 01592176 1
28 Display Board 30565260 30565260 1
29 Main Board 300002000093 300002000093 1
30 Terminal Board 42011233 42011233 1
31 Electric Box Cover 2011220901 2011220901 1
32 Electric Box Cover2 2011221001 2011221001 1
33 Shield Cover of Electric Box Cover 2 01202000099 01202000099 1
34 Connecting Cable 400205382 400205382 0
35 Connecting Cable / / /
36 Temperature Sensor 3900031302 3900031302 1
37 Remote Controller 30510138 30510138 1
38 Jumper 4202021911 4202021912 1
39 Detecting Plate 30070077 30070077 1
Above data is subject to change without notice.
37a Cradle for Remote Controller - Not Shown 26150008 26150008 1
6
Parts Manual
Outdoor Unit
10
25
The component picture is only for reference; please refer to the actual product.
SAP09HP230V1AO
SAP12HP230V1AO
7
Parts Manual
Above data is subject to change without notice.
No.
Description
Part Code
Qty
SAP09HP230V1AO SAP12HP230V1AO
Product Code CB437W01200 CB437W00900
1 Front Grill 01473065 01473065 1
2 Cabinet 0143303402P 0143303402P 1
3 Axial Flow Fan 10333022 10333022 1
4 Fan Motor 1501308511 1501308511 1
5 Clapboard 01233510 01233510 1
6 Chassis Sub-assy 0280311901P 0280311901P 1
7 Electrical Heater (Chassis) 76510004 76510004 1
8 Compressor and Fittings 00103977 00103977 1
9 Valve Support Sub-Assy 01703242P 01713115P 1
10 Right Side Plate 0130510002P 0130510002P 1
11 Valve Cover 22243005 22243005 1
12 Cable Cross Plate 1 02123013P 02123013P 1
13 Cable Cross Plate 2 02123014P 02123014P 1
14 Cut off Valve Sub-Assy 0713376301 0713376301 1
15 Cut off Valve 1/2 07100006 0710307901 1
16 4-Way Valve Assy 03073358 03073360 1
17 Magnet Coil 4300008301 4300008301 1
18 Capillary Sub-assy 03000600300 03000600305 1
19 Wiring Clamp 26115004 26115004 1
20 Condenser Assy 01100200314 01100200318 1
21 Rear Grill 0147306001 0147306001 1
22 Electric Expand Valve Fitting 4300876704 4300876704 1
23 Stationary Barrier 01703179 01703179 1
24 Electronic Expansion Valve 07133909 07133909 1
25 Flash Vaporizer Sub-assy 07223057 03007000001
1
26 Magnet Coil 4300008301 4300040047 1
27 Tube Clip 02143030 02143030 1
28 Reactor 43130185 43130185 1
29 Coping 01253034P 01253034P 1
30 Motor Support Sub-Assy 01703180 01703180 1
31 Left Side Plate 01303169P 01303169P 1
32 Electric Box Assy 10000100921 10000100908 1
33 Electric Box Cover Sub-Assy 0260309601 0260309601 1
34 Main Board 300027000087 300027000057 1
35 Electric Box 1 20113005 20113005 1
36 Terminal Board 42010313 42010313 1
37 Wire Clamp 71010003 71010003 2
38 Temperature Sensor 39000079 3900007901 1
8
Parts Manual
Exploded View and Parts List
Indoor Unit
1
2
3
4
5
6
7
9
10
11
13
14
15
34
35
36
37
16
17
18
19
24
25
26
27
28
29
30
38
31
32
33
20
21
22
23
12
8
FAN
MODE
ON/OFF
The component picture is only for reference; please refer to the actual product.
SAP18HP230V1AH
SAP24HP230V1AH
9
Parts Manual
Above data is subject to change without notice.
No.
Description
Part Code
Qty
SAP18HP230V1AH
SAP24HP230V1AH
Product Code CB437N01500 CB437N01700
1
Front Panel(low display) 20000300059T 20000300059T 1
2
Filter Sub-Assy 11012007 11012007 2
3
Front Case Sub-Assy 0000020006401 0000020006401 1
4
Axile Bush 10542036 10542036 2
5
Guide Louver 10512503 10512503 1
6
Ring of Bearing 26152025 26152025 1
7
O-Gasket of Cross Fan Bearing 76512203 76512203 1
8
Cross Flow Fan 10352057 10352057 1
9
Air Louver(Manual) 10512744 10512744 3
10
Helicoid Tongue 26112513 26112513 1
11
Rear Case assy 00000100170 00000100170 1
12
Evaporator Support 24212178 24212178 1
13
Evaporator Assy 011001000180 011001000095 1
14
Wall Mounting Frame 01252229 01252229 1
15
Drainage Hose 0523001405 0523001405 1
16
Cold Plasma Generator / / /
17
Rubber Plug (Water Tray) 76712012 76712012 1
18
Connecting pipe clamp 26112514 26112514 1
19
Crank 73012005 73012005 1
20
Stepping Motor 1521210704/1521240210 1521210704/1521240210 1
21 Motor Press Plate 26112515 26112515 1
22 Fan Motor 1501213601 1501213601 1
23 Screw Cover 22242191 22242191 3
24
Electric Box Assy 100002000486 100002000597 1
25 Electric Box 2011221102 20112211 1
26 Lower Shield of Electric Box 01592139 01592139 1
27 Shield Cover of Electric Box 01592176 01592176 1
28 Display Board 30565260 30565260 1
29 Main Board 300002000093 300002000093 1
30 Terminal Board 42011233 42011233 1
31 Electric Box Cover 2011220901 2011220901 1
32 Electric Box Cover2 2011221001 2011221001 1
33 Shield Cover of Electric Box Cover 2 01202000099 01202000099 1
34 Connecting Cable / / /
35 Connecting Cable / / /
36 Temperature Sensor 3900031302 3900031302 1
37 Remote Controller 30510138 30510138 1
38 Jumper 4202021914 4202021930 1
Indoor Unit
37a Cradle for Remote Controller - Not Shown 26150008 26150008 1
10
Parts Manual

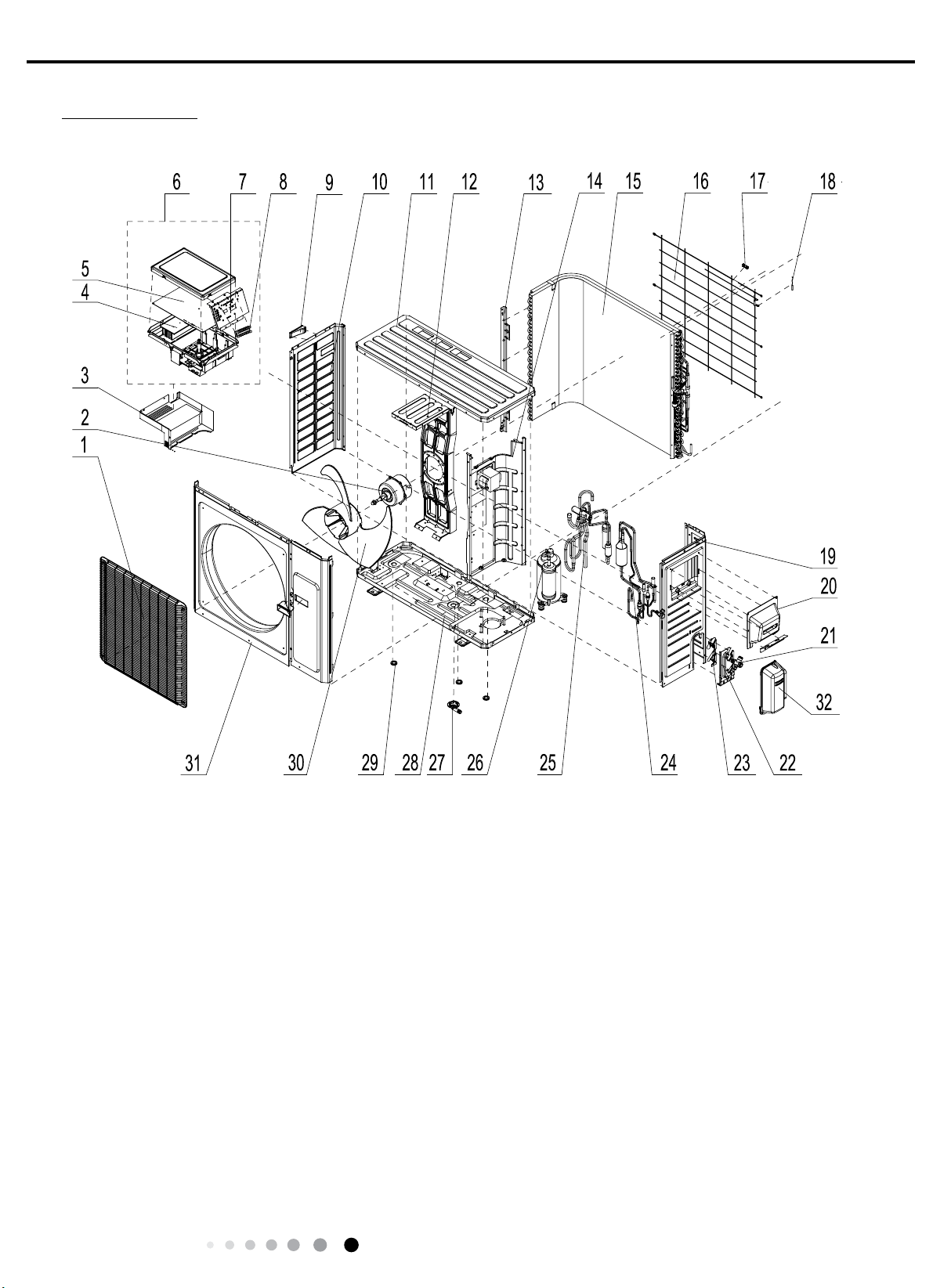

Outdoor Unit
SAP18HP230V1AO
SAP24HP230V1AO
11
Parts Manual
Above data is subject to change without notice.
No.
Description
Part Code
QtySAP18HP230V1AO SAP24HP230V1AO
Product Code CB437W01500 CB437W01700
1 Front Grill 01473050 01473050 1
2 Fan Motor 15010400000102 15010400000102 1
3 / / / /
4 Radiator 49015215 4901521501 1
5 Main Board 300027000040 300027000224 1
6 Electric Box Assy 100002000485 100002000598 1
7 Terminal Board Support sub-assy 01715016 01715016 1
8 Terminal Board 42010255 42010255 1
9 Handle 26233053 26233053 1
10 Left Side Plate 01305043P 01305043P 1
11 Coping 01255006P 01255006P 1
12 Motor Support Assy 000046000019 017012000015 1
13 Condenser Support Plate 01175092 01175092 1
14 Clapboard Sub-Assy 01235091 01233182 1
15 Condenser Assy 011002000242 011002000340 1
16 Rear Grill 01475013 01475013 1
17 Wiring Clamp 26115004 26115004 1
18 Temperature Sensor 39000072 39000072 1
19 Right Side Plate 0130504402P 0130504402P 1
20 Handle Assy 02113109 02113109 1
21 Cut off Valve 07130239 07130239 1
22 Valve Support Sub-Assy 0170506101P 0170506101P 1
23 Valve Support Block 26113017 26113017 1
24 Electronic Expansion Valve assy 4300876704 030174000045 1
25 4-Way Valve Assy 030152000081 030152000081 1
26 Compressor and Fittings 00105251 4300876704 1
27 Drainage Connecter 06123401 06123401 1
28 Chassis Sub-assy 02803315P 017000000166P 1
29 Drainage hole Cap 06813401 06813401 1
30 Axial Flow Fan 10335013 10335013 1
31 Cabinet 0143500401P 0143500401P 1
32 Valve Cover 22245003 22245003 1
GREE_SAPPHIRE_PARTS_A_09-24MBH_032618
