About Your
Jenn-Air
Congratulations on your choice of a Jenn-Air Grill-Range.The indoor
grilling of meats,fish or fowl isoneof the most attractiveandsucculent
methods of preparingthesefoods.., a uniqueflexibility made possible
by Jenn-Air's patented integral ventilation system.
Your Jenn-AJrself-cleaning oven combines the best of two cooking
methods, convection and radiant bake (conventional) baking or
roasting. (Note: Only Models S156 and $161 have the convection
option.)
The Jenn-Air convection oven is actually a conventional oven that
circulates heated air within the oven.As both bake and broil heating
elements cycle on and off with the thermostat, afan keepsthe heated
air circulating around the food.
The constantly recireulating heated air in the convection oven strips
away the layer of cooler air that surrounds food. Consequently, many
foods cook more quickly. Distributed heat makes multiple rack
cooking possible.Convection roastedmeatsretain their natural flavor
and juiciness with lessshrinkage than radiant bake roasting.
In addition to the many exclusive benefits of convection cooking,
your Jenn-Air oven isalso a fine full featured "bakeand broil" oven.
You can cook your "old favorite" recipes as you have in the past.
The radiant bake ovenalsogivesyou the flexibility of preparingvarious
foods when convection cooking may not be as beneficial, as when
cooking foods in coveredcasserolesor clay pots.
The broil element is convenient for top browning and oven broiling
of foods.
Before you begin cooking with your new grill-range, please take a
few minutes to read and become familiar with the instructions in
this book. Onthe following pagesyou will find awealth of information
regarding all aspects of using your new grill-range. By following the
instructions carefully, you will be able to fully enjoy and properly
maintain your grill-range and achieve excellent results with the food
you prepare.
Should you haveany questions about using your Jenn-Air grill-range
or need a use and care manual for your cooktop cartridge, write
to us. Be sure to providethe model number.
ConsumerRe|atlonsDepartment
Jenn-AIrCompany
3035Shadeland Avenue
Indianapolis, IN 46226-0901
Index
Using the Cooktop and Grill
Accessories.................. Installing ..................................... 12
Optional ................................... 46-47
Cleaning..................... Other Range Parts............................. 17
Cooktop and Grill Controls ................................................... 8
Cooktop Cartridge Installing, Removing....................................... 11
Ducting Information........................................................ 44
Grill ......................... Cleaning ..................................... 16
Installing ..................................... 12
Usageand Grilling Tips..................... 13-15
HomeCanning ............................................................. 11
Surface Controls ........................................................... 10
Ventilation System............ Operation and Cleaning ......................... 9
Using the Oven
Baking ...................... General Recommendations..................... 24
Convection Baking ......................... 25-28
Baking Charts.............................. '..26
Broiling ................................................................. 32-33
Cleaning..................... AUTO-CLEAN ................................ 35
Self-Cleaning Process...................... 34-39
Other Cleaning Tips ........................ 40-41
Clock-Controlled Baking or Roasting...................................... 22-23
Clock Controls............................................................. 20
Light Bulb Replacement..................................................... 40
Minute Timer............................................................... 21
Oven Controls and Operation ............................................. 18-19
Oven Thermostat Knob Adjustment .......................................... 41
Rack Positions............................................................. 19
Roasting..................... General Recommendations..................... 29
Convection Roasting........................ 30-31
Appliance Usage
Safety Precautions......................................................... 5-7
ServiceInformation ...................................................... 42-43
MODELNUMBER
SERIALNUMBER
(Numbersappearontheserialplateontheovenfrontframe.)
DatePurchased
JENN-AIRDEALERFROM WHOM PURCHASED
ADDRESS
CITY
PHONE
AUTHORIZEDJENN-AIRSERVICECONTRACTOR
ADDRESS
CITY
PHONE.
IMPORTANT:Retainproofof purchasedocumentsfor warrantyservice
SAFETY
PRECAUTIONS
Read before operating your range
All appliances -- regardlessof the manufacturer-- havethe
potentialthroughimproperorcarelessusetocreatesafetyprob-
lems. Therefore the following safety precautionsshould be
observed:
1. Besureyourapplianceisproperlyinstalledandgrounded
bya qualifiedtechnician.
2. Neveruseyourapplianceforwarmingorheatingtheroom.
3. Childrenshouldnot be left alone or unattendedin area
whereapplianceisinuse.Theyshouldneverbeallowedto
sitor standonany partof theappliance.
4. Wear properapparel.Loose-fittingor hanginggarments
shouldneverbewornwhileusingtheappliance.
5. Do not repairor replaceany part of the applianceunless
specificallyrecommendedinthismanual.Allotherservicing
should be referred to an authorized Jenn-Air Service
Contractor.
6. Flammablematerialsshould not be stored in an oven or
nearsurfaceunits.
7. Do not use wateron greasefires. Smotherfire or flame
or usedrychemicalor foam-typeextinguisher.
8. Useonlydrypotholders.Moistordamppotholderson hot
surfacesmay result in burns from steam. Do not let
potholdertouch hot heatingelements.Do not usea towel
or otherbulkycloth.
9. Use properpan size.Many appliancesare equippedwith
oneormoresurfaceunitsofdifferentsize.Selectcookware
havingflat bottomslargeenoughtocoverthesurfaceunit
heating element.The use of undersizedco(_kwarewill
exposea portionof the heatingelementto directcontact
and may resultin ignitionof clothing.Properrelationship
of cookwareto heatingelementwillalsoimproveefficiency
and performance.
10. Neverleavesurfaceunitsunattendedat high heatsettings.
Boil overcausessmokingand greasyspilloversthat may
ignite.
11. On conventionalelementrangesmakesurethatdrip pans
are in place.Absenceof these pansduringcooking may
subjectwiringor componentsunderneathto damage.
12. Do not usealuminumfoil to line surfaceunit drip pans,
grill basinor ovenbottom.Installationof theselinersmay
resultin anelectricshockorfirehazard.
13. Glazed cookware-- only certain types of glass,glass-
ceramic,ceramic,earthenware,or otherglazedcookpots
are suitablefor range top surfacewithout breakingdue
to the sudden change in temperature.Use only such
cookwareasyouknowhavebeenapprovedforthispurpose.
14. Oookwarehandlesshouldbeturnedinwardandnotextend
over adjacentsurface heating elementsto avoid burns,
ignitionofflammablematerialsandspillageduetouninten-
tionalcontactwiththecookware.
15. Do not soak or immerse removableheatingelementsin
water.
16. CAUTION -- Do not storeitemsof interestto childrenin
cabinetsabovea rangeor on the backguardof a range
--children climbingon the rangeto reach itemscould be
seriouslyinjured.

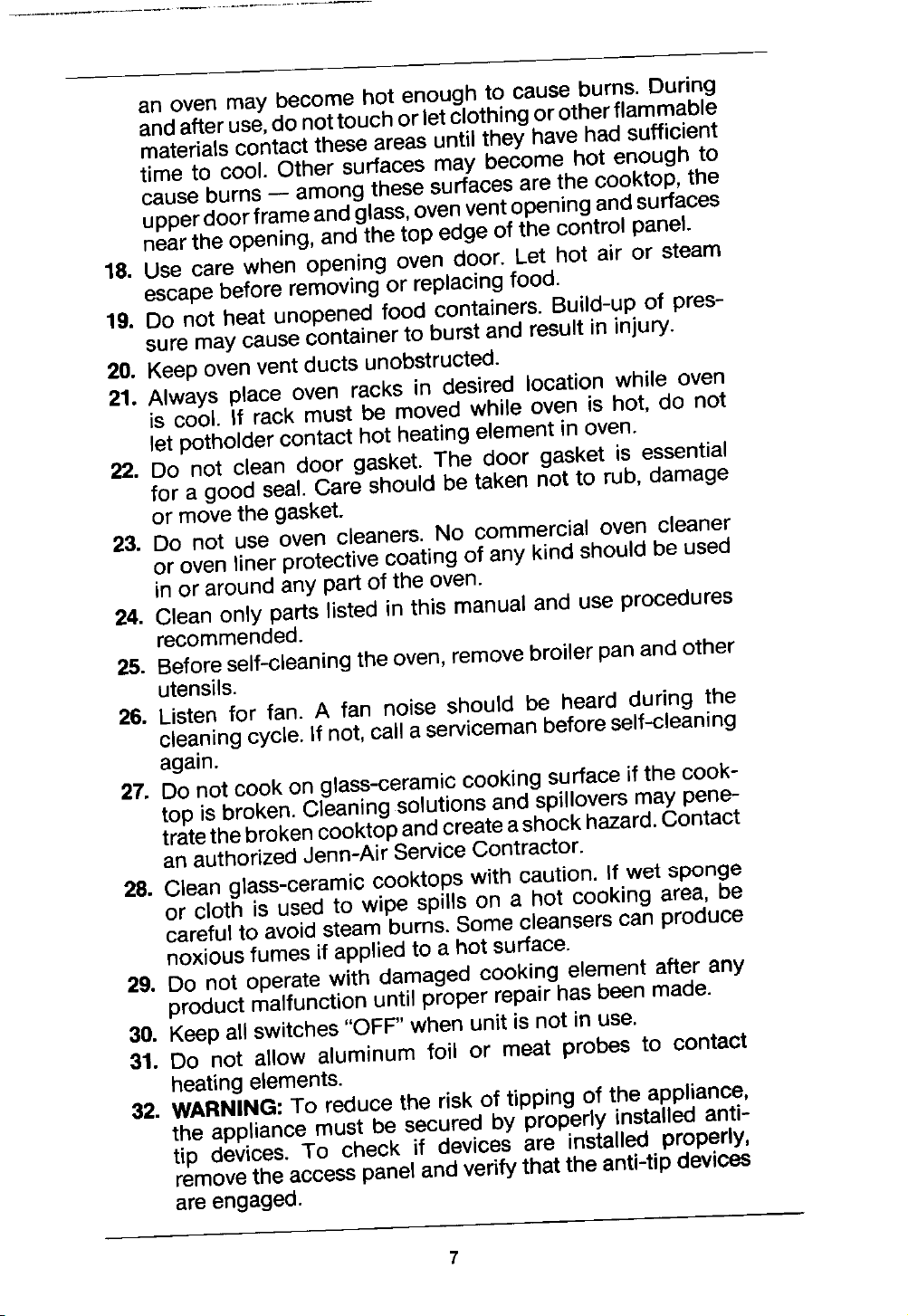

17. Do not touch surface units or areasnear units,heating
elementsor interiorsurfacesof oven. Surface units or
heatingelementsmay be hoteven thoughthey are dark
in color.Areasnear surfaceunitsand interiorsurfacesof
an oven may become hot enough to cause bums. During
and after use, do not touch or let clothing or other flammable
materials contact these areas until they have had sufficient
time to cool. Other surfaces may become hot enough to
cause burns -- among these surfaces are the cooktop, the
upper door frame and glass, oven vent opening and surfaces
near the opening, and the top edge of the control panel.
18. Use care when opening oven door. Let hot air or steam
escape before removing or replacing food.
19. Do not heat unopened food containers. Build-up of pres-
sure may cause container to burst and result in injury.
20. Keep oven vent ducts unobstructed.
21. Always place oven racks in desired location while oven
is cool. If rack must be moved while oven is hot, do not
let potholder contact hot heating element in oven.
22. Do not clean door gasket. The door gasket is essential
for a good seal. Care should be taken not to rub, damage
or move the gasket.
23. Do not use oven cleaners. No commercial oven cleaner
or oven liner protective coating of any kind should be used
in or around any part of the oven.
24. Clean only parts listed in this manual and use procedures
recommended.
25. Before self-cleaning the oven, remove broiler pan and other
utensils.
26. Listen for fan. A fan noise should be heard during the
cleaning cycle. If not, call a serviceman before self-cleaning
again.
27. Do not cook on glass-ceramic cooking surface if the cook-
top is broken. Cleaning solutions and spillovers may pene-
trate the broken cooktop and create a shock hazard. Contact
an authorized Jenn-Air Service Contractor.
28. Clean glass-ceramic cooktops with caution. If wet sponge
or cloth is used to wipe spills on a hot cooking area, be
careful to avoid steam burns. Some cleansers can produce
noxious fumes if applied to a hot surface.
29. Do not operate with damaged cooking element after any
product malfunction until proper repair has been made.
30. Keep all switches "OFF" when unit is not in use.
31. Do not allow aluminum foil or meat probes to contact
heating elements.
32. WARNING: To reduce the risk of tipping of the appliance,
the appliance must be secured by properly installed anti-
tip devices. To check if devices are installed properly,
remove the access panel and verify that the anti-tip devices
are engaged.
Cooktopand
Grill Operation
oktop and Grill Cntrols
Ventilation System and Air
Oven Light Switch Grille Oven Vent Clock
Controls
Clean Indicator and
and Minute
Indicator Light Timer
Indicator
Indicator Light
Light
Surface
Controls
Controls
Oven
Grease Indicator
Container
Oven Selector Door Lock Lever Oven Light
Temperature
Knob Knob
Ventilation System and Oven Light Switch
• Use to turn on ventilation system or oven light manually. (See page 9.)
Surface Indicator Light
• Will glow when a surface unit is on. (See page 10.)
Surface Controls
• Use to provide variable heat to cooktop heating elements or grill element.
{See page 10.)
CIo=k Controls and Minute Timer
• Features time of day, MINUTE TIMER and oven clock controls. (See pages
20-23.)
Grease Container
• Collects grease when grilling or using other accessories; or spillovers when
using conventional coil cartridge. (See page 16.)
[ NOTE: For information on oven controls, see page 18. I
Ventilation System
Thebuilt-in ventilationsystemremovescookingvapors,odorsandsmokefrom foods
preparedonthe cooktop,grill andgrillaccessories.
Regularuse of this systemwill insurea more comfortableand lesshumid kitchen
whichis free of heavycooking odors and fumes that normally create a frequent
needfor cleaningand redecorating,
Using the Ventilation System
• To operate theventilationsystemmanually, push
thefan symbolonthethreepositionVENTILATION
AND OVENLIGHT SWITCH locatedin frontof the
air grille. To turn the fan off, push the switch to
the middleposition.If the light symbol is pushed,
the ovenlightwill be turnedon.
• The ventilationsystemw(It operateautomatically when the grill element is
in use.
• Besidesusingthe ventilation systemto removecook{ngvaporsand fumes,
it canbe usedto cool bakedpies, cakesor hotcookpots.To cool an item,
set it on the air grille and turn on the fan. The air being pulled over the
itemwill quicklycool it. Be careful not to coverthe ovenvent or the entire
airgrille.
• The fan can be used to removestrong odors from the kitchen as when
choppingonionsnearthe fan.
Cleaning the Veniation Syste===
t_Uc: The air grille lifts off easily. Wipe clean or wash in sink with mild
householddetergents.Maybe cleanedindishwasher.NOTE:The ovenventislocated
under the gri|le. When using or cleaning the oven, hot
and moistair may be noticed in thisarea, Be carefulnot
to sp(f(anything intothis vent.
]E_Lltcr:Turn off ventilationsystembefore removing.The
filter is a permanenttype and should be cleaned when
soiled.Cleaninsinkwithwarmwaterandliquiddishwash-
ingdetergentor indishwasher.
IMPORTANT: Filter shouldalways be placed at an angle. As you face the front
of the range,the top of the filter shouldrestagainstthe left side of the vent opening
and the bottom of the filter should rest againstthe right side of the ventilation
chamberat the bottom. DO NOT OPERATESYSTEM WITHOUT FILTER.
VcntElation Chamber= This area, which housesthe filter, shou(dbe cleaned
in the event of spills or whenever it becomescoated with a film of grease. May
be cleanedwith papertowel, damp cloth or spongeand mild householddetergent.
9

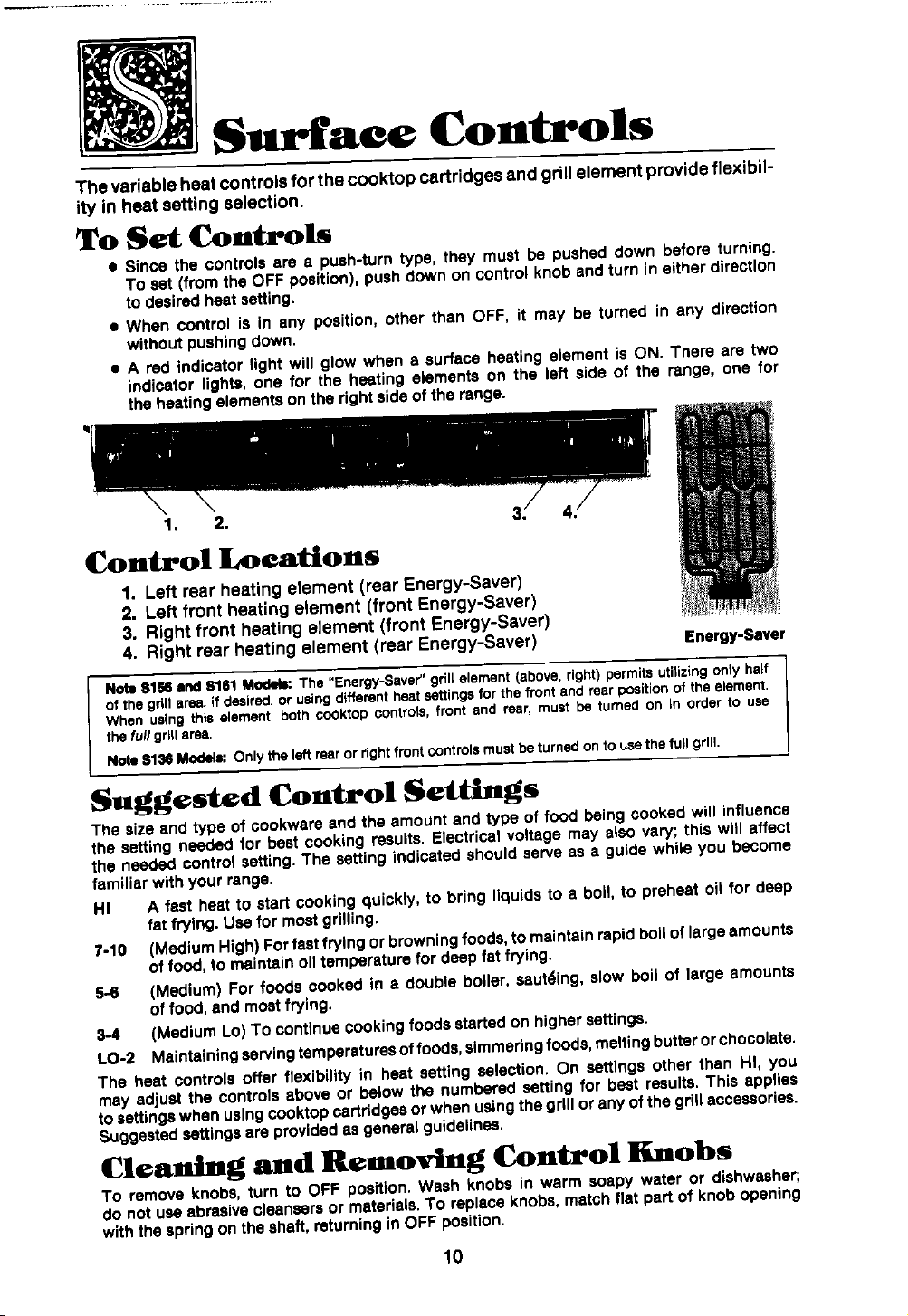

Surface Controls
The variable heat controls for the cooktop cartridges and grill element provide flexibil-
ity in heat setting selection.
To Set Controls
• Since the controlsere a push-turntype, they must be pushed down before turning.
To set (fromthe OFF position),pushdownon controlknobandturn in eitherdirection
to desiredheatsetting.
• When control is in any position,other than OFF, it may be turned in any direction
withoutpushingdown.
• A red indicatorlightwill glow when s surface heatingelement is ON. There are two
indicator lights,one for the heating elements on the left side of the range, one for
the heatingelementson the rightside of the range.
1, 2.
Control Loeations
1. Left rear heating element (rear Energy-Saver)
2. Left front heating element (front Energy-Saver)
3. Right front heating element (front Energy-Saver)
4. Right rear heating element (rear Energy-Saver) Energy-Saver
Noteel_ endS161Mode_ The"Energy-Saver"grfl[element(above,right)permitsutilizingonlyhalf
ofthegrillarea,ifdesired,orusingdifferentt_atsettingsforthefrontandrearpositionoftheelement.
Whenusingthiselement,bothcooktopcontrols,frontandrear,mustbe turnedonin orderto use
thefullgrlgarea.
NoteS136Mocki: Onlytheleftrearorrightfrontcontrolsmustbeturnedonto usethefullgrill.
Suggested Control Settings
The size and type of cookwareand the amountandtype of food beingcookedwill influence
the settingneededfor best cooking results.Electricalvoltagemay also vary;this will affect
the needed control setting.The setting indicatedshouldserveas a guide whileyou become
familiarwithyour range.
HI A fast heat to start cooking quick_y,to bring liquidsto a boil, to preheatoil for deep
fat frying.Use formostgrilling.
7-10 (MediumHigh)Forfastfrying orbrowningfoods,to maintainrapidboilof largeamounts
of food,to maintainoiltemperaturefor deepfatfrying.
5-6 (Medium) For foodscooked in a double boiler,sauteing, slow boil of large amounts
of food, end mostfrying.
3-4 (MediumLo) To continuecookingfoodsstartedon highersettings.
LO-2 Maintainingservingtemperaturesof foods,simmeringfoods,meltingbutterorchocolate.
The heat controls offer flexibility in heat setting selection. On settings other than HI, you
may adjustthe controlsaboveor below the numberedsetting for best results.This applies
to settingswhen usingcooktopcartridgesor whenusingthegrill orany ofthe grillaccessories.
Suggestedsettingsereprovidedas generalguidelines,
Cleaning and Removing Control Knobs
To remove knobs, turn to OFF posit)on, Wash knobs Jnwarm soapywater or dishwasher;
do not use abrasivecleansersor materials,TOreplaceknobs,matchflat part of knobopening
withthe springonthe shaft,returningin OFF position.
10

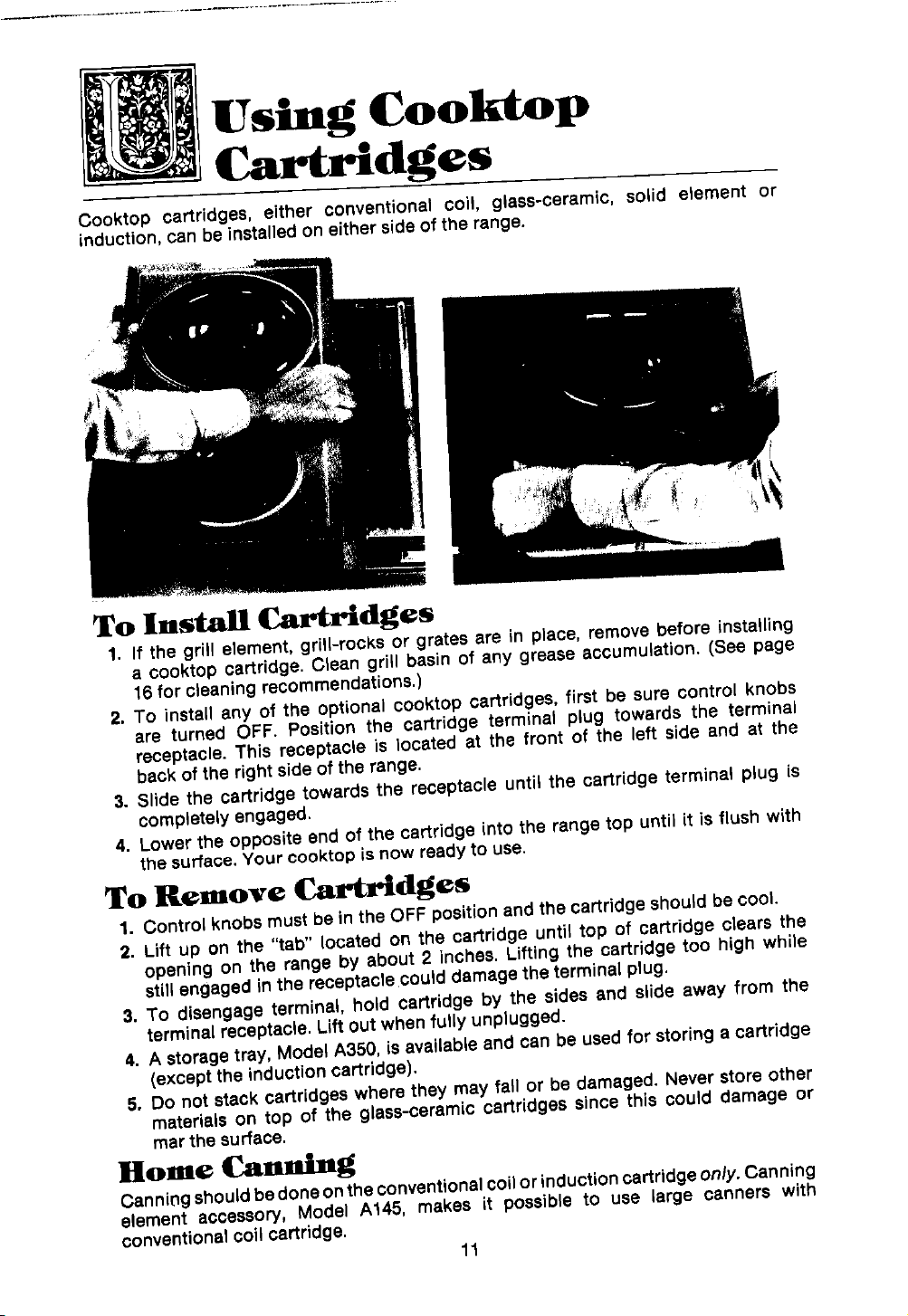

Using.Cooktop
Cartridges
Cooktop cartridges, either conventional coil, glass-ceramic, solid element or
induction,canbe installedoneithersideof the range.
To Install Cartridges
1. If the grill element, grill-rocks or grates are in place, removebefore installing
a cooktop cartridge. Clean grill basin of any grease accumulation. (See page
16for cleaning recommendations.)
2. To install any of the optional cooktop cartridges, first be sure control knobs
are turned OFF. Position the cartridge terminal plug towards the terminal
receptacle. This receptacle is located at the front of the left side and at the
back of the right sideof the range.
3. Slide the cartridge towards the receptacle until the cartridge terminal plug is
completelyengaged.
4. Lowerthe oppositeend of the cartridge into the range top until it isflush with
thesurface. Your cooktopis now readyto use.
To Remove Cartridges
1. Control knobs mustbe in the OFF positionand the cartridge should be cool
2. Lift up on the "tab" located on the cartridge until top of cartridge clears the
opening on the range by about 2 inches. Lifting the cartridge too high while
st(l(engaged (nthe receptaclecould damagethe terminal plug.
3. To disengage terminal, hold cartridge by the sides and slide away from the
terminal receptacle. Lift out when fully unplugged.
4. A storage tray, Model A350, is availableand can be used for storing a cartridge
(except the induction cartridge).
5. Do not stack cartridges where they may fall or be damaged. Never store other
materials on top of the glass-ceramic cartridges since this could damage or
mar the surface.
Home Canning
Cann{ngshouldbedone onthe conventionalcoil or inductioncartridgeonly. Canning
element accessory, Model A145, makes it possible to use large canners with
conventionalcoil cartridge,
11

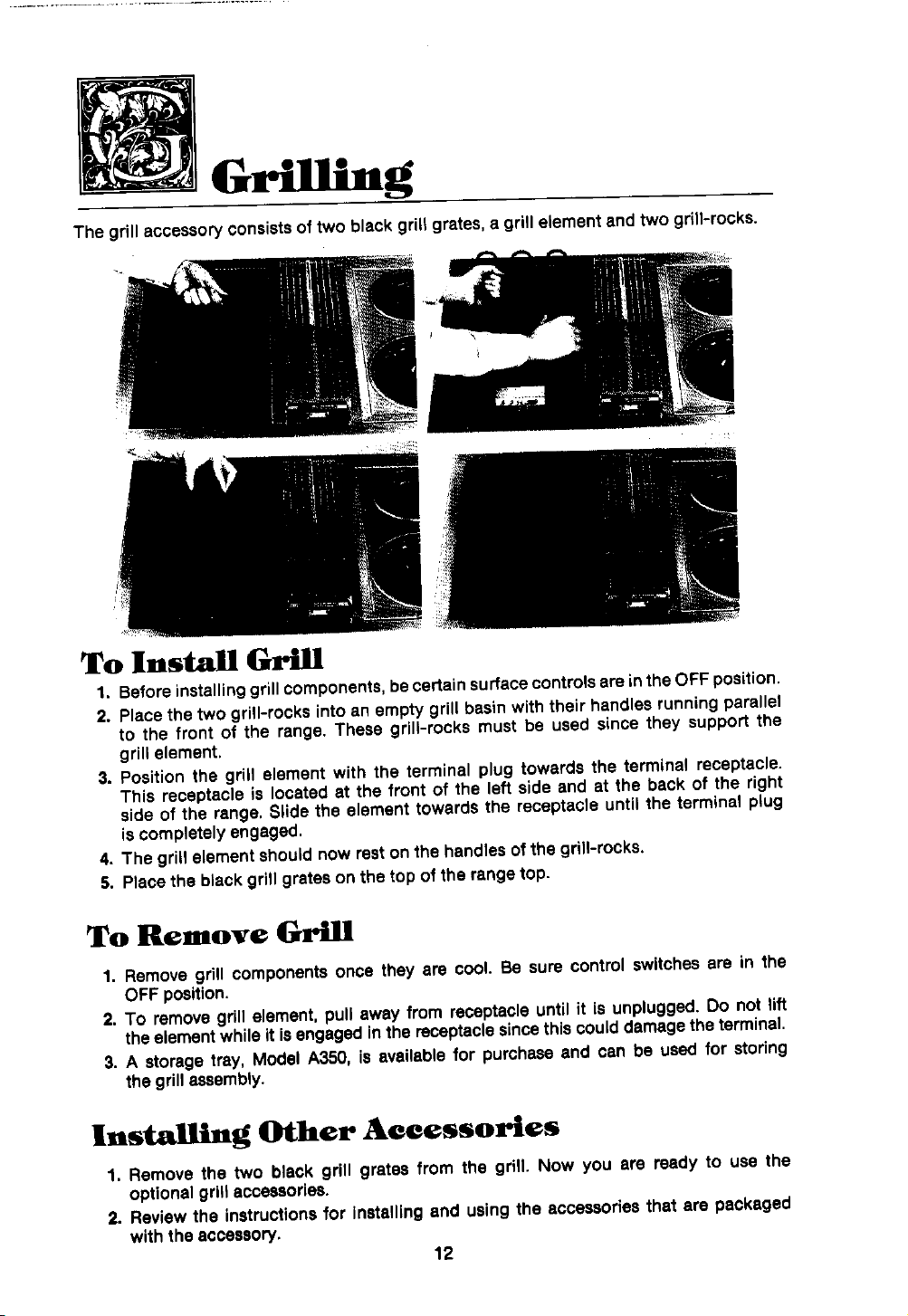

The grill accessory consistsof two black grill grates, a grill element and two grill-rocks.
To Install Grill
1. Before installing grill components, be certainsurface controls arein the OFF position.
2. Place the two grill-rocks into an empty grill basin with their handles running parallel
to the front of the range. These grill-rocks must be used since they support the
grill element.
3. Position the grill element with the terminal plug towards the terminal receptacle.
This receptacle is located at the front of the left side end at the back of the right
side of the range. Slide the element towards the receptacle until the terminal plug
iscompletely engaged.
4. The grillelement should now reston the handles of the grill-rocks.
5. Place the black grill grates on the top of the range top.
To Remove Grill
1. Remove grill components once they are cool. Be sure control switches ere in the
OFF position.
2. To remove gdll element, pull away from receptacle until it Is unplugged. Do not lift
theelement while it isengaged inthe receptacle since this coulddamage the terminal.
3. A storage tray, Model A350, is available for purchase and can be used for storing
thegdll assembly.
Installing Other Accessories
1. Remove the two black grill grates from the grill. Now you are ready to use the
optional grill accessories.
2. Review the instructionsfor installing and using the accessoriesthat are packaged
with the accessory,
12
Using the Grill
• Before using the gdll for the first time, wash grill grates in hot soapy water; rinse
and dry.
• Precondition new grates and grill-rocks by brushing with vegetable oil or spraying
with a nonstick coating such as Pare. This procedure should be repeated after
cleaning in a dishwasher since the detergent removes seasoning.
• For easier clean-up, as well as preventing meats from sticking to grates until
they are seasoned, spray grates, grill-rocks and grill basinwith a nonstick coating.
• Preheat grill on HI setting for 5 minutes. Preheating improves the flavor and
appearance of meats and quickly sears the meat to help retain the juices. The
heating element should glow a bright cherry red.
• Excessive amounts of fat should be trimmed from meats. Only a normal amount
is necessary to produce the smoke needed for that smoked, "outdoor" flavor.
Excessivefat can create cleaning and flame-up problems.
• Allowing excessive amounts of grease or,drippings to constantly flame voids the
warranty on gri//grates. Excessive flame-ups indicate that either the grill interior
needs to be cleaned or that excessive amounts of fat are in the meat or the
meat was not properly trimmed.
• Grease drippings will occasionally ignite to produce harmless puffs of flame for
a second or two. This is a normal part of the cooking process.
• NEVER LEAVE GRILL UNATTENDED DURING GRILL OPERATION.
Should excess grease cause sustained flame-up=
1. Turn on FANmanually.
2. Immediatelyturn grill heatcontrolswitchto OFF position.
3. Removemeatfrom grill,
IMPORTANT
• Do notuse aluminumfoil (r_sidethe grillarea.
• Do notusecharcoalorwoodchipsin thegrill area.
• Do notallow grill-rocksto becomeoverloadedwithgrease.Clean frequently,
• Do not covergratescompletelywith meat. Leaveair space betweeneach steak,etc.
to allowproperventilationaswellaspreventflame-ups.
13
Grill Guide
Seasongrill grates,Preheatgrill on HI, 5 minutes,forbestflavor.
14
Grilling Tips
With your Jenn-Air grill and accessories,literally any food you've considered "at
itsbest" when preparedoutdoorscan now be preparedindoorswith lessfuss and
greatflavor.
Manygrilling ideasare containedin Jenn-Air'sCookbook,Comp/ete Cooking With
Jenn-Air, Mode/No. A905. There are alsomany cookbookscontainingrecipesfor
outdoorgrillingwhich can be usedon a Jenn-Air.
The followingsuggestionsaregood rulestofollowand will increaseyour enjoyment
of the equipment.
• Be sureto follow directions on page 13for using the grill.
• SuggestedcookingtimesandcontrolsettJngsareapproximateduetovariations
in meatsand electrical voltage. Experience will quickly indicate cooking times
aswell as which settingswork best.
• Use the Energy-Savergrill element for grilling small amounts of food on half
of the grill or for keeping cooked foods warm or preparing foods requiring
different heat control settings. (Note S136 Owners: The Energy-Saver grill
element can be purchased asan optional accessory. Seep. 45.)
• For best results, buy top grade meat. Meat that is at least 3/4-inch will grill
better than thinner cuts.
• Score fat on edges of steak, but do not cut into meat, to prevent curling
while cooking.
• For the attractive "branded" look on steaks, be sure grill is preheated. Allow
one side of meat to cook to desired doneness, or until juices appear on the
top surface, before turning. It takes fewer minutes to cook the second side.
Turn steaksand hamburgersjust once. Manipulating food causesloss of juices.
• When basting meats or applying sauces to foods, remember that excessive
amounts wind up inside your grill and do not improve the food flavor. Apply
saucesduring the last 15to 20 minutes of cooking time unlessrecipe specifies
otherwise. Sugar-basedsauces,excessivelyused, will caramelizeon the grill-
rocks and will create a cleaning chore.
• There are many meat marinadeswhich will help tenderize lessexpensivecuts
of meat for cooking on the grill.
• Certain foods, such as poultry and non-oily fish, may need some extra fat.
Brush with oil or melted butter occasionally while grilling.
• Use tongs with long handles or spatulasfor turning meats. Do not use forks
as these pierce the meat, allowing juices to be lost.
• To help retainmeatjuices, saltafterturning meator after cookingiscompleted.
• Should grilled foods be preparedand readybeforeyou'rereadyto serve,turn
heatcontrolto a low settingand covermeatwith a singlesheetof foil. Food
will continueto cook.
15
Cleaning the Grill
Grates: These are made from cast aluminum. Model $161: the grates have been
anodized. This coating will fade with use. Models $136 and $156: the grates have a nonstick
finish.
• The grates should be cleaned after each use.They can be cleaned with detergent and
a plastic scrubber, such as Tufty, or washed in the dishwasher if burned on residue
is first removed. For heavy soil, grates can be soaked in hot, soapy water to which
a cleanser, such ashouseholdammonia, hasbeenadded.
• Do not use metal brushes or abrasive scouring pads or other scrubbers intended to
clean outdoor charcoal grills. These will remove the finish aswell as scratch the grates.
Do not clean in the self-cleaning oven or useovencleaners on the grates.
GrEBoROeI_J: These are madefrom cast-iron which havebeencoated with porcelain enamel.
• The grill-rocks should be cleaned frequently or after any excessivebuild-up of grease.
To clean light soil, use detergent and a plastic scrubber, such as Tufty, or wash in
the dishwasher if burned on residue is first removed. For heavysoil, soak in hot, soapy
water to which a cleanser, such as household ammonia, has been added. Stubborn
spots on grill-rocks, such as burned on residue from sauces, can be scrubbed with
a stiff bristle brush.
• An ovencleaner,such as Easy-Off,can beused for burned onsoil. Follow manufacturer's
directions; spray on cleaner and let soak overnight. Do not clean grill-rocks in the
self-cleaning oven.
Grill Element: Follow instructions on page 12 for removing the grill element. The grill
element should never be immersed in water. Most soil will burn off during use. The terminal
block may be cleaned with soapy S.O.S. pad. Dry thoroughly before reinserting in the range.
Peals, in Grill Basin: This area, located under the grill-rocks, should be cleaned after
each heavy use of the grill.
• To remove light soil, clean area with soapy water or spray with cleansers such as409
or Grease Relief. For easier clean-up, lay paper towels in grill basin, spray with a
household cleanser,and soak for at least a half-hour or longer.
• To remove moderate soil, scrub with Comet, Ben Ami, a soft scrub cleanser or plastic
scrubber.
• To remove stubborn soil,spray with anoven cleaner suchasEasy-Oft; let soak overnight,
wipe clean, rinse and dry.
Grease Cont=LIn¢_ This containercollects greaseand other liq-
uidscreatedwhile grillingor usingsomeof the accessories;or spill-
overswhileusingtheconventionalcoil cartridge.Emptywhengrease
isnoticeablethroughcontainerwindow,
• Checkthecontainerperiodicallyto preventgreasefromspilling
over.If thisshouldhappen,thegreasewill flowoverthefront
of the containerthusalertingyou to empty the container.The
containeris madefrom polypropyleneand can be washed in
hot,soapywater.A fewtablespoonsof dishwashingliquidand
wateradded to a cleancontainerwill make iteasierto empty
whenfull. May bewashedindishwasher.
• A metaldraintube leadsfromthe rightgrill basinto the grease
container.To preventtubefrom becomingcloggedifthe right
aideof therangeis usedfor mostgrilling,after grillingremove
food particleswith a paper towel. Then, pour a cup of hot, soapy water throughthe
draintube.
16

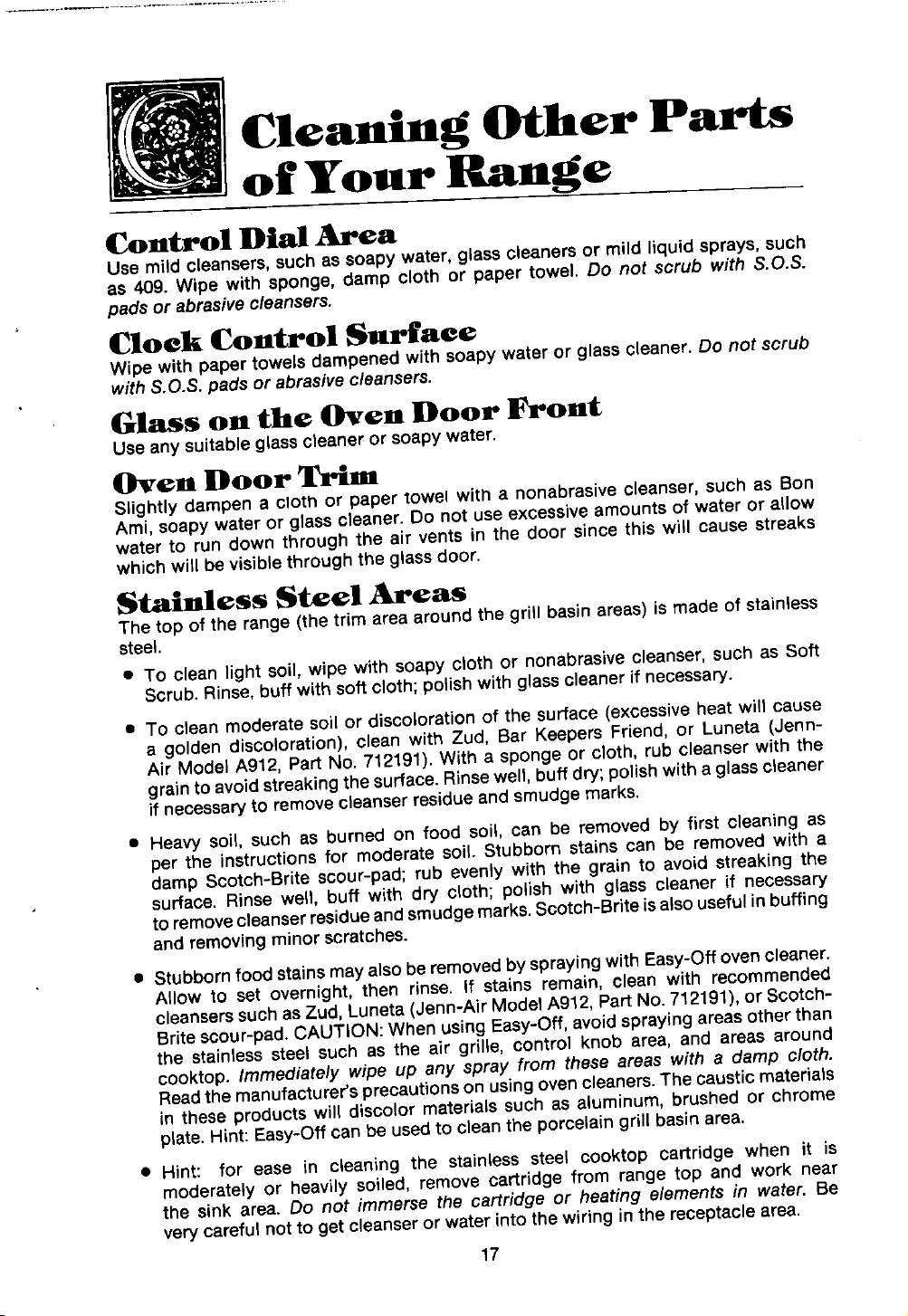

Cleaning Other Parts
of Your Range
Control Dial Area
Use mild cleansers,such assoapy water, glasscleanersor mild liquid sprays,such
as 409. Wipe with sponge, damp cloth or paper towel. Do not scrub with S.O.S.
pads or abrasivecleansers.
Clock Control Surface
Wipewith paper towelsdampened with soapywater or glasscleaner.Do not scrub
with S.O.S.pads or abrasive cleansers.
Glass on the Oven Door Front
Useany suitableglasscleaneror soapywater.
Oven Door Trim
Slightly dampen a cloth or paper towel with a nonabrasive cleanser, such as Bon
Ami,soapywater or glasscleaner.Do not use excessiveamountsof water or allow
water to run down through the air vents in the door since this will causestreaks
whichwill be visiblethrough the glassdoor.
Stainless Steel Areas
The top of the range (the trim area aroundthe grill basin areas) is made of stainless
steel.
• To clean light soil, wipe with soapy cloth or nonabrasivecleanser, such as Soft
Scrub. Rinse, buffwith soft cloth; polish with glasscleaner if necessary.
• To clean moderate soil or discoloration of the surface (excessiveheat will cause
a golden discoloration), clean with Zud, Sar Keepers Friend, or Luneta (Jenn-
Air Model A912, Part No. 712191).With a sponge or cloth, rub cleanser with the
grain to avoidstreakingthe surface.Rinsewelt,buff dry;polishwith aglasscleaner
if necessaryto removecleanserresidueand smudgemarks.
• Heavy soil, such as burned on food soil, can be removedby first cleaning as
per the instructionsfor moderate soil. Stubborn stains can be removed with a
damp Scotch-Brite scour-pad; rub evenly with the grain to avoid streakingthe
surface. Rinsewell, buff with dry cloth;polish with glass cleaner if necessary
to removecleanserresidueandsmudgemarks.Scotch-Briteisalsousefulin buffing
and removingminorscratches.
• Stubbornfood stainsmay alsobe removedbysprayingwithEasy-Offovencleaner.
Allow to set overnight,then rinse. If stains remain, clean with recommended
cleanserssuch asZud,Luneta(Jenn-AirModelA912,Part No. 712191),or Scotch-
Britescour-pad.CAUTION: When using Easy-Off,avoidsprayingareasother than
the stainless steel such as the air grille, control knob area, and areas around
cooktop. Immediately wipe up any spray from these areas with a damp cloth.
Readthe manufacturer's precautionson using oven cleaners.The caustic materials
in these products will discolor materials such as aluminum, brushed or chrome
plate.Hint: Easy-Off can be used to cleanthe porcelain grill basin area.
• Hint: for ease in cleaning the stainless steel cooktop cartridge when it is
moderately or heavily soiled, remove cartridge from range top and work near
the sink area. Do not immerse the cartridge or heating elements in water. Be
very careful not to get cleanser or water into the wiring in the receptacle area.
17

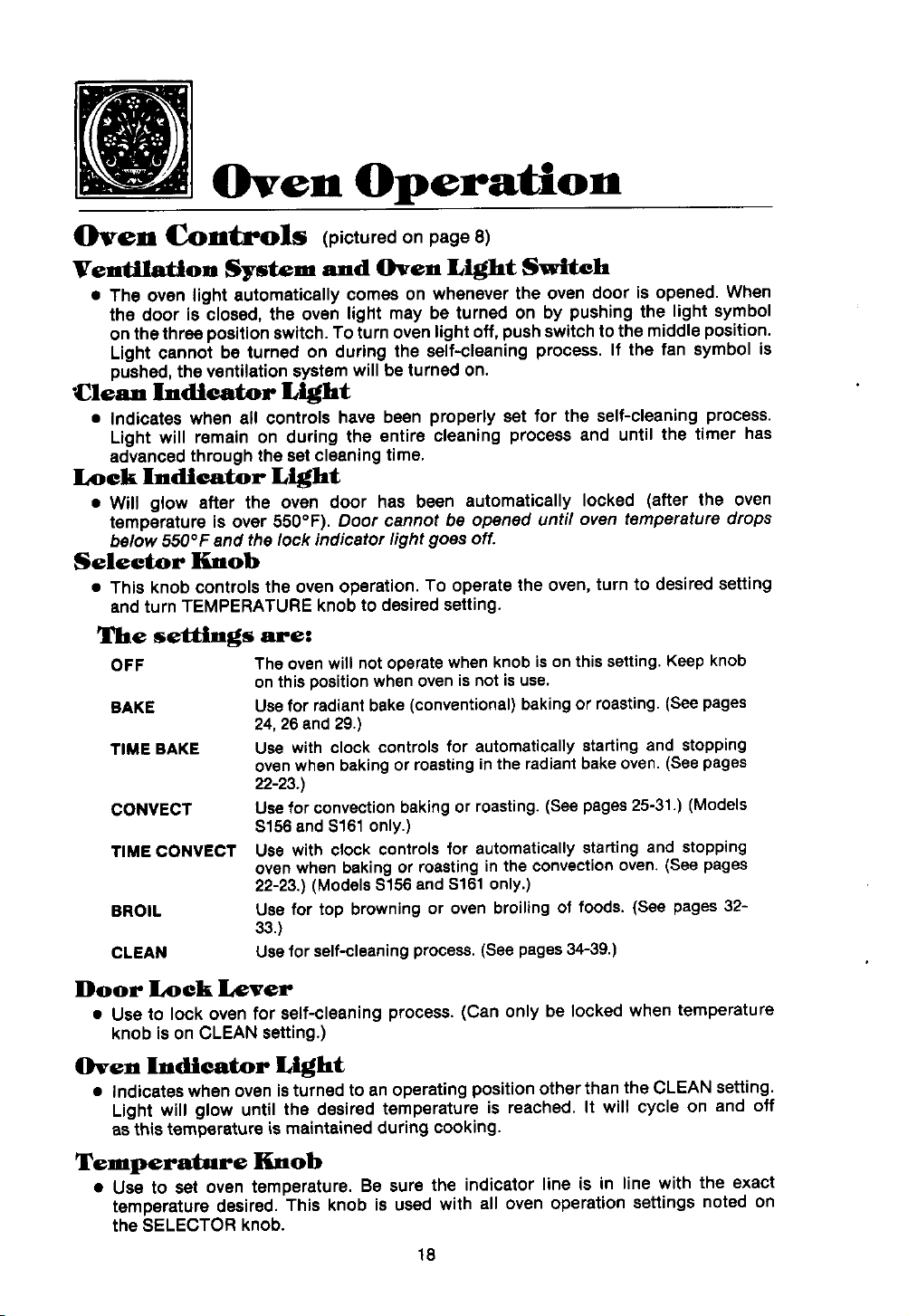

Oven Operation
Oven Controls (picturedon page 8)
Ventilation System and Oven Light Switch
• The oven light automatically comes on whenever the oven door is opened. When
the door is closed, the oven light may be turned on by pushing the light symbol
on thethree positionswitch.To turn oven lightoff, push switchto the middleposition.
Light cannot be turned on during the self-cleaning process. If the fan symbol is
pushed,the ventilationsystem will be turned on.
"Clean Indicator Light
• Indicates when all controls have been properly set for the self-cleaning process.
Light will remain on during the entire cleaning process and until the timer has
advanced through the setcleaning time.
Lock Indicator Light
• Will glow after the oven door has been automatically locked (after the oven
temperature is over 550°F). Door cannot be opened until oven temperature drops
below 550°F and the lock indicator light goes off.
Selector Knob
• This knob controlsthe oven operation. To operate the oven, turn to desired setting
and turn TEMPERATURE knobto desired setting.
The settings are=
OFF The ovenwill not operatewhen knob ison this setting.Keep knob
onthispositionwhen ovenis not is use,
BAKE Usefor radiantbake(conventional)bakingor roasting.(See pages
24,26and 29.)
TIME BAKE Use with clock controlsfor automatically startingand stopping
ovenwhenbakingorroastingin the radiantbakeoven.(Seepages
22-23.)
CONVECT Use for convectionbakingor roasting.(Seepages25-31.) (Models
$156and $161 only.)
TIME CONVECT Use with clock controls for automaticallystarting and stopping
ovenwhen bakingor roastingin the convectionoven.(See pages
22-23.) (Models$156 and$161 only.)
BROIL Use for top browningor oven broiling of foods. (See pages 32-
33.)
CLEAN Usefor self-cleaningprocess.(Seepages34-39.)
Door Lock Lever
• Use to lock oven for self-cleaning process. (Can only be locked when temperature
knob ison CLEAN setting.)
Oven Indicator Light
• Indicateswhen oven is turned to an operating positionotherthan the CLEAN setting.
Light will glow until the desired temperature is reached. It will cycle on and off
as this temperature is maintained during cooking.
Temperature Knob
• Use to set oven temperature. Be sure the indicator line is in line with the exact
temperature desired. This knob is used with all oven operation settings noted on
the SELECTOR knob.
18
Oven Operation
Baking or Roasting
1. Locate oven racks on properrack positions.
2. Turn TEMPERATUREknobtodesiredtemperature.
3. Turn SELECTORknobto BAKEor CONVECT setting.When the OVEN INDICA-
TOR LIGHT cyclesoff,the ovenis preheatedto the selectedtemperature.Place
the food in the oven. The OVEN INDICATOR LIGHT will cycle on and off
throughout the baking process. Preheat only when necessary. Refer to baking
and roastingsectionsastowhenpreheatingisrecommended.
4. After baking,turn bothTEMPERATUREandSELECTORknobsto OFF position.
Rack Positions
The rack positionsnoted are generally recommended for the best browning results
and most efficient cooking times. For many food items,excellent results can be
achievedwhen using one of several different rack positions. Refer to baking and
roastingsectionsfor recommendationsforspecificfoods.
Different ]l¢_clu_:
One flat rack and one offset rack were packagedwith your oven.The use of the
offsetrackis denotedin the listbelowand the chartsasan "o" afterthe racknumber.
(Note $156 and $161 Owners:A secondflat rack has been packaged with your
ovenfor usein three rackbaking.)
II
I
4 (flat rack)
30 (offset rack)
1 (flatrack)
Use Raek Position #1:
Large cuts of meat and large poultry, angelfoodcake,loavesof bread,custard
pie,dessertsouffle,
Use Rack Position #_o (offset raek on #_):
Roasting small cuts of meat, loavesof bread,angelfood cake.
Use Rack Position #2:
Roasting smafl cuts of meat, cakes (tube, bundt or layer), frozen fruit pie,
pieshell, large casseroles.
Use Raek Position #80 (offset raek on #3):
Most baked goodson cookie sheets,frozen conveniencefoods, fresh fruit
pie,creampie, layercakes,maindishsouffle.
Use lhzck Position #3-
Most baked goods on cookiesheets,cakes(sheetand layer).
Use Rack Position #40 (offset raek on #4):
Mostbroiling.
Multiple Rack Cooking:
Two rack, use #20 and #4. Three racks, use #1, #30, and #4. (Note: Three
rackbaking is only possibleina convectionoven.)
19
Cloek Controls
INDICATOR WORDS DISPLAY WINDOW
/
/ \
12 HOUR MINUTE ANDSECOND
TIME OF DAY CLOCK TIMER
KEY: * Dotmeanstopush.
•-Dashmeanstohold.
Clock Sgttlng
IMPORTANT: The clockisa 12hourclock,Whenovenisfirstsuppliedpowerorpower
isinterrupted,thedisplaywillshow"00:00".
To se( |line of day on eloek:
1. Turn SETdial counterclockwise until the wordTIME appearsintheDisplayWindow.
Then,turn theSET dialineitherdirectionuntilthe correcttimeappearsinwindow.
2. PushENTER button.
To elban_ _--¢ of day set on eloek= Repeatabovesequence.
To ehcekdm¢ of daywhen thucr llsI,, use: PushENTERbutton.Time ofday
willbe displayedbriefly,thendisplaywill returnto timerfunction.
20
Mimute Timer
IMPORTANT: This intervaltimer can be used to remind you when a period, up
to 99 minutesand 00 seconds,expires.It can be usedindependentlyof any other
oven activity and can be set while another oven function is operating. The timer
doesnot control the oven.
To set MINlYrI_ TIMER:
1. Turn SET dial clockwiseuntil desired number of minutesand secondsappear
inthe DisplayWindow.
EXAMPLE:Turn the dialto 5 for5 secondsor to 5:00for5 minutes.
IMPORTANT: This is the only function where time entered is in minutes and
seconds.Minutesare to the left of colonand secondsto rightof colon.
DISPLAY
SSECONDS 5 MINUTES
2. Push ENTER button.
The indicatorwordTIMERwillremaininDisplayWindowduringcountdown.Count-
downwill havedisplayprecedenceoveranythingelse programmed,suchasTIME
BAKE.At end of time set, the indicatorword TIMER will blink and timer will
beep.Beepingwill continueevery10 secondsfor 15minutesunlessthe CANCEL
button is pushedonce. After CANCEL buttonis pushed,Displaywill return to
timeof dayor whateveris programmedon control panel.
To cancel M]I_IlJTI_ TIMER: Push CANCEL button once. Pushing CANCEL
buttontwicewill cancelall programming(timebake or self-clean).
21
Clock-Controlled Baking or Roasting
To set oven to start Immediately and shut off automatir_ally:
1. Turn SELECTOR knob to TIME BAKE or TIME CONVECT.
2. Turn TEMPERATURE knob to desired temperature.
3. Hold in STOP TIME button until the indicator words STOP TIME eppear in Display
Window.
4. Turn SET dial to time you want food to stop cooking.
EXAMPLE." If time of day is one o'clock and the roast needs to cook for 3 hours, the
stop time would be four o'clock.
I.FI i"l
I.U U
DISPLAY
TIME OF DAY STOPTIME
5. Push ENTER button to enter stop time.
The indicator word AUTO will appear in the Display Window and oven will start
heating. The oven indicator light will glow until the desired temperature is reached.
When stop time is reached, the oven shuts off and the indicator word AUTO will
begin to blink and timer will beep. Beeping will continue every 10 seconds for 15
minutes unless the CANCEL button is pushed twice.
To set oven to start at future time and shut off automatically:
1. Turn SELECTOR knob to TIME BAKE or TIME CONVECT.
2. Turn TEMPERATURE knob to desired temperature.
3. Hold in START TIME button until the indicator words START TIME appear in
Display Window.
4. Turn SET dial to time you wish food to start cooking.
EXAMPLE: If time of day is 11:30 and the roast needs to start cooking at one o'clock,
turn dial until numbers 1:00 appear in display.
DISPLAY
TIME OF DAY STARTTIME
5. Push ENTER button to enter start time.
The indicator words STOP TIME will appear in Display Window as a reminder to set
STOP TIME.
6. Turn SET dial to time you want food to stop cooking.
EXAMPLE: If start time is one o'clock and the roast needs to cook for 3 hours, the
stop time would be four o'clock.
I.i-I rl
i.u u
DISPLAY
STARTTIME STOPTIME
22
7. Push ENTER button to enter stoptime.
The indicator word AUTO will blink in the Display Window. When start time
is reached,the indicatorwordAUTO will remainin DisplayWindow. The oven
indicatorlightwill glow untilthe desiredtemperatureis reached.
When stop time is reached, the oven shuts off and the indicator word AUTO
will begin to blink and timer will beep. Beepingwill continueevery 10 seconds
for 15minutesunlessthe CANCEL buttonis pushedtwice.
To cheek ST_¢"I _11[MIR.before C_)oking begins: Hold in START TIME
button until the words START TIME appear in the Display Window. The start time
' will be displayed briefly, then Display will return to timeof day.
To change START TIME before cooking begins:
' 1. Hold in STARTTIME button until the words START TIME appear in the Display
Window.
2. Turn SET dial to desiredtime.
3. Push ENTER button twice to enter new start time and stop time previously
programmed.
To check STOP TIME: Hold inSTOP TIME button until the words STOP TIME
appear in the Display Window. The stop time will be displayed briefly, then Display
will return to on-going program.
To change STOP TIME:
1. Hold in STOP TIME button until the words STOP TIME appear in the Display
Window.
2. Turn SET dial to desired time.
3. Push ENTER button to enter stop time.
To Cancel function programmed: Push CANCEL button twice to cancel
function, during programmed time or after time hasexpired.
NOTE: After clock-controlled baking, turn SELECTOR and TEMPERATURE knobs
to OFF position.
NOTE; Since food continues to cook if left in the oven, it is suggested that the
clock controls be used primarily to start the oven when no one is in the
• kitchen. Provisionsshould be made to have the food removedas soon
asthe signalhassounded.
NOTE: If morethan 7 secondselapsesbetweenholding in STARTTIME button
or STOP TIME button and turning the SET dial, the displaywindow
willautomaticallyreturnto on-goingprogram.
NOTE: If morethan 1 minute elapsesbetweenturning SET dial to a newtime
and enteringnew START TIME and STOP TIME, the entire program
willbecancelledanddisplaywillreturnto timeof day clock.
23
Baking
General Baking Recomendations
• Whencookingfoodsforthefirsttimeinyournewoven, userecipecooking
timesandtemperaturesas a guide.
• Usetestedrecipesfrom reliable sources.
• Preheatthe oven only when necessary.For baked foods that rise and
for richerbrowning,a preheatedovenisbetter.Casserolescan bestarted
in a coldoven. Preheatingtakesfrom 5to 9 minutes;placefood in oven
afterOVEN INDICATOR LIGHT cyclesoff.
• Arrange ovenracksbeforeturningon oven.Followsuggestedrack posi-
tionson page19 andin the variousbakingcharts.
• Allow about 1 to 1½ inchesof space between the oven side walls and
pansto allowproper air circulation.
• Whenbakingfoodsin morethanonepan,placethemonoppositecorners
of the rack. Stagger pans when baking on two racksso that one pan
doesnotshieldanotherunlessshieldingis intended.(Seeabovephoto.)
• To conserveenergy, avoidfrequentor prolongeddooropenings.At the
end of cooking,turn oven off beforeremovingfood.
• Alwaystestfor doneness(fingertip,toothpick,sidespulling away from
pan),Do not rely ontime or brownnessas only indicators.
• Use goodqualitybaking pansand the sizerecommendedin the recipe.
• Dull, dark,enameledor glasspanswill generally producea brown,crisp
crust.Shinymetalpansproducea light,goldencrust.
• Frozenpiesin shinyaluminumpansshouldbe baked on a cookie sheet
on rack2 or beremovedto a dull orglasspan.
24
Convection Baking Recommendations
(Models $156 and S161 Only)
• As a general rule, when usingrecipesor preparedmixesdevelopedfor a radiant
bakeoven,setthe oventemperature25°F lowerthanthe reciperecommended
temperature.Timeswill be similarto or a few minuteslessthan recipe recom-
mendedtimes. The chart on page 26 comparestimes and temperaturesof
manybakedfoods.Usethisasa reference..
• For better browning,large panssuch as cookiesheets,or rectangularbaking
pans should be placed/engthwise, front to back, on the rack. This centers
the food in front of the convectionfan for better air circulation which gives
betteroverallbrowning.
• Cookie sheetsshould be without sides and made of shiny aluminum. The
bestsizeto useforcookiesheetsandjelly rollpansis151hx 12-inches(overall
size,includeshandles).
Causes of Cake Failure
25
Baking Chart
** The timesgivenarebased on Specificbrandsof mixesorrecipeBtested,
Actualtimeswilldepend onthe onesyou bake.
*** The CONVECTtemperature is25°F lowerthen recommendedonpackagemix or recipe.
26
Conve_tion Baking of Frozen Convenlenee
Foods (Models $156 and $161 Only)
• Preheatingtheoven is not necessary.
• Followpackagerecommendatior_sfor oventemperature,foil coveringand use
of cookiesheets.Bakingtimeswill besimilar.Seechartbelowfor someexcep-
tionsand examples.
• Center foods in the oven. If more than one food item is being bakedor if
foodsarebeingbakedon multipleracks,staggerfoodsfor properaircirculation.
• Mostfoodsarebakedon rackposition#3o.
• For multiplerackbaking,use racks#1, 3o and 4. However,pizzasshouldbe
placedon cookiesheetsand bakedon rackposition#2o,3 and4.
Here are a few examples of dines and temperatures:
27
Convection Cooking on Multiple Rack
(Models S156 and S161 Only)
For best results, bake foods on one rack at a time as described in this manual.
However,very good resultscan be obtained when baking quantitiesof foods on
multipleracks.Quantitycooking providesboth timeand energysavings.
The convectionoven is suggestedfor most multiplerack cooking,especiallythree
rack cooking, becausethe circulating heated air resultsin more even browning
than radiant.For two rackcooking,the radiantbakeovenprovidesvery goodbaking
resultsespeciallywhen panscan bestaggered,as withlayercakesand freshpies.
Many foods can be prepared on three racks at the same time. These are just a
few examples:cookies,cupcakes,rolls,biscuits,muffins,pies,frozen convenience
foods,pizzas,appetizers,and snackfoods.
To obtainthe bestresultsin multiplerackcooking,followthesesuggestions:
• Usetemperatureandtimesin thismanualasa guidefor bestresults.
• Fortworackbaking,rackpositions#2oand4are bestfor mostbakedproducts
but positions#2 and 4 alsoprovideacceptableresults.
• For three rack baking use positions#1, 3o and 4. One exception is pizza.
(See page27)
• Since foods on positions#1 and 4 will usually be done before foods on
position#3o, additionalcooking time will be neededfor browningfoods on
themiddlerack.Anadditionalminuteisneededforthinfoodssuchascookies.
For foods such as biscuits, rolls, or muffins, allow 1 to 2 more minutes.
Frozenpies and pizzas, which should be baked on a cookie sheet, need
about2 to 4 more minutes.
• Staggersmallpans,suchas layercakepans,in theoven.
• Frozenpiesin shinyaluminum pansshouldbe placedon cookie sheetsand
bakedon rackpositions#1,3o and4.
• Cookie sheetsshould be placed lengthwise, front to back, in front of the
fan formoreeven browning.
• Oven mealsare recommendedfor energy conservation.Use rack positions
#1 and3o or #2o and 4.
28

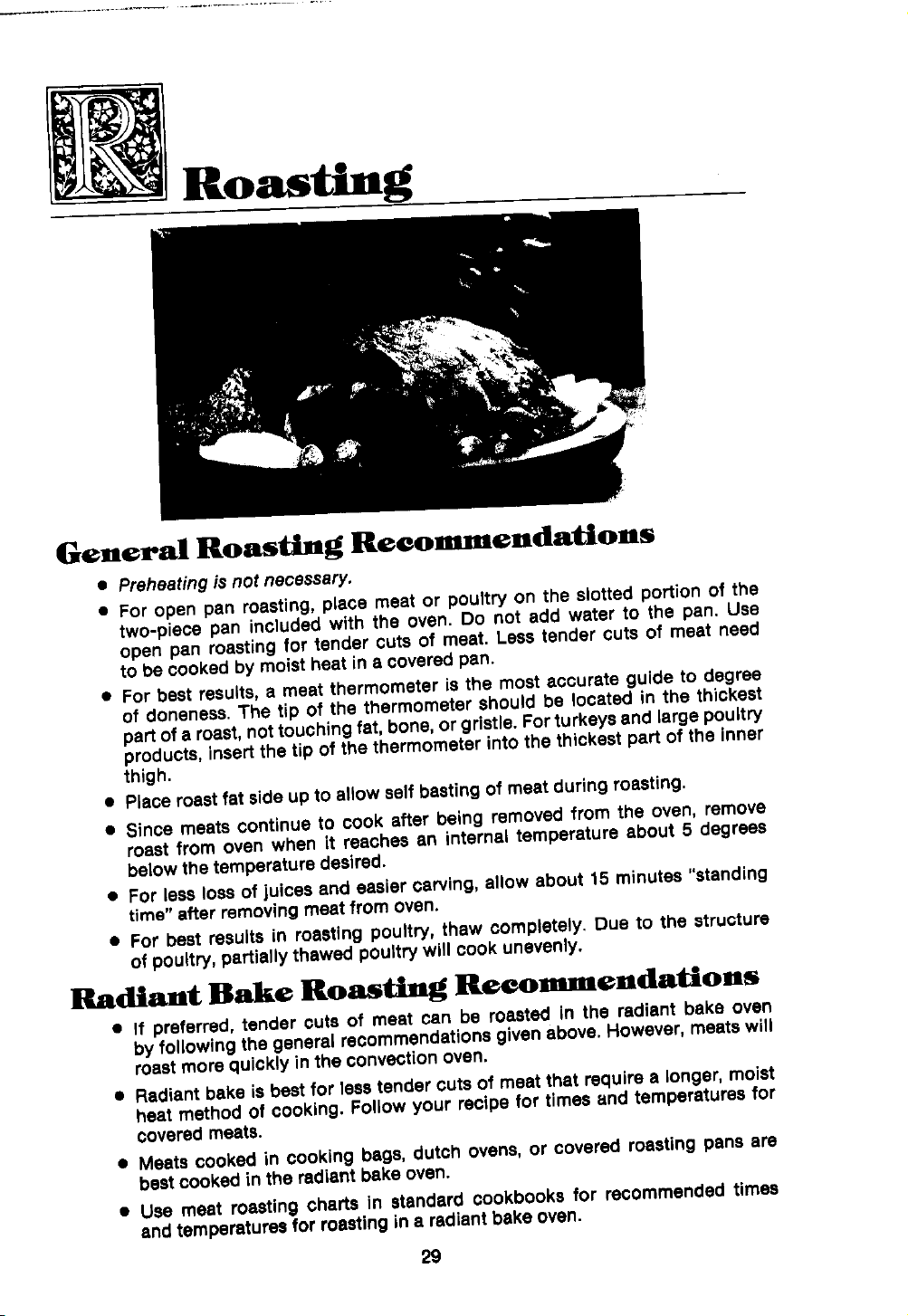

Roasting
General Roasting Reco_,,mendatlons
s Preheating is not necessary.
• For open pan roasting,place meat or poultryon the slotted portionof the
two-piecepan includedwith the oven. Do not add water to the pan. Use
open pan roastingfor tender cuts of meat. Less tender cuts of meat need
to be cookedby moistheat in a coveredpan.
• For best results,a meat thermometeris the most accurateguideto degree
of doneness.The tip of the thermometershould be located in the thickest
part of a roast,nottouchingfat, bone,or gristle.Forturkeysand largepoultry
products,insertthe tip of the thermometerinto the thickestpartof the inner
thigh.
• Placeroastfat sideup to allowself bastingof meatduringroasting.
• Since meatscontinue to cook after being removedfrom the oven, remove
roast from oven when it reachesan internaltemperatureabout 5 degrees
belowthe temperaturedesired.
• For lesslossof juicesand easiercarving,allowabout 15 minutes"standing
time"after removingmeatfrom oven.
a For best resultsin roastingpoultry, thaw completely. Due to the etructure
of poultry, partiallythawedpoultry will cook unevenly,
Radiant Bake Roas¢tng Reeommendattons
• If preferred, tender cuts of meat can be roasted in the radiant bake oven
by followingthe generalrecommendationsgivenabove.However,meatswill
roastmorequickly inthe convectionoven.
• Radiantbake is bestfor lesstendercuts of meatthat requirea longer,moist
heat methodof cooking. Followyour recipe for times and temperaturesfor
coveredmeats.
• Meats cooked in cooking bags, dutch ovens,or covered roastingpans are
bestcookedin the radiantbakeoven.
• Use meat roastingcharts in standardcookbooks for recommended times
and temperaturesfor roastingin• radiant bakeoven.
29
Convection Roasting Recom-endations
(Models S156 and $161 Only)
• Tender cuts of meat and poultry can be roasted to a rich golden brown
inthe convectionoven,Followgeneralrecommendationsfor roasting.
• Referto convectionmeatroastingchart for recommendedcookingtempera-
ture and time. The chart can serve as a guide to help plan meal serving
time.
• Minutesper poundwill vary accordingto the size,shape,quality, and initial
temperatureof meat,as well as the electricalvoltage in your area. Times
arebasedon refrigeratorcold meat.
• A large cut of meat will usually requirefewer minutes per pound to roast
thana smallercutof meat.
• Do not usea roastingpan with high sides;usepan providedwith oven.
• Do not cover meat.Allow the circulating hot air to surround the meat and
seal in the juices.
• Since the breastmeaton a large turkey cooks more quicklythan the thigh
area,placea"foil cap" overthebreastareaafterdesiredbrownnessisreached
to preventoverbrowning.(Seeabovephoto.)
• A stuffedturkey will require an extra 30 to 60 minutesdepending on size.
Stuffingshouldreachan internaltemperatureof 165°F.
Convection Roasting: Frozen to Finish
Meats (except poultry) may be roastedfrozen to finish. Follow these guidelines
forthe mostsatisfactoryresults.
• Use temperaturesfor roasting fresh meatsas recommendedby most cook-
books.Generally, most meatsare roastedat 325°F. For best resultsdo not
usetemperaturesbelow300°F.
• Usetimesfor roastingfresh meatsgiveninyour favoritecookbooksasapprox-
imateguidesforroastingfrozen meats.Roastingtimeswill vary dueto factors
such as coldness of meat, size, quality, or cut. In general, roasting times
for frozen to finish in the convectionoven will be approximatelythe same
asfresh to finishin a radiantbake oven.
• The guidelines given for roastingfresh meats in the convectionoven also
apply to roastingfrozen meats.
• Insert meatthermometermidwayduring the cooking process.
30
Roasting _Thawed Meats Only_
31
The broil elementprovidesflexibilityfor'broilingfoods.
We recommend you use the grill accessoryfor mostof your broiling. There are
sometypes of foods that do require use of the oven broilelement.These include
foods such as stuffed lobsters, meringuepies, or other foods which require top
browning.
To Broil
1. Place oven rack on the rack position
suggestedin the chart. Distancefrom
broiling element depends on foods
being prepared. Rack position #40
(offset rack in position#4) is usually
recommendedunlessotherwisestated.
2. Turn SELECTOR knob to BROIL
setting.
3. Turn TEMPERATURE knobto 550°F.
4. Place food on roastingpan provided
withoven.After topbroilelementisred
place food in oven. Preheatingtakes
a few minutes,or until element glows
a brightcherryred.
5. Leave oven door open at broi/ stop
position when broiling.
Broiling Tips
• Tender cuts of meat or marinated meats are best for broiling. This includes
riband loin cutsof steak,ground beef,ham steaks,lamb chops,poultry pieces
or fish. For best results,steaksshould be at least 1" thick. Thinner steaks
shouldbe pan-broiled.
• Donotcoverbroilergridwithfoilsincethispreventsfat drippingsfromdraining
intobottomof pan.
• Before broiling, remove excessfat from meat and score edges of fat (do
not cut into meat)to preventmeatfromcurling. Salt aftercooking.
32
• To preventdry surfaceon fish or lean meats,brush melted butter on top.
• Foodsthat requireturningshouldbe turnedonly once during broiling.Turn
meatwithtongsto avoid piercingand lossof juices.
• Cookingtimesgiven inthe chart are to be usedonlyas a guide.
• Theovenhasavariablebroilfeaturewhichmeansthatthebroilingtemperature
canbe variedbyselectinga lowertemperaturesettingonthe TEMPERATURE
knob. Usinga lowertemperaturesettingwill causethe broilelementto cycle
on and off.Thisfeature can be usedfor foodsthat needto cookmore slowly
or need less radiant heat. If foods are broilingtoo fast, the control can be
set at a lower temperatureto reduce the cookingspeed rather than moving
thebroilerpanto a lowerrack.
NOTE:A fanshouldcomeonduringthe BROILcycle.If thefan doesnotoperate,
contactyourauthorizedJenn-AirServiceContractorforrepair.
NOTE:Thischartisasuggestedguide.Thetimesmayvarywithfoodbeingcooked.
33
Oven Cleaning
How the Self-Cleaning Process Work
When the oven controls are set to CLEAN, the oven heats to temperaturesthat
are higher than those used for cooking. The high temperaturescause food soil
to burn off and substantiallydisappear.While this occurs,a device in the oven
vent helpsto consumenormalamounts of smoke. The oven is ventedthroughan
openingunderthe air grilleon the top of the range.
How to pare Oven Before Operating
Jhe Self Cleaning Process
• Removethe roastingpanandany otherutensilsfromthe oven.Theseutensils
cannotwithstandthe hightemperaturesof the cleaningprocess.
• The oven rockscan be cleaned in the oven.However, the oven racks will
discolor,lose shininess,and becomedifficult to slide in and out if left in
the oven during the cleaning process.REMOVE RACKS FROM OVEN IF
THIS DISCOLORATION WILL BE OBJECTIONABLE. As a suggestion,do
not leavethe racksin the oven during each self-cleaningprocessif they
do not needto be cleanedsincethey will discolorto a dull silverafter many
cleanings.Moderatelysoiled rackscan be cleanedwith a soapyS.O.S. pad
or Scotch-Brite scour-pad.Stubbornstainsneed to be removedin the self-
cleaningprocess.Be sure to readspecial tipson page 39 if ovenracksare
cleanedduringthe self-cleaningprocess.
• Cleanspattersandspillsfrom thoseareas
whichwill not becleaned duringthe self-
cleaningprocess:
--center frontof ovenanddoornearopen-
ingindoorgasket.
--porcelain ovendoor liner (area outside
thedoor gasket).
--stainlesssteelovenfrontframe.
NOTE: DO NOT CLEAN serial plate
locatedon the ovenfront.
To clean these areas, use hot water and
detergent,nonabrasivecleansersor soap
filledsteelwoolpads(rubwiththe brushed
grain on the ovenfront frame to prevent
scratching).Rinsethoroughly,beingcare-
fulnotto useanexcessiveamountof water
thatwould dampen the door gasket.So#
taft in these areas wi// be more difficuH to remove after the serf-cleaning
process since the high heat will bake on any soil that is present. DO NOT
USECOMMERCIAL OVEN CLEANERSTO CLEANTHESE AREAS.
• If you intendto usegrill whencleaningthe oven,makesuregreasecontainer
isemptyto preventa possibleoverflow.
34
• DO NOT ATTEMPT TO CLEAN, RUB,OR APPLYWATER TO QASKET ON
OVENDOOR.The gasketis essentialfora gooddoorseal.Rubbingor cleaning
willdamagethe gasketandmayaffectthe seal.
• Wipeupexcessgreaseandfoodspilloverswhichhavenotbakedonthe bottom
of the oven. Large accumulationsof soil can causeheavy smoke or fire in
theovenduringthecleaningprocess.Foreaseofcleaning,the heatingelement
canbe liftedslightly.
• Althoughsmokeor fire in the oven is a normal occurrenceand there is no
safetyproblem,there will be ventingof excessivesmoke and odor. Smoke
andodorcanbe removedfromthekitchenby turningonthe ventilationsystem.
Auto Clean Feature
This modelfeatures AUTO CLEAN to simplify cleaning an average soiled oven.
To use,merelysetSELECTORandTEMPERATURE knobsto CLEAN, LOCK DOOR,
and push ENTER buttontwice. The oven will clean for 2_ hours (plus cool-down
time). For a heavilysoiledoven or to start cleaningat a later time, refer to section
below.
Steps to Follow for Self-Cleaning Process
1. Turn SELECTOR knob to CLEAN.
2. Turn TEMPERATUREknobfully clockwiseto
CLEANuntil it comes to a full stop. The door
cannot be locked if TEMPERATURE knob is
not in the CLEAN position.
3. Close oven door (if opened).
4. To lock door, moveDOOR LOCK LEVER to
the full right position.
35
5. Setclockcontrolsto cleanovenusingoneof thefollowingprocedures:
To set oven to start cleaning Immediately:
An automaticprogramof 2_ hours is preset for an averagesoiled oven. For a
heavilysoiledoven,programcan be extendedupto 4 hours.
a. PushENTERbuttonto enterstarttime.
The indicatorwordsSTOP TIME will appear in Displayand the time will be
21/2hourslaterthantimeof day.
b. Foran averagesoiledoven:PushENTER buttonto enterstop time.The oven
will beepand indicatorword AUTO willappearand remaininthe DisplayWindow.
For a heavily soiled oven:Turn SET dial in clockwise direction to desired time
(maximum 4 hour clean cycle). Push ENTER button to enter stop time. The
oven will beep and the indicator word AUTO will appear and remain in Display
Window,
To set oven to start cleaning at a later time:
An automatic program of 21/2hours is preset for an averagesoiled oven. For a
heavilysoiled oven,program can beextended up to 4 hours.
a. Turn SETdial to desiredstart time.
b. Push ENTER button to enter START TIME. The indicator words STOP TIME
will appearin Displayand the time will be 21/2hours later than the starttime.
c. For an average=lolledoven:Push ENTER button to enter stop time. The oven
will beepand the word AUTO will blink,When start time is reached,the oven
willbeepandthe wordAUTO willremainin DisplayWindowduringthe cleaning
cycle.
For a heavilysoiledoven:Turn set dial in a clockwisedirectionto desiredtime
(maximum4 hourscleaningcycle).Push ENTERbuttonto enterstoptime.The
ovenwill beep and the word AUTO willblink. When start time is reached, the
oven will beep and the word AUTO will remain in Display Window during the
cleaning process.
6. The ovenCLEANINDICATORLIGHT willglow when allstepsarecompleted properly,
exceptwhenset for a delayedstart.The lightgoesoffwhenstop time isreached.
7. The cleaning process begins immediately unless the self-cleaning process has
been set for a delayed start. When the oven temperature reaches 550°F, the
LOCK INDICATOR LIGHT will glow and the door cannot be opened until the
temperature drops below 550°F. DO NOT TRY TO UNLOCK THE DOOR WHILE
LOCK INDICATOR LIGHT IS ON. The normal cleaning process takes the time
selected on the clock plus about 45 minutes for the ovento cool down before
the LOCK INDICATOR LIGHT goes out and the door can be opened.
36
8. At end of time set, ovenwill stopautomaticallyand notbeep.
9. After the LOCK INDICATOR LIGHT goes out, movethe DOOR LOCK LEVER
to the left. The ovendoor can now be opened.
10. Turn the SELECTOR AND TEMPERATURE knobs from CLEAN to OFF after
the door is unlocked.
IMPORTANT: IF THE TEMPERATURE KNOB IS TURNED TO OFF BEFORE
THE DOOR IS UNLOCKED, THE DOOR WILL NOT OPEN. Forcing the lock
will damagethe lock mechanism. ReturnTEMPERATUREknob to CLEAN, unlock
the door, then turn TEMPERATURE knob OFF.
NOTE: A fan comes on whenever the SELECTOR knob is set on CLEAN; there-
fore, the fan will continue to operate at the end of the cleaning process until
the SELECTOR knob is turned OFF. The fan will also start as soon as the
controls are setfor a delayed start of the self-cleaning process,
To eheck ST_llCT '][I_BI_before elesnlng begins: Hold in START TIME
button until the words START TIME appear in the DisplayWindow. The start time
will be displayedbriefly,then Displaywill returnto time of day.
To change START TIME before cleaning begins:
1. Hold in START TIME button until the words START TIME appear in the Display
Window.
2. Turn SET dial to time desired.
3. Push ENTERbutton to enter new start time.
The indicator wordsSTOP TIME and a new stop time will appear in Display
Window.The newstop time will be 21,_hours later than the newstart time,
For a heavily soiled oven, the stop time will need to be changed by turning the
SET dial,
4. Push ENTERbutton to enter new stop time.
To eheek STOP TIME: Hold in STOP TIME button until the words STOPTIME
appear in the Display Window. The stop time will be displayed briefly, then Display
will return to on-going program.
To change STOP TIME before ele_,.I,,_ begins:
1. Hold In STOP TIME butonuntilwordsSTOP TIME appearin the DiaplayWindow.
2. Turn SET dial to desiredSTOP TIME.
37
3. PushENTER buttonto enternew stoptime.
NOTE: If more than 7 seconds elapse between holding in START TIME button
or STOP TIME button and turning the SET dial, the display window will
automaticallyreturnto on-going program.
NOTE: If more than 1 minuteelapsesbetweenturning SET dial to a new time and
entering new START TIME and STOP TIME, the entire program will be
cancelledanddisplaywill returnto time of day clock.
To stop elga_ln_ pro_ss before lock indicator light Comes on:
1. Movethe DOOR LOCK LEVERto the left.
2. Turn SELECTORand TEMPERATUREknobsfrom CLEAN to OFF.
3. PushCANCEL buttontwice.
To stop cleaning process after lock indicator light comes on:
1. Push CANCEL buttontwice.
2. Leavethe TEMPERATUREand SELECTORknobsinthe CLEANposition.
3. Allowovento cool untilthe LOCK INDICATOR LIGHT goesout. This may take
upto 45 minutes,dependingonhow longthe ovenhasbeenon.
4. After LOCK INDICATOR LIGHT goes off, move the DOOR LOCK LEVER to
the left.
5. Turn SELECTORandTEMPERATUREknobsfromCLEAN to OFF.
NOTE: When SELECTORknob is turnedto CLEAN, a fan comeson. If this fan
is notoperating,the ovenwill go throughthe self-cleaningprocessat a reduced
oventemperatureandtheovenwillnotcleaneffectively.If thefandoesnot operate,
contactyourJenn-AirAuthorizedServiceContractorfor service.
38
More Information on the
Self-Cleaning Process
• A slight odor may bedetected,and if an ovenis heavilysoiled,some smoke
maybevisible.Somesmokeandodorduringthe cleaningprocessisa normal
occurrence.Since the oven vent is located under the air grille, vapors,
moisture,etc. may be seen coming from this area. If the odor is strongor
objectionable,turn on the ventilationsystemto exhaustodors outdoors.
• During the cleaning process, do not be alarmed if an occasional flame is
visible through the oven window. This is caused by excessive food soil that
wasnot removed before the oven was set to clean.
• SINCE THE DOOR AND WINDOW OF THE OVEN AND OVENVENT WILL
GET WARM DURING THE SELF-CLEANING PROCESS,AVOID CONTACT,
• Some types of soil may disintegrate but leave a light film or heavier deposit
of ash. The amount of ash depends on the amount of soil which was in
the oven. After oven has cooled, this ash may be removed with a damp
sponge.If other dark depositsremain after wiping with a sponge,the time
set for the lengthof cleaningwas not enough. Increasethe cleaningtime
for future cleaningsor clean more frequently. The normal cleaningtime is
21/2hours.A maximumof 4 hoursmaybe selectedif necessary.
• If racks have been left in oven during the cleaning process, they should
betreatedas follows.After the cleaningprocessis completedand the oven
has cooled, buff the undersideof rack edges with Scotch-Brite scour-pad
Or rublightly the undersideof rack edgeswith a coating of vegetableoil.
Usea light applicationof oil so it does not soil the oven. As a suggestion,
usefingertipsto apply oil. This will make the cleanedracks slide more easily.
• To removeoccasionalspillovers betweencleanings, useasoap-filled scouring
pad or mild cleanser; rinse well.
• It is better to clean the oven regularly rather than wait until there is a heavy
build-up of soil in the oven.
• During the cleaning process, the kitchen should be well ventilated to help
eliminate normal odors associatedwith cleaning.
• Any attempt to force the self-clean DOOR LOCK LEVER to lock or unlock
without electric power applied to the door or with the TEMPERATUREknob
In any position other than CLEAN may result in damage to the door locking
mechanism.
• DO NOT USECOMMERCIAL OVEN CLEANERS INOR AROUND THE SELF-
CLEANING OVEN AREA.
• DO NOT USE ALUMINUM FOIL OR OTHER LINERS IN THE OVEN.
39
Other Hints on
Carin for Your Ran e
Oven Light Bulb
Before replacing bulb, disconnect power to oven at the main fuse or circuit breaker
panel. Be sure that the entire oven.cavityincluding the light bulb is cool before
attemptingto remove.
To replace light bulb:
1. Carefully remove the glass light lens and lens
retainerby removingthe two screwsin the light
lens retainer using a phillips screwdriver.
Note: Thelightlensisseparatefromthe lightlens-
retainer.The two pieceswill dropdown intoyour
hands at the same time. Do NOT remove the
remainingtwo screws.
2. To obtain firm grasp on bulb, wear protective
rubbergloves.Removeby turningbulbto the left,
Do not touch a hot even'light bulb with a damp
cloth as bulb will break, Note: If the bulb does
breakandyouwishto removeit,be certainpower
supply is disconnected and wear protective
gloves.You may contact your authorizedJenn-
AirServiceContractorfor service.
3. Replacebulbwitha 40 watt oven-rated appliance
bulb. Bulb with brass base is recommendedto
preventfusingof bulbintosocket.
4. Place lightlens insideof _ightlensretainer.Hold-
ingthe lightlensand lensretainerin place,insert
the two screws into the light lens retainer and
tighten. ;;
Access Door
The accessdoor is easily removed to clean under
the range if necessary. To remove door, pull door
down and lift off pivot points. To replace door, slide
door over pivot points; lift up and insert prongs into
holes in the range.
To avoid the possibility of accidentally disconnecting
any part of the ventilation system, do not use the
area behind the access door for storage.
40
Oven
To remove, pull forward to the "stop"
position; lift up on the front of the rack
and pull out.
Oven Thermostat Knob AdjustJ-ent
The oventhermostat knob can be adjusted if the oven temperature is too low or
too high and the length of time to cook ALL foods is too long or too short. Do
NOT adjustthe thermostatknobJfonlyone ortwo itemsare notbaking properly.
To adjust tit*=thermostat knob:
Turn the oven thermostat knob to OFF. _ _-Trlsngle
Removethe knob and turn it to the under-
neathside. Hold itsothatthetdangle is l _'q_ _T°p screw_"_*__[ _' Z
at the top. (See Fig. 1) Loosen the two _ _
screwsslightly. Holding the skirt in place, " "
move the top screw by rotating the knob _
one notch,asnotedbyoneclick,in direction
necessary. If notch indentation is not _/ _--Sklrt
apparent, tighten screws until clicking is
heard. There are five notches in each .__c,_vo^___,_o_
direction. One notch equals approximately _ FIG.1
lOOF.
EXAMPLE:if the oven temperature is too F°____o'__ 1
cool and ALL foods are
requiring a longer time period
rotated to move the top screw ;o
toward the word "HOTTER".
(SeeFig. 2)
Tighten the screws while tightly holding '_oo '"_/ q
knob to skirt. To replaceknob, matchfiat
part of knob opening with spring on the FIG.2
shaft,returningto OFFposition.
IMPORTANT: The oven thermostatknob should be adjustedone notchand then
theovenshould be tested.(We recommendbaking2 -- 9" yellow layer cakesusing
a purchasedbox mix.) If the oven temperatureis still too low or too high, repeat
theproceduredescribedabove.
Ifthe knobisrotatedtoo faror inthe wrongdirection,rotatethe knobin the opposite
direction until the centerof the screw is directly under the triangle, which is the
startingpoint.Initiatethe procedureagain until the desiredtemperatureis reached.
41
Before You Callfor Service
Check the followinglistto besure aservicecall isreallynecessary.A quickreference
of this manual,as well as reviewingadditionalinformationon itemsto check, may
preventan unneededservicecall.
If nothing on the range operates:
• check for a blown circuit fuse or a tripped main circuit breaker.
• checkif rangeisproperlyconnectedto electriccircuitin house.
If ventilation fan does not operate but everything else on the range
does:
• check behind lower access door if power cord to blower assembly has been
disconnected.
If grill heating element or eooktop does not get hot enough:
• check if heating element is plugged insolidly.
• surface controls may not be set properly.
• voltage to house may be low.
If ventilation system Is not capturing smoke efficiently:
• check on crossventilation in room or make up air.
• excessiveamount of smoke is being created;check instructionsfor grilling,
trimmingmeats.(Seep. 13.)
• outsidewall capmaybe trappedshut.
• rangemaybe improperlyinstalled;checkductinginformation(seep. 44).
• airfilter may be improperlyinstalled(seep.9).
If oven does not heat:
• the SELECTORand/or TEMPERATURE knobs may be set incorrectly.
• clockcontrolsmay be setfor delayedstartof oven.
If the oven light does not work:
• the light bulb is looseor defective.
• ovenlightdoes notwork duringself-cleaningprocess.
If oven will not go through self-cleaning proeess:
• controls may be improperly set.
• door may not be locked.
• check the clock controlled settings and the current time of day on the clock.
If oven did not clean properly:
• oven may needlonger cleaningtime.
• excessivespills were not removed prior to self-cleaning process.
• one or severalcontrols may have been turned from GLEANto another position
after self-cleaning process started.
42
If oven door _ not nnloel_
• ovenmay not havecooledto safe temperatureafter se)f.-cleaningprocess.
• TEMPERATUREknob may havebeenswitchedfrom CLEAN position.
• electric currentcomingintothe ovenmay be off.
If food• do not broil properly:
• the SELECTOR and/or TEMPERATUREknobsmay notbe set properly.
• check rackposition.
• voltageinto housemay be low.
if baked food is burned or too brown on top:
• the SELECTOR knob may be in the BROIL position.
• food maybe positionedincorrectlyin oven.
• ovennot preheatedproperly.
If foods bake unevenly:
s the range may be installedimproperly.
• checkthe oven rackwitha level.
• staggerpans;do notallow pansto touch each otheror ovenwall.
• check instructionsfor suggestedplacementof panson ovenrack.
if oven bnklu_ results are less than _xpemd:
• the pans being used may not be of the size or material recommendedfor
bestresults.
• theremay notbesufficientroomaroundsidesof the pansfor properaircircula-
tionin the oven.
• check instructionsfor preheating,rackpositionand oventemperature.
• ovenventmay havebeenblockedor covered.
If bakl--_ rest_ts diner from previous oven:
• oven thermostatcalibration may differ between old and new ovens. Follow
recipeanduseandcaredirectionsbeforecallingforservicesincethe oalibretion
on the previousovenmay have driftedto atoo highor too low setting.
43
Information
Jenn-Air'sventilationsystemis designedto captureboth cookingfumesand smoke
from any placeon the grill surface.If the systemdoesnot, theseare some ducting
installationsituationsto check:
• 6" diameterround or 31_'' x 10" rectangularductingshould be used. Note:5"
diameter round ducting may be used for venting stra_'ghtout the back of the
cooktopand directlythroughthe wall for 10' or less.
• No morethanthree90° elbowsshouldbe used.Distancebetweenelbowsshould
beat least18".
• RecommendedJenn-Air wall cap shouldbe used.Make sure damper moves
freely whenventilationsystemis operating.
• There should be a minimumclearanceof 6" for cooktopinstallednear a side
wall,
If there isnot an obviousimproperinstallation,there may bea concealedproblem
such as a pinchedjoint,obstructionin the pipe,etc. installationisthe responsibility
of the installerandquestionsshouldbeaddressedfirst by the installer.The installer
shouldverycarefullycheckthe ductinginstallationinstructions.
44
Notes
Accessories
Griddle--Model A302
Self-draining griddle makes many favor-
ite foods easier to fix. Family-sized sur-
face lets you cook several pancakes,
hamburgers, or grilled sandwiches at a
time. Hasa black nonstick finish.
Cooker-Steamer--Model A335
Ideal for anything you steam, blanch,
poachor stew. Includesa dual-position
basketandsee-throughcover.Attractive
blacknonstickfinish.
GriLl Cover--Model A341
Attractive grill cover protectsgrill when
not in use. Black textured steel with
moldedhandles.
Two-in-One Combination
Ae_essory Rottss-lT_bab
Model A31_
Enjoy the great flavor of rotissedfoods
indoorsall year 'roundand makeparties
more fun by serving attractive shish
kebabs. Includes chrome finish motor,
rotiss, shish kebab skewers and all
brackets,Foldsfor easystorage.
Wok Aeeessory -- Model A141
For use with conventional coil cartridge
only. Includesspecialplug-in contoured
elementthat replacesthe largeelement.
Wok has nonstickfinish,wood handles,
cover, steaming rack, rice paddles,
cookingtipsandrecipes.
46
Assembly
Grill assemblies include one plug-in
element, two grill-rocks and two black
aluminum grates to convert either side
of your cooktop to a grill. A storage tray
is included. (Tray is not included with
grill shipped with your range.)
Energy-Saver Models. Model A158 Storage Tray -- Model A850
(Designer line grates) or Model A151 Tostoregrillassemblieswhichcamewith
(Traditional line grates). 2800 watt grill range or cooktop cartridges except
element permits you to control tempera- induction.
tures under front and rear grills in-
dependently. Complete Cooking
Standard Model A150. (Traditional style with Jenn-Air
grates). 2800 watt grill element ModelAg05
distributes heat under entire grill area.
Cau.ing Element -- Model A145
Special canning element replaces the This outstanding cookbook by Jenn-Air
conventional coil element, raising the features many invaluable recipes and
heating element above the cooking cooking tips when using your Jenn-Air
surface. AIIows useof oversizedcanners, grill, accessories or selective-use
convection oven. 192pages.
NOTE: Use the information in this use
and care asguidelines for rack positions,
times and settings when using the
recipes in the cookbook.
Cooktop Cartridges
CONVENTIONAL GLASSCERAMIC INDUCTION SOLIDELEMENT
ConventionalColl Dualrated208/240volts
TwinElementplug-incooktopcartridge.............................. StalnlessNo.A100
BlackNo.A100B
AlmondNo.A100L
WhlteNo.AI00W
BlackGlass-Ceramlc
Twinelementplug-incooktopcartridge......................... Rated240voltsNo.A120
Rated208voltsNo.A120-8
InductionCartddgeDualrated208/240volts
Twinelementcartridgewithrearplug-interminal......... White-No.A130R,Black-No.A135R
Twinelementcartridgewithfrontplug-interminal........ White-No.A130F,Black-No.A135F
SolidElement
Twinelementplug-incooktopcartridge.... Rated240volts,Black-No.A105,White-No.A105W
Rated208volts,Black-No.A105-8,White-No.A105W-8
47
