OWNER'S MANUAL
Quick-Fill™ Electric Air Pump
Model AP643 110 – 120Volt ~ 60Hz 2A
PARTS DESCRIPTION:
1. PUMP
2. INFLATION CONNECTOR
3. DEFLATION CONNECTOR
4. SWITCH
5. AC LINE CORD
6. NOZZLES
7. AIR HOSE
OPERATING INSTRUCTIONS
General
•
This appliance has a polarized plug (one blade is wider than the other). This plug will t in a polarized outlet only one
way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to
install the proper outlet. Do not change the plug in any way.
• Return pump, hose and nozzles to package when not in use.
SERVICING OF A DOUBLE-INSULATED PRODUCT:
In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided
on a double-insulated product, nor should a means for grounding be added to the product. Servicing of a double-insulated
product requires extreme care and knowledge of the system, and should be done only by qualied service personnel.
Replacement parts for a double-insulated product must be identical to those parts in the product.
A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED” and with the
symbol .
NAMES OF PARTS
READ AND SAVE THESE INSTRUCTIONS
Page 1
167-*PO-R0-2205
•
For Indoor Household Use Only.
• Adult use only.
• Do not drop unit into water or expose unit to rain or water.
• Do not direct air stream at face or body.
• Do not operate for more than 10 minutes at a time. Unplug and let cool at least 10 minutes.
• Unplug unit when not in use.
• Do not obstruct vent holes or open source.
• Do not insert objects into the ination or deation connector.
• If the AC supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualied
persons in order to avoid a hazard.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord
under furniture or appliances. Arrange cord away from trac area and where it will not be tripped over.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE, ELECTRIC SHOCK,
BURNS OR OTHER INJURY.
WARNING
•
To reduce the risk of electric shock or injury, use indoors only, do not expose to rain. Store indoors.
CAUTION
NOTE:
Drawings for illustration purpose only. May not reect actual product. Not to scale.
3
1
2
6
4
7
5
167
PO
OPERATING INSTRUCTIONS
INFLATION
1. Attach nozzle or air hose to the ination connector if necessary and hold pump against ination valve on item to be
inated. See Fig
(1)
.
NOTE:
On large items like inatable boats and large air mattresses, the pump will t directly into the ination valves and
provide faster ination times. Use the appropriate nozzle on small ination valves as on small air mattresses, etc.
2. Plug in the AC line cord into an AC electrical outlet. See Fig
(2)
.
3. SWITCH ON: Press “I”; SWITCH OFF: Press “0”. See Fig
(3)
.
DEFLATION
1.
Attach nozzle or air hose to the deation connector if necessary and hold pump against ination valve on item to be
deated. See Fig
(4)
.
NOTE:
On large items like inatable boats and large air mattresses, the pump will t directly into the ination valves and
provide faster deation times. Use the appropriate nozzle on small ination valves as on small air mattresses, etc.
2. Plug in the AC line cord into an AC electrical outlet. See Fig
(2)
.
3. SWITCH ON: Press “I”; SWITCH OFF: Press “0”. See Fig
(3)
.
(167PO) AP643 ELECTRIC PUMP ENGLISH 4.875” X 7.25” 05/12/2021
READ AND SAVE THESE INSTRUCTIONS
Page 2

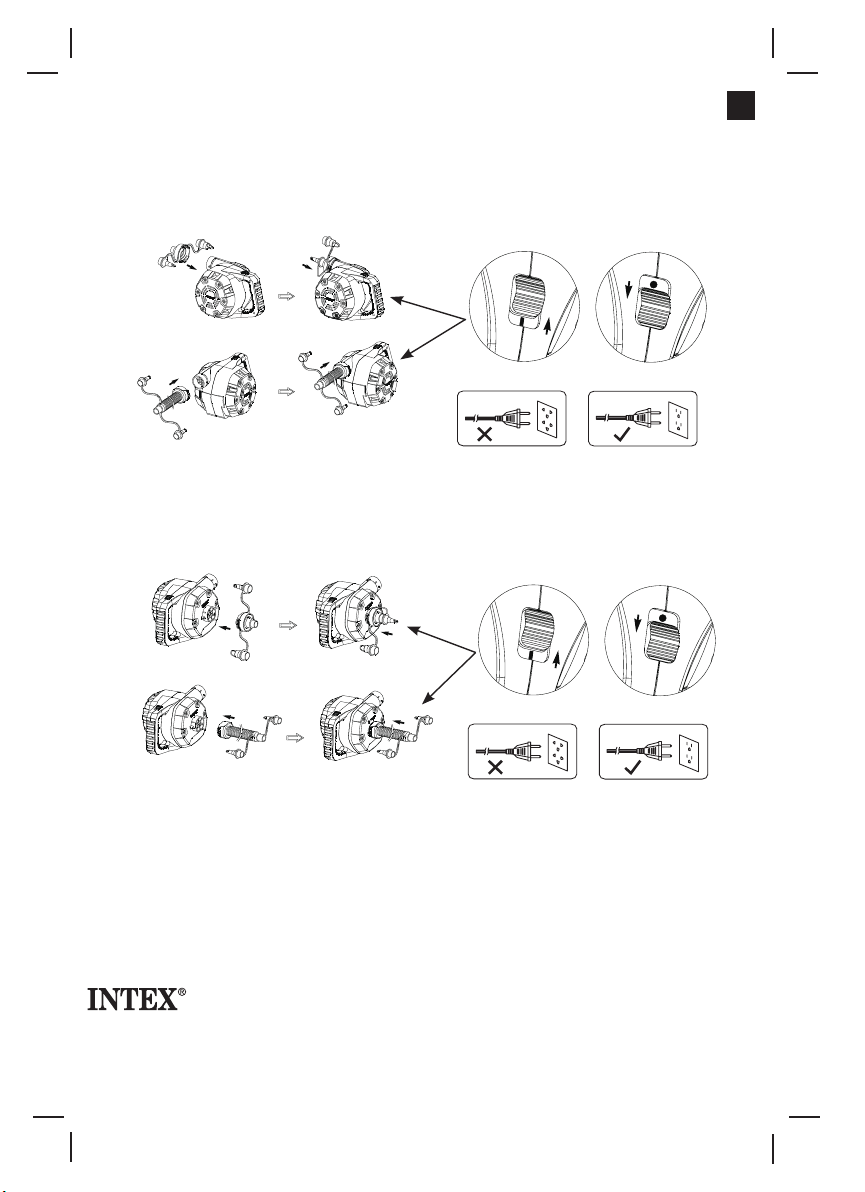

FIG (1): ATTACH NOZZLE
OR ATTACH HOSE
MAINTENANCE INSTRUCTIONS
No specic air pump maintenance is required. Air pump has no user serviceable parts.
MOVING AND STORAGE INSTRUCTIONS
Move the product, air pump and accessories to the power source location. Make sure the power cord is free of twist, kink
and knot. Fold the power cord loosely, and return pump and nozzles to package when not in use.
FIG (4): ATTACH NOZZLE
OR ATTACH HOSE
FIG (3): SWITCH
FIG (2)
220-240V 110-120V
FIG (2)
220-240V 110-120V
FIG (3): SWITCH
