User guide
WINE FRIDGE
LKS116VN
IMPORTANT SAFETY INSTRUCTIONS
Please read this user guide carefully and in full before installing and using the wine fridge.
It is important that this guide is kept with the fridge for future reference.
If the wine fridge is given to another person, make sure the user guide follows the fridge so
that the new owner can properly install and use the fridge.
1
The meaning of these symbols in this user guide is outlined below.
Important information about your personal safety
and how to avoid damaging the fridge.
General information and advice
Environmental information
Fire risk
Risk of electric shock
2
GENERAL SAFETY
For your safety and the safety of others, please read these safety instructions
carefully before installing and using your wine fridge.
● This fridge is intended for domestic use or in similar settings such as:
o kitchen areas in an office or other business environments; and
o hotels (for guest use), motels and other residential environments.
● This wine fridge should not be used for commercial or industrial purposes or for any
purpose other than the one for which it was designed. This fridge is intended for wine
storage.
● Do not use outdoors.
● Make sure the voltage on the product matches your power supply before plugging it
in.
● Check the condition of your fridge regularly. Do not use the device if it is damaged.
● Always unplug the fridge at the power socket before cleaning the unit; defrosting it;
changing the lighting lamp (when it is replaceable); moving the fridge or cleaning the
ground under the fridge.
● Do not remove the electrical socket by pulling on the cord. To remove it, hold the plug
and carefully remove it from the wall socket.
WARNING: Do not dismantle or otherwise damage the refrigeration system.
WARNING: Fire hazard. Contains refrigerant gas.
3
● The refrigerant gas contained in this device is isobutane (R600a). It is a flammable
gas. When transporting and installing the unit, be careful not to damage any part of
the refrigeration system.
● Do not use anything sharp to defrost the device.
● Do not use any electrical appliance inside the wine fridge.
● If the refrigeration system is damaged:
o Do not use a flame near the device.
o Avoid sparks - do not turn on an electrical appliance or electric lamp.
o Immediately ventilate the room.
For your safety, follow these installation recommendations:
The room in which the fridge will be installed must be at least 1m
3
per 8 grams of
refrigerant gas. The amount of refrigerant gas contained in this fridge is shown in grams on
the rating label at the back of the fridge.
4
CHILD SAFETY
This fridge may be used by children aged 8 years or older and by persons with
reduced physical, sensory or mental abilities or lack of experience or knowledge,
if they are properly monitored, or if instructions on the safe use of the fridge have been
given and if the risks involved have been appropriately assessed.
The fridge is not a toy. Children should be monitored to ensure proper use of the fridge.
Cleaning and maintenance should not be done by children without supervision.
CONNECTION
● Check the plug and power cord regularly for damage.
● Do not use the device if the power cord or socket is damaged.
WARNING: If the power cord is damaged, it must be replaced by the manufacturer,
its after-sales service or people of similar qualification to avoid danger.
5
ELECTRICAL SAFETY
● Do not connect the fridge to a power outlet that is not protected from overloads.
● Never use power boards with multiple sockets to connect the device.
WARNING: Do not immerse the cord in water, handle the electrical components or
grip them with wet hands.
● The power socket to which the wine fridge is connected must be easily accessible, so
it can be disconnected quickly in an emergency.
● Do not unplug the fridge by pulling on the cord and do not wrap the cord around the
fridge.
● Turn the fridge off before unplugging the power cord from the socket.
● Always unplug the fridge before cleaning it.
● In the event of a fire, unplug the power cord if safe to do so or separate the unit from
the area by another means before taking fire action.
● This fridge is not intended to be activated by an external timer, by a separate
remote-control system or any other device that automatically switches on the device.
● If you do not use the device for a long period of time, please turn it off and unplug it
from the power supply.
● Do not store explosive materials such as aerosol containers with a flammable thruster
in this device.
● Any maintenance or repair of this device must be carried out by a licensed
professional. Do not attempt to repair the device yourself.
6
WARNING: Danger of Electrocution
WARNING: The ventilation openings on the fridge's casing must remain uncovered. Be
careful not to block them.
WARNING: Do not use mechanical devices inside the wine fridge.
WARNING: Do not dismantle or otherwise damage the refrigeration system.
WARNING: Do not use electrical appliances in the wine fridge, other than those
recommended by the manufacturer.
7
INSTALLATION
● This wine fridge is heavy. Be careful when moving it.
● When transporting the fridge, be careful not to damage any part of the refrigeration
system.
● Important! Leave your device vertical for 24 hours before plugging it in for the first
time so the refrigerant gas can equalise.
● If your device has been horizontal during transport, wait 48 hours before turning it
on.
● After installation, make sure the fridge is not resting on the power cable.
CLEANING
● Never clean the appliance with flammable products. The fumes could cause a fire or
explosion.
● When it comes to the use, handling, cleaning and disposal of the device, refer to the
following chapters of the user guide.
WARNING: Do not use electrical appliances to clean your wine cellar.
8
Summary
IMPORTANT SECURITY WARNINGS Page 1
I DESCRIPTION OF THE APPLIANCE Page 11
II TECHNICAL CHARACTERISTICS Page 12
III INSTALLATION Page 14
A. Location Page 15
B. Unpacking the device and
discarding the packaging items Page 15
C. Foot adjustment Page 16
D. Before loading the fridge Page 16
E. Ambient temperature Page 16
F. Changing the orientation of the door Page 17
IV BEFORE USE Page 19
V USING YOUR WINE FRIDGE Page 20
A. Loading your wine fridge Page 20
B. Loading plan Page 21
C. Adjustable shelves Page 22
D. Functions and temperature setting Page 24
E. Wine service temperature table Page 26
F. Power outage Page 27
VI MAINTENANCE AND CLEANING Page 28
VII TROUBLESHOOTING Page 30
VIII WARRANTY Page 32
IX CAUTION Page 33
9
I DESCRIPTION OF THE APPLIANCE
1. Digital control panel & display
2. Fan
3. Metal shelves with wooden trim
4. Temperature sensor
5. UV glass door
6. Adjustable foot
11
II TECHNICAL CHARACTERISTICS
Item number
LKS116VN
Model
JC-210
Power supply
220-240 V
Electric current
1.5A
Power of the lamp
2W
Dimensions W x D x H
540 x 601 x 1244 mm
Weight
41kg
Type of installation
Free standing
Door orientation
Right (factory setting)
Electrical scheme
12
ENERGY-RELATED PRODUCT SHEET
Brand
TRIOMPH
Reference
LKS116VN
Capacity (L)
213L
The coldest storage temperature
setting that can be maintained
continuously
5˚C
Defrost
Automatic
Climate class
Climate class N/ST.
This fridge is designed
to be used in an
ambient temperature
of between 16-38˚C.
Noise (dB)
43
Integrable device
No
This device is intended only for the storage of wine
13
III INSTALLATION
Recommendations:
The location you have selected for your wine fridge should:
● be well ventilated
● be away from any source of heat and direct sunlight;
● not be frequently wet (e.g. laundry, bathroom);
● have a level floor;
● have a reliable electricity supply; and
● be away from the microwave. Some microwaves do not have a wave jamming shield
so when the wine fridge is placed less than 1m from a microwave, the operation of
the wine fridge can be affected.
The device is designed for the N-ST climate class. Protect the device from heat (above 38 ˚C)
and cold (below 16 ˚C), dust, moisture, flooding events and splashes.
● The wine fridge must be positioned so that the power socket remains accessible after
installation.
● Unwind the power cord but do not plug it into the electricity supply immediately.
● Install your wine cellar in its final location before loading it. If the fridge is moved while
loaded, the fridge walls may be permanently deformed.
IMPORTANT: Two people are required to properly and safely install the fridge.
14
A. Location
To ensure adequate ventilation of the fridge, allow a minimum of 15 cm between the wine
fridge and the nearby walls as shown in the illustration below.
B. Unpacking the device and discarding the packaging.
Remove all packaging, as well as protective elements inside the device's compartments,
before turning it on.
The carton and paper packaging are recyclable. Please dispose of paper packaging in
recycling bins.
Materials bearing the symbol are recyclable. Including: Polyethylene; Polystyrene;
and Polypropylene. These materials can be recycled if you dispose of them in collection
containers.
Other packaging items (e.g. fasteners) must be disposed of with household waste.
15
C. Foot adjustment
Your wine fridge is equipped with an adjustable foot to facilitate levelling.
It is recommended to adjust the front feet to level the wine fridge. Correctly levelled feet
will limit noise and vibration of the wine fridge.
Turn the adjustable foot by hand (be careful not to jam your fingers).
- Turn the foot anti-clockwise to raise the level of the
wine cellar
- Turn the foot clockwise to lower the level of the wine
cellar
D. Before loading the fridge
● Levelling: The wine fridge must be levelled before loading your wine
● Stable floor: Place the fridge on a stable surface where the ground can support the
loaded weight (1 full bottle usually weighs 1.3kg).
E. Ambient temperature
The wine fridge should be placed in a room with temperatures between 16-38˚C. If the
ambient temperature is above or below the climatic class, the performance of the wine
fridge will be impacted. Cold or warm temperatures can cause fluctuating fridge
temperatures, the fridge may not reach the set temperature or may stop working.
16
F. Change in the orientation of the door:
The door can be right or left opening. Change the door by following the instructions below.
Making this change requires 2 people.
Instructions for changing the "right-hung" door and reassembling it so it is "left-hung":
1. Unplug the power cord from the socket.
2. Remove the top hinge cover.
3. Unscrew the top hinge and remove it, then
remove the door by gently lifting it.
4. Unwind the front right foot completely until it
comes off. Remove it.
5. Unscrew the lower hinge and remove it.
6. Place the lower hinge on the opposite side after
removing the front foot and attach the hinge with
the screws you have just removed from the right
side.
7. Replace the foot on the left side of the fridge
with the adjustable foot removed from the right
side. Screw the smaller foot onto the right side.
8. Place the door on the lower hinge. Make sure
the glass door is upright and closes easily.
17
9. Place the top hinge on the opposite side.
10. Place the door on the fridge, then loosely screw
the hinge without tightening completely.
11 Once the door is installed, adjust the hinge by
tightening the screws until the door is in the
correct place.
12. Replace the top hinge cover.
Note: The door seal may come out of its place when changing the door. If you notice gaps
between the seal and the fridge frame when the door is closed, pull carefully on the seal to
close these openings. The correct positioning of the seal is important to ensure the fridge is
waterproof.
18
IV BEFORE USE
Wait 24 hours before starting your wine fridge.
We recommend that you leave your wine fridge upright, clean it with soapy water and leave
it open to eliminate residual odors.
Recommendations:
● Place the fridge in a cool place away from sunlight and heat sources.
● Certain parameters such as room temperature, door opening time or the number of
bottles stored inside could affect the internal temperature of your wine fridge. We
recommend that you check the internal temperature regularly and adjust it if
necessary.
● Do not cover the vents.
Operating noise:
To reach the desired temperature, this wine fridge, like all wine fridges with compressor
cooling systems, can produce certain noises, which are normal operating noises.
● Gurgling noise: caused by the refrigerant gas circulating in the refrigeration area of
the unit.
● Cracking noise: resulting from the contraction and expansion of the gas to produce
the cold.
The perception of noise by the individual is directly related to the environment in which the
wine fridge is located. Noise in normal operation is not a cause of the warranty's
application.
19
V USING YOUR WINE FRIDGE
A. Loading your wine fridge
● You can load your wine bottles in single or double rows.
● For loading, take note of the following: if you don’t have enough bottles to
completely fill your wine fridge, it’s best to spread the load over the entire height of
the wine cellar to avoid a thermal imbalance at the top or bottom of the fridge.
● The balanced distribution of bottles throughout the height of the wine cellar is the
most efficient way to use the energy of the appliance.
● The bottle capacity is expressed in bottles of the “Bordeaux” type. If larger bottles are
stored, or if additional shelves are used, the maximum bottle capacity is reduced.
● To accommodate the largest type of bottle or increase the capacity of the cellar by
stacking the bottles when necessary, the shelves must be removed or moved (see
paragraph adjustable shelves).
● Keep a gap between the bottom of the fridge and the bottles to allow air to flow. As
in an underground wine cellar, air circulation is important for a homogeneous
temperature inside your wine fridge.
This will also reduce energy consumption.
IMPORTANT INFORMATION ABOUT THE SERVING TEMPERATURE OF WINE
Your wine fridge has been designed to allow you to set desired serving temperature of your
wine. Each wine varietal is served at a different ideal temperature.
The temperature of the cellar is adjustable from 5-20 ˚C. Unless the wine producer says
recommends a different temperature for your particular wine, champagne should be served
at 7˚C, white wine should be served at 12˚C and red wine should be served at 18˚C (see
“Wine Service Temperature” recommendation table).
Some wines can be served young (2 to 3 years), while others are much better aged (10 years
and older). Each wine peaks at a different age. Check the ideal drinking age for your wine
with your wine merchant.
20
SETTING TYPES: Please note that depending on where your wine fridge is kept, how often
the door is open, the ambient temperate and the loading, the time taken to reach the set
temperate varies. Usually, it takes about 24 hours for the wine fridge to reach the desired
temperature and indicate a stable temperature on the digital display. The temperature
displayed will change when the desired temperature is adjusted or whenever a large
number of bottles are added to the fridge.
B. Loading plan
Your wine fridge can accommodate up to 116 Bordeaux bottles with a stack based on two
shelves however the fridge comes with four shelves.
While loading several levels of bottles on the same shelf, please gently store your
bottles in the 1st row to prevent them from colliding with the 2nd row. Store the bottles in a
"head to tail" - crossing the neck and bottom of each bottle, so you can get close to the
stated maximum capacity.
If you store larger bottles or add a shelf to more easily access your bottles, storage capacity
will be reduced.
The way you load your fridge and the number of shelves, determines capacity. Below you
will find an explanatory diagram for loading (capacity with load “head to tail”):
21
The indoor fan helps keep the temperature consistent throughout the fridge. The fridge
door should not be kept open for long periods of time as it will impact the fridge’s ability to
remain cool.
This wine fridge is called mono temperature, which means that you have a single choice of
temperature.
If storing red, rosé and whites together, set the thermostat on average between 11 and 13
degrees and store the red wines on the top shelves and whites at the bottom. This will make
the most of the ‘hot air rises’ phenomenon. Consider the ambient temperature of your
room when setting the thermostat.
For wines stored at the top of the fridge: bottles of red wine. Before serving, uncork and let
it decant in a carafe a few hours before tasting (to slowly rise to 16 to 18 degrees).
For wines stored in the middle of the fridge: white wine. Cool before serving according to
your preference (8-10 degrees)
For wines stored at the bottom: rosé and champagne. Cool them for about an hour before
serving (6-8 degrees).
C. Adjustable shelves
Your wine fridge has 4 adjustable metal shelves, which gives the strength to stack several
rows of bottles (the moulding at the bottom of the fridge allows bottles to be stacked
underneath the bottom shelf).
The 4 shelves can be adjusted to different spacings depending on your needs.
22
● Door seal protection: Ensure you open the door completely before removing shelves
from their rails.
● Do not slide multiple loaded shelves outwards as it may cause bottles to fall or may
cause the wine fridge to tip forward.
● Do not cover shelves with material like aluminum foil or metal plate as this will
impact internal airflow.
● Do not move your wine fridge while it is loaded with bottles. This could distort the
walls of the wine fridge and cause back injuries.
23
D. Functions and temperature setting
Please note that depending on the selected settings and the loading, it can take 24 hours for
the wine fridge to reach the desired temperature.
● Plug the power cord into a suitable power supply
● Set the thermostat to adjust the temperature using the K4 and K5 keys
Light
K1: This button allows you to turn on / off the inside light
Increase temperature
K2: Press the button once, the LED display will flash indicating the current temperature.
Press again to set the temperature. 1 touch will increase the temperature by 1 degree. The
blink stops after 5 seconds without action on your part, and the new temperature
requested is recorded. The LED display then shows the actual temperature inside.
Temperature display
K3: The temperature can be adjusted from 5 to 20 degrees depending on the cycle below
24
Decrease temperature
K4: Press the button once, the LED display will flash indicating the current temperature.
Press again to set the temperature. 1 touch will reduce the temperature by 1 degree. The
blink stops after 5 seconds without action on your part, and the newly set temperature is
recorded. The LED display then shows the actual inside temperature
Mode Fahrenheit/Celsius
K4: Switch the temperature display between Fahrenheit/Celsius by pressing the button.
Please do not open the door too often as this will disrupt the operation of the temperature
sensors. The fridge automatically adjusts moisture and condensation levels within the fridge
as required.
Attention
When the temperature sensor is failing due to power outage or bug, an error code appears.
E1 internal temperature problem
E2 ambient temperature problem
CE communication problem
25
E. Wine service temperatures:
The table below shows the recommended serving temperatures for different wine.
Wine
Recommended temperature
Champagne, sparkling
6˚C
White: Sémillon, Sauvignon Blanc
8˚C
Vintage Champagne
10˚C
Dry white: Chardonnay
10˚C
Dry white: Gewürztraminer, Riesling, Pinot gris
10˚C
Sweet late harvested white: Sauternes, Barsac,
Monbazillac
10˚C
Beaujolais
13˚C
Sweet white wine: Sauternes
14˚C
White Chardonnay vintage
14˚C
Pinot Noir
16˚C
Red Grenache, Syrah
16˚C
Red vintage
18˚C
Other red wines
Temperature not exceeding
20˚C
To bring the wine to the serving temperature, it is recommended to place it in your wine
cellar at least 48 hours before serving and uncork or aerate a few minutes before tasting.
F. Power outage
26
In the event of a power outage, all temperature settings will be automatically
preserved, unless you change the thermostat setting.
A power outage of an hour or two will not affect the temperature of your wine cellar. To
avoid a sudden change in temperature when the power supply is turned off, you should
avoid opening the door. In the event of a prolonged cut, storage alternatives must be found
to preserve your wine.
If you plan to temporarily shut off the electrical power or if there is a power outage
scheduled by your power provider, it is imperative to disconnect the power socket rather
than have your power meter shut down. A sudden shutdown of the current could damage
the mother board in your wine fridge
27
VI MAINTENANCE AND CLEANING
A. Defrosting
Your wine cellar is designed with a "natural" defrosting system. When the engine is shut
down, the refrigerated surfaces of the wine cellar automatically defrost. The de-icing water
descends into a drainage container near the compressor at the back of the wine fridge. This
water is evaporated by the heat produced by the compressor.
Important: Keep the drain and gutter clean to prevent it to clog and water to flow
inside the wine fridge.
B. Cleaning
Before cleaning or restarting, unplug at the socket.
Never use abrasive products or sponges with scrapers for cleaning inside or outside your
device.
● Remove all accessories (e.g. shelves, water tank). Wash them with lukewarm water
with a mild, odorless detergent (an unscented dish liquid, for example), rinse with
water containing bleach and dry thoroughly.
● Wash the interior walls in the same way; take special care of the shelves.
● Wash the door seal without omitting to clean also under the door seal
● Reconnect the device and get it back into operation.
Occasionally, dust the condenser at the back of the unit; a build-up of dust could reduce the
performance of the unit.
28
At certain times of the year, condensation on the door may occur. If this happens, wipe the
water from the door and avoid opening the door of the fridge often as this amplifies the
difference between the inside of the fridge and the ambient temperature.
In case of prolonged absence, empty and clean the appliance; keep the door ajar for the
duration of non-use.
Important!
When the wine fridge is not used:
● Unplug the appliance
● Remove all objects inside.
● Clean and dry the interior space of the wine fridge per the above instructions.
● Leave the door slightly ajar to avoid mold.
29
VII TROUBLESHOOTING
Some issues can be easily resolved. Before using after-sales service or a repairman, please
see the following table:
Problem
POSSIBLE CAUSES
The wine cellar
doesn't work.
The fridge is not plugged in or it is switched off
The circuit breaker is triggered, or the fuse is damaged.
Check to see if the power outlet is powered by connecting another
electrical appliance.
The wine cellar is
not cold enough.
Check the temperature setting.
A high ambient temperature may require a lower setting.
The door is opened too often.
The door is not completely closed.
The door seal is not properly positioned.
The compressor
works and goes
out often.
The room temperature is warmer than normal.
A large quantity of bottles has been added to the wine cellar.
The door is opened too often.
The door is not completely closed.
Temperature control is not properly defined.
The door seal is not properly positioned.
30
The light doesn't
work.
The socket is not plugged in.
The circuit breaker has gone off or a fuse is damaged.
The lighting button is stuck on "OFF."
Vibration.
The wine fridge may not be level.
The wine cellar
seems to be
making too much
noise.
Squeaking or slamming may come from the circulation of the
refrigerant gas, which is normal.
At the end of the cycle, the compressor emits a noise caused by the
passage of the refrigerant into your wine cellar.
The contraction and expansion of the gas inside the walls can emit
hissing and crackling.
The wine cellar is not level, check the setting of the feet.
The door doesn't
close properly.
The door was reversed and not properly reinstalled.
The seal is defective (the magnet or rubber is altered).
The shelves block the door closure.
If your wine fridge doesn't seem to be working normally, unplug the device for a few
minutes, then plug it again to reset the fridge
If the problem persists or for any other problems occurring at your device: contact the
After-Sale Service by email: hello@tromph-australia.com
Any service or repair on the cooling process must be carried out by a licensed professional
who will have to carry out an inspection of the refrigeration circuit.
Similarly, any service or repairs on the electrical circuit must be carried out by a qualified
electrician.
Note: Any repair by an unlicensed technician will result in cancellation of the warranty.
31
VIII WARRANTY
WARRANTY EXCLUSIONS
The warranty does not cover the wear parts of the product, or the problems or damage
resulting from:
(1) superficial deterioration due to normal wear and tear of the product.
(2) defects or deteriorations due to the product's contact with food or liquids, and due to
corrosion caused by rust.
(3) any unauthorised incident, abuse, improper use, modification, dismantling or repair.
(4) any improper maintenance operation, non-compliant use of the product or connection
to an incorrect voltage.
(5) any use of accessories not supplied or approved by the manufacturer.
The warranty will be waived if the rating plate and/or serial number of the product is
removed.
32
IX CAUTION
For more information about disposing of your fridge, you can contact your local or regional
government. Electronic products that have not been selectively sorted are potentially
hazardous to the environment and human health due to the presence of hazardous
substances
This wine cellar contains flammable foaming agents.

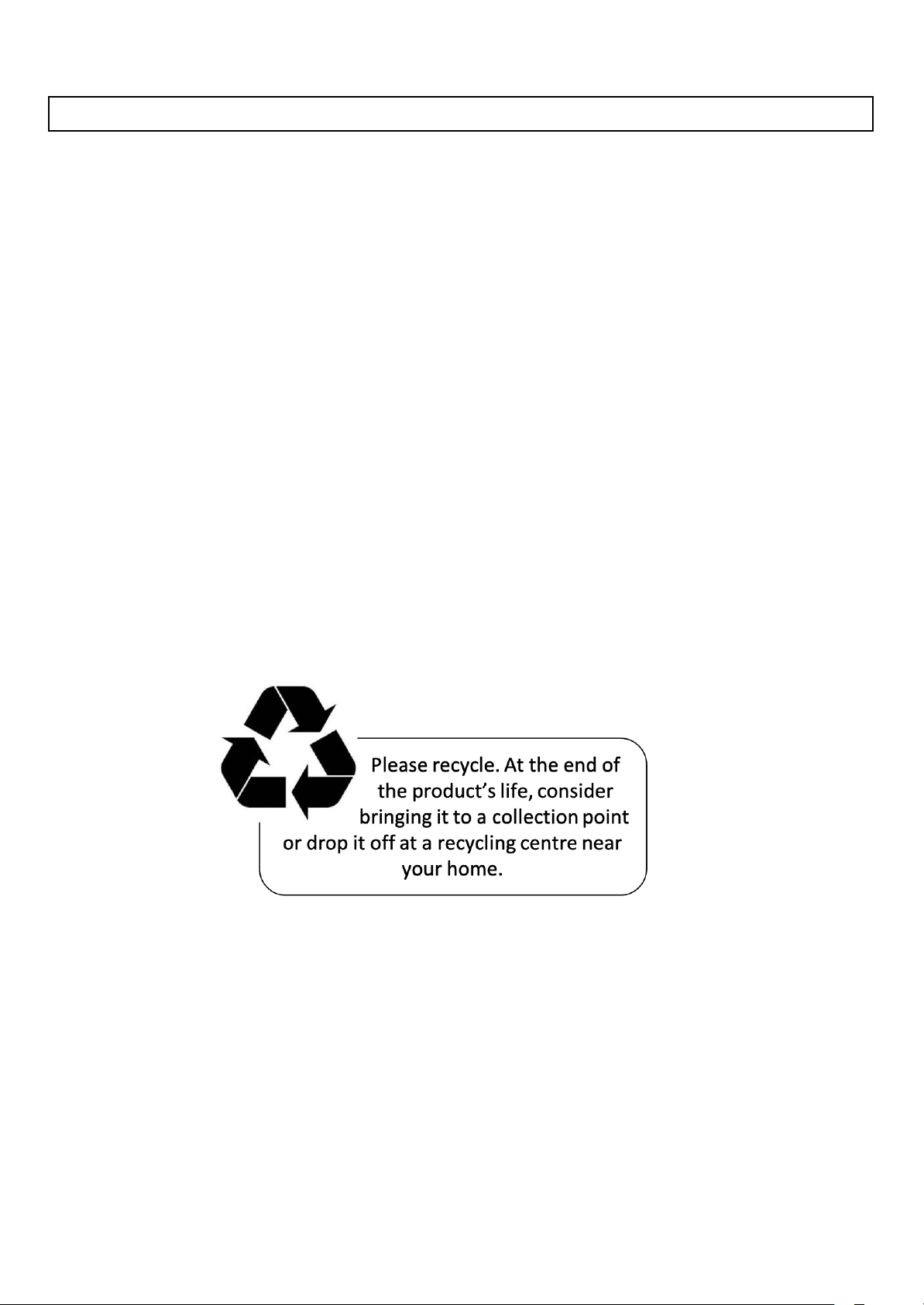

At the end of your product life, it must be disposed of in an appropriate location, capable of
recycling refrigerators, freezers, and wine cellars. To do this contact your local council.
Under no circumstances should you dispose of this wine fridge during curbside collections.
33
