Instruction Manual
3223 / 3229
This household sewing machine is designed to comply with IEC/EN 60335-2-28 and Ul1594.
When using an electrical appliance, basic safety precautions should always be followed, including
the following:
Read all instructions before using this household sewing machine. Keep the instructions in a
suitable place close to the machine. Make sure to hand them over if the machine is given to a third
party.
- A sewing machine should never be left unattended when plugged in. Always unplug this sewing
machine from the electric outlet immediately after using and before cleaning, removing covers,
lubricating or when making any other user servicing adjustments mentioned in the instruction
manual.
- Always unplug before re-lamping. Replace bulb with same type rated 10 watts (110-120V area) or
15 watts (220-240V area).
IMPORTANT SAFETY INSTRUCTIONS
DANGER
WARNING
-
-
To reduce the risk of electric shock :
To reduce the risk of burns, fire, electric shock, or injury to
person :
- Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used
by or near children.
- Use this sewing machine only for its intended use as described in this manual. Use only
attachments recommended by the manufacturer as contained in this manual.
I
IMPORTANT SAFETY INSTRUCTIONS
- Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if
it has been dropped or damaged, or dropped into water. Return the sewing machine to the
nearest authorized dealer or service center for examination, repair, electrical or mechanical
adjustment.
- Never operate the sewing machine with any air openings blocked. Keep ventilation openings of
the sewing machine and foot control free from the accumulation of lint, dust, and loose cloth.
- Keep fingers away from all moving parts. Special care is required around the sewing machine
needle.
- Always use the proper needle plate. The wrong plate can cause the needle to break.
- Do not use bent needles.
- Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
- Wear safety glasses.
- Switch the sewing machine off (" ") when making any adjustment in the needle area, such as
threading needle, changing needle, threading bobbin, or changing presser foot, etc.
- Never drop or insert any object into any opening.
- Do not use outdoors.
- Do not operate where aerosol (spray) products are being used or where oxygen is being
administrated.
- To disconnect, turn all controls to the off (" ") position, then remove plug from outlet.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- The foot control is used to operate the machine. Avoid placing other objects on the foot control.
- Do not use the machine if it is wet.
- If the supply cord connected with the foot control is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person, in order to avoid a hazard.
- This sewing machine is provided with double insulation. Use only identical replacement parts.
See instructions for Servicing of Double-Insulated Appliances.
O
O
II
SAVE THESE INSTRUCTIONS
For Europe only :
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
The noise level under normal operating conditions is less than 75dB(A).
The machine must only be used with foot control of type KD-1902, FC-1902 (110-120V area)/ KD-
2902, FC-2902A, FC-2902C, FC-2902D (220-240V area) manufactured by ZHEJIANG FOUNDER
MOTOR CORPORATION LTD. (China) / 4C-316B (110-125V area) / 4C-316C (127V area) / 4C-
326C (220V area) / 4C-326G (230V area) / 4C-336G (240V area) / 4C-336G (220-240V area)
manufactured by Wakaho Electric Ind. Co., Ltd. (Vietnam)
This sewing machine is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the sewing machine by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the sewing machine.
The noise level under normal operating conditions is less than 75dB(A).
The machine must only be used with foot control of type KD-1902, FC-1902 (110-120V area)/ KD-
2902, FC-2902A, FC-2902C, FC-2902D (220-240V area) manufactured by ZHEJIANG FOUNDER
For outside Europe :
III
MOTOR CORPORATION LTD. (China) / 4C-316B (110-125V area) / 4C-316C (127V area) / 4C-
326C (220V area) / 4C-326G (230V area) / 4C-336G (240V area) / 4C-336G (220-240V area)
manufactured by Wakaho Electric Ind. Co., Ltd. (Vietnam)
In a double-insulated product, two systems of insulation are provided instead of grounding. No
ground means is provided on a double-insulated product, nor should a means for grounding be
added to the product. Servicing of a double-insulated product requires extreme care and
knowledge of the system and should be done only by qualified service personnel. Replacement
parts for a double-insulated product must be identical to those parts in the product. A double-
insulated product is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED".
SERVICING OF DOUBLE INSULATED PRODUCTS
IV
Congratulations
As the owner of a new Singer sewing machine, you are about to begin an exciting adventure in
creativity. From the moment you first use your machine, you will know you are sewing on one
of the easiest to use sewing machines ever made.
May we recommend that, before you start to use your sewing machine, you discover the many
features and the ease of operation by going through this instruction book, step by step, seated
at your machine.
To ensure that you are always provided with the most modern sewing capabilities, the
manufacturer reserves the right to change the appearance, design or accessories of this
sewing machine when considered necessary.
SINGER is the exclusive trademark of The Singer Company Limited S.à.r.l. or its Affiliates.
©2011 The Singer Company Limited S.à.r.l. or its Affiliates. All rights reserved.
V
List of contents
Machine Basics
Threading the Machine
Sewing
General Information
Maintenance and Troubleshooting
Principle Parts of the Machine..............................................................................................................................................2/3
Connecting Machine to Power Source ....................................................................................................................................4
Two Step Presser Foot Lifter...................................................................................................................................................5
Accessories .............................................................................................................................................................................6
Winding the Bobbin .................................................................................................................................................................7
Inserting the Bobbin ................................................................................................................................................................8
Thread Tension .......................................................................................................................................................................9
Threading the Upper Thread .................................................................................................................................................10
Raising the Bobbin Thread....................................................................................................................................................12
How to Choose Your Pattern.................................................................................................................................................13
Stitch Length Dial ...................................................................................................................................14
Sewing Straight Stitch ...........................................................................................................................................................15
Reverse Sewing/ ...................................................................................................16
Choosing Stretch Stitch Patterns ..........................................................................................................................................17
Blind Hem..............................................................................................................................................................................18
..........................................................................................................................................................19
Sewing on Buttons (Model 3223) ..........................................................................................................................................20
Installing the Removable ........................................................................................................................22
Attaching the Presser Foot Shank.........................................................................................................................................23
Needle/Fabric/Thread Chart..................................................................................................................................................24
Darning Plate.........................................................................................................................................................................25
Inserting & Changing Needle ................................................................................................................................................26
Changing the Bulb.................................................................................................................................................................27
Troubleshooting Guide ..........................................................................................................................................................28
Automatic needle threader (optional) ....................................................................................................................................11
Stitch Width Dial &
Removing the Work/ Cutting the Thread
Sew 4-Step Buttonhole
Sewing on Buttons (Model 3229) ..........................................................................................................................................21
Accessory Storage
VI

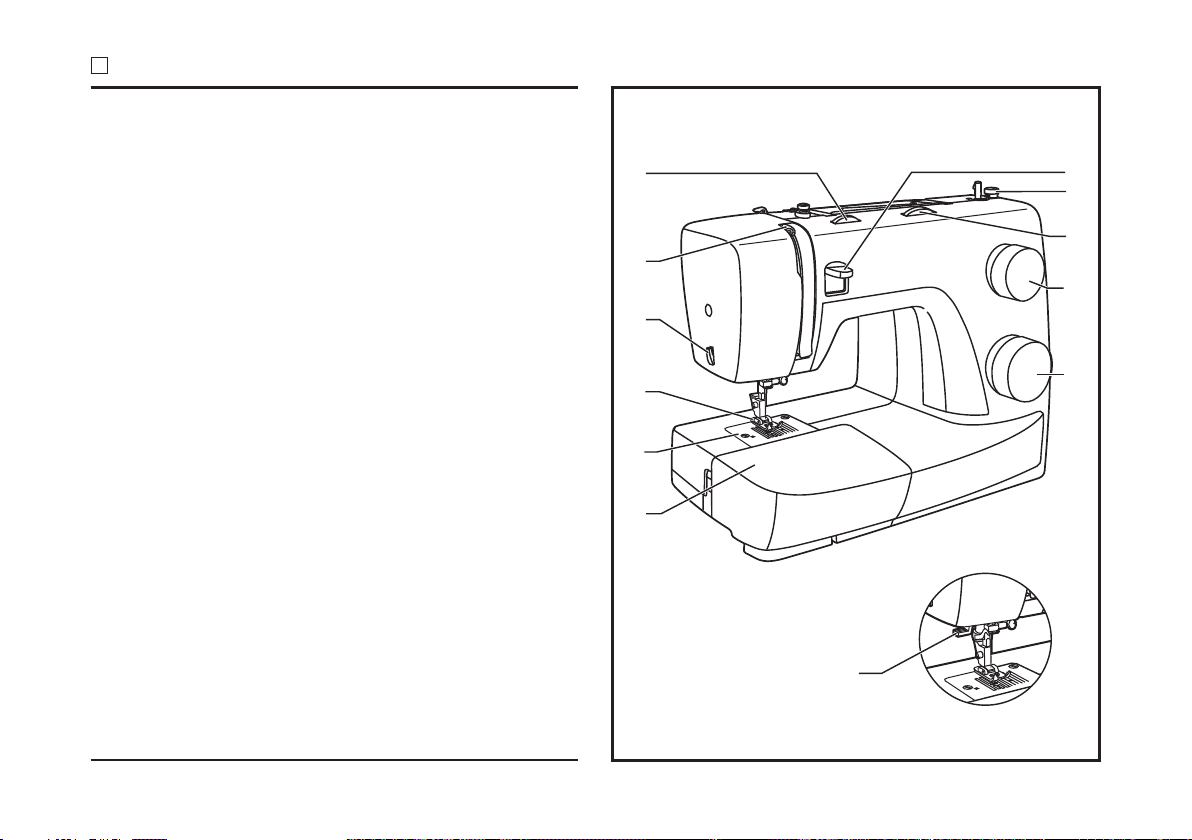

Principal Parts of the Machine
2
1. Thread tension dial
2. Thread take-up lever
3. Thread cutter
4. Presser foot
5. Needle plate
6. Removable accessory storage
7. Reverse sewing lever
8. Bobbin stopper
9. Stitch width dial
10. Stitch length dial
11. Pattern selector dial
12. Automatic needle threader (optional)
(Model 3229)
1
2
3
5
6
7
8
9
11
10
4
12
3
Principal Parts of the Machine
13. Horizontal spool pin
14. Bobbin winding spindle
15. Hole for second spool pin
16. Handwheel
17. Power and light switch
18. Main plug socket
19. Bobbin thread guide
20. Upper thread guide
21. Face plate
22. Handle
23. Presser foot lifter
24. Foot speed control
25. Power cord
24
25
17
18
13
14
16
15
19
20
21
23
22
23

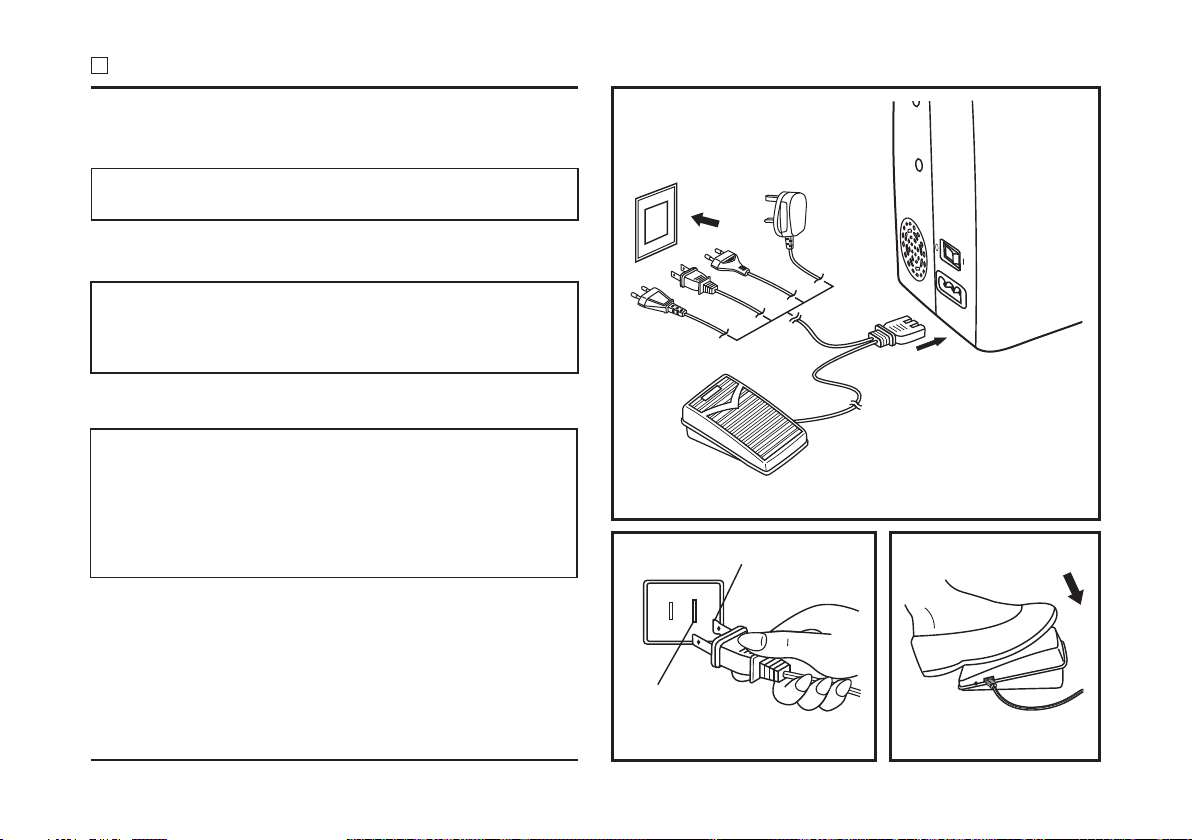

Connecting Machine to Power Source
4
1
A
Connect the machine to a power source as illustrated. (1)
This appliance is equipped with a polarized plug which must
be used with the appropriate polarized outlet. (2)
Unplug power cord when machine is not in use.
The foot control pedal regulates the sewing speed. (3)
Consult a qualified electrician if in doubt of how to connect
machine to power source.
Unplug power cord when machine is not in use.
Press main switch (A) to " l " for power and light.
For appliance with a polarized plug (one blade is wider than
the other). To reduce the risk of electric shock, this plug is
intended to fit in a polarized outlet only one way. If it does
not fit fully in the outlet, reverse the plug. If it still does not
fit, contact a qualified electrician to install the proper outlet.
Do not modify the plug in any way.
a. Polarized attachment plug
b. Conductor intended to be grounded
Attention:
Foot control
Attention:
Sewing light
IMPORTANT NOTICE
a
b
Two Step Presser Foot Lifter
5
A
When sewing several layers or thick fabrics, the presser foot
can be raised for easy positioning of the
work. (A)
to a higher position
6

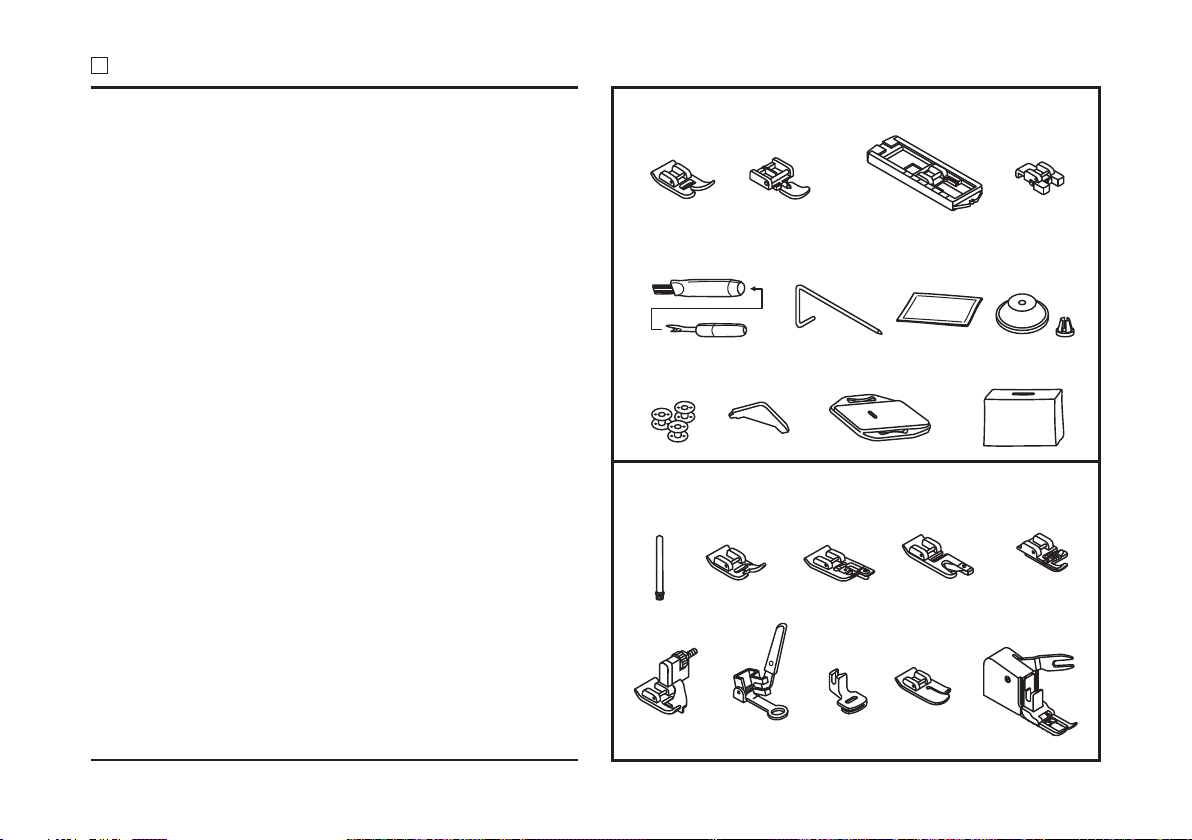

Accessories
1 Standard accessories
rs
006016008006812008
2 Optional accessories
m
n
p
o
006804008
006803008
006800008
q
006810008
006917008
t
u
006916008 006815008
v
h
g
e
f
ij
k
a
006806008
b
006905008
d
006914008
Standard accessories (1)
Optional accessories (2)
a. All purpose foot
b. Zipper foot
c. Buttonhole foot
d. Button sewing foot
e. Seam ripper/ brush
f. Edge/ quilting guide
g. Pack of needles
h. Spool holder
i. Bobbin (3x)
j. L-screwdriver
k. Darning plate
l. Soft cover
(These 10 accessories are not supplied with this machine;
they are however available as special accessories from your
local dealer.)
m. Auxiliary spool pin
n. Satin stitch foot
o. Overcasting foot
p. Hemmer foot
q. Cording foot
r. Blind hem foot
s. Darning/ embroidery foot
t. Gathering foot
u. Quilting/ straight stitch foot
v. Even-feed foot
l
c
006909008
7
Winding the Bobbin
- corresponding .
(1/2)
- Snap thread into thread guide. (3)
- Wind thread clockwise around bobbin winder tension discs.
(4)
- Thread bobbin as illustrated and place on spindle. (5)
- Push bobbin spindle to right. (6)
- Hold thread end. (7)
- Step on foot control pedal. (8)
- Cut thread. (9)
- Push bobbin spindle to left (10) and remove.
When the bobbin winder spindle is in "bobbin winding"
position, the machine will not sew and the hand wheel will
not turn. To start sewing, push the bobbin winder spindle to
the left (sewing position).
Please Note:
Place thread and spool holder on to spool pin
1
2
4
7
8
9
5
6
3
10
8
2
6
3
4
5
a
Inserting the Bobbin
When inserting or removing the bobbin, the needle must
be fully raised.
Attention:
- Remove the extension table, then open the hinged cover.
(1)
- Pull the bobbin case tab (a) and remove the bobbin case. (2)
- Hold the bobbin case with one hand. Insert the bobbin so
that the thread runs in a clockwise direction (arrow). (3)
- Pull the thread through the slit and under the finger. (4)
Leave a 6 inch tail of thread.
- Hold the bobbin case by the hinged latch. (5)
- Insert it into the shuttle. (6)
Turn power switch to off ("O") before inserting or
removing the bobbin.
1
9
BA
C
D
12
Thread Tension
Upper thread tension
Lower thread tension
Please note:
Basic thread tension setting: "4"
To increase the tension, turn the dial to the next number up.
To reduce the tension, turn the dial to the next number down.
A. Normal thread tension for straight stitch sewing.
B. Thread tension too loose for straight stitch sewing. Turn dial
to higher number.
C. Thread tension too tight for straight stitch sewing. Turn dial to
lower number.
D. Normal thread tension for zig zag and decorative sewing.
Correct thread tension is when a small amount of the upper
thread appears on the bottom side of fabric.
To test the bobbin thread tension, remove the bobbin case and
bobbin and hold it by suspending it by the thread. Jerk it once or
twice. If the tension is correct, the thread will unwind by about an
inch or two. If the tension is too tight, it does not unwind at all. If
the tension is too loose, it will drop too much. To adjust, turn the
small screw on the side of the bobbin case.
- Proper setting of tension is important to good sewing.
- There is no single tension setting appropriate for all stitch
functions, thread or fabric.
- A balanced tension (identical stitches both top and bottom) is
usually only desirable for straight stitch construction sewing.
- 90% of all sewing will be between "3" and "5".
- For zig zag and decorative sewing stitch functions, thread
tension should generally be less than for straight stitch sewing.
- For all decorative sewing you will always obtain a nicer stitch
and less fabric puckering when the upper thread appears on
the bottom side of your fabric.
10
Threading the Upper Thread
This is a simple operation but it is important to carry out correctly as
by not doing so .
- Start by raising the needle to its highest point (1), and continue
turning the handwheel counterclockwise until the needle just
slightly begins to descend. Raise the presser foot to release the
tension discs.
For safety, it is strongly suggested you turn off the power
before threading.
- Lift up the spool pin. Place the spool of thread on the holder with
the thread coming off the spool as shown. For small thread spools,
place small side of spool holder next to spool. (2)
- Draw thread from spool through the upper thread guide (3) and
pulling thread through pre-tension spring as illustrated. (4)
- Thread tension module by leading thread down right channel and
up left channel. (5) During this process it is helpful to hold the
thread between the spool and thread guide.
- At the top of this movement pass thread from right to left through
the slotted eye of the take-up lever and then downwards again. (6)
-
(8)
If your sewing machine is equipped with the factory installed
optional automatic needle threader, instructions for use can be
found on page 11.
several sewing problems could result
Note:
Note:
Now pass thread behind the thin wire needle clamp guide (7) and
then down to the needle which should be threaded from front to
back.
- Pull about 6-8 inches of thread to the rear beyond the needle eye.
Trim thread to length with built in thread cutter.
6
8
7
5
4
2
3
11

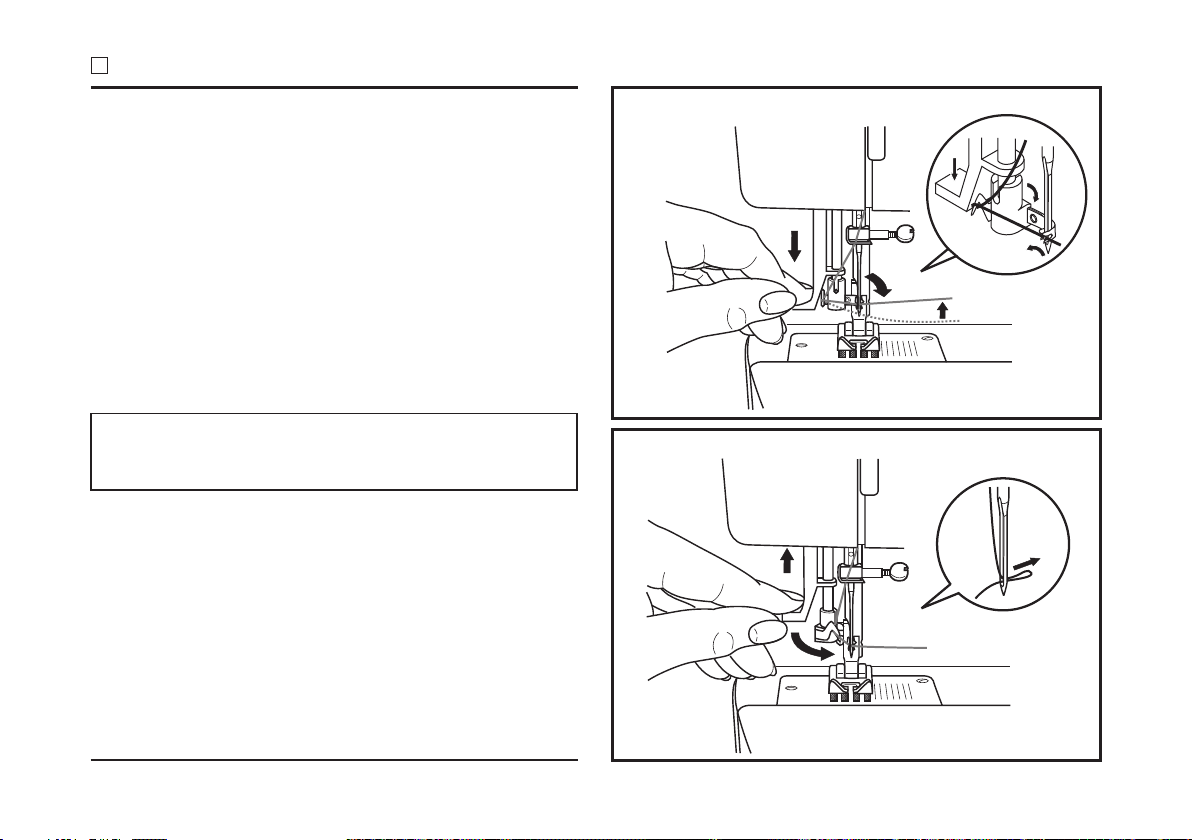

Automatic needle threader (optional)
- Raise the needle to its highest position.
- Press lever (A) down as far as it will go.
- The threader automatically swings to the threading position
(B).
- Pass thread around thread guide (C).
- Pass the thread in front of the needle around the hook (D)
from bottom to top.
- Release lever (A).
- Pull the thread through the needle eye.
Turn power switch to off ("O")!
Attention:
1
2
A
B
D
C
A
C
A
C
B
D
12
Raising the Bobbin Thread
Hold the upper thread with the left hand. Turn the handwheel
(1) towards you (counterclockwise) lowering, then raising
needle.
If it is difficult to raise the bobbin thread, check to make sure
the thread is not trapped by the hinged cover or the
.
Gently pull on the upper thread to bring the bobbin thread up
through the needle plate hole. (2)
Lay both threads to the back under the presser foot. (3)
Note:
removable accessory storage
1
2
3
How to Choose Your Pattern
13
c
d
a
b
To select a stitch, simply turn the pattern selector dial. The
pattern selector dial may be turned in either direction.
For , select pattern " " or " " with the pattern
selector dial. Adjust the stitch length with the stitch length
dial.
For , select pattern " " with the pattern selector
dial. Adjust the stitch length and stitch width according to the
fabric being used.
To obtain the other patterns, turn the stitch length dial to
"S1" or "S2", select the pattern desired with pattern selector
dial, and adjust the stitch width with the stitch width dial.
(Model 3229)
straight stitch
zigzag stitch
a. Reverse lever
b.
c. Stitch length dial
d. Pattern selector dial
Stitch width dial
Model 3223
Model 3229
S1 S2
2
43
1
S1 S2
2
43
1
14
Stitch Width Dial & Stitch Length Dial
1
3
Function of stitch width dial (Model 3229)
Function of stitch length dial while zig-zag stitching
Function of stitch length dial for when straight stitching
The maximum zigzag stitch width for zigzag stitching is 5mm;
however, the width can be reduced on any patterns. The
width increases as you move zigzag dial from "0" - "5". (1)
The stitch width dial is also the control for the straight stitch
infinite needle position. "0" is center needle position, "5" is
full right.
Set the pattern selector dial to " ". (2) (Model 3223)
Set the pattern selector dial to zig-zag. (Model 3229)
The density of zig-zag stitches increase as the setting of stitch
length dial approaches "0".
Neat zig-zag stitches are usually achieved at "2.5" or below. (3)
Dense zig-zag stitches are called satin stitches. (3)
For straight stitch sewing, turn the pattern selector dial to the
straight stitch setting. Turn the stitch length dial, and the
length of the individual stitches will decrease as the dial
approached "0". The length of the individual stitches will
increase as the dial approaches "4". Generally speaking, use
a longer stitch length when sewing heavier weight fabrics or
when using a thicker needle or thread. Use a shorter stitch
length when sewing lighter weight fabrics or when using a
finer needle or thread.
4
3
21
0.5
4
0.5
2
3
1
2
15
To begin sewing, set the machine for straight stitch. (1)
Place the fabric under the presser foot with the fabric edge
lined up with the desired seam guide line on the needle plate.
(2)
Lower the presser foot lifter, and then step on the foot
controller to start sewing. (3)
Sewing Straight Stitch
1
2
3
16
Removing the Work
Cutting the Thread
Reverse Sewing
Turn the handwheel toward you (counterclockwise) to bring
the thread take up lever to its highest position, raise the
presser foot and remove work behind
(2)
the needle and
presser foot.
Pull the threads under and behind the presser foot. Guide
the threads to the side of the face plate and into thread
cutter (B). Pull threads down to cut. (3)

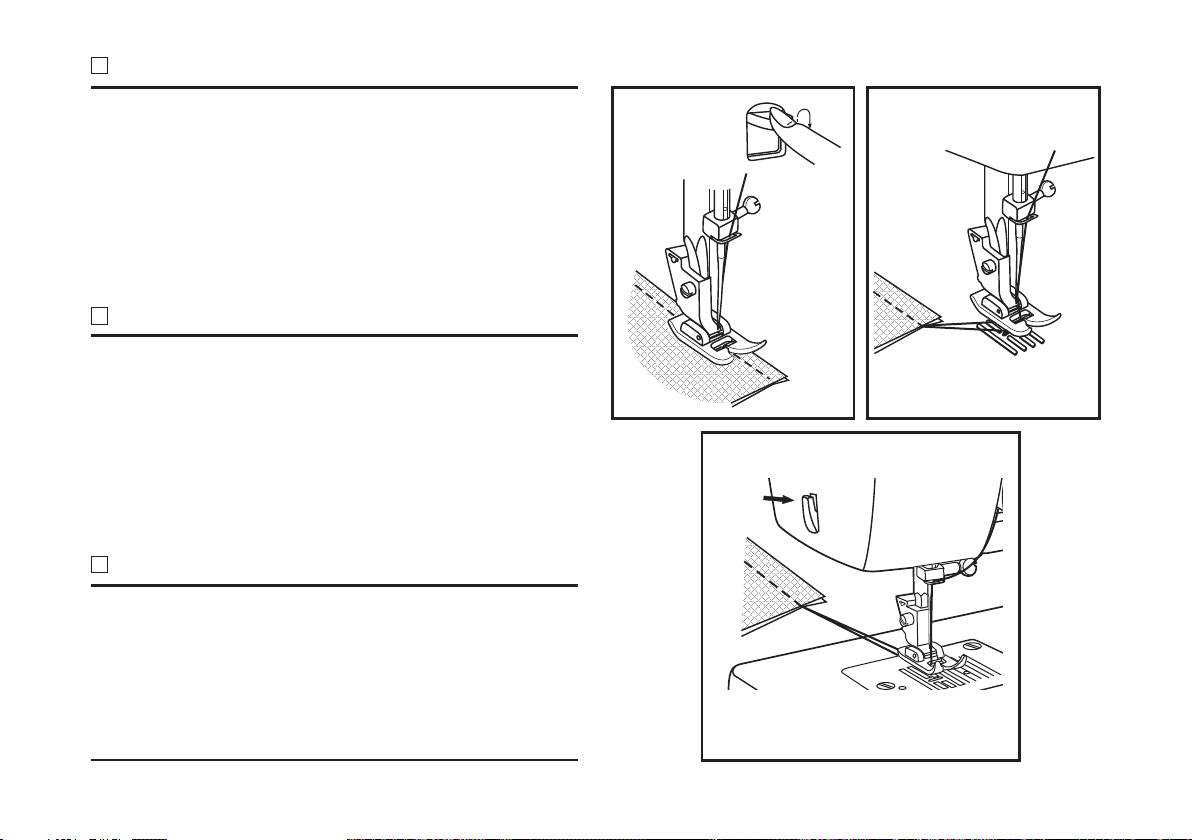

To secure the beginning and the end of a seam, press down
the reverse sewing lever (A). Sew a few reverse stitches.
Release the lever and the machine will sew forward again. (1)
1 2
A
3
B
17
Choosing Stretch Stitch Patterns
1
2
The stretch stitch patterns are indicated with a blue color on
the p
titch ength dial to the indicator marked "S1". Though there
are several stretch patterns, here are two examples:
The machine sews two stitches forward and one stitch
backwards.
Adjust the stitch width dial to between "3" and "5". (Model
3229)
Ric rac stitch is suitable for firm fabrics like denim, corduroy,
poplin, duck, etc.
attern selector dial. To select these stitches, turn the
pattern selector dial to the desired pattern. Then, turn the
sl
Set the pattern selector dial to " " or " ".
Used to add triple reinforcement to stretch and hardwearing
seams.
Set the pattern selector dial to " ".
Straight Stretch Stitch
Ric Rac
18

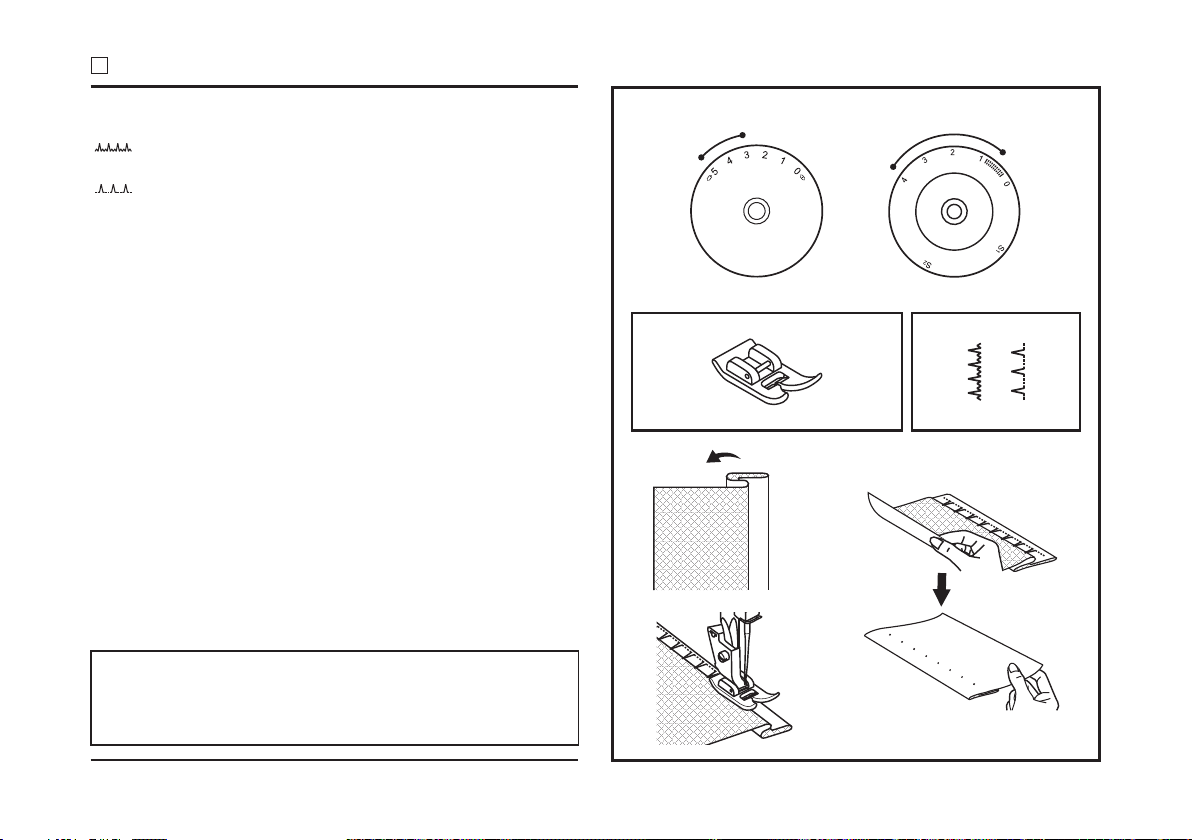

Blind Hem
For hems on curtains, trousers, skirts, etc.
Blind hem for stretch fabrics.
Blind hem for firm fabrics.
Set the stitch width
dial at a setting appropriate for the weight/type of fabric being
sewn, within the range shown in the diagram on the right of
the page. Generally, a narrower stitch is used for lighter
weight fabrics, and a wider stitch is used for heavier weight
fabrics. Sew a test first to make sure the machine settings
are appropriate for the fabric.
Blind Hem:
Set the stitch length dial with the range shown on the
diagram at the right. Blind hems, however, are normally
sewn with a longer stitch length setting.
Turn up the hem to the desired width and press. Fold back
(as shown in Fig. 1) against the right side of the fabric with
the top edge of the hem extending about 7 mm (1/4") to the
right side of the folded fabric.
Start to sew slowly on the fold, making sure the needle
touches slightly the folded top to catch one or two fabric
threads. (2)
Unfold the fabric when hemming is completed and press.
To make blind hem sewing even easier, use a blind hem
foot, available from your SINGER retailer. (See page 6
for part number)
Note:
®
2
1
19

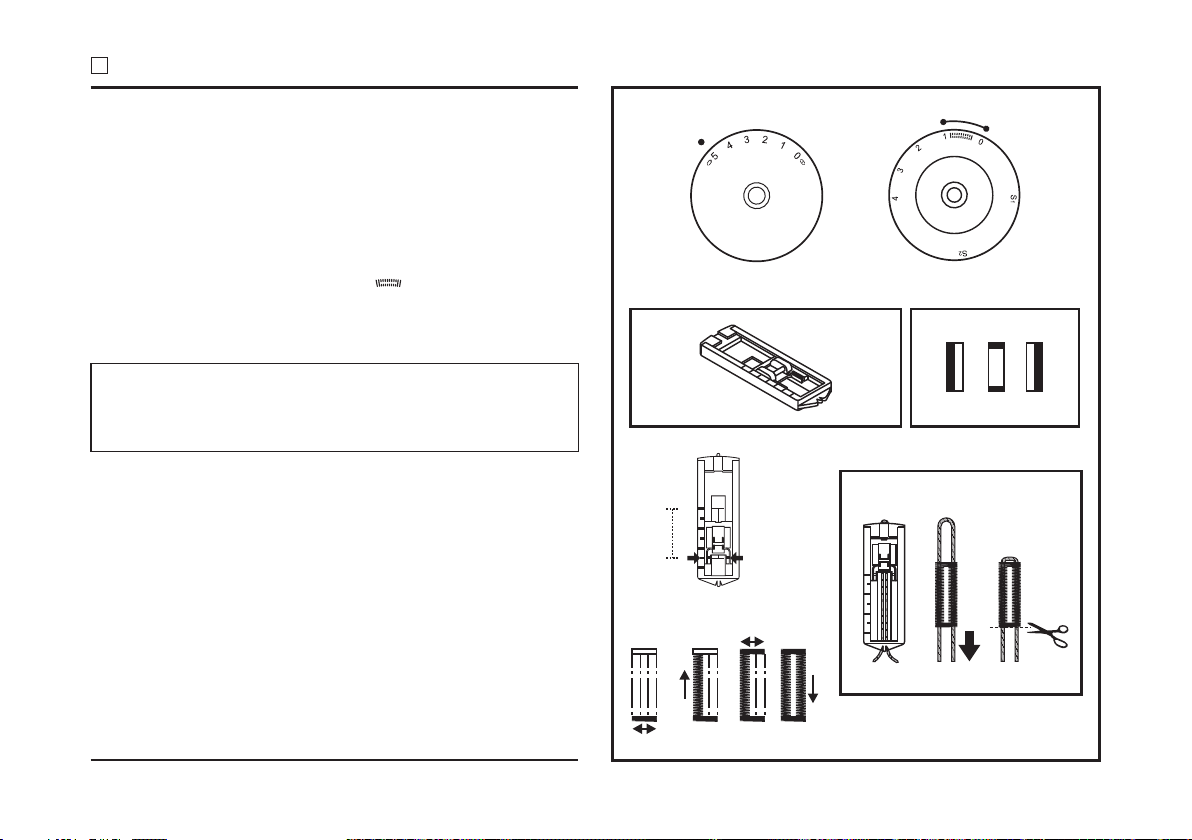

Sew 4-step Buttonhole
Prepare
Note:
Tips:
1. Take off the all purpose foot and attach the buttonhole foot.
2. Measure diameter and thickness of button and add 0.3 cm
(1/8") for bar tacks; mark buttonhole size on fabric. (a)
3. Place fabric under the foot, so that marking on the
buttonhole foot aligns with starting marking on fabric. Lower
the foot, so that the buttonhole center line marked on the
fabric aligns with the center of the buttonhole foot. (b)
Adjust the stitch length dial in the " " to set stitch density.
Density varies according to the fabric.
Always test sew a buttonhole on the fabric you are using to
sew the buttonhole.
Follow the 4-step sequence changing from one step to
another with the pattern selector dial. When moving from step
to step through the buttonhole process, be sure that the
needle is raised before turning the pattern selector dial to the
next step. Take care not to sew too many stitches in steps 1
and 3. Use seam ripper and cut buttonhole open from both
ends towards the middle.
- Slightly reducing upper thread tension will produce better
results.
- Use a stabilizer for fine or stretchy fabrics.
- It is advisable to use heavy thread or cord for stretch or knit
fabrics. The zig-zag should sew over the heavy thread or
cord. (A)
Set the stitch width at "5". (Model 3229) The width however
may need to be adjusted according to the project, sew a test
first to determine this.
A
1
3
4
2
(a) (b)
2
43
1
20

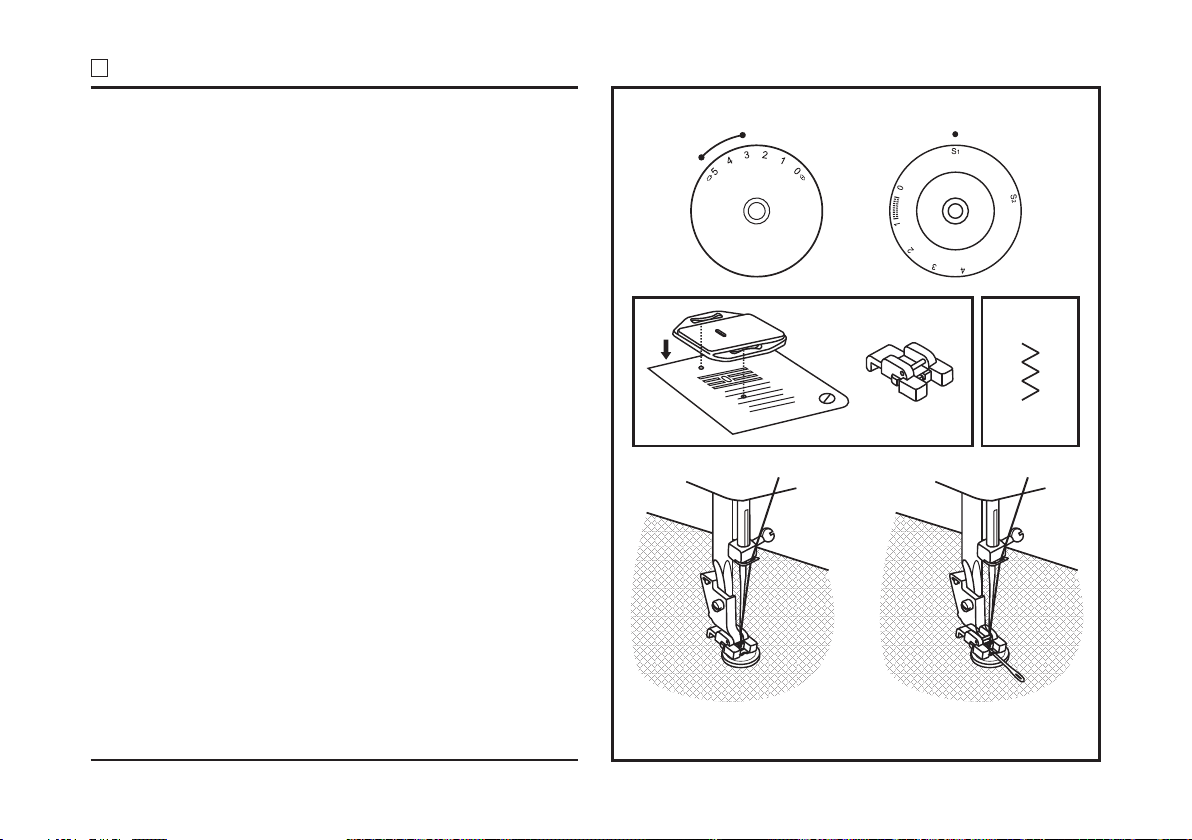

Sewing on Buttons (Model 3223)
Install the darning plate. (1)
Change the all purpose foot to button sewing foot. (2)
Position the work under the foot.
Place the button in the desired position and lower the foot.
Set the pattern selector dial on " " and sew a few securing
stitches. Select one of the two narrow zig-zag patterns
according to the distance between the two holes of the
button. Turn the handwheel to check if the needle goes into
the right and the left hole of the button without hitting the
button. Slowly sew on the button with about 10 stitches.
Select pattern " " and sew a few securing stitches. (3)
If a shank is required, place a darning needle on top of the
button and sew. (4)
For buttons with 4 holes, sew through the front two holes first,
push the work forward and then sew through the back two
holes.
4
3
1
2
Sewing on Buttons (Model 3229)
21
Install the darning plate. (1) Change the all purpose foot to
the button sewing foot. (2) Set the stitch length to "0".
To sew a few securing stitches, set the machine for straight
stitch, with the stitch width set at "0".
Raise the needle out of the fabric. Set the machine for zig-
zag stitch, then set the width to number "3" - "5". Turn the
handwheel to check that the needle goes cleanly into the left
and right holes of the button. Adjust the stitch width, as
needed, according to the distance between the holes of the
button. Slowly sew on the button with about 10 stitches.
Raise the needle out of the fabric. Set the machine for
straight stitch again, with the width at "0" sew a few securing
stitches to finish.
If a shank is required, place a darning needle on top of the
button and sew. (4)
For buttons with 4 holes, sew through the front two holes first,
push the work forward and then sew through the back two
holes.
1 2
4
3
2
Installing the Removable Accessory Storage
22
Hold the removable accessory storage horizontally, and push
it in the direction of the arrow. (1)
To remove the accessory storage, pull it toward the left.
The standard accessories are contained inside the
removable accessory storage compartment.
To open, flip cover down as shown. (2)
1

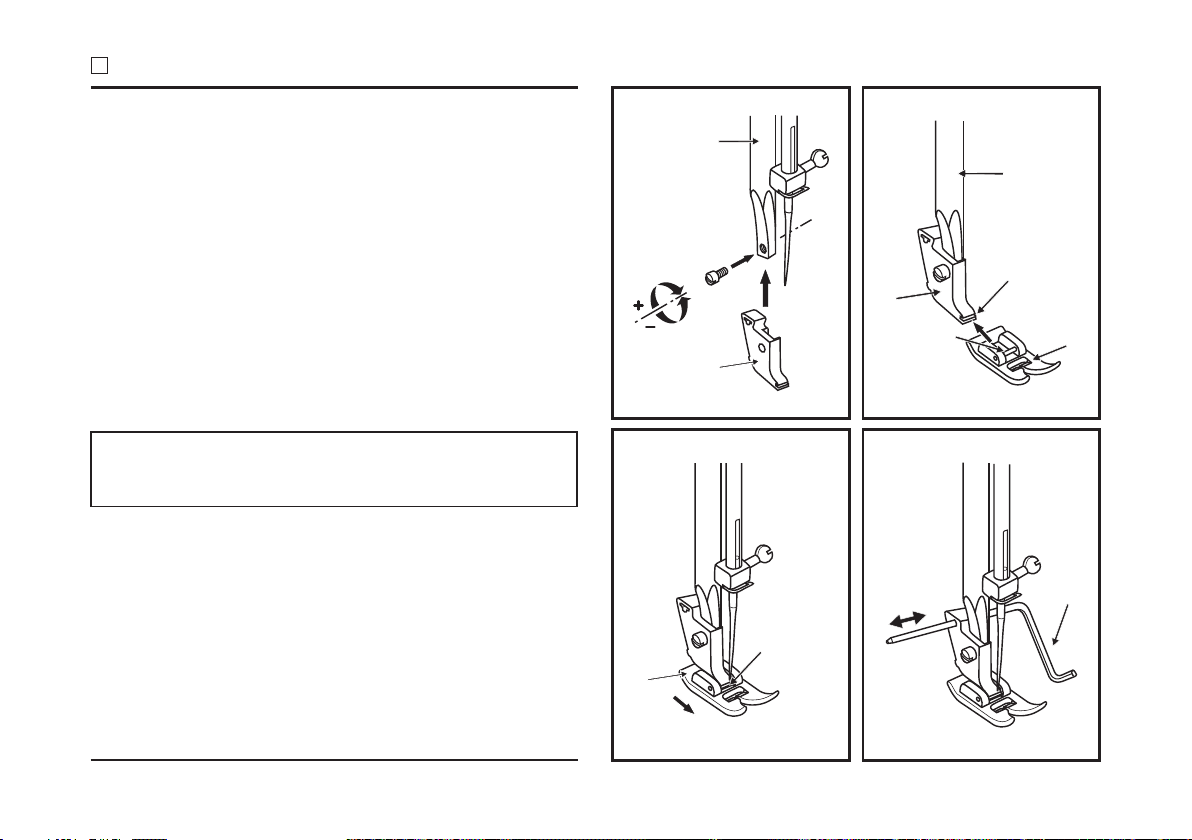

Attaching the Presser Foot Shank
23
1
3
2
Raise the presser bar (a) with the presser foot lifter. Attach
the presser foot shank (b) as illustrated. (1)
Install the pin (d) of the presser foot (e) into the cut-out (c) of
the presser foot shank. (2)
Push the presser foot (e) to disengage from the cut-out (c). (3)
Attach the edge/quilting guide (f) in the slot as illustrated.
Adjust as needed for hems, pleats, quilting, etc. (4)
Turn power switch to off ("O") when carrying out any of
the above operations!
Attaching the presser foot
Removing the presser foot
Attaching the edge/quilting guide
Attention:
4
e
c
f
a
b
a
c
d
e
b
24
N Charteedle/ Fabric/ Thread
Heavy woolen, overcoat fabrics, upholstery fabrics, some
leathers and vinyls.
EXPLANATION
Standard sharp needles. Sizes range
thin to large. 9 (70) to 18 (110).
Semi-ball point needle, scarfed.
9 (70) to 18 (110).
Leather needles. 12 (80) to 18 (110).
SINGER
®
2020
SINGER
®
2045
SINGER
®
2032
9-11 (70-80)
11-14 (80-90)
14 (90)
16 (100)
18 (110)
NEEDLE, FABRIC, THREAD SELECTION GUIDE
NEEDLE SIZE
FABRICS
THREAD
NEEDLE, FABRIC SELECTION
IMPORTANT: Match needle size to thread size and weight of fabric.
Lightweight fabrics-thin cottons, voile, silk, muslin,
interlocks, cotton knits, tricots, jerseys, crepes, woven
polyester, shirt & blouse fabrics.
Light-duty thread in cotton, nylon, polyester or
cotton wrapped polyester.
Medium weight fabrics-cotton duck, woolen, heavier knits,
terrycloth, denims.
Heavyweight fabrics-canvas, woolens, outdoor tent and
quilted fabrics, denims, upholstery material (light to medium).
Heavy duty thread.
Most threads sold are medium size and suitable
for these fabrics and needle sizes.
Use polyester threads on synthetic materials
and cotton on natural woven fabrics for best
results.
Always use the same thread on top and bottom.
Medium weight fabrics-cotton, satin, kettlecloth, sailcloth,
double knits, lightweight woolens.
NEEDLES TYPE OF FABRIC
Natural woven fabrics-wool, cotton, silk, etc.
Not recommended for double knits.
Natural and synthetic woven fabrics, polyester blends.
Knits-polyesters, interlocks, tricot, single and double knits.
Also sweater knits, Lycra , swimsuit fabric, elastic.
®
Leather, vinyl, upholstery. (Leaves smaller hole than standard
large needle.)
Note :
1. For best sewing results always use genuine SINGER needles.
2. Replace needle often (approximately every other garment ) and/ or at first thread breakage or skipped stitches.
®
Darning Plate
25
For certain types of work, (e.g. darning or free-hand
embroidery), the darning plate must be used.
Install the darning plate as illustrated.
For normal sewing, remove the darning plate.
For free-motion sewing it is recommended to use a
darning/embroidery foot, available as an optional accessory
from SINGER retailers. (See page 6 for part number of
darning/embroidery foot )
®
26
A
C
B
A
B
C
D
1
2

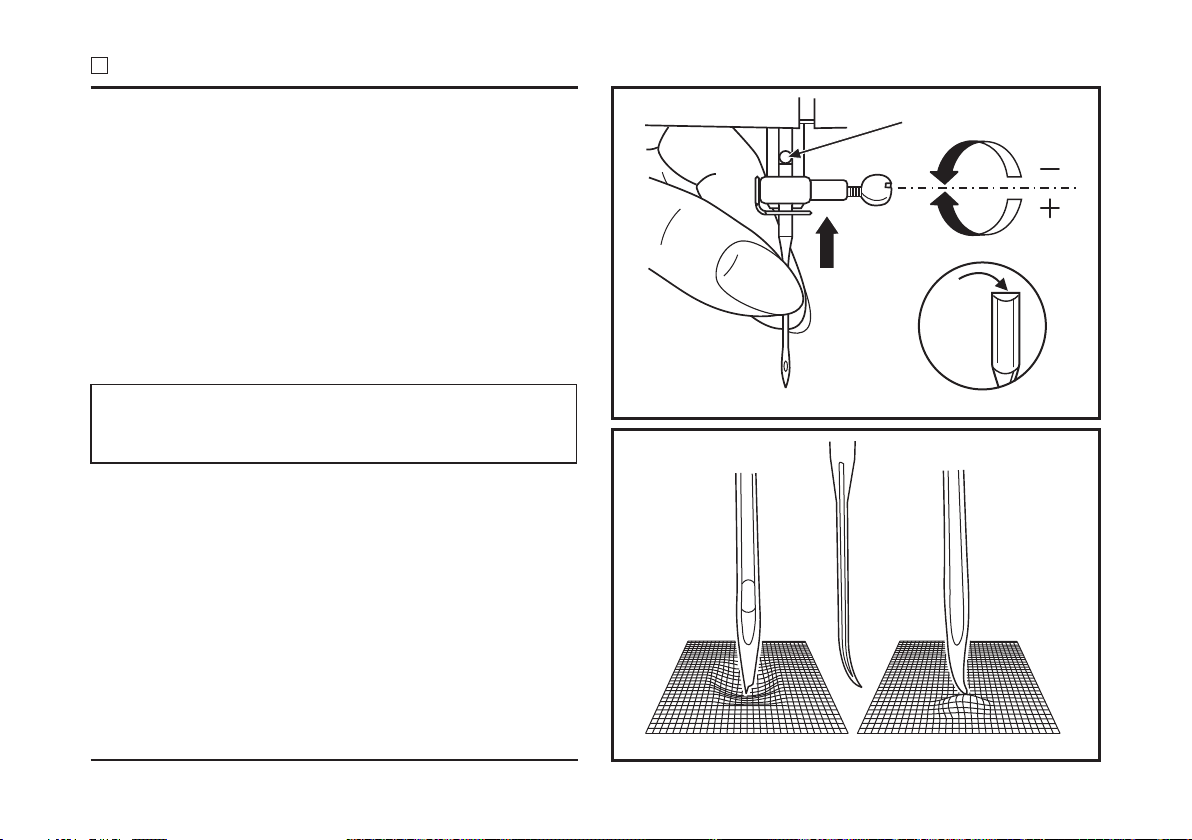

Inserting & Changing Needle
Change the needle regularly, especially if it is showing signs
of wear and causing problems. For best sewing results
always use SINGER brand needles.
Insert the needle
A. Loosen the needle clamp screw and tighten again after
inserting the new needle. (1)
B. The flat side of the shaft should be towards the back.
C/D. Insert the needle as far up as it will go.
Turn power switch to off ("O") before inserting or
removing the needle.
Needles must be in perfect condition. (2)
Problems can occur with:
A. Bent needles
B. Damaged points
C. Blunt needles
®
Attention:
as illustrated as follows:

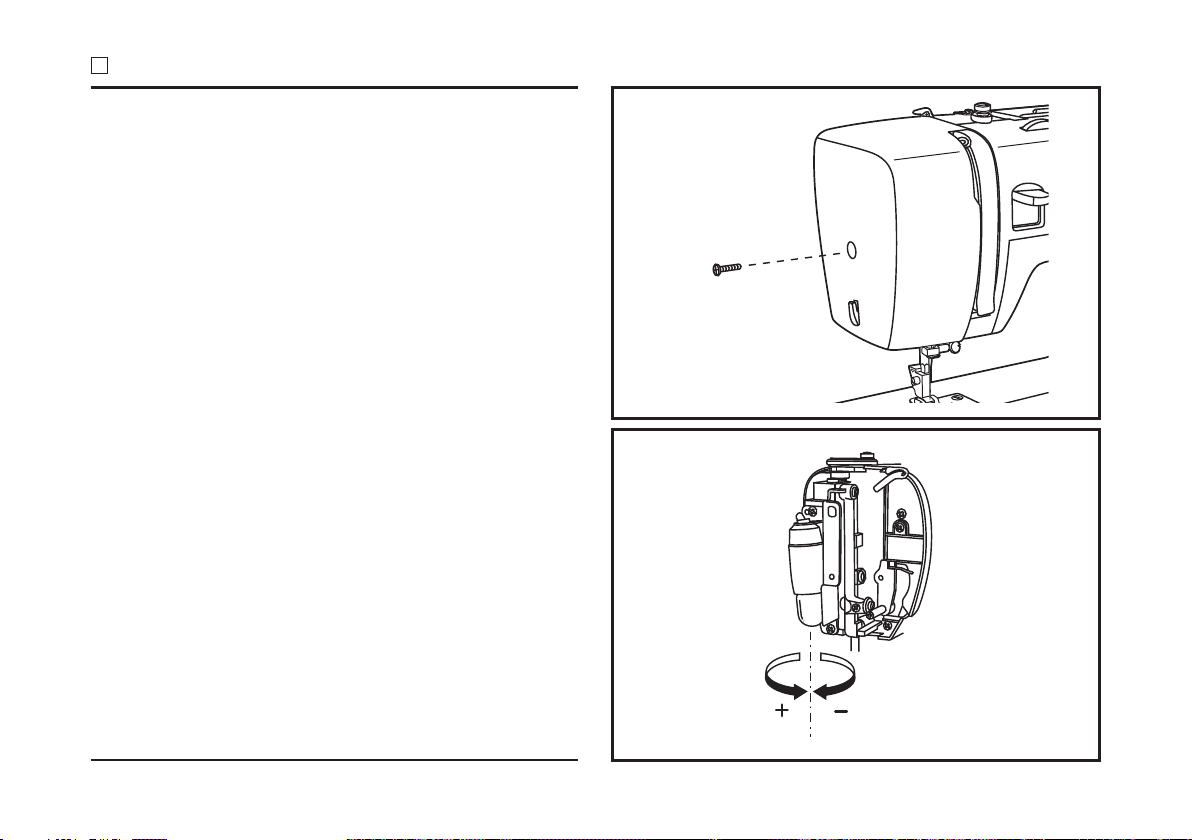

Changing the Bulb
27
Disconnect the machine from the power supply by removing
the plug from the socket!
Replace bulb with same type rated 10 watts (110-120V area)
or 15 watts (220-240V area).
- Loosen screw (A) as illustrated. (1)
- Remove the face plate (B).
- Unscrew the bulb and install a new one (C). (2)
- Replace the face plate and tighten screw.
Should there be any problem, consult your SINGER retailer.
®
electrical
C
1
2
A
B
28
Troubleshooting Guide
Problem Cause Correction
Upper thread breaks
Lower thread breaks
Skipped stitches
Needle breaks
Loose stitches
Seams gather
or pucker
Uneven stitches,
uneven feed
The machine is
noisy
The machine jams
1. The machine is not threaded correctly.
2. The thread tension is too tight.
3. The thread is too thick for the needle.
4. The needle is not inserted correctly.
5. The thread is wound around the spool holder pin.
6. The needle is damaged.
1. The bobbin case is not inserted correctly.
2. The bobbin case is threaded wrong.
3. The lower thread tension is too tight.
1. The needle is not inserted correctly.
2. The needle is damaged.
3. The wrong size or type of needle has been used.
4. The foot is not attached correctly.
1. The needle is damaged.
2. The needle is not correctly inserted.
3. Wrong needle size for the fabric.
4. The wrong foot is attached.
1. The machine is not correctly threaded.
2. The bobbin case is not correctly threaded.
3. Needle/ fabric/ thread combination is wrong.
4. Thread tension wrong.
1. The needle is too thick for the fabric.
2. The stitch length is incorrectly adjusted.
3. The thread tension is too tight.
1. Poor quality thread.
2. The bobbin case is incorrectly threaded.
3. Fabric has been pulled.
1. The machine must be lubricated.
2. Lint or oil have collected on the hook or needle bar.
3. Poor quality oil has been used.
4. The needle is damaged.
Thread is caught in the hook.
1. Rethread the machine.
2. Reduce the thread tension. (lower number)
3. Select a larger needle.
4. Remove and reinsert the needle. (flat side towards the back)
5. Remove the reel and wind thread onto reel.
6. Replace the needle.
1. Remove and reinsert the bobbin case and pull on the thread.
The thread should pull easily.
2. Check both bobbin and bobbin case.
3. Loosen lower thread tension as described.
1. Remove and reinsert needle. (flat side towards the back)
2. Insert a new needle.
3. Choose a needle to suit the thread and fabric.
4. Check and attach correctly.
1. Insert a new needle.
2. Insert the needle correctly. (flat side towards the back)
3. Choose a needle to suit the thread and fabric.
4. Select the correct foot.
1. Check the threading.
2. Thread the bobbin case as illustrated.
3. The needle size must suit the fabric and thread.
4. Correct the thread tension.
1. Select a finer needle.
2. Readjust the stitch length.
3. Loosen the thread tension.
1. Select a better quality thread.
2. Remove bobbin case, thread and insert correctly.
3. Do not pull on the fabric while sewing, let it be drawn through
by the machine.
1. Lubricate as described.
2. Clean the hook and feed dog as described.
3. Only use good quality sewing machine oil.
4. Replace the needle.
Remove the upper thread and bobbin case, turn the handwheel
backwards and forwards by hand and remove the thread.
Lubricate as described.
021K6D0106(B)(EN)
Please note that on disposal, this product must be safely recycled in accordance with relevant
National legislation relating to electrical/electronic products. Do not dispose of electrical appliances
as unsorted municipal waste, use separate collection facilities. Contact your local government for
information regarding the collection systems available. When replacing old appliances with new ones,
the retailer may be legally obligated to take back your old appliance for disposal free of charge.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your health and well-being.
