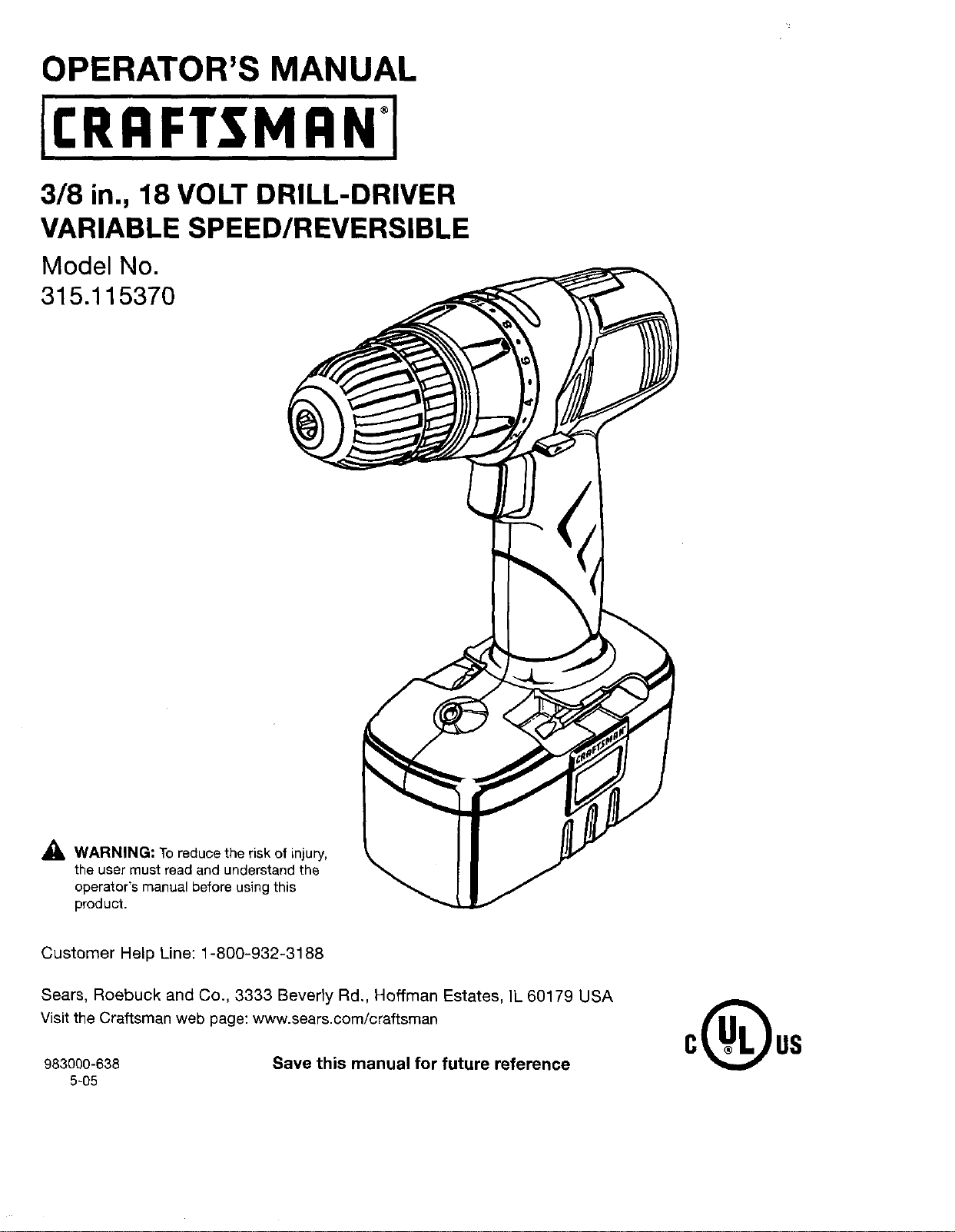

OPERATOR'S MANUAL
II:RRFTSMRN°I
3/8 in., 18 VOLT DRILL-DRIVER
VARIABLE SPEED/REVERSIBLE
Model No.
315.115370
_, WARNING: To reduce the risk of injury,
the user must read and understand the
operator's manual before using this
product.
Customer Help Line: 1-800-932-3188
Sears, Roebuck and Co., 3333 Beverly Rd., Heffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman
983000-638
5-05
Save this manual for future reference

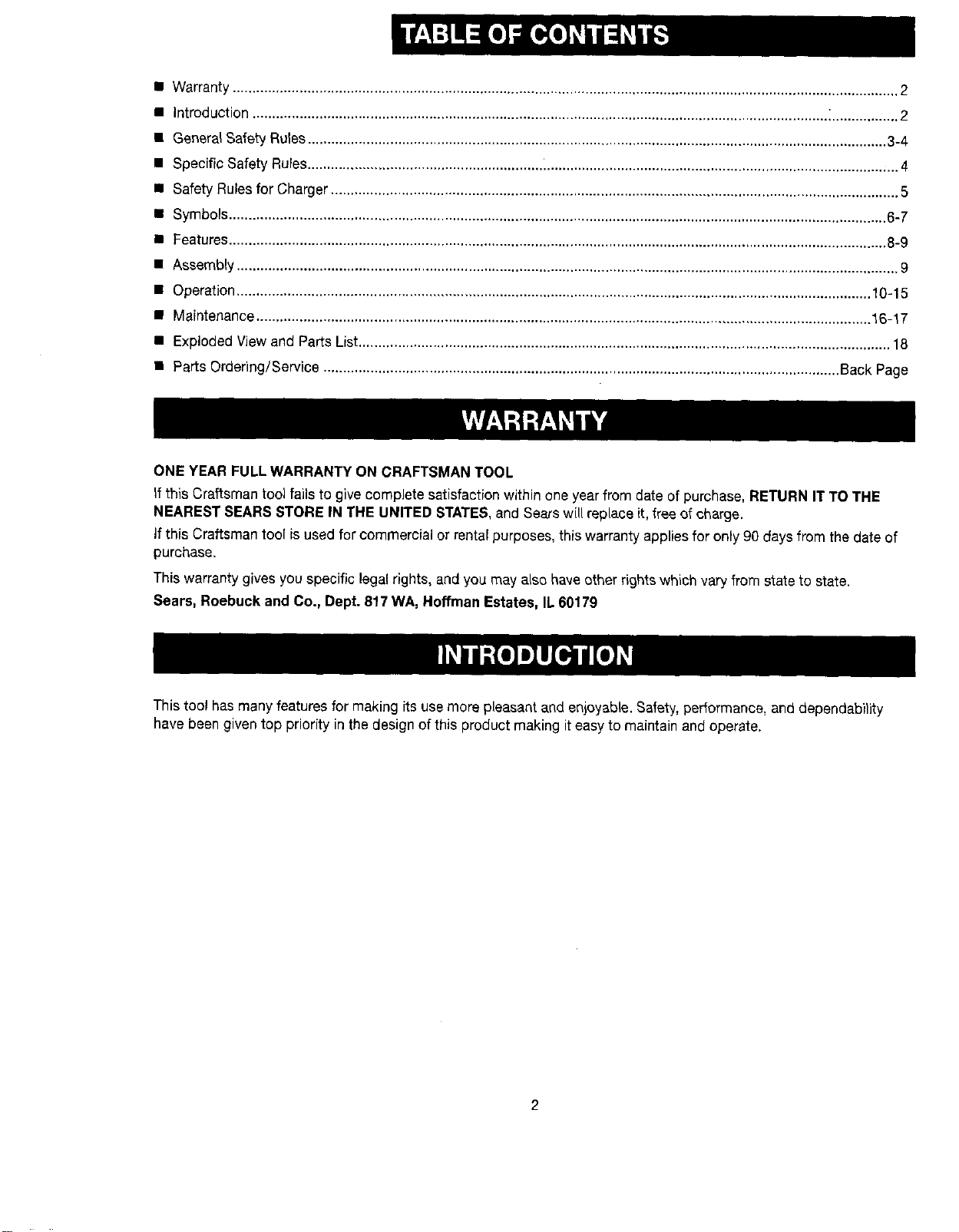

• Warranty .......................................................................................................................................................................... 2
• Introduction ................................................................................................................................................... :.................2
• General Safety Rules.................................................................................................................................................... 3-4
• Specific Safety Rules............................................................ _...................................................................................... ;...4
• Safety Rulesfor Charger ................................................................................................................................................. 5

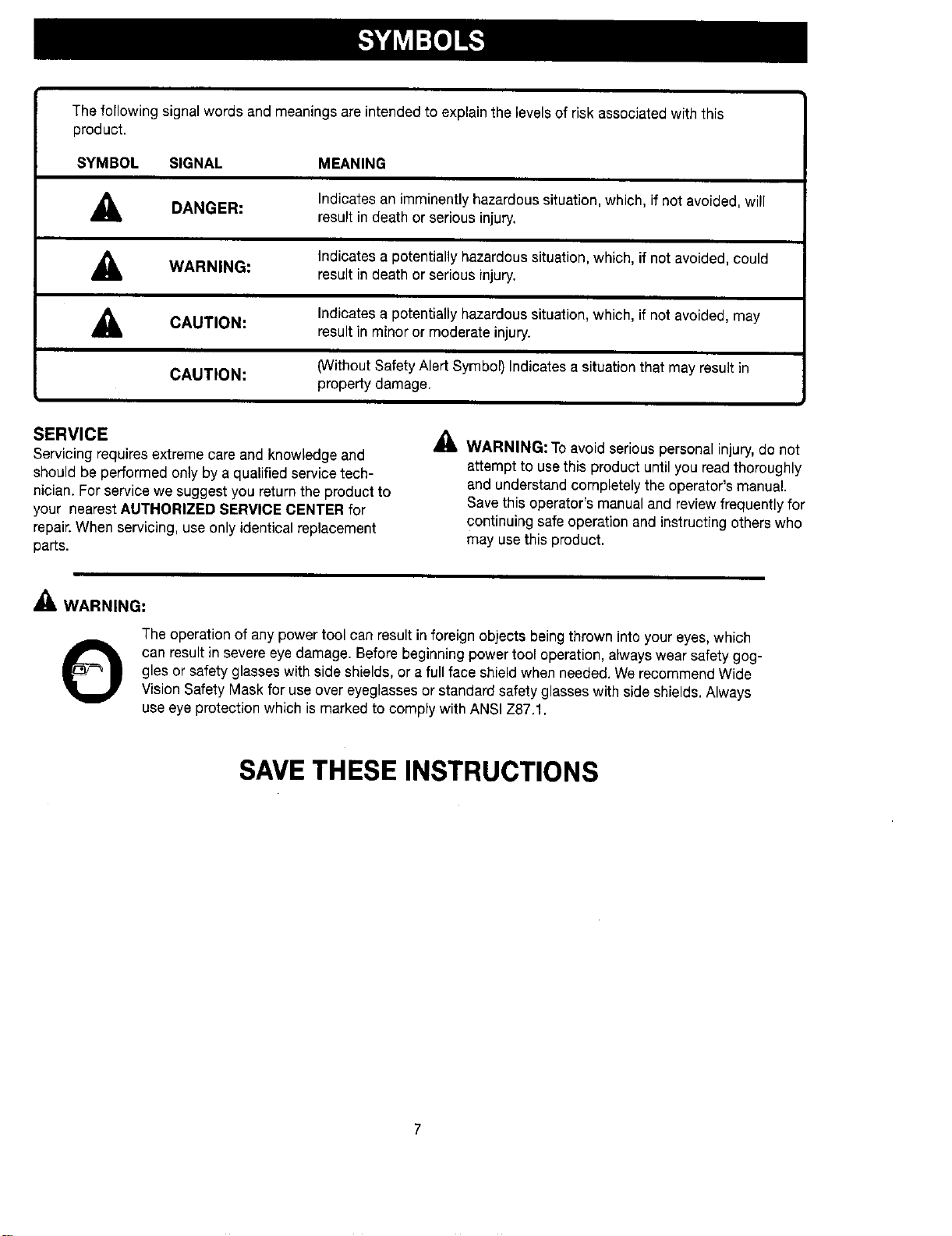

• Symbols ........................................................................................................................................................................ 6-7

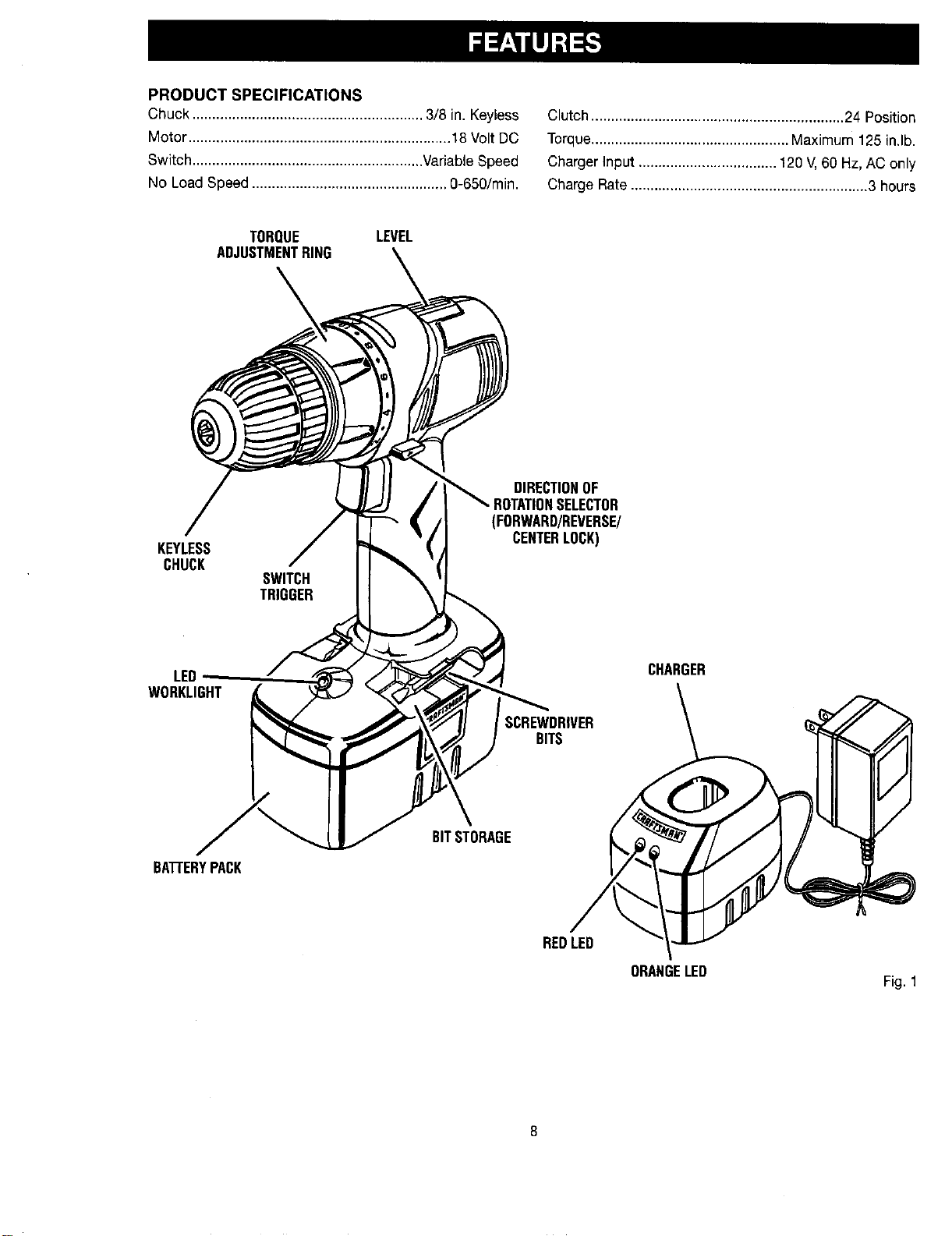

• Features........................................................................................................................................................................ 8-9
• Assembly ......................................................................................................................................................................... 9
• Operation .................................................................................................................................................................. 10-15

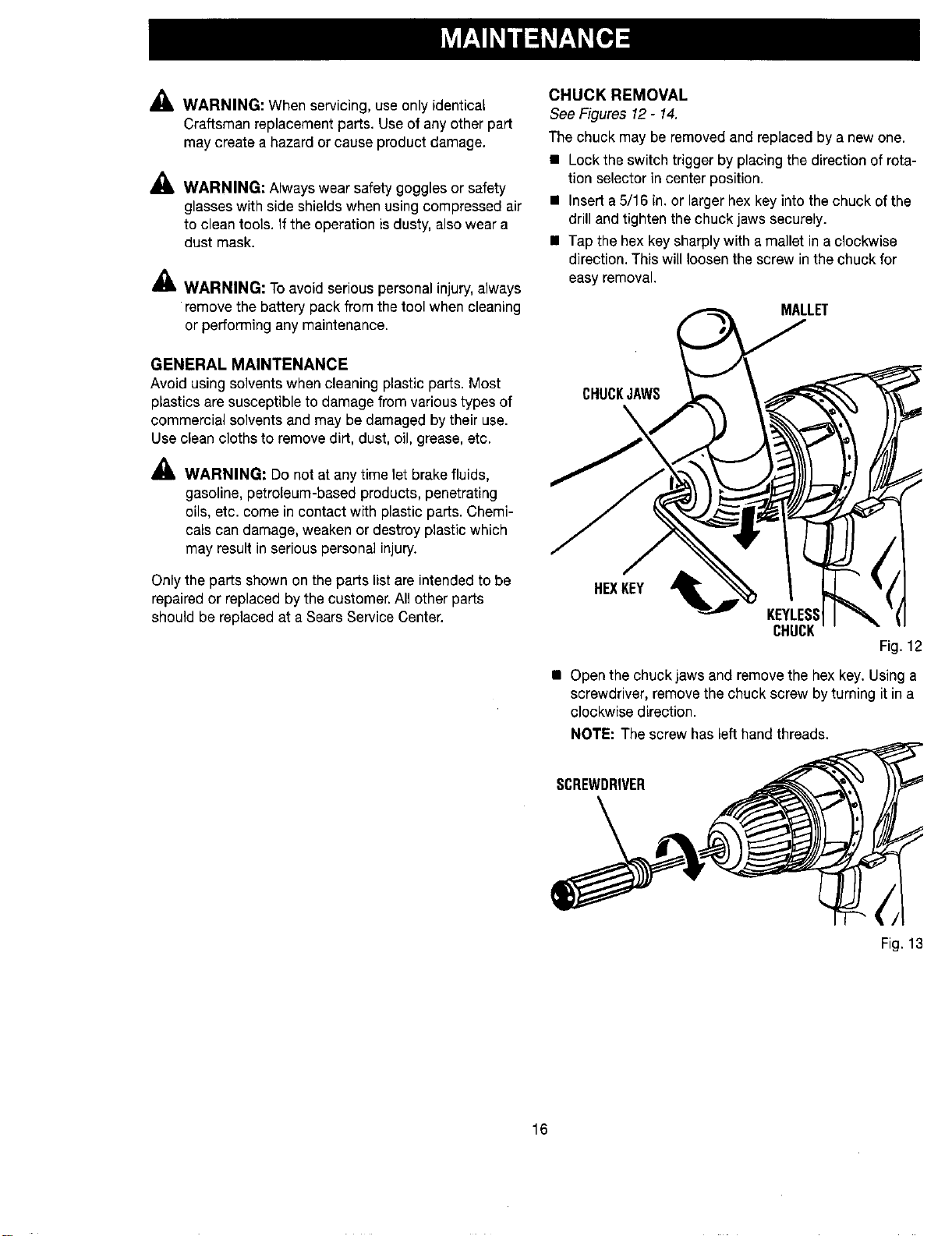

• Maintenance ............................................................................................................................................................. 16-17

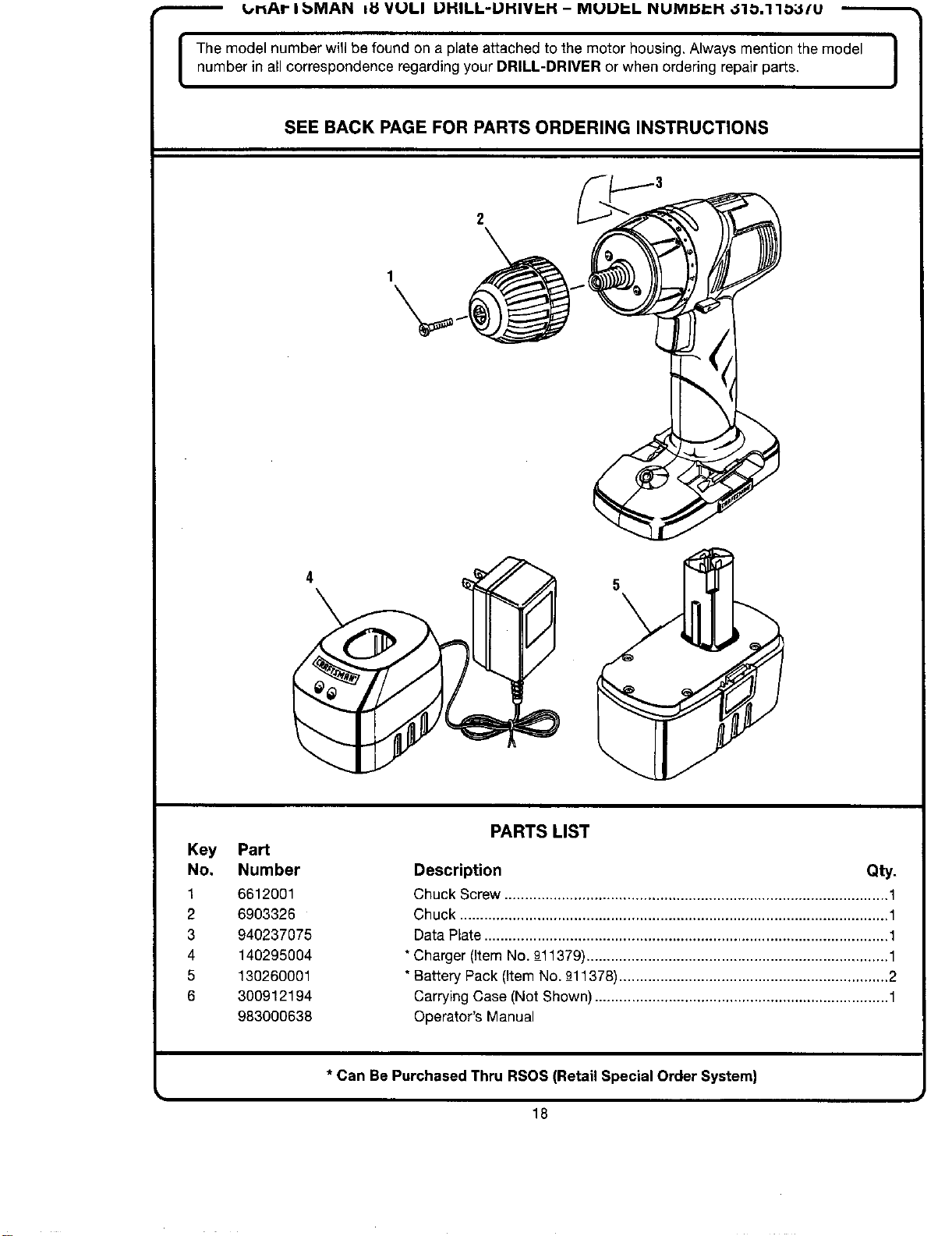

• Exploded View and Parts List........................................................................................................................................ 18
• Parts Ordering/Service .................................................................................................................................... Back Page
ONE YEAR FULL WARRANTY ON CRAFTSMAN TOOL
If this Craftsman tool fails to give complete satisfaction within one year from date of purchase, RETURN IT TO THE
NEAREST SEARS STORE IN THE UNITED STATES,and Sears will replace it, free of charge,
If this Craftsman tool is used for commercial or rental purposes, this warranty applies for only 90 days from the date of
purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to maintain and operate.

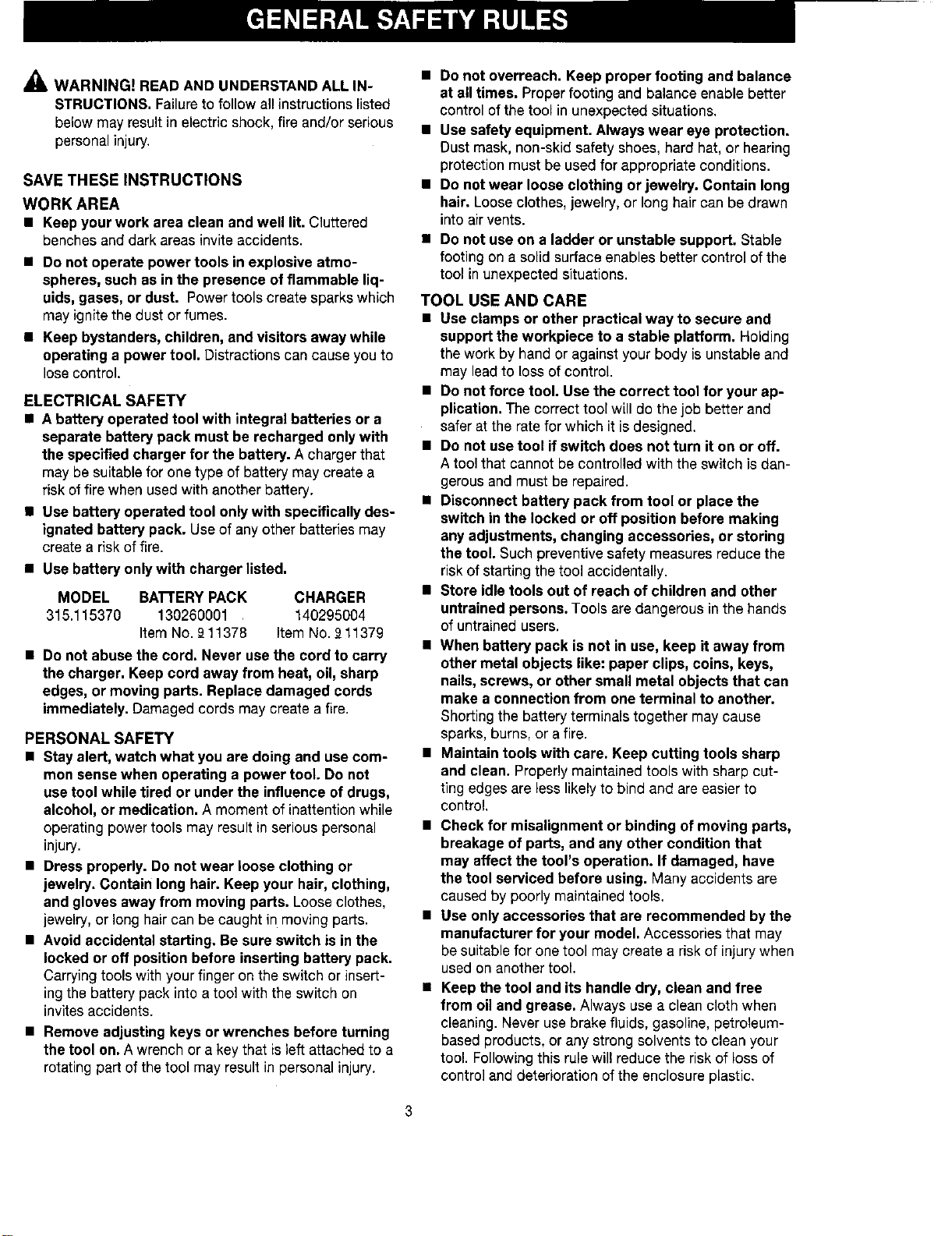

_, WARNING! READAND UNDERSTAND ALL IN-
STRUCTIONS. Failureto follow all instructions listed
below may result in electric shock, fire and/or serious
personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
• Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liq-
uids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
• Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you to
losecontrol.
ELECTRICAL SAFETY
• A battery operated tool with integral batteries or a
separate battery pack must be recharged onlywith
the specified charger for the battery. A chargerthat
may be suitable for one type of battery may create a
risk of fire when used with another battery.
• Use battery operated tool onlywith specifically des-
ignated battery pack. Use of anyotherbatteries may
create a risk of fire.
• Use battery only with charger listed.
MODEL BA'B'ERYPACK CHARGER
315.115370 130260001 . 140295004
Item No. _ 11378 Item No. _ 11379
• Do not abuse the cord. Never use the cord to carry
the charger. Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged cords
immediately. Damaged cords may create a fire.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not
usetool while tired or under the influence of drugs,
alcohol, or medication. A moment of inattentionwhile
operating power tools may result in serious personal
injury.
• Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
• Avoidaccidental starting. Be sure switch is in the
locked or off position before inserting battery pack.
Carrying tools with your finger on the switch or insert-
ing the battery pack into a tool with the switch on
invites accidents.
• Remove adjusting keys or wrenches before turning
the tool on. A wrench or a key that is left attached to a
rotating part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
controlofthetool inunexpectedsituations.
• Use safety equipment. Always wear eye protection.
Dustmask,non-skidsafety shoes, hard hat, or hearing
protection must be usedfor appropriateconditions.
• Do not wear loose clothing or jewelry. Contain long
hair, Looseclothes,jewelry,or longhair canbe drawn
intoairvents.
• Do not use on a ladder or unstable support. Stable
footingon a solidsurface enablesbetter control ofthe
toolinunexpectedsituations.
TOOL USE AND CARE
• Use clamps or other practical way to secure and
support the workpiece to a stable platform. Holding
the work by hand or against your body is unstable and
may lead to loss of control.
• Do not force tool. Use the correct tool for your ap-
plication. The correct tool wLIIdo thejob better and
safer at the ratefor which it is designed.
• De not use tool if switch does notturn it on or off.
A tool that cannot be controlled with the switch is dan-
gerous and must be repaired.
• Disconnect battery pack from tool or place the
switch in the locked or off position before making
any adjustments, changing accessories, or storing
the tool. Such preventive safety measures reduce the
risk of starting the tool accidentally.
• Store idle tools out of reach of children and other
untrained persons. Tools are dangerous in the hands
of untrained users.
• When battery pack is net in use, keep it away from
other metal objects like: paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
sparks, burns, or a fire.
• Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp cut-
ting edges are less likely to bind and are easier to
control.
• Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that
may affect the tool's operation. If damaged, have
the tool serviced before using, Many accidents are
caused by poorly maintained tools.
• Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may create a risk of injury when
used on another tool.
Keep the tool and its handle dry, clean and free
from oil and grease. Always use a clean cloth when
cleaning. Never use brake fluids, gasoline, petroleum-
based products, or any strong solvents to clean your
tool. Following this rule will reduce the risk of loss of
control and deterioration of the enclosure plastic.

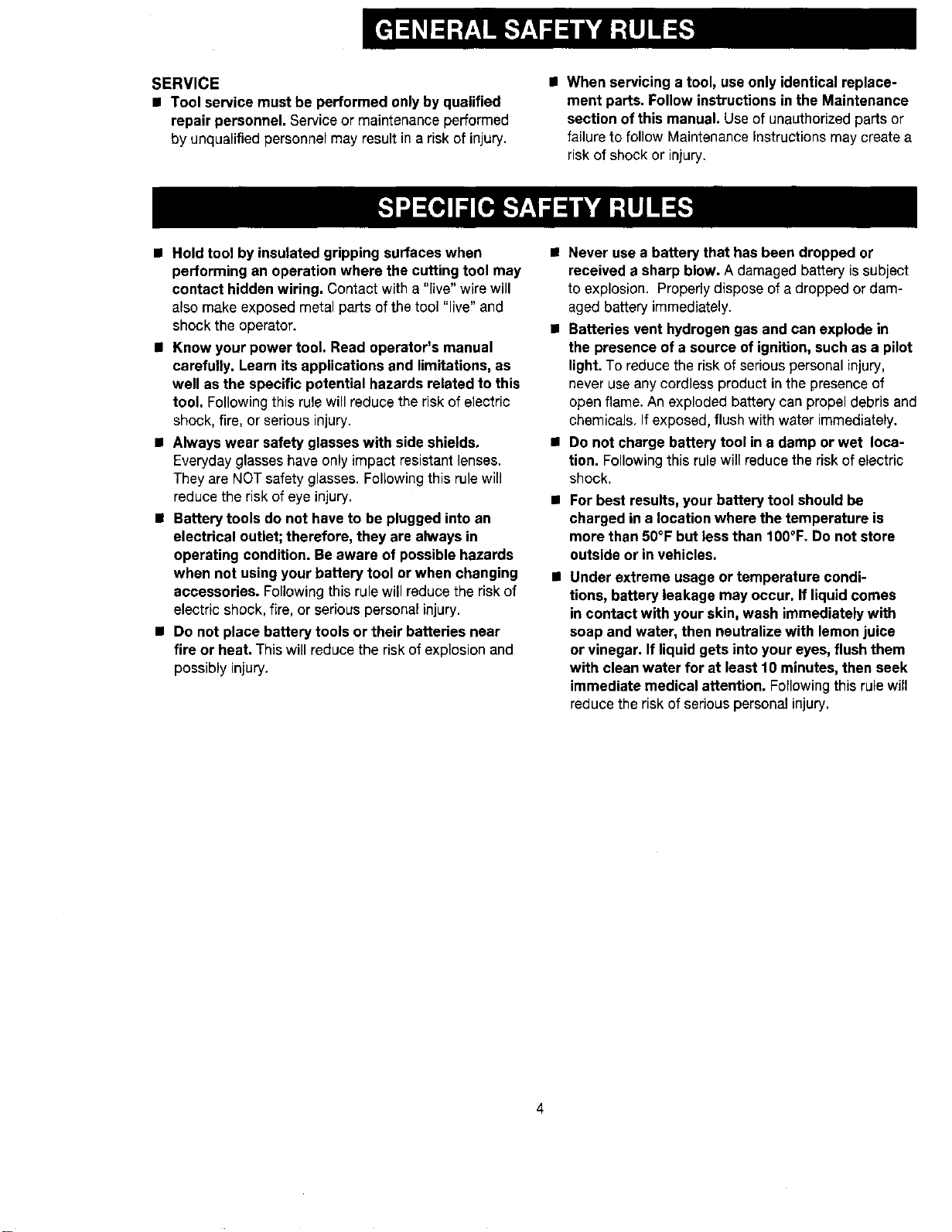

SERVICE
• Tool service must be performed onlyby qualified
repair personnel. Serviceor maintenance performed
by unqualifiedpersonnelmay resultina riskof injury.
• When servicing a tool, use only identical replace-
ment parts, Follow instructions in the Maintenance
section of this manual, Use ofunauthorizedpartsor
failureto follow Maintenance Instructions may create a
risk of shock or injury.
• Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring. Contactwith a "live" wire will
also make exposedmetal parts ofthetool"live" and
shockthe operator.
• Know your power tool. Read operator's manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to this
tool. Following this rulewill reduce the risk of electric
shock, fire, or serious injury.
• Always wear safety glasses with side shields,
Everydayglasseshaveonlyimpact resistantlenses.
They areNOT safetyglasses.Followingthis rulewill
reducethe riskofeye injury.
• Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool or when changing
accessories. Followingthisrulewillreducethe riskof
electric shock, fire, or serious personal injury.
• Do not place battery tools or their batteries near
fire or heat. This will reduce the risk of explosion and
possibly injury.
• Never use a battery that has been dropped or
received a sharp blow. A damaged battery issubject
to explosion. Properly dispose of a dropped or dam-
aged battery immediately.
• Batteries vent hydrogen gas and can explode in
the presence of a source of ignition, such as a pilot
light. To reduce the risk of serious personal injury,
never use any cordless product in the presence of
open flame. An exploded battery can propel debris and
chemicals, If exposed, flush with water immediately.
• Do not charge battery tool in a damp or wet loca-
tion. Following this rule willreduce the risk of electric
shock.
• For best results, your battery tool should be
charged in a location where the temperature is
more than 50°F but lessthan 100°F. Do not store
outside or in vehicles,
• Under extreme usage or temperature condi-
tions, battery leakage may occur. If liquid comes
in contact with your skin, wash immediately with
soap and water, then neutralize with lemon juice
or vinegar. If liquid gets into your eyes, flush them
with clean water for at least tO minutes, then seek
immediate medical attention. Following this rule will
reduce the risk of serious personal injury.

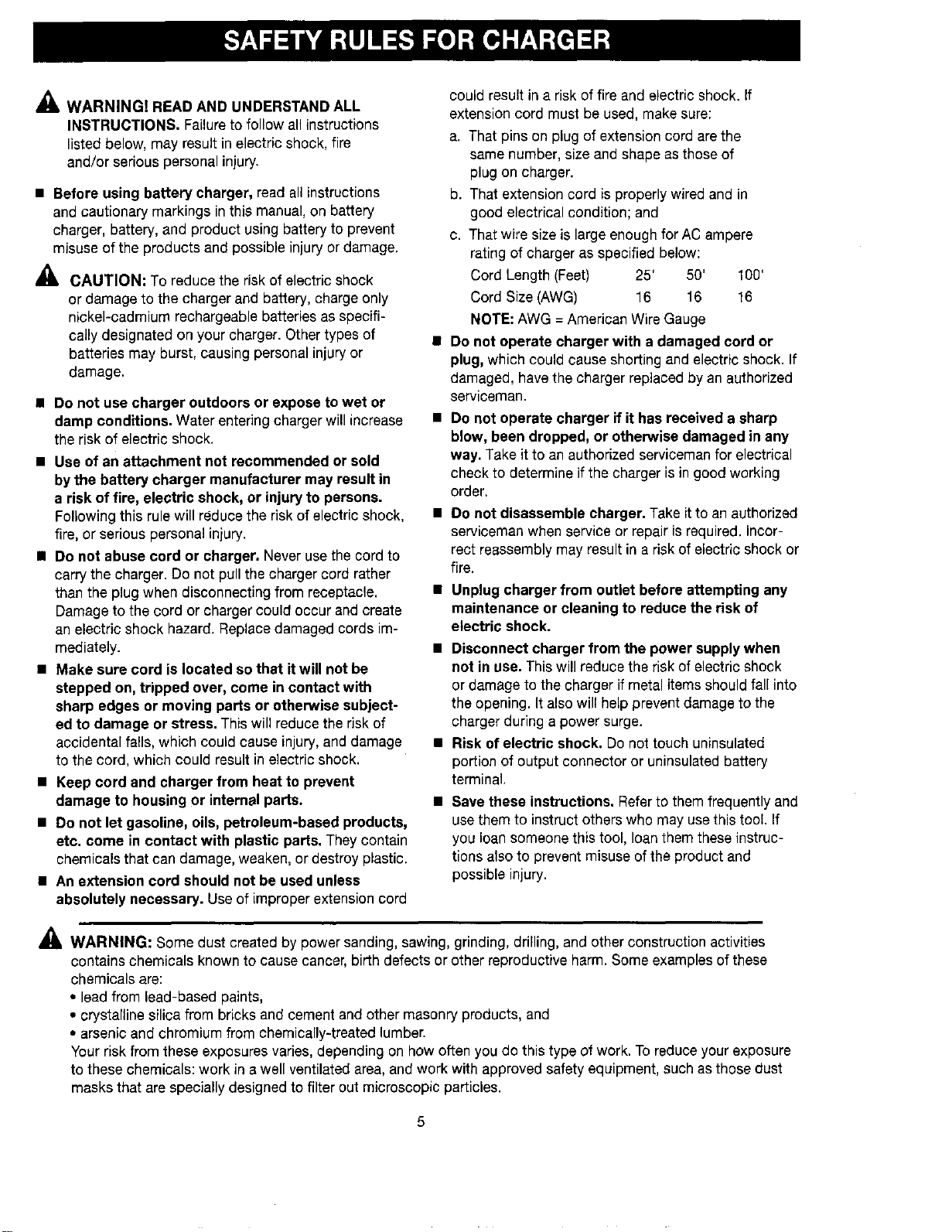

_1=WARNING! READ AND UNDERSTAND ALL
INSTRUCTIONS. Failureto followall instructions
listedbelow, may result inelectric shock, fire
and/or serious personal injury.
• Before using battery charger, read all instructions
and cautionarymarkings inthismanual, on battery
charger, battery, and product usingbattery to prevent
misuse of the products and possible injury or damage.
A_. CAUTION: To reduce the risk of electricshock
or damage to the charger and battery, charge only
nickel-cadmium rechargeable batteries as specifi-
cally designated on your charger. Other types of
batteries may burst, causing personal injury or
damage.
• Do not use charger outdoors or expose to wet or
damp conditions. Water enteringchargerwillincrease
the risk of electric shock.
• Use of an attachment not recommended or sold
bythe battery charger manufacturer may result in
a risk of fire, electric shock, or injury to persons.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
• Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather
than the plug when disconnecting from receptacle.
Damage to the cord or charger could occur and create
an electric shock hazard. Replace damaged cords im-
mediately.
• Make sure cord islocated sothat itwill not be
stepped on, tripped over, come in contact with
sharp edges or moving parts or otherwise subject-
ed to damage or stress. This will reduce the risk of
accidental falls, which could cause injury, and damage
to the cord, which could result in electric shock.
• Keep cord and charger from heat to prevent
damage to housing or internal parts.
• Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals thatcan damage, weaken, ordestroy plastic.
• An extension cord should not be used unless
absolutely necessary. Use ofimproper extensioncord
could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plug of extension cord are the
same number, size and shape as those of
plug on charger.
b. That extension cord is properly wired and in
good electrical condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
NOTE=AWG =American Wire Gauge
• Do not operate charger with a damaged cord or
plug, whichcould cause shorting and electric shock. If
damaged, have the charger replaced by an authorized
serviceman.
• Do not operate charger if it has received s sharp
blow, been dropped, or otherwise damaged in any
way. Take it to an authorized serviceman for electrical
check to determine if the charger is in good working
order.
• Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incor-
rect reassembly may result in a risk of electric shock or
fire.
• Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of
electric shock.
• Disconnect charger from the power supplywhen
not in use. Thiswillreducetherisk of electricshock
or damageto the chargerifmetalitemsshould fall into
the opening.Italsowill help preventdamageto the
charger during a powersurge.
• Risk of electric shock. Do not touchuninsulated
portion ofoutputconnector or uninsulatedbattery
terminal.
• Save these instructions, Refer to them frequently and
use them to instruct others who may use this tool. If
you loan someone this tool, loan them these instruc-
tions also to prevent misuse of the product and
possible injury.
_ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies,depending on how often you do this type of work. To reduce your exposure
to these chemicals: work in a well ventilated area, andwork with approved safety equipment, such asthose dust
masks that are specially designed to filter out microscopic particles.
5

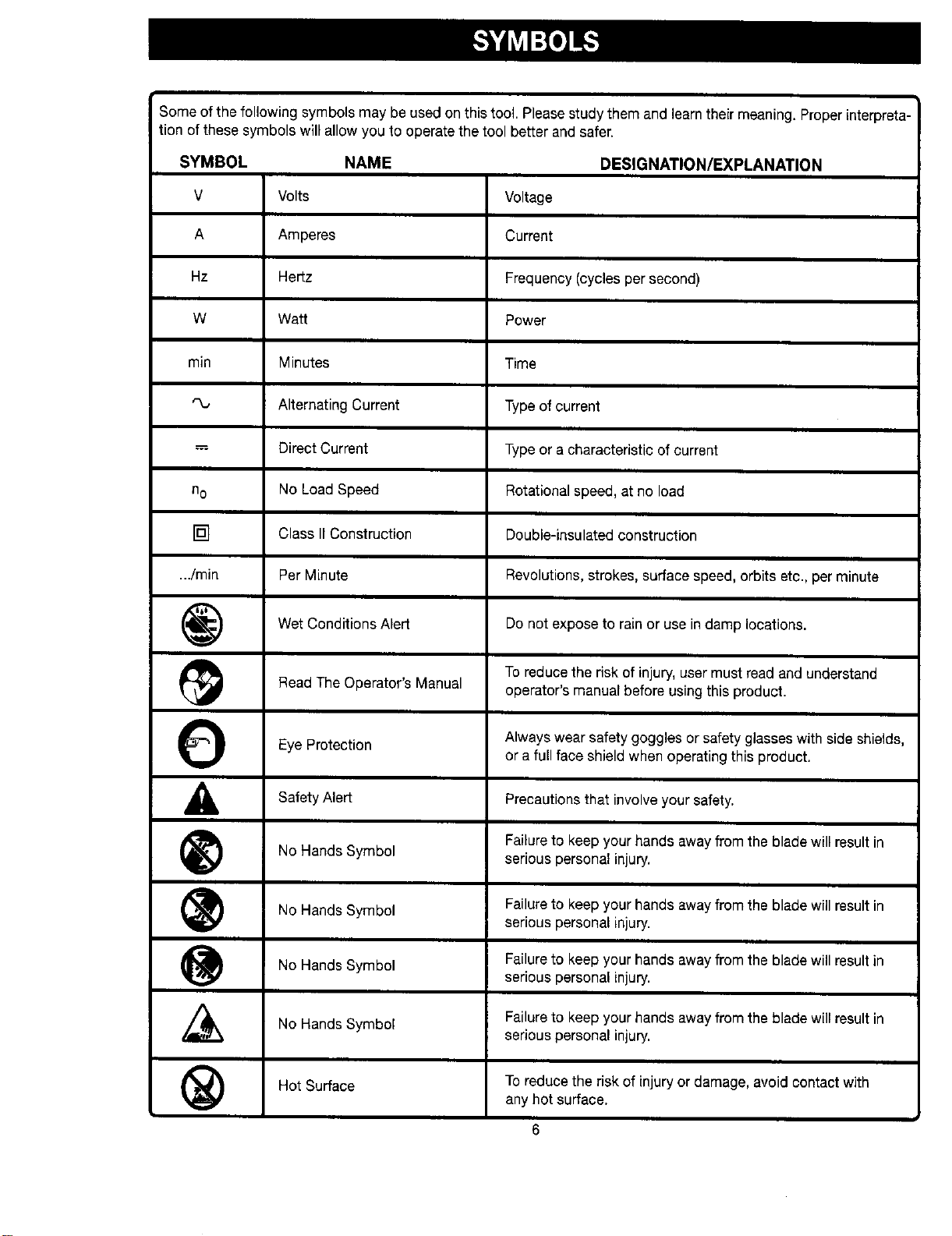

Someofthefollowingsymbolsmaybeusedonthistool.Pleasestudythemandlearntheirmeaning.Properinterpreta-
tion of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIG NATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
"-',-, Alternating Current Typeof current
= Direct Current Typeor a characteristic of current
no No Load Speed Rotational speed, at no load
[] Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
Wet Conditions Alerf Do not to rain in locations.
expose
or
use
damp
i_ Toreduce the risk of injury, user must read and understandRead The Operator's Manual operator's manual before using this product.
O Always wear safety goggles or safety glasses with side shields,
Eye
Protection
or a full face shield when operating this product.
,_ Safety Precautions that involve your safety.
Alert
i_ Failureto keep your hands away from the blade will result in
No Hands Symbol serious personal injury.
I_ No Hands Failureto keep your hands away from the blade will result in
Symbol
serious personal injury.
I_ No Hands Failureto keep your hands away from the blade will result in
Symbol
serious personal injury.
Failureto keep your hands away from the blade will result in
No Hands
Symbol
serious personal injury.
Hot Surface Toreduce the risk of injury or damage, avoid contact with
any hot surface.
6
Thefollowingsignalwordsandmeaningsareintendedtoexplainthelevelsofriskassociatedwiththis
product.
SYMBOL SIGNAL MEANING
,_ DANGER:
Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
,_ WARNING:
Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION:
(Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SERVICE
Servicing requires extreme care and knowledge and
should be performed only by a qualified service tech-
nician. Forservice we suggest you return the product to
your nearest AUTHORIZED SERVICE CENTER for
repair.When servicing, use only identical replacement
parts.
WARNING: To avoid serious personal injury, do not
attempt to use this product until you read thoroughly
and understand completely the operator's manual.
Save this operator's manual and review frequently for
continuing safe operation and instructing others who
may use this product.
_1, WARNING:
O
The operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eyedamage. Before beginning power tool operation, always wear safety gog-
gles or safety glasses with side shields, or a full face shield when needed. We recommend Wide
Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always
use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
PRODUCT SPECIFICATIONS
Chuck .......................................................... 3/8 in. Keyless
Motor.................................................................. 18 VoltDC
Switch.......................................................... VariableSpeed
No LoadSpeed ................................................. 0-650/min.
Clutch ................................................................24 Position
Torque.................................................. Maximum 125 in.lb.
Charger Input ................................... 120V,60 Hz,AC only
Charge Rate ............................................................3 hours
TORQUE LEVEL
ADJUSTMENTRING
\
KEYLESS
CHUCK
SWITCH
TRIGGER
DIRECTIONOF
ROTATIONSELECTOR
(FORWARD/REVERSE/
CENTERLOCK)
LED
WORKLIGHT
SCREWDRIVER
BITS
CHARGER
BATrERYPACK
BITSTORAGE
REDLED
ORANGELED
Fig. 1

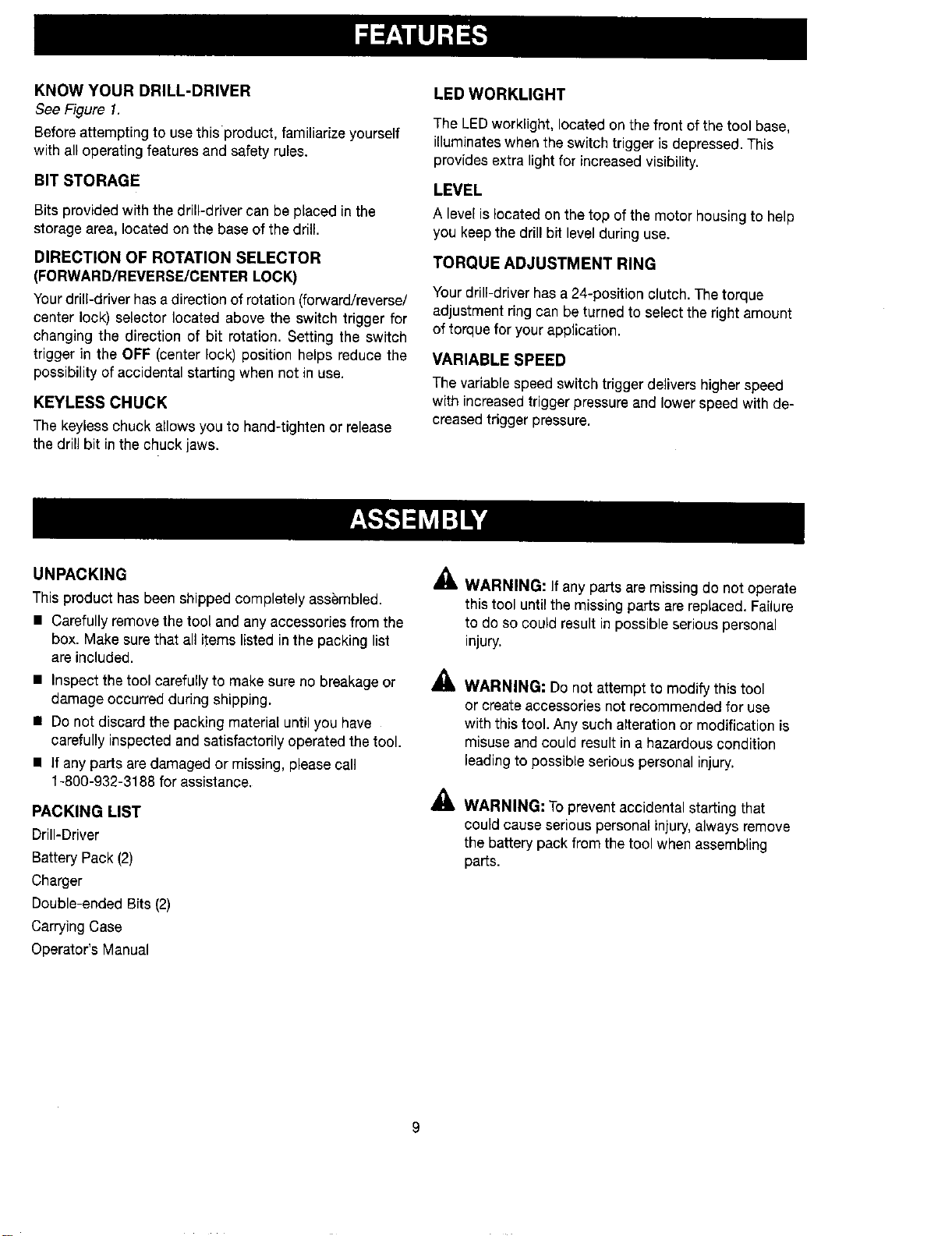

KNOW YOUR DRILL-DRIVER
See Figure 1.
Beforeattemptingto usethis product,familiarize yourself
with alloperatingfeatures and safety rules,
BIT STORAGE
Bits provided withthe drill-driver can be placed in the
storage area, located on the base of the drill.

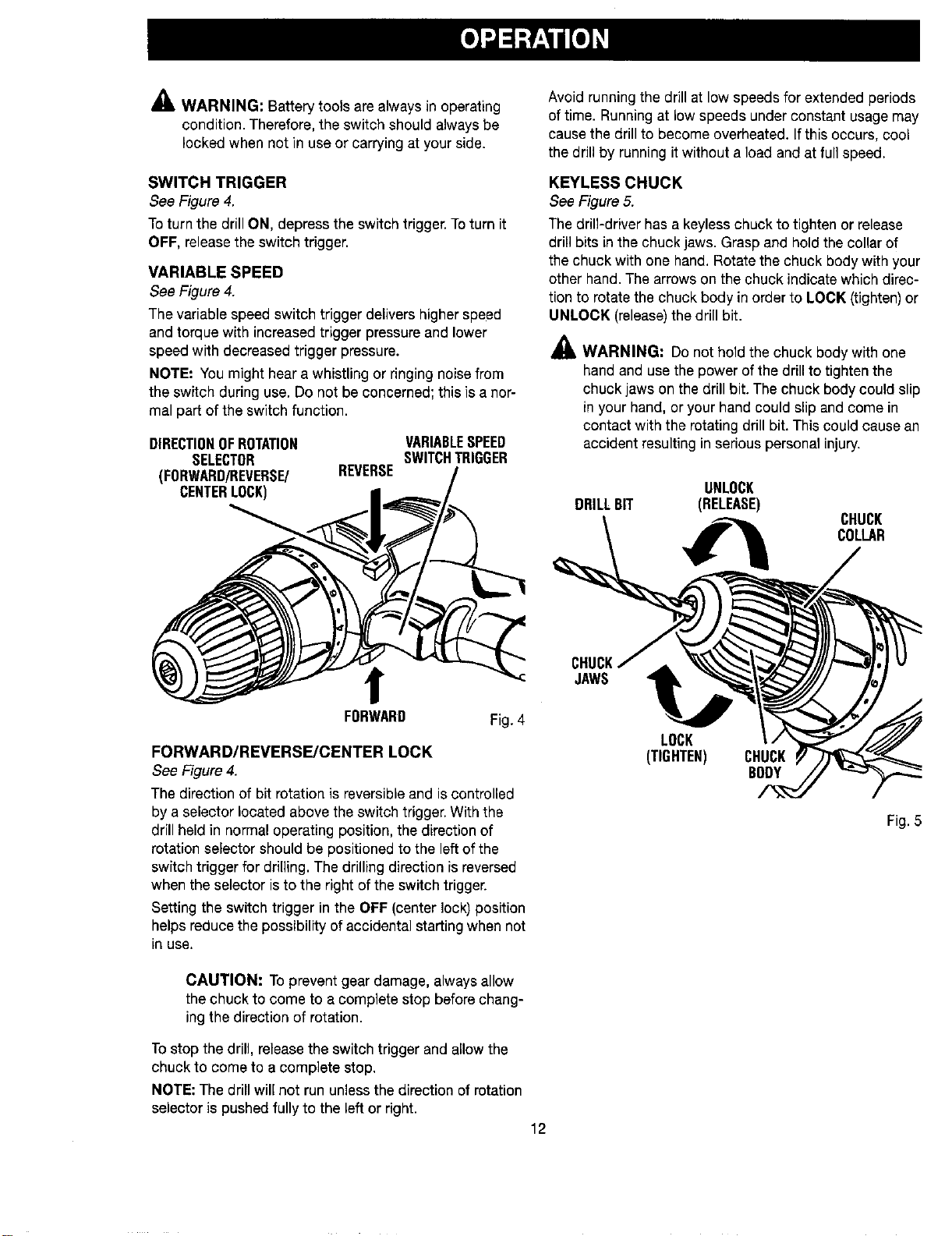

DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
Your drill-driver hasa direction of rotation (forward/reverse/
center lock) selector located above the switch trigger for
changing the direction of bit rotation. Setting the switch
trigger in the OFF (center lock) position helps reduce the
possibility of accidental starting when not in use.
KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release
the drill bit in the chuck jaws.
LED WORKLIGHT
The LEDworklight, located on the front of the tool base,
illuminates when the switch trigger is depressed. This
provides extra light for increased visibility.
LEVEL
A levelislocated onthe top ofthe motor housing to help
you keepthe drill bit levelduring use.

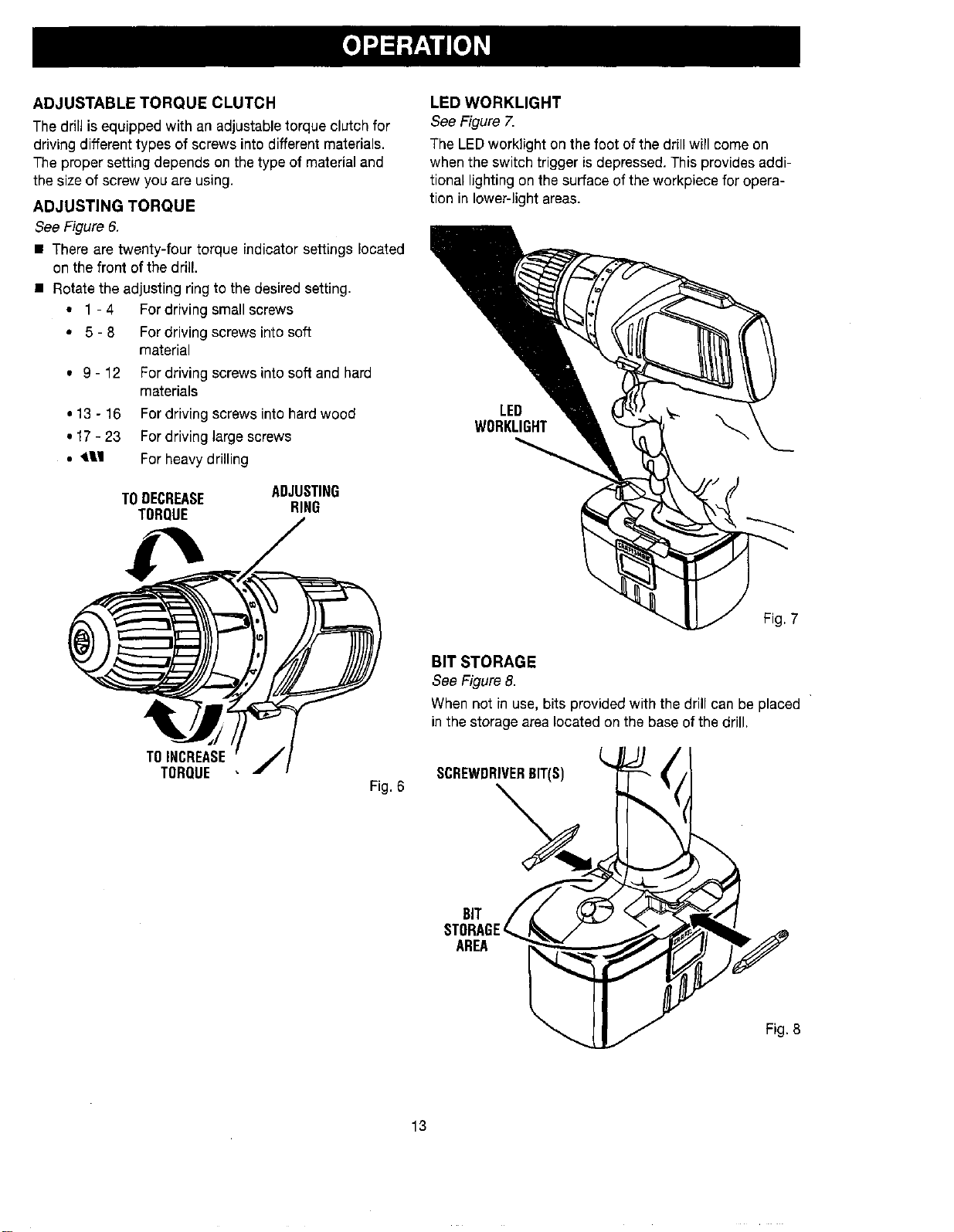

TORQUE ADJUSTMENT RING
Your drill-driver has a 24-position clutch. Thetorque
adjustment ring can be turned to select the right amount
of torque for your application.
VARIABLE SPEED
The variable speed switch trigger delivers higher speed
with increased trigger pressure and lower speed with de-
creased trigger pressure.
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the tool and any accessories from the
box. Make sure that all itemslisted in the packing list
are included.
• Inspectthe tool carefully to make sure no breakage or
damage occurred during shipping.
• Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
• ]f any parts are damaged or missing, please call
1-800-932-3188 for assistance.
PACKING LIST
Drill-Driver
Battery Pack (2)
Charger
Double-ended Bits (2)
Carrying Case
Operator's Manual
_lh WARNING: Ifany parts are missing do not operate
this tooluntil the missing parts are replaced. Failure
to do so could result in possible serious personal
injury.
A,
WARNING: Do not attempt to modify this tool
or create accessories not recommended for use
with this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
a,
WARNING: Toprevent accidentalstarting that
could cause serious personal injury,always remove
the battery pack from the tool when assembling
parts.
9
_, WARNING: Do not allow familiarity with tools to
make you careless. Remember that a careless
fraction of a second is sufficient to inflict serious
injury.
WARNING: Always wear safety goggles or safety
glasses with side shields when operating tools.
Failureto do so could result in objects being thrown
into your eyes, resulting inpossible serious injury.
& WARNING: Do not use any attachments or acces-
sories not recommended by the manufacturer of
this tool. The use of attachments or accessories not
recommended can result in serious personal injury.
APPLICATIONS
You may usethis toolfor the following purposes:
• Drillinginwood
• Drilling inceramics, plastics, fiberglass, and laminates
• Drilling in metals
• Mixing paint

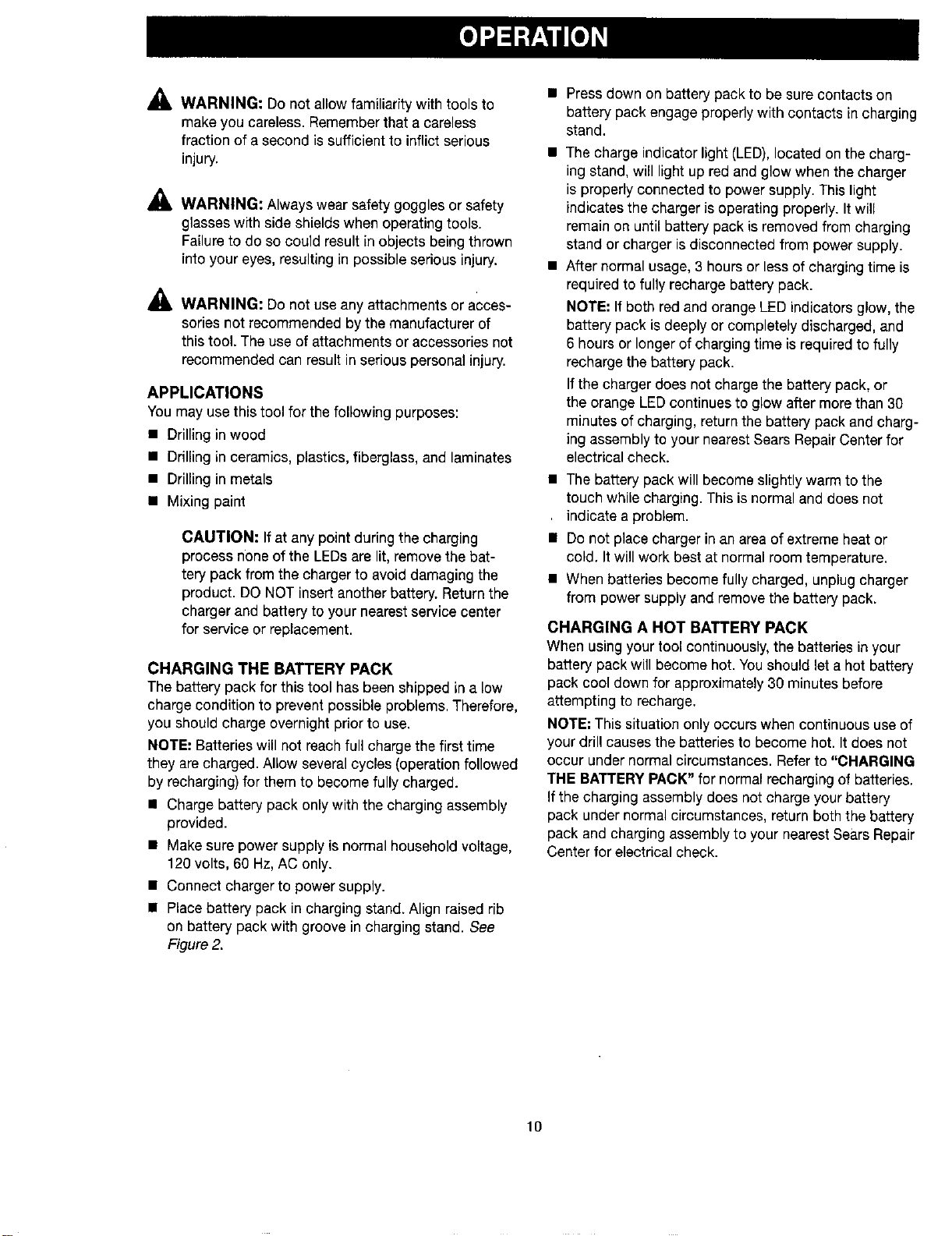

CAUTION: If at any point during the charging
process none of the LEDsare lit, remove the bat-
tery pack from the charger to avoid damaging the
product. DO NOT insert another battery. Return the
charger and battery to your nearest service center
for service or replacement.
CHARGING THE BATTERY PACK
The battery pack for this tool hasbeen shipped in a low
charge condition to prevent possible problems. Therefore,
you should charge overnight prior to use.
NOTE: Batteries will not reach full charge the first time
they are charged. Allow several cycles (operation followed
by recharging) for them to become fully charged.
• Charge battery pack only with the charging assembly
provided.
• Make sure power supply is normal household voltage,
120 volts, 60 Hz, AC only.
• Connect charger to power supply.
• Place battery pack in charging stand. Align raised rib
on battery pack with groove in charging stand. See
Figure 2.
Press down on battery pack to be sure contacts on
battery pack engage properly with contacts incharging
stand.
The charge indicator light (LED),located on the charg-
ing stand, will light up red and glow when the charger
is properly connected to power supply. This light
indicatesthe charger is operating properly. It will
remain on until battery pack is removed from charging
stand or charger is disconnected from power supply.
After normal usage, 3 hours or less of charging time is
required to fully recharge battery pack.
NOTE: If both red and orange LED indicatorsglow, the
battery pack is deeply or completely discharged, and
6 hours or longer of charging time isrequired to fully
recharge the battery pack.
If the charger does not charge the battery pack, or
the orange LEDcontinues to glow after more than 30
minutes of charging, return the battery pack and charg-
ing assembly to your nearest Sears Repair Center for
electrical check.
The battery pack will become slightly warm to the
touch whilecharging. This is normal and does not
indicate a problem.
• Do not place charger in an area of extreme heat or
cold. Itwill work best at normal room temperature.
• When batteries become fully charged, unplug charger
from power supply and remove the battery pack.
CHARGING A HOT BATTERY PACK
When using your tool continuously, the batteries in your
battery pack will become hot. You should let a hot battery
pack cool down for approximately 30 minutes before
attempting to recharge.
NOTE; This situation only occurs when continuous use of
your drill causes the batteries to become hot. It does not
occur under normal circumstances. Refer to "CHARGING
THE BATTERY PACK" for normal recharging of batteries.
If the charging assembly does not charge your battery
pack under normal circumstances, return both the battery
pack and charging assembly to your nearest Sears Repair
Center for electrical check.
10

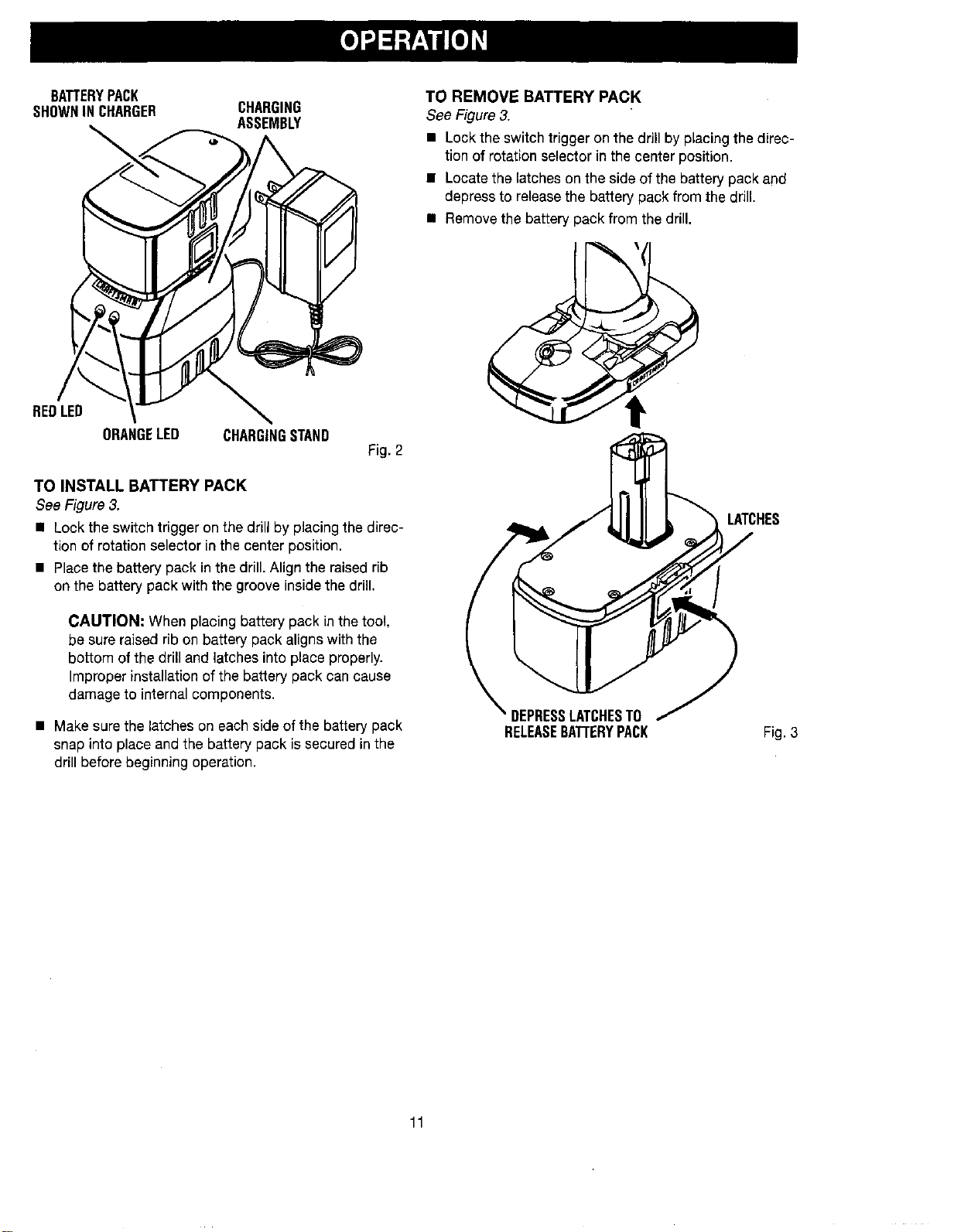

BATTERYPACK
SHOWNIN CHARGER
\
CHARGING
ASSEMBLY
REDLED
ORANGELED CHARGINGSTAND
Fig. 2
TO INSTALL BATTERY PACK
See Figure3.
• Lockthe switch triggeron the drill byplacing the direc-
tionof rotation selector in the center position.
• Placethe battery pack inthe drill. Align the raisedrib
on the battery pack withthe grooveinsidethe drill.
CAUTION: When placing battery pack inthe tool,
be sure raised rib on battery pack aligns with the
bottom of the drill and latches into place properly.
Improper installation of the battery pack can cause
damage to internal components.
• Make sure the latches on eachside of the battery pack
snap into place and the battery pack is secured inthe
drill before beginning operation.
TO REMOVE BATTERY PACK
See Figure3.
• Lockthe switch triggeron the drillby placing the direc-
tionof rotation selector inthe centerposition.
• Locatethe latches on theside ofthe batterypackand
depress to releasethe battery pack from the drill.
• Removethe battery pack fromthe drill.
LATCHES
RELEASEBATTERYPACK
Fig. 3
11
WARNING: Battery tools are always in operating
condition. Therefore, the switch should always be
locked when not in use or carrying at your side.
SWITCH TRIGGER
See Figure 4.
Toturnthe drill ON, depress the switch trigger.Toturn it
OFF, release the switch trigger.
VARIABLE SPEED
See Figure4.
The variable speed switch trigger delivers higher speed
and torque with increased trigger pressure and lower
speed with decreased trigger pressure.
NOTE: You might hear a whistling or ringing noise from
the switch during use. Do not be concerned; this is a nor-
mal part of the switch function.
DIRECTIONOFROTATION
SELECTOR
(FORWARD/REVERSE/
CENTERLOCK)
REVERSE
VARIABLESPEED
SWITCHTRIGGER
f
FORWARD Fig. 4
FORWAR D/REVERSE/CENTER LOCK
See Figure4.
The directionof bit rotation isreversible and iscontrolled
by a selector located above the switch trigger.Withthe
drill held in normal operating position, the direction of
rotation selector should be positioned to the left of the
switch trigger for drilling. The drilling direction is reversed
when the selector isto the right of the switch trigger.
Setting the switch trigger in the OFF (center lock) position
helps reduce the possibility of accidental starting when not
in use.
CAUTION: To prevent gear damage, always allow
the chuck to come to a complete stop before chang-
ing the direction of rotation.
Tostop the drill, release the switch trigger and allow the
chuck to come to a complete stop.
NOTE: The drill will not run unless the direction of rotation
selector is pushed fully to the left or right.
Avoid running the drill at low speeds for extended periods
of time. Running at low speeds under constant usage may
cause the drill to become overheated. If this occurs, cool
the drill by running it without a load and at full speed.
KEYLESS CHUCK
See Figure5.
The drill-driver has a keyless chuck to tighten or release
drill bits in the chuck jaws. Grasp and hold the collar of
the chuck with one hand. Rotate the chuck body with your
other hand. The arrows on the chuck indicate which direc-
tion to rotate the chuck body in order to LOCK (tighten) or
UNLOCK (release)the drill bit.
WARNING: Do not hold the chuck body with one
hand and use the power of the drill to tighten the
chuck jaws on the drill bit. The chuck body could slip
in your hand, or your hand could slip and come in
contact with the rotating drill bit. This could cause an
accident resulting in serious personal injury.
UNLOCK
DRILLBIT (RELEASE)
,_,._ CHUCK
COLLAR
JAWS
LOCK
(TIGHTEN) CHUCK
BODY
Fig. 5
12
ADJUSTABLE TORQUE CLUTCH
The drillis equipped with an adjustable torque clutch for
driving different types of screws into different materials.
The proper setting depends on the type of material and
the size of screw you are using.
ADJUSTING TORQUE
See Figure 6.
• There are twenty-four torque indicator settings located
on the front of the drill.
• Rotate the adjusting ring to the desiredsetting.
• 1 - 4 For driving small screws
• 5 - 8 For driving screws into soft
material
• 9 - 12 Fordriving screws into soft and hard
materials
• 13 - 16 Fordriving screws into hard wood
• 17 - 23 Fordriving large screws
• 41L! For heavy drilling
TODECREASE ADJUSTING
TORQUE RING
LED WORKLIGHT
See Figure 7.
The LEDworklight on the foot of the drill willcome on
when the switch trigger is depressed. This provides addi-
tional lighting on the surface ofthe workpiece for opera-
tion in lower-light areas.
LED
WORKLIGHT
Fig. 7
TOINCREASE
TORQUE
BIT STORAGE
See Figure 8.
Whennot in use, bits providedwith the drill canbe placed "
inthe storage area locatedon the baseofthe drill,
SCREWDRIVERBIT(S)
Fig. 6
BIT
AREA
Fig. 8
13

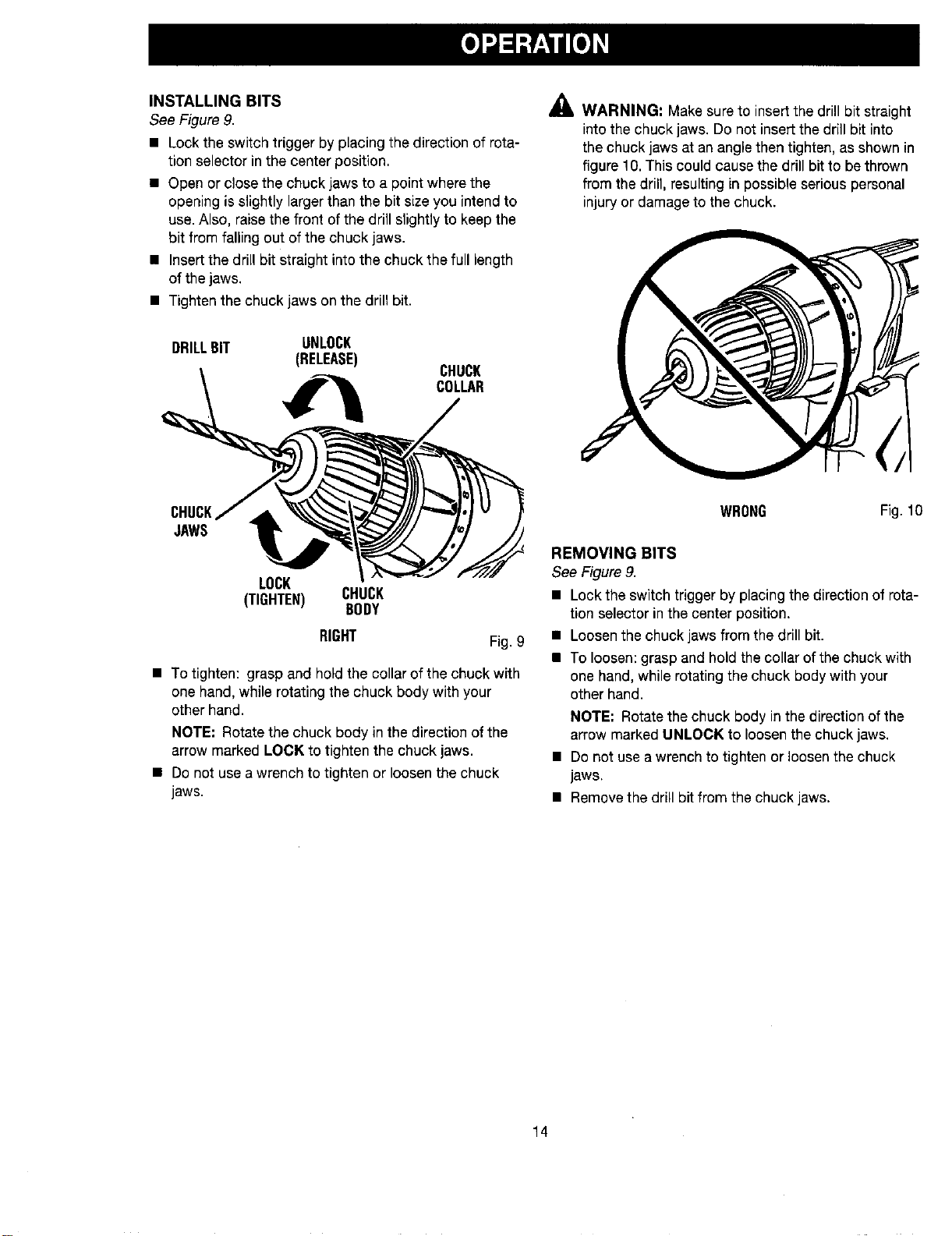

INSTALLING BITS
See Figure9.
• Lockthe switchtriggerby placingthe directionof rota-
tionselectorinthe centerposition,
• Open or closethe chuckjaws to a pointwhere the
openingisslightlylargerthan the bit sizeyou intendto
use.Also, raisethe front ofthe drillslightlyto keepthe
bitfrom fallingout ofthe chuckjaws.
• Insertthe drillbit straightintothe chuckthe fulllength
ofthejaws.
• Tightenthe chuckjawson the drillbit.
_, WARNING: Make sure to insert the drill bit straight
into the chuck jaws. Do not insert the drill bit into
the chuck jaws at an angle then tighten, as shown in
figure 10. This could cause the drill bit to be thrown
from the drill, resulting in possible serious personal
injury or damage to the chuck.
DRILLBIT UNLOCK
(RELEASE)
CHUCK
COLLAR
CHUCK
JAWS
LOCK
(TIGHTEN)
CHUCK
BODY
RIGHT
Fig,9
• To tighten: grasp and hold the collar of the chuck with
one hand, while rotating the chuck body with your
other hand.
NOTE; Rotate the chuck body in the direction of the
arrow marked LOCK to tighten the chuck jaws.
• Do not use a wrench to tighten or loosen the chuck
jaws.
WRONG Fig. 10
REMOVING BITS
See Figure9.
• Locktheswitch triggerby placingthedirection of rota-
tionselector inthecenter position.
• Loosenthe chuckjawsfrom thedrillbit.
• To loosen:graspand hold thecollarofthe chuckwith
one hand, whilerotatingthe chuckbody withyour
otherhand.
NOTE: Rotate thechuck body inthe direction of the
arrow marked UNLOCK to loosenthechuckjaws.
• Do not usea wrenchto tightenor loosen the chuck
jaws.
• Remove the drill bit from the chuck jaws.
14
_t, WARNING: Always wear safety goggles or safety
glasses with side shields when operating tools. Fail-
ure to do so could result in objects being thrown into
your eyes, resulting in possible serious injury.

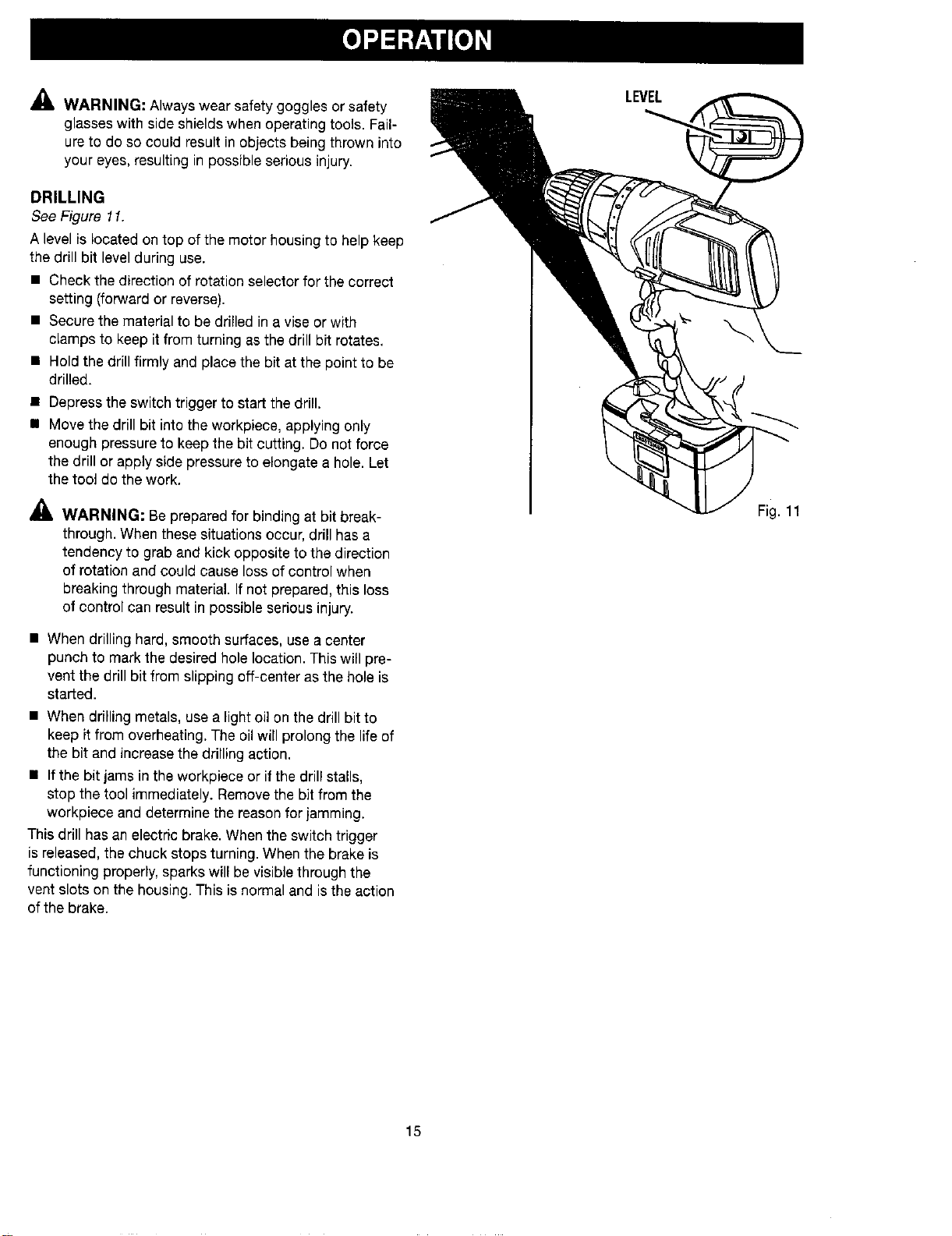

DRILLING
See Figure 11.
A levelislocated on top of the motor housing to help keep
the drill bit level during use.
• Check the direction of rotation selector for the correct
setting (forward or reverse).
• Secure the material to be drilled in a vise or with
clamps to keep it from turning as the drill bit rotates.
• Hold the drill firmly and place the bit at the point to be
drilled.
• Depress the switch trigger to start the drill.
• Move the drill bit into the workpiece, applying only
enough pressure to keep the bit cutting. Do not force
the drill or apply side pressure to elongate a hole. Let
the tool do the work.
_" WARNING: Be prepared for binding at bit break-
through. When these situations occur, drill has a
tendency to grab and kick opposite to the direction
of rotation and could cause loss of control when
breaking through material. If not prepared, this loss
of control can result in possible serious injury.
• When drilling hard, smooth surfaces, use a center
punch to mark the desired hole location. This will pre-
vent the drill bit from slipping off-center as the hole is
started.
• When drilling metals, use a light oil on the drill bit to
keep it from overheating. The oil will prolong the life of
the bit and increase the drilling action.
• If the bit jams in the workpiece or if the drill stalls,
stop the tool immediately. Removethe bit from the
workpiece and determine the reasonfor jamming.
This drill has an electric brake. When the switch trigger
is released, the chuck stops turning. When the brake is
functioning properly, sparks will be visible through the
vent slots on the housing. This is normal and is the action
of the brake.
LEVEL
Fig. 11
15
_, WARNING: When servicing, use only identical
Craftsman replacement parts. Use of any other part
may create a hazard or cause product damage.
A
WARNING: Always wear safety goggles or safety
glasses with side shields when using compressed air
to clean tools. If the operation isdusty, also wear a
dust mask.
A
41& WARNING: To avoid serious personal injury, always
remove the battery pack from the tool when cleaning
or performing any maintenance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
_l, WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc. come in contact with plastic parts. Chemi-
cals can damage, weaken or destroy plastic which
may result in serious personal injury.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts
should be replaced at a Sears Service Center.
CHUCK REMOVAL
See Figures 12 - 14.
The chuck may be removed and replaced by a new one.
• Lock the switch trigger by placing the direction of rota-
tion selector in center position.
• Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
• Tap the hex key sharply with a mallet in a clockwise
direction. This will loosenthe screw in the chuck for
easy removal.
MALLET
CHUCKJAWS
HEXKEY
KEYLESS
CHUCK
Fig. 12
• Open the chuck jaws and remove the hex key. Using a
screwdriver, remove the chuck screw by turning it in a
clockwise direction.
NOTE: The screw has left hand threads.
SCREWDRIVER
Fig. 13
16

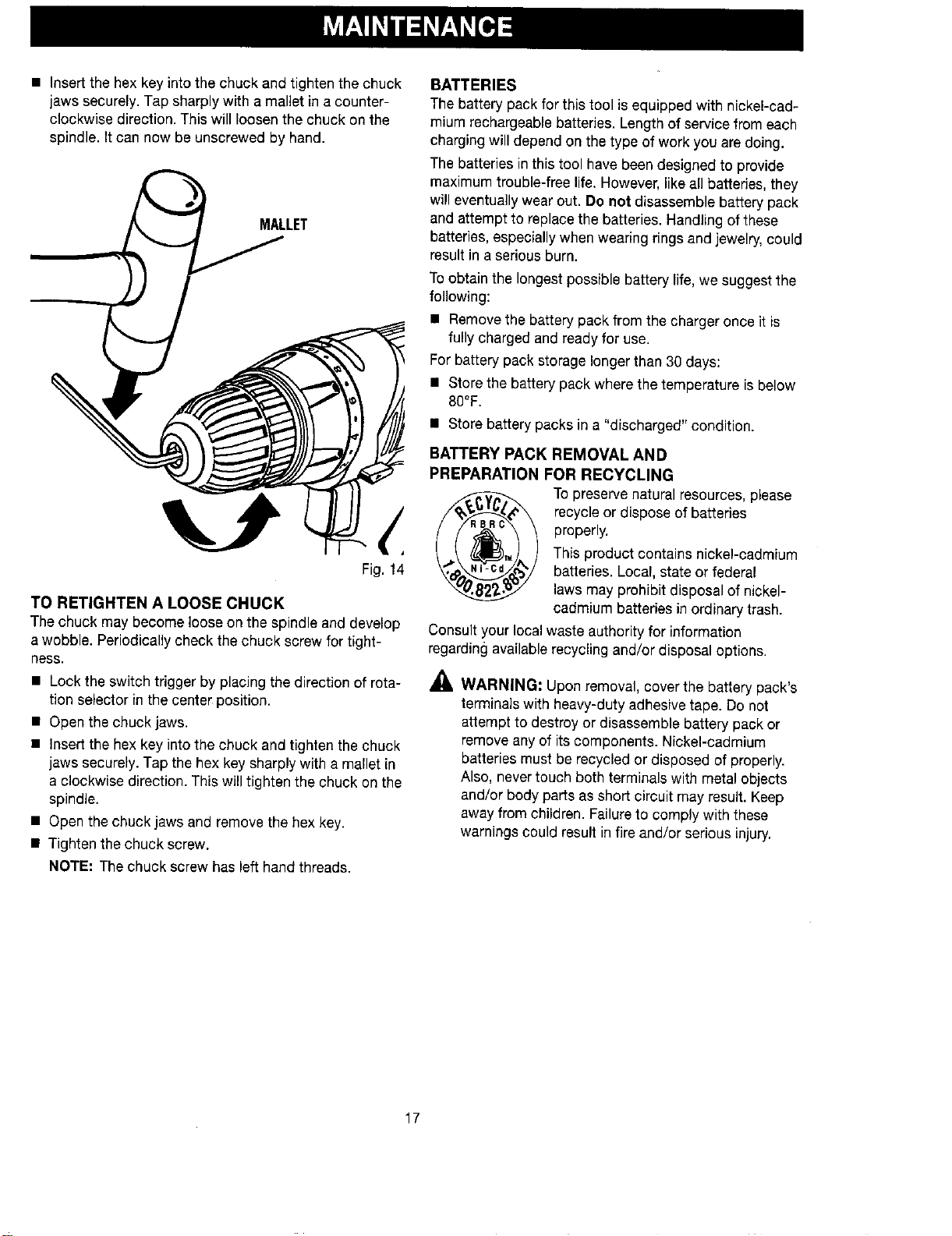

• Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap sharply with a mallet in a counter-
clockwise direction, This will loosen the chuck on the
spindle. It can now be unscrewed by hand.
MALLET
BATTERIES
The battery pack for this tool is equipped with nickel-cad-
mium rechargeable batteries. Length of service from each
charging will depend on the type of work you aredoing.
The batteries in this tool have been designed to provide
maximum trouble-free life. However, like all batteries, they
wilt eventually wear out. Do net disassemble battery pack
and attempt to replace the batteries. Handling of these
batteries, especially when wearing rings and jewelry, could
result in a serious burn.
Toobtain the longest possible battery life, we suggest the
re]lowing:
• Remove the battery pack from the charger once it is
fully charged and ready for use,
Forbattery pack storage longer than 30 days:
• Store the battery pack where the temperature is below
80°F.
• Store battery packs in a "discharged" condition.
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on the spindle and develop
a wobble. Periodically check the chuck screw for tight-
ness.
• Lock the switch trigger by placing the direction of rota-
tion selector in the center position.
• Open the chuck jaws.
• Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap the hex key sharply with a mallet in
a clockwise direction. This will tighten the chuck on the
spindle.
• Open the chuck jaws and remove the hex key.
• Tighten the chuck screw.
NOTE: ]he chuck screwhas )efthand threads.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
To preserve natural resources, please
recycle or dispose of batteries
properly.
This product contains nickel-cadmium
batteries. Local, state or federal
laws may prohibit disposal of nickel-
cadmium batteries in ordinary trash.
Consult your localwaste authority for information
regarding available recycling and/or disposal options.
WARNING: Upon removal, cover the battery pack's
terminals with heavy-duty adhesive tape. Do not
attempt to destroy or disassemble battery pack or
remove any of its components. Nickel-cadmium
batteries must be recycled or disposed of properly.
Also, nevertouch both terminals with metal ob}ects
and/or body parts as short circuit may result. Keep
away from children. Failureto comply with these
warnings could result in fire and/or serious injury.
17
-- L,rtAr IbMAN z_ VULI UHILL-UHIVPH- MUUbL NUMUI:H dlb,11_);.t/u --
I The model number will be found on a plate attached to the motor housing. Always mention the model ]
number in all correspondence regarding your DRILL-DRIVER or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
2
1
\
5
\
Key
NO,
1
2
3
4
5
6
PaN
Number
6612OO1
6903326
940237075
140295004
130260001
300912194
983000638
PARTS LIST
Description Qty.
Chuck Screw .............................................................................................. 1
Chuck ......................................................................................................... 1
Data Plate ................................................................................................... 1
* Charger (item No. 9_11379).......................................................................... 1
* Battery Pack (Item No. 911378) .................................................................. 2
Carrying Case (Not Shown) ........................................................................ 1
Operator's Manual
* Can Be Purchased Thru RSOS (Retail Special Order System)
18
Get t fixed,at
Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it{
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800469-4663)
Call anytime, day or night (U.S.A. and Canada)
::;'_ www.sears.com www,sears,ca _,,
Our Home _':_
_ For repair of carry-in items like vacuums, lawn equipment, x.-
f y
_,, and electronics, call or go on-line for the location o our nearest ',ij
_ _'_
Sears Parts & Repair Center. "_
_;_. _;_._
1-800-488-1222
'_' Call anytime, day or night (U.S,A. only) "_
To purchase a protection agreement (U.S.A.) :_'.:.:
or maintenance agreement (Canada) on a product serviced by Sears:
.... 1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
,,_ Para pedir servicio de reparaci6n Au Canada pour service en fran(;ais: ,.q
a domici{io, y para ordenar piezas: 1-800-LE-FOYER _c
1-888-SU-HOGAR sM (1-800-533-6937)
(1-888-784-6427) www.sears.ca
TM SM
® Registered Trademark / Trademark / Serv}ce Mark of Sears, Roebuck and Co.
TM SM
® Marca Registrada/ Marcade Fabrica / Marca deServicio deSears, RoebuckandCo.
MC M_ ck 0
Marquede commerce/ Marquedeposee deSears, Roebu endC .
® Seam,RoebuckandCo.
960214103-01(A)
