IMPORTANT NOTES
• This unit must be connected to a grounded circuit.
• The electrical rating marked on the installed Zoneline
and power supply kit must be the same as the supply
branch circuit.
• Aluminum building wiring may present special
problems—consult a qualified electrician.
• All wiring, including installation of the receptacle,
must be in accordance with the NEC, local codes,
ordinances and regulations.
• This power supply kit provides for connection of
1/2” trade size electrical conduit and provision for
connection to a wiring system in accordance with the
National Electrical Code. ANSI/NFPA No. 70-1996 or
latest edition.
• Use ONLY the wiring size recommended for single
outlet branch circuit.
• Proper current protection is the responsibility of
the owner.
TOOLS NEEDED
• Phillips head screwdriver
• 5/16” Nut driver
WARNING
RISK OF ELECTRIC SHOCK.
Disconnect the electrical power supply before wiring
connections.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
31-5000623 Rev. 0 09-21 GEA
Installation Instructions
for your new
RAK315D, RAK320D, RAK330D
RAK515D, RAK520D, RAK530D
Power Supply Kit for
Direct Connection
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
RAK315D, RAK320D, and RAK330D kits
These kits are for use with 230/208V AZ45, AZ65,
AZ95 and AZ9V series GE Zoneline units. GE
Zoneline AZ45 and AZ65 series units must be
installed with a junction box (RAK4002D purchased
separately).
RAK515D, RAK520D, and RAK530D kits
These kits are for use with 265V AZ45, AZ65, AZ95
and AZ9V series GE Zoneline Units.
FOR 230/208 VOLT DIRECT CONNECT
APPLICATIONS ONLY
IMPORTANT: Some local electrical codes and customer
requirements require PTAC units to be direct connected
to building wiring.
These models must be installed using the appropriate
GE power supply kit for the branch circuit amperage
and the electrical resistance heater wattage desired as
indicated in the units’ use and care manual.
6HHWKH32:(5&211(&7,21&+$57WRFRQ¿UPWKH
appropriate kit.

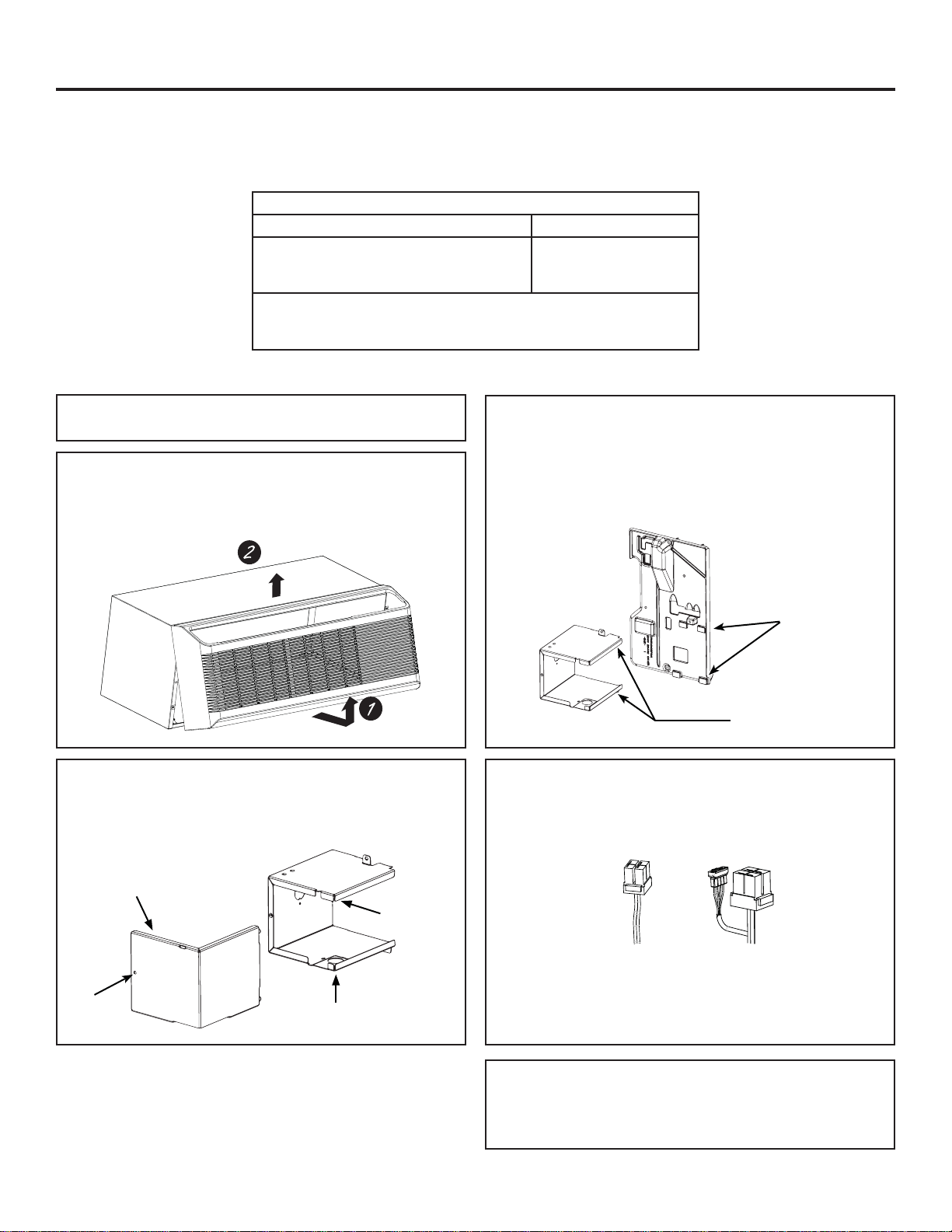

POWER CONNECTION CHART
GE 230/208 Volt
Power Supply Kit
Circuit Protective Device
RAK315D
RAK320D
RAK330D
15-Amp Time-Delay Fuse or Breaker
20-Amp Time-Delay Fuse or Breaker
30-Amp Time-Delay Fuse or Breaker

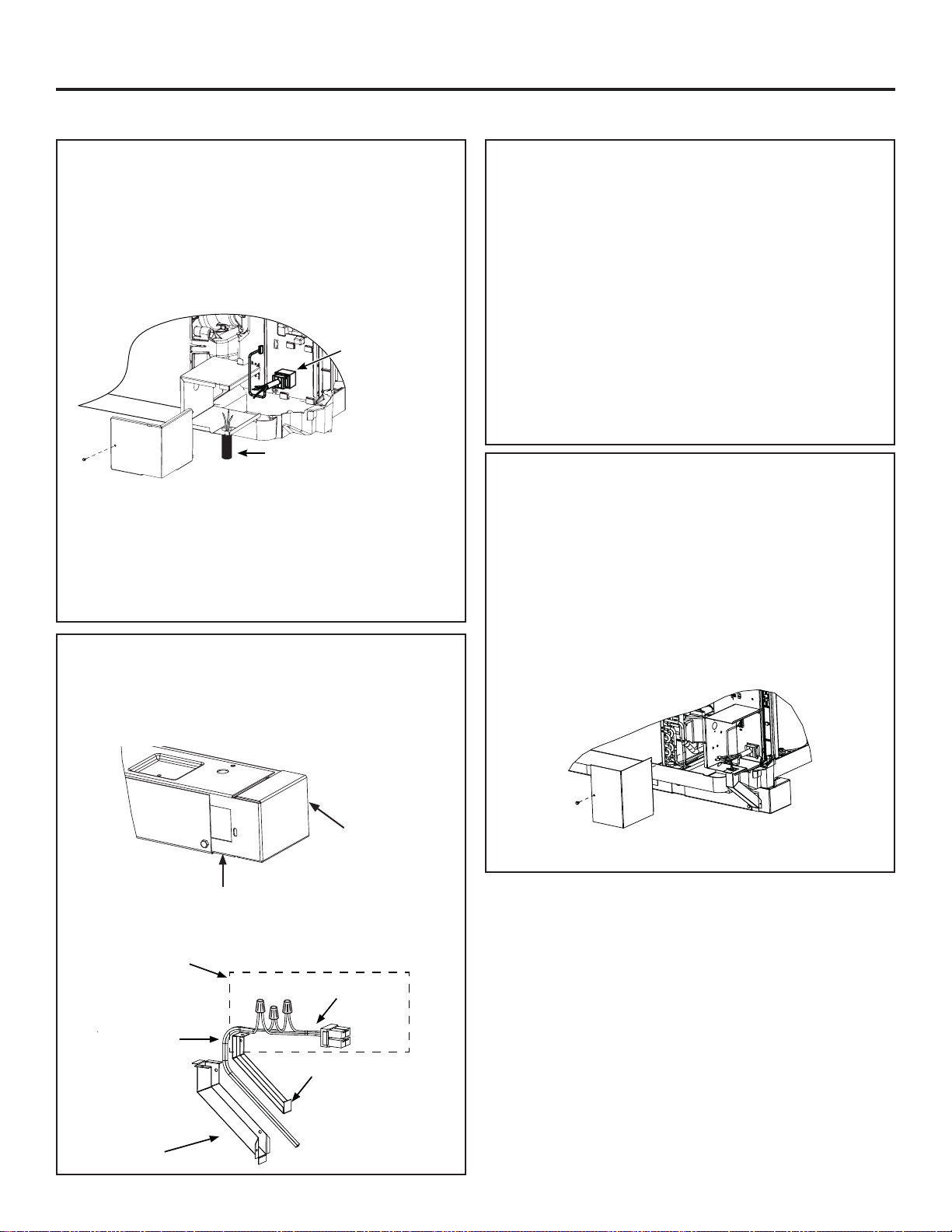

*RAK315D not for use with AZ95*18 models
FOR 265 VOLT DIRECT CONNECT
APPLICATIONS ONLY
IMPORTANT: Connection of a 265V AC product to a
branch circuit MUST be done by direct connection in
accordance with the National Electrical Code. Plugging
this unit into a building-mounted exposed receptacle is
not permitted by code.
These models must be installed using the appropriate
GE power supply kit for the branch circuit amperage
and the electrical resistance heater wattage desired as
indicated in the units’ use and care manual.
6HHWKH32:(5&211(&7,21&+$57WRFRQ¿UPWKH
appropriate kit.

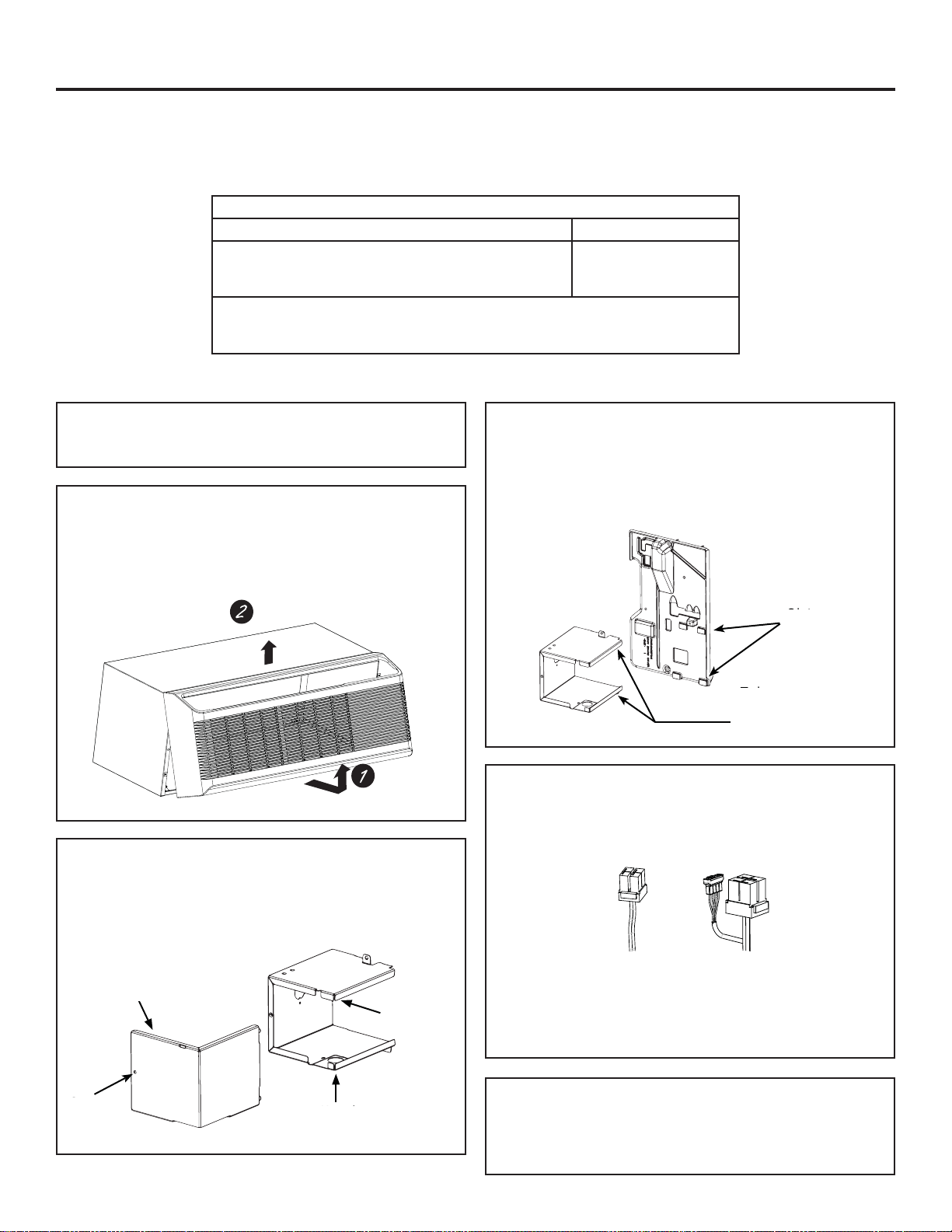

POWER CONNECTION CHART
GE 265 Volt
Power Supply Kit
Circuit Protective Device
RAK515D
RAK520D
RAK530D
15-Amp Time-Delay Fuse or Breaker
20-Amp Time-Delay Fuse or Breaker
30-Amp Time-Delay Fuse or Breaker

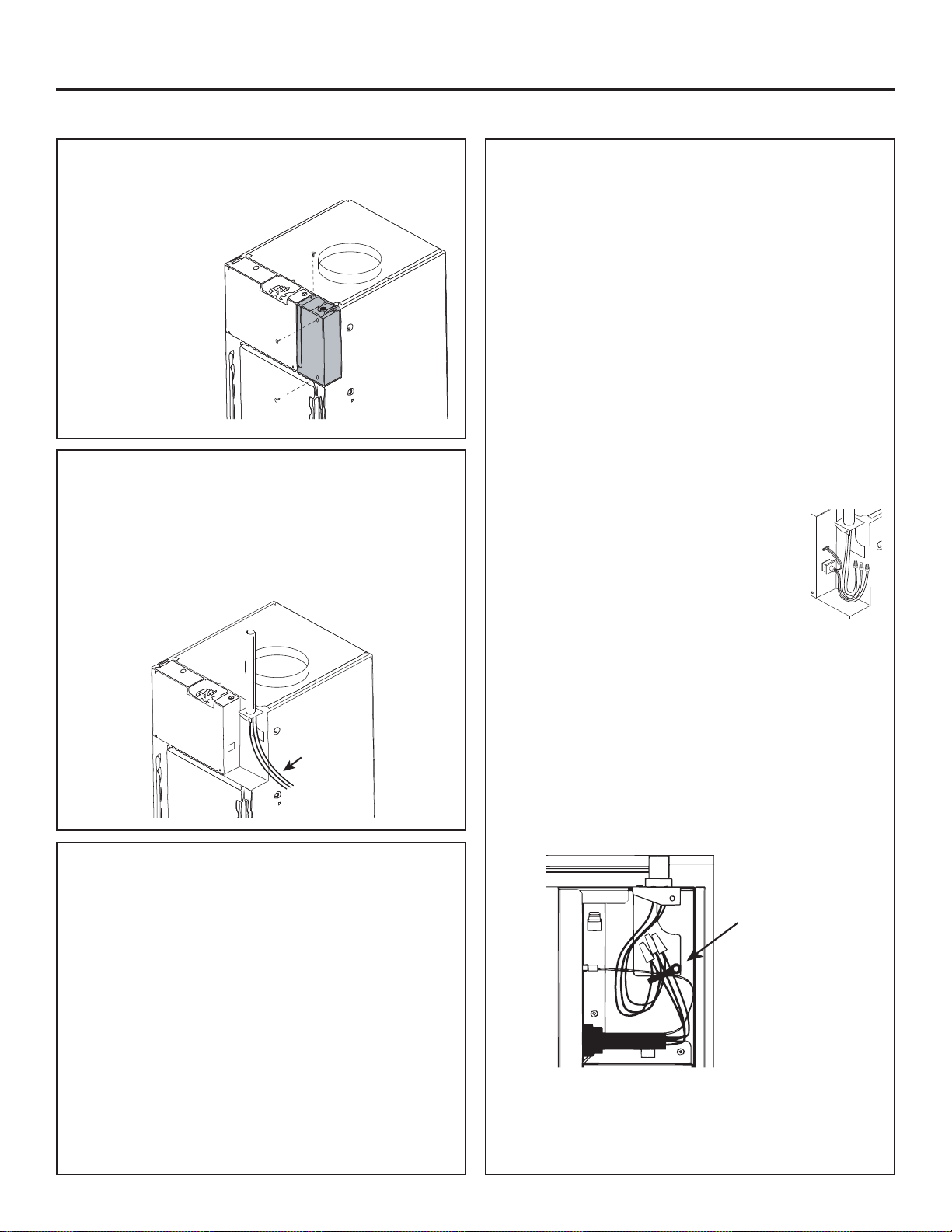

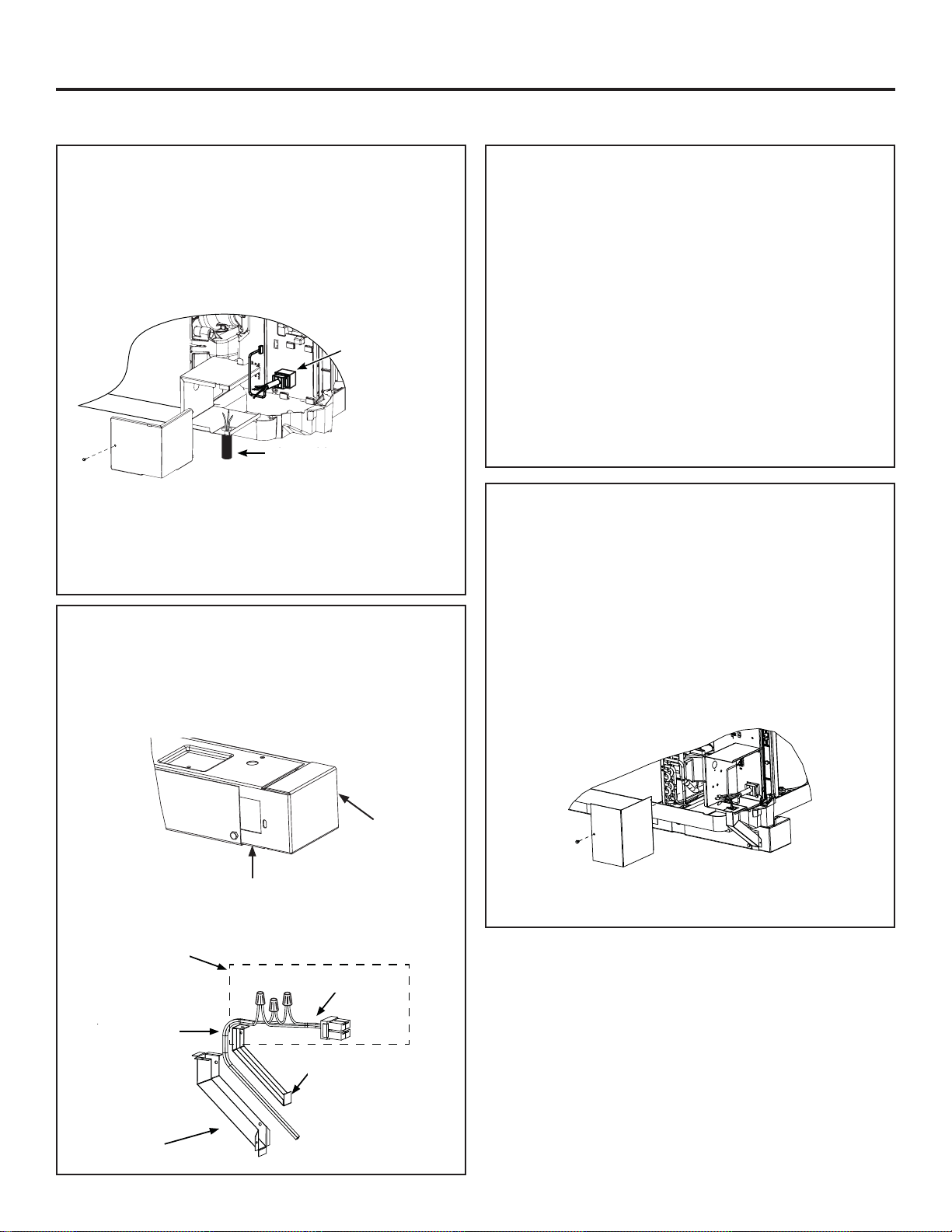

*RAK515D not for use with AZ95*18 models
