Attach the top
Place the white felt gasket on top of the filters
Place the top and align the holes in the top with
the holes on the 4 brackets without pushing the top
completely down all around
Place one screw with its washer and screw in partially
Fit the top onto the body all around
Screw in the 3 remaining screws
Tighten fully the first screw
Place the elbow over the oval opening
on the unit so that the elbow is towards the left
when looking from the back of the unit.
(The clean air flows out in a clockwise direction)
Attach the elbow with the 4 screws provided
Attach the elbow
Attach standard 5" pipes from the house ventilation
system to create a bypass to the air purification system
Attach standard 5" pipes
600W Series
Whole House Air Purifier
Unit Set Up
Back view
Back view
Back view
Front view
See over for connection options
ToBuy:ContactSylvaneat800-934-9194orvisitwww.sylvane.com
ForProductSupport:ContactAirpuraat866-505-7872
H Vac unit
Airpura
600-W

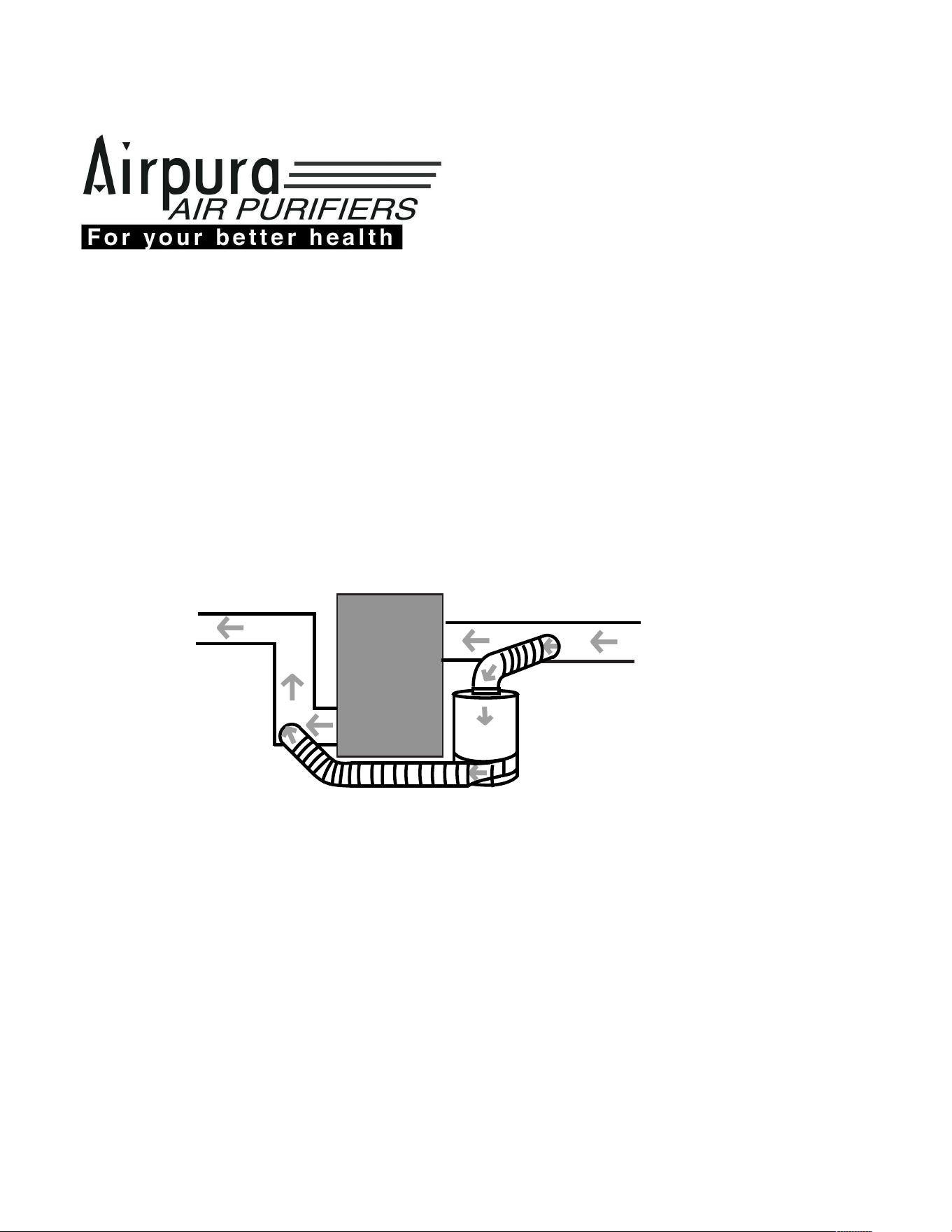

By-pass installation of the Airpura 600-W central air purifier
