4. INTRODUCTION
4.1 SCOPE
This torque wrench is used to apply a specific torque to a fastener such as a nut or bolt.
Any application other than that it was designed for is considered misuse.
4.2 SPECIFICATION
Stock no. .................................................................................................................................30357
Part no. ...................................................................................................................................3001A
Torque range ................................................................................................................... 30-210Nm
.........................................................................................................................................22-155lb/ft
Accuracy ................................................................................................................................ +/- 4%
Square drive size ....................................................................................................................... 1/2"
Overall length approx ...........................................................................................................475mm
Manufactured and tested in accordance with to ISO 6789 Standards.
Whilst every effort has been made to ensure that the accuracy of information given in this manual
is correct at time of going to print, the Draper Tools policy of continuous improvement determines
the right to change specification without notice.
This torque wrench is accurate to ± 4% of the set load and has been manufactured and tested in
accordance to ISO 6789.
Torque tools are classified as test devices. If a calibration routine is required, the calibration
interval shall be chosen on the basis of the factors of operation such as required accuracy,
frequency of use, typical load during operation as well as ambient conditions during operation and
storage conditions. The interval should be decided according to the user's procedures for the
control of test devices and by the requirements of the user.
If the user does not use a control procedure, a period of use of 12 months, or approximately 5000
cycles can be taken as a default value of the recalibration interval. For the first recalibration,
the period of validity starts with user's first operation of the torque tool.
In addition to these specifications, factory or legal regulations shall be observed.
The torque tool shall be recalibrated when it has been subjected to an overload greater than 125%
of maximum rated load and after repair, or after any improper handling which might influence any
errors in measurement.
4.3 HANDLING & STORAGE
Ensure you have a good stable position whilst using this product. Care should be exercised when
using this product due to rotating parts etc.
Store the product together with this manual in its protective case in a cool dry place with the torque
wrench set to its minimum setting.
This product should be cleaned, maintained and lubricated regularly to ensure it is operating at
peak performance.

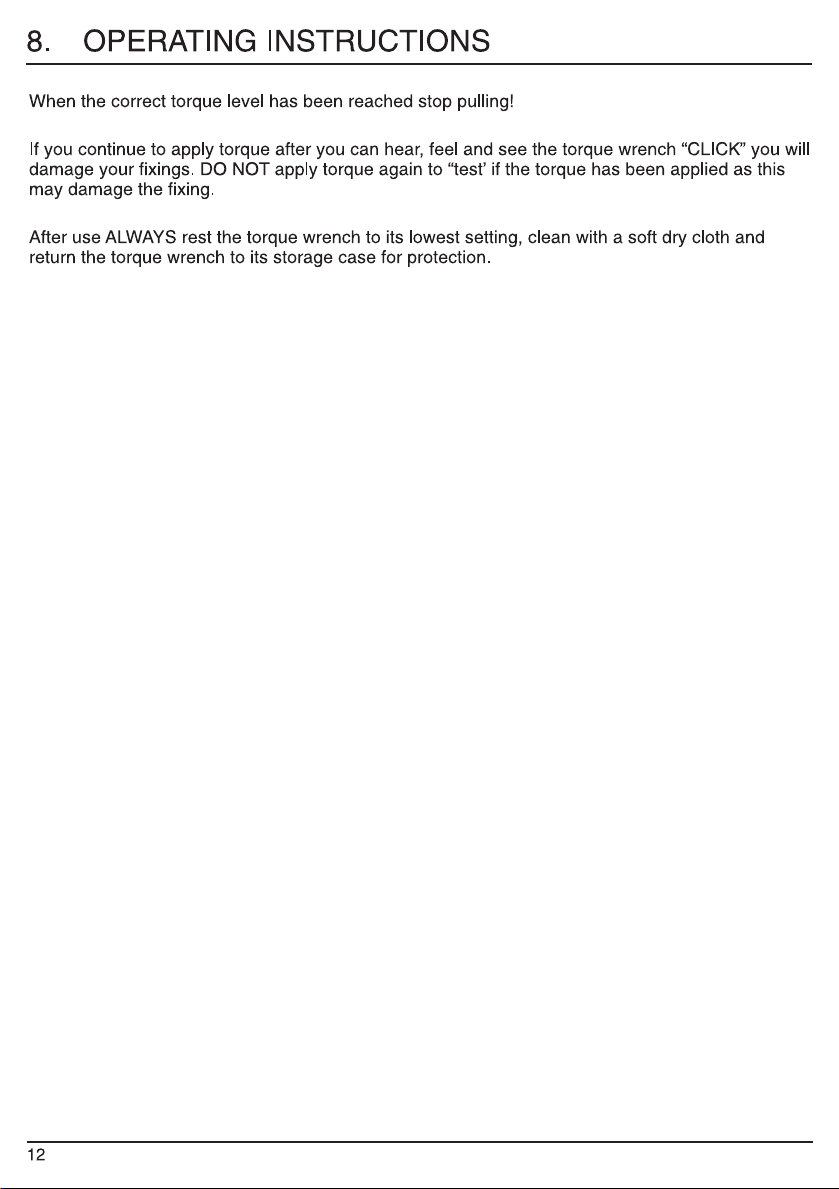

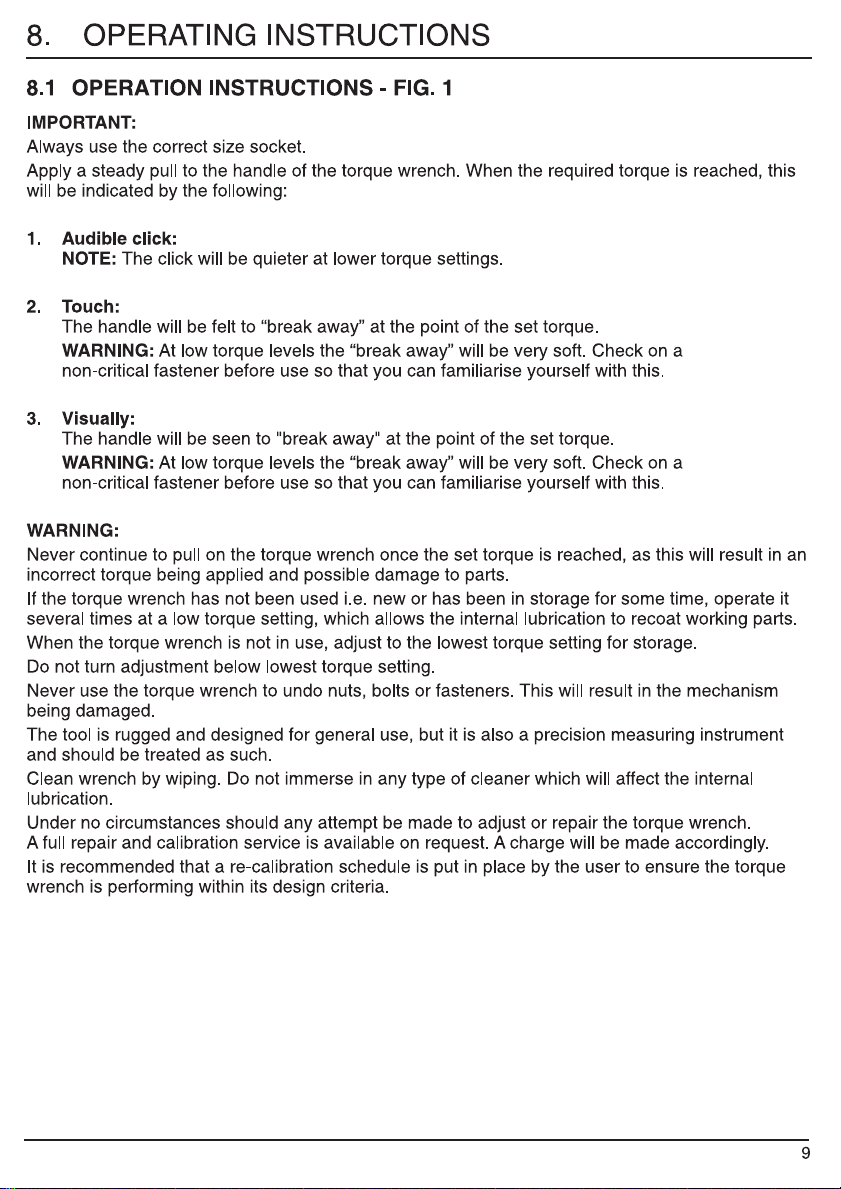

8. OPERATING INSTRUCTIONS
When the correct torque level has been reached stop pulling!
If you continue to apply torque after you can hear, feel and see the torque wrench “CLICK” you will
damage your fixings. DO NOT apply torque again to “test’ if the torque has been applied as this
may damage the fixing.
After use ALWAYS rest the torque wrench to its lowest setting, clean with a soft dry cloth and
return the torque wrench to its storage case for protection.
10
7
6. TECHNICAL DESCRIPTION

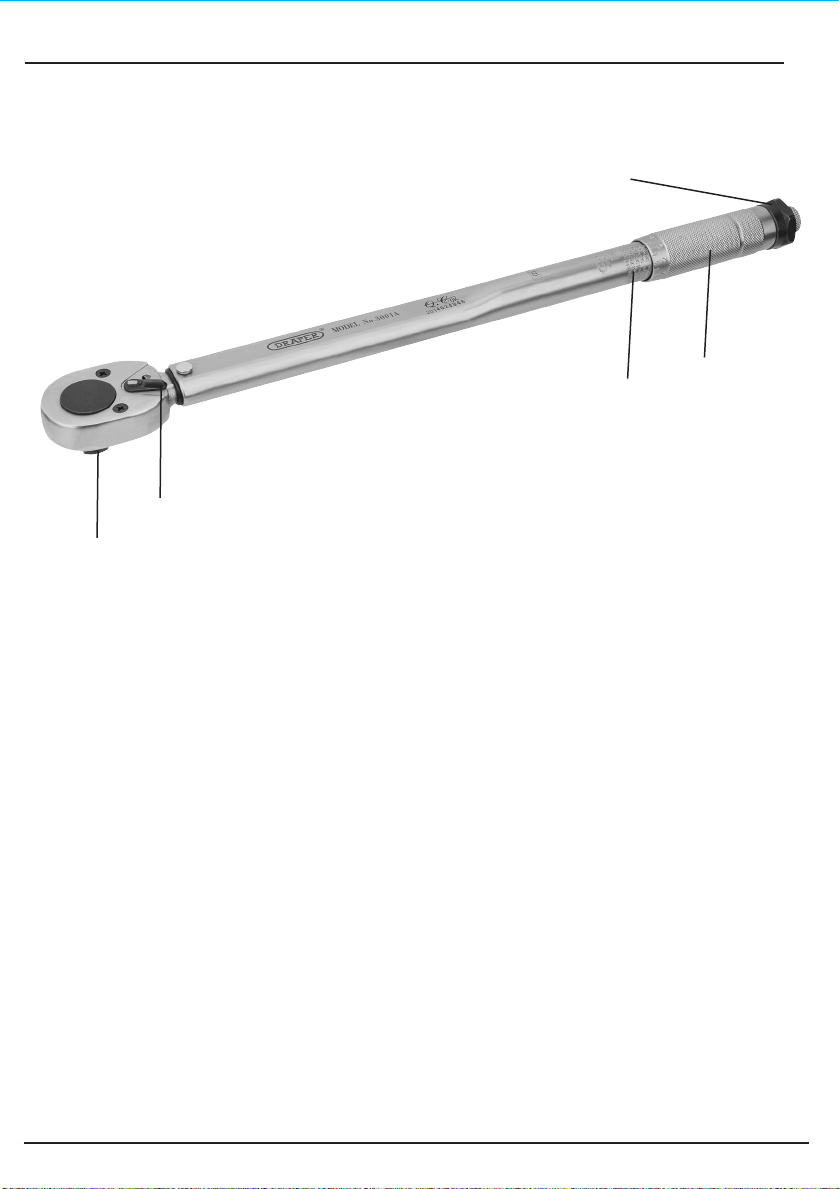

6.1 IDENTIFICATION 8.2 GETTING TO KNOW YOUR TORQUE WRENCH
Drive square.
Direction arrow.
Torque scales.
Handle.
Locking screw.
Note: After use ALWAYS reset torque wrench to its lowest setting for storage.
Storing at a level other than the lowest setting will affect torque wrench calibration.

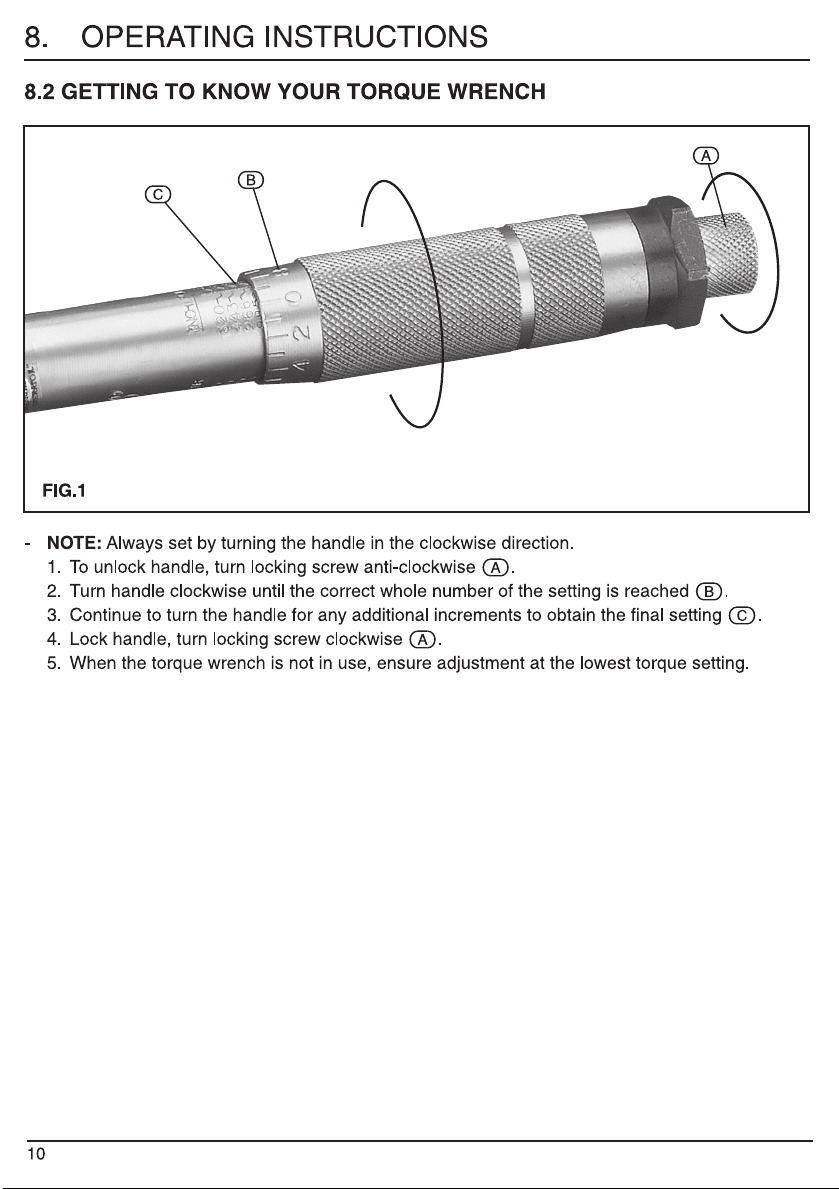

8. OPERATING INSTRUCTIONS
- NOTE: Always set by turning the handle in the clockwise direction.
1. To unlock handle, turn locking screw anti-clockwise $.
2. Turn handle clockwise until the correct whole number of the setting is reached %.
3. Continue to turn the handle for any additional increments to obtain the final setting &.
4. Lock handle, turn locking screw clockwise $.
5. When the torque wrench is not in use, ensure adjustment at the lowest torque setting.
FIG.1
$
%
&
6
11

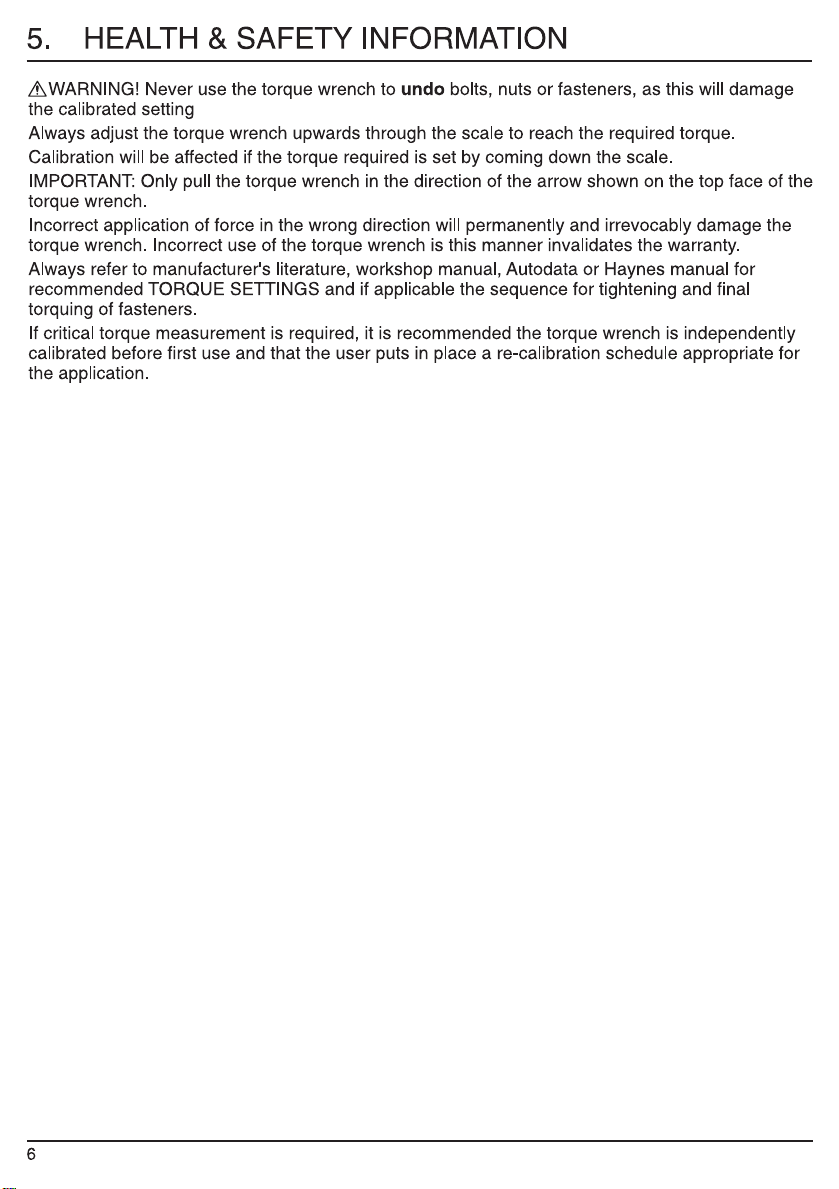

5. HEALTH & SAFETY INFORMATION
WARNING! Never use the torque wrench to undo bolts, nuts or fasteners, as this will damage
the calibrated setting
Always adjust the torque wrench upwards through the scale to reach the required torque.
Calibration will be affected if the torque required is set by coming down the scale.
IMPORTANT: Only pull the torque wrench in the direction of the arrow shown on the top face of the
torque wrench.
Incorrect application of force in the wrong direction will permanently and irrevocably damage the
torque wrench. Incorrect use of the torque wrench is this manner invalidates the warranty.
Always refer to manufacturer's literature, workshop manual, Autodata or Haynes manual for
recommended TORQUE SETTINGS and if applicable the sequence for tightening and final
torquing of fasteners.
If critical torque measurement is required, it is recommended the torque wrench is independently
calibrated before first use and that the user puts in place a re-calibration schedule appropriate for
the application.
8. OPERATING INSTRUCTIONS
2
130
110
90
140
120
100
08
8
130
110
90
140
120
100
64
8
95.9
81.1
66.4
103.3
88.5
73.8
64
2
95.9
81.1
66.4
103.3
88.5
73.8
08
- SETTING EXAMPLE
1
⁄2" SQUARE DRIVE (Figs.2-5):
Stock No.30357 Part No.3001A
- Torque wrench set to 96Nm.
1. Unlock handle (Fig.1) (Page 10).
2. 90Nm. whole number (Fig.2).
3. 1 div. on handle = 1Nm.
6 div. = 6Nm.
90 + 6 = 96Nm (Fig.3).
4. Lock handle (Fig.1) (Page 10).
FIG.2
FIG.3
- Torque wrench set to 70.84 ft-lb.
1. Unlock handle (Fig.1) (Page 10).
2. 66.4 ft-lb. whole number (Fig.4).
3. 1 div. on handle = 0.74 ft-lb.
6 div. = 4.44 ft-lb.
66.4 + 4.44 = 70.84 ft-lb (Fig.5).
4. Lock handle (Fig.1) (Page 10).
FIG.4
FIG.5
