Model No.: F0044
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
*for full limited lifetime warranty details please see final page of these instructions.
Safety Instructions
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN TO
INSTALL THE FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets,
balancing the blades or cleaning the fan. Do not insert foreign objects between rotating fan blades.
Before changing the fan direction, turn off the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are
not meant to cover all possible conditions and situations that may occur. It must be understood that
common sense, caution and care are factors which can not be built into this product. These factors
must be supplied by the person(s) installing, caring for and operating the fan.
TO AVOID RISK OF ELECTRIC SHOCK, BE SURE TO SHUT OFF POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX BEFORE INSTALLING OR SERVICING THIS
FIXTURE. TURNING OFF THE ELECTRICAL POWER BY USING THE LIGHT SWITCH
IS NOT SUFFICIENT TO PREVENT ELECTRICAL SHOCK.
TO REDUCE THE RISK OF INJURY, INSTALL THE FAN SO THAT THE BLADES ARE
AT LEAST 7 FEET (2.1 METERS) ABOVE THE FLOOR AND AT LEAST 18 INCHES
(0.5 METERS) FROM THE TIP OF THE BLADES TO THE WALL.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY, MOUNT
TO OUTLET BOX MARKED "ACCEPTABLE FOR FAN SUPPORT" AND USE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
THE INSTALLATION HAS TO BE IN ACCORDANCE WITH THE NATIONAL ELECTRICAL
CODE, ANSI/NFPA 70-1999 AND LOCAL CODES. IF YOU ARE UNFAMILIAR WITH THE
METHODS OF INSTALLING ELECTRICAL WIRING, SEEK THE SERVICES OF A
QUALIFIED LICENSED ELECTRICIAN.
WARNING
PAGE: 1 / 10
240628
PAGE: 2 / 10
240628
12
13
X16
14
15
16
17
11
5
6
8
9
7
10
3
4
Unpack your fan and check the contents. You should have the following items.
1.) Hanger Bracket
2.) Canopy
3.) Decorative Cap
4.) Downrod Stand Cover
5.) Downrod Stand Cover Decoration
6.) Downrod Set (Included Hanger Ball, 6” Downrod, Hanger Pin & Lock Pin)
7.) Fan Motor Assembly
8.) Fan Blades (5PCS)
9.) Decorative Cover
10.) Decorative Frame
11.) Light Kit
12.) 2-4W Type B11 E12 LED Bulbs (included）
13.) Glass Shade
14.) Assembly Kit
15.) Remote Control Set (Includes Transmitter & Receiver)
16.) Blade Balancing Kit
17.) Installation Instructions
Package Contents:
2
1
Installation
Instruction

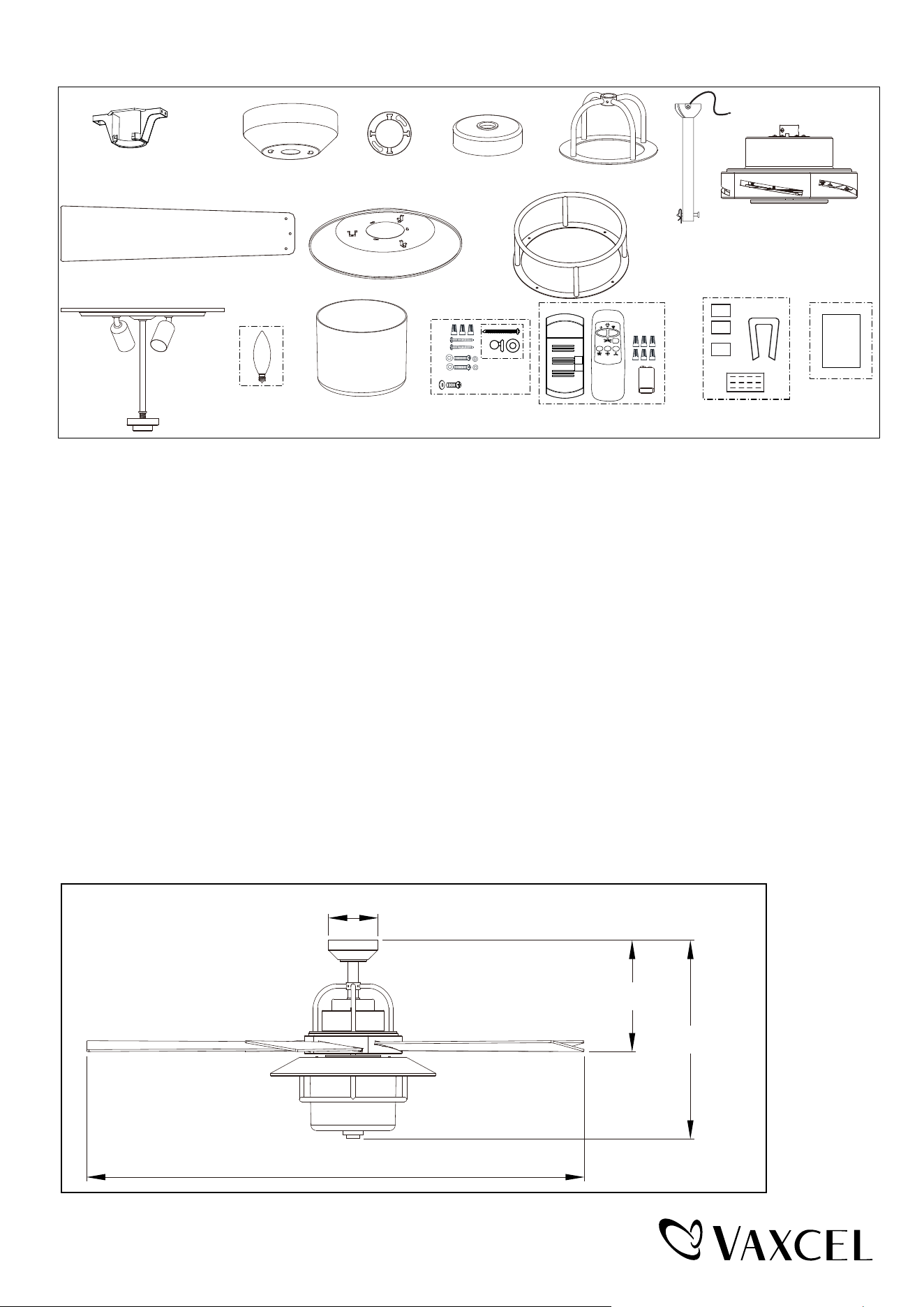

Dimension Reference (Installed with 6” Downrod):
A. 19-1/2” B. 11-1/2” C. 56” D. 5-1/5”
C
A
B
D
Hanger Bracket
Canopy
Downrod
Downrod Stand Cover Decoration
Downrod Stand Cover
Hanger Ball
Hanger Pin
Decorative Cap
Collar
Lock Pin
Light Kit
Rubber Pad
Metal Pad
Hex Nut
Glass Shade
Metal Frame
Metal Cover
Finial

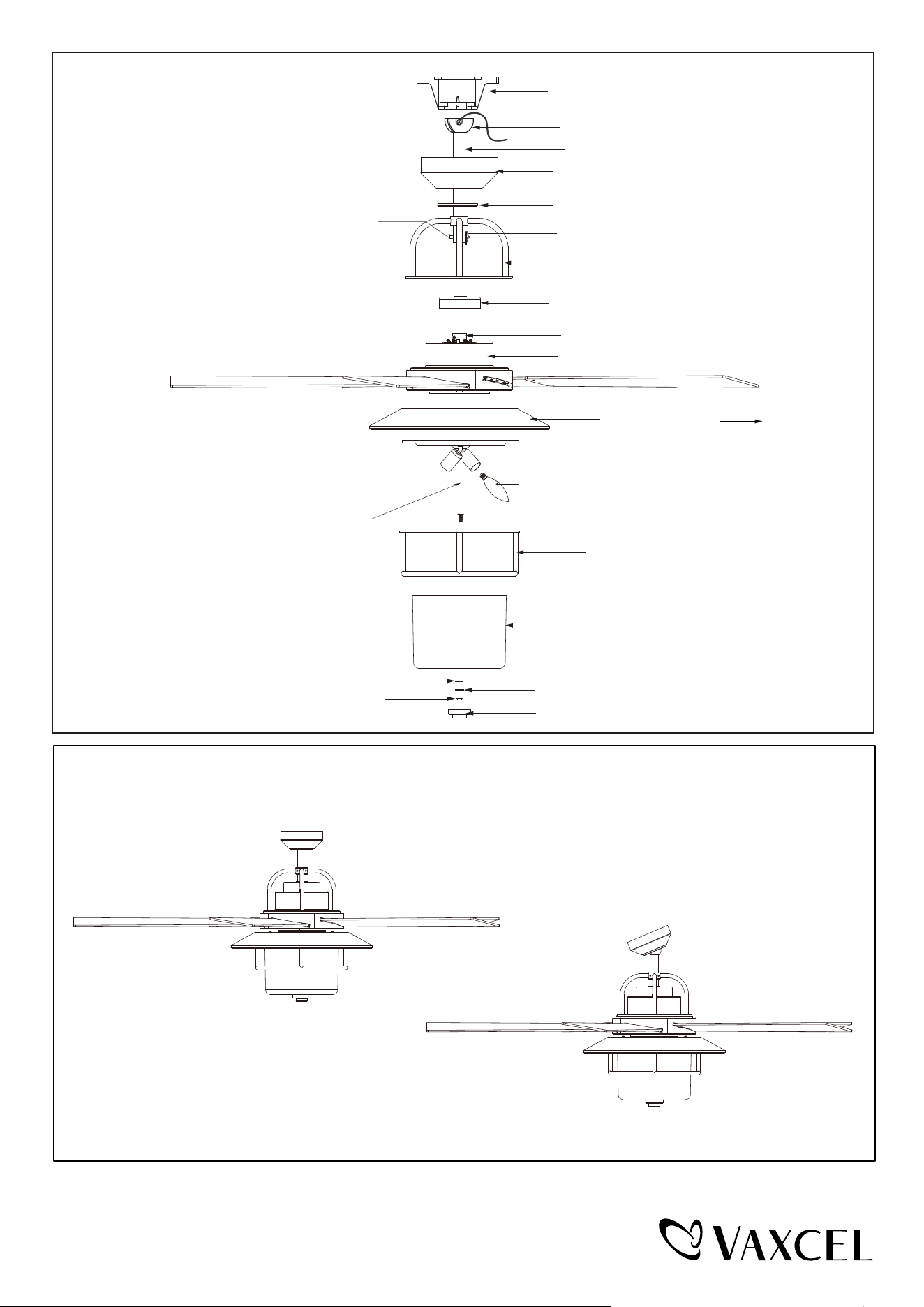

Exploded View Detail
Downrod Mount
Slope Ceiling Mount (Up to 23 degrees)
Dual Mount Drawing
Fan Blade
Fan Motor Assembly
2-4W Type B11 E12 LED Bulbs (included)
Type B11 E12 LED Bulbs Max 60W
PAGE: 3 / 10
240628
PAGE: 4 / 10
240628

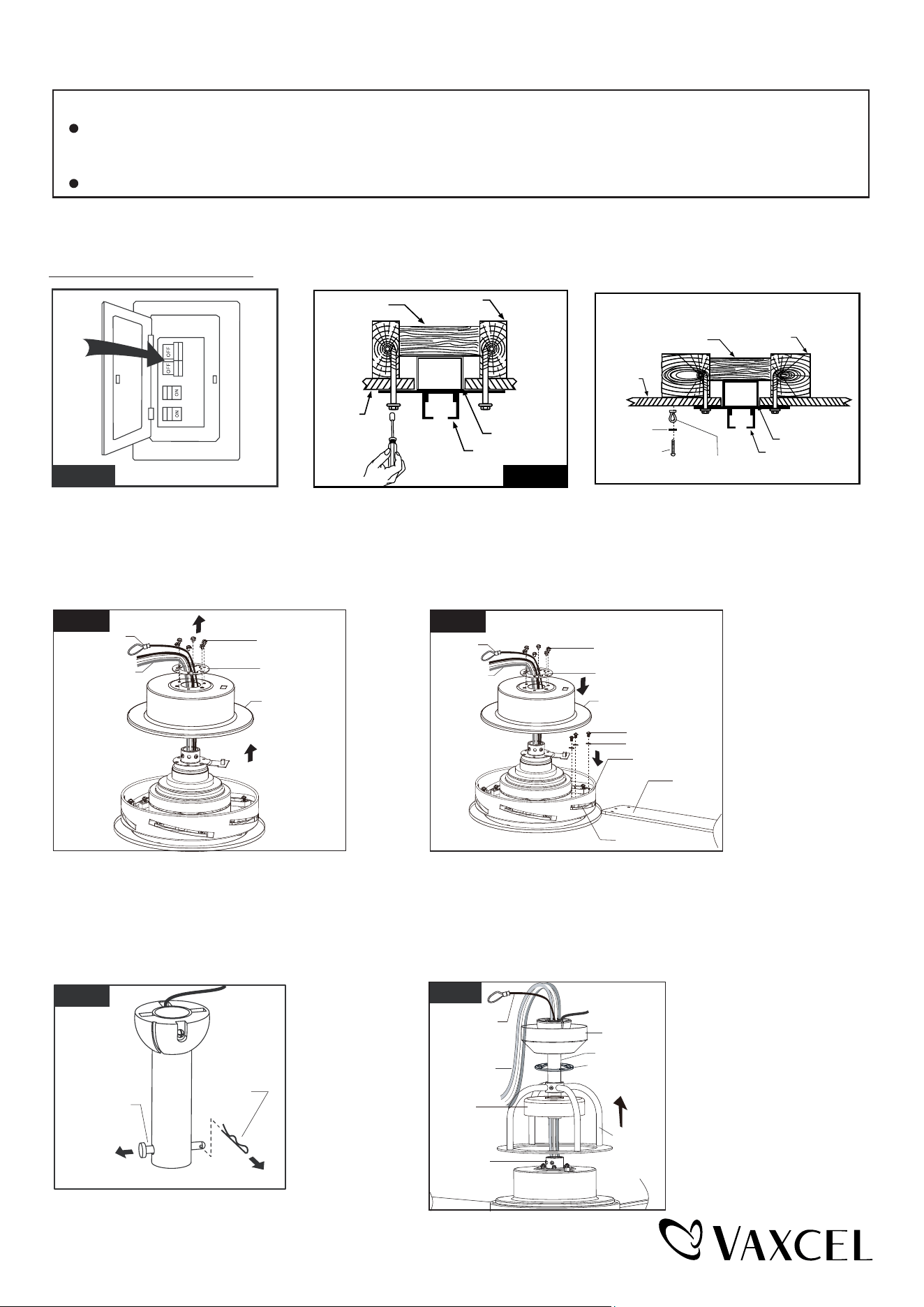

Installation Steps :
Fig.1
Turn OFF the electric circuit at the
main fuse or circuit breaker box.
NOTE: The fan weight is 23.8 lbs (10.8 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failing to do so can result in serious injury.
INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION ON THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SAVE ALL INSTRUCTIONS.
Tighten the hanger bracket to the outlet box with two mounting screws.(Make sure
the outlet box is securely installed so that it will be able to support at least the
fan weight.) Attach the safety cable hook to the ceiling with the dry wall screw and
washer, and make sure the safety cable hook is covered by the fan canopy.
WARNING: MOUNT ONLY TO AN OUTLET BOX MARKED "ACCEPTABLE FOR
FAN SUPPORT"!
Fig.5.Fig.2.
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Washer
Safety Cable Hook
Dry Wall Screw
Ceiling
Hanger Bracket
Ceiling Joist
Wood Member
(2" x 4" Approx.)
Junction Box
Fig.3
Housing Screw
Motor Cover
Motor Cover
Blade Screw
Motor Wires
Motor Wires
Screw Plate
Remove six housing screws, take care not to
drop the screws or washers into the fan
housing. Push the motor cover upward, and
slide down the motor wires and the safety
cable until they are out of the way.
Fig.4
Housing Screw
Slot
Blade
Motor
Screw Plate
Remove the blade screws and washers from motor. Insert
the blade through the slot on the motor. Align holes and
fasten blade to the motor with blade screws and washers.
Repeat for remaining blades. After all blades are fastened
securely to the motor, restore the motor cover and screw
plate onto the motor and fasten it with six housing screws.
Safety Cable
Safety Cable
Safety Cable
Washer
Thread the motor wires
and safety cable through
the downrod stand cover,
downrod stand cover
decoration, decorative cap,
canopy and the downrod.
Downrod
Hanger Pin
Lock Pin
Remove the lock pin and take off
the hanger pin.
Fig.5
Fig.6
Motor Wires
Downrod
Stand
Cover
Downrod
Stand
Cover
Decoration
Decorative Cap
Canopy
Collar
PAGE: 5 / 10
240628
Hanger Pin
Sollar Screw
Fig.7
Fig.8
Collar
Lock Pin
Hanger
Pin
Collar Screw
Downrod
Loosen the collar screws in part
way. Insert the downrod into the collar.
Slide hanger pin through holes of
collar and downrod.
Insert and tighten the two collar
screws. Slide lock pin into hanger pin
until it is locked into position.
Hang the fan on hanger bracket,
and make sure the slot of hanger
ball is snapped into the chip of
hanger bracket exactly.
Note: For slope ceiling
installation, make sure the slot
of hanger ball and the chip of
hanger bracket face down.
Slot
Chip
Hanger Bracket
Fig.9
Code example:
1-ON 2-OFF 3-ON 4-OFF on both
DIP Switches.
Note: If you have two ceiling fans
with 2 remote control units, set 2
different codes for each set of
transmitter / receivers.
Fig.10
Antenna
DIP Switch
Transmitter
Receiver
Fig.10a

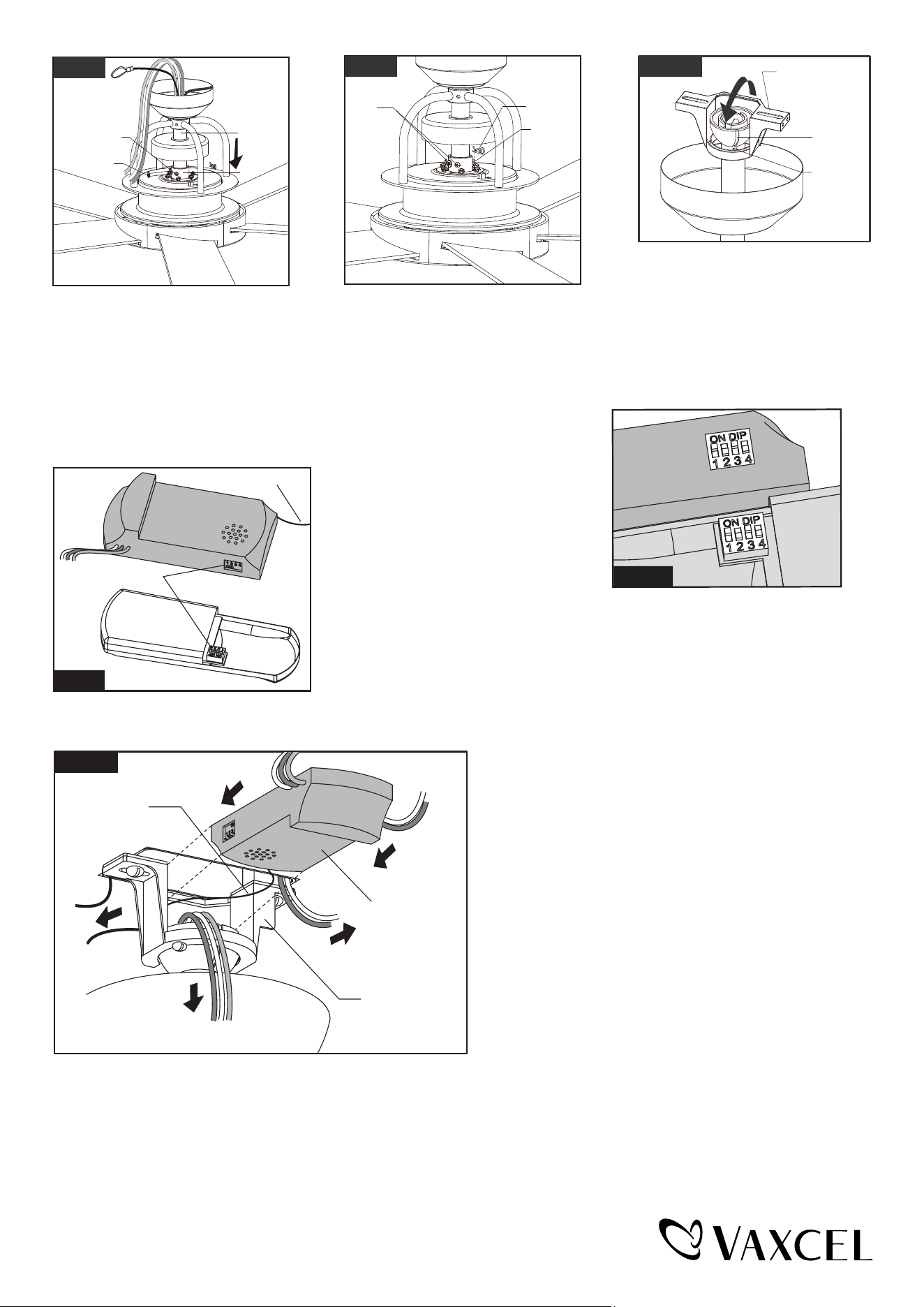

There is a code switch in the transmitter
and receiver. This "DIP Switch" is a 4 key
unit (Fig.10). All keys were set at "ON"
position in the beginning. Set the keys to
a different code. Make sure the same
numbered keys are switched "ON" for
both DIP Switches (Fig.10a). Take note
that the "ON" position may have different
orientation in each.
Fig.11
Move Ground Wires (a), Outlet Box wires (b), and
Motor Wires (c) away from the center of the Hanger
Bracket. Then slide Receiver through Hanger
Bracket as shown, Antenna end first, until it is
centered. Finally, cut Motor Wires (c) to length
needed for connections.
Antenna
Receiver
Hanger Bracket
a.
b.
c.
PAGE: 6 / 10
240628
Fig.14
Canopy Screw
Key Hole
Slot
Hanger Bracket
Canopy
Decorative Cap
Push the canopy
upwards by inserting
canopy screw heads in
hanger bracket into key
hole slots, rotate the
canopy, finally, tighten
the canopy screws.
Attach the decorative
cap to canopy, rotate it
clockwise until tight.
Fig.13
Hang the safety cable into the safety cable hook.
Safety Cable Hook
Safety
Cable
Fig.15
Metal Cover
Set Screw
Wire
Thread the wires through the hole of the metal cover, push the metal
cover to the motor by inserting set screw heads at the bottom of the
motor into key hole slots, rotate the metal cover, finally, tighten the
set screws.

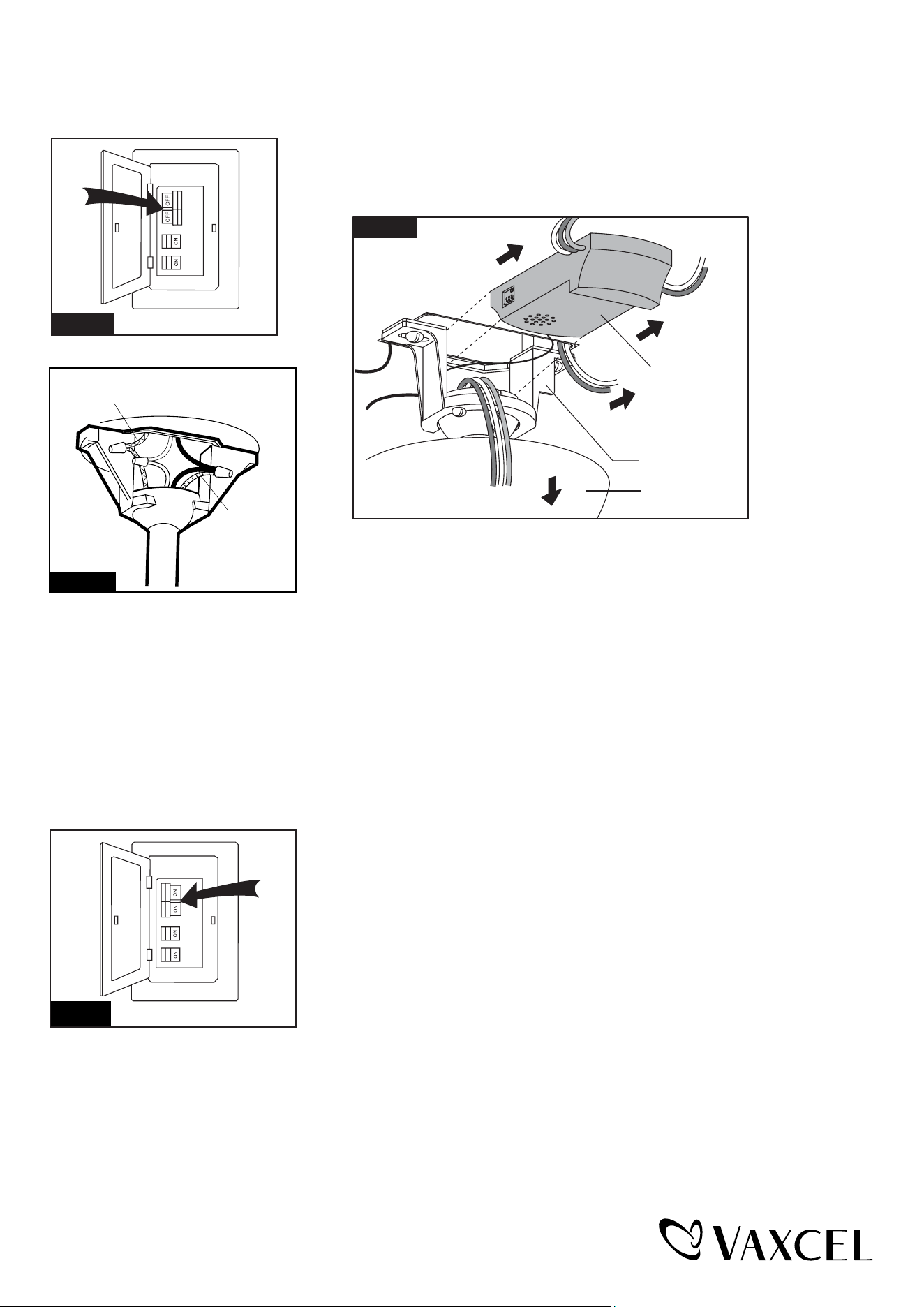

Fig.12
Hanger
Bracket
Hanger
Ball
Receiver
1.
4.
5.
6.
2.3.
Antenna:
DO NOT CUT
OR SPLICE

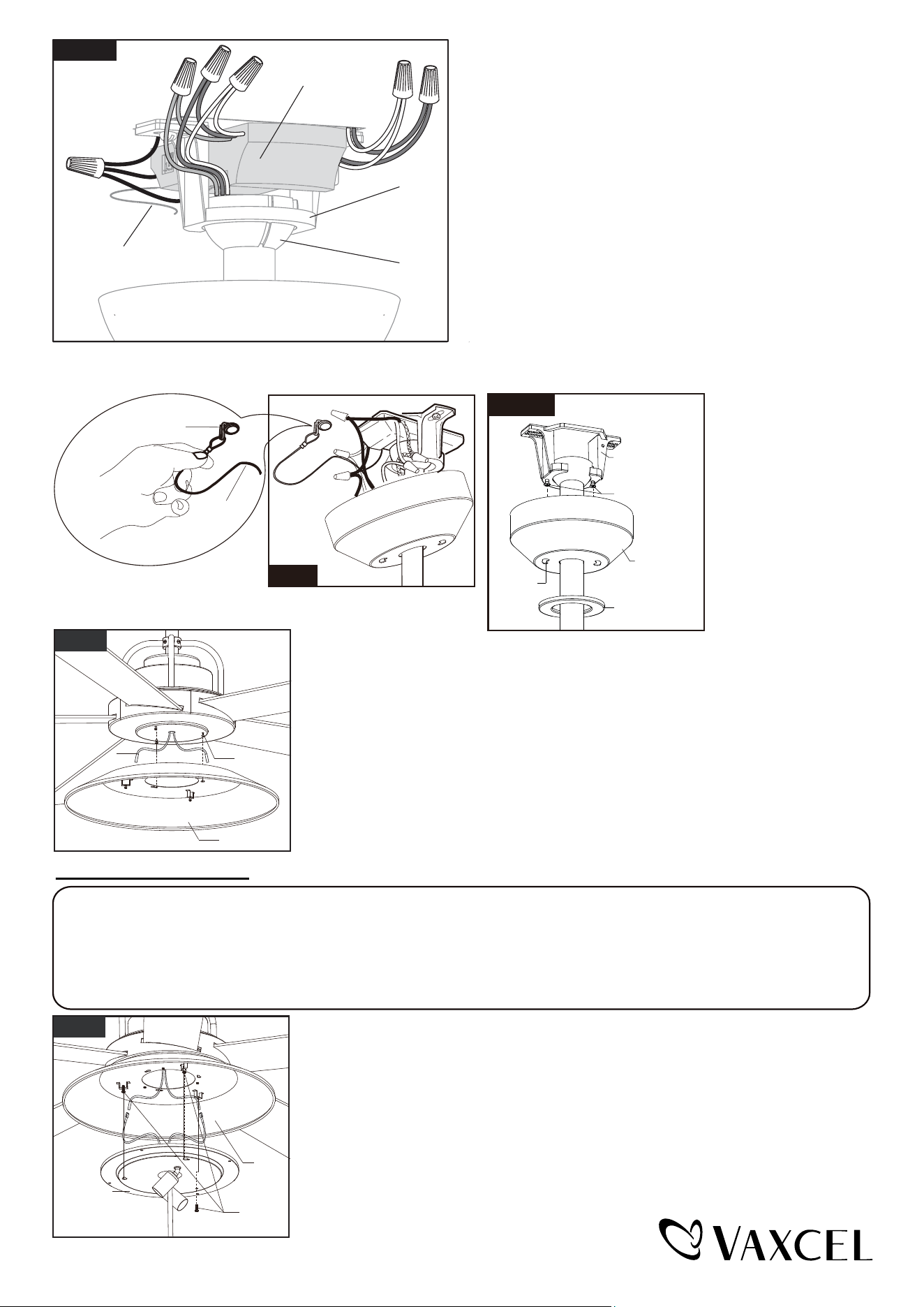

Connect wires:
1) The white (neutral) wire from motor to the white (neutral)
"To Motor N" wire from Receiver with a wire connector.
2) The black (hot) wire from motor to the black (hot) "To
Motor L" wire from Receiver with a wire connector.
3) The blue wire from motor to the blue "For Light" wire from
Receiver with a wire connector.
4) The white (neutral) wire from Outlet Box to the white "AC
in N" wire from Receiver with a wire connector.
5) The black (hot) wire from Outlet Box to the black "AC in L"
wire from Receiver with a wire connector.
6) The ground wire from Outlet Box to the green ground wire
from the Hanger Ball and the green ground wire from the
Hanger Bracket with a wire connector.
Make sure all of wire connectors are connected firmly.
*** Put all wire connectors and wires carefully up into the
outlet box, EXCEPT antenna, which should remain outside
outlet box.
Make wire connection. Plug the connector with black motor wire into the connector
with black light wire. Plug the connector with white motor wire into the connector
with white light wire.
Carefully put the wires into the light kit.
Remove one light kit screw (for later use), then push the light kit to the motor
bottom by inserting light kit screw heads into key hole slots, rotate the light kit,
finally, secure the light kit to metal cover with previous light kit screw and tighten
the other light kit screws.
Fig.16
Metal
Cover
Light Kit
Light Kit
Screw
Fan Light Installation:
WARNING:
As per EPACT 2005 requirements, this fan light has a built-in current limiting device to conserve
energy. The fan light will not operate if the combined wattage of the installed bulbs exceeds 190
Watts. If the fan light shuts off shortly after being switched on, it may be due to excessive current
demand. You should replace the light bulbs with lower wattage bulbs.
PAGE: 7 / 10
240628
Type B11
E12 LED
Bulbs
Max 60W
2-4W
Type B11
E12 LED
Bulbs
(included)
Attach the metal frame to the
light kit, secure it with four
metal frame screws.
Install bulbs (included). See
relamping label at socket
area or packaging for
maximum allowed wattage.
Attach the glass shade to the
light kit by inserting the
threaded pipe into the hole
of the glass shade, secure it
with the rubber pad, metal
pad and the hex nut.
Attach the finial to the
threaded pipe.
Adjust the direction of
the downrod stand
cover as you desire,
and then tighten two
set screws.
Metal Frame
Set Screw
Downrod
Stand
Cover
Light Kit
Glass Shade
Metal Pad
Finial
Hex Nut
Rubber Pad
Metal Frame
Screw
Threaded Pipe

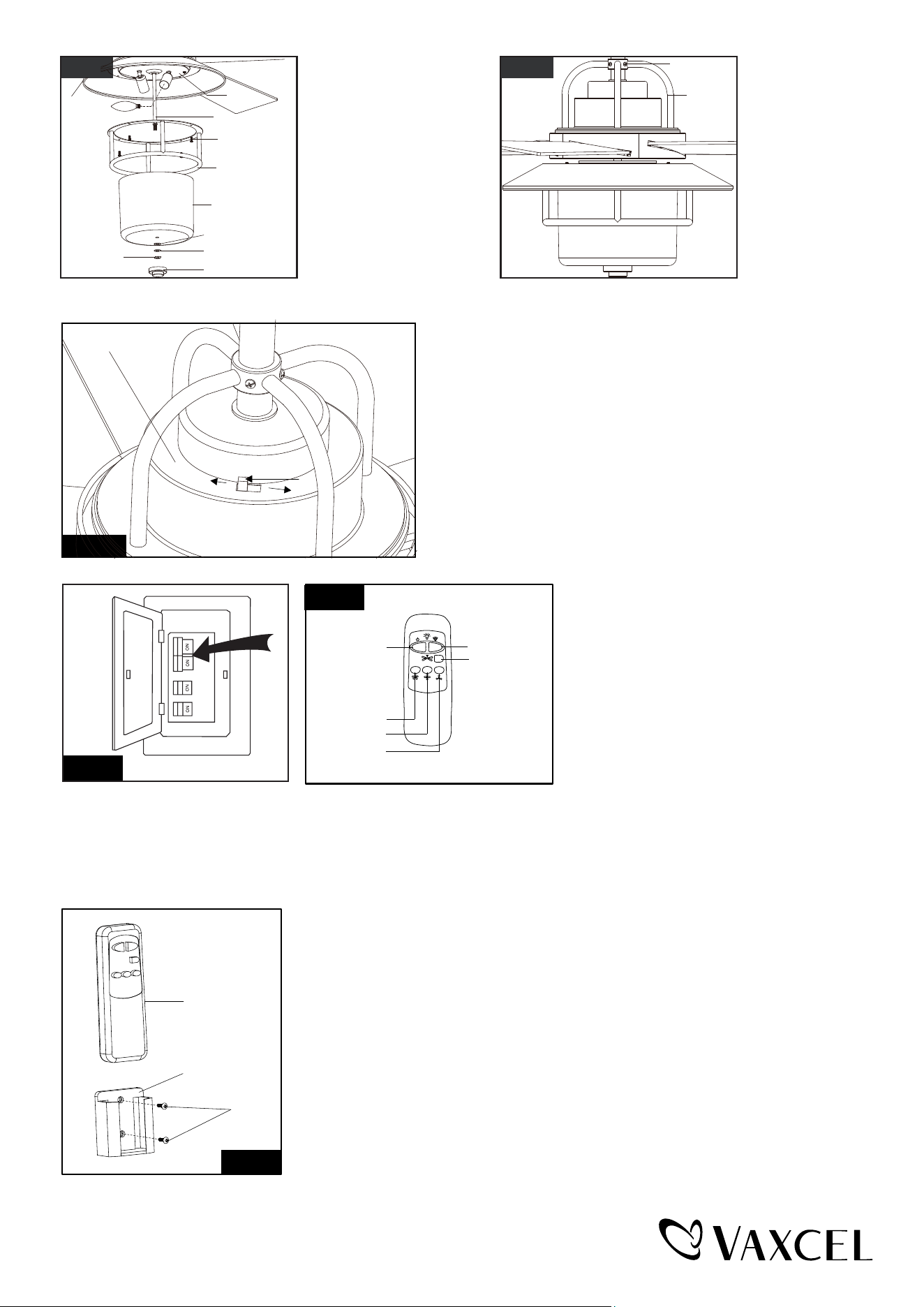

Fig.19
Slide Switch
Fig.20
Turn ON the electric circuit at the
main fuse or circuit breaker box.
Forward
Reverse
Motor
The slide switch on motor sets direction of fan rotation.
Select the desired direction of fan rotation.
Push the slide switch left for " Forward" and right for "Reverse".
Note: Wait for fan to stop before reversing the direction of blade
rotation.
Fig.21
Install the battery (9V, included) to the transmitter.
* Press "HI" button to turn on the fan at high speed.
* Press "MED" button to turn the fan in medium
speed.
* Press "LOW" button to turn the fan in low speed.
* Press "FAN OFF" button to turn off the fan.
* Press "LIGHT ON /OFF" button to turn on or turn
off the light.
* Press and hold the "DIMMER" button to dim or
brighten lights to the desired level and release,
and the brightness level will be memorized. Turn
on the light again, then fan light will restore on of
the brightness level which was dimmed last time.
Note:
This remote controller has memory function
setting. The fan will operate at the same speed
and the fan light will stay at the same
brightness as the last time the power supply
was turned off.
HI
MED
LOW
FAN OFF
DIMMER
LIGHT
ON/OFF
Fig.22
Install the transmitter wall bracket in wall by two screws
and hang transmitter in it carefully.
Wall Bracket
Screw
Transmitter
Fig.17 Fig.18
PAGE: 8 / 10
240628
Blue
Green (Ground)
Fig.25
Fig.26
Turn ON the electric circuit at the
main fuse or circuit breaker box.
Install Without Remote Controller
Fig.23
Turn OFF the electric circuit at the main fuse or circuit breaker box. (See Fig.23)
Unscrew the canopy. Remove the wire connectors from the fan to ceiling
wire connections. Slide the receiver in the Hanger Bracket with the flat
side toward the ceiling. (See Fig. 24)
Fig.24
Receiver
Hanger Bracket
Canopy
Connect wires: (See Fig.25)
1). The white (neutral) motor wire to the white (neutral) wire from the outlet box with a wire connector.
2). The black (hot) motor wire and blue (hot) wire to the black wire from the outlet box with
a wire connector.
3). The green (ground) wire from the downrod to the ground wire from the outlet box
with a wire connector.
*** After making the wire connections, the wires should be spread apart with the
white (neutral) conductor and the green (ground) conductor on one side
and the black (hot) conductor on the other side of the outlet box.
*** The wire connection points should be turned upward and pushed carefully up
into the outlet box.
Note: Remote control can not be worked along with solid-state speed control at the same time.
PAGE: 9 / 10
240628
Trouble Shooting Guide
If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation
or wiring. If you experience any faults, please check this Trouble Shooting Guide. If a problem cannot be
remedied or you are experiencing difficulty in installation, please call our Customer Service Department.
PROBLEM
1. If fan does not start:
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. Check main and branch circuit fuses or circuit breakers.
2. Make sure forward/reverse switch is firmly in left or right position. Fan will not
operate when switch is in the middle.
3. Make sure that the wall control is turned "ON".
4. Check line wire connections to fan and switch wire connections in switch box.
CAUTION: Make sure main power is turned off.
1. Make sure all screws in motor housing are snug. (not over tightened)
2. Make sure the screws which attach the fan blade bracket to the motor are tight.
3. Check to be sure the light kit is secured on motor tightly.
4. Some fan motors are sensitive to signals from Solid State variable speed
controls. DO NOT USE a Solid State variable speed control.
5. Allow "break-in" period of 24 hours. Most noises associated with a new fan will
disappear after this period.
All blades are weighed and grouped by weight. Natural woods vary in density
which could cause the fan to wobble even though all blades are weight-matched.
The following procedures should eliminate most of the wobble. Check for wobble
after each step.
1. Check that all blades are screwed firmly into blade brackets.
2. Check that all blade brackets are tightened securely to motor.
3. Make sure that canopy and hanger bracket are tightened securely to ceiling
outlet box and outlet box is mounted firmly to ceiling joist.
4. Most wobble problems of fan are caused when blades are not in equal level. To
check the blade levels, select a point on the ceiling above the tip of any blade.
Measure the distance from the ceiling to the blade tip, to an accuracy of 1/8
inch. Rotate the blades until the next blade is in the measuring position. Repeat
measurement for each blade. If all blade levels are not equal, you can adjust
blade levels by the following procedure. To adjust a blade tip down, insert a
washer (not supplied) between the blade and blade bracket at the screw
closest to the motor. To adjust a blade tip up, insert washer (not supplied)
between the blade and blade bracket at the two screws farthest from the motor.
5. Interchanging two adjacent blades could redistribute the weight and possibly result
in smoother operation.
1. Check blue wire from fan to make sure it is connected to hot wire from supply wire
coming out of the ceiling.
2. Check for loose or disconnected wires in light kit.
SUGGESTED REMEDY
PAGE: 10 / 10
240628
The limited lifetime warranty covers this fan, for residential use by the original purchaser, against defects
in material or workmanship as follows:
If your fan motor fails at any time during the lifetime of the original purchaser due to defects in material or
workmanship, we will provide a replacement part free of charge.
If your fan motor fails at any time within one year after the original date of sale to the original purchaser
due to defects in material or workmanship, we will provide labor to repair the defect, with the exception
of take down/reinstallation, free of charge. The original purchaser will be responsible for all labor costs
after this one year period.
If no replacement parts are provided for any part of your fan motor that fails at any time during your
lifetime due to defects in material or workmanship, we will refund the original purchase price of your fan.
If your fan includes any integrated LED modules, the LED functionality is covered by a 5-year warranty.
If your fan blades, or any accessory, except glass globes and light bulbs, fails at any time within one year
after the original date of purchase due to a defect in material and workmanship, we will repair or replace
the defective blades, switch, or accessory free of charge, with the exception of take down/reinstallation
services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including but not
limited to any implied warranty of merchantability or fitness for a particular purpose, become void. This
warranty and any implied warranty, including but not limited to any implied warranty of merchantability or
fitness for a particular purpose, does not cover glass globes, light bulbs, or finish on any metal portions of
the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of merchantability or
fitness for a particular purpose, with respect to any fan motor, blades, switch, or accessories, is expressly
limited to the period of the express warranty set forth above for such motor, LED modules, blades, switch,
or accessories.
This warranty excludes defects, malfunctions, or failures of any fan that are caused by repairs by persons
not authorized by us, use of parts or accessories not authorized by us, mishandling, improper installation,
modifications or damage to the fan while in your possession, or unreasonable use, including failure to
provide necessary maintenance. This warranty does not include the failure of products from extreme acts
of nature; environmental conditions not suited for the products intended use; operation in temperatures
outside of the range specified in the instruction manual; usage with improper power supply, power surges
or dips. For coastal locations, some corrosion is considered normal for the environment.
In no event shall VAXCEL be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in which case
the above limitation or exclusion may not apply. This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided
it is returned per RMA instruction. This warranty is limited to the cost of the product only and does not
extend to transportation, installation or replacement costs.
ORIGINAL VAXCEL CEILING FAN LIMITED LIFETIME WARRANTY*
How can warranty service be obtained for your ceiling fan?
1-800-482-9235
