Zip Domestic Chill Tap - Installation & Operating Instructions - 87403 - June 2007 Page 1 of 8
Domestic Installation and Operating Instructions
Zip Domestic Chill Tap
Undersink filtered / unfiltered domestic chilled drinking water
76121 - 60 Glass/Hr Filtered UCCT12FXV
®
Page 2 of 8 Zip Domestic Chill Tap - Installation & Operating Instructions - 87403 - June 2007
# Section Heading
Zip Domestic Chill Tap - Installation & Operating Instructions - 87403 - June 2007 Page 3 of 8
# Read These Warnings First
Installing the Chiller
Sit the chiller unit into the cupboard as close to the proposed outlet tap position
as is possible, to minimise the length of tubing exposed between the chiller
unit and the outlet tap.
Allow at least 50 mm around the chiller unit to permit free airflow. Both the
top and the front of the chiller must remain accessible for servicing purposes.
Installing the Tap
If this model comes with a carafe filler, position and install the carafe filler at
the back of the sink where there is a 45 mm wide flat area within the draining
area of the sink.
Make sure the selected position allows the carafe filler spout to overhang the
sink bowl.
# Domestic Installation Instructions
Please read all installation requirements, installation procedures and
precautions before installing any Zip Chill Tap.
Never attempt to install any Zip Chill Tap without reading all of the applicable
instructions.
All electrical connections must comply with current wiring rules.
This appliance is not designed for use by young children or infirm people
without supervision.
Young children should be prevented from having access to ensure they are not
able to use or play with the chiller.
This appliance must be earthed.
If the power supply cord is damaged it must be replaced by a Zip Service
Provider or a qualified electrician.
Do not remove the cover of the appliance under any circumstances without
first isolating the appliance from the power supply.

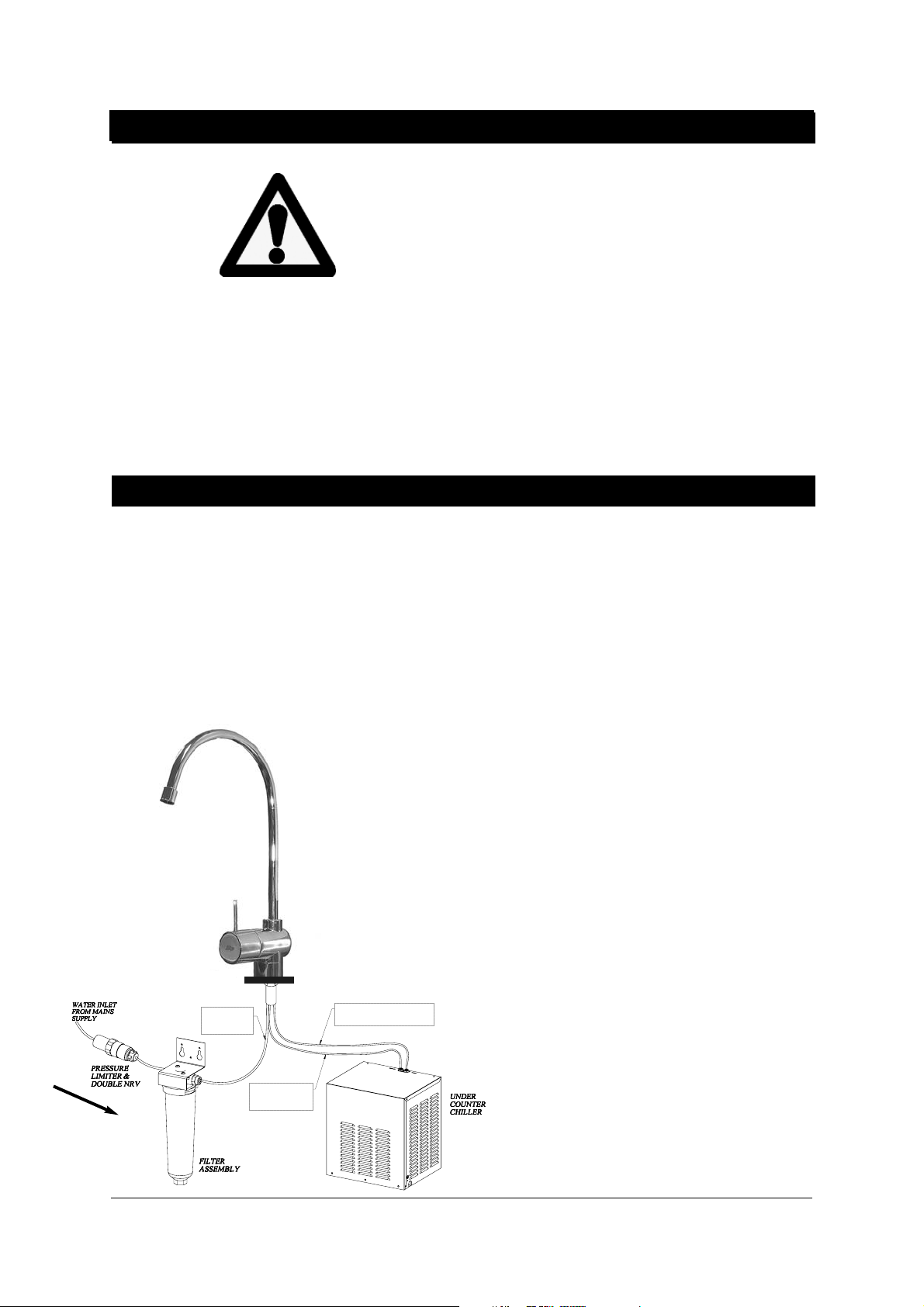

RED tube into chiller
BLUE tube
from chiller
CLEAR tube
into carafe
Flow
Page 4 of 8 Zip Domestic Chill Tap - Installation & Operating Instructions - 87403 - June 2007
# Domestic Installation Instructions continued
Use a 25 mm sheet metal punch to create a neat hole without burrs.
Remove the nut and washer from the base of the carafe filler, leaving the rubber-
sealing ring in place.
Fit the carafe filler and seal to the sink, oriented so that the operating lever is away
from the sink bowl.
Slide the washer and nut over the tubes from under the sink, and tighten the nut to
secure the carafe filler firmly into place.
Connecting
If this model comes with a filtration kit, follow the separate filter kit installation
instructions.
It this is an unfiltered model, only a 1/2" BSP to 1/4" tube adaptor is supplied.
You must separately supply and install an isolating valve in the supply line before
the connection to the product.
If the pressure exceeds 700kPa, you must also supply and install a 350kPa
pressure-limiting valve.
From the outlet of the pressure limiting valve or the outlet of the filter housing
(if supplied) connect the CLEAR tubing from the vented carafe filler, cut excess off
to ensure a neat job. Make sure all connections to John Guest fittings are pushed in
past the “O”ring to full depth, at least 15-16mm.
Now measure and cut the RED tube to connect directly to the JG fitting marked
INLET on the top right rear of the chiller unit. Insulate the BLUE tube with the loose
length of the pipe insulation, cut both pieces to correct length. Now connect the
BLUE tube to the JG fitting marked OUTLET on the top left rear of the chiller.
Tap connection is now complete.
Precautions
The plumbing installation must be done in accordance with local Water Authority
regulations and these Installation Instructions.
As the installer, it is your responsibility to supply (if necessary) and install all valves
as required by local regulations and relevant standards.
The chiller and filtration systems are indoor units and must not be exposed to the
elements of nature.
# Section Heading
Zip Domestic Chill Tap - Installation & Operating Instructions - 87403 - June 2007 Page 5 of 8
Take care, when bending rigid plastic tubing, to prevent it from kinking or
crushing around a bend. As it is plastic tubing containing water under mains
pressure, be careful not to nick, scratch or damage it during installation.
Cut the tube squarely with a sharp knife or tube cutter. Shake out and remove
any swarf and debris.
Ensure there is adequate ventilation available through the cupboard. If there is
inadequate ventilation, and the cupboard temperature rises to above 40°C, the
chiller may become damaged and malfunction which will void the product
warranty.
There must be a minimum 168cm2 of cupboard cross-flow ventilation.
Suitable holes or vents will need to be cut into the cupboard and door.
For safe operation, thoroughly flush the water through after non-use periods
longer than 12 hours.
Filter cartridges (if fitted) should be replaced at least every 6-12 months, or
sooner if you notice:
A. a persistent reduction in water pressure from the product, or;
B. an unpleasant taste or odour in the water.
Not changing the cartridges when required may cause the water to become
biologically unsafe.
Commissioning
Clip the tubing in the cupboard. After the appliance is installed and connected,
turn "ON" the water supply. Check all connections for leaks. Repair any
found.
The filters (if fitted), chiller and tubing are full of air until purged. Press the
operating lever on the appliance outlet tap for a minimum of five minutes until
all of the air has been purged from the system.
Plug the 3-pin power cord into a standard power point. Do NOT turn "ON"
until after the unit is purged.
Wipe clean and dry the area.
Dispose of packaging wisely.
# Domestic Installation Instructions continued
The use of this crossed out wheeled bin logo indicates that this product needs
to be disposed of separately to any other household waste.
Within each of the European Union member countries, provisions have been
made for the collection and recycling of unwanted electrical and electronic
equipment. Outside of the EU it will be necessary to dispose of this product at
your local community waste collection or recycling centre.
In order to help preserve our environment we ask that you dispose of this
product correctly. Please contact your local city council for collection centre
details
Page 6 of 8 Zip Domestic Chill Tap - Installation & Operating Instructions - 87403 - June 2007
# Domestic Operating Procedures
Operation
Chilled water is obtained by rotating the lever on the carafe filler. The water is
chilled by a refrigeration unit fitted within the cabinet stand, under the basin.
With the carafe filler, you can obtain chilled water within the rated capacity, for
as long as you leave the lever in the open (vertical) position. When finished,
return the lever to the OFF (upright) position.
Cleaning
Never use strong, corrosive or abrasive cleaning materials on the Zip Chill Tap.
Wipe clean the outer surfaces with a sponge or a soft cloth using a mild soap
and water.
The louvres on the sides of the chiller unit need to be kept free of dust and lint
to permit free flow of air through the vents. They should be checked regularly,
at least monthly, and dusted or vacuumed.
Filter Replacement
The Zip Chill Tap Under Counter Chiller may have a separate filtration system
connected to the incoming water supply line, and which may be located within
the same cupoard as the chiller unit.
For safe operation, the filter cartridge should be replaced every 6-12 months,
or earlier if you notice a persistent reduction in water pressure from the
appliance or an unpleasant taste or odour in the water.
WARNING
Not changing filtration cartridges when required, may cause the water to
become biologically unsafe. Make an entry in your diary to check the
water quality of the Chill Tap at least six months after installation and
after every subsequent filter change.
Use only a Zip Filter to match that used with this Chill Tap (if fitted).
Replacement filter cartridges can be obtained through plumbing suppliers
or directly from Zip.
Replacement instructions come with the filter cartridges.
Before attempting to disconnect or remove the filter cartridge from the
housing, isolate (turn off) the water supply prior to the filter system, and
then relieve the system pressure by operating the chilled water outlet tap
until the water ceases to flow.
Service
There are no user serviceable parts but there are dangerous voltages present
within the unit. All service work must only be carried out by a suitably qualified
and experienced service person.
Before calling for service, check that both the water and electricity supplies are
turned ‘ON’ and OK.
Call an electrican, a plumber, or Zip for a free call in Australia on 1800-638-
633, for assistance, service , spare parts, or enquiries.
#
ROTATE
# Section Heading
Zip Domestic Chill Tap - Installation & Operating Instructions - 87403 - June 2007 Page 7 of 8
# Domestic Warranty Information
Certain warranties may be implied by law into your contract with Zip. The
warranty provided below is additional to these implied warranties and nothing
set out below shall limit your statutory rights or rights at law.
Zip Heaters (Aust) Pty Ltd warrants that, should any part fail within 12 calendar
months of installation, that part will be repaired or replaced free of charge by
Zip or its Distributor or Service Provider, except as set out below, provided the
appliance is installed and used strictly in accordance with the instructions
supplied, and that failure is not due to accident, misuse, abuse, unsuitable
water conditions, or to any alteration, modification or repair by any party not
expressly nominated by Zip.
No costs are payable by the customer other than any mileage or travelling-time
charges incurred by a Zip Service Provider or the cost of removal, cartage and
re-installation of any component of the appliance if it needs to be returned for
repair to Zip or its Distributor.
This warranty does not cover damage resulting from non-operation of the
appliance, the use of non authorised parts or consequential damage to any
other goods, furnishings or property.
No warranty applies to the life of any filtration cartridge installed with the
appliance as cartridge life may vary according to water quality and the rate of
water consumption.
Zip does not exclude, restrict or modify any liability that cannot be excluded,
restricted or modified or which cannot, except to a limited extent, be excluded,
restricted or modified as between the owner or user and Zip under the laws
applicable.
Furthermore, this warranty does not displace any statutory warranty, but, to the
extent to which Zip is entitled to do so, the liability of Zip under any statutory
warranty will be limited at Zip's option to the replacement of the appliance or
supply of equivalent appliance, the payment of the cost of replacing the
appliance or acquiring an equivalent appliance, or the payment of the cost of
having the appliance repaired or the repair of the appliance.
Registering Your Purchase
Registering your Zip installation on the Zip website may help to establish date
of installation should it become necessary to service the appliance under terms
of the Zip warranty. To register your installation go to www.zipheaters.com and
look under the heading "Warranty".
As Zip policy is one of continuous product improvement, changes to
specifications may be made without prior notice. Images in this booklet have
been modified and may not be true representations of the finished goods.
