Self-Cleaning Gas Range
Use & Care Guide
Cocina de gas con autolimpieza
Manual de uso y cuidado
Models, Modelos 665.75002
665.72002
665.75004
665.72004
665.75O12
665.72012
665.75014
665.72014
!11
TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT,
TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE REFERENCE,
PARA EL INSTALADOR: FAVOR DE DEJAR ESTE MANUAL DE INSTRUCCIONES CON LA UNIDAD.
PARA EL CONSUMIDOR: FAVOR DE LEER Y GUARDAR ESTE MANUAL PARA FUTURAS REFER_NCIAS,
Super Capacity with ULTRABAKE TMSystem
Capacidad extra con el Sistema ULTRABAKE TM
8274183 Sears Roebuck and Co., Hoffmar_ Estates, |L 60179 U.S,A. www.sears.com

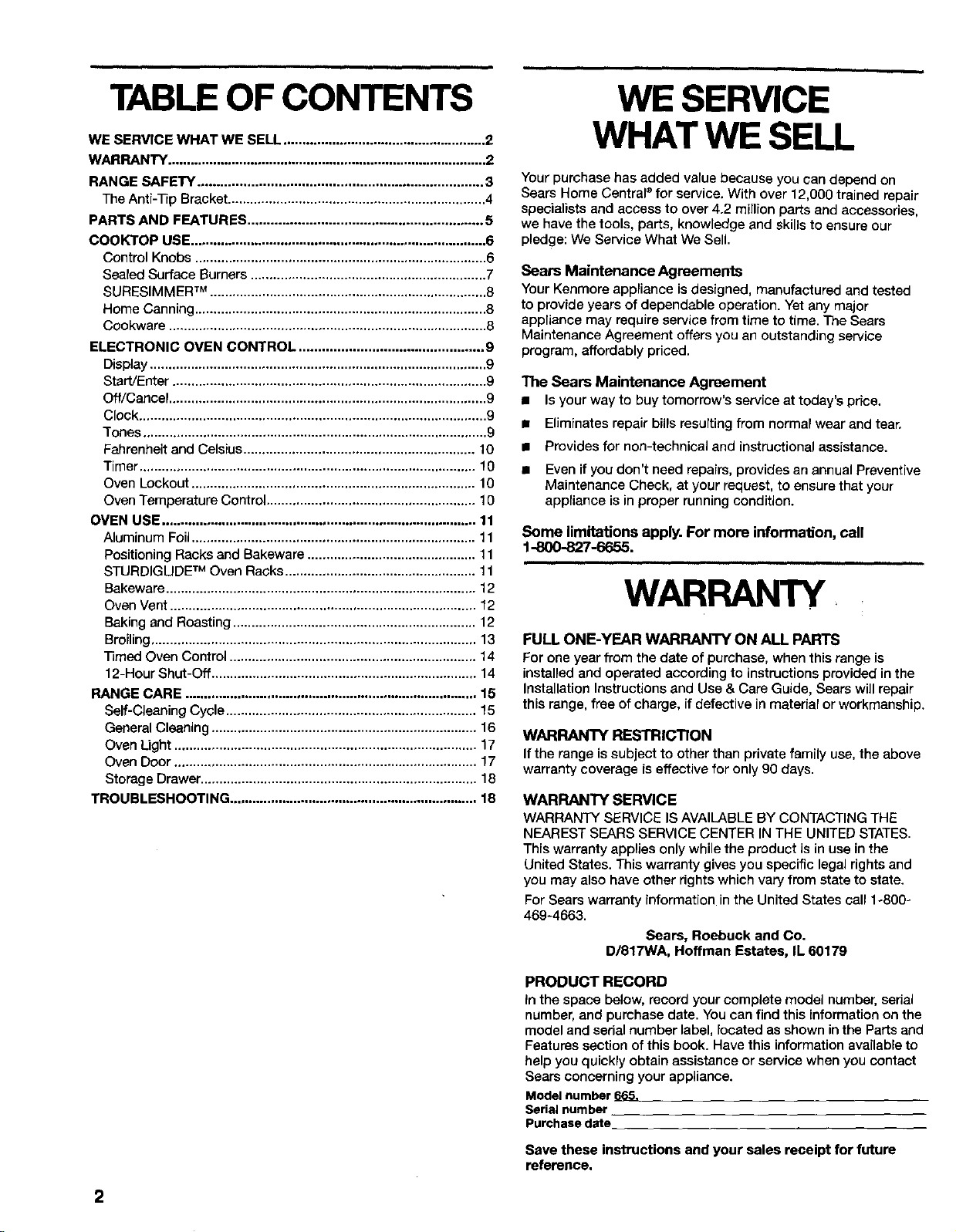

TABLE OF CONTENTS
WE SERVICE WHAT WE SELL ...................................................... 2
WARRANTY ..................................................................................... 2
RANGE SAFETY .......................................................................... 3
The Anti-Tip Bracket..................................................................... 4
PARTS AND FEATURES ............................................................. 5
COOKTOP USE............................................................................... 6
Control Knobs .............................................................................. 6
Sealed Surface Burners ............................................................... 7
SURESIMMER TM .......................................................................... 8
Home Canning .............................................................................. 8
Cookware ..................................................................................... 8

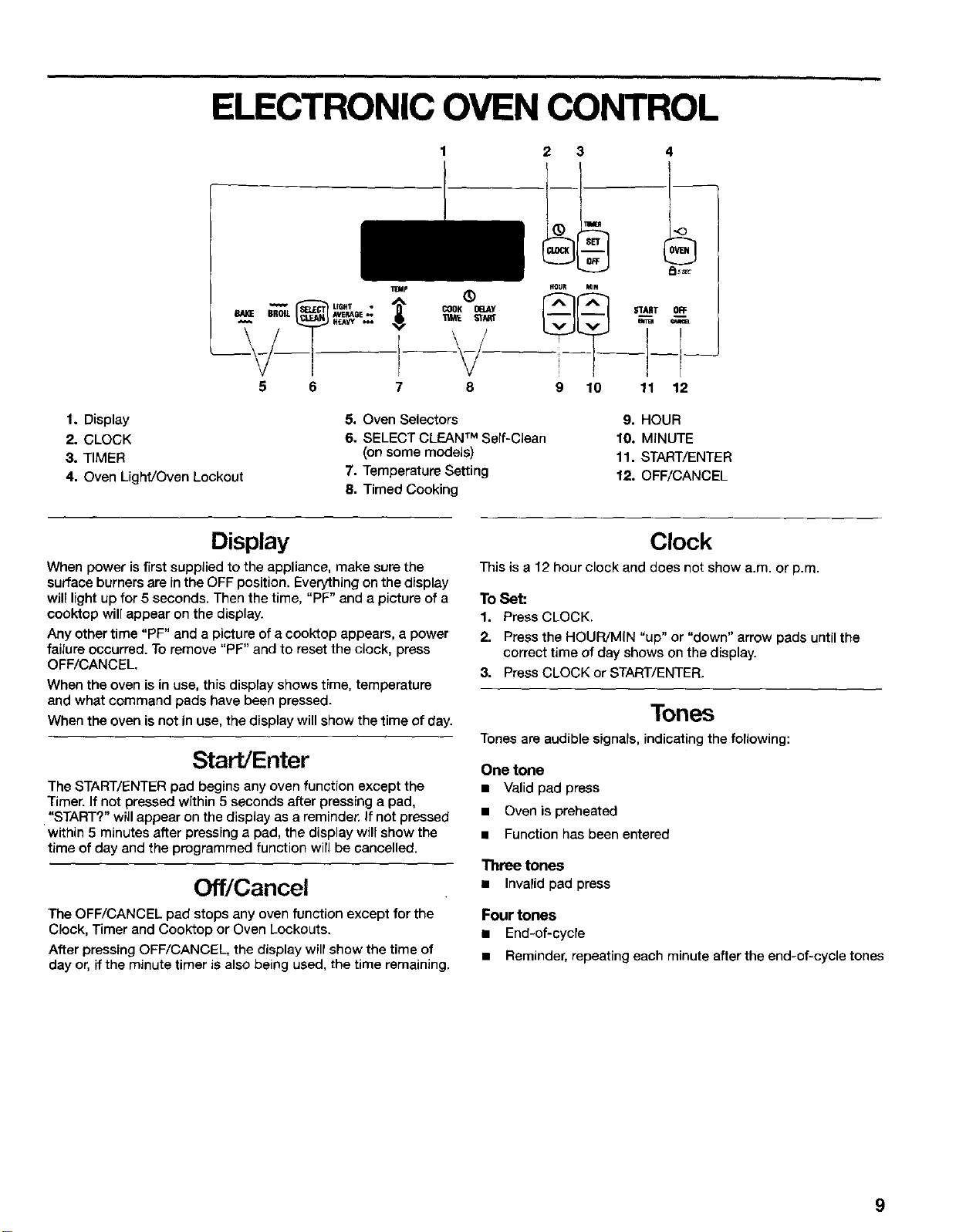

ELECTRONIC OVEN CONTROL ................................................ 9
Display.......................................................................................... 9
Start/Enter .................................................................................... 9
Off/Cancel ..................................................................................... 9
Clock ............................................................................................. 9
Tones ............................................................................................ 9
Fahrenheit and Celsius .............................................................. 10
Timer .......................................................................................... 10
Oven Lockout ............................................................................ 10
Oven Temperature Control ........................................................ 10

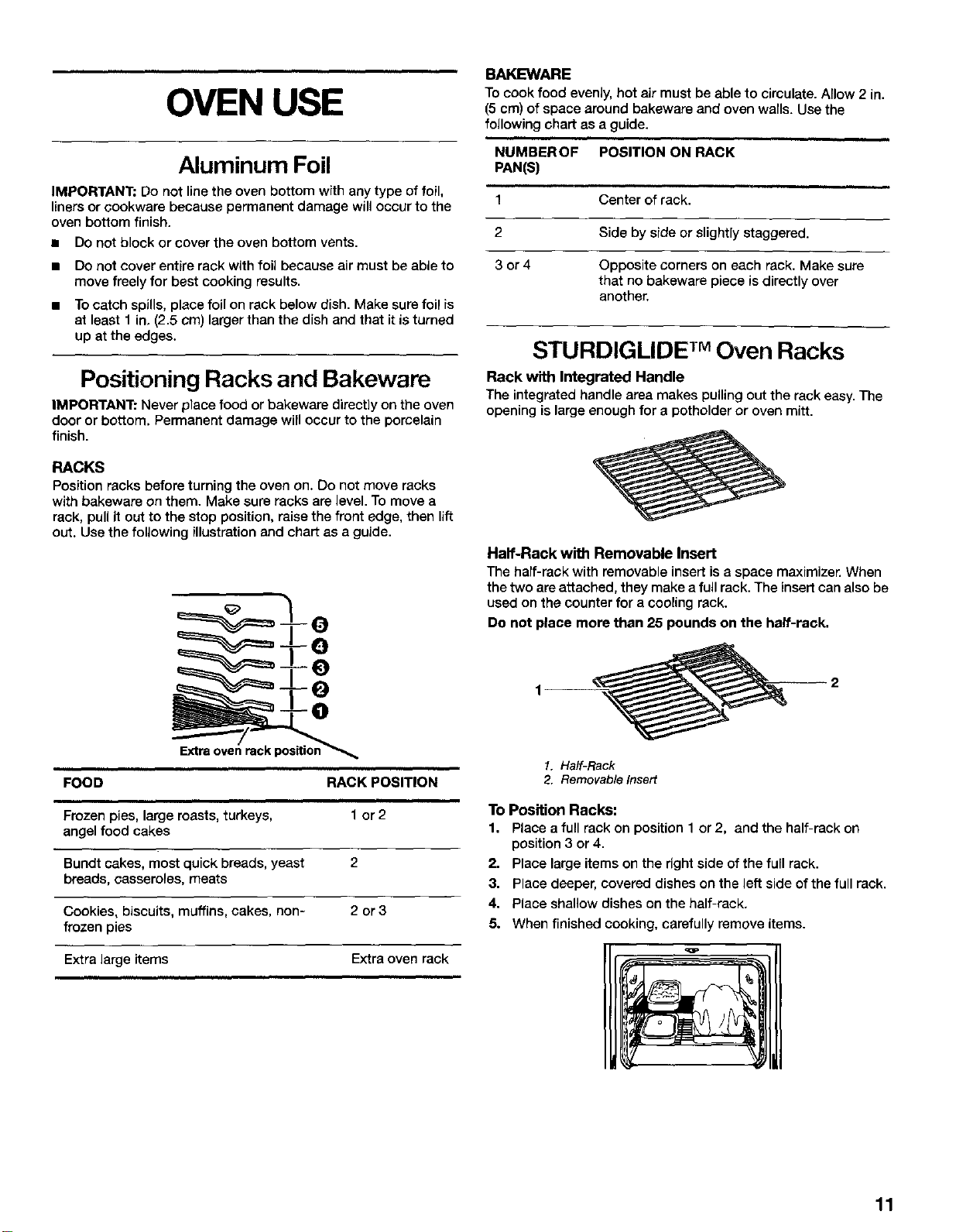

OVEN USE .................................................................................... 11
Aluminum Foil............................................................................ 11
Positioning Racks and Bakeware ............................................. 11
STURDIGLIDE TM Oven Racks ................................................... 11
Bakeware ................................................................................... 12
Oven Vent .................................................................................. 12
Baking and Roasting ................................................................. 12
Broiling....................................................................................... 13
Timed Oven Control .................................................................. 14
12-Hour Shut-Off ....................................................................... 14
RANGE CARE .............................................................................. 15

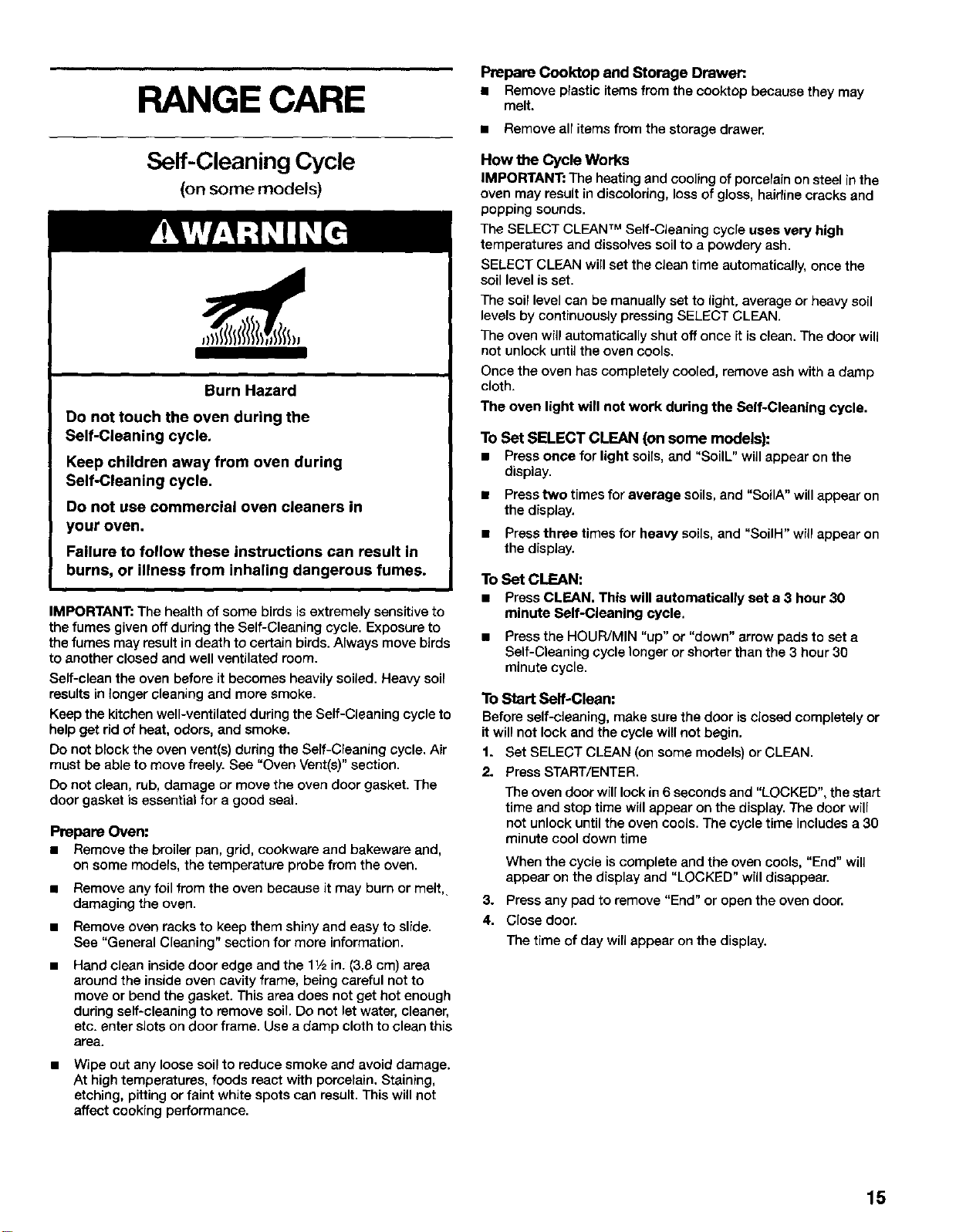

Self-Cleaning Cycle ................................................................... 15
General Cleaning ....................................................................... 16
Oven Light ................................................................................. 17
Oven Door ................................................................................. 17
Storage Drawer .......................................................................... 18
TROUBLESHOOTING .................................................................. 18
WE SERVICE
WHAT WE SELL
Your purchase has added value because you can depend on
Sears Home Central ®for service. With over 12,000 trained repair
specialists and access to over 4.2 million parts end accessories,
we have the tools, parts, knowledge and skills to ensure our
pledge: We Service What We Sell.
Soars Maintenance Agreements
Your Kenmore appliance isdesigned, manufactured and tested
to provide years of dependable operation. Yet any major
appliance may require service from time to time. The Sears
Maintenance Agreement offers you an outstanding service
program, effordably priced.
The Soars Maintenance Agreement
= Is your way to buy tomorrow's service at today's price.
• Eliminates repair bills resulting from normal wear and tear.
• Provides for non-technical and instructional assistance.
• Even if you don't need repairs, provides an annual Preventive
Maintenance Check, at your request, to ensure that your
appliance is in proper running condition.
Some limitations apply. For more information, call
1-800-827-6655.
WARRANTY
FULL ONE-YEAR WARRANTY ON ALL PARTS
For one year from the date of purchase, when this range is
installed and operated according to instructions provided in the
Installation Instructions and Use & Care Guide, Sears will repair
this range, free of charge, if defective in material or workmanship.
WARRANTY RESTRICTION
If the range is subject to other than private family use, the above
warranty coverage is effective for only 90 days,
WARRANTY SERVICE
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER IN THE UNITED STATES.
This warranty applies only while the product is in use in the
United States. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state.
For Sears warranty information in the United States call 1÷800-
469-4663.
Sears, Roebuck and Co.
D/817WA, Hoffman Estates, IL 60179
PRODUCT RECORD
In the space below, record your complete model number, serial
number, and purchase date. You can find this information on the
model and serial number label, located as shown inthe Parts and
Features section of this book. Have this information available to
help you quickly obtain assistance or service when you contact
Sears concerning your appliance.
Model number _,
Serial number
Purchase date.
Save these instructions and your sales receipt for future
reference.
2

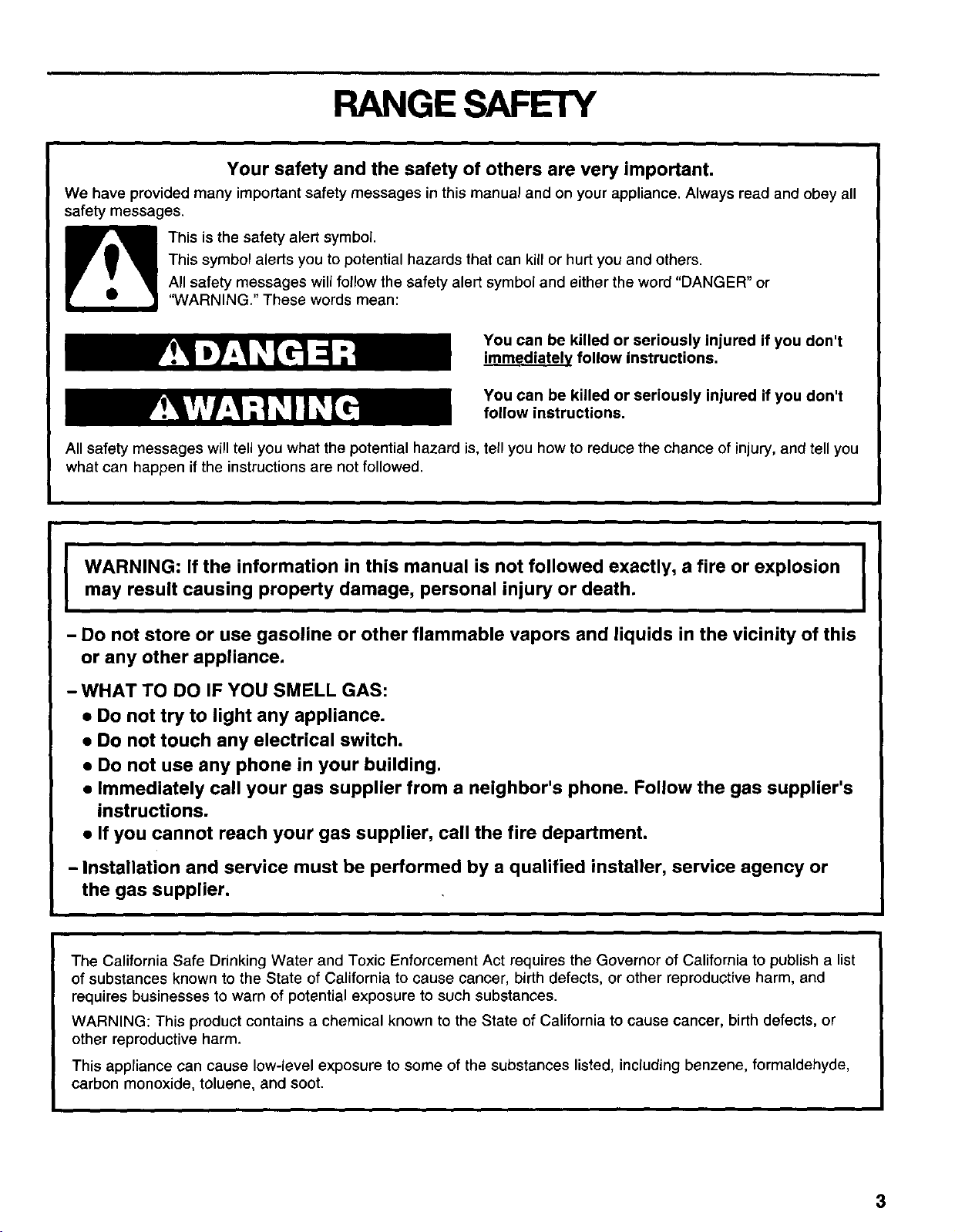

RANGESAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all
safety messages,
This is the safety alert symbol
This symbol alerts you to potential hazards that can killor hurt you and others,
All safety messages will follow the safety alert symbol and either the word "DANGER" or
"WARNING." These words mean:
You can be killed or seriously injured if you don't
immediately follow instructions,
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
I ARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
= Do not try to light any appliance.
= Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list
of substances known to the State of California to cause cancer, birth defects, or other reproductive harm, and
requires businesses to warn of potential exposure to such substances.
WARNING: This product contains a chemical known to the State of California to cause cancer, birth defects, or
other reproductive harm.
This appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde,
carbon monoxide, toluene, and soot.
3

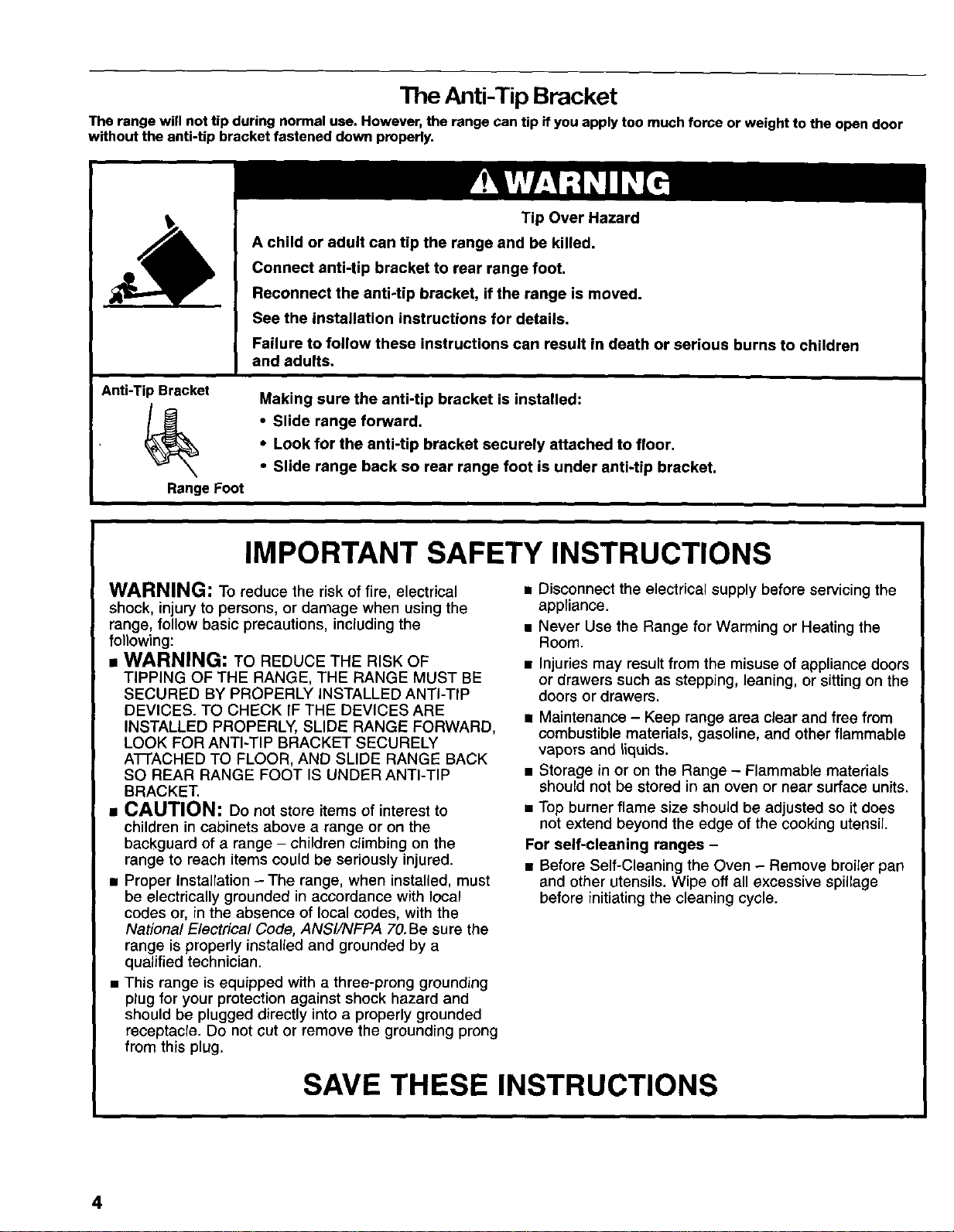

The Anti-Tip Bracket
The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door
without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Range Foot
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns to children
and adults.
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor,
• Slide range back so rear range foot is under anti-tip bracket.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using the
range, follow basic precautions, including the
following:
• WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST BE
SECURED BY PROPERLY INSTALLED ANTI-TIP
DEVICES. TO CHECK IF THE DEVICES ARE
INSTALLED PROPERLY, SLIDE RANGE FORWARD,
LOOK FOR ANTI-TIP BRACKET SECURELY
ATrACHED TO FLOOR, AND SLIDE RANGE BACK
SO REAR RANGE FOOT IS UNDER ANTI-TIP
BRACKET.
• CAUTION: Do not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
• Proper Installation - The range, when installed, must
be electrically grounded in accordance with local
codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70.Be sure the
range is properly installed and grounded by a
qualified technician.
• This range is equipped with a three-prong grounding
plug for your protection against shock hazard and
should be plugged directly into a properly grounded
receptacle. Do not cut or remove the grounding prong
from this plug.
a Disconnect the electrical supply before servicing the
appliance.
• Never Use the Range for Warming or Heating the
Room.
• Injuries may result from the misuse of appliance doors
or drawers such as stepping, leaning, or sitting on the
doors or drawers.
• Maintenance - Keep range area clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
= Storage in or on the Range - Flammable materials
should not be stored in an oven or near surface units.
• Top burner flame size should be adjusted so it does
not extend beyond the edge of the cooking utensil.
For self-cleaning ranges -
• Before Self-Cleaning the Oven - Remove broiler pan
and other utensils. Wipe off all excessive spillage
before initiating the cleaning cycle.
SAVE THESE INSTRUCTIONS
4

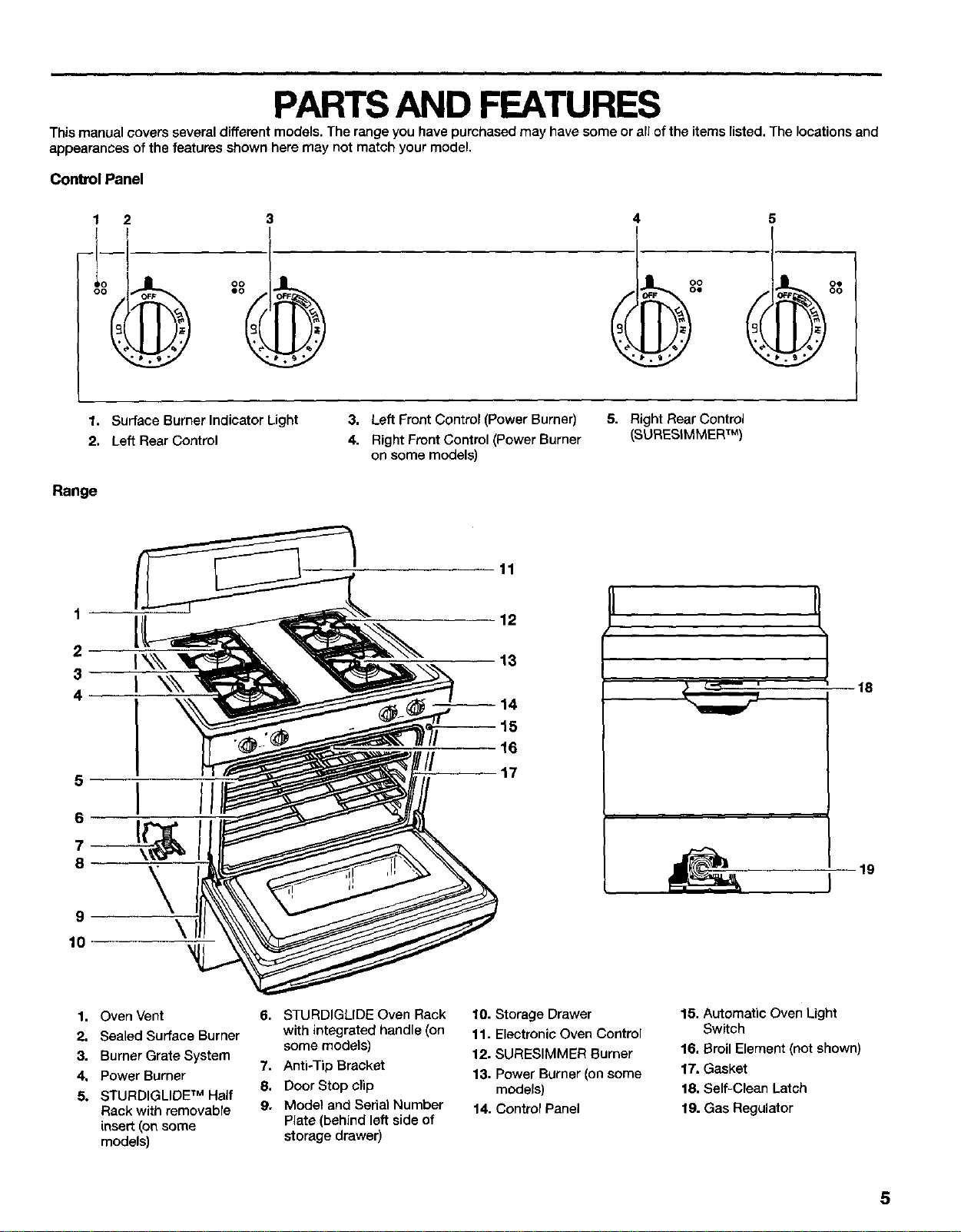

PARTS AND FEATURES
This manual covers several different models. The range you have purchased may have some or all of the items listed. The locations and
appearances of the features shown here may not match your model.
Control Panel
1 2
I
oo OPF
5
l
1. Surface Burner Indicator Light
2. Left Rear Control
Range
3, Left Front Control (Power Burner)
4. Right Front Control (Power Burner
on some models)
5. Right RearControl
(SURESIMMERTM)
2
3
4
5
6
7--
8
9
10
\
11
12
13
14
--15
16
17
18
19
1, Oven Vent
2. Sealed Surface Burner
3. Burner Grate System
4, Power Burner
5. STURDIGLIDE TM Half
Rack with removabte
insert (on some
models)
6. STURDIGLIDE Oven Rack
with integrated handle (on
some models)
7. Anti-Tip Bracket
8, Door Stop clip
9. Model and Serial Number
Plate (behind left side of
storage drawer)
10. Storage Drawer
11. Electronic Oven Control
12. SURESIMMER Burner
13. Power Burner (on some
models)
14. Control Panel
15. Automatic Oven Light
Switch
16. Broil Element (not shown)
17. Gasket
18, Self-Clean Latch
19. Gas Regulator
5

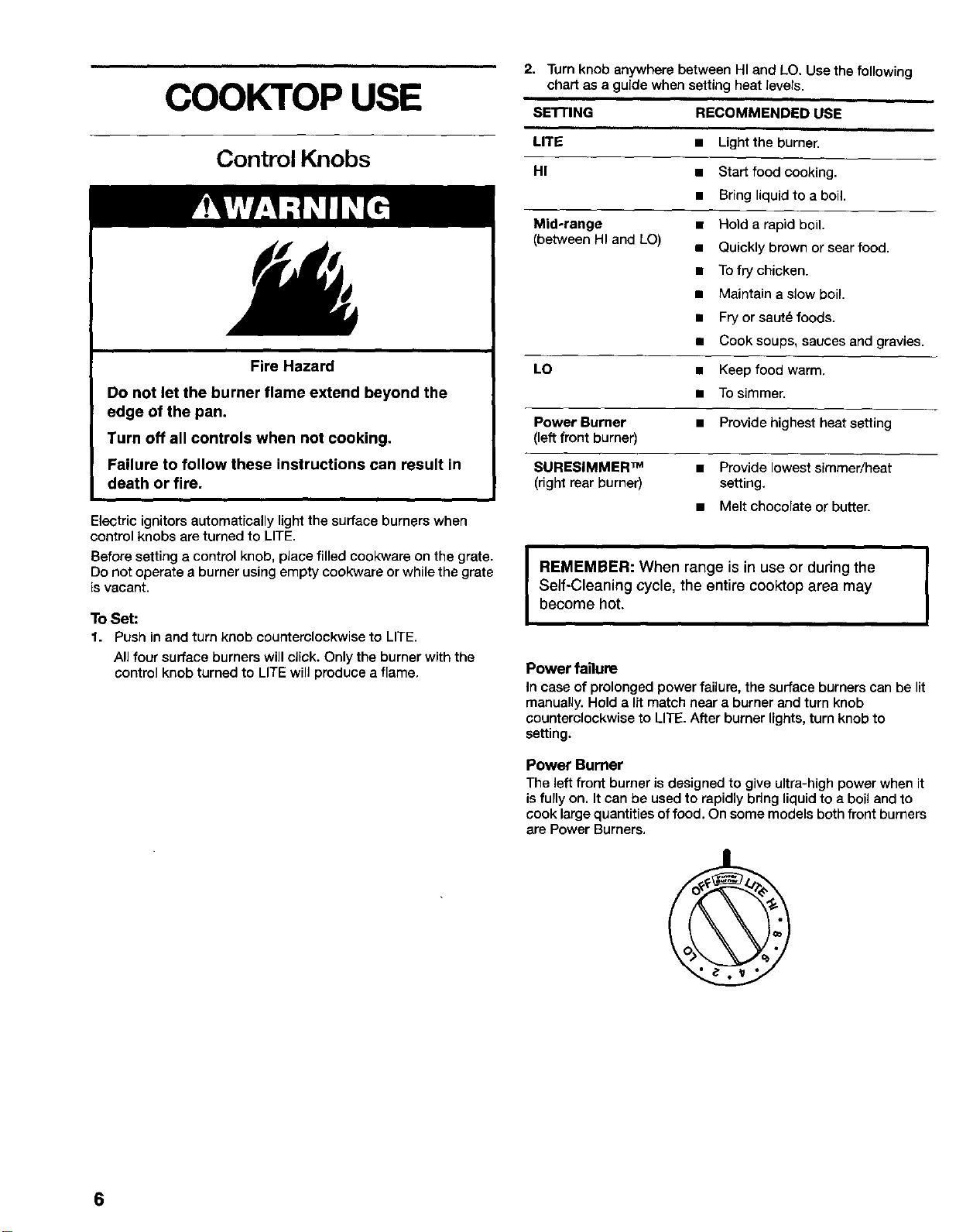

COOKTOP USE
Control Knobs
Fire Hazard
Do not let the burner flame extend beyond the
edge of the pan.
Turn off all controls when not cooking.
Failure to follow these instructions can result in
death or fire.
Electric ignitors automatically light the surface burners when
control knobs are turned to LITE.
Before setting a control knob, place filled cookware on the grate.
Do not operate a burner using empty cookware or while the grate
is vacant.
To Set:
1. Push in and turn knob counterclockwise to LITE.
All four surface burners will click. Only the burner with the
control knob turned to LITE will produce a flame,
2. Turn knob anywhere between HI and LO. Use the following
chart as a guide when setting heat levels.
SE'FrlNG RECOMMENDED USE
LITE •
HI •
Mid-range
(between HI and LO)
LO •
Power Burner
(left front burner)
Light the burner.
Start food cooking.
Bring liquid to a boil.
Hold a rapid boil.
Quickly brown or sear food.
To fry chicken.
Maintain a slow boil.
Fry or saut_ foods.
Cook soups, sauces and gravies.
Keep food warm,
Tosimmer.
SURESIMMER TM
(right rear burner)
• Provide highest heat setting
• Provide lowest simmer/heat
setting.
• Melt chocolate or butter.
I
REMEMBER: When range is in use or during the
Self-Cleaning cycle, the entire cooktop area may
become hot.
I
Power failure
In case of prolonged power failure, the surface burners can be lit
manuaUy. Hold a lit match near a burner and turn knob
counterclockwise to LITE. After burner lights, turn knob to
setting.
Power Burner
The left front burner is designed to give ultra-high power when it
is fully on. It can be used to rapidly bnng liquid to a boil and to
cook large quantities of food. On some models both front burners
are Power Burners.
6

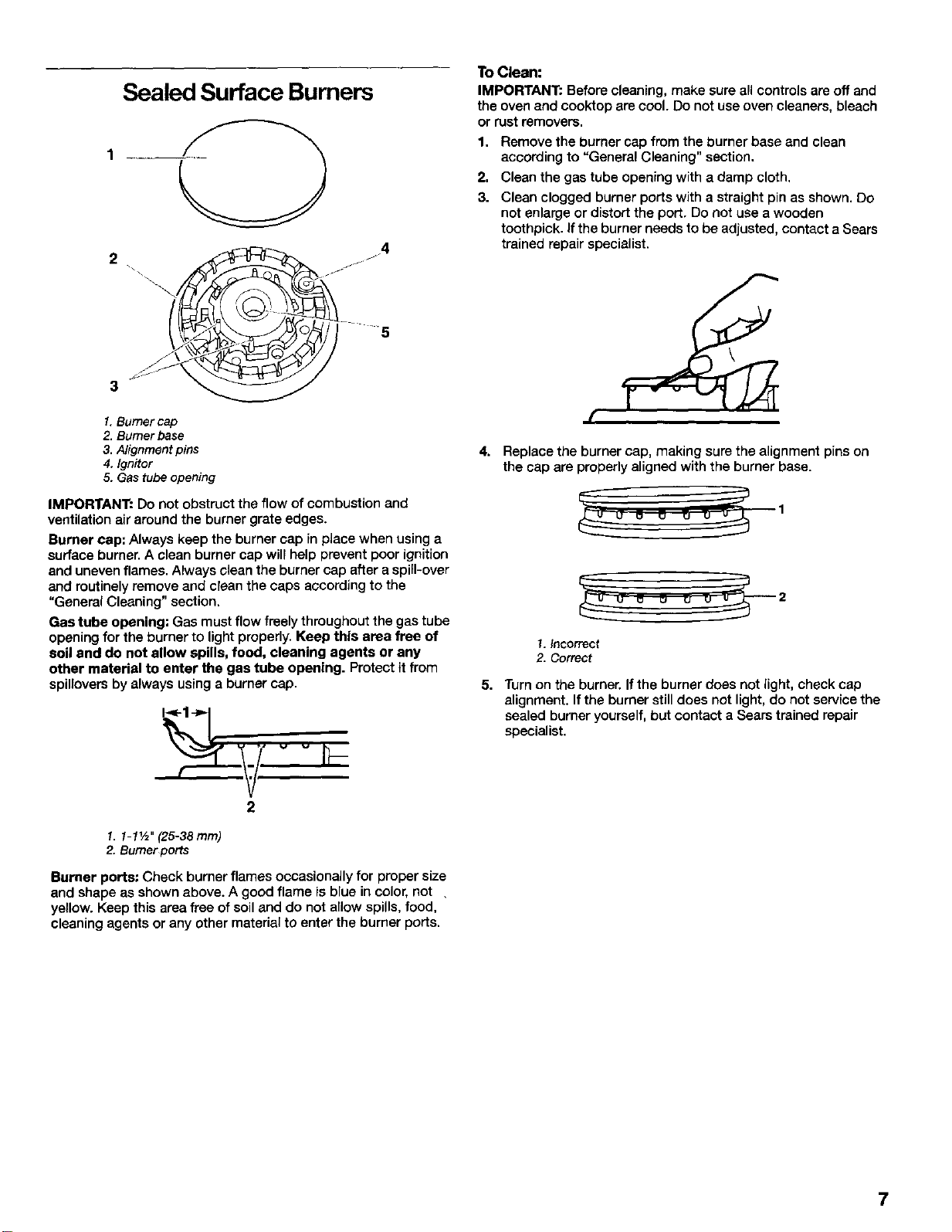

Sealed Surface Burners
2
3
j4
j
J
_J
.y
-_ -5
1, Burner cap
2. Burner base
3. Alignment pins
4. Ignitor
5. Gas tube opening
IMPORTANT= Do not obstruct the flow of combustion and
ventilation air around the burner grate edges.
Burner cap: Always keep the burner cap in place when using a
surface burner. A clean burner cap will help prevent poor ignition
and uneven flames. Always clean the burner cap after a spill-over
and routinely remove and clean the caps according to the
"General Cleaning" section.
Gas tube opening; Gas must flow freely throughout the gas tube
opening for the burner to light properly. Keep this area free of
soil and do not allow spills, food, cleaning agents or any
other material to enter the gas tube opening. Protect it from
spillovers by always using a burner cap.
2
1. 1-11/2" (25-38 ram)
2. Bumer ports
Burner ports: Check burner flames occasionally for proper size
and shape as shown above. A good flame is blue in color, not .
yellow. Keep this area free of soil and do not allow spills, food,
cleaning agents or any other material to enter the burner ports.
To Clean:
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Do not use oven cleaners, bleach
or rust removers.
1. Remove the burner cap from the burner base and clean
according to "General Cleaning" section.
2. Clean the gas tube opening with a damp cloth.
3. Clean clogged burner ports with a straight pin as shown. Do
not enlarge or distort the port. Do not use a wooden
toothpick. If the burner needs to be adjusted, contact a Sears
trained repair specialist.
(
4. Replace the burner cap, making sure the alignment pins on
the cap are properly aligned with the burner base.
_=_ 2
1. Incorrect
2. Correct
5. Turn on the burner, lf the burner does not light, check cap
alignment. If the burner still does not light, do not service the
sealed burner yourself, but contact a Sears trained repair
specialist.
7

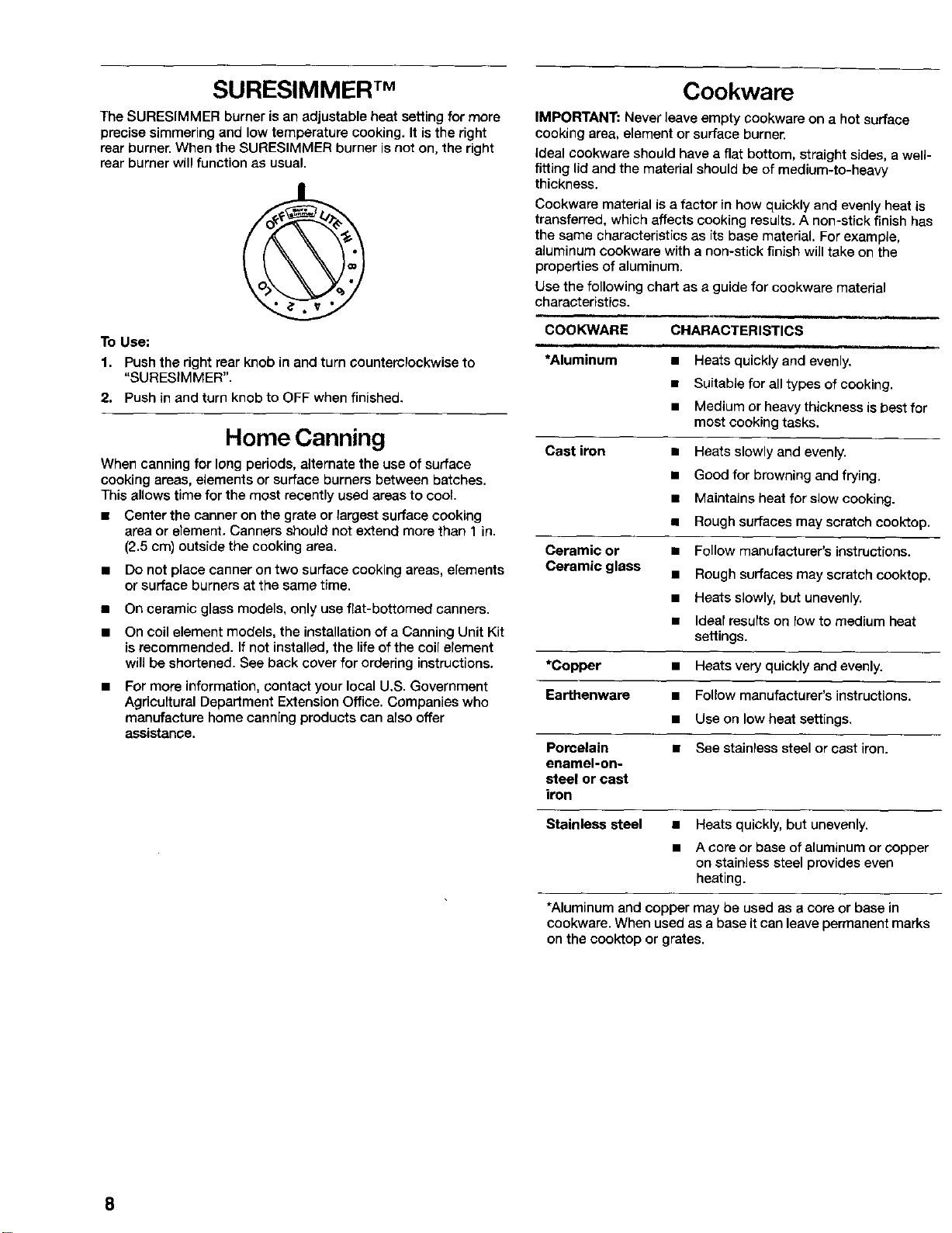

SURESIMMER TM
The SURESIMMER burner is an adjustable heat setting for more
precise simmering and low temperature cooking. It is the right
rear burner. When the SURESIMMER burner is not on, the right
rear burner will function as usual.
To Use:
1. Push the right rear knob in and turn counterclockwise to
"SURESIMMER".
2. Push in and turn knob to OFF when finished.
Home Canning
When canning for long periods, alternate the use of surface
cooking areas, elements or surface burners between batches.
This allows time for the most recently used areas to cool
• Center the canner on the grate or largest surface cooking
area or element, Canners should not extend more than 1 in.
(2.5 cm) outside the cooking area.
• Do not place canner on two surface cooking areas, elements
or surface burners at the same time.
On ceramic glass models, only use flat-bottomed canners.
On coil element models, the installation of a Canning Unit Kit
is recommended. If not installed, the life of the coil element
wilJbe shortened. See back cover for ordering instructions.
For more information, contact your local U.S. Government
Agricultural Department Extension Office. Companies who
manufacture home canning products can arso offer
assistance.
Cookware
IMPORTANT; Never leave empty cookware on a hot surface
cooking area, element or surface burner.
ideal cookware should have a flat bottom, straight sides, a well-
fitting lid and the material should be of medium-to-heavy
thickness.
Cookware material is a factor in how quickly and evenly heat is
transferred, which affects cooking results, A non-stick finish has
the same characteristics as its base material. For example,
aluminum cookware with a non-stick finish will take on the
properties of aluminum.
Use the following chart as a guide for cookware material
characteristics.
COOKWARE CHARACTERISTICS
"*Aluminum • Heats qu';'ckJyand evenly.-'_
• Suitable for all types of cooking.
• Medium or heavy thickness is best for
most cooking tasks.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Rough surfaces mayscratch cooktop,
Ceramic or • Follow manufacturer's instructions.
Ceramic glass • Rough surfaces may scratch cooktop.
• Heats slowly, but unevenly.
• Ideal results on low to medium heat
settings.
*Copper • Heats very quickly and evenly.
Earthenware • Follow manufacturer's instructions.
• Use on low heat settings.
Porcelain • See stainless steel or cast iron.
enamel-on-
steel or cast
iron
Stainless steel • Heats quickly, but unevenly.
• A core or base of aluminum or copper
on stainless steel provides even
heating.
*Aluminum and copper may be used as a core or base in
cookware. When used as a base it can leave permanent marks
on the cooktop or grates.
8
ELECTRONIC OVEN CONTROL
11£Mp
2 3 4
HOUR MIN
COOK iUBA¥ START Oh'=
"r_ STOAT
8 9 10 11 12
1. Display
2. CLOCK
3. TIMER
4. Oven Light/Oven Lockout
5, Oven Selectors
6. SELECT CLEAN TM Seff-Ciean
(on some models)
7. Temperature Setting
8. Timed Cooking
9. HOUR
10o MINUTE
11. START/ENTER
12. OFF/CANCEL
Display
When power isfirst supplied to the appliance, make sure the
surface burners are in the OFF position. Everything onthe display
will light up for 5 seconds. Then the time, "PF" and a picture of a
cooktop will appear on the display.
Any other time "PF" and a picture of a cooktop appears, a power
failure occurred. To remove "PF" and to reset the clock, press
OFF/CANCEL.
When the oven is in use, this display shows time, temperature
and what command pads have been pressed.
When the oven is not in use, the display will show the time of day.
Start/Enter
The START/ENTER pad begins any oven function except the
Timer. If not pressed within 5 seconds after pressing a pad,
"START?" will appear on the display as a reminder, If not pressed
within 5 minutes after pressing a pad, the display will show the
time of day and the programmed function will be cancelled.
Off/Cancel
The OFF/CANCEL pad stops any oven function except for the
Clock, Timer and Cooktop or Oven Lockouts.
After pressing OFF/CANCEL, the display wilt show the time of
day or, if the minute timer is also being used, the time remaining,
Clock
This is a 12 hour clock and does not show a.m. or p.m.
To Set:
1. Press CLOCK,
2. Press the HOUR/MIN "up" or "down" arrow pads until the
correct time of day shows on the display.
3. Press CLOCK or START/ENTER,
Tones
Tones are audible signals, indicating the following:
One tone
• Valid pad press
• Oven is preheated
• Function has been entered
Three tones
• Invalidpad press
Four tones
• End-of-cycle
• Reminder, repeating each minute after the end-of-cycle tones

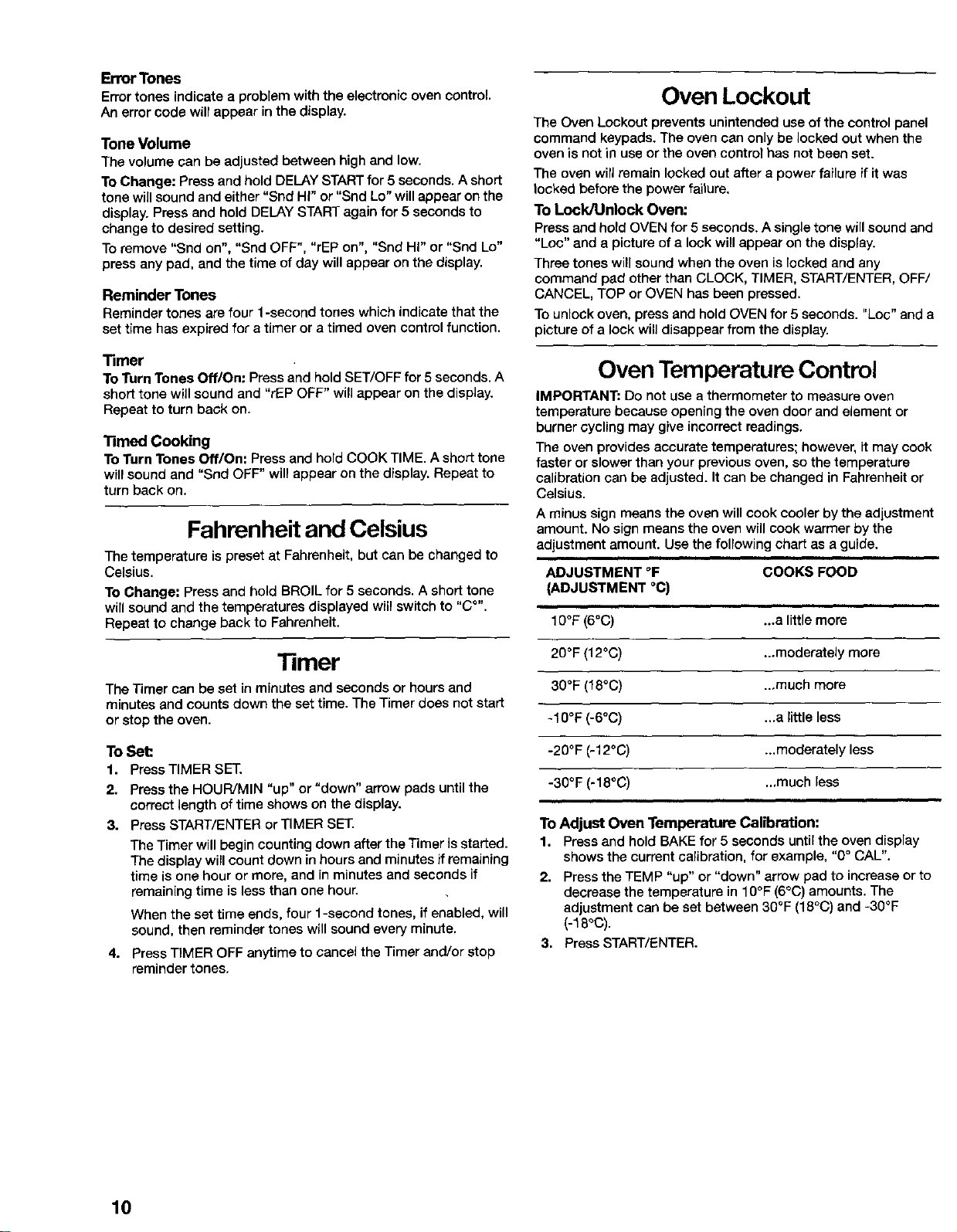

Error Tones
Errortonesindicatea problemwiththe electronicovencontrol.
An errorcodewiltappearinthe display.
Tone Volume
The volume can be adjusted between high and low.
To Change: Press and hold DELAY START for 5 seconds. A short
tone will sound and either "Snd Hi" or "Snd Lo" will appear on the
display. Press and hold DELAY START again for 5 seconds to
change to desired setting.
To remove "Snd on", "Snd OFF", "rEP on", "Snd HI" or "Snd Lo"
press any pad. and the time of day will appear on the display.
Reminder Tones
Reminder tones are four 1-second tones which indicate that the
set time has expired for a timer or a timed oven control function.
Timer
To Turn Tones Off/On: Press and hold SET/OFF for 5 seconds, A
short tone will sound and "rEP OFF" will appear on the display.
Repeat to turn baok on.
Timed Cooking
To Turn Tones Off/On: Press and hold COOK TIME, A short tone
will sound and "Snd OFF" will appear on the display. Repeat to
turn back on.
Fahrenheit and Celsius
The temperature is preset at Fahrenheit, but can be changed to
Celsius.
To Change; Press and hold BROIL for 5 seconds. A short tone
will sound and the temperatures displayed will switch to "C °'.
Repeat to change back to Fahrenheit.
Timer
The Timer can be set in minutes and seconds or hours and
minutes and counts down the set time. The Timer does not start
or stop the oven.
To Set:
1. Press TIMER SET.
2. Press the HOUR/MIN "up" or "down" arrow pads until the
correct length of time shows on the display.
3. Press START/ENTER orTIMER SET.
The Timer will begin counting down after the Timer is started.
The display will count down in hours and minutes if remaining
time is one hour or more, and in minutes and seconds if
remaining time is less than one hour.
When the set time ends, four 1-second tones, if enabled, will
sound, then reminder tones will sound every minute.
4. Press TIMER OFF anytime to cancel the Timer and/or stop
reminder tones,
Oven Lockout
The Oven Lockout prevents unintended use of the control panel
command keypads. The oven can only be locked out when the
oven is not in use or the oven control has not been set.
The oven will remain locked out after a power failure if it was
locked before the power failure.
To LocWUnlock Oven:
Press and hold OVEN for 5 seconds. A single tone willsound and
"Lee" and a picture of a lock will appear on the display.
Three tones will sound when the oven is locked and any
command pad other than CLOCK, TIMER. START/ENTER, OFF/
CANCEL, TOP or OVEN has been pressed.
To unlock oven, press and hold OVEN for 5 seconds. "Loc" and a
picture of a lock will disappear from the display,
Oven Temperature Control
iMPORTANT; Do not use a thermometer to measure oven
temperature because opening the oven door and element or
burner cycling may give incorrect readings.
The oven provides accurate temperatures; however, it may cook
faster or slower than your previous oven, so the temperature
calibration can be adjusted. It can be changed in Fahrenheit or
Celsius.
A minus sign means the oven will cook cooler by the adjustment
amount. No sign means the oven will cook warmer by the
adjustment amount. Use the following chart as a guide.
ADJUSTMENT °F
(ADJUSTMENT °C)
COOKS FOOD
10°F(6°C) ...alittlemore
20°F (12°(3) ...moderately more
30°F (18°C) ..,much more
-10°F (-6°C) ...a little less
-20°F (-12°C) ..,moderately less
-3O°F (-18°C) ..,much less
To Adjust Oven Temperature Calibration:
1. Press and hold BAKE for 5 seconds until the oven display
shows the current calibration, for example, "0 ° CAL".
2. Press the TEMP "up" or "down" arrow pad to increase or to
decrease the temperature in 10°F (6°C) amounts. The
adjustment can be set between 30°F (18°C) and -3O°F
(-18°C).
3. Press START/ENTER.
10
OVEN USE
Aluminum Foil
IMPORTANT: Do not line the oven bottom with any type of foil,
liners or cookware because permanent damage will occur to the
oven bottom finish.
• Do not block or cover the oven bottom vents.
• Do not cover entire rack with foil because air must be able to
move freely for best cooking results.
• To catch spills, place foil on rack below dish. Make sure foil is
at least 1 in, (2.5 cm) larger than the dish and that it is turned
up at the edges.
Positioning Racks and Bakeware
IMPORTANT: Never place food or bakewara directly on the oven
door or bottom. Permanent damage will occur to the porcelain
finish.
RACKS
Position racks before turning the oven on. Do not move racks
with bakewara on them. Make sure racks are level. To move a
rack, pull it out to the stop position, raise the front edge, then lift
out. Use the following illustration and chart as a guide.
Extra oven rack
FOOD
Frozen pies, large roasts, turkeys,
angel food cakes
Bundt cakes, most quick breads, yeast
breads, casseroles, meats
Cookies, biscuits, muffins, cakes, non-
frozen pies
Extra large items
RACK POSITION
1 or2
2
2or3
Extra oven rack
BAKL=WARE
To cook food evenly, hot air must be able to circulate. Allow 2 in.
(5 cm) of space around bakewara and oven walls. Use the
following chart as a guide.
NUMBEROF POSITION ON RACK
PAN(S)
,,,,,,,,,
1 Center of rack.
2 Side by side or slightly staggered.
3 or 4 Opposite corners on each rack. Make sure
that no bakeware piece is directly over
another.
STURDIGLIDE TM Oven Racks
Rack with Integrated Handle
The integrated handle area makes pulling out the rack easy. The
opening is large enough for a potholder or oven mitt.
Half-Rack wittt Removable Insert
The half-rack with removable insert isa space maximizer, When
the two are attached, they make a full rack. The insert can also be
used on the counter for a cooling rack.
Do not place more than 25 pounds on the half-rack.
1. Half-Rack
2. Removable Insert
To Position Racks:
1. Place a full rack on position 1 or 2, and the half-rack on
position 3 or 4.
2. Place large items on the right side of the full rack.
3. Place deeper, covered dishes on the left side of the full rack.
4. Place shallow dishes on the half-rack,
5. When finished cooking, carefully remove items.
11

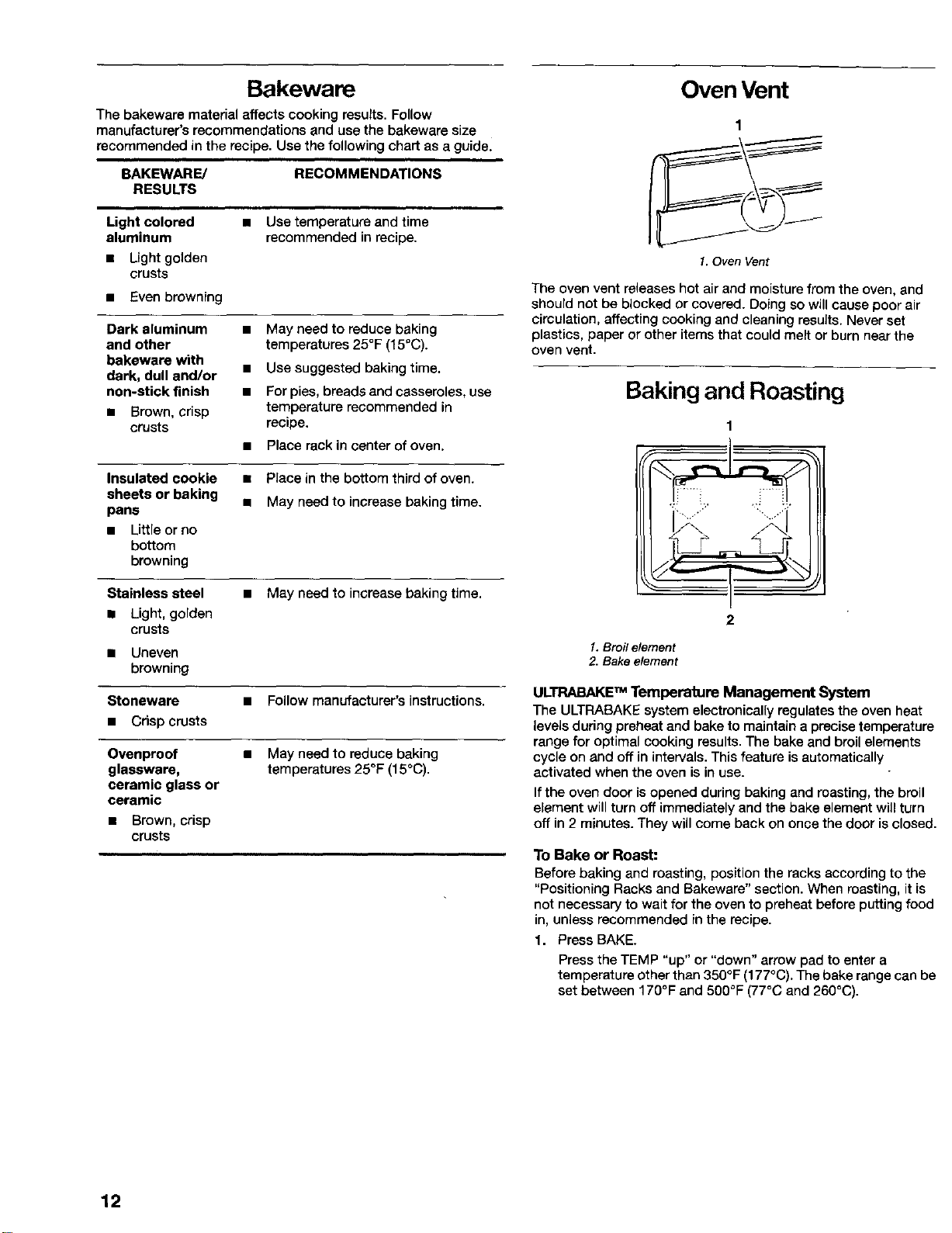

Bakeware
The bakeware material affects cooking results. Follow
manufacturer's recommendations and use the bakeware size
recommended in the recipe. Use the following chart as a guide.
BAKEWAREJ RECOMMENDATIONS
RESULTS
Light colored • Use temperature and time
aluminum recommended in recipe.
• Lightgolden
crusts
• Even browning
Dark aluminum •
and other
bakeware with
dark, dull and/or I
non-stick finish •
• Brown, crisp
crusts
May need to reduce baking
temperatures 25°F (15°C).
Use suggested baking time.
For pies, breads and casseroles, use
temperature recommended in
recipe.
• Place rack in center of oven.
Insulated cookie
sheets or baking
pans
• Little or no
bottom
browning
• Place in the bottom third of oven.
• May need to increase baking time.
Stainless steel • May need to increase baking time.
• Light, golden
crusts
• Uneven
browning
Stoneware • Follow manufacturer's instructions.
• Crisp crusts
Ovenproof • May need to reduce baking
glassware, temperatures 25°F (15°C).
ceramic glass or
ceramic
• Brown, crisp
crusts
Oven Vent
1
1.OvenVent
The oven vent releases hot air and moisture from the oven, and
should not be blocked or covered. Doing so will cause poor air
circulation, affecting cooking and cleaning results. Never set
plastics, paper or other items that could melt or burn near the
oven vent.
Baking and Roasting
2
I. B_# element
2. Bake element
ULTRABAKE TM Temperature Management System
The ULTRABAKE system electronically regulates the oven heat
levels during preheat and bake to maintain a precise temperature
range for optimal cooking results.The bake and broil elements
cycle on and off in intervals. This feature isautomatically
activated when the oven is in use.
If the oven door is opened during baking and roasting, the broil
element will turn off immediately and the bake element will turn
off in 2 minutes. They will come back on once the door is closed.
To Bake or Roast:
Before baking and roasting, position the racks according to the
"Positioning Racks and Bakeware" section. When roasting, it is
not necessary to wait for the oven to preheat before putting food
in, unless recommended in the recipe.
1. Press BAKE.
Press the TEMP "up" or "down" arrow pad to enter a
temperature other than 350°F (177°C). The bake range can be
set between 170°F and 500°F (77°C and 260°C).
12
2. Press START/ENTER.
A preheat time will count down and "PrE HEAt" will appear on
the oven display if the actual oven temperature is under
170°F (77°C).
When the actual oven temperature reaches 170°F (77°C), the
timer will continue counting down. The temperature setting
can be changed any time after pressing START/ENTER.
While the oven is in the preheat mode, the set temperature
can be seen for 5 seconds by pressing BAKE.
When the set temperature isreached, if tones are enabled,
one tone will sound.
3. Press OFF/CANCEL when finished cooking.

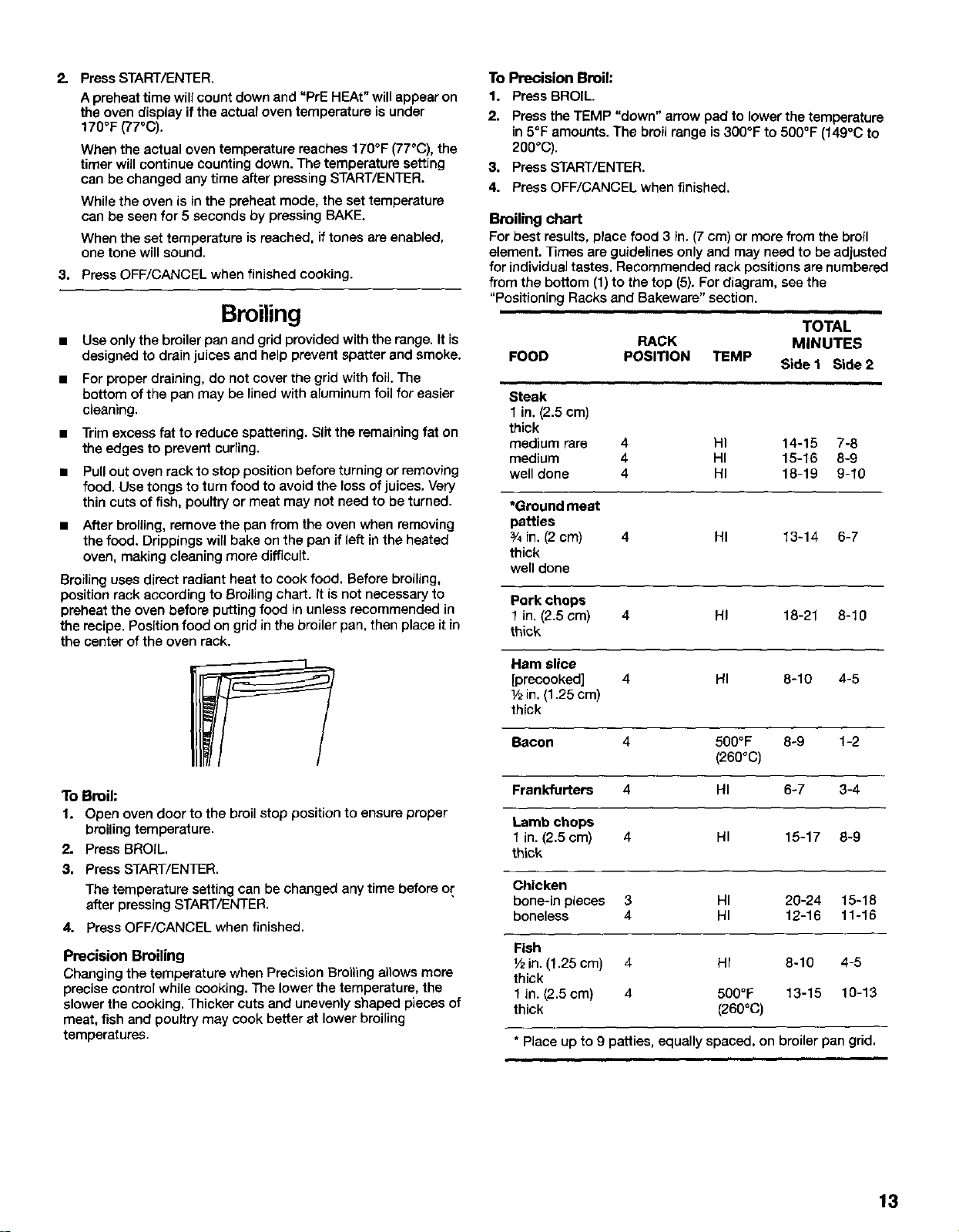

Broiling
• Use only the broiler pan and grid provided with the range. It is
designed to drain juices and help prevent spatter and smoke.
• For proper draining, do not cover the grid with foil. The
bottom of the pan may be lined with aluminum foil for easier
cleaning.
• Trim excess fat to reduce spattering. Slit the remaining fat on
the edges to prevent curling.
• Pull out oven rack to stop position before turning or removing
food. Use tongs to turn food to avoid the loss of juices, Very
thin cuts of fish, poultry or meat may not need to be turned.
• After broiling, remove the pan from the oven when removing
the food. Drippings will bake on the pan if left in the heated
oven, making cleaning more difficult.
Broiling uses direct radiant heat to cook food. Before broiling,
position rack according to Broiling chart, it is not necessary to
preheat the oven before putting food in unless recommended in
the recipe. Position food on grid in the broiler pan, then place it in
the center of the oven rack.
To Broil:
1. Open oven door to the broil stop position to ensure proper
broiling temperature.
2. Press BROIL.
3. Press START/ENTER.
The temperature setting can be changed any time before or
after pressing START/ENTER.
4. Press OFF/CANCEL when finished.
Precision Broiling
Changing the temperature when Precision Broiling allows more
precise control while cooking. The lower the temperature, the
slower the cooking. Thicker cuts and unevenly shaped pieces of
meat, fish and poultry may cook better at lower broiling
temperatures.
To Precision Broil:
1. PressBROIL.
2. Press the TEMP "down" arrow pad to lower the temperature
in 5°F amounts. The broil range is300°F to 500°F (149°C to
200°C).
3. Press START/ENTER,
4. Press OFF/CANCEL when finished.
Broiling chart
For best results, place food 3 in. (7 cre) or more from the broil
element. Times are guidelines only and may need to be adjusted
for individual tastes. Recommended rack positions are numbered
from the bottom (1) to the top (5). For diagram, see the
"Positioning Racks and Bakeware" section.
TOTAL
RACK MINUTES
FOOD POSITION TEMP
Side 1 Side 2
Steak
1 in, (2.5 cm)
thick
medium rare 4 HI 14-15 7-8
medium 4 HI 15-16 8-9
well done 4 HI 18-19 9-10
*Ground meat
patties
_'4in. (2 cm) 4 HI 13-14 6-7
thick
well done
Pork chops
f in. (2.5 cm) 4 HI 18-21 8-10
thick
Ham slice
[precooked] 4 HI 8-10 4-5
1/2in. (1.25 cm)
thick
Bacon 4 500°F 8-9 1-2
(260°C)
Frankfurters 4 HI 6-7 3-4
Lamb chops
1 in. (2.5 cm) 4 HI 15-17 8-9
thick
Chicken
bone-in pieces 3 HI 20-24 15-18
boneless 4 HI 12-16 11-16
Fish
V2in. (1.25 cm) 4 Hr 8-10 4-5
thick
1 in. (2.5 cm) 4 500°F 13-15 10-13
thick (260°C)
* Place up to 9 patties, equally spaced, on broiler pan grid,
13

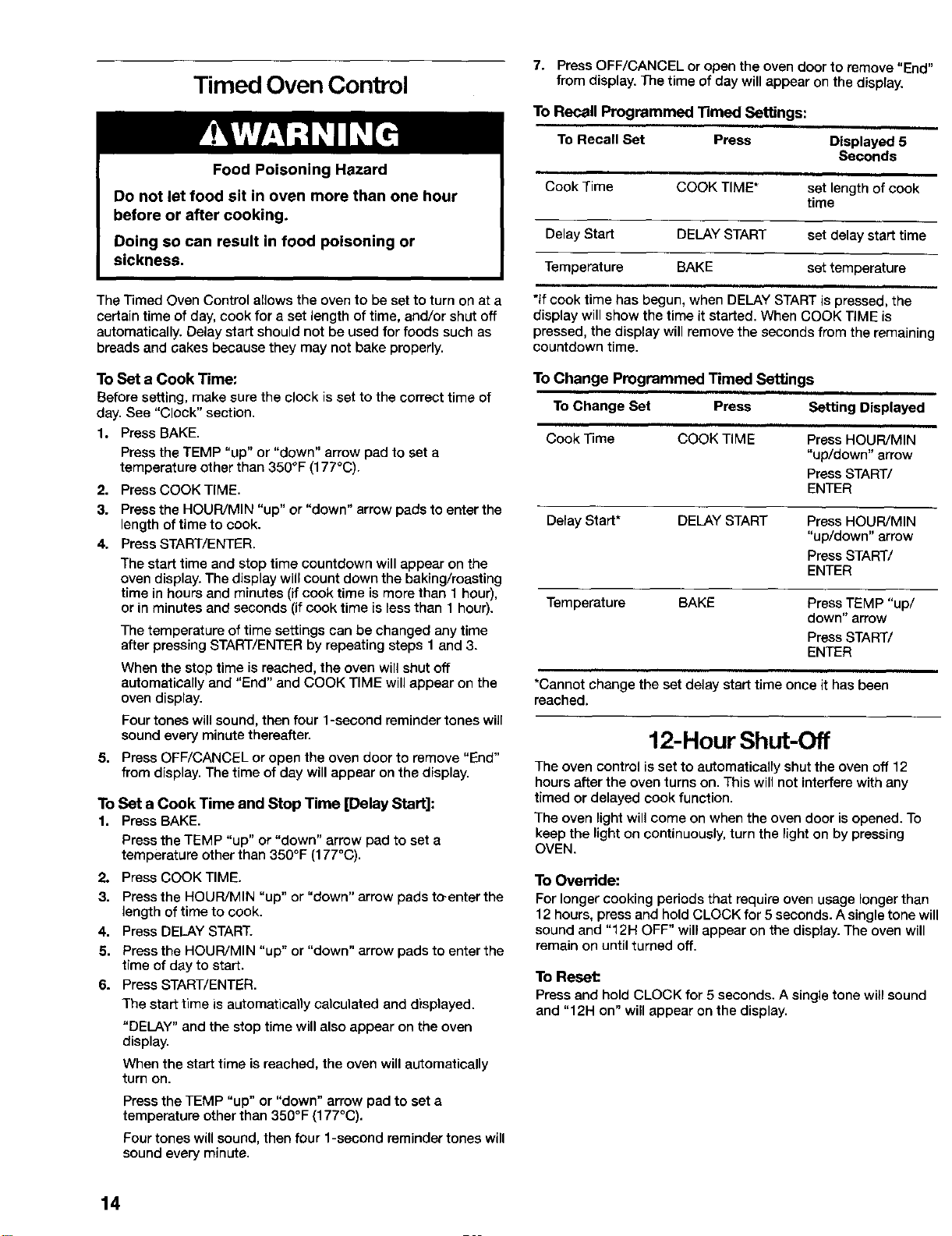

Timed Oven Control
Food Poisoning Hazard
Do not let food sit in oven more than one hour
before or after cooking.
Doing so can result in food poisoning or
sickness,
The Timed Oven Control allows the oven to be set to turn on at a
certain time of day, cook for a set length of time, and/or shut off
automatically. Delay start should not be used for foods such as
breads and cakes because they may not bake properly.
To Set a Cook Time:
Before setting, make sure the clock is set to the correct time of
day. See "Clock" section.
1. Press BAKE.
2.
3.
4,
Press the TEMP "up" or "down" arrow pad to set a
temperature other than 350°F (177°C).
Press COOK TIME.
Press the HOUR/MIN "up" or "down" arrow pads to enter the
length of time to cook.
Press START/ENTER.
The start time and stop time countdown will appear on the
oven display. The display will count down the baking/roasting
time in hours and minutes (if cook time is more than 1 hour),
or in minutes and seconds (if cook time is less than 1 hour).
The temperature of time settings can be changed any time
after pressing START/ENTER by repeating steps 1 and 3.
When the stop time is reached, the oven will shut off
automatically and "End" and COOK TIME will appear on the
oven display.
Four tones will sound, then four 1-second reminder tones will
sound every minute thereafter.
5. Press OFF/CANCEL or open the oven door to remove "End"
from display. The time of day will appear on the display.
To Set a Cook Time and Stop Time [Delay Start]:
1. Press BAKE,
Press the TEMP "up" or "down" arrow pad to set a
temperature other than 350°F (177°C),
2. Press COOK TIME.
3, Press the HOUR/MIN "up" or "down" arrow pads t_enter the
length of time to cook,
4. Press DELAY START.
5. Press the HOUR/MIN "up" or "down" arrow pads to enter the
time of day to start.
6. Press START/ENTER.
The start time is automatically calculated and displayed.
"DELAY" and the stop time will also appear on the oven
display.
When the start time is reached, the oven will automatically
turn on.
Press the TEMP "up" or "down" arrow pad to set a
temperature other than 350°F (177°C).
Four tones will sound, then four 1-second reminder tones will
sound every minute.
7. Press OFF/CANCEL or open the oven door to remove "End"
from display. The time of day will appear on the display.
To Recall Programmed "rimed Settings:
,,, ,
To Recall Set Press Displayed 5
Seconds
i
Cook Time COOK TIME* set length of cook
time
Delay Start DELAY START set delay start time
Temperature BAKE set temperature
,.,,,,,,,, ,,,, , ,,,
*If cook time has begun, when DELAY START is pressed, the
display will show the time it started. When COOK TIME is
pressed, the display will remove the seconds from the remaining
countdown time.
To Change Programmed Timed Settings
To Change Set Press Setting Displayed
Cook Time COOK TIME Press HOUR/MIN
"up/down" arrow
Press START/
ENTER
Delay Start* DELAY START Press HOUR/MIN
"up/down" arrow
Press START/
ENTER
Temperature BAKE Press TEMP "up/
down" arrow
Press START/
ENTER
*Cannot change the set delay start time once it has been
reached.
12-Hour Shut-Off
The oven control is set to automatically shut the oven off 12
hours after the oven turns on. This will not interfere with any
timed or delayed cook function.
The oven light will come on when the oven door isopened. To
keep the light on continuously, turn the light on by pressing
OVEN.
To Override:
For longer cooking periods that require oven usage longer than
12 hours, press and hold CLOCK for 5 seconds. A single tone will
sound and "12H OFF" will appear on the display. The oven will
remain on until turned off.
"re Reset:
Press and hold CLOCK for 5 seconds. A single tone will sound
and "12H on" will appear on the display.
14
RANGE CARE
Self-Cleaning Cycle
(on some models)
;I)J
Burn Hazard
Do not touch the oven during the
Self-Cleaning cycle,
Keep children away from oven during
Self-Cleaning cycle.
Do not use commercial oven cleaners in
your oven.
Failure to follow these instructions can result in
burns, or illness from inhaling dangerous fumes.
IMPORTANT: The health of some birds is extremely sensitive to
the fumes given off during the Self-Cleaning cycle. Exposure to
the fumes may result in death to certain birds. Always move birds
to another closed and well ventilated room.
Self-clean the oven before it becomes heavily soiled. Heavy soil
results in longer cleaning and more smoke.
Keep the kitchen well-ventilated during the Self-Cleaning cycle to
help get rid of heat, odors, and smoke.
Do not block the oven vent(s) during the Self-CFeaning cycle. Air
must be abJe to move freely. See "Oven Vent(s)" section.
Do not clean, rub, damage or move the oven door gasket. The
door gasket is essential for a good seal.
Prepare Oven:
• Remove the broiler pan, grid, cookware and bakeware and,
on some models, the temperature probe from the oven.
• Remove any foil from the oven because it may burn or melt,.
damaging the oven.
• Remove oven racks to keep them shiny and easy to slide.
See "General Cleaning" section for more information.
Hand clean inside door edge and the 11/2in. (3.8 cm) area
around the inside oven cavity frame, being careful not to
move or bend the gasket. This area does not get hot enough
during self-cleaning to remove soil. Do not let water, cleaner,
etc. enter slots on door frame. Use a damp cloth to clean this
area.
• Wipe out any loose soil to reduce smoke and avoid damage.
At high temperatures, foods react with porcelain. Staining,
etching, pitting or faint white spots can result. This will not
affect cooking performance.
Prepare Cooktop and Storage Drawen
• Remove plastic items from the cooktop because they may
melt.
• Remove all items from the storage drawer.
How ttm Cycle Works
IMPORTANT: The heating and cooling of porcelain on steel inthe
oven may result in discoloring, loss of gJoss, hairline cracks and
popping sounds.
The SELECT CLEAN TM Self-Cleaning cycle uses very high
temperatures and dissolves soil to a powdery ash.
SELECT CLEAN will set the cJeantime automatically, once the
soil level is set.
The soil level can be manually set to light, average or heavy soil
levels by continuously pressing SELECT CLEAN.
The oven will automatically shut off once it is clean. The door will
not unlock until the oven cools.
Once the oven has completely cooled, remove ash with a damp
cloth.
The oven light will not work during the Self-Cleaning cycle.
To Set SELECT CLEAN (on some models):
• Press once for light soils, and "SoilL" will appear on the
display.
• Press two times for average soils, and "SoilA" will appear on
the display.
• Press three times for heavy soils, and "SoilH" will appear on
the display.
To Set CLEAN:
• Press CLEAN. This will automatically set a 3 hour 30
minute Self-Cleaning cycle.
• Press the HOUR/MIN "up" or "down" arrow pads to set a
Self-Cleaning cycle longer or shorter than the 3 hour 30
minute cycle.
To Start SelfoClean:
Before self-cleaning, make sure the door is closed completely or
it will not lock and the cycle will not begin,
1. Set SELECT CLEAN (on some models) or CLEAN.
2. Press START/ENTER.
The oven door will lock in 6 seconds and "LOCKED", the start
time and stop time will appear on the display. The door will
not unlock until the oven cools. The cycle time includes a 30
minute cool down time
When the cycle is complete and the oven cools, "End" will
appear on the display and "LOCKED" will disappear.
3. Press any pad to remove "End" or open the oven door.
4. Close door.
The time of day wirlappear on the display.
15

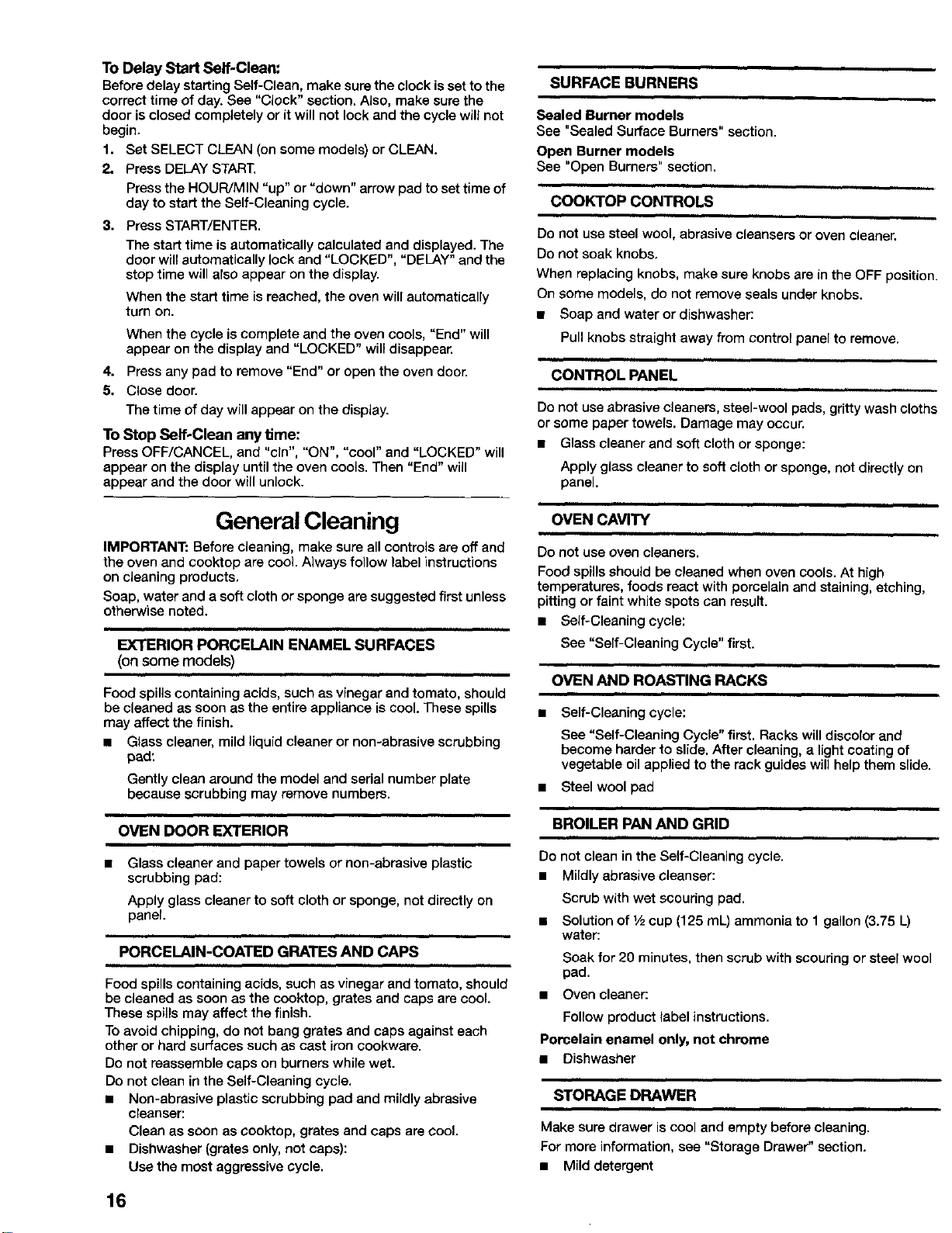

To Delay Start Self-Clean:
Before delay starting Self-Clean, make sure the clock isset to the
correct time of day. See "Clock" section. AJso,make sure the
door is closed completely or it will not lock and the cycle will not
begin.
1. Set SELECT CLEAN (on some models) or CLEAN.
2. Press DELAY START.
Press the HOUR/MIN "up" or "down" arrow pad to set time of
day to start the Self-Cleaning cycle.
3. Press START/ENTER.
The start time is automatically calculated and displayed. The
door will automatically lock and "LOCKED", =DELAY" and the
stop time will arso appear on the display.
When the start time is reached, the oven wilt automaticalry
turn on.
When the cycle is complete and the oven cools, "End" will
appear on the display and "LOCKED" will disappear.
4. Press any pad to remove "End" or open the oven door.
5. Close door.
The time of day will appear on the display.
To Stop Self-Clean any time:
Press OFF/CANCEL, and "cln", "ON", "cool" and "LOCKED" will
appear on the display until the oven cools. Then "End" will
appear and the door will unlock.
SURFACE BURNERS
Sealed Burner model•
See "Sealed Surface Burners" section.
Open Burner models
See "Open Burners" section.
COOKTOP CONTROLS
Do not use steel wool, abrasive cleansers or oven cleaner.
Do not soak knobs.
When replacing knobs, make sure knobs are in the OFF position.
On some models, do not remove seals under knobs.
• Soap and water or dishwasher:
Pull knobs straight away from control panel to remove.
CONTROL PANEL
Do not use abrasive cleaners, steel-wool pads, gritty wash cloths
or some paper towers. Damage may occur.
• Glass cleaner and soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly on
panel.
OVEN CAVITY
Do not use oven cleaners.
Food spillsshould be cleaned when oven cools. At high
temperatures, foods react with porcelain and staining, etching,
pitting or faint white spots can resurt.
• Self-Cleaning cycle:
See "Serf-Cleaning Cycle" first.
OVEN AND ROASTING RACKS
• Self-Cleaning cycle:
See "Self-Cleaning Cycle" first. Racks will discolor and
become harder to slide. After cleaning, a light coating of
vegetable oil applied to the rack guides will help them slide.
• Steel wool pad
BROILER PAN AND GRID
Do not clean in the Self-Cleaning cycle.
• Mildly abrasive cleanser:
Scrub with wet scouring pad.
• Solution of 1/2cup (125 mL) ammonia to 1 gallon (3.75 L)
water:
Soak for 20 minutes, then scrub with scouring or steel wool
pad.
• Oven cleaner:
Follow product label instructions.
Porcelain enamel only, not chrome
• Dishwasher
STORAGE DRAWER
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the oven and cooktop are cool. Always follow label instructions
on cleaning products,
Soap, water and a soft cloth or sponge are suggested first unless
otherwise noted.
H
EXTERIOR PORCELAIN ENAMEL SURFACES
(on some models)
Food spillscontaining acids, such as vinegar and tomato, should
be cleaned as soon as the entire appliance is cool. These spirls
may affect the finish.
• Glass cleaner, mild liquid cleaner or non-abrasive scrubbing
pad:
Gently clean around the model and serial number plate
because scrubbing may remove numbers.
OVEN DOOR EXTERIOR
• Glass cleaner and paper towels or non-abrasive plastic
scrubbing pad:
Apply glass cleaner to soft cloth or sponge, not directly on
panel
PORCELAIN-COATED GRATES AND CAPS
Food spills containing acids, such as vinegar and tomato, should
be cleaned as soon as the cooktop, grates and caps are cool.
These spills may affect the finish.
To avoid chipping, do not bang grates and caps against each
other or hard surfaces such as cast iron cookware.
Do not reassemble caps on burners whire wet.
Do not clean in the Self-Cleaning cycle.
• Non-abrasive plastic scrubbing pad and mildly abrasive
cleanser:
Clean as soon as cooktop, grates and caps are cool.
• Dishwasher (grates only, not caps):
Use the most aggressive cycle.
Make sure drawer is cool and empty before cleaning.
For more information, see "Storage Drawer" section.
• Mild detergent
16

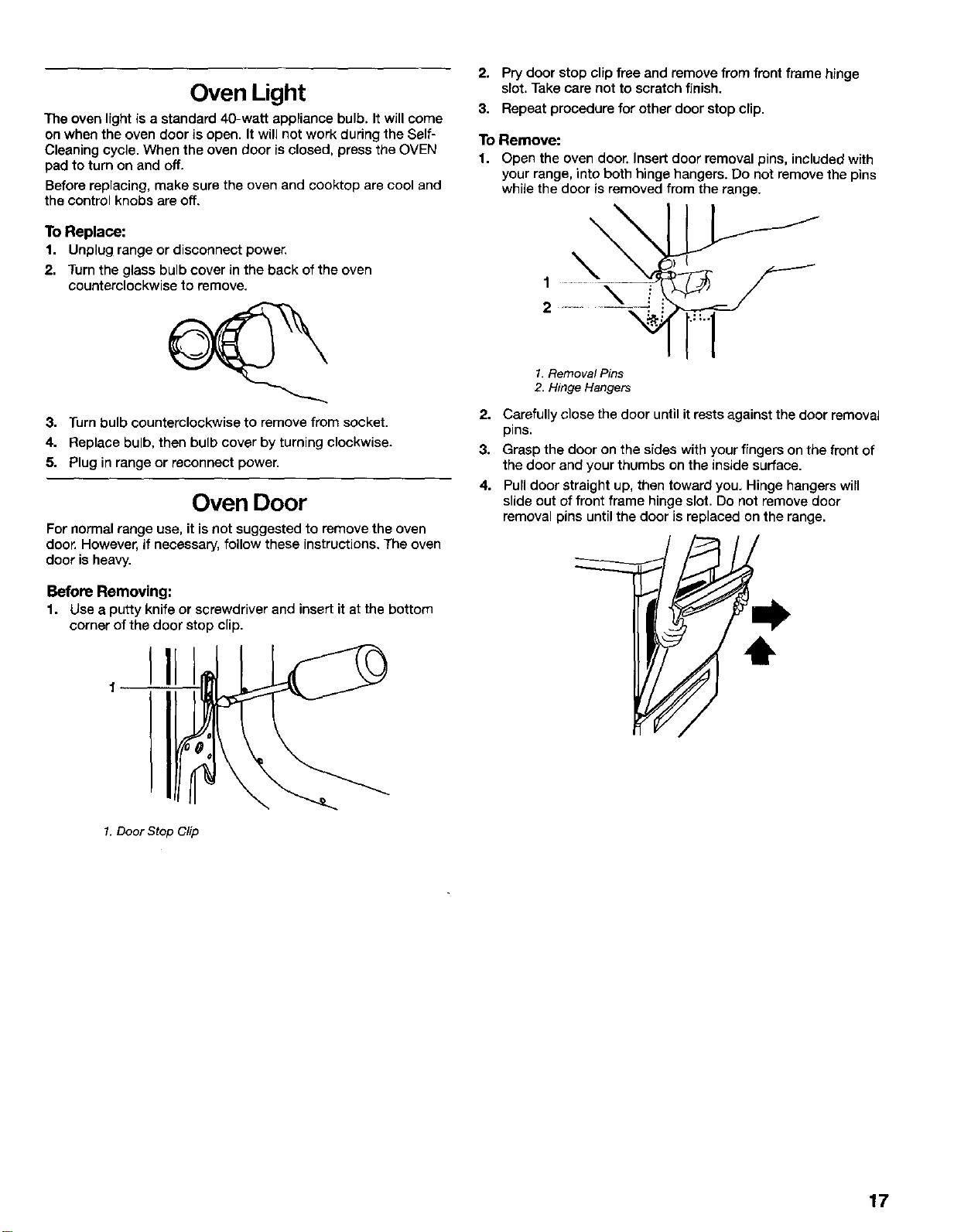

Oven Light
The oven light is a standard 40-watt appliance bulb. It will come
on when the oven door is open. It will not work during the Self-
Cleaning cycle. When the oven door is closed, press the OVEN
pad to turn on and off.
Before replacing, make sure the oven and cooktop are cool and
the control knobs are off.
To Replace:
1. Unplug range or disconnect power.
2. Turn the glass bulb cover in the back of the oven
counterclockwise to remove.
2. Pry door stop clip free and remove from front frame hinge
slot. Take care not to scratch finish.
3. Repeat procedure for other door stop clip.
To Remove:
•1. Open the oven door. Insert door removal pins, included with
your range, into both hinge hangers. Do not remove the pins
while the door is removed from the range.
\
\
1
\
3. Turn bulb counterclockwise to remove from socket.
4. Replace bulb, then bulb cover by turning clockwise.
5. Plug in range or reconnect power.
Oven Door
For normal range use, it is not suggested to remove the oven
door. However, if necessary, follow these instructions. The oven
door is heavy.
Before Removing:
1. Use a putty knife or screwdriver and insert it at the bottom
corner of the door stop clip.
1. Removal Pins
2. Hinge Hangers
2. Carefully close the door until it rests against the door removal
pins.
3. Grasp the door on the sides with your fingers on the front of
the door and your thumbs on the inside surface.
4. Pull door straight up, then toward you, Hinge hangers will
slide out of front frame hinge slot. Do not remove door
removal pins until the door is replaced on the range.
1. Door Step Clip
17

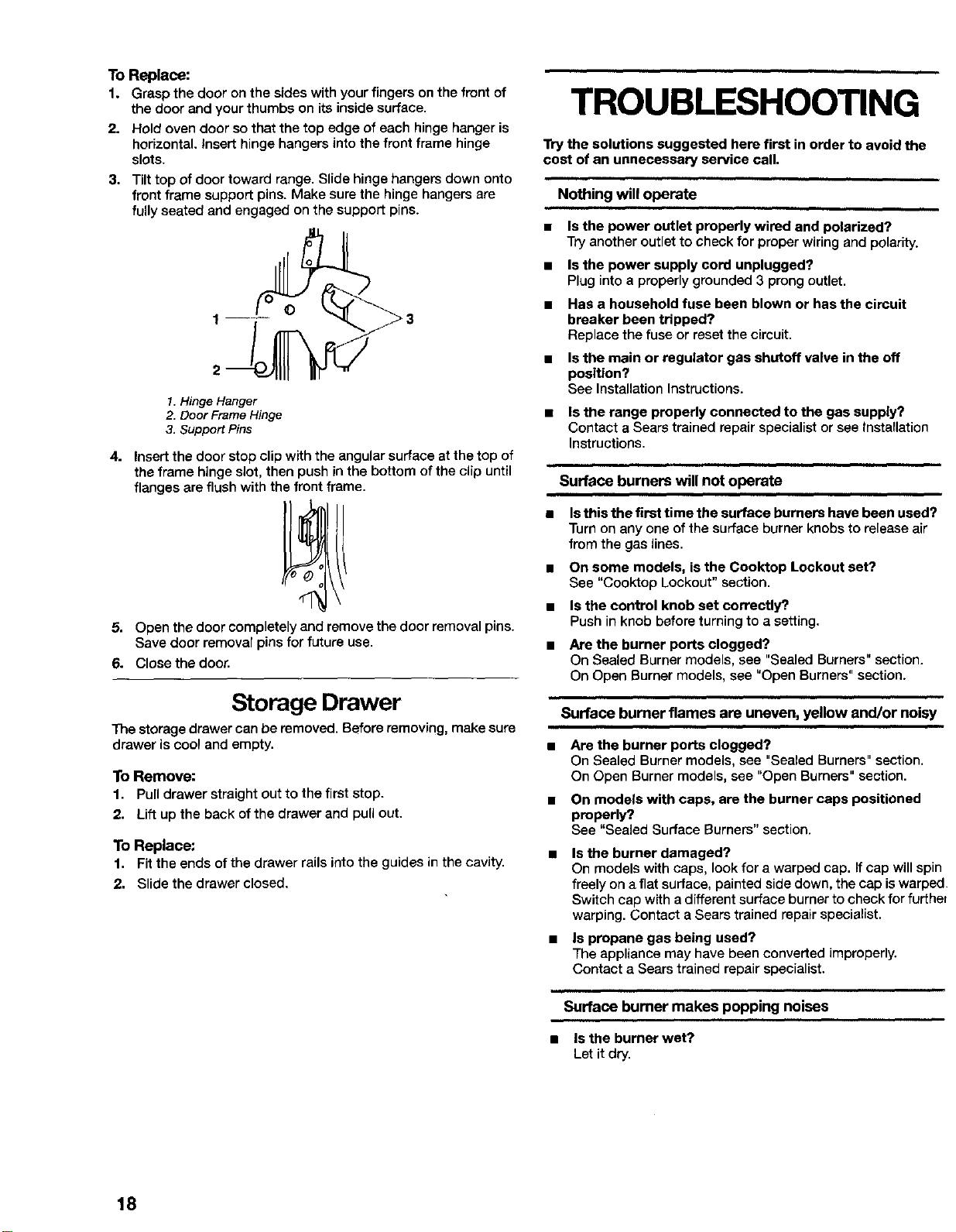

To Replace:
1. Grasp the door on the sides with your fingers on the front of
the door and your thumbs on its inside surface.
2. Hold oven door so that the top edge of each hinge hanger is
horizontal, insert hinge hangers into the front frame hinge
slots.
3. Tilt top of door toward range. Slide hinge hangers down onto
front frame support pins. Make sure the hinge hangers are
fully seated and engaged on the support pins.
1. Hinge Hanger
DoorFrame Hinge
3. Support Pins
4. Insert the door stop clip with the angular surface at the top of
the frame hinge slot, then push in the bottom of the clip until
flanges are flush with the front frame.
5. Open the door completely and remove the door removal pins.
Save door removal pins for future use.
6. Close the door.
Storage Drawer
The storage drawer can be removed. Before removing, make sure
drawer is cool and empty.
To Remove:
1. Pull drawer straight out to the first stop.
2. Lift up the back ofthe drawer and pull out.
To Replace:
1, Fit the ends °f the drawer rails int° the guides in the cavity"
2, Slide the drawer closed,
TROUBLESHOOTING
Try the solutions suggested here first in order to avoid the
cost of an unnecessary service call,
Nothing will operate
,.,,..,,
• Is the power outlet properly wired and polarized?
Try another outlet to check for proper wiring and polarity.
• Is the power supply cord unplugged?
Plug into a properly grounded 3 prong cutlet.
• Has a household fuse been blown or has the circuit
breaker been tripped?
Replace the fuse or reset the circuit.
• Is the main or regulator gas shutoff valve in the off
position?
See Installation Instructions.
• Is the range properly connected to the gas supply?
Contact a Sears trained repair specialist or see Installation
Instructions,
Surface burners will not operate
• Is this the first time the surface burners have been used?
Turn on any one of the surface burner knobs to release air
from the gas lines,
• On some models, is the Cooktop Lockout set?
See "Cooktop Lockout" section.
• Is the control knob set correctly?
Push in knob before turning to a setting.
• Are the burner ports clogged?
On Sealed Burner models, see "Sealed Burners" section.
On Open Burner models, see "Open Burners" section.
i ,i
Surface burner flames are uneven, yenow and/or noisy
Are the burner ports clogged?
On Sealed Burner models, see "Sealed Burners" section.
On Open Burner models, see "Open Burners" section.
On models with caps, are the burner caps positioned
properly?.
See "Sealed Surface Burners" section.
Is the burner damaged?
On models with caps, look for a warped cap. If cap will spin
freely on a flat surface, painted side down, the cap iswarped
Switch cap with a different surface burner to check for further
warping. Contact a Sears trained repair specialist.
Is propane gas being used?
The appliance may have been converted improperly.
Contact a Sears trained repair specialist.
Surface burner makes popping noises
• Is the burner wet?
Let it dry,
18

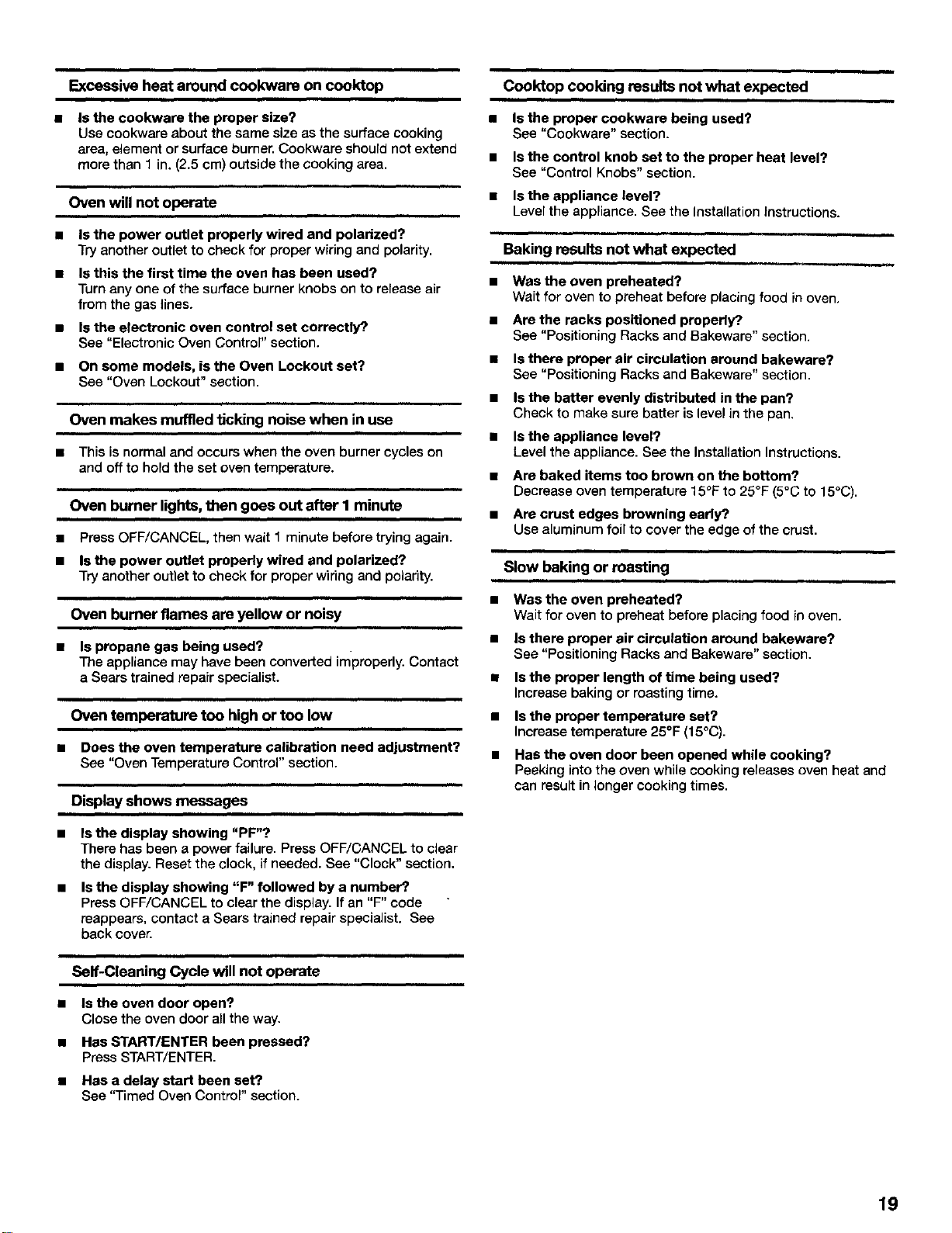

Excessive heat around cookware on cooktop
• Is the cookware the proper size?
Use cookware about the same size as the surface cooking
area, element or surface burner. Cookware should not extend
more than 1 in. (2.5 cm) outside the cooking area.
Oven will not operate
• Is the power outlet properly wired and polarized?
Tryanother outlet to check for proper wiring and polarity.
• Is this the first time the oven has been used?
Turn any one of the surface burner knobs on to release air
from the gas lines.
• Is the electronic oven control set correctly?.
See "Electronic Oven Control" section.
• On some models, is the Oven Lockout set?
See "Oven Lockout" section.
Oven makes muffled ticking noise when in use
• This is normal and occurs when the oven burner cycles on
and off to hold the set oven temperature.
Oven burner lights, then goes out after 1 minute
• Press OFF/CANCEL, then wait 1 minute before trying again.
• Is the power outlet property wired and polarized?
Try another outlet to check for proper wiring and polarity.
Oven burner flames are yellow or noisy
• Is propane gas being used?
The appliance may have been converted improperly. Contact
a Sears trained repair specialist.
oven temperature too high or toe low
• Does the oven temperature calibration need adjustment?
See "Oven Temperature Control" section.
Display shows messages
• Is the display showing "PF"?
There has been a power failure. Press OFF/CANCEL to clear
the display. Reset the clock, if needed. See "Clock" section.
• Is the display showing "F" followed by a number?
Press OFF/CANCEL to clear the display. If an "F" code
reappears, contact a Sears trained repair specialist. See
back cover.
Self-Cleaning Cycle will not operate
• Is the oven door open?
Close the oven door all the way.
Cooktop cooking results not what expected
• Is the proper cookware being used?
See "Cookware" section.
• Is the control knob set to the proper heat level?
See "Control Knobs" section.
• Isthe appliancelevel?
Level the appliance. See the Installation instructions.
.,.,..
Baking results not what expected
• Was the oven preheated?
Wait for oven to preheat before placing food in oven,
• Are the racks positioned properly?.
See "Positioning Racks and Bakeware" section.
• Is there proper air circulation around bakeware?
See "Positioning Racks and Bakeware" section.
• Is the batter evenly distributed in the pan?
Check to make sure batter is level in the pan.
• Is the appliance level?
Level the appliance. See the Installation Instructions.
• Are baked items too brown on the bottom?
Decrease oven temperature 15°F to 25°F (5°C to 15°C).
• Are crust edges browning early?.
Use aluminum foil to cover the edge of the crust.
Slow baking or roasting
Was the oven preheated?
Wait for oven to preheat before placing food inoven.
Is there proper air circulation around bakeware?
See "Positioning Racks and Bakeware" section.
Is the proper length of time being used?
Increase baking or roasting time.
msthe proper temperature set?
Increase temperature 25°F (15°C).
Has the oven door been opened while cooking?
Peeking into the oven while cooking releases oven heat and
can result in longer cooking times.
Has START/ENTER been pressed?
Press START/ENTER.
Has a delay start been se_
See "Timed Oven Control" section.
19
