Installation and User’s Manual for
Remote Low Side Modular Cube
Prodigy ELITE® A Series Model
MC222 with ECC Condensing Unit
June 2022
Page 2
MC222 and Condensing Unit
Remote Low Side User Manual
Introduction:
The design of this modular remote cuber is the result
of years of experience with remote ice machine
refrigeration systems. Standard features of this
product include front accessible on-o switches,
always-visible indicator lights, mechanical assist ice
harvest for extra eciency, automatically adjusting
water purge and a control system that optimizes
system operation.

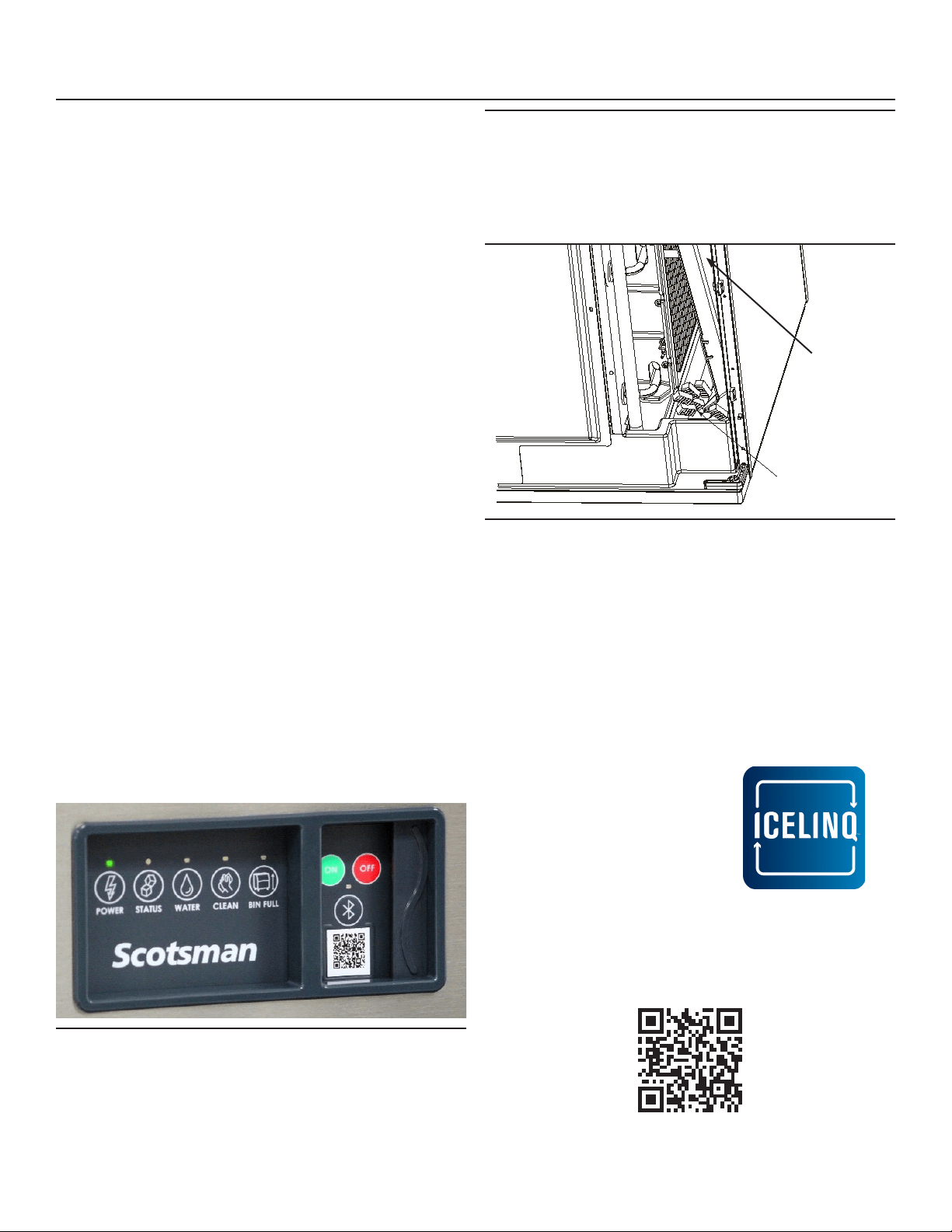

In addition, the Scotsman ICELINQ® app allows users
to connect to the machine via Bluetooth® to monitor,
control, and maintain the ice machine.
This installation and user manual is divided into
three sections: Installation, Use and Operation and
Maintenance.
The Installation section provides the trade person with
the information needed to properly install and start
up this ice system. The Use and Operation section
provides the user with the information needed to use
the machine. The Maintenance section contains the
instructions and schedules for the sanitation and
cleaning of the machine.
Contents
Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Specications and Location Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Cabinet Drawings, Ice Making Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Cabinet Drawings, Condensing Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Pre-Installation Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Create the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8

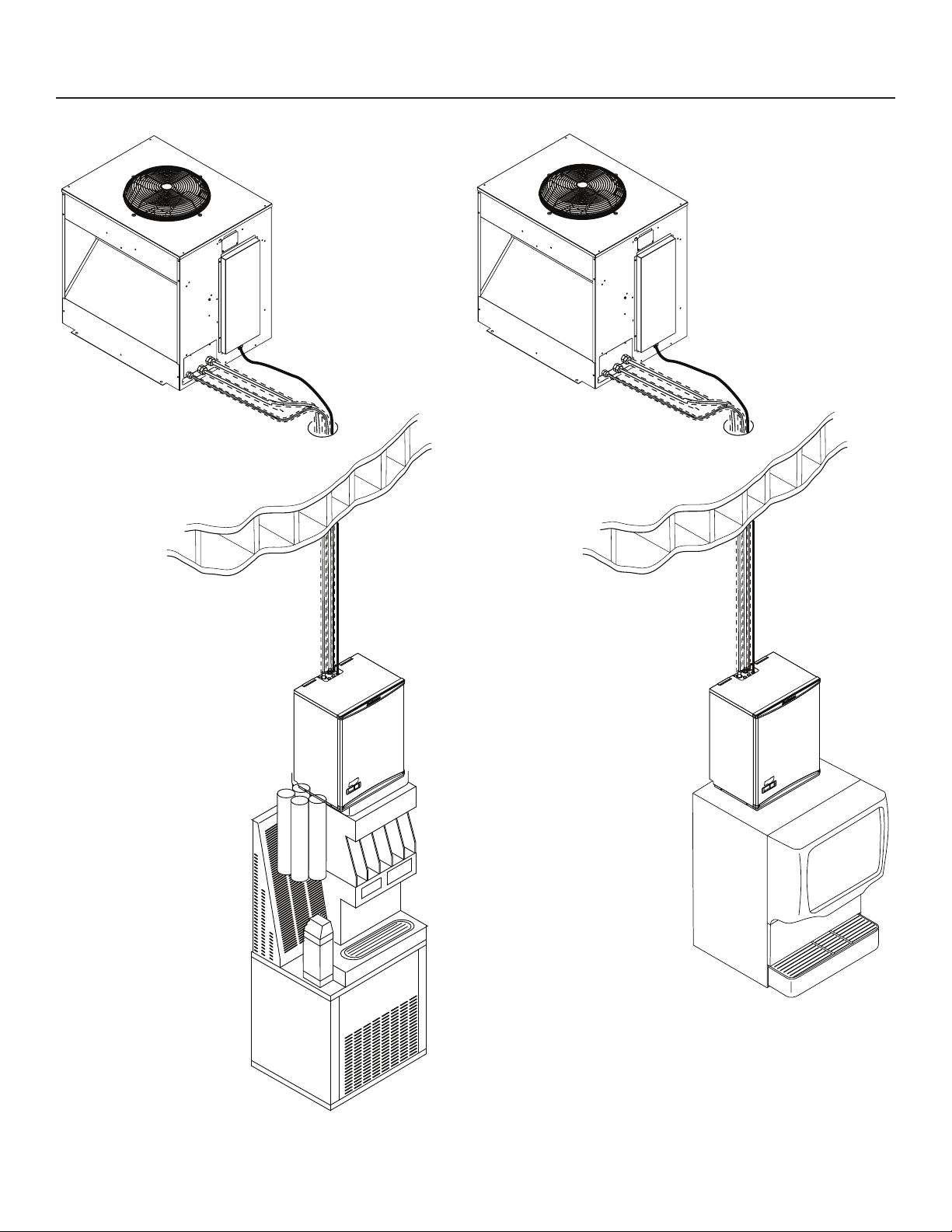

Completed System Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Place Remote System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
Place Ice Making Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Drain Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Water Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Electrical: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Connect Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Complete the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
Reference for Start Up: Controller Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 18
Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19
Ice Thickness and Water Purge Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
Adjustable Ice Level Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21
Cleaning, Sanitation and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22
Operational Characteristics 800 lb system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24
Operational Characteristics 1000 lb system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24
What to do before calling for service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26
Note any Caution or Warning symbols when they
appear on the product or in this manual. They indicate
potential hazards.
June 2022
Page 3
MC222 and Condensing Unit
Remote Low Side User Manual
Conguration
A remote low side cuber system includes two sub
systems: an ice making head and a remote air cooled
condensing unit. This manual covers the MC222 head
and the condensing units that go with it.
The ice making heads are designed for use indoors
in a controlled environment. The remote condensing
units are designed to operate outdoors. Each sub-
system has limits for power, water and temperature.
Operational Limitations:
Minimum Maximum
Air Temp (at head) 50
o
F 100
o
F.
Air Temp (CU) -20
o
F. 120
o
F.
Water Temp 40
o
F. 100
o
F.
Water Pressure 20 psi 80 psi
Water Conductivity 10 microSiemens/cm any
Voltage (at head) 104 126
Voltage (CU) 198 253
CU= Condensing Unit
Do Not operate the machine in conditions beyond
these limitations. Doing so will void the warranty.
Scotsman ice systems are designed and
manufactured with the highest regard for safety and
performance. They meet or exceed common agency
standards.
Scotsman assumes no liability of responsibility of
any kind for products manufactured by Scotsman
that have been altered in any way, including the use
of any part and/or other components not specically
approved by Scotsman.
Scotsman reserves the right to make design changes
and/or improvements at any time. Specications and
design are subject to change without notice.
Warranty
Refer to the warranty coverage in eect when the
equipment was sold. Warranty statements are
included with each product.
Systems:
Ice making heads and condensing units have their
own model and serial numbers. They must be
combined to create a remote cuber low side system.
Notes: Voltage Codes are at the end of the model
number. Codes read Voltage/Hertz/Phase. Those
related to these products include:
-1 = 115/60/1
-3 = 208-230/60/3
-32 = 208-230/60/1
System Information
Tubing kits are required to connect the head to the
condensing unit.
Interconnecting 24 volt control wire ships with the
condensing unit.
System Size Condensing Unit (CU) Ice Making Head
Model Electrical (volts/Hz/phase Model Electrical (volts/Hz/phase)
800 ECC0800-32E 208-230/60/1 MC222SL-1E 115/60/1
800 ECC0800-3E 208-230/60/3 same same
1000 ECC1410-32E 208-230/60/1 same same
1000 ECC1410-3E 208-230/60/3 same same
June 2022
Page 4
MC222 and Condensing Unit
Remote Low Side User Manual
Model Electrical
volts/Hz/phase
Minimum
Circuit
Ampacity
Maximum
Fuse Size
System Charge,
oz of R-404A
Cabinet Size*
w” x d” x h”
Unit
Weight (lb)
MC222SL-1E 115/60/1 1.13 15 shipped w/none 22 x 16.5 x 29 ~100
ECC0800-3E 208-230/60/3 10.6 15 192 32 x 39 x 39.75 ~300
ECC1410-32E 208-230/60/1 15.8 30 248 32 x 39 x 39.75
~310
ECC1410-3E 208-230/60/3 11.6 20 248 32 x 39 x 39.75
~310
* See cabinet drawings for detailed dimensions.
Location Limitations
Maximum Distance between Head and Condensing
Unit: Limited to the length of the longest available
single tubing kit, 75 feet.
Maximum Condensing Unit Elevation over Ice Making
Head: 35 feet.
Note: Elevations greater than 20 feet require
installation of a suction line trap at the 20 foot mark.
Maximum Ice Making Head Elevation over
Condensing Unit: 15 feet.
Line Routing:
• Allowed: One rise after a drop.
• Allowed: One drop after a rise.
• Not Allowed: More than one rise after a drop
• Not Allowed: More than one drop after a rise.
Model Number Locations
Ice Making Head
The dataplate on the back of the ice machine contains
the model number, serial number and electrical data.
A second plate, located behind the front panel at
the lower right front, also lists the model and serial
numbers.
Condensing unit
The dataplate on the end contains the model number,
serial number, electrical data and system refrigerant
charge.
A second plate, located behind the side panel on the
deck, also lists the model number, serial number and
refrigerant charge.
Specications and Location Information
June 2022
Page 5
MC222 and Condensing Unit
Remote Low Side User Manual

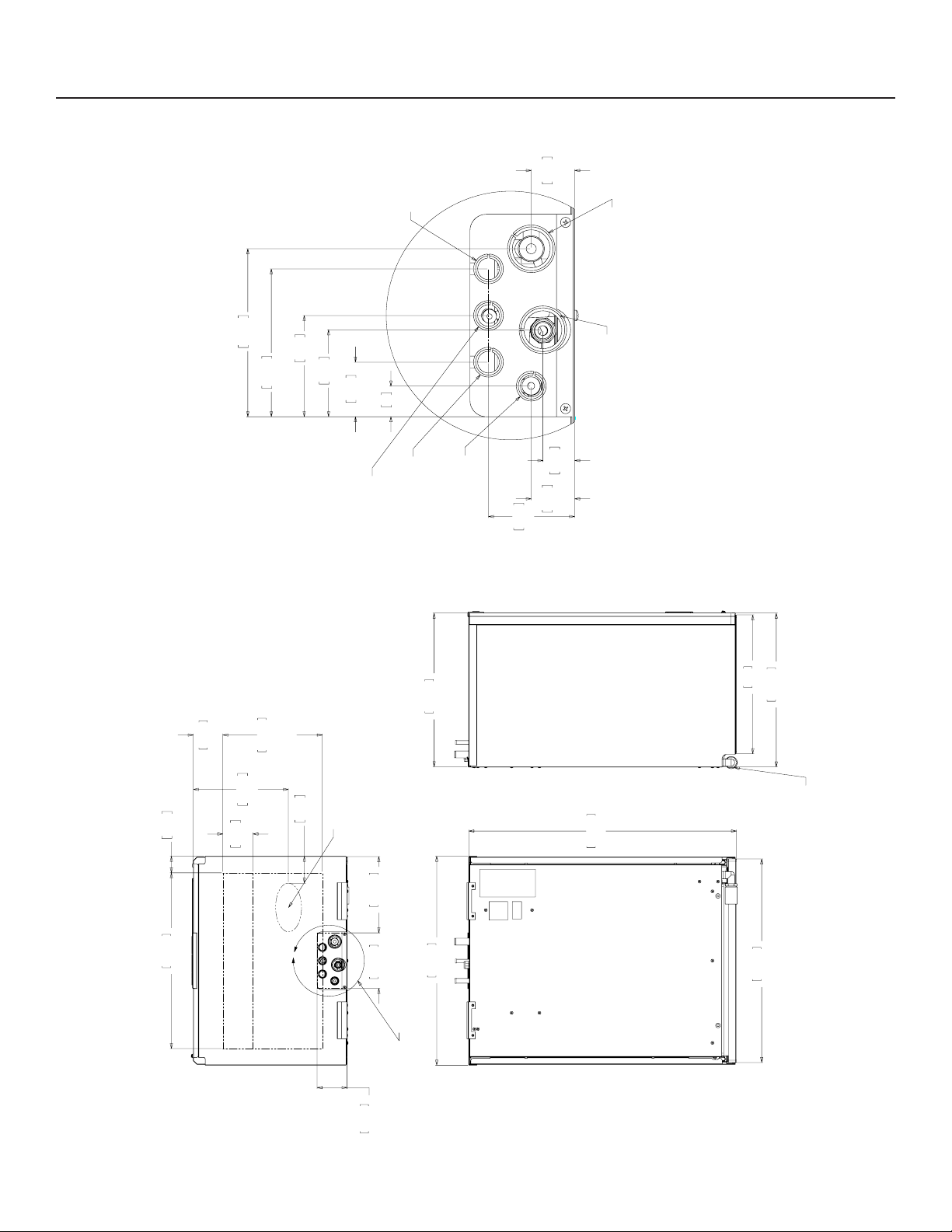

Cabinet Drawings, Ice Making Head
22.00
558.80
22.58
573.53
28.94
734.97
TOP VIEW
REAR VIEW
6.00
152.40
3.25
82.55
3.20
81.16
10.75
MINIMUM BIN
TOP OPENING
273.05
19.00
482.60
8.24
209.32
82.55
3.25
73.94
2.91
260.99
10.28
45.47
1.79
A
LINE SET, POTABLE WATER INLET 3/8",
120V AC, AND INTERFACE CABLE
SEE DETAIL "A"
ULTRA SONIC
BIN LEVEL
SENSOR
ICE DROP AREA
15.00
381
16.63
422.47
16.61
421.91
DRAIN 3/4" PVC FEMALE
REAR, LEFT AND RIGHT SIDE ACCESS
LEFT SIDE VIEW
24
.95
42.80
1.69
79.38
3.13
115.95
4.57
68.20
2.69
131.70
5.19
24.89
.98
34.04
1.34
67.56
2.66
34.04
1.34
DETAIL A
INTERFACE CABLE
ACCESS HOLE
3/4" SUCTION LINE
POTABLE WATER INLET 3/8"
1/2" COOL VAPOR LINE
3/8" LIQUID LINE
ELECTRICAL CORD
ACCESS HOLE
June 2022
Page 6
MC222 and Condensing Unit
Remote Low Side User Manual

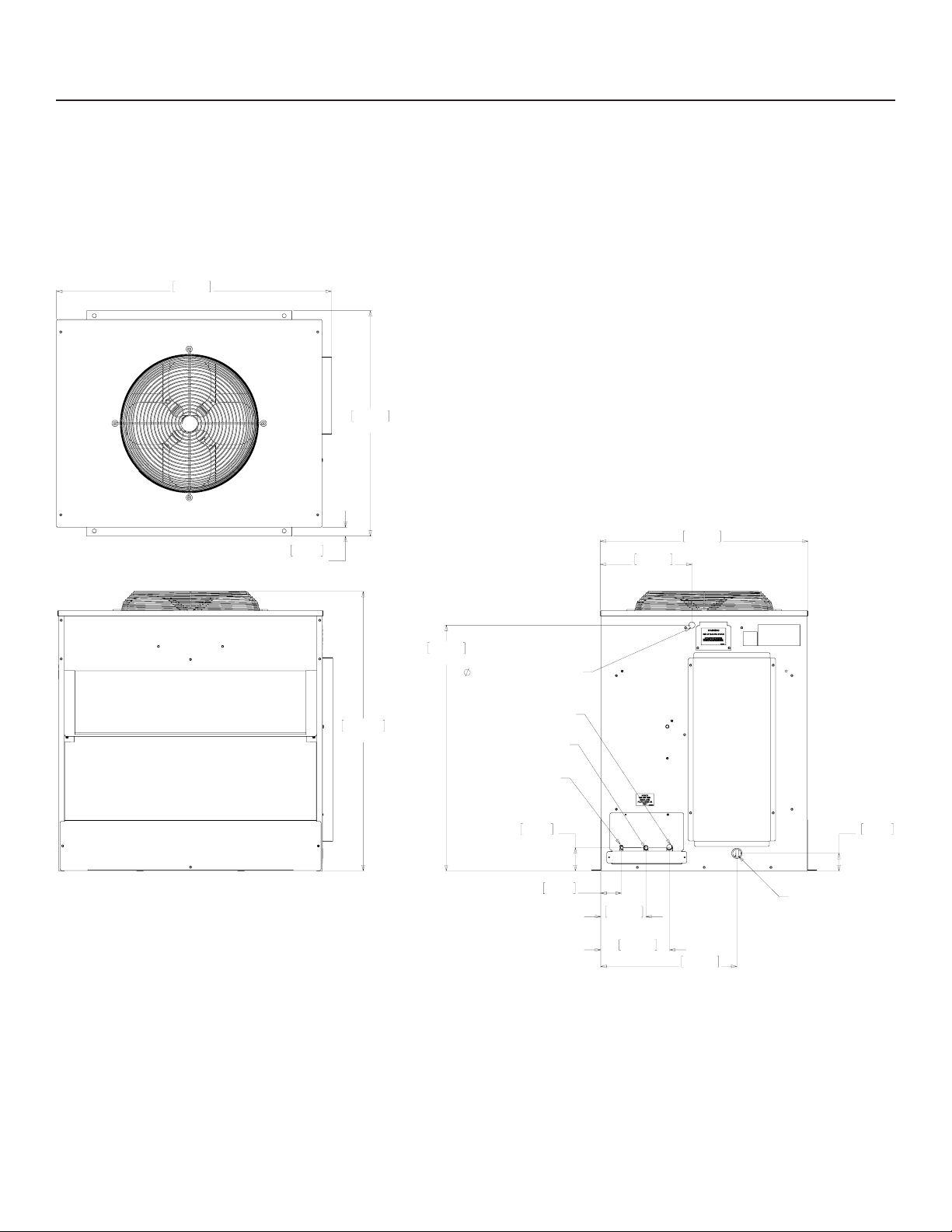

Cabinet Drawings, Condensing Unit
992.81
39.09
814.22
32.06
32.05
1.26
TYP.
TOP VIEW
1009.65
39.75
FRONT VIEW
83.67
3.29
74.12
2.92
163.02
6.42
248.87
9.80
491.69
19.36
63.50
2.50
887.73
34.95
750.06
29.53
330.86
13.03
SIDE VIEW
LINE SET AND ELECTRICAL ATTACHMENT SIDE
1/2" COOL VAPOR LINE
3/8" LIQUID LINE
3/4" SUCTION LINE
.88" ELECTRICAL INLET
INTERFACE HARNESS
ACCESS HOLE
June 2022
Page 7
MC222 and Condensing Unit
Remote Low Side User Manual
Pre-Installation Details
Note: The ice making section cannot be stacked
vertically.
Accessories such as bin adapters and tubing kits are
required to complete the installation.
Dispenser Adapter Kits:
• Cornelius ABS: KBTABS ED150: KBT40
• Scotsman ID150: KBT40
• Scotsman ID200 or ID250: KBT41
Bin Adapter Kits:
• B530P or B530S: KBT32
• B948S: KBT34
Tubing Kits:
• 20 foot: 3BRTE20-EH
• 35 foot: 3BRTE35-EH
• 50 foot: 3BRTE50-EH
• 75 foot: 3BRTE75-EH
Note: Line set may have quick connects. The
condensing section may have quick connects. See
refrigeration system detailed instructions connection
details.
Items required for installation:
• Ice making head
• Condensing unit (includes interconnecting control
system wire)
• Tubing kit. 20’, 35', 50’ or 75’ triple line set (liquid,
vapor and suction)
• Bin or dispenser adapter
Special Considerations
The ice making section’s footprint is 22” wide by 16.5”
deep. The refrigeration connections can be routed up
or to the back. The drain may be routed out the back
at any position left to right; it may also be routed to
either side.
Water
Pure water does not exist. All water supplies contain
some amounts of impurities, although potable water
is, by denition, t for human consumption. Because
the contents of the water to an ice machine directly
impact its performance, consideration should be given
to improving the water’s quality.
There are two ways water can contain impurities:
in suspension or in solution. Suspended solids can
be ltered out of the water. In solution or dissolved
solids must be diluted or treated. Water lters are
recommended to remove the suspended solids.
Some lters or lter systems have treatment
chemicals in them for treating the suspended solids.
This ice machine has an adjustment for the amount
of water rinsed or purged. Water use adjustments
are customer convenience adjustments; they are not
factory defects and are not covered by warranty.
June 2022
Page 8
MC222 and Condensing Unit
Remote Low Side User Manual
Create the System
Plan the installation. The system consists of three
parts: the ice making head, the condensing unit and
the interconnecting tubing. Of these, the biggest
variable is the interconnecting tubing.
Tubing: The tubing consists of three insulated and
sealed soft copper tubes. One tube, the liquid line,
is 3/8” OD. The vapor tube is ½” OD and the suction
tube is ¾” OD. A site inspection will determine what
length of tubing is required for the installation.
In 2013 Scotsman made a change to the Eclipse
tubing kits:
• Prior Tubing Kits: They each contain a small
holding charge of R-404A and have quick
connects at the ends.
• Current Tubing Kits: The do not contain any
refrigerant and do not have quick connects.
Either type can be used to connect the head and
condensing unit.
Check condensing unit for quick connects. If none,
recover refrigerant from tubing and cut the quick
connects o.
Excess tubing must be shortened at the job site.
Installations with greater than 20 feet of vertical lift
between ice machine and the compressor require
a suction line trap. The suction line requires careful
handling and large radius bends to prevent kinking.
Roof mounting: Some installations will require the use
of a hoist to lift the components to the roof.
Pad mounting: The condensing unit may be located
below the ice making section, up to a limit of 15 feet.
Distance from unit: Limited to the length of the
available tubing.
Elevation: Condensing unit limited to 35 feet above
the ice making section.
Condensing Unit: Electrical power must be supplied to
the condensing unit, it will be separate from the head.
Ice making section location and attachment: The
unique footprint of the MC222 requires adapter kits to
allow placement on dispensers and bins.
The remote tubing connections are at the top of the
machine, and connections should not be made until
the machine is nearly in its nal installed position.
The 115/60 Hz ice making section is cord connected
and requires an outlet within 6 feet of the installation.
Interconnecting wires: An interconnecting wire
harness is included with the condensing unit. One end
plugs into the ice making section and the other into
the condensing unit. The system will NOT operate
without this harness.
Exposed tubing: Minimize the amount of tubing
exposed outdoors.
Lineset Ice machine head and condensing
unit both have stubs
Ice machine head has stubs, condensing
unit has quick connects.
Has Quick Connect Fittings Cut quick connects o both ends Cut o quick connects at condensing unit
end only
Does NOT have Quick
Connect Fittings
Use as supplied Use as is at head, obtain kit KTE6-EH,
use 3 of 6 ttings on condensing unit end.
June 2022
Page 9
MC222 and Condensing Unit
Remote Low Side User Manual
Completed System Example
June 2022
Page 10
MC222 and Condensing Unit
Remote Low Side User Manual

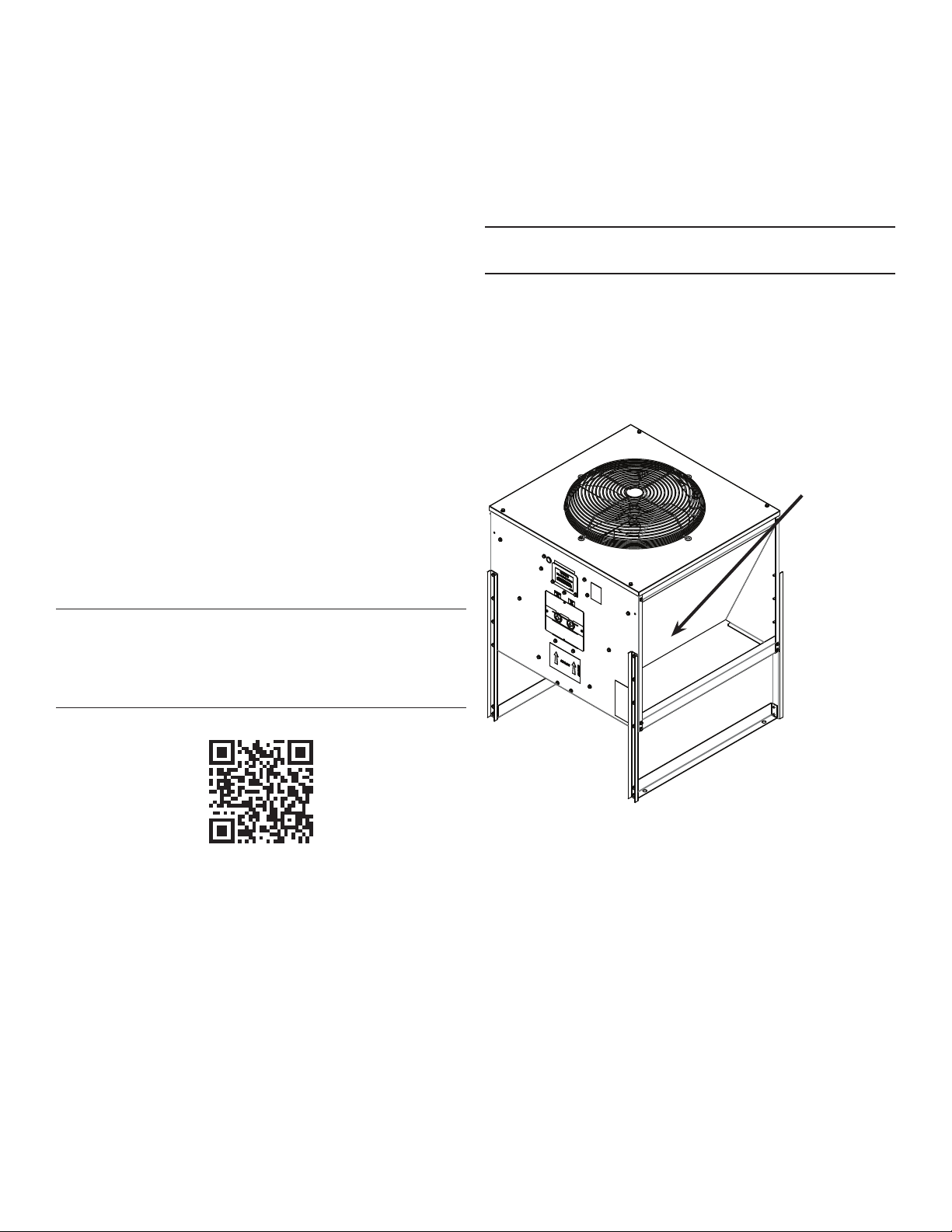

Place Remote System
Roof preparation
Most installations of this system will place the
condensing unit on the roof of a building. The roof
must be physically able to accept the load of the
equipment and the roong material must be prepared
to prevent water leaks.
Follow local codes for the placement and attachment
of the equipment.
Location
The condensing unit requires unobstructed air ow
to operate eciently. A four foot space between
each intake side and a wall or other cabinet is
recommended.
Do not place where it will pick up hot discharged air
from an air conditioner or other refrigeration system
condensing unit.
Space must also be reserved for service on the
condensing unit.
Roof Piercing:
The roof (or wall) must have a passage large enough
for the three refrigeration tubes and the control wire
to pass through. The minimum recommended size is
4” ID. In most areas the power supply may also pass
through the same passage. If there isn’t a passage
one must be created. In most cases this must be done
by a licensed and bonded roofer in order to maintain
the roof’s integrity.
Roof Pipe Curb or Pitch Pocket:
To avoid potential kinking of the refrigeration tubing,
avoid small, tight radius types of covers on pitch
pockets.
Suggestions:
In most cases a mechanical lift, boom truck or crane
will be required to hoist the condensing unit.
Mount unit to roof rails or curbs and secure with lag
screws or similar eld supplied fasteners.
Orient the assembled unit so that the unit’s mounts
are parallel to the pitch of the roof to allow water to
drain freely.
Do NOT place the unit directly onto roof rock.
In all cases the line set will need to be shortened to t.
Do NOT leave excess line set exposed outdoors,
especially on a roof.
Refrigerant Recovery and System Evacuation Notice
In the event the refrigerant must be recovered from this system and the system evacuated, recover and
evacuate from the three ball valve access valves with the ball valves open.
June 2022
Page 11
MC222 and Condensing Unit
Remote Low Side User Manual
Lower Light and Switch Panel
This user accessible panel provides important
operational information and duplicates the lights and
switches on the controller. It also allows access to the
On and O buttons that operate the ice machine.
Sometimes access to the switches should be limited
to prevent unauthorized operation. For that purpose a
xed panel is shipped in the hardware package. The
xed panel cannot be opened.
To install the xed panel:
1. Remove the front panel.
2. From the back side of the panel, slide the door
to left while spreading the clips to remove the
original door from the bezel.
3. Slide the xed panel into bezel until it snaps into
place.
4. Reinstall front panel.

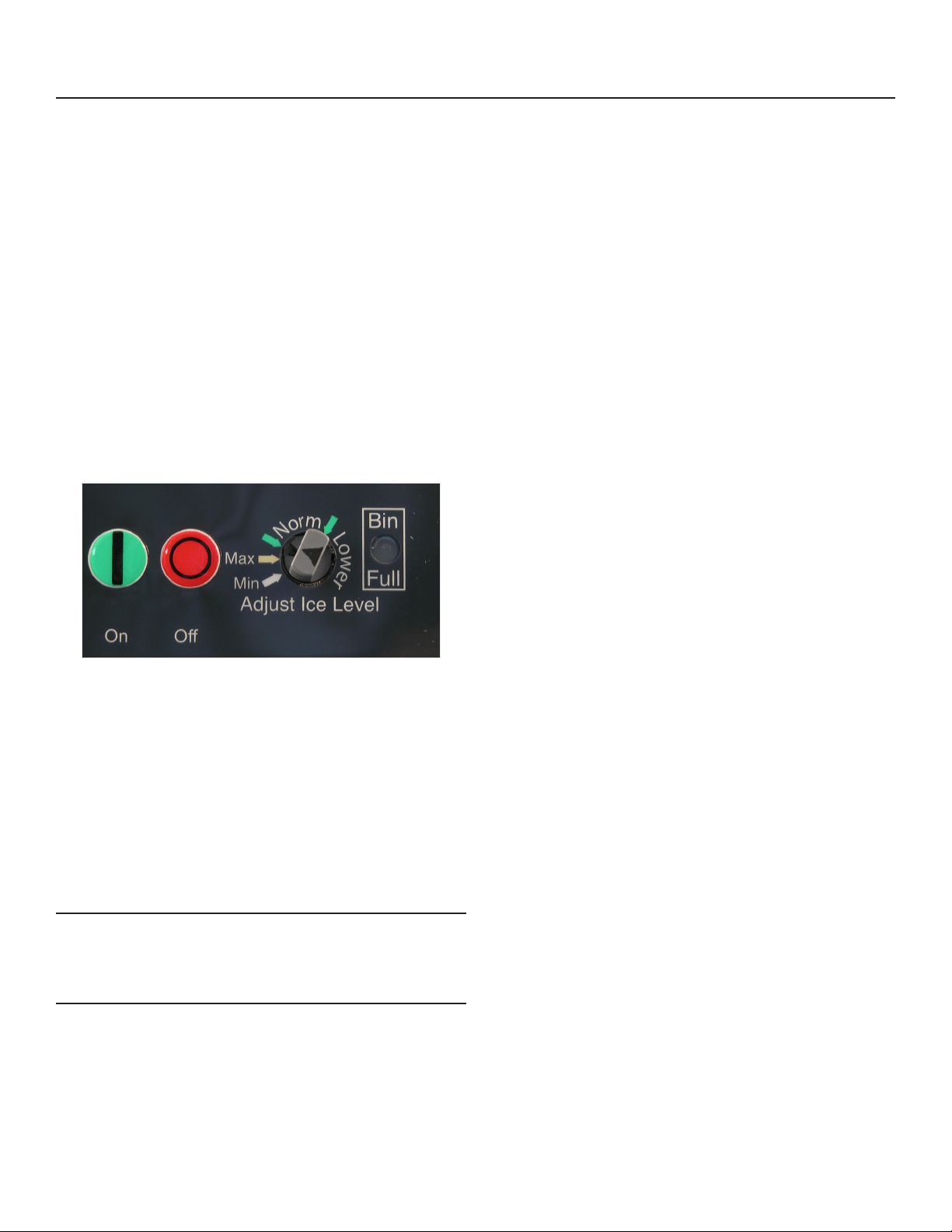

Open door to access On
and O switch buttons.
June 2022
Page 12
MC222 and Condensing Unit
Remote Low Side User Manual
Place Ice Making Head
Remove from carton.
Place adapter kit onto bin or dispenser top. If adapter
does NOT have gasket tape install tape such as
Scotsman part number 19-0503-04. The adapter to
ice head base MUST be sealed with gasket tape or
food grade sealant.
Attachment
ABS (Automatic Beverage Dispenser) in drive up
installations: Route refrigerant tubing and install drain
and water supply tubing onto ice making section
before placing unit on the dispenser.
Place MC222 onto adapter, do not secure at this time.
Uncoil power cord and route to the power supply.
Plug interconnecting control wire to the wire harness
in the ice making head.
Located at the top panel:
• Refrigeration connections.
• Interconnecting control wire.
• Access port for water supply.
• Power cord.
The drain may be routed to the left or right, allowing
the ice making section to be placed with its back tight
against a wall.
Water and Drain
The ice maker requires an adequate potable water
supply and a gravity drain.
Determine how the drain will be connected to the ice
making section.
• If access is available behind the unit, route the
drain in from the back.
• If the unit is to be ush mounted to the back of
the dispenser and tight against the wall, route the
drain out either the left or right.
In some tight situations it will be necessary to
assemble the ice making section to the dispenser or
bin and install the water and drain connections before
placing the system in its installed position. A loop of
water supply tubing will aid movement of the system.
In other tight situations the unit should have its water
and drain tubing connected and stubbed out before
placing on the dispenser or bin.

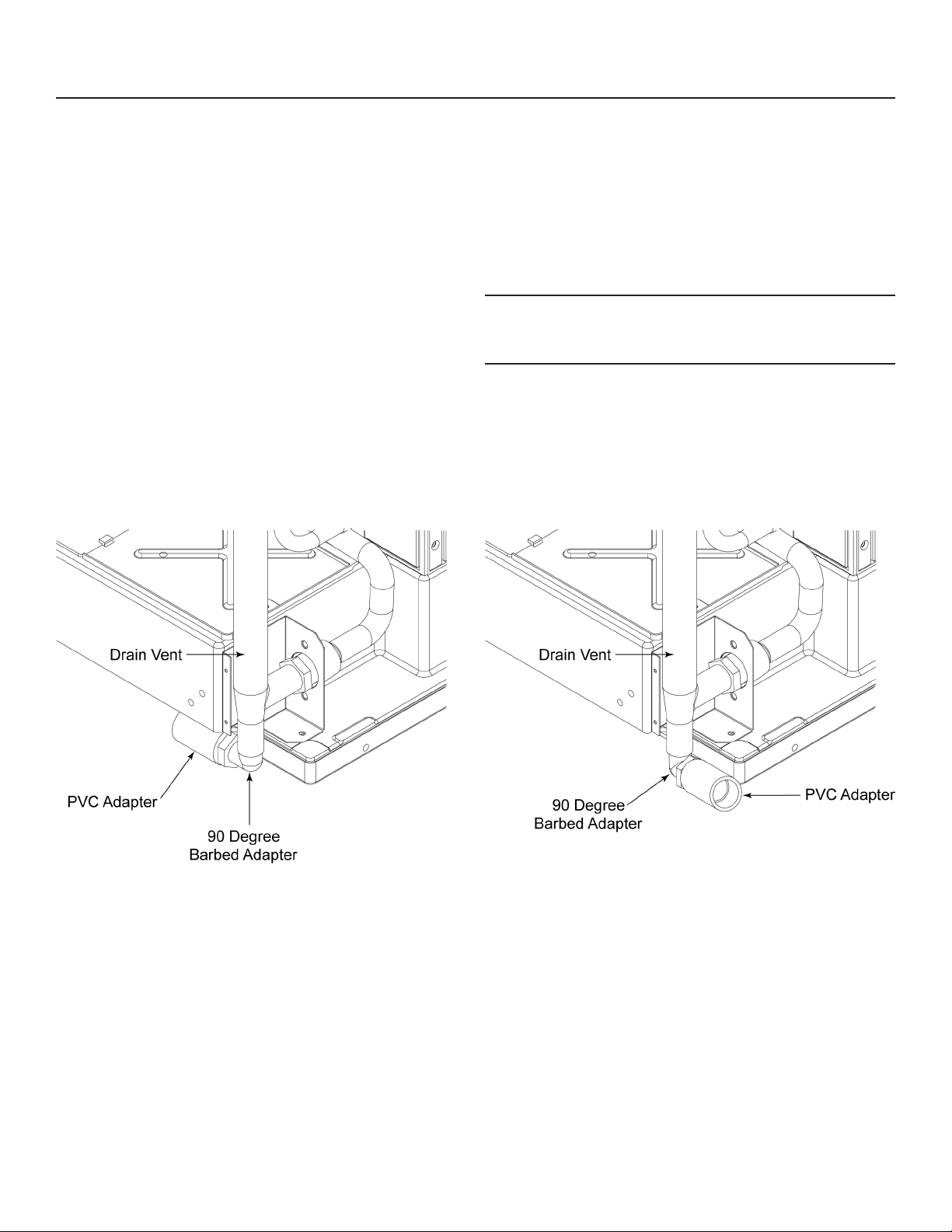

The drain tting is adaptable to drain connections to
the left, right and back.
The unit is shipped ready to drain right. The drain
tting elbow with PVC adapter can be rotated to drain
right, left or back.
Drain Fitting
MC222 Back View
June 2022
Page 13
MC222 and Condensing Unit
Remote Low Side User Manual
Drain Connections
Right Draining:
1. Connect ¾” PVC to the female PVC tting.
If copper is required by code, remove the PVC
connector and install a ¾” FPT female copper tting
onto the ¾” NPT male tting. Do all soldering before
connecting to the male tting.
2. In tight locations do the next step after the unit is
placed on the dispenser or bin.
3. Connect rigid drain tubing to the reservoir drain
tube. Route the drain either out the back, under the
unit (through the notch in the base) to the left side
or to the right side. A vent is built into the unit, so no
external vent is required.
Run the drain tubing to the building drain. Do not
“Tee” into any other drain, including the bin or
dispenser drain.
Left Draining: Rotate elbow to the other direction.
Connect ¾” PVC to the PVC tting.
Back Draining: Rotate elbow to face the back or
connect PVC directly into the ¾” FPT drain tting.
No external drain vent is required, venting is internally
provided for.
Note: External drain tubing must be supported to
insure that it does not move and kink the internal
rubber tube.
June 2022
Page 14
MC222 and Condensing Unit
Remote Low Side User Manual
Water Supply:
A 3/8" are nut on tubing is located at the top panel,
near the refrigeration tubing.
Inside the hardware bag, inside the cabinet, a
3/8" inch double male are adapter (are union) is
supplied. Use the supplied adapter to make a 3/8"
male are tting for the water inlet.
Connect a cold, potable water supply to the 3/8” water
inlet tting installed above. Use 3/8" OD copper or
other comparable sized tubing for the water supply.
Note: This is an NSF listed ice machine and contains
provisions for back-ow prevention in its design. No
external back ow preventer is required.

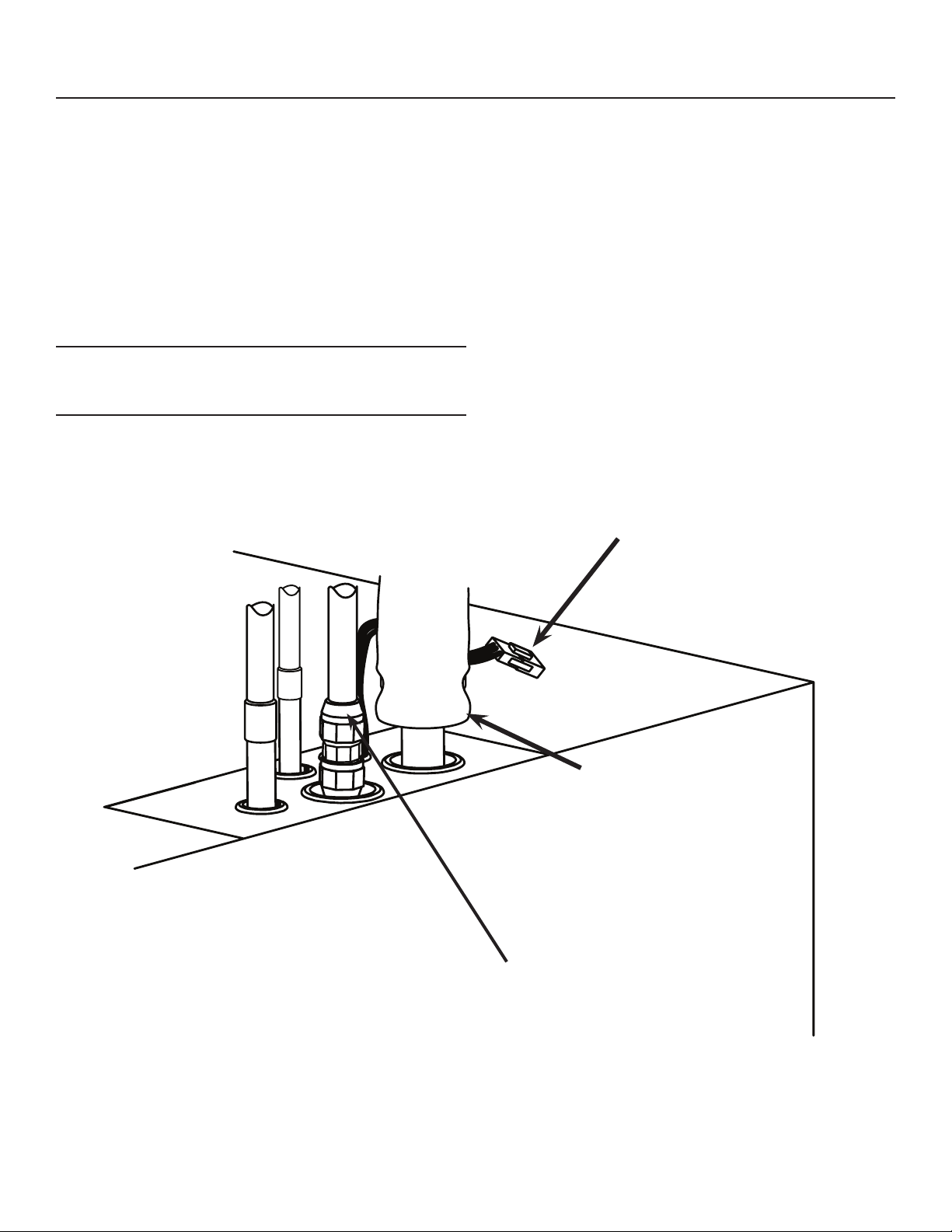

Water Supply Connection
Communication Cable
Suction Line Insulation
June 2022
Page 15
MC222 and Condensing Unit
Remote Low Side User Manual
Electrical:

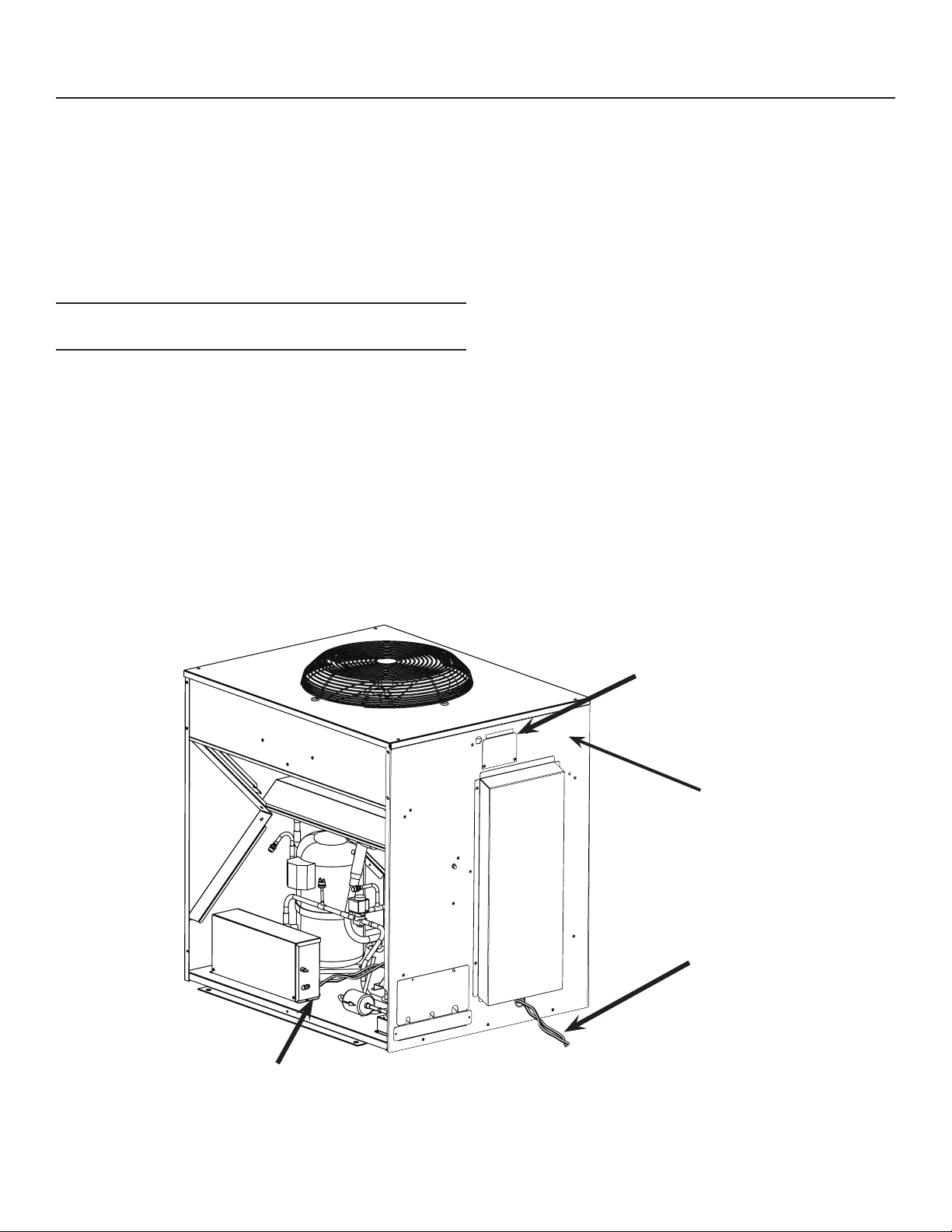

Condensing Unit
Route interconnecting control wire through proper
hole end of condensing unit and plug into the
connection on the control box.
Route power conduit (liquid tight) and wires to the
junction box of the ECC unit. Secure with the proper
type of connector.
Note: The power supply wires must be the correct
size and type per the National Electric Code.
Locate the nameplate on the ECC unit for the Voltage,
Phase, Minimum Circuit Ampacity and Maximum Fuse
Size. Either fuses or HACR type circuit breakers may
be used.
Follow all Local, State and National Codes.
Three Phase Notice: Check voltage between legs
at contactor. If there is a “wild leg” in the three phase
power supply move supply wires at the contactor so
the higher voltage is on L3, which connects to the
compressor motor only.
Head
Plug head’s power cord into a nearby 115 volt
electrical outlet.
Communication Cable
Connect Cable Here
Electrical Junction Box
Dataplate Location
MC222 and Condensing Unit
Remote Low Side User Manual
June 2018
Page 16
Connect Refrigeration
Requires brazing, steps must be performed by an
EPA certied type II or higher technician.
At Head:
1. Remove protective plugs from all three
connections and vent the nitrogen from the ice
machine.
2. Route the each of the three tubes to its
connection.
3. Remove the top panel and attach a refrigeration
hose with depressor to the 1/2” vapor line access
valve so the valve is OPEN. This is a vent for
nitrogen purging.
4. Remove screws holding tubing bracket to back
panel and lower it out of the way for brazing.
5. Clean tubing ends and position into couplings.
At Condensing Unit
1. Conrm connection
valves are fully
closed.
2. Remove protective
plugs from all three
connections.
3. Remove caps from access valve connections.
4. Remove cores from access valves.
5. Connect refrigeration hoses to access valves.
6. Connect dry nitrogen source to liquid line
connection and vapor line connection.
7. Shorten tubing to correct length, clean ends and
insert them into valve ends and couplings.
Note: Be sure tube and stubs are round, dress with
swage tool if needed.
8. Add heat sink material to ball valve body.
9. Open nitrogen and ow 1 psi nitrogen into liquid
line and vapor line tubes and braze the liquid
line, vapor line and suction line tubes to the valve
stubs.
At Head
1. With nitrogen owing from condensing unit, braze
the liquid, vapor and suction line connections.
2. Remove refrigeration hose from head. Be sure
valve cap is on tight.
3. Pull tubing bracket up and secure to back panel.
At Condensing Unit
1. Remove nitrogen source.
2. Return valve cores to access valves.
3. Connect vacuum pump to all three access valves
(use two manifolds or two extra hoses and a tee)
and evacuate the tubing and head to at least a
300 micron level.
4. Remove vacuum pump and add R-404A vapor to
all three tubes to provide a positive pressure.
5. Leak check the braze connections and repair any
leaks.
6. Open all three valves to full open.
Note: The full refrigerant charge is contained in the
receiver of the ice machine.

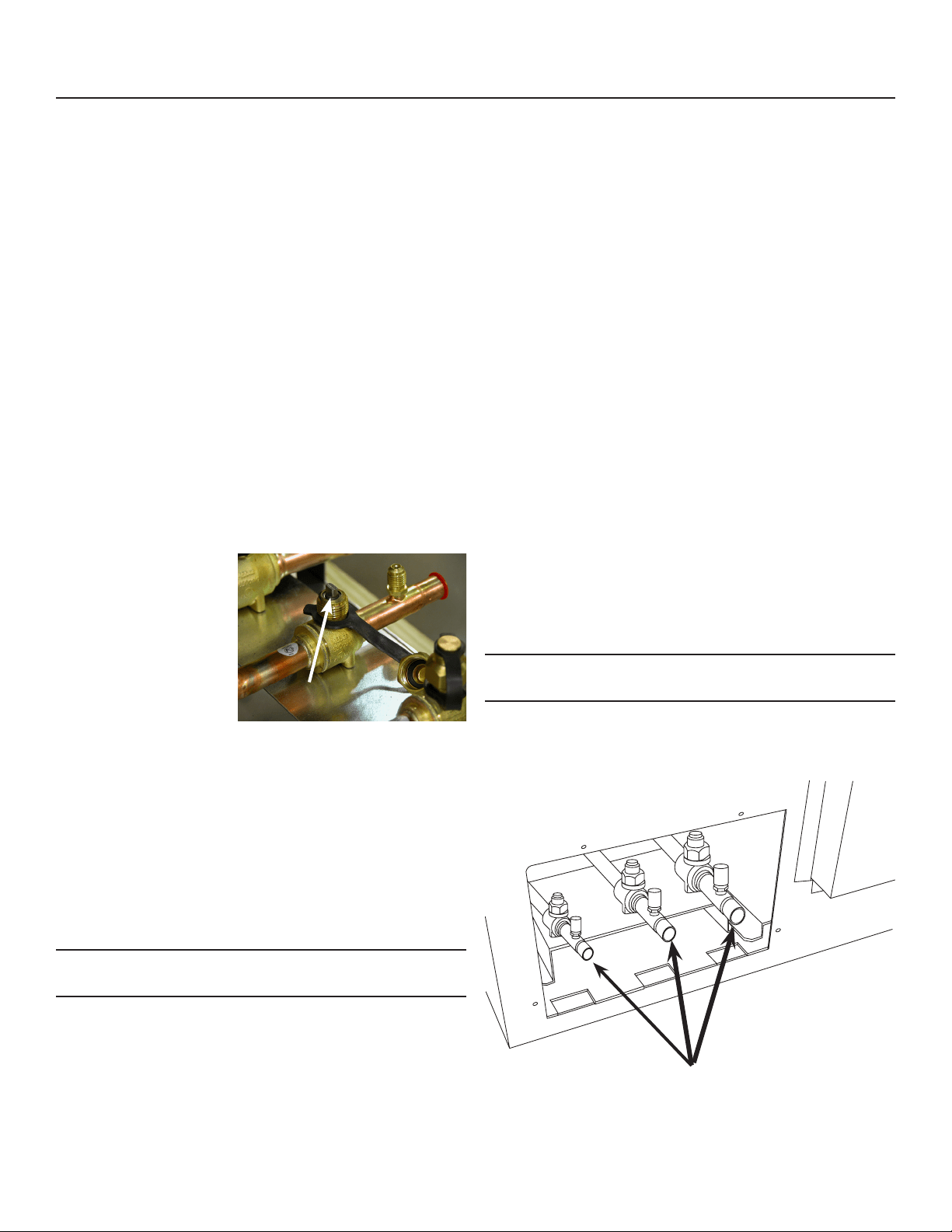

Valves Closed
Refrigeration Connections
Liquid
Vapor
Suction
June 2022
Page 17
MC222 and Condensing Unit
Remote Low Side User Manual
Complete the Installation
After the utilities and refrigeration connections have
been made, secure the unit to the dispenser or bin
top.
Secure ice making section to dispenser or bin
adapter.
Use strap/clips to secure unit:
• When used with Cornelius ABS adapter, install
clip on the side of the cabinet. Clip under edge of
adapter and secure to ice making section using
the screws provided in the hardware bag.
Note: If one side will be against a wall, do not use a
clip on that side. One clip is sucient to secure the
unit.
• For use on bin adapter, use clip (as a strap) on
back.
If the ice maker & bin or dispenser is not yet in its nal
position gently move it there.
Note: The refrigerant lines above the machine must
be able to move freely while the machine is being
moved into position.
Final Check List Before Initial Start Up
1. Conrm that the ice making section is installed
indoors in a controlled environment.
2. Conrm that all packing materials have been
removed from all products.
3. Conrm that the ice making section is level.
4. Conrm that all the refrigerant connections have
been made and checked for leaks.
5. Conrm that the proper power supply has been
turned on to the condensing unit.
6. Conrm that cold, potable water has been supplied
to the ice making section and checked for leaks.
7. Conrm that the water supply is adequate.
8. Conrm that there is adequate water pressure and
that any water lters have been checked to conrm
that the cartridges do not need changing.
9. Conrm that the proper size drain tubing has been
installed and properly routed.
10. Conrm that the ice making section has been
connected to the proper power supply.
11. Conrm that the interconnecting wire has been
routed and connected between the ice making section
and the condensing unit.
Clip
June 2022
Page 18
MC222 and Condensing Unit
Remote Low Side User Manual
Reference for Start Up: Controller Operation
The controller has four indicator lights, a code display,
four push buttons, and eleven component indicator
lights.
Indicator Lights
• Power - on when there is power to the controller
• Status - on in ice making mode
• Water - on and blinking when there is no water
• De-scale & Sanitize - on when it is time to clean
the machine
Code Display
• Displays status and diagnostic codes
Push Buttons
• O n
• O
• Manual Harvest
• Clean
Component indicator lights
• Fan - not used on this model
• Water Pump - on when the pump is
• Purge Valve - on when the purge valve is
• Water Solenoid - on when the inlet water solenoid
valve is
• Hot Gas - on when the vapor inlet valve and
harvest assist solenoid have power
• Compressor - on when the compressor contactor
is energized
• Ready to Harvest - on when the ice thickness
sensor has water touching it
• Sump Empty - on when there is no water touching
the mid-length probe
• Sump Full - on when water is touching the
shortest probe
• SW2 - on when the curtain is open
• SW1 - on when the curtain is open
Cycle Denitions:
Freeze: The refrigeration system is operating to
remove heat from the evaporators. The compressor,
fan motor, and water pump are on.
Harvest: The refrigeration system and water system
are operating to harvest the ice and rinse the
reservoir. The compressor is on for the full cycle, the
pump is on until the purge valve closes.
The inlet water valve opens and rells the reservoir.
The vapor and condenser by-pass valves are open
during the entire harvest cycle, as is the harvest assist
mechanism.

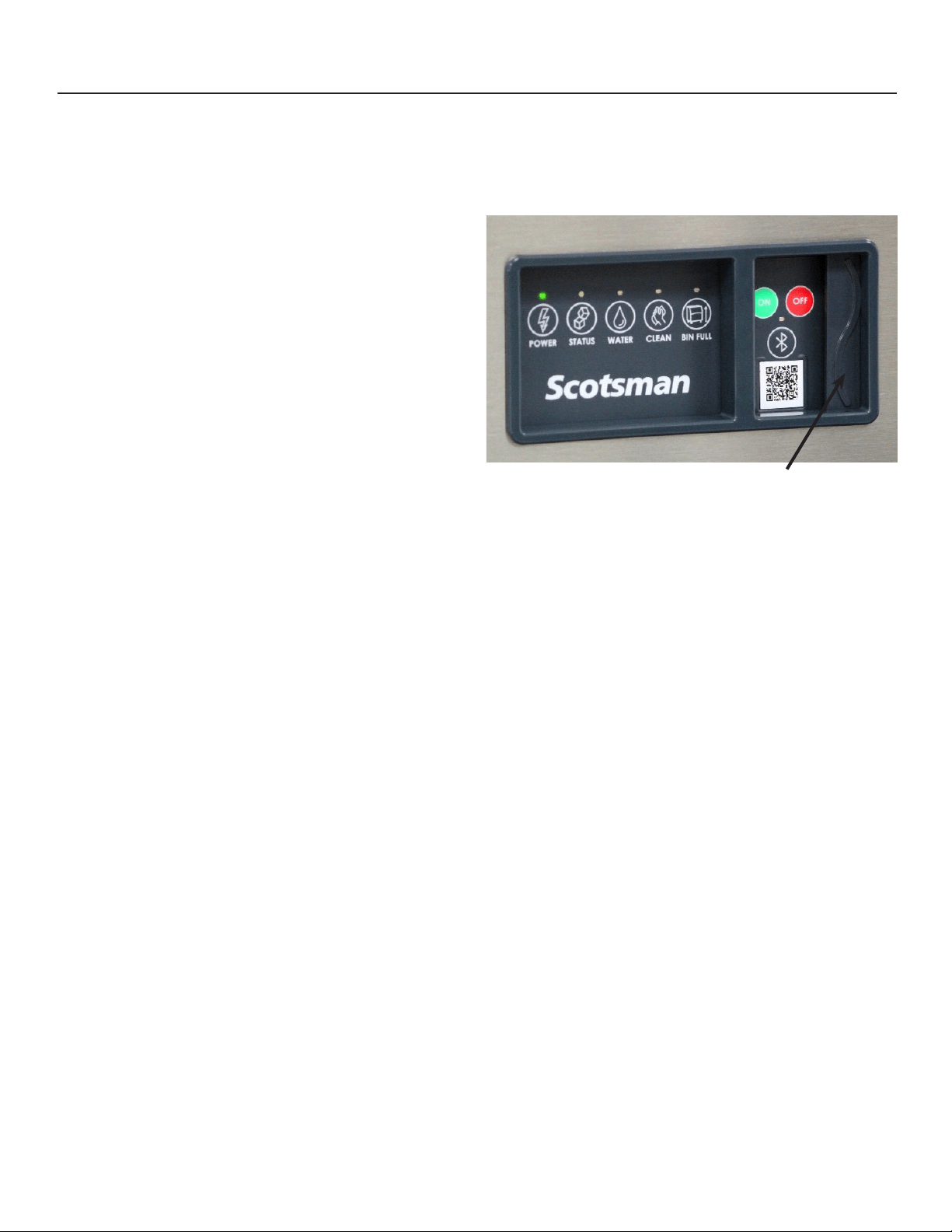

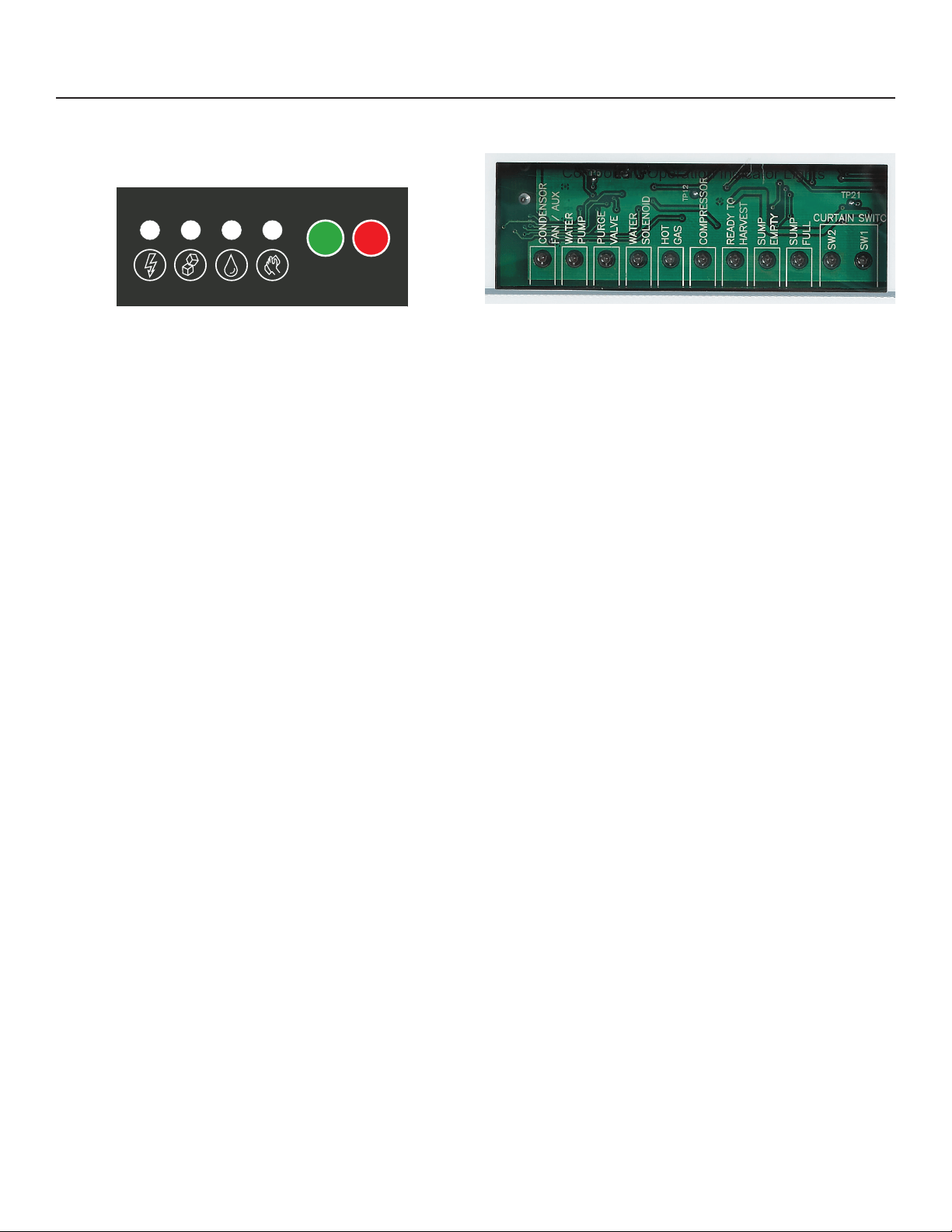

POWER STATUS WATER CLEAN
ICE PRODUCTION
MANUAL
HARVEST
INITIATE
CLEAN
OPTIONAL KVS PLACED HERE
(Vari-Smart
TM
Adjustable Ice Level Control)
The following codes will be displayed when
unit is operating as expected:
F
- Freeze
H
- Harvest
B
- Bin Full
O
- Standby/Off
Additional operational and error codes can
be found on the inside of the front panel.
Scan QR code to download the Scotsman ICELINQ™ App:
Connect to this machine via Bluetooth to access additional machine operations,
view error information, adjust settings, and initiate self-guided cleaning.
ON OFF
02-5166-01
OPTIONAL KSBU, KPAS, KSBU-N PLACED HERE
(Smart-Board™ Advanced Control Panel)
Component Operation Indicator Lights
June 2022
Page 19
MC222 and Condensing Unit
Remote Low Side User Manual
Initial Start Up
Pre Start
A soak-out period of four hours is optional for this
system. If desired, powering the compressor unit
for four hours prior to start up allows the crankcase
heater to warm up the oil in the compressor.
Start Up
1. Connect power to the condensing unit and move
its toggle switch to Run or On.
2. Open the water supply valve.
3. Switch on the electrical power to the MC222.
Observe that some of the lower control’s indicator
lights glow and its display shows O.
4. Locate lower light and control panel.
5. Push and release the ON button on the lower
panel. The code display will begin to blink F.
The purge valve opens, the water pump starts and the
inlet water valve opens to add water to the reservoir.
In a few seconds the purge valve closes and the
water pump stops. Water will ow into the machine
until the reservoir is full. The vapor valve and harvest
assist device will activate, then the compressor and
water pump will start. F will be on steady.
Note: Because the condensing unit is external to the
ice making section, no visible signs of operation will
be noticeable until the water begins to cool and frost
forms on the evaporator tubing.
6. Go to the condensing unit and conrm that the
compressor and fan motor are operating. Warm
air will be discharged from the condenser.
Observe the Ready for Harvest indicator light. It may
blink early in the cycle, that is normal. The control will
ignore that signal for the rst 6 minutes of freeze.
During the Freeze cycle move the curtain and observe
that either the SW1 or SW2 light on the control
board blinks On when the curtain moves away from
the evaporator and O when returned to its normal
position.
Note: Moving the curtain during the Freeze cycle has
no aect on control function, but will cause water to
ow into the cube chute.
When enough ice has frozen, the Ready for Harvest
indicator light will be on steady. After it’s been on
steady for a few seconds Harvest will begin.
The display shows an H. The vapor valve in the
MC222 opens, and the harvest assist mechanism
activates. In the CU the condenser bypass valve
opens and the receiver inlet valve closes. In the
MC222, the purge valve opens to drain some water,
when it does the inlet water valve opens to rell the
reservoir. After a few seconds the purge valve closes
but the inlet water valve continues to ll the reservoir.
Harvest continues until the ice is released as a unit
and forces the curtain to open.
When the curtain opens it signals the controller that
harvest is complete, and it returns the unit to a freeze
cycle.
7. Check the ice harvested for proper bridge
thickness. The ice bridge is factory set at 1/8 inch.
If needed, adjust bridge thickness. Do NOT make
it too thin.
8. Instruct the user in the operation of the machine
and its maintenance requirements.
9. Fill out and mail the warranty registration form or
register it on line at www.scotsman-ice.com.
June 2022
Page 20
MC222 and Condensing Unit
Remote Low Side User Manual
Ice Thickness and Water Purge Adjustment
Bridge Thickness - For the Service Tech Only
1. Push and hold O till the machine stops.
2. Remove evaporator cover.
3. Remove curtain.
4. Use a hex wrench and rotate the bridge thickness
adjustment screw in 1/16 turn increments CW to
increase bridge thickness.
5. Rotate CCW to decrease bridge thickness.
Caution: Do not make the bridge too thin or the
machine will not harvest properly. Bridge thickness
adjustments are not covered by warranty.
6. Return curtain and evaporator cover to their
normal positions.
7. Push and release the On button. Check next
harvest of ice. Repeat steps 1-6 if needed.
Water Purge Setting
The water purge is factory set to the automatic
position, suitable for most water conditions. The
setting can be changed to one of 5 manual settings or
left on automatic.
Setting Water Type
1 Minimum - RO water or equivalent
2 Moderate - Low TDS, non RO
3 Standard - Use with typical water
4 Heavy - High TDS
5 Maximum - Very high TDS
A Automatic - Factory setting
To set:
1. Switch the machine OFF by holding the O button
in until a number or the letter A shows on the
display.
2. Press and release the On button repeatedly until
the number on the display corresponds to the
desired setting.
3. Press and release the O switch again to return to
the normal control state.

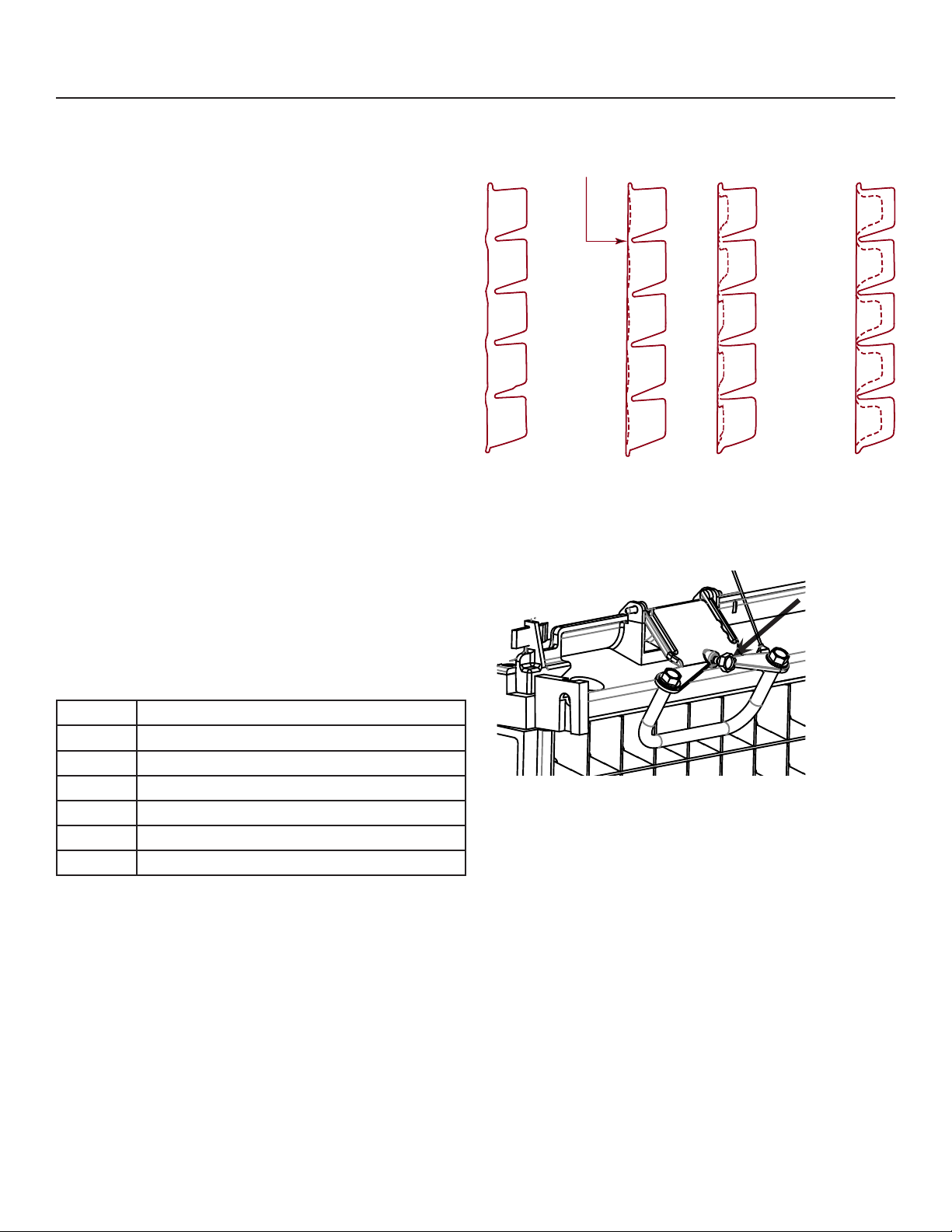

1/8 to 3/16”
Bridge
Adjustment
Screw
Bridge Thickness Adjustment Mechanism
ice Bridge Thickness
June 2022
Page 21
MC222 and Condensing Unit
Remote Low Side User Manual
Adjustable Ice Level Control
There is an adjustment post and an additional
indicator light to the right of the four indicator lights.
The ultrasonic ice level control allows the user to
control the point that the ice machine will stop making
ice before the bin or dispenser is full. Reasons for this
include:
• Seasonal changes in ice used
• Planning to sanitize the bin
• Certain dispenser applications where maximum
ice level is not desired
Use of control
There are several positions the ice level can be set
to, including O (knob and label indicators lined up),
where it lls the bin until the standard bin control shuts
the machine o.
Rotate the adjustment post to the desired ice level.
The machine will ll up to that level and when it shuts
o the indicator light next to the adjustment post will
be On.
Suggested Adjustment Knob Position for use with the
ABS or Freestyle: rst CW position - as shown above.
DO NOT ADJUST TOO LOW OR THE MACHINE
WILL STOP MAKING ICE
Note: Ice will build up in the bin or dispenser at an
angle, the distance set will be from the sensor to the
top of the ice. The sensor position is shown in the
cabinet layout diagrams.
The actual distance between the highest point of the
ice may be closer or further away than the distance
set, depending upon the angle of the ice.
Ice
The cuber drops ice in large sections. That ice will
break up into random parts as it falls into the bin, but
some large sections may remain on top of the ice
in the bin. In a dispenser this ice will break up into
mostly individual cubes as the dispense mechanism
moves the ice.
Noise
The ice machine will make little noise when it is in
ice making mode. The compressor and fan motor are
remote from the ice making head. The water pump
in the ice making head will produce some sound. It
is also normal to hear some cracking just before the
harvest cycle begins. In addition, during the harvest
cycle the harvest assist solenoid will click twice as it
pushes the ice out and returns to its normal position.
The ice harvests as a unit or slab, which makes some
noise when it impacts the bin or dispenser. These
noises are all normal for this machine.
June 2022
Page 22
MC222 and Condensing Unit
Remote Low Side User Manual
Ice machine cleaner contains
acids. Acids can cause burns.
If concentrated cleaner comes
in contact with skin, ush with
water. If swallowed, do NOT
induce vomiting. Give large
amounts of water or milk. Call
Physician immediately. Keep
out of the reach of children.
Cleaning, Sanitation and Maintenance
This ice system requires three types of maintenance:
• Remove the build up of mineral scale from the ice machine’s water system and sensors.
• Sanitize the ice machine’s water system and the ice storage bin or dispenser.
• Clean or replace the air lter and clean the air cooled condenser (air cooled models only).
It is the User’s responsibility to keep the ice machine and ice storage bin in a sanitary condition. Without
human intervention, sanitation will not be maintained. Ice machines also require occasional cleaning of their
water systems with a specically designed chemical. This chemical dissolves mineral build up that forms during
the ice making process.
The ice machine’s water system should be cleaned and sanitized a minimum of twice per year. Sanitize the
ice storage bin as frequently as local health codes require, and every time the ice machine is cleaned and
sanitized.
Preparing to Clean:
1. Remove the front panel.
2. Remove the evaporator cover.
Scale Removal:
3. Push and release the Clean button. The yellow
Clean light will blink and the display will show C.
The machine will harvest any ice, drain the reservoir
and begin to rell it.
4. Observe code display, when it blinks the characters
“A d 1” immediately go to the next step.
5. Pour the below specied amount Scotsman Clear
1 ice machine scale remover into the reservoir. The
unit will circulate the scale remover, then drain and
ush it. This will take 35 minutes, then the machine
will stop and the display will show O.
Note: Using chemicals or dilution ratios other than
what is specied will damage the ice machine and
signicantly aect the performance and life of the
ice machine.
Clean internal parts:
6. Mix a cleaning solution of 6oz of Scotsman Clear
1 scale remover with 9 cups (72oz) of 105-115° F
potable water.
7. In a separate bucket, mix a sanitizing solution of 1.6
oz of Nu-Calgon IMS Sanitizer with 1 gallon (128
oz) of 105-115 degree F. potable water.
8. Remove air lter(s)(if applicable), water level sensor
and housing, water distributor(s), curtain(s), ice
thickness sensor, and splash panel for additional
cleaning.
9. Soak and scrub each part (including the
evaporator cover!) using the previously prepared
solution of Scotsman Clear 1 scale remover and a
nylon brush, and then rinse with water. Save scale
remover solution.
10. Soak and scrub each part using the previously
prepared sanitizing solution. No rinse needed. Save
sanitizing solution.
11. Using a non-metallic scouring pad, scrub spillway
with sanitizer to remove any material buildup and
debris.
12. Reinstall ice thickness sensor, curtain(s), splash
panel, water distributor(s), and water level sensor in
their original positions. Be sure water level sensor
and ice thickness sensor are completely dry.
MC222 8 ounces
June 2022
Page 23
MC222 and Condensing Unit
Remote Low Side User Manual
Sanitize:
13. Push and release the Clean button. The yellow
Clean light will blink and the display will show C.
The machine will go through a harvest cycle, drain
the reservoir and begin to rell it.
14. Observe code display, when it blinks the
characters “A d 1” immediately go to the next
step.
15. Pour the previously prepared sanitizing solution
into the reservoir until it is full. The unit will circulate
the sanitizer, then drain and ush it. This will take
35 minutes, then the machine will stop and the
display will show O.
16. Remove all ice from storage bin or dispenser and
sanitize bin or dispenser with remaining sanitizing
solution while machine completes sanitizing cycle.
Pour excess sanitizer down drain.
Finish Cleaning Process:
17. Reinstall evaporator cover and front panel (with
air lter(s) if applicable) in their original positions.
18. Push and release the “ON” button to resume ice
making.
Want more detail?
Scan QR Code to download the Scotsman IcelinQ™
App to connect to this machine via Bluetooth and
access the self-guided cleaning process.
Additional maintenance:
Remote Condenser
The condenser ns will need to be cleaned.
Push and release the O button. Wait until the
machine stops.
Note: Lock out the controller or the ice machine power
supply to prevent an unauthorized fan motor restart.
If there is imbedded grease, use a commercial coil
cleaner to wash out the grease. Dust can be blown
out with compressed air from the inside or use a
vacuum cleaner and soft brush. Be careful not to
damage the condenser’s ns. Use a n comb to
straighten any bent ns.
Exterior Panels
Fingerprints, dust and grease will require cleaning
with a good quality stainless steel cleaner.
Water lters
If the machine has been connected to water lters,
check the cartridges for the date they were replaced
or for the pressure on the gauge. Change cartridges
if they’ve been installed more than 6 months or if the
pressure drops too much when the ice machine lls
with water
Clean
Condenser
Fins
June 2022
Page 24
MC222 and Condensing Unit
Remote Low Side User Manual
Operational Characteristics 800 lb system
Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F.
-20/50/40 70/70/50 90/90/70 120/110/100
Freeze 9 to 10 minutes 10 to 12 minutes 13 to 15 minutes 19 to 21 minutes
Harvest 2 to 3 minutes 1 to 1.5 minutes 1 to 1.5 minutes .5 to 1 minute
System Pressures @ Condenser Temp/Cabinet Temp/Water Temp in degrees F
-20/50/40 70/70/50 90/90/70 120/110/100
Suction at head, end of Freeze 26 to 27 PSIG 26 to 31 PSIG 26 to 31 PSIG 30 to 35 PSIG
Suction at head, Harvest - Peak 88 PSIG 85 to 105 PSIG 105 to 125 PSIG 140 t0 160 PSIG
Discharge at Condensing Unit:
Freeze - 5 minutes in
217 PSIG 230 to 250 PSIG 250 to 270 PSIG 330 to 350 PSIG
Operational Characteristics 1000 lb system
Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F.
20/70/40 70/70/50 90/90/70 120/110/100
Freeze 7 to 8 minutes 8 to 9 minutes 10 to 11 minutes 16 to 18 minutes
Harvest 2 to 3 minutes 1 to 1.5 minutes 1 to 1.5 minutes .5 to 1 minute
System Pressures @ Condenser Temp/Cabinet Temp/Water Temp in degrees F
-20/50/40 70/70/50 90/90/70 120/110/100
Suction at head, end of Freeze 22 PSIG 26 to 31 PSIG 27 to 32 PSIG 30 to 35 PSIG
Suction at head, Harvest - Peak 88 PSIG 85 to 105 PSIG 90 to 110 PSIG 140 to 160 PSIG
Discharge at Condensing Unit:
Freeze - 5 minutes in
219 PSIG 230 to 250 PSIG 240 to 250 PSIG 345 to 380 PSIG
-20/40/35
70/70/50
90/90/70 120/110/100
Freeze 7 to 8 minutes 10 to 12 minutes 12 to 14 minutes 19 to 21 minutes
Harvest 3 to 4 minutes 1 to 2 minutes 1 to 2 minutes 1 to 1.5 minutes
-20/40/35 70/70/50 90/90/70 120/110/100
28 PSIG 30 PSIG 30 PSIG 35 PSIG
84 PSIG 101 PSIG 101 PSIG 136 PSIG
208 PSIG 229 PSIG 264 PSIG 386 PSIG
Operational Characteristics ECC0805-6E / EH222SL-6E with R452
Cycle Times @ Condenser Temp/Cabinet Temp/Water Temp in degrees F.
Suction at head, end of Freeze
Suction at head, Harvest - Peak
Discharge at Condensing Unit:
Freeze - 5 minutes in
System Pressures @ Condenser Temp/Cabinet Temp/Water Temp in degrees F.
June 2022
Page 25
MC222 and Condensing Unit
Remote Low Side User Manual
Below information applies to both size systems:
Headmaster maintains a minimum discharge pressure during freeze of 217 PSIG + 25, -15 PSIG.
CPR Valve Setting: 55 - 60 PSIG.
Note: CPR allows a maximum low side pressure at the compressor. Maximum only occurs during harvest.
Refrigerant Charge
• 800: 192 oz.
• 1000: 248 oz
Compressor Amps, 800 model
• Single Phase - 6 to 8 Three Phase - 5 to 7
Compressor Amps, 1000 model
• Single Phase - 8 to 9, Three Phase - 6.3 to 5.2
Batch Weight: 8 lb
Discharge Pressure Cut Out Switch
• Cuts Out at: 450 PSIG Resets at: 350 PSIG
June 2022
Page 26
MC222 and Condensing Unit
Remote Low Side User Manual
What to do before calling for service
Reasons the machine might shut itself o:
• Lack of water.
• Freeze cycle takes too long.
• Harvest cycle takes too long.
• High discharge temperature.
• Controller self test failure.
Check the following:
1. Has the water supply to the ice machine or
building been shut o? If yes, the ice machine will
automatically restart within 25 minutes after water
begins to ow to it.
2. Has power been shut o to the ice machine? If
yes, the ice machine will automatically restart
when power is restored.
3. Has someone shut the water o to a water
cooled unit? If yes, after the water supply has
been restored the ice machine may need to be
manually reset.
4. Is the curtain open because some ice is stuck
under it? If so, remove the ice and the machine
should start in a few minutes.
To Manually Reset the machine.
• Open the switch door
• Push and release the O button.
• Push and release the On button.
To Shut the Machine O:
1. Push and hold the O button for 3 seconds or until
the machine stops.
Note: Curtain can be removed & replaced anytime the
machine is in a standby mode or when it is in a freeze
cycle. However, removal of the curtain during freeze
will result in water owing into the bin. Removal of the
curtain during harvest terminates harvest at that point
and, if left o, will result in the machine shutting o.
• View machine status
• Control machine operation
• Adjust machine settings
• View active errors with troubleshooting tips
• Initiate self-guided cleaning
• Access service resources and warranty info
Scan QR Code to download the
Scotsman ICELINQ® App
Curtain
Clear Ice
From Here
Clear Ice From Beneath Curtain
Scotsman ICELINQ® Mobile App
All Prodigy ELITE® models are Bluetooth® enabled
and are compatible with the Scotsman ICELINQ®
app, available on both the Apple App Store and
Google Play Store.
The ICELINQ mobile app uses Bluetooth connectivity
to allow users to easily monitor, control, and maintain
their machine:
Open Door to Reset or Switch O
17-3737-05
SCOTSMAN ICE SYSTEMS
101 Corporate Woods Parkway
Vernon Hills, IL 60061
www.scotsman-ice.com
800-726-8762
