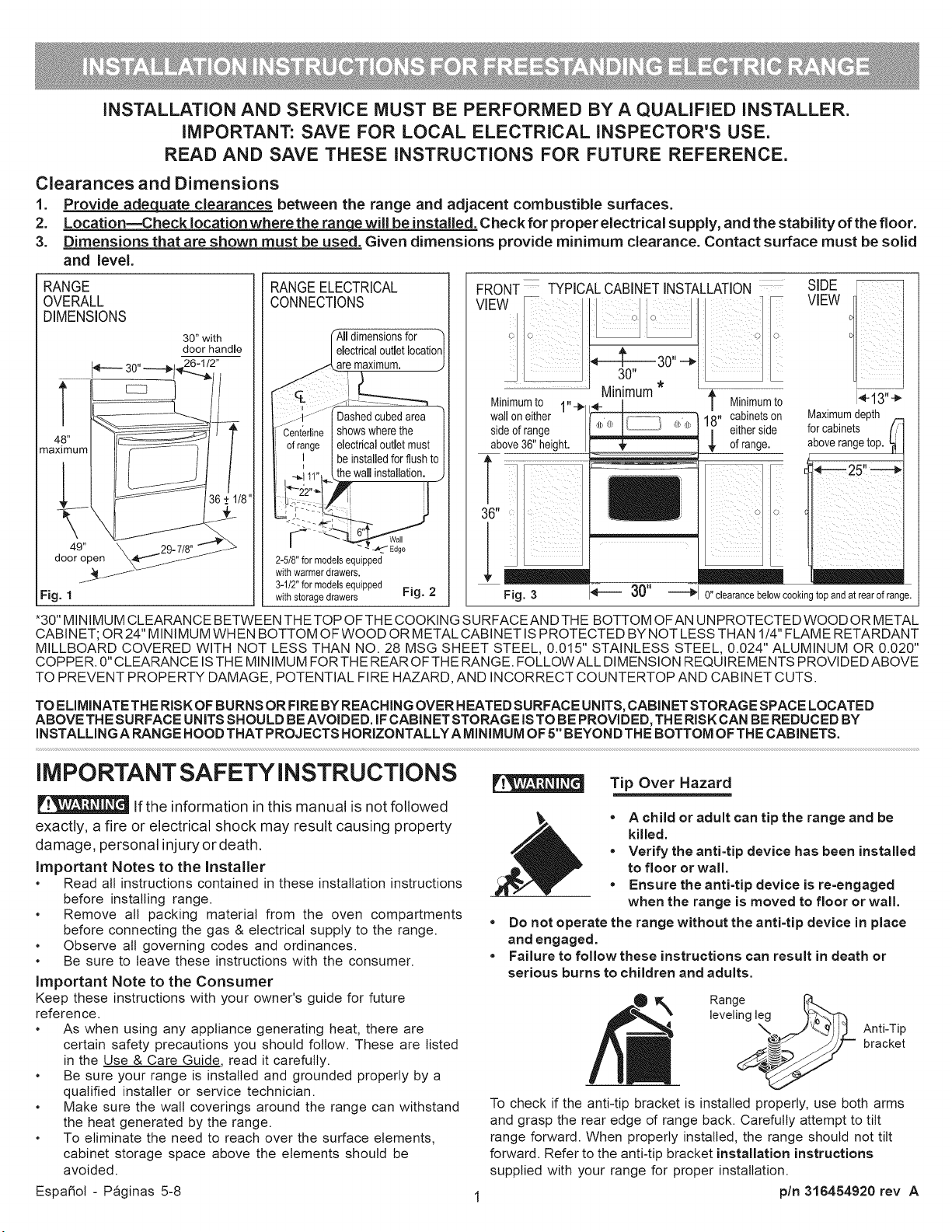

iNSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
Clearances and Dimensions
1. Provide adequate clearances between the range and adjacent combustible surfaces.
2. Location=Check location where the range will be installed. Check for proper electrical supply, and the stability of the floor.
3. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be solid
and level.
RANGE
OVERALL
DiMENSiONS
30" with
door handle
30 .... 26-1/2"
ma !/8"
d°°19;P en
Fig. 1
RANGEELECTRICAL
CONNECTIONS
...._lll dimensionsfor -_
ectricaloutletlocationI
remaximum, j
l....-i-- edcubedaea1
_¢-Centerlineshowswherethe |
of range electricaloutletmust |
I ! be nstaedforf ushto|
I , -_!11"1-_Ihewallinstallation.__
I1%::4¥
-- - 4 _ Edge
2-5/8"for modelsequipped
withwarmerdrawers.
3-1/2"for modelsequipped
with storagedrawers Fig. 2
30"
Minimum
Minimumto 1"-_ ÷ I
walloneither
sideofrange
above36"height.
Fig. 3 _ 30"
FRONT ..................TYPICAL CABINET INSTALLATION SIDE
o VIEW
t Minimumto 1÷13"÷
18" cabinetson Maximumdepth
F
eitherside forcabinets _'
,_. ofrange, aboverangetop.
'_1 O"clearance below cooking top and at rear of range.
*30" MINIMUM CLEARANCE BETWEEN THE TOP OF THE COOKING SURFACEAND THE BOTTOM OFAN UNPROTECTED WOOD OR METAL
CABI NET; OR 24"M INIMUM WH EN BOTTOM OF WOOD OR METAL CABI NET IS PROTECTED BY NOT LESS THAN 1/4" FLAME RETARDANT
MILLBOARD COVERED WITH NOT LESS THAN NO. 28 MSG SHEET STEEL, 0.015" STAINLESS STEEL, 0.024" ALUMINUM OR 0.020"
COPPER. 0" CLEARANCE ISTHE MINIMUM FORTHE REAR OFTHE RANGE. FOLLOWALL DIMENSION REQUIREMENTS PROVIDED ABOVE
TO PREVENT PROPERTY DAMAGE, POTENTIAL FIRE HAZARD, AND INCORRECT COUNTERTOP AND CABINET CUTS.
TO ELIMINATE THE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STORAGE SPACE LOCATED
ABOVE THE SURFACE UNITS SHOU LD BE AVOIDED. IF CABINET STORAGE ISTO BE PROVIDED, THE RISK CAN BE REDUCED BY
INSTALLING A RANGE HOOD THAT PROJECTS HORIZONTALLYA MINIMUM OF 5" BEYOND THE BOTTOM OF THE CABINETS.
IMPORTANT SAFETY INSTRUCTIONS
If the information in this manual is not followed
exactly, a fire or electrical shock may result causing property
damage, personal injury or death.
Important Notes to the Installer
• Read all instructions contained in these installation instructions
before installing range.
• Remove all packing material from the oven compartments
before connecting the gas & electrical supply to the range.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future
reference.
• As when using any appliance generating heat, there are
certain safety precautions you should follow. These are listed
in the Use & Care Guide read it carefully.
• Be sure your range is installed and grounded properly by a
qualified installer or service technician.
• Make sure the wall coverings around the range can withstand
the heat generated by the range.
• To eliminate the need to reach over the surface elements,
cabinet storage space above the elements should be
avoided.
EspaSol - Paginas 5-8
Tip Over Hazard
o
o
A child or adult can tip the range and be
killed.
Verify the anti-tip device has been installed
to floor or wall.
, Ensure the anti-tip device is re-engaged
when the range is moved to floor or wall.
Do not operate the range without the anti-tip device in place
and engaged.
Failure to follow these instructions can result in death or
serious burns to children and adults.
Range _.__
leveling leg ')t_ i--_,_
__ Anti-Tip
X'_ bracket
To check if the anti-tip bracket is installed properly, use both arms
and grasp the rear edge of range back. Carefully attempt to tilt
range forward. When properly installed, the range should not tilt
forward. Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
pin 316454920 rev A
