DIMENSION AND INSTALLATION GUIDE
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface
A 148mm
B 154mm
510mm
594mm
50mm
(built-in height)
7c_d_ckc
8c_d_ckc
+,&cc
*.&cc
=Wiikffbo
Yedd[Yj_ed
©
2008 Electrolux Home Products Pty Ltd
WDIMGHP16/17/765 Current as at Jul 2008
Note: Electrical connection
Requires 240V 10AMP power outlet

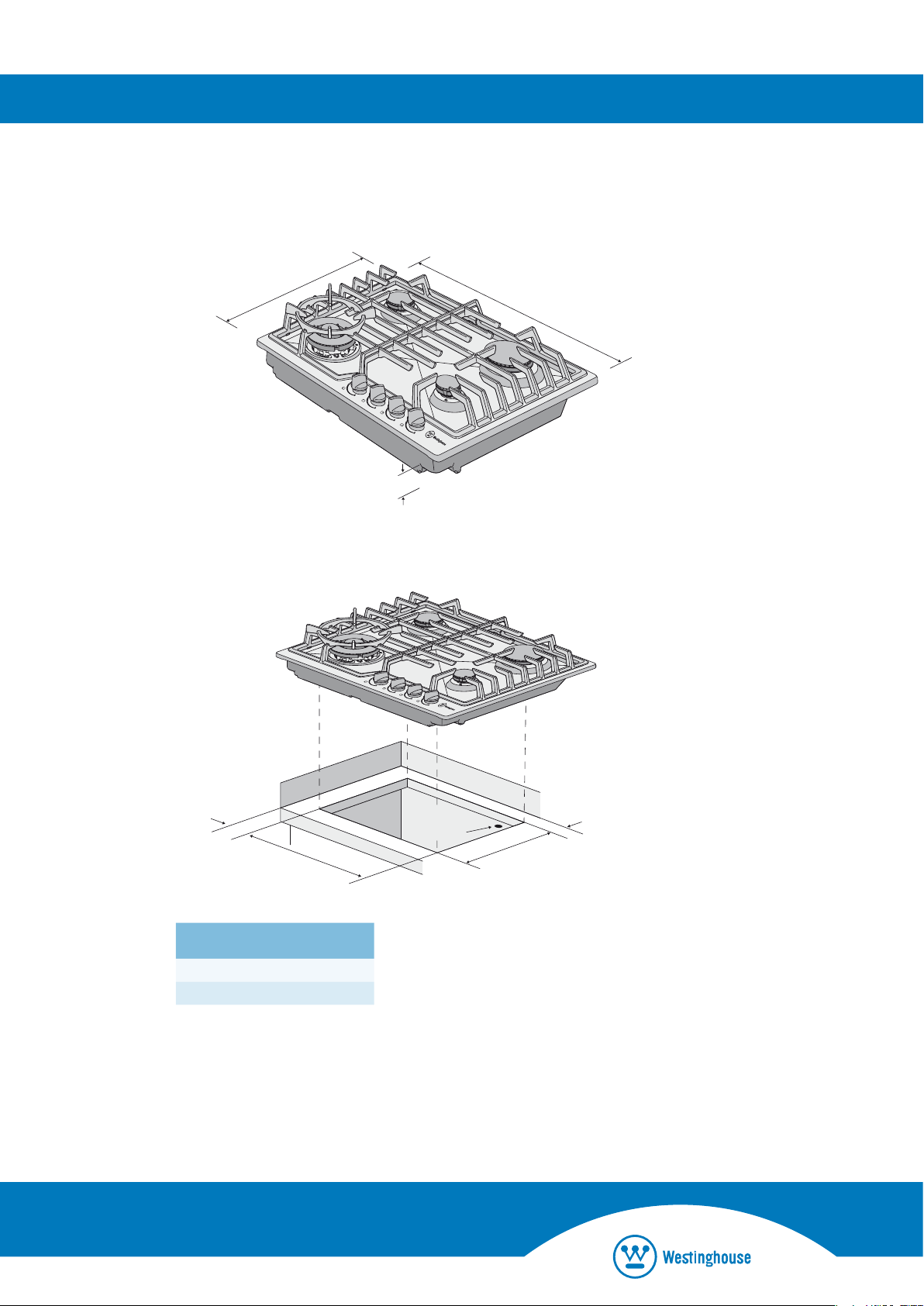

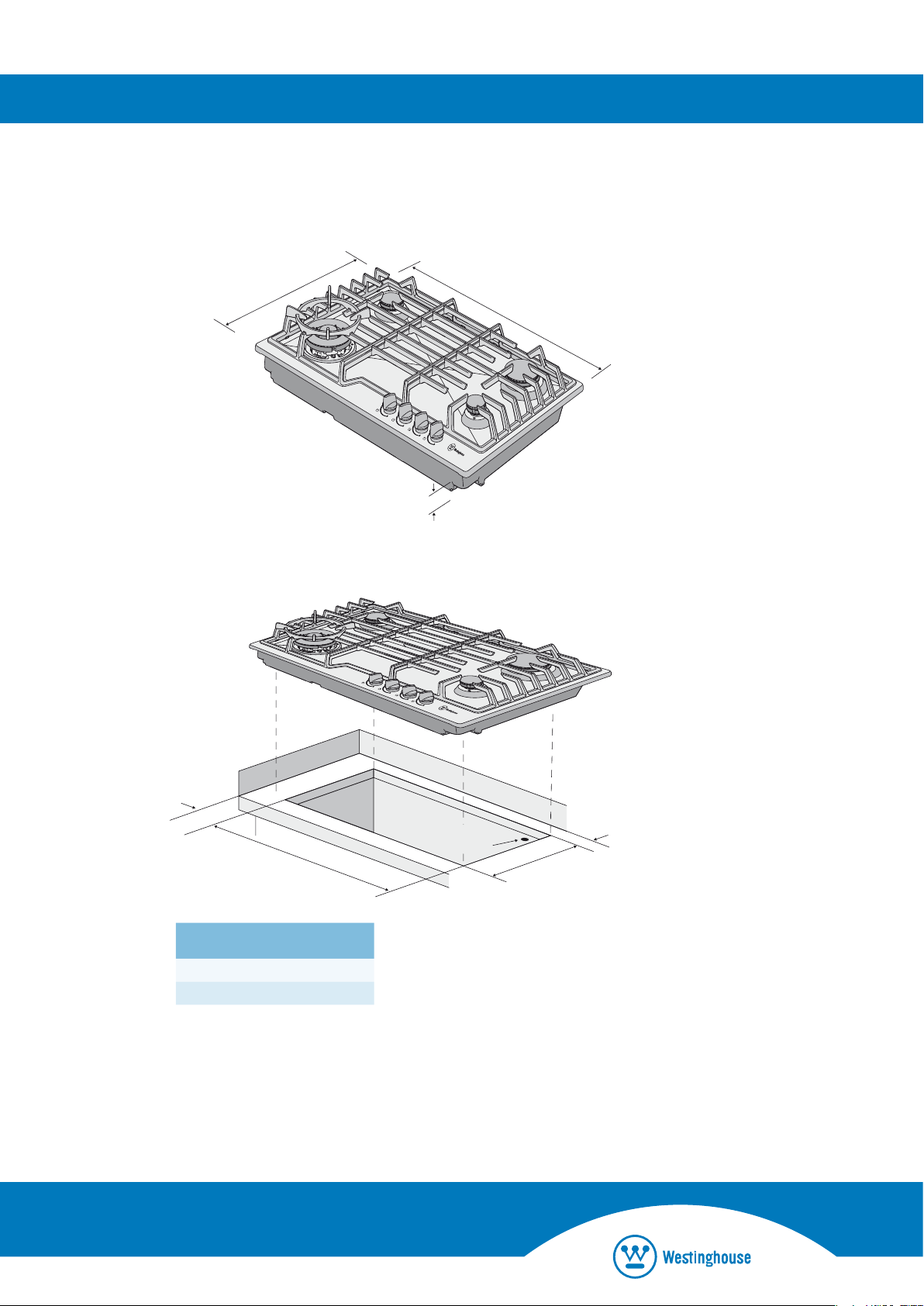

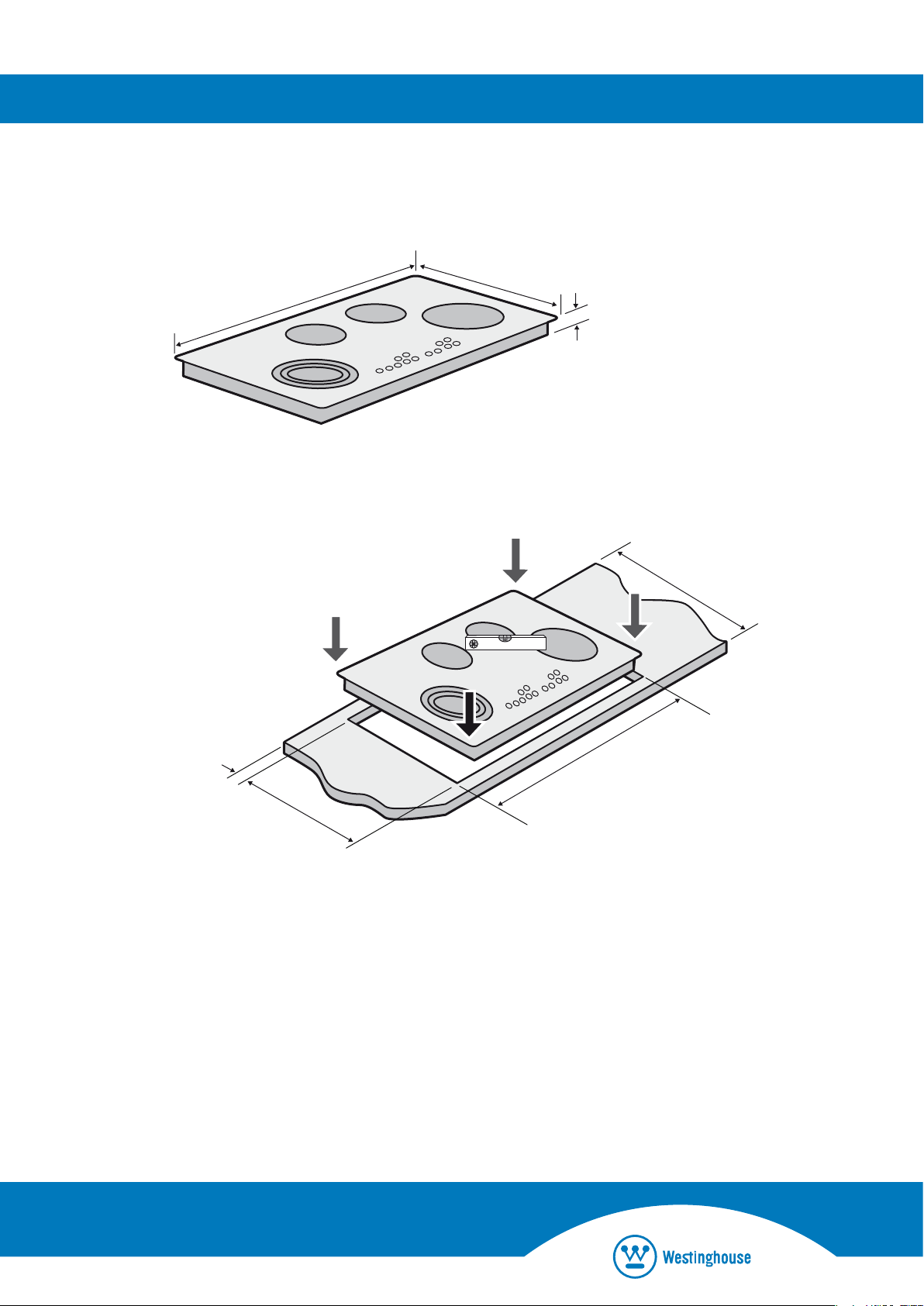

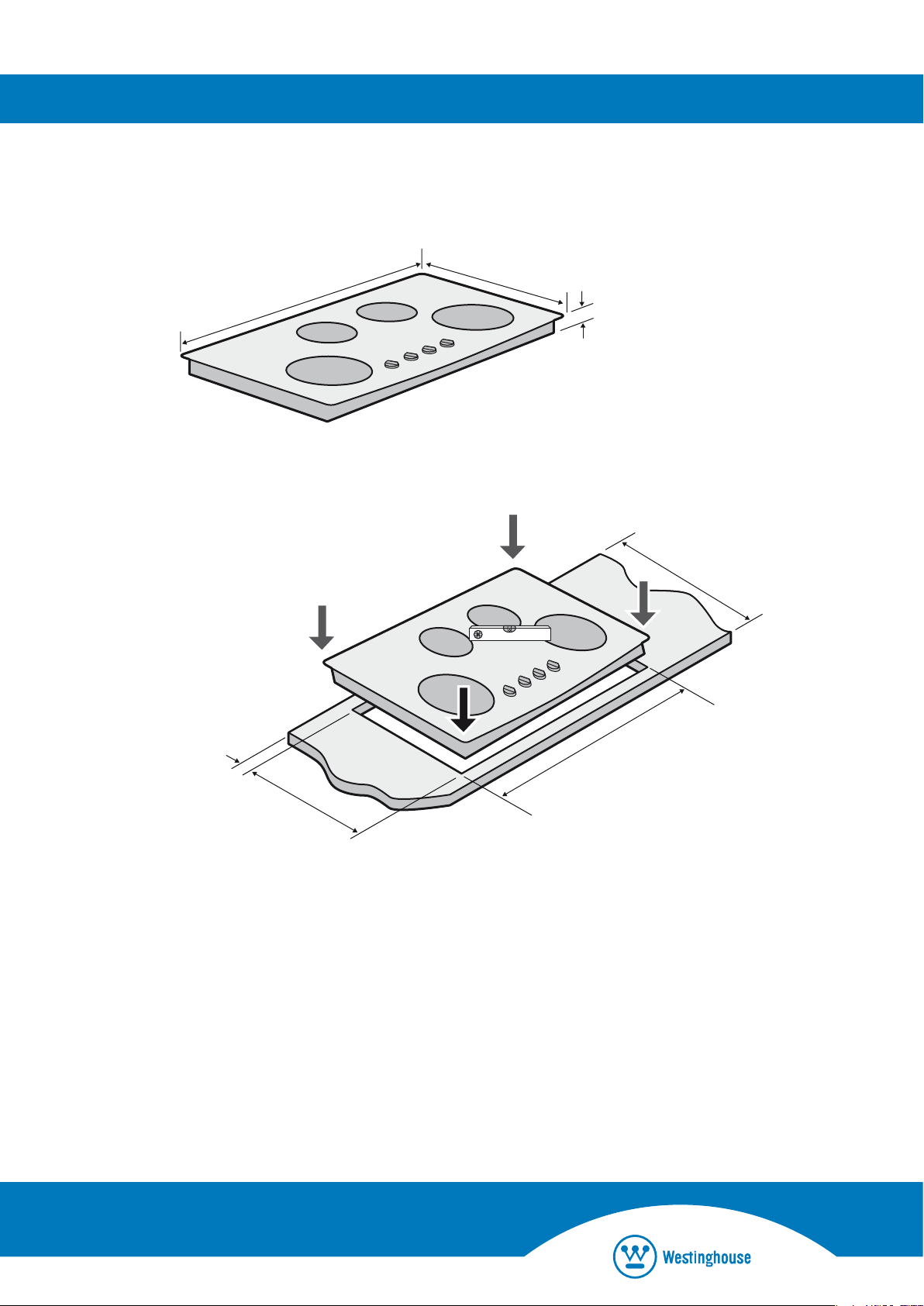

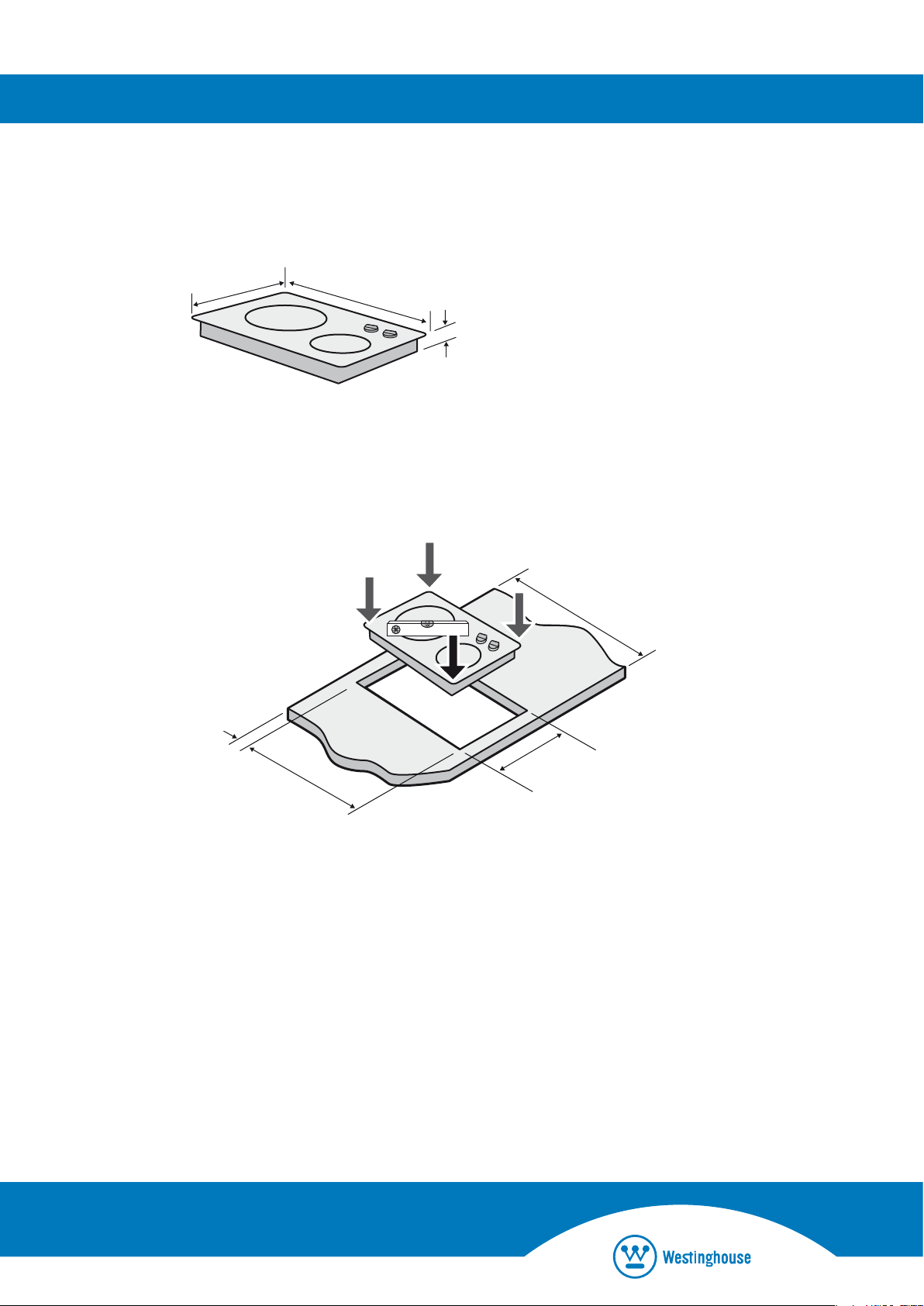

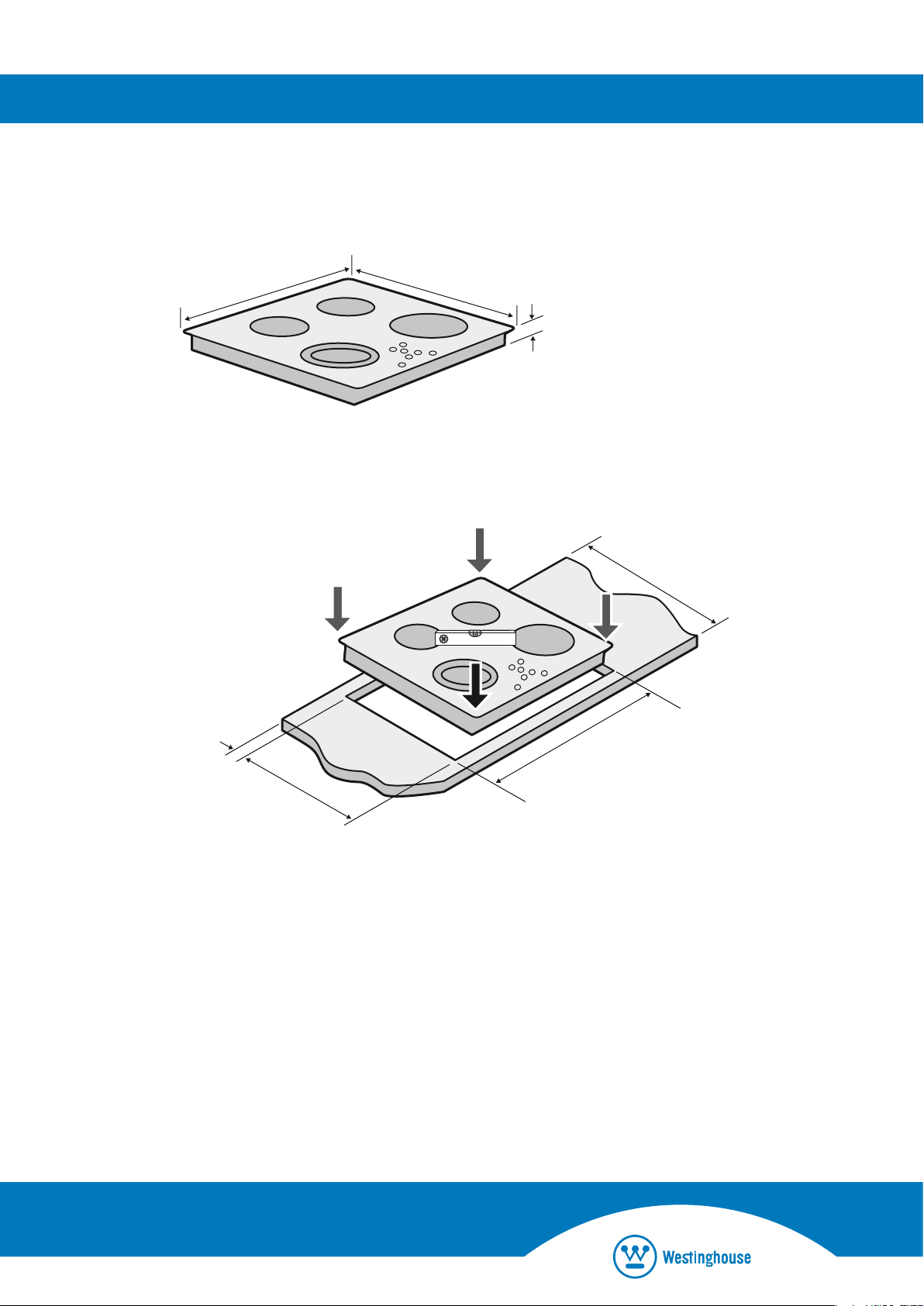

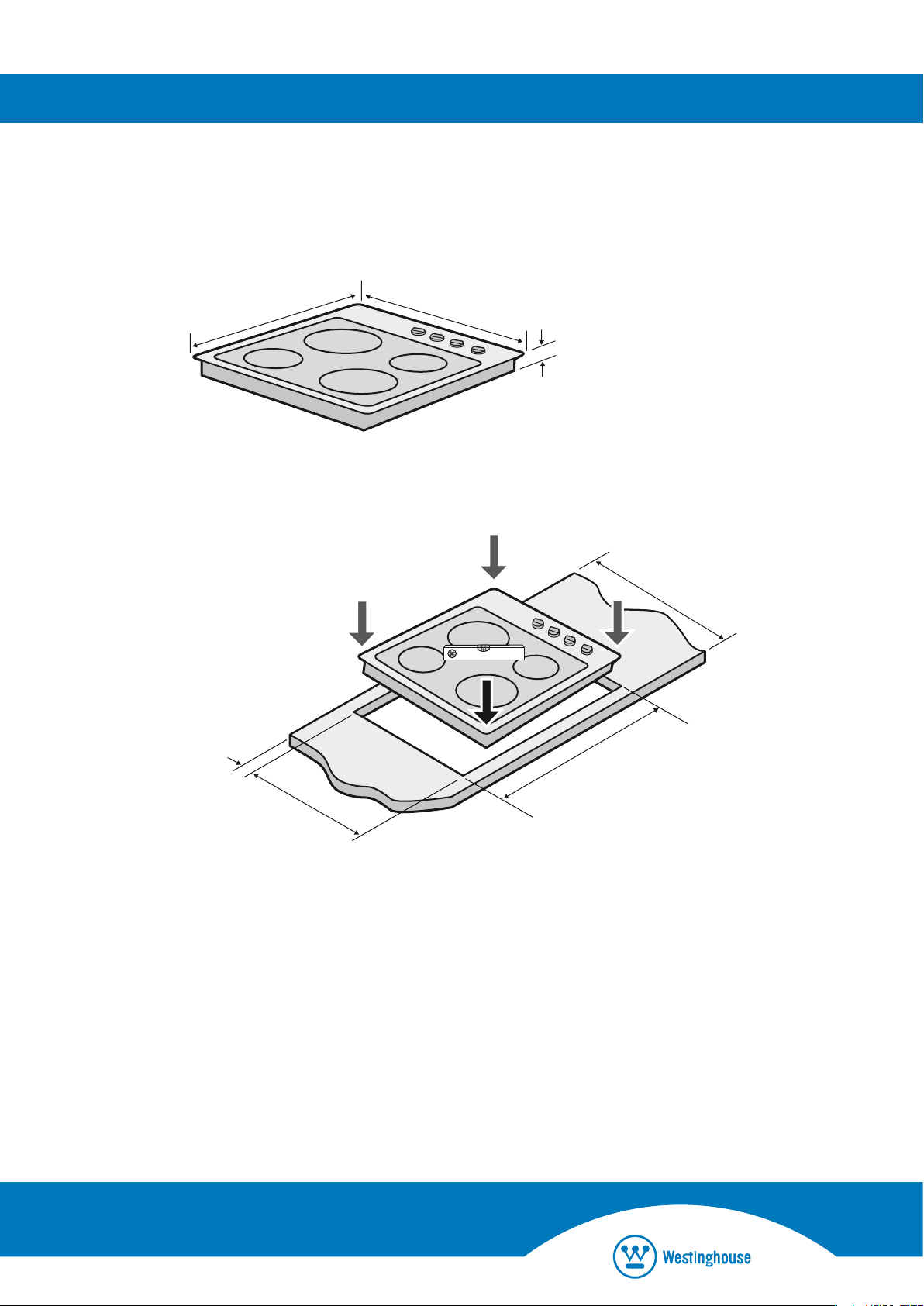

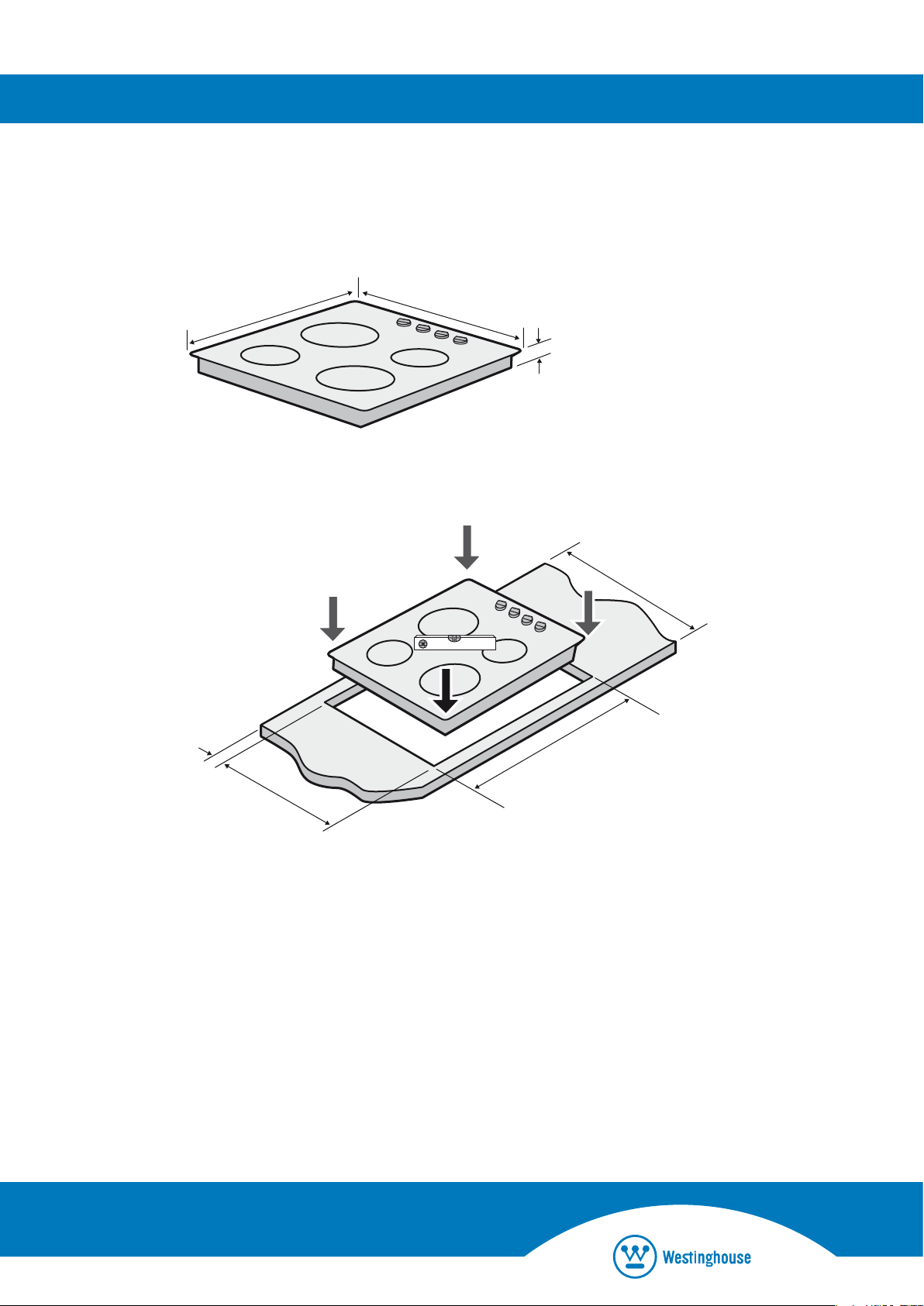

cooktop dimensions
building-in cut-out dimensions
Walls around cooktop must be
heat resistant for temperatures up to
90
o
C to a height of 150mm above
the bench top.
These models are supplied with
10Amp plug and lead
gas cooktop
MODELS: GHP16, GHP17, GHP765

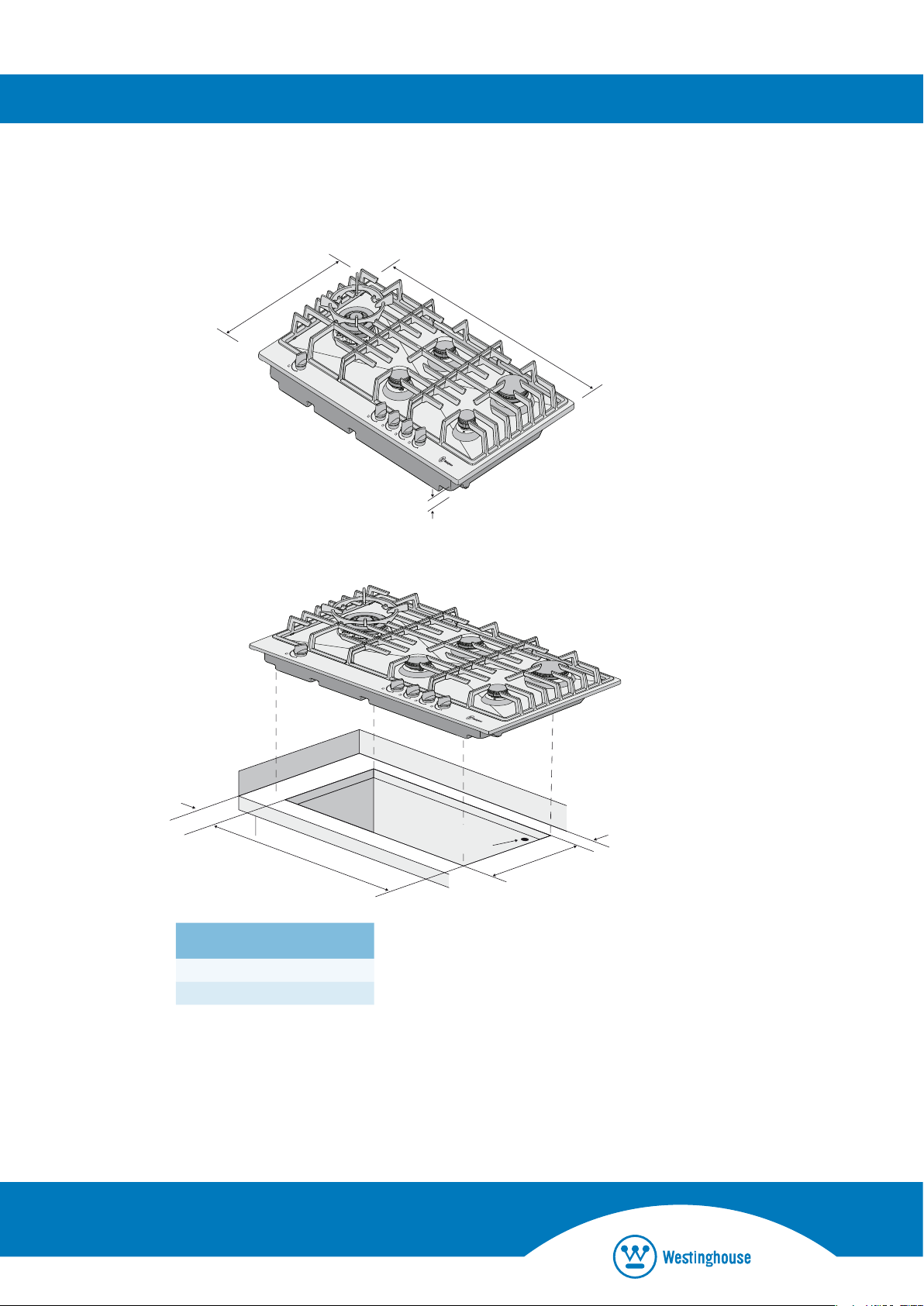

DIMENSION AND INSTALLATION GUIDE
510mm
894mm
50mm
(built-in height)
©
2008 Electrolux Home Products Pty Ltd
WDIMGHP95/795 Current as at Jul 2008
Note: Electrical connection
Requires 240V 10AMP power outlet
cooktop dimensions
building-in cut-out dimensions
Walls around cooktop must be
heat resistant for temperatures up to
90
o
C to a height of 150mm above
the bench top.
These models are supplied with
10Amp plug and lead
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface
A 143mm
B 154mm
gas cooktop
MODELS: GHP95, GHP795
7c_d_ckc
8c_d_ckc
.)&cc
*.&cc
=Wiikffbo
Yedd[Yj_ed
DIMENSION AND INSTALLATION GUIDE
510mm
744mm
50mm
(built-in height)
©
2008 Electrolux Home Products Pty Ltd
WDIMGHP775 Current as at Jul 2008
Note: Electrical connection
Requires 240V 10AMP power outlet
cooktop dimensions
building-in cut-out dimensions
Walls around cooktop must be
heat resistant for temperatures up to
90
o
C to a height of 150mm above
the bench top.
These models are supplied with
10Amp plug and lead
NOTE: All appliances must be installed to Australian Standard AS5601
minimum distance to
combustible vertical surface
A 183mm
B 154mm
gas cooktop
MODELS: GHP775
7c_d_ckc
8c_d_ckc
+,&cc
*.&cc
=Wiikffbo
Yedd[Yj_ed

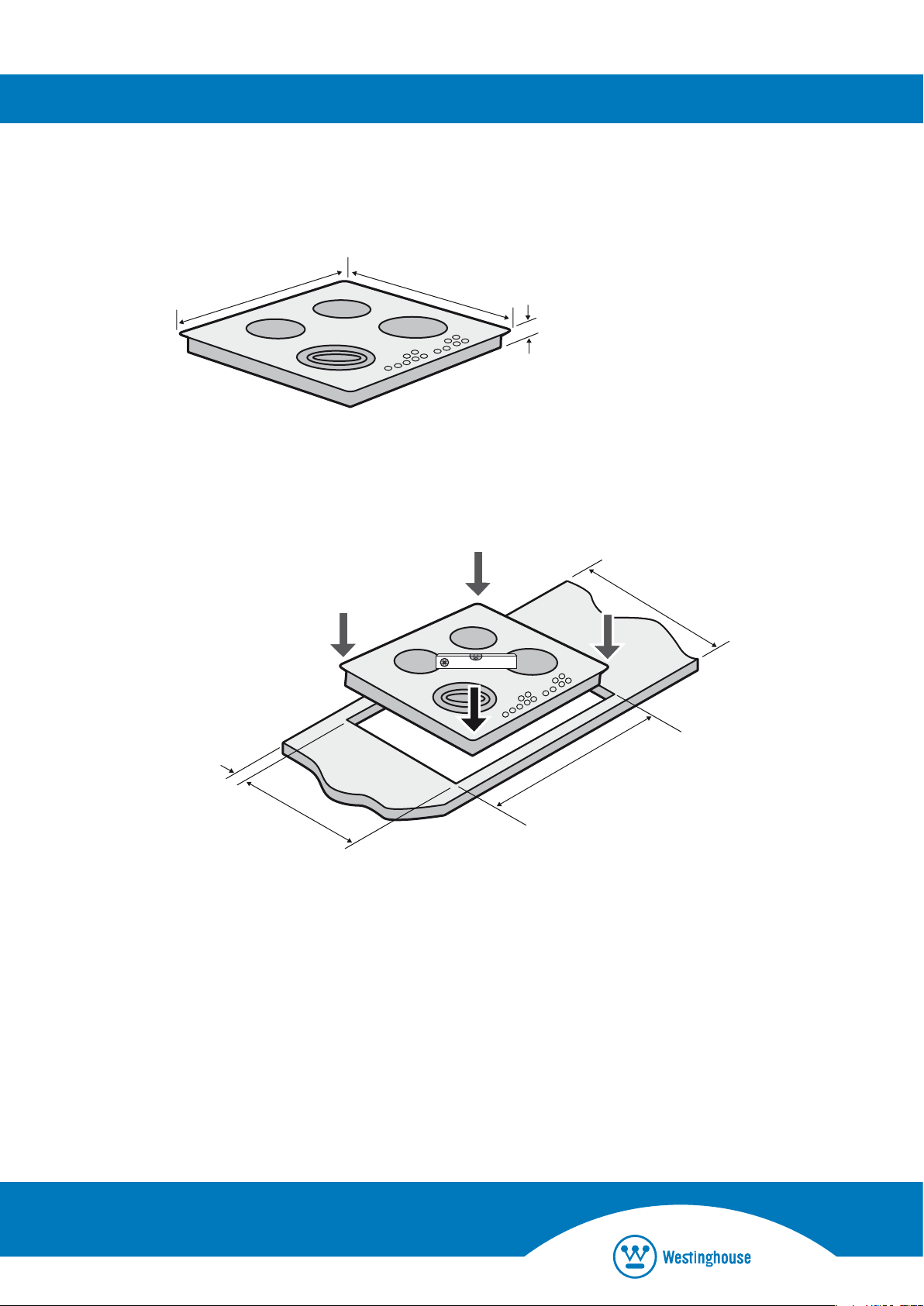

DIMENSION AND INSTALLATION GUIDE
610mm
515mm
40mm
(built-in height)
600mm
50mm min
490mm
560mm
©
2008 Electrolux Home Products Pty Ltd
WDIMPHN668 Current as at Jul 2008
cooktop dimensions
building-in cut-out dimensions
Note: Connection type – hardwired
Maximum power load 5.9kW
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles
Note: If a barrier is not required, a minimum gap of 30mm is needed under
the cooktop.
Note: If the base of the cooktop can be touched from inside a cupboard or
drawer, a barrier MUST be installed to prevent contact. The material for
the barrier must be capable of sustaining heat up to 70
o
C. Make sure
the barrier is at least 50mm and not more than 75mm below the base
of the cooktop. The barrier is to have ventilation holes evenly spaced
in the one of the following configurations: 25 x 25mm diameter,
15 x 35mm diameter or 6 x 50mm diameter.
electric ceramic cooktop
MODEL: PHN668

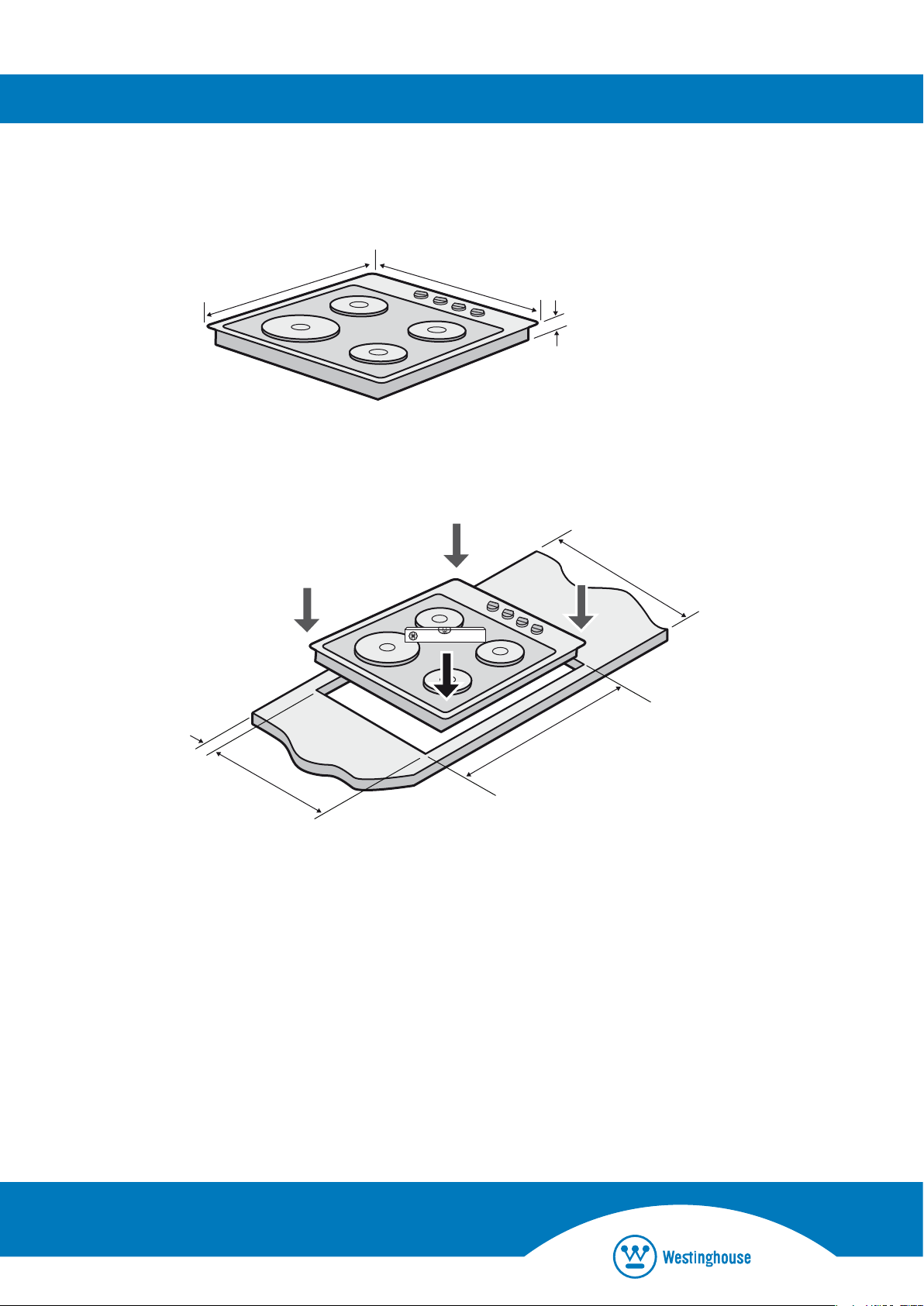

DIMENSION AND INSTALLATION GUIDE
600mm
50mm min
490mm
560mm
610mm
515mm
46mm
(built-in height)
©
2008 Electrolux Home Products Pty Ltd
WDIMPHN768 Current as at Jul 2008
cooktop dimensions
building-in cut-out dimensions
Note: Connection type – hardwired
Maximum power load 6.5kW
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles
Note: If a barrier is not required, a minimum gap of 30mm is needed under
the cooktop.
Note: If the base of the cooktop can be touched from inside a cupboard or
drawer, a barrier MUST be installed to prevent contact. The material for
the barrier must be capable of sustaining heat up to 70
o
C. Make sure
the barrier is at least 50mm and not more than 75mm below the base
of the cooktop. The barrier is to have ventilation holes evenly spaced
in the one of the following configurations: 25 x 25mm diameter,
15 x 35mm diameter or 6 x 50mm diameter.
electric ceramic cooktop
MODEL: PHN768
DIMENSION AND INSTALLATION GUIDE
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles
Note: If a barrier is not required, a minimum gap of 30mm is needed under
the cooktop.
Note: If the base of the cooktop can be touched from inside a cupboard or
drawer, a barrier MUST be installed to prevent contact. The material for
the barrier must be capable of sustaining heat up to 70
o
C. Make sure
the barrier is at least 50mm and not more than 75mm below the base
of the cooktop. The barrier is to have ventilation holes evenly spaced
in the one of the following configurations: 25 x 25mm diameter,
15 x 35mm diameter or 6 x 50mm diameter.
600mm
50mm min
490mm
880mm
930mm
520mm
46mm
(built-in height)
©
2008 Electrolux Home Products Pty Ltd
WDIMPHN798 Current as at Jul 2008
cooktop dimensions
building-in cut-out dimensions
Note: Connection type – hardwired
Maximum power load 6.5kW
electric ceramic cooktop
MODEL: PHN798
DIMENSION AND INSTALLATION GUIDE
PHL222
320mm
505mm
40mm
(built-in height)
600mm
303mm
485mm
50mm min
©
2008 Electrolux Home Products Pty Ltd
WDIMPHP222 Current as at Jul 2008
Note: Connection type – hardwired
Maximum power load 3.0kW
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles.
Note: If a barrier is not required, a minimum gap of 30mm is needed under
the cooktop.
Note: If the base of the cooktop can be touched from inside a cupboard or
drawer, a barrier MUST be installed to prevent contact. The material for
the barrier must be capable of sustaining heat up to 70
o
C. Make sure
the barrier is at least 50mm and not more than 75mm below the base
of the cooktop. The barrier is to have ventilation holes evenly spaced
in the one of the following configurations: 25 x 25mm diameter,
15 x 35mm diameter or 6 x 50mm diameter.
cooktop dimensions
building-in cut-out dimensions
electric ceramic cooktop
MODEL: PHP222
DIMENSION AND INSTALLATION GUIDE
600mm
535mm
58mm
(built-in height)
600mm
50mm min
490mm
570mm
©
2008 Electrolux Home Products Pty Ltd
WDIMPHP255 Current as at Jul 2008
cooktop dimensions
building-in cut-out dimensions
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles
Note: Connection type requires
240V/20A power outlet
electric solid hotplate cooktop
MODEL: PHP255
DIMENSION AND INSTALLATION GUIDE
600mm
50mm min
490mm
560mm
610mm
515mm
46mm
(built-in height)
©
2008 Electrolux Home Products Pty Ltd
WDIMPHP284 Current as at Jul 2008
Note: Connection type – hardwired
Maximum power load 6.5kW
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles.
Note: If a barrier is not required, a minimum gap of 30mm is needed under
the cooktop.
Note: If the base of the cooktop can be touched from inside a cupboard or
drawer, a barrier MUST be installed to prevent contact. The material for
the barrier must be capable of sustaining heat up to 70
o
C. Make sure
the barrier is at least 50mm and not more than 75mm below the base
of the cooktop. The barrier is to have ventilation holes evenly spaced
in the one of the following configurations: 25 x 25mm diameter,
15 x 35mm diameter or 6 x 50mm diameter.
cooktop dimensions
building-in cut-out dimensions
electric ceramic cooktop
MODEL: PHP284
DIMENSION AND INSTALLATION GUIDE
605mm
505mm
46mm
(built-in height)
600mm
50mm min
490mm
560mm
©
2008 Electrolux Home Products Pty Ltd
WDIMPHP285 Current as at Jul 2008
Note: Connection type – hardwired
Maximum power load 6.4kW
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles
Note: If a barrier is not required, a minimum gap of 30mm is needed under
the cooktop.
Note: If the base of the cooktop can be touched from inside a cupboard or
drawer, a barrier MUST be installed to prevent contact. The material for
the barrier must be capable of sustaining heat up to 70
o
C. Make sure
the barrier is at least 50mm and not more than 75mm below the base
of the cooktop. The barrier is to have ventilation holes evenly spaced
in the one of the following configurations: 25 x 25mm diameter,
15 x 35mm diameter or 6 x 50mm diameter.
cooktop dimensions
building-in cut-out dimensions
electric ceramic cooktop
MODEL: PHP285
DIMENSION AND INSTALLATION GUIDE
930mm
520mm
46mm
(built-in height)
600mm
50mm min
490mm
880mm
©
2008 Electrolux Home Products Pty Ltd
WDIMPHP395 Current as at Jul 2008
Note: Connection type – hardwired
Maximum power load 6.4kW
cooktop dimensions
building-in cut-out dimensions
electric ceramic cooktop
MODEL: PHP395
Note: Any walls surrounding the cooktop are to be heat resistant up to 90
o
C,
up to 150mm high eg. ceramic tiles
Note: If a barrier is not required, a minimum gap of 30mm is needed under
the cooktop.
Note: If the base of the cooktop can be touched from inside a cupboard or
drawer, a barrier MUST be installed to prevent contact. The material for
the barrier must be capable of sustaining heat up to 70
o
C. Make sure
the barrier is at least 50mm and not more than 75mm below the base
of the cooktop. The barrier is to have ventilation holes evenly spaced
in the one of the following configurations: 25 x 25mm diameter,
15 x 35mm diameter or 6 x 50mm diameter.
