APPLICATION GUIDE FOR:

ENGINE

TIMING KIT

1. TITLE PAGE

1.2 REVISIONS:

Date first published June 2018.

- 11 -

10. EXPLANATION OF SYMBOLS

- 2 -

10.1 EXPLANATION OF SYMBOLS

Refer to website.

As our user manuals are continually updated, users should make sure that they use

the very latest version.

Downloads are available from: http://drapertools.com

Draper Tools Limited

Hursley Road

Chandler’s Ford

Eastleigh

Hampshire

SO53 1YF

Website: drapertools.com

Product Helpline: +44 (0) 23 8049 4344

General Fax: +44 (0) 23 8026 0784

1.3 UNDERSTANDING THIS GUIDES SAFETY CONTENT:

WARNING! – Information that draws attention to the risk of injury or death.

CAUTION! – Information that draws attention to the risk of damage to the product or

surroundings.

Permission is granted to reproduce this publication for personal and educational use

only. Commercial copying, redistribution, hiring or lending is prohibited.

No part of this publication may be stored in a retrieval system or transmitted in any

other form or means without written permission from Draper Tools Limited.

In all cases this copyright notice must remain intact.

Read the guide.

1.1 INTRODUCTION:

USER GUIDE FOR: Engine Timing Kit

Stock No: 27232

Part No: ETK135

2. CONTENTS

- 3 -

- 10 -

Depending on manufacture and model, some engine components do change. Please check with

Autodata or the manufacturer’s data before use.

1. TITLE PAGE

1.1 INTRODUCTION.......................................................................................................... 2

1.2 REVISION HISTORY .................................................................................................. 2

1.3 UNDERSTANDING THIS GUIDE................................................................................. 2

1.4 COPYRIGHT NOTICE .................................................................................................2

2. CONTENTS

2.1 CONTENTS ....................................................................................................................3

3. GUARANTEE

3.1 GUARANTEE ............................................................................................................... 4

4. GENERAL PRODUCT INFORMATION

4.1 GENERAL PRODUCT INFORMATION ....................................................................... 5

5. HEALTH AND SAFETY INFORMATION

5.1 GENERAL SAFETY INSTRUCTIONS FOR USE

Personal safety........................................................................................................... 6

6. CONTENTS

6.1 PARTS DRAWING AND LISTING ............................................................................... 7

7. APPLICATION

7.1 PRODUCT APPLICATION AND COMPATIBILITY LISTING ...................................... 8

8. PREPARATION

8.1 ADVISORIES BEFORE USE ...................................................................................... 9

9. PROCEDURE AND APPLICATION GUIDE

9.1 APPLICATION GUIDANCE........................................................................................10

10. EXPLANATION OF SYMBOLS

10.1 EXPLANATION OF SYMBOLS .................................................................................. 11

9. PROCEDURE AND APPLICATION GUIDE

Please note images are for guidance only and subject to change.

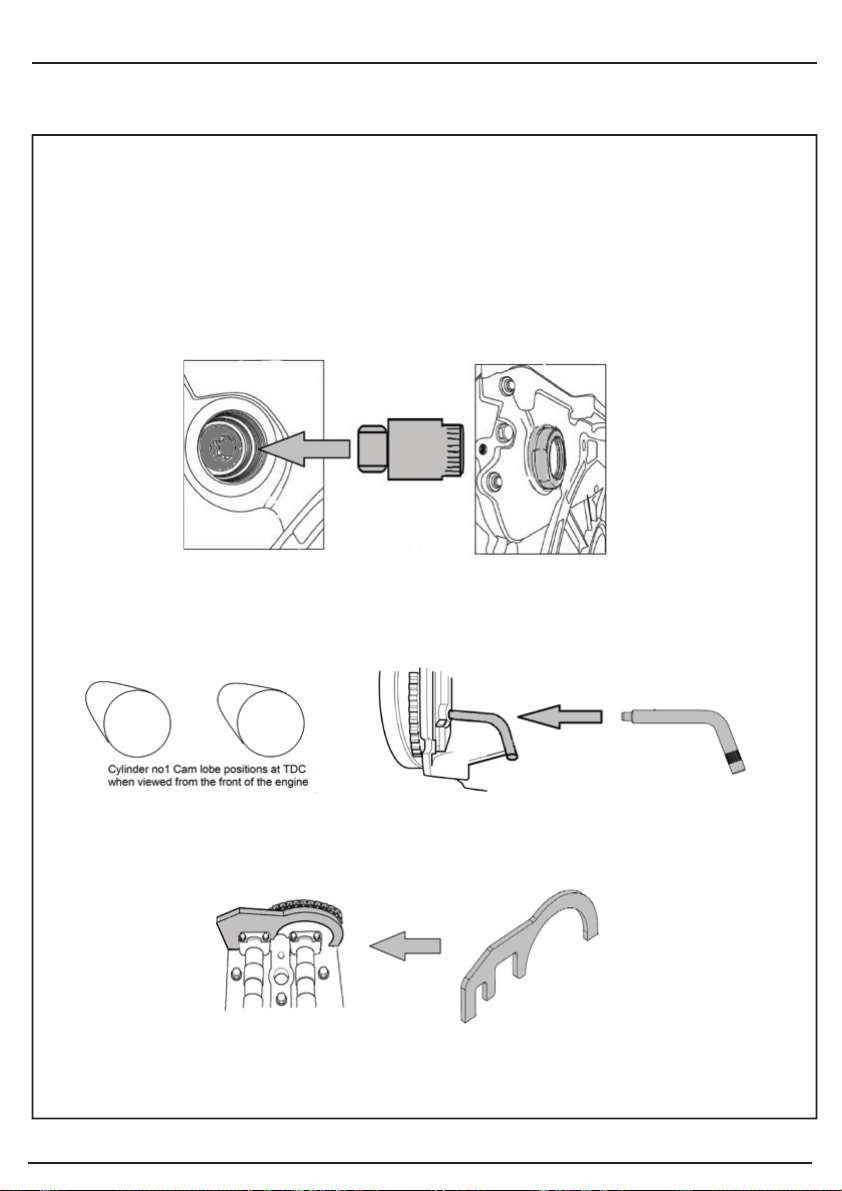

Component 1 = CRANKSHAFT TURNING TOOL

Component 1 is used to turn the front pulley and crankshaft to its required position.

Component 3 = FLYWHEEL TIMING PIN

Component 3 is used to lock the crankshaft in its TDC no1 position. 3 locates through the

engine block into the back of the Flywheel/flywheel Plate. Turn the engine in its normal

direction of rotation until the pin can be located fully. Confirm TDC no 1 cylinder by checking

the position of the Cam lobes on no 1 cylinder.

Component 2 = HIGH PRESSURE FUEL PUMP SPROCKET RETAINING TOOL

Component 2 is designed to allow the HP diesel pump to be removed whilst holding the

pump sprocket in place so the Cam Chain, Valve timing etc. do not need to be disturbed to

remove/replace the HP pump. Locate and remove the plastic blanking plug that covers the

HP pump sprocket holding bold. Ensure engine is at TDC No 1. Screw component 2 into

the sprocket (do not remove the sprocket central fixing bolt till Component 2 is in place)

Remove the HP pump mounting bolts and slacken the sprocket fixing via the centre of

component 2. The HP pump will be pushed out of the back of the sprocket.

Component 4 = CAMSHAFT ALIGNMENT TOOL

Locates on the exhaust Cam just behind the Camshaft drive gears. Both ends should sit

flush on the cylinder head when in place if the timing is correct. If incorrect, check compo-

nent 3 is in place correctly. If 3 is correctly fitted then the camshaft timing must be adjusted.

Components 5 (x 2) = CHAIN TENSIONER LOCKING PINS

Components 5 are used to lock the Chain Tensioners in their retracted position.

3. GUARANTEE

3.1 GUARANTEE

Draper tools have been carefully tested and inspected before shipment and are guaranteed to be

free from defective materials and workmanship.

Should the tool develop a fault, please return the complete tool to your nearest distributor or

contact:

Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.

Telephone Sales Desk: (023) 8049 4333 or:

Product Helpline (023) 8049 4344.

A proof of purchase must be provided.

If upon inspection it is found that the fault occurring is due to defective materials or workmanship,

repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months

from the date of purchase except where tools are hired out when the guarantee period is 90 days

from the date of purchase. This guarantee does not apply to normal wear and tear, nor does it

cover any damage caused by misuse, careless or unsafe handling, alterations, accidents, or

repairs attempted or made by any personnel other than the authorised Draper warranty repair

agent.

Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be

quoted and made accordingly.

This guarantee applies in lieu of any other guarantee expressed or implied and variations of its

terms are not authorised.

Your Draper guarantee is not effective unless you can produce upon request a dated receipt or

invoice to verify your proof of purchase within the guarantee period.

Please note that this guarantee is an additional benefit and does not affect your statutory rights.

Draper Tools Limited.

8. PREPARATION

- 4 -

- 9 -

The following is for guidance only. Please refer to OEM derived data such as the vehicle

manufacturer’s own data or Autodata. The use of this product is purely down to the user’s

discretion and Draper Tools Limited cannot be held responsible for any damage caused what so

ever.

4. GENERAL PRODUCT INFORMATION

This product is designed to be used correctly and with care for the purpose for which it is intended.

No liability is accepted by Draper Tools Limited for incorrect use or application of any of our

products, and Draper Tools Limited cannot be held responsible for any damage to personnel,

property or equipment when using this product. Incorrect use will also invalidate any warranty.

The applications database and any instructional information provided has been designed to offer

general guidance for a particular product’s use and while all attention is given to the accuracy of

the data, no project should be attempted without referring first to the manufacturer’s technical

documentation (workshop or instruction manual) or the use of a recognised authority such as

Autodata.

It is our policy to continually improve our products and thus we reserve the right to alter

specifications and components without prior notice. It is the responsibility of the user to ensure the

suitability of the product and information prior to use.

7. APPLICATION

- 5 -

- 8 -

The 27232 has been developed as an engine timing kit for the vehicles listed below. Allows the

user to lock camshafts and the crankshaft in the ‘timed’ position so the timing chain or timing belt

can be removed and replaced safely.

Used on the following Vehicles:

BMW 1 Series 2007 - 2014

BMW 1 Series 2011 - 2015

BMW 2 Series Coupe 2014 - 2016

BMW 3 Series 2007 - 2014

BMW 3 Series 2012 - 2017

BMW 3 Series G T 2013 - 2016

BMW 4 Series Cabriolet 2014 - 2017

BMW 4 Series Coupe 2013 - 2017

BMW 4 Series G Coupe 2014 - 2017

BMW 5 Series 2007 - 2010

BMW 5 Series 2010 - 2017

BMW 5 Series G T 2009 - 2017

BMW 6 Serixes 2011 - 2017

BMW 6 Series G Coupe 2012 - 2017

BMW 7 Series 2008 - 2015

BMW X1 2009 - 2015

BMW X3 2007 - 2010

BMW X3 2011 - 2017

BMW X4 2014 - 2017

BMW X5 2013 - 2016

BMW X5 2010 - 2013

BMW X5 2013 - 2017

BMW X6 2010 - 2014

BMW X6 2014 - 2017

Engine Codes:

1.6cc

N47 D16C, N47 D16, N47 C16U1, N47 C16K1, N47 C16A/U1

2.0cc

N47 D20A/K0, N47 D20A, N47S D20B/D/T0, N47 D20C/K1, N47 D20C, N47 D20C/U1,

N47 D20C/O1, N47 D20D, N47 D20D/T1, N47 D20A/U0, N47T D20K1, N47 D20U0,

N47T D20U1, N47T D20O1, N47 D20C/O, N47 D20C/01, N47 D20O0, N47S D20D/T0,

N47 D20A/O0, N47 C20K1, N47 C20U1, N47 C20A/K1

3.0cc

N57 D30U0, N57 D30A/O0, N57 D30A/O1, N57 D30B, N57 D30A, N57 D30UO, N57

D30O0, N57 D30O1, N57 D30B/T1, N57 D30TO, N57 D30C/S1, N57 D30A0/O0, N57

D30T0, N57 D30C, N57 D30B/T0

Mini Clubman 2015 - 2017

Mini Convertible 2016 - 2017

Mini Mini Hatch 2014 - 2017

Mini Clubman 2010 - 2014

Mini Clubvan 2012 - 2014

Mini Countryman 2010 - 2017

Mini Mini 2010 - 2015

Mini Paceman 2013 - 2017

Mini Coupe 2011 - 2015

Mini Roadster 2012 - 2015

5. HEALTH AND SAFETY INFORMATION

6. CONTENTS

- 6 -

- 7 -

GENERAL SAFETY INSTRUCTIONS

Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings

may result in serious injury or major component damage.

Important: Draper Tools recommends that this product should not be modified or used for any

application other than that for which it was designed.

Save all warnings and instructions for future reference.

1) Personal safety

a) Stay alert, watch what you are doing and use common sense when using this product.

Do not use this product while you are tired or under the influence of drugs, alcohol or any

medication. A moment of inattention while using this product may result in serious personal

injury.

b) Use personal protective equipment as necessary.

c) Check and remove any part of the product before turning/testing the engine. A part left

attached to a rotating part of the engine may result in personal injury or major component

damage.

d) Carefully clean the tool components after every use.

f) Keep the tool components safe and tidy.

g) Do not use this product for any purpose other than for which it is designed.

Warning! Some of the packaging materials used may be harmful to children. Do not leave any of

these materials in the reach of children.

If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to

local regulations.

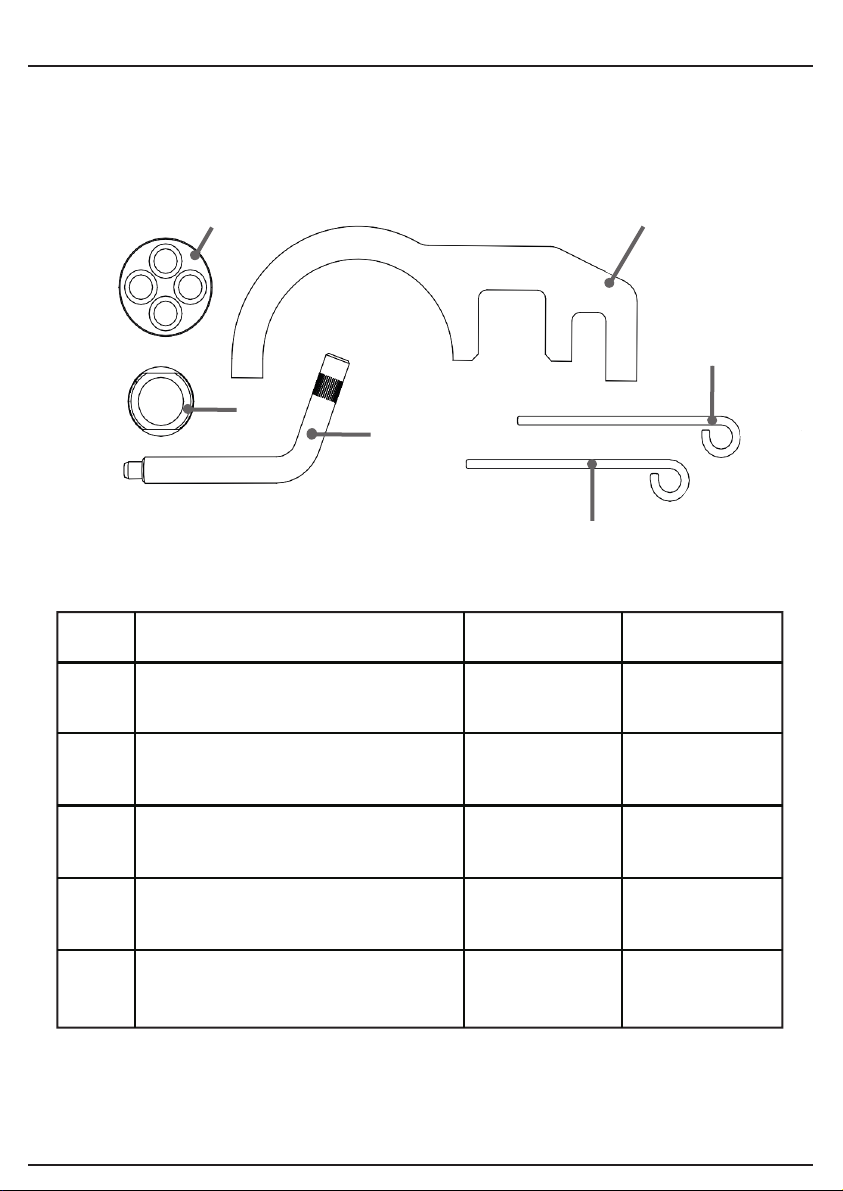

ITEM DESCRIPTION OEM STOCK No.

A Crankshaft Pulley Turning Tool 11 6 480 29909

High-Pressure Fuel Pump

11 8 740/030 29928

Sprocket Removal Tool

C Flywheel Plate Timing Pin 11 5 320 30081

D Camshaft Alignment Tool 11 8 760 30101

E 2x Loop Pins 11 3 340 30194

5. HEALTH AND SAFETY INFORMATION

6. CONTENTS

- 6 -

- 7 -

GENERAL SAFETY INSTRUCTIONS

Warning: Please read all safety warnings and all details carefully. Failure to follow the warnings

may result in serious injury or major component damage.

Important: Draper Tools recommends that this product should not be modified or used for any

application other than that for which it was designed.

Save all warnings and instructions for future reference.

1) Personal safety

a) Stay alert, watch what you are doing and use common sense when using this product.

Do not use this product while you are tired or under the influence of drugs, alcohol or any

medication. A moment of inattention while using this product may result in serious personal

injury.

b) Use personal protective equipment as necessary.

c) Check and remove any part of the product before turning/testing the engine. A part left

attached to a rotating part of the engine may result in personal injury or major component

damage.

d) Carefully clean the tool components after every use.

f) Keep the tool components safe and tidy.

g) Do not use this product for any purpose other than for which it is designed.

Warning! Some of the packaging materials used may be harmful to children. Do not leave any of

these materials in the reach of children.

If any of the packaging is to be thrown away, make sure it is disposed of correctly; according to

local regulations.

ITEM DESCRIPTION OEM STOCK No.

A Crankshaft Pulley Turning Tool 11 6 480 29909

High-Pressure Fuel Pump

11 8 740/030 29928

Sprocket Removal Tool

C Flywheel Plate Timing Pin 11 5 320 30081

D Camshaft Alignment Tool 11 8 760 30101

E 2x Loop Pins 11 3 340 30194
