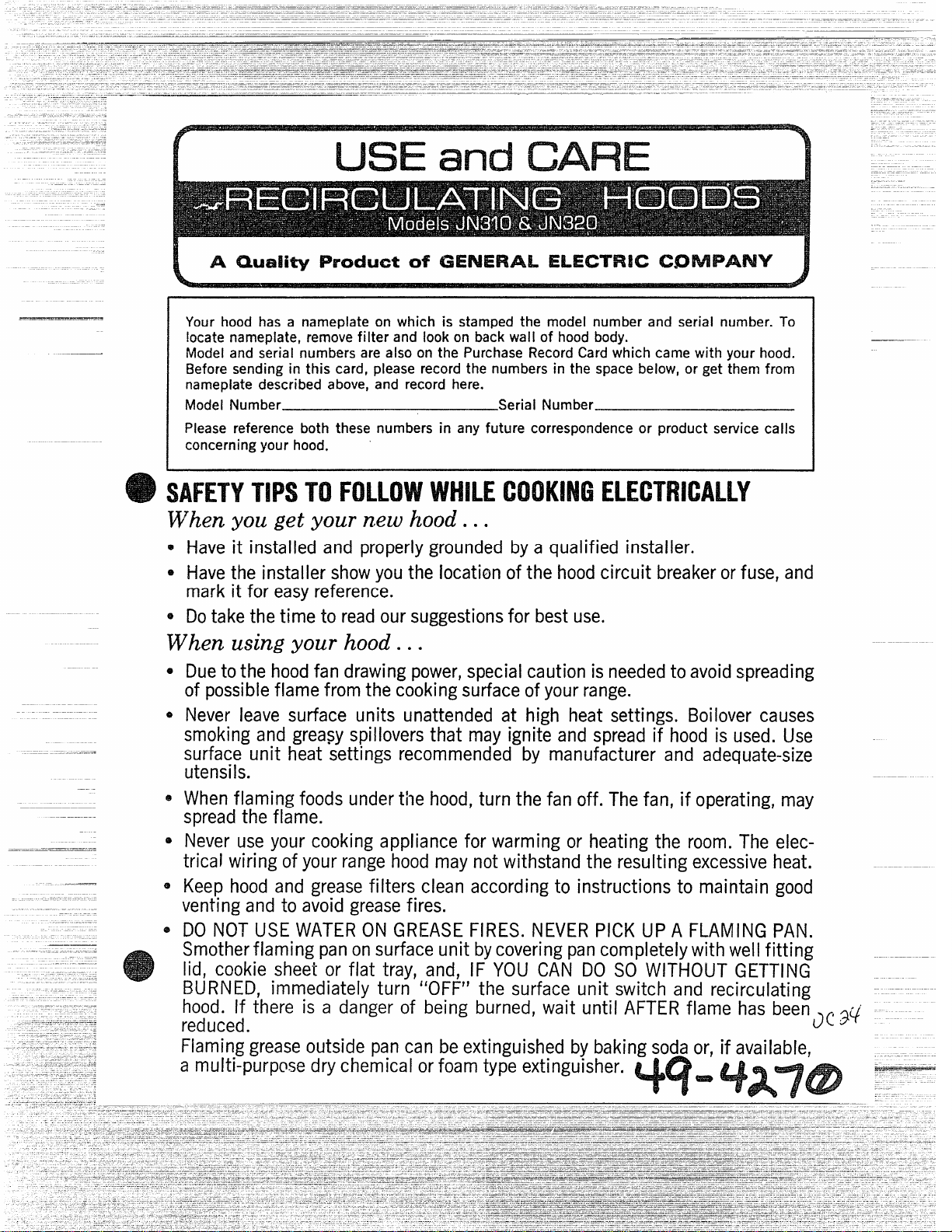

Your hood has a nameplate on which is stamped the model number and serial number. To
locate nameplate, remove filter and look on back wall of hood body.
Model and serial numbers are also on the Purchase Record Card which came with your hood.
Before sending in this card, pIease record the numbers in the space below, or get them from
nameplate described above, and record here.
Model Number Serial Number
Please reference both these numbers in any future correspondence or product service calls
concerning your hood.
SAFETYTll%T’(IFOLLOWWHILE COOKINGELECTRICALLY
When you get your new hood. . .
*
Have it installed and properly grounded by a qualified installer.
“ Have the installer show you the location of the hood circuit breaker or fuse, and
mark it for easy reference.
~ Do take the time to read our suggestions for best use.
When using your hood. . .
——
Due to the hood fan drawing power, special caution is needed to avoid spreading
of possible flame from the cooking surface of your range.
Never leave surface units unattended at high heat settings. Boilover causes
smoking and greasy spillovers that may ignite and spread if hood is used. Use
surface unit heat settings recommended by manufacturer and adequate-size
utensils.
When flaming foods under tile hood, turn the fan off. The fan, if operating, may
spread the flame.
Never use your cooking appliance for warming or heating the room. The elec-
trical wiring of your range hood may not withstand the resulting excessive heat.
Keep hood and grease filters clean according to instructions to maintain good
venting and to avoid grease fires.
DO NOT USE WATER ON GREASE FIRES. NEVER PICK UP A FLAMING PAN.
Smother flaming pan on surface unit by covering pan completely with well fitting
lid, cookie sheet or flat tray, and, IF YOU CAN DO SO WITHOUT GETTING
BURNED, immediately turn “OFF” the surface unit switch and recirculating
hood. If there is a danger of being burned, wait until AFTER flame has been
reduced.
Jc gq’
Flaming grease outside pan can be extinguished by baking soda or, if available,
a multi-purpose dry chemical or foam type extinguisher.
+q-qA7

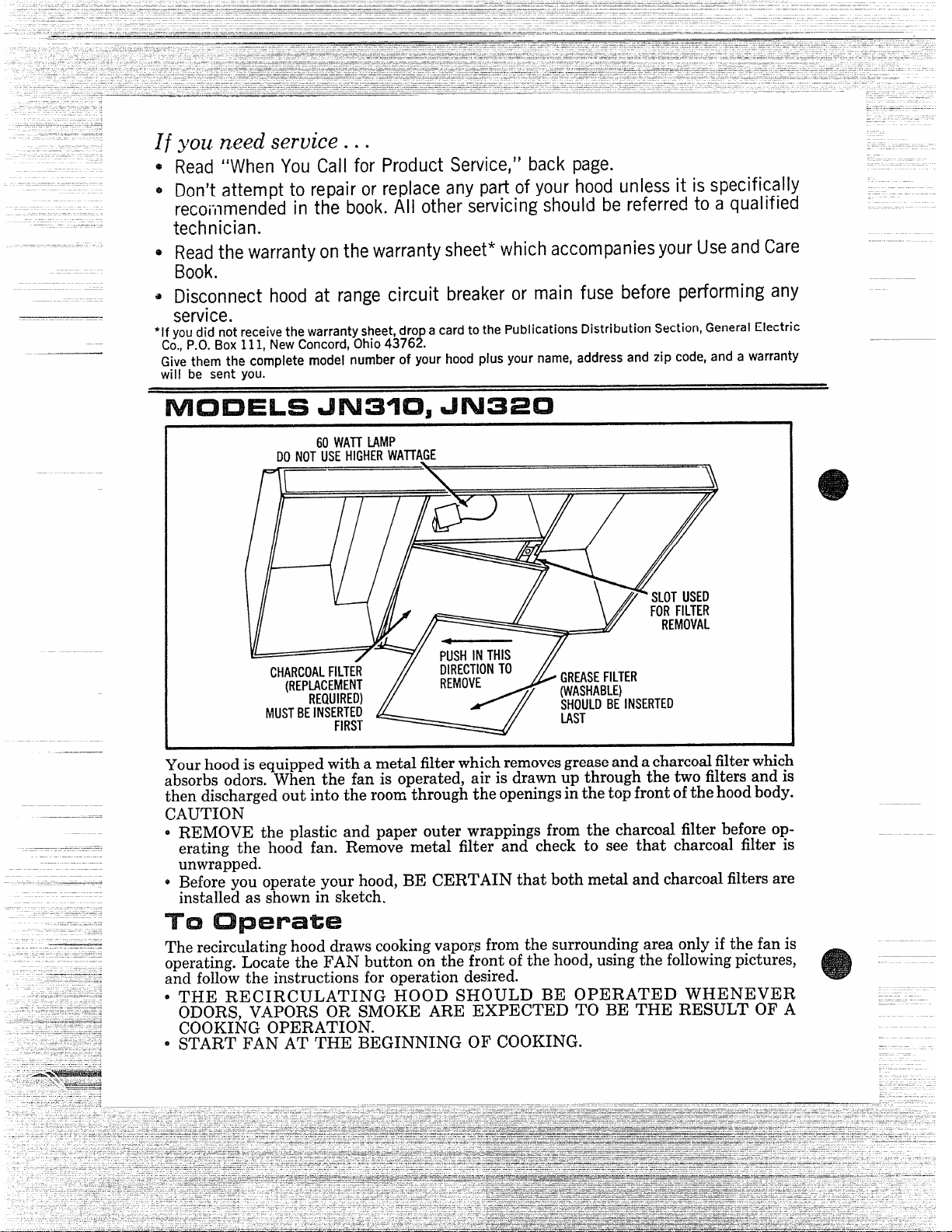

If sou needservice. . .
Read “When You Call for Product Service,” back page.
Don’t attempt to repair or replace any part of your hood
unless it is specifically
recoi-llmen~ed
in the book. All other servicing should be referred to a qualified
technician.
Read the warranty on the warranty sheet* which accompanies your Use and Care
Book.
Disconnect hood at range circuit breaker or main fuse before performing any
~Qrvir@.
WV. ., ---
‘If you did notreceivethewarrantysheet,dropacardto the PublicationsDistribution SectionrGeneralElectric
Co.,P.O.Box111,NewConcord,Ohio 43762.
_-
Give them the complete model number of your hood plus your name, address and zip code, and a warranty
will be sent you.
60 WATTLAMP
Your hood is equipped with a metal filterwhich removesgreaseandacharcoal filterwhich
absorbs odors. When the fan is operated, air is drawnup through the two filtersand is
then dischargedout into the room through the openingsin the top front of thehood body.
CAUTION
e REMOVE the plastic and paper outer wrappings from the charcoal filter before op-
erating
the hood fan. Remove metal filter and check to see that charcoal filter is
unwrapped.
e l%fore you operate your hood, BE CERTAIN that both metal and charcoal filtersare
installed as shown in
sketch.
T= =p~~~=~
The recirculating hood drawscooking vapors from the surrounding areaonly if the fan is
operating. Locate the FAN button on the front of the hood, usingthe followingpictures,
and follow the instructions for operation desired.
e T-HE RECIRCULATING HOOD SHOULD BE OPERATED WHENEVER
ODORS, VAPORS OR SMOKE ARE EXPECTED TO BE THE RESULT OF A
COOKING OPERATION.
“ START FAN AT THE .BEGINNING OF COOKING.
—_ —
.-

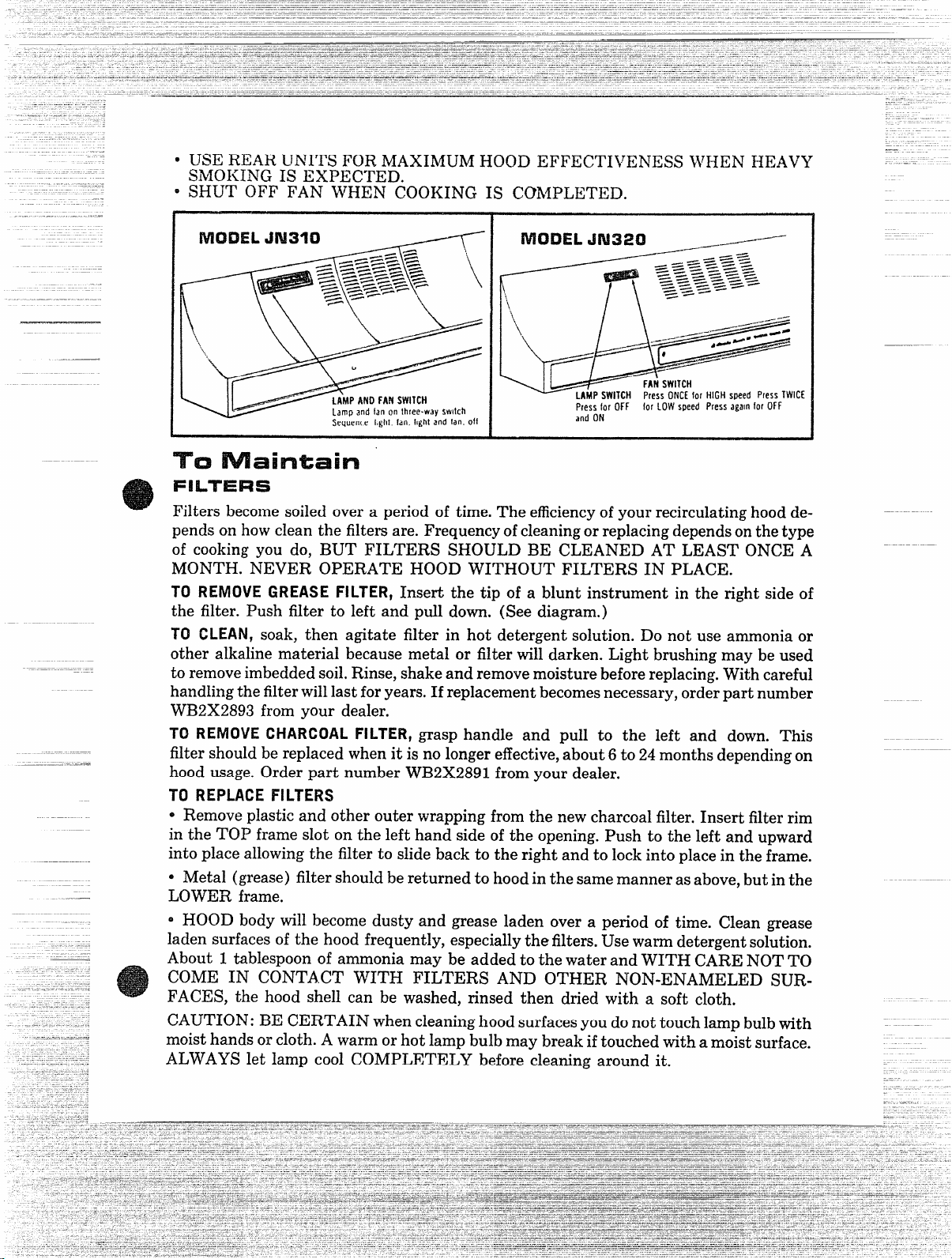

* USE R.E.4RUNW17SFOR MAXIMUM HOOD EFFECTIJTENESS WHEN HEAVY
SiMOKING IS EXPECTED.
* SHUT OFF FAN WHEN COOKING IS COMPLETED.
MODEL JN3’10
“-”- 5----
\
/
-.
LAMP AND FAN SWITCH
LAMP SWITCH Press ONCE for HIGH speed Press T}YICE
Lamp and Ian on lhree.way
swtctr
Press for OFF for LOW speed Press agawrfor OFF
$equem e light. fan. light and Ian. off
and ON
Filters become soiled over a period of time. The efficiencyof your recirculating hood de-
pends on how clean the filtersare. Frequency of cleaningor replacingdependsonthetype
of cooking you do, BUT FILTERS SHOULD BE CLEANED AT LEAST ONCE A
MONTH. NEVER OPERATE HOOD WITHOUT FILTERS IN PLACE.
TO REMOVE GREASE Fl LTER, Insert the tip of a blunt instrument in the right side of
the filter. Push filter to left and pull down. (See diagram.)
TO CLEAN, soak, then agitate filter in hot detergent solution. Do not use ammonia or
other alkaline material because metal or filter will darken. Light brushingmay be used
to removeimbedded soil. Rinse, shakeand removemoisture before replacing.With careful
handlingthe filterwilllastfor years. If replacementbecomes necessary, orderpart number
WB2X2893 from your dealer.
TO REMOVE CHARCOAL FILTER, grasp handle and pull to the left and down. This
filter should be replaced when it is no longer effective,about 6 to 24 months dependingon
hood usage. Order part number WB2X2891 from your dealer.
TO REPLACE FILTERS
~ Remove plastic and other outer wrapping from the new charcoal filter. Insert filterrim
in the TOP frame slot on the left hand side of the opening. Push to the left and upward
into place allowing the filter to slide back to the right and to lock into place in the frame.
o Metal (grease) filtershould be returnedto hood in the samemannerasabove, butinthe
LOWER frame.
o HOOD body w-Mbecome dusty and grease laden over a period of time. Clean grease
laden surfaces of the hood frequently, especiallythe filters.Use warmdetergentsolution.
About 1 tablespoon of ammonia may be added to the waterand WITH CARE NOT TO
COME IN CONTA.CT WITH FILTERS AND OTHER NON-ENAMELED SUR-
FACES,
the hood shell can be washed, rinsed then dried with a soft cloth.
CAUTION: BE CERTAIN whencleaninghood surfacesyou do not touch lamp bulbwith
moist hands or cloth. A warm or hot lamp bulb may break if touched witha moist surface.
ALWAYS let lamp cool COMPLETELY before cleaning around it.

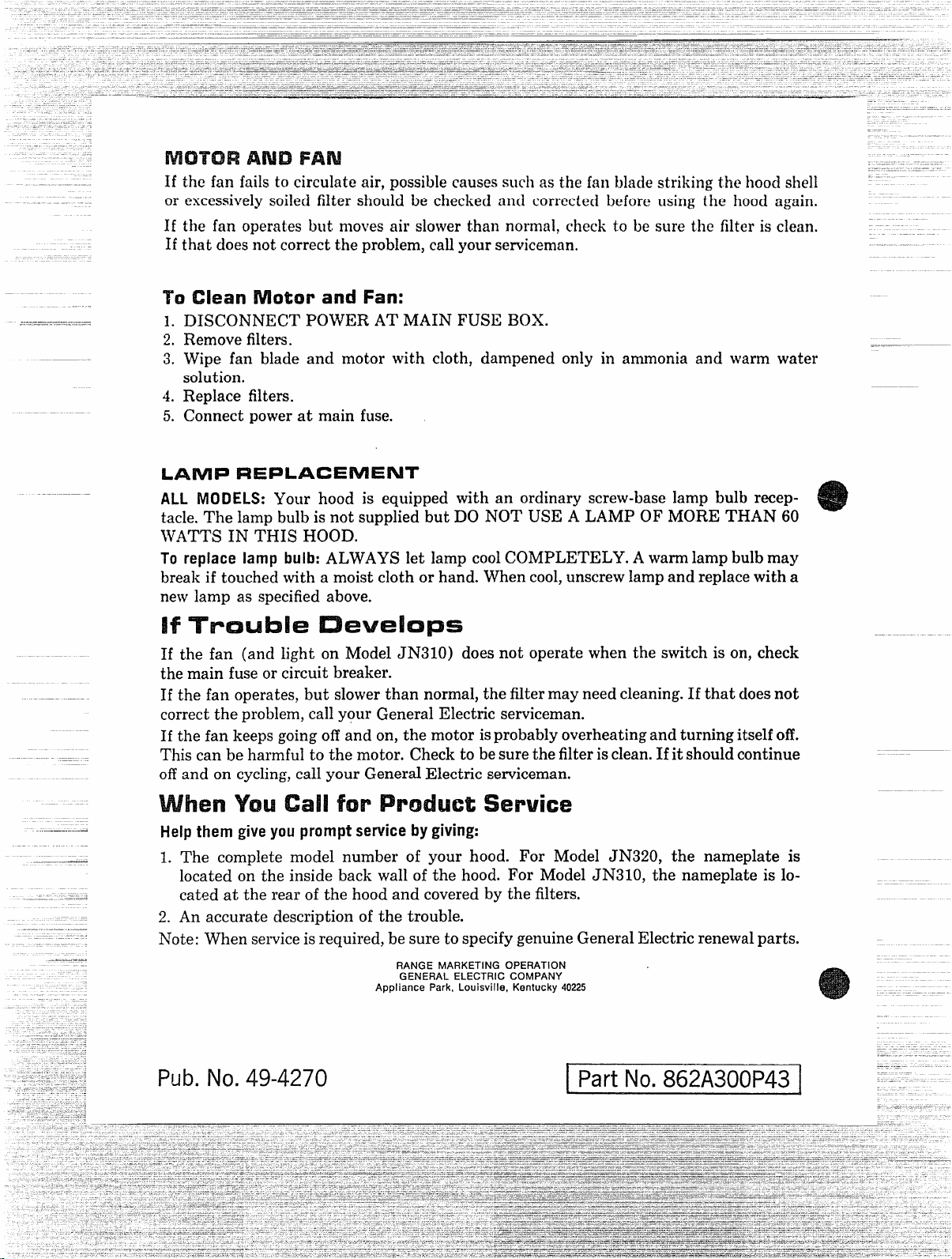

To Chxm Motor and Fan:
4.
5.
DISCONNECT POWER AT MAIN FUSE BOX.
Remove filters.
Wipe fan blade and motor with cloth, dampened
solution.
Replace filters.
Connect power at main fuse.
only in ammonia and warm water
LAMP HEPLACEMENT
ALL MODELS: Your hood is equipped with an ordinary screw-base lamp bulb recep-
tacle. The lamp bulb is not supplied but DO NOT USE A LAMP OF MORE THAN 60 -
WATTS IN THIS HOOD.
To replace lamp bulb: ALWAYS let lamp cool COMPLETELY. A warmlamp bulb may
break if toucheclwith a moist cloth or hand. When cool, unscrewlampand replacewith a
new lamp as specified above.
If the fan (and light on Model JN31O) does not operate when the switch is on, check
the main fuse or circuit breaker.
If the fan operates, but slower than normal, the filtermay needcleaning.If that doesnot
correct the problem, call your General Electric serviceman.
If
the fan keeps going off and on, the motor isprobably overheatingand turningitselfoff.
This can be harmful to the motor. Check to be surethefilterisclean.If it should continue
off and on cycling, call your General Electric serviceman.
When You Cdl forProduct Service
Help therm give you prompt service by giving:
1. The complete model number of your hood. For Model JN320, the nameplate is
located on the inside back wall of the hood. For Model JN31O, the nameplate is lo-
cated at the rear of the hood and covered by the filters.
2. An accurate description of the trouble.
hTote:When serviceisrequired,be sure to specify genuineGeneralElectric renewalparts.
Pub.No,49-4270
RANGE MARKETING OPERATION
GENERAL ELECTRIC COMPANY
Appliance Park, Louisville, Kentucky 40225
