ALTURI MANUAL
MADE IN USA
Natural gas & liquid propane configurations
ALTURI INSTALLATION INSTRUCTIONS & OWNERS’S MANUAL
ALTURI 36”
ALT36
ALTURI 42”
ALT42
ALTURI 30”
ALT30
NAME:
PART #:
THANK YOU
FOR YOUR RECORDS
INSTALLER:
Thank you for your purchase. We’d like to welcome you to the Summerset family of luxury outdoor
kitchen products and look forward to being a part your home for years to come. As a family business
with over 30 years of industry experience, we aim to deliver exceptional quality and personal service.
Welcome to the Summerset family and we hope you love your new grill!
Please record the following information and refer to it when contacting Summerset Professional Grills
or an authorized dealer. The serial number is located on the rating plate. The rating plate is located on
the exterior basin of the grill (fire box) and on the underneath side of the drip tray (select models only).
Serial Number:
Model:
Date of Purchase:
Place of Purchase:
Please leave this manual for the owner
To view on your phone, scan the QR code on your smart phone’s
camera app. (For Android devices, use Google Lens.)
For warranty information and to register your grill
visit, Summersetgrills.com/register/alturi
CALIFORNIA PROPOSITION 65
This product can expose you to chemicals
including Chromium which is known to the
State of California to cause cancer and birth
defects or other reproductive harm.
California law requires businesses to warn
customers of potential exposure to such
substances. To minimize exposure to the
substances, always operate this unit according
to the use and care instructions found in
this manual. Be certain to provide adequate
ventilation when cooking.
WARNING!
READ THIS MANUAL CAREFULLY AND
COMPLETELY BEFORE USING YOUR GRILL TO
REDUCE THE RISK OF:
Fire, Burn hazard, personal injury or property
damage. Improper installation or servicing
Electric Shock
WARNING!
EXPLOSION HAZARD:
DO NOT use the grill as a storage area for
flammable materials. Keep area clear and free
from combustible materials, gasoline, and
other flammable vapors and liquids. Failure
to do so can result in death, explosion, or fire
An LP cylinder not connect for use shall not
be stored in the vicinity of this or any other
appliance
WARNING!
• The outdoor cooking gas appliance
and its dedicated shutoff valve must
be disconnected from the gas supply
piping system during pressure testing of
that system at test pressures in excess of
.5 psi (3.5kPa).
• The outdoor cooking gas appliance must
be isolated from the gas supply piping
system by closing its dedicated manual
shutoff valve during any pressure testing
of the gas supply piping system at test
pressures equal to or less than .5 psi
(3.5kPa).
WARNING!
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read this manual
thoroughly before installation, use, or
servicing of this product.
THIS PRODUCT IS DESIGNED FOR OUTDOOR
USE ONLY
WARNING!
CODE AND SUPPLY REQUIREMENTS:
This grill must be installed in accordance with
local codes and ordinances, or, in the absence
of local codes, with the latest National Fuel
Gas Code (ANSI Z223.1/NFPA 54), or Natural
Gas and Propane Storage and Handling
Installation Code (CSA-B149.1)
WARNING!
IF YOU SMELL GAS:
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read this manual
thoroughly before installation, use, or
servicing of this product.
DANGER!
IF YOU SMELL GAS:
Shut off all gas supply lines to the grill
Extinguish any open flames
Carefully open the lid. Remember, it may be
extremely hot!
If odor continues, keep everyone away
from the grill and immediately call your gas
supplier or your fire department
DANGER!
WARNING!
STATE OF MASSACHUSETTS
• Massachuses requires all gas be
installed using a plumber or gas fier
carrying the appropriate Massachuses
license.
• All permanently-installed natural gas
or propane installations require a
"T" handle type manual gas valve be
installed in the gas supply line to this
appliance.
• This does not apply to portable propane
installations using a 20 pound cylinder.
SAFETY AND INSTALLATION WARNINGS
• Please read all instructions before installation or operating your gas grill to prevent injury and
appliance damage
• All gas grills will get hot during use. Use extreme caution when operating the grill
• Do not touch hot surfaces. Always use the handle to open or close the grill
• Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane
cylinders in the grill cabinet or in the vicinity of this or any other appliance
• Close supervision is necessary when this or any appliance is used near children. Keep children away
from the grill during operation and until the grill has cooled off
• Children should never be le alone or unaended in an area where a grill is located. Place your grill
well away from areas where children play. Do not store items that may interest children in or around
the grill, in the cart, or in the masonry enclosure
• Never move the grill when hot. When in use, portions of the grill are hot enough to cause severe
burns.
• Always maintain the required clearances from combustibles as detailed. The grill is designed for
outdoor use only. Never use in a garage, building, shed, breezeway, or other enclosed area. Do not
use this grill under any unprotected overhead combustible construction
• Gas grills are not designed or certified for and are not to be installed in or on recreational vehicles,
portable trailers, boats or any other moving installation
• Always have an ABC Fire Extinguisher accessible — never aempt to extinguish a grease fire with
water or other liquids.
• Storing your grill: Store your grill in a well-ventilated area. If stored indoors, detach and leave L.P.
cylinder outdoors in a well-ventilated area away from heat and away from where children may
tamper with it
• Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical
cords should be placed away from walkways to avoid tripping hazard
• Do not repair or replace any part of the grill unless specifically recommended in this manual. Other
service should be performed by a qualified technician
• If the grill is installed by a professional installer or technician, be sure that he/she shows you where
your gas supply shut-off is located. All gas lines must have a shut-off that is readily and easily
accessible. If you smell gas, check for gas leaks immediately. Check only with a soap and water
solution. Never check for gas leaks with an open flame.
• Do not twist the gas supply hose
• Inspect the L.P. gas supply hose prior to each use of the grill. If there is evidence of excessive
abrasion or wear, or the hose is cut, it must be replaced before using the grill
• The use of accessories, regulators, or components not recommend by the appliance manufacturer
may cause injuries and will void warranty
• Never light the grill with the hood closed and be certain the burners are positioned and seated over
the gas valves and on the burner support
• Never lean over the cooking surface when lighting or operating the grill
• Use barbecue tools with wood handles and insulated oven mis when operating the grill
• Be sure the gas supplied to the grill conforms to the model you purchased. A natural gas grill
requires natural gas to operate; a liquid propane grill requires liquid propane to operate
• Never connect the appliance to an unregulated gas supply line. Grills operated without a regulator
are unsafe and will not be serviced until installed properly and safely. Unsafe operation without a
gas regulator will void the warranty
• Grills operating with natural gas must be installed with the NG regulator supplied with the unit and
set to 4.0” of water column pressure
• Grills operating with liquid propane must be installed with an LP regulator and set to 11” of water
column pressure
WARNING!
TABLE OF CONTENTS
Replacement Parts List
Exploded View
Before Grilling
Installation
Gas Requirements
Lighting The Grill
Maintenance Tips
Grill Features
Warranty
1
2
3
4
6
9
9
11
12
1
REPLACEMENT PARTS LIST
Item Description Alturi 30” Qty Alturi 36” Qty Alturi 42” Qty
1 Top Hood Hood-Alt30 1 Hood-Alt36 1 Hood-Alt42 1
2 Hood Spring Spring-Alt180-2 2 Spring-Alt180-2 2 Spring-Alt180-2 2
3 Interior Light Light Bulb Alt 2 Light Bulb Alt 2 Light Bulb Alt 2
4 Rear Hood Rear Hood-Alt30 1 Rear Hood-Alt36 1 Rear Hood-Alt42 1
5 IR Back Burner IR-Backburn-Alt-Sm 1 IR-Backburn-Alt-Sm 1 IR-Backburn-Alt-Lg 1
6 Warming Rack Warm-Alt30 1 Warm-Alt36 1 Warm-Alt42 1
7 Heat Separator HeatSep-Alt 1 HeatSep-Alt 2 HeatSep-Alt 2
8 Main Burner Grate Grate-Alt-L 2 Grate-Alt-Sm 3 Grate-Alt-M 3
9 Briquees Briq24-Alt 2 Briq54-Alt 1 Briq36-Alt 2
10 Briquee Tray Brncov-Alt-Lg-L 2 Brncov-Alt-Sm-L 3 Brncov-Alt-Lg-L 3
11 Transformer Trans-Alt 1 Trans-Alt 1 Trans-Alt 1
12 Transformer Wire Trans-Wire 1 Trans-Wire 1 Trans-Wire 1
13 Basin Basin-Alt30 1 Basin-Alt36 1 Basin-Alt42 1
14 Regulator Reg NG 1 Reg NG 1 Reg NG 1
15 Manifold Man-Alt30 1 Man-Alt36 1 Man-Alt42 1
16 LED Extension Older Models
17 Drip Tray Drip-Alt30 1 Drip-Alt36 1 Drip-Alt42 1
18 Light Harness Light Harn-Alt30 1 Light Harn-Alt36 1 Light Harn-Alt42 1
19 LED Module (older models) LED MOD 1 LED MOD 1 LED MOD 1
20 LED Module Bracket (older models) LED Mod Brak 1 Led Mod Brak 1 LED Mod Brak 1
21 Bull Nose Front Panel Front-Alt30 B 1 Front-Alt36 B 1 Front-Alt42 B 1
22 LED Switch Swtch-LED-SS 1 Swtch-LED-SS 1 Swtch-LED-SS 1
23 Light Switch Swtch-Light-SS 1 Swtch-Light-SS 1 Swtch-Light-SS 1
24 Front Panel Front-Alt30 1 Front-Alt36 1 Front-Alt42 1
25 Knob Bezel Knob Bezel LG 4 Knob Bezel LG 4 Knob Bezel LG 5
26 Knob Knob LG 4 Knob LG 4 Knob LG 5
27 Alturi Logo Plate Logo Plate –Alt 1 Logo Plate –Alt 1 Logo Plate –Alt 1
28 Smoker Tray 2018 - Older 1 2018 - Older 0 2018 - Older 1
29/A LED Harness (old style) LED Harn-Alt30 1 LED Harn-Alt36 1 LED Harn-Alt42 1
29/B LED Wire (new style) Led Wire-Alt30 1 Led Wire-Alt 36 1 Led Wire-Alt 42 1
30 Valve Bracket (included w/ valve)
31 Back burner valve BBV-ALT 1 BBV-ALT 1 BBV-ALT 1
32 Main Valve MV-ALT 2 MV-ALT 3 MV-ALT 3
33 Smoker Valve Wire 2018 - Older 1 n/a 0 2018 - Older 1
34 Back Burner Flex Tube FlexTube bbAlt30 1 FlexTube bbAlt36 1 FlexTube bbAlt42 1
35 Smoker Burner 2018 - Older 1 n/a 0 2018 - Older 1
36 Main Burners – UTube Burners UTUBE-ALT 2 UTUBE-ALT 3 UTUBE-ALT 3
37 Back Burner Wire BBW-ALT30 1 BBW-ALT36 1 BBW-ALT42 1
38 Rotisserie Handle Rot Hand 1 Rot Hand 1 Rot Hand 1
39 Rotisserie Collar Rot Collar 1 Rot Collar 1 Rot Collar 1
40 Rotisserie Spit Rot Spit –Alt 30 1 Rot Spit – Alt 36 1 Rot Spit – Alt 42 1
41 Rotisserie Forks Rot Forks 2 Rot Forks 2 Rot Forks 2
42 See above
43 Rotisserie Motor Bracket RotMotorBrak-alt 1 RotMotorBrak-alt 1 RotMotorBrak-alt 1
44 Rotisserie Motor Rot Motor 1 Rot Motor 1 Rot Motor 1
45 Hood Handle End Cap HHEC-ALT 2 HHEC-ALT 2 HHEC-ALT 2
46 Hood Handle Spacer HHS-ALT 2 HHS-ALT 2 HHS-ALT 2
47 Hood Handle HoodHand-Alt 30 1 HoodHand-Alt36 1 HoodHand-Alt42 1
48 Temperature Gauge Bezel Temp BZL 1 Temp BZL 1 Temp BZL 1
49 Temperature Gauge Temp 1 Temp 1 Temp 1
2

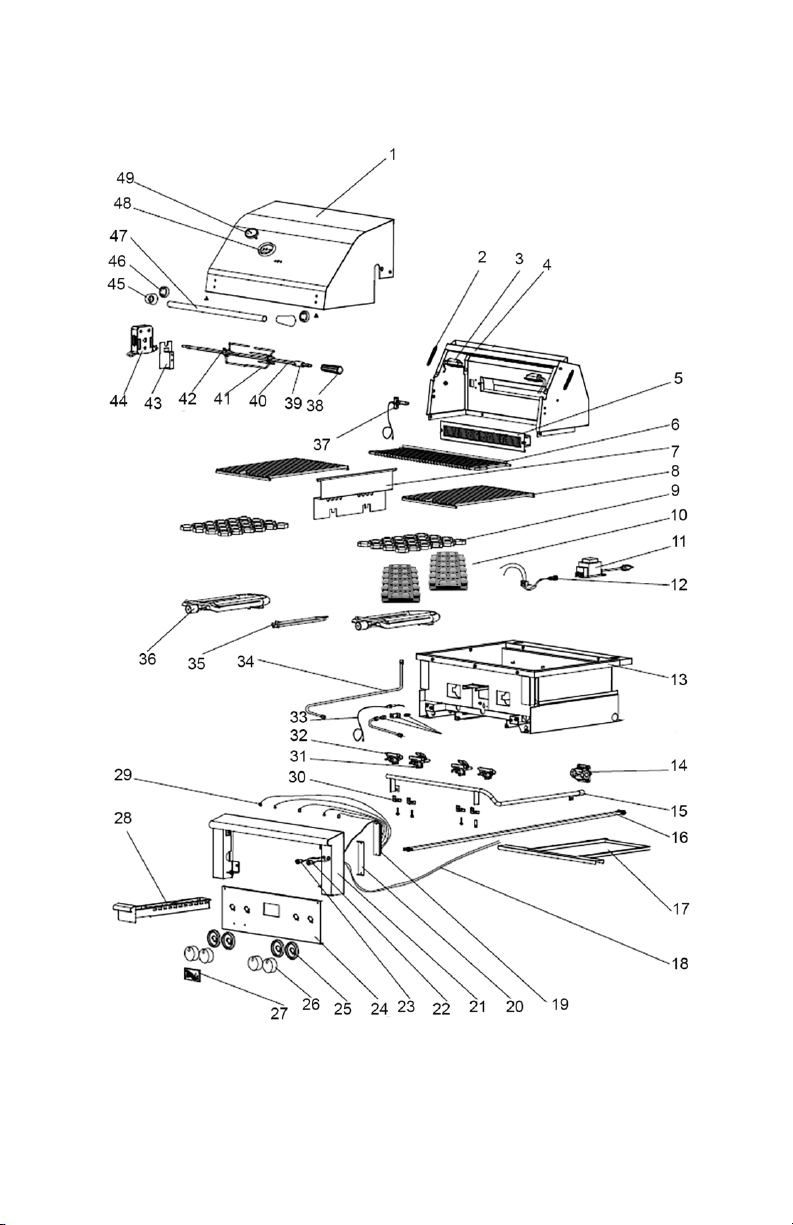

EXPLODED VIEW
3
BEFORE GRILLING
SHIPMENT ARRIVING DAMAGED:
IMPORTANT NOTES:
VISIBLE DAMAGE
If your shipment arrives with visible damage to
the box/carton, be sure the damage is noted on
the bill of freight or express receipt and signed
by the person making the delivery. File claim for
damages immediately, regardless of the extent of
damage.
BE MINDFUL OF WIND DIRECTION
When selecting a suitable location, consider
important factors such as exposure to the
wind and foot traffic paerns. If you have a
freestanding grill, position it so the prevailing
wind blows into the front control panel (at your
back when grilling), allowing for proper front to
rear airflow. Built-in grills located in areas with
prevailing winds should be protected by a wind
barrier, wind deflector, or wind guard. The grill is
designed to pull in air from the front and exhaust
through the rear of the unit. Winds hiing the
back of the grill directly may cause problems. Be
sure wind doesn’t blow into the hood gap.
CONCEALED DAMAGES
If damages are unnoticed until the grill is
unpacked, notify the transportation company or
carrier immediately and file a concealed damage
claim with them. This should be done within (5)
days of the delivery date. Be sure to hold on to
the box/carton for inspection. We cannot assume
responsibility for damage or loss incurred in
transit.
GAS LINE LENGTH
Keep all gas supply lines as short as possible. Gas
lines lose pressure over distance and with each
elbow or “t” fiing added. This drop in pressure
affects grill performance.
PROPER LEVELING
PROPER LEVELING DURING INSTALLATION
IS CRITICAL. A GRILL THAT IS OUT OF LEVEL
WILL CAUSE ERRATIC BURNER COMBUSTION
AND INEFFICIENT, UNEVEN HEATING. THE
GRILL SHOULD BE LEVEL IN ALL DIRECTIONS.
ADJUSTMENTS MAY NEED TO BE MADE EACH TIME
WHEN MOVING A FREESTANDING UNIT.
CONSTRUCTION ZONES
Keep all stainless steel products away from
construction zones. Construction debris such as
(but not limited to) stone dust, stucco, and lime
dust could damage or permanently discolor
stainless steel products. Keep all caustic chemicals
including chlorine and pool cleaning products
away from stainless steel at all times.
TESTING FOR LEAKS
Create a soapy water solution of 1 part soap and
3 parts water. Confirm that all control knobs are
in the off position. Turn on the fuel supply. For
natural gas, turn the valve handle ¼ turn to align
with the gas flow. For LP, turn the cylinder valve
counter clockwise one full rotation. Apply the
soap solution generously by paint brush or squirt
bole on all connections and fiings. If bubble
appear to grow on any of the connections, you
have a gas leak. IMMEDIATELY turn off the gas
supply. Wash off the soapy solution with cold
water and dry. Tighten the loose joint or replace
the faulty part with manufacturer-recommended
replacement parts. DO NOT aempt to repair the
L.P. cylinder valve if it is damaged. The only way
to safely resolve a damaged cylinder is to replace
it by calling an authorized gas appliance service
technician or an LP gas dealer. Repeat the leak
test to ensure that no leaks are present. Do not
use the appliance until the leak is corrected.
4

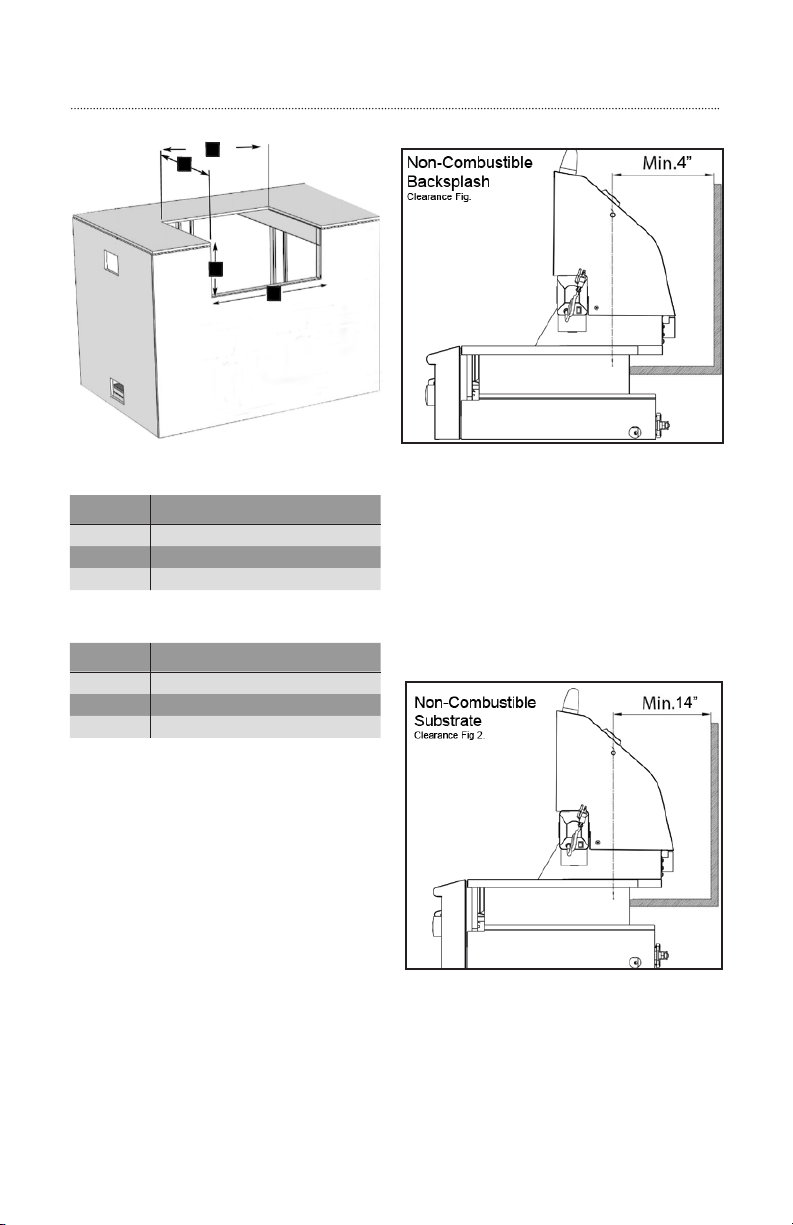

CUT OUT DIMENSIONS
Grill Model A: Width B: Height C: Depth
Alturi 30” 28.5” 10.1875" 23.0625"
Alturi 36” 34.75" 10.1875" 23.0625"
Alturi 42” 40.5" 10.1875" 23.0625"
OVERALL PRODUCT DIMENSIONS
Grill Model A: Width B: Height C: Depth
Alturi 30” 30" 25.484" 29.36"
Alturi 36” 36.024" 25.484" 29.36"
Alturi 42” 42" 25.484" 29.36"
INSTALLATION
IMPORTANT NOTES:
Clearance between grill and strictly non-
combustible wall (i.e. brick wall, Clearance Fig. 1).
The grill must have a minimum of 4” right, le
and rear clearance from any non-combustible
wall. This allows for proper ventilation and helps
prevent dangerous overheating.
ALL BBQ ISLANDS MUST BE MANUFACTURED FROM
“NON COMBUSTIBLE” MATERIAL. IF COMBUSTIBLE
MATERIAL IS BEING USED, A SUMMERSET GRILL
LINER IS REQUIRED.
NOTE:
For the minimum clearances between the grill
and any side or rear walls, your setup must fall
within one (or more) of the following:
Clearance between grill and protected
combustible wall (i.e. a non-combustible
wall in front of a combustible wall to serve as a
barrier. This can be accomplished by brick or
a metal stud finished with non-combustible
substrate. Clearance Fig. 2). The grill must have
a minimum of 14” right, le and rear clearance
from the protected combustible wall. (The 4”
non-combustible material clearance, plus an
additional 10” clearance between the grill and
protected wall.)
C
A
A
B
1
5
INSTALLATION
EXHAUST HOOD REQUIREMENTS
When using an exhaust hood, the area above
the cooking surface of the grill must be covered
with a hood larger than the cooking area of the
grill, AND with a minimum of 1200 CFM (cubic
feet per minute) for proper outdoor application

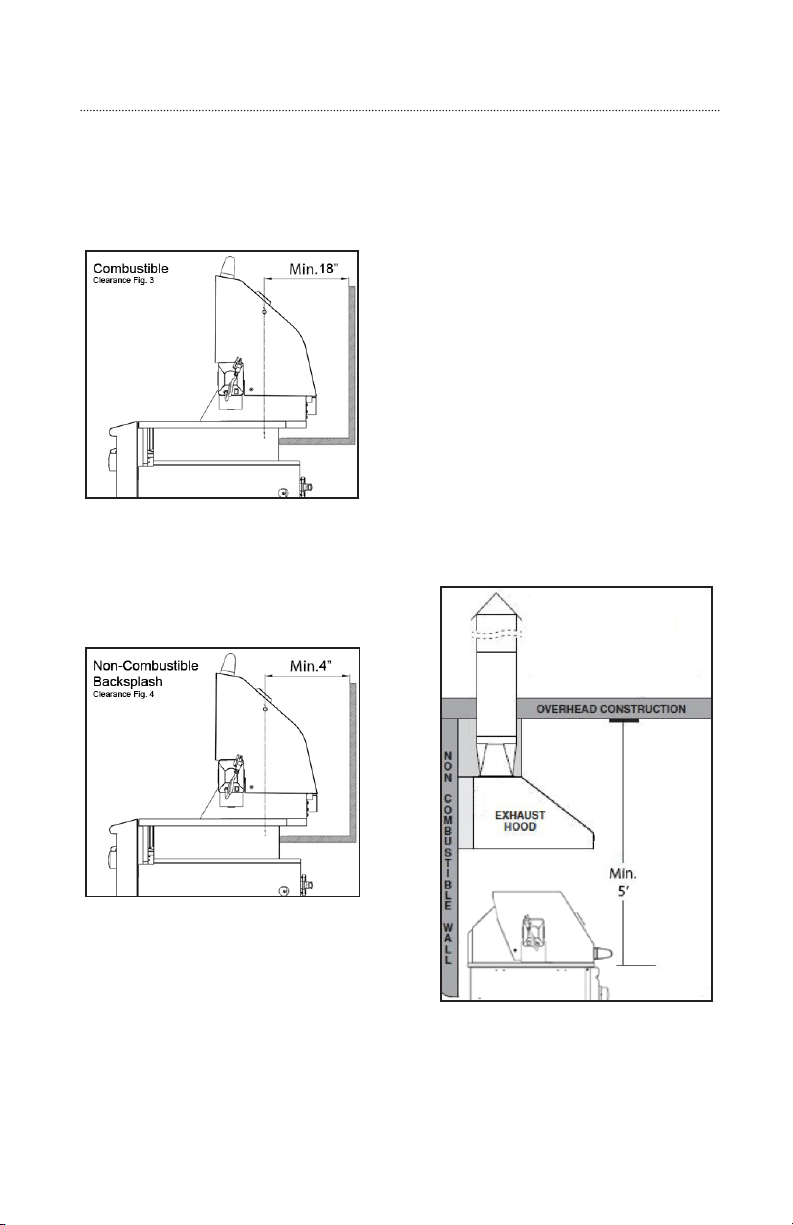

SIDE AND REAR WALL CLEARANCES
Clearance between grill and combustible wall
(Clearance Fig. 3). The grill must have a minimum
of 18” right, le and rear clearance from any
combustible wall.
BACK SPLASH CLEARANCE
(
IF APPLICABLE
)
If a non-combustible backsplash exists, it must
have a minimum of a 4” clearance from the rear
of the grill (to allow for proper ventilation and
help prevent dangerous overheating. Clearance
Fig. 4).
IMPORTANT NOTES:
This 4” backsplash clearance must first be met
prior to any non-combustible walls beginning
behind it.

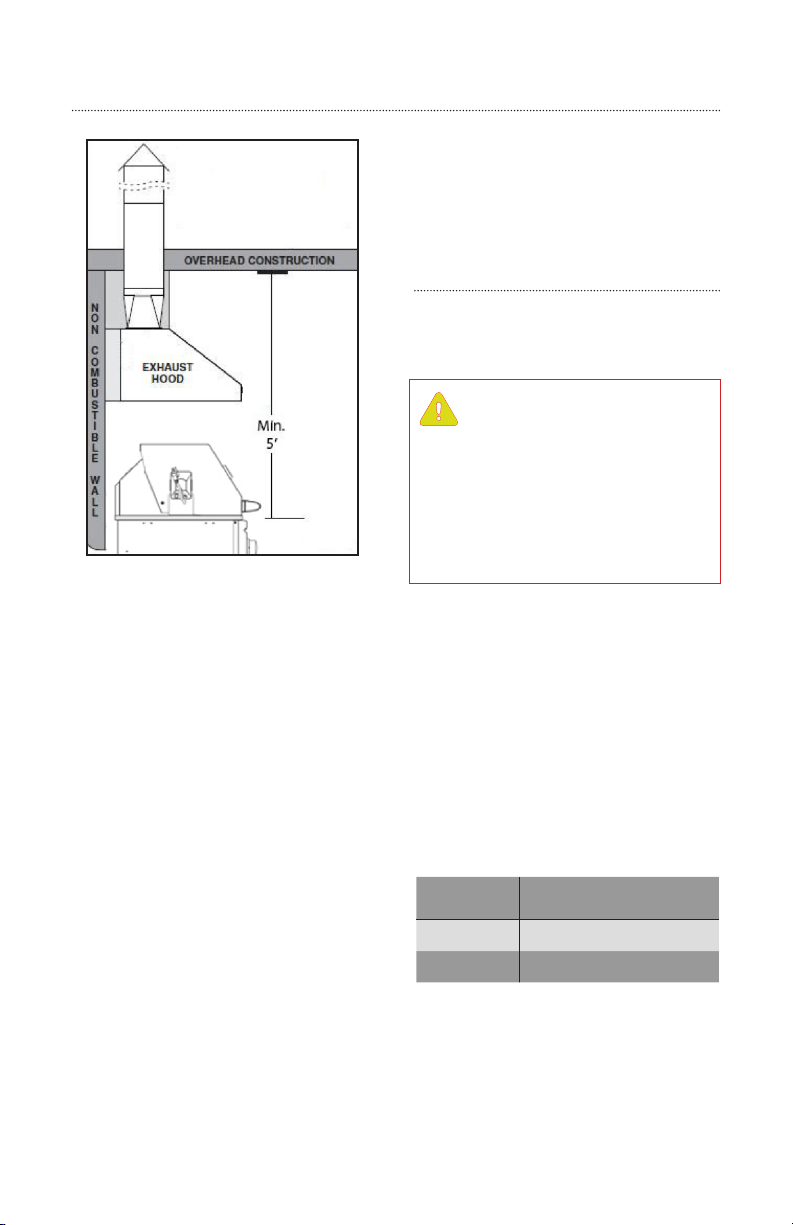

OVERHEAD CONSTRUCTION AND EXHAUST
HOOD REQUIREMENTS
IMPORTANT NOTES:
• DO NOT use this appliance under
unprotected combustible overhead
construction.
• When installed under overhead non-
combustible construction, an exhaust
hood is highly recommended.
This grill is designed for outdoor use only. DO
NOT use this grill inside a building, garage, or
enclosed area. DO NOT use this grill in or on a
recreational vehicle or boat.
When installing this grill in a combustible
surround, a Summerset insulating jacket/grill
liner must be used.
A minimum five (5) foot clearance is required
between the countertop and the overhead
construction.
When installed under combustible overhead
construction, the area above the cooking
surface of the grill must be covered with an
exhaust hood. The exhaust hood provides
the protection for the combustible overhead
construction.
6
INSTALLATION / GAS REQUIREMENTS
UNPACKING YOUR GRILL
Included with your ALTURI grill are the following
loose items:
Cooking Grates: ALT30(2), ALT36(3), ALT42(3)
Burner Covers: ALT30(2), ALT36(3), ALT42(3)
Warming Rack: ALT30(1), ALT36(1), ALT42(1)
Drip Tray: ALT30(1), ALT36(1), ALT42(1)

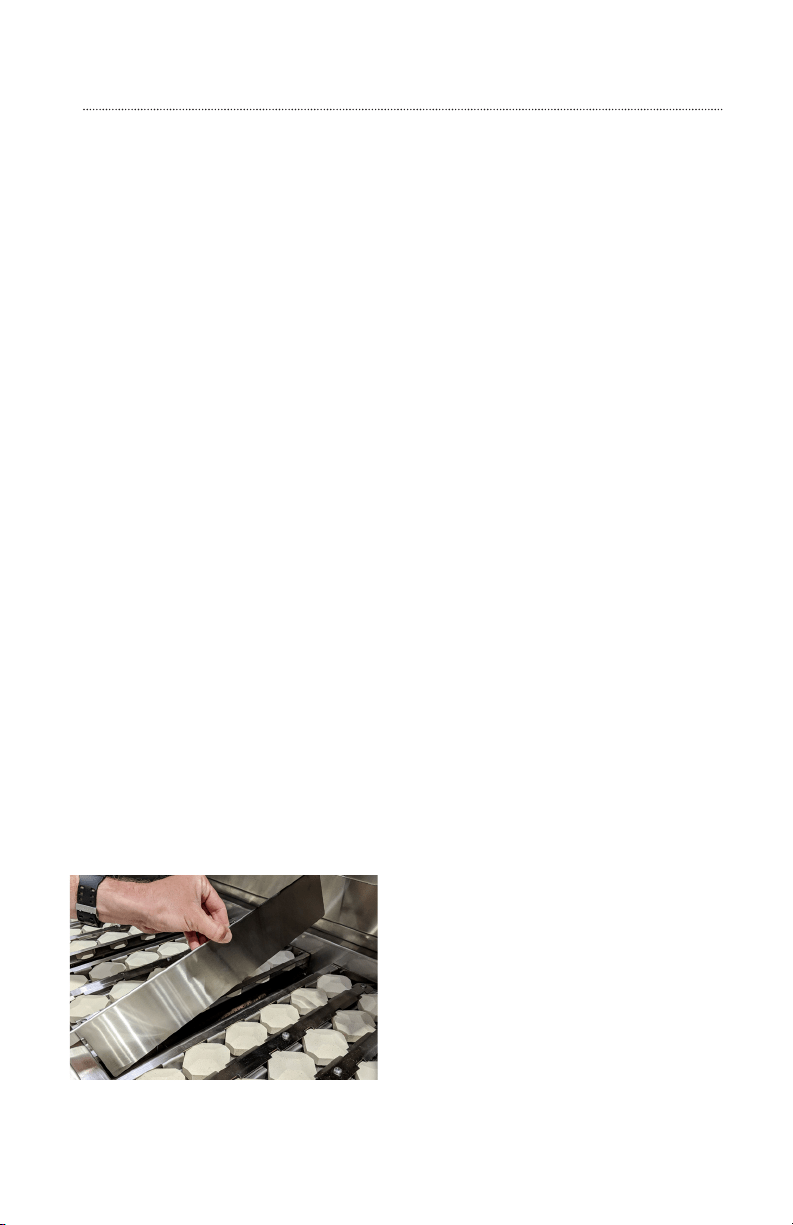

Heat Zone Separators: ALT30(1), ALT36(2), ALT42 (2)
Rotisserie Kit: ALT30 (1), ALT36 (1), ALT42 (1)
Combustible Overhead Construction:
Exhaust hood required.
Non-Combustible Overhead Construction:
Exhaust hood is highly recommended.
Conversion Kit:
• Set of orifices
• If grill is factory set LP, NG orifices will be
included
• If grill is factory set NG, LP orifices will be
included
• The drip tray will be at the boom of
the unit and will slide into the drip tray
support brackets.

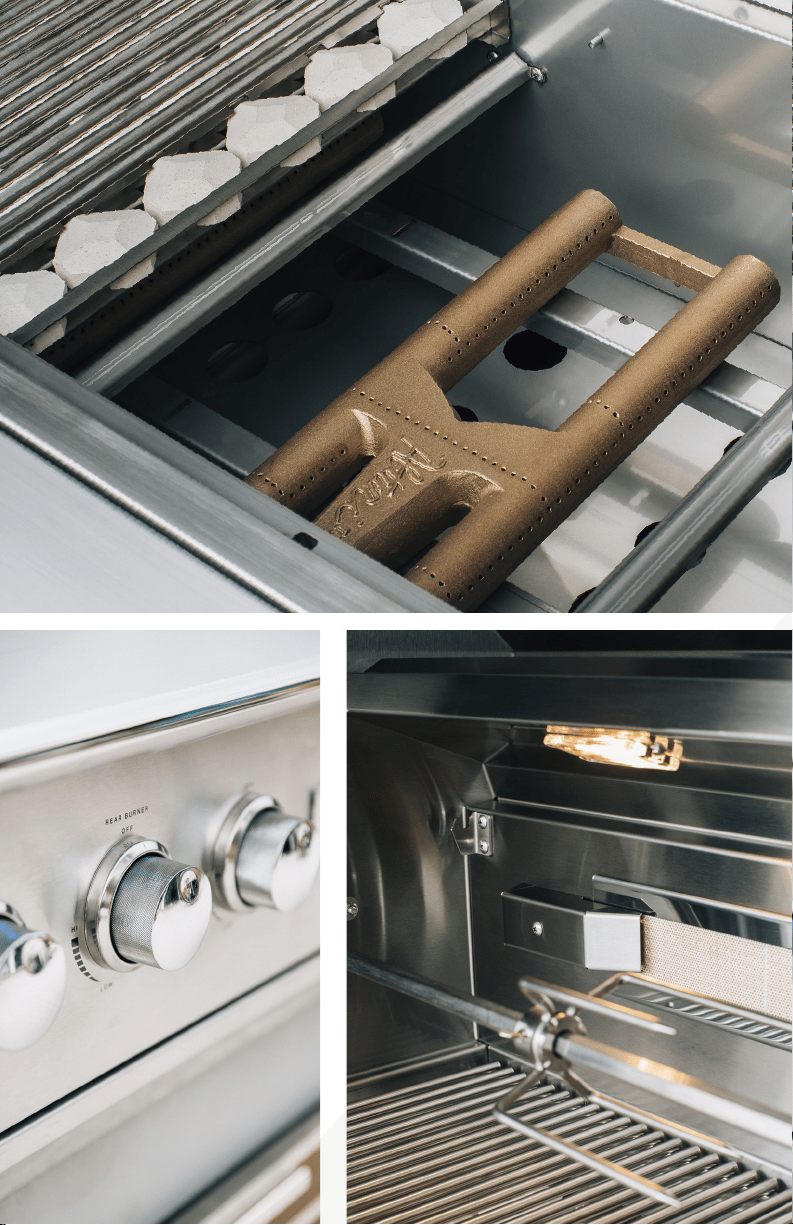

• Above the heat shields are the Red Brass
Burners (already installed).
GAS REQUIREMENTS
NATURAL GAS AND LIQUID PROPANE
REQUIREMENTS
When using an exhaust hood, the area above
the cooking surface of the grill must be covered
with a hood larger than the cooking area of the
grill, AND with a minimum of 1200 CFM (cubic
feet per minute) for proper outdoor application
WARNING!
GAS LINES
Never connect a gas line directly to the grill.
A pressure regulator must be installed on
all gas equipment. Removing or failing to
install the pressure regulator can result in fire
and serious personal injury and will void the
warranty
MINIMUM PRESSURE REQUIREMENTS
Ensure the gas supplied meets the minimum
pressure requirements. See below table for gas
requirements measure in water column (w.c.)
pressure:
Gas Type Maximum Minimum
Natural Gas 7” w.c. 4” w.c.
Liquid Propane 14” w.c. 11” w.c.
The burner covers or briquee trays are above
the burners and aach to the mounting pegs
located inside the firebox.
The cooking grates are placed above the burner
covers and finally the warming rack is placed on
the mounting tabs
Both the regulator and burner orifices have
been tuned for the type of gas specified on
the rating plate. Converting to a different type
of gas requires a conversion kit. Conversion
kits are included with this grill and located with
the manual. Converting gases may require
additional parts not included with this grill. (See
Gas Conversion section for details).
7
GAS REQUIREMENTS
NOTE: DO NOT use any tape, pipe dope or
threading compound on any flare fiing. This will
cause a clog in the regulator and prevent your grill
from functioning properly.
LIQUID PROPANE TANK REQUIREMENTS
NATURAL GAS REQUIREMENTS

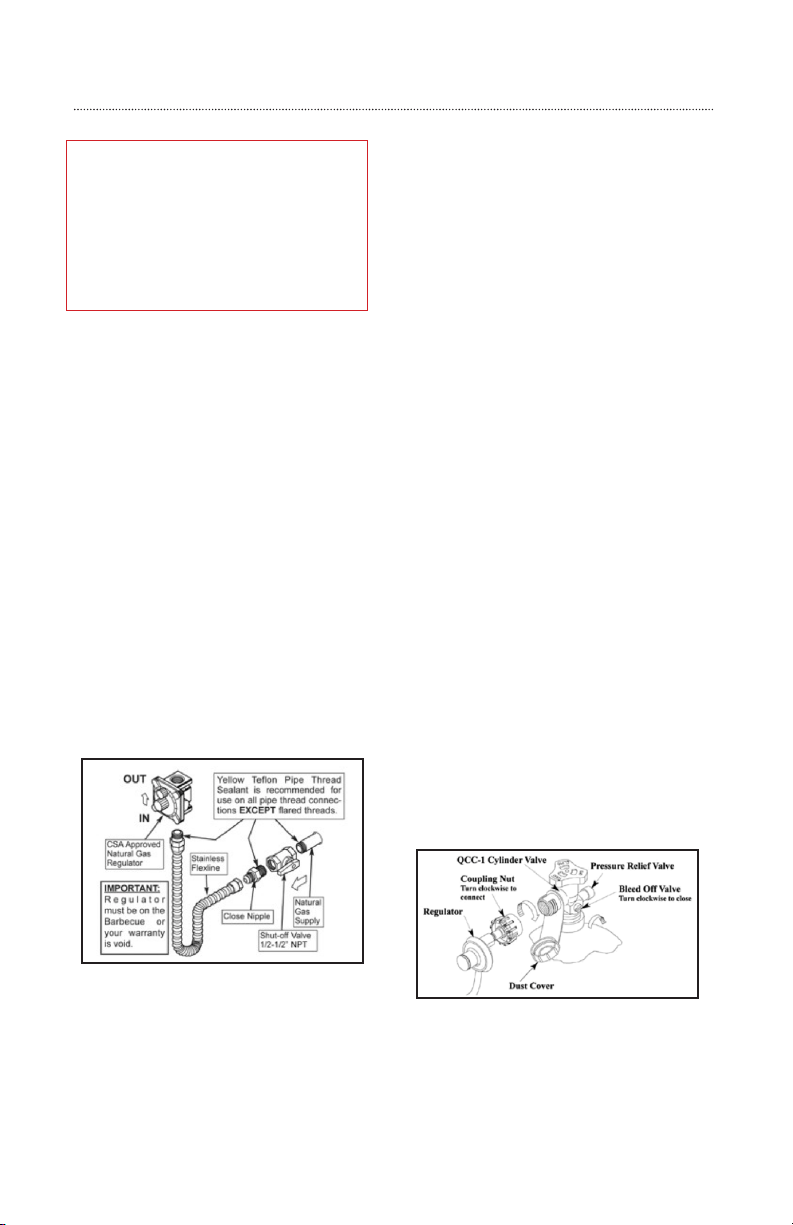

CONNECTING TO THE NG REGULATOR
Turn off the gas at the supply when grill is not
in use.
Please ensure:
• Summerset Professional Grills
recommends that only qualified
professionals perform the required
plumbing on this product.
• Check the Rating Plate to make sure the
gas supply you are hooking up to is the gas
type the grill is manufactured for.
• To ensure satisfactory performance, the gas
supply line must be sized to accommodate
the total BTU requirements of all the gas-
fired equipment that will be connected to
that line.
• In no case should pipe less than 1/2” inside
diameter or 1” outside diameter ever be
used to connect this product.
• The LP gas tank has a shutoff valve,
terminating in an LP gas supply tank valve
outlet that is compatible with a Type 1 tank
connection device. The LP gas tank must

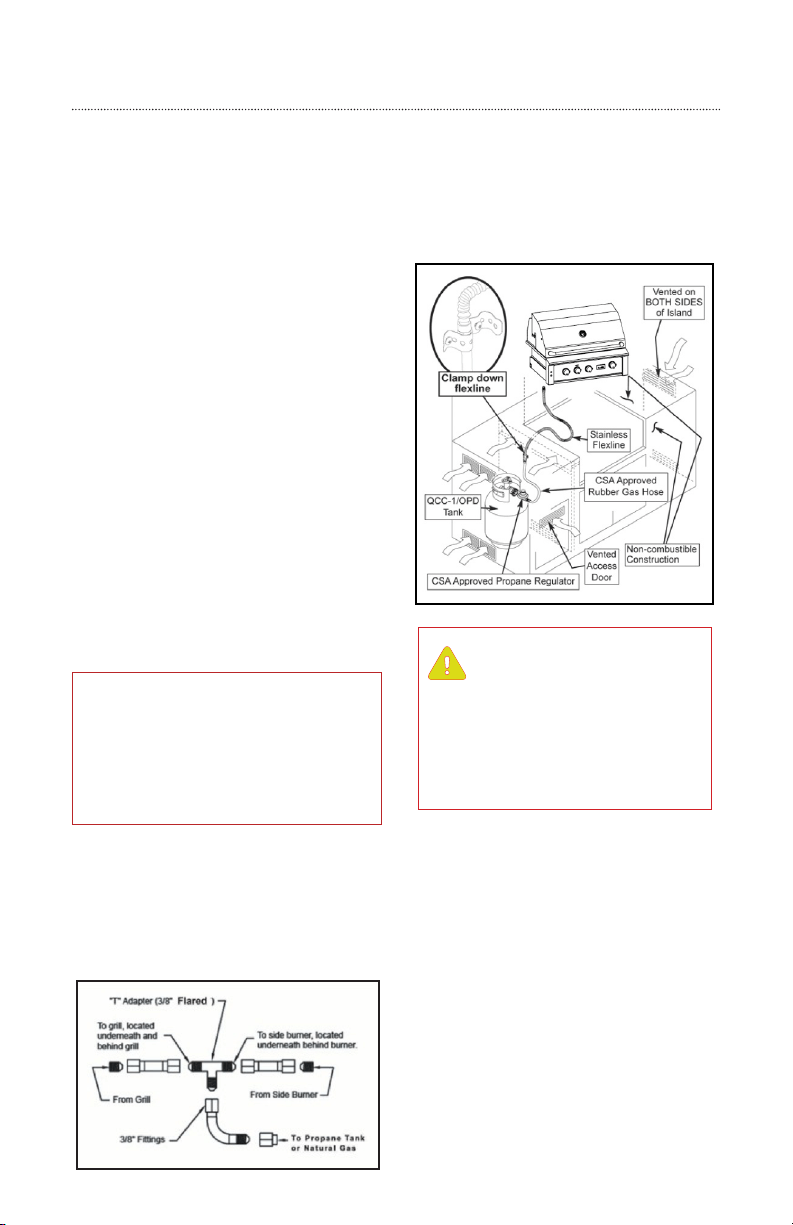

CONNECTING TO THE LP TANK
Never connect an unregulated LP gas tank to your
gas grill. The gas regulator assembly supplied
with your gas grill is adjusted to have an outlet
pressure of an estimated 11” water column (W.C.)
for connection to an LP gas tank.
The hose and regulator are connected in the
following manner:
• Use a standard 20 lbs. LP tank with QCC – 1
fiing
• Grills set up for LP gas come equipped
with an LP hose regulator assembly for
connection to a standard 20 lbs. LP cylinder
(Type 1)
NOTE: DO NOT use any tape, pipe dope or
threading compound on any flare fiing. This will
cause a clog in the regulator and prevent your grill
from functioning properly.
• Insert the regulator inlet into the cylinder
valve and turn the black coupling nut
clockwise until the coupling nut is
hand tight. DO NOT over-tighten this
connection.
• To disconnect the coupling nut, first make
sure the main cylinder valve is turned off.
Grasp the coupling nut and turn counter
clockwise. The inlet will then disengage.
IMPORTANT:
All installation and all installation parts
must conform to local codes with the
National Electrical Code, ANSI Z223.1/
NFPA 70 latest edition and the National
Fuel Gas Code ANSI Z223.1/NFPA 54 in the
U.S. and CGA-B149.1/.2 in Canada
FILLING AND REFILLING LP GAS CYLINDERS
All purging and refilling of LP gas cylinders
must be performed by qualified personnel in
the LP gas industry. Never store a spare LP gas
cylinder under or near this appliance.
Never fill the LP gas cylinder beyond 80 percent
full. Failure to follow these instructions may
result in explosion, personal injury or death.
also have a safety relief device that has a
direct communication with the vapor space
of the tank.
• The tank supply system must be arranged
for vapor withdrawal.
• The LP gas tank used must have a collar to
protect the tank valve.
8
GAS REQUIREMENTS
LP gas grill models are designed for use with a
standard 20 lb. liquid propane gas (LP) tank with
type (1) valve connections. (Not included)
Never connect your gas grill to an LP tank that
exceeds this capacity. A tank of approximately
12 inches in diameter by 18-1/2 inches high is the
maximum size LP gas tank to use. A propane tank
with an OPD (Overfill Prevention Device) must be
used. This safety feature prevents the tank from
being over-filled which can cause malfunction of
the LP gas tank, regulator and/or grill.
The LP cylinder must be constructed and
marked in accordance with the specifications
for LP gas cylinders of the U.S. Department of
Transportation (DOT) and designed for use with
a Type 1 system only. Be sure to read and follow all
LP connection instructions.
A dented or rusty LP cylinder may be hazardous
and should be avoided. If in doubt, have it
checked by your LP supplier. Always check
for leaks aer every LP cylinder change. (See
Checking For Leaks)
Cylinders must be stored outdoors in a well-
ventilated area out of the reach of children. If
your grill is stored indoors, the LP cylinder must
be stored outside, in upright position and away
from excessive heat.
CONNECTING TO A SIDE BURNER
You will need a ‘T’ adapter fiing (not provided)
or similar connection to connect a single gas line
to both a side burner and a grill. We recommend
a licensed gas technician install all gas lines. See
below figure for installation of a ‘T’ adapter.
IMPORTANT
All installation and all installation parts must
conform to local codes with the National
Electrical Code, ANSI Z223.1/ NFPA 70 latest
edition and the National Fuel Gas Code ANSI
Z223.1/NFPA 54 in the U.S. and CGA-B149.1/.2
in Canada
LIQUID PROPANE INSTALLATION
NOTE: Ventilation is require in the enclosure
on opposite sides to create cross-ventilation.
Liquid propane is heavier than natural gas and
vents should be located near the boom of the
enclosure.
Before lighting the burners, inspect the gas
supply piping or hose. If there is evidence of
cuts, wear, or abrasion, it must be replaced
prior to use. Always keep your face and body
as far away from the grill as possible when
lighting.
WARNING!
Never operate the grill unaended. DO
NOT OPERATE ROTISSERIE BURNER WITH
WARMING RACK INSTALLED
Your Summerset Professional Grill is equipped
with reliable, high-efficiency piezo ignition
valves. Below are instructions for valve ignition
and manual ignition lighting.
9
LIGHTING THE GRILL / MAINTENANCE TIPS
VALVE IGNITION
MANUAL IGNITION
BEFORE LIGHTING ROTISSERIE BURNER
NOTE:
CAUTION: Always wait five (5) minutes for gas to
clear aer any unsuccessful lighting aempt.
IMPORTANT: REMOVE THE WARMING RACK
PRIOR TO TURNING ON THE ROTISSERIE
BURNER. Turning the rotisserie burner on while
the warming rack is installed will cause the
warming rack to warp and void the warranty.
NOTE: Keep the hood closed during the pre-heat
period.
1. Follow steps 1-3
2. Place either a burning long-barrel butane
lighter or a burning long-stem match
near the manual flash tube to the right of
the grill. For back burners, hold the flame
against the surface of the back burner.
3. Hold the lighter or match flame at the top
of the manual flash tube for five (5) seconds,
or, next to the back burner. Then depress
the appropriate control knob and while
pressing turn it counterclockwise to the HI
position. Remove the lighter or match when
the burner lights and release the control
knob.
4. If the burner does not light within five
(5) seconds of turning the control knob,
immediately depress the knob and turn the
control knob to off. Wait five (5) minutes
before repeating steps 2-4 of the MANUAL
LIGHTING instructions.
• Open the hood before lighting; do not
aempt to ignite burners while hood is
closed.
• Make sure gas supply is turned on.
• Make sure burner control knobs are in the
“OFF” position.
• Press in the control knob then slightly
turn the knob counterclockwise while still
pressing in.
• Hold in the above position for 5 seconds
allowing the gas to reach the manifold.
• Turn the knob counterclockwise past the
ignition to the high seing to ignite. You
will hear the one time clicking sound of the
spark ignition.
• Aer ignition, set the knob to the desired
seing.
PLEASE Keep your face and body away from the
grill top when lighting
1. If the burner doesn’t ignite, wait five (5)
minutes before repeating steps 4-7.
2. DO NOT turn on more than one valve at
a time for either
MAINTENANCE TIPS
PREHEATING THE GRILL
Pre-heating your grill every time you use it is
extremely important. Pre-heating allows the
briquees to properly heat up, providing more
even and more consistent cooking results. Pre-
heat your grill by igniting all main burners. Then
close the hood and allow the grill to heat for 10
to 15 minutes, the hood thermometer should
reach approximately 450°. Once you’ve reached
your desired pre-heat temperature, turn off the
burners that you won’t be using to cook your food.
Remember, surface temperature can be up to
200° higher.
SHUT OFF INSTRUCTIONS
1. To shut off the unit, depress each valve
control knob and while pressing turn
clockwise to the “OFF” position.
2. Always close the valve from the gas supply
aer each use of the unit.
CLEANING THE DRIP TRAY
NOTE: When using a portable propane tank:
Propane tanks are equipped with a safety
shutdown device that may cause low or no gas
pressure/flame at the burners if operating and
lighting instructions are not followed exactly.
The drip tray should be cleaned aer each use.
Aer the grill is completely cool, remove the drip
tray by pulling it out until it stops, then liing the
front edge until the drip tray comes free. Clean
it with hot soapy water or an oven-style cleaning
product and re-install. When using an oven-
style cleaning product be sure to carefully follow
the manufacturer’s instructions. Many of these
cleaners are toxic and can damage the stainless-
steel finish if not used properly. Also, check the
tray aer rain. If you’ve le the grill uncovered,
you may need to remove the drip tray to drain the
water from the tray.
10
MAINTENANCE TIPS
LOW FLAME ADJUSTMENT
MAINTENANCE TIPS
Wash will warm soapy water and apply stainless
steel polish to protect routinely Grill Interior
STAINLESS STEEL NEEDS TO BE CLEANED?!?
ABSOLUTELY!
Stainless steels need to be cleaned for aesthetic
considerations and to preserve corrosion
resistance. Stainless steel is protected from
corrosion by a thin layer of chromium oxide.
Oxygen from the atmosphere combines with
the chromium in the stainless steel to form this
passive chromium oxide film that protects from
further corrosion. Any contamination of the
surface by dirt, or other material, hinders
this passivation process and traps corrosive
agents reducing corrosion protection. Thus,
routine cleaning is necessary to preserve the
appearance and integrity of the surface.
• To Adjust the Burner to a Low Seing:
• Make sure the grill is cool
• Remove the racks so you can see the
flames while adjusting the burners
• Light the burner and allow it to preheat on
high for 3 minutes
• Turn the burner to “LOW”
• Pull off the control knob
• Use a flat head screw driver and adjust the
“gold flathead screw” in the valve to the
proper flame height
GRILL EXTERIOR
STAINLESS STEEL MAINTENANCE
When removing stubborn stains:
• Do not use metallic abrasives and always
rub in the direction of the grain
• Some household cleaning products are
not suitable for stainless steel; be sure to
read the label before using on the grill
• Always use the mildest cleaning solution
first, scrubbing in the direction of the grain
• Specks of grease may gather in the grain
of the stainless steel and bake on to the
surface, giving the appearance of rust
• To remove these baked-on foods use a fine
to medium grit non-metallic abrasive pad
(Scotch Brite is good) in conjunction with a
stainless-steel cleaner
• Solutions used for cleaning concrete and
masonry can be very corrosive and will
‘aack’ stainless steel
• Be sure your Summerset products are well
protected before using these products
Aer each use wipe down the exterior of the grill to
remove grease and splaers. Use a commercially
available stainless-steel cleaner to clean and
polish the exterior surfaces. Doing these things
• Burn off excess food debris and marinades
for 15 minutes aer cooking
• Once the unit is cool, turn over the burner
covers and burn the top side (the burner
covers are reversible and are able to
be mounted upside down for cleaning
purposes)
• Use an approved stainless-steel oven
cleaner to remove grease build up
• Routinely have a professional barbecue
cleaning company detail the barbecue for
best results and longevity
GRILL EXTERIOR
IMPORTANT NOTE: FOR LOCATIONS NEAR
COASTAL AREAS AND POOLS
#304 stainless steel materials used in the
construction of your Summerset Professional Grill
are highly rust resistant, however, chlorine in the
air from swimming pools or the salt from sea air
may cause surface rust to appear and even create
some piing if le on the product. Here are a few
tips to avoid this:
• Regularly wipe down the exterior surfaces
with a damp cloth (micro fiber towels work
well)
• Allow the surfaces to dry before installing
the cover Do not cover a damp grill
• In extreme environments apply a rust
inhibitor which leaves a microscopic
protective layer on the grill
• For seasonal storage use the product
referred to above, ensure the grill is
dry, then cover and secure the cover to
minimize the amount of damp air geing
to the surfaces
on a regular basis minimizes the amount of effort
required
Aer your first use, certain areas of the grill may
discolor from the intense heat given off by the
burners - this is normal and cannot be cleaned
off. For light and heavy food stains there are many
different stainless-steel cleaners available.
11
GRILL FEATURES
ROTISSERIE INSTALLATION
CAUTION: When using the back burner, keep the
grill lid closed to prevent heat loss, provide proper
convection and provide proper venting. This will
ensure even cooking temperatures.
1. Remove the warming rack, cooking grates,
and cooking grates if necessary
2. Mount the rotisserie motor bracket on either
side of the grill nearest the outlet
3. Slide the rotisserie motor onto the rotisserie
motor bracket
4. Insert rotisserie spit (rotisserie rod) into
motor
5. Place 1st fork onto the rotisserie spit and
secure tightly
6. Position the meat onto the spit securing to
the 1st fork
7. Place 2nd fork onto the spit securing to the
meat and tighten screw
8. Insert collar onto spit
9. Screw on handle nut and handle
10. Add a drip pan beneath the meat to catch
drippings and retain moisture in the meat
11. Light back burner per lighting instructions
in this manual and close grill lid
Do not keep you grill lid open while cooking on the
rotisserie as this may cause personal injury, or in
some cases, in windy conditions, damage the grill.
Do not use the rotisserie motor in the rain. Do not
leave the motor on the grill when not in use.
IMPORTANT: Turn the back burner to low or off
when stopping the rotisserie to prevent over
cooking
HEATZONE SEPARATOR INSTALLATION
To install the heat zone separators, please insert
the heat zone separators as shown in the figure
below.
OPTIONAL DROPIN SEAR BURNER
INSTALLATION
The preferred location to install a drop-in sear
burner is on the far le of the grill. This will allow
for a sear zone while maximizing the main burner
grilling space. To install a drop-in sear burner:
• Remove the grate and burner covers to
access the main burner
• Remove the coer pin securing the main
burner (if necessary)
• Remove main burner
• Remove cross tube in between main
burners allowing for drop-in sear burner
to rest flat, if necessary
• Install sear burner with the center of the
orifice positioned in the center of the
burner and rest the back of sear burner flat
on the rear of the grill. There is a locating
pin in the rear of the sear burner that must
be seated correctly.
LIGHTING OPTIONAL DROPIN SEAR BURNER
1. Open the hood before lighting; do not
aempt to ignite burners while hood is
closed.
2. Make sure gas supply is turned on.
3. Make sure burner control knobs are in the
“OFF” position.
4. Press in the control knob then slightly
turn the knob counterclockwise while still
pressing in.
5. Hold in the above position for 5 seconds
allowing the gas to reach the manifold.
6. Turn the knob counterclockwise past the
ignition to the high seing to ignite. You
will hear the one time clicking sound of the
spark ignition.
7. Aer ignition, set the knob to the desired
seing.
8. Using the main burner sear zone can cause
extreme damage. 100% aendance to this
style of cooking is required.
POWER FRONT PANEL LED
To power internal halogen and external LED lights,
insert the trans wire (two prong connection) into
the transformer. Plug the transformer into an
electrical outlet rated for the transformer.
12
WARRANTY
Lifetime Warranty on construction and manufacturers defects
Lifetime Warranty on frame and housing
Lifetime Warranty on cooking grates, burners and valves
One year warranty on all other parts, components and electrical
Summerset Professional Grills Warranty is valid for original purchaser at original site of delivery with
proof of purchase and photo documentation only. Registration form must be submied within 30 days
of the purchase date to validate the warranty. Warranty is void upon transfer of ownership. Warranty
does not apply to products installed in any commercial, rental, or non-residential application. Warranty
covers replacement parts only. Manufacturer is not responsible for labor or labor-related costs. Warranty
does not cover discoloration, surface rust, corrosion, or oxidation, which may occur due to harsh
environments, chemicals, or overheating. Warranty will not apply for damage resulting from improper
installations, abuse, extreme environments, grease fires, or misuse. Regular and proper maintenance is
required. Coastal, humid, and/or salt environments are subject to manufacturer review. All out-of-box
claims must be made within 30 days of purchase and must be made prior to installation. Any product
installed damaged will be considered damaged during installation and not covered under warranty.
Warranty and registration forms are available at www.SummersetGrills.com. Please be advised – all
display models are sold “as is” and the warranty covers the following items only: main burners (lifetime),
grates (lifetime), burner covers (1 year). All warranties are subject to the review and approval of the
manufacturer.
WARRANTY NOTE
The Summerset Lifetime Warranty provides protection against rust through of parts that render
the product inoperative. It does not cover occasional surface rust or staining due to environmental
conditions.
Summersetgrills.com 17322 Gothard St., Huntington Beach, CA. 92647 800.966.8126
WE MAKE IT ALL
Summerset offers a wide variety of luxury stainless steel
refrigerators, wine coolers, and kegerators. With up to 6.6 cubic
feet of storage, these appliances will help keep your food fresh,
wine chilled, and beer flowing, bringing the function of your
indoor refrigeration outside to join the party.
SINKS & BAR PREP
Take your outdoor kitchen to the next level with our sinks
and ice chests. The Summerset Beverage Center is complete
with an ice compartment, sink, towel holder, speed rail with
condiment tray, LED lights, and a built-in bole opener. When
you’re grilling, we want to make sure you have everything you
need conveniently on hand.
Summerset Professional Grills strives to meet every outdoor living expression. We offer a wide
range of products from grills, refrigeration, sinks, accessories and more. Our goal is to ensure
you have everything you need to create your perfect outdoor atmosphere. No maer the style or
budget, Summerset will deliver an experience that will help create the ultimate backyard getaway.
ACCESSORIES
Summerset’s full line of stainless steal outdoor kitchen
components makes sure you have everything you need for the
perfect outdoor kitchen experience. Double-lined construction
provides the extra insulation and resilience needed against
the elements, so closing drawers offer a luxurious feel, and a
thicker flange provides a sturdy, seamless fit and elegant style
that will work with any countertop and island finish.
REFRIGERATION
