INSTALLATION:
IFM742A10
09/18
SAFETY PRECAUTIONS:
EASY CONNECT®
INSTALLATION INSTRUCTIONS
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS

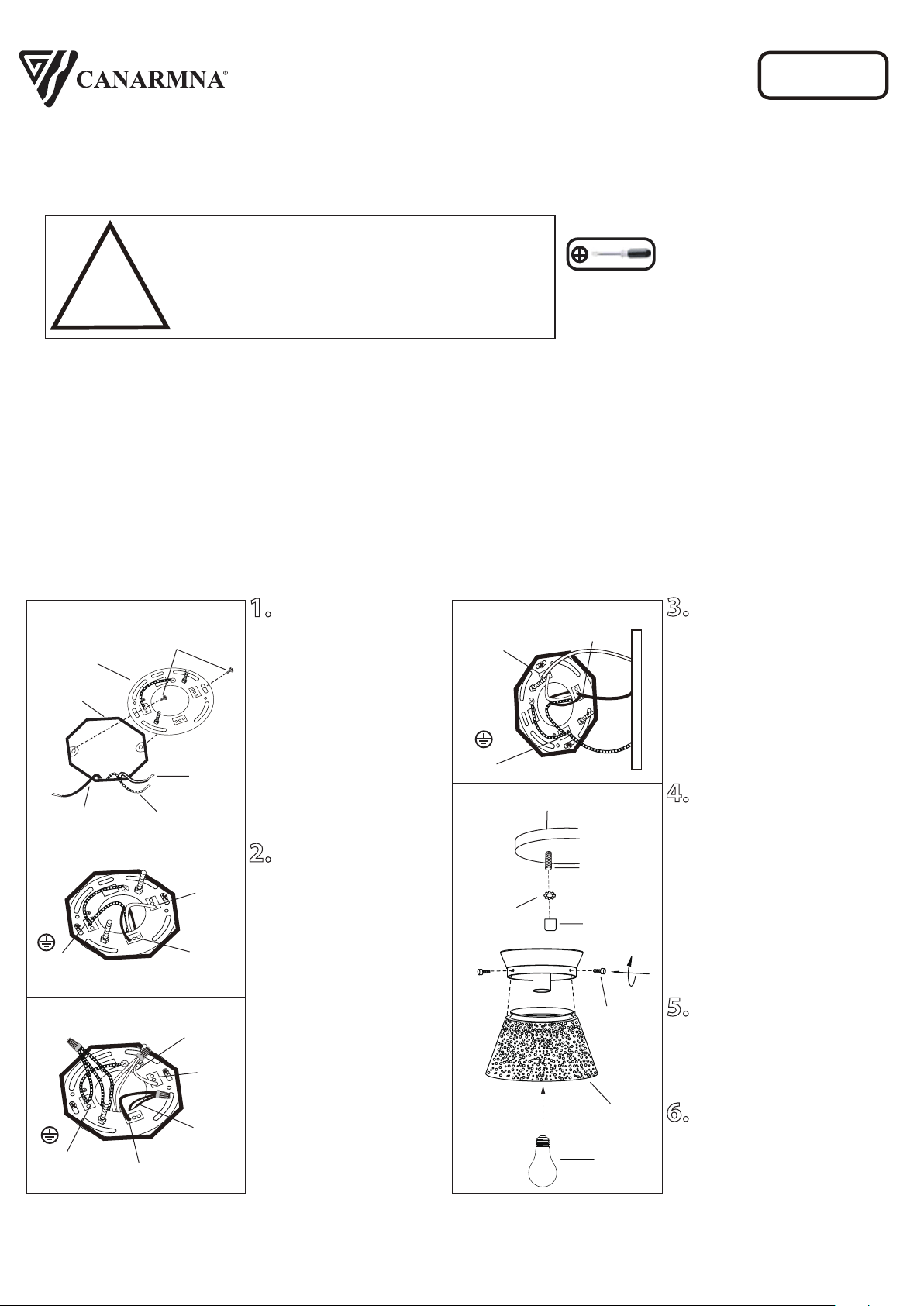

1. Attach easy connect
mounting bracket to
electrical box with electrical
box screws (not included).
2. Option 1: Connect
(push) electrical wires from
electric box (house wiring)
into correct inserts.
Option 2: For multiple
green (ground), black (live)
and white (neutral) wires
joined in the electrical box
(house wiring), attach a
single “green”, “black” and
“white” jumper wire before
connecting. Strip 7mm from
the 6” jumper wires (AWG
12-24) supplied. Then
connect (push) wires into
the correct inserts.
3. Connect (push) electrical
wires from fixture into correct
inserts.
4. Tuck electrical wires into
electrical box and position
fixture over studs on
mounting bracket assembly.
Secure fixture in place with
star washers and cap nuts.
5. Remove the thumb
screws that are already on
your fixture. Attach the glass
shade to the fixture using the
thumb screws (tighten with
fingers only).
6. Install proper bulb type
and wattage (not included).
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
DO NOT REMOVE INSULATION FROM FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT
CONDUCTOR.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598
Star
Washer
Cap
Nut
Fixture
Stud
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Bulb
Thumb
Screw
Shade
L
N
L
N
Fixture
Option 1
Option 2
Black (Live)
White
(Neutral)
Green (Ground)
Easy Connect
mounting
bracket
(L)
Black
(Live)
(L)
Black (Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Green
(Ground)
Jumper Wire
Jumper Wire
Electrical
box screws
Electrical
Box
L
N
L
N
