PatentPending
ModelNo.831.21522.1
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal
(beneath stabilizer)
• Assembly
• Operation
• Maintenance
• Part List and Drawing
I EXERCISE
User's Manual
_, CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL 60179

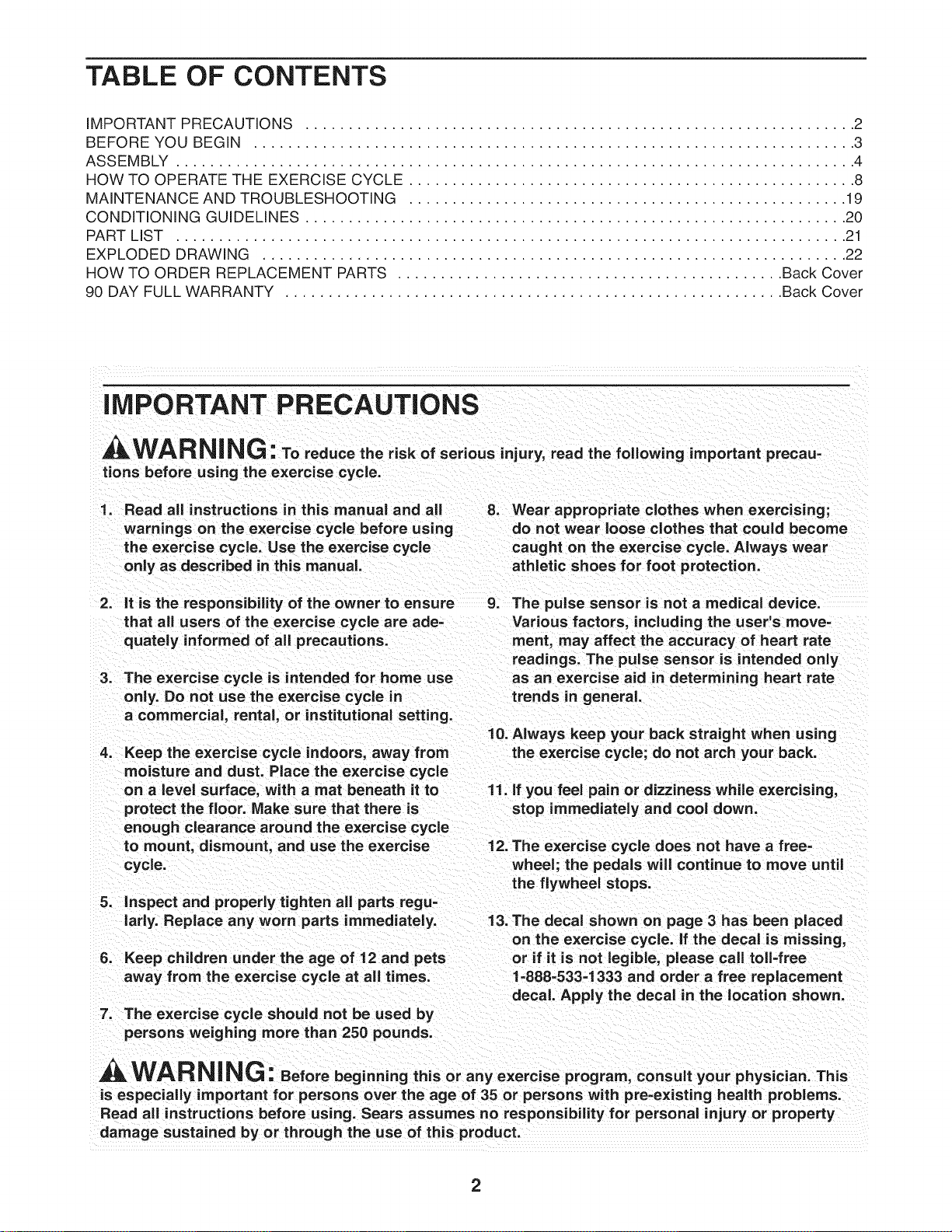

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................ 2
BEFORE YOU BEGIN ...................................................................... 3
ASSEMBLY ............................................................................... 4
HOW TO OPERATE THE EXERCISE CYCLE .................................................... 8

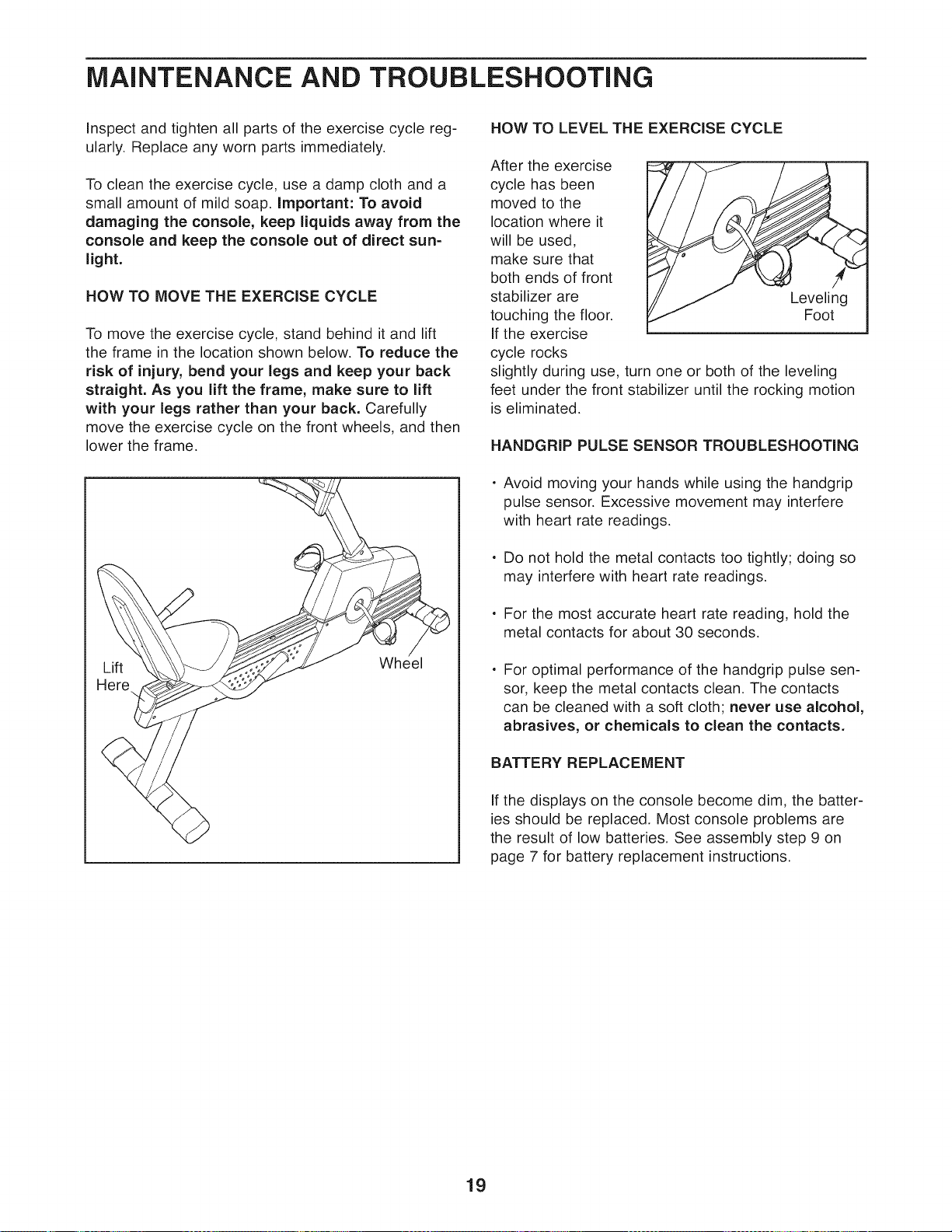

MAINTENANCE AND TROUBLESHOOTING ................................................... 19
CONDITIONING GUIDELINES ............................................................... 20

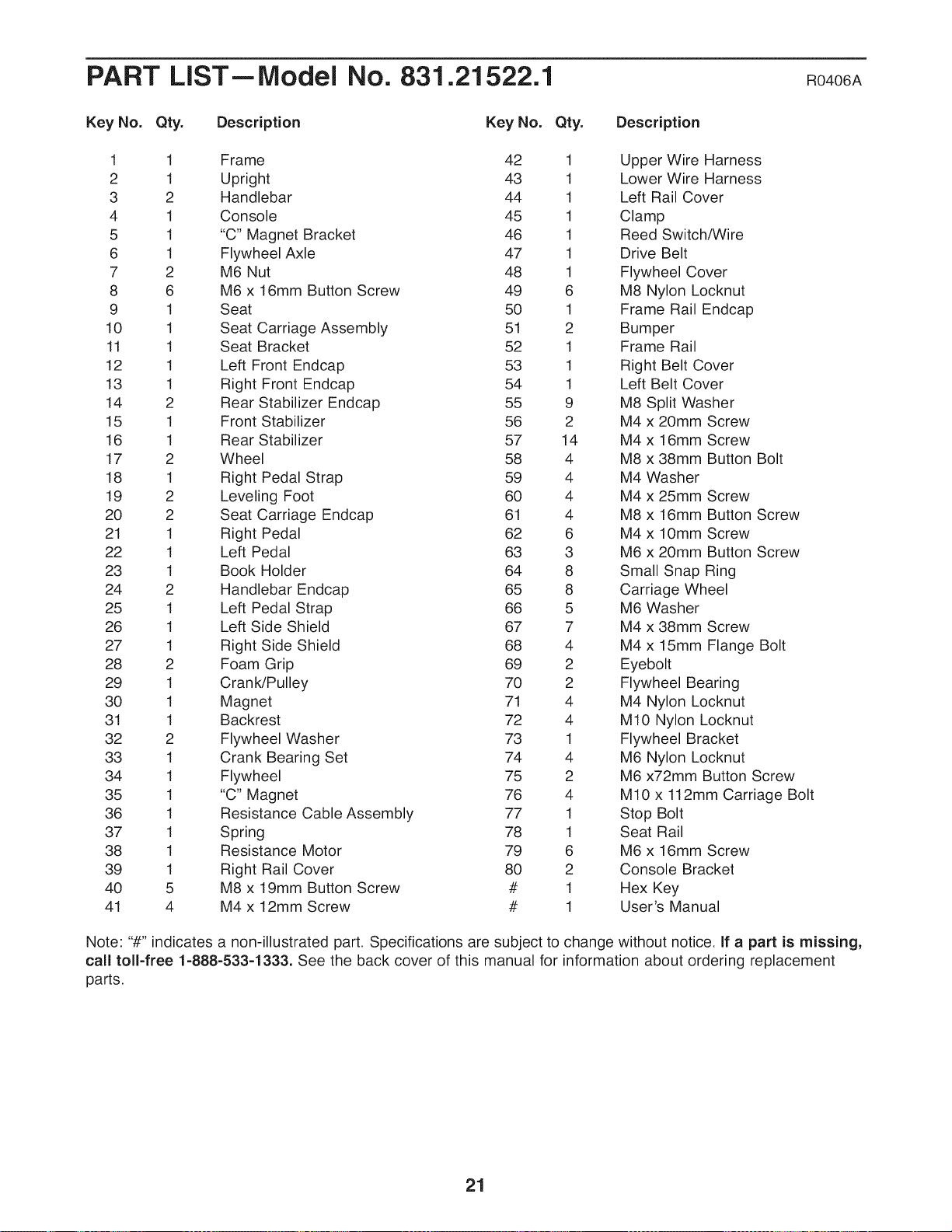

PART LIST .............................................................................. 21

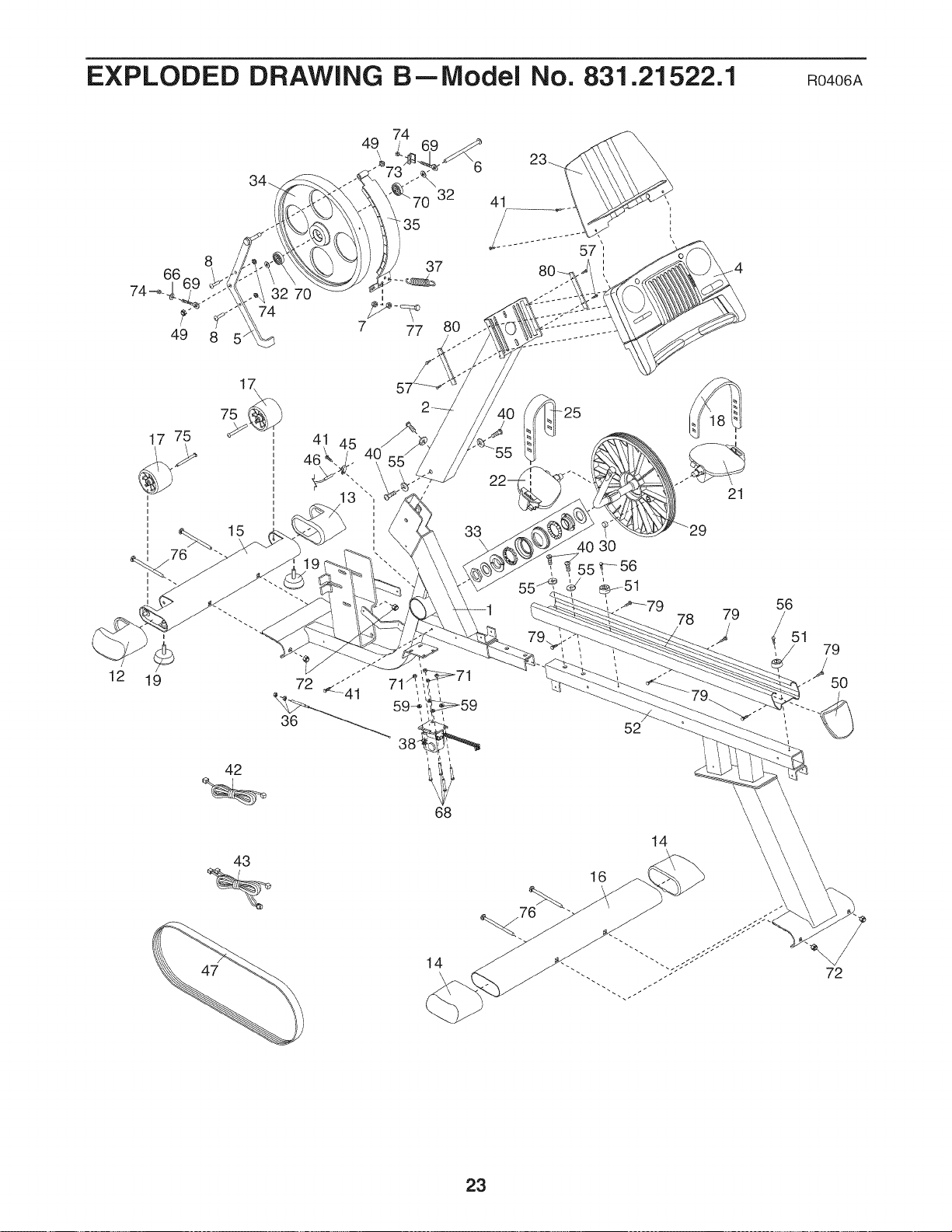

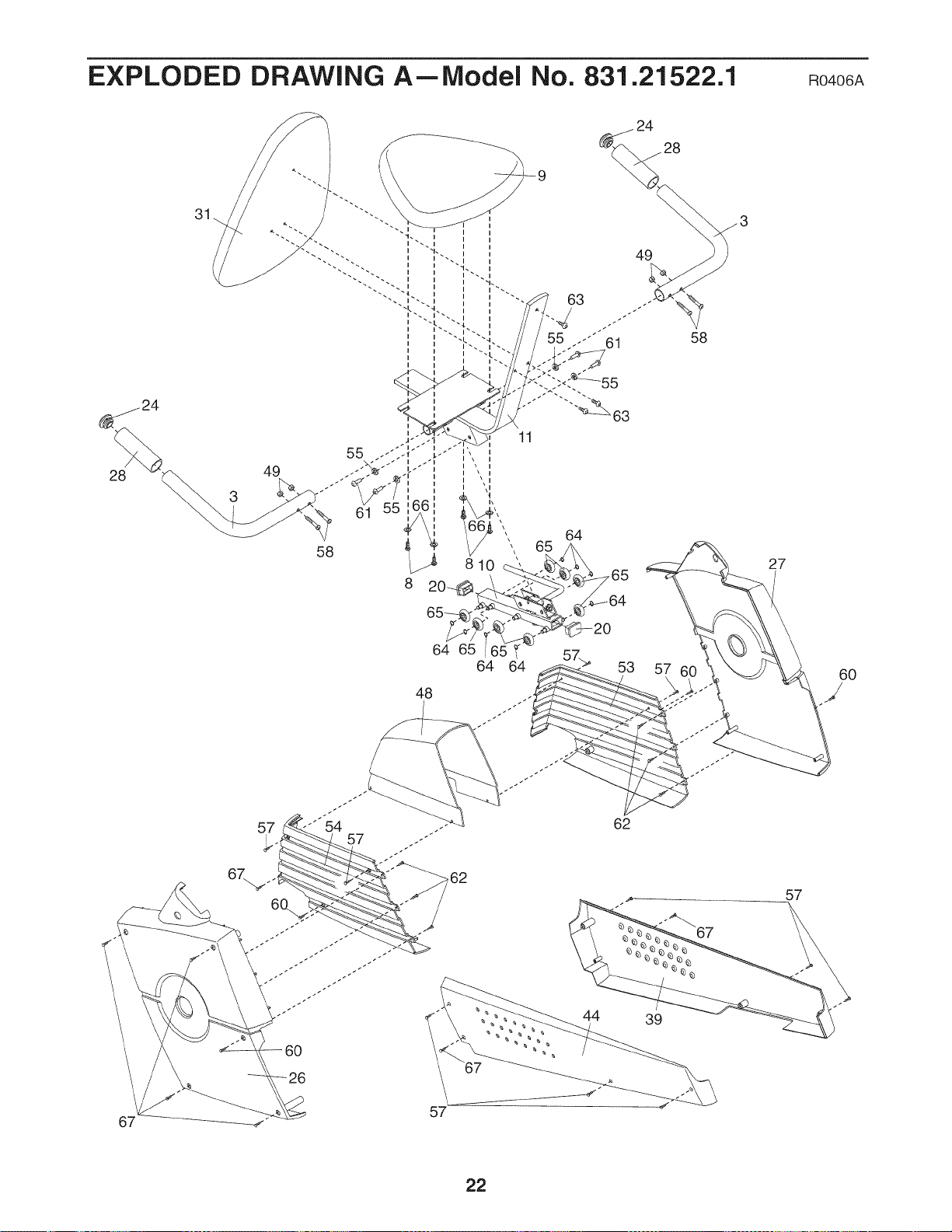

EXPLODED DRAWING .................................................................... 22
HOW TO ORDER REPLACEMENT PARTS ............................................. Back Cover
90 DAY FULL WARRANTY .......................................................... Back Cover
iMPORTANT PRECAUTIONS
AWARNING: Toreducethe.skofse.ousinjury, readthefollowing important precau-
tionsbefore using the exercise cycle.
1. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle. Use the exercise cycle
only as described in this manual.
8. Wear appropriate clothes when exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
2. It is the responsibility of the owner to ensure 9. The pulse sensor is not a medical device.
that all users of the exercise cycle are ade- Various factors, including the user's move-
quately informed of all precautions, merit, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
3. The exercise cycle is intended for home use as an exercise aid in determining heart rate
only. Do not use the exercise cycle in trends in general.
a commercial, rental, or institutional setting.
10. Always keep your back straight when using
4. Keep the exercise cycle indoors, away from the exercise cycle; do not arch your back.
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor. Make sure that there is
enough clearance around the exercise cycle
to mount, dismount, and use the exercise
cycle.
5. Inspect and properly tighten all parts regu-
11. if you feel pain or dizziness while exercising,
stop immediately and cool down.
12. The exercise cycle does not have a free-
wheel; the pedals will continue to move until
the flywheel stops.
lady. Replace any worn parts immediately. 13. The decal shown on page 3 has been placed
on the exercise cycle, if the decal is missing,
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. The exercise cycle should not be used by
persons weighing more than 250 pounds.
or if it is not legible, please call toll-free
1-888-533-1333 and order a free replacement
decal. Apply the decal in the location shown.
A WARNING: Beforebeginningthisoranyexerciseprogram,consultyourphysician.Th_s
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. Sears assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
2

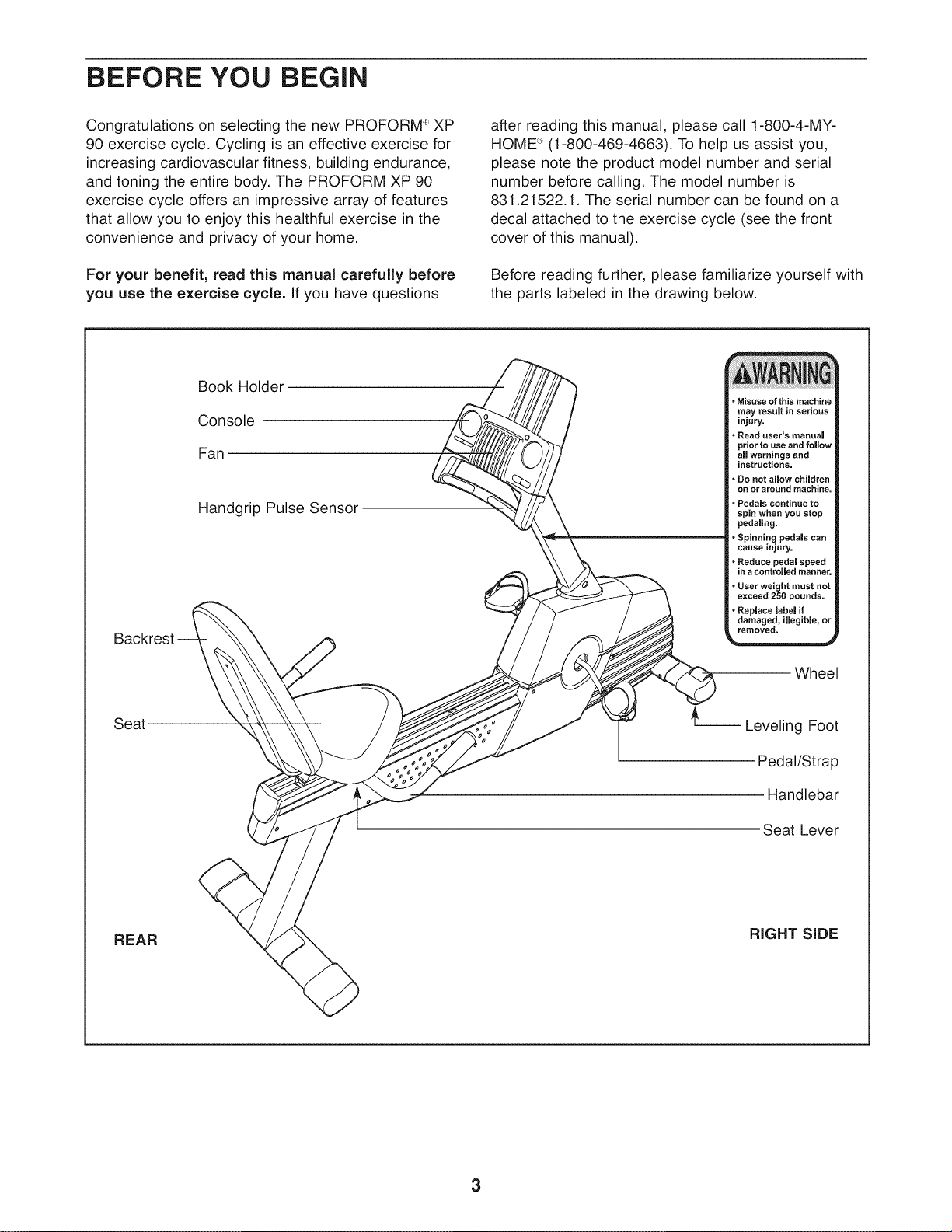

BEFORE YOU BEGIN
Congratulations on selecting the new PROFORM ®XP
90 exercise cycle. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the entire body. The PROFORM XP 90
exercise cycle offers an impressive array of features
that allow you to enjoy this healthful exercise in the
convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please call 1-800-4-MY-
HOME ®(1-800-469-4663). To help us assist you,
please note the product model number and serial
number before calling. The model number is
831.21522.1. The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual).
Before reading further, please familiarize yourself with
the parts labeled in the drawing below.
Book Holder
Console
Fan
Handgrip Pulse Sensor
Seat
REAR
• Misuse of this machine
may result in serious
injury.
• Read user's manual
prior to use and follow
all warnings and
instructions.
• Do not allow chi|dren
on or around machine.
• Pedals continue to
spin when you stop
pedaling.
• Spinning pedals can
cause injury.
• Reduce pedal speed
in a controlled manner.
• User weight must not
exceed 25() pounds.
• Replace label if
damaged, illegible, or
Wheel
-- Leveling Foot
Pedal/Strap
Handlebar
Seat Lever
RIGHT SIDE
3

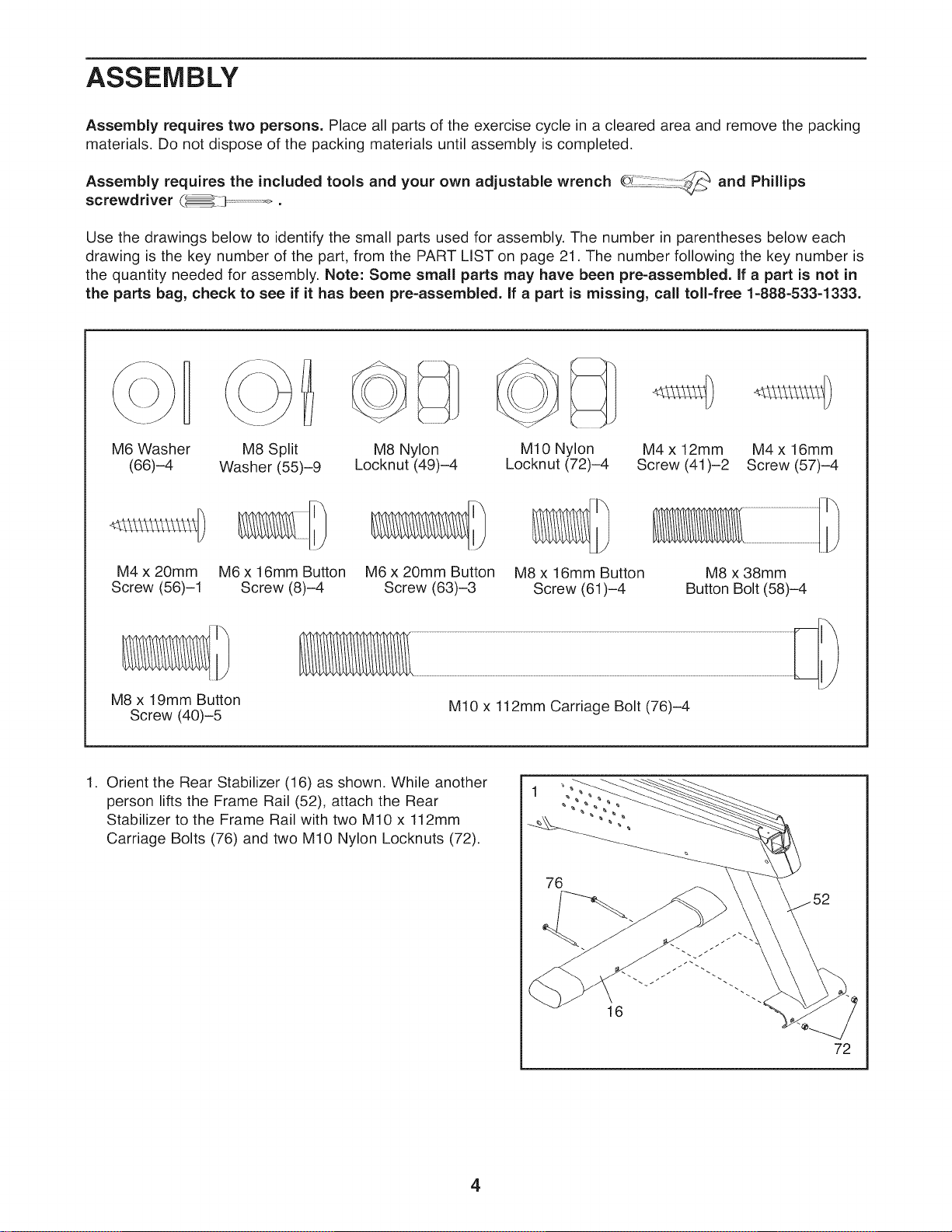

ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips
screwdriver (_]
Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LiST on page 21. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled. If a part is missing, call toll-free 1-888-533-1333.
M6 Washer
(66)-4
M4 x 20mm
Screw (56)-1
M8 Split
Washer (55)-9
M6 x 16mm Button
Screw (8)-4
M8 Nylon
Locknut (49)-4
M6 x 20mm Button
Screw (63)-3
M10 Nylon M4 x 12mm M4 x 16mm
Locknut (72)-4 Screw (41)-2 Screw (57)-4
M8 x 16mm Button
Screw (61)-4
M8 x 38mm
Button Bolt (58)-4
M8 x 19mm Button
Screw (40)-5
M10 x 112mm Carriage Bolt (76)-4
1. Orient the Rear Stabilizer (16) as shown. While another
person lifts the Frame Rail (52), attach the Rear
Stabilizer to the Frame Rail with two M10 x 112mm
Carriage Bolts (76) and two M10 Nylon Locknuts (72).
76
16
72
4

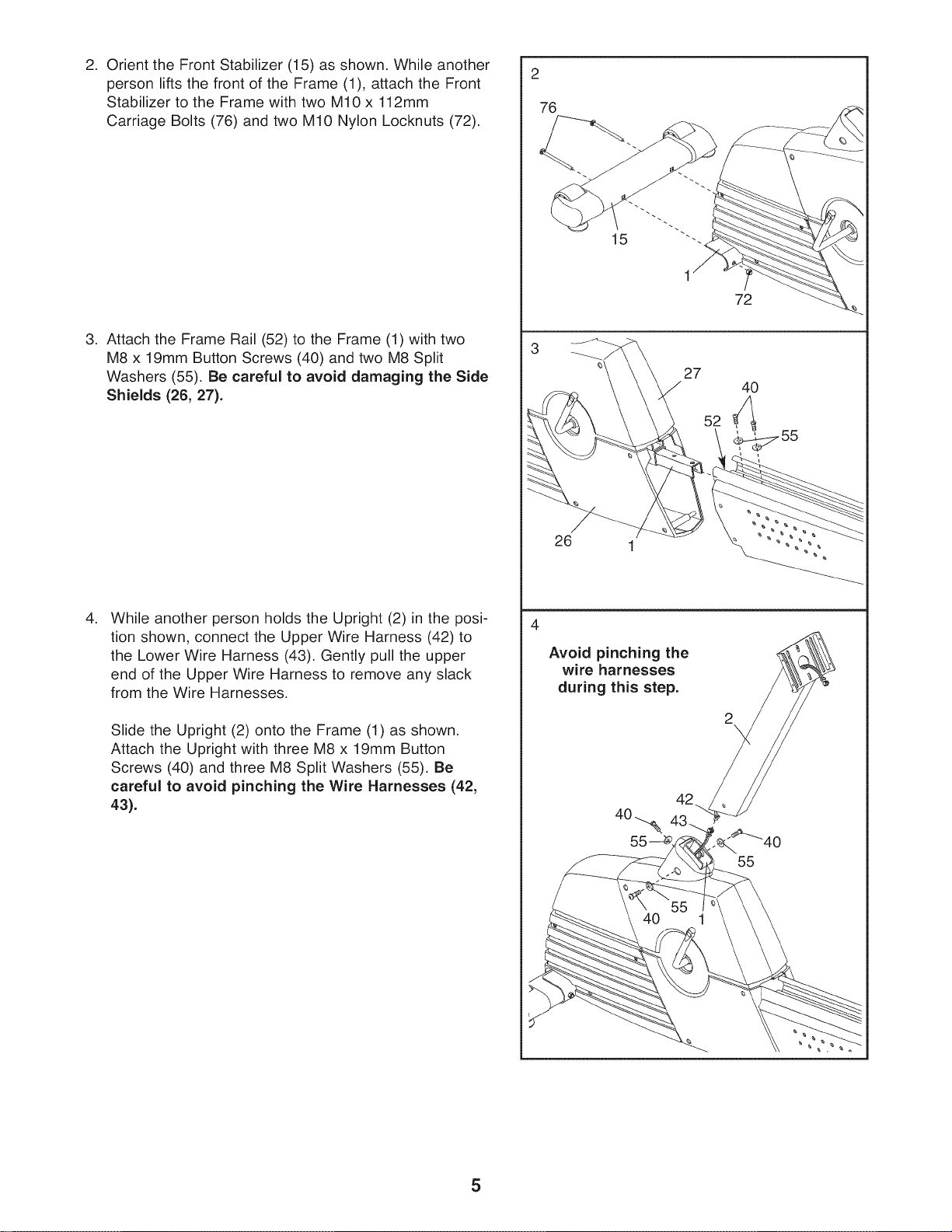

2. Orient the Front Stabilizer (15) as shown. While another
person lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 112mm
Carriage Bolts (76) and two M10 Nylon Locknuts (72).
3. Attach the Frame Rail (52) to the Frame (1) with two
M8 x 19mm Button Screws (40) and two M8 Split
Washers (55). Be careful to avoid damaging the Side
Shields (26, 27).
.
While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (42) to
the Lower Wire Harness (43). Gently pull the upper
end of the Upper Wire Harness to remove any slack
from the Wire Harnesses.
Slide the Upright (2) onto the Frame (1) as shown.
Attach the Upright with three M8 x 19mm Button
Screws (40) and three M8 Split Washers (55). Be
careful to avoid pinching the Wire Harnesses (42,
43).
2
76
15
1
72
3
27
40
26 1
4
Avoid pinching the
wire harnesses
during this step.
42
43_
2
\
55
5
5. 5
.
.

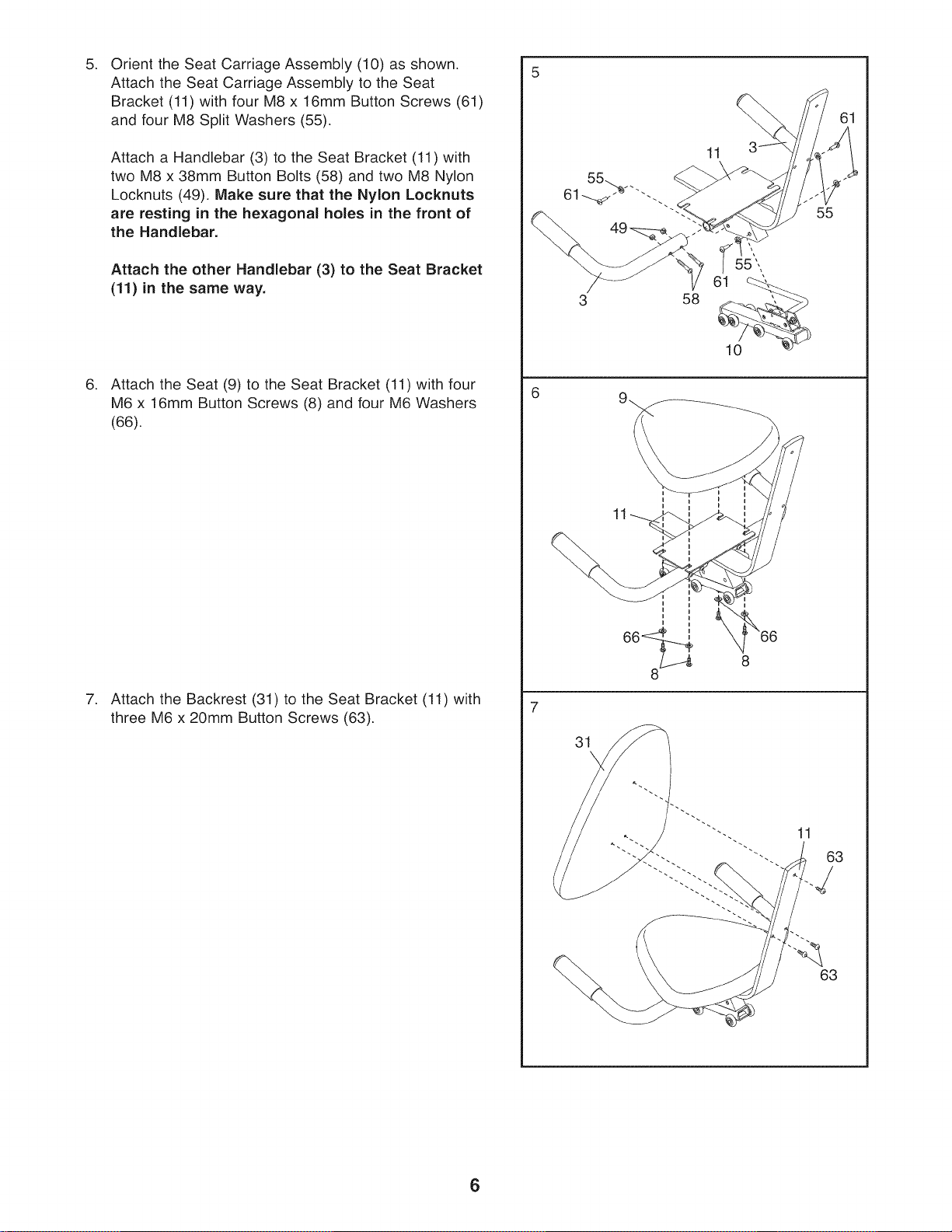

Orient the Seat Carriage Assembly (10) as shown.
Attach the Seat Carriage Assembly to the Seat
Bracket (11) with four M8 x 16mm Button Screws (61)
and four M8 Split Washers (55).
Attach a Handlebar (3) to the Seat Bracket (11) with
two M8 x 38mm Button Bolts (58) and two M8 Nylon
Locknuts (49). Make sure that the Nylon Locknuts
are resting in the hexagonal holes in the front of
the Handlebar.
Attach the other Handlebar (3) to the Seat Bracket
(11) in the same way.
Attach the Seat (9) to the Seat Bracket (11) with four
M6 x 16mm Button Screws (8) and four M6 Washers
(66).
Attach the Backrest (31) to the Seat Bracket (11) with
three M6 x 20mm Button Screws (63).
7
11
3
31
\
55
63
6
8. 8
Push down the seat lever (not shown) on the right side
of the Seat Carriage Assembly (10), slide the Seat
Carriage Assembly into the Seat Rail (78), and then
pull the seat lever back up.
Attach a Bumper (51) to the Seat Rail (78) with an
M4 x 20mm Screw (56). Next, press the Frame Rail
Endcap (50) into the end of the Frame Rail (52).
g.
The Console (4) requires four 1.5V "D" batteries (not
included); alkaline batteries are recommended.
Remove the two battery covers from the Console.
Next, insert four batteries into the battery compart-
ments. Make sure that the batteries are oriented as
shown by the diagrams inside of the battery com-
partments. Then, reattach the battery covers to the
Console.
Attach the Book Holder (23) to the Console (4) with
two M4 x 12mm Screws (41) as shown.
10. While another person holds the Console (4) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (42). Insert the
excess wire harness down into the Upright (2).
Attach the Console (4) to the Upright (2) with four M4
x 16mm Screws (57) and two Console Brackets (80).
Be careful to avoid pinching the wire harnesses.
10
78
52
Seat
Lever
10
50
23
41
Battery
Covers
...../ Batteries
57
80
42 Wire
Harness
7

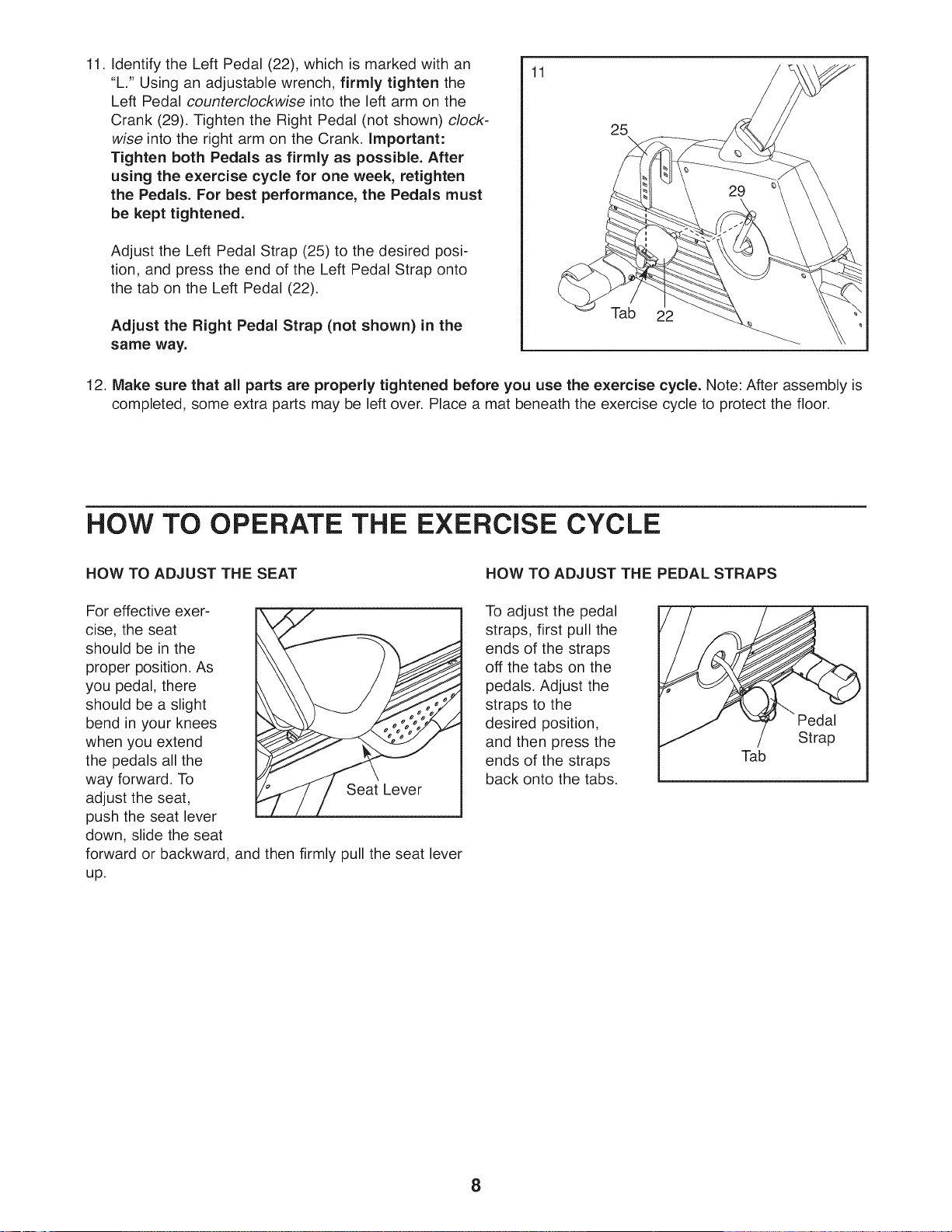

11. Identify the Left Pedal (22), which is marked with an
"L." Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the left arm on the
Crank (29). Tighten the Right Pedal (not shown) clock-
wise into the right arm on the Crank. important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the Left Pedal Strap (25) to the desired posi-
tion, and press the end of the Left Pedal Strap onto
the tab on the Left Pedal (22).
Adjust the Right Pedal Strap (not shown) in the
same way.
11
25
Tab 22
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT
For effective exer-
cise, the seat
should be in the
proper position. As
you pedal, there
should be a slight
bend in your knees
when you extend
the pedals all the
way forward. To
Seat Lever
adjust the seat,
push the seat lever
down, slide the seat
forward or backward, and then firmly pull the seat lever
up.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps
off the tabs on the
pedals. Adjust the
straps to the
desired position,
and then press the
ends of the straps
back onto the tabs.
Tab
Pedal
Strap
8

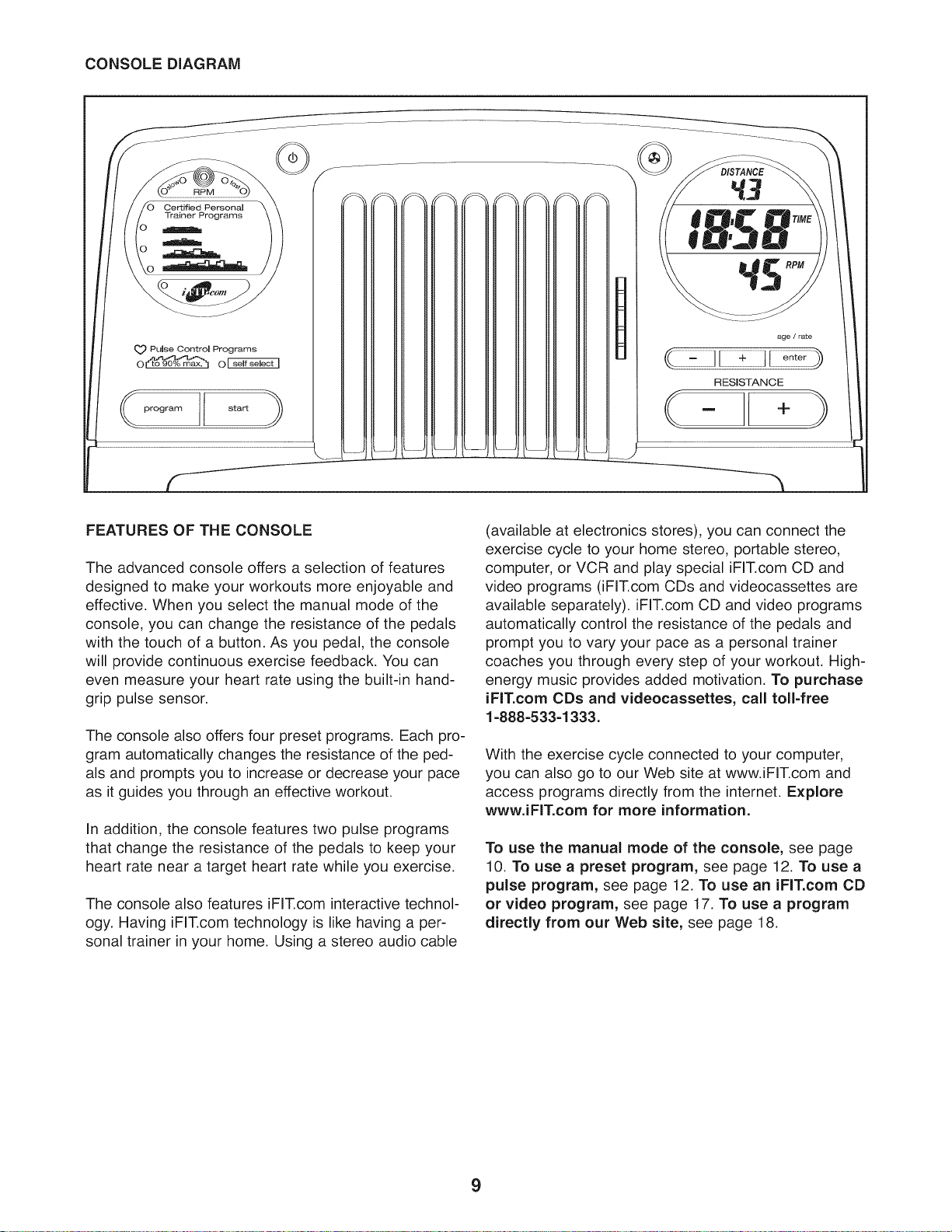

CONSOLE DIAGRAM
Pulse Control Programs
o_ o_
age / rate
RESISTANCE
(- +)
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When you select the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you pedal, the console
will provide continuous exercise feedback. You can
even measure your heart rate using the built-in hand-
grip pulse sensor.

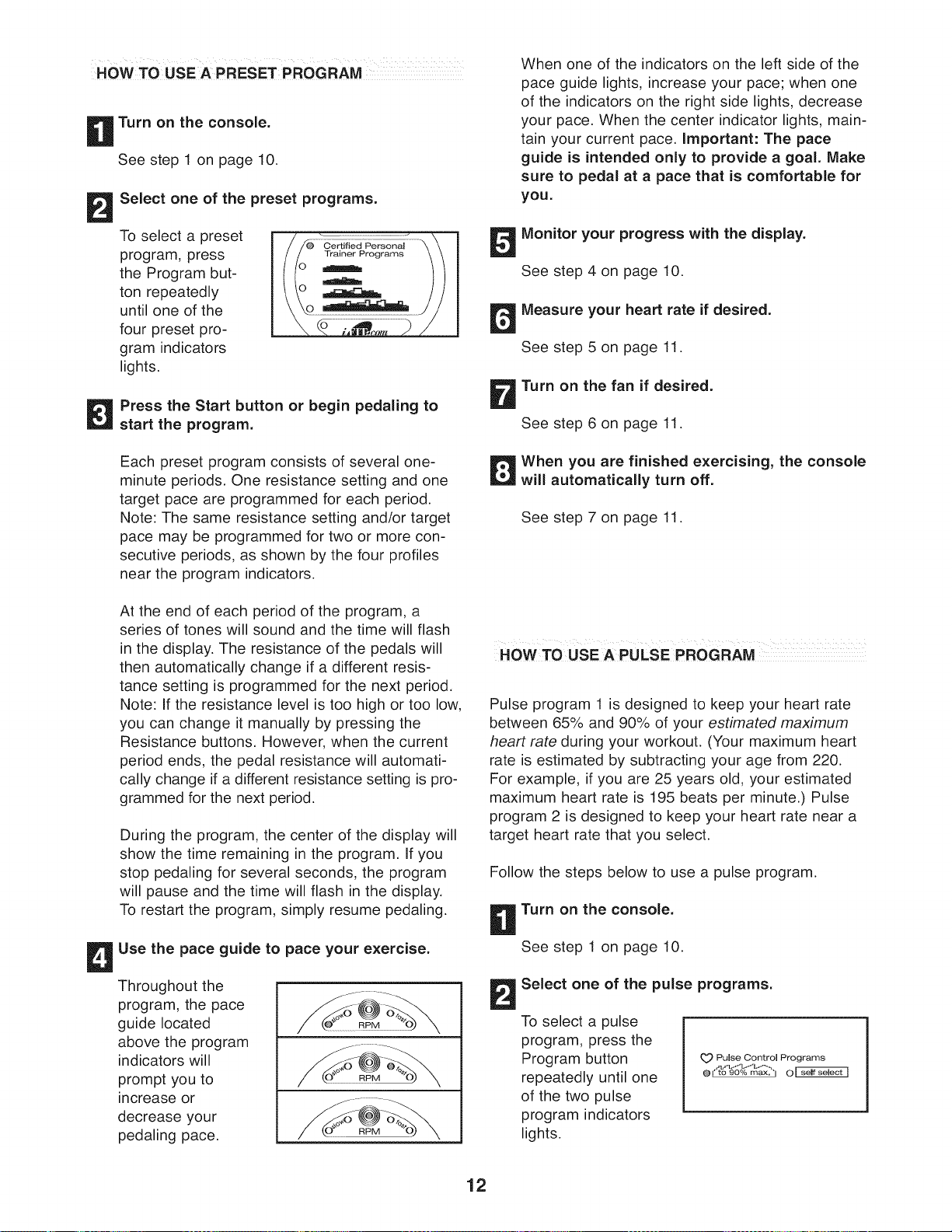

The console also offers four preset programs. Each pro-
gram automatically changes the resistance of the ped-
als and prompts you to increase or decrease your pace
as it guides you through an effective workout.
In addition, the console features two pulse programs
that change the resistance of the pedals to keep your
heart rate near a target heart rate while you exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using a stereo audio cable
(available at electronics stores), you can connect the
exercise cycle to your home stereo, portable stereo,
computer, or VCR and play special iFIT.com CD and
video programs (iFIT.com CDs and videocassettes are
available separately), iFIT.com CD and video programs
automatically control the resistance of the pedals and
prompt you to vary your pace as a personal trainer
coaches you through every step of your workout. High-
energy music provides added motivation. To purchase
iFIT.com CDs and videocassettes, call toll-free
1-888-533-1333.
With the exercise cycle connected to your computer,
you can also go to our Web site at www.iFIT.com and
access programs directly from the internet. Explore
www.iFIT.com for more information.
To use the manual mode of the console, see page
10. To use a preset program, see page 12. To use a
pulse program, see page 12. To use an iFIT.com CD
or video program, see page 17. To use a program
directly from our Web site, see page 18.
9

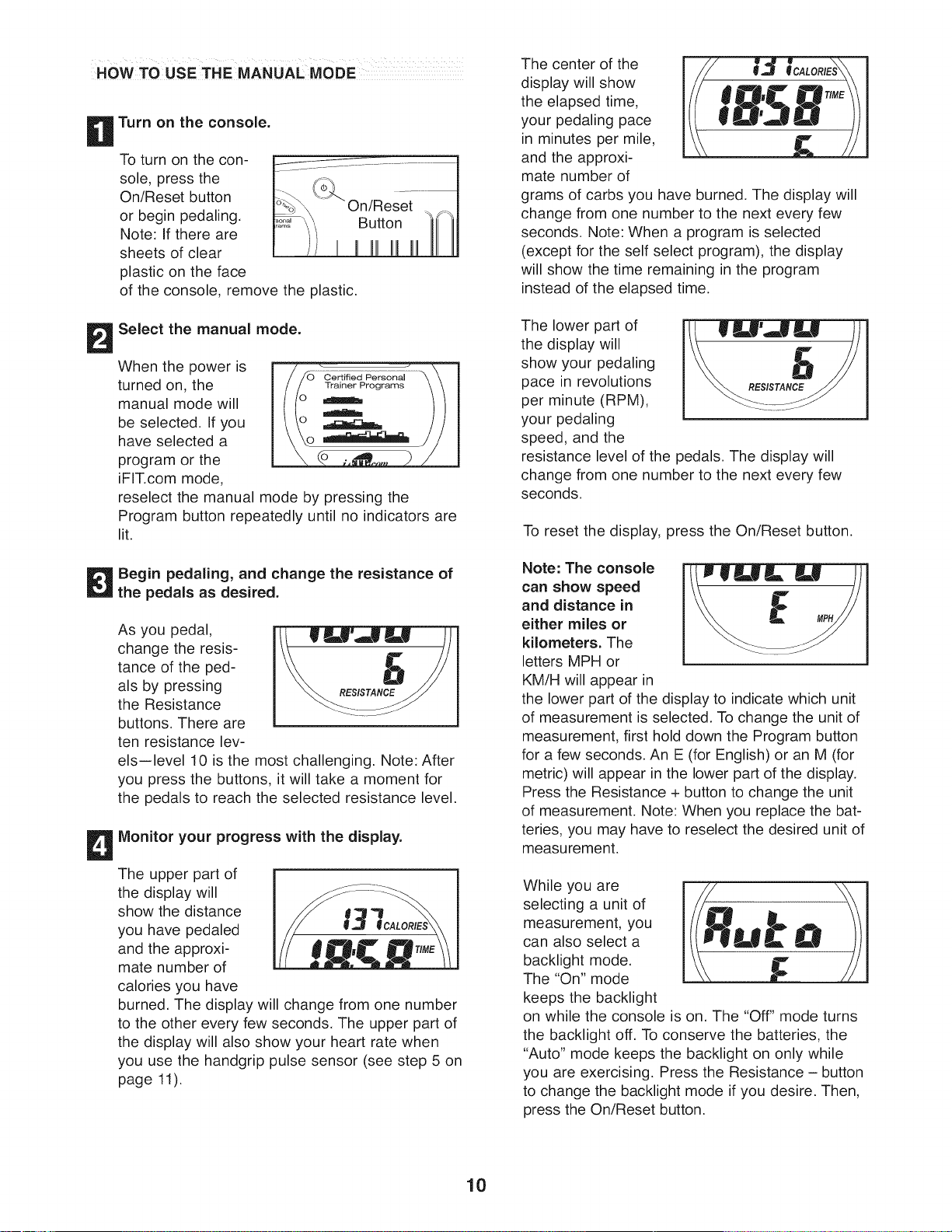

HOW TO USE THE MANUAL MODE
n
Turn on the console.
To turn on the con-
sole, press the
On/Reset button
or begin pedaling.
Note: If there are
sheets of clear
plastic on the face
of the console, remove the plastic.
Button
Select the manual mode.
When the power is
turned on, the
manual mode will
be selected, if you
have selected a
program or the
iFIT.com mode,
I / / Trainer Prog .... \ \ I
Ilt ))l
reselect the manual mode by pressing the
Program button repeatedly until no indicators are
lit.
Begin pedaling, and change the resistance of
the pedals as desired.
As you pedal,
change the resis-
tance of the ped-
als by pressing
the Resistance
buttons. There are
ten resistance lev-
els-level 10 is the most challenging. Note: After
you press the buttons, it will take a moment for
the pedals to reach the selected resistance level.
Monitor your progress with the display.
The upper part of
the display will
show the distance
you have pedaled
and the approxi-
mate number of
calories you have
burned. The display will change from one number
to the other every few seconds. The upper part of
the display will also show your heart rate when
you use the handgrip pulse sensor (see step 5 on
page 11).
The center of the
display will show
the elapsed time,
your pedaling pace
in minutes per mile,
and the approxi-
mate number of
grams of carbs you have burned. The display will
change from one number to the next every few
seconds. Note: When a program is selected
(except for the self select program), the display
will show the time remaining in the program
instead of the elapsed time.
The lower part of
the display will
show your pedaling
pace in revolutions
per minute (RPM),
your pedaling
speed, and the
resistance level of the pedals. The display will
change from one number to the next every few
seconds.
To reset the display, press the On/Reset button.
Note: The console
can show speed
and distance in
either miles or MP.
kilometers. The
letters MPH or
KM/H will appear in
the lower part of the display to indicate which unit
of measurement is selected. To change the unit of
measurement, first hold down the Program button
for a few seconds. An E (for English) or an M (for
metric) will appear in the lower part of the display.
Press the Resistance + button to change the unit
of measurement. Note: When you replace the bat-
teries, you may have to reselect the desired unit of
measurement.
While you are
selecting a unit of
measurement, you _
can also select a
backlight mode.
The "On" mode
keeps the backlight
on while the console is on. The "Off" mode turns
the backlight off. To conserve the batteries, the
"Auto" mode keeps the backlight on only while
you are exercising. Press the Resistance - button
to change the backlight mode if you desire. Then,
press the On/Reset button.
10
Measure your heart rate if desired.
if there are
thin sheets of
plastic on the
metal con-
tacts on the
handgrip
pulse sensor,
peel off the Contact,,
plastic. Place
your hands on
the handgrip pulse sensor, with your palms on the
contacts closest to you and your fingers touching
the contacts on the opposite side of the handgrip
pulse sensor. Avoid moving your hands. When
your pulse is detected, the heart-shaped indicator
in the upper part of the display will begin to flash
each time your heart beats, After a moment, the
display will show your heart rate.
For the most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds.
Note: If you continue to hold the handgrip pulse
sensor, the display will show your heart rate for
up to 30 seconds. The display will then show
your heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance,
periodically clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
Turn on the fan if desired.
To turn on the
fan at low speed,
press the fan but-
ton. To turn on
Button
the fan at high
speed, press the
fan button a sec-
ond time. To turn
off the fan, press
the fan button a
third time. Note:
If the fan is turned on but the pedals are not
moved for thirty seconds, the fan will automati-
cally turn off.
Thumb Wheel
Rotate the thumb wheel on the right side of the
fan to adjust the angle of the fan.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds, a
series of tones will sound, the time will begin to
flash, and the console will pause.
If the pedals are not moved for a few minutes, the
console will turn off and the display will be reset.
11
HOWTO USE A PRESET PROGRAM
n
Turn on the console.
See step 1 on page 10.
Select one of the preset programs.
To select a preset
program, press
the Program but-
ton repeatedly
until one of the
four preset pro-
gram indicators
lights.
I / / Trainer Programs \ \ I
I I
Press the Start button or begin pedaling to
start the program.
Each preset program consists of several one-
minute periods. One resistance setting and one
target pace are programmed for each period.
Note: The same resistance setting and/or target
pace may be programmed for two or more con-
secutive periods, as shown by the four profiles
near the program indicators.
At the end of each period of the program, a
series of tones will sound and the time will flash
in the display. The resistance of the pedals will
then automatically change if a different resis-
tance setting is programmed for the next period.
Note: If the resistance level is too high or too low,
you can change it manually by pressing the
Resistance buttons. However, when the current
period ends, the pedal resistance will automati-
cally change if a different resistance setting is pro-
grammed for the next period.
During the program, the center of the display will
show the time remaining in the program. If you
stop pedaling for several seconds, the program
will pause and the time will flash in the display.
To restart the program, simply resume pedaling.
Use the pace guide to pace your exercise.
Throughout the
program, the pace
guide located
above the program
indicators will
prompt you to
increase or
decrease your
pedaling pace.
D
When one of the indicators on the left side of the
pace guide lights, increase your pace; when one
of the indicators on the right side lights, decrease
your pace. When the center indicator lights, main-
tain your current pace. Important: The pace
guide is intended only to provide a goal. Make
sure to pedal at a pace that is comfortable for
you.
Monitor your progress with the display.
See step 4 on page 10.
Measure your heart rate if desired.
See step 5 on page 11.
Turn on the fan if desired.
See step 6 on page 11.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 11.
HOWTOUSE A PULSEPROGRAM
Pulse program 1 is designed to keep your heart rate
between 65% and 90% of your estimated maximum
heart rate during your workout. (Your maximum heart
rate is estimated by subtracting your age from 220.
For example, if you are 25 years old, your estimated
maximum heart rate is 195 beats per minute.) Pulse
program 2 is designed to keep your heart rate near a
target heart rate that you select.
Follow the steps below to use a pulse program.
B Turn on the console.
See step 1 on page 10.
Select one of the pulse programs.
To select a pulse
program, press the
Program button
repeatedly until one
of the two pulse
program indicators
lights.
(_ Pulse Oontrol Programs
12

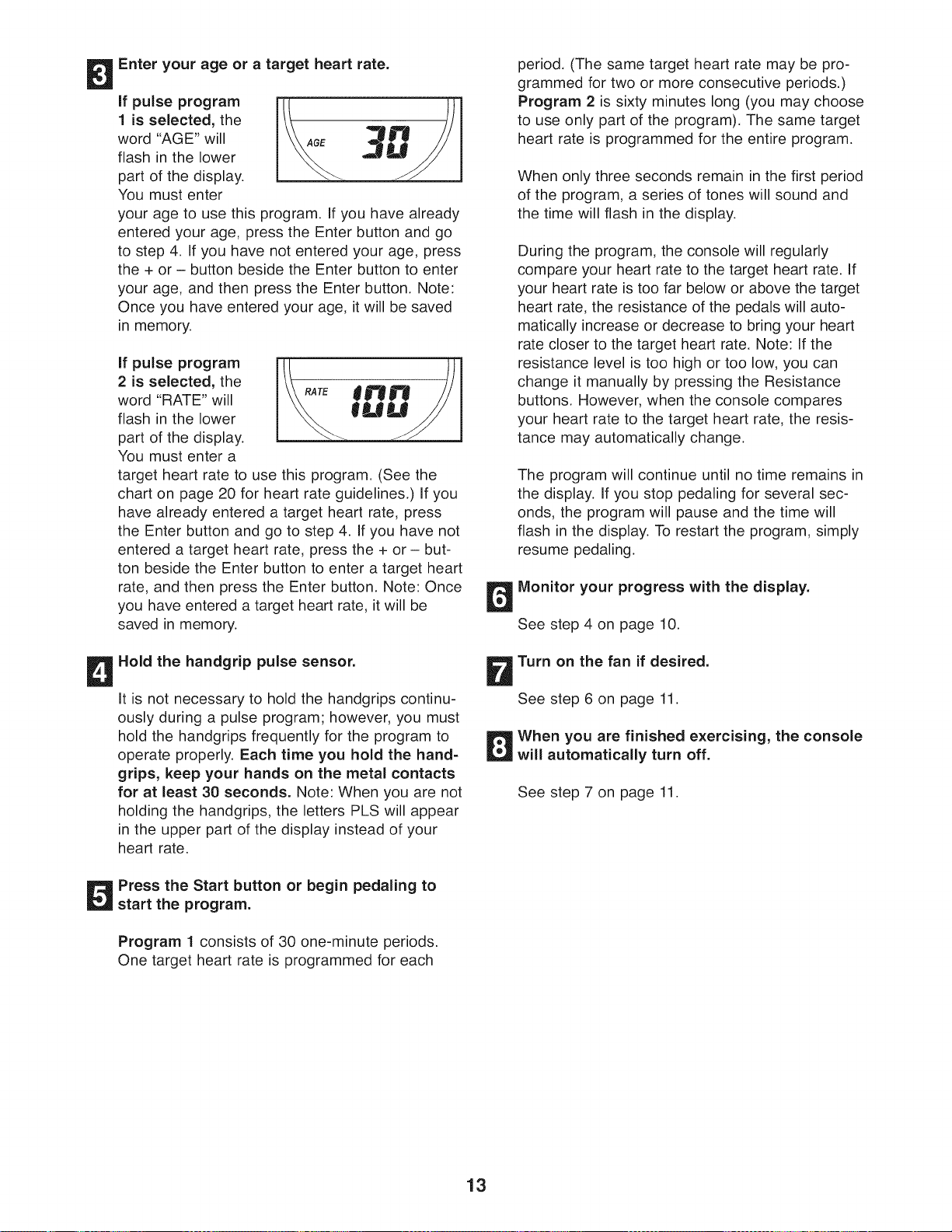

Enter your age or a target heart rate.
If pulse program
1 is selected, the
word "AGE" will AGE
flash in the lower
part of the display.
You must enter
your age to use this program, if you have already
entered your age, press the Enter button and go
to step 4. if you have not entered your age, press
the + or - button beside the Enter button to enter
your age, and then press the Enter button. Note:
Once you have entered your age, it will be saved
in memory.
If pulse program
2 is selected, the
word "RATE" will
flash in the lower
part of the display.
You must enter a
;00
target heart rate to use this program. (See the
chart on page 20 for heart rate guidelines.) If you
have already entered a target heart rate, press
the Enter button and go to step 4. If you have not
entered a target heart rate, press the 4-or - but-
ton beside the Enter button to enter a target heart
rate, and then press the Enter button. Note: Once
you have entered a target heart rate, it will be
saved in memory.
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrips continu-
ously during a pulse program; however, you must
hold the handgrips frequently for the program to
operate properly. Each time you hold the hand-
grips, keep your hands on the metal contacts
for at least 30 seconds. Note: When you are not
holding the handgrips, the letters PLS will appear
in the upper part of the display instead of your
heart rate.
Press the Start button or begin pedaling to
start the program.
Program 1 consists of 30 one-minute periods.
One target heart rate is programmed for each
period. (The same target heart rate may be pro-
grammed for two or more consecutive periods.)
Program 2 is sixty minutes long (you may choose
to use only part of the program). The same target
heart rate is programmed for the entire program.
When only three seconds remain in the first period
of the program, a series of tones will sound and
the time will flash in the display.
During the program, the console will regularly
compare your heart rate to the target heart rate. If
your heart rate is too far below or above the target
heart rate, the resistance of the pedals will auto-
matically increase or decrease to bring your heart
rate closer to the target heart rate. Note: If the
resistance level is too high or too low, you can
change it manually by pressing the Resistance
buttons. However, when the console compares
your heart rate to the target heart rate, the resis-
tance may automatically change.
The program will continue until no time remains in
the display. If you stop pedaling for several sec-
onds, the program will pause and the time will
flash in the display. To restart the program, simply
resume pedaling.
Monitor your progress with the display.
See step 4 on page 10.
Turn on the fan if desired.
See step 6 on page 11.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 11.
13

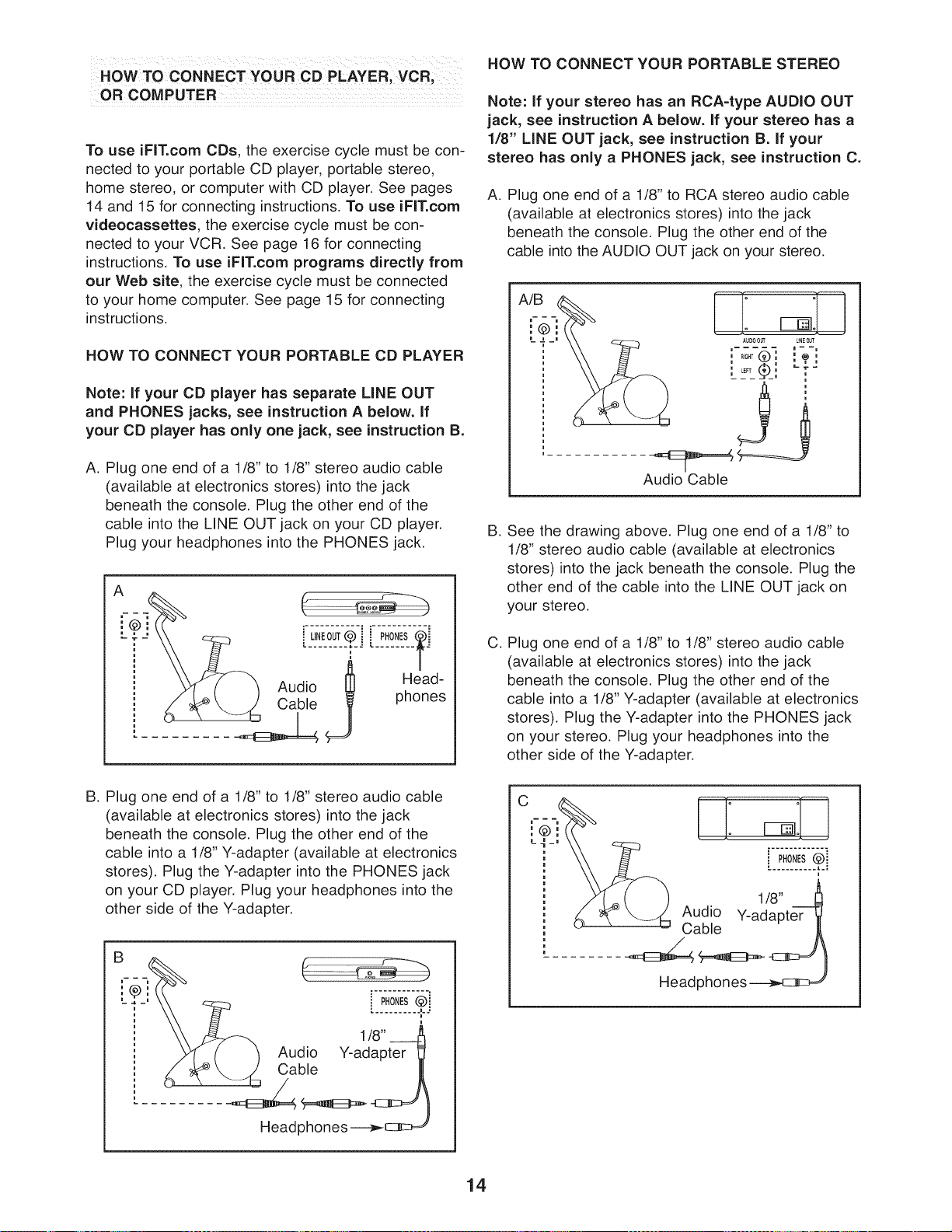

HOWTO CONNECT YOUR CD PLAYER, VCR,
OR COIVlPUTER
To use iFIT.com CDs, the exercise cycle must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player, See pages
14 and 15 for connecting instructions. To use iFIT.com
videocassettes, the exercise cycle must be con-
nected to your VCR, See page 16 for connecting
instructions, To use iFIT.com programs directly from
our Web site, the exercise cycle must be connected
to your home computer. See page 15 for connecting
instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT
and PHONES jacks, see instruction A below. If
your CD player has only one jack, see instruction B.
A. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
"_ Audio _ Head-
nones
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8" LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your stereo.
==\\ L;' i/
Audio Cable
a.
C.
See the drawing above. Plug one end of a 1/8" to
1/8" stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
B. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
a--_
___ _UdilO Y-ad_
--\\
._" _ _ Audio Y-adapter---_
Headphones _
14
HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LiNE OUT jack,
see instruction A below. If the LiNE OUT jack is
being used, see instruction B.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
Note: if your computer has a 1/8" LiNE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
A
L :j
-- vcR
:Amp
LINEOUT_)
•- ......... L.-"
I
I
I
Audio_Cable
B. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack beneath
the console. Plug the other end of the cable into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Y-
adapter into the LINE OUT jack on your stereo.
A
[ti_ Audio ....._ i
=========4
B. Plug one end of a 1/8" to 1/8" stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8" Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
PHONES_)!
1/8"
Audio Cable -- Y-adapter j
Headphones/Speakers -----_-_
15

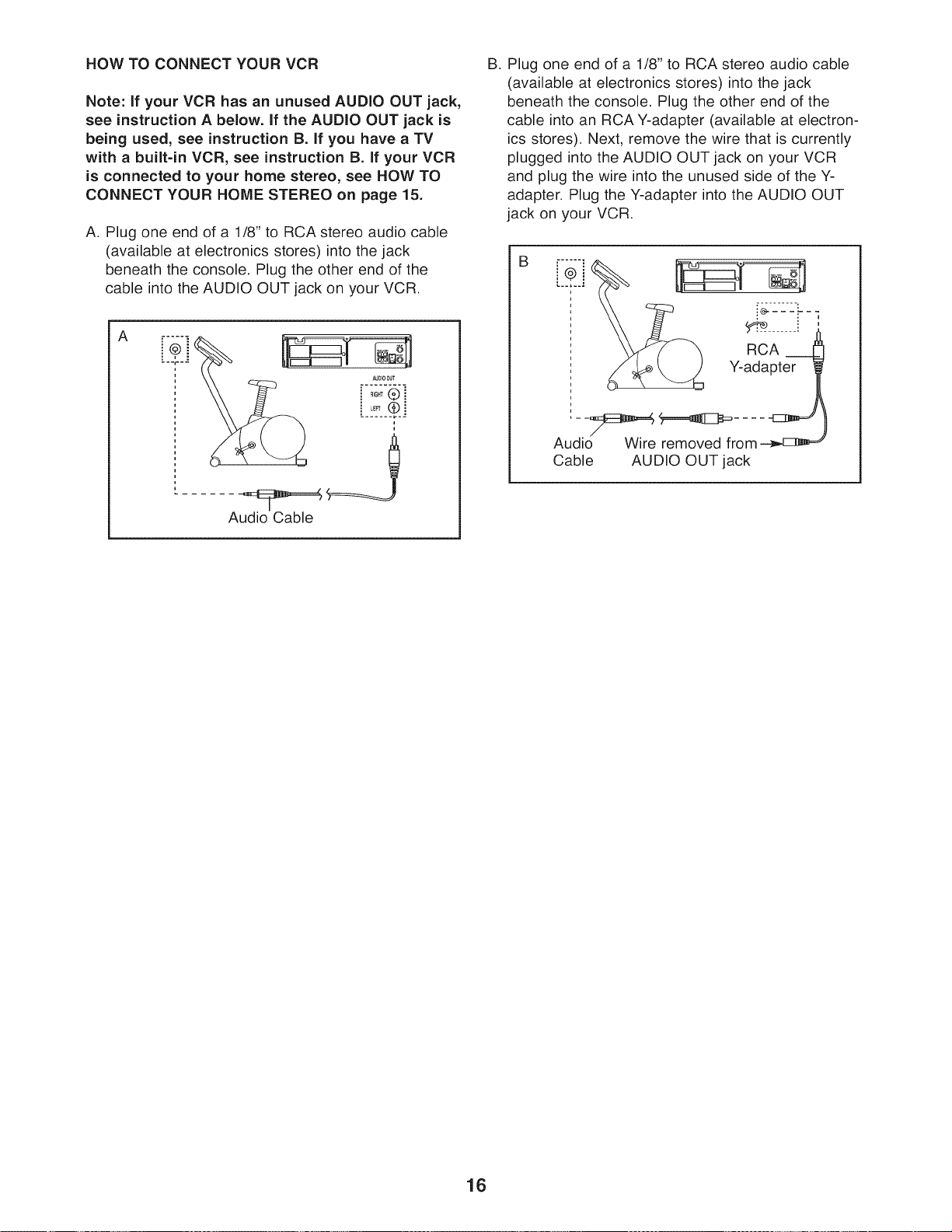

HOW TO CONNECT YOUR VCR
Note: if your VCR has an unused AUDIO OUT jack,
see instruction A below, if the AUDIO OUT jack is
being used, see instruction B. if you have a TV
with a built-in VCR, see instruction B. if your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
A
Audio Cable
B. Plug one end of a 1/8" to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electron-
ics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Y-
adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
B
Y-adapter _
Aud io__rW ire _:o-m _--_
Cable AUDIO OUT jack
16
HOWTO USEAN IFiT.COM CD OR VIDEO
PROGRAM
To use iFIT.com CDs or videocassettes, the exercise
cycle must be connected to your portable CD player,
portable stereo, home stereo, computer with CD
player, or VCR, See HOW TO CONNECT YOUR CD
PLAYER, VCR, OR COMPUTER on pages 14 to 16.
To purchase iFIT.com CDs and videocassettes, call
toll-free 1-888-533-1333.
Follow the steps below to use an iFIT.com CD or
video program.
B Turn on the console.
See step 1 on page 10.
Select the iFIT.com mode.
To select the
iFIT.com mode,
press the Program
button repeatedly
until the iFIT.com
indicator lights.
o
insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player, Ifyou are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer's
instructions.
The program will function in almost the same way
as a preset program (see steps 3 and 4 on page
12), However, an electronic "chirping" sound will
alert you when the resistance of the pedals and/or
the pace guide is about to change.
Note: If the pedal resistance and/or the pace
guide does not change when a "chirp"
sounds:
• Make sure that the iFIT.com indicator is lit.
• Adjust the volume of your CD player or VCR.
if the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Monitor your progress with the display.
See step 4 on page 10.
Measure your heart rate if desired.
See step 5 on page 11.
Turn on the fan if desired.
See step 6 on page 11.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 11.
17

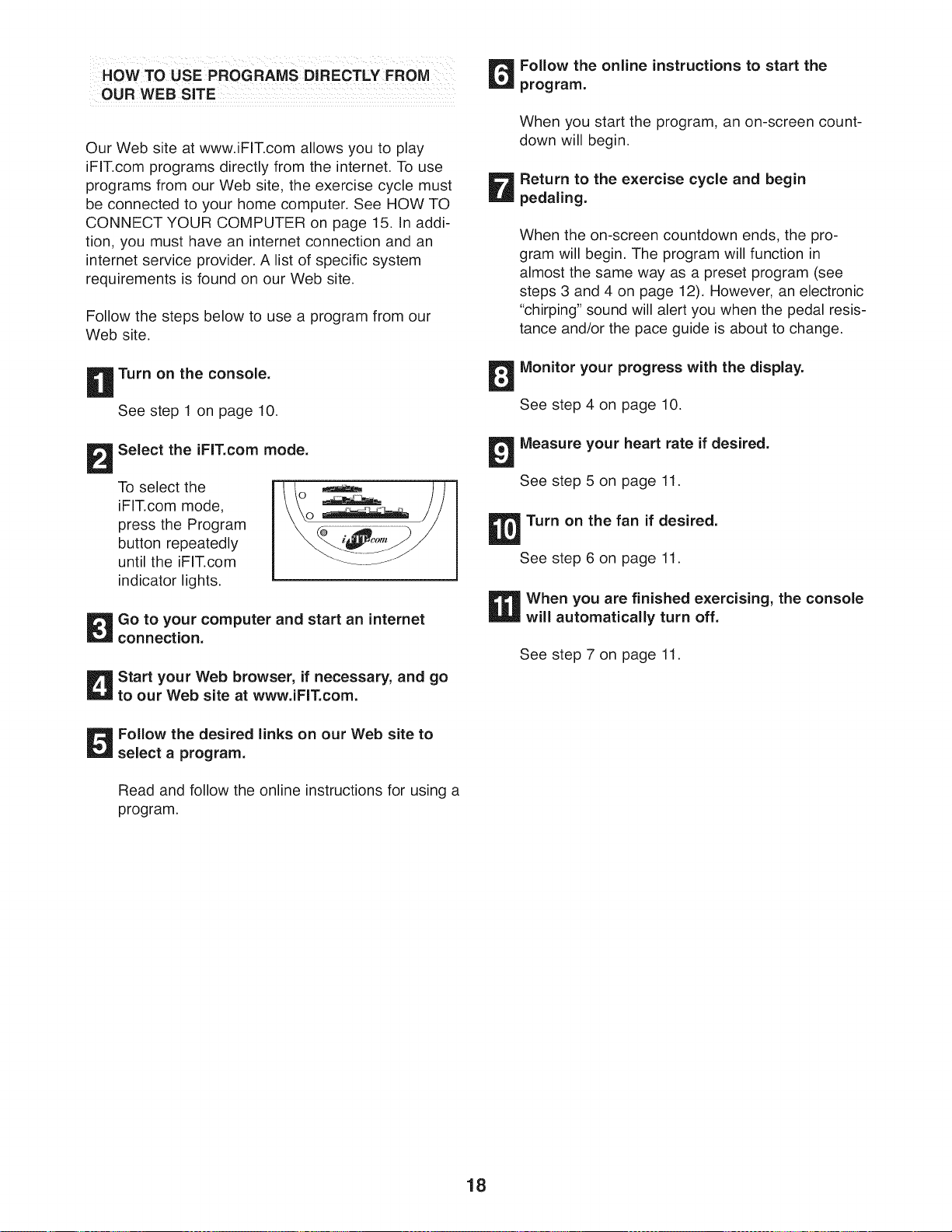

HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
iFIT.com programs directly from the internet. To use
programs from our Web site, the exercise cycle must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 15. In addi-
tion, you must have an internet connection and an
internet service provider. A list of specific system
requirements is found on our Web site.
Follow the steps below to use a program from our
Web site.
B Turn on the console.
See step 1 on page 10.
Select the iFIT.com mode.
To select the
iFIT.com mode,
press the Program
button repeatedly
until the iFIT.com
indicator lights.
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the online instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the exercise cycle and begin
pedaling.
When the on-screen countdown ends, the pro-
gram will begin. The program will function in
almost the same way as a preset program (see
steps 3 and 4 on page 12). However, an electronic
"chirping" sound will alert you when the pedal resis-
tance and/or the pace guide is about to change.
Monitor your progress with the display.
See step 4 on page 10.
Measure your heart rate if desired.
See step 5 on page 11.
Turn on the fan if desired.
See step 6 on page 11.
When you are finished exercising, the console
will automatically turn off.
See step 7 on page 11.
Follow the desired links on our Web site to
select a program.
Read and follow the online instructions for using a
program.
18
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild soap. important: To avoid
damaging the console, keep liquids away from the
console and keep the console out of direct sun-
light.
HOW TO MOVE THE EXERCISE CYCLE
To move the exercise cycle, stand behind it and lift
the frame in the location shown below. To reduce the
risk of injury, bend your legs and keep your back
straight. As you lift the frame, make sure to lift
with your legs rather than your back. Carefully
move the exercise cycle on the front wheels, and then
lower the frame.
Here.
Wheel
HOW TO LEVEL THE EXERCISE CYCLE
After the exercise
cycle has been
moved to the
location where it
will be used,
make sure that
both ends of front
stabilizer are Leveling
touching the floor. Foot
If the exercise
cycle rocks
slightly during use, turn one or both of the leveling
feet under the front stabilizer until the rocking motion
is eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
For optimal performance of the handgrip pulse sen-
sor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
BATTERY REPLACEMENT
If the displays on the console become dim, the batter-
ies should be replaced. Most console problems are
the result of low batteries. See assembly step 9 on
page 7 for battery replacement instructions.
19
CONDiTiONiNG GUiDELiNES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
J.LWARNING: Beforebeginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
165 .I,55 145 140 130 125 115 (_
I45 138 I30 125 118 110 103 q,_?
125 I20 115 1]0 ]05 95 90 W
20 30 40 50 60 70 80
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your "training zone."
The lowest number is the recommended heart rate for
fat burning; the middle number is the recommended
heart rate for maximum fat burning; the highest num-
ber is the recommended heart rate for aerobic exer-
cise.
Fat Burning
To burn fat effectively, you must exercise at a rela-
tively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for
energy. Only after the first few minutes of exercise
does your body begin to use stored fat calories for
energy. If your goal is to burn fat, adjust the intensity
of your exercise until your heart rate is near the low-
est number in your training zone as you exercise. For
maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle num-
ber in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise, A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone, Note: During the first few weeks of your exer-
cise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching, This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exer-
cise a regular and enjoyable part of your everyday life.
2O
PART LISTmlVlodel No. 831.21522.1 R040GA
Key No. Qty. Description Key No. Qty.
1 1 Frame 42
2 1 Upright 43
3 2 Handlebar 44
4 1 Console 45
5 1 "C" Magnet Bracket 46
6 1 Flywheel Axle 47
7 2 M6 Nut 48
8 6 M6 x 16mm Button Screw 49
9 1 Seat 50
10 1 Seat Carriage Assembly 51
11 1 Seat Bracket 52
12 1 Left Front Endcap 53
13 1 Right Front Endcap 54
14 2 Rear Stabilizer Endcap 55
15 1 Front Stabilizer 56
16 1 Rear Stabilizer 57
17 2 Wheel 58
18 1 Right Pedal Strap 59
19 2 Leveling Foot 60
20 2 Seat Carriage Endcap 61
21 1 Right Pedal 62
22 1 Left Pedal 63
23 1 Book Holder 64
24 2 Handlebar Endcap 65
25 1 Left Pedal Strap 66
26 1 Left Side Shield 67
27 1 Right Side Shield 68
28 2 Foam Grip 69
29 1 Crank/Pulley 70
30 1 Magnet 71
31 1 Backrest 72
32 2 Flywheel Washer 73
33 1 Crank Bearing Set 74
34 1 Flywheel 75
35 1 "C" Magnet 76
36 1 Resistance Cable Assembly 77
37 1 Spring 78
38 1 Resistance Motor 79
39 1 Right Rail Cover 80
40 5 M8 x 19mm Button Screw #
41 4 M4 x 12mm Screw #
1
1
1
1
1
1
1
6
1
2
1
1
1
9
2
14
4
4
4
4
Note: "#" indicates a non-illustrated part. Specifications are subject to
call toll-free 1-888-533-1333. See the back cover of this manual for
parts.
Description
6
3
8
8
5
7
4
2
2
4
4
1
4
2
4
1
1
6
2
1
1
Upper Wire Harness
Lower Wire Harness
Left Rail Cover
Clamp
Reed Switch/Wire
Drive Belt
Flywheel Cover
M8 Nylon Locknut
Frame Rail Endcap
Bumper
Frame Rail
Right Belt Cover
Left Belt Cover
M8 Split Washer
M4 x 20mm Screw
M4 x 16mm Screw
M8 x 38mm Button Bolt
M4 Washer
M4 x 25mm Screw
M8 x 16mm Button Screw
M4 x 10mm Screw
M6 x 20mm Button Screw
Small Snap Ring
Carriage Wheel
M6 Washer
M4 x 38mm Screw
M4 x 15mm Flange Bolt
Eyebolt
Flywheel Bearing
M4 Nylon Locknut
M10 Nylon Locknut
Flywheel Bracket
M6 Nylon Locknut
M6 x72mm Button Screw
M10 x 112mm Carriage Bolt
Stop Bolt
Seat Rail
M6 x 16mm Screw
Console Bracket
Hex Key
User's Manual
change without notice. If a part is missing,
information about ordering replacement
21
EXPLODED DRAWING A--IVlodel No. 831.21522.1 Ro4oGA
\
28
31
3
49
61
11
58
48
62
57
67
57
22
EXPLODED DRAWING BmlVlodel No. 831.21522.1 Ro4oGA
12
49 8
19
49
74
41
46 _
37
7 77 80
15
33
78
21
79
42
68
43
14
52
14
16
56
79
5O
72
23
iiiiiiiiiiiiiiiiiiiii!ii_
iiiiiiiiiiiiiiiiiii_i,
Your Home
For repair--in your home--of all major brand appliances, lawn and garden equipment,
or heating and cooling systems, no matter who made it, no matter who sold it!
For the replacement parts, accessories, and user's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ® (1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222 Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
® Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC
® Marca Registrada / TMMarca de Fabrica / SMMarca de Servicio de Sears Brands, LLC
f
90 DAY FULL WARRANTY
If this Sears Bike Exerciser fails due to a defect in material or workmanship within 90 days of the date
of purchase, call 1-800-4-MY-HOME ®(1-800-469-4663) to arrange for free repair (or replacement if
repair proves impossible).
This warranty does not apply when the Bike Exerciser is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
J
J
Part No. 223136 R0406A Printed in China © 2006 ICON IP, Inc.
