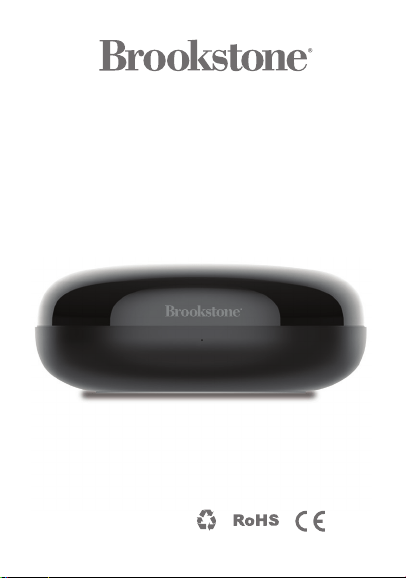

Smart WiFi
Remote Control
FCC ID:2ANDL-UFOR1
USER MANUAL
SPECIFICATIONS
Model: BKSCNTRL
Power Input: DC 5V/1A (Micro-USB 2.0)
Standby Power: ≤0.4W
Operating Temperature: 14°F~122°F
Working humidity: ≤85% RH
Wireless type: Wi-Fi 2.4GHz 802.11 b/g/n
Infrared Frequency: 38Khz
Infrared Direction: Multi-faceted infrared
Infrared Distance: ≤26ft
Supporting Systems:
Android 4.0/iOS 8.0 or higher
Product Size: 2.7x2.7x1inch
FEATURES
• Control IR remote controlled devices from
anywhere
• Programmable with Schedule
• App and Voice Control
• Works with Hey Google or Amazon Alexa
PRODUCT CONFIGURATION
Network
Configuration
Indicator
Power Outlet Port
Reset Button
(Configuration Button)
DOWNLOAD APP
Brookstone Smart
1. Android: download “Brookstone Smart” app
on GooglePlay.
2. iPhone: download “Brookstone Smart” app
from the App Store.

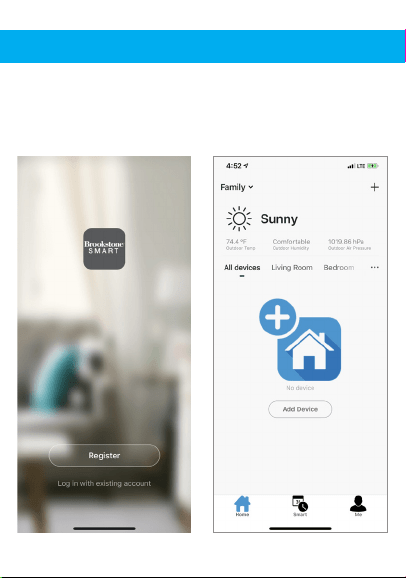

REGISTRATION AND LOGIN
1. Run the “Brookstone Smart” app from your
smart phone.
2. Register and login.
1. Plug in Smart Wi-Fi Remote Control into USB
hub or computer. Hold reset button until
indicator light blinks blue rapidly.
2. Make sure phone is connected to your Wi-Fi
network and that it is a 2.4GHz network.
3. Press the (+) symbol in the top right corner of
the app and select the “Smart Controller”
from the list of devices to add.
ADD DEVICE
1. Plug in Smart Wi-Fi Remote Control into USB
hub or computer. Hold reset button until
indicator light blinks blue rapidly.
2. Make sure phone is connected to your Wi-Fi
network and that it is a 2.4GHz network.
3. Press the (+) symbol in the top right corner of
the app and select the “Smart Controller”
from the list of devices to add.
5. Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
4. Confirm indicator light is blinking and press
the “confirm indicator rapidly blinks” button.
6. Connecting process will begin. Do not turn off
Smart Wi-Fi Remote or phone while connecting.
Wait for connection process to complete.
7. Once device has been successfully added, name
the device what you would like it to be called in
the app. The Smart Wi-Fi Remote is ready for use.
5. Make sure phone is connected to the Wi-Fi
network that the device will be connected to.
Enter your password for the Wi-Fi network.
4. Confirm indicator light is blinking and press
the “confirm indicator rapidly blinks” button.
6. Connecting process will begin. Do not turn off
Smart Wi-Fi Remote or phone while connecting.
Wait for connection process to complete.
7. Once device has been successfully added, name
the device what you would like it to be called in
the app. The Smart Wi-Fi Remote is ready for use.
8. To connect an IR remote controlled device to the
Smart Wi-Fi Remote, click on your Smart Wi-Fi
Remote under “All devices” on your home page.
Then click on “Add Remote Control”.
9. Then select what kind of device you would like to
add. If you would like to set up a TV, press the TV
button.

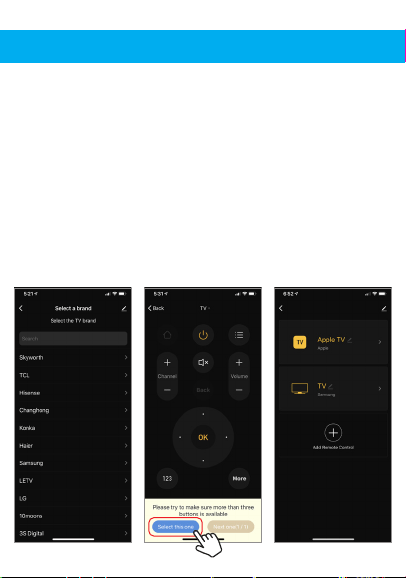

10. Then select the brand of the device you are
adding. The Smart Wi-Fi Remote will
automatically connect to your device.
11. You’ll then see a remote. Scroll through button
layouts at the bottom of the page until you find
the one you like. Then press “select this one”.
12. Continue steps 8-11 to add more devices if you
like. You can view all of your remotes in the app
by clicking the Smart Wi-Fi Remote from your
home screen.
8. To connect an IR remote controlled device to the
Smart Wi-Fi Remote, click on your Smart Wi-Fi
Remote under “All devices” on your home page.
Then click on “Add Remote Control”.
9. Then select what kind of device you would like to
add. If you would like to set up a TV, press the TV
button.
REMOVE A DEVICE
1. From the home screen, click on the device you would like
to remove.
2. Then click on the edit symbol on the top right of the
screen.
3. From there you would then click the “Remove Device”
button at the bottom of the screen.
How to control the Smart Wi-Fi Remote with Amazon Alexa
How to control the Smart Wi-Fi Remote with Amazon Alexa
Please make sure that your Alexa app is
connected to your Amazon Echo and both
work together successfully on your Wi-Fi
home network.

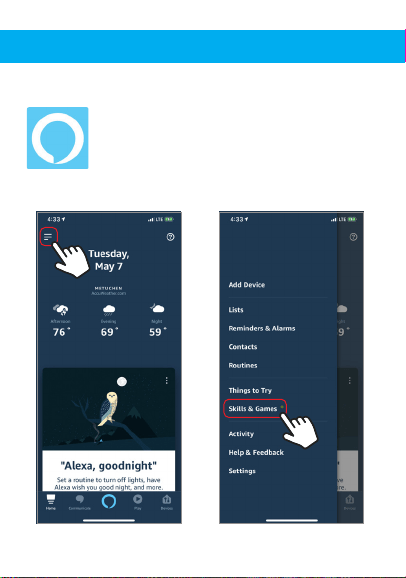

Step A. Log into your Alexa app, tap top left
corner, and tap “Skills”.
How to control the Smart Wi-Fi Remote with Amazon Alexa
Step E. Wait a few seconds for Alexa to detect the Smart Wi-Fi
Remote from the Brookstone Smart app and you will find the
device named “Smart Wi-Fi Remote” has been paired to Alexa
app from “Brookstone Smart” app.
If you already have your Brookstone Smart account linked with
Alexa, Alexa will automatically detect the new device. To
rename the device press “Devices” in the bottom right corner.
Then press “All Devices” at the top right. On the next page scroll
down to “Smart Wi-Fi Remote” and press “Edit Name”. You can
now name it whatever name you chose.
Step D. Once your Brookstone Smart account is successfully
linked to Alexa, the next page will pop up. Tap ”Done” on the
top left corner, then tap “Discover Devices”.

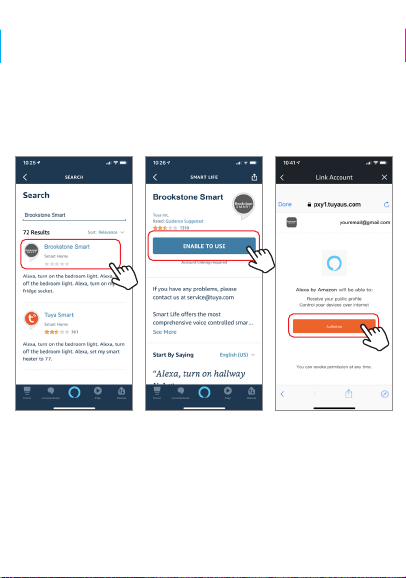

Step B. Type “Brookstone Smart”, find “Brookstone Smart”
app in the search results and tap “enable” button.
Step C. Enter your account info for the “Brookstone
Smart” app, tap “Link Now”, then tap “Authorize” on the
next page to link Brookstone Smart account to Alexa.
Step E. Wait a few seconds for Alexa to detect the Smart Wi-Fi
Remote from the Brookstone Smart app and you will find the
device named “Smart Wi-Fi Remote” has been paired to Alexa
app from “Brookstone Smart” app.

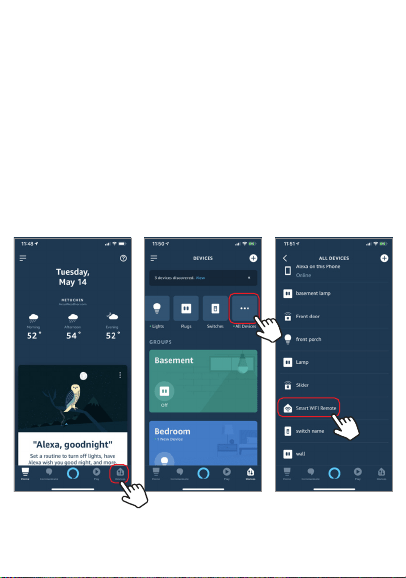

If you already have your Brookstone Smart account linked with
Alexa, Alexa will automatically detect the new device. To
rename the device press “Devices” in the bottom right corner.
Then press “All Devices” at the top right. On the next page scroll
down to “Smart Wi-Fi Remote” and press “Edit Name”. You can
now name it whatever name you chose.
Step F. Once you are able to control your
IR remote
controlled devices
via Amazon Alexa, any device
connected to the Smart Wi-Fi Remote will react to voice
commands.
For example, if you connected your TV remote to the
Smart Wi-Fi Remote, you could try these commands.
See what happens by asking Alexa:
• Alexa, turn on the “TV”
• Alexa, turn off the “TV”
Note: The controlled device name is the name you give it
on the “Brookstone Smart” app after adding remote to
the Smart Wi-Fi Remote.
If you also want to control the Smart Wi-Fi Remote with
Google Assistant, you can continue to read next page.
How to control the Smart Wi-Fi Remote with Google Assistant
How to control the Smart Wi-Fi Remote with Google Assistant
Step A. Once you are logged into your Google Home App, you
should see buttons at the top to connect your Brookstone
Smart account to the Google Home App.
Step B. Tap the Brookstone Smart button to link your
account with the Google Assistant.
1. Pair Smart Wi-Fi Remote with Brookstone
Smart App and name it with an easily
recognizable name.
2. Download the Google Home App and
register and log in with your Google
account info.
How to control the Smart Wi-Fi Remote with Google Assistant

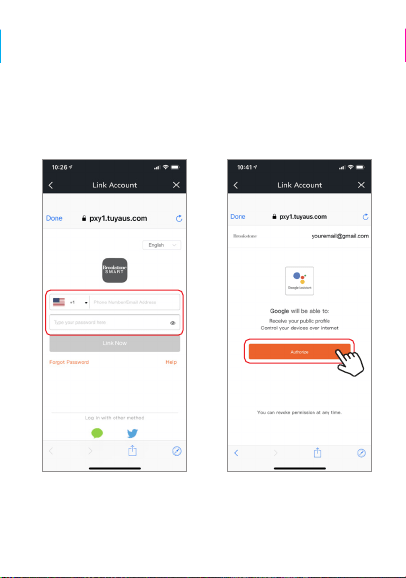

Step C. Enter your account info for the “Brookstone Smart”
app, tap “Link now”, then tap “Authorize” on the next
page to link your Brookstone Smart account to the
Google Assistant.
1. Pair Smart Wi-Fi Remote with Brookstone
Smart App and name it with an easily
recognizable name.
2. Download the Google Home App and
register and log in with your Google
account info.
Step D. You will find that the Google Assistant has found
the device named ”Smart Wi-Fi Remote” on this page.
Now you can view and control your IR remote controlled devices
connected to the Smart Wi-Fi Remote with the Google Home
App.
Step E.
You can control your IR remote controlled devices
connected to the Smart Wi-Fi Remote with the Google
Assistant with voice commands
.
For example, if you connected your TV remote to the
Smart Wi-Fi Remote, you could try these commands.
See what happens by asking Google:
“Hey Google, turn on the TV”
“Hey Google, turn o the TV”
Note: The controlled device name is the name you give it
on the “Brookstone Smart” app after adding remote to the
Smart Wi-Fi Remote.
WARRANTY INFORMATION
One Year Limited Warranty.
Customer Service: 732-994-2301; email: [email protected]
©Smartpoint LLC,
250 Liberty Street, Suite 1A
Metuchen, NJ 08840
The BROOKSTONE trademark. names and logos are owned by
BKST Brand Holdings LLC ©2019. All rights reserved.
Manufactured, marketed and distributed by Smartpoint LLC, under license.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
Google and Google Play are trademarks of Google LLC.
App Store
®
is a registered trademark of Apple, Inc.
All trademarks and registered trademarks are property of their respective owners.
Made in China
For more products please visit www.brookstone.com
For more products please visit www.brookstone.com
FCC Notice:
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The users manual or instruction manual for an intentional or unintentional
radiator shall caution the user that changes or modifications not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment. In cases where the manual is provided
only in a form other than paper, such as on a computer disk or over the
Internet, the information required by this section may be included in the
manual in that alternative form, provided the user can reasonably be
expected to have the capability to access information in that form.
(b) For a Class B digital device or peripheral, the instructions furnished the
user shall include the following or similar statement, placed in a prominent
location in the text of the manual:
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
RF exposure warning
This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provide with
antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
