Safety precautions
Follow these instructions.
To prevent accidents, injuries or damage to
property, please follow the instructions below.
■ The following chart indicates the
degree of damage caused by
improper operation.
CAUTION
Indicates potential
hazard that could
result in minor injury
or property damage.
CAUTION
►Protecting the skin
• Do not press the blade rmly
against the skin.
• Do not use the appliance for any
purpose other than trimming
beard, hair and body hair.
• Do not directly apply the blades on
ears or rough skin (such as
swellings, injuries or blemishes).
- Doing so may cause injury to ears
or uneven skin.
• Check the blades are not damaged
or deformed before use.
- Failure to do so may cause injury to
the skin.
Important information
• Apply the lubrication oil to the blade
before and after each use.
Failure to apply the lubrication oil may
cause the following problems.
- The appliance has become blunt.
- Shorter operating time.
- Louder sound.
Parts identication
(Fig. 1)
A Head
1 Water inlet
2 Trimming height indication mark
3 Dial (Height adjustment control)
4 Water outlet
5 Blade
Accessories
B Comb attachment [A]
(1 mm [1/32˝] to 10 mm [13/32˝])
C Comb attachment [B]
(11 mm [7/16˝] to 20 mm [51/64˝])
D Comb attachment [C]
(21 mm [53/64˝ ] to 30 mm [13/16˝ ])
E Comb attachment for body hair [D]

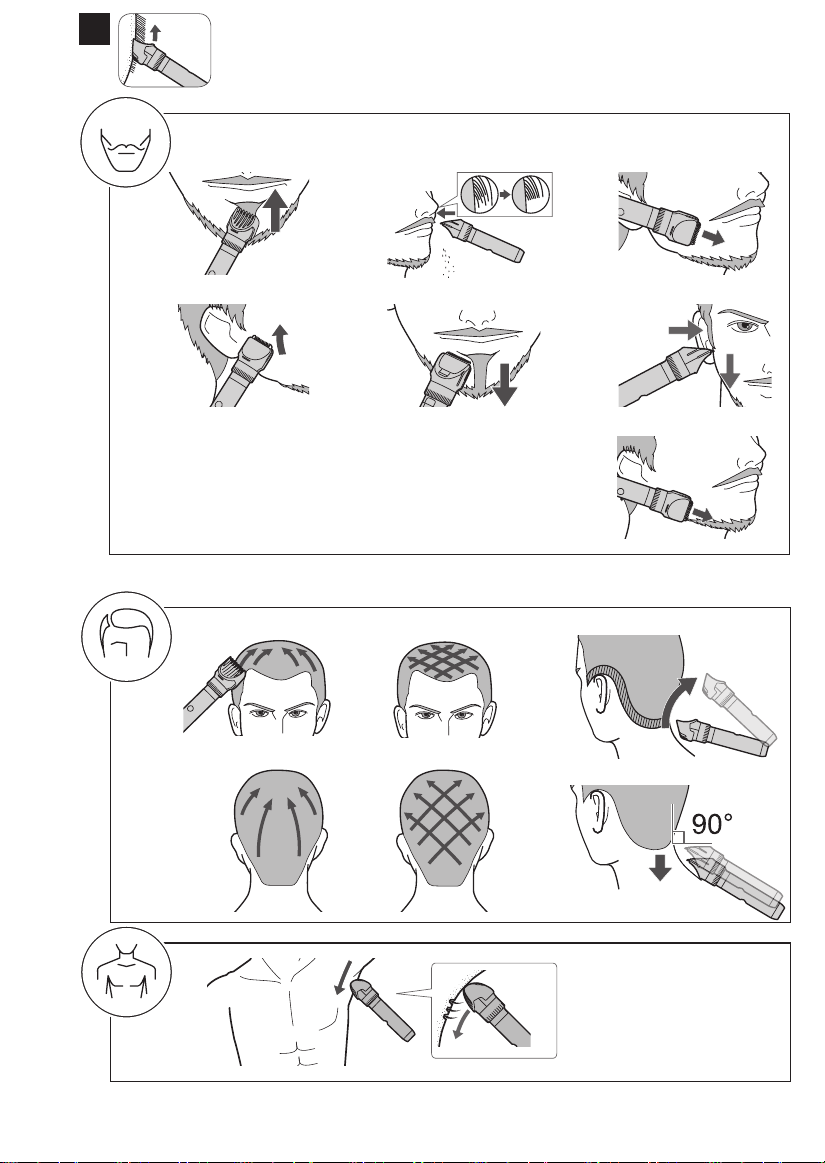

How to use
• Clean the appliance after use.
1
Mount the head to the main body
until it clicks.
2
Mount the desired comb attachment
and adjust the trimming height as
needed.
▪
It can also be used without the comb
attachment.
(Trimmingheight:approx.0.5mm[1/64˝])
▪
Do not use the comb attachment on
wet hair. Wet hair might clump or stick
totheskinasitwillbedifculttotrim.
▪Settingof10.5mm(27/64˝)and
20.5mm(13/16˝)isunavailable.
▪
The trimming height of the comb
attachment for body hair cannot be
adjusted. This comb attachment trims to
alengthofapproximately1.5mm(1/16˝).
3
Turn on the power.
Note
• The use time after a full charge is as
follows.
ER-CBL1: 70 minutes
ER-CBN1: 45 minutes
(Based on dry using at 20 °C – 30 °C
[68°F–86°F])
The operating time may differ
depending on the frequency of use and
the operating method.
Quick charge (ER‑CBL1 only)
Even though the battery runs out, you can
use for 5 minutes after 3-minute charge.
(This will differ depending on usage.)
Operating Instructions
(Household use)
Trimmer Head
Model No.
ER-CTW1
4
-1
-2
-3
-4
1 2
3
7
8
5 6
ER-CTW1_US_PR.indd 1 2022/02/21 15:08:50
