Operating Instructions
Model No. KX-TG8032AL
KX-TG8033AL
KX-TG8032NZ
Digital Cordless Answering System
Model shown is KX-TG8032.
Before initial use, see “Getting Started”
on page 9.
Thank you for purchasing a Panasonic product.
Please read these operating instructions before using the unit and save them for
future reference.
This unit is compatible with Caller ID. You must subscribe to the appropriate service
offered by your service provider/telephone company.
Please access our online customer survey:
http://panasonic.net/pcc/tel/q
TG80xxAL_NZ(en)_1021_ver001-2.pd1 1 2011/10/21 15:09:41
Introduction
Model composition .......................................3
Accessory information ..................................3
Important Information
For your safety .............................................5
Important safety instructions ........................7
For best performance ...................................7
Other information .........................................7
Specifications ...............................................8
Getting Started
Setting up .....................................................9
Note when setting up .................................10
Controls ......................................................11
Display .......................................................12
Screen saver mode ....................................14
Turning the power on/off ............................14
Initial settings .............................................14
Display mode .............................................15
Making/Answering Calls
Making calls ...............................................16
Answering calls ..........................................16
Useful features during a call .......................17
Key lock ......................................................17
Power back-up operation ...........................18
Phonebook
Handset phonebook ...................................20
Copying phonebook entries .......................22
Programming
Programmable settings ..............................23
Special programming .................................27
Registering a unit .......................................30
One touch eco mode ..................................30
Caller ID Service
Using Caller ID service ...............................32
Caller list ....................................................33
Answering System
Answering system ......................................35
Turning the answering system on/
off ...............................................................35
Greeting message ......................................35
Listening to messages using the base
unit .............................................................36
Listening to messages using the
handset ......................................................36
Remote operation .......................................38
Answering system settings .........................39
Voice Mail Service
Voice mail service ......................................41
Intercom/Locator
Intercom .....................................................42
Handset locator ..........................................42
Transferring calls, conference calls ............42
DECT repeater
Installation for DECT repeater ....................43
Useful Information
Character entry ..........................................45
Error messages ..........................................47
Troubleshooting .........................................48
Belt clip .......................................................53
Wall mounting ............................................54
Warranty (for New Zealand) .......................55
Index
Index...........................................................56
2
Table of Contents
TG80xxAL_NZ(en)_1021_ver001-2.pd2 2 2011/10/21 15:09:41
Model composition
Series Model No.
Base unit Handset
Part No. Part No. Quantity
KX-TG8031
series
KX-TG8032 KX-TG8061 KX-TGA806 2
KX-TG8033 KX-TG8061 KX-TGA806 3
R The suffix (AL/NZ) in the following model numbers will be omitted in these instructions:
KX-TG8032AL/KX-TG8033AL/KX-TG8032NZ
Accessory information
Supplied accessories
No. Accessory item/Part number
Quantity
KX-TG8032 KX-TG8033
A AC adaptor for base unit and charger/PNLV226AL 1 2
B
Telephone line cord (for Australia)
*1
1 1
C Telephone line cord (for New Zealand) 1 1
D
Rechargeable batteries
*2
2 4
E
Handset cover
*3
1 2
F Belt clip 1 2
G Charger – 1
H DECT repeater 1 1
I AC adaptor for DECT repeater/PQLV219AL 1 1
*1 The telephone line cord comes connected with the telephone plug.
*2 See page 4 for replacement battery information.
*3 The handset cover comes attached to the handset.
AI B C D E
F G H
3
Introduction
TG80xxAL_NZ(en)_1021_ver001-2.pd3 3 2011/10/21 15:09:41
Additional/replacement accessories
Please contact your nearest Panasonic dealer for sales information.
Accessory item Model number
Rechargeable batteries
HHR-4MRT/2B
*1
Battery type:
– Nickel metal hydride (Ni-MH)
– 2 x AAA (R03) size for each handset
Headset KX-TCA89, RP-TCA400, RP-TCA430
*1 Replacement batteries may have a different capacity from that of the supplied batteries.
Expanding your phone system
Handset (optional): KX-TGA806AZ
You can expand your phone system by
registering optional handsets (6 max.) to a
single base unit.
R Optional handsets may be a different
colour from that of the supplied handsets.
4
Introduction
TG80xxAL_NZ(en)_1021_ver001-2.pd4 4 2011/10/21 15:09:41
For your safety
To prevent severe injury and loss of life/
property, read this section carefully before
using the product to ensure proper and safe
operation of your product.
WARNING
Power connection
R Use only the power source marked on the
product.
R Do not overload power outlets and
extension cords. This can result in the risk
of fire or electric shock.
R Completely insert the AC adaptor/power
plug into the power outlet. Failure to do so
may cause electric shock and/or excessive
heat resulting in a fire.
R Regularly remove any dust, etc. from the
AC adaptor/power plug by pulling it from
the power outlet, then wiping with a dry
cloth. Accumulated dust may cause an
insulation defect from moisture, etc.
resulting in a fire.
R Unplug the product from power outlets if it
emits smoke, an abnormal smell, or makes
an unusual noise. These conditions can
cause fire or electric shock. Confirm that
smoke has stopped emitting and contact an
authorised service centre.
R Unplug from power outlets and never touch
the inside of the product if its casing has
been broken open.
R Never touch the plug with wet hands.
Danger of electric shock exists.
Installation
R To prevent the risk of fire or electrical
shock, do not expose the product to rain or
any type of moisture.
R Do not place or use this product near
automatically controlled devices such as
automatic doors and fire alarms. Radio
waves emitted from this product may cause
such devices to malfunction resulting in an
accident.
R Do not allow the AC adaptor or telephone
line cord to be excessively pulled, bent or
placed under heavy objects.
R It is advised not to use the equipment at a
refuelling point. Users are reminded to
observe restrictions on the use of radio
equipment in fuel depots, chemical plants
or where blasting operations are in
progress.
Operating safeguards
R Unplug the product from power outlets
before cleaning. Do not use liquid or
aerosol cleaners.
R Do not disassemble the product.
R Do not spill liquids (detergents, cleansers,
etc.) onto the telephone line cord plug, or
allow it to become wet at all. This may
cause a fire. If the telephone line cord plug
becomes wet, immediately pull it from the
telephone wall socket, and do not use.
Medical
R Consult the manufacturer of any personal
medical devices, such as pacemakers or
hearing aids, to determine if they are
adequately shielded from external RF
(radio frequency) energy. (The product
operates in the frequency range of
1.88 GHz to 1.90 GHz, and the RF
transmission power is 250 mW (max.).)
R Do not use the product in health care
facilities if any regulations posted in the
area instruct you not to do so. Hospitals or
health care facilities may be using
equipment that could be sensitive to
external RF energy.
CAUTION
Installation and location
R Never install telephone wiring during an
electrical storm.
R Never install telephone line sockets in wet
locations unless the socket is specifically
designed for wet locations.
R Never touch uninsulated telephone wires or
terminals unless the telephone line has
been disconnected at the network interface.
5
Important Information
TG80xxAL_NZ(en)_1021_ver001-2.pd5 5 2011/10/21 15:09:41
R Use caution when installing or modifying
telephone lines.
R The AC adaptor is used as the main
disconnect device. Ensure that the AC
outlet is installed near the product and is
easily accessible.
R This product is unable to make calls when:
– the handset batteries need recharging or
have failed.
– there is a power failure.
– the key lock feature is turned on.
Battery
R We recommend using the batteries noted
on page 4. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
R Do not mix old and new batteries.
R Do not open or mutilate the batteries.
Released electrolyte from the batteries is
corrosive and may cause burns or injury to
the eyes or skin. The electrolyte is toxic and
may be harmful if swallowed.
R Exercise care when handling the batteries.
Do not allow conductive materials such as
rings, bracelets, or keys to touch the
batteries, otherwise a short circuit may
cause the batteries and/or the conductive
material to overheat and cause burns.
R Charge the batteries provided with or
identified for use with this product only, in
accordance with the instructions and
limitations specified in this manual.
R Only use a compatible base unit (or
charger) to charge the batteries. Do not
tamper with the base unit (or charger).
Failure to follow these instructions may
cause the batteries to swell or explode.
General notices
R This equipment will be inoperable when
mains power fails.
R When a failure occurs which results in the
internal parts becoming accessible,
disconnect the power supply cord
immediately and return this unit to an
authorised service centre.
R To minimise the possibility of lightning
damage, when you know that a
thunderstorm is coming, we recommend
that you:
– Unplug the telephone line cord from the
phone socket.
– Unplug the AC adaptor from the AC
power outlet.
R No “000” (for Australia), “111” (for New
Zealand), and/or other calls can be made
from this device during a mains power
failure.
R The earpiece on the handset is magnetised
and may retain small metallic objects.
Important notice:
R Under power failure conditions, this
telephone may not operate. Please ensure
that a separate telephone, not dependent
on local power, is available for emergency
use.
For New Zealand
R Disconnect the telecom connection before
disconnecting the power connection prior to
relocating the equipment, and reconnect
the power first.
R This equipment shall not be set to make
automatic calls to the Telecom “111”
Emergency Service.
R The unit’s answering system only responds
to Distinctive Alert cadence(s) DA1 and
DA3.
R Not all telephones will respond to incoming
ringing when connected to the extension
socket.
R This equipment may not provide for the
effective hand-over of a call to another
device connected to the same line.
R The grant of a Telepermit for any item of
terminal equipment indicates only that
Telecom has accepted that the item
complies with minimum conditions for
connection to its network. It indicates no
endorsement of the product by Telecom,
nor does it provide any sort of warranty.
Above all, it provides no assurance that any
item will work correctly in all respects with
another item of Telepermitted equipment of
a different make or model, nor does it imply
that any product is compatible with all of
Telecom’s network services.
6
Important Information
TG80xxAL_NZ(en)_1021_ver001-2.pd6 6 2011/10/21 15:09:41
Important safety
instructions
When using your product, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Do not use this product near water for
example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (including a
cordless type) during an electrical storm.
There may be a remote risk of electric
shock from lightning.
3. Do not use the telephone to report a gas
leak in the vicinity of the leak.
4. Use only the power cord and batteries
indicated in this manual. Do not dispose of
batteries in a fire. They may explode.
Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
For best performance
Base unit location/avoiding noise
The base unit and other compatible Panasonic
units use radio waves to communicate with
each other.
R For maximum coverage and noise-free
communications, place your base unit:
– at a convenient, high, and central
location with no obstructions between
the handset and base unit in an indoor
environment.
– away from electronic appliances such as
TVs, radios, personal computers,
wireless devices, or other phones.
– facing away from radio frequency
transmitters, such as external antennas
of mobile phone cell stations. (Avoid
putting the base unit on a bay window or
near a window.)
R Coverage and voice quality depends on the
local environmental conditions.
R If the reception for a base unit location is
not satisfactory, move the base unit to
another location for better reception.
Environment
R Keep the product away from electrical noise
generating devices, such as fluorescent
lamps and motors.
R The product should be kept free from
excessive smoke, dust, high temperature,
and vibration.
R The product should not be exposed to
direct sunlight.
R Do not place heavy objects on top of the
product.
R When you leave the product unused for a
long period of time, unplug the product from
the power outlet.
R The product should be kept away from heat
sources such as radiators, cookers, etc. It
should not be placed in rooms where the
temperature is less than 0 °C or greater
than 40 °C. Damp basements should also
be avoided.
R The maximum calling distance may be
shortened when the product is used in the
following places: Near obstacles such as
hills, tunnels, underground, near metal
objects such as wire fences, etc.
R Operating the product near electrical
appliances may cause interference. Move
away from the electrical appliances.
Routine care
R Wipe the outer surface of the product
with a soft moist cloth.
R Do not use benzine, thinner, or any
abrasive powder.
Other information
Notice for product disposal, transfer,
or return
R This product can store your private/
confidential information. To protect your
privacy/confidentiality, we recommend that
you erase information such as phonebook
or caller list entries from the memory before
7
Important Information
TG80xxAL_NZ(en)_1021_ver001-2.pd7 7 2011/10/21 15:09:41
you dispose of, transfer, or return the
product.
Information on Disposal in other
Countries outside the European Union
These symbols are only valid in the European
Union. If you wish to discard these items,
please contact your local authorities or dealer
and ask for the correct method of disposal.
Specifications
R Standard:
GAP (Generic Access Profile)
R Frequency range:
1.88 GHz to 1.90 GHz
R RF transmission power:
Approx. 10 mW (average power per
channel)
R Power source:
220–240 V AC, 50/60 Hz
R Power consumption:
Base unit:
Standby: Approx. 0.5 W
Maximum: Approx. 2.4 W
Charger:
Standby: Approx. 0.1 W
Maximum: Approx. 1.8 W
DECT repeater:
Standby: Approx. 1.0 W
Maximum: Approx. 1.8 W
R Operating conditions:
0 °C–40 °C, 20 %–80 % relative air
humidity (dry)
Note:
R Design and specifications are subject to
change without notice.
R The illustrations in these instructions may
vary slightly from the actual product.
8
Important Information
TG80xxAL_NZ(en)_1021_ver001-2.pd8 8 2011/10/21 15:09:41
Setting up
Connections
R Use only the supplied Panasonic AC
adaptor PNLV226AL.
R When mounting the unit on a wall, see
page 54.

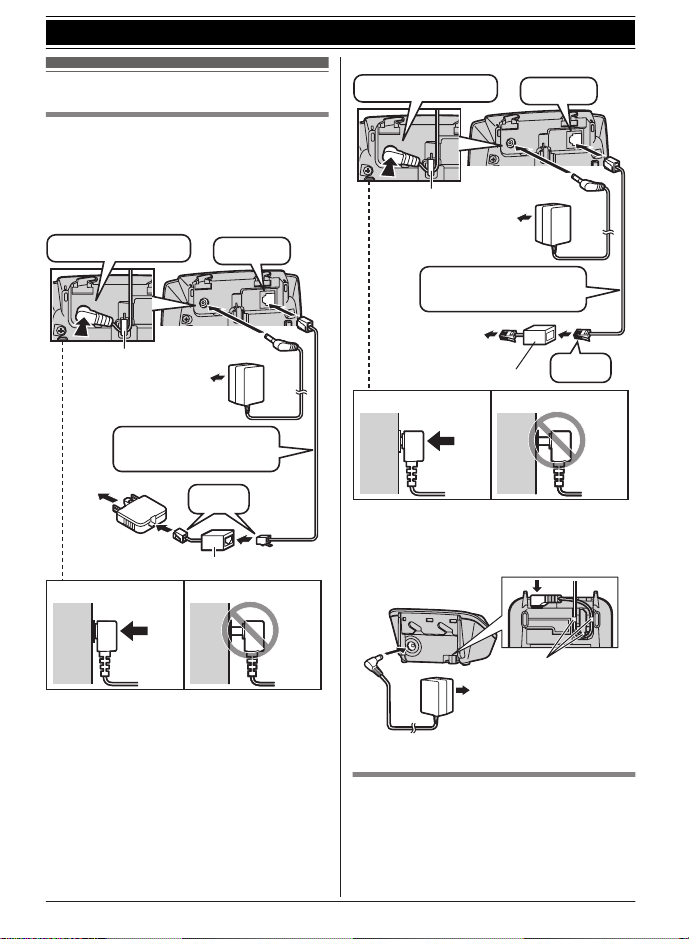

n Base unit (for Australia)
Hook
“Click”
Press plug firmly.
Use only the supplied
telephone line cord.
Correct Wrong
(220-240 V AC,
50/60 Hz)
To socket
DSL/ADSL filter*
“Click”
*DSL/ADSL filter (not supplied) is required if
you have DSL/ADSL service.
n Base unit (for New Zealand)
Hook
“Click”
Press plug firmly.
Use only the supplied
telephone line cord.
Correct Wrong
(220-240 V AC,
50/60 Hz)
To single-line
telephone socket
DSL/ADSL filter*
“Click”
*DSL/ADSL filter (not supplied) is required if
you have DSL/ADSL service.
n Charger
(220-240 V AC,
50/60 Hz)
Hooks
Battery installation
R USE ONLY Ni-MH batteries AAA (R03)
size.
R Do NOT use Alkaline/Manganese/Ni-Cd
batteries.
9
Getting Started
TG80xxAL_NZ(en)_1021_ver001-2.pd9 9 2011/10/21 15:09:41

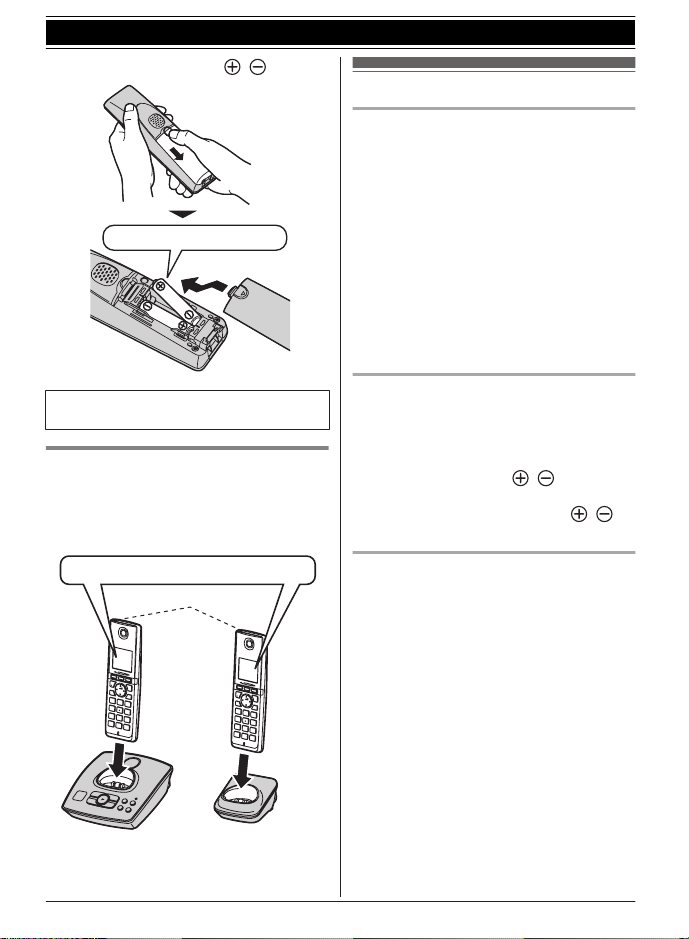

R Confirm correct polarities ( , ).
Rechargeable Ni-MH ONLY
R When the date and time setting is
displayed, see page 15.
Battery charging
Charge for about 7 hours.
R When the batteries are fully charged, the
charge indicator goes off and “Fully
charged” is displayed.
Confirm "Charging" is displayed.
Charge indicator
Note when setting up
Note for connections
R The AC adaptor must remain connected at
all times. (It is normal for the adaptor to feel
warm during use.)
R The AC adaptor should be connected to a
vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a
ceiling-mounted AC outlet, as the weight of
the adaptor may cause it to become
disconnected.
R The unit is not designed to be used with
rotary/pulse dialling services.
R The unit’s answering system will not
answer incoming calls on your FaxAbility
number. (for New Zealand)
Note for battery installation
R Use the supplied rechargeable batteries.
For replacement, we recommend using the
Panasonic rechargeable batteries noted on
page 4, 6.
R Wipe the battery ends (
, ) with a dry
cloth.
R Avoid touching the battery ends (
, ) or
the unit contacts.
Note for battery charging
R It is normal for the handset to feel warm
during charging.
R Clean the charge contacts of the handset,
base unit, and charger with a soft and dry
cloth once a month. Before cleaning the
unit, disconnect from power outlets and any
telephone line cords. Clean more often if
the unit is exposed to grease, dust, or high
humidity.
10
Getting Started
TG80xxAL_NZ(en)_1021_ver001-2.pd10 10 2011/10/21 15:09:41

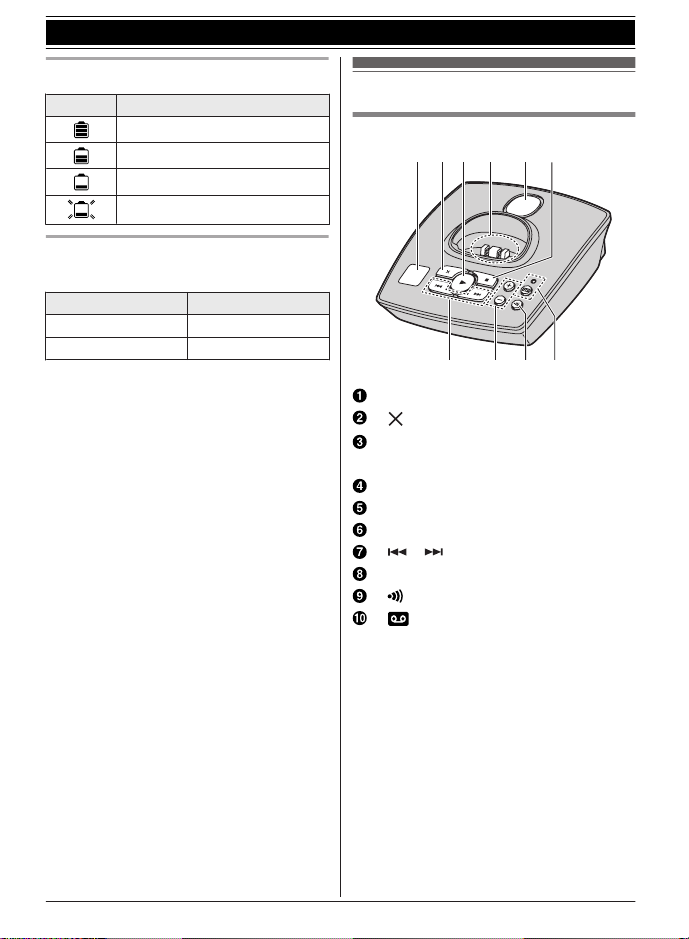

Battery level
Icon Battery level
High
Medium
Low
Needs charging.
Panasonic Ni-MH battery
performance (supplied batteries)
Operation Operating time
In continuous use 13 hours max.
Not in use (standby) 250 hours max.
Note:
R It is normal for batteries not to reach full
capacity at the initial charge. Maximum
battery performance is reached after a few
complete cycles of charge/discharge (use).
R Actual battery performance depends on
usage and ambient environment.
R Even after the batteries are fully charged,
the handset can be left on the base unit or
charger without any ill effect on the
batteries.
R The battery level may not be displayed
correctly after you replace the batteries. In
this case, place the handset on the base
unit or charger and let it charge for at least
7 hours.
Controls
Base unit
DA B C E
G I JH
F
Message counter
M N (Erase)
MEN (Play)
Message indicator
Charge contacts
Speaker
MnN (Stop)
M N/M N (Repeat/Skip)
MjN/MkN (Volume up/down)
M N (Locator)
M N (Answer on)
Answer on indicator
11
Getting Started
TG80xxAL_NZ(en)_1021_ver001-2.pd11 11 2011/10/21 15:09:41
Handset
B C
M
A
G
F
D
E
J
K
I
H
L
B
A
Charge indicator
Ringer indicator
Secure grip
R Secure grip offers support when you
cradle the handset between your
shoulder and ear.
Speaker
Headset socket
M N (Talk)
M N (Speakerphone)
Dial keypad
Receiver
Display
M N (Off/Power)
MECO/RN
ECO: Eco mode shortcut key
R: Recall/Flash
Microphone
Charge contacts
n Control type
Soft keys
The handset features 3 soft keys. By
pressing a soft key, you can select the
feature shown directly above it on the
display.
Navigator key
– MDN, MCN, MFN, or MEN: Scroll through
various lists and items.
–
(Volume: MDN or MCN): Adjust the
receiver or speaker volume while
talking.
– MFN (
: Caller list): View the caller list.
– MEN (
: Redial): View the redial list.
R As all multiple items cannot be
displayed on screen at the same time,
you can quickly search the desired item
to move screens by pressing MEN or
MFN, instead of scrolling down or up line
by line (page 15).
Display
Handset display items
Item Meaning
Range status: The more bars
visible, the closer the handset
is to the base unit.
Out of base unit range
Paging, intercom mode
Speakerphone is on.
(page 16)
12
Getting Started
TG80xxAL_NZ(en)_1021_ver001-2.pd12 12 2011/10/21 15:09:41
Item Meaning
The line is in use.
R When flashing slowly: The
call is put on hold.
R When flashing rapidly: An
incoming call is now being
received.
Missed call
*1
(page 32)
The base unit transmission
power is set to “Low”.
(page 31)
The key backlight is off.
(page 25)
R When displayed next to the
battery icon:
Answering system is on.
(page 35)
R When displayed with a
number:
New messages have been
recorded. (page 36)
Answering system answers
calls with a greeting message
and caller messages are not
recorded. (“Selecting
“Greeting Only””,
page 40)
Battery level
Alarm is on. (page 27)
Equalizer is set. (page 17)
Privacy mode is on.
(page 26)
Ringer volume is off.
(page 25)
Night mode is on. (page 28)
Blocked call
*1
(page 28,
33)
New voice mail message
received.
*2
(page 41)
Line in
use
Someone is using the line.
IN USE
Answering system is being
used by another handset or
the base unit .
*1 Caller ID subscribers only
*2 Voice mail subscribers only
Base unit display items
Item Meaning
- - Answering system answers
calls with a greeting message
and caller messages are not
recorded. (“Selecting
“Greeting Only””,
page 40)
Handset soft key icons
Icon Action
Returns to the previous screen or
outside call.
Displays the menu.
Accepts the current selection.
Displays a previously dialled
phone number.
Makes a call. (page 16)
Temporarily turns off the ringer
for incoming calls. (page 17)
Sets 24-hour or 12-hour clock
format. (page 15)
Switches the wallpaper to display
with or without date and time.
(page 26)
Places a call on hold.
Opens the phonebook.
Allows you to edit phone
numbers. (page 29, 34)
Adds new entry. (page 20, 29)
Displays the phonebook search
menu.
Turns the key lock feature off.
(page 17)
Selects a character entry mode.
Selects categories or handsets.
(page 28, 29)
13
Getting Started
TG80xxAL_NZ(en)_1021_ver001-2.pd13 13 2011/10/21 15:09:41
Icon Action
Plays a message.
Stops recording or playback.
Stores phone numbers.
(page 29, 34)
Inserts a dialling pause.
Erases the selected item or
returns to the outside call.
Switches display mode between
single item and multiple items.
(page 15)
Allows you to make an intercom
call. (page 42)
Erases a number/character.
Puts the call on mute.
Handset main menu icons
The following icons are shown when you
press down on the middle soft key in standby
mode.
Icon Feature
Caller List
Answer System
Time Settings
Intercom
Ringer Setup
Initial Setup
Screen saver mode
The backlight goes dark when on a call or
turns off completely after 1 minute of
inactivity if the handset is not on the base unit
or charger.
Activate the handset display again by:
– pressing MFN or MEN when on a call.
– pressing M N at all other times.
Turning the power on/off
Power on
Press M
N for about 1 second.
Power off
Press M N for about 2 seconds.
Initial settings
n Direct command code:
Programmable settings can be accessed by
pressing
(middle soft key), # and
then the corresponding code on the dial
keypad (page 23).
Example: Press
(middle soft key)
#101.
n Symbol meaning:
Example: MbN: “Off”
Press MCN or MDN to select the words in
quotations.
Display language
1
(middle soft key) #110
2 MbN: Select your desired language. a
3 M N
14
Getting Started
TG80xxAL_NZ(en)_1021_ver001-2.pd14 14 2011/10/21 15:09:42
Date and time
Important:
R When you install the batteries for the first
time, the handset may prompt you to set
date and time. First press
, then
proceed to step 2.
1
(middle soft key) #101
2 Enter the current date, month, and year.
a
Example: 15 July, 2011
15 07 11
R You can select the date format by
pressing #:
– dd/mm/yy (date/month/year)
– yy/mm/dd
3 Enter the current hour and minute.
Example: 9:30
09 30
R You can select 24-hour or 12-hour
clock format (“AM” or “PM”) by
pressing
.
4
a M N
Note:
R The date and time may be incorrect after a
power failure. In this case, set the date and
time again.
Display mode
You can select to display either a single item
or multiple items on one screen at a time for
the following features:
– handset main menu icons in function menu
– menu list, recorded message list,
phonebook list, caller list, and redial list
Select the desired setting:
– “Multi Items”: Multiple entries/all menu
icons are shown on one screen at a time.
– “Single Item”: An entry/a menu icon is
shown on one screen in large characters at
a time.
The default setting is “Multi Items”.
Using soft key (Temporarily
switching the display mode)
You can temporarily switch the display mode
by pressing shown when viewing the
lists or selecting menu icons.
Programming the display mode
beforehand
1
(middle soft key) #192
2 MbN: Select the desired setting. a
a M N
Note:
R When in multiple items display mode, you
can move screens by pressing MEN or MFN,
without scrolling down or up through the list:
– Press MEN to go to the next screen.
– Press MFN to return to the previous
screen.
R When in multiple items display mode, you
can switch the screen to confirm the
detailed information by pressing
.
15
Getting Started
TG80xxAL_NZ(en)_1021_ver001-2.pd15 15 2011/10/21 15:09:42
Making calls
1 Lift the handset and dial the phone
number.
R To correct a digit, press
.
2 Press M
N or .
3 When you finish talking, press
M
N or place the handset on the base
unit or charger.
Using the speakerphone
1 Dial the phone number and press M
N.
R Speak alternately with the other party.
2 When you finish talking, press
M
N.
Note:
R For best performance, use the
speakerphone in a quiet environment.
R To switch back to the receiver, press M
N/
M
N.
Adjusting the receiver or speaker
volume
Press MDN or MCN repeatedly while talking.
Making a call using the redial list
The last 10 phone numbers dialled are stored
in the redial list (each 24 digits max.).
1
(right soft key) or MEN ( )
2 MbN: Select the desired phone number.
3 M
N
Erasing a number in the redial list
1
(right soft key) or MEN ( )
2 MbN: Select the desired phone number.
a
3 MbN: “Yes” a a M N
Pause (for PBX/long distance service
users)
A pause is sometimes required when making
calls using a PBX or long distance service.
When storing a calling card access number
and/or PIN in the phonebook, a pause is also
needed (page 21).
Example: If you need to dial the line access
number “0” when making outside calls with a
PBX:
1 0 a
2 Dial the phone number. a M N
Note:
R A 3 second pause is inserted each time
is pressed. Repeat as needed to
create longer pauses.
Answering calls
When a call is being received, the ringer
indicator flashes rapidly.
1 Lift the handset and press M
N or M N
when the unit rings.
R You can also answer the call by
pressing any dial key from 0 to 9,
*, or #. (Any key answer feature)
2 When you finish talking, press
M
N or place the handset on the base
unit or charger.
Auto talk
You can answer calls simply by lifting the
handset off the base unit or charger. You do
not need to press M N. To turn this feature
on, see page 26.
Adjusting the handset ringer volume
n While the handset is ringing for an
incoming call:
Press MDN or MCN repeatedly to select the
desired volume.
n Programming the volume beforehand:
1
(middle soft key) #160
2 MbN: Select the desired volume.
16
Making/Answering Calls
TG80xxAL_NZ(en)_1021_ver001-2.pd16 16 2011/10/21 15:09:42
3 a M N
Temporary handset ringer off
While the handset is ringing for a call, you can
turn the ringer off temporarily by pressing
.
Useful features during a
call
Hold
This feature allows you to put an outside call
on hold.
1 Press
during an outside call.
2 MbN: “Hold” a
3 To release hold, press M N.
R Another handset user can take the call
by pressing M
N.
Note:
R If a call is kept on hold for more than 9
minutes, an alarm tone starts to sound and
the ringer indicator flashes rapidly. After 1
additional minute on hold, the call is
disconnected.
R If another phone is connected to the same
line, you can also take the call by lifting its
handset.
Mute
While mute is turned on, you can hear the
other party, but the other party cannot hear
you.
1 Press
during conversation.
R
flashes.
2 To return to the conversation, press
again.
Recall/flash
MECO/RN allows you to use the special
features of your host PBX such as transferring
an extension call, or accessing optional
telephone services.
Note:
R To change the recall/flash time, see
page 26.
Handset equalizer
This feature clarifies the voice of the person
you are talking to, producing a more
natural-sounding voice that is easier to hear
and understand.
1 Press
while talking.
2 MbN: “Equalizer” a
3 MbN: Select the desired setting.
4 Press
to exit.
Note:
R When this feature is turned on,
is
displayed while talking.
R Depending on the condition and quality of
your telephone line, this feature may
emphasise existing line noise. If it becomes
difficult to hear, turn this feature off.
R This feature is not available while using the
speakerphone.
Call share
You can join an existing outside call.
To join the conversation, press M
N when
the other handset is on an outside call.
Note:
R To prevent other users from joining your
conversations with outside callers, turn the
privacy mode on (page 26).
Key lock
The handset can be locked so that no calls or
settings can be made. Incoming calls can be
answered, but all other functions are disabled
while key lock is on.
To turn key lock on, press for about 3
seconds.
R
is displayed.
R To turn key lock off, press
for about 3
seconds.
17
Making/Answering Calls
TG80xxAL_NZ(en)_1021_ver001-2.pd17 17 2011/10/21 15:09:42
Note:
R Calls to emergency numbers cannot be
made until key lock is turned off.
Power back-up operation
When a power failure occurs, the charged
handset temporarily supplies power to the
base unit (power back-up mode). This allows
you to make and receive calls using a handset
during a power failure. The base unit will not
perform any other functions. You can program
“Power Failure” and the default setting is
“Auto” (page 26).
Important:
R If a handset is not placed on the base unit
when a power failure occurs, “Base no
power Press
” is displayed. After
pressing M
N on the handset, place it
on the base unit to start power back-up
mode.
R Power back-up mode will not work if the
battery level of the power supplying
handset is
/ .
R Do not lift the power supplying handset
from the base unit during power back-up
mode.
R Do not touch the handset’s charge contacts
during power back-up mode.
R If the battery level is low, the unit will not
work sufficiently during power back-up
mode. In addition, in case handset battery
power runs out, we recommend connecting
a corded-type telephone (without AC
adaptor) to the same telephone line or to
the same telephone line jack using a
T-adaptor.
R Calls cannot be made during a power
failure until key lock is turned off (page 17).
Panasonic Ni-MH battery
performance (supplied batteries)
during power back-up mode
When the batteries are fully charged,
operating time of the handset in power
back-up mode varies depending on usage.
– Continuous use of the handset in power
back-up mode: 2 hours max.
– Continuous use of the handset other than a
handset in power back-up mode: 3 hours
max.
– Not in use in power back-up mode: 3 hours
max.
Note:
R Actual battery performance depends on
usage and ambient environment.
Making calls during a power
failure
n When only 1 handset is registered:
1 Lift the handset and dial the phone
number.
2 Within 1 minute, place the handset on
the base unit.
R Wait until speakerphone is turned
on automatically and the call is
made.
3 When the other party answers the
call, keep the handset on the base
unit and talk using the speakerphone.
4 When you finish talking, press
M
N.
Note:
R In step 2, if you do not place the
handset on the base unit within 1
minute, the power back-up mode turns
off. In this case, press M
N on the
handset and dial the phone number.
Then try again from step 2.
n When 2 or more handsets are registered:
You should leave one handset on the base
unit for supplying the power, and use
another handset for making calls. For the
operation, please see “Making calls”,
page 16.
Note:
R During a call with the handset placed on
the base unit (power back-up mode),
the call may be disconnected if you
touch the handset. In such case, try to
call back.
18
Making/Answering Calls
TG80xxAL_NZ(en)_1021_ver001-2.pd18 18 2011/10/21 15:09:42
R The range of the base unit is limited
during a power failure. Please use the
handset close to the base unit.
Making a call using the redial list
n When only 1 handset is registered:
1 Lift the handset.
2
or MEN ( )
3 MbN: Select the desired phone number.
4 Within 1 minute, place the handset on
the base unit.
R Wait until speakerphone is turned
on automatically and the call is
made.
n When 2 or more handsets are registered:
You should leave one handset on the base
unit for supplying the power, and use
another handset for making calls. For the
operation, please see “Making a call using
the redial list”, page 16.
Making a call using the handset
phonebook
n When only 1 handset is registered:
1 Lift the handset.
2
3 MbN: Select the desired entry.
4 Within 1 minute, place the handset on
the base unit.
R Wait until speakerphone is turned
on automatically and the call is
made.
n When 2 or more handsets are registered:
You should leave one handset on the base
unit for supplying the power, and use
another handset for making calls. For the
operation, please see “Finding and calling
from a phonebook entry”, page 20.
Answering calls during a power
failure
n When only 1 handset is registered:
1 When the unit rings, keep the handset
on the base unit and press M
N or
M
N.
R Speakerphone is turned on.
2 When you finish talking, press
M
N.
n When 2 or more handsets are registered:
When the unit rings, use a handset which
is not supplying power to the base unit.
For the operation, please see “Answering
calls”, page 16.
R Do not use or lift the handset which is
placed on the base unit during power
back-up mode.
Note:
R During a call with the handset placed on
the base unit (power back-up mode),
the call may be disconnected if you
touch the handset. In such case, try to
call back.
R The range of the base unit is limited
during a power failure. Please use the
handset close to the base unit.
19
Making/Answering Calls
TG80xxAL_NZ(en)_1021_ver001-2.pd19 19 2011/10/21 15:09:42
Handset phonebook
The phonebook allows you to make calls
without having to dial manually. You can add
200 names and phone numbers, assign each
phonebook entry to the desired category.
Adding entries
1
(left soft key) a
2 Enter the party’s name (16 characters
max.). a
R You can change the character entry
mode by pressing
(page 45).
3 Enter the party’s phone number (24 digits
max.). a
4 MbN: Select the desired category. a
2 times.
R To add other entries, repeat from step
2.
5 M
N
Note for New Zealand:
R Your service provider/telephone company
may charge you for a local call if the
number dialled has the area code prefix
included. If this is unacceptable, dial only
the 7-digit local number. Do not dial the “0”
prefix or the area code.
Categories
Categories can help you find entries in the
phonebook quickly and easily. When adding
an entry to the phonebook, you can assign it
to one of 9 categories. You can change the
names of categories assigned for phonebook
entries (“Friends”, “Family”, etc.) and then
search for phonebook entries by category.
The category ringer tone feature is available
for Caller ID subscribers (page 33).
Changing category names
1
(left soft key) a
2 MbN: “Category” a
3 MbN: Select the desired category. a
4 MbN: “Category Name” a
5 Edit the name (10 characters max.;
page 45). a
a M N
Finding and calling from a
phonebook entry
Scrolling through all entries
1
(left soft key)
2 MbN: Select the desired entry.
R You can scroll through the phonebook
entry by pressing and holding MCN or
MDN.
3 M
N
Searching by first character
1
(left soft key)
R Change the character entry mode if
necessary:
a MbN: “Character Set” a
a MbN: Select the character
entry mode. a
2 Press the dial key (0 to 9, or #) which
contains the character you are searching
for (page 45).
R Press the same dial key repeatedly to
display the first entry corresponding to
each character located on that dial key.
R If there is no entry corresponding to
the character you selected, the next
entry is displayed.
3 MbN: Scroll through the phonebook if
necessary.
4 M
N
Searching by category
1
(left soft key) a
2 MbN: “Category” a
3 MbN: Select the desired category. a
R If you select “All”, the unit ends the
category search.
4 MbN: Scroll through the phonebook if
necessary.
20
Phonebook
TG80xxAL_NZ(en)_1021_ver001-2.pd20 20 2011/10/21 15:09:42
5 M N
Editing entries
1 Find the desired entry (page 20). a
2 MbN: “Edit” a
3 Edit the name if necessary (16 characters
max.; page 45). a
4 Edit the phone number if necessary (24
digits max.). a
5 MbN: Select the desired category. a
2 times a M N
Erasing entries
Erasing an entry
1 Find the desired entry (page 20).
2
a MbN: “Yes” a a
M
N
Erasing all entries
1
(left soft key) a
2 MbN: “Erase All” a
3 MbN: “Yes” a
4 MbN: “Yes” a a M N
Speed dial
Assigning an entry in the phonebook
to a speed dial key
Dial keys 1 to 9 can each be used as a
speed dial key, allowing you to dial a number
from the phonebook by simply pressing a dial
key.
1 Find the desired entry (page 20). a
2 MbN: “Speed Dial” a
3 MbN: Select the desired dial key number.
a
R Where a dial key is already being used
for speed dialling, “
” is displayed
next to the dial key number. If you
select this dial key, you can overwrite
the previous assignment.
4
a M N
Making a call using a speed dial key
1 Press and hold the desired speed dial key
(1 to 9).
R You can view other speed dial
assignments by pressing MCN or MDN.
2 M
N
Cancelling a speed dial assignment
1 Press and hold the desired speed dial key
(1 to 9).a
2 MbN: “Yes” a a M N
Chain dial
This feature allows you to dial phone numbers
in the phonebook while you are on a call. This
feature can be used, for example, to dial a
calling card access number or bank account
PIN that you have stored in the phonebook,
without having to dial manually.
1 During an outside call, press
.
2 MbN: “Phonebook” a
3 MbN: Select the desired entry.
4 Press to dial the number.
Note:
R When storing a calling card access number
and your PIN in the phonebook as one
phonebook entry, press
to add
pauses after the number and PIN as
necessary (page 16).
21
Phonebook
TG80xxAL_NZ(en)_1021_ver001-2.pd21 21 2011/10/21 15:09:42
Copying phonebook
entries
You can copy phonebook entries between 2
handsets.
*1
*1 Panasonic compatible handset
Note:
R Category settings for phonebook entries
are not copied.
Copying an entry
1 Find the desired entry (page 20). a
2 MbN: “Copy” a
3 MbN: Select the handset you want to send
the phonebook entry to. a
R When an entry has been copied,
“Completed” is displayed.
R To continue copying another entry:
MbN: “Yes” a
aMbN: Select the
desired entry.a
4 M N
Copying all entries
1
(left soft key) a
2 MbN: “Copy All” a
3 MbN: Select the handset you want to send
the phonebook entry to. a
R When all entries have been copied,
“Completed” is displayed.
4 M
N
22
Phonebook
TG80xxAL_NZ(en)_1021_ver001-2.pd22 22 2011/10/21 15:09:42
Programmable settings
You can customise the unit by programming the following features using the handset.
To access the features, there are 2 methods.
n Scrolling through the display menus
1
(middle soft key)
2 Press MCN, MDN, MEN, or MFN to select the desired main menu. a
3 Press MCN or MDN to select the desired item from the next sub-menus. a
4 Press MCN or MDN to select the desired setting. a
R This step may vary depending on the feature being programmed.
R To exit the operation, press M N.
n Using the direct command code
1
(middle soft key) a Enter the desired code.
Example: Press
(middle soft key) #101.
2 Select the desired setting. a
R This step may vary depending on the feature being programmed.
R To exit the operation, press M N.
Note:
R In the following table, < > indicates the default settings.
R In the following table,
indicates the reference page number.
R Display menu order and sub-menu may vary depending on your model.
Display the menu tree and direct command code table
Main menu:
“Caller List”
Operation Code
Viewing the caller list. #213 33
Main menu: “Answer System”
Sub-menu 1 Sub-menu 2 Settings Code
Message List
– – #329 37
Play New Msg.
– – #323 36
Play All Msg.
– – #324 36
Erase All Msg.
*1
– – #325 37
Greeting
Start REC
*1
(Record greeting)
– #302 36
Play Greeting
– #303 36
Default
*1
(Reset to pre-recorded
greeting)
– #304 36
23
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd23 23 2011/10/21 15:09:42
Sub-menu 1 Sub-menu 2 Settings Code
Settings
Number of Rings
*1
2–9: 2-9 Rings
5: <5 Rings>
0: Auto
#211 39
Recording Time
*1
1: 1 Minute
3: <3 Minutes>
0: Greeting Only
*2
#305 40
Remote Code
*1
– #306 38
Call Screening
1: <On> 0: Off #310 35
Answer On
*1
– – #327 35
Answer Off
*1
– – #328 35
Main menu: “Time Settings”
Sub-menu 1 Sub-menu 2 Settings Code
Set Date/Time
*1
– – #101 15
Alarm
– 1: Once
2: Daily
0: <Off>
#720 27
Time Adjustment
*1,
*3
– 1: <Caller ID>
0: Manual
#226 –
Main menu: “Intercom”
Operation Code
Paging the desired unit. #274 42
Main menu: “Ringer Setup”
Sub-menu 1 Sub-menu 2 Settings Code
Ringer Volume
Handset
*4
0–6: Off–6 <6> #160 16
Base Unit
*1
0–6: Off–6 <3> #G160 –
Ringtone
*5, *6
(Handset)
– <Ringtone 1> #161 –
Night Mode On/Off
1: On 0: <Off> #238 27
Start/End
<23:00/06:00> #237 28
Ring Delay
1: 30 sec.
2: <60 sec.>
3: 90 sec.
4: 120 sec.
0: No Ringing
#239 28
Select Category
1–9: Category
1-9
#241 28
24
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd24 24 2011/10/21 15:09:42
Main menu: “Initial Setup”
Sub-menu 1 Sub-menu 2 Settings Code
Ringer Setup Ringer Volume
– Handset
*4
0–6: Off–6 <6> #160 16
Ringer Volume
– Base Unit
*1
0–6: Off–6 <3> #G160 –
Ringtone
*5,
*6
(Handset)
<Ringtone 1> #161 –
Night Mode
– On/Off
1: On 0: <Off> #238 27
Night Mode
– Start/End
<23:00/06:00> #237 28
Night Mode
– Ring Delay
1: 30 sec.
2: <60 sec.>
3: 90 sec.
4: 120 sec.
0: No Ringing
#239 28
Night Mode
– Select Category
1–9: Category
1-9
#241 28
Time Settings
Set Date/Time
*1
– #101 15
Alarm
1: Once
2: Daily
0: <Off>
#720 27
Time Adjustment
*1,
*3
1: <Caller ID>
0: Manual
#226 –
Handset Name
– – #104 28
Caller Barred
*1
– – #217 28
Eco Setup
Transmission Power
*1
1: <Normal>
2: Low
#725 30
Display Setup
Wallpaper
*7
<Wallpaper1> #181 –
Display Colour 1-2: Colour1-2
<Colour1>
#182 –
Display Mode
1: <Multi Items>
0: Single Item
#192 15
Key Backlight
1: <On> 0: Off #276 –
LCD in charging
*8
(LCD backlight)
1: <On> 0: Off #191 –
Contrast
(Display contrast)
1–6: Contrast 1-6
<Contrast 3>
#145 –
Keytones
*9
– 1: <On> 0: Off #165 –
25
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd25 25 2011/10/21 15:09:42
Sub-menu 1 Sub-menu 2 Settings Code
Area Code
*1
– – #255 29
Call Restrict
*1
– – #256 29
Auto Talk
*10
– 1: On 0: <Off> #200 16
Line Setup
Recall/Flash
*1,
*11
0: 900 msec.
1: 700 msec.
2: <600 msec. >
*12
3: 400 msec.
4: 300 msec.
5: 250 msec.
G: 200 msec.
#: 160 msec.
6: 110 msec.
7: <100 msec.>
*13
8: 90 msec.
9: 80 msec.
#121 17
Privacy Mode
*1,
*14
– 1: On 0: <Off> #194 –
Base Unit PIN
*1
– <0000> #132 30
Repeater Mode
*1
– 1: <On> 0: Off #138 44
Register Register H.set
– #130 30
Cancel Register
*2
– #131 30
Power Failure
– 1: <Auto> 0: Off #152 18
Language Display
<English> #110 14
*1 If you program these settings using one of the handsets, you do not need to program the
same item using another handset.
*2 This menu is not displayed when scrolling through the display menus. It is only available in
direct command code.
*3 This feature allows the unit to automatically adjust the date and time each time caller
information including date and time is received.
To turn this feature on, select “Caller ID”. To turn this feature off, select “Manual”.
(Caller ID subscribers only)
To use this feature, set the date and time first (page 15).
*4 Ringer volume cannot be turned off for alarm, intercom calls, and paging.
*5 If you select one of the melody ringer tones, the ringer tone continues to play for several
seconds even if the caller has already hung up. You may either hear a dial tone or no one on
the line when you answer the call.
*6 The preset melodies in this product are used with permission of © 2011 Copyrights Vision
Inc.
*7
You can set the wallpaper to display with or without date and time by pressing
. The
default setting is with date and time displayed.
*8 You can set the handset display backlight while on charge.
– “On”: Backlight is on (dimmed).
– “Off”: Backlight turns off after 10 seconds of charging.
26
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd26 26 2011/10/21 15:09:42
*9 Turn this feature off if you prefer not to hear key tones while you are dialling or pressing any
keys, including confirmation tones and error tones.
*10 If you subscribe to a Caller ID service and want to view the caller’s information after lifting up
the handset to answer a call, turn off this feature.
*11 The recall/flash time depends on your telephone exchange or host PBX. Contact your PBX
supplier if necessary.
You can access your service provider/telephone company “call waiting” service by having
the recall/flash time set at “100 msec.”, and then follow your service provider/telephone
company “call waiting” instructions to operate this service. (for Australia)
*12 For New Zealand
*13 For Australia
*14 To prevent other users from joining your conversations with outside callers, turn this feature
on.
Special programming
Alarm
An alarm sounds at the set time for 3 minutes
once or daily. Alarm can be set for each
handset.
Important:
R Set the date and time beforehand
(page 15).
1 (middle soft key) #720
2 MbN: Select the desired alarm option. a
“Off”
Turns alarm off. Go to step 6.
“Once”
An alarm sounds once at the set time.
“Daily”
An alarm sounds daily at the set time.
Go to step 4.
3 Enter the desired date and month. a
4 Set the desired time. a
5 MbN: Select the desired alarm tone. a
R We recommend selecting a different
ringer tone from the one used for
outside calls.
6 a M N
R When the alarm is set,
is displayed.
Note:
R To stop the alarm, press M N or place
the handset on the base unit or charger.
R When the handset is in use, the alarm will
not sound until the handset is in standby
mode.
Night mode
Night mode allows you to select a period of
time during which the handset will not ring for
outside calls. This feature is useful for time
periods when you do not want to be disturbed,
for example, while sleeping. Night mode can
be set for each handset.
Using the phonebook’s category feature
(page 20), you can also select categories of
callers whose calls override night mode and
ring the handset (Caller ID subscribers only).
Important:
R Set the date and time beforehand
(page 15).
R We recommend turning the base unit ringer
off (page 25) in addition to turning the night
mode on.
R If you have set the alarm, the alarm sounds
even if the night mode is turned on.
Turning night mode on/off
1
(middle soft key) #238
27
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd27 27 2011/10/21 15:09:42
2 MbN: Select the desired setting. a
R If you select “Off”, press M N to
exit.
3 Enter the desired hour and minute you
wish to start this feature. a
R You can select 24-hour or 12-hour
clock format (“AM” or “PM”) by
pressing
.
4 Enter the desired hour and minute you
wish to end this feature. a
5 M N
R When the night mode is set,
is
displayed.
Changing the start and end time
1
(middle soft key) #237
2 Continue from step 3, "Turning night
mode on/off", page 27.
Setting the ring delay
This setting allows the handset to ring during
night mode if the caller waits long enough.
After the selected amount of time passes, the
handset rings. If you select “No Ringing”,
the handset never rings during night mode.
1
(middle soft key) #239
2 MbN: Select the desired setting. a
a M N
Note:
R When the answering system answers the
call, this feature does not work.
Selecting categories to bypass night
mode
1
(middle soft key) #241
2 MbN: Select your desired categories. a
R “ ” is displayed next to the selected
category numbers.
R To cancel a selected category, press
again. “ ” disappears.
3
a M N
Note:
R You can also select the categories in step 2
as follows:
Press 1 to 9. a
Changing the handset name
Each handset can be given a customised
name (“Bob”, “Kitchen”, etc.). This is useful
when you make intercom calls between
handsets. You can also select whether or not
the handset name is displayed in standby
mode. The default setting is “No”. If you select
“Yes” without entering any handset name,
“Handset 1” to “Handset 6” is displayed.
1
(middle soft key) #104
2 Enter the desired name (max. 10
characters; page 45).
R If not required, go to step 3.
3
4 MbN: Select the desired setting. a 2
times
5 M N
Incoming call barring (Caller ID
subscribers only)
This feature allows the unit to reject calls from
specified phone numbers that you do not want
to answer such as junk calls.
When a call is received, the unit does not ring
while the caller is being identified. If the phone
number matches an entry in the call barred
list, the unit sends out a busy tone to the
caller, and then disconnects the call.
Important:
R When the unit receives a call from a
number that is stored in the call barred list,
the call is logged in the caller list
(page 33) with
after the call is
disconnected.
Storing unwanted callers
You can store up to 30 phone numbers in the
call barred list.
28
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd28 28 2011/10/21 15:09:42
Important:
R You must store the phone number with an
area code in the call barred list.
n From the caller list:
1 MFN (
)
2 MbN: Select the entry to be barred. a
a
3 MbN: “Caller Barred” a
4 MbN: “Yes” a a M N
n By entering phone numbers:
1
(middle soft key) #217 a
2 Enter the phone number (24 digits
max.). a
R To erase a digit, press .
3 M
N
Viewing/editing/erasing bar call
numbers
1
(middle soft key) #217
2 MbN: Select the desired entry.
R To exit, press M
N.
3 To edit a number:
a Edit the phone number. a
a M N
To erase a number:
a MbN: “Yes” a a
M
N
Note:
R When editing, press the desired dial key to
add,
to erase.
Storing an area code to be
deleted automatically
In some situations, phone numbers stored
automatically in the caller list (page 33) will
include area codes. If you do not want to dial
the area code when making calls from the
caller list, you can store the area code which
you want the unit to delete automatically.
Example: You have stored the area code
“09”. If you make a call from the caller list to
the phone number “09-456-7890”, the unit
dials “456-7890”.
1
(middle soft key) #255
2 Enter an area code (5 digits max.). a
a M N
Note for New Zealand:
R The use of this feature can prevent a
National Call from being dialled. E.g., in the
case of the South Island, the “03” will be
omitted and will therefore prevent a
National Call to other areas of the South
Island.
Setting call restriction
You can restrict selected handsets from
dialling certain numbers. You can assign up to
6 phone numbers to be restricted, and select
which handsets are to be restricted. Storing
area codes here prevents the restricted
handsets from dialling any phone number in
that area code.
1
(middle soft key) #256
2 Enter the base unit PIN (default: “0000”).
R If you forget your PIN, contact an
authorised service centre.
3 MbN: Select the handsets to be restricted.
a
R All handsets registered to the base unit
are displayed.
R “
” is displayed next to the selected
handset numbers.
R To cancel a selected handset, press
again. “ ” disappears.
4
5 MbN: Select a memory location. a
6 Enter the phone number or area code to
be restricted (8 digits max.). a
a
M
N
R To erase a restricted number, press
.
Note:
R You can also select a memory location in
step 5 as follows:
Press 1 to 6. a
29
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd29 29 2011/10/21 15:09:43
Changing the base unit PIN
(Personal Identification Number)
Important:
R If you change the PIN, please make note of
your new PIN. The unit will not reveal the
PIN to you. If you forget your PIN, contact
an authorised service centre.
1
(middle soft key) #132
2 Enter the current 4-digit base unit PIN
(default: “0000”).
3 Enter the new 4-digit base unit PIN. a
a M N
Registering a unit
Operating additional units
Additional handsets
Up to 6 handsets can be registered to the
base unit.
Important:
R The additional handset model
recommended for use with this unit is noted
on page 4. If another handset model is
used, certain operations (handset settings,
base unit settings, etc.) may not be
available.
Registering a handset to the
base unit
The supplied handset and base unit are
pre-registered. If for some reason the handset
is not registered to the base unit (for example,
is displayed even when the handset is
near the base unit), re-register the handset.
1 Handset:
(middle soft key) #130
2 Base unit:
Press and hold M
N for about 5 seconds,
until the registration tone sounds.
R If all registered handsets start ringing,
press M
N again to stop, then repeat
this step.
R The next step must be completed
within 90 seconds.
3 Handset:
a Wait until “Base PIN” is
displayed. a Enter the base unit PIN
(default: “0000”). a
R If you forget your PIN, contact an
authorised service centre.
R When the handset has been registered
successfully,
is displayed.
Note:
R While registering, “Base in
registering” is displayed on all
registered handsets.
R When you purchase an additional handset,
refer to the additional handset’s installation
manual for registration.
Deregistering a handset
A handset can cancel its own registration to
the base unit, or other handsets registered to
the same base unit. This allows the handset to
end its wireless connection with the system.
1
(middle soft key) #131
R All handsets registered to the base unit
are displayed.
2 MbN: Select the handset you want to
cancel. a
3 MbN: “Yes” a
R A confirmation tone sounds.
R The handset does not beep when
cancelling its own registration.
4 M
N
One touch eco mode
If you want to activate eco mode, set the
repeater mode “Off” beforehand (page 44).
The MECO/RN button on the handset enables
you to activate the eco function with one touch.
By activating eco mode, your unit can reduce
the base unit transmission power by up to
90% in standby mode.
30
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd30 30 2011/10/21 15:09:43
You can turn on/off one touch eco mode by
just pressing MECO/RN. The default setting is
“Normal”.
– When the one touch eco mode is on: “Low”
is temporarily displayed and
is shown
on the handset display instead of
.
– When the one touch eco mode is off:
“Normal” is temporarily displayed and
goes off from the handset display.
Note:
R When there is another cordless phone
nearby and it is in use, the base unit
transmission power may not be reduced.
R Activating one touch eco mode reduces the
range of the base unit in standby mode.
R If you set the repeater mode to “On” (page
44):
– One touch eco mode is cancelled.
– “Eco Setup” is not shown in the
display menu (page 25).
31
Programming
TG80xxAL_NZ(en)_1021_ver001-2.pd31 31 2011/10/21 15:09:43
Using Caller ID service
Important:
R This unit is Caller ID compatible. To use
Caller ID features (such as displaying caller
phone numbers), you must subscribe to a
Caller ID service. Contact your service
provider/telephone company for details.
For New Zealand:
R For all local and national incoming calls,
your display will show the area code (e.g.
09 for Auckland) or the cellular prefix (e.g.
0274 for Telecom Cellular) followed by the
caller’s telephone number. An Auckland
caller’s number will be displayed as
09XXXXXXX. The seven X’s represent the
seven digits of the caller’s telephone
number. A caller from a 6-digit Telecom
Cellular number will be displayed as
0274XXXXXX. For incoming international
calls, your display may only show “0000”.
For business users on a Centrex line, your
display will show Centrex extension
numbers in the shorter extension number
format used within your company.
R The Caller ID information will not be
presented on incoming fax calls if Telecom
FaxAbility is used.
Using toll services from Telecom or
another company (for New Zealand)
Your telephone company may charge you for
a local call if the number dialled has the area
code prefix included. If this is unacceptable,
dial only the 7-digit local number. Do not dial
the 0 prefix or the area code.
Caller ID features
When an outside call is being received, the
caller’s phone number is displayed.
Caller information for the last 50 callers is
logged in the caller list from the most recent
call to the oldest.
R If the unit cannot receive caller information,
the following is displayed:
– “Out of Area”: The caller dials from
an area which does not provide a Caller
ID service.
– “Private Caller”: The caller
requests not to send caller information.
R If the unit is connected to a PBX system,
caller information may not be properly
received. Contact your PBX supplier.
Missed calls
If a call is not answered, the unit treats it as a
missed call and
is displayed. This lets you
know if you should view the caller list to see
who called while you were away.
Even if only one missed call in the caller list is
viewed (page 33),
disappears from the
display. When you receive another new call,
is displayed again.
Note:
R Even when there are unviewed missed
calls,
disappears from the standby
display if the following operation is
performed by one of the registered
handsets:
– Being replaced on the base unit or
charger.
– Pressing M
N.
Phonebook name display
When caller information is received and it
matches a phone number stored in the
phonebook, the stored name in the
phonebook is displayed and logged in the
caller list.
Call waiting and Caller ID
compatible (for Australia)
If you subscribe to Caller ID service, your
handset displays the 2nd caller’s information
while talking. After you hear a call waiting
tone, the caller’s phone number will be
displayed.
You can answer the 2nd call, keeping the 1st
call on hold. Follow your service provider/
telephone company instructions using
MECO/RN. (Recall/flash function)
R If the phone number is stored in the
phonebook with its name, the caller’s name
will also be displayed.
32
Caller ID Service
TG80xxAL_NZ(en)_1021_ver001-2.pd32 32 2011/10/21 15:09:43
R Please contact your service provider/
telephone company for details and
availability in your area.
For Caller ID Type II users
When you receive a 2nd call during a
conversation, you will hear a signal tone
following the call waiting tone and the
conversation will be interrupted or muted
for a short period of time. This is not a fault
of the product as these events are normal.
R The tones are generated by your service
provider/telephone company.
For Call Waiting or Call Waiting
Caller ID service users (for New
Zealand)
To use call waiting or Call Waiting Caller ID,
you must first subscribe with your service
provider/telephone company. This feature
allows you to receive calls while you are
already talking on the phone. If you receive a
call while on the phone, you will hear a call
waiting tone. If you subscribe to both Caller
ID and Call Waiting with Caller ID services,
the 2nd caller’s information is displayed after
you hear the call waiting tone on the handset.
1 Press MECO/RN to answer the 2nd call.
2 To switch between calls, press MECO/RN.
Note:
R Please contact your service provider/
telephone company for details and
availability of this service in your area.
Category ringer tone
This feature can help you identify who is
calling by using different ringer tones for
different categories of callers. When adding an
entry to the phonebook, you can assign it to
the desired category (page 20). When a call is
received from a caller assigned to a category,
the ringer you selected for that category rings
after caller information is displayed.
If you select “Default Ringer”, the unit
uses the ringer tone you selected on page 25
when calls from this category are received.
The default setting is “Default Ringer”.
1
(left soft key) a
2 MbN: “Category” a
3 MbN: Select the desired category. a
4 MbN: Select the current setting of the
category ringer tone. a
5 MbN: Select the desired ringer tone. a
6 M N
Caller list
Important:
R Only 1 person can access the caller list at a
time.
R Make sure the unit’s date and time setting
is correct (page 15).
Viewing the caller list and calling
back
1 MFN (
)
2 Press MCN to search from the most recent
call, or press MDN to search from the
oldest call.
R You can see the detailed information
about the caller by pressing
when in multiple display mode.
3 To call back, press M
N.
To exit, press M N.
Note:
R If the entry has already been viewed or
answered, “
” is displayed, even if it was
viewed or answered using another handset.
R If the call matches an entry in the call
barred list, the number is logged with
(page 28).
R If you do not want to dial the area code
when making calls from the caller list, you
can store the area code which you want the
unit to delete automatically (page 29).
33
Caller ID Service
TG80xxAL_NZ(en)_1021_ver001-2.pd33 33 2011/10/21 15:09:43
Editing a caller’s phone number
before calling back
The caller’s telephone number, which is sent
to your telephone from your local telephone
exchange, includes “0” and an area code
prefix. For local calls, “0” and the area code
prefix can be omitted. (for New Zealand)
1 MFN (
)
2 MbN: Select the desired entry. a
3 a Edit the number.
R Press dial key (0 to 9) to add,
to delete.
4 M
N
Erasing selected caller
information
1 MFN (
)
2 MbN: Select the desired entry.
3
a MbN: “Yes” a a
M
N
Erasing all caller information
1 MFN (
)
2
a MbN: “Yes” a a
M
N
Storing caller information to the
phonebook
1 MFN (
)
2 MbN: Select the desired entry. a
a
3 MbN: “Phonebook” a
4 To store the name, continue from step 2,
"Adding entries", page 20.
34
Caller ID Service
TG80xxAL_NZ(en)_1021_ver001-2.pd34 34 2011/10/21 15:09:43
Answering system
The answering system can answer and record
calls for you when you are unavailable to
answer the phone.
You can also set the unit to play a greeting
message but not to record caller messages by
selecting “Greeting Only” as the recording
time setting (page 40).
Important:
R Only 1 person can access the answering
system (listen to messages, record a
greeting message, etc.) at a time.
R When callers leave messages, the unit
records the day and time of each message.
Make sure the date and time have been set
correctly (page 15).
R The unit’s answering system will not
answer incoming calls on your FaxAbility
number. (for New Zealand)
Memory capacity (including your
greeting message)
The total recording capacity is about 18
minutes. A maximum of 64 messages can be
recorded.
Note:
R When message memory becomes full:
– “Messages Full” is shown on the
handset display.
– The answer on indicator on the base unit
flashes rapidly if the answering system is
turned on.
– The message counter on the base unit
flashes if the answering system is turned
on.
–
and the total number of new
messages are not displayed on the
handset even if the answering system is
turned on.
– If you use the pre-recorded greeting
message, the unit automatically switches
to another pre-recorded greeting
message asking callers to call again
later.
– If you recorded your own greeting
message, the same message is still
announced to callers even though their
messages are not recorded.
Turning the answering
system on/off
The answering system is preset to on.
Base unit
Press M
N to turn on/off the answering
system.
R When the answering system is turned on:
– The answer on indicator lights up.
– The message counter displays the total
number of messages (old and new).
Handset
1 To turn on:
(middle soft key) #327
To turn off:
(middle soft key) #328
2 M
N
Note:
R When the answering system is turned on,
is displayed next to the battery icon.
Call screening
While a caller is leaving a message, you can
listen to the call through the handset’s
speaker. To adjust the speaker volume, press
MDN or MCN repeatedly. You can answer the call
by pressing M
N on the handset. Call
screening can be set for each handset. The
default setting is “On”.
1
(middle soft key) #310
2 MbN: Select the desired setting. a
a M N
Greeting message
When the unit answers a call, a greeting
message is played to callers.
You can use either:
– your own greeting message
35
Answering System
TG80xxAL_NZ(en)_1021_ver001-2.pd35 35 2011/10/21 15:09:43
– a pre-recorded greeting message
Recording your greeting message
1
(middle soft key) #302
2 MbN: “Yes” a
3 After a beep sounds, hold the handset
about 20 cm away and speak clearly into
the microphone (2 minutes and 30
seconds max.).
4 Press
to stop recording.
5 M
N
Using a pre-recorded greeting
message
The unit provides 2 pre-recorded greeting
messages:
– If you erase or do not record your own
greeting message, the unit plays a
pre-recorded greeting asking callers to
leave a message.
– If the message recording time (page 40)
is set to “Greeting Only”, callers’
messages are not recorded and the unit
plays a different pre-recorded greeting
message asking callers to call again.
Resetting to a pre-recorded greeting
message
If you want to use a pre-recorded greeting
message once you record your own greeting
message, you need to erase your own
greeting message.
1
(middle soft key) #304
2
a M N
Playing back the greeting
message
1
(middle soft key) #303
2 M
N
Listening to messages
using the base unit
When new messages have been recorded,
MEN on the base unit flashes.
Press MEN.
R If new messages have been recorded, the
base unit plays back new messages.
R If there are no new messages, the base
unit plays back all messages.
Operating the answering system
during playback
Key Operation
MjN or MkN Adjust the speaker
volume
M N
Repeat message
*1
M N Skip message
MnN Stop playback
M N
Erase currently playing
message
*1 If pressed within the first 5 seconds of a
message, the previous message is
played.
Erasing all messages
Press M
N 2 times while the unit is not in use.
Listening to messages
using the handset
When new messages have been recorded,
is displayed on the handset with the total
number of new messages.
1 To listen to new messages:
(middle soft key) #323
To listen to all messages:
(middle soft key) #324
2 When finished, press M
N.
36
Answering System
TG80xxAL_NZ(en)_1021_ver001-2.pd36 36 2011/10/21 15:09:43
Note:
R To switch to the receiver, press M
N.
Listening to messages from the
message list
You can select the item to play back.
1
(middle soft key) #329
2 MbN: Select the desired item from the
message list. a
R You can erase the selected message
as follows:
a MbN: “Yes” a
3 When finished, press M N.
Note:
R If the item has already been heard, “
” is
displayed, even if it was heard using
another handset.
R “Message” is displayed in the message list
if the unit cannot receive caller information.
Operating the answering system
(middle soft key) a a
Key Operation
MDN or MCN Adjust the receiver or
speaker volume (during
playback)
1 or MFN Repeat message (during
playback)
*1
2 or MEN Skip message
(during playback)
*2
3 Enter the “Settings”
menu
4 Play new messages
5 Play all messages
6 Play greeting message
76 Record greeting message
8 Turn answering system on
Pause message
*3
9 or
Stop recording
Stop playback
Key Operation
0 Turn answering system off
*4
*4
Erase currently playing
message
*5 Erase all messages
*6 Reset to a pre-recorded
greeting message
*1 If pressed within the first 5 seconds of a
message, the previous message is
played except when playing back from
the message list.
*2 When you play a message from the
message list, the unit stops message
playback and the display goes back to the
message list.
*3 To resume playback:
MbN: “Play” a
*4 You can also erase as follows:
a MbN: “Yes” a
Calling back (Caller ID
subscribers only)
If caller information is received for the call, you
can call the caller back while listening to a
message.
1 Press
during playback.
2 MbN: “Call Back” a
Editing the number before calling back
1 Press
during playback.
2 MbN: “Edit & Call” a
3 Edit the number. a M N
Erasing all messages
1
(middle soft key) #325
2 MbN: “Yes” a
a M N
37
Answering System
TG80xxAL_NZ(en)_1021_ver001-2.pd37 37 2011/10/21 15:09:43
Remote operation
Using a touch-tone phone, you can call your
phone number from outside and access the
unit to listen to messages or change
answering system settings. The unit’s voice
guidance prompts you to press certain dial
keys to perform different operations.
Remote access code
A 3-digit remote access code must be entered
when operating the answering system
remotely. This code prevents unauthorised
parties from listening to your messages
remotely.
Important:
R In order to operate the answering system
remotely, you must first set a remote
access code.
1
(middle soft key) #306
2 To turn on remote operation, enter the
desired 3-digit remote access code.
3
a M N
Deactivating remote operation
Press * in step 2 on "Remote access code"
page 38.
R The entered remote access code is deleted.
Using the answering system
remotely
1 Dial your phone number from a
touch-tone phone.
2 After the greeting message starts, enter
your remote access code.
3 Follow the voice guidance prompts as
necessary or control the unit using
remote commands (page 38).
4 When finished, hang up.
Voice guidance
During remote operation, the unit’s voice
guidance starts and prompts you to press 1
to perform a specific operation, or press 2 to
listen to more available operations.
Note:
R If you do not press any dial keys within 10
seconds after a voice guidance prompt, the
unit disconnects your call.
Remote commands
You can press dial keys to access certain
answering system functions without waiting for
the voice guidance to prompt you.
Key Operation
1 Repeat message
(during playback)
*1
2 Skip message
(during playback)
4 Play new messages
5 Play all messages
6 Play greeting message
7 Record greeting message
9 Stop recording
Stop playback
0 Turn answering system off
*4 Erase currently playing message
*5 Erase all messages
*6 Reset to a pre-recorded greeting
message (during greeting
message playback)
*# End remote operation
(or hang up)
*1 If pressed within the first 5 seconds of a
message, the previous message is
played.
Turning on the answering system
remotely
If the answering system is off, you can turn it
on remotely.
38
Answering System
TG80xxAL_NZ(en)_1021_ver001-2.pd38 38 2011/10/21 15:09:43
1 Dial your phone number from a
touch-tone phone.
2 Let the phone ring 15 times.
R A long beep is heard.
3 Enter your remote access code within 10
seconds after the long beep.
R The greeting message is played back.
R You can either hang up, or enter your
remote access code again and begin
remote operation (page 38).
Answering system settings
Number of rings before the unit
answers a call
You can change the number of times the
phone rings “Number of Rings” before the
unit answers a call. You can select 2 to 9
rings, or “Auto”.
The default setting is “5 Rings”.
“Auto”: The unit’s answering system answers
at the end of the 2nd ring when new
messages have been recorded, or at the end
of the 5th ring when there are no new
messages. If you call your phone from outside
to listen to new messages (page 38), you
know that there are no new messages when
the phone rings for the 3rd time. You can then
hang up without being charged for the call.
1
(middle soft key) #211
2 MbN: Select the desired setting. a
a M N
For service provider voice mail
subscribers (for Australia)
To receive voice mail and use the answering
system properly, please note the following:
R “Voice mail” is a service provided by your
service provider/telephone company
(page 41). You will need to first subscribe
or activate this service through your service
provider/telephone company. Contact your
service provider/telephone company on
how to operate this service and how you
will be notified that you have messages on
your voice mail.
To use this service you will be required to
leave your answering machine off on your
unit.
This will allow the voice mail to receive any
messages.
R To use the unit’s answering machine rather
than the voice mail service provided by
your service provider/telephone company,
please contact your service provider/
telephone company to have it removed or
deactivated permanently or temporarily.
Alternatively you can leave this service
connected and change the “Number of
Rings” to a shorter duration on your unit
so your unit’s answering machine can pick
up the call prior to the voice mail provided
by your service provider/telephone
company.
For Telecom Call Minder or
TelstraClear Message Mailbox
service subscribers (for New Zealand)
To receive Call Minder or Message Mailbox
messages and use the unit’s answering
system properly, please note the following:
R “Call Minder” and “Message Mailbox” are
services provided by your service provider/
telephone company (page 41). You will
need to first subscribe or activate this
service through your service provider/
telephone company.
Contact your service provider/telephone
company on how to operate this service
and how you will be notified that you have
messages. To use this service you will be
required to leave your answering machine
off on your unit (page 35). This will allow
the service to receive any messages.
R To use the unit’s answering machine rather
than the service provided by your service
provider/telephone company, please
contact your service provider/telephone
company to have it removed or deactivated
permanently or temporarily. Alternatively
you can leave this service connected and
change the “Number of Rings” to a
shorter duration on your unit so your unit’s
answering machine can pick up the call
39
Answering System
TG80xxAL_NZ(en)_1021_ver001-2.pd39 39 2011/10/21 15:09:43
prior to the service provided by your service
provider/telephone company.
Caller’s recording time
You can change the maximum message
recording time allowed for each caller. The
default setting is “3 Minutes”.
1
(middle soft key) #305
2 MbN: Select the desired setting. a
a M N
Selecting “Greeting Only”
You can select “Greeting Only” which sets
the unit to announce a greeting message to
callers but not record messages.
Select “Greeting Only” in step 2 on
"Caller’s recording time" page 40.
Note:
R When you select “Greeting Only”:
– If you do not record your own message,
the unit will play the pre-recorded
greeting-only message asking callers to
call again later.
– If you use your own message, record the
greeting-only message asking callers to
call again later (page 36).
40
Answering System
TG80xxAL_NZ(en)_1021_ver001-2.pd40 40 2011/10/21 15:09:43
Voice mail service
For Australia
Voice mail is an automatic answering service
offered by your service provider/telephone
company.
For New Zealand
To receive Call Minder or Message Mailbox
messages, please note the following:
“Call Minder” and “Message Mailbox” are
automatic answering services offered by your
service provider/telephone company.
For Australia and New Zealand
After you subscribe to this service, your
service provider/telephone company’s voice
mail system answers calls for you when you
are unavailable to answer the phone or when
your line is busy. Messages are recorded by
your service provider/telephone company, not
your telephone.
When you have new messages,
is
displayed on the handset if message
indication service is available. Please contact
your service provider/telephone company for
details of this service.
Important:
R If
still remains on the display even after
you have listened to new messages, turn it
off by pressing and holding # for 2
seconds.
R To use the voice mail service provided by
your service provider/telephone company
rather than the unit’s answering system,
turn off the answering system (page 35).
For details, see page 39.
41
Voice Mail Service
TG80xxAL_NZ(en)_1021_ver001-2.pd41 41 2011/10/21 15:09:43
Intercom
Intercom calls can be made between
handsets.
Note:
R If you receive an outside call while talking
on the intercom, you hear 2 tones. To
answer the call, press M
N, then press
M
N.
R When paging the handset, the paged
handset beeps for 1 minute.
Making an intercom call
1
(middle soft key) a
2 MbN: Select the desired unit. a
R To stop paging, press M N.
3 When you finish talking, press M
N.
Answering an intercom call
1 Press M
N to answer the page.
2 When you finish talking, press
M
N.
Handset locator
You can locate a misplaced handset by
paging it.
1 Base unit: Press M
N.
R All registered handsets beep for 1
minute.
2 To stop paging:
Base unit: Press M
N.
Handset: Press M
N.
Transferring calls,
conference calls
Outside calls can be transferred or a
conference call with an outside party can be
made between 2 handsets.
1 During an outside call, press to put
the call on hold.
2 MbN: Select the desired unit. a
3 Wait for the paged party to answer.
R If the paged party does not answer,
press to return to the outside call.
4 To complete the transfer:
Press M
N.
R The outside call is being routed to the
destination unit.
To establish a conference call:
a MbN: “Conference” a
R To leave the conference, press
M N. The other 2 parties can
continue the conversation.
R To put the outside call on hold:
a MbN: “Hold” a
To resume the conference: a
MbN: “Conference” a
Note:
R If you want to return to the outside call after
the paged party answers, press .
Answering a transferred call
Press M N to answer the page.
42
Intercom/Locator
TG80xxAL_NZ(en)_1021_ver001-2.pd42 42 2011/10/21 15:09:43

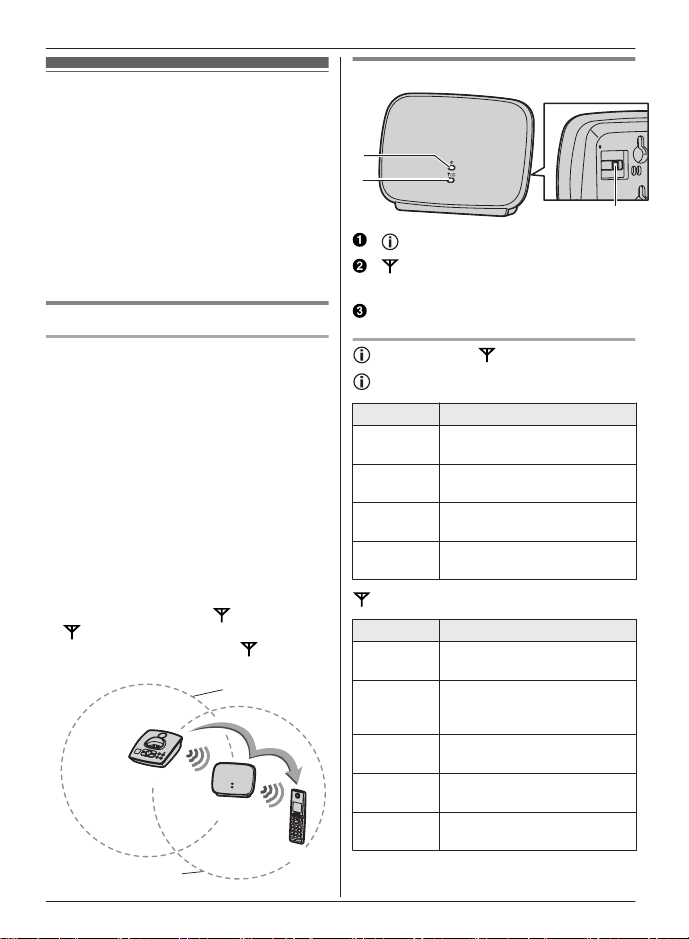

Installation for DECT
repeater
By installing this unit, you can extend the
range of your phone system to include areas
where reception was previously not available.
The unit extends the range in all directions,
allowing several floors to be covered.
Important:
R This unit is an accessory unit for use with
Panasonic Digital Cordless phones.
R This unit is pre-registered to the base unit.
For best performance
Placement
R Install the unit within base unit range in an
indoor environment. We recommend
installing the unit in a raised position (such
as on a wall).
R Avoid positioning the unit close to objects
that will interfere with reception, such as
thick walls, radiators, metal shelving, etc.
R For maximum distance noise-free
operation, place the unit away from
electrical appliances such as TV, radio,
personal computer, or other telephone
equipment.
R Keep an appropriate distance from the
base unit to maximise the range of your
phone system. Find the appropriate
location by checking the
indicator. If the
indicator lights red or amber, re-position
this unit in a place where the
indicator
lights green.
Base unit
Handset
DECT repeater
DECT repeater range
Base unit range
Controls
B
A
C
indicator
indicator
ID indicator
MPROGRAMN
indicator and indicator
indicator
Status Meaning
Green
(On)
Signal strength of the base
unit is strong.
Amber
(On)
Signal strength of the base
unit is weak.
Red
(On)
Out of base unit range.
Off R The unit is not being used.
R The power is off.
indicator
Status Meaning
Green
(On)
Within base unit range. The
unit is ready for use.
Green
(Flashing)
Handsets are communicating
with the base unit through this
unit.
Red
(On)
Out of base unit range.
Red
(Flashing)
The unit is not registered to
the base unit.
Off The power is off. (AC adaptor
is not connected properly.)
43
DECT repeater
TG80xxAL_NZ(en)_1021_ver001-2.pd43 43 2011/10/21 15:09:43

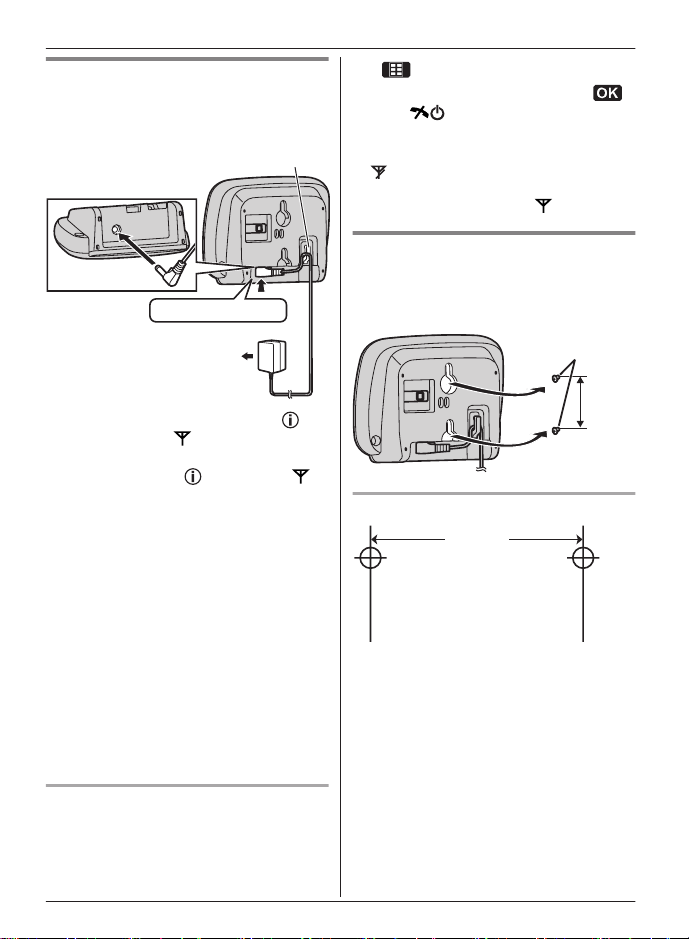

Installation
1 Connect the unit.
R Use only the supplied Panasonic AC
adaptor PQLV219AL.
Press plug firmly.
Hook
(220-240 V AC, 50/60 Hz)
R When the unit is turned on, the
indicator and indicator light amber
for about 2 seconds.
2 Confirm that the
indicator and
indicator light green. (The unit is ready
for use.)
R If the indicators do not light green,
re-position the unit in a place where
the indicators light green.
Note:
R The AC adaptor must remain connected at
all times. (It is normal for the adaptor to feel
warm during use.)
R The AC adaptor should be connected to a
vertically oriented or floor-mounted AC
outlet. Do not connect the AC adaptor to a
ceiling-mounted AC outlet, as the weight of
the adaptor may cause it to become
disconnected.
R The unit can support a maximum of 3
handsets at a time.
Setting the repeater mode
This repeater is pre-registered to the base unit
and the default setting of repeater mode is
“On”. You do not need to change this setting
for initial use.
1 (middle soft key) #138
2 MbN: Select the desired setting. a
a M N
Note:
R After turning the repeater mode on or off,
is displayed on the handset
momentarily. This is normal and the
handset can be used once
is displayed.
Wall mounting
Note:
R Make sure that the wall is strong enough to
support the weight of the unit.
37 mm
(Not supplied)
Screws
Wall mounting template
37 mm
44
DECT repeater
TG80xxAL_NZ(en)_1021_ver001-2.pd44 44 2011/10/21 15:09:43

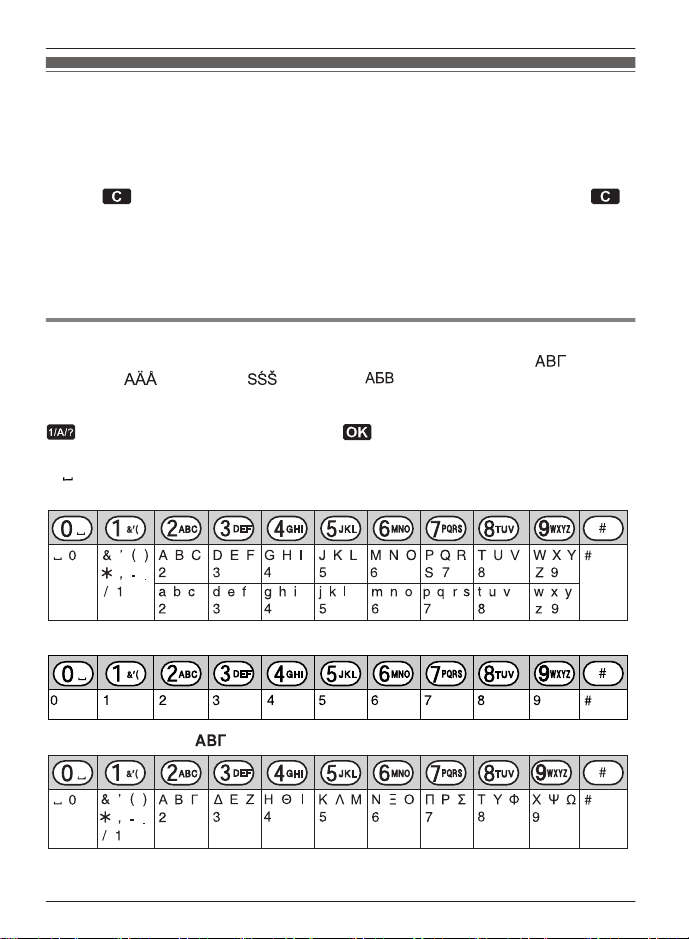

Character entry
The dial keys are used to enter characters and numbers. Each dial key has multiple characters
assigned to it. The characters that can be entered depend on the character entry mode
(page 45).
– Press MFN or MEN to move the cursor left or right.
– Press dial keys to enter characters and numbers.
– Press
to erase the character or number highlighted by the cursor. Press and hold to
erase all characters or numbers.
– Press * (Aaa) to switch between uppercase and lowercase.
– To enter another character located on the same dial key, press MEN to move the cursor to the
next space, then press the appropriate dial key.
– If you do not press any dial key within 5 seconds after entering a character, the character is
fixed and the cursor moves to the next space.
Character entry modes
The available character entry modes are Alphabet (ABC), Numeric (0-9), Greek (
),
Extended 1 (
), Extended 2 ( ), and Cyrillic ( ). When in these entry modes except
Numeric, you can select which character is entered by pressing a dial key repeatedly.
When the unit displays the character entry screen:
a MbN: Select a character entry mode. a
Note:
R
in the following tables represents a single space.
Alphabet character table (ABC)
Numeric entry table (0-9)
Greek character table ( )
45
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd45 45 2011/10/21 15:09:43

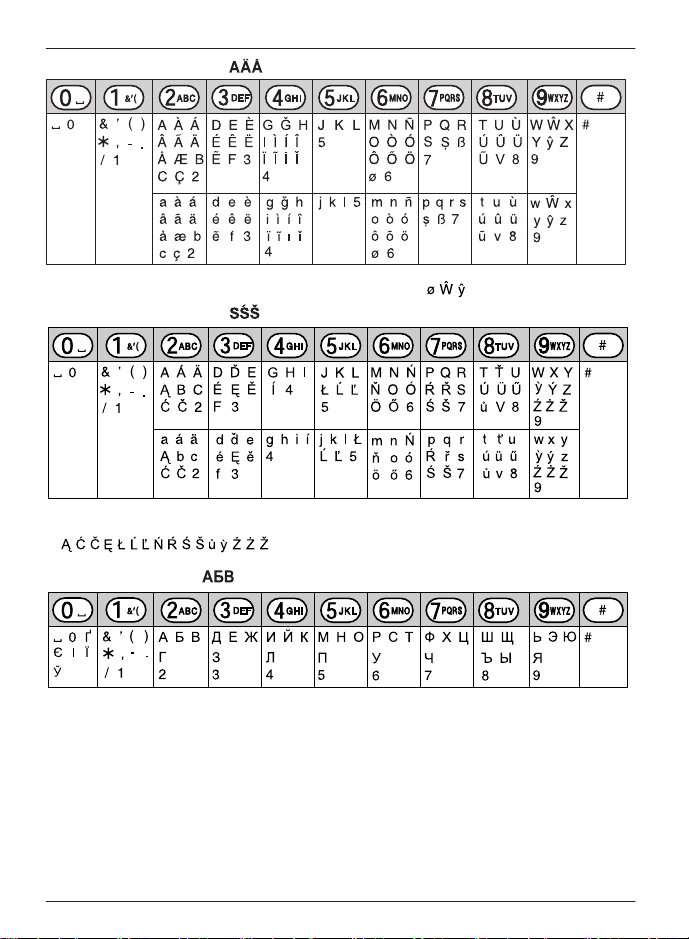

Extended 1 character table ( )
R The following are used for both uppercase and lowercase:
Extended 2 character table ( )
R The following are used for both uppercase and lowercase:
Cyrillic character table ( )
46
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd46 46 2011/10/21 15:09:44
Error messages
Display message Cause/solution
Base no power
or
No link to base.
Reconnect main base
AC adaptor.
or
No link.
R The handset has lost communication with the base unit. Move
closer to the base unit and try again.
R Unplug the base unit’s AC adaptor to reset the unit. Reconnect
the adaptor and try again.
R The handset’s registration may have been cancelled.
Re-register the handset (page 30).
R When “No link.” is displayed during a power failure, place a
handset on the base unit to supply power to the base unit.
Check Phone Line
R The supplied telephone line cord has not been connected yet
or not connected properly. Check the connections (page 9).
Error
R Recording was too short. Try again.
Failed
R Phonebook copy failed (page 22). Confirm the other handset
(the receiver) is in standby mode and try again.
Incomplete
R The receiver’s phonebook memory is full. Erase the unwanted
phonebook entries from the other handset (the receiver) and
try again.
Memory Full
R The phonebook memory is full. Erase unwanted entries
(page 21).
R Message memory is full. Erase unwanted messages (page 36,
37).
R The call barred list memory is full. Erase unwanted entries
(page 29).
Use rechargeable
battery.
R A wrong type of battery such as Alkaline or Manganese was
inserted. Use only the rechargeable Ni-MH batteries noted on
page 4, 6.
You must first
subscribe to Caller
ID.
R You must subscribe to a Caller ID service. Once you receive
caller information after subscribing to a Caller ID service, this
message will not be displayed.
47
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd47 47 2011/10/21 15:09:44
Troubleshooting
If you still have difficulties after following the instructions in this section, disconnect the base unit’s
AC adaptor and turn off the handset, then reconnect the base unit’s AC adaptor and turn on the
handset.
General use
Problem Cause/solution
The handset does not
turn on even after
installing charged
batteries.
R Place the handset on the base unit or charger to turn on the
handset.
The unit does not work. R Make sure the batteries are installed correctly (page 9).
R Fully charge the batteries (page 10).
R Check the connections (page 9).
R Unplug the base unit’s AC adaptor to reset the unit and turn off
the handset. Reconnect the adaptor, turn on the handset and
try again.
R The handset has not been registered to the base unit. Register
the handset (page 30).
The handset display is
blank or dark.
R The handset is in screen saver mode (page 14). Activate the
handset display again by:
– pressing MFN or MEN when on a call.
– pressing M N at all other times.
R “LCD in charging” is set to “Off” while on charge. Change
the setting (page 25).
R The handset is not turned on. Turn the power on (page 14).
I cannot hear a dial tone. R Make sure that you are using the supplied telephone line cord.
Your old telephone line cord may have a different wiring
configuration.
R The base unit’s AC adaptor or telephone line cord is not
connected. Check the connections.
R Disconnect the base unit from the telephone line and connect
the line to a known working telephone. If the working telephone
operates properly, contact our service personnel to have the
unit repaired. If the working telephone does not operate
properly, contact your service provider/telephone company.
Programmable settings
Problem Cause/solution
The display is in a
language I cannot read.
R Change the display language (page 14).
While programming, the
display returns to standby
mode.
R A call matching an entry in the call barred list is being received.
Wait and try again later.
48
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd48 48 2011/10/21 15:09:44
Problem Cause/solution
I cannot activate the eco
mode.
R You cannot set eco mode when you set the repeater mode
“On”. If required, set the repeater mode to “Off” (page 44).
I cannot register a
handset to a base unit.
R The maximum number of handsets (6) is already registered to
the base unit. Cancel unused handset registrations from the
base unit (page 30).
R You entered the wrong PIN. If you forget your PIN, contact an
authorised service centre.
Battery recharge
Problem Cause/solution
The handset beeps and/
or
flashes.
R Battery charge is low. Fully charge the batteries (page 10).
I fully charged the
batteries, but
–
still flashes or
– the operating time
seems to be shorter.
R Clean the battery ends ( , ) and the charge contacts with a
dry cloth and charge again.
R It is time to replace the batteries (page 9).
Making/answering calls, intercom
Problem Cause/solution
is displayed.
R The handset is too far from the base unit. Move closer.
R The base unit’s AC adaptor is not properly connected.
Reconnect AC adaptor to the base unit.
R The handset is not registered to the base unit. Register it
(page 30).
R Activating one touch eco mode reduces the range of the base
unit in standby mode. If required, turn eco mode off (page 30).
Noise is heard, sound
cuts in and out.
R You are using the handset or base unit in an area with high
electrical interference. Re-position the base unit and use the
handset away from sources of interference.
R Move closer to the base unit.
R If you use a DSL/ADSL service, we recommend connecting a
filter (contact your DSL/ADSL service provider) to the telephone
line between the base unit and the telephone line socket.
Contact your DSL/ADSL provider for details. (for Australia)
R If you use a DSL/ADSL (JetStream) service, we recommend
that you contact your DSL/ADSL service provider to have a
DSL/ADSL Splitter installed. We do not recommend the use of
generic DSL/ADSL filters.Contact your DSL/ADSL service
provider for details.(for New Zealand)
R Unplug the base unit’s AC adaptor to reset the unit and turn off
the handset. Reconnect the adaptor, turn on the handset and
try again.
49
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd49 49 2011/10/21 15:09:44
Problem Cause/solution
Sound quality seems to
be getting worse.
R You have registered a handset that is not recommended
(page 4). The clearest sound quality is only possible by
registering the recommended handset.
The handset does not
ring.
R The ringer volume is turned off. Adjust ringer volume (page 16).
R Night mode is turned on. Turn it off (page 27).
The base unit does not
ring.
R The ringer volume is turned off. Adjust ringer volume (page 25).
I cannot make a call. R The handset is too far from the base unit. Move closer and try
again.
R Another unit is in use. Wait and try again later.
R Answering system is being used. Wait and try again later.
R If you are using a BT double adaptor to connect the unit,
remove the adaptor and connect the unit to the phone wall
socket directly. If the unit operates properly, check or replace
the adaptor. (for New Zealand)
R You dialled a call restricted number (page 29).
R The key lock feature is turned on. Turn it off (page 17).
R The unit is not designed to be used with rotary/pulse dialling
services.
Caller ID
Problem Cause/solution
Caller information is not
displayed.
R You must subscribe to a Caller ID service. Contact your service
provider/telephone company for details.
R If your unit is connected to any additional telephone equipment,
remove and plug the unit directly into the wall socket.
R If you use a DSL/ADSL service, we recommend connecting a
filter (contact your DSL/ADSL service provider) to the telephone
line between the base unit and the telephone line socket.
Contact your DSL/ADSL provider for details. (for Australia)
R If you use a DSL/ADSL (JetStream) service, we recommend
that you contact your DSL/ADSL service provider to have a
DSL/ADSL Splitter installed. We do not recommend the use of
generic DSL/ADSL filters. Contact your DSL/ADSL service
provider for details.(for New Zealand)
R Other telephone equipment may be interfering with this unit.
Disconnect the other equipment and try again. (for Australia)
R Other telephone equipment such as a monitored Burglar Alarm
or the modem in the SKY Digital decoder may be interfering
with this unit. Disconnect the other equipment and try again. (for
New Zealand)
Caller information is slow
to display.
R Depending on your service provider/telephone company, the
unit may display the caller’s information at the 2nd ring or later.
R Move closer to the base unit.
Time on the unit has
shifted.
R Incorrect time information from incoming Caller ID changes the
time. Set the time adjustment to “Manual” (off) (page 24).
50
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd50 50 2011/10/21 15:09:44
Problem Cause/solution
The name stored in the
phonebook is not fully
displayed while an
outside call is being
received.
R Edit the phonebook entry name to fit in 1 line of text (page 21).
Answering system
Problem Cause/solution
The unit does not record
new messages.
R The answering system is turned off. Turn it on (page 35).
R The message memory is full. Erase unwanted messages
(page 36).
R The recording time is set to “Greeting Only”. Change the
setting (page 40).
R If your own greeting message is not recorded properly, callers
are unable to leave a message. Record your own greeting
message again (page 36).
R If you subscribe to a voice mail service, messages are recorded
by your service provider/telephone company, not your
telephone. Change the unit’s number of rings setting or contact
your service provider/telephone company (page 39).
My own greeting
message cannot be
properly heard.
R Record your own greeting message again (page 36).
I cannot operate the
answering system.
R Someone is using the unit. Wait for the other user to finish.
R A caller is leaving a message. Wait for the caller to finish.
R The handset is too far from the base unit. Move closer.
I cannot operate the
answering system
remotely.
R The remote access code is not set. Set the remote access code
(page 38).
R You are entering the wrong remote access code. If you have
forgotten your remote access code, enter the remote access
code setting to check your current code (page 38).
R Press each key firmly.
R The answering system is turned off. Turn it on (page 38).
51
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd51 51 2011/10/21 15:09:44
DECT repeater
Problem Cause/solution
The unit does not work. R When the indicators do not light, the AC adaptor is not
connected properly. Check the connections.
R When the indicators do not light green, move the unit closer to
the base unit.
R Registration may have been cancelled. Deregister the unit, then
re-register.
Deregister:
1 Unplug the AC adaptor, then press and hold MPROGRAMN.
2 While pressing and holding MPROGRAMN, re-connect the
AC adaptor.
3 Keep holding to press MPROGRAMN for about 10 seconds
until the indicator stops flashing and lights red. Then
release MPROGRAMN.
R The
and indicators light amber for a moment
then only the
indicator flashes red.
R If the
indicator flashes green after releasing
MPROGRAMN, deregistration failed. Deregisterthe unit
again.
Re-register:
1 DECT repeater: Unplug the AC adaptor.
2 Base unit: Press and hold M
N for about 5 second, until
the registration tone sounds.
R The next step must be completed within 90 seconds.
3 DECT repeater: Connect the AC adaptor, then wait until
the indicator and indicator light green.
4 Base unit: To stop the registration tone, press M
N.
While talking using the
handset, sound cuts in
and out.
R The handset is out of range. Move the handset closer to this
unit.
A repeating tone is heard
while talking using the
handset.
or
The
indicator
continues to light amber
and the
indicator
flashes green.
R MPROGRAMN was pressed. The unit is in programming mode.
To exit, press MPROGRAMN again. Do not press MPROGRAMN,
except when deregistering the unit.
52
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd52 52 2011/10/21 15:09:44
Liquid damage
Problem Cause/solution
Liquid or other form of
moisture has entered the
handset/base unit.
R Disconnect the AC adaptor and telephone line cord from the
base unit. Remove the batteries from the handset and leave to
dry for at least 3 days. After the handset/base unit are
completely dry, reconnect the AC adaptor and telephone line
cord. Insert the batteries and charge fully before use. If the unit
does not work properly, contact an authorised service centre.
Caution:
R To avoid permanent damage, do not use a microwave oven to speed up the drying process.
Belt clip
n To attach n To remove
53
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd53 53 2011/10/21 15:09:44

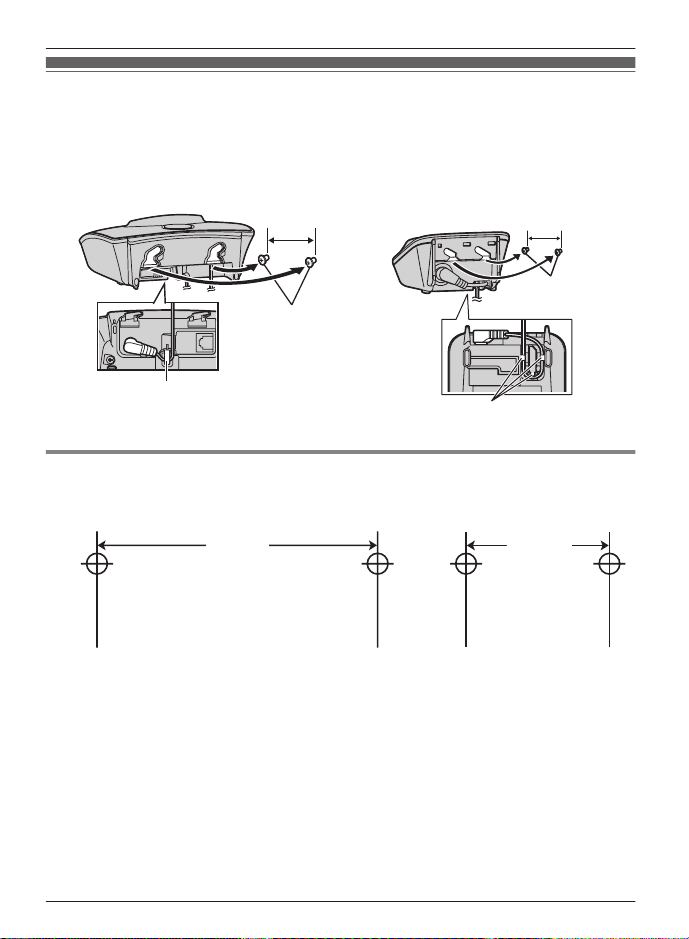

Wall mounting
Note:
R Make sure that the wall and the fixing method are strong enough to support the weight of the
unit.
n Base unit
Screws
(Not supplied)
49 mm
Hook
n Charger
25 mm
Screws
(Not supplied)
Hooks
Wall mounting template
n Base unit
49 mm
n Charger
25 mm
54
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd54 54 2011/10/21 15:09:44
Warranty (for New Zealand)
Panasonic New Zealand undertakes to:
Repair or at its option, replace without cost to the owner, either for material or labour,
part which is found to be defective within two years of the date of purchase.
THIS EXPRESS WARRANTY DOES NOT COVER:
IF YOUR PANASONIC PRODUCT FAILS WITHIN THE
WARRANTY PERIOD:
Take it to the Authorised Panasonic Dealer from whom you purchased the product
will repair it (or arrange to have it repaired) during their normal business
enquiries regarding warranty or otherwise, please call – Customer
e
Tel. No.: (09) 272 0178
NOTE: THIS EXPRESS WARRANTY IS OFFERED AS AN
BENEFIT AND DOES NOT AFFECT YOUR LEGAL
1) Pick up and delivery.
2) Batteries.
3) Repairs when the product has not been used in accordance with the Operating
Instructions Manual or has been modified.
4) Normal maintenance and cleaning as required in the product’s Operating
Instructions Manual.
5) Service calls to:
a Correct the set up of the product
b Instruct you how to use the product
c Replace fuses or correct your building’s wiring
6) Damage to the product caused by accident, misuse or Act of God.
7) Repairs when the product has been dismantled, repaired, modified or serviced
by
other than a Panasonic Authorised Dealer authorised to service that type of
product.
any
Centr
All
who
RIGHTS.
EXTRA
Support
hours.
55
Useful Information
TG80xxAL_NZ(en)_1021_ver001-2.pd55 55 2011/10/21 15:09:44
Index
A Additional handsets: 30
Alarm: 27
Answering calls: 16
Answering system: 35
Call screening: 35
Erasing messages: 36, 37, 38
Greeting message: 35
Greeting only: 40
Listening to messages: 36, 38
Message list: 37
Number of rings: 39
Recording time: 40
Remote access code: 38
Remote operation: 38
Turning on/off: 35, 37, 38
Area code: 29
Auto talk: 16
B Battery: 9, 10
Belt clip: 53
C Call restriction: 29
Call share: 17
Call Waiting: 33
Call waiting and Caller ID compatible: 32
Call Waiting Caller ID: 33
Caller ID service: 32
Caller list: 33
Caller list edit: 34
Category: 20, 33
Chain dial: 21
Character entry: 45
Conference calls: 42
Control type: 12
D Date and time: 15
Direct command code: 23
Display
Colour: 25
Contrast: 25
Display mode: 15
Language: 14
LCD backlight: 25
Wallpaper: 25
E Eco mode: 30
Equalizer: 17
Error messages: 47
H Handset
Deregistration: 30
Locator: 42
Name: 28
Registration: 30
Hold: 17
I Incoming call barring: 28
Intercom: 42
K Key lock: 17
Keytones: 25
M Making calls: 16
Missed calls: 32
Mute: 17
N Night mode: 27
P Pause: 16
Phonebook: 20
PIN: 30
Power failure (power back-up
operation): 18
Power on/off: 14
Privacy mode: 26
R Recall/flash: 17
Redialling: 16
Repeater: 26, 43
Ringer tone: 24, 33
S Speakerphone: 16
Speed dial: 21
T Time adjustment: 24
Transferring calls: 42
Troubleshooting: 48
V Voice mail: 41
Volume
Receiver: 16
Ringer (Base unit): 25
Ringer (Handset): 16, 25
Speaker: 16
W Wall mounting: 44, 54
56
Index
TG80xxAL_NZ(en)_1021_ver001-2.pd56 56 2011/10/21 15:09:44
57
Notes
TG80xxAL_NZ(en)_1021_ver001-2.pd57 57 2011/10/21 15:09:44
58
Notes
TG80xxAL_NZ(en)_1021_ver001-2.pd58 58 2011/10/21 15:09:44
59
Notes
TG80xxAL_NZ(en)_1021_ver001-2.pd59 59 2011/10/21 15:09:44
For your future reference
We recommend keeping a record of the following information to assist with any repair under
warranty.
Serial No. Date of purchase
(found on the bottom of the base unit)
Name and address of dealer
Attach your purchase receipt here.
For Australia
Customer Care Centre Tel. No.: 132600
or website www.panasonic.com.au
For New Zealand
Customer Care Centre Tel. No.: (09) 272 0178
or website www.panasonic.co.nz
N52
Sales Department:
1 Innovation Road, Macquarie Park NSW 2113, Australia
350 Te Irirangi Drive, East Tamaki, Private Bag 14911 Panmure, Auckland,
New Zealand
Phone: (09) 272 0100
Fax: (09) 272 0137
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
© Panasonic System Networks Co., Ltd. 2011
*TG8032AL*
*TG8032AL*
PNQX5355ZA TC1211YK0 (A)
TG80xxAL_NZ(en)_1021_ver001-2.pd60 60 2011/10/21 15:09:44
