OWNER’S MANUAL
BOTTOM FREEZER
REFRIGERATOR
Please read this owner’s manual thoroughly before
operating and keep it handy
for reference at all times.
P/No. : MFL67851401-8
www.lg.com
ENGLISH ESPAÑOL
LDC2 LDNS22220*4370**
GM-B24*QTB
LDC22370**
LDN2 GB24BGS
LDCS22220*
2470**
LBN22370**
LBC24360**
GM-B22*QTB
Model Name/Nombre del modelo =color number/número de color**
LDCS24223*
GB22BGS
2
TABLE OF CONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4
IMPORTANT SAFETY
INSTRUCTIONS
7 COMPONENTS
7 Refrigerator Exterior
8 Refrigerator Interior
10 INSTALLATION

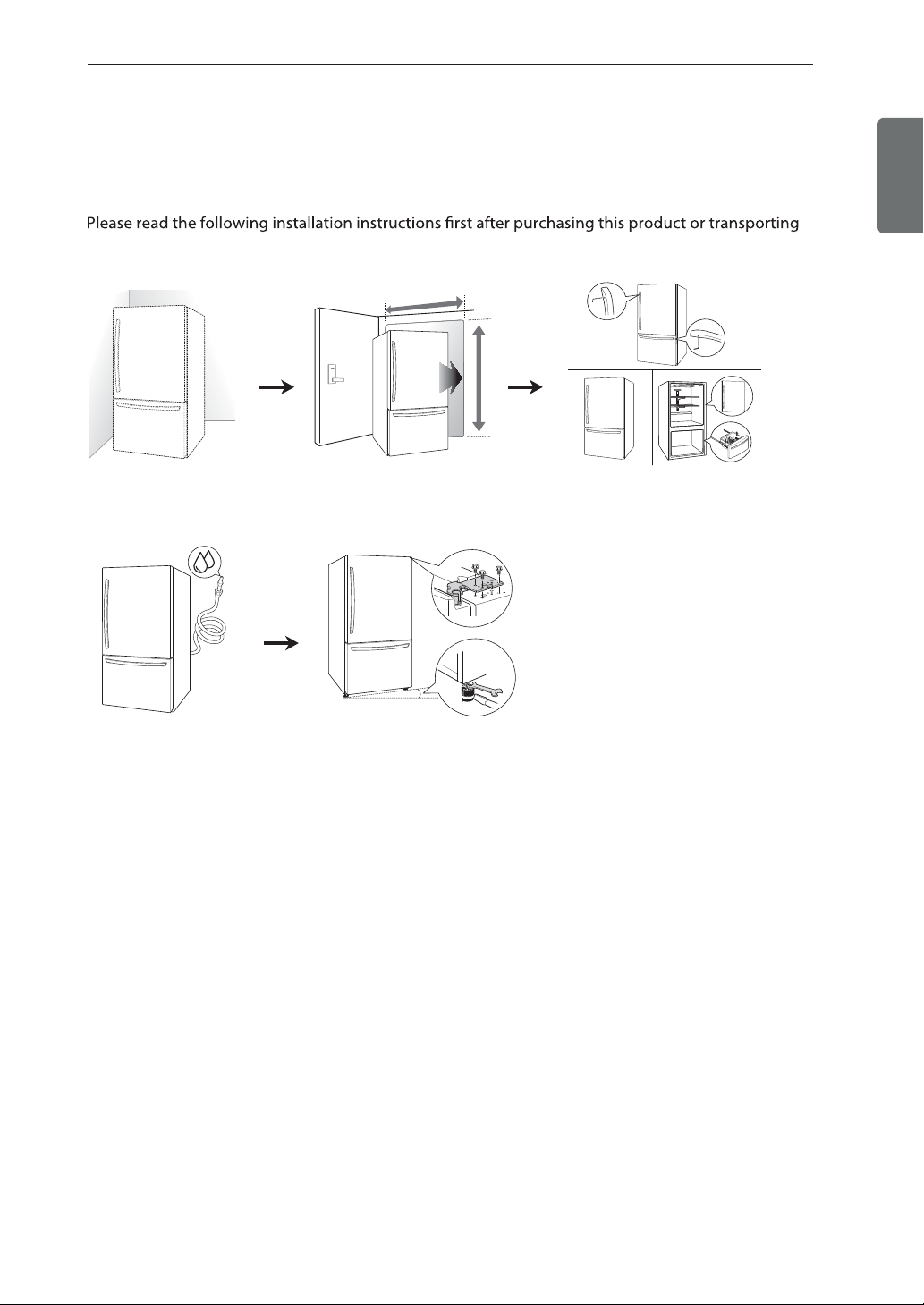

10 Installation Overview
11 Specications
12 Unpacking Your Refrigerator
12 Choosing the Proper Location
12 - Flooring
13 - Ambient Temperature
13 - Measuring the Clearances
13 Removing/Assembling the Refrigerator
Door Handles
14 Removing/Assembling the Freezer
Drawer Handle
14 Removing/Assembling the Doors and
Drawers
19 Reversing Door Opening Direction
19 - Reversing the Refrigerator Handle
20 - Reversing the Doors
27 Connecting the Water Line
27 - Before Yo
u Begin
27 - Water Pressure
27 - What You Will Need
28 - Water Line Installation Instructions
30 Turning On the Power
31 Leveling and Door Alignment
31 - Leveling
31 - Door Alignment
32 HOW TO USE
32 Before Use
33 Control Pad
33 - Control Pad Features
34 Automatic Icemaker
34
- Turning the Automatic Icemaker On or O
35 - When You Should Turn the Icemaker O
35 - Normal Sounds You May Hear
35 - Preparing for Vacation
36 Storing Food
36 - Food Preservation Location
38 - Food Storage Tips
38 - Storing Frozen Food
39 Humidity Controlled Crisper and
Glide’N’Serve
40
Detaching and Assembling the Storage Bins
41 Adjusting the Refrigerator Shelves
42 MAINTENANCE
42 Cleaning
43 SMART DIAGNOSIS
43 Using Smart Diagnosis
44 TROUBLESHOOTING
52 WARRANTY
ENGLISH
TM
TM
3
PRODUCT FEATURES
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open. If a
refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds at 30 second intervals.
HUMIDITY CONTROLLED CRISPERS
The Humidity Controlled Crispers are designed to help keep fruits and
vegetables fresh and crisp. You can control the amount of humidity in the
crispers by adjusting the settings between Low and High.
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period.
ENGLISH
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always read and obey all safety messages.
WARNING
You can be killed or seriously injured if you do not follow instructions.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
WARNING
product, basic safety precautions should be followed, including the following :
Power
NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug rmly and pull it
.
straight out from the outlet.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
.
similarly qua ed person in order to avoid a safety hazard. Do not use a cord that shows cracks or
abrasion damage along its length or at either the plug or connector end.
Do not use an uncerti
ed power outlet.
.
Unplug the power plug immediately in the event of a blackout or thunderstorm.
.
Plug in the power plug with the power cord facing downward.
.
Installation
Contact an authorized service center before you install or relocate the refrigerator.
.
When moving the refrigerator away from the wall, be careful not to roll over or damage the power
.
cord.
Prior to use, ensure that you are connecting this product to a dedicated grounded electrical outlet
.
rated for use with this product (115V, 60Hz, AC only). It is the user’s responsibility to replace a
standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not install the refrigerator where there may be a danger of the unit falling.
.
Use
DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the
.
refrigerator. They could damage the refrigerator and seriously injure themselves.
Do not hang on to or place heavy objects on the refrigerator’s dispenser.
.
Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
.
Do not put live animals inside the refrigerator.
.
Do not allow children to climb into the product when it is in use.
.
In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized
.
service center before resuming use. Do not touch or disassemble the electrical outlet of the
refrigerator.
In the event of a refrigerant leak,
ammable objects away from the refrigerator. Ensure
.
adequate ventilation and contact an authorized service center.
Do not use or place
able substances (chemicals, medicine, cosmetics, etc) near the refrigerator
.
or store them inside the refrigerator. Do not place the refrigerator in the vicinity of ammable gas.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING or CAUTION. These words mean:
ENGLISH
This product contains chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm. Wash hands after handling.
.
5
IMPORTANT SAFETY INSTRUCTIONS
This product is not to be used for special purposes such as the storage of medicine or test
.
materials or for use on ships, etc.
Unplug the power plug before cleaning or repairing the refrigerator.
.
.
Do not modify or extend the power cord.
.
Do not use a dryer to dry the interior. Do not light a candle to remove interior odors.
.
For your safety, this appliance must be properly grounded. Have the wall outlet and the electrical
.
.
user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
.
Do not use extension cords and adapters ungrounded.
.
Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke
.
coming from the appliance.
.
Do not disassemble or modify the refrigerator.
.
Do not put hands, feet, or metal objects below or behind the refrigerator.
.
Do not operate the refrigerator or touch the power cord with wet hands.
.
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
.
on the automatic ice-making mechanism while the refrigerator is plugged in.
When dispensing ice from the dispenser, do not use crystal ceramics.
.
Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when the
.
refrigerator is in operation.
Do not put glass containers, glass bottles or soda in the freezer.
.
This appliance is not intended for use by persons (including children) with reduced physical,
.
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health
.
issue.
If you are throwing away your old refrigerator, make sure the CFC or HCFC coolant is removed
.
imprisoned in accordance with the relevant environmental law.
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days.
.
doors but leave the shelves in place so that children may not easily climb inside.
If connected to a circuit protected by fuses, use time delay fuse.
.
Do not use extension cords or ungrounded (two prong) adapters.
.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
precautions should be followed, including the following :
ENGLISH
6
IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING:
This product contains chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm. Wash hands after handling.
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that
.
were taped to the front of the refrigerator.
Be careful when you unpack and install the refrigerator. Immediately dispose of plastic and
.
other packing materials out of the reach of children.
The appliance must be positioned for easy access to a power source.
.
Use
Close the door carefully when children are around.
.
.
necessarily small. Be careful closing doors when children are nearby.
If you store food improperly, be aware that it may fall and cause injury.
.
Do not use aerosols near the refrigerator.
.
Do not store articles on the top of the appliance.
.
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
.
.
areas regularly.
Do not store, disassemble or repair the refrigerator by yourself.
.
Remove any dust or foreign matter from the power plug pins.
.
Do not use a wet or damp cloth when cleaning the plug.
.
.
before plugging it back in.
If you notice a chemical or burning plastic smell or see smoke, unplug the refrigerator
.
immediately and contact your LG Electronics Service Center.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
precautions should be followed, including the following :
SAVE THESE INSTRUCTIONS
ENGLISH
NOTE
a special elimination process. Before discontinuing use of this refrigerator, contact local authorities to
arrange for safe disposal of the unit.
7
COMPONENTS
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
Page references are included for your convenience.
*The appearance and specications of the actual product may dier depending on the model.
Refrigerator Exterior
Handle
Opens and closes
the door.
Refrigerator
Preserves food.
Handle
Opens the freezer
door.
Ez Handle
Easily opens the freezer
door. (*On some models)
Freezer
Preserves frozen food.
<Freezer Drawer model> <Freezer Swing model>
ENGLISH
8
COMPONENTS
Refrigerator Interior (Freezer Drawer Model)
Crisper
Controls humidity and
helps vegetables and
fruit to stay crisp.
Durabase® and Durabase® Divider
The Durabase is a storage space
recommended for the preservation of large
food items. The Durabase Divider is used
to organize the Durabase area into sections.
It can be adjusted from side to side to
Dairy Product Bin
Used to preserve dairy products.
Fold-Up Bin
Can be folded up when
tall storage is needed in
the Door Bin.
Adjustable
Refrigerator Shelf
The shelves in your
refrigerator are adjustable
to meet your individual
storage needs.
(Half or full Type)
Door Bin
Interchangeable bins can
be arranged to suit your
storage needs.
Auto Closing Door
The refrigerator door and
freezer drawers close
automatically when you
push them slightly.
Pullout Drawer
Used for extra storage
within the freezer
compartment.
Glide‘N’Serve
Used for large party
trays, deli items and
beverages.
Icemaker*
Ice cubes are
(included with icemaker)
Can be removed to
fill ice buckets, coolers,
or pitchers.
automatically produced
LED interior lamps
The interior lamps light up
the inside of the refrigerator.
ENGLISH
Ice Bin*
* Optional Parts : Not included with all models.
9
COMPONENTS
Refrigerator Interior (Freezer Swing Model)
Crisper
Controls humidity and
helps vegetables and
fruit to stay crisp.
Durabase® and Durabase® Divider
The Durabase is a storage space
recommended for the preservation of large
food items. The Durabase Divider is used
to organize the Durabase area into sections.
It can be adjusted from side to side to
Dairy Product Bin
Used to preserve dairy products.
Fold-Up Bin
Can be folded up when
tall storage is needed in
the Door Bin.
Adjustable
Refrigerator Shelf
The shelves in your
refrigerator are adjustable
to meet your individual
storage needs.
Door Bin
Interchangeable bins can
be arranged to suit your
storage needs.
Auto Closing Door
The refrigerator door and
freezer drawers close
automatically when you
push them slightly.
Pullout Drawer
Used for extra storage
within the freezer
compartment.
Glide‘N’Serve
Used for large party
trays, deli items and
beverages.
LED interior lamps
The interior lamps light up
the inside of the refrigerator.
ENGLISH
Icemaker*
Ice cubes are
(included with icemaker)
Can be removed to
fill ice buckets, coolers,
or pitchers.
automatically produced
Ice Bin*
* Optional Parts : Not included with all models.
10
INSTALLATION
INSTALLATION
Installation Overview
it to another location.
1 Unpacking your
refrigerator
2 Choosing the proper
location
3 Disassembling/Assembling
4 Connecting the water
supply and
(Ice maker installed only)
water line
5 Leveling and Door
Alignment
ENGLISH
11
INSTALLATION
Specifications
improvements.
Dimensions
24 cu. ft.
models
32 3/4’’ (W) X 34 7/8’’ (D) X 69 7/8’’ (H), 62 ¾’’ (D w/ door open)
833.1 mm (W) X 886.4 mm (D) X 1775.5 mm (H), 1592.5 mm (D w/ door
open)
22 cu. ft.
models
24 cu. ft.
models
22 cu. ft.
models
29 3/4’’ (W) X 34 7/8’’ (D) X 68 ½’’ (H), 59 ¾ (D w/ door open)
756.9 mm (W) X 886.4 mm (D) X 1739.9 mm (H), 1516.5 mm (D w/ door
open)
Net weight
248.5 lb. (112.7 Kg) – Freezer Drawer models
235.2 lb. (106.7 Kg) – Freezer Swing models
230.8 lb. (104.7 Kg) – Freezer Drawer models
216.3 lb. (98.1 Kg) – Freezer Swing models
ENGLISH
12
INSTALLATION
ENGLISH
Choosing the Proper Location
Select a place where a water supply can
be easily connected for the automatic
icemaker.
Unpacking Your Refrigerator
DANGER
Use two or more people to move and
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
the refrigerator for cleaning or service,
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
could occur.
such as gasoline, away from the
refrigerator. Failure to do so can result in
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, Installations labels or the Circuit Diagram
located in the backward of refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your
gers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
ammabl uids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.
The refrigerator should always be plugged
into its own individual properly grounded
electrical outlet rated for 115/127 V ~
60 Hz, AC only, and fused at 15 A.
This provides the best performance
and also prevents overloading house
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
CAUTION
To reduce the risk of electric shock, do not
install the refrigerator in a wet or damp
area.
NOTE
The water pressure must be between
20 and 120 psi (0,138 - 0,82 MPa) on models
120 psi (0,276 - 0,82 MPa) on models with a
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
front should be slightly higher than the rear to
aid in door closing. The leveling legs can be
turned easily by tipping the cabinet slightly.
Turn the leveling legs to the left to raise the
unit or to the right to lower it. (See Leveling
and Door Alignment.)
NOTE
Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure
is not recommended.
.
.
.
.
.
ENGLISH
13
INSTALLATION
Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely aected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 33 ¾ inches (86 cm) in front of
the refrigerator to open the doors, and at least
2 inches (5.08 cm) between the back of the
refrigerator and the wall.
2” (5.08 cm)
33 ¾ ” (86 cm)
Removing/Assembling the
Refrigerator Door Handles
Removing the Handles
1
Loosen the set screws with a
3
/
32
in.
(2.5 mm) Allen wrench and remove the
handle.
2
Loosen the mounting fasteners that
connect to the refrigerator door and handle
using a
1
/
4
in. (6.35 mm) Allen wrench, and
remove the mounting fasteners.
Assembling the Handles
1
Assemble the mounting fasteners at
both ends of the handle using a
1
/
4
in.
(6.35 mm) Allen wrench.
2
Place the handle on the door by tting
the handle footprints over the mounting
fasteners and tightening the set screws
with a
3
/
32
in. (2.5 mm) Allen wrench.
NOTE
When it is necessary to move the
refrigerator through a narrow opening,
removing the doors is the recommended
procedure. If it is necessary to remove the
handles, follow the directions below. The
appearance of the handle may vary from
what is shown in the illustrations.
ENGLISH
14
INSTALLATION
ENGLISH
CAUTION
If your entrance door is too narrow for the
.
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
Use two or more people to remove and
.
install the refrigerator doors. Failure to do
so can result in back or other injury.
Disconnect the electrical supply to the
.
refrigerator before installation. Failure to do
so could result in serious injury or death.
Do not put hands, feet or other objects into
.
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
Be careful when handling the hinge and
.
stopper. You may be injured.
Remove food and bins before detaching the
.
doors and drawers.
Removing/Assembling the
Doors and Drawers
When it is necessary to move the refrigerator
through a narrow opening, removing the doors
is the recommended procedure.
CAUTION
When assembling or disassembling the
handles:
Grasp the handle tightly to avoid dropping it.
.
Do not swing the handle into nearby people
.
or animals.
Make sure that the bracket hole of the
.
handle ts properly into the stopper bolt of
the door. Assemble the set screws to x
the handle into place.
Make sure that there is not a gap between
.
the door and handle after assembling the
handle.
Removing/Assembling the
Freezer Drawer Handle
(On Freezer Drawer Models)
Removing the Handle
1
Loosen the set screws located on the
lower side of the handle with a
Allen wrench and remove the handle.
2
Loosen the mounting fasteners that
connect to the
freezer drawer
and handle
using a
(6.35 mm)
1
/
4
in.
Allen wrench,
and remove
the mounting
fasteners.
Assembling the Handle
1
Assemble the mounting fasteners at
both ends of the handle using a
1
/
4
in.
(6.35 mm) Allen wrench.
2
Place the handle on the door by tting
the handle
footprints over
the mounting
fasteners and
tightening the
set screws
with a 3/32 in.
(2.5 mm)
Allen wrench.
ENGLISH
3
/
32
in. (2.5 mm)
15
INSTALLATION
1
Remove the top hinge cover screws .
Lift the hook (not visible), located at the
bottom of the front side of the cover
,
with a at-head screwdriver.
2
Remove the three bolts using a 10mm or
13/32-inch socket wrench and lift o the
top hinge. Set parts aside.

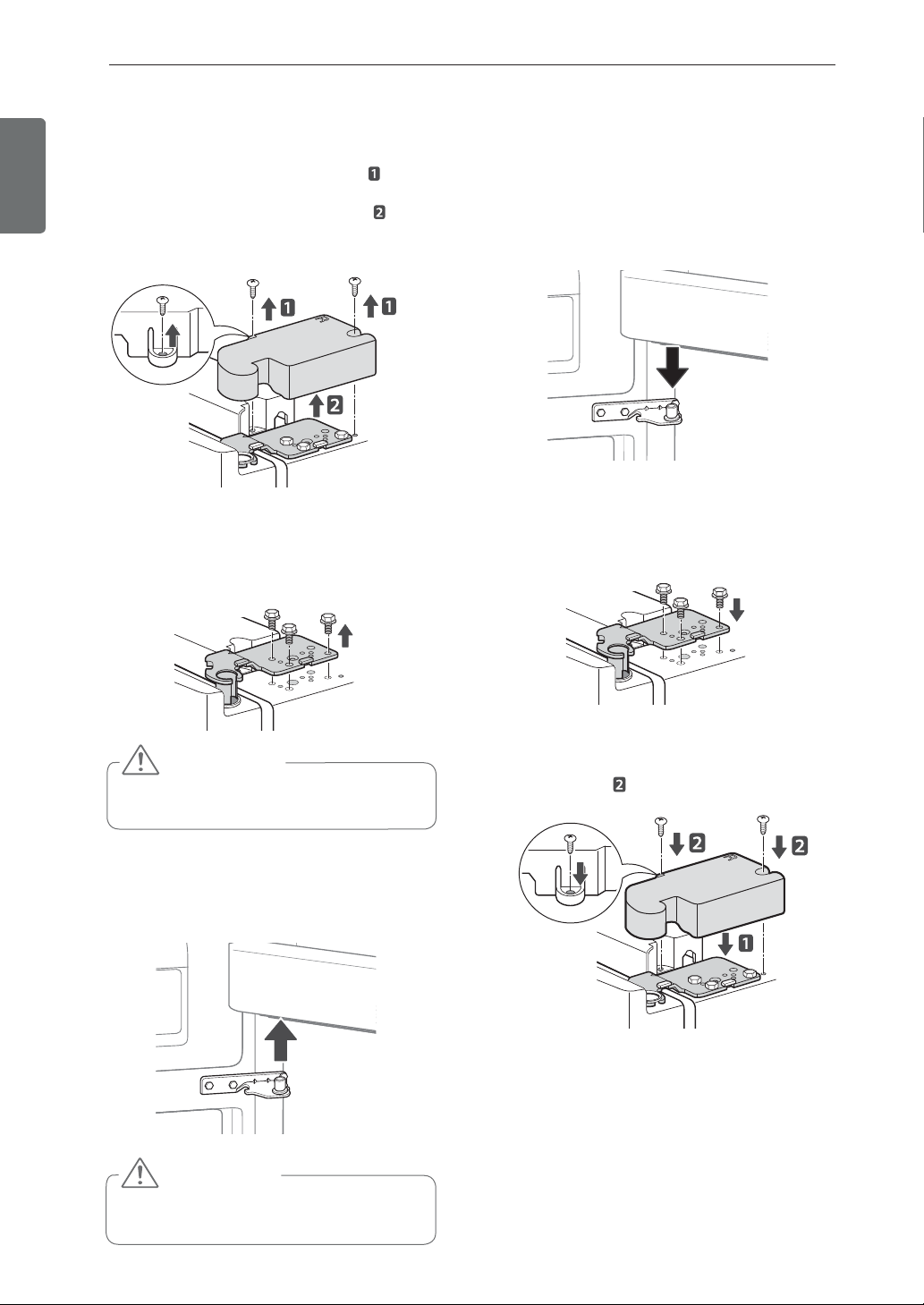

Removing the Refrigerator Door
WARNING
When lifting the hinge, be careful that
the door does not fall forward.
3
Lift the door from the middle hinge pin and
remove the door.
WARNING
Place the door, inside facing up, on a
non-scratching surface.
1
Make sure that the plastic sleeve is
inserted in the bottom of the door. Lower
the door onto the middle hinge pin as
shown in the gure.
2
Line up the top hinge with the holes in the
top of the refrigerator. Use the three bolts
to replace the hinge. Tighten the bolts.
Assembling the Refrigerator Door
3
Replace the cover. Insert and tighten the
cover screws
.
ENGLISH
16
INSTALLATION
WARNING
Use two or more people to remove and
install the freezer drawer. Failure to do so
can result in back or other injury.
Do not hold the handle when removing
or replacing the drawer. The handle may
come o, causing personal injury.
Be careful of sharp hinges on both sides
of the drawer.
When you lay the drawer down, be
careful not to damage the oor.
Do not sit or stand on the freezer drawer.
To prevent accidents, keep children and
pets away from the drawer. Do not leave
the drawer open.

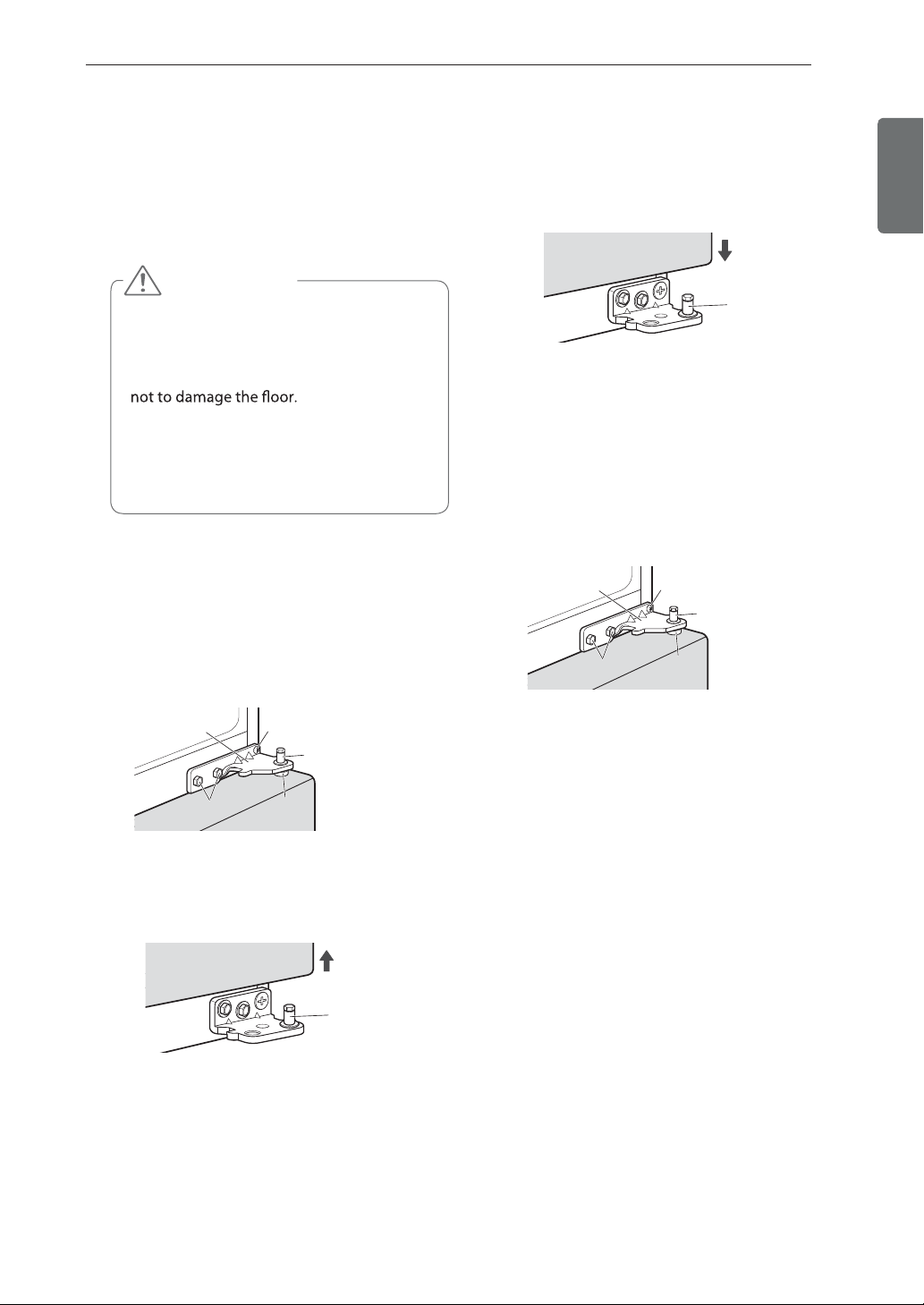

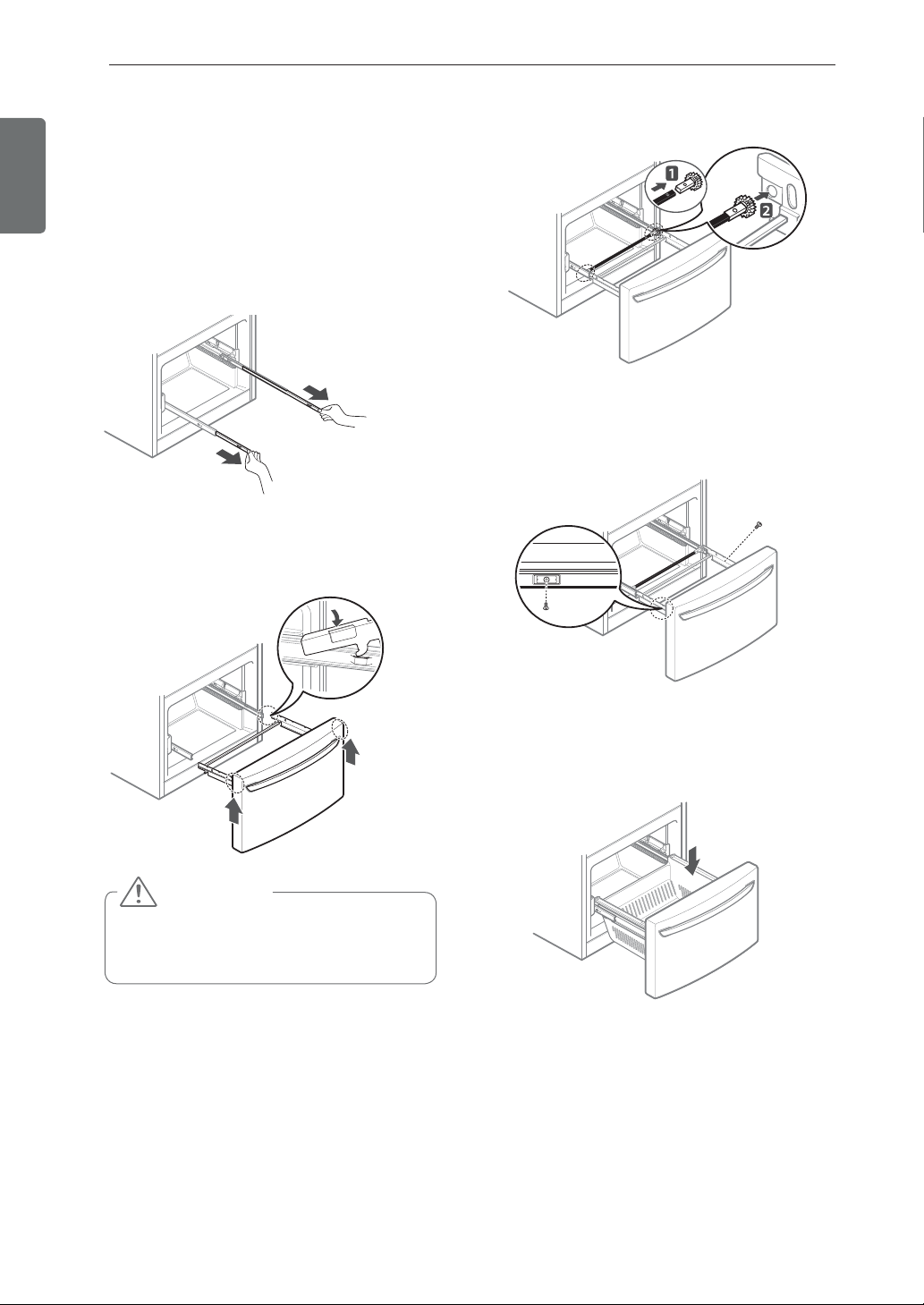

Removing the Freezer Drawers
(On Freezer Drawer Models)
The top and bottom drawers are all removed
in the same way. In the following gures,
the Pullout Drawer located above the freezer
drawer is not shown for clarity.
5
Grip both sides of the drawer and pull it up to
remove it from the rails.
6
Holding one rail with each hand, push the
rails in simultaneously.
WARNING
Do not hold the handle when removing
or replacing the drawer. The handle may
come o, causing personal injury.
4
Slide out the bar.
1
Pull the drawer open to full extension.
2
Lift the Durabase basket up and out,
making sure to clear the rail system.
3
Remove the screws at the ends of both rails.
ENGLISH
.
.
.
.
.
.
17
INSTALLATION
4
Lower the door into nal position and
tighten the screws located on both sides.
5
With the drawer pulled out to full
extension, insert the lower basket in the
rail assembly.
Assembling the Freezer Drawers
(On Freezer Drawer Models)
The top and bottom drawers are all assembled
in the same way.
1
Using two hands, pull out both rails
simultaneously until they are fully
extended.
2
Grasp the drawer on each side and hook the
drawer supports into the rail tabs located on
both sides.
CAUTION
Do not hold the handle when removing
or replacing the drawer. The handle
may come o, causing personal injury.
3
Reinstall the bar in the drawer supports.
ENGLISH
18
INSTALLATION
Removing the Freezer Door
(On Freezer Swing Models)
Before beginning, make sure you completely
remove the refrigerator door.
See
Removing the Refrigerator Door (p.15)
Assembling the Freezer Door
(On Freezer Swing Models)
1
mottob eht no nwod rood rezeerf eht ecalP
hinge pin.
2
Put the washer between the freezer door
and the middle hinge.
3
Attach the middle hinge with the
previously removed two bolts and screw.
Reattach the middle hinge pin using a 1/4
in. (6.35 mm) hex socket wrench.
WARNING
Use two or more people to remove and
.
install the freezer door. Failure to do so
can result in back or other injury.
When you lay the door down, be careful
.
Do not sit or stand on the freezer door.
.
To prevent accidents, keep children and
.
pets away from the door. Do not leave
the door open.
1
Use a 1/4 in (6.35 mm) hex socket wrench
to loosen and remove the hinge pin from
the middle hinge bracket. Use a 13/32 in.
or 10 mm socket wrench to remove
the two bolts. Remove the screw and
the washer, and set the middle hinge and
other parts aside.
2
Carefully lift up the freezer door. Remove
and place it on a non-scratching surface.
Bottom
Hinge Pin
Bottom
Hinge Pin
Screw
Middle Hinge Pin
Washer
Bolts
Middle Hinge
Screw
Middle Hinge Pin
Washer
Bolts
Middle Hinge
ENGLISH
19
INSTALLATION
Reversing Door Opening Direction
Reversing the Refrigerator Handle
1
Loosen the set screws with a
3
/
32
in.
(2.5 mm) Allen wrench and remove the
handle.
2
Loosen the mounting fasteners that
connect to the refrigerator door and handle
using a
1
/
4
in. (6.35 mm) Allen wrench, and
remove the mounting fasteners.
3
Carefully loosen the plug buttons
4
them counter-clockwise and continuing
until they loosen and fall out The buttons
were installed without pressure, and for
this reason, they can be unscrewed using
the plug buttons
5
on the left side.
4
Assemble the mounting fasteners at
both ends of the handle using a
1
/
4
in.
(6.35 mm) Allen wrench.
5
the handle footprints over the mounting
fasteners and tightening the set screws
with a
3
/
32
in. (2.5 mm) Allen wrench.
NOTE
To assist in the installation of the handle
on the right side, place a piece of
masking tape near the top of the handle
before removing it.
The appearance of the handle may
vary from what is shown in the illustrations.
4
5
ENGLISH
20
INSTALLATION
1
Remove the top hinge cover screws .
Lift the hook (not visible), located at the
bottom of the front side of the cover
,
with a
at-head screwdriver.
2
Using a13/32 in. or 10 mm socket
wrench, remove the three bolts and lift o
the top hinge. Set parts aside.
Reversing the Doors
(On Freezer Drawer Models)
WARNING
When lifting the hinge, be careful that
the door does not fall forward.
3
Lift the door from the middle hinge pin and
remove the door.
4
Remove the four screws , the hinge
pin insert
2
and the hinge pin brackets
3
from the bottom right side of the door.
5
Reinstall the hinge pin brackets
1
, screws
2
and hinge pin insert
3
on the bottom
left side of the door.
WARNING
Place the door, inside facing up, on a
non-scratching surface.
3
3
6
Use a ¼ in (6.35 mm) hex socket wrench to
loosen the hinge pin and remove. Remove the
1
two bolts
2
, the screw
3
and the hinge
4
.
3
4
ENGLISH
1
21
INSTALLATION
NOTE
The bracket has been ipped, but the
hinge pin stays in the same orientation
with its hexagonal end facing upward.
7
With a at-head screwdriver, carefully pry
o and remove the cover over the bolt
holes on the left side of the refrigerator.
8
Remove the outer lower decorative screw
from the ange on the frame between
the freezer and refrigerator doors. (You
will need this hole for the middle hinge
bracket.)
9
Flip the middle hinge bracket and position
it on the left side of refrigerator and
reattach with two bolts and a screw.
10
Reattach middle hinge pin using a ¼ in.
(6.35 mm) socket wrench.
Middle Hinge
Pin
Middle Hinge
Bracket
13
Place the refrigerator door down over the
hinge pin on the middle hinge pin bracket.
11
Insert the decorative screw into the outer
hole on the right side of the ange. Attach
the cover on the right side. Cover is force-
tted.
12
Loosen the two screws and remove the
left hinge cap.
Decorative
Screw
ENGLISH
22
INSTALLATION
NOTE
The left top hinge, right hinge cap
and left hinge cover are provided for
reversing doors.
14
Line up the left top hinge with the holes in
the top of the refrigerator. Use the three
bolts to replace the hinge.
Assemble the left hinge cover with the
two screws.
15
Assemble the right hinge cap with the two
screws.
Reversing the Doors
(On Freezer Swing Models)
1
Remove the top hinge cover screws .
Lift the hook (not visible), located at the
bottom of the front side of the cover
,
with a at-head screwdriver.
2
Using a 10mm or 13/32 in. socket
wrench, remove the three bolts and lift o
the top hinge. Set parts aside.
WARNING
When lifting the hinge, be careful that
the door does not fall forward.
3
Lift the door from the middle hinge pin and
remove the door.
WARNING
Place the door, inside facing up, on a
non-scratching surface.
ENGLISH

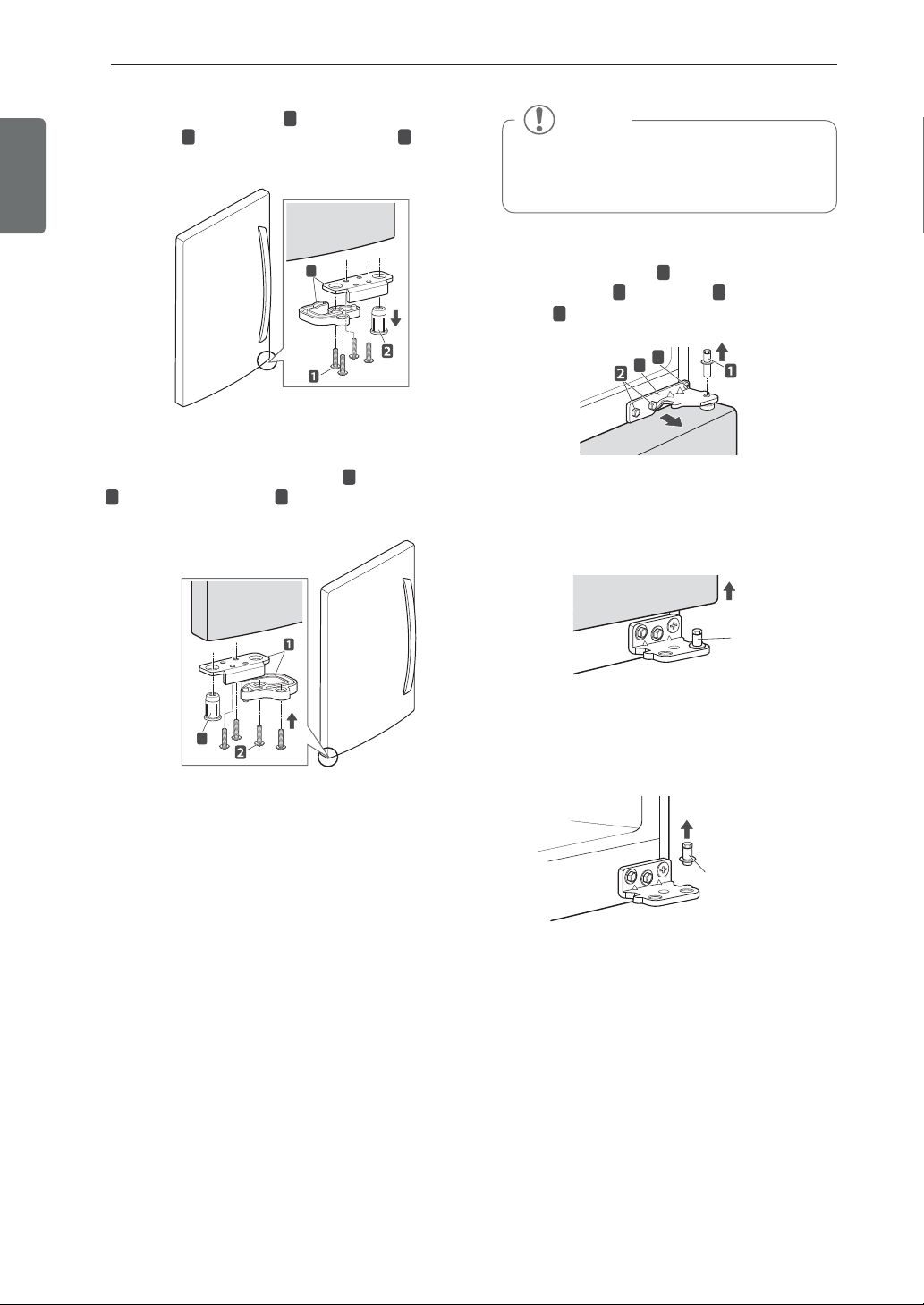

23
INSTALLATION
4
Remove the four screws
1
, the hinge
pin insert
2
and the hinge pin brackets
3
from the bottom right side of the door.
5
Reinstall the hinge pin brackets
1
, screws
2
and hinge pin insert
3
on the bottom
left side of the door.
3
3
6
Use a ¼ in. (6.35 mm) hex socket wrench to
loosen the hinge pin and remove it. Remove
1
the two bolts
2
, the screw
3
and the
hinge
4
. Remove the washer.
7
Carefully lift up the freezer door. Remove
and place it on a non-scratching surface.
8
Using a ¼” (6.35 mm) socket wrench, loosen
and remove the hinge pin from the bottom
hinge.
NOTE
Before removing the freezer door,
make sure you completely remove the
refrigerator door.
Bottom
Hinge Pin
Bottom Hinge Pin
3
4
ENGLISH

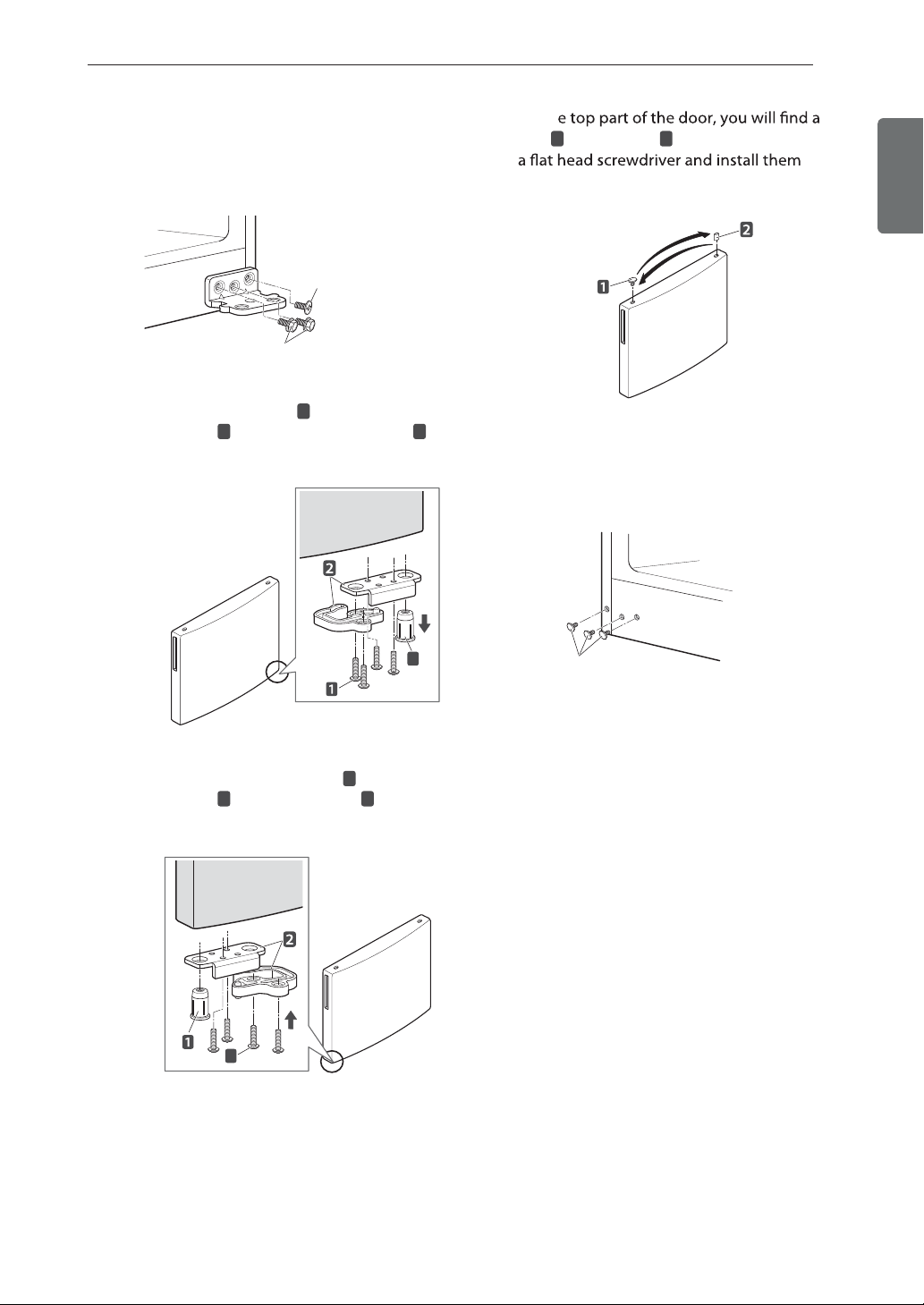

24
INSTALLATION
10
Remove the four screws
1
, the hinge
pin brackets
2
and the hinge pin insert
3
from the bottom right side of the freezer
door.
11
Reinstall the hinge pin insert
1
, the hinge
pin brackets
2
and the screws
3
on the
bottom left side of the door.
12
On th
cap
1
and a pivot
2
. Remove them with
on the opposite side ( the cap goes on the
right and the pivot on the left).
3
3
13
Re move the decorative caps on the
bottom of the refrigerator housing. You will
need these holes for the bottom hinge.
Decorative Cap
9
Usin g a 13/32-in. or 10mm socket
wrench with a 2 in. (50 mm) extension and
a screwdriver, loosen the two bolts and the
screw, and remove the bottom hinge from
the right side.
Screw
Bolts
ENGLISH
25
INSTALLATION
14
Using a 13/32 in. or 10 mm socket wrench
with a 2 in. (50.8 mm) extension and a
screwdriver, tighten the two bolts and the
screw, and assemble the bottom hinge on
the left side of the ange.
15
Attach the hinge pin using a ¼ in. (6.35 mm)
socket wrench.
16
With a at-head screwdriver, carefully pry
o and remove the cover over the bolt
holes on the left side of the refrigerator.
17
Remove the outer lower decorative screw
from the ange on the frame between
the freezer and refrigerator doors. (You
will need this hole for the middle hinge
bracket.)
18
Flip the middle hinge bracket and position
it on the left side of the refrigerator and
reattach it with two bolts and a screw.
19
Place the freezer door down on the bottom
hinge pin.
20
Reattach the middle hinge pin using a ¼ in
(6.35 mm) socket wrench. Replace the
washer.
NOTE
The bracket has been ipped, but the
hinge pin stays in the same orientation
with its hexagonal end facing upward.
Bottom Hinge Pin
Middle Hinge Pin
Washer
Middle Hinge Bracket
Bottom Hinge
Pin
ENGLISH

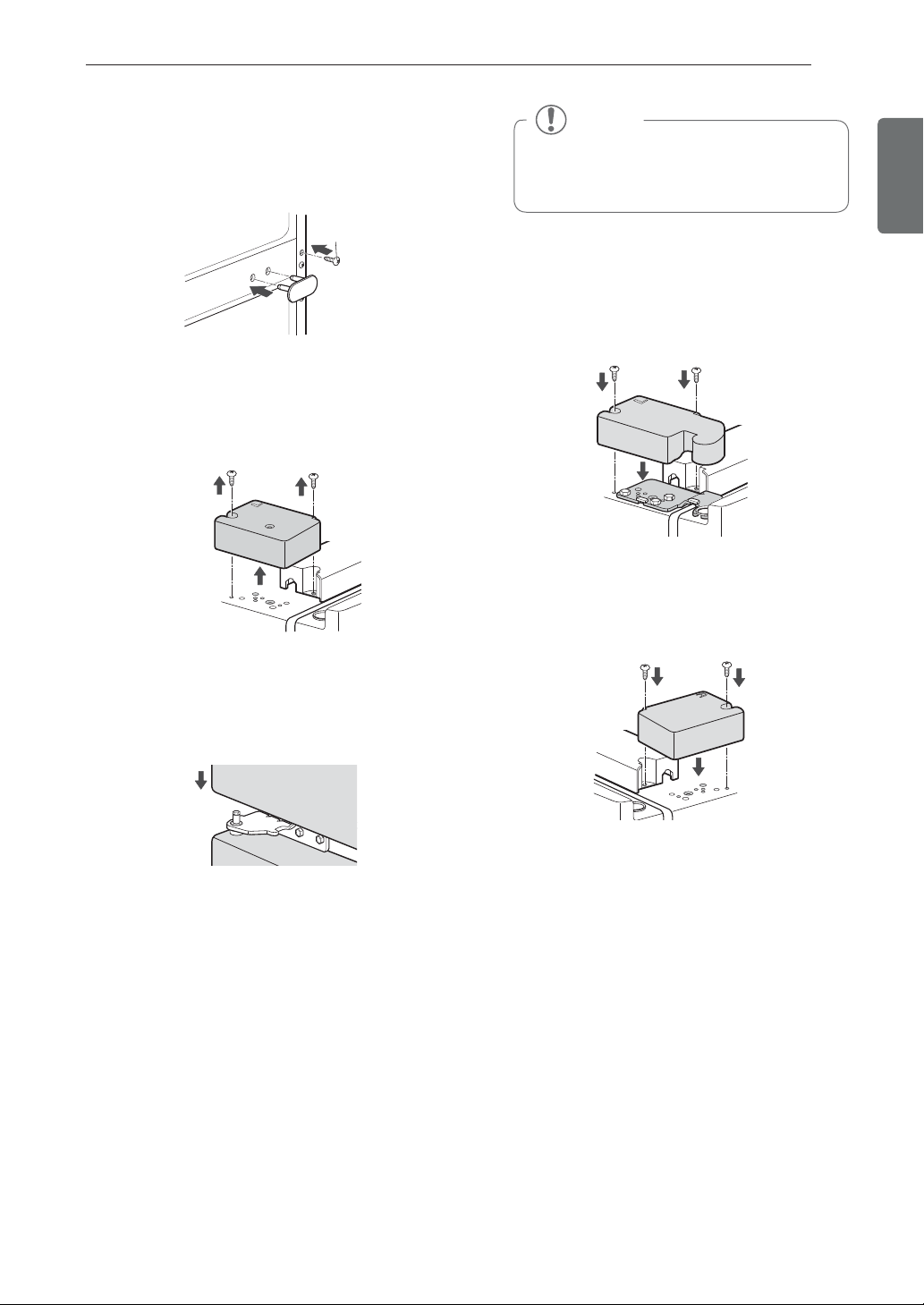

26
INSTALLATION
NOTE
The left top hinge, right hinge cap
and left hinge cover are provided for
reversing doors.
24
Line up the left top hinge with the holes in
the top of refrigerator. Use the three bolts
to replace the the hinge.
Assemble the left hinge cover with the
two screws.
25
Assemble the right hinge cap with the two
screws.
23
Place the refrigerator door down over the
hinge pin on the middle hinge pin bracket.
21
Insert the decorative screw into the outer
hole on the right side of the ange. Attach
the cover on the right side. Cover is force-
tted.
22
Loosen the two screws and remove the
left hinge cap.
Decorative
Screw
ENGLISH
27
INSTALLATION
WARNING
Wear eye protection during installation
to prevent injury.
Connecting the Water Line
Before You Begin
This water line installation is not covered by the
(Ice maker installed only)
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
Water hammer (water banging in the pipes) in
house plumbing can cause damage to refrigerator
before installing the water supply line to the
refrigerator.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF (O) position.
Water Pressure
The water pressure must be between 20 and 120
psi on models without a wate
ter and between
40 and 120 psi on models with a wat
.
If a reverse osmosis water
ltration system is
connected to your cold water supply, this water
line installation is not covered by the refrigerator
warranty. Follow the instructions carefully to
minimize the risk of expensive water damage.
If a reverse osmosis water
ltration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (0,14 y 0,41 MPa)
less than 2.0~3.0 sec. to
a cup of 7 oz (0.2 L)
capacity.
If the water pressure from the reverse osmosis
system is less than 21 psi or 0,14 MPa takes
more than 4.0 sec
cup of 7 oz capacity:
.
the reverse osmosis system is blocked.
Allow the storage tank on the reverse
.
usage.
If water pressure issues associated with
.
a reverse osmosis system persist, call a
All installations must be in accordance
.
with local plumbing code requirements.
What You Will Need
Copper Tubing,
.
¼ in. (6.35 mm) outer
diameter, to connect the refrigerator to
the water supply. Be sure both ends of
the tubing are cut square.
To determine how
much tubing you need:
measure the distance
from the water valve on the back of the
refrigerator to the water supply pipe.
Then, add 8 feet (2.4 m).
(about 8 feet [2.4 m] coiled into three
turns of about 10 in. [25 cm] diameter)
to allow the refrigerator to move out
from the wall after installation.
Power drill.
.
½ in. (13 mm) or
.
adjustable wrench.
Flat blade and Phillips
.
head screwdrivers.
Two ¼ in. (6.35 mm)
.
outer diameter compression
nuts and 2 ferrules (sleeves)
to connect the
the refrigerator water valve.
WARNING
Do not install the icemaker tubing in
areas where temperatures fall below
freezing.
WARNING
To prevent burns and product damage,
only connect the refrigerator water line to
a cold water supply.
ENGLISH
28
INSTALLATION
NOTE
A self piercing saddle type water valve
should not be used.
NOTE
The hookup line cannot be white, plastic
tubing. Licensed plumbers must use
only copper tubing (NDA tubing #49595
or #49599) or Cross Link Polyethylene
(PEX) tubing.
If your existing copper water line has a
ared tting at the end, you will need
an adapter (available at plumbing supply
stores) to connect the water line to the
refrigerator OR you
can cut o the ared
tting with a tube
cutter and then use a
compression tting.
Shuto valve
to connect to the cold
water line. The shuto valve should
have a water inlet with a minimum
inside diameter of 5/32 in. (4 mm) at the
point of connection to the COLD WATER LINE.
Saddle-type shuto valves are included
in many water
supply kits. Before
purchasing, make
sure a saddle-type
valve complies with
your local plumbing codes.
2
CHOOSE THE VALVE LOCATION
Choose a location for
the valve that is easily
accessible. It is best to
connect into the side of a
vertical water pipe. When
it is necessary to connect
into a horizontal water
pipe, make the connection to the top or
side, rather than at the bottom, to avoid
drawing o any sediment from the water
pipe.
3
DRILL THE HOLE FOR THE VALVE
Drill a ¼ in. (6.35 mm) hole
in the water pipe using
a sharp bit. Remove
any burrs resulting
from drilling the hole
in the pipe. Be careful
not to allow water
to drain into the drill. Failure to drill a ¼ in.
(6.35 mm) hole may result in reduced ice
production or smaller cubes.
ENGLISH
.
.
Water Line Installation Instructions
Install the shuto valve on the nearest
frequently used drinking water line.
1
SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the
pressure on the line.
CAUTION
When using any electrical device
(such as a power drill) during
installation, be sure the device is
battery powered, double insulated
or grounded in a manner that will
prevent the hazard of electric shock.
4
FASTEN THE SHUTOFF VALVE
Fasten the shuto valve to the cold water
pipe with the pipe clamp.
Pipe Clamp
Saddle-Type
Shuto Valve
Vertical Cold
Water Pipe
NOTE
Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be
adhered to. Saddle valves are illegal and
use is not permitted in Massachusetts.
Consult with your licensed plumber by
norms and regulations of your country.
29
INSTALLATION
5
TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE:
Do not overtighten the clamp or
you may crush the tubing.
6
ROUTE THE TUBING
Route the tubing between the cold water
line and the refrigerator.
Route the tubing through a hole drilled in
the wall or oor (behind the refrigerator or
adjacent base cabinet) as close to the wall
as possible.
Pipe Clamp
Clamp Screw
Washer
Inlet End
7
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule
(sleeve) for copper tubing onto the end of
the tubing and connect it to the shuto
valve. Make sure the tubing is fully inserted
into the valve. Tighten the compression
nut securely.
8
FLUSH OUT THE TUBING

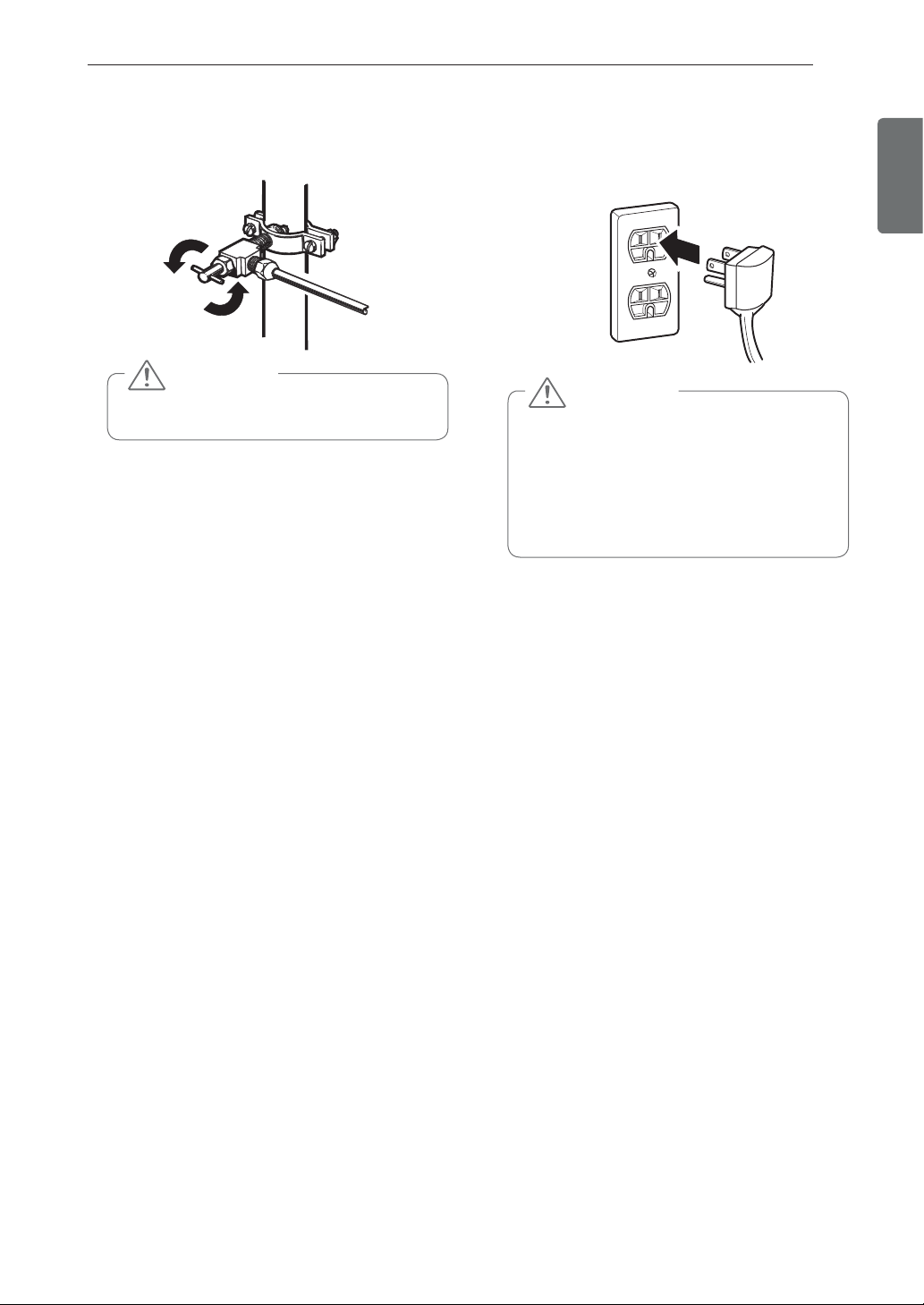

Turn the main water
supply on and ush out
the tubing until the water
is clear.
Shut the water o at the
water valve after about
one quart of water has
been ushed through the tubing.
9
CONNECT THE TUBING TO THE
REFRIGERATOR
NOTE:
Before making the connection
to the refrigerator, be sure that the
refrigerator power cord is not plugged into
the wall outlet.
a. Remove the plastic exible cap from the
water valve.
b. Place the compression nut and ferrule
(sleeve) onto the end of the tubing as
shown.
c. Insert the end of the copper tubing into
the connection as far as possible. While
holding the tubing, tighten the tting.
Tubing Clamp
¼ in. Tubing
¼ in.
Compression
Nut
Refrigerator
Connection
Ferrule
(sleeve)
Saddle-Type
Shuto Valve
Packing Nut
Outlet Valve
Compression
Nut
Ferrule (sleeve)
NOTE
Be sure there is sucient extra tubing
(about 8 feet or 2.4 m coiled into 3 turns of
about 10 in. or 25 cm diameter) to allow the
refrigerator to move out from the wall
after installation.
ENGLISH
NOTE
Never use old or used hoses. Always use
new ones to have a better use and
experience. Connect always to a potable
water source to avoid security and health
issues.
30
INSTALLATION
10
TURN THE WATER ON AT THE SHUTOFF
VALVE
Tighten any connections that leak.
11
PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it
does not vibrate against the back of the
refrigerator or against the wall. Push the
refrigerator back to the wall.
12
START THE ICEMAKER
Set the icemaker power switch to the ON
position.
The icemaker will not begin to operate
until it reaches its operating temperature
of 15°F (–9°C) or below. It will then begin
operation automatically if the icemaker
power switch is in the
ON (I)
position.
Turning On The Power
1
Plug in the refrigerator.
CAUTION
Check to see if leaks occur at the water
line connections.
CAUTION
Connect to a rated power outlet.
Have a certied electrician check
the wall outlet and wiring for proper
grounding.
Do not damage or cut o the ground
terminal of the power plug.
ENGLISH
.
.
.
31
INSTALLATION
Leveling and Door Alignment
Leveling
After installing, plug the refrigerator’s power
cord into a 3-prong grounded outlet and push
the refrigerator into the nal position.
Your refrigerator has two front leveling legs—
one on the right and one on the left. Adjust the
legs to alter the tilt from front-to-back or side-
to-side. If your refrigerator seems unsteady, or
you want the doors to close more easily, adjust
the refrigerator’s tilt using the instructions
below:
1
Turn the leveling leg to the left to raise
that side of the refrigerator or to the right
to lower it. It may take several turns of the
leveling leg to adjust the tilt of the
refrigerator.
2
Open the doors again and check to make
sure that they close easily. If the doors do
not close easily, tilt the refrigerator slightly
more to the rear by turning both leveling
legs to the left. It may take several more
turns, and you should turn both leveling
legs the same amounts.
NOTE
A are nut wrench works best, but an
open-end wrench will suce.
Do not over-tighten.
Door Alignment
If the space between your doors is uneven,
follow the instructions below to align the
doors.
1
Remove the top hinge cover screws.
Lift the hook located at the bottom of the
front side of the cover with a at-head
screwdriver.
2
Loosen the top hinge bolts using a 10mm
or 13/32 in. socket wrench or open-end
wrench.
3
Have someone hold the refrigerator door
so the space between the two door is
even, and retighten the top hinge bolts.
4
Replace the top hinge cover.
ENGLISH
32
HOW TO USE
ENGLISH
HOW TO USE
Before use
Clean the refrigerator.
shipping.
NOTE
Remove adhesive residue by wiping it o with your thumb or dish detergent.
WARNING
Do not scratch the refrigerator with a sharp object or use a detergent that
.
or adhesive from the refrigerator.
.
on the rear surface of the refrigerator.
Connect the power supply.
Check if the power supply is connected before use.
Read the “Turning On The Power” section.
WARNING
Running the automatic icemaker before connecting it to the water
supply may cause the refrigerator to malfunction.
Turn off the icemaker if the refrigerator is not yet connected to the
water supply. (Ice maker installed only)
into the grounded electric outlet.
* This is applicable only to certain models.
WARNING
Putting food in the refrigerator before it has cooled could cause the
food to spoil, or a bad odor could linger inside the refrigerator.
Wait for the refrigerator to cool.
Allow your refrigerator to run for at least two to three hours before putting food in
The refrigerator makes a loud noise after initial operation.
This is normal. The volume will decrease as the temperature lowers.
Open refrigerator doors and freezer drawers to ventilate the interior.
tape from inside the refrigerator and open the refrigerator doors and the freezer
drawers for ventilation.
ENGLISH
33
HOW TO USE
NOTE
The displayed temperature is the target
temperature, and not the actual temperature
of the refrigerator. The actual refrigerator
temperature depends on the food inside the
refrigerator.
Control Pad
* Depending on the model, some of the following functions may not be available.
Control Pad Features
Control Button
Refrigerator Temperature
Indicates the set temperature of the refrigerator
compartment in Celsius (°C) or Fahrenheit (°F).
Freezer Temperature
Indicates the set temperature of the freezer
compartment in Celsius (°C) or Fahrenheit (°F).
To change the temperature mode from °F to °C
(or vice versa) press and hold the
Refrigerator
and
Freezer
temperature buttons simultaneously
for approximately ve seconds. The temperature
indicator on the display window switches
between Celsius and Fahrenheit.
Ice Plus
This function increases both ice making and
freezing capabilities.
When you press the
.
Ice Plus
button, the light
will be on in the display and will continue for
24 hours. The function will automatically shut
o after 24 hours.
You can stop this function manually by
.
pressing the button one more time.
Door Alarm
When power is connected to the refrigerator,
the door alarm is initially set to ON. When you
press the
Door Alarm
button, the light will
change to OFF and the Door Alarm function
will deactivate.
.
When either the refrigerator or the freezer
.
door is left open for more than 60 seconds,
the alarm tone will sound to let you know that
the door is open.
When you close the door, the door alarm will
.
stop.
WARNING
Display Mode (For Store Use Only)
The Display Mode disables all cooling in the
refrigerator and freezer sections to conserve
energy while on display in a retail store. When
activated, OFF will display on the control panel
and the display will remain on for 20 seconds.
To deactivate / activate:
With either refrigerator door opened, press
and hold the
Refrigerator
and
Ice Plus
buttons
at the same time for ve seconds. The control
panel will beep and the temperature settings
will display to conrm that Display Mode
is deactivated. Use the same procedure to
activate the Display Mode.
LED Display Indicator
ENGLISH
Door
Door
34
HOW TO USE
A
(Ice maker installed only)

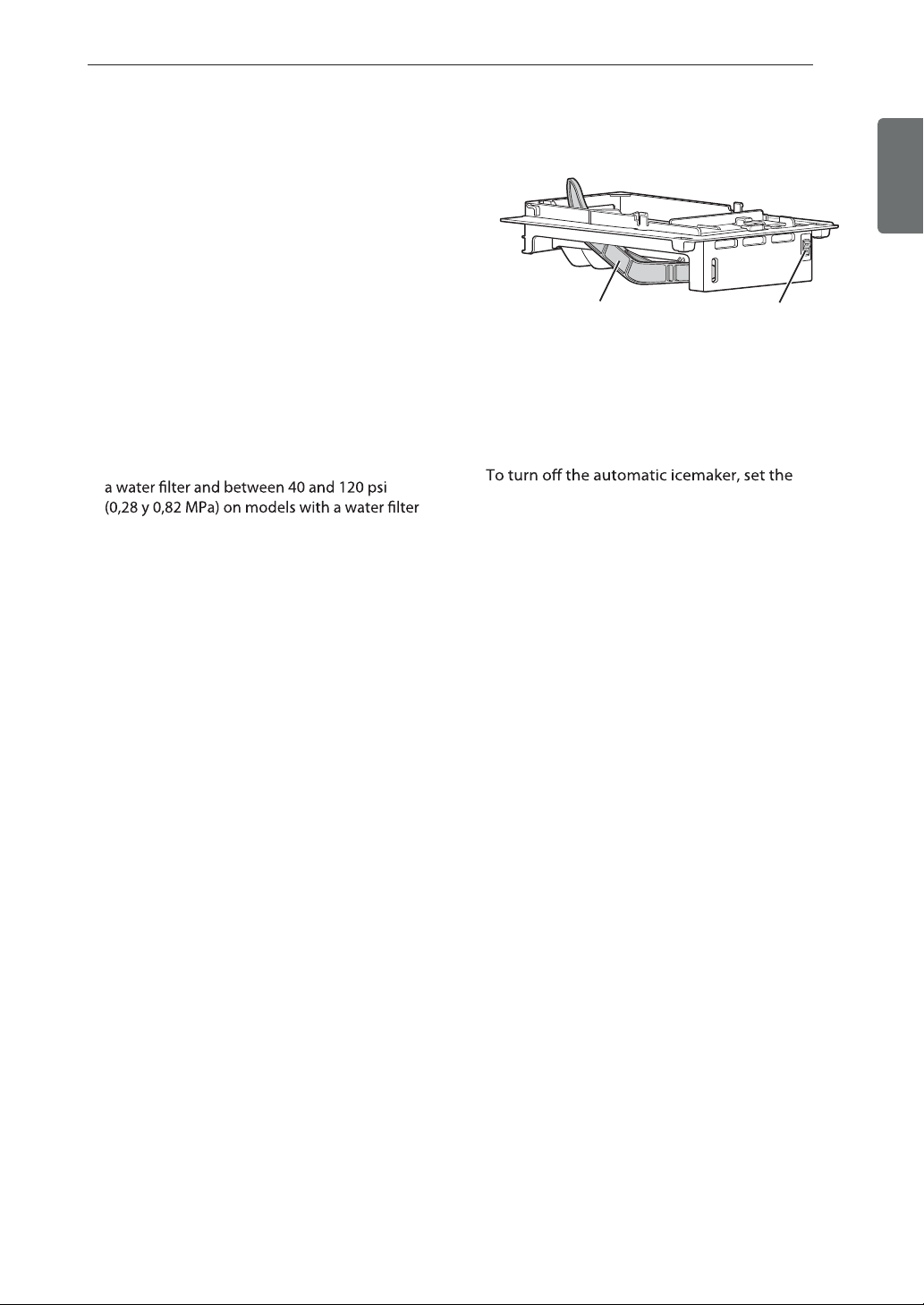

utomatic Icemaker (Freezer Room)
* Depending on the model, some of the
following functions may not be available.
Ice is made in the automatic icemaker and sent
to the dispenser. The icemaker will produce
12 cubes per cycle—approximately 100 cubes
in a 24-hour period, depending on freezer
compartment temperature, room temperature,
number of door openings and other operating
conditions.
It takes about 12 to 24 hours for a newly
.
installed refrigerator to begin making ice.
The water pressure must be between 20 and
.
120 psi (0,14 y 0,82 MPa) on models without
to produce the normal amount and size of ice
cubes.
Foreign substances or frost on the ice-
.
detecting sensor can interrupt ice production.
Make sure the sensor area is clean at all times
for proper operation.
Turning the Automatic Icemaker
On or Off
icemaker switch to
OFF (O)
. To turn on the
automatic icemaker, set the switch to
ON (I)
.
Automatic
Shut Off Arm
Power Switch
ENGLISH
35
HOW TO USE
The rst ice produced may include particles
.
or odor from the water supply line or the
water tank.
Throw away the rst few batches of ice.
.
This is also necessary if the refrigerator has
not been used for a long time.
If discolored ice is produced, check the
.
water supply. If the problem continues,
contact a qualied service center. Do not
use the ice or water until the problem is
corrected.
Be sure nothing interferes with the sweep
.
of the automatic shut o arm.
When the bin lls to the level of the
.
automatic shut o arm, the icemaker will
stop producing ice.
It is normal for some cubes to be stuck
.
together.
If ice is not used frequently, old ice cubes
.
will become cloudy, taste stale, and shrink.
WARNING
Automatic Icemaker (continued)
When You Should Turn the
Icemaker Off
When the water supply will be shut o
.
for several hours.
When the ice bin is removed for more
.
than one or two minutes.
When the refrigerator will not be used
.
for several days.
Normal Sounds You May Hear
The icemaker water valve will buzz as
.
the icemaker lls with water. If the
power switch is in the
ON (I) position,
it will buzz even if it has not yet been
hooked up to water. To stop the buzzing,
move the power switch to
OFF (O).
You will hear the sound of cubes
.
dropping into the bin and water running
in the pipes as the icemaker rells.
Preparing For Vacation
Set the icemaker power switch to OFF (O) and
shut o the water supply to the refrigerator.
If the ambient temperature is expected to drop
below freezing, have a qualied technician
drain the water supply system to prevent
serious property damage due to ooding
caused by ruptured water lines or connections.
NOTE
The ice bin should be emptied when the
icemaker on/o switch is turned to the
OFF
position.
NOTE
Keeping the power switch in the ON
(I) position before the water line is
connected can damage the icemaker.
NOTE
The ice bin should be emptied anytime
the icemaker on/o switch is turned to
the
OFF (O) position.
ENGLISH
36
HOW TO USE
Storing Food

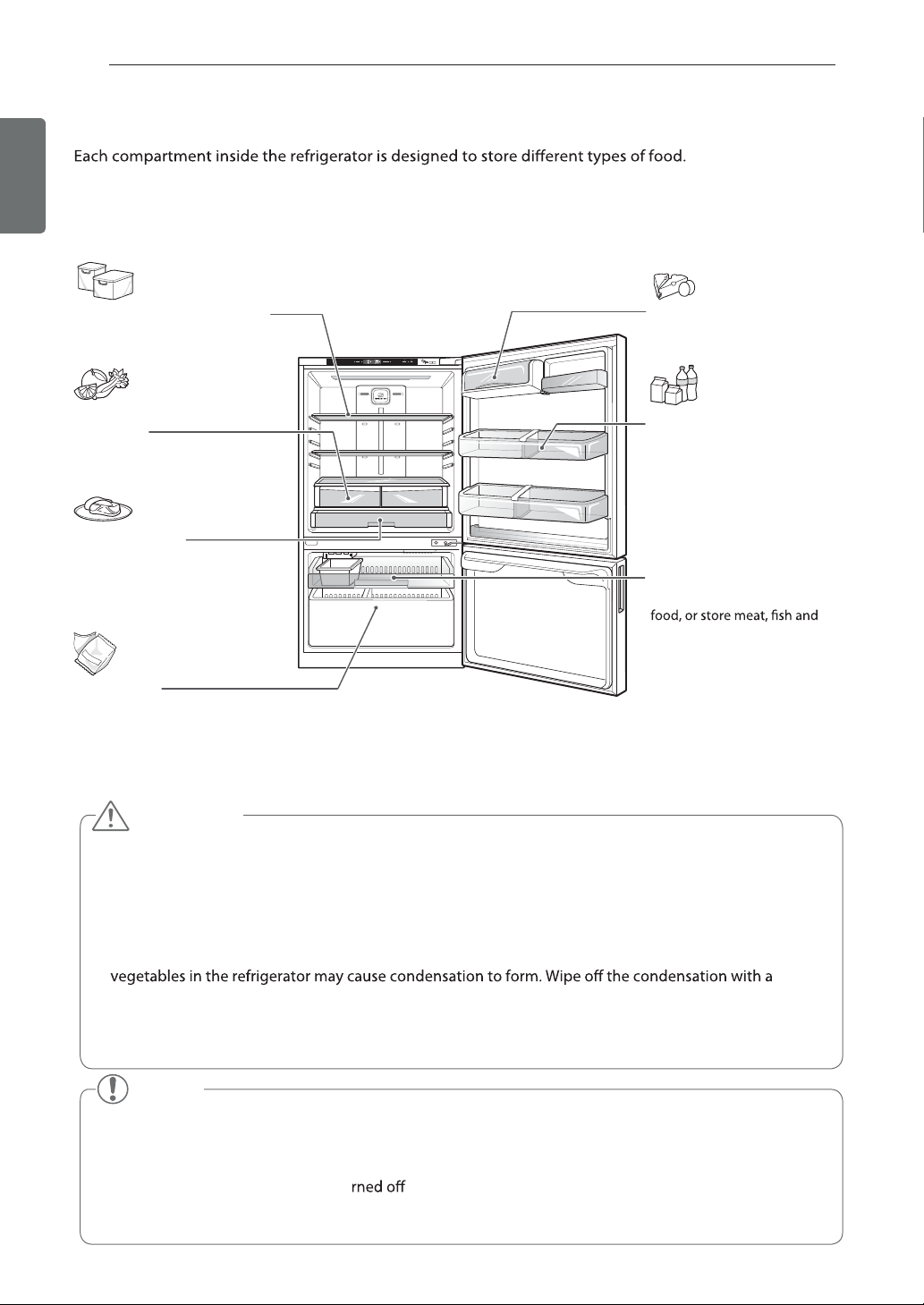

Food Preservation Location (On Freezer Drawer Models)
Store your food in the optimal space to enjoy the freshest taste.
Vegetable storage
(Crisper)
Preserves vegetables and
fruit.
Durabase
®
Largest storage space in
the freezer.
Dairy product bin
Adjustable refrigerator shelf
Adjustable shelves to meet your
i
(Half or full Type)
ndividual storage needs.
Door bin
Store drinks such as
juice and soda, as well as
seasonings, salad dressings
and other food items.
Pullout Drawer
Store small packed frozen
chicken after wrapping them
with thin foil. Store dry.
Glide‘N’Serve
Used for large party trays,
deli items and beverages
WARNING
Do not store food with high moisture content towards the top of the refrigerator. The moisture
could come in direct contact with the cold air and freeze.
Wash food before storing it in the refrigerator. If necessary, rinse and thoroughly pat dry vegetables
and fruit to remove obvious soil, juice, or blemished areas, and wipe down food packaging to prevent
adjacent foods from being contaminated.
If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of
clean cloth or a paper towel.
If the refrigerator door or freezer drawer is opened too often, warm air may penetrate the
refrigerator and raise its temperature. This can increase the running costs of the unit.
NOTE
If you are leaving home for a short period of time, like a short vacation, the refrigerator should
be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the
freezer.
If you are leaving the refrigerator tu
for an extended period of time, remove all food and
unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing
in the refrigerator.
.
.
.
.
.
.
ENGLISH
37
HOW TO USE
Food Preservation Location (On Freezer Swing Models)
Store your food in the optimal space to enjoy the freshest taste.
Vegetable storage
(Crisper)
Preserves vegetables and
fruit.
Durabase
®
Largest storage space in
the freezer.
Dairy product bin
Adjustable refrigerator shelf
Adjustable shelves to meet your
individual storage needs.
Door bin
Store drinks such as
juice and soda, as well as
seasonings, salad dressings
and other food items.
Pullout Drawer
Store small packed frozen
chicken after wrapping them
with thin foil. Store dry.
Glide‘N’Serve
Used for large party trays,
deli items and beverages
WARNING
Do not store food with high moisture content towards the top of the refrigerator. The moisture
could come in direct contact with the cold air and freeze.
Wash food before storing it in the refrigerator. If necessary, rinse and thoroughly pat dry vegetables
and fruit to remove obvious soil, juice, or blemished areas, and wipe down food packaging to prevent
adjacent foods from being contaminated.
If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of
clean cloth or a paper towel.
If the refrigerator door or freezer drawer is opened too often, warm air may penetrate the
refrigerator and raise its temperature. This can increase the running costs of the unit.
NOTE
If you are leaving home for a short period of time, like a short vacation, the refrigerator should
be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the
freezer.
If you are leaving the refrigerator tu
for an extended period of time, remove all food and
unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing
in the refrigerator.
.
.
.
.
.
.
ENGLISH
38
HOW TO USE
Food Storage Tips
* The following tips may not be applicable
depending on the model.
Wrap or store food in the refrigerator in airtight
and moisture-proof material unless otherwise
noted. This prevents food odor and taste transfer
throughout the refrigerator. For dated products,
check date code to ensure freshness.
Food How to
Butter or
Margarine
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply, wrap
in freezer packaging and freeze.
Cheese
Store in the original wrapping
until you are ready to use it. Once
opened, re-wrap tightly in plastic
wrap or aluminum foil.
Milk
Wipe milk cartons. For coldest milk,
place containers on interior shelf.
Eggs
Store in the original carton on
interior shelf, not on the door shelf.
Fruit
Do not wash or hull the fruit until it
is ready to be used. Sort and keep
fruit in its original container, in a
crisper, or store it in a completely
closed paper bag on a refrigerator
shelf.
Leafy
Vegetables
Remove store wrapping and trim
or tear o bruised and discolored
areas. Wash in cold water and
drain. Place in a plastic bag or
plastic container and store in the
crisper.
Vegetables
with skins
(carrots,
peppers)
Place in plastic bags or plastic
container and store in crisper.
Fish
Store fresh sh and shellsh in
the freezer section if they are not
being consumed the same day of
purchase. It is recommended to
consume fresh sh and shellsh
the same day as purchased.
Leftovers
Cover leftovers with plastic wrap
or aluminum foil or store in plastic
containers with tight lids.
Storing Frozen Food
Freezing
Your freezer will not quick-freeze a large
quantity of food. Do not put more unfrozen
food into the freezer than will freeze within
24 hours (no more than 2 to 3 lbs. of food per
cubic foot of freezer space). Leave enough
space in the freezer for air to circulate around
packages. Be careful to leave enough room at
the front so the door can close tightly.
Storage times will vary according to the quality
and type of food, the type of packaging or wrap
used (how airtight and moisture-proof) and
the storage temperature. Ice crystals inside a
sealed package are normal. This simply means
that moisture in the food and air inside the
package have condensed, creating ice crystals.
NOTE
Check a freezer guide or a reliable cookbook
for further information about preparing food
for freezing or food storage times.
NOTE
Allow hot foods to cool at room temperature
for 30 minutes, then package and freeze.
Cooling hot foods before freezing saves
energy.
ENGLISH
39
HOW TO USE
Humidity Controlled Crisper
and Glide’N’Serve
Humidity Controlled Crisper
* Depending on the model, some of the
following functions may not be available.
The crispers provide fresher tasting fruit
and vegetables by letting you easily control
humidity inside the drawer.
You can control the amount of humidity in the
moisture-sealed crispers by adjusting the control
to any setting between
Vegetable
and
Fruit.
Vegetable
.
keeps moist air in the crisper for
best storage of fresh, leafy vegetables.
Fruit
.
lets moist air out of the crisper for
best storage of fruit.
Fruit Vegetable
FruitVegetable
Glide’N’Serve
This drawer can be used for large party trays,
deli items and beverages. (This drawer should
not be used for vegetables that require high
humidity.)
Storing Frozen Food (continued)
Packaging
Successful freezing depends on correct
packaging. When you close and seal the
package, it must not allow air or moisture in or
out. If it does, you could have food odor and
taste transfer throughout the refrigerator and
could also dry out frozen food.
Packaging recommendations:
Rigid plastic containers with tight-tting
.
lids
Straight-sided canning/freezing jars
.
Heavy-duty aluminum foil
.
Plastic-coated paper
.
Non-permeable plastic wraps
.
Specied freezer-grade self-sealing plastic
.
bags
Follow package or container instructions for
proper freezing methods.
Do not use
Bread wrappers
.
Non-polyethylene plastic containers
.
Containers without tight lids
.
Wax paper or wax-coated freezer wrap
.
Thin, semi-permeable wrap
.
ENGLISH
40
HOW TO USE
Detaching and Assembling the
Storage Bins
Glide’N’Serve and Humidity
Controlled Crisper
To remove the Humidity Controlled Crisper and
the Glide’N’Serve, pull out the Crisper
and
Glide’N’Serve
to full extension, lift the front
up, and pull straight out.
To install, slightly tilt up the front, insert the
drawer into the frame and push it back into
place.
To Remove the Glass
(Glide’N’Serve not shown for clarity.)
Lift up the glass under the crisper cover, and
pull up and out.
Door Bins
The door bins are removable for easy cleaning
and adjustment.
1
To remove a bin, simply lift the bin up and
pull straight out.
2
To replace the bin, slide it in above the
desired support and push down until it snaps
into place.
NOTE
Some bins may vary in appearance and
CAUTION
Do not apply excessive force while
.
detaching or assembling the storage
bins.
Do not use the dishwasher to clean
.
the storage bins and shelves.
Regularly detach and wash the
.
storage bins and shelves; they can
become easily contaminated by the
food.
ENGLISH
ICE BIN (In some models)
ţ
Pull the drawer as much as possible (1).
ţ
Raise the ice box and take it out carefully (2).
ţ
Take the drawer o as much as possible and put the
ice bin in the right position (3).
%rawer
*cF#JO
12
3
41
HOW TO USE
Adjusting the Refrigerator
Shelves
The shelves in your refrigerator are adjustable
to meet your individual storage needs. Your
model may have full or split shelves.
want easier. Doing so will also reduce the
amount of time the refrigerator door is open
which will save energy.
D
(Half Shelf Type)
etaching the Split Shelf
Tilt up the front of the shelf and then lift the
shelf straight up. Pull the shelf out.
A
(Half Shelf Type)
s
sembling the Split Shelf
Tilt the front of the shelf up and guide the shelf
hooks into the slots at a desired height. Then,
lower the front of the shelf so that the hooks
drop into the slots.
D
(Full Shelf Type)
etaching the Full Shelf
Tilt up the back of the shelf and pull the shelf
out.
A
(Full Shelf Type)
ssembling the Full Shelf
Slide the shelf into the guides until it stops.
WARNING
Do not clean glass shelves with
warm water while they are cold.
Shelves may break if exposed to
sudden temperature changes or
impact.
Glass shelves are heavy. Use special
care when removing them.
WARNING
Make sure that shelves are level from
one side to the other. Failure to do so
may result in the shelf falling or spilling
food.
ENGLISH
.
.
42
MAINTENANCE
MAINTENANCE
Cleaning
Both the refrigerator and freezer sections defrost automatically; however, clean both
sections about once a month to prevent odors.
Wipe up spills immediately.
Always unplug the refrigerator before cleaning.
General Cleaning Tips
Unplug refrigerator or disconnect the
power.
Remove all removable parts, such as
shelves, crispers, etc.
Use a clean sponge or soft cloth and a
mild detergent in warm water. Do not
use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces
thoroughly.
Exterior
Waxing external painted metal surfaces helps
provide rust protection. Do not wax plastic
parts. Wax painted metal surfaces at least
twice a year using appliance wax (or auto paste
wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior,
use a clean, non-scratch sponge or soft cloth
and a mild detergent in warm water. Do not use
abrasive or harsh cleaners. Dry thoroughly with
a soft cloth.
Inside Walls (allow freezer to warm
up so the cloth will not stick)
To help remove odors, you can wash the inside
of the refrigerator with a mixture of baking
soda and warm water. Mix 2 tablespoons of
baking soda to 1 quart of water (26 g soda
to 1 liter water). Be sure the baking soda is
completely dissolved so it does not scratch the
surfaces of the refrigerator.
Door Liners and Gaskets
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use cleaning
waxes, concentrated detergents, bleaches,
or cleaners containing petroleum on plastic
refrigerator parts.
Plastic Parts (covers and panels)
Use a clean sponge or soft cloth and a mild
detergent in warm water. Do not use glass
cleaners, abrasive cleansers, or ammable
uids. These can scratch or damage the
material.
Condenser Coils
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
WARNING
Do not use a cloth or sponge with a rough,
abrasive surface when cleaning the
interior and exterior of the refrigerator.
Do not place your hand on the bottom
surface of the refrigerator when
opening and closing it.
DANGER
Use non-ammable cleaner. Failure to do
so can result in re, explosion, or death.
.
.
.
.
.
.
.
.
ENGLISH
LIGHT (LED) REPLACEMENT
Note: Do not remove the LED, it is only to be
removed by a qualied technician.
43

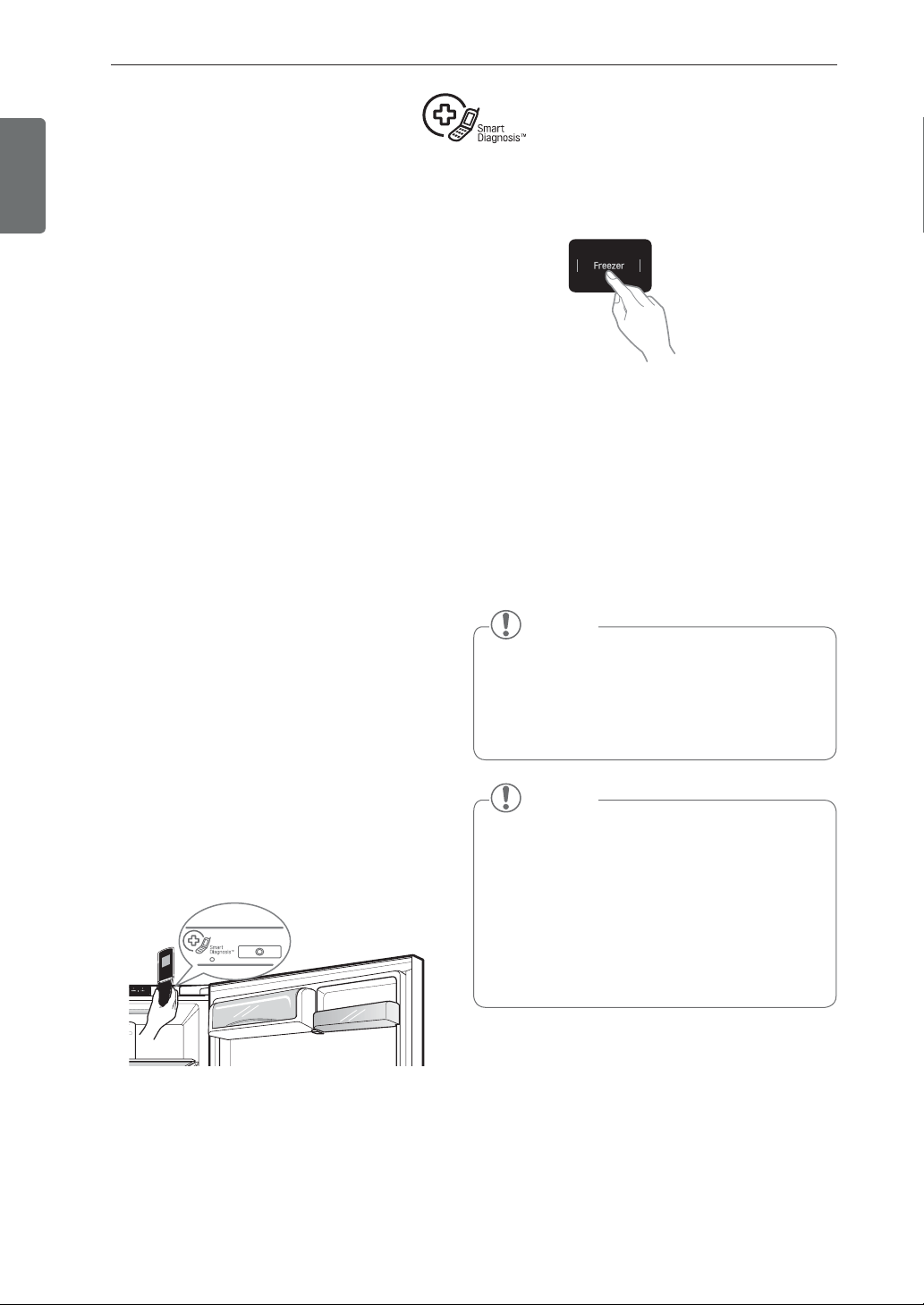

SMART DIAGNOSIS
3
Press and hold the Freezer button for three
seconds while continuing to hold your
phone to the speaker.
4
After you hear three beeps, release the
Freezer button.
5
Keep the phone in place until the tone
transmission has nished. This takes about
3 seconds, and the display will count down
the time. Once the countdown is over
and the tones have stopped, resume your
conversation with the specialist, who will
then be able to assist you in using the
information transmitted for analysis.
Should you experience any problems with your
refrigerator, it has the capability of transmitting
data via your telephone to the LG service
center. This allows you to speak directly to our
trained specialists. The specialist records the
data transmitted from your machine and uses
it to analyze the issue, providing a fast and
eective diagnosis.
If you experience problems with your
refrigerator, call 1-800-243-0000 in USA
(1-888-542-2623 in Canada). Only use the
Smart Diagnosis feature when instructed
to do so by the LG call center agent. The
transmission sounds that you will hear are
normal and sound similar to a fax machine.
Smart Diagnosis cannot be activated unless
your refrigerator is connected to power. If
your refrigerator is unable to turn on, then
troubleshooting must be done without using
Smart Diagnosis.
Using Smart Diagnosis
First, call 1-800-243-0000 in USA (1-888-542-2623
in Canada). Only use the Smart Diagnosis feature
when instructed to do so by the LG call center
agent.
1
Open the refrigerator door.
2
Hold the mouthpiece of your phone in front
of the speaker that is located on the right
side of the control pad, when instructed to
do so by the call center.
SMART DIAGNOSIS
(Some models).
TM
TM
TM
NOTE
For best results, do not move the phone
while the tones are being transmitted.
If the call center agent is not able to get
an accurate recording of the data, you
may be asked to try again.
NOTE
Call quality dierences by region may
aect the function.
Use the home telephone for better
communication performance, resulting
in better service.
Bad call quality may result in poor data
transmission from your phone to the
machine, which could cause Smart
Diagnosis to malfunction.
.
.
.
.
.
ENGLISH
TM
TM
TM
TM
44
TROUBLESHOOTING
TROUBLESHOOTING
Review the Troubleshooting section before calling for service; doing so will save you both time
and money.
Problem Possible Causes Solutions
Refrigerator and
Freezer section
are not cooling.
The refrigerator control is set to
OFF (some models).
Turn the control ON. Refer to the Setting the
Controls section for proper temperature settings.
The refrigerator is in the defrost
cycle.
During the defrost cycle, the temperature of each
compartment may rise slightly. Wait 30 minutes
and conrm the proper temperature has been
restored once the defrost cycle has completed.
The refrigerator was recently
installed.
It may take up to 24 hours for each compartment
to reach the desired temperature.
The refrigerator was recently
relocated.
If the refrigerator was stored for a long period of
time or moved on its side, it is necessary for the
refrigerator to stand upright for 24 hours before
connecting it to power.
Cooling System
runs too much.
The refrigerator is replacing an
older model.
Modern refrigerators require more operating
time but use less energy due to more ecient
technology.
The refrigerator was recently
plugged in or the power was
restored.
The refrigerator will take up to 24 hours to cool
completely.
The door opened often or a
large amount of food / hot food
was added.
Adding food and opening the door warms the
refrigerator, requiring the compressor to run
longer in order to cool the refrigerator back down.
In order to conserve energy, try to get everything
you need out of the refrigerator a
t once, keep
food organized so it is easy to nd, and close the
door as soon as the food is removed. (Refer to
the Food Storage Guide.)
The doors are not closed
completely.
Firmly push the doors shut.
The refrigerator is installed in a
hot location.
The compressor will run longer under warm
conditions. At normal room temperatures 70°F
(21 °C) expect your compressor to run about 40% to
80% of the time. Under warmer conditions,
expect it to run even more often. The refrigerator
should not be operated above 110°F (43 °C).
The condenser / back cover is
clogged.
Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
ENGLISH
45
TROUBLESHOOTING
Problem Possible Causes Solutions
Refrigerator or
Freezer section is
too warm.
The refrigerator was recently
installed.
It may take up to 24 hours for each compartment
to reach the desired temperature.
The air vents are blocked. Rearrange items to allow air to ow throughout
the compartment. Refer to the airow diagram in
the Using Your Refrigerator section.
The doors are opened often or
for long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To lessen
the eect, reduce the frequency and duration of
door openings.
The unit is installed in a hot
location.
The refrigerator should not b
e operated in
temperatures above 110°F (43 °C).
A large amount of food or
hot food was added to either
compartment.
Adding food warms the compartment requiring
the cooling system to run. Allowing hot food to
cool to room temperature before putting it in the
refrigerator will reduce this eect.
The doors are not closed
correctly.
See the Doors will not close correctly or pop open
section in Troubleshooting.
The temperature control is not
set correctly.
If the temperature is too warm, adjust the
control one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
The defrost cycle has recently
completed.
During the defrost cycle
, the temperature of each
compartment may rise slightly and condensation
may form on the back wall. Wait 30 minutes
and conrm the proper temperature has been
restored once the defrost cycle has completed.
ENGLISH
46
TROUBLESHOOTING
Problem Possible Causes Solutions
Interior moisture
buildup.
The doors are opened often or
for long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To lessen
the eect, reduce the frequency and duration of
door openings.
The doors are not closed
correctly.
See the Doors will not close correctly section in
the Troubleshooting section.
The weather is humid. Humid weather allows additional moisture
to enter the compartments when the doors
are opened leading to condensation or frost.
Maintaining a reasonable level of humidity in the
home will help to control the amount of moisture
that can enter the compartment
s.
The defrost cycle recently
completed.
During the defrost cycle, the temperature of each
compartment may rise slightly and condensation
may form on the back wall. Wait 30 minutes and
conrm that the proper temperature has been
restored once the defrost cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation
within each compartment. Wipe all containers
dry and store food in sealed packaging to prevent
condensation and frost.
Food is freezing
in the refrigerator
compartment.
Food with high water content
was placed near an air vent.
Rearrange items with high water content away
from air vents.
The refrigerator temperature
control is set incorrectly.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
The refrigerator is installed in a
cold location.
When the refrigerator is operated in temperature
below 41°F (5°C), food can freeze in the
refrigerator compartment. The refrigerator should
not be operated in temperatures below 55°F
(13°C).
Frost or ice
crystals form
on frozen food
(outside of
package).
The door is opened frequently
or for long periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compar
tment. This raises the temperature and
moisture level within the compartment. Increased
moisture will lead to frost and condensation.
To lessen the eect, reduce the frequency and
duration of door openings.
The door is not closing properly. Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
ENGLISH
47
TROUBLESHOOTING
Problem Possible Causes Solutions
Refrigerator or
Freezer section is
too cold.
Incorrect temperature control
settings.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
Frost or ice
crystals on frozen
food (inside of
sealed package).
Condensation from food with a
high water content has frozen
inside of the food package.
This is normal for food items with a high water
content.
Food has been left in the freezer
for a long period of time.
Do not store food items with high water content
in the freezer for a long period of time.
Icemaker is not
making enough
ic
(Ice maker installed
only)
e.
Demand exceeds ice storage
capacity.
The icemaker will produce approximately 70~210
cubes in a 24 hour period.
The house water supply is not
connected, the valve is not
turned on fully
, or the valve is
clogged.
Connect the refrigerator to a cold water supply
with adequate pressure and turn the water
shuto
valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
The water
er has been
exhausted.
It is recommended that you replace the water
lter:
Approximately every six months.t
When the water
er indicator turns on.t
When the water dispenser output decreases. t
When the ice cubes are smaller than normal.t
Low house water supply
pressure.
The water pressure must be between 20 and 120
psi (0,14 y 0,82 MPa) on models without a water
ter and between 40 and 120 psi (0,28 y 0,82 MPa)
on models with a wat
er.
If the problem persists, it may be necessary to
contact a plumber.
A reverse osmosis
ltration
system is used.
Reverse osmosis ration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to the “Water Pressure” section.)
The tubing connecting the
refrigerator to the house supply
valve is kinked.
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting in
reduced water
ow. Straighten or repair the water
supply line and arrange it to prevent future kinks.
ENGLISH
48
TROUBLESHOOTING
Problem Possible Causes Solutions
Icemaker is not
making enough
ice (continued).
The doors are opened often or
for long periods of time.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent
the unit from maintaining the set temperature.
Lowering the refrigerator temperature can help,
as well as not opening the doors as frequently.
The doors are not closed
completely.
If the doors are not properly closed, ice
production will be
cted. See the Doors will
not close completely or pop open section in Parts
& Features Troubleshooting for more information.
The temperature setting for the
freezer is too warm.
The recommended temperature for the freezer
compartment for normal ice production is 0°F. If
the freezer temperature is warmer, ice production
will be
ected.
Icemaker is not
making ice.
The refrigerator was recently
installed or the icemaker
recently connected.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice.
The icemaker is not turned on. Locate the icemaker ON /OFF switch and
that it is in the ON (I) position.
The ice detecting sensor is
obstructed.
Foreign substances or frost on the ice-detecting
sensor can interrupt ice production. Make sure
that the sensor area is clean at all times for proper
operation.
The refrigerator is not connected
to a water supply or the supply
shut
valve is not turned on.
Connect the refrigerator to the water supply and
turn the water sh
valve fully open.
The icemaker shuto
(arm or
sensor) is obstructed.
If your icemaker is equipped with an ice shuto
arm, make sure that the arm moves freely. If
your icemaker is equipped with the electronic ice
shut
sensor, make sure that there is a clear
path between the two sensors.
A reverse osmosis water
ltration system is connected to
your cold water supply.
Reverse osmosis
ration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
(Refer to the “Water Pressure” section.)
ENGLISH
(Ice maker installed
only)
(Ice maker installed
only)
49
TROUBLESHOOTING
Problem Possible Causes Solutions
Ice has a bad
taste or odor.
The water supply contains
minerals such as sulfur.
A water lter may need to be installed to
eliminate taste and odor problems.
NOTE: In some cases, a
er may not help. It
may not be possible to remove all minerals / odor
/ taste in all water supplies.
The icemaker was recently
installed.
Discard the
t few batches of ice to avoid
discolored or bad tasting ice.
The ice has been stored for too
long.
Ice that has been stored for too long will shrink,
become cloudy, and may develop a stale taste.
Throw away old ice and make a new supply.
The food has not been stored
properly in either compartment.
Rewrap the food. Odors may migrate to the ice if
food is not wrapped properly.
The interior of the refrigerator
needs to be clea
ned.
See the “Care and Cleaning” section for more
information.
The ice storage bin needs to be
cleaned.
Empty and wash the bin (discard old cubes).
Make sure that the bin is completely dry before
reinstalling it.
Icemaker is
making too much
ice.
The icemaker shuto
(arm/
sensor) is obstructed.
Empty the ice bin. If your icemaker is equipped
with an ice shu
arm, make sure that the arm
moves freely. If your icemaker is equipped with
the electronic ice shut
sensor, make sure that
there is a clear path between the two sensors.
Reinstall the ice bin and wait 24 hours to co
proper operation.
Clicking The defrost control will click
when the automatic defrost
cycle begins and ends.
The thermostat control (or
refrigerator control on some
models) will also click when
cycling on and o
.
Normal Operation
ENGLISH
(Ice maker installed
only)
(Ice maker installed
only)
50
TROUBLESHOOTING
Problem Possible Causes Solutions
Rattling Rattling noises may come from
the ow of refrigerant, the
water line on the back of the
unit, or items stored on top of
or around the refrigerator.
Normal Operation
The refrigerator is not resting
solidly on the oor.
The oor is weak or uneven or the leveling legs
need to be adjusted. See the “Door Alignment”
section.
The refrigerator with a linear
compressor was jarred while
running.
Normal Operation
Whooshing The evaporator fan motor
is circulating air through
the refrigerator and freezer
compartments.
Normal Operation
Air is being forced over the
condenser by the condenser
fan.
Normal Operation
Gurgling Refrigerant is owing through
the cooling system.
Normal Operatio
n
Popping Contraction and expansion of
the inside walls due to changes
in temperature.
Normal Operation
Sizzling Water dripping on the defrost
heater during a defrost cycle.
Normal Operation
Vibrating If the side or back of the
refrigerator is touching a cabinet
or wall, some of the normal
vibrations may make an audible
sound.
To eliminate the noise, make sure that the sides
and back cannot vibrate against any wall or
cabinet.
Dripping Water is running into the drain
pan during the defrost cycle.
Normal Operation
Pulsating or
High-Pitched
Sound
Your refrigerator is designed
to run more eciently to keep
your food items at the desired
temperature. The high eci
ency
compressor may cause your
new refrigerator to run longer
than your old one, but it is still
more energy ecient than
previous models. While the
refrigerator is running, it is
normal to hear a pulsating or
high-pitched sound.
Normal Operation
ENGLISH
51
TROUBLESHOOTING
ENGLISH
Problem Possible Causes Solutions
Doors will not
close correctly or
pop open.
Food packages are keeping the
door open.
Rearrange food containers to clear the door and
door shelves.
The ice bin, crisper cover, pans,
shelves, door bins, or baskets
are out of position.
Push bins all the way in and put the crisper cover,
pans, shelves and baskets into their correct
positions. See the Using Your Refrigerator section
for more information.
The doors were removed during
product installation and not
properly replaced.
Remove and replace the doors according to the
Removing and Replacing Refrigerator Handles
and Doors section.
The refrigerator is not leveled
properly.
See “Door Alignment” in the Refrigerator Insta
llation
section to level refrigerator.
Doors are dicult
to open.
The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they
touch. Rub a thin coat of appliance polish or
kitchen wax on the gaskets after cleaning.
The door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create
a vacuum. If the door is hard to open, wait one
minute to allow the air pressure to equalize, then
see if it opens more easily.
Refrigerator
wobbles or
seems unstable.
The leveling legs are not
adjusted properly.
Refer to the “Leveling and Door Alignment” section.
The oor is not level. It may be necessary to add shims under the
leveling legs or roller
s to complete installation.
Lights do not
work.
LED interior lighting failure. The refrigerator compartment lamp is LED interior
lighting, and service should be performed by a
qualied technician.
The interior of
the refrigerator
is covered with
dust or soot.
The refrigerator is located near a
re source, such as a replace,
chimney or candle.
Make sure that the refrigerator is not located
near a re source, such as a replace, chimney or
candle.
ENGLISH
52
WARRANTY
ENGLISH
LG ELECTRONICS U.S.A., INC.
LG REFRIGERATOR LIMITED WARRANTY - U.S.A.
Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under normal home use, during
the warranty period set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to
the original retail purchaser of the product and applies only when purchased and used within the United States including
U.S. Territories. Proof of original retail purchase is required to obtain warranty service under this limited warranty.
WARRANTY PERIOD
Refrigerator Linear Compressor
One (1) year from the date
of original retail purchase.
One (1) year from the date
of original retail purchase.
Seven (7) years from
the date of original retail
purchase.
Ten (10) years from the date of
original retail purchase.
Parts and Labor
(internal/functional parts
only)
Parts and Labor Parts only
(Consumer will be charged
for labor)
Part only
(Consumer will be charged for
labor)
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or
operating the unit in an unsuitable environment will not be covered under this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days,
whichever is greater.
Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED
WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER
THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT,
SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS,
OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion
or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion
or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from
state to state.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the
product; instruct the customer on operation of the
product; repair or replace fuses or correct wiring or
plumbing, or correction of unauthorized repairs/
installation.
2. Failure of product to perform during power failures and
interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen
water pipes, restricted drain lines, inadequate or
interrupted water supply or inadequate supply of air.
4. Damage resulting from operating the product in a
corrosive atmosphere or contrary to the instructions
outlined in the product owner’s manual.
5. Damage to the product caused by accidents, pests and
vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from misuse, abuse, improper
installation, repair, or maintenance. Improper repair
includes use of parts not approved or specified by LG.
7. Damage or failure caused by unauthorized modification
or alteration, or if it is used for other than the intended
purpose, or any water leakage where the unit was not
properly installed.
8. Damage or failure caused by incorrect electrical current,
voltage, or plumbing codes, commercial or industrial
use, or use of accessories, components, or consumable
cleaning products that are not approved by LG.
9. Damage caused by transportation and handling,
including scratches, dents, chips, and/or other damage
to the finish of your product, unless such damage
results from defects in materials or workmanship and
is reported within one (1) week of delivery (Call: 1-800-
243-0000).
10. Damage or missing items to any display, open box,
discounted, or refurbished product.
11. Products with original serial numbers that have been
removed, altered, or can not be readily determined.
Model and Serial numbers, along with original retail
sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility
expenses.
13. Replacement of light bulbs, filters, or any consumable
parts.
14. Repairs when your product is used in other than normal
and usual household use (e.g. commercial use, offices,
and recreational facilities) or contrary to the instructions
outlined in the product owner’s manual.
15. Costs associated with removal of your product from your
home for repairs.
16. The removal and reinstallation of the product if it is
installed in an inaccessible location or is not installed
in accordance with published installation instructions,
including LG’s owner’s and installation manuals.
17. Shelves, door bins, drawers, handles, accessories, and
other parts besides those that were originally included
with this particular model.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
For complete warranty details and customer assistance,
please call or visit our website:
Call 1-800-243-0000 (24 hours a day, 365 days a year) and
select the appropriate option from the menu, or visit our website
at www.lg.com
Or by mail: LG Customer Information Center:
P. O. Box 240007, 201 James Record Road Huntsville, Alabama
35813
ATTN: CIC
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
Sealed System
(Condenser, Dryer, Connecting Tube,
Compressor, Refrigerant and Evaporator)
53
WARRANTY
ENGLISH
LG ELECTRONICS CANADA, INC.
LG REFRIGERATOR LIMITED WARRANTY - Canada
WARRANTY: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship under normal home use during
the warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail
purchase.
This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG
Canada or an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
Refrigerator/Freezer
Sealed System
(Condenser, Dryer, Connecting Tube,
Compressor, Refrigerant and Evaporator)
Linear Compressor
One (1) year from the date of
original retail purchase.
One (1) year from the date
of original retail purchase.
Seven (7) years from the date
of original retail purchase.
Ten (10) years from the date of
original retail purchase.
Parts and Labor
(internal/functional parts
only)
Parts and Labor Parts only
(Consumer will be charged
for labor)
Part only
(Consumer will be charged for
labor)
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or
operating the unit in an unsuitable environment will not be covered under this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days,
whichever is greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED
ABOVE, LG CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE
PRODUCT, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON
LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY
OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION
IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR
DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DIRECT OR INDIRECT DAMAGES,
LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE, WHETHER ARISING
DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY ACTS OR
OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary
from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied
condition or warranty under provincial law is severable where it conflicts with provincial law without affecting the remainder of
this warranty’s terms.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product;
instruct the customer on operation of the product; repair or
replace fuses or correct wiring or plumbing, or correction of
unauthorized repairs/installation.
2. Failure of product to perform during power failures and
interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water
pipes, restricted drain lines, inadequate or interrupted water
supply or inadequate supply of air.
4. Damage resulting from operating the product in a corrosive
atmosphere or contrary to the instructions outlined in the
product owner’s manual.
5. Damage to the product caused by accidents, pests and vermin,
lightning, wind, fire, floods, or acts of God.
6. Damage resulting from misuse, abuse, improper install
ation,
repair, or maintenance. Improper repair includes use of parts not
approved or specified by LG.
7. Damage or failure caused by unauthorized modification or
alteration, or if it is used for other than the intended purpose, or
any water leakage where the unit was not properly installed.
8. Damage or failure caused by incorrect electrical current, voltage,
or plumbing codes, commercial or industrial use, or use of
accessories, components, or consumable cleaning products that
are not approved by LG.
9. Damage caused by transportation and handling, including
scratches, dents, chips, and/or other damage to the finish
of your product, unless such damage results from defects in
materials or workmanship and is reported within one (1) week of
delivery.
10. Damage or missing items to any display, open bo
x, discounted,
or refurbished product.
11. Products with original serial numbers that have been removed,
altered, or can not be readily determined. Model and Serial
numbers, along with original retail sales receipt, are required for
warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your product is used in other than normal
and usual household use (e.g. commercial use, offices, and
recreational facilities) or contrary to the instructions outlined in
the product owner’s manual.
15. Costs associated with removal of your product from your home
for repairs.
16. The removal and reinstallation of the product if it is installed in
an inaccessible location or is not installed in accordance with
published installation instructions, including LG’s owner’s and
installation manuals.
17. Shelves, door bins, drawers, handles, accessories, and other
parts besides those that were originally included with this
particular model.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
For complete warranty details and
customer assistance, please call or visit
our website: Call 1-888-542-2623 (24 hours
a day, 365 days a year) and select the
appropriate option from the menu, or visit our
website at www.lg.com
Write your warranty information below:
Product Registration Information:
Model:
Serial Number:
Date of Purchase:
1-800-243-0000
1-888-865-3026
1-888-542-2623
USA, Consumer User
USA, Commercial User
CANADA
For inquiries or comments,
visit ww w.lg.com or call:
ww w.lg.com
Register your product Online!
LG Customer Information Center
